Parts index — Typical GN2000tap a row to open its page

Page 5

Typical GN2000 parts on page 5

Ref	Part number	Part name	Qty
	2000-3	2000-3B
	2000-3E	2000-4
	2000-4M	2000-4H
	2000-5L	2000-5
	2000-5(5x5)	2000-5H

Page 11

Typical GN2000 parts on page 11

Ref	Part number	Part name	Qty
	1	Screw
	2	Screw
	3	The cover of oil basin
	4	Rubber ring
	5	Filter

Page 13 — Replacing the lower knife

Typical GN2000 parts on page 13

Ref	Part number	Part name	Qty
	2000-5	2000-5H
	2000-3	2000-4

Page 14

Typical GN2000 parts on page 14

Ref	Part number	Part name	Qty
	2000-5L	10.6
	2000-5	10.6
	2000-5(5x5)	10.6
	2000-5H	12.0
	2000-3	10.1
	2000-3B	10.1
	2000-3E	10.1
	2000-4	10.1
	2000-4H	11.1
	2000-3	Organ DC x 27	11
	2000-3B	Organ DC x 27	9
	2000-3E	Organ DC x 27	9
	2000-4	Organ DC x 27	11
	2000-4H	Organ DC x 27	14
	2000-5L	Organ DC x 27	11
	2000-5	Organ DC x 27	14
	2000-5(5x5)	Organ DC x 27	14
	2000-5H	Organ DC x 27	21

Page 15

Typical GN2000 parts on page 15

Ref	Part number	Part name	Qty
14	2000-3,-4	2000-3,-4
14	2000-5	2000-5

Page 16 — 1. MACHINE ARM PARTS (1)

Typical GN2000 parts on page 16

Ref	Part number	Part name	Qty
	S150220005	Screw	4
	155100001	Frame side cover	1
	S150215011	Screw(L)	1
	S150215009	Screw(S)	3
	S8A3104007	Spring pin	2
	155100002	Thread guide pipe	2
	BXF8899009	Rivet	2
	198000014	Model plate	1
	S8A3104007	Spring pin	1
	S150220016	Screw	2
	S8A3104007	Spring pin	1
	159100001	Needle plate support bracket	1
	155100003	Needle plate support bracket	1
	155100005	Screw	4
	155100041	Oil mark	1

Page 17

Typical GN2000 parts on page 17

Ref	Part number	Part name	Qty
17	2000-3,-4	2000-3,-4
17	2000-5	2000-5
20	2000-5	2000-5
20	2000-3,-4	2000-3,-4
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	18	18
	19	19
	21	21
	21	21
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36

Page 18 — 2. MACHINE ARM PART(2)

Typical GN2000 parts on page 18

Ref	Part number	Part name	Qty
	155100010	Oil guide plate	1
	S150215008	Screw	1
	155100031	Packing	1
	155100030	Oil monitor	1
	S150215011	Screw	4
	155100008	Top cover	1
	155100009	Oil gusket	1
	155100016	Belt cover	1
	S150215014	Screw	3
	S150215001	Screw	2
	155100015	Cooling fan guard	1
	155100013	Plate spring	1
	S150215008	Screw	1
	155100014	Cover	1
	S150215001	Screw	3
	155100034	Screw	1
	159140000	Cloth guide	1
	155150000	Cloth guide	1
	155100033	Screw	1
	S150215001	Screw	2
	159120001	Front cover	1
	155120004	Front cover	1
	S150215008	Screw	2
	155120007	Front cover hinge stopper	1
	S150215008	Screw	1
	155120005	Stopper plate	1
	S120202007	Screw	1
	155120002	Front cover hinge shaft	1
	B12400432	Screw	2
	155120001	Front cover(L)	1
	155120003	Spring	1
	155120006	Front cover hinge	1
	S150215010	Screw	3
	155100012	Oil seal	1
	160DQZ005	Decorative brand	1
	160DHZ001	Decorative brand	1
	155100046	Oil filter tags	1

Page 19

Typical GN2000 parts on page 19

Ref	Part number	Part name	Qty
1	2000-5	SCREW
2	2000-5	GASKET
3	2000-5	BRACKET
4	2000-5	SCREW
5	2000-5	BRACKET
6	2000-5	SCREW
7	2000-5	WASHER
8	2000-5	BRACKET
9	2000-5	COVER
10	2000-5	LABEL
11	2000-5	BRACKET
12	2000-5	SCREW
13	2000-5	BRACKET
14	2000-3,-4	BRACKET
15	2000-5	SCREW
16	2000-5	WASHER
17	2000-5	SCREW
18	2000-5	BRACKET
19	2000-5	SCREW
20	2000-5	WASHER
21	2000-5	SCREW
22	2000-5	BRACKET
23	2000-5	BRACKET
24	2000-5	BRACKET
25	2000-5	BRACKET
26	2000-5	SCREW
27	2000-5	WASHER
28	2000-5	BRACKET
29	2000-5	COVER
30	2000-5	COLLAR
31	2000-5	SPRING
32	2000-5	WASHER
33	2000-5	SCREW
34	2000-5	BRACKET
35	2000-5	BRACKET
36	2000-5	BRACKET
37	2000-5	SCREW
38	2000-5	WASHER
39	2000-5	BRACKET
40	2000-5	BRACKET
41	2000-5	BRACKET
42	2000-5	SCREW
43	2000-5	WASHER
45	2000-5	SCREW

Page 20 — 3. MACHINE ARM PART(3)

Typical GN2000 parts on page 20

Ref	Part number	Part name	Qty
	S150215009	Screw	4
	155100017	Back cover for feed mechanism	1
	155100033	Screw	4
	155100018	Feed bar cover	1
	B12400432	Screw	1
	S150215008	Screw	1
	155100021	Plate spring	1
	155100020	shaft for needle thread cover	1
	155100019	Needle thread cover	1
	160DQZ002	Trade mark plate	1
	155100024	Screw	1
	155100025	Wave spring	2
	155100023	Eye guard support plate	1
	159100004	Eye guard	1
	155100026	Eye guard	1
	S8A3103002	Washer	2
	S120202007	Screw	2
	155100027	Rubber plug	1
	155100029	Needle bar seal cover	1
	155100022	Screw	1
	155100034	Screw	1
	S150215005	Screw	1
	S150559002	Nut	1
	S150218005	Screw	2
	155140001	Direction guide plate	1
	155140002	Plate spring	1
	S150217008	Screw	1
	155100027	Rubber plug	3
	155130006	Nut	1
	159131001	Cloth plate	1
	155131001	Cloth plate	1
	B12400432	Screw	1
	155130001	Cloth plate shaft bush	1
	155100025	Wave spring	1
	155100024	Screw	1
	155130005	Screw	1
	155130004	Spring	1
	155130003	Latch lever for cloth plate	1
	S150215001	Screw	2
	155130008	Washer	2
	155130007	Side cover	1
	155100027	Rubber plug	1
	155130009	Plate spring	1
	S120202004	Screw	1
	S4B3000010	Spring washer	1
	S150215005	Screw(L)	1
	116400008	Screw	1

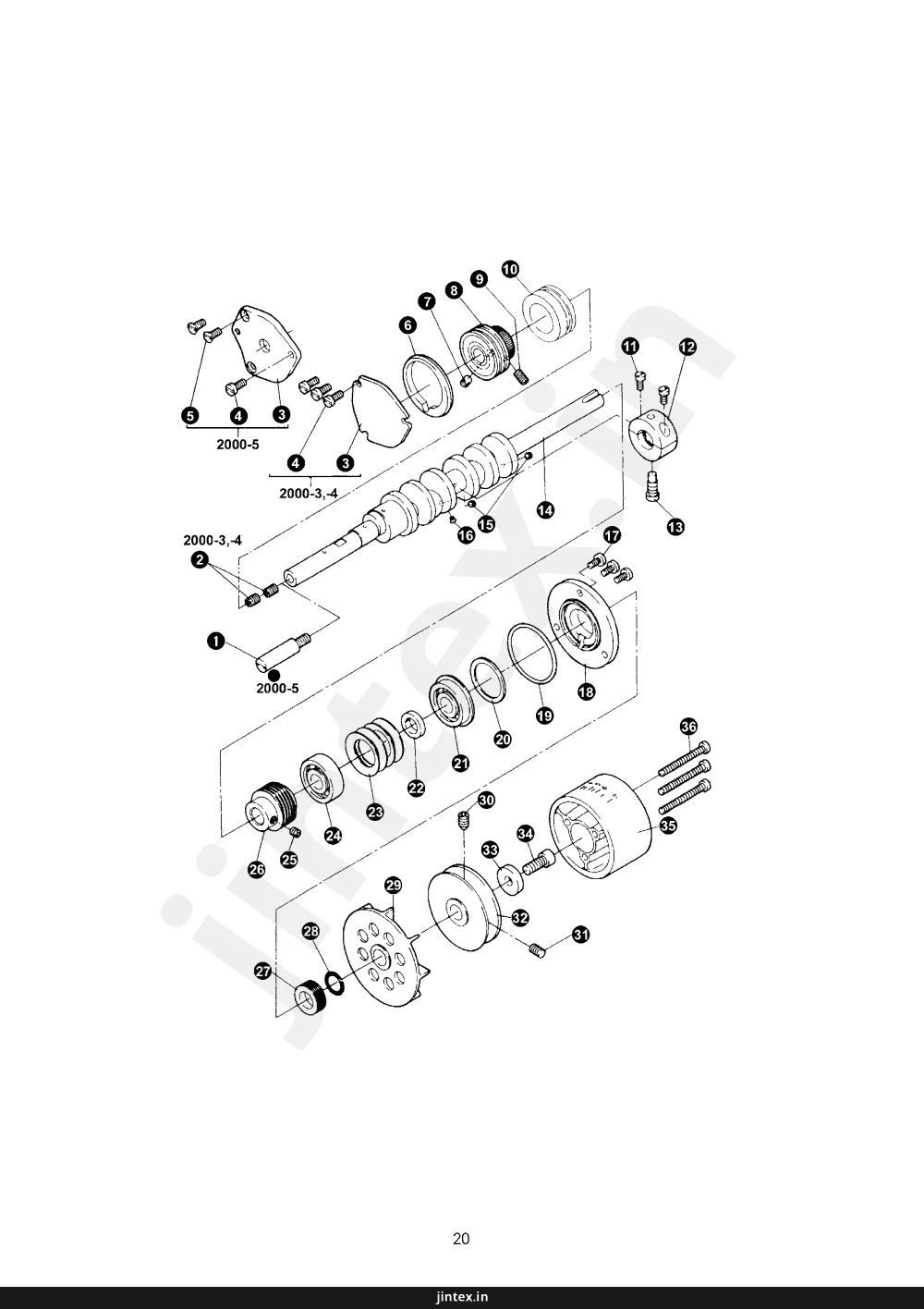

Page 21

Typical GN2000 parts on page 21

Ref	Part number	Part name	Qty
1	2000-5	SCREW
2	2000-3,-4	SPRING
3	2000-5	SCREW
4	2000-3,-4	SCREW
5	2000-5	BRACKET
6	2000-5	SCREW
7	2000-5	WASHER
8	2000-5	BEARING
9	2000-5	COLLAR
10	2000-5	PULLEY
11	2000-5	SCREW
12	2000-5	BRACKET
13	2000-5	SCREW
14	2000-5	SHAFT
15	2000-5	KEY
16	2000-5	SCREW
17	2000-5	SCREW
18	2000-5	BEARING
19	2000-5	WASHER
20	2000-5	COLLAR
21	2000-5	BEARING
22	2000-5	PULLEY
23	2000-5	PULLEY
24	2000-5	BEARING
25	2000-5	SCREW
26	2000-5	PULLEY
27	2000-5	SCREW
28	2000-5	PLATE
29	2000-5	SCREW
30	2000-5	SPRING
31	2000-5	SCREW
32	2000-5	WASHER
33	2000-5	COLLAR
34	2000-5	SCREW
35	2000-5	HOUSING
36	2000-5	SCREW

Page 22 — 4. NEEDLE BAR DRIVE PARTS (1)

Typical GN2000 parts on page 22

Ref	Part number	Part name	Qty
	155200001	Crank shaft extension	2
	S150224007	Screw	2
	159200001	Bearing cap	1
	155200002	Bearing cap	1
	S150215009	Screw	3
	S150215009	Screw	1
	S120205003	Screw	1
	155200004	Rubber ring	1
	B12500532	Screw	1
	155220000	Ball bearing(L), assy	1
	S150224006	Screw	1
	155200005	Crank shaftbush(M)	1
	SFB0201004	Screw	2
	155230001	Stopper bush	1
	155200006	Screw	1
	155210001	Crank shaft	1
	006301008	Screw	2
	028260003	Screw	1
	S150215009	Screw	3
	155200011	Bearing presser	1
	15520018	O-type ring	1
	155200010	Packing	1
	052200036	Ball bearing (right)	1
	15520009	Collar	1
	15520008	Spring washer	4
	S15086046	Ball bearing (middle)	1
	B12500532	Screw	1
	155200007	Worm	1
	155200012	Crank shaft oil reject	1
	S150656004	O-type ring	1
	155200013	Cooling fan	1
	S150225003	Screw	1
	S150224003	Screw	1
	155200014	Belt wheel	1
	155200016	Washer	1
	S150220005	Screw	1
	155200017	Machine pulley	3
	S150215012	Screw	3

Page 23

Typical GN2000 parts on page 23

Ref	Part number	Part name	Qty
34	2000-3	2000-3
34	2000-4	2000-4
34	2000-5 (5x5)	2000-5 (5x5)

Page 24 — 5. NEEDLE BAR DRIVE PARTS (2)

Typical GN2000 parts on page 24

Ref	Part number	Part name	Qty
	060410014	Retaining ring	1
	155300006	Washer	1
	155300005	Bush	1
	B12400432	Screw	2
	155300004	Set collar	1
	155310000	Upper shaft crank complete	1
	155370000	Upper shaft crank complete	1
	155300017	Screw	1
	155330000	Needle drive crank rod assy	1
	B62401612	Screw	2
	155300023	Pin	1
	S150225008	Screw	1
	155300002	Bush	1
	155300003	Oil seal	1
	155300001	Upper shaft	1
	155300007	Needle bar crank	1
	155400010	Screw	1
	S150225005	Screw	1
	155320000	Pin	2
	155300008	Link for needle bar	1
	155300012	Oil wick pin	1
	S150656005	O-type ring	1
	155300014	Upper bush needle bar	1
	B12400432	Screw	1
	155300013	Bush	1
	155300010	Needle connector	1
	155300030	Screw	1
	S150225005	Screw	1
	155300015	Bush	1
	155300016	Needle bar oil ervoir	1
	S150215008	Screw	1
	155350001	Needle bar	1
	160320001	Needle holder	1
	159320001	Needle holder	1
	155350002	Needle holder	1
	182610010	Screw	1
	159300006	Needle	1
	159300007	Needle	2
	028280109	Needle	2
	077200401	Needle	2
	155300021	Screw	2
	155300020	Set plate for oil felt	1
	155300019	Oil felt	1
	155300022	Oil reservoir	1

Page 25

Typical GN2000 parts on page 25

Ref	Part number	Part name	Qty
	1	2000-5 (5x5)
	2	2000-5 (5x5)
	3	2000-5 (5x5)
	4	2000-5 (5x5)
	5	2000-5 (5x5)
	6	2000-5 (5x5)
	7	2000-5 (5x5)
	8	2000-5 (5x5)
	9	2000-5 (5x5)
	10	2000-5 (5x5)
	11	2000-5 (5x5)
	12	2000-5 (5x5)
	13	2000-5 (5x5)
	14	2000-5 (5x5)
	15	2000-5 (5x5)
	16	2000-5 (5x5)
	17	2000-5 (5x5)
	18	2000-5 (5x5)
	1	2000-3,-4
	2	2000-3,-4
	3	2000-3,-4
	4	2000-3,-4
	5	2000-3,-4
	6	2000-3,-4
	7	2000-3,-4
	8	2000-3,-4
	9	2000-3,-4
	16	2000-3,-4
	17	2000-3,-4
	18	2000-3,-4
	19	2000-3,-4
	20	2000-3,-4
	21	2000-3,-4
	22	2000-3,-4
	23	2000-3,-4
	24	2000-3,-4
	1	2000-4
	2	2000-4
	4	2000-4

Page 26 — 6. NEEDLE BAR DRIVE PARTS (3)

Typical GN2000 parts on page 26

Ref	Part number	Part name	Qty
	160300001	Needle plate	1
	160300003	Needle plate	1
	159310001	Needle plate	1
	155340001	Needle plate	1
	155380001	Needle plate	1
	159310003	Screw	1
	039230003	Screw	1
	159300006	Screw	2
	028200050	Screw	2
	159310002	Needle plate fitting (S)	1
	155340002	Needle plate fitting	1
	155380002	Needle plate fitting	1
	155100027	Rubber plug	1
	B62400812	Screw	2
	B62400812	Screw	1
	159300000	Needle plate baracket (rear)	1
	155300029	Needle plate baracket (rear)	1
	B62401012	Screw	2
	B62401012	Scrw	2
	159300004	Needle plate bracket (front)	1
	155300028	Needle plate bracket (front)	1
	155300027	Chain stitch needle guard (front)	1
	S15017002	Screw	1
	S12020001	Screw	2
	155300026	Chain stitch needle guard (rear)	1
	S150217002	Screw	2
	155300025	Needle guard	1
	028200054	Screw	1
	058600008	Washer	1
	155300024	Movalbe needle guard	1
	110550005	Screw	2
	159300002	Needle guard bracket	1
	159300001	Needle guard	1
	SFB0201003	Screw	1
	159300005	Needle plate guide plate	1
	SFB0201004	Screw	2
	S8A3103002	Washer	1

Page 27

Typical GN2000 parts on page 27

Ref	Part number	Part name	Qty
1	92-001 0001	SCREW
2	92-001 0001	SCREW
3	92-001 0001	SCREW
4	92-001 0001	SCREW
5	92-001 0001	SCREW
6	92-001 0001	SCREW
7	92-001 0001	SCREW
8	92-001 0001	SCREW
9	92-001 0001	SCREW
10	92-001 0001	SCREW
11	92-001 0001	SCREW
12	92-001 0001	SCREW
13	92-001 0001	SCREW
14	92-001 0001	SCREW
15	92-001 0001	SCREW
16	92-001 0001	SCREW
17	92-001 0001	SCREW
18	92-001 0001	SCREW
19	92-001 0001	SCREW
20	92-001 0001	SCREW
21	92-001 0001	SCREW
22	92-001 0001	SCREW
23	92-001 0001	SCREW
24	92-001 0001	SCREW
25	92-001 0001	SCREW
26	92-001 0001	SCREW
27	92-001 0001	SCREW
28	92-001 0001	SCREW
29	92-001 0001	SCREW
30	92-001 0001	SCREW
31	92-001 0001	SCREW
32	92-001 0001	SCREW
33	92-001 0001	SCREW

Page 28 — 7. UPPER AND LOWER LOOPER DRIVE PART(1)

Typical GN2000 parts on page 28

Ref	Part number	Part name	Qty
1	155400006	Rubber plug	1
2	S150204002	Screw	2
3	S8A3103012	Spring washer	2
4	155400005	Washer	1
5	155400004	Bush	1
6	155400001	Washer	2
7	155410000	Looper ball link complete	1
8	B62401612	Screw	4
10	155420000	Upper looper ball crank complete	1
10	159400002	Upper looper ball crank complete	1
11	155400021	Screw	2
12	155400003	Bushing	1
13	028330001	Oil seal	1
14	155400002	Upper/lower looper shaft	1
15	155400009	Upper looper crank	1
16	155400010	Screw	1
17	S150225005	Screw	1
18	155430000	Pin complete	1
19	S150215008	Screw	1
20	155400014	Oil reservoir	1
21	B12400432	Screw	1
22	155400000	Pin complete	1
23	S8A3105006	Small ball plug	1
24	160400001	Upper looper	1
24	159400001	Upper looper	1
24	155400015	Upper looper	1
24	155400025	Upper looper	1
25	028100007	Screw	1
26	155400011/12	Upper looper tension shaft and guide	1
27	155400013	Oil felt	1
28	S150218001	Screw	1
29	S150217011	Screw	1
30	155400016	Over looper guide cover	1
31	S150220005	Screw	2
32	155400007	Over looper mechanism	1
33	155400008	Oil felt	1

Page 29

Typical GN2000 parts on page 29

Ref	Part number	Part name	Qty
9	2000-5	2000-5
9	2000-3	2000-3
9	2000-4	2000-4
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	6	6
	8	8
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19

Page 30 — 8. UPPER AND LOWER LOOPER DRIVE PART(2)

Typical GN2000 parts on page 30

Ref	Part number	Part name	Qty
1	S150204002	Screw	1
2	S8A3103012	Spring washer	1
3	155400005	Washer	1
4	155400020	Bush	1
5	155410000	Looper ball link complete	1
6	B62401612	Screw	4
8	155400001	Washer	2
9	159400002	Lower looper ball crank
9	155400019	Lower looper ball crank
9	155420000	Lower looper ball crank
10	155400021	Screw	1
11	155400002	Upper/lower looper shaft	1
12	155400003	Bush	1
13	028330001	Oil seal	1
14	155451000	Lower looper holder complete	1
15	028300043	Pin	1
16	155400010	Screw	1
17	028300046	Pin	1
18	155450002	Lower looper	1
19	028100027	Screw	1

Page 31

Typical GN2000 parts on page 31

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	SPRING
3	3	WASHER
4	4	SCREW
5	5	SCREW
6	6	BRACKET
7	7	SHAFT
8	8	SHAFT
9	9	SCREW
10	10	GEAR
11	11	BRACKET
12	12	BRACKET
13	13	SPRING
14	14	BRACKET
15	15	SCREW
16	16	SPRING
17	17	SCREW
18	18	SCREW
19	19	SCREW
20	20	WASHER
21	21	WASHER
22	22	SPRING
23	23	SHAFT
24	24	BRACKET
25	25	PLATE
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	SCREW
30	30	SCREW
31	31	BRACKET
32	32	SHAFT
33	33	SPRING
34	34	SLEEVE
35	35	WASHER
36	36	BRACKET
37	37	SHAFT
38	38	SPRING
39	39	KNOB
40	40	BRACKET
41	41	SHAFT
42	42	SCREW
43	43	WASHER
44	44	SCREW
45	45	SCREW

Page 32 — 9. FEED DOG LIFT PART(1)

Typical GN2000 parts on page 32

Ref	Part number	Part name	Qty
	155530000	Feed drive cam holder complete	1
	B12500532	Screw	2
	028400082	Pin	1
	028400080	Roller	1
	S150224015	Screw	2
	155500026	Feed drive cam	1
	155500027	Plate spring	1
	155500028	Link for feed drive	1
	S150225008	Screw	1
	155540000	Needle bearing	1
	155300023	Pin	1
	155500029	Crank for feed drive	1
	155300017	Screw	1
	155500030	Stitch length adjust stopper	1
	155500032	Screw	1
	155500031	Spring	1
	155500000	Stitch length cam complete	1
	S150446010	Spring pin	2
	S8A3103018	Retaining ring	1
	S4A0604005	O-type ring	2
	155500035	Washer	2
	155500034	Spring	1
	155500033	Push	1
	155560000	Diff. Feed crank complete	1
	155560002	Differential feed dog holder	1
	155560001	Diff. feed crank	1
	155300017	Screw	1
	155560003	Cover for differential feed dog holder	1
	S150217012	Screw	2
	155500037	Screw	2
	155500036	Diff. Feed regulating link	1
	155500038	Differential feed adjust link crank	1
	155300017	Screw	1
	155500040	Bush	1
	S4A0604005	O-type ring	1
	155500039	Diff. feed regulating shaft	1
	155500041	Diff. feed regulating	1
	155500042	Spring	1
	155500043	Screw	1
	155500044	Stopper plate	2
	155500045	Differential stitch control	1
	S150215010	Screw	2
	028400044	Washer	1
	155500046	Nut	1
	155500047	Screw	1

Page 33

Typical GN2000 parts on page 33

Ref	Part number	Part name	Qty
1	1	PIN
2	2	CLIP
3	3	SHAFT
4	4	WASHER
5	5	SLEEVE
6	6	BRACKET
7	7	SCREW
8	8	BRACKET
9	9	SCREW
10	10	NUT
11	11	BRACKET
12	12	SCREW
13	13	WASHER
14	14	PIN
15	15	BRACKET
16	16	BRACKET
17	17	SCREW
18	18	PIN
19	19	SCREW
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	WASHER
24	24	SCREW
25	25	CAP
26	26	SCREW
27	27	WASHER
28	28	BRACKET
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	BRACKET
33	33	SCREW
34	34	SCREW
35	35	SPRING
36	36	BRACKET
37	37	SPRING
38	38	BRACKET
39	39	BRACKET

Page 34 — 10. FEED DOG LIFT PART(2)

Typical GN2000 parts on page 34

Ref	Part number	Part name	Qty
1	028310001	Oil seal	1
2	060410014	Retaining ring	1
3	155500001	Feed shaft	1
4	155300006	Washer	2
5	155300003	Left bush for feed shaft	1
6	155500005	Feed crank	1
7	155300017	Screw	1
8	155500006	Pin	1
9	155500010	Washer	1
10	S120503010	Nut	1
11	155500004	Right bush for feed shaft	1
12	028400023	Screw	1
13	155500010	Washer	1
14	028400021	Roller for feed dog holder link	1
15	155500008	Link for feed dog holder	1
16	155500019	Slide block for feed dog	1
17	155500014	Eccentric shaft bush	1
18	B12400432	Screw	2
19	028400055	Eccentric shaft	1
20	155500012	Slide block	1
21	155510001	Feed dog holder	1
22	155510002	Differential feed dog holder	1
23	028400058	Washer	1
24	028400059	Screw	1
25	155500017	Oil seal	1

Page 35

Typical GN2000 parts on page 35

Ref	Part number	Part name	Qty
1	1	PIN
2	2	CLIP
3	3	SHAFT
4	4	O-RING
5	5	SLEEVE
6	6	BRACKET
7	7	BOLT
8	8	BRACKET
9	9	WASHER
10	10	NUT
11	11	BRACKET
12	12	BOLT
13	13	WASHER
14	14	WASHER
15	15	BRACKET
16	16	BRACKET
17	17	SLEEVE
18	18	PIN
19	19	SHAFT
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	BOLT
24	24	WASHER
25	25	CAP
26	26	BOLT
27	27	WASHER
28	28	BRACKET
29	29	PIN
30	30	BRACKET
31	31	BRACKET
32	32	WIRE
33	33	BRACKET
34	34	BOLT
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	BRACKET
39	39	BRACKET

Page 36 — 10. FEED DOG LIFT PART(2)

Typical GN2000 parts on page 36

Ref	Part number	Part name	Qty
26	028400023	Screw
27	155500010	Washer
28	155500018	Link for differential feed dog holder
29	028400021	Roller for feed dog holder link
30	028200056	Screw
30	02810027	Screw
31	155500021	Differential feed dog
31	155500050	Differential feed dog
31	160500001	Differential feed dog
31	159500001	Differential feed dog
31	159500001	Differential feed dog
32	155580000	Main feed dog complete
32	155580001	Main feed dog
32	155520002	Auxible feed dog
32	155520000	Main feed dog complete
32	155520001	Main feed dog
32	155520002	Auxible feed dog
32	159510000	Main feed dog complete
32	15951001	Main feed dog
32	159510002	Auxible feed dog
32	159510000	Main feed dog complete
32	160510001	Main feed dog
32	159510000	Main feed dog
33	028400004	Screw
34	02810027	Screw
35	S150215001	Screw
36	155500023	Differential feed guide bracket
37	S120202007	Screw
38	155500024	Differential feed seal guide plate
39	155500025	Differential feed seal plate

Page 37

Typical GN2000 parts on page 37

Ref	Part number	Part name	Qty
11	2000-5	SCREW
11	2000-3,4	SCREW
20	2000-5	SPRING
23	2000-5	SCREW
23	2000-3,4	SCREW

Page 38 — 11. CUTTER DRIVE PARTS

Typical GN2000 parts on page 38

Ref	Part number	Part name	Qty
	155300023	Pin	1
	155600001	Crank for upper cutter drive	1
	155300017	Screw	1
	155600002	Washer	1
	155600005	Right bush for upper cutter bar	1
	155600004	Left bush for upper cutter bar	1
	155600003	Upper knife bar	1
	155600006	Pin	1
	159600001	Pin	1
	155600013	Screw	1
	155600008	Upper knife	1
	159600002	Upper knife holder	1
	155600007	Upper knife holder	1
	B60350812	Screw	2
	155610000	Link for upper knife drive complete	1
	B62401612	Screw	2
	S150225008	Screw	1
	028300027	Screw	1
	028500013	Clamp for lower cutter	1
	159600004	Lower knife	1
	155600011	Lower knife holder	1
	S150215001	Screw	1
	159600003	Lower knife holder	1
	155600009	Lower knife holder	1
	155600010	Spring	1
	S150215010	Screw	2
	155600012	Needle guard holder	1
	159600005	Needle guard holder	1

Page 39

Typical GN2000 parts on page 39

Ref	Part number	Part name	Qty
1	1	HANDLE
2	2	SCREW
3	3	BRACKET
4	4	SPRING
5	5	BRACKET
6	6	SCREW
7	7	BRACKET
8	8	SPRING
9	9	CYLINDER
10	10	PIN
11	11	BRACKET
12	12	SCREW
13	13	SCREW
14	14	BRACKET
15	15	BRACKET
16	16	SPRING
17	17	LEVER
18	18	PIN
19	19	SCREW
20	20	SPRING
21	21	BRACKET
22	22	BRACKET
23	23	SCREW
24	24	SPRING
25	25	LEVER
26	26	SPRING
27	27	BRACKET
28	28	SCREW
29	29	SCREW
30	30	SCREW
31	31	BRACKET
32	32	BRACKET

Page 40 — 12. PRESSER FOOT LIFT PARTS (1)

Typical GN2000 parts on page 40

Ref	Part number	Part name	Qty
	155800011	Link for foot lift lever	1
	155800010	Screw	1
	155800008	Foot lift lever	1
	155800009	Spring	1
	155800007	Set collar for foot lift shaft	1
	155300017	Screw	1
	155800005	Lever	1
	155800006	Spring	1
	155800004	Bush for presser foot lift	1
	B12400432	Screw	1
	155800012	Stopper plate	1
	S150215009	Screw	2
	S150215013	Screw	1
	S120503010	Nut	1
	S12021015	Screw	1
	155800003	Press arm shaft	1
	155800001	Press arm	1
	155800002	Press arm pin	1
	S120202004	Screw	1
	S120202007	Screw	1
	155800020	Knife	1
	159700001	Finger guard	1
	155800019	Finger guard	1
	160710000	Presser foot complete	1
	160730000	Presser foot complete	1
	159710000	Presser foot complete	1
	039720000	Presser foot complete	1
	77T7-001A	Presser foot complete	1
	155800018	Screw	1
	155800017	Spring	1
	155800016	Press bar lifter	1
	155800013	Screw	1
	155800014	Spring	1
	155800015	Press arm stopper	1
	S150215008	Screw	1
	155810000	Presser bar complete	1
	155810002	Cushion	1
	S150446011	Spring pin	1

Page 41

Typical GN2000 parts on page 41

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Lever
3	3	Shaft
4	4	Shaft
5	5	Screw
6	6	Screw
7	7	Lever
8	8	Lever
9	9	Screw
10	10	Screw
10	10	Screw
1	1	Screw
2	2	Lever
3	3	Shaft
12	12	Lever
13	13	Screw
14	14	Lever
15	15	Shaft
16	16	Lever
17	17	Lever
18	18	Lever
19	19	Lever
20	20	Screw
21	21	Screw

Page 42 — 13. PRESSER FOOT LIFT PARTS (2)

Typical GN2000 parts on page 42

Ref	Part number	Part name	Qty
	S120202004	Screw	1
	155800021	Spring	1
	039720000	Presser foot complete	1
	39T7-003B2	Main presser foot	1
	39T7-003B3	Auxible presser foot	1
	39T7-003B1	Bracket for presser foot	1
	39T7-001A3	Screw	1
	39T7-001A6	Screw	1
	28T1-007	Screw	1
	39T7-001A5	Fabric guard	1
	39T7-001A4	Screw	1
	39T7-001A10	Spring	1
	77T7-001A4	Pin	1
	155A20006	Screw	1
	155800025	Spring	1
	77T7-001A	Presser foot complete	1
	77T7-001A1	Main presser foot	1
	77T7-001A2	Aauxible presser foot	1
	77T7-001A3	Bracket for presser foot	1
	77T7-001A5	Link for presser foot	1
	6A2-14	Screw	1
	28T1-007	Screw	1
	77T7-001A6	Fabric guard	1
	77T7-001A4	Pin	3
	S120202004	Screw	1
	159700002	Stopper	1
	159710000	Presser foot complete	1
	159710007	Bracket for presser foot	1
	028100007	Screw	1
	39T7-001A6	Screw	1
	28T6-019A1	Presser foot fitting piece	1
	GB97-76	Washer	1
	159710002	Presser foot fitting piece	1
	159710001	Main presser foot	1
	159710006	Guide	1
	159710005	Set presser for presser foot	1
	28T1-041	Screw	1
	160710000	Presser foot complete	1
	160730000	Presser foot complete	1

Page 43

Typical GN2000 parts on page 43

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23

Page 44 — 14. FRONT LOOPER PARTS (1)

Typical GN2000 parts on page 44

Ref	Part number	Part name	Qty
1	155500017	Rubber cap	1
2	155700003	Pin shaft	1
3	B12500532	Screw	1
4	155700002	Sliding bush	1
5	155700001	Fork	1
6	B12500532	Screw	1
7	155700004	Connector	1
8	155700005	Pin	1
9	155700006	Slide block holder	1
10	B12500532	Screw	1
11	155700008	Bush	1
12	155700010	Crank for front looper	1
13	155300017	Screw	1
14	039400009	Link for front looper	1
15	039400010	Pin	1
16	S150237030	Screw	2
17	155700007	Shaft for looper drive	1
18	155700008	Bush	1
19	028330001	Oil seal	1
20	155710000	Front looper holder complete	1
20	155730000	Front looper holder complete	1
21	155700010	Screw	1
22	006300018	Screw	1
23	155710002	Front looper	1
23	155730001	Front looper	1

Page 45

Typical GN2000 parts on page 45

Ref	Part number	Part name	Qty
1	1	Shaft
2	2	Bracket
3	3	Lever
4	4	Shaft
5	5	Roller
6	6	Spring
7	7	Washer
8	8	Spring
9	9	Lever
10	10	Screw
11	11	Plate
12	12	Lever
13	13	Lever
14	14	Roller
15	15	Roller
16	16	Lever
17	17	Screw
18	18	Lever
19	19	Screw
20	20	Shaft
21	21	Screw

Page 46 — 15. FRONT LOOPER PARTS (2)

Typical GN2000 parts on page 46

Ref	Part number	Part name	Qty
	039400037	Long thread pipe	1
	116250002	Tube clamp	3
	S150215001	Screw	1
	155A00011	Short thread pipe	1
	155A41000	Nut	1
	039400042	Spring	1
	039400041	Thread guide disc	2
	155A40004	Screw	1
	155A40003	Left thread guide	1
	S150217009	Screw	2
	155A40002	Right thread guide	1
	S150215007	Screw	1
	155A00009	Thread guide plate	1
	155100024	Screw	1
	155100025	Washer	2
	155A40001	Lower thread guide bracket	1
	155A00010	Spring	1
	155A00008	Thread guide plate	1
	S150215001	Screw	1
	039410N	Thread takeup cam complete	1
	182610010	Screw	2

Page 47

Typical GN2000 parts on page 47

Ref	Part number	Part name	Qty
	1	2000-5
	2	2000-3,4
	3	2000-3,4
	4	2000-3,4
	5	2000-5
	6	2000-5
	7	2000-5
	8	2000-5
	9	2000-5
	10	2000-5
	11	2000-5
	12	2000-5
	13	2000-5
	14	2000-5
	15	2000-5
	16	2000-5
	17	2000-5
	18	2000-5
	19	2000-5
	20	2000-5
	21	2000-5
	22	2000-5
	23	2000-5
	24	2000-5
	25	2000-5
	26	2000-5

Page 48 — 16. THREAD EYELETS(1)

Typical GN2000 parts on page 48

Ref	Part number	Part name	Qty
	1599000002	Needle thread guide plate	1
	155A000002	Needle thread guide plate	1
	155100034	Screw	3
	1599000001	Thread guide plate for thread takeup plate	1
	155A000001	Thread guide plate for thread takeup plate	1
	155A20000	Thread takeup lever complete	1
	159910000	Thread takeup lever complete	1
	S150217008	Screw	2
	155A20007	Thread guide	1
	155A00002	Thread takeup lever	1
	155A20001	Thread takeup lever bracket	1
	S120203019	Screw	1
	155A20004	Bracket	1
	155A20003	Thread retaining plate	1
	159910001	Thread retaining plate	1
	155A20005	Spring	1
	155A20006	Screw	1
	155450003	Thread guide	1
	155A00003	Thread guide plate	1
	S150215008	Screw	1
	155A00004	Thread guide	1
	S150215001	Screw	1
	S150215008	Screw	2
	155A00005	Thread guide plate	1
	155400018	Thread guide	1
	155A00006	Upper looper thread takeup(big)	1
	155A00007	Upper looper thread takeup(small)	1
	S150215001	Screw	1
	S120202004	Screw	1
	S8A3103003	Washer	1

Page 49

Typical GN2000 parts on page 49

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	WASHER
3	3	WASHER
4	4	COLLAR
5	5	COLLAR
6	6	COLLAR
7	7	COLLAR
8	8	COLLAR
9	9	COLLAR
10	10	COLLAR
11	11	COLLAR
12	12	COLLAR
13	13	COLLAR
14	14	COLLAR
15	15	COLLAR
16	16	COLLAR

Page 50 — 17. THREAD EYELETS (2)

Typical GN2000 parts on page 50

Ref	Part number	Part name	Qty
1	155A10003	Post	3
2	28T2-060H7	Felt	3
3	22T1-012F5	Tension disc.	6
4	155A10009	Cup	3
5	155A10005	Tension spring	1
6	155A10004	Tension spring (upper looper)	1
7	155A10006	Tension spring (lower looper)	1
8	155A10007	Spring bushing	3
9	155A10009	Post nut	3
10	Tension nut complete	Tension nut complete	1
11	Tension nut complete (upper looper)	Tension nut complete (upper looper)	1
12	Tension nut complete (lower looper)	Tension nut complete (lower looper)	1
13	116400008	Screw	2
14	28T2-060H8	Tension guide plate	3
15	155A10000	Thread guide plate complete	1
15	160910000	Thread guide plate complete	1
16	155A10002	Thread guide plate	1

Page 51

Typical GN2000 parts on page 51

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17

Page 52 — 18. LUBRICATING PARTS (1)

Typical GN2000 parts on page 52

Ref	Part number	Part name	Qty
	155900019	Oil guide	1
	155920003	Oil felt	1
	155920001	Upper silicone oil reservoir	1
	155920002	Cover for upper silicone oil reservoir	1
	155900018	Thread guide	1
	S150215009	Screw	1
	155930002	Felt	1
	155930003	Felt	1
	159810002	Felt	1
	159810001	Needle cooler	1
	155930001	Needle cooler	1
	S150215001	Screw	2
	S8A3105006	Ball plug	1
	155900020	Oil tube	1
	155900023	Cover for upper silicone oil reservoir	1
	155900022	Cover for upper silicone oil reservoir	1
	S8A3103003	Washer	1
	S150215009	Screw	1
	028700011	Pipe clamp	2

Page 53

Typical GN2000 parts on page 53

Ref	Part number	Part name	Qty
2	2	PIN
6	6	SPRING
7	7	SCREW
8	8	BRACKET
1	1	BRACKET
3	3	WASHER
5	5	SPRING
11	11	BRACKET
12	12	SCREW
6	6	SPRING
10	10	BRACKET
4	4	SCREW
31	31	COVER
32	32	GASKET
33	33	FILTER
34	34	HOUSING
35	35	SCREW
36	36	SCREW
14	14	SHAFT
15	15	GEAR
16	16	PIN
17	17	SCREW
25	25	GASKET
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	WASHER
30	30	WASHER
18	18	PLATE
19	19	SCREW
20	20	RING
21	21	CLAMP
22	22	SCREW
23	23	RING
24	24	RING
37	37	PIN

Page 54

Typical GN2000 parts on page 54

Ref	Part number	Part name	Qty
	S150215007	Screw	1
	155900007	Oil pipe for oil gauhe window	1
	028700010	Oil splash connector	2
	S150237007	Screw	3
	028700011	Oil splash connecto clamp	2
	155900005	Screw	3
	S150215005	Screw	1
	155900006	Oil distributor	1
	155900010	Oil return pipe connector	1
	155900008	Bronze oil pipe	1
	155940000	Pump complete	1
	155910001	Worm wheel	1
	B12500532	Screw	1
	S150220003	Screw	2
	155940002	Cover for oil pump	1
	S150217010	Screw	3
	155910006	Oil filter flange	1
	S150217012	Screw	1
	S150559001	Screw	1
	155910004	Oil filter	1
	155910005	Oil filter	1
	155900013	Packing	1
	155900017	Washer	4
	S150220015	Screw	4
	155900012	Oil reservoir	1
	28T7-025H	Packing	1
	028700026	Screw	1
	155900031	The cover of oil basin	1
	155900032	Rubber ring	1
	028770001	Filter	1
	155900029	Oil basin	1
	155900033	Oil storage connector	1
	S150218015	Screw	1
	155900027	Oil level gauge	1

Page 55

Typical GN2000 parts on page 55

Ref	Part number	Part name	Qty
31	2000-4 -4M	2000-4 -4M

Page 56 — 20. ACCESSORIES

Typical GN2000 parts on page 56

Ref	Part number	Part name	Qty
	28T8-001	Machine rest board	1
	28T8-004A	Rubber cushion	3
	28T8-005	Rubber cushion	1
	28T8-002	Bolt	4
	155F00001	Table	1
	110F10008	Rubber cushion	20
	S150630001	Washer	4
	S150671001	Washer	4
	28T8-006	Wastes chute mouth	1
	GB100-76	Screw	3
	28T8-007	Wastes chute (upper)	1
	28T8-008	Wastes chute (lower)	1
	GB99-76	screw	4
	W050103006	Tweezer	1
	W050102051	Screwdriver(S)	1
	W050102050	Screwdriver(B)	1
	159300007	Needle DC x 27	1
	W050102030	Double open-end wrench (6x10)	1
	39T10-005	Double open-end	1
	39T10-001	Threading wire	1
	W050102038	Hex key6	1
	W050102037	Hex key5	1
	W050102035	Hex key3	1
	W050102040	Hex key2.5	1
	W050102034	Hex key2	1
	W050202005	Silicon oil pot	1
	W050103011	Chain complete	50
	Funnel	Funnel	1
	155F00002	Oil can	1
	22T9-001	Oil pot	1
	W060302035	Vinyl cover(GB1171-74)	1
	GB1171-74	Belt	1
	159F00001	Tape guide holder (upper)	1
	159F00002	Tape guide holder (lower)	1
	110F00005	Hndled hex driver	1
	S150220027	Screw	1

Page 57

Typical GN2000 parts on page 57

Ref	Part number	Part name	Qty
35	35	SPOOL HOLDER
36	36	SPOOL HOLDER
37	37	SPOOL HOLDER

Page 58 — 20. ACCESSORIES

Typical GN2000 parts on page 58

Ref	Part number	Part name	Qty
35	086700212	Spool stand for three	1
36	088900101	Spool stand for four	1
37	031380002	Spool stand for five	1

Page 59 — Special – use parts for 2000 – 4H – A

Typical GN2000 parts on page 59

Ref	Part number	Part name	Qty
1	159600006	Upper knife
2	159600007	Upper knife holder
3	159600008	Screw
4	S150217009	Screw M3 x4
5	155600014	Guide board
6	155600015	Fixed board
7	155600017	Pin
8	S8A3103003	Washer 4

Page 60 — Special – use parts for 2000 – 5H – A

Typical GN2000 parts on page 60

Ref	Part number	Part name	Qty
1	155600019	Upper knife holder	1
2	155600014	Guide board	1
3	155600015	Fixed board	1
4	155600016	Upper knife	1
5	155600017	Pin	1
6	155600018	Screw	1
7	S150217009	Screw M3 × 4	1
8	S8A3103003	Washer 4	1

Page 61

Typical GN2000 parts on page 61

Ref	Part number	Part name	Qty
42	2000-3C	PRESSER FOOT ASSEMBLY
1	1	PRESSER FOOT
2	2	PRESSER BAR
3	3	PRESSER FOOT SPRING
4	4	PRESSER FOOT SCREW
5	5	PRESSER FOOT HOLDER
6	6	PRESSER FOOT HOLDER SCREW
7	7	PRESSER FOOT HOLDER SPRING
8	8	TENSION SPRING
9	9	TENSION SPRING CAP
10	10	TENSION DISC
11	11	TENSION DISC HOLDER
12	12	TENSION DISC HOLDER SCREW
13	13	TENSION BASE
14	14	TENSION BASE SCREW
15	15	TENSION BASE COVER
16	16	ARM COVER
17	17	ARM COVER SCREW
18	18	ARM COVER HINGE
19	19	ARM COVER HINGE SCREW
20	20	ARM COVER HINGE PIN
21	21	ARM COVER HINGE BRACKET
22	22	ARM COVER HINGE BRACKET SCREW
23	23	NEEDLE BAR GUIDE
24	24	NEEDLE BAR GUIDE SCREW
25	25	NEEDLE BAR GUIDE SPRING
26	26	NEEDLE BAR GUIDE BRACKET
27	27	NEEDLE BAR GUIDE BRACKET SCREW
28	28	NEEDLE BAR GUIDE BRACKET PIN
29	29	NEEDLE BAR GUIDE BRACKET SPRING
30	30	UPPER SHAFT BRACKET
31	31	UPPER SHAFT BRACKET SCREW
32	32	UPPER SHAFT BRACKET PIN
33	33	UPPER SHAFT BRACKET SPRING
34	34	UPPER SHAFT BRACKET COVER
35	35	UPPER SHAFT BRACKET COVER SCREW
36	36	UPPER SHAFT BRACKET COVER PIN
37	37	UPPER SHAFT BRACKET COVER SPRING
38	38	UPPER SHAFT BRACKET COVER HOLDER
39	39	UPPER SHAFT BRACKET COVER HOLDER SCREW
40	40	UPPER SHAFT BRACKET COVER HOLDER PIN
41	41	UPPER SHAFT BRACKET COVER HOLDER SPRING

Page 62 — Special -use parts for 2000-3C 2000-4C

Typical GN2000 parts on page 62

Ref	Part number	Part name	Qty
	159A410000	Needle plate complete	1
	109210009	Screw	1
	159A40005	Cutter protect plate	1
	028400059	Screw	2
	159A40003	Thread cut guide plate	1
	028400059	Screw	2
	159A40001	Needle plate guide plate	1
	109210010	Spring	1
	109210011	Nut	1
	109210005	Knife support bracket	2
	109210005	Block	1
	109210007	Screw	1
	159A40002	Needle plate block (Front)	1
	020101035	Knife (width 9mm)	1
	159A40004	Screw	2
	159A00002	Sewing plate complete	1
	159A30003	Screw	1
	159A23006	Washer	1
	159A30001	Plate	1
	159A30002	Screw	1
	S120501011	Nut M6	1
	S150633001	Washer 6	1
	159A30004	Screw	1
	S150217013	Screw M6 10	1
	159A00003	Thread support plate	2
	182610010	Screw	1
	159A00004	Block	1
	159A22000	Soft thread complete	1
	028100035	Nut	1
	159A23001	Thread lease rack	1
	159A23006	Washer	1
	159A23004	Screw	1
	159A23002	Screw	1
	159A23005	Spring	1
	159A23003	Block	1
	028100035	Nut	1
	159A21001	Thread guide plate	1
	159A10001	Drawing	1
	160510000	Mainfeed dog complete	1
	160500001	Differential feed dog	1
	160A30000	Needle plate complete	1

Page 63 — Special use parts for 2000 4G

Typical GN2000 parts on page 63

Ref	Part number	Part name	Qty
	155E10000	Cover	1
	155E00002	Edge binder support bracket	1
	155E20002	Front cover	1
	155E20001	Front cover(L)	1
	155E00011	Pin	1
	155E00009	Upper knife bar	1
	155E00010	Upper knife holder	1
	028500032	Screw	1
	155E00012	Upper knife	1
	155E00004	Needle guard (rear)	1
	155E00005	Chain stitch needle guard (rear)	1
	155E00003	Needle guard (front)	1
	028400004	Screw	1
	155E00006	Plate	1
	S150215001	Screw	1
	028200061	Screw	1
	155E60000	Edge binder complete	1
	155E00007	Washer	1
	SFB0201020	Screw	1
	155E70000	Needle plate baracket	1

Page 64 — Special – use parts for 2000 – 4G

Typical GN2000 parts on page 64

Ref	Part number	Part name	Qty
	028200061	Screw	1
	028400004	Washer	1
	155E70002	Needle cloth guide	1
	155E70001	Needle plate	1
	155E80000	Main feed dog complete	1
	155E80002	Auxible feed dog	1
	155E80001	Main feed dog	1
	155Eg0000	Belt plate dig complete	1
	155Eg0006	Felt	1
	155Eg1000	Belt plat small complete	1
	155Eg0003	Rack	1
	155Eg0005	Bush	1
	S120501011	Nut	1
	S150237006	Screw	1
	155Eg0004	Screw	1
	155Eg0002	Support rack	1
	W050101002	Screw	1
	155Eg0001	Base mechanism	1
	155E00008	Differential feed dog	1
	155E50001	Needle holder	1
	155E00016	Upper looper shaft	1
	022500005	Oil seal	2
	155E00014	Lower knife	1
	155Ea0000	Presser foot complete	1
	155E90001	Small looper	1
	155E90002	Front looper holder	1
	028100007	Screw	1
	155Ee0000	Double short thread pipe	1
	155Ed0000	Double long thread pipe	1
	155E00015	Thread guide plate	1
	155Eh0002	Right thread guide	1
	155Eh0001	Lower thread guide bracket	1
	028160001	Upper looper oil seal	1

Page 65

Typical GN2000 parts on page 65

Ref	Part number	Part name	Qty
1	159350000	Needle plate asm	1
2	159400003	Lower looper	1
3	159500002	Differential feed dog	1
4	159520000	Main feed dog asm	1
5	159400004	Upper looper	1
6	159150000	Cloth guide asm	1
1	155500052	Differential feed dog	1
2	155590000	Main feed dog asm	1
3	155590001	Main feed dog	1
4	155590002	Auxible feed dog	1

Page 66 — Special-use parts for 2000-5/BB 2000-6/BB

Typical GN2000 parts on page 66

Ref	Part number	Part name	Qty
1	155K00002	Strap guide holder	1
2	S150215010	Screw M4x12	1
3	155900017	Washer	1
4	155K00003	Block	1
5	159600008	Screw	2
6	155K00004	Edge fomer ( 8mm )	1
6	155S00002	* Edge fomer ( 12mm )	1
6	155S00003	* Edge fomer ( 14mm )	1
7	155K00005	Block	1
8	S150215001	Screw M4x8	3
9	155K00006	Lower knife holder	1
10	155K00007	Front cover	1
11	155E20001	Front cover ( L )	1
12	155K20000	Presser foot complete	1
12	155S10000	Presser foot complete	1
13	159600004	Lower knife	1
14	155K30000	Needle plate complete ( 3x4 )	1
14	155S00001	Needle plate complete	1
15	155Eg0000	Edge rotating plate complete	1
16	S150632001	Washer	3

Page 67 — Special use parts for 2000 6

Typical GN2000 parts on page 67

Ref	Part number	Part name	Qty
1	155G10000	Needle plate complete
2	155G10001	Needle plate fitting
3	155G40002	Thread guide plate
4	1555a0000	Main feed dog complete
5	155500051	Differential feed dog
6	155G40001	Thread guide plate(S)
7	155370001	Upper shaft crank
8	155G00003	Needle thread guide plate
9	155G20000	Needle holder
10	155G00002	Upper looper
11	155G30000	Presser foot complete

Page 68

Typical GN2000 parts on page 68

Ref	Part number	Part name	Qty
1	160100003	Model plate	1
2	160300004	Needle plate	1
3	028280009	Needle (DCX27 )	1
4	160500003	Differential feed dog	1
5	160520000	Main feed dog complete	1
6	160520001	Main feed dog	1
7	160520002	Auxible feed dog	1
8	160600001	Lower knife	1
9	160740000	Presser foot complete	1
1	160100004	Model plate	1
2	160300004	Needle plate	1
3	028280009	Needle (DCX27 )	1
4	160500004	Differential feed dog	1
5	160530000	Main feed dog complete	1
6	160530001	Main feed dog	1
7	160530002	Auxible feed dog	1
8	160750000	Presser foot complete	1

Page 69

Typical GN2000 parts on page 69

Ref	Part number	Part name	Qty
30	30	Screw
28	28	Tube
22	22	Tube
23	23	Support
21	21	Support
16	16	Hose Clamp
15	15	Hose
19	19	Bracket
20	20	Bracket
24	24	Mounting Plate
25	25	Container
12	12	Tube
29	29	Tube
14	14	Hose Clamp
13	13	Screw
9	9	Bracket
8	8	Washer
2	2	Cover
5	5	Screw
4	4	Screw
1	1	Valve Assembly
3	3	Screw
31	31	Connector
32	32	Filter
26	26	Wire
27	27	Wire
10	10	Connector
17	17	Mounting Plate
11	11	Adapter

Page 70 — Special —use parts for 2000/P3D

Typical GN2000 parts on page 70

Ref	Part number	Part name	Qty
	GB818-85	Screw M5X10	2
	W70-WX04-05	Bracket 54X56X17X2	1
	GB93-87	Washer 5	2
	GB6170-86	Nut M5	2
	GB845-85	Screw ST4.2X17-C-H	2
	GB845-85	Washer 10	2
	W70-WX04-06	Bracket ( 2 )	1
	W70-WX04-08	Air throttle	1
	W70-WX04-07	Spray head 19X63	1
	W70-WX04-07	Links 20.2X78	1
	GB845-85	Screw ST4.2X12-C-H	1
	W70-WX06-07g	Bracket folder	2
	W70-WX06-10	Nylon tube ( φ 39Xφ 46 )	1
	W70-WX06-08g	Pipe chuck	2
	GB818-85	Funnel	1
	GB859-86	Screw M4X12	4
	GB97.1-85	Washer 4	4
	W70-WX06-01	Washer 4	4
	W70-WX06-02	90-Degree big bend	1
	W70-WX06-03	90- Degree small bend	1
	W70-WX06-04	Pylon	2
	W70-WX06-05	Disc	1
	PU-6	Ring belt	1
	PU-6	Pipe 6X4	1
	PU-6	Pipe 6X4	1
	PU-6	Pipe 6X4	1
	Nylon tubeφ 18Xφ 25	Nylon tubeφ 18Xφ 25	1
	GB845-85	Screw ST4.2X12-C-H	9
	159R50000	Solenoid valve assy	1
	PU-6	Pipe 6X4	1

Page 71

Typical GN2000 parts on page 71

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	BRACKET
4	4	SCREW
5	5	POWER SUPPLY UNIT
6	6	BRACKET
7	7	SCREW
8	8	SCREW
9	9	WASHER
10	10	BRACKET
11	11	SCREW
12	12	BRACKET
13	13	BRACKET
14	14	SCREW
15	15	SCREW
16	16	BRACKET
17	17	BRACKET
18	18	SCREW
19	19	BRACKET
20	20	BRACKET
21	21	SHAFT
22	22	SPRING
23	23	SPRING
24	24	COLLAR
25	25	SCREW
26	26	PIN
27	27	LEVER
28	28	SCREW
29	29	POWER SUPPLY UNIT
30	30	BRACKET
31	31	SWITCH
32	32	CONNECTOR
33	33	BRACKET
34	34	SPRING
35	35	BRACKET
36	36	SPRING

Page 72 — Special —use parts for 2000ET/ET-1

Typical GN2000 parts on page 72

Ref	Part number	Part name	Qty
	159M30000	Switch assy.	1
	S150218005	Screw M4 × 6	2
	159C00001	Joint plate	1
	S150237007	Screw M4 × 6	2
	159M20000	Solenoid assy.	1
	S150220014	Set screw M6 × 12	2
	S150667002	Washer 6	2
	036900002	Screw	1
	036954116	Spring washer	1
	159C10004	Thread cutter holder	1
	S150220032	Set screw M6 × 10	2
	159C00002	Joint bracket	1
	159C10006	Thread cutter guard	1
	159C10009	Screw M3	7
	S150217001	Screw M2.5 × 3	2
	155H10003	Guard bracket	1
	159C10005	Fixing cutter	1
	155H10001	Fixing cutter	1
	159300006	Screw SM 4.37 × 40	2
	159C10003	Guard plate	1
	159C10008	Crank guard	1
	159C11000	Thread cutter assy.	1
	159C10002	Collar	1
	159C10001	Spring	1
	159C12000	Crank assy.	1
	028400035	Screw	1
	159C10010	Screw SM 4.37 × 40	1
	028A00009	Cutter link	1
	SFB1403003	Collar 2.5	1
	998281100	Control box assy.	1
	159M10000	Sewing Platform assy.	1
	155N10000	Sewing Platform assy.	1
	159R70000	Synchronizer	1
	S150218020	Screw M3 × 10	2
	159M10002	Observe window	1
	159M10003	Sponge washer	1
	213000020	Nylon Spool stand	2
	159M10004	Latch lock wrench	1

Page 73 — 2000 SERIES GAUGE PARTS LIST

Typical GN2000 parts on page 73

Ref	Part number	Part name	Qty
1	155390002	NEEDLE PLATE FINGER	3
1	155390002	NEEDLE PLATE FINGER	3
1	155340002	NEEDLE PLATE FINGER	5
1	155380002	NEEDLE PLATE FINGER	6
1	155390002	NEEDLE PLATE	4
1	155390002	NEEDLE PLATE	4
1	155340002	NEEDLE PLATE	5
1	155380002	NEEDLE PLATE	6
1	1555000052	D.I.F.F. FEED DOG	3
1	1555000051	D.I.F.F. FEED DOG	5
1	1555000050	D.I.F.F. FEED DOG	5
1	1555000050	D.I.F.F. FEED DOG	5
1	155590000	MAIN FEED DOG ASSM	3
1	1555a0000	MAIN FEED DOG ASSM	5
1	155520000	MAIN FEED DOG ASSM	5
1	155580000	MAIN FEED DOG ASSM	6
1	03971	PRESSER FOOT ASS.	3
1	039720000	PRESSER FOOT ASS.	5
1	07771	PRESSER FOOT ASS.	5
1	07771	PRESSER FOOT ASS.	6
1	155400015	UPPER LOOPER	3
1	155400015	UPPER LOOPER	3
1	155400015	UPPER LOOPER	5
1	155400015	UPPER LOOPER	6
1	155710002	LOWER LOOPER	3
1	155710002	LOWER LOOPER	3
1	155710002	LOWER LOOPER	5
1	155710002	LOWER LOOPER	6
1	155730001	CHAINSTITCH LOOPER	3
1	155730001	CHAINSTITCH LOOPER	3
1	155730001	CHAINSTITCH LOOPER	5
1	155730001	CHAINSTITCH LOOPER	6
1	155600008	UPPER KNIFE	3
1	155600008	UPPER KNIFE	3
1	155600008	UPPER KNIFE	5
1	155600008	UPPER KNIFE	5
1	155600011	LOWER KNIFE	3
1	155600011	LOWER KNIFE	3
1	155600011	LOWER KNIFE	5
1	155600011	LOWER KNIFE	5
1	155300025	OVERLOCK NEEDLE GUARD FRONT	3
1	155300025	OVERLOCK NEEDLE GUARD FRONT	3
1	155300025	OVERLOCK NEEDLE GUARD FRONT	5
1	155300025	OVERLOCK NEEDLE GUARD FRONT	5
1	155300031	OVERLOCK NEEDLE GUARD REAR	3
1	155300031	OVERLOCK NEEDLE GUARD REAR	3
1	155300027	OVERLOCK NEEDLE GUARD REAR	5
1	155300027	OVERLOCK NEEDLE GUARD REAR	5
1	155360002	NEEDLE BAR ASSM	3
1	155360002	NEEDLE BAR ASSM	3
1	155350002	NEEDLE BAR ASSM	5
1	155350002	NEEDLE BAR ASSM	5
DC x 27 11#	155360002	NEEDLE HOLDER	3
DC x 27 14#	155360002	NEEDLE HOLDER	3
DC x 27 14#	155350002	NEEDLE HOLDER	5
DC x 27 21#	155350002	NEEDLE HOLDER	5

Page 74

Typical GN2000 parts on page 74

Ref	Part number	Part name	Qty
	159310001	NEEDLE PLATE	4
	159310001	NEEDLE PLATE	4
	159310001	NEEDLE PLATE	1.5
	159310001	NEEDLE PLATE	2
	159310001	NEEDLE PLATE	2
	159310001	NEEDLE PLATE	2
	159310001	NEEDLE PLATE	2
	159310001	NEEDLE PLATE	2
	189300003	NEEDLE PLATE FINGER
	189300004	NEEDLE PLATE FINGER
	189300004	NEEDLE PLATE FINGER
	189300004	NEEDLE PLATE FINGER
	189300004	NEEDLE PLATE FINGER
	189300004	NEEDLE PLATE FINGER
	189300004	NEEDLE PLATE FINGER
	189300004	NEEDLE PLATE FINGER
	160510000	MAIN FEED DOG
	159510000	MAIN FEED DOG
	159500001	MAIN FEED DOG
	159500001	MAIN FEED DOG
	159500001	MAIN FEED DOG
	159500001	MAIN FEED DOG
	159500001	MAIN FEED DOG
	159500001	MAIN FEED DOG
	160510002	MAIN FEED DOG ASSM.
	159510002	MAIN FEED DOG ASSM.
	159510002	MAIN FEED DOG ASSM.
	159510002	MAIN FEED DOG ASSM.
	159510002	MAIN FEED DOG ASSM.
	159510002	MAIN FEED DOG ASSM.
	159510002	MAIN FEED DOG ASSM.
	159510002	MAIN FEED DOG ASSM.
	160510001	DIFF. FEED DOG
	159510001	DIFF. FEED DOG
	159500001	DIFF. FEED DOG
	159500001	DIFF. FEED DOG
	159500001	DIFF. FEED DOG
	159500001	DIFF. FEED DOG
	159500001	DIFF. FEED DOG
	159500001	DIFF. FEED DOG
	160710000	PRESSER FOOT ASS.
	160730000	PRESSER FOOT ASS.
	160750000	PRESSER FOOT ASS.
	160750000	PRESSER FOOT ASS.
	160750000	PRESSER FOOT ASS.
	160750000	PRESSER FOOT ASS.
	160750000	PRESSER FOOT ASS.
	160750000	PRESSER FOOT ASS.
	160400001	UPPER LOOPER
	160400001	UPPER LOOPER
	160400001	UPPER LOOPER
	160400001	UPPER LOOPER
	160400001	UPPER LOOPER
	160400001	UPPER LOOPER
	160400001	UPPER LOOPER
	160400001	UPPER LOOPER
	155450002	LOWER LOOPER
	155450002	LOWER LOOPER
	155450002	LOWER LOOPER
	155450002	LOWER LOOPER
	155450002	LOWER LOOPER
	155450002	LOWER LOOPER
	155450002	LOWER LOOPER
	155450002	LOWER LOOPER
	155600008	UPPER KNIFE	4
	155600008	UPPER KNIFE	4
	155600008	UPPER KNIFE	1.5
	155600008	UPPER KNIFE	2
	155600008	UPPER KNIFE	2
	155600008	UPPER KNIFE	2
	155600008	UPPER KNIFE	2
	155600008	UPPER KNIFE	2
	159600004	LOWER KNIFE	4
	159600004	LOWER KNIFE	4
	159600004	LOWER KNIFE	1.5
	159600004	LOWER KNIFE	2
	159600004	LOWER KNIFE	2
	159600004	LOWER KNIFE	2
	159600004	LOWER KNIFE	2
	159600004	LOWER KNIFE	2
	155300024	NEEDLE GUARD REAR	4
	155300024	NEEDLE GUARD REAR	4
	155300024	NEEDLE GUARD REAR	1.5
	155300024	NEEDLE GUARD REAR	2
	155300024	NEEDLE GUARD REAR	2
	155300024	NEEDLE GUARD REAR	2
	155300024	NEEDLE GUARD REAR	2
	155300024	NEEDLE GUARD REAR	2
	159300024	NEEDLE BAR ASSM FRONT	4
	159300024	NEEDLE BAR ASSM FRONT	4
	159300024	NEEDLE BAR ASSM FRONT	1.5
	159300024	NEEDLE BAR ASSM FRONT	2
	159300024	NEEDLE BAR ASSM FRONT	2
	159300024	NEEDLE BAR ASSM FRONT	2
	159300024	NEEDLE BAR ASSM FRONT	2
	159300024	NEEDLE BAR ASSM FRONT	2
	160320001	NEEDLE HOLDER	4
	160320001	NEEDLE HOLDER	4
	160320001	NEEDLE HOLDER	1.5
	160320001	NEEDLE HOLDER	2
	160320001	NEEDLE HOLDER	2
	160320001	NEEDLE HOLDER	2
	160320001	NEEDLE HOLDER	2
	160320001	NEEDLE HOLDER	2
	DC x 27 11#	NEEDLE HOLDER	4
	DC x 27 11#	NEEDLE HOLDER	4
	DC x 27 9#	NEEDLE HOLDER	1.5
	DC x 27 9#	NEEDLE HOLDER	2
	DC x 27 11#	NEEDLE HOLDER	2
	DC x 27 14#	NEEDLE HOLDER	2
	DC x 27 14#	NEEDLE HOLDER	2
	DC x 27 14#	NEEDLE HOLDER	2

Part BooksPartsSearchNotes

Part Books

×

Search

×

Typical GN2000 — parts catalog

• Page 1 (cover): This is the cover page for the GN2000 Instruction Book // Parts Catalogue for a high-speed overlock sewing machine by Typical.
• Page 2 (text): This page contains an introduction to the 2000 Series sewing machine and important safety precautions to observe before operating the machine, including illustrations demonstrating power switch and foot pedal operation.
• Page 3 (toc): This page contains the table of contents for the manual, detailing sections on 'Before Operating', 'Test Sewing', and 'Maintenance During Use' with corresponding page numbers.
• Page 4 (diagram): This page contains a schematic diagram of the machine table, including dimensions and labels for different sides and features.
• Page 5 (text): This page provides instructions for installing the machine head and adjusting the belt tension, along with a table detailing machine speeds for different models.
• Page 6 (text): This page describes the lubrication process for the sewing machine, including initial oil filling and manual lubrication instructions, accompanied by diagrams illustrating the procedures.
• Page 7 (text): This page contains instructions for filling the HR device with silicone oil and threading the sewing machine, accompanied by diagrams illustrating these processes.
• Page 8 (text): This page provides instructions on threading the sewing machine and adjusting the presser foot pressure, accompanied by diagrams.
• Page 9 (text): This page provides instructions for adjusting the differential feed ratio and stitch length on a sewing machine, accompanied by diagrams illustrating the relevant components and adjustments.
• Page 10 (text): This page contains instructions for adjusting thread tension and cleaning the machine, with diagrams illustrating the tension adjustment knobs and cleaning areas.
• Page 11 (text): This page contains maintenance instructions for replacing the needle and checking/replacing the filter, along with diagrams illustrating these procedures.
• Page 12 (text): This page contains maintenance instructions for the sewing machine, specifically detailing how to check and replace the oil. It includes illustrations showing the oil circulation check and the oil replacement process.
• Page 13 (text): This page describes the procedure for removing and replacing the lower knife on an industrial sewing machine, including diagrams and instructions for correct angles when resharpening.
• Page 14 (text): This page contains maintenance information for replacing the lower knife, including adjustment dimensions for models 2000-5 and 2000-3/2000-4, as well as standard needle information for various models.
• Page 15 (diagram): This page displays a diagram of various components and sub-assemblies of an industrial sewing machine, with numbered callouts indicating specific parts and their relationships.
• Page 16 (parts_list): This page lists parts for machine arm components, including screws, frame side covers, spring pins, rivets, and oil marks, with their respective part numbers and quantities for different machine models.
• Page 17 (diagram): This page displays a diagram of various components of an industrial sewing machine, with numbered parts and their corresponding part numbers and descriptions.
• Page 18 (parts_list): This page lists machine arm parts, including part numbers, descriptions, and quantities for different machine models.
• Page 19 (diagram): This page displays a diagram of various machine components and hardware, with numbered references for each part.
• Page 20 (parts_list): This page lists machine arm parts, including screws, plates, springs, and washers, with their corresponding part numbers and quantities for different machine models.
• Page 21 (diagram): This page displays a diagram of various components, including screws, shafts, bearings, and pulleys, with corresponding reference numbers for identification.
• Page 22 (parts_list): This page lists parts for the needle bar drive, including part numbers, descriptions, and quantities for various models.
• Page 23 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification. It also shows three different types of components labeled 2000-3, 2000-4, and 2000-5 (5x5).
• Page 24 (parts_list): This page lists needle bar drive parts, including part numbers, descriptions, and quantities for different machine models.
• Page 25 (diagram): This page displays diagrams of sewing machine parts for models 2000-5 (5x5), 2000-3,4, and 2000-4, with numbered components for identification.
• Page 26 (parts_list): This page lists parts for Needle Bar Drive Parts (3), including part numbers, descriptions, and quantities for various models.
• Page 27 (diagram): This page displays a diagram of various machine components, including levers, shafts, bearings, and fasteners, with corresponding reference numbers for identification.
• Page 28 (parts_list): This page lists parts for the upper and lower looper drive, including part numbers, descriptions, and quantities for various machine models.
• Page 29 (diagram): This page displays a diagram of various machine components, including part numbers and reference indicators. It lists parts such as 2000-5, 2000-3, and 2000-4, along with other numbered components from 1 to 19.
• Page 30 (parts_list): This page lists parts for the upper and lower looper drive, including screws, washers, pins, and oil seals, with part numbers and quantities for different machine models.
• Page 31 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 45, illustrating their assembly and placement within the machine.
• Page 32 (parts_list): This page lists parts for the 9. FEED DOG LIFT PART(1) section, including part numbers, descriptions, and quantities for different machine models.
• Page 33 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their location and assembly.
• Page 34 (parts_list): This page lists parts for the Feed Dog Lift, including part numbers, descriptions, and quantities for various models.
• Page 35 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their positions. It includes components such as bolts, pins, shafts, and housing parts, numbered from 1 to 39.
• Page 36 (parts_list): This page lists parts for the feed dog lift, including screws, washers, links, rollers, and differential feed dogs, with quantities specified for different machine models.
• Page 37 (diagram): This page displays a diagram of various sewing machine parts, including screws, springs, and specialized components, with corresponding reference numbers and part codes.
• Page 38 (parts_list): This page lists parts for the cutter drive, including pins, screws, washers, and knife holders, with their corresponding part numbers and quantities for different machine models.
• Page 39 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 32, illustrating their assembly and placement within the machine. It includes components like levers, springs, screws, and housing parts.
• Page 40 (parts_list): This page lists parts for the presser foot lift, including part numbers, descriptions, and quantities for various models.
• Page 41 (diagram): This page contains diagrams of parts for models 2000-5 (5x5), 2000-5H, and 2000-3,4, with numbered parts indicated in each diagram.
• Page 42 (parts_list): This page lists parts for the presser foot lift, including screws, springs, brackets, and pins, with quantities specified for different machine models.
• Page 43 (diagram): This page contains a diagram of various machine parts, numbered 1 through 23, with a reference code 2000-5.
• Page 44 (parts_list): This page lists parts for the front looper, including part numbers, descriptions, and quantities for different models.
• Page 45 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 21, with a reference code '2000-5'.
• Page 46 (parts_list): This page lists front looper parts, including part numbers, descriptions, and quantities for different machine models.
• Page 47 (diagram): This page displays diagrams of various sewing machine components, including parts labeled 1 through 26, with specific sections for models 2000-5 and 2000-3,4.
• Page 48 (parts_list): This page lists thread eyelets for industrial sewing machines, including part numbers, descriptions, and quantities for different models.
• Page 49 (diagram): This page displays diagrams of various components for sewing machine models 2000-3, 2000-4, and 2000-5, illustrating parts numbered 1 through 16.
• Page 50 (parts_list): This page lists thread eyelets (2) with part numbers, descriptions, and quantities for models 3, 4/4H, 5, and 5H.
• Page 51 (diagram): This page displays a diagram of various sewing machine parts, including components labeled with reference numbers 1 through 17. It also indicates part groups for '2000-3,-4' and '2000-5'.
• Page 52 (parts_list): This page lists lubricating parts for industrial sewing machines, including part numbers, descriptions, and quantities for various models.
• Page 53 (diagram): This page displays a diagram of various machine components, including a filter assembly, a gearbox, and a base plate with associated hardware, each labeled with reference numbers for identification.
• Page 54 (parts_list): This page lists lubricating parts for a machine, including screws, oil pipes, filters, and washers, with their corresponding part numbers and quantities for different models.
• Page 55 (diagram): This page displays a diagram of various machine parts, including screws, brackets, tools, and accessories, with reference numbers for identification.
• Page 56 (parts_list): This page lists accessories for the sewing machine, including machine rest boards, rubber cushions, bolts, tables, screws, tweezers, screwdrivers, wrenches, oil cans, oil pots, belts, and tape guide holders, along with their part numbers and quantities for different models.
• Page 57 (diagram): This page displays diagrams of various components of an industrial sewing machine, including spool holders and related hardware, with reference numbers and some part numbers indicated.
• Page 58 (parts_list): This page lists accessories for the sewing machine, including different types of spool stands with their corresponding part numbers and quantities for various models.
• Page 59 (diagram): This page displays a diagram of special use parts for the 2000-4H-A model, along with a table listing these parts with their reference numbers, part numbers, descriptions, and quantities.
• Page 60 (diagram): This page displays a diagram of special use parts for model 2000-5H-A, along with a table listing these parts with their reference numbers, part numbers, descriptions, and quantities.
• Page 61 (diagram): This page displays a diagram of various sewing machine parts, including a presser foot assembly, tension discs, and related components, with reference numbers for each part.
• Page 62 (parts_list): This page lists special use parts for sewing machine models 2000-3C and 2000-4C, including part numbers, descriptions, and quantities for each model.
• Page 63 (parts_list): This page lists special use parts for the 2000-4G model, including covers, brackets, pins, screws, and needle guards, with their corresponding part numbers and quantities.
• Page 64 (parts_list): This page lists special use parts for the 2000-4G model, including screws, washers, needle plates, feed dogs, and other components with their respective part numbers and quantities.
• Page 65 (parts_list): This page lists special use parts for sewing machine models 2000-4XH and 2000-5L, including part numbers, descriptions, and quantities.
• Page 66 (parts_list): This page lists special-use parts for sewing machine models 2000-5/BB and 2000-6/BB, including part numbers, descriptions, and quantities.
• Page 67 (diagram): This page displays a diagram of special use parts for models 2000-6, along with a table listing 11 parts with their reference numbers, part numbers, descriptions, and quantities.
• Page 68 (parts_list): This page lists special use parts for sewing machine models 2000-3B and 2000-3E, including part numbers, descriptions, and quantities.
• Page 69 (diagram): This page displays a diagram of various components, including a large container, tubes, a valve assembly, and mounting hardware, with reference numbers for each part.
• Page 70 (parts_list): This page lists special use parts for the 2000/P3D model, including part numbers, descriptions, quantities, and notes.
• Page 71 (diagram): This page displays a diagram of various machine components, including brackets, levers, screws, and a power supply unit, with numbered references for each part.
• Page 72 (parts_list): This page lists special use parts for the 2000ET/ET-1 sewing machine, including part numbers, descriptions, and quantities for different models.
• Page 73 (parts_list): This page lists parts for the 2000 Series Gauge, including machine type/spec, gauge, needle plate finger, needle plate, differential feed dog, main feed dog, presser foot assembly, upper looper, lower looper, chainstitch looper, upper knife, lower knife, overlock needle guard, needle bar assembly, and needle holder.
• Page 74 (parts_list): This page contains parts lists for various machine types including 3100-3(/2), 3100-3, 3100-3B, 3100-3E, 3100-4, 3100-4M, 3100-4H, and 3100-4M-A. It details components such as needle plate, needle plate finger, auxiliary feed dog, main feed dog, differential feed dog, presser foot ass., upper looper, and lower looper, along with their respective part numbers and quantities.
• Page 75 (cover): This is the cover page of the XI'AN TYPICAL INDUSTRIES CO., LTD. parts catalog, dated 2009.02.20. It includes contact information and a disclaimer about design changes.
• Page 76 (cover): This is the cover page for the GN2000 High-Speed Overlock Sewing Machine manual, featuring company contact information for XI'AN TYPICAL INDUSTRIES CO., LTD. and XI'AN TYPICAL EUROPE GmbH.

Page 1

GN2000 INSTRUCTION BOOK // PARTS CATALOGUE HIGH-SPEED OVERLOCK SEWING MACHINE TYPICAL jintex.in

Page 2 — INTRODUCTION

INTRODUCTION Thank you very much for purchasing 2000 Series sewing machine. This instruction manual describes daily routine maintenance and safety precautions to keep the machine in the best possible conditions. Please study this manual very carefully before operating the machine. OBSERVE THESE SAFETY PRECAUTIONS Though 2000 series takes the utmost care to produce safe sewing machines and devices, operators should follow these basic safety rules. To prevent accidents, do not remove safety devices or parts while operating the machine. Do not leave tools or other unnecessary objects on the machine table while operating the machine. Before maintenance, adjusting, cleaning, threading or replacing the needle, and to prevent accidents, be sure the power is turned off. Check that the machine will not operate when the pedal is pressed. Note In case a clutch type motor is used, it will keep on rotating by inertia after turning off power supply ①. If the machine pedal ② is stepped on inadvertently, it is dangerous because the machine will move unexpected- ly. Keep on stepping on the machine pedal ② until the machine comes to a stop after turning off the power supply ① . Turn the power off before leaving the machine table. In the event of a power failure, be sure to turn the machine off. Check that the machine is securely grounded. 1 jintex.in

Page 3 — CONTENTS

CONTENTS BEFORE OPERATING Schematic diagram of the machine table 3 Installing the machine head 4 The machine speed and the turning direction 4 Lubrication 5 Manual lubrication 5 Filling the HR device with silicon oil 6 Threading 6 TEST SEWING Adjusting the presser foot pressure 7 Adjusting the diff. feed ratio 8 Adjusting the stitch length 8 Adjusting the thread tension 9 MAINTENANCE DURING USE Cleaning the machine 9 Replacing the needle 10 The check of the filter fixs and replace 10 Checking the oil circulation 11 Replacing the oil 11 Replacing the lower knife 12-13 Adjustment dimensions 13 Standard needle 13 2 jintex.in

Page 4 — Schematic diagram of the machine table

BEFORE OPERATING Schematic diagram of the machine table Cut the table referring to the diagram . (525) 306 86 294 Right side 262 236 48 16 75 420 75 Rear side 595 (200) 369 329 288 159 33 66 130 12-R10 215 286 30 183 210 234 Left side Standard dimention 30 28 3 jintex.in

Page 5

BEFORE OPERATING Instaling the machine head 1. Mount the machine head on the mahcine rest board. 2. Adjust the tension of the belt so that it can be about 2cm bent inward when you press the middle of it. Adjust the height of the motor to do this. 3. Install the belt cover referring to the Figure. BEFORE OPERATING The machine speed and turning direction The machine rotates clockwise when seen from the machine pully side. Make sure your machine type and run it not exceeding the maximum speed as listed in the table. Modle (r. p. m) Sewing speed (max) 2000-3 2000-3B 7000 2000-3E 2000-4 2000-4M 6500 2000-4H 6000 2000-5L 2000-5 6500 2000-5(5x5) 2000-5H 5500 4 jintex.in

Page 6 — Lubrication

BEFORE OPERATING Lubrication After filling the oil pan, the top of oil indicator should lie between (H) and (L) lines. Add oil, when it reaches or goes below (L). Note: Use our company recommended oil. BEFORE OPERATING Manual lubrication Apply 2 or 3 drops of oil by hand when the machine is used for the first time or has been left unused for some time. Note: Use our company recommended oil. 5 jintex.in

Page 7

BEFORE OPERATING Filling the HR device with silicon oil Fill the HR device with oil before it is too low in order to prevent needle thread breakage and fabric damage. BEFORE OPERATING Threading Open three covers. Swing the presser foot aside. 6 jintex.in

Page 8 — Threading

BEFORE OPERATING Threading Needle thread Trim the knots off neatly before passing through the eye of the needle to rethread. Looper thread Trim the knots off neatly af- ter passing through the eye of the looper. Knot the preset thread and the thread being used together to thread the machine. (2) Be sure to thread the machine correctly by referring to the threading diagram. Threading diagram TEST SEWING Adjusting the presser foot pressure Turn adjusting screw to adjust the presser foot pressure. It should be as light as possible, yet be sufficient to obtain the proper stitch formation. Light Heavy 7 jintex.in

Page 9

TEST SEWING Adjusting the diff. feed ratio Loosen the nut and move the lever up and down to obtain the correct differential feed ratio. Tighten the nut after positioning the lever as desired. TEST SEWING Adjusting the stitch renqth 1. While pressing the push button, turn the hand- wheel to seek the position at which the push button goes further into the depth. 2. Then, keeping the push button pressed, turn the handwheel and set the desired scale to the aligning mark. Note: Stitch length adjustment must only be made after the differential feed ratio has been changed. Aligning Mark Coarse Fine Handwheel 8 jinte x.in Handweel Push button

Page 10 — Adjusting the thread tension

TEST SEWING Adjusting the thread tension Make tension adjustments with the nee- dle thread knot ①, the upper looper knob ②, and the lower looper knob ③. To loosen To tighten MAINTENANCE DURING USE Cleaning the machine Mainly the slots of the needle plate and the feed rows should be cleaned. 9 jintex.in

Page 11

MAINTENANCE DURING USE Replacing the needle Check the needle carefully to see that the scarf is turned to the rear of the machine. Insert the needle to the proper depth, and fasten securely. Be sure to use standard nee- dle. Refer to ADJUSTMENT DI- MENSIONS on the end of instruc- tions. OK! NO! scarf Be sure to use the blue-handled hex driver packaged in the accessory box. Note: Do not remove the screw. MAINTENANCE DURING USE The check of the filter fixs and replace Turn off the power before checking filter and replacing. You'd better appeal for aid to a profes- sional technical person. If the filter is jammed by de- brics, oil circulation will be break off. For the sake of working order, please clean up the trash or change a new one each 6 months. As shown on the right, fixed dis- assembly order of filter likes this: 1. Top cove 2. Screw 3. The cover of oil basin 4. Rubber ring 5. Filter 6. Check the filer, if the filter has been dilapidate, replace it. 10 jintex.in

Page 12

MAINTENANCE DURING USE Checking the oil circulation Operating MAINTENANCE DURING USE Replacing the oil Replace the oil one month after the first use and every six months thereafter. 11 jintex.in

Page 13 — Replacing the lower knife

MAINTENANCE DURING USE Replacing the lower knife To remove the lower knife Temporarily screw ① after sliding the lower knife holder to the left. Correct angles to resharpen the lower knife. 2000-5 2000-5H 45° 75° 2000-3 2000-4 62° 75° Loosen the screw Remove the lower knife To replace the lower knife Loosening the screw ⑤ makes the lower knife holder slide to the right. Turn the handwheel as the drawing on the right figure. 3 Tighten the screw. Insert the lower knife. (See the below figure) 1 Tighten the screw. 12 jintex.in

Page 14

MAINTENANCE DURING USE Replacing the lower knife Level of A = Level of B Check cutting action of knives. Cutting edge of the lower knife Upper knife Top surface of the needle plate Lower knife Adjustment dimentions 2000-5 (mm) 2000-5L 10.6 3.9 5.1 0.9~1.1 5.5 1.5 2000-5 10.6 3.9 3.3 0.9~1.1 5.5 1.5 2000-5(5x5) 10.6 3.9 5.1 0.9~1.1 5.5 1.5 2000-5H 12.0 3.6 5.1 0.9~1.1 6 1.5 Adjustment dimentions 2000-3, 2000-4 (mm) 2000-3 10.1 4.2 5.1 0.9~1.1 5.5 2000-3B 10.1 4.2 5.1 0.9~1.1 5.5 2000-3E 10.1 4.2 5.1 0.9~1.1 5.5 2000-4 10.1 4.6 5.8 0.9~1.1 5.5 2000-4H 11.1 4.6 5.8 0.9~1.1 6 2000 Standard needle Organ DC x 27 Organ DC x 27 2000-3 11 2000-4H 14 2000-3B 9 2000-5L 11 2000-3E 9 2000-5 14 2000-5(5x5) 14 2000-4 11 2000-5H 21 13 jintex.in

Page 15

14 jintex.in

Page 16 — 1. MACHINE ARM PARTS (1)

1. MACHINE ARM PARTS (1) No Ret. No. Description Qt 3 4/4H 5 6H 1 S150220005 Screw 4 4 4 4 2 155100001 Frame side cover 1 1 1 1 3 S150215011 Screw(L) 1 1 1 1 4 S150215009 Screw(S) 3 3 3 3 6 S8A3104007 Spring pin 2 2 2 2 7 155100002 Thread guide pipe 2 2 2 2 8 BXF8899009 Rivet 2 2 2 2 10 198000014 Model plate 1 11 S8A3104007 Spring pin 1 1 1 1 12 S150220016 Screw 2 2 2 2 13 S8A3104007 Spring pin 1 1 1 1 14 159100001 Needle plate support bracket 1 1 155100003 Needle plate support bracket 15 155100005 Screw 4 4 4 4 16 155100041 Oil mark 1 1 1 1 15 jintex.in

Page 17

2000-3,-4 17 2000-5 17 2000-5 20 2000-3,-4 20 33 19 34 18 35 1 2 3 4 36 5 6 7 8 9 10 11 12 13 14 15 16 21 24 23 25 21 26 27 28 29 30 31 32 16 jintex.in

Page 18 — 2. MACHINE ARM PART(2)

2. MACHINE ARM PART(2) No Ret. No. Description Qt 3 4/4H 5 5H 1 155100010 Oil guide plate 1 1 1 1 2 S150215008 Screw 1 1 1 1 3 155100031 Packing 1 1 1 1 4 155100030 Oil monitor 1 1 1 1 5 S150215011 Screw 4 4 4 4 6 155100008 Top cover 1 1 1 1 7 155100009 Oil gusket 1 1 1 1 8 155100016 Belt cover 1 1 1 1 9 S150215014 Screw 3 3 3 3 10 S150215001 Screw 2 2 2 2 11 155100015 Cooling fan guard 1 1 1 1 12 155100013 Plate spring 1 1 1 1 13 S150215008 Screw 1 1 1 1 14 155100014 Cover 1 1 1 1 15 S150215001 Screw 3 3 3 3 16 155100034 Screw 1 1 1 1 17 159140000 Cloth guide 1 1 1 155150000 Cloth guide 18 155100033 Screw 1 1 1 1 19 S150215001 Screw 2 2 2 2 20 159120001 Front cover 1 1 155120004 Front cover 1 21 S150215008 Screw 2 2 2 2 22 155120007 Front cover hinge stopper 1 1 1 1 23 S150215008 Screw 1 1 1 1 24 155120005 Stopper plate 1 1 1 1 25 S120202007 Screw 1 1 1 1 26 155120002 Front cover hinge shaft 1 1 1 1 27 B12400432 Screw 2 2 2 2 28 155120001 Front cover(L) 1 1 1 1 29 155120003 Spring 1 1 1 1 30 155120006 Front cover hinge 1 1 1 1 31 S150215010 Screw 3 3 3 3 32 155100012 Oil seal 1 1 1 1 33 160DQZ005 Decorative brand 1 1 1 1 34 160DHZ001 Decorative brand 1 1 1 1 35 155100046 Oil filter tags 1 1 1 1 17 jintex.in

Page 19

2000-5 2000-3,-4 18 jintex.in

Page 20 — 3. MACHINE ARM PART(3)

3. MACHINE ARM PART(3) No Ret. No. Description Qt 3 4/4H 5 5H 1 S150215009 Screw 4 4 4 4 2 155100017 Back cover for feed mechanism 1 1 1 1 3 155100033 Screw 4 4 4 4 4 155100018 Feed bar cover 1 1 1 1 5 B12400432 Screw 1 1 1 1 6 S150215008 Screw 1 1 1 1 7 155100021 Plate spring 1 1 1 1 8 155100020 shaft for needle thread cover 1 1 1 1 9 155100019 Needle thread cover 1 1 1 1 10 160DQZ002 Trade mark plate 1 1 1 1 11 155100024 Screw 1 1 1 1 12 155100025 Wave spring 2 2 2 2 13 155100023 Eye guard support plate 1 1 1 1 14 159100004 Eye guard 1 1 155100026 Eye guard 1 1 15 S8A3103002 Washer 2 2 2 2 16 S120202007 Screw 2 2 2 2 17 155100027 Rubber plug 1 1 1 1 18 155100029 Needle bar seal cover 1 1 1 1 19 155100022 Screw 1 1 1 1 20 155100034 Screw 1 1 1 1 21 S150215005 Screw 1 1 1 1 22 S150559002 Nut 1 1 1 1 23 S150218005 Screw 2 2 2 2 24 155140001 Direction guide plate 1 1 1 1 25 155140002 Plate spring 1 1 1 1 26 S150217008 Screw 1 1 1 1 27 155100027 Rubber plug 3 3 3 3 28 155130006 Nut 1 1 1 1 29 159131001 Cloth plate 1 1 155131001 Cloth plate 1 1 30 B12400432 Screw 1 1 1 1 31 155130001 Cloth plate shaft bush 1 1 1 1 32 155100025 Wave spring 1 1 1 1 33 155100024 Screw 1 1 1 1 34 155130005 Screw 1 1 1 1 35 155130004 Spring 1 1 1 1 36 155130003 Latch lever for cloth plate 1 1 1 1 37 S150215001 Screw 2 2 2 2 38 155130008 Washer 2 2 2 2 39 155130007 Side cover 1 1 1 1 40 155100027 Rubber plug 1 1 1 1 41 155130009 Plate spring 1 1 1 1 42 S120202004 Screw 1 1 1 1 43 S4B3000010 Spring washer 1 1 1 1 44 S150215005 Screw(L) 1 1 1 1 45 116400008 Screw 1 1 1 1 19 jintex.in

Page 21

2000-5 2000-3,-4 2000-3,-4 2000-5 20 jintex.in

Page 22 — 4. NEEDLE BAR DRIVE PARTS (1)

4. NEEDLE BAR DRIVE PARTS (1) No Ret. No. Description Qt 3 4/4H 5 5H 1 155200001 Crank shaft extension 2 2 1 1 159200001 Bearing cap 1 1 155200002 Bearing cap 3 1 1 S150215009 Screw 3 3 S150215009 Screw 1 1 155200004 Rubber ring 1 1 1 B12500532 Screw 1 1 1 155220000 Ball bearing(L), assy 1 1 1 1 S150224006 Screw 1 1 1 1 155200005 Crank shaftbush(M) 1 1 1 1 SFB0201004 Screw 2 2 2 2 155230001 Stopper bush 1 1 1 1 155200006 Screw 1 1 1 1 155210001 Crank shaft 1 1 1 1 006301008 Screw 2 2 2 2 028260003 Screw 1 1 1 1 S150215009 Screw 3 3 3 3 155200011 Bearing presser 1 1 1 1 15520018 O-type ring 1 1 1 1 155200010 Packing 1 1 1 1 052200036 Ball bearing (right) 1 1 1 1 15520009 Collar 1 1 1 1 15520008 Spring washer 4 4 4 4 S15086046 Ball bearing (middle) 1 1 1 1 B12500532 Screw 1 1 1 1 155200007 Worm 1 1 1 1 155200012 Crank shaft oil reject 1 1 1 1 S150656004 O-type ring 1 1 1 1 155200013 Cooling fan 1 1 1 1 S150225003 Screw 1 1 1 1 S150224003 Screw 1 1 1 1 155200014 Belt wheel 1 1 1 1 155200016 Washer 1 1 1 1 S150220005 Screw 1 1 1 1 155200017 Machine pulley 3 3 3 3 S150215012 Screw 21 jintex.in

Page 23

22 jintex.in 2000-3 2000-4 2000-5 (5x5)

Page 24 — 5. NEEDLE BAR DRIVE PARTS (2)

5. NEEDLE BAR DRIVE PARTS (2) No Ret. No. Description Qt 3 4 4H 5 5H 1 060410014 Retaining ring 1 1 1 1 1 2 155300006 Washer 1 1 1 1 1 3 155300005 Bush 1 1 1 1 1 4 B12400432 Screw 2 2 2 2 2 5 155300004 Set collar 1 1 1 1 1 6 155310000 Upper shaft crank complete 1 1 1 1 155370000 Upper shaft crank complete 1 1 7 155300017 Screw 1 1 1 1 1 8 155330000 Needle drive crank rod assy 1 1 1 1 1 9 B62401612 Screw 2 2 2 2 2 10 155300023 Pin 1 1 1 1 1 11 S150225008 Screw 1 1 1 1 1 12 155300002 Bush 1 1 1 1 1 13 155300003 Oil seal 1 1 1 1 1 14 155300001 Upper shaft 1 1 1 1 1 15 155300007 Needle bar crank 1 1 1 1 1 16 155400010 Screw 1 1 1 1 1 17 S150225005 Screw 1 1 1 1 1 18 155320000 Pin 2 2 2 2 2 19 155300008 Link for needle bar 1 1 1 1 1 20 155300012 Oil wick pin 1 1 1 1 1 21 S150656005 O-type ring 1 1 1 1 1 22 155300014 Upper bush needle bar 1 1 1 1 1 23 B12400432 Screw 1 1 1 1 1 24 155300013 Bush 1 1 1 1 1 25 155300010 Needle connector 1 1 1 1 1 26 155300030 Screw 1 1 1 1 1 27 S150225005 Screw 1 1 1 1 1 28 155300015 Bush 1 1 1 1 1 29 155300016 Needle bar oil ervoir 1 1 1 1 1 30 S150215008 Screw 1 1 1 1 1 31 155350001 Needle bar 1 1 1 1 1 32 160320001 Needle holder 1 159320001 Needle holder 1 1 155350002 Needle holder 1 1 33 182610010 Screw 1 2 2 2 2 34 159300006 Needle 1 159300007 Needle 2 2 028280109 Needle 2 077200401 Needle 2 35 155300021 Screw 2 2 2 2 2 36 155300020 Set plate for oil felt 1 1 1 1 1 37 155300019 Oil felt 1 1 1 1 1 38 155300022 Oil reservoir 1 1 1 1 1 23 jintex.in

Page 25

2000-5 (5x5) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 2000-3,-4 1 2 3 4 5 6 7 8 9 16 17 18 19 20 21 22 23 24 2000-4 24 jintex.in

Page 26 — 6. NEEDLE BAR DRIVE PARTS (3)

6. NEEDLE BAR DRIVE PARTS (3) No Ret. No. Description Qt 3 4/4H 5 5H 1 160300001 Needle plate 1 160300003 Needle plate 1 159310001 Needle plate 1 155340001 Needle plate 1 155380001 Needle plate 1 2 159310003 Screw 1 1 039230003 Screw 1 1 3 159300006 Screw 2 2 028200050 Screw 2 2 4 159310002 Needle plate fitting (S) 1 155340002 Needle plate fitting 1 155380002 Needle plate fitting 1 5 155100027 Rubber plug 1 1 1 1 6 B62400812 Screw 2 2 B62400812 Screw 1 1 7 159300000 Needle plate baracket (rear) 1 1 155300029 Needle plate baracket (rear) 1 1 8 B62401012 Screw 2 2 B62401012 Scrw 2 2 9 159300004 Needle plate bracket (front) 1 1 155300028 Needle plate bracket (front) 1 1 10 155300027 Chain stitch needle guard (front) 1 1 11 S15017002 Screw 1 1 12 S12020001 Screw 2 2 13 155300026 Chain stitch needle guard (rear) 1 1 14 S150217002 Screw 2 2 15 155300025 Needle guard 1 16 028200054 Screw 1 1 1 1 17 058600008 Washer 1 1 1 1 18 155300024 Movalbe needle guard 1 1 1 1 19 110550005 Screw 2 2 20 159300002 Needle guard bracket 1 1 21 159300001 Needle guard 1 1 22 SFB0201003 Screw 1 1 23 159300005 Needle plate guide plate 1 1 24 SFB0201004 Screw 2 2 25 S8A3103002 Washer 1 1 25 jintex.in

Page 27

26 jintex.in

Page 28 — 7. UPPER AND LOWER LOOPER DRIVE PART(1)

7. UPPER AND LOWER LOOPER DRIVE PART(1) No Ret. No. Description Qt 3 4 4H 5 5H 1 155400006 Rubber plug 1 1 1 1 1 2 S150204002 Screw 2 2 2 2 2 3 S8A3103012 Spring washer 2 2 2 2 2 4 155400005 Washer 1 1 1 1 1 5 155400004 Bush 1 1 1 1 1 6 155400001 Washer 2 2 2 2 2 7 155410000 Looper ball link complete 1 1 1 1 1 8 B62401612 Screw 4 4 4 4 4 10 155420000 Upper looper ball crank complete 1 1 1 1 1 159400002 Upper looper ball crank complete 11 155400021 Screw 2 2 2 2 2 12 155400003 Bushing 1 1 1 1 1 13 028330001 Oil seal 1 1 1 1 1 14 155400002 Upper/lower looper shaft 1 1 1 1 1 15 155400009 Upper looper crank 1 1 1 1 1 16 155400010 Screw 1 1 1 1 1 17 S150225005 Screw 1 1 1 1 1 18 155430000 Pin complete 1 1 1 1 1 19 S150215008 Screw 1 1 1 1 1 20 155400014 Oil reservoir 1 1 1 1 1 21 B12400432 Screw 1 1 1 1 1 22 155400000 Pin complete 1 1 1 1 1 23 S8A3105006 Small ball plug 1 1 1 1 1 24 160400001 Upper looper 1 159400001 Upper looper 1 1 1 1 155400015 Upper looper 1 155400025 Upper looper 25 028100007 Screw 1 1 1 1 1 26 155400011/12 Upper looper tension shaft and guide 1 1 1 1 1 27 155400013 Oil felt 1 1 1 1 1 28 S150218001 Screw 1 1 1 1 1 29 S150217011 Screw 1 1 1 1 1 30 155400016 Over looper guide cover 1 1 1 1 1 31 S150220005 Screw 2 2 2 2 2 32 155400007 Over looper mechanism 1 1 1 1 1 33 155400008 Oil felt 1 1 1 1 1 27 jintex.in

Page 29

2000-5 9 10 2000-3 9 10 2000-4 1 2 3 4 5 6 6 8 11 12 13 14 15 16 17 18 19 28 jinttex.in

Page 30 — 8. UPPER AND LOWER LOOPER DRIVE PART(2)

8. UPPER AND LOWER LOOPER DRIVE PART(2) No Ret. No. Description Qt 3 4/4H 5 5H 1 S150204002 Screw 1 1 1 1 2 S8A3103012 Spring washer 1 1 1 1 3 155400005 Washer 1 1 1 1 4 155400020 Bush 1 1 1 1 5 155410000 Looper ball link complete 1 1 1 1 6 B62401612 Screw 4 4 4 4 8 155400001 Washer 2 2 2 2 9 159400002 Lower looper ball crank 1 155400019 Lower looper ball crank 1 155420000 Lower looper ball crank 10 155400021 Screw 1 1 1 11 155400002 Upper/lower looper shaft 1 1 1 12 155400003 Bush 1 1 1 13 028330001 Oil seal 1 1 1 14 155451000 Lower looper holder complete 1 1 1 15 028300043 Pin 1 1 1 16 155400010 Screw 1 1 1 17 028300046 Pin 1 1 1 18 155450002 Lower looper 1 1 1 19 028100027 Screw 1 1 1 29 jintex.in

Page 31

30 jintex.in

Page 32 — 9. FEED DOG LIFT PART(1)

9. FEED DOG LIFT PART(1) No Ret. No. Description Ot 3 4/4H 5 5H 1 155530000 Feed drive cam holder complete 1 1 1 1 2 B12500532 Screw 2 2 2 2 3 028400082 Pin 1 1 1 1 4 028400080 Roller 1 1 1 1 5 S150224015 Screw 2 2 2 2 6 155500026 Feed drive cam 1 1 1 1 7 155500027 Plate spring 1 1 1 1 8 155500028 Link for feed drive 1 1 1 1 9 S150225008 Screw 1 1 1 1 10 155540000 Needle bearing 1 1 1 1 11 155300023 Pin 1 1 1 1 12 155500029 Crank for feed drive 1 1 1 1 13 155300017 Screw 1 1 1 1 14 155500030 Stitch length adjust stopper 1 1 1 1 15 155500032 Screw 1 1 1 1 16 155500031 Spring 1 1 1 1 17 155500000 Stitch length cam complete 1 1 1 1 18 S150446010 Spring pin 2 2 2 2 19 S8A3103018 Retaining ring 1 1 1 1 20 S4A0604005 O-type ring 2 2 2 2 21 155500035 Washer 2 2 2 2 22 155500034 Spring 1 1 1 1 23 155500033 Push 1 1 1 1 24 155560000 Diff. Feed crank complete 1 1 1 1 25 155560002 Differential feed dog holder 1 1 1 1 26 155560001 Diff. feed crank 1 1 1 1 27 155300017 Screw 1 1 1 1 28 155560003 Cover for differential feed dog holder 1 1 1 1 29 S150217012 Screw 2 2 2 2 30 155500037 Screw 2 2 2 2 31 155500036 Diff. Feed regulating link 1 1 1 1 32 155500038 Differential feed adjust link crank 1 1 1 1 33 155300017 Screw 1 1 1 1 34 155500040 Bush 1 1 1 1 35 S4A0604005 O-type ring 1 1 1 1 36 155500039 Diff. feed regulating shaft 1 1 1 1 37 155500041 Diff. feed regulating 1 1 1 1 38 155500042 Spring 1 1 1 1 39 155500043 Screw 1 1 1 1 40 155500044 Stopper plate 2 2 2 2 41 155500045 Differential stitch control 1 1 1 1 42 S150215010 Screw 2 2 2 2 43 028400044 Washer 1 1 1 1 44 155500046 Nut 1 1 1 1 45 155500047 Screw 1 1 1 1 31 jintex.in

Page 33

32 jintex.in

Page 34 — 10. FEED DOG LIFT PART(2)

10. FEED DOG LIFT PART(2) No Ret. No. Description Qt 3 4/4H 5 5H 1 028310001 Oil seal 1 1 1 1 2 060410014 Retaining ring 1 1 1 1 3 155500001 Feed shaft 1 1 1 1 4 155300006 Washer 2 2 2 2 5 155300003 Left bush for feed shaft 1 1 1 1 6 155500005 Feed crank 1 1 1 1 7 155300017 Screw 1 1 1 1 8 155500006 Pin 1 1 1 1 9 155500010 Washer 1 1 1 1 10 S120503010 Nut 1 1 1 1 11 155500004 Right bush for feed shaft 1 1 1 1 12 028400023 Screw 1 1 1 1 13 155500010 Washer 1 1 1 1 14 028400021 Roller for feed dog holder link 1 1 1 1 15 155500008 Link for feed dog holder 1 1 1 1 16 155500019 Slide block for feed dog 1 1 1 1 17 155500014 Eccentric shaft bush 1 1 1 1 18 B12400432 Screw 2 2 2 2 19 028400055 Eccentric shaft 1 1 1 1 20 155500012 Slide block 1 1 1 1 21 155510001 Feed dog holder 1 1 1 1 22 155510002 Differential feed dog holder 1 1 1 1 23 028400058 Washer 1 1 1 1 24 028400059 Screw 1 1 1 1 25 155500017 Oil seal 1 1 1 1 33 jintex.in

Page 35

34 jintex.in

Page 36 — 10. FEED DOG LIFT PART(2)

10. FEED DOG LIFT PART(2) No Ret. No. Description Ot 3 14/4H 5 5H 26 028400023 Screw 1 1 1 1 27 155500010 Washer 1 1 1 1 28 155500018 Link for differential feed dog holder 1 1 1 1 29 028400021 Roller for feed dog holder link 1 1 1 1 30 028200056 Screw 1 02810027 Screw 1 1 31 155500021 Differential feed dog 1 155500050 Differential feed dog 1 160500001 Differential feed dog 1 159500001 Differential feed dog 1 159500001 Differential feed dog 1 32 155580000 Main feed dog complete 1 155580001 Main feed dog 1 155520002 Auxible feed dog 1 32 155520000 Main feed dog complete 1 155520001 Main feed dog 1 155520002 Auxible feed dog 1 32 159510000 Main feed dog complete 1 159510001 Main feed dog 1 159510002 Auxible feed dog 1 32 159510000 Main feed dog complete 1 160510001 Main feed dog 1 159510000 Main feed dog 1 33 028400004 Screw 1 1 1 1 34 02810027 Screw 1 1 1 1 35 S150215001 Screw 4 4 4 4 36 155500023 Differential feed guide bracket 1 1 1 1 37 S120202007 Screw 4 4 4 4 38 155500024 Differential feed seal guide plate 1 1 1 1 39 155500025 Differential feed seal plate 2 2 2 2 35 jintex.in

Page 37

1 2 3 4 5 6 7 8 9 10 11 2000-5 11 2000-3,4 12 13 14 15 16 17 18 19 20 2000-5 21 22 23 2000-5 22 23 2000-3,4 36 jintex.in

Page 38 — 11. CUTTER DRIVE PARTS

11. CUTTER DRIVE PARTS No Ret. No. Description Qt 3 4/4H 5 5H 1 155300023 Pin 1 1 1 1 2 155600001 Crank for upper cutter drive 1 1 1 1 3 155300017 Screw 1 1 1 1 4 155600002 Washer 1 1 1 1 5 155600005 Right bush for upper cutter bar 1 1 1 1 6 155600004 Left bush for upper cutter bar 1 1 1 1 7 155600003 Upper knife bar 1 1 1 1 8 155600006 Pin 159600001 Pin 1 1 1 1 9 155600013 Screw 1 1 1 1 10 155600008 Upper knife 1 1 1 1 11 159600002 Upper knife holder 1 1 155600007 Upper knife holder 12 B60350812 Screw 2 2 2 2 13 155610000 Link for upper knife drive complete 1 1 1 1 14 B62401612 Screw 2 2 2 2 15 S150225008 Screw 1 1 1 1 16 028300027 Screw 1 1 1 1 17 028500013 Clamp for lower cutter 1 1 1 1 18 159600004 Lower knife 1 1 155600011 Lower knife holder 1 19 S150215001 Screw 1 1 1 1 20 159600003 Lower knife holder 1 1 155600009 Lower knife holder 21 155600010 Spring 1 1 1 1 22 S150215010 Screw 2 2 2 2 23 155600012 Needle guard holder 1 159600005 Needle guard holder 1 1 37 jintex.in

Page 39

38 jintex.in

Page 40 — 12. PRESSER FOOT LIFT PARTS (1)

12. PRESSER FOOT LIFT PARTS (1) No Ret. No. Description Qt 3 4/4H 5 5H 1 155800011 Link for foot lift lever 1 1 1 1 2 155800010 Screw 1 1 1 1 3 155800008 Foot lift lever 1 1 1 1 4 155800009 Spring 1 1 1 1 5 155800007 Set collar for foot lift shaft 1 1 1 1 6 155300017 Screw 1 1 1 1 7 155800005 Lever 1 1 1 1 8 155800006 Spring 1 1 1 1 9 155800004 Bush for presser foot lift 1 1 1 1 10 B12400432 Screw 1 1 1 1 11 155800012 Stopper plate 1 1 1 1 12 S150215009 Screw 2 2 2 2 13 S150215013 Screw 1 1 1 1 14 S120503010 Nut 1 1 1 1 15 S12021015 Screw 1 1 1 1 16 155800003 Press arm shaft 1 1 1 1 17 155800001 Press arm 1 1 1 1 18 155800002 Press arm pin 1 1 1 1 S120202004 Screw 1 1 1 1 19 S120202007 Screw 1 1 1 1 20 155800020 Knife 1 1 1 1 21 159700001 Finger guard 1 1 1 1 155800019 Finger guard 1 1 22 160710000 Presser foot complete 1 160730000 Presser foot complete 1 159710000 Presser foot complete 1 039720000 Presser foot complete 1 77T7-001A Presser foot complete 1 23 155800018 Screw 1 1 1 1 24 155800017 Spring 1 1 1 1 25 155800016 Press bar lifter 1 1 1 1 26 155800013 Screw 1 1 1 1 27 155800014 Spring 1 1 1 1 28 155800015 Press arm stopper 1 1 1 1 29 S150215008 Screw 1 1 1 1 30 155810000 Presser bar complete 1 1 1 1 31 155810002 Cushion 1 1 1 1 32 S150446011 Spring pin 1 1 1 1 39 jintex.in

Page 41

2000-5 (5x5) 2000-5H 2000-3,4 40 jintex.in

Page 42 — 13. PRESSER FOOT LIFT PARTS (2)

13. PRESSER FOOT LIFT PARTS (2) No Ret. No. Description Qt 3 4/4H 5 5H 1 S120202004 Screw 1 2 155800021 Spring 1 3 039720000 Presser foot complete 1 39T7-003B2 Main presser foot 1 39T7-003B3 Auxible presser foot 1 39T7-003B1 Bracket for presser foot 1 4 39T7-001A3 Screw 1 5 39T7-001A6 Screw 1 6 28T1-007 Screw 1 7 39T7-001A5 Fabric guard 1 8 39T7-001A4 Screw 1 9 39T7-001A10 Spring 1 10 77T7-001A4 Pin 1 1 155A20006 Screw 1 2 155800025 Spring 1 3 77T7-001A Presser foot complete 1 77T7-001A1 Main presser foot 1 77T7-001A2 Aauxible presser foot 1 77T7-001A3 Bracket for presser foot 1 77T7-001A5 Link for presser foot 1 5 6A2-14 Screw 1 6 28T1-007 Screw 1 7 77T7-001A6 Fabric guard 1 10 77T7-001A4 Pin 3 1 S120202004 Screw 1 1 2 159700002 Stopper 1 1 3 159710000 Presser foot complete 1 12 159710007 Bracket for presser foot 1 1 13 028100007 Screw 1 1 14 39T7-001A6 Screw 1 1 15 28T6-019A1 Presser foot fitting piece 1 16 GB97-76 Washer 1 17 159710002 Presser foot fitting piece 1 18 159710001 Main presser foot 1 19 159710006 Guide 1 20 159710005 Set presser for presser foot 1 1 21 28T1-041 Screw 1 1 3 160710000 Presser foot complete 1 160730000 Presser foot complete 1 41 jintex.in

Page 43

2000-5 42 jintex.in

Page 44 — 14. FRONT LOOPER PARTS (1)

14. FRONT LOOPER PARTS (1) No Ret. No. Description Qt 3 4/4H 5 5H 1 155500017 Rubber cap 1 1 2 155700003 Pin shaft 1 1 3 B12500532 Screw 1 1 4 155700002 Sliding bush 1 1 5 155700001 Fork 1 1 6 B12500532 Screw 1 1 7 155700004 Connector 1 1 8 155700005 Pin 1 1 9 155700006 Slide block holder 1 1 10 B12500532 Screw 1 1 11 155700008 Bush 1 1 12 155700010 Crank for front looper 1 1 13 155300017 Screw 1 1 14 039400009 Link for front looper 1 1 15 039400010 Pin 1 1 16 S150237030 Screw 2 2 17 155700007 Shaft for looper drive 1 1 18 155700008 Bush 1 1 19 028330001 Oil seal 1 1 20 155710000 Front looper holder complete 1 1 155730000 Front looper holder complete 21 155700010 Screw 1 1 22 006300018 Screw 1 1 23 155710002 Front looper 1 1 155730001 Front looper 1 43 jintex.in

Page 45

2000-5 44 jintex.in

Page 46 — 15. FRONT LOOPER PARTS (2)

15. FRONT LOOPER PARTS (2) No Ret. No. Description Qt 3 4/4H 5 5H 1 039400037 Long thread pipe 1 1 2 116250002 Tube clamp 3 3 3 S150215001 Screw 1 1 4 155A00011 Short thread pipe 1 1 5 155A41000 Nut 1 1 6 039400042 Spring 1 1 7 039400041 Thread guide disc 2 2 8 155A40004 Screw 1 1 9 155A40003 Left thread guide 1 1 10 S150217009 Screw 2 2 11 155A40002 Right thread guide 1 1 12 S150215007 Screw 1 1 13 155A00009 Thread guide plate 1 1 14 155100024 Screw 1 1 15 155100025 Washer 2 2 16 155A40001 Lower thread guide bracket 1 1 17 155A00010 Spring 1 1 18 155A00008 Thread guide plate 1 1 19 S150215001 Screw 1 1 20 039410N Thread takeup cam complete 1 1 21 182610010 Screw 2 2 45 jintex.in

Page 47

2000-5 1 2 4 2000-3,4 2 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 46 jintex.in

Page 48 — 16. THREAD EYELETS(1)

16. THREAD EYELETS(1) No Ret. No. Description Qt 3 4/4H 5 5H 1 1599000002 Needle thread guide plate 1 1 1 1 155A000002 Needle thread guide plate 4 155100034 Screw 3 3 3 3 1599000001 Thread guide plate for thread takeup plate 1 155A000001 Thread guide plate for thread takeup plate 155A20000 Thread takeup lever complete 1 1 159910000 Thread takeup lever complete 1 1 5 S150217008 Screw 2 2 2 2 6 155A20007 Thread guide 7 155A00002 Thread takeup lever 1 1 1 1 8 155A20001 Thread takeup lever bracket 1 1 1 1 9 S120203019 Screw 1 1 1 1 10 155A20004 Bracket 1 1 1 1 11 155A20003 Thread retaining plate 159910001 Thread retaining plate 1 1 12 155A20005 Spring 1 1 1 1 13 155A20006 Screw 1 1 1 1 14 155450003 Thread guide 1 1 1 1 15 155A00003 Thread guide plate 1 1 1 1 16 S150215008 Screw 1 1 1 1 17 155A00004 Thread guide 1 1 1 1 18 S150215001 Screw 1 1 1 1 19 S150215008 Screw 2 2 2 2 20 155A00005 Thread guide plate 1 1 1 1 21 155400018 Thread guide 1 1 1 1 22 155A00006 Upper looper thread takeup(big) 1 1 1 1 23 155A00007 Upper looper thread takeup(small) 1 1 1 1 24 S150215001 Screw 1 1 1 1 25 S120202004 Screw 1 1 1 1 26 S8A3103003 Washer 1 1 1 1 47 jintex.in

Page 49

2000-3 2000-4, 2000-5 48 jintex.in

Page 50 — 17. THREAD EYELETS (2)

17. THREAD EYELETS (2) No Ret. No. Description Qt 3 4/4H 5 5H 1 155A10003 Post 3 4 4 4 2 28T2-060H7 Felt 3 4 4 4 3 22T1-012F5 Tension disc. 6 8 8 8 4 155A10009 Cup 3 4 4 4 5 155A10005 Tension spring 1 2 2 2 6 155A10004 Tension spring (upper looper) 1 1 1 1 7 155A10006 Tension spring (lower looper) 1 1 1 1 8 155A10007 Spring bushing 3 4 4 4 9 155A10009 Post nut 3 4 4 4 10 Tension nut complete 1 2 2 2 11 Tension nut complete (upper looper) 1 1 1 1 12 Tension nut complete (lower looper) 1 1 1 1 13 116400008 Screw 2 2 2 2 14 28T2-060H8 Tension guide plate 3 3 3 3 15 155A10000 Thread guide plate complete 1 1 1 16 160910000 Thread guide plate complete 1 155A10002 Thread guide plate 1 1 1 49 jintex.in

Page 51

2000-3,-4 2000-5 50 jintex.in

Page 52 — 18. LUBRICATING PARTS (1)

18. LUBRICATING PARTS (1) No Ret. No. Description Qt 3 4/4H 5 5H 1 155900019 Oil guide 1 1 1 1 2 155920003 Oil felt 1 1 1 1 3 155920001 Upper silicone oil reservoir 1 1 1 1 4 155920002 Cover for upper silicone oil reservoir 1 1 1 1 5 155900018 Thread guide 1 1 1 1 6 S150215009 Screw 1 1 1 1 7 155930002 Felt 1 1 1 1 155930003 Felt 1 1 1 1 159810002 Felt 1 1 1 1 8 Pin 1 1 1 1 9 159810001 Needle cooler 1 1 1 1 155930001 Needle cooler 1 1 1 1 10 S150215001 Screw 2 2 2 2 11 S8A3105006 Ball plug 1 1 1 1 12 155900020 Oil tube 1 1 1 1 13 155900023 Cover for upper silicone oil reservoir 1 1 1 1 14 155900022 Cover for upper silicone oil reservoir 1 1 1 1 15 S8A3103003 Washer 1 1 1 1 16 S150215009 Screw 1 1 1 1 17 028700011 Pipe clamp 2 2 2 2 51 jintex.in

Page 53

52 jintex.in

Page 54

19. LUBRICATING PARTS(2) No. Ret. No. Description 3 4/4H 5 5H 1 S150215007 Screw 1 1 1 1 2 155900007 Oil pipe for oil gauhe window 1 1 1 1 3 028700010 Oil splash connector 2 2 2 2 4 S150237007 Screw 3 3 3 3 5 028700011 Oil splash connecto clamp 2 2 2 2 6 155900005 Screw 3 3 3 3 7 S150215005 Screw 1 1 1 1 8 155900006 Oil distributor 1 1 1 1 10 155900010 Oil return pipe connector 1 1 1 1 11 155900008 Bronze oil pipe 1 1 1 1 14 155940000 Pump complete 1 1 1 1 15 155910001 Worm wheel 1 1 1 1 16 B12500532 Screw 1 1 1 1 17 S150220003 Screw 2 2 2 2 18 155940002 Cover for oil pump 1 1 1 1 19 S150217010 Screw 3 3 3 3 20 155910006 Oil filter flange 1 1 1 1 21 S150217012 Screw 1 1 1 1 22 S150559001 Screw 1 1 1 1 23 155910004 Oil filter 1 1 1 1 24 155910005 Oil filter 1 1 1 1 25 155900013 Packing 1 1 1 1 26 155900017 Washer 4 4 4 4 27 S150220015 Screw 4 4 4 4 28 155900012 Oil reservoir 1 1 1 1 29 28T7-025H Packing 1 1 1 1 30 028700026 Screw 1 1 1 1 31 155900031 The cover of oil basin 1 1 1 1 32 155900032 Rubber ring 1 1 1 1 33 028770001 Filter 1 1 1 1 34 155900029 Oil basin 1 1 1 1 35 155900033 Oil storage connector 1 1 1 1 36 S150218015 Screw 1 1 1 1 37 155900027 Oil level gauge 1 1 1 1 53 jintex.in

Page 55

The number depends on the table thickness(35 -50mm) 54 jintex.in 2000-4 -4M

Page 56 — 20. ACCESSORIES

20. ACCESSORIES No Ret. No. Description Qt 3 4/4H 5 5H 1 28T8-001 Machine rest board 1 1 1 1 2 28T8-004A Rubber cushion 3 3 3 3 3 28T8-005 Rubber cushion 1 1 1 1 4 28T8-002 Bolt 4 4 4 4 5 155F00001 Table 1 1 1 1 6 110F10008 Rubber cushion 20 20 20 20 7 S150630001 Washer 4 4 4 4 8 S150671001 Washer 4 4 4 4 9 28T8-006 Wastes chute mouth 1 1 1 1 10 GB100-76 Screw 3 3 3 3 11 28T8-007 Wastes chute (upper) 1 1 1 1 12 28T8-008 Wastes chute (lower) 1 1 1 1 13 GB99-76 screw 4 4 4 4 14 W050103006 Tweezer 1 1 1 1 15 W050102051 Screwdriver(S) 1 1 1 1 17 W050102050 Screwdriver(B) 1 1 1 1 18 159300007 Needle DC x 27 1 1 1 1 19 W050102030 Double open-end wrench (6x10) 1 1 1 1 20 39T10-005 Double open-end 1 1 1 1 21 39T10-001 Threading wire 1 1 1 1 22 W050102038 Hex key6 1 1 1 1 W050102037 Hex key5 1 1 1 1 W050102035 Hex key3 1 1 1 1 W050102040 Hex key2.5 1 1 1 1 W050102034 Hex key2 1 1 1 1 23 W050202005 Silicon oil pot 1 1 1 1 25 W050103011 Chain complete 50 50 50 50 26 Funnel 1 1 1 1 27 155F00002 Oil can 1 1 1 1 28 22T9-001 Oil pot 1 1 1 1 29 W060302035 Vinyl cover(GB1171-74) 1 1 1 1 30 GB1171-74 Belt 1 1 1 1 31 159F00001 Tape guide holder (upper) 1 1 32 159F00002 Tape guide holder (lower) 1 1 33 110F00005 Hndled hex driver 1 1 1 1 34 S150220027 Screw 1 1 1 1 55 jintex.in

Page 57

56 jintex.in

Page 58 — 20. ACCESSORIES

20. ACCESSORIES No Ret. No. Description Qt 3 4/4H 5 5H 35 086700212 Spool stand for three 1 36 088900101 Spool stand for four 1 37 031380002 Spool stand for five 1 1 1 57 jintex.in

Page 59 — Special – use parts for 2000 – 4H – A

2000 - 4H - A Special use parts for 2000 - 4H - A No. Ret. No. Description Qt 1 159600006 Upper knife 1 2 159600007 Upper knife holder 1 3 159600008 Screw 1 4 S150217009 Screw M3 x4 1 5 155600014 Guide board 1 6 155600015 Fixed board 1 7 155600017 Pin 1 8 S8A3103003 Washer 4 1 Note: Spare parts of 2000 - 4H - A employ the same parts of 2000 - 4H 58 jintex.in

Page 60 — Special – use parts for 2000 – 5H – A

2000 – 5H – A Special – use parts for 2000 – 5H – A No. Ret. No. Description Qt 1 155600019 Upper knife holder 1 2 155600014 Guide board 1 3 155600015 Fixed board 1 4 155600016 Upper knife 1 5 155600017 Pin 1 6 155600018 Screw 1 7 S150217009 Screw M3 × 4 1 8 S8A3103003 Washer 4 1 Note: Spare partes of 2000 – 5H – A employ the same parts of 2000 – 5H 59 jintex.in

Page 61

2000-3C 60 jintex.in

Page 62 — Special -use parts for 2000-3C 2000-4C

Special -use parts for 2000-3C 2000-4C No Ret. No. Description Qt 3C 4C 1 159A410000 Needle plate complete 1 1 2 109210009 Screw 1 1 3 159A40005 Cutter protect plate 1 1 4 028400059 Screw 2 2 5 159A40003 Thread cut guide plate 1 1 6 028400059 Screw 2 2 7 159A40001 Needle plate guide plate 1 1 8 109210010 Spring 1 1 9 109210011 Nut 1 1 10 109210005 Knife support bracket 2 2 11 109210005 Block 1 1 12 109210007 Screw 1 1 13 159A40002 Needle plate block (Front) 1 1 14 020101035 Knife (width 9mm) 1 1 15 159A40004 Screw 2 2 16 159A00002 Sewing plate complete 1 1 17 159A30003 Screw 1 1 18 159A23006 Washer 1 1 19 159A30001 Plate 1 1 20 159A30002 Screw 1 1 21 S120501011 Nut M6 1 1 22 S150633001 Washer 6 1 1 23 159A30004 Screw 1 1 24 S150217013 Screw M6 10 1 1 25 159A00003 Thread support plate 2 2 26 182610010 Screw 1 1 27 159A00004 Block 1 1 28 159A22000 Soft thread complete 1 1 29 028100035 Nut 1 1 30 159A23001 Thread lease rack 1 1 31 159A23006 Washer 1 1 32 159A23004 Screw 1 1 33 159A23002 Screw 1 1 34 159A23005 Spring 1 1 35 159A23003 Block 1 1 36 028100035 Nut 1 1 37 159A21001 Thread guide plate 1 1 38 159A10001 Drawing 1 1 39 160510000 Mainfeed dog complete 1 1 40 160500001 Differential feed dog 1 1 41 160A30000 Needle plate complete 1 1 Note: Spare parts of 2000-3C/4C employ the same parts of 2000-3. 2000-4H 61 jintex.in

Page 63 — Special use parts for 2000 4G

Special use parts for 2000 4G No. Ret. No. Description Qt 1 155E10000 Cover 1 2 155E00002 Edge binder support bracket 1 3 155E20002 Front cover 1 4 155E20001 Front cover(L) 1 5 155E00011 Pin 1 6 155E00009 Upper knife bar 1 7 155E00010 Upper knife holder 1 8 028500032 Screw 1 9 155E00012 Upper knife 1 10 155E00004 Needle guard (rear) 1 11 155E00005 Chain stitch needle guard (rear) 1 12 155E00003 Needle guard (front) 1 13 028400004 Screw 1 14 155E00006 Plate 1 15 S150215001 Screw 1 16 028200061 Screw 1 17 155E60000 Edge binder complete 1 18 155E00007 Washer 1 19 SFB0201020 Screw 1 20 155E70000 Needle plate baracket 1 Note: Spare parts of 2000 4G employ the same parts of 2000 5 62 jintex.in

Page 64 — Special – use parts for 2000 – 4G

Special – use parts for 2000 – 4G No Ret. No. Description Qt 21 028200061 Screw 1 22 028400004 Washer 1 23 155E70002 Needle cloth guide 1 24 155E70001 Needle plate 1 25 155E80000 Main feed dog complete 1 26 155E80002 Auxible feed dog 1 27 155E80001 Main feed dog 1 28 155Eg0000 Belt plate dig complete 1 29 155Eg0006 Felt 1 30 155Eg1000 Belt plat small complete 1 31 155Eg0003 Rack 1 32 155Eg0005 Bush 1 33 S120501011 Nut 1 34 S150237006 Screw 1 35 155Eg0004 Screw 1 36 155Eg0002 Support rack 1 37 W050101002 Screw 1 38 155Eg0001 Base mechanism 1 39 155E00008 Differential feed dog 1 40 155E50001 Needle holder 1 41 155E00016 Upper looper shaft 1 42 022500005 Oil seal 2 43 155E00014 Lower knife 1 44 155Ea0000 Presser foot complete 1 45 155E90001 Small looper 1 46 155E90002 Front looper holder 1 47 028100007 Screw 1 48 155Ee0000 Double short thread pipe 1 49 155Ed0000 Double long thread pipe 1 50 155E00015 Thread guide plate 1 51 155Eh0002 Right thread guide 1 52 155Eh0001 Lower thread guide bracket 1 53 028160001 Upper looper oil seal 1 63 jintex.in

Page 65

Special – use parts for 2000 – 4XH No Ret. No. Description Qt 1 159350000 Needle plate asm 1 2 159400003 Lower looper 1 3 159500002 Differential feed dog 1 4 159520000 Main feed dog asm 1 5 159400004 Upper looper 1 6 159150000 Cloth guide asm 1 Note: Spare parts of 2000 – 4XH employ the same parts of 2000 – 4H – A Special – use parts for 2000 – 5L No Ret. No. Description Qt 1 155500052 Differential feed dog 1 2 155590000 Main feed dog asm 1 3 155590001 Main feed dog 1 4 155590002 Auxible feed dog 1 Note: Spare parts of 2000 – 5L employ the same parts of 2000 – 5(3 × 4) 64 jintex.in

Page 66 — Special-use parts for 2000-5/BB 2000-6/BB

Special-use parts for 2000-5/BB 2000-6/BB No Ret.No. Description Qt -5/BB -6/BB 1 155K00002 Strap guide holder 1 1 2 S150215010 Screw M4x12 1 1 3 155900017 Washer 1 1 4 155K00003 Block 1 1 5 159600008 Screw 2 2 6 155K00004 Edge fomer ( 8mm ) 1 1 155S00002 * Edge fomer ( 12mm ) 1 1 155S00003 * Edge fomer ( 14mm ) 1 1 7 155K00005 Block 1 1 8 S150215001 Screw M4x8 3 3 9 155K00006 Lower knife holder 1 1 10 155K00007 Front cover 1 1 11 155E20001 Front cover ( L ) 1 1 12 155K20000 Presser foot complete 1 1 155S10000 Presser foot complete 1 1 13 159600004 Lower knife 1 1 14 155K30000 Needle plate complete ( 3x4 ) 1 1 155S00001 Needle plate complete 1 1 15 155Eg0000 Edge rotating plate complete 1 1 16 S150632001 Washer 3 3 Note: Spare parts of 2000-5BB, 2000-6BB employ the same parts of 2000-5. * Optional parts. jintex.in

Page 67 — Special use parts for 2000 6

Special use parts for 2000 6 No Ret. No. Description Qt 1 155G10000 Needle plate complete 1 2 155G10001 Needle plate fitting 1 3 155G40002 Thread guide plate 1 4 1555a0000 Main feed dog complete 1 5 155500051 Differential feed dog 1 6 155G40001 Thread guide plate(S) 1 7 155370001 Upper shaft crank 1 8 155G00003 Needle thread guide plate 1 9 155G20000 Needle holder 1 10 155G00002 Upper looper 1 11 155G30000 Presser foot complete 1 Note: Spare parts of 2000-6 employ the same parts of 2000-5 jintex.in

Page 68

Special – use parts for 2000 –3B No. Ret. No. Description Qt 1 160100003 Model plate 1 2 160300004 Needle plate 1 3 028280009 Needle (DCX27 ) 1 4 160500003 Differential feed dog 1 5 160520000 Main feed dog complete 1 6 160520001 Main feed dog 1 7 160520002 Auxible feed dog 1 8 160600001 Lower knife 1 9 160740000 Presser foot complete 1 Note: Spare parts of 2000 –3B employ the same parts of 2000 –3. Special – use parts for 2000 –3E No. Ret. No. Description Qt 1 160100004 Model plate 1 2 160300004 Needle plate 1 3 028280009 Needle (DCX27 ) 1 4 160500004 Differential feed dog 1 5 160530000 Main feed dog complete 1 6 160530001 Main feed dog 1 7 160530002 Auxible feed dog 1 8 160750000 Presser foot complete 1 Note: Spare parts of 2000 –3E employ the same parts of 2000 –3. jintex.in

Page 69

30 28 22 23 21 30 16 15 19 20 24 25 12 29 14 30 15 13 9 8 2 5 4 1 3 31 32 26 27 10 17 30 15 16 jintex.in

Page 70 — Special —use parts for 2000/P3D

Special —use parts for 2000/P3D No. Ret. No. Description Qt Note 1 GB818-85 Screw M5X10 2 2 W70-WX04-05 Bracket 54X56X17X2 1 3 GB93-87 Washer 5 2 4 GB6170-86 Nut M5 2 5 GB845-85 Screw ST4.2X17-C-H 2 8 GB845-85 Washer 10 2 9 W70-WX04-06 Bracket ( 2 ) 1 Pipe PU-6 10 W70-WX04-08 Air throttle 1 11 W70-WX04-07 Spray head 19X63 1 12 W70-WX04-07 Links 20.2X78 1 13 GB845-85 Screw ST4.2X12-C-H 1 14 W70-WX06-07g Bracket folder 2 15 W70-WX06-10 Nylon tube ( φ 39Xφ 46 ) 1 L=800 16 Pipe chuck 2 17 W70-WX06-08g Funnel 1 18 GB818-85 Screw M4X12 4 19 GB859-86 Washer 4 4 20 GB97.1-85 Washer 4 4 21 W70-WX06-01 90-Degree big bend 1 22 W70-WX06-02 90- Degree small bend 1 23 W70-WX06-03 Pylon 2 24 W70-WX06-04 Disc 1 25 W70-WX06-05 Ring belt 1 26 PU-6 Pipe 6X4 1 L=600 27 PU-6 Pipe 6X4 1 L=400 28 PU-6 Pipe 6X4 1 L=300 29 Nylon tubeφ 18Xφ 25 1 L=500 30 GB845-85 Screw ST4.2X12-C-H 9 31 159R50000 Solenoid valve assy 1 32 PU-6 Pipe 6X4 1 L=1200 jintex.in

Page 71

jinttex.in

Page 72 — Special —use parts for 2000ET/ET-1

Special —use parts for 2000ET/ET-1 No. Ref. No. Description 3/4ET 5/6ET 3/4ET-1 5/6ET-1 1 159M30000 Switch assy. 1 1 1 1 2 S150218005 Screw M4 × 6 2 2 2 2 3 159C00001 Joint plate 1 1 1 1 4 S150237007 Screw M4 × 6 2 2 2 2 5 159M20000 Solenoid assy. 1 1 1 1 6 S150220014 Set screw M6 × 12 2 2 2 2 7 S150667002 Washer 6 2 2 2 2 8 036900002 Screw 1 1 1 1 9 036954116 Spring washer 1 1 1 1 10 159C10004 Thread cutter holder 1 1 1 1 11 S150220032 Set screw M6 × 10 2 2 2 2 12 159C00002 Joint bracket 1 1 1 1 13 159C10006 Thread cutter guard 1 1 1 1 14 159C10009 Screw M3 7 7 7 7 15 S150217001 Screw M2.5 × 3 2 2 2 2 16 155H10003 Guard bracket 1 1 1 1 17 159C10005 Fixing cutter 1 1 155H10001 Fixing cutter 1 1 18 159300006 Screw SM 4.37 × 40 2 2 2 2 19 159C10003 Guard plate 1 1 1 1 20 159C10008 Crank guard 1 1 1 1 21 159C11000 Thread cutter assy. 1 1 1 1 22 159C10002 Collar 1 1 1 1 23 159C10001 Spring 1 1 1 1 24 159C12000 Crank assy. 1 1 1 1 25 028400035 Screw 1 1 1 1 26 159C10010 Screw SM 4.37 × 40 1 1 1 1 27 028A00009 Cutter link 1 1 1 1 28 SFB1403003 Collar 2.5 1 1 1 1 29 998281100 Control box assy. 1 1 1 1 30 159M10000 Sewing Platform assy. 1 1 1 155N10000 Sewing Platform assy. 1 1 31 159R70000 Synchronizer 1 1 32 S150218020 Screw M3 × 10 2 2 33 159M10002 Observe window 1 1 1 1 34 159M10003 Sponge washer 1 1 1 1 35 213000020 Nylon Spool stand 2 2 2 2 36 159M10004 Latch lock wrench 1 1 1 1 Note. 1. Switch off the automatic thread trimmer and use manual switch when using special light black or yarn material in et-1 series. 2. If do not need the automatic thread trimming, the sensor can be unplugged, attached the manual switch in the attachment box, adjust the parameter according to the instructions. jintex.in

Page 73 — 2000 SERIES GAUGE PARTS LIST

2000 SERIES GAUGE PARTS LIST MACHINE TYPE/SPEC 2000-5L 2000-5(3x5) 2000-5H 2000-5H-A GAUGE NG SW 3 3 5 6 4 4 5 6 NEEDLE PLATE FINGER 155390002 155390002 155340002 155380002 NEEDLE PLATE 155390002 155390002 155340002 155380002 D.I.F.F. FEED DOG 1555000052 1555000051 1555000050 1555000050 MAIN FEED DOG ASSM 155590000 1555a0000 155520000 155580000 PRESSER FOOT ASS. 03971 039720000 07771 07771 UPPER LOOPER 155400015 155400015 155400015 155400015 LOWER LOOPER 155710002 155710002 155710002 155710002 CHAINSTITCH LOOPER 155730001 155730001 155730001 155730001 MACHINE TYPE/SPEC GAUGE NG SW 2000-5L 3 4 2000-5(3x5) 3 5 2000-5H 5 6 2000-5H-A 5 6 UPPER KNIFE 155600008 155600008 155600008 155600008 LOWER KNIFE 155600011 155600011 155600011 155600011 OVERLOCK NEEDLE GUARD FRONT REAR 155300025 155300025 155300025 155300025 155300031 155300031 155300027 155300027 NEEDLE BAR ASSM 155360002 155360002 155350002 155350002 NEEDLE HOLDER DC x 27 11# DC x 27 14# DC x 27 14# DC x 27 14# DC x 27 21# DC x 27 21# 155360002 155360002 155350002 155350002 Jintex.in

Page 74

MACHINE TYPE/SPEC GAUGE NG SW 3100-3(/2) 3100-3 3100-3B 3100-3E 3100-4 3100-4M 3100-4H 3100-4M-A 4 4 1.5 2 2 2 2 — — — 4 4 4 4 NEEDLE PLATE 159310001 159310001 159310001 159310001 159310001 159310001 159310001 159310001 NEEDLE PLATE FINGER 189300003 189300004 189300004 189300004 189300004 189300004 189300004 189300004 MAIN FEED DOG 160510000 159510000 159500001 159500001 159500001 159500001 159500001 159500001 MAIN FEED DOG ASSM. 160510002 159510002 159510002 159510002 159510002 159510002 159510002 159510002 DIFF. FEED DOG 160510001 159510001 159500001 159500001 159500001 159500001 159500001 159500001 PRESSER FOOT ASS. 160710000 160730000 160750000 160750000 160750000 160750000 160750000 160750000 UPPER LOOPER 160400001 160400001 160400001 160400001 160400001 160400001 160400001 160400001 LOWER LOOPER 155450002 155450002 155450002 155450002 155450002 155450002 155450002 155450002 MACHINE TYPE/SPEC GAUGE NG SW 3100-3(/2) 3100-3 3100-3B 3100-3E 3100-4 3100-4M 3100-4H 3100-4M-A 4 4 1.5 2 2 2 2 — — — 4 4 4 4 UPPER KNIFE 155600008 155600008 155600008 155600008 155600008 155600008 155600008 155600008 LOWER KNIFE 159600004 159600004 159600004 159600004 159600004 159600004 159600004 159600004 NEEDLE GUARD REAR 155300024 155300024 155300024 155300024 155300024 155300024 155300024 155300024 NEEDLE BAR ASSM FRONT 159300024 159300024 159300024 159300024 159300024 159300024 159300024 159300024 NEEDLE HOLDER 160320001 160320001 160320001 160320001 160320001 160320001 160320001 160320001 DC x 27 11# DC x 27 11# DC x 27 9# DC x 27 9# DC x 27 11# DC x 27 14# DC x 27 14# DC x 27 14# Jinte.in

Page 75

Besides adjusting stitch, olease laypeople don't debug or maintaine. Parts are subject to changes in design without prior notice. XI AN TYPICAL INDUSTRIES CO., LTD. Add: No. 335 Taibai South Road, Xi'an, P. R. China - 710068 Tel : +86-29-88279091 88279150 Fax : +86-29-88249715 88245215 E-mail: typical@chinatypical. com Http: www. chinatypical. com Http: www. globalsources. com jintex.in 2009. 02. 20 ⑤

Page 76 — GN2000

GN2000 HIGH-SPEED OVERLOCK SEWING MACHINE XI'AN TYPICAL INDUSTRIES CO., LTD. No. 335, South Taibai Road Xi'an 710068, P.R.China Tel.: +86-29-88279093 // 88279150 // 88279151 Fax: +86-29-88249715 // 88245215 E-mail: tic@chinatypical.com www.chinatypical.com XI'AN TYPICAL EUROPE GmbH Hertelsbrunnenring 9 D-67657 Kaiserslautern Tel.: +49 (0)631 316019-0 Fax: +49 (0)631 316019-11 E-mail: sales@typical-europe.com www.typical-europe.com GN2000 - Manual - EN - 09-2010 jintex.in
