Yamato AZ6500 Parts Book (PDF)
Text index — Yamato AZ6500
Page 5 — MISCELLANEOUS COVERS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100006 | Cloth Plate | 1 |
| 2 | 2150210 | Cloth Plate(Lower) | 1 |
| 3 | 2100014 | Rubber Cushion | 1 |
| 4 | 001123 | Washer | 5 |
| 5 | 000644 | Spring Washer | 3 |
| 6 | 110045 | Screw(M4-0.7X12) | 3 |
| 7 | 2100011 | Cloth Plate Eccentric Bushing | 1 |
| 8 | 160001 | Screw(M4-0.7X4) | 1 |
| 9 | 2100012 | Collar(4X9X6mm) | 1 |
| 10 | 003637 | Screw(1/8-44X2.5) | 1 |
| 11 | 2150015 | Cloth Plate Spring | 1 |
| 12 | 110012 | Screw(M4-0.7X5) | 2 |
| 13 | 100001 | Lock Nut | 1 |
| 14 | 110031 | Stop Screw(M4-0.7X12) | 1 |
| 15 | 0020004 | Oil Cap | 1 |
| 16 | 0020005 | O-ring(P28) | 1 |
| 17 | 2100053 | Top Cover | 1 |
| 18 | 110016 | Screw(M4-0.7X15) | 6 |
| 19 | 2150026 | Top Cover Gasket | 1 |
| 20 | 2500864 | Oil Reservoir Gasket | 1 |
| 21 | 2100863 | Oil Reservoir | 1 |
| 22 | 006816 | Screw(1/4-24X8) | 4 |
| 23 | 0032879 | Oil Reservoir Rubber Cushion(Black-colored) | 3 |
| 24 | 0033627 | Oil Reservoir Rubber Cushion(Green-colored) | 1 |
| 26 | 2100875 | Oil Reservoir Positioning Bar | 4 |
| 27 | 300004 | Washer | 4 |
| 28 | 120017 | Screw(M5-0.8X15) | 6 |
| 29 | 0020137 | Drain Hole Seal | 1 |
| 30 | 005075 | Drain Hole Screw(3/8-24X8) | 1 |
| 34 | 300043 | Washer | 2 |
| 36 | 2049401 | Serial Number Plate | 1 |
| 37 | 000726 | Rivet | 2 |
Page 7 — MISCELLANEOUS COVERS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2150016 | Side Cover | 1 |
| 2 | 110013 | Screw(M4-0.7×8) | 5 |
| 3 | 110001 | Screw(M4-0.7×5.4) | 1 |
| 4 | 2150018 | Eye Guard Holder | 1 |
| 5 | 170032 | Screw(M4-0.7×5) | 1 |
| 6 | 000010 | Conical Spring Washer | 2 |
| 7 | 2150125 | Eye Guard | 1 |
| 8 | 110076 | Screw(M3-0.5×6) | 2 |
| 9 | 000444 | Washer | 2 |
| 10 | 2150023 | Needle Bar Oil Defender | 1 |
| 11 | 110012 | Screw(M4-0.7×5) | 2 |
| 12 | 2150024 | Needle Bar Oil Seal | 1 |
| 13 | 190015 | Screw(M14-2×6) | 2 |
| 14 | 2150025 | Logo Plate | 1 |
| 15 | 110106 | Screw(M4-0.7×8) | 2 |
| 16 | 390177 | "AZ-G" Logo Mark | 1 |
| 17 | 390098 | Brand Name Plate(68mm)(Red) | 1 |
| 18 | 390097 | Brand Name Plate(83mm)(Red) | 1 |
| 19 | 2100538 | Front Cover Latch Spring | 1 |
| 20 | 0024446 | Front Cover Hook | 1 |
| 21 | 001203 | Screw(9/64-40×4.5) | 1 |
| 22 | 0020016 | Front Cover Hinge Pin | 1 |
| 23 | 003637 | Screw(1/8-44×2.5) | 2 |
| 24 | 2100024 | Front Cover(Right) | 1 |
| 25 | 0024095 | Front Cover Hinge Spring | 1 |
| 26 | 2100855 | Front Cover Hinge | 1 |
| 27 | 2100703 | Chip Guard(Openable) | 1 |
| 28 | 110003 | Screw(M3.5-0.6×6) | 2 |
| 29 | 2129423 | Model Plate(Red) | 1 |
| 30 | ----- | Threading Chart(See the Table) | 1 |
| 31 | 2100856 | Front Cover Latch | 1 |
| 32 | 110054 | Screw(M3-0.5×3.5) | 2 |
| 33 | 390513 | Threading Chart(Left) | 1 |
Page 9 — MISCELLANEOUS COVERS(3) / カバー関係(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100035 | Feed Mechanism Cover | 1 |
| 2 | 2100921 | Feed Mechanism Cover Gasket | 1 |
| 3 | 110048 | Screw(M4-0.7X10) | 5 |
| 4 | 2100047 | Rubber Cushion | 1 |
| 5 | 2110027 | O-ring(P52) | 1 |
| 6 | 2110026 | Ball Bearing Holder | 1 |
| 7 | 110013 | Screw(M4-0.7X8) | 7 |
| 10 | 150004 | Screw(M4-0.7X6) | 1 |
| 12 | 2150022 | Pushbutton | 1 |
| 13 | 2100861 | Oil Seal | 1 |
| 14 | 0033024 | Retaining Ring | 2 |
| 15 | 0068517 | Pushbutton Spring | 1 |
| 16 | 330008 | Seal Plug | 1 |
| 17 | 330000 | Seal Plug | 1 |
| 18 | 2150017 | Fabric Guide Plate | 1 |
| 19 | 110064 | Screw(M4-0.7X8) | 2 |
| 20 | 2100918 | Tail Cover Gasket | 1 |
| 21 | 2100037 | Tail Cover | 1 |
| 22 | 0036518 | Seal Plug | 1 |
| 23 | 2100960 | Ball Bearing Housing | 1 |
| 24 | 2100874 | Ball Bearing Housing Gasket | 1 |
| 25 | 130003 | Screw(M4-0.7X7.3) | 3 |
| 26 | 0093528 | Looper Thread Pipe Stay | 1 |
| 27 | 0021735 | Looper Thread Pipe | 1 |
Page 11 — MISCELLANEOUS THREAD EYELETS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100063 | Thread Guide Plate | 1 |
| 2 | 110013 | Screw(M4-0.7×8) | 2 |
| 3 | 0024084 | Thread Tension Spring Cap | 4 |
| 4 | 0024083 | Tension Spring Bushing | 4 |
| 5 | 0024157 | Tension Spring(Lower Looper Thread) | 1 |
| 6 | 0020118 | Thread Tension Spring Retainer | 4 |
| 7 | 000178 | Felt | 4 |
| 8 | 0031111 | Tension Disc | 8 |
| 9 | 000177 | Felt | 4 |
| 10 | 190016 | Tension Post(Short) | 4 |
| 11 | 0032962 | Tension Disc Eyelet | 3 |
| 12 | 0032952 | Tension Spring(Upper Looper Thread) | 1 |
| 13 | 0030255 | Tension Spring(Double Chain Thread) | 1 |
| 14 | 0024156 | Tension Spring(Needle Thread) | 1 |
| 15 | 2150116 | Tension Disc Eyelet for Needle Thread | 1 |
| 16 | 0022215 | Looper Thread Pipe | 2 |
| 17 | 2100404 | Double Chaining Looper Thread Eyelet(Rear) | 1 |
| 18 | 110009 | Screw(M4-0.7×8) | 3 |
| 24 | 2150124 | Needle Thread Eyelet Holder | 1 |
| 25 | 110001 | Screw(M4-0.7×5.4) | 2 |
| 26 | 2150115 | Needle Thread Eyelet(Right) | 1 |
| 27 | 006035 | Screw(9/64-40×7) | 1 |
| 28 | 000644 | Spring Washer | 1 |
| 29 | 000322 | Nut | 1 |
| 30 | 2150167 | Needle Thread Eyelet Holder(Double Chain) | 1 |
| 31 | 2150162 | Needle Thread Eyelet(Right)(Double Chain) | 1 |
| 32 | 110002 | Screw(M3-0.5×5) | 1 |
| 33 | 2150131 | Needle Thread Eyelet(Left) | 1 |
| 34 | 2150173 | Needle Thread Eyelet(Left)(Double Chain) | 1 |
| 35 | 130026 | Screw(M4-0.7×5.8) | 1 |
| 36 | 2150160 | Needle Thread Pull-off | 1 |
| 37 | 110041 | Screw(M4-0.7×8) | 1 |
| 38 | 000653 | Knock Pin | 1 |
| 39 | 2150165 | Double Chaining Looper Thread Eyelet(Left) | 1 |
| 40 | 110008 | Screw(M4-0.7×5) | 2 |
Page 12 — MISCELLANEOUS THREAD EYELETS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 41 | 2150151 | Thread Eyelet Stopper | 1 |
| 42 | 110091 | Screw(M3-0.5X3) | 1 |
| 43 | 0020123 | Tension Disc Eyelet | 1 |
| 44 | 190002 | Tension Post | 1 |
| 45 | 0020124 | Tension Disc | 2 |
| 46 | 0020125 | Double Chaining Looper Tension | 1 |
| 47 | 0020126 | Tension Spring Bushing | 1 |
| 48 | 000182 | Adjusting Nut | 1 |
| 49 | 0020167 | Double Chaining Looper Thread Eyelet | 1 |
| 50 | 009853 | Screw(11/64-40X6.5) | 1 |
| 51 | 0020165 | Thread Eyelet Bracket | 1 |
| 52 | 000010 | Conical Spring Washer | 1 |
| 53 | 190000 | Screw(M4-0.7X7) | 1 |
| 54 | 0020166 | Thread Retaining Finger | 1 |
| 55 | 2150111 | Thread Retainer Plate Support | 1 |
| 56 | 2150112 | Thread Retainer Plate | 1 |
| 57 | 2150132 | Thread Retainer Spring | 1 |
| 58 | 170049 | Screw(M2-0.4X4) | 1 |
| 59 | 2150027 | Looper Holder Cover | 1 |
| 60 | 0093303 | Looper Driving Shaft Oil Seal | 1 |
| 61 | 2100229 | Looper Holder Cover Spacer(Rubber) | 1 |
| 62 | 2150119 | Looper Thread Eyelet(Left) | 1 |
| 63 | 110035 | Screw(M4-0.7X10) | 3 |
| 64 | 2150123 | Thread Eyelet Support | 1 |
| 65 | 2150120 | Lower Looper Thread Eyelet | 1 |
| 66 | 2150121 | Upper Looper Thread Eyelet | 1 |
| 67 | 000014 | Washer | 2 |
| 68 | 110026 | Screw(M3-0.5X6) | 2 |

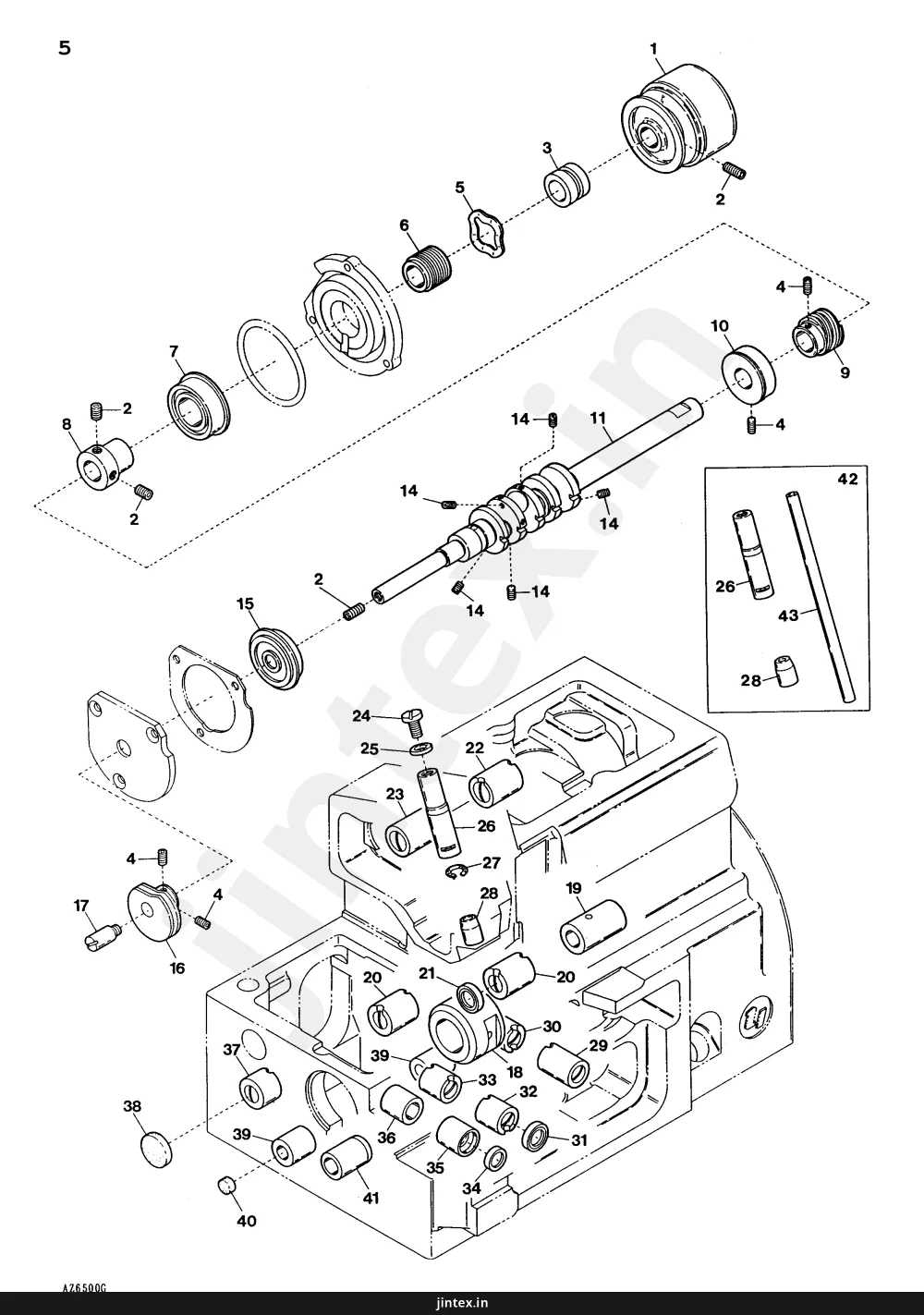

Page 14 — MISCELLANEOUS CRANKSHAFT & BUSHINGS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2150214 | Machine Pulley | 1 |
| 2 | 160007 | Screw(M6-1×6) | 5 |
| 3 | 2100625 | Mechanical Oil Shield Sleeve | 1 |
| 4 | 160001 | Screw(M4-0.7×4) | 5 |
| 5 | 2110184 | Corrugeted Washer | 1 |
| 6 | 2110183 | Mechanical Oil Shield | 1 |
| 7 | 0093090 | Crankshaft Ball Bearing(Right) | 1 |
| 8 | 3100129 | Bearing Adapter | 1 |
| 9 | 2150096 | Oil Pump Driving Worm | 1 |
| 10 | 2150038 | Crankshaft Bushing | 1 |
| 11 | 2150180 | Crankshaft | 1 |
| 14 | 160027 | Screw(M3-0.5×3) | 5 |
| 15 | 2100872 | Crankshaft Ball Bearing(Left) | 1 |
| 16 | 2120537 | Double Chaining Looper Thread Take-up | 1 |
| 17 | 2100410 | Thread Take-up Pin | 1 |
| 18 | 2150039 | Crankshaft Bushing | 1 |
| 19 | 2100105 | Upper Knife Driving Shaft Bushing(Right) | 1 |
| 20 | 2150043 | Upper Knife Feed Bar Driving Shaft Bushing | 2 |
| 21 | 2100117 | Upper Knife Driving Shaft Oil Seal | 1 |
| 22 | 2150049 | Needle Bar Driving Shaft Bushing(Right) | 1 |
| 23 | 2150048 | Needle Bar Driving Shaft Bushing(Left) | 1 |
| 24 | 003636 | Cap Screw(5/16-32×3.5) | 1 |
| 25 | 000526 | Gasket | 1 |
| 26 | 2150040 | Needle Bar Bushing(Upper) | 1 |
| 27 | 310109 | Oil Wick | 1 |
| 28 | 2150041 | Needle Bar Bushing(Lower) | 1 |
| 29 | 2150046 | Upper Looper Driving Shaft Bushing(Front) | 1 |
| 30 | 2150047 | Upper Looper Driving Shaft Bushing(Rear) | 1 |
| 31 | 2100272 | Looper Driving Shaft Oil Seal | 1 |
| 32 | 2150044 | Lower Looper Driving Shaft Bushing(Front) | 1 |
| 33 | 2150045 | Lower Looper Driving Shaft Bushing(Rear) | 1 |
| 34 | 0077301 | Looper Shaft Oil Seal | 1 |
| 35 | 2100412 | Double Chaining Looper Shaft Bushing(Front) | 1 |
| 36 | 2100413 | Double Chaining Looper Shaft Bushing(Rear) | 1 |
| 37 | 2150042 | Feed Bar Driving Shaft Bushing(Left) | 1 |
| 38 | 2150069 | Seal Plug | 1 |
| 39 | 2100414 | Looper Rocker Shaft Bushing | 2 |
| 40 | 2100417 | Seal Plug | 1 |
| 41 | 2100098 | Control Lever Shaft Bushing | 1 |
| 42 | 2150050 | Needle Bar & Needle Bar Bushing, C. Set | 1 |
| 43 | 2100642 | Needle Bar | 1 |
Page 16 — NEEDLE BAR DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2150105 | Needle Bar Driving Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7×16) | 2 |
| 3 | 2100144 | Needle Bar Driving Connecting Rod Pin | 1 |
| 4 | 160002 | Screw(M4-0.7×5) | 1 |
| 5 | 2100899 | Needle Bar Driving Lever | 1 |
| 6 | 120006 | Screw(M6-1×12) | 1 |
| 7 | 2100137 | Collar(12×20×10mm) | 1 |
| 8 | 160003 | Screw(M5-0.8×5) | 2 |
| 9 | 2150510 | Needle Bar Crank Arm, C. Set | 1 |
| 10 | 2150500 | Needle Bar Driving Shaft | 1 |
| 11 | 2100136 | Needle Bar Crank Arm | 1 |
| 12 | 300008 | Washer | 1 |
| 13 | 140003 | Screw(M6-1×18) | 1 |
| 14 | 2100138 | Needle Bar Connecting Link | 1 |
| 15 | 2100176 | Needle Bar Connecting Link Pin | 2 |
| 16 | 310089 | Oil Wick | 2 |
| 17 | 2150051 | Needle Bar Connecting Bracket | 1 |
| 18 | 110006 | Screw(M3.5-0.6×10) | 1 |
| 19 | 160016 | Screw(M4-0.7×4.5) | 2 |
| 20 | 2100642 | Needle Bar | 1 |
| 21 | 2159111 | Needle Clamp(A) | 1 |
| 23 | 003637 | Screw(1/8-44×2.5) | 2 |
| 24 | 2150057 | Stitch Plate Support Stay, C. Set | 1 |
| 25 | 2150058 | Stitch Plate Support Stay | 1 |
| 26 | 000035 | Roll Pin | 1 |
| 27 | 110009 | Screw(M4-0.7×8) | 6 |
| 28 | 2100502 | Stitch Plate Support(Rear) | 1 |
| 29 | 110001 | Screw(M4-0.7×5.4) | 1 |
| 30 | 2108050 | Stitch Plate(A4) | 1 |
| 31 | 005345 | Screw(11/64-40×8.3) | 2 |
| 32 | 2100145 | Stitch Plate Support(Front) | 1 |
| 33 | 110011 | Screw(M5-0.8×10) | 2 |
| 34 | 0032604 | Rubber Cushion | 1 |
| 35 | 2109211 | Needle Guard(Front)(Double Chain Stitch) | 1 |
| 36 | 110002 | Screw(M3-0.5×5) | 1 |
| 37 | 2150035 | HR Unit, Complete Set | 1 |
| 38 | 3100370 | Tube Joint | 1 |
| 39 | 2100152 | Oil Tube(70mm) | 1 |
| 40 | 310005 | Oil Wick | 1 |
Page 17 — NEEDLE BAR DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 41 | 2100533 | HR Felt Holder | 1 |
| 42 | 310001 | HR Felt | 1 |
| 43 | 2100535 | HR Felt Holder Bracket, C. Set | 1 |
| 44 | 2100536 | HR Felt Holder Bracket | 1 |
| 45 | 000393 | Roll Pin | 1 |
| 46 | 110013 | Screw(M4-0.7×8) | 1 |
| 47 | 320008 | Fitting Stud(Short) | 1 |
| 48 | 000567 | Seal | 1 |
| 49 | 2150150 | HR Unit Bracket | 1 |
| 50 | 2109212 | Needle Guard(Rear)(Double Chain Stitch) | 1 |
| 51 | 007627 | Screw(M4-0.7×6) | 2 |
| 52 | 2109210 | Needle Guard(Front)(Overlock Stitch) | 1 |
| 53 | 110027 | Screw(M2.5-0.45×3.5) | 2 |
Page 19 — KNIFE DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100160 | Upper Knife Driving Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7×16) | 2 |
| 3 | 2100173 | Driving Lever Pin | 1 |
| 4 | 160002 | Screw(M4-0.7×5) | 1 |
| 5 | 2100162 | Upper Knife Driving Lever | 1 |
| 6 | 120006 | Screw(M6-1×12) | 1 |
| 7 | 2100161 | Collar(10×19×9mm) | 1 |
| 8 | 160003 | Screw(M5-0.8×5) | 2 |
| 9 | 2150060 | Upper Knife Driving Shaft | 1 |
| 10 | 2100165 | Upper Knife Holder Positioner | 1 |
| 11 | 2100418 | Upper Knife Holder(Flat Type) | 1 |
| 12 | 110035 | Screw(M4-0.7×10) | 1 |
| 13 | 0020496 | Upper Knife(Flat Type) | 1 |
| 14 | 000532 | Washer | 1 |
| 15 | 110004 | Screw(M3.5-0.6×8) | 1 |
| 16 | 0093864 | Seal Plug | 1 |
| 17 | 2150020 | Lower Knife Holder Spring Stop | 1 |
| 18 | 110012 | Screw(M4-0.7×5) | 3 |
| 19 | 2100174 | Cloth Plate Rubber Cushion | 1 |
| 20 | 2150019 | Front Cover | 1 |
| 21 | 110001 | Screw(M4-0.7×5.4) | 2 |
| 22 | 2100009 | Cloth Plate Spring Pin | 1 |
| 23 | 2150021 | Lower Knife Holder Locking Plate | 1 |
| 24 | 0032919 | Lower Knife Holder Spring | 1 |
| 25 | 2100419 | Lower Knife Holder | 1 |
| 26 | 110046 | Screw(M5-0.8×12) | 1 |
| 27 | 000688 | Guide Pin | 1 |
| 28 | 2100167 | Lower Knife | 1 |
| 29 | 2100168 | Lower Knife Clamp | 1 |
| 30 | 140014 | Screw(M4-0.7×8) | 1 |
Page 21 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 190080 | Adjusting Screw(M10-0.75×30) | 1 |
| 2 | 100073 | Lock Nut | 1 |
| 3 | 2100181 | Presser Spring | 1 |
| 4 | 2150145 | Presser Bar | 1 |
| 5 | 2100580 | Presser Arm Positioning Guide Pin | 1 |
| 6 | 000482 | Spring Pin | 1 |
| 7 | 2150146 | Presser Arm Stop | 1 |
| 8 | 110012 | Screw(M4-0.7×5) | 1 |
| 9 | 2150147 | Presser Foot Release Lever | 1 |
| 10 | 2150148 | Presser Foot Release Lever Spring | 1 |
| 11 | 170045 | Screw(M4-0.7×5) | 1 |
| 12 | 180001 | Screw(M4-0.7×4.5) | 1 |
| 13 | 2100193 | Presser Foot Lifter Lever | 1 |
| 15 | 170047 | Screw(M8-1.25×10) | 1 |
| 16 | 2150138 | Presser Foot Lifter Lever Stop | 1 |
| 17 | 120010 | Screw(M6-1×10) | 1 |
| 18 | 2100197 | Presser Foot Lifter Lever Link | 1 |
| 19 | 2100518 | Presser Foot Shaft Collar | 1 |
| 20 | 120017 | Screw(M5-0.8×15) | 1 |
| 21 | 2100192 | Intermediate Lever | 1 |
| 22 | 110065 | Stop Screw(M4-0.7×12) | 1 |
| 23 | 100001 | Lock Nut | 1 |
| 24 | 2150139 | Presser Foot Lifter Lever Spring | 1 |
| 25 | 2100099 | Presser Foot Shaft Bushing | 1 |
| 26 | 160007 | Screw(M6-1×6) | 1 |
| 27 | 2150140 | Presser Arm, Complete Set | 1 |
| 28 | 2100189 | Presser Foot Shaft | 1 |
| 29 | 2150141 | Presser Arm | 1 |
| 30 | 2100199 | Presser Arm Hinge Pin | 1 |
| 31 | 160001 | Screw(M4-0.7×4) | 1 |
| 32 | 2157310 | Presser Foot, Complete Set(A4) | 1 |
| 33 | 2157300 | Presser Foot Hinge | 1 |
| 34 | 110004 | Screw(M3.5-0.6×8) | 1 |
| 35 | 2157305 | Presser Foot Spring(Large) | 1 |
| 36 | 110002 | Screw(M3-0.5×5) | 1 |
| 37 | 2107409 | Presser Foot(Front/Rear) Unit(A4) | 1 |
| 38 | 004136 | Screw(1/8-44×2.7) | 1 |
| 39 | 0022156 | Thread Chain Guide | 1 |
| 40 | 004141 | Screw(3/32-56×2.1) | 1 |
| 41 | 0025035 | Presser Foot Spring(Small) | 1 |
| 42 | 006093 | Screw(3/32-56×5.6) | 1 |
| 43 | 0033529 | Presser Foot(Rear) Adjusting Plate | 1 |
| 44 | 000216 | Nut | 1 |
| 45 | 000747 | Pin | 1 |
| 46 | 2107104 | Presser Foot Stitch Tongue(A4) | 1 |
| 47 | 2107163 | Presser Foot Adjusting Plate | 1 |
| 48 | 005036 | Screw(1/8-44×5.6) | 1 |
Page 23 — UPPER LOOPER DRIVING MECHANISM / 上ルーパ機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100900 | Looper Driving Lever Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7X16) | 4 |
| 3 | 2100088 | Connecting Rod Swing-proof | 2 |
| 4 | 2150071 | Upper Looper Driving Lever | 1 |
| 5 | 120006 | Screw(M6-1X12) | 1 |
| 6 | 2150070 | Looper Driving Shaft | 1 |
| 7 | 2150072 | Driving Shaft Thrust Ring | 1 |
| 8 | 2150075 | Driving Shaft Thrust Ring | 1 |
| 9 | 2100161 | Collar(10X19X9mm) | 1 |
| 10 | 160001 | Screw(M4-0.7X4) | 2 |
| 11 | 2150130 | Upper Looper Thread Pull-off | 1 |
| 12 | 110009 | Screw(M4-0.7X8) | 2 |
| 13 | 2150515 | Upper Looper Bar Crank Arm, C. Set | 1 |
| 14 | 2150084 | Upper Looper Bar Guide Bushing | 1 |
| 15 | 2100227 | Upper Looper Bar Guide Cover | 1 |
| 16 | 130001 | Screw(M2.5-0.45X6) | 1 |
| 17 | 110071 | Screw(M2.5-0.45X6) | 1 |
| 18 | 2100884 | Upper Looper Bar Guide, Complete Set | 1 |
| 19 | 2100221 | Upper Looper Bar Crank Arm | 1 |
| 20 | 300008 | Washer | 1 |
| 21 | 140004 | Screw(M6-1X16) | 1 |
| 22 | 2100903 | Upper Looper Bar Crank Arm Pin | 1 |
| 23 | 160002 | Screw(M4-0.7X5) | 1 |
| 24 | 310089 | Oil Wick | 1 |
| 25 | 2100667 | Upper Looper Bart | 1 |
| 26 | 000629 | Seal Plug | 1 |
| 27 | 2100892 | Upper Looper Bar Guide | 1 |
| 28 | 310065 | Oiling Felt | 2 |
| 29 | 2109320 | Upper Looper(for Needle Size #9~14) | 1 |
| 30 | 210009 | Screw(1/8-44X3.2) | 1 |
| 31 | 000779 | Standard Pin | 1 |
| 32 | 120013 | Screw(M6-1X15) | 2 |
| 33 | 2100854 | Upper Looper Supplementary Thread Eyelet | 1 |
| 34 | 2150117 | Lower Looper Thread Pull-off | 1 |
| 35 | 000014 | Washer | 1 |
| 36 | 110002 | Screw(M3-0.5X5) | 1 |
| 37 | 2100890 | Upper Looper Bar, C. Set | 1 |
Page 25 — LOWER & DOUBLE CHAINING LOOPER DRIVING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100215 | Looper Driving Lever Connecting Rod | 1 |
| 2 | 120049 | Screw(M4-0.7×16) | 4 |
| 3 | 2100088 | Connecting Rod Swing-proof | 1 |
| 4 | 2150166 | Lower Looper Driving Lever | 1 |
| 5 | 120024 | Screw(M4-0.7×14) | 2 |
| 6 | 2100902 | Driving Shaft Thrust Ring | 1 |
| 7 | 2100161 | Collar(10×19×9mm) | 1 |
| 8 | 160003 | Screw(M5-0.8×5) | 4 |
| 9 | 2150170 | Looper Driving Shaft | 1 |
| 10 | 2100211 | Lower Looper Holder Arm | 1 |
| 11 | 300008 | Washer | 1 |
| 12 | 140002 | Screw(M6-1×14) | 2 |
| 13 | 2150118 | Thread Pull-off | 1 |
| 14 | 110009 | Screw(M4-0.7×8) | 1 |
| 15 | 2109347 | Lower Looper | 1 |
| 16 | 2109201 | Needle Guard(Rear) | 1 |
| 17 | 110036 | Screw(M3-0.5×6.5) | 1 |
| 18 | 180014 | Screwed Pin(M3-0.5×4.5) | 1 |
| 19 | 2150169 | Double Chaining Looper Driving Connection | 1 |
| 20 | 2100249 | Bushing | 1 |
| 21 | 300000 | Washer | 1 |
| 22 | 140001 | Screw(M5-0.5×12) | 2 |
| 23 | 2150168 | Double Chaining Looper Driving Lever | 1 |
| 24 | 120006 | Screw(M6-1×10) | 1 |
| 25 | 2100433 | Looper Driving Connecting Pin(Left) | 1 |
| 26 | 160001 | Screw(M4-0.7×4) | 1 |
| 27 | 2100436 | Looper Slide Block Holder(Front) | 1 |
| 28 | 2100438 | Looper Slide Block Holder(Rear) | 1 |
| 29 | 120018 | Screw(M4-0.7×10) | 2 |
| 30 | 2100437 | Looper Slide Block | 1 |
| 32 | 2150550 | Double Chaining Looper Driving Shaft | 1 |
| 33 | 2100441 | Double Chaining Looper Holder Arm | 1 |
| 34 | 2109302 | Double Chaining Looper | 1 |
| 35 | 000035 | Positioning Pin | 1 |
| 36 | 300032 | Washer | 1 |
Page 27 — FEED DRIVING CONTROL MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2150064 | Main Feed Bar Lever | 1 |
| 2 | 120006 | Screw(M6-1×12) | 4 |
| 3 | 2100251 | Main Feed Bar Lever Pin | 1 |
| 4 | 300000 | Washer | 3 |
| 5 | 100002 | Nut | 1 |
| 6 | 000669 | Washer | 2 |
| 7 | 2150075 | Thrust Plate | 1 |
| 8 | 0095027 | Retaining Ring | 1 |
| 9 | 2100248 | Main Feed Bar Connection | 1 |
| 10 | 2100249 | Connection Bushing | 1 |
| 11 | 140001 | Screw(M5-0.5×12) | 1 |
| 12 | 2100266 | Feed Bar, Complete Set | 1 |
| 13 | 2100242 | Main Feed Bar | 1 |
| 14 | 2100241 | Differential Feed Bar | 1 |
| 15 | 2100243 | Differential Feed Bar Connection | 1 |
| 16 | 2100244 | Connection Bushing | 1 |
| 17 | 140000 | Screw(M5-0.5×15.5) | 1 |
| 18 | 2150065 | Feed Bar Driving Shaft | 1 |
| 19 | 2150066 | Feed Bar Driving Shaft Lever | 1 |
| 20 | 2100288 | Connecting Rod Pin | 1 |
| 21 | 160007 | Screw(M6-1×6) | 1 |
| 22 | 2100671 | Differential Rocker, Complete Set | 1 |
| 23 | 2100672 | Differential Rocker | 1 |
| 24 | 2100673 | Differential Regulating Slider | 1 |
| 25 | 2100674 | Differential Regulating Slider Cap | 1 |
| 26 | 110033 | Screw(M3-0.5×6) | 2 |
| 27 | 2100269 | Differential Lever(Right), C. Set | 1 |
| 28 | 2100252 | Slider Link | 1 |
| 29 | 0068202 | Retaining Ring | 1 |
| 30 | 2100253 | Slider Link Pin | 1 |
| 31 | 2100262 | Differential Lever(Right) | 1 |
| 32 | 2100267 | Collar(10×17×8mm) | 1 |
| 33 | 160001 | Screw(M4-0.7×4) | 2 |
| 34 | 000690 | Spring Pin | 1 |
| 35 | 2100256 | Differential Lever Spring | 1 |
| 36 | 0020538 | O-ring(P7) | 1 |
| 37 | 2100263 | Differential Lever(Left) | 1 |
| 38 | 000528 | Washer | 1 |
| 39 | 000561 | Conical Spring Washer | 1 |
| 40 | 100000 | Adjusting Nut | 1 |
| 41 | 190001 | Adjusting Screw(M6-1×11.5, M4.5-0.5×4) | 1 |
| 42 | 2100271 | Differential Feed Graduation | 1 |
| 43 | 110016 | Screw(M4-0.7×15) | 2 |
| 44 | 0020350 | Differential Lever Stop | 2 |
| 45 | 110017 | Screw(M5-0.8×8) | 2 |
Page 29 — FEED DRIVING MECHANISM / 送り機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100865 | Feed Bar Guide Support | 1 |
| 2 | 110064 | Screw(M4-0.7×8) | 4 |
| 3 | 110004 | Screw(M3.5-0.6×8) | 6 |
| 4 | 2100866 | Feed Bar Shield(Front) | 1 |
| 5 | 2100867 | Feed Bar Shield(Rear) | 1 |
| 6 | 2100869 | Feed Bar Shield Guide | 1 |
| 7 | 2100870 | Feed Bar Guide | 2 |
| 8 | 2100868 | Feed Bar Shield(Upper) | 1 |
| 9 | 2150063 | Feed Bar Guide Bushing | 1 |
| 10 | 160007 | Screw(M6-1×6) | 1 |
| 11 | 2100602 | Feed Bar Block(Rear) Shaft | 1 |
| 12 | 160001 | Screw(M4-0.7×4) | 3 |
| 13 | 2100283 | Feed Bar Block(Rear) | 1 |
| 14 | 2100281 | Feed Bar Block(Rear) Lid | 1 |
| 15 | 130002 | Screw(M3-0.5×6) | 1 |
| 16 | 2100434 | Looper Rocker Shaft Lever | 1 |
| 17 | 2100251 | Looper Slide Block Pin | 1 |
| 18 | 300000 | Washer | 1 |
| 19 | 100072 | Nut | 1 |
| 20 | 2100442 | Looper Rocker Shaft | 1 |
| 21 | 003655 | Screw(M4-0.7×10) | 2 |
| 22 | 2100443 | Collar(9×17×8mm) | 1 |
| 23 | 300001 | Washer | 1 |
| 24 | 0013208 | Retaining Ring | 1 |
| 25 | 2100435 | Looper Rocker Connecting Rod Pin | 1 |
| 26 | 2100444 | Retaining Ring | 1 |
| 27 | 2100280 | Feed Bar Block(Front) | 1 |
| 28 | 2100451 | Retaining Ring | 1 |
| 29 | 2100452 | Looper Rocker Connecting Rod | 1 |
| 30 | 0068146 | Roller Bearing | 1 |
| 31 | 2100450 | Looper Rocker Eccentric | 1 |
| 32 | 0020401 | Feed Dog Eccentric Pin | 1 |
| 33 | 2100277 | Feed Dog Eccentric | 1 |
| 34 | 2100278 | Roller Bearing | 1 |
| 35 | 2100275 | Feed Dog Driving Connecting Rod | 1 |
| 36 | 2100276 | Feed Dog Regulating Eccentric | 1 |
| 37 | 180002 | Screw(M3-0.5×4) | 2 |
| 38 | 2100289 | Feed Dog Regulating Plate Spring | 1 |
| 39 | 110070 | Screw(M3-0.5×6.3) | 1 |
| 40 | 0023473 | Feed Dog Regulating Plate | 1 |
| 41 | 2100279 | Feed Dog Regulating Gear | 1 |
| 42 | 180003 | Screw(M5-0.8×8) | 1 |
| 43 | 160003 | Screw(M5-0.8×5) | 3 |
| 44 | 2109050 | Differential Feed Dog(A4)(A5) | 1 |
| 45 | 2109051 | Main Feed Dog | 1 |
| 46 | 2109052 | Auxiliary Feed Dog | 1 |
| 47 | 110026 | Screw(M3-0.5×6) | 1 |
| 48 | 2150067 | Connecting Rod Cover | 1 |
| 49 | 130003 | Screw(M4-0.7×7.3) | 2 |
Page 31 — LUBR ICAT ING MECHAN ISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100935 | Oil Pump, Complete Set | 1 |
| 2 | 2100363 | Worm Wheel | 1 |
| 3 | 160001 | Screw(M4-0.7×4) | 4 |
| 4 | 110016 | Screw(M4-0.7×15) | 2 |
| 5 | 001820 | Screw(1/4-40×5) | 1 |
| 6 | 000567 | Seal | 2 |
| 7 | 2150201 | Oil Tube, Complete Set | 1 |
| 8 | 3100370 | Oil Tube Fitting One Way End | 4 |
| 9 | 0031831 | Oil Tube Clamp | 7 |
| 10 | 2150206 | Oil Tube(4.6×6.4×220mm) | 1 |
| 11 | 320008 | Oil Tube Fitting Stud(M6-1) | 2 |
| 12 | 2100958 | Suction Tube, C. Set | 1 |
| 13 | 3100371 | Oil Tube Fitting Two Way | 1 |
| 14 | 2100369 | Oil Tube(4.6×6.4×36.5mm) | 1 |
| 15 | 2100957 | Oil Filter | 1 |
| 16 | 2100926 | Suction Pipe(Upper), C. Set | 1 |
| 17 | 2100927 | Suction Tube(4×6×18mm) | 1 |
| 18 | 2100928 | Suction Tube(2.5×4×60mm) | 1 |
| 19 | 2100929 | Suction Pipe(Upper) | 1 |
| 20 | 310073 | Felt | 1 |
| 21 | 2150202 | Oil Tube, Complete Set | 1 |
| 22 | 2150207 | Oil Tube(4.6×6.4×320mm) | 1 |
| 23 | 320009 | Oil Tube Fitting Stud(Long)(M6-1) | 1 |
| 24 | 2150095 | Oil Pressure Regulating Valve, C. Set | 1 |
| 25 | 2150094 | Oil Pressure Regulating Valve | 1 |
| 26 | 0080503 | Oil Pressure Regulating Ball | 1 |
| 27 | 0030748 | Guide Pin | 1 |
| 28 | 2150097 | Spring | 1 |
| 29 | 006861 | Adjusting Screw(1/4-40×5) | 1 |
| 30 | 000419 | Nut | 1 |
| 31 | 3100060 | Oil Filter Cap | 1 |
| 32 | 110045 | Screw(M4-0.7×12) | 3 |
| 33 | 3100061 | O-ring(P42) | 1 |
| 34 | 3100345 | Oil Filter | 1 |
| 35 | 3100329 | Filter Housing | 1 |
| 36 | 2150055 | Oil Pipe, C. Set | 1 |
| 37 | 2150056 | Oil Pipe | 1 |
| 38 | 310081 | Oil Wick | 1 |
| 39 | 2100896 | Oil Pipe, C. Set | 1 |
| 40 | 2100895 | Oil Pipe | 1 |
| 41 | 000456 | Seal Plug | 1 |
| 42 | 310090 | Oil Wick | 1 |
| 43 | 2100032 | Oil Sight Gauge | 1 |
| 44 | 0020538 | O-ring(P7) | 1 |
| 45 | 110053 | Screw(M6-1×8) | 3 |
| 46 | 320010 | Oil Tube Fitting Stud(1/4-40) | 2 |
Page 33 — EXCLUSIVE PARTS for UPPER KNIFE(Angled Type), AZ6500G-C5 / 角メス及びサブモデル専用部品
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100425 | Upper Knife Holder | 1 |
| 2 | 0020491 | Upper Knife | 1 |
| 3 | 2101435 | Upper Knife Clamp | 1 |
| 4 | 2100354 | Upper Knife Chip Guard | 1 |
| 5 | 140013 | Screw(M4-0.7×24) | 1 |
| 6 | 2100349 | Upper Knife Clamp Plate | 1 |
| 7 | 2100353 | Upper Knife Stop | 1 |
| 8 | 110038 | Screw(M2.5-0.45×4.5) | 1 |
| 9 | 000665 | Washer | 1 |
| 10 | 2157315 | Presser Foot, C. Set(C5) | 1 |
| 11 | 2157301 | Presser Foot Hinge(C) | 1 |
| 12 | 110004 | Screw(M3.5-0.6×8) | 1 |
| 13 | 004136 | Screw(1/8-44×2.7) | 1 |
| 14 | 2107412 | Presser Foot(Front/Rear) Unit(C5) | 1 |
| 15 | 2107105 | Presser Foot Stitch Tongue(C5) | 1 |
| 16 | 2107163 | Presser Foot Adjusting Plate | 1 |
| 17 | 005036 | Screw(1/8-44×5.6) | 1 |
| 18 | 0020501 | Thread Chain Guide(C) | 1 |
| 19 | 004141 | Screw(3/32-56×2.1) | 1 |
| 20 | 0025035 | Presser Foot Spring(Small) | 1 |
| 21 | 006093 | Screw(3/32-56×5.6) | 1 |
| 22 | 0033529 | Presser Foot(Rear) Adjusting Plate | 1 |
| 23 | 000216 | Nut | 1 |
| 24 | 000747 | Pin | 1 |
| 25 | 2159112 | Needle Clamp(C) | 1 |
| 26 | 2108076 | Stitch Plate(C5) | 1 |
| 27 | 2109055 | Differential Feed Dog | 1 |
| 28 | 2109056 | Main Feed Dog | 1 |
| 29 | 2157305 | Presser Foot Spring(Large) | 1 |
| 30 | 110002 | Screw(M3-0.5×5) | 1 |
Page 35 — AZ6500G-A4-52 EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2157324 | Presser Foot, C. Set(A4) | 1 |
| 2 | 2157300 | Presser Foot Hinge | 1 |
| 3 | 110004 | Screw(M3.5-0.6×8) | 1 |
| 4 | 004136 | Screw(1/8-44×2.7) | 1 |
| 5 | 2107409 | Presser Foot(Front/Rear) Unit | 1 |
| 6 | 2107104 | Presser Foot Stitch Tongue(A4) | 1 |
| 7 | 2107163 | Presser Foot Adjusting Plate | 1 |
| 8 | 005036 | Screw(1/8-44×5.6) | 1 |
| 9 | 0022156 | Thread Chain Guide | 1 |
| 10 | 004141 | Screw(3/32-56×2.1) | 1 |
| 11 | 0025035 | Presser Foot Spring(Small) | 1 |
| 12 | 006093 | Screw(3/32-56×5.6) | 1 |
| 13 | 0033529 | Presser Foot(Rear) Adjusting Plate | 1 |
| 14 | 000216 | Nut | 1 |
| 15 | 000747 | Pin | 1 |
| 16 | 2157305 | Presser Foot Spring(Large) | 1 |
| 17 | 110002 | Screw(M3-0.5×5) | 1 |
| 18 | 2108079 | Stitch Plate(A4) | 1 |
| 000016 | Nut | 1 |
Page 37 — "K1" DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2159900 | "K1" Device, Complete Set | 1 |
| 2 | 2101167 | Suction Pipe Cover | 1 |
| 3 | 004314 | Screw(1/8-44×5.6) | 1 |
| 4 | 001230 | Screw(3/32-56×3.8) | 2 |
| 5 | 2101163 | Lower Trimming Knife Driving Arm | 1 |
| 6 | 110068 | Screw(M4-0.7×8) | 1 |
| 7 | 2101151 | Suction Pipe, Complete Set | 1 |
| 8 | 2101152 | Suction Pipe | 1 |
| 9 | 2101155 | Upper Trimming Knife | 1 |
| 10 | 005112 | Screw(3/32-56×6) | 2 |
| 11 | 000240 | Oil Wick | 1 |
| 12 | 2101160 | Trimming Knife Holder Pin | 1 |
| 13 | 2101161 | Holder Pin Support | 1 |
| 14 | 004139 | Screw(3/32-56×3) | 2 |
| 15 | 2101156 | Lower Trimming Knife | 1 |
| 16 | 110036 | Screw(M3-0.5×6.5) | 1 |
| 17 | 160001 | Screw(M4-0.7×4) | 1 |
| 18 | 2101157 | Guide Block Holder | 1 |
| 19 | 2101158 | Lower Trimming Knife Guide Block | 1 |
| 20 | 2101164 | Lower Trimming Knife Driving Link | 1 |
| 21 | 170010 | Screw(M4-0.7×4) | 1 |
| 22 | 2101159 | Lower Trimming Knife Pushing Plate | 1 |
| 23 | 2101166 | Driving Link Presser | 1 |
| 24 | 2101165 | Oil Wick Clamp | 1 |
| 25 | 001196 | Screw(1/8-44×6) | 1 |
| 26 | 310011 | Felt | 1 |
| 27 | 007623 | Screw(9/64-40×5.3) | 2 |
| 28 | 2151001 | Suction Pipe Support | 1 |
Page 39 — 'C' DEVICE / "C"装置
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2109932 | "C" Device, Complete Set | 1 |
| 2 | 0033939 | Hose Band(1/4 inch) | 1 |
| 3 | 1094011 | Hose Nipple(PT1/8×8) | 1 |
| 4 | 1097000 | Regulator(AR2000-01BG) | 1 |
| 5 | 009960 | Screw(M5-0.8×16) | 2 |
| 6 | 000669 | Washer | 4 |
| 7 | 000600 | Spring Washer | 2 |
| 8 | 000009 | Nut | 2 |
| 9 | 1097001 | Regulator Support | 1 |
| 10 | 006905 | Wood Screw(φ5.1×20) | 2 |
| 11 | 0010263 | Connector(EC6-PT1/8) | 1 |
| 12 | 1096000 | Nylon Hose(4×6×2000mm) | 1 |
| 13 | 1298000 | Air Valve, Complete Set | 1 |
| 14 | 0033938 | Collar(6.4×13×9mm) | 1 |
| 15 | 005040 | Screw(11/64-40×8.5) | 5 |
| 16 | 0033937 | Return Spring | 1 |
| 17 | 0033936 | Air Valve Holder | 1 |
| 18 | 0033935 | Air Valve Stop | 1 |
| 19 | 000334 | Nut | 1 |
| 20 | 005505 | Adjusting Screw(11/64-40×16) | 1 |
| 21 | 1090133 | TAC Valve, C. Set | 1 |
| 22 | 0010052 | TAC Valve | 1 |
| 23 | 000623 | Gasket | 2 |
| 24 | 0010112 | Joint(I-4) | 2 |
| 25 | 0010290 | Connector(EFC6-PT1/8) | 1 |
| 26 | 0010310 | Venturi Tube | 1 |
| 27 | 0033940 | Hose Band(3/8 inch) | 2 |
| 28 | 1096004 | Vinyl Hose(12×18×1500mm) | 1 |
| 29 | 1096005 | Vinyl Hose(12×18×500mm) | 1 |
| 30 | 0011987 | UL Clamp | 3 |
| 31 | 009814 | Wood Screw(φ3.1×20) | 3 |
Page 41 — MISCELLANEOUS SUPPORTING BOARD
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2100381 | Belt Cover | 1 |
| 2 | 110015 | Screw(M4-0.7×25) | 2 |
| 3 | 2100382 | Supplementary Belt Cover | 1 |
| 4 | 110013 | Screw(M4-0.7×8) | 2 |
| 5 | 2100339 | Supporting Board | 1 |
| 6 | 000070 | Hanging Nut | 4 |
| 7 | 009861 | Hanging Bolt (Semi-submerged only) | 4 |
| 8 | 2101450 | Spacer(15mm) | 4 |
| 9 | 2101451 | Spacer(5mm) (See the below) | 4 |
| 10 | 0020064 | Supporting Board Rubber Cushion | 8 |
| 11 | 000162 | Washer(Semi-submerged) | 4 |
| 11 | 000162 | " (Full-submerged) | 20 |
| 12 | 000016 | Nut (Semi-submerged) | 8 |
| 12 | 000016 | Nut (Full-submerged) | 20 |
| 13 | 2100375 | Chute(Upper) Support | 1 |
| 14 | 005624 | Screw(M4-0.7×10) | 4 |
| 15 | 2100337 | Chute(Upper) | 1 |
| 16 | 2100338 | Chute(Lower) | 1 |
| 17 | 009864 | Hanging Bolt (Full-submerged only) | 4 |
| 18 | 009871 | Bolt (Full-submerged only) | 4 |
| 19 | 0020057 | Supporting Board Connector (Full-submerged only) | 2 |
| 20 | 0020045 | Supporting Board Sleeve (Full-submerged only) | 2 |
| 21 | 2100336 | Supplementary Chute Cover | 1 |
| 22 | 000538 | Washer | 1 |
| 23 | 140011 | Wing Bolt(M4-0.7×6) | 1 |
| 24 | 2100374 | Chip Receiver(Semi-submerged only) | 1 |
| 25 | 350007 | Wood Screw(φ3.5×16) | 2 |
| 26 | 0020078 | Idler, C. Set(for Left Footing Pedal) | 1 |
| 27 | 0020077 | Idler Support | 1 |
| 28 | 009992 | Screw(M4-0.7×10) | 2 |
| 29 | 0020076 | Idler | 1 |
| 30 | 009995 | Screw(M3-0.5×5) | 2 |
Page 43 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 9620695 | Thread Stand, C. Set(5 Spools Type) | 1 |
| 2 | 9620631 | Column Cap | 1 |
| 3 | 9620670 | Column Pipe(Upper) | 1 |
| 4 | 9620689 | Thread Guide Holder(Large) | 1 |
| 5 | 911002 | Screw(M4-0.7×20) | 1 |
| 6 | 911001 | Screw(M4-0.7×12) | 3 |
| 7 | 910001 | Nut | 4 |
| 8 | 9620673 | Column Pipe Connector | 1 |
| 9 | 911006 | Screw(M5-0.8×13) | 2 |
| 10 | 910000 | Nut | 7 |
| 11 | 9620675 | Column Pipe(Lower) | 1 |
| 12 | 930052 | Washer | 1 |
| 13 | 930053 | Spring Washer | 1 |
| 14 | 910003 | Nut(M16-1.5) | 1 |
| 15 | 9620702 | Thread Hanger(2 Spools Type) | 2 |
| 16 | 9620703 | Thread Hanger(3 Spools Type) | 2 |
| 17 | 9620700 | Thread Eyelet | 5 |
| 18 | 9620688 | Thread Hanger Holder | 4 |
| 19 | 911060 | Screw(M6-1×15) | 4 |
| 20 | 9620691 | Thread Guide Arm | 1 |
| 21 | 9620690 | Thread Guide Holder(Small) | 1 |
| 22 | 9620665 | Thread Guide(5 Spools Type) | 1 |
| 23 | 9620678 | Spool Cushion | 5 |
| 24 | 9620679 | Spool Pin | 5 |
| 25 | 9620680 | Spool Mat | 5 |
| 26 | 9620681 | Spool Seat Disc | 5 |
| 27 | 930055 | Spring Washer | 5 |
Page 44 — WARNING LABEL 警告ラベル
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 390140 | CAUTION IN OPERATION | ||
| 390143 | |||
| 390144 | DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE | ||
| 390145 | "Be sure to connect earth line." | ||
| 390146 | ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION | ||
| 390147 | EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS | ||
| 390148 | CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID |
Page 46 — AZ6500G Class LIST of MAIN SPARE PARTS(主要部品リスト)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2159111 | Needle Clamp | ||
| 2157310 | Presser Foot C.Set | ||
| 2157300 | Presser Foot Hinge | ||
| 2107409 | Presser Foot (Front/Rear) Unit | ||
| 2107104 | Stitch Tongue | ||
| 0022156 | Thread Chain Guide | ||
| 2159112 | Needle Clamp | ||
| 2157315 | Presser Foot C.Set | ||
| 2157301 | Presser Foot Hinge | ||
| 2107412 | Presser Foot (Front/Rear) Unit | ||
| 2107105 | Stitch Tongue | ||
| 0020501 | Thread Chain Guide | ||
| 2159111 | Needle Clamp | ||
| 2157324 | Presser Foot C.Set | ||
| 2157300 | Presser Foot Hinge | ||
| 2107409 | Presser Foot (Front/Rear) Unit | ||
| I2159111 | Stitch Tongue | ||
| 0022156 | Thread Chain Guide |
Page 47
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2109051 | 12109050 | ||
| -2108050 | |||
| 2109050 | |||
| 2109051 | |||
| 2109052 | |||
| 2109320 | |||
| 2109347 | |||
| 2109302 | |||
| 2108076 | |||
| 2109055 | |||
| 2109056 | |||
| -2108079 | |||
| 2109050 | |||
| 2109051 |
Page 48 — AZ6500G INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8 | 000009 | 17 | |
| 6 | 000010 | 2 | |
| 52 | 000010 | 4 | |
| 67 | 000014 | 4 | |
| 35 | 000014 | 9 | |
| 12 | 000016 | 18 | |
| 26 | 000035 | 6 | |
| 35 | 000035 | 10 | |
| 6 | 000070 | 18 | |
| 11 | 000162 | 18 | |
| 9 | 000177 | 4 | |
| 7 | 000178 | 4 | |
| 48 | 000182 | 4 | |
| 44 | 000216 | 8 | |
| 23 | 000216 | 14 | |
| 14 | 000216 | 15 | |
| 11 | 000240 | 16 | |
| 29 | 000322 | 4 | |
| 19 | 000334 | 17 | |
| 45 | 000393 | 6 | |
| 30 | 000419 | 13 | |
| 9 | 000444 | 2 | |
| 41 | 000456 | 13 | |
| 6 | 000482 | 8 | |
| 25 | 000526 | 5 | |
| 38 | 000528 | 11 | |
| 14 | 000532 | 7 | |
| 22 | 000538 | 18 | |
| 39 | 000561 | 11 | |
| 48 | 000567 | 6 | |
| 6 | 000567 | 13 | |
| 7 | 000600 | 17 | |
| 23 | 000623 | 17 | |
| 26 | 000629 | 9 | |
| 5 | 000644 | 1 | |
| 28 | 000644 | 4 | |
| 38 | 000653 | 4 | |
| 9 | 000665 | 14 | |
| 6 | 000669 | 11 | |
| 6 | 000669 | 17 | |
| 27 | 000688 | 7 | |
| 34 | 000690 | 11 | |
| 37 | 000726 | 1 | |
| 45 | 000747 | 8 | |
| 24 | 000747 | 14 | |
| 15 | 000747 | 15 | |
| 31 | 000779 | 9 | |
| 4 | 001123 | 1 | |
| 25 | 001196 | 16 | |
| 21 | 001203 | 2 | |
| 4 | 001230 | 16 | |
| 5 | 001820 | 13 | |
| 24 | 003636 | 5 | |
| 10 | 003637 | 1 | |
| 23 | 003637 | 2 | |
| 23 | 003637 | 6 | |
| 21 | 003655 | 12 | |
| 38 | 004136 | 8 | |
| 13 | 004136 | 14 | |
| 4 | 004136 | 15 | |
| 14 | 004139 | 16 | |
| 40 | 004141 | 8 | |
| 19 | 004141 | 14 | |
| 10 | 004141 | 15 | |
| 3 | 004314 | 16 | |
| 48 | 005036 | 8 | |
| 17 | 005036 | 14 | |
| 8 | 005036 | 15 | |
| 15 | 005040 | 17 | |
| 30 | 005075 | 1 | |
| 10 | 005112 | 16 | |
| 31 | 005345 | 6 | |
| 20 | 005505 | 17 | |
| 14 | 005624 | 18 | |
| 27 | 006035 | 4 | |
| 42 | 006093 | 8 | |
| 21 | 006093 | 14 | |
| 12 | 006093 | 15 | |
| 22 | 006816 | 1 | |
| 29 | 006861 | 13 | |
| 10 | 006905 | 17 | |
| 27 | 007623 | 16 | |
| 51 | 007627 | 6 | |
| 31 | 009814 | 17 | |
| 50 | 009853 | 4 | |
| 7 | 009861 | 18 | |
| 17 | 009864 | 18 | |
| 18 | 009871 | 18 | |
| 5 | 009960 | 17 | |
| 28 | 009992 | 18 | |
| 30 | 009995 | 18 | |
| 22 | 0010052 | 17 | |
| 24 | 0010112 | 17 | |
| 11 | 0010263 | 17 | |
| 25 | 0010290 | 17 | |
| 26 | 0010310 | 17 | |
| 30 | 0011987 | 17 | |
| 24 | 0013208 | 12 | |
| 15 | 0020004 | 1 | |
| 16 | 0020005 | 1 | |
| 22 | 0020016 | 2 | |
| 20 | 0020045 | 18 | |
| 19 | 0020057 | 18 | |
| 10 | 0020064 | 18 | |
| 29 | 0020076 | 18 | |
| 27 | 0020077 | 18 | |
| 26 | 0020078 | 18 | |
| 6 | 0020118 | 4 | |
| 43 | 0020123 | 4 | |
| 45 | 0020124 | 4 | |
| 46 | 0020125 | 4 | |
| 47 | 0020126 | 4 | |
| 29 | 0020137 | 1 | |
| 51 | 0020165 | 4 | |
| 54 | 0020166 | 4 | |
| 49 | 0020167 | 4 | |
| 44 | 0020350 | 11 | |
| 32 | 0020401 | 12 | |
| 2 | 0020491 | 14 | |
| 13 | 0020496 | 7 | |
| 18 | 0020501 | 14 | |
| 36 | 0020538 | 11 | |
| 44 | 0020538 | 13 | |
| 27 | 0021735 | 3 | |
| 39 | 0022156 | 8 | |
| 9 | 0022156 | 15 | |
| 16 | 0022215 | 4 | |
| 40 | 0023473 | 12 | |
| 4 | 0024083 | 4 | |
| 3 | 0024084 | 4 | |
| 25 | 0024095 | 2 | |
| 14 | 0024156 | 4 | |
| 5 | 0024157 | 4 | |
| 20 | 0024446 | 2 | |
| 41 | 0025035 | 8 | |
| 20 | 0025035 | 14 | |
| 11 | 0025035 | 15 | |
| 13 | 0030255 | 4 | |
| 27 | 0030748 | 13 | |
| 8 | 0031111 | 4 | |
| 9 | 0031831 | 13 | |
| 34 | 0032604 | 6 | |
| 23 | 0032879 | 1 | |
| 24 | 0032919 | 7 | |
| 12 | 0032952 | 4 | |
| 11 | 0032962 | 4 |
Page 49 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14 | 0033024 | ||
| 43 | 0033529 | ||
| 22 | 0033529 | ||
| 13 | 0033529 | ||
| 24 | 0033627 | ||
| 18 | 0033935 | ||
| 17 | 0033936 | ||
| 16 | 0033937 | ||
| 14 | 0033938 | ||
| 2 | 0033939 | ||
| 27 | 0033940 | ||
| 22 | 0036518 | ||
| 30 | 0068146 | ||
| 29 | 0068202 | ||
| 15 | 0068517 | ||
| 34 | 0077301 | ||
| 26 | 0080503 | ||
| 7 | 0093090 | ||
| 60 | 0093303 | ||
| 26 | 0093528 | ||
| 16 | 0093864 | ||
| 8 | 0095027 | ||
| 40 | 100000 | ||
| 13 | 100001 | ||
| 23 | 100001 | ||
| 5 | 100002 | ||
| 19 | 100072 | ||
| 2 | 100073 | ||
| 3 | 110001 | ||
| 25 | 110001 | ||
| 29 | 110001 | ||
| 21 | 110001 | ||
| 32 | 110002 | ||
| 36 | 110002 | ||
| 36 | 110002 | ||
| 36 | 110002 | ||
| 30 | 110002 | ||
| 17 | 110002 | ||
| 28 | 110003 | ||
| 15 | 110004 | ||
| 34 | 110004 | ||
| 3 | 110004 | ||
| 12 | 110004 | ||
| 3 | 110004 | ||
| 18 | 110006 | ||
| 40 | 110008 | ||
| 18 | 110009 | ||
| 27 | 110009 | ||
| 12 | 110009 | ||
| 14 | 110009 | ||
| 33 | 110011 | ||
| 12 | 110012 | ||
| 11 | 110012 | ||
| 18 | 110012 | ||
| 8 | 110012 | ||
| 2 | 110013 | ||
| 7 | 110013 | ||
| 2 | 110013 | ||
| 46 | 110013 | ||
| 4 | 110013 | ||
| 2 | 110015 | ||
| 18 | 110016 | ||
| 43 | 110016 | ||
| 4 | 110016 | ||
| 45 | 110017 | ||
| 68 | 110026 | ||
| 47 | 110026 | ||
| 53 | 110027 | ||
| 14 | 110031 | ||
| 26 | 110033 | ||
| 63 | 110035 | ||
| 12 | 110035 | ||
| 17 | 110036 | ||
| 16 | 110036 | ||
| 8 | 110038 | ||
| 37 | 110041 | ||
| 6 | 110045 | ||
| 32 | 110045 | ||
| 26 | 110046 | ||
| 3 | 110048 | ||
| 45 | 110053 | ||
| 32 | 110054 | ||
| 19 | 110064 | ||
| 2 | 110064 | ||
| 22 | 110065 | ||
| 6 | 110068 | ||
| 39 | 110070 | ||
| 17 | 110071 | ||
| 8 | 110076 | ||
| 42 | 110091 | ||
| 15 | 110106 | ||
| 6 | 120006 | ||
| 6 | 120006 | ||
| 5 | 120006 | ||
| 24 | 120006 | ||
| 2 | 120006 | ||
| 17 | 120010 | ||
| 32 | 120013 | ||
| 28 | 120017 | ||
| 20 | 120017 | ||
| 29 | 120018 | ||
| 5 | 120024 | ||
| 2 | 120049 | ||
| 2 | 120049 | ||
| 2 | 120049 | ||
| 2 | 120049 | ||
| 16 | 130001 | ||
| 15 | 130002 | ||
| 25 | 130003 | ||
| 49 | 130003 | ||
| 35 | 130026 | ||
| 17 | 140000 | ||
| 22 | 140001 | ||
| 11 | 140001 | ||
| 12 | 140002 | ||
| 13 | 140003 | ||
| 21 | 140004 | ||
| 23 | 140011 | ||
| 5 | 140013 | ||
| 30 | 140014 | ||
| 10 | 150004 | ||
| 8 | 160001 | ||
| 4 | 160001 | ||
| 31 | 160001 | ||
| 10 | 160001 | ||
| 26 | 160001 | ||
| 33 | 160001 | ||
| 12 | 160001 | ||
| 3 | 160001 | ||
| 17 | 160001 | ||
| 4 | 160002 | ||
| 4 | 160002 | ||
| 23 | 160002 | ||
| 8 | 160003 | ||
| 8 | 160003 | ||
| 8 | 160003 | ||
| 43 | 160003 | ||
| 2 | 160007 | ||
| 26 | 160007 | ||
| 21 | 160007 | ||
| 10 | 160007 | ||
| 19 | 160016 | ||
| 14 | 160027 | ||
| 21 | 170010 | ||
| 5 | 170032 | ||
| 11 | 170045 | ||
| 15 | 170047 | ||
| 58 | 170049 | ||
| 12 | 180001 |
Page 50 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 37 | 180002 | 12 | |
| 42 | 180003 | 12 | |
| 18 | 180014 | 10 | |
| 53 | 190000 | 4 | |
| 41 | 190001 | 11 | |
| 44 | 190002 | 4 | |
| 13 | 190015 | 2 | |
| 10 | 190016 | 4 | |
| 1 | 190080 | 8 | |
| 30 | 210009 | 9 | |
| 21 | 300000 | 10 | |
| 4 | 300000 | 11 | |
| 18 | 300000 | 12 | |
| 23 | 300001 | 12 | |
| 27 | 300004 | 1 | |
| 12 | 300008 | 6 | |
| 20 | 300008 | 9 | |
| 11 | 300008 | 10 | |
| 36 | 300032 | 10 | |
| 34 | 300043 | 1 | |
| 42 | 310001 | 6 | |
| 40 | 310005 | 6 | |
| 26 | 310011 | 16 | |
| 28 | 310065 | 9 | |
| 20 | 310073 | 13 | |
| 38 | 310081 | 13 | |
| 16 | 310089 | 6 | |
| 24 | 310089 | 9 | |
| 42 | 310090 | 13 | |
| 27 | 310109 | 5 | |
| 47 | 320008 | 6 | |
| 11 | 320008 | 13 | |
| 23 | 320009 | 13 | |
| 46 | 320010 | 13 | |
| 17 | 330000 | 3 | |
| 16 | 330008 | 3 | |
| 25 | 350007 | 18 | |
| 18 | 390097 | 2 | |
| 17 | 390098 | 2 | |
| 1 | 390140 | 20 | |
| 2 | 390143 | 20 | |
| 3 | 390144 | 20 | |
| 4 | 390145 | 20 | |
| 5 | 390146 | 20 | |
| 6 | 390147 | 20 | |
| 7 | 390148 | 20 | |
| 16 | 390177 | 2 | |
| 33 | 390513 | 2 | |
| 10 | 910000 | 19 | |
| 7 | 910001 | 19 | |
| 14 | 910003 | 19 | |
| 6 | 911001 | 19 | |
| 5 | 911002 | 19 | |
| 9 | 911006 | 19 | |
| 19 | 911060 | 19 | |
| 12 | 930052 | 19 | |
| 13 | 930053 | 19 | |
| 27 | 930055 | 19 | |
| 21 | 1090133 | 17 | |
| 3 | 1094011 | 17 | |
| 12 | 1096000 | 17 | |
| 28 | 1096004 | 17 | |
| 29 | 1096005 | 17 | |
| 4 | 1097000 | 17 | |
| 9 | 1097001 | 17 | |
| 13 | 1298000 | 17 | |
| 36 | 2049401 | 1 | |
| 1 | 2100006 | 1 | |
| 22 | 2100009 | 7 | |
| 7 | 2100011 | 1 | |
| 9 | 2100012 | 1 | |
| 3 | 2100014 | 1 | |
| 24 | 2100024 | 2 | |
| 43 | 2100032 | 13 | |
| 1 | 2100035 | 3 | |
| 21 | 2100037 | 3 | |
| 4 | 2100047 | 3 | |
| 17 | 2100053 | 1 | |
| 1 | 2100063 | 4 | |
| 3 | 2100088 | 10 | |
| 41 | 2100098 | 5 | |
| 25 | 2100099 | 8 | |
| 19 | 2100105 | 5 | |
| 21 | 2100117 | 5 | |
| 11 | 2100136 | 6 | |
| 7 | 2100137 | 6 | |
| 14 | 2100138 | 6 | |
| 3 | 2100144 | 6 | |
| 32 | 2100145 | 6 | |
| 39 | 2100152 | 6 | |
| 1 | 2100160 | 7 | |
| 7 | 2100161 | 7 | |
| 9 | 2100161 | 9 | |
| 7 | 2100161 | 10 | |
| 5 | 2100162 | 7 | |
| 10 | 2100165 | 7 | |
| 28 | 2100167 | 7 | |
| 29 | 2100168 | 7 | |
| 3 | 2100173 | 7 | |
| 19 | 2100174 | 7 | |
| 15 | 2100176 | 6 | |
| 3 | 2100181 | 8 | |
| 28 | 2100189 | 8 | |
| 21 | 2100192 | 8 | |
| 13 | 2100193 | 8 | |
| 18 | 2100197 | 8 | |
| 30 | 2100199 | 8 | |
| 10 | 2100211 | 10 | |
| 1 | 2100215 | 10 | |
| 19 | 2100221 | 9 | |
| 15 | 2100227 | 9 | |
| 61 | 2100229 | 4 | |
| 14 | 2100241 | 11 | |
| 13 | 2100242 | 11 | |
| 15 | 2100243 | 11 | |
| 16 | 2100244 | 11 | |
| 9 | 2100248 | 11 | |
| 20 | 2100249 | 10 | |
| 10 | 2100249 | 11 | |
| 3 | 2100251 | 11 | |
| 17 | 2100251 | 12 | |
| 28 | 2100252 | 11 | |
| 30 | 2100253 | 11 | |
| 35 | 2100256 | 11 | |
| 31 | 2100262 | 11 | |
| 37 | 2100263 | 11 | |
| 12 | 2100266 | 11 | |
| 32 | 2100267 | 11 | |
| 27 | 2100269 | 11 | |
| 42 | 2100271 | 11 | |
| 31 | 2100272 | 5 | |
| 35 | 2100275 | 12 | |
| 36 | 2100276 | 12 | |
| 33 | 2100277 | 12 | |
| 34 | 2100278 | 12 | |
| 41 | 2100279 | 12 | |
| 27 | 2100280 | 12 | |
| 14 | 2100281 | 12 | |
| 13 | 2100283 | 12 | |
| 20 | 2100288 | 11 | |
| 38 | 2100289 | 12 | |
| 21 | 2100336 | 18 | |
| 15 | 2100337 | 18 | |
| 16 | 2100338 | 18 | |
| 5 | 2100339 | 18 | |
| 6 | 2100349 | 14 |
Page 51 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7 | 2100353 | ||
| 4 | 2100354 | ||
| 2 | 2100363 | ||
| 14 | 2100369 | ||
| 24 | 2100374 | ||
| 13 | 2100375 | ||
| 1 | 2100381 | ||
| 3 | 2100382 | ||
| 17 | 2100404 | ||
| 17 | 2100410 | ||
| 35 | 2100412 | ||
| 36 | 2100413 | ||
| 39 | 2100414 | ||
| 40 | 2100417 | ||
| 11 | 2100418 | ||
| 25 | 2100419 | ||
| 1 | 2100425 | ||
| 25 | 2100433 | ||
| 16 | 2100434 | ||
| 25 | 2100435 | ||
| 27 | 2100436 | ||
| 30 | 2100437 | ||
| 28 | 2100438 | ||
| 33 | 2100441 | ||
| 20 | 2100442 | ||
| 22 | 2100443 | ||
| 26 | 2100444 | ||
| 31 | 2100450 | ||
| 28 | 2100451 | ||
| 29 | 2100452 | ||
| 28 | 2100502 | ||
| 19 | 2100518 | ||
| 41 | 2100533 | ||
| 43 | 2100535 | ||
| 44 | 2100536 | ||
| 19 | 2100538 | ||
| 5 | 2100580 | ||
| 11 | 2100602 | ||
| 3 | 2100625 | ||
| 43 | 2100642 | ||
| 20 | 2100642 | ||
| 25 | 2100667 | ||
| 22 | 2100671 | ||
| 23 | 2100672 | ||
| 24 | 2100673 | ||
| 25 | 2100674 | ||
| 27 | 2100703 | ||
| 33 | 2100854 | ||
| 26 | 2100855 | ||
| 31 | 2100856 | ||
| 21 | 2100863 | ||
| 20 | 2100864 | ||
| 1 | 2100865 | ||
| 4 | 2100866 | ||
| 5 | 2100867 | ||
| 8 | 2100868 | ||
| 6 | 2100869 | ||
| 7 | 2100870 | ||
| 15 | 2100872 | ||
| 24 | 2100874 | ||
| 26 | 2100875 | ||
| 18 | 2100884 | ||
| 37 | 2100890 | ||
| 27 | 2100892 | ||
| 40 | 2100895 | ||
| 39 | 2100896 | ||
| 5 | 2100899 | ||
| 1 | 2100900 | ||
| 6 | 2100902 | ||
| 22 | 2100903 | ||
| 20 | 2100918 | ||
| 2 | 2100921 | ||
| 16 | 2100926 | ||
| 17 | 2100927 | ||
| 18 | 2100928 | ||
| 19 | 2100929 | ||
| 1 | 2100935 | ||
| 15 | 2100957 | ||
| 12 | 2100958 | ||
| 23 | 2100960 | ||
| 7 | 2101151 | ||
| 8 | 2101152 | ||
| 9 | 2101155 | ||
| 15 | 2101156 | ||
| 18 | 2101157 | ||
| 19 | 2101158 | ||
| 22 | 2101159 | ||
| 12 | 2101160 | ||
| 13 | 2101161 | ||
| 5 | 2101163 | ||
| 20 | 2101164 | ||
| 24 | 2101165 | ||
| 23 | 2101166 | ||
| 2 | 2101167 | ||
| 3 | 2101435 | ||
| 8 | 2101450 | ||
| 9 | 2101451 | ||
| 46 | 2107104 | ||
| 6 | 2107104 | ||
| 15 | 2107105 | ||
| 47 | 2107163 | ||
| 16 | 2107163 | ||
| 37 | 2107409 | ||
| 5 | 2107409 | ||
| 14 | 2107412 | ||
| 30 | 2108050 | ||
| 26 | 2108076 | ||
| 18 | 2108079 | ||
| 44 | 2109050 | ||
| 45 | 2109051 | ||
| 46 | 2109052 | ||
| 27 | 2109055 | ||
| 28 | 2109056 | ||
| 16 | 2109201 | ||
| 52 | 2109210 | ||
| 35 | 2109211 | ||
| 50 | 2109212 | ||
| 34 | 2109302 | ||
| 29 | 2109320 | ||
| 15 | 2109347 | ||
| 1 | 2109932 | ||
| 6 | 2110026 | ||
| 5 | 2110027 | ||
| 6 | 2110183 | ||
| 5 | 2110184 | ||
| 16 | 2120537 | ||
| 29 | 2129423 | ||
| 11 | 2150015 | ||
| 1 | 2150016 | ||
| 18 | 2150017 | ||
| 4 | 2150018 | ||
| 20 | 2150019 | ||
| 17 | 2150020 | ||
| 23 | 2150021 | ||
| 12 | 2150022 | ||
| 10 | 2150023 | ||
| 12 | 2150024 | ||
| 14 | 2150025 | ||
| 19 | 2150026 | ||
| 59 | 2150027 | ||
| 37 | 2150035 | ||
| 10 | 2150038 | ||
| 18 | 2150039 | ||
| 26 | 2150040 | ||
| 28 | 2150041 | ||
| 37 | 2150042 | ||
| 20 | 2150043 | ||
| 32 | 2150044 | ||
| 33 | 2150045 | ||
| 29 | 2150046 | ||
| 30 | 2150047 | ||
| 23 | 2150048 | ||
| 22 | 2150049 | ||
| 42 | 2150050 | ||
| 17 | 2150051 |
Page 52 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13 | 2150055 | 36 | |
| 13 | 2150056 | 37 | |
| 6 | 2150057 | 24 | |
| 6 | 2150058 | 25 | |
| 7 | 2150060 | 9 | |
| 12 | 2150063 | 9 | |
| 11 | 2150064 | 1 | |
| 11 | 2150065 | 18 | |
| 11 | 2150066 | 19 | |
| 12 | 2150067 | 48 | |
| 5 | 2150069 | 38 | |
| 9 | 2150070 | 6 | |
| 9 | 2150071 | 4 | |
| 9 | 2150072 | 7 | |
| 9 | 2150075 | 8 | |
| 11 | 2150075 | 7 | |
| 9 | 2150084 | 14 | |
| 13 | 2150094 | 25 | |
| 13 | 2150095 | 24 | |
| 5 | 2150096 | 9 | |
| 13 | 2150097 | 28 | |
| 6 | 2150105 | 1 | |
| 4 | 2150111 | 55 | |
| 4 | 2150112 | 56 | |
| 4 | 2150115 | 26 | |
| 4 | 2150116 | 15 | |
| 9 | 2150117 | 34 | |
| 10 | 2150118 | 13 | |
| 4 | 2150119 | 62 | |
| 4 | 2150120 | 65 | |
| 4 | 2150121 | 66 | |
| 4 | 2150123 | 64 | |
| 4 | 2150124 | 24 | |
| 2 | 2150125 | 7 | |
| 9 | 2150130 | 11 | |
| 4 | 2150131 | 33 | |
| 4 | 2150132 | 57 | |
| 8 | 2150138 | 16 | |
| 8 | 2150139 | 24 | |
| 8 | 2150140 | 27 | |
| 8 | 2150141 | 29 | |
| 8 | 2150145 | 4 | |
| 8 | 2150146 | 7 | |
| 8 | 2150147 | 9 | |
| 8 | 2150148 | 10 | |
| 6 | 2150150 | 49 | |
| 4 | 2150151 | 41 | |
| 4 | 2150160 | 36 | |
| 4 | 2150162 | 31 | |
| 4 | 2150165 | 39 | |
| 10 | 2150166 | 4 | |
| 4 | 2150167 | 30 | |
| 10 | 2150168 | 23 | |
| 10 | 2150169 | 19 | |
| 10 | 2150170 | 9 | |
| 4 | 2150173 | 34 | |
| 5 | 2150180 | 11 | |
| 13 | 2150201 | 7 | |
| 13 | 2150202 | 21 | |
| 13 | 2150206 | 10 | |
| 13 | 2150207 | 22 | |
| 1 | 2150210 | 2 | |
| 5 | 2150214 | 1 | |
| 6 | 2150500 | 10 | |
| 6 | 2150510 | 9 | |
| 9 | 2150515 | 13 | |
| 10 | 2150550 | 32 | |
| 16 | 2151001 | 28 | |
| 8 | 2157300 | 33 | |
| 15 | 2157300 | 2 | |
| 14 | 2157301 | 11 | |
| 8 | 2157305 | 35 | |
| 14 | 2157305 | 29 | |
| 15 | 2157305 | 16 | |
| 8 | 2157310 | 32 | |
| 14 | 2157315 | 10 | |
| 15 | 2157324 | 1 | |
| 6 | 2159111 | 21 | |
| 14 | 2159112 | 25 | |
| 16 | 2159900 | 1 | |
| 13 | 3100060 | 31 | |
| 13 | 3100061 | 33 | |
| 5 | 3100129 | 8 | |
| 13 | 3100329 | 35 | |
| 13 | 3100345 | 34 | |
| 6 | 3100370 | 38 | |
| 13 | 3100370 | 8 | |
| 13 | 3100371 | 13 | |
| 19 | 9620631 | 2 | |
| 19 | 9620665 | 22 | |
| 19 | 9620670 | 3 | |
| 19 | 9620673 | 8 | |
| 19 | 9620675 | 11 | |
| 19 | 9620678 | 23 | |
| 19 | 9620679 | 24 | |
| 19 | 9620680 | 25 | |
| 19 | 9620681 | 26 | |
| 19 | 9620688 | 18 | |
| 19 | 9620689 | 4 | |
| 19 | 9620690 | 21 | |
| 19 | 9620691 | 20 | |
| 19 | 9620695 | 1 | |
| 19 | 9620700 | 17 | |
| 19 | 9620702 | 15 | |
| 19 | 9620503 | 16 |
Yamato AZ6500 — parts catalog
- Page 1 (cover): This is the cover page for the Yamato Illustrated Spare Parts List for High Speed Safety Stitch Machines, listing models AZ6500G-A, AZ6500G-A-52, and AZ6500G-C.
- Page 2 (text): This page provides instructions on how to read the parts list for the AZ6500G-A4, including explanations of marks and how to place orders for parts. It also includes notes on ordering specific parts like air tubes and a disclaimer that the parts list is subject to change.
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing various sections and their corresponding page numbers, including covers, driving mechanisms, and special devices.
- Page 4 (diagram): This page displays a diagram of various components and their corresponding reference numbers, including covers, screws, gaskets, and other mechanical parts for an industrial sewing machine.
- Page 5 (parts_list): This page lists miscellaneous covers for the sewing machine, including part numbers, descriptions, and quantities required.
- Page 6 (diagram): This page displays a diagram of various machine components, including screws, brackets, covers, and other parts, with reference numbers for identification.
- Page 7 (parts_list): This page lists miscellaneous covers and related parts for sewing machines, including part numbers, descriptions, and quantities required.
- Page 8 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, gaskets, plates, and a main housing unit, with reference numbers for each part.
- Page 9 (parts_list): This page lists miscellaneous covers and related parts for an industrial sewing machine, including part numbers, descriptions, quantities, and remarks.
- Page 10 (diagram): This page displays a diagram of various machine components, including brackets, screws, washers, and other small parts, with reference numbers for identification.
- Page 11 (parts_list): This page lists miscellaneous thread eyelets and related parts, including part numbers, descriptions, and quantities required.
- Page 12 (parts_list): This page lists miscellaneous thread eyelets with their part numbers, descriptions, and quantities required, ranging from reference number 41 to 68.
- Page 13 (diagram): This page displays a diagram of various components of an industrial sewing machine, including shafts, bearings, screws, and housing parts, with reference numbers for each part.
- Page 14 (parts_list): This page lists miscellaneous crankshaft and bushing parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 15 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, screws, and brackets, with reference numbers for each part.
- Page 16 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities.
- Page 17 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various machine components, including screws, plates, and levers, with reference numbers for each part.
- Page 19 (parts_list): This page lists parts for the KNIFE DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
- Page 20 (diagram): This page displays a diagram of various machine parts, including levers, springs, screws, and brackets, with reference numbers for identification.
- Page 21 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of various machine components, including brackets, shafts, screws, and other hardware, with reference numbers for each part.
- Page 23 (parts_list): This page lists parts for the Upper Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
- Page 24 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, screws, and brackets, with reference numbers for each part.
- Page 25 (parts_list): This page lists parts for the LOWER & DOUBLE CHAINING LOOPER DRIVING MECHANISM, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of various machine components, including levers, shafts, screws, and nuts, with corresponding reference numbers for identification.
- Page 27 (parts_list): This page lists parts for the FEED DRIVING CONTROL MECHANISM, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of various machine components, including shafts, gears, linkages, and fasteners, with reference numbers for each part.
- Page 29 (parts_list): This page lists parts for the FEED DR IVING MECHANISM, including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of various engine components, including filter assemblies, fuel lines, and internal engine parts, with corresponding reference numbers for identification.
- Page 31 (parts_list): This page lists parts for the Lubricating Mechanism, including oil pumps, worm wheels, screws, seals, oil tubes, clamps, filters, and various fittings, with their corresponding part numbers and quantities.
- Page 32 (diagram): This page displays diagrams of machine parts, including the "UPPER KN FE (Angled Type)" and parts for the "AZ6500G-C5" model, with numbered references for each component.
- Page 33 (parts_list): This page lists exclusive parts for the Upper Knife (Angled Type), AZ6500G-C5, including part numbers, descriptions, and quantities required.
- Page 34 (diagram): This page displays a diagram of machine parts with reference numbers, part numbers, and descriptions for the AZ6500G-A4-52 model.
- Page 35 (parts_list): This page lists exclusive parts for the AZ6500G-A4-52, including part numbers, descriptions, and quantities required.
- Page 36 (diagram): This page displays a diagram of the "K1" device, illustrating various components with reference numbers for identification.
- Page 37 (parts_list): This page lists parts for the "K1" Device, including various screws, trimming knives, and supports, with their corresponding part numbers and quantities.
- Page 38 (diagram): This page displays a diagram of the "C" DEVICE, with numbered parts including screws, brackets, regulators, gauges, and tubing.
- Page 39 (parts_list): This page lists parts for the 'C' DEVICE, including part numbers, descriptions, and quantities required.
- Page 40 (diagram): This page displays a diagram of various machine components, including frame parts, semi-submerged and fully-submerged settings, and extra parts, with corresponding reference numbers for identification.
- Page 41 (parts_list): This page lists miscellaneous supporting board parts with their corresponding part numbers, descriptions, and quantities required.
- Page 42 (diagram): This page displays a diagram of various machine components, including spools, brackets, and fasteners, with corresponding reference numbers.
- Page 43 (parts_list): This page lists parts for the THREAD STAND, including part numbers, descriptions, and quantities required.
- Page 44 (parts_list): This page lists various warning labels for the machine, including caution for operation, attention, danger of electric shock, and high temperature warnings, along with their corresponding part numbers.
- Page 45 (cover): This page is the cover of the parts list, titled 'LIST of MAIN SPARE PARTS' and also in Japanese '(主要部品リスト)'.
- Page 46 (parts_list): This page lists the main spare parts for the AZ6500G sewing machine, including needle clamp, presser foot components, stitch tongue, and thread chain guide.
- Page 47 (parts_list): This page contains a parts list for various sewing machine components, including plate, differential feed dog, main feed dog, auxiliary feed dog, upper looper, lower looper, and double chaining looper, with corresponding part numbers and descriptions.
- Page 48 (parts_list): This page contains a parts list for the AZ6500G, listing part numbers, page references, and weights.
- Page 49 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, page numbers, reference numbers, and weights.
- Page 50 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, page numbers, reference numbers, and weights.
- Page 51 (index): This page is an index of parts for a sewing machine, listing part numbers, page numbers, reference numbers, and weights.
- Page 52 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, page numbers, reference numbers, and weights in grams.
