Page 5 — MISCELLANEOUS COVERS(1)

Yamato AZF8600G parts on page 5
Ref	Part number	Part name	Qty
1	2100006	Cloth Plate	1
2	2150210	Cloth Plate(Lower)	1
3	2100014	Rubber Cushion	1
4	001123	Washer	5
5	000644	Spring Washer	3
6	110045	Screw(M4-0.7 × 12)	3
7	2100011	Cloth Plate Eccentric Bushing	1
8	160001	Screw(M4-0.7 × 4)	1
9	2100012	Collar(4 × 9 × 6mm)	1
10	003637	Screw(1/8-44 × 2.5)	1
11	2150015	Cloth Plate Spring	1
12	110012	Screw(M4-0.7 × 5)	2
13	100001	Lock Nut	1
14	110031	Stop Screw(M4-0.7 × 12)	1
15	0020004	Oil Cap	1
16	0020005	O-ring(P28)	1
17	2100053	Top Cover	1
18	110016	Screw(M4-0.7 × 15)	6
19	2150026	Top Cover Gasket	1
20	2100864	Oil Reservoir Gasket	1
21	2151054	Oil Reservoir	1
22	006816	Screw(1/4-24 × 8)	4
23	0032879	OilReservoirRubberCushion(Black)	3
24	0033627	OilReservoirRubberCushion(Green)	1
26	2100875	Oil Reservoir Positioning Bar	4
27	300004	Washer	4
28	120017	Screw(M5-0.8 × 15)	6
29	0020137	Drain Hole Seal	1
30	005075	Drain Hole Screw(3/8-24 × 8)	1
32	2151056	Wind Guide Plate	1
33	110013	Screw(M4-0.7 × 8)	2
34	300043	Washer	2
35	2049401	Serial Number Plate	1
36	000726	Rivet	2

Page 7 — MISCELLANEOUS COVERS(2)

Yamato AZF8600G parts on page 7
Ref	Part number	Part name	Qty
1	2160014	Side Cover	1
2	110013	Screw(M4-0.7 × 8)	5
3	110013	Screw(M4-0.7 × 8)[M4-0.7 × 5.4]	1
4	2150018	Eye Guard Holder	1
5	170032	Screw(M4-0.7 × 5)	1
6	000010	Conical Spring Washer	2
7	2150125	Eye Guard	1
8	110076	Screw(M3-0.5 × 6)	2
9	000444	Washer	2
10	2150023	Needle Bar Oil Defender	1
11	110012	Screw(M4-0.7 × 5)	4
12	2150024	Needle Bar Oil Seal	1
13	190015	Screw(M14-2 × 6)	4
14	2150025	Logo Plate	1
15	110106	Screw(M4-0.7 × 8)	2
16	390170	"AZF-G" Logo Mark	1
17	390165	Brand Name Plate(68mm)(Green)	1
18	390166	Brand Name Plate(83mm)(Green)	1
19	2100538	Front Cover Latch Spring	1
20	0024446	Front Cover Hook	1
21	001203	Screw(9/64-40 × 4.5)	1
22	0020016	Front Cover Hinge Pin	1
23	003637	Screw(1/8-44 × 2.5)	2
24	2100024	Front Cover(Right)	1
25	0024095	Front Cover Hinge Spring	1
26	2151055	Front Cover Hinge	1
27	2100703	Chip Guard(Openable)	1
28	110003	Screw(M3.5-0.6 × 6)	2
29	2129420	Model Plate(Green)	1
30	390670	Threading Chart	1
31	2100856	Front Cover Latch	1
32	110054	Screw(M3-0.5 × 3.5)	2
33	390523	Threading Chart(Left)	1
34	2120062	Rear Cover Support	1
35	110045	Screw(M4-0.7 × 12)	1
36	2120055	Top Feed Dog Bar Rear Cover	1
37	001123	Washer	2
38	2120141	Top Feed Dog Bar Oil Receiver, C. Set	1
39	2120053	Top Feed Dog Bar Oil Receiver	1
40	2120138	Oil Receiver Rubber(Large)	1
41	2120139	Oil Receiver Rubber(Small)	1
42	2120098	Oil Receiver Fixing Plate	1
43	110045	Screw(M4-0.7 × 12)[M4-0.7 × 8]	1

Page 9 — MISCELLANEOUS COVERS (3)

Yamato AZF8600G parts on page 9
Ref	Part number	Part name	Qty
1	2120063	Feed Mechanism Cover	1
2	2120588	Feed Mechanism Cover Gasket	1
3	110048	Screw(M4-0.7 × 10)	5
4	2100047	Rubber Cushion	1
5	2110027	O-ring(P52)	1
6	2110026	Ball Bearing Holder	1
7	110013	Screw(M4-0.7 × 8)	10
8	2100318	Fan Cover	1
9	110012	Screw(M4-0.7 × 5)	2
10	150004	Screw(M4-0.7 × 6)	1
12	2150022	Pushbutton	1
13	2100861	Oil Seal	1
14	0033024	Retaining Ring	2
15	0068517	Pushbutton Spring	1
16	330008	Seal Plug	1
17	330000	Seal Plug	1
18	2150017	Fabric Guide Plate	1
19	110064	Screw(M4-0.7 × 8)	2
20	2100918	Tail Cover Gasket	1
21	2100037	Tail Cover	1
22	2150069	Seal Plug	1
23	2100960	Ball Bearing Housing	1
24	2100874	Ball Bearing Housing Gasket	1
25	130003	Screw(M4-0.7 × 7.3)	3
26	0093528	Looper Thread Pipe Stay	1
27	0021735	Looper Thread Pipe	1
28	0020218	Top Feed Shaft End Cap	1
29	0020051	Seal Plaug	1
	2100651	Oil Seal	1

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato AZF8600G parts on page 11
Ref	Part number	Part name	Qty
1	2160122	Thread Guide Plate	1
2	110013	Screw(M4-0.7 x 8)	3
3	0024084	Thread Tension Spring Cap	4
4	0024083	Tension Spring Bushing	4
5	0024157	Tension Spring(Lower Looper Thread)	1
6	0020118	Thread Tension Spring Retainer	4
7	000178	Felt	4
8	0031111	Tension Disc	8
9	000177	Felt	4
10	190016	Tension Post	4
11	0032962	Tension Disc Eyelet	3
12	0032952	Tension Spring(Upper Looper Thread)	1
13	0030255	Tension Spring(Double Chain Thread)	1
14	0024156	Tension Spring(Needle Thread)	1
15	2150116	Tension Disc Eyelet for Needle Thread	1
16	0022215	Looper Thread Pipe	2
17	2100404	Double Chaining Looper Thread Eyelet(Rear)	1
18	110009	Screw(M4-0.7 x 8)	2
19	2150030	Oil Container	1
20	2150031	Oil Container Plug	1
21	310105	Felt	1
22	2150032	Felt Holder	1
23	110013	Screw(M4-0.7 x 8)[M4-0.7 x 8]	1
24	2150124	Needle Thread Eyelet Holder	1
25	110001	Screw(M4-0.7 x 8)	2
26	2150115	Needle Thread Eyelet(Right)	1
27	006035	Screw(9/64-40 x 7)	1
28	000644	Spring Washer	1
29	000322	Nut	1
30	2150167	Needle Thread Eyelet Holder(Double Chain)	1
31	2150162	Needle Thread Eyelet(Right)(Double Chain)	1
32	110002	Screw(M3-0.5 x 5)	1
33	2150131	Needle Thread Eyelet(Left)	1
34	2150173	Needle Thread Eyelet(Left)(Double Chain)	1
35	130026	Screw(M4-0.7 x 5.8)[M4-0.7 x 6]	1
36	2150270	Needle Thread Pull-off	1
37	110073	Screw(M4-0.7 x 7.5)	1
38	000653	Knock Pin	1
39	2150165	Double Chaining Looper Thread Eyelet(Left)	1
40	110008	Screw(M4-0.7 x 5)	2

Page 13 — MISCELLANEOUS THREAD EYELETS

Yamato AZF8600G parts on page 13
Ref	Part number	Part name	Qty
41	2150151	Thread Eyelet Stopper	1
42	110091	Screw(M3-0.5 × 3)	1
43	0020123	Tension Disc Eyelet	1
44	190002	Tension Post	1
45	0020124	Tension Disc	2
46	0020125	Double Chaining Looper Tension	1
47	0020126	Tension Spring Bushing	1
48	000182	Adjusting Nut	1
49	0020167	Double Chaining Looper Thread Eyelet	1
50	009853	Screw(11/64-40 × 6.5)	1
51	0020165	Thread Eyelet Bracket	1
52	000010	Conical Spring Washer	1
53	190000	Screw(M4-0.7 × 7)	1
54	0020166	Thread Retaining Finger	1
55	2150163	Thread Retainer Plate Support	1
56	2150112	Thread Retainer Plate	1
57	2150132	Thread Retainer Spring	1
58	170049	Screw(M2-0.4 × 4)	1
59	2150240	Looper Holder Cover	1
60	0093303	Looper Driving Shaft Oil Seal	1
61	2100229	Looper Holder Cover Spacer(Rubber)	1
62	2150119	Looper Thread Eyelet(Left)	1
63	110035	Screw(M4-0.7 × 10)	3
64	2150123	Thread Eyelet Support	1
65	2150120	Lower Looper Thread Eyelet	1
66	2150121	Upper Looper Thread Eyelet	1
67	000014	Washer	2
68	110026	Screw(M3-0.5 × 6)	2
69	000494	Spacer	1
70	110048	Screw(M4-0.7 × 10)	1
71	2120536	Supplementary Thread Eyelet	1

Page 15 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

Yamato AZF8600G parts on page 15
Ref	Part number	Part name	Qty
1	2150214	Machine Pulley	1
2	160007	Screw(M6-1 × 6)	5
3	2110181	Oil Cooling Fan	1
4	160001	Screw(M4-0.7 × 4)	5
5	2110184	Wave Washer	1
6	2110183	Mechanical Oil Shield	1
7	3100131	Crankshaft Ball Bearing(Right)	1
8	2120026	Bearing Adapter	1
9	2150096	Oil Pump Driving Worm	1
10	2150038	Crankshaft Bushing	1
11	2160100	Crankshaft	1
12	2100111	Crankshaft Counterweight	1
13	110036	Screw(M3-0.5 × 6.5)	2
14	160027	Screw(M3-0.5 × 3)	5
15	2100872	Crankshaft Ball Bearing(Left)	1
16	2120537	DoubleChainingLooperThreadTake-up	1
17	2100410	Thread Take-up Pin	1
18	2150039	Crankshaft Bushing	1
19	2100105	UpperKnifeDrivingShaftBushing(Right)	1
20	2150043	UpperKnife・FeedBarDrivingShaftBushing	2
21	2100117	Upper Knife Driving Shaft Oil Seal	1
22	2150049	NeedleBarDrivingShaftBushing(Right)	1
23	2150048	Needle Bar Driving Shaft Bushing(Left)	1
24	003636	Cap Screw(5/16-32 × 3.5)	1
25	000526	Gasket	1
26	2150040	Needle Bar Bushing(Upper)	1
27	310109	Oil Wick	1
28	2150041	Needle Bar Bushing(Lower)	1
29	2150046	UpperLooperDrivingShaftBushing(Front)	1
30	2150047	UpperLooperDrivingShaftBushing(Rear)	1
31	2100272	Looper Driving Shaft Oil Seal	1
32	2150044	LowerLooperDrivingShaftBushing(Front)	1
33	2150045	LowerLooperDrivingShaftBushing(Rear)	1
34	0077301	Looper Shaft Oil Seal	1
35	2100412	DoubleChainingLooperShaftBushing(Front)	1
36	2100413	DoubleChainingLooperShaftBushing(Rear)	1
37	2150042	Feed Bar Driving Shaft Bushing(Left)	1
38	2150069	Seal Plug	1
39	2100414	Looper Rocker Shaft Bushing	2
40	2100417	Seal Plug	1
41	2100098	Control Lever Shaft Bushing	1
42	2120030	TopFeedDrivingConnectingRodSpacer	1
43	2120074	Top Feed Shaft Bushing(Right)	1
44	2120075	Top Feed Shaft Bushing(Left)	1
45	2120071	VerticalMotion&RockerShaftBushing(Right)	2
46	2120073	Vertical Motion Shaft Bushing(Left)	1
47	0093303	Oil Seal	1
48	2120072	Top Feed Rocker Shaft Bushing(Left)	1
49	2150050	Needle Bar & Needle Bar Bushing, C. Set	1
50	2100642	Needle Bar	1

Page 17 — NEEDLE BAR DRIVING MECHANISM

Yamato AZF8600G parts on page 17
Ref	Part number	Part name	Qty
1	2100252	Needle Bar Driving Connecting Rod	1
2	120049	Screw(M4-0.7 x 16)	2
3	2100144	Needle Bar Driving Connecting Rod Pin	1
4	160002	Screw(M4-0.7 x 5)	1
5	2101405	Needle Bar Driving Lever	1
6	120006	Screw(M6-1 x 12)	1
7	2100137	Collar(12 x 20 x 10mm)	1
8	160003	Screw(M5-0.8 x 5)	2
9	2150242	Needle Bar Crank Arm, C. Set	1
10	2150053	Needle Bar Driving Shaft	1
11	2101406	Needle Bar Crank Arm	1
12	300008	Washer	1
13	140003	Screw(M6-1 x 18)	1
14	2100138	Needle Bar Connecting Link	1
15	2100176	Needle Bar Connecting Link Pin	2
16	310089	Oil Wick	2
17	2150059	Needle Bar Connecting Bracket	1
18	110006	Screw(M3.5-0.6 x 10)	1
19	160016	Screw(M4-0.7 x 4.5)	2
20	2100642	Needle Bar	1
21	2169112	Needle Clamp(C)	1
23	003637	Screw(1/8-44 x 2.5)	2
24	2150057	Stitch Plate Support Stay, C. Set	1
25	2150058	Stitch Plate Support Stay	1
26	000035	Roll Pin	1
27	110009	Screw(M4-0.7 x 8)	6
28	2100502	Stitch Plate Support(Rear)	1
29	110001	Screw(M4-0.7 x 5.4)	1
30-1	2128604	Stitch Plate(C5)	1
30-2	2128605	Stitch Plate(C7)	1
31	005345	Screw(11/64-40 x 8.3)	2
32	2100145	Stitch Plate Support(Front)	1
33	110011	Screw(M5-0.8 x 10)	2
34	0032604	Rubber Cushion	1
35	2109211	NeedleGuard(Front)(DoubleChainStitch)	1
36	110002	Screw(M3-0.5 x 5)	1
37	2150035	HR Unit, Complete Set	1
38	3100370	Tube Joint	1
39	2100152	Oil Tube(70mm)	1
40	310005	Oil Wick	1

Page 19 — NEEDLE BAR DRIVING MECHANISM

Yamato AZF8600G parts on page 19
Ref	Part number	Part name	Qty
41	2100533	HR Felt Holder	1
42	310001	HR Felt	1
43	2100535	HR Felt Holder Bracket, C. Set	1
44	2100536	HR Felt Holder Bracket	1
45	000393	Roll Pin	1
46	110013	Screw(M4-0.7 × 8)	1
47	320008	Fitting Stud(Short)	1
48	000567	Seal	1
49	2150150	HR Unit Bracket	1
50	2109212	Needle Guard(Rear)(Double Chain Stitch)	1
51	007627	Screw(M4-0.7 × 6)	2
52	2129200	Needle Guard(Front)(Overlock Stitch)	1
53	110027	Screw(M2.5-0.45 × 3.5)	2

Page 21 — KNIFE DRIVING MECHANISM

Yamato AZF8600G parts on page 21
Ref	Part number	Part name	Qty
1	2100160	Upper Knife Driving Connecting Rod	1
2	120049	Screw(M4-0.7 × 16)	2
3	2100173	Driving Lever Pin	1
4	160002	Screw(M4-0.7 × 5)	1
5	2101423	Upper Knife Driving Lever	1
6	120006	Screw(M6-1 × 12)	1
7	2100161	Collar(10 × 19 × 9mm)	1
8	160003	Screw(M5-0.8 × 5)	2
9	2150250	Upper Knife Driving Shaft	1
10	2100165	Upper Knife Holder Positioner	1
11	2121108	Upper Knife Holder(Angled Type)	1
12	2121107	Upper Knife(Angled Type)	1
13	2121114	Upper Knife Clamp	1
14	2121110	Upper Knife Chip Guard	1
15	000665	Washer	1
16	140013	Screw(M4-0.7 × 24)	1
17	2121109	Upper Knife Holder	1
18	110038	Screw(M2.5-0.45 × 4.5)	1
19	110063	Stop Screw(M3-0.5 × 18)	1
20	000488	Nut	1
21	0093864	Seal Plug	1
22	2150020	Lower Knife Holder Spring Stop	1
23	110012	Screw(M4-0.7 × 5)	3
24	2100174	Cloth Plate Rubber Cushion	1
25	2150019	Front Cover	1
26	110001	Screw(M4-0.7 × 5.4)	2
27	2100009	Cloth Plate Spring Pin	1
28	2150021	Lower Knife Holder Locking Plate	1
29	0032919	Lower Knife Holder Spring	1
30	2121112	Lower Knife Holder	1
31	110046	Screw(M5-0.8 × 12)	1
32	2121111	Lower Knife	1
33	2121113	Lower Knife Clamp	1
34	140010	Screw(M4-0.7 × 6)	1

Page 23 — PRESSER FOOT MECHANISM

Yamato AZF8600G parts on page 23
Ref	Part number	Part name	Qty
1	190080	Adjusting Screw(M10-0.75 × 30)	1
2	100073	Lock Nut	1
3	0032726	Presser Spring	1
4	2150145	Presser Bar	1
5	2100580	Presser Arm Positioning Guide Pin	1
6	340050	Spring Pin	1
7	2160057	Presser Arm Stop	1
8	110008	Screw(M4-0.7 × 5)[M4-0.7 × 4.8]	1
9	2160055	Presser Foot Release Lever	1
10	2160058	Presser Foot Release Lever Spring	1
11	170045	Screw(M4-0.7 × 5)	1
13	2150143	Presser Foot Lifter Lever	1
15	170065	Screw(M8-1.25 × 10)[M8-1.25 × 10]	1
16	2150142	Presser Foot Lifter Lever Stop	1
17	120010	Screw(M6-1 × 10)	1
18	2150144	Presser Foot Lifter Lever Link	1
19	2100518	Presser Foot Shaft Collar	1
20	120017	Screw(M5-0.8 × 15)	1
21	2160033	Intermediate Lever	1
22	110065	Stop Screw(M4-0.7 × 12)	1
23	100001	Lock Nut	1
24	2150139	Presser Foot Lifter Lever Spring	1
25	2160032	Presser Foot Shaft Bushing	1
26	160007	Screw(M6-1 × 6)	1
27	3100104	O-ring(P16)	1
28	2120045	Top Feed Dog Lifting Lever	1
29	120017	Screw(M5-0.8 × 15)	1
30	2160029	Presser Arm, Complete Set	1
31	2160031	Presser Foot Shaft	1
32	2160030	Presser Arm	1
33	2100199	Presser Arm Hinge Pin	1
34	160001	Screw(M4-0.7 × 4)	1
35-1	2127550	Presser Foot, C. Set(C5)	1
35-2	2127551	Presser Foot, C. Set(C7)	1
36	2127580	Presser Foot(Upper)	1
37	110004	Screw(M3.5-0.6 × 8)	1
38	2127575	Presser Foot Connector	1
39	006094	Screw(1/8-44 × 3)	3
40	2127570	Presser Foot(Rear)	1
41-1	2127560	Presser Foot(Front)(C5)	1
41-2	2127561	Presser Foot(Front)(C7)	1
42	2127578	Presser Foot Connector(Right)	1
43	004404	Screw(3/32-56 × 5.1)	3
44	2127507	Presser Foot Spring	1
45	0020271	Thread Chain Cutting Knife	1
46	000531	Washer	1
47	2160059	Presser Foot Release Lever Stop	1
48	2160063	Presser Bar Guide Plate	1
49	110023	Screw(M2-0.4 × 3.5)	1

Page 25 — TOP FEED MECHANISM(1)

Yamato AZF8600G parts on page 25
Ref	Part number	Part name	Qty
1	2120027	Top Feed Driving Connecting Rod	1
2	120001	Screw(M4-0.7 × 14)	2
3	2120028	Connecting Rod Pin	1
4	330009	Seal Plug	2
5	160007	Screw(M6-1 × 6)	1
6	2120029	Top Feed Shaft Lever	1
7	120006	Screw(M6-1 × 12)	1
8	0032646	Collar	2
9	009604	Screw(11/64-40 × 5.5)	4
10	2120031	Top Feed Shaft	1
11	000750	Seal Plug	1
12	330008	Seal Plug	1
13	2120002	Top Feed Rocker, Complete Set	1
14	2120003	Top Feed Rocker	1
15	120013	Screw(M6-1 × 15)	2
16	2120004	Top Feed Regulating Slider	1
17	2120005	Slider Pin Adjusting Lever, C. Set	1
18	2120082	Top Feed Regulating Slider Pin	1
19	160001	Screw(M4-0.7 × 14)	3
20	2120007	Top Feed Shaft Lever Link	1
21	0026081	Link Pin	1
22	0026413	Spacer	1
23	0026099	Top Feed Guide Block	1
24	2120083	Spacer	1
25	0033024	Retaining Ring	1
26	2120006	Slider Pin Adjusting Lever	1
27	120011	Screw(M6-1 × 18)	1
28	2120008	Top Feed Rocker Shaft Lever	1
29	0033104	Coller	1
30	005550	Screw(11/64-40 × 13.5)	1
31	2120032	Slider Pin Adjusting Lever Shaft	1
32	2120009	Top Feed Rocker Shaft	1
33	310046	Oil Wick(2.3 × 2.3 × 14mm)	1

Page 27 — TOP FEED MECHANISM(2)

Yamato AZF8600G parts on page 27
Ref	Part number	Part name	Qty
1	0093323	Collar(Right)	1
2	0033104	Collar(Left)	1
3	005550	Screw(11/64-40 × 13.5)	2
4	2120020	Vertical Motion Adjusting Lever, C. Set	1
5	2120021	Vertical Motion Adjusting Lever	1
6	120013	Screw(M6-1 × 15)	2
7	004106	Screw(9/64-40 × 6.5)	1
8	000533	Washer	1
9	0026075	Adjusting Lever Pin	1
10	2120022	Vertical Motion Lever Link	1
11	0026081	Vertical Motion Lever Pin	1
12	003637	Screw(1/8-44 × 2.5)	5
13	2120023	Vertical Motion Lever	1
14	2120019	Top Feed Vertical Motion Shaft	1
15	310047	Oil Wick(2.3 × 2.3 × 11.5mm)	2
16	0023234	Positioning Pin	1
17	2120131	Top Feed Dog Bar, C. Set(2)	1
18	2120018	Vertical Motion Link	1
19	310069	Oil Wick(No. 2-210mm)	1
20	000755	Pin	1
21	310068	Oil Wick(No.2-120mm)	1
22	0024302	Oil Wick Stay	1
23	2120067	Oil Wick Holder	1
24	110002	Screw(M3-0.5 × 5)	1
25	2120130	Top Feed Dog Bar, C. Set(1)	1
26	2120093	Top Feed Dog Bar Guide Lever	1
29	2120095	Top Feed Dog Bar Guide Pin	1
30	2120112	Top Feed Dog Bar Guide	1
31	310054	Oil Wick(2.3 × 2.3 × 6mm)	1
32	2120017	Press Bar Receiver	1
33	2120132	Shield Support	1
34	110050	Screw(M3.5-0.6 × 4.5)	2
35	2120014	Top Feed Dog Bar	1
36	2120572	Top Feed Dog Bar Shield	2
37	310046	Oil Wick(2.3 × 2.3 × 14mm)	1
38	0026418	Top Feed Dog Bar Connecting Pin	1
39	2120015	Top Feed Rocker Link	1
40	2120570	Top Feed Dog Bar Cover(Front), C. Set	1

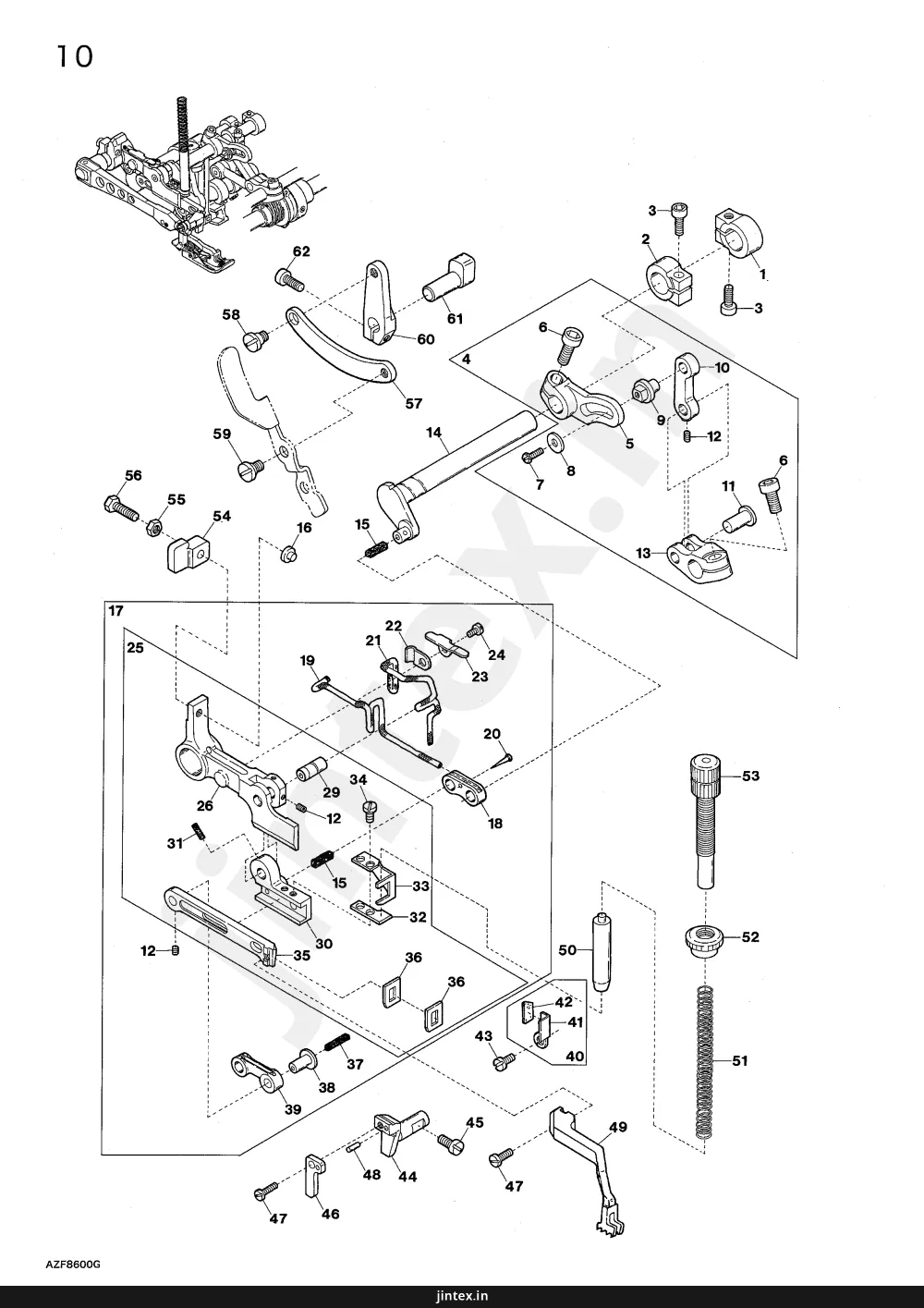

Page 29 — TOP FEED MECHANISM(2) / 上送り機構(2)

Yamato AZF8600G parts on page 29
Ref	Part number	Part name	Qty
41	2120136	Top Feed Dog Bar Cover(Front)	1
42	2120571	Top Feed Dog Bar Cover Rubber	1
43	110012	Screw(M4-0.7 × 5)	1
44	2160015	Top Feed Dog Bar Support(Right)	1
45	110035	Screw(M4-0.7 × 10)	1
46	2160016	Top Feed Dog Bar Support(Left)	1
47	110004	Screw(M3.5-0.6 × 8)	2
48	000687	Knock Pin	1
49	2129070	Top Feed Dog	1
50	2120037	Top Feed Dog Press Bar	1
51	2120038	Top Feed Dog Press Spring	1
52	100074	Lock Nut	1
53	190081	Adjusting Screw(M10-0.75 × 44)	1
54	2160028	Top Feed Dog Bar Block	1
55	100001	Nut	1
56	140032	Screw(M4-0.7 × 22)	1
57	2160056	Top Feed Dog Lift Link	1
58	170041	Screw(M5-0.8 × 3.5)	1
59	170048	Screw(M5-0.8 × 5)	1
60	2160026	Top Feed Dog Lift Lever	1
61	2160027	Top Feed Dog Lift Shaft	1
62	009747	Screw(M4-0.7 × 10)	1

Page 31 — TOP FEED MECHANISM (3)

Yamato AZF8600G parts on page 31
Ref	Part number	Part name	Qty
1	2120035	Spring Hanger	1
2	000665	Washer	2
3	110013	Screw(M4-0.7 × 8)	2
4	2120036	Top Feed Dog Lever Spring	1
5	2120033	Top Feed Dog Lever	1
6	110009	Screw(M4-0.7 × 8)	3
7	2120034	Top Feed Dog Graduation	1
8	000538	Washer	2
9	110035	Screw(M4-0.7 × 10)	2
10	190039	Screw(M4-0.7, M6-1 × 19)	1
11	100029	Adjusting Nut	1
12	000663	Washer	1
13	100001	Lock Nut	1
14	005049	Screw(M5-0.8 × 8)	1
15	000554	Washer	1
16	0020350	Top Feed Dog Lever Stopper	1
17	0026434	Lever Adjusting Box, C. Set	1
18	0026427	Lever Adjusting Box	1
19	0026430	Lever Adjusting Block	1
20	0026428	Lever Adjusting Screw	1
21	0026438	Coller	1
22	003637	Screw(1/8-44 × 2.5)	3
23	0068206	O-ring(P4)	1
24	0026429	Adjusting Screw Supporting Plate	1
25	004351	Screw(9/64-40 × 7)	2
26	000280	Rubber Cushion	2
27	2020048	Adjusting Knob Spring	1
28	0026431	Adjusting Knob	1
29	110064	Screw(M4-0.7 × 8)	2

Page 33 — UPPER LOOPER DRIVING MECHANISM

Yamato AZF8600G parts on page 33
Ref	Part number	Part name	Qty
1	2100215	Looper Driving Lever Connecting Rod	1
2	120049	Screw(M4-0.7 × 16)	4
3	2100088	Connecting Rod Swing-proof	2
4	2101416	Upper Looper Driving Lever	1
5	120006	Screw(M6-1 × 12)	1
6	2150070	Looper Driving Shaft	1
7	2101418	Driving Shaft Thrust Ring	1
8	2150075	Driving Shaft Thrust Ring	1
9	2100161	Collar(10 × 19 × 9mm)	1
10	160001	Screw(M4-0.7 × 4)	2
11	2150130	Upper Looper Thread Pull-off	1
12	110009	Screw(M4-0.7 × 8)	2
13	2150087	Upper Looper Bar Crank Arm, C. Set	1
14	2101412	Upper Looper Bar Guide Bushing	1
15	2100227	Upper Looper Bar Guide Cover	1
16	130001	Screw(M2.5-0.45 × 6)	1
17	110071	Screw(M2.5-0.45 × 6)	1
18	2150092	Upper Looper Bar Guide, Complete Set	1
19	2101414	Upper Looper Bar Crank Arm	1
20	300008	Washer	1
21	140004	Screw(M6-1 × 16)	1
22	2100903	Upper Looper Bar Crank Arm Pin	1
23	160002	Screw(M4-0.7 × 5)	1
24	310089	Oil Wick	1
25	2150080	Upper Looper Bar	1
26	000629	Seal Plug	1
27	2100892	Upper Looper Bar Guide	1
28	310065	Oiling Felt	1
29	2109343	Upper Looper(for Needle Size #18~21)	1
30	210009	Screw(1/8-44 × 3.2)	1
31	000779	Standard Pin	1
32	120013	Screw(M6-1 × 15)	2
33	2100854	UpperLooperSupplementaryThreadEyelet	1
34	2150117	Lower Looper Thread Pull-off	1
35	000014	Washer	1
36	110002	Screw(M3-0.5 × 5)	1
37	2150079	Upper Looper Bar, C. Set	1

Page 35 — LOWER & DOUBLE CHAINING LOOPER DRIVING MECHANISM 下ループ及び二重環ルーパ機構 13

Yamato AZF8600G parts on page 35
Ref	Part number	Part name	Qty
1	2100215	Looper Driving Lever Connecting Rod	1
2	120049	Screw(M4-0.7×16)	4
3	2100088	Connecting Rod Swing-proof	1
4	2150253	Lower Looper Driving Lever	1
5	160024	Screw(M6-1×8)	2
6	2100905	Driving Shaft Thrust Ring	1
7	2100161	Collar(10×19×9mm)	1
8	160003	Screw(M5-0.8×5)	3
9	2150170	Looper Driving Shaft	1
10	2101417	Lower Looper Holder Arm	1
11	300008	Washer	1
12	140002	Screw(M6-1×14)	2
13	2150118	Thread Pull-off	1
14	110009	Screw(M4-0.7×8)	1
15	2109334	Lower Looper	1
16	2109214	Needle Guard(Rear)	1
17	110036	Screw(M3-0.5×6.5)	1
18	180014	Screwed Pin(M3-0.5×4.5)	1
19	2150169	DoubleChainingLooperDrivingConnection	1
20	2100249	Bushing	1
21	300000	Washer	1
22	140005	Screw(M5-0.5×17)[M5-0.5×12]	1
23	2150168	Double Chaining Looper Driving Lever	1
24	120006	Screw(M6-1×10)	1
25	2100433	Looper Driving Connecting Pin(Left)	1
26	160001	Screw(M4-0.7×4)	1
27	2100436	Looper Slide Block Holder(Front)	1
28	2100438	Looper Slide Block Holder(Rear)	1
29	120018	Screw(M4-0.7×10)	2
30	2100437	Looper Slide Block	1
31	000740	Seal Plug	1
32	2101434	Double Chaining Looper Driving Shaft	1
33	2101420	Double Chaining Looper Holder Arm	1
34	2109335	Double Chaining Looper	1
35	000035	Position Pin	1
36	300032	Washer	1
37	007610	Screw(M4-0.7×10)	1
38	300106	Conical Spring Washer	1
39	100044	Nut	1

Page 37 — FEED DRIVING CONTROL MECHANISM / 前送り調節機構

Yamato AZF8600G parts on page 37
Ref	Part number	Part name	Qty
1	2150064	Main Feed Bar Lever	1
2	120006	Screw(M6-1 × 12)	4
3	2100251	Main Feed Bar Lever Pin	1
4	300000	Washer	3
5	100002	Nut	1
6	000669	Washer	2
7	2150075	Thrust Plate	1
8	0095027	Retaining Ring	1
9	2100248	Main Feed Bar Connection	1
10	2100249	Connection Bushing	1
11	140001	Screw(M5-0.5 × 12)	1
12	2100266	Feed Bar, Complete Set	1
13	2100242	Main Feed Bar	1
14	2100241	Differential Feed Bar	1
15	2100243	Differential Feed Bar Connection	1
16	2100244	Connection Bushing	1
17	140000	Screw(M5-0.5 × 15.5)	1
18	2150065	Feed Bar Driving Shaft	1
19	2150066	Feed Bar Driving Shaft Lever	1
20	2100288	Connecting Rod Pin	1
21	160007	Screw(M6-1 × 6)	1
22	2100671	Differential Rocker, Complete Set	1
23	2100672	Differential Rocker	1
24	2100673	Differential Regulating Slider	1
25	2100674	Differential Regulating Slider Cap	1
26	110033	Screw(M3-0.5 × 6)	2
27	2100269	Differential Lever(Right), C. Set	1
28	2100252	Slider Link	1
29	0068202	Retaining Ring	1
30	2100253	Slider Link Pin	1
31	2100262	Differential Lever(Right)	1
32	2100267	Collar(10 × 17 × 8mm)	1
33	160001	Screw(M4-0.7 × 4)	2
34	000690	Spring Pin	1
35	2100256	Differential Lever Spring	1
36	0020538	O-ring(P7)	1
37	2100263	Differential Lever(Left)	1
38	000528	Washer	1
39	000561	Conical Spring Washer	1
40	100000	Adjusting Nut	1
41	190001	Adjusting Screw(M6-1×11.5,M4.5-0.5×4)	1
42	2100271	Differential Feed Graduation	1
43	110016	Screw(M4-0.7 × 15)	2
44	0020350	Differential Lever Stop	2
45	110017	Screw(M5-0.8 × 8)	2
46	2100257	Adjusting Screw	1
47	2100264	Adjusting Block	1
48	2100259	Adjusting Block Spring	1
49	0034293	Retaining Ring	1
	2150068	Connecting Rod Pin	1

Page 39 — FEED DRIVING MECHANISM

Yamato AZF8600G parts on page 39
Ref	Part number	Part name	Qty
1	2100865	Feed Bar Guide Support	1
2	110064	Screw(M4-0.7 X 8)	4
3	110004	Screw(M3.5-0.6 X 8)	6
4	2100866	Feed Bar Shield(Front)	1
5	2100867	Feed Bar Shield(Rear)	1
6	2100869	Feed Bar Shield Guide	1
7	2100870	Feed Bar Guide	2
8	2100868	Feed Bar Shield(Upper)	1
9	2150063	Feed Bar Guide Bushing	1
10	160007	Screw(M6-1 X 6)	1
11	2100602	Feed Bar Block(Rear) Shaft	1
12	160001	Screw(M4-0.7 X 4)	3
13	2100283	Feed Bar Block(Rear)	1
14	2100281	Feed Bar Block(Rear) Lid	1
15	130002	Screw(M3-0.5 X 6)	1
16	2100434	Looper Rocker Shaft Lever	1
17	2100251	Looper Slide Block Pin	1
18	300000	Washer	1
19	100072	Nut	1
20	2100442	Looper Rocker Shaft	1
21	003655	Screw(M4-0.7 X 10)	2
22	2100443	Collar(9 X 17 X 8mm)	1
23	300001	Washer	1
24	0013208	Retaining Ring	1
25	2100435	Looper Rocker Connecting Rod Pin	1
26	2100444	Petaining Ring	1
27	2100280	Feed Bar Block(Front)	1
28	2100451	Retaining Ring	1
29	2100452	Looper Rocker Connecting Rod	1
30	0068146	Roller Bearing	1
31	2100450	Looper Rocker Eccentric	1
32	0020401	Feed Dog Eccentric Pin	1
33	2100277	Feed Dog Eccentric	1
34	2100278	Roller Bearing	1
35	2100275	Feed Dog Driving Connecting Rod	1
36	2100276	Feed Dog Regulating Eccentric	1
37	180002	Screw(M3-0.5 X 4)	2
38	2100289	Feed Dog Regulating Plate Spring	1
39	110070	Screw(M3-0.5 X 6.3)	1
40	0023473	Feed Dog Regulating Plate	1
41	2100279	Feed Dog Regulating Gear	1
42	180003	Screw(M5-0.8 X 8)	1
43	160003	Screw(M5-0.8 X 5)	3
44-1	2109089	Differential Feed Dog(C5)	1
44-2	2109090	Differential Feed Dog(C7)	1
45	2109081	Main Feed Dog	1
46	2109082	Auxiliary Feed Dog	1
47	110026	Screw(M3-0.5 X 6)	1
48	2150067	Connecting Rod Cover	1
49	130003	Screw(M4-0.7 X 7.3)	2

Page 41 — LUBRICATING MECHANISM

Yamato AZF8600G parts on page 41
Ref	Part number	Part name	Qty
1	2150103	Oil Pump, Complete Set	1
2	2150104	Worm Wheel	1
3	160001	Screw(M4-0.7 x 4)	4
4	120049	Screw(M4-0.7 x 16)[M4-0.7 x 15]	2
6	000567	Seal	1
7	2150201	Oil Tube, Complete Set	1
8	3100370	Oil Tube Fitting One Way End	6
9	0031831	Oil Tube Clamp	9
9	2120506	Oil Tube(4.6 × 6.4 × 220mm)	1
10	2150206	Oil Tube(4.6 x 6.4 x 220mm)	1
11	320008	Oil Tube Fitting Stud(M6-1)	2
12	2100958	Suction Tube, C. Set	1
13	3100371	Oil Tube Fitting Two Way	1
14	2100369	Oil Tube(4.6 x 6.4 x 36.5mm)	1
15	2100957	Oil Filter	1
16	2120586	Suction Pipe(Upper), C. Set	1
17	2120587	Suction Tube(4 x 6 x 325mm)	1
18	2100928	Suction Tube(2.5 x 4 x 60mm)	1
19	2100929	Suction Pipe(Upper)	1
20	310073	Felt	1
21	2150202	Oil Tube, Complete Set	1
22	2150207	Oil Tube(4.6 x 6.4 x 315mm)	1
23	320009	Oil Tube Fitting Stud(Long)(M6-1)	1
24	2150713	Oil Pressure Regulating Valve, C. Set	1
25	[2150094]	Oil Pressure Regulating Valve	2
26	0080503	Oil Pressure Regulating Ball	1
27	0030748	Guide Pin	1
28	[2150097]	Spring	1
29	006861	Adjusting Screw(1/4-40 x 5)	1
29	0000419	Nut	1
30	000419	Nut	1
31	3100060	Oil Filter Cap	1
32	110045	Screw(M4-0.7 x 12)	3
33	3100061	O-ring(P42)	1
34	3100345	Oil Filter	1
35	3100329	Filter Housing	1
36	2160035	Oil Tube, C. Set	1
37	2160040	Oil Tube(4.6 x 6.4 x 150mm)	1
39	2100896	Oil Pipe, C. Set	1
40	2100895	Oil Pipe	1
41	000456	Seal Plug	2
42	310090	Oil Wick	1
43	2100032	Oil Sight Gauge	1
44	0020538	O-ring(P7)	1
45	110053	Screw(M6-1 x 8)	3
46	2160045	Oil Pipe, C. Set	1
46	3100081	Oil Wick	1
47	2160046	Oil Pipe	1
48	310081	Oil Wick	1
49	[320010]	Oil Tube Fitting Stud(1/4-40)	3

Page 43 — AZF8611G EXCLUSIVE PARTS

Yamato AZF8600G parts on page 43
Ref	Part number	Part name	Qty
1	2127585	Presser Foot, C. Set(C5)	1
2	0027224	Presser Foot(Upper)	1
3	004351	Screw(9/64-40 × 7)	1
4	0027245	Presser Foot Connector	1
5	0027246	Presser Foot Connector(Right)	1
6	2127586	Presser Foot(Front)	1
7	2127587	Presser Foot(Rear)	1
8	004149	Screw(1/8-44 × 2)	2
9	004404	Screw(3/32-56 × 5.1)	2
10	004109	Screw(1/8-44 × 2.5)	1
12	2128505	Stitch Plate(C5)	1
13	2106013	Differential Feed Dog	1
14	2106007	Main Feed Dog	1
15	2129070	Top Feed Dog(Coarse)	1
17	0022981	Tape Guide Stay Shaft	1
18	110009	Screw(M4-0.7 × 8)	1
19	0022963	Tape Guide Stay	1
20	0022982	Tape Guide	1
21	003638	Screw(11/64-40 × 4)	2
22	0026239	Folder Support, C. Set	1
23	0026242	Vertical Adjusting Plate	1
24	001331	Screw(9/64-40 × 3.8)	6
25	0026241	Lateral Adjusting Plate	1
26	0026240	Swing-out Lever	1
27	000172	Conical Spring Washer	1
28	004150	Screw(11/64-40 × 5.2)	1
29	000334	Nut	1
30	0022447	Swing-out Lever Holder	1
31	0022448	Swing-out Lever Stop	1
32	005036	Screw(1/8-44 × 5.6)	1
33	0022435	Folder Positioning Pin	2
34	0022436	Pin Holder Spring	2
35	001196	Screw(1/8-44 × 6)	1
36	001225	Screw(1/8-44 × 2.8)	1
37	110047	Screw(M4-0.7 × 10)	2
38	2109052	Auxiliary Feed Dog	1
39	0026243	Folder Supporting Plate	1

Page 45 — EXTRA PARTS for AZF8611G

Yamato AZF8600G parts on page 45
Ref	Part number	Part name	Qty
1	0027359	Fastener Guide Mechanism, C. Set	1
2	0027346	Fastener Guide(Upper)	1
3	0027347	Fastener Guide(Lower)	1
4	001202	Screw(9/64-40 × 6.6)	2
5	0027348	Fastener Guide Support	1
6	001330	Screw(9/64-40 × 3.8)	2
7	0027349	Fastener Guide Holder	1
8	004440	Screw(11/64-40 × 8.3)	2
9	0027350	Fastener Guide Shaft	1
10	0075081	Cotter Pin	1
11	0027355	Shaft Holder(Large)	1
12	0027352	Fastener Guide Return Spring	1
13	0032912	Collar	1
14	007616	Screw(1/8-44 × 4.2)	1
15	0027351	Shaft Guide Bar	1
16	0027356	Shaft Holder(Small)	1
17	000532	Washer	2
18	004353	Screw(9/64-40 × 7)	4
19	0027353	Positioning Spring	1
20	000533	Washer	2
21	004541	Screw(7/32-32 × 7)	1
22	000621	Conical Spring Washer	3
23	0027357	Shaft Holder Block	1
24	0027358	Block Shaft	1
25	002308	Screw(11/64-40 × 10.4)	2
26	0027046	Positioning Plate	1
27	005000	Screw(9/64-40 × 5.7)	1
28	0027354	Fixing Spring	1
29	000538	Washer	1

Page 47 — AZF8620G-1 EXCLUSIVE PARTS

Yamato AZF8600G parts on page 47
Ref	Part number	Part name	Qty
1	0024084	Thread Tension Spring Cap	1
2	0024083	Tension Spring Bushing	1
3	0032971	Needle Thread Tension Spring	1
4	0020118	Thread Tension Spring Retainer	1
5	000178	Felt(2.5mm)	1
6	0031111	Tension Disc	2
7	000177	Felt(1.0mm)	1
8	190016	Tension Post	1
9	2150164	Tension Disc Eyelet for Needle Thread	1
10	2150172	Tension Disc Eyelet(Right)	1
11	100001	Nut	1
12	2150603	Presser Spring	1
13	2160124	Thread Pull-off	1
14	2160123	Lower Looper Holder Arm	1
15	180004	Screw(M4-0.7 × 10.8)	1
16	2160120	Cloth Plate	1
17	2160121	Fabric Guide	1
18	110101	Screw(M3-0.5 × 3)	1
19	2169113	Needle Clamp(CA7)	1
20	003637	Screw(1/8-44 × 2.5)	1
21	2157407	Presser Foot Spring	1
22	2167400	Presser Foot, C. Set(A7)	1
23	2167415	Presser Foot(Upper)	1
24	110004	Screw(M3.5-0.6 × 8)	1
25	2167410	Presser Foot Connector	1
26	2167420	Pin	1
27	160033	Screw(M2.5-0.45 × 3)	1
28	2157400	Presser Foot(Rear)	1
29	004149	Screw(1/8-44 × 2)	3
30	2167405	Presser Foot(Front)(CA7)	1
31	2129301	Upper Looper	1
32	2168000	Stitch Plate(CA7)	1
33	2106017	Main Feed Dog	1
34	2106016	Differential Feed Dog	1

Page 49 — AZF8620G-20 EXCLUSIVE PARTS

Yamato AZF8600G parts on page 49
Ref	Part number	Part name	Qty
1	0024084	Thread Tension Spring Cap	1
2	0024083	Tension Spring Bushing	1
3	0032971	Needle Thread Tension Spring	1
4	0020118	Thread Tension Spring Retainer	1
5	000178	Felt(2.5mm)	1
6	0031111	Tension Disc	2
7	000177	Felt(1.0mm)	1
8	190016	Tension Post	1
9	2150164	Tension Disc Eyelet for Needle Thread	1
10	2150172	Tension Disc Eyelet(Right)	1
11	100001	Nut	1
12	2150603	Presser Spring	1
13	2160124	Thread Pull-off	1
14	2160123	Lower Looper Holder Arm	1
15	180004	Screw(M4-0.7 × 10.8)	1
16	2160120	Cloth Plate	1
17	2160121	Fabric Guide	1
18	110101	Screw(M3-0.5 × 3)	1
19	2169113	Needle Clamp(CA7)	1
20	003637	Screw(1/8-44 × 2.5)	1
21	2157407	Presser Foot Spring	1
22	2167400	Presser Foot, C. Set(A7)	1
23	2167415	Presser Foot(Upper)	1
24	110004	Screw(M3.5-0.6 × 8)	1
25	2167410	Presser Foot Connector	1
26	2167420	Pin	1
27	160033	Screw(M2.5-0.45 × 3)	1
28	2157400	Presser Foot(Rear)	1
29	004149	Screw(1/8-44 × 2)	3
30	2167405	Presser Foot(Front)(CA7)	1
31	2129301	Upper Looper	1
32	2168002	Stitch Plate(CA7)	1
33	2106017	Main Feed Dog	1
34	2106016	Differential Feed Dog	1

Page 51 — K1 DEVICE

Yamato AZF8600G parts on page 51
Ref	Part number	Part name	Qty
1	2169901	K1 Device, Complete Set	1
2	2121015	Suction Pipe Cover	1
3	004314	Screw(1/8-44 × 5.6)	1
4	001230	Screw(3/32-56 × 3.8)	2
5	2101163	Lower Trimming Knife Driving Arm	1
6	110068	Screw(M4-0.7 × 8)	1
7	2101151	Suction Pipe, Complete Set	1
8	2101152	Suction Pipe	1
9	2101155	Upper Trimming Knife	1
10	005112	Screw(3/32-56 × 6)	3
11	000240	Oil Wick	1
12	2101160	Trimming Knife Holder Pin	1
13	2101161	Holder Pin Support	1
14	004139	Screw(3/32-56 × 3)	2
15	2101156	Lower Trimming Knife	1
16	110036	Screw(M3-0.5 × 6.5)	1
17	160001	Screw(M4-0.7 × 4)	1
18	2101157	Guide Block Holder	1
19	2101158	Lower Trimming Knife Guide Block	1
20	2101164	Lower Trimming Knife Driving Link	1
21	170010	Screw(M4-0.7 × 4)	1
22	2101159	Lower Trimming Knife Pushing Plate	1
23	2101166	Driving Link Presser	1
24	2101165	Oil Wick Clamp	1
25	001196	Screw(1/8-44 × 6)	1
26	310011	Felt	1
27	007623	Screw(9/64-40 × 5.3)	2
28	2151001	Suction Pipe Support	1

Page 53 — K1 DEVICE for AZF8620G

Yamato AZF8600G parts on page 53
Ref	Part number	Part name	Qty
1	2169920	K1 Device, Complete Set	1
2	2161024	Suction Pipe Cover	1
3	004314	Screw(1/8-44 × 5.6)	1
5	2101163	Lower Trimming Knife Driving Arm	1
6	110068	Screw(M4-0.7 × 8)	1
7	2151020	Suction Pipe, Complete Set	1
8	2151021	Suction Pipe	1
9	2151024	Upper Trimming Knife	1
10	005112	Screw(3/32-56 × 6)	3
11	000240	Oil Wick	1
12	2101160	Trimming Knife Holder Pin	1
13	2101161	Holder Pin Support	1
14	004139	Screw(3/32-56 × 3)	2
15	2151025	Lower Trimming Knife	1
16	110036	Screw(M3-0.5 × 6.5)	1
17	160001	Screw(M4-0.7 × 4)	1
18	2101157	Guide Block Holder	1
19	2101158	Lower Trimming Knife Guide Block	1
20	2101164	Lower Trimming Knife Driving Link	1
21	170010	Screw(M4-0.7 × 4)	1
22	2101159	Lower Trimming Knife Pushing Plate	1
23	2101166	Driving Link Presser	1
24	2101165	Oil Wick Clamp	1
25	001196	Screw(1/8-44 × 6)	1
26	310011	Felt	1
27	007623	Screw(9/64-40 × 5.3)	2
28	2151001	Suction Pipe Support	1

Page 55 — C DEVICE

Yamato AZF8600G parts on page 55
Ref	Part number	Part name	Qty
1	2109932	C Device, Complete Set	1
2	0033939	Hose Band(1/4 inch)	1
3	1094011	Hose Nipple(φ 8-PT1/8)	1
4	1097000	Regulator(AR2000-01BG)	1
5	009960	Screw(M5-0.8 × 16)	2
6	000669	Washer	4
7	000600	Spring Washer	2
8	000009	Nut	2
9	1097001	Regulator Support	1
10	006905	Wood Screw(φ 5.1 × 20)	2
11	0010263	Connector(φ 6-PT1/8)	1
12	1096000	Air Hose(4 × 6 × 2000mm)	1
13	1298000	Air Valve, Complete Set	1
14	0033938	Collar(6.4 × 13 × 19mm)	1
15	005040	Screw(11/64-40 × 8.5)	5
16	0033937	Return Spring	1
17	0033936	Air Valve Holder	1
18	0033935	Air Valve Stop	1
19	000334	Nut	1
20	005505	Adjusting Screw(11/64-40 × 16)	1
21	1090133	TAC Valve, C. Set	1
22	0010052	TAC Valve	1
23	000623	Gasket	2
24	0010112	Joint(φ 6-M5)	2
25	0010290	Connector(φ 6-PT1/8)	1
26	0010310	Venturi Tube	1
27	003940	Hose Band(3/8 inch)	2
28	1096004	Air Hose(12 × 18 × 1500mm)	1
29	1096005	Air Hose(12 × 18 × 500mm)	1
30	0011987	UL Clamp	3
31	009814	Wood Screw(φ 3.1 × 20)	3

Page 57 — SC10 DEVICE

Yamato AZF8600G parts on page 57
Ref	Part number	Part name	Qty
1	2151067	Lint Removal Pipe	1
2	2151066	Pipe Clamp	2
3	110094	Screw(M4-0.7 × 6)	2
4	2151059	Blowing Hole Screen	1
5	2151057	Wind Guide Plate(Front)	1
6	110001	Screw(M4-0.7 × 5.4)	2
7	2151058	Air Deflector	1

Page 59 — EXTRA PARTS

Yamato AZF8600G parts on page 59
Ref	Part number	Part name	Qty
1	2169000	Differential Feed Dog(C7, CA7)(P1.25)	1
2	2169001	Main Feed Dog(P1.25)	1
3	2169080	Top Feed Dog(P1.25)	1
4	2169081	Top Feed Dog(P1.6)	1
5	0020700	Edge Guide, Complete Set	1
6	110009	Screw(M4-0.7 × 8)	1
7	0022430	Edge Guide, Complete Set	1
8	0022432	Edge Guide	1
9	001330	Screw(9/64-40 × 3.8)	1
10	0022431	Edge Guide Swing-out Lever	1
11	000172	Conical Spring Washer	1
12	004150	Screw(11/64-40 × 5.2)	1
13	000334	Nut	1
14	0022434	Edge Guide Swing-out Lever Holder	1
15	005506	Screw(11/64-40 × 8)	1
16	0022433	Edge Guide Swing-out Lever Holder Support	1
17	0022437	Edge Guide Swing-out Lever Stop	1
18	001227	Screw(1/8-44 × 3.8)	1
19	0022435	Edge Guide Positioning Pin	1
20	0022436	Positioning Pin Holder Spring	1
21	001225	Screw(1/8-44 × 2.8)	1
22	110047	Screw(M4-0.7 × 10)	1
23	2151015	Cloth Plate(Right) Unit	1
24	000535	Washer	1
25	110003	Screw(M3.5-0.6 × 6)	1

Page 61 — MICHELLANEOUS SUPPORTING BOARD

Yamato AZF8600G parts on page 61
Ref	Part number	Part name	Qty
1	2150212	Belt Cover	1
2	110015	Screw(M4-0.7 × 25)	2
3	2150213	Supplementary Belt Cover	1
4	110013	Screw(M4-0.7 × 8)	2
5	2100339	Supporting Board	1
6	000070	Hanging Nut	4
7	009861	Hanging Bolt(Semi-submerged only)	4
8	2101450	Spacer(15mm)	4
9	2101451	Spacer(5mm)(See the below)	4
10	0020064	Supporting Board Rubber Cushion	8
11	000162	Washer(Semi-submerged)	4
11	000162	Washer(Full-submerged)	12
12	000016	Nut(Semi-submerged)	8
12	000016	Nut(Full-submerged)	24
13	2100375	Chute(Upper) Support	1
14	005624	Screw(M4-0.7 × 10)	4
15	2100337	Chute(Upper)	1
16	2100338	Chute(Lower)	1
17	009864	Hanging Bolt(Full-submerged only)	4
18	009871	Bolt(Full-submerged only)	4
19	0020057	SupportingBoardConnector(Full-submergedonly)	2
20	0020045	SupportingBoardSleeve(Full-submergedonly)	2
21	2100336	Supplementary Chute Cover	1
22	000538	Washer	1
23	140011	Wing Bolt(M4-0.7 × 6)	1
24	2100374	Chip Receiver(Semi-submerged only)	1
25	350007	Wood Screw(φ 3.5 × 16)	2
26	0020078	Idler, C. Set(for Left Footing Pedal)	1
27	0020077	Idler Support	1
28	009992	Screw(M4-0.7 × 10)	2
29	0020076	Idler	1
30	009995	Screw(M3-0.5 × 5)	2
31	2150266	Timming Gauge	1
32	000676	Spring Washer	4
33	000666	Washer	8
	210074	Chip Receiver(Semi-submerged only)	1

Page 63 — THREAD STAND

Yamato AZF8600G parts on page 63
Ref	Part number	Part name	Qty
1-1	9620695	Thread Stand, C. Set(5 Spools Type)	1
1-2	9620696	Thread Stand, C. Set(6 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Pipe(Upper)	1
4	9620689	Thread Guide Holder(Large)	1
5	911002	Screw(M4-0.7 x 20)	1
6	911001	Screw(M4-0.7 x 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw(M5-0.8 x 13)	2
10	910000	Nut	7(8)
11	9620675	Column Pipe(Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut(M16-1.5)	1
15	9620702	Thread Hanger(2 Spools Type)	2
16	9620703	Thread Hanger(3 Spools Type)	2(4)
17	9620700	Thread Eyelet	5(6)
18	9620688	Thread Hanger Holder	4
19	911060	Screw(M6-1 x 15)	4
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder(Small)	1
22	9620665	Thread Guide(5 Spools Type)	1
23	9620678	Spool Cushion	5(6)
24	9620679	Spool Pin	5(6)
25	9620680	Spool Mat	5(6)
26	9620681	Spool Seat Disc	5(6)
27	930055	Spring Washer	5(6)
28	9620666	Thread Guide(6 Spools Type)	1

Page 64 — WARNING LABEL 警告ラベル

Yamato AZF8600G parts on page 64
Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE
	390145	"Be sure to connect earth line".
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION
	390147	EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID

Page 66 — AZF8600G Class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato AZF8600G parts on page 66
Ref	Part number	Part name	Qty
	2169112	Needle Clamp
	2127550	Presser Foot, C. Set
	2127560	Presser Foot (Front)
	2127570	Presser Foot (Rear)
	2128604	Stitch Plate
	2127551	Presser Foot, C. Set
	2127561	Presser Foot (Front)
	2128605	Stitch Plate
	2127585	Presser Foot, C. Set
	2127586	Presser Foot (Front)
	2127587	Presser Foot (Rear)
	2128505	Stitch Plate
	2169113	Needle Clamp
	2167400	Presser Foot, C. Set
	2167405	Presser Foot (Front)
	2157400	Presser Foot (Rear)
	2168000	Stitch Plate
	2168002	Stitch Plate

Page 67

Yamato AZF8600G parts on page 67
Ref	Part number	Part name	Qty
	2109089	Differential Feed Dog
	2109081	Main Feed Dog
	2109082	Auxiliary Feed Dog
	2129070	Top Feed Dog
	2109343	Upper Looper
	2109334	Lower Looper
	2109335	Double Chaining Looper
	2109090	Differential Feed Dog
	2109090	Main Feed Dog
	2109090	Auxiliary Feed Dog
	2106013	Differential Feed Dog
	2106007	Main Feed Dog
	2109052	Auxiliary Feed Dog
	2106016	Differential Feed Dog
	2106017	Main Feed Dog
	2109082	Auxiliary Feed Dog
	2129301	Upper Looper

Page 68 — INDEX

Yamato AZF8600G parts on page 68
Ref	Part number	Part name	Qty
8	000009
6	000010
52	000010
67	000014
35	000014
12	000016
12	000016
26	000035
35	000035
6	000070
11	000162
11	000162
27	000172
11	000172
9	000177
7	000177
7	000177
7	000178
5	000178
5	000178
48	000182
11	000240
11	000240
26	000250
29	000322
29	000334
19	000334
13	000334
45	000393
30	000419
9	000444
41	000456
20	000488
69	000494
25	000526
38	000528
46	000531
17	000532
8	000533
20	000533
24	000535
8	000538
29	000538
22	000538
15	000554
39	000561
48	000567
6	000567
7	000600
22	000621
23	000623
26	000629
5	000644
28	000644
38	000653
12	000663
15	000665
2	000665
33	000666
6	000669
6	000669
32	000676
48	000687
34	000690
36	000726
31	000740
11	000750
20	000755
31	000779
4	001123
37	001123
35	001196
25	001196
25	001196
4	001202
21	001203
36	001225
21	001225
18	001227
4	001230
6	001330
9	001330
24	001331
25	002308
24	003636
10	003637
23	003637
23	003637
12	003637
22	003637
20	003637
20	003637
21	003638
21	003655
27	003940
7	004106
10	004109
14	004139
14	004139
8	004149
29	004149
29	004149
28	004150
12	004150
3	004314
3	004314
25	004351
3	004351
18	004353
43	004404
9	004404
8	004440
21	004541
27	005000
32	005036
15	005040
14	005049
30	005075
10	005112
10	005112
31	005345
20	005505
15	005506
30	005550
3	005550
14	005624
27	006035
39	006094
22	006816
29	006861
10	006905
37	007610
14	007616
27	007623
27	007623
51	007627

Page 69 — INDEX

Yamato AZF8600G parts on page 69
Ref	Part number	Qty
9	009604	9
62	009747	10
31	009814	23
50	009853	4
7	009861	26
17	009864	26
18	009871	26
5	009960	23
28	009992	26
30	009995	26
22	0010052	23
24	0010112	23
11	0010263	23
25	0010290	23
26	0010310	23
30	0011987	23
24	0013208	15
15	0020004	1
16	0020005	1
22	0020016	2
20	0020045	26
29	0020051	3
19	0020057	26
10	0020064	26
29	0020076	26
27	0020077	26
26	0020078	26
6	0020118	4
4	0020118	19
4	0020118	20
43	0020123	4
45	0020124	4
46	0020125	4
47	0020126	4
29	0020137	1
51	0020165	4
54	0020166	4
49	0020167	4
28	0020218	3
45	0020271	8
16	0020350	11
44	0020350	14
32	0020401	15
36	0020538	14
44	0020538	16
5	0020700	25
27	0021735	3
16	0022215	4
7	0022430	25
10	0022431	25
8	0022432	25
16	0022433	25
14	0022434	25
33	0022435	17
19	0022435	25
34	0022436	17
20	0022436	25
17	0022437	25
30	0022447	17
31	0022448	17
19	0022963	17
17	0022981	17
20	0022982	17
16	0023234	10
40	0023473	15
4	0024083	4
2	0024083	19
2	0024083	20
3	0024084	4
1	0024084	19
1	0024084	20
25	0024095	2
14	0024156	4
5	0024157	4
22	0024302	10
20	0024446	2
9	0026075	10
21	0026081	9
11	0026081	10
23	0026099	9
22	0026239	17
26	0026240	17
25	0026241	17
23	0026242	17
39	0026243	17
22	0026413	9
38	0026418	10
18	0026427	11
20	0026428	11
24	0026429	11
19	0026430	11
28	0026431	11
17	0026434	11
21	0026438	11
26	0027046	18
2	0027224	17
4	0027245	17
5	0027246	17
2	0027346	18
3	0027347	18
5	0027348	18
7	0027349	18
9	0027350	18
15	0027351	18
12	0027352	18
19	0027353	18
28	0027354	18
11	0027355	18
16	0027356	18
23	0027357	18
24	0027358	18
1	0027359	18
13	0030255	4
27	0030748	16
8	0031111	4
6	0031111	19
6	0031111	20
9	0031831	16
34	0032604	6
8	0032646	9
3	0032726	8
23	0032879	1
13	0032912	18
29	0032919	7
12	0032952	4
11	0032962	4
3	0032971	19
3	0032971	20
14	0033024	3
25	0033024	9

Page 70 — INDEX

Yamato AZF8600G parts on page 70
Ref	Part number	Part name	Qty
29	0033104
2	0033104
24	0033627
18	0033935
17	0033936
16	0033937
14	0033938
2	0033939
49	0034293
30	0068146
29	0068202
23	0068206
15	0068517
10	0075081
34	0077301
26	0080503
60	0093303
47	0093303
1	0093323
26	0093528
21	0093864
8	0095027
40	100000
13	100001
23	100001
55	100001
13	100001
11	100001
11	100001
5	100002
11	100029
39	100044
19	100072
2	100073
52	100074
25	110001
29	110001
26	110001
6	110001
32	110002
36	110002
24	110002
36	110002
28	110003
25	110003
37	110004
47	110004
3	110004
24	110004
24	110004
18	110006
40	110008
8	110008
18	110009
27	110009
6	110009
12	110009
14	110009
18	110009
6	110009
33	110011
12	110012
11	110012
9	110012
23	110012
43	110012
33	110013
2	110013
3	110013
7	110013
2	110013
23	110013
46	110013
3	110013
4	110013
2	110015
18	110016
43	110016
45	110017
49	110023
68	110026
47	110026
53	110027
14	110031
26	110033
63	110035
45	110035
9	110035
13	110036
17	110036
16	110036
16	110036
18	110038
6	110045
35	110045
43	110045
32	110045
31	110046
37	110047
22	110047
3	110048
70	110048
34	110050
45	110053
32	110054
19	110063
19	110064
29	110064
2	110064
22	110065
6	110068
6	110068
39	110070
17	110071
37	110073
8	110076
42	110091
3	110094
18	110101
18	110101
15	110106
2	120001
6	120006
6	120006
7	120006
5	120006
24	120006
2	120006
17	120010
27	120011
15	120013
6	120013
32	120013
28	120017

Page 71 — INDEX

Yamato AZF8600G parts on page 71
Ref	Part number	Part name	Qty
20	120017
29	120017
29	120018
2	120049
2	120049
2	120049
2	120049
4	120049
16	130001
15	130002
25	130003
49	130003
35	130026
17	140000
11	140001
12	140002
13	140003
21	140004
22	140005
34	140010
23	140011
16	140013
56	140032
10	150004
8	160001
4	160001
34	160001
19	160001
10	160001
26	160001
33	160001
12	160001
3	160001
17	160001
17	160001
4	160002
4	160002
23	160002
8	160003
8	160003
8	160003
43	160003
2	160007
26	160007
5	160007
21	160007
10	160007
19	160016
5	160024
14	160027
27	160033
27	160033
21	170010
21	170010
5	170032
58	170041
11	170045
59	170048
58	170049
15	170065
37	180002
42	180003
15	180004
15	180004
18	180014
53	190000
41	190001
44	190002
13	190015
10	190016
8	190016
8	190016
10	190039
1	190080
53	190081
30	210009
21	300000
4	300000
18	300000
23	300001
27	300004
12	300008
20	300008
11	300008
36	300032
34	300043
38	300106
42	310001
40	310005
26	310011
26	310011
33	310046
37	310046
15	310054
31	310054
28	310065
21	310068
19	310069
20	310073
48	310081
16	310089
24	310089
42	310090
21	310105
27	310109
47	320008
11	320008
23	320009
49	320012
17	330000
16	330008
12	330008
4	330009
6	340050
25	350007
17	390165
18	390166
16	390170
33	390523
30	390670
10	910000
7	910001
14	910003
6	911001
5	911002
9	911006
19	911060

Page 72 — INDEX

Yamato AZF8600G parts on page 72
Ref	Part number	Part name	Qty
12	930052
13	930053
27	930055
21	1090133
3	1094011
12	1096000
28	1096004
29	1096005
4	1097000
9	1097001
13	1298000
27	2020048
35	2049401
1	2100006
27	2100009
7	2100011
9	2100012
3	2100014
24	2100024
43	2100032
21	2100037
4	2100047
17	2100053
3	2100088
3	2100088
41	2100098
19	2100105
12	2100111
21	2100117
7	2100137
14	2100138
3	2100144
32	2100145
39	2100152
1	2100160
7	2100161
9	2100161
7	2100161
10	2100165
3	2100173
24	2100174
15	2100176
33	2100199
1	2100215
1	2100215
15	2100227
61	2100229
14	2100241
13	2100242
15	2100243
16	2100244
9	2100248
20	2100249
10	2100249
3	2100251
17	2100251
1	2100252
28	2100253
30	2100256
35	2100257
46	2100259
48	2100262
31	2100263
37	2100264
47	2100266
12	2100267
32	2100269
27	2100271
42	2100272
31	2100275
35	2100276
36	2100277
33	2100278
34	2100279
41	2100280
27	2100281
14	2100283
13	2100288
20	2100289
38	2100318
8	2100336
21	2100337
15	2100338
16	2100339
5	2100369
14	2100374
13	2100375
17	2100404
17	2100410
35	2100412
36	2100413
39	2100414
40	2100417
25	2100433
16	2100434
25	2100435
27	2100436
30	2100437
20	2100442
22	2100443
26	2100444
31	2100450
28	2100451
29	2100452
28	2100502
19	2100518
41	2100533
43	2100535
44	2100536
19	2100538
5	2100580
11	2100602
50	2100642
20	2100642
22	2100671
23	2100672
24	2100673
25	2100674
27	2100703
33	2100854
31	2100856
13	2100861
20	2100864
1	2100865
4	2100866
5	2100867
8	2100868
6	2100869
7	2100870
15	2100872
24	2100874
26	2100875
27	2100892

Page 73 — INDEX

Yamato AZF8600G parts on page 73
Ref	Part number	Qty
40	2100895	16
39	2100896	16
22	2100903	12
6	2100905	13
20	2100918	3
18	2100928	16
19	2100929	16
15	2100957	16
12	2100958	16
23	2100960	3
7	2101151	21
8	2101152	21
9	2101155	21
15	2101156	21
18	2101157	21
18	2101157	22
19	2101158	21
19	2101158	22
22	2101159	21
22	2101159	22
12	2101160	21
12	2101160	22
13	2101161	21
13	2101161	22
5	2101163	21
5	2101163	22
20	2101164	21
20	2101164	22
24	2101165	21
24	2101165	22
23	2101166	21
23	2101166	22
5	2101405	6
11	2101406	6
14	2101412	12
19	2101414	12
4	2101416	12
10	2101417	13
7	2101418	12
33	2101420	13
5	2101423	7
32	2101434	13
8	2101450	26
9	2101451	26
14	2106007	17
13	2106013	17
34	2106016	19
34	2106016	20
33	2106017	19
33	2106017	20
38	2109052	17
45	2109081	15
46	2109082	15
44-1	2109089	15
44-2	2109090	15
35	2109211	6
50	2109212	6
16	2109214	13
15	2109334	13
34	2109335	13
29	2109343	12
1	2109932	23
6	2110026	3
5	2110027	3
3	2110181	5
6	2110183	5
5	2110184	5
13	2120002	9
14	2120003	9
16	2120004	9
17	2120005	9
26	2120006	9
20	2120007	9
28	2120008	9
32	2120009	9
35	2120014	10
39	2120015	10
32	2120017	10
18	2120018	10
14	2120019	10
4	2120020	10
5	2120021	10
10	2120022	10
13	2120023	10
8	2120026	5
1	2120027	9
3	2120028	9
6	2120029	9
42	2120030	5
10	2120031	9
31	2120032	9
5	2120033	11
7	2120034	11
1	2120035	11
4	2120036	11
50	2120037	10
51	2120038	10
28	2120045	8
39	2120053	2
36	2120055	2
34	2120062	2
1	2120063	3
23	2120067	10
45	2120071	5
48	2120072	5
46	2120073	5
43	2120074	5
44	2120075	5
18	2120082	9
24	2120083	9
26	2120093	10
29	2120095	10
42	2120098	2
30	2120112	10
25	2120130	10
17	2120131	10
33	2120132	10
41	2120136	10
40	2120138	2
41	2120139	2
38	2120141	2
71	2120536	4
16	2120537	5
40	2120570	10
42	2120571	10
36	2120572	10
16	2120586	16
17	2120587	16
2	2120588	3
2	2121015	21
12	2121107	7
11	2121108	7
17	2121109	7
14	2121110	7
32	2121111	7
30	2121112	7
33	2121113	7
13	2121114	7

Page 74 — INDEX

Yamato AZF8600G parts on page 74
Ref	Part number	Part name	Qty
	2127507		8
	2127550		8
	2127551		8
	2127560		8
	2127561		8
	2127570		8
	2127575		8
	2127578		8
	2127580		8
	2127585		17
	2127586		17
	2127587		17
	2128505		17
	2128604		6
	2128605		6
	2129070		10
	2129070		17
	2129200		6
	2129301		19
	2129301		20
	2129420		2
	2150015		1
	2150017		3
	2150018		2
	2150019		7
	2150020		7
	2150021		7
	2150022		3
	2150023		2
	2150024		2
	2150025		2
	2150026		1
	2150030		4
	2150031		4
	2150032		4
	2150035		6
	2150038		5
	2150039		5
	2150040		5
	2150041		5
	2150042		5
	2150043		5
	2150044		5
	2150045		5
	2150046		5
	2150047		5
	2150048		5
	2150049		5
	2150050		5
	2150053		6
	2150057		6
	2150058		6
	2150059		6
	2150063		15
	2150064		14
	2150065		14
	2150066		14
	2150067		15
	2150069		3
	2150069		5
	2150070		12
	2150075		12
	2150075		14
	2150079		12
	2150080		12
	2150087		12
	2150092		12
	2150096		5
	2150102		16
	2150103		16
	2150104		16
	2150112		4
	2150115		4
	2150116		4
	2150117		12
	2150118		13
	2150119		4
	2150120		4
	2150121		4
	2150123		4
	2150124		4
	2150125		2
	2150130		12
	2150131		4
	2150132		4
	2150139		8
	2150142		8
	2150143		8
	2150144		8
	2150145		8
	2150150		6
	2150151		4
	2150162		4
	2150163		4
	2150164		19
	2150164		20
	2150165		4
	2150167		4
	2150168		13
	2150169		13
	2150170		13
	2150172		19
	2150172		20
	2150173		4
	2150201		16
	2150202		16
	2150206		16
	2150207		16
	2150210		1
	2150212		26
	2150213		26
	2150214		5
	2150240		4
	2150242		6
	2150250		7
	2150253		13
	2150266		26
	2150270		4
	2150603		19
	2150603		20
	2150710		16
	2150713		16
	2151001		21
	2151001		22
	2151015		25
	2151020		22
	2151021		22
	2151024		22
	2151025		22
	2151054		1
	2151055		2
	2151056		1
	2151057		24
	2151058		24
	2151059		24
	2151066		24
	2151067		24
	2157400		19

Page 75 — INDEX

Yamato AZF8600G parts on page 75
Ref	Part number	Part name	Qty
20	2157400
19	2157407
20	2157407
2	2160014
10	2160015
10	2160016
10	2160026
10	2160027
10	2160028
8	2160029
8	2160030
8	2160031
8	2160032
8	2160033
16	2160035
16	2160040
16	2160045
16	2160046
8	2160055
10	2160056
8	2160057
8	2160058
8	2160059
8	2160063
5	2160100
19	2160120
20	2160120
19	2160121
20	2160121
4	2160122
19	2160123
20	2160123
19	2160124
20	2160124
22	2161024
19	2167400
20	2167400
19	2167405
20	2167405
19	2167410
20	2167410
19	2167415
20	2167415
19	2167420
20	2167420
19	2168000
20	2168002
25	2169000
25	2169001
25	2169080
25	2169081
6	2169112
19	2169113
20	2169113
21	2169901
22	2169920
16	3100060
16	3100061
8	3100104
5	3100131
16	3100329
16	3100345
6	3100370
16	3100370
16	3100371
27	9620631
27	9620665
27	9620666
27	9620670
27	9620673
27	9620675
27	9620678
27	9620679
27	9620680
27	9620681
27	9620688
27	9620689
27	9620690
27	9620691
27	9620695
27	9620696
27	9620700
27	9620702
27	9620703

Page 5 — MISCELLANEOUS COVERS(1)

Page 7 — MISCELLANEOUS COVERS(2)

Page 9 — MISCELLANEOUS COVERS (3)

Page 11 — MISCELLANEOUS THREAD EYELETS

Page 13 — MISCELLANEOUS THREAD EYELETS

Page 15 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

Page 17 — NEEDLE BAR DRIVING MECHANISM

Page 19 — NEEDLE BAR DRIVING MECHANISM

Page 21 — KNIFE DRIVING MECHANISM

Page 23 — PRESSER FOOT MECHANISM

Page 25 — TOP FEED MECHANISM(1)

Page 27 — TOP FEED MECHANISM(2)

Page 29 — TOP FEED MECHANISM(2) / 上送り機構(2)

Page 31 — TOP FEED MECHANISM (3)

Page 33 — UPPER LOOPER DRIVING MECHANISM

Page 35 — LOWER & DOUBLE CHAINING LOOPER DRIVING MECHANISM 下ループ及び二重環ルーパ機構 13

Page 37 — FEED DRIVING CONTROL MECHANISM / 前送り調節機構

Page 39 — FEED DRIVING MECHANISM

Page 41 — LUBRICATING MECHANISM

Page 43 — AZF8611G EXCLUSIVE PARTS

Page 45 — EXTRA PARTS for AZF8611G

Page 47 — AZF8620G-1 EXCLUSIVE PARTS

Page 49 — AZF8620G-20 EXCLUSIVE PARTS

Page 51 — K1 DEVICE

Page 53 — K1 DEVICE for AZF8620G

Page 55 — C DEVICE

Page 57 — SC10 DEVICE

Page 59 — EXTRA PARTS

Page 61 — MICHELLANEOUS SUPPORTING BOARD

Page 63 — THREAD STAND

Page 64 — WARNING LABEL 警告ラベル

Page 66 — AZF8600G Class LIST of MAIN SPARE PARTS(主要部品リスト)

Page 67

Page 68 — INDEX

Page 69 — INDEX

Page 70 — INDEX

Page 71 — INDEX

Page 72 — INDEX

Page 73 — INDEX

Page 74 — INDEX

Page 75 — INDEX

Yamato AZF8600G — parts catalog
