Parts index — Yamato AZF8600Gtap a row to open its page

Page 3 — Contents

Yamato AZF8600G parts on page 3

Ref	Part number	Part name	Qty
	(1)	MISCELLANEOUS COVERS
	(2)	MISCELLANEOUS COVERS
	(3)	MISCELLANEOUS COVERS
	4	MISCELLANEOUS THREAD EYELETS
	5	MISCELLANEOUS CRANKSHAFT & BUSHINGS
	6	NEEDLE BAR DRIVING MECHANISM
	7	KNIFE DRIVING MECHANISM
	8	PRESSER FOOT MECHANISM
	(1)	TOP FEED MECHANISM
	(2)	TOP FEED MECHANISM
	(3)	TOP FEED MECHANISM
	12	UPPER LOOPER DRIVING MECHANISM
	13	LOWER & DOUBLE CHAINING LOOPER DRIVING MECHANISM
	14	FEED DRIVING CONTROL MECHANISM
	15	FEED DRIVING MECHANISM
	16	LUBRICATING MECHANISM
	17	AZF8611G EXCLUSIVE PARTS
	18	EXTRAPARTS for AZF8611G
	19	AZF8620G-1 EXCLUSIVE PARTS
	20	AZF8620G-20 EXCLUSIVE PARTS
	21	K1 DEVICE
	22	K1 DEVICE for AZF8620G
	23	C DEVICE
	24	SC10 DEVICE
	25	EXTRA PARTS
	26	MISCELLANEOUS SUPPORTING BOARD
	27	THREAD STAND
	28	WARNING LABEL
	29	LIST of MAIN SPARE PARTS
	30	INDEX

Page 4

Yamato AZF8600G parts on page 4

Ref	Part number	Part name	Qty
1	1	COVER
2	2	COVER
3	3	PLUG
4	4	WASHER
5	5	WASHER
6	6	SCREW
7	7	SLEEVE
8	8	BRACKET
9	9	WASHER
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	NUT
14	14	SCREW
15	15	PLUG
16	16	O-RING
17	17	COVER
18	18	SCREW
19	19	GASKET
20	20	GASKET
21	21	BASE
22	22	STUD
23	23	FOOT
24	24	FOOT
26	26	STUD
27	27	WASHER
28	28	SCREW
29	29	WASHER
30	30	PLUG
32	32	BASE
33	33	SCREW
34	34	WASHER
35	35	BRACKET
36	36	SCREW

Page 5 — MISCELLANEOUS COVERS(1)

Yamato AZF8600G parts on page 5

Ref	Part number	Part name	Qty
1	2100006	Cloth Plate
2	2150210	Cloth Plate(Lower)
3	2100014	Rubber Cushion
4	001123	Washer
5	000644	Spring Washer
6	110045	Screw(M4-0.7 × 12)
7	2100011	Cloth Plate Eccentric Bushing
8	160001	Screw(M4-0.7 × 4)
9	2100012	Collar(4 × 9 × 6mm)
10	003637	Screw(1/8-44 × 2.5)
11	2150015	Cloth Plate Spring
12	110012	Screw(M4-0.7 × 5)
13	100001	Lock Nut
14	110031	Stop Screw(M4-0.7 × 12)
15	0020004	Oil Cap
16	0020005	O-ring(P28)
17	2100053	Top Cover
18	110016	Screw(M4-0.7 × 15)
19	2150026	Top Cover Gasket
20	2100864	Oil Reservoir Gasket
21	2151054	Oil Reservoir
22	006816	Screw(1/4-24 × 8)
23	0032879	OilReservoirRubberCushion(Black)
24	0033627	OilReservoirRubberCushion(Green)
25	2100875	Oil Reservoir Positioning Bar
26	300004	Washer
27	120017	Screw(M5-0.8 × 15)
28	0020137	Drain Hole Seal
29	005075	Drain Hole Screw(3/8-24 × 8)
31	2151056	Wind Guide Plate
32	110013	Screw(M4-0.7 × 8)
33	300043	Washer
34	2049401	Serial Number Plate
35	000726	Rivet

Page 6

Yamato AZF8600G parts on page 6

Ref	Part number	Part name	Qty
	1	COVER
	2	SCREW
	3	BRACKET
	4	BRACKET
	5	SCREW
	6	WASHER
	7	COVER
	8	SCREW
	9	WASHER
	10	BRACKET
	11	SCREW
	12	RING
	13	PLUG
	14	COVER
	15	SCREW
	16	LABEL
	17	PLATE
	18	COVER
	19	BRACKET
	20	BRACKET
	21	SCREW
	22	ROD
	23	SCREW
	24	BRACKET
	25	SPRING
	26	BRACKET
	27	COVER
	28	SCREW
	29	COVER
	30	COVER
	31	BRACKET
	32	SCREW
	33	COVER
	34	PLATE
	35	SCREW
	36	COVER
	37	WASHER
	38	COVER
	39	COVER
	40	PLATE
	41	BRACKET
	42	PLATE
	43	BRACKET

Page 7 — MISCELLANEOUS COVERS(2)

Yamato AZF8600G parts on page 7

Ref	Part number	Part name	Qty
	2160014	Side Cover
	110013	Screw(M4-0.7 × 8)
	110013	Screw(M4-0.7 × 8)[M4-0.7 × 5.4]
	2150018	Eye Guard Holder
	170032	Screw(M4-0.7 × 5)
	000010	Conical Spring Washer
	2150125	Eye Guard
	110076	Screw(M3-0.5 × 6)
	000444	Washer
	2150023	Needle Bar Oil Defender
	110012	Screw(M4-0.7 × 5)
	2150024	Needle Bar Oil Seal
	190015	Screw(M14-2 × 6)
	2150025	Logo Plate
	110106	Screw(M4-0.7 × 8)
	390170	"AZF-G" Logo Mark
	390165	Brand Name Plate(68mm)(Green)
	390166	Brand Name Plate(83mm)(Green)
	2100538	Front Cover Latch Spring
	0024446	Front Cover Hook
	001203	Screw(9/64-40 × 4.5)
	0020016	Front Cover Hinge Pin
	003637	Screw(1/8-44 × 2.5)
	2100024	Front Cover(Right)
	0024095	Front Cover Hinge Spring
	2151055	Front Cover Hinge
	2100703	Chip Guard(Openable)
	110003	Screw(M3.5-0.6 × 6)
	2129420	Model Plate(Green)
	390670	Threading Chart
	2100856	Front Cover Latch
	110054	Screw(M3-0.5 × 3.5)
	390523	Threading Chart(Left)
	2120062	Rear Cover Support
	110045	Screw(M4-0.7 × 12)
	2120055	Top Feed Dog Bar Rear Cover
	001123	Washer
	2120141	Top Feed Dog Bar Oil Receiver, C. Set
	2120053	Top Feed Dog Bar Oil Receiver
	2120138	Oil Receiver Rubber(Large)
	2120139	Oil Receiver Rubber(Small)
	2120098	Oil Receiver Fixing Plate
	110045	Screw(M4-0.7 × 12)[M4-0.7 × 8]

Page 8

Yamato AZF8600G parts on page 8

Ref	Part number	Part name	Qty
3	3	Screw
4	4	Spacer
1	1	Cover
2	2	Filter
7	7	Screw
28	28	Cover
6	6	Cover
5	5	O-ring
29	29	Filter
9	9	Screw
8	8	Housing
10	10	Screw
16	16	Screw
17	17	Pin
15	15	Spring
14	14	Washer
13	13	Shaft
12	12	Shaft
19	19	Screw
26	26	Bracket
18	18	Bracket
27	27	Tube
21	21	Filter
20	20	Filter
22	22	Gasket
24	24	Gasket
23	23	Cover
25	25	Screw

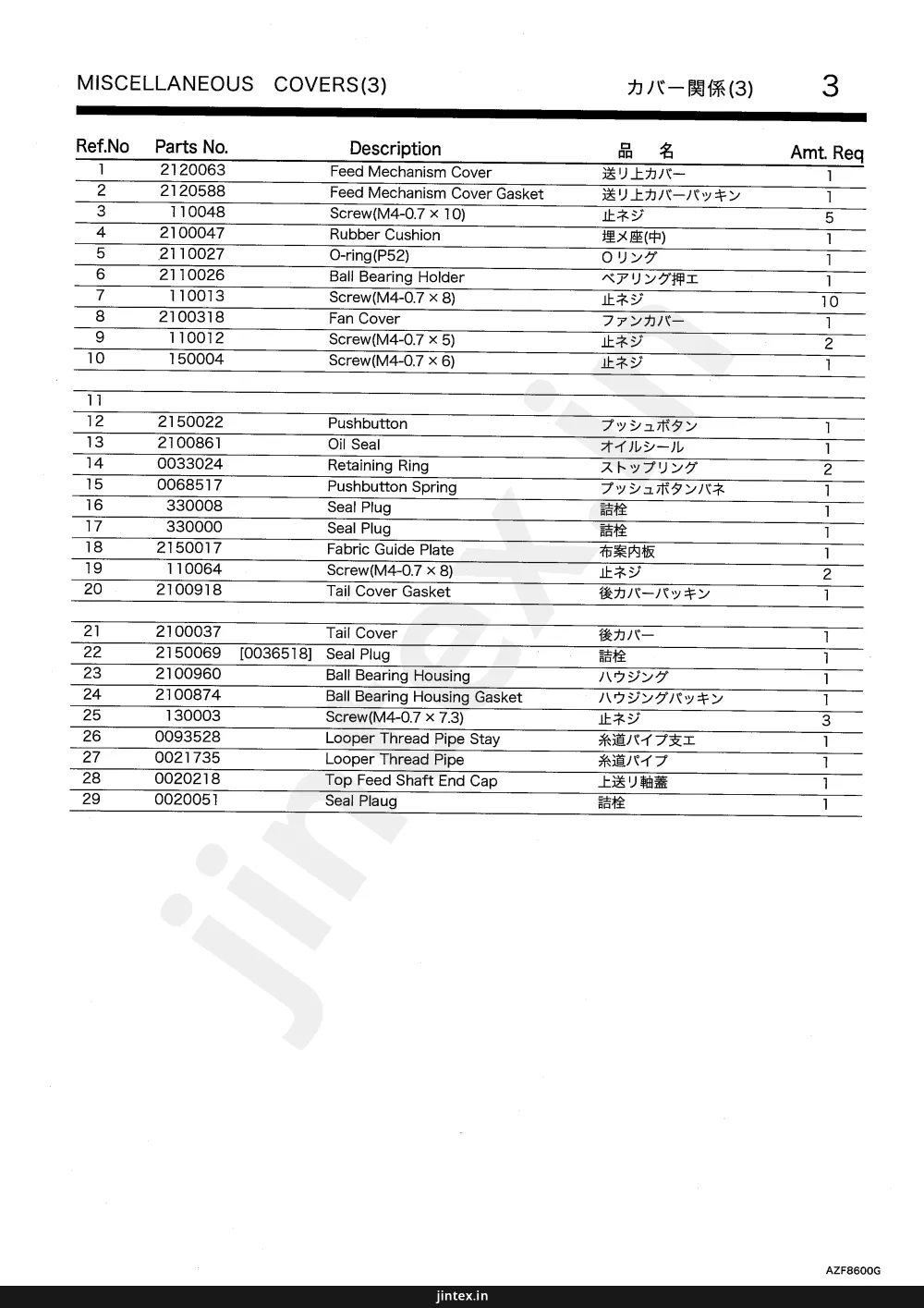

Page 9 — MISCELLANEOUS COVERS (3)

Yamato AZF8600G parts on page 9

Ref	Part number	Part name	Qty
	2120063	Feed Mechanism Cover	1
	2120588	Feed Mechanism Cover Gasket	1
	110048	Screw(M4-0.7 × 10)	5
	2100047	Rubber Cushion	1
	2110027	O-ring(P52)	1
	2110026	Ball Bearing Holder	1
	110013	Screw(M4-0.7 × 8)	10
	2100318	Fan Cover	1
	110012	Screw(M4-0.7 × 5)	2
	150004	Screw(M4-0.7 × 6)	1
	2150022	Pushbutton	1
	2100651	Oil Seal	1
	0033024	Retaining Ring	2
	0068517	Pushbutton Spring	1
	330008	Seal Plug	1
	330000	Seal Plug	1
	2150017	Fabric Guide Plate	1
	110064	Screw(M4-0.7 × 8)	2
	2100918	Tail Cover Gasket	1
	2100037	Tail Cover	1
	2150069	Seal Plug
	2100960	Ball Bearing Housing	1
	2100874	Ball Bearing Housing Gasket	1
	130003	Screw(M4-0.7 × 7.3)	3
	0093528	Looper Thread Pipe Stay	1
	0021735	Looper Thread Pipe	1
	0020218	Top Feed Shaft End Cap	1
	0020051	Seal Plaug	1

Page 10

Yamato AZF8600G parts on page 10

Ref	Part number	Part name	Qty
1	1	Lever
2	2	Screw
3	3	Knob
4	4	Washer
5	5	Spring
6	6	Bush
7	7	Washer
8	8	Washer
9	9	Washer
10	10	Bolt
11	11	Bracket
12	12	Washer
13	13	Washer
14	14	Washer
15	15	Bracket
16	16	Pin
17	17	Bracket
18	18	Screw
19	19	Housing
20	20	Lever
21	21	Lever
22	22	Bracket
23	23	Screw
24	24	Bracket
25	25	Screw
26	26	Bracket
27	27	Screw
28	28	Washer
29	29	Screw
30	30	Shaft
31	31	Bracket
32	32	Screw
33	33	Plate
34	34	Screw
35	35	Screw
36	36	Lever
37	37	Screw
38	38	Pin
39	39	Bracket
40	40	Screw
41	41	Bracket
42	42	Screw
43	43	Bracket
44	44	Bolt
45	45	Washer
46	46	Washer
47	47	Washer
48	48	Screw
49	49	Lever
50	50	Screw
51	51	Bracket
52	52	Washer
53	53	Shaft
54	54	Lever
55	55	Clip
56	56	Washer
57	57	Spring
58	58	Screw
59	59	Screw
60	60	Washer
61	61	Plate
62	62	Bracket
63	63	Screw
64	64	Bracket
65	65	Lever
66	66	Bracket
67	67	Washer
68	68	Screw
69	69	Bush
70	70	Screw
71	71	Bracket

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato AZF8600G parts on page 11

Ref	Part number	Part name	Qty
	2160122	Thread Guide Plate
	110013	Screw(M4-0.7 × 8)
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0024157	Tension Spring(Lower Looper Thread)
	0020118	Thread Tension Spring Retainer
	000178	Felt
	0031111	Tension Disc
	000177	Felt
	190016	Tension Post
	0032962	Tension Disc Eyelet
	0032952	Tension Spring(Upper Looper Thread)
	0030255	Tension Spring(Double Chain Thread)
	0024156	Tension Spring(Needle Thread)
	2150116	Tension Disc Eyelet for Needle Thread
	0022215	Looper Thread Pipe
	2100404	Double Chaining Looper ThreadEyelet(Rear)
	110009	Screw(M4-0.7 × 8)
	2150030	Oil Container
	2150031	Oil Container Plug
	310105	Felt
	2150032	Felt Holder
	110013	Screw(M4-0.7 × 8)[M4-0.7 × 8]
	2150124	Needle Thread Eyelet Holder
	110001	Screw(M4-0.7 × 8)
	2150115	Needle Thread Eyelet(Right)
	006035	Screw(9/64-40 × 7)
	000644	Spring Washer
	000322	Nut
	2150167	NeedleThread EyeletHolder(Double Chain)
	2150162	Needle Thread Eyelet(Right) (Double Chain)
	110002	Screw(M3-0.5 × 5)
	2150131	Needle Thread Eyelet(Left)
	2150173	Needle Thread Eyelet(Left) (Double Chain)
	130026	Screw(M4-0.7 × 5.8)[M4-0.7 × 6]
	2150270	Needle Thread Pull-off
	110073	Screw(M4-0.7 × 7.5)
	000653	Knock Pin
	2150165	DoubleChaining LooperThreadEyelet(Left)
	110008	Screw(M4-0.7 × 5)

Page 12

Yamato AZF8600G parts on page 12

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	KNOB
	4	WASHER
	5	SPRING
	6	SLEEVE
	7	WASHER
	8	WASHER
	9	WASHER
	10	STUD BOLT
	11	BRACKET
	12	SPRING
	13	SPRING
	14	SPRING
	15	BRACKET
	16	PIN
	17	BRACKET
	18	SCREW
	19	HOUSING
	20	SHAFT
	21	SHAFT
	22	BRACKET
	23	SCREW
	24	BRACKET
	25	SCREW
	26	BRACKET
	27	SCREW
	28	WASHER
	29	SCREW
	30	SHAFT
	31	BRACKET
	32	SCREW
	33	PLATE
	34	SCREW
	35	SCREW
	36	BRACKET
	37	SCREW
	38	PIN
	39	BRACKET
	40	SCREW
	41	BRACKET
	42	SCREW
	43	BRACKET
	44	SHAFT
	45	WASHER
	46	SPRING
	47	WASHER
	48	SCREW
	49	BRACKET
	50	SCREW
	51	BRACKET
	52	WASHER
	53	SHAFT
	54	BRACKET
	55	BRACKET
	56	WASHER
	57	SPRING
	58	SCREW
	59	BRACKET
	60	BEARING
	61	PLATE
	62	BRACKET
	63	SCREW
	64	BRACKET
	65	BRACKET
	66	BRACKET
	67	WASHER
	68	SCREW
	69	BUSHING
	70	SCREW
	71	BRACKET

Page 13 — MISCELLANEOUS THREAD EYELETS

Yamato AZF8600G parts on page 13

Ref	Part number	Part name	Qty
	2150151	Thread Eyelet Stopper
	110091	Screw(M3-0.5 × 3)
	0020123	Tension Disc Eyelet
	190002	Tension Post
	0020124	Tension Disc
	0020125	Double Chaining Looper Tension
	0020126	Tension Spring Bushing
	000182	Adjusting Nut
	0020167	Double Chaining Looper Thread Eyelet
	009853	Screw(11/64-40 × 6.5)
	0020165	Thread Eyelet Bracket
	000010	Conical Spring Washer
	190000	Screw(M4-0.7 × 7)
	0020166	Thread Retaining Finger
	2150163	Thread Retainer Plate Support
	2150112	Thread Retainer Plate
	2150132	Thread Retainer Spring
	170049	Screw(M2-0.4 × 4)
	2150240	Looper Holder Cover
	0093303	Looper Driving Shaft Oil Seal
	2100229	Looper Holder Cover Spacer(Rubber)
	2150119	Looper Thread Eyelet(Left)
	110035	Screw(M4-0.7 × 10)
	2150123	Thread Eyelet Support
	2150120	Lower Looper Thread Eyelet
	2150121	Upper Looper Thread Eyelet
	000014	Washer
	110026	Screw(M3-0.5 × 6)
	000494	Spacer
	110048	Screw(M4-0.7 × 10)
	2120536	Supplementary Thread Eyelet

Page 14

Yamato AZF8600G parts on page 14

Ref	Part number	Part name	Qty
1	1	BEARING HOUSING
2	2	SPRING
3	3	DRIVE SHAFT FLANGE
4	4	SPRING
5	5	SEAL
6	6	BEARING
7	7	BEARING
8	8	SHAFT
9	9	BEARING
10	10	PULLEY
11	11	SHAFT
12	12	KEY
13	13	SCREW
14	14	SCREW
15	15	COVER
16	16	HOUSING
17	17	PLUG
18	18	BEARING
19	19	HOUSING
20	20	BEARING
21	21	BEARING
22	22	BEARING
23	23	BEARING
24	24	SCREW
25	25	WASHER
26	26	SHAFT
27	27	CIRCLIP
28	28	PLUG
29	29	BEARING
30	30	SCREW
31	31	WASHER
32	32	BEARING
33	33	BEARING
34	34	WASHER
35	35	BEARING
36	36	BEARING
37	37	BEARING
38	38	SEAL
39	39	BEARING
40	40	PLUG
41	41	BEARING
42	42	SEAL
43	43	BEARING
44	44	BEARING
45	45	BEARING
46	46	BEARING
47	47	BEARING
48	48	BEARING
49	49	SHAFT
50	50	SHAFT

Page 15 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

Yamato AZF8600G parts on page 15

Ref	Part number	Part name	Qty
	2150214	Machine Pulley	1
	160007	Screw(M6-1 × 6)	5
	2110181	Oil Cooling Fan	1
	160001	Screw(M4-0.7 × 4)	5
	2110184	Wave Washer	1
	2110183	Mechanical Oil Shield	1
	3100131	Crankshaft Ball Bearing(Right)	1
	2120026	Bearing Adapter	1
	2150096	Oil Pump Driving Worm	1
	2150038	Crankshaft Bushing	1
	2160100	Crankshaft	1
	2100111	Crankshaft Counterweight	1
	110036	Screw(M3-0.5 × 6.5)	2
	160027	Screw(M3-0.5 × 3)	5
	2100872	Crankshaft Ball Bearing(Left)	1
	2120537	Double Chaining Looper Thread Take-up	1
	2100410	Thread Take-up Pin	1
	2150039	Crankshaft Bushing	1
	2100105	Upper Knife Driving Shaft Bushing(Right)	1
	2150043	Upper Knife Feed Bar Driving Shaft Bushing	2
	2100117	Upper Knife Driving Shaft Oil Seal	1
	2150049	Needle Bar Driving Shaft Bushing(Right)	1
	2150048	Needle Bar Driving Shaft Bushing(Left)	1
	003636	Cap Screw(5/16-32 × 3.5)	1
	000526	Gasket	1
	2150040	Needle Bar Bushing(Upper)	1
	310109	Oil Wick	1
	2150041	Needle Bar Bushing(Lower)	1
	2150046	Upper Looper Driving Shaft Bushing(Front)	1
	2150047	Upper Looper Driving Shaft Bushing(Rear)	1
	2100272	Looper Driving Shaft Oil Seal	1
	2150044	Lower Looper Driving Shaft Bushing(Front)	1
	2150045	Lower Looper Driving Shaft Bushing(Rear)	1
	0077301	Looper Shaft Oil Seal	1
	2100412	Double Chaining Looper Shaft Bushing(Front)	1
	2100413	Double Chaining Looper Shaft Bushing(Rear)	1
	2150042	Feed Bar Driving Shaft Bushing(Left)	1
	2150069	Seal Plug	1
	2100414	Looper Rocker Shaft Bushing	2
	2100417	Seal Plug	1
	2100098	Control Lever Shaft Bushing	1
	2120030	Top Feed Driving Connecting Rod Spacer	1
	2120074	Top Feed Shaft Bushing(Right)	1
	2120075	Top Feed Shaft Bushing(Left)	1
	2120071	Vertical Motion & Rocker Shaft Bushing(Right)	2
	2120073	Vertical Motion Shaft Bushing(Left)	1
	0093303	Oil Seal	1
	2120072	Top Feed Rocker Shaft Bushing(Left)	1
	2150050	Needle Bar & Needle Bar Bushing, C. Set	1
	2100642	Needle Bar	1

Page 16

Yamato AZF8600G parts on page 16

Ref	Part number	Part name	Qty
	1	CONNECTING ROD
	2	BOLT
	3	BRACKET
	4	BOLT
	5	BRACKET
	6	BOLT
	7	COLLAR
	8	SCREW
	9	BRACKET
	10	TUBE
	11	WASHER
	12	BOLT
	13	BOLT
	14	BRACKET
	15	BOLT
	16	BOLT
	17	BRACKET
	18	BOLT
	19	BOLT
	20	ROD
	21	BRACKET
	22	NEEDLE BAR
	23	WASHER
	24	BRACKET
	25	BRACKET
	26	BRACKET
	27	BOLT
	28	BRACKET
	29	BOLT
	30-1	BRACKET
	30-2	BRACKET
	31	BOLT
	32	BRACKET
	33	BOLT
	34	COLLAR
	35	LEVER
	36	BOLT
	37	BRACKET
	38	COLLAR
	39	BRACKET
	40	BRACKET
	41	BRACKET
	42	BRACKET
	43	BRACKET
	44	BRACKET
	45	BOLT
	46	BOLT
	47	BOLT
	48	WASHER
	49	BRACKET
	50	BRACKET
	51	BOLT
	52	BOLT
	53	BOLT

Page 17 — NEEDLE BAR DRIVING MECHANISM

Yamato AZF8600G parts on page 17

Ref	Part number	Part name	Qty
1	2100252	Needle Bar Driving Connecting Rod	1
2	120049	Screw(M4-0.7 × 16)	2
3	2100144	Needle Bar Driving Connecting Rod Pin	1
4	160002	Screw(M4-0.7 × 5)	1
5	2101405	Needle Bar Driving Lever	1
6	120006	Screw(M6-1 × 12)	1
7	2100137	Collar(12 × 20 × 10mm)	1
8	160003	Screw(M5-0.8 × 5)	2
9	2150242	Needle Bar Crank Arm, C. Set	2
10	2150053	Needle Bar Driving Shaft	1
11	2101406	Needle Bar Crank Arm	1
12	300008	Washer	1
13	140003	Screw(M6-1 × 18)	1
14	2100138	Needle Bar Connecting Link	1
15	2100176	Needle Bar Connecting Link Pin	2
16	310089	Oil Wick	2
17	2150059	Needle Bar Connecting Bracket	1
18	110006	Screw(M3.5-0.6 × 10)	1
19	160016	Screw(M4-0.7 × 4.5)	2
20	2100642	Needle Bar	1
21	2169112	Needle Clamp(C)	1
23	003637	Screw(1/8-44 × 2.5)	2
24	2150057	Stitch Plate Support Stay, C. Set	1
25	2150058	Stitch Plate Support Stay	1
26	000035	Roll Pin	1
27	110009	Screw(M4-0.7 × 8)	6
28	2100502	Stitch Plate Support(Rear)	1
29	110001	Screw(M4-0.7 × 5.4)	1
30-1	2128604	Stitch Plate(C5)	1
30-2	2128605	Stitch Plate(C7)	1
31	005345	Screw(11/64-40 × 8.3)	2
32	2100145	Stitch Plate Support(Front)	1
33	110011	Screw(M5-0.8 × 10)	2
34	0032604	Rubber Cushion	1
35	2109211	NeedleGuard(Front)(DoubleChainStitch)	1
36	110002	Screw(M3-0.5 × 5)	1
37	2150035	HR Unit, Complete Set	1
38	3100370	Tube Joint	1
39	2100152	Oil Tube(70mm)	1
40	310005	Oil Wick	1

Page 18

Yamato AZF8600G parts on page 18

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SCREW
	3	LINKAGE
	4	SCREW
	5	LINKAGE
	6	SCREW
	7	BRACKET
	8	SCREW
	9	LINKAGE
	10	TUBE
	11	BRACKET
	12	WASHER
	13	SCREW
	14	BRACKET
	15	SCREW
	16	SCREW
	17	BRACKET
	18	SCREW
	19	SCREW
	20	TUBE
	21	BRACKET
	22	NEEDLE BAR
	23	SCREW
	24	BRACKET
	25	BRACKET
	26	BRACKET
	27	SCREW
	28	BRACKET
	29	SCREW
	30-1	BRACKET
	30-2	BRACKET
	31	SCREW
	32	BRACKET
	33	SCREW
	34	BRACKET
	35	LEVER
	36	SCREW
	37	BRACKET
	38	BRACKET
	39	SCREW
	40	BELT
	41	LINKAGE
	42	BRACKET
	43	BRACKET
	44	BRACKET
	45	SCREW
	46	SCREW
	47	SCREW
	48	WASHER
	49	BRACKET
	50	BRACKET
	51	SCREW
	52	SCREW
	53	SCREW

Page 19 — NEEDLE BAR DRIVING MECHANISM

Yamato AZF8600G parts on page 19

Ref	Part number	Part name	Qty
41	2100533	HR Felt Holder
42	310001	HR Felt
43	2100535	HR Felt Holder Bracket, C. Set
44	2100536	HR Felt Holder Bracket
45	000393	Roll Pin
46	110013	Screw(M4-0.7 × 8)
47	320008	Fitting Stud(Short)
48	000567	Seal
49	2150150	HR Unit Bracket
50	2109212	NeedleGuard(Rear)(Double Chain Stitch)
51	007627	Screw(M4-0.7 × 6)
52	2129200	Needle Guard(Front)(Overlock Stitch)
53	110027	Screw(M2.5-0.45 × 3.5)

Page 20

Yamato AZF8600G parts on page 20

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	BRACKET
3	3	PIN
4	4	SCREW
5	5	BRACKET
6	6	SCREW
7	7	WASHER
8	8	SPRING
9	9	SHAFT
10	10	BRACKET
11	11	BRACKET
12	12	LEVER
13	13	PIN
14	14	BRACKET
15	15	WASHER
16	16	SCREW
17	17	SPRING
18	18	SCREW
19	19	SCREW
20	20	SCREW
21	21	COVER
22	22	PLATE
23	23	SCREW
24	24	CAP
25	25	BRACKET
26	26	SCREW
27	27	SCREW
28	28	BRACKET
29	29	SPRING
30	30	SHAFT
31	31	SCREW
32	32	PLATE
33	33	PLATE
34	34	SCREW

Page 21 — KNIFE DRIVING MECHANISM

Yamato AZF8600G parts on page 21

Ref	Part number	Part name	Qty
1	2100160	Upper Knife Driving Connecting Rod	1
2	120049	Screw(M4-0.7 × 16)	2
3	2100173	Driving Lever Pin	1
4	160002	Screw(M4-0.7 × 5)	1
5	2101423	Upper Knife Driving Lever	1
6	120006	Screw(M6-1 × 12)	1
7	2100161	Collar(10 × 19 × 9mm)	1
8	160003	Screw(M5-0.8 × 5)	2
9	2150250	Upper Knife Driving Shaft	1
10	2100165	Upper Knife Holder Positioner	1
11	2121108	Upper Knife Holder(Angled Type)	1
12	2121107	Upper Knife(Angled Type)	1
13	2121114	Upper Knife Clamp	1
14	2121110	Upper Knife Chip Guard	1
15	000665	Washer	1
16	140013	Screw(M4-0.7 × 24)	1
17	2121109	Upper Knife Holder	1
18	110038	Screw(M2.5-0.45 × 4.5)	1
19	110063	Stop Screw(M3-0.5 × 18)	1
20	000488	Nut	1
21	0093864	Seal Plug	1
22	2150020	Lower Knife Holder Spring Stop	1
23	110012	Screw(M4-0.7 × 5)	3
24	2100174	Cloth Plate Rubber Cushion	1
25	2150019	Front Cover	1
26	110001	Screw(M4-0.7 × 5.4)	2
27	2100009	Cloth Plate Spring Pin	1
28	2150021	Lower Knife Holder Locking Plate	1
29	0032919	Lower Knife Holder Spring	1
30	2121112	Lower Knife Holder	1
31	110046	Screw(M5-0.8 × 12)	1
32	2121111	Lower Knife	1
33	2121113	Lower Knife Clamp	1
34	140010	Screw(M4-0.7 × 6)	1

Page 22

Yamato AZF8600G parts on page 22

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	NUT
3	3	SPRING
4	4	BRACKET
5	5	PIN
6	6	PIN
7	7	BRACKET
8	8	SCREW
9	9	BRACKET
10	10	BRACKET
11	11	SPRING
13	13	BRACKET
15	15	SCREW
16	16	BRACKET
17	17	SCREW
18	18	SPRING
19	19	BRACKET
20	20	SCREW
21	21	BRACKET
22	22	SCREW
23	23	NUT
24	24	SPRING
25	25	SHAFT
26	26	SCREW
27	27	RING
28	28	BRACKET
29	29	SCREW
30	30	SHAFT
31	31	SHAFT
32	32	LEVER
33	33	PIN
34	34	BRACKET
35-1	35-1	BRACKET
35-2	35-2	BRACKET
36	36	BRACKET
37	37	SCREW
38	38	BRACKET
39	39	SCREW
40	40	BRACKET
41-1	41-1	BRACKET
41-2	41-2	BRACKET
42	42	BRACKET
43	43	SCREW
44	44	SPRING
45	45	BRACKET
	46	WASHER
47	47	BRACKET
48	48	BRACKET
49	49	SCREW

Page 23 — PRESSER FOOT MECHANISM

Yamato AZF8600G parts on page 23

Ref	Part number	Part name	Qty
1	190080	Adjusting Screw(M10-0.75 × 30)	1
2	100073	Lock Nut	1
3	0032726	Presser Spring	1
4	2150145	Presser Bar	1
5	2100580	Presser Arm Positioning Guide Pin	1
	340050	Spring Pin
	2160057	Presser Arm Stop
	110008	Screw(M4-0.7 × 5)[M4-0.7 × 4.8]
	2160055	Presser Foot Release Lever
	2160058	Presser Foot Release Lever Spring
	170045	Screw(M4-0.7 × 5)
	2150143	Presser Foot Lifter Lever
	170065	Screw(M8-1.25 × 10)[M8-1.25 × 10]
	2150142	Presser Foot Lifter Lever Stop
	120010	Screw(M6-1 × 10)
	2150144	Presser Foot Lifter Lever Link
	2100518	Presser Foot Shaft Collar
	120017	Screw(M5-0.8 × 15)
	2160033	Intermediate Lever
	110065	Stop Screw(M4-0.7 × 12)
	100001	Lock Nut
	2150139	Presser Foot Lifter Lever Spring
	2160032	Presser Foot Shaft Bushing
	160007	Screw(M6-1 × 6)
	3100104	O-ring(P16)
	2120045	Top Feed Dog Lifting Lever
	120017	Screw(M5-0.8 × 15)
	2160029	Presser Arm, Complete Set
	2160031	Presser Foot Shaft
	2160030	Presser Arm
	2100199	Presser Arm Hinge Pin
	160001	Screw(M4-0.7 × 4)
	2127550	Presser Foot, C. Set(C5)
	2127551	Presser Foot, C. Set(C7)
	2127580	Presser Foot(Upper)
	110004	Screw(M3.5-0.6 × 8)
	2127575	Presser Foot Connector
	006094	Screw(1/8-44 × 3)	3
	2127570	Presser Foot(Rear)
	2127560	Presser Foot(Front)(C5)
	2127561	Presser Foot(Front)(C7)
	2127578	Presser Foot Connector(Right)
	004404	Screw(3/32-56 × 5.1)	3
	2127507	Presser Foot Spring
	0020271	Thread Chain Cutting Knife
	000531	Washer
	2160059	Presser Foot Release Lever Stop
	2160063	Presser Bar Guide Plate
	110023	Screw(M2-0.4 × 3.5)

Page 24

Yamato AZF8600G parts on page 24

Ref	Part number	Part name	Qty
5	5	SPRING
6	6	BRACKET
7	7	SCREW
4	4	PIN
3	3	SLEEVE
2	2	SPRING
1	1	CLAMP
8	8	COLLAR
9	9	SCREW
10	10	SHAFT
11	11	BRACKET
12	12	PIN
13	13	BRACKET
14	14	BRACKET
15	15	SCREW
16	16	NUT
17	17	LINKAGE
18	18	SHAFT
19	19	SCREW
20	20	LINKAGE
21	21	PIN
22	22	WASHER
23	23	NUT
24	24	WASHER
25	25	SPRING
26	26	LEVER
27	27	SCREW
28	28	BRACKET
29	29	NUT
30	30	SCREW
31	31	BRACKET
32	32	SHAFT
33	33	SPRING

Page 25 — TOP FEED MECHANISM(1)

Yamato AZF8600G parts on page 25

Ref	Part number	Part name	Qty
1	2120027	Top Feed Driving Connecting Rod	1
2	120001	Screw(M4-0.7 × 14)	2
3	2120028	Connecting Rod Pin	1
4	330009	Seal Plug	2
5	160007	Screw(M6-1 × 6)	1
6	2120029	Top Feed Shaft Lever	1
7	120006	Screw(M6-1 × 12)	1
8	0032646	Collar	2
9	009604	Screw(11/64-40 × 5.5)	4
10	2120031	Top Feed Shaft	1
11	000750	Seal Plug	1
12	330008	Seal Plug	1
13	2120002	Top Feed Rocker, Complete Set	1
14	2120003	Top Feed Rocker	1
15	120013	Screw(M6-1 × 15)	2
16	2120004	Top Feed Regulating Slider	1
17	2120005	Slider Pin Adjusting Lever, C. Set	1
18	2120006	Top Feed Regulating Slider Pin	1
19	160001	Screw(M4-0.7 × 14)	3
20	2120007	Top Feed Shaft Lever Link	1
21	0026081	Link Pin	1
22	0026413	Spacer	1
23	0026099	Top Feed Guide Block	1
24	2120083	Spacer	1
25	0033024	Retaining Ring	1
26	2120006	Slider Pin Adjusting Lever	1
27	120011	Screw(M6-1 × 18)	1
28	2120008	Top Feed Rocker Shaft Lever	1
29	0033104	Collar	1
30	005550	Screw(11/64-40 × 13.5)	1
31	2120032	Slider Pin Adjusting Lever Shaft	1
32	2120009	Top Feed Rocker Shaft	1
33	310046	Oil Wick(2.3 × 2.3 × 14mm)	1

Page 26

Yamato AZF8600G parts on page 26

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	BRACKET
3	3	SCREW
4	4	BRACKET
5	5	BRACKET
6	6	SCREW
7	7	SCREW
8	8	WASHER
9	9	BRACKET
10	10	BRACKET
11	11	COLLAR
12	12	SCREW
13	13	BRACKET
14	14	SHAFT
15	15	SCREW
16	16	SCREW
17	17	FRAME
18	18	PIN
19	19	LEVER
20	20	PIN
21	21	LEVER
22	22	SPRING
23	23	SPRING
24	24	SPRING
25	25	LEVER
26	26	LEVER
29	29	SCREW
30	30	BRACKET
31	31	SCREW
32	32	BRACKET
33	33	BRACKET
34	34	SCREW
35	35	LEVER
36	36	BRACKET
37	37	BRACKET
38	38	SCREW
39	39	LEVER
40	40	BRACKET
41	41	BRACKET
42	42	SPRING
43	43	SCREW
44	44	LEVER
45	45	SCREW
46	46	LEVER
47	47	SCREW
48	48	SCREW
49	49	LEVER
50	50	CYLINDER
51	51	SPRING
52	52	NUT
53	53	STUD
54	54	BLOCK
55	55	NUT
56	56	SCREW
57	57	LEVER
58	58	LEVER
59	59	SCREW
60	60	SCREW
61	61	BRACKET
62	62	SCREW

Page 27 — TOP FEED MECHANISM(2)

Yamato AZF8600G parts on page 27

Ref	Part number	Part name	Qty
	0093323	Collar(Right)	1
	0033104	Collar(Left)	1
	005550	Screw(11/64-40 × 13.5)	2
	2120020	Vertical Motion Adjusting Lever, C. Set	1
	2120021	Vertical Motion Adjusting Lever	1
	120013	Screw(M6-1 × 15)	2
	004106	Screw(9/64-40 × 6.5)	1
	000533	Washer	1
	0026075	Adjusting Lever Pin	1
	2120022	Vertical Motion Lever Link	1
	0026081	Vertical Motion Lever Pin	1
	003637	Screw(1/8-44 × 2.5)	5
	2120023	Vertical Motion Lever	1
	2120019	Top Feed Vertical Motion Shaft	1
	310047	Oil Wick(2.3 × 2.3 × 11.5mm)	2
	0023234	Positioning Pin	1
	2120131	Top Feed Dog Bar, C. Set(2)	1
	2120018	Vertical Motion Link	1
	310069	Oil Wick(No. 2-210mm)	1
	000755	Pin	1
	310068	Oil Wick(No.2-120mm)	1
	0024302	Oil Wick Stay	1
	2120067	Oil Wick Holder	1
	110002	Screw(M3-0.5 × 5)	1
	2120130	Top Feed Dog Bar, C. Set(1)	1
	2120093	Top Feed Dog Bar Guide Lever	1
	2120095	Top Feed Dog Bar Guide Pin	1
	2120112	Top Feed Dog Bar Guide	1
	310054	Oil Wick(2.3 × 2.3 × 6mm)	1
	2120017	Press Bar Receiver	1
	2120132	Shield Support	1
	110050	Screw(M3.5-0.6 × 4.5)	2
	2120014	Top Feed Dog Bar	1
	2120572	Top Feed Dog Bar Shield	2
	310046	Oil Wick(2.3 × 2.3 × 14mm)	1
	0026418	Top Feed Dog Bar Connecting Pin	1
	2120015	Top Feed Rocker Link	1
	2120570	Top Feed Dog Bar Cover(Front), C. Set	1

Page 28

Yamato AZF8600G parts on page 28

Ref	Part number	Part name	Qty
1	1	COLLAR
2	2	COLLAR
3	3	SCREW
4	4	BRACKET
5	5	BRACKET
6	6	SCREW
7	7	WASHER
8	8	COLLAR
9	9	BRACKET
10	10	BRACKET
11	11	COLLAR
12	12	SCREW
13	13	BRACKET
14	14	SHAFT
15	15	SPRING
16	16	SCREW
17	17	PRESSER FOOT ASSEMBLY
18	18	BRACKET
19	19	SHAFT
20	20	SCREW
21	21	BRACKET
22	22	BRACKET
23	23	SPRING
24	24	BRACKET
25	25	BRACKET
26	26	BRACKET
29	29	SCREW
30	30	BRACKET
31	31	SPRING
32	32	BRACKET
33	33	BRACKET
34	34	SCREW
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	SCREW
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	BRACKET
43	43	SCREW
44	44	BRACKET
45	45	SCREW
46	46	BRACKET
47	47	SCREW
48	48	SCREW
49	49	BRACKET
50	50	CYLINDER
51	51	SPRING
52	52	COLLAR
53	53	COLLAR
54	54	BRACKET
55	55	NUT
56	56	SCREW
57	57	BRACKET
58	58	BRACKET
59	59	SCREW
60	60	SCREW
61	61	COLLAR
62	62	SCREW

Page 30

Yamato AZF8600G parts on page 30

Ref	Part number	Part name	Qty
	1	BRACKET
	2	BRACKET
	3	SCREW
	4	SPRING
	5	BRACKET
	6	SCREW
	7	BRACKET
	8	PIN
	9	SCREW
	10	SCREW
	11	ROLLER
	12	WASHER
	13	NUT
	14	SCREW
	15	WASHER
	16	NUT
	17	BRACKET
	18	BRACKET
	19	COLLAR
	20	SPRING
	21	COLLAR
	22	PIN
	23	WASHER
	24	BRACKET
	25	SCREW
	26	WASHER
	27	SPRING
	28	ROLLER
	29	SCREW

Page 31 — TOP FEED MECHANISM (3)

Yamato AZF8600G parts on page 31

Ref	Part number	Part name	Qty
	2120035	Spring Hanger
	000665	Washer
	110013	Screw(M4-0.7 × 8)
	2120036	Top Feed Dog Lever Spring
	2120033	Top Feed Dog Lever
	110009	Screw(M4-0.7 × 8)
	2120034	Top Feed Dog Graduation
	000538	Washer
	110035	Screw(M4-0.7 × 10)
	190039	Screw(M4-0.7, M6-1 × 19)
	100029	Adjusting Nut
	000663	Washer
	100001	Lock Nut
	005049	Screw(M5-0.8 × 8)
	000554	Washer
	0020350	Top Feed Dog Lever Stopper
	0026434	Lever Adjusting Box, C. Set
	0026427	Lever Adjusting Box
	0026430	Lever Adjusting Block
	0026428	Lever Adjusting Screw
	0026438	Coller
	003637	Screw(1/8-44 × 2.5)
	0068206	O-ring(P4)
	0026429	Adjusting Screw Supporting Plate
	004351	Screw(9/64-40 × 7)
	000280	Rubber Cushion
	2020048	Adjusting Knob Spring
	0026431	Adjusting Knob
	110064	Screw(M4-0.7 × 8)

Page 32

Yamato AZF8600G parts on page 32

Ref	Part number	Part name	Qty
2	2	SCREW
1	1	BRACKET
3	3	WASHER
4	4	JOINT
5	5	SCREW
6	6	SHAFT
7	7	WASHER
8	8	WASHER
9	9	COLLAR
10	10	SCREW
13	13	BRACKET
14	14	BRACKET
15	15	BRACKET
16	16	SCREW
17	17	SCREW
12	12	SCREW
18	18	BRACKET
19	19	ARM
20	20	WASHER
21	21	SCREW
22	22	PIN
23	23	BRACKET
24	24	SPRING
25	25	SHAFT
26	26	BUSHING
27	27	BUSHING
28	28	PLATE
29	29	LEVER
30	30	SCREW
31	31	PIN
32	32	SCREW
33	33	BRACKET
34	34	BRACKET
35	35	WASHER
36	36	SCREW
37	37	BRACKET
11	11	BRACKET

Page 33 — UPPER LOOPER DRIVING MECHANISM

Yamato AZF8600G parts on page 33

Ref	Part number	Part name	Qty
	2100215	Looper Driving Lever Connecting Rod	1
	120049	Screw(M4-0.7 × 16)	4
	2100088	Connecting Rod Swing-proof	2
	2101416	Upper Looper Driving Lever	1
	120006	Screw(M6-1 × 12)	1
	2150070	Looper Driving Shaft	1
	2101418	Driving Shaft Thrust Ring	1
	2150075	Driving Shaft Thrust Ring	1
	2100161	Collar(10 × 19 × 9mm)	1
	160001	Screw(M4-0.7 × 4)	2
	2150130	Upper Looper Thread Pull-off	1
	110009	Screw(M4-0.7 × 8)	2
	2150087	Upper Looper Bar Crank Arm, C. Set	1
	2101412	Upper Looper Bar Guide Bushing	1
	2100227	Upper Looper Bar Guide Cover	1
	130001	Screw(M2.5-0.45 × 6)	1
	110071	Screw(M2.5-0.45 × 6)	1
	2150092	Upper Looper Bar Guide, Complete Set	1
	2101414	Upper Looper Bar Crank Arm	1
	300008	Washer	1
	140004	Screw(M6-1 × 16)	1
	2100903	Upper Looper Bar Crank Arm Pin	1
	160002	Screw(M4-0.7 × 5)	1
	310089	Oil Wick	1
	2150080	Upper Looper Bar	1
	000629	Seal Plug	1
	2100892	Upper Looper Bar Guide	1
	310065	Oiling Felt	1
	2109343	Upper Looper(for Needle Size #18~21)	1
	210009	Screw(1/8-44 × 3.2)	1
	000779	Standard Pin	1
	120013	Screw(M6-1 × 15)	2
	2100854	Upper Looper Supplementary Thread Eyelet	1
	2150117	Lower Looper Thread Pull-off	1
	000014	Washer	1
	110002	Screw(M3-0.5 × 5)	1
	2150079	Upper Looper Bar, C. Set	1

Page 34

Yamato AZF8600G parts on page 34

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	COLLAR
4	4	BRACKET
5	5	SCREW
6	6	WASHER
7	7	BRACKET
8	8	SCREW
9	9	SHAFT
10	10	BRACKET
11	11	WASHER
12	12	SCREW
13	13	BRACKET
14	14	SCREW
15	15	LEVER
16	16	BRACKET
17	17	SCREW
18	18	SCREW
19	19	BRACKET
20	20	BUSHING
21	21	WASHER
22	22	SCREW
23	23	BRACKET
24	24	SCREW
25	25	BUSHING
26	26	SCREW
27	27	BRACKET
28	28	BRACKET
29	29	SCREW
30	30	PLATE
31	31	PIN
32	32	SHAFT
33	33	BRACKET
34	34	BRACKET
35	35	SCREW
36	36	WASHER
37	37	SCREW
38	38	WASHER
39	39	NUT

Page 35 — LOWER & DOUBLE CHAINING LOOPER DRIVING MECHANISM 下ループ及び二重環ルーパ機構 13

Yamato AZF8600G parts on page 35

Ref	Part number	Part name	Qty
	2100215	Looper Driving Lever Connecting Rod
	120049	Screw(M4-0.7 × 16)
	2100088	Connecting Rod Swing-proof
	2150253	Lower Looper Driving Lever
	160024	Screw(M6-1 × 8)
	2100905	Driving Shaft Thrust Ring
	2100161	Collar(10 × 19 × 9mm)
	160003	Screw(M5-0.8 × 5)
	2150170	Looper Driving Shaft
	2101417	Lower Looper Holder Arm
	300008	Washer
	140002	Screw(M6-1 × 14)
	2150118	Thread Pull-off
	110009	Screw(M4-0.7 × 8)
	2109334	Lower Looper
	2109214	Needle Guard(Rear)
	110036	Screw(M3-0.5 × 6.5)
	180014	Screwed Pin(M3-0.5 × 4.5)
	2150169	DoubleChaining LooperDrivingConnection
	2100249	Bushing
	300000	Washer
	140005	Screw(M5-0.5 × 17)[M5-0.5 × 12]
	2150168	Double Chaining Looper Driving Lever
	120006	Screw(M6-1 × 10)
	2100433	Looper Driving Connecting Pin(Left)
	160001	Screw(M4-0.7 × 4)
	2100436	Looper Slide Block Holder(Front)
	2100438	Looper Slide Block Holder(Rear)
	120018	Screw(M4-0.7 × 10)
	2100437	Looper Slide Block
	000740	Seal Plug
	2101434	Double Chaining Looper Driving Shaft
	2101420	Double Chaining Looper Holder Arm
	2109335	Double Chaining Looper
	000035	Position Pin
	300032	Washer
	007610	Screw(M4-0.7 × 10)
	300106	Conical Spring Washer
	100044	Nut

Page 37

Yamato AZF8600G parts on page 37

Ref	Part number	Part name	Qty
	2150064	Main Feed Bar Lever	1
	120006	Screw(M6-1 × 12)	4
	2100251	Main Feed Bar Lever Pin	1
	300000	Washer	3
	100002	Nut	1
	000669	Washer	2
	2150075	Thrust Plate	1
	0095027	Retaining Ring	1
	2100248	Main Feed Bar Connection	1
	2100249	Connection Bushing	1
	140001	Screw(M5-0.5 × 12)	1
	2100266	Feed Bar, Complete Set	1
	2100242	Main Feed Bar	1
	2100241	Differential Feed Bar	1
	2100243	Differential Feed Bar Connection	1
	2100244	Connection Bushing	1
	140000	Screw(M5-0.5 × 15.5)	1
	2150065	Feed Bar Driving Shaft	1
	2150066	Feed Bar Driving Shaft Lever	1
	2150068	Connecting Rod Pin	1
	160007	Screw(M6-1 × 6)	1
	2100671	Differential Rocker, Complete Set	1
	2100672	Differential Rocker	1
	2100673	Differential Regulating Slider	1
	2100674	Differential Regulating Slider Cap	1
	110033	Screw(M3-0.5 × 6)	2
	2100269	Differential Lever(Right), C. Set	1
	2100252	Slider Link	1
	0068202	Retaining Ring	1
	2100253	Slider Link Pin	1
	2100262	Differential Lever(Right)	1
	2100267	Collar(10 × 17 × 8mm)	1
	160001	Screw(M4-0.7 × 4)	2
	000690	Spring Pin	1
	2100256	Differential Lever Spring	1
	0020538	O-ring(P7)	1
	2100263	Differential Lever(Left)	1
	000528	Washer	1
	000561	Conical Spring Washer	1
	100000	Adjusting Nut	1
	190001	Adjusting Screw(M6-1 ×11.5,M4.5-0.5×4)	1
	2100271	Differential Feed Graduation	1
	110016	Screw(M4-0.7 × 15)	2
	0020350	Differential Lever Stop	2
	110017	Screw(M5-0.8 × 8)	2
	2100257	Adjusting Screw	1
	2100264	Adjusting Block	1
	2100259	Adjusting Block Spring	1
	0034293	Retaining Ring	1

Page 39 — FEED DRIVING MECHANISM

Yamato AZF8600G parts on page 39

Ref	Part number	Part name	Qty
	2100865	Feed Bar Guide Support
	110064	Screw(M4-0.7 × 8)
	110004	Screw(M3.5-0.6 × 8)
	2100866	Feed Bar Shield(Front)
	2100867	Feed Bar Shield(Rear)
	2100869	Feed Bar Shield Guide
	2100870	Feed Bar Guide
	2100868	Feed Bar Shield(Upper)
	2150063	Feed Bar Guide Bushing
	160007	Screw(M6-1 × 6)
	2100602	Feed Bar Block(Rear) Shaft
	160001	Screw(M4-0.7 × 4)
	2100283	Feed Bar Block(Rear)
	2100281	Feed Bar Block(Rear) Lid
	130002	Screw(M3-0.5 × 6)
	2100434	Looper Rocker Shaft Lever
	2100251	Looper Slide Block Pin
	300000	Washer
	100072	Nut
	2100442	Looper Rocker Shaft
	003655	Screw(M4-0.7 × 10)
	2100443	Collar(9 × 17 × 8mm)
	300001	Washer
	0013208	Retaining Ring
	2100435	Looper Rocker Connecting Rod Pin
	2100444	Petaíning Ring
	2100280	Feed Bar Block(Front)
	2100451	Retaining Ring
	2100452	Looper Rocker Connecting Rod
	0068146	Roller Bearing
	2100450	Looper Rocker Eccentric
	0020401	Feed Dog Eccentric Pin
	2100277	Feed Dog Eccentric
	2100278	Roller Bearing
	2100275	Feed Dog Driving Connecting Rod
	2100276	Feed Dog Regulating Eccentric
	180002	Screw(M5-0.8 × 4)
	2100289	Feed Dog Regulating Plate Spring
	110070	Screw(M3-0.5 × 6.3)
	0023473	Feed Dog Regulating Plate
	2100279	Feed Dog Regulating Gear
	180003	Screw(M5-0.8 × 8)
	160003	Screw(M5-0.8 × 5)
	2109089	Differential Feed Dog(C5)
	2109090	Differential Feed Dog(C7)
	2109081	Main Feed Dog
	2109082	Auxiliary Feed Dog
	110026	Screw(M3-0.5 × 6)
	2150067	Connecting Rod Cover
	130003	Screw(M4-0.7 × 7.3)

Page 40

Yamato AZF8600G parts on page 40

Ref	Part number	Part name	Qty
23	23	BOLT
25	25	BRACKET
24	24	BRACKET
28	28	SPRING
29	29	SPRING
30	30	NUT
27	27	PIN
26	26	WASHER
6	6	WASHER
22	22	TUBE
3	3	SPRING
9	9	CLIP
8	8	FITTING
49	49	FITTING
45	45	BOLT
44	44	WASHER
46	46	BRACKET
48	48	BOLT
41	41	WASHER
47	47	BOLT
1	1	GEAR
2	2	SHAFT
3	3	SPRING
8	8	FITTING
9	9	CLIP
7	7	TUBE
10	10	TUBE
49	49	FITTING
33	33	O-RING
34	34	FILTER
35	35	FITTING
32	32	BOLT
31	31	COVER
11	11	BOLT
17	17	TUBE
16	16	TUBE
18	18	TUBE
19	19	BRACKET
20	20	BRACKET
43	43	BRACKET
8	8	FITTING
9	9	CLIP
12	12	TUBE
13	13	TUBE
9	9	CLIP
14	14	TUBE
15	15	NUT
39	39	BRACKET
42	42	TUBE
40	40	BRACKET
41	41	WASHER
3	3	SPRING
36	36	BRACKET
8	8	FITTING
9	9	CLIP
37	37	ROD
9	9	CLIP
8	8	FITTING
23	23	BOLT
11	11	BOLT

Page 41 — LUBRICATING MECHANISM

Yamato AZF8600G parts on page 41

Ref	Part number	Part name	Qty
1	2150103	Oil Pump, Complete Set	1
2	2150104	Worm Wheel	1
3	160001	Screw(M4-0.7 × 4)	4
4	120049	Screw(M4-0.7 × 16)[M4-0.7 × 15]	2
5	000567	Seal	1
6	2150201	Oil Tube, Complete Set	1
7	3100370	Oil Tube Fitting One Way End	1
8	0031831	Oil Tube Clamp	9
9	2120506	Oil Tube(4.6 × 6.4 × 220mm)	1
10	320008	Oil Tube Fitting Stud(M6-1)	2
11	2100958	Suction Tube, C. Set	1
12	3100371	Oil Tube Fitting Two Way	1
13	2100369	Oil Tube(4.6 × 6.4 × 36.5mm)	1
14	2100957	Oil Filter	1
15	2120586	Suction Pipe(Upper), C. Set	1
16	2120587	Suction Tube(4 × 6 × 325mm)	1
17	2100928	Suction Tube(2.5 × 4 × 60mm)	1
18	2100929	Suction Pipe(Upper)	1
19	310073	Felt	1
20	2150202	Oil Tube, Complete Set	1
21	2150207	Oil Tube(4.6 × 6.4 × 315mm)	1
22	320009	Oil Tube Fitting Stud(Long)(M6-1)	1
23	2150710	Oil Pressure Regulating Valve, C. Set	1
24	2150713	Oil Pressure Regulating Valve	2
25	0080503	Oil Pressure Regulating Ball	1
26	0030748	Guide Pin	1
27	2150102	Spring	1
28	006861	Adjusting Screw(1/4-40 × 5)	1
29	0000419	Nut	1
30	3100060	Oil Filter Cap	1
31	110045	Screw(M4-0.7 × 12)	3
32	3100061	O-ring(P42)	1
33	3100345	Oil Filter	1
34	3100329	Filter Housing	1
35	3100345	Oil Tube, C. Set	1
36	2160035	Oil Tube(4.6 × 6.4 × 150mm)	1
37	2160040	Oil Pipe, C. Set	1
38	2100896	Oil Pipe	1
39	000456	Seal Plug	2
40	3100090	Oil Wick	1
41	2100032	Oil Sight Gauge	1
42	0020538	O-ring(P7)	1
43	110053	Screw(M6-1 × 8)	3
44	2160045	Oil Pipe, C. Set	1
45	2160046	Oil Pipe	1
46	3100081	Oil Wick	1
47	320012	Oil Tube Fitting Stud(1/4-40)	3

Page 42

Yamato AZF8600G parts on page 42

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	12	12
	13	13
	14	14
	15	15
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39

Page 43 — AZF8611G EXCLUSIVE PARTS

Yamato AZF8600G parts on page 43

Ref	Part number	Part name	Qty
1	2127785	Presser Foot, C. Set(C5)	1
2	0027224	Presser Foot(Upper)	1
3	004351	Screw(9/64-40 × 7)	1
4	0027245	Presser Foot Connector	1
5	0027246	Presser Foot Connector(Right)	1
6	2127586	Presser Foot(Front)	1
7	2127587	Presser Foot(Rear)	1
8	004149	Screw(1/8-44 × 2)	2
9	004404	Screw(3/32-56 × 5.1)	2
10	004109	Screw(1/8-44 × 2.5)	1
12	2128505	Stitch Plate(C5)	1
13	2106013	Differential Feed Dog	1
13	2106006	Differential Feed Dog	1
14	2106007	Main Feed Dog	1
15	2129070	Top Feed Dog(Coarse)	1
15	2129091	Top Feed Dog(Coarse)	1
17	0022981	Tape Guide Stay Shaft	1
18	110009	Screw(M4-0.7 × 8)	1
19	0022963	Tape Guide Stay	1
20	0022982	Tape Guide	1
21	003638	Screw(11/64-40 × 4)	2
22	0026239	Folder Support, C. Set	1
23	0026242	Vertical Adjusting Plate	1
24	001331	Screw(9/64-40 × 3.8)	6
25	0026241	Lateral Adjusting Plate	1
26	0026240	Swing-out Lever	1
27	000172	Conical Spring Washer	1
28	004150	Screw(11/64-40 × 5.2)	1
29	000334	Nut	1
30	0022447	Swing-out Lever Holder	1
31	0022448	Swing-out Lever Stop	1
32	005036	Screw(1/8-44 × 5.6)	1
33	0022435	Folder Positioning Pin	2
34	0022436	Pin Holder Spring	2
35	001196	Screw(1/8-44 × 6)	1
36	001225	Screw(1/8-44 × 2.8)	1
37	110047	Screw(M4-0.7 × 10)	2
38	2109052	Auxiliary Feed Dog	1
39	0026243	Folder Supporting Plate	1

Page 44 — EXTRA PARTS AZF8611G-C5DA

Yamato AZF8600G parts on page 44

Ref	Part number	Part name	Qty
4	4	SCREW
2	2	BRACKET
3	3	BRACKET
6	6	SCREW
5	5	BRACKET
12	12	SPRING
13	13	BRACKET
14	14	SCREW
15	15	ROD
9	9	ROD
10	10	PIN
11	11	BRACKET
16	16	BRACKET
21	21	SCREW
22	22	WASHER
17	17	WASHER
18	18	SCREW
27	27	SCREW
26	26	WASHER
23	23	BRACKET
8	8	BRACKET
29	29	WASHER
28	28	BRACKET
24	24	ROD
19	19	BRACKET
20	20	WASHER
18	18	SCREW
25	25	SCREW
25	25	SCREW

Page 45 — EXTRA PARTS for AZF8611G

Yamato AZF8600G parts on page 45

Ref	Part number	Part name	Qty
1	0027359	Fastener Guide Mechanism, C. Set	1
2	0027346	Fastener Guide(Upper)	1
3	0027347	Fastener Guide(Lower)	1
4	001202	Screw(9/64-40 × 6.6)	2
5	0027348	Fastener Guide Support	1
6	001330	Screw(9/64-40 × 3.8)	2
7	0027349	Fastener Guide Holder	1
8	004440	Screw(11/64-40 × 8.3)	2
9	0027350	Fastener Guide Shaft	1
10	0075081	Cotter Pin	1
11	0027355	Shaft Holder(Large)	1
12	0027352	Fastener Guide Return Spring	1
13	0032912	Collar	1
14	007616	Screw(1/8-44 × 4.2)	1
15	0027351	Shaft Guide Bar	1
16	0027356	Shaft Holder(Small)	1
17	000532	Washer	2
18	004353	Screw(9/64-40 × 7)	4
19	0027353	Positioning Spring	1
20	000533	Washer	2
21	004541	Screw(7/32-32 × 7)	1
22	000621	Conical Spring Washer	3
23	0027357	Shaft Holder Block	1
24	0027358	Block Shaft	1
25	002308	Screw(11/64-40 × 10.4)	2
26	0027046	Positioning Plate	1
27	005000	Screw(9/64-40 × 5.7)	1
28	0027354	Fixing Spring	1
29	000538	Washer	1

Page 46 — 19 AZF8620G-1

Yamato AZF8600G parts on page 46

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	WASHER
3	3	SCREW
4	4	WASHER
5	5	WASHER
6	6	WASHER
7	7	WASHER
8	8	WASHER
9	9	BRACKET
10	10	SCREW
11	11	NUT
12	12	SPRING
13	13	SCREW
14	14	BRACKET
15	15	SCREW
16	16	COVER
17	17	BRACKET
18	18	SCREW
19	19	BASE
20	20	SCREW
21	21	SPRING
22	22	ARM
23	23	BRACKET
24	24	SCREW
25	25	BASE
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	SCREW
30	30	BASE
31	31	BRACKET
32	32	BASE
33	33	BRACKET
34	34	BASE

Page 47 — AZF8620G-1 EXCLUSIVE PARTS

Yamato AZF8600G parts on page 47

Ref	Part number	Part name	Qty
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0032971	Needle Thread Tension Spring
	0020118	Thread Tension Spring Retainer
	000178	Felt(2.5mm)
	0031111	Tension Disc
	000177	Felt(1.0mm)
	190016	Tension Post
	2150164	Tension Disc Eyelet for Needle Thread
	2150172	Tension Disc Eyelet(Right)
	100001	Nut
	2150603	Presser Spring
	2160124	Thread Pull-off
	2160123	Lower Looper Holder Arm
	180004	Screw(M4-0.7 × 10.8)
	2160120	Cloth Plate
	2160121	Fabric Guide
	110101	Screw(M3-0.5 × 3)
	2169113	Needle Clamp(CA7)
	003637	Screw(1/8-44 × 2.5)
	2157407	Presser Foot Spring
	2167400	Presser Foot, Set(A7)
	2167415	Presser Foot(Upper)
	110004	Screw(M3.5-0.6 × 8)
	2167410	Presser Foot Connector
	2167420	Pin
	160033	Screw(M2.5-0.45 × 3)
	2157400	Presser Foot(Rear)
	004149	Screw(1/8-44 × 2)
	2167405	Presser Foot(Front)(CA7)
	2129301	Upper Looper
	2168000	Stitch Plate(CA7)
	2106017	Main Feed Dog
	2106016	Differential Feed Dog

Page 48 — 20 AZF8620G-20

Yamato AZF8600G parts on page 48

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	WASHER
3	3	SPRING
4	4	WASHER
5	5	WASHER
6	6	WASHER
7	7	WASHER
8	8	WASHER
9	9	BRACKET
10	10	BRACKET
11	11	NUT
12	12	SPRING
13	13	SCREW
14	14	BRACKET
15	15	SCREW
16	16	COVER
17	17	BRACKET
18	18	SCREW
19	19	BASE
20	20	SCREW
21	21	SPRING
22	22	BRACKET
23	23	BRACKET
24	24	SCREW
25	25	BRACKET
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	SCREW
30	30	BRACKET
31	31	BRACKET
32	32	BASE
33	33	BRACKET
34	34	BRACKET

Page 49 — AZF8620G-20 EXCLUSIVE PARTS

Yamato AZF8600G parts on page 49

Ref	Part number	Part name	Qty
	0024084	Thread Tension Spring Cap	1
	0024083	Tension Spring Bushing	1
	0032971	Needle Thread Tension Spring	1
	0020118	Thread Tension Spring Retainer	1
	000178	Felt(2.5mm)	1
	0031111	Tension Disc	2
	000177	Felt(1.0mm)	1
	190016	Tension Post	1
	2150164	Tension Disc Eyelet for Needle Thread	1
	2150172	Tension Disc Eyelet(Right)	1
	100001	Nut	1
	2150603	Presser Spring	1
	2160124	Thread Pull-off	1
	2160123	Lower Looper Holder Arm	1
	180004	Screw(M4-0.7 × 10.8)	1
	2160120	Cloth Plate	1
	2160121	Fabric Guide	1
	110101	Screw(M3-0.5 × 3)	1
	2169113	Needle Clamp(CA7)	1
	003637	Screw(1/8-44 × 2.5)	1
	2157407	Presser Foot Spring	1
	2167400	Presser Foot C. Set(A7)	1
	2167415	Presser Foot(Upper)	1
	110004	Screw(M3.5-0.6 × 8)	1
	2167410	Presser Foot Connector	1
	2167420	Pin	1
	160033	Screw(M2.5-0.45 × 3)	1
	2157400	Presser Foot(Rear)	1
	004149	Screw(1/8-44 × 2)	3
	2167405	Presser Foot(Front)(CA7)	1
	2129301	Upper Looper	1
	2168002	Stitch Plate(CA7)	1
	2106017	Main Feed Dog	1
	2106016	Differential Feed Dog	1

Page 50 — K1 DEVICE

Yamato AZF8600G parts on page 50

Ref	Part number	Part name	Qty
3	3	SCREW
4	4	SCREW
5	5	BRACKET
6	6	SCREW
10	10	SCREW
11	11	SHAFT
12	12	COLLAR
13	13	PLATE
14	14	SCREW
15	15	BRACKET
16	16	SCREW
17	17	SCREW
18	18	BRACKET
19	19	BRACKET
20	20	LEVER
21	21	SCREW
22	22	BRACKET
23	23	BRACKET
24	24	SPRING
25	25	SCREW
26	26	SPRING
27	27	SCREW
28	28	BRACKET

Page 51 — K1 DEVICE

Yamato AZF8600G parts on page 51

Ref	Part number	Part name	Qty
1	2169901	K1 Device, Complete Set
2	2121015	Suction Pipe Cover
3	004314	Screw(1/8-44 × 5.6)
4	001230	Screw(3/32-56 × 3.8)
5	2101163	Lower Trimming Knife Driving Arm
6	110068	Screw(M4-0.7 × 8)
7	2101151	Suction Pipe, Complete Set
8	2101152	Suction Pipe
9	2101155	Upper Trimming Knife
10	005112	Screw(3/32-56 × 6)
11	000240	Oil Wick
12	2101160	Trimming Knife Holder Pin
13	2101161	Holder Pin Support
14	004139	Screw(3/32-56 × 3)
15	2101156	Lower Trimming Knife
16	110036	Screw(M3-0.5 × 6.5)
17	160001	Screw(M4-0.7 × 4)
18	2101157	Guide Block Holder
19	2101158	Lower Trimming Knife Guide Block
20	2101164	Lower Trimming Knife Driving Link
21	170010	Screw(M4-0.7 × 4)
22	2101159	Lower Trimming Knife Pushing Plate
23	2101166	Driving Link Presser
24	2101165	Oil Wick Clamp
25	001196	Screw(1/8-44 × 6)
26	310011	Felt
27	007623	Screw(9/64-40 × 5.3)
28	2151001	Suction Pipe Support

Page 52 — K1 DEVICE for AZF8620G

Yamato AZF8600G parts on page 52

Ref	Part number	Part name	Qty
3	3	SCREW
10	10	SCREW
2	2	BRACKET
5	5	BRACKET
6	6	SCREW
11	11	SPRING
12	12	BRACKET
13	13	BRACKET
9	9	BASE PLATE
14	14	SCREW
16	16	SCREW
15	15	BRACKET
20	20	LEVER
19	19	BRACKET
17	17	BRACKET
18	18	BRACKET
21	21	SCREW
26	26	SCREW
28	28	BRACKET
25	25	BRACKET
24	24	SPRING
4	4	SCREW
22	22	BRACKET
8	8	BASE
27	27	SCREW

Page 53 — K1 DEVICE for AZF8620G

Yamato AZF8600G parts on page 53

Ref	Part number	Part name	Qty
1	2169920	K1 Device, Complete Set	1
2	2161024	Suction Pipe Cover	1
3	004314	Screw(1/8-44 × 5.6)	1
5	2101163	Lower Trimming Knife Driving Arm	1
6	110068	Screw(M4-0.7 × 8)	1
7	2151020	Suction Pipe, Complete Set	1
8	2151021	Suction Pipe	1
9	2151024	Upper Trimming Knife	1
10	005112	Screw(3/32-56 × 6)	3
11	000240	Oil Wick	1
12	2101160	Trimming Knife Holder Pin	1
13	2101161	Holder Pin Support	1
14	004139	Screw(3/32-56 × 3)	2
15	2151025	Lower Trimming Knife	1
16	110036	Screw(M3-0.5 × 6.5)	1
17	160001	Screw(M4-0.7 × 4)	1
18	2101157	Guide Block Holder	1
19	2101158	Lower Trimming Knife Guide Block	1
20	2101164	Lower Trimming Knife Driving Link	1
21	170010	Screw(M4-0.7 × 4)	1
22	2101159	Lower Trimming Knife Pushing Plate	1
23	2101166	Driving Link Presser	1
24	2101165	Oil Wick Clamp	1
25	001196	Screw(1/8-44 × 6)	1
26	310011	Felt	1
27	007623	Screw(9/64-40 × 5.3)	2
28	2151001	Suction Pipe Support	1

Page 54

Yamato AZF8600G parts on page 54

Ref	Part number	Part name	Qty
	1	C DEVICE
	2	NIPPLE
	3	NIPPLE
	4	REGULATOR
	5	NIPPLE
	6	WASHER
	7	WASHER
	8	NUT
	9	BRACKET
	10	SCREW
	11	NIPPLE
	12	TUBE
	13	BRACKET
	14	SPRING
	15	SCREW
	16	SPRING
	17	BRACKET
	18	BRACKET
	19	NUT
	20	SCREW
	21	VALVE
	22	VALVE
	23	WASHER
	24	VALVE
	25	NIPPLE
	26	TUBE
	27	CLAMP
	28	TUBE
	29	TUBE
	30	CLAMP
	31	SCREW

Page 55 — C DEVICE

Yamato AZF8600G parts on page 55

Ref	Part number	Part name	Qty
	2109932	C Device, Complete Set	1
	0033939	Hose Band(1/4 inch)	1
	1094011	Hose Nipple(φ 8-PT1/8)	1
	1097000	Regulator(AR2000-01BG)	1
	009960	Screw(M5-0.8 × 16)	2
	000669	Washer	4
	000600	Spring Washer	2
	000009	Nut	2
	1097001	Regulator Support	1
	006905	Wood Screw(φ 5.1 × 20)	2
	0010263	Connector(φ 6-PT1/8)	1
	1096000	Air Hose(4 × 6 × 2000mm)	1
	1298000	Air Valve, Complete Set	1
	0033938	Collar(6.4 × 13 × 19mm)	1
	005040	Screw(11/64-40 × 8.5)	5
	0033937	Return Spring	1
	0033936	Air Valve Holder	1
	0033935	Air Valve Stop	1
	000334	Nut	1
	005505	Adjusting Screw(11/64-40 × 16)	1
	1090133	TAC Valve, C. Set	1
	0010052	TAC Valve	1
	000623	Gasket	2
	0010112	Joint(φ 6-M5)	2
	0010290	Connector(φ 6-PT1/8)	1
	0010310	Venturi Tube	1
	003940	Hose Band(3/8 inch)	2
	1096004	Air Hose(12 × 18 × 1500mm)	1
	1096005	Air Hose(12 × 18 × 500mm)	1
	0011987	UL Clamp	3
	009814	Wood Screw(φ 3.1 × 20)	3

Page 56

Yamato AZF8600G parts on page 56

Ref	Part number	Part name	Qty
24	AZF8600G	SC10 DEVICE

Page 57 — SC10 DEVICE

Yamato AZF8600G parts on page 57

Ref	Part number	Part name	Qty
1	2151067	Lint Removal Pipe
2	2151066	Pipe Clamp
3	110094	Screw(M4-0.7 × 6)
4	2151059	Blowing Hole Screen
5	2151057	Wind Guide Plate(Front)
6	110001	Screw(M4-0.7 × 5.4)
7	2151058	Air Deflector

Page 58

Yamato AZF8600G parts on page 58

Ref	Part number	Part name	Qty
	1	AZF8600G-C7, 8620G-CA7 P=1.25
	2	P1.25
	3	P1.25
	4	P1.6
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25

Page 59 — EXTRA PARTS

Yamato AZF8600G parts on page 59

Ref	Part number	Part name	Qty
1	2169000	Differential Feed Dog(C7, CA7)(P1.25)	1
2	2169001	Main Feed Dog(P1.25)	1
3	2169080	Top Feed Dog(P1.25)	1
4	2169081	Top Feed Dog(P1.6)	1
5	0020700	Edge Guide, Complete Set	1
6	110009	Screw(M4-0.7 × 8)	1
7	002430	Edge Guide, Complete Set	1
8	002432	Edge Guide	1
9	001330	Screw(9/64-40 × 3.8)	1
10	0022431	Edge Guide Swing-out Lever	1
11	000172	Conical Spring Washer	1
12	004150	Screw(11/64-40 × 5.2)	1
13	000334	Nut	1
14	0022434	Edge Guide Swing-out Lever Holder	1
15	005506	Screw(11/64-40 × 8)	1
16	0022433	Edge Guide Swing-out Lever Holder Support	1
17	0022437	Edge Guide Swing-out Lever Stop	1
18	001227	Screw(1/8-44 × 3.8)	1
19	0022435	Edge Guide Positioning Pin	1
20	0022436	Positioning Pin Holder Spring	1
21	001225	Screw(1/8-44 × 2.8)	1
22	110047	Screw(M4-0.7 × 10)	1
23	2151015	Cloth Plate(Right) Unit	1
24	000535	Washer	1
25	110003	Screw(M3.5-0.6 × 6)	1

Page 60

Yamato AZF8600G parts on page 60

Ref	Part number	Part name	Qty
	1	COVER, CHAIN CASE
	2	SCREW
	3	BRACKET
	4	SCREW
	5	FRAME, MAIN
	6	KNOB, ADJUSTING
	7	STUD, ADJUSTING
	8	COLLAR
	9	WASHER
	10	COLLAR
	11	WASHER
	12	NUT
	13	BRACKET
	14	SCREW
	15	BRACKET
	16	BRACKET
	17	STUD, ADJUSTING
	18	SCREW
	19	BRACKET
	20	COLLAR
	21	BRACKET
	22	WASHER
	23	KNOB, WING
	24	COVER, OIL LEVEL
	25	SCREW
	26	EXTRA PARTS
	27	PLATE, MOUNTING
	28	SCREW
	29	ROLLER, GUIDE
	30	SCREW
	31	BRACKET, GUIDE
	32	WASHER
	33	WASHER

Page 61 — MICHELLANEOUS SUPPORTING BOARD

Yamato AZF8600G parts on page 61

Ref	Part number	Part name	Qty
	2150212	Belt Cover	1
	110015	Screw(M4-0.7 × 25)	2
	2150213	Supplementary Belt Cover	1
	110013	Screw(M4-0.7 × 8)	2
	2100339	Supporting Board	1
	000070	Hanging Nut	4
	009861	Hanging Bolt(Semi-submerged only)	4
	2101450	Spacer(15mm)	4
	2101451	Spacer(5mm)(See the below)	4
	0020064	Supporting Board Rubber Cushion	8
	000162	Washer(Semi-submerged)	4
	000162	Washer(Full-submerged)	12
	000016	Nut(Semi-submerged)	8
	000016	Nut(Full-submerged)	24
	2100375	Chute(Upper) Support	1
	005624	Screw(M4-0.7 × 10)	4
	2100337	Chute(Upper)	1
	2100338	Chute(Lower)	1
	009864	Hanging Bolt(Full-submerged only)	4
	009871	Bolt(Full-submerged only)	4
	0020057	Supporting Board Connector(Full-submergedonly)	2
	0020045	Supporting Board Sleeve(Full-submergedonly)	2
	2100336	Supplementary Chute Cover	1
	000538	Washer	1
	140011	Wing Bolt(M4-0.7 × 6)	1
	210074	Chip Receiver(Semi-submerged only)	1
	350007	Wood Screw(φ 3.5 × 16)	2
	0020078	Idler, C. Set(for Left Footing Pedal)	1
	0020077	Idler Support	1
	009992	Screw(M4-0.7 × 10)	2
	0020076	Idler	1
	009995	Screw(M3-0.5 × 5)	2
	2150266	Timming Gauge	1
	000676	Spring Washer	4
	000666	Washer	8

Page 62

Yamato AZF8600G parts on page 62

Ref	Part number	Part name	Qty
2	2	BEARING
3	3	SHAFT
4	4	BRACKET
5	5	SCREW
6	6	SCREW
7	7	NUT
8	8	SPRING
9	9	SCREW
10	10	NUT
11	11	SHAFT
12	12	WASHER
13	13	WASHER
14	14	NUT
15	15	BRACKET
16	16	BRACKET
17	17	NUT
18	18	SCREW
19	19	SCREW
20	20	ROD
21	21	BRACKET
22	22	BRACKET
23	23	HOLDER
24	24	SHAFT
25	25	SPRING
26	26	SPRING
27	27	NUT
28	28	ROD

Page 63 — THREAD STAND

Yamato AZF8600G parts on page 63

Ref	Part number	Part name	Qty
	9620695	Thread Stand, C. Set(5 Spools Type)	1
	9620696	Thread Stand, C. Set(6 Spools Type)	1
	9620631	Column Cap	1
	9620670	Column Pipe(Upper)	1
	9620689	Thread Guide Holder(Large)	1
	911002	Screw(M4-0.7 × 20)	1
	911001	Screw(M4-0.7 × 12)	3
	910001	Nut	4
	9620673	Column Pipe Connector	1
	911006	Screw(M5-0.8 × 13)	2
	910000	Nut	7(8)
	9620675	Column Pipe(Lower)	1
	930052	Washer	1
	930053	Spring Washer	1
	910003	Nut(M16-1.5)	1
	9620702	Thread Hanger(2 Spools Type)	2
	9620703	Thread Hanger(3 Spools Type)	2(4)
	9620700	Thread Eyelet	5(6)
	9620688	Thread Hanger Holder	4
	911060	Screw(M6-1 × 15)	4
	9620691	Thread Guide Arm	1
	9620690	Thread Guide Holder(Small)	1
	9620665	Thread Guide(5 Spools Type)	1
	9620678	Spool Cushion	5(6)
	9620679	Spool Pin	5(6)
	9620680	Spool Mat	5(6)
	9620681	Spool Seat Disc	5(6)
	930055	Spring Washer	5(6)
	9620666	Thread Guide(6 Spools Type)	1

Page 64 — WARNING LABEL 警告ラベル

Yamato AZF8600G parts on page 64

Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143	操作注意ラベル
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル
	390145	"Be sure to connect earth line". アースラベル
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル
	390147	EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS ケガ注意ラベル
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル

Page 66 — AZF8600G Class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato AZF8600G parts on page 66

Ref	Part number	Part name	Qty
	2169112	2127550
	2127551	2127561
	2127585	2127586
	2169113	2167400
	2168002	2168000

Page 68 — INDEX

Yamato AZF8600G parts on page 68

Ref	Part number	Part name	Qty
8	000009	000009
6	000010	000010
52	000010	000010
67	000014	000014
35	000014	000014
12	000016	000016
12	000016	000016
26	000035	000035
35	000035	000035
6	000070	000070
11	000162	000162
11	000162	000162
27	000172	000172
11	000172	000172
9	000177	000177
7	000177	000177
7	000177	000177
7	000178	000178
5	000178	000178
5	000178	000178
48	000182	000182
11	000240	000240
11	000240	000240
26	000250	000250
29	000322	000322
29	000334	000334
19	000334	000334
13	000334	000334
45	000393	000393
30	000419	000419
9	000444	000444
41	000456	000456
20	000488	000488
69	000494	000494
25	000526	000526
38	000528	000528
46	000531	000531
17	000532	000532
8	000533	000533
20	000533	000533
24	000535	000535
8	000538	000538
29	000538	000538
22	000538	000538
15	000554	000554
39	000561	000561
48	000567	000567
6	000567	000567
7	000600	000600
22	000621	000621
23	000623	000623
26	000629	000629
5	000644	000644
28	000644	000644
38	000653	000653
12	000663	000663
15	000665	000665
2	000665	000665
33	000666	000666
6	000669	000669
6	000669	000669
32	000676	000676
48	000687	000687
34	000690	000690
36	000726	000726
31	000740	000740
11	000750	000750
20	000755	000755
31	000779	000779
4	001123	001123
37	001123	001123
35	001196	001196
25	001196	001196
25	001196	001196
4	001202	001202
21	001203	001203
36	001225	001225
21	001225	001225
18	001227	001227
4	001230	001230
6	001330	001330
9	001330	001330
24	001331	001331
25	002308	002308
24	003636	003636
10	003637	003637
23	003637	003637
23	003637	003637
12	003637	003637
22	003637	003637
20	003637	003637
20	003637	003637
21	003638	003638
21	003655	003655
27	003940	003940
7	004106	004106
10	004109	004109
14	004139	004139
14	004139	004139
8	004149	004149
29	004149	004149
29	004149	004149
28	004150	004150
12	004150	004150
3	004314	004314
3	004314	004314
25	004351	004351
3	004351	004351
18	004353	004353
43	004404	004404
9	004404	004404
8	004440	004440
21	004541	004541
27	005000	005000
32	005036	005036
15	005040	005040
14	005049	005049
30	005075	005075
10	005112	005112
10	005112	005112
31	005345	005345
20	005505	005505
15	005506	005506
30	005550	005550
3	005550	005550
14	005624	005624
27	006035	006035
39	006094	006094
22	006816	006816
29	006861	006861
10	006905	006905
37	007610	007610
14	007616	007616
27	007623	007623
27	007623	007623
51	007627	007627

Page 69 — INDEX

Yamato AZF8600G parts on page 69

Ref	Part number	Part name	Qty
9	009604		9
62	009747		10
31	009814		23
50	009853		4
7	009861		26
17	009864		26
18	009871		26
5	009960		23
28	009992		26
30	009995		26
22	0010052		23
24	0010112		23
11	0010263		23
25	0010290		23
26	0010310		23
30	0011987		23
24	0013208		15
15	0020004		1
16	0020005		1
22	0020016		2
20	0020045		26
29	0020051		3
19	0020057		26
10	0020064		26
29	0020076		26
27	0020077		26
26	0020078		26
6	0020118		4
4	0020118		19
4	0020118		20
43	0020123		4
45	0020124		4
46	0020125		4
47	0020126		4
29	0020137		1
51	0020165		4
54	0020166		4
49	0020167		4
28	0020218		3
45	0020271		8
16	0020350		11
44	0020350		14
32	0020401		15
36	0020538		14
44	0020538		16
5	0020700		25
27	0021735		3
16	0022215		4
7	0022430		25
10	0022431		25
8	0022432		25
16	0022433		25
14	0022434		25
33	0022435		17
19	0022435		25
34	0022436		17
20	0022436		25
17	0022437		25
30	0022447		17
31	0022448		17
19	0022963		17
17	0022981		17
20	0022982		17
16	0023234		10
40	0023473		15
4	0024083		4
2	0024083		19
2	0024083		20
3	0024084		4
1	0024084		19
1	0024084		20
25	0024095		2
14	0024156		4
5	0024157		4
22	0024302		10
20	0024446		2
9	0026075		10
21	0026081		9
11	0026081		10
23	0026099		9
22	0026239		17
26	0026240		17
25	0026241		17
23	0026242		17
39	0026243		17
22	0026413		9
38	0026418		10
18	0026427		11
20	0026428		11
24	0026429		11
19	0026430		11
28	0026431		11
17	0026434		11
21	0026438		11
26	0027046		18
2	0027224		17
4	0027245		17
5	0027246		17
2	0027346		18
3	0027347		18
5	0027348		18
7	0027349		18
9	0027350		18
15	0027351		18
12	0027352		18
19	0027353		18
28	0027354		18
11	0027355		18
16	0027356		18
23	0027357		18
24	0027358		18
1	0027359		18
13	0030255		4
27	0030748		16
8	0031111		4
6	0031111		19
6	0031111		20
9	0031831		16
34	0032604		6
8	0032646		9
3	0032726		8
23	0032879		1
13	0032912		18
29	0032919		7
12	0032952		4
11	0032962		4
3	0032971		19
3	0032971		20
14	0033024		3
25	0033024		9

Page 70 — INDEX

Yamato AZF8600G parts on page 70

Ref	Part number	Part name	Qty
29	0033104
2	0033104
24	0033627
18	0033935
17	0033936
16	0033937
14	0033938
2	0033939
49	0034293
30	0068146
29	0068202
23	0068206
15	0068517
10	0075081
34	0077301
26	0080503
60	0093303
47	0093303
1	0093323
26	0093528
21	0093864
8	0095027
40	100000
13	100001
23	100001
55	100001
13	100001
11	100001
11	100001
5	100002
11	100029
39	100044
19	100072
2	100073
52	100074
25	110001
29	110001
26	110001
6	110001
32	110002
36	110002
24	110002
36	110002
28	110003
25	110003
37	110004
47	110004
3	110004
24	110004
24	110004
18	110006
40	110008
8	110008
18	110009
27	110009
6	110009
12	110009
14	110009
18	110009
6	110009
33	110011
12	110012
11	110012
9	110012
23	110012
43	110012
33	110013
2	110013
3	110013
7	110013
2	110013
23	110013
46	110013
3	110013
4	110013
2	110015
18	110016
43	110016
45	110017
49	110023
68	110026
47	110026
53	110027
14	110031
26	110033
63	110035
45	110035
9	110035
13	110036
17	110036
16	110036
16	110036
18	110038
6	110045
35	110045
43	110045
32	110045
31	110046
37	110047
22	110047
3	110048
70	110048
34	110050
45	110053
32	110054
19	110063
19	110064
29	110064
2	110064
22	110065
6	110068
6	110068
39	110070
17	110071
37	110073
8	110076
42	110091
3	110094
18	110101
18	110101
15	110106
2	120001
6	120006
6	120006
7	120006
5	120006
24	120006
2	120006
17	120010
27	120011
15	120013
6	120013
32	120013
28	120017

Page 71 — INDEX

Yamato AZF8600G parts on page 71

Ref	Part number	Part name	Qty
20	120017	120017
29	120017	120017
29	120018	120018
2	120049	120049
2	120049	120049
2	120049	120049
2	120049	120049
4	120049	120049
16	130001	130001
15	130002	130002
25	130003	130003
49	130003	130003
35	130026	130026
17	140000	140000
11	140001	140001
12	140002	140002
13	140003	140003
21	140004	140004
22	140005	140005
34	140010	140010
23	140011	140011
16	140013	140013
56	140032	140032
10	150004	150004
8	160001	160001
4	160001	160001
34	160001	160001
19	160001	160001
10	160001	160001
26	160001	160001
33	160001	160001
12	160001	160001
3	160001	160001
17	160001	160001
17	160001	160001
4	160002	160002
4	160002	160002
23	160002	160002
8	160003	160003
8	160003	160003
8	160003	160003
43	160003	160003
2	160007	160007
26	160007	160007
5	160007	160007
21	160007	160007
10	160007	160007
19	160016	160016
5	160024	160024
14	160027	160027
27	160033	160033
27	160033	160033
21	170010	170010
21	170010	170010
5	170032	170032
58	170041	170041
11	170045	170045
59	170048	170048
58	170049	170049
15	170065	170065
37	180002	180002
42	180003	180003
15	180004	180004
15	180004	180004
18	180014	180014
53	190000	190000
41	190001	190001
44	190002	190002
13	190015	190015
10	190016	190016
8	190016	190016
8	190016	190016
10	190039	190039
1	190080	190080
53	190081	190081
30	210009	210009
21	300000	300000
4	300000	300000
18	300000	300000
23	300001	300001
27	300004	300004
12	300008	300008
20	300008	300008
11	300008	300008
36	300032	300032
34	300043	300043
38	300106	300106
42	310001	310001
40	310005	310005
26	310011	310011
26	310011	310011
33	310046	310046
37	310046	310046
15	310054	310054
31	310054	310054
28	310065	310065
21	310068	310068
19	310069	310069
20	310073	310073
48	310081	310081
16	310089	310089
24	310089	310089
42	310090	310090
21	310105	310105
27	310109	310109
47	320008	320008
11	320008	320008
23	320009	320009
49	320012	320012
17	330000	330000
16	330008	330008
12	330008	330008
4	330009	330009
6	340050	340050
25	350007	350007
17	390165	390165
18	390166	390166
16	390170	390170
33	390523	390523
30	390670	390670
10	910000	910000
7	910001	910001
14	910003	910003
6	911001	911001
5	911002	911002
9	911006	911006
19	911060	911060

Page 72 — INDEX

Yamato AZF8600G parts on page 72

Ref	Part number	Part name	Qty
12	930052
13	930053
27	930055
21	1090133
3	1094011
12	1096000
28	1096004
29	1096005
4	1097000
9	1097001
13	1298000
27	2020048
35	2049401
1	2100006
27	2100009
7	2100011
9	2100012
3	2100014
24	2100024
43	2100032
21	2100037
4	2100047
17	2100053
3	2100088
3	2100088
41	2100098
19	2100105
12	2100111
21	2100117
7	2100137
14	2100138
3	2100144
32	2100145
39	2100152
1	2100160
7	2100161
9	2100161
7	2100161
10	2100165
3	2100173
24	2100174
15	2100176
33	2100199
1	2100215
1	2100215
15	2100227
61	2100229
14	2100241
13	2100242
15	2100243
16	2100244
9	2100248
20	2100249
10	2100249
3	2100251
17	2100251
1	2100252
28	2100253
30	2100256
35	2100257
46	2100259
48	2100262
31	2100263
37	2100264
47	2100266
12	2100267
32	2100269
27	2100271
42	2100272
31	2100275
35	2100276
36	2100277
33	2100278
34	2100279
41	2100280
27	2100281
14	2100283
13	2100288
20	2100289
38	2100318
8	2100336
21	2100337
15	2100338
16	2100339
5	2100369
14	2100374
13	2100375
17	2100404
17	2100410
35	2100412
36	2100413
39	2100414
40	2100417
25	2100433
16	2100434
25	2100435
27	2100436
30	2100437
20	2100442
22	2100443
26	2100444
31	2100450
28	2100451
29	2100452
28	2100502
19	2100518
41	2100533
43	2100535
44	2100536
19	2100538
5	2100580
11	2100602
50	2100642
20	2100642
22	2100671
23	2100672
24	2100673
25	2100674
27	2100703
33	2100854
31	2100856
13	2100861
20	2100864
1	2100865
4	2100866
5	2100867
8	2100868
6	2100869
7	2100870
15	2100872
24	2100874
26	2100875
27	2100892

Page 73 — INDEX

Yamato AZF8600G parts on page 73

Ref	Part number	Part name	Qty
40	2100895	40	16
39	2100896	39	16
22	2100903	22	12
6	2100905	6	13
20	2100918	20	3
18	2100928	18	16
19	2100929	19	16
15	2100957	15	16
12	2100958	12	16
23	2100960	23	3
7	2101151	7	21
8	2101152	8	21
9	2101155	9	21
15	2101156	15	21
18	2101157	18	21
18	2101157	18	22
19	2101158	19	21
19	2101158	19	22
22	2101159	22	21
22	2101159	22	22
12	2101160	12	21
12	2101160	12	22
13	2101161	13	21
13	2101161	13	22
5	2101163	5	21
5	2101163	5	22
20	2101164	20	21
20	2101164	20	22
24	2101165	24	21
24	2101165	24	22
23	2101166	23	21
23	2101166	23	22
5	2101405	5	6
11	2101406	11	6
14	2101412	14	12
19	2101414	19	12
4	2101416	4	12
10	2101417	10	13
7	2101418	7	12
33	2101420	33	13
5	2101423	5	7
32	2101434	32	13
8	2101450	8	26
9	2101451	9	26
14	2106007	14	17
13	2106013	13	17
34	2106016	34	19
34	2106016	34	20
33	2106017	33	19
33	2106017	33	20
38	2109052	38	17
45	2109081	45	15
46	2109082	46	15
44-1	2109089	44-1	15
44-2	2109090	44-2	15
35	2109211	35	6
50	2109212	50	6
16	2109214	16	13
15	2109334	15	13
34	2109335	34	13
29	2109343	29	12
1	2109932	1	23
6	2110026	6	3
5	2110027	5	3
3	2110181	3	5
6	2110183	6	5
5	2110184	5	5
13	2120002	13	9
14	2120003	14	9
16	2120004	16	9
17	2120005	17	9
26	2120006	26	9
20	2120007	20	9
28	2120008	28	9
32	2120009	32	9
35	2120014	35	10
39	2120015	39	10
32	2120017	32	10
18	2120018	18	10
14	2120019	14	10
4	2120020	4	10
5	2120021	5	10
10	2120022	10	10
13	2120023	13	10
8	2120026	8	5
1	2120027	1	9
3	2120028	3	9
6	2120029	6	9
42	2120030	42	5
10	2120031	10	9
31	2120032	31	9
5	2120033	5	11
7	2120034	7	11
1	2120035	1	11
4	2120036	4	11
50	2120037	50	10
51	2120038	51	10
28	2120045	28	8
39	2120053	39	2
36	2120055	36	2
34	2120062	34	2
1	2120063	1	3
23	2120067	23	10
45	2120071	45	5
48	2120072	48	5
46	2120073	46	5
43	2120074	43	5
44	2120075	44	5
18	2120082	18	9
24	2120083	24	9
26	2120093	26	10
29	2120095	29	10
42	2120098	42	2
30	2120112	30	10
25	2120130	25	10
17	2120131	17	10
33	2120132	33	10
41	2120136	41	10
40	2120138	40	2
41	2120139	41	2
38	2120141	38	2
71	2120536	71	4
16	2120537	16	5
40	2120570	40	10
42	2120571	42	10
36	2120572	36	10
16	2120586	16	16
17	2120587	17	16
2	2120588	2	3
2	2121015	2	21
12	2121107	12	7
11	2121108	11	7
17	2121109	17	7
14	2121110	14	7
32	2121111	32	7
30	2121112	30	7
33	2121113	33	7
13	2121114	13	7

Page 74 — INDEX

Yamato AZF8600G parts on page 74

Ref	Part number	Part name	Qty
	2127507	44	8
	2127550	35-1	8
	2127551	35-2	8
	2127560	41-1	8
	2127561	41-2	8
	2127570	40	8
	2127575	38	8
	2127578	42	8
	2127580	36	8
	2127585	1	17
	2127586	6	17
	2127587	7	17
	2128505	12	17
	2128604	30-1	6
	2128605	30-2	6
	2129070	49	10
	2129070	15	17
	2129200	52	6
	2129301	31	19
	2129301	31	20
	2129420	29	2
	2150015	11	1
	2150017	18	3
	2150018	4	2
	2150019	25	7
	2150020	22	7
	2150021	28	7
	2150022	12	3
	2150023	10	2
	2150024	12	2
	2150025	14	2
	2150026	19	1
	2150030	19	4
	2150031	20	4
	2150032	22	4
	2150035	37	6
	2150038	10	5
	2150039	18	5
	2150040	26	5
	2150041	28	5
	2150042	37	5
	2150043	20	5
	2150044	32	5
	2150045	33	5
	2150046	29	5
	2150047	30	5
	2150048	23	5
	2150049	22	5
	2150050	49	5
	2150053	10	6
	2150057	24	6
	2150058	25	6
	2150059	17	6
	2150063	9	15
	2150064	1	14
	2150065	18	14
	2150066	19	14
	2150067	48	15
	2150069	22	3
	2150069	38	5
	2150070	6	12
	2150075	8	12
	2150075	7	14
	2150079	37	12
	2150080	25	12
	2150087	13	12
	2150092	18	12
	2150096	9	5
	2150102	28	16
	2150103	1	16
	2150104	2	16
	2150112	56	4
	2150115	26	4
	2150116	15	4
	2150117	34	12
	2150118	13	13
	2150119	62	4
	2150120	65	4
	2150121	66	4
	2150123	64	4
	2150124	24	4
	2150125	7	2
	2150130	11	12
	2150131	33	4
	2150132	57	4
	2150139	24	8
	2150142	16	8
	2150143	13	8
	2150144	18	8
	2150145	4	8
	2150150	49	6
	2150151	41	4
	2150162	31	4
	2150163	55	4
	2150164	9	19
	2150164	9	20
	2150165	39	4
	2150167	30	4
	2150168	23	13
	2150169	19	13
	2150170	9	13
	2150172	10	19
	2150172	10	20
	2150173	34	4
	2150201	7	16
	2150202	21	16
	2150206	10	16
	2150207	22	16
	2150210	2	1
	2150212	1	26
	2150213	3	26
	2150214	1	5
	2150240	59	4
	2150242	9	6
	2150250	9	7
	2150253	4	13
	2150266	31	26
	2150270	36	4
	2150603	12	19
	2150603	12	20
	2150710	24	16
	2150713	25	16
	2151001	28	21
	2151001	28	22
	2151015	23	25
	2151020	7	22
	2151021	8	22
	2151024	9	22
	2151025	15	22
	2151054	21	1
	2151055	26	2
	2151056	32	1
	2151057	5	24
	2151058	7	24
	2151059	4	24
	2151066	2	24
	2151067	1	24
	2157400	28	19

Page 75 — INDEX

Yamato AZF8600G parts on page 75

Ref	Part number	Part name	Qty
20	2157400	28
19	2157407	21
20	2157407	21
2	2160014	1
10	2160015	44
10	2160016	46
10	2160026	60
10	2160027	61
10	2160028	54
8	2160029	30
8	2160030	32
8	2160031	31
8	2160032	25
8	2160033	21
16	2160035	36
16	2160040	37
16	2160045	46
16	2160046	47
8	2160055	9
10	2160056	57
8	2160057	7
8	2160058	10
8	2160059	47
8	2160063	48
5	2160100	11
19	2160120	16
20	2160120	16
19	2160121	17
20	2160121	17
4	2160122	1
19	2160123	14
20	2160123	14
19	2160124	13
20	2160124	13
22	2161024	2
19	2167400	22
20	2167400	22
19	2167405	30
20	2167405	30
19	2167410	25
20	2167410	25
19	2167415	23
20	2167415	23
19	2167420	26
20	2167420	26
19	2168000	32
20	2168002	32
25	2169000	1
25	2169001	2
25	2169080	3
25	2169081	4
6	2169112	21
19	2169113	19
20	2169113	19
21	2169901	1
22	2169920	1
16	3100060	31
16	3100061	33
8	3100104	27
5	3100131	7
16	3100329	35
16	3100345	34
6	3100370	38
16	3100370	8
16	3100371	13
27	9620631	2
27	9620665	22
27	9620666	28
27	9620670	3
27	9620673	8
27	9620675	11
27	9620678	23
27	9620679	24
27	9620680	25
27	9620681	26
27	9620688	18
27	9620689	4
27	9620690	21
27	9620691	20
27	9620695	1-1
27	9620696	1-2
27	9620700	17
27	9620702	15
27	9620703	16

Part BooksPartsSearchNotes

Part Books

×

Search

×

Yamato AZF8600G — parts catalog

• Page 1 (cover): This is the cover page for the Yamato AZF8600G parts list, which details high speed safety stitch machines with variable top feeders for heavy-weight materials.
• Page 2 (text): This page provides instructions on how to read the parts list, including explanations of symbols and how to place an order for parts. It also mentions that the parts list is subject to change without notice.
• Page 3 (toc): This table of contents lists machine components and their corresponding page numbers, including various mechanisms, devices, and parts like covers, thread eyelets, and warning labels.
• Page 4 (diagram): This page displays a diagram of the machine frame and miscellaneous cover components, with numbered parts and their corresponding details.
• Page 5 (parts_list): This page lists miscellaneous covers and related parts, including part numbers, descriptions, and quantities required.
• Page 6 (diagram): This page displays a diagram of various machine components, including screws, brackets, covers, and other parts, with reference numbers for identification.
• Page 7 (parts_list): This page lists miscellaneous covers and related parts for an industrial sewing machine, including screws, plates, guards, and latches, with their corresponding part numbers and quantities.
• Page 8 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, plates, filters, gaskets, and a main housing, with reference numbers for each part.
• Page 9 (parts_list): This page lists miscellaneous covers and related parts, including feed mechanism covers, screws, O-rings, oil seals, and tail covers, with their respective part numbers and quantities.
• Page 10 (diagram): This page displays a diagram of various machine parts, including screws, washers, and specialized components, with reference numbers for identification.
• Page 11 (parts_list): This page lists miscellaneous thread eyelets with part numbers, descriptions, and quantities required.
• Page 12 (diagram): This page displays a diagram of various machine components, including brackets, screws, washers, and other hardware, with reference numbers for each part.
• Page 13 (parts_list): This page lists miscellaneous thread eyelet parts with their part numbers, descriptions, and quantities required, including items like stoppers, screws, tension discs, and washers.
• Page 14 (diagram): This page displays a diagram of various components of an industrial sewing machine, including shafts, bearings, screws, and housing parts, with reference numbers for each part.
• Page 15 (parts_list): This page lists miscellaneous crankshaft and bushing parts for an industrial sewing machine, including part numbers, descriptions, and quantities required.
• Page 16 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 53, with specific callouts for parts like bolts, brackets, and linkages.
• Page 17 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 18 (diagram): This page displays a diagram of various sewing machine components, including linkages, levers, screws, and mounting brackets, with reference numbers for each part.
• Page 19 (parts_list): This page lists parts for the Needle Bar Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 20 (diagram): This page displays a diagram of various machine components, including screws, plates, and levers, with reference numbers for each part.
• Page 21 (parts_list): This page lists parts for the KNIFE DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
• Page 22 (diagram): This page displays a diagram of various machine components, including screws, springs, levers, and brackets, with reference numbers for identification.
• Page 23 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 24 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification.
• Page 25 (parts_list): This page lists parts for the TOP FEED MECHANISM (1) with part numbers, descriptions, and quantities required.
• Page 26 (diagram): This page displays a diagram of various sewing machine parts, including screws, levers, springs, and other components, each identified by a reference number.
• Page 27 (parts_list): This page lists parts for the TOP FEED MECHANISM (2) with part numbers, descriptions, and quantities required.
• Page 28 (diagram): This page displays a diagram of various sewing machine components, including a presser foot assembly, shafts, levers, screws, and springs, with corresponding reference numbers for identification.
• Page 30 (diagram): This page displays a diagram of various machine components, including springs, brackets, screws, and rollers, with reference numbers for each part.
• Page 31 (parts_list): This page lists parts for the TOP FEED MECHANISM (3) with part numbers, descriptions, and quantities required.
• Page 32 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification.
• Page 33 (parts_list): This page lists parts for the Upper Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 34 (diagram): This page displays a diagram of various machine components, including levers, shafts, screws, and nuts, with reference numbers for each part.
• Page 35 (parts_list): This page lists parts for the Lower & Double Chaining Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 37 (parts_list): This page lists parts for the FEED DRIVING CONTROL MECHANISM, including part numbers, descriptions, and quantities required.
• Page 39 (parts_list): This page lists parts for the FEED DRIVING MECHANISM, including part numbers, descriptions, and quantities required.
• Page 40 (diagram): This page displays a diagram of various machine components, including bolts, fittings, filters, and linkages, with corresponding reference numbers for identification.
• Page 41 (parts_list): This page lists parts for the lubricating mechanism, including part numbers, descriptions, and quantities required.
• Page 42 (diagram): This page displays diagrams of various parts for the AZF8611G-C5DA sewing machine, including extra parts.
• Page 43 (parts_list): This page lists parts for the AZF8611G sewing machine, including presser feet, screws, feed dogs, and plates, with their corresponding part numbers, descriptions, and quantities required.
• Page 44 (diagram): This page displays a diagram of extra parts for the AZF8611G-C5DA sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 45 (parts_list): This page lists extra parts for AZF8611G, including fasteners, guides, shafts, and washers, with their corresponding part numbers, descriptions, and quantities required.
• Page 46 (diagram): This page displays a diagram of sewing machine parts, with reference numbers and part numbers for items 1 through 34.
• Page 47 (parts_list): This page lists exclusive parts for the AZF8620G-1, including part numbers, descriptions, and quantities required.
• Page 48 (diagram): This page displays a diagram of various sewing machine parts, including springs, screws, and mechanical components, with reference numbers for identification.
• Page 49 (parts_list): This page lists parts for the AZF8620G-20 sewing machine, including part numbers, descriptions, and quantities required.
• Page 50 (diagram): This page displays a diagram of the K1 device, illustrating various components with reference numbers for identification.
• Page 51 (parts_list): This page lists parts for the K1 Device, including part numbers, descriptions, and quantities required.
• Page 52 (diagram): This page displays a diagram of the K1 device for the AZF8620G sewing machine, illustrating various components with reference numbers.
• Page 53 (parts_list): This page lists parts for the K1 DEVICE for AZF8620G, including part numbers, descriptions, and quantities required.
• Page 54 (diagram): This page displays a diagram of the C DEVICE with numbered parts and their corresponding references.
• Page 55 (parts_list): This page lists parts for C DEVICE, including part numbers, descriptions, and quantities required. It contains 31 items.
• Page 56 (diagram): This page displays a diagram of the SC10 device, illustrating various components with reference numbers.
• Page 57 (parts_list): This page lists parts for the SC10 DEVICE, including part numbers, descriptions, and quantities required.
• Page 58 (parts_list): This page lists extra parts for the AZF8600G-C7 and 8620G-CA7 models, with part numbers and diagrams.
• Page 59 (parts_list): This page lists extra parts for an industrial sewing machine, including various screws, guides, and plates, with their corresponding part numbers and quantities.
• Page 60 (diagram): This page displays a diagram of various machine parts, including frame components, semi-submerged and fully-submerged settings, and extra parts like rollers and brackets, with corresponding reference numbers for identification.
• Page 61 (parts_list): This page lists miscellaneous supporting board components with their part numbers, descriptions, and quantities required.
• Page 62 (diagram): This page displays diagrams of machine components, labeled with reference numbers and part numbers, for sections 1-1 and 1-2.
• Page 63 (parts_list): This page lists parts for the Thread Stand, including part numbers, descriptions, and quantities required.
• Page 64 (parts_list): This page lists various warning labels for industrial sewing machines, including their part numbers and descriptions in both English and Japanese.
• Page 65 (cover): This is the cover page of a parts list for main spare parts, with the title also provided in Japanese.
• Page 66 (parts_list): This page lists spare parts for the AZF8600G Class sewing machine, including Needle Clamp, Presser Foot (C. Set, Front, Rear), and Stitch Plate, with corresponding part numbers for various models.
• Page 68 (index): This page is an index of parts for the AZF8600G sewing machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 69 (index): This page is an index for the AZF8600G, listing part numbers, page numbers, reference numbers, and weights.
• Page 70 (index): This page contains an index of parts for the AZF8600G sewing machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 71 (index): This page is an index for the AZF8600G machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 72 (index): This page is an index for the AZF8600G, listing part numbers, page numbers, reference numbers, and weights.
• Page 73 (index): This page is an index of parts for the AZF8600G, listing part numbers, page numbers, reference numbers, and weights.
• Page 74 (index): This page is an index of parts for the AZF8600G, listing part numbers, page numbers, reference numbers, and weights.
• Page 75 (index): This page is an index for the AZF8600G, listing part numbers with their corresponding page and reference numbers.
• Page 76 (cover): This is the cover page for the Yamato Sewing Machine Mfg. Co., Ltd. parts catalog, identified by P/N 9710065(P), No. 2, edited in 2005.3. It includes the company's address and contact information in Japan.

Page 1 — Parts List

Yamato Parts List HIGH SPEED SAFETY STITCH MACHINE WITH VARIABLE TOP FEEDER FOR HEAVY-WEIGHT MATERIALS AZF8600G MODELS & DEVICES AZF8600G-C5DA AZF8611G-C5DA AZF8620G-CA7DA-20 AZF8600G-C7DA AZF8620G-CA7DA-1 K1 C SC10 YAMATO SEWING MACHINE MFG. CO.,LTD. jintex.in

Page 2

パーツリストの見方 このパーツリストはAZF8600G-C5DA(C7DA)(角メス装備)を基本モデルにしてイラストを作成しています。 項目1~16には基本モデルを記載しています。 項目17~サブモデル、付帯装置等を記載しています。 パーツリストに記載されているカラーの寸法は内径×外径×幅を表わしています。 コネクタに表記してある数字は、接続部のサイズです。 記号の説明 (Parts No. の隣に記載されています。) [ ] 前回 のパーツリストに対して、今回変更された部品を表わしています。 [ ]内は旧Parts No. 及びネジ類の形状。 ◆ 前回 のパーツリストに対して、今回追加された部品及びモデルを表わしています。 部品注文のご注意 ☆ このパーツリストに記載されている部品をご注文の際は、Parts No.(例えば、2150210)でお願いします。 ☆ 0020004の場合は、0020004又は20004でご注文下さい。 ☆ エアチューブ御注文の際は品番と長さを お知らせ下さい。 なお、このパーツリストの記載事項は、改良により変更される場合がありますのでご了承下さい。 How to use this Parts List The illustrations on this Parts List are drawn on the basis of AZF8600G-C5DA(C7DA) with Angled Knife. The items from No.1 to No.16 contain the standard model. The following items included No.17 contain the submodel and Device. The dimension of Collar on this Parts List shows Inside diameter X Outside diameter X Width. Numbers on a connector show sizes of joints. Explanation of Marks (marked at the Side of Part No.) [ ] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. ◆ means this part and model is added to the previous Parts List. How to place an order for the parts ☆ When placing an order for the parts from this Parts List, please clearly state the Parts No. (e.g.2150210) which you require so that we can deliver the correct Parts to you. ☆ When the Part No. is "0020004", please place an order for the part by showing "0020004" or "20004". ☆ When ordering Air Tube, please inform us of the Part No. and the length. This Parts Listis subject to change without notice. jintex.in

Page 3 — Contents

Contents 目次 MISCELLANEOUS COVERS(1) カバー関係(1) 1 MISCELLANEOUS COVERS(2) カバー関係(2) 2 MISCELLANEOUS COVERS(3) カバー関係(3) 3 MISCELLANEOUS THREAD EYELETS 糸道関係 4 MISCELLANEOUS CRANKSHAFT & BUSHINGS 主軸及びブッシュ関係 5 NEEDLE BAR DRIVING MECHANISM 針棒機構 6 KNIFE DRIVING MECHANISM メス機構 7 PRESSER FOOT MECHANISM 押工機構 8 TOP FEED MECHANISM(1) 上送り機構(1) 9 TOP FEED MECHANISM(2) 上送り機構(2) 10 TOP FEED MECHANISM(3) 上送り機構(3) 11 UPPER LOOPER DRIVING MECHANISM 上ルーパ機構 12 LOWER & DOUBLE CHAINING LOOPER DRIVING MECHANISM下ルーパ及び二重環ルーパ機構 13 FEED DRIVING CONTROL MECHANISM 前送り調節機構 14 FEED DRIVING MECHANISM 送り機構 15 LUBRICATING MECHANISM 給油機構 16 AZF8611G EXCLUSIVE PARTS サブモデル専用部品 17 EXTRAPARTS for AZF8611G 特注部品 18 AZF8620G-1 EXCLUSIVE PARTS サブモデル専用部品 19 AZF8620G-20 EXCLUSIVE PARTS サブモデル専用部品 20 K1 DEVICE K1装置 21 K1 DEVICE for AZF8620G K1装置 22 C DEVICE C装置 23 SC10 DEVICE SC10装置 24 EXTRA PARTS 特注部品 25 MISCELLANEOUS SUPPORTING BOARD 受ケ板関係 26 THREAD STAND 糸立台 27 WARNING LABEL 警告ラベル 28 LIST of MAIN SPARE PARTS 主要部品リスト 29 INDEX 索引 30 jintex.in

Page 4

1 AZF8600G jintex.in

Page 5 — MISCELLANEOUS COVERS(1)

MISCELLANEOUS COVERS(1) カバー関係(1) 1 Ref.No Parts No. Description Amt. Req 1 2100006 Cloth Plate クロスプレート 1 2 2150210 Cloth Plate(Lower) クロスプレート(下) 1 3 2100014 Rubber Cushion クロスプレート(下)埋メ座 1 4 001123 Washer ワッシャ 5 5 000644 Spring Washer スプリングワッシャ 3 6 110045 Screw(M4-0.7 × 12) 止ネジ 3 7 2100011 Cloth Plate Eccentric Bushing エキセンブッシュ 1 8 160001 Screw(M4-0.7 × 4) 止ネジ 1 9 2100012 Collar(4 × 9 × 6mm) カラー 1 10 003637 Screw(1/8-44 × 2.5) 止ネジ 1 11 2150015 Cloth Plate Spring クロスプレートバネ 1 12 110012 Screw(M4-0.7 × 5) 止ネジ 2 13 100001 Lock Nut ロックナット 1 14 110031 Stop Screw(M4-0.7 × 12) ストッパネジ 1 15 0020004 Oil Cap オイルキャップ 1 16 0020005 O-ring(P28) Oリング 1 17 2100053 Top Cover 上カバー 1 18 110016 Screw(M4-0.7 × 15) 止ネジ 6 19 2150026 Top Cover Gasket 上カバーパッキン 1 20 2100864 Oil Reservoir Gasket 油受ケパッキン 1 21 2151054 [2100863] Oil Reservoir 油受ケ 1 22 006816 Screw(1/4-24 × 8) 止ネジ 4 23 0032879 OilReservoirRubberCushion(Black) 防振ゴム(黒) 3 24 0033627 OilReservoirRubberCushion(Green) 防振ゴム(緑) 1 25 2100875 Oil Reservoir Positioning Bar 油受ケ固定棒 4 26 300004 Washer ワッシャ 4 27 120017 Screw(M5-0.8 × 15) 止ネジ 6 28 0020137 Drain Hole Seal パッキン 1 29 005075 Drain Hole Screw(3/8-24 × 8) 油抜キネジ 1 30 31 2151056 [2100004] Wind Guide Plate 風案内板 1 32 110013 Screw(M4-0.7 × 8) 止ネジ 2 33 300043 Washer ワッシャ 2 34 2049401 Serial Number Plate 機番プレート 1 35 000726 Rivet 止メ釘 2 AZF8600G

Page 6

2 13 17 14 15 16 1 43 2 5 6 7 A B 18 Yamato 13 3 37 35 19 20 36 37 2 34 A 13 32 31 30 23 11 12 10 38 40 39 27 25 21 22 24 29 Yamato 26 2 11 42 AZF8600G jintex.in

Page 7 — MISCELLANEOUS COVERS(2)

MISCELLANEOUS COVERS(2) カバー関係(2) 2 Ref.No Parts No. Description 品 名 Amt. Req 1 2160014 [2150016] Side Cover 側面カバー 1 2 110013 Screw(M4-0.7 × 8) 止ネジ 5 3 110013 [110001] Screw(M4-0.7 × 8)[M4-0.7 × 5.4] 止ネジ 1 4 2150018 Eye Guard Holder アイガード板 1 5 170032 Screw(M4-0.7 × 5) 止ネジ 1 6 000010 Conical Spring Washer 皿バネワッシャ 2 7 2150125 Eye Guard アイガード 1 8 110076 Screw(M3-0.5 × 6) 止ネジ 2 9 000444 Washer ワッシャ 2 10 2150023 Needle Bar Oil Defender 針棒油受ケ 1 11 110012 Screw(M4-0.7 × 5) 止ネジ 4 12 2150024 Needle Bar Oil Seal 針棒シール 1 13 190015 Screw(M14-2 × 6) 止ネジ 4 14 2150025 Logo Plate ロゴマーク板 1 15 110106 Screw(M4-0.7 × 8) 止ネジ 2 16 390170 "AZF-G" Logo Mark AZF-Gロゴマーク 1 17 390165 Brand Name Plate(68mm)(Green) 銘板(緑) 1 18 390166 Brand Name Plate(83mm)(Green) 銘板(緑) 1 19 2100538 Front Cover Latch Spring 前開キカバーラッチバネ 1 20 0024446 Front Cover Hook 前開キカバーフック 1 21 001203 Screw(9/64-40 × 4.5) 止ネジ 1 22 0020016 Front Cover Hinge Pin 前開キカバーヒンジピン 1 23 003637 Screw(1/8-44 × 2.5) 止ネジ 2 24 2100024 Front Cover(Right) 前開キカバー 1 25 0024095 Front Cover Hinge Spring 前開キカバーヒンジバネ 1 26 2151055 [2100855] Front Cover Hinge 前開キカバーヒンジ 1 27 2100703 Chip Guard(Openable) 切屑落シ板 1 28 110003 Screw(M3.5-0.6 × 6) 止ネジ 2 29 2129420 Model Plate(Green) 型式板(緑) 1 30 390670 Threading Chart 糸通シ図 1 31 2100856 Front Cover Latch 前開キカバーラッチ 1 32 110054 Screw(M3-0.5 × 3.5) 止ネジ 2 33 390523 [390513] Threading Chart(Left) 糸通シ図(左) 1 34 2120062 Rear Cover Support 後カバー取付台 1 35 110045 Screw(M4-0.7 × 12) 止ネジ 1 36 2120055 Top Feed Dog Bar Rear Cover 上送り台後カバー 1 37 001123 Washer ワッシャ 2 38 2120141 Top Feed Dog Bar Oil Receiver, C. Set 上送り台油受ケ(組) 1 39 2120053 Top Feed Dog Bar Oil Receiver 上送り台油受ケ 1 40 2120138 Oil Receiver Rubber(Large) 油受ケゴム(大) 1 41 2120139 Oil Receiver Rubber(Small) 油受ケゴム(小) 1 42 2120098 Oil Receiver Fixing Plate 油受ケ押工板 1 43 110045 [110013] Screw(M4-0.7 × 12)[M4-0.7 × 8] 止ネジ 1 Note : Order for Model Plate must be accompanied by model designation(including symbols of gauge and devices). (注) 型式板を御注文の際は機種名(ゲージ記号、附帯装置含む)をお知らせください。 AZF8600G

Page 8

3 3 4 1 2 19 26 18 27 7 21 20 7 22 24 23 25 16 5 7 28 6 7 29 9 8 14 17 10 15 14 13 12 AZF8600G jintex.in

Page 9 — MISCELLANEOUS COVERS (3)

MISCELLANEOUS COVERS (3) カバー関係(3) 3 Ref.No Parts No. Description 品 名 Amt. Req 1 2120063 Feed Mechanism Cover 送り上カバー 1 2 2120588 Feed Mechanism Cover Gasket 送り上カバーパッキン 1 3 110048 Screw(M4-0.7 × 10) 止ネジ 5 4 2100047 Rubber Cushion 埋メ座(中) 1 5 2110027 O-ring(P52) Oリング 1 6 2110026 Ball Bearing Holder ベアリング押エ 1 7 110013 Screw(M4-0.7 × 8) 止ネジ 10 8 2100318 Fan Cover ファンカバー 1 9 110012 Screw(M4-0.7 × 5) 止ネジ 2 10 150004 Screw(M4-0.7 × 6) 止ネジ 1 11 12 2150022 Pushbutton プッシュボタン 1 13 2100651 Oil Seal オイルシール 1 14 0033024 Retaining Ring ストツプリング 2 15 0068517 Pushbutton Spring プッシュボタンバネ 1 16 330008 Seal Plug 詰栓 1 17 330000 Seal Plug 詰栓 1 18 2150017 Fabric Guide Plate 布案内板 1 19 110064 Screw(M4-0.7 × 8) 止ネジ 2 20 2100918 Tail Cover Gasket 後カバーパッキン 1 21 2100037 Tail Cover 後カバー 1 22 2150069 [0036518] Seal Plug 詰栓 1 23 2100960 Ball Bearing Housing ハウジング 1 24 2100874 Ball Bearing Housing Gasket ハウジングパッキン 1 25 130003 Screw(M4-0.7 × 7.3) 止ネジ 3 26 0093528 Looper Thread Pipe Stay 糸道パイプ支エ 1 27 0021735 Looper Thread Pipe 糸道パイプ 1 28 0020218 Top Feed Shaft End Cap 上送り軸蓋 1 29 0020051 Seal Plaug 詰栓 1 jintex.in AZF8600G

Page 10

4 2 1 71 2 16 10 9 8 A 11 B 11 10 9 8 C 15 6 7 6 5 4 3 13 12 4 3 7 9 8 6 10 13 4 9 8 6 14 4 3 7 18 32 30 31 27 28 25 24 29 26 19 22 23 21 20 43 41 39 40 38 37 36 44 45 46 47 49 50 51 53 52 54 40 55 56 57 58 61 D 60 64 63 66 65 67 68 67 68 59 18 AZF8600G jintex.in

Page 11 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS Ref.No Parts No. 1 2160122 [2100063] 2 110013 3 0024084 4 0024083 5 0024157 6 0020118 7 000178 8 0031111 9 000177 10 190016 11 0032962 12 0032952 13 0030255 14 0024156 15 2150116 16 0022215 17 2100404 18 110009 19 2150030 20 2150031 21 310105 22 2150032 23 110013 [110012] 24 2150124 25 110001 26 2150115 27 006035 28 000644 29 000322 30 2150167 31 2150162 32 110002 33 2150131 34 2150173 35 130026 [130021] 36 2150270 37 110073 [110041] 38 000653 39 2150165 40 110008 Description Thread Guide Plate Screw(M4-0.7 × 8) Thread Tension Spring Cap Tension Spring Bushing Tension Spring(Lower Looper Thread) Thread Tension Spring Retainer Felt Tension Disc Felt Tension Post Tension Disc Eyelet Tension Spring(Upper Looper Thread) Tension Spring(Double Chain Thread) Tension Spring(Needle Thread) Tension Disc Eyelet for Needle Thread Looper Thread Pipe Double Chaining Looper ThreadEyelet(Rear) Screw(M4-0.7 × 8) Oil Container Oil Container Plug Felt Felt Holder Screw(M4-0.7 × 8)[M4-0.7 × 8] Needle Thread Eyelet Holder Screw(M4-0.7 × 8) Needle Thread Eyelet(Right) Screw(9/64-40 × 7) Spring Washer Nut NeedleThread EyeletHolder(Double Chain) Needle Thread Eyelet(Right) (Double Chain) Screw(M3-0.5 × 5) Needle Thread Eyelet(Left) Needle Thread Eyelet(Left) (Double Chain) Screw(M4-0.7 × 5.8)[M4-0.7 × 6] Needle Thread Pull-off Screw(M4-0.7 × 7.5) Knock Pin DoubleChaining LooperThreadEyelet(Left) Screw(M4-0.7 × 5) Ref. No 41 to 71 See the following page. 糸道関係 品 名 糸案内板 止ネジ 糸調子バネキャップ(上) 糸調子ナット回り止メ 下ルーパ糸調子バネ 糸調子バネキャップ(下) フェルト 糸調子皿 フェルト 糸調子棒 糸調子台糸道 上ルーパ糸調子バネ 針糸調子バネ(二重環) 針糸調子バネ 針糸調子台糸道 糸道パイプ 二重環ルーパ糸道(後) 止ネジ SPタンク 詰栓 SPフェルト SPフェルト押工 止ネジ 針糸道取付板 止ネジ 針糸道(右) 止ネジ スプリングワッシャ ナット 二重環針糸道取付台 二重環針糸道(右) 止ネジ 針糸道(左) 二重環針糸道(左) 止ネジ 針糸繰り 止ネジ ノックピン 二重環ルーパ糸道(左) 止ネジ 4 Amt. Req 1 3 4 4 1 4 4 8 4 4 3 1 1 1 1 2 1 2 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 2 AZF8600G jintex.in

Page 12

4 2 1 71 16 B A 11 10 9 8 7 6 5 4 3 10 9 8 7 6 12 4 3 11 10 9 8 7 6 13 4 3 15 C 18 32 30 31 27 28 25 24 29 26 19 22 23 21 20 33 34 35 41 39 40 38 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 61 D 60 64 65 66 67 68 63 63 59 18 AZF8600G jintex.in

Page 13 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS 糸道関係 4 Ref.No Parts No. Description Amt. Req 41 2150151 Thread Eyelet Stopper 二又糸道ストッパ 1 42 110091 Screw(M3-0.5 × 3) 止ネジ 1 43 0020123 Tension Disc Eyelet 二重環糸調子台糸道 1 44 190002 Tension Post 糸調子棒 1 45 0020124 Tension Disc 二重環糸調子皿 2 46 0020125 Double Chaining Looper Tension 二重環糸調子バネ 1 47 0020126 Tension Spring Bushing 二重環糸調子ナット回り止メ 1 48 000182 Adjusting Nut 調節ナット 1 49 0020167 Double Chaining Looper Thread Eyelet 二又糸道 1 50 009853 Screw(11/64-40 × 6.5) 止ネジ 1 51 0020165 Thread Eyelet Bracket 二又糸道台 1 52 000010 Conical Spring Washer 皿バネワッシャ 1 53 190000 Screw(M4-0.7 × 7) 止ネジ 1 54 0020166 Thread Retaining Finger 糸案内 1 55 2150163 [2150111] Thread Retainer Plate Support 小調子板 1 56 2150112 Thread Retainer Plate 小調子皿 1 57 2150132 Thread Retainer Spring 小調子バネ 1 58 170049 Screw(M2-0.4 × 4) 止ネジ 1 59 2150240 Looper Holder Cover ルーパ台カバー 1 60 0093303 Looper Driving Shaft Oil Seal ルーパ軸オイルシール 1 61 2100229 Looper Holder Cover Spacer(Rubber) ルーパ台カバー スペーサ 1 62 2150119 Looper Thread Eyelet(Left) ルーパ糸道(左) 1 63 110035 Screw(M4-0.7 × 10) 止ネジ 3 64 2150123 Thread Eyelet Support 糸道取付板 1 65 2150120 Lower Looper Thread Eyelet 下ルーパ糸道 1 66 2150121 Upper Looper Thread Eyelet 上ルーパ糸道 1 67 000014 Washer ワッシャ 2 68 110026 Screw(M3-0.5 × 6) 止ネジ 2 69 000494 Spacer スペーサ 1 70 110048 Screw(M4-0.7 × 10) 止ネジ 1 71 2120536 Supplementary Thread Eyelet 二重環ルーパ補助糸道 1 AZF8600G

Page 14

5 AZF8600G jintex.in

Page 15 — MISCELLANEOUS CRANKSHAFT & BUSHINGS

MISCELLANEOUS CRANKSHAFT & BUSHINGS 主軸及びブッシュ関係 5 Ref.No Parts No. Description 品 名 Amt. Req 1 2150214 Machine Pulley ミシンブーリ 1 2 160007 Screw(M6-1 × 6) 止ネジ 5 3 2110181 Oil Cooling Fan 冷却ファン 1 4 160001 Screw(M4-0.7 × 4) 止ネジ 5 5 2110184 Wave Washer 波形ワッシャ 1 6 2110183 Mechanical Oil Shield 油切り 1 7 3100131 [0093090] Crankshaft Ball Bearing(Right) ボールベアリング(右) 1 8 2120026 Bearing Adapter ベアリング受ケ 1 9 2150096 Oil Pump Driving Worm ウオーム 1 10 2150038 Crankshaft Bushing 中ブッシュ 1 11 2160100 Crankshaft クランクシャフト 1 12 2100111 Crankshaft Counterweight バランスウエイト 1 13 110036 Screw(M3-0.5 × 6.5) 止ネジ 2 14 160027 Screw(M3-0.5 × 3) 詰ネジ 5 15 2100872 Crankshaft Ball Bearing(Left) ボールベアリング(左) 1 16 2120537 Double Chaining Looper Thread Take-up 糸調子カム 1 17 2100410 Thread Take-up Pin 糸調子カムピン 1 18 2150039 Crankshaft Bushing 小ブッシュ 1 19 2100105 Upper Knife Driving Shaft Bushing(Right) 上メス軸ブッシュ(右) 1 20 2150043 Upper Knife Feed Bar Driving Shaft Bushing 上メス軸・送り軸ブッシュ 2 21 2100117 Upper Knife Driving Shaft Oil Seal 上メス軸オイルシール 1 22 2150049 Needle Bar Driving Shaft Bushing(Right) 針棒クランク軸ブッシュ(右) 1 23 2150048 Needle Bar Driving Shaft Bushing(Left) 針棒クランク軸ブッシュ(左) 1 24 003636 Cap Screw(5/16-32 × 3.5) 蓋ネジ 1 25 000526 Gasket パッキン 1 26 2150040 Needle Bar Bushing(Upper) 針棒ブッシュ(上) 1 27 310109 Oil Wick 油芯 1 28 2150041 Needle Bar Bushing(Lower) 針棒ブッシュ(下) 1 29 2150046 Upper Looper Driving Shaft Bushing(Front) 上ルーパ軸ブッシュ(前) 1 30 2150047 Upper Looper Driving Shaft Bushing(Rear) 上ルーパ軸ブッシュ(後) 1 31 2100272 Looper Driving Shaft Oil Seal ルーパ軸オイルシール 1 32 2150044 Lower Looper Driving Shaft Bushing(Front) 下ルーパ軸ブッシュ(前) 1 33 2150045 Lower Looper Driving Shaft Bushing(Rear) 下ルーパ軸ブッシュ(後) 1 34 0077301 Looper Shaft Oil Seal ルーパ軸オイルシール 1 35 2100412 Double Chaining Looper Shaft Bushing(Front) 二重環ルーパ軸ブッシュ(前) 1 36 2100413 Double Chaining Looper Shaft Bushing(Rear) 二重環ルーパ軸ブッシュ(後) 1 37 2150042 Feed Bar Driving Shaft Bushing(Left) 送り軸ブッシュ(左) 1 38 2150069 Seal Plug 詰栓 1 39 2100414 Looper Rocker Shaft Bushing ルーパ前後軸ブッシュ 2 40 2100417 Seal Plug 詰栓 1 41 2100098 Control Lever Shaft Bushing 送り調節レバー軸ブッシュ 1 42 2120030 Top Feed Driving Connecting Rod Spacer 上送りロッドスペーサ 1 43 2120074 Top Feed Shaft Bushing(Right) 上送り軸ブッシュ(右) 1 44 2120075 Top Feed Shaft Bushing(Left) 上送り軸ブッシュ(左) 1 45 2120071 Vertical Motion & Rocker Shaft Bushing(Right) 上下・前後軸ブッシュ(右) 2 46 2120073 Vertical Motion Shaft Bushing(Left) 上送り上下軸ブッシュ(左) 1 47 0093303 Oil Seal オイルシール 1 48 2120072 Top Feed Rocker Shaft Bushing(Left) 上送り前後軸ブッシュ(左) 1 49 2150050 Needle Bar & Needle Bar Bushing, C. Set 針棒・針棒ブッシュ(組) 1 50 2100642 Needle Bar 針棒 1 AZF8600G jintex.in

Page 16

6 AZF8600G jintex.in

Page 17 — NEEDLE BAR DRIVING MECHANISM

NEEDLE BAR DRIVING MECHANISM Ref.No Parts No. Description 6 品 名 Amt. Req 1 2100252 Needle Bar Driving Connecting Rod 針棒ロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 2 3 2100144 Needle Bar Driving Connecting Rod Pin 針棒クランクピン 1 4 160002 Screw(M4-0.7 × 5) 止ネジ 1 5 2101405 Needle Bar Driving Lever 針棒クランク軸腕 1 6 120006 Screw(M6-1 × 12) 止ネジ 1 7 2100137 Collar(12 × 20 × 10mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 2 9 2150242 Needle Bar Crank Arm, C. Set 針棒クランク(組) 2 10 2150053 Needle Bar Driving Shaft 針棒クランク軸 1 11 2101406 Needle Bar Crank Arm 針棒クランク 1 12 300008 Washer ワッシャ 1 13 140003 Screw(M6-1 × 18) 止ネジ 1 14 2100138 Needle Bar Connecting Link 針棒リンク 1 15 2100176 [2100620] Needle Bar Connecting Link Pin 針棒リンクピン 2 16 310089 Oil Wick 油芯 2 17 2150059 Needle Bar Connecting Bracket 針棒抱キ 1 18 110006 Screw(M3.5-0.6 × 10) 止ネジ 1 19 160016 Screw(M4-0.7 × 4.5) 止ネジ 2 20 2100642 Needle Bar 針棒 1 21 2169112 Needle Clamp(C) 針止メ 1 22 --- Needle(System: D0 × 5) 止ネジ 2 23 003637 Screw(1/8-44 × 2.5) 止ネジ 2 24 2150057 Stitch Plate Support Stay, C. Set 針板取付台支工(組) 1 25 2150058 Stitch Plate Support Stay 針板取付台支工 1 26 000035 Roll Pin ロールピン 1 27 110009 Screw(M4-0.7 × 8) 止ネジ 6 28 2100502 Stitch Plate Support(Rear) 針板取付台(後) 1 29 110001 Screw(M4-0.7 × 5.4) 止ネジ 1 30-1 2128604 Stitch Plate(C5) 針板 1 30-2 2128605 Stitch Plate(C7) 針板 1 31 005345 Screw(11/64-40 × 8.3) 止ネジ 2 32 2100145 Stitch Plate Support(Front) 針板取付台(前) 1 33 110011 Screw(M5-0.8 × 10) 止ネジ 2 34 0032604 Rubber Cushion 埋メ座 1 35 2109211 NeedleGuard(Front)(DoubleChainStitch) インタ針受ケ(前) 1 36 110002 Screw(M3-0.5 × 5) 止ネジ 1 37 2150035 HR Unit, Complete Set HR装置(組) 1 38 3100370 Tube Joint パイプ継手 1 39 2100152 Oil Tube(70mm) 給油パイプ(70mm) 1 40 310005 Oil Wick 油芯 1 Ref. No 41 to 53 See the following page. jintex.in AZF8600G

Page 18

6 AZF8600G jintex.in

Page 19 — NEEDLE BAR DRIVING MECHANISM

NEEDLE BAR DRIVING MECHANISM Ref.No 41 42 43 44 45 46 47 48 49 50 51 52 53 Parts No. 2100533 310001 2100535 2100536 000393 110013 320008 000567 2150150 2109212 007627 2129200 110027 Description HR Felt Holder HR Felt HR Felt Holder Bracket, C. Set HR Felt Holder Bracket Roll Pin Screw(M4-0.7 × 8) Fitting Stud(Short) Seal HR Unit Bracket NeedleGuard(Rear)(Double Chain Stitch) Screw(M4-0.7 × 6) Needle Guard(Front)(Overlock Stitch) Screw(M2.5-0.45 × 3.5) 針棒機構 品 名 HR フェルト受ケ HR フェルト HR取付台(組) HR取付台 ロールピン 止ネジ 管継手ボルト(短) パッキン HR 装置台 イン夕針受ケ(後) 止ネジ オーバ針受ケ(前) 止ネジ 6 Amt. Req 1 1 1 1 1 1 1 1 1 1 2 1 2 AZF8600G jintex.in

Page 20

7 AZF8600G jintex.in

Page 21 — KNIFE DRIVING MECHANISM

KNIFE DRIVING MECHANISM Ref.No Parts No. Description 品 名 Amt. Req 1 2100160 Upper Knife Driving Connecting Rod 上メスロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 2 3 2100173 Driving Lever Pin 上メス腕ピン 1 4 160002 Screw(M4-0.7 × 5) 止ネジ 1 5 2101423 Upper Knife Driving Lever 上メス腕 1 6 120006 Screw(M6-1 × 12) 止ネジ 1 7 2100161 Collar(10 × 19 × 9mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 2 9 2150250 Upper Knife Driving Shaft 上メス軸 1 10 2100165 Upper Knife Holder Positioner 上メスホルダピン 1 11 2121108 Upper Knife Holder(Angled Type) 上メスホルダ(角) 1 12 2121107 Upper Knife(Angled Type) 上メス(角) 1 13 2121114 Upper Knife Clamp 上メス押工 1 14 2121110 Upper Knife Chip Guard 切屑押シ 1 15 000665 Washer ワッシャ 1 16 140013 Screw(M4-0.7 × 24) 止ネジ 1 17 2121109 Upper Knife Holder 上メス抱キ 1 18 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 19 110063 Stop Screw(M3-0.5 × 18) ストップネジ 1 20 000488 Nut ナット 1 21 0093864 Seal Plug 詰栓 1 22 2150020 Lower Knife Holder Spring Stop 下メスバネ受ケ 1 23 110012 Screw(M4-0.7 × 5) 止ネジ 3 24 2100174 Cloth Plate Rubber Cushion 緩衝ゴム 1 25 2150019 Front Cover 前カバー 1 26 110001 Screw(M4-0.7 × 5.4) 止ネジ 2 27 2100009 Cloth Plate Spring Pin バネ受ケピン 1 28 2150021 Lower Knife Holder Locking Plate 下メス台回り止メ 1 29 0032919 Lower Knife Holder Spring 下メスバネ 1 30 2121112 Lower Knife Holder 下メス台 1 31 110046 Screw(M5-0.8 × 12) 止ネジ 1 32 2121111 Lower Knife 下メス 1 33 2121113 Lower Knife Clamp 下メス押工 1 34 140010 Screw(M4-0.7 × 6) 止ネジ 1 メス機構 7 AZF8600G jintex.in

Page 22

8 AZF8600G Jinte.in

Page 23 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 1 190080 Adjusting Screw(M10-0.75 × 30) 調節ネジ 1 2 100073 Lock Nut ロックナット 1 3 0032726 Presser Spring 押工バネ 1 4 2150145 Presser Bar 押工棒 1 5 2100580 Presser Arm Positioning Guide Pin 押工腕案内ピン 1 6 340050 [340044] Spring Pin スプリングピン 1 7 2160057 [2150146] Presser Arm Stop 押工腕ストッパ 1 8 110008 [110060] Screw(M4-0.7 × 5)[M4-0.7 × 4.8] 止ネジ 1 9 2160055 [2160023] Presser Foot Release Lever 手揚ゲ 1 10 2160058 [2150148] Presser Foot Release Lever Spring 手揚ゲバネ 1 11 170045 Screw(M4-0.7 × 5) 止ネジ 1 12 13 2150143 [2100193] Presser Foot Lifter Lever 押工場レバー 1 14 15 170065 [170047] Screw(M8-1.25 × 10)[M8-1.25 × 10] 止ネジ 1 16 2150142 [2150138] Presser Foot Lifter Lever Stop 押工場レバー ストッパ 1 17 120010 Screw(M6-1 × 10) 止ネジ 1 18 2150144 [2100197] Presser Foot Lifter Lever Link 押工場レバーリンク 1 19 2100518 Presser Foot Shaft Collar 押工軸カラー 1 20 120017 Screw(M5-0.8 × 15) 止ネジ 1 21 2160033 Intermediate Lever 押工軸レバー 1 22 110065 Stop Screw(M4-0.7 × 12) ストップネジ 1 23 100001 Lock Nut ロックナット 1 24 2150139 Presser Foot Lifter Lever Spring 押工場レバーバネ 1 25 2160032 Presser Foot Shaft Bushing 押工軸ブッシュ 1 26 160007 Screw(M6-1 × 6) 止ネジ 1 27 3100104 O-ring(P16) Oリング 1 28 2120045 Top Feed Dog Lifting Lever リフトレバー 1 29 120017 Screw(M5-0.8 × 15) 止ネジ 1 30 2160029 Presser Arm, Complete Set 押工腕(組) 1 31 2160031 Presser Foot Shaft 押工軸 1 32 2160030 Presser Arm 押工腕 1 33 2100199 Presser Arm Hinge Pin 押工腕ヒンジピン 1 34 160001 Screw(M4-0.7 × 4) 止ネジ 1 35-1 2127550 Presser Foot, C. Set(C5) 押工(組) 1 35-2 2127551 Presser Foot, C. Set(C7) 押工(組) 1 36 2127580 Presser Foot(Upper) 押工(上) 1 37 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 38 2127575 Presser Foot Connector 押工連結桿 1 39 006094 Screw(1/8-44 × 3) 止ネジ 3 40 2127570 Presser Foot(Rear) 押工(後) 1 41-1 2127560 Presser Foot(Front)(C5) 押工(前) 1 41-2 2127561 Presser Foot(Front)(C7) 押工(前) 1 42 2127578 Presser Foot Connector(Right) 押工連結桿(右) 1 43 004404 Screw(3/32-56 × 5.1) 止ネジ 3 44 2127507 Presser Foot Spring 押工バネ 1 45 0020271 Thread Chain Cutting Knife チェインカッタ 1 46 000531 Washer ワッシャ 1 47 2160059 Presser Foot Release Lever Stop 手揚ゲストッパ 1 48 2160063 Presser Bar Guide Plate 押工棒ガイド板 1 49 110023 Screw(M2-0.4 × 3.5) 止ネジ 1 AZF8600G

Page 24

9 AZF8600G jintex.in

Page 25 — TOP FEED MECHANISM(1)

TOP FEED MECHANISM(1) 9 Ref.No Parts No. Description Amt. Req 1 2120027 Top Feed Driving Connecting Rod 上送りロッド 1 2 120001 Screw(M4-0.7 × 14) 止ネジ 2 3 2120028 Connecting Rod Pin 上送りロッドピン 1 4 330009 Seal Plug 詰栓 2 5 160007 Screw(M6-1 × 6) 止ネジ 1 6 2120029 Top Feed Shaft Lever 上送り軸腕 1 7 120006 Screw(M6-1 × 12) 止ネジ 1 8 0032646 Collar カラー 2 9 009604 Screw(11/64-40 × 5.5) 止ネジ 4 10 2120031 Top Feed Shaft 上送り軸 1 11 000750 Seal Plug 詰栓 1 12 330008 Seal Plug 詰栓 1 13 2120002 Top Feed Rocker, Complete Set 上送りリ腕(組) 1 14 2120003 Top Feed Rocker 上送り腕 1 15 120013 Screw(M6-1 × 15) 止ネジ 2 16 2120004 Top Feed Regulating Slider スライダ 1 17 2120005 Slider Pin Adjusting Lever, C. Set スライダ調節レバー(組) 1 18 2120006 Top Feed Regulating Slider Pin スライダピン 1 19 160001 Screw(M4-0.7 × 14) 止ネジ 3 20 2120007 Top Feed Shaft Lever Link 上送り軸腕リンク 1 21 0026081 Link Pin リンクピン 1 22 0026413 Spacer スペーサ 1 23 0026099 Top Feed Guide Block 上送り前後駒 1 24 2120083 Spacer スペーサ 1 25 0033024 Retaining Ring ストップリング 1 26 2120006 Slider Pin Adjusting Lever スライダ調節レバー 1 27 120011 Screw(M6-1 × 18) 止ネジ 1 28 2120008 Top Feed Rocker Shaft Lever 上送り前後軸腕 1 29 0033104 Collar カラー 1 30 005550 Screw(11/64-40 × 13.5) 止ネジ 1 31 2120032 Slider Pin Adjusting Lever Shaft スライダ調節レバー軸 1 32 2120009 Top Feed Rocker Shaft 上送り前後軸 1 33 310046 Oil Wick(2.3 × 2.3 × 14mm) 油芯 1 AZF8600G

Page 26

10 AZF8600G jintex.in

Page 27 — TOP FEED MECHANISM(2)

TOP FEED MECHANISM(2) 上送り機構(2) 10 Ref.No Parts No. Description 品 名 Amt. Req 1 0093323 Collar(Right) カラー(右) 1 2 0033104 Collar(Left) カラー(左) 1 3 005550 Screw(11/64-40 × 13.5) 止ネジ 2 4 2120020 Vertical Motion Adjusting Lever, C. Set 上送り上下調節レバー(組) 1 5 2120021 Vertical Motion Adjusting Lever 上送り上下調節レバー 1 6 120013 Screw(M6-1 × 15) 止ネジ 2 7 004106 Screw(9/64-40 × 6.5) 止ネジ 1 8 000533 Washer ワッシャ 1 9 0026075 Adjusting Lever Pin 上下調節レバーピン 1 10 2120022 Vertical Motion Lever Link 上下レバーリンク 1 11 0026081 Vertical Motion Lever Pin 上下レバーピン 1 12 003637 Screw(1/8-44 × 2.5) 止ネジ 5 13 2120023 Vertical Motion Lever Lever 1 14 2120019 Top Feed Vertical Motion Shaft 上送り上下軸 1 15 310047 Oil Wick(2.3 × 2.3 × 11.5mm) 油芯 2 16 0023234 Positioning Pin 位置決メピン 1 17 2120131 Top Feed Dog Bar, C. Set(2) 上送り台(組2) 1 18 2120018 Vertical Motion Link 上送り上下リンク 1 19 310069 Oil Wick(No. 2-210mm) 油芯 1 20 000755 Pin 油芯止メピン 1 21 310068 Oil Wick(No.2-120mm) 油芯 1 22 0024302 Oil Wick Stay 油芯支エ 1 23 2120067 Oil Wick Holder 油芯押工 1 24 110002 Screw(M3-0.5 × 5) 止ネジ 1 25 2120130 Top Feed Dog Bar, C. Set(1) 上送り台(組1) 1 26 2120093 Top Feed Dog Bar Guide Lever 上送り台ガイド腕 1 27 28 29 2120095 Top Feed Dog Bar Guide Pin 上送り台ガイドピン 1 30 2120112 Top Feed Dog Bar Guide 上送り台ガイド 1 31 310054 Oil Wick(2.3 × 2.3 × 6mm) 油芯 1 32 2120017 Press Bar Receiver バネ受ケ 1 33 2120132 Shield Support シールサポート 1 34 110050 Screw(M3.5-0.6 × 4.5) 止ネジ 2 35 2120014 Top Feed Dog Bar 上送り台 1 36 2120572 Top Feed Dog Bar Shield 上送り台シール 2 37 310046 Oil Wick(2.3 × 2.3 × 14mm) 油芯 1 38 0026418 Top Feed Dog Bar Connecting Pin 上送り台ピン 1 39 2120015 Top Feed Rocker Link 上送り前後リンク 1 40 2120570 Top Feed Dog Bar Cover(Front), C. Set 上送り台カバー(前)(組) 1 Ref. No 41 to 62 See the following page. jintex.in AZF8600G

Page 28

10 AZF8600G jintex.in

Page 30

11 AZF8600G jintex.in

Page 31 — TOP FEED MECHANISM (3)

TOP FEED MECHANISM (3) 上送り機構 (3) 11 Ref.No Parts No. Description 品 名 Amt. Req 1 2120035 Spring Hanger バネ掛ケ 1 2 000665 Washer ワッシャ 2 3 110013 Screw(M4-0.7 × 8) 止ネジ 2 4 2120036 Top Feed Dog Lever Spring 上送りレバーバネ 1 5 2120033 Top Feed Dog Lever 上送りレバー 1 6 110009 Screw(M4-0.7 × 8) 止ネジ 3 7 2120034 Top Feed Dog Graduation 上送り目盛板 1 8 000538 Washer ワッシャ 2 9 110035 Screw(M4-0.7 × 10) 止ネジ 2 10 190039 Screw(M4-0.7, M6-1 × 19) 止ネジ 1 11 100029 Adjusting Nut 調節ナット 1 12 000663 Washer ワッシャ 1 13 100001 Lock Nut ロツクナット 1 14 005049 Screw(M5-0.8 × 8) 止ネジ 1 15 000554 Washer ワッシャ 1 16 0020350 Top Feed Dog Lever Stopper レバーストツパ 1 17 0026434 Lever Adjusting Box, C. Set レバー調節台(組) 1 18 0026427 Lever Adjusting Box レバー調節台 1 19 0026430 Lever Adjusting Block レバー調節駒 1 20 0026428 Lever Adjusting Screw レバー調節ネジ 1 21 0026438 Coller カラー 1 22 003637 Screw(1/8-44 × 2.5) 止ネジ 3 23 0068206 O-ring(P4) Oリング 1 24 0026429 Adjusting Screw Supporting Plate 調節ネジ支工板 1 25 004351 Screw(9/64-40 × 7) 止ネジ 2 26 000280 Rubber Cushion ラバークツシヨン 2 27 2020048 Adjusting Knob Spring 調節ツマミバネ 1 28 0026431 Adjusting Knob 調節ツマミ 1 29 110064 Screw(M4-0.7 × 8) 止ネジ 2 AZF8600G

Page 32

12 AZF8600G jintex.in

Page 33 — UPPER LOOPER DRIVING MECHANISM

UPPER LOOPER DRIVING MECHANISM 上ルーパ機構 12 Ref.No Parts No. Description 品 名 Amt. Req 1 2100215 Looper Driving Lever Connecting Rod ルーパロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 4 3 2100088 Connecting Rod Swing-proof 振止メ 2 4 2101416 Upper Looper Driving Lever 上ルーパ軸腕 1 5 120006 Screw(M6-1 × 12) 止ネジ 1 6 2150070 Looper Driving Shaft 上ルーパ軸 1 7 2101418 Driving Shaft Thrust Ring スラストリング 1 8 2150075 Driving Shaft Thrust Ring スラストリング 1 9 2100161 Collar(10 × 19 × 9mm) カラー 1 10 160001 Screw(M4-0.7 × 4) 止ネジ 2 11 2150130 Upper Looper Thread Pull-off 上ルーパ糸繰り 1 12 110009 Screw(M4-0.7 × 8) 止ネジ 2 13 2150087 Upper Looper Bar Crank Arm, C. Set 上ルーパクランク(組) 1 14 2101412 Upper Looper Bar Guide Bushing ルーパ案内メタル 1 15 2100227 Upper Looper Bar Guide Cover ルーパ案内蓋 1 16 130001 Screw(M2.5-0.45 × 6) 止ネジ 1 17 110071 Screw(M2.5-0.45 × 6) 止ネジ 1 18 2150092 Upper Looper Bar Guide, Complete Set ルーパ案内(組) 1 19 2101414 Upper Looper Bar Crank Arm 上ルーパクランク 1 20 300008 Washer ワッシャ 1 21 140004 Screw(M6-1 × 16) 止ネジ 1 22 2100903 Upper Looper Bar Crank Arm Pin 上ルーパクランクピン 1 23 160002 Screw(M4-0.7 × 5) 止ネジ 1 24 310089 Oil Wick 油芯 1 25 2150080 Upper Looper Bar ルーパ棒 1 26 000629 Seal Plug 詰栓 1 27 2100892 Upper Looper Bar Guide ルーパ案内 1 28 310065 Oiling Felt フェルト 1 29 2109343 Upper Looper(for Needle Size #18~21) 上ルーパ(針番手#18~21用) 1 30 210009 Screw(1/8-44 × 3.2) 止ネジ 1 31 000779 Standard Pin 基準ピン 1 32 120013 Screw(M6-1 × 15) 止ネジ 2 33 2100854 Upper Looper Supplementary Thread Eyelet 上ルーパ補助糸道 1 34 2150117 Lower Looper Thread Pull-off 下ルーパ糸繰り 1 35 000014 Washer ワッシャ 1 36 110002 Screw(M3-0.5 × 5) 止ネジ 1 37 2150079 Upper Looper Bar, C. Set ルーパ棒(組) 1 jintex.in AZF8600G

Page 34

13 AZF8600G jintex.in

Page 35 — LOWER & DOUBLE CHAINING LOOPER DRIVING MECHANISM 下ループ及び二重環ルーパ機構 13

LOWER & DOUBLE CHAINING LOOPER DRIVING MECHANISM 下ループ及び二重環ルーパ機構 13 Ref.No Parts No. Description 品 名 Amt. Req 1 2100215 Looper Driving Lever Connecting Rod ルーパロッド 1 2 120049 Screw(M4-0.7 × 16) 止ネジ 4 3 2100088 Connecting Rod Swing-proof 振止メ 1 4 2150253 Lower Looper Driving Lever 下ルーパ軸腕 1 5 160024 Screw(M6-1 × 8) 止ネジ 2 6 2100905 Driving Shaft Thrust Ring スラストプレート 1 7 2100161 Collar(10 × 19 × 9mm) カラー 1 8 160003 Screw(M5-0.8 × 5) 止ネジ 3 9 2150170 Looper Driving Shaft ルーパ軸 1 10 2101417 Lower Looper Holder Arm 下ルーパ台 1 11 300008 Washer ワッシャ 1 12 140002 Screw(M6-1 × 14) 止ネジ 2 13 2150118 Thread Pull-off 下ルーパ台糸繰り 1 14 110009 Screw(M4-0.7 × 8) 止ネジ 1 15 2109334 Lower Looper 下ルーパ 1 16 2109214 Needle Guard(Rear) 針受ケ(後) 1 17 110036 Screw(M3-0.5 × 6.5) 止ネジ 1 18 180014 Screwed Pin(M3-0.5 × 4.5) ピンネジ 1 19 2150169 DoubleChaining LooperDriving Connection 二重環ルーパリンク 1 20 2100249 Bushing ブッシュ 1 21 300000 Washer ワッシャ 1 22 140005 [140001] Screw(M5-0.5 × 17)[M5-0.5 × 12] 止ネジ 1 23 2150168 Double Chaining Looper Driving Lever 二重環ルーパ軸腕 1 24 120006 Screw(M6-1 × 10) 止ネジ 1 25 2100433 Looper Driving Connecting Pin(Left) ルーパリンクピン(左) 1 26 160001 Screw(M4-0.7 × 4) 止ネジ 1 27 2100436 Looper Slide Block Holder(Front) ルーパ前脚抱キ(前) 1 28 2100438 Looper Slide Block Holder(Rear) ルーパ前後脚抱キ(後) 1 29 120018 Screw(M4-0.7 × 10) 止ネジ 2 30 2100437 Looper Slide Block ルーパ前脚 1 31 000740 Seal Plug 詰栓 1 32 2101434 Double Chaining Looper Driving Shaft 二重環ルーパ軸 1 33 2101420 Double Chaining Looper Holder Arm 二重環ルーパ台 1 34 2109335 Double Chaining Looper 二重環ルーパ 1 35 000035 Position Pin 位置決メピン 1 36 300032 Washer ワッシャ 1 37 007610 Screw(M4-0.7 × 10) 止ネジ 1 38 300106 Conical Spring Washer 皿バネワッシャ 1 39 100044 Nut ナット 1 jintex.in AZF8600G

Page 37

FEED DRIVING CONTROL MECHANISM 前送り調節機構 14 Ref.No Parts No. Description 品 名 Amt. Req 1 2150064 Main Feed Bar Lever 後送りリレバー 1 2 120006 Screw(M6-1 × 12) 止ネジ 4 3 2100251 Main Feed Bar Lever Pin 後送りリレバーピン 1 4 300000 Washer ワッシャ 3 5 100002 Nut ナット 1 6 000669 Washer ワッシャ 2 7 2150075 Thrust Plate スラストプレート 1 8 0095027 Retaining Ring ストツプリング 1 9 2100248 Main Feed Bar Connection 後送りリンク 1 10 2100249 Connection Bushing 後送りリンクブツシュ 1 11 140001 Screw(M5-0.5 × 12) 止ネジ 1 12 2100266 Feed Bar, Complete Set 前送り台(組) 1 13 2100242 Main Feed Bar 後送り台 1 14 2100241 Differential Feed Bar 前送り台 1 15 2100243 Differential Feed Bar Connection 前送りリンク 1 16 2100244 Connection Bushing 前送りリンクブツシュ 1 17 140000 Screw(M5-0.5 × 15.5) 止ネジ 1 18 2150065 Feed Bar Driving Shaft 送り軸 1 19 2150066 Feed Bar Driving Shaft Lever 送り軸腕 1 20 2150068 Connecting Rod Pin 送りロツドピン 1 21 160007 Screw(M6-1 × 6) 止ネジ 1 22 2100671 Differential Rocker, Complete Set 前送り腕(組) 1 23 2100672 Differential Rocker 前送り腕 1 24 2100673 Differential Regulating Slider スライダ 1 25 2100674 Differential Regulating Slider Cap スライダ蓋 1 26 110033 Screw(M3-0.5 × 6) 止ネジ 2 27 2100269 Differential Lever(Right), C. Set 差動レバー(右)(組) 1 28 2100252 Slider Link スライダリンク 1 29 0068202 Retaining Ring ストツプリング 1 30 2100253 Slider Link Pin スライダリンクピン 1 31 2100262 Differential Lever(Right) 差動レバー(右) 1 32 2100267 Collar(10 × 17 × 8mm) カラー 1 33 160001 Screw(M4-0.7 × 4) 止ネジ 2 34 000690 Spring Pin スプリングピン 1 35 2100256 Differential Lever Spring 差動レバーバネ 1 36 0020538 O-ring(P7) Oリング 1 37 2100263 Differential Lever(Left) 差動レバー(左) 1 38 000528 Washer ワッシャ 1 39 000561 Conical Spring Washer 皿バネワッシャ 1 40 100000 Adjusting Nut 調節ナット 1 41 190001 Adjusting Screw(M6-1 ×11.5,M4.5-0.5×4) 調節ネジ 1 42 2100271 Differential Feed Graduation 送り目盛板 1 43 110016 Screw(M4-0.7 × 15) 止ネジ 2 44 0020350 Differential Lever Stop 差動レバー ストツパ 2 45 110017 Screw(M5-0.8 × 8) 止ネジ 2 46 2100257 Adjusting Screw アジャスタ 1 47 2100264 Adjusting Block アジャスタ駒 1 48 2100259 Adjusting Block Spring アジャスタバネ 1 49 0034293 Retaining Ring ストツプリング 1 jintex.in AZF8600G

Page 39 — FEED DRIVING MECHANISM

FEED DRIVING MECHANISM 送り機構 15 Ref.No Parts No. Description 品 名 Amt. Req 1 2100865 Feed Bar Guide Support 送り台ガイドサポート 1 2 110064 Screw(M4-0.7 × 8) 止ネジ 4 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 6 4 2100866 Feed Bar Shield(Front) 送り台シール(前) 1 5 2100867 Feed Bar Shield(Rear) 送り台シール(後) 1 6 2100869 Feed Bar Shield Guide 送り台シールガイド 1 7 2100870 Feed Bar Guide 送り台ガイド 2 8 2100868 Feed Bar Shield(Upper) 送り台シール(上) 1 9 2150063 Feed Bar Guide Bushing 送り台ガイドブッシュ 1 10 160007 Screw(M6-1 × 6) 止ネジ 1 11 2100602 Feed Bar Block(Rear) Shaft 角駒(後)軸 1 12 160001 Screw(M4-0.7 × 4) 止ネジ 3 13 2100283 Feed Bar Block(Rear) 角駒(後) 1 14 2100281 Feed Bar Block(Rear) Lid 角駒(後)蓋 1 15 130002 Screw(M3-0.5 × 6) 止ネジ 1 16 2100434 Looper Rocker Shaft Lever 二重環ルーパ前後軸腕 1 17 2100251 Looper Slide Block Pin ルーパ前後ピン 1 18 300000 Washer ワッシャ 1 19 100072 Nut ナット 1 20 2100442 Looper Rocker Shaft 二重環ルーパ前後軸 1 21 003655 Screw(M4-0.7 × 10) 止ネジ 2 22 2100443 Collar(9 × 17 × 8mm) ルーパ前後軸カラー 1 23 300001 Washer ワッシャ 1 24 0013208 Retaining Ring ストップリング 1 25 2100435 Looper Rocker Connecting Rod Pin ルーパ前後ロッドピン 1 26 2100444 Petaíning Ring ストップリング 1 27 2100280 Feed Bar Block(Front) 角駒(前) 1 28 2100451 Retaining Ring ストップリング 1 29 2100452 Looper Rocker Connecting Rod ルーパ前後ロッド 1 30 0068146 Roller Bearing ニードルベアリング 1 31 2100450 Looper Rocker Eccentric ルーパ前後エキセン 1 32 0020401 Feed Dog Eccentric Pin 送りエキセンピン 1 33 2100277 Feed Dog Eccentric 送りエキセン 1 34 2100278 Roller Bearing ニードルベアリング 1 35 2100275 Feed Dog Driving Connecting Rod 送りロッド 1 36 2100276 Feed Dog Regulating Eccentric 送り調節エキセン 1 37 180002 Screw(M5-0.8 × 4) 止ネジ 2 38 2100289 Feed Dog Regulating Plate Spring 送り調節プレートバネ 1 39 110070 Screw(M3-0.5 × 6.3) 止ネジ 1 40 0023473 Feed Dog Regulating Plate 送り調節プレート 1 41 2100279 Feed Dog Regulating Gear 送り調節ギア 1 42 180003 Screw(M5-0.8 × 8) 止ネジ 1 43 160003 Screw(M5-0.8 × 5) 止ネジ 3 44-1 2109089 Differential Feed Dog(C5) 前送り 1 44-2 2109090 Differential Feed Dog(C7) 前送り 1 45 2109081 Main Feed Dog 後送り 1 46 2109082 Auxiliary Feed Dog 小送り 1 47 110026 Screw(M3-0.5 × 6) 止ネジ 1 48 2150067 Connecting Rod Cover 送りロッドカバー 1 49 130003 Screw(M4-0.7 × 7.3) 止ネジ 2 AZF8600G jintex.in

Page 40

16 23 25 24 28 29 30 27 26 6 A 3 9 8 45 44 46 48 41 47 22 2 3 1 8 9 7 10 49 33 34 35 32 31 11 17 16 18 19 20 B C A 43 D B 9 12 13 9 14 15 39 42 40 41 3 36 8 9 37 9 8 23 11 AZF8600G jintex.in

Page 41 — LUBRICATING MECHANISM

LUBRICATING MECHANISM 16 Ref.No Parts No. Description 品 名 Amt. Req 1 2150103 [2100935] Oil Pump, Complete Set ポンプ(組) 1 2 2150104 [2100363] Worm Wheel ウオームホイール 1 3 160001 Screw(M4-0.7 × 4) 止ネジ 4 4 120049 [110016] Screw(M4-0.7 × 16)[M4-0.7 × 15] 止ネジ 2 5 000567 Seal パッキン 1 6 2150201 Oil Tube, Complete Set 給油パイプ(組) 1 7 3100370 Oil Tube Fitting One Way End 片口継手 1 8 0031831 Oil Tube Clamp 緊束環 9 9 2120506 Oil Tube(4.6 × 6.4 × 220mm) 給油パイプ 1 10 320008 Oil Tube Fitting Stud(M6-1) 管継手ボルト 2 11 2100958 Suction Tube, C. Set 吸入パイプ(組) 1 12 3100371 Oil Tube Fitting Two Way 両口継手 1 13 2100369 Oil Tube(4.6 × 6.4 × 36.5mm) 給油パイプ 1 14 2100957 Oil Filter 濾過網 1 15 2120586 Suction Pipe(Upper), C. Set 吸入パイプ(上)(組) 1 16 2120587 Suction Tube(4 × 6 × 325mm) 吸入パイプ 1 17 2100928 Suction Tube(2.5 × 4 × 60mm) 吸入パイプ 1 18 2100929 Suction Pipe(Upper) 吸入パイプ(上) 1 19 310073 Felt フェルト 1 20 2150202 Oil Tube, Complete Set 給油パイプ(組) 1 21 2150207 Oil Tube(4.6 × 6.4 × 315mm) 給油パイプ 1 22 320009 Oil Tube Fitting Stud(Long)(M6-1) 管継手ボルト(長) 1 23 2150710 [2150095] Oil Pressure Regulating Valve, C. Set 調圧弁(組) 1 24 2150713 [2150094] Oil Pressure Regulating Valve 調圧弁 2 25 0080503 Oil Pressure Regulating Ball 調圧ボール弁 1 26 0030748 Guide Pin ガイドピン 1 27 2150102 [2150097] Spring バネ 1 28 006861 Adjusting Screw(1/4-40 × 5) 調節ネジ 1 29 0000419 Nut ナット 1 30 3100060 Oil Filter Cap オイルフィルタキャップ 1 31 110045 Screw(M4-0.7 × 12) 止ネジ 3 32 3100061 O-ring(P42) Oリング 1 33 3100345 Oil Filter オイルフィルタ 1 34 3100329 Filter Housing オイルフィルタ継手 1 35 3100345 Oil Tube, C. Set 給油パイプ(組) 1 36 2160035 Oil Tube(4.6 × 6.4 × 150mm) 給油パイプ 1 37 2160040 Oil Pipe, C. Set オイルパイプ(組) 1 38 2100896 Oil Pipe オイルパイプ 1 39 000456 Seal Plug 詰栓 2 40 3100090 Oil Wick 油芯 1 41 2100032 Oil Sight Gauge オイルゲージ 1 42 0020538 O-ring(P7) Oリング 1 43 110053 Screw(M6-1 × 8) 止ネジ 3 44 2160045 Oil Pipe, C. Set オイルパイプ(組) 1 45 2160046 Oil Pipe オイルパイプ 1 46 3100081 Oil Wick 油芯 1 47 320012 [320010] Oil Tube Fitting Stud(1/4-40) 管継手ボルト 3 AZF8600G

Page 42

17 AZF8611G-C5DA 1 3 8 2 5 9 4 6 10 EXTRA PARTS AZF8611G-C5DA 12 13 14 15 18 21 17 19 20 22 24 25 24 27 26 28 39 31 32 30 23 29 33 34 35 36 37 24 AZF8600G jintex.in

Page 43 — AZF8611G EXCLUSIVE PARTS

AZF8611G EXCLUSIVE PARTS サブモデル専用部品 17 Ref.No Parts No. Description 品 名 Amt. Req 1 2127785 Presser Foot, C. Set(C5) 押工(組) 1 2 0027224 Presser Foot(Upper) 押工(上) 1 3 004351 Screw(9/64-40 × 7) 止ネジ 1 4 0027245 Presser Foot Connector 押工連結桿 1 5 0027246 Presser Foot Connector(Right) 押工連結桿(右) 1 6 2127586 Presser Foot(Front) 押工(前) 1 7 2127587 Presser Foot(Rear) 押工(後) 1 8 004149 Screw(1/8-44 × 2) 止ネジ 2 9 004404 Screw(3/32-56 × 5.1) 止ネジ 2 10 004109 Screw(1/8-44 × 2.5) 止ネジ 1 11 12 2128505 Stitch Plate(C5) 針板 1 13 2106013 [2106006] Differential Feed Dog 前送り 1 14 2106007 Main Feed Dog 後送り 1 15 2129070 [2129091] Top Feed Dog(Coarse) 上送り(荒歯) 1 16 17 0022981 Tape Guide Stay Shaft テープガイド支工取付軸 1 18 110009 Screw(M4-0.7 × 8) 止ネジ 1 19 0022963 Tape Guide Stay テープガイド支工 1 20 0022982 Tape Guide テープガイド 1 21 003638 Screw(11/64-40 × 4) 止ネジ 2 22 0026239 Folder Support, C. Set 定規取付台(組) 1 23 0026242 Vertical Adjusting Plate 上下調節板 1 24 001331 Screw(9/64-40 × 3.8) 止ネジ 6 25 0026241 Lateral Adjusting Plate 左右調節板 1 26 0026240 Swing-out Lever スイングアウトレバー 1 27 000172 Conical Spring Washer 皿バネワッシャ 1 28 004150 Screw(11/64-40 × 5.2) 止ネジ 1 29 000334 Nut ナット 1 30 0022447 Swing-out Lever Holder スイングアウトレバー取付台 1 31 0022448 Swing-out Lever Stop スイングアウトレバーストッパ 1 32 005036 Screw(1/8-44 × 5.6) 止ネジ 1 33 0022435 Folder Positioning Pin 定規固定ピン 2 34 0022436 Pin Holder Spring ピン押エバネ 2 35 001196 Screw(1/8-44 × 6) 止ネジ 1 36 001225 Screw(1/8-44 × 2.8) 止ネジ 1 37 110047 Screw(M4-0.7 × 10) 止ネジ 2 38 2109052 Auxiliary Feed Dog 小送り 1 39 0026243 Folder Supporting Plate 定規取付板 1 jintex.in AZF8600G

Page 44 — EXTRA PARTS AZF8611G-C5DA

18 EXTRA PARTS AZF8611G-C5DA 1 13 21 22 12 14 15 11 10 9 27 26 23 8 29 28 24 19 20 18 25 7 4 2 3 6 5 AZF8600G jintex.in

Page 45 — EXTRA PARTS for AZF8611G

EXTRA PARTS for AZF8611G Ref.No Parts No. Description 品名 Amt. Req 1 0027359 Fastener Guide Mechanism, C. Set 定規装置(組) 1 2 0027346 Fastener Guide(Upper) 定規(上) 1 3 0027347 Fastener Guide(Lower) 定規(下) 1 4 001202 Screw(9/64-40 × 6.6) 止ネジ 2 5 0027348 Fastener Guide Support 定規取付板 1 6 001330 Screw(9/64-40 × 3.8) 止ネジ 2 7 0027349 Fastener Guide Holder 定規取付板支工 1 8 004440 Screw(11/64-40 × 8.3) 止ネジ 2 9 0027350 Fastener Guide Shaft 定規軸 1 10 0075081 Cotter Pin 割リピン 1 11 0027355 Shaft Holder(Large) 定規軸受ケ(大) 1 12 0027352 Fastener Guide Return Spring 定規戻シバネ 1 13 0032912 Collar カラー 1 14 007616 Screw(1/8-44 × 4.2) 止ネジ 1 15 0027351 Shaft Guide Bar 定規ガイド軸 1 16 0027356 Shaft Holder(Small) 定規軸受ケ(小) 1 17 000532 Washer ワッシャ 2 18 004353 Screw(9/64-40 × 7) 止ネジ 4 19 0027353 Positioning Spring 定規位置決メバネ 1 20 000533 Washer ワッシャ 2 21 004541 Screw(7/32-32 × 7) 止ネジ 1 22 000621 Conical Spring Washer 皿バネワッシャ 3 23 0027357 Shaft Holder Block 定規軸受ケ台 1 24 0027358 Block Shaft 定規装置取付軸 1 25 002308 Screw(11/64-40 × 10.4) 止ネジ 2 26 0027046 Positioning Plate 位置決メ板 1 27 005000 Screw(9/64-40 × 5.7) 止ネジ 1 28 0027354 Fixing Spring 定規軸受ケ固定バネ 1 29 000538 Washer ワッシャ 1 特注部品 18 AZF8600G

Page 46 — 19 AZF8620G-1

19 AZF8620G-1 12 11 10 3 9 8 7 6 5 4 2 1 16 15 14 13 19 20 21 22 24 23 28 27 26 25 29 30 31 32 33 34 AZF8600G jintex.in

Page 47 — AZF8620G-1 EXCLUSIVE PARTS

AZF8620G-1 EXCLUSIVE PARTS サブモデル専用部品 19 Ref.No Parts No. Description 品 名 Amt. Req 1 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 2 0024083 Tension Spring Bushing 糸調子ナット回り止メ 1 3 0032971 Needle Thread Tension Spring 糸調子バネ 1 4 0020118 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 5 000178 Felt(2.5mm) フェルト 1 6 0031111 Tension Disc 糸調子皿 2 7 000177 Felt(1.0mm) フェルト 1 8 190016 Tension Post 糸調子棒 1 9 2150164 Tension Disc Eyelet for Needle Thread 糸調子台糸道 1 10 2150172 Tension Disc Eyelet(Right) 糸調子台糸道(右) 1 11 100001 Nut ナット 1 12 2150603 Presser Spring 押エバネ 1 13 2160124 Thread Pull-off 下ルーパ台糸繰り 1 14 2160123 Lower Looper Holder Arm 下ルーパ台 1 15 180004 Screw(M4-0.7 × 10.8) 止ネジ 1 16 2160120 Cloth Plate クロスプレート 1 17 2160121 Fabric Guide 生地ガイド 1 18 110101 Screw(M3-0.5 × 3) 止ネジ 1 19 2169113 Needle Clamp(CA7) 針止メ 1 20 003637 Screw(1/8-44 × 2.5) 止ネジ 1 21 2157407 Presser Foot Spring 押エバネ 1 22 2167400 Presser Foot, Set(A7) 押エ(組) 1 23 2167415 Presser Foot(Upper) 押エ(上) 1 24 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 25 2167410 Presser Foot Connector 押工連結棒 1 26 2167420 Pin ピン 1 27 160033 Screw(M2.5-0.45 × 3) 止ネジ 1 28 2157400 Presser Foot(Rear) 押エ(後) 1 29 004149 Screw(1/8-44 × 2) 止ネジ 3 30 2167405 Presser Foot(Front)(CA7) 押エ(前) 1 31 2129301 Upper Looper 上ルーパ 1 32 2168000 Stitch Plate(CA7) 針板 1 33 2106017 Main Feed Dog 後送り 1 34 2106016 Differential Feed Dog 前送り 1 AZF8600G

Page 48 — 20 AZF8620G-20

20 AZF8620G-20 12 9 8 7 6 5 4 2 1 11 10 3 16 15 14 13 19 20 17 18 21 22 24 27 28 25 29 23 30 31 32 33 34 AZF8600G jintex.in

Page 49 — AZF8620G-20 EXCLUSIVE PARTS

AZF8620G-20 EXCLUSIVE PARTS Ref.No Parts No. Description サブモデル専用部品 20 品 名 Amt. Req 1 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 2 0024083 Tension Spring Bushing 糸調子ナット回り止メ 1 3 0032971 Needle Thread Tension Spring 糸調子バネ 1 4 0020118 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 5 000178 Felt(2.5mm) フェルト 1 6 0031111 Tension Disc 糸調子皿 2 7 000177 Felt(1.0mm) フェルト 1 8 190016 Tension Post 糸調子棒 1 9 2150164 Tension Disc Eyelet for Needle Thread 糸調子台糸道 1 10 2150172 Tension Disc Eyelet(Right) 糸調子台糸道(右) 1 11 100001 Nut ナット 1 12 2150603 Presser Spring 押エバネ 1 13 2160124 Thread Pull-off 下ルーパ台糸繰り 1 14 2160123 Lower Looper Holder Arm 下ルーパ台 1 15 180004 Screw(M4-0.7 × 10.8) 止ネジ 1 16 2160120 Cloth Plate クロスプレート 1 17 2160121 Fabric Guide 生地ガイド 1 18 110101 Screw(M3-0.5 × 3) 止ネジメ 1 19 2169113 Needle Clamp(CA7) 針止メ 1 20 003637 Screw(1/8-44 × 2.5) 止ネジ 1 21 2157407 Presser Foot Spring 押エバネ 1 22 2167400 Presser Foot C. Set(A7) 押エ(箱) 1 23 2167415 Presser Foot(Upper) 押エ(上) 1 24 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 25 2167410 Presser Foot Connector 押工連結桿 1 26 2167420 Pin ピン 1 27 160033 Screw(M2.5-0.45 × 3) 止ネジ 1 28 2157400 Presser Foot(Rear) 押エ(後) 1 29 004149 Screw(1/8-44 × 2) 止ネジ 3 30 2167405 Presser Foot(Front)(CA7) 押エ(前) 1 31 2129301 Upper Looper 上ルーパ 1 32 2168002 Stitch Plate(CA7) 針板 1 33 2106017 Main Feed Dog 後送り 1 34 2106016 Differential Feed Dog 前送り 1 AZF8600G

Page 50 — K1 DEVICE

21 K1 DEVICE 1 2 3 4 7 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 B A B A AZF8600G jintex.in

Page 51 — K1 DEVICE

K1 DEVICE Ref.No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Parts No. 2169901 2121015 004314 001230 2101163 110068 2101151 2101152 2101155 005112 000240 2101160 2101161 004139 2101156 110036 160001 2101157 2101158 2101164 170010 2101159 2101166 2101165 001196 310011 007623 2151001 Description K1 Device, Complete Set Suction Pipe Cover Screw(1/8-44 × 5.6) Screw(3/32-56 × 3.8) Lower Trimming Knife Driving Arm Screw(M4-0.7 × 8) Suction Pipe, Complete Set Suction Pipe Upper Trimming Knife Screw(3/32-56 × 6) Oil Wick Trimming Knife Holder Pin Holder Pin Support Screw(3/32-56 × 3) Lower Trimming Knife Screw(M3-0.5 × 6.5) Screw(M4-0.7 × 4) Guide Block Holder Lower Trimming Knife Guide Block Lower Trimming Knife Driving Link Screw(M4-0.7 × 4) Lower Trimming Knife Pushing Plate Driving Link Presser Oil Wick Clamp Screw(1/8-44 × 6) Felt Screw(9/64-40 × 5.3) Suction Pipe Support K1 装置 吸込管カバー 止ネジ 止ネジ 下刃駆動腕 止ネジ 吸込管(組) 吸込管本体 上刃 止ネジ 油芯 刃支持ピン 刃支持ピン取付台 止ネジ 下刃 止ネジ 止ネジ 下刃ガイド駒ホルダ 下刃ガイド駒 下刃駆動リンク 止ネジ 下刃圧着バネ 駆動リンク押工 油芯止メ 止ネジ フェルト 止ネジ 吸込管取付台 21 Amt. Req 1 1 1 2 1 1 1 1 3 1 1 1 2 1 1 1 1 1 1 1 1 1 1 2 1 AZF8600G

Page 52 — K1 DEVICE for AZF8620G

22 K1 DEVICE for AZF8620G 1 3 10 2 7 11 12 10 13 9 14 16 15 20 A 19 17 18 26 B 25 24 23 4 22 8 27 AZF8600G jintex.in

Page 53 — K1 DEVICE for AZF8620G

K1 DEVICE for AZF8620G K1 装置 22 Ref.No Parts No. Description 品 名 Amt. Req 1 2169920 K1 Device, Complete Set K1装置(組) 1 2 2161024 Suction Pipe Cover 吸込管カバー 1 3 004314 Screw(1/8-44 × 5.6) 止ネジ 1 4 5 2101163 Lower Trimming Knife Driving Arm 下刃駆動腕 1 6 110068 Screw(M4-0.7 × 8) 止ネジ 1 7 2151020 Suction Pipe, Complete Set 吸込管(組) 1 8 2151021 Suction Pipe 吸込管本体 1 9 2151024 Upper Trimming Knife 上刃 1 10 005112 Screw(3/32-56 × 6) 止ネジ 3 11 000240 Oil Wick 油芯 1 12 2101160 Trimming Knife Holder Pin 刃支持ピン 1 13 2101161 Holder Pin Support 刃支持ピン取付台 1 14 004139 Screw(3/32-56 × 3) 止ネジ 2 15 2151025 Lower Trimming Knife 下刃 1 16 110036 Screw(M3-0.5 × 6.5) 止ネジ 1 17 160001 Screw(M4-0.7 × 4) 止ネジ 1 18 2101157 Guide Block Holder 下刃ガイド駒ホルダ 1 19 2101158 Lower Trimming Knife Guide Block 下刃ガイド駒 1 20 2101164 Lower Trimming Knife Driving Link 下刃駆動リンク 1 21 170010 Screw(M4-0.7 × 4) 止ネジ 1 22 2101159 Lower Trimming Knife Pushing Plate 下刃圧着バネ 1 23 2101166 Driving Link Presser 駆動リンク押エ 1 24 2101165 Oil Wick Clamp 油芯止メ 1 25 001196 Screw(1/8-44 × 6) 止ネジ 1 26 310011 Felt フェルト 1 27 007623 Screw(9/64-40 × 5.3) 止ネジ 2 28 2151001 Suction Pipe Support 吸込管取付台 1 jintex.in AZF8600G

Page 54

23 C DEVICE 1 13 15 14 10 9 8 6 4 3 2 15 17 16 5 11 12 15 18 19 21 20 22 23 24 26 25 31 30 27 28 27 29 AZF8600G jintex.in

Page 55 — C DEVICE

C DEVICE C 装置 23 Ref.No Parts No. Description 品 名 Amt. Req 1 2109932 C Device, Complete Set C装置(組) 1 2 0033939 Hose Band(1/4 inch) ホースバンド(1/4インチ) 1 3 1094011 Hose Nipple(φ 8-PT1/8) ホースニップル 1 4 1097000 Regulator(AR2000-01BG) レギュレータ 1 5 009960 Screw(M5-0.8 × 16) 止ネジ 2 6 000669 Washer ワッシャ 4 7 000600 Spring Washer スプリングワッシャ 2 8 000009 Nut ナット 2 9 1097001 Regulator Support レギュレータ取付板 1 10 006905 Wood Screw(φ 5.1 × 20) 木ネジ 2 11 0010263 Connector(φ 6-PT1/8) コネクタ 1 12 1096000 Air Hose(4 × 6 × 2000mm) エアホース 1 13 1298000 Air Valve, Complete Set エアバルブ(組) 1 14 0033938 Collar(6.4 × 13 × 19mm) エアバルブ補助バネカラー 1 15 005040 Screw(11/64-40 × 8.5) 止ネジ 5 16 0033937 Return Spring エアバルブ補助バネ 1 17 0033936 Air Valve Holder エアバルブ取付台 1 18 0033935 Air Valve Stop エアバルブストッパ 1 19 000334 Nut ナット 1 20 005505 Adjusting Screw(11/64-40 × 16) 調節ネジ 1 21 1090133 TAC Valve, C. Set TACバルブ(組) 1 22 0010052 TAC Valve TACバルブ 1 23 000623 Gasket パッキン 2 24 0010112 Joint(φ 6-M5) 継手 2 25 0010290 Connector(φ 6-PT1/8) 継手 1 26 0010310 Venturi Tube ベンチュリ管 1 27 003940 Hose Band(3/8 inch) ホースバンド(3/8インチ) 2 28 1096004 Air Hose(12 × 18 × 1500mm) エアホース 1 29 1096005 Air Hose(12 × 18 × 500mm) エアホース 1 30 0011987 UL Clamp ULクランプ 3 31 009814 Wood Screw(φ 3.1 × 20) 木ネジ 3 AZF8600G jintex.in

Page 56

24 SC10 DEVICE AZF8600G jintex.in

Page 57 — SC10 DEVICE

SC10 DEVICE SC10 装置 24 Ref.No Parts No. Description 品 名 Amt. Req 1 2151067 Lint Removal Pipe 集塵パイプ 1 2 2151066 Pipe Clamp パイプ固定バンド 2 3 110094 Screw(M4-0.7 × 6) 止ネジ 2 4 2151059 Blowing Hole Screen 吹出口板 1 5 2151057 Wind Guide Plate(Front) 風案内板(前) 1 6 110001 Screw(M4-0.7 × 5.4) 止ネジ 2 7 2151058 Air Deflector 風調整板 1 AZF8600G jintex.in

Page 58

25 EXTRA PARTS AZF8600G-C7, 8620G-CA7 P=1.25 P1.25 P1.6 AZF8600G 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in

Page 59 — EXTRA PARTS

EXTRA PARTS 特注部品 25 Ref.No Parts No. Description 品 名 Amt. Req 1 2169000 Differential Feed Dog(C7, CA7)(P1.25) 前送り 1 2 2169001 Main Feed Dog(P1.25) 後送り 1 3 2169080 Top Feed Dog(P1.25) 上送り 1 4 2169081 Top Feed Dog(P1.6) 上送り 1 5 0020700 Edge Guide, Complete Set 当テ定規(組) 1 6 110009 Screw(M4-0.7 × 8) 止ネジ 1 7 002430 Edge Guide, Complete Set 当テ定規(組) 1 8 002432 Edge Guide 当テ定規 1 9 001330 Screw(9/64-40 × 3.8) 止ネジ 1 10 0022431 Edge Guide Swing-out Lever スイングアウトレバー 1 11 000172 Conical Spring Washer 皿バネワッシャ 1 12 004150 Screw(11/64-40 × 5.2) 止ネジ 1 13 000334 Nut ナット 1 14 0022434 Edge Guide Swing-out Lever Holder スイングアウトレバー取付台 1 15 005506 Screw(11/64-40 × 8) 止ネジ 1 16 0022433 Edge Guide Swing-out Lever Holder Support 定規取付台 1 17 0022437 Edge Guide Swing-out Lever Stop レバー ストッパ 1 18 001227 Screw(1/8-44 × 3.8) 止ネジ 1 19 0022435 Edge Guide Positioning Pin 定規固定ピン 1 20 0022436 Positioning Pin Holder Spring 定規固定ピン押エバネ 1 21 001225 Screw(1/8-44 × 2.8) 止ネジ 1 22 110047 Screw(M4-0.7 × 10) 止ネジ 1 23 2151015 Cloth Plate(Right) Unit クロスプレート(右)(組) 1 24 000535 Washer ワッシャ 1 25 110003 Screw(M3.5-0.6 × 6) 止ネジ 1 AZF8600G

Page 60

26 Semi-submerged Only 24 25 Fully-submerged Setting 6 17 11 12 10 11 12 18 33 19 11 10 33 32 12 20 5 EXTRA PARTS 26 27 28 30 29 AZF8600G EXTRA PARTS 31 jintex.in 1 2 4 3 5 6 7 8 9 10 11 12 13 14 15 A 16 21 22 23 A

Page 61 — MICHELLANEOUS SUPPORTING BOARD

MICHELLANEOUS SUPPORTING BOARD 受ケ板関係 26 Ref.No Parts No. Description 品 名 Amt. Req 1 2150212 Belt Cover ベルトカバー 1 2 110015 Screw(M4-0.7 × 25) 止ネジ 2 3 2150213 Supplementary Belt Cover ベルト補助カバー 1 4 110013 Screw(M4-0.7 × 8) 止ネジ 2 5 2100339 Supporting Board 受ケ板 1 6 000070 Hanging Nut 吊りナット 4 7 009861 Hanging Bolt(Semi-submerged only) 吊りボルト(半沈式のみ) 4 8 2101450 Spacer(15mm) 受ケ板スペーサ 4 9 2101451 Spacer(5mm)(See the below) 受ケ板スペーサ(下記参照) 4 10 0020064 Supporting Board Rubber Cushion 受ケ板ゴム座 8 11 000162 Washer(Semi-submerged) ワッシャ(半沈式) 4 11 000162 Washer(Full-submerged) ワッシャ(全沈式) 12 12 000016 Nut(Semi-submerged) ナット(半沈式) 8 12 000016 Nut(Full-submerged) ナット(全沈式) 24 13 2100375 Chute(Upper) Support シュー卜(上)取付板 1 14 005624 Screw(M4-0.7 × 10) 止ネジ 4 15 2100337 Chute(Upper) シュー卜(上) 1 16 2100338 Chute(Lower) シュー卜(下) 1 17 009864 Hanging Bolt(Full-submerged only) 吊りボルト(全沈式のみ) 4 18 009871 Bolt(Full-submerged only) ボルト(全沈式のみ) 4 19 0020057 Supporting Board Connector(Full-submergedonly) 受ケ板支工具(全沈式のみ) 2 20 0020045 Supporting Board Sleeve(Full-submergedonly) 受ケ板スリープ(全沈式のみ) 2 21 2100336 Supplementary Chute Cover シュー卜補助カバー 1 22 000538 Washer ワッシャ 1 23 140011 Wing Bolt(M4-0.7 × 6) チョウボルト 1 24 210074 Chip Receiver(Semi-submerged only) 切屑受ケ(半沈のみ) 1 25 350007 Wood Screw(φ 3.5 × 16) 木ネジ 2 26 0020078 Idler, C. Set(for Left Footing Pedal) アイドラ(組) 1 27 0020077 Idler Support アイドラ取付板 1 28 009992 Screw(M4-0.7 × 10) 止ネジ 2 29 0020076 Idler アイドラ 1 30 009995 Screw(M3-0.5 × 5) 止ネジ 2 31 2150266 Timming Gauge タイミングゲージ 1 32 000676 Spring Washer スプリングワッシャ 4 33 000666 Washer ワッシャ 8 (注) テーブルの厚さ45mmのときは不要。 Note : Not necessary when the thickness of Table is 45mm. AZF8600G jintex.in

Page 62

27 1-1 19 18 16 17 20 21 23 24 25 26 12 13 14 10 16 1-2 19 18 17 20 21 23 24 25 26 12 13 14 10 16 27 AZF8600G jintex.in

Page 63 — THREAD STAND

THREAD STAND 糸立台 27 Ref.No Parts No. Description 品 名 Amt. Req 1-1 9620695 Thread Stand, C. Set(5 Spools Type) 糸立台(組)(5本糸用) 1 1-2 9620696 Thread Stand, C. Set(6 Spools Type) 糸立台(組)(6本糸用) 1 2 9620631 Column Cap コラムキャップ 1 3 9620670 Column Pipe(Upper) コラムパイプ(上) 1 4 9620689 Thread Guide Holder(Large) ガイドホルダ(大) 1 5 911002 Screw(M4-0.7 × 20) 止ネジ 1 6 911001 Screw(M4-0.7 × 12) 止ネジ 3 7 910001 Nut ナット 4 8 9620673 Column Pipe Connector コラムパイプ継手 1 9 911006 Screw(M5-0.8 × 13) 止ネジ 2 10 910000 Nut ナット 7(8) 11 9620675 Column Pipe(Lower) コラムパイプ(下) 1 12 930052 Washer ワッシャ 1 13 930053 Spring Washer スプリングワッシャ 1 14 910003 Nut(M16-1.5) ナット 1 15 9620702 Thread Hanger(2 Spools Type) スレッドハンガ(2本糸用) 2 16 9620703 Thread Hanger(3 Spools Type) スレッドハンガ(3本糸用) 2(4) 17 9620700 Thread Eyelet アイレット 5(6) 18 9620688 Thread Hanger Holder スレッドハンガ抱キ 4 19 911060 Screw(M6-1 × 15) 止ネジ 4 20 9620691 Thread Guide Arm ガイドアーム 1 21 9620690 Thread Guide Holder(Small) ガイドホルダ(小) 1 22 9620665 Thread Guide(5 Spools Type) スレッドガイド(5本糸用) 1 23 9620678 Spool Cushion スプールクッション 5(6) 24 9620679 Spool Pin スプール軸 5(6) 25 9620680 Spool Mat スプールマット 5(6) 26 9620681 Spool Seat Disc 受皿 5(6) 27 930055 Spring Washer スプリングワッシャ 5(6) 28 9620666 Thread Guide(6 Spools Type) スレッドガイド(6本糸用) 1 jintex.in AZF8600G

Page 64 — WARNING LABEL 警告ラベル

28 WARNING LABEL 警告ラベル LABEL Parts No. Description ラベル 品番 品名 CAUTION Do not operate without eye guard and safety devices. Before threading, changing needle, cleaning etc. switch off main switch. 390140 CAUTION IN OPERATION 注意 動く部分だけがをする。 安全保護装置をつけて 縫製作業をすること。 電源を切ってから、糸 通し、ボビンや針の交換、 掃除や調整をすること。 390143 操作注意ラベル 高電圧警告 このカバーを開けるときは、 電源スイッチを切った後、 5分たってから開けること。 390144 DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE DANGER To open this cover, turn off power supply and wait more than 5 minutes before opening. 感電注意ラベル 390145 "Be sure to connect earth line". アースラベル 390146 ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル ケガ注意 CAUTION 390147 EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS ケガ注意ラベル 高温注意 CAUTION 390148 CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル jintex.in

Page 65 — LIST of MAIN SPARE PARTS

LIST of MAIN SPARE PARTS (主要部品リスト) jintex.in

Page 66 — AZF8600G Class LIST of MAIN SPARE PARTS(主要部品リスト)

29 AZF8600G Class LIST of MAIN SPARE PARTS(主要部品リスト) Models Main Parts Needle Clamp Presser Foot, C. Set 押工(組) Presser Foot (Front) 押工(前) Presser Foot (Rear) 押工(後) Stitch Plate 針板 AZF8600G-C5DA 2169112 2127550 2127560 2127570 2128604 AZF8600G-C7DA // 2127551 2127561 // 2128605 AZF8611G-C5DA 2127585 2127586 2127587 2128505 AZF8620G-CA7DA-1 2169113 2167400 2167405 2157400 2168000 AZF8620G-CA7DA-20 // // // // 2168002 jintex.in

Page 68 — INDEX

30 INDEX AZF8600G Page = 1 Parts No. Page No. Ref. No. Weight(g) 000009 23 8 000600 23 7 003655 15 21 000010 2 6 000621 18 22 003940 23 27 000010 4 52 000623 23 23 000014 4 67 000629 12 26 004106 10 7 000014 12 35 000644 1 5 004109 17 10 000016 26 12 000644 4 28 004139 21 14 000016 26 12 000653 4 38 004139 22 14 000035 6 26 000663 11 12 004149 17 8 000035 13 35 000665 7 15 004149 19 29 000070 26 6 000665 11 2 004149 20 29 000162 26 11 000666 26 33 004150 17 28 000162 26 11 000669 14 6 004150 25 12 000172 17 27 000669 23 6 004314 21 3 000172 25 11 000676 26 32 004314 22 3 000177 4 9 000687 10 48 004351 11 25 000177 19 7 000690 14 34 004351 17 3 000177 20 7 000726 1 36 004353 18 18 000178 4 7 000740 13 31 004404 8 43 000178 19 5 000750 9 11 004404 17 9 000178 20 5 000755 10 20 004440 18 8 000182 4 48 000779 12 31 004541 18 21 000240 21 11 000240 22 11 001123 1 4 005000 18 27 000250 11 26 001123 2 37 005036 17 32 000322 4 29 001196 17 35 005040 23 15 000334 17 29 001196 21 25 005049 11 14 000334 23 19 001196 22 25 005075 1 30 000334 25 13 001202 18 4 005112 21 10 000393 6 45 001203 2 21 005112 22 10 000419 16 30 001225 17 36 005345 6 31 000444 2 9 001225 25 21 005505 23 20 000456 16 41 001227 25 18 005506 25 15 000488 7 20 001230 21 4 005550 9 30 000494 4 69 001330 18 6 005550 10 3 000526 5 25 001330 25 9 005624 26 14 000528 14 38 001331 17 24 000531 8 46 006035 4 27 000532 18 17 002308 18 25 006094 8 39 000533 10 8 006816 1 22 000533 18 20 003636 5 24 006861 16 29 000535 25 24 003637 1 10 006905 23 10 000538 11 8 003637 2 23 000538 18 29 003637 6 23 007610 13 37 000538 26 22 003637 10 12 007616 18 14 000554 11 15 003637 11 22 007623 21 27 000561 14 39 003637 19 20 007623 22 27 000567 6 48 003637 20 20 007627 6 51 000567 16 6 003638 17 21 jintex.in

Page 69 — INDEX

AZF8600G INDEX Page = 2 Parts No. Page No. Ref. No. Weight(g) 009604 9 9 009747 10 62 009814 23 31 009853 4 50 009861 26 7 009864 26 17 009871 26 18 009960 23 5 009992 26 28 009995 26 30 0010052 23 22 0010112 23 24 0010263 23 11 0010290 23 25 0010310 23 26 0011987 23 30 0013208 15 24 0020004 1 15 0020005 1 16 0020016 2 22 0020045 26 20 0020051 3 29 0020057 26 19 0020064 26 10 0020076 26 29 0020077 26 27 0020078 26 26 0020118 4 6 0020118 19 4 0020118 20 4 0020123 4 43 0020124 4 45 0020125 4 46 0020126 4 47 0020137 1 29 0020165 4 51 0020166 4 54 0020167 4 49 0020218 3 28 0020271 8 45 0020350 11 16 0020350 14 44 0020401 15 32 0020538 14 36 Parts No. Page No. Ref. No. Weight(g) 0020538 16 44 0020700 25 5 0021735 3 27 0022215 4 16 0022430 25 7 0022431 25 10 0022432 25 8 0022433 25 16 0022434 25 14 0022435 17 33 0022435 25 19 0022436 17 34 0022436 25 20 0022437 25 17 0022447 17 30 0022448 17 31 0022963 17 19 0022981 17 17 0022982 17 20 0023234 10 16 0023473 15 40 0024083 4 4 0024083 19 2 0024083 20 2 0024084 4 3 0024084 19 1 0024084 20 1 0024095 2 25 0024156 4 14 0024157 4 5 0024302 10 22 0024446 2 20 0026075 10 9 0026081 9 21 0026081 10 11 0026099 9 23 0026239 17 22 0026240 17 26 0026241 17 25 0026242 17 23 0026243 17 39 0026413 9 22 0026418 10 38 Parts No. Page No. Ref. No. Weight(g) 0026427 11 18 0026428 11 20 0026429 11 24 0026430 11 19 0026431 11 28 0026434 11 17 0026438 11 21 0027046 18 26 0027224 17 2 0027245 17 4 0027246 17 5 0027346 18 2 0027347 18 3 0027348 18 5 0027349 18 7 0027350 18 9 0027351 18 15 0027352 18 12 0027353 18 19 0027354 18 28 0027355 18 11 0027356 18 16 0027357 18 23 0027358 18 24 0027359 18 1 0030255 4 13 0030748 16 27 0031111 4 8 0031111 19 6 0031111 20 6 0031831 16 9 0032604 6 34 0032646 9 8 0032726 8 3 0032879 1 23 0032912 18 13 0032919 7 29 0032952 4 12 0032962 4 11 0032971 19 3 0032971 20 3 0033024 3 14 0033024 9 25 jintex.in

Page 70 — INDEX

AZF8600G INDEX Page = 3 Parts No. Page No. Ref. No. Weight(g) 0033104 9 29 0033104 10 2 0033627 1 24 0033935 23 18 0033936 23 17 0033937 23 16 0033938 23 14 0033939 23 2 0034293 14 49 0068146 15 30 0068202 14 29 0068206 11 23 0068517 3 15 0075081 18 10 0077301 5 34 0080503 16 26 0093303 4 60 0093303 5 47 0093323 10 1 0093528 3 26 0093864 7 21 0095027 14 8 100000 14 40 100001 1 13 100001 8 23 100001 10 55 100001 11 13 100001 19 11 100001 20 11 100002 14 5 100029 11 11 100044 13 39 100072 15 19 100073 8 2 100074 10 52 110001 4 25 110001 6 29 110001 7 26 110001 24 6 Parts No. Page No. Ref. No. Weight(g) 110002 4 32 110002 6 36 110002 10 24 110002 12 36 110003 2 28 110003 25 25 110004 8 37 110004 10 47 110004 15 3 110004 19 24 110004 20 24 110006 6 18 110008 4 40 110008 8 8 110009 4 18 110009 6 27 110009 11 6 110009 12 12 110009 13 14 110009 17 18 110009 25 6 110011 6 33 110012 1 12 110012 2 11 110012 3 9 110012 7 23 110012 10 43 110013 1 33 110013 2 2 110013 2 3 110013 3 7 110013 4 2 110013 4 23 110013 6 46 110013 11 3 110013 26 4 110015 26 2 110016 1 18 110016 14 43 110017 14 45 110023 8 49 110026 4 68 110026 15 47 110027 6 53 110031 1 14 110033 14 26 110035 4 63 110035 10 45 Parts No. Page No. Ref. No. Weight(g) 110035 11 9 110036 5 13 110036 13 17 110036 21 16 110036 22 16 110038 7 18 110045 1 6 110045 2 35 110045 2 43 110045 16 32 110046 7 31 110047 17 37 110047 25 22 110048 3 3 110048 4 70 110050 10 34 110053 16 45 110054 2 32 110063 7 19 110064 3 19 110064 11 29 110064 15 2 110065 8 22 110068 21 6 110068 22 6 110070 15 39 110071 12 17 110073 4 37 110076 2 8 110091 4 42 110094 24 3 110101 19 18 110101 20 18 110106 2 15 120001 9 2 120006 6 6 120006 7 6 120006 9 7 120006 12 5 120006 13 24 120006 14 2 120010 8 17 120011 9 27 120013 9 15 120013 10 6 120013 12 32 120017 1 28 jintex.in

Page 71 — INDEX

AZF8600G INDEX Page = 4 Parts No. Page No. Ref. No. Weight(g) 120017 8 20 120017 8 29 120018 13 29 120049 6 2 120049 7 2 120049 12 2 120049 13 2 120049 16 4 130001 12 16 130002 15 15 130003 3 25 130003 15 49 130026 4 35 140000 14 17 140001 14 11 140002 13 12 140003 6 13 140004 12 21 140005 13 22 140010 7 34 140011 26 23 140013 7 16 140032 10 56 150004 3 10 160001 1 8 160001 5 4 160001 8 34 160001 9 19 160001 12 10 160001 13 26 160001 14 33 160001 15 12 160001 16 3 160001 21 17 160001 22 17 160002 6 4 160002 7 4 160002 12 23 160003 6 8 160003 7 8 160003 13 8 160003 15 43 160007 5 2 160007 8 26 Parts No. Page No. Ref. No. Weight(g) 160007 9 5 160007 14 21 160007 15 10 160016 6 19 160024 13 5 160027 5 14 160033 19 27 160033 20 27 170010 21 21 170010 22 21 170032 2 5 170041 10 58 170045 8 11 170048 10 59 170049 4 58 170065 8 15 180002 15 37 180003 15 42 180004 19 15 180004 20 15 180014 13 18 190000 4 53 190001 14 41 190002 4 44 190015 2 13 190016 4 10 190016 19 8 190016 20 8 190039 11 10 190080 8 1 190081 10 53 210009 12 30 300000 13 21 300000 14 4 300000 15 18 300001 15 23 300004 1 27 300008 6 12 300008 12 20 300008 13 11 300032 13 36 300043 1 34 300106 13 38 Parts No. Page No. Ref. No. Weight(g) 310001 6 42 310005 6 40 310011 21 26 310011 22 26 310046 9 33 310046 10 37 310054 10 15 310054 10 31 310065 12 28 310068 10 21 310069 10 19 310073 16 20 310081 16 48 310089 6 16 310089 12 24 310090 16 42 310105 4 21 310109 5 27 320008 6 47 320008 16 11 320009 16 23 320012 16 49 330000 3 17 330008 3 16 330008 9 12 330009 9 4 340050 8 6 350007 26 25 390165 2 17 390166 2 18 390170 2 16 390523 2 33 390670 2 30 910000 27 10 910001 27 7 910003 27 14 911001 27 6 911002 27 5 911006 27 9 911060 27 19 jintex.in

Page 72 — INDEX

AZF8600G INDEX Page = 5 Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) Parts No. Page No. Ref. No. Weight(g) 930052 27 12 2100173 7 3 2100375 26 13 930053 27 13 2100174 7 24 2100404 4 17 930055 27 27 2100176 6 15 2100410 5 17 1090133 23 21 2100199 8 33 2100412 5 35 1094011 23 3 2100215 12 1 2100413 5 36 1096000 23 12 2100215 13 1 2100414 5 39 1096004 23 28 2100227 12 15 2100417 5 40 1096005 23 29 2100229 4 61 2100433 13 25 2100241 14 14 2100434 15 16 1097000 23 4 2100242 14 13 2100435 15 25 1097001 23 9 2100243 14 15 2100436 13 27 1298000 23 13 2100244 14 16 2100437 13 30 2020048 11 27 2100248 14 9 2100442 15 20 2049401 1 35 2100249 13 20 2100443 15 22 2100250 14 10 2100444 15 26 2100006 1 1 2100251 14 3 2100450 15 31 2100009 7 27 2100251 15 17 2100451 15 28 2100011 1 7 2100252 6 1 2100452 15 29 2100012 1 9 2100253 14 28 2100502 6 28 2100014 1 3 2100256 14 30 2100518 8 19 2100024 2 24 2100257 14 35 2100533 6 41 2100032 16 43 2100259 14 46 2100535 6 43 2100037 3 21 2100262 14 48 2100536 6 44 2100047 3 4 2100263 14 31 2100538 2 19 2100053 1 17 2100264 14 37 2100580 8 5 2100088 12 3 2100266 14 47 2100602 15 11 2100088 13 3 2100267 14 12 2100642 5 50 2100098 5 41 2100269 14 32 2100642 6 20 2100105 5 19 2100271 14 27 2100671 14 22 2100111 5 12 2100272 14 42 2100672 14 23 2100117 5 21 2100275 5 31 2100673 14 24 2100137 6 7 2100276 15 35 2100674 14 25 2100138 6 14 2100277 15 36 2100703 2 27 2100144 6 3 2100278 15 33 2100854 12 33 2100145 6 32 2100279 15 34 2100856 2 31 2100152 6 39 2100280 15 41 2100861 3 13 2100160 7 1 2100281 15 27 2100864 1 20 2100161 7 7 2100283 15 14 2100865 15 1 2100161 12 9 2100288 14 13 2100866 15 4 2100161 13 7 2100289 14 20 2100867 15 5 2100165 7 10 2100318 15 38 2100868 15 8 2100336 3 8 2100869 15 6 2100337 26 21 2100870 15 7 2100338 26 15 2100872 5 15 2100339 26 16 2100874 3 24 2100369 26 5 2100875 1 26 2100374 16 14 2100892 12 27 jintex.in

Page 73 — INDEX

AZF8600G INDEX Page =6 Parts No. Page No. Ref. No. Weight(g) 2100895 16 40 2100896 16 39 2100903 12 22 2100905 13 6 2100918 3 20 2100928 16 18 2100929 16 19 2100957 16 15 2100958 16 12 2100960 3 23 2101151 21 7 2101152 21 8 2101155 21 9 2101156 21 15 2101157 21 18 2101157 22 18 2101158 21 19 2101158 22 19 2101159 21 22 2101159 22 22 2101160 21 12 2101160 22 12 2101161 21 13 2101161 22 13 2101163 21 5 2101163 22 5 2101164 21 20 2101164 22 20 2101165 21 24 2101165 22 24 2101166 21 23 2101166 22 23 2101405 6 5 2101406 6 11 2101412 12 14 2101414 12 19 2101416 12 4 2101417 13 10 2101418 12 7 2101420 13 33 2101423 7 5 2101434 13 32 2101450 26 8 2101451 26 9 2106007 17 14 2106013 17 13 Parts No. Page No. Ref. No. Weight(g) 2106016 19 34 2106016 20 34 2106017 19 33 2106017 20 33 2109052 17 38 2109081 15 45 2109082 15 46 2109089 15 44-1 2109090 15 44-2 2109211 6 35 2109212 6 50 2109214 13 16 2109334 13 15 2109335 13 34 2109343 12 29 2109932 23 1 2110026 3 6 2110027 3 5 2110181 5 3 2110183 5 6 2110184 5 5 2120002 9 13 2120003 9 14 2120004 9 16 2120005 9 17 2120006 9 26 2120007 9 28 2120008 9 28 2120009 9 32 2120014 10 35 2120015 10 39 2120017 10 32 2120018 10 18 2120019 10 14 2120020 10 4 2120021 10 5 2120022 10 10 2120023 10 13 2120026 5 8 2120027 9 1 2120028 9 3 2120029 9 6 2120030 5 42 2120031 9 10 2120032 9 31 Parts No. Page No. Ref. No. Weight(g) 2120033 11 5 2120034 11 7 2120035 11 1 2120036 11 4 2120037 10 50 2120038 10 51 2120045 8 28 2120053 2 39 2120055 2 36 2120062 2 34 2120063 3 1 2120067 10 23 2120071 5 45 2120072 5 48 2120073 5 46 2120074 5 43 2120075 5 44 2120082 9 18 2120083 9 24 2120093 10 26 2120095 10 29 2120098 2 42 2120112 10 30 2120130 10 25 2120131 10 17 2120132 10 33 2120136 10 41 2120138 2 40 2120139 2 41 2120141 2 38 2120536 4 71 2120537 5 16 2120570 10 40 2120571 10 42 2120572 10 36 2120586 16 16 2120587 16 17 2120588 3 2 2121015 21 2 2121107 7 12 2121108 7 11 2121109 7 17 2121110 7 14 2121111 7 32 2121112 7 30 2121113 7 33 2121114 7 13 jintex.in

Page 74 — INDEX

AZF8600G INDEX Page = 7 Parts No. Page No. Ref. No. Weight(g) 2127507 8 44 2127550 8 35-1 2127551 8 35-2 2127560 8 41-1 2127561 8 41-2 2127570 8 40 2127575 8 38 2127578 8 42 2127580 8 36 2127585 17 1 2127586 17 6 2127587 17 7 2128505 17 12 2128604 6 30-1 2128605 6 30-2 2129070 10 49 2129070 17 15 2129200 6 52 2129301 19 31 2129301 20 31 2129420 2 29 2150015 1 11 2150017 3 18 2150018 2 4 2150019 7 25 2150020 7 22 2150021 7 28 2150022 3 12 2150023 2 10 2150024 2 12 2150025 2 14 2150026 1 19 2150030 4 19 2150031 4 20 2150032 4 22 2150035 6 37 2150038 5 10 2150039 5 18 2150040 5 26 2150041 5 28 2150042 5 37 2150043 5 20 2150044 5 32 2150045 5 33 Parts No. Page No. Ref. No. Weight(g) 2150046 5 29 2150047 5 30 2150048 5 23 2150049 5 22 2150050 5 49 2150053 6 10 2150057 6 24 2150058 6 25 2150059 6 17 2150063 15 9 2150064 14 1 2150065 14 18 2150066 14 19 2150067 15 48 2150069 3 22 2150069 5 38 2150070 12 6 2150075 12 8 2150075 14 7 2150079 12 37 2150080 12 25 2150087 12 13 2150092 12 18 2150096 5 9 2150102 16 28 2150103 16 1 2150104 16 2 2150112 4 56 2150115 4 26 2150116 4 15 2150117 12 34 2150118 13 13 2150119 4 62 2150120 4 65 2150121 4 66 2150123 4 64 2150124 4 24 2150125 2 7 2150130 12 11 2150131 4 33 2150132 4 57 2150139 8 24 2150142 8 16 2150143 8 13 2150144 8 18 2150145 8 4 2150150 6 49 2150151 4 41 Parts No. Page No. Ref. No. Weight(g) 2150162 4 31 2150163 4 55 2150164 19 9 2150164 20 9 2150165 4 39 2150167 4 30 2150168 13 23 2150169 13 19 2150170 13 9 2150172 19 10 2150172 20 10 2150173 4 34 2150201 16 7 2150202 16 21 2150206 16 10 2150207 16 22 2150210 1 2 2150212 26 1 2150213 26 3 2150214 5 1 2150240 4 59 2150242 6 9 2150250 7 9 2150253 13 4 2150266 26 31 2150270 4 36 2150603 19 12 2150603 20 12 2150710 16 24 2150713 16 25 2151001 21 28 2151001 22 28 2151015 25 23 2151020 22 7 2151021 22 8 2151024 22 9 2151025 22 15 2151054 1 21 2151055 2 26 2151056 1 32 2151057 24 5 2151058 24 7 2151059 24 4 2151066 24 2 2151067 24 1 2157400 19 28 jintex.in

Page 75 — INDEX

AZF8600G INDEX Page = 8 Parts No. Page No. Ref. No. Weight(g) 2157400 20 28 2157407 19 21 2157407 20 21 2160014 2 1 2160015 10 44 2160016 10 46 2160026 10 60 2160027 10 61 2160028 10 54 2160029 8 30 2160030 8 32 2160031 8 31 2160032 8 25 2160033 8 21 2160035 16 36 2160040 16 37 2160045 16 46 2160046 16 47 2160055 8 9 2160056 10 57 2160057 8 7 2160058 8 10 2160059 8 47 2160063 8 48 2160100 5 11 21610120 19 16 2160120 20 16 2160121 19 17 2160121 20 17 2160122 4 1 2160123 19 14 2160123 20 14 2160124 19 13 2160124 20 13 2161024 22 2 2167400 19 22 2167400 20 22 2167405 19 30 2167405 20 30 2167410 19 25 2167410 20 25 2167415 19 23 2167415 20 23 2167420 19 26 2167420 20 26 Parts No. Page No. Ref. No. Weight(g) 2168000 19 32 2168002 20 32 2169000 25 1 2169001 25 2 2169080 25 3 2169081 25 4 2169112 6 21 2169113 19 19 2169113 20 19 2169901 21 1 2169920 22 1 3100060 16 31 3100061 16 33 3100104 8 27 3100131 5 7 3100329 16 35 3100345 16 34 3100370 6 38 3100370 16 8 3100371 16 13 9620631 27 2 9620665 27 22 9620666 27 28 9620670 27 3 9620673 27 8 9620675 27 11 9620678 27 23 9620679 27 24 9620680 27 25 9620681 27 26 9620688 27 18 9620689 27 4 9620690 27 21 9620691 27 20 9620695 27 1-1 9620696 27 1-2 9620700 27 17 9620702 27 15 9620703 27 16 Parts No. Page No. Ref. No. Weight(g) jintex.in

Page 76

Yamato ヤマトミシン製造株式会社 YAMATO SEWING MACHINE MFG. CO.,LTD. 4-4-12,NISHITENMA, KITA-KU, OSAKA, JAPAN TEL: 81-6-6364-1321 FAX: 81-6-6364-1307 〒530-0047 大阪市北区西天満4丁目4番12号 TEL(06)6364-1321(代) FAX(06)6365-5176 P/N 9710065(P) No. 2 Edited in 2005.3 (AZF8600G) Printed in Japan 2005.4.1H jintex.in
