Yamato CZ6025 Parts Book (PDF)
Text index — Yamato CZ6025

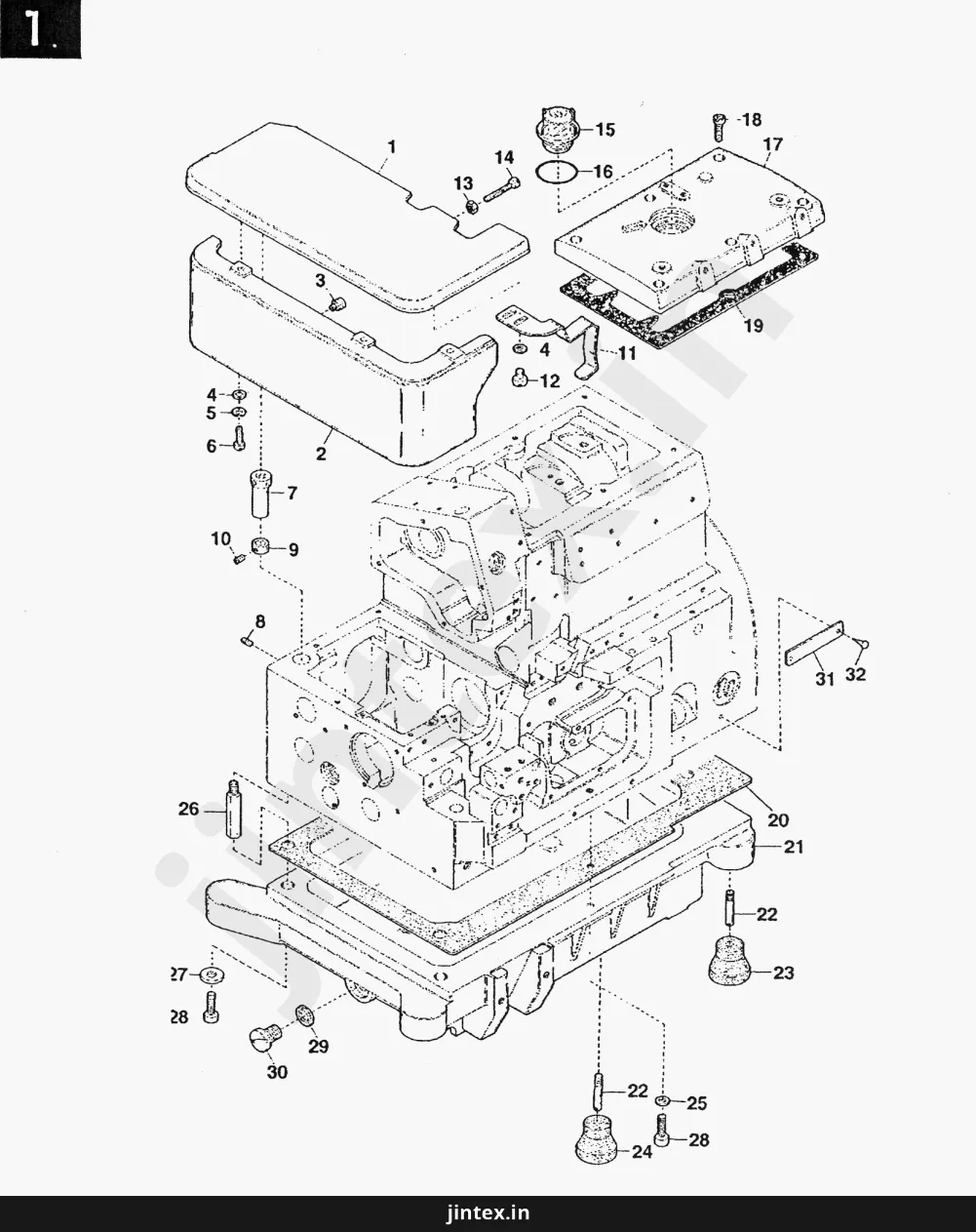

Page 3 — 1.
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200066 | 1 | |
| 2 | 6200302 | 1 | |
| 3 | 6200072 | 1 | |
| 4 | 001123 | 5 | |
| 5 | 000644 | 3 | |
| 6 | 110045 | 3 | |
| 7 | 6200070 | 1 | |
| 8 | 160001 | 1 | |
| 9 | 6200071 | 1 | |
| 10 | 003637 | 1 | |
| 11 | 6200217 | 1 | |
| 12 | 110012 | 2 | |
| 13 | 100001 | 1 | |
| 14 | 110031 | 1 | |
| 16 | 6200016 | 1 | |
| 17 | 6200078 | 1 | |
| 18 | 110016 | 6 | |
| 19 | 6200228 | 1 | |
| 20 | 6200172 | 1 | |
| 21 | 6200309 | 1 | |
| 22 | 006816 | 4 | |
| 23 | 6200029 | 3 | |
| 24 | 6200033 | 1 | |
| 25 | 300043 | 2 | |
| 26 | 6200182 | 4 | |
| 27 | 300004 | 4 | |
| 28 | 120017 | 6 | |
| 29 | 6100029 | 1 | |
| 30 | 005075 | 1 | |
| 31 | 6109401 | 1 | |
| 32 | 000726 | 2 |
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200218 | 1 | |
| 2 | 110013 | 6 | |
| 4 | 6200220 | 1 | |
| 5 | 170032 | 1 | |
| 6 | 000010 | 2 | |
| 7 | 6200285 | 1 | |
| 8 | 110076 | 2 | |
| 9 | 000444 | 2 | |
| 10 | 6200225 | 1 | |
| 11 | 110012 | 4 | |
| 12 | 6200226 | 1 | |
| 13 | 190015 | 2 | |
| 14 | 6200227 | 1 | |
| 15 | 110106 | 2 | |
| 19 | 6200159 | 1 | |
| 20 | 6200027 | 1 | |
| 21 | 001203 | 1 | |
| 22 | 6200017 | 1 | |
| 23 | 003637 | 2 | |
| 24 | 6200073 | 1 | |
| 25 | 6200024 | 1 | |
| 26 | 6200310 | 1 | |
| 27 | 6200156 | 1 | |
| 28 | 110003 | 2 | |
| 30 | 390660 | 1 | |
| 31 | 6200170 | 1 | |
| 32 | 110054 | 2 | |
| 33 | 6200375 | 1 |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200075 | 1 | |
| 2 | 6200192 | 1 | |
| 3 | 110048 | 5 | |
| 4 | 6200077 | 1 | |
| 5 | 6200212 | 1 | |
| 6 | 6200211 | 1 | |
| 7 | 110013 | 7 | |
| 10 | 150004 | 1 | |
| 11 | 6200209 | 2 | |
| 12 | 6200224 | 1 | |
| 13 | 6200171 | 1 | |
| 14 | 6100333 | 2 | |
| 15 | 6200036 | 1 | |
| 16 | 330008 | 1 | |
| 17 | 330000 | 1 | |
| 18 | 6200219 | 1 | |
| 19 | 110064 | 2 | |
| 20 | 6200191 | 1 | |
| 21 | 6200076 | 1 | |
| 22 | 6200035 | 1 | |
| 23 | 6200180 | 1 | |
| 24 | 6200181 | 1 | |
| 25 | 130003 | 3 |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200079 | 1 | |
| 2 | 110013 | 2 | |
| 3 | 6100056 | 4 | |
| 4 | 6100057 | 4 | |
| 5 | 6200026 | 1 | |
| 6 | 6200019 | 4 | |
| 7 | 000178 | 4 | |
| 8 | 6100062 | 8 | |
| 9 | 000177 | 4 | |
| 10 | 190087 | 4 | |
| 11 | 6200031 | 3 | |
| 12 | 6100059 | 1 | |
| 13 | 6200032 | 1 | |
| 14 | 6200025 | 1 | |
| 15 | 6200277 | 1 | |
| 21 | 6200284 | 1 | |
| 22 | 110001 | 3 | |
| 23 | 6200276 | 1 | |
| 24 | 006035 | 1 | |
| 25 | 000644 | 1 | |
| 26 | 000322 | 1 | |
| 27 | 6200275 | 1 | |
| 28 | 6200272 | 1 | |
| 29 | 110073 | 1 | |
| 30 | 000653 | 1 | |
| 31 | 6200273 | 1 | |
| 32 | 6200274 | 1 | |
| 33 | 6200287 | 1 | |
| 34 | 170049 | 1 | |
| 35 | 6200229 | 1 | |
| 36 | 110009 | 1 | |
| 37 | 6100111 | 1 | |
| 38 | 6200164 | 1 | |
| 39 | 6200280 | 1 | |
| 41 | 6200283 | 1 | |
| 42 | 6200281 | 1 | |
| 43 | 6200282 | 1 | |
| 44 | 000014 | 2 | |
| 45 | 110026 | 2 | |
| 46 | 6200023 | 2 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200305 | 1 | |
| 2 | 160007 | 6 | |
| 3 | 6200162 | 1 | |
| 5 | 6200214 | 1 | |
| 6 | 6200213 | 1 | |
| 7 | 6100125 | 1 | |
| 8 | 6100127 | 1 | |
| 9 | 6200268 | 1 | |
| 10 | 6200373 | 1 | |
| 11 | 6200270 | 1 | |
| 14 | 160027 | 5 | |
| 15 | 6200179 | 1 | |
| 16 | 6200234 | 1 | |
| 17 | 6200083 | 1 | |
| 18 | 6200238 | 2 | |
| 19 | 6200084 | 1 | |
| 20 | 6200244 | 1 | |
| 21 | 6200243 | 1 | |
| 22 | 003636 | 1 | |
| 23 | 000526 | 1 | |
| 24 | 6200235 | 1 | |
| 25 | 310109 | 1 | |
| 26 | 6200236 | 1 | |
| 27 | 6200241 | 1 | |
| 28 | 6200242 | 1 | |
| 29 | 6200132 | 1 | |
| 30 | 6200239 | 1 | |
| 31 | 6200240 | 1 | |
| 32 | 6200237 | 1 | |
| 33 | 6200259 | 1 | |
| 34 | 6200081 | 1 | |
| 35 | 6200245 | 1 | |
| 36 | 6200163 | 1 |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200271 | 1 | |
| 2 | 120049 | 2 | |
| 3 | 6200088 | 1 | |
| 4 | 160002 | 1 | |
| 5 | 6200187 | 1 | |
| 6 | 120006 | 1 | |
| 7 | 6200086 | 1 | |
| 8 | 160003 | 2 | |
| 9 | 6200307 | 1 | |
| 10 | 6200306 | 1 | |
| 11 | 6200085 | 1 | |
| 12 | 300008 | 1 | |
| 13 | 140003 | 1 | |
| 14 | 6200087 | 1 | |
| 15 | 6200101 | 2 | |
| 16 | 310089 | 2 | |
| 17 | 6200246 | 1 | |
| 18 | 110006 | 1 | |
| 19 | 160016 | 2 | |
| 20 | 6200163 | 1 | |
| 21 | 6209100 | 1 | |
| 23 | 003637 | 2 | |
| 24 | 6200249 | 1 | |
| 25 | 6200250 | 1 | |
| 26 | 000035 | 1 | |
| 27 | 110009 | 6 | |
| 28 | 6200153 | 1 | |
| 29 | 110001 | 1 | |
| 30-1 | 6208000 | 1 | |
| 30-2 | 6208002 | 1 | |
| 31 | 005345 | 2 | |
| 32 | 6200089 | 1 | |
| 33 | 110011 | 2 | |
| 34 | 6100020 | 1 | |
| 35 | 6209200 | 1 | |
| 36 | 110002 | 1 | |
| 37 | 6200232 | 1 | |
| 38 | 6100310 | 1 | |
| 39 | 6200090 | 1 | |
| 41 | 6200155 | 1 | |
| 42 | 310001 | 1 | |
| 43 | 6200157 | 1 | |
| 44 | 6200158 | 1 | |
| 45 | 000393 | 1 | |
| 46 | 110013 | 1 | |
| 47 | 320008 | 1 | |
| 48 | 000567 | 1 | |
| 49 | 6200296 | 1 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200091 | 1 | |
| 2 | 120049 | 2 | |
| 3 | 6100367 | 1 | |
| 4 | 160002 | 1 | |
| 5 | 6200093 | 1 | |
| 6 | 120006 | 1 | |
| 7 | 6200092 | 1 | |
| 8 | 160003 | 2 | |
| 9 | 6200251 | 1 | |
| 10 | 6200095 | 1 | |
| 11 | 6200094 | 1 | |
| 12 | 110035 | 1 | |
| 13 | 6200022 | 1 | |
| 14 | 000532 | 1 | |
| 15 | 110004 | 1 | |
| 16 | 6100017 | 1 | |
| 17 | 6200222 | 1 | |
| 18 | 110012 | 3 | |
| 19 | 6200100 | 1 | |
| 20 | 6200221 | 1 | |
| 21 | 110001 | 2 | |
| 22 | 6200068 | 1 | |
| 23 | 6200223 | 1 | |
| 24 | 6200030 | 1 | |
| 25 | 6200096 | 1 | |
| 26 | 110046 | 1 | |
| 27 | 000688 | 1 | |
| 28 | 6200097 | 1 | |
| 29 | 6200098 | 1 | |
| 30 | 140014 | 1 |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 190081 | 1 | |
| 2 | 100073 | 1 | |
| 3 | 215709 | 1 | |
| 4 | 6200292 | 1 | |
| 5 | 6200160 | 1 | |
| 6 | 000482 | 1 | |
| 7 | 6200293 | 1 | |
| 8 | 110012 | 1 | |
| 9 | 6200294 | 1 | |
| 10 | 6200295 | 1 | |
| 11 | 170045 | 1 | |
| 12 | 180001 | 1 | |
| 13 | 6200297 | 1 | |
| 14 | 000487 | ||
| 15 | 170047 | 1 | |
| 16 | 6200291 | 1 | |
| 17 | 120010 | 1 | |
| 18 | 6200105 | 1 | |
| 19 | 6200154 | 1 | |
| 20 | 120017 | 1 | |
| 21 | 6200104 | 1 | |
| 22 | 110065 | 1 | |
| 23 | 100001 | 1 | |
| 24 | 6200288 | 1 | |
| 25 | 6200082 | 1 | |
| 26 | 160007 | 1 | |
| 27 | 6200289 | 1 | |
| 28 | 6200103 | 1 | |
| 29 | 6200290 | 1 | |
| 30 | 6200106 | 1 | |
| 31 | 160001 | 1 | |
| 32 -1 | 6207020 | 1 | |
| 32 -2 | 6207021 | 1 | |
| 33 | 6207001 | 1 | |
| 34 | 110004 | 1 | |
| 35 | 6207003 | 1 | |
| 36 | 110050 | 1 | |
| 37 | 6207002 | 1 | |
| 38 | 6200034 | 1 | |
| 39 | 004237 | 1 | |
| 40 -2 | 6207022 | 1 | |
| 41 | 6207643 | 1 | |
| 42 | 000444 | 1 | |
| 43 | 005036 | 1 | |
| 44 | 6207018 | 1 | |
| 45 | 001230 | 1 | |
| 46 | 6200020 | 1 | |
| 47 | 004097 | 1 |
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200188 | 1 | |
| 2 | 120049 | 4 | |
| 3 | 6200080 | 2 | |
| 4 | 6200261 | 1 | |
| 5 | 120006 | 1 | |
| 6 | 6200260 | 1 | |
| 7 | 6200262 | 1 | |
| 8 | 6200263 | 1 | |
| 9 | 6200092 | 1 | |
| 10 | 160001 | 2 | |
| 11 | 6200286 | 1 | |
| 12 | 110009 | 2 | |
| 13 | 6200117 | 1 | |
| 14 | 6200114 | 1 | |
| 15 | 6200110 | 1 | |
| 16 | 130001 | 1 | |
| 17 | 110071 | 1 | |
| 18 | 6200116 | 1 | |
| 19 | 6200111 | 1 | |
| 20 | 300008 | 1 | |
| 21 | 140004 | 1 | |
| 22 | 6200113 | 1 | |
| 23 | 160002 | 1 | |
| 24 | 310089 | 1 | |
| 25 | 6200112 | 1 | |
| 26 | 000629 | 1 | |
| 27 | 6200115 | 1 | |
| 28 | 310065 | 1 | |
| 29 | 6209300 | 1 | |
| 30 | 210009 | 1 | |
| 31 | 000779 | 1 | |
| 32 | 120013 | 2 | |
| 33 | 6200169 | 1 | |
| 34 | 6200278 | 1 | |
| 35 | 000014 | 1 | |
| 36 | 110002 | 1 | |
| 37 | 6200120 | 1 |
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200108 | 1 | |
| 2 | 120049 | 4 | |
| 3 | 6200080 | 1 | |
| 4 | 6200377 | 1 | |
| 5 | 120006 | 1 | |
| 6 | 6200189 | 1 | |
| 7 | 6200092 | 1 | |
| 8 | 160003 | 3 | |
| 9 | 6200109 | 1 | |
| 10 | 6200107 | 1 | |
| 11 | 300008 | 1 | |
| 12 | 140002 | 1 | |
| 13 | 6200279 | 1 | |
| 14 | 110009 | 1 | |
| 15 | 6209301 | 1 | |
| 16 | 6209201 | 1 | |
| 17 | 110036 | 1 | |
| 18 | 180014 | 1 |
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200254 | 1 | |
| 2 | 120006 | 4 | |
| 3 | 6200119 | 1 | |
| 4 | 300000 | 3 | |
| 5 | 100002 | 1 | |
| 6 | 000669 | 2 | |
| 7 | 6200263 | 1 | |
| 8 | 6200038 | 1 | |
| 9 | 6100262 | 1 | |
| 10 | 6200118 | 1 | |
| 11 | 140001 | 1 | |
| 12 | 6200127 | 1 | |
| 13 | 6200184 | 1 | |
| 14 | 6200183 | 1 | |
| 15 | 6200190 | 1 | |
| 16 | 6200265 | 1 | |
| 17 | 140000 | 1 | |
| 18 | 6200255 | 1 | |
| 19 | 6200256 | 1 | |
| 20 | 6200142 | 1 | |
| 21 | 160007 | 1 | |
| 22 | 6200165 | 1 | |
| 23 | 6200166 | 1 | |
| 24 | 6200167 | 1 | |
| 25 | 6200168 | 1 | |
| 26 | 110033 | 2 | |
| 27 | 6200130 | 1 | |
| 28 | 6100255 | 1 | |
| 29 | 6100343 | 1 | |
| 30 | 6100360 | 1 | |
| 31 | 6200125 | 1 | |
| 32 | 6100235 | 1 | |
| 33 | 160001 | 2 | |
| 34 | 000690 | 1 | |
| 35 | 6200123 | 1 | |
| 36 | 6100363 | 1 | |
| 37 | 6200126 | ||
| 38 | 000528 | ||
| 39 | 000561 | ||
| 40 | 100000 | 1 | |
| 41 | 190001 | 1 | |
| 42 | 6200131 | 1 | |
| 43 | 110016 | 2 | |
| 44 | 6100269 | 2 | |
| 45 | 110017 | 2 |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200173 | 1 | |
| 2 | 110064 | 4 | |
| 3 | 110004 | 6 | |
| 4 | 6200174 | 1 | |
| 5 | 6200175 | 1 | |
| 6 | 6200177 | 1 | |
| 7 | 6200178 | 2 | |
| 8 | 6200176 | 1 | |
| 9 | 6200253 | 1 | |
| 10 | 160007 | 1 | |
| 11 | 6200166 | 1 | |
| 12 | 160001 | 1 | |
| 13 | 6200140 | 1 | |
| 14 | 6200139 | 1 | |
| 15 | 130002 | 1 | |
| 16 | 6200138 | 1 | |
| 17 | 6200141 | 1 | |
| 18 | 6100366 | 1 | |
| 19 | 6100281 | 1 | |
| 20 | 6100282 | 1 | |
| 21 | 6200133 | 1 | |
| 22 | 6100284 | 1 | |
| 23 | 180002 | 2 | |
| 24 | 110070 | 1 | |
| 25 | 6100285 | 1 | |
| 26 | 6100286 | 1 | |
| 27 | 6200137 | 1 | |
| 28 | 180003 | 1 | |
| 29 | 160003 | 3 | |
| 30 1 | 6209000 | 1 | |
| 30 2 | 6209006 | 1 | |
| 31 | 6209001 | 1 | |
| 32 | 6209002 | 1 | |
| 33 | 110026 | 1 | |
| 34 | 6200257 | 1 | |
| 35 | 130003 | 2 |
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200197 | 1 | |
| 2 | 6200149 | 1 | |
| 3 | 160001 | 4 | |
| 4 | 110016 | 2 | |
| 6 | 000567 | 1 | |
| 7 | 6200298 | 1 | |
| 8 | 6100310 | 4 | |
| 9 | 6100303 | 7 | |
| 10 | 6200300 | 1 | |
| 11 | 320008 | 2 | |
| 12 | 6200207 | 1 | |
| 13 | 6100308 | 1 | |
| 14 | 6200150 | 1 | |
| 15 | 6200206 | 1 | |
| 16 | 6200193 | 1 | |
| 17 | 6200194 | 1 | |
| 18 | 6200195 | 1 | |
| 19 | 6200196 | 1 | |
| 20 | 6100270 | 1 | |
| 21 | 6200299 | 1 | |
| 22 | 6200301 | 1 | |
| 23 | 320009 | 1 | |
| 24 | 6200267 | 1 | |
| 25 | 6200266 | 1 | |
| 26 | 6200037 | 1 | |
| 27 | 6200028 | 1 | |
| 28 | 6200269 | 1 | |
| 29 | 006861 | 1 | |
| 30 | 000419 | 1 | |
| 31 | 6100002 | 1 | |
| 32 | 110045 | 3 | |
| 33 | 6100370 | 1 | |
| 34 | 6100296 | 1 | |
| 35 | 6100297 | 1 | |
| 36 | 6200247 | 1 | |
| 37 | 6200248 | 1 | |
| 38 | 310081 | 1 | |
| 39 | 6200186 | 1 | |
| 41 | 000456 | 1 | |
| 42 | 310090 | 1 | |
| 43 | 6200074 | 1 | |
| 44 | 6100363 | 1 | |
| 45 | 110053 | 1 | |
| 46 | 320012 | 2 |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6200303 | 1 | |
| 2 | 110015 | 2 | |
| 3 | 6200304 | 1 | |
| 4 | 110013 | 2 | |
| 5 | 6200148 | 1 | |
| 6 | 000070 | 4 | |
| 7 | 009861 | 4 | |
| 8 | 6200210 | 4 | |
| 9 | 6101005 | 4 | |
| 10 | 6100326 | 8 | |
| 11 | 000162 | 4 | |
| 12 | 000016 | 8 | |
| 13 | 6200152 | 1 | |
| 14 | 005624 | 4 | |
| 15 | 6200146 | 1 | |
| 16 | 6200147 | 1 | |
| 17 | 6200151 | 1 | |
| 18 | 350007 | 2 |
Page 31
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6802629 | 1 | |
| 2 | 6802601 | 1 | |
| 3 | 6802602 | 1 | |
| 4 | 6802603 | 1 | |
| 5 | 911002 | 1 | |
| 6 | 911001 | 3 | |
| 7 | 910001 | 4 | |
| 8 | 6802604 | 1 | |
| 9 | 911006 | 2 | |
| 10 | 910000 | 6 | |
| 11 | 6802605 | 1 | |
| 12 | 930052 | 1 | |
| 13 | 930053 | 1 | |
| 14 | 910003 | 1 | |
| 15 | 6802606 | 4 | |
| 16 | 6802607 | 2 | |
| 17 | 6802608 | 4 | |
| 18 | 6802609 | 4 | |
| 19 | 911060 | 4 | |
| 20 | 6802610 | 1 | |
| 21 | 6820690 | 1 | |
| 23 | 6802613 | 4 | |
| 24 | 6802614 | 4 | |
| 25 | 6802615 | 4 | |
| 26 | 6802616 | 4 | |
| 27 | 930055 | 4 | |
| 28 | 6802612 | 1 |
Page 32
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10 | 2b | ||
| 14 | 4b | ||
| 14 | 9b | ||
| 16 | 14b | ||
| 35 | 6b | ||
| 70 | 14b | ||
| 162 | 14b | ||
| 177 | 4b | ||
| 178 | 4b | ||
| 322 | 4b | ||
| 393 | 6b | ||
| 419 | 13b | ||
| 444 | 2b | ||
| 444 | 8b | ||
| 456 | 13b | ||
| 482 | 8b | ||
| 487 | 8b | ||
| 526 | 5b | ||
| 528 | 11b | ||
| 532 | 7b | ||
| 561 | 11b | ||
| 567 | 6b | ||
| 567 | 13b | ||
| 629 | 9b | ||
| 644 | 1b | ||
| 644 | 4b | ||
| 653 | 4b | ||
| 669 | 11b | ||
| 688 | 7b | ||
| 726 | 1b | ||
| 779 | 9b | ||
| 1123 | 1b | ||
| 1203 | 2b | ||
| 1230 | 8b | ||
| 3636 | 5b | ||
| 3637 | 1b | ||
| 3637 | 2b | ||
| 3637 | 6b | ||
| 4097 | 8b | ||
| 4237 | 8b | ||
| 5036 | 8b | ||
| 5075 | 1b | ||
| 5345 | 6b | ||
| 5624 | 14b | ||
| 6035 | 4b | ||
| 6816 | 1b | ||
| 6861 | 13b | ||
| 9861 | 14b | ||
| 100000 | 11b | ||
| 100001 | 1b | ||
| 100001 | 8b | ||
| 100002 | 11b | ||
| 100073 | 8b | ||
| 110001 | 4b | ||
| 110001 | 6b | ||
| 110001 | 7b | ||
| 110001 | 9b | ||
| 110001 | 10b | ||
| 110001 | 11b | ||
| 110009 | 6b | ||
| 110009 | 9b | ||
| 110009 | 10b | ||
| 110011 | 6b | ||
| 110012 | 1b | ||
| 110012 | 2b | ||
| 110012 | 7b | ||
| 110012 | 8b | ||
| 110013 | 2b | ||
| 110013 | 3b | ||
| 110013 | 4b | ||
| 110013 | 6b | ||
| 110013 | 14b | ||
| 110015 | 14b | ||
| 110016 | 1b | ||
| 110016 | 11b | ||
| 110016 | 13b | ||
| 110026 | 4b | ||
| 110026 | 12b | ||
| 110031 | 1b | ||
| 110033 | 11b | ||
| 110035 | 4b | ||
| 110035 | 7b | ||
| 110036 | 10b | ||
| 110045 | 1b | ||
| 110045 | 13b | ||
| 110046 | 7b | ||
| 110048 | 3b | ||
| 110050 | 8b | ||
| 110053 | 13b | ||
| 110054 | 2b | ||
| 110064 | 3b | ||
| 110064 | 12b | ||
| 110065 | 8b | ||
| 110070 | 12b | ||
| 110071 | 9b | ||
| 110073 | 4b | ||
| 110076 | 2b | ||
| 110106 | 2b | ||
| 120006 | 6b | ||
| 120006 | 7b | ||
| 120006 | 9b | ||
| 120006 | 10b | ||
| 120006 | 11b | ||
| 120010 | 8b | ||
| 120013 | 9b | ||
| 120017 | 1b | ||
| 120017 | 8b | ||
| 120049 | 6b | ||
| 120049 | 7b | ||
| 120049 | 9b | ||
| 120049 | 10b | ||
| 130001 | 9b | ||
| 130002 | 12b | ||
| 130003 | 3b | ||
| 130003 | 12b | ||
| 140000 | 11b | ||
| 140001 | 11b | ||
| 140002 | 10b | ||
| 140003 | 6b | ||
| 140004 | 9b | ||
| 140014 | 7b | ||
| 150004 | 3b | ||
| 160001 | 1b | ||
| 160001 | 8b | ||
| 160001 | 9b | ||
| 160001 | 11b | ||
| 160001 | 12b | ||
| 160001 | 13b | ||
| 160002 | 6b | ||
| 160002 | 7b | ||
| 160003 | 9b | ||
| 160003 | 6b | ||
| 160003 | 7b | ||
| 160003 | 10b | ||
| 160003 | 12b | ||
| 160007 | 5b | ||
| 160007 | 8b | ||
| 160007 | 11b | ||
| 160007 | 12b | ||
| 160016 | 6b | ||
| 160027 | 5b | ||
| 170032 | 2b | ||
| 170045 | 8b | ||
| 170047 | 8b | ||
| 170049 | 4b | ||
| 180001 | 8b | ||
| 180002 | 12b | ||
| 180003 | 12b | ||
| 180014 | 10b | ||
| 190001 | 11b | ||
| 190015 | 2b | ||
| 190081 | 8b | ||
| 190087 | 4b | ||
| 210009 | 9b | ||
| 215709 | 8b | ||
| 300000 | 11b | ||
| 300004 | 1b | ||
| 300008 | 6b |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20 | 300008 | 9b | |
| 11 | 300008 | 10b | |
| 25 | 300043 | 1b | |
| 42 | 310001 | 6b | |
| 40 | 310005 | 6b | |
| 28 | 310065 | 9b | |
| 20 | 310073 | 13b | |
| 38 | 310081 | 13b | |
| 16 | 310089 | 6b | |
| 24 | 310089 | 9b | |
| 42 | 310090 | 13b | |
| 25 | 310109 | 5b | |
| 47 | 320008 | 6b | |
| 11 | 320008 | 13b | |
| 23 | 320009 | 13b | |
| 46 | 320012 | 13b | |
| 17 | 330000 | 3b | |
| 16 | 330008 | 3b | |
| 18 | 350007 | 14b | |
| 30 | 390660 | 2b | |
| 10 | 910000 | 15b | |
| 7 | 910001 | 15b | |
| 14 | 910003 | 15b | |
| 6 | 911001 | 15b | |
| 5 | 911002 | 15b | |
| 9 | 911006 | 15b | |
| 19 | 911060 | 15b | |
| 12 | 930052 | 15b | |
| 13 | 930053 | 15b | |
| 27 | 930055 | 15b | |
| 31 | 6100002 | 13b | |
| 16 | 6100017 | 7b | |
| 34 | 6100020 | 6b | |
| 29 | 6100029 | 1b | |
| 3 | 6100056 | 4b | |
| 4 | 6100057 | 4b | |
| 12 | 6100059 | 4b | |
| 8 | 6100062 | 4b | |
| 37 | 6100111 | 4b | |
| 7 | 6100125 | 5b | |
| 8 | 6100127 | 5b | |
| 32 | 6100235 | 11b | |
| 28 | 6100255 | 11b | |
| 9 | 6100262 | 11b | |
| 44 | 6100269 | 11b | |
| 19 | 6100281 | 12b | |
| 20 | 6100282 | 12b | |
| 22 | 6100284 | 12b | |
| 25 | 6100285 | 12b | |
| 26 | 6100286 | 12b | |
| 34 | 6100296 | 13b | |
| 35 | 6100297 | 13b | |
| 9 | 6100303 | 13b | |
| 13 | 6100308 | 13b | |
| 38 | 6100310 | 6b | |
| 10 | 6100326 | 14b | |
| 14 | 6100333 | 3b | |
| 29 | 6100360 | 11b | |
| 36 | 6100363 | 11b | |
| 44 | 6100363 | 13b | |
| 18 | 6100366 | 12b | |
| 3 | 6100367 | 7b | |
| 33 | 6100370 | 13b | |
| 31 | 6109401 | 1b | |
| 15 | 6200015 | 1b | |
| 16 | 6200016 | 1b | |
| 22 | 6200017 | 2b | |
| 6 | 6200019 | 4b | |
| 46 | 6200020 | 8b | |
| 13 | 6200022 | 7b | |
| 46 | 6200023 | 4b | |
| 25 | 6200024 | 2b | |
| 14 | 6200025 | 4b | |
| 5 | 6200026 | 4b | |
| 20 | 6200027 | 2b | |
| 27 | 6200028 | 13b | |
| 23 | 6200029 | 1b | |
| 24 | 6200030 | 7b | |
| 11 | 6200031 | 4b | |
| 13 | 6200032 | 4b | |
| 24 | 6200033 | 1b | |
| 38 | 6200034 | 8b | |
| 22 | 6200035 | 3b | |
| 15 | 6200036 | 3b | |
| 26 | 6200037 | 13b | |
| 8 | 6200038 | 11b | |
| 1 | 6200066 | 1b | |
| 22 | 6200068 | 7b | |
| 7 | 6200070 | 1b | |
| 9 | 6200071 | 1b | |
| 3 | 6200072 | 1b | |
| 24 | 6200073 | 2b | |
| 43 | 6200074 | 13b | |
| 1 | 6200075 | 3b | |
| 21 | 6200076 | 3b | |
| 4 | 6200077 | 3b | |
| 17 | 6200078 | 1b | |
| 1 | 6200079 | 4b | |
| 3 | 6200080 | 9b | |
| 3 | 6200080 | 10b | |
| 34 | 6200081 | 5b | |
| 25 | 6200082 | 8b | |
| 17 | 6200083 | 5b | |
| 19 | 6200084 | 5b | |
| 11 | 6200085 | 6b | |
| 7 | 6200086 | 6b | |
| 14 | 6200087 | 6b | |
| 3 | 6200088 | 6b | |
| 32 | 6200089 | 6b | |
| 39 | 6200090 | 6b | |
| 1 | 6200091 | 7b | |
| 7 | 6200092 | 7b | |
| 9 | 6200092 | 9b | |
| 7 | 6200092 | 10b | |
| 5 | 6200093 | 7b | |
| 11 | 6200094 | 7b | |
| 10 | 6200095 | 7b | |
| 25 | 6200096 | 7b | |
| 28 | 6200097 | 7b | |
| 29 | 6200098 | 7b | |
| 19 | 6200100 | 7b | |
| 15 | 6200101 | 6b | |
| 28 | 6200103 | 8b | |
| 21 | 6200104 | 8b | |
| 18 | 6200105 | 8b | |
| 30 | 6200106 | 8b | |
| 10 | 6200107 | 10b | |
| 1 | 6200108 | 10b | |
| 9 | 6200109 | 10b | |
| 15 | 6200110 | 9b | |
| 19 | 6200111 | 9b | |
| 25 | 6200112 | 9b | |
| 22 | 6200113 | 9b | |
| 14 | 6200114 | 9b | |
| 27 | 6200115 | 9b | |
| 18 | 6200116 | 9b | |
| 13 | 6200117 | 9b | |
| 10 | 6200118 | 11b | |
| 3 | 6200119 | 11b | |
| 37 | 6200120 | 9b | |
| 35 | 6200123 | 11b | |
| 31 | 6200125 | 11b | |
| 37 | 6200126 | 11b | |
| 12 | 6200127 | 11b | |
| 27 | 6200130 | 11b | |
| 42 | 6200131 | 11b | |
| 29 | 6200132 | 5b | |
| 21 | 6200133 | 12b | |
| 27 | 6200137 | 12b | |
| 16 | 6200138 | 12b | |
| 14 | 6200139 | 12b | |
| 13 | 6200140 | 12b | |
| 17 | 6200141 | 12b | |
| 20 | 6200142 | 11b | |
| 15 | 6200146 | 14b | |
| 16 | 6200147 | 14b | |
| 5 | 6200148 | 14b | |
| 2 | 6200149 | 13b | |
| 14 | 6200150 | 13b | |
| 17 | 6200151 | 14b | |
| 13 | 6200152 | 14b | |
| 28 | 6200153 | 6b |
Page 34
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6200154 | |||
| 6200155 | |||
| 6200156 | |||
| 6200157 | |||
| 6200158 | |||
| 6200159 | |||
| 6200160 | |||
| 6200162 | |||
| 6200163 | |||
| 6200163 | |||
| 6200164 | |||
| 6200165 | |||
| 6200166 | |||
| 6200166 | |||
| 6200167 | |||
| 6200168 | |||
| 6200169 | |||
| 6200170 | |||
| 6200171 | |||
| 6200172 | |||
| 6200173 | |||
| 6200174 | |||
| 6200175 | |||
| 6200176 | |||
| 6200177 | |||
| 6200178 | |||
| 6200179 | |||
| 6200180 | |||
| 6200181 | |||
| 6200182 | |||
| 6200183 | |||
| 6200184 | |||
| 6200185 | |||
| 6200186 | |||
| 6200187 | |||
| 6200188 | |||
| 6200189 | |||
| 6200190 | |||
| 6200191 | |||
| 6200192 | |||
| 6200193 | |||
| 6200194 | |||
| 6200195 | |||
| 6200196 | |||
| 6200197 | |||
| 6200206 | |||
| 6200207 | |||
| 6200209 | |||
| 6200210 | |||
| 6200211 | |||
| 6200212 | |||
| 6200213 | |||
| 6200214 | |||
| 6200217 | |||
| 6200218 | |||
| 6200219 | |||
| 6200220 | |||
| 6200221 | |||
| 6200222 | |||
| 6200223 | |||
| 6200224 | |||
| 6200225 | |||
| 6200226 | |||
| 6200227 | |||
| 6200228 | |||
| 6200229 | |||
| 6200232 | |||
| 6200234 | |||
| 6200235 | |||
| 6200236 | |||
| 6200237 | |||
| 6200238 | |||
| 6200239 | |||
| 6200240 | |||
| 6200241 | |||
| 6200242 | |||
| 6200243 | |||
| 6200244 | |||
| 6200245 | |||
| 6200246 | |||
| 6200247 | |||
| 6200248 | |||
| 6200249 | |||
| 6200250 | |||
| 6200251 | |||
| 6200253 | |||
| 6200254 | |||
| 6200255 | |||
| 6200256 | |||
| 6200257 | |||
| 6200259 | |||
| 6200260 | |||
| 6200261 | |||
| 6200262 | |||
| 6200263 | |||
| 6200265 | |||
| 6200266 | |||
| 6200267 | |||
| 6200268 | |||
| 6200269 | |||
| 6200270 | |||
| 6200271 | |||
| 6200272 | |||
| 6200273 | |||
| 6200274 | |||
| 6200275 | |||
| 6200276 | |||
| 6200277 | |||
| 6200278 | |||
| 6200279 | |||
| 6200280 | |||
| 6200281 | |||
| 6200282 | |||
| 6200283 | |||
| 6200284 | |||
| 6200285 | |||
| 6200286 | |||
| 6200287 | |||
| 6200288 | |||
| 6200289 | |||
| 6200290 | |||
| 6200291 | |||
| 6200292 | |||
| 6200293 | |||
| 6200294 | |||
| 6200295 | |||
| 6200296 | |||
| 6200297 | |||
| 6200298 | |||
| 6200299 | |||
| 6200300 | |||
| 6200301 | |||
| 6200302 | |||
| 6200303 | |||
| 6200304 | |||
| 6200305 | |||
| 6200306 | |||
| 6200307 | |||
| 6200309 | |||
| 6200310 | |||
| 6200373 | |||
| 6200375 | |||
| 6200377 | |||
| 6207001 | |||
| 6207002 | |||
| 6207003 | |||
| 6207017 | |||
| 6207018 | |||
| 6207020 | |||
| 6207021 | |||
| 6207022 | |||
| 6207643 | |||
| 6208000 | |||
| 6208002 | |||
| 6209000 | |||
| 6209001 | |||
| 6209002 | |||
| 6209006 | |||
| 6209100 | |||
| 6209200 | |||
| 6209201 | |||
| 6209300 | |||
| 6209301 | |||
| 6802601 | |||
| 6802602 |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6802603 | |||
| 6802604 | |||
| 6802605 | |||
| 6802606 | |||
| 6802607 | |||
| 6802608 | |||
| 6802609 | |||
| 6802610 | |||
| 6802612 | |||
| 6802613 | |||
| 6802614 | |||
| 6802615 | |||
| 6802616 | |||
| 6802629 | |||
| 6820690 | |||
| 62100263 |
Yamato CZ6025 — parts catalog
- Page 1 (cover): This is the cover page for the Yamato CZ6000 Class High Speed Overlock Stitch Machine Parts Number List, model CZ6025.
- Page 2 (diagram): This page displays a diagram of various machine components, including covers, screws, washers, and other miscellaneous parts, labeled with reference numbers from 1 to 32.
- Page 3 (parts_list): This page lists parts with reference numbers, part numbers, and quantities required. It includes parts numbered 1 through 32.
- Page 4 (diagram): This page displays a diagram of various components and their corresponding reference numbers, including parts like brackets, screws, and covers, with some parts labeled with part numbers and names.
- Page 5 (parts_list): This page lists parts with reference numbers, part numbers, and quantities. It includes parts numbered 1 through 34, with some reference numbers not having associated part numbers.
- Page 6 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, gaskets, covers, and other mechanical parts, identified by reference numbers.
- Page 7 (parts_list): This page lists parts with reference numbers, part numbers, and quantities. It includes parts numbered 1 through 25.
- Page 8 (diagram): This page displays a diagram of various engine components and their associated parts, including bolts, brackets, gears, and plates, with reference numbers for identification.
- Page 9 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities for various components, organized into three columns.
- Page 10 (diagram): This page displays a diagram of various components of an industrial sewing machine, including shafts, bearings, screws, and housing parts, with reference numbers for each component.
- Page 11 (parts_list): This page lists parts with reference numbers, part numbers, and quantities. It includes parts numbered 1 through 36.
- Page 12 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, screws, and mounting plates, with reference numbers for each part.
- Page 13 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities required. It lists parts from reference number 1 to 49, with some multi-part references like 30-1 and 30-2.
- Page 14 (diagram): This page displays a diagram of various machine parts, including screws, brackets, levers, and springs, with reference numbers for each component.
- Page 15 (parts_list): This page lists parts with reference numbers, part numbers, and quantities required. It includes parts numbered 1 through 30.
- Page 16 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and mounting plates, with reference numbers for each part.
- Page 17 (parts_list): This page contains a parts list for industrial sewing machine components, listing reference numbers, part numbers, and quantities required.
- Page 18 (diagram): This page displays a diagram of various machine parts, including bolts, washers, brackets, and shafts, with reference numbers and some part numbers indicated.
- Page 19 (parts_list): This page lists parts with reference numbers, part numbers, and quantities required. It includes parts numbered 1 through 37.
- Page 20 (diagram): This page displays a diagram of various mechanical components, including universal joints, shafts, levers, and fasteners, with reference numbers for each part.
- Page 21 (parts_list): This page contains a parts list with reference numbers, part numbers, and quantities for various components, numbered 1 through 18.
- Page 22 (diagram): This page displays a diagram of various machine components, including levers, shafts, bolts, nuts, and brackets, with reference numbers for each part.
- Page 23 (parts_list): This page lists parts with reference numbers, part numbers, and quantities required. It includes parts numbered 1 through 45.
- Page 24 (diagram): This page displays a diagram of various machine components, including screws, brackets, gears, and other mechanical parts, with reference numbers for identification.
- Page 25 (parts_list): This page lists parts with reference numbers, part numbers, and quantities required. It includes parts numbered from 1 to 35.
- Page 26 (diagram): This page displays a diagram of various engine components, including filters, housings, bolts, and other miscellaneous parts, with corresponding reference numbers for identification.
- Page 27 (parts_list): This page lists parts with reference numbers, part numbers, and quantities required. It includes parts numbered from 1 to 46.
- Page 28 (diagram): This page displays a diagram of various machine components, including covers, brackets, screws, and a semi-submerged part, with reference numbers for each item.
- Page 29 (parts_list): This page lists parts with reference numbers, part numbers, and quantities required. It includes parts numbered 1 through 18.
- Page 30 (diagram): This page displays a diagram of various machine parts, including screws, nuts, brackets, and spools, with reference numbers and labels.
- Page 31 (parts_list): This page lists parts with reference numbers, part numbers, and quantities required. It includes parts numbered from 1 to 28.
- Page 32 (parts_list): This page contains a parts list with columns for part number, page, and figure number, organized into two main tables.
- Page 33 (parts_list): This page contains a parts list for industrial sewing machines, detailing part numbers, page references, and figure numbers across multiple columns.
- Page 34 (parts_list): This page contains a parts list with part numbers, page references, and illustration numbers for various machine components.
- Page 35 (parts_list): This page contains a parts list with part numbers, page references, and illustration numbers. It lists parts such as 6802603, 6802604, 6802605, and others, with corresponding page and illustration numbers.
