Yamato FD-62G Parts Book (PDF)

Feed-off-the-arm · also listed as FD62G, 62GDownload PDF

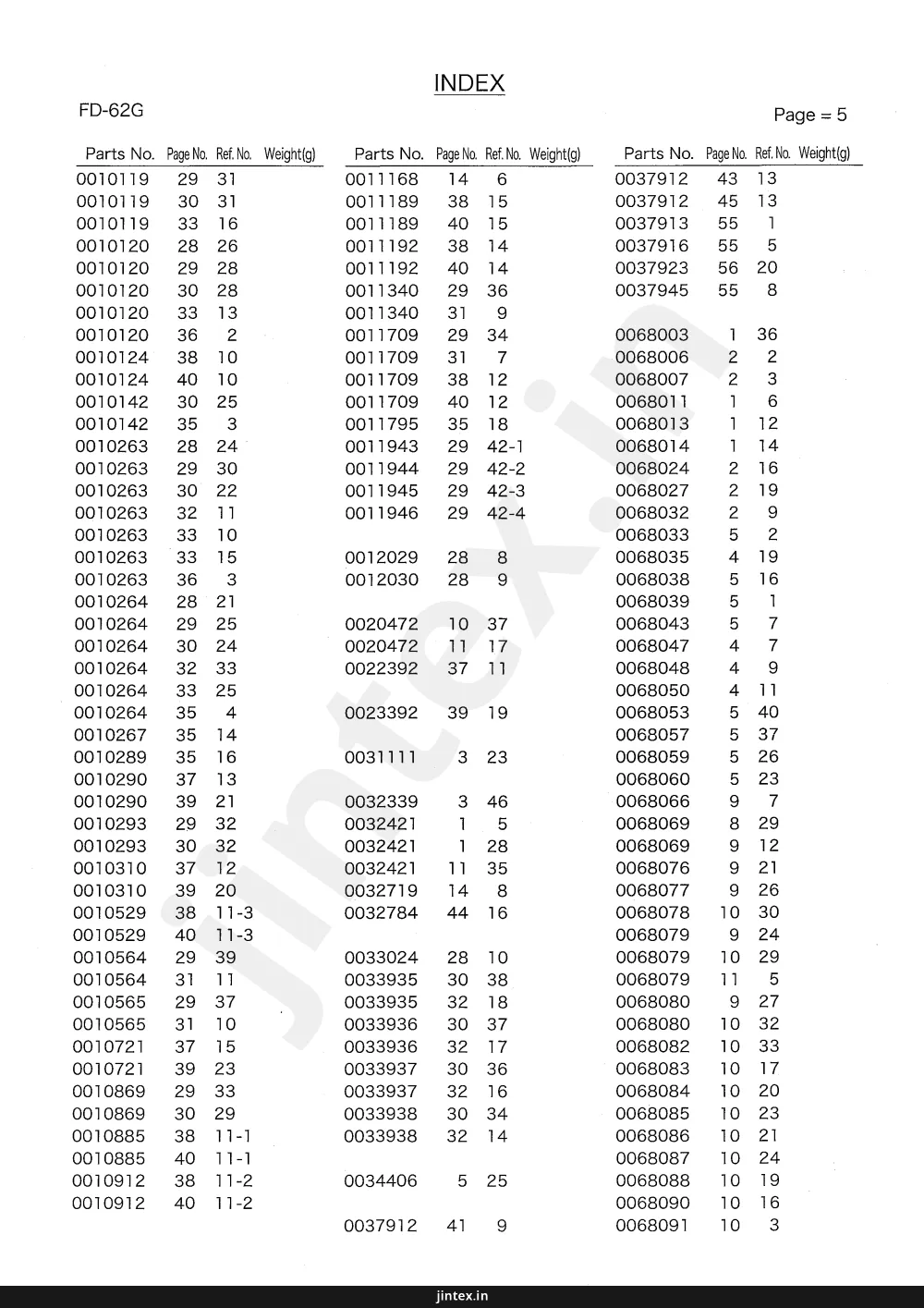

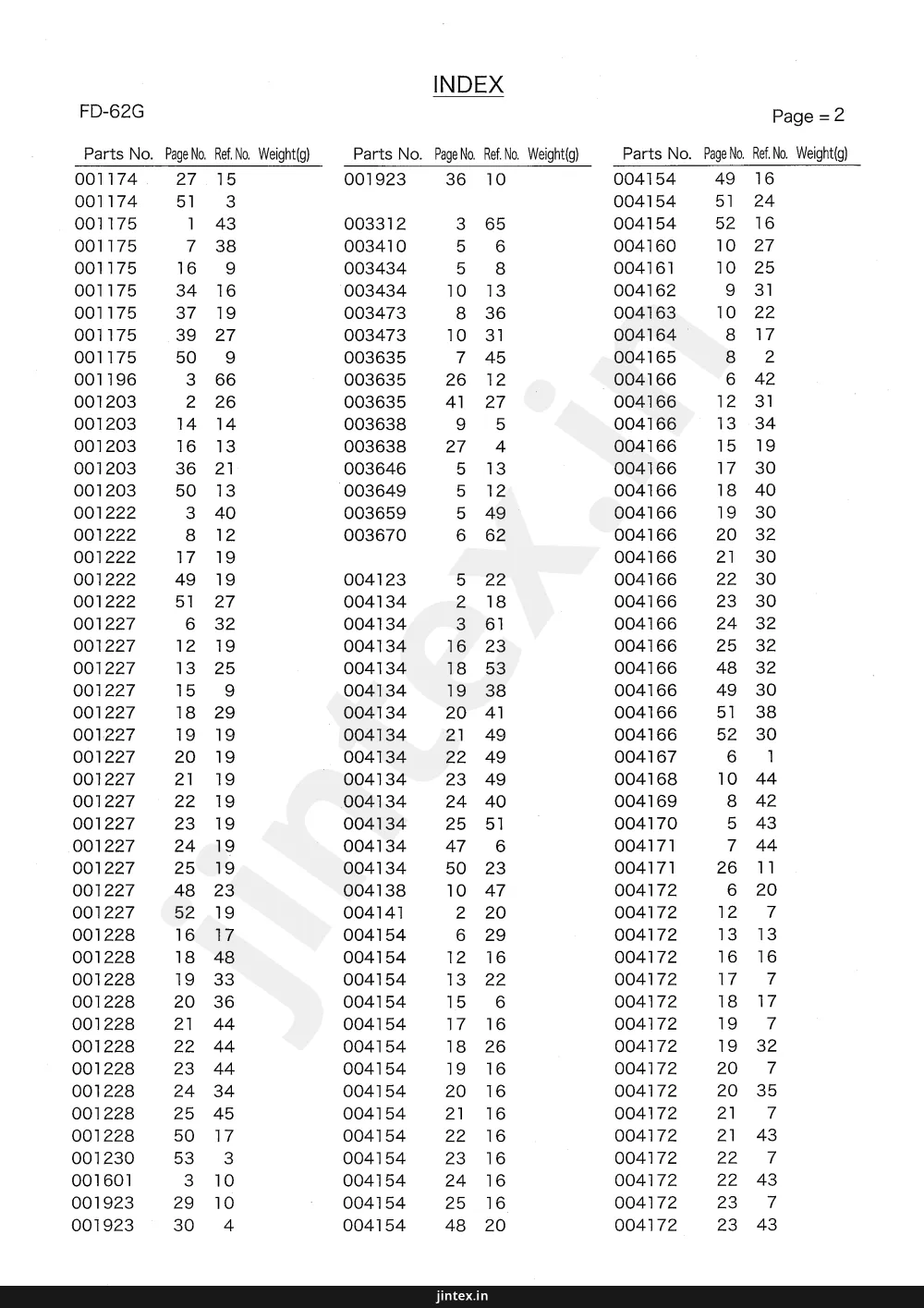

Text index — Yamato FD-62G

Page 7 — MISCELLANEOUS COVERS(1)

Yamato FD-62G parts on page 7
Ref	Part number	Part name	Qty
1	3021523	Crank Chamber Cover	1
2	3020444	Crank Chamber Cover Gasket	1
3	004445	Screw(11/64-40 × 11)	5
4	004192	Screw(M12-1.75 × 9)	2
5	0032421	O-ring(P10)	2
6	0068011	Oil Sight Top Window	2
7	004352	Screw(9/64-40 × 11.3)	10
8	3021524	Top Cover(Middle)	1
9	009853	Screw(11/64-40 × 6.5)	2
10	000340	Nut	2
11	004358	Screw(9/64-40 × 5.6)	4
12	0068013	Top Cover(Middle) Spring	1
13	000322	Nut	2
14	0068014	Top Cover(Middle) Hinge	1
15	004184	Screw(9/64-40 × 6)	7
16	3021525	Top Cover(Front)	1
17	004196	Plug Screw(M12-1.75 × 7)	1
18	3020445	Top Cover(Front) Gasket	1
19	009104	Screw(5/16-24 × 32)	3
20	000472	Washer	3
21	2049401	Serial Number Plate	1
22	000726	Rivet	2
23	3020448	Machine Frame End Cover Gasket	1
24	3021526	Machine Frame End Cover	1
25	3020442	Looper Lever Shaft Cover Gasket	1
26	3020441	Looper Lever Shaft Cover	1
27	009142	Screw(9/64-40 × 7.1)	13
28	0032421	O-ring(P10)	1
29	005076	Drain Hole Screw(3/8-24 × 8)	1
30	190036	Plug Screw(M14-1 × 4)	2
31	004175	Screw(1/4-28 × 32.5)	2
32	000474	Washer	3
33	0068307	Crank Chamber Cover Oil Shield	1
34	0093059	Oil Seal Plug	1
35	3020434	Sewing Head Oil Defender	1
36	0068003	Sewing Head Key	2
37	007621	Screw(9/64-40 × 8.5)	2
38	004174	Screw(1/4-28 × 20)	1
39	000479	Pin	1
40	3021530	Knife Driving Connection Oil Guard	1

Page 9 — MISCELLANEOUS COVERS(1)

Yamato FD-62G parts on page 9
Ref	Part number	Part name	Qty
41	0068323	Knife Driving Connection Felt	1
42	3020457	Thread Carrier and Hook Driving Rod Oil Guard	1
43	001175	Screw(9/64-40 × 8)	2
44	000187	Seal	2
45	000335	Nut	2
46	3020455	Sewing Head Cover(Left)	1
47	390207	"FD-62G" Emblem	1
48	5544886	Seal Plug	1
49	0093864	Seal Plug	1
50	0068308	Oil Guide Wire	1
51	0068196	Frame Chip Guard Washer	1
52	0068191	Frame Chip Guard	1
53	0068193	Frame Chip Guard Spring	1
54	004188	Screw(M5-0.8 × 8.7)	1
55	3020447	Sewing Head Cover Gasket	1
56	3020446	Sewing Head Cover(Front)	1
57	3020464	Needle Thrad Take-up Guard	1
58	110013	Screw(M4-0.7 × 8)	2
59	390206	Brand Name Sticker(95mm)	1

Page 11 — MISCELLANEOUS COVERS(2)

Yamato FD-62G parts on page 11
Ref	Part number	Part name	Qty
1	3020392	Sewing Cylinder	1
2	0068006	Sewing Cylinder Gasket	1
3	0068007	Sewing Cylinder Alignment Eccentric Pin	1
4	000478	Knock Pin	1
5	004194	Plug Screw(3/8-24 × 5.4)	1
6	3020450	Sewing Cylinder Cover(Front) Gasket	1
7	3021529	Sewing Cylinder Cover(Front)	1
8	004312	Screw(1/8-44 × 7.9)	4
9	0068032	Sewing Cylinder Oil Gauge	1
10	110136	Plug Screw(M22-1.5 × 5.7)	1
11	300061	Gasket	1
12	3020440	Sewing Cylinder Cover(Left) Gasket	1
13	3021531	Sewing Cylinder Cover(Left)	1
14	007621	Screw(9/64-40 × 8.5)	6
15	2129420	Model Plate(Green)	1
16	0068024	Sewing Cylinder Cover(Upper)	1
17	3020449	Cylinder Cover(Upper) Gasket	1
18	004134	Screw(1/8-44 × 6.5)	8
19	0068027	Dust Defender(Upper)	1
20	004141	Screw(3/32-56 × 2.1)	1
21	0068094	Dust Defender(Lower)	1
22	000480	Pin	2
23	0068227	Looper Cover Spring Support	1
24	007650	Screw(11/64-40 × 5)	1
25	0068226	Looper Cover Spring	1
26	001203	Screw(9/64-40 × 4.5)	1
27	0068225	Looper Cover	1
28	000486	Pin	1
29	004190	Screw(9/64-40 × 15.8)	1
30	3021060	Chain-off Cutting Knife	1
31	3021061	Chain-off Cutting Knife Guard	1
32	180025	Screw(M4-0.7 × 4.5)	1
33	007627	Screw(M4-0.7 × 6)	1
34	0068265	Looper Thread Guide Wire	1
35	007405	Screw(9/64-40 × 10.3)	1
36	3020453	Feed Drive Shaft Cover Gasket	2
37	3020452	Feed Drive Shaft Cover	2
38	009142	Screw(9/64-40 × 7.1)	6

Page 13 — MISCELLANEOUS THREAD EYELETS

Yamato FD-62G parts on page 13
Ref	Part number	Part name	Qty
1	0068356	Thread Guide Plate	1
2	004440	Screw(11/64-40 × 8.3)	12
3	0068359	Thread Eyelet Bushing	4
4	0068358	Thread Eyelet	4
5	0093538	Thread Pipe	2
6	0093528	Thread Pipe Stay	2
7	000532	Washer	2
8	004358	Screw(9/64-40 × 5.6)	2
9	0068357	Thread Guide Plate Support	2
10	001601	Screw(11/64-40 × 7)	2
11	3020034	Thread Tension Support	1
12	3020035	Thread Tension Support Bracket	2
13	004552	Screw(7/32-32 × 9.5)	4
15	0068235	Tension Release Shaft Spring	1
16	0068234	Tension Release Shaft	1
17	000485	Nut	6
18	0068273	Tension Spring Bushing	6
19	0068244	Looper Thread Tension Spring	1
20	0068243	Top Cover Thread Tension Spring	1
21	0068245	Needle Thread Tension Spring	4
22	0068413	Tension Release Pin Bushing	7
23	0031111	Thread Tension Disc	12
24	0068411	Thread Tension Disc Eyelet	3
25	004206	Tension Post	6
26	0068412	Tension Release Pin	7
27	0068355	SP Device, C. Set	1
28	0068350	Oil Cup Lid	1
29	001107	Hinge Pin	2
30	0068353	SP Felt	4
31	0068403	SP Felt Stay	1
32	310086	Oil Wick(Woollen Yarn)(200mm)	1
33	0068349	SP Container	1
34	0068351	SP Container Support	1
35	007619	Screw(9/64-40 × 6.3)	2
36	0068259	Thread Take-up Eyelet Holder	1
37	0068260	Thread Take-up Eyelet	1
38	004180	Screw(1/8-44 × 4.8)	1
39	0068258	Looper Thread Take-up Guide	1
40	001222	Screw(1/8-44 × 4.8)	4

Page 15 — MISCELLANEOUS THREAD EYELETS

Yamato FD-62G parts on page 15
Ref	Part number	Part name	Qty
41	0068256	Looper Thread Take-up Eyelet(Front)	1
42	0068257	Looper Thread Take-up Eyelet(Rear)	1
43	004245	Screw(11/128-56 × 3.2)	4
44	0068255	Eyelet Supporting Plate	1
45	0068262	Looper Thread Guard	1
46	0032339	Top Cover Thread Pipe	1
47	0068261	Looper Thread Guide Wire(Upper)	1
48	0068269	Needle Thread Strike-off Pin Holder Bracket	1
49	0068270	Needle Thread Strike-off Pin	4
50	004197	Screw(1/8-44 × 2)	4
51	0068324	Needle Thread Strike-off Pin Holder	1
52	004187	Screw(3/32-56 × 6.2)	2
53	0068242	Needle Thread Guide Wire	1
54	0068267	Head Cover Thread Eyelet	1
55	009730	Screw(1/8-44 × 5.3)	1
56	0068246	Needle Thread Eyelet Holder	1
57	007311	Screw(11/64-40 × 12.6)	1
58	0068249	Needle Thread Eyelet	4
59	0068250	Stitch Unlocking Mounting Bracket	1
60	004191	Screw(11/128-56 × 2.5)	1
61	004134	Screw(1/8-44 × 6.5)	1
62	0068251	Stitch Unlocking Spring	1
63	0068252	Stitch Unlocking Spring Holder	1
64	004321	Screw(1/8-44 × 6.4)	1
65	003312	Screw(1/8-44 × 3.4)	1
66	001196	Screw(1/8-44 × 6)	1
67	005431	Screw(1/8-44 × 4.4)	2

Page 17 — MISCELLANEOUS BUSHINGS

Yamato FD-62G parts on page 17
Ref	Part number	Part name	Qty
1	3020411	Adapter, C. Set	1
2	3020400	Adapter	1
3	160003	Screw(M5-0.8 × 5)	2
4	3500054	Ball Bearing	1
5	3020435	Bushing Housing	1
6	004202	Screw(3/16-32 × 11.5)	3
7	0068047	Bushing Housing Gasket	1
8	3020417	Oil Seal	4
9	0068048	Crankshaft Bushing(Front)	1
10	3020401	Main Shaft Bushing(Rear)	1
11	0068050	Main Shaft Bushing(Front)	1
12	310087	Oil Wick(Woollen Yarn)(320mm)	2
13	000463	Oil Wick(Laced Wire)	1
14	3020402	Knife Driving Lever Bushing(Rear)	1
15	3020403	Knife Driving Lever Bushing(Front)	1
16	0068139	Presser Foot Lifter Stop Plunger Bushing	1
17	0068230	Looper Driving Lever Shaft Bushing	1
18	000390	Oil Wick(ϕ 9 × 2.5mm)	1
19	0068035	Seal Plug	1
20	310017	Oil Wick(No.2 -300mm)	1
21	004440	Screw(11/64-40 × 8.3)	1
22	3020097	Vinyl Tube	1
23	0068131	Presser Bar Bushing	1
24	3020014	Needle Bar Bushing(Upper) Lid	1
25	000509	Gasket	1
26	3020013	Needle Bar Bushing(Upper)	1
27	3020404	Needle Bar Bushing(Lower)	1
28	3020416	Oil Seal	1
29	0068214	Looper Rocker Shaft Bushing(Front)	1
30	3020405	Looper Rocker Shaft Bushing(Rear)	1
31	3020418	Oil Seal	2
32	3020406	Feed Bar Eccentric Pin Bushing	1

Page 19 — CRANKSHAFT & NEEDLE BAR DRIVING MECHANISM

Yamato FD-62G parts on page 19
Ref	Part number	Part name	Qty
1	0068039	Main Shaft	1
2	0068033	O-ring(P12.5)	1
3	0068253	Looper Thread Take-up	1
4	0068254	Top Cover Thread Take-up	1
5	008047	Screw(7/32-32 × 3.6)	4
6	003410	Positioning Screw(1/8-44 × 4)	2
7	0068043	Collar(12.7 × 25.4 × 8mm)	2
8	003434	Screw(11/64-40 × 6)	4
9	0068493	Main Shaft Coupling, C. Set	1
10	300049	Washer	3
11	004177	Screw(11/64-40 × 17)	3
12	003649	Screw(1/4-28 × 8.5)	2
13	003646	Screw(1/4-28 × 6.35)	4
14	0068276	Pump Driving Gear	1
15	004186	Screw(1/8-44 × 7.7)	3
16	0068038	Crankshaft	1
17	0068146	Needle Bearing	1
18	0068145	Thread Carrier and Hook Driving Rod(Right)	1
19	0068147	Needle Bearing Retaining Plate	1
20	007619	Screw(9/64-40 × 3)	2
21	3020087	Pulley	1
22	004123	Screw(1/4-28 × 10)	2
23	0068060	Needle Bar Lever Connecting Rod	1
24	005070	Screw(3/16-32 × 14)	2
25	0034406	Needle Bearing	1
26	0068059	Needle Ber Lever Connecting Rod Pin	1
27	000203	Oil Wick(4 × 5 × 50mm)	1
28	001170	Screw(9/64-40 × 12)	2
29	3020431	Needle Bar Lever	1
30	160009	Screw(M5-0.8 × 5)	2
31	3160038	Retaining Ring	1
32	3020433	Thrust Ring	1
33	0090321	Needle Bar Connecting Link	1
34	0090320	Needle Bar Connecting Link Pin	2
35	000278	Oil Wick(2.5 × 2.5 × 18mm)	2
36	004313	Screw(1/8-44 × 5)	2
37	0068057	Needle Bar Connecting Bracket	1
38	004185	Screw(9/64-40 × 7.2)	4
39	3020422	Needle Bar	1
40	0068053	Needle Clamp(5.2)	1
41	------	Needle(system:UY118GAS)	4
42	------	Retainer(system:36211)	1
43	004170	Screw(3/32-56 × 2.5)	5
44	0068490	Stitch Plate	1
45-1	0068491	Stitch Plate Tongue	1
45-2	3028003	StitchPlateTongue(forwoollythread)(Extra)	1
46	004182	Screw(3/32-56 × 2.5)	1
47	3020429	Needle Bar Lever, C. Set	1
48	3020432	Collar(12.7 × 22 × 8)	1
49	003659	Screw(M5-0.8 × 5)	2

Page 21 — PRESSER FOOT MECHANISM

Yamato FD-62G parts on page 21
Ref	Part number	Part name	Qty
1	004167	Adjusting Screw(M12-1 × 19.15)	1
2	100030	Lock Nut	1
3	0068132	Presser Spring	1
4	3020024	Presser Bar Connecting Bracket	1
5	004437	Screw(11/64-40 × 10)	1
6	3020021	Presser Foot Adjusting Screw	1
7	000039	Pin	1
8	3020023	Connecting Bracket Cushion	1
9	3020020	Presser Bar Guide	1
10	100049	Lock Nut	1
11	3020022	Adjusting Nut	1
12	160024	Screw(M6-1 × 8)	1
13	0068130	Presser Bar	1
14	3027092	Presser Foot, C. Set3	1
15	3027090	Presser Foot	1
16	009853	Screw(11/64-40 × 6.5)	1
17	0068127	Carrier/Hook Driving Segment	1
18	0068128	Carrier/Hook Driving Lever Link	2
19	0068129	Link Pin	4
20	004172	Screw(3/32-56 × 3.4)	4
21	0068126	Thread Hook Driving Lever	1
22	0068124	Top Cover Thread Hook	1
23	004353	Screw(9/64-40 × 7)	1
24	0068125	Top Cover Thread Carrier Driving Lever	1
25	0068123	Top Cover Thread Carrier	1
26	004180	Screw(1/8-44 × 4.8)	1
27	0068346	Presser Foot Attach Piece(Right)	1
28	0068347	Presser Foot Attach Piece(Left)	1
29	004154	Screw(3/32-56 × 1.5)	4
30	0068121	Lower Knife	1
31	3027123	Lower Knife Clamp	1
32	001227	Screw(1/8-44 × 3.8)	1
33	0068117	Yielding Section Spring	1
34	3027120	Yielding Section	1
35	004180	Screw(1/8-44 × 4.8)	1
36	0068118	Presser Foot Spring Plate(A)(Left)	1
37	0068119	Presser Foot Spring Plate(A)(Right)	1
38	004173	Screw(3/32-56 × 2.4)	2
39	0068120	Spring Plate Holder	1
40	0068187	Chip Guard	1

Page 23 — PRESSER FOOT MECHANISM

Yamato FD-62G parts on page 23
Ref	Part number	Part name	Qty
41	3027087	Chip Guard Spring	1
42	004166	Screw(1/8-44 × 3.2)	1
43	0068135	Presser Foot Guide(Right)	1
44	004176	Screw(M5-0.8 × 12)	1
45	0068136	Presser Foot Guide(Left)	1
46	005650	Screw(M5-0.8 × 14)	2
47	0068157	Presser Foot Spring Plate(B)(Left)	1
48	0068158	Presser Foot Spring Plate(B)(Right)	1
49	0068164	Lifter Lever Supplementary Plate	1
50	004216	Screw(3/16-32 × 4)	5
51	0068162	Presser Bar Lifter Lever(Large)	1
52	005553	Screw(7/32-32 × 12)	1
53	0068141	Stop Plunger Segment Pin	1
54	160009	Screw(M5-0.8 × 5)	1
55	0068140	Stop Plunger Segment	1
56	000363	Nut	1
57	0068138	Presser Foot Lifter Stop Plunger	1
58	0068142	Presser Foot Lifter Lever Link(Long)	1
59	004358	Screw(9/64-40 × 5.6)	2
60	0068154	Presser Foot Lifter Lever Link(Short)	1
61	0068163	Presser Bar Lifter Lever(Small)	1
62	003670	Screw(7/32-32 × 6.3)	1
63	0068144	Presser Bar Lifter Lever	1

Page 25 — UPPER KNIFE, CARRIER AND HOOK DRIVING MECHANISM

Yamato FD-62G parts on page 25
Ref	Part number	Part name	Qty
1	0068968	Carrier/Hook Driving Rod(Left), C. Set	1
2	0068148	Carrier Hook Driving Rod(Left)	1
3	0068174	Rod Ball(Left)	1
4	001174	Screw(9/64-40 × 10.3)	2
5	000471	Nut	1
6	000347	Nut	2
7	0068150	Carrier Hook Sleeve Lever	1
8	007609	Screw(9/64-40 × 9)	1
9	3020425	Needle Thread Take-up	1
10	110003	Screw(M3.5-0.6 × 6)	1
11	110004	Screw(M3.5-0.6 × 8)	2
12	3020426	Bracket	1
13	3020430	Knife Driving Lever	1
14	0068176	Steady Washer	1
15	3020061	Knife Driving Connection(Right), C. Set	1
16	3020048	Knife Driving Connection(Right)	1
17	3020047	Knife Driving Connection Ball(Right)	1
18	120053	Screw(M3.5-0.6 × 14)	4
19	000356	Nut(Left-handed Screw)	1
20	0068175	Knife Driving Connecting Rod	1
21	000355	Nut	1
22	3020062	Knife Driving Connection(Left), C. Set	1
23	3020049	Knife Driving Connection(Left)	1
24	3020050	Rod Ball(Left)	1
25	3020407	Knife Holder Bracket, C. Set	1
26	3020410	Thread Carrier and Hook Sleeve Bushing	1
27	3020409	Bushing Ring	1
28	3020436	Carrier/Hook Driving Sleeve	1
29	310113	Oil Wick	1
30	3020414	Oil Seal	1
31	3020415	Oil Seal	1
32	3020002	Knife Holder Guide Collar, C. Set	1
33	0068348	Knife Holder Shank Support	1
34	0068181	Knife Holder Spring	1
35	0068182	Knife Holder Guide Collar	1
36	004185	Screw(9/64-40 × 7.2)	1
37	0068180	Knife Holder Shank	1
38	001175	Screw(9/64-40 × 8)	2
39	004181	Screw(3/32-56 × 3.6)	1
40	0068185	Knife Support	1
41	004179	Screw(3/32-56 × 1.2)	1
42	0068184	Upper Knife	1
43	0068183	Knife Holder	1
44	004171	Screw(3/32-56 × 13)	2
45	003635	Screw(1/4-40 × 6)	1

Page 27 — LOOPER DRIVING MECHANISM

Yamato FD-62G parts on page 27
Ref	Part number	Part name	Qty
1	0068197	Looper Driving Crank Pin	1
2	004165	Screw(9/64-40 × 16.3)	1
3	000477	Roll Pin for Main Shaft	1
4	3020040	Looper Lever Driving Rod, C. Set	1
5	3020042	Looper Lever Driving Rod Ball	1
6	120053	Screw(M3.5-0.6 × 14)	2
7	3020041	Looper Lever Driving Rod	1
8	000586	Washer	1
9	000356	Nut(Left-handed Screw)	2
10	0068202	Retaining Ring	2
11	0068205	Looper Lever Driving Rod Pin	1
12	001222	Screw(1/8-44 × 4.8)	1
13	0068207	Collar(8.1 × 14 × 6.4mm)	2
14	009604	Screw(11/64-40 × 5.5)[11/64-40 × 3.3]	2
15	0068204	Looper Lever Shaft	1
17	004164	Screw(7/32-32 × 20)	1
18	0068203	Looper Lever	1
19	3020060	Looper Driving Connection Rod, C. Set	1
20	3020051	Looper Driving Connection(Upper)	1
21	120053	Screw(M3.5-0.6 × 14)	4
22	3020047	Looper Driving Connection Ball(Upper)	1
23	000470	Nut	1
24	0068175	Looper Driving Connecting Rod	1
25	000355	Nut	1
26	3020052	Looper Driving Connection(Lower)	1
27	3020053	Looper Driving Connection Ball(Lower)	1
28	000306	Nut	1
29	0068069	Steady Fork	1
30	110004	Screw(M3.5-0.6 × 8)	1
31	0068213	Looper Rocker Shaft	1
32	0068222	Looper Rocker Shaft Sleeve	1
33	000548	Washer	1
34	004352	Screw(9/64-40 × 11.3)	1
35	0068223	Looper Rocker Shaft Sleeve Guide	1
36	003473	Screw(3/16-32 × 7.9)	1
37	0068224	Collar(9.53 × 16 × 8mm)	1
38	005550	Screw(11/64-40 × 13.5)	1
39	0068216	Looper Holder	1
40	005040	Screw(11/64-40 × 8.5)	1
41	000489	Packing	1
42	004169	Adjusting Screw(9/64-40 × 8.2)	1
43	0068217	Looper	1
44	210007	Screw(1/4-24 × 20)	1
45	0068218	Needle Guard(Front)	1
46	004284	Screw(29/256-48 × 3.2)	2
47	004181	Screw(3/32-56 × 3.6)	1
48	3020063	LooperDrivingConnection(Upper),C.Set	1
49	3020064	Looper Driving Connection(Lower),C.Set	1
50	3020043	Spacer	1

Page 29 — FEED DRIVING MECHANISM

Yamato FD-62G parts on page 29
Ref	Part number	Part name	Qty
1	3020056	Feed Lift Eccentric, C. Set	1
2	3020028	Feed Lift Connection(Upper)	2
3	004441	Screw(11/64-40 × 16)	4
4	3020029	Feed Lift Eccentric Ball	1
5	003638	Screw(11/64-40 × 4)	4
6	000356	Nut(Lift-handed Screw)	2
7	0068066	Feed Lift Eccentric Connecting Rod	1
8	000355	Nut	2
9	3020052	Feed Lift Connection(Lower)	1
10	120053	Screw(M3.5-0.6 × 14)	4
11	3020045	Feed Lift Connection Ball	1
12	0068069	Steady Fork	1
13	110004	Screw(M3.5-0.6 × 8)	1
14	310084	Oil Wick(Woollen Yarn)(70mm)	2
15	000755	Pin	2
16	3020058	Feed Drive Eccentric, C. Set	1
17	3020033	Feed Drive Eccentric Ball	1
18	3020112	Feed Drive Eccentric Connecting Rod	1
19	3020049	Feed Drive Connection(Lower)	1
20	3020046	Feed Drive Connection Ball	1
21	0068076	Steady Washer	1
22	000474	Washer	1
23	000306	Nut	1
24	0068079	O-ring(P9)	1
25	0068345	Feed Drive Shaft	1
26	0068077	Feed Drive/Looper Avoid Lever	1
27	0068080	Feed Drive Shaft Bushing	1
28	005047	Screw(3/16-32 × 9.5)	1
29	004203	Screw(3/16-32 × 9.5)	1
30	0068219	Looper Avoid Connecting Rod, C. Set	1
31	004162	Screw(7/32-32 × 15)	2
32	0068221	Looper Avoid Connecting Rod Bushing	2
33	0068199	Needle Bearing	2
34	0068220	Looper Avoid Connecting Rod	1
35	0068228	Looper Avoid Adjusting Nut	1
36	3020027	Feed Lift Connection(Upper), C. Set	1
37	3020057	Feed Lift Connection(Lower), C. Set	1
38	3020032	Feed Drive Eccentric(Upper), C. Set	1
39	3020059	Feed Drive Eccentric(Lower), C. Set	1

Page 31 — FEED DRIVING CONTROL MECHANISM

Yamato FD-62G parts on page 31
Ref	Part number	Part name	Qty
1	0068106	Feed Bar, C. Set	1
2	0068092	Main Feed Bar	1
3	0068091	Differential Feed Bar	1
4	0068093	Feed Bar Plate	2
5	005004	Screw(11/64-40 × 18.5)	4
6	009508	Screw(11/64-40 × 7.5)	1
7	0068095	Differential Feed Dog(P=1.8mm)	1
8	0068096	Main Feed Dog(P=1.8mm)	1
9	004440	Screw(11/64-40 × 8.3)	2
10	0068097	Needle Guard(Rear)	1
11	240009	Screw(1/8-44 × 4.8)	1
12	3020423	Feed Bar Eccentric Pin	1
13	003434	Screw(11/64-40 × 6)	1
14	3020424	O-ring(P8)	1
16	0068090	Feed Bar Slide Block	1
17	0068083	Feed Rocker Link Bushing	3
18	004178	Screw(7/32-32 × 11.5)	2
19	0068088	Main Feed Bar Driving Link	1
20	0068084	Feed Rocker Link Pin	2
21	0068086	Differential Feed Bar Driving Link	1
22	004163	Screw(7/32-32 × 5)	1
23	0068085	Feed Rocker	1
24	0068087	Differential Feed Bar Driving Link Slider	1
25	004161	Screw(7/32-32 × 12)	1
26	0068099	Differential Feed Adjusting Link	1
27	004160	Screw(11/64-40 × 10.6)	1
28	0068098	Differential Feed Adjusting Lever	1
29	0068079	O-ring(P9)	1
30	0068078	Feed Rocker Shaft	1
31	003473	Screw(3/16-32 × 7.9)	2
32	0068080	Feed Rocker Shaft Bushing	1
33	0068082	Feed Rocker Link	1
34	004551	Screw(7/32-32 × 13)	1
35	0068107	Feed Adjusting Nut	1
36	0068101	DifferentialFeedAdjustingLever(Middle)	1
37	0020472	O-ring(P6)	1
38	3020451	Differential Feed Adjusting Dial Gasket	1
39	0068103	Differential Feed Adjusting Dial	1
40	007621	Screw(9/64-40 × 8.5)	4
41	000475	Spacer(Fiber)	1
42	000487	Wave Washer	1
43	0068105	Differential Feed Operating Lever	1
44	004168	Screw(M3-0.5 × 2.8)	2
45	000488	Nut	2
46	007616	Screw(1/8-44 × 4.2)	1
47	004138	Screw(1/8-44 × 5)	1

Page 33 — LUBRICATING MECHANISM / 給油機構

Yamato FD-62G parts on page 33
Ref	Part number	Part name	Qty
1	0068303	Crank Chamber Oil Gauge Unit	1
2	0068304	Oil Height Indicator	1
3	3020090	Oil Reciver(Rear)	1
4	310111	Oil Wick(No.3-280mm)	1
5	0068079	O-ring(P9)	1
6	0068483	Pump, C. Set	1
7	0068290	Pump Housing Cover(Rear) Unit	1
8	007605	Screw(9/64-40 × 9.5)	6
9	0068294	In-take Filter	1
10	0068482	Pump, C. Set	1
11	0068480	Pump Housing	1
12	0068281	Pump Gear Shaft(Short)	2
13	0068280	Pump Gear Shaft(Long)	1
14	0068481	Oil Pump Gear	4
15	0068277	Pump Driven Gear	1
16	007650	Screw(11/64-40 × 5)	2
17	0020472	O-ring(P6)	1
18	000474	Washer	1
19	004249	Screw(9/64-40 × 3)	2
20	009150	Screw(11/64-40 × 11)	2
21	0068282	Pump Housing Cover(Front) Unit	1
22	004198	Screw(M10-1.5 × 6)	1
23	0068298	Thread Take-up Oil Defender Unit	1
24	004353	Screw(9/64-40 × 7)	2
25	000550	Seal	1
26	000532	Washer	1
27	0068287	Oil Reciver(Front)	1
28	310085	Oil Wick(Woollen Yarn)(90mm)	3
29	0068344	Rubber Bushing	1
30	0068343	Oil Filter Screen Rubber Seal	1
31	0068342	Oil Filter Screen	1
32	3020443	Oil Reservoir Gasket	1
33	3020454	Oil Reservoir	1
34	005650	Screw(M5-0.8 × 14)	6
35	0032421	O-ring(P10)	1
36	005076	Drain Hole Screw(3/8-24 × 8)	1

Page 35 — FD-62G-01MR-12, 01MR-59 EXCLUSIVE PARTS

Yamato FD-62G parts on page 35
Ref	Part number	Part name	Qty
1	3027127	Presser Foot, C. Set3	1
2	3027090	Presser Foot	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Top Cover Thread Hook	1
10	004185	Screw(9/64-40 × 7.2)	1
11	0068125	Top Cover Thread Carrier Driving Lever	1
12	0068123	Top Cover Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	1
14	0068346	Presser Foot Attach Piece(Right)	1
15	3027079	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	0068121	Lower Knife	1
18	3027123	Lower Knife Clamp	1
19	001227	Screw(1/8-44 × 3.8)	1
20	0068117	Yielding Section Spring	1
21	3027120	Yielding Section	1
22	004180	Screw(1/8-44 × 4.8)	1
23	0068118	Presser Foot Spring Plate(Left)	1
24	0068119	Presser Foot Spring Plate(Right)	1
25	004173	Screw(3/32-56 × 2.4)	1
26	0068120	Spring Plate Holder	1
27	3020093	Chip Guard Plate	1
28	210031	Screw(3/32-56 × 4.2)	1
29	3020092	Chip Guard	1
30	3027087	Chip Guard Spring	1
31	004166	Screw(1/8-44 × 3.2)	1
32	0068157	Presser Foot Spring Plate(Left)	1
33	0068158	Presser Foot Spring Plate(Right)	1
34	3021096	Presser Foot Guide(Left)	1
35	3027098	Presser Foot, C. Set3	1
36	3027096	Presser Foot	1
37	0068347	Presser Foot Attach Piece(Left)	1
38	0068157	Presser Foot Spring Plate(Left)	1
39	0068448	Presser Foot Spring Plate(Right)	1
40	0068187	Chip Guard	1
41	0068443	Stitch Plate	1
42	0068444	Stitch Plate Tongue	1
43	0068441	Differential Feed Dog	1
44	0068448	Presser Foot Spring Plate(Right)	1

Page 37 — FD-62G-01MS, 01MS-12 EXCLUSIVE PARTS

Yamato FD-62G parts on page 37
Ref	Part number	Part name	Qty
1	0068553	Needle Clamp(6.0mm)	1
2	000393	Pin	5
3	0068559	Stitch Plate	1
4-1	0068560	Stitch Plate Tongue	1
4-2	3028004	Stitch Plate Tongue(EXTRA)	1
7	3027095	Presser Foot, C. Set3( 01MS)	1
8	3027093	Presser Foot	1
9	009853	Screw(11/64-40 × 6.5)	1
10	0068127	Carrier/Hook Driving Segment	1
11	0068128	Carrier/Hook Driving Lever Link	2
12	0068129	Link Pin	4
13	004172	Screw(3/32-56 × 3.4)	4
14	0068126	Thread Hook Driving Lever	1
15	0068124	Ornamental Thread Hook	1
16	004353	Screw(9/64-40 × 7)	1
17	0068125	Ornamental Thread Carrier Driving Lever	1
18	0068558	Ornamental Thread Carrier	1
19	004180	Screw(1/8-44 × 4.8)	2
20	0068346	Presser Foot Attach Piece(Right)	1
21	0068347	Presser Foot Attach Piece(Left)(01MS)	1
22	004154	Screw(3/32-56 × 1.5)	4
23	0068121	Lower Knife	1
24	3027123	Lower Knife Clamp	1
25	001227	Screw(1/8-44 × 3.8)	1
26	0068117	Yielding Section Spring	1
27	3027120	Yielding Section	1
28	0068561	Presser Foot Spring Plate(Left)	1
29	0068562	Presser Foot Spring Plate(Right)	1
30	004173	Screw(3/32-56 × 2.4)	2
31	0068120	Spring Plate Holder	1
32	0068187	Chip Guard(01MS)	1
33	3027087	Chip Guard Spring	1
34	004166	Screw(1/8-44 × 3.2)	1
35	3020015	Carrier/Hook Driving Rod(Left), C. Set	1
36	0068148	Carrier/Hook Driving Rod(Left)	1
37	001174	Screw(9/64-40 × 10.3)	2
38	0068551	Rod Ball(Left)	1
39	0068552	Carrier/Hook Sleeve Lever	1
40	000347	Nut	1
41	3027187	Presser Foot, C. Set3(01MS-12)	1
42	3027079	PresserFootAttachPiece(Left)(01MS-12)	1
43	3021095	Chip Guard(01MS-12)	1
44	3020093	Chip Guard Plate	1
45	210031	Screw(3/32-56 × 4.2)	1
46	3021096	Presser Foot Guide(Left)	1
47	0068561	Presser Foot Spring Plate(Left)	1
48	0068562	Presser Foot Spring Plate(Right)	1

Page 39 — FD-62G-03MR, 03MS EXCLUSIVE PARTS(1)

Yamato FD-62G parts on page 39
Ref	Part number	Part name	Qty
1	3020467	Tape Reel Support	1
2	007405	Screw(9/64-40 × 10.3)	2
3	000568	Rubber Cushion	2
4	0068428	Tape Reel Shaft	1
5	000145	Nut	1
6	0011168	Tape Reel	2
7	0068432	Tape Reel Spring	1
8	0032719	Collar(10 × 16 × 6mm)	1
9	006434	Screw(9/64-40 × 7.9)	1
10	3020466	Tape Guide	1
11	110012	Screw(M4-0.7 × 5)	1
12	0068426	Frame Chip Guard	1
13	0068431	Folder	1
14	001203	Screw(9/64-40 × 4.5)	2

Page 41 — FD-62G-03MR, 03MS EXCLUSIVE PARTS(2)

Yamato FD-62G parts on page 41
Ref	Part number	Part name	Qty
1	3027102	Presser Foot, C. Set3	1
2	3027100	Presser Foot, C. Set1	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068346	Presser Foot Attach Piece(Right)	1
5	0068347	Presser Foot Attach Piece(Left)	1
6	004154	Screw(3/32-56 × 1.5)	4
7	0068121	Lower Knife	1
8	3027123	Lower Knife Clamp	1
9	001227	Screw(1/8-44 × 3.8)	1
10	0068117	Yielding Section Spring	1
11	3027120	Yielding Section	1
12	004180	Screw(1/8-44 × 4.8)	1
13	0068423	Presser Foot Spring Plate(D)(Left)	1
14	0068424	Presser Foot Spring Plate(D)(Right)	1
15	004173	Screw(3/32-56 × 2.4)	2
16	0068120	Spring Plate Holder	1
17	0068425	Chip Guard	1
18	3027087	Chip Guard Spring	1
19	004166	Screw(1/8-44 × 3.2)	1
20	0068553	Needle Clamp(6.0)	1
21	000393	Pin	5
22	0068559	Stitch Plate	1
23	0068560	Stitch Plate Tongue	1
24	3020015	Carrier/Hook Driving Rod(Left), C. Set	1
25	0068148	Carrier/Hook Driving Rod(Left)	1
26	001174	Screw(9/64-40 × 10.3)	2
27	0068551	Rod Ball(Left)	1
28	0068552	Carrier/Hook Sleeve Lever	1
29	000347	Nut	1
30	3027106	Presser Foot, C. Set3	1
31	3027104	Presser Foot, C. Set1	1
32	3027023	Presser Foot Spring Plate(Left)	1
33	3027024	Presser Foot Spring Plate(Right)	1
34	0068423	Presser Foot Spring Plate(D)(Left)	1
35	0068424	Presser Foot Spring Plate(D)(Right)	1
36	3027023	Presser Foot Spring Plate(Left)	1
37	3027024	Presser Foot Spring Plate(Right)	1

Page 43 — FD-62G-06MR EXCLUSIVE PARTS(1)

Yamato FD-62G parts on page 43
Ref	Part number	Part name	Qty
1	3021023	Knife Holder Guide Collar, C. Set	1
2	3021021	Knife Holder Shank Support	1
3	0068181	Knife Holder Spring	1
4	3021022	Knife Holder Guide Collar	1
5	004185	Screw(9/64-40 × 7.2)	1
6	0068180	Knife Holder Shank	1
7	3020471	Sewing Head Cover(Front)	1
8	3021026	Frame Chip Guard Bracket	1
9	001175	Screw(9/64-40 × 8)	2
10	000322	Nut	2
11	3021025	Frame Chip Guard Support	1
12	3021024	Frame Chip Guard	1
13	001203	Screw(9/64-40 × 4.5)	2
14-1	3021120	Lap Former(Note 1)	1
14-2	3021087	Lap Former(EXTRA)(Note 2)	1
15	3021033	Lap Former Slide Block	1
16	004172	Screw(3/32-56 × 3.4)	1
17	001228	Screw(3/32-56 × 3.2)	1
18	0068471	Lap Former Slide Block Spring	1
19	004182	Screw(3/32-56 × 2.5)	1
20	0068473	Lap Former Guide Plate(Right)	1
21	0068472	Lap Former Guide Plate(Left)	1
22	0068463	Sewing Cylinder Cover(Upper)	1
23	004134	Screw(1/8-44 × 6.5)	8
24	004218	Screw(3/32-56 × 1.6)	1
25	3020473	Knife Driving Lever	1

Page 45 — FD-62G-06MR EXCLUSIVE PARTS (2)

Yamato FD-62G parts on page 45
Ref	Part number	Part name	Qty
1	3027052	Presser Foot, C. Set3	1
2	3027054	Presser Foot, C. Set1	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Ornamental Thread Hook	1
10	004353	Screw(9/64-40 × 7.2)	1
11	0068125	Ornamental Thread Carrier Driving Lever	1
12	0068123	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	0068347	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	0068121	Lower Knife	1
18	3027062	Lower Knife Clamp	1
19	001222	Screw(1/8-44 × 3.8)	1
20	0068117	Yielding Section Spring	1
21	3027010	Yielding Section	1
22	3027058	Cloth Guide Plate	1
23	004182	Screw(3/32-56 × 2)	2
24-1	3027056	Presser Foot Spring Plate(Left)	1
24-2	3027039	PresserFootSpringPlate(Left)(Short)(EXTRA)	1
25-1	3027057	Presser Foot Spring Plate(Right)	1
25-2	3027040	PresserFootSpringPlate(Right)(Short)(EXTRA)	1
26	004173	Screw(3/32-56 × 2.4)	2
27	0068120	Spring Plate Holder	1
28	3027009	Chip Guard	1
29	3027087	Chip Guard Spring	1
30	004166	Screw(1/8-44 × 3.2)	1
31	3029014	Main Feed Dog(P=2.1mm)	1
32	3029018	Differential Feed Dog(P=2.1mm)	1
33	3028013	Stitch Plate(Difference : 1.0mm)	1
34	0068491	Stitch Plate Tongue	1
35	3027056	Presser Foot Spring Plate(Left)	1
36	3027057	Presser Foot Spring Plate(Right)	1

Page 47 — FD-62G-07MS, 07MS-1 EXCLUSIVE PARTS

Yamato FD-62G parts on page 47
Ref	Part number	Part name	Qty
1	0068553	Needle Clamp(6.0)	1
2	000393	Pin	5
3	3021096	Presser Foot Guide(Left)	1
4	3020015	Carrier/Hook Driving Rod(Left), C. Set	1
5	0068148	Carrier/Hook Driving Rod(Left)	1
6	001174	Screw(9/64-40 × 10.3)	2
7	0068551	Rod Ball(Left)	1
8	0068552	Carrier/Hook Sleeve Lever	1
9	000347	Nut	1
10	3021093	Knife Support	1
11	3027109	Presser Foot, C. Set3	1
12	3027107	Presser Foot	1
13	009853	Screw(11/64-40 × 6.5)	1
14	0068127	Carrier/Hook Driving Segment	1
15	0068128	Carrier/Hook Driving Lever Link	2
16	0068129	Link Pin	4
17	004172	Screw(3/32-56 × 3.4)	5
18	0068126	Thread Hook Driving Lever	1
19	3021092	Top Cover Thread Hook	1
20	004353	Screw(9/64-40 × 7)	1
21	0068125	Carrier Driving Lever	1
22	0068558	Top Cover Thread Carrier	1
23	004180	Screw(1/8-44 × 4.8)	2
24	0068346	Presser Foot Attach Piece(Right)	1
25	3027079	Presser Foot Attach Piece(Left)	1
26	004154	Screw(3/32-56 × 1.5)	4
27	0068121	Lower Knife	1
28	3027124	Lower Knife Clamp	1
29	001227	Screw(1/8-44 × 3.8)	1
30	0068117	Yielding Section Spring	1
31	3027122	Yielding Section	1
32	3027128	Presser Foot Spring Plate(Left)	1
33	3027129	Presser Foot Spring Plate(Right)	1
34	004173	Screw(3/32-56 × 2.4)	1
35	0068120	Spring Plate Holder	1
36	3020093	Chip Guard Plate	1
37	210031	Screw(3/32-56 × 4.2)	1
38	3020092	Chip Guard	1
39	3027087	Chip Guard Spring	1
40	004166	Screw(1/8-44 × 3.2)	1

Page 49 — FD-62G-07MS, 07MS-1 EXCLUSIVE PARTS / サブモデル専用部品

Yamato FD-62G parts on page 49
Ref	Part number	Part name	Qty
41	3028012	Stitch Plate	1
42-1	0068560	Stitch Plate Tongue	1
42-2	3028004	Stitch Plate Tongue(EXTRA)	1
43	004182	Screw(3/32-56 × 2)	2
44	3029015	Differential Feed Dog	1
45	3029016	Main Feed Dog	1
46	3021097	Presser Bar	1
47	3021091	Lap Former	1
48	001228	Screw(3/32-56 × 3.2)	1
49	0068470	Lap Former Slide Block	1
50	0068471	Lap Former Slide Block Spring	1
51	0068472	Lap Former Guide Plate(Left)	1
52	0068473	Lap Former Guide Plate(Right)	1
53	004134	Screw(1/8-44 × 6.5)	8
54	0068463	Sewing Cylinder Cover(Upper)	1
55	004218	Screw(3/32-56 × 1.6)	1
56	3020477	Sewing Cylinder	1
57	3021090	Stitch Plate Stay	1
58	007627	Screw(M4-0.7 × 6)	2
59	3021094	Sewing Cylinder Cover(Front)	1
60	3029305	Looper	1
61	3028017	Stitch Plate	1
62	3029017	Main Feed Dog(P=1.8mm)	1
63	3027128	Presser Foot Spring Plate(Left)(Long)	1
64	3027129	Presser Foot Spring Plate(Right)(Long)	1

Page 51 — FD-62G-12MR EXCLUSIVE PARTS

Yamato FD-62G parts on page 51
Ref	Part number	Part name	Qty
1	3027140	Presser Foot, C. Set3	1
2	3027110	Presser Foot	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Ornamental Thread Hook	1
10	004353	Screw(9/64-40 × 7)	1
11	0068125	Ornamental Thread Carrier Driving Lever	1
12	0068123	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	0068347	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	0068121	Lower Knife	1
18	3027124	Lower Knife Clamp	1
19	001227	Screw(1/8-44 × 3.8)	1
20	0068117	Yielding Section Spring	1
21	3027146	Yielding Section	1
22	3027147	Cloth Guide Plate	1
23	004182	Screw(3/32-56 × 2.5)	2
24	3027144	Presser Foot Spring Plate(Left)	1
25	3027145	Presser Foot Spring Plate(Right)	1
26	004173	Screw(3/32-56 × 2.4)	2
27	0068120	Spring Plate Holder	1
28	0068187	Chip Guard	1
29	0068189	Chip Guard Spring	1
30	004166	Screw(1/8-44 × 3.2)	1
31	3021120	Lap Former	1
32	004172	Screw(3/32-56 × 3.4)	1
33	001228	Screw(3/32-56 × 3.2)	1
34	0068470	Lap Former Slide Block	1
35	0068471	Lap Former Slide Block Spring	1
36	0068472	Lap Former Guide Plate(Left)	1
37	0068473	Lap Former Guide Plate(Right)	1
38	004134	Screw(1/8-44 × 6.5)	8
39	0068463	Sewing Cylinder Cover(Upper)	1
40	004218	Screw(3/32-56 × 1.6)	1
41	3029019	Main Feed Dog	1
42	3028015	Stitch Plate	1
43	3027074	Presser Foot Spring Plate(Left)	1
44	3027075	Presser Foot Spring Plate(Right)	1

Page 53 — FD-62G-12MR-12 EXCLUSIVE PARTS

Yamato FD-62G parts on page 53
Ref	Part number	Part name	Qty
1	3027188	Presser Foot, C. Set3	1
2	3027110	Presser Foot	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Ornamental Thread Hook	1
10	004353	Screw(9/64-40 × 7)	1
11	0068125	Ornamental Thread Carrier Driving Lever	1
12	0068123	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	3027079	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	0068121	Lower Knife	1
18	3027124	Lower Knife Clamp	1
19	001227	Screw(1/8-44 × 3.8)	1
20	0068117	Yielding Section Spring	1
21	3027146	Yielding Section	1
22	3027147	Cloth Guide Plate	1
23	004182	Screw(3/32-56 × 2.5)	2
24	0068464	Presser Foot Spring Plate(Left)	1
25	0068465	Presser Foot Spring Plate(Right)	1
26	004173	Screw(3/32-56 × 2.4)	2
27	0068120	Spring Plate Holder	1
28	3020093	Chip Guard Plate	1
29	210031	Screw(3/32-56 × 4.2)	1
30	3020092	Chip Guard	1
31	3027087	Chip Guard Spring	1
32	004166	Screw(1/8-44 × 3.2)	1
33	3021096	Presser Foot Guide(Left)	1
34	3021120	Lap Former	1
35	004172	Screw(3/32-56 × 3.4)	1
36	001228	Screw(3/32-56 × 3.2)	1
37	0068470	Lap Former Slide Block	1
38	0068471	Lap Former Slide Block Spring	1
39	0068472	Lap Former Guide Plate(Left)	1
40	0068473	Lap Former Guide Plate(Right)	1
41	004134	Screw(1/8-44 × 6.5)	8
42	0068463	Sewing Cylinder Cover(Upper)	1
43	004218	Screw(3/32-56 × 1.6)	1
44	3029019	Main Feed Dog	1
45	3028015	Stitch Plate	1
46	0068549	Presser Foot Spring Plate(Left)	1
47	0068550	Presser Foot Spring Plate(Right)	1

Page 55 — FD-62G-12MS EXCLUSIVE PARTS

Yamato FD-62G parts on page 55
Ref	Part number	Part name	Qty
1	3027143	Presser Foot, C. Set3	1
2	3027113	Presser Foot	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Ornamental Thread Hook	1
10	004353	Screw(9/64-40 × 7)	1
11	0068125	OrnamentalThreadCarrierDrivingLever	1
12	0068558	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	0068347	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	0068121	Lower Knife	1
18	3027124	Lower Knife Clamp	1
19	001227	Screw(1/8-44 × 3.8)	1
20	0068117	Yielding Section Spring	1
21	3027146	Yielding Section	1
22	3027147	Cloth Guide Plate	1
23	004182	Screw(3/32-56 × 2.5)	2
24	3027144	Presser Foot Spring Plate(Left)	1
25	3027145	Presser Foot Spring Plate(Right)	1
26	004173	Screw(3/32-56 × 2.4)	2
27	0068120	Spring Plate Holder	1
28	0068187	Chip Guard	1
29	0068189	Chip Guard Spring	1
30	004166	Screw(1/8-44 × 3.2)	1
31	0068553	Needle Clamp(6.0mm)	1
32	000393	Pin	5
33	3028016	Stitch Plate	1
34	0068560	Stitch Plate Tongue	1
35	3029019	Main Feed Dog	1
36	3020015	Carrier/Hook Driving Rod(Left), C. Set	1
37	0068148	Carrier/Hook Driving Rod(Left)	1
38	001174	Screw(9/64-40 × 10.3)	2
39	0068551	Rod Ball(Left)	1
40	0068552	Carrier/Hook Sleeve Lever	1

Page 57 — FD-62G-12MS EXCLUSIVE PARTS

Yamato FD-62G parts on page 57
Ref	Part number	Part name	Qty
41	000347	Nut	1
42	3021120	Lap Former	1
43	004172	Screw(3/32-56 × 3.4)	1
44	001228	Screw(3/32-56 × 3.2)	1
45	0068470	Lap Former Slide Block	1
46	0068471	Lap Former Slide Block Spring	1
47	0068472	Lap Former Guide Plate(Left)	1
48	0068473	Lap Former Guide Plate(Right)	1
49	004134	Screw(1/8-44 × 6.5)	8
50	0068463	Sewing Cylinder Cover(Upper)	1
51	004218	Screw(3/32-56 × 1.6)	1
52	3027074	Presser Foot Spring Plate(Left)	1
53	3027075	Presser Foot Spring Plate(Right)	1

Page 59 — FD-62G-12MS-52 EXCLUSIVE PARTS

Yamato FD-62G parts on page 59
Ref	Part number	Part name	Qty
1	3027232	Presser Foot, C. Set3	1
2	3027230	Presser Foot	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Ornamental Thread Hook	1
10	004353	Screw(9/64-40 × 7)	1
11	0068125	Ornamental Thread Carrier Driving Lever	1
12	0068558	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	0068347	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	0068121	Lower Knife	1
18	3027124	Lower Knife Clamp	1
19	001227	Screw(1/8-44 × 3.8)	1
20	0068117	Yielding Section Spring	1
21	3027233	Yielding Section	1
22	0068474	Cloth Guide Plate	1
23	004182	Screw(3/32-56 × 2.5)	2
24	3027144	Presser Foot Spring Plate(Left)	1
25	3027145	Presser Foot Spring Plate(Right)	1
26	004173	Screw(3/32-56 × 2.4)	2
27	0068120	Spring Plate Holder	1
28	0068187	Chip Guard	1
29	0068189	Chip Guard Spring	1
30	004166	Screw(1/8-44 × 3.2)	1
31	0068553	Needle Clamp(6.0mm)	1
32	000393	Pin	5
33	3028016	Stitch Plate	1
34	0068560	Stitch Plate Tongue	1
35	3029019	Main Feed Dog	1
36	3020015	Carrier/Hook Driving Rod(Left), C. Set	1
37	0068148	Carrier/Hook Driving Rod(Left)	1
38	001174	Screw(9/64-40 × 10.3)	2
39	0068551	Rod Ball(Left)	1
40	0068552	Carrier/Hook Sleeve Lever	1

Page 61 — FD-62G-12MS-52 EXCLUSIVE PARTS

Yamato FD-62G parts on page 61
Ref	Part number	Part name	Qty
41	000347	Nut	1
42	3021120	Lap Former	1
43	004172	Screw(3/32-56 × 3.4)	1
44	001228	Screw(3/32-56 × 3.2)	1
45	0068470	Lap Former Slide Block	1
46	0068471	Lap Former Slide Block Spring	1
47	0068472	Lap Former Guide Plate(Left)	1
48	0068473	Lap Former Guide Plate(Right)	1
49	004134	Screw(1/8-44 × 6.5)	8
50	0068463	Sewing Cylinder Cover(Upper)	1
51	004218	Screw(3/32-56 × 1.6)	1
52	3027074	Presser Foot Spring Plate(Left)	1
53	3027075	Presser Foot Spring Plate(Right)	1

Page 63 — FD-62G-12MS-53 EXCLUSIVE PARTS

Yamato FD-62G parts on page 63
Ref	Part number	Part name	Qty
1	3027235	Presser Foot, C. Set3	1
2	3027230	Presser Foot	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	3029310	Ornamental Thread Hook	1
10	004353	Screw(9/64-40 × 7)	1
11	0068125	Ornamental Thread Carrier Driving Lever	1
12	0068558	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	0068347	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	0068121	Lower Knife	1
18	3027124	Lower Knife Clamp	1
19	001227	Screw(1/8-44 × 3.8)	1
20	0068117	Yielding Section Spring	1
21	3027236	Yielding Section	1
22	0068474	Cloth Guide Plate	1
23	004182	Screw(3/32-56 × 2.5)	2
24	3027144	Presser Foot Spring Plate(Left)	1
25	3027145	Presser Foot Spring Plate(Right)	1
26	004173	Screw(3/32-56 × 2.4)	2
27	0068120	Spring Plate Holder	1
28	0068187	Chip Guard	1
29	0068189	Chip Guard Spring	1
30	004166	Screw(1/8-44 × 3.2)	1
31	0068553	Needle Clamp(6.0mm)	1
32	000393	Pin	5
33	3028016	Stitch Plate	1
34	0068560	Stitch Plate Tongue	1
35	3029019	Main Feed Dog	1
36	3020015	Carrier/Hook Driving Rod(Left), C. Set	1
37	0068148	Carrier/Hook Driving Rod(Left)	1
38	001174	Screw(9/64-40 × 10.3)	2
39	0068551	Rod Ball(Left)	1
40	0068552	Carrier/Hook Sleeve Lever	1

Page 65 — FD-62G-12MS-53 EXCLUSIVE PARTS

Yamato FD-62G parts on page 65
Ref	Part number	Part name	Qty
41	000347	Nut	1
42	3021120	Lap Former	1
43	004172	Screw(3/32-56 × 3.4)	1
44	001228	Screw(3/32-56 × 3.2)	1
45	0068470	Lap Former Slide Block	1
46	0068471	Lap Former Slide Block Spring	1
47	0068472	Lap Former Guide Plate(Left)	1
48	0068473	Lap Former Guide Plate(Right)	1
49	004134	Screw(1/8-44 × 6.5)	8
50	0068463	Sewing Cylinder Cover(Upper)	1
51	004218	Screw(3/32-56 × 1.6)	1
52	3027074	Presser Foot Spring Plate(Left)	1
53	3027075	Presser Foot Spring Plate(Right)	1

Page 67 — FD-62G-12HR EXCLUSIVE PARTS (1)

Yamato FD-62G parts on page 67
Ref	Part number	Part name	Qty
1	3027177	Presser Foot, C. Set3	1
2	3027175	Presser Foot	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Ornamental Thread Hook	1
10	004185	Screw(9/64-40 × 7.2)	1
11	0068125	Ornamental Thread Carrier Driving Lever	1
12	0068123	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	0068347	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	3021109	Lower Knife	1
18	3027124	Lower Knife Clamp	1
19	001227	Screw(1/8-44 × 3.8)	1
20	3027087	Yielding Section Spring	1
21	3027146	Yielding Section	1
22	3027169	Cloth Guide Plate	1
23	004182	Screw(3/32-56 × 2.5)	2
24	3027166	Presser Foot Spring Plate(C)(Left)	1
25	3027167	Presser Foot Spring Plate(C)(Right)	1
26	004173	Screw(3/32-56 × 24)	1
27	0068120	Spring Plate Holder	1
28	3020093	Chip Guard Plate	1
29	210031	Screw(3/32-56 × 4.2)	1
30	3020092	Chip Guard	1
31	3027087	Chip Guard Spring	1
32	004166	Screw(1/8-44 × 3.2)	1
33	3021119	Lap Former	1
34	001228	Screw(3/32-56 × 3.2)	1
35	004172	Screw(3/32-56 × 3.4)	1
36	0068470	Lap Former Slide Block	1
37	0068471	Lap Former Slide Block Spring	1
38	0068472	Lap Former Guide Plate(Left)	1
39	0068473	Lap Former Guide Plate(Right)	1
40	004134	Screw(1/8-44 × 6.5)	8
41	0068463	Sewing Cylinder Cover(Upper)	1
42	004218	Screw(3/32-56 × 1.6)	1
43	3029019	Main Feed Dog	1
44	3028015	Stitch Plate	1
45	3027144	Presser Foot Spring Plate(Left)	1
46	3027145	Presser Foot Spring Plate(Right)	1

Page 69 — FD-62G-12HS EXCLUSIVE PARTS (1)

Yamato FD-62G parts on page 69
Ref	Part number	Part name	Qty
1	3027180	Presser Foot, C. Set3	1
2	3027178	Presser Foot	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Ornamental Thread Hook	1
10	004185	Screw(9/64-40 × 7.2)	1
11	0068125	Ornamental Thread Carrier Driving Lever	1
12	0068558	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	0068347	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	3021109	Lower Knife	1
18	3027124	Lower Knife Clamp	1
19	001227	Screw(1/8-44 × 3.8)	1
20	3027087	Yielding Section Spring	1
21	3027146	Yielding Section	1
22	3027169	Cloth Guide Plate	1
23	004182	Screw(3/32-56 × 2.5)	2
24	3027166	Presser Foot Spring Plate(C)(Left)	1
25	3027167	Presser Foot Spring Plate(C)(Right)	1
26	004173	Screw(3/32-56 × 24)	1
27	0068120	Spring Plate Holder	1
28	3020093	Chip Guard Plate	1
29	210031	Screw(3/32-56 × 4.2)	1
30	3020092	Chip Guard	1
31	3027087	Chip Guard Spring	1
32	004166	Screw(1/8-44 × 3.2)	1
33	0068553	Needle Clamp(6.0mm)	1
34	000393	Pin	5
35	3028016	Stitch Plate	1
36	0068560	Stitch Plate Tongue	1
37	3029019	Main Feed Dog	1
38	3020015	Carrier/Hook Driving Rod(Left), C. Set	1
39	0068148	Carrier/Hook Driving Rod(Left)	1
40	001174	Screw(9/64-40 × 10.3)	2

Page 71 — FD-62G-12HS EXCLUSIVE PARTS(1)

Yamato FD-62G parts on page 71
Ref	Part number	Part name	Qty
41	0068551	Rod Ball(Left)	1
42	0068552	Carrier/Hook Sleeve Lever	1
43	000347	Nut	1
44	3021119	Lap Former	1
45	001228	Screw(3/32-56 × 3.2)	1
46	004172	Screw(3/32-56 × 3.4)	1
47	0068470	Lap Former Slide Block	1
48	0068471	Lap Former Slide Block Spring	1
49	0068472	Lap Former Guide Plate(Left)	1
50	0068473	Lap Former Guide Plate(Right)	1
51	004134	Screw(1/8-44 × 6.5)	8
52	0068463	Sewing Cylinder Cover(Upper)	1
53	004218	Screw(3/32-56 × 1.6)	1
54	3027144	Presser Foot Spring Plate(Left)	1
55	3027145	Presser Foot Spring Plate(Right)	1

Page 73 — FD-62G-12HR, 12HS EXCLUSIVE PARTS(2)

Yamato FD-62G parts on page 73
Ref	Part number	Part name	Qty
1	3020065	Knife Holder Guide Coller, C. Set	1
2	0068348	Knife Holder Shank Support	1
3	0068181	Knife Holder Spring	1
4	0068182	Knife Holder Guide Collar	1
5	004185	Screw(9/64-40 × 7.2)	1
6	3021113	Knife Holder Shank	1
7	004181	Screw(3/32-56 × 3.6)	1
8	3021112	Knife Support	1
9	3021111	Upper Knife	1
10	3021114	Knife Holder	1
11	004171	Screw(3/32-56 × 13)	2
12	003635	Screw(1/4-40 × 6)	1

Page 75 — FD-62G-15MS EXCLUSIVE PARTS

Yamato FD-62G parts on page 75
Ref	Part number	Part name	Qty
1	3021180	Feed Drive Eccentric, C. Set	1
2	3021181	Feed Drive Eccentric(Upper), C. Set	1
3	3021182	Feed Drive Eccentric Ball	1
4	003638	Screw(11/64-40 × 4)	2
5	3020028	Feed Lift Connection(Upper)	1
6	004441	Screw(11/64-40 × 16)	2
7	000356	Nut(Lift-handed Screw)	2
8	3020112	Feed Drive Eccentric Connecting Rod	1
9	3020059	Feed Drive Eccentric(Lower), C. Set	1
10	3020046	Feed Drive Connection Ball	1
11	3020049	Feed Drive Connection(Lower)	1
12	120053	Screw(M3.5-0.6 × 14)	2
13	3020015	Carrier/Hook Driving Rod(Left), C. Set	1
14	0068148	Carrier/Hook Driving Rod(Left)	1
15	001174	Screw(9/64-40 × 10.3)	2
16	0068551	Rod Ball(Left)	1
17	0068552	Carrier/Hook Sleeve Lever	1
18	000347	Nut	1
19	0068553	Needle Clamp(6.0mm)	1
20	000393	Pin	5
21	0068559	Stitch Plate	1
22	0068560	Stitch Plate Tongue	1
23	3021183	Looper Rocker Shaft	1

Page 77 — FDL-4 DEVICE

Yamato FD-62G parts on page 77
Ref	Part number	Part name	Qty
1	3021083	FDL-4 Device, C. Set	1
2	3021084	Presser Foot Lifter Cylinder, C. Set	1
3	3021085	Cylinder Bracket	1
4	120029	Screw(M8-1.25 × 15)	2
5	1260000	Cylinder Holder	1
6	006219	Screw(M4-0.7 × 30)	2
7	1091082	Air Cylinder	1
8	0012029	Presser Lifter Holder	1
9	0012030	Presser Lifter Holder Pin	1
10	0033024	Retaining Ring	2
11	0010055	Connector(φ 4-PT1/8)	4
12	1096029	Air Tube(4 × 2.5mm)(Black)	-
13	1098015	Hose Band(12-20mm)	1
14	0010108	Hose Union	1
15	1097009	Regulator	1
16	110017	Screw(M5-0.8 × 16)	2
17	000600	Spring Washer	2
18	000426	Washer	2
19	1253240	Regulator Support	1
20	006905	Wood Screw(φ 5.1 × 20)	2
21	0010264	Connector(φ 6-1/4)	1
22	1096030	Air Tube(6 × 4mm)(Black)	-
23	1090121	Solenoid Valve, C. Set	1
24	0010263	Connector(φ 6-PT1/8)	1
25	1097007	Silencer	2
26	0010120	Solenoid Valve	1
27	1200235	Cord(S)	1
28	009937	Wood Screw(φ 3.8 × 20)	2

Page 79 — AC DEVICE

Yamato FD-62G parts on page 79
Ref	Part number	Part name	Qty
1-1	3029901	AC1 Device, C. Set	1
1-2	3029908	AC1 Device, C. Set(for RF Device)	1
2-1	3029902	AC2 Device, C. Set	1
2-2	3029909	AC2 Device, C. Set(for RF Device)	1
3-1	3029903	AC3 Device, C. Set	1
3-2	3029910	AC3 Device, C. Set(for RF Device)	1
4	1096030	Air Tube(6 × 4mm)(Black)	-
5	1094010	Elbow Connector(φ 6-M5)	1
6	000623	Gasket	1
7	1091028	Air Cylinder	1
8	3021036	Cutting Head	1
9	3001101	Cylinder Holder	1
10	001923	Screw(9/64-40 × 14)	4
11	000532	Washer	4
12	000644	Spring Washer	4
13	000335	Nut	4
14-1	3021015	Cylinder Holder Support	1
14-2	3021031	Cylinder Holder Support(for RF Device)	1
15	3021016	Cutting Head Anvil	1
16	110009	Screw(M4-0.7 × 8)	2
17	1097009	Regulator	1
18	1253240	Regulator Support	1
19	110017	Screw(M5-0.8 × 16)	2
20	000600	Spring Washer	1
21	000426	Washer	2
22	006905	Wood Screw(φ 5.1 × 20)	6
23	1098015	Hose Band(12-20mm)	1
24	0010108	Hose Union	1
25	0010264	Connector(φ 6-PT1/4)	1
27	1090164	Solenoid Valve, C. Set	1
28	0010120	Solenoid Valve	1
29	009937	Wood Screw(φ 3.8 × 20)	2
30	0010263	Connector(φ 6-PT1/8)	1
31	0010119	Seal Plug	1
32	0010293	Speed Controller	1
33	0010869	Cord(B)	1
34	0011709	Control Box Stay	2
35	1249087	Control Box, C. Set	1
36	0011340	Control Board	1
37	0010565	Knee Switch, C. Set	1
38	0092232	Knee Switch Holder	1
39	0010564	Knee Switch	1
40	300031	Washer	4
41	100038	Wing Nut	2
42-1	0011943	Power Cord(for 100 Voltage)	1
42-2	0011944	Power Cord(for 200 Voltage)	1
42-3	0011945	Power Cord(for 220 Voltage)	1
42-4	0011946	Power Cord(for 380 Voltage)	1
43	1200039	Cord(G)	1
44	300033	Spring Washer	2
45	006910	Wood Screw(φ 6.8 × 26)	2

Page 81 — AC1/SC3 DEVICE(1)

Yamato FD-62G parts on page 81
Ref	Part number	Part name	Qty
1	3029950	AC1/SC3 Device, C. Set	1
2	3029903	AC3 Device, C. Set	1
3	3021015	Cylinder Holder Support	1
4	001923	Screw(9/64-40 × 14)	4
5	000532	Washer	6
6	000644	Spring Washer	4
7	000335	Nut	4
8	1091028	Air Cylinder	1
9	3001101	Cylinder Holder	1
10	3021036	Cutting Head	1
11	3021016	Cutting Head Anvil	1
12	110009	Screw(M4-0.7 × 8)	2
13	000623	Gasket	1
14	1094010	Elbow Connector(φ 6-M5)	1
15	3021007	Suction Pipe, C. Set2	1
16	3021005	Suction Pipe Support	1
17	001132	Screw(9/64-40 × 14.7)	2
18	3021000	Suction Pipe Unit	1
19	005000	Screw(9/64-40 × 5.7)	1
20	1096001	Vinyl Tube(36 × 30 × 200mm)	1
21	1070017	Bundler(Small)	2
22	0010263	Connector(φ 6-PT1/8)	3
23	0010084	Speed Controller	1
24	0010264	Connector(φ 6-PT1/4)	2
25	0010142	T-Joint(φ 2-PT1/4)	1
26	0010108	Hose Union(φ 8-PT1/4)	1
27	1090164	Solenoid Valev, C. Set	1
28	0010120	Solenoid Valve	1
29	0010869	Cord(B)	1
30	009937	Wood Screw(φ 3.8 × 20)	2
31	0010119	Seal Plug	1
32	0010293	Speed Controller	1
33	1298000	Air Valve, C. Set	1
34	0033938	Collar(6.4 × 13 × 9mm)	1
35	005040	Screw(11/64-40 × 8.5)	5
36	0033937	Return Spring	1
37	0033936	Air Valve Holder	1
38	0033935	Air Valve Stop	1
39	000334	Nut	1
40	005505	Adjusting Screw(11/64-40 × 16)	1
41	1090133	TAC Valve, C. Set	1
42	0010052	TAC Valve	1
43	000623	Gasket	2
44	0010112	Joint	2
45	1098015	Hose Band(12-20mm)	1
46	1096030	Air Tube(6 × 4mm)(Black)	-

Page 83 — AC1/SC3 DEVICE(2)

Yamato FD-62G parts on page 83
Ref	Part number	Part name	Qty
1	1097009	Regulator	1
2	110017	Screw(M5-0.8 × 16)	2
3	000600	Spring Washer	2
4	000426	Washer	2
5	1253240	Regulator Support	1
6	006905	Wood Screw(φ 5.1 × 20)	6
7	0011709	Control Box Stay	2
8	1249087	Control Box, C. Set	1
9	0011340	Control Board	1
10	0010565	Knee Switch, C. Set	1
11	0010564	Knee Switch	1
12	300031	Washer	4
13	300033	Spring Washer	2
14	100038	Wing Nut	2
15	0092232	Knee Switch Holder	1
16	006910	Wood Screw(φ 6.8 × 26)	2

Page 85 — SC3 DEVICE

Yamato FD-62G parts on page 85
Ref	Part number	Part name	Qty
1	3029919	SC3 Device, C. Set	1
2	3021007	Suction Pipe, C. Set2	1
3	3020472	Suction Pipe Support	1
4	001132	Screw(9/64-40 × 14.7)	2
5	000532	Washer	2
6	3021000	Suction Pipe Unit	1
7	005000	Screw(9/64-40 × 5.7)	1
8	1096001	Vinyl Tube(36 × 30 × 2000mm)	1
9	1070017	Bundler(Small)	2
10	1096030	Air Tube(6 × 4mm)(Black)	-
11	0010263	Connector(φ 6-PT1/8)	2
12	0010084	Speed Controller	1
13	1298000	Air Valve, C. Set	1
14	0033938	Collar(6.4 × 13 × 9mm)	1
15	005040	Screw(11/64-40 × 8.5)	5
16	0033937	Return Spring	1
17	0033936	Air Valve Holder	1
18	0033935	Air Valve Stop	1
19	000334	Nut	1
20	005505	Adjusting Screw(11/64-40 × 16)	1
21	1090133	TAC Valve, C. Set	1
22	0010052	TAC Valve	1
23	000623	Gasket	2
24	0010112	Joint	2
25	1098015	Hose Band(12-20mm)	1
26	0010108	Hose Union	1
27	1097009	Regulator	1
28	110017	Screw(M5-0.8 × 16)	2
29	000600	Spring Washer	2
30	000426	Washer	2
31	1253240	Regulator Support	1
32	006905	Wood Screw(φ 5.1 × 20)	2
33	0010264	Connector(φ 6-PT1/4)	1

Page 87 — ◆ SC4 DEVICE / SC4装置

Yamato FD-62G parts on page 87
Ref	Part number	Part name	Qty
1	3021007	Suction Pipe, C. Set2	1
2	3020472	Suction Pipe Support	1
3	001132	Screw(9/64-40 × 14.7)	2
4	000532	Washer	2
5	3021000	Suction Pipe Unit	1
6	005000	Screw(9/64-40 × 5.7)	1
7	1096001	Vinyl Tube(36 × 30 × 2000mm)	1
8	1070017	Bundler(Small)	2
9	1096030	Air Tube(6 × 4mm)(Black)	-
10	0010263	Connector(φ 6-PT1/8)	2
11	0010084	Speed Controller	1
12	1090101	Solenoid Valve, C. Set	1
13	0010120	Solenoid Valve	1
14	009937	Wood Screw(Φ 3.8 × 20)	2
15	0010263	Connector(Φ 6-PT1/8)	2
16	0010119	Seal Plug	3
17	1098015	Hose Band(12-20mm)	1
18	0010108	Hose Union	1
19	1097009	Regulator	1
20	110017	Screw(M5-0.8 × 16)	2
21	000600	Spring Washer	2
22	000426	Washer	2
23	1253240	Regulator Support	1
24	006905	Wood Screw(φ 5.1 × 20)	2
25	0010264	Connector(φ 6-PT1/4)	1

Page 89 — RF DEVICE / RF装置

Yamato FD-62G parts on page 89
Ref	Part number	Part name	Qty
1	3029907	RF Device, C. Set	1
2	0068456	Supplementary Presser Foot, C. Set	1
3	0068453	Supplementary Presser Foot Holder	1
4	000334	Nut	1
5	001156	Screw(11/64-40 × 13.3)	1
6	004208	Adjusting Screw(5/16-24 × 9)	1
7	0068117	Yielding Section Spring	1
8	0068452	Supplementary Presser Foot Pin	1
9	004180	Screw(1/8-44 × 4.8)	1
10	0068451	Supplementary Presser Foot	1
11	004207	Screw(M2-0.4 × 2.5)	1
12	3021028	Supplementary Feed Dog Plate	1
13	120009	Screw(M4-0.7 × 12)	2
14	001123	Washer	2
15	3021029	Supplementary Feed Dog Plate Support	1
16	001175	Screw(9/64-40 × 8)	1
17	3021030	Supplementary Feed Dog Cover	1
18	007006	Screw(9/64-40 × 4)	1
19	0068449	Supplementary Feed Dog	1
20	009150	Screw(11/64-40 × 11)	1
21	9620208	Hexagonal Wrench(3mm)	1

Page 91 — AC16, RF/AC16 DEVICE (1)

Yamato FD-62G parts on page 91
Ref	Part number	Part name	Qty
1	1090106	Regulator/Solenoid Valve, C. Set	1
2	0010108	Hose Union(φ 8 × 1/4)	1
3	0010142	T-Joint(φ 6-PT1/4)	1
4	0010264	Connector(φ 6-PT1/4)	2
5	1097009	Regulator	1
6	110017	Screw(M5-0.8 × 8)	2
7	009973	Screw(M5-0.8 × 10)	4
8	000600	Spring Washer	6
9	000426	Washer	6
10	3021045	Solenoid Valve Support	1
11	1095004	Speed Controller	1
12	1090099	Solenoid Valve(Orange)	1
13	1090051	Solenoid Valve(Blue)	1
14	0010267	Elbow Connector(φ 6-PT1/4)	1
15	1096030	Air Tube(6 × 4mm)(Black)	-
16	0010289	T-Connector(φ 6-PT1/4)	1
17	1094037	Y-Connector(φ 4-PT1/4)	1
18	0011795	Wrapping Band(2.3 × 92)	1
19	1096029	Air Tube(4 × 2.5mm)(Black)	-
20	0010018	Bamboo Joint(φ 3.3-M5)	4
21	000623	Gasket	4
22	0010054	Speed Controller	2
23	009768	Screw(M3-0.5 × 30)	2

Page 93 — AC16, RF/AC16 DEVICE (2)

Yamato FD-62G parts on page 93
Ref	Part number	Part name	Qty
1	1090094	Solenoid Valve, C. Set	1
2	0010120	Solenoid Valve	1
3	0010263	Connector(φ 6-PT1/8)	3
4	000623	Gasket	3
5	009992	Screw(M4-0.7 × 10)	2
6	1096030	Air Tube(6 × 4mm)(Black)	-
7	1094010	Elbow Connector(φ 6-M5)	2
8	1091055	Air Cylinder	1
9	3001101	Cylinder Holder	1
10	001923	Screw(9/64-40 × 14)	4
11	000532	Washer	4
12	000644	Spring Washer	4
13	000335	Nut	4
14	000588	Anti-shock Rubber	1
15	3101071	Collar(6 × 12 × 6mm)	1
16	160001	Screw(M4-0.7 × 4)	1
17-1	3001100	Cutting Head(15mm)	1
17-2	3021036	Cutting Head(22mm)(Extra)	1
17-3	3021051	Cutting Head(10mm)(Extra)	1
18	3021052	Cylinder Holder Support	1
19	1200171	Rotation Detector, C. Set	1
20	3021062	Rotation Detector Support	1
21	001203	Screw(9/64-40 × 4.5)	1
22	110008	Screw(M4-0.7 × 5)	2
23	3021041	Magnet, C. Set	1
24	3021042	Magnet Holder	1
25	0092305	Magnet	2
26	004445	Screw(11/64-40 × 11)	3
27	1200299	Fabric Detector	1
28	110115	Screw(M2-0.4 × 8.5)	2
29	3021201	Fabric Detector Support	1
30	007606	Screw(9/64-40 × 20)	2
31	2100265	Spacer	2
32	3020468	Air Nozzle(Upper) Unit	1
33	007405	Screw(9/64-40 × 10.3)	1
34	1096029	Air Tube(4 × 2.5mm)(Black)	-

Page 95 — AC16 DEVICE (3)

Yamato FD-62G parts on page 95
Ref	Part number	Part name	Qty
1	3021101	Lower Knife	1
2	3021102	Suction Pipe Block	1
3	120001	Screw(M4-0.7 × 14)	2
4	160001	Screw(M4-0.7 × 4)	4
5	0093864	Seal Plug	1
6	3021059	Air Nozzle(Lower)	4
7	1096029	Aur Tube(4 × 2.5mm)(Black)	-
8	0068520	Hose Joint	1
9	1096002	Nylon Hose(14 × 10 × 1350mm)	1
10	0068524	Nylon Hose Mouthpiece	1
11	0022392	Nylon Hose(18 × 12 × 1000mm)	2
12	0010310	Venturi Tube	1
13	0010290	Connector(φ 6-PT1/8)	1
14	0068523	Hose Clamp(Small)	1
15	0010721	Cord Clamp(φ 19-11N)	1
16	000665	Washer	1
17	009974	Screw(M4-0.7 × 8)	1
18	0068522	Hose Clamp(Large)	1
19	001175	Screw(9/64-40 × 8)	2
20	3021209	Looper Cover, C. Set	1
21	0068225	Looper Cover	1
22	3021203	Reflection Sheet	1
23	1096030	Air Tube(6 × 4mm)(Black)	-

Page 97 — AC16 DEVICE(4) / AC16装置(4)

Yamato FD-62G parts on page 97
Ref	Part number	Part name	Qty
1	1249065	Control Box, C. Set	1
2	1200161	Control Box Cover	1
3	110076	Screw(M3-0.5 X 6)	4
4	300030	Washer	4
5	1260036	Box Lid	1
6	009791	Screw(M3-0.5 X 6)	2
7	1057040	Counter(Double digit)	2
8	1057080	Control Board Unit	1
9	1050041	EPROM	1
10	0010124	Transformer	1
11-1	0010885	Fuse(2A)(100V)	1
11-2	0010912	Fuse(1A)(200, 220V)	1
11-3	0010529	Fuse(0.5A)(380V)	1
12	0011709	Controll Box Stay	4
13	006905	Wood Screw(φ 5.1 X 20)	8
14	0011192	Knee Switch, C. Set	1
15	0011189	Knee Switch	1
16	300031	Washer	4
17	300033	Spring Washer	2
18	100038	Wing Nut(M4)	2
19	0092232	Knee Switch Holder	1
20	006910	Wood Screw(φ 6.8 X 26)	2

Page 99 — RF/AC16 DEVICE(3)

Yamato FD-62G parts on page 99
Ref	Part number	Part name	Qty
1	3021040	Looper Cover Spring Support	1
2	007650	Screw(11/64-40 × 5)	1
3	3021204	Supplementary Feed Dog Plate	1
4	120009	Screw(M4-0.7 × 12)	2
5	001123	Washer	2
6	005062	Screw(1/4-40 × 8)	1
7	3021202	Supplementary Feed Dog Cover, C. Set	1
8	3021038	Supplementary Feed Dog Cover	1
9	3021203	Reflection Sheet	1
10	3021047	Suction Pipe Block	1
11	004312	Screw(1/8-44 × 7.9)	2
12	3021059	Air Nozzle(Lower)	2
13	160001	Screw(M4-0.7 × 4)	4
14	0093864	Seal Plug	1
15	1096029	Air Tube(4 × 2.5mm)(Black)	-
16	0068520	Hose Joint	1
17	1096002	Nylon Hose(14 × 10 × 1350mm)	1
18	0068524	Nylon Hose Mouthpiece	1
19	0023392	Nylon Hose(18 × 12 × 1000mm)	2
20	0010310	Venturi Tube	1
21	0010290	Connector(φ 6-PT1/8)	1
22	0068523	Hose Clamp(Small)	1
23	0010721	Cord Clamp(φ 19-1N)	1
24	000665	Washer	1
25	009974	Screw(M4-0.7 × 8)	1
26	0068522	Hose Clamp(Large)	1
27	001175	Screw(9/64-40 × 8)	2
28	9620208	Hexagonal Wrench(3mm)	1
29	1096030	Air Tube(6 × 4mm)(Black)	-

Page 101 — RF/AC16 DEVICE(4) / RF/AC16装置(4)

Yamato FD-62G parts on page 101
Ref	Part number	Part name	Qty
1	1249124	Control Box, C. Set	1
2	1200161	Control Box Cover	1
3	110076	Screw(M3-0.5 × 6)	4
4	300030	Washer	4
5	1260036	Box Lid	1
6	009791	Screw(M3-0.5 × 6)	2
7	1057040	Counter(Double digit)	2
8	1057109	Control Board Unit	1
9	1050071	EPROM	1
10	0010124	Transformer	1
11-1	0010885	Fuse(2A)(100V)	1
11-2	0010912	Fuse(1A)(200, 220V)	1
11-3	0010529	Fuse(0.5A)(380V)	1
12	0011709	Control Box Stay	4
13	006905	Wood Screw(φ 5.1 × 20)	8
14	0011192	Knee Switch, C. Set	1
15	0011189	Knee Switch	1
16	300031	Washer	4
17	300033	Spring Washer	2
18	100038	Wing Nut(M4)	2
19	0092232	Knee Switch Holder	1
20	006910	Wood Screw(φ 6.8 × 26)	2
21	0068456	Supplementary Presser Foot, C. Set	1
22	0068453	Supplementary Presser Foot Holder	1
23	000334	Nut	1
24	001156	Screw(11/64-40 × 13.3)	1
25	004208	Adjusting Screw(5/16-24 × 9)	1
26	0068117	Yielding Section Spring	1
27	0068452	Supplementary Presser Foot Pin	1
28	004180	Screw(1/8-44 × 4.8)	1
29	0068451	Supplementary Presser Foot	1
30	004207	Screw(M2-0.4 × 2.5)	1
31	0068449	Supplementary Feed Dog	1
32	009150	Screw(11/64-40 × 11)	1

Page 103 — SET STYLE SL-C EXCLUSIVE PARTS(1)

Yamato FD-62G parts on page 103
Ref	Part number	Part name	Qty
1	3021055	MFS, C. Set	1
2	3021548	Sewing Machine Supporting Block	1
3	004215	Screw(3/8-16 × 45)	2
4	000016	Nut	8
5	009858	Bolt(M8-1.25 × 75)	4
6	000429	Washer	4
7	0068962	Supporting Block Cushion	4
8	000070	Hanging Nut	4
9	0037912	Chain	1
10	0068161	Presser Foot Connecting Lever	1
11	004440	Screw(11/64-40 × 8.3)	1
12	0068160	Handwheel	1
13	001156	Screw(11/64-40 × 13.3)	3
14	3021544	Belt Cover(Upper)	1
15	3021545	Belt Cover(Lower)	1
16	009973	Screw(M5-0.8 × 10)	4
17	3021009	MLS, C. Set	1
18	9611043	Pitman	1
19	3021010	Driving Lever Shaft	1
20	3021012	Rod End	2
21	000421	Nut(M12)	2
22	3021014	Rod End Nut	2
23	000429	Washer	2
24	000676	Spring Washer	2
25	009891	Screw(M8-1.25 × 20)	2
26	0077286	Collar(12 × 24.3 × 10)	2
27	003635	Screw(1/4-40 × 6)	4
28	3021011	Driving Lever	2
29	160007	Screw(M6-1 × 6)	4

Page 105 — SET STYLE SL-C EXCLUSIVE PARTS(2)

Yamato FD-62G parts on page 105
Ref	Part number	Part name	Qty
1	3021105	SL-C1, C. Set	1
2	9603012	Machine Table	1
3	350001	Wood Screw(φ 5.8 × 4.5)	4
4	9611071	Table Stand(H Type)	1
5	9611043	Pitman	1

Page 107 — SET STYLE SU-C-R EXCLUSIVE PARTS(1)

Yamato FD-62G parts on page 107
Ref	Part number	Part name	Qty
1	3021079	SU-C1-R, C. Set	1
2	3021548	Sewing Machine Supporting Block	1
3	004215	Screw(3/8-16 × 45)	2
4	3021069	Belt Cover Bracket	1
5	004176	Screw(M5-0.8 × 12)	2
6	000669	Washer	9
7	009973	Screw(M5-0.8 × 10)	7
8	3021068	Belt Cover(Lower)	1
9	3021065	Belt Cover(Upper)	1
10	9611077	Pitman(Long)	1
11	0068161	Presser Foot Connecting Lever	1
12	004440	Screw(11/64-40 × 8.3)	1
13	0037912	Chain	1
14	000070	Hanging Nut	4
15	0068962	Supporting Block Cushion	4
16	000429	Washer	4
17	009863	Bolt(M8-1.25 × 120)	4
18	000016	Nut	8

Page 109 — SET STYLE SU-C-R EXCLUSIVE PARTS(2)

Yamato FD-62G parts on page 109
Ref	Part number	Part name	Qty
1-1	9613107*	Clutch Motor(for 100V)	1
1-2	9613022*	Clutch Motor(for 200V)	1
2-1	0068934	Handwheel, C. Set(M12-1.75)	1
2-2	3020006	Handwheel, C. Set(M10-1)	1
2-3	3020016	Handwheel, C. Set(M14-2)	1
3-1	3020007	Handwheel Shaft(M12-1.75)	1
3-2	3020008	Handwheel Shaft(M10-1)	1
3-3	3020017	Handwheel Shaft(M14-2)	1
4	3020009	Handwheel	1
5	009508	Screw(11/64-40 × 7.5)	3
6	3021192	Lever Plate	1
7	009977	Screw(M6-1 × 25)	2
8	000613	Washer	4
9	100003	Nut	2
10	3021191	Lever(Upper)	1
11	000498	Washer	1
12	000054	Nut	2
13	9611077	Pitman(Long)	1
14	3021193	Lever Holder	1
15	006920	Wood Screw(Φ 5.8 × 32)	4
16	0032784	Lever Pin	1
17	3021194	Lever(Lower)	1
18	110022	Screw(M3-0.5 × 10)	1
19	000016	Nut	7
20	000676	Spring Washer	5
21	300019	Washer	3
22	9603026	Motor Support	1
23	9603025	Motor Support	1
24	9603024	Machine Table	1
25	000070	Hanging Nut	5
26	009861	Bolt(M8-1.25 × 95)	2
27	000429	Washer	2
28	009863	Bolt(M8-1.25 × 120)	3
29	9611074	Presser Foot Pedal	1

Page 111 — SET STYLE SU-S EXCLUSIVE PARTS

Yamato FD-62G parts on page 111
Ref	Part number	Part name	Qty
1	3021080	SU-S1, C. Set	1
2	3021548	Sewing Machine Supporting Block	1
3	004215	Screw(3/8-16 × 45)	2
4	3021069	Belt Cover Bracket	1
5	004176	Screw(M5-0.8 × 12)	2
6	000669	Washer	10
7	009973	Screw(M5-0.8 × 10)	8
8	3021068	Belt Cover(Lower)	1
9	3021065	Belt Cover(Upper)	1
10	3021073	Position Plate	1
11	0068161	Presser Foot Connecting Lever	1
12	004440	Screw(11/64-40 × 8.3)	1
13	0037912	Chain	1
14	000070	Hanging Nut	7
15	0068962	Supporting Block Cushion	4
16	000429	Washer	6
17	009863	Bolt(M8-1.25 × 120)[M8-1.25 × 150]	7
18	000016	Nut	13
19	000676	Spring Washer	3
20	300019	Washer	1
21	009861	Bolt(M8-1.25 × 95)[M8-1.25 × 120]	2
22-1	9613120	SU-S2, C. Set(Single Phase 100V)	1
22-2	9613121	SU-S2, C. Set(3 Phase 200V)	1
23	3021071	Control Box Support(Front)	1
24	3021072	Control Box Support(Rear)	1
25	006905	Wood Screw(φ 5.1 × 20)	4
26	1200197	Cable(4P)	1
27	1200196	Cable(6P)	1
29	3020016	Handwheel, C. Set(M10)	1
30	3020008	Handwheel Shaft(M10)	1
31	3020009	Handwheel	1
32	009508	Screw(11/64-40 × 7.5)	3
33	9603026	Motor Support(Upper)	1
34	9603025	Motor Support	1
35	9603024	Machine Table	1
37	005624	Screw(M4-0.7 × 10)	4
38	9613117	Synchroniser	1

Page 113 — EXTRA PARTS(1) for SU-C-R, SU-S

Yamato FD-62G parts on page 113
Ref	Part number	Part name	Qty
1	9603025	Motor Support	1
2	009864	Bolt(M8-1.25 × 200)	9

Page 115 — EXTRA PARTS(2)

Yamato FD-62G parts on page 115
Ref	Part number	Part name	Qty
1	0068486	Stitch Plate	1
2	0068485	Lower Tape Guide	1
3	004312	Screw(1/8-44 × 7.9)	1
4	0068472	Lap Former Guide Plate(Left)	1
5	0068473	Lap Former Guide Plate(Right)	1
6	004134	Screw(1/8-44 × 6.5)	7
7	0068463	Sewing Cylinder Cover(Upper)	1

Page 117 — EXTRA PARTS (3)

Yamato FD-62G parts on page 117
Ref	Part number	Part name	Qty
1	0068443	Stitch Plate	1
2	0068444	Stitch Plate Tongue	1
3	0068096	Main Feed Dog	1
4	0068441	Differential Feed Dog(5 rows)	1
5	3027125	Presser Foot, C. Set3(Right side)	1
6	3027096	Presser Foot	1
7	009853	Screw(11/64-40 × 6.5)	1
8	0068127	Carrier/Hook Driving Segment	1
9	0068128	Carrier/Hook Driving Lever Link	2
10	0068129	Link Pin	4
11	004172	Screw(3/32-56 × 3.4)	4
12	0068126	Thread Hook Driving Lever	1
13	0068124	Top Cover Thread Hook	1
14	004353	Screw(9/64-40 × 7)	1
15	0068125	Top Cover Thread Carrier Driving Lever	1
16	0068123	Top Cover Thread Carrier	1
17	004180	Screw(1/8-44 × 4.8)	2
18	0068346	Presser Foot Attach Piece(Right)	1
19	0068347	Presser Foot Attach Piece(Left)	1
20	004154	Screw(3/32-56 × 1.5)	4
21	0068121	Lower Knife	1
22	3027123	Lower Knife Clamp	1
23	001227	Screw(1/8-44 × 3.8)	1
24	0068117	Yielding Section Spring	1
25	3027120	Yielding Section	1
26	0068478	Presser Foot Spring Plate(Left)	1
27	0068158	Presser Foot Spring Plate(Right)	1
28	004173	Screw(3/32-56 × 2.4)	2
29	0068120	Spring Plate Holder	1
30	0068187	Chip Guard	1
31	3027087	Chip Guard Spring	1
32	004166	Screw(1/8-44 × 3.2)	1
33	3027098	Presser Foot, C. Set3(Left side)	1
34	0068157	Presser Foot Spring Plate(Left)	1
35	0068448	Presser Foot Spring Plate(Right)	1

Page 119 — EXTRA PARTS(4)

Yamato FD-62G parts on page 119
Ref	Part number	Part name	Qty
1	3027003	Presser Foot, C. Set3	1
2	3027001	Presser Foot, C. Set1	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Ornamental Thread Hook	1
10	004353	Screw(9/64-40 × 7.2)	1
11	0068125	OrnamentalThreadCarrierDrivingLever	1
12	0068123	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	0068347	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	0068121	Lower Knife	1
18	3027062	Lower Knife Clamp	1
19	001222	Screw(1/8-44 × 3.8)	1
20	0068117	Yielding Section Spring	2
21	3027120	Yielding Section	1
22	3027005	Cloth Plate Guide	1
23	004182	Screw(3/32-56 × 2)	2
24	3027007	Presser Foot Spring Plate(Left)	1
25	3027008	Presser Foot Spring Plate(Right)	1
26	004173	Screw(3/32-56 × 2.4)	2
27	0068120	Spring Plate Holder	1
28	3027009	Chip Guard	1
29	3027087	Chip Guard Spring	1
30	004166	Screw(1/8-44 × 3.2)	1
31	0068508	Upper Knife	1
32	3028000	Stitch Plate	1
33	3029001	Main Feed Dog(P=1.8mm)	1
34	3029000	Differential Feed Dog(P=1.8mm)	1
35	3021034	Lap Former	1
36	3027015	Presser Foot, C. Set3	1
37	3027013	Presser Foot, C. Set1	1
38	0068558	Ornamental Thread Carrier	1
39	0068509	Lower Knife	1
40	3027016	Presser Foot Spring Plate(Left)	1
41	3027017	Presser Foot Spring Plate(Right)	1
42	3028006	Stitch Plate Tongue	1
43	3028005	Stitch Plate	1

Page 121 — EXTRA PARTS (5)

Yamato FD-62G parts on page 121
Ref	Part number	Part name	Qty
1	3021023	Knife Holder Guide Collar, C. Set	1
2	3021021	Knife Holder Shank Support	1
3	0068181	Knife Holder Spring	1
4	3021022	Knife Holder Guide Collar	1
5	004185	Screw(9/64-40 × 7.2)	1
6	0068180	Knife Holder Shank	1
7	3020471	Sewing Head Cover(Front)	1
8	3021026	Frame Chip Guard Bracket	1
9	001175	Screw(9/64-40 × 8)	2
10	000322	Nut	2
11	3021025	Frame Chip Guard Support	1
12	3021024	Frame Chip Guard	1
13	001203	Screw(9/64-40 × 4.5)	2
14-1	3021120	Lap Former(Note 1)	1
14-2	3021087	Lap Former(Note 2)	1
15	3021033	Lap Former Slide Block	1
16	004172	Screw(3/32-56 × 3.4)	1
17	001228	Screw(3/32-56 × 3.2)	1
18	0068471	Lap Former Slide Block Spring	1
19	004182	Screw(3/32-56 × 2.5)	1
20	0068473	Lap Former Guide Plate(Right)	1
21	0068472	Lap Former Guide Plate(Left)	1
22	0068463	Sewing Cylinder Cover(Upper)	1
23	004134	Screw(1/8-44 × 6.5)	8
24	004218	Screw(3/32-56 × 1.6)	1
25	3020473	Knife Driving Lever	1

Page 123 — EXTRA PARTS(6)

Yamato FD-62G parts on page 123
Ref	Part number	Part name	Qty
1	3020015	Carrier/Hook Driving Rod(Left), C. Set	1
2	0068148	Carrier/Hook Driving Rod(Left)	1
3	001174	Screw(9/64-40 × 10.3)	2
4	0068551	Rod Ball(Left)	1
5	0068552	Carrier/Hook Sleeve Lever	1
6	000347	Nut	1
7	0068553	Needle Clamp(6.0)	1
8	000393	Pin	5
9	3027080	Presser Foot, C. Set3	1
10	3027082	Presser Foot, C. Set1	1
11	009853	Screw(11/64-40 × 6.5)	1
12	0068127	Carrier/Hook Driving Segment	1
13	0068128	Carrier/Hook Driving Lever Link	2
14	0068129	Link Pin	4
15	004172	Screw(3/32-56 × 3.4)	4
16	0068126	Thread Hook Driving Lever	1
17	0068124	Ornamental Thread Hook	1
18	004353	Screw(9/64-40 × 7.2)	1
19	0068125	Ornamental Thread Carrier Driving Lever	1
20	0068558	Ornamental Thread Carrier	1
21	004180	Screw(1/8-44 × 4.8)	2
22	0068346	Presser Foot Attach Piece(Right)	1
23	0068347	Presser Foot Attach Piece(Left)	1
24	004154	Screw(3/32-56 × 1.5)	4
25	0068121	Lower Knife	1
26	3027062	Lower Knife Clamp	1
27	001222	Screw(1/8-44 × 3.8)	1
28	0068117	Yielding Section Spring	2
29	3027010	Yielding Section	1
30	3027058	Cloth Guide Plate	1
31	004182	Screw(3/32-56 × 2)	2
32	3027084	Presser Foot Spring Plate(Left)	1
33	3027085	Presser Foot Spring Plate(Right)	1
34	004173	Screw(3/32-56 × 2.4)	2
35	0068120	Spring Plate Holder	1
36	3027009	Chip Guard	1
37	3027087	Chip Guard Spring	1
38	004166	Screw(1/8-44 × 3.2)	1
39	0068184	Upper Knife	1
40	3029014	Main Feed Dog(P=2.1mm)	1
41	3029018	Differential Feed Dog(P=2.1mm)	1
42	3028014	Stitch Plate	1
43	0068560	Stitch Plate Tongue	1

Page 125 — EXTRA PARTS(7)

Yamato FD-62G parts on page 125
Ref	Part number	Part name	Qty
1	3027119	Presser Foot, C. Set3	1
2	3027117	Presser Foot	1
3	009853	Screw(11/64-40 × 6.5)	1
4	0068127	Carrier/Hook Driving Segment	1
5	0068128	Carrier/Hook Driving Lever Link	2
6	0068129	Link Pin	4
7	004172	Screw(3/32-56 × 3.4)	4
8	0068126	Thread Hook Driving Lever	1
9	0068124	Ornamental Thread Hook	1
10	004353	Screw(9/64-40 × 7.2)	1
11	0068125	Ornamental Thread Carrier Driving Lever	1
12	0068123	Ornamental Thread Carrier	1
13	004180	Screw(1/8-44 × 4.8)	2
14	0068346	Presser Foot Attach Piece(Right)	1
15	0068347	Presser Foot Attach Piece(Left)	1
16	004154	Screw(3/32-56 × 1.5)	4
17	0068509	Lower Knife	1
18	3027124	Lower Knife Clamp	1
19	001227	Screw(1/8-44 × 3.8)	1
20	0068117	Yielding Section Spring	1
21	3027121	Yielding Section	1
22	0068474	Cloth Plate Guide	1
23	004182	Screw(3/32-56 × 2)	2
24	0068504	Presser Foot Spring Plate(Left)	1
25	0068505	Presser Foot Spring Plate(Right)	1
26	004173	Screw(3/32-56 × 2.4)	2
27	0068120	Spring Plate Holder	1
28	0068187	Chip Guard	1
29	3027087	Chip Guard Spring	1
30	004166	Screw(1/8-44 × 3.2)	1
31	0068508	Upper Knife	1
32	0068500	Stitch Plate	1
33	0068444	Stitch Plate Tongue	1
34	0068507	Main Feed Dog(P=1.8mm)	1
35	0068506	Differential Feed Dog(P=1.8mm)	1

Page 127 — EXTRA PARTS(8)

Yamato FD-62G parts on page 127
Ref	Part number	Part name	Qty
1	3027010	Yielding Section(Note 1)	1
2	3020004	Fabric Guide(Note 2)	1
3	001230	Screw(3/32-56 × 3.8)	1
4	3029004	Main Feed Dog(with Rubber)(P=2.1mm)	1
5	3029002	DifferentialFeedDog(withRubber)(P=2.1mm)	1
6	3029009	Main Feed Dog(Coarse Mesh)	1
7	3029008	Differential Feed Dog(Coarse Mesh)	1
8	3027074	Presser Foot Spring Plate(Left)(Note 3)	1
9	3027075	Presser Foot Spring Plate(Right)(Note3)	1
10	0068549	Presser Foot Spring Plate(Left)(Note 4)	1
11	0068550	Presser Foot Spring Plate(Right)(Note4)	1
12	3021075	Suction Pipe	1
13	160007	Screw(M6-1 × 6)	1

Page 129 — THREAD STAND

Yamato FD-62G parts on page 129
Ref	Part number	Part name	Qty
1	9620697	Thread Stand, C. Set(7 Spools Type)	1
2	9620704	Thread Hanger	1
3	911061	Screw(M6-1 × 10)	4
4	9620631	Column Cap	1
5	9620700	Eyelet	26
6	9620634	Thread Guide Holder(Large)	1
7	911002	Screw(M4-0.7 × 20)	1
8	911001	Screw(M4-0.7 × 12)	1
9	910001	Nut	4
10	9620706	Thread Guide Arm	1
11	9620707	Thread Guide Holder(Small)	1
12	911062	Screw(M4-0.7 × 15)	2
13	9620705	Thread Guide	1
14	9620709	Thread Stand	1
15	9620644	Spool Cushion	7
16	9620710	Spool Pin	7
17	9620711	Spool Mat	7
18	9620712	Spool Seat Disc	7
19	910014	Nut(M6-1)	14
20	930056	Washer	14
21	9620708	Thread Stand Bar	1
22	3021106	Column Pipr, C. Set	1
23	9620669	Column Cap	1
24	9620673	Column Pipe Connector	1
25	911006	Screw(M5-0.8 × 13)	2
26	910004	Nut	2
27	9620675	Column Pipe(Lower)	1
28	930054	Washer	1
29	910005	Nut(5/8-18 UNF)	1

Page 131 — ACCESSORIES

Yamato FD-62G parts on page 131
Ref	Part number	Part name	Qty
1	0037913	Bag	1
2	0099094	Screwdriver(2.5 × 75mm)	1
3	0099091	Screwdriver(5.5 × 200mm)	1
4	0099051	Thread Tweezers	1
5	0037916	Hexagonal Wrench(3.2mm)	1
6	0085964	Hexagonal Wrench(4mm)	1
7	9620402	Wrench(7 × 5.5)	1
8	0037945	Wrench(7.9 × 8)	1
9-1	0068121	Lower Knife	1
9-2	3021109	Lower Knife(12HR, 12HS)	1
10-1	0068184	Upper Knife	1
10-2	3021111	Upper Knife(12HR, 12HS)	1
11	3000010	Looper Threading Bar	1
12	9620002	Oiler	1
13	------	SF Oil 68(350ml)	1
14-1	9720248	Instruction Book	1
14-2	9720247		1
15	9710115	Parts Book	1

Page 133 — EXTRA TOOLS & GAUGES

Yamato FD-62G parts on page 133
Ref	Part number	Part name	Qty
1	0068365	Looper Rocking Movement Gauge Unit	1
2	0068366	Looper Rocking Movement Gauge Graduation	1
3	0068367	Looper Rocking Movement Gauge Pointer	1
4	0068361	Looper and Needle Cynchronizing Gauge Unit	1
5	0068362	Needle Setting Block	1
6	000173	Nut	1
7	004200	Adjusting Screw(7/32-40 × 21.8)	1
8	0068363	Looper Clamp and Height Gauge	1
9	004201	Screw(9/64-40 × 11.1)	1
10	004404	Screw(3/32-56 × 5.1)	1
11	0068364	Cynchronizing Gauge Rod	1
12	0068368	Looper Angle Gauge	1
13	0068369	Looper Gauge	1
14	0068371	Looper Avoid Gauge Unit	1
15	0068370	Needle Height Test Pin	2
16	0068360	Needle Height Gauge(MR)	1
17	0068563	Needle Height Gauge(MS)	1
18	0068375	Needle Bar Setting Torque Rod	1
19	0099096	HexagonalWrenchKey(T-Handle)(6.35mm)(1/4inch)	1
20	0037923	Hexagonal Screwdriver(1.98mm)(5/64inch)	1
21	0099097	Wrench(OpenandBoxEnds)(6.35mm)(1/4inch)	1
22	0099098	Pin Wrench	1
23	0099099	Offset Box Wrench(4.76mm)(3/16 inch)	1

Page 134 — WARNING LABEL 警告ラベル

Yamato FD-62G parts on page 134
Ref	Part number	Part name	Qty
	390220	SAFETY INSTRUCTON LABEL
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE
	390145	"Be sure to connect earth line".
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION
	390147	EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID

Page 136 — FD-62G Class LIST of MAIN SPARE PARTS(主要部品リスト)(1)

Yamato FD-62G parts on page 136
Ref	Part number	Part name	Qty
	0068053	Needle Clamp
	3027092	Presser Foot, C. Set3
	3027090	Presser Foot
	0068118	Presser Foot Spring Plate (Left)
	0068119	Presser Foot Spring Plate (Right)
	3027127	Presser Foot, C. Set3
	3027092	Presser Foot, C. Set3
	3027098	Presser Foot, C. Set3
	3027096	Presser Foot
	0068157	Presser Foot Spring Plate (Left)
	0068448	Presser Foot Spring Plate (Right)
	0068553	Needle Clamp
	3027095	Presser Foot, C. Set3
	3027093	Presser Foot
	0068561	Presser Foot Spring Plate (Left)
	0068562	Presser Foot Spring Plate (Right)
	3027187	Presser Foot, C. Set3
	3027095	Presser Foot, C. Set3
	0068150	Carrier/Hook Sleeve Lever
	3020050	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	0068490	Stitch Plate
	0068150	Carrier/Hook Sleeve Lever
	3020050	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	0068490	Stitch Plate
	0068150	Carrier/Hook Sleeve Lever
	3020050	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	0068490	Stitch Plate
	0068150	Carrier/Hook Sleeve Lever
	3020050	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	0068443	Stitch Plate
	0068552	Carrier/Hook Sleeve Lever
	0068551	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	0068559	Stitch Plate
	0068552	Carrier/Hook Sleeve Lever
	0068551	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	0068559	Stitch Plate
	0068552	Carrier/Hook Sleeve Lever
	0068551	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	0068559	Stitch Plate

Page 137

Yamato FD-62G parts on page 137
Ref	Part number	Part name	Qty
	0068184	Upper Knife
	0068121	Lower Knife
	3027123	Lower Knife Clamp
	0068123	Top Cover Thread Carrier
	0068124	Top Cover Thread Hook
	0068558	Top Cover Thread Carrier
	0068491	Stitch Plate Tongue
	0068095	Differential Feed Dog
	0068096	Main Feed Dog
	0068218	Needle Guard (Front)
	0068097	Needle Guard (Rear)
	0068217	Looper
	0068444	Stitch Plate Tongue
	0068441	Differential Feed Dog
	0068560	Stitch Plate Tongue
	0068095	Differential Feed Dog
	0068096	Main Feed Dog

Page 138 — FD-62G Class LIST of MAIN SPARE PARTS(主要部品リスト)(2)

Yamato FD-62G parts on page 138
Ref	Part number	Part name	Qty
	0068053	Needle Clamp
	3027102	Presser Foot, C. Set3
	3027100	Presser Foot
	0068423	Presser Foot Spring Plate (Left)
	0068424	Presser Foot Spring Plate (Right)
	0068553	Needle Clamp
	3027106	Presser Foot, C. Set3
	3027104	Presser Foot
	3027023	Presser Foot Spring Plate (Left)
	3027024	Presser Foot Spring Plate (Right)
	0068053	Needle Clamp
	3027052	Presser Foot, C. Set3
	3027054	Presser Foot
	3027056	Presser Foot Spring Plate (Left)
	3027057	Presser Foot Spring Plate (Right)
	0068553	Needle Clamp
	3027109	Presser Foot, C. Set3
	3027107	Presser Foot
	3027077	Presser Foot Spring Plate (Left)
	3027078	Presser Foot Spring Plate (Right)
	0068553	Needle Clamp
	3027109	Presser Foot, C. Set3
	3027107	Presser Foot
	3027077	Presser Foot Spring Plate (Left)
	3027078	Presser Foot Spring Plate (Right)
	0068150	Carrier/Hook Sleeve Lever
	3020050	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	0068490	Stitch Plate
	0068552	Carrier/Hook Sleeve Lever
	0068551	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	0068559	Stitch Plate
	3021120	Lap Former
	0068150	Carrier/Hook Sleeve Lever
	3020050	Carrier/Hook Rod Ball(Left)
	3020473	Knife Driving Lever
	3028013	Stitch Plate
	3021091	Lap Former
	0068552	Carrier/Hook Sleeve Lever
	0068551	Carrier/Hook Rod Ball(Left)
	0068552	Knife Driving Lever
	3028012	Stitch Plate
	3021091	Lap Former
	0068552	Carrier/Hook Sleeve Lever
	0068551	Carrier/Hook Rod Ball(Left)
	0068552	Knife Driving Lever
	3028017	Stitch Plate

Page 139

Yamato FD-62G parts on page 139
Ref	Part number	Part name	Qty
	0068184	Upper Knife
	0068121	Lower Knife
	3027123	Lower Knife Clamp
	3027062	Lower Knife Clamp
	0068123	Top Cover Thread Carrier
	0068124	Top Cover Thread Hook
	3027058	Cloth Guide Plate
	3027124	Lower Knife Clamp
	0068558	Top Cover Thread Carrier
	3021092	Top Cover Thread Hook
	0068491	Stitch Plate Tongue
	0068095	Differential Feed Dog
	0068096	Main Feed Dog
	0068218	Needle Guard (Front)
	0068097	Needle Guard (Rear)
	0068217	Looper
	0068560	Stitch Plate Tongue
	0068095	Differential Feed Dog
	0068096	Main Feed Dog
	0068491	Stitch Plate Tongue
	3029018	Differential Feed Dog
	3029014	Main Feed Dog
	0068560	Stitch Plate Tongue
	3029015	Differential Feed Dog
	3029016	Main Feed Dog
	3029305	Looper

Page 140 — FD-62G Class LIST of MAIN SPARE PARTS(主要部品リスト)(3)

Yamato FD-62G parts on page 140
Ref	Part number	Part name	Qty
	0068053	Needle Clamp
	3027140	Presser Foot, C. Set3
	3027110	Presser Foot
	3027144	Presser Foot Spring Plate (Left)
	3027145	Presser Foot Spring Plate (Right)
	3027188	Presser Foot, C. Set3
	0068464	Presser Foot Spring Plate (Left)
	0068465	Presser Foot Spring Plate (Right)
	0068553	Needle Clamp
	3027143	Presser Foot, C. Set3
	3027113	Presser Foot
	3027144	Presser Foot Spring Plate (Left)
	3027145	Presser Foot Spring Plate (Right)
	3027232	Presser Foot, C. Set3
	3027230	Presser Foot
	3027235	Presser Foot, C. Set3
	3027177	Presser Foot, C. Set3
	3027175	Presser Foot
	3027166	Presser Foot Spring Plate (Left)
	3027167	Presser Foot Spring Plate (Right)
	3027180	Presser Foot, C. Set3
	3027178	Presser Foot
	3027092	Presser Foot, C. Set3
	3027090	Presser Foot
	0068118	Presser Foot Spring Plate (Left)
	0068119	Presser Foot Spring Plate (Right)
	3021120	Lap Former
	0068150	Carrier/Hook Sleeve Lever
	3020050	Carrier/Hook Rod Ball(Left)
	3020430	Knife Driving Lever
	3028015	Stitch Plate
	3021119	Lap Former
	0068552	Carrier/Hook Sleeve Lever
	0068551	Carrier/Hook Rod Ball(Left)
	3028016	Stitch Plate
	0068490	Stitch Plate

Page 141

Yamato FD-62G parts on page 141
Ref	Part number	Part name	Qty
	0068184	Upper Knife
	3021111	Upper Knife
	0068184	Upper Knife
	0068121	Lower Knife
	3021109	Lower Knife
	0068121	Lower Knife
	3027124	Lower Knife Clamp
	3027123	Lower Knife Clamp
	0068123	Top Cover Thread Carrier
	0068558	Top Cover Thread Carrier
	0068123	Top Cover Thread Carrier
	0068558	Top Cover Thread Carrier
	0068123	Top Cover Thread Carrier
	0068124	Top Cover Thread Hook
	3029310	Top Cover Thread Hook
	0068124	Top Cover Thread Hook
	3027147	Cloth Guide Plate
	0068474	Cloth Guide Plate
	3027169	Cloth Guide Plate
	0068491	Stitch Plate Tongue
	0068560	Stitch Plate Tongue
	0068491	Stitch Plate Tongue
	0068560	Stitch Plate Tongue
	0068095	Differential Feed Dog
	3029019	Main Feed Dog
	0068096	Main Feed Dog
	0068218	Needle Guard (Front)
	3029019	Needle Guard (Rear)
	0068217	Looper

Page 142 — INDEX

Yamato FD-62G parts on page 142
Ref	Part number	Qty
4	000016	41
18	000016	43
19	000016	44
18	000016	45
7	000039	6
12	000054	44
8	000070	41
14	000070	43
25	000070	44
14	000070	45
5	000145	14
6	000173	56
44	000187	1
27	000203	5
35	000278	5
28	000306	8
23	000306	9
13	000322	1
10	000322	16
10	000322	50
39	000334	30
19	000334	32
4	000334	34
23	000334	40
45	000335	1
13	000335	29
7	000335	30
13	000335	36
10	000340	1
6	000347	7
40	000347	13
29	000347	15
9	000347	18
41	000347	21
41	000347	22
41	000347	23
43	000347	25
18	000347	27
6	000347	51
21	000355	7
25	000355	8
8	000355	9
19	000356	7
9	000356	8
6	000356	9
7	000356	27
56	000363	6
18	000390	4
2	000393	13
21	000393	15
2	000393	18
32	000393	21
32	000393	22
32	000393	23
34	000393	25
20	000393	27
8	000393	51
21	000421	41
18	000426	28
21	000426	29
4	000426	31
30	000426	32
22	000426	33
9	000426	35
6	000429	41
23	000429	41
16	000429	43
27	000429	44
16	000429	45
13	000463	4
23	000470	8
5	000471	7
20	000472	1
32	000474	1
22	000474	9
18	000474	11
41	000475	10
3	000477	8
4	000478	2
39	000479	1
22	000480	2
17	000485	3
28	000486	2
42	000487	10
45	000488	10
41	000489	8
11	000498	44
25	000509	4
7	000532	3
26	000532	11
11	000532	29
5	000532	30
5	000532	32
4	000532	33
11	000532	36
33	000548	8
25	000550	11
3	000568	14
8	000586	8
14	000588	36
17	000600	28
20	000600	29
3	000600	31
29	000600	32
21	000600	33
8	000600	35
8	000613	44
6	000623	29
13	000623	30
43	000623	30
23	000623	32
21	000623	35
4	000623	36
12	000644	29
6	000644	30
12	000644	36
16	000665	37
24	000665	39
6	000669	43
6	000669	45
24	000676	41
20	000676	44
19	000676	45
22	000726	1
15	000755	9
29	001107	3
14	001123	34
5	001123	39
17	001132	30
4	001132	32
3	001132	33
5	001156	34
24	001156	40
13	001156	41
28	001170	5
4	001174	7
37	001174	13
26	001174	15
6	001174	18
38	001174	21
38	001174	22
38	001174	23
40	001174	25

Page 143

Yamato FD-62G parts on page 143
Ref	Part number	Part name	Qty
15	001174
3	001174
43	001175
38	001175
9	001175
16	001175
19	001175
27	001175
9	001175
66	001196
26	001203
14	001203
13	001203
21	001203
13	001203
40	001222
12	001222
19	001222
19	001222
27	001222
32	001227
19	001227
25	001227
9	001227
29	001227
19	001227
19	001227
19	001227
19	001227
19	001227
19	001227
23	001227
19	001227
17	001228
48	001228
33	001228
36	001228
44	001228
44	001228
44	001228
34	001228
45	001228
17	001228
3	001230
10	001601
10	001923
4	001923
10	001923
65	003312
6	003410
8	003434
13	003434
36	003473
31	003473
45	003635
12	003635
27	003635
5	003638
4	003638
13	003646
12	003649
49	003659
62	003670
22	004123
18	004134
61	004134
23	004134
53	004134
38	004134
41	004134
49	004134
49	004134
49	004134
40	004134
51	004134
6	004134
23	004134
47	004138
20	004141
29	004154
16	004154
22	004154
6	004154
16	004154
16	004154
16	004154
16	004154
16	004154
16	004154
20	004154
16	004154
24	004154
16	004154
27	004160
25	004161
31	004162
22	004163
17	004164
2	004165
42	004166
31	004166
34	004166
19	004166
30	004166
40	004166
30	004166
32	004166
30	004166
30	004166
30	004166
32	004166
32	004166
30	004166
38	004166
30	004166
1	004167
44	004168
42	004169
43	004170
44	004171
11	004171
20	004172
7	004172
13	004172
16	004172
7	004172
17	004172
7	004172
32	004172
7	004172
35	004172
7	004172
43	004172
7	004172
43	004172

Page 145 — INDEX

Yamato FD-62G parts on page 145
Ref	Part number	Part name	Qty
5	004437
2	004440
21	004440
9	004440
11	004440
12	004440
12	004440
3	004441
6	004441
3	004445
26	004445
34	004551
13	004552
19	005000
7	005000
6	005000
5	005004
40	005040
35	005040
15	005040
28	005047
6	005062
24	005070
29	005076
36	005076
67	005431
40	005505
20	005505
38	005550
52	005553
37	005624
46	005650
34	005650
6	006219
9	006434
20	006905
22	006905
6	006905
32	006905
24	006905
13	006905
13	006905
25	006905
45	006910
16	006910
20	006910
20	006910
15	006920
18	007006
57	007311
35	007405
2	007405
33	007405
8	007605
30	007606
8	007609
46	007616
35	007619
20	007619
37	007621
14	007621
40	007621
33	007627
58	007627
24	007650
16	007650
2	007650
5	008047
19	009104
27	009142
38	009142
20	009150
20	009150
32	009150
6	009508
5	009508
32	009508
14	009604
55	009730
23	009768
6	009791
6	009791
9	009853
16	009853
3	009853
9	009853
3	009853
3	009853
13	009853
3	009853
3	009853
3	009853
3	009853
3	009853
7	009853
3	009853
11	009853
3	009853
5	009858
26	009861
21	009861
17	009863
28	009863
17	009863
2	009864
25	009891
28	009937
29	009937
30	009937
14	009937
7	009973
16	009973
7	009973
7	009973
17	009974
25	009974
7	009977
5	009992
20	0010018
42	0010052
22	0010052
22	0010054
11	0010055
23	0010084
12	0010084
11	0010084
14	0010108
24	0010108
26	0010108
26	0010108
18	0010108
2	0010108
44	0010112
24	0010112

Page 146

Yamato FD-62G parts on page 146
Ref	Part number	Part name	Qty
31	0010119
31	0010119
16	0010119
26	0010120
28	0010120
28	0010120
13	0010120
2	0010120
10	0010124
10	0010124
25	0010142
3	0010142
24	0010263
30	0010263
22	0010263
11	0010263
10	0010263
15	0010263
3	0010263
21	0010264
25	0010264
24	0010264
33	0010264
25	0010264
4	0010264
14	0010267
16	0010289
13	0010290
21	0010290
32	0010293
32	0010293
12	0010310
20	0010310
11-3	0010529
11-3	0010529
39	0010564
11	0010564
37	0010565
10	0010565
15	0010721
23	0010721
33	0010869
29	0010869
11-1	0010885
11-1	0010885
11-2	0010912
11-2	0010912
6	0011168
15	0011189
15	0011189
14	0011192
14	0011192
36	0011340
9	0011340
34	0011709
7	0011709
12	0011709
12	0011709
18	0011795
42-1	0011943
42-2	0011944
42-3	0011945
42-4	0011946
8	0012029
9	0012030
37	0020472
17	0020472
11	0022392
19	0023392
23	0031111
46	0032339
5	0032421
28	0032421
35	0032421
8	0032719
16	0032784
10	0033024
38	0033935
18	0033935
37	0033936
17	0033936
36	0033937
16	0033937
34	0033938
14	0033938
25	0034406
9	0037912
13	0037912
13	0037912
1	0037913
5	0037916
20	0037923
8	0037945
36	0068003
2	0068006
3	0068007
6	0068011
12	0068013
14	0068014
16	0068024
19	0068027
9	0068032
2	0068033
19	0068035
16	0068038
1	0068039
7	0068043
7	0068047
9	0068048
11	0068050
40	0068053
37	0068057
26	0068059
23	0068060
7	0068066
29	0068069
12	0068069
21	0068076
26	0068077
30	0068078
24	0068079
29	0068079
5	0068079
27	0068080
32	0068080
33	0068082
17	0068083
20	0068084
23	0068085
21	0068086
24	0068087
19	0068088
16	0068090
3	0068091

Page 147 — INDEX

Yamato FD-62G parts on page 147
Ref	Part number	Qty
2	0068092	10
4	0068093	10
21	0068094	2
7	0068095	10
8	0068096	10
3	0068096	48
10	0068097	10
28	0068098	10
26	0068099	10
36	0068101	10
39	0068103	10
43	0068105	10
1	0068106	10
35	0068107	10
33	0068117	6
20	0068117	12
26	0068117	13
10	0068117	15
20	0068117	17
30	0068117	18
20	0068117	19
20	0068117	20
20	0068117	21
20	0068117	22
20	0068117	23
7	0068117	34
26	0068117	40
24	0068117	48
20	0068117	49
28	0068117	51
20	0068117	52
36	0068118	6
23	0068118	12
37	0068119	6
24	0068119	12
39	0068120	6
26	0068120	12
31	0068120	13
16	0068120	15
27	0068120	17
35	0068120	18
27	0068120	19
27	0068120	20
27	0068120	21
27	0068120	22
27	0068120	23
27	0068120	24
27	0068120	25
29	0068120	48
27	0068120	49
35	0068120	51
9-1	0068120	55
25	0068123	6
12	0068123	12
12	0068123	17
12	0068123	19
12	0068123	20
12	0068123	24
16	0068123	48
12	0068123	49
12	0068123	52
22	0068124	6
9	0068124	12
15	0068124	13
9	0068124	17
9	0068124	19
9	0068124	20
9	0068124	21
9	0068124	22
9	0068124	24
9	0068124	25
13	0068124	48
9	0068124	49
17	0068124	51
9	0068124	52
24	0068125	6
11	0068125	12
17	0068125	13
11	0068125	17
21	0068125	18
11	0068125	19
11	0068125	20
11	0068125	21
11	0068125	22
11	0068125	23
11	0068125	24
11	0068125	25
15	0068125	48
11	0068125	49
19	0068125	51
11	0068125	52
21	0068126	6
8	0068126	12
14	0068126	13
8	0068126	17
18	0068126	18
8	0068126	19
8	0068126	20
8	0068126	21
8	0068126	22
8	0068126	23
8	0068126	24
8	0068126	25
12	0068126	48
8	0068126	49
16	0068126	51
8	0068126	52
17	0068127	6
4	0068127	12
10	0068127	13
4	0068127	17
14	0068127	18
4	0068127	19
4	0068127	20
4	0068127	21
4	0068127	22
4	0068127	23
4	0068127	24
4	0068127	25
8	0068127	48
4	0068127	49
12	0068127	51
4	0068127	52
18	0068128	6
5	0068128	12
11	0068128	13
5	0068128	17
15	0068128	18
5	0068128	19

Page 148 — INDEX

Yamato FD-62G parts on page 148
Ref	Part number	Qty
5	0068128	5
5	0068128	5
5	0068128	5
5	0068128	5
5	0068128	5
5	0068128	5
9	0068128	5
5	0068128	5
13	0068128	13
5	0068128	5
19	0068129	6
6	0068129	12
12	0068129	13
6	0068129	17
16	0068129	18
6	0068129	19
6	0068129	20
6	0068129	21
6	0068129	22
6	0068129	23
6	0068129	24
6	0068129	25
10	0068129	48
6	0068129	49
14	0068129	51
6	0068129	52
13	0068130	6
23	0068131	4
3	0068132	6
43	0068135	6
45	0068136	6
57	0068138	6
16	0068139	4
55	0068140	6
53	0068141	6
58	0068142	6
63	0068144	6
18	0068145	5
17	0068146	5
19	0068147	5
2	0068148	7
36	0068148	13
25	0068148	15
5	0068148	18
37	0068148	21
37	0068148	22
37	0068148	23
39	0068148	25
14	0068148	27
2	0068148	51
7	0068150	7
60	0068154	6
47	0068157	6
32	0068157	12
38	0068157	12
34	0068157	48
48	0068158	6
33	0068158	12
27	0068158	48
12	0068160	41
10	0068161	41
11	0068161	43
11	0068161	45
51	0068162	6
61	0068163	6
49	0068164	6
3	0068174	7
20	0068175	7
24	0068175	8
14	0068176	7
37	0068180	7
6	0068180	16
6	0068180	50
34	0068181	7
3	0068181	16
3	0068181	26
3	0068181	50
35	0068182	7
4	0068182	26
43	0068183	7
42	0068184	7
39	0068184	51
10-1	0068184	55
40	0068185	7
40	0068187	6
40	0068187	12
32	0068187	13
28	0068187	19
28	0068187	21
28	0068187	22
28	0068187	23
30	0068187	48
28	0068187	52
29	0068189	19
29	0068189	21
29	0068189	22
29	0068189	23
52	0068191	1
53	0068193	1
51	0068196	1
1	0068197	8
33	0068199	9
10	0068202	8
18	0068203	8
15	0068204	8
11	0068205	8
13	0068207	8
31	0068213	8
29	0068214	4
39	0068216	8
43	0068217	8
45	0068218	8
30	0068219	9
34	0068220	9
32	0068221	9
32	0068222	8
35	0068223	8
37	0068224	8
27	0068225	2
21	0068225	37
25	0068226	2
23	0068227	2
35	0068228	9
17	0068230	4
16	0068234	3
15	0068235	3
53	0068242	3
20	0068243	3
19	0068244	3
21	0068245	3
56	0068246	3
58	0068249	3
59	0068250	3
62	0068251	3
63	0068252	3
3	0068253	5
4	0068254	5
44	0068255	3
41	0068256	3
42	0068257	3
39	0068258	3
36	0068259	3
37	0068260	3
47	0068261	3

Page 149 — INDEX

Yamato FD-62G parts on page 149
Ref	Part number	Part name	Qty
45	0068262
34	0068265
54	0068267
48	0068269
49	0068270
18	0068273
14	0068276
15	0068277
13	0068280
12	0068281
21	0068282
27	0068287
7	0068290
9	0068294
23	0068298
1	0068303
2	0068304
33	0068307
50	0068308
41	0068323
51	0068324
31	0068342
30	0068343
29	0068344
25	0068345
27	0068346
14	0068346
20	0068346
4	0068346
14	0068346
24	0068346
14	0068346
14	0068346
14	0068346
14	0068346
14	0068346
14	0068346
18	0068346
14	0068346
22	0068346
14	0068346
28	0068347
37	0068347
21	0068347
5	0068347
15	0068347
15	0068347
15	0068347
15	0068347
15	0068347
15	0068347
19	0068347
15	0068347
23	0068347
15	0068347
33	0068348
2	0068348
33	0068349
28	0068350
34	0068351
30	0068353
27	0068355
1	0068356
9	0068357
4	0068358
3	0068359
16	0068360
4	0068361
5	0068362
8	0068363
11	0068364
1	0068365
2	0068366
3	0068367
12	0068368
13	0068369
15	0068370
14	0068371
18	0068375
31	0068403
24	0068411
26	0068412
22	0068413
13	0068423
34	0068423
14	0068424
35	0068424
17	0068425
12	0068426
4	0068428
13	0068431
7	0068432
43	0068441
4	0068441
41	0068443
1	0068443
42	0068444
2	0068444
33	0068444
39	0068448
44	0068448
35	0068448
19	0068449
31	0068449
10	0068451
29	0068451
8	0068452
27	0068452
3	0068453
22	0068453
2	0068456
21	0068456
22	0068463
54	0068463
39	0068463
42	0068463
50	0068463
50	0068463
50	0068463
41	0068463
52	0068463
7	0068463
22	0068463
24	0068464
25	0068465
49	0068470
34	0068470
37	0068470
45	0068470
45	0068470
45	0068470
36	0068470
47	0068470
18	0068471
50	0068471
35	0068471
38	0068471
46	0068471
46	0068471
46	0068471
37	0068471
48	0068471

Page 150 — INDEX

Yamato FD-62G parts on page 150
Ref	Part number	Part name	Qty
18	0068471
21	0068472
51	0068472
36	0068472
39	0068472
47	0068472
47	0068472
47	0068472
38	0068472
49	0068472
4	0068472
21	0068472
20	0068473
52	0068473
37	0068473
40	0068473
48	0068473
48	0068473
48	0068473
39	0068473
50	0068473
5	0068473
20	0068473
22	0068474
22	0068474
22	0068474
26	0068478
11	0068480
14	0068481
10	0068482
6	0068483
2	0068485
1	0068486
44	0068490
45-1	0068491
34	0068491
9	0068493
32	0068500
24	0068504
25	0068505
35	0068506
34	0068507
31	0068508
31	0068508
39	0068509
17	0068509
8	0068520
16	0068520
18	0068522
26	0068522
14	0068523
22	0068523
10	0068524
18	0068524
46	0068549
10	0068549
47	0068550
11	0068550
38	0068551
27	0068551
7	0068551
39	0068551
39	0068551
39	0068551
41	0068551
16	0068551
4	0068551
39	0068552
28	0068552
8	0068552
40	0068552
40	0068552
40	0068552
42	0068552
17	0068552
5	0068552
1	0068553
20	0068553
1	0068553
31	0068553
31	0068553
31	0068553
33	0068553
19	0068553
7	0068553
18	0068558
22	0068558
12	0068558
12	0068558
12	0068558
12	0068558
38	0068558
20	0068558
3	0068559
22	0068559
21	0068559
4-1	0068560
23	0068560
42-1	0068560
34	0068560
34	0068560
34	0068560
36	0068560
22	0068560
43	0068560
28	0068561
47	0068561
29	0068562
48	0068562
17	0068563
2-1	0068934
7	0068962
15	0068962
15	0068962
1	0068968
26	0077286
6	0085964
34	0090320
33	0090321
38	0092232
15	0092232
19	0092232
19	0092232
25	0092305
34	0093059
6	0093528
5	0093538
49	0093864
5	0093864
14	0093864
4	0099051
3	0099091
2	0099094
19	0099096
21	0099097
22	0099098
23	0099099

Page 151 — FD-62G

Yamato FD-62G parts on page 151
Ref	Part number	Part name	Qty
9	100003
2	100030
32	180025
41	100038
14	100038
18	100038
18	100038
10	100049
44	210007
28	210031
10	110003
45	210031
11	110004
37	210031
30	110004
29	210031
13	110004
29	210031
22	110008
29	210031
16	110009
11	240009
12	110009
11	110012
21	300019
58	110013
20	300019
16	110017
4	300030
19	110017
4	300030
2	110017
40	300031
28	110017
12	300031
20	110017
16	300031
6	110017
16	300031
18	110022
44	300033
3	110076
13	300033
3	110076
17	300033
28	110115
17	300033
10	110136
10	300049
11	300061
3	120001
20	310017
13	120009
14	310084
4	120009
28	310085
4	120029
32	310086
18	120053
12	310087
6	120053
4	310111
21	120053
29	310113
12	120053
3	350001
16	160001
59	390206
4	160001
47	390207
13	160001
3	160003
9	910001
29	160007
26	910004
13	160007
29	910005
30	160009
19	910014
54	160009
12	160024
8	911001
7	911002
25	911006
3	911061
12	911062
28	930054
20	930056
9	1050041
9	1050071
7	1057040
7	1057040
8	1057080
8	1057109
21	1070017
9	1070017
8	1070017
13	1090051
1	1090094
12	1090099
12	1090101
1	1090106
23	1090121
41	1090133
21	1090133
27	1090164
27	1090164
7	1091028
8	1091028
8	1091055
7	1091082
5	1094010
14	1094010
7	1094010
17	1094037
11	1095004
20	1096001
8	1096001
7	1096001
9	1096002

Page 152 — INDEX

Yamato FD-62G parts on page 152
Ref	Part number	Part name	Qty
17	1096002
12	1096029
19	1096029
34	1096029
7	1096029
15	1096029
22	1096030
4	1096030
46	1096030
10	1096030
9	1096030
15	1096030
6	1096030
23	1096030
29	1096030
25	1097007
15	1097009
17	1097009
1	1097009
27	1097009
19	1097009
5	1097009
13	1098015
23	1098015
45	1098015
25	1098015
17	1098015
43	1200039
2	1200161
2	1200161
19	1200171
27	1200196
26	1200197
27	1200235
27	1200299
1	1249065
35	1249087
8	1249087
1	1249124
19	1253240
18	1253240
5	1253240
31	1253240
23	1253240
5	1260000
5	1260036
5	1260036
33	1298000
13	1298000
21	2049401
31	2100265
15	2129420
11	3000010
17-1	3001100
9	3001101
9	3001101
9	3001101
32	3020002
2	3020004
2-2	3020006
3-1	3020007
3-2	3020008
30	3020008
4	3020009
31	3020009
26	3020013
24	3020014
35	3020015
24	3020015
4	3020015
36	3020015
36	3020015
36	3020015
38	3020015
13	3020015
1	3020015
2-3	3020016
29	3020016
3-3	3020017
9	3020020
6	3020021
11	3020022
8	3020023
4	3020024
36	3020027
2	3020028
5	3020028
4	3020029
38	3020032
17	3020033
11	3020034
12	3020035
4	3020040
7	3020041
5	3020042
50	3020043
11	3020045
20	3020046
10	3020046
17	3020047
22	3020047
16	3020048
23	3020049
19	3020049
11	3020049
24	3020050
20	3020051
26	3020052
9	3020052
27	3020053
1	3020056
37	3020057
16	3020058
39	3020059
9	3020059
19	3020060
15	3020061
22	3020062
48	3020063
49	3020064
1	3020065
21	3020087
3	3020090
29	3020092
38	3020092
30	3020092
30	3020092
30	3020092
27	3020093
44	3020093
36	3020093

Page 153 — INDEX

Yamato FD-62G parts on page 153
Ref	Part number	Part name	Qty
28	3020093
28	3020093
28	3020093
22	3020097
18	3020112
8	3020112
1	3020392
2	3020400
10	3020401
14	3020402
15	3020403
27	3020404
30	3020405
32	3020406
25	3020407
27	3020409
26	3020410
1	3020411
30	3020414
31	3020415
28	3020416
8	3020417
31	3020418
39	3020422
12	3020423
14	3020424
9	3020425
12	3020426
47	3020429
13	3020430
29	3020431
48	3020432
32	3020433
35	3020434
5	3020435
28	3020436
12	3020440
26	3020441
25	3020442
32	3020443
2	3020444
18	3020445
56	3020446
55	3020447
23	3020448
17	3020449
6	3020450
38	3020451
37	3020452
36	3020453
33	3020454
46	3020455
42	3020457
57	3020464
10	3020466
1	3020467
32	3020468
7	3020471
7	3020471
3	3020472
2	3020472
25	3020473
25	3020473
56	3020477
18	3021000
6	3021000
5	3021000
16	3021005
15	3021007
2	3021007
1	3021007
17	3021009
19	3021010
28	3021011
20	3021012
22	3021014
14-1	3021015
3	3021015
15	3021016
11	3021016
2	3021021
2	3021021
4	3021022
4	3021022
1	3021023
1	3021023
12	3021024
12	3021024
11	3021025
11	3021025
8	3021026
8	3021026
12	3021028
15	3021029
17	3021030
14-2	3021031
15	3021033
15	3021033
35	3021034
8	3021036
10	3021036
17-2	3021036
8	3021038
1	3021039
23	3021041
24	3021042
10	3021045
10	3021047
17-3	3021051
18	3021052
1	3021055
6	3021059
12	3021059
30	3021060
31	3021061
20	3021062
9	3021065
9	3021065
8	3021068
8	3021068
4	3021069
4	3021069
23	3021071
24	3021072
10	3021073
12	3021075
1	3021079
1	3021080
1	3021083
2	3021084
3	3021085
14-2	3021087
14-2	3021087
57	3021090
47	3021091
19	3021092
10	3021093
59	3021094
43	3021095
34	3021096
46	3021096
3	3021096
33	3021096

Page 154 — INDEX

Yamato FD-62G parts on page 154
Ref	Part number	Part name	Qty
46	3021097
1	3021101
2	3021102
1	3021105
22	3021106
17	3021109
17	3021109
9-2	3021109
9	3021111
10-2	3021111
8	3021112
6	3021113
10	3021114
33	3021119
44	3021119
1-1	3021120
31	3021120
34	3021120
42	3021120
42	3021120
42	3021120
14-1	3021120
1	3021180
2	3021181
3	3021182
23	3021183
10	3021191
6	3021192
14	3021193
17	3021194
29	3021201
7	3021202
22	3021203
9	3021203
3	3021204
20	3021209
1	3021523
8	3021524
16	3021525
24	3021526
7	3021529
40	3021530
13	3021531
14	3021544
15	3021545
2	3021548
2	3021548
2	3021548
2	3027001
1	3027003
22	3027005
24	3027007
25	3027008
28	3027009
28	3027009
36	3027009
21	3027010
29	3027010
1	3027010
37	3027013
36	3027015
40	3027016
41	3027017
32	3027023
36	3027023
33	3027024
37	3027024
24-2	3027039
25-2	3027040
1	3027052
2	3027054
35	3027056
24-1	3027056
36	3027057
25-1	3027057
22	3027058
30	3027058
18	3027062
18	3027062
26	3027062
43	3027074
52	3027074
52	3027074
52	3027074
44	3027075
53	3027075
53	3027075
53	3027075
9	3027075
15	3027079
42	3027079
25	3027079
15	3027079
9	3027080
10	3027082
32	3027084
33	3027085
41	3027087
30	3027087
33	3027087
18	3027087
29	3027087
39	3027087
31	3027087
20	3027087
31	3027087
20	3027087
31	3027087
31	3027087
29	3027087
37	3027087
29	3027087
15	3027090
2	3027090
14	3027092
8	3027093
7	3027095
36	3027096
6	3027096
35	3027098
33	3027098
2	3027100
1	3027102
31	3027104
30	3027106
12	3027107
11	3027109
2	3027110
2	3027110
2	3027113
2	3027117
1	3027119
34	3027120
21	3027120
27	3027120
11	3027120
25	3027120
21	3027120
21	3027121
31	3027122
31	3027123
18	3027123

Page 155 — INDEX

Yamato FD-62G parts on page 155
Ref	Part number	Part name	Qty
24	3027123
8	3027123
22	3027123
28	3027124
18	3027124
18	3027124
18	3027124
18	3027124
18	3027124
18	3027124
18	3027124
18	3027124
5	3027125
1	3027127
32	3027128
63	3027128
33	3027129
64	3027129
1	3027140
1	3027143
24	3027144
24	3027144
24	3027144
45	3027144
54	3027144
25	3027145
25	3027145
25	3027145
25	3027145
46	3027145
55	3027145
21	3027146
21	3027146
21	3027146
21	3027146
21	3027146
22	3027147
22	3027147
22	3027147
24	3027166
24	3027166
25	3027167
25	3027167
22	3027169
22	3027169
2	3027175
1	3027177
2	3027178
1	3027180
41	3027187
1	3027188
2	3027230
2	3027230
1	3027232
21	3027233
1	3027235
21	3027236
32	3028000
45-2	3028003
4-2	3028004
42-2	3028004
43	3028005
42	3028006
41	3028012
33	3028013
42	3028014
42	3028015
45	3028015
44	3028015
33	3028016
33	3028016
33	3028016
35	3028016
61	3028017
34	3029000
33	3029001
5	3029002
4	3029004
7	3029008
6	3029009
31	3029014
40	3029015
44	3029015
45	3029016
62	3029017
32	3029018
41	3029018
41	3029019
44	3029019
35	3029019
35	3029019
35	3029019
43	3029019
37	3029019
60	3029305
9	3029310
1-1	3029901
2-1	3029902
3-1	3029903
2	3029903
1	3029907
1-2	3029908
2-2	3029909
3-2	3029910
1	3029919
1	3029950
15	3101071
31	3160038
4	3500054
48	5544886
2	9603012
24	9603024
35	9603024
23	9603025
34	9603025
1	9603025
22	9603026
33	9603026
18	9611043
5	9611043
4	9611071
29	9611074
10	9611077
13	9611077
1-2	9613022
1-1	9613107
38	9613117
22-1	9613120
22-2	9613121
12	9620002
21	9620208
28	9620208
7	9620402

Page 156 — INDEX

Yamato FD-62G parts on page 156
Ref	Part number	Part name	Qty
4	9620631
6	9620634
15	9620644
23	9620669
24	9620673
27	9620675
1	9620697
5	9620700
2	9620704
13	9620705
10	9620706
11	9620707
21	9620708
14	9620709
16	9620710
17	9620711
18	9620712
15	9710115
14-2	9720247
14-1	9720248
