Yamato VFS2500-8 Parts Book (PDF)

Coverstitch · also listed as VFS25008, 2500-8Download PDF

Text index — Yamato VFS2500-8

Page 5 — MISCELLANEOUS COVERS (1)

Yamato VFS2500-8 parts on page 5
Ref	Part number	Part name	Qty
1	3500201	Top Cover	1
2	110045	Screw(M4-0.7 × 12)	11
3	3500430	Top Cover Gasket	1
4	0068011	Oil Sight Window	1
5	0020759	Top Cover Seal Plug	2
6	3510008	Top Feed Dog Bracket	1
7	120027	Screw(M4-0.7 × 25)	4
8	009748	Screw(M4-0.7 × 12)	2
9	0093864	Seal Plug	2
10	3100207	Pin(5 × 12mm)	2
11	3510011	Head Cover	1
12	3510012	Head Cover Gasket	1
13	110048	Screw(M4-0.7 × 10)	8
14	110060	Screw(M4-0.7 × 4.8)	2
15	390212	"VFS" Emblem	1
16	3160009	Bracket Cover Gasket	1
17	3160008	Bracket Cover	1
18	330000	Seal Plug	1
19	3200021	Wind Guide Plate	1
20	110013	Screw(M4-0.7 × 8)	4
21	3200006	Oil Reservoir	1
22	009970	Screw(M6-1 × 20)	6
23	3200007	Oil Reservoir Gasket	1
24	005075	Screw(3/8-24 × 8)	1
25	0020137	Drain Hole Seal	1
26	340016	Machine Frame Supporting Bar	4
27	4109403	Model Plate(See the below)	1
28	2049401	Serial Number Plate	1
29	000726	Rivet	4

Page 7 — MISCELLANEOUS COVERS (2)

Yamato VFS2500-8 parts on page 7
Ref	Part number	Part name	Qty
1	3200017	Cloth Plate(Large)	1
2	009749	Screw(M4-0.7 × 16)	3
3	009747	Screw(M4-0.7 × 10)	1
4-1	3200018	Looper Thread Take-up Cover(48, 56)	1
4-2	3200035	Looper Thread Take-up Cover(64)	1
5	006004	Screw(11/64-40 × 9.7)	1
6	000010	Conical Spring Washer	1
7	3200019	Take-up Cover Spring	1
8	110030	Screw(M3-0.5 × 2.6)	2
9	3201453	Cloth Plate(Small)	1
10	130003	Screw(M4-0.7 × 7.3)	1
11	130004	Screw(M4-0.7 × 14)	1
12	3200010	Bed Rear Cover	1
13	0095108	Bed Rear Cover Gasket	1
14	110045	Screw(M4-0.7 × 12)	4
15	3201452	Side Cover	1
16	170001	Screw(M5-0.8 × 8)	1
17	300100	Conical Spring Washer	2
18	180005	Screw(M5-0.8 × 8)	1
19	160000	Screw(M3-0.5 × 3)	1
20	0032604	Rubber Cushion(Large)	1
21	3200033	Rubber Cushion(Small)	5
22	0094201	Cover Latch Spring	1
23	110012	Screw(M4-0.7 × 5)	1
24	0093864	Seal Plug	3
25	3500012	Seal Plug	1
26	0065275	Seal Plug	1
27	0020052	Seal Plug	1
29	3200020	Oil Cooling Fan Cover	1
30	110012	Screw(M4-0.7 × 5)	4
31	3200024	Bed Top Cover	1
32	3200025	Bed Top Cover Gasket	1
33	007610	Screw(M4-0.7 × 10)	8
34	130006	Screw(M4-0.7 × 10)	2
35	3200022	Bed Top Cover(Left)	1
36	3200023	Bed Top Cover(Left) Gasket	1
37	3200209	Feed Regulating Pushbutton	1
38	0063152	Feed Regulating Pushbutton Spring	1
39	0020472	O-ring(P6)	1
40	000425	Washer	1

Page 9 — MISCELLANEOUS COVERS (2)

Yamato VFS2500-8 parts on page 9
Ref	Part number	Part name	Qty
41	0033024	Retaining Ring	1
42	3100113	Needle Bar Guide	1
43	110079	Screw(M4-0.7 × 8)	2
44	3200028	Bed Rear Cover(Small)	1
45	3200029	Bed Rear Cover(Small) Gasket	1
46	110013	Screw(M4-0.7 × 8)	8
47	3200030	Ball Bearing Housing	1
48	3200031	O-ring	1
49	110048	Screw(M4-0.7 × 10)	3
50	3200210	Pushbutton Stop	1
51	110012	Screw(M4-0.7 × 5)	2
52	000015	Nut	1
53	110016	Screw(M4-0.7 × 15)	1
54	190078	Screw(M4-0.7 × 5)	1
55	3200032	Stitch Plate Support	1
56	110041	Screw(M4-0.7 × 8)	2
57	000745	Knock Pin	2
58	3200026	Bed Front Cover	1
59	3200027	Bed Front Cover Gasket	1
60	3100030	Front Cover Hinge	1
61	110016	Screw(M4-0.7 × 15)	2
62-1	3201451	Front Cover(48, 56)	1
62-2	3201461	Front Cover(64)	1
63	170020	Screw(M4-0.7 × 8)	1
64	300100	Conical Spring Washer	2
65	160001	Screw(M4-0.7 × 4)	1
66	180017	Screw(M4-0.7 × 6)	1
67	3200016	Front Cover Spring	1
68	180018	Screw(M4-0.7 × 7)	1
69	3201454	Supporting Block	1
70	130002	Screw(M3-0.5 × 6)	2
71	3270024	Guide Spacer	1
72	3100630	Fabric Edge Guide(Left)	1
73	0095367	Fabric Edge Guide Chip	1
74	004182	Screw(3/32-56 × 2.5)	1
75	3100631	Fabric Edge Guide(Right)	1
76	000538	Washer	2
77	110014	Screw(M4-0.7 × 18)	2

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato VFS2500-8 parts on page 11
Ref	Part number	Part name	Qty
1	0024084	Thread Tension Spring Cap	5
2	0024083	Tension Spring Bushing	5
3	0030255	Tension Spring(Needle)	3
4	0032952	Tension Spring(Looper, Top Cover)	2
5	0090071	Thread Tension Spring Retainer	5
6	000177	Felt	5
7	0031111	Tension Disc	10
8	290029	Tension Post	5
9	0090812	Tension Post Ferrule	5
10	3500287	Tension Disc Separator	1
11	0090856	Tension Disc Eyelet	5
12	0090807	Thread Lead-in Guide	5
13	3500286	Tension Post Support	1
14	110013	Screw(M4-0.7 × 8)	7
15	2100065	Looper Thread Eyelet	1
16	3180076	Top Cover Thread Eyelet(Left)	1
17	3200042	Looper Thread Eyelet	1
18	110009	Screw(M4-0.7 × 8)	7
19	0093556	Looper Thread Eyelet(Long)	1
21	3500284	Thread Guide Plate	1
22	0020119	Thread Eyelet Pipe(Short)	2
23	3500285	Thread Eyelet Pipe Holder	1
24	3500489	Top Cover Thread Eyelet(Right)	1
25	3180071	SP Device, Complete Set	1
26	3100384	SP Container	1
27	3100386	Felt	1
28	3180072	Needle Thread Eyelet	1
29	350009	Tapping Screw(3 × 6mm)	2
30	0068247	Needle Thread Eyelet Holder	1
31	005431	Screw(1/8-44 × 4.4)	2
32	0068249	Needle Thread Eyelet	3
33	003312	Screw(1/8-44 × 3.4)	3
34	000538	Washer	1
35	000651	Guide Pin	1
36	0090068	Needle Thread Guide	1
37	3180073	Needle Thread Eyelet	1
38	130003	Screw(M4-0.7 × 4.5)	1
39	3100081	Top Cover Thread Guide	1
40	0063074	Supplementary Thread Guide	1
41	001818	Tension Post	1
42	0037108	Supplementary Tension Disc	2
43	0035813	Supplementary Tension Spring	1
44	000360	Nut	1

Page 13 — MISCELLANEOUS BUSHINGS

Yamato VFS2500-8 parts on page 13
Ref	Part number	Part name	Qty
1	3500309	Oil Seal	2
2	310106	Laced Wire(Φ3×130mm)	1
3	3160158	Presser Bar Bushing	1
4	3204021	Oil Seal	1
5	3500096	Sponge	1
6	000397	Oil Wick (Φ2×11mm)	1
7	3500095	Spreader Driving Bar Bushing	1
8	0063055	Oil Seal	1
9	3500050	Oil Seal	1
10	3500044	Needle Thread Take-up Bushing(Front)	1
11	3500045	Needle Thread Take-up Bushing(Rear)	1
12	3500047	Spreader Driving Shaft Bushing(Left)	1
13	3500048	Spreader Driving Shaft Bushing(Right)	1
14	3500041	Oil Seal	1
15	3500046	Foot Lifter Lever Bushing	2
16	000195	Oil Wick(No. 4-175mm)	1
17	3200050	Lower Shaft Bushing(Left)	1
18	3200067	Oil Seal	1
19	3200062	Looper Rocker Shaft Bushing(Left)	1
20	3200052	Looper Rocker Shaft Bushing(Right)	1
21	0077300	Oil Seal	1
22	3200056	Needle Guard Driving Shaft	2
23	3200057	Seal Plug	1
24	3200053	Feed Bar Driving Shaft Bushing(Left)	1
25	3200065	Feed Bar Driving Shaft Bushing(Right)	1
26	2100034	Seal Plug	1
27	0093303	Oil Seal	1
28	3200061	Looper Driving Shaft Bushing(Front)	1
29	3200051	Looper Driving Shaft Bushing(Rear)	1
30	3200055	Differential Lever Shaft Bushing	1
31	0093864	Seal Plug	1
32	0065275	Seal Plug	1
33	0095218	Seal Plug	1
34	3200066	Seal Plug	1
35	3100006	Seal Plug	1
36	3160022	Top Feed Shaft Bushing	2
37	3160023	Vertical Motion Shaft Bushing(Right)	1
38	3160024	Top Feed Rocker Shaft Bushing(Right)	1
39	3160027	Adjusting Shaft Bushing	1
40	0032684	Oil Seal	1
41	3160025	Rocker Drive Shaft Bushing(Left)	1
42	3160026	Rocker Drive Shaft Bushing(Right)	1
43	0020051	Seal Plug	1
44	3510050	Eye Guard, C. Set	1
45	3510051	Finger Guard	1
46	170010	Screw(M4-0.7×4)	1
47	300100	Conical Spring Washer	1
48	000669	Washer	1
49	3100272	Cushion	1
50	3510052	Eye Guard	1
51	110076	Screw(M3-0.5×6)	2
52	000014	Washer	2

Page 15 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

Yamato VFS2500-8 parts on page 15
Ref	Part number	Part name	Qty
1	3200070	Pulley	1
2	160005	Screw(M6-1 x 8)	5
3	160007	Screw(M6-1 x 6)	9
4	000037	Roll Pin	1
5	3200071	Oil Cooling Fan	1
6	3200095	Ball Bearing(Right)	1
7	3260010	Main Shaft Sprocket(Lower)	1
8	3100131	Ball Bearing(Middle)	1
9	3200072	Oil Pump Driving Worm	1
10	3100129	Adapter	1
11	3200078	Ball Bearing(Left)	1
12	3200073	Lower Shaft(Right)	1
13	3200074	Lower Shaft Joint	1
14	3200143	Looper Thread Take-up	1
15	150000	Screw(M5-0.8 x 4)	2
16	0093091	Ball Bearing	1
17	3200097	Needle Guard Connecting Rod, C. Set(2)	1
18	3200096	Needle Guard Connecting Rod, C. Set(1)	1
19	3200082	Needle Guard Connecting Rod	1
20	110005	Screw(M3.5-0.6 x 12)	2
21	3200098	Needle Guard Eccentric	1
22	160003	Screw(M5-0.8 x 5)	2
23	3200087	Connecting Rod Pin	1
24	3200084	Needle Guard Driving Shaft Arm	1
25	005650	Screw(M5-0.8 x 14)	1
26	160000	Screw(M3-0.5 x 3)	4
27	3200077	Counterweight	1
28	110036	Screw(M3-0.5 x 6.5)	2
29	3200075	Lower Crankshaft	1
30	310035	Oil Wick(No. 2-165mm)	3
31	160001	Screw(M4-0.7 x 4)	2
32	0020159	Ball Bearing	1
33	0068202	Retaining Ring	1
34	3200085	Spacer	1
35	3200086	Collar(8 x 13 x 6mm)	1
36	3200083	Needle Guard Driving Shaft	1
37	0093669	Needle Guard(Rear)	1
38	110083	Screw(M3.5-0.6 x 4.5)	1
39	3200093	Supporting Plate Stay(Lower)	1
40	110048	Screw(M4-0.7 x 10)	2

Page 17 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

Yamato VFS2500-8 parts on page 17
Ref	Part number	Part name	Qty
41	3200092	Supporting Plate Stay(Upper)	1
42	110009	Screw(M4-0.7 × 8)	1
43	3200091	Supporting Plate	1
44	130002	Screw(M3-0.5 × 6)	2
46	0093515	Thread Take-up Eyelet	2
47	000014	Washer	2
48	001227	Screw(1/8-44 × 3.8)	2
49	3200042	Looper Thread Eyelet	1
50	001818	Tension Post	1
51	0037108	Supplementary Tension Disc	2
52	0035813	Supplementary Tension Spring	1
53	000360	Adjusting Nut	1
54	0063197	Cast-off Plate Bracket	1
55	001223	Screw(9/64-40 × 7.5)	1
56	3200094	Cast-off Plate	1
57	000532	Washer	1
58	004106	Screw(9/64-40 × 6.5)	1

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VFS2500-8 parts on page 19
Ref	Part number	Part name	Qty
1	3270030	Handwheel	1
2	000989	Handwheel Mark	1
3	160005	Screw(M6-1 × 8)	3
4	160007	Screw(M6-1 × 6)	10
5	0092305	Magnet	1
6	3500054	Ball Bearing	2
7	3100129	Handwheel Adapter	1
8	3260012	Timing Belt(565-5GT-15)	1
9	3260011	Upper Shaft Sprocket(Upper)	1
10	3100275	Upper Shaft(Right)	1
11	3100283	Upper Shaft Joint	1
12	3500448	Oil Sleeve	1
13	310040	Oil Wick	1
14	3510025	Upper Shaft(Left)	1
15	3500444	Connecting Rod, C. Set	1
16	3500445	Needle Thread Take-up Eccentric	1
17	160003	Screw(M5-0.8 × 5)	4
18	3500446	Connecting Rod	1
19	120001	Screw(M4-0.7 × 14)	2
20	3500066	Driving Lever	1
21	120013	Screw(M6-1 × 15)	2
22	2100218	Driving Shaft Thrust Ring	1
23	000555	Washer	1
24	000600	Spring Washer	1
25	120015	Screw(M5-0.8 × 10)	1
26	3500065	Driving Shaft	1
27	3500492	Bracket	1
28	000667	Spring Washer	1
29	160023	Screw(M4-0.7 × 4)	1
30	3180070	Needle Thread Take-up	1
31	3180075	Top Cover Thread Take-up	1
32	110009	Screw(M4-0.7 × 8)	2
34	3500442	Collar	1
35	110135	Screw(M5-0.8 × 7)	1
36	310132	Oil Wick(Φ 4.2 × 16mm)	1
37	3500062	Upper Shaft Sleeve, C. Set	1
38	3500064	Upper Shaft Sleeve	1
39	160004	Screw(M6-1 × 4.8)	1
40	0093154	Ball Bearing	2
41	310099	Oil Wick(Φ 3.3 × 30mm)	1
42	110067	Screw(M5-0.8 × 5)	1
43	160041	Screw(M5-0.8 × 8)	1

Page 21 — NEEDLE BAR MECHANISM

Yamato VFS2500-8 parts on page 21
Ref	Part number	Part name	Qty
1	3270015	Needle Bar & Needle Bar Bushing, C. Set	1
2	004358	Screw(9/64-40 × 5.6)	1
3	0063044	Needle Bar Thread Eyelet	1
5	3500100	Needle Bar Bracket	1
6	110035	Screw(M4-0.7 × 10)	1
7-1	0093356	Needle Clamp(48)	1
7-2	0093357	Needle Clamp(56)	1
9	001900	Screw(1/8-44 × 2.4)	4
10	0093365	Top Cover Thread Eyelet	1
11-1	3108133	Stitch Plate(48M)	1
11-2	3108134	Stitch Plate(56M)	1
12	009142	Screw(9/64-40 × 4.8)	2
13	3500615	Counterweight	1
14	110011	Screw(M5-0.8 × 10)	1
15	160029	Screw(M8-1.25 × 8)	2
16	3500091	Connecting Rod, C. Set	1
17	3200112	Connecting Rod	1
18	0093212	Roller Bearing	1
19	3500617	Eccentric Pin Plate	1
20	130002	Screw(M3-0.5 × 6)	1
21	3500616	Eccentric Pin	1
22	000309	Felt(2.5 × 3 × 30mm)	1
23	330000	Seal Plug	1
24	3240015	Needle Bar Guide, C. Set	1
25	3240016	Needle Bar Guide	1
26	0093186	Slide Block	1
27	009750	Screw(M4-0.7 × 20)	2
28	3100338	Sponge	1
29	3200120	HR Device, Complete Set	1
30	3200121	HR Cup	1
31	3200122	HR Cup Lid	1
32	0093864	Seal Plug	1
33	310036	HR Felt	1
34	0093663	HR Felt Guard	1
35	006219	Screw(M4-0.7 × 30)	2

Page 23 — PRESSER FOOT MECHANISM

Yamato VFS2500-8 parts on page 23
Ref	Part number	Part name	Qty
1	0077270	Presser Spring Regulator	1
2	000445	Lock Nut	1
3	0065372	Presser Bar Spring(Outer)	1
4	3160163	Presser Bar Connecting Bracket	1
5	110035	Screw(M4-0.7 × 10)	1
6	3240026	Presser Bar Guide	1
7	110001	Screw(M4-0.7 × 5.4)	2
8	0060142	Presser Bar Spring(Inner)	1
9	3100110	Presser Bar	1
10	0093611	Oil Protector Ring	1
11	3100310	Collar(9 × 17 × 7mm)	1
12	160001	Screw(M4-0.7 × 4)	2
13	0020271	Thread Chain Cutting Knife	1
14	110054	Screw(M3-0.5 × 3.5)	1
15-1	3167002	Presser Foot, C. Set(48)	1
15-2	3167004	Presser Foot, C. Set(56)	1
16	110004	Screw(M3.5-0.6 × 8)	1
17	3107303	Presser Foot Spring(Left)	1
18	130016	Screw(M2.5-0.45 × 6)	2
19	3107306	Presser Foot Hinge Pin(48, 56)	1
20	110084	Screw(M3-0.5 × 4.2)	1
21	000327	Lock Nut	1
22	003302	Adjusting Screw(1/8-44 × 11)	1
23	3160090	Presser Bar Lifter Link	1
24	3510063	Guide Lifter Link	1
25	170041	Screw(M5-0.8 × 3.5)	3
26	3500300	Lifter Shaft	1
27	2100267	Collar(10 × 17 × 8mm)	1
28	160001	Screw(M4-0.7 × 4)	2
29	3500293	Lifter Shaft Lever	1
30	005650	Screw(M5-0.8 × 14)	1
31	0068181	Spring	1
32	3500294	Lever Link	1
33	3160091	Guide Lifter Link(Upper)	1
34	110009	Screw(M4-0.7 × 8)	2
35	000538	Washer	2
36	3500291	Lifter Lever	1
37	000487	Wave Washer	2
38	300005	Washer	1
39	120010	Screw(M6-1 × 10)	1
40	2110361	Spring	1

Page 25 — PRESSER FOOT MECHANISM

Yamato VFS2500-8 parts on page 25
Ref	Part number	Part name	Qty
41	3500305	Cap	1
42	2100194	Lifter Lever Holder	1
43	340003	Knock Pin(Φ5 X 20mm)	1
44	3500295	Lifter Lever Stopper	1
45	120006	Screw(M6-1 X 12)	2
46	000206	Lock Nut	1
47	110021	Screw(M5-0.8 X 18)	1
48	3500299	Tension Release Lever Connector	1
49	170038	Screw(M4-0.7 X 5)	1
50	170009	Screw(M4-0.7 X 4)	1
51	3100533	Tension Release Lever	1
52	120001	Screw(M4-0.7 X 14)	1
53	3500292	Tension Release Shaft	1
54	0063515	Thread Pull-off Lever	1
55	000690	Spring Pin(4 X 16mm)	1
56	0094390	Tension Release Adjusting Eccentric	1
57	0095334	Swing-proof Spring	1
58	001170	Screw(9/64-40 X 12)	1

Page 27 — TOP FEED VERTICAL MECHANISM

Yamato VFS2500-8 parts on page 27
Ref	Part number	Part name	Qty
1	3510017	Vertical Motion Connecting Rod, C. Set	1
2	3160034	Vertical Motion Eccentric	1
3	160003	Screw(M5-0.8 × 5)	6
4	3510018	Vertical Motion Connecting Rod	1
5	120049	Screw(M4-0.7 × 16)	2
6	3510029	Connecting Rod Pin Plate	1
7	130002	Screw(M3-0.5 × 6)	1
8	3510027	Vertical Motion Adjusting Arm, C. Set	1
9	3510028	Connecting Rod Pin	1
10	300000	Washer	1
11	000206	Nut	1
12	3160036	Vertical Motion Adjusting Arm	1
13	120013	Screw(M6-1 × 15)	1
14	2100137	Collar(12 × 20 × 10mm)	1
15	000740	Seal Plug	2
16	3160037	Vertical Motion Shaft	1
17	3160039	Thrust Plate	1
18	3160038	Retaining Ring	1
19	3510038	Vertical Motion Rocking Arm	1
20	140004	Screw(M6-1 × 16)	1
21	160000	Screw(M3-0.5 × 3)	6
22	3510039	Rocking Arm Link	1
23	310068	Oil Wick(No.2-120mm)	1
24	3160098	Oil Wick Presser	1
25	110023	Screw(M2-0.4 × 3.5)	1
26	3510037	Link Pin	3
27	3510020	Top Feed Dog Bar Guide, C. Set	1
28	3510021	Top Feed Dog Bar Guide Arm	1
29	2100288	Guide Arm Pin	1
30	3510022	Top Feed Dog Bar Guide	1
31	3510024	Top Feed Dog Bar	1
32	160006	Screw(M3-0.5 × 6)	2
33	3160104	Thrust Plate	1
34	0068202	Retaining Ring	1
35	160001	Screw(M4-0.7 × 4)	3
36	3160092	Guide Stop	1
37	3160103	Guide Arm Shaft	1
38	3200086	Collar(8 × 13 × 6mm)	1
39	180033	Screw(M6-1 × 5)	1
40	004272	Adjusting Screw(M10-0.75 × 44)	1

Page 29 — TOP FEED VERTICAL MECHANISM

Yamato VFS2500-8 parts on page 29
Ref	Part number	Part name	Qty
41	100007	Lock Nut	2
42	3510062	Top Feed Dog Press Spring	1
43	3510059	Top Feed Dog Bar Bushing	1
44	3510060	Top Feed Dog Bar Bushing Holder	1
45	005650	Screw(M5-0.8 × 14)	2
46	3160124	Top Feed Dog Presser Bar	1
47	3510030	Top Feed Dog Bar, C. Set	1
48	3510031	Top Feed Dog Bar	1
49	3510032	Top Feed Dog Bar Link	1
50	3510034	Top Feed Dog Bar Link Pin	1
51	000278	Oil Wick(2.5 × 2.5 × 18mm)	2
52	2100176	Top Feed Dog Bar Pin	1
53	3510033	Top Feed Dog Link Pin	1
54	3160120	Oil Leakage Proof Cover	1
55	3160114	Cover Support	1
56	3510040	Spring Holder	1
57	009747	Screw(M4-0.7 × 10)	2
58	3510041	Auxilary Top Feed Dog Spring	1
59	3160116	Top Feed Dog Bar Seal	1
60	3510057	Seal Support	1
61	110002	Screw(M2-0.4 × 5)	4
62	110115	Screw(M2-0.4 × 8.5)	2
63	3510035	Top Feed Dog Holder	1
64	190077	Screw(M4-0.7 × 10)	1
65	3519014	Top Feed Dog	1
66	009779	Screw(M3-0.5 × 6)	1
67	000014	Washer	1
68	160007	Screw(M5-0.8 × 6)	2
69	3510043	Guid Bracket	1
70	3510044	Top Feed Dog Bar Guid(Right)	1
71	3160109	Top Feed Dog Bar Guid(Left)	1
72	120001	Screw(M4-0.7 × 14)	2
73	310079	Oil Wick	1

Page 31 — TOP FEED ROCKER MECHANISM

Yamato VFS2500-8 parts on page 31
Ref	Part number	Part name	Qty
1	3160173	Top Feed Rocker Drive Shaft	1
2	000740	Seal Plug	4
3	2100137	Collar(12 × 20 × 10mm)	2
4	160003	Screw(M5-0.8 × 5)	8
5	3160056	Top Feed Arm, Complete Set	1
6	3160057	Top Feed Regulator Arm	1
7	120013	Screw(M6-1 × 15)	2
8	3160058	Slider	1
9	3160051	Rocker Shaft Lever	1
10	3160038	Retaining Ring	2
11	3160039	Thrust Plate	2
12	3160064	Top Feed Rocker Arm Link	1
13	160001	Screw(M4-0.7 × 4)	2
14	2120082	Slider Pin	1
15	0026413	Spacer	1
16	3160061	Slider Lever, C. Set	1
17	3160062	Slider Lever	1
18	0026099	Slider Lever Block	1
19	2120083	Spacer	1
20	0033024	Retaining Ring	1
21	3160063	Slider Link	1
22	0026081	Link Pin	3
23	160030	Screw(M3.5-0.6 × 3)	1
24	3160071	Slider Lever Pin	1
25	3160070	Slider Lever Holder	1
26	160007	Screw(M6-1 × 6)	2
27	009977	Screw(M6-1 × 30)	2
28	3100207	Pin(5 × 12mm)	2
29	3160065	Top Feed Rocker Arm(Right)	1
30	160000	Screw(M3-0.5 × 3)	4
31	3160066	Top Feed Rocker Shaft	1
32	3510023	Top Feed Rocking Arm	1
33	140004	Screw(M6-1 × 16)	1
34	3510039	Rocking Arm Link	1
35	310068	Oil Wick(No.2-120mm)	1
36	3160098	Oil Wick Presser	1
37	110023	Screw(M2-0.4 × 3.5)	1
38	3510037	Link Pin	1
39	3160049	Driving Connecting Rod, C. Set	1
40	3160050	Driving Connecting Rod	1
41	120049	Screw(M4-0.7 × 16)	2
42	3160054	Top Feed Eccentric	1
43	3160052	Top Feed Dog Link Pin	1

Page 33 — TOP FEED DIFFERENTIAL MECHANISM

Yamato VFS2500-8 parts on page 33
Ref	Part number	Part name	Qty
1	3160085	Differential Feed Graduation	1
2	009784	Screw(M6-1 × 10)	2
3	3160086	Adjusting Knob	1
4	160001	Screw(M4-0.7 × 4)	3
5	3240091	Adjusting Screw	1
6	3240087	Adjusting Pin	1
7	3160088	Stop Block	1
8	2100259	Adjusting Spring	1
9	0034293	Retaining Ring	1
10	009751	Screw(M5-0.8 × 10)	2
11	000669	Washer	1
12	180012	Screwed Pin(M4-0.7 × 3)	2
13	0077179	Retaining Ring	1
14	3240086	Differential Feed Pointer	1
15	110054	Screw(M3-0.5 × 3.5)	2
16	3160084	Adjusting Outer Link	1
17	006202	Screw(M4-0.7 × 6)	1
18	170010	Screw(M4-0.7 × 4)	1
19	3160073	Slider Link Lever	1
20	160003	Screw(M5-0.8 × 5)	2
21	0095027	Retaining Ring	1
22	3160077	Thrust Plate	1
23	3160074	Adjusting Lever Spring	1
24	3160076	Adjusting Shaft	1
25	0020538	O-ring(P7)	1
26	3160080	Top Feed Dog Adjusting Lever	1
27	160021	Screw(M5-0.8 × 6)	1
28	3160082	Adjusting Lever Hinge	1
29	000426	Washer	1
30	3160081	Hinge Holder	1
31	110011	Screw(M5-0.8 × 10)	2
32	0085710	Spring	1
33	3510055	Spring Latch	1
34	110094	Screw(M4-0.7 × 6)	2

Page 35 — SPREADER MECHANISM

Yamato VFS2500-8 parts on page 35
Ref	Part number	Part name	Qty
1	3500081	Spreader Eccentric, C. Set	1
2	3500082	Spreader Eccentric	1
3	160003	Screw(M5-0.8 × 5)	2
4	3500084	Spreader Connecting Rod	1
5	110009	Screw(M4-0.7 × 8)	1
6	300006	Washer	1
7	3100309	Adjusting Lever Pin	1
8	000528	Washer	1
9	100003	Nut(M6-1.0)	1
10	3500086	Spreader Adjusting Lever	1
11	120013	Screw(M6-1 × 15)	1
12	3160138	Driving Shaft	1
13	0032646	Collar(12 × 20 × 8mm)	1
14	009604	Screw(11/64-40 × 5.5)	2
16	3100305	Rocking Arm	1
17	160007	Screw(M6-1 × 6)	2
18	0063051	Rocking Pin	1
19	310094	Oil Wick(φ 3.3 × 15mm)	1
20	0063053	Spreader Bar	1
21	0063056	Bushing Ring	1
22	0063057	Collar(10 × 18 × 7mm)	1
23	009526	Screw(9/64-40 × 4.4)	2
24	3100307	Spreader Holder	1
25	3509320	Spreader	1
26	110031	Screw(M4-0.7 × 12)	2
27	2100218	Thrust Ring	1
28	3500097	Thrust Sheet(Small)	1

Page 37 — LOOPER DRIVING MECHANISM

Yamato VFS2500-8 parts on page 37
Ref	Part number	Part name	Qty
1	3200150	Looper Rocker Connecting Rod, C. Set(2)	1
2	3200149	Looper Rocker Connecting Rod, C. Set(1)	1
3	3200152	Looper Rocker Connecting Rod	1
4	120001	Screw(M4-0.7 × 14)	5
5	3200151	Looper Rocker Eccentric	1
6	160003	Screw(M5-0.8 × 5)	2
7	3200159	Connecting Rod Pin	1
8	300000	Washer	1
9	100002	Nut	1
10	3200154	Looper Rocker Lever	1
11	005650	Screw(M5-0.8 × 14)	2
12	3200155	Looper Rocker Adjusting Guide Plate	1
13	110007	Screw(M2.5-0.45 × 6)	2
14	170021	Adjusting Screw(M2.5-0.45 × 10.5)	1
15	2100267	Collar(10 × 17 × 8mm)	1
16	160001	Screw(M4-0.7 × 4)	2
17	0093314	Looper Rocker Shaft	1
18	3200157	Looper Rocker Arm	1
19	0093319	Looper Slide Block	1
21	3200160	Looper Slide Block Pin	1
22	160009	Screw(M5-0.8 × 5)	1
23	3200161	Looper Connecting Rod	1
24	0032784	Link Pin(Short)	1
25	009604	Screw(11/64-40 × 5.5)	1
26	0032785	Looper Driving Lever Link	1
27	001457	Screw(11/64-40 × 3.3)	1
28	0032786	Link Pin(Long)	1
29	3200162	Looper Driving Lever	1
30	160007	Screw(M6-1 × 6)	2
31	3200163	Collar	1
32	0093300	Looper Driving Shaft	1
33	3200164	Looper Holder	1
34	000669	Washer	1
35	0094480	Looper	1
36	110057	Screw(M4-0.7 × 7)	1
37	0095723	Needle Guard(Front)	1
38	004236	Screw(3/32-56 × 4.2)	1
39	009934	Screw(M5-0.8 × 16)	1

Page 39 — FEED DRIVING CONTROL MECHANISM / 前送リ調節機構

Yamato VFS2500-8 parts on page 39
Ref	Part number	Part name	Qty
1	3200181	Feed Bar Driving Shaft	1
2	3200183	Main Feed Bar Lever	1
3	120006	Screw(M6-1 × 12)	3
4	3200184	Differential Rocker, Complete Set	1
5	3200185	Differential Rocker	1
6	3200186	Differential Regulating Slider	1
7	3200187	Differential Regulating Slider Cap	1
8	110033	Screw(M3-0.5 × 6)	2
9	2100161	Collar(10 × 19 × 9mm)	1
10	160003	Screw(M5-0.8 × 5)	2
11	3200205	Differential Lever(Inner), C. Set	1
12	2100252	Slider Link	1
13	0068202	Retaining Ring	1
14	2100253	Slider Link Pin	1
15	3200206	Differential Lever(Inner)	1
16	3200189	Feed Bar, Complete Set	1
17	3200190	Main Feed Bar	1
18	3200191	Differential Feed Bar	1
19	140018	Screw(M5-0.5 × 6)	1
20	300000	Washer	2
21	3200194	Connection Bushing	1
22	2100243	Differential Feed Bar Connection	1
23	140017	Screw(M5-0.5 × 6)	1
24	2100248	Main Feed Bar Connection	1
25	3200192	Connection Bushing	1
26	3200215	Retaining Ring	1
27	2100267	Collar(10 × 17 × 8mm)	1
28	160001	Screw(M4-0.7 × 4)	2
29	000690	Roll Pin	1
30	3200216	Differential Lever Spring	1
31	0020538	O-ring(P7)	1
32	3200207	Differential Lever Shaft	1
33	0095132	Differential Lever(Left)	1
34	110009	Screw(M4-0.7 × 8)	1
35	004143	Screw(11/64-40 × 3.2)	1
36	3200213	Differential Feed Graduation	1
37	110045	Screw(M4-0.7 × 12)	2
38	310072	Felt	1
39	000210	Adjusting Nut	1
40	005511	Adjusting Screw(1/4-40×11, 11/64-40×4)	1
41	0020350	Differential Lever Stop	2
42	000669	Washer	2
43	000600	Spring Washer	2
44	005049	Screw(M5-0.8 × 8)	2
45	310071	Oil Wick(No.8-400mm)	1

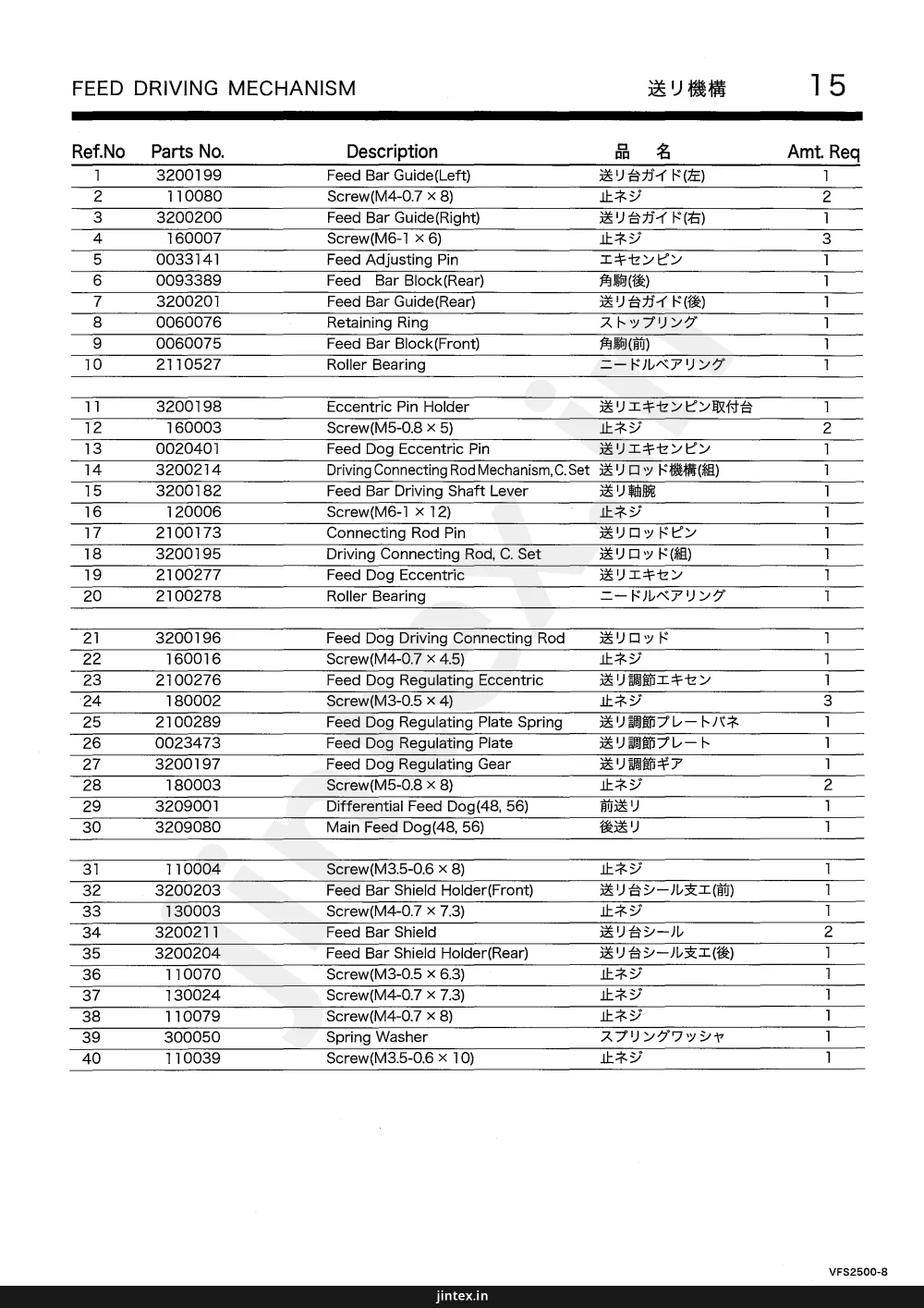

Page 41 — FEED DRIVING MECHANISM / 送り機構

Yamato VFS2500-8 parts on page 41
Ref	Part number	Part name	Qty
1	3200199	Feed Bar Guide(Left)	1
2	110080	Screw(M4-0.7 × 8)	2
3	3200200	Feed Bar Guide(Right)	1
4	160007	Screw(M6-1 × 6)	3
5	0033141	Feed Adjusting Pin	1
6	0093389	Feed Bar Block(Rear)	1
7	3200201	Feed Bar Guide(Rear)	1
8	0060076	Retaining Ring	1
9	0060075	Feed Bar Block(Front)	1
10	2110527	Roller Bearing	1
11	3200198	Eccentric Pin Holder	1
12	160003	Screw(M5-0.8 × 5)	2
13	0020401	Feed Dog Eccentric Pin	1
14	3200214	Driving Connecting Rod Mechanism, C. Set	1
15	3200182	Feed Bar Driving Shaft Lever	1
16	120006	Screw(M6-1 × 12)	1
17	2100173	Connecting Rod Pin	1
18	3200195	Driving Connecting Rod, C. Set	1
19	2100277	Feed Dog Eccentric	1
20	2100278	Roller Bearing	1
21	3200196	Feed Dog Driving Connecting Rod	1
22	160016	Screw(M4-0.7 × 4.5)	1
23	2100276	Feed Dog Regulating Eccentric	1
24	180002	Screw(M3-0.5 × 4)	3
25	2100289	Feed Dog Regulating Plate Spring	1
26	0023473	Feed Dog Regulating Plate	1
27	3200197	Feed Dog Regulating Gear	1
28	180003	Screw(M5-0.8 × 8)	2
29	3209001	Differential Feed Dog(48, 56)	1
30	3209080	Main Feed Dog(48, 56)	1
31	110004	Screw(M3.5-0.6 × 8)	1
32	3200203	Feed Bar Shield Holder(Front)	1
33	130003	Screw(M4-0.7 × 7.3)	1
34	3200211	Feed Bar Shield	2
35	3200204	Feed Bar Shield Holder(Rear)	1
36	110070	Screw(M3-0.5 × 6.3)	1
37	130024	Screw(M4-0.7 × 7.3)	1
38	110079	Screw(M4-0.7 × 8)	1
39	300050	Spring Washer	1
40	110039	Screw(M3.5-0.6 × 10)	1

Page 43 — LUBRICATING MECHANISM / 給油機構

Yamato VFS2500-8 parts on page 43
Ref	Part number	Part name	Qty
1	3500412	Oil Receiver	1
2	110012	Screw(M4-0.7 × 5)	5
3	0032518	O-ring(P3)	1
4	3500402	Oil Sight Top Nozzle	1
5	3100370	Oil Tube Joint, One Way	4
6	000425	Washer	1
7	000234	Nut	2
8	0031831	Oil Tube Clamp	8
9	000463	Laced Wire(ϕ 3 × 260mm)	1
10	3100060	Oil Filter Cap	1
11	110045	Screw(M4-0.7 × 12)	3
12	3100061	O-ring (P42)	1
13	3100345	Oil Filter	1
14	3100329	Oil Filter Connector	1
15	0093617	Suction Pipe Bushing	1
16	3160152	Suction Pipe	1
17	3510067	Oil Tube(3 × 5 × 60mm)	1
18	3510065	Suction Pipe(Lower)	1
19	3510068	Felt	1
20	3160153	Suction Pipe Stay	1
21	110038	Screw(M2.5-0.45 × 4.5)	1
22	3270022	Oil Tube(Long), Complete Set	1
23	3270023	Oil Tube(4 × 6 × 530mm)	1
24	3100371	Oil Tube Joint, Two Way	1
25	3200233	Oil Tube(4 × 6 × 175mm)	1
26	320010	Fitting Stud(Short)	3
27	320001	Oil Tube Joint, One Way	1
28	320011	Fitting Stud(Long)	1
29	3200235	Oil Tube(Short), Complete Set	1
30	3200232	Oil Tube(4 × 6 × 45mm)	1
31	3100328	Oil Pump, Complete Set	1
32	0030711	Oil Pump Driving Worm Gear	1
33	160001	Screw(M4-0.7 × 4)	2
34	120006	Screw(M6-1 × 12)	2
35	000567	Seal	1
36	000419	Nut	1
37	3100349	Oil Nozzle for Worm Gear	1
38	3160155	Adapter	1
39	0010018	Bamboo Joint(I-2.5L)	1
40	3160151	Oil Tube(2.5 × 4 × 420mm)	1
41	0010258	Connector(Φ2.5-M5)	2
42	0010019	Universal Elbow(M5)	1
43	3160149	Oil Tube(2.5 × 4 × 490mm)	1
44	3200231	Dust Proof Plate	1
45	0020533	Oil Sight Gauge	1
46	0063216	Oil Filter Screen	1
47	0063217	Oil Filter Screen Clamp	1

Page 45 — VFS2503-8 EXCLUSIVE PARTS (1)

Yamato VFS2500-8 parts on page 45
Ref	Part number	Part name	Qty
1-1	0093241	Folder(for Type P)	1
1-2	0093242	Folder(for Type Q)	1
1-3	0093243	Folder(for Type R)	1
2	0091736	Folder Clamp	1
3	009932	Screw(11/64-40 × 4)	2
4	005554	Screw(7/32-32 × 6.5)	1
5	0094245	Folder Support	1
6	0094246	Folder Support Fixing Plate	1
7	140019	Screw(M5-0.8 × 14)	2
8	3240100	Front Cover(40, 56)	1
9	3201002	Front Cover(Small)	1
10	110013	Screw(M4-0.7 × 8)	3
11	3201007	Fabric Slide Plate	1
12	000426	Washer	1
13	110103	Screw(M5-0.8 × 8)	1
14	3240101	Dustproof Cover	1
15	110104	Screw(M4-0.7 × 8)	2
16	3201006	Front Cover Spring	1
18	3260025	Looper Thread Take-up Cover	1
19	3260026	Tape Guide(Right)	1
20	000538	Washer	2
21	007627	Screw(M4-0.7 × 6)	2
22	3200014	Cloth Plate(Small)	1
23	3200011	Side Cover	1
24	0032604	Rubber Cushion(Large)	1
25	3200012	Cover Latch Spring	1
26	110012	Screw(M4-0.7 × 5)	2
27	340041	Knock Pin	1
28	3200013	Side Cover Holder	1
29	110016	Screw(M4-0.7 × 15)	1
30	000015	Nut	1

Page 47 — VFS2503-8 EXCLUSIVE PARTS (2)

Yamato VFS2500-8 parts on page 47
Ref	Part number	Part name	Qty
1	3267026	Presser Foot, C. Set(40)	1
2	110004	Screw(M3.5-0.6 × 8)	1
3	0091725	Presser Foot Spring	1
4	005133	Screw(1/8-44 × 4.5)	1
5	3267038	Presser Foot Spring(Left)	1
6	006010	Screw(1/8-44 × 4.5)	1
7	3267037	Tape Guide	1
8	001228	Screw(3/32-56 × 3.2)	1
9	3267015	Presser Foot Hinge Pin	1
10	110084	Screw(M3-0.5 × 4.2)	1
11	000327	Lock Nut	1
12	003302	Adjusting Screw(1/8-44 × 11)	1
13	0093352	Needle Clamp(40)	1
14	3268011	Stitch Plate(40M)	1
15	3269002	Main Feed Dog	1
16	3209065	Differential Feed Dog	1
17	3279000	Top Feed Dog	1
18	3267030	Presser Foot, C. Set(56)	1
19	3268013	Stitch Plate(56M)	1

Page 49 — VFS2511-8 EXCLUSIVE PARTS

Yamato VFS2500-8 parts on page 49
Ref	Part number	Part name	Qty
1	3277000	Presser Foot, C. Set(56)	1
2	110004	Screw(M3.5-0.6 × 8)	1
3	0091725	Presser Foot Spring	1
4	005133	Screw(M2.5-0.45 × 6)	1
5	160000	Screw(M3-0.5 × 3)	1
6	3247022	Presser Foot Hinge Pin	1
7	003300	Adjusting Screw(1/8-44 × 11)	1
8	000327	Lock Nut	1
9	3279000	Top Feed Dog	1
10	3248005	Stitch Plate(56M)	1
11	3209008	Main Feed Dog(56)	1
12	3249001	Differential Feed Dog(56)	1
13	3241002	Cloth Plate(Small)	1
14	130004	Screw(M4-0.7 × 14)	1
15	0010258	Connector(Φ4-M5)	1
16	3201001	Looper Thread Take-up Cover(56)	1
17	3240100	Front Cover(56)	1
18	3201006	Front Cover Spring	1

Page 51 — SUPPORTING BOARD & ACCESSORIES

Yamato VFS2500-8 parts on page 51
Ref	Part number	Part name	Qty
1	3200240	Supporting Board, C. Set	1
2	3200241	Supporting Board	2
3	180020	Setting Screw(M6-1 x 15)	4
4	0093035	Oil Resrvoir Rubber Cushion	4
5	000070	Hanging Nut	4
6	009861	Hanging Bolt(M8-1.25 x 95)	4
7	000162	Washer	12
8	000016	Nut	12
9	2101451	Spacer(See the table below)	12
10	0020064	Supporting Board Rubber Cushion	4
11	0063010	SupportingBoardRubberCushion(Lower)	4
12	3160190	Needle Thread Retainer Support, C. Set	1
13	3160191	Needle Thread Retainer Support	1
14	005431	Screw(1/8-44 x 4.4)	1
15	0036175	Thread Retainer Disc Support	1
16	0032425	Needle Thread Retainer Dice	1
17	0032426	Needle Thread Retainer Spring	1
18	001093	Screw(1/8-44 x 2.2)	1
19	3201456	Supplementary Front Cover	1
20	110105	Screw(M5-0.8 x 12)	2
21	000426	Washer	2
22	110013	Screw(M4-0.7 x 8)	2

Page 53 — THREAD STAND

Yamato VFS2500-8 parts on page 53
Ref	Part number	Part name	Qty
1	9620696	Thread Stand, C. Set(6 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Cap(Upper)	1
4	9620689	Thread Guide Holder(Large)	1
5	911002	Screw(M4-0.7 × 20)	1
6	911001	Screw(M4-0.7 × 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw(M5-0.8 × 13)	2
10	910000	Nut	8
11	9620675	Column Pipe(Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut	1
16	9620703	Thread Hanger(3 Spools Type)	4
17	9620700	Thread Eyelet	6
18	9620688	Thread Hanger Holder	4
19	911060	Screw(M6-1 × 15)	4
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder(Small)	1
22	9620666	Thread Guide(6 Spools Type)	1
23	9620678	Spool Cushion	6
24	9620679	Spool Pin	6
25	9620680	Spool Mat	6
26	9620681	Spool Seat Disc	6
27	930055	Spring Washer	6
28	3500700	Belt Cover	1
29	110028	Screw(M6-1 × 46)	2
30	3000010	Looper Threading Bar	2
31	9620750	Knitted Tape Stand, C. Set	1
32	9620751	Tape Pin	1
33	9620752	Tape Disc	1
34	000433	Washer	1
35	9620753	Tape Disc Block	1
36	911062	Screw(M4-0.7 × 15)	4
37	910001	Nut	4
38	9620756	Tape Stand Bar	1
39	001448	Screw(15/64-28 × 5.5)	1
40	9620757	Tape Stand	1
41	005148	Wood Screw(φ 4.5 × 25)	3
42	9620754	Tape Guide Bar	1
43	9620755	Tape Guide	2

Page 54 — WARNING LABEL 警告ラベル

Yamato VFS2500-8 parts on page 54
Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE
	390145	"Be sure to connect earth line".
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION
	390147	BELT COVER : DO NOT INSERT FINGERS
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID

Page 56 — VFS2500 Class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato VFS2500-8 parts on page 56
Ref	Part number	Part name	Qty
	0093356	Needle Clamp
	3167002	Presser Foot C. Set
	3108133	Stitch Plate
	3209001	Differential Feed Dog
	3209080	Main Feed Dog
	0093357	Needle Clamp
	3167004	Presser Foot C. Set
	3108134	Stitch Plate
	"	Differential Feed Dog
	"	Main Feed Dog
	0093352	Needle Clamp
	3267026	Presser Foot C. Set
	3268011	Stitch Plate
	3209065	Differential Feed Dog
	3269002	Main Feed Dog
	0093357	Needle Clamp
	3267030	Presser Foot C. Set
	3268013	Stitch Plate
	"	Differential Feed Dog
	"	Main Feed Dog
	0093357	Needle Clamp
	3277000	Presser Foot C. Set
	3248005	Stitch Plate
	3249001	Differential Feed Dog
	3209008	Main Feed Dog

Page 57

Yamato VFS2500-8 parts on page 57
Ref	Part number	Part name	Qty
	3519014	Top Feed Dog
	3201451	Front Cover
	3200017	Cloth Plte (Large)
	3201453	Cloth Plate (Small)
	3200018	Thread Take-up Cover
	3200032	Stitch Plate Support
	0094480	Looper
	3279000	Top Feed Dog
	3240100	Front Cover
	3200017	Cloth Plte (Large)
	3200014	Cloth Plate (Small)
	3260025	Thread Take-up Cover
	3200032	Stitch Plate Support
	0094480	Looper
	3279000	Top Feed Dog
	3240100	Front Cover
	3200017	Cloth Plte (Large)
	3241002	Cloth Plate (Small)
	3201001	Thread Take-up Cover
	3200032	Stitch Plate Support
	0094480	Looper

Page 58

Yamato VFS2500-8 parts on page 58
Ref	Part number	Part name	Qty
6	000010
52	000014
47	000014
67	000014
52	000015
30	000015
8	000016
4	000037
5	000070
7	000162
6	000177
16	000195
46	000206
11	000206
39	000210
7	000234
51	000278
22	000309
21	000327
11	000327
8	000327
44	000360
53	000360
6	000397
36	000419
40	000425
6	000425
29	000426
12	000426
21	000426
34	000433
2	000445
9	000463
37	000487
8	000528
57	000532
76	000538
34	000538
35	000538
20	000538
23	000555
35	000567
24	000600
43	000600
35	000651
28	000667
48	000669
11	000669
34	000669
42	000669
55	000690
29	000690
29	000726
15	000740
2	000740
57	000745
2	000989
18	001093
58	001170
55	001223
48	001227
8	001228
39	001448
27	001457
41	001818
50	001818
9	001900
7	003300
22	003302
12	003302
33	003312
58	004106
35	004143
74	004182
38	004236
40	004272
2	004358
44	005049
24	005075
4	005133
4	005133
41	005148
31	005431
14	005431
40	005511
4	005554
25	005650
30	005650
45	005650
11	005650
5	006004
6	006010
17	006202
35	006219
33	007610
21	007627
12	009142
23	009526
14	009604
25	009604
3	009747
57	009747
8	009748
2	009749
27	009750
10	009751
66	009779
2	009784
6	009861
3	009932
39	009934
22	009970
27	009977
39	0010018
42	0010019
41	0010258
15	0010258
43	0020051
27	0020052
10	0020064
22	0020119
25	0020137
32	0020159
13	0020271
41	0020350
13	0020401
39	0020472
45	0020533
25	0020538
31	0020538
5	0020759
26	0023473
2	0024083
1	0024084

Page 59

Yamato VFS2500-8 parts on page 59
Ref	Part number	Part name	Qty
22	0026081
18	0026099
15	0026413
3	0030255
32	0030711
7	0031111
8	0031831
16	0032425
17	0032426
3	0032518
20	0032604
24	0032604
13	0032646
40	0032684
24	0032784
26	0032785
28	0032786
4	0032952
41	0033024
20	0033024
5	0033141
9	0034293
43	0035813
52	0035813
15	0036175
42	0037108
51	0037108
9	0060075
8	0060076
8	0060142
11	0063010
3	0063044
18	0063051
20	0063053
8	0063055
21	0063056
22	0063057
40	0063074
38	0063152
54	0063197
46	0063216
47	0063217
54	0063515
26	0065275
32	0065275
3	0065372
4	0068011
31	0068181
33	0068202
34	0068202
13	0068202
30	0068247
32	0068249
13	0077179
1	0077270
21	0077300
32	0085710
36	0090068
5	0090071
12	0090807
9	0090812
11	0090856
3	0091725
3	0091725
2	0091736
5	0092305
4	0093035
16	0093091
40	0093154
26	0093186
18	0093212
1-1	0093241
1-2	0093242
1-3	0093243
32	0093300
27	0093303
17	0093314
19	0093319
13	0093352
7-1	0093356
7-2	0093357
10	0093365
6	0093389
46	0093515
19	0093556
10	0093611
15	0093617
34	0093663
37	0093669
9	0093864
24	0093864
31	0093864
32	0093864
22	0094201
5	0094245
6	0094246
56	0094390
35	0094480
21	0095027
13	0095108
33	0095132
33	0095218
57	0095334
73	0095367
37	0095723
9	100002
9	100003
41	100007
7	110001
61	110002
16	110004
31	110004
2	110004
2	110004
20	110005
13	110007
18	110009
42	110009
32	110009
34	110009
5	110009

Page 60 — INDEX

Yamato VFS2500-8 parts on page 60
Ref	Part number	Part name	Qty
34	110009
14	110011
31	110011
23	110012
30	110012
51	110012
2	110012
26	110012
20	110013
46	110013
14	110013
10	110013
22	110013
77	110014
53	110016
61	110016
29	110016
47	110021
25	110023
37	110023
29	110028
8	110030
26	110031
8	110033
6	110035
5	110035
28	110036
21	110038
40	110039
56	110041
2	110045
14	110045
37	110045
11	110045
13	110048
49	110048
40	110048
14	110054
15	110054
36	110057
14	110060
42	110067
36	110070
51	110076
43	110079
38	110079
2	110080
38	110083
20	110084
10	110084
34	110094
13	110103
15	110104
20	110105
62	110115
35	110135
19	120001
52	120001
72	120001
4	120001
45	120006
3	120006
16	120006
34	120006
39	120010
21	120013
13	120013
7	120013
11	120013
25	120015
7	120027
5	120049
41	120049
70	130002
44	130002
20	130002
7	130002
10	130003
38	130003
33	130003
11	130004
14	130004
34	130006
18	130016
37	130024
20	140004
33	140004
23	140017
19	140018
7	140019
15	150000
19	160000
26	160000
21	160000
30	160000
5	160000
65	160001
31	160001
12	160001
28	160001
35	160001
13	160001
4	160001
16	160001
28	160001
33	160001
22	160003
17	160003
3	160003
4	160003
20	160003
3	160003
6	160003
10	160003
12	160003
39	160004
2	160005
3	160005
32	160006
3	160007
4	160007
68	160007
26	160007
17	160007
30	160007
4	160007
22	160009
22	160016
27	160021
29	160023
15	160029
23	160030
43	160041
16	170001
50	170009
46	170010
18	170010
63	170020

Page 61 — INDEX

Yamato VFS2500-8 parts on page 61
Ref	Part number	Part name	Qty
14	170021
49	170038
25	170041
24	180002
28	180003
18	180005
12	180012
66	180017
68	180018
3	180020
39	180033
64	190077
54	190078
8	290029
10	300000
8	300000
20	300000
38	300005
6	300006
39	300050
17	300100
64	300100
47	300100
30	310035
33	310036
13	310040
23	310068
35	310068
45	310071
38	310072
73	310079
19	310094
41	310099
2	310106
36	310132
27	320001
26	320010
28	320011
18	330000
23	330000
43	340003
26	340016
27	340041
29	350009
15	390212
10	910000
7	910001
37	910001
14	910003
6	911001
5	911002
9	911006
19	911060
36	911062
12	930052
13	930053
27	930055
28	2049401
26	2100034
15	2100065
14	2100137
3	2100137
9	2100161
17	2100173
52	2100176
42	2100194
22	2100218
27	2100218
22	2100243
24	2100248
12	2100252
14	2100253
8	2100259
27	2100267
15	2100267
27	2100267
23	2100276
19	2100277
20	2100278
29	2100288
25	2100289
9	2101451
40	2110361
10	2110527
14	2120082
19	2120083
30	3000010
35	3100006
60	3100030
10	3100060
12	3100061
39	3100081
9	3100110
42	3100113
10	3100129
7	3100129
8	3100131
10	3100207
28	3100207
49	3100272
10	3100275
11	3100283
16	3100305
24	3100307
7	3100309
11	3100310
31	3100328
14	3100329
28	3100338
13	3100345
37	3100349
5	3100370
24	3100371
26	3100384
27	3100386
51	3100533
72	3100630
75	3100631
17	3107303
19	3107306
11-1	3108133
11-2	3108134

Page 62 — INDEX

Yamato VFS2500-8 parts on page 62
Ref	Part number	Qty
17	3160008	1
16	3160009	1
36	3160022	4
37	3160023	4
38	3160024	4
41	3160025	4
42	3160026	4
39	3160027	4
2	3160034	9
12	3160036	9
16	3160037	9
18	3160038	9
10	3160038	10
17	3160039	9
11	3160039	10
39	3160049	10
40	3160050	10
9	3160051	10
43	3160052	10
42	3160054	10
5	3160056	10
6	3160057	10
8	3160058	10
16	3160061	10
17	3160062	10
21	3160063	10
12	3160064	10
29	3160065	10
31	3160066	10
25	3160070	10
24	3160071	10
19	3160073	11
23	3160074	11
24	3160076	11
22	3160077	11
26	3160080	11
30	3160081	11
28	3160082	11
16	3160084	11
1	3160085	11
3	3160086	11
7	3160088	11
23	3160090	8
33	3160091	8
36	3160092	9
24	3160098	9
36	3160098	10
37	3160103	9
33	3160104	9
71	3160109	9
55	3160114	9
59	3160116	9
54	3160120	9
46	3160124	9
12	3160138	12
43	3160149	16
40	3160151	16
16	3160152	16
20	3160153	16
38	3160155	16
3	3160158	4
4	3160163	8
1	3160173	10
12	3160190	20
13	3160191	20
15-1	3167002	8
15-2	3167004	8
30	3180070	6
25	3180071	3
28	3180072	3
37	3180073	3
31	3180075	6
16	3180076	3
21	3200006	1
23	3200007	1
12	3200010	2
23	3200011	17
25	3200012	17
28	3200013	17
22	3200014	17
67	3200016	2
1	3200017	2
4-1	3200018	2
7	3200019	2
29	3200020	2
19	3200021	1
35	3200022	2
36	3200023	2
31	3200024	2
32	3200025	2
58	3200026	2
59	3200027	2
44	3200028	2
45	3200029	2
47	3200030	2
48	3200031	2
55	3200032	2
21	3200033	2
4-2	3200035	2
17	3200042	3
49	3200042	5
17	3200050	4
29	3200051	4
20	3200052	4
24	3200053	4
30	3200055	4
22	3200056	4
23	3200057	4
28	3200061	4
19	3200062	4
25	3200065	4
34	3200066	4
18	3200067	4
1	3200070	5
5	3200071	5
9	3200072	5
12	3200073	5
13	3200074	5
29	3200075	5
27	3200077	5
11	3200078	5
19	3200082	5
36	3200083	5
24	3200084	5
34	3200085	5
35	3200086	5
38	3200086	9
23	3200087	5
43	3200091	5
41	3200092	5
39	3200093	5
56	3200094	5
6	3200095	5
18	3200096	5
17	3200097	5
21	3200098	5
17	3200112	7
29	3200120	7
30	3200121	7
31	3200122	7
14	3200143	5

Page 63 — INDEX

Yamato VFS2500-8 parts on page 63
Ref	Part number	Part name	Qty
2	3200149
1	3200150
5	3200151
3	3200152
10	3200154
12	3200155
18	3200157
7	3200159
21	3200160
23	3200161
29	3200162
31	3200163
33	3200164
1	3200181
15	3200182
2	3200183
4	3200184
5	3200185
6	3200186
7	3200187
16	3200189
17	3200190
18	3200191
25	3200192
21	3200194
18	3200195
21	3200196
27	3200197
11	3200198
1	3200199
3	3200200
7	3200201
32	3200203
35	3200204
11	3200205
15	3200206
32	3200207
37	3200209
50	3200210
34	3200211
36	3200213
14	3200214
26	3200215
30	3200216
44	3200231
30	3200232
25	3200233
29	3200235
1	3200240
2	3200241
16	3201001
9	3201002
16	3201006
18	3201006
11	3201007
62-1	3201451
15	3201452
9	3201453
69	3201454
19	3201456
62-2	3201461
4	3204021
29	3209001
11	3209008
16	3209065
30	3209080
24	3240015
25	3240016
6	3240026
14	3240086
6	3240087
5	3240091
8	3240100
17	3240100
14	3240101
13	3241002
6	3247022
10	3248005
12	3249001
7	3260010
9	3260011
8	3260012
18	3260025
19	3260026
9	3267015
1	3267026
18	3267030
7	3267037
5	3267038
14	3268011
19	3268013
15	3269002
1	3270015
22	3270022
23	3270023
71	3270024
1	3270030
1	3277000
17	3279000
9	3279000
25	3500012
14	3500041
10	3500044
11	3500045
15	3500046
12	3500047
13	3500048
9	3500050
6	3500054
37	3500062
38	3500064
26	3500065
20	3500066
1	3500081
2	3500082
4	3500084
10	3500086
16	3500091
7	3500095
5	3500096
28	3500097
5	3500100
1	3500201
21	3500284
23	3500285
13	3500286
10	3500287
36	3500291

Page 64 — INDEX

Yamato VFS2500-8 parts on page 64
Ref	Part number	Qty
53	3500292	8
29	3500293	8
32	3500294	8
44	3500295	8
48	3500299	8
26	3500300	8
41	3500305	8
1	3500309	4
4	3500402	16
1	3500412	16
3	3500430	1
34	3500442	6
15	3500444	6
16	3500445	6
18	3500446	6
12	3500448	6
24	3500489	3
27	3500492	6
13	3500615	7
21	3500616	7
19	3500617	7
28	3500700	21
22	3510039	9
34	3510039	10
56	3510040	9
58	3510041	9
69	3510043	9
70	3510044	9
44	3510050	4
45	3510051	4
50	3510052	4
33	3510055	11
60	3510057	9
43	3510059	9
44	3510060	9
42	3510062	9
24	3510063	8
18	3510065	16
17	3510067	16
19	3510068	16
65	3519014	9
27	4109403	1
2	9620631	21
22	9620666	21
3	9620670	21
8	9620673	21
11	9620675	21
23	9620678	21
24	9620679	21
25	9620680	21
26	9620681	21
18	9620688	21
4	9620689	21
21	9620690	21
20	9620691	21
1	9620696	21
17	9620700	21
16	9620703	21
31	9620750	21
32	9620751	21
33	9620752	21
35	9620753	21
42	9620754	21
43	9620755	21
38	9620756	21
40	9620757	21
25	3509320	12
6	3510008	1
11	3510011	1
12	3510012	1
1	3510017	9
4	3510018	9
27	3510020	9
28	3510021	9
30	3510022	9
32	3510023	10
31	3510024	9
14	3510025	6
8	3510027	9
9	3510028	9
6	3510029	9
47	3510030	9
48	3510031	9
49	3510032	9
53	3510033	9
50	3510034	9
63	3510035	9
26	3510037	9
38	3510037	10
19	3510038	9

Yamato VFS2500-8 Parts Book (PDF)

Page 5 — MISCELLANEOUS COVERS (1)

Page 7 — MISCELLANEOUS COVERS (2)

Page 9 — MISCELLANEOUS COVERS (2)

Page 11 — MISCELLANEOUS THREAD EYELETS

Page 13 — MISCELLANEOUS BUSHINGS

Page 15 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

Page 17 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Page 21 — NEEDLE BAR MECHANISM

Page 23 — PRESSER FOOT MECHANISM

Page 25 — PRESSER FOOT MECHANISM

Page 27 — TOP FEED VERTICAL MECHANISM

Page 29 — TOP FEED VERTICAL MECHANISM

Page 31 — TOP FEED ROCKER MECHANISM

Page 33 — TOP FEED DIFFERENTIAL MECHANISM

Page 35 — SPREADER MECHANISM

Page 37 — LOOPER DRIVING MECHANISM

Page 39 — FEED DRIVING CONTROL MECHANISM / 前送リ調節機構

Page 41 — FEED DRIVING MECHANISM / 送り機構

Page 43 — LUBRICATING MECHANISM / 給油機構

Page 45 — VFS2503-8 EXCLUSIVE PARTS (1)

Page 47 — VFS2503-8 EXCLUSIVE PARTS (2)

Page 49 — VFS2511-8 EXCLUSIVE PARTS

Page 51 — SUPPORTING BOARD & ACCESSORIES

Page 53 — THREAD STAND

Page 54 — WARNING LABEL 警告ラベル

Page 56 — VFS2500 Class LIST of MAIN SPARE PARTS(主要部品リスト)

Page 57

Page 58

Page 59

Page 60 — INDEX

Page 61 — INDEX

Page 62 — INDEX

Page 63 — INDEX

Page 64 — INDEX

Part Books

Search

Parts on page 1

Parts on page 1

Page 5 — MISCELLANEOUS COVERS (1)

Page 7 — MISCELLANEOUS COVERS (2)

Page 9 — MISCELLANEOUS COVERS (2)

Page 11 — MISCELLANEOUS THREAD EYELETS

Page 13 — MISCELLANEOUS BUSHINGS

Page 15 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

Page 17 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Page 21 — NEEDLE BAR MECHANISM

Page 23 — PRESSER FOOT MECHANISM

Page 25 — PRESSER FOOT MECHANISM

Page 27 — TOP FEED VERTICAL MECHANISM

Page 29 — TOP FEED VERTICAL MECHANISM

Page 31 — TOP FEED ROCKER MECHANISM

Page 33 — TOP FEED DIFFERENTIAL MECHANISM

Page 35 — SPREADER MECHANISM

Page 37 — LOOPER DRIVING MECHANISM

Page 39 — FEED DRIVING CONTROL MECHANISM / 前送リ調節機構

Page 41 — FEED DRIVING MECHANISM / 送り機構

Page 43 — LUBRICATING MECHANISM / 給油機構

Page 45 — VFS2503-8 EXCLUSIVE PARTS (1)

Page 47 — VFS2503-8 EXCLUSIVE PARTS (2)

Page 49 — VFS2511-8 EXCLUSIVE PARTS

Page 51 — SUPPORTING BOARD & ACCESSORIES

Page 53 — THREAD STAND

Page 54 — WARNING LABEL 警告ラベル

Page 56 — VFS2500 Class LIST of MAIN SPARE PARTS(主要部品リスト)

Page 57

Page 58

Page 59

Page 60 — INDEX

Page 61 — INDEX

Page 62 — INDEX

Page 63 — INDEX

Page 64 — INDEX

Yamato VFS2500-8 — parts catalog
