Parts index — Yamato VFS2500-8tap a row to open its page

Page 3 — Contents

Yamato VFS2500-8 parts on page 3

Ref	Part number	Part name	Qty
	(1)	MISCELLANEOUS COVERS
	(2)	MISCELLANEOUS COVERS
	3	MISCELLANEOUS THREAD EYELETS
	4	MISCELLANEOUS BUSHINGS
	5	NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM
	6	UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM
	7	NEEDLE BAR MECHANISM
	8	PRESSER FOOT MECHANISM
	9	TOP FEED VERTICAL MECHANISM
	10	TOP FEED ROCKER MECHANISM
	11	TOP FEED DIFFERENTIAL MECHANISM
	12	SPREADER MECHANISM
	13	LOOPER DRIVING MECHANISM
	14	FEED DRIVING CONTROL MECHANISM
	15	FEED DRIVING MECHANISM
	16	LUBRICATING MECHANISM
	(1)	VFS2503-8 EXCLUSIVE PARTS
	(2)	VFS2503-8 EXCLUSIVE PARTS
	19	VFS2511-8 EXCLUSIVE PARTS
	20	SUPPORTING BOARD & ACCESSORIES
	21	THREAD STAND
	22	WARNING LABEL
	23	LIST of MAIN SPARE PARTS
	24	INDEX

Page 4 — FIG. 1 MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Yamato VFS2500-8 parts on page 4

Ref	Part number	Part name	Qty
1	1	COVER
2	2	SCREW
3	3	GASKET
4	4	PLUG
5	5	PLUG
6	6	SPRING
7	7	BRACKET
8	8	SPRING
9	9	SPRING
10	10	PIN
11	11	COVER
12	12	GASKET
13	13	COVER
14	14	SCREW
15	15	SPRING
16	16	GASKET
17	17	COVER
18	18	PLUG
19	19	COVER
20	20	SCREW
21	21	COVER
22	22	SCREW
23	23	PLATE
24	24	PLUG
25	25	WASHER
26	26	PIN
27	27	PLATE
28	28	SCREW
29	29	SCREW

Page 5 — MISCELLANEOUS COVERS (1)

Yamato VFS2500-8 parts on page 5

Ref	Part number	Part name	Qty
1	3500201	Top Cover	1
2	110045	Screw(M4-0.7 × 12)	11
3	3500430	Top Cover Gasket	1
4	0068011	Oil Sight Window	1
5	0020759	Top Cover Seal Plug	2
6	3510008	Top Feed Dog Bracket	1
7	120027	Screw(M4-0.7 × 25)	4
8	009748	Screw(M4-0.7 × 12)	2
9	0093864	Seal Plug	2
10	3100207	Pin(5 × 12mm)	2
11	3510011	Head Cover	1
12	3510012	Head Cover Gasket	1
13	110048	Screw(M4-0.7 × 10)	8
14	110060	Screw(M4-0.7 × 4.8)	2
15	390212	"VFS" Emblem	1
16	3160009	Bracket Cover Gasket	1
17	3160008	Bracket Cover	1
18	330000	Seal Plug	1
19	320021	Wind Guide Plate	1
20	110013	Screw(M4-0.7 × 8)	4
21	3200006	Oil Reservoir	1
22	009970	Screw(M4-1 × 20)	6
23	3200007	Oil Reservoir Gasket	1
24	005075	Screw(3/8-24 × 8)	1
25	0020137	Drain Hole Seal	1
26	340016	Machine Frame Supporting Bar	4
27	4109403	Model Plate(See the below)	1
28	2049401	Serial Number Plate	1
29	000726	Rivet	4

Page 6

Yamato VFS2500-8 parts on page 6

Ref	Part number	Part name	Qty
4-1	4-1	4-2
4-2	4-2	4-2
62-1	62-1	62-2
62-2	62-2	62-2

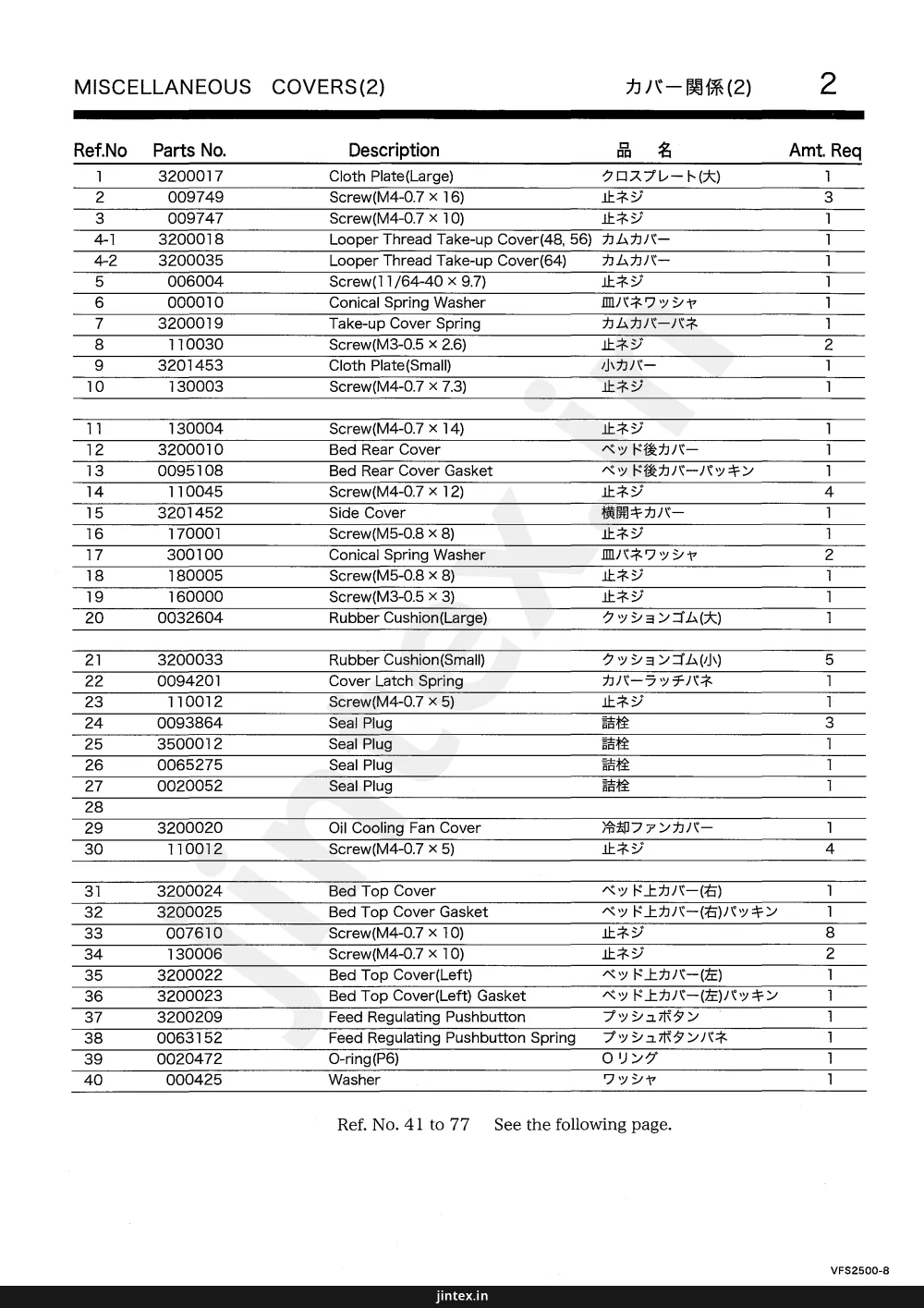

Page 7 — MISCELLANEOUS COVERS (2)

Yamato VFS2500-8 parts on page 7

Ref	Part number	Part name	Qty
	3200017	Cloth Plate(Large)
	009749	Screw(M4-0.7 × 16)
	009747	Screw(M4-0.7 × 10)
	3200018	Looper Thread Take-up Cover(48, 56)
	3200035	Looper Thread Take-up Cover(64)
	006004	Screw(11/64-40 × 9.7)
	000010	Conical Spring Washer
	3200019	Take-up Cover Spring
	110030	Screw(M3-0.5 × 2.6)
	3201453	Cloth Plate(Small)
	130003	Screw(M4-0.7 × 7.3)
	130004	Screw(M4-0.7 × 14)
	3200010	Bed Rear Cover
	0095108	Bed Rear Cover Gasket
	110045	Screw(M4-0.7 × 12)
	3201452	Side Cover
	170001	Screw(M5-0.8 × 8)
	300100	Conical Spring Washer
	180005	Screw(M5-0.8 × 8)
	160000	Screw(M3-0.5 × 3)
	0032604	Rubber Cushion(Large)
	3200033	Rubber Cushion(Small)
	0094201	Cover Latch Spring
	110012	Screw(M4-0.7 × 5)
	0093864	Seal Plug
	3500012	Seal Plug
	0065275	Seal Plug
	0020052	Seal Plug
	3200020	Oil Cooling Fan Cover
	110012	Screw(M4-0.7 × 5)
	3200024	Bed Top Cover
	3200025	Bed Top Cover Gasket
	007610	Screw(M4-0.7 × 10)
	130006	Screw(M4-0.7 × 10)
	3200022	Bed Top Cover(Left)
	3200023	Bed Top Cover(Left) Gasket
	3200209	Feed Regulating Pushbutton
	0063152	Feed Regulating Pushbutton Spring
	0020472	O-ring(P6)
	000425	Washer

Page 8

Yamato VFS2500-8 parts on page 8

Ref	Part number	Part name	Qty
16	16	SCREW
17	17	WASHER
17	17	WASHER
19	19	SPRING
14	14	SCREW
12	12	COVER
13	13	PLATE
22	22	BRACKET
23	23	SCREW
21	21	SCREW
20	20	BUSHING
15	15	BRACKET
8	8	SCREW
7	7	BRACKET
6	6	WASHER
5	5	SCREW
4-1	4-1	COVER
4-2	4-2	COVER
3	3	SCREW
11	11	SCREW
9	9	BRACKET
1	1	BASE
10	10	SCREW
2	2	SCREW
18	18	PIN
33	33	SCREW
34	34	SCREW
37	37	PIN
38	38	SPRING
35	35	PLATE
36	36	GASKET
32	32	PLUG
26	26	PLUG
24	24	PLUG
25	25	PLUG
31	31	BRACKET
27	27	BUSHING
43	43	SCREW
42	42	COVER
40	40	WASHER
39	39	WASHER
41	41	SPRING
44	44	PLATE
45	45	GASKET
46	46	SCREW
50	50	BRACKET
51	51	SCREW
49	49	COVER
48	48	GASKET
53	53	SCREW
54	54	SPRING
57	57	SPRING
56	56	SCREW
55	55	PLATE
47	47	COVER
52	52	SCREW
58	58	BRACKET
59	59	SCREW
66	66	SCREW
69	69	BRACKET
70	70	SCREW
61	61	SCREW
60	60	BRACKET
65	65	SCREW
71	71	BRACKET
72	72	BRACKET
73	73	BRACKET
74	74	SCREW
75	75	BRACKET
76	76	WASHER
77	77	SCREW
63	63	SCREW
64	64	WASHER
64	64	WASHER
62-1	62-1	BRACKET
62-2	62-2	BRACKET
67	67	BRACKET
68	68	PIN
30	30	SCREW
21	21	SCREW
29	29	COVER

Page 9 — MISCELLANEOUS COVERS (2)

Yamato VFS2500-8 parts on page 9

Ref	Part number	Part name	Qty
41	0033024	Retaining Ring	1
42	3100113	Needle Bar Guide	1
43	110079	Screw(M4-0.7 × 8)	2
44	3200028	Bed Rear Cover(Small)	1
45	3200029	Bed Rear Cover(Small) Gasket	1
46	110013	Screw(M4-0.7 × 8)	8
47	3200030	Ball Bearing Housing	1
48	3200031	O-ring	1
49	110048	Screw(M4-0.7 × 10)	3
50	3200210	Pushbutton Stop	1
51	110012	Screw(M4-0.7 × 5)	2
52	000015	Nut	1
53	110016	Screw(M4-0.7 × 15)	1
54	190078	Screw(M4-0.7 × 5)	1
55	3200032	Stitch Plate Support	1
56	110041	Screw(M4-0.7 × 8)	2
57	000745	Knock Pin	2
58	3200026	Bed Front Cover	1
59	3200027	Bed Front Cover Gasket	1
60	3100030	Front Cover Hinge	1
61	110016	Screw(M4-0.7 × 15)	2
62-1	3201451	Front Cover(48, 56)	1
62-2	3201461	Front Cover(64)	1
63	170020	Screw(M4-0.7 × 8)	1
64	300100	Conical Spring Washer	2
65	160001	Screw(M4-0.7 × 4)	1
66	160017	Screw(M4-0.7 × 6)	1
67	3200016	Front Cover Spring	1
68	180018	Screw(M4-0.7 × 7)	1
69	3201454	Supporting Block	1
70	130002	Screw(M3-0.5 × 6)	2
71	3270024	Guide Spacer	1
72	3100630	Fabric Edge Guide(Left)	1
73	0095367	Fabric Edge Guide Chip	1
74	004182	Screw(3/32-56 × 2.5)	1
75	3100631	Fabric Edge Guide(Right)	1
76	000538	Washer	2
77	110014	Screw(M4-0.7 × 18)	2

Page 10

Yamato VFS2500-8 parts on page 10

Ref	Part number	Part name	Qty
1	1	KNOB
2	2	WASHER
3	3	SPRING
4	4	SPRING
5	5	COLLAR
6	6	WASHER
7	7	WASHER
8	8	SCREW
9	9	SPRING
10	10	BRACKET
11	11	BRACKET
12	12	BRACKET
13	13	PLATE
14	14	SCREW
15	15	BRACKET
16	16	BRACKET
17	17	BRACKET
18	18	SCREW
19	19	BRACKET
21	21	BRACKET
22	22	PIN
23	23	BRACKET
24	24	BRACKET
25	25	NEEDLE BAR
26	26	BRACKET
27	27	COVER
28	28	BRACKET
29	29	BRACKET
30	30	BRACKET
31	31	SCREW
32	32	NEEDLE BAR
33	33	BRACKET
34	34	BRACKET
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	SCREW
39	39	BRACKET
40	40	BRACKET
41	41	SCREW
42	42	WASHER
43	43	WASHER
44	44	SPRING

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato VFS2500-8 parts on page 11

Ref	Part number	Part name	Qty
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0030255	Tension Spring(Needle)
	0032952	Tension Spring(Looper, Top Cover)
	0090071	Thread Tension Spring Retainer
	000177	Felt
	0031111	Tension Disc
	290029	Tension Post
	0090812	Tension Post Ferrule
	3500287	Tension Disc Separator
	0090856	Tension Disc Eyelet
	0090807	Thread Lead-in Guide
	3500286	Tension Post Support
	110013	Screw(M4-0.7 × 8)
	2100065	Looper Thread Eyelet
	3180076	Top Cover Thread Eyelet(Left)
	3200042	Looper Thread Eyelet
	110009	Screw(M4-0.7 × 8)
	0093556	Looper Thread Eyelet(Long)
	3500284	Thread Guide Plate
	0020119	Thread Eyelet Pipe(Short)
	3500285	Thread Eyelet Pipe Holder
	3500489	Top Cover Thread Eyelet(Right)
	3180071	SP Device, Complete Set
	3100384	SP Container
	3100386	Felt
	3180072	Needle Thread Eyelet
	350009	Tapping Screw(3 × 6mm)
	0068247	Needle Thread Eyelet Holder
	005431	Screw(1/8-44 × 4.4)
	0068249	Needle Thread Eyelet
	003312	Screw(1/8-44 × 3.4)
	000538	Washer
	000651	Guide Pin
	0090068	Needle Thread Guide
	3180073	Needle Thread Eyelet
	130003	Screw(M4-0.7 × 4.5)
	3100081	Top Cover Thread Guide
	0063074	Supplementary Thread Guide
	001818	Tension Post
	0037108	Supplementary Tension Disc
	0035813	Supplementary Tension Spring
	000360	Nut

Page 12

Yamato VFS2500-8 parts on page 12

Ref	Part number	Part name	Qty
1	1	VALVE
2	2	SPRING
3	3	SLEEVE
4	4	SPRING
5	5	SPRING
6	6	SPRING
7	7	SPRING
8	8	SPRING
9	9	SPRING
10	10	SPRING
11	11	SPRING
12	12	SPRING
13	13	SPRING
14	14	SPRING
15	15	SPRING
16	16	SPRING
17	17	SPRING
18	18	SPRING
19	19	SPRING
20	20	SPRING
21	21	SPRING
22	22	SPRING
23	23	SPRING
24	24	SPRING
25	25	SPRING
26	26	SPRING
27	27	SPRING
28	28	SPRING
29	29	SPRING
30	30	SPRING
31	31	SPRING
32	32	SPRING
33	33	SPRING
34	34	SPRING
35	35	SPRING
36	36	SPRING
37	37	SPRING
38	38	SPRING
39	39	SPRING
40	40	SPRING
41	41	SPRING
42	42	SPRING
43	43	SPRING
44	44	SPRING
45	45	SPRING
46	46	SPRING
47	47	SPRING
48	48	SPRING
49	49	SPRING
50	50	SPRING
51	51	SPRING
52	52	SPRING

Page 13 — MISCELLANEOUS BUSHINGS

Yamato VFS2500-8 parts on page 13

Ref	Part number	Part name	Qty
	3500309	Oil Seal	2
	310106	Laced Wire($3 × 130mm)	1
	3160158	Presser Bar Bushing	1
	3204021	Oil Seal	1
	3500096	Sponge	1
	000397	Oil Wick ($2 × 11mm)	1
	3500095	Spreader Driving Bar Bushing	1
	0063055	Oil Seal	1
	3500050	Oil Seal	1
	3500044	Needle Thread Take-up Bushing(Front)	1
	3500045	Needle Thread Take-up Bushing(Rear)	1
	3500047	Spreader Driving Shaft Bushing(Left)	1
	3500048	Spreader Driving Shaft Bushing(Right)	1
	3500041	Oil Seal	1
	3500046	Foot Lifter Lever Bushing	2
	000195	Oil Wick (No. 4-175mm)	1
	3200050	Lower Shaft Bushing(Left)	1
	3200067	Oil Seal	1
	3200062	Looper Rocker Shaft Bushing(Left)	1
	3200052	Looper Rocker Shaft Bushing(Right)	1
	0077300	Oil Seal	1
	3200056	Needle Guard Driving Shaft	2
	3200057	Seal Plug	1
	3200053	Feed Bar Driving Shaft Bushing(Left)	1
	3200065	Feed Bar Driving Shaft Bushing(Right)	1
	2100034	Seal Plug	1
	0093303	Oil Seal	1
	3200061	Looper Driving Shaft Bushing(Front)	1
	3200051	Looper Driving Shaft Bushing(Rear)	1
	3200055	Differential Lever Shaft Bushing	1
	0093864	Seal Plug	1
	0065275	Seal Plug	1
	0095218	Seal Plug	1
	3200066	Seal Plug	1
	3100006	Seal Plug	1
	3160022	Top Feed Shaft Bushing	2
	3160023	Vertical Motion Shaft Bushing(Right)	1
	3160024	Top Feed Rocker Shaft Bushing(Right)	1
	3160027	Adjusting Shaft Bushing	1
	0032684	Oil Seal	1
	3160025	Rocker Drive Shaft Bushing(Left)	1
	3160026	Rocker Drive Shaft Bushing(Right)	1
	0020051	Seal Plug	1
	3510050	Eye Guard, C. Set	1
	3510051	Finger Guard	1
	170010	Screw(M4-0.7 × 4)	1
	300100	Conical Spring Washer	1
	000669	Washer	1
	3100272	Cushion	1
	3510052	Eye Guard	1
	110076	Screw(M3-0.5 × 6)	2
	000014	Washer	2

Page 14

Yamato VFS2500-8 parts on page 14

Ref	Part number	Part name	Qty
1	1	PULLEY
2	2	SCREW
3	3	SCREW
4	4	SHAFT
5	5	PULLEY
6	6	PULLEY
7	7	PULLEY
8	8	PULLEY
9	9	COLLAR
10	10	COLLAR
11	11	PULLEY
12	12	SHAFT
13	13	COLLAR
14	14	BRACKET
15	15	SCREW
16	16	PULLEY
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	SCREW
21	21	COLLAR
22	22	WASHER
23	23	PIN
24	24	BRACKET
25	25	SCREW
26	26	SCREW
27	27	BRACKET
28	28	SCREW
29	29	SHAFT
30	30	WIRE
31	31	SPRING
32	32	PULLEY
33	33	SCREW
34	34	WASHER
35	35	COLLAR
36	36	SHAFT
37	37	TOOL
38	38	SCREW
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	SCREW
43	43	PLATE
44	44	SCREW
46	46	BRACKET
47	47	SCREW
48	48	SCREW
49	49	BRACKET
50	50	SHAFT
51	51	COLLAR
52	52	SPRING
53	53	SCREW
54	54	BRACKET
55	55	SCREW
56	56	COLLAR
57	57	COLLAR
58	58	COLLAR

Page 15 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

Yamato VFS2500-8 parts on page 15

Ref	Part number	Part name	Qty
	3200070	Pulley
	160005	Screw(M6-1 × 8)
	160007	Screw(M6-1 × 6)
	000037	Roll Pin
	3200071	Oil Cooling Fan
	3200095	Ball Bearing(Right)
	3200010	Main Shaft Sprocket(Lower)
	3100131	Ball Bearing(Middle)
	3200072	Oil Pump Driving Worm
	3100129	Adapter
	3200078	Ball Bearing(Left)
	3200073	Lower Shaft(Right)
	3200074	Lower Shaft Joint
	3200143	Looper Thread Take-up
	150000	Screw(M5-0.8 × 4)
	0093091	Ball Bearing
	3200097	Needle Guard Connecting Rod, C. Set(2)
	3200096	Needle Guard Connecting Rod, C. Set(1)
	3200082	Needle Guard Connecting Rod
	110005	Screw(M3.5-0.6 × 12)
	3200098	Needle Guard Eccentric
	160003	Screw(M5-0.8 × 5)
	3200087	Connecting Rod Pin
	3200084	Needle Guard Driving Shaft Arm
	005650	Screw(M5-0.8 × 14)
	160000	Screw(M3-0.5 × 3)
	3200077	Counterweight
	110036	Screw(M3-0.5 × 6.5)
	3200075	Lower Crankshaft
	310035	Oil Wick(No. 2-165mm)
	160001	Screw(M4-0.7 × 4)
	0020159	Ball Bearing
	0068202	Retaining Ring
	3200085	Spacer
	3200086	Collar(8 × 13 × 6mm)
	3200083	Needle Guard Driving Shaft
	0093669	Needle Guard(Rear)
	110083	Screw(M3.5-0.6 × 4.5)
	3200093	Supporting Plate Stay(Lower)
	110048	Screw(M4-0.7 × 10)

Page 16

Yamato VFS2500-8 parts on page 16

Ref	Part number	Part name	Qty
1	1	PULLEY
2	2	SCREW
3	3	SCREW
4	4	SCREW
5	5	PULLEY
6	6	PULLEY
7	7	PULLEY
8	8	PULLEY
9	9	COLLAR
10	10	COLLAR
11	11	PULLEY
12	12	SHAFT
13	13	COLLAR
14	14	PULLEY
15	15	SCREW
16	16	PULLEY
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	SCREW
21	21	COLLAR
22	22	SCREW
23	23	COLLAR
24	24	BRACKET
25	25	SCREW
26	26	SCREW
27	27	BRACKET
28	28	SCREW
29	29	SHAFT
30	30	BRACKET
31	31	SPRING
32	32	PULLEY
33	33	SCREW
34	34	WASHER
35	35	COLLAR
36	36	SHAFT
37	37	TOOL
38	38	SCREW
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	SCREW
43	43	PLATE
44	44	SCREW
46	46	BRACKET
47	47	SCREW
48	48	SCREW
49	49	BRACKET
50	50	SHAFT
51	51	WASHER
52	52	NUT
53	53	NUT
54	54	BRACKET
55	55	SCREW
56	56	BRACKET
57	57	SCREW
58	58	SCREW

Page 17 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

Yamato VFS2500-8 parts on page 17

Ref	Part number	Part name	Qty
41	3200092	Supporting Plate Stay(Upper)
42	110009	Screw(M4-0.7 × 8)
43	3200091	Supporting Plate
44	130002	Screw(M3-0.5 × 6)
46	0093515	Thread Take-up Eyelet
47	000014	Washer
48	001227	Screw(1/8-44 × 3.8)
49	3200042	Looper Thread Eyelet
50	001818	Tension Post
51	0037108	Supplementary Tension Disc
52	0035813	Supplementary Tension Spring
53	000360	Adjusting Nut
54	0063197	Cast-off Plate Bracket
55	001223	Screw(9/64-40 × 7.5)
56	3200094	Cast-off Plate
57	000532	Washer
58	004106	Screw(9/64-40 × 6.5)

Page 18

Yamato VFS2500-8 parts on page 18

Ref	Part number	Part name	Qty
1	1	PULLEY
2	2	WASHER
3	3	SCREW
4	4	SCREW
5	5	PIN
6	6	PULLEY
7	7	BRACKET
8	8	BELT
9	9	GEAR
10	10	SHAFT
11	11	COLLAR
12	12	COLLAR
13	13	SPRING
14	14	SHAFT
15	15	BRACKET
16	16	COLLAR
17	17	SCREW
18	18	CLAMP
19	19	SCREW
20	20	SHAFT
21	21	SCREW
22	22	WASHER
23	23	WASHER
24	24	WASHER
25	25	WASHER
26	26	SHAFT
27	27	BRACKET
28	28	SCREW
29	29	SCREW
30	30	BRACKET
31	31	BRACKET
32	32	SCREW
34	34	PULLEY
35	35	SCREW
36	36	PULLEY
37	37	SCREW
38	38	PULLEY
39	39	SCREW
40	40	PULLEY
41	41	SHAFT
42	42	SCREW
43	43	SCREW

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VFS2500-8 parts on page 19

Ref	Part number	Part name	Qty
	3270030	Handwheel
	000989	Handwheel Mark
	160005	Screw(M6-1 × 8)
	160007	Screw(M6-1 × 6)
	0092305	Magnet
	3500054	Ball Bearing
	310129	Handwheel Adapter
	3260012	Timing Belt(565-5GT-15)
	3260011	Upper Shaft Sprocket(Upper)
	3100275	Upper Shaft(Right)
	3100283	Upper Shaft Joint
	3500448	Oil Sleeve
	310040	Oil Wick
	3510025	Upper Shaft(Left)
	3500444	Connecting Rod, C. Set
	3500445	Needle Thread Take-up Eccentric
	160003	Screw(M5-0.8 × 5)
	3500446	Connecting Rod
	120001	Screw(M4-0.7 × 14)
	3500066	Driving Lever
	120013	Screw(M6-1 × 15)
	2100218	Driving Shaft Thrust Ring
	000555	Washer
	000600	Spring Washer
	120015	Screw(M5-0.8 × 10)
	3500065	Driving Shaft
	3500492	Bracket
	000687	Spring Washer
	160023	Screw(M4-0.7 × 4)
	3180070	Needle Thread Take-up
	3180075	Top Cover Thread Take-up
	110009	Screw(M4-0.7 × 8)
	3500442	Collar
	110135	Screw(M5-0.8 × 7)
	310132	Oil Wick(Φ 4.2 × 16mm)
	3500062	Upper Shaft Sleeve, C. Set
	3500064	Upper Shaft Sleeve
	160004	Screw(M6-1 × 4.8)
	0093154	Ball Bearing
	310099	Oil Wick(Φ 3.3 × 30mm)
	110067	Screw(M5-0.8 × 5)
	160041	Screw(M5-0.8 × 8)

Page 20

Yamato VFS2500-8 parts on page 20

Ref	Part number	Part name	Qty
2	2	Screw
3	3	Lever
1	1	Shaft
16	16	Assembly
17	17	Shaft
18	18	Gear
19	19	Washer
20	20	Screw
21	21	Shaft
22	22	Spring
23	23	Screw
14	14	Screw
15	15	Screw
13	13	Housing
5	5	Shaft
6	6	Screw
9	9	Shaft
7-1	7-1	Lever
7-2	7-2	Lever
10	10	Needle
8	8	Needle
12	12	Screw
11-1	11-1	Plate
11-2	11-2	Plate
24	24	Assembly
25	25	Housing
26	26	Block
27	27	Screw
35	35	Screw
28	28	Bobbin Case
29	29	Assembly
32	32	Screw
31	31	Plate
30	30	Base
34	34	Guide
33	33	Felt

Page 21 — NEEDLE BAR MECHANISM

Yamato VFS2500-8 parts on page 21

Ref	Part number	Part name	Qty
	3270015	Needle Bar & Needle Bar Bushing, C. Set	1
	004358	Screw(9/64-40 × 5.6)	1
	0063044	Needle Bar Thread Eyelet	1
	3500100	Needle Bar Bracket	1
	110035	Screw(M4-0.7 × 10)	1
	0093356	Needle Clamp(48)	1
	0093357	Needle Clamp(56)	1
	-- -- -- -- --	Needle(UY128 GAS)	3
	001900	Screw(1/8-44 × 2.4)	4
	0093365	Top Cover Thread Eyelet	1
	3108133	Stitch Plate(48M)	1
	3108134	Stitch Plate(56M)	1
	009142	Screw(9/64-40 × 4.8)	2
	3500615	Counterweight	1
	110011	Screw(M5-0.8 × 10)	1
	160029	Screw(M8-1.25 × 8)	2
	3500091	Connecting Rod, C. Set	1
	3200112	Connecting Rod	1
	0093212	Roller Bearing	1
	3500617	Eccentric Pin Plate	1
	130002	Screw(M3-0.5 × 6)	1
	3500616	Eccentric Pin	1
	000309	Felt(2.5 × 3 × 30mm)	1
	330000	Seal Plug	1
	3240015	Needle Bar Guide, C. Set	1
	3240016	Needle Bar Guide	1
	0093186	Slide Block	1
	009750	Screw(M4-0.7 × 20)	2
	3100338	Sponge	1
	3200120	HR Device, Complete Set	1
	3200121	HR Cup	1
	3200122	HR Cup Lid	1
	0093864	Seal Plug	1
	310036	HR Felt	1
	0093663	HR Felt Guard	1
	006219	Screw(M4-0.7 × 30)	2

Page 22

Yamato VFS2500-8 parts on page 22

Ref	Part number	Part name	Qty
1	1	NEEDLE BAR
2	2	NEEDLE BAR BUSHING
3	3	PRESSER BAR SPRING
4	4	PRESSER BAR HOLDER
5	5	PRESSER BAR GUIDE
6	6	PRESSER BAR GUIDE
7	7	PRESSER BAR GUIDE
8	8	PRESSER BAR
9	9	PRESSER BAR
10	10	WASHER
11	11	PRESSER BAR BUSHING
12	12	PRESSER BAR BUSHING
13	13	PRESSER BAR BUSHING
14	14	PRESSER BAR BUSHING
15-1	15-1	PRESSER FOOT
15-2	15-2	PRESSER FOOT
16	16	PRESSER FOOT SPRING
17	17	PRESSER FOOT SCREW
18	18	PRESSER FOOT SCREW
19	19	PRESSER FOOT SCREW
20	20	PRESSER FOOT SCREW
21	21	PRESSER FOOT SCREW
22	22	PRESSER FOOT SCREW
23	23	FEED DOG
24	24	FEED DOG
25	25	FEED DOG
26	26	FEED DOG
27	27	FEED DOG
28	28	FEED DOG
29	29	FEED DOG
30	30	FEED DOG SCREW
31	31	FEED DOG SCREW
32	32	FEED DOG SCREW
33	33	FEED DOG SCREW
34	34	FEED DOG SCREW
35	35	FEED DOG SCREW
36	36	FEED DOG SCREW
37	37	FEED DOG SCREW
38	38	FEED DOG SCREW
39	39	FEED DOG SCREW
40	40	TENSION SPRING
41	41	TENSION SPRING
42	42	TENSION NUT
43	43	TENSION PIN
44	44	TENSION BRACKET
45	45	TENSION BRACKET
47	47	TENSION BRACKET SCREW
48	48	TENSION BRACKET SCREW
49	49	TENSION BRACKET SCREW
50	50	TENSION BRACKET SCREW
51	51	TENSION BRACKET SCREW
52	52	TENSION BRACKET SCREW
53	53	TENSION BRACKET SCREW
54	54	TENSION BRACKET SCREW
55	55	TENSION BRACKET SCREW
56	56	TENSION BRACKET SCREW
57	57	TENSION BRACKET SCREW
58	58	TENSION BRACKET SCREW

Page 23 — PRESSER FOOT MECHANISM

Yamato VFS2500-8 parts on page 23

Ref	Part number	Part name	Qty
	0077270	Presser Spring Regulator
	000445	Lock Nut
	0065372	Presser Bar Spring(Outer)
	3160163	Presser Bar Connecting Bracket
	110035	Screw(M4-0.7 × 10)
	3240026	Presser Bar Guide
	110001	Screw(M4-0.7 × 5.4)
	0060142	Presser Bar Spring(Inner)
	3100110	Presser Bar
	0093611	Oil Protector Ring
	3100310	Collar(9 × 17 × 7mm)
	160001	Screw(M4-0.7 × 4)
	0020271	Thread Chain Cutting Knife
	110054	Screw(M3-0.5 × 3.5)
	3167002	Presser Foot, C. Set(48)
	3167004	Presser Foot, C. Set(56)
	110004	Screw(M3.5-0.6 × 8)
	3107303	Presser Foot Spring(Left)
	130016	Screw(M2.5-0.45 × 6)
	3107306	Presser Foot Hinge Pin(48, 56)
	110084	Screw(M3-0.5 × 4.2)
	000327	Lock Nut
	003302	Adjusting Screw(1/8-44 × 11)
	3160090	Presser Bar Lifter Link
	3510063	Guide Lifter Link
	170041	Screw(M5-0.8 × 3.5)
	3500300	Lifter Shaft
	2100267	Collar(10 × 17 × 8mm)
	160001	Screw(M4-0.7 × 4)
	3500293	Lifter Shaft Lever
	005650	Screw(M5-0.8 × 14)
	0068181	Spring
	3500294	Lever Link
	3160091	Guide Lifter Link(Upper)
	110009	Screw(M4-0.7 × 6)
	000538	Washer
	3500291	Lifter Lever
	000487	Wave Washer
	300005	Washer
	120010	Screw(M6-1 × 10)
	2110361	Spring

Page 24

Yamato VFS2500-8 parts on page 24

Ref	Part number	Part name	Qty
1	1	Presser Bar
2	2	Presser Bar Bushing
3	3	Presser Bar Spring
4	4	Presser Bar Holder
5	5	Screw
6	6	Presser Bar Guide
7	7	Screw
8	8	Presser Bar Spring
9	9	Presser Bar
10	10	Washer
11	11	Presser Bar Lever
12	12	Screw
13	13	Presser Bar Lever
14	14	Presser Bar Lever
15-1	15-1	Presser Foot
15-2	15-2	Presser Foot
16	16	Presser Foot Spring
17	17	Screw
18	18	Screw
19	19	Presser Foot Spring
20	20	Screw
21	21	Nut
22	22	Screw
23	23	Lever
24	24	Lever
25	25	Screw
26	26	Shaft
27	27	Bushing
28	28	Pin
29	29	Lever
30	30	Screw
31	31	Spring
32	32	Link
33	33	Lever
34	34	Screw
35	35	Screw
36	36	Lever
37	37	Lever
38	38	Washer
39	39	Screw
40	40	Nut
41	41	Spring
42	42	Nut
43	43	Pin
44	44	Lever
45	45	Lever
47	47	Screw
48	48	Lever
49	49	Screw
50	50	Screw
51	51	Shaft
52	52	Screw
53	53	Shaft
54	54	Lever
55	55	Pin
56	56	Bushing
57	57	Spring
58	58	Screw

Page 25 — PRESSER FOOT MECHANISM

Yamato VFS2500-8 parts on page 25

Ref	Part number	Part name	Qty
41	3500305	Cap
42	2100194	Lifter Lever Holder
43	340003	Knock Pin(Φ5 × 20mm)
44	3500295	Lifter Lever Stopper
45	120006	Screw(M6-1 × 12)
46	000206	Lock Nut
47	110021	Screw(M5-0.8 × 18)
48	3500299	Tension Release Lever Connector
49	170038	Screw(M4-0.7 × 5)
50	170009	Screw(M4-0.7 × 4)
51	3100533	Tension Release Lever
52	120001	Screw(M4-0.7 × 14)
53	3500292	Tension Release Shaft
54	006315	Thread Pull-off Lever
55	000690	Spring Pin(4 × 16mm)
56	0094390	Tension Release Adjusting Eccentric
57	0095334	Swing-proof Spring
58	001170	Screw(9/64-40 × 12)

Page 26

Yamato VFS2500-8 parts on page 26

Ref	Part number	Part name	Qty
	1	SHAFT
	2	COLLAR
	3	SPRING
	4	BRACKET
	5	SCREW
	6	WASHER
	7	SCREW
	8	BRACKET
	9	BRACKET
	10	BRACKET
	11	NUT
	12	BRACKET
	13	BRACKET
	14	COLLAR
	15	PIN
	16	SHAFT
	17	COLLAR
	18	SCREW
	19	BRACKET
	20	WASHER
	21	SCREW
	22	BRACKET
	23	SPRING
	24	BRACKET
	25	SCREW
	26	PIN
	27	BRACKET
	28	BRACKET
	29	SCREW
	30	BRACKET
	31	BRACKET
	32	SCREW
	33	WASHER
	34	WASHER
	35	COLLAR
	36	WASHER
	37	SHAFT
	38	COLLAR
	39	COLLAR
	40	SHAFT
	41	NUT
	42	SHAFT
	43	BRACKET
	44	BRACKET
	45	SCREW
	46	SHAFT
	47	BRACKET
	48	BRACKET
	49	BRACKET
	50	COLLAR
	51	BRACKET
	52	PIN
	53	SCREW
	54	BRACKET
	55	BRACKET
	56	BRACKET
	57	SCREW
	58	SPRING
	59	PLATE
	60	BRACKET
	61	BRACKET
	62	SCREW
	63	BRACKET
	64	SCREW
	65	BRACKET
	66	SCREW
	67	WASHER
	68	PIN
	69	BRACKET
	70	BRACKET
	71	BRACKET
	72	SCREW
	73	WIRE

Page 27 — TOP FEED VERTICAL MECHANISM

Yamato VFS2500-8 parts on page 27

Ref	Part number	Part name	Qty
	3510017	Vertical Motion Connecting Rod, C. Set	1
	3160034	Vertical Motion Eccentric	1
	160003	Screw(M5-0.8 × 5)	6
	3510018	Vertical Motion Connecting Rod	1
	120049	Screw(M4-0.7 × 16)	2
	3510029	Connecting Rod Pin Plate	1
	130002	Screw(M3-0.5 × 6)	1
	3510027	Vertical Motion Adjusting Arm, C. Set	1
	3510028	Connecting Rod Pin	1
	300000	Washer	1
	000206	Nut	1
	3160036	Vertical Motion Adjusting Arm	1
	120013	Screw(M6-1 × 15)	1
	2100137	Collar(12 × 20 × 10mm)	1
	000740	Seal Plug	2
	3160037	Vertical Motion Shaft	1
	3160039	Thrust Plate	1
	3160038	Retaining Ring	1
	3510038	Vertical Motion Rocking Arm	1
	140004	Screw(M6-1 × 16)	1
	160000	Screw(M3-0.5 × 3)	6
	3510039	Rocking Arm Link	1
	310068	Oil Wick(No.2-120mm)	1
	3160098	Oil Wick Presser	1
	110023	Screw(M2-0.4 × 3.5)	1
	3510037	Link Pin	3
	3510020	Top Feed Dog Bar Guide, C. Set	1
	3510021	Top Feed Dog Bar Guide Arm	1
	2100288	Guide Arm Pin	1
	3510022	Top Feed Dog Bar Guide	1
	3510024	Top Feed Dog Bar	1
	160006	Screw(M3-0.5 × 6)	2
	3160104	Thrust Plate	1
	0068202	Retaining Ring	1
	160001	Screw(M4-0.7 × 4)	3
	3160092	Guide Stop	1
	3160103	Guide Arm Shaft	1
	3200086	Collar(8 × 13 × 6mm)	1
	180033	Screw(M6-1 × 5)	1
	004272	Adjusting Screw(M10-0.75 × 44)	1

Page 28

Yamato VFS2500-8 parts on page 28

Ref	Part number	Part name	Qty
	1	SHAFT
	2	COLLAR
	3	SCREW
	4	BRACKET
	5	SCREW
	6	WASHER
	7	SCREW
	8	BRACKET
	9	BRACKET
	10	BRACKET
	11	SCREW
	12	BRACKET
	13	BRACKET
	14	COLLAR
	15	SHAFT
	16	SHAFT
	17	WASHER
	18	SCREW
	19	BRACKET
	20	SCREW
	21	SCREW
	22	BRACKET
	23	BRACKET
	24	BRACKET
	25	SCREW
	26	COLLAR
	27	SHAFT
	28	BRACKET
	29	COLLAR
	30	BRACKET
	31	SHAFT
	32	SCREW
	33	WASHER
	34	WASHER
	35	SPRING
	36	COLLAR
	37	SHAFT
	38	COLLAR
	39	SHAFT
	40	SHAFT
	41	WASHER
	42	SHAFT
	43	BRACKET
	44	BRACKET
	45	SCREW
	46	SHAFT
	47	BRACKET
	48	SHAFT
	49	BRACKET
	50	COLLAR
	51	BRACKET
	52	COLLAR
	53	SCREW
	54	SPRING
	55	SPRING
	56	BRACKET
	57	SCREW
	58	SPRING
	59	PLATE
	60	PLATE
	61	BRACKET
	62	SCREW
	63	BRACKET
	64	SCREW
	65	BRACKET
	66	SCREW
	67	BRACKET
	68	SPRING
	69	BRACKET
	70	BRACKET
	71	BRACKET
	72	SCREW
	73	BRACKET

Page 29 — TOP FEED VERTICAL MECHANISM

Yamato VFS2500-8 parts on page 29

Ref	Part number	Part name	Qty
41	100007	Lock Nut	2
42	3510062	Top Feed Dog Press Spring	1
43	3510059	Top Feed Dog Bar Bushing	1
44	3510060	Top Feed Dog Bar Bushing Holder	1
45	005650	Screw(M5-0.8 × 14)	2
46	3160124	Top Feed Dog Presser Bar	1
47	3510030	Top Feed Dog Bar, C. Set	1
48	3510031	Top Feed Dog Bar	1
49	3510032	Top Feed Dog Bar Link	1
50	3510034	Top Feed Dog Bar Link Pin	1
51	000278	Oil Wick(2.5 × 2.5 × 18mm)	2
52	2100176	Top Feed Dog Bar Pin	1
53	3510033	Top Feed Dog Link Pin	1
54	3160120	Oil Leakage Proof Cover	1
55	3160114	Cover Support	1
56	3510040	Spring Holder	1
57	009747	Screw(M4-0.7 × 10)	2
58	3510041	Auxiliary Top Feed Dog Spring	1
59	3160116	Top Feed Dog Bar Seal	1
60	3510057	Seal Support	1
61	110002	Screw(M2-0.4 × 5)	4
62	110115	Screw(M2-0.4 × 8.5)	2
63	3510035	Top Feed Dog Holder	1
64	190077	Screw(M4-0.7 × 10)	1
65	3519014	Top Feed Dog	1
66	009779	Screw(M3-0.5 × 6)	1
67	000014	Washer	1
68	160007	Screw(M5-0.8 × 6)	2
69	3510043	Guid Bracket	1
70	3510044	Top Feed Dog Bar Guid(Right)	1
71	3160109	Top Feed Dog Bar Guid(Left)	1
72	120001	Screw(M4-0.7 × 14)	2
73	310079	Oil Wick	1

Page 30

Yamato VFS2500-8 parts on page 30

Ref	Part number	Part name	Qty
1	1	SHAFT
2	2	PIN
3	3	BEARING
4	4	SCREW
5	5	LINK
6	6	BRACKET
7	7	SCREW
8	8	PIN
9	9	BRACKET
10	10	COLLAR
11	11	RING
12	12	SHAFT
13	13	PIN
14	14	COLLAR
15	15	WASHER
16	16	LEVER
17	17	SHAFT
18	18	LEVER
19	19	WASHER
20	20	RING
21	21	LINK
22	22	PIN
23	23	SCREW
24	24	PIN
25	25	BRACKET
26	26	SCREW
27	27	BOLT
28	28	PIN
29	29	BRACKET
30	30	SPRING
31	31	SHAFT
32	32	LEVER
33	33	SCREW
34	34	PLATE
35	35	SPRING
36	36	SPRING
37	37	SCREW
38	38	PIN
39	39	BRACKET
40	40	SHAFT
41	41	SCREW
42	42	COLLAR
43	43	PIN

Page 31 — TOP FEED ROCKER MECHANISM

Yamato VFS2500-8 parts on page 31

Ref	Part number	Part name	Qty
	3160173	Top Feed Rocker Drive Shaft	1
	000740	Seal Plug	4
	2100137	Collar(12 × 20 × 10mm)	2
	160003	Screw(M5-0.8 × 5)	8
	3160056	Top Feed Arm, Complete Set	1
	3160057	Top Feed Regulator Arm	1
	120013	Screw(M6-1 × 15)	2
	3160058	Slider	1
	3160051	Rocker Shaft Lever	1
	3160038	Retaining Ring	2
	3160039	Thrust Plate	2
	3160064	Top Feed Rocker Arm Link	1
	160001	Screw(M4-0.7 × 4)	2
	2120082	Slider Pin	1
	0026413	Spacer	1
	3160061	Slider Lever, C. Set	1
	3160062	Slider Lever	1
	0026099	Slider Lever Block	1
	2120083	Spacer	1
	0033024	Retaining Ring	1
	3160063	Slider Link	1
	0026081	Link Pin	3
	160030	Screw(M3.5-0.6 × 3)	1
	3160071	Slider Lever Pin	1
	3160070	Slider Lever Holder	1
	160007	Screw(M6-1 × 6)	2
	009977	Screw(M6-1 × 30)	2
	3100207	Pin(5 × 12mm)	2
	3160065	Top Feed Rocker Arm(Right)	1
	160000	Screw(M3-0.5 × 3)	4
	3160066	Top Feed Rocker Shaft	1
	3510023	Top Feed Rocking Arm	1
	140004	Screw(M6-1 × 16)	1
	3510039	Rocking Arm Link	1
	310068	Oil Wick(No.2-120mm)	1
	3160098	Oil Wick Presser	1
	110023	Screw(M2-0.4 × 3.5)	1
	3510037	Link Pin	1
	3160049	Driving Connecting Rod, C. Set	1
	3160050	Driving Connecting Rod	1
	120049	Screw(M4-0.7 × 16)	2
	3160054	Top Feed Eccentric	1
	3160052	Top Feed Dog Link Pin	1

Page 32

Yamato VFS2500-8 parts on page 32

Ref	Part number	Part name	Qty
1	1	BASE PLATE
2	2	SCREW
3	3	HANDWHEEL
4	4	WASHER
5	5	ADJUSTING SCREW
6	6	BRACKET
7	7	BRACKET
8	8	SPRING
9	9	CIRCLIP
10	10	SCREW
11	11	SCREW
12	12	SCREW
13	13	CIRCLIP
14	14	BRACKET
15	15	SCREW
16	16	LINK
17	17	SCREW
18	18	SCREW
19	19	BRACKET
20	20	SCREW
21	21	SPRING
22	22	WASHER
23	23	SPRING
24	24	SHAFT
25	25	WASHER
26	26	BRACKET
27	27	SCREW
28	28	LEVER
29	29	WASHER
30	30	SCREW
31	31	SCREW
32	32	BRACKET
33	33	BRACKET
34	34	SCREW

Page 33 — TOP FEED DIFFERENTIAL MECHANISM

Yamato VFS2500-8 parts on page 33

Ref	Part number	Part name	Qty
	3160085	Differential Feed Graduation	1
	009784	Screw(M6-1 × 10)	2
	3160086	Adjusting Knob	1
	160001	Screw(M4-0.7 × 4)	3
	3240091	Adjusting Screw	1
	3240087	Adjusting Pin	1
	3240088	Stop Block	1
	2100259	Adjusting Spring	1
	0034293	Retaining Ring	1
	009751	Screw(M5-0.8 × 10)	2
	000669	Washer	1
	180012	Screwed Pin(M4-0.7 × 3)	2
	0077179	Retaining Ring	1
	3240086	Differential Feed Pointer	1
	110054	Screw(M3-0.5 × 3.5)	2
	3160084	Adjusting Outer Link	1
	006202	Screw(M4-0.7 × 6)	1
	170010	Screw(M4-0.7 × 4)	1
	3160073	Slider Link Lever	1
	160003	Screw(M5-0.8 × 5)	2
	0095027	Retaining Ring	1
	3160077	Thrust Plate	1
	3160074	Adjusting Lever Spring	1
	3160076	Adjusting Shaft	1
	0020538	O-ring(P7)	1
	3160080	Top Feed Dog Adjusting Lever	1
	160021	Screw(M5-0.8 × 6)	1
	3160082	Adjusting Lever Hinge	1
	000426	Washer	1
	3160081	Hinge Holder	1
	110011	Screw(M5-0.8 × 10)	2
	0085710	Spring	1
	3510055	Spring Latch	1
	110094	Screw(M4-0.7 × 6)	2

Page 34

Yamato VFS2500-8 parts on page 34

Ref	Part number	Part name	Qty
	1	SHAFT, FEED ROCK
	2	COLLAR, FEED ROCK SHAFT
	3	SCREW, SET
	4	BRACKET, FEED ROCK SHAFT
	5	SCREW, CAP
	6	WASHER
	7	STUD, THREADED
	8	WASHER
	9	NUT
	10	BRACKET, CONNECTING ROD
	11	SCREW, CAP
	12	SHAFT, CONNECTING ROD
	13	COLLAR
	14	SCREW, CAP
	16	LEVER, CONNECTING ROD
	17	SPRING, TENSION
	18	BRACKET, NEEDLE BAR CONNECTING ROD
	19	PIN, CONNECTING ROD
	20	SHAFT, NEEDLE BAR CONNECTING ROD
	21	WASHER
	22	COLLAR
	23	SCREW, SET
	24	LEVER, NEEDLE BAR CONNECTING ROD
	25	ROD, NEEDLE BAR CONNECTING
	26	SCREW, CAP
	27	WASHER
	28	WASHER

Page 35 — SPREADER MECHANISM

Yamato VFS2500-8 parts on page 35

Ref	Part number	Part name	Qty
1	3500081	Spreader Eccentric, C. Set	1
2	3500082	Spreader Eccentric	1
3	160003	Screw(M5-0.8 × 5)	2
4	3500084	Spreader Connecting Rod	1
5	110009	Screw(M4-0.7 × 8)	1
6	300006	Washer	1
7	3100309	Adjusting Lever Pin	1
8	000528	Washer	1
9	100003	Nut(M6-1.0)	1
10	3500086	Spreader Adjusting Lever	1
11	120013	Screw(M6-1 × 15)	1
12	3160138	Driving Shaft	1
13	0032646	Collar(12 × 20 × 8mm)	1
14	009604	Screw(11/64-40 × 5.5)	2
16	3100305	Rocking Arm	1
17	160007	Screw(M6-1 × 6)	2
18	0063051	Rocking Pin	1
19	310094	Oil Wick(φ 3.3 × 15mm)	1
20	0063053	Spreader Bar	1
21	0063056	Bushing Ring	1
22	0063057	Collar(10 × 18 × 7mm)	1
23	009526	Screw(9/64-40 × 4.4)	2
24	3100307	Spreader Holder	1
25	3509320	Spreader	1
26	110031	Screw(M4-0.7 × 12)	2
27	2100218	Thrust Ring	1
28	3500097	Thrust Sheet(Small)	1

Page 36

Yamato VFS2500-8 parts on page 36

Ref	Part number	Part name	Qty
4	4	SCREW
5	5	COLLAR
6	6	SCREW
7	7	SHAFT
8	8	WASHER
9	9	NUT
10	10	BRACKET
11	11	SCREW
12	12	WASHER
13	13	SCREW
14	14	BRACKET
15	15	COLLAR
16	16	SCREW
17	17	SHAFT
18	18	BRACKET
19	19	BRACKET
21	21	COLLAR
22	22	SCREW
23	23	BRACKET
24	24	COLLAR
25	25	SCREW
26	26	BRACKET
27	27	SCREW
28	28	SHAFT
29	29	BRACKET
30	30	SCREW
31	31	BRACKET
32	32	SHAFT
33	33	BRACKET
34	34	WASHER
35	35	BRACKET
36	36	SCREW
37	37	BRACKET
38	38	SCREW
39	39	SCREW

Page 37 — LOOPER DRIVING MECHANISM

Yamato VFS2500-8 parts on page 37

Ref	Part number	Part name	Qty
	3200150	Looper Rocker Connecting Rod, C. Set(2)	1
	3200149	Looper Rocker Connecting Rod, C. Set(1)	1
	3200152	Looper Rocker Connecting Rod	1
	120001	Screw(M4-0.7 × 14)	5
	3200151	Looper Rocker Eccentric	1
	160003	Screw(M5-0.8 × 5)	2
	3200159	Connecting Rod Pin	1
	300008	Washer	1
	100002	Nut	1
	3200154	Looper Rocker Lever	1
	005650	Screw(M5-0.8 × 1.4)	2
	3200155	Looper Rocker Adjusting Guide Plate	1
	110007	Screw(M2.5-0.45 × 6)	2
	170021	Adjusting Screw(M2.5-0.45 × 10.5)	1
	2100267	Collar(10 × 17 × 8mm)	1
	160001	Screw(M4-0.7 × 4)	2
	0093314	Looper Rocker Shaft	1
	3200157	Looper Rocker Arm	1
	0093319	Looper Slide Block	1
	3200160	Looper Slide Block Pin	1
	160009	Screw(M5-0.8 × 5)	1
	3200161	Looper Connecting Rod	1
	0032784	Link Pin(Short)	1
	009604	Screw(11/64-40 × 5.5)	1
	0032785	Looper Driving Lever Link	1
	001457	Screw(11/64-40 × 3.3)	1
	0032786	Link Pin(Long)	1
	3200162	Looper Driving Lever	1
	160007	Screw(M6-1 × 6)	2
	3200163	Collar	1
	0093300	Looper Driving Shaft	1
	3200164	Looper Holder	1
	000669	Washer	1
	0094480	Looper	1
	110057	Screw(M4-0.7 × 7)	1
	0095723	Needle Guard(Front)	1
	004236	Screw(3/32-56 × 4.2)	1
	009934	Screw(M5-0.8 × 16)	1

Page 38

Yamato VFS2500-8 parts on page 38

Ref	Part number	Part name	Qty
	1	ROD
	2	LINK
	3	SCREW
	4	BRACKET
	5	LEVER
	6	BRACKET
	7	PLATE
	8	SCREW
	9	COLLAR
	10	SCREW
	11	BRACKET
	12	BRACKET
	13	SPRING
	14	BRACKET
	15	BRACKET
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	SCREW
	20	WASHER
	21	COLLAR
	22	BRACKET
	23	SCREW
	24	SCREW
	25	COLLAR
	26	SPRING
	27	COLLAR
	28	SPRING
	29	COLLAR
	30	SPRING
	31	RING
	32	COLLAR
	33	BRACKET
	34	SCREW
	35	SCREW
	36	BRACKET
	37	SCREW
	38	SCREW
	39	COLLAR
	40	SCREW
	41	NUT
	42	WASHER
	43	SPRING
	44	SCREW
	45	BELT

Page 39

Yamato VFS2500-8 parts on page 39

Ref	Part number	Part name	Qty
	3200181	Feed Bar Driving Shaft
	3200183	Main Feed Bar Lever
	120006	Screw(M6-1 × 12)
	3200184	Differential Rocker, Complete Set
	3200185	Differential Rocker
	3200186	Differential Regulating Slider
	3200187	Differential Regulating Slider Cap
	110033	Screw(M3-0.5 × 6)
	2100161	Collar(15 × 19 × 9mm)
	160003	Screw(M5-0.8 × 5)
	3200205	Differential Lever(Inner), C. Set
	2100252	Slider Link
	0068202	Retaining Ring
	2100253	Slider Link Pin
	3200206	Differential Lever(Inner)
	3200189	Feed Bar, Complete Set
	3200190	Main Feed Bar
	3200191	Differential Feed Bar
	140018	Screw(M5-0.5 × 6)
	300000	Washer
	3200194	Connection Bushing
	2100243	Differential Feed Bar Connection
	140017	Screw(M5-0.5 × 6)
	2100248	Main Feed Bar Connection
	3200192	Connection Bushing
	3200215	Retaining Ring
	2100267	Collar(10 × 17 × 8mm)
	160001	Screw(M4-0.7 × 4)
	000690	Roll Pin
	3200216	Differential Lever Spring
	0020538	O-ring(P7)
	3200207	Differential Lever Shaft
	0095132	Differential Lever(Left)
	110009	Screw(M4-0.7 × 8)
	004143	Screw(1/64-40 × 3.2)
	3200213	Differential Feed Graduation
	110045	Screw(M4-0.7 × 12)
	310072	Felt
	000210	Adjusting Nut
	009511	Adjusting Screw(1/4-40×11,11/64-40×4)
	0020350	Differential Lever Stop
	000669	Washer
	000600	Spring Washer
	005049	Screw(M5-0.8 × 8)
	310071	Oil Wick(No.8-400mm)

Page 40

Yamato VFS2500-8 parts on page 40

Ref	Part number	Part name	Qty
	1	COVER
	2	BRACKET
	3	BRACKET
	4	SCREW
	5	SCREW
	6	BLOCK
	7	BRACKET
	8	RING
	9	BLOCK
	10	GEAR
	11	WHEEL
	12	SCREW
	13	SHAFT
	14	BRACKET
	15	BRACKET
	16	SCREW
	17	SHAFT
	18	BASE
	19	DRUM
	20	GEAR
	21	SHAFT
	22	SCREW
	23	BRACKET
	24	SCREW
	25	SPRING
	26	PLATE
	27	GEAR
	28	SCREW
	29	BRACKET
	30	FEED DOG
	31	BRACKET
	32	BRACKET
	33	SCREW
	34	PLATE
	35	BRACKET
	36	SCREW
	37	SCREW
	38	SCREW
	39	SPRING
	40	SCREW

Page 41

Yamato VFS2500-8 parts on page 41

Ref	Part number	Part name	Qty
1	3200199	Feed Bar Guide(Left)	1
2	110080	Screw(M4-0.7 × 8)	2
3	3200200	Feed Bar Guide(Right)	1
4	160007	Screw(M6-1 × 6)	3
5	0033141	Feed Adjusting Pin	1
6	0093389	Feed Bar Block(Rear)	1
7	3200201	Feed Bar Guide(Rear)	1
8	0060076	Retaining Ring	1
9	0060075	Feed Bar Block(Front)	1
10	2110527	Roller Bearing	1
11	3200198	Eccentric Pin Holder	1
12	160003	Screw(M5-0.8 × 5)	2
13	0020401	Feed Dog Eccentric Pin	1
14	3200214	Driving Connecting Rod Mechanism,C.Set	1
15	3200182	Feed Bar Driving Shaft Lever	1
16	120006	Screw(M6-1 × 12)	1
17	2100173	Connecting Rod Pin	1
18	3200195	Driving Connecting Rod, C. Set	1
19	2100277	Feed Dog Eccentric	1
20	2100278	Roller Bearing	1
21	3200196	Feed Dog Driving Connecting Rod	1
22	160016	Screw(M4-0.7 × 4.5)	1
23	2100276	Feed Dog Regulating Eccentric	1
24	180002	Screw(M3-0.5 × 4)	3
25	2100289	Feed Dog Regulating Plate Spring	1
26	0023473	Feed Dog Regulating Plate	1
27	3200197	Feed Dog Regulating Gear	1
28	180003	Screw(M5-0.8 × 8)	2
29	3200901	Differential Feed Dog(48, 56)	1
30	3209080	Main Feed Dog(48, 56)	1
31	110004	Screw(M3.5-0.6 × 8)	1
32	3200203	Feed Bar Shield Holder(Front)	1
33	130003	Screw(M4-0.7 × 7.3)	1
34	3200211	Feed Bar Shield	2
35	3200204	Feed Bar Shield Holder(Rear)	1
36	110070	Screw(M3-0.5 × 6.3)	1
37	130024	Screw(M4-0.7 × 7.3)	1
38	110079	Screw(M4-0.7 × 8)	1
39	300050	Spring Washer	1
40	110039	Screw(M3.5-0.6 × 10)	1

Page 42

Yamato VFS2500-8 parts on page 42

Ref	Part number	Part name	Qty
	11	Bolt
	10	Cover
	12	O-ring
	13	Filter
	14	Valve
	3	Washer
	4	Bolt
	15	Filter
	16	Hose
	17	Hose
	18	Hose
	19	Bracket
	20	Washer
	21	Bolt
	1	Base
	2	Bolt
	5	Fitting
	6	Washer
	7	Nut
	8	Clip
	22	Hose
	9	Hose
	41	Fitting
	42	Adapter
	43	Hose
	40	Hose
	23	Frame
	45	Fitting
	46	Filter
	47	Ring
	24	Fitting
	25	Shaft
	27	Fitting
	28	Bolt
	29	Hose
	30	Hose
	26	Bolt
	37	Hose
	31	Pump
	32	Shaft
	33	Spring
	34	Bolt
	35	Nut
	36	Washer
	38	Adapter
	39	Screw
	44	Plate

Page 43

Yamato VFS2500-8 parts on page 43

Ref	Part number	Part name	Qty
	3500412	Oil Receiver	1
	110012	Screw(M4-0.7 × 5)	5
	0032518	O-ring(P3)	1
	3500402	Oil Sight Top Nozzle	1
	3100370	Oil Tube Joint, One Way	4
	000425	Washer	1
	000234	Nut	2
	0031831	Oil Tube Clamp	8
	000463	Laced Wire(φ 3 × 260mm)	1
	3100060	Oil Filter Cap	1
	110045	Screw(M4-0.7 × 12)	3
	3100061	O-ring (P42)	1
	3100345	Oil Filter	1
	3100329	Oil Filter Connector	1
	0093617	Suction Pipe Bushing	1
	3160152	Suction Pipe	1
	3510067	Oil Tube(3 × 5 × 60mm)	1
	3510065	Suction Pipe(Lower)	1
	3510068	Felt	1
	3160153	Suction Pipe Stay	1
	110038	Screw(M2.5-0.45 × 4.5)	1
	3270022	Oil Tube(Long), Complete Set	1
	3270023	Oil Tube(4 × 6 × 530mm)	1
	3100371	Oil Tube Joint, Two Way	1
	3200233	Oil Tube(4 × 6 × 175mm)	1
	320010	Fitting Stud(Short)	3
	320001	Oil Tube Joint, One Way	1
	320011	Fitting Stud(Long)	1
	3200235	Oil Tube(Short), Complete Set	1
	3200232	Oil Tube(4 × 6 × 45mm)	1
	3100328	Oil Pump, Complete Set	1
	0030711	Oil Pump Driving Worm Gear	1
	160001	Screw(M4-0.7 × 4)	2
	120006	Screw(M6-1 × 12)	2
	000567	Seal	1
	000419	Nut	1
	3100349	Oil Nozzle for Worm Gear	1
	3160155	Adapter	1
	0010018	Bamboo Joint(I-2.5L)	1
	3160151	Oil Tube(2.5 × 4 × 420mm)	1
	0010258	Connector(Φ 2.5-M5)	2
	0010019	Universal Elbow(M5)	1
	3160149	Oil Tube(2.5 × 4 × 490mm)	1
	3200231	Dust Proof Plate	1
	0020533	Oil Sight Gauge	1
	0063216	Oil Filter Screen	1
	0063217	Oil Filter Screen Clamp	1

Page 44 — 17 VFS2503-8(1)

Yamato VFS2500-8 parts on page 44

Ref	Part number	Part name	Qty
1-1	P	1-1
1-2	Q	1-2
1-3	R	1-3
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30

Page 45 — VFS2503-8 EXCLUSIVE PARTS (1)

Yamato VFS2500-8 parts on page 45

Ref	Part number	Part name	Qty
1-1	0093241	Folder(for Type P)
1-2	0093242	Folder(for Type Q)
1-3	0093243	Folder(for Type R)
2	0091736	Folder Clamp
3	009932	Screw(11/64-40 × 4)
4	005554	Screw(7/32-32 × 6.5)
5	0094245	Folder Support
6	0094246	Folder Support Fixing Plate
7	140019	Screw(M5-0.8 × 14)
8	3240100	Front Cover(40, 56)
9	3201002	Front Cover(Small)
10	110013	Screw(M4-0.7 × 8)
11	3201007	Fabric Slide Plate
12	000426	Washer
13	110103	Screw(M5-0.8 × 8)
14	3240101	Dustproof Cover
15	110104	Screw(M4-0.7 × 8)
16	3201006	Front Cover Spring
18	3260025	Looper Thread Take-up Cover
19	3260026	Tape Guide(Right)
20	000538	Washer
21	007627	Screw(M4-0.7 × 6)
22	3200014	Cloth Plate(Small)
23	3200011	Side Cover
24	0032604	Rubber Cushion(Large)
25	3200012	Cover Latch Spring
26	110012	Screw(M4-0.7 × 5)
27	340041	Knock Pin
28	3200013	Side Cover Holder
29	110016	Screw(M4-0.7 × 15)
30	000015	Nut

Page 46 — 18 VFS2503-8(2)

Yamato VFS2500-8 parts on page 46

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19

Page 47 — VFS2503-8 EXCLUSIVE PARTS (2)

Yamato VFS2500-8 parts on page 47

Ref	Part number	Part name	Qty
1	3267026	Presser Foot, C. Set(40)
2	110004	Screw(M3.5-0.6 × 8)
3	0097725	Presser Foot Spring
4	005133	Screw(1/8-44 × 4.5)
5	3267038	Presser Foot Spring(Left)
6	006010	Screw(1/8-44 × 4.5)
7	3267037	Tape Guide
8	001228	Screw(3/32-56 × 3.2)
9	3267015	Presser Foot Hinge Pin
10	110084	Screw(M3-0.5 × 4.2)
11	000327	Lock Nut
12	003302	Adjusting Screw(1/8-44 × 11)
13	0093352	Needle Clamp(40)
14	3268011	Stitch Plate(40M)
15	3269002	Main Feed Dog
16	3209065	Differential Feed Dog
17	3279000	Top Feed Dog
18	3267030	Presser Foot, C. Set(56)
19	3268013	Stitch Plate(56M)

Page 48 — 19

Yamato VFS2500-8 parts on page 48

Ref	Part number	Part name	Qty
1	VFS2511-156M-3-8	VFS2511-156M-3-8
2	2	2
3	3	3
4	4	4
6	6	6
7	7	7
8	8	8
5	5	5
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
16	16	16
14	14	14
15	15	15
18	18	18
17	17	17

Page 49 — VFS2511-8 EXCLUSIVE PARTS

Yamato VFS2500-8 parts on page 49

Ref	Part number	Part name	Qty
1	3277000	Presser Foot, C. Set(56)	1
2	110004	Screw(M3.5-0.6 × 8)	1
3	0091725	Presser Foot Spring	1
4	005133	Screw(M2.5-0.45 × 6)	1
5	160000	Screw(M3-0.5 × 3)	1
6	3247022	Presser Foot Hinge Pin	1
7	003300	Adjusting Screw(1/8-44 × 11)	1
8	000327	Lock Nut	1
9	3279000	Top Feed Dog	1
10	3248005	Stitch Plate(56M)	1
11	3209008	Main Feed Dog(56)	1
12	3249001	Differential Feed Dog(56)	1
13	3241002	Cloth Plate(Small)	1
14	130004	Screw(M4-0.7 × 14)	1
15	0010258	Connector(Φ4-M5)	1
16	3201001	Looper Thread Take-up Cover(56)	1
17	3240100	Front Cover(56)	1
18	3201006	Front Cover Spring	1

Page 50

Yamato VFS2500-8 parts on page 50

Ref	Part number	Part name	Qty
5	5	Knob
6	6	Screw
7	7	Washer
8	8	Nut
9	9	Washer
10	10	Screw
11	11	Washer
2	2	Bracket
3	3	Screw
4	4	Cap
12	12	Accessory
13	13	Plate
15	15	Screw
16	16	Screw
17	17	Spring
18	18	Screw
14	14	Screw
20	20	Screw
21	21	Washer
19	19	Base
22	22	Screw

Page 51 — SUPPORTING BOARD & ACCESSORIES

Yamato VFS2500-8 parts on page 51

Ref	Part number	Part name	Qty
1	3200240	Supporting Board, C. Set	1
2	3200241	Supporting Board	2
3	180020	Setting Screw(M6-1 × 15)	4
4	0093035	Oil Resrvoir Rubber Cushion	4
5	000070	Hanging Nut	4
6	009861	Hanging Bolt(M8-1.25 × 95)	4
7	000162	Washer	12
8	000016	Nut	12
9	2101451	Spacer(See the table below)	12
10	0020064	Supporting Board Rubber Cushion	4
11	0063010	SupportingBoardRubberCushion(Lower)	4
12	3160190	Needle Thread Retainer Support, C. Set	1
13	3160191	Needle Thread Retainer Support	1
14	005431	Screw(1/8-44 × 4.4)	1
15	0036175	Thread Retainer Disc Support	1
16	0032425	Needle Thread Retainer Dice	1
17	0032426	Needle Thread Retainer Spring	1
18	001093	Screw(1/8-44 × 2.2)	1
19	3201456	Supplementary Front Cover	1
20	110105	Screw(M5-0.8 × 12)	2
21	000426	Washer	2
22	110013	Screw(M4-0.7 × 8)	2

Page 52

Yamato VFS2500-8 parts on page 52

Ref	Part number	Part name	Qty
	1	FRAME
	2	WASHER
	3	POST
	4	BRACKET
	5	SCREW
	6	SCREW
	7	NUT
	8	SPRING
	9	SCREW
	10	NUT
	11	POST
	12	WASHER
	13	WASHER
	14	NUT
	16	BRACKET
	17	SCREW
	18	CLAMP
	19	SCREW
	20	GUIDE
	21	BRACKET
	22	BRACKET
	23	SPINDLE
	24	SPACER
	25	WASHER
	26	WASHER
	27	NUT
	28	BRACKET
	29	SCREW
	30	WIRE
	31	VFS2503-8 only
	32	POST
	33	PLATE
	34	WASHER
	35	BLOCK
	36	SCREW
	37	NUT
	38	POST
	39	SCREW
	40	BASE
	41	SCREW
	42	ROD
	43	BRACKET

Page 53 — THREAD STAND

Yamato VFS2500-8 parts on page 53

Ref	Part number	Part name	Qty
	9620696	Thread Stand, C. Set(6 Spools Type)	1
	9620631	Column Cap	1
	9620670	Column Cap(Upper)	1
	9620689	Thread Guide Holder(Large)	1
	911002	Screw(M4-0.7 × 20)	1
	911001	Screw(M4-0.7 × 12)	3
	910001	Nut	4
	9620673	Column Pipe Connector	1
	911006	Screw(M5-0.8 × 13)	2
	910000	Nut	8
	9620675	Column Pipe(Lower)	1
	930052	Washer	1
	930053	Spring Washer	1
	910003	Nut	1
	9620703	Thread Hanger(3 Spools Type)	4
	9620700	Thread Eyelet	6
	9620688	Thread Hanger Holder	4
	911060	Screw(M6-1 × 15)	4
	9620691	Thread Guide Arm	1
	9620690	Thread Guide Holder(Small)	1
	9620666	Thread Guide(6 Spools Type)	1
	9620678	Spool Cushion	6
	9620679	Spool Pin	6
	9620680	Spool Mat	6
	9620681	Spool Seat Disc	6
	930055	Spring Washer	6
	3500700	Belt Cover	1
	110028	Screw(M6-1 × 46)	2
	3000010	Looper Threading Bar	2
	9620750	Knitted Tape Stand, C. Set	1
	9620751	Tape Pin	1
	9620752	Tape Disc	1
	000433	Washer	1
	9620753	Tape Disc Block	1
	911062	Screw(M4-0.7 × 15)	4
	910001	Nut	4
	9620756	Tape Stand Bar	1
	001448	Screw(15/64-28 × 5.5)	1
	9620757	Tape Stand	1
	005148	Wood Screw($ 4.5 × 25)	3
	9620754	Tape Guide Bar	1
	9620755	Tape Guide	2

Page 54 — WARNING LABEL 警告ラベル

Yamato VFS2500-8 parts on page 54

Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143	操作注意ラベル
	390144	感電注意ラベル
	390145	アースラベル
	390146	回転方向表示ラベル
	390147	ケガ注意ラベル
	390148	高温注意ラベル

Page 56 — VFS2500 Class LIST of MAIN SPARE PARTS(主要部品リスト)

Yamato VFS2500-8 parts on page 56

Ref	Part number	Part name	Qty
3167002	0093356	針止メ
3167004	0093357	針止メ
3267026	0093352	針止メ
3267030	0093357	針止メ
3277000	0093357	針止メ

Page 57

Yamato VFS2500-8 parts on page 57

Ref	Part number	Part name	Qty
	3519014	上送り
	3201451	前開キカバー
	3200017	クロスプレート(大)
	3201453	小カバー
	3200018	カムカバー
	3200032	針板台
	0094480	ルーパ
	3279000	上送り
	3240100	前開キカバー
	3200017	クロスプレート(大)
	3200014	小カバー
	3260025	カムカバー
	3200032	針板台
	0094480	ルーパ
	3279000	上送り
	3240100	前開キカバー
	3200017	クロスプレート(大)
	3241002	小カバー
	3201001	カムカバー
	3200032	針板台
	0094480	ルーパ

Page 58

Yamato VFS2500-8 parts on page 58

Ref	Part number	Part name	Qty
6	000010
52	000014
47	000014
67	000014
52	000015
30	000015
8	000016
4	000037
5	000070
7	000162
6	000177
16	000195
46	000206
11	000206
39	000210
7	000234
51	000278
22	000309
21	000327
11	000327
8	000327
44	000360
53	000360
6	000397
36	000419
40	000425
6	000425
29	000426
12	000426
21	000426
34	000433
2	000445
9	000463
37	000487
8	000528
57	000532
76	000538
34	000538
35	000538
20	000538
23	000555
35	000567
24	000600
43	000600
35	000651
28	000667
48	000669
11	000669
34	000669
42	000669
55	000690
29	000690
29	000726
15	000740
2	000740
57	000745
2	000989
18	001093
58	001170
55	001223
48	001227
8	001228
39	001448
27	001457
41	001818
50	001818
9	001900
7	003300
22	003302
12	003302
33	003312
58	004106
35	004143
74	004182
38	004236
40	004272
2	004358
44	005049
24	005075
4	005133
4	005133
41	005148
31	005431
14	005431
40	005511
4	005554
25	005650
30	005650
45	005650
11	005650
5	006004
6	006010
17	006202
35	006219
33	007610
21	007627
12	009142
23	009526
14	009604
25	009604
3	009747
57	009747
8	009748
2	009749
27	009750
10	009751
66	009779
2	009784
6	009861
3	009932
39	009934
22	009970
27	009977
39	0010018
42	0010019
41	0010258
15	0010258
43	0020051
27	0020052
10	0020064
22	0020119
25	0020137
32	0020159
13	0020271
41	0020350
13	0020401
39	0020472
45	0020533
25	0020538
31	0020538
5	0020759
26	0023473
2	0024083
1	0024084

Page 59

Yamato VFS2500-8 parts on page 59

Ref	Part number	Part name	Qty
22	0026081
18	0026099
15	0026413
3	0030255
32	0030711
7	0031111
8	0031831
16	0032425
17	0032426
3	0032518
20	0032604
24	0032604
13	0032646
40	0032684
24	0032784
26	0032785
28	0032786
4	0032952
41	0033024
20	0033024
5	0033141
9	0034293
43	0035813
52	0035813
15	0036175
42	0037108
51	0037108
9	0060075
8	0060076
8	0060142
11	0063010
3	0063044
18	0063051
20	0063053
8	0063055
21	0063056
22	0063057
40	0063074
38	0063152
54	0063197
46	0063216
47	0063217
54	0063515
26	0065275
32	0065275
3	0065372
4	0068011
31	0068181
33	0068202
34	0068202
13	0068202
30	0068247
32	0068249
13	0077179
1	0077270
21	0077300
32	0085710
36	0090068
5	0090071
12	0090807
9	0090812
11	0090856
3	0091725
3	0091725
2	0091736
5	0092305
4	0093035
16	0093091
40	0093154
26	0093186
18	0093212
1-1	0093241
1-2	0093242
1-3	0093243
32	0093300
27	0093303
17	0093314
19	0093319
13	0093352
7-1	0093356
7-2	0093357
10	0093365
6	0093389
46	0093515
19	0093556
10	0093611
15	0093617
34	0093663
37	0093669
9	0093864
24	0093864
31	0093864
32	0093864
22	0094201
5	0094245
6	0094246
56	0094390
35	0094480
21	0095027
13	0095108
33	0095132
33	0095218
57	0095334
73	0095367
37	0095723
9	100002
9	100003
41	100007
7	110001
61	110002
16	110004
31	110004
2	110004
2	110004
20	110005
13	110007
18	110009
42	110009
32	110009
34	110009
5	110009

Page 60 — INDEX

Yamato VFS2500-8 parts on page 60

Ref	Part number	Part name	Qty
34	110009	110009
14	110011	110011
31	110011	110011
23	110012	110012
30	110012	110012
51	110012	110012
2	110012	110012
26	110012	110012
20	110013	110013
46	110013	110013
14	110013	110013
10	110013	110013
22	110013	110013
77	110014	110014
53	110016	110016
61	110016	110016
29	110016	110016
47	110021	110021
25	110023	110023
37	110023	110023
29	110028	110028
8	110030	110030
26	110031	110031
8	110033	110033
6	110035	110035
5	110035	110035
28	110036	110036
21	110038	110038
40	110039	110039
56	110041	110041
2	110045	110045
14	110045	110045
37	110045	110045
11	110045	110045
13	110048	110048
49	110048	110048
40	110048	110048
14	110054	110054
15	110054	110054
36	110057	110057
14	110060	110060
42	110067	110067
36	110070	110070
51	110076	110076
43	110079	110079
38	110079	110079
2	110080	110080
38	110083	110083
20	110084	110084
10	110084	110084
34	110094	110094
13	110103	110103
15	110104	110104
20	110105	110105
62	110115	110115
35	110135	110135
19	120001	120001
52	120001	120001
72	120001	120001
4	120001	120001
45	120006	120006
3	120006	120006
16	120006	120006
34	120006	120006
39	120010	120010
21	120013	120013
13	120013	120013
7	120013	120013
11	120013	120013
25	120015	120015
7	120027	120027
5	120049	120049
41	120049	120049
70	130002	130002
44	130002	130002
20	130002	130002
7	130002	130002
10	130003	130003
38	130003	130003
33	130003	130003
11	130004	130004
14	130004	130004
34	130006	130006
18	130016	130016
37	130024	130024
20	140004	140004
33	140004	140004
23	140017	140017
19	140018	140018
7	140019	140019
15	150000	150000
19	160000	160000
26	160000	160000
21	160000	160000
30	160000	160000
5	160000	160000
65	160001	160001
31	160001	160001
12	160001	160001
28	160001	160001
35	160001	160001
13	160001	160001
4	160001	160001
16	160001	160001
28	160001	160001
33	160001	160001
22	160003	160003
17	160003	160003
3	160003	160003
4	160003	160003
20	160003	160003
3	160003	160003
6	160003	160003
10	160003	160003
12	160003	160003
39	160004	160004
2	160005	160005
3	160005	160005
32	160006	160006
3	160007	160007
4	160007	160007
68	160007	160007
26	160007	160007
17	160007	160007
30	160007	160007
4	160007	160007
22	160009	160009
22	160016	160016
27	160021	160021
29	160023	160023
15	160029	160029
23	160030	160030
43	160041	160041
16	170001	170001
50	170009	170009
46	170010	170010
18	170010	170010
63	170020	170020

Page 61 — INDEX

Yamato VFS2500-8 parts on page 61

Ref	Part number	Part name	Qty
14	170021
49	170038
25	170041
24	180002
28	180003
18	180005
12	180012
66	180017
68	180018
3	180020
39	180033
64	190077
54	190078
8	290029
10	300000
8	300000
20	300000
38	300005
6	300006
39	300050
17	300100
64	300100
47	300100
30	310035
33	310036
13	310040
23	310068
35	310068
45	310071
38	310072
73	310079
19	310094
41	310099
2	310106
36	310132
27	320001
26	320010
28	320011
18	330000
23	330000
43	340003
26	340016
27	340041
29	350009
15	390212
10	910000
7	910001
37	910001
14	910003
6	911001
5	911002
9	911006
19	911060
36	911062
12	930052
13	930053
27	930055
28	2049401
26	2100034
15	2100065
14	2100137
3	2100137
9	2100161
17	2100173
52	2100176
42	2100194
22	2100218
27	2100218
22	2100243
24	2100248
12	2100252
14	2100253
8	2100259
27	2100267
15	2100267
27	2100267
23	2100276
19	2100277
20	2100278
29	2100288
25	2100289
9	2101451
40	2110361
10	2110527
14	2120082
19	2120083
30	3000010
35	3100006
60	3100030
10	3100060
12	3100061
39	3100081
9	3100110
42	3100113
10	3100129
7	3100129
8	3100131
10	3100207
28	3100207
49	3100272
10	3100275
11	3100283
16	3100305
24	3100307
7	3100309
11	3100310
31	3100328
14	3100329
28	3100338
13	3100345
37	3100349
5	3100370
24	3100371
26	3100384
27	3100386
51	3100533
72	3100630
75	3100631
17	3107303
19	3107306
11-1	3108133
11-2	3108134

Page 62 — INDEX

Yamato VFS2500-8 parts on page 62

Ref	Part number	Part name	Qty
17	3160008	17	1
16	3160009	16	1
36	3160022	36	4
37	3160023	37	4
38	3160024	38	4
41	3160025	41	4
42	3160026	42	4
39	3160027	39	4
2	3160034	2	9
12	3160036	12	9
16	3160037	16	9
18	3160038	18	9
10	3160038	10	10
17	3160039	17	9
11	3160039	11	10
39	3160049	39	10
40	3160050	40	10
9	3160051	9	10
43	3160052	43	10
42	3160054	42	10
5	3160056	5	10
6	3160057	6	10
8	3160058	8	10
16	3160061	16	10
17	3160062	17	10
21	3160063	21	10
12	3160064	12	10
29	3160065	29	10
31	3160066	31	10
25	3160070	25	10
24	3160071	24	10
19	3160073	19	11
23	3160074	23	11
24	3160076	24	11
22	3160077	22	11
26	3160080	26	11
30	3160081	30	11
28	3160082	28	11
16	3160084	16	11
1	3160085	1	11
3	3160086	3	11
7	3160088	7	11
23	3160090	23	8
33	3160091	33	8
36	3160092	36	9
24	3160098	24	9
36	3160098	36	10
37	3160103	37	9
33	3160104	33	9
71	3160109	71	9
55	3160114	55	9
59	3160116	59	9
54	3160120	54	9
46	3160124	46	9
12	3160138	12	12
43	3160149	43	16
40	3160151	40	16
16	3160152	16	16
20	3160153	20	16
38	3160155	38	16
3	3160158	3	4
4	3160163	4	8
1	3160173	1	10
12	3160190	12	20
13	3160191	13	20
15-1	3167002	15-1	8
15-2	3167004	15-2	8
30	3180070	30	6
25	3180071	25	3
28	3180072	28	3
37	3180073	37	3
31	3180075	31	6
16	3180076	16	3
21	3200006	21	1
23	3200007	23	1
12	3200010	12	2
23	3200011	23	17
25	3200012	25	17
28	3200013	28	17
22	3200014	22	17
67	3200016	67	2
1	3200017	1	2
4-1	3200018	4-1	2
7	3200019	7	2
29	3200020	29	2
19	3200021	19	1
35	3200022	35	2
36	3200023	36	2
31	3200024	31	2
32	3200025	32	2
58	3200026	58	2
59	3200027	59	2
44	3200028	44	2
45	3200029	45	2
47	3200030	47	2
48	3200031	48	2
55	3200032	55	2
21	3200033	21	2
4-2	3200035	4-2	2
17	3200042	17	3
49	3200042	49	5
17	3200050	17	4
29	3200051	29	4
20	3200052	20	4
24	3200053	24	4
30	3200055	30	4
22	3200056	22	4
23	3200057	23	4
28	3200061	28	4
19	3200062	19	4
25	3200065	25	4
34	3200066	34	4
18	3200067	18	4
1	3200070	1	5
5	3200071	5	5
9	3200072	9	5
12	3200073	12	5
13	3200074	13	5
29	3200075	29	5
27	3200077	27	5
11	3200078	11	5
19	3200082	19	5
36	3200083	36	5
24	3200084	24	5
34	3200085	34	5
35	3200086	35	5
38	3200086	38	9
23	3200087	23	5
43	3200091	43	5
41	3200092	41	5
39	3200093	39	5
56	3200094	56	5
6	3200095	6	5
18	3200096	18	5
17	3200097	17	5
21	3200098	21	5
17	3200112	17	7
29	3200120	29	7
30	3200121	30	7
31	3200122	31	7
14	3200143	14	5

Page 63 — INDEX

Yamato VFS2500-8 parts on page 63

Ref	Part number	Part name	Qty
2	3200149
1	3200150
5	3200151
3	3200152
10	3200154
12	3200155
18	3200157
7	3200159
21	3200160
23	3200161
29	3200162
31	3200163
33	3200164
1	3200181
15	3200182
2	3200183
4	3200184
5	3200185
6	3200186
7	3200187
16	3200189
17	3200190
18	3200191
25	3200192
21	3200194
18	3200195
21	3200196
27	3200197
11	3200198
1	3200199
3	3200200
7	3200201
32	3200203
35	3200204
11	3200205
15	3200206
32	3200207
37	3200209
50	3200210
34	3200211
36	3200213
14	3200214
26	3200215
30	3200216
44	3200231
30	3200232
25	3200233
29	3200235
1	3200240
2	3200241
16	3201001
9	3201002
16	3201006
18	3201006
11	3201007
62-1	3201451
15	3201452
9	3201453
69	3201454
19	3201456
62-2	3201461
4	3204021
29	3209001
11	3209008
16	3209065
30	3209080
24	3240015
25	3240016
6	3240026
14	3240086
6	3240087
5	3240091
8	3240100
17	3240100
14	3240101
13	3241002
6	3247022
10	3248005
12	3249001
7	3260010
9	3260011
8	3260012
18	3260025
19	3260026
9	3267015
1	3267026
18	3267030
7	3267037
5	3267038
14	3268011
19	3268013
15	3269002
1	3270015
22	3270022
23	3270023
71	3270024
1	3270030
1	3277000
17	3279000
9	3279000
25	3500012
14	3500041
10	3500044
11	3500045
15	3500046
12	3500047
13	3500048
9	3500050
6	3500054
37	3500062
38	3500064
26	3500065
20	3500066
1	3500081
2	3500082
4	3500084
10	3500086
16	3500091
7	3500095
5	3500096
28	3500097
5	3500100
1	3500201
21	3500284
23	3500285
13	3500286
10	3500287
36	3500291

Page 64 — INDEX

Yamato VFS2500-8 parts on page 64

Ref	Part number	Part name	Qty
53	3500292		8
29	3500293		8
32	3500294		8
44	3500295		8
48	3500299		8
26	3500300		8
41	3500305		8
1	3500309		4
4	3500402		16
1	3500412		16
3	3500430		1
34	3500442		6
15	3500444		6
16	3500445		6
18	3500446		6
12	3500448		6
24	3500489		3
27	3500492		6
13	3500615		7
21	3500616		7
19	3500617		7
28	3500700		21
22	3510039		9
34	3510039		10
56	3510040		9
58	3510041		9
69	3510043		9
70	3510044		9
44	3510050		4
45	3510051		4
50	3510052		4
33	3510055		11
60	3510057		9
43	3510059		9
44	3510060		9
42	3510062		9
24	3510063		8
18	3510065		16
17	3510067		16
19	3510068		16
65	3519014		9
27	4109403		1
2	9620631		21
22	9620666		21
3	9620670		21
8	9620673		21
11	9620675		21
23	9620678		21
24	9620679		21
25	9620680		21
26	9620681		21
18	9620688		21
4	9620689		21
21	9620690		21
20	9620691		21
1	9620696		21
17	9620700		21
16	9620703		21
31	9620750		21
32	9620751		21
33	9620752		21
35	9620753		21
42	9620754		21
43	9620755		21
38	9620756		21
40	9620757		21
25	3509320		12
6	3510008		1
11	3510011		1
12	3510012		1
1	3510017		9
4	3510018		9
27	3510020		9
28	3510021		9
30	3510022		9
32	3510023		10
31	3510024		9
14	3510025		6
8	3510027		9
9	3510028		9
6	3510029		9
47	3510030		9
48	3510031		9
49	3510032		9
53	3510033		9
50	3510034		9
63	3510035		9
26	3510037		9
38	3510037		10
19	3510038		9

Part BooksPartsSearchNotes

Part Books

×

Search

×

Yamato VFS2500-8 — parts catalog

• Page 1 (cover): This is the cover page for the Yamato VFS2500-8 High Speed Top Feeding Flat Bed Interlock Stitch Machine parts list. It features an illustration of the machine and lists compatible models.
• Page 2 (text): This page explains how to use the parts list, including how to interpret symbols and place orders for parts. It also provides information on the base model for the illustrations and how dimensions are represented.
• Page 3 (toc): This page is a table of contents for a parts catalog, listing various mechanisms and parts with corresponding page numbers in both English and Japanese.
• Page 4 (diagram): This page displays a diagram of the sewing machine's frame and miscellaneous cover components, with numbered parts and their corresponding references.
• Page 5 (parts_list): This page lists miscellaneous covers and related parts for industrial sewing machines, including part numbers, descriptions, and quantities required.
• Page 6 (diagram): This page displays a diagram of various machine components, including screws, plates, and housing parts, with reference numbers for identification.
• Page 7 (parts_list): This page lists miscellaneous covers and related parts, including screws, washers, and various covers, with their corresponding part numbers and quantities.
• Page 8 (diagram): This page displays a diagram of various machine components, including screws, plates, covers, and brackets, with corresponding reference numbers for identification.
• Page 9 (parts_list): This page lists miscellaneous covers and related parts, including screws, nuts, rings, and guides, with their corresponding part numbers and quantities.
• Page 10 (diagram): This page displays a diagram of sewing machine components, with numbered parts indicated by reference numbers. It includes parts such as knobs, springs, screws, brackets, and other mechanical elements.
• Page 11 (parts_list): This page lists miscellaneous thread eyelets and their corresponding part numbers, descriptions, and quantities required.
• Page 12 (diagram): This page displays a diagram of various machine components, including parts numbered 1 through 52, with detailed illustrations of their assembly and placement within the machine structure.
• Page 13 (parts_list): This page lists miscellaneous bushings and related parts with their part numbers, descriptions, and quantities required.
• Page 14 (diagram): This page displays a diagram of various machine components, including pulleys, shafts, brackets, and fasteners, with corresponding reference numbers for identification.
• Page 15 (parts_list): This page lists parts for the Needle Guard & Main Shaft Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 16 (diagram): This page displays a diagram of various sewing machine components, including pulleys, shafts, brackets, and fasteners, with reference numbers for each part.
• Page 17 (parts_list): This page lists parts for the Needle Guard & Main Shaft Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 18 (diagram): This page displays a diagram of various sewing machine components, including shafts, pulleys, gears, and mounting hardware, with reference numbers for each part.
• Page 19 (parts_list): This page lists parts for the Upper Shaft & Needle Thread Take-up Mechanism, including part numbers, descriptions, and quantities required.
• Page 20 (diagram): This page displays a diagram of various sewing machine parts, including screws, levers, shafts, and plates, with corresponding reference numbers.
• Page 21 (parts_list): This page lists parts for the needle bar mechanism, including various screws, plates, and other components with their corresponding part numbers and quantities.
• Page 22 (diagram): This page displays a diagram of various sewing machine components, including a needle bar assembly, presser bar, feed mechanism parts, and tension mechanism components, with corresponding reference numbers for identification.
• Page 23 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 24 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and other small parts, with reference numbers for identification.
• Page 25 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities required.
• Page 26 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, screws, and brackets, with reference numbers for identification.
• Page 27 (parts_list): This page lists parts for the Vertical Motion Mechanism, including part numbers, descriptions, and quantities required, with reference numbers from 1 to 40.
• Page 28 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, screws, and other hardware, with reference numbers for each part.
• Page 29 (parts_list): This page lists parts for the Top Feed Vertical Mechanism, including part numbers, descriptions, and quantities required.
• Page 30 (diagram): This page displays a diagram of various sewing machine components, including shafts, levers, bearings, and fasteners, with reference numbers for each part.
• Page 31 (parts_list): This page lists parts for the Top Feed Rocker Mechanism, including part numbers, descriptions, and quantities required.
• Page 32 (diagram): This page displays a diagram of various sewing machine components, including screws, springs, levers, and adjustment mechanisms, with reference numbers for each part.
• Page 33 (parts_list): This page lists parts for the TOP FEED DIFFERENTIAL MECHANISM, including part numbers, descriptions, and quantities required.
• Page 34 (diagram): This page displays a diagram of various sewing machine components, including shafts, levers, screws, and nuts, with reference numbers for each part.
• Page 35 (parts_list): This page lists parts for the Spreader Mechanism, including part numbers, descriptions, and quantities required.
• Page 36 (diagram): This page displays a diagram of various machine parts, including screws, brackets, shafts, and levers, with corresponding reference numbers.
• Page 37 (parts_list): This page lists parts for the Looper Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 38 (diagram): This page displays a diagram of various sewing machine components, including levers, screws, and other mechanical parts, with reference numbers for identification.
• Page 39 (parts_list): This page lists parts for the FEED DRIVING CONTROL MECHANISM, including part numbers, descriptions, and quantities required.
• Page 40 (diagram): This page displays a diagram of various sewing machine components, including a main assembly, a feed mechanism, and smaller parts like screws and gears, each identified by a reference number.
• Page 41 (parts_list): This page lists parts for the Feed Driving Mechanism, including part numbers, descriptions, and quantities required.
• Page 42 (diagram): This page displays a diagram of various engine components, including filters, hoses, bolts, and a pump assembly, with corresponding reference numbers for identification.
• Page 43 (parts_list): This page lists parts for the lubricating mechanism, including part numbers, descriptions, and quantities required.
• Page 44 (diagram): This page displays a diagram of sewing machine parts, including various screws, plates, and brackets, with reference numbers for identification.
• Page 45 (parts_list): This page lists parts for the VFS2503-8 EXCLUSIVE PARTS (1) section, including folders, screws, covers, washers, and nuts, with their corresponding part numbers, descriptions, and quantities required.
• Page 46 (diagram): This page displays diagrams of parts for VFS2503-140M-8 and VFS2503-156M-8 sewing machines, with numbered parts indicated.
• Page 47 (parts_list): This page lists parts for VFS2503-8 EXCLUSIVE PARTS (2), including part numbers, descriptions, and quantities required.
• Page 48 (diagram): This page displays a diagram of various sewing machine parts, numbered 1 through 18, with part numbers and descriptions provided in a table.
• Page 49 (parts_list): This page lists parts for the VFS2511-8 sewing machine, including part numbers, descriptions, and quantities required.
• Page 50 (diagram): This page displays diagrams of machine parts and accessories, with numbered components for identification.
• Page 51 (parts_list): This page lists parts for supporting boards and accessories, including part numbers, descriptions, quantities, and notes about spacer usage based on table thickness.
• Page 52 (diagram): This page displays a diagram of various sewing machine components, including thread guides, spools, and mounting brackets, with numbered references for each part.
• Page 53 (parts_list): This page lists parts for a thread stand, including part numbers, descriptions, and quantities required. It contains 43 items with reference numbers from 1 to 43.
• Page 54 (parts_list): This page lists various warning labels for industrial sewing machines, including their part numbers and descriptions in both English and Japanese.
• Page 55 (cover): This is the cover page of a parts list for main spare parts, with the title also provided in Japanese.
• Page 56 (parts_list): This page lists spare parts for the VFS2500 Class sewing machine, including Needle Clamp, Presser Foot C. Set, Stitch Plate, Differential Feed Dog, and Main Feed Dog, with corresponding part numbers and applicable models.
• Page 57 (parts_list): This page lists parts for sewing machines, including Top Feed Dog, Front Cover, Cloth Plate (Large and Small), Thread Take-up Cover, Stitch Plate Support, and Looper, with corresponding part numbers and descriptions.
• Page 58 (index): This page is an index for the VFS2500-8 sewing machine, listing part numbers, corresponding page numbers, reference numbers, and weights.
• Page 59 (index): This page is an index for the VFS2500-8, listing part numbers, page numbers, reference numbers, and weights.
• Page 60 (index): This page is an index of parts for the VFS2500-8, listing part numbers, page numbers, reference numbers, and weights.
• Page 61 (index): This page is an index for the VFS2500-8, listing part numbers, page numbers, reference numbers, and weights.
• Page 62 (index): This page is an index of parts for the VFS2500-8 sewing machine, listing part numbers, page numbers, reference numbers, and weights.
• Page 63 (index): This page is an index of parts for the VFS2500-8, listing part numbers, page numbers, reference numbers, and weights.
• Page 64 (index): This page is an index for the VFS2500-8, listing part numbers, their corresponding page numbers, reference numbers, and weights.
• Page 65 (cover): This is the cover page of a parts catalog from Jintex.in, a library of Superior Sewing Machine & Supply LLC.
• Page 66 (cover): This is the cover page of a parts catalog for Yamato Sewing Machine Mfg. Co., Ltd. It includes the company logo, address, contact information, part number P/N 9710142, and publication date.

Page 1 — Parts List

Yamato Parts List HIGH SPEED TOP FEEDING FLAT BED INTERLOCK STITCH MACHINE VFS2500-8 MODELS VFS2500-8 VFS2503-8 VFS2511-3-8 YAMATO SEWING MACHINE MFG. CO.,LTD. From the library of: Superior Sewing Machine & Supply LLC Jjnitex.in

Page 2

パーツリストの見方 このパーツリストはVFS2500-148M-8, 156M-8を基本モデルにしてイラストを作成しています。 パーツリストに記載されているカラーの寸法は内径×外径×幅を表しています。 記号の説明 (Parts No. の隣に記載されています。) [ ] 前回 のパーツリストに対して、今回変更された部品を表しています。 [ ] 内は旧Parts No. 及びネジ類の形状 前回 のパーツリストに対して、今回追加された部品及びモデルを表しています。 部品注文のご注意 ☆ このパーツリストに記載されている部品をご注文の際は、Parts No.(例えば、3500201) でお願いしま す。 ☆ 0068011の場合は、0068011又は68011でご注文下さい。 ☆ エアチューブ御注文の際は品番と長さを お知らせ下さい。 なお、このパーツリストの記載事項は、改良により変更される場合がありますのでご了承下さい。 How to use this Parts List The illustrations on this Parts List are drawn on the basis of VFS2500-148M-8, 156M-8. The dimension of Collar on this Parts List shows Inside diameter X Outside diameter X Width. Explanation of Marks (marked at the Side of Part No.) [ ] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. means this part and model is added to the previous Parts List. How to place an order for the parts ☆ When placing an order for the parts from this Parts List, please clearly state the Parts No. (e.g.3500201) which you require so that we can deliver the correct Parts to you. ☆ When the Part No. is "0068011", please place an order for the part by showing "0068011" or "68011". ☆ When ordering Air Tube, please inform us of the Part No. and the length. This Parts Listis subject to change without notice. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3 — Contents

Contents 目次 MISCELLANEOUS COVERS(1) 1 MISCELLANEOUS COVERS(2) 2 MISCELLANEOUS THREAD EYELETS 3 MISCELLANEOUS BUSHINGS 4 NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 5 UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM 6 NEEDLE BAR MECHANISM 7 PRESSER FOOT MECHANISM 8 TOP FEED VERTICAL MECHANISM 9 TOP FEED ROCKER MECHANISM 10 TOP FEED DIFFERENTIAL MECHANISM 11 SPREADER MECHANISM 12 LOOPER DRIVING MECHANISM 13 FEED DRIVING CONTROL MECHANISM 14 FEED DRIVING MECHANISM 15 LUBRICATING MECHANISM 16 VFS2503-8 EXCLUSIVE PARTS(1) 17 VFS2503-8 EXCLUSIVE PARTS(2) 18 VFS2511-8 EXCLUSIVE PARTS 19 SUPPORTING BOARD & ACCESSORIES 20 THREAD STAND 21 WARNING LABEL 22 LIST of MAIN SPARE PARTS 23 INDEX 24 カバー関係 (1) カバー関係 (2) 糸道関係 ブッシュ関係 針受ケ及び下軸機構 上軸及び針糸繰り機構 針棒機構 押工機構 上送り上下機構 上送り前後機構 上送り差動機構 飾り糸ルーパ機構 ルーパ機構 前送り調節機構 送り機構 給油機構 サブモデル専用部品(1) サブモデル専用部品(2) サブモデル専用部品 受ケ板及びアクセサリ関係 糸立台 警告ラベル 主要部品リスト 索引 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4 — FIG. 1 MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

1 10 5 4 2 11 12 VFS 13 9 15 14 17 16 A 8 6 10 9 22 Yamata 18 21 19 20 22 27 23 29 28 24 25 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 5 — MISCELLANEOUS COVERS (1)

MISCELLANEOUS COVERS (1) カバー関係(1) 1 Ref.No Parts No. Description 品 名 Amt. Req 1 3500201 Top Cover 上カバー 1 2 110045 Screw(M4-0.7 × 12) 止ネジ 11 3 3500430 Top Cover Gasket 上カバーパッキン 1 4 0068011 Oil Sight Window オイル確認窓 1 5 0020759 Top Cover Seal Plug 上カバー詰栓 2 6 3510008 Top Feed Dog Bracket 上送り台ブラケット 1 7 120027 Screw(M4-0.7 × 25) 止ネジ 4 8 009748 Screw(M4-0.7 × 12) 止ネジ 2 9 0093864 Seal Plug 詰栓 2 10 3100207 Pin(5 × 12mm) ピン 2 11 3510011 Head Cover ヘッドカバー 1 12 3510012 Head Cover Gasket ヘッドカバーパッキン 1 13 110048 Screw(M4-0.7 × 10) 止ネジ 8 14 110060 Screw(M4-0.7 × 4.8) 止ネジ 2 15 390212 "VFS" Emblem VFSエンブレム 1 16 3160009 Bracket Cover Gasket ブラケットカバーパッキン 1 17 3160008 Bracket Cover ブラケットカバー 1 18 330000 Seal Plug 詰栓 1 19 320021 Wind Guide Plate 風案内板 1 20 110013 Screw(M4-0.7 × 8) 止ネジ 4 21 3200006 Oil Reservoir 油受ケ 1 22 009970 Screw(M4-1 × 20) 止ネジ 6 23 3200007 Oil Reservoir Gasket 油受ケパッキン 1 24 005075 Screw(3/8-24 × 8) 油抜キネジ 1 25 0020137 Drain Hole Seal 油抜キネジパッキン 1 26 340016 Machine Frame Supporting Bar ベッド支工棒 4 27 4109403 Model Plate(See the below) 型式板(下記参照) 1 28 2049401 Serial Number Plate 機番プレート 1 29 000726 Rivet 止メ鋲 4 Note : Order for Model Plate must be accompanied by model designation(including symbols of gauge and devices). (注) 型式板を御注文の際は機種名(ゲージ記号、附帯装置含む)をお知らせください。 From the library of: Superior Sewing Machine & Supply LLC VFS2500-8

Page 6

2 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 7 — MISCELLANEOUS COVERS (2)

MISCELLANEOUS COVERS (2) カバー関係(2) 2 Ref.No Parts No. Description 品 名 Amt. Req 1 3200017 Cloth Plate(Large) クロ スプレート(大) 1 2 009749 Screw(M4-0.7 × 16) 止ネジ 3 3 009747 Screw(M4-0.7 × 10) 止ネジ 1 4-1 3200018 Looper Thread Take-up Cover(48, 56) カムカバー 1 4-2 3200035 Looper Thread Take-up Cover(64) カムカバー 1 5 006004 Screw(11/64-40 × 9.7) 止ネジ 1 6 000010 Conical Spring Washer 皿バネワッシャ 1 7 3200019 Take-up Cover Spring カムカバーバネ 1 8 110030 Screw(M3-0.5 × 2.6) 止ネジ 2 9 3201453 Cloth Plate(Small) 小カバー 1 10 130003 Screw(M4-0.7 × 7.3) 止ネジ 1 11 130004 Screw(M4-0.7 × 14) 止ネジ 1 12 3200010 Bed Rear Cover ベッド後カバー 1 13 0095108 Bed Rear Cover Gasket ベッド後カバーパッキン 1 14 110045 Screw(M4-0.7 × 12) 止ネジ 4 15 3201452 Side Cover 横開キカバー 1 16 170001 Screw(M5-0.8 × 8) 止ネジ 1 17 300100 Conical Spring Washer 皿バネワッシャ 2 18 180005 Screw(M5-0.8 × 8) 止ネジ 1 19 160000 Screw(M3-0.5 × 3) 止ネジ 1 20 0032604 Rubber Cushion(Large) クッションゴム(大) 1 21 3200033 Rubber Cushion(Small) クッションゴム(小) 5 22 0094201 Cover Latch Spring カバーラッチバネ 1 23 110012 Screw(M4-0.7 × 5) 止ネジ 1 24 0093864 Seal Plug 詰栓 3 25 3500012 Seal Plug 詰栓 1 26 0065275 Seal Plug 詰栓 1 27 0020052 Seal Plug 詰栓 1 28 29 3200020 Oil Cooling Fan Cover 冷却ファンカバー 1 30 110012 Screw(M4-0.7 × 5) 止ネジ 4 31 3200024 Bed Top Cover ベッド上カバー(右) 1 32 3200025 Bed Top Cover Gasket ベッド上カバー(右)パッキン 1 33 007610 Screw(M4-0.7 × 10) 止ネジ 8 34 130006 Screw(M4-0.7 × 10) 止ネジ 2 35 3200022 Bed Top Cover(Left) ベッド上カバー(左) 1 36 3200023 Bed Top Cover(Left) Gasket ベッド上カバー(左)パッキン 1 37 3200209 Feed Regulating Pushbutton プッシュボタン 1 38 0063152 Feed Regulating Pushbutton Spring プッシュボタンバネ 1 39 0020472 O-ring(P6) ○リング 1 40 000425 Washer ワッシャ 1 Ref. No. 41 to 77 See the following page. From the library of: Superior Sewing Machine & Supply LLC VFS2500-8

Page 8

2 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.x.in

Page 9 — MISCELLANEOUS COVERS (2)

MISCELLANEOUS COVERS (2) カバー関係(2) 2 Ref.No Parts No. Description 品 名 Amt. Req 41 0033024 Retaining Ring ストップリング 1 42 3100113 Needle Bar Guide 針棒ガード 1 43 110079 Screw(M4-0.7 × 8) 止ネジ 2 44 3200028 Bed Rear Cover(Small) ベッド後カバー(小) 1 45 3200029 Bed Rear Cover(Small) Gasket ベッド後カバー(小)パッキン 1 46 110013 Screw(M4-0.7 × 8) 止ネジ 8 47 3200030 Ball Bearing Housing ハウジング 1 48 3200031 O-ring Oリング 1 49 110048 Screw(M4-0.7 × 10) 止ネジ 3 50 3200210 Pushbutton Stop プッシュボタンストッパ 1 51 110012 Screw(M4-0.7 × 5) 止ネジ 2 52 000015 Nut ナット 1 53 110016 Screw(M4-0.7 × 15) 止ネジ 1 54 190078 Screw(M4-0.7 × 5) バネ掛ケネジ 1 55 3200032 Stitch Plate Support 針板台 1 56 110041 Screw(M4-0.7 × 8) 止ネジ 2 57 000745 Knock Pin ノックピン 2 58 3200026 Bed Front Cover ベッド前カバー 1 59 3200027 Bed Front Cover Gasket ベッド前カバーパッキン 1 60 3100030 Front Cover Hinge 前開キカバーヒンジ 1 61 110016 Screw(M4-0.7 × 15) 止ネジ 2 62-1 3201451 Front Cover(48, 56) 前開キカバー 1 62-2 3201461 Front Cover(64) 前開キカバー 1 63 170020 Screw(M4-0.7 × 8) 止ネジ 1 64 300100 Conical Spring Washer 皿バネワッシャ 2 65 160001 Screw(M4-0.7 × 4) 止ネジ 1 66 160017 Screw(M4-0.7 × 6) 止ネジ 1 67 3200016 Front Cover Spring 前開キカバーバネ 1 68 180018 Screw(M4-0.7 × 7) バネ掛ケネジ 1 69 3201454 Supporting Block 補助ブロック 1 70 130002 Screw(M3-0.5 × 6) 止ネジ 2 71 3270024 Guide Spacer ガイドスペーサ 1 72 3100630 Fabric Edge Guide(Left) 定規(左) 1 73 0095367 Fabric Edge Guide Chip 定規チップ 1 74 004182 Screw(3/32-56 × 2.5) 止ネジ 1 75 3100631 Fabric Edge Guide(Right) 定規(右) 1 76 000538 Washer ワッシャ 2 77 110014 Screw(M4-0.7 × 18) 止ネジ 2 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VFS2500-8

Page 10

3 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 11 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS 糸道関係 3 Ref.No Parts No. Description 品 名 Amt. Req 1 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 5 2 0024083 Tension Spring Bushing 糸調子ナット回リ止メ 5 3 0030255 Tension Spring(Needle) 糸調子バネ(針糸) 3 4 0032952 Tension Spring(Looper, Top Cover) 糸調子バネ(ルーパ、飾り) 2 5 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 5 6 000177 Felt フェルト 5 7 0031111 Tension Disc 糸調子皿 10 8 290029 Tension Post 糸調子棒 5 9 0090812 Tension Post Ferrule 糸調子棒糸摺レ 5 10 3500287 Tension Disc Separator 糸緩メ板 1 11 0090856 Tension Disc Eyelet 糸調子皿糸道 5 12 0090807 Thread Lead-in Guide 糸調子台糸道 5 13 3500286 Tension Post Support 糸調子台 1 14 110013 Screw(M4-0.7 × 8) 止ネジ 7 15 2100065 Looper Thread Eyelet ルーパ糸道 1 16 3180076 Top Cover Thread Eyelet(Left) 飾り糸道(左) 1 17 3200042 Looper Thread Eyelet ルーパ糸道 1 18 110009 Screw(M4-0.7 × 8) 止ネジ 7 19 0093556 Looper Thread Eyelet(Long) ルーパ糸道(長) 1 20 21 3500284 Thread Guide Plate 糸案内板 1 22 0020119 Thread Eyelet Pipe(Short) 糸道パイプ(短) 2 23 3500285 Thread Eyelet Pipe Holder 糸道パイプ押工 1 24 3500489 Top Cover Thread Eyelet(Right) 飾り糸道(右) 1 25 3180071 SP Device, Complete Set SP装置(組) 1 26 3100384 SP Container SPタンク 1 27 3100386 Felt SPフェルト 1 28 3180072 Needle Thread Eyelet 針糸道 1 29 350009 Tapping Screw(3 × 6mm) タッピンネジ 2 30 0068247 Needle Thread Eyelet Holder 針糸道台 1 31 005431 Screw(1/8-44 × 4.4) 止ネジ 2 32 0068249 Needle Thread Eyelet 針糸道 3 33 003312 Screw(1/8-44 × 3.4) 止ネジ 3 34 000538 Washer ワッシャ 1 35 000651 Guide Pin ガイドピン 1 36 0090068 Needle Thread Guide 針糸受ケ 1 37 3180073 Needle Thread Eyelet 針糸道 1 38 130003 Screw(M4-0.7 × 4.5) 止ネジ 1 39 3100081 Top Cover Thread Guide 飾り糸案内 1 40 0063074 Supplementary Thread Guide 小調子台糸道 1 41 001818 Tension Post 糸調子棒 1 42 0037108 Supplementary Tension Disc 小調子皿 2 43 0035813 Supplementary Tension Spring 飾り糸調子バネ 1 44 000360 Nut ナット 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in VFS2500-8

Page 12

4 42 35 36 41 38 37 39 43 15 14 13 12 10 9 11 2 16 5 6 7 3 34 8 4 31 32 19 29 24 33 30 28 27 26 25 22 21 23 18 20 44 47 48 49 46 45 50 51 52 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 13 — MISCELLANEOUS BUSHINGS

MISCELLANEOUS BUSHINGS ブッシュ関係 4 Ref.No Parts No. Description 品 名 Amt. Req 1 3500309 Oil Seal オイルシール 2 2 310106 Laced Wire($3 × 130mm) モール 1 3 3160158 Presser Bar Bushing 押工棒ブッシュ 1 4 3204021 Oil Seal オイルシール 1 5 3500096 Sponge 給油スポンジ 1 6 000397 Oil Wick ($2 × 11mm) 油芯 1 7 3500095 Spreader Driving Bar Bushing 飾り糸ルーパ棒ブッシュ 1 8 0063055 Oil Seal オイルシール 1 9 3500050 Oil Seal オイルシール 1 10 3500044 Needle Thread Take-up Bushing(Front) 針糸繰り軸ブッシュ(前) 1 11 3500045 Needle Thread Take-up Bushing(Rear) 針糸繰り軸ブッシュ(後) 1 12 3500047 Spreader Driving Shaft Bushing(Left) 飾り糸ルーパ棒ブッシュ(左) 1 13 3500048 Spreader Driving Shaft Bushing(Right) 飾り糸ルーパ棒ブッシュ(右) 1 14 3500041 Oil Seal オイルシール 1 15 3500046 Foot Lifter Lever Bushing 押工揚ゲ軸ブッシュ 2 16 000195 Oil Wick (No. 4-175mm) 油芯 1 17 3200050 Lower Shaft Bushing(Left) 下軸ブッシュ 1 18 3200067 Oil Seal オイルシール 1 19 3200062 Looper Rocker Shaft Bushing(Left) ルーパ前後軸ブッシュ(左) 1 20 3200052 Looper Rocker Shaft Bushing(Right) ルーパ前後軸ブッシュ(右) 1 21 0077300 Oil Seal オイルシール 1 22 3200056 Needle Guard Driving Shaft 針受ケ軸ブッシュ 2 23 3200057 Seal Plug 詰栓 1 24 3200053 Feed Bar Driving Shaft Bushing(Left) 送り軸ブッシュ(左) 1 25 3200065 Feed Bar Driving Shaft Bushing(Right) 送り軸ブッシュ(右) 1 26 2100034 Seal Plug 詰栓 1 27 0093303 Oil Seal オイルシール 1 28 3200061 Looper Driving Shaft Bushing(Front) ルーパ軸ブッシュ(前) 1 29 3200051 Looper Driving Shaft Bushing(Rear) ルーパ軸ブッシュ(後) 1 30 3200055 Differential Lever Shaft Bushing 差動レバー軸ブッシュ 1 31 0093864 Seal Plug 詰栓 1 32 0065275 Seal Plug 詰栓 1 33 0095218 Seal Plug 詰栓 1 34 3200066 Seal Plug 詰栓 1 35 3100006 Seal Plug 詰栓 1 36 3160022 Top Feed Shaft Bushing 上送り軸ブッシュ 2 37 3160023 Vertical Motion Shaft Bushing(Right) 上送り上下軸ブッシュ(右) 1 38 3160024 Top Feed Rocker Shaft Bushing(Right) 上送り前後軸ブッシュ(右) 1 39 3160027 Adjusting Shaft Bushing 前後調節軸ブッシュ 1 40 0032684 Oil Seal オイルシール 1 41 3160025 Rocker Drive Shaft Bushing(Left) 前後駆動軸ブッシュ(左) 1 42 3160026 Rocker Drive Shaft Bushing(Right) 前後駆動軸ブッシュ(右) 1 43 0020051 Seal Plug 詰栓 1 44 3510050 Eye Guard, C. Set アイガード(組) 1 45 3510051 Finger Guard フィンガード 1 46 170010 Screw(M4-0.7 × 4) 止ネジ 1 47 300100 Conical Spring Washer 皿バネワッシャ 1 48 000669 Washer ワッシャ 1 49 3100272 Cushion クッション 1 50 3510052 Eye Guard アイガード 1 51 110076 Screw(M3-0.5 × 6) 止ネジ 2 52 000014 Washer ワッシャ 2 From the library of: Superior Sewing Machine & Supply LLC Jinte.in VFS2500-8

Page 14

5 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte x.in

Page 15 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構 5 Ref.No Parts No. Description 品 名 Amt. Req 1 3200070 Pulley プーリー 1 2 160005 Screw(M6-1 × 8) 止ネジ 5 3 160007 Screw(M6-1 × 6) 止ネジ 9 4 000037 Roll Pin ロールピン 1 5 3200071 Oil Cooling Fan 冷却ファン 1 6 3200095 Ball Bearing(Right) ボールベアリング(右) 1 7 3200010 Main Shaft Sprocket(Lower) ベルトプーリー(下) 1 8 3100131 Ball Bearing(Middle) ボールベアリング(中) 1 9 3200072 Oil Pump Driving Worm ウォーム 1 10 3100129 Adapter アダプタ 1 11 3200078 Ball Bearing(Left) ボールベアリング(左) 1 12 3200073 Lower Shaft(Right) 下軸(右) 1 13 3200074 Lower Shaft Joint 継手 1 14 3200143 Looper Thread Take-up 下糸調子カム 1 15 150000 Screw(M5-0.8 × 4) 止ネジ 2 16 0093091 Ball Bearing ボールベアリング 1 17 3200097 Needle Guard Connecting Rod, C. Set(2) 針受ケロッド(組2) 1 18 3200096 Needle Guard Connecting Rod, C. Set(1) 針受ケロッド(組1) 1 19 3200082 Needle Guard Connecting Rod 針受ケロッド 1 20 110005 Screw(M3.5-0.6 × 12) 止ネジ 2 21 3200098 Needle Guard Eccentric 針受ケエキセン 1 22 160003 Screw(M5-0.8 × 5) 止ネジ 2 23 3200087 Connecting Rod Pin ロッドピン 1 24 3200084 Needle Guard Driving Shaft Arm 針受ケ軸腕 1 25 005650 Screw(M5-0.8 × 14) 止ネジ 1 26 160000 Screw(M3-0.5 × 3) 止ネジ 4 27 3200077 Counterweight バランスウエイト 1 28 110036 Screw(M3-0.5 × 6.5) 止ネジ 2 29 3200075 Lower Crankshaft 下軸クランク 1 30 310035 Oil Wick(No. 2-165mm) 油芯 3 31 160001 Screw(M4-0.7 × 4) 諸ネジ 2 32 0020159 Ball Bearing ボールベアリング 1 33 0068202 Retaining Ring ストップリング 1 34 3200085 Spacer スペーサ 1 35 3200086 Collar(8 × 13 × 6mm) カラー 1 36 3200083 Needle Guard Driving Shaft 針受ケ軸 1 37 0093669 Needle Guard(Rear) 針受ケ(後) 1 38 110083 Screw(M3.5-0.6 × 4.5) 止ネジ 1 39 3200093 Supporting Plate Stay(Lower) カム糸取付板支工(下) 1 40 110048 Screw(M4-0.7 × 10) 止ネジ 2 Ref. No. 41 to 58 See the following page. From the library of: Superior Sewing Machine & Supply LLC VFS2500-8 jintex.in

Page 16

5 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 17 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構

NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構 5 Ref.No Parts No. Description 品 名 Amt. Req 41 3200092 Supporting Plate Stay(Upper) カム糸通路取付板支工(上) 1 42 110009 Screw(M4-0.7 × 8) 止ネジ 1 43 3200091 Supporting Plate カム糸通路取付板 1 44 130002 Screw(M3-0.5 × 6) 止ネジ 2 45 46 0093515 Thread Take-up Eyelet カム糸道 2 47 000014 Washer ワッシャ 2 48 001227 Screw(1/8-44 × 3.8) 止ネジ 2 49 3200042 Looper Thread Eyelet ルーパ糸道 1 50 001818 Tension Post 糸調子棒 1 51 0037108 Supplementary Tension Disc 小調子皿 2 52 0035813 Supplementary Tension Spring 小調子バネ 1 53 000360 Adjusting Nut 調節ナット 1 54 0063197 Cast-off Plate Bracket 糸案内台 1 55 001223 Screw(9/64-40 × 7.5) 止ネジ 1 56 3200094 Cast-off Plate 糸案内 1 57 000532 Washer ワッシャ 1 58 004106 Screw(9/64-40 × 6.5) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC VFS2500-8 jintex.in

Page 18

6 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 19 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM 上軸及び針糸繰り機構 6 Ref.No Parts No. Description 品 名 Amt. Req 1 3270030 Handwheel ハンドホイール 1 2 000989 Handwheel Mark ハンドホイールマーク 1 3 160005 Screw(M6-1 × 8) 止ネジ 3 4 160007 Screw(M6-1 × 6) 止ネジ 10 5 0092305 Magnet マグネット 1 6 3500054 Ball Bearing ボールベアリング 2 7 310129 Handwheel Adapter アダプタ 1 8 3260012 Timing Belt(565-5GT-15) タイミングベルト 1 9 3260011 Upper Shaft Sprocket(Upper) ベルトプーリ(上) 1 10 3100275 Upper Shaft(Right) 上軸(右) 1 11 3100283 Upper Shaft Joint 上軸継手 1 12 3500448 Oil Sleeve オイルスリーブ 1 13 310040 Oil Wick 油芯 1 14 3510025 Upper Shaft(Left) 上軸(左) 1 15 3500444 Connecting Rod, C. Set 針糸繰りロッド(組) 1 16 3500445 Needle Thread Take-up Eccentric 針糸リキセン 1 17 160003 Screw(M5-0.8 × 5) 止ネジ 4 18 3500446 Connecting Rod 針糸繰りロッド 1 19 120001 Screw(M4-0.7 × 14) 止ネジ 2 20 3500066 Driving Lever 針糸繰り軸腕 1 21 120013 Screw(M6-1 × 15) 止ネジ 2 22 2100218 Driving Shaft Thrust Ring スラストリング 1 23 000555 Washer ワッシャ 1 24 000600 Spring Washer スプリングワッシャ 1 25 120015 Screw(M5-0.8 × 10) 止ネジ 1 26 3500065 Driving Shaft 針糸繰り軸 1 27 3500492 Bracket 針糸繰り台 1 28 000687 Spring Washer スプリングワッシャ 1 29 160023 Screw(M4-0.7 × 4) 止ネジ 1 30 3180070 Needle Thread Take-up 針糸繰り糸道 1 31 3180075 Top Cover Thread Take-up 飾り糸繰り 1 32 110009 Screw(M4-0.7 × 8) 止ネジ 2 33 3500442 Collar カラー 1 34 110135 Screw(M5-0.8 × 7) 止ネジ 1 35 310132 Oil Wick(Φ 4.2 × 16mm) 油芯 1 36 3500062 Upper Shaft Sleeve, C. Set 上軸スリーブ(組) 1 37 3500064 Upper Shaft Sleeve 上軸スリーブ 1 38 160004 Screw(M6-1 × 4.8) 止ネジ 1 39 0093154 Ball Bearing ボールベアリング 2 40 310099 Oil Wick(Φ 3.3 × 30mm) 油芯 1 41 110067 Screw(M5-0.8 × 5) 止ネジ 1 42 160041 Screw(M5-0.8 × 8) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC VFS2500-8 jintex.in

Page 20

7 2 1 3 16 19 18 20 17 21 22 23 14 15 13 15 5 6 9 7-1 7-2 9 10 8 12 11-1 11-2 24 25 26 27 35 29 32 31 30 34 33 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jitex.in

Page 21 — NEEDLE BAR MECHANISM

NEEDLE BAR MECHANISM Ref.No Parts No. Description 針棒機構 7 品 名 Amt. Req 1 3270015 Needle Bar & Needle Bar Bushing, C. Set 針棒・針棒ブッシュ(組) 1 2 004358 Screw(9/64-40 × 5.6) 止ネジ 1 3 0063044 Needle Bar Thread Eyelet 針棒糸道 1 4 5 3500100 Needle Bar Bracket 針棒抱キ 1 6 110035 Screw(M4-0.7 × 10) 止ネジ 1 7-1 0093356 Needle Clamp(48) 針止メ 1 7-2 0093357 Needle Clamp(56) 針止メ 1 8 -- -- -- -- -- Needle(UY128 GAS) 針 3 9 001900 Screw(1/8-44 × 2.4) 止ネジ 4 10 0093365 Top Cover Thread Eyelet 飾り糸道 1 11-1 3108133 Stitch Plate(48M) 針板 1 11-2 3108134 Stitch Plate(56M) 針板 1 12 009142 Screw(9/64-40 × 4.8) 止ネジ 2 13 3500615 Counterweight バランスウエイト 1 14 110011 Screw(M5-0.8 × 10) 止ネジ 1 15 160029 Screw(M8-1.25 × 8) 止ネジ 2 16 3500091 Connecting Rod, C. Set 針棒ロッド(組) 1 17 3200112 Connecting Rod 針棒ロッド 1 18 0093212 Roller Bearing ニードルベアリング 1 19 3500617 Eccentric Pin Plate エキセンピンプレート 1 20 130002 Screw(M3-0.5 × 6) 止ネジ 1 21 3500616 Eccentric Pin 針棒エキセンピン 1 22 000309 Felt(2.5 × 3 × 30mm) フェルト 1 23 330000 Seal Plug 詰栓 1 24 3240015 Needle Bar Guide, C. Set 針案内(組) 1 25 3240016 Needle Bar Guide 針案内 1 26 0093186 Slide Block 針案内駒 1 27 009750 Screw(M4-0.7 × 20) 止ネジ 2 28 3100338 Sponge 給油スポンジ 1 29 3200120 HR Device, Complete Set HR装置(組) 1 30 3200121 HR Cup HRカップ 1 31 3200122 HR Cup Lid HRカップ蓋 1 32 0093864 Seal Plug 詰栓 1 33 310036 HR Felt HR フェルト 1 34 0093663 HR Felt Guard HR フェルトガード 1 35 006219 Screw(M4-0.7 × 30) 止ネジ 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in VFS2500-8

Page 22

8 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 23 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 1 0077270 Presser Spring Regulator 押工調節ネジ 1 2 000445 Lock Nut ロックナット 1 3 0065372 Presser Bar Spring(Outer) 押工棒バネ(太) 1 4 3160163 Presser Bar Connecting Bracket 押工棒抱キ 1 5 110035 Screw(M4-0.7 × 10) 止ネジ 1 6 3240026 Presser Bar Guide 押工棒案内 1 7 110001 Screw(M4-0.7 × 5.4) 止ネジ 2 8 0060142 Presser Bar Spring(Inner) 押工棒バネ(細) 1 9 3100110 Presser Bar 押工棒 1 10 0093611 Oil Protector Ring 油切リリング 1 11 3100310 Collar(9 × 17 × 7mm) カラー 1 12 160001 Screw(M4-0.7 × 4) 止ネジ 2 13 0020271 Thread Chain Cutting Knife チェインカッタ 1 14 110054 Screw(M3-0.5 × 3.5) 止ネジ 1 15-1 3167002 Presser Foot, C. Set(48) 押工(組) 1 15-2 3167004 Presser Foot, C. Set(56) 押工(組) 1 16 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 17 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 18 130016 Screw(M2.5-0.45 × 6) 止ネジ 2 19 3107306 Presser Foot Hinge Pin(48, 56) 押工ヒンジピン 1 20 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 21 000327 Lock Nut ロックナット 1 22 003302 Adjusting Screw(1/8-44 × 11) 調節ネジ 1 23 3160090 Presser Bar Lifter Link 押工釣り 1 24 3510063 Guide Lifter Link 上送り台ガイド釣り 1 25 170041 Screw(M5-0.8 × 3.5) 止ネジ 3 26 3500300 Lifter Shaft 押工揚ゲ軸 1 27 2100267 Collar(10 × 17 × 8mm) カラー 1 28 160001 Screw(M4-0.7 × 4) 止ネジ 2 29 3500293 Lifter Shaft Lever 押工揚ゲ軸レバー 1 30 005650 Screw(M5-0.8 × 14) 止ネジ 1 31 0068181 Spring バネ 1 32 3500294 Lever Link レバーリンク 1 33 3160091 Guide Lifter Link(Upper) 上送り台ガイド吊り(上) 1 34 110009 Screw(M4-0.7 × 6) 止ネジ 2 35 000538 Washer ワッシャ 2 36 3500291 Lifter Lever 押工揚ゲレバー 1 37 000487 Wave Washer 波形ワッシャ 2 38 300005 Washer ワッシャ 1 39 120010 Screw(M6-1 × 10) 止ネジ 1 40 2110361 Spring バネ 1 Ref. No. 41 to 58 See the following page. From the library of: Superior Sewing Machine & Supply LLC VFS2500-8 jintex.in

Page 24

8 1 2 3 4 5 A 6 7 9 10 11 13 14 15-1 15-2 16 17 18 19 20 21 22 23 A 24 25 35 B 48 49 50 B 36 37 38 39 40 41 42 43 44 45 47 51 52 53 54 55 56 57 58 VF52500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 25 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品 名 Amt. Req 41 3500305 Cap キャップ 1 42 2100194 Lifter Lever Holder 押工揚グレーバー台 1 43 340003 Knock Pin(Φ5 × 20mm) ノックピン 1 44 3500295 Lifter Lever Stopper 押工揚グレーバーストップパ 1 45 120006 Screw(M6-1 × 12) 止ネジ 2 46 000206 Lock Nut ロックナット 1 47 110021 Screw(M5-0.8 × 18) 止ネジ 1 48 3500299 Tension Release Lever Connector 糸緩メ腕連結板 1 49 170038 Screw(M4-0.7 × 5) 止ネジ 1 50 170009 Screw(M4-0.7 × 4) 止ネジ 1 51 3100533 Tension Release Lever 糸緩メ腕 1 52 120001 Screw(M4-0.7 × 14) 止ネジ 1 53 3500292 Tension Release Shaft 糸緩メ軸 1 54 006315 Thread Pull-off Lever 糸緩メレバー 1 55 000690 Spring Pin(4 × 16mm) スプリングピン 1 56 0094390 Tension Release Adjusting Eccentric 糸緩メ板調節コロ 1 57 0095334 Swing-proof Spring 防振バネ 1 58 001170 Screw(9/64-40 × 12) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC Jjtex.in VFS2500-8

Page 26

9 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 27 — TOP FEED VERTICAL MECHANISM

TOP FEED VERTICAL MECHANISM 上送り上下機構 9 Ref.No Parts No. Description 品 名 Amt. Req 1 3510017 Vertical Motion Connecting Rod, C. Set 上下ロッド(組) 1 2 3160034 Vertical Motion Eccentric 上下エキセン 1 3 160003 Screw(M5-0.8 × 5) 止ネジ 6 4 3510018 Vertical Motion Connecting Rod 上下ロッド 1 5 120049 Screw(M4-0.7 × 16) 止ネジ 2 6 3510029 Connecting Rod Pin Plate ロッドピンプレート 1 7 130002 Screw(M3-0.5 × 6) 止ネジ 1 8 3510027 Vertical Motion Adjusting Arm, C. Set 上下調節腕(組) 1 9 3510028 Connecting Rod Pin 上下ロッドピン 1 10 300000 Washer ワッシャ 1 11 000206 Nut ナット 1 12 3160036 Vertical Motion Adjusting Arm 上下調節腕 1 13 120013 Screw(M6-1 × 15) 止ネジ 1 14 2100137 Collar(12 × 20 × 10mm) カラー 1 15 000740 Seal Plug 詰栓 2 16 3160037 Vertical Motion Shaft 上送り上下軸 1 17 3160039 Thrust Plate スラストプレート 1 18 3160038 Retaining Ring ストツプリング 1 19 3510038 Vertical Motion Rocking Arm 上送り上振り腕 1 20 140004 Screw(M6-1 × 16) 止ネジ 1 21 160000 Screw(M3-0.5 × 3) 止ネジ 6 22 3510039 Rocking Arm Link 振り腕リンク 1 23 310068 Oil Wick(No.2-120mm) 油芯 1 24 3160098 Oil Wick Presser 油芯押工 1 25 110023 Screw(M2-0.4 × 3.5) 止ネジ 1 26 3510037 Link Pin リンクピン 3 27 3510020 Top Feed Dog Bar Guide, C. Set 上送り台ガイド(組) 1 28 3510021 Top Feed Dog Bar Guide Arm 上送り台ガイド腕 1 29 2100288 Guide Arm Pin ガイド腕ピン 1 30 3510022 Top Feed Dog Bar Guide 上送り台ガイド 1 31 3510024 Top Feed Dog Bar 上送り台 1 32 160006 Screw(M3-0.5 × 6) 止ネジ 2 33 3160104 Thrust Plate スラストプレート 1 34 0068202 Retaining Ring ストツプリング 1 35 160001 Screw(M4-0.7 × 4) 止ネジ 3 36 3160092 Guide Stop 上送り台ガイドストツプ 1 37 3160103 Guide Arm Shaft ガイド腕軸 1 38 3200086 Collar(8 × 13 × 6mm) カラー 1 39 180033 Screw(M6-1 × 5) 止ネジ 1 40 004272 Adjusting Screw(M10-0.75 × 44) 調節ネジ 1 Ref. No. 41 to 73 See the following page. From the library of: Superior Sewing Machine & Supply LLC VFS2500-8 jintex.in

Page 28

9 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 29 — TOP FEED VERTICAL MECHANISM

TOP FEED VERTICAL MECHANISM 9 Ref.No Parts No. Description 品名 Amt. Req 41 100007 Lock Nut ロックナット 2 42 3510062 Top Feed Dog Press Spring 上送り押エバネ 1 43 3510059 Top Feed Dog Bar Bushing 上送り棒ブッシュ 1 44 3510060 Top Feed Dog Bar Bushing Holder 上送り棒ブッシュ台 1 45 005650 Screw(M5-0.8 × 14) 止ネジ 2 46 3160124 Top Feed Dog Presser Bar 上送り台押工棒 1 47 3510030 Top Feed Dog Bar, C. Set 上送り棒(組) 1 48 3510031 Top Feed Dog Bar 上送り棒 1 49 3510032 Top Feed Dog Bar Link 上送り棒リンク 1 50 3510034 Top Feed Dog Bar Link Pin 上送り棒リンクピン 1 51 000278 Oil Wick(2.5 × 2.5 × 18mm) 油芯 2 52 2100176 Top Feed Dog Bar Pin 上送り棒ピン 1 53 3510033 Top Feed Dog Link Pin 上送りリンクピン 1 54 3160120 Oil Leakage Proof Cover 防油カバー 1 55 3160114 Cover Support 防油カバーサポート 1 56 3510040 Spring Holder バネ受ケ台 1 57 009747 Screw(M4-0.7 × 10) 止ネジ 2 58 3510041 Auxiliary Top Feed Dog Spring 上送り補助バネ 1 59 3160116 Top Feed Dog Bar Seal 上送り棒シール 1 60 3510057 Seal Support シールサポート 1 61 110002 Screw(M2-0.4 × 5) 止ネジ 4 62 110115 Screw(M2-0.4 × 8.5) 止ネジ 2 63 3510035 Top Feed Dog Holder 上送り取付台 1 64 190077 Screw(M4-0.7 × 10) 止ネジ 1 65 3519014 Top Feed Dog 上送り 1 66 009779 Screw(M3-0.5 × 6) 止ネジ 1 67 000014 Washer ワッシャ 1 68 160007 Screw(M5-0.8 × 6) 止ネジ 2 69 3510043 Guid Bracket ガイドブラケット 1 70 3510044 Top Feed Dog Bar Guid(Right) 上送り棒ガイド(右) 1 71 3160109 Top Feed Dog Bar Guid(Left) 上送り棒ガイド(左) 1 72 120001 Screw(M4-0.7 × 14) 止ネジ 2 73 310079 Oil Wick 油芯 1 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VFS2500-8

Page 30

10 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jintex.in

Page 31 — TOP FEED ROCKER MECHANISM

TOP FEED ROCKER MECHANISM 上送り前後機構 10 Ref.No Parts No. Description 品 名 Amt. Req 1 3160173 Top Feed Rocker Drive Shaft 上送り前後駆動軸 1 2 000740 Seal Plug 詰栓 4 3 2100137 Collar(12 × 20 × 10mm) カラー 2 4 160003 Screw(M5-0.8 × 5) 止ネジ 8 5 3160056 Top Feed Arm, Complete Set 上送り調節節腕(組) 1 6 3160057 Top Feed Regulator Arm 上送り調節腕 1 7 120013 Screw(M6-1 × 15) 止ネジ 2 8 3160058 Slider スライダ 1 9 3160051 Rocker Shaft Lever 上送り前後駆動軸 1 10 3160038 Retaining Ring ストップリング 2 11 3160039 Thrust Plate スラストプレート 2 12 3160064 Top Feed Rocker Arm Link 前後送り腕リンク 1 13 160001 Screw(M4-0.7 × 4) 止ネジ 2 14 2120082 Slider Pin スライダピン 1 15 0026413 Spacer スペーサ 1 16 3160061 Slider Lever, C. Set スライダレバー(組) 1 17 3160062 Slider Lever スライダレバー 1 18 0026099 Slider Lever Block 角駒 1 19 2120083 Spacer スペーサ 1 20 0033024 Retaining Ring ストップリング 1 21 3160063 Slider Link スライダリンク 1 22 0026081 Link Pin リンクピン 3 23 160030 Screw(M3.5-0.6 × 3) 止ネジ 1 24 3160071 Slider Lever Pin スライダレバーピン 1 25 3160070 Slider Lever Holder スライダレバー台 1 26 160007 Screw(M6-1 × 6) 止ネジ 2 27 009977 Screw(M6-1 × 30) 止ネジ 2 28 3100207 Pin(5 × 12mm) ピン 2 29 3160065 Top Feed Rocker Arm(Right) 上送り前後腕(右) 1 30 160000 Screw(M3-0.5 × 3) 止ネジ 4 31 3160066 Top Feed Rocker Shaft 上送り前後軸 1 32 3510023 Top Feed Rocking Arm 上送り前後振り腕 1 33 140004 Screw(M6-1 × 16) 止ネジ 1 34 3510039 Rocking Arm Link 振りリンク 1 35 310068 Oil Wick(No.2-120mm) 油芯 1 36 3160098 Oil Wick Presser 油芯押工 1 37 110023 Screw(M2-0.4 × 3.5) 止ネジ 1 38 3510037 Link Pin リンクピン 1 39 3160049 Driving Connecting Rod, C. Set 上送り前後ロッド(組) 1 40 3160050 Driving Connecting Rod 上送り前後ロッド 1 41 120049 Screw(M4-0.7 × 16) 止ネジ 2 42 3160054 Top Feed Eccentric 送りエキセン 1 43 3160052 Top Feed Dog Link Pin 上送りリンクピン 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in VFS2500-8

Page 32

11 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte x.in

Page 33 — TOP FEED DIFFERENTIAL MECHANISM

TOP FEED DIFFERENTIAL MECHANISM Ref.No Parts No. Description 品 名 Amt. Req 1 3160085 Differential Feed Graduation 上送り目盛板 1 2 009784 Screw(M6-1 × 10) 止ネジ 2 3 3160086 Adjusting Knob 調節ツマミ 1 4 160001 Screw(M4-0.7 × 4) 止ネジ 3 5 3240091 Adjusting Screw 調節ネジ 1 6 3240087 Adjusting Pin 調節ピン 1 7 3240088 Stop Block ストップブロック 1 8 2100259 Adjusting Spring 調節バネ 1 9 0034293 Retaining Ring ストップリング 1 10 009751 Screw(M5-0.8 × 10) 止ネジ 2 11 000669 Washer ワッシャ 1 12 180012 Screwed Pin(M4-0.7 × 3) ピンネジ 2 13 0077179 Retaining Ring ストップリング 1 14 3240086 Differential Feed Pointer 上送り量指針 1 15 110054 Screw(M3-0.5 × 3.5) 止ネジ 2 16 3160084 Adjusting Outer Link 上送り前後外リンク 1 17 006202 Screw(M4-0.7 × 6) 止ネジ 1 18 170010 Screw(M4-0.7 × 4) 止ネジ 1 19 3160073 Slider Link Lever スライダリンクレバー 1 20 160003 Screw(M5-0.8 × 5) 止ネジ 2 21 0095027 Retaining Ring ストップリング 1 22 3160077 Thrust Plate スラストプレート 1 23 3160074 Adjusting Lever Spring レバーバネ 1 24 3160076 Adjusting Shaft 前後調節軸 1 25 0020538 O-ring(P7) Oリング 1 26 3160080 Top Feed Dog Adjusting Lever 上送り前後レバー 1 27 160021 Screw(M5-0.8 × 6) 止ネジ 1 28 3160082 Adjusting Lever Hinge 上送り前後レバーヒンジ 1 29 000426 Washer ワッシャ 1 30 3160081 Hinge Holder ヒンジ台 1 31 110011 Screw(M5-0.8 × 10) 止ネジ 2 32 0085710 Spring バネ 1 33 3510055 Spring Latch バネ掛ケ 1 34 110094 Screw(M4-0.7 × 6) 止ネジ 2 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VFS2500-8

Page 34

12 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 35 — SPREADER MECHANISM

SPREADER MECHANISM 節リ糸ルーパ機構 12 Ref.No Parts No. Description 品 名 Amt. Req 1 3500081 Spreader Eccentric, C. Set 節リエキセン(組) 1 2 3500082 Spreader Eccentric 節リエキセン 1 3 160003 Screw(M5-0.8 × 5) 止ネジ 2 4 3500084 Spreader Connecting Rod 節リロッド 1 5 110009 Screw(M4-0.7 × 8) 止ネジ 1 6 300006 Washer ワッシャ 1 7 3100309 Adjusting Lever Pin 調節レバーピン 1 8 000528 Washer ワッシャ 1 9 100003 Nut(M6-1.0) ナット 1 10 3500086 Spreader Adjusting Lever 節り調節レバー 1 11 120013 Screw(M6-1 × 15) 止ネジ 1 12 3160138 Driving Shaft ルーパ軸 1 13 0032646 Collar(12 × 20 × 8mm) カラー 1 14 009604 Screw(11/64-40 × 5.5) 止ネジ 2 15 16 3100305 Rocking Arm ルーパ振り腕 1 17 160007 Screw(M6-1 × 6) 止ネジ 2 18 0063051 Rocking Pin ルーパ振リピン 1 19 310094 Oil Wick(φ 3.3 × 15mm) 油芯 1 20 0063053 Spreader Bar ルーパ棒 1 21 0063056 Bushing Ring ブッシュリング 1 22 0063057 Collar(10 × 18 × 7mm) カラー 1 23 009526 Screw(9/64-40 × 4.4) 止ネジ 2 24 3100307 Spreader Holder 節り糸ルーパ台 1 25 3509320 Spreader 節り糸ルーパ 1 26 110031 Screw(M4-0.7 × 12) 止ネジ 2 27 2100218 Thrust Ring スラストリング 1 28 3500097 Thrust Sheet(Small) スラストシート(小) 1 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VFS2500-8

Page 36

13 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 37 — LOOPER DRIVING MECHANISM

LOOPER DRIVING MECHANISM Ref.No Parts No. Description 品 名 Amt. Req 1 3200150 Looper Rocker Connecting Rod, C. Set(2) ルーパ前後ロッド(組2) 1 2 3200149 Looper Rocker Connecting Rod, C. Set(1) ルーパ前後ロッド(組1) 1 3 3200152 Looper Rocker Connecting Rod ルーパ前後ロッド 1 4 120001 Screw(M4-0.7 × 14) 止ネジ 5 5 3200151 Looper Rocker Eccentric ルーパ前後エキセン 1 6 160003 Screw(M5-0.8 × 5) 止ネジ 2 7 3200159 Connecting Rod Pin ルーパ前後ロッドピン 1 8 300008 Washer ワッシャ 1 9 100002 Nut ナット 1 10 3200154 Looper Rocker Lever ルーパ前後腕 1 11 005650 Screw(M5-0.8 × 1.4) 止ネジ 2 12 3200155 Looper Rocker Adjusting Guide Plate ルーパ前後調節ガイド板 1 13 110007 Screw(M2.5-0.45 × 6) 止ネジ 2 14 170021 Adjusting Screw(M2.5-0.45 × 10.5) 調節ネジ 1 15 2100267 Collar(10 × 17 × 8mm) カラー 1 16 160001 Screw(M4-0.7 × 4) 止ネジ 2 17 0093314 Looper Rocker Shaft ルーパ前後軸 1 18 3200157 Looper Rocker Arm ルーパ振り腕 1 19 0093319 Looper Slide Block ルーパ前駒 1 20 21 3200160 Looper Slide Block Pin ルーパ前後駒ピン 1 22 160009 Screw(M5-0.8 × 5) 止ネジ 1 23 3200161 Looper Connecting Rod ルーパロッド 1 24 0032784 Link Pin(Short) ルーパリンクピン(短) 1 25 009604 Screw(11/64-40 × 5.5) 止ネジ 1 26 0032785 Looper Driving Lever Link ルーパリンク 1 27 001457 Screw(11/64-40 × 3.3) 止ネジ 1 28 0032786 Link Pin(Long) ルーパリンクピン(長) 1 29 3200162 Looper Driving Lever ルーパ軸腕 1 30 160007 Screw(M6-1 × 6) 止ネジ 2 31 3200163 Collar カラー 1 32 0093300 Looper Driving Shaft ルーパ軸 1 33 3200164 Looper Holder ルーパ台 1 34 000669 Washer ワッシャ 1 35 0094480 Looper ルーパ 1 36 110057 Screw(M4-0.7 × 7) 止ネジ 1 37 0095723 Needle Guard(Front) 針受ケ(前) 1 38 004236 Screw(3/32-56 × 4.2) 止ネジ 1 39 009934 Screw(M5-0.8 × 16) 止ネジ 1 13 From the library of: Superior Sewing Machine & Supply LLC Jinte.in VFS2500-8

Page 38

14 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 39

FEED DRIVING CONTROL MECHANISM 前送り調節機構 14 Ref.No Parts No. Description 品 名 Amt. Req 1 3200181 Feed Bar Driving Shaft 送り軸 1 2 3200183 Main Feed Bar Lever 後送りレバー 1 3 120006 Screw(M6-1 × 12) 止ネジ 3 4 3200184 Differential Rocker, Complete Set 前送り腕(組) 1 5 3200185 Differential Rocker 前送り腕 1 6 3200186 Differential Regulating Slider スライダ 1 7 3200187 Differential Regulating Slider Cap スライダ蓋 1 8 110033 Screw(M3-0.5 × 6) 止ネジ 2 9 2100161 Collar(15 × 19 × 9mm) カラー 1 10 160003 Screw(M5-0.8 × 5) 止ネジ 2 11 3200205 Differential Lever(Inner), C. Set 差動レバー(中)(組) 1 12 2100252 Slider Link スライダリンク 1 13 0068202 Retaining Ring ストップリング 1 14 2100253 Slider Link Pin スライダリンクピン 1 15 3200206 Differential Lever(Inner) 差動レバー(中) 1 16 3200189 Feed Bar, Complete Set 前後送り台(組) 1 17 3200190 Main Feed Bar 後送り台 1 18 3200191 Differential Feed Bar 前送り台 1 19 140018 Screw(M5-0.5 × 6) 止ネジ 1 20 300000 Washer ワッシャ 2 21 3200194 Connection Bushing 前送りリンクブッシュ 1 22 2100243 Differential Feed Bar Connection 前送りリンク 1 23 140017 Screw(M5-0.5 × 6) 止ネジ 1 24 2100248 Main Feed Bar Connection 後送りリンク 1 25 3200192 Connection Bushing 後送りリンクブッシュ 1 26 3200215 Retaining Ring ストップリング 1 27 2100267 Collar(10 × 17 × 8mm) カラー 1 28 160001 Screw(M4-0.7 × 4) 止ネジ 2 29 000690 Roll Pin ロールピン 1 30 3200216 Differential Lever Spring 差動レバーバネ 1 31 0020538 O-ring(P7) Oリング 1 32 3200207 Differential Lever Shaft 差動レバー軸 1 33 0095132 Differential Lever(Left) 差動レバー(左) 1 34 110009 Screw(M4-0.7 × 8) 止ネジ 1 35 004143 Screw(1/64-40 × 3.2) 鍋掛ケネジ 1 36 3200213 Differential Feed Graduation 送り目盛板 1 37 110045 Screw(M4-0.7 × 12) 止ネジ 2 38 310072 Felt フェルト 1 39 000210 Adjusting Nut 調節ナット 1 40 009511 Adjusting Screw(1/4-40×11,11/64-40×4) 調節ネジ 1 41 0020350 Differential Lever Stop 差動レバー ストッパ 2 42 000669 Washer ワッシャ 2 43 000600 Spring Washer スプリングワッシャ 2 44 005049 Screw(M5-0.8 × 8) 止ネジ 2 45 310071 Oil Wick(No.8-400mm) 油芯 1 From the library of: Superior Sewing Machine & Supply LLC VFS2500-8

Page 40

15 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jintez.in

Page 41

FEED DRIVING MECHANISM 送り機構 15 Ref.No Parts No. Description 品 名 Amt. Req 1 3200199 Feed Bar Guide(Left) 送り台ガイド(左) 1 2 110080 Screw(M4-0.7 × 8) 止ネジ 2 3 3200200 Feed Bar Guide(Right) 送り台ガイド(右) 1 4 160007 Screw(M6-1 × 6) 止ネジ 3 5 0033141 Feed Adjusting Pin エキセンピン 1 6 0093389 Feed Bar Block(Rear) 角駒(後) 1 7 3200201 Feed Bar Guide(Rear) 送り台ガイド(後) 1 8 0060076 Retaining Ring ストツプリング 1 9 0060075 Feed Bar Block(Front) 角駒(前) 1 10 2110527 Roller Bearing ニードルベアリング 1 11 3200198 Eccentric Pin Holder 送リエキセンピン取付台 1 12 160003 Screw(M5-0.8 × 5) 止ネジ 2 13 0020401 Feed Dog Eccentric Pin 送リエキセンピン 1 14 3200214 Driving Connecting Rod Mechanism,C.Set 送リロッド機構(組) 1 15 3200182 Feed Bar Driving Shaft Lever 送り軸腕 1 16 120006 Screw(M6-1 × 12) 止ネジ 1 17 2100173 Connecting Rod Pin 送リロッドピン 1 18 3200195 Driving Connecting Rod, C. Set 送リロッド(組) 1 19 2100277 Feed Dog Eccentric 送リエキセン 1 20 2100278 Roller Bearing ニードルベアリング 1 21 3200196 Feed Dog Driving Connecting Rod 送リロッド 1 22 160016 Screw(M4-0.7 × 4.5) 止ネジ 1 23 2100276 Feed Dog Regulating Eccentric 送リ調節エキセン 1 24 180002 Screw(M3-0.5 × 4) 止ネジ 3 25 2100289 Feed Dog Regulating Plate Spring 送リ調節プレートバネ 1 26 0023473 Feed Dog Regulating Plate 送リ調節プレート 1 27 3200197 Feed Dog Regulating Gear 送リ調節ギア 1 28 180003 Screw(M5-0.8 × 8) 止ネジ 2 29 3200901 Differential Feed Dog(48, 56) 前送り 1 30 3209080 Main Feed Dog(48, 56) 後送り 1 31 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 32 3200203 Feed Bar Shield Holder(Front) 送り台シール支工(前) 1 33 130003 Screw(M4-0.7 × 7.3) 止ネジ 1 34 3200211 Feed Bar Shield 送り台シール 2 35 3200204 Feed Bar Shield Holder(Rear) 送り台シール支工(後) 1 36 110070 Screw(M3-0.5 × 6.3) 止ネジ 1 37 130024 Screw(M4-0.7 × 7.3) 止ネジ 1 38 110079 Screw(M4-0.7 × 8) 止ネジ 1 39 300050 Spring Washer スプリングワツシヤ 1 40 110039 Screw(M3.5-0.6 × 10) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC Jintex.in VFS2500-8

Page 42

16 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 43

LUBRICATING MECHANISM 16 Ref.No Parts No. Description 品 名 Amt. Req 1 3500412 Oil Receiver 油受皿 1 2 110012 Screw(M4-0.7 × 5) 止ネジ 5 3 0032518 O-ring(P3) Oリング 1 4 3500402 Oil Sight Top Nozzle ノズル 1 5 3100370 Oil Tube Joint, One Way 片口管継手 4 6 000425 Washer ワッシャ 1 7 000234 Nut ナット 2 8 0031831 Oil Tube Clamp 緊束環 8 9 000463 Laced Wire(φ 3 × 260mm) モール 1 10 3100060 Oil Filter Cap オイルフィルタキャップ 1 11 110045 Screw(M4-0.7 × 12) 止ネジ 3 12 3100061 O-ring (P42) Oリング 1 13 3100345 Oil Filter オイルフィルタ 1 14 3100329 Oil Filter Connector オイルフィルタ継手 1 15 0093617 Suction Pipe Bushing 吸入パイプブッシュ 1 16 3160152 Suction Pipe 吸入パイプ 1 17 3510067 Oil Tube(3 × 5 × 60mm) オイルパイプ 1 18 3510065 Suction Pipe(Lower) 吸入パイプ(下) 1 19 3510068 Felt フェルト 1 20 3160153 Suction Pipe Stay 吸入パイプ支エ 1 21 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 22 3270022 Oil Tube(Long), Complete Set 給油パイプ(長)(組) 1 23 3270023 Oil Tube(4 × 6 × 530mm) オイルパイプ 1 24 3100371 Oil Tube Joint, Two Way 両口管継手 1 25 3200233 Oil Tube(4 × 6 × 175mm) オイルパイプ 1 26 320010 Fitting Stud(Short) 管継手ボルト(短) 3 27 320001 Oil Tube Joint, One Way 片口管継手 1 28 320011 Fitting Stud(Long) 管継手ボルト(長) 1 29 3200235 Oil Tube(Short), Complete Set 給油パイプ(短)(組) 1 30 3200232 Oil Tube(4 × 6 × 45mm) オイルパイプ 1 31 3100328 Oil Pump, Complete Set ポンプ(組) 1 32 0030711 Oil Pump Driving Worm Gear ウォームギア 1 33 160001 Screw(M4-0.7 × 4) 止ネジ 2 34 120006 Screw(M6-1 × 12) 止ネジ 2 35 000567 Seal パッキン 1 36 000419 Nut ノズル止メナット 1 37 3100349 Oil Nozzle for Worm Gear 給油パイプ 1 38 3160155 Adapter アダプタ 1 39 0010018 Bamboo Joint(I-2.5L) バンブ継手 1 40 3160151 Oil Tube(2.5 × 4 × 420mm) オイルパイプ 1 41 0010258 Connector(Φ 2.5-M5) コネクタ 2 42 0010019 Universal Elbow(M5) ユニバーサルエルボ 1 43 3160149 Oil Tube(2.5 × 4 × 490mm) オイルパイプ 1 44 3200231 Dust Proof Plate 防塵板 1 45 0020533 Oil Sight Gauge オイルゲージ 1 46 0063216 Oil Filter Screen 濾過網 1 47 0063217 Oil Filter Screen Clamp 濾過網押工 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in VFS2500-8

Page 44 — 17 VFS2503-8(1)

17 VFS2503-8(1) 1-1 1-2 1-3 P Q R 2 3 4 1-1 1-2 1-3 5 6 7 18 19 20 21 22 23 24 25 26 10 9 8 11 12 13 14 15 16 27 28 29 30 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 45 — VFS2503-8 EXCLUSIVE PARTS (1)

VFS2503-8 EXCLUSIVE PARTS (1) サブモデル専用部品(1) 17 Ref.No Parts No. Description 品 名 Amt. Req 1-1 0093241 Folder(for Type P) 定規(P) 1 1-2 0093242 Folder(for Type Q) 定規(Q) 1 1-3 0093243 Folder(for Type R) 定規(R) 1 2 0091736 Folder Clamp 定規取付片 1 3 009932 Screw(11/64-40 × 4) 止ネジ 2 4 005554 Screw(7/32-32 × 6.5) 止ネジ 1 5 0094245 Folder Support 定規取付台 1 6 0094246 Folder Support Fixing Plate 定規取付台固定片 1 7 140019 Screw(M5-0.8 × 14) 止ネジ 2 8 3240100 Front Cover(40, 56) 前開キカバー 1 9 3201002 Front Cover(Small) 前開キカバー(小) 1 10 110013 Screw(M4-0.7 × 8) 止ネジ 3 11 3201007 Fabric Slide Plate 布滑り板 1 12 000426 Washer ワッシャ 1 13 110103 Screw(M5-0.8 × 8) 止ネジ 1 14 3240101 Dustproof Cover 防塵カバー 1 15 110104 Screw(M4-0.7 × 8) 止ネジ 2 16 3201006 Front Cover Spring 前開キカバーバネ 1 17 18 3260025 Looper Thread Take-up Cover カムカバー 1 19 3260026 Tape Guide(Right) テープガイド(右) 1 20 000538 Washer ワッシャ 2 21 007627 Screw(M4-0.7 × 6) 止ネジ 2 22 3200014 Cloth Plate(Small) 小カバー 1 23 3200011 Side Cover 横開キカバー 1 24 0032604 Rubber Cushion(Large) クッションゴム(大) 1 25 3200012 Cover Latch Spring カバーラッチバネ 1 26 110012 Screw(M4-0.7 × 5) 止ネジ 2 27 340041 Knock Pin ノックピン 1 28 3200013 Side Cover Holder 横開キカバー受ケ 1 29 110016 Screw(M4-0.7 × 15) 止ネジ 1 30 000015 Nut ナット 1 From the library of: Superior Sewing Machine & Supply LLC VFS2500-8 jintex.in

Page 46 — 18 VFS2503-8(2)

18 VFS2503-8(2) VFS2503-140M-8 1 2 4 3 5 6 10 11 12 9 8 7 14 15 16 17 VFS2503-156M-8 18 2 4 3 5 6 10 11 12 9 8 7 19 15 16 17 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 47 — VFS2503-8 EXCLUSIVE PARTS (2)

VFS2503-8 EXCLUSIVE PARTS (2) サブモデル専用部品(2) 18 Ref.No Parts No. Description 品 名 Amt. Req 1 3267026 Presser Foot, C. Set(40) 押工(組) 1 2 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 3 0097725 Presser Foot Spring 小押エバネ 1 4 005133 Screw(1/8-44 × 4.5) 止ネジ 1 5 3267038 Presser Foot Spring(Left) 小押エバネ(左) 1 6 006010 Screw(1/8-44 × 4.5) 止ネジ 1 7 3267037 Tape Guide テープガイド 1 8 001228 Screw(3/32-56 × 3.2) 止ネジ 1 9 3267015 Presser Foot Hinge Pin 押工ヒンジピン 1 10 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 11 000327 Lock Nut ロツクナット 1 12 003302 Adjusting Screw(1/8-44 × 11) 調節ネジ 1 13 0093352 Needle Clamp(40) 針止メ 1 14 3268011 Stitch Plate(40M) 針板 1 15 3269002 Main Feed Dog 後送リ 1 16 3209065 Differential Feed Dog 前送リ 1 17 3279000 Top Feed Dog 上送リ 1 18 3267030 Presser Foot, C. Set(56) 押工(組) 1 19 3268013 Stitch Plate(56M) 針板 1 From the library of: Superior Sewing Machine & Supply LLC VFS2500-8

Page 48 — 19

19 VFS2511-8 VFS2511-156M-3-8 1 2 3 4 6 7 8 5 9 10 11 12 13 16 14 15 18 17 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 49 — VFS2511-8 EXCLUSIVE PARTS

VFS2511-8 EXCLUSIVE PARTS サブモデル専用部品 19 Ref.No Parts No. Description 品 名 Amt. Req 1 3277000 Presser Foot, C. Set(56) 押工(組) 1 2 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 3 0091725 Presser Foot Spring 小押エバネ 1 4 005133 Screw(M2.5-0.45 × 6) 止ネジ 1 5 160000 Screw(M3-0.5 × 3) 止ネジ 1 6 3247022 Presser Foot Hinge Pin 押工ヒンジピン 1 7 003300 Adjusting Screw(1/8-44 × 11) 調節ネジ 1 8 000327 Lock Nut ロックナット 1 9 3279000 Top Feed Dog 上送り 1 10 3248005 Stitch Plate(56M) 針板 1 11 3209008 Main Feed Dog(56) 後送り 1 12 3249001 Differential Feed Dog(56) 前送り 1 13 3241002 Cloth Plate(Small) 小力バー 1 14 130004 Screw(M4-0.7 × 14) 止ネジ 1 15 0010258 Connector(Φ4-M5) コネクタ 1 16 3201001 Looper Thread Take-up Cover(56) カムカバー 1 17 3240100 Front Cover(56) 前開キカバー 1 18 3201006 Front Cover Spring 前開キカバーバネ 1 From the library of: Superior Sewing Machine & Supply LLC VFS2500-8 jntex.in

Page 50

20 1 5 6 7 8 9 9 7 10 11 7 8 8 2 3 4 ACCESSORIES 12 13 15 16 17 18 14 20 21 19 22 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 51 — SUPPORTING BOARD & ACCESSORIES

SUPPORTING BOARD & ACCESSORIES Ref.No Parts No. Description 受ケ板及びアクセサリ関係 20 品 名 Amt. Req 1 3200240 Supporting Board, C. Set 受ケ板(組) 1 2 3200241 Supporting Board 受ケ板 2 3 180020 Setting Screw(M6-1 × 15) 取付ケネジ 4 4 0093035 Oil Resrvoir Rubber Cushion ゴム座 4 5 000070 Hanging Nut 吊りナット 4 6 009861 Hanging Bolt(M8-1.25 × 95) 吊りボルト 4 7 000162 Washer ワッシャ 12 8 000016 Nut ナット 12 9 2101451 Spacer(See the table below) スペーサ(下表参照) 12 10 0020064 Supporting Board Rubber Cushion 受ケ板ゴム座 4 11 0063010 SupportingBoardRubberCushion(Lower) 受ケ板ゴム座(下) 4 12 3160190 Needle Thread Retainer Support, C. Set 小調子台(組) 1 13 3160191 Needle Thread Retainer Support 小調子台 1 14 005431 Screw(1/8-44 × 4.4) 止ネジ 1 15 0036175 Thread Retainer Disc Support 小調子板 1 16 0032425 Needle Thread Retainer Dice 小調子皿 1 17 0032426 Needle Thread Retainer Spring 小調子バネ 1 18 001093 Screw(1/8-44 × 2.2) 止ネジ 1 19 3201456 Supplementary Front Cover 補助カバー 1 20 110105 Screw(M5-0.8 × 12) 止ネジ 2 21 000426 Washer ワッシャ 2 22 110013 Screw(M4-0.7 × 8) 止ネジ 2 Note : Number of Spacer(2101451) to be used. (注) スペーサ(2101451)の使用個数 Thickness of Table Number of Spacer テーブルの厚さ スペーサの個数 for 40mm 3pcs. × 4 = 12pcs. for 45mm 2pcs. × 4 = 8pcs. for 50mm 1pc. × 4 = 4pcs. From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VFS2500-8

Page 52

21 VFS2500-8 From the library of: Superior Sewing Machine & Supply LLC Jinte.in 1 19 18 2 7 3 16 5 4 7 20 22 17 9 10 21 7 23 24 11 25 26 12 19 18 16 13 14 27 10 31 VFS2503-8 only 29 28 30 32 33 37 36 35 37 43 36 42 37 36 41 39 40 34 38 43 37 36

Page 53 — THREAD STAND

THREAD STAND 糸立台 21 Ref.No Parts No. Description 品 名 Amt. Req 1 9620696 Thread Stand, C. Set(6 Spools Type) 糸立台(組)(6本糸用) 1 2 9620631 Column Cap コラムキャップ 1 3 9620670 Column Cap(Upper) コラムパイプ(上) 1 4 9620689 Thread Guide Holder(Large) ガイドホルダ(大) 1 5 911002 Screw(M4-0.7 × 20) 止ネジ 1 6 911001 Screw(M4-0.7 × 12) 止ネジ 3 7 910001 Nut ナット 4 8 9620673 Column Pipe Connector コラムパイプ継手 1 9 911006 Screw(M5-0.8 × 13) 止ネジ 2 10 910000 Nut ナット 8 11 9620675 Column Pipe(Lower) コラムパイプ(下) 1 12 930052 Washer ワッシャ 1 13 930053 Spring Washer スプリングワッシャ 1 14 910003 Nut ナット 1 15 16 9620703 Thread Hanger(3 Spools Type) スレッドハンガ(3本糸用) 4 17 9620700 Thread Eyelet アイレット 6 18 9620688 Thread Hanger Holder スレッドハンガ抱キ 4 19 911060 Screw(M6-1 × 15) 止ネジ 4 20 9620691 Thread Guide Arm ガイドアーム 1 21 9620690 Thread Guide Holder(Small) ガイドホルダ(小) 1 22 9620666 Thread Guide(6 Spools Type) スレッドガイド(6本糸用) 1 23 9620678 Spool Cushion スプールクッション 6 24 9620679 Spool Pin スプール軸 6 25 9620680 Spool Mat スプールマット 6 26 9620681 Spool Seat Disc 受ケ皿 6 27 930055 Spring Washer スプリングワッシャ 6 28 3500700 Belt Cover ベルトカバー 1 29 110028 Screw(M6-1 × 46) 止ネジ 2 30 3000010 Looper Threading Bar ルーパ糸通シ 2 31 9620750 Knitted Tape Stand, C. Set メリヤステープスタンド 1 32 9620751 Tape Pin テープ支柱 1 33 9620752 Tape Disc テープ受ケ板 1 34 000433 Washer ワッシャ 1 35 9620753 Tape Disc Block テープ受ケ板ブロック 1 36 911062 Screw(M4-0.7 × 15) 止ネジ 4 37 910001 Nut ナット 4 38 9620756 Tape Stand Bar テープスタンド棒 1 39 001448 Screw(15/64-28 × 5.5) 止ネジ 1 40 9620757 Tape Stand テープスタンド 1 41 005148 Wood Screw($ 4.5 × 25) 木ネジ 3 42 9620754 Tape Guide Bar テープガイド棒 1 43 9620755 Tape Guide テープガイド 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in VFS2500-8

Page 54 — WARNING LABEL 警告ラベル

22 WARNING LABEL 警告ラベル LABEL Parts No. Description ラベル 品番 品名 CAUTION 390140 CAUTION IN OPERATION Do not operate without eye guard and safety devices. Before threading, changing needle, cleaning etc. switch off main switch. 注意 動く部分けがをする。 安全保護装置をつけて 縫製作業をすることを。 電源を切ってから、糸 通し、ボビンや針の交換、 掃除や調整をすること。 390143 操作注意ラベル ▲高電圧警告 このカバーを開けるときは、 電源スイッチを切った後、 5分たってから開けること。 DANGER DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 4 感電注意ラベル 390144 To open this cover, turn off power supply and wait more than 5 minutes before opening. 390145 "Be sure to connect earth line". アースラベル ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 390146 回転方向表示ラベル EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS 390147 ケガ注意ラベル CAUTION CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 390148 高温注意ラベル CAUTION From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 55 — LIST of MAIN SPARE PARTS (主要部品リスト)

LIST of MAIN SPARE PARTS (主要部品リスト) From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 56 — VFS2500 Class LIST of MAIN SPARE PARTS(主要部品リスト)

23 VFS2500 Class LIST of MAIN SPARE PARTS(主要部品リスト) Main Parts Needle Clamp Presser Foot C. Set Stitch Plate Differential Feed Dog Main Feed Dog Models 針止メ 押工(組) 針板 前送り 後送り VFS2500-148M-8 0093356 3167002 3108133 3209001 3209080 156M-8 0093357 3167004 3108134 " " VFS2503-140M-8 0093352 3267026 3268011 3209065 3269002 156M-8 0093357 3267030 3268013 " " VFS2511-156M-3-8 0093357 3277000 3248005 3249001 3209008 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 57

23 Top Feed Dog Front Cover Cloth Plte (Large) Cloth Plate (Small) Thread Take-up Cover Stitch Plate Support Looper 上送り 前開キカバー クロスプレート(大) 小カバー カムカバー 針板台 ルーパ 3519014 3201451 3200017 3201453 3200018 3200032 0094480 " " " " " " 3279000 3240100 3200017 3200014 3260025 3200032 0094480 " " " " " " 3279000 3240100 3200017 3241002 3201001 3200032 0094480 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 58

24 INDEX VFS2500-8 Page = 1 Parts No. Page No. Ref. No. Weight(g) 000010 2 6 000014 4 52 000014 5 47 000014 9 67 000015 2 52 000015 17 30 000016 20 8 000037 5 4 000070 20 5 000162 20 7 000177 3 6 000195 4 16 000206 8 46 000206 9 11 000210 14 39 000234 16 7 000278 9 51 000309 7 22 000327 8 21 000327 18 11 000327 19 8 000360 3 44 000360 5 53 000397 4 6 000419 16 36 000425 2 40 000425 16 6 000426 11 29 000426 17 12 000426 20 21 000433 21 34 000445 8 2 000463 16 9 000487 8 37 000528 12 8 000532 5 57 000538 2 76 000538 3 34 000538 8 35 000538 17 20 000555 6 23 000567 16 35 000600 6 24 000600 14 43 000651 3 35 000667 6 28 000669 4 48 000669 11 11 Parts No. Page No. Ref. No. Weight(g) 000669 13 34 000669 14 42 000690 8 55 000690 14 29 000726 1 29 000740 9 15 000740 10 2 000745 2 57 000989 6 2 001093 20 18 001170 8 58 001223 5 55 001227 5 48 001228 18 8 001448 21 39 001457 13 27 001818 3 41 001818 5 50 001900 7 9 003300 19 7 003302 8 22 003302 18 12 003312 3 33 004106 5 58 004143 14 35 004182 2 74 004236 13 38 004272 9 40 004358 7 2 005049 14 44 005075 1 24 005133 18 4 005133 19 4 005148 21 41 005431 3 31 005431 20 14 005511 14 40 005554 17 4 005650 5 25 005650 8 30 005650 9 45 005650 13 11 006004 2 5 006010 18 6 Parts No. Page No. Ref. No. Weight(g) 006202 11 17 006219 7 35 007610 2 33 007627 17 21 009142 7 12 009526 12 23 009604 12 14 009604 13 25 009747 2 3 009747 9 57 009748 1 8 009749 2 2 009750 7 27 009751 11 10 009779 9 66 009784 11 2 009861 20 6 009932 17 3 009934 13 39 009970 1 22 009977 10 27 0010018 16 39 0010019 16 42 0010258 16 41 0010258 19 15 0020051 4 43 0020052 2 27 0020064 20 10 0020119 3 22 0020137 1 25 0020159 5 32 0020271 8 13 0020350 14 41 0020401 15 13 0020472 2 39 0020533 16 45 0020538 11 25 0020538 14 31 0020759 1 5 0023473 15 26 0024083 3 2 0024084 3 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 59

VFS2500-8 INDEX Page = 2 Parts No. Page No. Ref. No. Weight(g) 0026081 10 22 0026099 10 18 0026413 10 15 0030255 3 3 0030711 16 32 0031111 3 7 0031831 16 8 0032425 20 16 0032426 20 17 0032518 16 3 0032604 2 20 0032604 17 24 0032646 12 13 0032684 4 40 0032784 13 24 0032785 13 26 0032786 13 28 0032952 3 4 0033024 2 41 0033024 10 20 0033141 15 5 0034293 11 9 0035813 3 43 0035813 5 52 0036175 20 15 0037108 3 42 0037108 5 51 0060075 15 9 0060076 15 8 0060142 8 8 0063010 20 11 0063044 7 3 0063051 12 18 0063053 12 20 0063055 4 8 0063056 12 21 0063057 12 22 Parts No. Page No. Ref. No. Weight(g) 0063074 3 40 0063152 2 38 0063197 5 54 0063216 16 46 0063217 16 47 0063515 8 54 0065275 2 26 0065275 4 32 0065372 8 3 0068011 1 4 0068181 8 31 0068202 5 33 0068202 9 34 0068202 14 13 0068247 3 30 0068249 3 32 0077179 11 13 0077270 8 1 0077300 4 21 0085710 11 32 0090068 3 36 0090071 3 5 0090807 3 12 0090812 3 9 0090856 3 11 0091725 18 3 0091725 19 3 0091736 17 2 0092305 6 5 0093035 20 4 0093091 5 16 0093154 6 40 0093186 7 26 0093212 7 18 0093241 17 1-1 0093242 17 1-2 0093243 17 1-3 0093300 13 32 0093303 4 27 0093314 13 17 Parts No. Page No. Ref. No. Weight(g) 0093319 13 19 0093352 18 13 0093356 7 7-1 0093357 7 7-2 0093365 7 10 0093389 15 6 0093515 5 46 0093556 3 19 0093611 8 10 0093617 16 15 0093663 7 34 0093669 5 37 0093864 1 9 0093864 2 24 0093864 4 31 0093864 7 32 0094201 2 22 0094245 17 5 0094246 17 6 0094390 8 56 0094480 13 35 0095027 11 21 0095108 2 13 0095132 14 33 0095218 4 33 0095334 8 57 0095367 2 73 0095723 13 37 100002 13 9 100003 12 9 100007 9 41 110001 8 7 110002 9 61 110004 8 16 110004 15 31 110004 18 2 110004 19 2 110005 5 20 110007 13 13 110009 3 18 110009 5 42 110009 6 32 110009 8 34 110009 12 5 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 60 — INDEX

VFS2500-8 INDEX Page = 3 Parts No. Page No. Ref. No. Weight(g) 110009 14 34 110011 7 14 110011 11 31 110012 2 23 110012 2 30 110012 2 51 110012 16 2 110012 17 26 110013 1 20 110013 2 46 110013 3 14 110013 17 10 110013 20 22 110014 2 77 110016 2 53 110016 2 61 110016 17 29 110021 8 47 110023 9 25 110023 10 37 110028 21 29 110030 2 8 110031 12 26 110033 14 8 110035 7 6 110035 8 5 110036 5 28 110038 16 21 110039 15 40 110041 2 56 110045 1 2 110045 2 14 110045 14 37 110045 16 11 110048 1 13 110048 2 49 110048 5 40 110054 8 14 110054 11 15 110057 13 36 110060 1 14 110067 6 42 110070 15 36 110076 4 51 110079 2 43 110079 15 38 110080 15 2 110083 5 38 Parts No. Page No. Ref. No. Weight(g) 110084 8 20 110084 18 10 110094 11 34 110103 17 13 110104 17 15 110105 20 20 110115 9 62 110135 6 35 120001 6 19 120001 8 52 120001 9 72 120001 13 4 120006 8 45 120006 14 3 120006 15 16 120006 16 34 120010 8 39 120013 6 21 120013 9 13 120013 10 7 120013 12 11 120015 6 25 120027 1 7 120049 9 5 120049 10 41 130002 2 70 130002 5 44 130002 7 20 130002 9 7 130003 2 10 130003 3 38 130003 15 33 130004 2 11 130004 19 14 130006 2 34 130016 8 18 130024 15 37 140004 9 20 140004 10 33 140017 14 23 140018 14 19 140019 17 7 150000 5 15 Parts No. Page No. Ref. No. Weight(g) 160000 2 19 160000 5 26 160000 9 21 160000 10 30 160000 19 5 160001 2 65 160001 5 31 160001 8 12 160001 8 28 160001 9 35 160001 10 13 160001 11 4 160001 13 16 160001 14 28 160001 16 33 160003 5 22 160003 6 17 160003 9 3 160003 10 4 160003 11 20 160003 12 3 160003 13 6 160003 14 10 160003 15 12 160004 6 39 160005 5 2 160005 6 3 160006 9 32 160007 5 3 160007 6 4 160007 9 68 160007 10 26 160007 12 17 160007 13 30 160007 15 4 160009 13 22 160016 15 22 160021 11 27 160023 6 29 160029 7 15 160030 10 23 160041 6 43 170001 2 16 170009 8 50 170010 4 46 170010 11 18 170020 2 63 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 61 — INDEX

VFS2500-8 INDEX Page = 4 Parts No. Page No. Ref. No. Weight(g) 170021 13 14 170038 8 49 170041 8 25 180002 15 24 180003 15 28 180005 2 18 180012 11 12 180017 2 66 180018 2 68 180020 20 3 180033 9 39 190077 9 64 190078 2 54 290029 3 8 300000 9 10 300000 13 8 300000 14 20 300005 8 38 300006 12 6 300050 15 39 300100 2 17 300100 2 64 300100 4 47 310035 5 30 310036 7 33 310040 6 13 310068 9 23 310068 10 35 310071 14 45 310072 14 38 310079 9 73 310094 12 19 310099 6 41 310106 4 2 310132 6 36 320001 16 27 320010 16 26 320011 16 28 330000 1 18 330000 7 23 Parts No. Page No. Ref. No. Weight(g) 340003 8 43 340016 1 26 340041 17 27 350009 3 29 390212 1 15 910000 21 10 910001 21 7 910001 21 37 910003 21 14 911001 21 6 911002 21 5 911006 21 9 911060 21 19 911062 21 36 930052 21 12 930053 21 13 930055 21 27 2049401 1 28 2100034 4 26 2100065 3 15 2100137 9 14 2100137 10 3 2100161 14 9 2100173 15 17 2100176 9 52 2100194 8 42 2100218 6 22 2100218 12 27 2100243 14 22 2100248 14 24 2100252 14 12 2100253 14 14 2100259 11 8 2100267 8 27 2100267 13 15 2100267 14 27 2100276 15 23 2100277 15 19 2100278 15 20 2100288 9 29 2100289 15 25 Parts No. Page No. Ref. No. Weight(g) 2101451 20 9 2110361 8 40 2110527 15 10 2120082 10 14 2120083 10 19 3000010 21 30 3100006 4 35 3100030 2 60 3100060 16 10 3100061 16 12 3100081 3 39 3100110 8 9 3100113 2 42 3100129 5 10 3100129 6 7 3100131 5 8 3100207 1 10 3100207 10 28 3100272 4 49 3100275 6 10 3100283 6 11 3100305 12 16 3100307 12 24 3100309 12 7 3100310 8 11 3100328 16 31 3100329 16 14 3100338 7 28 3100345 16 13 3100349 16 37 3100370 16 5 3100371 16 24 3100384 3 26 3100386 3 27 3100533 8 51 3100630 2 72 3100631 2 75 3107303 8 17 3107306 8 19 3108133 7 11-1 3108134 7 11-2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 62 — INDEX

VFS2500-8 INDEX Page = 5 Parts No. Page No. Ref. No. Weight(g) 3160008 1 17 3160009 1 16 3160022 4 36 3160023 4 37 3160024 4 38 3160025 4 41 3160026 4 42 3160027 4 39 3160034 9 2 3160036 9 12 3160037 9 16 3160038 9 18 3160038 10 10 3160039 9 17 3160039 10 11 3160049 10 39 3160050 10 40 3160051 10 9 3160052 10 43 3160054 10 42 3160056 10 5 3160057 10 6 3160058 10 8 3160061 10 16 3160062 10 17 3160063 10 21 3160064 10 12 3160065 10 29 3160066 10 31 3160070 10 25 3160071 10 24 3160073 11 19 3160074 11 23 3160076 11 24 3160077 11 22 3160080 11 26 3160081 11 30 3160082 11 28 3160084 11 16 3160085 11 1 3160086 11 3 3160088 11 7 3160090 8 23 3160091 8 33 3160092 9 36 3160098 9 24 3160098 10 36 3160103 9 37 Parts No. Page No. Ref. No. Weight(g) 3160104 9 33 3160109 9 71 3160114 9 55 3160116 9 59 3160120 9 54 3160124 9 46 3160138 12 12 3160149 16 43 3160151 16 40 3160152 16 16 3160153 16 20 3160155 16 38 3160158 4 3 3160163 8 4 3160173 10 1 3160190 20 12 3160191 20 13 3167002 8 15-1 3167004 8 15-2 3180070 6 30 3180071 3 25 3180072 3 28 3180073 3 37 3180075 6 31 3180076 3 16 3200006 1 21 3200007 1 23 3200010 2 12 3200011 17 23 3200012 17 25 3200013 17 28 3200014 17 22 3200016 2 67 3200017 2 1 3200018 2 4-1 3200019 2 7 3200020 2 29 3200021 1 19 3200022 2 35 3200023 2 36 3200024 2 31 3200025 2 32 3200026 2 58 3200027 2 59 3200028 2 44 Parts No. Page No. Ref. No. Weight(g) 3200029 2 45 3200030 2 47 3200031 2 48 3200032 2 55 3200033 2 21 3200035 2 4-2 3200042 3 17 3200042 5 49 3200050 4 17 3200051 4 29 3200052 4 20 3200053 4 24 3200055 4 30 3200056 4 22 3200057 4 23 3200061 4 28 3200062 4 19 3200065 4 25 3200066 4 34 3200067 4 18 3200070 5 1 3200071 5 5 3200072 5 9 3200073 5 12 3200074 5 13 3200075 5 29 3200077 5 27 3200078 5 11 3200082 5 19 3200083 5 36 3200084 5 24 3200085 5 34 3200086 5 35 3200086 9 38 3200087 5 23 3200091 5 43 3200092 5 41 3200093 5 39 3200094 5 56 3200095 5 6 3200096 5 18 3200097 5 17 3200098 5 21 3200112 7 17 3200120 7 29 3200121 7 30 3200122 7 31 3200143 5 14 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 63 — INDEX

VFS2500-8 INDEX Page =6 Parts No. Page No. Ref. No. Weight(g) 3200149 13 2 3200150 13 1 3200151 13 5 3200152 13 3 3200154 13 10 3200155 13 12 3200157 13 18 3200159 13 7 3200160 13 21 3200161 13 23 3200162 13 29 3200163 13 31 3200164 13 33 3200181 14 1 3200182 15 15 3200183 14 2 3200184 14 4 3200185 14 5 3200186 14 6 3200187 14 7 3200189 14 16 3200190 14 17 3200191 14 18 3200192 14 25 3200194 14 21 3200195 15 18 3200196 15 21 3200197 15 27 3200198 15 11 3200199 15 1 3200200 15 3 3200201 15 7 3200203 15 32 3200204 15 35 3200205 14 11 3200206 14 15 3200207 14 32 3200209 2 37 3200210 2 50 3200211 15 34 3200213 14 36 3200214 15 14 3200215 14 26 3200216 14 30 3200231 16 44 3200232 16 30 3200233 16 25 3200235 16 29 Parts No. Page No. Ref. No. Weight(g) 3200240 20 1 3200241 20 2 3201001 19 16 3201002 17 9 3201006 17 16 3201006 19 18 3201007 17 11 3201451 2 62-1 3201452 2 15 3201453 2 9 3201454 2 69 3201456 20 19 3201461 2 62-2 3204021 4 4 3209001 15 29 3209008 19 11 3209065 18 16 3209080 15 30 3240015 7 24 3240016 7 25 3240026 8 6 3240086 11 14 3240087 11 6 3240091 11 5 3240100 17 8 3240100 19 17 3240101 17 14 3241002 19 13 3247022 19 6 3248005 19 10 3249001 19 12 3260010 5 7 3260011 6 9 3260012 6 8 3260025 17 18 3260026 17 19 3267015 18 9 3267026 18 1 Parts No. Page No. Ref. No. Weight(g) 3267030 18 18 3267037 18 7 3267038 18 5 3268011 18 14 3268013 18 19 3269002 18 15 3270015 7 1 3270022 16 22 3270023 16 23 3270024 2 71 3270030 6 1 3277000 19 1 3279000 18 17 3279000 19 9 3500012 2 25 3500041 4 14 3500044 4 10 3500045 4 11 3500046 4 15 3500047 4 12 3500048 4 13 3500050 4 9 3500054 6 6 3500062 6 37 3500064 6 38 3500065 6 26 3500066 6 20 3500081 12 1 3500082 12 2 3500084 12 4 3500086 12 10 3500091 7 16 3500095 4 7 3500096 4 5 3500097 12 28 3500100 7 5 3500201 1 1 3500284 3 21 3500285 3 23 3500286 3 13 3500287 3 10 3500291 8 36 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 64 — INDEX

VFS2500-8 INDEX Page = 7 Parts No. Page No. Ref. No. Weight(g) 3500292 8 53 3500293 8 29 3500294 8 32 3500295 8 44 3500299 8 48 3500300 8 26 3500305 8 41 3500309 4 1 3500402 16 4 3500412 16 1 3500430 1 3 3500442 6 34 3500444 6 15 3500445 6 16 3500446 6 18 3500448 6 12 3500489 3 24 3500492 6 27 3500615 7 13 3500616 7 21 3500617 7 19 3500700 21 28 Parts No. Page No. Ref. No. Weight(g) 3510039 9 22 3510039 10 34 3510040 9 56 3510041 9 58 3510043 9 69 3510044 9 70 3510050 4 44 3510051 4 45 3510052 4 50 3510055 11 33 3510057 9 60 3510059 9 43 3510060 9 44 3510062 9 42 3510063 8 24 3510065 16 18 3510067 16 17 3510068 16 19 3519014 9 65 4109403 1 27 Parts No. Page No. Ref. No. Weight(g) 9620631 21 2 9620666 21 22 9620670 21 3 9620673 21 8 9620675 21 11 9620678 21 23 9620679 21 24 9620680 21 25 9620681 21 26 9620688 21 18 9620689 21 4 9620690 21 21 9620691 21 20 9620696 21 1 9620700 21 17 9620703 21 16 9620750 21 31 9620751 21 32 9620752 21 33 9620753 21 35 9620754 21 42 9620755 21 43 9620756 21 38 9620757 21 40 3509320 12 25 3510008 1 6 3510011 1 11 3510012 1 12 3510017 9 1 3510018 9 4 3510020 9 27 3510021 9 28 3510022 9 30 3510023 10 32 3510024 9 31 3510025 6 14 3510027 9 8 3510028 9 9 3510029 9 6 3510030 9 47 3510031 9 48 3510032 9 49 3510033 9 53 3510034 9 50 3510035 9 63 3510037 9 26 3510037 10 38 3510038 9 19 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 65

jinttex.in From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 66

yamato ヤマトミシン製造株式会社 YAMATO SEWING MACHINE MFG. CO., LTD. 4-4-12,NISHITENMA, KITA-KU, OSAKA,JAPAN TEL: 81-6-6364-1321 FAX: 81-6-6364-1307 〒530-0047 大阪市北区西天満4丁目4番12号 TEL(06)6364-1321(代) FAX(06)6365-5176 P/N 9710142 (P) No. 1 Edited in 2006.10 (VFS2500-8) Printed in Japan 2006.10.1H From the library of: Superior Sewing Machine & Supply LLC Jinte tex.in
