Yamato VG2700 Parts Book (PDF)

Coverstitch · also listed as 2700Download PDF

Text index — Yamato VG2700

Page 7 — MISCELLANEOUS COVERS(1)

Yamato VG2700 parts on page 7
Ref	Part number	Part name	Qty
1	3500201	Top Cover	1
2	110045	Screw(M4-0.7 × 12)	11
3	3500430	Top Cover Gasket	1
4	0068011	Oil Sight Window	1
5	0020759	Top Cover Seal Plug	2
6	3500207	Head Cover	1
7	3500431	Head Cover Gasket	1
8	0093864	Head Cover Seal Plug	1
9	390164	"VG" Emblem	1
10	3500212	Side Cover(Lower)	1
11	110048	Screw(M4-0.7 × 10)	5
12	3500215	Side Cover Gasket	1
13	3500213	Side Cover Hinge Pin	1
14	160000	Screw(M3-0.5 × 3)	2
15	0037164	Spring	1
16	3500216	Oil Defender	1
17	006233	Screw(M3-0.5 × 5)	2
18	3500211	Side Cover(Upper)	1
19	3500214	Side Cover Hook	1
20	110012	Screw(M4-0.7 × 5)	1
21	3500217	Extension Cover	1
24	3500007	Wind Guide Plate	1
25	110013	Screw(M4-0.7 × 8)	3
26	0020137	Drain Hole Seal	1
27	005075	Screw(3/8-24 × 8)	1
28	3500005	Oil Reservoir Gasket	1
29	3500004	Oil Reservoir Gasket	1
30	120016	Screw(M8-1.25 × 20)	4
31	340000	Machine Frame Supporting Bar	4
32	2049401	Serial Number Plate	1
33	4109403	Model Plate(See the below)	1
34	000726	Rivet	4

Page 9 — MISCELLANEOUS COVERS(2)

Yamato VG2700 parts on page 9
Ref	Part number	Part name	Qty
1	3500224	Cloth Plate(Large)	1
2	120009	Screw(M4-0.7 x 12)	2
3	3500219	Slide Cover	1
4	3500227	Crank Chamber Cover	1
5	3500228	Crank Chamber Cover Gasket	1
6	130003	Screw(M4-0.7 x 7.3)	7
8	0020052	Seal Plug	1
9	3500432	Rear Cover Gasket	1
10	3100016	Rear Cover	1
11	110013	Screw(M4-0.7 x 8)	12
12	3500012	Seal Plug	2
13	0093864	Seal Plug	2
14	0065275	Seal Plug	1
16	3500255	Stitch Plate Holder	1
17	110041	Screw(M4-0.7 x 8)	2
18	3500256	Slide Cover Supplementary Block	1
19	006202	Screw(M4-0.7 x 6)	1
20	330011	Seal Plug(φ 4.9 x 4.3)	1
21	160005	Screw(M6-1 x 8)	1
22	3500223	Front Cover Hinge	1
23	110016	Screw(M4-0.7 x 14)	2
24	170001	Screw(M4-0.7 x 8)	2
25	300100	Conical Spring Washer	4
26	160001	Screw(M4-0.7 x 4)	2
27	3500222	Front Cover(Lower)	1
28	110031	Screw(M4-0.7 x 12)[M4-0.7 x 12]	1
29	000015	Nut	1
30	3200033	Seal Plug	1
31	110009	Screw(M4-0.7 x 8)	2
32	000538	Washer	2
33	110031	Screw(M4-0.7 x 12)[M4-0.7 x 8]	2
34	000665	Washer	2
35	3500225	Supplementary Block	1
36	110022	Screw(M3-0.5 x 10)	2
37	3500221	Front Cover(Upper)	1
38	130002	Screw(M3-0.5 x 6)	1
39	3500233	Thread Take-up Cover(Front)	1
40	110002	Screw(M3-0.5 x 5)	1
41	007627	Screw(M4-0.7 x 6)	2
42	190078	Screw(M4-0.7 x 5)	2
43	0094201	Cover Latch Spring	1
44	110012	Screw(M4-0.7 x 5)	3
45	3500008	Oil Cooling Fan Cover	1
46	3500230	Ball Bearing Holder	1
47	3200013	Belt Cover Support	1
48	330011	Seal Plug(φ 4.9 x 3.5)	2
49	3500226	Cushion	2
50	330019	Seal Plug(φ 4.9 x 3.5)[φ 4.9 x 4.3]	1

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato VG2700 parts on page 11
Ref	Part number	Part name	Qty
1	0024084	Thread Tension Spring Cap	5
2	0024083	Tension Spring Bushing	5
3	0030255	Tension Spring(Needle)	3
4	0032952	Tension Spring(Looper, Top Cover)	2
5	0090071	Thread Tension Spring Retainer	5
6	000177	Felt	5
7	0031111	Tension Disc	10
8	290029	Tension Post	5
9	0090812	Tension Post Ferrule	5
10	3500287	Tension Disc Separator	1
11	0090856	Tension Disc Eyelet	5
12	0090807	Thread Lead-in Guide	5
13	3500286	Tension Post Support	1
14	110013	Screw(M4-0.7 × 8)	9
15	3500284	Thread Guide Plate	1
16	0020119	Thread Eyelet Pipe(Short)	2
17	3500285	Thread Eyelet Pipe Holder	2
18	3500288	SP Device, Complete Set	1
19	3500281	Needle Thread Eyelet Bracket	1
20	350009	Tapping Screw(3 × 6mm)	2
21	3100384	SP Container	1
22	3100386	Felt	1
23	3500282	Needle Thread Eyelet	3
24	110054	Screw(M3-0.5 × 3.5)	8
25	3500269	Top Cover Thread Eyelet(Upper)	1
26	110009	Screw(M4-0.7 × 8)	4
27	3500202	Needle Thread Take-up Guard	1
28	130003	Screw(M4-0.7 × 7.3)[M3-0.5 × 6]	2
29	3500435	Needle Thread Guide	1
30	000538	Washer	1
31	007627	Screw(M4-0.7 × 6)	1
32	3500270	Top Cover Thread Guide	1
33	3500238	Eyelet Holder Stopper	1
34	3500271	Top Cover Thread Eyelet	1
35	001818	Tension Post	1
36	0037108	Top Cover Tension Disc	4
37	0035813	Top Cover Tension Spring	1
38	000360	Nut	1
39	3500232	Thread Take-up Eyelet Bracket	1
40	3500234	Thread Take-up Cover(Rear)	1

Page 13 — MISCELLANEOUS THREAD EYELETS

Yamato VG2700 parts on page 13
Ref	Part number	Part name	Qty
41	006202	Screw(M4-0.7 × 6)	2
42	3500237	Latch Spring	1
43	3500240	Thread Take-up Eyelet Holder	1
44	170010	Screw(M4-0.7 × 4)	1
45	300100	Conical Spring Washer	1
46	000669	Washer	1
47	3500245	Thread Take-up Eyelet(Left)	1
48	3500246	Thread Take-up Eyelet(Right)	1
49	110027	Screw(M2.5-0.45 × 3.5)	2
50	3500242	Looper Thread Guide	1
51	3500247	Looper Thread Eyelet	1
52	0032426	Looper Thread Retainer Spring	1
53	170042	Screw(M3-0.5 × 5)	1
54	3500250	Looper Thread Eyelet(Center)	1
55	3500249	Looper Thread Eyelet(Right)	1

Page 15 — MISCELLANEOUS BUSHINGS & EYE GUARD

Yamato VG2700 parts on page 15
Ref	Part number	Part name	Qty
1	110116	Screw(M10-1.5 × 4)	1
2	3500042	Needle Bar Bushing(Upper)	1
3	3500088	Needle Bar Bushing(Lower)	1
4	310106	Laced Wire(φ 3 × 130mm)	1
5	3100099	Presser Bar Bushing	1
6	3204021	Oil Seal	1
7	3100100	Spreader Driving Bar Bushing	1
8	0063055	Oil Seal	1
9	3500050	Oil Seal	1
10	3500044	Needle Thread Take-up Bushing(Front)	1
11	3500045	Needle Thread Take-up Bushing(Rear)	1
12	3500047	Spreader Driving Shaft Bushing(Left)	1
13	3500048	Spreader Driving Shaft Bushing(Right)	1
14	3500041	Oil Seal	1
15	3500046	Foot Lifter Lever Bushing	2
16	000195	Oil Wick(No.4-175mm)	1
17	3500021	Lower Shaft Bushing(Left)	1
18	3500407	Oiling Felt	1
19	3500040	Oil Seal	1
20	3500022	Lower Shaft Bushing(Right)	1
21	3500030	Feed Bar Lift Shaft Bushing(Left)	1
22	3500039	Oil Seal	2
23	3500031	Feed Bar Lift Shaft Bushing(Middle)	1
24	3500032	Feed Bar Lift Shaft Bushing(Right)	1
25	3500025	Feed Bar Shaft Bushing(Left)	2
26	3500028	Differential Feed Bar Shaft Bushing(Middle)	1
27	3500029	Differential Feed Bar Shaft Bushing(Right)	1
28	3500026	Feed Bar Shaft Bushing(Middle)	1
29	3500027	Feed Bar Shaft Bushing(Right)	1
30	3500023	Main Feed Lever Shaft Bushing(Left)	1
31	3500024	Main Feed Lever Shaft Bushing(Right)	1
32	3500033	Needle Guard Holder Bushing(Front)	1
33	3500034	Needle Guard Holder Bushing(Rear)	1
34	3500035	Differential Lever Shaft Bushing(Left)	1
35	3500036	Differential Lever Shaft Bushing(Right)	1
36	3100006	Seal Plug	2
37	3500037	Looper Driving Shaft Bushing(Front)	1
38	3500038	Looper Driving Shaft Bushing(Rear)	1
39	3500203	Eye Guard, Complete Set	1
40	3500204	Air Wiper Bracket	1

Page 17 — MISCELLANEOUS BUSHINGS & EYE GUARD

Yamato VG2700 parts on page 17
Ref	Part number	Part name	Qty
41	110009	Screw(M4-0.7 × 8)	2
42	000538	Washer	2
43	3500205	Eye Guard Holder	1
44	170044	Screw(M4-0.7 × 7)	1
45	300104	Conical Spring Washer	1
46	000663	Washer	1
47	000022	Nut	1
48	3500206	Eye Guard	1
49	110076	Screw(M3-0.5 × 6)	2
50	3500208	Stopper Spring	1
51	110030	Screw(M3-0.5 × 2.6)	1
52	000014	Washer	2
53	3204020	Oil Seal	1
54	3500041	Oil Seal	1

Page 19 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM

Yamato VG2700 parts on page 19
Ref	Part number	Part name	Qty
1	3500101	Pulley	1
2	300005	Washer	1
3	120012	Screw(M6-1 × 20)	1
4	160005	Screw(M6-1 × 8)	4
5	160007	Screw(M6-1 × 6)	4
6	3500104	Oil Cooling Fan Unit	1
7	160001	Screw(M4-0.7 × 4)	4
9	3260010	Main Shaft Sprocket(Lower)	1
10	3100131	Ball Bearing(Middle)	1
11	3100132	Lower Shaft(Right)	1
12	3100122	Oil Pump Driving Worm	1
13	3100127	Counterweight(Small)	1
14	110009	Screw(M4-0.7 × 8)	2
15	3100123	Ball Bearing(Left)	1
16	3500109	Lower Shaft(Middle)	1
17	160004	Screw(M6-1 × 4.8)	2
18	001107	Spring Pin(φ 2 × 6mm)	4
19	3500111	Lower Shaft(Left)	1
20	310100	Oil Wick(φ 4.4 × 100mm)	1
21	160003	Screw(M5-0.8 × 5)	1
22	3500165	Needle Guard Eccentric	1
23	3500166	Needle Guard(Front) Lever	1
24	110022	Screw(M3-0.5 × 10)	2
25	3500413	Felt	1
26	3100241	Needle Guard(Front) Holder	1
27	3139200	Needle Guard(Front)	1
28	110036	Screw(M3-0.5 × 6.5)	2
29	3500167	Needle Guard(Rear) Lever	1
30	3100245	Needle Guard(Rear) Holder	1
31	3109201	Needle Guard(Rear)	1
32	3500419	Needle Guard Lever Cover	1
33	110012	Screw(M4-0.7 × 5)	2

Page 21 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VG2700 parts on page 21
Ref	Part number	Part name	Qty
1	3500051	Handwheel	1
2	000989	Handwheel Mark	1
3	160005	Screw(M6-1 × 8)	5
4	160007	Screw(M6-1 × 6)	16
5	0092305	Magnet	1
6	3500054	Ball Bearing	2
7	3100129	Handwheel Adapter	1
8	3500056	Timing Belt(550-5GT-12)	1
9	3260011	Upper Shaft Sprocket(Upper)	1
10	3500069	Timing Belt(384-3GT-8)	1
11	3500068	Upper Shaft Sprocket(Upper)	1
12	3100275	Upper Shaft(Right)	1
13	3100283	Upper Shaft Joint	1
14	3100127	Counterweight(Small)	1
15	110009	Screw(M4-0.7 × 8)	2
16	3500403	Oil Sleeve	1
17	3500060	Upper Shaft(Left)	1
18	160004	Screw(M6-1 × 4.8)	4
19	310101	Oil Wick(φ 5.1 × 15mm)	1
20	310099	Oil Wick(φ 3.3 × 30mm)	1
21	110012	Screw(M4-0.7 × 5)	1
22	3500062	Upper Shaft Sleeve, C. Set	1
23	3500064	Upper Shaft Sleeve	1
24	0093154	Ball Bearing	2
26	160004	Screw(M6-1 × 4.8)	1
27	3500072	Adapter(Right), C. Set	1
28	3500073	Ball Bearing	1
29	3500076	Adapter	2
30	3500071	Looper Thread Take-up Shaft	1
31	3500070	Thread Take-up Shaft Sprocket(Lower)	1
32	3500074	Adapter(Left), C. Set	1
33	3500075	Ball Bearing	1
34	3500077	Looper Thread Take-up	1
35	006212	Screw(M5-0.8 × 6)	2
36	3500079	Connecting Rod	1
37	120001	Screw(M4-0.7 × 14)[M4-0.7 × 16]	4
38	2100088	Connecting Rod Swing-proof	2
39	3500066	Driving Lever	1
40	120013	Screw(M6-1 × 15)	2
41	2100218	Driving Shaft Thrust Ring	1
42	000555	Washer	1
43	120015	Screw(M5-0.8 × 10)	1
44	3500065	Driving Shaft	1
45	3500067	Bracket	1
46	000667	Spring Washer	1
47	3500278	Needle Thread Take-up	1
48	110106	Screw(M4-0.7 × 8)[M4-0.7 × 6]	2
49	000600	Spring Washer	1

Page 23 — NEEDLE BAR MECHANISM

Yamato VG2700 parts on page 23
Ref	Part number	Part name	Qty
1	330017	Seal Plug	1
2	3500078	Needle Bar	1
3	3200111	Needle Bar Bracket	1
4	110035	Screw(M4-0.7 × 10)	1
5-1	0093356	Needle Clamp(48)	1
5-2	0093357	Needle Clamp(56)	1
5-3	0093358	Needle Clamp(64)	1
7	0093365	Top Cover Thread Eyelet	1
8	001900	Screw(1/8-44 × 2.4)	4
9-1	3508002	Stitch Plate(48M)	1
9-2	3508003	Stitch Plate(56M)	1
9-3	3508004	Stitch Plate(64M)	1
10	009142	Screw(9/64-40 × 4.8)	2
11	3500615	Counterweight	1
12	110011	Screw(M5-0.8 × 10)	2
13	160029	Screw(M8-1.25 × 8)	2
14	3500091	Connecting Rod, Complete Set	1
15	3200112	Connecting Rod	1
16	0093212	Roller Bearing	1
17	3500617	Eccentric Pin Plate	1
18	130002	Screw(M3-0.5 × 6)	1
19	3500616	Eccentric Pin	1
20	000309	Felt(2.5 × 3 × 30mm)	1
21	330000	Seal Plug	1
22	3200118	Needle Bar Guide, C. Set	1
23	3200116	Needle Bar Guide	1
24	0093186	Slide Block	1
25	009749	Screw(M4-0.7 × 16)	2
26	3100338	Sponge	1

Page 25 — PRESSER FOOT MECHANISM

Yamato VG2700 parts on page 25
Ref	Part number	Part name	Qty
1	0077270	Presser Spring Regulator	1
2	000445	Lock Nut	1
3	0065372	Presser Bar Spring(Outer)	1
4	3500304	Presser Bar Connecting Brackst	1
5	110031	Screw(M4-0.7 × 12)	1
6	0093483	Presser Bar Guide	1
7	004441	Screw(11/64-40 × 16)	2
8	0060142	Presser Bar Spring(Inner)	1
9	3100110	Presser Bar	1
10	3100112	Finger Guard	1
11	110002	Screw(M3-0.5 × 5)	1
12	0093611	Oil Protector Ring	1
13	3100310	Collar(9 × 17 × 7mm)	1
14	150001	Screw(M4-0.7 × 4)	1
15	0020271	Thread Chain Cutting Knife	1
16	110054	Screw(M3-0.5 × 3.5)	1
17-1	3507050	Presser Foot, C. Set(48)	1
17-2	3507052	Presser Foot, C. Set(56)	1
17-3	3507054	Presser Foot, C. Set(64)	1
18	110004	Screw(M3.5-0.6 × 8)	1
19	3107303	Presser Foot Spring(Left)	1
20	3107304	Presser Foot Spring(Right)	1
23	130016	Screw(M2.5-0.45 × 6)	4
24	3107306	Presser Foot Hinge Pin(56, 64)	1
25	110084	Screw(M3.5-0.5 × 4.2)	1
26	000327	Lock Nut	1
27	260006	Adjusting Screw(1/8-44 × 9.5)	1
28	3500305	Cap	1
30	3500296	Presser Foot Lifter	1
31	170041	Screw(M5-0.8 × 3.5)	2
32	3500300	Lifter Shaft	1
33	2100267	Collar(10 × 17 × 8mm)	1
34	160001	Screw(M4-0.7 × 4)	2
35	3500293	Lifter Shaft Lever	1
36	005650	Screw(M5-0.8 × 14)	1
37	0068181	Spring	1
38	3500294	Lever Link	1
39	3500291	Lifter Lever	1
40	000487	Wave Washer	1

Page 27 — PRESSER FOOT MECHANISM

Yamato VG2700 parts on page 27
Ref	Part number	Part name	Qty
41	300005	Washer	1
42	120010	Screw(M6-1 × 10)	1
43	2110361	Spring	1
44	2100194	Lifter Lever Holder	1
45	340003	Knock Pin(φ5 × 20mm)	1
46	3500295	Lifter Lever Stopper	1
47	120006	Screw(M6-1 × 12)	2
48	000206	Lock Nut	1
49	110118	Screw(M5-0.8 × 22)[M5-0.8 × 18]	1
50	3500299	Tension Release Lever Connector	1
51	170038	Screw(M4-0.7 × 5)	1
52	170009	Screw(M4-0.7 × 4)	1
53	3100533	Tension Release Lever	1
54	120001	Screw(M4-0.7 × 14)	1
55	3500292	Tension Release Shaft	1
56	0063515	Thread Pull-off Lever	1
57	000690	Spring Pin(4 × 16mm)	1
58	0094390	Tension Release Adjusting Eccentric	1
59	0095334	Swing-proof Spring	1
60	001170	Screw(9/64-40 × 12)	1

Page 29 — SPREADER MECHANISM / 飾り糸ルーパ機構

Yamato VG2700 parts on page 29
Ref	Part number	Part name	Qty
1	3500081	Spreader Eccentric, C. Set	1
2	3500082	Spreader Eccentric	1
3	160003	Screw(M5-0.8 × 5)	2
4	3500084	Spreader Connecting Rod	1
5	110009	Screw(M4-0.7 × 8)	1
6	300006	Washer	1
7	3100309	Adjusting Lever Pin	1
8	000528	Washer	1
9	100003	Nut	1
10	3500086	Spreader Adjusting Lever	1
11	120013	Screw(M6-1 × 15)	1
12	3160138	Driving Shaft	1
13	0032646	Collar(12 × 20 × 8mm)	1
14	009604	Screw(11/64-40 × 5.5)	2
16	3100305	Rocking Arm	1
17	160007	Screw(M6-1 × 6)	2
18	0063051	Rocking Pin	1
19	310094	Oil Wick(φ 3.3 × 15mm)	1
20	0063053	Spreader Bar	1
21	0063056	Bushing Ring	1
22	0063057	Collar(10 × 18 × 7mm)	1
23	009526	Screw(9/64-40 × 4.4)	2
24	3100307	Spreader Holder	1
25	3509320	Spreader	1
26	110031	Screw(M4-0.7 × 12)	2

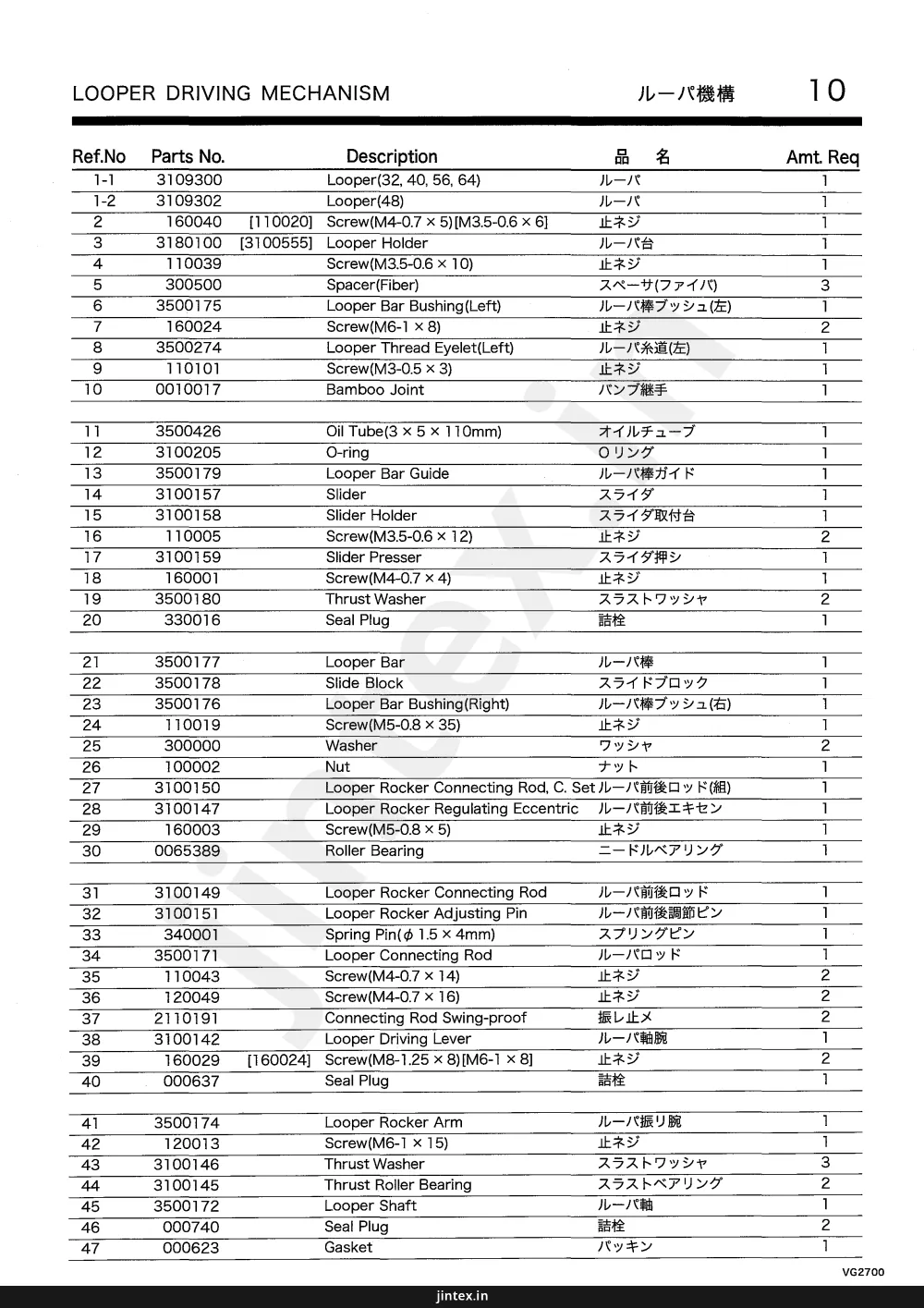

Page 31 — LOOPER DRIVING MECHANISM

Yamato VG2700 parts on page 31
Ref	Part number	Part name	Qty
1-1	3109300	Looper(32, 40, 56, 64)	1
1-2	3109302	Looper(48)	1
2	160040	Screw(M4-0.7 × 5)[M3.5-0.6 × 6]	1
3	3180100	Looper Holder	1
4	110039	Screw(M3.5-0.6 × 10)	1
5	300500	Spacer(Fiber)	3
6	3500175	Looper Bar Bushing(Left)	1
7	160024	Screw(M6-1 × 8)	2
8	3500274	Looper Thread Eyelet(Left)	1
9	110101	Screw(M3-0.5 × 3)	1
10	0010017	Bamboo Joint	1
11	3500426	Oil Tube(3 × 5 × 110mm)	1
12	3100205	O-ring	1
13	3500179	Looper Bar Guide	1
14	3100157	Slider	1
15	3100158	Slider Holder	1
16	110005	Screw(M3.5-0.6 × 12)	2
17	3100159	Slider Presser	1
18	160001	Screw(M4-0.7 × 4)	1
19	3500180	Thrust Washer	2
20	330016	Seal Plug	1
21	3500177	Looper Bar	1
22	3500178	Slide Block	1
23	3500176	Looper Bar Bushing(Right)	1
24	110019	Screw(M5-0.8 × 35)	1
25	300000	Washer	2
26	100002	Nut	1
27	3100150	Looper Rocker Connecting Rod, C. Set	1
28	3100147	Looper Rocker Regulating Eccentric	1
29	160003	Screw(M5-0.8 × 5)	1
30	0065389	Roller Bearing	1
31	3100149	Looper Rocker Connecting Rod	1
32	3100151	Looper Rocker Adjusting Pin	1
33	340001	Spring Pin(φ 1.5 × 4mm)	1
34	3500171	Looper Connecting Rod	1
35	110043	Screw(M4-0.7 × 14)	2
36	120049	Screw(M4-0.7 × 16)	2
37	2110191	Connecting Rod Swing-proof	2
38	3100142	Looper Driving Lever	1
39	160029	Screw(M8-1.25 × 8)[M6-1 × 8]	2
40	000637	Seal Plug	1
41	3500174	Looper Rocker Arm	1
42	120013	Screw(M6-1 × 15)	1
43	3100146	Thrust Washer	3
44	3100145	Thrust Roller Bearing	2
45	3500172	Looper Shaft	1
46	000740	Seal Plug	2
47	000623	Gasket	1

Page 33 — FEED DRIVING CONTROL MECHANISM

Yamato VG2700 parts on page 33
Ref	Part number	Part name	Qty
1	3500147	Differential Feed Rocker Arm, C. Set	1
2	3500148	Differential Feed Rocker Arm	1
3	120013	Screw(M6-1 × 15)	1
4	3500149	Differential Regulating Slider	1
5	3500152	Differential Link	1
6	3500154	Differential Feed Regulating Link	1
7	3200215	Retaining Ring	2
8	3500146	Differential Feed Shaft Arm	1
9	310096	Oil Wick(φ5 × 130mm)	1
10	3500144	Differential Feed Shaft	1
11	2100249	Connection Bushing(Front)	1
12	3500143	Differential Feed Bar Connection	1
13	300000	Washer	2
14	110046	Screw(M5-0.8 × 12)	1
15	110021	Screw(M5-0.8 × 18)	1
16	3500142	Connection Bushing(Rear)	1
17	3509004	Differential Feed Dog	1
18	3509005	Main Feed Dog	1
19	110004	Screw(M3.5-0.6 × 8)	2
20	3500151	Linear Block	1
21	3500150	Linear Guide	1
22	160001	Screw(M4-0.7 × 4)	3
23	3500153	Linear Link	1
24	0068202	Retaining Ring	2
25	2100253	Linear Link Pin	1
26	3500155	Differential Feed Lever(Left)	1
27	160004	Screw(M6-1 × 4.8)[M6-1 × 6]	1
28	3500156	Differential Feed Lever Shaft	1
29	2100267	Collar(10 × 17 × 18mm)	1
30	3500157	Spring	1
31	340003	Knock Pin(φ5 × 20mm)	1
32	3500158	Differential Feed Lever(Right)	1
33	000690	Spring Pin(φ4 × 16mm)	1
35	000010	Conical Spring Washer	1
36	3500161	Lock Nut	1
37	190004	Screw(M6-1 × 8.5, M4.5-0.5 × 3)	1
38	3500160	Differential Feed Graduations	1
39	110045	Screw(M4-0.7 × 12)	2
40	3101754	Adjusting Screw	1
41	2100264	Adjusting Block	1
42	2100259	Spring	1
43	001123	Washer	1
44	0034293	Retaining Ring	1
45	0020350	Differential Feed Lever Stopper	1
46	000669	Washer	1
47	000600	Spring Washer	1
48	005049	Screw(M5-0.8 × 8)	1
49	120011	Screw(M6-1 × 18)	1

Page 35 — FEED DRIVING MECHANISM

Yamato VG2700 parts on page 35
Ref	Part number	Part name	Qty
1	3500131	Feed Bar Driving Shaft Lever	1
2	120013	Screw(M6-1 × 15)	1
3	3500130	Feed Bar Link Pin	1
4	3500129	Feed Bar Link(Long)	1
5	160002	Screw(M4-0.7 × 5)	3
6	3100195	Feed Bar Link(Short)	1
7	3100193	Feed Bar Connecting Rod Pin	1
8	3500128	Feed Bar Connecting Rod	1
9	3100192	Retaining Ring	2
10	3500105	Counterweight	1
11	110009	Screw(M4-0.7 × 8)	4
12	3100623	Roller Bearing	1
13	3500127	Main Feed Eccentric	1
14	006212	Screw(M5-0.8 × 6)	2
15	3100190	Roller Bearing	1
16	3500162	Feed Lift Connecting Rod	1
17	3500119	Feed Bar Guide(Right)	1
18	160007	Screw(M6-1 × 6)	4
19	3500411	Oiling Felt	1
20	110030	Screw(M3-0.5 × 2.6)	2
21	3201355	Roller Bearing	1
22	0013208	Retaining Ring	1
23	3500163	Feed Lift Shaft Lever	1
24	3500124	Collar(12 × 20 × 10mm)	2
25	160004	Screw(M6-1 × 4.8)	3
26	160005	Screw(M6-1 × 8)	2
27	310096	Oil Wick(φ 5 × 130mm)	1
28	3500164	Feed Lift Shaft	1
29	000397	Oil Wick(φ 2 × 11mm)	1
30	3500113	Feed Bar, Complete Set	1
31	3500116	Feed Lift Block(Rear)	1
32	0032867	Feed Lift Block(Front)	1
33	3500115	Main Feed Bar	1
34	3500114	Differential Feed Bar	1
35	3500408	Oiling Felt	1
36	3100231	Feed Dog Key	2
37	3500118	Feed Bar Guide(Left)	1
38	3500122	Main Feed Bar Driving Shaft	1
39	000750	Seal Plug	1
40	2020002	Retaining Ring	1

Page 37 — FEED DRIVING MECHANISM

Yamato VG2700 parts on page 37
Ref	Part number	Part name	Qty
41	3500123	Main Feed Bar Driving Shaft Lever	1
42	110117	Screw(M5-0.8 × 9.5)	1
43	3100214	Link Pin	1
44	000199	Oil Wick(2.3 × 2.3 × 13mm)	1
45	160006	Screw(M3-0.5 × 4)	1
46	3500121	Main Feed Bar Connection	1
47	3500120	Connection Bushing	1
48	300000	Washer	1
49	110118	Screw(M5-0.8 × 22)	1
50	3500136	Adjusting Screw Stopper	1
51	160001	Screw(M4-0.7 × 4)[M3-0.5 × 3]	2
52	3500133	Main Feed Bar Adjusting Screw	1
53	100067	Lock Nut	1
54	0020551	O-ring(P5)	1
55	3500132	Main Feed Bar Bracket	1
56	3500138	Main Feed Lever Shaft(Right)	1
57	3500126	Connecting Shaft	1
58	3240072	Spring	1
59	340003	Knock Pin(φ 5 × 20mm)	2
60	0068079	O-ring(P16)	1
61	3500137	Main Feed Lever Shaft(Left)	1
62	3500139	Main Feed Lever	1
63	110013	Screw(M4-0.7 × 8)	1
64	3500141	Main Feed Graduations	1
65	009749	Screw(M4-0.7 × 16)	2
66	0020350	Main Feed Lever Stopper	1
67	000669	Washer	1
68	000600	Spring Washer	1
69	005049	Screw(M5-0.8 × 8)	1
70	310102	Oil Wick(φ 4.8 × 150)[φ 5 × 130]	1
71	3500190	Feed Lift Connecting Rod, C. Set	1

Page 39 — LUBRICATING MECHANISM

Yamato VG2700 parts on page 39
Ref	Part number	Part name	Qty
1	3500412	Oil Receiver	1
2	110012	Screw(M4-0.7 x 5)	4
3	0032518	O-ring(P3)	1
4	3500402	Oil Sight Top Nozzle	1
5	3100370	Oil Tube Joint, One Way	6
6	000425	Washer	1
7	000234	Nut	2
8	0031831	Oil Tube Clamp	8
9	3500229	Oil Filter Cover	1
10	110045	Screw(M4-0.7 x 12)	3
	3100061	O-ring(P42)	1
	3100345	Oil Filter	1
	3100329	Oil Filter Connector	1
	3200237	Felt	1
	3200236	Suction Pipe	1
	0093617	Suction Pipe Bushing	1
	3200238	Oil Tube(3 × 5 × 440mm)	1
	0010017	Bamboo Joint	2
	3500422	Oil Tube(Long), Complete Set	1
	3400261	Oil Tube(4 × 6 × 500mm)	1
	3100371	Oil Tube Joint, Two Way	1
	3100332	Oil Tube(4 × 6 × 37mm)	1
	320008	Fitting Stud(Short)	4
	3500423	Oil Tube(Middle), Complete Set	1
	3500415	Oil Filter Screen	1
	3500424	Oil Tube(4 × 6 × 190mm)	1
	320009	Fitting Stud(Long)	1
	3100356	Oil Tube(Short), Complete Set	1
	3100331	Oil Tube(4 × 6 × 31mm)	1
	3500418	Oiling Shower	1
	3500410	Draining Felt	1
	3500404	Draining Pipe	1
	110013	Screw(M4-0.7 × 8)	2
	3500425	Oil Tube(4 × 6 × 350mm)	1
	3150195	Oil Pump, Complete Set
	2040033	Oil Pump Driving Worm Gear
	160001	Screw(M4×4)	2
	120011	Screw(M6-1 × 18)[M6-1 × 15]
	000560	Seal
	100014	Nut
	3150151	Oil Nozzle for Worm Gear	1
	3100330	Oil Tube Stay	1
	3500236	Dust Proof Plate	1
	3500006	Oil Sight Gauge	1

Page 41 — PULLER MECHANISM EXCLUSIVE PARTS(1)

Yamato VG2700 parts on page 41
Ref	Part number	Part name	Qty
1	3100625	Upper Feed Roller Shaft Bracket	1
2	120019	Screw(M6-1 × 18)	4
3	000779	Knock Pin	2
4	3100006	Seal Plug	1
5	3100607	Roller Shaft Bushing(Right)	1
6	3100604	Upper Feed Roller Shaft Lever	1
7	160007	Screw(M6-1 × 6)	2
8	0065398	Collar(14 × 22 × 10mm)	1
9	009604	Screw(11/64-40 × 5.5)	2
10	3100626	Roller Shaft Bushing(Left)	1
11	0065395	Oil Seal	1
12	3100605	Upper Feed Roller Shaft	1
14	3100608	Upper Feed Roller Lever	1
15	120012	Screw(M6-1 × 20)	1
16	0065401	Upper Feed Roller Lever Pin	1
17	000613	Washer	1
18	000306	Nut	2
19	3501281	Upper Feed Roller Lever Rod	1
20	240010	Screw(1/4-40 × 11)	1
21	310063	Oil Wick	1
22	0032921	Upper Feed Roller Driving Rod Pin	1
23	160001	Screw(M4-0.7 × 4)	1
24	3100602	Upper Feed Roller Driving Rod	1
25	3100192	Retaining Ring	1
26	3100623	Roller Bearing	1
27	3100603	Upper Feed Roller Regulator, C. Set	1
28	3100601	Upper Feed Roller Eccentric	1
29	3100600	Upper Feed Roller Regulator	1
30	160003	Screw(M5-0.8 × 5)	2
31	190007	Adjusting Screw(M5-0.8 × 6)	1
32	120008	Screw(M4-0.7 × 8)	1
33	300045	Spacer	1
34	3100636	Upper Feed Roller Shaft Bracket, C. Set	1

Page 43 — PULLER MECHANISM EXCLUSIVE PARTS(2)

Yamato VG2700 parts on page 43
Ref	Part number	Part name	Qty
2	3100611	Upper Feed Roller Yoke	1
3	120012	Screw(M6-1 x 20)	1
4	3100612	Upper Feed Roller Yoke Guide	1
5	120008	Screw(M4-0.7 x 8)	2
6	3100613	Upper Feed Roller Yoke Pin	1
7	160007	Screw(M6-1 x 6)	1
8	0090620	Wire(0.9 x 45mm)	1
9	180005	Screw(M4-0.7 x 6)	1
10	160001	Screw(M4-0.7 x 4)	2
11	160003	Screw(M5-0.8 x 5)	3
12	0060056	Retaining Ring	1
13	2100902	Thrust Ring	1
14	3501270	Clutch Driving Shaft	1
15	3100616	Clutch Driving Shaft Bushing(Left)	1
16	0065414	Clutch Driving Shaft Bushing(Right)	1
17	0065421	Clutch Tension Sleeve	1
18	3501283	Adjusting Collar	1
20	3501284	Adjusting Screw Stay	1
21	110002	Screw(M3-0.5 x 5)	2
22	110097	Screw(M5-0.8 x 12)	1
23	3501282	Clutch Tension Spring	1
24	3501280	Clutch Driving Lever	1
25	130003	Screw(M4-0.7 x 7.3)	3
26	3501276	Clutch Sleeve(Right)	1
27	3501272	Thrust Plate	2
28	3501271	Clutch Spacer	1
29	160005	Screw(M6-1 x 8)	1
30	3501275	Clutch Sleeve(Left)	1
31-1	3501290	Upper Feed Roller (30 teeth)(Standard)	1
31-2	3501289	Upper Feed Roller(26 teeth)(Extra Parts)	1
32	007621	Screw(9/64-40 x 8.5)	3
33	3500697	Lower Feed Roller Support, C. Set	1
34-1	3501260	Lower Feed Roller(19 teeth)(Standard)	1
34-2	3501259	Lower Feed Roller(16theeth)(Extra Parts)	1
35	000487	Wave Washer	1
36	3501252	Lower Feed Roller Guide	1
37	0060056	Retaining Ring	1
38	160000	Screw(M3-0.5 x 3)	2
39	3501251	Lower Feed Roller Shaft	1
40	160003	Screw(M5-0.8 x 5)	1

Page 45 — PULLER MECHANISM EXCLUSIVE PARTS(2)

Yamato VG2700 parts on page 45
Ref	Part number	Part name	Qty
41	3501250	Lower Feed Roller Bracket	1
42	120041	Screw(M6-1 × 12)	2
43	000779	Knock Pin	2
44	3501295	Upper Feed Roller(Rubber)	1
45	3501265	Lower Feed Roller(Rubber)	1
46	3500698	Supplementary Roller, C. Set	1
47	3501253	Supplementary Roller Support	1
48	000538	Washer	2
49	110009	Screw(M4-0.7 × 8)	2
50	3501122	Supplementary Roller	1
51	0065436	Supplementary Roller Stay(A)	1
52	0065437	Supplementary Roller Stay(B)	1
53	009730	Screw(1/8-44 × 5.3)[M3-0.5 × 2.6]	4
54	0063460	Lower Feed Roller(Rubber) Bushing	2

Page 47 — PULLER MECHANISM EXCLUSIVE PARTS(3)

Yamato VG2700 parts on page 47
Ref	Part number	Part name	Qty
1	0065381	Upper Feed Roller Lifter(Right)	1
2	110009	Screw(M4-0.7 x 8)	2
3	000538	Washer	3
4	000334	Nut	2
5	0034979	Flexible Wire Clamp Bushing	2
6	006075	Screw(11/64-40 x 6)	2
7	0067126	Lifter Connecting Plate	1
8	0065374	Upper Feed Roller Lifter(Left)	1
9	0065375	Upper Feed Roller Lifter Pin	1
10	0095027	Retaining Ring	2
11	0065376	Lifter Connecting Plate	1
12	006038	Screw(3/16-32 x 2.2)	2
13	0065407	Roller Press Bar Bracket	1
14	005650	Screw(M5-0.8 x 14)	1
15	0065402	Lifting Lever Sleeve	1
16	006411	Screw(11/64-40 x 5.5)	1
17	000340	Nut	1
18	009931	Stop Screw(11/64-40 x 26)	1
19	3100614	Roller Press Spring	1
20	3100610	Upper Feed Roller Bracket	1
21	009753	Screw(M6-1 x 35)	2
22	000779	Knock Pin	2
23	0065405	Roller Press Bar Bushing(Upper)	1
24	160007	Screw(M6-1 x 6)	1
25	3100609	Roller Press Bar Bushing(Lower)	1
26	0065404	Upper Feed Roller Press Bar	1
27	0034117	Retaining Ring	1
28	000690	Stop Pin	1
29	000613	Washer	1
30	0067111	Upper Feed Roller Lifting Lever	1
31	000487	Corrugated Washer	1
32	170008	Screw(M6-1 x 9)	1
33	3500699	Upper Feed Roller Bracket, C. Set	1

Page 49 — VG2700 EXCLUSIVE PARTS

Yamato VG2700 parts on page 49
Ref	Part number	Part name	Qty
1-1	3508007	Stitch Plate(48L)	1
1-2	3508008	Stitch Plate(56L)	1
2-1	3508012	Stitch Plate(48S)	1
2-2	3508062	Stitch Plate(48S1)	1
2-3	3508063	Stitch Plate(56S1)	1
2-4	3508064	Stitch Plate(64S1)	1
2-5	3508067	Stitch Plate(48S2)	1
2-6	3508068	Stitch Plate(56S2)	1
2-7	3508069	Stitch Plate(64S2)	1
3-1	0093351	Needle Clamp(32)	1
3-2	0093352	Needle Clamp(40)	1
4-1	3507000	Presser Foot, C. Set(32)	1
4-2	3507002	Presser Foot, C. Set(40)	1
5	110004	Screw(M3.5-0.6 × 8)	1
6	3107303	Presser Foot Spring(Left)	1
7	3107304	Presser Foot Spring(Right)	1
8	130016	Screw(M2.5-0.45 × 6)	4
9	3107306	Presser Foot Hinge Pin	1
10	110084	Screw(M3-0.5 × 4.2)	1
11	000327	Lock Nut	1
12	260006	Adjusting Screw(1/8-44 × 9.5)	1
13-1	3508000	Stitch Plate(32M)	1
13-2	3508001	Stitch Plate(40M)	1
14-1	3508011	Stitch Plate(40S)	1
14-2	3508060	Stitch Plate(32S1)	1
14-3	3508061	Stitch Plate(40S1)	1
14-4	3508065	Stitch Plate(32S2)	1
14-5	3508066	Stitch Plate(40S2)	1
15	3108134	Stitch Plate(56M-31)	1
16	3106000	Main Feed Dog	1
17	3109000	Differential Feed Dog	1
18	3100630	Fabric Edge Guide(Left)	1
19	0095367	Fabric Edge Guide Chip	1
20	004182	Screw(3/32-56 × 2.5)	1
21	3100631	Fabric Edge Guide(Right)	1

Page 51 — VG2700-□□□□-WF1 EXCLUSIVE PARTS

Yamato VG2700 parts on page 51
Ref	Part number	Part name	Qty
1	3500297	Presser Spring Regulator	1
2	3200132	Presser Bar Spring(Outer)	1
3	3101315	Presser Bar Stopper	1
4	000538	Washer	1
5	004440	Screw(11/64-40 × 8.3)	1
6	0093480	Presser Bar	1
7-1	3107277	Walking Foot, C. Set(48)(Extra Parts)	1
7-2	3107270	Walking Foot, C. Set(56)	1
7-3	3107282	Walking Foot,C.Set(32)(2 Needle)(Extra Parts)	1
7-4	3107275	Walking Foot,C.Set(40)(2 Needle)(Extra Parts)	1
7-5	3107280	Walking Foot, C. Set(64)(Extra Parts)	1
8	160001	Screw(M4-0.7 × 4)	1
9	100052	Nut	1
10	3207148	Presser Foot Spring	1
11	100020	Nut	1
12	000665	Washer	1
13	100057	Nut	1
14	3207146	Adjusting Screw	1
15	160025	Screw(M3-0.5 × 6)	1
16	0060270	Yoke Pin	1
17	160001	Screw(M4-0.7 × 4)	2
18	3107303	Presser Foot Spring(Left)	1
19	3107306	Presser Foot Hinge Pin	1
20	110084	Screw(M3-0.5 × 4.2)	1
21-1	3107273	Fabric Presser(width 6.2mm)	1
21-2	3107272	Fabric Presser(width 3.1mm)	1
22	001228	Screw(3/32-56 × 3.2)	2
23	3110201	Spacer(Extra Parts)	1
24-1	3107274	FabricPresser(width12.6mm)(ExtraParts)	1
24-2	3107285	FabricPresser(width37.2mm)(ExtraParts)	1

Page 53 — VG2703 EXCLUSIVE PARTS(1)

Yamato VG2700 parts on page 53
Ref	Part number	Part name	Qty
1	3502003	Front Cover, C. Set	1
2	3502010	Slide Cover	1
3	3502007	Folder Support	1
4	3502012	Folder Support Fixing Plate	1
5	140019	Screw(M5-0.8 × 14)	2
6	3502006	Folder Clamp	1
7	009932	Screw(11/64-40 × 4)	2
8	005554	Screw(7/32-32 × 6.5)	1
9	3502013	Eye Guard	1
10	3500223	Front Cover Hinge	1
11	110016	Screw(M4-0.7 × 14)	2
12	170001	Screw(M4-0.7 × 8)	2
13	300100	Conical Spring Washer	4
14	160001	Screw(M4-0.7 × 4)	2
15	3502004	Front Cover (Lower)	1
16	110045	Screw(M4-0.7 × 12)	1
17	000015	Nut	1
18	330019	Seal Plug	1
19	3201007	Fabric Slide Plate	1
20	000426	Washer	1
21	110103	Screw(M5-0.8 × 8)	1
22	3502009	Cloth Plate(Front)	1
23	130007	Screw(M4-0.7 × 10)[M3-0.5 × 6]	2
24	3502008	Supplementary Plate	1
25	110050	Screw(M3-0.6 × 4.5)	2
26	3200033	Seal Plug	1
27	3502011	Tape Guide	1
28	110048	Screw(M4-0.7 × 10)	2
29	000505	Spacer	2
30	3502005	Front Cover(Upper)	1
31	3502015	Dustproof Cover(Sponge)	1
32	110094	Screw(M4-0.7 × 6)	2
33	3500233	Thread Take-up Cover(Front)	1
34	007627	Screw(M4-0.7 × 6)	2
35	110002	Screw(M3-0.5 × 5)	1
36	190078	Screw(M4-0.7 × 5)	1
37	390173	Caution Label	1
38-1	0093241	Folder(for Type P)	1
38-2	0093242	Folder(for Type Q)	1
38-3	0093243	Folder(for Type R)	1

Page 55 — VG2703 EXCLUSIVE PARTS(2)

Yamato VG2700 parts on page 55
Ref	Part number	Part name	Qty
1-1	3207155	Presser Foot, C. Set(48)	1
1-2	3207156	Presser Foot, C. Set(56)	1
1-3	3207157	Presser Foot, C. Set(64)	1
2	001186	Screw(9/64-40 × 7.8)	1
3	0091725	Presser Foot Spring	1
4	005133	Screw(1/8-44 × 4.5)	1
5	000220	Lock Nut	1
6	003300	Adjusting Screw(1/8-44 × 15)	1
7	0091696	Presser Foot Hinge Pin	1
8	3207160	Tape Guide	1
9	001230	Screw(3/32-56 × 3.8)	1
10-1	3508051	Stitch Plate(48M)	1
10-2	3508052	Stitch Plate(56M)	1
10-3	3508053	Stitch Plate(64M)	1
11	3509001	Main Feed Dog	1
12	3509000	Differential Feed Dog	1
13-1	3207150	Presser Foot, C. Set(32)	1
13-2	3207151	Presser Foot, C. Set(40)	1
14-1	3508049	Stitch Plate(32M)	1
14-2	3508050	Stitch Plate(40M)	1

Page 57 — VG2708-WF8 EXCLUSIVE PARTS

Yamato VG2700 parts on page 57
Ref	Part number	Part name	Qty
1	3500297	Presser Spring Regulator	1
2	3200132	Presser Bar Spring(Outer)	1
3	3101315	Presser Bar Stopper	1
4	000538	Washer	1
5	004440	Screw(11/64-40 × 8.3)	1
6	0093480	Presser Bar	1
7	3107290	Walking Foot, C. Set	1
8	160001	Screw(M4-0.7 × 4)	1
9	100052	Nut	1
10	3207148	Presser Foot Spring	1
11	100020	Nut	1
12	000665	Washer	1
13	100057	Nut	1
14	3207146	Adjusting Screw	1
15	160025	Screw(M3-0.5 × 6)	1
16	0060270	Yoke Pin	1
17	160001	Screw(M4-0.7 × 4)	2
18	3107306	Presser Foot Hinge Pin	1
19	110084	Screw(M3-0.5 × 4.2)	1
20	0094507	Stitch Plate	1
21	3509031	Main Feed Dog	1
22	3509030	Differential Feed Dog	1
23	3120076	Looper Thread Take-up	1

Page 59 — VG2713-0000-T1N, T4N EXCLUSIVE PARTS

Yamato VG2700 parts on page 59
Ref	Part number	Part name	Qty
1-1	3107311	Fabric Guide	1
1-2	3507091	Fabric Guide(Long)(Extra Parts)	1
2	110027	Screw(M2.5-0.45 × 3.5)	2
3	3500631	Fabric Guide(Left)	1
4	3500632	Fabric Guide(Right)	1
6	3500634	Fabric Guide(Small)(Left)	1
7	3500635	Fabric Guide(Small)(Right)	1
8	110038	Screw(M2.5-0.45 × 4.5)	2
9-1	3508020	Stitch Plate(48L)	1
9-2	3508021	Stitch Plate(56L)	1
9-3	3508019	Stitch Plate(56M)	1
10	3509007	Differential Feed Dog	1
11	3509012	Differential Feed Dog(Middle)	1
12	110038	Screw(M2.5-0.45 × 4.5)	1
13-1	3508040	Stitch Plate(40S)(2 Needle)	1
13-2	3508031	Stitch Plate(48M)(3 Needle)	1
13-3	3508032	Stitch Plate(56M)(3 Needle)	1
13-4	3508033	Stitch Plate(64M)(3 Needle)	1
14	3509010	Differential Feed Dog(Middle)	1

Page 61 — VG2713-0000-T1A, T2A, T4A EXCLUSIVE PARTS サブモデル専用部品

Yamato VG2700 parts on page 61
Ref	Part number	Part name	Qty
1-1	3107311	Fabric Guide	1
1-2	3507091	Fabric Guide(Long)(Extra Parts)	1
2	110027	Screw(M2.5-0.45 × 3.5)	2
3	3500631	Fabric Guide(Left)	1
4	3500632	Fabric Guide(Right)	1
6	3500634	Fabric Guide(Small)(Left)	1
7	3500635	Fabric Guide(Small)(Right)	1
8	110038	Screw(M2.5-0.45 × 4.5)	2
9-1	3508019	Stitch Plate(56M)	1
9-2	3508020	Stitch Plate(48L)	1
9-3	3508021	Stitch Plate(56L)	1
12	110038	Screw(M2.5-0.45 × 4.5)	1
13	3509017	Main Feed Dog	1
14	3509015	Differential Feed Dog	1
15	3509016	Differential Feed Dog(Middle)	1
16	3508074	Stitch Plate(56L)	1
17	3509019	Main Feed Dog	1
18-1	3508031	Stitch Plate(48M)	1
18-2	3508032	Stitch Plate(56M)	1
18-3	3508033	Stitch Plate(64M)	1
18-4	3508040	Stitch Plate(40S)(2 Needle)	1
19	3509018	Differential Feed Dog(Middle)	1

Page 63 — VG2713-0000-K1N, K4N EXCLUSIVE PARTS

Yamato VG2700 parts on page 63
Ref	Part number	Part name	Qty
1-1	3107311	Fabric Guide	1
1-2	3507091	Fabric Guide(Long)(Extra Parts)	1
2	110027	Screw(M2.5-0.45 × 3.5)	1
3	3101320	Fabric Guide(Left)	1
4	3101321	Fabric Guide(Rright)	1
5	110027	Screw(M2.5-0.45 × 3.5)[M2.5-0.45 × 4.5]	2
6	3500637	Supplementary Block	1
7-1	3508025	Stitch Plate(48M-K1N)	1
7-2	3508026	Stitch Plate(56M-K1N)	1
8	3509007	Differential Feed Dog	1
9	3509012	Differential Feed Dog(Middle)	1
10	110038	Screw(M2.5-0.45 × 4.5)	1
11	3508087	Stitch Plate(56M-K4N)	1
12	3509010	Differential Feed Dog(Middle)	1
13-1	3508041	Stitch Plate(40S-K4N)	1
13-2	3508086	Stitch Plate(48M-K4N)	1

Page 65 — VG2713-000-000-WF2 EXCLUSIVE PARTS

Yamato VG2700 parts on page 65
Ref	Part number	Part name	Qty
1	3500297	Presser Spring Regulator	1
2	3200132	Presser Bar Spring(Outer)	1
3	3101315	Presser Bar Stopper	1
4	000538	Washer	1
5	004440	Screw(11/64-40 × 8.3)	1
6	0093480	Presser Bar	1
7-1	3507072	Walking Foot, C. Set(48)	1
7-2	3507074	Walking Foot, C. Set(56)	1
7-3	3507070	Walking Foot, C. Set(40)(2 Needle)	1
7-4	3507076	Walking Foot, C. Set(64)(Extra Parts)	1
8	160001	Screw(M4-0.7 × 4)	1
9	100052	Nut	1
10	3207148	Presser Foot Spring	1
11	100020	Nut	1
12	000665	Washer	1
13	100057	Nut	1
14	3207146	Adjusting Screw	1
15	160025	Screw(M3-0.5 × 6)	1
16	0060270	Yoke Pin	1
17	160001	Screw(M4-0.7 × 4)	2
18	3107303	Presser Foot Spring(Left)	1
19	3107304	Presser Foot Spring(Right)	1
20	3107306	Presser Foot Hinge Pin	1
21	110084	Screw(M3-0.5 × 4.2)	1
22	3107311	Fabric Guide	1
23	110027	Screw(M2.5-0.45 × 3.5)	1

Page 67 — VG2740, 2740P EXCLUSIVE PARTS(1)

Yamato VG2700 parts on page 67
Ref	Part number	Part name	Qty
1	3501302	Fabric Guide(Left)	1
2	3110073	Fabric Guide(Right)	1
3	2100265	Spacer	2
4	110010	Screw(M4-0.7 × 16)[M4-0.7 × 14]	2
5	3100630	Folder(Left)	1
6	0095367	Folder Chip	1
7	004182	Screw(3/32-56 × 2.5)	1
8	3100631	Folder(Right)	1
9	0094615	Fabric Edge Guide(Left)(Extra Parts)	1
10	001228	Screw(3/32-56 × 3.2)(Extra Parts)	1
11	3507060	Presser Foot, C. Set(1)(32, 40)	1
12	3507058	Presser Foot, C. Set	1
13	110004	Screw(M3.5-0.6 × 8)	1
14	3107303	Presser Foot Spring(Left)	1
15	130016	Screw(M2.5-0.45 × 6)	2
16	3107306	Presser Foot Hinge Pin	1
17	110084	Screw(M3-0.5 × 4.2)	1
18	004154	Screw(3/32-56 × 2.2)	1
19	000327	Lock Nut	1
20	260006	Adjusting Screw(1/8-44 × 9.5)	1
21	3507061	Presser Foot Stitch Tongue(32, 40)	1
22	3509007	Differential Feed Dog	1
23	3509025	Differential Feed Dog(Middle)	1
24	110038	Screw(M2.5-0.45 × 4.5)	1
25-1	3507083	Presser Foot Stitch Tongue(32)	1
25-2	3507084	Presser Foot Stitch Tongue(40)	1
26-1	3508080	Stitch Plate(32S1)(2 Needle)	1
26-2	3508081	Stitch Plate(40S1)(2 Needle)	1
27	3508125	Stitch Plate(32M)(2 Needle)	1
28	3508126	Stitch Plate(40M)(2 Needle)(Extra Parts)	1
29	3508136	Stitch Plate(32M)(2 Needle)(Extra Parts)	1
30	3500255	Supplementary Block	1

Page 69 — VG2740, 2740P EXCLUSIVE PARTS(2)

Yamato VG2700 parts on page 69
Ref	Part number	Part name	Qty
1	3507064	Presser Foot, C. Set(1)(48, 56, 64)	1
2	3507058	Presser Foot, C. Set	1
3	110004	Screw(M3.5-0.6 x 8)	1
4	3107303	Presser Foot Spring(Left)	1
5	130016	Screw(M2.5-0.45 x 6)	2
6	3107306	Presser Foot Hinge Pin	1
7	110084	Screw(M3-0.5 x 4.2)	1
8	004154	Screw(3/32-56 x 2.2)	1
9	000327	Lock Nut	1
10	260006	Adjusting Screw(1/8-44 x 9.5)	1
11	3507065	Presser Foot Stitch Tongue(48, 56, 64)	1
12	3509007	Differential Feed Dog	1
13	3509026	Differential Feed Dog(Middle)	1
14	110038	Screw(M2.5-0.45 x 4.5)	1
15	3507085	Presser Foot Stitch Tongue(48)	1
16	3507087	Presser Foot Stitch Tongue(56, 64)	1
17-1	3508082	Stitch Plate(48S1)	1
17-2	3508083	Stitch Plate(56S1)	1
17-3	3508084	Stitch Plate(64S1)	1
18-1	3508127	Stitch Plate(48M)	1
18-2	3508128	Stitch Plate(56M)	1
18-3	3508129	Stitch Plate(64M)	1

Page 71 — VG2740-156S1-WF1 EXCLUSIVE PARTS

Yamato VG2700 parts on page 71
Ref	Part number	Part name	Qty
1	3500297	Presser Spring Regulator	1
2	3200132	Presser Bar Spring(Outer)	1
3	3101315	Presser Bar Stopper	1
4	000538	Washer	1
5	004440	Screw(11/64-40 × 8.3)	1
6	0093480	Presser Bar	1
7	3107270	Walking Foot, C. Set(56)	1
8	160001	Screw(M4-0.7 × 4)	1
9	100052	Nut	1
10	3207145	Presser Foot Spring	1
11	100020	Nut	1
12	000665	Washer	1
13	100057	Nut	1
14	3207146	Adjusting Screw	1
15	160025	Screw(M3-0.5 × 6)	1
16	0060270	Yoke Pin	1
17	160001	Screw(M4-0.7 × 4)	2
18	3107303	Presser Foot Spring(Left)	1
19	3107306	Presser Foot Hinge Pin	1
20	110084	Screw(M3-0.5 × 4.2)	1
21-1	3107272	Fabric Presser(width 6.2mm)	1
21-2	3107273	Fabric Presser(width 3.1mm)(Accesary)	1
22	001228	Screw(3/32-56 × 3.2)	2
23	3110201	Spacer(Extra Parts)	1
24-1	3107274	FabricPresser(width12.6mm)(ExtraParts)	1
24-2	3107285	FabricPreaaer(Width37.2mm)(ExtraParts)	1

Page 73 — VG2740(P)-140M-SM, 148M-SM EXCLUSIVE PARTS

Yamato VG2700 parts on page 73
Ref	Part number	Part name	Qty
1	3103000	Needle Thread Retainer Support, C. Set	1
2	3100087	Needle Thread Retainer Support	1
3	110013	Screw(M4-0.7 × 8)	1
4	0036175	Thread Retainer Disc Support	1
5	0032425	Needle Thread Retainer Dice	1
6	0032426	Needle Thread Retainer Spring	1
7	001093	Screw(1/8-44 × 2.2)	1
8	3501302	Fabric Edge Guide(Left)	1
10	0093415	Presser Foot, C. Set(40)	1
11	001186	Screw(9/64-40 × 7.8)	1
12	3107304	Presser Foot Spring	1
13	0065366	Locking Pin	1
14	0063282	Presser Foot Hinge Pin	1
15	005122	Screw(3/32-56 × 5.5)	1
16	0093352	Needle Clamp(40)	1
17	0093410	Stitch Plate(40M)	1
18	3109042	Main Feed Dog(40)	1
19	3139006	Differential Feed Dog(40)	1
20	0093421	Presser Foot, C. Set(48)	1
21	0093417	Stitch Plate(48M)	1
22	3109044	Main Feed Dog(48)	1
23	3139007	Differential Feed Dog(48)	1

Page 75 — VG2760 EXCLUSIVE PARTS / サブモデル専用部品

Yamato VG2700 parts on page 75
Ref	Part number	Part name	Qty
1-1	3209121	Needle Clamp(56)	1
1-2	3209122	Needle Clamp(64)	1
2	160033	Screw(M2.5-0.45 × 3)	4
4-1	3207039	Presser Foot, C. Set(56)	1
4-2	3207040	Presser Foot, C. Set(64)	1
5	001186	Screw(9/64-40 × 7.8)	1
6	3107303	Presser Foot Spring(Left)	1
7	0063284	Presser Foot Guide Pin	1
8	0063282	Presser Foot Hinge Pin	1
9	005122	Screw(3/32-56 × 5.5)	1
10	3107304	Presser Foot Spring(Right)	1
11-1	3207044	Presser Foot Tongue(56)	1
11-2	3207045	Presser Foot Tongue(64)	1
12	004182	Screw(3/32-56 × 2.5)	1
13	3207046	Fabric Guide	1
14	110027	Screw(M2.5-0.45 × 3.5)	1
15-1	3508077	Stitch Plate(56S3)	1
15-2	3508078	Stitch Plate(64S3)	1
16	3509023	Main Feed Dog	1
17	3509022	Differential Feed Dog	1
18	3109306	Looper	1
19	0024084	Thread Tension Spring Cap	1
20	0024083	Tension Spring Bushing	1
21	0030255	Tension Spring(Needle)	1
22	0090071	Thread Tension Spring Retainer	1
23	000177	Felt	1
24	0031111	Tension Disc	2
25	290029	Tension Post	1
26	0090812	Tension Post Ferrule	1
27	3100417	Tension Disc Separator	1
28	0090856	Tension Disc Eyelet	1
29	0090807	Thread Lead-in Guide	1
30	3100416	Tension Post Support	1
31	3500282	Needle Thread Eyelet	1
32	110054	Screw(M3-0.5 × 3.5)	1
33	3100418	Thread Pull-off Eyelet	1
34	110012	Screw(M4-0.7 × 5)	2
35	3500514	Thread Pull-off Hook Unit	1
36	003657	Screw(M4-0.7 × 3)[M4-0.7 × 4]	1

Page 77 — EC DEVICE (1)

Yamato VG2700 parts on page 77
Ref	Part number	Part name	Qty
1	3509969	EC Device, Complete Set	1
2	3501181	Cutting Device, C. Set	1
3	3501182	Cutting Device Basement	1
4	120010	Screw(M6-1 × 10)	2
5	300047	Washer	2
6	3101438	Cutting Device Basement Holder	1
7	0011789	Solenoid	1
8	000528	Washer	2
9	000011	Nut	4
10	0092288	Cutting Knife Connecting Lever	1
11	005115	Screw(1/4-28 × 19)	1
12	0092286	Sliding Block	1
13	0092287	Sliding Block Pin	1
14	003638	Screw(11/64-40 × 4)	3
15	3101443	Upper Cutting Knife Holder	1
16	003670	Screw(7/32-32 × 6.3)	2
17	3201105	Upper Cutting Knife	1
18	000538	Washer	2
19	002308	Screw(11/64-40 × 10.4)	2
20	290035	Adjusting Screw(11/64-40 × 11.5)	1
21	0092283	Upper Cutting Knife Holder Shaft	1
22	3101442	Cutting Knife Cover	1
23	004406	Screw(11/64-40 × 8)	2
24	3501183	Lower Cutting Knife	1
25	005550	Screw(11/64-40 × 13.5)	2
27	0092294	Collar(10 × 18 × 7.5mm)	1
28	0092292	Press Spring	1
29	000498	Washer	1
30	0092291	Return Spring	1
31	005512	Screw(11/64-40 × 3)	1
32	0092293	Return Spring Latch	1
33	003635	Screw(1/4-40 × 6)	1
34	000621	Washer	1
35	170031	Screw(M5-0.8 × 12.4(8.4))	1
36	0060248	Cord Clamp(3N- φ 5.3)	1
37	110012	Screw(M4-0.7 × 5)	1
38	2114124	Clamp Lever	1
39	340014	Roll Pin	1
40	3101439	Clamp Lever Fixing Plate	1

Page 79 — EC DEVICE(1)

Yamato VG2700 parts on page 79
Ref	Part number	Part name	Qty
41	000009	Nut	1
42	3501185	Cloth Plate(Large)	1
43	120009	Screw(M4-0.7 × 12)	1
44	110031	Screw(M4-0. 7 × 12)	1
45	3101444	Stopper	1
46	000538	Washer	1
47	007610	Screw(M4-0.7 × 10)	1
48	3502022	Cloth Plate(Small)	1
49	190092	Screw(M5-0.8 × 46.3)	1
50	3501187	Cloth Plate(Small) Spring	1
51	000426	Washer	1
52	0077179	Retaining Ring	1

Page 81 — EC DEVICE(2)

Yamato VG2700 parts on page 81
Ref	Part number	Part name	Qty
1	3502023	Cloth Plate(Small) Support	1
2	110001	Screw(M4-0.7 x 5.4)	1
3	3502021	Stitch Plate Holder	1
4	0011957	Control Box, Complete Set	1
5	0011952	Control Board	1
6-1	0010938	Fuse(100V)	1
6-2	1070020	Fuse(200V)	1
7	0011709	Control Box Stay	2
8	006905	Wood Screw(φ 5.1 x 20)	4
9	0010565	Knee Switch, Complete Set	1
10	0010564	Knee Switch	1
11	300031	Washer	4
12	300033	Spring Washer	2
13	100038	Wing Nut	2
14	0092232	Knee Switch Holder	1
15	006910	Wood Screw(φ 6.8 x 26)	2
16	0011303	Earthed Line	1
17	3101447	Fabric Guide	1
18	3508208	Stitch Plate(56M)	1

Page 83 — EL1 DEVICE

Yamato VG2700 parts on page 83
Ref	Part number	Part name	Qty
1	3500670	EL1 Device, C. Set	1
2	3500671	Supplementary Cover	1
3	3500675	Lamp Cover(Green)(Standard)	1
4	3500676	Lamp Cover	1
5	3500672	Light Emitter Holder	1
6	110106	Screw(M4-0.7 × 8)	2
7	1200309	Light Emitter	1
8	004236	Screw(3/32-56 × 4.2)	1

Page 85 — EXTRA PARTS

Yamato VG2700 parts on page 85
Ref	Part number	Part name	Qty
1	3500603	Self-cleaning Pipe	1
2	3500605	Pipe Holder	2
3	3100033	Supplementary Front Cover	1
4	110105	Screw(M5-0.8 × 12)	2
5	000426	Washer	2
6	0093690	Timing Gauge	1
7	0095220	Looper Timing Gauge	1
8	3500493	Timing Gauge	1
9	3100256	HR Device, Complete Set	1
10	3100254	HR Container	1
11	1090190	Pipe Joint	1
12	3100253	Oil Tube	1
13	310007	Felt(2.5 × 2.5 × 100mm)	1
14	3100250	HR Cup	1
15	310006	HR Felt	1
16	000637	Seal Plug	1
17	110013	Screw(M4-0.7 × 8)	2
18	3109210	Needle Guard(Rear)(an angle of 23°)	1
19	3507095	Presser Foot, C. Set(56, 64)	1
20	110004	Screw(M3.5-0.6 × 8)	1
21	3507097	Presser Foot Hinge Pin	1
22	110084	Screw(M3-0.5 × 4.2)	1
23	000327	Lock Nut	1
24	260006	Adjusting Screw(1/8-44 × 9.5)	1
25	3507087	Presser Foot Stitch Tongue(56, 64)	1
26	004154	Screw(3/32-56 × 2.2)	1
27	3109301	Looper(hard plating)	1

Page 87 — THREAD STAND

Yamato VG2700 parts on page 87
Ref	Part number	Part name	Qty
1	9620696	Thread Stand, C. Set(6 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Cap(Upper)	1
4	9620689	Thread Guide Holder(Large)	1
5	911002	Screw(M4-0.7 × 20)	1
6	911001	Screw(M4-0.7 × 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw(M5-0.8 × 13)	2
10	910000	Nut	8
11	9620675	Column Pipe(Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut	1
16	9620703	Thread Hanger(3 Spools Type)	4
17	9620700	Thread Eyelet	6
18	9620688	Thread Hanger Holder	4
19	911060	Screw(M6-1 × 15)	4
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder(Small)	1
22	9620666	Thread Guide(6 Spools Type)	1
23	9620678	Spool Cushion	6
24	9620679	Spool Pin	6
25	9620680	Spool Mat	6
26	9620681	Spool Seat Disc	6
27	930055	Spring Washer	6

Page 89 — ACCESSORIES(1)

Yamato VG2700 parts on page 89
Ref	Part number	Part name	Qty
1	3500700	Belt Cover	1
2	110028	Screw(M6-1 x 46)	2
3	9620003	Bag	1
5	0099094	Screwdriver(2.5 x 75mm)	1
6	0099091	Screwdriver(5.5 x 200mm)	1
7	0099051	Thread Tweezers	1
8	9620210	Hexagonal Wrench(2.5mm)	1
9-1	9720160	Instructions Book	1
9-2	9720162		1
9-3	9720161	Instructions Book(with UT-A, UT Device)	1
9-4	9720163	取扱い説明書(UT-A, UT装置)	1
10	9710056	Parts Book	1
11	9620008	SF Oil 28(1 ・)	1
12	9620750	Knitted Tape Stand, C. Set(VG2703)	1
13	9620751	Tape Pin	1
14	9620752	Tape Disc	1
15	000433	Washer	1
16	9620753	Tape Disc Block	1
17	911062	Screw(M4-0.7 x 15)	4
18	910001	Nut	4
19	9620756	Tape Stand Bar	1
20	001448	Screw(15/64-28 x 5.5)	1
21	9620757	Tape Stand	1
22	005148	Wood Screw(φ 4.5 x 25)	3
23	9620754	Tape Guide Bar	1
24	9620755	Tape Guide	2

Page 91 — ACCESSORIES(2)

Yamato VG2700 parts on page 91
Ref	Part number	Part name	Qty
1	0063009	Oil Reservoir Rubber Cushion	4
2	180008	Setting Screw(M6-1 × 63)	4
3	000528	Washer	8
4	000667	Spring Washer	4
5	000011	Nut	4
6	3500701	Belt Cover(Lower)	1
7	006905	Wood Screw(φ 5.1 × 20)	3
8	0037988	Screwdriver(Short)	1
9	9620202	Hexagonal Wrench(2.0mm)	1
12	0037912	Chain	1
13	9611074	Presser Foot Pedal	1
14	000070	Hanging Nut	4
15	009858	Hanging Bolt(M8-1.25 × 75)	4
16	000162	Washer	8
17	0020064	Supporting Board Rubber Cushion	4
18	0063010	SupportingBoardRubberCushion(Lower)	4
19	000016	Nut	8
20	3100008	Supporting Board	2
21	0063009	Oil Reservoir Rubber Cushion	4
22	180009	Setting Screw(M6-1 × 16)	4

Page 92 — WARNING LABEL 警告ラベル

Yamato VG2700 parts on page 92
Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143
	390144	DANGER : WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE
	390145	"Be sure to connect earth line".
	390146	ROTATING-DIRECTION SYMBOL : CHECK CORRECT ROTATING DIRECTION
	390147	EYE GUARD : TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER : DO NOT INSERT FINGERS
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID

Page 94 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(1)

Yamato VG2700 parts on page 94
Ref	Part number	Part name
3508000	0093351
3508001	0093352
3508002	0093356
3508003	0093357
3508004	0093358
	3508000	Stitch Plate
	3508060	Stitch Plate
	3508065	Stitch Plate
	3508001	Stitch Plate
	3508011	Stitch Plate
	3508061	Stitch Plate
	3508066	Stitch Plate
	3508002	Stitch Plate
	3508007	Stitch Plate
	3508012	Stitch Plate
	3508062	Stitch Plate
	3508067	Stitch Plate
	3508003	Stitch Plate
	3108134	Stitch Plate
	3508008	Stitch Plate
	3508063	Stitch Plate
	3508068	Stitch Plate
	3508004	Stitch Plate
	3508064	Stitch Plate
	3508069	Stitch Plate
	3508003	Stitch Plate
	3508000	Stitch Plate

Page 95

Yamato VG2700 parts on page 95
Ref	Part number	Part name	Qty
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3106000	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3509005	Main Feed Dog
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109302	Looper
	3109302	Looper
	3109302	Looper
	3109302	Looper
	3109302	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper
	3109300	Looper

Page 96 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(2)

Yamato VG2700 parts on page 96
Ref	Part number	Part name
	0093352
	0093352
	0093352
	0093352
	0093356
	0093356
	0093356
	0093356
	0093356
	0093357
	0093357
	0093357
	0093357
	0093358
	0093358
	0093358
	0093351
	0093352
	0093356
	0093357
	0093358
	0093357
"	140S-WF1*	140S-WF1*
"	140S1-WF1 *	140S1-WF1 *
"	140S2-WF1 *	140S2-WF1 *
"	148L-WF1	148L-WF1
"	148S-WF1	148S-WF1
"	148S1-WF1	148S1-WF1
"	148S2-WF1	148S2-WF1
"	156L-WF1	156L-WF1
"	156S1-WF1	156S1-WF1
"	156S2-WF1	156S2-WF1
"	164S1-WF1	164S1-WF1
"	164S2-WF1	164S2-WF1

Page 97

Yamato VG2700 parts on page 97
Ref	Part number	Part name	Qty
	3509005	Main Feed Dog
	3109300	Looper
	3109302	Looper
	3509001	Main Feed Dog
	3209302	Looper
	3509031	Main Feed Dog

Page 98 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(3)

Yamato VG2700 parts on page 98
Ref	Part number	Part name	Qty
	0093351	Needle Clamp
	3507060	Presser Foot, C. Set
	3507061	Presser Foot Stitch Tongue
	3508080	Stitch Plate
	3509007	Differential Feed Dog
	0093351	Needle Clamp
	3507060	Presser Foot, C. Set
	3507061	Presser Foot Stitch Tongue
	3508080	Stitch Plate
	3509007	Differential Feed Dog
	0093352	Needle Clamp
	3507060	Presser Foot, C. Set
	3507061	Presser Foot Stitch Tongue
	3508081	Stitch Plate
	3509007	Differential Feed Dog
	0093356	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508082	Stitch Plate
	3509007	Differential Feed Dog
	0093356	Needle Clamp
	0093421	Presser Foot, C. Set
	0093417	Stitch Plate
	3139007	Differential Feed Dog
	0093357	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508083	Stitch Plate
	3509007	Differential Feed Dog
	0093357	Needle Clamp
	3107270	Presser Foot, C. Set
	3508083	Stitch Plate
	3509007	Differential Feed Dog
	0093358	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508084	Stitch Plate
	3509007	Differential Feed Dog
	0093351	Needle Clamp
	3507060	Presser Foot, C. Set
	3507061	Presser Foot Stitch Tongue
	3508080	Stitch Plate
	3509007	Differential Feed Dog
	0093352	Needle Clamp
	3507060	Presser Foot, C. Set
	3507061	Presser Foot Stitch Tongue
	3508081	Stitch Plate
	3509007	Differential Feed Dog
	0093352	Needle Clamp
	0093415	Presser Foot, C. Set
	0093410	Stitch Plate
	3139006	Differential Feed Dog
	0093356	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508082	Stitch Plate
	3509007	Differential Feed Dog
	0093356	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508127	Stitch Plate
	3509007	Differential Feed Dog
	0093356	Needle Clamp
	0093421	Presser Foot, C. Set
	0093417	Stitch Plate
	3139007	Differential Feed Dog
	0093357	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508083	Stitch Plate
	3509007	Differential Feed Dog
	0093357	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508128	Stitch Plate
	3509007	Differential Feed Dog
	0093358	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508084	Stitch Plate
	3509007	Differential Feed Dog
	0093358	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508129	Stitch Plate
	3509007	Differential Feed Dog
	3209121	Needle Clamp
	3207039	Presser Foot, C. Set
	3207044	Presser Foot Stitch Tongue
	3508077	Stitch Plate
	3509022	Differential Feed Dog
	3209122	Needle Clamp
	3207040	Presser Foot, C. Set
	3207045	Presser Foot Stitch Tongue
	3508078	Stitch Plate
	3509022	Differential Feed Dog
	3209121	Needle Clamp
	3207039	Presser Foot, C. Set
	3207044	Presser Foot Stitch Tongue
	3508077	Stitch Plate
	3509022	Differential Feed Dog

Page 99

Yamato VG2700 parts on page 99
Ref	Part number	Part name	Qty
	3509025	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509025	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509025	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509026	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109302	Looper
	3109044	Main Feed Dog
	3109300	Looper
	3509026	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509026	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509026	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509025	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509025	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3109042	Main Feed Dog
	3109300	Looper
	3509026	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109302	Looper
	3509026	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109302	Looper
	3109044	Main Feed Dog
	3109302	Looper
	3509026	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509026	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509026	Differential Feed Dog (Middle)
	3509005	Main Feed Dog
	3109300	Looper
	3509023	Main Feed Dog
	3109306	Looper
	3509023	Main Feed Dog
	3109306	Looper
	3509023	Main Feed Dog
	3109306	Looper

Page 100 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(4)

Yamato VG2700 parts on page 100
Ref	Part number	Part name	Qty
	0093356	Needle Clamp
	0093357	Needle Clamp
	0093357	Needle Clamp
	0093356	Needle Clamp
	0093357	Needle Clamp
	0093357	Needle Clamp
	0093352	Needle Clamp
	0093356	Needle Clamp
	0093357	Needle Clamp
	0093358	Needle Clamp
	0093352	Needle Clamp
	0093356	Needle Clamp
	0093357	Needle Clamp
	0093356	Needle Clamp
	0093357	Needle Clamp
	0093357	Needle Clamp
	0093356	Needle Clamp
	0093357	Needle Clamp
	0093357	Needle Clamp
	0093357	Needle Clamp
	0093357	Needle Clamp

Page 101

Yamato VG2700 parts on page 101
Ref	Part number	Part name	Qty
	3509005	Main Feed Dog
	3500631	Fabric Guide (Left)
	3500632	Fabric Guide (Right)
	3109302	Looper
	3109300	Looper
	3509017	Main Feed Dog
	3509019	Main Feed Dog

Page 102 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(5)

Yamato VG2700 parts on page 102
Ref	Part number	Part name	Qty
	0093352	Needle Clamp
	3507002	Presser Foot, C. Set
	3508040	Stitch Plate
	3509015	Differential Feed Dog
	3509018	Differential Feed Dog (Middle)
	0093356	Needle Clamp
	3507050	Presser Foot, C. Set
	3508031	Stitch Plate
	3509015	Differential Feed Dog
	3509018	Differential Feed Dog (Middle)
	0093357	Needle Clamp
	3507052	Presser Foot, C. Set
	3508032	Stitch Plate
	3509015	Differential Feed Dog
	3509018	Differential Feed Dog (Middle)
	0093358	Needle Clamp
	3507054	Presser Foot, C. Set
	3508033	Stitch Plate
	3509015	Differential Feed Dog
	3509018	Differential Feed Dog (Middle)
	0093352	Needle Clamp
	3507070	Presser Foot, C. Set
	3508040	Stitch Plate
	3509015	Differential Feed Dog
	3509018	Differential Feed Dog (Middle)
	0093356	Needle Clamp
	3507072	Presser Foot, C. Set
	3508031	Stitch Plate
	3509015	Differential Feed Dog
	3509018	Differential Feed Dog (Middle)
	0093357	Needle Clamp
	3507074	Presser Foot, C. Set
	3508032	Stitch Plate
	3509015	Differential Feed Dog
	3509018	Differential Feed Dog (Middle)
	0093356	Needle Clamp
	3507050	Presser Foot, C. Set
	3508025	Stitch Plate
	3509007	Differential Feed Dog
	3509012	Differential Feed Dog (Middle)
	0093357	Needle Clamp
	3507052	Presser Foot, C. Set
	3508026	Stitch Plate
	3509007	Differential Feed Dog
	3509012	Differential Feed Dog (Middle)
	0093356	Needle Clamp
	3507072	Presser Foot, C. Set
	3508025	Stitch Plate
	3509007	Differential Feed Dog
	3509012	Differential Feed Dog (Middle)
	0093357	Needle Clamp
	3507074	Presser Foot, C. Set
	3508026	Stitch Plate
	3509007	Differential Feed Dog
	3509012	Differential Feed Dog (Middle)
	0093352	Needle Clamp
	3507002	Presser Foot, C. Set
	3508041	Stitch Plate
	3509007	Differential Feed Dog
	3509010	Differential Feed Dog (Middle)
	0093352	Needle Clamp
	3507070	Presser Foot, C. Set
	3508041	Stitch Plate
	3509007	Differential Feed Dog
	3509010	Differential Feed Dog (Middle)
	0093357	Needle Clamp
	3507052	Presser Foot, C. Set
	3508087	Stitch Plate
	3509007	Differential Feed Dog
	3509010	Differential Feed Dog (Middle)
	0093357	Needle Clamp
	3507074	Presser Foot, C. Set
	3508087	Stitch Plate
	3509007	Differential Feed Dog
	3509010	Differential Feed Dog (Middle)
	0093357	Needle Clamp
	3507052	Presser Foot, C. Set
	3508087	Stitch Plate
	3509007	Differential Feed Dog
	3509010	Differential Feed Dog (Middle)
	VG2713-140S-T4A *	Needle Clamp
	148M-T4A	Needle Clamp
	156M-T4A	Needle Clamp
	164M-T4A	Needle Clamp
	140S-T4A-WF2 *	Needle Clamp
	148M-T4A-WF2	Needle Clamp
	156M-T4A-WF2	Needle Clamp
	148M-K1N	Needle Clamp
	156M-K1N	Needle Clamp
	148M-K1N-WF2	Needle Clamp
	156M-K1N-WF2	Needle Clamp
	140S-K4N *	Needle Clamp
	140S-K4N-WF2 *	Needle Clamp
	156M-K4N	Needle Clamp
	156M-K4N-WF2	Needle Clamp
	VG2713P-156M-K4N	Needle Clamp

Page 103

Yamato VG2700 parts on page 103
Ref	Part number	Part name	Qty
	3509017	Main Feed Dog
	3500631	Fabric Guide (Left)
	3500632	Fabric Guide (Right)
	3109300	Looper
	3109302	Looper
	3509005	Main Feed Dog
	3101320	Fabric Guide (Left)
	3101321	Fabric Guide (Right)
	3500637	Supplementary Block
	3109300	Looper

Page 104

Yamato VG2700 parts on page 104
Ref	Part number	Part name	Qty
41	000009
35	000010
9	000011
5	000011
52	000014
29	000015
17	000015
19	000016
47	000022
14	000070
16	000162
6	000177
23	000177
16	000195
44	000199
48	000206
5	000220
7	000234
18	000306
20	000309
26	000327
11	000327
19	000327
9	000327
23	000327
4	000334
17	000340
38	000360
29	000397
6	000425
20	000426
51	000426
5	000426
15	000433
2	000445
40	000487
35	000487
31	000487
29	000498
29	000505
8	000528
8	000528
3	000528
32	000538
30	000538
42	000538
48	000538
3	000538
4	000538
4	000538
18	000538
46	000538
4	000538
4	000538
18	000538
46	000538
42	000555
40	000560
49	000600
47	000600
68	000600
17	000613
29	000613
34	000621
47	000623
40	000637
16	000637
46	000663
34	000665
12	000665
12	000665
12	000665
12	000665
46	000667
4	000667
46	000669
46	000669
67	000669
57	000690
33	000690
28	000690
34	000726
46	000740
39	000750
3	000779
43	000779
22	000779
2	000989
7	001093
18	001107
43	001123
60	001170
2	001186
11	001186
5	001186
22	001228
10	001228
22	001228
9	001230
20	001448
35	001818
8	001900
19	002308
6	003300
33	003635
14	003638
36	003657
16	003670
18	004154
8	004154
26	004154
20	004182
7	004182
12	004182
8	004236
23	004406
5	004440
5	004440
5	004440
5	004440
7	004441
48	005049
69	005049
27	005075
11	005115
15	005122
9	005122
4	005133
22	005148
31	005512
25	005550
8	005554
36	005650
14	005650
12	006038
6	006075
19	006202
41	006202
35	006212
14	006212

Page 105 — INDEX

Yamato VG2700 parts on page 105
Ref	Part number	Part name	Qty
17	006233
16	006411
8	006905
7	006905
15	006910
47	007610
32	007621
41	007627
31	007627
34	007627
10	009142
23	009526
14	009604
9	009604
53	009730
25	009749
65	009749
21	009753
15	009858
18	009931
7	009932
10	0010017
18	0010017
10	0010564
9	0010565
6-1	0010938
16	0011303
7	0011709
7	0011789
5	0011952
4	0011957
22	0013208
8	0020052
17	0020064
16	0020119
26	0020137
15	0020271
45	0020350
66	0020350
54	0020551
5	0020759
2	0024083
20	0024083
1	0024084
19	0024084
3	0030255
21	0030255
7	0031111
24	0031111
8	0031831
5	0032425
52	0032426
6	0032426
3	0032518
13	0032646
32	0032867
22	0032921
4	0032952
27	0034117
44	0034293
5	0034979
37	0035813
4	0036175
36	0037108
15	0037164
12	0037912
8	0037988
12	0060056
37	0060056
8	0060142
36	0060248
16	0060270
16	0060270
16	0060270
16	0060270
1	0063009
21	0063009
18	0063010
18	0063051
20	0063053
8	0063055
21	0063056
22	0063057
14	0063282
8	0063282
7	0063284
54	0063460
56	0063515
14	0065275
13	0065366
3	0065372
8	0065374
9	0065375
11	0065376
1	0065381
30	0065389
11	0065395
8	0065398
16	0065401
15	0065402
26	0065404
23	0065405
13	0065407
16	0065414
17	0065421
51	0065436
52	0065437
30	0067111
7	0067126
4	0068011
60	0068079
37	0068181
24	0068202
52	0077179
1	0077270
5	0090071
22	0090071
8	0090620
12	0090807
29	0090807
9	0090812
26	0090812
11	0090856

Page 106

Yamato VG2700 parts on page 106
Ref	Part number	Qty
28	0090856	30
7	0091696	20
3	0091725	20
14	0092232	32
21	0092283	31
12	0092286	31
13	0092287	31
10	0092288	31
30	0092291	31
28	0092292	31
32	0092293	31
27	0092294	31
5	0092305	6
24	0093154	6
24	0093186	7
16	0093212	7
38-1	0093241	19
38-2	0093242	19
38-3	0093243	19
3-1	0093351	17
3-2	0093352	17
16	0093352	29
5-1	0093356	7
5-2	0093357	7
5-3	0093358	7
7	0093365	7
17	0093410	29
10	0093415	29
21	0093417	29
20	0093421	29
6	0093480	18
6	0093480	21
6	0093480	25
6	0093480	28
6	0093483	8
12	0093611	8
16	0093617	13
6	0093690	34
8	0093864	1
13	0093864	2
43	0094201	2
58	0094390	8
20	0094507	21
9	0094615	26
10	0095027	16
7	0095220	34
59	0095334	8
19	0095367	17
6	0095367	26
7	0099051	36
6	0099091	36
5	0099094	36
26	100002	10
9	100003	9
41	100014	13
11	100020	18
11	100020	21
11	100020	25
11	100020	28
13	100038	32
9	100052	18
9	100052	21
9	100052	25
9	100052	28
13	100057	18
13	100057	21
13	100057	25
13	100057	28
53	100067	12
2	110001	32
40	110002	2
11	110002	8
21	110002	15
35	110002	19
18	110004	8
19	110004	11
5	110004	17
13	110004	26
3	110004	27
20	110004	34
16	110005	10
31	110009	2
26	110009	3
41	110009	4
14	110009	5
15	110009	6
5	110009	9
11	110009	12
49	110009	15
2	110009	16
4	110010	26
12	110011	7
20	110012	1
44	110012	2
33	110012	5
21	110012	6
2	110012	13
34	110012	30
37	110012	31
25	110013	1
11	110013	2
14	110013	3
63	110013	12
34	110013	13
3	110013	29
17	110013	34
23	110016	2
11	110016	19
24	110019	10
15	110021	11
36	110022	2
24	110022	5
49	110027	3
2	110027	22
2	110027	23
2	110027	24
5	110027	24
23	110027	25
14	110027	30
2	110028	36
51	110030	4
20	110030	12
28	110031	2
33	110031	2
5	110031	8
26	110031	9
44	110031	31
4	110035	7
28	110036	5
8	110038	22
12	110038	22
8	110038	23
12	110038	23
10	110038	24
24	110038	26
14	110038	27

Page 107 — INDEX

Yamato VG2700 parts on page 107
Ref	Part number	Part name	Qty
4	110039
17	110041
35	110043
2	110045
39	110045
10	110045
16	110045
14	110046
11	110048
28	110048
25	110050
24	110054
16	110054
32	110054
49	110076
25	110084
10	110084
20	110084
19	110084
21	110084
17	110084
7	110084
20	110084
22	110084
32	110094
22	110097
9	110101
21	110103
4	110105
48	110106
6	110106
1	110116
42	110117
49	110118
49	110118
37	120001
54	120001
47	120006
32	120008
5	120008
2	120009
43	120009
42	120010
4	120010
49	120011
39	120011
3	120012
15	120012
3	120012
40	120013
11	120013
42	120013
3	120013
2	120013
43	120015
30	120016
2	120019
42	120041
36	120049
38	130002
18	130002
6	130003
28	130003
25	130003
23	130007
23	130016
8	130016
15	130016
5	130016
5	140019
14	150001
14	160000
38	160000
26	160001
7	160001
34	160001
18	160001
22	160001
51	160001
38	160001
23	160001
10	160001
8	160001
17	160001
14	160001
8	160001
17	160001
8	160001
17	160001
5	160002
21	160003
3	160003
29	160003
30	160003
11	160003
40	160003
17	160004
18	160004
26	160004
27	160004
25	160004
21	160005
4	160005
3	160005
26	160005
29	160005
45	160006
5	160007
4	160007
17	160007
18	160007
7	160007
7	160007
24	160007
7	160024
15	160025
15	160025
15	160025
15	160025
13	160029
39	160029
2	160033
2	160040
24	170001
12	170001
32	170008
52	170009
44	170010
35	170031
51	170038
31	170041
53	170042
44	170044
9	180005
2	180008

Page 108 — INDEX

Yamato VG2700 parts on page 108
Ref	Part number	Part name	Qty
22	180009
37	190004
31	190007
42	190078
36	190078
49	190092
20	240010
27	260006
12	260006
20	260006
10	260006
24	260006
8	290029
25	290029
20	290035
25	300000
13	300000
48	300000
2	300005
41	300005
6	300006
11	300031
12	300033
33	300045
5	300047
25	300100
45	300100
13	300100
45	300104
5	300500
15	310006
13	310007
21	310063
19	310094
9	310096
27	310096
20	310099
20	310100
19	310101
70	310102
4	310106
23	320008
28	320009
21	330000
20	330011
48	330011
20	330016
1	330017
50	330019
18	330019
31	340000
33	340001
45	340003
31	340003
59	340003
39	340014
20	350009
9	390164
37	390173
10	910000
7	910001
18	910001
14	910003
6	911001
5	911002
9	911006
19	911060
17	911062
12	930052
13	930053
27	930055
6-2	1070020
11	1090190
7	1200309
40	2020002
37	2040033
32	2049401
38	2100088
44	2100194
41	2100218
11	2100249
25	2100253
42	2100259
41	2100264
3	2100265
33	2100267
29	2100267
13	2100902
37	2110191
43	2110361
38	2114124
36	3100006
4	3100006
20	3100008
10	3100016
3	3100033
11	3100061
2	3100087
5	3100099
7	3100100
9	3100110
10	3100112
12	3100122
15	3100123
13	3100127
14	3100127
7	3100129
10	3100131
11	3100132
38	3100142
44	3100145
43	3100146
28	3100147
31	3100149
27	3100150
32	3100151
14	3100157
15	3100158
17	3100159
15	3100190
9	3100192
25	3100192

Page 109 — INDEX

Yamato VG2700 parts on page 109
Ref	Part number	Part name
7	3100193	VG2700
6	3100195	VG2700
12	3100205	VG2700
43	3100214	VG2700
36	3100231	VG2700
26	3100241	VG2700
30	3100245	VG2700
14	3100250	VG2700
12	3100253	VG2700
10	3100254	VG2700
9	3100256	VG2700
12	3100275	VG2700
13	3100283	VG2700
16	3100305	VG2700
24	3100307	VG2700
7	3100309	VG2700
13	3100310	VG2700
13	3100329	VG2700
43	3100330	VG2700
30	3100331	VG2700
22	3100332	VG2700
26	3100338	VG2700
12	3100345	VG2700
29	3100356	VG2700
5	3100370	VG2700
21	3100371	VG2700
21	3100384	VG2700
22	3100386	VG2700
30	3100416	VG2700
27	3100417	VG2700
33	3100418	VG2700
53	3100533	VG2700
29	3100600	VG2700
28	3100601	VG2700
24	3100602	VG2700
27	3100603	VG2700
6	3100604	VG2700
12	3100605	VG2700
5	3100607	VG2700
14	3100608	VG2700
25	3100609	VG2700
20	3100610	VG2700
2	3100611	VG2700
4	3100612	VG2700
6	3100613	VG2700
19	3100614	VG2700
15	3100616	VG2700
12	3100623	VG2700
26	3100623	VG2700
1	3100625	VG2700
10	3100626	VG2700
18	3100630	VG2700
5	3100630	VG2700
21	3100631	VG2700
8	3100631	VG2700
34	3100636	VG2700
3	3101315	VG2700
3	3101315	VG2700
3	3101315	VG2700
3	3101315	VG2700
3	3101320	VG2700
4	3101321	VG2700
6	3101438	VG2700
40	3101439	VG2700
22	3101442	VG2700
15	3101443	VG2700
45	3101444	VG2700
17	3101447	VG2700
40	3101754	VG2700
1	3103000	VG2700
16	3106000	VG2700
7-2	3107270	VG2700
7	3107270	VG2700
21-2	3107272	VG2700
21-1	3107272	VG2700
21-1	3107273	VG2700
21-2	3107273	VG2700
24-1	3107274	VG2700
24-1	3107274	VG2700
7-4	3107275	VG2700
7-1	3107277	VG2700
7-5	3107280	VG2700
7-3	3107282	VG2700
24-2	3107285	VG2700
24-2	3107285	VG2700
7	3107290	VG2700
19	3107303	VG2700
6	3107303	VG2700
18	3107303	VG2700
18	3107303	VG2700
14	3107303	VG2700
4	3107303	VG2700
18	3107303	VG2700
6	3107303	VG2700
20	3107304	VG2700
7	3107304	VG2700
19	3107304	VG2700
12	3107304	VG2700
10	3107304	VG2700
24	3107306	VG2700
9	3107306	VG2700
19	3107306	VG2700
18	3107306	VG2700
20	3107306	VG2700
16	3107306	VG2700
6	3107306	VG2700
19	3107306	VG2700
1-1	3107311	VG2700
1-1	3107311	VG2700
1-1	3107311	VG2700
22	3107311	VG2700
15	3108134	VG2700
17	3109000	VG2700
18	3109042	VG2700
22	3109044	VG2700
31	3109201	VG2700
18	3109210	VG2700
1-1	3109300	VG2700
27	3109301	VG2700
1-2	3109302	VG2700
18	3109306	VG2700
2	3110073	VG2700
23	3110201	VG2700
23	3110201	VG2700
23	3120076	VG2700
19	3139006	VG2700
23	3139007	VG2700
27	3139200	VG2700
42	3150151	VG2700
36	3150195	VG2700
12	3160138	VG2700
3	3180100	VG2700

Page 110 — INDEX

Yamato VG2700 parts on page 110
Ref	Part number	Qty
47	3200013	2
30	3200033	2
26	3200033	19
3	3200111	7
15	3200112	7
23	3200116	7
22	3200118	7
2	3200132	18
2	3200132	21
2	3200132	25
2	3200132	28
7	3200215	11
15	3200236	13
14	3200237	13
17	3200238	13
19	3201007	19
17	3201105	31
21	3201355	12
53	3204020	4
6	3204021	4
4-1	3207039	30
4-2	3207040	30
11-1	3207044	30
11-2	3207045	30
13	3207046	30
10	3207145	28
14	3207146	18
14	3207146	21
14	3207146	25
14	3207146	28
10	3207148	18
10	3207148	21
10	3207148	25
13-1	3207150	20
13-2	3207151	20
1-1	3207155	20
1-2	3207156	20
1-3	3207157	20
8	3207160	20
1-1	3209121	30
1-2	3209122	30
58	3240072	12
9	3260010	5
9	3260011	6
20	3400261	13
29	3500004	1
28	3500005	1
45	3500006	13
24	3500007	1
45	3500008	2
12	3500012	2
17	3500021	4
20	3500022	4
30	3500023	4
31	3500024	4
25	3500025	4
28	3500026	4
29	3500027	4
26	3500028	4
27	3500029	4
21	3500030	4
23	3500031	4
24	3500032	4
32	3500033	4
33	3500034	4
34	3500035	4
35	3500036	4
37	3500037	4
38	3500038	4
22	3500039	4
19	3500040	4
14	3500041	4
54	3500041	4
2	3500042	4
10	3500044	4
11	3500045	4
15	3500046	4
12	3500047	4
13	3500048	4
9	3500050	4
1	3500051	6
6	3500054	6
8	3500056	6
17	3500060	6
22	3500062	6
23	3500064	6
44	3500065	6
39	3500066	6
45	3500067	6
11	3500068	6
10	3500069	6
31	3500070	6
30	3500071	6
27	3500072	6
28	3500073	6
32	3500074	6
33	3500075	6
29	3500076	6
34	3500077	6
2	3500078	7
36	3500079	6
1	3500081	9
2	3500082	9
4	3500084	9
10	3500086	9
3	3500088	4
14	3500091	7
1	3500101	5
6	3500104	5
10	3500105	12
16	3500109	5
19	3500111	5
30	3500113	12
34	3500114	12
33	3500115	12
31	3500116	12
37	3500118	12
17	3500119	12
47	3500120	12
46	3500121	12
38	3500122	12
41	3500123	12
24	3500124	12
57	3500126	12
13	3500127	12
8	3500128	12
4	3500129	12
3	3500130	12
1	3500131	12
55	3500132	12
52	3500133	12
50	3500136	12
61	3500137	12
56	3500138	12
62	3500139	12

Page 111 — INDEX

Yamato VG2700 parts on page 111
Ref	Part number	Part name	Qty
64	3500141
16	3500142
12	3500143
10	3500144
8	3500146
1	3500147
2	3500148
4	3500149
21	3500150
20	3500151
5	3500152
23	3500153
6	3500154
26	3500155
28	3500156
30	3500157
32	3500158
38	3500160
36	3500161
16	3500162
23	3500163
28	3500164
22	3500165
23	3500166
29	3500167
34	3500171
45	3500172
41	3500174
6	3500175
23	3500176
21	3500177
22	3500178
13	3500179
19	3500180
71	3500190
1	3500201
27	3500202
39	3500203
40	3500204
43	3500205
48	3500206
6	3500207
50	3500208
18	3500211
10	3500212
13	3500213
19	3500214
12	3500215
16	3500216
21	3500217
3	3500219
37	3500221
27	3500222
22	3500223
10	3500223
1	3500224
35	3500225
49	3500226
4	3500227
5	3500228
9	3500229
46	3500230
39	3500232
39	3500233
33	3500233
40	3500234
44	3500236
42	3500237
33	3500238
43	3500240
50	3500242
47	3500245
48	3500246
51	3500247
55	3500249
54	3500250
16	3500255
30	3500255
18	3500256
25	3500269
32	3500270
34	3500271
8	3500274
47	3500278
19	3500281
23	3500282
31	3500282
15	3500284
17	3500285
13	3500286
10	3500287
18	3500288
39	3500291
55	3500292
35	3500293
38	3500294
46	3500295
30	3500296
1	3500297
1	3500297
1	3500297
1	3500297
50	3500299
32	3500300
4	3500304
28	3500305
4	3500402
16	3500403
33	3500404
18	3500407
35	3500408
32	3500410
19	3500411
1	3500412
25	3500413
26	3500415
31	3500418
32	3500419
19	3500422
24	3500423
27	3500424
35	3500425
11	3500426
3	3500430
7	3500431
9	3500432
29	3500435
8	3500493
35	3500514
1	3500603
2	3500605
11	3500615
19	3500616
17	3500617
3	3500631
3	3500631
4	3500632
4	3500632
6	3500634
6	3500634
7	3500635
7	3500635
6	3500637
1	3500670

Page 112

Yamato VG2700 parts on page 112
Ref	Part number	Part name	Qty
2	3500671
5	3500672
3	3500675
4	3500676
33	3500697
46	3500698
33	3500699
1	3500700
6	3500701
50	3501122
2	3501181
3	3501182
24	3501183
42	3501185
50	3501187
41	3501250
39	3501251
36	3501252
47	3501253
34-2	3501259
34-1	3501260
45	3501265
14	3501270
28	3501271
27	3501272
30	3501275
26	3501276
24	3501280
19	3501281
23	3501282
18	3501283
20	3501284
31-2	3501289
31-1	3501290
44	3501295
1	3501302
8	3501302
1	3502003
15	3502004
30	3502005
6	3502006
3	3502007
24	3502008
22	3502009
2	3502010
27	3502011
4	3502012
9	3502013
31	3502015
3	3502021
48	3502022
1	3502023
4-1	3507000
4-2	3507002
17-1	3507050
17-2	3507052
17-3	3507054
12	3507058
2	3507058
11	3507060
21	3507061
1	3507064
11	3507065
7-3	3507070
7-1	3507072
7-2	3507074
7-4	3507076
25-1	3507083
25-2	3507084
15	3507085
16	3507087
25	3507087
1-2	3507091
1-2	3507091
1-2	3507091
19	3507095
21	3507097
13-1	3508000
13-2	3508001
9-1	3508002
9-2	3508003
9-3	3508004
1-1	3508007
1-2	3508008
14-1	3508011
2-1	3508012
9-3	3508019
9-1	3508019
9-1	3508020
9-2	3508020
9-2	3508021
9-3	3508021
7-1	3508025
7-2	3508026
13-2	3508031
18-1	3508031
13-3	3508032
18-2	3508032
13-4	3508033
18-3	3508033
13-1	3508040
18-4	3508040
13-1	3508041
14-1	3508049
14-2	3508050
10-1	3508051
10-2	3508052
10-3	3508053
14-2	3508060
14-3	3508061
2-2	3508062
2-3	3508063
2-4	3508064
14-4	3508065
14-5	3508066
2-5	3508067
2-6	3508068
2-7	3508069
16	3508074
15-1	3508077
15-2	3508078
26-1	3508080
26-2	3508081
17-1	3508082
17-2	3508083
17-3	3508084
13-2	3508086
11	3508087
27	3508125
28	3508126
18-1	3508127
18-2	3508128
18-3	3508129
29	3508136
18	3508208
12	3509000
11	3509001
17	3509004
18	3509005

Page 113 — INDEX

Yamato VG2700 parts on page 113
Ref	Part number	Part name	Qty
10	3509007
8	3509007
22	3509007
12	3509007
14	3509010
12	3509010
11	3509012
9	3509012
14	3509015
15	3509016
13	3509017
19	3509018
17	3509019
17	3509022
16	3509023
23	3509025
13	3509026
22	3509030
21	3509031
25	3509320
1	3509969
33	4109403
13	9611074
3	9620003
11	9620008
9	9620202
8	9620210
2	9620631
22	9620666
3	9620670
8	9620673
11	9620675
23	9620678
24	9620679
25	9620680
26	9620681
18	9620688
4	9620689
21	9620690
20	9620691
1	9620696
17	9620700
16	9620703
12	9620750
13	9620751
14	9620752
16	9620753
23	9620754
24	9620755
19	9620756
21	9620757
10	9710056
9-1	9720160
9-3	9720161
9-2	9720162
9-4	9720163

Page 7 — MISCELLANEOUS COVERS(1)

Page 9 — MISCELLANEOUS COVERS(2)

Page 11 — MISCELLANEOUS THREAD EYELETS

Page 13 — MISCELLANEOUS THREAD EYELETS

Page 15 — MISCELLANEOUS BUSHINGS & EYE GUARD

Page 17 — MISCELLANEOUS BUSHINGS & EYE GUARD

Page 19 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM

Page 21 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Page 23 — NEEDLE BAR MECHANISM

Page 25 — PRESSER FOOT MECHANISM

Page 27 — PRESSER FOOT MECHANISM

Page 29 — SPREADER MECHANISM / 飾り糸ルーパ機構

Page 31 — LOOPER DRIVING MECHANISM

Page 33 — FEED DRIVING CONTROL MECHANISM

Page 35 — FEED DRIVING MECHANISM

Page 37 — FEED DRIVING MECHANISM

Page 39 — LUBRICATING MECHANISM

Page 41 — PULLER MECHANISM EXCLUSIVE PARTS(1)

Page 43 — PULLER MECHANISM EXCLUSIVE PARTS(2)

Page 45 — PULLER MECHANISM EXCLUSIVE PARTS(2)

Page 47 — PULLER MECHANISM EXCLUSIVE PARTS(3)

Page 49 — VG2700 EXCLUSIVE PARTS

Page 51 — VG2700-□□□□-WF1 EXCLUSIVE PARTS

Page 53 — VG2703 EXCLUSIVE PARTS(1)

Page 55 — VG2703 EXCLUSIVE PARTS(2)

Page 57 — VG2708-WF8 EXCLUSIVE PARTS

Page 59 — VG2713-0000-T1N, T4N EXCLUSIVE PARTS

Page 61 — VG2713-0000-T1A, T2A, T4A EXCLUSIVE PARTS サブモデル専用部品

Page 63 — VG2713-0000-K1N, K4N EXCLUSIVE PARTS

Page 65 — VG2713-000-000-WF2 EXCLUSIVE PARTS

Page 67 — VG2740, 2740P EXCLUSIVE PARTS(1)

Page 69 — VG2740, 2740P EXCLUSIVE PARTS(2)

Page 71 — VG2740-156S1-WF1 EXCLUSIVE PARTS

Page 73 — VG2740(P)-140M-SM, 148M-SM EXCLUSIVE PARTS

Page 75 — VG2760 EXCLUSIVE PARTS / サブモデル専用部品

Page 77 — EC DEVICE (1)

Page 79 — EC DEVICE(1)

Page 81 — EC DEVICE(2)

Page 83 — EL1 DEVICE

Page 85 — EXTRA PARTS

Page 87 — THREAD STAND

Page 89 — ACCESSORIES(1)

Page 91 — ACCESSORIES(2)

Page 92 — WARNING LABEL 警告ラベル

Page 94 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(1)

Page 95

Page 96 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(2)

Page 97

Page 98 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(3)

Page 99

Page 100 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(4)

Page 101

Page 102 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(5)

Page 103

Page 104

Page 105 — INDEX

Page 106

Page 107 — INDEX

Page 108 — INDEX

Page 109 — INDEX

Page 110 — INDEX

Page 111 — INDEX

Page 112

Page 113 — INDEX

Yamato VG2700 — parts catalog
