Yamato VG2700 Parts Book PDF — View & Download

Parts index — Yamato VG2700tap a row to open its page

Page 1 — Parts List

Yamato VG2700 parts on page 1
Ref	Part number	Part name	Qty
	VG2700	VG2700
	VG2708-WF8	VG2708-WF8
	VG2740	VG2740
	VG2740-SM	VG2740-SM
	VG2700-WF1	VG2700-WF1
	VG2713	VG2713
	VG2740P	VG2740P
	VG2760	VG2760
	VG2703	VG2703
	VG2713-WF2	VG2713-WF2
	VG2740-WF1	VG2740-WF1

Page 3 — Contents

Yamato VG2700 parts on page 3
Ref	Part number	Part name	Qty
	1	MISCELLANEOUS COVERS(1)
	2	MISCELLANEOUS COVERS(2)
	3	MISCELLANEOUS THREAD EYELETS
	4	MISCELLANEOUS BUSHINGS & EYE GUARD
	5	NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM
	6	UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM
	7	NEEDLE BAR MECHANISM
	8	PRESSER FOOT MECHANISM
	9	SPREADER MECHANISM
	10	LOOPER DRIVING MECHANISM
	11	FEED DRIVING CONTROL MECHANISM
	12	FEED DRIVING MECHANISM
	13	LUBRICATING MECHANISM
	14	PULLER MECHANISM EXCLUSIVE PARTS(1)
	15	PULLER MECHANISM EXCLUSIVE PARTS(2)
	16	PULLER MECHANISM EXCLUSIVE PARTS(3)
	17	VG2700 EXCLUSIVE PARTS
	18	VG2700-0000-WF1 EXCLUSIVE PARTS
	19	VG2703 EXCLUSIVE PARTS(1)
	20	VG2703 EXCLUSIVE PARTS(2)
	21	VG2708-WF8 EXCLUSIVE PARTS
	22	VG2713-0000-T1N, T4N EXCLUSIVE PARTS
	23	VG2713-0000-T1A, T2A, T4A EXCLUSIVE PARTS
	24	VG2713-0000-K1N, K4N EXCLUSIVE PARTS
	25	VG2713-0000-000-WF2 EXCLUSIVE PARTS
	26	VG2740, 2740P EXCLUSIVE PARTS(1)
	27	VG2740, 2740P EXCLUSIVE PARTS(2)
	28	VG2740-156S1-WF1 EXCLUSIVE PARTS
	29	VG2740(P)-140M-SM, 148M-SM EXCLUSIVE PARTS
	30	VG2760 EXCLUSIVE PARTS

Page 4 — Contents

Yamato VG2700 parts on page 4
Ref	Part number	Part name	Qty
	EC装置(1)	EC DEVICE(1)
	EC装置(2)	EC DEVICE(2)
	EL1装置	EL1 DEVICE
	特注部品	EXTRA PARTS
	糸立台	THREAD STAND
	アクセサリ関係(1)	ACCESSORIES(1)
	アクセサリ関係(2)	ACCESSORIES(2)
	警告ラベル	WARNING LABEL
	主要部品リスト(1)	LIST of MAIN SPARE PARTS(1)
	主要部品リスト(2)	LIST of MAIN SPARE PARTS(2)
	主要部品リスト(3)	LIST of MAIN SPARE PARTS(3)
	主要部品リスト(4)	LIST of MAIN SPARE PARTS(4)
	主要部品リスト(5)	LIST of MAIN SPARE PARTS(5)
	索引	INDEX

Page 6 — 1

Yamato VG2700 parts on page 6
Ref	Part number	Part name
2	2	SCREW
4	4	CAP
5	5	CAP
6	6	COVER
7	7	GASKET
8	8	WASHER
9	9	LABEL
10	10	BRACKET
11	11	SCREW
12	12	BRACKET
13	13	BRACKET
14	14	BRACKET
15	15	SPRING
16	16	BRACKET
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	SCREW
21	21	BRACKET
24	24	PLATE
25	25	PLATE
26	26	WASHER
27	27	SCREW
28	28	GASKET
29	29	BASE
30	30	SCREW
31	31	PIN
32	32	PLATE
33	33	PLATE
34	34	SCREW

Page 7 — MISCELLANEOUS COVERS(1)

Yamato VG2700 parts on page 7
Ref	Part number	Part name	Qty
	3500201	Top Cover
	110045	Screw(M4-0.7 × 12)
	3500430	Top Cover Gasket
	0068011	Oil Sight Window
	0020759	Top Cover Seal Plug
	3500207	Head Cover
	3500431	Head Cover Gasket
	0093864	Head Cover Seal Plug
	390164	"VG" Emblem
	3500212	Side Cover(Lower)
	110048	Screw(M4-0.7 × 10)
	3500215	Side Cover Gasket
	3500213	Side Cover Hinge Pin
	160000	Screw(M3-0.5 × 3)
	0037164	Spring
	3500216	Oil Defender
	006233	Screw(M3-0.5 × 5)
	3500211	Side Cover(Upper)
	3500214	Side Cover Hook
	110012	Screw(M4-0.7 × 5)
	3500217	Extension Cover
	3500007	Wind Guide Plate
	110013	Screw(M4-0.7 × 8)
	0020137	Drain Hole Seal
	005075	Screw(3/8-24 × 8)
	3500005	Oil Reservoir Gasket
	3500004	Oil Reservoir Gasket
	120016	Screw(M8-1.25 × 20)
	340000	Machine Frame Supporting Bar
	2049401	Serial Number Plate
	4109403	Model Plate(See the below)
	000726	Rivet

Page 8

Yamato VG2700 parts on page 8
Ref	Part number	Part name
1	1	COVER
2	2	SCREW
3	3	COVER
4	4	COVER
5	5	COVER
6	6	SCREW
8	8	WASHER
9	9	COVER
10	10	COVER
11	11	SCREW
12	12	BUSHING
13	13	BUSHING
14	14	BUSHING
16	16	BRACKET
17	17	SCREW
18	18	BRACKET
19	19	SCREW
20	20	SCREW
21	21	BUSHING
22	22	BRACKET
23	23	SCREW
24	24	BOLT
25	25	WASHER
26	26	SCREW
27	27	BRACKET
28	28	SCREW
29	29	NUT
30	30	SCREW
31	31	SCREW
32	32	WASHER
33	33	SCREW
34	34	BRACKET
35	35	BRACKET
36	36	SCREW
37	37	COVER
38	38	SCREW
39	39	COVER
40	40	SCREW
41	41	SCREW
42	42	BOLT
43	43	BRACKET
44	44	SCREW
45	45	COVER
46	46	GASKET
47	47	COVER
49	49	COVER
50	50	NUT

Page 9 — MISCELLANEOUS COVERS(2)

Yamato VG2700 parts on page 9
Ref	Part number	Part name	Qty
	3500224	Cloth Plate(Large)
	120009	Screw(M4-0.7 × 12)
	3500219	Slide Cover
	3500227	Crank Chamber Cover
	3500228	Crank Chamber Cover Gasket
	130003	Screw(M4-0.7 × 7.3)
	0020052	Seal Plug
	3500432	Rear Cover Gasket
	3100016	Rear Cover
	110013	Screw(M4-0.7 × 8)
	3500012	Seal Plug
	0093864	Seal Plug
	0065275	Seal Plug
	3500255	Stitch Plate Holder
	110041	Screw(M4-0.7 × 8)
	3500256	Slide Cover Supplementary Block
	006202	Screw(M4-0.7 × 6)
	330011	Seal Plug(φ 4.9 × 4.3)
	160005	Screw(M6-1 × 8)
	3500223	Front Cover Hinge
	110016	Screw(M4-0.7 × 14)
	170001	Screw(M4-0.7 × 8)
	300100	Conical Spring Washer
	160001	Screw(M4-0.7 × 4)
	3500222	Front Cover(Lower)
	110031	Screw(M4-0.7 × 12)[M4-0.7 × 12]
	000015	Nut
	3200033	Seal Plug
	110009	Screw(M4-0.7 × 8)
	000538	Washer
	110031	Screw(M4-0.7 × 12)[M4-0.7 × 8]
	000665	Washer
	3500225	Supplementary Block
	110022	Screw(M3-0.5 × 10)
	3500221	Front Cover(Upper)
	130002	Screw(M3-0.5 × 6)
	3500233	Thread Take-up Cover(Front)
	110002	Screw(M3-0.5 × 5)
	007627	Screw(M4-0.7 × 6)
	190078	Screw(M4-0.7 × 5)
	0094201	Cover Latch Spring
	110012	Screw(M4-0.7 × 5)
	3500008	Oil Cooling Fan Cover
	3500230	Ball Bearing Holder
	3200013	Belt Cover Support
	330011	Seal Plug(φ 4.9 × 3.5)
	3500226	Cushion
	330019	Seal Plug(φ 4.9 × 3.5)[φ 4.9 × 4.3]

Page 10

Yamato VG2700 parts on page 10
Ref	Part number	Part name	Qty
	1	KNOB
	2	WASHER
	3	SPRING
	4	SPRING
	5	SPRING
	6	WASHER
	7	WASHER
	8	SCREW
	9	BUSHING
	10	FEED DOG
	11	BRACKET
	12	BRACKET
	13	PLATE
	14	SCREW
	15	BRACKET
	16	ROD
	17	ROD
	18	BRACKET
	19	BRACKET
	20	SCREW
	21	HOLDER
	22	FELT
	23	SPRING
	24	SCREW
	25	BRACKET
	26	SCREW
	27	BRACKET
	28	BRACKET
	29	SPRING
	30	WASHER
	31	SCREW
	32	BRACKET
	33	BRACKET
	34	BRACKET
	35	SCREW
	36	WASHER
	37	WASHER
	38	NUT
	39	BRACKET
	40	BRACKET
	41	SCREW
	42	BRACKET
	43	BRACKET
	44	SCREW
	45	WASHER
	46	WASHER
	47	BRACKET
	48	BRACKET
	49	SCREW
	50	BRACKET
	51	BRACKET
	52	SPRING
	53	SCREW
	54	BRACKET
	55	BRACKET

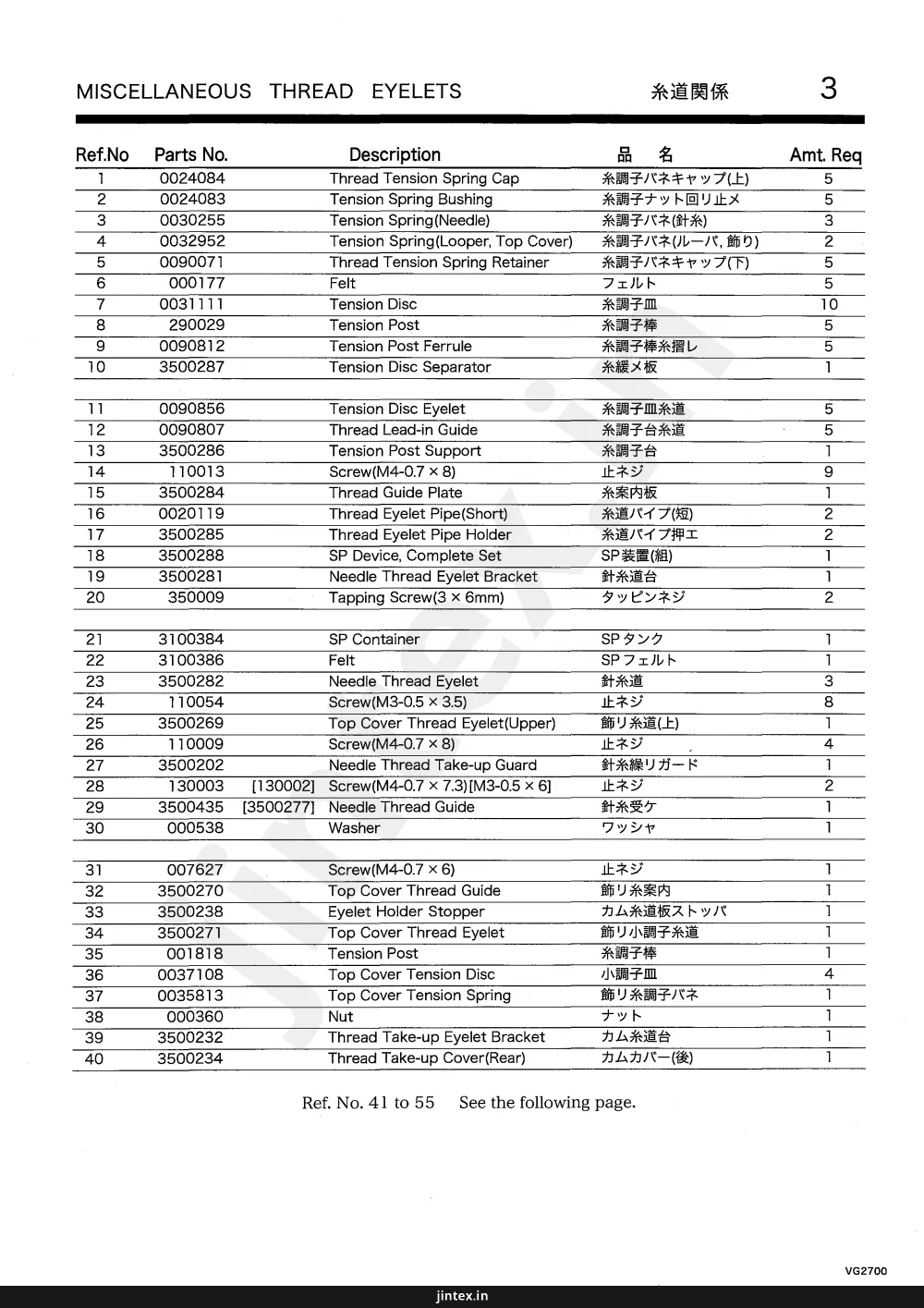

Page 11 — MISCELLANEOUS THREAD EYELETS

Yamato VG2700 parts on page 11
Ref	Part number	Part name	Qty
	0024084	Thread Tension Spring Cap
	0024083	Tension Spring Bushing
	0030255	Tension Spring(Needle)
	0032952	Tension Spring(Looper, Top Cover)
	0090071	Thread Tension Spring Retainer
	000177	Felt
	0031111	Tension Disc
	290029	Tension Post
	0090812	Tension Post Ferrule
	3500287	Tension Disc Separator
	0090856	Tension Disc Eyelet
	0090807	Thread Lead-in Guide
	3500286	Tension Post Support
	110013	Screw(M4-0.7 × 8)
	3500284	Thread Guide Plate
	0020119	Thread Eyelet Pipe(Short)
	3500285	Thread Eyelet Pipe Holder
	3500288	SP Device, Complete Set
	3500281	Needle Thread Eyelet Bracket
	350009	Tapping Screw(3 × 6mm)
	3100384	SP Container
	3100386	Felt
	3500282	Needle Thread Eyelet
	110054	Screw(M3-0.5 × 3.5)
	3500269	Top Cover Thread Eyelet(Upper)
	110009	Screw(M4-0.7 × 8)
	3500202	Needle Thread Take-up Guard
	130003	Screw(M4-0.7 × 7.3)[M3-0.5 × 6]
	3500435	Needle Thread Guide
	000538	Washer
	007627	Screw(M4-0.7 × 6)
	3500270	Top Cover Thread Guide
	3500238	Eyelet Holder Stopper
	3500271	Top Cover Thread Eyelet
	001818	Tension Post
	0037108	Top Cover Tension Disc
	0035813	Top Cover Tension Spring
	000360	Nut
	3500232	Thread Take-up Eyelet Bracket
	3500234	Thread Take-up Cover(Rear)

Page 12

Yamato VG2700 parts on page 12
Ref	Part number	Part name	Qty
	1	Knob
	2	Washer
	3	Spring
	4	Spring
	5	Casing
	6	Washer
	7	Washer
	8	Screw
	9	Bush
	10	Lever
	11	Bracket
	12	Bracket
	13	Base Plate
	14	Screw
	15	Bracket
	16	Tube
	17	Screw
	18	Bracket
	19	Bracket
	20	Screw
	21	Holder
	22	Felt
	23	Spring
	24	Screw
	25	Screw
	26	Screw
	27	Spring
	28	Screw
	29	Bracket
	30	Washer
	31	Screw
	32	Lever
	33	Bracket
	34	Bracket
	35	Screw
	36	Washer
	37	Washer
	38	Spring
	39	Plate
	40	Screw
	41	Screw
	42	Bracket
	43	Lever
	44	Screw
	45	Washer
	46	Washer
	47	Bracket
	48	Screw
	49	Screw
	50	Bracket
	51	Bracket
	52	Spring
	53	Screw
	54	Bracket
	55	Bracket

Page 13 — MISCELLANEOUS THREAD EYELETS

Yamato VG2700 parts on page 13
Ref	Part number	Part name
41	006202	Screw(M4-0.7 × 6)
42	3500237	Latch Spring
43	3500240	Thread Take-up Eyelet Holder
44	170010	Screw(M4-0.7 × 4)
45	300100	Conical Spring Washer
46	000669	Washer
47	3500245	Thread Take-up Eyelet(Left)
48	3500246	Thread Take-up Eyelet(Right)
49	110027	Screw(M2.5-0.45 × 3.5)
50	3500242	Looper Thread Guide
51	3500247	Looper Thread Eyelet
52	0032426	Looper Thread Retainer Spring
53	170042	Screw(M3-0.5 × 5)
54	3500250	Looper Thread Eyelet(Center)
55	3500249	Looper Thread Eyelet(Right)

Page 14

Yamato VG2700 parts on page 14
Ref	Part number	Part name
1	1	PLUG
2	2	SLEEVE
3	3	SLEEVE
4	4	SPRING
5	5	SLEEVE
6	6	WASHER
7	7	SLEEVE
8	8	BEARING
9	9	SLEEVE
10	10	SLEEVE
11	11	SLEEVE
12	12	PIPE
13	13	BRACKET
14	14	BEARING
15	15	SLEEVE
16	16	SPRING
17	17	BRACKET
18	18	BRACKET
19	19	PLUG
20	20	BEARING
21	21	SLEEVE
22	22	SLEEVE
23	23	SLEEVE
24	24	SLEEVE
25	25	SLEEVE
26	26	SLEEVE
27	27	SLEEVE
28	28	SLEEVE
29	29	SLEEVE
30	30	SLEEVE
31	31	SLEEVE
32	32	BEARING
33	33	BRACKET
34	34	BRACKET
35	35	BRACKET
36	36	FILTER
37	37	BRACKET
38	38	SLEEVE
39	39	BRACKET
40	40	BRACKET
41	41	SCREW
42	42	BRACKET
43	43	WASHER
44	44	SCREW
45	45	WASHER
46	46	WASHER
47	47	NUT
48	48	BRACKET
49	49	SCREW
50	50	BRACKET
51	51	SPRING
52	52	SCREW
53	53	PLUG
54	54	BRACKET

Page 15 — MISCELLANEOUS BUSHINGS & EYE GUARD

Yamato VG2700 parts on page 15
Part number	Part name	Qty
110116	Screw(M10-1.5 × 4)	1
3500042	Needle Bar Bushing(Upper)	1
3500088	Needle Bar Bushing(Lower)
310106	Laced Wire(φ 3 × 130mm)	1
3100099	Presser Bar Bushing	1
3204021	Oil Seal
3100100	Spreader Driving Bar Bushing	1
0063055	Oil Seal	1
3500050	Oil Seal
3500044	Needle Thread Take-up Bushing(Front)	1
3500045	Needle Thread Take-up Bushing(Rear)	1
3500047	Spreader Driving Shaft Bushing(Left)	1
3500048	Spreader Driving Shaft Bushing(Right)	1
3500041	Oil Seal	1
3500046	Foot Lifter Lever Bushing	2
000195	Oil Wick(No.4-175mm)	1
3500021	Lower Shaft Bushing(Left)	1
35000407	Oiling Felt	1
3500040	Oil Seal	1
3500022	Lower Shaft Bushing(Right)	1
3500030	Feed Bar Lift Shaft Bushing(Left)	1
3500039	Feed Bar Lift Shaft Bushing(Middle)	1
3500031	Feed Bar Lift Shaft Bushing(Right)	2
3500032	Feed Bar Shaft Bushing(Left)	1
3500025	Differential Feed Bar Shaft Bushing(Middle)	1
3500028	Differential Feed Bar Shaft Bushing(Right)	1
3500029	Feed Bar Shaft Bushing(Middle)	1
3500026	Feed Bar Shaft Bushing(Right)	1
3500027	Main Feed Lever Shaft Bushing(Left)	1
3500023	Main Feed Lever Shaft Bushing(Right)	1
3500024	Needle Guard Holder Bushing(Front)	1
3500033	Needle Guard Holder Bushing(Rear)	1
3500034	Differential Lever Shaft Bushing(Left)	1
3500035	Differential Lever Shaft Bushing(Right)	1
3100006	Seal Plug	2
3500037	Looper Driving Shaft Bushing(Front)	1
3500038	Looper Driving Shaft Bushing(Rear)	1
3500203	Eye Guard, Complete Set	1
3500204	Air Wiper Bracket	1

Page 16

Yamato VG2700 parts on page 16
Ref	Part number	Part name	Qty
	1	Plug
	2	Tube
	3	Plug
	4	Clip
	5	Plug
	6	Bearing
	7	Bearing
	8	Bearing
	9	Bearing
	10	Bearing
	11	Bearing
	12	Tube
	13	Block
	14	Bearing
	15	Bearing
	16	Clip
	17	Block
	18	Bearing
	19	Bearing
	20	Bearing
	21	Bearing
	22	Bearing
	23	Bearing
	24	Bearing
	25	Bearing
	26	Bearing
	27	Bearing
	28	Bearing
	29	Bearing
	30	Bearing
	31	Bracket
	33	Block
	34	Bracket
	35	Bracket
	36	Filter
	37	Bracket
	38	Bearing
	39	Bracket
	40	Bracket
	41	Screw
	42	Bracket
	43	Washer
	44	Screw
	45	Washer
	46	Washer
	47	Nut
	48	Cover
	49	Screw
	50	Screw
	51	Screw
	52	Screw
	53	Plug
	54	Bracket

Page 17 — MISCELLANEOUS BUSHINGS & EYE GUARD

Yamato VG2700 parts on page 17
Ref	Part number	Part name
41	110009	Screw(M4-0.7 × 8)
42	000538	Washer
43	3500205	Eye Guard Holder
44	170044	Screw(M4-0.7 × 7)
45	300104	Conical Spring Washer
46	000663	Washer
47	000022	Nut
48	3500206	Eye Guard
49	110076	Screw(M3-0.5 × 6)
50	3500208	Stopper Spring
51	110030	Screw(M3-0.5 × 2.6)
52	000014	Washer
53	3204020	Oil Seal
54	3500041	Oil Seal

Page 18

Yamato VG2700 parts on page 18
Ref	Part number	Part name
1	1	WASHER
2	2	WASHER
3	3	SCREW
4	4	SCREW
5	5	SCREW
6	6	CLUTCH PULLEY
7	7	SCREW
9	9	CLUTCH PULLEY
10	10	CLUTCH PULLEY
11	11	SHAFT
12	12	SHAFT
13	13	CAM
14	14	SCREW
15	15	PULLEY
16	16	SHAFT
17	17	SCREW
18	18	PIN
19	19	SHAFT
20	20	PIN
21	21	SCREW
22	22	COLLAR
23	23	LEVER
24	24	SCREW
25	25	WASHER
26	26	SHAFT
27	27	LEVER
28	28	SCREW
29	29	FORK
30	30	SHAFT
31	31	BRACKET
32	32	BRACKET
33	33	SCREW

Page 19 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM

Yamato VG2700 parts on page 19
Ref	Part number	Part name	Qty
1	3500101	Pulley	1
2	300005	Washer	1
3	120012	Screw(M6-1 × 20)	1
4	160005	Screw(M6-1 × 8)	4
5	160007	Screw(M6-1 × 6)	4
6	3500104	Oil Cooling Fan Unit	1
7	160001	Screw(M4-0.7 × 4)	4
8	3260010	Main Shaft Sprocket(Lower)	1
10	3100131	Ball Bearing(Middle)	1
11	3100132	Lower Shaft(Right)	1
12	3100122	Oil Pump Driving Worm	1
13	3100127	Counterweight(Small)	1
14	110009	Screw(M4-0.7 × 8)	2
15	3100123	Ball Bearing(Left)	1
16	3500109	Lower Shaft(Middle)	1
17	160004	Screw(M6-1 × 4.8)	2
18	001107	Spring Pin(φ 2 × 6mm)	4
19	3500111	Lower Shaft(Left)	1
20	310100	Oil Wick(φ 4.4 × 100mm)	1
21	160003	Screw(M5-0.8 × 5)	1
22	3500165	Needle Guard Eccentric	1
23	3500166	Needle Guard(Front) Lever	1
24	110022	Screw(M3-0.5 × 10)	2
25	3500413	Felt	1
26	3100241	Needle Guard(Front) Holder	1
27	3139200	Needle Guard(Front)	1
28	110036	Screw(M3-0.5 × 6.5)	2
29	3500167	Needle Guard(Rear) Lever	1
30	3100245	Needle Guard(Rear) Holder	1
31	3109201	Needle Guard(Rear)	1
32	3500419	Needle Guard Lever Cover	1
33	110012	Screw(M4-0.7 × 5)	2

Page 20

Yamato VG2700 parts on page 20
Ref	Part number	Part name
1	1	CAP
2	2	WASHER
3	3	SET SCREW
4	4	SET SCREW
5	5	NUT
6	6	PULLEY
7	7	COLLAR
8	8	BELT
9	9	GEAR
10	10	BELT
11	11	COLLAR
12	12	SHAFT
13	13	COLLAR
14	14	COLLAR
15	15	SCREW
16	16	COLLAR
17	17	SHAFT
18	18	SPRING
19	19	SPRING
20	20	BELT
21	21	SPRING
22	22	BEARING
23	23	PULLEY
24	24	BEARING
26	26	SET SCREW
27	27	BEARING
28	28	PULLEY
29	29	COLLAR
30	30	SHAFT
31	31	GEAR
32	32	PULLEY
33	33	COLLAR
34	34	PULLEY
35	35	SET SCREW
36	36	BRACKET
37	37	SCREW
38	38	WASHER
39	39	SHAFT
40	40	SCREW
41	41	WASHER
42	42	WASHER
43	43	COLLAR
44	44	SHAFT
45	45	BRACKET
46	46	COLLAR
47	47	BRACKET
48	48	SCREW
49	49	COLLAR

Page 21 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

Yamato VG2700 parts on page 21
Ref	Part number	Part name	Qty
	3500051	Handwheel
	000989	Handwheel Mark
	160005	Screw(M6-1 × 8)
	160007	Screw(M6-1 × 6)
	0092305	Magnet
	3500054	Ball Bearing
	3100129	Handwheel Adapter
	3500056	Timing Belt(550-5GT-12)
	3260011	Upper Shaft Sprocket(Upper)
	3500069	Timing Belt(384-3GT-8)
	3500068	Upper Shaft Sprocket(Upper)
	3100275	Upper Shaft(Right)
	3100283	Upper Shaft Joint
	3100127	Counterweight(Small)
	110009	Screw(M4-0.7 × 8)
	3500403	Oil Sleeve
	3500060	Upper Shaft(Left)
	160004	Screw(M6-1 × 4.8)
	310101	Oil Wick(φ 5.1 × 15mm)
	310099	Oil Wick(φ 3.3 × 30mm)
	110012	Screw(M4-0.7 × 5)
	3500062	Upper Shaft Sleeve, C. Set
	3500064	Upper Shaft Sleeve
	0093154	Ball Bearing
	160004	Screw(M6-1 × 4.8)
	3500072	Adapter(Right), C. Set
	3500073	Ball Bearing
	3500076	Adapter
	3500071	Looper Thread Take-up Shaft
	3500070	Thread Take-up Shaft Sprocket(Lower)
	3500074	Adapter(Left), C. Set
	3500075	Ball Bearing
	3500077	Looper Thread Take-up
	006212	Screw(M5-0.8 × 6)
	3500079	Connecting Rod
	120001	Screw(M4-0.7 × 14)[M4-0.7 × 16]
	2100088	Connecting Rod Swing-proof
	3500066	Driving Lever
	120013	Screw(M6-1 × 15)
	2100218	Driving Shaft Thrust Ring
	000555	Washer
	120015	Screw(M5-0.8 × 10)
	3500065	Driving Shaft
	3500067	Bracket
	000667	Spring Washer
	3500278	Needle Thread Take-up
	110106	Screw(M4-0.7 × 8)[M4-0.7 × 6]
	000600	Spring Washer

Page 22

Yamato VG2700 parts on page 22
Ref	Part number	Part name
1	1	SCREW
2	2	NEEDLE BAR
3	3	CONNECTING ROD
4	4	SCREW
5-1	5-1	NEEDLE BAR BUSHING
5-2	5-2	NEEDLE BAR BUSHING
5-3	5-3	NEEDLE BAR BUSHING
6	6	NEEDLES
7	7	THREAD GUIDE
8	8	SCREWS
9-1	9-1	NEEDLE PLATE
9-2	9-2	NEEDLE PLATE
9-3	9-3	NEEDLE PLATE
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	SCREW
14	14	UPPER SHAFT
15	15	BEARING
16	16	GEAR
17	17	WASHER
18	18	SCREW
19	19	ECCENTRIC
20	20	ECCENTRIC BUSHING
21	21	COLLAR
22	22	BRACKET
23	23	BRACKET
24	24	BLOCK
25	25	SCREW
26	26	TERMINAL BLOCK

Page 23 — NEEDLE BAR MECHANISM

Yamato VG2700 parts on page 23
Ref	Part number	Part name
1	330017	Seal Plug
2	3500078	Needle Bar
3	3200111	Needle Bar Bracket
4	110035	Screw(M4-0.7 × 10)
5-1	0093356	Needle Clamp(48)
5-2	0093357	Needle Clamp(56)
5-3	0093358	Needle Clamp(64)
6	0093365	Needle(UY × 128 GAS)
7	001900	Top Cover Thread Eyelet
8	3508002	Screw(1/8-44 × 2.4)
9-1	3508003	Stitch Plate(48M)
9-2	3508004	Stitch Plate(56M)
9-3	3508004	Stitch Plate(64M)
10	009142	Screw(9/64-40 × 4.8)
11	3500615	Counterweight
12	110011	Screw(M5-0.8 × 10)
13	160029	Screw(M8-1.25 × 8)
14	3500091	Connecting Rod, Complete Set
15	3200112	Connecting Rod
16	0093212	Roller Bearing
17	3500617	Eccentric Pin Plate
18	130002	Screw(M3-0.5 × 6)
19	3500616	Eccentric Pin
20	000309	Felt(2.5 × 3 × 30mm)
21	330000	Seal Plug
22	3200118	Needle Bar Guide, C. Set
23	3200116	Needle Bar Guide
24	009186	Slide Block
25	009749	Screw(M4-0.7 × 16)
26	3100338	Sponge

Page 24

Yamato VG2700 parts on page 24
Ref	Part number	Part name	Qty
	1	NEEDLE BAR ASSEMBLY
	2	THREAD GUIDE
	3	SPRING
	4	BRACKET
	5	SCREW
	6	BRACKET
	7	SCREW
	8	SPRING
	9	PRESSER BAR ASSEMBLY
	10	BRACKET
	11	SCREW
	12	WASHER
	13	COLLAR
	14	SPRING
	15	LEVER
	16	SCREW
	17-1	SPRING
	17-2	SPRING
	17-3	SPRING
	18	SCREW
	19	SPRING
	20	BRACKET
	23	SCREW
	24	PIN
	25	SCREW
	26	NUT
	27	SPRING
	28	PIN
	30	LEVER
	31	SCREW
	32	ROD
	33	COLLAR
	34	SCREW
	35	BRACKET
	36	SCREW
	37	SPRING
	38	LINK
	39	SPRING
	40	WASHER
	41	SCREW
	42	SCREW
	43	SPRING
	44	NUT
	45	BRACKET
	46	BRACKET
	47	SCREW
	48	NUT
	49	SCREW
	50	BRACKET
	51	SCREW
	52	ROD
	53	BRACKET
	54	SCREW
	55	ROD
	56	LEVER
	57	PIN
	58	COLLAR
	59	SPRING
	60	SCREW

Page 25 — PRESSER FOOT MECHANISM

Yamato VG2700 parts on page 25
Ref	Part number	Part name	Qty
	0077270	Presser Spring Regulator
	000445	Lock Nut
	0065372	Presser Bar Spring(Outer)
	3500304	Presser Bar Connecting Brackst
	110031	Screw(M4-0.7 × 12)
	0093483	Presser Bar Guide
	004441	Screw(11/64-40 × 16)
	0060142	Presser Bar Spring(Inner)
	3100110	Presser Bar
	3100112	Finger Guard
	110002	Screw(M3-0.5 × 5)
	0093611	Oil Protector Ring
	3100310	Collar(9 × 17 × 7mm)
	150001	Screw(M4-0.7 × 4)
	000271	Thread Chain Cutting Knife
	110054	Screw(M3-0.5 × 3.5)
	3507050	Presser Foot, C. Set(48)
	3507052	Presser Foot, C. Set(56)
	3507054	Presser Foot, C. Set(64)
	110004	Screw(M3.5-0.6 × 8)
	3107303	Presser Foot Spring(Left)
	3107304	Presser Foot Spring(Right)
	130016	Screw(M2.5-0.45 × 6)
	3107306	Presser Foot Hinge Pin(56, 64)
	110084	Screw(M3.5-0.5 × 4.2)
	000327	Lock Nut
	260006	Adjusting Screw(1/8-44 × 9.5)
	3500305	Cap
	3500296	Presser Foot Lifter
	170041	Screw(M5-0.8 × 3.5)
	350300	Lifter Shaft
	2100267	Collar(10 × 17 × 8mm)
	160001	Screw(M4-0.7 × 4)
	3500293	Lifter Shaft Lever
	005650	Screw(M5-0.8 × 14)
	0068181	Spring
	3500294	Lever Link
	3500291	Lifter Lever
	000487	Wave Washer

Page 26

Yamato VG2700 parts on page 26
Ref	Part number	Part name	Qty
	1	NEEDLE BAR ASSEMBLY
	2	THREAD GUIDE
	3	SPRING
	4	PRESSER BAR HOLDER
	5	SCREW
	6	BRACKET
	7	SCREW
	8	PRESSER BAR
	9	PRESSER BAR
	10	PRESSER BAR SPRING GUIDE
	11	SCREW
	12	WASHER
	13	NUT
	14	SCREW
	15	PRESSER BAR GUIDE
	16	SCREW
	17-1	PRESSER FOOT
	17-2	PRESSER FOOT
	17-3	PRESSER FOOT
	18	SCREW
	19	SPRING
	20	SPRING
	23	SCREW
	24	PIN
	25	SCREW
	26	SPRING
	27	SPRING
	28	PIN
	30	BRACKET
	31	SCREW
	32	SHAFT
	33	COLLAR
	34	SCREW
	35	BRACKET
	36	SCREW
	37	SPRING
	38	LINK
	39	SPRING
	40	NUT
	41	WASHER
	42	SCREW
	43	SPRING
	44	NUT
	45	BRACKET
	46	BRACKET
	47	SCREW
	48	NUT
	49	SCREW
	50	BRACKET
	51	SCREW
	52	SHAFT
	53	BRACKET
	54	SCREW
	55	SHAFT
	56	LEVER
	57	PIN
	58	COLLAR
	59	SPRING
	60	SCREW

Page 27 — PRESSER FOOT MECHANISM

Yamato VG2700 parts on page 27
Ref	Part number	Part name
41	300005	Washer
42	120010	Screw(M6-1 × 10)
43	2110361	Spring
44	2100194	Lifter Lever Holder
45	340003	Knock Pin(φ 5 × 20mm)
46	3500295	Lifter Lever Stopper
47	120006	Screw(M6-1 × 12)
48	000206	Lock Nut
49	110118	Screw(M5-0.8 × 22)[M5-0.8 × 18]
50	3500299	Tension Release Lever Connector
51	170038	Screw(M4-0.7 × 5)
52	170009	Screw(M4-0.7 × 4)
53	3100533	Tension Release Lever
54	120001	Screw(M4-0.7 × 14)
55	3500292	Tension Release Shaft
56	0063515	Thread Pull-off Lever
57	000690	Spring Pin(4 × 16mm)
58	0094390	Tension Release Adjusting Eccentric
59	0095334	Swing-proof Spring
60	001170	Screw(9/64-40 × 12)

Page 28

Yamato VG2700 parts on page 28
Ref	Part number	Part name	Qty
	1	Housing
	2	Shaft
	3	Screw
	4	Shaft
	5	Screw
	6	Washer
	7	Shaft
	8	Nut
	9	Shaft
	10	Lever
	11	Shaft
	12	Shaft
	13	Collar
	14	Screw
	16	Lever
	17	Screw
	18	Collar
	19	Pin
	20	Shaft
	21	Washer
	22	Collar
	23	Screw
	24	Lever
	25	Shaft
	26	Screw

Page 30

Yamato VG2700 parts on page 30
Ref	Part number	Part name	Qty
	1-1	1-2
	3
	4
	5
	2
	8
	9
	7
	6
	47
	10
	11
	12
	25
	14
	13
	15
	18
	19
	21
	24
	16
	22
	23
	26
	27
	29
	30
	31
	33
	28
	32
	35
	37
	34
	36
	45
	46
	43
	44
	40
	38
	39
	41
	42

Page 31 — LOOPER DRIVING MECHANISM

Yamato VG2700 parts on page 31
Ref	Part number	Part name	Qty
1-1	3109300	Looper(32, 40, 56, 64)	1
1-2	3109302	Looper(48)	1
2	160040	Screw(M4-0.7 × 5)[M3.5-0.6 × 6]	1
3	3180100	Looper Holder	1
4	110039	Screw(M3.5-0.6 × 10)	1
5	300500	Spacer(Fiber)	3
6	3500175	Looper Bar Bushing(Left)	1
7	160024	Screw(M5 × 8)	2
8	3500274	Looper Thread Eyelet(Left)	1
9	110101	Screw(M3-0.5 × 3)	1
10	0010017	Bamboo Joint	1
11	3500426	Oil Tube(3 × 5 × 110mm)	1
12	3100205	O-ring	1
13	3500179	Looper Bar Guide	1
14	3100157	Slider	1
15	3100158	Slider Holder	1
16	110005	Screw(M3.5-0.6 × 12)	2
17	3100159	Slider Presser	1
18	160001	Screw(M4-0.7 × 4)	1
19	3500180	Thrust Washer	2
20	330016	Seal Plug	1
21	3500177	Looper Bar	1
22	3500178	Slide Block	1
23	3500176	Looper Bar Bushing(Right)	1
24	110019	Screw(M5-0.8 × 35)	1
25	300000	Washer	2
26	100002	Nut	1
27	3100150	Looper Rocker Connecting Rod, C. Set	1
28	3100147	Looper Rocker Regulating Eccentric	1
29	160003	Screw(M5-0.8 × 5)	1
30	0065389	Roller Bearing	1
31	3100149	Looper Rocker Connecting Rod	1
32	3100151	Looper Rocker Adjusting Pin	1
33	340001	Spring Pin(φ 1.5 × 4mm)	1
34	3500171	Looper Connecting Rod	1
35	110043	Screw(M5-0.7 × 14)	2
36	120049	Screw(M4-0.7 × 16)	2
37	2110191	Connecting Rod Swing-proof	2
38	3100142	Looper Driving Lever	1
39	160029	Screw(M8-1.25 × 8)[M6-1 × 8]	2
40	000637	Seal Plug	1
41	3500174	Looper Rocker Arm	1
42	120013	Screw(M6-1 × 15)	1
43	3100146	Thrust Washer	3
44	3100145	Thrust Roller Bearing	2
45	3500172	Looper Shaft	1
46	000740	Seal Plug	2
47	000623	Gasket	1

Page 32

Yamato VG2700 parts on page 32
Ref	Part number	Part name
49	49	SCREW
8	8	BRACKET
9	9	SHAFT
10	10	SHAFT
18	18	BRACKET
19	19	SCREW
17	17	BRACKET
16	16	BUSHING
13	13	BRACKET
12	12	WASHER
15	15	SCREW
14	14	SCREW
7	7	CIR-CLIP
21	21	PIN
22	22	SCREW
20	20	BRACKET
1	1	BRACKET
3	3	SCREW
4	4	BRACKET
2	2	BRACKET
5	5	BRACKET
6	6	BRACKET
26	26	BRACKET
27	27	SCREW
25	25	PIN
23	23	BRACKET
24	24	BRACKET
28	28	SHAFT
40	40	SCREW
39	39	SCREW
41	41	NUT
37	37	BRACKET
36	36	KNOB
35	35	WASHER
48	48	SCREW
47	47	WASHER
46	46	WASHER
45	45	NUT
31	31	PIN
30	30	SPRING
29	29	BUSHING
22	22	SCREW
32	32	BRACKET
33	33	PIN
38	38	BRACKET
42	42	WASHER
43	43	WASHER
44	44	CIR-CLIP

Page 33 — FEED DRIVING CONTROL MECHANISM

Yamato VG2700 parts on page 33
Ref	Part number	Part name	Qty
1	3500147	Differential Feed Rocker Arm, C. Set	1
2	3500148	Differential Feed Rocker Arm	1
3	120013	Screw(M6-1 × 15)	1
4	3500149	Differential Regulating Slider	1
5	3500152	Differential Link	1
6	3500154	Differential Feed Regulating Link	1
7	3200215	Retaining Ring	2
8	3500146	Differential Feed Shaft Arm	1
9	310096	Oil Wick(φ 5 × 130mm)	1
10	3500144	Differential Feed Shaft	1
11	2100249	Connection Bushing(Front)	1
12	3500143	Differential Feed Bar Connection	1
13	300000	Washer	2
14	110046	Screw(M5-0.8 × 12)	1
15	110021	Screw(M5-0.8 × 18)	1
16	3500142	Connection Bushing(Rear)	1
17	3509004	Differential Feed Dog	1
18	3509005	Main Feed Dog	1
19	110004	Screw(M3.5-0.6 × 8)	2
20	3500151	Linear Block	1
21	3500150	Linear Guide	1
22	160001	Screw(M4-0.7 × 4)	3
23	3500153	Linear Link	1
24	0068202	Linear Link Pin	1
25	2100253	Retaining Ring	1
26	3500155	Differential Feed Lever(Left)	1
27	160004 [160007]	Screw(M6-1 × 4.8)[M6-1 × 6]	1
28	3500156	Differential Feed Lever Shaft	1
29	2100267	Collar(10 × 17 × 18mm)	1
30	3500157	Spring	1
31	340003	Knock Pin(φ 5 × 20mm)	1
32	3500158	Differential Feed Lever(Right)	1
33	000690	Spring Pin(φ 4 × 16mm)	1
35	000010	Conical Spring Washer	1
36	3500161	Lock Nut	1
37	190004	Screw(M6-1 × 8.5, M4.5-0.5 × 3)	1
38	3500160	Differential Feed Graduations	1
39	110045	Screw(M4-0.7 × 12)	2
40	3101754	Adjusting Screw	1
41	2100264	Adjusting Block	1
42	2100259	Spring	1
43	001123	Washer	1
44	0034293	Retaining Ring	1
45	0020350	Differential Feed Lever Stopper	1
46	000669	Washer	1
47	000600	Spring Washer	1
48	005049	Screw(M5-0.8 × 8)	1
49	120011	Screw(M6-1 × 18)	1

Page 34

Yamato VG2700 parts on page 34
Ref	Part number	Part name
1	1	BRACKET
2	2	SCREW
3	3	PIN
4	4	BRACKET
5	5	SCREW
6	6	WASHER
7	7	PIN
8	8	BRACKET
9	9	RING
10	10	BRACKET
11	11	SCREW
12	12	BEARING
13	13	BRACKET
14	14	SCREW
15	15	BEARING
16	16	BRACKET
17	17	BRACKET
18	18	SCREW
19	19	PLATE
20	20	SCREW
21	21	BRACKET
22	22	RING
23	23	BRACKET
24	24	BRACKET
25	25	SPRING
26	26	SPRING
27	27	SPRING
28	28	SHAFT
29	29	PIN
30	30	SHAFT
31	31	BRACKET
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET
35	35	WASHER
36	36	PIN
37	37	BRACKET
38	38	SHAFT
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	SCREW
43	43	SCREW
44	44	BRACKET
45	45	RING
46	46	BRACKET
47	47	PIN
48	48	WASHER
49	49	SCREW
50	50	SCREW
51	51	SPRING
52	52	KNOB
53	53	NUT
54	54	WASHER
55	55	BRACKET
56	56	SLEEVE
57	57	PIN
58	58	SPRING
59	59	PIN
60	60	RING
61	61	BRACKET
62	62	BRACKET
63	63	BRACKET
64	64	BRACKET
65	65	SCREW
66	66	BRACKET
67	67	BRACKET
68	68	WASHER
69	69	SCREW
70	70	SHAFT
71	71	BRACKET

Page 35 — FEED DRIVING MECHANISM

Yamato VG2700 parts on page 35
Ref	Part number	Part name
1	3500131	Feed Bar Driving Shaft Lever
2	120013	Screw(M6-1 × 15)
3	3500130	Feed Bar Link Pin
4	3500129	Feed Bar Link(Long)
5	160002	Screw(M4-0.7 × 5)
6	3100195	Feed Bar Link(Short)
7	3100193	Feed Bar Connecting Rod Pin
8	3500128	Feed Bar Connecting Rod
9	3100192	Retaining Ring
10	3500105	Counterweight
11	110009	Screw(M4-0.7 × 8)
12	3100623	Roller Bearing
13	3500127	Main Feed Eccentric
14	006212	Screw(M5-0.8 × 6)
15	3100190	Roller Bearing
16	3500162	Feed Lift Connecting Rod
17	3500119	Feed Bar Guide(Right)
18	160007	Screw(M6-1 × 6)
19	3500411	Oiling Felt
20	110030	Screw(M3-0.5 × 2.6)
21	3201355	Roller Bearing
22	0013208	Retaining Ring
23	3500163	Feed Lift Shaft Lever
24	3500124	Collar(12 × 20 × 10mm)
25	160004	Screw(M6-1 × 4.8)
26	160005	Screw(M6-1 × 8)
27	310096	Oil Wick(φ 5 × 130mm)
28	3500164	Feed Lift Shaft
29	000397	Oil Wick(φ 2 × 11mm)
30	3500113	Feed Bar, Complete Set
31	3500116	Feed Lift Block(Rear)
32	0032867	Feed Lift Block(Front)
33	3500115	Main Feed Bar
34	3500114	Differential Feed Bar
35	3500408	Oiling Felt
36	3100231	Feed Dog Key
37	3500118	Feed Bar Guide(Left)
38	3500122	Main Feed Bar Driving Shaft
39	000750	Seal Plug
40	2020002	Retaining Ring

Page 36

Yamato VG2700 parts on page 36
Ref	Part number	Part name
1	1	BRACKET
2	2	SCREW
3	3	PIN
4	4	BRACKET
5	5	SCREW
6	6	BRACKET
7	7	PIN
8	8	BRACKET
9	9	RING
10	10	BRACKET
11	11	SCREW
12	12	BEARING
13	13	BRACKET
14	14	SPRING
15	15	BEARING
16	16	BRACKET
17	17	BRACKET
18	18	SCREW
19	19	PAD
20	20	SCREW
21	21	BRACKET
22	22	RING
23	23	BRACKET
24	24	BRACKET
25	25	SPRING
26	26	SCREW
27	27	BRACKET
28	28	SHAFT
29	29	PIN
30	30	SHAFT
31	31	BRACKET
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET
35	35	WASHER
36	36	PIN
37	37	BRACKET
38	38	SHAFT
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	SCREW
43	43	BRACKET
44	44	SCREW
45	45	RING
46	46	BRACKET
47	47	PIN
48	48	WASHER
49	49	SCREW
50	50	SCREW
51	51	SPRING
52	52	SHAFT
53	53	NUT
54	54	RING
55	55	BRACKET
56	56	PIN
57	57	PIN
58	58	SPRING
59	59	PIN
60	60	RING
61	61	BRACKET
62	62	BRACKET
63	63	BRACKET
64	64	BRACKET
65	65	SCREW
66	66	BRACKET
67	67	BRACKET
68	68	WASHER
69	69	SCREW
70	70	SHAFT
71	71	BRACKET

Page 37 — FEED DRIVING MECHANISM

Yamato VG2700 parts on page 37
Ref	Part number	Part name
41	3500123	Main Feed Bar Driving Shaft Lever
42	110117	Screw(M5-0.8 × 9.5)
43	3100214	Link Pin
44	000199	Oil Wick(2.3 × 2.3 × 13mm)
45	160006	Screw(M3-0.5 × 4)
46	3500121	Main Feed Bar Connection
47	3500120	Connection Bushing
48	300000	Washer
49	110118	Screw(M5-0.8 × 22)
50	3500136	Adjusting Screw Stopper
51	160001	Screw(M4-0.7 × 4)[M3-0.5 × 3]
52	3500133	Main Feed Bar Adjusting Screw
53	100067	Lock Nut
54	0020551	O-ring(P5)
55	3500132	Main Feed Bar Bracket
56	3500138	Main Feed Lever Shaft(Right)
57	3500126	Connecting Shaft
58	3240072	Spring
59	340003	Knock Pin(φ 5 × 20mm)
60	0068079	O-ring(P16)
61	3500137	Main Feed Lever Shaft(Left)
62	3500139	Main Feed Lever
63	110013	Screw(M4-0.7 × 8)
64	3500141	Main Feed Graduations
65	009749	Screw(M4-0.7 × 16)
66	0020350	Main Feed Lever Stopper
67	000669	Washer
68	000600	Spring Washer
69	005049	Screw(M5-0.8 × 8)
70	310102	Oil Wick(φ 4.8 × 150)[φ 5 × 130]
71	3500190	Feed Lift Connecting Rod, C. Set

Page 38

Yamato VG2700 parts on page 38
Ref	Part number	Part name
1	1	BASE PLATE
2	2	SCREW
3	3	WASHER
4	4	SHAFT
5	5	BALL JOINT
6	6	WASHER
7	7	NUT
8	8	CLIP
9	9	COVER
10	10	SCREW
11	11	O-RING
12	12	OIL FILTER
13	13	PLUG
14	14	BRACKET
15	15	TUBE
16	16	FILTER
17	17	TUBE
18	18	FITTING
19	19	TUBE
20	20	TUBE
21	21	TUBE
22	22	TUBE
23	23	SCREW
24	24	TUBE
26	26	WASHER
27	27	TUBE
28	28	SCREW
29	29	BALL JOINT
30	30	TUBE
31	31	SCREW
32	32	GASKET
33	33	ROD
34	34	SCREW
35	35	PIN
36	36	MOTOR
37	37	SHAFT
38	38	SPRING
39	39	SCREW
40	40	NUT
41	41	NUT
42	42	BRACKET
43	43	BRACKET
44	44	COVER
45	45	PLUG

Page 39 — LUBRICATING MECHANISM

Yamato VG2700 parts on page 39
Part number	Part name	Qty
3500412	Oil Receiver	1
110012	Screw(M4-0.7 × 5)	4
0032518	O-ring(P3)	1
3500402	Oil Sight Top Nozzle	1
3100370	Oil Tube Joint, One Way	6
000425	Washer	1
000234	Nut	2
0031831	Oil Tube Clamp	8
3500229	Oil Filter Cover	1
110045	Screw(M4-0.7 × 12)	3
3100061	O-ring(P42)	1
3100345	Oil Filter	1
3100329	Oil Filter Connector	1
3200237	Felt	1
3200236	Suction Pipe	1
0093617	Suction Pipe Bushing	1
3200238	Oil Tube(3 × 5 × 440mm)	1
0010017	Bamboo Joint	2
3500422	Oil Tube(Long), Complete Set	1
3400261	Oil Tube(4 × 6 × 500mm)	1
3100371	Oil Tube Joint, Two Way	1
3100332	Oil Tube(4 × 6 × 37mm)	1
320008	Fitting Stud(Short)	4
3500423	Oil Tube(Middle), Complete Set	1
3500415	Oil Filter Screen	1
3500424	Oil Tube(4 × 6 × 190mm)	1
320009	Fitting Stud(Long)	1
3100356	Oil Tube(Short), Complete Set	1
3100331	Oil Tube(4 × 6 × 31mm)	1
3500418	Oiling Shower	1
3500410	Draining Felt	1
3500404	Draining Pipe	1
110013	Screw(M4-0.7 × 8)	2
3500425	Oil Tube(4 × 6 × 350mm)	1
3150195	Oil Pump, Complete Set
2040033	Oil Pump Driving Worm Gear
160001	Screw(M4×4)	2
120011	Screw(M6-1 × 18)[M6-1 × 15]
000560	Seal
100014	Nut
3150151	Oil Nozzle for Worm Gear	1
3100330	Oil Tube Stay	1
3500236	Dust Proof Plate	1
3500006	Oil Sight Gauge	1

Page 40 — PULLER MECHANISM(1)

Yamato VG2700 parts on page 40
Ref	Part number	Part name	Qty
	1	BODY
	2	SCREW
	3	PIN
	4	ROLLER
	5	COLLAR
	6	BRACKET
	7	SCREW
	8	BEARING
	9	SCREW
	10	COLLAR
	11	WASHER
	12	SHAFT
	13	BRACKET
	14	LINK
	15	SCREW
	16	SCREW
	17	ROLLER
	18	NUT
	19	SCREW
	20	SCREW
	21	PIN
	22	PIN
	23	SPRING
	24	COLLAR
	25	CIRCLIP
	26	BEARING
	27	BRACKET
	28	COLLAR
	29	SHAFT
	30	SCREW
	31	SCREW
	32	COLLAR
	33	WASHER

Page 41 — PULLER MECHANISM EXCLUSIVE PARTS(1)

Yamato VG2700 parts on page 41
Ref	Part number	Part name	Qty
1	3100625	Upper Feed Roller Shaft Bracket	1
2	120019	Screw(M6-1 × 18)	4
3	000779	Knock Pin	2
4	3100006	Seal Plug	1
5	3100607	Roller Shaft Bushing(Right)	1
6	3100604	Upper Feed Roller Shaft Lever	1
7	160007	Screw(M6-1 × 6)	2
8	0065398	Collar(14 × 22 × 10mm)	1
9	009604	Screw(11/64-40 × 5.5)	2
10	3100626	Roller Shaft Bushing(Left)	1
11	0065395	Oil Seal	1
12	3100605	Upper Feed Roller Shaft	1
14	3100608	Upper Feed Roller Lever	1
15	120014	Screw(M6-1 × 20)	1
16	0064011	Upper Feed Roller Lever Pin	1
17	000613	Washer	1
18	000306	Nut	2
19	3501281	Upper Feed Roller Lever Rod	1
20	240010	Screw(1/4-40 × 11)	1
21	310063	Oil Wick	1
22	0032921	Upper Feed Roller Driving Rod Pin	1
23	160001	Screw(M4-0.7 × 4)	1
24	3100602	Upper Feed Roller Driving Rod	1
25	3100192	Retaining Ring	1
26	3100623	Roller Bearing	1
27	3100603	Upper Feed Roller Regulator, C. Set	1
28	3100601	Upper Feed Roller Eccentric	1
29	3100600	Upper Feed Roller Regulator	1
30	160003	Screw(M5-0.8 × 5)	2
31	190007	Adjusting Screw(M5-0.8 × 6)	1
32	120008	Screw(M4-0.7 × 8)	1
33	300045	Spacer	1
34	3100636	Upper Feed Roller Shaft Bracket, C. Set	1

Page 42 — PULLER MECHANISM(2)

Yamato VG2700 parts on page 42
Ref	Part number	Part name
3	3	SCREW
4	4	BRACKET
5	5	SCREW
6	6	SHAFT
7	7	SPRING
8	8	PIN
9	9	SCREW
10	10	BASE
11	11	SCREW
12	12	WASHER
13	13	RING
14	14	SHAFT
15	15	COLLAR
16	16	COLLAR
17	17	COLLAR
18	18	COLLAR
20	20	BRACKET
21	21	SCREW
22	22	NUT
23	23	SPROCKET
24	24	ARM
25	25	SCREW
26	26	ROLLER
27	27	WASHER
28	28	ROLLER
29	29	COLLAR
30	30	ROLLER
31-1	31-1	GEAR
31-2	31-2	GEAR
32	32	SCREW
34-1	34-1	ROLLER
34-2	34-2	ROLLER
35	35	RING
36	36	LEVER
37	37	RING
38	38	SCREW
39	39	SHAFT
40	40	SCREW
41	41	BRACKET
42	42	COLLAR
43	43	PIN
44	44	COLLAR
45	45	ROLLER
47	47	COVER
48	48	WASHER
49	49	SCREW
50	50	SHAFT
51	51	BRACKET
52	52	SCREW
53	53	SCREW
54	54	COLLAR

Page 43 — PULLER MECHANISM EXCLUSIVE PARTS(2)

Yamato VG2700 parts on page 43
Ref	Part number	Part name
	3100611	Upper Feed Roller Yoke
	120012	Screw(M6-1 × 20)
	3100612	Upper Feed Roller Yoke Guide
	120008	Screw(M4-0.7 × 8)
	3100613	Upper Feed Roller Yoke Pin
	160007	Screw(M6-1 × 6)
3200133	0090620	Wire(0.9 × 45mm)
	180005	Screw(M4-0.7 × 5)
	160001	Screw(M4-0.7 × 4)
	160003	Screw(M5-0.8 × 5)
	0060056	Retaining Ring
	2100902	Thrust Ring
	3501270	Clutch Driving Shaft
	3100616	Clutch Driving Shaft Bushing(Left)
	0065414	Clutch Driving Shaft Bushing(Right)
	0065421	Clutch Tension Sleeve
	3501283	Adjusting Collar
	3501284	Screw(M3-0.5 × 5)
	110002	Screw(M3-0.5 × 12)
	110097	Clutch Tension Spring
	3501282	Clutch Driving Lever
	3501280	Screw(M4-0.7 × 7.3)
	130003	Clutch Sleeve(Right)
	3501276	Thrust Plate
	3501272	Clutch Spacer
	160005	Screw(M6-1 × 8)
	3501275	Clutch Sleeve(Left)
	3501290	Upper Feed Roller (30 teeth)(Standard)
	3501289	Upper Feed Roller(26 teeth)(Extra Parts)
	007621	Screw(9/64-40 × 8.5)
	3500697	Lower Feed Roller Support, C. Set
	3501260	Lower Feed Roller(19 teeth)(Standard)
	3501259	Lower Feed Roller(16teeth)(Extra Parts)
	000487	Wave Washer
	3501252	Lower Feed Roller Guide
	0060056	Retaining Ring
	160000	Screw(M3-0.5 × 3)
	3501251	Lower Feed Roller Shaft
	160003	Screw(M5-0.8 × 5)

Page 44 — PULLER MECHANISM(2)

Yamato VG2700 parts on page 44
Ref	Part number	Part name
3	3	SCREW
4	4	BRACKET
5	5	SCREW
6	6	SHAFT
7	7	SCREW
8	8	PIN
9	9	SCREW
10	10	BRACKET
11	11	SCREW
12	12	WASHER
13	13	RING
14	14	SHAFT
15	15	COLLAR
16	16	COLLAR
17	17	COLLAR
18	18	COLLAR
20	20	BRACKET
21	21	SCREW
22	22	SCREW
23	23	GEAR
24	24	BRACKET
25	25	SCREW
26	26	ROLLER
27	27	WASHER
28	28	ROLLER
29	29	COLLAR
30	30	ROLLER
31-1	31-1	ROLLER
31-2	31-2	ROLLER
32	32	SCREW
34-1	34-1	ROLLER
34-2	34-2	ROLLER
35	35	RING
36	36	SPRING
37	37	RING
38	38	SPRING
39	39	SHAFT
40	40	SCREW
41	41	BRACKET
42	42	COLLAR
43	43	PIN
44	44	ROLLER
45	45	ROLLER
47	47	PLATE
48	48	WASHER
49	49	SCREW
50	50	SHAFT
51	51	BRACKET
52	52	SCREW
53	53	SCREW
54	54	COLLAR

Page 45 — PULLER MECHANISM EXCLUSIVE PARTS(2)

Yamato VG2700 parts on page 45
Ref	Part number	Part name
41	3501250	Lower Feed Roller Bracket
42	120041	Screw(M6-1 × 12)
43	000779	Knock Pin
44	3501295	Upper Feed Roller(Rubber)
45	3501265	Lower Feed Roller(Rubber)
46	3500698	Supplementary Roller, C. Set
47	3501253	Supplementary Roller Support
48	000538	Washer
49	110009	Screw(M4-0.7 × 8)
50	3501122	Supplementary Roller
51	0065436	Supplementary Roller Stay(A)
52	0065437	Supplementary Roller Stay(B)
53	009730	Screw(1/8-44 × 5.3)[M3-0.5 × 2.6]
54	0063460	Lower Feed Roller(Rubber) Bushing

Page 46 — PULLER MECHANISM (3)

Yamato VG2700 parts on page 46
Ref	Part number	Part name
1	1	BRACKET
2	2	SCREW
3	3	WASHER
4	4	NUT
5	5	BUSHING
6	6	SCREW
7	7	LINK
8	8	BRACKET
9	9	SHAFT
10	10	CLIP
11	11	BRACKET
12	12	SCREW
13	13	BLOCK
14	14	SCREW
15	15	BUSHING
16	16	SCREW
17	17	NUT
18	18	SCREW
19	19	SPRING
20	20	BRACKET
21	21	SCREW
22	22	PIN
23	23	SLEEVE
24	24	SCREW
25	25	BUSHING
26	26	ROD
27	27	CLIP
28	28	PIN
29	29	WASHER
30	30	BRACKET
31	31	WASHER
32	32	SCREW

Page 47 — PULLER MECHANISM EXCLUSIVE PARTS(3)

Yamato VG2700 parts on page 47
Ref	Part number	Part name	Qty
1	0065381	Upper Feed Roller Lifter(Right)	1
2	110009	Screw(M4-0.7 × 8)	2
3	000538	Washer	3
4	000334	Nut	2
5	0034979	Flexible Wire Clamp Bushing	2
6	006075	Screw(11/64-40 × 6)	2
7	0067126	Lifter Connecting Plate	1
8	0065374	Upper Feed Roller Lifter(Left)	1
9	0065375	Upper Feed Roller Lifter Pin	1
10	0095027	Retaining Ring	2
11	0065376	Lifter Connecting Plate	1
12	006038	Screw(3/16-32 × 2.2)	2
13	0065407	Roller Press Bar Bracket	1
14	005650	Screw(M5-0.8 × 14)	1
15	0065402	Lifting Lever Sleeve	1
16	006411	Screw(11/64-40 × 5.5)	1
17	000340	Nut	1
18	009931	Stop Screw(11/64-40 × 26)	1
19	3100614	Roller Press Spring	1
20	3100610	Upper Feed Roller Bracket	1
21	009753	Screw(M6-1 × 35)	2
22	000779	Knock Pin	2
23	0065405	Roller Press Bar Bushing(Upper)	1
24	160007	Screw(M6-1 × 6)	1
25	3100609	Roller Press Bar Bushing(Lower)	1
26	0065404	Upper Feed Roller Press Bar	1
27	0034117	Retaining Ring	1
28	000690	Stop Pin	1
29	000613	Washer	1
30	0067111	Upper Feed Roller Lifting Lever	1
31	000487	Corrugated Washer	1
32	170008	Screw(M6-1 × 9)	1
33	3500699	Upper Feed Roller Bracket, C. Set	1

Page 48

Yamato VG2700 parts on page 48
Ref	Part number	Part name	Qty
	1-1	000 L
	1-2	000 L
	2-1	000 S, 000 S1, 000 S2
	2-2	000 S, 000 S1, 000 S2
	2-3	000 S, 000 S1, 000 S2
	2-4	000 S, 000 S1, 000 S2
	2-5	000 S, 000 S1, 000 S2
	2-6	000 S, 000 S1, 000 S2
	2-7	000 S, 000 S1, 000 S2
	3-1	VG2700-000 M, 000 S, 000 S1, 000 S2
	3-2	VG2700-000 M, 000 S, 000 S1, 000 S2
	4-1	000 S, 000 S1, 000 S2
	4-2	000 S, 000 S1, 000 S2
	5	VG2700-000 M, 000 S, 000 S1, 000 S2
	6	VG2700-000 M, 000 S, 000 S1, 000 S2
	7	VG2700-000 M, 000 S, 000 S1, 000 S2
	8	VG2700-000 M, 000 S, 000 S1, 000 S2
	9	VG2700-000 M, 000 S, 000 S1, 000 S2
	10	VG2700-000 M, 000 S, 000 S1, 000 S2
	11	VG2700-000 M, 000 S, 000 S1, 000 S2
	12	VG2700-000 M, 000 S, 000 S1, 000 S2
	13-1	000 M
	13-2	000 M
	14-1	000 S, 000 S1, 000 S2
	14-2	000 S, 000 S1, 000 S2
	14-3	000 S, 000 S1, 000 S2
	14-4	000 S, 000 S1, 000 S2
	14-5	000 S, 000 S1, 000 S2
	15	VG2700-156M-31
	16	VG2700-156M-31
	17	VG2700-156M-31
	18	Fabric Edge Guide for bottom hemming
	19	Fabric Edge Guide for bottom hemming
	20	Fabric Edge Guide for bottom hemming
	21	Fabric Edge Guide for bottom hemming

Page 49 — VG2700 EXCLUSIVE PARTS

Yamato VG2700 parts on page 49
Ref	Part number	Part name
1-1	3508007	Stitch Plate(48L)
1-2	3508008	Stitch Plate(56L)
2-1	3508012	Stitch Plate(48S)
2-2	3508062	Stitch Plate(48S1)
2-3	3508063	Stitch Plate(56S1)
2-4	3508064	Stitch Plate(64S1)
2-5	3508067	Stitch Plate(48S2)
2-6	3508068	Stitch Plate(56S2)
2-7	3508069	Stitch Plate(64S2)
3-1	0093351	Needle Clamp(32)
3-2	0093352	Needle Clamp(40)
4-1	3507000	Presser Foot, C. Set(32)
4-2	3507002	Presser Foot, C. Set(40)
5	110004	Screw(M3.5-0.6 × 8)
6	3107303	Presser Foot Spring(Left)
7	3107304	Presser Foot Spring(Right)
8	130016	Screw(M2.5-0.45 × 6)
9	3107306	Presser Foot Hinge Pin
10	110084	Screw(M3-0.5 × 4.2)
11	000327	Lock Nut
12	260006	Adjusting Screw(1/8-44 × 9.5)
13-1	3508000	Stitch Plate(32M)
13-2	3508001	Stitch Plate(40M)
14-1	3508011	Stitch Plate(40S)
14-2	3508060	Stitch Plate(32S1)
14-3	3508061	Stitch Plate(40S1)
14-4	3508065	Stitch Plate(32S2)
14-5	3508066	Stitch Plate(40S2)
15	3108134	Stitch Plate(56M-31)
16	3106000	Main Feed Dog
17	3109000	Differential Feed Dog
18	3100630	Fabric Edge Guide(Left)
19	0095367	Fabric Edge Guide Chip
20	004182	Screw(3/32-56 × 2.5)
21	3100631	Fabric Edge Guide(Right)

Page 50

Yamato VG2700 parts on page 50
Ref	Part number	Part name	Qty
	1	Needle Bar Assembly
	2	Spring
	3	Presser Bar Holder
	4	Washer
	5	Screw
	6	Tube
	7-1	Screw
	7-2	Screw
	7-3	Screw
	7-4	Screw
	7-5	Screw
	8	Screw
	9	Knob
	10	Spring
	11	Nut
	12	Washer
	13	Lever
	14	Screw
	15	Nut
	16	Pin
	17	Screw
	18	Spring
	19	Pin
	20	Screw
	21-1	Presser Foot
	21-2	Presser Foot
	22	Screw
	23	Base Plate
	24-1	Presser Foot
	24-2	Presser Foot

Page 51 — VG2700-□□□□-WF1 EXCLUSIVE PARTS

Yamato VG2700 parts on page 51
Ref	Part number	Part name	Qty
	3500297	Presser Spring Regulator
	3200132	Presser Bar Spring(Outer)
	3101315	Presser Bar Stopper
	000538	Washer
	004440	Screw(11/64-40 × 8.3)
	0093480	Presser Bar
	3107277	Walking Foot, C. Set(48)(Extra Parts)
	3107270	Walking Foot, C. Set(56)
	3107282	Walking Foot, C. Set(32)(2 Needle)(Extra Parts)
	3107275	Walking Foot, C. Set(40)(2 Needle)(Extra Parts)
	3107280	Walking Foot, C. Set(64)(Extra Parts)
	160001	Screw(M4-0.7 × 4)
	100052	Nut
	3207148	Presser Foot Spring
	100020	Nut
	000665	Washer
	100057	Nut
	3207146	Adjusting Screw
	160025	Screw(M3-0.5 × 6)
	0060270	Yoke Pin
	160001	Screw(M4-0.7 × 4)
	3107303	Presser Foot Spring(Left)
	3107306	Presser Foot Hinge Pin
	110084	Screw(M3-0.5 × 4.2)
	3107273	Fabric Presser(width 6.2mm)
	3107272	Fabric Presser(width 3.1mm)
	001228	Screw(3/32-56 × 3.2)
	3110201	Spacer(Extra Parts)
	3107274	Fabric Presser(width 12.6mm)(Extra Parts)
	3107285	Fabric Presser(width 37.2mm)(Extra Parts)

Page 52 — VG2703(1)

Yamato VG2700 parts on page 52
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38-1	38-1
	38-2	38-2
	38-3	38-3

Page 53 — VG2703 EXCLUSIVE PARTS(1)

Yamato VG2700 parts on page 53
Part number	Part name	Qty
3502003	Front Cover, C. Set
3502010	Slide Cover
3502007	Folder Support
3502012	Folder Support Fixing Plate
140019	Screw(M5-0.8 × 14)	2
3502006	Folder Clamp
009932	Screw(11/64-40 × 4)	2
005554	Screw(7/32-32 × 6.5)	1
3502013	Eye Guard
3502203	Front Cover Hinge
110016	Screw(M4-0.7 × 14)	2
170001	Screw(M4-0.7 × 8)	2
300100	Conical Spring Washer	4
160001	Screw(M4-0.7 × 4)	2
3502004	Front Cover (Lower)
110045	Screw(M4-0.7 × 12)	1
000015	Nut	1
330019	Seal Plug
3201007	Fabric Slide Plate
000426	Washer	1
110103	Screw(M5-0.8 × 8)	1
3502009	Cloth Plate(Front)
130007	Screw(M4-0.7 × 10)[M3-0.5 × 6]	2
3502008	Supplementary Plate
110050	Screw(M3-0.6 × 4.5)	2
3200033	Seal Plug	1
3502011	Tape Guide
110048	Screw(M4-0.7 × 10)	2
000505	Spacer	2
3502005	Front Cover(Upper)
3502015	Dustproof Cover(Sponge)
110094	Screw(M4-0.7 × 6)	2
3500233	Thread Take-up Cover(Front)
007627	Screw(M4-0.7 × 6)	2
110002	Screw(M3-0.5 × 5)	1
190078	Screw(M4-0.7 × 5)	1
390173	Caution Label
0093241	Folder(for Type P)	1
0093242	Folder(for Type Q)	1
0093243	Folder(for Type R)	1

Page 54 — VG2703(2)

Yamato VG2700 parts on page 54
Ref	Part number	Part name
1-1	1-1	1-1
1-2	1-2	1-2
1-3	1-3	1-3
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10-1	10-1	10-1
10-2	10-2	10-2
10-3	10-3	10-3
11	11	11
12	12	12
13-1	13-1	13-1
13-2	13-2	13-2
14-1	14-1	14-1
14-2	14-2	14-2

Page 55 — VG2703 EXCLUSIVE PARTS(2)

Yamato VG2700 parts on page 55
Ref	Part number	Part name
1-1	3207155	Presser Foot, C. Set(48)
1-2	3207156	Presser Foot, C. Set(56)
1-3	3207157	Presser Foot, C. Set(64)
2	001186	Screw(9/64-40 × 7.8)
3	0091725	Presser Foot Spring
4	005133	Screw(1/8-44 × 4.5)
5	000220	Lock Nut
6	003300	Adjusting Screw(1/8-44 × 15)
7	0091696	Presser Foot Hinge Pin
8	3207160	Tape Guide
9	001230	Screw(3/32-56 × 3.8)
10-1	3508051	Stitch Plate(48M)
10-2	3508052	Stitch Plate(56M)
10-3	3508053	Stitch Plate(64M)
11	3509001	Main Feed Dog
12	3509000	Differential Feed Dog
13-1	3207150	Presser Foot, C. Set(32)
13-2	3207151	Presser Foot, C. Set(40)
14-1	3508049	Stitch Plate(32M)
14-2	3508050	Stitch Plate(40M)

Page 56 — VG2708-WF8

Yamato VG2700 parts on page 56
Ref	Part number	Part name
1	1	Needle Bar Guide
2	2	Needle Bar Spring
3	3	Presser Bar
4	4	Washer
5	5	Screw
6	6	Presser Bar Guide
7	7	Presser Foot Bar
8	8	Screw
9	9	Presser Foot
10	10	Spring
11	11	Nut
12	12	Washer
13	13	Screw
14	14	Presser Foot
15	15	Screw
16	16	Screw
17	17	Screw
18	18	Pin
19	19	Screw
20	20	Needle Plate
21	21	Feed Dog
22	22	Feed Dog
23	23	Bobbin Case

Page 57 — VG2708-WF8 EXCLUSIVE PARTS

Yamato VG2700 parts on page 57
Ref	Part number	Part name	Qty
1	3500297	Presser Spring Regulator	1
2	3200132	Presser Bar Spring(Outer)	1
3	3101315	Presser Bar Stopper	1
4	000538	Washer	1
5	004440	Screw(11/64-40 × 8.3)	1
6	0093480	Presser Bar	1
7	3107290	Walking Foot, C. Set	1
8	160001	Screw(M4-0.7 × 4)	1
9	100052	Nut	1
10	3207148	Presser Foot Spring	1
11	100020	Nut	1
12	000665	Washer	1
13	100057	Nut	1
14	3207146	Adjusting Screw	1
15	160025	Screw(M3-0.5 × 6)	1
16	0060270	Yoke Pin	1
17	160001	Screw(M4-0.7 × 4)	2
18	3107306	Presser Foot Hinge Pin	1
19	110084	Screw(M3-0.5 × 4.2)	1
20	0094507	Stitch Plate	1
21	3509031	Main Feed Dog	1
22	3509030	Differential Feed Dog	1
23	3120076	Looper Thread Take-up	1

Page 58

Yamato VG2700 parts on page 58
Ref	Part number	Part name
1-1	1-1	1-1
1-2	1-2	1-2
2	2	2
4	4	4
3	3	3
6	6	6
7	7	7
8	8	8
9-1	9-1	9-1
9-2	9-2	9-2
9-3	9-3	9-3
10	10	10
11	11	11
12	12	12
13-1	13-1	13-1
13-2	13-2	13-2
13-3	13-3	13-3
13-4	13-4	13-4
10	10	10
14	14	14
12	12	12

Page 59 — VG2713-0000-T1N, T4N EXCLUSIVE PARTS

Yamato VG2700 parts on page 59
Ref	Part number	Part name
1-1	3107311	Fabric Guide
1-2	3507091	Fabric Guide(Long)(Extra Parts)
2	110027	Screw(M2.5-0.45 × 3.5)
3	3500631	Fabric Guide(Left)
4	3500632	Fabric Guide(Right)
6	3500634	Fabric Guide(Small)(Left)
7	3500635	Fabric Guide(Small)(Right)
8	110038	Screw(M2.5-0.45 × 4.5)
9-1	3508020	Stitch Plate(48L)
9-2	3508021	Stitch Plate(56L)
9-3	3508019	Stitch Plate(56M)
10	3509007	Differential Feed Dog
11	3509012	Differential Feed Dog(Middle)
12	110038	Screw(M2.5-0.45 × 4.5)
13-1	3508040	Stitch Plate(40S)(2 Needle)
13-2	3508031	Stitch Plate(48M)(3 Needle)
13-3	3508032	Stitch Plate(56M)(3 Needle)
13-4	3508033	Stitch Plate(64M)(3 Needle)
14	3509010	Differential Feed Dog(Middle)

Page 60

Yamato VG2700 parts on page 60
Ref	Part number	Part name
2	2	Screw
1-1	1-1	Part
1-2	1-2	Part
4	4	Part
3	3	Part
9-1	9-1	Part
9-2	9-2	Part
9-3	9-3	Part
13	13	Part
14	14	Part
15	15	Part
12	12	Screw
16	16	Needle Plate
17	17	Part
18-1	18-1	Part
18-2	18-2	Part
18-3	18-3	Part
18-4	18-4	Part
19	19	Part
12	12	Screw
8	8	Screw
7	7	Part
6	6	Part

Page 61 — VG2713-0000-T1A, T2A, T4A EXCLUSIVE PARTS サブモデル専用部品

Yamato VG2700 parts on page 61
Ref	Part number	Part name
1-1	3107311	Fabric Guide
1-2	3507091	Fabric Guide(Long)(Extra Parts)
2	110027	Screw(M2.5-0.45 × 3.5)
3	3500631	Fabric Guide(Left)
4	3500632	Fabric Guide(Right)
6	3500634	Fabric Guide(Small)(Left)
7	110038	Screw(M2.5-0.45 × 4.5)
8	110038	Screw(M2.5-0.45 × 4.5)
9-1	3508019	Stitch Plate(56M)
9-2	3508020	Stitch Plate(48L)
9-3	3508021	Stitch Plate(56L)
12	110038	Screw(M2.5-0.45 × 4.5)
13	3509017	Main Feed Dog
14	3509015	Differential Feed Dog
15	3509016	Differential Feed Dog(Middle)
16	3508074	Stitch Plate(56L)
17	3509019	Main Feed Dog
18-1	3508031	Stitch Plate(48M)
18-2	3508032	Stitch Plate(56M)
18-3	3508033	Stitch Plate(64M)
18-4	3508040	Stitch Plate(40S)(2 Needle)
19	3509018	Differential Feed Dog(Middle)

Page 62 — 24

Yamato VG2700 parts on page 62
Ref	Part number	Part name
1-1 1-2	1-1	1-2
2	2	SCREW
3	3	BRACKET
4	4	BRACKET
5	5	SCREW
6	6	PLATE
7-1 7-2	7-1	7-2
8	8	FEED DOG
9	9	BRACKET
10	10	SCREW
11	11	NEEDLE PLATE
12	12	FEED DOG
13-1 13-2	13-1	13-2

Page 63 — VG2713-0000-K1N, K4N EXCLUSIVE PARTS

Yamato VG2700 parts on page 63
Ref	Part number	Part name
1-1	3107311	Fabric Guide
1-2	3507091	Fabric Guide(Long)(Extra Parts)
2	110027	Screw(M2.5-0.45 × 3.5)
3	3101320	Fabric Guide(Left)
4	3101321	Fabric Guide(Right)
5	110027	Screw(M2.5-0.45 × 3.5) [M2.5-0.45 × 4.5]
6	3500637	Supplementary Block
7-1	3508025	Stitch Plate(48M-K1N)
7-2	3508026	Stitch Plate(56M-K1N)
8	3509007	Differential Feed Dog
9	3509012	Differential Feed Dog(Middle)
10	110038	Screw(M2.5-0.45 × 4.5)
11	3508087	Stitch Plate(56M-K4N)
12	3509010	Differential Feed Dog(Middle)
13-1	3508041	Stitch Plate(40S-K4N)
13-2	3508086	Stitch Plate(48M-K4N)

Page 64 — 25 VG2713-0000-000-WF2

Yamato VG2700 parts on page 64
Ref	Part number	Part name	Qty
	1	Needle Bar Assembly
	2	Presser Bar Spring
	3	Presser Foot Holder
	4	Washer
	5	Screw
	6	Presser Bar
	7-1	Presser Foot
	7-2	Presser Foot
	7-3	Presser Foot
	7-4	Presser Foot
	8	Screw
	9	Presser Foot Adjusting Nut
	10	Presser Foot Spring
	11	Washer
	12	Washer
	13	Presser Foot Bar Link
	14	Screw
	15	Screw
	16	Pin
	17	Spring
	18	Spring
	19	Presser Foot Lever Spring
	20	Pin
	21	Screw
	22	Presser Foot Bar Guide
	23	Screw

Page 65 — VG2713-000-000-WF2 EXCLUSIVE PARTS

Yamato VG2700 parts on page 65
Ref	Part number	Part name
1	3500297	Presser Spring Regulator
2	3200132	Presser Bar Spring(Outer)
3	3101315	Presser Bar Stopper
4	000538	Washer
5	004440	Screw(11/64-40 × 8.3)
6	0093480	Presser Bar
7-1	3507072	Walking Foot, C. Set(48)
7-2	3507074	Walking Foot, C. Set(56)
7-3	3507070	Walking Foot, C. Set(40) (2 Needle)
7-4	3507076	Walking Foot, C. Set(64) (Extra Parts)
8	160001	Screw(M4-0.7 × 4)
9	100052	Nut
10	3207148	Presser Foot Spring
11	100020	Nut
12	000665	Washer
13	100057	Nut
14	3207146	Adjusting Screw
15	160025	Screw(M3-0.5 × 6)
16	0060270	Yoke Pin
17	160001	Screw(M4-0.7 × 4)
18	3107303	Presser Foot Spring(Left)
19	3107304	Presser Foot Spring(Right)
20	3107306	Presser Foot Hinge Pin
21	110084	Screw(M3-0.5 × 4.2)
22	3107311	Fabric Guide
23	110027	Screw(M2.5-0.45 × 3.5)

Page 66

Yamato VG2700 parts on page 66
Ref	Part number	Part name	Qty
	1	VG2740: Including in accessory/アクセサリーに同梱
	2	VG2740P: Fitted on machine/ミシン本体に装着
	3	VG2740P: Including in accessory/アクセサリーに同梱
	4	VG2740: Fitted on machine/ミシン本体に装着
	5	VG2740P: Including in accessory/アクセサリーに同梱
	6	VG2740P: Including in accessory/アクセサリーに同梱
	7	VG2740P: Including in accessory/アクセサリーに同梱
	8	VG2740P: Including in accessory/アクセサリーに同梱
	9	EXTRA PARTS
	10	EXTRA PARTS
	11	VG2740 (P) -132S1, 132M, 140S1 (2 Needle)
	12	EXTRA PARTS
	13	Stitch tongue of P. F. for using machine without spreader thread. 上飾りなし使用時の押工爪
	14	VG2740 (P) -132S1, 140S1
	15	VG2740 (P) -132M
	16	EXTRA PARTS
	17	25-1
	18	25-2
	19	26-1
	20	26-2
	21	27
	22	28
	23	29
	24	VG2700

Page 67 — VG2740, 2740P EXCLUSIVE PARTS(1)

Yamato VG2700 parts on page 67
Ref	Part number	Part name	Qty
	3501302 [3501298]	Fabric Guide(Left)
	3110073	Fabric Guide(Right)
	2100265	Spacer
	110010 [110043]	Screw(M4-0.7 x 16)[M4-0.7 x 14]
	3100630	Folder(Left)
	0095367	Folder Chip
	004182	Screw(3/32-56 x 2.5)
	3100631	Folder(Right)
	0094615	Fabric Edge Guide(Left) (Extra Parts)
	001228	Screw(3/32-56 x 3.2)(Extra Parts)
	3507060	Presser Foot, C. Set(1) (32, 40)
	3507058	Presser Foot, C. Set
	110004	Screw(M3.5-0.6 x 8)
	3107303	Presser Foot Spring(Left)
	130016	Screw(M2.5-0.45 x 6)
	3107306	Presser Foot Hinge Pin
	110084	Screw(M3-0.5 x 4.2)
	004154	Screw(3/32-56 x 2.2)
	000327	Lock Nut
	260006	Adjusting Screw(1/8-44 x 9.5)
	3507061	Presser Foot Stitch Tongue(32, 40)
	3509007	Differential Feed Dog
	3509025	Differential Feed Dog(Middle)
	110038	Screw(M2.5-0.45 x 4.5)
	3507083	Presser Foot Stitch Tongue(32)
	3507084	Presser Foot Stitch Tongue(40)
	3508080	Stitch Plate(32S1) (2 Needle)
	3508081	Stitch Plate(40S1) (2 Needle)
	3508125	Stitch Plate(32M) (2 Needle)
	3508126	Stitch Plate(40M) (2 Needle) (Extra Parts)
	3508136	Stitch Plate(32M) (2 Needle) (Extra Parts)
	3500255	Supplementary Block

Page 68

Yamato VG2700 parts on page 68
Ref	Part number	Part name	Qty
	1	VG2740 (P)-148S1, 148M, 156S1, 156M, 164S1, 164M
	2	Main assembly diagram
	3	Screw
	4	Spring
	5	Screw
	6	Pin
	7	Screw
	8	Screw
	9	Part
	10	Part
	11	Part
	12	Part
	13	Part
	14	Part
	15	Part
	16	Part
	17-1	Needle plate
	17-2	Needle plate
	17-3	Needle plate
	18-1	Needle plate
	18-2	Needle plate
	18-3	Needle plate

Page 69 — VG2740, 2740P EXCLUSIVE PARTS(2)

Yamato VG2700 parts on page 69
Ref	Part number	Part name
1	3507064	Presser Foot, C. Set(1)(48, 56, 64)
2	3507058	Presser Foot, C. Set
3	110004	Screw(M3.5-0.6 × 8)
4	3107303	Presser Foot Spring(Left)
5	130016	Screw(M2.5-0.45 × 6)
6	3107306	Presser Foot Hinge Pin
7	110084	Screw(M3-0.5 × 4.2)
8	004154	Screw(3/32-56 × 2.2)
9	000327	Lock Nut
10	260006	Adjusting Screw(1/8-44 × 9.5)
11	3507065	Presser Foot Stitch Tongue(48, 56, 64)
12	3509007	Differential Feed Dog
13	3509026	Differential Feed Dog(Middle)
14	110038	Screw(M2.5-0.45 × 4.5)
15	3507085	Presser Foot Stitch Tongue(48)
16	3507087	Presser Foot Stitch Tongue(56, 64)
17-1	3508082	Stitch Plate(48S1)
17-2	3508083	Stitch Plate(56S1)
17-3	3508084	Stitch Plate(64S1)
18-1	3508127	Stitch Plate(48M)
18-2	3508128	Stitch Plate(56M)
18-3	3508129	Stitch Plate(64M)

Page 70

Yamato VG2700 parts on page 70
Ref	Part number	Part name
28	VG2740-156S1-WF1	28
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21-1
	21-2
	22
	23
	24-1
	24-2

Page 71 — VG2740-156S1-WF1 EXCLUSIVE PARTS

Yamato VG2700 parts on page 71
Part number	Part name	Qty
3500297	Presser Spring Regulator	1
3200132	Presser Bar Spring(Outer)	1
3101315	Presser Bar Stopper	1
000538	Washer	1
004440	Screw(11/64-40 × 8.3)	1
0093480	Presser Bar	1
3107270	Walking Foot, C. Set(56)	1
160001	Screw(M4-0.7 × 4)	1
100052	Nut	1
3207145	Presser Foot Spring	1
100020	Nut	1
000665	Washer	1
100057	Nut	1
3207146	Adjusting Screw	1
160025	Screw(M3-0.5 × 6)	1
0060270	Yoke Pin	1
160001	Screw(M4-0.7 × 4)	2
3107303	Presser Foot Spring(Left)	1
3107306	Presser Foot Hinge Pin	1
110084	Screw(M3-0.5 × 4.2)	1
3107272	Fabric Presser(width 6.2mm)	1
3107273	Fabric Presser(width 3.1mm)(Accesary)	1
001228	Screw(3/32-56 × 3.2)	2
3110201	Spacer(Extra Parts)	1
3107274	FabricPresser(width 12.6mm)(Extra Parts)	1
3107285	FabricPreaaer(Width 37.2mm)(Extra Parts)	1

Page 72

Yamato VG2700 parts on page 72
Ref	Part number	Part name
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23

Page 73 — VG2740(P)-140M-SM, 148M-SM EXCLUSIVE PARTS

Yamato VG2700 parts on page 73
Ref	Part number	Part name	Qty
1	3103000	Needle Thread Retainer Support, C.Set	1
2	3100087	Needle Thread Retainer Support	1
3	110013	Screw(M4-0.7 × 8)	1
4	0036175	Thread Retainer Disc Support	1
5	0032425	Needle Thread Retainer Dice	1
6	0032426	Needle Thread Retainer Spring	1
7	001093	Screw(1/8-44 × 2.2)	1
8	3501302	Fabric Edge Guide(Left)	1
9	0093415	Presser Foot, C. Set(40)	1
11	001186	Screw(9/64-40 × 7.8)	1
12	3107304	Presser Foot Spring	1
13	0065366	Locking Pin	1
14	0063282	Presser Foot Hinge Pin	1
15	005122	Screw(3/32-56 × 5.5)	1
16	0093352	Needle Clamp(40)	1
17	0093410	Stitch Plate(40M)	1
18	3109042	Main Feed Dog(40)	1
19	3139006	Differential Feed Dog(40)	1
20	0093421	Presser Foot, C. Set(48)	1
21	0093417	Stitch Plate(48M)	1
22	3109044	Main Feed Dog(48)	1
23	3139007	Differential Feed Dog(48)	1

Page 74 — 30 VG2760

Yamato VG2700 parts on page 74
Ref	Part number	Part name
1	1-1	1-2
	2	2
	3	3
	4-1	4-2
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11-1	11-2
	12	12
	13	13
	14	14
	15-1	15-2
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	for UT-A, UT Device
	36	36

Page 75

Yamato VG2700 parts on page 75
Part number	Part name	Qty
3209121	Needle Clamp(56)	1
3209122	Needle Clamp(64)	1
160033	Screw(M2.5-0.45 × 3)	4
3207039	Presser Foot, C. Set(56)	1
3207040	Presser Foot, C. Set(64)	1
001186	Screw(9/64-40 × 7.8)	1
3107303	Presser Foot Spring(Left)	1
0063284	Presser Foot Guide Pin	1
0063282	Presser Foot Hinge Pin	1
005122	Screw(3/32-56 × 5.5)	1
3107304	Presser Foot Spring(Right)	1
3207044	Presser Foot Tongue(56)	1
3207045	Presser Foot Tongue(64)	1
004182	Screw(3/32-56 × 2.5)	1
3207046	Fabric Guide	1
110027	Screw(M2.5-0.45 × 3.5)	1
3508077	Stitch Plate(56S3)	1
3508078	Stitch Plate(64S3)	1
3509023	Main Feed Dog	1
3509022	Differential Feed Dog	1
3109306	Looper	1
0024084	Thread Tension Spring Cap	1
0024083	Tension Spring Bushing	1
0030255	Tension Spring(Needle)	1
0090071	Thread Tension Spring Retainer	1
000177	Felt	1
0031111	Tension Disc	2
290029	Tension Post	1
0090812	Tension Post Ferrule	1
3100417	Tension Disc Separator	1
0090856	Tension Disc Eyelet	1
0090807	Thread Lead-in Guide	1
3100416	Tension Post Support	1
3500282	Needle Thread Eyelet	1
110054	Screw(M3-0.5 × 3.5)	1
3100418	Thread Pull-off Eyelet	1
110012	Screw(M4-0.7 × 5)	2
3500514	Thread Pull-off Hook Unit	1
003657	Screw(M4-0.7 × 3)[M4-0.7 × 4]	1

Page 76 — EC DEVICE(1)

Yamato VG2700 parts on page 76
Ref	Part number	Part name	Qty
	1	EC DEVICE(1)
	2	EC DEVICE(1)
	3	BRACKET
	4	SCREW
	5	WASHER
	6	BASE PLATE
	7	MOTOR
	8	WASHER
	9	NUT
	10	BRACKET
	11	SCREW
	12	BRACKET
	13	SCREW
	14	SCREW
	15	LEVER
	16	SCREW
	17	BRACKET
	18	WASHER
	19	SCREW
	20	SCREW
	21	SHAFT
	22	BRACKET
	23	SCREW
	24	LEVER
	25	SCREW
	27	COLLAR
	28	SPRING
	29	WASHER
	30	SPRING
	31	SCREW
	32	STOPPER
	33	SPRING
	34	WASHER
	35	SCREW
	36	BRACKET
	37	SCREW
	38	HANDLE
	39	PIN
	40	BRACKET
	41	NUT
	42	BASE PLATE
	43	SCREW
	44	SCREW
	45	BRACKET
	46	WASHER
	47	SCREW
	48	COVER
	49	SCREW
	50	SPRING
	51	WASHER
	52	NUT

Page 77 — EC DEVICE (1)

Yamato VG2700 parts on page 77
Part number	Part name	Qty
3509969	EC Device, Complete Set	1
3501181	Cutting Device, C. Set	1
3501182	Cutting Device Basement	1
120010	Screw(M6-1 × 10)	2
300047	Washer	2
3101438	Cutting Device Basement Holder	1
0011789	Solenoid	1
000528	Washer	2
000011	Nut	4
0092288	Cutting Knife Connecting Lever	1
005115	Screw(1/4-28 × 19)	1
0092286	Sliding Block	1
0092287	Sliding Block Pin	1
003638	Screw(11/64-40 × 4)	3
3101443	Upper Cutting Knife Holder	1
003670	Screw(7/32-32 × 6.3)	2
3201105	Upper Cutting Knife	1
000538	Washer	2
002308	Screw(11/64-40 × 10.4)	2
290035	Adjusting Screw(11/64-40 × 11.5)	1
0092283	Upper Cutting Knife Holder Shaft	1
3101442	Cutting Knife Cover	1
004406	Screw(11/64-40 × 8)	2
3501183	Lower Cutting Knife	1
005550	Screw(11/64-40 × 13.5)	2
0092294	Collar(10 × 18 × 7.5mm)	1
0092252	Press Spring	1
000498	Washer	1
0092291	Return Spring	1
005512	Screw(11/64-40 × 3)	1
0092293	Return Spring Latch	1
003635	Screw(1/4-40 × 6)	1
000621	Washer	1
170031	Screw(M5-0.8 × 12.4(8.4))	1
0060248	Cord Clamp(3N- φ5.3)	1
110012	Screw(M4-0.7 × 5)	1
2114124	Clamp Lever	1
340014	Roll Pin	1
3101439	Clamp Lever Fixing Plate	1

Page 78 — EC DEVICE(1)

Yamato VG2700 parts on page 78
Ref	Part number	Part name
2	2	EC DEVICE(1)
7	7	MOTOR
32	32	BRACKET
33	33	SPRING
31	31	SCREW
29	29	WASHER
28	28	SPRING
14	14	SCREW
27	27	COLLAR
25	25	SCREW
24	24	NEEDLE BAR CONNECTING LINK
37	37	SCREW
36	36	BRACKET
38	38	HANDLE
39	39	PIN
40	40	BRACKET
49	49	SCREW
50	50	SPRING
51	51	WASHER
48	48	COVER
6	6	BASE PLATE
35	35	SCREW
34	34	WASHER
44	44	SCREW
43	43	SCREW
41	41	NUT
42	42	BASE PLATE
11	11	SCREW
10	10	BRACKET
9	9	WASHER
8	8	NUT
4	4	BRACKET
5	5	WASHER
3	3	BRACKET
22	22	COVER
23	23	SCREW
20	20	SCREW
17	17	BRACKET
18	18	WASHER
19	19	SCREW
21	21	SHAFT
16	16	SCREW
15	15	LEVER
13	13	SCREW
12	12	PIN
45	45	PLATE
46	46	WASHER
47	47	SCREW
52	52	SCREW

Page 79 — EC DEVICE(1)

Yamato VG2700 parts on page 79
Ref	Part number	Part name
41	000009	Nut
42	3501185	Cloth Plate(Large)
43	120009	Screw(M4-0.7 × 12)
44	110031	Screw(M4-0.7 × 12)
45	3101444	Stopper
46	000538	Washer
47	007610	Screw(M4-0.7 × 10)
48	3502022	Cloth Plate(Small)
49	190092	Screw(M5-0.8 × 46.3)
50	3501187	Cloth Plate(Small) Spring
51	000426	Washer
52	0077179	Retaining Ring

Page 80 — EC DEVICE(2)

Yamato VG2700 parts on page 80
Ref	Part number	Part name	Qty
	1	EC DEVICE(2)
	2	SCREW
	3	BRACKET
	4	EC DEVICE
	5	CIRCUIT BOARD
	6-1	BRACKET
	6-2	BRACKET
	7	TERMINAL BLOCK
	8	SCREW
	9	BRACKET
	10	MOTOR
	11	WASHER
	12	SCREW
	13	BRACKET
	14	BRACKET
	15	SCREW
	16	CABLE
	17	SWITCH
	18	FOOT

Page 81 — EC DEVICE(2)

Yamato VG2700 parts on page 81
Ref	Part number	Part name
1	3502023	Cloth Plate(Small) Support
2	110001	Screw(M4-0.7 × 5.4)
3	3502021	Stitch Plate Holder
4	0011957	Control Box, Complete Set
5	0011952	Control Board
6-1	0010938	Fuse(100V)
6-2	1070020	Fuse(200V)
7	0011709	Control Box Stay
8	006905	Wood Screw($ 5.1 × 20)
9	0010565	Knee Switch, Complete Set
10	0010564	Knee Switch
11	300031	Washer
12	300033	Spring Washer
13	100038	Wing Nut
14	0092232	Knee Switch Holder
15	006910	Wood Screw($ 6.8 × 26)
16	0011303	Earthed Line
17	3101447	Fabric Guide
18	3508208	Stitch Plate(56M)

Page 82 — EL1 DEVICE

Yamato VG2700 parts on page 82
Ref	Part number	Part name
1	1	EL1 DEVICE
2	2	BRACKET
3	3	PLATE
4	4	PLATE
5	5	BRACKET
6	6	SCREW
7	7	CABLE
8	8	SCREW

Page 83 — EL1 DEVICE

Yamato VG2700 parts on page 83
Ref	Part number	Part name
1	3500670	EL1 Device, C. Set
2	3500671	Supplementary Cover
3	3500675	Lamp Cover(Green)(Standard)
4	3500676	Lamp Cover
5	3500672	Light Emitter Holder
6	110106	Screw(M4-0.7 × 8)
7	1200309	Light Emitter
8	004236	Screw(3/32-56 × 4.2)

Page 84

Yamato VG2700 parts on page 84
Ref	Part number	Part name	Qty
	1	EXTRA PARTS
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27

Page 85 — EXTRA PARTS

Yamato VG2700 parts on page 85
Ref	Part number	Part name	Qty
1	3500603	Self-cleaning Pipe	1
2	3500605	Pipe Holder	2
3	3100033	Supplementary Front Cover	1
4	110105	Screw(M5-0.8 × 12)	2
5	000426	Washer	2
6	0093690	Timing Gauge	1
7	0095220	Looper Timing Gauge	1
8	3500493	Timing Gauge	1
9	3100256	HR Device, Complete Set	1
10	3100254	HR Container	1
11	1090190	Pipe Joint	1
12	3100253	Oil Tube	1
13	310007	Felt(2.5 × 2.5 × 100mm)	1
14	3100250	HR Cup	1
15	310006	HR Felt	1
16	000637	Seal Plug	1
17	110013	Screw(M4-0.7 × 8)	2
18	3109210	Needle Guard(Rear)(an angle of 23°)	1
19	3507095	Presser Foot, C. Set(56, 64)	1
20	110004	Screw(M3.5-0.6 × 8)	1
21	3507097	Presser Foot Hinge Pin	1
22	110084	Screw(M3-0.5 × 4.2)	1
23	000327	Lock Nut	1
24	260006	Adjusting Screw(1/8-44 × 9.5)	1
25	3507087	Presser Foot Stitch Tongue(56, 64)	1
26	004154	Screw(3/32-56 × 2.2)	1
27	3109301	Looper(hard plating)	1

Page 86

Yamato VG2700 parts on page 86
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27

Page 87 — THREAD STAND

Yamato VG2700 parts on page 87
Ref	Part number	Part name	Qty
1	9620696	Thread Stand, C. Set(6 Spools Type)	1
2	9620631	Column Cap	1
3	9620670	Column Cap(Upper)	1
4	9620689	Thread Guide Holder(Large)	1
5	911002	Screw(M4-0.7 × 20)	1
6	911001	Screw(M4-0.7 × 12)	3
7	910001	Nut	4
8	9620673	Column Pipe Connector	1
9	911006	Screw(M5-0.8 × 13)	2
10	910000	Nut	8
11	9620675	Column Pipe(Lower)	1
12	930052	Washer	1
13	930053	Spring Washer	1
14	910003	Nut	1
16	9620703	Thread Hanger(3 Spools Type)	4
17	9620700	Thread Eyelet	6
18	9620688	Thread Hanger Holder	4
19	911060	Screw(M6-1 × 15)	4
20	9620691	Thread Guide Arm	1
21	9620690	Thread Guide Holder(Small)	1
22	9620666	Thread Guide(6 Spools Type)	1
23	9620678	Spool Cushion	6
24	9620679	Spool Pin	6
25	9620680	Spool Mat	6
26	9620681	Spool Seat Disc	6
27	930055	Spring Washer	6

Page 88

Yamato VG2700 parts on page 88
Ref	Part number	Part name
1	1	COVER
2	2	SCREW
3	3	COVER
4	4	NEEDLES
5	5	SCREW DRIVER
6	6	SCREW DRIVER
7	7	TWEEZERS
8	8	WRENCH
9-1	9-1	INSTRUCTION MANUAL
9-2	9-2	INSTRUCTION MANUAL
9-3	9-3	INSTRUCTION MANUAL
9-4	9-4	INSTRUCTION MANUAL
10	10	PART LIST
11	11	Yamato SF OIL 2B
13	13	NEEDLE BAR
14	14	BASE PLATE
15	15	SPRING
16	16	PRESSER FOOT BAR
17	17	SCREW
18	18	NUT
19	19	PRESSER FOOT
20	20	SCREW
21	21	BASE
22	22	SCREW
23	23	ROD
24	24	HOLDER

Page 89 — ACCESSORIES(1)

Yamato VG2700 parts on page 89
Ref	Part number	Part name
1	3500700	Belt Cover
2	110028	Screw(M6-1 × 46)
3	9620003	Bag
5	0099094	Screwdriver(2.5 × 75mm)
6	0099091	Screwdriver(5.5 × 200mm)
7	0099051	Thread Tweezers
8	9620210	Hexagonal Wrench(2.5mm)
9-1	9720160	Instructions Book
9-2	9720162	Instructions Book(with UT-A, UT Device)
9-3	9720161	Parts Book
9-4	9710056
11	9620008	SF Oil 28(1・)
12	9620750	Knitted Tape Stand, C. Set(VG2703)
13	9620751	Tape Pin
14	9620752	Tape Disc
15	0004333	Washer
16	9620753	Tape Disc Block
17	911062	Screw(M4-0.7 × 15)
18	910001	Nut
19	9620756	Tape Stand Bar
20	001448	Screw(15/64-28 × 5.5)
21	9620757	Tape Stand
22	005148	Wood Screw(φ 4.5 × 25)
23	9620754	Tape Guide Bar
24	9620755	Tape Guide

Page 90

Yamato VG2700 parts on page 90
Ref	Part number	Part name
1	1	Cone-shaped part
2	2	Bolt
3	3	Washer
4	4	Spring washer
5	5	Nut
6	6	Bracket
7	7	Screw
8	8	Knob
9	9	Hex wrench
12	12	Chain
13	13	Base plate
14	14	Knob
15	15	Bolt
16	16	Washer
17	17	Washer
18	18	Washer
19	19	Nut
20	20	Bracket
21	21	Cone-shaped part
22	22	Bolt

Page 91 — ACCESSORIES(2)

Yamato VG2700 parts on page 91
Ref	Part number	Part name	Qty
	0063009	Oil Reservoir Rubber Cushion
	180008	Setting Screw(M6-1 × 63)
	000528	Washer
	000667	Spring Washer
	000011	Nut
	3500701	Belt Cover(Lower)
	006905	Wood Screw(φ 5.1 × 20)
	0037988	Screwdriver(Short)
	9620202	Hexagonal Wrench(2.0mm)
	0037912	Chain
	9611074	Presser Foot Pedal
	000070	Hanging Nut
	009858	Hanging Bolt(M8-1.25 × 75)
	000162	Washer
	0020064	Supporting Board Rubber Cushion
	0063010	Supporting Board Rubber Cushion(Lower)
	000016	Nut
	3100008	Supporting Board
	0063009	Oil Reservoir Rubber Cushion
	180009	Setting Screw(M6-1 × 16)

Page 92 — WARNING LABEL 警告ラベル

Yamato VG2700 parts on page 92
Ref	Part number	Part name	Qty
	390140	CAUTION IN OPERATION
	390143	操作注意ラベル
	390144	DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE 感電注意ラベル
	390145	"Be sure to connect earth line". アースラベル
	390146	ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベル
	390147	EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル
	390148	CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル

Page 94 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(1)

Yamato VG2700 parts on page 94
Ref	Part number	Part name
3508000	0093351	3507000
3508001	0093352	3507002
3508002	0093356	3507050
3508003	0093357	3507052
3508004	0093358	3507054
3508003	0093357	3507052
3508000	0093351	3507000

Page 95

Yamato VG2700 parts on page 95
Ref	Part number	Part name	Qty
	3509005	後送り
	3109300	"
	"	"
	"	"
	"	"
	"	"
	"	"
	"	"
	"	3109302
	"	"
	"	"
	"	"
	3106000	"
	3509005	"
	"	"
	"	"
	"	"
	"	"
	"	"
	3509005	"
	"	"

Page 96 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(2)

Yamato VG2700 parts on page 96
Ref	Part number	Part name
3107275	0093352	VG2700-140M-WF1*
"	140S-WF1*	140S-WF1*
"	140S1-WF1 *	140S1-WF1 *
"	140S2-WF1 *	140S2-WF1 *
3107277	0093356	148M-WF1
"	148L-WF1	148L-WF1
"	148S-WF1	148S-WF1
"	148S1-WF1	148S1-WF1
"	148S2-WF1	148S2-WF1
3107270	0093357	156M-WF1
"	156L-WF1	156L-WF1
"	156S1-WF1	156S1-WF1
"	156S2-WF1	156S2-WF1
3107280	0093358	164M-WF1
"	164S1-WF1	164S1-WF1
"	164S2-WF1	164S2-WF1
3207150	0093351	VG2703-132M *
3207151	0093352	140M *
3207155	0093356	148M
3207156	0093357	156M
3207157	0093358	164M
3107290	0093357	VG2708-WF8

Page 97

Yamato VG2700 parts on page 97
Ref	Part number	Part name	Qty
	3509005	後送り
	3109300	ルーパ
	3109302
	3509001
	3109300
	3209302
	3109300
	3509031
	3109300

Page 98

Yamato VG2700 parts on page 98
Ref	Part number	Part name
針止メ	0093351	Needle Clamp
押工(組)	3507060	Presser Foot, C. Set
押工爪	3507061	Presser Foot Stitch Tongue
針板	3508080	Stitch Plate
前送り	3509007	Differential Feed Dog
	0093352	Needle Clamp
	3508081	Stitch Plate
	0093356	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508082	Stitch Plate
	0093421	Presser Foot, C. Set
	3139007	Differential Feed Dog
	0093357	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508083	Stitch Plate
	3509007	Differential Feed Dog
	3107270	Presser Foot, C. Set
	0093358	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508084	Stitch Plate
	0093351	Needle Clamp
	3507060	Presser Foot, C. Set
	3507061	Presser Foot Stitch Tongue
	3508080	Stitch Plate
	3509007	Differential Feed Dog
	0093352	Needle Clamp
	3508081	Stitch Plate
	0093415	Presser Foot, C. Set
	3139006	Differential Feed Dog
	0093356	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508082	Stitch Plate
	3508127	Stitch Plate
	0093421	Presser Foot, C. Set
	3139007	Differential Feed Dog
	0093357	Needle Clamp
	3507064	Presser Foot, C. Set
	3507065	Presser Foot Stitch Tongue
	3508083	Stitch Plate
	3509007	Differential Feed Dog
	3508128	Stitch Plate
	0093358	Needle Clamp
	3508084	Stitch Plate
	3508129	Stitch Plate
	3209121	Needle Clamp
	3207039	Presser Foot, C. Set
	3207044	Presser Foot Stitch Tongue
	3508077	Stitch Plate
	3509022	Differential Feed Dog
	3209122	Needle Clamp
	3207040	Presser Foot, C. Set
	3207045	Presser Foot Stitch Tongue
	3508078	Stitch Plate
	3209121	Needle Clamp
	3207039	Presser Foot, C. Set
	3207044	Presser Foot Stitch Tongue
	3508077	Stitch Plate
	3509022	Differential Feed Dog

Page 99

Yamato VG2700 parts on page 99
Ref	Part number	Part name	Qty
	3509025	3509005
	3509026	3109044
	3509026	3509005
	3509026	3109042
	3509026	3509005
	3509023	3109306
	3509023	3109306

Page 100 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(4)

Yamato VG2700 parts on page 100
Ref	Part number	Part name	Qty
3508020	0093356	VG2713-148L-T1N	3507050
3508019	0093357	156M-T1N	3507052
3508021	"	156L-T1N	"
3508020	0093356	148L-T1N-WF2	3507072
3508019	0093357	156M-T1N-WF2	3507074
3508021	"	156L-T1N-WF2	"
3508040	0093352	140S-T4N *	3507002
3508031	0093356	148M-T4N	3507050
3508032	0093357	156M-T4N	3507052
3508033	0093358	164M-T4N	3507054
3508040	0093352	140S-T4N-WF2 *	3507070
3508031	0093356	148M-T4N-WF2	3507072
3508032	0093357	156M-T4N-WF2	3507074
3508020	0093356	148L-T1A	3507050
3508019	0093357	156M-T1A	3507052
3508021	"	156L-T1A	"
3508020	0093356	148L-T1A-WF2	3507072
3508019	0093357	156M-T1A-WF2	3507074
3508021	"	156L-T1A-WF2	"
3507074	"	156L-T2A	3507052
"	"	1561-T2A-WF2	3507074

Page 101

Yamato VG2700 parts on page 101
Ref	Part number	Part name	Qty
	3509005	Main Feed Dog 後送り
	3500631	Fabric Guide (Left) 布ガイド(左)
	3500632	Fabric Guide (Right) 布ガイド(右)
	3109302	Supplementary Block 補助ブロック
	3109300	Looper ルーパ
	3109302	Looper ルーパ
	3109300	Looper ルーパ
	3109302	Looper ルーパ
	3109300	Looper ルーパ
	3109302	Looper ルーパ
	3109300	Looper ルーパ
	3109302	Looper ルーパ
	3509017	Main Feed Dog 後送り
	3109300	Looper ルーパ
	3109302	Looper ルーパ
	3109300	Looper ルーパ
	3509019	Main Feed Dog 後送り
	3109300	Looper ルーパ

Page 102 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(5)

Yamato VG2700 parts on page 102
Ref	Part number	Part name	Qty
	VG2713-140S-T4A *	Needle Clamp
	0093352	Presser Foot, C. Set
	3507002	Stitch Plate
	3508040	Differential Feed Dog
	3509015	Differential Feed Dog (Middle)
	3509018	Differential Feed Dog (Middle)
	148M-T4A	Needle Clamp
	0093356	Presser Foot, C. Set
	3507050	Stitch Plate
	3508031	Differential Feed Dog
	156M-T4A	Needle Clamp
	0093357	Presser Foot, C. Set
	3507052	Stitch Plate
	3508032	Differential Feed Dog
	164M-T4A	Needle Clamp
	0093358	Presser Foot, C. Set
	3507054	Stitch Plate
	3508033	Differential Feed Dog
	140S-T4A-WF2 *	Needle Clamp
	0093352	Presser Foot, C. Set
	3507070	Stitch Plate
	3508040	Differential Feed Dog
	148M-T4A-WF2	Needle Clamp
	0093356	Presser Foot, C. Set
	3507072	Stitch Plate
	3508031	Differential Feed Dog
	156M-T4A-WF2	Needle Clamp
	0093357	Presser Foot, C. Set
	3507074	Stitch Plate
	3508032	Differential Feed Dog
	148M-K1N	Needle Clamp
	0093356	Presser Foot, C. Set
	3507050	Stitch Plate
	3508025	Differential Feed Dog
	3509007	Differential Feed Dog (Middle)
	3509012	Differential Feed Dog (Middle)
	156M-K1N	Needle Clamp
	0093357	Presser Foot, C. Set
	3507052	Stitch Plate
	3508026	Differential Feed Dog
	148M-K1N-WF2	Needle Clamp
	0093356	Presser Foot, C. Set
	3507072	Stitch Plate
	3508025	Differential Feed Dog
	156M-K1N-WF2	Needle Clamp
	0093357	Presser Foot, C. Set
	3507074	Stitch Plate
	3508026	Differential Feed Dog
	140S-K4N *	Needle Clamp
	0093352	Presser Foot, C. Set
	3507002	Stitch Plate
	3508041	Differential Feed Dog
	3509010	Differential Feed Dog (Middle)
	140S-K4N-WF2 *	Needle Clamp
	3507070	Presser Foot, C. Set
	156M-K4N	Needle Clamp
	0093357	Presser Foot, C. Set
	3507052	Stitch Plate
	3508087	Differential Feed Dog
	156M-K4N-WF2	Needle Clamp
	3507074	Presser Foot, C. Set
	VG2713P-156M-K4N	Needle Clamp
	0093357	Presser Foot, C. Set
	3507052	Stitch Plate
	3508087	Differential Feed Dog
	3509007	Differential Feed Dog (Middle)
	3509010	Differential Feed Dog (Middle)

Page 103

Yamato VG2700 parts on page 103
Ref	Part number	Part name	Qty
	3509017	Main Feed Dog
	3500631	Fabric Guide (Left)
	3500632	Fabric Guide (Right)
	3109300	Supplementary Block
	3109302	Supplementary Block
	3109300	Supplementary Block
	3109302	Supplementary Block
	3109300	Supplementary Block
	3509005	Main Feed Dog
	3101320	Fabric Guide (Left)
	3101321	Fabric Guide (Right)
	3500637	Supplementary Block
	3109302	Looper
	3109300	Looper
	3109302	Looper
	3109300	Looper

Page 104

Yamato VG2700 parts on page 104
Ref	Part number	Part name	Qty
41	000009
35	000010
9	000011
5	000011
52	000014
29	000015
17	000015
19	000016
47	000022
14	000070
16	000162
6	000177
23	000177
16	000195
44	000199
48	000206
5	000220
7	000234
18	000306
20	000309
26	000327
11	000327
19	000327
9	000327
23	000327
4	000334
17	000340
38	000360
29	000397
6	000425
20	000426
51	000426
5	000426
15	000433
2	000445
40	000487
35	000487
31	000487
29	000498
29	000505
8	000528
8	000528
3	000528
32	000538
30	000538
42	000538
48	000538
3	000538
4	000538
4	000538
18	000538
46	000538
4	000538
4	000538
18	000538
46	000538
42	000555
40	000560
49	000600
47	000600
68	000600
17	000613
29	000613
34	000621
47	000623
40	000637
16	000637
46	000663
34	000665
12	000665
12	000665
12	000665
12	000665
46	000667
4	000667
46	000669
46	000669
67	000669
57	000690
33	000690
28	000690
34	000726
46	000740
39	000750
3	000779
43	000779
22	000779
2	000989
7	001093
18	001107
43	001123
60	001170
2	001186
11	001186
5	001186
22	001228
10	001228
22	001228
9	001230
20	001448
35	001818
8	001900
19	002308
6	003300
33	003635
14	003638
36	003657
16	003670
18	004154
8	004154
26	004154
20	004182
7	004182
12	004182
8	004236
23	004406
5	004440
5	004440
5	004440
5	004440
7	004441
48	005049
69	005049
27	005075
11	005115
15	005122
9	005122
4	005133
22	005148
31	005512
25	005550
8	005554
36	005650
14	005650
12	006038
6	006075
19	006202
41	006202
35	006212
14	006212

Page 105 — INDEX

Yamato VG2700 parts on page 105
Ref	Part number	Part name	Qty
17	006233
16	006411
8	006905
7	006905
15	006910
47	007610
32	007621
41	007627
31	007627
34	007627
10	009142
23	009526
14	009604
9	009604
53	009730
25	009749
65	009749
21	009753
15	009858
18	009931
7	009932
10	0010017
18	0010017
10	0010564
9	0010565
6-1	0010938
16	0011303
7	0011709
7	0011789
5	0011952
4	0011957
22	0013208
8	0020052
17	0020064
16	0020119
26	0020137
15	0020271
45	0020350
66	0020350
54	0020551
5	0020759
2	0024083
20	0024083
1	0024084
19	0024084
3	0030255
21	0030255
7	0031111
24	0031111
8	0031831
5	0032425
52	0032426
6	0032426
3	0032518
13	0032646
32	0032867
22	0032921
4	0032952
27	0034117
44	0034293
5	0034979
37	0035813
4	0036175
36	0037108
15	0037164
12	0037912
8	0037988
12	0060056
37	0060056
8	0060142
36	0060248
16	0060270
16	0060270
16	0060270
16	0060270
1	0063009
21	0063009
18	0063010
18	0063051
20	0063053
8	0063055
21	0063056
22	0063057
14	0063282
8	0063282
7	0063284
54	0063460
56	0063515
14	0065275
13	0065366
3	0065372
8	0065374
9	0065375
11	0065376
1	0065381
30	0065389
11	0065395
8	0065398
16	0065401
15	0065402
26	0065404
23	0065405
13	0065407
16	0065414
17	0065421
51	0065436
52	0065437
30	0067111
7	0067126
4	0068011
60	0068079
37	0068181
24	0068202
52	0077179
1	0077270
5	0090071
22	0090071
8	0090620
12	0090807
29	0090807
9	0090812
26	0090812
11	0090856

Page 106

Yamato VG2700 parts on page 106
Ref	Part number	Qty
28	0090856	30
7	0091696	20
3	0091725	20
14	0092232	32
21	0092283	31
12	0092286	31
13	0092287	31
10	0092288	31
30	0092291	31
28	0092292	31
32	0092293	31
27	0092294	31
5	0092305	6
24	0093154	6
24	0093186	7
16	0093212	7
38-1	0093241	19
38-2	0093242	19
38-3	0093243	19
3-1	0093351	17
3-2	0093352	17
16	0093352	29
5-1	0093356	7
5-2	0093357	7
5-3	0093358	7
7	0093365	7
17	0093410	29
10	0093415	29
21	0093417	29
20	0093421	29
6	0093480	18
6	0093480	21
6	0093480	25
6	0093480	28
6	0093483	8
12	0093611	8
16	0093617	13
6	0093690	34
8	0093864	1
13	0093864	2
43	0094201	2
58	0094390	8
20	0094507	21
9	0094615	26
10	0095027	16
7	0095220	34
59	0095334	8
19	0095367	17
6	0095367	26
7	0099051	36
6	0099091	36
5	0099094	36
26	100002	10
9	100003	9
41	100014	13
11	100020	18
11	100020	21
11	100020	25
11	100020	28
13	100038	32
9	100052	18
9	100052	21
9	100052	25
9	100052	28
13	100057	18
13	100057	21
13	100057	25
13	100057	28
53	100067	12
2	110001	32
40	110002	2
11	110002	8
21	110002	15
35	110002	19
18	110004	8
19	110004	11
5	110004	17
13	110004	26
3	110004	27
20	110004	34
16	110005	10
31	110009	2
26	110009	3
41	110009	4
14	110009	5
15	110009	6
5	110009	9
11	110009	12
49	110009	15
2	110009	16
4	110010	26
12	110011	7
20	110012	1
44	110012	2
33	110012	5
21	110012	6
2	110012	13
34	110012	30
37	110012	31
25	110013	1
11	110013	2
14	110013	3
63	110013	12
34	110013	13
3	110013	29
17	110013	34
23	110016	2
11	110016	19
24	110019	10
15	110021	11
36	110022	2
24	110022	5
49	110027	3
2	110027	22
2	110027	23
2	110027	24
5	110027	24
23	110027	25
14	110027	30
2	110028	36
51	110030	4
20	110030	12
28	110031	2
33	110031	2
5	110031	8
26	110031	9
44	110031	31
4	110035	7
28	110036	5
8	110038	22
12	110038	22
8	110038	23
12	110038	23
10	110038	24
24	110038	26
14	110038	27

Page 107 — INDEX

Yamato VG2700 parts on page 107
Ref	Part number	Part name	Qty
4	110039
17	110041
35	110043
2	110045
39	110045
10	110045
16	110045
14	110046
11	110048
28	110048
25	110050
24	110054
16	110054
32	110054
49	110076
25	110084
10	110084
20	110084
19	110084
21	110084
17	110084
7	110084
20	110084
22	110084
32	110094
22	110097
9	110101
21	110103
4	110105
48	110106
6	110106
1	110116
42	110117
49	110118
49	110118
37	120001
54	120001
47	120006
32	120008
5	120008
2	120009
43	120009
42	120010
4	120010
49	120011
39	120011
3	120012
15	120012
3	120012
40	120013
11	120013
42	120013
3	120013
2	120013
43	120015
30	120016
2	120019
42	120041
36	120049
38	130002
18	130002
6	130003
28	130003
25	130003
23	130007
23	130016
8	130016
15	130016
5	130016
5	140019
14	150001
14	160000
38	160000
26	160001
7	160001
34	160001
18	160001
22	160001
51	160001
38	160001
23	160001
10	160001
8	160001
17	160001
14	160001
8	160001
17	160001
8	160001
17	160001
5	160002
21	160003
3	160003
29	160003
30	160003
11	160003
40	160003
17	160004
18	160004
26	160004
27	160004
25	160004
21	160005
4	160005
3	160005
26	160005
29	160005
45	160006
5	160007
4	160007
17	160007
18	160007
7	160007
7	160007
24	160007
7	160024
15	160025
15	160025
15	160025
15	160025
13	160029
39	160029
2	160033
2	160040
24	170001
12	170001
32	170008
52	170009
44	170010
35	170031
51	170038
31	170041
53	170042
44	170044
9	180005
2	180008

Page 108 — INDEX

Yamato VG2700 parts on page 108
Ref	Part number	Part name	Qty
22	180009
37	190004
31	190007
42	190078
36	190078
49	190092
20	240010
27	260006
12	260006
20	260006
10	260006
24	260006
8	290029
25	290029
20	290035
25	300000
13	300000
48	300000
2	300005
41	300005
6	300006
11	300031
12	300033
33	300045
5	300047
25	300100
45	300100
13	300100
45	300104
5	300500
15	310006
13	310007
21	310063
19	310094
9	310096
27	310096
20	310099
20	310100
19	310101
70	310102
4	310106
23	320008
28	320009
21	330000
20	330011
48	330011
20	330016
1	330017
50	330019
18	330019
31	340000
33	340001
45	340003
31	340003
59	340003
39	340014
20	350009
9	390164
37	390173
10	910000
7	910001
18	910001
14	910003
6	911001
5	911002
9	911006
19	911060
17	911062
12	930052
13	930053
27	930055
6-2	1070020
11	1090190
7	1200309
40	2020002
37	2040033
32	2049401
38	2100088
44	2100194
41	2100218
11	2100249
25	2100253
42	2100259
41	2100264
3	2100265
33	2100267
29	2100267
13	2100902
37	2110191
43	2110361
38	2114124
36	3100006
4	3100006
20	3100008
10	3100016
3	3100033
11	3100061
2	3100087
5	3100099
7	3100100
9	3100110
10	3100112
12	3100122
15	3100123
13	3100127
14	3100127
7	3100129
10	3100131
11	3100132
38	3100142
44	3100145
43	3100146
28	3100147
31	3100149
27	3100150
32	3100151
14	3100157
15	3100158
17	3100159
15	3100190
9	3100192
25	3100192

Page 109 — INDEX

Yamato VG2700 parts on page 109
Ref	Part number	Part name
7	3100193	VG2700
6	3100195	VG2700
12	3100205	VG2700
43	3100214	VG2700
36	3100231	VG2700
26	3100241	VG2700
30	3100245	VG2700
14	3100250	VG2700
12	3100253	VG2700
10	3100254	VG2700
9	3100256	VG2700
12	3100275	VG2700
13	3100283	VG2700
16	3100305	VG2700
24	3100307	VG2700
7	3100309	VG2700
13	3100310	VG2700
13	3100329	VG2700
43	3100330	VG2700
30	3100331	VG2700
22	3100332	VG2700
26	3100338	VG2700
12	3100345	VG2700
29	3100356	VG2700
5	3100370	VG2700
21	3100371	VG2700
21	3100384	VG2700
22	3100386	VG2700
30	3100416	VG2700
27	3100417	VG2700
33	3100418	VG2700
53	3100533	VG2700
29	3100600	VG2700
28	3100601	VG2700
24	3100602	VG2700
27	3100603	VG2700
6	3100604	VG2700
12	3100605	VG2700
5	3100607	VG2700
14	3100608	VG2700
25	3100609	VG2700
20	3100610	VG2700
2	3100611	VG2700
4	3100612	VG2700
6	3100613	VG2700
19	3100614	VG2700
15	3100616	VG2700
12	3100623	VG2700
26	3100623	VG2700
1	3100625	VG2700
10	3100626	VG2700
18	3100630	VG2700
5	3100630	VG2700
21	3100631	VG2700
8	3100631	VG2700
34	3100636	VG2700
3	3101315	VG2700
3	3101315	VG2700
3	3101315	VG2700
3	3101315	VG2700
3	3101320	VG2700
4	3101321	VG2700
6	3101438	VG2700
40	3101439	VG2700
22	3101442	VG2700
15	3101443	VG2700
45	3101444	VG2700
17	3101447	VG2700
40	3101754	VG2700
1	3103000	VG2700
16	3106000	VG2700
7-2	3107270	VG2700
7	3107270	VG2700
21-2	3107272	VG2700
21-1	3107272	VG2700
21-1	3107273	VG2700
21-2	3107273	VG2700
24-1	3107274	VG2700
24-1	3107274	VG2700
7-4	3107275	VG2700
7-1	3107277	VG2700
7-5	3107280	VG2700
7-3	3107282	VG2700
24-2	3107285	VG2700
24-2	3107285	VG2700
7	3107290	VG2700
19	3107303	VG2700
6	3107303	VG2700
18	3107303	VG2700
18	3107303	VG2700
14	3107303	VG2700
4	3107303	VG2700
18	3107303	VG2700
6	3107303	VG2700
20	3107304	VG2700
7	3107304	VG2700
19	3107304	VG2700
12	3107304	VG2700
10	3107304	VG2700
24	3107306	VG2700
9	3107306	VG2700
19	3107306	VG2700
18	3107306	VG2700
20	3107306	VG2700
16	3107306	VG2700
6	3107306	VG2700
19	3107306	VG2700
1-1	3107311	VG2700
1-1	3107311	VG2700
1-1	3107311	VG2700
22	3107311	VG2700
15	3108134	VG2700
17	3109000	VG2700
18	3109042	VG2700
22	3109044	VG2700
31	3109201	VG2700
18	3109210	VG2700
1-1	3109300	VG2700
27	3109301	VG2700
1-2	3109302	VG2700
18	3109306	VG2700
2	3110073	VG2700
23	3110201	VG2700
23	3110201	VG2700
23	3120076	VG2700
19	3139006	VG2700
23	3139007	VG2700
27	3139200	VG2700
42	3150151	VG2700
36	3150195	VG2700
12	3160138	VG2700
3	3180100	VG2700

Page 110 — INDEX

Yamato VG2700 parts on page 110
Ref	Part number	Qty
47	3200013	2
30	3200033	2
26	3200033	19
3	3200111	7
15	3200112	7
23	3200116	7
22	3200118	7
2	3200132	18
2	3200132	21
2	3200132	25
2	3200132	28
7	3200215	11
15	3200236	13
14	3200237	13
17	3200238	13
19	3201007	19
17	3201105	31
21	3201355	12
53	3204020	4
6	3204021	4
4-1	3207039	30
4-2	3207040	30
11-1	3207044	30
11-2	3207045	30
13	3207046	30
10	3207145	28
14	3207146	18
14	3207146	21
14	3207146	25
14	3207146	28
10	3207148	18
10	3207148	21
10	3207148	25
13-1	3207150	20
13-2	3207151	20
1-1	3207155	20
1-2	3207156	20
1-3	3207157	20
8	3207160	20
1-1	3209121	30
1-2	3209122	30
58	3240072	12
9	3260010	5
9	3260011	6
20	3400261	13
29	3500004	1
28	3500005	1
45	3500006	13
24	3500007	1
45	3500008	2
12	3500012	2
17	3500021	4
20	3500022	4
30	3500023	4
31	3500024	4
25	3500025	4
28	3500026	4
29	3500027	4
26	3500028	4
27	3500029	4
21	3500030	4
23	3500031	4
24	3500032	4
32	3500033	4
33	3500034	4
34	3500035	4
35	3500036	4
37	3500037	4
38	3500038	4
22	3500039	4
19	3500040	4
14	3500041	4
54	3500041	4
2	3500042	4
10	3500044	4
11	3500045	4
15	3500046	4
12	3500047	4
13	3500048	4
9	3500050	4
1	3500051	6
6	3500054	6
8	3500056	6
17	3500060	6
22	3500062	6
23	3500064	6
44	3500065	6
39	3500066	6
45	3500067	6
11	3500068	6
10	3500069	6
31	3500070	6
30	3500071	6
27	3500072	6
28	3500073	6
32	3500074	6
33	3500075	6
29	3500076	6
34	3500077	6
2	3500078	7
36	3500079	6
1	3500081	9
2	3500082	9
4	3500084	9
10	3500086	9
3	3500088	4
14	3500091	7
1	3500101	5
6	3500104	5
10	3500105	12
16	3500109	5
19	3500111	5
30	3500113	12
34	3500114	12
33	3500115	12
31	3500116	12
37	3500118	12
17	3500119	12
47	3500120	12
46	3500121	12
38	3500122	12
41	3500123	12
24	3500124	12
57	3500126	12
13	3500127	12
8	3500128	12
4	3500129	12
3	3500130	12
1	3500131	12
55	3500132	12
52	3500133	12
50	3500136	12
61	3500137	12
56	3500138	12
62	3500139	12

Page 111 — INDEX

Yamato VG2700 parts on page 111
Ref	Part number	Part name	Qty
64	3500141
16	3500142
12	3500143
10	3500144
8	3500146
1	3500147
2	3500148
4	3500149
21	3500150
20	3500151
5	3500152
23	3500153
6	3500154
26	3500155
28	3500156
30	3500157
32	3500158
38	3500160
36	3500161
16	3500162
23	3500163
28	3500164
22	3500165
23	3500166
29	3500167
34	3500171
45	3500172
41	3500174
6	3500175
23	3500176
21	3500177
22	3500178
13	3500179
19	3500180
71	3500190
1	3500201
27	3500202
39	3500203
40	3500204
43	3500205
48	3500206
6	3500207
50	3500208
18	3500211
10	3500212
13	3500213
19	3500214
12	3500215
16	3500216
21	3500217
3	3500219
37	3500221
27	3500222
22	3500223
10	3500223
1	3500224
35	3500225
49	3500226
4	3500227
5	3500228
9	3500229
46	3500230
39	3500232
39	3500233
33	3500233
40	3500234
44	3500236
42	3500237
33	3500238
43	3500240
50	3500242
47	3500245
48	3500246
51	3500247
55	3500249
54	3500250
16	3500255
30	3500255
18	3500256
25	3500269
32	3500270
34	3500271
8	3500274
47	3500278
19	3500281
23	3500282
31	3500282
15	3500284
17	3500285
13	3500286
10	3500287
18	3500288
39	3500291
55	3500292
35	3500293
38	3500294
46	3500295
30	3500296
1	3500297
1	3500297
1	3500297
1	3500297
50	3500299
32	3500300
4	3500304
28	3500305
4	3500402
16	3500403
33	3500404
18	3500407
35	3500408
32	3500410
19	3500411
1	3500412
25	3500413
26	3500415
31	3500418
32	3500419
19	3500422
24	3500423
27	3500424
35	3500425
11	3500426
3	3500430
7	3500431
9	3500432
29	3500435
8	3500493
35	3500514
1	3500603
2	3500605
11	3500615
19	3500616
17	3500617
3	3500631
3	3500631
4	3500632
4	3500632
6	3500634
6	3500634
7	3500635
7	3500635
6	3500637
1	3500670

Page 112

Yamato VG2700 parts on page 112
Ref	Part number	Part name	Qty
2	3500671
5	3500672
3	3500675
4	3500676
33	3500697
46	3500698
33	3500699
1	3500700
6	3500701
50	3501122
2	3501181
3	3501182
24	3501183
42	3501185
50	3501187
41	3501250
39	3501251
36	3501252
47	3501253
34-2	3501259
34-1	3501260
45	3501265
14	3501270
28	3501271
27	3501272
30	3501275
26	3501276
24	3501280
19	3501281
23	3501282
18	3501283
20	3501284
31-2	3501289
31-1	3501290
44	3501295
1	3501302
8	3501302
1	3502003
15	3502004
30	3502005
6	3502006
3	3502007
24	3502008
22	3502009
2	3502010
27	3502011
4	3502012
9	3502013
31	3502015
3	3502021
48	3502022
1	3502023
4-1	3507000
4-2	3507002
17-1	3507050
17-2	3507052
17-3	3507054
12	3507058
2	3507058
11	3507060
21	3507061
1	3507064
11	3507065
7-3	3507070
7-1	3507072
7-2	3507074
7-4	3507076
25-1	3507083
25-2	3507084
15	3507085
16	3507087
25	3507087
1-2	3507091
1-2	3507091
1-2	3507091
19	3507095
21	3507097
13-1	3508000
13-2	3508001
9-1	3508002
9-2	3508003
9-3	3508004
1-1	3508007
1-2	3508008
14-1	3508011
2-1	3508012
9-3	3508019
9-1	3508019
9-1	3508020
9-2	3508020
9-2	3508021
9-3	3508021
7-1	3508025
7-2	3508026
13-2	3508031
18-1	3508031
13-3	3508032
18-2	3508032
13-4	3508033
18-3	3508033
13-1	3508040
18-4	3508040
13-1	3508041
14-1	3508049
14-2	3508050
10-1	3508051
10-2	3508052
10-3	3508053
14-2	3508060
14-3	3508061
2-2	3508062
2-3	3508063
2-4	3508064
14-4	3508065
14-5	3508066
2-5	3508067
2-6	3508068
2-7	3508069
16	3508074
15-1	3508077
15-2	3508078
26-1	3508080
26-2	3508081
17-1	3508082
17-2	3508083
17-3	3508084
13-2	3508086
11	3508087
27	3508125
28	3508126
18-1	3508127
18-2	3508128
18-3	3508129
29	3508136
18	3508208
12	3509000
11	3509001
17	3509004
18	3509005

Page 113 — INDEX

Yamato VG2700 parts on page 113
Ref	Part number	Part name	Qty
10	3509007
8	3509007
22	3509007
12	3509007
14	3509010
12	3509010
11	3509012
9	3509012
14	3509015
15	3509016
13	3509017
19	3509018
17	3509019
17	3509022
16	3509023
23	3509025
13	3509026
22	3509030
21	3509031
25	3509320
1	3509969
33	4109403
13	9611074
3	9620003
11	9620008
9	9620202
8	9620210
2	9620631
22	9620666
3	9620670
8	9620673
11	9620675
23	9620678
24	9620679
25	9620680
26	9620681
18	9620688
4	9620689
21	9620690
20	9620691
1	9620696
17	9620700
16	9620703
12	9620750
13	9620751
14	9620752
16	9620753
23	9620754
24	9620755
19	9620756
21	9620757
10	9710056
9-1	9720160
9-3	9720161
9-2	9720162
9-4	9720163

Yamato VG2700 — parts catalog

Page 1 — Parts List

Yamato Parts List HIGH SPEED CYLINDER BED CHAINSTITCH MACHINE VG2700 MODELS & DEVICES VG2700 VG2700-WF1 VG2703 VG2708-WF8 VG2713 VG2713-WF2 VG2740 VG2740P VG2740-WF1 VG2740-SM VG2760 EC EL1 YAMATO SEWING MACHINE MFG. CO.,LTD. From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 2

パーツリストの見方このパーツリストはVG2700-148M, 156M, 164Mを基本モデルにしてイラストを作成しています。項目1~13には基本モデルを記載しています。項目14~サブモデル、付帯装置等を記載しています。パーツリストに記載されているカラーの寸法は内径×外径×幅を表わしています。記号の説明 (Parts No. の隣に記載されています。) [ ] 前回のパーツリストに対して、今回変更された部品を表わしています。 [ ] 内は旧Parts No. 及びネジ類の形状前回のパーツリストに対して、今回追加された部品及びモデルを表わしています。部品注文のご注意 ☆ このパーツリストに記載されている部品をご注文の際は、Parts No.(例えば、3500201)でお願いします。 ☆ 0068011の場合は、0068011又は68011でご注文下さい。 ☆ エアチューブ御注文の際は品番と長さをお知らせ下さい。なお、このパーツリストの記載事項は、改良により変更される場合がありますのでご了承下さい。 How to use this Parts List The illustrations on this Parts List are drawn on the basis of VG2700-148M, 156M, 164M. The items from No.1 to No.13 contain the standerd model. The following items included No.14 contain the submodel and Devices. The dimension of Collar on this Parts List shows Inside diameter X Outside diameter X Width. Explanation of Marks (marked at the Side of Part No.) [ ] means this part is changed from the previous Parts List. Inside of [ ] shows the previous Part No. and the shape of screw or the like. means this part and model is added to the previous Parts List. How to place an order for the parts ☆ When placing an order for the parts from this Parts List, please clearly state the Parts No. (e.g.3500201) which you require so that we can deliver the correct Parts to you. ☆ When the Part No. is "0068011", please place an order for the part by showing "0068011" or "68011". ☆ When ordering Air Tube, please inform us of the Part No. and the length. This Parts Listis subject to change without notice. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3 — Contents

Contents 目次 MISCELLANEOUS COVERS(1) 1 MISCELLANEOUS COVERS(2) 2 MISCELLANEOUS THREAD EYELETS 3 MISCELLANEOUS BUSHINGS & EYE GUARD 4 NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 5 UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM 6 NEEDLE BAR MECHANISM 7 PRESSER FOOT MECHANISM 8 SPREADER MECHANISM 9 LOOPER DRIVING MECHANISM 10 FEED DRIVING CONTROL MECHANISM 11 FEED DRIVING MECHANISM 12 LUBRICATING MECHANISM 13 PULLER MECHANISM EXCLUSIVE PARTS(1) 14 PULLER MECHANISM EXCLUSIVE PARTS(2) 15 PULLER MECHANISM EXCLUSIVE PARTS(3) 16 VG2700 EXCLUSIVE PARTS 17 VG2700-0000-WF1 EXCLUSIVE PARTS 18 VG2703 EXCLUSIVE PARTS(1) 19 VG2703 EXCLUSIVE PARTS(2) 20 VG2708-WF8 EXCLUSIVE PARTS 21 VG2713-0000-T1N, T4N EXCLUSIVE PARTS 22 VG2713-0000-T1A, T2A, T4A EXCLUSIVE PARTS 23 VG2713-0000-K1N, K4N EXCLUSIVE PARTS 24 VG2713-0000-000-WF2 EXCLUSIVE PARTS 25 VG2740, 2740P EXCLUSIVE PARTS(1) 26 VG2740, 2740P EXCLUSIVE PARTS(2) 27 VG2740-156S1-WF1 EXCLUSIVE PARTS 28 VG2740(P)-140M-SM, 148M-SM EXCLUSIVE PARTS 29 VG2760 EXCLUSIVE PARTS 30 カバー関係 (1) 1 カバー関係 (2) 2 糸道関係 3 ブッシュ及びアイガード関係 4 針受ケ及び下軸機構 5 上軸及び針糸繰り機構 6 針棒機構 7 押工機構 8 飾り糸ルーパ機構 9 ルーパ機構 10 前送り調節機構 11 送り機構 12 給油機構 13 プラー機構専用部品(1)14 プラー機構専用部品(2)15 プラー機構専用部品(3)16 サブモデル専用部品 17 サブモデル専用部品 18 サブモデル専用部品(1)19 サブモデル専用部品(2)20 サブモデル専用部品 21 サブモデル専用部品 22 サブモデル専用部品 23 サブモデル専用部品 24 サブモデル専用部品 25 サブモデル専用部品(1)26 サブモデル専用部品(2)27 サブモデル専用部品 28 サブモデル専用部品 29 サブモデル専用部品 30 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4 — Contents

Contents 目次 EC DEVICE(1) EC装置(1) 31 EC DEVICE(2) EC装置(2) 32 EL1 DEVICE EL1装置 33 EXTRA PARTS 特注部品 34 THREAD STAND 糸立台 35 ACCESSORIES(1) アクセサリ関係(1) 36 ACCESSORIES(2) アクセサリ関係(2) 37 WARNING LABEL 警告ラベル 38 LIST of MAIN SPARE PARTS(1) 主要部品リスト(1) 39 LIST of MAIN SPARE PARTS(2) 主要部品リスト(2) 40 LIST of MAIN SPARE PARTS(3) 主要部品リスト(3) 41 LIST of MAIN SPARE PARTS(4) 主要部品リスト(4) 42 LIST of MAIN SPARE PARTS(5) 主要部品リスト(5) 43 INDEX 索引 44 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 5

jintex.in From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 6 — 1

1 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 7 — MISCELLANEOUS COVERS(1)

MISCELLANEOUS COVERS(1) カバー関係(1) Ref.No Parts No. Description 品名 Amt. Req 1 3500201 Top Cover 上カバー 1 2 110045 Screw(M4-0.7 × 12) 止ネジ 11 3 3500430 Top Cover Gasket 上カバーパッキン 1 4 0068011 Oil Sight Window オイル確認窓 1 5 0020759 Top Cover Seal Plug 上カバー詰栓 2 6 3500207 Head Cover ヘッドカバー 1 7 3500431 Head Cover Gasket ヘッドカバーパッキン 1 8 0093864 Head Cover Seal Plug 詰栓 1 9 390164 "VG" Emblem VG エンブレム 1 10 3500212 Side Cover(Lower) 横開カバー(下) 1 11 110048 Screw(M4-0.7 × 10) 止ネジ 5 12 3500215 Side Cover Gasket 横開カバーパッキン 1 13 3500213 Side Cover Hinge Pin 横開カバーヒンジピン 1 14 160000 Screw(M3-0.5 × 3) 止ネジ 2 15 0037164 Spring バネ 1 16 3500216 Oil Defender 防油板 1 17 006233 Screw(M3-0.5 × 5) 止ネジ 2 18 3500211 Side Cover(Upper) 横開カバー(上) 1 19 3500214 Side Cover Hook 横開カバーフック 1 20 110012 Screw(M4-0.7 × 5) 止ネジ 1 21 3500217 Extension Cover エクステンションカバー 1 22 23 24 3500007 Wind Guide Plate 風案内板 1 25 110013 Screw(M4-0.7 × 8) 止ネジ 3 26 0020137 Drain Hole Seal 油抜キネジパッキン 1 27 005075 Screw(3/8-24 × 8) 油抜キネジ 1 28 3500005 Oil Reservoir Gasket 油受ケパッキン 1 29 3500004 Oil Reservoir Gasket 油受ケ 1 30 120016 Screw(M8-1.25 × 20) 止ネジ 4 31 340000 Machine Frame Supporting Bar ベッド支工棒 4 32 2049401 Serial Number Plate 機番プレート 1 33 4109403 Model Plate(See the below) 型式板(下記参照) 1 34 000726 Rivet 止メ鋲 4 Note : Order for Model Plate must be accompanied by model designation(including symbols of gauge and devices). (注) 型式板を御注文の際は機種名(ゲージ記号、附帯装置含む)をお知らせください。 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VG2700

Page 8

2 3 11 10 9 13 14 13 12 19 20 17 16 18 21 30 35 32 31 27 28 50 26 25 24 22 23 36 33 34 37 38 49 40 41 39 42 43 44 45 46 8 6 4 5 1 2 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 9 — MISCELLANEOUS COVERS(2)

MISCELLANEOUS COVERS(2) カバー関係(2) 2 Ref.No Parts No. Description Amt. Req 1 3500224 Cloth Plate(Large) クロスプレート(大) 1 2 120009 Screw(M4-0.7 × 12) 止ネジ 2 3 3500219 Slide Cover 滑り板 1 4 3500227 Crank Chamber Cover ナカカバー 1 5 3500228 Crank Chamber Cover Gasket ナカカバーパッキン 1 6 130003 Screw(M4-0.7 × 7.3) 止ネジ 7 8 0020052 Seal Plug 詰栓 1 9 3500432 Rear Cover Gasket 後力カバーパッキン 1 10 3100016 Rear Cover 後力カバー 1 11 110013 Screw(M4-0.7 × 8) 止ネジ 12 12 3500012 Seal Plug 詰栓 2 13 0093864 Seal Plug 詰栓 2 14 0065275 Seal Plug 詰栓 1 16 3500255 Stitch Plate Holder 針板台 1 17 110041 Screw(M4-0.7 × 8) 止ネジ 2 18 3500256 Slide Cover Supplementary Block 滑り板補助ブロック 1 19 006202 Screw(M4-0.7 × 6) 止ネジ 1 20 330011 Seal Plug(φ 4.9 × 4.3) 詰栓 1 21 160005 Screw(M6-1 × 8) 止ネジ 1 22 3500223 Front Cover Hinge 前開キカバーヒンジ 1 23 110016 Screw(M4-0.7 × 14) 止ネジ 2 24 170001 Screw(M4-0.7 × 8) 止ネジ 2 25 300100 Conical Spring Washer 皿バネワッシャ 4 26 160001 Screw(M4-0.7 × 4) 止ネジ 2 27 3500222 Front Cover(Lower) 前開キカバー(下) 1 28 110031 [110045] Screw(M4-0.7 × 12)[M4-0.7 × 12] 止ネジ 1 29 000015 Nut ナット 1 30 3200033 Seal Plug 詰栓 1 31 110009 Screw(M4-0.7 × 8) 止ネジ 2 32 000538 Washer ワッシャ 2 33 110031 [110009] Screw(M4-0.7 × 12)[M4-0.7 × 8] 止ネジ 2 34 000665 [000538] Washer ワッシャ 2 35 3500225 Supplementary Block 補助ブロック 1 36 110022 Screw(M3-0.5 × 10) 止ネジ 2 37 3500221 Front Cover(Upper) 前開キカバー(上) 1 38 130002 Screw(M3-0.5 × 6) 止ネジ 1 39 3500233 Thread Take-up Cover(Front) カムカバー(前) 1 40 110002 Screw(M3-0.5 × 5) 止ネジ 1 41 007627 Screw(M4-0.7 × 6) 止ネジ 2 42 190078 Screw(M4-0.7 × 5) バネ掛ケネジ 2 43 0094201 Cover Latch Spring カバーラッチバネ 1 44 110012 Screw(M4-0.7 × 5) 止ネジ 3 45 3500008 Oil Cooling Fan Cover 冷却ファンカバー 1 46 3500230 Ball Bearing Holder ベアリング押工 1 47 3200013 Belt Cover Support ベルトカバー支工 1 48 330011 Seal Plug(φ 4.9 × 3.5) 詰栓 2 49 3500226 Cushion クッション 2 50 330019 [330011] Seal Plug(φ 4.9 × 3.5)[φ 4.9 × 4.3] 詰栓 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 10

3 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 11 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS Ref.No Parts No. Description 品名 Amt. Req 1 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 5 2 0024083 Tension Spring Bushing 糸調子ナット回り止メ 5 3 0030255 Tension Spring(Needle) 糸調子バネ(針糸) 3 4 0032952 Tension Spring(Looper, Top Cover) 糸調子バネ(ルーパ,飾り) 2 5 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 5 6 000177 Felt フエルト 5 7 0031111 Tension Disc 糸調子皿 10 8 290029 Tension Post 糸調子棒 5 9 0090812 Tension Post Ferrule 糸調子棒爪摺レ 5 10 3500287 Tension Disc Separator 糸緩メ板 1 11 0090856 Tension Disc Eyelet 糸調子皿糸道 5 12 0090807 Thread Lead-in Guide 糸調子台糸道 5 13 3500286 Tension Post Support 糸調子台 1 14 110013 Screw(M4-0.7 × 8) 止ネジ 9 15 3500284 Thread Guide Plate 糸案内板 1 16 0020119 Thread Eyelet Pipe(Short) 糸道パイプ(短) 2 17 3500285 Thread Eyelet Pipe Holder 糸道パイプ押工 2 18 3500288 SP Device, Complete Set SP装置(組) 1 19 3500281 Needle Thread Eyelet Bracket 針糸道台 1 20 350009 Tapping Screw(3 × 6mm) タップネジ 2 21 3100384 SP Container SPタンク 1 22 3100386 Felt SP フエルト 1 23 3500282 Needle Thread Eyelet 針糸道 3 24 110054 Screw(M3-0.5 × 3.5) 止ネジ 8 25 3500269 Top Cover Thread Eyelet(Upper)\n飾り糸道(上) 1 26 110009 Screw(M4-0.7 × 8) 止ネジ 4 27 3500202 Needle Thread Take-up Guard 針糸繰りガード 1 28 130003 [130002] Screw(M4-0.7 × 7.3)[M3-0.5 × 6] 止ネジ 2 29 3500435 [3500277] Needle Thread Guide 針糸受ケ 1 30 000538 Washer ワツシヤ 1 31 007627 Screw(M4-0.7 × 6) 止ネジ 1 32 3500270 Top Cover Thread Guide 飾り糸案内 1 33 3500238 Eyelet Holder Stopper カム糸道板ストツパ 1 34 3500271 Top Cover Thread Eyelet 飾り小調子糸道 1 35 001818 Tension Post 糸調子棒 1 36 0037108 Top Cover Tension Disc 小調子皿 4 37 0035813 Top Cover Tension Spring 飾り糸調子バネ 1 38 000360 Nut ナット 1 39 3500232 Thread Take-up Eyelet Bracket カム糸道台 1 40 3500234 Thread Take-up Cover(Rear) カムカバー(後) 1 Ref. No. 41 to 55 See the following page. 3

Page 12

3 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jintez.in

Page 13 — MISCELLANEOUS THREAD EYELETS

MISCELLANEOUS THREAD EYELETS 糸道関係 3 Ref.No Parts No. Description 品名 Amt. Req 41 006202 Screw(M4-0.7 × 6) 止ネジ 2 42 3500237 Latch Spring ラッチバネ 1 43 3500240 Thread Take-up Eyelet Holder カム糸道板 1 44 170010 Screw(M4-0.7 × 4) 止ネジ 1 45 300100 Conical Spring Washer 皿バネワッシャ 1 46 000669 Washer ワッシャ 1 47 3500245 Thread Take-up Eyelet(Left) カム糸道(左) 1 48 3500246 Thread Take-up Eyelet(Right) カム糸道(右) 1 49 110027 Screw(M2.5-0.45 × 3.5) 止ネジ 2 50 3500242 Looper Thread Guide ルーパ糸案内 1 51 3500247 Looper Thread Eyelet ルーパ小調子糸道 1 52 0032426 Looper Thread Retainer Spring 小調子バネ 1 53 170042 Screw(M3-0.5 × 5) 止ネジ 1 54 3500250 Looper Thread Eyelet(Center) ルーパ糸道(中) 1 55 3500249 Looper Thread Eyelet(Right) ルーパ糸道(右) 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 14

4 1 12 2 16 8 6 18 17 33 25 3 53 19 20 36 22 21 30 28 22 26 31 37 35 54 24 23 27 29 34 36 15 14 15 13 10 9 11 39 51 46 47 43 50 48 42 41 45 40 49 52 VG2700 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 15 — MISCELLANEOUS BUSHINGS & EYE GUARD

MISCELLANEOUS BUSHINGS & EYE GUARD Ref.No Parts No. Description ブッシュ及びアイガード関係4 品名 Amt. Req 1 110116 Screw(M10-1.5 × 4) 止ネジ 1 2 3500042 Needle Bar Bushing(Upper) 針棒ブッシュ(上) 1 3 3500088 [3160128] Needle Bar Bushing(Lower) 針棒ブッシュ(下) 1 4 310106 Laced Wire(φ 3 × 130mm) モール 1 5 3100099 Presser Bar Bushing 押工棒ブッシュ 1 6 3204021 [0030291] Oil Seal オイルシール 1 7 3100100 Spreader Driving Bar Bushing 飾り糸ルーパ棒ブッシュ 1 8 0063055 Oil Seal オイルシール 1 9 3500050 [2100272] Oil Seal オイルシール 1 10 3500044 Needle Thread Take-up Bushing(Front) 針糸繰り軸ブッシュ(前) 1 11 3500045 Needle Thread Take-up Bushing(Rear) 針糸繰り軸ブッシュ(後) 1 12 3500047 Spreader Driving Shaft Bushing(Left) 飾り糸ルーパ軸ブッシュ(左) 1 13 3500048 Spreader Driving Shaft Bushing(Right) 飾り糸ルーパ軸ブッシュ(右) 1 14 3500041 Oil Seal オイルシール 1 15 3500046 Foot Lifter Lever Bushing 押工揚ゲ軸ブッシュ 2 16 000195 Oil Wick(No.4-175mm) 油芯 1 17 3500021 Lower Shaft Bushing(Left) 下軸ブッシュ(左) 1 18 35000407 Oiling Felt 給油フェルト 1 19 3500040 Oil Seal オイルシール 1 20 3500022 Lower Shaft Bushing(Right) 下軸ブッシュ(右) 1 21 3500030 Feed Bar Lift Shaft Bushing(Left) 送り上下軸ブッシュ(左) 1 22 3500039 Feed Bar Lift Shaft Bushing(Middle) 送り上下軸ブッシュ(中) 1 23 3500031 Feed Bar Lift Shaft Bushing(Right) 送り上下軸ブッシュ(右) 2 24 3500032 Feed Bar Shaft Bushing(Left) 送り軸ブッシュ(左) 1 25 3500025 Differential Feed Bar Shaft Bushing(Middle) 前送り軸ブッシュ(中) 1 26 3500028 Differential Feed Bar Shaft Bushing(Right) 前送り軸ブッシュ(右) 1 27 3500029 Feed Bar Shaft Bushing(Middle) 送り軸ブッシュ(中) 1 28 3500026 Feed Bar Shaft Bushing(Right) 送り軸ブッシュ(右) 1 29 3500027 Main Feed Lever Shaft Bushing(Left) 後送りレバー軸ブッシュ(左) 1 30 3500023 Main Feed Lever Shaft Bushing(Right) 後送りレバー軸ブッシュ(右) 1 31 3500024 Needle Guard Holder Bushing(Front) 針受ケ台ブッシュ(前) 1 32 3500033 Needle Guard Holder Bushing(Rear) 針受ケ台ブッシュ(後) 1 33 3500034 Differential Lever Shaft Bushing(Left) 差動レバー軸ブッシュ(左) 1 34 3500035 Differential Lever Shaft Bushing(Right) 差動レバー軸ブッシュ(右) 1 35 3100006 Seal Plug 詰栓 2 36 3500037 Looper Driving Shaft Bushing(Front) ルーパ軸ブッシュ(前) 1 37 3500038 Looper Driving Shaft Bushing(Rear) ルーパ軸ブッシュ(後) 1 38 3500203 Eye Guard, Complete Set アイガード(組) 1 39 3500204 Air Wiper Bracket エアワイパブラケット 1 Ref. No. 41 to 54 See the following page From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 16

4 1 12 2 16 7 8 18 17 33 25 3 5 53 20 19 36 38 22 21 30 28 22 26 31 37 34 35 36 27 24 23 29 11 10 9 15 14 15 13 40 41 44 45 50 51 42 43 46 47 48 49 52 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 17 — MISCELLANEOUS BUSHINGS & EYE GUARD

MISCELLANEOUS BUSHINGS & EYE GUARD プッシュ及びアイガード関係 4 Ref.No Parts No. Description 品名 Amt. Req 41 110009 Screw(M4-0.7 × 8) 止ネジ 2 42 000538 Washer ワッシャ 2 43 3500205 Eye Guard Holder アイガード台 1 44 170044 Screw(M4-0.7 × 7) 止ネジ 1 45 300104 [000010] Conical Spring Washer 皿バネワッシャ 1 46 000663 Washer ワッシャ 1 47 000022 Nut ナット 1 48 3500206 Eye Guard アイガード 1 49 110076 Screw(M3-0.5 × 6) 止ネジ 2 50 3500208 Stopper Spring ストッパバネ 1 51 110030 Screw(M3-0.5 × 2.6) 止ネジ 1 52 000014 Washer ワッシャ 2 53 3204020 Oil Seal オイルシール 1 54 3500041 Oil Seal オイルシール 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in VG2700

Page 18

5 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19 — NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM

NEEDLE GUARD & MAIN SHAFT DRIVING MECHANISM 針受ケ及び下軸機構 5 Ref.No Parts No. Description Amt. Req 1 3500101 Pulley プーリー 1 2 300005 Washer ワッシャ 1 3 120012 Screw(M6-1 × 20) 止ネジ 1 4 160005 Screw(M6-1 × 8) 止ネジ 4 5 160007 Screw(M6-1 × 6) 止ネジ 4 6 3500104 Oil Cooling Fan Unit 冷却ファン(組) 1 7 160001 Screw(M4-0.7 × 4) 止ネジ 4 8 3260010 Main Shaft Sprocket(Lower) ベルトプーリー(下) 1 10 3100131 [0093090] Ball Bearing(Middle) ボールベアリング(中) 1 11 3100132 Lower Shaft(Right) 下軸(右) 1 12 3100122 Oil Pump Driving Worm ウォーム 1 13 3100127 Counterweight(Small) バランスウェイト(小) 1 14 110009 Screw(M4-0.7 × 8) 止ネジ 2 15 3100123 Ball Bearing(Left) ボールベアリング(左) 1 16 3500109 Lower Shaft(Middle) 下軸(中) 1 17 160004 Screw(M6-1 × 4.8) 止ネジ 2 18 001107 Spring Pin(φ 2 × 6mm) スプリングピン 4 19 3500111 Lower Shaft(Left) 下軸(左) 1 20 310100 Oil Wick(φ 4.4 × 100mm) 油芯 1 21 160003 Screw(M5-0.8 × 5) 止ネジ 1 22 3500165 Needle Guard Eccentric 針受ケエキセン 1 23 3500166 Needle Guard(Front) Lever 針受ケ(前)腕 1 24 110022 Screw(M3-0.5 × 10) 止ネジ 2 25 3500413 [3500409] Felt フェルト 1 26 3100241 Needle Guard(Front) Holder 針受ケ(前)台 1 27 3139200 Needle Guard(Front) 針受ケ(前) 1 28 110036 Screw(M3-0.5 × 6.5) 止ネジ 2 29 3500167 Needle Guard(Rear) Lever 針受ケ(後)腕 1 30 3100245 Needle Guard(Rear) Holder 針受ケ(後)台 1 31 3109201 Needle Guard(Rear) 針受ケ(後) 1 32 3500419 Needle Guard Lever Cover 針受ケ腕カバー 1 33 110012 Screw(M4-0.7 × 5) 止ネジ 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in VG2700

Page 20

6 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21 — UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM

UPPER SHAFT & NEEDLE THREAD TAKE-UP MECHANISM 上軸及び針糸繰り機構 6 Ref.No Parts No. Description 品名 Amt. Req 1 3500051 Handwheel ハンドホイール 1 2 000989 Handwheel Mark ハンドホイールマーク 1 3 160005 Screw(M6-1 × 8) 止ネジ 5 4 160007 Screw(M6-1 × 6) 止ネジ 16 5 0092305 Magnet マグネット 1 6 3500054 Ball Bearing ボールベアリング 2 7 3100129 Handwheel Adapter アダプタ 1 8 3500056 Timing Belt(550-5GT-12) タイミングベルト 1 9 3260011 Upper Shaft Sprocket(Upper) ベルトプーリ(上) 1 10 3500069 Timing Belt(384-3GT-8) タイミングベルト 1 11 3500068 Upper Shaft Sprocket(Upper) タイミングプーリ(上) 1 12 3100275 Upper Shaft(Right) 上軸(右) 1 13 3100283 Upper Shaft Joint 上軸継手 1 14 3100127 Counterweight(Small) バランスウエイト(小) 1 15 110009 Screw(M4-0.7 × 8) 止ネジ 2 16 3500403 Oil Sleeve オイルスリーブ 1 17 3500060 Upper Shaft(Left) 上軸(左) 1 18 160004 Screw(M6-1 × 4.8) 止ネジ 4 19 310101 Oil Wick(φ 5.1 × 15mm) 油芯 1 20 310099 Oil Wick(φ 3.3 × 30mm) 油芯 1 21 110012 Screw(M4-0.7 × 5) 止ネジ 1 22 3500062 Upper Shaft Sleeve, C. Set 上軸スリーブ(組) 1 23 3500064 Upper Shaft Sleeve 上軸スリーブ 1 24 0093154 Ball Bearing ボールベアリング 2 25 26 160004 Screw(M6-1 × 4.8) 止ネジ 1 27 3500072 Adapter(Right), C. Set アダプタ(右)(組) 1 28 3500073 Ball Bearing ボールベアリング 1 29 3500076 Adapter アダプタ 2 30 3500071 Looper Thread Take-up Shaft 糸繰りカム軸 1 31 3500070 Thread Take-up Shaft Sprocket(Lower) ベルトプーリ(下) 1 32 3500074 Adapter(Left), C. Set アダプタ(左)(組) 1 33 3500075 Ball Bearing ボールベアリング 1 34 3500077 Looper Thread Take-up ルーパ糸調カム 1 35 006212 Screw(M5-0.8 × 6) 止ネジ 2 36 3500079 Connecting Rod 針糸繰りロッド 1 37 120001 [120049] Screw(M4-0.7 × 14)[M4-0.7 × 16] 止ネジ 4 38 2100088 Connecting Rod Swing-proof 振れ止めメ 2 39 3500066 Driving Lever 針繰り軸腕 1 40 120013 Screw(M6-1 × 15) 止ネジ 2 41 2100218 Driving Shaft Thrust Ring スラストリング 1 42 000555 Washer ワッシャ 1 43 120015 Screw(M5-0.8 × 10) 止ネジ 1 44 3500065 Driving Shaft 針繰り軸 1 45 3500067 Bracket 針繰り台 1 46 000667 [000663] Spring Washer スプリングワッシャ 1 47 3500278 Needle Thread Take-up 針繰り糸道 1 48 110106 [110104] Screw(M4-0.7 × 8)[M4-0.7 × 6] 止ネジ 2 49 000600 Spring Washer スプリングワッシャ 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 22

7 1 2 14 15 16 17 18 4 3 5-1 5-2 5-3 8 10 7 9-1 9-2 9-3 12 13 11 21 20 19 22 24 23 25 26 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23 — NEEDLE BAR MECHANISM

NEEDLE BAR MECHANISM Ref.No Parts No. Description 品名 Amt. Req 1 330017 Seal Plug 詰栓 1 2 3500078 Needle Bar 針棒 1 3 3200111 Needle Bar Bracket 針棒抱キ 1 4 110035 Screw(M4-0.7 × 10) 止ネジ 1 5-1 0093356 Needle Clamp(48) 針止メ 1 5-2 0093357 Needle Clamp(56) 針止メ 1 5-3 0093358 Needle Clamp(64) 針止メ 1 6 0093365 Needle(UY × 128 GAS) 針 3 7 001900 Top Cover Thread Eyelet 飾り糸道 1 8 3508002 Screw(1/8-44 × 2.4) 止ネジ 4 9-1 3508003 Stitch Plate(48M) 針板 1 9-2 3508004 Stitch Plate(56M) 針板 1 9-3 3508004 Stitch Plate(64M) 針板 1 10 009142 Screw(9/64-40 × 4.8) 止ネジ 2 11 3500615 Counterweight バランスウエイト 1 12 110011 Screw(M5-0.8 × 10) 止ネジ 2 13 160029 Screw(M8-1.25 × 8) 止ネジ 2 14 3500091 Connecting Rod, Complete Set 針棒ロッド(組) 1 15 3200112 Connecting Rod 針棒ロッド 1 16 0093212 Roller Bearing ニードルベアリング 1 17 3500617 Eccentric Pin Plate エキセンピンプレート 1 18 130002 Screw(M3-0.5 × 6) 止ネジ 1 19 3500616 Eccentric Pin 針棒エキセンピン 1 20 000309 Felt(2.5 × 3 × 30mm) フェルト 1 21 330000 Seal Plug 詰栓 1 22 3200118 Needle Bar Guide, C. Set 針棒案内(組) 1 23 3200116 Needle Bar Guide 針棒案内 1 24 009186 Slide Block 針棒案内駒 1 25 009749 Screw(M4-0.7 × 16) 止ネジ 2 26 3100338 Sponge 給油スポンジ 1 針棒機構 7 From the library of: Superior Sewing Machine & Supply LLC jintex.in VG2700

Page 24

8 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品名 Amt. Req 1 0077270 Presser Spring Regulator 押工調節ネジ 1 2 000445 Lock Nut ロックナット 1 3 0065372 Presser Bar Spring(Outer) 押工棒バネ(太) 1 4 3500304 Presser Bar Connecting Brackst 押工棒抱キ 1 5 110031 Screw(M4-0.7 × 12) 止ネジ 1 6 0093483 Presser Bar Guide 押工棒案内 1 7 004441 Screw(11/64-40 × 16) 止ネジ 2 8 0060142 Presser Bar Spring(Inner) 押工棒バネ(細) 1 9 3100110 Presser Bar 押工棒 1 10 3100112 Finger Guard フィンガード 1 11 110002 Screw(M3-0.5 × 5) 止ネジ 1 12 0093611 Oil Protector Ring 油切リリング 1 13 3100310 Collar(9 × 17 × 7mm) カラー 1 14 150001 Screw(M4-0.7 × 4) 止ネジ 1 15 000271 Thread Chain Cutting Knife チェンカッタ 1 16 110054 Screw(M3-0.5 × 3.5) 止ネジ 1 17-1 3507050 Presser Foot, C. Set(48) 押工(組) 1 17-2 3507052 Presser Foot, C. Set(56) 押工(組) 1 17-3 3507054 Presser Foot, C. Set(64) 押工(組) 1 18 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 19 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 20 3107304 Presser Foot Spring(Right) 小押エバネ(右) 1 21 22 23 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 24 3107306 Presser Foot Hinge Pin(56, 64) 押工ヒンジピン 1 25 110084 Screw(M3.5-0.5 × 4.2) 止ネジ 1 26 000327 Lock Nut ロックナット 1 27 260006 Adjusting Screw(1/8-44 × 9.5) 調節ネジ 1 28 3500305 Cap キャツプ 1 29 30 3500296 Presser Foot Lifter 押工吊り 1 31 170041 Screw(M5-0.8 × 3.5) 止ネジ 2 32 350300 Lifter Shaft 押工揚ゲ軸 1 33 2100267 Collar(10 × 17 × 8mm) カラー 1 34 160001 Screw(M4-0.7 × 4) 止ネジ 2 35 3500293 Lifter Shaft Lever 押工揚ゲ軸レバー 1 36 005650 Screw(M5-0.8 × 14) 止ネジ 1 37 0068181 Spring バネ 1 38 3500294 Lever Link レバーリンク 1 39 3500291 Lifter Lever 押工揚ゲレバー 1 40 000487 Wave Washer 波形ワツシヤ 1 Ref. No. 41 to 60 See the following page. From the library of: Superior Sewing Machine & Supply LLC VG2700 Jintez.in

Page 26

8 1 2 3 4 5 6 7 30 31 A 9 10 11 12 13 14 15 16 17-1 17-2 17-3 18 19 20 23 24 25 26 27 32 33 34 35 36 37 38 C B 50 51 52 53 54 49 48 46 45 47 B 28 43 44 55 56 57 58 59 60 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 27 — PRESSER FOOT MECHANISM

PRESSER FOOT MECHANISM 押工機構 8 Ref.No Parts No. Description 品名 Amt. Req 41 300005 Washer ワッシャ 1 42 120010 Screw(M6-1 × 10) 止ネジ 1 43 2110361 Spring バネ 1 44 2100194 Lifter Lever Holder 押工揚グレーバー台 1 45 340003 Knock Pin(φ 5 × 20mm) ノックピン 1 46 3500295 Lifter Lever Stopper 押工揚グレーバーストッパ 1 47 120006 Screw(M6-1 × 12) 止ネジ 2 48 000206 Lock Nut ロックナット 1 49 110118 [110021] Screw(M5-0.8 × 22)[M5-0.8 × 18] 止ネジ 1 50 3500299 Tension Release Lever Connector 糸緩メ腕連結板 1 51 170038 Screw(M4-0.7 × 5) 止ネジ 1 52 170009 Screw(M4-0.7 × 4) 止ネジ 1 53 3100533 Tension Release Lever 糸緩メ腕 1 54 120001 Screw(M4-0.7 × 14) 止ネジ 1 55 3500292 Tension Release Shaft 糸緩メ軸 1 56 0063515 Thread Pull-off Lever 糸緩メレバー 1 57 000690 Spring Pin(4 × 16mm) スプリングピン 1 58 0094390 Tension Release Adjusting Eccentric 糸緩メ板調節コロ 1 59 0095334 Swing-proof Spring 防振バネ 1 60 001170 Screw(9/64-40 × 12) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VG2700

Page 28

9 11 10 9 8 7 12 13 17 14 19 16 18 20 1 3 2 4 5 6 21 22 23 24 26 25 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 30

10 1-1 1-2 3 4 5 2 8 9 7 6 47 10 11 12 25 14 A 13 15 18 19 21 24 5 16 22 5 23 26 25 27 29 30 31 33 A 28 32 35 37 34 36 45 46 43 44 40 38 39 41 42 43 44 43 VG2700 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 31 — LOOPER DRIVING MECHANISM

LOOPER DRIVING MECHANISM ルーパ機構 10 Ref.No Parts No. Description 品名 Amt. Req 1-1 3109300 Looper(32, 40, 56, 64) ルーパ 1 1-2 3109302 Looper(48) ルーパ 1 2 160040 [110020] Screw(M4-0.7 × 5)[M3.5-0.6 × 6] 止ネジ 1 3 3180100 [3100555] Looper Holder ルーパ台 1 4 110039 Screw(M3.5-0.6 × 10) 止ネジ 1 5 300500 Spacer(Fiber) スペーサ(ファイバ) 3 6 3500175 Looper Bar Bushing(Left) ルーパ棒ブッシュ(左) 1 7 160024 Screw(M5 × 8) 止ネジ 2 8 3500274 Looper Thread Eyelet(Left) ルーパ糸道(左) 1 9 110101 Screw(M3-0.5 × 3) 止ネジ 1 10 0010017 Bamboo Joint バンプ継手 1 11 3500426 Oil Tube(3 × 5 × 110mm) オイルチューブ 1 12 3100205 O-ring Oリング 1 13 3500179 Looper Bar Guide ルーパ棒ガイド 1 14 3100157 Slider スライダ 1 15 3100158 Slider Holder スライダ取付台 1 16 110005 Screw(M3.5-0.6 × 12) 止ネジ 2 17 3100159 Slider Presser スライダ押シ 1 18 160001 Screw(M4-0.7 × 4) 止ネジ 1 19 3500180 Thrust Washer スラストワッシャ 2 20 330016 Seal Plug 詰栓 1 21 3500177 Looper Bar ルーパ棒 1 22 3500178 Slide Block スライドブロック 1 23 3500176 Looper Bar Bushing(Right) ルーパ棒ブッシュ(右) 1 24 110019 Screw(M5-0.8 × 35) 止ネジ 1 25 300000 Washer ワッシャ 2 26 100002 Nut ナット 1 27 3100150 Looper Rocker Connecting Rod, C. Set ルーパ前後ロッド(組) 1 28 3100147 Looper Rocker Regulating Eccentric ルーパ前後エキセン 1 29 160003 Screw(M5-0.8 × 5) 止ネジ 1 30 0065389 Roller Bearing ニードルベアリング 1 31 3100149 Looper Rocker Connecting Rod ルーパ前後ロッド 1 32 3100151 Looper Rocker Adjusting Pin ルーパ前後調節ピン 1 33 340001 Spring Pin(φ 1.5 × 4mm) スプリングピン 1 34 3500171 Looper Connecting Rod ルーパロッド 1 35 110043 Screw(M5-0.7 × 14) 止ネジ 2 36 120049 Screw(M4-0.7 × 16) 止ネジ 2 37 2110191 Connecting Rod Swing-proof 振止メ 2 38 3100142 Looper Driving Lever ルーパ軸腕 1 39 160029 [160024] Screw(M8-1.25 × 8)[M6-1 × 8] 止ネジ 2 40 000637 Seal Plug 詰栓 1 41 3500174 Looper Rocker Arm ルーパ振り腕 1 42 120013 Screw(M6-1 × 15) 止ネジ 1 43 3100146 Thrust Washer スラストワッシャ 3 44 3100145 Thrust Roller Bearing スラストベアリング 2 45 3500172 Looper Shaft ルーパ軸 1 46 000740 Seal Plug 詰栓 2 47 000623 Gasket パッキン 1 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VG2700

Page 32

11 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 33 — FEED DRIVING CONTROL MECHANISM

FEED DRIVING CONTROL MECHANISM 前送り調節機構 11 Ref.No Parts No. Description 品名 Amt. Req 1 3500147 Differential Feed Rocker Arm, C. Set 前送り調節節(組) 1 2 3500148 Differential Feed Rocker Arm 前送り調節腕 1 3 120013 Screw(M6-1 × 15) 止ネジ 1 4 3500149 Differential Regulating Slider 前送り調節スライダ 1 5 3500152 Differential Link 差動リンク 1 6 3500154 Differential Feed Regulating Link 前送り調節リンク 1 7 3200215 Retaining Ring ストツプリング 2 8 3500146 Differential Feed Shaft Arm 前送り軸腕 1 9 310096 Oil Wick(φ 5 × 130mm) 油芯 1 10 3500144 Differential Feed Shaft 前送り軸 1 11 2100249 Connection Bushing(Front) 前送りリンクブツシュ(前) 1 12 3500143 Differential Feed Bar Connection 前送りリンク 1 13 300000 Washer ワツシャ 2 14 110046 Screw(M5-0.8 × 12) 止ネジ 1 15 110021 Screw(M5-0.8 × 18) 止ネジ 1 16 3500142 Connection Bushing(Rear) 前送りリンクブツシュ(後) 1 17 3509004 Differential Feed Dog 前送り 1 18 3509005 Main Feed Dog 後送り 1 19 110004 Screw(M3.5-0.6 × 8) 止ネジ 2 20 3500151 Linear Block リニアブロック 1 21 3500150 Linear Guide リニアガイド 1 22 160001 Screw(M4-0.7 × 4) 止ネジ 3 23 3500153 Linear Link リニアリンク 1 24 0068202 Linear Link Pin リニアリンクピン 1 25 2100253 Retaining Ring ストツプリング 1 26 3500155 Differential Feed Lever(Left) 差動レバー(左) 1 27 160004 [160007] Screw(M6-1 × 4.8)[M6-1 × 6] 止ネジ 1 28 3500156 Differential Feed Lever Shaft 差動レバー軸 1 29 2100267 Collar(10 × 17 × 18mm) カラー 1 30 3500157 Spring バネ 1 31 340003 Knock Pin(φ 5 × 20mm) ノツクピン 1 32 3500158 Differential Feed Lever(Right) 差動レバー(右) 1 33 000690 Spring Pin(φ 4 × 16mm) スプリングピン 1 34 35 000010 Conical Spring Washer 皿バネワツシャ 1 36 3500161 Lock Nut ロックナット 1 37 190004 Screw(M6-1 × 8.5, M4.5-0.5 × 3) 止ネジ 1 38 3500160 Differential Feed Graduations 差動目盛板 1 39 110045 Screw(M4-0.7 × 12) 止ネジ 2 40 3101754 Adjusting Screw アジヤスタ 1 41 2100264 Adjusting Block アジヤスタ駒 1 42 2100259 Spring バネ 1 43 001123 Washer ワツシャ 1 44 0034293 Retaining Ring ストツプリング 1 45 0020350 Differential Feed Lever Stopper 差動レバーストツパ 1 46 000669 Washer ワツシャ 1 47 000600 Spring Washer スプリングワツシャ 1 48 005049 Screw(M5-0.8 × 8) 止ネジ 1 49 120011 Screw(M6-1 × 18) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 34

12 VG2707 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 35 — FEED DRIVING MECHANISM

FEED DRIVING MECHANISM 送り機構 12 Ref.No Parts No. Description 品名 Amt. Req 1 3500131 Feed Bar Driving Shaft Lever 送り軸腕 1 2 120013 Screw(M6-1 × 15) 止ネジ 1 3 3500130 Feed Bar Link Pin 送りリンクピン 1 4 3500129 Feed Bar Link(Long) 送りリンク(長) 1 5 160002 Screw(M4-0.7 × 5) 止ネジ 3 6 3100195 Feed Bar Link(Short) 送りリンク(短) 1 7 3100193 Feed Bar Connecting Rod Pin 送りロッドピン 1 8 3500128 Feed Bar Connecting Rod 送りロッド 1 9 3100192 Retaining Ring ストップリング 2 10 3500105 Counterweight バランスウエイト 1 11 110009 Screw(M4-0.7 × 8) 止ネジ 4 12 3100623 Roller Bearing ニードルベアリング 1 13 3500127 Main Feed Eccentric 送リリキセン 1 14 006212 Screw(M5-0.8 × 6) 止ネジ 2 15 3100190 Roller Bearing ニードルベアリング 1 16 3500162 Feed Lift Connecting Rod 送り上下ロッド 1 17 3500119 Feed Bar Guide(Right) 送リ台ガイド(右) 1 18 160007 Screw(M6-1 × 6) 止ネジ 4 19 3500411 Oiling Felt 給油フェルト 1 20 110030 Screw(M3-0.5 × 2.6) 止ネジ 2 21 3201355 Roller Bearing ニードルベアリング 1 22 0013208 [0068202] Retaining Ring ストップリング 1 23 3500163 Feed Lift Shaft Lever 送り上下軸腕 1 24 3500124 Collar(12 × 20 × 10mm) カラー 2 25 160004 Screw(M6-1 × 4.8) 止ネジ 3 26 160005 Screw(M6-1 × 8) 止ネジ 2 27 310096 Oil Wick(φ 5 × 130mm) 油芯 1 28 3500164 Feed Lift Shaft 送り上下軸 1 29 000397 Oil Wick(φ 2 × 11mm) 油芯 1 30 3500113 Feed Bar, Complete Set 送り台(組) 1 31 3500116 [3500146] Feed Lift Block(Rear) 角駒(後) 1 32 0032867 Feed Lift Block(Front) 角駒(前) 1 33 3500115 Main Feed Bar 後送り台 1 34 3500114 Differential Feed Bar 前送り台 1 35 3500408 Oiling Felt 給油フェルト 1 36 3100231 Feed Dog Key キー 2 37 3500118 Feed Bar Guide(Left) 送リ台ガイド(左) 1 38 3500122 Main Feed Bar Driving Shaft 後送り軸 1 39 000750 Seal Plug 詰栓 1 40 2020002 Retaining Ring ストップリング 1 Ref. No. 41 to 71 See the following page. From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 36

12 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 37 — FEED DRIVING MECHANISM

FEED DRIVING MECHANISM 送り機構 12 Ref.No Parts No. Description 品名 Amt. Req 41 3500123 Main Feed Bar Driving Shaft Lever 後送り軸腕 1 42 110117 Screw(M5-0.8 × 9.5) 止ネジ 1 43 3100214 Link Pin リンクピン 1 44 000199 Oil Wick(2.3 × 2.3 × 13mm) 油芯 1 45 160006 Screw(M3-0.5 × 4) 止ネジ 1 46 3500121 Main Feed Bar Connection 後送りリンク 1 47 3500120 Connection Bushing 後送りリンクブッシュ 1 48 300000 Washer ワッシャ 1 49 110118 Screw(M5-0.8 × 22) 止ネジ 1 50 3500136 Adjusting Screw Stopper 送り調節ネジストッパ 1 51 160001 [160000] Screw(M4-0.7 × 4)[M3-0.5 × 3] 止ネジ 2 52 3500133 Main Feed Bar Adjusting Screw 送り調節ネジ 1 53 100067 Lock Nut ロックナット 1 54 0020551 O-ring(P5) Oリング 1 55 3500132 Main Feed Bar Bracket 送リブラケット 1 56 3500138 Main Feed Lever Shaft(Right) 後送リレバー軸(右) 1 57 3500126 Connecting Shaft 連結軸 1 58 3240072 Spring バネ 1 59 340003 Knock Pin(φ 5 × 20mm) ノックピン 2 60 0068079 [310104] O-ring(P16) Oリング 1 61 3500137 Main Feed Lever Shaft(Left) 後送リレバー軸(左) 1 62 3500139 Main Feed Lever 送リレバー 1 63 110013 Screw(M4-0.7 × 8) 止ネジ 1 64 3500141 Main Feed Graduations 送り目盛板 1 65 009749 Screw(M4-0.7 × 16) 止ネジ 2 66 0020350 Main Feed Lever Stopper 送リレバーストッパ 1 67 000669 Washer ワッシャ 1 68 000600 Spring Washer スプリングワッシャ 1 69 005049 Screw(M5-0.8 × 8) 止ネジ 1 70 310102 [310096] Oil Wick(φ 4.8 × 150)[φ 5 × 130] 油芯 1 71 3500190 Feed Lift Connecting Rod, C. Set 送リ上下ロッド(組) 1 From the library of: Superior Sewing Machine & Supply LLC jinttex.in VG2700

Page 38

13 10 9 11 12 15 14 31 7 32 23 5 8 26 27 24 VG2700 19 7 6 5 1 2 3 4 16 33 34 35 B A 21 8 22 5 8 28 30 8 5 23 29 5 8 34 44 43 2 39 36 37 38 18 B 18 From the library of: Superior Sewing Machine & Supply LLC jintex.in 20 17 45 42 41 40

Page 39 — LUBRICATING MECHANISM

LUBRICATING MECHANISM 13 Ref.No Parts No. Description 品名 Amt. Req 1 3500412 Oil Receiver 油受皿 1 2 110012 Screw(M4-0.7 × 5) 止ネジ 4 3 0032518 O-ring(P3) Oリング 1 4 3500402 Oil Sight Top Nozzle ノズル 1 5 3100370 Oil Tube Joint, One Way 片口管継手 6 6 000425 Washer ワッシャ 1 7 000234 Nut ナット 2 8 0031831 Oil Tube Clamp 緊束環 8 9 3500229 Oil Filter Cover オイルフィルタカバー 1 10 110045 Screw(M4-0.7 × 12) 止ネジ 3 11 3100061 O-ring(P42) Oリング 1 12 3100345 Oil Filter オイルフィルタ 1 13 3100329 Oil Filter Connector オイルフィルタ継手 1 14 3200237 Felt フェルト 1 15 3200236 Suction Pipe 吸入パイプ 1 16 0093617 Suction Pipe Bushing 吸入パイプブッシュ 1 17 3200238 Oil Tube(3 × 5 × 440mm) オイルパイプ 1 18 0010017 Bamboo Joint ポンプ継手 2 19 3500422 Oil Tube(Long), Complete Set 給油パイプ(長)(組) 1 20 3400261 Oil Tube(4 × 6 × 500mm) オイルパイプ 1 21 3100371 Oil Tube Joint, Two Way 両口管継手 1 22 3100332 Oil Tube(4 × 6 × 37mm) オイルパイプ 1 23 320008 Fitting Stud(Short) 管継手ボルト(短) 4 24 3500423 Oil Tube(Middle), Complete Set 給油パイプ(中)(組) 1 25 26 3500415 Oil Filter Screen 濾過網 1 27 3500424 Oil Tube(4 × 6 × 190mm) オイルパイプ 1 28 320009 Fitting Stud(Long) 管継手ボルト(長) 1 29 3100356 Oil Tube(Short), Complete Set 給油パイプ(短)(組) 1 30 3100331 Oil Tube(4 × 6 × 31mm) オイルパイプ 1 31 3500418 Oiling Shower 給油シャワ 1 32 3500410 Draining Felt 排油フェルト 1 33 3500404 Draining Pipe 排油パイプ 1 34 110013 Screw(M4-0.7 × 8) 止ネジ 2 35 3500425 Oil Tube(4 × 6 × 350mm) オイルパイプ 1 36 3150195 [3150143] Oil Pump, Complete Set ポンプ(組) 1 37 2040033 [0030711] Oil Pump Driving Worm Gear ウォームギア 1 38 160001 Screw(M4×4) 止ネジ 2 39 120011 [120013] Screw(M6-1 × 18)[M6-1 × 15] 止ネジ 2 40 000560 [000567] Seal パッキン 1 41 100014 [100004] Nut ナット 1 42 3150151 Oil Nozzle for Worm Gear 給油パイプ 1 43 3100330 Oil Tube Stay オイルパイプ支エ 1 44 3500236 Dust Proof Plate 防塵板 1 45 3500006 Oil Sight Gauge オイルゲージ 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 40 — PULLER MECHANISM(1)

14 PULLER MECHANISM(1) 34 2 1 3 4 5 8 9 6 7 10 11 12 19 20 21 22 18 17 15 16 14 13 23 27 28 30 31 33 29 32 30 26 24 25 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 41 — PULLER MECHANISM EXCLUSIVE PARTS(1)

PULLER MECHANISM EXCLUSIVE PARTS(1) プラー機構専用部品(1) 14 Ref.No Parts No. Description 品名 Amt. Req 1 3100625 Upper Feed Roller Shaft Bracket 上ローラ軸ブラケット 1 2 120019 Screw(M6-1 × 18) 止ネジ 4 3 000779 Knock Pin ノックピン 2 4 3100006 Seal Plug 詰栓 1 5 3100607 Roller Shaft Bushing(Right) 上ローラ軸ブッシュ(右) 1 6 3100604 Upper Feed Roller Shaft Lever 上ローラ軸腕 1 7 160007 Screw(M6-1 × 6) 止ネジ 2 8 0065398 Collar(14 × 22 × 10mm) カラー 1 9 009604 Screw(11/64-40 × 5.5) 止ネジ 2 10 3100626 Roller Shaft Bushing(Left) 上ローラ軸ブッシュ(左) 1 11 0065395 Oil Seal オイルシール 1 12 3100605 Upper Feed Roller Shaft 上ローラ軸 1 13 - See page 16 16ページ参照 - 14 3100608 Upper Feed Roller Lever 上ローラレバー 1 15 120014 Screw(M6-1 × 20) 止ネジ 1 16 0064011 Upper Feed Roller Lever Pin 上ローラレバーピン 1 17 000613 Washer ワッシャ 1 18 000306 Nut ナット 2 19 3501281 Upper Feed Roller Lever Rod 上ローラレバーロッド 1 20 240010 Screw(1/4-40 × 11) 止ネジ 1 21 310063 Oil Wick 油芯 1 22 0032921 Upper Feed Roller Driving Rod Pin 上ローラロッドピン 1 23 160001 Screw(M4-0.7 × 4) 止ネジ 1 24 3100602 Upper Feed Roller Driving Rod 上ローラロッド 1 25 3100192 Retaining Ring ストップリング 1 26 3100623 Roller Bearing ニードルベアリング 1 27 3100603 Upper Feed Roller Regulator, C. Set 上ローラ調節器(組) 1 28 3100601 Upper Feed Roller Eccentric 上ローラエキセン 1 29 3100600 Upper Feed Roller Regulator 上ローラ調節器 1 30 160003 Screw(M5-0.8 × 5) 止ネジ 2 31 190007 Adjusting Screw(M5-0.8 × 6) 調節ネジ 1 32 120008 Screw(M4-0.7 × 8) 止ネジ 1 33 300045 Spacer スペーサ 1 34 3100636 Upper Feed Roller Shaft Bracket, C. Set 上ローラ軸ブラケット(組) 1 Note: Parts No. of Puller Mechanism, C. Set . . . 3500695 = 3100636 + 3500697 + 3500699 (注) プラー機構(組)の Parts No. . . 3500695 = 3100636 + 3500697 + 3500699 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 42 — PULLER MECHANISM(2)

15 PULLER MECHANISM(2) 1 3 2 8 7 4 6 5 21 20 22 11 18 16 17 9 10 14 15 26 24 27 23 25 28 27 30 31-1 31-2 32 33 34-1 34-2 35 40 38 39 41 43 36 37 42 RUBBER ROLLER 45 54 44 46 EXTRA PARTS 49 48 53 52 51 53 50 47 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 43 — PULLER MECHANISM EXCLUSIVE PARTS(2)

PULLER MECHANISM EXCLUSIVE PARTS(2) プラー機構専用部品(2) 15 Ref.No Parts No. Description Amt. Req 1 - See Page 16 16ページ参照 - 2 3100611 Upper Feed Roller Yoke 上ローラヨーク 1 3 120012 Screw(M6-1 × 20) 止ネジ 1 4 3100612 Upper Feed Roller Yoke Guide 上ローラヨークガイド 1 5 120008 Screw(M4-0.7 × 8) 止ネジ 2 6 3100613 Upper Feed Roller Yoke Pin 上ローラヨークピン 1 7 160007 Screw(M6-1 × 6) 止ネジ 1 8 0090620 [3200133] Wire(0.9 × 45mm) 鉄線 1 9 180005 Screw(M4-0.7 × 5) 止ネジ 2 10 160001 Screw(M4-0.7 × 4) 止ネジ 1 11 160003 Screw(M5-0.8 × 5) 止ネジ 3 12 0060056 Retaining Ring ストップリング 1 13 2100902 Thrust Ring スラストリング 1 14 3501270 Clutch Driving Shaft クラッチ軸 1 15 3100616 Clutch Driving Shaft Bushing(Left) クラッチ軸ブッシュ(左) 1 16 0065414 Clutch Driving Shaft Bushing(Right) クラッチ軸ブッシュ(右) 1 17 0065421 Clutch Tension Sleeve クラッチテンションスリーブ 1 18 3501283 Adjusting Collar 調節カラー 1 19 Adjusting Screw Stay 調節ネジ支工 1 20 3501284 Screw(M3-0.5 × 5) 止ネジ 2 21 110002 Screw(M3-0.5 × 12) 止ネジ 1 22 110097 Clutch Tension Spring クラッチテンションバネ 1 23 3501282 Clutch Driving Lever クラッチ板(右) 1 24 3501280 Screw(M4-0.7 × 7.3) 止ネジ 3 25 130003 Clutch Sleeve(Right) クラッチスリーブ(右) 1 26 3501276 Thrust Plate スラストプレート 2 27 3501272 Clutch Spacer クラッチスペーサ 1 28 160005 Screw(M6-1 × 8) 止ネジ 1 29 3501275 Clutch Sleeve(Left) クラッチスリーブ(左) 1 31-1 3501290 Upper Feed Roller (30 teeth)(Standard) 上ローラ(30山)(標準) 1 31-2 3501289 Upper Feed Roller(26 teeth)(Extra Parts) 上ローラ(26山)(特注部品) 1 32 007621 Screw(9/64-40 × 8.5) 止ネジ 3 33 3500697 Lower Feed Roller Support, C. Set 下ローラサポート(組) 1 34-1 3501260 Lower Feed Roller(19 teeth)(Standard) 下ローラ(19山)(標準) 1 34-2 3501259 Lower Feed Roller(16teeth)(Extra Parts) 下ローラ(16山)(特注部品) 1 35 000487 Wave Washer 波形ワッシャ 1 36 3501252 Lower Feed Roller Guide 下ローラガイド 1 37 0060056 Retaining Ring ストップリング 1 38 160000 Screw(M3-0.5 × 3) 止ネジ 2 39 3501251 Lower Feed Roller Shaft 下ローラ軸 1 40 160003 Screw(M5-0.8 × 5) 止ネジ 1 Ref. No. 41 to 54 See the following page. From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 44 — PULLER MECHANISM(2)

15 PULLER MECHANISM(2) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 20 21 22 23 24 25 26 27 28 29 30 31-1 31-2 32 33 34-1 34-2 35 36 37 38 39 40 41 42 43 44 45 54 46 EXTRA PARTS 47 48 49 50 51 52 53 RUBBER ROLLER VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 45 — PULLER MECHANISM EXCLUSIVE PARTS(2)

PULLER MECHANISM EXCLUSIVE PARTS(2) プラー機構専用部品(2) 15 Ref.No Parts No. Description 41 3501250 Lower Feed Roller Bracket 42 120041 Screw(M6-1 × 12) 43 000779 Knock Pin 44 3501295 Upper Feed Roller(Rubber) 45 3501265 Lower Feed Roller(Rubber) 46 3500698 Supplementary Roller, C. Set 47 3501253 Supplementary Roller Support 48 000538 Washer 49 110009 Screw(M4-0.7 × 8) 50 3501122 Supplementary Roller 51 0065436 Supplementary Roller Stay(A) 52 0065437 Supplementary Roller Stay(B) 53 009730 [110030] Screw(1/8-44 × 5.3)[M3-0.5 × 2.6] 54 0063460 Lower Feed Roller(Rubber) Bushing 品名 Amt. Req 下ローラーブラケット 1 止ネジ 2 ノツクピン 2 上ローラー(ゴム) 1 下ローラー(ゴム) 1 補助ローラー(組) 1 補助ローラー取付板 1 ワツシヤ 2 止ネジ 2 補助ローラー 1 補助ローラー支工(A) 1 補助ローラー支工(B) 1 止ネジ 4 下ローラー(ゴム)ブツシユ 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in VG2700

Page 46 — PULLER MECHANISM (3)

16 PULLER MECHANISM (3) 33 6 7 5 1 2 3 4 6 2 3 4 10 9 8 3 4 10 12 11 18 19 17 13 15 16 14 23 21 22 20 24 25 28 26 27 31 30 32 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 47 — PULLER MECHANISM EXCLUSIVE PARTS(3)

PULLER MECHANISM EXCLUSIVE PARTS(3) プラー機構専用部品(3) 16 Ref.No Parts No. Description 品名 Amt. Req 1 0065381 Upper Feed Roller Lifter(Right) 上ローラ揚ケ(右) 1 2 110009 Screw(M4-0.7 × 8) 止ネジ 2 3 000538 Washer ワッシャ 3 4 000334 Nut ナット 2 5 0034979 Flexible Wire Clamp Bushing ワイヤ止メブッシュ 2 6 006075 Screw(11/64-40 × 6) 止ネジ 2 7 0067126 Lifter Connecting Plate 上ローラ揚ケ連結板 1 8 0065374 Upper Feed Roller Lifter(Left) 上ローラ揚ケ(左) 1 9 0065375 Upper Feed Roller Lifter Pin 上ローラ揚ケピン 1 10 0095027 Retaining Ring ストップリング 2 11 0065376 Lifter Connecting Plate 上ローラ吊リ 1 12 006038 Screw(3/16-32 × 2.2) 止ネジ 2 13 0065407 Roller Press Bar Bracket 上ローラ押工棒抱キ 1 14 005650 Screw(M5-0.8 × 14) 止ネジ 1 15 0065402 Lifting Lever Sleeve 上ローラレバースリーブ 1 16 006411 Screw(11/64-40 × 5.5) 止ネジ 1 17 000340 Nut ロックナット 1 18 009931 Stop Screw(11/64-40 × 26) ストップネジ 1 19 3100614 Roller Press Spring 上ローラ押エバネ 1 20 3100610 Upper Feed Roller Bracket 上ローラブラケット 1 21 009753 Screw(M6-1 × 35) 止ネジ 2 22 000779 Knock Pin ノックピン 2 23 0065405 Roller Press Bar Bushing(Upper) 上ローラ押工棒ブッシュ(上) 1 24 160007 Screw(M6-1 × 6) 止ネジ 1 25 3100609 Roller Press Bar Bushing(Lower) 上ローラ押工棒ブッシュ(下) 1 26 0065404 Upper Feed Roller Press Bar 上ローラ押工棒 1 27 0034117 Retaining Ring ストップリング 1 28 000690 Stop Pin ストップピン 1 29 000613 Washer ワッシャ 1 30 0067111 Upper Feed Roller Lifting Lever 手揚ゲ 1 31 000487 Corrugated Washer 波形ワッシャ 1 32 170008 Screw(M6-1 × 9) 止ネジ 1 33 3500699 Upper Feed Roller Bracket, C. Set 上ローラブラケット(組) 1 Note: Part No. 3500699 of Ref. No. 33 contains the part numbers of Ref. No. 13 on page 14 and Ref. No. 1 on page 15. (注) Ref. No. 33 の Part No. 3500699 は 14 ページの Ref. No. 13 及び 15 ページの Ref. No. 1 の部分を含んだPart No. です。 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 48

17 VG2700-000 L, 000 S, 000 S1, 000 S2 000 L 1-1 1-2 000 S, 000 S1, 000 S2 2-1 2-2 2-3 2-4 2-5 2-6 2-7 VG2700-000 M, 000 S, 000 S1, 000 S2 2 Needle 4-1 4-2 000 M 3-1 3-2 5 10 11 12 7 14-1 14-2 14-3 14-4 14-5 6 8 9 VG2700-156M-31 15 16 17 EXTRA PARTS Fabric Edge Guide for bottom hemming 裾引き縫い用定規 18 20 19 21 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 49 — VG2700 EXCLUSIVE PARTS

VG2700 EXCLUSIVE PARTS サブモデル専用部品 17 Ref.No Parts No. Description 品名 Amt. Req 1-1 3508007 Stitch Plate(48L) 針板 1 1-2 3508008 Stitch Plate(56L) 針板 1 2-1 3508012 Stitch Plate(48S) 針板 1 2-2 3508062 Stitch Plate(48S1) 針板 1 2-3 3508063 Stitch Plate(56S1) 針板 1 2-4 3508064 Stitch Plate(64S1) 針板 1 2-5 3508067 Stitch Plate(48S2) 針板 1 2-6 3508068 Stitch Plate(56S2) 針板 1 2-7 3508069 Stitch Plate(64S2) 針板 1 3-1 0093351 Needle Clamp(32) 針止メ 1 3-2 0093352 Needle Clamp(40) 針止メ 1 4-1 3507000 Presser Foot, C. Set(32) 押工(組) 1 4-2 3507002 Presser Foot, C. Set(40) 押工(組) 1 5 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 6 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 7 3107304 Presser Foot Spring(Right) 小押エバネ(右) 1 8 130016 Screw(M2.5-0.45 × 6) 止ネジ 4 9 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 10 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 11 000327 Lock Nut ロックナット 1 12 260006 Adjusting Screw(1/8-44 × 9.5) 止ネジ 1 13-1 3508000 Stitch Plate(32M) 針板 1 13-2 3508001 Stitch Plate(40M) 針板 1 14-1 3508011 Stitch Plate(40S) 針板 1 14-2 3508060 Stitch Plate(32S1) 針板 1 14-3 3508061 Stitch Plate(40S1) 針板 1 14-4 3508065 Stitch Plate(32S2) 針板 1 14-5 3508066 Stitch Plate(40S2) 針板 1 15 3108134 Stitch Plate(56M-31) 針板 1 16 3106000 Main Feed Dog 後送り 1 17 3109000 Differential Feed Dog 前送り 1 18 3100630 Fabric Edge Guide(Left) 定規(左) 1 19 0095367 Fabric Edge Guide Chip 定規チップ 1 20 004182 Screw(3/32-56 × 2.5) 止ネジ 1 21 3100631 Fabric Edge Guide(Right) 定規(右) 1 From the library of: Superior Sewing Machine & Supply LLC Jintex.in VG2700

Page 50

18 VG2700-□□□□-WF1 1 2 3 4 5 6 EXTRA PARTS 24-1 24-2 7-1 7-2 7-3 7-4 7-5 8 9 10 11 12 13 14 15 16 17 18 19 20 21-1 21-2 22 23 VG2700 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 51 — VG2700-□□□□-WF1 EXCLUSIVE PARTS

VG2700-□□□□-WF1 EXCLUSIVE PARTS サブモデル専用部品 18 Ref.No Parts No. Description 品名 Amt. Req 1 3500297 Presser Spring Regulator 押工調節ネジ 1 2 3200132 Presser Bar Spring(Outer) 押工棒バネ(太) 1 3 3101315 Presser Bar Stopper 押工棒ストッパ 1 4 000538 Washer ワッシャ 1 5 004440 Screw(11/64-40 × 8.3) 止ネジ 1 6 0093480 Presser Bar 押工棒 1 7-1 3107277 Walking Foot, C. Set(48)(Extra Parts) ウォーキング押工(組)(特注部品) 1 7-2 3107270 Walking Foot, C. Set(56) ウォーキング押工(組) 1 7-3 3107282 Walking Foot, C. Set(32)(2 Needle)(Extra Parts) ウォーキング押工(組)(2本針)(特注部品) 1 7-4 3107275 Walking Foot, C. Set(40)(2 Needle)(Extra Parts) ウォーキング押工(組)(2本針)(特注部品) 1 7-5 3107280 Walking Foot, C. Set(64)(Extra Parts) ウォーキング押工(組)(特注部品) 1 8 160001 Screw(M4-0.7 × 4) 止ネジ 1 9 100052 Nut ナット 1 10 3207148 Presser Foot Spring 押工バネ 1 11 100020 Nut ナット 1 12 000665 Washer ワッシャ 1 13 100057 Nut ナット 1 14 3207146 Adjusting Screw 調節ネジ 1 15 160025 Screw(M3-0.5 × 6) 止ネジ 1 16 0060270 Yoke Pin 押工ヨークピン 1 17 160001 Screw(M4-0.7 × 4) 止ネジ 2 18 3107303 Presser Foot Spring(Left) 小押工バネ(左) 1 19 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 20 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 21-1 3107273 Fabric Presser(width 6.2mm) 布押工 1 21-2 3107272 Fabric Presser(width 3.1mm) 布押工 1 22 001228 Screw(3/32-56 × 3.2) 止ネジ 2 23 3110201 Spacer(Extra Parts) スペーサ(特注部品) 1 24-1 3107274 Fabric Presser(width 12.6mm)(Extra Parts) 布押工(特注部品) 1 24-2 3107285 Fabric Presser(width 37.2mm)(Extra Parts) 布押工(特注部品) 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 52 — VG2703(1)

19 VG2703(1) 1 8 7 6 3 5 2 4 28 27 9 29 23 24 25 22 19 20 21 16 17 18 38-1 P 38-2 Q 38-3 R 32 35 30 36 A 15 13 12 10 14 11 34 33 CAUTION 37 32 38-1 38-2 38-3 VG2700 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 53 — VG2703 EXCLUSIVE PARTS(1)

VG2703 EXCLUSIVE PARTS(1) サブモデル専用部品(1) 19 Ref.No Parts No. Description 品名 Amt. Req 1 3502003 Front Cover, C. Set 前開きカバー(組) 1 2 3502010 Slide Cover 滑り板 1 3 3502007 Folder Support 定規支工 1 4 3502012 Folder Support Fixing Plate 定規固定板 1 5 140019 Screw(M5-0.8 × 14) 止ネジ 2 6 3502006 Folder Clamp 定規取付板 1 7 009932 Screw(11/64-40 × 4) 止ネジ 2 8 005554 Screw(7/32-32 × 6.5) 止ネジ 1 9 3502013 Eye Guard アイガード 1 10 3502203 Front Cover Hinge 前開キカバーヒンジ 1 11 110016 Screw(M4-0.7 × 14) 止ネジ 2 12 170001 Screw(M4-0.7 × 8) 止ネジ 2 13 300100 Conical Spring Washer 皿バネワッシャ 4 14 160001 Screw(M4-0.7 × 4) 止ネジ 2 15 3502004 Front Cover (Lower) 前開キカバー(下) 1 16 110045 Screw(M4-0.7 × 12) 止ネジ 1 17 000015 Nut ナット 1 18 330019 [330011] Seal Plug 詰栓 1 19 3201007 [0096277] Fabric Slide Plate 布滑り板 1 20 000426 Washer ワッシャ 1 21 110103 Screw(M5-0.8 × 8) 止ネジ 1 22 3502009 Cloth Plate(Front) クロスプレート(前) 1 23 130007 [130002] Screw(M4-0.7 × 10) [M3-0.5 × 6] 止ネジ 2 24 3502008 Supplementary Plate 補助板 1 25 110050 Screw(M3-0.6 × 4.5) 止ネジ 2 26 3200033 Seal Plug 詰栓 1 27 3502011 Tape Guide テープガイド 1 28 110048 Screw(M4-0.7 × 10) 止ネジ 2 29 000505 Spacer スペーサ 2 30 3502005 Front Cover(Upper) 前開キカバー(上) 1 31 3502015 Dustproof Cover(Sponge) 防塵カバー(スポンジ) 1 32 110094 Screw(M4-0.7 × 6) 止ネジ 2 33 3500233 Thread Take-up Cover(Front) カムカバー(前) 1 34 007627 Screw(M4-0.7 × 6) 止ネジ 2 35 110002 Screw(M3-0.5 × 5) 止ネジ 1 36 190078 Screw(M4-0.7 × 5) バネ掛ケネジ 1 37 390173 Caution Label 注意書ラベル 1 38-1 0093241 Folder(for Type P) 定規(P) 1 38-2 0093242 Folder(for Type Q) 定規(Q) 1 38-3 0093243 Folder(for Type R) 定規(R) 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 54 — VG2703(2)

20 VG2703(2) VG2703-148M, 156M, 164M 1-1 1-2 1-3 4 3 8 9 5 2 7 10-1 10-2 10-3 11 12 VG2703-132M, 140M (2 Needle) 13-1 13-2 4 3 8 9 5 6 2 7 14-1 14-2 11 12 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 55 — VG2703 EXCLUSIVE PARTS(2)

VG2703 EXCLUSIVE PARTS(2) サブモデル専用部品(2) 20 Ref.No Parts No. Description 品名 Amt. Req 1-1 3207155 Presser Foot, C. Set(48) 押工(組) 1 1-2 3207156 Presser Foot, C. Set(56) 押工(組) 1 1-3 3207157 Presser Foot, C. Set(64) 押工(組) 1 2 001186 Screw(9/64-40 × 7.8) 止ネジ 1 3 0091725 Presser Foot Spring 小押工バネ 1 4 005133 Screw(1/8-44 × 4.5) 止ネジ 1 5 000220 Lock Nut ロックナット 1 6 003300 Adjusting Screw(1/8-44 × 15) 調節ネジ 1 7 0091696 Presser Foot Hinge Pin 押工ヒンジピン 1 8 3207160 Tape Guide テープガイド 1 9 001230 Screw(3/32-56 × 3.8) 止ネジ 1 10-1 3508051 Stitch Plate(48M) 針板 1 10-2 3508052 Stitch Plate(56M) 針板 1 10-3 3508053 Stitch Plate(64M) 針板 1 11 3509001 Main Feed Dog 後送り 1 12 3509000 Differential Feed Dog 前送り 1 13-1 3207150 Presser Foot, C. Set(32) 押工(組) 1 13-2 3207151 Presser Foot, C. Set(40) 押工(組) 1 14-1 3508049 Stitch Plate(32M) 針板 1 14-2 3508050 Stitch Plate(40M) 針板 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 56 — VG2708-WF8

21 VG2708-WF8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 57 — VG2708-WF8 EXCLUSIVE PARTS

VG2708-WF8 EXCLUSIVE PARTS サブモデル専用部品 21 Ref.No Parts No. Description 品名 Amt. Req 1 3500297 Presser Spring Regulator 押工調節ネジ 1 2 3200132 Presser Bar Spring(Outer) 押工棒バネ(太) 1 3 3101315 Presser Bar Stopper 押工棒ストッパ 1 4 000538 Washer ワッシャ 1 5 004440 Screw(11/64-40 × 8.3) 止ネジ 1 6 0093480 Presser Bar 押工棒 1 7 3107290 Walking Foot, C. Set ウォーキング押工(組) 1 8 160001 Screw(M4-0.7 × 4) 止ネジ 1 9 100052 Nut ナット 1 10 3207148 Presser Foot Spring 押工バネ 1 11 100020 Nut ナット 1 12 000665 Washer ワッシャ 1 13 100057 Nut ナット 1 14 3207146 Adjusting Screw 調節ネジ 1 15 160025 Screw(M3-0.5 × 6) 止ネジ 1 16 0060270 Yoke Pin 押工ヨークピン 1 17 160001 Screw(M4-0.7 × 4) 止ネジ 2 18 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 19 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 20 0094507 Stitch Plate 針板 1 21 3509031 Main Feed Dog 後送り 1 22 3509030 Differential Feed Dog 前送り 1 23 3120076 Looper Thread Take-up ルーパ糸調子カム 1 From the library of: Superior Sewing Machine & Supply LLC Jintex.in VG2700

Page 58

22 VG2713-0000-T1N, T4N EXTRA PARTS 2 1-1 1-2 4 3 VG2713-146L-T1N, 156L-T1N, 156M-T1N 9-1 9-2 9-3 10 11 12 VG2713-140S-T4N, 148M-T4N, 156M-T4N, 164M-T4N 13-1 13-2 13-3 13-4 10 14 12 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jintex.in

Page 59 — VG2713-0000-T1N, T4N EXCLUSIVE PARTS

VG2713-0000-T1N, T4N EXCLUSIVE PARTS サブモデル専用部品 22 Ref.No Parts No. Description 品名 Amt. Req 1-1 3107311 Fabric Guide 布ガイド 1 1-2 3507091 ◆ Fabric Guide(Long)(Extra Parts) 布ガイド(長)(特注部品) 1 2 110027 Screw(M2.5-0.45 × 3.5) 止ネジ 2 3 3500631 Fabric Guide(Left) 布ガイド(左) 1 4 3500632 Fabric Guide(Right) 布ガイド(右) 1 5 6 3500634 Fabric Guide(Small)(Left) 布ガイド(小)(左) 1 7 3500635 Fabric Guide(Small)(Right) 布ガイド(小)(右) 1 8 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 2 9-1 3508020 Stitch Plate(48L) 針板 1 9-2 3508021 Stitch Plate(56L) 針板 1 9-3 3508019 Stitch Plate(56M) 針板 1 10 3509007 Differential Feed Dog 前送り 1 11 3509012 Differential Feed Dog(Middle) 中送り 1 12 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 13-1 3508040 Stitch Plate(40S)(2 Needle) 針板 1 13-2 3508031 Stitch Plate(48M)(3 Needle) 針板 1 13-3 3508032 Stitch Plate(56M)(3 Needle) 針板 1 13-4 3508033 Stitch Plate(64M)(3 Needle) 針板 1 14 3509010 Differential Feed Dog(Middle) 中送り 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 60

23 VG2713-□□□□-T1A, T2A, T4A EXTRA PARTS 2 1-1 1-2 4 8 7 6 3 VG2713-148L-T1A, 156L-T1A, 156M-T1A 9-1 9-2 9-3 13 14 15 12 VG2713-156L-T2A 16 17 14 15 12 VG2713-140S-T4A, 148M-T4A, 156M-T4A, 164M-T4A 18-1 18-2 18-3 18-4 13 14 19 12 VG2700 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 61 — VG2713-0000-T1A, T2A, T4A EXCLUSIVE PARTS サブモデル専用部品

VG2713-0000-T1A, T2A, T4A EXCLUSIVE PARTS サブモデル専用部品 23 Ref.No Parts No. Description 品名 Amt. Req 1-1 3107311 Fabric Guide 布ガイド 1 1-2 3507091 ◆ Fabric Guide(Long)(Extra Parts) 布ガイド(長)(特注部品) 1 2 110027 Screw(M2.5-0.45 × 3.5) 止ネジ 2 3 3500631 Fabric Guide(Left) 布ガイド(左) 1 4 3500632 Fabric Guide(Right) 布ガイド(右) 1 5 6 3500634 Fabric Guide(Small)(Left) 布ガイド(小)(左) 1 7 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 2 8 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 2 9-1 3508019 Stitch Plate(56M) 針板 1 9-2 3508020 Stitch Plate(48L) 針板 1 9-3 3508021 Stitch Plate(56L) 針板 1 10 11 12 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 13 3509017 Main Feed Dog 後送り 1 14 3509015 Differential Feed Dog 前送り 1 15 3509016 Differential Feed Dog(Middle) 中送り 1 16 3508074 Stitch Plate(56L) 針板 1 17 3509019 Main Feed Dog 後送り 1 18-1 3508031 Stitch Plate(48M) 針板 1 18-2 3508032 Stitch Plate(56M) 針板 1 18-3 3508033 Stitch Plate(64M) 針板 1 18-4 3508040 Stitch Plate(40S)(2 Needle) 針板 1 19 3509018 Differential Feed Dog(Middle) 中送り 1 From the library of: Superior Sewing Machine & Supply LLC Jintex.in VG2700

Page 62 — 24

24 VG2713-148M-K1N, 156M-K1N, 156M-K4N 2 1-1 1-2 3 5 4 6 VG2713-148L-K1N, 156M-K1N 7-1 7-2 8 9 10 VG2713 (P)-156M-K4N 11 8 12 10 EXTRA PARTS VG2713-140S-K4N, 148M-K4N 13-1 13-2 8 12 10 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 63 — VG2713-0000-K1N, K4N EXCLUSIVE PARTS

VG2713-0000-K1N, K4N EXCLUSIVE PARTS サブモデル専用部品 24 Ref.No Parts No. Description 品名 Amt. Req 1-1 3107311 Fabric Guide 布ガイド 1 1-2 3507091 Fabric Guide(Long)(Extra Parts) 布ガイド(長)(特注部品) 1 2 110027 Screw(M2.5-0.45 × 3.5) 止ネジ 1 3 3101320 Fabric Guide(Left) 布ガイド(左) 1 4 3101321 Fabric Guide(Right) 布ガイド(右) 1 5 110027 [110038] Screw(M2.5-0.45 × 3.5) [M2.5-0.45 × 4.5] 止ネジ 2 6 3500637 Supplementary Block 補助ブロック 1 7-1 3508025 Stitch Plate(48M-K1N) 針板 1 7-2 3508026 Stitch Plate(56M-K1N) 針板 1 8 3509007 Differential Feed Dog 前送り 1 9 3509012 Differential Feed Dog(Middle) 中送り 1 10 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 11 3508087 Stitch Plate(56M-K4N) 針板 1 12 3509010 Differential Feed Dog(Middle) 中送り 1 13-1 3508041 Stitch Plate(40S-K4N) 針板 1 13-2 3508086 Stitch Plate(48M-K4N) 針板 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 64 — 25 VG2713-0000-000-WF2

25 VG2713-0000-000-WF2 1 2 3 4 5 6 7-1 7-2 7-3 7-4 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 VG2700 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 65 — VG2713-000-000-WF2 EXCLUSIVE PARTS

VG2713-000-000-WF2 EXCLUSIVE PARTS サブモデル専用部品 25 Ref.No Parts No. Description 品名 Amt. Req 1 3500297 Presser Spring Regulator 押工調節ネジ 1 2 3200132 Presser Bar Spring(Outer) 押工棒ハネ(太) 1 3 3101315 Presser Bar Stopper 押工棒ストッパ 1 4 000538 Washer ワッシャ 1 5 004440 Screw(11/64-40 × 8.3) 止ネジ 1 6 0093480 Presser Bar 押工棒 1 7-1 3507072 Walking Foot, C. Set(48) ウォーキング押工(組) 1 7-2 3507074 Walking Foot, C. Set(56) ウォーキング押工(組) 1 7-3 3507070 Walking Foot, C. Set(40) (2 Needle) ウォーキング押工(組) 1 7-4 3507076 Walking Foot, C. Set(64) (Extra Parts) ウォーキング押工(組) 1 8 160001 Screw(M4-0.7 × 4) 止ネジ 1 9 100052 Nut ナット 1 10 3207148 Presser Foot Spring 押工ハネ 1 11 100020 Nut ナット 1 12 000665 Washer ワッシャ 1 13 100057 Nut ナット 1 14 3207146 Adjusting Screw 調節ネジ 1 15 160025 Screw(M3-0.5 × 6) 止ネジ 1 16 0060270 Yoke Pin 押工ヨークピン 1 17 160001 Screw(M4-0.7 × 4) 止ネジ 2 18 3107303 Presser Foot Spring(Left) 小押工ハネ(左) 1 19 3107304 Presser Foot Spring(Right) 小押工ハネ(右) 1 20 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 21 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 22 3107311 Fabric Guide 布ガイド 1 23 110027 Screw(M2.5-0.45 × 3.5) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 66

26 VG2740, 2740P(1) VG2740: Including in accessory/アクセサリーに同梱 VG2740P: Fitted on machine/ミシン本体に装着 1 4 2 3 VG2740P: Including in accessory/アクセサリーに同梱 7 5 30 6 8 9 10 VG2740 (P) -132S1, 132M, 140S1 (2 Needle) EXTRA PARTS 11 12 13 17 18 19 20 22 23 14 15 16 24 VG2740 (P) -132S1, 140S1 VG2740 (P) -132M EXTRA PARTS Stitch tongue of P. F. for using machine without spreader thread. 上飾りなし使用時の押工爪 25-1 25-2 26-1 26-2 27 28 29 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 67 — VG2740, 2740P EXCLUSIVE PARTS(1)

VG2740, 2740P EXCLUSIVE PARTS(1) サブモデル専用部品(1) 26 Ref.No Parts No. Description 品名 Amt. Req 1 3501302 [3501298] Fabric Guide(Left) 布ガイド(左) 1 2 3110073 Fabric Guide(Right) 布ガイド(右) 1 3 2100265 Spacer スペーサ 2 4 110010 [110043] Screw(M4-0.7 x 16)[M4-0.7 x 14] 止ネジ 2 5 3100630 Folder(Left) 定規(左) 1 6 0095367 Folder Chip 定規チップ 1 7 004182 Screw(3/32-56 x 2.5) 止ネジ 1 8 3100631 Folder(Right) 定規(右) 1 9 0094615 Fabric Edge Guide(Left) (Extra Parts) 定規(左)(特注部品) 1 10 001228 ◆ Screw(3/32-56 x 3.2)(Extra Parts) 止ネジ(特注部品) 1 11 3507060 Presser Foot, C. Set(1) (32, 40) 押工(組1) 1 12 3507058 Presser Foot, C. Set 押工(組) 1 13 110004 Screw(M3.5-0.6 x 8) 止ネジ 1 14 3107303 Presser Foot Spring(Left) 小押エバネ(左) 1 15 130016 Screw(M2.5-0.45 x 6) 止ネジ 2 16 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 17 110084 Screw(M3-0.5 x 4.2) 止ネジ 1 18 004154 Screw(3/32-56 x 2.2) 止ネジ 1 19 000327 Lock Nut ロックナット 1 20 260006 Adjusting Screw(1/8-44 x 9.5) 調節ネジ 1 21 3507061 Presser Foot Stitch Tongue(32, 40) 押工爪 1 22 3509007 Differential Feed Dog 前送り 1 23 3509025 Differential Feed Dog(Middle) 中送り 1 24 110038 Screw(M2.5-0.45 x 4.5) 止ネジ 1 25-1 3507083 Presser Foot Stitch Tongue(32) 押工爪 1 25-2 3507084 Presser Foot Stitch Tongue(40) 押工爪 1 26-1 3508080 Stitch Plate(32S1) (2 Needle) 針板 1 26-2 3508081 Stitch Plate(40S1) (2 Needle) 針板 1 27 3508125 ◆ Stitch Plate(32M) (2 Needle) 針板 1 28 3508126 ◆ Stitch Plate(40M) (2 Needle) (Extra Parts) 針板(特注部品) 1 29 3508136 ◆ Stitch Plate(32M) (2 Needle) (Extra Parts) 針板(特注部品) 1 30 3500255 Supplementary Block 補助ブロック 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 68

27 VG2740, 2740P(2) VG2740 (P)-148S1, 148M, 156S1, 156M, 164S1, 164M 1 2 3 7 8 9 10 4 5 6 11 12 13 14 15 16 VG2740 (P)-148S1, 156S1, 164S1 17-1 17-2 17-3 VG2740 (P)-148M, 156M, 164M 18-1 18-2 18-3 EXTRA PARTS Stitch tongue of P. F. for using machine without spreader thread. 上飾りなし使用時の押工爪 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 69 — VG2740, 2740P EXCLUSIVE PARTS(2)

VG2740, 2740P EXCLUSIVE PARTS(2) サブモデル専用部品(2) 27 Ref.No Parts No. Description 品名 Amt. Req 1 3507064 Presser Foot, C. Set(1)(48, 56, 64) 押工(組1) 1 2 3507058 Presser Foot, C. Set 押工(組) 1 3 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 4 3107303 Presser Foot Spring(Left) 小押工バネ(左) 1 5 130016 Screw(M2.5-0.45 × 6) 止ネジ 2 6 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 7 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 8 004154 Screw(3/32-56 × 2.2) 止ネジ 1 9 000327 Lock Nut ロックナット 1 10 260006 Adjusting Screw(1/8-44 × 9.5) 調節ネジ 1 11 3507065 Presser Foot Stitch Tongue(48, 56, 64) 押工爪 1 12 3509007 Differential Feed Dog 前送り 1 13 3509026 Differential Feed Dog(Middle) 中送り 1 14 110038 Screw(M2.5-0.45 × 4.5) 止ネジ 1 15 3507085 Presser Foot Stitch Tongue(48) 押工爪 1 16 3507087 Presser Foot Stitch Tongue(56, 64) 押工爪 1 17-1 3508082 Stitch Plate(48S1) 針板 1 17-2 3508083 Stitch Plate(56S1) 針板 1 17-3 3508084 Stitch Plate(64S1) 針板 1 18-1 3508127 Stitch Plate(48M) 針板 1 18-2 3508128 Stitch Plate(56M) 針板 1 18-3 3508129 Stitch Plate(64M) 針板 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 70

28 VG2740-156S1-WF1 1 2 EXTRA PARTS 24-1 24-2 21-2 22 21-1 23 7 8 9 10 15 11 12 13 16 17 19 20 14 18 6 5 4 3 VG2700 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 71 — VG2740-156S1-WF1 EXCLUSIVE PARTS

VG2740-156S1-WF1 EXCLUSIVE PARTS サブモデル専用部品 28 Ref.No Parts No. Description 品名 Amt. Req 1 3500297 Presser Spring Regulator 押工調節ネジ 1 2 3200132 Presser Bar Spring(Outer) 押工棒バネ(太) 1 3 3101315 Presser Bar Stopper 押工棒ストッパ 1 4 000538 Washer ワッシャ 1 5 004440 Screw(11/64-40 × 8.3) 止ネジ 1 6 0093480 Presser Bar 押工棒 1 7 3107270 Walking Foot, C. Set(56) ウォーキング押工(組) 1 8 160001 Screw(M4-0.7 × 4) 止ネジ 1 9 100052 Nut ナット 1 10 3207145 Presser Foot Spring 押工バネ 1 11 100020 Nut ナット 1 12 000665 Washer ワッシャ 1 13 100057 Nut ナット 1 14 3207146 Adjusting Screw 調節ネジ 1 15 160025 Screw(M3-0.5 × 6) 止ネジ 1 16 0060270 Yoke Pin 押工ヨークピン 1 17 160001 Screw(M4-0.7 × 4) 止ネジ 2 18 3107303 Presser Foot Spring(Left) 小押工バネ(左) 1 19 3107306 Presser Foot Hinge Pin 押工ヒンジピン 1 20 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 21-1 3107272 Fabric Presser(width 6.2mm) 布押工 1 21-2 3107273 Fabric Presser(width 3.1mm)(Accesary) 布押工(付属品) 1 22 001228 Screw(3/32-56 × 3.2) 止ネジ 2 23 3110201 Spacer(Extra Parts) スペーサ(特注部品) 1 24-1 3107274 FabricPresser(width 12.6mm)(Extra Parts) 布押工(特注部品) 1 24-2 3107285 FabricPreaaer(Width 37.2mm)(Extra Parts) 布押工(特注部品) 1 From the library of: Superior Sewing Machine & Supply LLC Jintex.in VG2700

Page 72

29 VG2740(P)-140M-SM, 148M-SM 1 2 3 4 5 6 7 8 VG2740(P)-140M-SM 10 12 11 13 14 15 17 16 18 19 VG2740(P)-148M-SM 20 12 11 13 14 15 21 22 23 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 73 — VG2740(P)-140M-SM, 148M-SM EXCLUSIVE PARTS

VG2740(P)-140M-SM, 148M-SM EXCLUSIVE PARTS サブモデル専用部品 29 Ref.No Parts No. Description 品名 Amt. Req 1 3103000 Needle Thread Retainer Support, C.Set 小調子台(組) 1 2 3100087 Needle Thread Retainer Support 小調子台 1 3 110013 Screw(M4-0.7 × 8) 止ネジ 1 4 0036175 Thread Retainer Disc Support 小調子板 1 5 0032425 Needle Thread Retainer Dice 小調子皿 1 6 0032426 Needle Thread Retainer Spring 小調子バネ 1 7 001093 Screw(1/8-44 × 2.2) 止ネジ 1 8 3501302 Fabric Edge Guide(Left) 定規(左) 1 9 0093415 Presser Foot, C. Set(40) 押工(組) 1 10 11 001186 Screw(9/64-40 × 7.8) 止ネジ 1 12 3107304 Presser Foot Spring 小押エバネ 1 13 0065366 Locking Pin 回り止メピン 1 14 0063282 Presser Foot Hinge Pin 押エヒンジピン 1 15 005122 Screw(3/32-56 × 5.5) 止ネジ 1 16 0093352 Needle Clamp(40) 針止メ 1 17 0093410 Stitch Plate(40M) 針板 1 18 3109042 Main Feed Dog(40) 後送り 1 19 3139006 Differential Feed Dog(40) 前送り 1 20 0093421 Presser Foot, C. Set(48) 押工(組) 1 21 0093417 Stitch Plate(48M) 針板 1 22 3109044 Main Feed Dog(48) 後送り 1 23 3139007 Differential Feed Dog(48) 前送り 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 jintex.in

Page 74 — 30 VG2760

30 VG2760 1-1 1-2 2 3 4-1 4-2 5 6 7 8 9 10 11-1 11-2 12 13 14 15-1 15-2 16 17 18 19 20 21 22 23 24 25 26 27 29 28 30 31 32 33 34 for UT-A, UT Device VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 75

VG2760 EXCLUSIVE PARTS サブモデル専用部品 30 Ref.No Parts No. Description 品名 Amt. Req 1-1 3209121 Needle Clamp(56) 針止メ 1 1-2 3209122 Needle Clamp(64) 針止メ 1 2 160033 Screw(M2.5-0.45 × 3) 止ネジ 4 3 Needle(MY1014H) 針 4 4-1 3207039 Presser Foot, C. Set(56) 押工(組) 1 4-2 3207040 Presser Foot, C. Set(64) 押工(組) 1 5 001186 Screw(9/64-40 × 7.8) 止ネジ 1 6 3107303 Presser Foot Spring(Left) 小押工バネ(左) 1 7 0063284 Presser Foot Guide Pin 小押工ガイドピン 1 8 0063282 Presser Foot Hinge Pin 押工ヒンジピン 1 9 005122 Screw(3/32-56 × 5.5) 止ネジ 1 10 3107304 Presser Foot Spring(Right) 小押工バネ(右) 1 11-1 3207044 Presser Foot Tongue(56) 押工爪 1 11-2 3207045 Presser Foot Tongue(64) 押工爪 1 12 004182 Screw(3/32-56 × 2.5) 止ネジ 1 13 3207046 Fabric Guide 布ガイド 1 14 110027 Screw(M2.5-0.45 × 3.5) 止ネジ 1 15-1 3508077 Stitch Plate(56S3) 針板 1 15-2 3508078 Stitch Plate(64S3) 針板 1 16 3509023 Main Feed Dog 後送リ 1 17 3509022 Differential Feed Dog 前送リ 1 18 3109306 Looper ルーパ 1 19 0024084 Thread Tension Spring Cap 糸調子バネキャップ(上) 1 20 0024083 Tension Spring Bushing 糸調子ナット回り止メ 1 21 0030255 Tension Spring(Needle) 糸調子バネ(針糸) 1 22 0090071 Thread Tension Spring Retainer 糸調子バネキャップ(下) 1 23 000177 Felt フェルト 1 24 0031111 Tension Disc 糸調子皿 2 25 290029 Tension Post 糸調子棒 1 26 0090812 Tension Post Ferrule 糸調子棒糸摺レ 1 27 3100417 Tension Disc Separator 糸緩メ板 1 28 0090856 Tension Disc Eyelet 糸調子皿糸道 1 29 0090807 Thread Lead-in Guide 糸調子台糸道 1 30 3100416 Tension Post Support 糸調子台 1 31 3500282 Needle Thread Eyelet 針糸道 1 32 110054 Screw(M3-0.5 × 3.5) 止ネジ 1 33 3100418 Thread Pull-off Eyelet 糸緩メ糸道 1 34 110012 Screw(M4-0.7 × 5) 止ネジ 2 35 3500514 Thread Pull-off Hook Unit 糸緩メフック(組) 1 36 003657 [160001] Screw(M4-0.7 × 3)[M4-0.7 × 4] 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 Jinte.in

Page 76 — EC DEVICE(1)

31 EC DEVICE(1) 1 2 7 31 29 28 14 27 32 30 33 25 24 37 36 38 39 40 49 50 51 48 6 35 34 22 23 44 43 42 41 52 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinte.in 11 10 9 8 4 5 3 16 12 15 13 20 17 19 18 21 47 46 45

Page 77 — EC DEVICE (1)

EC DEVICE (1) 31 Ref.No Parts No. Description 品名 Amt. Req 1 3509969 EC Device, Complete Set EC装置(組) 1 2 3501181 Cutting Device, C. Set カッタ装置(組) 1 3 3501182 Cutting Device Basement カッタ装置台 1 4 120010 Screw(M6-1 × 10) 止ネジ 2 5 300047 Washer ワッシャ 2 6 3101438 Cutting Device Basement Holder カッタ装置台取付板 1 7 0011789 Solenoid ソレノイド 1 8 000528 Washer ワッシャ 2 9 000011 Nut ナット 4 10 0092288 Cutting Knife Connecting Lever カッタ腕 1 11 005115 Screw(1/4-28 × 19) 止ネジ 1 12 0092286 Sliding Block 角駒 1 13 0092287 Sliding Block Pin 角駒軸 1 14 003638 Screw(11/64-40 × 4) 止ネジ 3 15 3101443 Upper Cutting Knife Holder カッタ(上)ホルダ 1 16 003670 Screw(7/32-32 × 6.3) 止ネジ 2 17 3201105 Upper Cutting Knife カッタ(上) 1 18 000538 Washer ワッシャ 2 19 002308 Screw(11/64-40 × 10.4) 止ネジ 2 20 290035 Adjusting Screw(11/64-40 × 11.5) 調節ネジ 1 21 0092283 Upper Cutting Knife Holder Shaft カッタ(上)ホルダ軸 1 22 3101442 Cutting Knife Cover カッタカバー 1 23 004406 Screw(11/64-40 × 8) 止ネジ 2 24 3501183 Lower Cutting Knife カッタ(下) 1 25 005550 Screw(11/64-40 × 13.5) 止ネジ 2 26 0092294 Collar(10 × 18 × 7.5mm) カラー 1 27 0092252 Press Spring カッタ(上)押シバネ 1 28 000498 Washer ワッシャ 1 29 0092291 Return Spring カッタ(上)戻シバネ 1 31 005512 Screw(11/64-40 × 3) 止ネジ 1 32 0092293 Return Spring Latch バネ掛ケ 1 33 003635 Screw(1/4-40 × 6) 止ネジ 1 34 000621 Washer ワッシャ 1 35 170031 Screw(M5-0.8 × 12.4(8.4)) 止ネジ 1 36 0060248 Cord Clamp(3N- φ5.3) コードクランプ 1 37 110012 Screw(M4-0.7 × 5) 止ネジ 1 38 2114124 Clamp Lever クランプレバー 1 39 340014 Roll Pin ロールピン 1 40 3101439 Clamp Lever Fixing Plate クランプレバー固定板 1 Ref. No. 41 to 52 See the following page. From the library of: Superior Sewing Machine & Supply LLC VG2700 Jinteх.in

Page 78 — EC DEVICE(1)

31 EC DEVICE(1) 1 2 7 32 33 31 29 28 14 27 25 24 37 36 38 39 40 49 50 51 48 6 35 34 44 43 41 42 11 10 9 8 4 5 3 22 23 20 17 18 19 21 16 15 13 12 45 46 47 52 VG2700 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 79 — EC DEVICE(1)

EC DEVICE(1) EC 装置(1) 31 Ref.No Parts No. Description 品名 Amt. Req 41 000009 Nut ナット 1 42 3501185 Cloth Plate(Large) クロスプレート(大) 1 43 120009 Screw(M4-0.7 × 12) 止ネジ 1 44 110031 Screw(M4-0.7 × 12) 止ネジ 1 45 3101444 Stopper ストッパ 1 46 000538 Washer ワッシャ 1 47 007610 Screw(M4-0.7 × 10) 止ネジ 1 48 3502022 Cloth Plate(Small) クロスプレート(小) 1 49 190092 Screw(M5-0.8 × 46.3) 止ネジ 1 50 3501187 Cloth Plate(Small) Spring クロスプレート(小)バネ 1 51 000426 Washer ワッシャ 1 52 0077179 Retaining Ring ストップリング 1 From the library of: Superior Sewing Machine & Supply LLC VG2700 Jinte.in

Page 80 — EC DEVICE(2)

32 EC DEVICE(2) 1 2 3 4 5 6-1 6-2 7 8 9 10 11 12 13 14 15 16 17 18 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 81 — EC DEVICE(2)

EC DEVICE(2) 32 Ref.No Parts No. Description 品名 Amt. Req 1 3502023 Cloth Plate(Small) Support クロスプレート(小)支工 1 2 110001 Screw(M4-0.7 × 5.4) 止ネジ 1 3 3502021 Stitch Plate Holder 針板台 1 4 0011957 Control Box, Complete Set 制御装置(組) 1 5 0011952 Control Board 制御基板 1 6-1 0010938 Fuse(100V) ヒューズ 1 6-2 1070020 Fuse(200V) ヒューズ 1 7 0011709 Control Box Stay 制御ボックススステイ 2 8 006905 Wood Screw($ 5.1 × 20) 木ネジ 4 9 0010565 Knee Switch, Complete Set 膝スイッチ(組) 1 10 0010564 Knee Switch 膝スイッチ 1 11 300031 Washer ワッシャ 4 12 300033 Spring Washer スプリングワッシャ 2 13 100038 Wing Nut チョウナット 2 14 0092232 Knee Switch Holder 膝スイッチ取付板 1 15 006910 Wood Screw($ 6.8 × 26) 木ネジ 2 16 0011303 Earthed Line アース線 1 17 3101447 Fabric Guide テープ案内板 1 18 3508208 Stitch Plate(56M) 針板 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in VG2700

Page 82 — EL1 DEVICE

33 EL1 DEVICE 1 7 8 5 2 4 3 6 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 83 — EL1 DEVICE

EL1 DEVICE EL1 装置 33 Ref.No Parts No. Description 品名 Amt. Req 1 3500670 EL1 Device, C. Set EL1 装置(組) 1 2 3500671 Supplementary Cover 補助カバー 1 3 3500675 Lamp Cover(Green)(Standard) ランプカバー(緑)(標準) 1 4 3500676 Lamp Cover ランプカバー 1 5 3500672 Light Emitter Holder 投光台 1 6 110106 Screw(M4-0.7 × 8) 止ネジ 2 7 1200309 Light Emitter 投光器 1 8 004236 Screw(3/32-56 × 4.2) 止ネジ 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in VG2700

Page 84

34 EXTRA PARTS 1 2 4 5 3 6 7 8 9 17 15 13 11 16 12 14 10 18 19 20 22 23 24 21 26 25 27 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 85 — EXTRA PARTS

EXTRA PARTS 特注部品 34 Ref.No Parts No. Description 品名 Amt. Req 1 3500603 Self-cleaning Pipe セルフクリーニングパイプ 1 2 3500605 Pipe Holder パイプホルダ 2 3 3100033 Supplementary Front Cover 補助カバー 1 4 110105 Screw(M5-0.8 × 12) 止ネジ 2 5 000426 Washer ワッシャ 2 6 0093690 Timing Gauge タイミングゲージ 1 7 0095220 Looper Timing Gauge ルーパタイミングゲージ 1 8 3500493 Timing Gauge タイミングゲージ 1 9 3100256 HR Device, Complete Set HR装置(組) 1 10 3100254 HR Container HRタンク 1 11 1090190 Pipe Joint パイプ継手 1 12 3100253 Oil Tube 給油パイプ 1 13 310007 Felt(2.5 × 2.5 × 100mm) フェルト 1 14 3100250 HR Cup HRカップ 1 15 310006 HR Felt HRフェルト 1 16 000637 Seal Plug 詰栓 1 17 110013 Screw(M4-0.7 × 8) 止ネジ 2 18 3109210 Needle Guard(Rear)(an angle of 23°) 針受ケ(後)(角度23°) 1 19 3507095 Presser Foot, C. Set(56, 64) 押工(組) 1 20 110004 Screw(M3.5-0.6 × 8) 止ネジ 1 21 3507097 Presser Foot Hinge Pin 押工ヒンジピン 1 22 110084 Screw(M3-0.5 × 4.2) 止ネジ 1 23 000327 Lock Nut ロックナット 1 24 260006 Adjusting Screw(1/8-44 × 9.5) 調節ネジ 1 25 3507087 Presser Foot Stitch Tongue(56, 64) 押工爪 1 26 004154 Screw(3/32-56 × 2.2) 止ネジ 1 27 3109301 Looper(hard plating) ルーパ(硬質メッキ) 1 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VG2700

Page 86

35 1 19 18 2 3 16 5 4 7 20 17 22 8 9 10 21 7 23 24 11 25 26 12 13 14 18 19 27 10 VG2700 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 87 — THREAD STAND

THREAD STAND 糸立台 35 Ref.No Parts No. Description 品名 Amt. Req 1 9620696 Thread Stand, C. Set(6 Spools Type) 糸立台(組)(6本糸用) 1 2 9620631 Column Cap コラムキャップ 1 3 9620670 Column Cap(Upper) コラムパイプ(上) 1 4 9620689 Thread Guide Holder(Large) ガイドホルダ(大) 1 5 911002 Screw(M4-0.7 × 20) 止ネジ 1 6 911001 Screw(M4-0.7 × 12) 止ネジ 3 7 910001 Nut ナット 4 8 9620673 Column Pipe Connector コラムパイプ継手 1 9 911006 Screw(M5-0.8 × 13) 止ネジ 2 10 910000 Nut ナット 8 11 9620675 Column Pipe(Lower) コラムパイプ(下) 1 12 930052 Washer ワッシャ 1 13 930053 Spring Washer スプリングワッシャ 1 14 910003 Nut ナット 1 15 16 9620703 Thread Hanger(3 Spools Type) スレッドハンガ(3本糸用) 4 17 9620700 Thread Eyelet アイレット 6 18 9620688 Thread Hanger Holder スレッドハンガ抱キ 4 19 911060 Screw(M6-1 × 15) 止ネジ 4 20 9620691 Thread Guide Arm ガイドアーム 1 21 9620690 Thread Guide Holder(Small) ガイドホルダ(小) 1 22 9620666 Thread Guide(6 Spools Type) スレッドガイド(6本糸用) 1 23 9620678 Spool Cushion スプールクッション 6 24 9620679 Spool Pin スプール軸 6 25 9620680 Spool Mat スプールマット 6 26 9620681 Spool Seat Disc 受皿 6 27 930055 Spring Washer スプリングワッシャ 6 From the library of: Superior Sewing Machine & Supply LLC jintex.in VG2700

Page 88

36 4 NEEDLES 5 6 7 8 10 11 Yamato Instruction Manual Yamato Part List Yamato SF OIL 2B 12 13 14 15 17 18 17 16 18 19 24 17 23 22 20 21 24 18 17 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jintez.in

Page 89 — ACCESSORIES(1)

ACCESSORIES(1) アクセサリ関係(1) 36 Ref.No Parts No. Description 品名 Amt. Req 1 3500700 Belt Cover ベルトカバー 1 2 110028 Screw(M6-1 × 46) 止ネジ 2 3 9620003 Bag 袋 1 4 Needle(System : UY × 128GAS) 針 5 5 0099094 Screwdriver(2.5 × 75mm) ドライバ 1 6 0099091 Screwdriver(5.5 × 200mm) ドライバ 1 7 0099051 Thread Tweezers ピンセット 1 8 9620210 Hexagonal Wrench(2.5mm) 6角レンチ 1 9-1 9720160 Instructions Book 取扱い説明書 1 9-2 9720162 Instructions Book(with UT-A, UT Device) 取扱い説明書(UT-A, UT装置) 1 9-3 9720161 Parts Book パーツブック 1 9-4 9720163 10 9710056 11 9620008 SF Oil 28(1・) 油 1 12 9620750 Knitted Tape Stand, C. Set(VG2703) メリヤステープスタンド 1 13 9620751 Tape Pin テープ支柱 1 14 9620752 Tape Disc テープ受ケ板 1 15 0004333 Washer ワッシャ 1 16 9620753 Tape Disc Block テープ受ケ板ブロック 1 17 911062 Screw(M4-0.7 × 15) 止ネジ 4 18 910001 Nut ナット 4 19 9620756 Tape Stand Bar テープスタンド棒 1 20 001448 Screw(15/64-28 × 5.5) 止ネジ 1 21 9620757 Tape Stand テープスタンド 1 22 005148 Wood Screw(φ 4.5 × 25) 木ネジ 3 23 9620754 Tape Guide Bar テープガイド棒 1 24 9620755 Tape Guide テープガイド 2 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in VG2700

Page 90

37 Table top installation 上乗せ式 (with UT-A, UT Device) 1 2 3 4 5 6 7 8 9 Semi-submerged installation 半沈式 (without UT-A, UT Device) 12 13 14 15 16 17 18 19 20 21 22 VG2700 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 91 — ACCESSORIES(2)

ACCESSORIES(2) アクセサリ関係(2) 37 Ref.No Parts No. Description 品名 Amt. Req 1 0063009 Oil Reservoir Rubber Cushion ゴム座 4 2 180008 Setting Screw(M6-1 × 63) 取付ケネジ 4 3 000528 Washer ワッシャ 8 4 000667 Spring Washer スプリングワッシャ 4 5 000011 Nut ナット 4 6 3500701 Belt Cover(Lower) ベルトカバー(下) 1 7 006905 Wood Screw(φ 5.1 × 20) 木ネジ 3 8 0037988 Screwdriver(Short) ミニドライバ 1 9 9620202 Hexagonal Wrench(2.0mm) 6角レンチ 1 11 12 0037912 Chain 鎖 1 13 9611074 Presser Foot Pedal 押エ揚ペダル 1 14 000070 Hanging Nut 吊りナット 4 15 009858 Hanging Bolt(M8-1.25 × 75) 吊りボルト 4 16 000162 Washer ワッシャ 8 17 0020064 Supporting Board Rubber Cushion 受ケ板ゴム座 4 18 0063010 Supporting Board Rubber Cushion(Lower) 受ケ板ゴム座(下) 4 19 000016 Nut ナット 8 20 3100008 Supporting Board 油受ケ板 2 21 0063009 Oil Reservoir Rubber Cushion ゴム座 4 22 180009 Setting Screw(M6-1 × 16) 取付ケネジ 4 From the library of: Superior Sewing Machine & Supply LLC Jintex.in VG2700

Page 92 — WARNING LABEL 警告ラベル

38 WARNING LABEL 警告ラベル LABEL Parts No. Description ラベル品番品名 CAUTION 390140 CAUTION IN OPERATION Do not operate without eye guard and safety devices. Before threading, changing needle, cleaning etc. switch off main switch. 注意動く部分だけがをする。安全保護装置をつけて縫製作業をすること。電源を切ってから、糸通し、ボビンや針の交換、掃除や調整をすること。 390143 操作注意ラベル ▲高電圧警告このカバーを開けるときは、 DANGER 電源スイッチを切った後、 5分たってから開けること。 DANGER: WARNING OF ELECTRIC SHOCK BY HIGH-VOLTAGE To open this cover, turn off power supply and wait more than 5 minutes before opening. 感電注意ラベル 390144 390145 "Be sure to connect earth line". アースラベル 390146 ROTATING-DIRECTION SYMBOL: CHECK CORRECT ROTATING DIRECTION 回転方向表示ラベルケガ注意 CAUTION EYE GUARD: TAKE CARE NOT CAUSE INJURY TO EYES BELT COVER: DO NOT INSERT FINGERS ケガ注意ラベル 390147 高温注意 CAUTION CAUTION FOR HIGH TEMPERATURE : DO NOT TOUCH STEPPING MOTOR AND SOLENOID 高温注意ラベル 390148 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 93 — LIST of MAIN SPARE PARTS

LIST of MAIN SPARE PARTS (主要部品リスト) From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 94 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(1)

39 VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(1) Main Parts Needle Clamp Presser Foot, C. Set Presser Foot Stitch Tongue Stitch Plate Differential Feed Dog Models 針止メ押工(組) 押工爪針板前送り VG2700-132M * 0093351 3507000 3508000 3509004 132S1 * " " 3508060 " 132S2 * " " 3508065 " 140M * 0093352 3507002 3508001 " 140S * " " 3508011 " 140S1 * " " 3508061 " 140S2 * " " 3508066 " 148M 0093356 3507050 3508002 " 148L " " 3508007 " 148S " " 3508012 " 148S1 " " 3508062 " 148S2 " " 3508067 " 156M 0093357 3507052 3508003 " 156M-31 " " 3108134 3109000 156L " " 3508008 3509004 156S1 " " 3508063 " 156S2 " " 3508068 " 164M 0093358 3507054 3508004 " 164S1 " " 3508064 " 164S2 " " 3508069 " VG2700P-156M 0093357 3507052 3508003 3509004 VG2700PR-132M * 0093351 3507000 3508000 " Note : The models with * have 2 needls. (注)* の付いている機種は2本針です。 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 95

39 Main Feed Dog Looper 後送りルーパ 3509005 3109300 " " " " " " " " " " " " " " 3109302 " " " " " " " " 3509005 3109300 " " From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 96 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(2)

40 VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(2) Main Parts Needle Clamp Presser Foot, C. Set Presser Foot Stitch Tongue Stitch Plate Differential Feed Dog Models 針止メ押工(組) 押工爪針板前送り VG2700-140M-WF1* 0093352 3107275 3508001 3509004 140S-WF1* " " 3508011 " 140S1-WF1 * " " 3508061 " 140S2-WF1 * " " 3508066 " 148M-WF1 0093356 3107277 3508002 " 148L-WF1 " " 3508007 " 148S-WF1 " " 3508012 " 148S1-WF1 " " 3508062 " 148S2-WF1 " " 3508067 " 156M-WF1 0093357 3107270 3508003 " 156L-WF1 " " 3508008 " 156S1-WF1 " " 3508063 " 156S2-WF1 " " 3508068 " 164M-WF1 0093358 3107280 3508004 " 164S1-WF1 " " 3508064 " 164S2-WF1 " " 3508069 " VG2703-132M * 0093351 3207150 3508049 3509000 140M * 0093352 3207151 3508050 " 148M 0093356 3207155 3508051 " 156M 0093357 3207156 3508052 " 164M 0093358 3207157 3508053 " VG2708-WF8 0093357 3107290 0094507 3509030 Note: The models with * have 2 needles. (注)・の付いている機種は2本針です。 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 97

40 Main Feed Dog Looper 後送りルーパ 3509005 3109300 " " " " " " " " " " 3109302 " " " " " " " " " " 3509001 3109300 " " " 3209302 " 3109300 3509031 3109300 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 98

41 VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(3) Main Parts Needle Clamp Presser Foot, C. Set Presser Foot Stitch Tongue Stitch Plate Differential Feed Dog Models 針止メ押工(組) 押工爪針板前送り VG2740-132S1 * 0093351 3507060 3507061 3508080 3509007 132M * " " " " " 140S1 * 0093352 " " 3508081 " 148S1 0093356 3507064 3507065 3508082 " 148M-SM " 0093421 3139007 156S1 0093357 3507064 3507065 3508083 3509007 156S1-WF1 " 3107270 " " 164S1 0093358 3507064 3507065 3508084 " VG2740P(PR)-132S1 * 0093351 3507060 3507061 3508080 3509007 140S1 * 0093352 " " 3508081 " 140M-SM " 0093415 3139006 148S1 0093356 3507064 3507065 3508082 3509007 148M " " 3508127 " 148M-SM " 0093421 3139007 156S1 0093357 3507064 3507065 3508083 3509007 156M " " 3508128 " 164S1 0093358 " 3508084 " 164M " " 3508129 " VG2760-156S3 3209121 3207039 3207044 3508077 3509022 164S3 3209122 3207040 3207045 3508078 " VG2760PR-156S3 3209121 3207039 3207044 3508077 3509022 Note : The models with * have 2 needs. (注) * の付いている機種は2本針です。 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 99

41 Differential Feed Dog (Middle) Main Feed Dog Looper 中送り後送りルーパ 3509025 3509005 3109300 " " " " " " 3509026 3109044 3109302 3509026 3509005 3109300 " " " " " " 3509042 3509026 3509005 3109302 " " 3109044 3509026 3509005 3109300 " " " " " " " " 3509023 3109306 " 3509023 3109306 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 100 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(4)

42 VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(4) Main Parts Needle Clamp Presser Foot, C. Set Stitch Plate Differential Feed Dog Differential Feed Dog (Middle) Models 針止メ押工(組) 針板前送り中送り VG2713-148L-T1N 0093356 3507050 3508020 3509007 3509012 156M-T1N 0093357 3507052 3508019 " " 156L-T1N " " 3508021 " " 148L-T1N-WF2 0093356 3507072 3508020 " " 156M-T1N-WF2 0093357 3507074 3508019 " " 156L-T1N-WF2 " " 3508021 " " 140S-T4N * 0093352 3507002 3508040 " 3509010 148M-T4N 0093356 3507050 3508031 " " 156M-T4N 0093357 3507052 3508032 " " 164M-T4N 0093358 3507054 3508033 " " 140S-T4N-WF2 * 0093352 3507070 3508040 " " 148M-T4N-WF2 0093356 3507072 3508031 " " 156M-T4N-WF2 0093357 3507074 3508032 " " 148L-T1A 0093356 3507050 3508020 3509015 3509016 156M-T1A 0093357 3507052 3508019 " " 156L-T1A " " 3508021 " " 148L-T1A-WF2 0093356 3507072 3508020 " " 156M-T1A-WF2 0093357 3507074 3508019 " " 156L-T1A-WF2 " " 3508021 " " 156L-T2A " 3507052 3507074 " " 1561-T2A-WF2 " 3507074 " " Note : The models with * have 2 needs. (注) * の付いている機種は2本針です。 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 101

42 Main Feed Dog Fabric Guide (Left) Fabric Guide (Right) Supplementary Block Looper 後送り布ガイド(左) 布ガイド(右) 補助ブロックルーパ 3509005 3500631 3500632 3109302 " " " 3109300 " " " 3109302 " " " 3109300 " " " " " " 3109302 " " " 3109300 " " " " " " 3109302 3509017 " " 3109300 " " " " " " 3109302 " " " 3109300 3509019 " " " " From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 102 — VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(5)

43 VG2700 Class LIST of MAIN SPARE PARTS(主要部品リスト)(5) Main Parts Needle Presser Stitch Differential Differential Models Clamp Foot, Plate Feed Dog Feed Dog (Middle) 針止メ C. Set 押工(組) 針板前送り中送り VG2713-140S-T4A * 0093352 3507002 3508040 3509015 3509018 148M-T4A 0093356 3507050 3508031 " " 156M-T4A 0093357 3507052 3508032 " " 164M-T4A 0093358 3507054 3508033 " " 140S-T4A-WF2 * 0093352 3507070 3508040 " " 148M-T4A-WF2 0093356 3507072 3508031 " " 156M-T4A-WF2 0093357 3507074 3508032 " " 148M-K1N 0093356 3507050 3508025 3509007 3509012 156M-K1N 0093357 3507052 3508026 " " 148M-K1N-WF2 0093356 3507072 3508025 " " 156M-K1N-WF2 0093357 3507074 3508026 " " 140S-K4N * 0093352 3507002 3508041 " 3509010 140S-K4N-WF2 * " 3507070 " " " 156M-K4N 0093357 3507052 3508087 " " 156M-K4N-WF2 " 3507074 " " " VG2713P-156M-K4N 0093357 3507052 3508087 3509007 3509010 Note : The models with * have 2 needs. (注)*の付いている機種は2本針です。 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 103

43 Main Feed Dog 後送り Fabric Guide (Left) 布ガイド(左) Fabric Guide (Right) 布ガイド(右) Supplementary Block 補助ブロック Looper ルーパ 3509017 3500631 3500632 3109300 3109302 3109300 3109302 3109300 3509005 3101320 3101321 3500637 3109302 3109300 3109302 3109300 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 104

44 INDEX Page = 1 VG2700 Parts No. Page No. Ref. No. Weight(g) 000009 31 41 000010 11 35 000011 31 9 000011 37 5 000014 4 52 000015 2 29 000015 19 17 000016 37 19 000022 4 47 000070 37 14 000162 37 16 000177 3 6 000177 30 23 000195 4 16 000199 12 44 000206 8 48 000220 20 5 000234 13 7 000306 14 18 000309 7 20 000327 8 26 000327 17 11 000327 26 19 000327 27 9 000327 34 23 000334 16 4 000340 16 17 000360 3 38 000397 12 29 000425 13 6 000426 19 20 000426 31 51 000426 34 5 000433 36 15 000445 8 2 000487 8 40 000487 15 35 000487 16 31 000498 31 29 000505 19 29 000528 9 8 000528 31 8 000528 37 3 000538 2 32 000538 3 30 000538 4 42 000538 15 48 000538 16 3 Parts No. Page No. Ref. No. Weight(g) 000538 18 4 000538 21 4 000538 25 4 000538 28 4 000538 31 18 000538 31 46 000555 6 42 000560 13 40 000600 6 49 000600 11 47 000600 12 68 000613 14 17 000613 16 29 000621 31 34 000623 10 47 000637 10 40 000637 34 16 000663 4 46 000665 2 34 000665 18 12 000665 21 12 000665 25 12 000665 28 12 000667 6 46 000667 37 4 000669 3 46 000669 11 46 000669 12 67 000690 8 57 000690 11 33 000690 16 28 000726 1 34 000740 10 46 000750 12 39 000779 14 3 000779 15 43 000779 16 22 000989 6 2 001093 29 7 001107 5 18 001123 11 43 001170 8 60 001186 20 2 001186 29 11 001186 30 5 001228 18 22 001228 26 10 Parts No. Page No. Ref. No. Weight(g) 001228 28 22 001230 20 9 001448 36 20 001818 3 35 001900 7 8 002308 31 19 003300 20 6 003635 31 33 003638 31 14 003657 30 36 003670 31 16 004154 26 18 004154 27 8 004154 34 26 004182 17 20 004182 26 7 004182 30 12 004236 33 8 004406 31 23 004440 18 5 004440 21 5 004440 25 5 004440 28 5 004441 8 7 005049 11 48 005049 12 69 005075 1 27 005115 31 11 005122 29 15 005122 30 9 005133 20 4 005148 36 22 005512 31 31 005550 31 25 005554 19 8 005650 8 36 005650 16 14 006038 16 12 006075 16 6 006202 2 19 006202 3 41 006212 6 35 006212 12 14 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 105 — INDEX

VG2700 INDEX Page = 2 Parts No. Page No. Ref. No. Weight(g) 006233 1 17 0024083 3 2 0063055 4 8 006411 16 16 0024083 30 20 0063056 9 21 006905 32 8 0024084 3 1 0063057 9 22 006905 37 7 0024084 30 19 0063282 29 14 006910 32 15 0063282 30 8 0030255 3 3 0063284 30 7 007610 31 47 0030255 30 21 0063460 15 54 007621 15 32 0063515 8 56 007627 2 41 0031111 3 7 007627 3 31 0031111 30 24 0065275 2 14 007627 19 34 0031831 13 8 0065366 29 13 009142 7 10 0032425 29 5 0065372 8 3 009526 9 23 0032426 3 52 0065374 16 8 009604 9 14 0032426 29 6 0065375 16 9 009604 14 9 0032518 13 3 0065376 16 11 009730 15 53 0032646 9 13 0065381 16 1 009749 7 25 0032867 12 32 0065389 10 30 009749 12 65 0032921 14 22 0065395 14 11 009753 16 21 0032952 3 4 0065398 14 8 009858 37 15 0065401 14 16 009931 16 18 0034117 16 27 0065402 16 15 009932 19 7 0034293 11 44 0065404 16 26 0034979 16 5 0065405 16 23 0010017 10 10 0065407 16 13 0010017 13 18 0035813 3 37 0065414 15 16 0010564 32 10 0065421 15 17 0010565 32 9 0036175 29 4 0065436 15 51 0010938 32 6-1 0065437 15 52 0011303 32 16 0037108 3 36 0067111 16 30 0011709 32 7 0037164 1 15 0067126 16 7 0011789 31 7 0037912 37 12 0011952 32 5 0037988 37 8 0068011 1 4 0011957 32 4 0068079 12 60 0060056 15 12 0068181 8 37 0013208 12 22 0060056 15 37 0068202 11 24 0060142 8 8 0060248 31 36 0077179 31 52 0020052 2 8 0060270 18 16 0077270 8 1 0020064 37 17 0060270 21 16 0020119 3 16 0060270 25 16 0090071 3 5 0020137 1 26 0060270 28 16 0090071 30 22 0020271 8 15 0090620 15 8 0020350 11 45 0063009 37 1 0090807 3 12 0020350 12 66 0063009 37 21 0090807 30 29 0020551 12 54 0063010 37 18 0090812 3 9 0020759 1 5 0063051 9 18 0090812 30 26 0063053 9 20 0090856 3 11 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 106

VG2700 INDEX Page = 3 Parts No. Page No. Ref. No. Weight(g) 0090856 30 28 0091696 20 7 0091725 20 3 0092232 32 14 0092283 31 21 0092286 31 12 0092287 31 13 0092288 31 10 0092291 31 30 0092292 31 28 0092293 31 32 0092294 31 27 0092305 6 5 0093154 6 24 0093186 7 24 0093212 7 16 0093241 19 38-1 0093242 19 38-2 0093243 19 38-3 0093351 17 3-1 0093352 17 3-2 0093352 29 16 0093356 7 5-1 0093357 7 5-2 0093358 7 5-3 0093365 7 7 0093410 29 17 0093415 29 10 0093417 29 21 0093421 29 20 0093480 18 6 0093480 21 6 0093480 25 6 0093480 28 6 0093483 8 6 0093611 8 12 0093617 13 16 0093690 34 6 0093864 1 8 0093864 2 13 0094201 2 43 0094390 8 58 0094507 21 20 0094615 26 9 Parts No. Page No. Ref. No. Weight(g) 0095027 16 10 0095220 34 7 0095334 8 59 0095367 17 19 0095367 26 6 0099051 36 7 0099091 36 6 0099094 36 5 100002 10 26 100003 9 9 100014 13 41 100020 18 11 100020 21 11 100020 25 11 100020 28 11 100038 32 13 100052 18 9 100052 21 9 100052 25 9 100052 28 9 100057 18 13 100057 21 13 100057 25 13 100057 28 13 100067 12 53 110001 32 2 110002 2 40 110002 8 11 110002 15 21 110002 19 35 110004 8 18 110004 11 19 110004 17 5 110004 26 13 110004 27 3 110004 34 20 110005 10 16 110009 2 31 110009 3 26 110009 4 41 110009 5 14 110009 6 15 110009 9 5 110009 12 11 Parts No. Page No. Ref. No. Weight(g) 110009 15 49 110009 16 2 110010 26 4 110011 7 12 110012 1 20 110012 2 44 110012 5 33 110012 6 21 110012 13 2 110012 30 34 110012 31 37 110013 1 25 110013 2 11 110013 3 14 110013 12 63 110013 13 34 110013 29 3 110013 34 17 110016 2 23 110016 19 11 110019 10 24 110021 11 15 110022 2 36 110022 5 24 110027 3 49 110027 22 2 110027 23 2 110027 24 2 110027 24 5 110027 25 23 110027 30 14 110028 36 2 110030 4 51 110030 12 20 110031 2 28 110031 2 33 110031 8 5 110031 9 26 110031 31 44 110035 7 4 110036 5 28 110038 22 8 110038 22 12 110038 23 8 110038 23 12 110038 24 10 110038 26 24 110038 27 14 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 107 — INDEX

VG2700 INDEX Page = 4 Parts No. Page No. Ref. No. Weight(g) 110039 10 4 110041 2 17 110043 10 35 110045 1 2 110045 11 39 110045 13 10 110045 19 16 110046 11 14 110048 1 11 110048 19 28 110050 19 25 110054 3 24 110054 8 16 110054 30 32 110076 4 49 110084 8 25 110084 17 10 110084 18 20 110084 21 19 110084 25 21 110084 26 17 110084 27 7 110084 28 20 110084 34 22 110094 19 32 110097 15 22 110101 10 9 110103 19 21 110105 34 4 110106 6 48 110106 33 6 110116 4 1 110117 12 42 110118 8 49 110118 12 49 120001 6 37 120001 8 54 120006 8 47 120008 14 32 120008 15 5 120009 2 2 120009 31 43 120010 8 42 120010 31 4 120011 11 49 120011 13 39 120012 5 3 Parts No. Page No. Ref. No. Weight(g) 120012 14 15 120012 15 3 120013 6 40 120013 9 11 120013 10 42 120013 11 3 120013 12 2 120015 6 43 120016 1 30 120019 14 2 120041 15 42 120049 10 36 130002 2 38 130002 7 18 130003 2 6 130003 3 28 130003 15 25 130007 19 23 130016 8 23 130016 17 8 130016 26 15 130016 27 5 140019 19 5 150001 8 14 160000 1 14 160000 15 38 160001 2 26 160001 5 7 160001 8 34 160001 10 18 160001 11 22 160001 12 51 160001 13 38 160001 14 23 160001 15 10 160001 18 8 160001 18 17 160001 19 14 160001 21 8 160001 21 17 160001 25 8 160001 25 17 160001 28 8 160001 28 17 Parts No. Page No. Ref. No. Weight(g) 160002 12 5 160003 5 21 160003 9 3 160003 10 29 160003 14 30 160003 15 11 160003 15 40 160004 5 17 160004 6 18 160004 6 26 160004 11 27 160004 12 25 160005 2 21 160005 5 4 160005 6 3 160005 12 26 160005 15 29 160006 12 45 160007 5 5 160007 6 4 160007 9 17 160007 12 18 160007 14 7 160007 15 7 160007 16 24 160024 10 7 160025 18 15 160025 21 15 160025 25 15 160025 28 15 160029 7 13 160029 10 39 160033 30 2 160040 10 2 170001 2 24 170001 19 12 170008 16 32 170009 8 52 170010 3 44 170031 31 35 170038 8 51 170041 8 31 170042 3 53 170044 4 44 180005 15 9 180008 37 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 108 — INDEX

VG2700 INDEX Page = 5 Parts No. Page No. Ref. No. Weight(g) 180009 37 22 190004 11 37 190007 14 31 190078 2 42 190078 19 36 190092 31 49 240010 14 20 260006 8 27 260006 17 12 260006 26 20 260006 27 10 260006 34 24 290029 3 8 290029 30 25 290035 31 20 300000 10 25 300000 11 13 300000 12 48 300005 5 2 300005 8 41 300006 9 6 300031 32 11 300033 32 12 300045 14 33 300047 31 5 300100 2 25 300100 3 45 300100 19 13 300104 4 45 300500 10 5 310006 34 15 310007 34 13 310063 14 21 310094 9 19 310096 11 9 310096 12 27 310099 6 20 310100 5 20 310101 6 19 310102 12 70 310106 4 4 320008 13 23 Parts No. Page No. Ref. No. Weight(g) 320009 13 28 330000 7 21 330011 2 20 330011 2 48 330016 10 20 330017 7 1 330019 2 50 330019 19 18 340000 1 31 340001 10 33 340003 8 45 340003 11 31 340003 12 59 340014 31 39 350009 3 20 390164 1 9 390173 19 37 910000 35 10 910001 35 7 910001 36 18 910003 35 14 911001 35 6 911002 35 5 911006 35 9 911060 35 19 911062 36 17 930052 35 12 930053 35 13 930055 35 27 1070020 32 6-2 1090190 34 11 1200309 33 7 2020002 12 40 2040033 13 37 2049401 1 32 Parts No. Page No. Ref. No. Weight(g) 2100088 6 38 2100194 8 44 2100218 6 41 2100249 11 11 2100253 11 25 2100259 11 42 2100264 11 41 2100265 26 3 2100267 8 33 2100267 11 29 2100902 15 13 2110191 10 37 2110361 8 43 2114124 31 38 3100006 4 36 3100006 14 4 3100008 37 20 3100016 2 10 3100033 34 3 3100061 13 11 3100087 29 2 3100099 4 5 3100100 4 7 3100110 8 9 3100112 8 10 3100122 5 12 3100123 5 15 3100127 5 13 3100127 6 14 3100129 6 7 3100131 5 10 3100132 5 11 3100142 10 38 3100145 10 44 3100146 10 43 3100147 10 28 3100149 10 31 3100150 10 27 3100151 10 32 3100157 10 14 3100158 10 15 3100159 10 17 3100190 12 15 3100192 12 9 3100192 14 25 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 109 — INDEX

VG2700 INDEX Page = 6 Parts No. Page No. Ref. No. Weight(g) 3100193 12 7 3100195 12 6 3100205 10 12 3100214 12 43 3100231 12 36 3100241 5 26 3100245 5 30 3100250 34 14 3100253 34 12 3100254 34 10 3100256 34 9 3100275 6 12 3100283 6 13 3100305 9 16 3100307 9 24 3100309 9 7 3100310 8 13 3100329 13 13 3100330 13 43 3100331 13 30 3100332 13 22 3100338 7 26 3100345 13 12 3100356 13 29 3100370 13 5 3100371 13 21 3100384 3 21 3100386 3 22 3100416 30 30 3100417 30 27 3100418 30 33 3100533 8 53 3100600 14 29 3100601 14 28 3100602 14 24 3100603 14 27 3100604 14 6 3100605 14 12 3100607 14 5 3100608 14 14 3100609 16 25 3100610 16 20 3100611 15 2 3100612 15 4 3100613 15 6 3100614 16 19 3100616 15 15 3100623 12 12 Parts No. Page No. Ref. No. Weight(g) 3100623 14 26 3100625 14 1 3100626 14 10 3100630 17 18 3100630 26 5 3100631 17 21 3100631 26 8 3100636 14 34 3101315 18 3 3101315 21 3 3101315 25 3 3101315 28 3 3101320 24 3 3101321 24 4 3101438 31 6 3101439 31 40 3101442 31 22 3101443 31 15 3101444 31 45 3101447 32 17 3101754 11 40 3103000 29 1 3106000 17 16 3107270 18 7-2 3107270 28 7 3107272 18 21-2 3107272 28 21-1 3107273 18 21-1 3107273 28 21-2 3107274 18 24-1 3107274 28 24-1 3107275 18 7-4 3107277 18 7-1 3107280 18 7-5 3107282 18 7-3 3107285 18 24-2 3107285 28 24-2 3107290 21 7 3107303 8 19 3107303 17 6 3107303 18 18 3107303 25 18 3107303 26 14 3107303 27 4 Parts No. Page No. Ref. No. Weight(g) 3107303 28 18 3107303 30 6 3107304 8 20 3107304 17 7 3107304 25 19 3107304 29 12 3107304 30 10 3107306 8 24 3107306 17 9 3107306 18 19 3107306 21 18 3107306 25 20 3107306 26 16 3107306 27 6 3107306 28 19 3107311 22 1-1 3107311 23 1-1 3107311 24 1-1 3107311 25 22 3108134 17 15 3109000 17 17 3109042 29 18 3109044 29 22 3109201 5 31 3109210 34 18 3109300 10 1-1 3109301 34 27 3109302 10 1-2 3109306 30 18 3110073 26 2 3110201 18 23 3110201 28 23 3120076 21 23 3139006 29 19 3139007 29 23 3139200 5 27 3150151 13 42 3150195 13 36 3160138 9 12 3180100 10 3 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 110 — INDEX

VG2700 INDEX Page = 7 Parts No. Page No. Ref. No. Weight(g) 3200013 2 47 3200033 2 30 3200033 19 26 3200111 7 3 3200112 7 15 3200116 7 23 3200118 7 22 3200132 18 2 3200132 21 2 3200132 25 2 3200132 28 2 3200215 11 7 3200236 13 15 3200237 13 14 3200238 13 17 3201007 19 19 3201105 31 17 3201355 12 21 3204020 4 53 3204021 4 6 3207039 30 4-1 3207040 30 4-2 3207044 30 11-1 3207045 30 11-2 3207046 30 13 3207145 28 10 3207146 18 14 3207146 21 14 3207146 25 14 3207146 28 14 3207148 18 10 3207148 21 10 3207148 25 10 3207150 20 13-1 3207151 20 13-2 3207155 20 1-1 3207156 20 1-2 3207157 20 1-3 3207160 20 8 3209121 30 1-1 3209122 30 1-2 3240072 12 58 Parts No. Page No. Ref. No. Weight(g) 3260010 5 9 3260011 6 9 3400261 13 20 3500004 1 29 3500005 1 28 3500006 13 45 3500007 1 24 3500008 2 45 3500012 2 12 3500021 4 17 3500022 4 20 3500023 4 30 3500024 4 31 3500025 4 25 3500026 4 28 3500027 4 29 3500028 4 26 3500029 4 27 3500030 4 21 3500031 4 23 3500032 4 24 3500033 4 32 3500034 4 33 3500035 4 34 3500036 4 35 3500037 4 37 3500038 4 38 3500039 4 22 3500040 4 19 3500041 4 14 3500041 4 54 3500042 4 2 3500044 4 10 3500045 4 11 3500046 4 15 3500047 4 12 3500048 4 13 3500050 4 9 3500051 6 1 3500054 6 6 3500056 6 8 3500060 6 17 3500062 6 22 3500064 6 23 3500065 6 44 Parts No. Page No. Ref. No. Weight(g) 3500066 6 39 3500067 6 45 3500068 6 11 3500069 6 10 3500070 6 31 3500071 6 30 3500072 6 27 3500073 6 28 3500074 6 32 3500075 6 33 3500076 6 29 3500077 6 34 3500078 7 2 3500079 6 36 3500081 9 1 3500082 9 2 3500084 9 4 3500086 9 10 3500088 4 3 3500091 7 14 3500101 5 1 3500104 5 6 3500105 12 10 3500109 5 16 3500111 5 19 3500113 12 30 3500114 12 34 3500115 12 33 3500116 12 31 3500118 12 37 3500119 12 17 3500120 12 47 3500121 12 46 3500122 12 38 3500123 12 41 3500124 12 24 3500126 12 57 3500127 12 13 3500128 12 8 3500129 12 4 3500130 12 3 3500131 12 1 3500132 12 55 3500133 12 52 3500136 12 50 3500137 12 61 3500138 12 56 3500139 12 62 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 111 — INDEX

VG2700 INDEX Page = 8 Parts No. Page No. Ref. No. Weight(g) 3500141 12 64 3500142 11 16 3500143 11 12 3500144 11 10 3500146 11 8 3500147 11 1 3500148 11 2 3500149 11 4 3500150 11 21 3500151 11 20 3500152 11 5 3500153 11 23 3500154 11 6 3500155 11 26 3500156 11 28 3500157 11 30 3500158 11 32 3500160 11 38 3500161 11 36 3500162 12 16 3500163 12 23 3500164 12 28 3500165 5 22 3500166 5 23 3500167 5 29 3500171 10 34 3500172 10 45 3500174 10 41 3500175 10 6 3500176 10 23 3500177 10 21 3500178 10 22 3500179 10 13 3500180 10 19 3500190 12 71 3500201 1 1 3500202 3 27 3500203 4 39 3500204 4 40 3500205 4 43 3500206 4 48 3500207 1 6 3500208 4 50 3500211 1 18 3500212 1 10 3500213 1 13 3500214 1 19 3500215 1 12 Parts No. Page No. Ref. No. Weight(g) 3500216 1 16 3500217 1 21 3500219 2 3 3500221 2 37 3500222 2 27 3500223 2 22 3500223 19 10 3500224 2 1 3500225 2 35 3500226 2 49 3500227 2 4 3500228 2 5 3500229 13 9 3500230 2 46 3500232 3 39 3500233 2 39 3500233 19 33 3500234 3 40 3500236 13 44 3500237 3 42 3500238 3 33 3500240 3 43 3500242 3 50 3500245 3 47 3500246 3 48 3500247 3 51 3500249 3 55 3500250 3 54 3500255 2 16 3500255 26 30 3500256 2 18 3500269 3 25 3500270 3 32 3500271 3 34 3500274 10 8 3500278 6 47 3500281 3 19 3500282 3 23 3500282 30 31 3500284 3 15 3500285 3 17 3500286 3 13 3500287 3 10 3500288 3 18 3500291 8 39 3500292 8 55 3500293 8 35 3500294 8 38 Parts No. Page No. Ref. No. Weight(g) 3500295 8 46 3500296 8 30 3500297 18 1 3500297 21 1 3500297 25 1 3500297 28 1 3500299 8 50 3500300 8 32 3500304 8 4 3500305 8 28 3500402 13 4 3500403 6 16 3500404 13 33 3500407 4 18 3500408 12 35 3500410 13 32 3500411 12 19 3500412 13 1 3500413 5 25 3500415 13 26 3500418 13 31 3500419 5 32 3500422 13 19 3500423 13 24 3500424 13 27 3500425 13 35 3500426 10 11 3500430 1 3 3500431 1 7 3500432 2 9 3500435 3 29 3500493 34 8 3500514 30 35 3500603 34 1 3500605 34 2 3500615 7 11 3500616 7 19 3500617 7 17 3500631 22 3 3500631 23 3 3500632 22 4 3500632 23 4 3500634 22 6 3500634 23 6 3500635 22 7 3500635 23 7 3500637 24 6 3500670 33 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 112

VG2700 INDEX Page = 9 Parts No. Page No. Ref. No. Weight(g) 3500671 33 2 3500672 33 5 3500675 33 3 3500676 33 4 3500697 15 33 3500698 15 46 3500699 16 33 3500700 36 1 3500701 37 6 3501122 15 50 3501181 31 2 3501182 31 3 3501183 31 24 3501185 31 42 3501187 31 50 3501250 15 41 3501251 15 39 3501252 15 36 3501253 15 47 3501259 15 34-2 3501260 15 34-1 3501265 15 45 3501270 15 14 3501271 15 28 3501272 15 27 3501275 15 30 3501276 15 26 3501280 15 24 3501281 14 19 3501282 15 23 3501283 15 18 3501284 15 20 3501289 15 31-2 3501290 15 31-1 3501295 15 44 3501302 26 1 3501302 29 8 3502003 19 1 3502004 19 15 3502005 19 30 3502006 19 6 3502007 19 3 3502008 19 24 3502009 19 22 3502010 19 2 3502011 19 27 Parts No. Page No. Ref. No. Weight(g) 3502012 19 4 3502013 19 9 3502015 19 31 3502021 32 3 3502022 31 48 3502023 32 1 3507000 17 4-1 3507002 17 4-2 3507050 8 17-1 3507052 8 17-2 3507054 8 17-3 3507058 26 12 3507058 27 2 3507060 26 11 3507061 26 21 3507064 27 1 3507065 27 11 3507070 25 7-3 3507072 25 7-1 3507074 25 7-2 3507076 25 7-4 3507083 26 25-1 3507084 26 25-2 3507085 27 15 3507087 27 16 3507087 34 25 3507091 22 1-2 3507091 23 1-2 3507091 24 1-2 3507095 34 19 3507097 34 21 3508000 17 13-1 3508001 17 13-2 3508002 7 9-1 3508003 7 9-2 3508004 7 9-3 3508007 17 1-1 3508008 17 1-2 3508011 17 14-1 3508012 17 2-1 3508019 22 9-3 3508019 23 9-1 3508020 22 9-1 3508020 23 9-2 3508021 22 9-2 3508021 23 9-3 Parts No. Page No. Ref. No. Weight(g) 3508025 24 7-1 3508026 24 7-2 3508031 22 13-2 3508031 23 18-1 3508032 22 13-3 3508032 23 18-2 3508033 22 13-4 3508033 23 18-3 3508040 22 13-1 3508040 23 18-4 3508041 24 13-1 3508049 20 14-1 3508050 20 14-2 3508051 20 10-1 3508052 20 10-2 3508053 20 10-3 3508060 17 14-2 3508061 17 14-3 3508062 17 2-2 3508063 17 2-3 3508064 17 2-4 3508065 17 14-4 3508066 17 14-5 3508067 17 2-5 3508068 17 2-6 3508069 17 2-7 3508074 23 16 3508077 30 15-1 3508078 30 15-2 3508080 26 26-1 3508081 26 26-2 3508082 27 17-1 3508083 27 17-2 3508084 27 17-3 3508086 24 13-2 3508087 24 11 3508125 26 27 3508126 26 28 3508127 27 18-1 3508128 27 18-2 3508129 27 18-3 3508136 26 29 3508208 32 18 3509000 20 12 3509001 20 11 3509004 11 17 3509005 11 18 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 113 — INDEX

VG2700 INDEX Page = 10 Parts No. Page No. Ref. No. Weight(g) 3509007 22 10 3509007 24 8 3509007 26 22 3509007 27 12 3509010 22 14 3509010 24 12 3509012 22 11 3509012 24 9 3509015 23 14 3509016 23 15 3509017 23 13 3509018 23 19 3509019 23 17 3509022 30 17 3509023 30 16 3509025 26 23 3509026 27 13 3509030 21 22 3509031 21 21 3509320 9 25 3509969 31 1 4109403 1 33 9611074 37 13 9620003 36 3 9620008 36 11 9620202 37 9 9620210 36 8 9620631 35 2 9620666 35 22 9620670 35 3 9620673 35 8 9620675 35 11 9620678 35 23 9620679 35 24 9620680 35 25 9620681 35 26 9620688 35 18 9620689 35 4 9620690 35 21 9620691 35 20 9620696 35 1 9620700 35 17 9620703 35 16 9620750 36 12 9620751 36 13 Parts No. Page No. Ref. No. Weight(g) 9620752 36 14 9620753 36 16 9620754 36 23 9620755 36 24 9620756 36 19 9620757 36 21 9710056 36 10 9720160 36 9-1 9720161 36 9-3 9720162 36 9-2 9720163 36 9-4 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 114

Yamato ヤマトミシン製造株式会社 YAMATO SEWING MACHINE MFG. CO., LTD. 4-4-12,NISHITENMA, KITA-KU, OSAKA,JAPAN TEL : 81-6-6364-1321 FAX : 81-6-6364-1307 〒530-0047 大阪市北区西天満4丁目4番12号 TEL (06) 6364-1321(代) FAX (06) 6365-5176 P/N 9710056(P) No. 4 Edited in 2005.6 (VG2700) Printed in Japan 2005.7.1T① From the library of: Superior Sewing Machine & Supply LLC jintex.in

Ref	Part number	Part name	Qty
	1-1	1-2
	3
	4
	5
	2
	8
	9
	7
	6
	47
	10
	11
	12
	25
	14
	13
	15
	18
	19
	21
	24
	16
	22
	23
	26
	27
	29
	30
	31
	33
	28
	32
	35
	37
	34
	36
	45
	46
	43
	44
	40
	38
	39
	41
	42

Ref	Part number	Part name
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27

Ref	Part number	Part name	Qty
	1-1	1-2
	3
	4
	5
	2
	8
	9
	7
	6
	47
	10
	11
	12
	25
	14
	13
	15
	18
	19
	21
	24
	16
	22
	23
	26
	27
	29
	30
	31
	33
	28
	32
	35
	37
	34
	36
	45
	46
	43
	44
	40
	38
	39
	41
	42

Ref	Part number	Part name
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27

Ref	Part number	Part name	Qty
	1-1	1-2
	3
	4
	5
	2
	8
	9
	7
	6
	47
	10
	11
	12
	25
	14
	13
	15
	18
	19
	21
	24
	16
	22
	23
	26
	27
	29
	30
	31
	33
	28
	32
	35
	37
	34
	36
	45
	46
	43
	44
	40
	38
	39
	41
	42

Ref	Part number	Part name
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
