Zoje ZJ-A7000 Parts Book (PDF)
Text index — Zoje ZJ-A7000
Page 3 — A 机壳分组件 Machine frame&miscellaneous cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | 10008972 | Screw | 9 |
| A-2 | 20021544 | Side plate | 1 |
| A-3 | 10008977 | Rubber plug | 1 |
| A-4 | 10058208 | Side plate gasket | 1 |
| A-5 | 10004380 | Screw | 3 |
| A-6 | 10031086 | Bobbin wider ASM. | 1 |
| A-7 | 10008773 | Rubber ring | 1 |
| A-8 | 10050423 | Screw | 2 |
| A-9 | 10011149 | Thread cutter | 1 |
| A-10 | 10008939 | O-ring | 1 |
| A-11 | 10008938 | Oil window | 1 |
| A-12 | 10009576 | Rubber plug | 1 |
| A-13 | 10059716 | Bobbin thread tension ASM. | 1 |
| A-14 | 10008975 | Rubber plug | 1 |
| A-15 | 10008941 | Rubber plug | 1 |
| A-16 | 10002577 | Bed screw stud | 4 |
| A-17 | 20022331 | Face plate | 1 |
| A-18 | 10058098 | Face plate gasket | 1 |
| A-19 | 10013706 | Side plate ASM. | 1 |
| A-20 | 10010080 | Screw | 2 |
| A-21 | 10003963 | Spring of side | 1 |
| A-22 | 10003960 | Side plate | 1 |
| A-23 | 10008972 | Screw | 3 |
| A-24 | 10008977 | Rubber plug | 2 |
| A-25 | 10059711 | Thread take-up lever cover | 1 |
| A-26 | 10008934 | Screw | 1 |
| A-27 | 10008942 | Rubber plug | 1 |
| A-28 | 10008943 | Rubber plug | 1 |
| A-29 | 10008943 | Arm thread guide right | 1 |
| A-30 | 10008973 | Screw | 2 |
| A-31 | 10039611 | Rubber plug | 1 |
| A-32 | 10054575 | Arm thread guide left | 1 |
| A-33 | 10004374 | Screw | 2 |
| A-34 | 10004373 | Ruler plate | 1 |
| A-35 | 10009005 | Screw | 1 |
| A-36 | 10012463 | Screw | 1 |
| A-37 | 10052464 | Needle plate | 1 |
| A-37 | 10014459 | Needle plate | 1 |
| A-37 | 10052350 | Needle plate | 1 |
Page 5 — B Main shaft&thread take-up components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | 10050672 | Thread take-up crank shaft | 1 |
| B-2 | 10010083 | Screw | 1 |
| B-3 | 10010535 | Thread take-up bar | 1 |
| B-3 | 10005936 | Thread take-up bar | 1 |
| B-4 | 10038474 | Thread take-up lever Asm. | 1 |
| B-4 | 10004158 | Thread take-up lever Asm. | 1 |
| B-4 | 10005939 | Thread take-up lever Asm. | 1 |
| B-5 | 10010539 | Oil resistant cover | 1 |
| B-6 | 10010545 | Screw | 1 |
| B-7 | 10010534 | O-ring | 1 |
| B-8 | 10010082 | Screw | 1 |
| B-9 | 10010065 | Screw | 2 |
| B-10 | 10010538 | O-ring | 1 |
| B-11 | 10010540 | Sleeve of adjusting pin | 1 |
| B-12 | 10010504 | Adjusting pin | 1 |
| B-13 | 10012203 | Counter weight | 1 |
| B-13 | 10012858 | Counter weight | 1 |
| B-14 | 10010504 | Bearing | 2 |
| B-15 | 10004144 | Needle bar crank | 1 |
| B-15 | 10005937 | Needle bar crank | 1 |
| B-16 | 10010592 | Needle bar crank rod | 1 |
| B-17 | 10055615 | Bearing support | 1 |
| B-18 | 10004472 | Wheel | 1 |
| B-19 | 10012062 | Screw | 2 |
| B-20 | 10010506 | Screw | 1 |
| B-21 | 10005020 | Screw | 2 |
| B-22 | 10010542 | Thrust collar | 1 |
| B-23 | 10056893 | Bearing support | 1 |
| B-24 | 10007239 | Bearing support | 1 |
| B-25 | 10053222 | Main shaft | 1 |
| B-26 | 10058049 | Oil seal | 1 |
| B-27 | 10058054 | Motor | 1 |
| B-28 | 10059025 | Screw | 4 |
| B-29 | 20022332 | Head wheel | 1 |
| B-30 | 10011232 | Screw | 2 |
Page 7 — C Needle bar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | 10010587 | Rubber plug | 1 |
| C-2 | 10011063 | Bearing support | 1 |
| C-3 | 10041608 | Needle bar | 1 |
| C-3 | 10041609 | Needle bar | 1 |
| C-4 | 10011063 | Screw | 1 |
| C-5 | 10014117 | Bearing support | 1 |
| C-5 | 10005916 | Bearing support | 1 |
| C-6 | 10005943 | Needle bar thread guide | 1 |
| C-7 | 10034917 | Needle DB×1 14# | 1 |
| C-7 | 10034916 | Needle DP×5 18# | 1 |
| C-8 | 10010591 | Needle bar thread guide | 1 |
| C-8 | 10005945 | Needle bar thread guide | 1 |
| C-9 | 10010588 | Screw | 1 |
| C-10 | 10010590 | Needle bar holder | 1 |
| C-11 | 10010586 | Slide block | 1 |
| C-12 | 10004184 | Thread release pin | 1 |
| C-13 | 10004183 | O-ring | 1 |
| C-14 | 10004200 | Screw | 1 |
| C-15 | 10039524 | Tension post socket | 1 |
| C-16 | 10004201 | Spring | 1 |
| C-17 | 10004177 | Screw | 1 |
| C-18 | 10012981 | Nut | 1 |
| C-19 | 10004199 | Tension disc stopper | 1 |
| C-20 | 10004176 | Spring | 1 |
| C-20 | 10005941 | Spring | 1 |
| C-21 | 10004179 | Thread release disc | 1 |
| C-22 | 10004180 | Tension disc holder | 2 |
| C-23 | 10059714 | Thread take-up device | 1 |
| C-23 | 10041543 | Thread take-up device | 1 |
| C-24 | 10006264 | Screw | 1 |
| C-25 | 10004181 | Nut | 1 |
| C-26 | 10005838 | Spring | 1 |
| C-27 | 10005839 | Tension disc holder | 2 |
| C-28 | 10005841 | Screw | 1 |
| C-29 | 10059712 | Thread take-up device | 1 |
| C-30 | 10008934 | Screw | 1 |
| C-31 | 10008934 | Screw | 1 |
| C-32 | 10033232 | Thread tension guide | 1 |
| C-33 | 10058041 | Tension release supporting pin | 1 |
| C-34 | 10050348 | Spring | 1 |
| C-35 | 10039460 | Electromagnet | 1 |
| 10005938 |

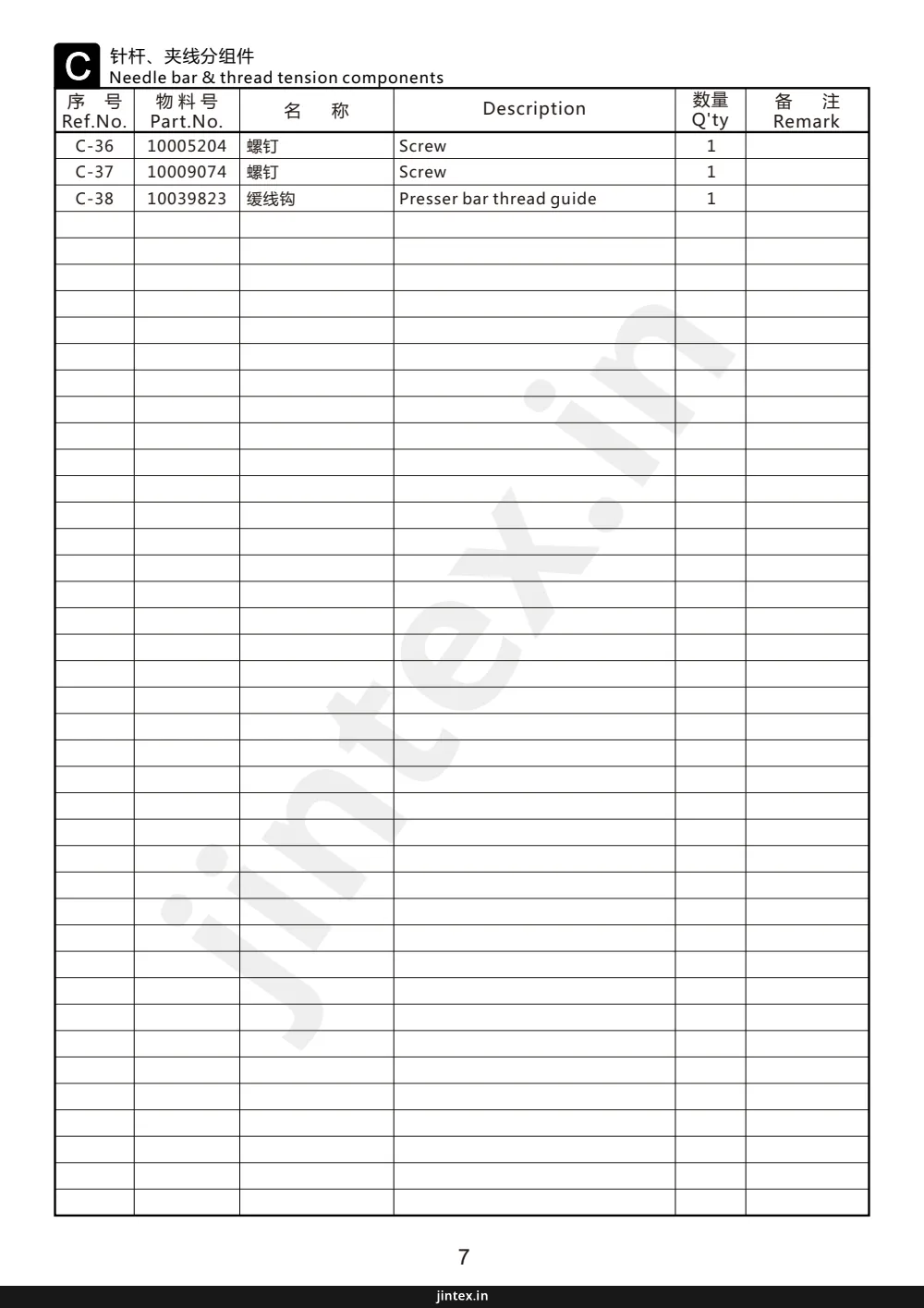

Page 8 — Needle bar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-36 | 10005204 | Screw | 1 |
| C-37 | 10009074 | Screw | 1 |
| C-38 | 10039823 | Presser bar thread guide | 1 |

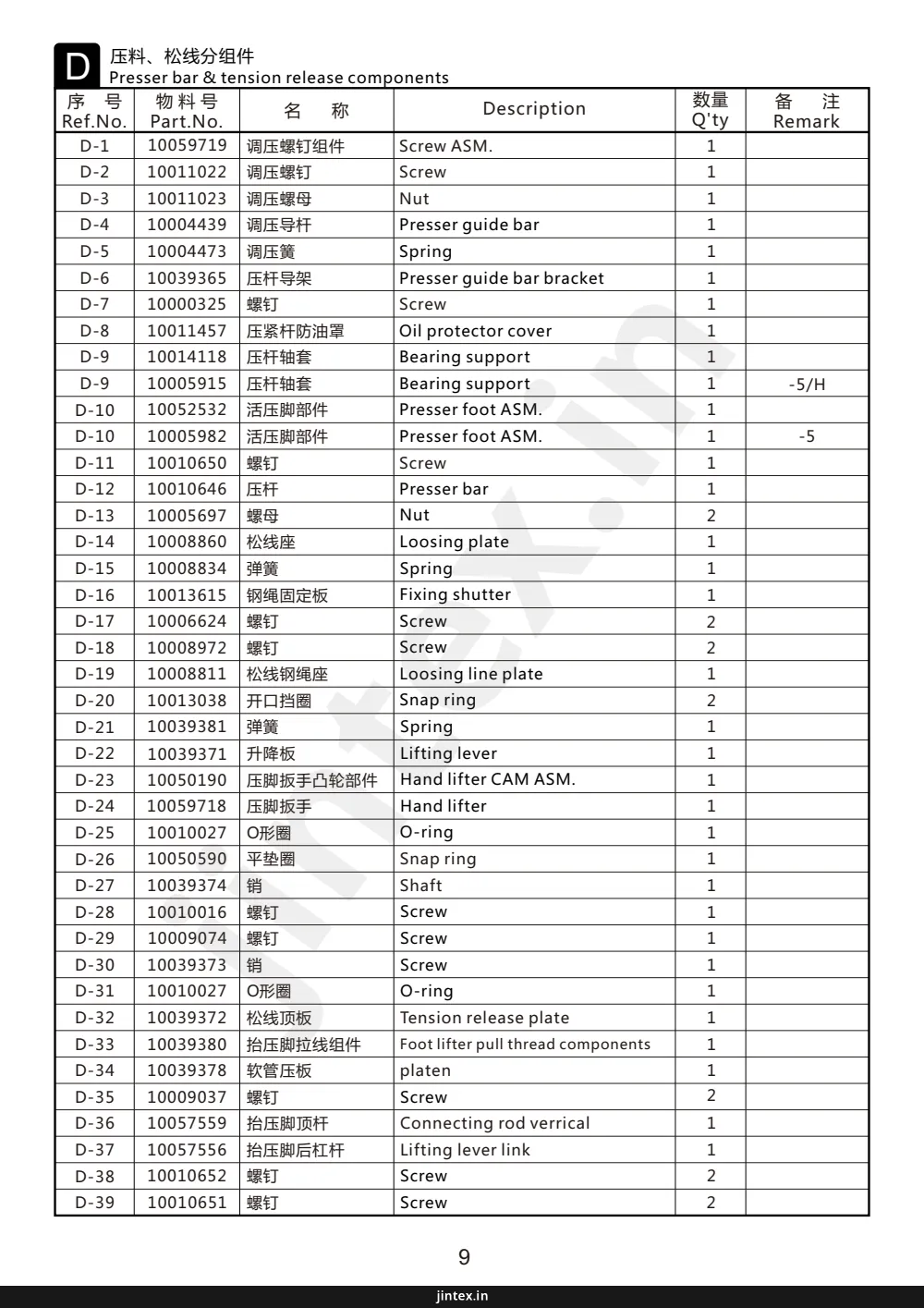

Page 10 — 压料、松线分组件 / Presser bar & tension release components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | 10059719 | Screw ASM. | 1 |
| D-2 | 10011022 | Screw | 1 |
| D-3 | 10011023 | Nut | 1 |
| D-4 | 10004439 | Presser guide bar | 1 |
| D-5 | 10004473 | Spring | 1 |
| D-6 | 10039365 | Presser guide bar bracket | 1 |
| D-7 | 10000325 | Screw | 1 |
| D-8 | 10011457 | Oil protector cover | 1 |
| D-9 | 10014118 | Bearing support | 1 |
| D-9 | 10005915 | Bearing support | 1 |
| D-10 | 10052532 | Presser foot ASM. | 1 |
| D-10 | 10005982 | Presser foot ASM. | 1 |
| D-11 | 10010650 | Screw | 1 |
| D-12 | 10010646 | Presser bar | 1 |
| D-13 | 10005697 | Nut | 2 |
| D-14 | 10008860 | Loosing plate | 1 |
| D-15 | 10008834 | Spring | 1 |
| D-16 | 10013615 | Fixing shutter | 1 |
| D-17 | 10006624 | Screw | 2 |
| D-18 | 10008972 | Screw | 2 |
| D-19 | 10008811 | Loosing line plate | 1 |
| D-20 | 10013038 | Snap ring | 2 |
| D-21 | 10039381 | Spring | 1 |
| D-22 | 10039371 | Lifting lever | 1 |
| D-23 | 10050190 | Hand lifter CAM ASM. | 1 |
| D-24 | 10059718 | Hand lifter | 1 |
| D-25 | 10010027 | O-ring | 1 |
| D-26 | 10050590 | Snap ring | 1 |
| D-27 | 10039374 | Shaft | 1 |
| D-28 | 10010016 | Screw | 1 |
| D-29 | 10009074 | Screw | 1 |
| D-30 | 10039373 | Screw | 1 |
| D-31 | 10010027 | O-ring | 1 |
| D-32 | 10039372 | Tension release plate | 1 |
| D-33 | 10039380 | Foot lifter pull thread components | 1 |
| D-34 | 10039378 | platen | 1 |
| D-35 | 10009037 | Screw | 2 |
| D-36 | 10057559 | Connecting rod verrical | 1 |
| D-37 | 10057556 | Lifting lever link | 1 |
| D-38 | 10010652 | Screw | 2 |
| D-39 | 10010651 | Screw | 2 |
Page 11 — D 压料、松线分组件 Presser bar & tension release components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-40 | 10041762 | Lifting lever connecting rod | 1 |
| D-41 | 10000134 | Screw | 3 |
| D-42 | 10050041 | Electromagnes | 1 |
| D-43 | 10057557 | Presser foot lifter connector plate | 1 |
| D-44 | 10009205 | Spring | 1 |
Page 13 — 钩线分组件 / Hook of driving shaft components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | 10031259* | Positioning finger | 1 |
| E-2 | 10011101 | Screw | 1 |
| E-3 | 10006924 | Bobbin case | 1 |
| E-3 | 10031867 | Bobbin case | 1 |
| E-4 | 10025484 | Bobbin | 1 |
| E-4 | 10007138 | Bobbin | 1 |
| E-5 | 10038530 | Hook | 1 |
| E-5 | 10051547 | Hook | 1 |
| E-5 | 10039876 | Hook | 1 |
| E-6 | 10010064 | Screw | 1 |
| E-7 | 10010063 | Oil wick | 1 |
| E-8 | 10010065 | Screw | 8 |
| E-9 | 10058811 | Bearing support | 1 |
| E-9 | 10058812 | Bearing support | 1 |
| E-10 | 10008857 | Bearing support | 1 |
| E-11 | 10010058 | Snap ring | 1 |
| E-12 | 10007266 | Bearing support | 1 |
| E-13 | 10008821 | Hook driving shaft | 1 |
| E-14 | 10002560 | Gear | 1 |
| E-15 | 10002509 | Gear | 1 |
| E-16 | 10010030 | Screw | 1 |
| E-17 | 10010059 | Screw | 2 |
| E-18 | 10010593 | Screw | 1 |
| E-19 | 10008864 | Rubber plug | 1 |
| E-20 | 10007235 | Bearing support | 1 |
| E-21 | 10010058 | Snap ring | 1 |
| E-22 | 10010059 | Screw | 2 |
| E-23 | 10007267 | Bearing support | 1 |
| E-24 | 10039610 | Screw | 1 |
| E-25 | 10000000 | Upright shaft | 1 |
| E-26 | 10002561 | Gear | 1 |
| E-27 | 10002445 | Gear | 1 |
Page 15 — F 送料分组件 Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | 10010089 | Snap ring | 1 |
| F-2 | 10010084 | Connecting rod | 1 |
| F-3 | 10010115 | Feed drive eccentric cam | 1 |
| F-3 | 10005991 | Feed drive eccentric cam | 1 |
| F-4 | 10010072 | Connecting rod | 1 |
| F-4 | 10006004 | Connecting rod | 1 |
| F-5 | 10010098 | Thrust cover | 1 |
| F-5 | 10005992 | Thrust cover | 1 |
| F-6 | 10010643 | Screw | 2 |
| F-7 | 10010238 | Screw | 1 |
| F-8 | 10013772 | Bearing support | 1 |
| F-9 | 10026886 | Pin | 1 |
| F-10 | 10051742 | Screw | 2 |
| F-11 | 10010649 | Snap ring | 2 |
| F-12 | 10008852 | Feed adjust rod | 1 |
| F-12 | 10037069 | Feed adjust rod | 1 |
| F-13 | 10008848 | Feed regulator | 1 |
| F-13 | 10027597 | Feed regulator | 1 |
| F-14 | 10010092 | Screw | 2 |
| F-15 | 10010096 | Pin | 1 |
| F-16 | 10010076 | Feed rocker | 1 |
| F-17 | 10013015 | Screw | 1 |
| F-18 | 10013015 | Screw | 1 |
| F-19 | 10010075 | Short link | 2 |
| F-20 | 10010068 | Long link | 2 |
| F-21 | 10010069 | Pin | 1 |
| F-22 | 10010071 | Screw | 1 |
| F-23 | 10010091 | Screw | 1 |
| F-24 | 10010102 | Pin | 1 |
| F-25 | 10010678 | Screw | 2 |
| F-26 | 10010087 | Pin | 2 |
| F-27 | 10012775 | Feed adjusting ASM. | 1 |
| F-27 | 10035665 | Feed adjusting ASM. | 1 |
| F-28 | 10000000 | Screw | 1 |
| F-29 | 10010282 | Plate | 1 |
| F-30 | 10010285 | Screw | 2 |
| F-31 | 10050707 | Screw | 1 |
| F-32 | 10050706 | Snap ring | 1 |
| F-33 | 10040404 | Screw | 2 |
| F-34 | 20003459 | Reverse feed control lever | 1 |
| F-35 | 10014119 | Bearing support | 1 |
Page 16 — 送料分组件 / Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-36 | 10008827 | Reverse feed shaft | 1 |
| F-37 | 10010243 | O-ring | 1 |
| F-38 | 10009008 | Screw | 1 |
| F-39 | 10039853 | Reverse feed shaft | 1 |
| F-39 | 10031548 | Reverse feed shaft | 1 |
| F-40 | 10010287 | Pin | 1 |
| F-41 | 10051845 | Screw | 1 |
| F-42 | 10051770 | Feed dial | 1 |
| F-43 | 10051578 | 1 | |
| F-44 | 10051619 | Pin | 1 |
| F-45 | 10013869 | Spring | 1 |
| F-46 | 10008829 | Screw | 1 |
| F-47 | 10051621 | Spring | 1 |
| F-48 | 10010240 | O-ring | 1 |
| F-49 | 10010099 | Screw | 2 |
| F-50 | 10026545 | Feed dog | 1 |
| F-50 | 10007322 | Feed dog | 1 |
| F-50 | 10038413 | Feed dog | 1 |
| F-51 | 20019012 | Feed bar ASM. | 1 |
| F-52 | 10004474 | Feed bar driving crank | 1 |
| F-53 | 10004440 | Pin | 1 |
| F-54 | 10010090 | Snap ring | 2 |
| F-55 | 10004628 | Screw | 1 |
| F-56 | 10014116 | Bearing support | 2 |
| F-57 | 10010900 | Screw | 2 |
| F-58 | 10010901 | Screw | 2 |
| F-59 | 10042079 | Lifting fork | 1 |
| F-59 | 10043177 | Lifting fork | 1 |
| F-60 | 10010073 | Feed rocker shaft | 1 |
| F-61 | 10010097 | Feed driving shaft | 1 |
| F-62 | 10004430 | Spring | 1 |
| F-62 | 10012991 | Spring | 1 |
| F-63 | 10012796 | Spring | 1 |
| F-63 | 10012990 | Spring | 1 |
| F-64 | 10010235 | Plate | 1 |
| F-64 | 10012987 | Plate | 1 |
| F-65 | 10010095 | Screw | 1 |
| F-66 | 10010086 | Lifting rocker | 1 |
| F-67 | 10004475 | Nut | 1 |
| F-68 | 10010542 | Thrust collar | 2 |
| F-69 | 10005020 | Screw | 2 |
Page 18 — 送料调节分组件 / Feed regulating components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | 10008934 | Screw | 2 |
| G-2 | 10011168 | Washer | 2 |
| G-3 | 10058099 | Led lamp ASM. | 1 |
| G-4 | 10012505 | Screw | 1 |
| G-5 | 10003281 | Snap ring | 1 |
| G-6 | 10024748 | Snap ring | 1 |
| G-7 | 10012985 | Nut | 2 |
| G-8 | 10012983 | Screw | 1 |
| G-9 | 10012797 | Reverse feed connecting plate | 1 |
| G-10 | 10012989 | Connecting arm ASM. | 1 |
| G-11 | 10031416 | Reverse feed magnet ASM. | 1 |
| G-12 | 10012983 | Screw | 1 |
| G-13 | 10012473 | Screw | 2 |
| G-14 | 10013002 | Snap ring | 1 |
| G-15 | 10013001 | Screw | 1 |
| G-16 | 10003281 | Snap ring | 1 |
| G-17 | 10012989 | Connecting arm ASM. | 1 |
| G-18 | 10037310 | Reverse feed magnet ASM. | 1 |
| G-19 | 10012986 | Screw | 1 |
| G-20 | 10012473 | Screw | 2 |
Page 20 — H 剪线分组件 Thread trimmer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | 10008866 | Trimming crank shaft | 1 |
| H-2 | 10011630 | Short bushing | 1 |
| H-3 | 10011630 | Short bushing | 1 |
| H-4 | 10011649 | Spring | 1 |
| H-5 | 10008865 | Washer | 1 |
| H-6 | 10011588 | Screw | 2 |
| H-7 | 10058043 | Trimming crank | 1 |
| H-8 | 10011579 | Block | 1 |
| H-9 | 10008863 | Screw | 1 |
| H-10 | 10011494 | Round knife | 1 |
| H-10 | 10030280 | Round knife | 1 |
| H-11 | 10004640 | Round knife bracket | 1 |
| H-12 | 10011578 | Nut | 1 |
| H-13 | 10031612 | Knife shaft crack rod | 1 |
| H-14 | 10011514 | Screw | 2 |
| H-15 | 10013541 | Screw | 2 |
| H-16 | 10013154 | Washer | 2 |
| H-17 | 10008856 | Knife holder ASM. | 1 |
| H-18 | 10014196 | Spring cover | 1 |
| H-19 | 10008812 | Spring | 1 |
| H-20 | 10011697 | Trimming shaft | 1 |
| H-21 | 10050266 | Silencer plug | 1 |
| H-22 | 10004707 | Screw | 1 |
| H-23 | 10004651 | Roller bearing | 1 |
| H-24 | 10025576 | Washer | 1 |
| H-25 | 10011578 | Nut | 3 |
| H-26 | 10004648 | Trimming cam crank | 1 |
| H-27 | 10025577 | Screw | 1 |
| H-28 | 10004703 | Slide block | 1 |
| H-29 | 10004704 | Pin | 1 |
| H-30 | 10004705 | Pin | 1 |
| H-31 | 10009654 | Washer | 1 |
| H-32 | 10003031 | Washer | 1 |
| H-33 | 10009654 | Snap ring | 1 |
| H-34 | 10031414 | Thread trimmer solenoid ASM. | 1 |
| H-35 | 10009471 | Nut | 2 |
| H-36 | 10008854 | Solenoid base | 1 |
| H-37 | 10011607 | Solenoid connecting shaft | 1 |
| H-38 | 10031415 | Thread trimmer solenoid | 1 |
| H-39 | 10011606 | Washer | 1 |
| H-40 | 10011845 | Washer | 1 |
Page 21 — 剪线分组件 / Thread trimmer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-41 | 10028999 | Screw | 1 |
| H-42 | 10012467 | Screw | 1 |
| H-43 | 10003077 | Washer | 1 |
| H-44 | 10011605 | Screw | 1 |
| H-45 | 10011584 | Dispart | 1 |
| H-45 | 10026784 | Dispart | 1 |
| H-46 | 10013154 | Washer | 1 |
| H-47 | 10014474 | Screw | 1 |
| H-48 | 10011421 | Fixed knife | 1 |
| H-49 | 10011422 | Screw | 1 |
| H-50 | 10013465 | Screw | 1 |
| H-51 | 10010736 | Thread trimmer cam | 1 |
| H-52 | 10023739 | Cam collar | 1 |
| H-53 | 10013465 | Screw | 1 |
| H-54 | 10026782 | Round knife | 1 |
| H-55 | 10009626 | Screw | 3 |
| H-56 | 10013026 | Knife holder | 1 |
| H-57 | 10031612 | Knife shaft crack rod | 1 |
| H-58 | 10026783 | Round knife bracket | 1 |
| H-59 | 10011686 | Trimming cam crank Asm | 1 |
Page 23 — I 润滑分组件 Lubrication components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | 10014197 | Foam rubber | 1 |
| I-2 | 10010294 | Oil felt preser | 1 |
| I-3 | 10008934 | Screw | 1 |
| I-4 | 10007795 | Tube | 1 |
| I-5 | 10042077 | Oil felt preser | 1 |
| I-6 | 10004065 | Oil stoper | 1 |
| I-7 | 10005558 | Screw | 1 |
| I-8 | 10050666 | Main shaft oil tube | 1 |
| I-9 | 10010340 | Oil tube holder | 1 |
| I-10 | 10010066 | Screw | 1 |
| I-11 | 10008817 | Oil pump | 1 |
| I-12 | 10050422 | Screw | 1 |
| I-13 | 10008831 | Screw | 1 |
| I-14 | 10008806 | Spring | 1 |
| I-15 | 10012443 | Plate | 1 |
| I-16 | 10012445 | Tube holder | 1 |
| I-17 | 10010074 | Screw | 1 |
| I-18 | 10013269 | Screw | 1 |
| I-19 | 10050424 | Tube holder | 1 |
| I-20 | 10008807 | Oil tube | 1 |
Page 25 — Presser foot components of oil plate knee lift
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | 10057328 | Oil reservoir | 1 |
| J-2 | 10014194 | Oil reservoir gasket | 1 |
| J-3 | 10009984 | Pin | 1 |
| J-4 | 10009991 | Screw | 1 |
| J-5 | 10009988 | Rubber ring | 1 |
| J-6 | 10002562 | Bracket ASM. | 1 |
| J-7 | 10003896 | Bracket | 1 |
| J-8 | 10002610 | Screw | 1 |
| J-9 | 10002613 | Screw | 1 |
| J-10 | 10058503 | Knee pressing shaft | 1 |
| J-11 | 10003893 | Spring | 1 |
| J-12 | 10002559 | Snap ring | 1 |
| J-13 | 10002563 | Crank ASM. | 1 |
| J-14 | 10009987 | Crank | 1 |
| J-15 | 10003895 | Screw | 2 |
| J-16 | 10003898 | Screw | 1 |
| J-17 | 10003890 | Nut | 3 |
| J-18 | 10009985 | Knee pressing plate ASM. | 1 |
| J-19 | 10003894 | Screw | 1 |
| J-20 | 10003897 | Knee pressing plate holder | 1 |
| J-21 | 10003901 | Knee pressing plate rod | 1 |
| J-22 | 10003900 | Knee pressing plate rubber | 1 |
| J-23 | 10003891 | Knee pressing plate | 1 |
| J-24 | 10004223 | Knee pressing cover | 1 |
| J-25 | 10057329 | Induction magnet assembly | 1 |
| J-26 | 10057330 | Knee lifting power sensor assembly | 1 |
| J-26 | 10002975 | Screw | 2 |
Page 27 — 过线架分组件 Components of thread-running stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-1 | 10004282 | Column cap | 1 |
| K-2 | 10004293 | Column pipe (upper) | 1 |
| K-3 | 10002953 | Nut | 6 |
| K-4 | 10003022 | Washer | 2 |
| K-5 | 10003301 | Screw | 3 |
| K-6 | 10004285 | Thread guide bushing | 2 |
| K-7 | 10004289 | Thread guide pipe | 2 |
| K-8 | 10004298 | Thread hanger (upper) | 1 |
| K-9 | 10004286 | Column pipe connector | 1 |
| K-10 | 10004291 | Column pipe (lower) | 1 |
| K-11 | 10004284 | Thread hanger (lower) | 1 |
| K-12 | 10003312 | Screw | 1 |
| K-13 | 10004288 | Spool pin | 2 |
| K-14 | 10004287 | Spool cushion | 2 |
| K-15 | 10004281 | Spool mat | 2 |
| K-16 | 10004299 | Spool seat disc | 2 |
| K-17 | 10004290 | Washer | 2 |
| K-18 | 10004295 | Washer | 1 |
| K-19 | 10002985 | Nut | 1 |
Page 28 — 附件 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | 10010995 | Screw driver | 1 |
| L-2 | 10034917 | Needle | 3 |
| L-2 | 10034916 | Needle | 3 |
| L-3 | 10003892 | Oil reservoir magnet | 1 |
| L-4 | 10025484 | Screw | 3 |
| L-4 | 10007138 | Screw | 3 |
| L-5 | 10004455 | Oil bottle with oil | 1 |
| L-6 | 10009986 | Oil reservoir seat | 2 |
| L-7 | 10009993 | Oil reservoir cushion | 2 |
| L-8 | 10050425 | Frame support bar | 1 |
| L-9 | 10004466 | Head connecting hook | 2 |
| L-10 | 10003889 | Nail | 4 |
| L-11 | 10011041 | Head connecting hook socket | 2 |
| L-12 | 10008849 | Head cover | 1 |
Page 31 — 电控分组件 / Drive-by-wire Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | 10058052 | Control box | 1 |
| M-1 | 10058053 | Control box | 1 |
| M-2 | 10006115 | Washer | 1 |
| M-3 | 10012080 | SCREW | 1 |
| M-4 | 10049837 | SCREW | 3 |
| M-5 | 10031424 | Pedal unit ASM. | 1 |
| M-6 | 10002417 | Pedal control rod ASM. | 1 |
| M-7 | 10031423 | Cable | 1 |
| M-8 | 10010899 | SCREW | 1 |
| M-9 | 10035172 | Cord holder | 2 |
| M-10 | 10031556 | Cord holder | 1 |
| M-11 | 10001796 | SCREW | 2 |
Zoje ZJ-A7000 — parts catalog
- Page 1 (toc): This page is a table of contents for a parts book, listing various machine components and their corresponding page numbers.
- Page 2 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with various parts labeled with reference numbers and part numbers.
- Page 3 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, descriptions, quantities, and remarks.
- Page 4 (diagram): This page displays a diagram of main shaft and thread take-up components, with parts labeled B-1 through B-30.
- Page 5 (parts_list): This page lists parts for the main shaft and thread take-up components, including part numbers, descriptions, quantities, and remarks.
- Page 6 (diagram): This page displays a diagram of needle bar and thread tension components, with various parts labeled with reference numbers such as C-1 through C-38.
- Page 7 (parts_list): This page lists needle bar and thread tension components, including part numbers, descriptions, quantities, and remarks.
- Page 8 (parts_list): This page lists needle bar and thread tension components, including reference numbers, part numbers, descriptions, quantities, and remarks.
- Page 9 (diagram): This page displays a diagram of presser bar and tension release components, with various parts labeled with reference numbers and part numbers.
- Page 10 (parts_list): This page lists parts for the Presser bar & tension release components, including part numbers, descriptions, quantities, and remarks.
- Page 11 (parts_list): This page lists components for the Presser bar & tension release, including part numbers, descriptions, quantities, and remarks.
- Page 12 (diagram): This page displays a diagram of the hook of the driving shaft components, with various parts labeled with reference numbers and part numbers.
- Page 13 (parts_list): This page lists components for the hook of the driving shaft, including part numbers, descriptions, quantities, and remarks.
- Page 14 (diagram): This page displays a diagram of feed mechanism components, with various parts labeled with reference numbers like F-1, F-2, and so on.
- Page 15 (parts_list): This page lists feed mechanism components with their reference numbers, part numbers, descriptions, quantities, and remarks.
- Page 16 (parts_list): This page lists feed mechanism components with their reference numbers, part numbers, descriptions, quantities, and remarks.
- Page 17 (diagram): This page displays a diagram of feed regulating components, with various parts labeled with reference numbers such as G-1 through G-20.
- Page 18 (parts_list): This page lists feed regulating components with their reference numbers, part numbers, descriptions, quantities, and remarks. It includes parts like screws, washers, nuts, and assemblies.
- Page 19 (diagram): This page displays a diagram of thread trimmer components for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 20 (parts_list): This page lists thread trimmer components with their reference numbers, part numbers, descriptions, quantities, and remarks.
- Page 21 (parts_list): This page lists thread trimmer components with their part numbers, descriptions, quantities, and remarks. It includes parts like screws, washers, fixed knives, and cam assemblies.
- Page 22 (diagram): This page displays a diagram of lubrication components for a sewing machine, with various parts labeled with reference numbers and some part numbers visible.
- Page 23 (parts_list): This page lists lubrication components with their part numbers, descriptions, quantities, and remarks. It includes items like foam rubber, oil felt preser, screws, tubes, oil pumps, springs, and plates.
- Page 24 (diagram): This page displays a diagram of presser foot components for an oil plate knee lift, with various parts labeled from J-1 to J-27.
- Page 25 (parts_list): This page lists components for the presser foot of an oil plate knee lift, including part numbers, descriptions, quantities, and remarks.
- Page 26 (diagram): This page displays a diagram of components for a thread-running stand, with parts labeled K-1 through K-19.
- Page 27 (parts_list): This page lists components for a thread-running stand, including part numbers, descriptions, quantities, and remarks.
- Page 28 (parts_list): This page lists accessories for the machine, including part numbers, descriptions, quantities, and remarks.
- Page 29 (diagram): This page displays a diagram of various accessories for the sewing machine, labeled from L-1 to L-12, with illustrations of each part.
- Page 30 (diagram): This page displays a diagram of drive-by-wire components, illustrating various parts labeled with reference numbers such as M1 through M11.
- Page 31 (parts_list): This page lists drive-by-wire components with their reference numbers, part numbers, descriptions, quantities, and remarks.
- Page 32 (cover): This is the cover page for a ZOJE SEWING MACHINE CO., LTD. parts catalog. It includes the company logo, contact information, and website.
