Zoje ZJ-A7000 Parts Book PDF — View & Download

Parts index — Zoje ZJ-A7000tap a row to open its page

Page 1 — CONTENTS

Zoje ZJ-A7000 parts on page 1
Ref	Part number	Part name	Qty
	A	机壳分组件 Machine Frame & Miscellaneous Cover Components
	B	上轴、挑线分组件 Main Shaft & Thread Take-up Cover Components
	C	针杆、夹线分组件 Needle bar & thread tension components
	D	压料、松线分组件 Presser bar & tension release components
	E	钩线分组件 Hook of driving shaft components
	F	送料分组件 Feed mechanism components
	G	送料调节分组件 Feed regulating components
	H	剪线分组件 Thread trimmer components
	I	润滑分组件 Lubrication Components
	J	油盘、膝抬压脚分组件 Presser Foot Components Of Oil Plate Knee Lift
	K	过线架分组件 Components Of Thread-running Stand
	L	附件 Auxiliaries
	M	电控分组件 Drive-by-wire Components

Page 2 — Machine frame&miscellaneous cover components

Zoje ZJ-A7000 parts on page 2
Ref	Part number	Part name	Qty
	A-1	Screw
	A-2	Cover
	A-3	Washer
	A-4	Screw
	A-5	Screw
	A-6	Motor
	A-7	Ring
	A-8	Switch
	A-9	Screw
	A-10	Screw
	A-11	Button
	A-12	Button
	A-13	Button
	A-14	Ring
	A-15	Ring
	A-16	Screw
	A-17	Cover
	A-18	Cover
	A-19	Bracket
	A-20	Screw
	A-21	Screw
	A-22	Blade
	A-23	Screw
	A-24	Ring
	A-25	Handle
	A-26	Screw
	A-27	Ring
	A-28	Ring
	A-29	Lever
	A-30	Screw
	A-31	Screw
	A-32	Lever
	A-33	Screw
	A-34	Bracket
	A-35	Bracket
	A-36	Screw
	A-37	Screw

Page 3 — A 机壳分组件 Machine frame&miscellaneous cover components

Zoje ZJ-A7000 parts on page 3
Ref	Part number	Part name	Qty
A-1	10008972	螺钉	9
A-2	20021544	后窗板	1
A-3	10008977	橡胶塞	1
A-4	10058208	后窗板垫	1
A-5	10004380	螺钉	3
A-6	10031086	绕线器	1
A-7	10008773	橡胶轮	1
A-8	10050423	螺钉	2
A-9	10011149	绕线切刀	1
A-10	10008939	O形圈	1
A-11	10008938	油窗	1
A-12	10009576	橡胶塞	1
A-13	10059716	绕线夹线器	1
A-14	10008975	橡胶塞	1
A-15	10008941	橡胶塞	1
A-16	10002577	底板支柱	4
A-17	20022331	面板	1
A-18	10058098	面板垫	1
A-19	10013706	推板部件	1
A-20	10010080	螺钉	2
A-21	10003963	推板簧	1
A-22	10003960	推板	1
A-23	10008972	螺钉	3
A-24	10008977	橡胶塞	2
A-25	10059711	挑线杆防护罩	1
A-26	10008934	螺钉	1
A-27	10008942	橡胶塞	1
A-28	10008943	橡胶塞	1
A-29	10008943	右线钩	1
A-30	10008973	螺钉	2
A-31	10039611	电线过线套	1
A-32	10054575	左线钩	1
A-33	10004374	螺钉	2
A-34	10004373	限位挡片	1
A-35	10009005	螺钉	1
A-36	10012463	螺钉	1
A-37	10052464	针板	1
	10014459	针板	1
	10052350	针板	1

Page 4 — Main shaft&thread take-up components

Zoje ZJ-A7000 parts on page 4
Ref	Part number	Part name	Qty
	B-1
	B-2
	B-3
	B-4
	B-5
	B-6
	B-7
	B-8
	B-9
	B-10
	B-11
	B-12
	B-13
	B-14
	B-15
	B-16
	B-17
	B-18
	B-19
	B-20
	B-21
	B-22
	B-23
	B-24
	B-25
	B-26
	B-27
	B-28
	B-29
	B-30

Page 5 — B Main shaft&thread take-up components

Zoje ZJ-A7000 parts on page 5
Ref	Part number	Part name	Qty
	10050672	挑线连杆销
	10010083	螺钉
	10010535	挑线连杆
	10005936	挑线连杆
	10038474	挑线杆部件
	10004158	挑线杆部件
	10005939	挑线杆部件
	10010539	挑线杆防油圈
	10010545	螺钉
	10010534	O形圈
	10010082	螺钉
	10010065	螺钉
	10010538	O形圈
	10005040	油量调节链套
	10010504	油量调节销
	10012203	针杆曲柄
	10012858	针杆曲柄
	10010504	滚针轴承
	10004144	挑线曲柄
	10005937	挑线曲柄
	10010592	针杆连杆
	10055615	上轴前轴套
	10004472	绕线主动轮
	10012062	螺钉
	10010506	螺钉
	10005020	螺钉
	10010542	上轴挡圈
	10056893	上轴后轴套
	10007239	上轴中轴套
	10053222	上轴
	10058049	上轴油封
	10058054	电机
	10059025	螺钉
	20022332	上轮
	10011232	螺钉

Page 6 — Needle bar & thread tension components

Zoje ZJ-A7000 parts on page 6
Ref	Part number	Part name	Qty
	C-1
	C-2
	C-3
	C-10
	C-11
	C-4
	C-5
	C-8
	C-9
	C-6
	C-7
	C-30
	C-28
	C-27
	C-26
	C-25
	C-23
	C-12
	C-13
	C-14
	C-15
	C-16
	C-17
	C-22
	C-21
	C-20
	C-19
	C-18
	C-33
	C-34
	C-35
	C-36
	C-37
	C-38
	C-31
	C-32
	C-29

Page 7 — C Needle bar & thread tension components

Zoje ZJ-A7000 parts on page 7
Ref	Part number	Part name	Qty
	10010587	橡胶塞
	10011063	针杆上轴套
	10041608	针杆
	10041609	针杆
	10011063	螺钉
	10014117	针杆下轴套
	10005916	针杆下轴套
	10005943	针杆下轴套线钩
	10034917	机针
	10034916	机针
	10010591	针杆线钩
	10005945	针杆线钩
	10005938	支针螺钉
	10010590	针杆连接柱
	10010586	针杆连接滑块
	10004184	松线钉
	10004183	O形圈
	10004200	螺钉
	10039524	挑线簧调节座
	10004201	挑线簧
	10004177	夹线螺钉
	10012981	夹线螺母
	10004199	夹线制动板
	10004176	夹线簧
	10005941	夹线簧
	10004179	松线板
	10004180	夹线板
	10059714	夹线器
	10041543	夹线器
	10006264	螺钉
	10004181	夹线螺母
	10005838	夹线簧
	10005839	夹线板
	10005841	夹线螺钉
	10059712	上夹线器
	10008934	螺钉
	10008934	螺钉
	10033232	上过线板
	10058041	松线辅钉
	10050348	弹簧
	10039460	电子夹线器

Page 8 — Needle bar & thread tension components

Zoje ZJ-A7000 parts on page 8
Ref	Part number	Part name
C-36	10005204	螺钉
C-37	10009074	螺钉
C-38	10039823	缓线钩

Page 9 — D Presser bar & tension release components

Zoje ZJ-A7000 parts on page 9
Ref	Part number	Part name	Qty
	D-1	D-1
	D-2	D-2
	D-3	D-3
	D-4	D-4
	D-5	D-5
	D-6	D-6
	D-7	D-7
	D-8	D-8
	D-9	D-9
	D-10	D-10
	D-11	D-11
	D-12	D-12
	D-13	D-13
	D-14	D-14
	D-15	D-15
	D-16	D-16
	D-17	D-17
	D-18	D-18
	D-19	D-19
	D-20	D-20
	D-21	D-21
	D-22	D-22
	D-23	D-23
	D-24	D-24
	D-25	D-25
	D-26	D-26
	D-27	D-27
	D-28	D-28
	D-29	D-29
	D-30	D-30
	D-31	D-31
	D-32	D-32
	D-33	D-33
	D-34	D-34
	D-35	D-35
	D-36	D-36
	D-37	D-37
	D-38	D-38
	D-39	D-39
	D-40	D-40
	D-41	D-41
	D-42	D-42
	D-43	D-43
	D-44	D-44

Page 10

Zoje ZJ-A7000 parts on page 10
Ref	Part number	Part name	Qty
	10059719	调压螺钉组件
	10011022	调压螺钉
	10011023	调压螺母
	10004439	调压导杆
	10004473	调压簧
	10039365	压杆导架
	10000325	螺钉
	10011457	压紧杆防油罩
	10014118	压杆轴套
	10005915	压杆轴套
	10052532	活压脚部件
	10005982	活压脚部件
	10010650	螺钉
	10010646	压杆
	10005697	螺母
	10008860	松线座
	10008834	弹簧
	10013615	钢绳固定板
	10006624	螺钉
	10008972	螺钉
	10008811	松线钢绳座
	10013038	开口挡圈
	10039381	弹簧
	10039371	升降板
	10050190	压脚扳手凸轮部件
	10059718	压脚扳手
	10010027	O形圈
	10050590	平垫圈
	10039374	销
	10010016	螺钉
	10009074	螺钉
	10039373	销
	10010027	O形圈
	10039372	松线顶板
	10039380	抬压脚拉线组件
	10039378	软管压板
	10009037	螺钉
	10057559	抬压脚顶杆
	10057556	抬压脚后杠杆
	10010652	螺钉
	10010651	螺钉

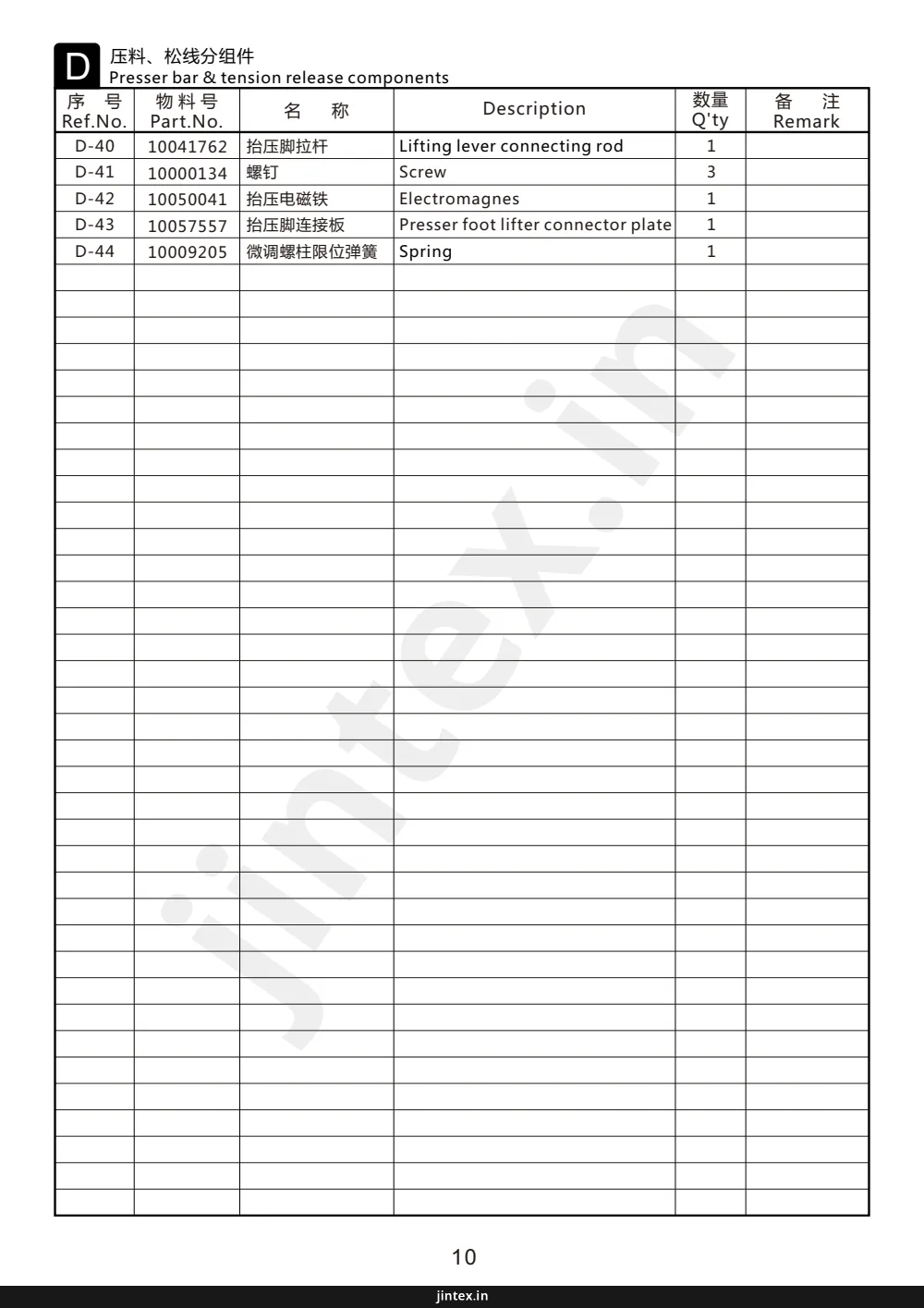

Page 11 — D 压料、松线分组件 Presser bar & tension release components

Zoje ZJ-A7000 parts on page 11
Ref	Part number	Part name
D-40	10041762	拾压脚拉杆
D-41	10000134	螺钉
D-42	10050041	拾压电磁铁
D-43	10057557	拾压脚连接板
D-44	10009205	微调螺柱限位弹簧

Page 12 — E Hook of driving shaft components

Zoje ZJ-A7000 parts on page 12
Ref	Part number	Part name	Qty
	E-1	Hook of driving shaft components
	E-2
	E-3
	E-4
	E-5
	E-6
	E-7
	E-8
	E-9
	E-10
	E-11
	E-12
	E-13
	E-14
	E-15
	E-16
	E-17
	E-18
	E-19
	E-20
	E-21
	E-22
	E-23
	E-24
	E-25
	E-26
	E-27

Page 13

Zoje ZJ-A7000 parts on page 13
Ref	Part number	Part name
E-1	10031259*	旋梭定位钩
E-2	10011101	螺钉
E-3	10006924	梭壳
E-3	10031867	梭壳
E-4	10025484	梭芯
E-4	10007138	梭芯
E-5	10038530	旋梭
E-5	10051547	旋梭
E-5	10039876	旋梭
E-6	10010064	限油螺钉
E-7	10010063	油芯
E-8	10010065	螺钉
E-9	10058811	下轴前轴套
E-9	10058812	下轴前轴套
E-10	10008857	下轴中轴套
E-11	10010058	挡圈
E-12	10007266	下轴后轴套
E-13	10008821	下轴
E-14	10002560	下轴伞齿轮组件
E-15	10002509	竖轴下伞齿轮组件
E-16	10010030	螺钉
E-17	10010059	螺钉
E-18	10010593	螺钉
E-19	10008864	橡胶塞
E-20	10007235	竖轴下轴套
E-21	10010058	挡圈
E-22	10010059	螺钉
E-23	10007267	竖轴上轴套
E-24	10039610	螺钉
E-25	10000000	竖轴
E-26	10002561	竖轴上伞齿轮组件
E-27	10002445	上轴伞齿轮组件

Page 14

Zoje ZJ-A7000 parts on page 14
Ref	Part number	Part name	Qty
	F-1	F-1
	F-2	F-2
	F-3	F-3
	F-4	F-4
	F-5	F-5
	F-6	F-6
	F-7	F-7
	F-8	F-8
	F-9	F-9
	F-10	F-10
	F-11	F-11
	F-12	F-12
	F-13	F-13
	F-14	F-14
	F-15	F-15
	F-16	F-16
	F-17	F-17
	F-18	F-18
	F-19	F-19
	F-20	F-20
	F-21	F-21
	F-22	F-22
	F-23	F-23
	F-24	F-24
	F-25	F-25
	F-26	F-26
	F-27	F-27
	F-28	F-28
	F-29	F-29
	F-30	F-30
	F-31	F-31
	F-32	F-32
	F-33	F-33
	F-34	F-34
	F-35	F-35
	F-36	F-36
	F-37	F-37
	F-38	F-38
	F-39	F-39
	F-40	F-40
	F-41	F-41
	F-42	F-42
	F-43	F-43
	F-44	F-44
	F-45	F-45
	F-46	F-46
	F-47	F-47
	F-48	F-48
	F-49	F-49
	F-50	F-50
	F-51	F-51
	F-52	F-52
	F-53	F-53
	F-54	F-54
	F-55	F-55
	F-56	F-56
	F-57	F-57
	F-58	F-58
	F-59	F-59
	F-60	F-60
	F-61	F-61
	F-62	F-62
	F-63	F-63
	F-64	F-64
	F-65	F-65
	F-66	F-66
	F-67	F-67
	F-68	F-68
	F-69	F-69

Page 15 — F 送料分组件 Feed mechanism components

Zoje ZJ-A7000 parts on page 15
Ref	Part number	Part name	Qty
	10010089	挡圈
	10010084	拾牙连杆
	10010115	送料偏心轮
	10005991	送料偏心轮
	10010072	送料连杆
	10006004	送料连杆
	10010098	偏心轮盖板
	10005992	偏心轮盖板
	10010643	螺钉
	10010238	螺钉
	10013772	调节器轴套
	10026886	偏心销
	10051742	螺钉
	10010649	挡圈
	10008852	倒送料连杆
	10037069	倒送料连杆
	10008848	送料调节器
	10027597	送料调节器
	10010092	螺钉
	10010096	销
	10010076	送料曲柄
	10013015	螺钉
	10013015	螺钉
	10010075	短摆动板
	10010068	长摆动板
	10010069	销
	10010071	螺钉
	10010091	螺钉
	10010102	左右销
	10010678	螺钉
	10010087	销
	10012775	摆动板座部件
	10035665	摆动板座部件
	10000000	螺钉
	10010282	复位板
	10010285	螺钉
	10050707	螺钉
	10050706	倒送料扳手挡圈
	1000404	螺钉
	20003459	倒送料扳手
	10014119	倒送料轴套

Page 16

Zoje ZJ-A7000 parts on page 16
Ref	Part number	Part name	Qty
	10008827	倒送料轴
	10010243	O形圈
	10009008	螺钉
	10039853	倒送料曲柄
	10031548	倒送料曲柄
	10010287	倒送料销
	10051845	针距旋钮螺钉
	10051770	送料距旋钮
	10051578	旋钮止动盘组件
	10051619	销
	10013869	弹簧
	10008829	送料调节螺柱
	10051621	旋钮复位簧
	10010240	O形圈
	10010099	螺钉
	10026545	送料牙
	10007322	送料牙
	10038413	送料牙
	20019012	牙架部件
	10004474	牙架座
	10004440	牙架销
	10010090	挡圈
	10004628	螺钉
	10014116	送料轴套
	10010900	螺钉
	10010901	螺钉
	10042079	拾牙叉形曲柄组件
	10043177	拾牙叉形曲柄组件
	10010073	送布轴
	10010097	拾牙轴
	10004430	弹簧
	10012991	弹簧
	10012796	复位簧
	10012990	复位簧
	10010235	拉簧固定板
	10012987	拉簧固定板
	10010095	螺钉
	10010086	拾牙后曲柄
	10004475	螺母
	10010542	挡圈
	10005020	螺钉

Page 17

Zoje ZJ-A7000 parts on page 17
Ref	Part number	Part name	Qty
	G-1	G-1
	G-2	G-2
	G-3	G-3
	G-4	G-4
	G-5	G-5
	G-6	G-6
	G-7	G-7
	G-8	G-8
	G-9	G-9
	G-10	G-10
	G-11	G-11
	G-12	G-12
	G-13	G-13
	G-14	G-14
	G-15	G-15
	G-16	G-16
	G-17	G-17
	G-18	G-18
	G-19	G-19
	G-20	G-20

Page 18

Zoje ZJ-A7000 parts on page 18
Ref	Part number	Part name
G-1	10008934	螺钉
G-2	10011168	垫圈
G-3	10058099	机头灯部件
G-4	10012505	油泵连接螺柱
G-5	10003281	挡圈
G-6	10024748	挡圈
G-7	10012985	螺母
G-8	10012983	螺钉
G-9	10012797	自动送料拉杆
G-10	10012989	自动送料曲柄
G-11	10031416	倒送料驱动部件
G-12	10012983	螺钉
G-13	10012473	螺钉
G-14	10013002	挡圈
G-15	10013001	油泵连接螺柱
G-16	10003281	挡圈
G-17	10012989	自动送料曲柄
G-18	10037310	倒送料驱动部件
G-19	10012986	螺钉
G-20	10012473	螺钉

Page 19

Zoje ZJ-A7000 parts on page 19
Ref	Part number	Part name	Qty
	H-1	H-1
	H-2	H-2
	H-3	H-3
	H-4	H-4
	H-5	H-5
	H-6	H-6
	H-7	H-7
	H-8	H-8
	H-9	H-9
	H-10	H-10
	H-11	H-11
	H-12	H-12
	H-13	H-13
	H-14	H-14
	H-15	H-15
	H-16	H-16
	H-17	H-17
	H-18	H-18
	H-19	H-19
	H-20	H-20
	H-21	H-21
	H-22	H-22
	H-23	H-23
	H-24	H-24
	H-25	H-25
	H-26	H-26
	H-27H-25	H-27H-25
	H-28	H-28
	H-29	H-29
	H-30	H-30
	H-31	H-31
	H-32	H-32
	H-33	H-33
	H-34	H-34
	H-35	H-35
	H-36	H-36
	H-37	H-37
	H-38	H-38
	H-39	H-39
	H-40	H-40
	H-41	H-41
	H-42	H-42
	H-43	H-43
	H-44	H-44
	H-45	H-45
	H-46	H-46
	H-47	H-47
	H-48	H-48
	H-49	H-49
	H-50	H-50
	H-51	H-51
	H-52	H-52
	H-53	H-53
	H-54	H-54
	H-55	H-55
	H-56	H-56
	H-57	H-57
	H-58	H-58
	H-59	H-59

Page 20 — H 剪线分组件 Thread trimmer components

Zoje ZJ-A7000 parts on page 20
Ref	Part number	Part name
H-1	10008866	切线驱动曲柄轴
H-2	10011630	曲柄短套
H-3	10011630	切线轴套
H-4	10011649	弹簧
H-5	10008865	垫圈
H-6	10011588	螺钉
H-7	10058043	切线驱动曲柄
H-8	10011579	曲柄止动块
H-9	10008863	螺钉
H-10	10011494	动刀
H-10	10030280	动刀
H-11	10004640	动刀架
H-12	10011578	螺母
H-13	10031612	刀轴连杆
H-14	10011514	螺钉
H-15	10013541	螺钉
H-16	10013154	垫圈
H-17	10008856	刀架压板组件
H-18	10014196	弹簧端盖
H-19	10008812	弹簧
H-20	10011697	切刀驱动轴
H-21	10050266	消音塞
H-22	10004707	螺钉
H-23	10004651	滚柱
H-24	10025576	垫圈
H-25	10011578	螺母
H-26	10004648	切线凸轮曲柄
H-27	10025577	螺钉
H-28	10004703	凸轮曲柄滑块
H-29	10004704	销
H-30	10004705	左曲柄滚柱
H-31	10009654	垫圈
H-32	10003031	垫圈
H-33	10009654	挡圈
H-34	10031414	剪线电磁铁组件
H-35	10009471	螺母
H-36	10008854	剪线电磁铁安装座
H-37	10011607	剪线电磁铁连接体
H-38	10031415	剪线电磁铁
H-39	10011606	垫圈
H-40	10011845	垫圈

Page 21

Zoje ZJ-A7000 parts on page 21
Ref	Part number	Part name
H-41	10028999	螺钉
H-42	10012467	螺钉
H-43	10003077	垫圈
H-44	10011605	螺钉
H-45	10011584	分线器
H-45	10026784	分线器
H-46	10013154	垫圈
H-47	10014474	螺钉
H-48	10011421	定刀
H-49	10011422	螺钉
H-50	10013465	螺钉
H-51	10010736	剪线凸轮
H-52	10023739	剪线凸轮垫
H-53	10013465	螺钉
H-54	10026782	动刀
H-55	10009626	螺钉
H-56	10013026	刀架压板
H-57	10031612	刀轴连杆
H-58	10026783	动刀架
H-59	10011686	切线凸轮曲柄组件

Page 22

Zoje ZJ-A7000 parts on page 22
Ref	Part number	Part name	Qty
	1-1	Lubrication components
	1-2
	1-3
	1-4
	1-5
	1-6
	1-7
	1-8
	1-9
	1-10
	1-11
	1-12
	1-13
	1-14
	1-15
	1-16
	1-17
	1-18
	1-19
	1-20

Page 23 — I 润滑分组件 Lubrication components

Zoje ZJ-A7000 parts on page 23
Ref	Part number	Part name	Qty
	10014197	挡油海绵
	10010294	回油管夹
	10008934	螺钉
	10007795	油管
	10042077	回油毡夹
	10004065	面部防油板
	10005558	螺钉
	10050666	上轴供油管
	10010340	供油管接头
	10010066	螺钉
	10008817	油泵部件
	10050422	螺钉
	10008831	螺钉
	10008806	弹簧
	10012443	油管支撑板
	10012445	油管压板
	10010074	螺钉
	10013269	螺钉
	10050424	油管压板
	10008807	旋梭供油管

Page 24

Zoje ZJ-A7000 parts on page 24
Ref	Part number	Part name	Qty
	J-1	Presser foot components of oil plate knee lift
	J-2
	J-3
	J-4
	J-5
	J-6
	J-7
	J-8
	J-9
	J-10
	J-11
	J-12
	J-13
	J-14
	J-15
	J-16
	J-17
	J-18
	J-19
	J-20
	J-21
	J-22
	J-23
	J-24
	J-25
	J-26
	J-27

Page 25 — Presser foot components of oil plate knee lift

Zoje ZJ-A7000 parts on page 25
Ref	Part number	Part name	Qty
	10057328	油盘
	10014194	油盘垫
	10009984	抬压脚顶销
	10009991	螺钉
	10009988	垫圈
	10002562	操纵杆接头组件
	10003896	操纵杆接头
	10002610	螺钉
	10002613	螺钉
	10058503	抬压脚轴
	10003893	弹簧
	10002559	挡圈
	10002563	抬压脚双向曲柄部件
	10009987	抬压脚双向曲柄
	10003895	螺钉
	10003898	螺钉
	10003890	螺母
	10009985	操纵杆部件
	10003894	螺钉
	10003897	操纵杆接头
	10003901	操纵杆
	10003900	操纵杆垫
	10003891	操纵板
	10004223	操纵板软垫
	10057329	感应磁铁组件
	10057330	膝抬助力传感器组件
	10002975	螺钉

Page 26

Zoje ZJ-A7000 parts on page 26
Ref	Part number	Part name	Qty
	K-1	Components of thread-running stand
	K-2
	K-3
	K-4
	K-5
	K-6
	K-7
	K-8
	K-9
	K-10
	K-11
	K-12
	K-13
	K-14
	K-15
	K-16
	K-17
	K-18
	K-19

Page 27 — 过线架分组件 Components of thread-running stand

Zoje ZJ-A7000 parts on page 27
Ref	Part number	Part name
K-1	10004282	撑管套
K-2	10004293	线上撑管
K-3	10002953	螺母
K-4	10003022	垫圈
K-5	10003301	螺钉
K-6	10004285	过线管套
K-7	10004289	过线管
K-8	10004298	上线线架
K-9	10004286	撑管夹
K-10	10004291	线下撑管
K-11	10004284	下过线架
K-12	10003312	螺钉
K-13	10004288	线轴
K-14	10004287	线盘塑料压块
K-15	10004281	线盘软垫
K-16	10004299	线盘
K-17	10004290	垫圈
K-18	10004295	垫圈
K-19	10002985	螺母

Page 28

Zoje ZJ-A7000 parts on page 28
Ref	Part number	Part name
L-1	10010995	中螺丝刀
L-2	10034917	机针
L-2	10034916	机针
L-3	10003892	油盘磁铁
L-4	10025484	梭芯
L-4	10007138	梭芯
L-5	10004455	油箱部件
L-6	10009986	油盘支座
L-7	10009993	油盘座垫
L-8	10050425	机头支柱
L-9	10004466	机头连接钩部件
L-10	10003889	机头连接钩座钉
L-11	10011041	机头连接钩座
L-12	10008849	机头罩

Page 29

Zoje ZJ-A7000 parts on page 29
Ref	Part number	Part name
L-1	L-1	SCREWDRIVER
L-2	L-2	NEEDLE PLATE
L-3	L-3	BOBBIN CASE
L-4	L-4	BOBBIN
L-5	L-5	OIL BOTTLE
L-6	L-6	PRESSER FOOT
L-7	L-7	PRESSER FOOT
L-8	L-8	NEEDLE
L-9	L-9	GUIDE
L-10	L-10	GUIDE
L-11	L-11	GUIDE
L-12	L-12	MACHINE COVER

Page 30 — Drive-by-wire Components

Zoje ZJ-A7000 parts on page 30
Ref	Part number	Part name
M1	M1	M1
M2	M2	M2
M3	M3	M3
M4	M4	M4
M5	M5	M5
M6	M6	M6
M7	M7	M7
M8	M8	M8
M9	M9	M9
M10	M10	M10
M11	M11	M11

Page 31

Zoje ZJ-A7000 parts on page 31
Ref	Part number	Part name
M-1	10058052	ZJ8000E电控箱
M-1	10058053	ZJ7000E电控箱
M-2	10006115	垫圈
M-3	10012080	螺钉
M-4	10049837	螺钉
M-5	10031424	踏板组件
M-6	10002417	踏板连杆组件
M-7	10031423	国标电源线
M-8	10010899	螺钉
M-9	10035172	电线压板
M-10	10031556	长电线夹
M-11	10001796	螺钉

Zoje ZJ-A7000 — parts catalog

Page 1 — CONTENTS

零件样本 Parts Book 目录 CONTENTS A 机壳分组件 Machine Frame & Miscellaneous Cover Components 1 B 上轴、挑线分组件 Main Shaft & Thread Take-up Cover Components 3 C 针杆、夹线分组件 Needle bar & thread tension components 5 D 压料、松线分组件 Presser bar & tension release components 8 E 钩线分组件 Hook of driving shaft components 11 F 送料分组件 Feed mechanism components 13 G 送料调节分组件 Feed regulating components 16 H 剪线分组件 Thread trimmer components 18 I 润滑分组件 Lubrication Components 21 J 油盘、膝抬压脚分组件 Presser Foot Components Of Oil Plate Knee Lift 23 K 过线架分组件 Components Of Thread-running Stand 25 L 附件 Auxiliaries 27 M 电控分组件 Drive-by-wire Components 29 jintex.in

Page 2 — Machine frame&miscellaneous cover components

A 机壳分组件 Machine frame&miscellaneous cover components A-1 A-2 A-3 A-4 A-5 A-6 A-7 A-26 A-25 A-28 A-27 A-18 A-17 A-23 A-24 A-23 A-36 A-37 A-19 A-22 A-21 A-20 A-16 A-33 A-34 A-35 A-32 A-31 A-30 A-29 A-14 A-15 A-16 A-16 A-13 A-12 A-11 A-10 A-9 A-8 1 jintex.in

Page 3 — A 机壳分组件 Machine frame&miscellaneous cover components

A 机壳分组件 Machine frame&miscellaneous cover components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark A-1 10008972 螺钉 Screw 9 A-2 20021544 后窗板 Side plate 1 A-3 10008977 橡胶塞 Rubber plug 1 A-4 10058208 后窗板垫 Side plate gasket 1 A-5 10004380 螺钉 Screw 3 A-6 10031086 绕线器 Bobbin wider ASM. 1 A-7 10008773 橡胶轮 Rubber ring 1 A-8 10050423 螺钉 Screw 2 A-9 10011149 绕线切刀 Thread cutter 1 A-10 10008939 O形圈 O-ring 1 A-11 10008938 油窗 Oil window 1 A-12 10009576 橡胶塞 Rubber plug 1 A-13 10059716 绕线夹线器 Bobbin thread tension ASM. 1 A-14 10008975 橡胶塞 Rubber plug 1 A-15 10008941 橡胶塞 Rubber plug 1 A-16 10002577 底板支柱 Bed screw stud 4 A-17 20022331 面板 Face plate 1 A-18 10058098 面板垫 Face plate gasket 1 A-19 10013706 推板部件 Side plate ASM. 1 A-20 10010080 螺钉 Screw 2 A-21 10003963 推板簧 Spring of side 1 A-22 10003960 推板 Side plate 1 A-23 10008972 螺钉 Screw 3 A-24 10008977 橡胶塞 Rubber plug 2 A-25 10059711 挑线杆防护罩 Thread take-up lever cover 1 A-26 10008934 螺钉 Screw 1 A-27 10008942 橡胶塞 Rubber plug 1 A-28 10008943 橡胶塞 Rubber plug 1 A-29 10008943 右线钩 Arm thread guide right 1 A-30 10008973 螺钉 Screw 2 A-31 10039611 电线过线套 Rubber plug 1 A-32 10054575 左线钩 Arm thread guide left 1 A-33 10004374 螺钉 Screw 2 A-34 10004373 限位挡片 Ruler plate 1 A-35 10009005 螺钉 Screw 1 A-36 10012463 螺钉 Screw 1 A-37 10052464 针板 Needle plate 1 A-37 10014459 针板 Needle plate 1 -5 A-37 10052350 针板 Needle plate 1 S7/H 2 jintex.in

Page 4 — Main shaft&thread take-up components

B 上轴、挑线分组件 Main shaft&thread take-up components B-2 B-1 B-3 B-4 B-5 B-6 B-7 B-8 B-9 B-10 B-11 B-12 B-13 B-14 B-15 B-16 B-17 B-18 B-19 B-20 B-21 B-22 B-23 B-24 B-25 B-26 B-27 B-27 B-28 B-29 B-30 3 jintex.in

Page 5 — B Main shaft&thread take-up components

B 上轴、挑线分组件 Main shaft&thread take-up components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark B-1 10050672 挑线连杆销 Thread take-up crank shaft 1 B-2 10010083 螺钉 Screw 1 B-3 10010535 挑线连杆 Thread take-up bar 1 B-3 10005936 挑线连杆 Thread take-up bar 1 H B-4 10038474 挑线杆部件 Thread take-up lever Asm. 1 B-4 10004158 挑线杆部件 Thread take-up lever Asm. 1 S7 B-4 10005939 挑线杆部件 Thread take-up lever Asm. 1 H B-5 10010539 挑线杆防油圈 Oil resistant cover 1 B-6 10010545 螺钉 Screw 1 B-7 10010534 O形圈 O-ring 1 B-8 10010082 螺钉 Screw 1 B-9 10010065 螺钉 Screw 2 B-10 10010538 O形圈 O-ring 1 B-11 10005040 油量调节链套 Sleeve of adjusting pin 1 B-12 10010504 油量调节销 Adjusting pin 1 B-13 10012203 针杆曲柄 Counter weight 1 B-13 10012858 针杆曲柄 Counter weight 1 -5/H B-14 10010504 滚针轴承 Bearing 2 B-15 10004144 挑线曲柄 Needle bar crank 1 B-15 10005937 挑线曲柄 Needle bar crank 1 -5/H B-16 10010592 针杆连杆 Needle bar crank rod 1 B-17 10055615 上轴前轴套 Bearing support 1 B-18 10004472 绕线主动轮 Wheel 1 B-19 10012062 螺钉 Screw 2 B-20 10010506 螺钉 Screw 1 B-21 10005020 螺钉 Screw 2 B-22 10010542 上轴挡圈 Thrust collar 1 B-23 10056893 上轴后轴套 Bearing support 1 B-24 10007239 上轴中轴套 Bearing support 1 B-25 10053222 上轴 Main shaft 1 B-26 10058049 上轴油封 Oil seal 1 B-27 10058054 电机 Motor 1 B-28 10059025 螺钉 Screw 4 B-29 20022332 上轮 Head wheel 1 B-30 10011232 螺钉 Screw 2 4 jintex.in

Page 6 — Needle bar & thread tension components

C 针杆、夹线分组件 Needle bar & thread tension components C-1 C-2 C-3 C-10 C-11 C-4 C-5 C-8 C-9 C-6 C-7 C-30 C-28 C-27 C-26 C-25 C-23 C-12 C-13 C-14 C-15 C-16 C-17 C-22 C-21 C-20 C-19 C-18 C-33 C-34 C-35 C-36 C-37 C-38 C-31 C-32 C-29 5 jintex.in

Page 7 — C Needle bar & thread tension components

C 针杆、夹线分组件 Needle bar & thread tension components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark C-1 10010587 橡胶塞 Rubber plug 1 C-2 10011063 针杆上轴套 Bearing support 1 C-3 10041608 针杆 Needle bar 1 C-3 10041609 针杆 Needle bar 1 -5/H C-4 10011063 螺钉 Screw 1 C-5 10014117 针杆下轴套 Bearing support 1 C-5 10005916 针杆下轴套 Bearing support 1 -5/H C-6 10005943 针杆下轴套线钩 Needle bar thread guide 1 C-7 10034917 机针 Needle DB×1 14# 1 C-7 10034916 机针 Needle DP×5 18# 1 -5/H C-8 10010591 针杆线钩 Needle bar thread guide 1 C-8 10005945 针杆线钩 Needle bar thread guide 1 -5/H C-9 10005938 支针螺钉 Screw 1 C-10 10010590 针杆连接柱 Needle bar holder 1 C-11 10010586 针杆连接滑块 Slide block 1 C-12 10004184 松线钉 Thread release pin 1 C-13 10004183 O形圈 O-ring 1 C-14 10004200 螺钉 Screw 1 C-15 10039524 挑线簧调节座 Tension post socket 1 C-16 10004201 挑线簧 Spring 1 C-17 10004177 夹线螺钉 Screw 1 C-18 10012981 夹线螺母 Nut 1 C-19 10004199 夹线制动板 Tension disc stopper 1 C-20 10004176 夹线簧 Spring 1 C-20 10005941 夹线簧 Spring 1 C-21 10004179 松线板 Thread release disc 1 C-22 10004180 夹线板 Tension disc holder 2 C-23 10059714 夹线器 Thread take-up device 1 C-23 10041543 夹线器 Thread take-up device 1 -5/H C-24 10006264 螺钉 Screw 1 C-25 10004181 夹线螺母 Nut 1 C-26 10005838 夹线簧 Spring 1 C-27 10005839 夹线板 Tension disc holder 2 C-28 10005841 夹线螺钉 Screw 1 C-29 10059712 上夹线器 Thread take-up device 1 C-30 10008934 螺钉 Screw 1 C-31 10008934 螺钉 Screw 1 C-32 10033232 上过线板 Thread tension guide 1 C-33 10058041 松线辅钉 Tension release supporting pin 1 C-34 10050348 弹簧 Spring 1 C-35 10039460 电子夹线器 Electromagnet 1 6 jintex.in

Page 8 — Needle bar & thread tension components

C 针杆、夹线分组 Needle bar & thread tension components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark C-36 10005204 螺钉 Screw 1 C-37 10009074 螺钉 Screw 1 C-38 10039823 缓线钩 Presser bar thread guide 1 7 jintex.in

Page 9 — D Presser bar & tension release components

D 压料、松线分组件 Presser bar & tension release components D-1 D-2 D-3 D-4 D-5 D-6 D-7 D-8 D-9 D-10 D-11 D-12 D-13 D-14 D-15 D-16 D-17 D-18 D-19 D-20 D-21 D-22 D-23 D-24 D-25 D-26 D-27 D-28 D-29 D-30 D-31 D-32 D-33 D-34 D-35 D-36 D-37 D-38 D-39 D-40 D-41 D-42 D-43 D-44 8 jintex.in

Page 10

D 压料、松线分组件 Presser bar & tension release components Ref.No. 序号物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark D-1 10059719 调压螺钉组件 Screw ASM. 1 D-2 10011022 调压螺钉 Screw 1 D-3 10011023 调压螺母 Nut 1 D-4 10004439 调压导杆 Presser guide bar 1 D-5 10004473 调压簧 Spring 1 D-6 10039365 压杆导架 Presser guide bar bracket 1 D-7 10000325 螺钉 Screw 1 D-8 10011457 压紧杆防油罩 Oil protector cover 1 D-9 10014118 压杆轴套 Bearing support 1 D-9 10005915 压杆轴套 Bearing support 1 -5/H D-10 10052532 活压脚部件 Presser foot ASM. 1 D-10 10005982 活压脚部件 Presser foot ASM. 1 -5 D-11 10010650 螺钉 Screw 1 D-12 10010646 压杆 Presser bar 1 D-13 10005697 螺母 Nut 2 D-14 10008860 松线座 Loosing plate 1 D-15 10008834 弹簧 Spring 1 D-16 10013615 钢绳固定板 Fixing shutter 1 D-17 10006624 螺钉 Screw 2 D-18 10008972 螺钉 Screw 2 D-19 10008811 松线钢绳座 Loosing line plate 1 D-20 10013038 开口挡圈 Snap ring 2 D-21 10039381 弹簧 Spring 1 D-22 10039371 升降板 Lifting lever 1 D-23 10050190 压脚扳手凸轮部件 Hand lifter CAM ASM. 1 D-24 10059718 压脚扳手 Hand lifter 1 D-25 10010027 O形圈 O-ring 1 D-26 10050590 平垫圈 Snap ring 1 D-27 10039374 销 Shaft 1 D-28 10010016 螺钉 Screw 1 D-29 10009074 螺钉 Screw 1 D-30 10039373 销 Screw 1 D-31 10010027 O形圈 O-ring 1 D-32 10039372 松线顶板 Tension release plate 1 D-33 10039380 抬压脚拉线组件 Foot lifter pull thread components 1 D-34 10039378 软管压板 platen 1 D-35 10009037 螺钉 Screw 2 D-36 10057559 抬压脚顶杆 Connecting rod vererical 1 D-37 10057556 抬压脚后杠杆 Lifting lever link 1 D-38 10010652 螺钉 Screw 2 D-39 10010651 螺钉 Screw 2 9 jintex.in

Page 11 — D 压料、松线分组件 Presser bar & tension release components

D 压料、松线分组件 Presser bar & tension release components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark D-40 10041762 拾压脚拉杆 Lifting lever connecting rod 1 D-41 10000134 螺钉 Screw 3 D-42 10050041 拾压电磁铁 Electromagn 1 D-43 10057557 拾压脚连接板 Presser foot lifter connector plate 1 D-44 10009205 微调螺柱限位弹簧 Spring 1 10 jintex.in

Page 12 — E Hook of driving shaft components

E 钩线分组件 Hook of driving shaft components E-1 E-2 E-3 E-4 E-5 E-6 E-7 E-8 E-27 E-26 E-25 E-24 E-23 E-22 E-21 E-20 E-13 E-12 E-11 E-10 E-9 E-17 E-16 E-15 E-14 E-19 E-18 11 jintex.in

Page 13

E 钩线分组件 Hook of driving shaft components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark E-1 10031259* 旋梭定位钩 Positioning finger 1 E-2 10011101 螺钉 Screw 1 E-3 10006924 梭壳 Bobbin case 1 E-3 10031867 梭壳 Bobbin case 1 H E-4 10025484 梭芯 Bobbin 1 E-4 10007138 梭芯 Bobbin 1 H E-5 10038530 旋梭 Hook 1 E-5 10051547 旋梭 Hook 1 -5 E-5 10039876 旋梭 Hook 1 H E-6 10010064 限油螺钉 Oil wick 1 E-7 10010063 油芯 Oil wick 1 E-8 10010065 螺钉 Screw 8 E-9 10058811 下轴前轴套 Bearing support 1 E-9 10058812 下轴前轴套 Bearing support 1 E-10 10008857 下轴中轴套 Bearing support 1 E-11 10010058 挡圈 Snap ring 1 E-12 10007266 下轴后轴套 Bearing support 1 E-13 10008821 下轴 Hook driving shaft 1 E-14 10002560 下轴伞齿轮组件 Gear 1 E-15 10002509 竖轴下伞齿轮组件 Gear 1 E-16 10010030 螺钉 Screw 1 E-17 10010059 螺钉 Screw 2 E-18 10010593 螺钉 Screw 1 E-19 10008864 橡胶塞 Rubber plug 1 E-20 10007235 竖轴下轴套 Bearing support 1 E-21 10010058 挡圈 Snap ring 1 E-22 10010059 螺钉 Screw 2 E-23 10007267 竖轴上轴套 Bearing support 1 E-24 10039610 螺钉 Screw 1 E-25 10000000 竖轴 Upright shaft 1 E-26 10002561 竖轴上伞齿轮组件 Gear 1 E-27 10002445 上轴伞齿轮组件 Gear 1 12 jintex.in

Page 14

F 送料分组件 Feed mechanism components F-1 F-2 F-3 F-4 F-5 F-6 F-9 F-8 F-7 F-16 F-15 F-13 F-11 F-12 F-14 F-17 F-18 F-20 F-19 F-21 F-22 F-26 F-11 F-24 F-25 F-23 F-27 F-26 F-31 F-32 F-46 F-45 F-44 F-28 F-29 F-30 F-33 F-35 F-34 F-48 F-47 F-49 F-50 F-43 F-42 F-41 F-40 F-39 F-37 F-38 F-36 F-51 F-59 F-53 F-52 F-58 F-57 F-55 F-68 F-60 F-69 F-65 F-66 F-67 F-54 F-56 F-61 F-68 F-69 F-63 F-64 F-62 F-54 F-56 13 jintex.in

Page 15 — F 送料分组件 Feed mechanism components

F 送料分组件 Feed mechanism components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark F-1 10010089 挡圈 Snap ring 1 F-2 10010084 拾牙连杆 Connecting rod 1 F-3 10010115 送料偏心轮 Feed drive eccentric cam 1 F-3 10005991 送料偏心轮 Feed drive eccentric cam 1 S7/H F-4 10010072 送料连杆 Connecting rod 1 F-4 10006004 送料连杆 Connecting rod 1 S7/H F-5 10010098 偏心轮盖板 Thrust cover 1 F-5 10005992 偏心轮盖板 Thrust cover 1 S7/H F-6 10010643 螺钉 Screw 2 F-7 10010238 螺钉 Screw 1 F-8 10013772 调节器轴套 Bearing support 1 F-9 10026886 偏心销 Pin 2 F-10 10051742 螺钉 Screw 2 F-11 10010649 挡圈 Snap ring 2 F-12 10008852 倒送料连杆 Feed adjust rod 1 F-12 10037069 倒送料连杆 Feed adjust rod 1 S7/H F-13 10008848 送料调节器 Feed regulator 1 F-13 10027597 送料调节器 Feed regulator 1 S7/H F-14 10010092 螺钉 Screw 2 F-15 10010096 销 Pin 1 F-16 10010076 送料曲柄 Feed rocker 1 F-17 10013015 螺钉 Screw 1 F-18 10013015 螺钉 Screw 1 F-19 10010075 短摆动板 Short link 2 F-20 10010068 长摆动板 Long link 2 F-21 10010069 销 Pin 1 F-22 10010071 螺钉 Screw 1 F-23 10010091 螺钉 Screw 1 F-24 10010102 左右销 Pin 1 F-25 10010678 螺钉 Screw 2 F-26 10010087 销 Pin 2 F-27 10012775 摆动板座部件 Feed adjusting ASM. 1 S7/H F-27 10035665 摆动板座部件 Feed adjusting ASM. 1 F-28 10000000 螺钉 Screw 1 F-29 10010282 复位板 Plate 1 F-30 10010285 螺钉 Screw 2 F-31 10050707 螺钉 Screw 1 F-32 10050706 倒送料扳手挡圈 Snap ring 1 F-33 1000404 螺钉 Screw 2 F-34 20003459 倒送料扳手 Reverse feed control lever 1 F-35 10014119 倒送料轴套 Bearing support 1 14 jintex.in

Page 16

F 送料分组件 Feed mechanism components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark F-36 10008827 倒送料轴 Reverse feed shaft 1 F-37 10010243 O形圈 O-ring 1 F-38 10009008 螺钉 Screw 1 F-39 10039853 倒送料曲柄 Reverse feed shaft 1 F-39 10031548 倒送料曲柄 Reverse feed shaft 1 S7/H F-40 10010287 倒送料销 Pin 1 F-41 10051845 针距旋钮螺钉 Screw 1 F-42 10051770 送料距旋钮 Feed dial 1 F-43 10051578 旋钮止动盘组件 Pin 1 F-44 10051619 销 Spring 1 F-45 10013869 弹簧 Screw 1 F-46 10008829 送料调节螺柱 Spring 1 F-47 10051621 旋钮复位簧 O-ring 1 F-48 10010240 O形圈 Screw 1 F-49 10010099 螺钉 Feed dog 2 F-50 10026545 送料牙 Feed dog 1 F-50 10007322 送料牙 Feed dog 1 -5 F-50 10038413 送料牙 Feed bar ASM. 1 H F-51 20019012 牙架部件 Feed bar driving crank 1 F-52 10004474 牙架座 Pin 1 F-53 10004440 牙架销 Snap ring 2 F-54 10010090 挡圈 Screw 1 F-55 10004628 螺钉 Bearing support 2 F-56 10014116 送料轴套 Screw 2 F-57 10010900 螺钉 Screw 2 F-58 10010901 螺钉 Lifting fork 1 F-59 10042079 拾牙叉形曲柄组件 Lifting fork 1 S7/H F-59 10043177 拾牙叉形曲柄组件 Feed rocker shaft 1 F-60 10010073 送布轴 Feed driving shaft 1 F-61 10010097 拾牙轴 Spring 1 F-62 10004430 弹簧 Spring 1 S7/H F-62 10012991 弹簧 Plate 1 F-63 10012796 复位簧 Plate 1 S7/H F-63 10012990 复位簧 Screw 1 F-64 10010235 拉簧固定板 Lifting rocker 1 F-64 10012987 拉簧固定板 Nut 1 S7/H F-65 10010095 螺钉 Thrust collar 1 F-66 10010086 拾牙后曲柄 Screw 2 F-67 10004475 螺母 2 F-68 10010542 挡圈 15 F-69 10005020 螺钉 jintex.in

Page 17

G 送料调节节组件 Feed regulating components G-1 G-2 G-3 G-4 G-5 G-6 G-7 G-8 G-9 G-10 G-7 G-11 G-12 G-13 G-14 G-15 G-16 G-17 G-13 G-18 G-19 G-20 16 jintex.in

Page 18

G 送料调节分组件 Feed regulating components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark G-1 10008934 螺钉 Screw 2 G-2 10011168 垫圈 Washer 2 G-3 10058099 机头灯部件 Led lamp ASM. 1 G-4 10012505 油泵连接螺柱 Screw 1 G-5 10003281 挡圈 Snap ring 1 G-6 10024748 挡圈 Snap ring 1 G-7 10012985 螺母 Nut 2 G-8 10012983 螺钉 Screw 1 G-9 10012797 自动送料拉杆 Reverse feed connecting plate 1 G-10 10012989 自动送料曲柄 Connecting arm ASM. 1 G-11 10031416 倒送料驱动部件 Reverse feed magnet ASM. 1 G-12 10012983 螺钉 Screw 1 G-13 10012473 螺钉 Screw 2 G-14 10013002 挡圈 Snap ring 1 -5/S7/H G-15 10013001 油泵连接螺柱 Screw 1 -5/S7/H G-16 10003281 挡圈 Snap ring 1 -5/S7/H G-17 10012989 自动送料曲柄 Connecting arm ASM. 1 -5/S7/H G-18 10037310 倒送料驱动部件 Reverse feed magnet ASM. 1 -5/S7/H G-19 10012986 螺钉 Screw 1 -5/S7/H G-20 10012473 螺钉 Screw 2 17 jintex.in

Page 19

H 剪线分组件 Thread trimmer components H-1 H-2 H-3 H-4 H-5 H-6 H-7 H-8 H-9 H-10 H-11 H-12 H-13 H-14 H-15 H-16 H-17 H-18 H-19 H-20 H-21 H-22 H-23 H-24 H-25 H-26 H-27H-25 H-28 H-29 H-30 H-31 H-32 H-33 H-34 H-35 H-36 H-37 H-38 H-39 H-40 H-41 H-42 H-43 H-44 H-45 H-46 H-47 H-48 H-49 H-50 H-51 H-52 H-53 H-54 H-55 H-56 H-57 H-58 H-59 18 jintex.in

Page 20 — H 剪线分组件 Thread trimmer components

H 剪线分组件 Thread trimmer components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark H-1 10008866 切线驱动曲柄轴 Trimming crank shaft 1 H-2 10011630 曲柄短套 Short bushing 1 H-3 10011630 切线轴套 Short bushing 1 H-4 10011649 弹簧 Spring 1 H-5 10008865 垫圈 Washer 1 H-6 10011588 螺钉 Screw 2 H-7 10058043 切线驱动曲柄 Trimming crank 1 H-8 10011579 曲柄止动块 Block 1 H-9 10008863 螺钉 Screw 1 H-10 10011494 动刀 Round knife 1 -5 H-10 10030280 动刀 Round knife 1 H-11 10004640 动刀架 Round knife bracket 1 H-12 10011578 螺母 Nut 1 H-13 10031612 刀轴连杆 Knife shaft crack rod 1 H-14 10011514 螺钉 Screw 2 H-15 10013541 螺钉 Screw 2 H-16 10013154 垫圈 Washer 2 H-17 10008856 刀架压板组件 Knife holder ASM. 1 H-18 10014196 弹簧端盖 Spring cover 1 H-19 10008812 弹簧 Spring 1 H-20 10011697 切刀驱动轴 Trimming shaft 1 H-21 10050266 消音塞 Silencer plug 1 H-22 10004707 螺钉 Screw 1 H-23 10004651 滚柱 Roller bearing 1 H-24 10025576 垫圈 Washer 1 H-25 10011578 螺母 Nut 3 H-26 10004648 切线凸轮曲柄 Trimming cam crank 1 H-27 10025577 螺钉 Screw 1 H-28 10004703 凸轮曲柄滑块 Slide block 1 H-29 10004704 销 Pin 1 H-30 10004705 左曲柄滚柱 Pin 1 H-31 10009654 垫圈 Washer 1 H-32 10003031 垫圈 Washer 1 H-33 10009654 挡圈 Snap ring 1 H-34 10031414 剪线电磁铁组件 Thread trimmer solenoid ASM. 1 H-35 10009471 螺母 Nut 2 H-36 10008854 剪线电磁铁安装座 Solenoid base 1 H-37 10011607 剪线电磁铁连接体 Solenoid connecting shaft 1 H-38 10031415 剪线电磁铁 Thread trimmer solenoid 1 H-39 10011606 垫圈 Washer 1 H-40 10011845 垫圈 Washer 1 19 jintex.in

Page 21

H 剪线分组件 Thread trimmer components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark H-41 10028999 螺钉 Screw 1 H-42 10012467 螺钉 Screw 1 H-43 10003077 垫圈 Washer 1 H-44 10011605 螺钉 Screw 1 H-45 10011584 分线器 Dispart 1 H H-45 10026784 分线器 Dispart 1 H H-46 10013154 垫圈 Washer 1 H-47 10014474 螺钉 Screw 1 H-48 10011421 定刀 Fixed knife 1 H-49 10011422 螺钉 Screw 1 H-50 10013465 螺钉 Screw 1 H-51 10010736 剪线凸轮 Thread trimmer cam 1 H-52 10023739 剪线凸轮垫 Cam collar 1 H-53 10013465 螺钉 Screw 1 H-54 10026782 动刀 Round knife 1 H H-55 10009626 螺钉 Screw 3 H H-56 10013026 刀架压板 Knife holder 1 H H-57 10031612 刀轴连杆 Knife shaft crack rod 1 H H-58 10026783 动刀架 Round knife bracket 1 H H-59 10011686 切线凸轮曲柄组件 Trimming cam crank Asm 1 20 jintex.in

Page 22

I 润滑分组件 Lubrication components 1-1 1-2 1-3 1-4 1-5 1-6 1-7 1-8 1-9 1-10 1-11 1-12 1-13 1-14 1-15 1-16 1-17 1-18 1-19 1-20 21 jintex.in

Page 23 — I 润滑分组件 Lubrication components

I 润滑分组件 Lubrication components 序号物料号名称 Description 数量备注 Ref.No. Part.No. Q'ty Remark I-1 10014197 挡油海绵 Foam rubber 1 I-2 10010294 回油管夹 Oil felt preser 1 I-3 10008934 螺钉 Screw 1 I-4 10007795 油管 Tube 1 I-5 10042077 回油毡夹 Oil felt preser 1 I-6 10004065 面部防油板 Oil stoper 1 I-7 10005558 螺钉 Screw 1 I-8 10050666 上轴供油管 Main shaft oil tube 1 I-9 10010340 供油管接头 Oil tube holder 1 I-10 10010066 螺钉 Screw 1 I-11 10008817 油泵部件 Oil pump 1 I-12 10050422 螺钉 Screw 1 I-13 10008831 螺钉 Screw 1 I-14 10008806 弹簧 Spring 1 I-15 10012443 油管支撑板 Plate 1 -5/S7/H I-16 10012445 油管压板 Tube holder 1 -5/S7/H I-17 10010074 螺钉 Screw 1 -5/S7/H I-18 10013269 螺钉 Screw 1 I-19 10050424 油管压板 Tube holder 1 I-20 10008807 旋梭供油管 Oil tube 1 22 jintex.in

Page 24

J 油盘、膝抬压脚组件 Presser foot components of oil plate knee lift J-1 J-2 J-3 J-4 J-5 J-27 J-26 J-25 J-14 J-13 J-12 J-11 J-10 J-6 J-17 J-7 J-16 J-9 J-8 J-15 J-18 J-21 J-19 J-20 J-22 J-23 J-24 23 jintex.in

Page 25 — Presser foot components of oil plate knee lift

J 油盘、膝抬压脚分组件 Presser foot components of oil plate knee lift 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark J-1 10057328 油盘 Oil reservoir 1 J-2 10014194 油盘垫 Oil reservoir gasket 1 J-3 10009984 抬压脚顶销 Pin 1 J-4 10009991 螺钉 Screw 1 J-5 10009988 垫圈 Rubber ring 1 J-6 10002562 操纵杆接头组件 Bracket ASM. 1 J-7 10003896 操纵杆接头 Bracket 1 J-8 10002610 螺钉 Screw 1 J-9 10002613 螺钉 Screw 1 J-10 10058503 抬压脚轴 Knee pressing shaft 1 J-11 10003893 弹簧 Spring 1 J-12 10002559 挡圈 Snap ring 1 J-13 10002563 抬压脚双向曲柄部件 Crank ASM. 1 J-14 10009987 抬压脚双向曲柄 Crank 1 J-15 10003895 螺钉 Screw 2 J-16 10003898 螺钉 Screw 1 J-17 10003890 螺母 Nut 3 J-18 10009985 操纵杆部件 Knee pressing plate ASM. 1 J-19 10003894 螺钉 Screw 1 J-20 10003897 操纵杆接头 Knee pressing plate holder 1 J-21 10003901 操纵杆 Knee pressing plate rod 1 J-22 10003900 操纵杆垫 Knee pressing plate rubber 1 J-23 10003891 操纵板 Knee pressing plate 1 J-24 10004223 操纵板软垫 Knee pressing cover 1 J-25 10057329 感应磁铁组件 Induction magnet assembly 1 J-26 10057330 膝抬助力传感器组件 Knee lifting power sensor assembly 1 J-26 10002975 螺钉 Screw 2 24 jintex.in

Page 26

K 过线架分组件 Components of thread-running stand K-1 K-2 K-3 K-4 K-5 K-7 K-6 K-7 K-8 K-9 K-3 K-11 K-4 K-12 K-3 K-13 K-14 K-15 K-16 K-3 K-17 K-18 K-17 K-19 25 jintex.in

Page 27 — 过线架分组件 Components of thread-running stand

K 过线架分组件 Components of thread-running stand 序号 Ref. No. 物料号 Part. No. 名称 Description 数量 Q'ty 备注 Remark K-1 10004282 撑管套 Column cap 1 K-2 10004293 线上撑管 Column pipe (upper) 1 K-3 10002953 螺母 Nut 6 K-4 10003022 垫圈 Washer 2 K-5 10003301 螺钉 Screw 3 K-6 10004285 过线管套 Thread guide bushing 2 K-7 10004289 过线管 Thread guide pipe 2 K-8 10004298 上线线架 Thread hanger (upper) 1 K-9 10004286 撑管夹 Column pipe connector 1 K-10 10004291 线下撑管 Column pipe (lower) 1 K-11 10004284 下过线架 Thread hanger (lower) 1 K-12 10003312 螺钉 Screw 1 K-13 10004288 线轴 Spool pin 2 K-14 10004287 线盘塑料压块 Spool cushion 2 K-15 10004281 线盘软垫 Spool mat 2 K-16 10004299 线盘 Spool seat disc 2 K-17 10004290 垫圈 Washer 2 K-18 10004295 垫圈 Washer 1 K-19 10002985 螺母 Nut 1 26 jintex.in

Page 28

L 附件 Accessories 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark L-1 10010995 中螺丝刀 Screw driver 1 L-2 10034917 机针 Needle 3 L-2 10034916 机针 Needle 3 -5/H L-3 10003892 油盘磁铁 Oil reservoir magnet 1 L-4 10025484 梭芯 Screw 3 L-4 10007138 梭芯 Screw 3 H L-5 10004455 油箱部件 Oil bottle with oil 1 L-6 10009986 油盘支座 Oil reservoir seat 2 L-7 10009993 油盘座垫 Oil reservoir cushion 2 L-8 10050425 机头支柱 Frame support bar 1 L-9 10004466 机头连接钩部件 Head connecting hook 2 L-10 10003889 机头连接钩座钉 Nail 4 L-11 10011041 机头连接钩座 Head connecting hook socket 2 L-12 10008849 机头罩 Head cover 1 28 jintex.in

Page 29

L 附件 Accessories L-1 L-2 L-3 L-4 L-5 L-6 L-8 L-9 L-10 L-11 L-7 L-12 27 jintex.in

Page 30 — Drive-by-wire Components

M 电控分组件 Drive-by-wire Components M10 M8 M9 M11 M1 M1 M2 M3 M4 M5 M6 M7 29 jintex.in

Page 31

M 电控分组件 Drive-by-wire Components 序号 Ref.No. 物料号 Part.No. 名称 Description 数量 Q'ty 备注 Remark M-1 10058052 ZJ8000E电控箱 Control box 1 M-1 10058053 ZJ7000E电控箱 Control box 1 M-2 10006115 垫圈 Washer 1 M-3 10012080 螺钉 SCREW 1 M-4 10049837 螺钉 SCREW 3 M-5 10031424 踏板组件 Pedal unit ASM. 1 M-6 10002417 踏板连杆组件 Pedal control rod ASM. 1 M-7 10031423 国标电源线 Cable 1 M-8 10010899 螺钉 SCREW 1 M-9 10035172 电线压板 Cord holder 2 M-10 10031556 长电线夹 Cord holder 1 M-11 10001796 螺钉 SCREW 2 30 jintex.in

Page 32

Z 服务再加1分全国服务热线 400-807-9881 800-857-6715 浙江中捷缝纫科技有限公司 ZOJE SEWING MACHINE CO., LTD. 地址:浙江省玉环县大麦屿开发区 Add:damaiyu Development Zone,Yuhuanxian,Zhejiang 317604,China 国内营销中心: Domestic Business Center Tel: 0576-87338345 87338215 Fax: 0576-87338222 国际营销中心: International Business Center Tel: +86-576-87333222 87338299 Fax: +86-576-87332702 www.zoje.com E-mail: sales@zoje.com jintex.in

Page 1 — CONTENTS

Page 2 — Machine frame&miscellaneous cover components

Page 3 — A 机壳分组件 Machine frame&miscellaneous cover components

Page 4 — Main shaft&thread take-up components

Page 5 — B Main shaft&thread take-up components

Page 6 — Needle bar & thread tension components

Page 7 — C Needle bar & thread tension components

Page 8 — Needle bar & thread tension components

Page 9 — D Presser bar & tension release components

Page 10

Page 11 — D 压料、松线分组件 Presser bar & tension release components

Page 12 — E Hook of driving shaft components

Page 13

Page 14

Page 15 — F 送料分组件 Feed mechanism components

Page 16

Page 17

Page 18

Page 19

Page 20 — H 剪线分组件 Thread trimmer components

Page 21

Page 22

Page 23 — I 润滑分组件 Lubrication components

Page 24

Page 25 — Presser foot components of oil plate knee lift

Page 26

Page 27 — 过线架分组件 Components of thread-running stand

Page 28

Page 29

Page 30 — Drive-by-wire Components

Page 31

Part Books

Search

Ref	Part number	Part name
M1	M1	M1
M2	M2	M2
M3	M3	M3
M4	M4	M4
M5	M5	M5
M6	M6	M6
M7	M7	M7
M8	M8	M8
M9	M9	M9
M10	M10	M10
M11	M11	M11

Ref	Part number	Part name
M1	M1	M1
M2	M2	M2
M3	M3	M3
M4	M4	M4
M5	M5	M5
M6	M6	M6
M7	M7	M7
M8	M8	M8
M9	M9	M9
M10	M10	M10
M11	M11	M11

Ref	Part number	Part name
M1	M1	M1
M2	M2	M2
M3	M3	M3
M4	M4	M4
M5	M5	M5
M6	M6	M6
M7	M7	M7
M8	M8	M8
M9	M9	M9
M10	M10	M10
M11	M11	M11
