Zoje ZJ5303A-W-BD Parts Book (PDF)
Text index — Zoje ZJ5303A-W-BD
Page 26 — Changing other parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10045639 | Needle plate | ||
| 10044601 | Feed dog | ||
| 10044596 | Presser foot | ||
| 10046026 | Needle plate | ||
| 10044601 | Feed dog | ||
| 10044596 | Presser foot | ||
| 10046025 | Needle plate | ||
| 10046027 | Feed dog | ||
| 10046028 | Presser foot |
Page 29 — Machine Frame & Miscellaneous Cover Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | 10002577 | Bed screw stud | 4 |
| A-2 | 10045829 | Shelter scraps plate | 1 |
| A-3 | 10045276 | Screw SM9/64″×40 | 4 |
| A-4 | 10045827 | Scraps guide plate | 1 |
| A-5 | 10045826 | Clearance hole plate | 1 |
| A-6 | 10011566 | Screw SM11/64"×40 | 4 |
| A-7 | 10045828 | Clearance-hole | 1 |
| A-8 | 10010744 | Screw SM3/32"×56 | 2 |
| A-9 | 10004400 | Belt cover | 1 |
| A-10 | 10011152 | Washer 8.2×13.6×1 | 2 |
| A-11 | 10010842 | Screw SM5/16"×24 | 2 |
| A-12 | 10012318 | Washer 5 | 1 |
| A-13 | 10010993 | Screw SM3/16"×28 | 1 |
| A-14 | 10004401 | Cover plate | 1 |
| A-15 | 10008941 | Rubber plug | 1 |
| A-16 | 10011153 | Screw stud | 1 |
| A-17 | 10008975 | Rubber plug | 1 |
| A-18 | 10004402 | Rear belt cover | 1 |
| A-19 | 10004513 | Cover plate | 1 |
| A-20 | 10004461 | Gasket | 1 |
| A-21 | 10003083 | Washer 4 | 2 |
| A-22 | 10008323 | Screw ST4.2×19 | 2 |
| A-23 | 10034382 | Bobbin thread tension ASM. | 1 |
| A-24 | 10011149 | Thread cutter | 1 |
| A-25 | 10050423 | Screw SM9/64"×40 | 2 |
| A-26 | 10008773 | Rubber ring | 1 |
| A-27 | 10031086 | Bobbin wider ASM. | 1 |
| A-28 | 10004380 | Screw SM3/16"×32 | 3 |
| A-29 | 10004382 | Thread guide ASM. | 1 |
| A-30 | 10041529 | Screw SM3/16"×28 | 1 |
| A-31 | 10050435 | Rubber ring | 2 |
| A-32 | 10008942 | Rubber ring | 2 |
| A-33 | 10008943 | Rubber ring | 2 |
| A-34 | 10014082 | Thread take-up lever cover | 1 |
| A-35 | 10008934 | Screw SM3/16"×28 | 1 |
| A-36 | 10010877 | Side plate gasket | 1 |
| A-37 | 20003774 | Side plate | 1 |
| A-38 | 10008972 | Screw SM3/16"×28 | 11 |
| A-39 | 10008977 | Rubber ring | 2 |
| A-40 | 10013706 | Push plate ASM. | 1 |
| A-41 | 10045639 | Needle plate 1/8 | 1 |
| A-42 | 10008973 | Screw SM11/64″×40 | 2 |
| A-43 | 10008937 | Arm thread guide left | 1 |
| A-44 | 20017152 | Face plate | 1 |
| A-45 | 10050002 | Face plate gasket | 1 |
| A-46 | 10006264 | Screw SM15/64″×28 | 1 |
| A-47 | 10008940 | Arm thread guide right | 1 |
Page 31 — Machine Frame & Miscellaneous Cover Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-48 | 10041354 | Thread take-up device | 1 |
| A-49 | 10010640 | Thread-hole guid | 1 |
Page 33 — Main Shaft & Thread Take-up Cover Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | 10010504 | Adjusting pin | 1 |
| B-2 | 10010538 | O-ring 6.46×1.78 | 1 |
| B-3 | 10010540 | Sleeve of adjusting pin | 1 |
| B-4 | 10010541 | Roler felt | 1 |
| B-5 | 10049878 | Main shaft | 1 |
| B-6 | 10010536 | Screw SM15/64″×28 | 2 |
| B-7 | 20003778 | Head wheel | 1 |
| B-8 | 10010507 | Oil seal 14.72×36×7 | 1 |
| B-9 | 10014499 | Shaft sleeve | 1 |
| B-10 | 10005020 | Screw SM1/4"×40 | 2 |
| B-11 | 10010542 | Thrust collar | 1 |
| B-12 | 10007239 | Shaft sleeve | 1 |
| B-13 | 10010506 | Screw SM15/64″×28 | 1 |
| B-14 | 10012062 | Screw SM11/64"×40 | 2 |
| B-15 | 10004472 | Driving wheel | 1 |
| B-16 | 10044580 | Shaft sleeve | 1 |
| B-17 | 10010065 | Screw SM1/4"×40 | 2 |
| B-18 | 10049877 | Crank | 1 |
| B-19 | 10010082 | Screw SM9/32″×28 | 1 |
| B-20 | 10010534 | O-ring 9.2×2.4 | 1 |
| B-21 | 10010545 | Screw | 1 |
| B-22 | 10034917 | Needle DB×1 14# | 1 |
| B-23 | 10043367 | Screw SM1/8"×44 | 1 |
| B-24 | 10045047 | Thread guide | 1 |
| B-25 | 10045046 | Needle bar | 1 |
| B-26 | 10005943 | Thread guide | 1 |
| B-27 | 10014117 | Shaft sleeve | 1 |
| B-28 | 10030286 | Screw SM9/64″×40 | 1 |
| B-29 | 10010339 | ARM oil shield ASM. | 1 |
| B-30 | 10005558 | Screw SM1/8"×44 | 1 |
| B-31 | 10010587 | Rubber plug | 1 |
| B-32 | 10011063 | Shaft sleeve | 1 |
| B-33 | 10010590 | Joint pin | 1 |
| B-34 | 10010586 | Sliding block | 1 |
| B-35 | 10010537 | Screw | 1 |
| B-36 | 10010592 | Connecting rod | 1 |
| B-37 | 10014107 | Needle bearing K8×12×7.8 | 2 |
| B-38 | 10004144 | Crank ASM. | 1 |
| B-39 | 10038474 | Thread take-up lever | 1 |
| B-40 | 10010539 | Oil resistant cover | 1 |
| B-41 | 10044426 | Connecting rod | 1 |
| B-42 | 20000648 | Pin ASM. | 1 |
| B-43 | 10010083 | Screw SM15/64″×28 | 1 |
| B-44 | 20017162 | Thread take-up lever ASM. | 1 |
Page 35 — Hang Lifter & Tension Release Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | 10010650 | Screw SM9/64″×40 | 1 |
| C-2 | 10045062 | Finger frame | 1 |
| C-3 | 10044596 | Presser foot ASM. | 1 |
| C-4 | 10010646 | Presser bar | 1 |
| C-5 | 10014118 | Shaft sleeve | 1 |
| C-6 | 10011457 | Oil protector cover | 1 |
| C-7 | 10010018 | Screw SM9/64″×40 | 2 |
| C-8 | 10003921 | Screw SM1/4″×40 | 1 |
| C-9 | 10010021 | Presser bar thread guide | 1 |
| C-10 | 10010024 | Presser guide bar bracket | 1 |
| C-11 | 10004439 | Presser guide bar | 1 |
| C-12 | 10004473 | Spring | 1 |
| C-13 | 10011023 | Nut | 1 |
| C-14 | 10011022 | Screw | 1 |
| C-15 | 10008409 | Screw ASM. | 1 |
| C-16 | 10011064 | Hand lifter | 1 |
| C-17 | 10010016 | Screw SM9/64″×40 | 1 |
| C-18 | 10010027 | O-ring 3.68×1.78 | 1 |
| C-19 | 10010023 | Hand lifter CAM ASM. | 1 |
| C-20 | 10010653 | Pin | 2 |
| C-21 | 10008945 | Hand lifter link ASM. | 1 |
| C-22 | 10013038 | Closing ring 5×0.8 | 4 |
| C-23 | 10032042 | Closing ring 5×0.8 | 1 |
| C-24 | 10010649 | Closing ring 5.1×0.6 | 2 |
| C-25 | 10010648 | Lifting lever | 1 |
| C-26 | 10010025 | Lifting lever connecting rod | 1 |
| C-27 | 10010651 | Screw | 1 |
| C-28 | 10010652 | Screw | 1 |
| C-29 | 10010017 | Lifting lever link | 1 |
| C-30 | 10010020 | Connecting rod vertical | 1 |
| C-31 | 10010022 | Pin | 1 |
| C-32 | 10010019 | Tension release plate | 1 |
| C-33 | 10010647 | Spring | 1 |
| C-34 | 10012140 | Tension release supporting pin | 1 |
| C-35 | 10010642 | Spring | 1 |
Page 37 — Hook Of Driving Shaft Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | 10003780 | Bobbin case | 1 |
| D-2 | 10010060 | Bobbin | 1 |
| D-3 | 10023997 | Hook | 1 |
| D-4 | 10010066 | Screw SM11/64"×40 | 1 |
| D-5 | 10031260 | Positioning finger | 1 |
| D-6 | 10043360 | Screw SM11/64"×40 | 1 |
| D-7 | 10050664 | Mounting rack | 1 |
| D-8 | 10010064 | Screw | 1 |
| D-9 | 10010063 | Oil wick | 1 |
| D-10 | 10011065 | Oil seal 7.94×18×4 | 1 |
| D-11 | 10010593 | Screw SM15/64"×28 | 1 |
| D-12 | 10007234 | Shaft sleeve | 1 |
| D-13 | 10010061 | Hook driving shaft | 1 |
| D-14 | 10010059 | Screw SM11/64"×40 | 2 |
| D-15 | 10010058 | Thrust collar | 1 |
| D-16 | 10010030 | Screw SM3/16"×28 | 1 |
| D-17 | 10007266 | Shaft sleeve | 1 |
| D-18 | 10010065 | Screw SM1/4"×40 | 8 |
| D-19 | 10003937 | Gear | 1 |
| D-20 | 10010029 | Gear | 1 |
| D-21 | 10007235 | Shaft sleeve | 1 |
| D-22 | 10010057 | Upright shaft | 1 |
| D-23 | 10007267 | Shaft sleeve | 1 |
| D-24 | 10008972 | Screw SM3/16″×28 | 1 |
| D-25 | 10010062 | Gear | 1 |
| D-26 | 10010056 | Gear | 1 |
Page 39 — 送料分组件 / Feed Mechanism Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | 10010090 | Closing ring 13.8×1 | 2 |
| E-2 | 10014116 | Shaft sleeve | 2 |
| E-3 | 10010097 | Feed driving shaft | 1 |
| E-4 | 10010073 | Feed rocker shaft | 1 |
| E-5 | 10004440 | Pin | 1 |
| E-6 | 10004474 | Feed bar driving crank | 1 |
| E-7 | 10010074 | Screw SM11/64"×40 | 1 |
| E-8 | 10004993 | Screw SM3/16"×28 | 1 |
| E-9 | 20001665 | Feed bar ASM. | 1 |
| E-10 | 10010099 | Screw SM1/8"×44 | 2 |
| E-11 | 10044601 | Feed dog 1/8 | 1 |
| E-12 | 10010100 | Crank | 1 |
| E-13 | 10004628 | Screw SM11/64"×40 | 1 |
| E-14 | 10010095 | Screw SM3/16"×28 | 2 |
| E-15 | 10010086 | Crank | 1 |
| E-16 | 10010091 | Screw | 1 |
| E-17 | 10004475 | Nut SM9/32"×28 | 1 |
| E-18 | 10010084 | Connecting rod | 1 |
| E-19 | 10010089 | Closing ring 18.5×1.2 | 1 |
| E-20 | 10010092 | Screw SM1/4"×40 | 2 |
| E-21 | 10010115 | Feed drive eccentric cam | 1 |
| E-22 | 10010072 | Connecting rod | 1 |
| E-23 | 10010098 | Thrust cover | 1 |
| E-24 | 10010643 | Screw SM9/64"×40 | 4 |
| E-25 | 10010069 | Pin | 1 |
| E-26 | 10010071 | Screw SM9/64"×40 | 1 |
| E-27 | 10010068 | Connecting plate | 2 |
| E-28 | 10010075 | Connecting plate | 2 |
| E-29 | 10010076 | Crank | 1 |
| E-30 | 10010096 | Pin | 1 |
| E-31 | 10013015 | Screw SM11/64"×40 | 1 |
| E-32 | 10010087 | Pin | 2 |
| E-33 | 10010088 | Feed adjusting ASM. | 1 |
| E-34 | 10010102 | Pin | 2 |
| E-35 | 10010506 | Screw SM15/64"×28 | 2 |
| E-36 | 10010197 | Screw SM9/64"×40 | 2 |
| E-37 | 10010282 | Plate | 1 |
| E-38 | 10010285 | Screw SM11/64"×40 | 2 |
| E-39 | 10010284 | Spring | 1 |
| E-40 | 10010283 | Feed adjust rod | 1 |
| E-41 | 10010649 | Closing ring 5.1×0.6 | 2 |
| E-42 | 10010288 | Pin | 1 |
| E-43 | 10010242 | Feed regulator | 1 |
| E-44 | 10014120 | Shaft sleeve | 1 |
| E-45 | 10010238 | Screw | 1 |
| E-46 | 10013869 | Spring | 1 |
| E-47 | 10013870 | Pin | 1 |
Page 41 — Feed Mechanism Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-48 | 10011025 | Screw | 1 |
| E-49 | 10010240 | O-ring 9.2×2.7 | 1 |
| E-50 | 10035275 | Feed dial | 1 |
| E-51 | 10010281 | Screw SM3/16"×28 | 1 |
| E-52 | 10010287 | Pin | 1 |
| E-53 | 10010239 | Crank | 1 |
| E-54 | 10010236 | Screw | 1 |
| E-55 | 10014119 | Shaft sleeve | 1 |
| E-56 | 10010241 | Reverse feed shaft | 1 |
| E-57 | 10010243 | O-ring 7.8×2 | 1 |
| E-58 | 10040504 | Screw M6 | 2 |
| E-59 | 20003459 | Reverse feed control lever | 1 |
| E-60 | 10010237 | Spring | 1 |
| E-61 | 10010235 | Plate | 1 |
Page 43 — 切刀控制分组件 / Cutter Control Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | 10044628 | Knob | 1 |
| F-2 | 10010106 | Nut SM11/64"×40 | 1 |
| F-3 | 10044627 | Guide bushing cover | 1 |
| F-4 | 10044625 | Spring | 1 |
| F-5 | 10044620 | Pin | 1 |
| F-6 | 10044622 | Spring | 1 |
| F-7 | 10044624 | Lever for knife | 1 |
| F-8 | 10029637 | Closing ring 1.5×0.4 | 2 |
| F-9 | 10044623 | Pin | 1 |
| F-10 | 10044621 | Guide bushing | 1 |
| F-11 | 10044629 | Knife bar | 1 |
| F-12 | 10044583 | Shaft sleeve | 1 |
| F-13 | 10030286 | Screw SM9/64″×40 | 1 |
| F-14 | 10044631 | Knife bar adaptor | 1 |
| F-15 | 10049881 | Connecting rod | 1 |
| F-16 | 10044632 | Slide block | 1 |
| F-17 | 10047852 | Screw SM11/64″×40 | 2 |
| F-18 | 10045917 | Guide rail | 1 |
| F-19 | 10047395 | Needle bearing K25×29×9.7 | 1 |
| F-20 | 10044595 | Washer | 1 |
| F-21 | 10044592 | Eccentric cam | 1 |
| F-22 | 10044591 | Pin | 1 |
| F-23 | 10044604 | Screw | 1 |
| F-24 | 10044605 | Knife control lever | 1 |
| F-25 | 10010026 | Closing ring 5×0.6 | 1 |
| F-26 | 10044606 | Spring | 1 |
| F-27 | 10044609 | Screw SM15/64″×28 | 1 |
| F-28 | 10044608 | Spring | 1 |
| F-29 | 10044143 | Nut SM15/64″×28 | 1 |
| F-30 | 10044611 | Guide plunger | 1 |
| F-31 | 10044612 | Guiding block | 1 |
| F-32 | 10005537 | Washer 5 | 2 |
| F-33 | 10044613 | Screw SM3/16″×28 | 2 |
| F-34 | 10013541 | Screw SM11/64"×40 | 1 |
| F-35 | 10044610 | Nut SM11/64"×40 | 1 |
| F-36 | 10044614 | Guide bracket | 1 |
| F-37 | 10044615 | Knife holder | 1 |
| F-38 | 10044616 | Screw | 1 |
| F-39 | 10044617 | Cutting knife | 1 |
| F-40 | 10044618 | Washer | 1 |
| F-41 | 10044619 | Screw SM1/8"×44 | 2 |
Page 45 — 润滑分组件 / Lubrication Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | 10008067 | Oil wick(430mm) | 1 |
| G-2 | 10008067 | Oil wick(400mm) | 1 |
| G-3 | 10010341 | Spring | 1 |
| G-4 | 10010344 | Screw | 1 |
| G-5 | 10010345 | Oil tube | 1 |
| G-6 | 10010295 | Pressing plate | 1 |
| G-7 | 10010292 | Screw SM15/64"×28 | 1 |
| G-8 | 10010340 | Oil connection | 1 |
| G-9 | 10010293 | Screw | 1 |
| G-10 | 10008817 | Oil pump ASM. | 1 |
| G-11 | 10003077 | Washer 6 | 1 |
| G-12 | 10050422 | Screw SM15/64"×28 | 1 |
| G-13 | 10005537 | Washer 5 | 1 |
| G-14 | 10010066 | Screw SM11/64"×40 | 1 |
| G-15 | 10008938 | Oil sight window | 1 |
| G-16 | 10008939 | O-ring 19×3 | 1 |
| G-17 | 10010343 | Oil tube | 1 |
| G-18 | 10010898 | Oil stoper | 1 |
| G-19 | 10010899 | Screw SM3/16"×28 | 1 |
| G-20 | 10014197 | Foam rubber | 1 |
| G-21 | 10045116 | Screw SM9/64"×40 | 2 |
| G-22 | 20017161 | Dead plate ASM. | 1 |
| G-23 | 10004476 | Holder | 1 |
| G-24 | 10008934 | Screw SM3/16"×28 | 1 |
| G-25 | 10010294 | Oil felt preser | 1 |
| G-26 | 20000778 | Oil return tube ASM. | 1 |
Page 47 — 油盘、膝压脚分组件 Presser Foot Components Of Oil Plate Knee Lift
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | 10004223 | Knee pressing cover | 1 |
| H-2 | 10003891 | Knee pressing plate | 1 |
| H-3 | 10003900 | Knee pressing plate rubber | 1 |
| H-4 | 10003897 | Knee pressing plate holder | 1 |
| H-5 | 10003894 | Screw SM15/64"×28 | 1 |
| H-6 | 10003901 | Knee pressing plate rod | 1 |
| H-7 | 10009985 | Knee pressing plate ASM. | 1 |
| H-8 | 10002613 | Screw M8×20 | 1 |
| H-9 | 10002610 | Screw M8×10 | 1 |
| H-10 | 10003896 | Connection | 1 |
| H-11 | 10002562 | Connection ASM. | 1 |
| H-12 | 10003899 | Knee pressing shaft | 1 |
| H-13 | 10003893 | Spring | 1 |
| H-14 | 10002559 | Closing ring 9.8×1 | 1 |
| H-15 | 10003895 | Screw M6×30 | 2 |
| H-16 | 10003898 | Screw | 1 |
| H-17 | 10003890 | Nut M6×3.2 | 3 |
| H-18 | 10009987 | Crank | 1 |
| H-19 | 10002563 | Crank ASM. | 1 |
| H-20 | 10044633 | Oil reservoir | 1 |
| H-21 | 10014194 | Oil reservoir gasket | 1 |
| H-22 | 10009984 | Pin | 1 |
| H-23 | 10009991 | Screw SM5/16"×24 | 1 |
| H-24 | 10009988 | Rubber ring 7.8×13.5×1.3 | 1 |
Page 49 — Components Of Thread-running Stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | 10007130 | Thread stand ASM. | 1 |
| I-2 | 10004282 | Column cap | 2 |
| I-3 | 10004293 | Column pipe(upper) | 1 |
| I-4 | 10002953 | Nut M5 | 6 |
| I-5 | 10003022 | Washer 5 | 4 |
| I-6 | 10003301 | Screw M5×14 | 3 |
| I-7 | 10004285 | Thread guide bushing | 2 |
| I-8 | 10004289 | Thread guide pipe | 2 |
| I-9 | 10004298 | Thread hanger(upper) | 1 |
| I-10 | 10004286 | Column pipe connector | 1 |
| I-11 | 10004291 | Column pipe(lower) | 1 |
| I-12 | 10003312 | Screw M5×30 | 1 |
| I-13 | 10004284 | Thread hanger(lower) | 1 |
| I-14 | 10004288 | Spool pin | 2 |
| I-15 | 10004287 | Spool cushion | 2 |
| I-16 | 10004281 | Spool mat | 2 |
| I-17 | 10004299 | Spool seat disc | 2 |
| I-18 | 10003077 | Washer 5 | 2 |
| I-19 | 10004290 | Washer 16×30×1.5 | 2 |
| I-20 | 10004295 | Washer 16.5×27.5×3 | 2 |
| I-21 | 10002985 | Nut M16 | 1 |
Page 51 — 附件 / Auxiliaries
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | 20016320 | Waste material chute holder | 1 |
| J-2 | 10045173 | Screw ST4.8×19 | 3 |
| J-3 | 10044640 | Waste material chute | 1 |
| J-4 | 10009455 | Screw M4×8 | 4 |
| J-5 | 10044641 | Waste material chute joint | 1 |
| J-6 | 10025484 | Bobbin | 3 |
| J-7 | 10034917 | Needle DB×1 14# | 3 |
| J-8 | 10003892 | Oil reservoir magnet | 1 |
| J-9 | 10044637 | Clearance hole cover | 1 |
| J-10 | 10044638 | Spring | 1 |
| J-11 | 10044639 | Screw SM1/8″×40 | 1 |
| J-12 | 10046027 | Feed dog 1/4 | 1 |
| J-13 | 10046026 | Needle plate 3/16 | 1 |
| J-14 | 10046025 | Needle plate 1/4 | 1 |
| J-15 | 10046028 | Presser foot ASM. 1/4 | 1 |
| J-16 | 10004399 | Head cover | 1 |
| J-17 | 10004455 | Oil bottle with oil | 1 |
| J-18 | 10004514 | Head pole | 1 |
| J-19 | 10011041 | Head connecting hook socket | 2 |
| J-20 | 10003889 | Nail | 4 |
| J-21 | 10004466 | Head connecting hook | 2 |
| J-22 | 10009986 | Oil reservoir seat | 2 |
| J-23 | 10009993 | Oil reservoir cushion | 2 |
| J-24 | 10010995 | Screw driver，middle | 1 |
Zoje ZJ5303A-W-BD — parts catalog
- Page 1 (text): This page contains important usage instructions and safety precautions for the sewing machine, including guidelines for operation, maintenance, and electrical safety.

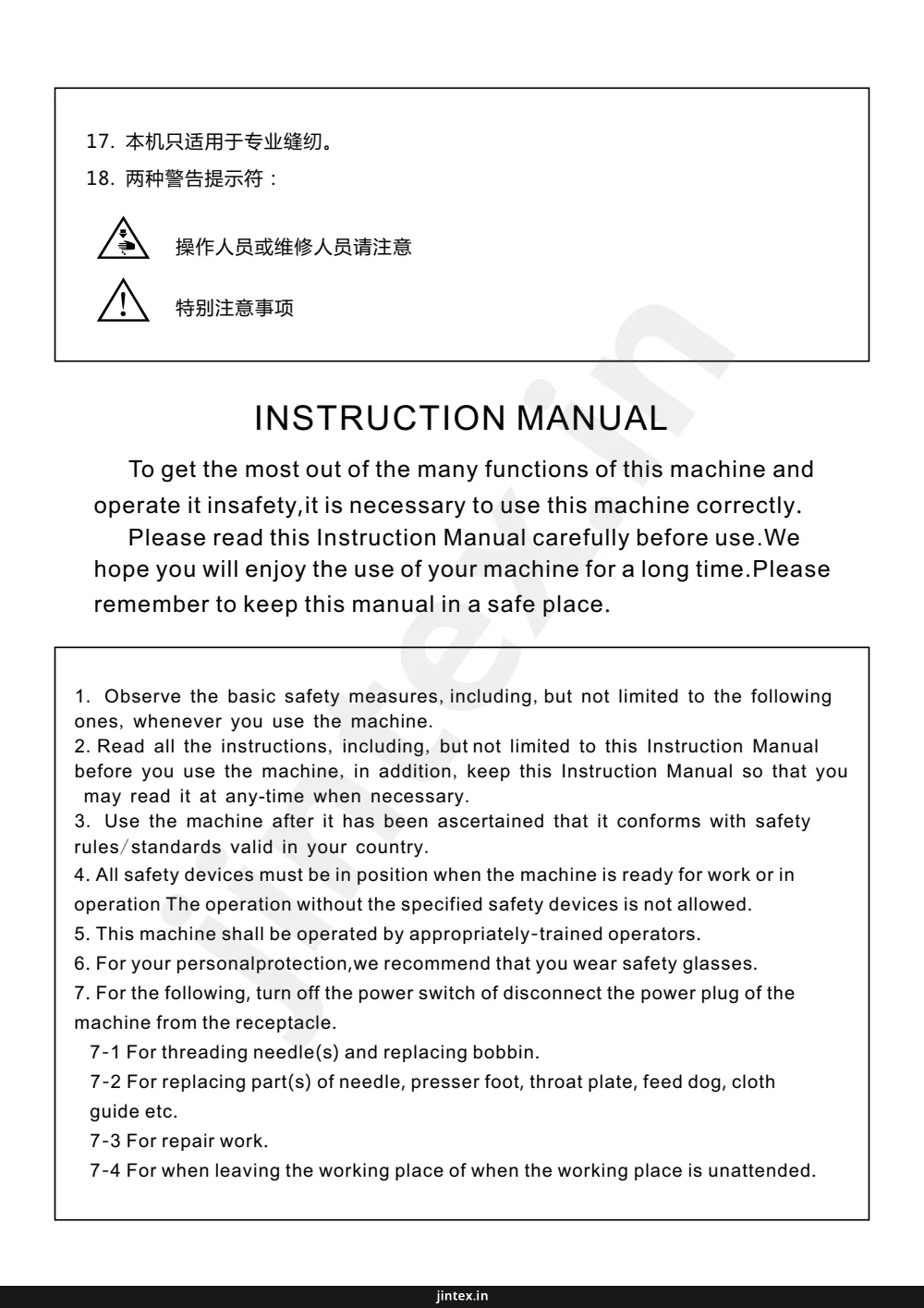

- Page 2 (text): This page contains safety instructions and general operating guidelines for the sewing machine, including warnings and precautions for different operational scenarios.
- Page 3 (text): This page contains safety instructions and warnings for operating and maintaining the industrial sewing machine, including specific precautions regarding oil, tampering, repairs, grounding, and modifications. It also lists two warning symbols and their meanings.
- Page 4 (text): This page lists safety precautions for operating the sewing machine, including warnings about electrical shock, personal injury, and proper handling during operation and maintenance.
- Page 5 (text): This page contains safety instructions for operating the sewing machine, including warnings about electrical hazards, moving parts, and proper handling procedures.
- Page 6 (toc): This page is a table of contents for the operation instruction manual, listing 17 sections with their corresponding page numbers.
- Page 7 (toc): This page contains a table of contents for sections 18 through 26, detailing adjustments and replacements for various sewing machine parts, including presser foot pressure, feed dog height and tilt, needle and hook position, and cutting knife replacement.
- Page 8 (text): This page contains precautions for startup and use of the machine, including instructions on how to prepare the machine for storage and operation, and safety guidelines.
- Page 9 (text): This page contains safety instructions for operating the sewing machine and a table of main technical specifications including application, speed, stitch length, needle type, presser foot lift height, lubrication system, lubrication oil, and motor power.
- Page 10 (text): This page details the mounting of the machine, including fixing the oil tray and inserting the machine head coupling hook. It also provides information on machine lubrication, specifying how to fill the oil pan and when to refill it.
- Page 11 (text): This page contains instructions for adjusting the oil mass of the rotating hook, including a diagram and cautionary notes.
- Page 12 (text): This page details the method for confirming oil mass, including cautions and guidelines for adjusting oil levels, with accompanying diagrams illustrating the process and oil level indicators.
- Page 13 (text): This page contains instructions for mounting the needle on a sewing machine, including safety precautions and diagrams illustrating the process.
- Page 14 (text): This page contains instructions for mounting the bobbin and threading the needle, along with a diagram illustrating the needle threading process, and instructions for winding the bobbin thread.
- Page 15 (text): This page contains instructions and diagrams related to bobbin thread winding, including adjustments for winding capacity and thread tension.
- Page 16 (text): This page contains instructions for adjusting stitch length and mounting the thread stand, with accompanying diagrams and part references.
- Page 17 (text): This page details the adjustment of the knee lifting height and the take-up spring, including instructions for adjusting oscillation and tension, with accompanying diagrams labeled Fig.16 and Fig.17.
- Page 18 (text): This page details the adjustment of needle thread and bobbin thread tension, including cautionary notes and diagrams illustrating the process.
- Page 19 (text): This page contains instructions for adjusting the presser foot lever and the take-up amount of the take-up lever, with diagrams illustrating the steps.
- Page 20 (text): This page contains instructions for adjusting the presser foot pressure and the manual foot lifting height, with accompanying diagrams and cautions.
- Page 21 (text): This page contains instructions and cautions for adjusting the height and tilt of the feed dog on a sewing machine, with diagrams illustrating the feed dog and needle plate.
- Page 22 (text): This page provides instructions for adjusting the feed timing of the sewing machine, including precautions and detailed steps with corresponding diagrams.
- Page 23 (text): This page details the adjustment of the needle and rotating hook positions, including cautions and step-by-step instructions with corresponding diagrams.
- Page 24 (text): This page contains instructions for using and replacing the cutting knife, including diagrams and cautions.
- Page 25 (text): This page contains instructions for adjusting the cutting knife and replacing the needle plate assembly, along with safety warnings and a diagram labeled Fig. 30.
- Page 26 (parts_list): This page lists parts for changing the cutting width of the machine, including needle plate, feed dog, and presser foot, with their corresponding part numbers.
- Page 27 (toc): This page is a table of contents for a parts book, listing sections A through J with their corresponding titles and page numbers.
- Page 28 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with various parts labeled with reference numbers and part numbers.
- Page 29 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, quantities, and remarks.
- Page 30 (diagram): This page displays a diagram of machine frame and miscellaneous cover components for an industrial sewing machine, with parts labeled from A-1 to A-49.
- Page 31 (parts_list): This page lists machine frame and miscellaneous cover components, including reference numbers, part numbers, names, quantities, and remarks.
- Page 32 (diagram): This page displays a diagram of the Main Shaft & Thread Take-up Cover Components, with various parts labeled with reference numbers and part numbers.
- Page 33 (parts_list): This page lists parts for the Main Shaft & Thread Take-up Cover Components, including part numbers, names, quantities, and remarks.
- Page 34 (diagram): This page displays a diagram of Hang Lifter & Tension Release Components, with various parts labeled with reference numbers and part numbers.
- Page 35 (parts_list): This page lists components for Hang Lifter & Tension Release Components, including part numbers, names, quantities, and remarks.
- Page 36 (diagram): This page displays a diagram of the Hook Of Driving Shaft Components, with various parts labeled with reference numbers and part numbers.
- Page 37 (parts_list): This page lists components for Hook Of Driving Shaft Components, including part numbers, names, quantities, and remarks.
- Page 38 (diagram): This page displays a diagram of feed mechanism components for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 39 (parts_list): This page lists parts for the Feed Mechanism Components, including reference numbers, part numbers, names, quantities, and remarks.
- Page 40 (diagram): This page displays a diagram of feed mechanism components for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 41 (parts_list): This page lists components for the Feed Mechanism, including part numbers, names, quantities, and remarks.
- Page 42 (diagram): This page displays a diagram of the cutter control components, with various parts labeled with reference numbers and part numbers.
- Page 43 (parts_list): This page lists cutter control components with their reference numbers, part numbers, names in English and Chinese, quantities, and remarks.
- Page 44 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 45 (parts_list): This page lists lubrication components with their reference numbers, part numbers, names, quantities, and remarks.
- Page 46 (diagram): This page displays a diagram of the presser foot components of an oil plate knee lift, with various parts labeled with reference numbers from H-1 to H-24.
- Page 47 (parts_list): This page lists parts for the Oil Plate Knee Lift, including reference numbers, part numbers, names, quantities, and remarks.
- Page 48 (diagram): This page displays a diagram of components for a thread-running stand, with various parts labeled with reference numbers and part numbers.
- Page 49 (parts_list): This page lists components for the Thread-running Stand, including part numbers, names, quantities, and remarks.
- Page 50 (diagram): This page displays a diagram of various auxiliary parts for an industrial sewing machine, labeled with reference numbers J-1 through J-24.
- Page 51 (parts_list): This page lists auxiliary parts for an industrial sewing machine, including part numbers, names, quantities, and remarks. It contains 24 listed parts, from J-1 to J-24.
