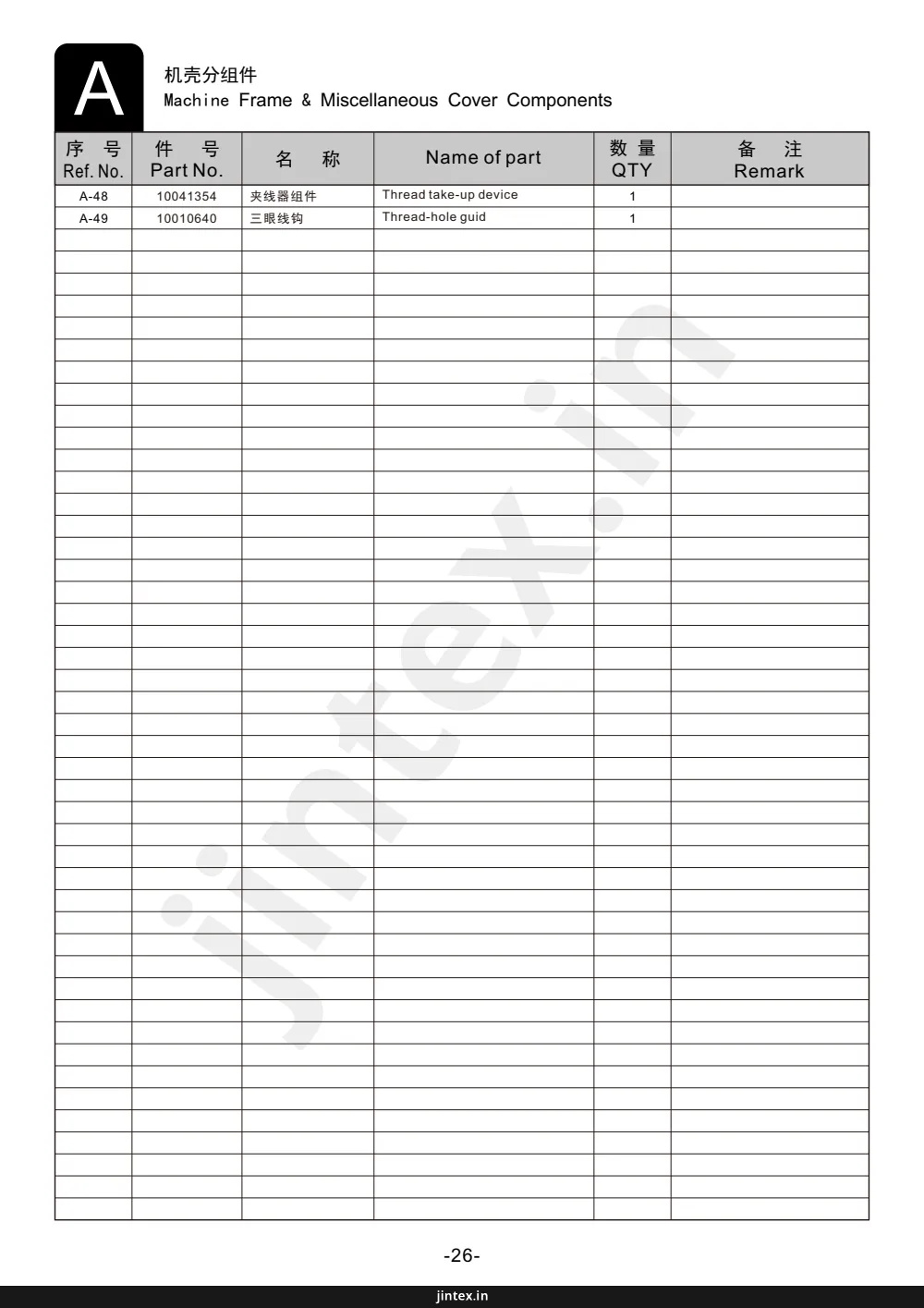

- Page 31 (parts_list): This page lists machine frame and miscellaneous cover components, including reference numbers, part numbers, names, quantities, and remarks.
- Page 32 (diagram): This page displays a diagram of the Main Shaft & Thread Take-up Cover Components, with various parts labeled with reference numbers and part numbers.
- Page 33 (parts_list): This page lists parts for the Main Shaft & Thread Take-up Cover Components, including part numbers, names, quantities, and remarks.
- Page 34 (diagram): This page displays a diagram of Hang Lifter & Tension Release Components, with various parts labeled with reference numbers and part numbers.
- Page 35 (parts_list): This page lists components for Hang Lifter & Tension Release Components, including part numbers, names, quantities, and remarks.
- Page 36 (diagram): This page displays a diagram of the Hook Of Driving Shaft Components, with various parts labeled with reference numbers and part numbers.
- Page 37 (parts_list): This page lists components for Hook Of Driving Shaft Components, including part numbers, names, quantities, and remarks.
- Page 38 (diagram): This page displays a diagram of feed mechanism components for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 39 (parts_list): This page lists parts for the Feed Mechanism Components, including reference numbers, part numbers, names, quantities, and remarks.
- Page 40 (diagram): This page displays a diagram of feed mechanism components for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 41 (parts_list): This page lists components for the Feed Mechanism, including part numbers, names, quantities, and remarks.
- Page 42 (diagram): This page displays a diagram of the cutter control components, with various parts labeled with reference numbers and part numbers.
- Page 43 (parts_list): This page lists cutter control components with their reference numbers, part numbers, names in English and Chinese, quantities, and remarks.
- Page 44 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 45 (parts_list): This page lists lubrication components with their reference numbers, part numbers, names, quantities, and remarks.
- Page 46 (diagram): This page displays a diagram of the presser foot components of an oil plate knee lift, with various parts labeled with reference numbers from H-1 to H-24.
- Page 47 (parts_list): This page lists parts for the Oil Plate Knee Lift, including reference numbers, part numbers, names, quantities, and remarks.
- Page 48 (diagram): This page displays a diagram of components for a thread-running stand, with various parts labeled with reference numbers and part numbers.
- Page 49 (parts_list): This page lists components for the Thread-running Stand, including part numbers, names, quantities, and remarks.
- Page 50 (diagram): This page displays a diagram of various auxiliary parts for an industrial sewing machine, labeled with reference numbers J-1 through J-24.
- Page 51 (parts_list): This page lists auxiliary parts for an industrial sewing machine, including part numbers, names, quantities, and remarks. It contains 24 listed parts, from J-1 to J-24.
Page 1
使用说明
为使您正确使用本机器，须对本机的各种功能充分了解，以便安全操作。
使用前请仔细阅读使用说明书，我们希望您能长期愉快地使用本机，
请保存好说明书，以备查阅。
1. 无论您何时使用本机，须了解基本的安全事项，包括但不限于下列事项。
2. 通读所有说明，并保存好使用说明书。如果需要，请随时翻阅。
3. 使用本机前，必须弄清与本机有关安全规定、标准在您的国家是否适用。
4. 使用本机前或使用本机时，所有安全装置必须配备齐全。机器运转时，无安全装置属
违章操作，决不允许。
5. 操作人员必须经过适当的培训。
6. 为了您的人身安全，我们建议您戴上防护上镜。
7. 下列情况下，请关闭电源开关或拔下电源插头：
7-1 机针穿线和换梭心；
7-2 更换机针、压脚、针板、送料牙、布料导板等；
7-3 进行维修时；
7-4 操作区无人时。
8. 在机器加油润滑时，若不小心让油接触眼睛、皮肤或咽下本机油或润滑油，请立即清洗
被沾染部位或去医院检查。
9. 无论机器运转与否，严禁乱动机器零部件和配套装置。
10. 机器的维修、改造和调整等工作必须由专业技术人员进行。
11. 应由专业受训人员进行一般的维修和检查工作。
12. 必须在专业电器人员或专业技术人员的指导下进行有关电器部件的维修，任何电器
部件一经发现受损，立即停止机器运转。
13. 使用期间要定期全面彻底清洗机器。
14. 正常操作本机时，必须进行试运转，工作环境远离强噪音源，如高频电焊机等。
15. 由电气人员选择合适的插头和有地线的插座。
16. 若需要改造或改进本机，请采用有效可行的安全措施。本公司对此而产生的伤害不
承担责任。
jintex.in
Page 2
17. 本机只适用于专业缝纫。
18. 两种警告提示符：
操作人员或维修人员请注意
特别注意事项
INSTRUCTION MANUAL
To get the most out of the many functions of this machine and
operate it insafety,it is necessary to use this machine correctly.
Please read this Instruction Manual carefully before use.We
hope you will enjoy the use of your machine for a long time.Please
remember to keep this manual in a safe place.
1. Observe the basic safety measures, including, but not limited to the following
ones, whenever you use the machine.
2. Read all the instructions, including, but not limited to this Instruction Manual
before you use the machine, in addition, keep this Instruction Manual so that you
may read it at any-time when necessary.
3. Use the machine after it has been ascertained that it conforms with safety
rules/standards valid in your country.
4. All safety devices must be in position when the machine is ready for work or in
operation The operation without the specified safety devices is not allowed.
5. This machine shall be operated by appropriately-trained operators.
6. For your personalprotection,we recommend that you wear safety glasses.
7. For the following, turn off the power switch of disconnect the power plug of the
machine from the receptacle.
7-1 For threading needle(s) and replacing bobbin.
7-2 For replacing part(s) of needle, presser foot, throat plate, feed dog, cloth
guide etc.
7-3 For repair work.
7-4 For when leaving the working place of when the working place is unattended.
jintex.in
Page 3
8. If you should allow oil, grease, etc. used with the machine and devices to come in contact with your eyes or skin or swallow any of such liquid by mistake, immediately wash the contacted ar-eas and consult a medical doctor.
9. Tampering with the live parts and devices, regardless of whether the machine is powered, is prohibited.
10. Repairing,remodeing and adjustment works must only be done by appropriately trained technicians or specially skilled personnel.
11. General maintenance and inspection works have to be done by appropriately trained personnel.
12. Repair and maintenance works of electrical components shall be conducted by qualified electric technicians or under the audit and guidance of specially skilled personnel. Whenever your find a failure of any of electrical components, immediately stop the machine.
13. Periodically clean the machine throughout the period of use.
14. Grounding the machine is always necessary for the nomal operation of the machine. The machine has to be operated in an enviorment that is free from strong noise sources such as high-frequency welder.
15. An appropriate power plug has to be attached to the machine by electric technicians, Power plug has to be connected to grounded receptacle.
16.Remodel or modify the machine in accordance with the safety rules/standards while taking all the effective safety measures.We assumes no responsibility for damage caused by remodeing or modification of the machine.
17. The machine is only allowed to be used for the ppose intended. Other used are not allowed.
18. Warning hints are marked with the two shown symbols.
Danger of injury to operator or service staff
Items requiring special attention
jintex.in
Page 4 — 安全操作事项
安全操作事项
1. 为避免触电,请不要打开电机的电箱盖,也不要触摸电机内部组件。
2. 为避免人身伤害,移动防护罩、护手挡或安全装置时,请不要开动机器。
3. 为尽可能避免机器运转造成的人身伤害,手指、头部和衣服应远离上轮,
上轮周围不要放置任何物品。
4. 为避免人身伤害,当您打开电源开关或操作机器时,切勿将手放在机针下方。
5. 为避免人身伤害,机器运转时,切勿将手放入挑线杆防护罩内。
6. 为尽可能避免人身伤害,当翘起或抬起机头时,勿将手指放入机器内部。
7. 为尽可能避免机器的突然启动所造成的故事,抬起机头时,请关掉机器的
电源。
8. 机器配有电机,机器未运转时,电机无噪音;为避免机器的突然启动所先
造成的事故,请关掉机器的电源开关。
9. 为尽可能避免触电或电器件受损,在插上或拔下插头之前,请关掉电源
开关。
jintex.in
Page 5
FOR SAFE OPERATION
1. To avoid electrical shock hazards, neither open the cover of the electrical box for the motor nor touch the components mounted inside the electrical box.
1. To avoid personal injury, never operate the machine with any of the belt cover, finger guard of safety devices removed.
2. To prevent possible personal injuries caused by being caught in the machine. Keep your fingers, head and clothes away from the handwheel, cover and the motor while themachine is in operation. In addition, place nothing around them.
3. To avoid personal injury, never put your hand under the needle when you turn ON the power switch or operate the machine.
4. To avoid personal injury, never put your fingers into the thread take-up cover while the machine is in operation.
5. The hook rotates at a high speed while the machine is in operation. To prevent possible injury to hands, be sure to keep your hands away from the vicinity of the hook during operation.In addition, be sure to turn OFF the power to the machine when replacing the bobbin.
6. To avoid possible personal injuries, be careful not to allow your fingers in the machine when tiling/raising the machine head.
7. To avoid possible accidents because of abrupt start of the machine, turn OFF the power to the machine when tiling the machine head.
8. If your machine is equipped with a serve-motor, the motor does not produce noise while the machine is at rest. To avoid possible accidents due to abrupt start of the machine, be sure to turn OFF the power to the machine.
9. To prevent possible accidents because of electric shock or damaged electrical component(s), turn OFF the power switch in prior to the connection /disconnection of the power plug.
jintex.in
Page 6 — CONTENTS
使用说明
Operation Instruction
目 录
CONTENTS
1 开车前的注意事项
Precautions Prior to Startup
3
2 使用注意事项
Precautions for Use
3
3 主要技术规格
Main Techanical Specifications
4
4 机器的安装
Mounting the Machine
5
5 机器的润滑
Lubrication
5
6 旋梭油量调节
Oil mass Adjustment of Rotating Hook
6
7 机针的装法
Mounting the Needle
8
8 梭芯的装法
Mounting the Bobbin
9
9 面线的穿法
Threading the Needle Thread
9
10 底线的卷绕
Winding up the Bobbin Thread
9
11 针距的调节
Adjusting the Stitch Length
11
12 线架的安装
Mounting the Thread Stand
11
13 膝提高度的调节
Adjusting the Knee Lifting Height
12
14 挑线簧的调节
Adjusting the Take-up Spring
12
15 缝线张力调整
Adjusting the Tension of Stitch Thread
13
16 压脚扳手
Presser Foot Lever
14
17 挑线杆挑线量的调节
Adjusting the Take-up Amount of Take-up Lever
14
-1-
jintex.in
Page 7
18 压脚压力的调节
Adjusting the Presser Foot Pressure 15
19 手动抬压脚高度的调节
Adjusting the Manual Foot Lifting Height 15
20 送料牙的高度
Height of the feed dog 16
21 送料牙的倾斜
To tilt the feed dog 16
22 送料相位的调节
Adjusting the feed timing 17
23 机针与旋梭的位置的调整
Adjusting the Positions of Needle and Rotating Hook 18
24 排屑孔盖板的使用
The use of clearance hole cover 19
25 切刀的更换与安装
The replacenent and installation of cutting knife 19
26 其他零件的更换
Changing other parts 21
-2-
jintex.in
Page 8
1 开车前的注意事项
Precautions Prior to Startup
1. 机头装箱前为了防止机件生锈,在部分均涂有较厚的防锈油脂,同时机头装箱后,还可能可
能在较长的贮藏和长途运输阶段造成油脂硬化和在机器表面积聚灰尘,所以必须将表面的油脂
和灰尘用汽油和洁净的软布擦干净。
2. 机器出厂时,虽经过周密的检查和试验,但在长途运输中也可能受到强烈的震动使机
件松动或歪曲,所以应该做一次周密的检查,并用手转动上轮,看机件之间有无转动困难、
碰撞现象或其它不均匀的阻力,不正常的声响,如有应作适当的调整,机器状态正常后才可
正式试车。
3. 油盒内机油液面高度没有在正常范围内绝不能开车。
4. 机器运转时,上轮转向应该是逆时针方向(从上轮外侧面看)。
5. 确认电控铭牌上所标电压及相位是否正确。
6. 生产日期见合格证。
1.The machine head is coated with a thick layer of rust-prevention grease before
encasement, and the encased machine head may possibly be subjected to grease
hardening and dust buildup on the machine surface in process of long storage and
long-haul traffic; therefore, take care to remove the grease and dust from the surface
using soft cloth and gasoline.
2.Though the machine was inspected and tested with care before factory leaving, it
might be affected by violent vibration resulting in looseness or distortion of the machine
parts; therefore the operator shall thoroughly check the machine, turn the upper wheel
by hand and check it for difficulty in free rotation, slight impact, and other uneven resisting
force or abnormal noises, and make appropriate adjustment if any to restore the machine
state before formal trial run.
3.Never start up the machine if the oil liquid level in the oil box falls outside the normal
range.
4.The upper wheel shall rotate counterclockwise (when it is viewed from the lateral
surface of the upper wheel) when the machine is operating.
5.Check whether the voltage and phases indicated on the electric-control data plate
are correct.
6.The date of manufacture is indicated on the certificate of conformity.
2 使用注意事项
Precautions for Use
1. 当接通电源或机器运转时,请勿将手与机针接触。
2. 机器运转时,请勿将手指伸入挑战杆防护罩内。
3. 操作者用手送料时,请勿将手指伸入护针架。
4. 机头翻动及拆手盖时,一定要切断电源。
-3-
jintex.in
Page 9 — 3 主要技术规格
Main Technical Specifications
5. 操作者离开机器时,必须切断电源。
6. 机器运转时,绝不允许头及任何东西靠近上轮、绕线器。
7. 只有在停机时,才能装卸防护罩或其它保护装置。
8. 不能用香蕉水等油漆稀释剂擦拭机头表面。
1.Never touch the needle by hand when the machine is powered on or while it is
operating.
2.Never put your finger into the protection cover of take-up lever during operation of
the machine.
3.The operator must not put his finger into the needle guard bracket when he feeds
the sewing materials by hand.
4.Operator must trim off the electricity supply before he turns over the machine head
or removes the hand cover.
5.The operator must trim off the electricity supply before he gets away from the machine.
6.Prohibit the head, hands and anything to approach the upper wheel and bobbin
winder while the machine is operating.
7.Never remove or mount the protection cover or other protection devices before the
machine is stopped.
8.Never wipe up the surface of machine head using paint thinner such as acetone.
3 主要技术规格
Main Technical Specifications
规格
参数
Specification
Parmeter
缝料
薄料至中厚料
Application
For light materials and
medium heavy materials
最高缝速
5000针/分
Max sewing
speed
5000RPM
最大针距
5毫米
Max stitch
length
5mm
机针
DB×1 19# ~ 18#
Needle
DB×1 19# ~ 18#
压脚提
手控
6毫米(最大)
Presser foot
Hand lifter
6mm(Max)
lift height
升高度
膝控
13毫米(最大)
Knee lifter
13mm(Max)
润滑系统
自动
Lubricating system
Auto
润滑油
10号白油
Lubrication oil
10# White oil
电机功率
220伏/370瓦
Motor power
220V/370W
-4-
jintex.in
Page 10 — 机器的安装 (图1、图2、图3、图4)
Mounting the Machine (Fig.1, Fig. 2, Fig.3 and Fig.4)
4 机器的安装 (图1、图2、图3、图4)
Mounting the Machine (Fig.1, Fig. 2, Fig.3 and Fig.4)
1.油盘的安装
1) 油盘②应放置在台板上的凹槽四角上。
2) 将两只机头座垫①安装在油盘②的A边
(朝操作者一边),将两只油盘支座③安装在
油盘②的B边(机头连接钩接合一边),然后
放上油盘②。
3) 将机头连接钩⑤插入底板销孔内,与台
板的机头连接钩座④相嵌合再把机头放到油盘
四角的机头座垫上。
1.Fixing oil tray
1) Put the oil tray ② on the four groove co
-rners on the sewing table.
2) Fix two arm cushion ① to the A side of
oil tray ② (facing the operator). Fix the two
stand bases ③ to the B side of oil tray ② (hin
-ge side),then fix the oil tray ②.
3) Insert machine head coupling hook ⑤
into the pin holes in the bottom plate such th
-at it is embedded into the coupling hook se
-at ④, and put the machine head onto the se
-ating washer on four corners of the oil tray.
图1 Fig.1
图2 Fig.2
图3 Fig.3
图4 Fig.4
5 机器的润滑 (图5)
Lubrication (Fig.5)
1.润滑须知
1) 向油盘①注入缝纫机油(10号白油)至
“MAX”记号部A。
2) 当油面低于MIN记号B时,应再加油。
1.Information on lubrication
1) Fill oil pan ① with sewing machine oil
(10 while oil)up to MAX mark A.
2)When the oil level lowers below MIN ma
-rk B, refill the oil pan with the specified oil.
-5-
jintex.in
Page 11 — 6 Oil mass Adjustment of Rotating Hook (Fig. 6, Fig. 7, Fig. 8)
3)加油后，开动机器，应看到油液飞溅到油窗②上，说明润滑正常。
4)至于飞溅的油量多少与总润滑油量多少无关。
注意:
1.为了防止缝纫机的意外启动，请关掉电源之后再进行操作。
3)When you operate the machine after lubri-cation, you will see splashing oil through oil sight window ② if the lubrication is adequate.
4)Note that the amount of the splash oil is u -nrelated to the amount of the lubricating oil.
Caution:
1.To prevent the unexpected startup of sewing machine, trim off the pow er supply before the operation is co -nducted.
图5 Fig.5
6 旋梭油量调节(图6、图7、图8)
Oil mass Adjustment of Rotating Hook (Fig. 6, Fig. 7, Fig. 8)
1.调节方法
1)旋梭的油量是用旋梭油量调节螺钉①来调节:当旋梭油量调节螺钉朝+方向A转动时，油量将增大;朝-方向B转动时，油量将减小。
2)调节油量后缝纫机应进行约30秒钟的空转，以确认油量状态。
注意:
1.为了防止缝纫机的意外启动，请关掉
电源之后再进行操作。
1.Adjustment method
1)Adjust the oil mass of rotating hook usi -ng adjusting screw ①:Turning the adjusting screw of the front shaft sleeve on bottom sh -aft towards + direction A, the oil amount wi -ll increase, and towards - direction B, the oil amount will decrease.
2)When adjustment of oil mass is over, all -ow the sewing machine to idle for about 30 seconds to confirm the state of oil mass.
Caution:
1.To prevent the unexpected startup of sewing machine, trim off the pow er supply before the operation is co -nducted.
-6-
jintex.in
Page 12
2.油量的确认方法
1)机头冷却时，请进行三分钟左右的空转
(适当的间歇运转)。
2)请在缝纫机转动时将油量确认专用纸插
入(具体操作见图8所示)。
3)油量确认时间为5秒。
注意:
1.进行上述操作时，确认油盘内的油面
高度处在“MAX”和“MIN”范围内。
2.旋梭是高速运转的。为了防止人身事
故，调节油量时，要充分注意手指不要
碰到旋梭。
1.Confirming the Oil Mass
1) To cool down the machine head, allow it
idle for about 3 minutes (appro priate discon
-tinuous running).
2) Insert the special oil mass confirmation
paper when the sewing machine is rotating (
detailed operations are described in Fig. 8).
3) Oil mass confirmation time lasts for 5 sec
-onds.
Caution:
1.Prior to the above-mentioned opera
-tion, Make sure the oil height in the oil
plate ranges between MAX and MIN.
2. Rotating hook works at high spe
-ed. To prevent human injury, the o
-perator shall keep his fingers away
from the rotating hook during oil
mass adjustment.
3.油量适合标样
1)右图标样(见图8)根据不同的缝制工序需求进行增或减的微调整，但应注意不要增加或
减少过多。油量过少时会引起旋梭发热，油量过多时会污染缝料。
2)用油量确认专用纸测试三次，直至确认3次油量确认专用纸均无变化为止。
-7-
jintex.in
① 油量确认专用纸
Special oil mass confirmation paper
25mm
70mm
② 油量确认位置
Position for oil mass confirmation
旋梭
Hook
油量纸
Oil mass
paper
油盘
Oil tray
图6 Fig.6
图7 Fig.7
油量小
MIN
飞溅的油迹
Splashed oil trace
2mm
油量大
MAX
飞溅的油迹
Splashed oil trace
5mm
图8 Fig.8
Page 13
3.Guide sample of oil mass adequacy
1)The guide sample shown in the right-hand figure (see Fig. 8) may be finely adjusted (in
-creased or reduced) as per different sewing processes; however, excessive increase or re
-duction shall be avoided. Too little oil mass may lead to rotating hook heating, and overmu
-ch oil mass may lead to contamination of the sewing materials.
2) Test the oil mass 3 times using special oil mass confirmation paper till the oil traces in
-dicated by the special paper show no changes.
7 机针的装法 (图9)
Mounting the Needle (Fig.9)
1. Turn the upper wheel to allow the needle
to reach its maximum height.
2. Unscrew needle carrying screw ②, hold n
-eedle ① by hand, and align the indentation A
of needle to right direction B.
3. Insert the needle into the bottom of needl
-e hole in direction of arrow till it reaches the e
-nd point.
4. Screw down the needle carrying screw ②.
5. Take care to ensure that the elongated sl
-ot C on the needle is aligned to the left directi
-on D.
1.转动上轮使机针上升到最高处。
2.拧松支针螺钉②, 手拿机针①将机针①的凹
弧部分A正对着B方向。
3.将机针朝箭头方向插入针孔的底部,直至插
不进为止。
4.拧紧支针螺钉②。
5.务必使机针的长槽C正对着左方向D。
注意:
1.为了防止缝纫机的意外启动,请关掉
电源之后再进行操作。
2.机针有各种编号,请根据所用线的粗
细和缝料来选择适当的机针。
Caution:
1. To prevent the unexpected startup
of sewing machine, trim off the pow
-er supply before the operation is co
-nducted.
2. Needles are available in different
sizes. Please select appropriate ne
-edle as per the thickness of threads
and the sewing materials.
图9 Fig.9
图10 Fig.10
-8-
jintex.in
Page 14
8 梭芯的装法 (图10) Mounting the Bobbin (Fig. 10)
1. 拿下梭子, 将梭芯装入梭子内。
2. 将线从梭子上的线槽A中穿过, 朝C方向拉
出。 这样, 线通过夹线簧从B处引出。
3. 拉底线时, 梭芯应按箭头方向顺时针转动。
1.Hold the rotating hook by hand, and fit t
-he bobbin into the rotating hook.
2.Thread the thread through the thread gr
-oove in the rotating hook, and draw out the
thread in direction C. In this way, the thread
is led out of hole B through the tension spring.
3.When bobbin thread is drawn, the bobbi
-n shall turn clockwise in direction of arrow.
9 面线的穿法 (图11) Threading the Needle Thread (Fig. 11)
穿面线时针杆应在最高位置, 然后由线架上引出线头按图示序号顺序进行穿线。
Thread the needle thread when needle bar stays in its highest position, lead out the thre
-ad end from the thread stand, and conduct threading as per the serial numbers indicated in
the figure.
图11 Fig.11
10 底线的卷绕 (图12、图13) Winding up the Bobbin Thread (Fig. 12, Fig. 13)
1.底线卷绕的方法
1) 把梭芯①装到绕线轴②上。
2) 把线架右侧的卷线如右图所示穿线,并
把线端向右缠绕梭芯数圈。
3) 把卷绕手柄③推到A方向, 然后运转缝纫
1.Bobbin thread winding-up method
1) Fit bobbin ① onto spool ②.
2) Thread the right-hand thread coiling on
thread stand as shown in right-hand figure,a
-nd reel the thread end rightwards onto the b
-obbin for several turns.
3) Push winding lever ③ over to direction
-9-
jintex.in
Page 15
机。梭芯①向C方向转动，线卷绕到梭芯①上。
A, and run the sewing machine. Bobbin ① is
卷绕满后卷绕手柄③自动向B方向弹开并停止
rotated in direction C, and thread is reeled o
卷绕。
-nto bobbin ①. Once the reel is full, winding
4) 取下梭芯①,用绕线切刀④切断机线。
lever ③ is pushed toward direction B, and wi
-nding is over.
注意:
4) Remove bobbin ①, and trim off the thre
1.卷绕底线时,请将要卷绕的底线处于
-ad using winding trimmer ④.
梭芯①和夹线板③之间拉线状态下开始
Caution:
卷绕。
1.To reel the bobbin thread, set the
2.不进行缝制时给梭芯①绕底线时,请
bobbin thread to between bobbin ①
把面线从挑线杆孔上抽出,把梭芯①
and thread gripper plate ③ in taking
从旋梭里卸下来后再进行。
-up mode, and start thread winding.
2.To reel bobbin thread onto bobbin
① when no sewing is performed, dra
-w the needle thread out of hole in th
-e take-up lever, remove bobbin ① o
-ut of rotating hook.
图12 Fig.12
图13 Fig.13
2.底线卷绕的调节
1)调整底线卷绕量时,请拧松固定螺钉⑤
,把卷绕手柄③移动到A方向或B方向,然后再
固定螺钉⑤。A方向变少,B方向变多。
2)如果线不能平绕梭芯时,请转动绕线夹
,转动绕线夹线器,调整夹线板⑦的高度:
a.旋梭①中心和夹线板⑦中心高度一样
时为标准位置。
b.下部卷的多时,向如右图D方向移动绕
线夹线器的位置,上部卷的多时,向如右图E方
向移动绕线夹线器的位置。
1.Adjusting the bobbin thread winding
1)To adjust the winding capacity of bobbin
thread, unscrew fixing screw ⑤, set winding
lever ③ in direction A or direction B, and fix s
-crew ⑤ again. Direction A is intended for re-
duction, and direction B is intended for incre
-ase.
2)If thread cannot be wound onto the bob
-bin flatly, unscrew nut ⑥, turn the winding te
-nsion disco, and adjust the height of height
of thread gripper plate ⑦.
a.The standard position is reached onc
-e the center heights of rotating hook ① and
thread gripper plate ⑦ are identical.
-10-
jintex.in
}
```
```json
{
Page 16
c.调整绕线夹线器到合适位置后，把固定螺钉⑥拧紧。
3)调整整底线卷绕张力时，请转动线张力螺母⑧进行调整。
b.If the winding amount on the lower pa
-rt is bigger, move the winding tension disco
in direction D indicated in the right-hand figu
-re. If the winding amount on upper part is bi
-gger, move the winding tension disco in dire
-ction E indicated in the right-hand figure.
c.When the winding tension disco reach
-es its suitable position, screw down fixing s
-crew ⑥.
3)Adjust the winding tension of bobbin thr
-ead by turning thread tension nut ⑧.
11 针距的调节 (图14)
Adjusting the Stitch Length (Fig. 14)
1.将送料距旋钮①朝箭头方向转动，旋至所需
数字对准机壳上的刻点A。
2.旋钮上的刻度数字用毫米表示。
3.当你 عايز缩短线迹长度时，把倒送料扳手②朝
B方向压下的同时并转动送料距旋钮。
1.Turn stitch length dial ① in the direction
of the arrow, and align the desired number to
marker dot "A" on the machine arm.
2.Scale mark digits are expressed on the k
-nob in millimeters.
3.To reduce the stitch length, hold down the
reverse feed lever ② in direction B, and turn
the feeding distance knob.
图14 Fig.14
12 线架的安装(图15)
Mounting the Thread Stand (Fig.15)
1.如右图所示那样将线架部件安装到缝纫机台
板线架安装孔上。
2.旋紧线架杆下节固定螺母①固定线架。
1.As shown in right-hand figure, mount the
thread stand component onto the mounting h
-ole for thread stand on the sewing machine t
-able.
2.Screw down retaining nut ① for lower se
-gment of thread stand lever to fix the thread
stand.
图15 Fig.15
-11-
jintex.in
Page 17
13 膝提高度的调节 (图16、图17) Adjusting the Knee Lifting Height (Fig.16, Fig. 17)
1.膝提高的标准高度是10mm.
2.用膝提调整螺钉①可以调节压脚提升量,最大可至13毫米.
注意:
1.为了防止缝纫机的意外启动,请关掉电源之后再进行操作.
2.当压脚提升超过10mm时,请不要运转缝纫机,因为针杆②与压脚③会相碰.
图16 Fig.16
14 挑线簧的调节 (图18、图19) Adjusting the Take-up Spring (Fig.18, Fig. 19)
1.挑线簧摆动量的调节
1)若将夹线器⑤中的螺钉③朝顺时针方向(即A方向)转动时,挑线簧①的摆动量将增大;若朝逆时针方向(即B方向)转动时,挑线簧①的摆动量将减小.
2.挑线簧张力的调节
1)旋松螺钉②,取出夹线器⑤(组件).
2)旋松螺钉⑤中螺钉④.
3)若将夹线器⑤中的螺钉③朝顺时针方向(即A方向)转动时,挑线簧①的张力将增大;若逆时针方向(即B方向)转动时,挑线簧①的张力将减小.
-12-
jintex.in
1.Standard knee lifting height is 10mm.
2.Knee-lifting adjusting screw ① may be used to adjust the lifting amount of presser foot, and the maximum lifting amount may reach 13mm.
Caution:
1.To prevent the unexpected startup of sewing machine, trim off the power supply before the operation is completed.
2.When the presser foot lifting exceeds 10mm, do not run the sewing machine because needle bar ② may collide with presser foot ③.
图17 Fig.17
1.Adjusting the oscillating quantity of take-up spring
1) The oscillating quantity of take-up spring ① is increased if screw ③ in tension disco ⑤ is turned clockwise (namely in direction A), and it is reduced if the screw is turned counterclockwise (namely in direction B).
2.Adjusting the tension of take-up spring
1) Unscrew screw ②, and take out tension disco ⑤(assembly).
2) Unscrew screw ④ in tension disco ⑤.
3) The tension of take-up spring ① is increased if screw ③ in tension disco ⑤ is turned clockwise (namely in direction A), and it is reduced if the screw is turned counterclockwise (namely in direction B).
Page 18 — 15 缝线张力调整(图20) Adjusting the Tension of Stitch Thread (Fig.20)
4) 调节结束后旋紧螺钉④,并将夹线器⑤(
组伴)装入机器中再旋紧螺钉②。
3.挑线簧调整适当的判断依据
1)确认挑线簧①的张力调整好后,把前面线
B方向拉出,如果在挑线簧①达到最低位置之前
面线B处就被拉动,请减弱挑线簧①的张力。
注意:
1.为了防止缝纫机的意外启动,请关掉
电源之后再进行操作。
2.通常机器在出厂前,挑线簧均已调整妥
善,只是在缝料特殊的或特殊的缝
线时,才需要重新进行调整。
※挑线簧一直动作到最后 ※挑线簧的张力过强,所以在动
※The take-up spring kee 作中途面线B处就被拉出来。
-ps on functioning till the ※The tension of take-up spring
end.
is too high, so needle thread is
drawn out of place B in proces
-s of the action.
图18 Fig.18
15 缝线张力调整(图20)
Adjusting the Tension of Stitch Thread (Fig.20)
1.面线张力的调节
1)若将夹线器中的调节螺母①朝顺针方
向(即A方向)转动时,面线张力将增大;若朝逆
时针方向(即B方向)转动时,面线张力将减小。
2.底线张力的调节
1)若将夹线螺钉②朝顺时针方向(即C方向)转
动时,底线张力将增大;若朝逆
-1.Adjusting the tension of needle thread
1) The tension of needle thread is increase
-d if the adjusting nut ① in tension disco is tur
-ned clockwise (namely in direction A), and it
is reduced if the nut is turned counterclockwi
-se (namely in direction B).
2.Adjusting the tension of bobbin thread
1) The tension of bobbin thread is increase
-d if the adjusting screw ② is turned clockwis
-e (namely in direction A), and it is reduced if t
-13-
jintex.in
4) Screw down screw ④ when adjustment is
over, fit tension disco ⑤(assembly) into the m
-achine, and screw down screw ②.
3.Judgment basis for adjustment adequacy of
take-up spring
1) Confirm that the tension of take-up sprin
-g ① is properly adjusted, draw out the needle
thread in direction B. If place B of needle threa
-d is drawn before take-up spring ① reaches it
-s lowest position, reduce the tension of take-
-up spring ①.
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow
-er supply before the operation is co
-nducted.
2.The take-up spring is already adju
-sted properly before the machine le
-aves the factory as a rule, and it req
-uires readjustment only for sewing
of special materials or usage of spe
-cial stitch threads.
图19 Fig.19
Page 19
向)转动时，底线张力将减小。
注意事项:
1.为了防止缝纫机的意外启动，请关掉
电源之后再进行操作。
图20 Fig.20
16 压脚扳手 (图21)
Presser Foot Lever (Fig.21)
1.停车后将压脚扳手①朝A方向转动使压脚抬
起(压脚的抬起量约为6mm)。
2.当压脚扳手①朝B方向转动时，压脚将放回
原来的位置。
17 挑线杆挑线量的调节 (图22)
Adjusting the Take-up Amount of Take-up Lever (Fig.22)
1.右线钩上的刻线C与螺钉中心一致时为标准
位置。
2.缝制厚料时,应旋松螺钉①再将右线钩②朝
左方向(即A方向)移动,以增大挑线量,调节完
成后再旋紧螺钉①。
3.缝制薄料时,应旋松螺钉①再将右线钩②朝
右方向(即B方向)移动,以减小挑线量,调节完
成后,再旋紧螺钉①。
-he screw is turned counterclockwise (namely
in direction B).
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow
-er supply before the operation is co
-nducted.
图21 Fig.21
1.Shut down the machine, turn presser foot
lever ① in direction A to uplift the presser foo
-t (for about 6mm).
2.When presser foot lever ① is turned in dir
-ection B, presser foot will be returned to its o
-riginal position.
1.The standard position is obtained when g
-raduation line C on right thread hook is align
-ed to screw center.
2.For thick material sewing, unscrew screw
① and move right thread hook ② to the left (na
-mely in direction A) to increase the take-up a
-mount, and screw down screw ① when adjus
-tment is over.
3.For thin material sewing, unscrew screw
① and move right thread hook ② to the right (
namely in direction B) to reduce the take-up a
-mount, and screw down screw ① when adjus
-tment is over.
-14-
jintex.in
Page 20
注意:
1.为了防止缝纫机的意外启动，请关掉
电源之后再进行操作。
图22 Fig.22
18 压脚压力的调节(图23)
Adjusting the Presser Foot Pressure (Fig.23)
1.旋松调压螺母②。
2.若将调压螺钉①朝顺时针方向(即A方向)转动
时,压脚压力将增强;若朝逆时针方向(即B方
向)转动时,压脚压力将减弱。
3.调节完成后旋紧调压螺母②。
注意:
1.为了防止缝纫机的意外启动,请关掉
电源之后再进行操作。
2.对一般布料而言,调压螺钉①的标准
高度为32~34毫米,(4.5公斤力)左右。
19 手动抬压脚高度的调节(图24)
Adjusting the Manual Foot Lifting Height (Fig.24)
1.将压脚扳手朝顺时针转动使压脚抬起,旋松
压杆导架紧固螺钉①,上下移动压杆②来调节
手动抬压脚高度(压脚高度为针板面与压脚底面
的距离,手动抬压脚高度的标准值为6mm)。
2.调节结束后,拧紧压杆导架紧固螺钉①。
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow
er supply before the operation is co
-nducted.
B
A
图23 Fig.23
1.Unscrew pressure adjusting nut ②.
2.Presser foot pressure is increased if pres
-sure adjusting screw ① is turned clockwise (
namely in direction A); the pressure is reduce
-d if the screw is turned counterclockwise (na
-mely in direction B).
3.Screw down pressure adjusting nut ② wh
-en adjustment is over.
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow
er supply before the operation is co
-nducted.
2.When the presser foot lifting exce
-eds 10mm, do not run the sewing m
achine because needle bar ② may c
-ollide with presser foot ③.
1.Turn clockwise the presser foot lever to up
-lift the presser foot, unscrew tightening screw
① of presser bar spring bracket, moving upwa
-rd/downward pressure bar ② to adjust the ma
-nual foot lifting height (presser foot height ind
-icates the distance from the surface of needle
plate to the bottom surface of presser foot, and
-15-
jintex.in
Page 21
注意:
1.为了防止缝纫机的意外启动，请关掉电源之后再进行操作。
图24 Fig.24
20
送料牙的高度 (图25)
Height of the feed dog (Fig.25)
1.送料牙一般应比针板高出0.75-0.85毫米。
2.送料牙高度的调节
1)旋松抬牙叉形曲柄①的紧固螺钉②。
2)上下移动牙架进行调节。
3)旋紧曲柄螺钉②。
注意:
1.为了防止缝纫机的意外启动，请关掉
电源之后再进行操作。
21
送料牙的倾斜 (图26)
To tilt the feed dog (Fig.26)
1.标准的倾斜，是在牙架销上的刻点A与牙架
座①上的刻点对齐。
2.为了防止浮线，要送料方向高，则旋松固定
螺钉，用螺丝刀把牙架销朝箭头方向转动90°。
the standard value of manual foot lifting height
is 6mm).
2.When adjustment is over, screw down tight
ening screw ① of presser bar spring bracket.
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow
-er supply before the operation is co
-nducted.
图25 Fig.25
A:送料牙
A:Feed dog
B:针板
B:Needle plate
0.75-0.85mm
1.The feed dog is factory-adjusted so that it ju
-st out from the throat plate 0.75 to 0.85mm.
2.To adjust the height of the feed dog
1) Loosen screw② of crank①.
2) Move the feed bar up or down to make ad
-justment.
3) Securely tighten wcrew②.
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow
-er supply before the operation is co
-nducted.
1.For standard adjustment, align point A wi
-th point ①.
2.To prevent thread float, it has to make the
sending direction higher, so loose the screw a
-nd turn the feeding bar shaft 90° in the directi
-on of the arrow with a screwdriver.
-16-
jintex.in
Page 22
3.为了防止缝料的潜移,要送料方向低,则牙
架销朝箭头方向转动90°。
注意:
1.为了防止缝纫机的意外启动,请关掉
电源之后再进行操作。
2.无论什么时候,调节送料牙的倾斜,
送料牙的高度会发生变化;所以,在调
整之后,请再次确认送料牙的高度。
图26 Fig.26
22 送料相位的调节 (图27)
Adjusting the feed timing (Fig.27)
1.在标准相位下,将送料偏心轮①的定位螺钉
A与上轴挡圈②的定位螺钉B对齐。
2.调整时,旋松送料偏心轮上的两个定位螺钉
③,将送料偏心轮调到适当的位置上,然后拧
紧定位螺钉。
3.为了防止缝料的潜移,要加快送料相位,可
将送料偏心轮朝箭头方向调整。
,可将送料偏心轮朝箭头反方向移动。
3.To prevent uneven material feed, turn the
feeding bar shaft 90° in the opposite direction
from the arrow with a screwdriver.
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow
-er supply before the operation is co
-nducted.
2.Whenever make the adjustment, t
-he height of the feed dog changes.
so after adjustment, please check t
-he height of the feed dog again.
a:前面高
a:Front up
b:标准
b:Standard
针板
Needle plate
c:前面低
c:Front down
1.To obtain the standard feed timing align s
-etscrew"A" on feed eccentric cam ① with se
-tscrew"B"on main shaft thrust collar ②.
2.To make adjustment, loosen two setscre
-ws ③ to release the feed eccentric cam, pro
perly position the eccentric cam. Then retight
-en the setscrews.
3.To advance the feed timing in order to pre
-vent uneven material feed, move the feed ec
-centric cam in the direction of the arrow.
4.To delay the feed timing in order to increa
-se stitch tightness, move the feed eccentric
cam in the opposit direction for the arrow.
-17-
jintex.in
Page 23 — 23 Adjusting the Positions of Needle and Rotating Hook (Fig.28)
23 机针与旋梭的位置的调整 (图28)
Adjusting the Positions of Needle and Rotating Hook (Fig.28)
注意:
1.为了防止缝纫机的意外启动，请关掉
电源之后再进行操作。
2.千万小心不要将送料偏心轮移动得太
多，不然会造成断针现象。
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow-
er supply before the operation is co-
nducted.
2.Be careful not to move the feed ec-
-centric cam too far, or elae needle b
-reakage may result.
标准相位
Stand feed timing
送料相位早
Advanced feed timing
送料相位迟
Delayed feed timing
图27 Fig.27
1.转动上轮，使针杆下到最低点，再旋松针杆
连接柱紧固螺钉①。
2.使针杆②上的刻线A对准针杆
端，然后旋紧针杆连接柱紧固螺钉①。
3.旋松3颗旋梭紧固螺钉并转动上轮，使针杆
②上的刻线B对准针杆下轴套③的下端。
4.移动旋梭使旋梭的勾线线尖⑤对准机针④的缺
口处并使机针④的缺口处与旋梭的勾线尖⑤间
隙为0.04~0.1mm，然后拧紧旋梭紧固螺钉。
注意:
1.为了防止缝纫机的意外启动，请关掉
电源之后再进行操作。
2.若机针④的缺口处与旋梭勾线尖⑤的
间隙过小，会磨损旋梭尖；若间隙过
1.Turn the upper wheel to allow the needle
bar to reach its lowest point, and unscrew trip
bolt ① of needle bar joint pin.
2.Align graduation line A on needle bar ② to
the lower end of lower shaft sleeve ③ of need-
le bar, and screw down tightening screw ① of
needle bar joint pin.
3. Unscrew 3 tightening screws of rotating h
-ook, turn the upper wheel, and align graduati-
-on line B on needle bar ② to the lower end of
lower shaft sleeve ③ of needle bar.
4.Move the rotating hook such that its threa-
-d hooking tip is aligned to the notch on needl-
-e ④, ensure that the clearance between notc-
-h on needle ④ and thread hooking tip ⑤ rang-
-es from 0.04 to 0.1mm, and screw down the t
-ightening screw of rotating hook.
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow-
er supply before the operation is co-
-nducted.
-18-
jintex.in
Page 24
大, 会引起跳动针。
图28 Fig.28
2. If the clearance between notch on
needle ④ and thread hooking tip ⑤ o
-f rotating hook is too small, rotating
hook tip may be worn; if the clearanc
-e is excessive, skipped stitch may t
-ake place.
图29 Fig.29
24 排屑孔盖板的使用 (图29)
The use of clearance hole cover (Fig.29)
1.When not in use the cutting knife, please
unload the two cloth scraps guides screws ①
and cloth scraps guides ② first, then put the cl
-earance hole cover onto the plate ③, press th
-e A section from above.
1.不使用切刀时,请先将两布屑导板螺钉①和
布屑导板②卸下,然后把排屑孔盖板盖到排屑
斗板③上,请从A部上方按下。
2.排屑孔盖板牢固的盖好后,就可作普通的平
缝机使用。
2. After clearance hole cover firmly covered
, you can make an ordinary sewing machine u
-se.
注意:
Caution:
1.为了防止缝纫机的意外启动,请关掉
电源之后再进行操作。
1. To prevent the unexpected startup
of sewing machine, trim off the pow
-er supply before the operation is co
-nducted.
25 切刀的更换与安装 (图30)
The replacement and installation of cutting knife (Fig.30)
1.切刀的操作
1) 让切刀动作时,请沿箭头方向按压控刀扳
手①,使切刀⑥下降,刀架导向与缝纫机同时
驱动。
2) 让切刀停止动作,转换为普通平缝机时,
请沿箭头方向拉出控刀拉钮②即可。
2.切刀的装法
1. The operation of cutting knife
1) When oprate cutting knife, please press
control Knife wrench ① in the direction of the
arrow, make cutting knife ⑥ drop, the knife h
-older guide frame and sewing machine drive
at the same time.
2) Let the cutting knife stop action, when co
-nverted into ordinary sewing machine, pleas
-epullout knob ② in direction of the arrow .
2. The installation method of cutting knife
1) Loosen the screw ③ of knife holder, mov
-19-
jintex.in
Page 25 — 图30 Fig.30
1) 拧松刀架螺钉③,移动刀架④。
2) 拧松两切刀螺钉⑤,按如图所示装上切刀⑥。
6)。
3) 按下控刀扳手①,转动上轮使切刀⑥下降
到最低点时,上下移动切刀⑥,让切刀⑥的A部
比针板⑦上平面低0~0.5mm,并交替拧紧两切刀
螺钉⑤。
4)移动刀架④,让切刀⑥的刀刃接触到针板
⑦的刀刃上,然后拧紧刀架螺钉②。
3.切断宽度的变更
切断宽度通过更换针板组件来决定的。
1) 针板组件的更换
a.拧松刀架螺钉③,移动刀架④。
b.卸下两针板螺钉⑧,按如图所示取下针板
⑦,换上要更换的针板,然后将两针板螺钉⑧装
上。
c.移动刀架④,让切刀⑥的刀刃接触到针板⑦
的刀刃上,然后拧紧刀架螺钉③。
注意:
1.为了防止缝纫机的意外启动,请关掉
电源之后再进行操作。
-e the knife holder ④.
2) Loosen the two screws ⑤ of cutting knife
, install the cutting knife ⑥ as shown in Figure
3) Press Control Knife wrench ①, turn the h
-and wheel, move cutting knife ⑥ up and dow
-n when the cutting knife ⑥ dropped to the low
-est point, let the A portion of cutting knife ⑥ I
-ower than the needle plate ⑦ 0-0.5mm, then
tighten the two screws ⑤ of cutting knife alter
-nately.
4)Move the knife holder ④, let the blade of
cutting knife ⑥ contact the blade of needle pl
-ate assembly, then tighten the screws ② of k
-nife holder.
3. The change of cutting width
The cutting width is decided By changing the
needle plate asse-
-mbly.
a.Loosen the screw ③ of knife holder, move
the knife holder ④.
b.Remove the two screws ⑧ of needle plate
, remove the needle plate ⑦ as shown in Figur
-e. Replace the needle plate that is needed to
replace, then install the two needle plate scre
-ws ⑧.
c.Move the knife holder ④, let the blade of c
-utting knife ⑥ contact the blade of needle pla
-te assembly, then tighten the screws ③ of
knife holder.
Caution:
1.To prevent the unexpected startup
of sewing machine, trim off the pow-
er supply before the operation is co-
-nducted.
图30 Fig.30
-20-
jintex.in
Page 26 — Changing other parts
26 其他零件的更换
Changing other parts
本机配置的标准裁断宽度是1/8in(3.2mm)。
根据用户需求，我们还另外配置了其他规格的
裁断宽度，如需更换，请参阅下表更换零件。
Standard configuration of the machine cutting width is 1/8 in(3.2mm). According to user needs, we also additionally equipped with other specifications of the cutting width, see the following table to replace parts if you need to replace.
裁断宽度
件号
Cutting width
Needle plate
Feed dog
Presser foot
1/8in(3.2mm)
10045639
10044601
10044596
1/8in(3.2mm)
10045639
10044601
10044596
3/16in(4.8mm)
10046026
10044601
10044596
3/16in(4.8mm)
10046026
10044601
10044596
1/4in(6.4mm)
10046025
10046027
10046028
1/4in(6.4mm)
10046025
10046027
10046028
-21-
jintex.in
Page 27 — CONTENTS
目 录
CONTENTS
零件样本
Parts Book
A 机壳分组件
Machine Frame & Miscellaneous Cover Components 23
B 上轴、挑线分组件
Main Shaft & Thread Take-up Cover Components 27
C 拾压脚分组件
Hang Lifter & Tension Release Components 29
D 勾线分组件
Hook Of Driving Shaft Components 31
E 送料分组件
Feed Mechanism Components 33
F 切刀控制分组件
Cutter Contrel Components 37
G 润滑分组件
Lubrication Components 39
H 油盘、膝压脚分组件
Presser Foot Components Of Oil Plate Knee Lift 41
I 过线架分组件
Components Of Thread-running Stand 43
J 附件
Auxiliaries 45
-22-
jintex.in
Page 28 — Machine Frame & Miscellaneous Cover Components
A
机壳分组件
Machine Frame & Miscellaneous Cover Components
A-38
A-37
A-36
A-35
A-27
A-29
A-34
A-33
A-32
A-30
A-28
A-31
A-45
A-44
A-38
A-43
A-40
A-41
A-6
A-1
A-2
A-3
A-4
A-5
A-7
A-8
A-26
A-25
A-24
A-23
A-19
A-18
A-17
A-16
A-15
A-49
A-42
A-46
A-47
A-48
A-14
A-10
A-11
A-10
A-11
A-12
A-13
A-9
A-1
A-1
-23-
jintex.in
Page 29 — Machine Frame & Miscellaneous Cover Components
A 机壳分组件
Machine Frame & Miscellaneous Cover Components
序 号
Ref. No.
件 号
Part No.
名 称
Name of part
数量
QTY
备 注
Remark
A-1
10002577
底板支柱
Bed screw stud
4
A-2
10045829
挡屑板
Shelter scraps plate
1
A-3
10045276
SM9/64"×40螺钉
Screw SM9/64"×40
4
A-4
10045827
布屑导板
Scraps guide plate
1
A-5
10045826
排屑斗板
Clearance hole plate
1
A-6
10011566
SM11/64"×40
Screw SM11/64"×40
4
A-7
10045828
排屑板
Clearance hole
1
A-8
10010744
SM3/32"×56螺钉
Screw SM3/32"×56
2
A-9
10004400
皮带护罩
Belt cover
1
A-10
10011152
8.2×13.6×1垫圈
Washer 8.2×13.6×1
2
A-11
10010842
SM5/16"×24螺钉
Screw SM5/16"×24
2
A-12
10012318
5平垫圈
Washer 5
1
A-13
10010993
SM3/16"×28螺钉
Screw SM3/16"×28
1
A-14
10004401
皮带护罩盖板
Cover plate
1
A-15
10008941
橡胶塞
Rubber plug
1
A-16
10011153
后罩支柱
Screw stud
1
A-17
10008945
橡胶塞
Rubber plug
1
A-18
10004402
上轮后罩壳
Rear belt cover
1
A-19
10004513
上轮后罩盖
Cover plate
1
A-20
10004461
后罩盖垫
Gasket
1
A-21
10003083
4平垫圈
Washer 4
2
A-22
10008323
ST4.2×19螺钉
Screw ST4.2×19
2
A-23
10034382
绕线夹线器组件
Bobbin thread tension ASM.
1
A-24
10011149
绕线切刀
Thread cutter
1
A-25
10050423
SM9/64"×40螺钉
Screw SM9/64"×40
2
A-26
10008773
橡胶轮
Rubber ring
1
A-27
10031086
绕线器
Bobbin wider ASM.
1
A-28
10004380
SM3/16"×32螺钉
Screw SM3/16"×32
3
A-29
10004382
过线部件
Thread guide ASM.
1
A-30
10041529
SM3/16"×28螺钉
Screw SM3/16"×28
1
A-31
10050435
橡胶塞
Rubber ring
2
A-32
10008942
橡胶塞
Rubber ring
2
A-33
10008943
橡胶塞
Rubber ring
2
A-34
10014082
挑线杆护罩
Thread take-up lever cover
1
A-35
10008934
SM3/16"×28螺钉
Screw SM3/16"×28
1
A-36
10010877
后窗垫
Side plate gasket
1
A-37
20003774
后窗板
Side plate
1
A-38
10008972
SM3/16"×28螺钉
Screw SM3/16"×28
11
A-39
10008977
橡胶塞
Rubber ring
2
A-40
10013706
推板部件
Push plate ASM.
1
A-41
10045639
1/8针板
Needle plate 1/8
1
A-42
10008973
SM11/64"×40螺钉
Screw SM11/64"×40
2
A-43
10008937
左线钩
Arm thread guide left
1
A-44
20017152
面板
Face plate
1
A-45
10050002
面板垫
Face plate gasket
1
A-46
10006264
SM15/64"×28螺钉
Screw SM15/64"×28
1
A-47
10008940
右线钩
Arm thread guide right
1
-24-
jintex.in
Page 30 — Machine Frame & Miscellaneous Cover Components
A
机壳分组件
Machine Frame & Miscellaneous Cover Components
A-38
A-37
A-36
A-35
A-34
A-29
A-33
A-32
A-30
A-45
A-44
A-38
A-39
A-40
A-41
A-1
A-2
A-3
A-4
A-5
A-6
A-7
A-8
A-27
A-28
A-31
A-26
A-25
A-24
A-23
A-22
A-21
A-20
A-19
A-18
A-17
A-16
A-15
A-49
A-48
A-47
A-46
A-42
A-43
A-6
A-14
A-10
A-11
A-10
A-11
A-12
A-13
A-9
A-1
A-1
-25-
jintex.in
Page 31 — Machine Frame & Miscellaneous Cover Components
A
机壳分组件
Machine Frame & Miscellaneous Cover Components
序 号
Ref. No.
件 号
Part No.
名 称
Name of part
数量
QTY
备 注
Remark
A-48
10041354
夹线器组件
Thread take-up device
1
A-49
10010640
三眼线钩
Thread-hole guid
1
-26-
jintex.in
Page 32 — Main Shaft & Thread Take-up Cover Components
B
上铀、挑线分组件
Main Shaft & Thread Take-up Cover Components
B-43
B-41
B-40
B-42
B-44
B-31
B-35
B-37
B-39
B-30
B-32
B-37
B-38
B-33
B-36
B-34
B-11
B-13
B-29
B-14
B-8
B-7
B-6
B-28
B-19
B-17
B-10
B-27
B-12
B-16
B-15
B-14
B-26
B-18
B-20
B-21
B-25
B-5
B-3
B-2
B-1
B-4
B-23
B-24
B-22
-27-
jintex.in
Page 33 — Main Shaft & Thread Take-up Cover Components
B
上轴、挑线分组件
Main Shaft & Thread Take-up Cover Components
序 号
Ref. No.
件 号
Part No.
名 称
Name of part
数量
QTY
备 注
Remark
B-1
10010504
油量调节销
Adjusting pin
1
B-2
10010538
6.46×1.780形圈
O-ring 6.46×1.78
1
B-3
10010540
油量调节销套
Sleeve of adjusting pin
1
B-4
10010541
毛毡
Roller felt
1
B-5
10049878
上轴
Main shaft
1
B-6
10010536
SM15/64"×28螺钉
Screw SM15/64"×28
2
B-7
20003778
上轮
Head wheel
1
B-8
10010507
14.72×36×7油封
Oil seal 14.72×36×7
1
B-9
10014499
上轴后轴套
Shaft sleeve
1
B-10
10005020
SM1/4"×40螺钉
Screw SM1/4"×40
2
B-11
10010542
挡圈
Thrust collar
1
B-12
10007239
上轴中轴套
Shaft sleeve
1
B-13
10012062
SM15/64"×28螺钉
Screw SM15/64"×28
1
B-14
10012062
SM11/64"×40螺钉
Screw SM11/64"×40
1
B-15
10004472
绕线主动轮
Driving wheel
1
B-16
10044580
上轴前轴套
Shaft sleeve
1
B-17
10010065
SM1/4"×40螺钉
Screw SM1/4"×40
2
B-18
10049877
针杆曲柄
Crank
1
B-19
10010082
SM9/32"×28螺钉
Screw SM9/32"×28
1
B-20
10010534
9.2×2.40形圈
O-ring 9.2×2.4
1
B-21
10010545
针杆曲柄定位螺钉
Screw
1
B-22
10034917
DB×1.14#机针
Needle DB×1.14#
1
B-23
10043367
SM1/8"×44螺钉
Screw SM1/8"×44
1
B-24
10045047
针杆过线环
Thread guide
1
B-25
10045046
针杆
Needle bar
1
B-26
10005943
针杆下套线钩
Thread guide
1
B-27
10014117
针杆下轴套
Shaft sleeve
1
B-28
10030286
SM9/64"×40螺钉
Screw SM9/64"×40
1
B-29
10010339
面部防油板部件
ARM oil shield ASM.
1
B-30
10005558
SM1/8"×44螺钉
Screw SM1/8"×44
1
B-31
10010587
橡胶塞
Rubber plug
1
B-32
10011063
针杆上轴套
Shaft sleeve
1
B-33
10010590
针杆连接柱
Joint pin
1
B-34
10010586
针杆连接滑块
Sliding block
1
B-35
10010537
挑线曲柄左旋螺钉
Screw
1
B-36
10010592
针杆连杆
Connecting rod
1
B-37
10014107
K8×12×7.8滚针轴承
Needle bearing K8×12×7.8
2
B-38
10004144
挑线曲柄部件
Crank ASM.
1
B-39
10038474
挑线杆
Thread take-up lever
1
B-40
10010539
挑线杆防油圈
Oil resistant cover
1
B-41
10044426
挑线连杆(加槽)
Connecting rod
1
B-42
20000648
挑线连杆销组件
Pin ASM.
1
B-43
10010083
SM15/64"×28螺钉
Screw SM15/64"×28
1
B-44
20017162
挑线杆组件
Thread take-up lever ASM.
1
-28-
jintex.in
Page 34 — C Hang Lifter & Tension Release Components
C
拾压脚分组件
Hang Lifter & Tension Release Components
C-15
C-14
C-13
C-17
C-16
C-12
C-11
C-7
C-8
C-7
C-1
C-2
C-19
C-20
C-18
C-21
C-25
C-10
C-6
C-5
C-4
C-3
C-26
C-24
C-22
C-23
C-24
C-28
C-29
C-31
C-32
C-22
C-33
C-22
C-30
C-34
C-35
-29-
jintex.in
Page 35 — Hang Lifter & Tension Release Components
C
拾压脚分组件
Hang Lifter & Tension Release Components
序 号
Ref. No.
件 号
Part No.
名 称
Name of part
数量
QTY
备 注
Remark
C-1
10010650
SM9/64"×40螺钉
Screw SM9/64"×40
1
C-2
10045062
护指架
Finger frame
1
C-3
10044596
压脚组件
Presser foot ASM.
1
C-4
10010646
压杆
Presser bar
1
C-5
10014118
压杆轴套
Shaft sleeve
1
C-6
10011457
压杆防油罩
Oil protector cover
1
C-7
10010018
SM9/64"×40螺钉
Screw SM9/64"×40
2
C-8
10003921
SM1/4"×40螺钉
Screw SM1/4"×40
1
C-9
10010021
缓线调节钩
Presser bar thread guide
1
C-10
10010024
压杆导架
Presser guide bar bracket
1
C-11
10004439
调压导杆
Presser guide bar
1
C-12
10004473
调压弹簧
Spring
1
C-13
10011023
调压螺母
Nut
1
C-14
10011022
调压螺钉
Screw
1
C-15
10008409
调压螺钉组件
Screw ASM.
1
C-16
10011064
压脚扳手
Hand lifter
1
C-17
10010016
SM9/64"×40螺钉
Screw SM9/64"×40
1
C-18
10010027
3.68×1.78 O形圈
O-ring 3.68×1.78
1
C-19
10010023
压脚扳手凸轮部件
Hand lifter CAM ASM.
1
C-20
10010653
前杠杆螺纹销
Pin
2
C-21
10008945
抬压脚前杠杆部件
Hand lifter link ASM.
1
C-22
10013038
5×0.8挡圈
Closing ring 5×0.8
4
C-23
10032042
5×0.8挡圈
Closing ring 5×0.8
1
C-24
10010649
5.1×0.6挡圈
Closing ring 5.1×0.6
2
C-25
10010648
压脚升降板
Lifting lever
1
C-26
10010025
抬压脚拉杆
Lifting lever connecting rod
1
C-27
10010651
抬压脚拉杆螺钉
Screw
1
C-28
10010652
后杠杆轴位螺钉
Screw
1
C-29
10010017
抬压脚后杠杆
Lifting lever link
1
C-30
10010020
抬压脚顶杆
Connecting rod vertical
1
C-31
10010022
松线顶板螺纹销
Pin
1
C-32
10010019
松线顶板
Tension release plate
1
C-33
10010647
松线顶板复位簧
Spring
1
C-34
10012140
松线辅钉销
Tension release supporting pin
1
C-35
10010642
松线辅钉弹簧
Spring
1
-30-
jintex.in
Page 36 — Hook Of Driving Shaft Components
D
勾线分组件
Hook Of Driving Shaft Components
D-18
D-26
D-18
D-7
D-18
D-6
D-5
D-4
D-10
D-9
D-8
D-1
D-2
D-3
D-12
D-13
D-14
D-15
D-14
D-17
D-16
D-24
D-23
D-22
D-21
D-20
D-18
D-18
D-19
D-18
-31-
jintex.in
Page 37 — Hook Of Driving Shaft Components
D
勾线分组件
Hook Of Driving Shaft Components
序号
Ref. No.
件号
Part No.
名称
Name of part
数量
QTY
备注
Remark
D-1
10003780
梭壳
Bobbin case
1
D-2
10010060
梭芯
Bobbin
1
D-3
10023997
旋梭
Hook
1
D-4
10010066
SM11/64"×40螺钉
Screw SM11/64"×40
1
D-5
10031260
旋梭定位钩
Positioning finger
1
D-6
10043360
SM11/64"×40螺钉
Screw SM11/64"×40
1
D-7
10050664
走刀安装架
Mounting rack
1
D-8
10010064
下轴限油螺钉
Screw
1
D-9
10010063
油芯
Oil wick
1
D-10
10011065
7.94×18×4油封
Oil seal 7.94×18×4
1
D-11
10010593
SM15/64"×28螺钉
Screw SM15/64"×28
1
D-12
10007234
下轴前轴套
Shaft sleeve
1
D-13
10010061
下轴
Hook driving shaft
1
D-14
10010059
SM11/64"×40螺钉
Screw SM11/64"×40
2
D-15
10010058
挡圈
Thrust collar
1
D-16
10010030
SM3/16"×28螺钉
Screw SM3/16"×28
1
D-17
10007266
下轴后轴套
Shaft sleeve
1
D-18
10010065
SM1/4"×40螺钉
Screw SM1/4"×40
8
D-19
10003937
下轴伞齿轮
Gear
1
D-20
10010029
竖轴下伞齿轮
Gear
1
D-21
10007235
竖轴下轴套
Shaft sleeve
1
D-22
10010057
竖轴
Upright shaft
1
D-23
10007267
竖轴上轴套
Shaft sleeve
1
D-24
10008972
SM3/16"×28螺钉
Screw SM3/16"×28
1
D-25
10010062
竖轴上伞齿轮
Gear
1
D-26
10010056
上轴伞齿轮
Gear
1
-32-
jintex.in
Page 38 — Feed Mechanism Components
E
送料分组件
Feed Mechanism Components
E-23
E-22
E-21
E-20
E-19
E-20
E-18
E-27
E-28
E-26
E-25
E-32
E-33
E-17
E-34
E-35
E-16
E-15
E-14
E-9
E-5
E-6
E-7
E-8
E-1
E-2
E-3
E-4
E-24
E-29
E-30
E-31
E-41
E-40
E-36
E-37
E-38
E-10
E-11
E-12
E-13
E-24
E-42
E-43
E-44
E-45
E-46
E-47
E-48
E-49
E-50
E-51
E-57
E-52
E-53
E-55
E-56
E-54
E-59
E-61
E-60
-33-
jintex.in
Page 39
E
送料分组件
Feed Mechanism Components
序号
Ref. No.
件号
Part No.
名称
Name of part
数量
QTY
备注
Remark
E-1
10010090
13.8×1挡圈
Closing ring 13.8×1
2
E-2
10014116
送料拾牙轴套
Shaft sleeve
2
E-3
10010097
拾牙轴
Feed driving shaft
1
E-4
10010073
送料轴
Feed rocker shaft
1
E-5
10004440
牙架偏心销
Pin
1
E-6
10004474
牙架座
Feed bar driving crank
1
E-7
10010074
SM11/64"×40螺钉
Screw SM11/64"×40
1
E-8
10004993
SM3/16"×28螺钉
Screw SM3/16"×28
1
E-9
20001665
牙架部件
Feed bar ASM.
2
E-10
10010099
SM1/8"×44螺钉
Screw SM1/8"×44
1
E-11
10044601
送料牙1/8
Feed dog 1/8
1
E-12
1010100
拾牙弓形曲柄
Crank
1
E-13
10004628
SM11/64"×40螺钉
Screw SM11/64"×40
1
E-14
10010095
SM3/16"×28螺钉
Screw SM3/16"×28
1
E-15
10010086
拾牙后曲柄
Crank
1
E-16
10010091
拾牙连杆轴位螺钉
Screw
1
E-17
10004475
SM9/32"×28螺母
Nut SM9/32"×28
2
E-18
10010084
拾牙连杆
Connecting rod
1
E-19
10010089
18.5×1.2挡圈
Closing ring 18.5×1.2
1
E-20
10010092
SM1/4"×40螺钉
Screw SM1/4"×40
1
E-21
10010115
送料偏心轮
Feed drive eccentric cam
1
E-22
10010072
送料连杆
Connecting rod
1
E-23
10010098
送料偏心轮盖板
Thrust cover
1
E-24
10010643
SM9/64"×40螺钉
Screw SM9/64"×40
4
E-25
10010069
送料连杆销
Pin
1
E-26
10010071
SM9/64"×40螺钉
Screw SM9/64"×40
1
E-27
10010068
送料长摆动板
Connecting plate
2
E-28
10010075
送料短摆动板
Connecting plate
2
E-29
10010076
送料曲柄
Crank
1
E-30
10010096
送料曲柄销
Pin
1
E-31
10013015
SM11/64"×40螺钉
Screw SM11/64"×40
1
E-32
10010087
短摆动板连接销
Pin
2
E-33
10010088
送料摆动板座部件
Feed adjusting ASM.
1
E-34
10010102
送料摆动板座左右销
Pin
2
E-35
10010506
SM15/64"×28螺钉
Screw SM15/64"×28
2
E-36
10010197
SM9/64"×40螺钉
Screw SM9/64"×40
2
E-37
10010282
摆动板座复位板
Plate
1
E-38
10010285
SM11/64"×40螺钉
Screw SM11/64"×40
2
E-39
10010284
摆动板座复位簧
Spring
1
E-40
10010283
倒送料连杆
Feed adjust rod
1
E-41
10010649
5.1×0.6挡圈
Closing ring 5.1×0.6
2
E-42
10010288
倒送料连杆销
Pin
1
E-43
10010242
送料调节器
Feed regulator
1
E-44
10014120
送料调节器轴套
Shaft sleeve
1
E-45
10010238
送料调节器轴端螺钉
Screw
1
E-46
10013869
旋钮锁簧
Spring
1
E-47
10013870
旋钮锁销
Pin
1
-34-
jintex.in
Page 40 — E Feed Mechanism Components
E
送料分组件
Feed Mechanism Components
E-23
E-22
E-21
E-20
E-19
E-20
E-24
E-30
E-29
E-31
E-41
E-27
E-28
E-26
E-25
E-32
E-33
E-18
E-17
E-34
E-35
E-36
E-37
E-38
E-10
E-15
E-14
E-9
E-11
E-16
E-5
E-6
E-7
E-8
E-13
E-12
E-1
E-2
E-3
E-4
E-1
E-2
E-3
E-24
E-42
E-43
E-44
E-46
E-47
E-45
E-48
E-49
E-50
E-51
E-57
E-58
E-55
E-56
E-52
E-53
E-54
E-59
E-61
E-60
-35-
jintex.in
Page 41 — Feed Mechanism Components
E
送料分组件
Feed Mechanism Components
序号
Ref. No.
件号
Part No.
名称
Name of part
数量
QTY
备注
Remark
E-48
10011025
送料调节螺柱
Screw
1
E-49
10010240
9.2×2.7 O形圈
O-ring 9.2×2.7
1
E-50
10035275
送料距旋钮
Feed dial
1
E-51
10010281
SM3/16"×28螺钉
Screw SM3/16"×28
1
E-52
10010287
倒送料曲柄销
Pin
1
E-53
10010239
倒送料曲柄
Crank
1
E-54
10010236
倒送料曲柄螺钉
Screw
1
E-55
10014119
倒送料轴轴套
Shaft sleeve
1
E-56
10010241
倒送料轴
Reverse feed shaft
1
E-57
10010243
7.8×2 O形圈
O-ring 7.8×2
1
E-58
10040504
M6螺钉
Screw M6
2
E-59
20003459
倒送料扳手
Reverse feed control lever
1
E-60
10010237
倒送料拉簧
Spring
1
E-61
10010235
拉簧固定板
Plate
1
-36-
jintex.in
Page 42
F
切刀控制分组件
Cutter Control Components
F-19
F-20
F-21
F-17
F-18
F-22
F-16
F-13
F-15
F-14
F-12
F-23
F-24
F-11
F-25
F-26
F-27
F-30
F-28
F-29
F-31
F-34
F-32
F-8
F-10
F-33
F-7
F-9
F-8
F-35
F-36
F-38
F-37
F-6
F-39
F-40
F-41
F-3
F-2
F-1
F-4
F-5
-37-
jintex.in
Page 43
F
切刀控制分组件
Cutter Control Components
序号
Ref. No.
件号
Part No.
名称
Name of part
数量
QTY
备注
Remark
F-1
10044628
控刀拉钮
Knob
1
F-2
10010106
SM11/64"×40螺母
Nut SM11/64"×40
1
F-3
10044627
导套盖
Guide bushing cover
1
F-4
10044625
刀控弹簧
Spring
1
F-5
10044620
导向控制销
Pin
1
F-6
10044622
杠杆弹簧
Spring
1
F-7
10044624
切刀控制杠杆
Lever for knife
1
F-8
10029637
1.5×0.4挡圈
Closing ring 1.5×0.4
2
F-9
10044623
杠杆连接销
Pin
1
F-10
10044621
控制导套
Guide bushing
1
F-11
10044629
刀杆
Knife bar
1
F-12
10044583
刀杆轴套
Shaft sleeve
1
F-13
10030286
SM9/64"×40螺钉
Screw SM9/64"×40
1
F-14
10044631
刀杆接头
Knife bar adaptor
1
F-15
10049881
刀杆连杆
Connecting rod
1
F-16
10044632
刀杆接头滑块
Slide block
1
F-17
10047852
SM11/64"×40螺钉
Screw SM11/64"×40
2
F-18
10045917
刀杆接头滑块导轨
Guide rail
1
F-19
10047395
K25×29×9.7滚针轴承
Needle bearing K25×29×9.7
1
F-20
10044595
凸轮止推垫片
Washer
1
F-21
10044592
刀杆凸轮
Eccentric cam
1
F-22
10044591
凸轮连接销
Pin
1
F-23
10044604
切刀扳手轴位螺钉
Screw
1
F-24
10044605
切刀扳手
Knife control lever
1
F-25
10010026
5×0.6挡圈
Closing ring 5×0.6
1
F-26
10044606
控刀扳手扭簧
Spring
1
F-27
10044609
SM15/64"×28螺钉
Screw SM15/64"×28
1
F-28
10044143
导向拉簧
Spring
1
F-29
10044143
SM15/64"×28螺母
Nut SM15/64"×28
1
F-30
10044611
导向架导柱
Guide plunger
1
F-31
10044612
导向架导轨
Guiding block
1
F-32
10005537
5弹簧垫圈
Washer 5
2
F-33
10044613
SM3/16"×28螺钉
Screw SM3/16"×28
1
F-34
10013541
SM11/64"×40螺钉
Screw SM11/64"×40
1
F-35
10044610
SM11/64"×40螺母
Nut SM11/64"×40
1
F-36
10044614
刀架导向架
Guide bracket
1
F-37
10044615
刀架
Knife holder
1
F-38
10044616
刀架螺钉
Screw
1
F-39
10044617
切刀
Cutting knife
1
F-40
10044618
切刀垫片
Washer
1
F-41
10044619
SM1/8"×44螺钉
Screw SM1/8"×44
2
-38-
jintex.in
Page 44
G
润滑分组件
Lubrication Components
G-20
G-19
G-18
G-15
G-16
G-21
G-17
G-22
G-23
G-24
G-25
G-26
G-1
G-2
G-5
G-6
G-7
G-4
G-8
G-9
G-10
G-11
G-12
G-13
G-14
-39-
jintex.in
Page 45
G
润滑分组件
Lubrication Components
序号
Ref. No.
件号
Part No.
名称
Name of part
数量
QTY
备注
Remark
G-1
10008067
Φ2油线(430mm)
Oil wick(430mm)
1
G-2
10008067
Φ2油线(400mm)
Oil wick(400mm)
1
G-3
10010341
旋栓油量调节簧
Spring
1
G-4
10010344
旋栓油量调节螺钉
Screw
1
G-5
10010345
旋栓供油管
Oil tube
1
G-6
10010295
旋栓供油管压板
Pressing plate
1
G-7
10010292
SM15/64"×28螺钉
Screw SM15/64"×28
1
G-8
10010340
供油接管头
Oil connection
1
G-9
10010293
油泵连接螺柱
Screw
1
G-10
10008817
油泵部件
Oil pump ASM.
1
G-11
10003077
6弹簧垫圈
Washer 6
1
G-12
10050422
SM15/64"×28螺钉
Screw SM15/64"×28
1
G-13
10005537
5弹簧垫圈
Washer 5
1
G-14
10010066
SM11/64"×40螺钉
Screw SM11/64"×40
1
G-15
10008938
油窗
Oil sight window
1
G-16
10008939
19×3 O形圈
O-ring 19×3
1
G-17
10010343
上轴供油管
Oil tube
1
G-18
10010898
隔油板
Oil stoper
1
G-19
10010899
SM3/16"×28螺钉
Screw SM3/16"×28
1
G-20
10014197
挡油海绵
Foam rubber
1
G-21
10045116
SM9/64"×40螺钉
Screw SM9/64"×40
2
G-22
20017161
油线固定板组件
Dead plate ASM.
1
G-23
10004476
回油管夹
Holder
1
G-24
10008934
SM3/16"×28螺钉
Screw SM3/16"×28
1
G-25
10010294
回油毛毡夹
Oil felt preser
1
G-26
20000778
回油管组件
Oil return tube ASM.
1
-40-
jintex.in
Page 46 — Presser Foot Components Of Oil Plate Knee Lift
H
油盘、腰抬压脚分组件
Presser Foot Components Of Oil Plate Knee Lift
H-21
H-22
H-23
H-20
H-24
H-19
H-18
H-14
H-13
H-12
H-11
H-17
H-15 H-16
H-8
H-10
H-9
H-6
H-5
H-3
H-4
H-7
H-1
H-2
-41-
jintex.in
Page 47 — 油盘、膝压脚分组件
Presser Foot Components Of Oil Plate Knee Lift
H 油盘、膝压脚分组件
Presser Foot Components Of Oil Plate Knee Lift
序 号
Ref. No.
件 号
Part No.
名 称
Name of part
数量
QTY
备 注
Remark
H-1
10004223
操纵板软垫
Knee pressing cover
1
H-2
10003891
操纵板
Knee pressing plate
1
H-3
10003900
操纵板垫
Knee pressing plate rubber
1
H-4
10003897
操纵杆接头
Knee pressing plate holder
1
H-5
10003894
SM15/64"×28螺钉
Screw SM15/64"×28
1
H-6
10003901
操纵杆
Knee pressing plate rod
1
H-7
10009985
操纵杆部件
Knee pressing plate ASM.
1
H-8
10002613
M8×20螺钉
Screw M8×20
1
H-9
10002610
M8×10螺钉
Screw M8×10
1
H-10
10003896
抬压操纵杆接头
Connection
1
H-11
10002562
抬压操纵杆接头组件
Connection ASM.
1
H-12
10003899
抬压脚轴
Knee pressing shaft
1
H-13
10003893
双向曲柄扭簧
Spring
1
H-14
10002559
9.8×1挡圈
Closing ring 9.8×1
2
H-15
10003895
M6×30螺钉
Screw M6×30
1
H-16
10003898
双向曲柄螺钉
Screw
3
H-17
10003890
M6×3.2螺母
Nut M6×3.2
1
H-18
10009987
抬压脚双向曲柄
Crank
1
H-19
10002563
抬压脚双向曲柄组件
Crank ASM.
1
H-20
10044633
油盘
Oil reservoir
1
H-21
10014194
油盘垫
Oil reservoir gasket
1
H-22
10009984
抬压脚顶销
Pin
1
H-23
10009991
SM5/16"×24螺钉
Screw SM5/16"×24
1
H-24
10009988
7.8×13.5×1.3垫圈
Rubber ring 7.8×13.5×1.3
-42-
jintex.in
Page 48 — Components Of Thread-running Stand
过线架分组件
Components Of Thread-running Stand
I-1
I-2
I-3
I-4
I-5
I-6
I-7
I-8
I-9
I-10
I-11
I-12
I-5
I-4
I-13
I-18
I-5
I-4
I-14
I-15
I-16
I-17
I-14
I-15
I-16
I-17
I-18
I-5
I-4
I-19
I-20
I-20
I-19
I-21
I-2
-43-
jintex.in
Page 49 — Components Of Thread-running Stand
I
过线架分组件
Components Of Thread-running Stand
序 号
Ref. No.
件 号
Part No.
名 称
Name of part
数量
QTY
备注
Remark
I-1
10007130
二线线架部件
Thread stand ASM.
1
I-2
10004282
撑管套
Column cap
2
I-3
10004293
线上撑管
Column pipe(upper)
1
I-4
10002953
M5螺母
Nut M5
6
I-5
10003022
5平垫圈
Washer 5
4
I-6
10003301
M5×14螺钉
Screw M5×14
3
I-7
10004285
过线管套
Thread guide bushing
2
I-8
10004289
过线管
Thread guide pipe
2
I-9
10004298
上过线架
Thread hanger(upper)
1
I-10
10004286
撑管夹
Column pipe connector
1
I-11
10004291
线下撑管
Column pipe(lower)
1
I-12
10003312
M5×30螺钉
Screw M5×30
1
I-13
10004284
下过线架
Thread hanger(lower)
1
I-14
10004288
线轴
Spool pin
2
I-15
10004287
线盘塑料压块
Spool cushion
2
I-16
10004281
线盘软垫
Spool mat
2
I-17
10004299
线盘
Spool seat disc
2
I-18
10003077
5弹簧垫圈
Washer 5
2
I-19
10004290
16×30×1.5垫圈
Washer 16×30×1.5
2
I-20
10004295
16.5×27.5×3垫圈
Washer 16.5×27.5×3
2
I-21
10002985
M16螺母
Nut M16
1
-44-
jintex.in
Page 50
J
附件
Auxiliaries
J-17
J-16
J-18
J-20
J-19
J-22
J-23
J-21
J-22
J-23
J-21
J-20
J-20
J-19
J-24
J-1
J-2
J-3
J-4
J-2
J-7
J-8
J-6
J-5
J-9
J-10
J-11
J-12
J-13
J-14
J-15
-45-
jintex.in
Page 51
附件
Auxiliaries
序号
Ref. No.
件号
Part No.
名称
Name of part
数量
QTY
备注
Remark
J-1
20016320
导屑滑板支架
Waste material chute holder
1
J-2
10045173
ST4.8×19螺钉
Screw ST4.8×19
3
J-3
10044640
导屑滑板
Waste material chute
1
J-4
10009455
M4×8螺钉
Screw M4×8
4
J-5
10044641
导屑连接滑板
Waste material chute joint
1
J-6
10025484
梭芯
Bobbin
3
J-7
10034917
DB×1.14#机针
Needle DB×1.14#
3
J-8
10003892
油盘磁铁
Oil reservoir magnet
1
J-9
10044637
排屑孔盖板
Clearance hole cover
1
J-10
10044638
排屑孔盖板簧
Spring
1
J-11
10044639
SM1/8"×40螺钉
Screw SM1/8"×40
1
J-12
10046027
1/4送料牙
Feed dog 1/4
1
J-13
10046026
3/16针板
Needle plate 3/16
1
J-14
10046025
1/4针板
Needle plate 1/4
1
J-15
10046028
1/4压脚组件
Presser foot ASM. 1/4
1
J-16
10004399
机头罩
Head cover
1
J-17
10004455
油箱
Oil bottle with oil
1
J-18
10004514
机头支柱
Head pole
1
J-19
10011041
机头连接钩座
Head connecting hook socket
2
J-20
10003889
机头连接钩座钉
Nail
4
J-21
10004466
机头连接钩部件
Head connecting hook
2
J-22
10009986
油盘支座
Oil reservoir seat
2
J-23
10009993
机头油盘座垫
Oil reservoir cushion
2
J-24
10010995
中螺丝刀
Screw driver, middle
1
-46-
jintex.in
