Brother HE-800A (90 pages) Parts Book PDF — View & Download

Parts index — Brother HE-800A (90 pages)tap a row to open its page

Page 2

Brother HE-800A (90 pages) parts on page 2
Ref	Part number	Part name
2	1	For General materials
3	1	For Knitted materials
5	1	For long-hole (70mm)

Page 3

Brother HE-800A (90 pages) parts on page 3
Ref	Part number	Part name	Qty
	1	主体関係
	3	針棒・天秤関係
	5	上軸関係
	7	針振関係
	7	非常停止関係
	9	押工関係
	13	送り関係(-2,-3)
	17	送り関係(-5)
	19	カッター関係
	21	糸切り感知関係
	21	下軸関係
	23	カマ関係
	25	給油潤滑関係
	29	糸通シ関係
	33	糸巻関係
	35	上糸切り関係
	39	下糸切り関係
	43	針位置検出器関係
	43	操作パネル関係
	45	コントロールボックス関係
	49	コントロールボックス関係
	53	コントロールボックス関係
	57	電装品関係
	59	プリント基板関係
	61	付属装置関係(オプション部品)
	63	付属装置関係(オプション部品)
	65	モータ関係
	67	カバー関係
	67	付属部品関係
	69	付属部品関係
	73	付属部品関係
	75	ゲージ部品一覧表
	76	ゲージ部品一覧表
	77	ゲージ部品一覧表
	78	警告ラベル
	79	索引

Page 4 — CONTENTS

Brother HE-800A (90 pages) parts on page 4
Ref	Part number	Part name	Qty
	A.	Machine body.
	B.	Needle bar and thread take-up mechanism.
	C.	Upper shaft mechanism.
	D.	Zigzag mechanism.
	E.	Emergency stop mechanism.
	F.	Presser foot mechanism.
	G1.	Feed mechanism (For "-2& -3")
	G2.	Feed mechanism (For "-5")
	H.	Cutter mechanism.
	J.	Thread breakage detector mechanism.
	K.	Lower shaft mechanism.
	L.	Rotary hook mechanism.
	M.	Lubrication.
	N.	Threading mechanism.
	P.	Bobbin winder mechanism.
	Q.	Upper thread trimmer mechanism.

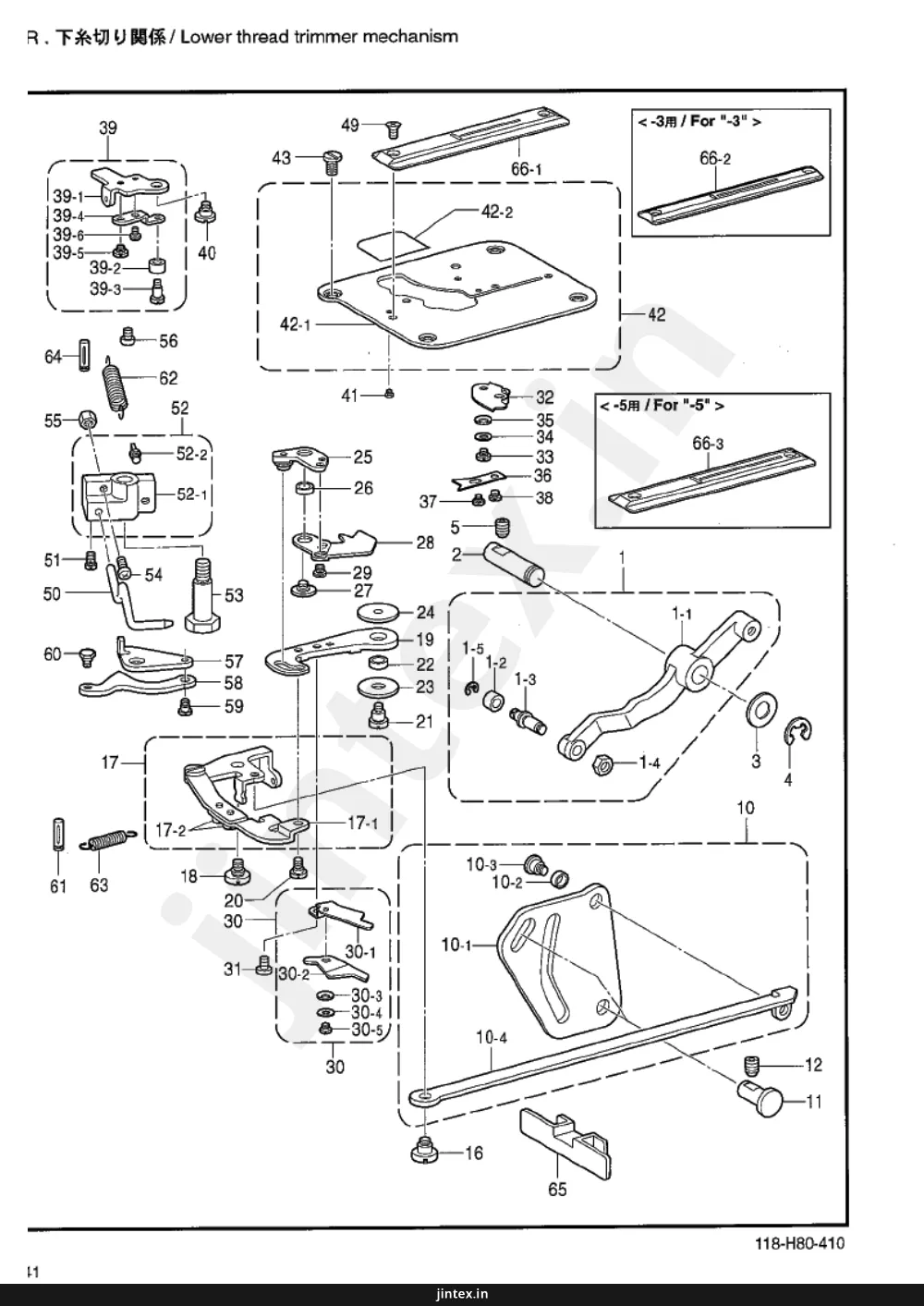

	R.	Lower thread trimmer mechanism.
	S.	Synchronizer.
	T.	Operation panel mechanism.
	U1.	Control box mechanism.
	U2.	Control box mechanism.
	U3.	Control box mechanism.
	V.	Power supply equipment mechanism.
	W.	Printed circuit board mechanism.
	X1.	Attachment set (Option parts).
	X2.	Attachment set (Option parts).
	Y.	Motor mechanism.
	AA.	Safety cover.
	Z1.	Accessories.
	Z2.	Accessories.
	Z3.	Accessories.
	Ga1.	Gauge parts List.
	Ga2.	Gauge parts List.
	Ga3.	Gauge parts List.
	Wa.	Warning labels.

Page 5 — A. 主体関係 / Machine body

Brother HE-800A (90 pages) parts on page 5
Ref	Part number	Part name
7	7	Screw
6	6	Cover
3	3	Screw
2	2	Cover
32	32	Screw
20	20	Screw
21	21	Lever
23	23	Bush
22	22	Pin
16	16	Washer
36	36	Screw
37	37	Screw
35	35	Screw
33	33	Screw
40	40	Screw
34	34	Screw
5	5	Screw
4	4	Handle
30	30	Screw
59	59	Screw
27	27	Screw
26	26	Screw
8	8	Cover
9	9	Screw
31	31	Plug
29	29	Screw
28	28	Roller
60	60	Cover
39	39	Screw
38	38	Screw
56	56	Screw
11	11	Screw
24	24	Screw
12	12	Screw
17	17	Screw
57	57	Cover
58	58	Screw
55	55	Screw
19	19	Screw
13	13	Lever
14	14	Screw
15	15	Screw
10	10	Cover

Page 6 — A.主体関係 / Machine body

Brother HE-800A (90 pages) parts on page 6
Part number	Part name	Qty
S50124001	メンタ	1
062711012	ナベコ476-32X10	4
S50125001	テツペンカバー	1
062680612	ナベコ4.37-40X6	1
S50126001	カバワタ	1
062711012	ナベコ476-32X10	6
S50127001	ウワブタ	1
062711612	ナベコ476-32X16	6
S50128001	カマカバー	1
104450101	ゴムセン8	1
158879001	カマカバーシク	1
S00306001	ヒンジイタ	1
025080132	ヒラザガネショウ8	1
048060342	トメE6	1
017606022	アナトメシ5.95	1
117103003	サラネジ4.37	2
021680202	ナット2シュ4.37	2
017606022	アナトメシ5.95	2
158879001	ヒンジ	2
158831001	ヒンジピン	2
158832000	ヒンジピンサエゴム	2
159150000	ゴムセン20.5	1
117934001	ゴムセン13.5	1
159150000	ゴムセン20.5	1
104450001	ゴムセン15.5	1
104451101	ゴムセン23.9	1
104450101	ゴムセン8	1
104450101	ゴムセン8	1
104450101	ゴムセン8	1
104450001	ゴムセン15.5	1
104449001	ゴムセン15.5	1
104450101	ゴムセン8	1
104450101	ゴムセン8	1
104450101	ゴムセン8	1
104450101	ゴムセン8	2
104450101	ゴムセン8	1
104449001	ゴムセン15.5	2
S32263001	ゴムセン8.5	3
S50131001	イトオシメメ	1
104449001	ゴムセン15.5	1
S50340000	ヘツトダイクシヨン	2
120263001	タンネジ4.37	2
117936001	ゴムセン9.4	1
S44629002	Eマーク	1

Page 7 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother HE-800A (90 pages) parts on page 7
Ref	Part number	Part name	Qty
	10	Needle bar and thread take-up mechanism
	9
	11
	5-3
	5-5
	5-4
	5-1
	5-2
	5-2-1
	5-7
	5-6
	19
	6
	18
	17
	21
	20
	9-1
	9-2
	9-3
	25
	26
	13
	12
	15
	15-1
	15-2
	16
	14
	14

Page 8 — B.針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother HE-800A (90 pages) parts on page 8
Part number	Part name	Qty
S50132000	THREAD TAKE-UP CRANK	1
100250001	SCREW, SM7.14	1
014770622	SET SCREW, SOCKET (CP) SM6.35	1
110367001	WASHER, PLAIN SPECIAL 8	1
S50133001	THREAD TAKE-UP LEVER SET	1
145465001	SCREW, SM3.57-40X6 L	1
S50136001	NEEDLE BAR CLAMP SET	1
140004001	SCREW, SM3.57-40X7	1
S52943001	SUPPORT SHAFT	1
140430001	WICK, L=40	1
S50142000	WICK, 3X30	1
S50271000	WICK, 3X25	1
S50272000	WICK, 3X15	1
S52248001	SLIDE BLOCK, N-BAR BRACKET	1
014770622	SET SCREW, SOCKET (CP) SM6.35	2
014760622	SET SCREW, SOCKET SM5.95	1
S50143001	NEEDLE BAR BRACKET SET	1
S50144001	NEEDLE BAR BRACKET ASSY	1
159624001	SLIDE BLOCK, N-BAR BRACKET	1
S50146001	STOPPER PLATE	1
15888001	SUPPORT SHAFT, N-BAR BRACKET	1
014760622	SET SCREW, SOCKET SM5.95	1
S50147001	GUIDE, N-BAR BRACKET	1
014760622	SET SCREW, SOCKET SM5.95	1
S50180075	NEEDLE, NM75	1
S50180090	NEEDLE, NM90	1
S50180065	NEEDLE, NM65	1
S50180070	NEEDLE, NM70	1
S50180080	NEEDLE, NM80	1
S50180085	NEEDLE, NM85	1
S48371060	NEEDLE, NM65	1
S48371065	NEEDLE, NM70	1
S48371070	NEEDLE, NM75	1
S48371075	NEEDLE, NM80	1
S48371080	NEEDLE, NM90	1
S48371090	NEEDLE, NM90	1
S50148001	NEEDLE BAR ASSY	1
158885201	NEEDLE BAR	1
S50149101	THREAD GUIDE, N-BAR	1
140553102	SET SCREW, SM3.18	1
S50150001	CRANK ROD GUIDE	1
S31808001	SCREW, PAN SM4.37-40X25	1
150382001	BOLT, SOCKET SM3.57X18	2
S50152001	GUIDE, N-BAR	1
154965001	BOLT, SOCKET SM3.57X8	2
S50153001	STOPPER	1
153483001	SET SCREW, SM4.76	1
021710202	NUT, SM4.76	1
013761410	SET SCREW, (CP) SM5.95X14	1
100022005	NUT, SM5.95	1
062681012	SCREW, PAN SM4.37-40X10	2

Page 9 — C. Upper shaft mechanism

Brother HE-800A (90 pages) parts on page 9
Ref	Part number	Part name
1-1	1-1	SHAFT
1-2	1-2	COLLAR
1-3	1-3	SHAFT
4	4	COLLAR
5	5	COLLAR
6-1	6-1	COLLAR
6-2	6-2	COLLAR
8	8	PULLEY
9	9	COLLAR
10-1	10-1	GEAR
10-2	10-2	COLLAR
10-3	10-3	SCREW
11	11	BELT
12-1	12-1	BRACKET
12-2	12-2	COLLAR
12-3	12-3	COLLAR
12-4	12-4	SCREW
12-5	12-5	NUT
12-6	12-6	CIRCLIP
12-7	12-7	BEARING
13	13	SHAFT
14	14	BRACKET
15	15	GEAR
16	16	SHAFT
17	17	COLLAR
18	18	BEARING
19	19	CIRCLIP
20	20	SCREW
21	21	COLLAR

Page 10 — C.上軸関係 / Upper shaft mechanism

Brother HE-800A (90 pages) parts on page 10
Part number	Part name	Qty
S51176001	UPPER SHAFT ASSY	1
S50154001	UPPER SHAFT	1
048150142	RETAINING RING, EXTERNAL C15	2
072630260	BALL BEARING, 6302VV	1
S50155001	BUSH, F	1
158893000	BUSH, M	1
S51223001	SET SCREW COLLAR ASSY	1
S50156001	SET SCREW COLLAR	1
014780622	SET SCREW, SOCKET (CP) SM6.35	2
S50157001	PULLEY ASSY	1
014760622	SET SCREW, SOCKET SM5.95	2
S50159001	T-PULLEY ASSY, U	1
S50160001	T-PULLEY, U	1
S48034001	RING	2
014780622	SET SCREW, SOCKET (CP) SM6.35	2
S50161000	TIMMING BELT	1
S50162001	TENSION PULLEY ASSY	1
S50163001	PLATE, T-PULLEY	1
S50164001	TENSION PULLEY	1
S50165001	COLLAR	1
018102536	BOLT, SOCKET M10X25	1
021100302	NUT, 3 M10	1
048300242	RETAINING RING, INTERNAL C30	2
076200800	BALL BEARING, 6200ZZ	1
018061022	BOLT, SOCKET M6X10	2
025060232	WASHER, PLAIN M 6	2
S50166001	IDLER PULLEY	1
S50167001	SHAFT	1
S50168001	COLLAR	1
070608800	BALL BEARING 0608ZZ	2
048220242	RETAINING RING, INTERNAL C22	2
014760622	SET SCREW, SOCKET SM5.95	2
111865001	CAP, 6	1

Page 11

Brother HE-800A (90 pages) parts on page 11
Ref	Part number	Part name
1	1	PLATE
2	2	SCREW
3	3	SCREW
4	4	SCREW
5	5	SCREW
6	6	BRACKET
7	7	SHAFT
8	8	COLLAR
9	9	SCREW
10	10	COLLAR
11	11	LINK
12	12	PIN
13	13	PIN
14	14	BRACKET
15	15	LINK
16	16	SCREW
17	17	WASHER
18	18	BRACKET
18-1	18-1	SHAFT
18-2	18-2	BRACKET
19	19	COLLAR
20	20	COLLAR
21	21	BRACKET

Page 12 — D.針振関係 / Zigzag mechanism E.非常停止関係 / Emergency stop mechanism

Brother HE-800A (90 pages) parts on page 12
Ref	Part number	Part name	Qty
	S50169001	モーターブラケット
	S37940001	キルン
	062711212	ナベコ32X12
	062711612	ナベコ4.76-32X16
	018401222	アキボルト4X12
	060300612	トメM3X6
	S50170001	モーターレバー
	014760622	アトメシ5.95
	S50171001	モーターシーク
	014760622	アトメシ5.95
	S50172001	フリコン
	S51190001	フリコンシーク
	014760622	アトメシ5.95
	S50174001	フリレバー
	118735001	ザガネ
	018061622	アキボルト6X16
	S32521001	スラストザガネ
	S50176001	フリレバーアセンブリ
	S50178001	フリレバー
	159625001	レバーコウマクク
	158945001	フリシクメタルF
	158946001	フリシクメタルR
	S50179001	フリシクサイタ
	S50182000	ヒジョウテイシカバー
	062400806	ナベコ4X8

Page 13 — F. 押工関係 / Presser foot mechanism

Brother HE-800A (90 pages) parts on page 13
Ref	Part number	Part name
16-4	16-4	screw
16-3	16-3	washer
16-2	16-2	collar
16-1	16-1	lever
16-1-4	16-1-4	screw
16-1-5	16-1-5	screw
16-1-3	16-1-3	screw
16-1-2	16-1-2	screw
16-1-1	16-1-1	screw
16	16	lever
11	11	screw
10	10	shaft
9	9	screw
8	8	plate
22	22	screw
21	21	pin
7	7	collar
6	6	bracket
2	2	screw
1	1	arm
14	14	screw
13	13	washer
12	12	pin
5	5	screw
4	4	screw
15	15	screw
52	52	washer
17	17	collar
18	18	washer
19	19	screw
29-2	29-2	lever
29-1	29-1	lever
29-3	29-3	screw
29-4	29-4	spring
29	29	lever
47	47	screw
46	46	screw
45	45	block
34	34	screw
33	33	knob
31	31	rod
32	32	spring
40	40	washer
30	30	rod
39	39	screw
37	37	block
38	38	collar
43	43	pin
42	42	washer
41	41	washer
23-2	23-2	lever
23-3	23-3	screw
23-1	23-1	lever
23	23	lever
25	25	washer
26	26	spring
27	27	screw
24	24	pin
28	28	screw
48	48	cover
49	49	screw
28	28	screw

Page 14 — F.押工関係 / Presser foot mechanism

Brother HE-800A (90 pages) parts on page 14
Part number	Part name	Qty
S50183001	オシエウデ
018061022	アナホルト6X10	4
S43717201	クドウキヤ 15.75	1
014770622	アナトメネジ 6.35ウキヤミ	2
S50184001	オシエウデアンナイダイ	1
S42116000	リニアボールベアリング	2
S50185001	ベアリングオサエ	1
018400822	アナホルト4X8	1
S50186001	アンナイジク	2
014760622	アナトメネジ 5.95	4
S50187001	クドウオサエ	1
110367001	サラネジ	1
014760622	アナトメネジ 5.95	4
018401222	アナホルト4X12	3
S51174001	オシエアゲレンカクソウクミ	1
S50188001	オシエアゲレンカククミ	1
S50189001	オシエアゲレンカン	1
S50190001	オシエレンカンタンネジ	1
110161004	レンカンコロ	1
028050242	ナツト 4.76	1
S00902001	ハネジナガニ 2-5	1
S50192001	オシエアゲカンザ	1
S00902001	メスサトウレハサガニヨ	1
117363001	ボルト 4.76	1
S38761001	ヒサアゲレバー	1
S50192001	オシエアゲカンザ	1
S00902001	メスサトウレハサガニヨ	1
117363001	ボルト 4.76	1
S50193001	オシエアゲレバーシクア	1
014760622	アナトメネジ 5.95	1
S50194001	オシエアゲレバーリンク	1
S50195001	ウワイトクリツトリンク	1
S38761001	ヒサアゲレバー	1
145478101	ダンネジ 4.76	1
S50196001	オシエアゲレバーシク	1
025080132	ヒラガネシヨウ8	1
048060342	トメワE6	1
014760622	アナトメネジ 5.95	1
145478101	ダンネジ 4.76	2
S50197001	オシエボウダキクミ	1
S50198001	オシエボウダキ	1
S50199001	オシエアゲリンク	1
145478101	ダンネジ 4.76	1
014760622	アナトメネジ 5.95	1
111466101	オシエボウ	1
141208001	オサエバアンナイ	1
S50200001	オサエバネ	1
S31012001	オサエチヨウセツネジ	1
140407001	サガネ	1
145472001	オサエボウメタル	1
S50201001	オサエローライ	1
S50202001	ハサミサシエジクコロ	1
062671212	ナベコ357-40X12	1
025060132	ヒラガネシヨウC6	1
048060142	トメワE6	1
S50203001	オサエコロ	1
S50204001	オサエコロジク	1
014760622	アナトメネジ 5.95	1
S37927000	ハリボウアンナイ	1
100242003	シメネジ 3.57	2

Page 15 — F. 押工関係 / Presser foot mechanism

Brother HE-800A (90 pages) parts on page 15
Ref	Part number	Part name
16-4	16-4	16-4
16-3	16-3	16-3
16-2	16-2	16-2
16-1	16-1	16-1
16-1-4	16-1-4	16-1-4
16-1-5	16-1-5	16-1-5
16-1-3	16-1-3	16-1-3
16-1-2	16-1-2	16-1-2
16-1-1	16-1-1	16-1-1
34	34	34
33	33	33
31	31	31
32	32	32
40	40	40
16	16	16
11	11	11
10	10	10
22	22	22
21	21	21
7	7	7
9	9	9
8	8	8
6	6	6
2	2	2
1	1	1
14	14	14
13	13	13
12	12	12
5	5	5
15	15	15
52	52	52
19	19	19
18	18	18
17	17	17
29-2	29-2	29-2
29-1	29-1	29-1
29	29	29
29-3	29-3	29-3
29-4	29-4	29-4
47	47	47
46	46	46
45	45	45
23-2	23-2	23-2
23-1	23-1	23-1
23-3	23-3	23-3
23	23	23
25	25	25
26	26	26
27	27	27
24	24	24
28	28	28
30	30	30
39	39	39
37	37	37
38	38	38
44	44	44
43	43	43
42	42	42
41	41	41

Page 16 — F.押工関係 / Presser foot mechanism

Brother HE-800A (90 pages) parts on page 16
Part number	Part name	Qty
155578000	ゴムセン7.2	2
S50205001	オオセンサードグ	1
060670512	ハインド 357-40X5	2
S50206001	オオセンサーイタ	1
102538002	サラネジ 3.57	1
025040232	ヒラザガネチユウ4	3

Page 17 — 31. 送り関係 (-2, -3) / Feed mechanism (For "-2 & -3")

Brother HE-800A (90 pages) parts on page 17
Ref	Part number	Part name
27-1.1	27-1.1	27-1-1
27-1-3	27-1-3	27-1-3
27-1-6	27-1-6	27-1-6
27-1-5	27-1-5	27-1-5
27-1-2	27-1-2	27-1-2
27-1-6	27-1-6	27-1-6
27-1-4	27-1-4	27-1-4
46-2	46-2	46-2
46-1-2	46-1-2	46-1-2
46-1-4	46-1-4	46-1-4
46-1-3	46-1-3	46-1-3
46-1-1	46-1-1	46-1-1
46-1-5	46-1-5	46-1-5
46-1-4	46-1-4	46-1-4
46-1-3	46-1-3	46-1-3
47-1	47-1	47-1
34	34	34
35	35	35
33-1	33-1	33-1
36	36	36
19	19	19
18	18	18
42	42	42
16-1	16-1	16-1
43	43	43
17	17	17
14-1	14-1	14-1
26	26	26
40	40	40
39	39	39
18	18	18
20-1	20-1	20-1
13-1	13-1	13-1
15	15	15
21	21	21
11	11	11
12	12	12
8	8	8
22	22	22
10	10	10
6-2	6-2	6-2
6-1	6-1	6-1
6	6	6
10	10	10
9	9	9
20-1	20-1	20-1
5-2	5-2	5-2
5-1	5-1	5-1
5	5	5
48	48	48
3	3	3
2	2	2
4	4	4
46-3-2	46-3-2	46-3-2
46-3-4	46-3-4	46-3-4
46-3-3	46-3-3	46-3-3
46-3-1	46-3-1	46-3-1
46-3-5	46-3-5	46-3-5
46-3-4	46-3-4	46-3-4
46-3-3	46-3-3	46-3-3
46-4	46-4	46-4
33-2	33-2	33-2

Page 18 — G1.送り関係 (-2,-3)/ Feed mechanism(For "-2 & -3")

Brother HE-800A (90 pages) parts on page 18
Part number	Part name	Qty
S50207001	モータサセイタ	1
062761012	ナベコ395-28X10	3
025060232	ヒラザガネチュウ6	3
018401022	アナボルト4X10	4
S51418001	オクリフトウブーリA	1
S50208001	オクリフトウブーリA	1
014060632	アナボルトミ6X6	2
S51225001	オクリフトウブーリB	1
S50110001	オクリフトウブーリB	1
014060632	アナボルトミ6X6	2
S50209000	オクリタイミングベルト	1
S50210001	オクリフトウシヤフト	1
070688850	タマシク68822NR	2
S50211001	オクリベルトホルダ	1
018680822	アナボルト4.37X8	2
S50212001	オクリフトウサセイタイ	1
S50213001	オクリアンナイシンクB	1
014760622	アナトメシ5.95	1
S50214001	オクリアンナイシンクA	1
018681232	アナボルト437-40X12	2
S12004000	リニアブツシュ	3
S02460001	トメシクヨウC19	2
S35184001	タマシクメイタ	2
060660416	ハインド318-40X4	2
S50215101	オクリセンサセイタイ	1
062680812	ナベコ437-40X8	2
025680132	ヒラザガネ37	2
S50216001	オクリフトウサセイ	1
012500536	アナヒラ5X5	1
S51178101	オクリフトウ	1
S50217001	オクリフトウ	1
S50218001	ニカシムサセイタイ	1
S50219101	ワイトキリニカシム	1
018681022	アナボルト4.37X10	2
018680522	アナボルト4.37X5	2
110735002	ザガネ	4
S50220001	ナガリフトー2	1
S50225001	ナガリフトー3	1
018681022	アナボルト4.37X10	2
028680242	バネザガネ2-4.37	2
S50221001	オクリフトウセイ	2
105130001	シメジ3.57	4
S50222001	オクリフトウシヤフト	1
S50223100	オクリカバー	1
018680822	アナボルト4.37X8	1
025680132	ヒラザガネ4.37	1
S50224001	オクリモータカバー	1
062680612	ナベコ4.37-40X6	2
159078001	ヌツカミサエバネ	1
S50562001	ダンネジ 6.35	1
159765202	ヌツカミ25RSクミ	1
159762002	ヌツカミ25RS	1
159926001	ヌツカミサエビン L	1
107401001	ヌツカミサエイトバネ	2

Page 19 — 31. 送り関係 (-2, -3) / Feed mechanism (For "-2 & -3")

Brother HE-800A (90 pages) parts on page 19
Ref	Part number	Part name
27-1	27-1-1	FEED MECHANISM
	27-1-2	BRACKET
	27-1-3	BRACKET
	27-1-4	SCREW
	27-1-5	WASHER
	27-1-6	SPRING
	46-1-1	FEED DOG
	46-1-2	SCREW
	46-1-3	FEED DOG
	46-1-4	WASHER
	46-1-5	SPRING
	46-2	FEED DOG
	46-3-1	FEED DOG
	46-3-2	SCREW
	46-3-3	FEED DOG
	46-3-4	WASHER
	46-3-5	SPRING
	46-4	FEED DOG
	47-1	SPRING
	33-1	BASE PLATE
	33-2	BASE PLATE
	36	BRACKET
	37	BRACKET
	38	BRACKET
	39	SHAFT
	40	COLLAR
	41	COLLAR
	42	BRACKET
	43	BRACKET
	44	SPRING
	45	SCREW
	1	BRACKET
	2	SCREW
	3	WASHER
	4	SCREW
	5	SHAFT
	5-1	SHAFT
	5-2	COLLAR
	6	FEED DOG
	6-1	FEED DOG
	6-2	SCREW
	8	FEED BAR
	9	SHAFT
	10	ROLLER
	11	BRACKET
	12	SCREW
	13-1	BRACKET
	14-1	FEED BAR
	15	SCREW
	16-1	FEED BAR
	17	BRACKET
	18	ROLLER
	19	ROLLER
	20-1	BRACKET
	21	SCREW
	22	BRACKET
	23	BRACKET
	24	BRACKET
	26	BRACKET
	48	SCREW

Page 20

Brother HE-800A (90 pages) parts on page 20
Part number	Part name	Qty
107404001	SCREW, SM1.98-64X2	2
159927001	PIN, S	1
S37100101	WORK CLAMP ASSY, 25RS W/F-G	1
S01467201	WORK CLAMP ASSY, 25-K	1
144630001	WORK CLAMP, 25-K	1
159926001	PIN, L	1
144707001	SPRING, PLATE	1
107404001	SCREW, SM1.98-64X2	2
159927001	PIN, S	1
S37102101	WORK CLAMP ASSY, 25-K W/F-G	1
159080000	FINGER GUARD, M	1
018502022	BOLT, SOCKET M5X20	1

Page 21 — G2 . 送り関係 (-5) / Feed mechanism (For "-5")

Brother HE-800A (90 pages) parts on page 21
Ref	Part number	Part name	Qty
	27-2-1	27-2-1
	27-2-3	27-2-3
	27-2-6	27-2-6
	27-2-5	27-2-5
	46-5-1	46-5-1
	46-5	46-5
	46-5-3	46-5-3
	46-5-5	46-5-5
	46-5-4	46-5-4
	46-5-2	46-5-2
	46-6	46-6
	47-2	47-2
	33-3-2	33-3-2
	33-3-2	33-3-2
	16-2	16-2
	56	56
	57	57
	58	58
	14-2	14-2
	27-2	27-2
	33-3-1	33-3-1
	33-3	33-3
	20-2	20-2
	13-2	13-2

Page 22

Brother HE-800A (90 pages) parts on page 22
Ref	Part number	Part name	Qty
	S54508001	オクリウデササエタイー5
	S54512001	オクリアンナインクB-5
	S54511001	オクリアンナインクA-5
	S54513001	タマンウクウケイメ
	S54502101	オクリウデクミ-5
	S54503001	オクリウデ-5
	S50218001	ニカシムサエタイタ
	S50219101	ウワイトキリニカシム
	018681022	アサボルト4.37X10
	018680522	アサボルト4.37X5
	110735002	ワッシャー
	S54504001	ナカサクリタイター5クミ
	S54505001	ナカサクリタイター5
	S54506001	オクリイタスペーサ
	117160001	サラネジ4.37
	S54514101	ヌカミクミ70
	S54516101	ヌカミクミサエ
	S54515001	ヌカミクミ70
	159926001	ヌカミクミサエピン L
	107401001	サラネジサエタイハネ
	107404001	シメネジ1.98
	S54987001	ヌカミクミサエピン F
	S54518101	ヌカミクミ70クミF
	S54517000	フィンガーガード 70
	S54507001	オクリイタサエタイタ
	018680822	アサボルト4.37X8
	S54509000	リニアブツシュ9.53
	S54510001	リニアブツシュトメイタ
	062680612	アサ 34.37-40X6

Page 23 — H . カッター関係 / Cutter mechanism

Brother HE-800A (90 pages) parts on page 23
Ref	Part number	Part name
10	10-1	10-1
10	10-2	10-2
10	10-3	10-3
10	10-4	10-4
	31	31
	32	32
	33	33
	11	11
	34	34
	37	37
	35	35
	36	36
	37	37
	39	39
	38	38
	29	29
	28	28
22	22-3	22-3
22	22-2	22-2
22	22-4	22-4
22	22-1	22-1
21	21-2	21-2
21	21-1	21-1
21	21-2	21-2
	27	27
	23	23
	26	26
	6	6
	40	40
4	4-2	4-2
4	4-1	4-1
4	4-3	4-3
	5	5
	2	2
	1	1
	7	7
	8	8
	15	15
	13	13
	12	12
	14	14
	16	16
	17	17
	18-2	18-2
	18-1	18-1
	20	20
	19	19

Page 24

Brother HE-800A (90 pages) parts on page 24
Ref	Part number	Part name	Qty
	S0283001	カッタードウテツク
	014760622	アトメシ 5.95
	S0284001	カッタードウテツク
	S0285001	サウシンクホルダアセンブリ
	S0286001	カッターサドウシンクホルダ
	S0287001	カッターサドウシンクリンク
	014780622	アトメシ 6.35クホミ
	S0288001	カッタードウシンクリンク
	102630001	ハリウシンナイカクコマ
	S50120001	カッタードウシンク
	062761012	ナベコ3595-28X10
	15917001	カッタードウシンクメタル
	S0289001	チョウセツネジ
	S0290001	チョウセツネジ
	S0291001	クツションバネ
	S0292001	クツションウケ
	S0293001	タンネジ 3.57
	021910302	ナツト3SM12.70
	S0294001	カッターホルダ
	018681022	アナボルト4.37X10
	S0295001	カッターホルダ M
	018680632	アナボルト4.37X6
	S0296001	カッターホルダ DL
	153057102	オクリダイシンネジ
	S51352001	カツタ1/2
	S51358001	カツタ1
	S0297001	カツターオサエ
	115503001	シメネジ 4.37
	S41466001	オクリジクセットカラークミ
	S09212001	シメネジ
	014770622	アトメシ 6.35クホミ
	S0298101	カッタードウシンクアセンブリ
	S50299101	カッタードウシンク
	159104001	Cドウシンクピン
	014680622	アトメシ 4.37クホミ
	159379001	ミゾウキピンBX6X18
	S50300001	カツターリンクシンク
	01760622	アトメシ 5.95
	048060342	トメワE6
	110367001	サガネ
	S51162001	カッターリンクイケミ
	018681232	アナボルト SM4.76-40X12
	S50362001	カッターソレノイドブラケツト
	062711412	ナベコ4.76-32X14
	018501022	アナボルト5X10
	S50363000	ストツパクツシヨン
	S50364001	ソレノイドストツパ
	028080242	バネザガネ2-8
	021080202	ニユウナツト8
	S50365101	カツターセンサトリツケイタ
	062710812	ナベコ476-32X8
	S50366001	カツターモトシバネ

Page 25

Brother HE-800A (90 pages) parts on page 25
Ref	Part number	Part name
1	1	Thread breakage detector mechanism
2	2	Thread breakage detector mechanism
3	3	Thread breakage detector mechanism
4	4	Thread breakage detector mechanism
5	5	Thread breakage detector mechanism
6	6	Thread breakage detector mechanism
6-1	6-1	Thread breakage detector mechanism
6-2	6-2	Thread breakage detector mechanism
6-3	6-3	Thread breakage detector mechanism
7	7	Thread breakage detector mechanism
10	10	Thread breakage detector mechanism
11	11	Thread breakage detector mechanism
12	12	Thread breakage detector mechanism
13	13	Thread breakage detector mechanism
1	1	Lower shaft mechanism
2	2	Lower shaft mechanism
2-1	2-1	Lower shaft mechanism
2-2	2-2	Lower shaft mechanism
4	4	Lower shaft mechanism
4-1	4-1	Lower shaft mechanism
4-2	4-2	Lower shaft mechanism
5	5	Lower shaft mechanism
5-1	5-1	Lower shaft mechanism
5-2	5-2	Lower shaft mechanism
5-3	5-3	Lower shaft mechanism
6	6	Lower shaft mechanism
7	7	Lower shaft mechanism

Page 26 — J.糸切れ感知関係 / Thread breakage detector mechanism K.下軸関係 / Lower shaft mechanism

Brother HE-800A (90 pages) parts on page 26
Part number	Part name	Qty
S50273000	THREAD GUIDE	1
025060232	WASHER, PLAIN M 6	1
025350332	WASHER, PLAIN L 3.5	1
060670612	SCREW, BIND SM3.57-40X6	1
159145001	SHAFT, ;TR-BREAKAGE PERCEIVING	1
S51173001	CUTTER BAR FIXED PLATE ASSY	1
141619001	FIXEING PLATE, ;C-BAR	1
141620001	BALANCER	1
101671002	SCREW, SM4.37	1
014760622	SET SCREW, SOCKET SM5.95	1
S50274001	LEVER STOPPER	2
062400612	SCREW, PAN M4X6	2
S50275001	PLATE, ;TR-BREAKAGE SENSOR	1
062400612	SCREW, PAN M4X6	1
S50240001	LOWER SHAFT	1
S50241001	TIMMING PULLEY ASSY	1
076002450	BALL BEARING, 6002DD	1
014760622	SET SCREW, SOCKET SM5.95	2
183827001	SET SCREW COLLAR ASSY	1
104521001	SET SCREW COLLAR	1
014770622	SET SCREW, SOCKET (CP) SM6.35	2
S50243001	BUSH ASSY, M	1
S50244001	BUSH, M	1
S38735001	OIL FEEDING PIPE	4
142274101	RUBBER CAP, 4.2	4
S50245001	COVER	1
062670612	SCREW, PAN SM3.57-40X6	2

Page 27 — L. Rotary hook mechanism

Brother HE-800A (90 pages) parts on page 27
Ref	Part number	Part name
1	1	Rotary hook mechanism
2	2	Rotary hook mechanism
2-1-1	2-1-1	Rotary hook mechanism
2-1-2	2-1-2	Rotary hook mechanism
2-1-3	2-1-3	Rotary hook mechanism
4	4	Rotary hook mechanism
5	5	Rotary hook mechanism
6	6	Rotary hook mechanism
7	7	Rotary hook mechanism
8	8	Rotary hook mechanism
9	9	Rotary hook mechanism
10	10	Rotary hook mechanism
11	11	Rotary hook mechanism
12-1-1	12-1-1	Rotary hook mechanism
12-1-2	12-1-2	Rotary hook mechanism
12-1-3	12-1-3	Rotary hook mechanism
20	20	Rotary hook mechanism
20-1	20-1	Rotary hook mechanism
20-2	20-2	Rotary hook mechanism
20-2-1	20-2-1	Rotary hook mechanism
20-2-2	20-2-2	Rotary hook mechanism
20-2-3	20-2-3	Rotary hook mechanism
20-2-4	20-2-4	Rotary hook mechanism
21	21	For Supply parts
22	22	Rotary hook mechanism

Page 28 — L.カマ関係 / Rotary hook mechanism

Brother HE-800A (90 pages) parts on page 28
Part number	Part name	Qty
S50226001	BUSH	1
S51226001	ROTARY HOOK JOINT SET	1
S50227001	JOINT ASSY, R-HOOK	1
S50228001	JOINT, R-HOOK	1
S50229000	FELT	1
014760622	SET SCREW, SOCKET SM5.95	4
S50230001	B-CASE HOLDER POSITION BRACKET	1
100644005	SCREW, SM4.37	2
S50232000	FELT	1
S50231100	COLLAR	1
S07478000	RUBBER PRESSER	1
S50741001	SCREW, SM6.35	1
S50233001	SPRING	1
S50111000	SPRING	1
S50234901	R-HOOK & B-CASE ASSY, W/BOX	1
S50235901	ROTARY HOOK ASSY, W/BOX	1
183526001	SCREW	2
S50236001	SCREW	1
183598001	SCREW	1
S50237001	BOBBIN CASE ASSY	1
S09477001	SPRING	1
180721001	SCREW	1
183507001	ADJUSTING SCREW	1
S50239001	SPRING, ANTI-SPIN	1
159158051	BOBBIN	1
S50239001	SPRING, ANTI-SPIN	1

Page 29 — M. Lubrication

Brother HE-800A (90 pages) parts on page 29
Ref	Part number	Part name	Qty
	25	COVER
	26	COVER
	69-1	BRACKET
	69-2	BRACKET
	71	SCREW
	73	SCREW
	82	SCREW
	74	SCREW
	59	SCREW
	76	SPRING
	75	SPRING
	72	SCREW
	49	SPRING
	44	HOSE
	46	HOSE
	66	SCREW
	65	BRACKET
	61	CAP
	36	WASHER
	35	WASHER
	34	WASHER
	39	TUBE
	37	TUBE
	87	CLAMP
	33	JOINT
	27	BRACKET
	28	BRACKET
	32	BRACKET
	38	PIN
	63	SCREW
	64	WASHER
	43	HOSE
	40	HOSE
	78	BRACKET
	77	BRACKET
	54	SCREW
	49	SPRING
	67	SCREW
	66	BRACKET
	62	WASHER
	24	COVER
	41	WASHER
	82	SCREW
	79	BRACKET
	88	BRACKET
	60	BRACKET
	55	BRACKET
	51	BRACKET
	52	BRACKET
	50	BRACKET
	53	BRACKET
	58	BRACKET
	57	BRACKET
	56	BRACKET
	81	BRACKET
	80	BRACKET
	68	SCREW
	17	BRACKET
	47	HOSE
	19	BRACKET
	1	BRACKET
	2	BRACKET
	4	BRACKET
	6	BRACKET
	5	BRACKET
	7	BRACKET
	23	BRACKET
	20	BRACKET
	21	BRACKET
	22	BRACKET
	13	BRACKET
	14	BRACKET
	9	BRACKET
	8	BRACKET
	10	BRACKET
	11	BRACKET
	12	BRACKET
	18	BRACKET
	16	BRACKET
	15	BRACKET

Page 30 — M.給油潤滑関係 / Lubrication

Brother HE-800A (90 pages) parts on page 30
Part number	Part name	Qty
144875001	プランジャー	2
S52764001	プランジャーバネ	2
552907000	コードホルダ	2
062670612	ナベコ357-40X6	2
025350132	ヒラザガネショウ	2
112467002	シメネジ 6.35	2
S50356001	オイルフィルタツケケイタミ	1
062680812	ナベコ437-40X8	3
14487101	ポンプフィルター	1
144874001	フィルターバネ	2
062670512	ナベコ357-40X5	2
S50359001	チューブツリツド	1
062670612	ナベコ4.37-40X6	1
S50360001	カフエルトサツエ	1
060670612	バインド 357-40X6	2
S50560000	フェルト	1
S50563000	クミヒモ4X200	1
S50564000	クミヒモ2X300	1
S50559001	チューブサツエ	1
060670612	バインド 357-40X6	1
S50557000	オイルチューブ	1
S50558000	ビニルチューブ	1
S50513000	メインパツキン	1
S50514000	カワイタパツキン	1
S50515000	ウワフタパツキン	1
S50516001	トウシンベースサツエ	1
062670612	ナベコ357-40X6	2
159187000	トウシンベースA	1
S50517001	トウシンベースフタ	1
062680712	ナベコ437-40X7	2
S50518000	トウシンベースフエルト	1
S50519000	オイルターミナル	1
062680712	ナベコ4.37-40X6	2
S50520000	パツキン	1
S50521000	オイルマト	1
159193000	オイルパイプ B	1
S50522000	ビニルチューブ	1
S52763000	クミヒモ2X140	1
S50524000	クミヒモ3X160	1
S50525000	クミヒモ3X290	1
S50527000	ビニルチューブ	1
S50528000	クミヒモ3X280	1
S50529000	ビニルチューブ	1
S50530000	クミヒモ3X355	1
S50531000	ビニルチューブ	1
S50532000	ビニルチューブ	1
228475000	ケツクバンド 1.9X80	2
S00480000	コードホルダ	1
062670612	ナベコ357-40X6	1
025350132	ヒラザガネショウ	1
106436001	フェルト	1
107149001	フェルト	2
151927001	クラツチフエルト	1
S50533000	スイアゲチューブクミ	1
S50536001	フエルトオサエ	1
062670512	ナベコ357-40X5	1
S25328001	フェルト	1
S50537000	クミヒモ4X50	1
S50538001	アプラマットサツエ	1
S50539000	アプラギリ	2
S50540001	ハイユチユーブサツエ	1

Page 31

Brother HE-800A (90 pages) parts on page 31
Ref	Part number	Part name
25	25	COVER
26	26	COVER
69	69	BRACKET
69-1	69-1	BRACKET
69-2	69-2	BRACKET
71	71	SCREW
73	73	SPRING
83	83	SPRING
82	82	SPRING
74	74	SPRING
59	59	SPRING
76	76	SPRING
75	75	SPRING
45	45	PIPE
49	49	PIPE
44	44	PIPE
46	46	PIPE
66	66	SPRING
65	65	SPRING
31	31	WASHER
30	30	WASHER
29	29	WASHER
36	36	SPRING
35	35	SPRING
34	34	SPRING
39	39	SPRING
37	37	SPRING
87	87	SPRING
61	61	SPRING
33	33	SPRING
27	27	SPRING
28	28	SPRING
32	32	SPRING
38	38	SPRING
63	63	SPRING
64	64	SPRING
43	43	PIPE
78	78	SPRING
77	77	SPRING
54	54	SPRING
51	51	SPRING
52	52	SPRING
50	50	SPRING
67	67	SPRING
68	68	SPRING
79	79	SPRING
84	84	SPRING
53	53	SPRING
58	58	SPRING
57	57	SPRING
88	88	SPRING
60	60	SPRING
56	56	SPRING
81	81	SPRING
47	47	PIPE
17	17	SPRING
19	19	SPRING
1	1	SPRING
2	2	SPRING
6	6	SPRING
7	7	SPRING
4	4	SPRING
5	5	SPRING
23	23	SPRING
20	20	SPRING
21	21	SPRING
22	22	SPRING
13	13	SPRING
14	14	SPRING
16	16	SPRING
15	15	SPRING
18	18	SPRING
9	9	SPRING
8	8	SPRING
10	10	SPRING
11	11	SPRING
12	12	SPRING
24	24	COVER
62	62	WASHER
41	41	WASHER
48	48	SPRING

Page 32 — M.給油潤滑関係 / Lubrication

Brother HE-800A (90 pages) parts on page 32
Part number	Part name	Qty
062680612	SCREW, PAN SM4.37-40X6	1
S050541001	TUBE SUPPORT, U	1
062670512	SCREW, PAN SM3.57-40X5	1
S050542001	TUBE SUPPORT, M	1
062400612	SCREW, PAN M4X6	1
S54763001	FELT SUPPORT ASSY	1
S050543001	FELT SUPPORT	1
S50544000	FELT	1
062400612	SCREW, PAN M4X6	1
S50545000	WICK, 3X180	1
S050546000	WICK, 3X370	1
S50537000	WICK, 4X50	1
S50547000	OIL TUBE	1
228475000	FASTENING BAND, 1.9X80	2
S50548001	TUBE SUPPORT, R	1
060670612	SCREW, BIND SM3.57-40X6	1
S50549000	FELT	1
S50550001	FELT SUPPORT	1
062670512	SCREW, PAN SM3.57-40X5	1
S050551001	TUBE SUPPORT	1
002300603	SCREW, PAN M3X6	1
S50552000	WICK, 4X70	1
S51020000	COLLAR	1
S25328001	FELT	2

Page 33 — N. 糸通シ関係 / Threading mechanism

Brother HE-800A (90 pages) parts on page 33
Ref	Part number	Part name
1	1	1-3
1-1	1-1	1-2
1-2	1-2	1-3
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
7-1	7-1	7-1
7-2	7-2	7-2
7-3	7-3	7-3
7-4	7-4	7-4
7-5	7-5	7-5
7-6	7-6	7-6
7-7	7-7	7-7
10	10	10
11	11	11
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
31-1	31-1	31-1
31-2	31-2	31-2
31-3	31-3	31-3
31-4	31-4	31-4
31-5	31-5	31-5
31-6	31-6	31-6
31-7	31-7	31-7
32	32	32
39	39	39
40	40	40
40-1	40-1	40-1
40-2	40-2	40-2
40-3	40-3	40-3
40-4	40-4	40-4
40-5	40-5	40-5
40-6	40-6	40-6
40-7	40-7	40-7
40-8	40-8	40-8
48	48	48
49	49	49
50	50	50
51	51	51
51-1	51-1	51-1
51-2	51-2	51-2
51-3	51-3	51-3
51-4	51-4	51-4
51-5	51-5	51-5
51-6	51-6	51-6
51-7	51-7	51-7
51-8	51-8	51-8
51-9	51-9	51-9
51-10	51-10	51-10
56	56	56
63	63	63
64	64	64
65	65	65
66	66	66
67	67	67
68	68	68
69	69	69
70	70	70

Page 34

Brother HE-800A (90 pages) parts on page 34
Part number	Part name	Qty
S50368001	イトユルメクトウレバーグミ	1
S50369001	イトユルメクトウレバー	1
S35095000	ニードルローラー4X13.8	1
014004032	アナツメ 4X4	1
014760622	アナトメシ 5.95	1
S50370001	イトユルメク	1
081005070	Oリング P5	1
S50371101	イトユルメカム	1
014760622	アナトメシ 5.95	1
S51185001	イトトリルバークミ	1
S50372001	イトクリダシレバー	1
S50373001	イトトリルバー	1
060670512	バインド 357-40X5	1
100645003	ザガネ	1
S50374001	イトトリルバーリンク	1
S50375001	イトトリルバー	1
S50376001	ダンネジ 4.37	2
100645003	ザガネ	1
062680612	ナベ 34. 37-40X6	1
025680234	ヒラザガネヨウ 4.37	1
S50376001	ダンネジ 4.37	1
S50377001	イトユルメソレノイドホルダ	1
062670612	ナベ 357-40X6	2
S50378001	プラングヤオサイタ	1
018300636	アナボルト3X6	1
062300502	ナベ 3X5	2
S50379001	イトユルメソレノイドリンク	1
S25456001	プラングピン	1
S50380001	スプリング	1
S50381000	ゴム	1
S50382001	イトユルメリンク	1
S50376001	ダンネジ 4.37	2
141590001	イトオシボウ	1
150553003	ナット 5.95	1
S50383001	イトカケ	1
062670612	ナベ 357-40X6	2
S51184001	フライトヨウクミ	1
159219101	フライトヨウシンサ	1
145446001	イトチョウシン	1
159805001	イトチョウシンサラ	1
144103009	イトチョウシンサラオサエ	1
144110001	シングルバイトチョウシンハネ	1
S30564000	チョウシンハネニユエザガネ	1
S30565003	チョウシンナット	1
S50384101	イトユルメピン	1
S50385001	イトユルメレバータイ	1
S51185001	イトチョウシンクミ	1
145446001	イトチョウシン	1
145446001	イトチョウシンサラ	2
159805001	イトチョウシンサラオサエ	1
144103009	イトチョウシンサラオサエ	1
S50386001	イトチョウシンハネ	1
S50387001	チョウシンナットカラー	1
S12441001	チョウシンハネニユエザガネ	1
S30565005	イトチョウシンナット	1
S50388001	イトユルメレバー	1
114988001	ダンネジ 4.37	1
S50389001	イトユルメレバーハネ	1
S51182101	イトチョウシンウデクミ	1
S50390101	イトチョウシンウデ	1
S50391001	イトチョウシンウデL	1

Page 35 — N. 糸通シ関係 / Threading mechanism

Brother HE-800A (90 pages) parts on page 35
Ref	Part number	Part name
1	1	1-1
1-2	1-2	1-2
1-3	1-3	1-3
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
7-1	7-1	7-1
7-2	7-2	7-2
7-3	7-3	7-3
7-4	7-4	7-4
7-6	7-6	7-6
7-7	7-7	7-7
10	10	10
11	11	11
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
31-1	31-1	31-1
31-2	31-2	31-2
31-3	31-3	31-3
31-4	31-4	31-4
31-5	31-5	31-5
31-6	31-6	31-6
31-7	31-7	31-7
32	32	32
39	39	39
40	40	40
40-1	40-1	40-1
40-2	40-2	40-2
40-3	40-3	40-3
40-4	40-4	40-4
40-5	40-5	40-5
40-6	40-6	40-6
40-7	40-7	40-7
40-8	40-8	40-8
48	48	48
49	49	49
50	50	50
51	51	51
51-1	51-1	51-1
51-2	51-2	51-2
51-3	51-3	51-3
51-4	51-4	51-4
51-5	51-5	51-5
51-6	51-6	51-6
51-7	51-7	51-7
51-8	51-8	51-8
51-9	51-9	51-9
51-10	51-10	51-10
56	56	56
63	63	63
64	64	64
65	65	65
66	66	66
67	67	67
68	68	68
69	69	69
70	70	70

Page 36 — N.糸通シ関係 / Threading mechanism

Brother HE-800A (90 pages) parts on page 36
Ref	Part number	Part name	Qty
51-3	100402004	SET SCREW, SM3.57	1
51-4	081014870	O RING, S14	1
51-5	145519001	THREAD TAKE-UP SPRING	1
51-6	145446001	DISC, TENSION	2
51-7	159805001	DISC, PRESSER, TENSION	1
51-8	159221001	TENSION SPRING	1
51-9	S30564000	WASHER	1
51-10	S31032001	TENSION NUT	1
56	S50384101	TENSION RELEASE PIN	1
62	S55975001	SET SCREW, SOCKET SM5.95	1
63	159224001	THREAD GUIDE, ARM	1
64	S50392001	THREAD GUIDE, ARM	1
65	060670512	SCREW, BIND SM3.57-40X5	1
66	113316001	THREAD GUIDE	1
67	060670512	SCREW, BIND SM3.57-40X5	1
68	S50393000	THREADING PLATE	1
69	159917201	THREAD GUIDE, L;ARM	1
70	112751003	SCREW, SM3.57X7	1
71	048060342	RETAINING RING, E6	1

Page 37 — Bobbin winder mechanism

Brother HE-800A (90 pages) parts on page 37
Ref	Part number	Part name
24-3	24-3	24-3
24-2	24-2	24-2
24-1	24-1	24-1
24	24	24
16	16	16
17	17	17
15	15	15
2	2	2
18	18	18
25	25	25
23	23	23
22	22	22
21	21	21
28	28	28
27	27	27
28	28	28
6	6	6
10	10	10
11	11	11
14	14	14
13	13	13
12	12	12
29	29	29
1	1	1
26	26	26
4	4	4
3	3	3
4	4	4
5	5	5

Page 38 — P.糸巻関係 / Bobbin winder mechanism

Brother HE-800A (90 pages) parts on page 38
Ref	Part number	Part name	Qty
1	S50276001	B-WINDER SHAFT BRACKET ASSY	1
2	S50278001	BOBBIN WINDER SHAFT	1
3	S25410050	BOBBIN WINDER WHEEL	1
4	012400636	SET SCREW, SOCKET (FT) M4X6	2
5	S25789000	RUBBER RING, 29	1
6	S50279001	BOBBIN WINDER ARM SHAFT	1
7	025080132	WASHER, PLAIN S 8	1
8	048060342	RETAINING RING, E6	1
10	S25413101	BOBBIN DRESSER SHAFT ASSY	1
11	S25417001	SPRING	1
12	S25418101	SPRING	1
13	S50280001	BOBBIN WINDER STOPPER	1
14	062400816	SCREW, PAN M4X8	1
15	S25420051	BOBBIN PRESSER, R	1
16	062400816	SCREW, PAN M4X8	1
17	026040236	WASHER, PLAIN 4	1
18	S10174000	DUST GUARD PLATE	1
21	157968001	KNIFE	1
22	062400616	SCREW, PAN M4X6	1
23	047200642	PIN, SPRING ROLL AW2	1
24	S38736101	BOBBIN WINDER TENSION ASSY	1
24-1	145446001	DISC, TENSION	2
24-2	115188001	SPRING, TENSION	1
24-3	108265009	TENSION NUT	1
25	012400636	SET SCREW, SOCKET (FT) M4X6	1
26	048040342	RETAINING RING, E4	1
27	S50281000	BOBBIN WINDER PULLEY	1
28	014780622	SET SCREW, SOCKET (CP) SM6.35	2
29	S50282000	B-WINDER LEVER CUSHION	1

Page 39 — Q.上糸切り関係 / Upper thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 39
Ref	Part number	Part name	Qty
	35-1	35-1
	35-8	35-8
	35-5	35-5
	35-9	35-9
	35-10	35-10
	35-2	35-2
	35-4	35-4
	35-6	35-6
	35-12	35-12
	35-3	35-3
	35-7	35-7
	35-11	35-11
	36	36
	35	35
	34	34
	32	32
	28	28
	30	30
	31	31
	33-1	33-1
	33-2	33-2
	33-4	33-4
	33-3	33-3
	33	33
	32	32
	28	28
	29	29
	31	31
	22	22
	23	23
	26	26
	22-1	22-1
	27	27
	22-2	22-2
	22-4	22-4
	22-3	22-3
	22-5	22-5
	17	17
	18	18
	16	16
	16-4	16-4
	16-3	16-3
	16-1	16-1
	16-2	16-2
	24	24
	24-3	24-3
	24-5	24-5
	24-4	24-4
	25	25
	24-1	24-1
	24-2	24-2
	24-6	24-6
	5	5
	4	4
	15	15
	6	6
	6-8	6-8
	6-7	6-7
	6-2	6-2
	6-6	6-6
	6-1	6-1
	6-4	6-4
	6-3	6-3
	6-5	6-5
	2	2
	2-2	2-2
	2-1	2-1
	2-2	2-2
	14	14
	3	3
	1	1
	7	7
	7-2	7-2
	7-6	7-6
	7-8	7-8
	7-7	7-7
	7-1	7-1
	7-4	7-4
	7-3	7-3
	7-5	7-5
	7-3	7-3

Page 40 — Q.上糸切り関係 / Upper thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 40
Part number	Part name	Qty
S50394001	FULCRUM SHAFT, U-TR	1
S21755001	SET SCREW COLLAR ASSY	1
11007001	SET SCREW COLLAR	1
014760622	SET SCREW, SOCKET SM5.95	2
S23337001	RUBBER CAP, 18.5	1
S52761001	WASHER, RECTANGLE 15X32X2.4	1
S19817001	SHOULDER SCREW, SM5.95	2
S51179101	THREAD TRIMMER LEVER SET, U	1
S50395001	U-THREAD TRIMMER LEVER ASSY	1
S50398001	STOP PLATE	1
S50399101	BACK PLATE	1
S50400001	COLLAR	2
062670712	SCREW, PAN SM3.57-40X7	2
S50401001	SPRING	1
S50402001	SPRING HOOK PLATE	1
062670512	SCREW, PAN SM3.57-40X5	1
S54519001	U-THREAD TRIMMER LEVER SET, B	1
S50395001	U-THREAD TRIMMER LEVER ASSY	1
S54520001	STOP PLATE, B	1
S54521001	BACK PLATE, B	1
S50400001	COLLAR	2
062670712	SCREW, PAN SM3.57-40X7	2
S50401001	SPRING	1
S50402001	SPRING HOOK PLATE	1
062670512	SCREW, PAN SM3.57-40X5	1
S02563001	SPRING	1
S02563001	SPRING	1
S51180001	SETTING PLATE ASSY	1
S50403001	SETTING PLATE	1
159343001	SUPPORT STUD	1
021660202	NUT, 2 SM4.37	1
025680132	WASHER, PLAIN 4.37	1
062680232	SCREW, PAN SM4.37-40X6	2
025680232	WASHER, PLAIN M 4.37	2
S50404201	UPPER THREAD TRIMMER ASSY	1
S50405101	UPPER THREAD TRIMMER ASSY, D	1
S50113101	UPPER THREAD TRIMMER, M	1
141513001	UPPER THREAD TRIMMER, UPPER	1
141514001	SHOULDER SCREW, SM3.18	1
S52431000	U-THREAD TRIMMER STOPPER	1
100644005	SCREW, SM4.37	1
S58097001	OPENING CAM ASSY	1
S50408001	BRACKET, OPENING CAM	1
S58098001	OPENING CAM	1
018300836	BOLT, SOCKET M3X8	2
S56251001	WASHER, PLAIN	1
028030246	WASHER, SPRING 2-3	2
021300206	NUT, 2 M3	2
107093002	SCREW, SM4.37	2
025680232	WASHER, PLAIN M 4.37	1
028680232	WASHER, SPRING 2-4.37	1
S50410001	DRIVING LEVER, TR	2
S50411001	ROLLER, ;D-LEVER	1
S50412000	BALL BEARING	1
S50413001	SHOULDER SCREW	2
081012070	O RING, P12	2

Page 41 — Q.上糸切り関係 / Upper thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 41
Ref	Part number	Part name	Qty
	36	Screw
	35-1	Lever
	35-8	Spring
	35-5	Shaft
	35-9	Spring
	35-10	Lever
	35-2	Shaft
	35-4	Washer
	35-6	Washer
	35-3	Screw
	35-7	Screw
	35-11	Screw
	35-12	Screw
	35	Upper thread trimmer mechanism
	34	Screw
	33-1	Lever
	32	O-ring
	28	Shaft
	30	Screw
	31	Screw
	33-2	Shaft
	33-4	Shaft
	33-5	Shaft
	33-3	Shaft
	33	Upper thread trimmer mechanism
	29	Screw
	22	Lever
	23	Screw
	26	Washer
	22-1	Lever
	22-4	Screw
	22-3	Lever
	17	Screw
	18	Washer
	22-2	Lever
	22-5	Screw
	16	Lever
	16-4	Screw
	16-3	Screw
	16-1	Lever
	16-2	Shaft
	27	Screw
	24	Lever
	24-3	Screw
	24-5	Washer
	24-4	Washer
	24-1	Lever
	24-2	Lever
	24-6	Screw
	25	Screw
	5	Screw
	4	Lever
	6	Lever
	6-8	Screw
	6-7	Screw
	6-2	Screw
	6-6	Lever
	6-1	Lever
	6-3	Lever
	6-4	Screw
	6-5	Screw
	14	Spring
	3	O-ring
	1	Shaft
	2	Lever
	2-1	O-ring
	2-2	Screw
	7	Lever
	7-2	Lever
	7-8	Screw
	7-7	Lever
	7-6	Screw
	7-1	Lever
	7-4	Screw
	7-3	Lever
	7-5	Screw
	15	Spring

Page 42 — Q.上糸切り関係 / Upper thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 42
Ref	Part number	Part name	Qty
	S50419001	ゼンゴサトウデクミ
	S50414001	ゼンゴサトウデ
	S50415001	ゼンゴウデピン
	S50416001	ゼンゴウデコロ
	048040342	トメワE4
	014680622	アナトメネジ 4.37X4.37ミ
	018061622	アナトメネジM6X16
	S51181001	イトギリサトウデクミ
	S50417001	イトギリサトウデ
	S50418001	ウデコロササエタ
	018681022	アナトメボルト 4.37X10
	025680132	ヒラザガネ 4.37
	S50420001	ウデコロ
	028050242	バネザガネ2-5
	021500312	3シュナット5
	048060142	トメワC6
	S50511001	サトウデコロ
	S50512001	ハサミトシストツパ
	018681022	アナトメボルト 4.37X10
	025680132	ヒラザガネ 4.37
	018061622	アナトメネジM6X16

Page 43

Brother HE-800A (90 pages) parts on page 43
Ref	Part number	Part name	Qty
	39-1	39-1
	39-4	39-4
	39-6	39-6
	39-5	39-5
	39-2	39-2
	39-3	39-3
	40	40
	43	43
	49	49
	66-1	66-1
	42-2	42-2
	42-1	42-1
	42	42
	66-2	66-2
	56	56
	62	62
	52-2	52-2
	52-1	52-1
	52	52
	55	55
	51	51
	50	50
	54	54
	53	53
	25	25
	26	26
	27	27
	24	24
	19	19
	22	22
	23	23
	21	21
	41	41
	32	32
	35	35
	34	34
	33	33
	36	36
	37	37
	38	38
	5	5
	2	2
	1-1	1-1
	1-2	1-2
	1-3	1-3
	1-4	1-4
	3	3
	4	4
	10	10
	17-2	17-2
	17-1	17-1
	17	17
	18	18
	20	20
	30-1	30-1
	31	31
	30-2	30-2
	30-3	30-3
	30-4	30-4
	30-5	30-5
	30	30
	10-3	10-3
	10-2	10-2
	10-1	10-1
	10-4	10-4
	16	16
	65	65
	61	61
	63	63
	11	11
	12	12
	39	39
	1	1
	66-3	66-3

Page 44 — R.下糸切り関係 / Lower thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 44
Part number	Part name	Qty
S51171001	CAM LEVER ASSY, L-TR	1
S50246001	CAM LEVER, L-TR	1
107744001	ROLLER	1
141519001	ROLLER SHAFT	1
110161004	NUT, SM4.76	1
048030342	RETAINING RING, E3	1
159267001	CAM SHAFT, L-TR	1
110494001	WASHER, PLAIN 9.5	1
048080342	RETAINING RING, E8	1
014760622	SET SCREW, SOCKET SM5.95	1
S51170001	LOWER THREAD TRIMMER CAM ASSY	1
S50247001	LOWER THREAD TRIMMER CAM	1
S50411001	ROLLER, ELEVATOR	1
145478101	SHOULDER SCREW, SOCKET SM4.76	1
S50248001	CONNECTING ROD, L-TR	1
150491101	LEVER SHAFT	2
014760622	SET SCREW, SOCKET SM5.95	2
159269001	SHOULDER SCREW, SM4.37	1
S50249001	LINK ASSY, L-TR	1
S59987001	CONNECTING ROD, A	1
062680512	SCREW, PAN SM4.37-40X5	2
149127001	SHOULDER SCREW, SM6.35	1
S50252001	KNIFE DRIVING LEVER	1
113730001	SHOULDER SCREW, SM4.37	1
159272001	SHOULDER SCREW	1
S00903001	COLLAR	1
S00901001	WASHER, PLAIN L 6.4 (U)	1
S00902001	WASHER, PLAIN L 4.6 (D)	1
S50253001	LEVER ASSY	1
S50257001	COLLAR	1
S00712101	SCREW, SM4.37	1
S50258001	LOWER THREAD RETAINER	1
110215002	SCREW, SM3.57	2
S50259101	FIXED KNIFE SET	1
S50260101	FIXED KNIFE ASSY	1
S50263001	MOVABLE KNIFE	1
025040000	WASHER	1
060640102	WASHER, PLAIN S 4	1
060630312	SCREW, BIND SM2.38X3	1
060670412	SCREW, BIND SM3.57-40X4	2
S50265001	LOWER THREAD CLAMP PLATE ASSY	1
141514001	SHOULDER SCREW, SM3.18	1
025040132	WASHER, PLAIN S 4	1
S50269000	WASHER	1
S50270001	LOWER THREAD PRESSER	1
145371001	SHOULDER SCREW, SM2.38	1
110215002	SCREW, SM3.57	1
S52433001	OPENING PLATE, A	1
S52433001	OPENING PLATE, A	1
110167001	ROLLER	1
110168001	ROLLER SHAFT	1
S52434001	OPENING PLATE, B	1
141514001	SHOULDER SCREW, SM3.18	1
123185001	SCREW 3.57X4.5	1
149127001	SHOULDER SCREW, SM6.35	1
105970001	SCREW, SM2.38	1
S52778001	BASE PLATE ASSY	1
S50303001	BASE PLATE	1
S52770000	COVER, B-PLATE	1
106629002	SCREW, SM4.37	4
S01696001	SCREW, FLAT SM3.57X6	2

Page 45 — R. 下糸切り関係 / Lower thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 45
Ref	Part number	Part name
39	39-1	39-1
39	39-4	39-4
39	39-6	39-6
39	39-5	39-5
39	39-2	39-2
39	39-3	39-3
40	40	40
49	49	49
66-1	66-1	66-1
42	42-2	42-2
42	42-1	42-1
66-2	66-2	66-2
64	64	64
56	56	56
62	62	62
52	52-2	52-2
52	52-1	52-1
55	55	55
51	51	51
54	54	54
53	53	53
60	60	60
57	57	57
58	58	58
59	59	59
17	17-2	17-2
61	61	61
63	63	63
18	18	18
20	20	20
30	30-1	30-1
30	30-2	30-2
30	30-3	30-3
30	30-4	30-4
30	30-5	30-5
30	30	30
17	17-1	17-1
25	25	25
26	26	26
29	29	29
27	27	27
24	24	24
22	22	22
23	23	23
21	21	21
32	32	32
35	35	35
34	34	34
33	33	33
36	36	36
37	37	37
38	38	38
5	5	5
2	2	2
66-3	66-3	66-3
1	1-1	1-1
1	1-2	1-2
1	1-3	1-3
1	1-4	1-4
3	3	3
4	4	4
10	10	10
10	10-3	10-3
10	10-2	10-2
10	10-1	10-1
10	10-4	10-4
16	16	16
65	65	65
11	11	11
12	12	12

Page 46 — R.下糸切り関係 / Lower thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 46
Ref	Part number	Part name	Qty
	S50323000	ボビンオサエ
	S01998001	アタマツキメネジ3.57
	S51172001	ボビンオサエダイクミ
	S50324001	ボビンオサエダイ
	107639001	ハネカケU
	15924001	ストツプレバータンネジ
	062671612	ナベコ357-40X16
	021670202	ナツト2シ3.57
	062680512	ナベコ437-40X5
	S50325001	カバーヒラキヨイタ
	S50326001	ボビンオサエキライタ
	105237002	ダンネジ 3.57
	159113001	ダンネジ 3.18
	159379001	シノツケピンBX6X18
	S50327001	ボビンオサエハネ
	S50328001	シタトカミラキイタハネ
	159379001	シノツケピンBX6X18
	S50329000	シタイトリレンカバ
	S50664001	ハリイタ1.4S
	S51248101	ハリイタ1.2S-3
	S54522001	ハリイタ1.4-50

Page 47

Brother HE-800A (90 pages) parts on page 47
Ref	Part number	Part name	Qty
	1	Synchronizer
	2	Screw
	4	Bracket
	5	Cover
	6	Screw
	7	Washer
	1-1-1	Operation panel mechanism
	1-1-2	Base
	1-1-3	Wire harness
	1-1-4	Lever
	1-1-5	Screw
	1-1-6	Bracket
	1-1-7-1	Switch
	1-1-7-2	Switch
	1-1-7-3	Switch
	1-1-7-4	Screw
	1-1-7-5	Lever
	1-1-7-6	Lever
	1-1-7-7	Lever
	1-1-7-8	Lever
	1-1-8	Wire harness
	1-1-9	Lever
	1-1-10	Screw
	1-1-11	Connector
	1-1-12	Washer
	1-1-13	Screw
	1-1-14	Screw
	1-2	Screw

Page 48

Brother HE-800A (90 pages) parts on page 48
Part number	Part name	Qty
S50657001	SYNCHRONIZER ASSY, H80	1
062400806	SCREW, PAN M4X8	2
S50354000	MAGNET ASSY, U	1
S38082001	MAGNET ASSY, U	1
062681412	SCREW, PAN SM4.37-40X14	2
025680132	WASHER, PLAIN S 4.37	2
S50565201	OPERATION PANEL SET	1
S50451201	OPERATION PANEL ASSY	1
S51901201	FRONT FRAME ASSY	1
S49492000	REAR FRAME	1
S49495000	PANEL SIDE COVER	1
S49496001	COVR GUIDE, ;SIDE	1
087310815	TAPTITE, CUP B M3X8	2
0A4400805	SCREW, PAN (S/P WASHER) M4X8	1
S50563000	PANEL PCB ASSY	1
S46703000	LED, PG5307S	6
S50455000	LED, BR5307S	1
S29023000	LED, GL9P040	6
S48579000	SWITCH, B3F-4050	8
U34870001	DIP SWITCH:KSP08	2
S30280000	BUZZER, PKB24SPC36	1
XG2A-2031	CONNECTOR, XG4A-2031	1
S50457000	PANEL CABLE ASSY	1
XA2220050	BOARD PRESSER	2
087311015	TAPTITE, CUP B M3X10	2
S58974000	PRG/M HARNESS ASSY	1
S58987001	HARNESS SETTING PLATE	1
002301003	SCREW, PAN M3X10	2
021300206	NUT, 2 M3	1
062300806	SCREW, PAN M3X8	4
S53181000	PANEL CABLE ASSY, L	1
S58984000	PRG/M HARNESS ASSY, L	1

Page 49 — U1. コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 49
Ref	Part number	Part name	Qty
	1-21	Screw
	1-22	Clip
	1-2	Panel
	6,7	Label
	1-3	Bracket
	1-25	Terminal Block
	1-25-2	Terminal Block
	1-25-6	Terminal Block
	1-25-1	Terminal Block
	1-25-3	Terminal Block
	1-13	Screw
	1-14	Bracket
	1-15	Screw
	1-19	Gasket
	1-16	Gasket
	1-17	Gasket
	1-33	Screw
	1-37	Screw
	1-36	Screw
	1-35	Screw
	1-10	Screw
	1-18	Gasket
	1-6	Transformer
	1-9	Screw
	1-8	Washer
	1-7	Washer
	1-4	Fan
	1-5	Screw
	1-12	Screw
	1-24	Power Supply Unit
	1-20	Ventilation Grille
	1-5-1	Screw
	1-24-3	Connector
	1-24-1	Fuse Holder
	1-24-5	Terminal
	52	Connector
	53	Cover
	5	Screw
	1-24-4	Fuse
	1-24-2	Terminal
	4	Screw
	1-23-1-20	Wire
	1-23-9	Wire
	1-23-1-18	Wire
	1-23-1-24	Wire
	1-23-1-19	Wire
	1-23-3	Wire
	1-23-8	Wire
	1-23-2	Wire
	1-23-1-17	Wire
	1-23-1-9	Wire
	1-23-1-21	Wire
	1-23-1-13	Wire
	1-23-1-7	Wire
	1-23-1-6	Wire
	1-23-1-10	Wire
	1-23-1-14	Wire
	1-23-1-15	Wire
	1-23-1-11	Wire
	1-23-1-12	Wire
	1-23-1-16	Wire
	1-23-7	Wire
	1-23-1-2	Wire
	1-23-1-4	Wire
	1-23-1-3	Wire
	1-23-1-5	Wire
	1-23-4	Wire
	1-23-1-1	Wire
	1-23-1-23	Wire
	1-23-5	Wire
	1-23	Control Box
	1-26	Screw
	1-27	Screw
	103	Screw
	104	Washer
	1-28	Wire
	1-29	Wire
	1-30	Wire
	102-1	Terminal Block
	1-31	Wire
	102-1-2	Terminal Block
	32	Spring
	31	Cover
	101	Terminal Block
	102-2	Terminal Block
	102-4	Screw
	102-3	Screw
	102-1-1	Terminal Block

Page 50 — U1.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 50
Part number	Part name	Qty
S0421001	BOX ASSY	1
S050566001	POWER SUPPLY BOX	1
S050567001	SETTING PLATE, M-PCB	1
S050568001	SETTING PLATE, AUX-PCB	1
S05066000	FAN MOTOR ASSY, DC	2
0A5403005	SCREW, PAN (S/P WASHER) M4X30	6
S47723201	TRANSFORMER ASSY	1
S47749101	SETTING PLATE, TRANSFORMER	2
025050236	WASHER, PLAIN M 5	4
028050246	WASHER, SPRING 2-5	4
018501236	BOLT, SOCKET M5X12	4
S43186000	BUSH, BU687B	1
S09142000	CORD CLAMP, 20-L	2
S43275000	CORD CLAMP, WS2NS	14
S43276000	CORD CLAMP, WS3NS	1
S50422000	CORD CLAMP, WS2WS	3
S43318000	CLAMP, LW8S8 2.5W	10
S51118001	CORD BUSH	1
S38820000	BUSHING, 35	1
S050423000	BUSHING, TB-1926	1
S42227009	RUBBER CAP, MG-3	1
S50440000	FRAGMENT PROTECTOR NET	1
008400604	SCREW, TRUSS M4X6	12
S00554000	SUPPORT, 6NS	23
S47721001	POWER SUPPLY PCB ACCY, EZ	1
J02443001	I-POWER MODULE, PM20CSJ060	1
J03284001	TRANSISTOR, FET :FS5UM-18R	1
J03285001	TRANSISTOR, FET :FS3KM-18A	1
S47720000	DIODE ASSY, BR :20L6P45	1
J03324001	CAPACITOR, ALUM-ELEV :450B471	3
S47735000	TRANSFORMER, 28AG1L9AD	1
J02441001	RELAY, G2R-1A6V	1
S38201000	VARISTOR :V14D471	4
J03283001	SURGE ABSORBER, :DSA362M	1
S47710000	COIL, :NF10TP102	1
218469001	FUSE, 15A#2	2
J01684001	FUSE HOLDER, F062	4
J02727001	GLASS FUSE, 2A/250V	2
S47734000	CONNECTOR, B4P5-VB-2	3
J02449001	CONNECTOR, 5281-02A	1
S47730000	IPM CORD, P	1
S47728000	HARNESS, P DC 300V	1
S47727000	MOTOR HARNESS, P	1
S47725000	POWER SUPPLY HARNESS, P	1
S47726000	GROUND WIRE, P	1
J03296001	HEATSINK, ;PR1616-25-PB	1
S47729000	HEATSINK, ;OSH-1025-MP	1
221419001	SCREW	2
J03291001	CORE, ESD-R-25B	1

Page 51 — U1.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 51
Part number	Part name	Qty
S47694000	MR-A40101Jクミ	1
0A5400805	ナベサキ4X8DB	1+
S47693000	スペーサー4EP-12	2
S47724000	スペーサー7NS	5
229017001	スペーサー4X10DA	4+
J02343001	スペーサー4X16DB	2+
S39819000	コードクランプ 1259	1
S40621000	EMI 37ESD-SR-15	1
S50425001	デンゲン EHキバンクミ	1
S38200000	MOSFET2SK1938	2
232384001	サージアブソーバ DSA362MA	1
S38201000	バリスター:VM4D471	2
S08030000	ヒューズ 5A :FB	1
153242000	ヒューズ 6A	2
S50431001	サブキバンクミ	1
S38155000	MOSFET2SK1306	5
S50645000	MOSFET2SK1307	1
Y44715591	デンC50B471	1
018401236	ボルト4X12	1
S50437000	PERコード	1
S50438000	EX32ハーネス	1
S50439000	26ハーネス	1
S50440000	デンケンACハーネス	1
S50441000	デンケンDCハーネス	1
S37059001	LABEL, PE	1
S37060001	アースコード	2
0A5401006	ナベコ 5X10	2
S50440000	アースコード	1
0A5401006	ナベコ 5X10	1
0A5401006	ナベコ 5X10	1
S50440000	GROUND WIRE	1
S50488100	PROMB800Eクミ	1
S20345001	ゴムセン14	2
S43186000	ブッシュBU687B	2
S38352101	デンケキラベル、4コ	2
S38353101	デンケキラベル、7	2
S10820000	デンツラベル	1
S10820001	デンツラベル	1
S10820002	デンツラベル	1
S10820003	デンツラベル	1
S10820004	デンツラベル	1
S10820005	デンツラベル	1
S10820006	デンツラベル	1
S10820007	デンツラベル	1
S10820008	デンツラベル	1
S38146000	コネクタ3191-04R	1
228475000	ケツノクバンド 1.9X80	1

Page 52 — U1.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 52
Part number	Part name	Qty
S50483100	B-OUTヘンカンハーネス	2
S38146000	コネクタ3191-04R	2
0A5501005	ナベザックス5X10DB	3
J0814001	TREADLE UNIT, EZ	1
J03419001	フミコミベースクミEZ-1	1
J01935001	スプリング28.6X30	1
J00649001	スプリング12.6X86	1
J0813001	PS CIRCUIT EZ	1
J02130001	ワッシャー6X4.3X8	3
037401015	ナベタツピン4X10	3
J03417001	アースコードクミ	1
229017001	ナベセット4X10DA	1
S50501201	ボックスクミA1V	1
S50502201	ボックスクミA2V	1
S50503201	ボックスクミA3V	1
S50504301	ボックスクミB1V	1
S50505301	ボックスクミB2V	1
S50506301	ボックスクミC1V	1
S50507301	ボックスクミC2V	1
S50508301	ボックスクミC3V	1
S50509301	ボックスクミEV	1
S50510201	ボックスクミFV	1

Page 53

Brother HE-800A (90 pages) parts on page 53
Ref	Part number	Part name	Qty
	30-1-3	30-1-1
	30-1	30-1-5
	30-1-6	30-1-4
	30-1-7	30-1-8
	50-1-7	50-1-7-2
	50-1-7-3	50-1-8
	50-1-10	50-1-9
	50-1-11	50-1-4
	50-1-2	50-1-3
	50-1-12	50-1-1
	30-3-3	30-3-1
	30-3-4	30-3-2
	30-3-8	30-3-7
	30-3-6	30-2-3
	30-2-1	30-2
	30-2-2	30-2-5
	30-2-4	30-2-6
	30-2-7	30-2-8
	50-2-7	50-2-7-2
	50-2-7-3	50-2-8
	50-2-10	50-2-11
	50-2-4	50-2-9
	50-2-7-1	50-2-2
	50-2-3	50-2-12
	50-2-6	50-2-1
	51-1-7	51-1-7-2
	51-1-7-3	51-1-8
	51-1-10	51-1-9
	51-1-11	51-1-12
	51-1-4	51-1-2
	51-1-3	51-1-1
	51-1-6	51-1-5
	30-2-3	30-2-1
	30-2-2	30-2-5
	30-2-4	30-2-6
	30-2-7	30-2-8

Page 54 — U2.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 54
Ref	Part number	Part name	Qty
	S50442001	デンゲンSWクミA
	S50443000	デンゲンコード A1
	S38133000	デンゲンコード
	J02657001	3PオンSW#17
	224514001	ゼツエンイタ
	218859001	バインダー M150
	S40623000	EMIコアTR-40-27
	0A4401205	ナベザクリ4X12A
	021040105	ナット1シュ4
	S50444001	デンゲンSWクミB
	S50445000	デンゲンコード B
	S47595000	デンゲンコードユシュツ
	J02657001	3PオンSW#17
	224514001	ゼツエンイタ
	218859001	バインダー M150
	S40623000	EMIコアTR-40-27
	0A4401205	ナベザクリ4X12A
	021040105	ナット1シュ4
	S50446001	デンゲンSWクミC
	S50445000	デンゲンコード B
	S38118000	デンゲンコードコウナイ
	J02657001	3PオンSW#17
	224514001	ゼツエンイタ
	218859001	バインダー M150
	S40623000	EMIコアTR-40-27
	0A4401205	ナベザクリ4X12A
	021040105	ナット1シュ4
	S50632101	ペンカントランスB100クミ
	S50407001	トランスベ-スイタ
	S54028001	トランスフタ
	S50474000	トツテ
	S41964000	プツシユ
	062500602	ナベコ5X6
	S23618001	シメネジ6X10
	S50633100	ペンカントランスB100
	S50649000	ペンカントランスB
	S50486100	TR-INハーネス
	S50486100	TR-OUTハーネス
	018060831	アアナボルト6X8
	025060236	ヒラザガネチユウ6
	028060246	バネザガネ32-6
	S10820000	デンキアツベル
	0A4400606	ナベザクリ4X6DA
	S50634101	ペンカントランスB110クミ
	S54027001	トランスベ-スイタ
	S54028001	トランスフタ
	S50474000	トツテ
	S41964000	プツシユ
	062500602	ナベコ5X6
	S23618001	シメネジ6X10
	S50635100	ペンカントランスB110
	S50649000	ペンカントランスB

Page 55

Brother HE-800A (90 pages) parts on page 55
Ref	Part number	Part name	Qty
	30-1-1	30-1-1
	30-1-2	30-1-2
	30-1-3	30-1-3
	30-1-4	30-1-4
	30-1-5	30-1-5
	30-1-6	30-1-6
	30-1-7	30-1-7
	30-1-8	30-1-8
	30-2-1	30-2-1
	30-2-2	30-2-2
	30-2-3	30-2-3
	30-2-4	30-2-4
	30-2-5	30-2-5
	30-2-6	30-2-6
	30-2-7	30-2-7
	30-2-8	30-2-8
	30-3-1	30-3-1
	30-3-2	30-3-2
	30-3-3	30-3-3
	30-3-4	30-3-4
	30-3-5	30-3-5
	30-3-6	30-3-6
	30-3-7	30-3-7
	30-3-8	30-3-8
	50-1-1	50-1-1
	50-1-2	50-1-2
	50-1-3	50-1-3
	50-1-4	50-1-4
	50-1-5	50-1-5
	50-1-6	50-1-6
	50-1-7	50-1-7
	50-1-7-1	50-1-7-1
	50-1-7-2	50-1-7-2
	50-1-7-3	50-1-7-3
	50-1-8	50-1-8
	50-1-9	50-1-9
	50-1-10	50-1-10
	50-1-11	50-1-11
	50-1-12	50-1-12
	50-2-1	50-2-1
	50-2-2	50-2-2
	50-2-3	50-2-3
	50-2-4	50-2-4
	50-2-5	50-2-5
	50-2-6	50-2-6
	50-2-7	50-2-7
	50-2-7-1	50-2-7-1
	50-2-7-2	50-2-7-2
	50-2-7-3	50-2-7-3
	50-2-8	50-2-8
	50-2-9	50-2-9
	50-2-10	50-2-10
	50-2-11	50-2-11
	50-2-12	50-2-12
	51-1-1	51-1-1
	51-1-2	51-1-2
	51-1-3	51-1-3
	51-1-4	51-1-4
	51-1-5	51-1-5
	51-1-6	51-1-6
	51-1-7	51-1-7
	51-1-7-1	51-1-7-1
	51-1-7-2	51-1-7-2
	51-1-7-3	51-1-7-3
	51-1-8	51-1-8
	51-1-9	51-1-9
	51-1-10	51-1-10
	51-1-11	51-1-11
	51-1-12	51-1-12

Page 56 — U2.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 56
Part number	Part name	Qty
S50485100	TR-INハーネス	1
S50485100	TR-OUTハーネス	1
018060831	アアナボルト6X8	4
025060236	ヒラサガネチユウ6	4
028060246	バネザガネ2-6	4
S10820002	デンツラペル	1
0A4400606	ナベザクミ4X6DA	1
S50636101	ペンカントランスC240クミ	1
S54027001	トランスベースイタ	1
S54028001	トランスフタ	1
S50474000	トツテ	2
S41964000	プツシユ	1
062500602	ナベコ5X6	4
S23618001	シメネジ6X10	4
S50637100	ペンカントランスC240	1
S38128000	ペンカントランスC	1
S50485100	TR-INハーネス	1
S50486100	TR-OUTハーネス	1
018060831	アアナボルト6X8	4
025060236	ヒラサガネチユウ6	4
028060246	バネザガネ2-6	4
S10820005	デンツラペル	1
0A4400606	ナベザクミ4X6DA	1

Page 57 — U3. コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 57
Ref	Part number	Part name	Qty
	51-2-7	51-2-7
	51-2-7-2	51-2-7-2
	51-2-7-3	51-2-7-3
	51-2-81	51-2-81
	51-2-10	51-2-10
	51-2-9	51-2-9
	51-2-7-1	51-2-7-1
	51-2-12	51-2-12
	51-2-11	51-2-11
	51-2-4	51-2-4
	51-2-2	51-2-2
	51-2-3	51-2-3
	51-2-6	51-2-6
	51-2-1	51-2-1
	30-4-3	30-4-3
	30-4-1	30-4-1
	30-4-2	30-4-2
	30-4-5	30-4-5
	30-4-6	30-4-6
	30-4-7	30-4-7
	30-4-8	30-4-8
	51-4-7	51-4-7
	51-4-7-2	51-4-7-2
	51-4-7-3	51-4-7-3
	51-4-8	51-4-8
	51-4-10	51-4-10
	51-4-9	51-4-9
	51-4-7-1	51-4-7-1
	51-4-12	51-4-12
	51-4-11	51-4-11
	51-4-4	51-4-4
	51-4-3	51-4-3
	51-4-2	51-4-2
	51-4-6	51-4-6
	51-4-1	51-4-1
	30-4-3	30-4-3
	30-4	30-4
	30-4-1	30-4-1
	30-4-2	30-4-2
	30-4-5	30-4-5
	30-4-6	30-4-6
	30-4-7	30-4-7
	30-4-8	30-4-8
	51-3-7	51-3-7
	51-3-7-2	51-3-7-2
	51-3-7-3	51-3-7-3
	51-3-8	51-3-8
	51-3-10	51-3-10
	51-3-9	51-3-9
	51-3-7-1	51-3-7-1
	51-3-12	51-3-12
	51-3-11	51-3-11
	51-3-4	51-3-4
	51-3-2	51-3-2
	51-3-3	51-3-3
	51-3-1	51-3-1
	51-3-6	51-3-6
	56-1-3	56-1-3
	56-1-1	56-1-1
	56-1-2	56-1-2
	56-1-5	56-1-5
	56-1-4	56-1-4
	30-5	30-5
	56	56
	59	59
	56-1	56-1
	56-2	56-2
	58	58
	57	57
	56-1-3	56-1-3
	56-1-1	56-1-1
	56-1-2	56-1-2
	56-1-5	56-1-5
	56-1-4	56-1-4
	30-6	30-6
	56	56
	59	59
	56-1	56-1
	56-2	56-2
	58	58
	57	57
	51-3-5	51-3-5

Page 58 — U3.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 58
Part number	Part name	Qty
S50447001	POWER SUPPLY SWITCH ASSY, D	1
S50445000	POWER SUPPLY CORD, B	1
S38133000	POWER SUPPLY HARNESS	1
J02657001	PUSH SWITCH, 3P #17	1
224514001	INSULATION PLATE	2
218859001	BINDER, M150	3
S40623000	EMI CORE, TR-40-27	1
S50448000	POWER SUPPLY CORD, E	1
S50500000	AC CORD, F	1
S50638101	TRANSFORMER ASSY, C380;CONV.	1
S54027001	BASE PLATE, TRANS.	1
S54028001	COVER, TRANS.	1
S50474000	HANDLE	2
S41964000	BUSH	1
062500602	SCREW, PAN M5X6	4
S23618001	SCREW, M6X10	4
S50639100	TRANSFORMER, C380;CONV.	1
S38128000	CONVERSION TRANSFORMER, C	1
S50485100	HARNESS, TR-IN	1
S50486100	HARNESS, TR-OUT	1
018060831	BOLT, SOCKET M6X8	4
025060236	WASHER, PLAIN M 6	4
028060246	WASHER, SPRING 2-6	4
S10820006	LABEL, 380V AC	1
0A4400606	SCREW, PAN (S/P WASHER) M4X6	1
S50640101	TRANSFORMER ASSY, C400;CONV.	1
S54027001	BASE PLATE, TRANS.	1
S54028001	COVER, TRANS.	1
S50474000	HANDLE	2
S41964000	BUSH	1
062500602	SCREW, PAN M5X6	4
S23618001	SCREW, M6X10	4
S50641100	TRANSFORMER, C400;CONV.	1
S38128000	CONVERSION TRANSFORMER, C	1
S50485100	HARNESS, TR-IN	1
S50486100	HARNESS, TR-OUT	1
018060831	BOLT, SOCKET M6X8	4
025060236	WASHER, PLAIN M 6	4
028060246	WASHER, SPRING 2-6	4
S10820008	LABEL, 400V AC	1
0A4400606	SCREW, PAN (S/P WASHER) M4X6	1

Page 59 — U3 . コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 59
Ref	Part number	Part name	Qty
	51-2-12	51-2-7- 51-2-7-2 51-2-7-3
	51-2-11	51-2-81
	51-2-10	51-2-9
	51-2-7-1	51-2-4
	51-2-2	51-2-3
	51-2-6	51-2-1
	30.4	30-4-3 30-4-1
	30-4-2	30-4-5
	30-4-4	30-4-8
	30-4-7
	51-3-12	51-3-7- 51-3-7-2 51-3-7-3
	51-3-5	51-3-11
	51-3-8	51-3-10
	51-3-7-1	51-3-9
	51-3-4	51-3-3
	51-3-2	51-3-1
	51-3-6
	56	56-1-3 56-1-1
	58	57
	56-1-2	56-1-5
	56-1-4	56-1
	56-2	30-5
	59
	51-4-12	51-4-7- 51-4-7-2 51-4-7-3
	51-4-11	51-4-8
	51-4-10	51-4-9
	51-4-7-1	51-4-4
	51-4-2	51-4-3
	51-4-6	51-4-1
	30-4-3 30-4-1	30-4-2
	30-4-5	30-4-4
	30-4-8	30-4-7
	56	56-1-3 56-1-1
	58	57
	56-1-2	56-1-5
	56-1-4	56-1
	56-2	30-6
	59

Page 60 — U3.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 60
Part number	Part name	Qty
S50642101	ペンカントランスC415クミ	1
S54027001	トランスベ-スイタ	1
S54028001	トランスフタ	1
S50474000	トツテ	2
S41964000	ブツシユ	1
062500602	ナベコ5X6	4
S23618001	シメネジ6X10	4
S50643100	ペンカントランスC415	1
S38128000	ペンカントランスC	1
S50485100	TR-INハーネス	1
S50486100	TR-OUTハーネス	1
018060831	アサルト6X8	4
025060236	ヒラザガネチユウ6	4
028060246	バネザガネ2-6	4
S10820007	デンツラベール	1
0A4400606	+ナベザクミ4X6DA	1
S50498001	ノイズフイルタEHクミ	1
S40616001	ノイズフイルタEMCクミ	1
S40617000	セラCECKDNA102MB	1
S40618000	ポリC250B474	2
S40619000	タンタツ12P	1
414900001	ヘツダー-5219-03A	1
S35598000	コイルSC0520J	1
S50499000	ノイズフイルターネス	1
S40620000	キヘントリツケイタ	1
0A4400605	+ナベザクミ4X6DA	2
0A4400606	+ナベザクミ4X6DA	4

Page 61 — V. 電装品関係/Power supply equipment mechanism

Brother HE-800A (90 pages) parts on page 61
Ref	Part number	Part name
24	24	24
24-2	24-2	24-2
24-1	24-1	24-1
24-3	24-3	24-3
25	25	25
5	5	5
6	6	6
1	1	1
18	18	18
19	19	19
11	11	11
12	12	12
20	20	20
22	22	22
21	21	21
16	16	16
16-1	16-1	16-1
9	9	9
10	10	10
63	63	63
4	4	4
30	30	30
29	29	29
28	28	28
7	7	7
7-1	7-1	7-1
8	8	8
31	31	31
3	3	3
2	2	2
13	13	13
15	15	15
14	14	14
60	60	60
61	61	61
50	50	50
51	51	51
52	52	52
53	53	53
54	54	54
59	59	59
57	57	57
55	55	55
56	56	56
23	23	23
902	902	902
901	901	901
900	900	900
903	903	903
905	905	905
904	904	904
906	906	906

Page 62

Brother HE-800A (90 pages) parts on page 62
Part number	Part name	Qty
S050458100	PULSE MOTOR ASSY, FD	1
S050459100	PULSE MOTOR ASSY, FT	1
S050460000	PULSE MOTOR ASSY, N	1
S50461000	CUTTER SOLENOID	1
S50462000	TENSION RELEASE SOLENOID	1
228475000	FASTENING BAND, 1.9X80	1
S050463000	SENSOR ASSY	1
S050464000	SENSOR, GL-N12	1
062300806	SCREW, PAN M3X8	1
S050464000	SENSOR, GL-N12	1
062300806	SCREW, PAN M3X8	1
S050465000	SENSOR, GL-N12	1
062300806	SCREW, PAN M3X8	1
625010000	CORD HOLDER, NK-2N	1
062670812	SCREW, PAN SM3.57-40X8	1
025350132	WASHER, PLAIN S 3.5	1
S050466000	CUTTER SENSOR ASSY	1
S050467000	SENSOR, GL-N12	1
062300806	SCREW, PAN M3X8	1
S050468000	DC FAN MOTOR ASSY, 40	1
0A5302005	SCREW, PAN (S/P WASHER) M3X20	2
S00480000	CORD HOLDER, 5N	3
062670612	SCREW, PAN SM3.57-40X6	3
025350132	WASHER, PLAIN S 3.5	3
S50471000	LOCK SWITCH HARNESS ASSY, EM	1
S32335100	SWITCH :AVS311N	1
S50472000	SWITC HARNESS, EM	1
S50473000	SENSOR, GL-N12	1
062300806	SCREW, PAN M3X8	1
S10243000	CORD HOLDER, NK-3N	4
0A5400806	SCREW, PAN (S/P WASHER) M4X8	4
152969001	CORD SUPPORT	1
002300603	SCREW, PAN M3X6	1
228475000	FASTENING BAND, 1.9X80	2
218859001	BINDER, M150	1
S50565001	CORD BUSH	1
552907000	CORD HOLDER, 10N	2
0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
552908000	CORD HOLDER, 14N	1
0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
552908000	CORD HOLDER, 14N	1
0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
S38145000	GROUND WIRE, 2	1
0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
S41216000	GROUND WIRE	1
S50644000	GROUND WIRE	1
SA0287000	TUBE, 30X350	1
S37055001	SPACER, 1 ;EM-SWITCH	1
S42653000	CORE :TFC-23-11-14	1
S40623000	EMI CORE, TR-40-27	3
0A5401206	SCREW, PAN (S/P WASHER) M4X12	3
021400106	NUT, 1 M4	3
S40623000	EMI CORE, TR-40-27	1
0A5401206	SCREW, PAN (S/P WASHER) M4X12	1
021400106	NUT, 1 M4	1

Page 64

Brother HE-800A (90 pages) parts on page 64
Part number	Part name	Qty
S3902301	MAIN PCB ASSY	1
S08047000	REGULATOR, :SI3052V	1
S47664000	REGULATOR, :AN78L18M	6
S47665000	REGULATOR, :AN78M18F	1
S46454000	REGULATOR, :TA7810S	1
S46455000	TRANSISTOR, FET :FK10KM-10	10
S38155000	TRANSISTOR, FET :2SK1306	1
S38200000	TRANSISTOR, :2SK1938	1
S47668000	DIODE, AR :PA905C6	1
S47669000	DIODE, BR :D5SB20	1
S47670000	DIODE, BR :SIZB60	9
Y42215591	CAPACITOR, ALUM-ELEC :50B221	5
Y44715591	CAPACITOR, ALUM-ELEC :50B471	4
S47673000	CAPACITOR, ALUM-ELEC :50B472	1
S47678000	CAPACITOR, ALUM-ELEC :450B101	1
S30209000	CAPACITOR, POLYESTER :400B105	1
S30205000	PHOTO COUPLER, :TLP112A	2
S42699000	PHOTO COUPLER, :TLP121	2
S43178000	PHOTO COUPLER, :PC9231	1
J02621001	PHOTO COUPLER, :TLP120	1
U32744000	DIP SWITCH:DSS708	2
S47680000	GLASS FUSE, 8A	1
S47681000	COIL, :SK40S120-700	1
S58731000	THERMISTOR ASSY	1
QA4301005	SCREW, PAN (S/P WASHER) M3X10	19
021300206	NUT, 2 M3	1
028030246	WASHER, SPRING 2-3	1
025030136	WASHER, PLAIN S 3	1

Page 65 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (90 pages) parts on page 65
Ref	Part number	Part name
1-1	1-1-1	Part for General materials
1-1	1-1-2	Part for General materials
1-1	1-1-3	Part for General materials
1-2	1-2-1	Part for Knitted materials
1-2	1-2-2	Part for Knitted materials
1-2	1-2-3	Part for Knitted materials
2	2	Part for Standing operation
3	3	Part for Standing operation
4	4	Part for Standing operation
5-1	5-1	Part for Standing operation
5-2	5-2	Part for Standing operation
5-3	5-3	Part for Standing operation
5-4	5-4	Part for Standing operation
5-5	5-5	Part for Standing operation
5-6	5-6	Part for Standing operation
5	5	Part for Standing operation

Page 66 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (90 pages) parts on page 66
Part number	Part name	Qty
S51361001	"For General materials"	1
S50304001	NEEDLE HOLE: 1.2X5.4MM	1
S50297001	NEEDLE PLATE SET, 1.2RB	1
S50341001	NEEDLE PLATE ASSY, 1.2S-RB	1
S50297001	CUTTER HOLDER	1
S50341001	POSITIONING PLATE	1
S51362001	<Needle hole : 1.4X7.3mm>	1
S50309001	NEEDLE PLATE SET, 1.4RB	1
S50297001	NEEDLE PLATE ASSY, 1.4S-RB	1
S50341001	CUTTER HOLDER	1
S50341001	POSITIONING PLATE	1
S51363001	<Needle hole : 1.6X7.3mm>	1
S50311001	NEEDLE PLATE SET, 1.6RB	1
S50297001	NEEDLE PLATE ASSY, 1.6S-RB	1
S50341001	CUTTER HOLDER	1
S50341001	POSITIONING PLATE	1
S51364001	"For knitted materials"	1
S50313101	NEEDLE PLATE SET, 1.2RB-3	1
S50297001	NEEDLE PLATE ASSY, 1.2-RB-3	1
S50341001	CUTTER HOLDER	1
S50341001	POSITIONING PLATE	1
S51365001	<Needle hole : 1.4X6.8mm>	1
S50317101	NEEDLE PLATE SET, 1.4RB-3	1
S50297001	NEEDLE PLATE ASSY, 1.4S-RB-3	1
S50341001	CUTTER HOLDER	1
S50341001	POSITIONING PLATE	1
S51366001	<Needle hole : 1.6X6.8mm>	1
S50319101	NEEDLE PLATE SET, 1.6RB-3	1
S50297001	NEEDLE PLATE ASSY, 1.6S-RB-3	1
S50341001	CUTTER HOLDER	1
S50341001	POSITIONING PLATE	1
J80081040	<For Standing operation> STANDING OPERATION 2-PEADL, #6	1
S47750000	<For 2 & 3-pedal> HARNESS, ;S-OPE.	1
J80380040	STANDING OPERATION 3-PEDAL,#40	1
S53996101	AUXILIARY TABLE ASSY	1
S53997001	AUXILIARY TABLE	1
S53998001	AUX. TABLE SUPPORT	3
031351006	WOOD SCREW, ROUND M3.5X10	6
S13650001	BOTTOM FEED ARM, D	3
018680822	BOLT, SOCKET SM4.37X8	3
032422003	WOOD SCREW, ROUND M4.1X20	3

Page 67 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (90 pages) parts on page 67
Ref	Part number	Part name	Qty
	10-14	BRACKET
	10-15	SCREW
	10-1	SUPPORT
	10-4	BRACKET
	10-3	BRACKET
	10-12-1	BRACKET
	10-2-2	BRACKET
	10-2-1	BRACKET
	10-2	BRACKET
	10-12	BRACKET
	10-12-3	SCREW
	10-12-5	WASHER
	10-12-4	SCREW
	10-12-2	BRACKET
	10-13	BRACKET
	10-2-3	BRACKET
	10-16	BRACKET
	10-6	SHAFT
	10-9	SHAFT
	10-7	SPRING
	10-8	SPRING
	10-11	BRACKET
	10-5	BRACKET
	10-19	BRACKET
	10-10	SHAFT
	10-17	BRACKET
	10-18	BRACKET
	11-1	BASE
	11-4	SCREW
	11-2	BRACKET
	11-1-1	COVER
	11-3	SCREW
	11-1-5	PLATE
	11-1-9	BRACKET
	11-1-15	BRACKET
	11-1-16	BRACKET
	11-1-14	BRACKET
	11-1-13	BRACKET
	11-1-7	BRACKET
	11-1-4	PLATE
	11-1-8	COVER
	11-1-2	COVER
	11-1-3	PLATE
	11-1-10	BRACKET
	11-1-6	SCREW
	11-1-19	BRACKET
	11-1-12	BRACKET
	11-1-17	BRACKET
	11-1-18	BRACKET
	11-1-13	BRACKET
	11-1-11	BRACKET
	12	HARNESS
	13	CLAMP

Page 68 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (90 pages) parts on page 68
Part number	Part name	Qty
S54501101	クミカエピンセット-70	1
S54503001	オクリウデ-5	1
S54504001	ナカオクリタイラー5クミ	1
S54505001	ナカオクリタイラー5	1
S54506001	オクリイタスペーサ	1
117160001	サラネジ 4.37	2
S54507001	オクリイタササエタ	1
018680822	アナボルト 4.37X8	2
S54508001	オクリウデササエタイー5	1
S54509000	リニアブツシュ9.53	1
S54510001	リニアブツシュトメタイ	1
062680612	アナボルト 4.37X8G	1
S54511001	オクリアナイシクA-5	1
S54512001	オクリアナイシクB-5	1
S54513001	タマゴウケタイタB	2
S54514101	ヌノツカミ70	1
S54515001	ヌノツカミ70	1
159926001	ヌノツカミササエピン L	1
107401001	ヌノツカミササエタイハネ	2
107404001	シメネジ 1.98	2
S54987001	ヌノツカミササエピン F	1
S54516101	ヌノツカミササエ	1
S54517000	フィンガーガード 70	1
S54520001	ハサミドメリトメタイB	1
S54521001	ハサミドメシイタB	1
S54522001	ハリイタ 1.4-50	1
S50215101	オクリセンササエタイ	1
228475000	ケツクバンド 1.9X80	1
S13597101	デアイゲージ-5/BAS	1
S58988001	プログラマセットA1	1
S58989001	プログラマセットA2	1
S58971001	プログラマテツクミA	1
S43250100	プログラマカバーウエフタ	1
S43251000	プログラマカバーシタフタ	1
S43252000	キーボードスペーサ	1
S43253000	キーボードゴムシート	1
S58972000	キーボードシート	1
037301015	Vナベタツピン3X10	4
S43255000	LCDカバー	1
S43256000	LCD	1
S43257000	LCDウインバーター	1
037200615	Vナベタツピン2X6	4
S43271000	プログラママグネツトA	1
S43272000	プログラママグネツトB	1
037300615	Vナベタツピン3X6	6
S43267000	プログラマハーネス	1
S43268000	ユートブツシKR51	1
S43270000	ユートブツシKR51	1
S43981000	プログラマカバー	2
S58978001	PROM プログラマミA	1
S58973000	プログラマミA	1
S42890001	プログラマササエ	1
032422003	+マルモクネジ 4.1X20	2
0B1351606	+サラモクネジ35X16	2
S40621000	EMI コアESD-SR-15	1
149809000	タイラップ L	1

Page 69 — Y. モータ関係 / Motor mechanism

Brother HE-800A (90 pages) parts on page 69
Ref	Part number	Part name
1-8	1-8	SCREW
1-10	1-10	FAN
1-11	1-11	WASHER
1-19	1-19	BRUSH HOLDER
1-20	1-20	BRUSH
1-3	1-3	BEARING
1-13	1-13	COLLAR
1-7	1-7	CIR-CLIP
1-9	1-9	STATOR
1-14	1-14	WASHER
1-15	1-15	NUT
1-16	1-16	SCREW
1-12	1-12	FAN COVER
1-17	1-17	SPRING
1-18	1-18	BRUSH
9	9	SPRING
10	10	WASHER
11	11	SPRING
12	12	BRUSH HOLDER
13	13	BRUSH
14	14	SCREW
8	8	BRACKET
2	2	HOUSING
4	4	BRACKET
6	6	WASHER
7	7	WASHER
5	5	NUT
1	1	ROTOR
3	3	SHAFT

Page 70 — Y. モータ関係 / Moter mechanism

Brother HE-800A (90 pages) parts on page 70
Part number	Part name	Qty
J80863001	EHモータ240V/400V	1
---	ロータクミINV	1
076202801	タツンクク6202ZZ	2
---	SMセンクミINV#2	1
---	モータブラケットINV#3M	1
---	モータブラケットINV#3E	1
203684001	ナミワッシャー0.3X27.5X34.9	11
J02537001	ロクザクミ5X110DB	4
---	モータメイバンINV	1
J02525001	モータファンINV	1
014500632	アナツメM5X6	1
J02278001	プーリーQ90	1
028100246	ハンゲツワッシャー4X13#2	1
028100246	バネザガネ#2-10	1
J02493001	3シュナットM10X1.0	1
J03457001	ナベコセット5X20DC	4
J02989001	カラー-D5. 1XT0.6XL9	4
J02991001	ウシゴムINV	4
J02990001	モータースコード	1
229017001	ナナベセット4X10DA	1
J00107001	MD806コテイダ#2	1
J02517001	ピン, 9.9X116	1
J03275001	LBルト10クミーV	1
021100206	2M10	1
025100236	バネザガネ#2-10	2
028100246	バネザガネ#2-10	1
J03410001	EZモータトリツケイタ	1
062401063	ナベコ4X10	1
028040245	バネザガネ2-4	1
025040173	バネザガネ2-4	1
---	メイバンEH	1
002401006	ナベコ4X10	1
229017001	ナナベセット4X10DA	1

Page 71

Brother HE-800A (90 pages) parts on page 71
Ref	Part number	Part name	Qty
	54-6-1	54-6-1
	54-12-1	54-12-1
	54-10-1	54-10-1
	54-12-5	54-12-5
	54-12-2	54-12-2
	54-10-2	54-10-2
	54-10-3	54-10-3
	54-11	54-11
	54-12-1	54-12-1
	54-7	54-7
	54-12-4	54-12-4
	54-8-1	54-8-1
	54-12-1	54-12-1
	54-5	54-5
	54-4	54-4
	54-3	54-3
	54-9	54-9
	54-12-3	54-12-3
	54-12-5	54-12-5
	54-8-2	54-8-2
	54-8-3	54-8-3
	54-2-2	54-2-2
	54-2-1	54-2-1
	54-1	54-1

Page 72

Brother HE-800A (90 pages) parts on page 72
Part number	Part name	Qty
J02513001	MOTOR COVER, INV	1
J00494001	SCREW, PAN (S/P WASHER) M4X14	3
J02515001	BELT COVER ASSY, INV	1
224508001	SCREW, PAN (S WASHER) M4X10	1
217071001	SCREW, PAN (S/P WASHER) M4X18	1
J02516001	BELT COVER, SUB INV	1
224508001	SCREW, PAN (S WASHER) M4X10	2
J02293001	FINGER PROTECTION BAR	1
224508001	SCREW, PAN (S WASHER) M4X10	1
J00351001	BELT HOLDER, 2	1
224508001	SCREW, PAN (S WASHER) M4X10	1
S02761309	COTTON STAND ASSY, 2	1
150189109	COTTON STAND BRACKET	1
S02773001	C-STAND BRACKET & SCREW SET	1
062060806	SCREW, PAN M6X8	2
031452206	WOOD SCREW, ROUND M4.5X22	3
S51283001	SPOOL STAND BASE	2
15018000	SPOOL MAT	2
S51282001	SPOOL CUSHION	2
S40639001	COLUMN PIPE W/CAP	1
150174000	COLUMN CAP	1
150173003	COLUMN JOINT	1
S21798001	SPOOL & SCREW SET	2
150179002	SPOOL SHAFT, B	2
028050246	WASHER, SPRING 2-5	2
021500106	NUT, 1 M5	1
S02778002	SPOOL HOLDER, 2	2
S02786002	THREAD HANGER ASSY, 2	1
S02787002	THREAD HANGER, 2	1
150183000	THREAD HANGER BASE	2
142990001	THREAD BUSH	2
150172003	COLUMN PIPE	1
S40641001	SPOOL SHAFT & SCREW SET, A	1
021500106	NUT, 1 M5	4
062501406	SCREW, PAN M5X14	1
062501406	SCREW, PAN M5X14	1
062501406	SCREW, PAN M5X14	2
026050136	WASHER, PLAIN S 5	2

Page 73 — Z2 . 付属品関係 / Accessories

Brother HE-800A (90 pages) parts on page 73
Ref	Part number	Part name	Qty
	1-2	FRAME
	1-9	BRACKET
	1-1	BASE
	1-7	SCREW
	1-6	WASHER
	1-8	SCREW
	1-4	BRACKET
	1-3	BRACKET
	1-5	BRACKET
	34-1	BRACKET
	34-2	BRACKET
	34-3	BRACKET
	34-4	BRACKET
	34-5	BRACKET
	22-1	BRACKET
	22-2	BRACKET
	22-3	BRACKET
	65-1	BRACKET
	65-2	WASHER
	65-3	SCREW
	66	BRACKET
	67	SCREW
	70	MANUAL
	9	WASHER
	7	SCREW
	10	WASHER
	1	BRACKET
	2	TAPE
	3	SCREW
	6	WASHER
	8	SLEEVE
	4	NUT
	36	OIL BOTTLE
	13	BRACKET
	35	OIL BOTTLE
	14	BRACKET
	59	BRACKET
	58	SCREW
	56	SCREW
	55	COVER
	56	SCREW
	57	WASHER
	33	BRACKET
	37	SHAFT
	32	WASHER
	60	SCREW
	25	SCREWDRIVER
	71	PIN
	69	SCREW
	72	PIN
	76	BRACKET
	74	BRACKET
	78	BLOCK
	26	SCREWDRIVER
	27	SCREWDRIVER
	73	PIN
	38	BRACKET
	43	WASHER
	42	WASHER
	41	WASHER
	40	WASHER
	39	NUT
	75	SCREW
	44	SCREW
	63	BRACKET
	80-7	SCREW
	80-2-3	BRACKET
	80-2-4	BRACKET
	80-2	BRACKET
	80-2-2	WINDER ASSEMBLY
	80-4	BRACKET
	80-3	BRACKET
	80-6	BRACKET
	80-5	BRACKET
	80-1-8	SCREW
	80-1-7	BRACKET
	80-1-4	BRACKET
	80-1-3	BRACKET
	80-1-6	BRACKET
	80-1-9	BRACKET
	80-1-2	BRACKET
	80-1-5	BRACKET
	80-1-1	BRACKET
	80-1-12	SCREW
	80-1-11	BRACKET
	80-1-10	BRACKET
	80-2-1	BRACKET

Page 74 — Z2. 付属吕関係 / Accessories

Brother HE-800A (90 pages) parts on page 74
Ref	Part number	Part name	Qty
	S50330101	ベッド・ダイ
	S50331000	ベッド・ダイ
	S50332000	オイルパッキン
	S54768001	アブソラツトシイタ
	S50334000	アブソラツトパッキン
	037401415	Vナベツピン4X14
	081007070	Oリング P7
	140518001	シメジ7.94
	S50335000	ベッドダイクツションA
	S50336000	ベッドダイクツションB
	S50337000	ベッドダイクツションC
	S50338000	アブソラツト
	S24250001	ボルトM8X90
	S50342000	オニメツト8
	028080246	バネザガネ2-8
	101118001	マルモクネジ4.5X20
	S50339001	ベッドダイカラー
	104449001	ゴムセン15.5
	025050236	ヒラザガネチユウ5
	S50180475	シンル1347ミ <#11 NM75>
	S50180490	シンル1347ミ <#14 NM90>
	S18707153	VベルトM
	S13595101	デイアゲージ-2
	S13596101	デイアゲージ-3
	S13597101	デイアゲージ-5/BAS
	142443001	ネジマワシ1.9X52
	118837001	ネジマワシ3.4X70
	101572101	ネジマワシ5.5X190
	159158051	ボビン
	117466000	ピンセツト
	S51290001	カツタ3/8
	S51354001	カツタ5/8
	S51358001	カツタ1
	S51360001	カツタ32
	S51359001	カツタ29
	S55663001	オイルタンククミ
	114483002	ボイラーイラケ
	159384009	トウフサエマクラ
	133740006	カクネボルト6X70
	021060106	1シユナツト6
	025060336	ヒラザガネ16
	S00617000	ボウシゴムカラー
	146256001	クツシヨンカク
	146255000	クツシヨン

Page 75 — Z2. 付属部品関係 / Accessories

Brother HE-800A (90 pages) parts on page 75
Ref	Part number	Part name	Qty
	1-2	FRAME
	1-9	BRACKET
	1-1	COVER
	1-7	SCREW
	1-6	WASHER
	1-8	BRACKET
	1-4	BRACKET
	1-3	BRACKET
	1-5	BRACKET
	34-1	BRACKET
	34-2	BRACKET
	34-3	BRACKET
	34-4	BRACKET
	34-5	BRACKET
	22-1	BRACKET
	22-2	BRACKET
	22-3	BRACKET
	9	WASHER
	7	SCREW
	10	WASHER
	1	BRACKET
	2	COVER
	1-10	BRACKET
	3	SCREW
	8	SLEEVE
	4	NUT
	36	OIL BOTTLE
	13	BRACKET
	35	OIL CAN
	14	BRACKET
	33	BRUSH
	60	SCREW
	59	BRACKET
	58	BRACKET
	56	SCREW
	55	COVER
	57	WASHER
	56	SCREW
	25	SCREW DRIVER
	26	SCREW DRIVER
	27	SCREW DRIVER
	71	TOOL
	72	TOOL
	73	TOOL
	38	BRACKET
	43	WASHER
	42	WASHER
	45	BRACKET
	65	BRACKET
	65-1	BRACKET
	65-2	WASHER
	65-3	WASHER
	76	BRACKET
	74	BRACKET
	75	SCREW
	41	WASHER
	40	WASHER
	39	NUT
	44	SCREW
	63	BRACKET
	66	SCREW
	67	WASHER
	70	MANUAL
	80-7	SCREW
	80-2-4	BRACKET
	80-2-3	BRACKET
	80-2-2	BOBBIN WINDER ASSEMBLY
	80-2-1	BRACKET
	80	BRACKET
	80-4	BRACKET
	80-3	BRACKET
	80-2	BRACKET
	80-6	SCREW
	80-5	WASHER
	80-1-8	SCREW
	80-1-7	BRACKET
	80-1-4	BRACKET
	80-1-3	BRACKET
	80-1-6	BRACKET
	80-1-1	BRACKET
	80-1-2	BRACKET
	80-1-5	BRACKET
	80-1-12	SCREW
	80-1-11	BRACKET
	80-1-10	BRACKET
	78	BRACKET

Page 76 — Z2. 付属品関係 / Accessories

Brother HE-800A (90 pages) parts on page 76
Part number	Part name	Qty
032461606	WOOD SCREW, ROUND M4.5X16	2
032422505	WOOD SCREW, ROUND M4.1X25	4
S50343000	BELT COVER	1
062401006	SCREW, PAN M4X10	3
025040236	WASHER, PLAIN M 4	1
104450101	RUBBER CAP	2
S50344001	PLATE, BELT COVER	1
032461606	WOOD SCREW, ROUND M4.5X16	6
200190001	STAPLE	6
S3711001	EYE GUARD ASSY	1
S01700001	SCREW, FLAT SM3.18X7	2
025030232	WASHER, PLAIN M 3	2
021660102	NUT, 1 SM3.18	2
062710612	SCREW, PAN SM4.76-32X6	1
148847001	WASHER, PLAIN 4.76	1
S50345001	EYE GUARD SUPPORT	1
062680812	SCREW, PAN SM4.37-40X8	1
218469001	FUSE	2
S08030000	FUSE, 5A:FB	1
153242000	FUSE, 6A	2
J03411001	SETTING PLATE, EZ-TREADLE	1
J00353001	SCREW, PAN (S/P WASHER) M5X14	3
J02036001	BUSHING, V CORD	1
112525000	MAGNET	1
144226001	HEAD COVER	1
S50346001	TAPE GUARD WINDER ASSY	1
S51896001	TAPE GUARD ASSY	1
144998001	TAPE GUARD, B	1
105288002	SCREW, SM2.38	2
144997001	TAPE GUARD, F	1
122771051	SCREW, SM2.38	2
144999001	TAPE GUIDE, C	1
144628001	TAPE GUARD, F	1
122771051	SCREW, SM2.38	1
105970001	SCREW, SM2.38	1
110067001	COLLAR	1
143749001	TAPE GUIDE, LOWER	1
143748001	TAPE GUIDE, UPPER	1
062660412	SCREW, PAN SM3.18-40X4	2
143767102	TAPE WINDER ASSY	1
143300001	SCREW	1
108494001	WASHER	1
108495001	SPRING, COMPRESSION	1
100136001	NUT, TENSION	1
S50348001	TAPE GUIDE, U	1
062400812	SCREW, PAN M4X8	1
S50349001	TAPE WINDER SETTING PLATE	1
062400812	SCREW, PAN M4X8	1
107407003	SCREW, SM4.37X9	2

Page 77 — Z3. 付属部品関係 (オプション部品) / Accessories (Option parts)

Brother HE-800A (90 pages) parts on page 77
Ref	Part number	Part name	Qty
	100-6	100-6
	100-7	100-7
	100-5	100-5
	100-2	100-2
	100-1	100-1
	100-3	100-3
	100-4	100-4
	100-9	100-9
	100-10	100-10
	100-8	100-8
	100-11	100-11
	120-2	120-2
	120-3	120-3
	120-1	120-1
	130-2-4	130-2-4
	130-2-3	130-2-3
	130-2-5	130-2-5
	130-2-1	130-2-1
	130-2-2	130-2-2
	130-1-3	130-1-3
	130-1-5	130-1-5
	130-1-4	130-1-4
	130-1-2	130-1-2
	130-1-1	130-1-1
	131	131
	150	150
	151	151

Page 78 — Z3. 付属部品関係 (オプションパーツ)/ Accessories (Option parts)

Brother HE-800A (90 pages) parts on page 78
Part number	Part name	Qty
S50477001	RULER ASSY	1
S06139001	RULER, A	1
S06140001	RULER, B	1
062680512	SCREW, PAN SM4.37-40X5	2
025680232	WASHER, PLAIN M 4.37	2
146000001	THREAD TRIMMER SUPPORT	1
062670412	SCREW, PAN SM3.57-40X4	2
105161003	WASHER	2
141620001	BALANCER	1
101671002	SCREW, SM4.37	2
025680132	WASHER, PLAIN S 4.37	2
S36522001	SCREW, SM4.37	2
S50350001	RULER ASSY, 800E	1
S50476001	RULER	1
S36522001	SCREW, SM4.37	2
S50351001	RULER SPACER	1
133797101	CONNECTING ROD ASSY, L=210	1
119710001	CONNECTING ROD ASSY	1
119711001	CONNECTING ROD	2
021060106	NUT, M6	2
119101001	CONNECTING ROD CLAMP	1
017841606	BOLT, SM7.94-18	1
133643006	NUT, SM7.94-18	1
133792101	JOINT ASSY	2
133793001	STUD	2
133794001	BODY	2
133795001	RING	2
021060106	NUT, M6	2
028060243	WASHER, SPRING 2-6	2
114859001	COLLAR	1
S54707000	SHEET	1
S55361100	LABEL SET	1

Page 79 — Ga1 . ゲージ部品一覧表 / Gauge parts List

Brother HE-800A (90 pages) parts on page 79
Ref	Part number	Part name	Qty
8	S51117-001	Cutter	1/4
10	S51290-001	Cutter	3/8
11	S51351-001	Cutter	7/16
13	S51352-001	Cutter	1/2
14	S51353-001	Cutter	9/16
18	S51354-001	Cutter	5/8
18	S51355-001	Cutter	11/16
19	S51356-001	Cutter	3/4
21	S25642-001	Cutter	13/16
22	S51357-001	Cutter	7/8
25 10	S51358-001	Cutter	1
30	S51359-001	Cutter	29
32 1 1/8	S51360-001	Cutter	32
45 1/16	147967-001	Cutter	45
48 1 1/8	147941-001	Cutter	48
50 1/2	147233-001	Cutter	50
10 1/4	S01271-001	Cutter	3/8
11 7/16	S01272-001	Cutter	7/16
13 1/8	S01273-001	Cutter	1/2
14 1/8	S03280-001	Cutter	9/16
16 1/4	S01274-001	Cutter	5/8
18 1/4	S01275-001	Cutter	3/4
22 1/4	S01276-001	Cutter	7/8
25 1	S35630-001	Cutter	1

Page 80 — Ga2 .ゲージ部品一覧表 / Gauge parts List

Brother HE-800A (90 pages) parts on page 80
Ref	Part number	Part name
1	S37101-102	(16mmRS)
2	159764-202	(16mmRS)
3	159079-000
4	159761-002
1	S37109-102	(32mmRS)
2	159766-202	(32mmRS)
3	159081-000
4	159763-002
1	S55350-001	(25mmW)
2	S55349-001	(25mmW)
3	159080-000
4	S55348-001
1	S37100-102	(25mmRS)
2	159765-202	(25mmRS)
3	159080-000
4	159762-002
1	S37103-101	(16mm)
2	S01466-201	(16mm)
3	159079-000
4	145136-001
1	S37110-101	(32mm)
2	S01468-201	(32mm)
3	159081-000
4	144632-001
1	S55347-002	(25mmRSW)
2	S55346-002	(25mmRSW)
3	159080-000
4	S55345-002
1	S37102-101	(25mm)
2	S01467-201	(25mm)
3	159080-000
4	144630-001
1	S54518-101
2	S51514-101
3	S54517-000
4	S54515-001

Page 81 — Ga3. ゲージ部品一覧表 / Gauge parts List

Brother HE-800A (90 pages) parts on page 81
Ref	Part number	Part name	Qty
	S50663-001	針板 / Needle plate (1.2mmS)
	S50664-001	針板 / Needle plate (1.4mmS)
	S50665-001	針板 / Needle plate (1.6mmS)
	S51248-101	針板 / Needle plate (1.2mm)
	S51249-101	針板 / Needle plate (1.4mm)
	S51250-101	針板 / Needle plate (1.6mm)
	S55344-001	針板 / Needle plate (1.2mm)
	S50321-001	針板 / Needle plate (1.2mmS)
	151843-001	カッターウケ / Plastic plate
	S54522-001	針板 / Needle plate (1.4mm)
	S50322-101	針板 / Needle plate (1.2mm)
	156612-001	カッターウケ / Plastic plate

Page 82 — Wa.警告ラベル/Warning labels

Brother HE-800A (90 pages) parts on page 82
Ref	Part number	Part name	Qty
	S38353-101	電撃ラベル・和
	S38352-101	Label, elc. shock 4 lang.
	S38350-001	操作注意ラベル・和
	S38349-001	Label, operation Eng.
	S36924-001	ワーニングマーク Mark, injury
	S37059-001	PE マーク Mark, grounding
	S37060-001	アースマーク Mark, grounding

Page 83

Brother HE-800A (90 pages) parts on page 83
Ref	Part number	Part name
28	002300603	83
44	002301003	1-1-13
66	002401006	13
46	008400604	1-21
34	012400636	4
34	012400636	25
14	012500536	26
4	013761410	25
14	014060632	5-2
14	014060632	6-2
6	014400432	1-3
66	014500632	1-11
20	014680622	22-3
38	014680622	33-5
2	014760622	16
2	014760622	20
4	014760622	8
4	014760622	11
4	014760622	13
6	014760622	9
8	014760622	20
8	014760622	8
8	014760622	10
8	014760622	13
10	014760622	11
10	014760622	14
10	014760622	22
10	014760622	27
10	014760622	29-4
10	014770622	0-2
6	014770622	10-3
20	014770622	4-3
34	014770622	28
6	014780622	6-2
74	017841606	130-1-4
50	018060831	50-1-8
52	018060831	50-2-8
54	018060831	51-1-8
54	018060831	51-2-8
56	018060831	51-3-8
56	018060831	51-4-8
6	018061022	13
10	018061022	2
8	018061622	16
38	018061622	34
36	018102536	12-4
19	018300636	36
36	018300836	24-3
10	018400822	9
14	018401022	4
8	018401222	5
10	018401236	1-26
20	018501022	33
48	018501236	15
16	018502022	48
14	018680522	27-1-5
18	018680522	27-2-5
20	018680632	15
14	018680822	12
14	018681022	27-1-4
14	018681022	34
18	018681022	27-2-4
20	018681022	13
38	018681022	35-3
38	018681022	35-11
14	018681232	17
20	018681232	29
50	021040105	30-1-8
50	021040105	30-2-8
50	021040105	30-3-8
70	021060106	39
74	021060106	130-1-2
74	021060106	130-2-4
20	021080202	37
66	021100206	5
6	021100302	12-5
36	021300206	24-6
44	021300206	1-1-14
60	021400106	1-25
58	021400106	903
58	021400106	906
68	021500106	54-12-1
38	021500312	35-7
72	021670202	65-3
42	021680202	55
20	021710202	16-3
24	021910302	19
60	025030136	27
72	025030232	32
40	025040132	30-4
40	025040173	34
66	025040232	32
72	025040236	10
70	025050236	10
70	025050236	10
10	025060132	40
10	025060132	40
6	025060232	14
50	025060236	50-1-9
52	025060236	50-2-9
54	025060236	51-1-9
54	025060236	51-2-9
54	025060236	51-3-9
56	025060236	51-4-9
70	025060336	40
14	025100236	6
26	025350132	7
14	025350332	3
14	025680132	24
14	025680132	41
36	025680132	16-4
38	025680132	35-4
38	025680132	35-12
44	025680132	7
74	025680132	100-10
36	025680232	18
36	025680232	26
74	025680232	100-4
30	025680234	14
34	026040236	17
68	026050136	54-12-5
36	028030246	24-5
60	028030246	1-26
66	028040245	10
10	028050242	16-1-5
38	028050242	35-6
46	028050246	1-8
68	028050246	54-8-2
74	028060243	130-2-5
50	028060246	50-1-10
52	028060246	50-2-10
54	028060246	51-1-10
54	028060246	51-2-10
54	028060246	51-3-10
56	028060246	51-4-10
20	028080242	36
70	028080246	6
66	028100246	1-14
14	028680242	35
30	028680242	27
62	031351006	5-3
68	031452206	54-2-2
62	032422003	5-6
72	032422505	45
72	032461606	44
64	037200615	11-1-10
64	037300615	11-1-13
64	037301015	11-1-6
48	037401015	102-4
34	047200642	23
40	048030342	1-5
34	048040342	26
38	048060142	33-4
2	048060142	15
38	048060142	35-8
2	048060342	15
40	048080342	4
6	048150142	1-2
6	048220242	19
6	048300242	12-6
8	060300612	6
14	060630312	30-5
40	060660416	21
40	060670412	31
12	060670512	49
30	060670512	7-3
32	060670512	65
32	060670512	67
22	060670612	4
26	060670612	16
26	060670612	21
68	062060806	54-2-1
30	062300502	20
44	062300806	1-2
58	062300806	8
58	062300806	10
58	062300806	12
58	062300806	17
58	062300806	25
22	062400612	11
22	062400612	13
28	062400612	68
28	062400612	71
34	062400616	22
8	062400806	2
72	062400812	80-4
72	062400812	80-6
34	062400816	14
34	062400816	16
72	062401006	56
66	062401063	9
50	062500602	50-1-5
50	062500602	50-2-5
52	062500602	51-1-5
54	062500602	51-2-5
54	062500602	51-3-5
56	062500602	51-4-5
68	062501406	54-12-2
68	062501406	54-12-3
68	062501406	54-12-4

Page 84 — 索引 / INDEX

Brother HE-800A (90 pages) parts on page 84
Ref	Part number	Part name
74	062670412	100-6
26	062670512	12
26	062670512	58
28	062670512	66
28	062670512	81
36	062670512	7-8
36	062670512	7-8
22	062670612	7
26	062670612	5
26	062670612	28
26	062670612	51
30	062670712	17
26	062670712	21
36	062670712	6-5
36	062670712	7-5
58	062670812	14
10	062671012	39
40	062671612	54
10	062680512	17-2
54	062680512	56
74	062680512	100-3
42	062680612	5
58	062680612	14
14	062680612	58
11	062680712	31
9	062680812	23
4	062681012	27
44	062681412	6
72	062710612	66
20	062710812	39
2	062711012	3
3	062711212	7
20	062711412	32
2	062711612	9
4	062761012	2
8	062761012	8
14	070608800	10
6	072630260	1-3
22	076002450	2-1
6	076200800	12-7
66	076202801	1-3
30	081005070	4
70	081007070	1-6
36	081012070	32
32	081014870	51-4
44	087310815	1-1-5
44	087311015	1-1-10
60	0A4301005	1-24
56	0A4400605	58
56	0A4400605	59
50	0A4400606	50-1-12
52	0A4400606	50-2-12
52	0A4400606	51-1-12
54	0A4400606	51-2-12
54	0A4400606	51-3-12
56	0A4400606	51-4-12
44	0A4400805	1-1-6
50	0A4400805	30-1-7
50	0A4400805	30-2-7
50	0A4401205	30-3-7
17	0A5300005	19
47	0A5400806	1-23-4
58	0A5400806	27
47	0A5401006	1-34
47	0A5401006	1-36
47	0A5401006	1-37
58	0A5401006	52
58	0A5401006	54
58	0A5401006	56
58	0A5401206	902
58	0A5401206	905
46	0A5403005	1-5
48	0B105501005	101
64	0B1351606	11-4
4	100022005	26
72	100136001	80-2-4
72	100242003	46
38	100250001	2
32	100402004	51-3
24	100644005	5
30	100645003	7-4
70	101118001	7
70	101572101	27
22	101671002	6-3
12	102538002	51
20	102630001	6
2	104449001	27
2	104449001	32
2	104449001	33
2	104449001	39
2	104449001	56
6	104450101	11
2	104451101	28
22	104521001	4
14	105130001	51
74	105161003	100-7
56	105237002	59
50	105288002	80-1-2
52	105970001	80-1-8
54	106436001	53
56	106629002	43
44	107093002	25
50	107149001	54
50	107401001	46-1-3
50	107401001	46-5-4
50	107401001	10-12-3
16	107404001	46-1-4
16	107404001	46-5-5
47	107407003	80-7
47	107639001	52-2
47	107744001	1-2
58	108265009	24-3
58	108494001	80-2-2
58	108495001	80-2-3
58	110027001	2-1
58	110067001	80-1-9
46	110161004	16-1-4
58	110167001	39-2
58	110168001	39-3
10	110215002	29
38	110367001	4
27	110494001	3
30	110735002	27-1-6
30	110735002	27-2-6
21	111466101	30
7	111865001	21
78	112467002	7
2	112525000	78
20	112751003	70
2	113316001	66
36	113730001	20
131	114483002	36
49	11459001	131
2	114988001	49
20	115188001	24-2
17	115503001	20
2	117143003	17
2	117160001	33-3-3
2	117160001	10-2-3
2	117363001	16-4
2	117363001	19
2	117466000	33
2	117934001	25
2	117936001	59
72	118735001	15
2	118837001	26
72	119101001	130-1-3
74	119710001	130-1
74	119711001	130-1-1
2	120263001	58
72	122771051	80-1-4
72	122771051	80-1-7
40	123165001	40
74	133643006	130-1-5
70	133740006	38
74	133792101	130-2
74	133793001	130-2-1
74	133794001	130-2-2
74	133795001	130-2-3
74	133797101	130
4	140004001	5-2-1
10	140407001	95
70	140518001	1-7
4	140553102	16
10	141208001	31
36	141513001	22-3
36	141514001	22-4
40	141514001	39-5
40	141519001	1-3
30	141590001	27
22	141619001	6-1
22	141620001	6-2
74	141620001	100-8
22	142274101	5-3
70	142443001	25
68	142990001	54-10-3
72	143748001	80-1-11
72	143767102	80-2
72	143767752	80-2
72	143980001	80-2-1
30	144103009	31-4
30	144103009	40-4
30	144110001	31-5
72	144226001	70
72	144628001	80-1-6
16	144630001	46-3-1
76	144632001	76
16	144707001	46-3-3
26	144872101	10
26	144874001	11
26	144875001	1
72	144970001	80-1-3
72	144990001	80-1-1
72	144999001	80-1-5
76	145136001	76
40	145371001	37
30	145440001	40-1
30	145446001	31-2
30	145446001	40-2
32	145446001	51-6
4	145465001	5-1
10	145472001	23-3
10	145478101	23-3
10	145478101	28
10	145478101	29-3
40	145478101	10-3
32	145519001	51-5

Page 85

Brother HE-800A (90 pages) parts on page 85
Ref	Part number	Part name
74	146000001	100-5
70	146255000	43
70	146256001	42
75	147233001	50
75	147941001	48
75	147987001	45
40	149127001	18
40	149809000	40
68	150172003	54-11
76	150173003	54-7
68	150179002	54-6-1
68	150179002	54-8-1
68	150182000	54-4
68	150183000	54-10-2
68	150189109	54-1
4	150382001	19
40	150491101	11
30	150553003	28
77	151843001	77
26	151927001	55
58	152969001	28
20	153057102	17
47	153242000	1-24-5
73	153483001	23
4	154965001	21
12	155578000	47
77	156612001	77
34	157968001	21
2	158830001	21
2	158831001	22
2	158832000	23
2	158879001	12
4	158885001	15-1
6	158893000	5
8	158945001	19
14	159078001	44
76	159079000	76
76	159080000	47-1
76	159081000	76
20	159104001	22-2
42	159113001	60
20	159117001	9
22	159145001	5
2	159150000	24
2	159158051	26
24	159187000	32
70	159193000	29
30	159219101	31-1
32	159221001	51-8
32	159241001	63
40	159267001	16
40	159272001	21
36	159343001	16-2
20	159379001	22-4
70	159384009	37
64	159624001	9-2
76	159625001	11-2
76	159761002	14
76	159762002	46-1-1
76	159763002	76
76	159764202	76
14	159765202	46-1
76	159766202	76
30	159805001	31-3
32	159917201	69
42	159924001	53
14	159926001	46-1-2
16	159927001	46-3-2
18	159927001	46-5-3
64	159927001	10-12-2
16	159927001	46-3-5
16	180721001	46-1-5
24	183507001	20-2-2
24	183526001	20-1-3
24	183598001	20-1-3
24	183827001	20-1-1
24	200190001	20-1-3
22	203684001	4
72	216205000	1-7
66	217071001	63
66	218469001	1-13
50	218859001	30-1-5
46	221419001	1-23-1-23
76	224508001	7
50	224514001	30-1-4
50	228475000	30-2-4
54	228475000	30-3-4
26	228475000	49
68	J00107001	2
76	J00351001	10
72	J00353001	75
68	J00494001	2
48	J00649001	102-1-2
48	J01684001	1-23-1-12
48	J01935001	102-1-1
72	J02036001	76
48	J02130001	102-3
66	J02278001	1-12
68	J02293001	8
47	J02343001	1-23-8
46	J02441001	1-23-1-7
46	J02443001	1-23-1-1
46	J02449001	1-23-1-15
46	J02493001	1-15
68	J02513001	1
68	J02516001	6
66	J02517001	3
66	J02525001	1-10
66	J02537001	1-8
60	J02621001	1-19
50	J02657001	30-1-3
50	J02727001	30-2-3
50	J02727001	30-3-3
54	J02727001	30-4-3
46	J02989001	1-23-1-13
66	J02989001	1-17
66	J02990001	1-19
66	J02991001	1-18
66	J03275001	4
46	J03283001	1-23-1-9
46	J03284001	1-23-1-2
48	J03285001	1-23-1-3
46	J03290001	1-23-1-24
46	J03296001	1-23-1-21
46	J03324001	1-23-1-5
66	J03410001	8
72	J03411001	74
48	J03417001	103
48	J03419001	102-1
66	J03457001	1-16
62	J80081040	2
62	J80380040	4
48	J80813001	102-2
48	J80814001	102
66	J80863001	1
2	S00306001	13
26	S00480000	50
58	S00554000	1-22
70	S00617000	41
40	S00712101	27
40	S00901001	23
10	S00902001	16-3
40	S00903001	22
75	S01271001	3/8
75	S01272001	7/16
75	S01273001	5/8
75	S01274001	3/4
75	S01275001	7/8
76	S01466201	76
16	S01467201	46-3
76	S01468201	76
40	S01686001	49
72	S01700001	65-1
42	S01998001	51
14	S02460001	19
36	S02563001	14
68	S02761309	54
68	S02773001	54-2
68	S02778002	54-10
68	S02787002	54-10-1
75	S03280001	9/16
74	S06139001	100-1
74	S06140001	100-2
24	S07478000	8
47	S08030000	1-24-4
72	S08040000	1-1
60	S09142000	1-11
46	S09212001	21-1
24	S09477001	20-2-1
34	S10174000	18
58	S10243000	26
47	S10820000	8
50	S10820001	50-1-11
47	S10820002	9
47	S10820003	10
47	S10820004	11
47	S10820005	12
52	S10820006	51-1-11
47	S10820007	13
54	S10820008	51-2-11
47	S10820009	14
56	S10820010	51-4-11
47	S10820011	15
54	S10820012	51-3-11
14	S12004000	18
70	S13595101	22-1
30	S12441001	40-7

Page 86

Brother HE-800A (90 pages) parts on page 86
Ref	Part number	Part name
70	S13596101	22-2
64	S13597101	10-19
70	S13650001	5-4
70	S18707153	14
36	S19817001	5
47	S20345001	4
36	S21755001	2
68	S21798001	54-8
36	S23337001	3
50	S23618001	50-1-6
52	S23618001	50-1-6
52	S23618001	51-1-6
54	S23618001	51-2-6
54	S23618001	51-3-6
56	S23618001	51-4-6
70	S24250001	3
26	S25328001	59
28	S25410050	88
34	S25413101	3
34	S25417001	11
34	S25418101	12
34	S25420051	15
30	S25456001	22
75	S25642001	13/16
34	S25789000	5
44	S29023000	1-1-7-3
60	S30205000	1-16
44	S30280000	1-1-7-6
30	S30564000	31-6
32	S30564000	51-9
30	S30565003	31-7
30	S30565005	40-8
10	S31012001	34
10	S31013001	33
32	S31032001	51-10
4	S31808001	18
2	S32263001	40
58	S32335100	24-1
8	S32521001	17
30	S35095000	1-2
14	S35184001	20-1
56	S35598000	56-1-5
75	S35630001	1
74	S36522001	100-11
74	S36522001	120-2
78	S36924001	120-2
58	S37055001	23
47	S37059001	1-32
78	S37060001	1-33
16	S37100101	46-2
76	S37100102	76
76	S37101102	76
16	S37102101	46-4
76	S37103101	76
76	S37109102	76
76	S37110101	76
72	S37111001	65
10	S37927000	45
8	S38082001	5
50	S38118000	30-3-2
52	S38128000	51-1-7-1
54	S38133000	51-2-7-1
54	S38145000	51-3-7-1
56	S38145000	51-4-7-1
47	S38155000	1-25-1
47	S38200000	1-23
60	S38200000	1-6
60	S38201000	1-7
46	S38201000	1-23-1-8
47	S38349001	1-24-3
78	S38350001	78
78	S3835101	6
78	S38352101	7
22	S38353101	5-2
34	S38735001	5
46	S38736101	16-5
46	S38820000	1-17
47	S39619000	1-23-9
56	S40616001	56-1
56	S40617000	56-1-1
56	S40618000	56-1-2
56	S40619000	56-1-3
56	S40620000	57
47	S40621000	1-23-10
64	S40622000	12
50	S40623000	30-1-6
50	S40623000	30-2-6
50	S40623000	30-3-6
54	S40623000	30-4-6
58	S40639001	901
68	S40639001	54-6
68	S40641001	54-12
58	S41216000	60
20	S41466000	21
50	S41964000	50-1-4
50	S41964000	50-2-4
52	S41964000	51-1-4
54	S41964000	51-2-4
54	S41964000	51-3-4
56	S41964000	51-4-4
10	S42116000	7
46	S42227009	1-19
58	S42653000	900
60	S42699000	1-17
64	S42890001	11-2
44	S43178000	1-18
46	S43186000	1-10
64	S43250100	5
64	S43251000	11-1-2
64	S43252000	11-1-3
64	S43253000	11-1-4
64	S43255000	11-1-7
64	S43256000	11-1-8
64	S43257000	11-1-9
64	S43267000	11-1-14
64	S43270000	11-1-15
64	S43271000	11-1-11
64	S43272000	11-1-12
48	S43275000	1-12
46	S43276000	1-13
46	S43318000	1-15
44	S43717201	4
62	S43981000	11-1-17
60	S44629002	60
44	S46454000	1-4
46	S46455000	1-5
46	S46703000	1-1-7-1
50	S47595000	30-2-2
60	S47664000	1-2
60	S47665000	1-3
60	S47668000	1-8
60	S47669000	1-9
60	S47670000	1-10
50	S47673000	1-13
46	S47678000	1-14
46	S47680000	1-21
46	S47691000	1-22
46	S47693000	1-23-5
47	S47694000	1-23-1-4
46	S47720000	1-23-1-4
46	S47721001	1-23
46	S47723201	1-6
46	S47724000	1-23-6
46	S47725000	1-23-1-19
46	S47726000	1-23-1-20
46	S47727000	1-23-1-18
46	S47728000	1-23-1-17
46	S47729000	1-23-1-22
46	S47730000	1-23-1-16
46	S47733000	1-23-1-10
46	S47734000	1-23-1-14
46	S47735000	1-23-1-6
46	S47749101	1-6-1
62	S47750000	3
6	S48034001	10-2
4	S48371060	14
4	S48371065	14
4	S48371070	14
4	S48371075	14
4	S48371080	14
4	S48371090	14
44	S48579000	1-1-7-4
44	S49492000	1-1-2
44	S49495000	1-1-3
44	S49496001	1-1-4
14	S50110001	6-1
24	S50111000	11
36	S50113101	22-2
20	S50120001	7
2	S50124001	2
2	S50126001	6
2	S50127001	8
2	S50128001	10
2	S50131001	55
4	S50132001	1
4	S50136001	5-2
4	S50142000	5-5
4	S50143001	9
4	S50144001	9-1
4	S50146001	9-3
4	S50147001	12
4	S50148001	15
4	S50149101	15-2
4	S50150001	17
4	S50152001	20
4	S50153001	22
6	S50154001	1-1
6	S50155001	4
6	S50156001	6-1
6	S50157001	8
6	S50159001	10
6	S50160001	10-1
6	S50161000	11
6	S50162001	12
6	S50163001	12-1
6	S50164001	12-2
6	S50165001	12-3
6	S50166001	15
6	S50167001	16
6	S50168001	17
8	S50169001	1
8	S50170001	7
8	S50171001	9
8	S50172001	11
8	S50174001	14
8	S50176001	18
8	S50178001	18-1
8	S50179001	21
4	S50180065	14
4	S50180070	14
4	S50180075	14
4	S50180080	14
4	S50180085	14
4	S50180090	14
70	S50180475	13
70	S50180490	13
8	S50182000	1
10	S50183001	1
10	S50184001	6
10	S50185001	8
10	S50186001	10
10	S50187001	12
10	S50188001	16-1

Page 87 — INDEX

Brother HE-800A (90 pages) parts on page 87
Ref	Part number	Part name	Qty
	S50189001	16-1-1
	S50190001	16-1-2
	S50191001	16-1-3
	S50192001	16-2
	S50193001	17
	S50193001	21
	S50194001	23
	S50195001	23-1
	S50196001	24
	S50197001	29
	S50198001	29-1
	S50199001	29-2
	S50200001	32
	S50201001	37
	S50202001	36
	S50203001	42
	S50204001	43
	S50205001	48
	S50206001	50
	S50207001	1
	S50208001	5-1
	S50209001	8
	S50210001	9
	S50211001	11
	S50212001	13-1
	S50213001	14-1
	S50214001	16-1
	S50215101	22
	S50216001	25
	S50217001	27-1-1
	S50218001	27-1-2
	S50219101	27-1-3
	S50220001	33-1
	S50221001	36
	S50222001	38
	S50223001	39
	S50224001	42
	S50225001	33-2
	S50226001	1
	S50227001	2-1
	S50228001	2-1-1
	S50229001	2-1-2
	S50230001	4
	S50231100	6
	S50233001	10
	S50234901	20
	S50235901	20-1
	S50236001	20-1-2
	S50237001	20-2
	S50239001	20-2-4
	S50240001	1
	S50241001	2
	S50243001	5
	S50244001	5-1
	S50245001	6
	S50246001	1-1
	S50247001	10-1
	S50248001	10-4
	S50249001	17
	S50252001	19
	S50253001	25
	S50257001	28
	S50258001	30
	S50259101	30-1
	S50260101	30-1
	S50263001	30-2
	S50264000	30-3
	S50265001	35
	S50269000	36
	S50270000	1-6
	S50271000	1-7
	S50272000	1-8
	S50273001	1
	S50274001	10
	S50275001	11
	S50276001	12
	S50278001	13
	S50279001	16
	S50281000	27
	S50282001	27-1
	S50283001	29
	S50284001	1
	S50285001	10-1
	S50286001	10-2
	S50287001	10-3
	S50288001	10-4
	S50289001	11
	S50290001	10-1
	S50291001	10-2
	S50292001	10-3
	S50293001	10-4
	S50294001	12
	S50295001	16
	S50296001	19
	S50297001	1
	S50298101	15
	S50299101	22-1
	S50300001	42
	S50301001	42-1
	S50303001	1-1-1
	S50304001	1-1-1
	S50309001	1-1-1
	S50311001	1-2-1
	S50313101	1-2-1
	S50317101	1-2-1
	S50322101	50
	S50323000	57
	S50325001	57
	S50326001	58
	S50327001	62
	S50329000	65
	S50329001	65
	S50330101	1
	S50331000	1-1
	S50332000	1-2
	S50334000	1-4
	S50335000	1-8
	S50336000	1-9
	S50337000	1-10
	S50339000	2
	S50340000	8
	S50341000	57
	S50341001	1-1-3
	S50342000	4
	S50343000	55
	S50344001	59
	S50345001	68
	S50346001	80
	S50348001	80-3
	S50349001	80-5
	S50350001	120
	S50351001	120-3
	S50354000	4
	S50356001	8
	S50359001	13
	S50360001	15
	S50362001	31
	S50363000	34
	S50364001	35
	S50365101	38
	S50366001	40
	S50368001	1
	S50369001	1-1
	S50370001	3
	S50371101	5
	S50372001	7-1
	S50373001	7-2
	S50374001	7-5
	S50375001	7-6
	S50376001	7-7
	S50377001	16
	S50378001	18
	S50379001	21
	S50380000	23
	S50381000	24
	S50382001	25
	S50383001	29
	S50384101	32
	S50385001	39
	S50386001	40-5
	S50387001	40-6
	S50388001	48
	S50389001	50
	S50390101	51-1
	S50391001	51-2
	S50392001	54
	S50393001	58
	S50394001	1
	S50395001	6-1
	S50398001	6-2
	S50399101	6-3
	S50400001	6-4
	S50401001	6-6
	S50402001	6-7
	S50403001	16-1
	S50404201	22
	S50405101	22-1
	S50408001	24-1
	S50410001	28
	S50411001	29
	S50412000	30
	S50413001	31
	S50414001	33-1
	S50415001	33-2
	S50416001	33-3
	S50417001	35-1
	S50418001	35-2
	S50419001	33
	S50420001	35-5
	S50421001	1
	S50422000	1-14
	S50423000	1-18
	S50424000	1-20
	S50425001	1-24
	S50431001	1-25
	S50437000	1-27
	S50438000	1-28
	S50439000	1-29
	S50440000	1-30
	S50441000	1-31
	S50442001	30-1
	S50443000	30-1-1
	S50444001	30-2
	S50445000	30-2-1
	S50446001	30-3
	S50447001	30-4
	S50448000	30-5
	S50451201	1-1
	S50453000	1-1-7
	S50455000	1-1-7-2
	S50456000	1-1-7-7
	S50457000	1-1-8
	S50458100	1
	S50459100	2
	S50460000	3

Page 88 — 索引/INDEX

Brother HE-800A (90 pages) parts on page 88
Ref	Part number	Part name	Qty
	S50461000	4
	S50462000	5
	S50463000	7
	S50464000	7-1
	S50465000	9
	S50466000	11
	S50467000	16-1
	S50468000	18
	S50471000	24
	S50472000	24-2
	S50473000	24-3
	S50474000	50-1-3
	50-2-3	58
	51-1-3	50
	51-2-3	52
	51-3-3	54
	51-4-3	56
	S50476001	120-1
	S50477001	100
	S50483100	52
	S50484000	1-35
	S50485100	50-1-7-2
	50-2-7-2	52
	51-1-7-2	52
	51-2-7-2	54
	51-3-7-2	54
	51-4-7-2	56
	S50486100	50-1-7-3
	50-2-7-3	52
	51-1-7-3	52
	51-2-7-3	54
	51-3-7-3	54
	51-4-7-3	56
	S50488100	3
	S50498001	56
	S50499000	56-2
	S50500000	30-6
	S50501201	H-1
	S50502201	H-2
	S50503201	H-3
	S50504301	H-4
	S50505301	H-5
	S50506301	H-6
	S50507301	H-7
	S50508301	H-8
	S50509301	H-9
	S50510201	H-10
	S50511201	35-9
	S50512001	35-10
	S50513000	24
	S50514000	25
	S50515000	26
	S50516001	27
	S50517001	30
	S50518000	32
	S50519000	33
	S50520000	35
	S50521000	36
	S50522000	38
	S50524000	40
	S50525000	41
	S50527000	43
	S50528000	44
	S50529000	45
	S50530000	46
	S50531000	47
	S50532000	48
	S50533000	56
	S50536001	57
	S50537000	60
	S50540001	61
	S50541001	63
	S50542001	65
	S50543001	67
	S50544000	69-1
	S50545000	69-2
	S50546000	72
	S50547000	73
	S50548001	75
	S50549000	77
	S50550001	79
	S50551001	80
	S50552000	82
	S50556000	17
	S50557000	22
	S50558000	23
	S50650001	65
	S50652001	55
	S50656001	19
	S50657001	1-1
	S50658001	1-2
	S50660001	1-3
	S50666001	1-1
	S50667001	1-2
	S50668001	1-3
	S50632101	50-1
	S50633100	50-1-7
	S50635100	50-2
	S50636101	51-1
	S50637100	51-7
	S50638101	51-2
	S50639100	51-2-7
	S50640101	51-3
	S50641100	51-3-7
	S50642101	51-4
	S50643100	51-4-7
	S50644000	61
	S50644001	1-38
	S50645000	1-25-2
	S50649000	50-1-7-1
	50-2-7-1	50
	S50656201	1
	S50657001	1
	S50660000	1-4
	S50663001	66-1
	S50664001	66-1
	S50665001	77
	S51020000	87
	S51117001	1/4
	S51118001	1-16
	S51162001	28
	S51170001	10
	S51171001	1
	S51172001	52
	S51173001	6
	S51174001	16
	S51176001	1
	S51178101	27-1
	S51179101	6
	S51180001	16
	S51181001	35
	S51182101	51
	S51183001	40
	S51184001	31
	S51185001	7
	S51190001	12
	S51223001	6
	S51225001	6
	S51226001	2
	S51248101	66-2
	S51249101	77
	S51250101	77
	S51282001	54-5
	S51290001	54-3
	3/5	75
	S51351001	7/16
	S51352001	18-1
	1/2	20
	S51353001	9/16
	S51354001	34-2
	5/8	75
	S51355001	11/16
	S51356001	3/4
	S51357001	7/8
	S51358001	18-2
	34-3	70
	1	70
	S51359001	34-5
	29	75
	S51360001	34-4
	32	62
	S51361001	1-1
	S51362001	1-1
	S51363001	1-1
	S51364001	1-2
	S51365001	1-2
	S51366001	1-2
	S51418001	5
	S51514101	76
	S51896001	80-1
	S51901201	1-1-1
	S52248001	6
	S52431000	22-5
	S52432001	39
	S52433001	39-1
	S52434001	39-4
	S52761001	4
	S52763000	39
	S52764001	1
	S52770000	42-2
	S52778001	42
	S52943001	5-3
	S53181000	3
	S53902301	1
	S53907001	1
	S53996101	5-1
	S53998001	5-2
	S54027001	50-1-1
	50-2-1	50
	51-1-1	52
	51-2-1	54
	51-3-1	54
	51-4-1	56
	S54028001	50-1-2
	50-2-2	50
	51-1-2	52
	51-2-2	54
	51-3-2	54
	51-4-2	56
	S54501101	10
	S54502101	27-2
	S54503001	27-2-1
	10-1	64
	S54504001	33-3
	10-2	64
	S54506001	33-3-2
	10-2-1	64
	S54507001	52
	10-3	64
	S54508001	13-2
	10-5	64
	S54509000	56
	10-6	64
	S54510001	57
	10-7	64
	S54511001	16-2
	10-9	64
	S54512001	14-2
	10-10	64
	S54513001	20-2
	10-11	64
	S54514101	46-5
	10-12	18
	S54515001	46-5-2
	10-12-1	18
	S54516101	46-5-1
	10-12-6	18
	S54517000	47-2
	10-13	18
	S54518101	46-6
	S54519001	7
	S54520001	7-2

Page 89 — 索引 / INDEX

Brother HE-800A (90 pages) parts on page 89
Ref	Part number	Part name
64	S54520001	10-14
36	S54521001	7-3
64	S54521001	10-15
42	S54522001	66-3
64	S54522001	10-16
24	S54741001	9
28	S54763001	69
74	S54767000	150
70	S54768001	1-3
18	S54987001	46-5-6
64	S54987001	10-12-5
	S55344001	77
	S55345002	76
	S55346002	76
	S55347002	76
	S55348001	76
	S55349001	76
	S55350001	76
74	S55361100	151
70	S55663001	35
32	S55975001	62
36	S56251001	24-4
36	S58097001	24
36	S58098001	24-2
60	S58731000	1-23
64	S58971001	11-1
64	S58972000	1-1-5
64	S58973000	1-1-19
44	S58974000	1-1-11
44	S58978001	11-1-18
44	S58984000	4
64	S58987001	1-1-12
64	S58988001	11
64	S58989001	11
40	S59987001	17-1
58	SA0287000	63
60	U32744000	1-20
44	U34870000	1-7-5
44	XA2220050	1-1-9
60	Y42215591	1-11
47	Y44715591	1-25-3
60	Y44715591	1-12

Brother HE-800A (90 pages) — parts catalog

Page 1 — HE-8000

HE-8000 パーツブック PARTS BOOK 本縫電子ボタン穴かがりミシン ELECTRONIC LOCKSTITCH BUTTON HOLDER brother. jintex.in

Page 2

BROTHER INDUSTRIES, LTD. HE-8000- MADE IN JAPAN ① 2: 布帛用/For General materials 3: ニット用/For Knitted materials 5: 長穴用 (70mm) /For long-hole (70mm)

Page 3

パーツブックご利用に際して 1 この本は、2002年5月のデータに基づいて作成されたものです。 2 部品は予告なしに設計変更される場合があります。 3 組単位で補給する部品は、破線で示しております。目次 A. 主体関係 1 T. 操作パネル関係 43 B. 針棒・天秤関係 3 U1. コントロールボックス関係 45 C. 上軸関係 5 U2. コントロールボックス関係 49 D. 針振関係 7 U3. コントロールボックス関係 53 E. 非常停止関係 7 V. 電装品関係 57 F. 押工関係 9 W. プリント基板関係 59 G1. 送り関係(-2,-3) 13 X1. 付属装置関係(オプション部品) 61 G2. 送り関係(-5) 17 X2. 付属装置関係(オプション部品) 63 H. カッター関係 19 Y. モータ関係 65 J. 糸切り感知関係 21 AA. カバー関係 67 K. 下軸関係 21 Z1. 付属部品関係 67 L. カマ関係 23 Z2. 付属部品関係 69 M. 給油潤滑関係 25 Z3. 付属部品関係 73 N. 糸通シ関係 29 Ga1. ゲージ部品一覧表 75 P. 糸巻関係 33 Ga2. ゲージ部品一覧表 76 Q. 上糸切り関係 35 Ga3. ゲージ部品一覧表 77 R. 下糸切り関係 39 Wa. 警告ラベル 78 S. 針位置検出器関係 43 索引 79

Page 4 — CONTENTS

Notes for using this parts book 1 This book was prepared based on information available in May 2002. 2 Parts are subject to changes in design without prior notice. 3 Parts supplied as complete assemblies are circled by a dotted line. CONTENTS A. Machine body. B. Needle bar and thread take-up mechanism. C. Upper shaft mechanism. D. Zigzag mechanism. E. Emergency stop mechanism. F. Presser foot mechanism. G1. Feed mechanism (For "-2& -3") G2. Feed mechanism (For "-5") H. Cutter mechanism. J. Thread breakage detector mechanism. K. Lower shaft mechanism. L. Rotary hook mechanism. M. Lubrication. N. Threading mechanism. P. Bobbin winder mechanism. Q. Upper thread trimmer mechanism. R. Lower thread trimmer mechanism. S. Synchronizer. 1 3 5 7 7 9 13 17 19 21 21 23 25 29 33 35 39 43 T. Operation panel mechanism. U1. Control box mechanism. U2. Control box mechanism. U3. Control box mechanism. V. Power supply equipment mechanism. W. Printed circuit board mechanism. X1. Attachment set (Option parts). X2. Attachment set (Option parts). Y. Motor mechanism. AA. Safety cover. Z1. Accessories. Z2. Accessories. Z3. Accessories. Ga1. Gauge parts List. Ga2. Gauge parts List. Ga3. Gauge parts List. Wa. Warning labels. Index 43 45 49 53 57 59 61 63 65 67 67 69 73 75 76 77 78 79

Page 5 — A. 主体関係 / Machine body

A. 主体関係 / Machine body 118-H80-050

Page 6 — A.主体関係 / Machine body

A.主体関係 / Machine body REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 2 S50124001 1 メンタ FACE PLATE 3 062711012 4 ナベコ476-32X10 SCREW, PAN SM4.76-32X10 4 S50125001 1 テツペンカバー COVER, T/TAKE-UP LEVER 5 062680612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 6 S50126001 1 カバワタ REAR COVER 7 062711012 6 ナベコ476-32X10 SCREW, PAN SM4.76-32X10 8 S50127001 1 ウワブタ TOP COVER 9 062711612 6 ナベコ476-32X16 SCREW, PAN SM4.76-32X16 10 S50128001 1 カマカバー COVER, R-HOOK 11 104450101 1 ゴムセン8 RUBBER CAP, 8 12 158879001 1 カマカバーシク SHAFT, R-HOOK COVER 13 S00306001 1 ヒンジイタ SPRING, PLATE 14 025080132 1 ヒラザガネショウ8 WASHER, PLAIN S 8 15 048060342 1 トメE6 RETAINING RING, E6 16 017606022 1 アナトメシ5.95 SET SCREW, SOCKET SM5.95 17 117103003 2 サラネジ4.37 SCREW, FLAT SM4.37 19 021680202 2 ナット2シュ4.37 NUT, 2 SM4.37 20 017606022 2 アナトメシ5.95 SET SCREW, SOCKET SM5.95 21 158879001 2 ヒンジ BED HINGE 22 158831001 2 ヒンジピン PIN 23 158832000 2 ヒンジピンサエゴム PIN SUPPORT RUBBER 24 159150000 1 ゴムセン20.5 RUBBER CAP, 20.5 25 117934001 1 ゴムセン13.5 RUBBER CAP, 13.5 26 159150000 1 ゴムセン20.5 RUBBER CAP, 20.5 27 104450001 1 ゴムセン15.5 RUBBER CAP, 15.5 28 104451101 1 ゴムセン23.9 RUBBER CAP, 23.9 29 104450101 1 ゴムセン8 RUBBER CAP, 8 30 104450101 1 ゴムセン8 RUBBER CAP, 8 31 104450101 1 ゴムセン8 RUBBER CAP, 8 32 104450001 1 ゴムセン15.5 RUBBER CAP, 15.5 33 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 34 104450101 1 ゴムセン8 RUBBER CAP, 8 35 104450101 1 ゴムセン8 RUBBER CAP, 8 36 104450101 1 ゴムセン8 RUBBER CAP, 8 37 104450101 2 ゴムセン8 RUBBER CAP, 8 38 104450101 1 ゴムセン8 RUBBER CAP, 8 39 104449001 2 ゴムセン15.5 RUBBER CAP, 15.5 40 S32263001 3 ゴムセン8.5 RUBBER CAP, 8.5 55 S50131001 1 イトオシメメ THREADING DIAGRAM 56 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 57 S50340000 2 ヘツトダイクシヨン BED BASE CUSHION 58 120263001 2 タンネジ4.37 SCREW 59 117936001 1 ゴムセン9.4 RUBBER CAP, 9.4 60 S44629002 1 Eマーク LABEL, E 118-H80-050 jintex.in 2

Page 7 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

B. 針棒・天秤関係 / Needle bar and thread take-up mechanism 10 9 11 5-3 5-5 5-4 5-1 5-2 5-2-1 5-7 5-6 19 6 18 17 21 20 9-1 9-2 9-3 25 26 13 12 15 15-1 15-2 16 14 " オプション部品 / OPTION PARTS " 14 118-H80-101 3 jintex.in

Page 8 — B.針棒・天秤関係 / Needle bar and thread take-up mechanism

B.針棒・天秤関係 / Needle bar and thread take-up mechanism REF. NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50132000 1 テンピンクランク THREAD TAKE-UP CRANK 2 100250001 1 シメネジ 7.14 SCREW, SM7.14 3 014770622 1 アナトメネジ 6.35クホミ SET SCREW, SOCKET (CP) SM6.35 4 110367001 1 サガネ WASHER, PLAIN SPECIAL 8 5 S50133001 1 ハリホウウレンカンクミ THREAD TAKE-UP LEVER SET 5-1 145465001 1 シメネジ 3.57L SCREW, SM3.57-40X6 L 5-2 S50136001 1 ハリホウウクランプセット NEEDLE BAR CLAMP SET 5-2-1 140004001 1 シメネジ 3.57 SCREW, SM3.57-40X7 5-3 S52943001 1 テンピンササエツク SUPPORT SHAFT 5-4 140430001 1 クミヒモ WICK, L=40 5-5 S50142000 1 クミヒモ3X290 WICK, 3X30 5-6 S50271000 1 クミヒモ3X25 WICK, 3X25 5-7 S50272000 1 クミヒモ3X15 WICK, 3X15 6 S52248001 1 ハリホウウナイカクコマ SLIDE BLOCK, N-BAR BRACKET 7 014770622 2 アナトメネジ 6.35クホミ SET SCREW, SOCKET (CP) SM6.35 8 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 9 S50143001 1 ハリホウウインクミ NEEDLE BAR BRACKET SET 9-1 S50144001 1 ハリホウウイタミ NEEDLE BAR BRACKET ASSY 9-2 159624001 1 ハリホウウナイカクコマ SLIDE BLOCK, N-BAR BRACKET 9-3 S50146001 1 ストツパ STOPPER PLATE 10 15888001 1 ハリホウウタイササエツク SUPPORT SHAFT, N-BAR BRACKET 11 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 12 S50147001 1 ハリホウウイアンナイ GUIDE, N-BAR BRACKET 13 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 14 S50180075 1 <国内-2用、-3用> ミシンバリ134 <#11 NM75> NEEDLE, NM75 14 S50180090 1 <輸出-2用、-5用> ミシンバリ134 <#14 NM90> NEEDLE, NM90 14 S50180065 1 ミシンバリ134 <#9 NM65> NEEDLE, NM65 14 S50180070 1 ミシンバリ134 <#10 NM70> NEEDLE, NM70 14 S50180080 1 ミシンバリ134 <#12 NM80> NEEDLE, NM80 14 S50180085 1 ミシンバリ134 <#13 NM85> NEEDLE, NM85 14 S48371060 1 ミシンバリ134SUK <#9 NM65> NEEDLE, NM65 14 S48371065 1 ミシンバリ134SUK <#10 NM70> NEEDLE, NM70 14 S48371070 1 ミシンバリ134SUK <#11 NM75> NEEDLE, NM75 14 S48371075 1 ミシンバリ134SUK <#12 NM80> NEEDLE, NM80 14 S48371080 1 ミシンバリ134SUK <#14 NM90> NEEDLE, NM90 14 S48371090 1 ミシンバリ134SUK <#14 NM90> NEEDLE, NM90 15 S50148001 1 ハリボウクミ NEEDLE BAR ASSY 15-1 158885201 1 ハリボウ NEEDLE BAR 15-2 S50149101 1 ハリボウウイトアンナイ THREAD GUIDE, N-BAR 16 140553102 1 アナマキトメネジ 3.18 SET SCREW, SM3.18 17 S50150001 1 クランクロツドアンナイ CRANK ROD GUIDE 18 S31808001 1 ナベコ437-40X25 SCREW, PAN SM4.37-40X25 19 150382001 2 アナトメネジ SM3.57X18 BOLT, SOCKET SM3.57X18 20 S50152001 1 クミヒモ3X15 GUIDE, N-BAR 21 154965001 2 アナトメネジ SM3.57X8 BOLT, SOCKET SM3.57X8 22 S50153001 1 ハリホウウタイストツパ STOPPER 23 153483001 1 トメネジ 4.76 SET SCREW, SM4.76 24 021710202 1 ナット2SM4.76 NUT, SM4.76 25 013761410 1 アナトメネジ 5.95クホミ SET SCREW, (CP) SM5.95X14 26 100022005 1 ナット5.95 NUT, SM5.95 27 062681012 2 ナベコ437-40X10 SCREW, PAN SM4.37-40X10 118-H80-101 4 jintex.in

Page 9 — C. Upper shaft mechanism

C. 上軸関係 / Upper shaft mechanism 1-1 1-2 1-3 4 5 6-1 6-2 8 9 10-1 10-2 10-3 11 12-1 12-4 12-6 12-7 12-6 12-2 12-3 12-5 13 14 15 16 17 18 19 20 19 118-H80-109 5 jintex.in

Page 10 — C.上軸関係 / Upper shaft mechanism

C.上軸関係 / Upper shaft mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S51176001 1 ウワジククミ UPPER SHAFT ASSY 1-1 S50154001 1 ウワジク UPPER SHAFT 1-2 048150142 2 トメワシヨウC15 RETAINING RING, EXTERNAL C15 1-3 072630260 1 ベアリング 6302VV BALL BEARING, 6302VV 4 S50155001 1 ウワジクメタルF BUSH, F 5 158893000 1 ウワジクメタルM BUSH, M 6 S51223001 1 セットカラークミ SET SCREW COLLAR ASSY 6-1 S50156001 1 セットカラー SET SCREW COLLAR 6-2 014780622 2 アナトメネジ 6.35ホウミ SET SCREW, SOCKET (CP) SM6.35 8 S50157001 1 プーリーアツシ PULLEY ASSY 9 014760622 2 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 10 S50159001 1 タイミングプーリー T-PULLEY ASSY, U 10-1 S50160001 1 タイミングプーリー T-PULLEY, U 10-2 S48034001 2 タイミングプーリング RING 10-3 014780622 2 アナトメネジ 6.35ホウミ SET SCREW, SOCKET (CP) SM6.35 11 S50161000 1 タイミングベルト TIMMING BELT 12 S50162001 1 テンションプーリークミ TENSION PULLEY ASSY 12-1 S50163001 1 テンションプーリーイタ PLATE, T-PULLEY 12-2 S50164001 1 テンションプーリー TENSION PULLEY 12-3 S50165001 1 テンションカラー COLLAR 12-4 018102536 1 アナトメボルト10X25 BOLT, SOCKET M10X25 12-5 021100302 1 ナット3X10 NUT, 3 M10 12-6 048300242 2 トメワアナヨウC30 RETAINING RING, INTERNAL C30 12-7 076200800 1 タマシクウケ6200ZZ BALL BEARING, 6200ZZ 13 018061022 2 アナトボルト6X10 BOLT, SOCKET M6X10 14 025060232 2 ヒラガネネチユウ6 WASHER, PLAIN M 6 15 S50166001 1 アイトラププーリー IDLER PULLEY 16 S50167001 1 アイトラププーリーシク SHAFT 17 S50168001 1 アイトラププーリーカラー COLLAR 18 070608800 2 タマシクウケ608ZZ BALL BEARING 0608ZZ 19 048220242 2 トメワアナヨウC22 RETAINING RING, INTERNAL C22 20 014760622 2 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 21 111865001 1 セン6 CAP, 6 118-H80-109 6

Page 11

D. 針振関係 / Zigzag mechanism 6 21 8 7 10 8 2 1 3 5 9 15 19 20 13 12 18-2 18 18-1 11 16 14 17 118-H80-110 E. 非常停止関係 / Emergency stop mechanism 2 1 118-H80-114 7 jintex.in

Page 12 — D.針振関係 / Zigzag mechanism E.非常停止関係 / Emergency stop mechanism

D.針振関係 / Zigzag mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50169001 1 モーターブラケット MOTOR BRACKET 2 S37940001 1 キルン POSITIONING PIN 3 062711212 4 ナベコ32X12 SCREW, PAN SM4.76-32X12 4 062711612 1 ナベコ4.76-32X16 SCREW, PAN SM4.76-32X16 5 018401222 4 アキボルト4X12 BOLT, SOCKET M4X12 6 060300612 2 トメM3X6 SCREW, BIND M3X6 7 S50170001 1 モーターレバー MOTOR LEVER 8 014760622 2 アトメシ5.95 SET SCREW, SOCKET SM5.95 9 S50171001 1 モーターシーク LEVER SHAFT, MOTOR 10 014760622 1 アトメシ5.95 SET SCREW, SOCKET SM5.95 11 S50172001 1 フリコン ZIGZAG CONNECTING ROD 12 S51190001 1 フリコンシーク SHAFT, Z-CONNECTING ROD 13 014760622 1 アトメシ5.95 SET SCREW, SOCKET SM5.95 14 S50174001 1 フリレバー LEVER, ZIGZAG 15 118735001 2 ザガネ WASHER, PLAIN 16 018061622 1 アキボルト6X16 BOLT, SOCKET M6X16 17 S32521001 1 スラストザガネ WASHER, THRUST 18 S50176001 1 フリレバーアセンブリ ZIGZAG LEVER ASSY, F 18-1 S50178001 1 フリレバー SHAFT, Z-LEVER 18-2 159625001 1 レバーコウマクク STUD 19 158945001 1 フリシクメタルF BUSH, F ;Z-LEVER 20 158946001 1 フリシクメタルR BUSH, R ;Z-LEVER 21 S50179001 1 フリシクサイタ PLATE, Z-SENSOR 118-H80-110 E.非常停止関係 / Emergency stop mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50182000 1 ヒジョウテイシカバー COVER, ;EM 2 062400806 3 ナベコ4X8 SCREW, PAN M4X8 118-H80-114 8 jintex.in

Page 13 — F. 押工関係 / Presser foot mechanism

F. 押工関係 / Presser foot mechanism 16-4 16-3 16-2 16-1 16-1-4 16-1-5 16-1-3 16-1-2 16-1-1 16 11 10 9 8 22 21 7 6 2 1 14 13 12 5 4 15 52 17 18 19 29-2 29-1 29-3 29-4 29 47 46 45 34 33 31 32 40 30 39 37 38 43 42 41 23-2 23-3 23-1 23 25 26 27 24 28 48 49 28 118-H80-201 jintex.in

Page 14 — F.押工関係 / Presser foot mechanism

F.押工関係 / Presser foot mechanism REF. NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50183001 1 オシエウデ DRIVING ARM, ;PRESSER 2 018061022 4 アナホルト6X10 BOLT, SOCKET M6X10 4 S43717201 1 クドウキヤ 15.75 GEAR, 15.75 5 014770622 2 アナトメネジ 6.35ウキヤミ SET SCREW, SOCKET (CP) SM6.35 6 S50184001 1 オシエウデアンナイダイ GUIDE BRACKET 7 S42116000 2 リニアボールベアリング LINEAR BALL BEARING 8 S50185001 1 ベアリングオサエ HOLDER, ;BEARING 9 018400822 1 アナホルト4X8 BOLT, SOCKET M4X8 10 S50186001 2 アンナイジク GUIDE SHAFT 11 014760622 4 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 12 S50187001 1 クドウオサエ PRESSER, DR-ARM 13 110367001 1 サラネジ WASHER, PLAIN SPECIAL 8 14 014760622 4 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 15 018401222 3 アナホルト4X12 BOLT, SOCKET M4X12 15-1 S51174001 1 オシエアゲレンカクソウクミ CONNECTING ROD SET, ;P-LIFTER 15-1-1 S50188001 1 オシエアゲレンカククミ CONNECTING ROD ASSY, ;P-LIFTER 15-1-2 S50189001 1 オシエアゲレンカン CONNECTING ROD, ;P-LIFTER 15-1-3 S50190001 1 オシエレンカンタンネジ SHOULDER SCREW 16 110161004 1 レンカンコロ ROLLER 16-1-4 028050242 1 ナツト 4.76 NUT, SM4.76 16-1-5 S00902001 1 ハネジナガニ 2-5 WASHER, SPRING 2-5 16-2 S50192001 1 オシエアゲカンザ SPACER 16-3 S00902001 1 メスサトウレハサガニヨ WASHER, PLAIN L 4.6 (D) 16-4 117363001 1 ボルト 4.76 BOLT, SM4.76 16-5 S38761001 1 ヒサアゲレバー LIFTER LEVER, ;KNEE 17 S50192001 1 オシエアゲカンザ SPACER 18 S00902001 1 メスサトウレハサガニヨ WASHER, PLAIN L 4.6 (D) 19 117363001 1 ボルト 4.76 BOLT, SM4.76 21 S50193001 1 オシエアゲレバーシクア LIFTER SHAFT, A 22 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 23 S50194001 1 オシエアゲレバーリンク LIFTER LEVER ASSY, ;P-BAR 23-1 S50195001 1 ウワイトクリツトリンク DRIVING LINK, ;U/TR 23-2 S38761001 1 ヒサアゲレバー LIFTER LEVER, ;KNEE 23-3 145478101 1 ダンネジ 4.76 SHOULDER SCREW, SOCKET SM4.76 24 S50196001 1 オシエアゲレバーシク LIFTER SHAFT 25 025080132 1 ヒラガネシヨウ8 WASHER, PLAIN S 8 26 048060342 1 トメワE6 RETAINING RING, E6 27 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 28 145478101 2 ダンネジ 4.76 SHOULDER SCREW, SOCKET SM4.76 29 S50197001 1 オシエボウダキクミ GUIDE BRACKET ASSY, ;P-BAR 29-1 S50198001 1 オシエボウダキ GUIDE BRACKET, ;P-BAR 29-2 S50199001 1 オシエアゲリンク LIFTER LINK, ;P-BAR 29-3 145478101 1 ダンネジ 4.76 SHOULDER SCREW, SOCKET SM4.76 29-4 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 30 111466101 1 オシエボウ PRESSER BAR 31 141208001 1 オサエバアンナイ SPRING GUIDE 32 S50200001 1 オサエバネ SPRING, COMPRESSION 33 S31012001 1 オサエチヨウセツネジ ADJUSTING NUT, PRESSER 34 140407001 1 サガネ WASHER 35 145472001 1 オサエボウメタル BUSH, P-BAR 36 S50201001 1 オサエローライ ROLLER BRACKET, P-BAR 37 S50202001 1 ハサミサシエジクコロ ROLLER 38 062671212 1 ナベコ357-40X12 SCREW, PAN SM3.57-40X12 39 025060132 1 ヒラガネシヨウC6 WASHER, PLAIN, C6 40 048060142 1 トメワE6 RETAINING RING, C6 41 S50203001 1 オサエコロ ROLLER 42 S50204001 1 オサエコロジク ROLLER SHAFT 43 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 44 S37927000 1 ハリボウアンナイ GUIDE, ;N-BAR 45 100242003 2 シメネジ 3.57 SCREW, SM3.57-40X5 118-H80-201 10 jintex.in

Page 15 — F. 押工関係 / Presser foot mechanism

F. 押工関係 / Presser foot mechanism 16-4 16-3 16-2 16-1 16-1-4 16-1-5 16-1-3 16-1-2 16-1-1 34 33 31 32 40 16 11 10 22 21 7 9 8 6 2 1 14 13 12 5 15 52 19 18 17 29-2 29-1 29 29-3 29-4 47 46 45 1 23-2 23-1 23-3 23 25 26 27 24 28 30 39 37 38 44 43 42 41 118-H80-201 jintex.in

Page 16 — F.押工関係 / Presser foot mechanism

F.押工関係 / Presser foot mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 47 155578000 2ゴムセン7.2 RUBBER CAP, 7.2 48 S50205001 1 オオセンサードグ DOG, CLAMP SENSOR 49 060670512 2ハインド 357-40X5 SCREW, BIND SM3.57-40X5 50 S50206001 1 オオセンサーイタ PLATE, CLAMP SENSOR 51 102538002 1 サラネジ 3.57 SCREW, FLAT SM3.57 52 025040232 3 ヒラザガネチユウ4 WASHER, PLAIN M 4 118-H80-201 12

Page 17 — 31. 送り関係 (-2, -3) / Feed mechanism (For "-2 & -3")

31. 送り関係 (-2, -3) / Feed mechanism (For "-2 & -3") 25 38 27-1.1 27-1-3 27-1-6 27-1-5 27-1-2 27-1-6 27-1-4 44 45 46-2 46-1 46-1-2 46-1-4 46-1-3 46-1-1 46-1-5 46-1-4 46-1-3 37 47-1 34 35 36 33-1 36 19 18 42 16-1 43 17 14-1 26 40 39 18 20-1 13-1 15 21 11 12 8 22 10 6-2 6-1 6 10 9 20-1 5-2 5-1 5 48 3 2 4 < -3用 / For "-3" > 46-3 46-3-2 46-3-4 46-3-3 46-3-1 46-3-5 46-3-4 46-3-3 46-4 33-2 3 Jinte.in 118-H80-202

Page 18 — G1.送り関係 (-2,-3)/ Feed mechanism(For "-2 & -3")

G1.送り関係 (-2,-3)/ Feed mechanism(For "-2 & -3") REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50207001 1 モータサセイタ MOUNTING BRACKET, MOTOR 2 062761012 3 ナベコ395-28X10 SCREW, PAN SM5.95-28X10 3 025060232 3 ヒラザガネチュウ6 WASHER, PLAIN M 6 4 018401022 4アナボルト4X10 BOLT, SOCKET M4X10 5 S51418001 1 オクリフトウブーリA PULLEY ASSY, A 5-1 S50208001 1 オクリフトウブーリA PULLEY, A 5-2 014060632 2アナボルトミ6X6 SET SCREW, SOCKET (CP) M6X6 6 S51225001 1 オクリフトウブーリB PULLEY ASSY, B 6-1 S50110001 1 オクリフトウブーリB PULLEY, B 6-2 014060632 2アナボルトミ6X6 SET SCREW, SOCKET (CP) M6X6 8 S50209000 1 オクリタイミングベルト TIMING BELT 9 S50210001 1 オクリフトウシヤフト SUPPORT SHAFT 10 070688850 2 タマシク68822NR BALL BEARING, 68822NR 11 S50211001 1 オクリベルトホルダ BELT HOLDER 12 018680822 2 アナボルト4.37X8 BOLT, SOCKET SM4.37X8 13-1 S50212001 1 オクリフトウサセイタイ FEED ARM SUPPORT 14-1 S50213001 1 オクリアンナイシンクB FEED GUIDE SHAFT, B 15 014760622 1 アナトメシ5.95 SET SCREW, SOCKET SM5.95 16-1 S50214001 1 オクリアンナイシンクA SHAFT, A ;F-GUIDE 17 018681232 2 アナボルト437-40X12 BOLT, SOCKET SM4.37-40X12 18 S12004000 3 リニアブツシュ LINEAR BUSH 19 S02460001 2 トメシクヨウC19 RETAINING RING, EXTERNAL C19 20-1 S35184001 2 タマシクメイタ STOPPER, BALL BEARING 21 060660416 2 ハインド318-40X4 SCREW, BIND SM3.18-40X4 22 S50215101 1 オクリセンサセイタイ SUPPORT PLATE, FEED SENSOR 23 062680812 2 ナベコ437-40X8 SCREW, PAN SM4.37-40X8 24 025680132 2 ヒラザガネ37 WASHER, PLAIN S 4.37 25 S50216001 1 オクリフトウサセイ SUPPORT SHAFT, ;F-ARM 26 012500536 1 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 27-1 S51178101 1 オクリフトウ FEED ARM ASSY 27-1-1 S50217001 1 オクリフトウ FEED ARM 27-1-2 S50218001 1 ニカシムサセイタイ SUPPORT PLATE 27-1-3 S50219101 1 ウワイトキリニカシム CAM 27-1-4 018681022 2 アナボルト4.37X10 BOLT, SOCKET SM4.37X10 27-1-5 018680522 2 アナボルト4.37X5 BOLT, SOCKET SM4.37X5 27-1-6 110735002 4 ザガネ WASHER 33-1 S50220001 1 ナガリフトー2 <For "-2"> LENGTH FEED PLATE, -2 33-2 S50225001 1 ナガリフトー3 <-3R> LENGTH FEED PLATE, -3 34 018681022 2 アナボルト4.37X10 BOLT, SOCKET SM4.37X10 35 028680242 2 バネザガネ2-4.37 WASHER, SPRING 2-4.37 36 S50221001 2 オクリフトウセイ FEED PRESSER PLATE 37 105130001 4 シメジ3.57 SCREW, SM3.57 38 S50222001 1 オクリフトウシヤフト FEED ARM SUPPORT 39 S50223100 1 オクリカバー COVER 40 018680822 1 アナボルト4.37X8 BOLT, SOCKET SM4.37X8 41 025680132 1 ヒラザガネ4.37 WASHER, PLAIN S 4.37 42 S50224001 1 オクリモータカバー COVER, ;F-MOTOR 43 062680612 2 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 44 159078001 1ヌツカミサエバネ SPRING 45 S50562001 1 ダンネジ 6.35 SHOULDER SCREW, SM6.35 46-1 159765202 1ヌツカミ25RSクミ <For "-2"> WORK CLAMP ASSY, 25RS 46-1-1 159762002 1ヌツカミ25RS WORK CLAMP, 25RS 46-1-2 159926001 1ヌツカミサエビン L PIN, L 46-1-3 107401001 2ヌツカミサエイトバネ SPRING, PLATE 118-H80-202 14 jintex.in

Page 19 — 31. 送り関係 (-2, -3) / Feed mechanism (For "-2 & -3")

31. 送り関係 (-2, -3) / Feed mechanism (For "-2 & -3") 25 38 27-1-1 27-1-3 27-1-2 27-1-6 27-1-5 27-1-4 44 46-2 46-1 46-1-2 46-1-4 46-1-3 46-1-1 47-1 37 36 33-1 36 42 43 17 18 5-2 21 5-1 5-2 48 <--3用/For "-3" --> 46-3-5 46-3-4 46-3-3 46-3-1 46-3 46-4 19 18 16-1 14-1 8 26 11 12 22 24 23 33-2 45 34 35 40 41 18 13-1 15 20-1 21 6-2 6-1 6 10 9 118-H80-202 5 jintex.in

Page 20

G1.送リ関係 (-2,-3)/ Feed mechanism(For "-2 & -3") REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 46-1-4 107404001 2 1.98 SCREW, SM1.98-64X2 46-1-5 159927001 1 S PIN, S 46-2 S37100101 1 25RSクミF WORK CLAMP ASSY, 25RS W/F-G <--3用> <For "-3"> 46-3 S01467201 1 25クミ WORK CLAMP ASSY, 25-K 46-3-1 144630001 1 WORK CLAMP, 25-K 46-3-2 159926001 1 L PIN, L 46-3-3 144707001 2 SPRING, PLATE 46-3-4 107404001 1 1.98 SCREW, SM1.98-64X2 46-3-5 159927001 1 S PIN, S 46-4 S37102101 1 25クミF WORK CLAMP ASSY, 25-K W/F-G <--2用、-3用> <For "-2 & -3"> 47-1 159080000 1 M FINGER GUARD, M 48 018502022 1 5X20 BOLT, SOCKET M5X20 118-H80-202 16

Page 21 — G2 . 送り関係 (-5) / Feed mechanism (For "-5")

G2 . 送り関係 (-5) / Feed mechanism (For "-5") 27-2-1 27-2-3 27-2-6 27-2-5 46-5-1 46-5 46-5-3 46-5-5 46-5-4 46-5-2 46-6 47-2 33-3-2 33-3-2 16-2 56 57 58 14-2 27-2-2 27-2 33-3-1 33-3 20-2 13-2 118-H80-202 7 jintex.in

Page 22

G2.送り関係 (-5)/ Feed mechanism(For "-5") REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 13-2 S54508001 1 < -5用 > オクリウデササエタイー5 <For "-5"> FEED ARM SUPPORT, -5 14-2 S54512001 1 オクリアンナインクB-5 SHAFT, B-5 ;F-GUIDE 16-2 S54511001 1 オクリアンナインクA-5 SHAFT, A-5 ;F-GUIDE 20-2 S54513001 2 タマンウクウケイメ PLATE, B ;B-BEARING 27-2 S54502101 1 オクリウデクミ-5 FEED ARM ASSY, 5 27-2-1 S54503001 1 オクリウデ-5 FEED ARM, 5 27-2-2 S50218001 1 ニカシムサエタイタ SUPPORT PLATE 27-2-3 S50219101 1 ウワイトキリニカシム CAM 27-2-4 018681022 2 アサボルト4.37X10 BOLT, SOCKET SM4.37X10 27-2-5 018680522 2 アサボルト4.37X5 BOLT, SOCKET SM4.37X5 27-2-6 110735002 4 ワッシャー WASHER 33-3 S54504001 1 ナカサクリタイター5クミ LENGTH FEED PLATE ASSY, -5 33-3-1 S54505001 1 ナカサクリタイター5 LENGTH FEED PLATE, -5 33-3-2 S54506001 1 オクリイタスペーサ SPACER, ;FEED PLATE 33-3-3 117160001 2 サラネジ4.37 SCREW, FLAT SM4.37 46-5 S54514101 1 ヌカミクミ70 WORK CLAMP ASSY, 70 46-5-1 S54516101 1 ヌカミクミサエ WORK CLAMP HOLDER 46-5-2 S54515001 1 ヌカミクミ70 WORK CLAMP, 70 46-5-3 159926001 1 ヌカミクミサエピン L PIN, L 46-5-4 107401001 2 サラネジサエタイハネ SPRING, PLATE 46-5-5 107404001 2 シメネジ1.98 SCREW, SM1.98-64X2 46-5-6 S54987001 1 ヌカミクミサエピン F PIN, F 46-6 S54518101 1 ヌカミクミ70クミF WORK CLAMP ASSY, 70 W/F-G 47-2 S54517000 1 フィンガーガード 70 FINGER GUARD, 70 52 S54507001 1 オクリイタサエタイタ FEED PLATE SUPPORT 53 018680822 2 アサボルト4.37X8 BOLT, SOCKET SM4.37X8 56 S54509000 1 リニアブツシュ9.53 LINEAR BUSH, 9.53 57 S54510001 1 リニアブツシュトメイタ STOPPER PLATE, L-BUSH 58 062680612 1 アサ 34.37-40X6 SCREW, PAN SM4.37-40X6 118-H80-202 jintex.in 18

Page 23 — H . カッター関係 / Cutter mechanism

H . カッター関係 / Cutter mechanism 10 10-1 10-2 10-3 10-4 31 32 33 11 34 37 35 36 37 39 38 29 28 22 24 22-3 22-2 22-4 22-1 21-2 21 21-1 21-2 27 23 26 6 40 4-2 4-1 4-3 2 1 4 5 7 8 15 13 12 14 16 17 18-2 18-1 20 " オプション部品 / OPTION PARTS " 19 118-H80-218 19 jintex.in

Page 24

H.カッター関係 / Cutter mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S0283001 1 カッタードウテツク CUTTER DRIVING ARM SHAFT 2 014760622 1 アトメシ 5.95 SET SCREW, SOCKET SM5.95 3 S0284001 1 カッタードウテツク CUTTER DRIVING SHAFT 4 S0285001 1 サウシンクホルダアセンブリ DRIVING SHAFT HOLDER ASSY 4-1 S0286001 1 カッターサドウシンクホルダ CUTTER DRIVING SHAFT HOLDER 4-2 S0287001 1 カッターサドウシンクリンク CUTTER DRIVING LINK SHAFT 4-3 014780622 3 アトメシ 6.35クホミ SET SCREW, SOCKET (CP) SM6.35 5 S0288001 1 カッタードウシンクリンク CUTTER DRIVING LINK 6 102630001 1 ハリウシンナイカクコマ SLIDE BLOCK, N-BAR GUIDE 7 S50120001 1 カッタードウシンク GUIDE, N-BAR 8 062761012 4 ナベコ3595-28X10 SCREW, PAN SM5.95-28X10 9 15917001 1 カッタードウシンクメタル BOLT, C DRIVING SHAFT 10 S0289001 1 チョウセツネジ ADJUSTING SCREW 10-1 S0290001 1 チョウセツネジ ADJUSTING SCREW 10-2 S0291001 1 クツションバネ SPRING, COMPRESSION 10-3 S0292001 1 クツションウケ CUSHION SUPPORT 10-4 S0293001 1 タンネジ 3.57 SHOULDER SCREW, SM3.57 11 021910302 1 ナツト3SM12.70 NUT, 3 SM12.70 12 S0294001 1 カッターホルダ CUTTER HOLDER 13 018681022 1 アナボルト4.37X10 BOLT, SOCKET SM4.37X10 14 S0295001 1 カッターホルダ M CUTTER HOLDER, M 15 018680632 2 アナボルト4.37X6 BOLT, SOCKET SM4.37X6 16 S0296001 1 カッターホルダ DL CUTTER HOLDER, DL 17 153057102 2 オクリダイシンネジ SCREW, ROUND W/SOCKET SM4.37 18-1 S51352001 1 カツタ1/2 <For -2 & -3> CUTTER, 1/2 18-2 S51358001 1 カツタ1 <For -5> CUTTER, 1 19 S0297001 1 カツターオサエ "OPTION PARTS" CUTTER HOLDER 20 115503001 1 シメネジ 4.37 SCREW, SM4.37 21 S41466001 1 オクリジクセットカラークミ SET SCREW COLLAR ASSY 21-1 S09212001 1 シメネジ SET SCREW COLLAR 21-2 014770622 2 アトメシ 6.35クホミ SET SCREW, SOCKET (CP) SM6.35 22 S0298101 1 カッタードウシンクアセンブリ CUTTER DRIVING ARM ASSY 22-1 S50299101 1 カッタードウシンク CUTTER DRIVING ARM 22-2 159104001 1 Cドウシンクピン PIN 22-3 014680622 1 アトメシ 4.37クホミ SET SCREW, SOCKET (CP) SM4.37 22-4 159379001 1 ミゾウキピンBX6X18 PIN, DOWEL BX6X18 23 S50300001 1 カツターリンクシンク CUTTER LINK SHAFT 24 01760622 1 アトメシ 5.95 SET SCREW, SOCKET SM5.95 26 048060342 1 トメワE6 RETAINING RING, E6 27 110367001 1 サガネ WASHER, PLAIN SPECIAL 8 28 S51162001 1 カッターリンクイケミ CUTTER LINK BRACKET ASSY 29 018681232 1 アナボルト SM4.76-40X12 BOLT, SOCKET SM4.76-40X12 30 S50362001 1 カッターソレノイドブラケツト CUTTER SOLENOID BRACKET 31 062711412 4 ナベコ4.76-32X14 SCREW, PAN SM4.76-32X14 32 018501022 3 アナボルト5X10 BOLT, SOCKET M5X10 33 S50363000 1 ストツパクツシヨン STOPPER CUSHION 34 S50364001 1 ソレノイドストツパ STOPPER, SOL 35 028080242 1 バネザガネ2-8 WASHER, SPRING 2-8 36 021080202 2 ニユウナツト8 NUT, 2 M8 37 S50365101 1 カツターセンサトリツケイタ SETTING PLATE, C-SENSOR 38 062710812 1 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 39 S50366001 1 カツターモトシバネ SPRING 118-H80-218 jintex.in 20

Page 25

J. 糸切れ感知関係 / Thread breakage detector mechanism 6-3 6-2 7 6 6-1 5 2 3 4 1 11 10 13 12 11B-H80-219 K. 下軸関係 / Lower shaft mechanism 1 2-2 4-2 5-1 5-3 2-1 6 7 4 4-1 4-2 5-2 5 118-H80-305 21 jintex.in

Page 26 — J.糸切れ感知関係 / Thread breakage detector mechanism K.下軸関係 / Lower shaft mechanism

J.糸切れ感知関係 / Thread breakage detector mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50273000 1 イトレカシチアンナイ THREAD GUIDE 2 025060232 1 ヒラザガネチュウ6 WASHER, PLAIN M 6 3 025350332 1 ヒラザガネチュウ 3.5 WASHER, PLAIN L 3.5 4 060670612 1 バインド SM3.57-40X6 SCREW, BIND SM3.57-40X6 5 159145001 1 イトレカシチレバーシク SHAFT, ;TR-BREAKAGE PERCEIVING 6 S51173001 1 カツタオチホウウンイタケミ CUTTER BAR FIXED PLATE ASSY 6-1 141619001 1 カツタオチホウウンイタ FIXEING PLATE, ;C-BAR 6-2 141620001 1 ポウイタバランス BALANCER 6-3 101671002 1 シメネジ 4.37 SCREW, SM4.37 7 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 10 S50274001 2 レバーストツパ LEVER STOPPER 11 062400612 2 ナベコM4X6 SCREW, PAN M4X6 12 S50275001 1 イトレカシチセンサイタ PLATE, ;TR-BREAKAGE SENSOR 13 062400612 1 ナベコM4X6 SCREW, PAN M4X6 118-H80-219 K.下軸関係 / Lower shaft mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50240001 1 シタジク LOWER SHAFT 2 S50241001 1 タイミングプーリASSY TIMMING PULLEY ASSY 2-1 076002450 1 タマシクク6002DD BALL BEARING, 6002DD 2-2 014760622 2 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 4 183827001 1 ヒラザガネ SET SCREW COLLAR ASSY 4-1 104521001 1 ヒラザガネ SET SCREW COLLAR 4-2 014770622 2 アナトメネジ 6.35ホウミ SET SCREW, SOCKET (CP) SM6.35 5 S50243001 1 シタジククメタルMクミ BUSH ASSY, M 5-1 S50244001 1 シタジククメタルM BUSH, M 5-2 S38735001 4 オイルナシ OIL FEEDING PIPE 5-3 142274101 4 ゴムセン4.2 RUBBER CAP, 4.2 6 S50245001 1 シタジククメタルMカバー COVER 7 062670612 2 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 118-H80-305 22

Page 27 — L. Rotary hook mechanism

L. カマ関係 / Rotary hook mechanism 1 2 2-1-2 2-1-1 2-1-3 4 5 6 11 7 8 10 9 2-1-3 20-1 20 20-2 12-1-1 12-1-3 20-2-1 12-1-2 20-2-2 20-2-4 20-2-3 " 補給用部品 / For Supply parts " 21 22 118-H80-301 13 jintex.in

Page 28 — L.カマ関係 / Rotary hook mechanism

L.カマ関係 / Rotary hook mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50226001 1 カマシクメタル BUSH 2 S51226001 1 カマツキテンノウミ ROTARY HOOK JOINT SET 2-1 S50227001 1 カマツキテツクミ JOINT ASSY, R-HOOK 2-1-1 S50228001 1 カマツキテ JOINT, R-HOOK 2-1-2 S50229000 1 フエルト FELT 2-1-3 014760622 4 アトメジ 5.95 SET SCREW, SOCKET SM5.95 4 S50230001 1 カトメ B-CASE HOLDER POSITION BRACKET 5 100644005 2 シメネジ 4.37 SCREW, SM4.37 6 S50232000 1 カマフエルト FELT 7 S50231100 1 トウシンカラー COLLAR 8 S07478000 1 ゴムオサエ RUBBER PRESSER 9 S50741001 1 シメネジ 6.35 SCREW, SM6.35 10 S50233001 1 コウシンバネ SPRING 11 S50111000 1 フエルトサエバネ SPRING 20 S50234901 1 カマホークビンケースハコウミ R-HOOK & B-CASE ASSY, W/BOX 20-1 S50235901 1 カマハコウミ ROTARY HOOK ASSY, W/BOX 20-1-1 183526001 2 ナカオマオサエネジ SCREW 20-1-2 S50236001 1 ナカオマオサエネジ B SCREW 20-1-3 183598001 1 ウライタメネジ SCREW 20-2 S50237001 1 ボビンケースクミ BOBBIN CASE ASSY 20-2-1 S09477001 1 ボビンチヨウシバネ SPRING 20-2-2 180721001 1 チヨウシンネジ SCREW 20-2-3 183507001 1 チヨウシン ADJUSTING SCREW 20-2-4 S50239001 1 ボビンオサエバネ SPRING, ANTI-SPIN 22 159158051 1 ボビン BOBBIN 21 S50239001 1

Page 29 — M. Lubrication

M.給油潤滑関係 / Lubrication 25 26 71 69-2 69-1 74 59 73 82 76 72 75 49 44 46 66 65 36 61 35 34 39 37 87 33 27 28 32 38 43 40 78 77 54 49 54 67 66 62 24 41 82 79 88 60 55 51 52 50 53 58 57 56 81 80 68 47 17 19 1 2 4 6 5 7 23 20 21 22 13 14 9 8 9 10 11 12 11 12 18 16 15 118-H80-350 5 jintex.in

Page 30 — M.給油潤滑関係 / Lubrication

M.給油潤滑関係 / Lubrication REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 144875001 2 プランジャー PLUNGER 2 S52764001 2 プランジャーバネ SPRING, COMPRESSION 4 552907000 2 コードホルダ CORD HOLDER, 10N 5 062670612 2 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 6 025350132 2 ヒラザガネショウ WASHER, PLAIN S 3.5 7 112467002 2 シメネジ 6.35 SCREW, SM6.35X5 8 S50356001 1 オイルフィルタツケケイタミ OIL FILTER BRACKET ASSY 9 062680812 3 ナベコ437-40X8 SCREW, PAN SM4.37-40X8 10 14487101 1 ポンプフィルター PUMP FILTER 11 144874001 2 フィルターバネ SPRING 12 062670512 2 ナベコ357-40X5 SCREW, PAN SM3.57-40X5 13 S50359001 1 チューブツリツド TUBE SUPPORT, D 14 062670612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 15 S50360001 1 カフエルトサツエ FELT SUPPORT 16 060670612 2 バインド 357-40X6 SCREW, BIND SM3.57-40X6 17 S50560000 1 フェルト FELT 18 S50563000 1 クミヒモ4X200 WICK, 4X200 19 S50564000 1 クミヒモ2X300 WICK, 2X300 20 S50559001 1 チューブサツエ TUBE SUPPORT 21 060670612 1 バインド 357-40X6 SCREW, BIND SM3.57-40X6 22 S50557000 1 オイルチューブ OIL TUBE 23 S50558000 1 ビニルチューブ OIL TUBE, L=180 24 S50513000 1 メインパツキン PACKING, ;F-PLATE 25 S50514000 1 カワイタパツキン PACKING, ;R-COVER 26 S50515000 1 ウワフタパツキン PACKING, ;T-COVER 27 S50516001 1 トウシンベースサツエ WICK BASE SUPPORT 28 062670612 2 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 29 159187000 1 トウシンベースA FELT BASE, A 30 S50517001 1 トウシンベースフタ CAP 31 062680712 2 ナベコ437-40X7 SCREW, PAN SM4.37-40X7 32 S50518000 1 トウシンベースフエルト FELT 33 S50519000 1 オイルターミナル OIL TERMINAL 34 062680712 2 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 35 S50520000 1 パツキン PACKING 36 S50521000 1 オイルマト OIL CAP 37 159193000 1 オイルパイプ B OIL PIPE, B 38 S50522000 1 ビニルチューブ OIL TUBE 39 S52763000 1 クミヒモ2X140 WICK, 2X140 40 S50524000 1 クミヒモ3X160 WICK, 3X160 41 S50525000 1 クミヒモ3X290 WICK, 3X290 43 S50527000 1 ビニルチューブ OIL TUBE 44 S50528000 1 クミヒモ3X280 WICK, 3X280 45 S50529000 1 ビニルチューブ OIL TUBE, L=320 46 S50530000 1 クミヒモ3X355 WICK, 3X355 47 S50531000 1 ビニルチューブ OIL TUBE 48 S50532000 1 ビニルチューブ OIL TUBE 49 228475000 2 ケツクバンド 1.9X80 FASTENING BAND, 1.9X80 50 S00480000 1 コードホルダ CORD HOLDER, SN 51 062670612 1 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 52 025350132 1 ヒラザガネショウ WASHER, PLAIN S 3.5 53 106436001 1 フェルト FELT 54 107149001 2 フェルト FELT 55 151927001 1 クラツチフエルト FELT, ;CLUTCH 56 S50533000 1 スイアゲチューブクミ OIL TUBE ASSY 57 S50536001 1 フエルトオサエ FELT HOLDER 58 062670512 1 ナベコ357-40X5 SCREW, PAN SM3.57-40X5 59 S25328001 1 フェルト FELT 60 S50537000 1 クミヒモ4X50 WICK, 4X50 61 S50538001 1 アプラマットサツエ OIL WINDOW SUPPORT 62 S50539000 2 アプラギリ OIL REJECTOR 63 S50540001 1 ハイユチユーブサツエ TUBE SUPPORT 118-H80-350 26 jintex.in

Page 31

M. 給油潤滑関係 / Lubrication 25 26 71 69 69-2 74 59 73 69-1 83 82 76 75 45 49 44 46 66 65 31 30 29 36 35 34 39 37 87 61 33 27 28 32 38 44 40 78 77 54 49 51 52 50 67 68 79 84 53 58 57 88 60 56 81 41 24 62 47 17 19 1 2 6 7 4 5 23 20 21 22 13 14 16 15 18 9 8 10 11 12 11 12 27 118-H80-350 jintex.in

Page 32 — M.給油潤滑関係 / Lubrication

M.給油潤滑関係 / Lubrication REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 64 062680612 1 ナベコ 4.37-40X6 SCREW, PAN SM4.37-40X6 65 S050541001 1 チューブササエU TUBE SUPPORT, U 66 062670512 1 ナベコ 3.57-40X5 SCREW, PAN SM3.57-40X5 67 S050542001 1 チューブササエM TUBE SUPPORT, M 68 062400612 1 ナベコ M4X6 SCREW, PAN M4X6 69 S54763001 1 ハリフリフエルトササエクミ FELT SUPPORT ASSY 69-1 S050543001 1 ハリフリフエルトササエ FELT SUPPORT 69-2 S50544000 1 フエルト FELT 71 062400612 1 ナベコ M4X6 SCREW, PAN M4X6 72 S50545000 1 クミヒモ3X180 WICK, 3X180 73 S050546000 1 クミヒモ3X370 WICK, 3X370 74 S50537000 1 クミヒモ4X50 WICK, 4X50 75 S50547000 1 ビニルチューブ OIL TUBE 76 228475000 2 ケツノクバンド 1.9X80 FASTENING BAND, 1.9X80 77 S50548001 1 フエルトササエR TUBE SUPPORT, R 78 060670612 1 ハインド 3.57-40X6 SCREW, BIND SM3.57-40X6 79 S50549000 1 クランクツツトフエルト FELT 80 S50550001 1 フエルトオサエタ FELT SUPPORT 81 062670512 1 ナベコ 3.57-40X5 SCREW, PAN SM3.57-40X5 82 S050551001 1 ハリフリチユーブササエ TUBE SUPPORT 83 002300603 1 ナベコ M3X6 SCREW, PAN M3X6 84 S50552000 1 クミヒモ4X70 WICK, 4X70 87 S51020000 1 トウシンカラー COLLAR 88 S25328001 2 フエルト FELT 118-H80-350 28 jintex.in

Page 33 — N. 糸通シ関係 / Threading mechanism

N. 糸通シ関係 / Threading mechanism 20 16 17 19 22 26 23 18 24 27 26 25 2 1-3 1-1 1-2 5 6 28 32 31 31-1 31-2 31-3 31-4 31-5 31-6 31-7 39 49 40-1 40-2 40-3 40-4 40-5 40-6 40-7 40-8 51 51-1 51-2 51-3 51-4 51-5 51-6 51-7 51-8 51-9 51-10 63 64 65 66 67 69 70 68 56 10 7-6 7-2 7-1 7-4 7-3 7-5 7-7 15 7 14 11 118-H80-401 9 jintex.in

Page 34

N.糸通関係 / Threading mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50368001 1 イトユルメクトウレバーグミ T-RELEASE DRIVING LEVER ASSY 1-1 S50369001 1 イトユルメクトウレバー TENSION RELEASE DRIVING LEVER 1-2 S35095000 1 ニードルローラー4X13.8 NEEDLE ROLLER, 4X13.8 1-3 014004032 1 アナツメ 4X4 SET SCREW, SOCKET (CP) M4X4 2 014760622 1 アナトメシ 5.95 SET SCREW, SOCKET SM5.95 3 S50370001 1 イトユルメク TENSION RELEASE SHAFT 4 081005070 1 Oリング P5 O RING, P5 5 S50371101 1 イトユルメカム TENSION RELEASE CAM 6 014760622 1 アナトメシ 5.95 SET SCREW, SOCKET SM5.95 7 S51185001 1 イトトリルバークミ TENSION TAKE-UP LEVER ASSY 7-1 S50372001 1 イトクリダシレバー LEVER 7-2 S50373001 1 イトトリルバー ADJUSTING LEVER 7-3 060670512 1 バインド 357-40X5 SCREW, BIND SM3.57-40X5 7-4 100645003 1 ザガネ WASHER 7-5 S50374001 1 イトトリルバーリンク LEVER LINK 7-6 S50375001 1 イトトリルバー TENSION TAKE-UP LEVER 7-7 S50376001 2 ダンネジ 4.37 SHOULDER SCREW, SM4.37 10 100645003 1 ザガネ WASHER 11 062680612 1 ナベ 34. 37-40X6 SCREW, PAN SM4.37-40X6 14 025680234 1 ヒラザガネヨウ 4.37 WASHER, PLAIN S 4.37 15 S50376001 1 ダンネジ 4.37 SHOULDER SCREW, SM4.37 16 S50377001 1 イトユルメソレノイドホルダ SOLENOID HOLDER 17 062670612 2 ナベ 357-40X6 SCREW, PAN SM3.57-40X6 18 S50378001 1 プラングヤオサイタ PLATE 19 018300636 1 アナボルト3X6 BOLT, SOCKET M3X6 20 062300502 2 ナベ 3X5 SCREW, PAN M3X5 21 S50379001 1 イトユルメソレノイドリンク T-RELEASE SOLENOID LINK 22 S25456001 1 プラングピン PLUNGER PIN 23 S50380001 1 スプリング SPRING 24 S50381000 1 ゴム RUBBER 25 S50382001 1 イトユルメリンク TENSION RELEASE LINK 26 S50376001 2 ダンネジ 4.37 SHOULDER SCREW, SM4.37 27 141590001 1 イトオシボウ THREADING BAR, U 28 150553003 1 ナット 5.95 NUT, SM5.95 29 S50383001 1 イトカケ RETAINER 30 062670612 2 ナベ 357-40X6 SCREW, PAN SM3.57-40X6 31 S51184001 1 フライトヨウクミ SUB THREAD TENSION ASSY 31-1 159219101 1 フライトヨウシンサ SUB THREAD STUD 31-2 145446001 1 イトチョウシン STUD, TENSION 31-3 159805001 1 イトチョウシンサラ DISC PRESSER, TENSION 31-4 144103009 1 イトチョウシンサラオサエ DISC PRESSER, TENSION 31-5 144110001 1 シングルバイトチョウシンハネ TENSION ADJUSTING SPRING 31-6 S30564000 1 チョウシンハネニユエザガネ WASHER 31-7 S30565003 1 チョウシンナット TENSION NUT, RED 32 S50384101 1 イトユルメピン TENSION RELEASE PIN 39 S50385001 1 イトユルメレバータイ TENSION RELEASE LEVER BRACKET 40 S51185001 1 イトチョウシンクミ TENSION STUD ASSY 40-1 145446001 1 イトチョウシン STUD, TENSION 40-2 145446001 2 イトチョウシンサラ DISC, TENSION 40-3 159805001 1 イトチョウシンサラオサエ DISC PRESSER, TENSION 40-4 144103009 1 イトチョウシンサラオサエ DISC PRESSER, TENSION 40-5 S50386001 1 イトチョウシンハネ TENSION SPRING 40-6 S50387001 1 チョウシンナットカラー COLLAR 40-7 S12441001 1 チョウシンハネニユエザガネ WASHER 40-8 S30565005 1 イトチョウシンナット TENSION NUT 48 S50388001 1 イトユルメレバー TENSION RELEASE LEVER 49 114988001 1 ダンネジ 4.37 SHOULDER SCREW, M4.37 50 S50389001 1 イトユルメレバーハネ SPRING 51 S51182101 1 イトチョウシンウデクミ TENSION STUD BRACKET ASSY 51-1 S50390101 1 イトチョウシンウデ TENSION STUD BRACKET 51-2 S50391001 1 イトチョウシンウデL TENSION STUD, L 118-H80-401 30 jintex.in

Page 35 — N. 糸通シ関係 / Threading mechanism

N. 糸通シ関係 / Threading mechanism 17 20 16 19 22 26 23 18 24 26 25 1-3 1-1 1-2 27 28 5 6 32 31-1 31-2 31-3 31-4 31-5 31-6 31-7 39 49 50 48 51-3 51-1 51-4 51-5 51-2 51-6 51-7 51-8 51-9 51-10 31 40-1 40-2 40-3 40-4 40-5 40-6 40-7 40-8 40 51 63 64 65 66 67 69 70 68 56 10 7-6 7-2 7-1 7-4 7-3 7-7 15 7 14 11 118-H80-401 31 jintex.in

Page 36 — N.糸通シ関係 / Threading mechanism

N.糸通シ関係 / Threading mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 51-3 100402004 1 トメネジ 3.57 SET SCREW, SM3.57 51-4 081014870 1 Oリング S14 O RING, S14 51-5 145519001 1 イトトリバネ THREAD TAKE-UP SPRING 51-6 145446001 2 イトチョウザラ DISC, TENSION 51-7 159805001 1 イトチョウウンサラオサエ DISC, PRESSER, TENSION 51-8 159221001 1 イトチョウウンバネ TENSION SPRING 51-9 S30564000 1 チョウウンバネウザエガネ WASHER 51-10 S31032001 1 イトチョウシンナット TENSION NUT 56 S50384101 1 イトユルメピン TENSION RELEASE PIN 62 S55975001 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 63 159224001 1 アイトトカク THREAD GUIDE, ARM 64 S50392001 1 アイトトカク THREAD GUIDE, ARM 65 060670512 1 アイトトアンナイ SCREW, BIND SM3.57-40X5 66 113316001 1 アイトトアンナイ THREAD GUIDE 67 060670512 1 バインド 357-40X5 SCREW, BIND SM3.57-40X5 68 S50393000 1 イトトシタゲイタ THREADING PLATE 69 159917201 1 アイトトアンナイシタ THREAD GUIDE, L;ARM 70 112751003 1 シメネジ 3.57 SCREW, SM3.57X7 71 048060342 1 トメE6 RETAINING RING, E6 118-H80-401 jintex.in 32

Page 37 — Bobbin winder mechanism

P. 糸巻関係 / Bobbin winder mechanism 24-3 24-2 24-1 24 16 17 15 2 18 25 23 22 21 28 27 28 6 10 11 14 13 12 29 1 26 4 3 4 5 118-H80-402 13 jintex.in

Page 38 — P.糸巻関係 / Bobbin winder mechanism

P.糸巻関係 / Bobbin winder mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50276001 1 イトマキクウケクミ B-WINDER SHAFT BRACKET ASSY 2 S50278001 1 イトマキク BOBBIN WINDER SHAFT 3 S25410050 1 イトマキクルマ BOBBIN WINDER WHEEL 4 012400636 2 アナヒラ4X6 SET SCREW, SOCKET (FT) M4X6 5 S25789000 1 ゴムワ729 RUBBER RING, 29 6 S50279001 1 イトマキウデジク BOBBIN WINDER ARM SHAFT 7 025080132 1 ヒラサガネショウ8 WASHER, PLAIN S 8 8 048060342 1 トメワE6 RETAINING RING, E6 10 S25413101 1 ホビンオサエジククミ BOBBIN DRESSER SHAFT ASSY 11 S25417001 1 イトマキハネ SPRING 12 S25418101 1 イトマキモトシハネ SPRING 13 S50280001 1 イトマキストツパー BOBBIN WINDER STOPPER 14 062400816 1 ナベコ4X8 SCREW, PAN M4X8 15 S25420051 1 ホビンオサエR BOBBIN PRESSER, R 16 062400816 1 ナベコ4X8 SCREW, PAN M4X8 17 026040236 1 ヒラサガネキ4 WASHER, PLAIN 4 18 S10174000 1 ホコリケイタ DUST GUARD PLATE 21 157968001 1 メス KNIFE 22 062400616 1 ナベコM4X6 SCREW, PAN M4X6 23 047200642 1 スプリングピンAW2 PIN, SPRING ROLL AW2 24 S38736101 1 イトマキイトヨウジクミ BOBBIN WINDER TENSION ASSY 24-1 145446001 2 イトヨウシラ DISC, TENSION 24-2 115188001 1 シュイトヨウシナト SPRING, TENSION 24-3 108265009 1 イトヨウシナツト TENSION NUT 25 012400636 1 アナヒラ4X6 SET SCREW, SOCKET (FT) M4X6 26 048040342 1 トメワE4 RETAINING RING, E4 27 S50281000 1 イトマキプーリー BOBBIN WINDER PULLEY 28 014780622 2 アナトメキン6.35クホミ SET SCREW, SOCKET (CP) SM6.35 29 S50282000 1 イトマキレバークツシヨン B-WINDER LEVER CUSHION 118-H80-402 34 jintex.in

Page 39 — Q.上糸切り関係 / Upper thread trimmer mechanism

Q.上糸切り関係 / Upper thread trimmer mechanism 36 35-1 35-8 35-5 35-9 35-10 35-2 35-4 35-6 35-12 35-3 35-7 35-11 22 23 26 22-1 27 22-2 22-4 22-3 22-5 17 18 16 16-4 16-3 16-1 16-2 24 24-3 24-5 24-4 25 24-1 24-2 24-6 35 34 32 28 30 31 33-1 33-2 33-4 33-3 33 5 4 15 6 < -2, -3用/For "-2 & -3" > 6-8 6-7 6-2 6-6 6-1 6-4 6-3 6-5 2 2-2 2-1 2-2 14 3 1 < -5用/For "-5" > 7-2 7-6 7-8 7-7 7-1 7-4 7-3 7-5 7-3 118-H80-409 jintex.in

Page 40 — Q.上糸切り関係 / Upper thread trimmer mechanism

Q.上糸切り関係 / Upper thread trimmer mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50394001 1 ウワイトキリテンジク FULCRUM SHAFT, U-TR 2 S21755001 1 セットカラーグミ SET SCREW COLLAR ASSY 2-1 11007001 1 セットカラー SET SCREW COLLAR 2-2 014760622 2 アナメネジ 5.95 SET SCREW, SOCKET SM5.95 3 S23337001 1 ゴムセン 18.5 RUBBER CAP, 18.5 4 S52761001 1 ウワイトキリレバーザガネ WASHER, RECTANGLE 15X32X2.4 5 S19817001 2 ダンネジ 5.95 SHOULDER SCREW, SM5.95 6 <--2,-3用> <For "-2 & -3"> 6-1 S51179101 1 ウワイトキリレバーンクミ THREAD TRIMMER LEVER SET, U 6-2 S50395001 1 ウワイトキリレバークミ U-THREAD TRIMMER LEVER ASSY 6-3 S50398001 1 ハサミトメイツイタ STOP PLATE 6-4 S50399101 1 ハサミトメイツイタ BACK PLATE 6-5 S50400001 2 モトシイタカラー COLLAR 6-6 062670712 2 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 6-7 S50401001 1 ウワイトキリモトシバネ SPRING 6-8 S50402001 1 ハネカケイタ SPRING HOOK PLATE 062670512 1 ナベコ357-40X5 SCREW, PAN SM3.57-40X5 7 <--5用> <For "-5"> 7-1 S54519001 1 ウワイトキリレバーンクミB U-THREAD TRIMMER LEVER SET, B 7-2 S50395001 1 ウワイトキリレバークミ U-THREAD TRIMMER LEVER ASSY 7-3 S54520001 1 ハサミトメイツイタB STOP PLATE, B 7-4 S54521001 1 ハサミトメイツイタB BACK PLATE, B 7-5 S50400001 2 モトシイタカラー COLLAR 7-6 062670712 2 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 7-7 S50401001 1 ウワイトキリモトシバネ SPRING 7-8 S50402001 1 ハネカケイタ SPRING HOOK PLATE 062670512 1 ナベコ357-40X5 SCREW, PAN SM3.57-40X5 14 S02563001 1 モトシバネ SPRING 15 S02563001 1 モトシバネ SPRING 16 S51180001 1 ハサミトリツケイタケミ SETTING PLATE ASSY 16-1 S50403001 1 ハサミトリツケイタ SETTING PLATE 16-2 159343001 1 ハサミサエシク SUPPORT STUD 16-3 021660202 1 ナット 2シュ4.37 NUT, 2 SM4.37 16-4 025680132 1 ヒラザガネチユウ4.37 WASHER, PLAIN 4.37 17 062680232 2 ナベコ 4.37-40X8 SCREW, PAN SM4.37-40X6 18 025680232 2 ヒラザガネチユウ4.37 WASHER, PLAIN M 4.37 22 S50404201 1 ハサミクミ UPPER THREAD TRIMMER ASSY 22-1 S50405101 1 ハサミDクミ UPPER THREAD TRIMMER ASSY, D 22-2 S50113101 1 ハサミM UPPER THREAD TRIMMER, M 22-3 141513001 1 ハサミウエ UPPER THREAD TRIMMER, UPPER 22-4 141514001 1 ハサミタンネジ SHOULDER SCREW, SM3.18 22-5 S52431000 1 ハサミストツパ U-THREAD TRIMMER STOPPER 23 100644005 1 シメネジ 4.37 SCREW, SM4.37 24 S58097001 1 ハサミヒラカムクミ OPENING CAM ASSY 24-1 S50408001 1 ヒラカムトツケイタ BRACKET, OPENING CAM 24-2 S58098001 1 ハサミヒラカム OPENING CAM 24-3 018300836 2 アナトメネジ 3X8 BOLT, SOCKET M3X8 24-4 S56251001 1 ヒラカムザガネ WASHER, PLAIN 24-5 028030246 2 ハネガネチユウ 2-3 WASHER, SPRING 2-3 24-6 021300206 2 シユナツト 3 NUT, 2 M3 25 107093002 2 シメネジ 4.37 SCREW, SM4.37 26 025680232 1 ヒラザガネチユウ4.37 WASHER, PLAIN M 4.37 27 028680232 1 ハネガネチユウ 2-4.37 WASHER, SPRING 2-4.37 28 S50410001 2 イトキリレバー DRIVING LEVER, TR 29 S50411001 1 イトキリレバー ROLLER, ;D-LEVER 30 S50412000 1 タマシクウケ BALL BEARING 31 S50413001 2 イトキリレバーダンネジ SHOULDER SCREW 32 081012070 2 Oリング P12 O RING, P12 118-H80-409 36 jintex.in

Page 41 — Q.上糸切り関係 / Upper thread trimmer mechanism

Q.上糸切り関係 / Upper thread trimmer mechanism 36 35-1 35-8 35-5 35-9 35-10 35-2 35-4 35-6 35-3 35-7 35-11 35-12 22 23 26 22-1 22-4 22-3 17 18 22-2 22-5 16 16-4 16-3 16-1 16-2 24 24-3 24-5 24-4 24-1 24-2 24-6 35 34 32 28 30 31 33-1 33-2 33-4 33-5 33-3 5 4 6 6-8 6-7 6-2 6-6 6-1 6-3 6-4 6-5 < -2, -3 用 / For "-2 & -3" > 14 3 1 2 2-1 2-2 2-2 < -5 用 / For "-5" > 7 7-2 7-8 7-7 7-6 7-1 7-4 7-3 7-5 15 17 jintex.in 118-H80-409

Page 42 — Q.上糸切り関係 / Upper thread trimmer mechanism

Q.上糸切り関係 / Upper thread trimmer mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 33 S50419001 1 ゼンゴサトウデクミ LONGITUDINAL FEED ARM ASSY 33-1 S50414001 1 ゼンゴサトウデ LONGITUDINAL FEED ARM 33-2 S50415001 1 ゼンゴウデピン PIN, L-FEED ARM 33-3 S50416001 1 ゼンゴウデコロ ROLLER, L-FEED ARM 33-4 048040342 2 トメワE4 RETAINING RING, E4 33-5 014680622 1 アナトメネジ 4.37X4.37ミ SET SCREW, SOCKET (CP) SM4.37 33-6 018061622 1 アナトメネジM6X16 BOLT, SOCKET M6X16 34 S51181001 1 イトギリサトウデクミ DRIVING ARM ASSY, TR 35 S50417001 1 イトギリサトウデ DRIVING ARM, TR 35-1 S50418001 1 ウデコロササエタ SUPPORT PLATE 35-2 018681022 1 アナトメボルト 4.37X10 BOLT, SOCKET SM4.37X10 35-3 025680132 1 ヒラザガネ 4.37 WASHER, PLAIN S 4.37 35-4 S50420001 1 ウデコロ ROLLER SHAFT 35-5 028050242 1 バネザガネ2-5 WASHER, SPRING 2-5 35-6 021500312 1 3シュナット5 NUT, 3 M5 35-7 048060142 1 トメワC6 RETAINING RING, C6 35-8 S50511001 1 サトウデコロ ROLLER, D-ARM 35-9 S50512001 1 ハサミトシストツパ STOPPER 35-10 018681022 1 アナトメボルト 4.37X10 BOLT, SOCKET SM4.37X10 35-11 025680132 1 ヒラザガネ 4.37 WASHER, PLAIN S 4.37 35-12 018061622 1 アナトメネジM6X16 BOLT, SOCKET M6X16 36 118-H80-409 38

Page 43

R. 下糸切り関係 / Lower thread trimmer mechanism 39 39-1 39-4 39-6 39-5 39-2 39-3 40 43 49 66-1 42-2 42-1 42 < -3用 / For "-3" > 66-2 < -5用 / For "-5" > 66-3 56 62 52 52-2 52-1 55 51 50 54 53 25 26 27 24 19 22 23 21 41 32 35 34 33 36 37 38 5 2 1-1 1-2 1-3 1-4 3 4 10 17 17-1 18 20 30 30-1 31 30-2 30-3 30-4 30-5 10-3 10-2 10-1 10-4 16 65 61 63 11 12 118-H80-410 39 Jinttex.in

Page 44 — R.下糸切り関係 / Lower thread trimmer mechanism

R.下糸切り関係 / Lower thread trimmer mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S51171001 1 シイトキリカムバーグミ CAM LEVER ASSY, L-TR 1-1 S50246001 1 シイトキリカムバー CAM LEVER, L-TR 1-2 107744001 1 コロ ROLLER 1-3 141519001 1 イトキリサトウカムコジック ROLLER SHAFT 1-4 110161004 1 ダンネジ 4.76 NUT, SM4.76 1-5 048030342 1 トメワE3 RETAINING RING, E3 2 159267001 1 シイトキリカムジク CAM SHAFT, L-TR 3 110494001 1 ザガネ WASHER, PLAIN 9.5 4 048080342 1 トメワE8 RETAINING RING, E8 5 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 10 S51170001 1 シイトキリカムジクミ LOWER THREAD TRIMMER CAM ASSY 10-1 S50247001 1 シイトキリカム LOWER THREAD TRIMMER CAM 10-2 S50411001 1 アクレバーコロ ROLLER, ELEVATOR 10-3 145478101 1 タンネジ 4.76 SHOULDER SCREW, SOCKET SM4.76 10-4 S50248001 1 シイトキリカムカンカン CONNECTING ROD, L-TR 11 150491101 2 レバーシク LEVER SHAFT 12 014760622 2 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 16 159269001 1 シイトキリカムジクダンネジ SHOULDER SCREW, SM4.37 17 S50249001 1 シイトキリカムジク LINK ASSY, L-TR 17-1 S59987001 1 シイトキリカレンカ CONNECTING ROD, A 17-2 062680512 2 ナベコ 437-40X5 SCREW, PAN SM4.37-40X5 18 149127001 1 ダンネジ 6.35 SHOULDER SCREW, SM6.35 19 S50252001 1 メスドウレバー KNIFE DRIVING LEVER 20 113730001 1 ダンネジ 4.37 SHOULDER SCREW, SM4.37 21 159272001 1 メスドウレバーダンネジ SHOULDER SCREW 22 S00903001 1 メスドウレバーカラー COLLAR 23 S00901001 1 メスドウレバーザガネU WASHER, PLAIN L 6.4 (U) 24 S00902001 1 メスドウレバーザガネD WASHER, PLAIN L 4.6 (D) 25 S50253001 1 ハリイタベークミ LEVER ASSY 26 S50257001 1 ハリイタベークラー COLLAR 27 S00712101 1 シメネジ 4.37 SCREW, SM4.37 28 S50258001 1 シイトサバキ LOWER THREAD RETAINER 29 110215002 2 シメネジ 3.57 SCREW, SM3.57 30 S50259101 1 シタコテイハクミ FIXED KNIFE SET 30-1 S50260101 1 シタコテイハクミ FIXED KNIFE ASSY 30-2 S50263001 1 シイトウハ MOVABLE KNIFE 30-3 025040000 1 マワシヤ-4302 WASHER 30-4 060640102 1 ヒラサガネシヨウ4 WASHER, PLAIN S 4 30-5 060630312 1 バインド238-56X3 SCREW, BIND SM2.38X3 31 060670412 2 バインド357-40X4 SCREW, BIND SM3.57-40X4 32 S50265001 1 シイトツカミイタクミ LOWER THREAD CLAMP PLATE ASSY 33 141514001 1 ハサミダンネジ SHOULDER SCREW, SM3.18 34 025040132 1 ヒラサガネシヨウ4 WASHER, PLAIN S 4 35 S50269000 1 マワシヤ-5011 WASHER 36 S50270001 1 シイトオサエ LOWER THREAD PRESSER 37 145371001 1 ダンネジ 2.38 SHOULDER SCREW, SM2.38 38 110215002 1 シメネジ 3.57 SCREW, SM3.57 39 S52433001 1 シイトツカミヒライタクミ OPENING PLATE, A 39-1 S52433001 1 シイトツカミヒライタクミA OPENING PLATE, A 39-2 110167001 1 コロ ROLLER 39-3 110168001 1 コロジク ROLLER SHAFT 39-4 S52434001 1 シイトツカミヒライタクミB OPENING PLATE, B 39-5 141514001 1 ハサミダンネジ SHOULDER SCREW, SM3.18 39-6 123185001 1 マルヒラネジ 3.57X4.5 SCREW 3.57X4.5 40 149127001 1 ダンネジ 6.35 SHOULDER SCREW, SM6.35 41 105970001 1 シメネジ 2.38 SCREW, SM2.38 42 S52778001 1 ハリイタベークミ BASE PLATE ASSY 42-1 S50303001 1 ハリイタベース BASE PLATE 42-2 S52770000 1 ハリイタバー COVER, B-PLATE 43 106629002 4 シメネジ 4.37 SCREW, SM4.37 49 S01696001 2 サラネジ 3.57X6 SCREW, FLAT SM3.57X6 118-H80-410 jintex.in 40

Page 45 — R. 下糸切り関係 / Lower thread trimmer mechanism

R. 下糸切り関係 / Lower thread trimmer mechanism 39 39-1 39-4 39-6 39-5 39-2 39-3 40 49 43 66-1 42-2 42-1 42 < -3用/For "-3" > 66-2 64 56 62 52 52-2 52-1 55 51 50 54 53 60 57 58 59 17 17-2 61 63 18 20 30 31 30-1 30-2 30-3 30-4 30-5 30 25 26 29 27 24 22 23 21 17-1 41 32 35 34 33 36 37 5 2 < -5用/For "-5" > 66-3 1-1 1-2 1-3 1-4 3 4 10 10-3 10-2 10-1 10-4 16 65 11 12 118-H80-410 11 Jjinte.in

Page 46 — R.下糸切り関係 / Lower thread trimmer mechanism

R.下糸切り関係 / Lower thread trimmer mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 50 S50323000 1 ボビンオサエ BOBBIN PRESSER 51 S01998001 1 アタマツキメネジ3.57 SET SCREW, SM3.57-40X6 52 S51172001 1 ボビンオサエダイクミ BOBBIN PRESSER BRACKET ASSY 52-1 S50324001 1 ボビンオサエダイ BOBBIN PRESSER BRACKET 52-2 107639001 1 ハネカケU SPRING HOOK, U 53 15924001 1 ストツプレバータンネジ SHOULDER SCREW 54 062671612 1 ナベコ357-40X16 SCREW, PAN SM3.57-40X16 55 021670202 1 ナツト2シ3.57 NUT, 2 SM3.57 56 062680512 2 ナベコ437-40X5 SCREW, PAN SM4.37-40X5 57 S50325001 1 カバーヒラキヨイタ AUXILIARY PLATE 58 S50326001 1 ボビンオサエキライタ OPENING PLATE 59 105237002 1 ダンネジ 3.57 SHOULDER SCREW, SM3.57 60 159113001 1 ダンネジ 3.18 SHOULDER SCREW, SM3.18 61 159379001 1 シノツケピンBX6X18 PIN, DOWEL BX6X18 62 S50327001 2 ボビンオサエハネ SPRING, EXTENSION 63 S50328001 1 シタトカミラキイタハネ SPRING, PLATE 64 159379001 1 シノツケピンBX6X18 PIN, DOWEL BX6X18 65 S50329000 1 シタイトリレンカバ COVER 66-1 S50664001 1 <ー2用> ハリイタ1.4S <For "2"> NEEDLE PLATE, 1.4S 66-2 S51248101 1 <ー3用> ハリイタ1.2S-3 <For "3"> NEEDLE PLATE, 1.2S-3 66-3 S54522001 1 <ー5用> ハリイタ1.4-50 <For "5"> NEEDLE PLATE, 1.4-50 118-H80-410 42 jintex.in

Page 47

S. 針位置検出器関係 / Synchronizer 1 2 5 4 6 7 118-H80-501 Г.操作パネル関係 / Operation panel mechanism 1-1-1 1-1-12 1-1-14 1-1-7-1 1-1-7-7 1-1-13 1-1-11 1-1-7-4 1-1-7-2 1-1-7-3 1-1-7-1 1-1-7-6 1-1-7-4 1-1-7-5 1-1-9 1-1-7-8 1-1-4 1-1-10 1-1-2 1-2 1-1-3 13 118-H80-530 jintex.in

Page 48

S.針位置検出器関係 / Synchronizer REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50657001 1 シンクロナイザH80 SYNCHRONIZER ASSY, H80 2 062400806 2 ナベコ34X8 SCREW, PAN M4X8 4 S50354000 1 シヤクミ MAGNET ASSY, U 5 S38082001 1 ハリウエジヤクミ MAGNET ASSY, U 6 062681412 2 ナベコ3437-40X14 SCREW, PAN SM4.37-40X14 7 025680132 2 ヒラザガネショウ4.37 WASHER, PLAIN S 4.37 T.操作パネル関係 / Operation panel mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-1 S50565201 1 ソウサパネルソウクミ OPERATION PANEL SET 1-1-1 S50451201 1 ソウサパネルクミ OPERATION PANEL ASSY 1-1-1-1 S51901201 1 マエフレームクミ FRONT FRAME ASSY 1-1-2 S49492000 1 ソウサパネルウシロフレーム REAR FRAME 1-1-3 S49495000 1 パネルヨコカバー PANEL SIDE COVER 1-1-4 S49496001 1 パネルヨコカバーガイド COVR GUIDE, ;SIDE 1-1-5 087310815 2 カップ Bタイト3X8 TAPTITE, CUP B M3X8 1-1-6 0A4400805 1 ナベコ(S/Pワッシャー)4X8DA SCREW, PAN (S/P WASHER) M4X8 1-1-7 S50563000 1 パネルキバンクミ PANEL PCB ASSY 1-1-7-1 S46703000 6 LEDPG5307S LED, PG5307S 1-1-7-2 S50455000 1 LEDBR5307S LED, BR5307S 1-1-7-3 S29023000 6 LEDGL9P040 LED, GL9P040 1-1-7-4 S48579000 8 SWB3F-4050 SWITCH, B3F-4050 1-1-7-5 U34870001 2 DIPSW KSP08 DIP SWITCH:KSP08 1-1-7-6 S30280000 1 ブザーPKB24SPC36 BUZZER, PKB24SPC36 1-1-7-7 XG2A-2031 1 コネクタXG4A-2031 CONNECTOR, XG4A-2031 1-1-8 S50457000 1 パネルケーブルクミ PANEL CABLE ASSY 1-1-9 XA2220050 2 キバンオサエ BOARD PRESSER 1-1-10 087311015 2 カップ Bタイト3X10 TAPTITE, CUP B M3X10 1-1-11 S58974000 1 PRG/Mハーネスクミ PRG/M HARNESS ASSY 1-1-12 S58987001 1 ハーネスリングケイタ HARNESS SETTING PLATE 1-1-13 002301003 2 ナベコ3X10 SCREW, PAN M3X10 1-1-14 021300206 1 2シュナツト3 NUT, 2 M3 1-2 062300806 4 ナベコ3X8 SCREW, PAN M3X8 3 S53181000 1 パネルケーブルクミ PANEL CABLE ASSY, L 4 S58984000 1 PRG/Mハーネスクミ PRG/M HARNESS ASSY, L 118-H80-501 118-H80-530 44 jintex.in

Page 49 — U1. コントロールボックス関係 / Control box mechanism

U1. コントロールボックス関係 / Control box mechanism 1-21 1-22 1-2 6,7 1-3 1-25 1-25-2 1-25-6 1-25-1 1-25-3 1-13 1-14 1-15 1-19 1-16 1-17 1-33 1-37 1-36 1-35 1-10 1-18 1-6 1-9 1-8 1-7 1-4 1-5 1-12 1-24 1-20 1-5-1 < 100V,110V,240V,380V, 400V,415V用 / For "100V,110V,240V,380V, 400V & 415V AC" > < 200V,220V,230V用 / For "200V,220V & 230V AC" > 1-24-3 1-24-1 1-24-5 52 53 5 1-24-4 1-24-2 4 1-23-1-20 1-23-9 1-23-1-18 1-23-1-24 1-23-1-19 1-23-3 1-23-8 1-23-2 1-23-1-17 1-23-1-9 1-23-1-21 1-23-1-13 1-23-1-7 1-23-1-6 1-23-1-10 1-23-1-14 1-23-1-15 1-23-1-11 1-23-1-12 1-23-1-16 1-23-7 1-23-1-2 1-23-1-4 1-23-1-3 1-23-1-5 1-23-4 1-23-1-1 1-23-1-23 1-23-5 1-23 1-26 1-27 103 104 1-28 1-29 1-30 102-1 1-31 102-1-2 32 31 101 102-2 102-4 102-3 102-1-1 45 118-H80-502 jintex.in

Page 50 — U1.コントロールボックス関係 / Control box mechanism

U1.コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S0421001 1 ボックスアッ BOX ASSY 1-1 S050566001 1 デンケンボックス POWER SUPPLY BOX 1-2 S050567001 1 メインキバントツリツケイタ SETTING PLATE, M-PCB 1-3 S050568001 1 サブキバントツリツケイタ SETTING PLATE, AUX-PCB 1-4 S05066000 2 DCファンモータクミ FAN MOTOR ASSY, DC 1-5 0A5403005 6 ナベザネジクミ4X30DB SCREW, PAN (S/P WASHER) M4X30 1-6 S47723201 1 トランスクミ TRANSFORMER ASSY 1-6-1 S47749101 2 EZトランスプレート SETTING PLATE, TRANSFORMER 1-7 025050236 4 ヒラザガネチユウ5 WASHER, PLAIN M 5 1-8 028050246 4 バネザガネ2-5 WASHER, SPRING 2-5 1-9 018501236 4 アサルト5X12 BOLT, SOCKET M5X12 1-10 S43186000 1 ブツシBU687B BUSH, BU687B 1-11 S09142000 2 コードクランプ 20L CORD CLAMP, 20-L 1-12 S43275000 14 コードクランプ WS2NS CORD CLAMP, WS2NS 1-13 S43276000 1 コードクランプ WS3NS CORD CLAMP, WS3NS 1-14 S50422000 3 コードクランプ WS2WS CORD CLAMP, WS2WS 1-15 S43318000 10 クランプLW8S2.5W CLAMP, LW8S8 2.5W 1-16 S51118001 1 コードブツシ CORD BUSH 1-17 S38820000 1 ブツシ35 BUSHING, 35 1-18 S050423000 1 ブツシTB-1926 BUSHING, TB-1926 1-19 S42227009 1 グロメットMG-3 RUBBER CAP, MG-3 1-20 S50440000 1 ホウジンアミ FRAGMENT PROTECTOR NET 1-21 008400604 12 トラスコ4X6 SCREW, TRUSS M4X6 1-22 S00554000 23 サポート6NS SUPPORT, 6NS 1-23 S47721001 1 デンケンEZバンクセミ POWER SUPPLY PCB ACCY, EZ 1-23-1-1 J02443001 1 IPMPM20CSJ060 I-POWER MODULE, PM20CSJ060 1-23-1-2 J03284001 1 FETFS5UM-18A TRANSISTOR, FET :FS5UM-18R 1-23-1-3 J03285001 1 FETFS3KM-18A TRANSISTOR, FET :FS3KM-18A 1-23-1-4 S47720000 1 SID20L6P45クミ DIODE ASSY, BR :20L6P45 1-23-1-5 J03324001 3 コンデンサC450B471 CAPACITOR, ALUM-ELEV :450B471 1-23-1-6 S47735000 1 トランス28AG1L9AD TRANSFORMER, 28AG1L9AD 1-23-1-7 J02441001 1 リレーG2R-1A6V RELAY, G2R-1A6V 1-23-1-8 S38201000 4 バリスタV14D471 VARISTOR :V14D471 1-23-1-9 J03283001 1 SPツナブサDSA362M SURGE ABSORBER, :DSA362M 1-23-1-10 S47710000 1 コイルNF10TP102 COIL, :NF10TP102 1-23-1-11 218469001 2 ガンヒューズ15A#2 FUSE, 15A#2 1-23-1-12 J01684001 4 ヒューズホルダ F062 FUSE HOLDER, F062 1-23-1-13 J02727001 2 ガラスヒューズ2A250V GLASS FUSE, 2A/250V 1-23-1-14 S47734000 3 コネクタB4P5-VB-2 CONNECTOR, B4P5-VB-2 1-23-1-15 J02449001 1 コネクタ5281-02A CONNECTOR, 5281-02A 1-23-1-16 S47730000 1 IPMコード P IPM CORD, P 1-23-1-17 S47728000 1 DC300VハーネスP HARNESS, P DC 300V 1-23-1-18 S47727000 1 モータハーネスP MOTOR HARNESS, P 1-23-1-19 S47725000 1 デンケンハーネスP POWER SUPPLY HARNESS, P 1-23-1-20 S47726000 1 グラウンドワイヤ P GROUND WIRE, P 1-23-1-21 J03296001 1 ファインPR1616-25-PB HEATSINK, ;PR1616-25-PB 1-23-1-22 S47729000 1 ファインOSH-1025-MP HEATSINK, ;OSH-1025-MP 1-23-1-23 221419001 2 ナベセット3X10DB SCREW 1-23-1-24 J03291001 1 コアESD-R-25B CORE, ESD-R-25B 118-H80-502 RM欄に*が付いている部品をご注文頂きますと、基板等必要な部品がー式入ったセットになっております。 When ordering parts which have an asterisk(*) in the RM column, these parts will be supplied as a set together with other necessary parts such as circuit boards. 46 Jinte.in

Page 51 — U1.コントロールボックス関係 / Control box mechanism

U1.コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-23-3 S47694000 1 MR-A40101Jクミ F-RESISTOR ASSY, MR-A40101 1-23-4 0A5400805 1+ F-RESISTOR ASSY, MR-A40101 SCREW, PAN (S/P WASHER) M4X8 1-23-5 S47693000 2 スペーサー4EP-12 SPACER, 4EP-12 1-23-6 S47724000 5 スペーサー7NS SPACER, 7NS 1-23-7 229017001 4+ スペーサー4X10DA SCREW, PAN (S/P WASHER) M4X10 1-23-8 J02343001 2+ スペーサー4X16DB SCREW, PAN (S/P WASHER) M4X16 1-23-9 S39819000 1 コードクランプ 1259 CORD CLAMP, 1259 1-23-10 S40621000 1 EMI 37ESD-SR-15 EMI CORE, ESD-SR-15 1-24 S50425001 1 デンゲン EHキバンクミ POWER SUPPLY PCB ASSY, EH 1-24-1 S38200000 2 MOSFET2SK1938 TRANSISTOR, 2SK1938 1-24-2 232384001 1 SURGE ABSORBER :DSA362MA SURGE ABSORBER :DSA362MA 1-24-3 S38201000 2 VARISTOR:VM4D471 VARISTOR:VM4D471 1-24-4 S08030000 1 FUSE, 5A :FB FUSE, 5A :FB 1-24-5 153242000 2 ヒューズ 6A FUSE, 6A 1-25 S50431001 1 サブキバンクミ SUB PCB ASSY 1-25-1 S38155000 5 MOSFET2SK1306 TRANSISTOR, FET :2SK1306 1-25-2 S50645000 1 MOSFET2SK1307 TRANSISTOR, FET :2SK1307 1-25-3 Y44715591 1 デンC50B471 CAPACITOR, ALUM-ELEC :50B471 1-26 018401236 1 ボルト4X12 BOLT, SOCKET M4X12 1-27 S50437000 1 PERコード CORD, PER 1-28 S50438000 1 EX32ハーネス HARNESS, EX32 1-29 S50439000 1 26ハーネス HARNESS, EX26 1-30 S50440000 1 デンケンACハーネス POWER SUPPLY HARNESS, AC 1-31 S50441000 1 デンケンDCハーネス POWER SUPPLY HARNESS, DC 1-32 S37059001 1 LABEL, PE LABEL, PE 1-33 S37060001 2 アースコード LABEL, GROUNDING 1-34 0A5401006 2 ナベコ 5X10 SCREW, PAN (S/P WASHER) M4X10 1-35 S50440000 1 アースコード GROUND WIRE 1-36 0A5401006 1 ナベコ 5X10 SCREW, PAN (S/P WASHER) M4X10 1-37 0A5401006 1 ナベコ 5X10 SCREW, PAN (S/P WASHER) M4X10 1-38 S50440000 1 GROUND WIRE 3 S50488100 1 PROMB800Eクミ BOX SET, A2H <220V, 220V, 230V用> <For "200V,220V & 230V AC> 4 S20345001 2 ゴムセン14 RUBBER CAP, 14 <For "100V,110V & 240V, 100V, 110V, 240 5 S43186000 2 ブッシュBU687B 380V,400V & 415V AC> 380V,400V,415V用> BUSH, BU687B 6 S38352101 2 デンケキラベル、4コ LABEL, ELEC. SHOCK 4 LANG. 7 S38353101 2 デンケキラベル、7 LABEL, ELEC. SHOCK JPN. 8 S10820000 1 デンツラベル LABEL, 100V AC 9 S10820001 1 デンツラベル LABEL, 200V AC 10 S10820002 1 デンツラベル LABEL, 110V AC 11 S10820003 1 デンツラベル LABEL, 220V AC 12 S10820004 1 デンツラベル LABEL, 230V AC 13 S10820005 1 デンツラベル LABEL, 380V AC 14 S10820006 1 デンツラベル LABEL, 400V AC 15 S10820007 1 デンツラベル LABEL, 415V AC 16 S10820008 1 デンツラベル LABEL, 415V AC 31 S38146000 1 コネクタ3191-04R CONNECTOR, 3191-04R 32 228475000 1 ケツノクバンド 1.9X80 FASTENING BAND, 1.9X80 47 118-H80-502 jintex.in

Page 52 — U1.コントロールボックス関係 / Control box mechanism

U1.コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 52 S50483100 2 B-OUTヘンカンハーネス <For "100V, 110V & 240V, 380V,400V & 415V AC"> CONVERSION HARNESS, B-OUT 53 S38146000 2 コネクタ3191-04R CONNECTOR, 3191-04R 101 0A5501005 3 ナベザックス5X10DB SCREW, PAN (S/P WASHER) M5X10 102 J0814001 1 TREADLE UNIT, EZ TREADLE UNIT, EZ 102-1 J03419001 1 フミコミベースクミEZ-1 TREADLE BASE ASSY, EZ-EXPORT 102-1-1 J01935001 1 スプリング28.6X30 SPRING, TWIST 28.6X30 102-1-2 J00649001 1 スプリング12.6X86 SPRING, EXTENSION 12.6X86 102-2 J0813001 1 PS CIRCUIT EZ PS PCB, EZ 102-3 J02130001 3 ワッシャー6X4.3X8 WASHER, WAVE 6X4.3X8 102-4 037401015 3 ナベタツピン4X10 TAPPING SCREW, PAN V M4X10 103 J03417001 1 アースコードクミ GROUND WIRE ASSY 104 229017001 1 ナベセット4X10DA SCREW, PAN (S/P WASHER) M4X10 "補給用部品" "For Supply parts" <三相200V国内用> <For Japan only> H-1 S50501201 1 ボックスクミA1V <三相220V輸出用> <For "1-Phase 220V AC"> H-2 S50502201 1 ボックスクミA2V BOX SET, A2V <単相220V輸出用> <For "1-Phase 220V AC"> H-3 S50503201 1 ボックスクミA3V BOX SET, A3V <単相100V国内用> <For Japan only> H-4 S50504301 1 ボックスクミB1V <For "1-Phase 110V AC"> H-5 S50505301 1 ボックスクミB2V BOX SET, B2V <三相415V輸出用> <For "3-Phase 415V AC"> H-6 S50506301 1 ボックスクミC1V BOX SET, C1V <三相380V輸出用> <For "3-Phase 380V AC"> H-7 S50507301 1 ボックスクミC2V BOX SET, C2V <単相240V輸出用> <For "1-Phase 240V AC"> H-8 S50508301 1 ボックスクミC3V BOX SET, C3V <三相400V輸出用> <For "3-Phase 400V AC"> H-9 S50509301 1 ボックスクミEV BOX SET, EV <単相230V輸出用> <For "1-Phase 230V AC"> H-10 S50510201 1 ボックスクミFV BOX SET, FV 118-H80-502 RM欄に*が付いている部品をご注文頂きますと、基板等必要な部品がー式入ったセットになっております。 When ordering parts which have an asterisk(*) in the RM column, these parts will be supplied as a set together with other necessary parts such as circuit boards. 48 jintex.in

Page 53

U2. コントロールボックス関係 / Control box mechanism < 三相200V,220V用 / For "3-Phase 200V & 220V AC" > 30-1-3 30-1-1 30-1 30-1-5 30-1-6 30-1-4 30-1-8 30-1-7 < 単相100V用 / For Japan only > 50-1-7 50-1-7-2 50-1-7-3 50-1-8 50-1-10 50-1-9 50-1-11 50-1-4 50-1-2 50-1-3 50-1-12 50-1-6 50-1-1 30-3 30-3-3 30-3-1 30-3-4 30-3-2 30-3-8 30-3-7 30-3-6 < 単相220V用 / For "1-Phase 220V AC" > 30-2-3 30-2-1 30-2 30-2-2 30-2-5 30-2-4 30-2-6 30-2-7 30-2-8 < 単相110V用 / For "1-Phase 110V AC" > 50-2-7 50-2-7-2 50-2-7-3 50-2-8 50-2-10 50-2-11 50-2-4 50-2-9 50-2-7-1 50-2-2 50-2-3 50-2-12 50-2-6 50-2-1 < 単相240V用 / For "1-Phase 240V AC" > 51-1-7 51-1-7-2 51-1-7-3 51-1-11 51-1-8 51-1-12 51-1-10 51-1-4 51-1-9 51-1-2 51-1-3 51-1-1 51-1-6 51-1-5 30-2-3 30-2-1 30-2-2 30-2-5 30-2-8 30-2-4 30-2-6 30-2-7 19 jintex.in 118-H80-502

Page 54 — U2.コントロールボックス関係 / Control box mechanism

U2.コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 30-1 S50442001 1 <三相200V, 220V用> デンゲンSWクミA <For "3-Phase 200V & 220V AC"> POWER SUPPLY SWITCH ASSY, A 30-1-1 S50443000 1 デンゲンコード A1 POWER SUPPLY CORD, A1 30-1-2 S38133000 1 デンゲンコード POWER SUPPLY HARNESS 30-1-3 J02657001 1 3PオンSW#17 PUSH SWITCH, 3P #17 30-1-4 224514001 2 ゼツエンイタ INSULATION PLATE 30-1-5 218859001 3 バインダー M150 BINDER, M150 30-1-6 S40623000 1 EMIコアTR-40-27 EMI CORE, TR-40-27 30-1-7 0A4401205 1 ナベザクリ4X12A SCREW, PAN (S/P WASHER) M4X12 30-1-8 021040105 1 ナット1シュ4 NUT, M4 30-2 S50444001 <単相110V, 220V, 240V用> デンゲンSWクミB <For "1-Phase 110V, 220V & 240V AC"> POWER SUPPLY SWITCH ASSY, B 30-2-1 S50445000 1 デンゲンコード B POWER SUPPLY CORD, B 30-2-2 S47595000 1 デンゲンコードユシュツ POWER SUPPLY HARNESS, EXP. 30-2-3 J02657001 1 3PオンSW#17 PUSH SWITCH, 3P #17 30-2-4 224514001 2 ゼツエンイタ INSULATION PLATE 30-2-5 218859001 3 バインダー M150 BINDER, M150 30-2-6 S40623000 1 EMIコアTR-40-27 EMI CORE, TR-40-27 30-2-7 0A4401205 1 ナベザクリ4X12A SCREW, PAN (S/P WASHER) M4X12 30-2-8 021040105 1 ナット1シュ4 NUT, M4 30-3 S50446001 <単相100V用> デンゲンSWクミC <For Japan only> 30-3-1 S50445000 1 デンゲンコード B 30-3-2 S38118000 1 デンゲンコードコウナイ 30-3-3 J02657001 1 3PオンSW#17 30-3-4 224514001 2 ゼツエンイタ 30-3-5 218859001 3 バインダー M150 30-3-6 S40623000 1 EMIコアTR-40-27 30-3-7 0A4401205 1 ナベザクリ4X12A 30-3-8 021040105 1 ナット1シュ4 50-1 S50632101 <単相100V用> ペンカントランスB100クミ <For Japan only> 50-1-1 S50407001 1 トランスベ-スイタ 50-1-2 S54028001 1 トランスフタ 50-1-3 S50474000 2 トツテ 50-1-4 S41964000 1 プツシユ 50-1-5 062500602 4 ナベコ5X6 50-1-6 S23618001 4 シメネジ6X10 50-1-7 S50633100 1 ペンカントランスB100 50-1-7-1 S50649000 1 ペンカントランスB 50-1-7-2 S50486100 1 TR-INハーネス 50-1-7-3 S50486100 1 TR-OUTハーネス 50-1-8 018060831 4 アアナボルト6X8 50-1-9 025060236 4 ヒラザガネチユウ6 50-1-10 028060246 4 バネザガネ32-6 50-1-11 S10820000 1 デンキアツベル 50-1-12 0A4400606 1 ナベザクリ4X6DA 50-2 S50634101 <単相110V用> ペンカントランスB110クミ <For "1-Phase 110V AC"> TRANSFORMER ASSY, B110;CONV. 50-2-1 S54027001 1 トランスベ-スイタ BASE PLATE, TRANS. 50-2-2 S54028001 1 トランスフタ COVER, TRANS. 50-2-3 S50474000 2 トツテ HANDLE 50-2-4 S41964000 1 プツシユ BUSH 50-2-5 062500602 4 ナベコ5X6 SCREW, PAN M5X6 50-2-6 S23618001 4 シメネジ6X10 SCREW, M6X10 50-2-7 S50635100 1 ペンカントランスB110 TRANSFORMER, B100;CONV. 50-2-7-1 S50549000 1 ペンカントランスB CONVERSION TRANSFORMER, B 118-H80-502 50 jintex.in

Page 55

U2. コントロールボックス関係 / Control box mechanism < 三相200V,220V用 / For "3-Phase 200V & 220V AC" > 30-1-3 30-1-1 30-1-2 30-1 30-1-5 30-1-4 30-1-6 30-1-8 30-1-7 < 単相100V用 / For Japan only > 50-1-7 50-1-7-2 50-1-7-3 50-1-11 50-1-8 50-1-10 50-1-9 50-1-4 50-1-12 50-1-3 50-1-1 50-1-6 30-3 30-3-3 30-3-1 30-3-2 30-3-4 30-3-5 30-3-6 30-3-7 30-3-8 < 単相220V用 / For "1-Phase 220V AC" > 30-2 30-2-3 30-2-1 30-2-2 30-2 30-2-5 30-2-4 30-2-6 30-2-7 30-2-8 < 単相110V用 / For "1-Phase 110V AC" > 50-2-7 50-2-7-2 50-2-7-3 50-2-11 50-2-5 50-2-8 50-2-10 50-2-7-1 50-2-9 50-2-4 50-1-2 50-2-12 50-2-2 50-2-3 50-2-6 50-2-1 50-2-11 < 単相240V / For "1-Phase 240V AC" > 51-1-7 51-1-7-2 51-1-7-3 51-1-11 51-1-8 51-1-12 51-1-10 51-1-4 51-1-9 51-1-2 51-1-3 51-1-6 51-1-1 30-2 51-1-11 30-2-3 30-2-1 30-2-2 30-2-5 30-2-4 30-2-6 30-2-7 30-2-8 51 jintex.in 118-H80-502

Page 56 — U2.コントロールボックス関係 / Control box mechanism

U2.コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 50-2-7-2 S50485100 1 <単相110V用> TR-INハーネス <For "1-Phase 110V AC"> HARNESS, TR-IN 50-2-7-3 S50485100 1 TR-OUTハーネス HARNESS, TR-OUT 50-2-8 018060831 4 アアナボルト6X8 BOLT, SOCKET M6X8 50-2-9 025060236 4 ヒラサガネチユウ6 WASHER, PLAIN M 6 50-2-10 028060246 4 バネザガネ2-6 WASHER, SPRING 2-6 50-2-11 S10820002 1 デンツラペル LABEL, 110V AC 50-2-12 0A4400606 1 ナベザクミ4X6DA SCREW, PAN (S/P WASHER) M4X6 51-1 S50636101 1 <単相240V用> ペンカントランスC240クミ <For "1-Phase 240V AC"> TRANSFORMER ASSY, C240;CONV. 51-1-1 S54027001 1 トランスベースイタ BASE PLATE, TRANS. 51-1-2 S54028001 1 トランスフタ COVER, TRANS. 51-1-3 S50474000 2 トツテ HANDLE 51-1-4 S41964000 1 プツシユ BUSH 51-1-5 062500602 4 ナベコ5X6 SCREW, PAN M5X6 51-1-6 S23618001 4 シメネジ6X10 SCREW, M6X10 51-1-7 S50637100 1 ペンカントランスC240 TRANSFORMER, C240 ;CONV. 51-1-7-1 S38128000 1 ペンカントランスC CONVERSION TRANSFORMER, C 51-1-7-2 S50485100 1 TR-INハーネス HARNESS, TR-IN 51-1-7-3 S50486100 1 TR-OUTハーネス HARNESS, TR-OUT 51-1-8 018060831 4 アアナボルト6X8 BOLT, SOCKET M6X8 51-1-9 025060236 4 ヒラサガネチユウ6 WASHER, PLAIN M 6 51-1-10 028060246 4 バネザガネ2-6 WASHER, SPRING 2-6 51-1-11 S10820005 1 デンツラペル LABEL, 240V AC 51-1-12 0A4400606 1 ナベザクミ4X6DA SCREW, PAN (S/P WASHER) M4X6 118-H80-502 52 Jinttex.in

Page 57 — U3. コントロールボックス関係 / Control box mechanism

U3. コントロールボックス関係 / Control box mechanism <三相380V用 / For "3-Phase 380V AC"> 51-2-12 51-2-7 51-2-7-2 51-2-7-3 51-2-11 51-2-81 51-2-10 51-2-7-1 51-2-9 51-2-4 51-2-2 51-2-3 51-2-6 51-2-1 30-4 30-4-3 30-4-1 30-4-2 30-4-5 30-4-6 30-4-7 30-4-8 <三相415V用 / For "3-Phase 415V AC"> 51-4-12 51-4-7 51-4-7-2 51-4-7-3 51-4-11 51-4-8 51-4-10 51-4-7-1 51-4-9 51-4-4 51-4-3 51-4-2 51-4-6 51-4-1 30-4-3 30-4 30-4-1 30-4-2 30-4-5 30-4-6 30-4-7 30-4-8 <三相400V用 / For "3-Phase 400V AC"> 51-3-5 51-3-12 51-3-7 51-3-7-2 51-3-7-3 51-3-11 51-3-8 51-3-10 51-3-7-1 51-3-9 51-3-4 51-3-2 51-3-3 51-3-1 51-3-6 56 56-1-3 56-1-1 58 57 56-1-2 56-1-5 56-1-4 30-5 59 56-1 56-2 <単相230V用 / For "1-Phase 230V AC"> 56 56-1-3 56-1-1 58 57 56-1-2 56-1-5 56-1-4 30-6 59 56-1 56-2 53 118-H80-502 jintex.in

Page 58 — U3.コントロールボックス関係 / Control box mechanism

U3.コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 30-4 S50447001 1 <三相380V、415V用> <For "3-Phase 380V & 415V AC"> 30-4-1 S50445000 1 デンゲンSWヨミD POWER SUPPLY SWITCH ASSY, D 30-4-2 S38133000 1 デンゲンコード B POWER SUPPLY CORD, B 30-4-3 J02657001 1 デンゲンコード POWER SUPPLY HARNESS 30-4-4 224514001 1 3PオンSW#17 PUSH SWITCH, 3P #17 30-4-5 218859001 2 ゼツエンイタ INSULATION PLATE 30-4-6 S40623000 3 バインダーM150 BINDER, M150 1 EMIコアTR-40-27 EMI CORE, TR-40-27 30-5 S50448000 1 <三相400V用> <For "3-Phase 400V AC"> デンゲンコード E POWER SUPPLY CORD, E 30-6 S50500000 1 <単相230V用> <For "1-Phase 230V AC"> デンゲンコード F AC CORD, F 51-2 S50638101 1 <三相380V用> <For "3-Phase 380V AC"> ペンカントランスC380クミ TRANSFORMER ASSY, C380;CONV. 51-2-1 S54027001 1 トランスベースイタ BASE PLATE, TRANS. 51-2-2 S54028001 1 トランスフタ COVER, TRANS. 51-2-3 S50474000 2 トツテ HANDLE 51-2-4 S41964000 1 プッシュ BUSH 51-2-5 062500602 4 ナベコ 5X6 SCREW, PAN M5X6 51-2-6 S23618001 4 シメネジ 6X10 SCREW, M6X10 51-2-7 S50639100 1 ペンカントランスC380 TRANSFORMER, C380;CONV. 51-2-7-1 S38128000 1 ペンカントランス CONVERSION TRANSFORMER, C 51-2-7-2 S50485100 1 TR-INハーネス HARNESS, TR-IN 51-2-7-3 S50486100 1 TR-OUTハーネス HARNESS, TR-OUT 51-2-8 018060831 4 アナボルト 6X8 BOLT, SOCKET M6X8 51-2-9 025060236 4 ヒラザガネチユウ6 WASHER, PLAIN M 6 51-2-10 028060246 4 バネザガネ2-6 WASHER, SPRING 2-6 51-2-11 S10820006 1 デンアラベル LABEL, 380V AC 51-2-12 0A4400606 1 ナベザクミ4X6DA SCREW, PAN (S/P WASHER) M4X6 51-3 S50640101 1 <三相400V用> <For "3-Phase 400V AC"> ペンカントランスC400クミ TRANSFORMER ASSY, C400;CONV. 51-3-1 S54027001 1 トランスベースイタ BASE PLATE, TRANS. 51-3-2 S54028001 1 トランスフタ COVER, TRANS. 51-3-3 S50474000 2 トツテ HANDLE 51-3-4 S41964000 1 プッシュ BUSH 51-3-5 062500602 4 ナベコ 5X6 SCREW, PAN M5X6 51-3-6 S23618001 4 シメネジ 6X10 SCREW, M6X10 51-3-7 S50641100 1 ペンカントランスC400 TRANSFORMER, C400;CONV. 51-3-7-1 S38128000 1 ペンカントランス CONVERSION TRANSFORMER, C 51-3-7-2 S50485100 1 TR-INハーネス HARNESS, TR-IN 51-3-7-3 S50486100 1 TR-OUTハーネス HARNESS, TR-OUT 51-3-8 018060831 4 アナボルト 6X8 BOLT, SOCKET M6X8 51-3-9 025060236 4 ヒラザガネチユウ6 WASHER, PLAIN M 6 51-3-10 028060246 4 バネザガネ2-6 WASHER, SPRING 2-6 51-3-11 S10820008 1 デンアラベル LABEL, 400V AC 51-3-12 0A4400606 1 ナベザクミ4X6DA SCREW, PAN (S/P WASHER) M4X6 118-H80-502 54

Page 59 — U3 . コントロールボックス関係 / Control box mechanism

U3 . コントロールボックス関係 / Control box mechanism < 三相380V用 / For "3-Phase 380V AC" > 51-2-12 51-2-7- 51-2-7-2 51-2-7-3 51-2-11 51-2-81 51-2-10 51-2-9 51-2-7-1 51-2-4 51-2-2 51-2-3 51-2-6 51-2-1 30.4 30-4-3 30-4-1 30-4-2 30-4-5 30-4-4 30-4-8 30-4-7 < 三相400V用 / For "3-Phase 400V AC" > 51-3-12 51-3-7- 51-3-7-2 51-3-7-3 51-3-5 51-3-11 51-3-8 51-3-10 51-3-7-1 51-3-9 51-3-4 51-3-2 51-3-3 51-3-1 51-3-6 56-1-3 56-1-1 56 58 57 56-1-2 56-1-5 56-1-4 30-5 59 56-1 56-2 < 三相415V用 / For "3-Phase 415V AC" > 51-4-12 51-4-7- 51-4-7-2 51-4-7-3 51-4-11 51-4-8 51-4-10 51-4-7-1 51-4-9 51-4-4 51-4-2 51-4-3 51-4-6 51-4-1 30-4-3 30-4-1 30-4-2 30-4-5 30-4-4 30-4-8 30-4-7 < 単相230V用 / For "1-Phase 230V AC" > 56 58 57 56-1-3 56-1-1 56-1-2 56-1-5 56-1-4 30-6 59 56-1 56-2 55 118-H80-502 jintex.in

Page 60 — U3.コントロールボックス関係 / Control box mechanism

U3.コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 51-4 S50642101 1 <三相415V用> <For "3-Phase 415V AC"> 51-4-1 S54027001 1 ペンカントランスC415クミ TRANSFORMER ASSY, C415;CONV. 51-4-2 S54028001 1 トランスベ-スイタ BASE PLATE, TRANS. 51-4-3 S50474000 1 トランスフタ COVER, TRANS. 51-4-4 S41964000 2 トツテ HANDLE 51-4-5 062500602 1 ブツシユ BUSH 51-4-6 S23618001 4 ナベコ5X6 SCREW, PAN M5X6 51-4-7 S50643100 4 シメネジ6X10 SCREW, M6X10 51-4-7-1 S38128000 1 ペンカントランスC415 TRANSFORMER, C415;CONV. 51-4-7-2 S50485100 1 ペンカントランスC CONVERSION TRANSFORMER, C 51-4-7-3 S50486100 1 TR-INハーネス HARNESS, TR-IN 51-4-8 018060831 1 TR-OUTハーネス HARNESS, TR-OUT 51-4-9 025060236 4 アサルト6X8 BOLT, SOCKET M6X8 51-4-10 028060246 4 ヒラザガネチユウ6 WASHER, PLAIN M 6 51-4-11 S10820007 1 バネザガネ2-6 SPRING 2-6 51-4-12 0A4400606 1 デンツラベール LABEL, 415V AC 56 S50498001 1 +ナベザクミ4X6DA SCREW, PAN (S/P WASHER) M4X6 <単相230V,三相415V用> <For "1-Phase 230V,3-Phase 415V AC"> 56-1 S40616001 1 ノイズフイルタEHクミ NOISE FILTER ASSY, EH 56-1-1 S40617000 1 ノイズフイルタEMCクミ NOISE FILTER ASSY, EMC 56-1-2 S40618000 1 セラCECKDNA102MB CAPACITOR, CERAMIC:ECDKNA102MB 56-1-3 S40619000 2 ポリC250B474 CAPACITOR, POLYESTER :250B474 56-1-4 414900001 1 タンタツ12P TERMINAL BLOCK, 2P 56-1-5 S35598000 1 ヘツダー-5219-03A HEADER 5219-03A 56-2 S50499000 1 コイルSC0520J COIL, SC0520J 57 S40620000 1 ノイズフイルターネス NOISE FILTER HARNESS 58 0A4400605 1 キヘントリツケイタ SETTING PLATE, PCB 59 0A4400606 2 +ナベザクミ4X6DA SCREW, PAN (S/P WASHER) M4X6 4 +ナベザクミ4X6DA SCREW, PAN (S/P WASHER) M4X6 118-H80-502 56

Page 61 — V. 電装品関係/Power supply equipment mechanism

V. 電装品関係/Power supply equipment mechanism 27 26 24 24-2 24-1 24-3 25 5 6 1 18 19 11 12 20 22 21 16 16-1 9 10 63 4 30 29 28 7 7-1 8 31 3 2 13 15 14 60 61 50 51 52 53 54 59 57 55 56 " オプション部品/OPTION PARTS " < 単相230V用,三相400V用 / For "1-Phase 230V AC & 3-Phase 400V AC" > 23 902 901 900 903 " オプション部品/OPTION PARTS " < 二相400V用 / For "3-Phase 400V AC" > 905 904 906 57 jintex.in 118-H80-515

Page 62

V.電装部品関係 / Power supply equipment mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S050458100 1 パルスモータFDクミ PULSE MOTOR ASSY, FD 2 S050459100 1 パルスモータFTクミ PULSE MOTOR ASSY, FT 3 S050460000 1 パルスモータNクミ PULSE MOTOR ASSY, N 4 S50461000 1 カツターソルノイド CUTTER SOLENOID 5 S50462000 1 イトユルメンレイド TENSION RELEASE SOLENOID 6 228475000 1 ケツツクバンド 1.9X80 FASTENING BAND, 1.9X80 7 S050463000 1 センサクミ SENSOR ASSY 7-1 S050464000 1 センサGL-N12 SENSOR, GL-N12 8 062300806 1 ナベコ3X8 SCREW, PAN M3X8 9 S050464000 1 センサGL-N12 SENSOR, GL-N12 10 062300806 1 ナベコ3X8 SCREW, PAN M3X8 11 S050465000 1 センサGL-N12 SENSOR, GL-N12 12 062300806 1 ナベコ3X8 SCREW, PAN M3X8 13 625010000 1 ナイロンクランプ NK-2N CORD HOLDER, NK-2N 14 062670812 1 ナベコ3.57-40X8 SCREW, PAN SM3.57-40X8 15 025350132 1 ヒラザガネショウ WASHER, PLAIN S 3.5 16 S050466000 1 カツターセンサクミ CUTTER SENSOR ASSY 16-1 S050467000 1 センサGL-N12 SENSOR, GL-N12 17 062300806 1 ナベコ3X8 SCREW, PAN M3X8 18 S050468000 1 DCファンモータ40クミ DC FAN MOTOR ASSY, 40 19 0A5302005 2 ナベザクミ3X20DB SCREW, PAN (S/P WASHER) M3X20 20 S00480000 3 コードホルダ #5 CORD HOLDER, 5N 21 062670612 3 ナベコ3.57-40X6 SCREW, PAN SM3.57-40X6 22 025350132 3 ヒラザガネショウ WASHER, PLAIN S 3.5 24 S50471000 1 EMロックSWハーネスクミ LOCK SWITCH HARNESS ASSY, EM 24-1 S32335100 1 SW-AVS311N SWITCH :AVS311N 24-2 S50472000 1 EMSWハーネス SWITC HARNESS, EM 24-3 S50473000 1 センサGL-N12 SENSOR, GL-N12 25 062300806 1 ナベコ3X8 SCREW, PAN M3X8 26 S10243000 4 ナイロンクランプ NK-3N CORD HOLDER, NK-3N 27 0A5400806 4 ナベザクミ4X8DB SCREW, PAN (S/P WASHER) M4X8 28 152969001 1 コードサエカネ CORD SUPPORT 29 002300603 1 ナベコ3X6 SCREW, PAN M3X6 30 228475000 2 ケツツクバンド 1.9X80 FASTENING BAND, 1.9X80 31 218859001 1 バインダ M150 BINDER, M150 50 S50565001 1 コードブツシュ CORD BUSH 51 552907000 2 コードホルダ #10 CORD HOLDER, 10N 52 0A5401006 2 ナベコネルビ4X10 SCREW, PAN (S/P WASHER) M4X10 53 552908000 1 コードホルダ #14 CORD HOLDER, 14N 54 0A5401006 1 ナベコネルビ4X10 SCREW, PAN (S/P WASHER) M4X10 55 552908000 1 コードホルダ #14 CORD HOLDER, 14N 56 0A5401006 1 ナベコネルビ4X10 SCREW, PAN (S/P WASHER) M4X10 57 S38145000 1 アースセン2 GROUND WIRE, 2 59 0A5401006 2 ナベコネルビ4X10 SCREW, PAN (S/P WASHER) M4X10 60 S41216000 1 アースセン GROUND WIRE 61 S50644000 1 アースコード GROUND WIRE 63 SA0287000 1 クイックチューブ 30X350 TUBE, 30X350 "オプション部品" "OPTION PARTS" <単相230V,三相400V用> <For "1-Phase 230V,3-Phase 400V AC"> 23 S37055001 1 EMIコアスペーサ #1 SPACER, 1 ;EM-SWITCH 900 S42653000 1 EMIコアTFC-23-11-14 CORE :TFC-23-11-14 901 S40623000 3 EMIコアTR-40-27 EMI CORE, TR-40-27 902 0A5401206 3 ナベザクミ4X12DB SCREW, PAN (S/P WASHER) M4X12 903 021400106 3 ナット1シュ4 NUT, 1 M4 <三相400V用> <For "3-Phase 400V AC"> 904 S40623000 1 EMIコアTR-40-27 EMI CORE, TR-40-27 905 0A5401206 1 ナベザクミ4X12DB SCREW, PAN (S/P WASHER) M4X12 906 021400106 1 ナット1シュ4 NUT, 1 M4 118-H80-515 58 jintex.in

Page 64

W.プリント基板関係 / Printed circuit board mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S3902301 1 キユメインクミ MAIN PCB ASSY 1-1 S08047000 1 BIBICS1-3052V REGULATOR, :SI3052V 1-2 S47664000 6 レギュレータAN78L18M REGULATOR, :AN78L18M 1-3 S47665000 1 レギュレータAN78M18F REGULATOR, :AN78M18F 1-4 S46454000 1 レギュレータTA7810S REGULATOR, :TA7810S 1-5 S46455000 10 FETFK10KM-10 TRANSISTOR, FET :FK10KM-10 1-6 S38155000 1 MOSFET2SK1306 TRANSISTOR, FET :2SK1306 1-7 S38200000 1 MOSFET2SK1938 TRANSISTOR, :2SK1938 1-8 S47668000 1 SIDPA905C6 DIODE, AR :PA905C6 1-9 S47669000 1 DBRD5SB20 DIODE, BR :D5SB20 1-10 S47670000 9 SIDS1ZB60 DIODE, BR :SIZB60 1-11 Y42215591 5 デ C50B221 CAPACITOR, ALUM-ELEC :50B221 1-12 Y44715591 4 デ C50B471 CAPACITOR, ALUM-ELEC :50B471 1-13 S47673000 1 デ C80B472 CAPACITOR, ALUM-ELEC :50B472 1-14 S47678000 1 デ C450B101 CAPACITOR, ALUM-ELEC :450B101 1-15 S30209000 1 フィルムC400B105 CAPACITOR, POLYESTER :400B105 1-16 S30205000 2 ホプ TLP112A PHOTO COUPLER, :TLP112A 1-17 S42699000 2 PH TLP121 PHOTO COUPLER, :TLP121 1-18 S43178000 1 PH PC9231 PHOTO COUPLER, :PC9231 1-19 J02621001 1 ホプ TLP120 PHOTO COUPLER, :TLP120 1-20 U32744000 2 DIPSWDSS708 DIP SWITCH:DSS708 1-21 S47680000 1 GFUSE8A GLASS FUSE, 8A 1-22 S47681000 1 コイルSK40S120-700 COIL, :SK40S120-700 1-23 S58731000 1 サーミスタクミ THERMISTOR ASSY 1-24 QA4301005 19 ナベザ 3X10DA SCREW, PAN (S/P WASHER) M3X10 1-25 021300206 1 ニユナット3 NUT, 2 M3 1-26 028030246 1 バネザ 2-3 WASHER, SPRING 2-3 1-27 025030136 1 ヒラザ 3 WASHER, PLAIN S 3 118-H80-518 60 Jinttex.in

Page 65 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

X1. 付属装置関係 (オプション部品) / Attachment set (Option parts) " 布帛用 / For General materials " 1-1 1-1-3 1-1-2 1-1-1 " ニット用 / For Knitted materials " 1-2 1-2-3 1-2-2 1-2-1 < 立作業用 / For Standing operation > 3 2 brother brother 5-1 5-2 5-2 5-3 5-3 5-5 5-4 5-6 5-5 5-6 5-4 5-3 5-4 5-5 5-6 5 31 118-H80-940 jintex.in

Page 66 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

X1. 付属装置関係 (オプション部品) / Attachment set (Option parts) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-1 S51361001 1 "布帛用" "For General materials" 1-1-1 S50304001 1 <針穴:1.2X5.4mm> NEEDLE HOLE: 1.2X5.4MM 1-1-2 S50297001 1 ハリイタ1.2RBセット NEEDLE PLATE SET, 1.2RB 1-1-3 S50341001 1 ハリイタ1.2S-RBクミ NEEDLE PLATE ASSY, 1.2S-RB 1 カッターオサエ CUTTER HOLDER 1 カッターネルダイイチイキメイタ POSITIONING PLATE 1-1 S51362001 <針穴:1.4X7.3mm> <Needle hole : 1.4X7.3mm> 1-1-1 S50309001 1 ハリイタ1.4RBセット NEEDLE PLATE SET, 1.4RB 1-1-2 S50297001 1 ハリイタ1.4S-RBクミ NEEDLE PLATE ASSY, 1.4S-RB 1-1-3 S50341001 1 カッターオサエ CUTTER HOLDER 1 カッターネルダイイチイキメイタ POSITIONING PLATE 1-1 S51363001 <針穴:1.6X7.3mm> <Needle hole : 1.6X7.3mm> 1-1-1 S50311001 1 ハリイタ1.6RBセット NEEDLE PLATE SET, 1.6RB 1-1-2 S50297001 1 ハリイタ1.6S-RBクミ NEEDLE PLATE ASSY, 1.6S-RB 1-1-3 S50341001 1 カッターオサエ CUTTER HOLDER 1 カッターネルダイイチイキメイタ POSITIONING PLATE 1-2 "ニット用" "For knitted materials" 1-2-1 S51364001 <針穴:1.2X5.4mm> <Needle hole : 1.2X5.4mm> 1-2-2 S50313101 1 ハリイタ1.2RB-3セット NEEDLE PLATE SET, 1.2RB-3 1-2-3 S50297001 1 ハリイタ1.2S-RBクミ-3 NEEDLE PLATE ASSY, 1.2-RB-3 1 カッターオサエ CUTTER HOLDER 1 カッターネルダイイチイキメイタ POSITIONING PLATE 1-2 S51365001 <針穴:1.4X6.8mm> <Needle hole : 1.4X6.8mm> 1-2-1 S50317101 1 ハリイタ1.4RB-3セット NEEDLE PLATE SET, 1.4RB-3 1-2-2 S50297001 1 ハリイタ1.4S-RBクミ-3 NEEDLE PLATE ASSY, 1.4S-RB-3 1-2-3 S50341001 1 カッターオサエ CUTTER HOLDER 1 カッターネルダイイチイキメイタ POSITIONING PLATE 1-2 S51366001 <針穴:1.6X6.8mm> <Needle hole : 1.6X6.8mm> 1-2-1 S50319101 1 ハリイタ1.6RB-3セット NEEDLE PLATE SET, 1.6RB-3 1-2-2 S50297001 1 ハリイタ1.6S-RBクミ-3 NEEDLE PLATE ASSY, 1.6S-RB-3 1-2-3 S50341001 1 カッターオサエ CUTTER HOLDER 1 カッターネルダイイチイキメイタ POSITIONING PLATE 2 J80081040 <立作業用> 1 DDタペタル40カハン#6 <For Standing operation> STANDING OPERATION 2-PEADL, #6 3 S47750000 <2,3連ペダル用> 1 タペタルヨウハーネス <For 2 & 3-pedal> HARNESS, ;S-OPE. 4 J80380040 1 DDタペタル3Pカハン40 STANDING OPERATION 3-PEDAL,#40 5 S53996101 1 ホンゴープテブルクミ AUXILIARY TABLE ASSY 5-1 S53997001 1 ホンゴープテブル AUXILIARY TABLE 5-2 S53998001 3 ホンゴープテブルサポト AUX. TABLE SUPPORT 5-3 031351006 6 マルモクネジ 3.5X10 WOOD SCREW, ROUND M3.5X10 5-4 S13650001 3 シタオクリウテ D BOTTOM FEED ARM, D 5-5 018680822 3 アナボルト4.37X8 BOLT, SOCKET SM4.37X8 5-6 032422003 3 マルモクネジ 4.1X20 WOOD SCREW, ROUND M4.1X20 118-H80-940 62 jintex.in

Page 67 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

X2. 付属装置関係 (オプション部品) / Attachment set (Option parts) 10-14 10-15 10-1 10-4 10-3 10-12-1 10-2-2 10-2-1 10-2 10-12 10-12-3 10-12-5 10-12-4 10-13 10-2-3 10-12-2 10-16 10-6 10-9 10-11 10-7 10-8 10-11 10-5 10-19 10-10 10-17 10-18 11 11-1 11-4 11-2 11-1-1 11-3 11-1-5 11-1-9 11-1-15 11-1-16 11-1-14 11-1-13 11-1-7 11-1-4 11-1-8 11-1-2 11-1-3 11-1-10 11-1-6 11-1-19 11-1-12 11-1-17 11-1-18 11-1-13 11-1-11 13 12 63 jintex.in 118-H80-940

Page 68 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

X2. 付属装置関係 (オプション部品) / Attachment set (Option parts) REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 10 S54501101 1 クミカエピンセット-70 EXCHANGE PARTS SET, -70 10-1 S54503001 1 オクリウデ-5 FEED ARM, 5 10-2 S54504001 1 ナカオクリタイラー5クミ LENGTH FEED PLATE ASSY, -5 10-2-1 S54505001 1 ナカオクリタイラー5 LENGTH FEED PLATE, -5 10-2-2 S54506001 1 オクリイタスペーサ SPACER, FEED PLATE 10-2-3 117160001 2 サラネジ 4.37 SCREW, FLAT SM4.37 10-3 S54507001 1 オクリイタササエタ FEED PLATE SUPPORT 10-4 018680822 2 アナボルト 4.37X8 BOLT, SOCKET SM4.37X8 10-5 S54508001 1 オクリウデササエタイー5 FEED ARM SUPPORT, -5 10-6 S54509000 1 リニアブツシュ9.53 LINEAR BUSH, 9.53 10-7 S54510001 1 リニアブツシュトメタイ STOPPER PLATE, L-BUSH 10-8 062680612 1 アナボルト 4.37X8G SCREW, PAN SM4.37-40X6 10-9 S54511001 1 オクリアナイシクA-5 SHAFT, A-5; F-GUIDE 10-10 S54512001 1 オクリアナイシクB-5 SHAFT, B-5; F-GUIDE 10-11 S54513001 2 タマゴウケタイタB STOPPER PLATE, B; B-BEARING 10-12 S54514101 1 ヌノツカミ70 WORK CLAMP ASSY, 70 10-12-1 S54515001 1 ヌノツカミ70 WORK CLAMP, 70 10-12-2 159926001 1 ヌノツカミササエピン L PIN, L 10-12-3 107401001 2 ヌノツカミササエタイハネ SPRING, PLATE 10-12-4 107404001 2 シメネジ 1.98 SCREW, SM1.98-64X2 10-12-5 S54987001 1 ヌノツカミササエピン F PIN, F 10-12-6 S54516101 1 ヌノツカミササエ WORK CLAMP HOLDER 10-13 S54517000 1 フィンガーガード 70 FINGER GUARD, 70 10-14 S54520001 1 ハサミドメリトメタイB STOP PLATE, B 10-15 S54521001 1 ハサミドメシイタB BACK PLATE, B 10-16 S54522001 1 ハリイタ 1.4-50 NEEDLE PLATE, 1.4-50 10-17 S50215101 1 オクリセンササエタイ SUPPORT PLATE, FEED SENSOR 10-18 228475000 1 ケツクバンド 1.9X80 FASTENING BAND, 1.9X80 10-19 S13597101 1 デアイゲージ-5/BAS GAUGE, -5/BAS 11 <国内用> S58988001 1 プログラマセットA1 PROGRAMMER SET, A1 <輸出用> <For export> 11 S58989001 1 プログラマセットA2 PROGRAMMER SET, A2 11-1 S58971001 1 プログラマテツクミA PROGRAMMER ASSY, A 11-1-1 S43250100 1 プログラマカバーウエフタ TOP COVER, PROGRAMMER 11-1-2 S43251000 1 プログラマカバーシタフタ LOWER COVER, PROGRAMMER 11-1-3 S43252000 1 キーボードスペーサ SPACER, KEYBOARD 11-1-4 S43253000 1 キーボードゴムシート RUBBER SHEET, KEYBOARD 11-1-5 S58972000 1 キーボードシート KEYBOARD SHEET 11-1-6 037301015 4 Vナベタツピン3X10 TAPPING SCREW, PAN V M3X10 11-1-7 S43255000 1 LCDカバー LCD COVER 11-1-8 S43256000 1 LCD LCD 11-1-9 S43257000 1 LCDウインバーター INVERTER, LCD 11-1-10 037200615 4 Vナベタツピン2X6 TAPPING SCREW, PAN V M2X6 11-1-11 S43271000 1 プログラママグネツトA MAGNET, A 11-1-12 S43272000 1 プログラママグネツトB MAGNET, B 11-1-13 037300615 6 Vナベタツピン3X6 TAPPING SCREW, PAN V M3X6 11-1-14 S43267000 1 プログラマハーネス INVERTER HARNESS 11-1-15 S43268000 1 ユートブツシKR51 CORD BUSH, KR51 11-1-16 S43270000 1 ユートブツシKR51 CORD BUSH, KR51 11-1-17 S43981000 2 プログラマカバー UNDER COVER, PROGRAMMER 11-1-18 S58978001 1 PROM プログラマミA PROGRAMMER PCB ASSY, A 11-1-19 S58973000 1 プログラマミA PROM PROGRAMMER ASSY 11-2 S42890001 1 プログラマササエ PROGRAMMER SUPPORT 11-3 032422003 2 +マルモクネジ 4.1X20 WOOD SCREW, ROUND M4.1X20 11-4 0B1351606 2 +サラモクネジ35X16 WOOD SCREW, FLAT M3.5X16 12 S40621000 1 EMI コアESD-SR-15 EMI CORE, ESD-SR-15 13 149809000 1 タイラップ L BEAD BAND, L=200 118-H80-940 64 jintex.in

Page 69 — Y. モータ関係 / Motor mechanism

Y. モータ関係 / Motor mechanism 1-8 1-10 1-11 1-19 1-20 1-3 1-13 1-3 1-7 1-9 1-14 1-15 1-16 1-12 1-17 1-18 9 10 11 12 13 14 8 2 3 4 6 7 5 35 118-H80(137-611) jintex.in

Page 70 — Y. モータ関係 / Moter mechanism

Y. モータ関係 / Moter mechanism REF NO CODE QTY ヒンメイ NAME OF PARTS RM 1 J80863001 1 EHモータ240V/400V MOTOR ASSY, EH 240V/400W 1-2 1 ロータクミINV ROTOR ASSY, INV 1-3 076202801 2 タツンクク6202ZZ BALL BEARING, 6202ZZ 1-4 - 1 SMセンクミINV#2 STATOR ASSY, INV-#2 1-5 - 1 モータブラケットINV#3M MOTOR BRACKET, INV-#3M 1-6 - 1 モータブラケットINV#3E MOTOR BRACKET, INV-#3E 1-7 203684001 11 ナミワッシャー0.3X27.5X34.9 WASHER WAVE M 0.3X27.5X34.9 1-8 J02537001 4 ロクザクミ5X110DB BOLT, HEX (S/P WASHER) M5X110 1-9 - 1 モータメイバンINV NAME PLATE, MOTOR-INV 1-10 J02525001 1 モータファンINV MOTOR FAN, INV 1-11 014500632 1 アナツメM5X6 SET SCREW, SOCKET (CP) M5X6 1-12 J02278001 1 プーリーQ90 PULLEY, Q90 1-13 028100246 1 ハンゲツワッシャー4X13#2 KEY, 4X13#2 1-14 028100246 1 バネザガネ#2-10 WASHER, SPRING 2-10 1-15 J02493001 1 3シュナットM10X1.0 NUT, 3M10X1.0 1-16 J03457001 4 ナベコセット5X20DC SCREW, PAN (S/P WASHER) M5X20 1-17 J02989001 4 カラー-D5. 1XT0.6XL9 COLLOR, D51XT0.6XL9 1-18 J02991001 4 ウシゴムINV RUBBER CUSHION, INV 1-19 J02990001 1 モータースコード GROUND WIRE ASSY, MOTOR 1-20 229017001 1 ナナベセット4X10DA SCREW, PAN (S/P WASHER) M4X10 2 J00107001 1 MD806コテイダ#2 BASE, MD806#2 3 J02517001 1 ピン, 9.9X116 PIN, 9.9X116 4 J03275001 1 LBルト10クミーV BOLT ASSY, LM10-V 5 021100206 1 2M10 NUT, 2M10 6 025100236 1 バネザガネ#2-10 WASHER, SPRING 2-10 7 028100246 1 バネザガネ#2-10 WASHER, SPRING 2-10 8 J03410001 1 EZモータトリツケイタ SETTING PLATE, EZ-MOTOR 9 062401063 1 ナベコ4X10 SCREW, PAN M4X10 10 028040245 1 バネザガネ2-4 WASHER, SPRING 2-4 11 025040173 1 バネザガネ2-4 WASHER, SPRING 2-4 12 - 1 メイバンEH NAME PLATE, EH 13 002401006 1 ナベコ4X10 SCREW, PAN M4X10 14 229017001 1 ナナベセット4X10DA SCREW, PAN (S/P WASHER) M4X10 118-H80 (137-611) 66

Page 71

AA. カバー関係 / Safety cover 2- 7 4 10 11 9 3 5 6 8 1 Z1.付属品関係 / Accessories 118-H80(137-611) 54-6-1 54-12-1 54-10-1 54-12-5 54-12-2 54-10-2 54-10-3 54-11 54-12-1 54-7 54-12-4 54 54-8-1 54-12-1 54-5 54-4 54-3 54-9 54-12-3 54-12-5 54-8-2 54-8-3 54-2-2 54-2-1 54-1 i7 118-H80-910 jintex.in

Page 72

AA.カバー関係/Safety cover REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 J02513001 1 モータカバー-INV MOTOR COVER, INV 2 J00494001 3 ナベセット4X14DA SCREW, PAN (S/P WASHER) M4X14 3 J02515001 1 ベルトカバー-INV BELT COVER ASSY, INV 4 224508001 1 ナベセット4X10DC SCREW, PAN (S WASHER) M4X10 5 217071001 1 ナベセット4X18DA SCREW, PAN (S/P WASHER) M4X18 6 J02516001 1 ベルトSカバー-INV BELT COVER, SUB INV 7 224508001 2 ナベセット4X10DC SCREW, PAN (S WASHER) M4X10 8 J02293001 1 ユビホゴク FINGER PROTECTION BAR 9 224508001 1 ナベセット4X10DC SCREW, PAN (S WASHER) M4X10 10 J00351001 1 ベルトハズレホゴク 2 BELT HOLDER, 2 11 224508001 1 ナベセット4X10DC SCREW, PAN (S WASHER) M4X10 118-H80(137-611) Z1. 付属品関係 / Accessories REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 54 S02761309 1 イトタタミダイクミ2 COTTON STAND ASSY, 2 54-1 150189109 1 ブラケット COTTON STAND BRACKET 54-2 S02773001 1 ブラケットネジセット C-STAND BRACKET & SCREW SET 54-2-1 062060806 2 ナベコ6X8 SCREW, PAN M6X8 54-2-2 031452206 3 マルモク45X22 WOOD SCREW, ROUND M4.5X22 54-3 S51283001 2 ウケザラ SPOOL STAND BASE 54-4 15018000 2 スプールマット SPOOL MAT 54-5 S51282001 2 スプールクッション SPOOL CUSHION 54-6 S40639001 1 コラムパイプキャップツキ COLUMN PIPE W/CAP 54-6-1 150174000 1 コラムキャップ COLUMN CAP 54-7 150173003 1 コラムジョイント COLUMN JOINT 54-8 S21798001 2 スプールネジセット SPOOL & SCREW SET 54-8-1 150179002 2 スプールシクB SPOOL SHAFT, B 54-8-2 028050246 2 バネザガネ2-5 WASHER, SPRING 2-5 54-8-3 021500106 1 シユナツトM5 NUT, 1 M5 54-9 S02778002 2 スプールホルダー-2 SPOOL HOLDER, 2 54-10 S02786002 1 スレッドハンガーグミ2 THREAD HANGER ASSY, 2 54-10-1 S02787002 1 スレッドハンガー-2 THREAD HANGER, 2 54-10-2 150183000 2 イトタタミハンガーダイ THREAD HANGER BASE 54-10-3 142990001 2 スレッドブッシュ THREAD BUSH 54-11 150172003 1 コラムパイプ COLUMN PIPE 54-12 S40641001 1 スプールシクネジセットA SPOOL SHAFT & SCREW SET, A 54-12-1 021500106 4 シユナツトM5 NUT, 1 M5 54-12-2 062501406 1 ナベコ5X14 SCREW, PAN M5X14 54-12-3 062501406 1 ナベコ5X14 SCREW, PAN M5X14 54-12-4 062501406 2 ナベコ5X14 SCREW, PAN M5X14 54-12-5 026050136 2 ヒラザガネコタフタ5 WASHER, PLAIN S 5 118-H80-910 68 jintex.in

Page 73 — Z2 . 付属品関係 / Accessories

Z2 . 付属品関係 / Accessories 1-2 1-9 1-1 1-7 1-6 1-8 1-4 1-3 1-5 34-1 34-2 34-3 34-4 34-5 < -2用 / For "-2"> 22-1 < -3用 / For "-3"> 22-2 < -5用 / For "-5"> 22-3 66 65-1 65-2 65-3 66 67 70 " オプション部品 / OPTION PARTS " 9 7 10 1 2 3 6 8 4 33 32 60 25 71 69 72 74 78 36 13 59 26 27 73 38 43 42 41 40 39 75 44 35 14 58 56 55 56 57 80-7 80-2-3 80-2-4 80-2 80-2-2 80-4 80-3 80-6 80-5 80-1-8 80-1-7 80-1-4 80-1-3 80-1-6 80-1-9 80-1-2 80-1-5 80-1-1 80-1-12 80-1-11 80-1-10 80-2-1 63 118-H80-910 JIN텍스.in

Page 74 — Z2. 付属吕関係 / Accessories

Z2. 付属吕関係 / Accessories REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S50330101 1 ベッド・ダイ BED BASE ASSY 1-1 S50331000 1 ベッド・ダイ BED BASE 1-2 S50332000 1 オイルパッキン OIL PACKING 1-3 S54768001 1 アブソラツトシイタ DRAIN PLATE 1-4 S50334000 1 アブソラツトパッキン PACKING 1-5 037401415 3 Vナベツピン4X14 TAPPING SCREW, PAN V M4X14 1-6 081007070 1 Oリング P7 O RING, P7 1-7 140518001 1 シメジ7.94 SCREW, SM7.94X10 1-8 S50335000 5 ベッドダイクツションA BED BASE CUSHION, A 1-9 S50336000 4 ベッドダイクツションB BED BASE CUSHION, B 1-10 S50337000 2 ベッドダイクツションC BED BASE CUSHION, C 2 S50338000 1 アブソラツト OIL STOPPER PLATE 3 <ベッド台取付用> <For setting the bed base assy> S24250001 4 ボルトM8X90 BOLT, M8X90 4 S50342000 4 オニメツト8 NUT, FLANGE M8 6 028080246 4 バネザガネ2-8 WASHER, SPRING 2-8 7 101118001 3 マルモクネジ4.5X20 WOOD SCREW, ROUND M4.5X20 8 S50339001 4 ベッドダイカラー COLLAR 9 104449001 2 ゴムセン15.5 RUBBER CAP, 15.5 10 025050236 3 ヒラザガネチユウ5 WASHER, PLAIN M5 13 <国内-2,-3用> <For "-2 & -3"> S50180475 1 シンル1347ミ <#11 NM75> NEEDLE ASSY, NM75... <#11 NM75> 13 <輸出-2,-5用> <For "-2 & -5"> S50180490 1 シンル1347ミ <#14 NM90> NEEDLE ASSY, NM90... <#14 NM90> 14 S18707153 1 VベルトM BELT, VM WHITE 22-1 <--2用> <For "-2"> S13595101 1 デイアゲージ-2 GAUGE, -2 22-2 <--3用> <For "-3"> S13596101 1 デイアゲージ-3 GAUGE, -3 22-3 <--5用> <For "-5"> S13597101 1 デイアゲージ-5/BAS GAUGE, -5/BAS 25 142443001 1 ネジマワシ1.9X52 SCREW DRIVER, 1.9X52 26 118837001 1 ネジマワシ3.4X70 SCREW DRIVER, 3.4X70 27 101572101 1 ネジマワシ5.5X190 SCREW DRIVER, 5.5X190 32 159158051 1 ボビン BOBBIN 33 117466000 1 ピンセツト PINCETTE 34-1 S51290001 1 カツタ3/8 CUTTER, 3/8 34-2 S51354001 1 カツタ5/8 CUTTER, 5/8 34-3 S51358001 1 カツタ1 CUTTER, 1 34-4 S51360001 1 カツタ32 CUTTER, 32 34-5 S51359001 1 カツタ29 CUTTER, 29 35 S55663001 1 オイルタンククミ OIL TANK ASSY 36 114483002 1 ボイラーイラケ OILER ASSY 37 159384009 1 トウフサエマクラ HEAD REST 38 <コントロールボックス取付> <For setting the Control box> 133740006 4 カクネボルト6X70 BOLT, SQUARE M6X70 39 021060106 8 1シユナツト6 NUT, 1 M6 40 025060336 4 ヒラザガネ16 WASHER, PLAIN L 6 41 S00617000 4 ボウシゴムカラー RUBBER COLLAR 42 146256001 4 クツシヨンカク CUSHION COLLAR 43 146255000 4 クツシヨン CUSHION 118-H80-910 付属品の説明は変更することがあります。 The details of included accessories are subject to change. jintex.in 70

Page 75 — Z2. 付属部品関係 / Accessories

Z2. 付属部品関係 / Accessories 1-2 1-9 1-1 1-7 1-6 1-8 1-4 1-3 1-5 34-1 34-2 34-3 34-4 34-5 < -2用 / For "-2" > 22-1 < -3用 / For "-3" > 22-2 < -5用 / For "-5" > 22-3 " オプション部品 / OPTION PARTS " 70 bod 9 7 10 1 2 1-10 3 8 4 33 60 25 71 69 68 74 66 67 65 65-1 36 13 59 26 27 72 73 75 41 40 39 35 14 58 56 55 45 44 80-7 80-2-4 80-2-3 80-2-2 80-2-1 80 80-4 80-3 80-2 80-6 80-5 80-1-8 80-1-7 80-1-4 80-1-3 80-1-6 80-1-1 80-1-2 80-1-5 80-1-12 80-1-11 80-1-10 76 78 63 71 118-H80-910 jintex.in

Page 76 — Z2. 付属品関係 / Accessories

Z2. 付属品関係 / Accessories REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 44 032461606 2 <電源スイッチ取付用> <For setting the Power supply switch> WOOD SCREW, ROUND M4.5X16 45 032422505 4 <操作パネル取付用> <For setting the Opreation panel> WOOD SCREW, ROUND M4.1X25 55 S50343000 1 ベルトカバー BELT COVER 56 062401006 3 ナベコ4X10 SCREW, PAN M4X10 57 025040236 1 ヒラガネチユウ4 WASHER, PLAIN M 4 58 104450101 2 ゴムセン8 RUBBER CAP 59 S50344001 1 ベルトカバーイタ PLATE, BELT COVER 60 032461606 6 マルモクネジ4.5X16 WOOD SCREW, ROUND M4.5X16 63 200190001 6 ステツプル STAPLE 65 S3711001 1 アイガートクミ EYE GUARD ASSY 65-1 S01700001 2 マルサラネジ 3.18X7 SCREW, FLAT SM3.18X7 65-2 025030232 2 ヒラガネチユウ3 WASHER, PLAIN M 3 65-3 021660102 2 ナット1シュ3.18 NUT, 1 SM3.18 66 062710612 1 ナベコ4.76-32X6 SCREW, PAN SM4.76-32X6 67 148847001 1 ザガネ WASHER, PLAIN 4.76 68 S50345001 1 アイガートササエタ EYE GUARD SUPPORT 69 062680812 1 ナベコ437-40X8 SCREW, PAN SM4.37-40X8 71 218469001 2 ガンヒューズ15A#2 FUSE 72 S08030000 1 GLヒューズ5AFB FUSE, 5A:FB 73 153242000 2 ヒューズ6A FUSE, 6A 74 J03411001 1 EZコミミトリツケイタ SETTING PLATE, EZ-TREADLE 75 J00353001 3 +ナベコセット5X14DB SCREW, PAN (S/P WASHER) M5X14 76 J02036001 1 デモトコードブツシング V BUSHING, V CORD 78 112525000 1 シュウシンマグネツト MAGNET "オプション部品" "OPTION PARTS" 70 144226001 1 トツプカバー HEAD COVER 80 S50346001 1 テープオサエワインダーダクミ TAPE GUARD WINDER ASSY 80-1 S51896001 1 テープオサエグミ TAPE GUARD ASSY 80-1-1 144998001 1 テープオサエB TAPE GUARD, B 80-1-2 105288002 2 シメネジ2.38 SCREW, SM2.38 80-1-3 144997001 1 テープオサエF TAPE GUARD, F 80-1-4 122771051 2 シメネジ2.38 SCREW, SM2.38 80-1-5 144999001 1 テープオサエC TAPE GUIDE, C 80-1-6 144628001 1 テープオサエF TAPE GUARD, F 80-1-7 122771051 1 シメネジ2.38 SCREW, SM2.38 80-1-8 105970001 1 シメネジ2.38 SCREW, SM2.38 80-1-9 110067001 1 カラー COLLAR 80-1-10 143749001 1 テープアンナイタ TAPE GUIDE, LOWER 80-1-11 143748001 1 テープアンナイウエ TAPE GUIDE, UPPER 80-1-12 062660412 2 ナベコ318-40X4 SCREW, PAN SM3.18-40X4 80-2 143767102 1 テープワインダーダクミ TAPE WINDER ASSY 80-2-1 143300001 1 ツマミネジ SCREW 80-2-2 108494001 1 サガネ WASHER 80-2-3 108495001 1 テープワインダオシバネ SPRING, COMPRESSION 80-2-4 100136001 1 イトチヨウシナツト NUT, TENSION 80-3 S50348001 1 テープアンナイウエ TAPE GUIDE, U 80-4 062400812 1 ナベコ4X8 SCREW, PAN M4X8 80-5 S50349001 1 テープワインダートリツケイタ TAPE WINDER SETTING PLATE 80-6 062400812 1 ナベコ4X8 SCREW, PAN M4X8 80-7 107407003 2 シメネジ4.37 SCREW, SM4.37X9 118-H80-910 付属品の明細は変更することがあります。 The details of included accessories are subject to change. jintex.in 72

Page 77 — Z3. 付属部品関係 (オプション部品) / Accessories (Option parts)

Z3. 付属部品関係 (オプション部品) / Accessories (Option parts) 100-6 100-7 100-5 100-2 100-1 100-3 100-4 100-9 100-10 100-8 100-11 100 120-2 120-3 120-1 120 130-2-4 130-2-3 130-2-5 130-2-2 130-1-3 130-1-5 130-1-4 130-1-2 130-1-1 130 131 150 151 118-H80-910 73 jintex.in

Page 78 — Z3. 付属部品関係 (オプションパーツ)/ Accessories (Option parts)

Z3. 付属部品関係 (オプションパーツ)/ Accessories (Option parts) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 100 S50477001 1 ジョウキグミ RULER ASSY 100-1 S06139001 1 ジョウキ A RULER, A 100-2 S06140001 1 ジョウキ B RULER, B 100-3 062680512 2 ナベコ 437-40X5 SCREW, PAN SM4.37-40X5 100-4 025680232 2 ヒラザガネチュウ4.37 WASHER, PLAIN M 4.37 100-5 146000001 1 ハサミサエ THREAD TRIMMER SUPPORT 100-6 062670412 2 ナベコ 357-40X4 SCREW, PAN SM3.57-40X4 100-7 105161003 2 ザガネ WASHER 100-8 141620001 1 ボウシイタバランス BALANCER 100-9 101671002 2 シメネジ 4.37 SCREW, SM4.37 100-10 025680132 2 ヒラザガネチュウ4.37 WASHER, PLAIN S 4.37 100-11 S36522001 2 シメネジ 4.37 SCREW, SM4.37 120 S50350001 1 ジョウキグミ 800E RULER ASSY, 800E 120-1 S50476001 1 ヨウキグミ RULER 120-2 S36522001 2 シメネジ 4.37 SCREW, SM4.37 120-3 S50351001 1 ジョウキグミスペーサー RULER SPACER 130 133797101 1 レンケツカンクミ CONNECTING ROD ASSY, L=210 130-1 119710001 1 レンカンクミ CONNECTING ROD ASSY 130-1-1 119711001 2 レンカン CONNECTING ROD 130-1-2 021060106 2 1シュナツト6 NUT, M6 130-1-3 119101001 1 レンカンタキ CONNECTING ROD CLAMP 130-1-4 017841606 1 6カクボルト 7.94-18 BOLT, SM7.94-18 130-1-5 133643006 1 6カクナット7.94-18 NUT, SM7.94-18 130-2 133792101 2 ジョイントクミ JOINT ASSY 130-2-1 133793001 2 スタツド STUD 130-2-2 133794001 2 ホンタイ BODY 130-2-3 133795001 2 リンク RING 130-2-4 021060106 2 1シュナツト6 NUT, M6 130-2-5 028060243 2 ハネザガネネー6 WASHER, SPRING 2-6 131 114859001 1 レンカンカラー COLLAR 150 S54707000 1 ホンタイシート SHEET 151 S55361100 1 パネルラベルクロツリ LABEL SET 118-H80-910 74

Page 79 — Ga1 . ゲージ部品一覧表 / Gauge parts List

Ga1 . ゲージ部品一覧表 / Gauge parts List カッター / Cutter S51117-001 S51290-001 S51351-001 S51352-001 S51353-001 S51354-001 19 19 19 19 19 19 34.5 34.5 34.5 34.5 34.5 34.5 6.4 9.5 11.1 12.7 14.3 15.9 1/4 3/8 7/16 1/2 9/16 5/8 S51355-001 S51356-001 S25642-001 S51357-001 S51358-001 19 19 19 19 19 34.5 34.5 34.1 34.5 34.5 11 10.8 11.1 11 10.5 17.5 19.1 20.6 22.2 25.4 11/16 3/4 13/16 7/8 1 S51359-001 S51360-001 147967-001 19 20.7 18 34.5 34.5 10 11.2 28.6 31.8 32 25 44.5 45 147941-001 147233-001 S01271-001 S01272-001 48-1% 48-1% 18 18 19 19 34.5 34.5 30 30 13.5 13.5 25 25 9.5 11.1 48 50 3/8 7/16 S01273-001 S03280-001 S01274-001 S01275-001 S01276-001 S35630-001 13-1% 14-1% 16-1% 18-1% 22-1% 25-1 19 19 19 19 19 28 30 30 30 30 30 6.5 4 12.7 14.3 15.9 19.1 22.2 25.4 1/2 9/16 5/8 3/4 7/8 1 75 118-H80-Ga1 jintex.in

Page 80 — Ga2 .ゲージ部品一覧表 / Gauge parts List

Ga2 .ゲージ部品一覧表 / Gauge parts List ※ 1 つかみ組フィンガーガード付 / Work clamp assy, W/F-G ※ 2 つかみ組 / Work clamp assy ※ 3 フィンガーガード / Finger guard ※ 4 つかみ / Work clamp < -2 用 / For "-2" > ※ 1 S37101-102 (16mmRS) ※ 2 159764-202 (16mmRS) ※ 3 159079-000 ※ 4 159761-002 ※ 3 縫製エリア 4 X 20 < -2 用 / For "-2" > ※ 1 S37109-102 (32mmRS) ※ 2 159766-202 (32mmRS) ※ 3 159081-000 ※ 4 159763-002 ※ 3 縫製エリア 6 X 40 < -3 用 / For "-3" > ※ 1 S55350-001 (25mmW) ※ 2 S55349-001 (25mmW) ※ 3 159080-000 ※ 4 S55348-001 ※ 3 縫製エリア 5.4 X 32 118-H80-Ga2 ※ 1 S37100-102 (25mmRS) ※ 2 159765-202 (25mmRS) ※ 3 159080-000 ※ 4 159762-002 ※ 4 縫製エリア 4 X 20 ※ 1 S37103-101 (16mm) ※ 2 S01466-201 (16mm) ※ 3 159079-000 ※ 4 145136-001 縫製エリア 4 X 20 < -3 用 / For "-3" > ※ 1 S37110-101 (32mm) ※ 2 S01468-201 (32mm) ※ 3 159081-000 ※ 4 144632-001 縫製エリア 5.4 X 40 ※ 1 S55347-002 (25mmRSW) ※ 2 S55346-002 (25mmRSW) ※ 3 159080-000 ※ 4 S55345-002 ※ 4 縫製エリア 6 X 32 ※ 1 S37102-101 (25mm) ※ 2 S01467-201 (25mm) ※ 3 159080-000 ※ 4 144630-001 縫製エリア 4 X 32 < -5 用 / For "-5" > ※ 1 S54518-101 ※ 2 S51514-101 ※ 3 S54517-000 ※ 4 S54515-001 縫製エリア 6 X 70 76 jintex.in

Page 81 — Ga3. ゲージ部品一覧表 / Gauge parts List

Ga3. ゲージ部品一覧表 / Gauge parts List 針板 / Needle plate < -2用 / For "-2" > S50663-001 (1.2mmS) S50664-001 (1.4mmS) S50665-001 (1.6mmS) 5.4 1.2 7.3 1.4 7.3 1.6 3.2 3.2 3.2 < -3用 / For "-3" > S51248-101 (1.2mm) S51249-101 (1.4mm) S51250-101 (1.6mm) 5.4 1.2 6.8 1.4 6.8 1.6 3.2 3.2 3.2 平カッター用 / For "flat cutter" < -2用 / For "-2" > 針板 / Needle plate カッターウケ / Plastic plate S55344-001 (1.2mm) S50321-001 (1.2mmS) 151843-001 5.4 1.2 5.4 1.2 34 1.9 2.5 3.2 5.5 < -3用 / For "-3" > 針板 / Needle plate カッターウケ / Plastic plate S54522-001 (1.4mm) S50322-101 (1.2mm) 156612-001 6.8 1.4 5.4 1.2 30 2.4 2.5 3.2 5.5 7 118-H80-Ga3 jintex.in

Page 82 — Wa.警告ラベル/Warning labels

Wa.警告ラベル/Warning labels 警告ラベル/Warning labels 品名/Name of parts Size(mm) Code ▲ 危険感電の恐れがあります。触れることを避けて、火をけがすことを。電源を切り、5秒たってからカバーをはずすこと。電撃ラベル・和 40 × 64 S38353-101 ▲ 注意熱い部分に触れないでください。安全保護装置をつけて、操作をすること。電源を切ってから、赤いし、ポキンをはずすこと。操作注意ラベル・和 40 × 64 S38350-001 ▲ CAUTION Moving parts May cause injury. Operate with safety devices. Turn off main switch before threading, changing bobbin and needle, cleaning etc. Label, operation Eng. 40 × 64 S38349-001 R L=16 R=0.8 ワーニングマーク Mark, injury S36924-001 PE PE マーク Mark, grounding 7.5 × 12.5 S37059-001 アースマーク Mark, grounding Φ 12 S37060-001 118-H80-050 78 jintex.in

Page 83

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 002300603 83 28 018061622 34 38 025060132 40 10 037300615 11-1-13 64 002301003 1-1-13 44 018102536 12-4 36 025060232 14 6 037301015 11-1-6 64 002401006 13 66 018300636 36 19 30 037401015 102-4 48 008400604 1-21 46 018300836 24-3 36 025060236 50-1-9 50 047200642 23 34 012400636 4 34 018400822 9 10 50-2-9 52 048030342 1-5 40 25 34 018401022 4 14 51-1-9 54 048040342 26 34 012500536 26 14 018401222 5 8 51-2-9 54 048060142 33-4 38 013761410 25 4 51-3-9 54 014060632 5-2 14 018401236 1-26 10 51-4-9 56 048060342 15 2 6-2 14 018501022 33 20 025060336 40 70 04860342 35-8 38 014400432 1-3 6 018501236 15 48 025100236 14 10 014500632 1-11 66 018502022 48 16 025350132 7 26 014680622 22-3 20 018680522 27-1-5 14 22 34 33-5 38 27-2-5 18 025100236 6 14 014760622 16 2 018680632 15 20 025350332 3 14 20 4 025350332 3 14 048080342 4 40 8 4 018680822 12 14 22 048150142 1-2 6 11 4 22 14 025680132 24 14 048220242 19 6 13 4 27 34 41 14 048300242 12-6 6 9 6 10-4 64 025680132 24 14 060300612 6 8 20 8 018681022 27-1-4 14 16-4 36 060630312 30-5 14 8 8 34 14 35-4 38 060660416 21 40 10 13 27-2-4 18 35-12 38 060670412 31 40 13 10 35-3 38 7 44 060670512 49 12 11 10 35-11 38 100-10 74 65 32 14 10 018681232 17 20 025680232 18 36 060670612 67 32 22 10 29 20 74 26 22 27 10 021040105 30-1-8 50 100-4 74 21 26 29-4 10 30-2-8 50 025680234 14 78 28 014770622 15 14 30-3-8 50 026040236 17 66 062060806 54-2-1 68 2 20 021060106 39 70 026050136 54-12-5 68 062300502 20 30 24 20 130-1-2 74 028030246 24-5 36 062300806 1-2 44 7 22 130-2-4 74 1-26 60 8 58 2-2 22 021080202 37 20 028040245 10 66 10 58 2-1-3 24 021100206 5 66 028050242 16-1-5 38 12 58 2 30 021100302 12-5 36 35-6 46 17 58 6 36 021300206 24-6 60 028050246 1-8 54 25 22 2-2 40 1-1-14 44 54-8-2 68 062400612 11 22 5 40 1-25 58 028060243 130-2-5 74 13 28 12 4 021400106 903 58 028060246 50-1-10 50 68 28 3 4 906 58 50-2-10 52 71 34 7 4 021500106 54-12-1 68 062400616 22 8 5 10 54-1-10 54 2 44 21-2 20 021500312 35-7 58 51-2-10 54 72 4-2 22 021670202 65-3 72 062400806 80-4 72 014780622 6-2 4 021680202 55 42 028080242 36 80-6 72 10-3 6 021710202 42 028080246 6 70 062400816 14 34 4-3 20 16-3 20 028100246 1-14 16 34 017841606 130-1-4 74 021910302 19 24 7 72 062401006 9 34 018060831 50-1-8 50 025030136 27 60 028680242 35 14 062401063 9 50 50-2-8 52 025030232 32 72 031351006 5-3 27 30 50 51-1-8 54 025040132 30-4 40 031452206 54-2-2 62 51-1-5 52 51-2-8 54 025040173 34 40 032422003 5-6 68 51-2-5 54 51-3-8 56 025040232 32 66 11-3 64 51-3-5 54 51-4-8 56 025040236 10 72 032422505 45 72 51-4-5 56 018061022 13 10 025050236 10 72 032461606 44 72 062501406 54-12-2 68 2 8 025050236 10 60 72 54-12-3 68 018061622 16 8 037200615 11-1-10 64 54-12-4 68 79 jintex.in

Page 84 — 索引 / INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 062670412 100-6 74 0A4400605 59 56 105237002 59 72 122771051 80-1-4 72 062670512 12 26 0A4400606 50-1-12 50 105288002 80-1-2 72 80-1-7 72 58 26 50-2-12 52 105970001 40 123165001 40 66 28 51-1-12 52 80-1-8 72 133643006 130-1-5 74 81 28 51-2-12 54 106436001 53 133740006 38 7-8 36 51-3-12 54 106629002 43 133792101 130-2 74 7-8 36 51-4-12 56 107093002 25 133793001 130-2-1 74 062670612 7 22 0A4400805 1-1-6 44 107149001 54 133794001 130-2-2 74 5 26 30-1-7 50 107401001 46-1-3 14 133795001 130-2-3 74 28 26 30-2-7 50 46-5-4 18 133797101 130 74 51 26 0A4401205 30-3-7 50 10-12-3 64 140004001 5-2-1 4 062670712 17 30 0A5300005 19 107404001 46-1-4 16 140407001 95 10 21 0A5400806 1-23-4 47 46-5-5 16 140518001 1-7 70 6-5 36 0A5400806 27 58 140553102 16 4 7-5 36 0A5401006 1-34 47 107407003 80-7 72 141208001 31 10 062670812 14 58 1-36 47 107639001 52-2 42 141513001 22-3 36 062671012 39 10 1-37 47 107744001 1-2 40 141514001 22-4 36 062671612 54 40 52 58 108265009 24-3 34 39-5 40 062680512 17-2 10 54 58 108494001 80-2-2 72 141519001 1-3 40 56 56 58 108495001 80-2-3 72 141590001 27 100-3 74 0A5401206 902 58 110027001 2-1 72 141619001 6-1 22 062680612 5 42 905 58 110067001 80-1-9 72 141620001 6-2 22 14 0A5403005 1-5 46 110161004 16-1-4 74 100-8 74 58 0B105501005 101 48 1-4 74 142274101 5-3 22 14 0B1351606 11-4 64 110167001 39-2 40 142443001 25 70 34 100022005 26 4 110168001 39-3 40 142990001 54-10-3 68 64 100136001 80-2-4 72 110215002 29 40 143748001 80-1-11 72 11 100242003 46 10 110367001 4 72 143767102 80-2 72 10-8 64 100250001 2 38 143767752 80-2 72 062680712 31 14 100402004 51-3 32 143980001 80-2-1 72 062680812 23 26 100644005 5 24 110494001 3 40 144103009 31-4 30 9 72 100645003 7-4 30 110735002 27-1-6 40 40-4 30 101 1118001 7 30 27-2-6 40 144110001 31-5 30 062681012 27 101118001 7 70 111466101 30 72 144226001 70 062681412 4 101572101 27 70 111865001 21 72 144628001 80-1-6 72 062710612 44 101671002 6-3 22 112467002 7 16 144630001 46-3-1 16 062710812 66 109-9 72 112525000 78 76 062711012 39 102538002 51 12 112751003 70 32 144632001 76 3 102630001 6 20 113316001 66 76 144707001 46-3-3 16 062711212 7 104449001 27 2 113730001 20 40 144872101 10 26 3 32 2 114483002 36 70 144874001 11 26 062711412 32 33 2 11459001 131 74 144875001 1 26 9 39 2 114988001 49 72 144970001 80-1-3 72 062711612 4 56 2 115188001 24-2 72 144990001 80-1-1 72 2 8 20 2 115503001 20 72 144999001 80-1-5 72 070608800 14 104450101 11 2 117143003 17 2 145136001 76 10 072630260 1-3 6 29 2 117160001 33-3-3 10 145371001 37 40 076002450 2-1 22 30 2 10-2-3 4 145440001 40-1 30 076200800 12-7 6 31 2 117363001 16-4 18 145446001 31-2 30 076202801 1-3 66 34 19 64 40-2 30 076202801 1-3 66 35 2 117466000 33 10 51-6 32 081005070 4 36 2 117934001 25 70 24-1 34 081007070 1-6 70 37 2 117936001 59 2 145465001 5-1 4 081012070 32 36 2 118735001 15 8 145472001 23-3 10 081014870 51-4 32 38 2 118837001 26 70 145478101 23-3 10 087310815 1-1-5 44 104451101 28 2 119101001 130-1-3 74 28 10 087311015 1-1-10 44 104521001 4 22 119710001 130-1 74 10-3 40 0A4301005 1-24 60 105130001 51 14 119711001 130-1-1 74 10.5 32 0A4400605 58 56 105161003 100-7 74 120263001 58 2 145519001 51-5 32 jintex.in 80

Page 85

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page 146000001 100-5 74 159221001 51-8 32 228475000 10-18 64 S00480000 50 26 146255000 43 70 159241001 63 32 229017001 1-23-7 47 S00554000 1-22 58 146256001 42 70 159267001 16 40 104 1-20 66 S00617000 41 70 147233001 50 75 159272001 21 40 14 66 S00712101 27 40 147941001 48 75 159343001 16-2 36 232384001 1-24-2 47 S00901001 23 40 147987001 45 75 159379001 22-4 20 414900001 56-1-4 56 S00902001 16-3 10 149127001 18 40 61 42 552907000 4 26 S00903001 18 10 40 40 51 58 149809000 54-11 68 159384009 37 70 552908000 51 58 S00930001 22 40 150172003 54-11 68 159624001 9-2 64 55 58 S01271001 3/8 75 150173003 54-7 76 159625001 11-2 76 J00107001 2 76 S01272001 7/16 75 150179002 54-6-1 68 159761002 14 J00351001 10 72 S01273001 5/8 75 150179002 54-8-1 68 159762002 46-1-1 76 J00353001 75 68 S01274001 3/4 75 150182000 54-4 68 76 J00494001 2 76 S01275001 7/8 75 150183000 54-10-2 68 159763002 76 J00649001 102-1-2 48 S01466201 76 150189109 54-1 68 159764202 14 J01684001 1-23-1-12 48 S01467201 46-3 76 150382001 19 4 159765202 46-1 76 J01935001 102-1-1 48 S01468201 76 150491101 11 40 76 J02036001 76 72 S01686001 49 40 150553003 28 30 159766202 76 J02130001 102-3 48 S01700001 65-1 72 151843001 77 159805001 31-3 30 J02278001 1-12 66 S01998001 51 42 151927001 55 26 40-3 30 J02293001 8 68 S02460001 19 14 152969001 28 58 32 J02343001 1-23-8 47 S02563001 14 36 153057102 17 20 159917201 69 32 J02441001 1-23-1-7 46 S02761309 54 68 153242000 1-24-5 47 159924001 53 42 J02443001 1-23-1-1 46 S02773001 54-2 68 73 72 159926001 46-1-2 14 J02449001 1-23-1-15 46 S02778002 54-10 68 153483001 23 4 46-3-2 16 J02493001 1-15 66 S02787002 54-10-1 68 154965001 21 12 46-5-3 18 J02513001 1 66 S03280001 9/16 75 155578000 47 12 159927001 10-12-2 64 J02516001 6 68 S06139001 100-1 74 156612001 77 159927001 46-3-5 64 J02517001 3 66 S06140001 100-2 74 157968001 21 34 159927001 1-23-1-3 66 S07478000 8 24 158830001 21 2 183507001 20-2-5 24 J02525001 1-10 60 S08030000 1-24-4 47 158831001 22 2 183526001 20-1-3 24 J02537001 1-8 50 S08040000 1-1 72 158832000 23 2 183598001 20-1-3 24 J02621001 1-19 50 S09142000 1-11 60 158879001 12 2 183827001 1-7 72 J02657001 30-1-3 54 S09212001 21-1 46 158885001 15-1 4 200190001 63 50-2-3 50 S09477001 20-2-1 24 158893000 5 6 2163684001 1-7 66 30-3-3 50 S10174000 18 34 158945001 19 8 217071001 5 66 30-4-3 54 S10243000 26 58 159078001 44 14 218469001 1-23-1-11 46 J02727001 1-23-1-13 46 S10820000 8 47 159079000 76 71 J02989001 1-17 66 S10820001 20-1-11 50 76 218859001 30-1-5 50 J02990001 1-19 66 S10820002 9 47 159080000 47-1 76 72 J02991001 1-18 66 S10820003 10 47 76 30-2-5 50 J03275001 4 66 S10820004 11 47 76 30-4-5 54 J03283001 1-23-1-9 46 S10820005 12 47 76 31 58 J03284001 1-23-1-2 46 S10820006 51-1-11 52 159081000 76 221419001 1-23-1-23 46 J03285001 1-23-1-3 48 S10820007 13 47 76 224508001 7 76 J03290001 1-23-1-21 46 S10820008 14 47 159104001 22-2 20 9 68 J03410001 8 46 S10820009 15 47 159113001 60 42 11 68 J03411001 74 72 S10820010 51-2-11 54 159117001 9 20 224514001 30-1-4 50 J03417001 103 48 S10820011 16 47 159145001 5 22 30-3-4 50 J03419001 102-1 48 S10820012 51-4-11 56 159150000 24 2 30-4-4 54 J03457001 1-16 66 S10820013 54-3-11 54 2 30-3-4 54 J80081040 2 62 S10820014 18 14 159158051 26 228475000 49 76 J80380040 4 62 S12004000 40-7 30 32 70 76 J80813001 102-2 48 S13595101 22-1 70 159187000 29 26 32 J80814001 102 48 159193000 37 30 6 58 J80863001 1 66 159219101 31-1 30 26 58 S00306001 13 2 81 jintex.in

Page 86

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S13596101 22-2 70 S37110101 76 S43178000 1-18 44 S49496001 1-1-4 44 S13597101 10-19 64 S37111001 65 S43186000 1-10 46 S50110001 6-1 14 S13650001 5-4 70 S37927000 45 S43250100 5 64 S50111000 11 24 S18707153 14 70 S38082001 5 44 S43251000 11-1-2 64 S50113101 22-2 36 S19817001 5 36 S38118000 30-3-2 50 S43252000 11-1-3 64 S50120001 7 20 S20345001 4 47 S38128000 51-1-7-1 52 S43253000 11-1-4 64 S50124001 2 2 S21755001 2 36 S38133000 51-2-7-1 54 S43255000 11-1-7 64 S50126001 6 2 S21798001 54-8 68 S38145000 51-3-7-1 54 S43256000 11-1-8 64 S50127001 8 2 S23337001 3 36 S38155000 51-4-7-1 56 S43257000 11-1-9 64 S50128001 10 2 S23618001 50-1-6 50 S38200000 1-24-1 47 S43267000 11-1-14 64 S50131001 55 2 50-1-6 52 S38201000 1-24-1 47 S43270000 11-1-15 64 S50132001 1 4 51-1-6 52 S38145000 57 S43271000 11-1-11 64 S50136001 5-2 4 51-2-6 54 S38146000 31 S43272000 11-1-12 64 S50142000 5-5 4 51-3-6 54 S38155000 1-25-1 47 S43275000 1-12 64 S50143001 9 4 51-4-6 54 S38200000 1-23 47 S43276000 1-13 48 S50144001 9-1 4 S24250001 3 70 S38200000 1-6 60 S43277000 1-14 46 S50146001 9-3 4 S25328001 59 26 S38201000 1-7 60 S43318000 1-15 46 S50147001 12 4 S25410050 88 S38201000 1-23-1-8 46 S43717201 4 44 S50148001 15 4 S25413101 10 34 S38349001 1-24-3 47 S43981000 11-1-17 62 S50149101 15-2 4 S25417001 11 34 S38350001 78 S44629002 60 60 S50150001 17 4 S25418101 12 34 S3835101 78 S46454000 1-4 44 S50152001 20 4 S25420051 15 34 S38352101 6 78 S46455000 1-5 46 S50153001 22 4 S25456001 22 30 S38353101 7 78 S47595000 30-2-2 50 S50154001 1-1 6 S25642001 13/16 75 S38735001 5 78 S47664000 1-2 60 S50155001 4 6 S25789000 5 34 S38736101 24 76 S47665000 1-3 60 S50156001 6-1 6 S29023000 1-1-7-3 44 S38735101 5-2 22 S47668000 1-8 60 S50157001 8 6 S30205000 1-16 60 S38761001 16-5 46 S47669000 1-9 60 S50159001 10 6 S30280000 1-1-7-6 44 S40616001 1-23-2 10 S47670000 1-10 60 S50160001 10-1 6 S30564000 31-6 30 S40623000 1-23 46 S47673000 1-13 50 S50161000 11 6 51-9 32 S40623000 30-1-2 50 S47678000 1-14 46 S50162001 12 6 S30565003 31-7 30 S40623000 30-2-9 50 S47680000 1-21 46 S50163001 12-1 6 S30565005 40-8 30 S40616001 56-1 46 S47691000 1-22 50 S50164001 12-2 6 S31012001 34 30 S40617000 56-1-1 56 S47693000 1-23-5 46 S50165001 12-3 6 S31013001 33 10 S40618000 56-1-2 56 S47694000 1-23-1-4 47 S50166001 15 6 S31032001 51-10 32 S40619000 56-1-3 56 S47720000 1-23-1-4 46 S50167001 16 6 S31808001 18 4 S40621000 1-23-10 56 S47721001 1-23 46 S50168001 17 6 S32263001 40 2 S40622000 12 64 S47723201 1-6 46 S50169001 1 8 S32335100 24-1 58 S40623000 30-1-6 50 S47724000 1-23-6 46 S50170001 7 8 S32521001 17 8 S40623000 30-2-6 50 S47725000 1-23-1-19 46 S50171001 9 8 S35095000 1-2 30 S40623000 30-3-6 50 S47726000 1-23-1-20 46 S50172001 11 8 S35184001 20-1 14 S40623000 30-4-6 54 S47727000 1-23-1-18 46 S50174001 14 8 S35598000 56-1-5 56 S40639001 901 58 S47728000 1-23-1-17 46 S50176001 18 8 S35630001 1 75 S40641001 54-12 68 S47729000 1-23-1-22 46 S50178001 18-1 8 S36522001 100-11 74 S40639001 54-6 68 S47730000 1-23-1-16 46 S50179001 21 8 120-2 74 S40641001 54-12 68 S47733000 1-23-1-10 46 S50180001 14 4 S36924001 78 S41216000 60 S47734000 1-23-1-14 46 S50180070 14 4 S37055001 23 58 S47735000 1-23-1-6 46 S50180075 14 4 S37059001 1-32 47 S41466001 21 50 S47749101 1-6-1 46 S50180080 14 4 S37060001 1-33 78 S41964000 50-1-4 50 S48034001 3 44 S50180085 14 4 S37100101 46-2 76 S41964000 50-2-4 50 S48371060 10-2 62 S50180090 14 4 S37100102 76 S41964000 51-1-4 52 S48371065 14 4 S50180475 13 70 S37101102 76 S41964000 51-2-4 54 S48371070 14 4 S50180490 13 70 S37102101 46-4 16 S41964000 51-3-4 54 S48371075 14 4 S50182000 1 8 S37103101 76 S42116000 1-19 58 S48371080 14 4 S50183001 1 10 S37109102 76 S42227009 1-19 46 S48371090 14 4 S50184001 6 10 S37109102 76 S42653000 900 58 S48579000 1-1-7-4 44 S50185001 8 10 S37109102 76 S42890001 1-12 64 S49492000 1-1-2 44 S50186001 10 10 S37109102 76 S42890001 1-12 64 S49495000 1-1-3 44 S50187001 12 10 S37109102 76 S42890001 1-12 64 S49495000 1-1-3 44 S50188001 16-1 10 jintex.in 82

Page 87 — INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S50189001 16-1-1 10 S50247001 10-1 40 S50326001 58 42 S50388001 48 30 S50190001 16-1-2 10 S50248001 10-4 40 S50327001 62 42 S50389001 50 30 S50191001 16-1-3 10 S50249001 17 40 S50329000 65 42 S50390101 51-1 30 S50192001 16-2 10 S50252001 19 40 S50329001 65 42 S50391001 51-2 30 17 10 S50253001 25 40 S50330101 1 70 S50392001 54 32 S50193001 21 10 S50257001 28 40 S50331000 1-1 70 S50393001 58 32 S50194001 23 10 S50259101 30 40 S50332000 1-2 70 S50401001 58 36 S50195001 23-1 10 S50259101 30 40 S50334000 1-4 70 S50395001 6-1 36 S50196001 24 10 S50260101 30-1 40 S50335000 1-8 70 7-1 36 S50197001 29 10 S50264000 30-2 40 S50336000 1-9 70 S50398001 6-2 36 S50198001 29-1 10 S50264000 30-3 40 S50337000 1-10 70 S50399101 6-3 36 S50199001 29-2 10 S50265001 35 40 S50339000 2 70 S50400001 6-4 36 S50200001 32 10 S50269000 36 40 S50340000 8 70 7-4 36 S50201001 37 10 S50270000 1-6 40 S50341000 57 70 S50401001 6-6 36 S50202001 36 10 S50271000 1-7 40 S50341001 1-1-3 62 7-6 36 S50203001 42 10 S50272000 1-8 40 1-1-3 62 S50402001 6-7 36 S50204001 43 10 S50273001 1 40 1-1-3 62 7-7 36 S50205001 48 12 S50274001 10 22 1-2-3 62 S50403001 16-1 36 S50206001 50 12 S50275001 11 22 1-2-3 62 S50404201 22 36 S50207001 1 14 S50276001 12 34 S50342000 4 62 S50405101 22-1 36 S50208001 5-1 14 S50278001 13 34 S50343000 55 70 S50408001 24-1 36 S50209001 8 14 S50279001 16 34 S50344001 59 72 S50410001 28 36 S50210001 9 14 S50281000 27 34 S50345001 68 72 S50411001 29 36 S50211001 11 14 S50282001 27-1 34 S50346001 80 72 10-2 40 S50212001 13-1 14 S50283001 29 34 S50348001 80-3 72 S50412000 30 36 S50213001 14-1 14 S50284001 1 20 S50349001 80-5 72 S50413001 31 36 S50214001 16-1 14 S50285001 10-1 20 S50350001 120 74 S50414001 33-1 38 S50215101 22 14 S50286001 10-2 20 S50351001 120-3 74 S50415001 33-2 38 17 64 S50287001 10-3 20 S50354000 4 74 S50416001 33-3 38 S50216001 25 14 S50288001 10-4 20 S50356001 8 26 S50417001 35-1 38 S50217001 27-1-1 14 S50289001 11 20 S50359001 13 26 S50418001 35-2 38 S50218001 27-1-2 14 S50290001 10-1 20 S50360001 15 26 S50419001 33 38 27-2-2 18 S50291001 10-1 20 S50362001 31 26 S50420001 35-5 38 S50219101 27-1-3 14 S50291001 10-2 20 S50363000 34 26 S50421001 1 46 27-2-3 18 S50292001 10-3 20 S50364001 35 26 S50422000 1-14 46 S50220001 33-1 14 S50293001 10-4 20 S50365101 38 26 S50423000 1-18 46 S50221001 36 14 S50294001 12 20 S50366001 40 26 S50424000 1-20 46 S50222001 38 14 S50295001 16 20 S50368001 1 30 S50425001 1-24 47 S50223001 39 14 S50296001 19 20 S50369001 1-1 30 S50431001 1-25 47 S50224001 42 14 S50297001 1 24 S50370001 3 30 S50437000 1-27 47 S50225001 33-2 14 1-1-2 62 S50371101 5 30 S50439000 1-29 47 S50226001 1 24 1-1-2 62 S50372001 7-1 30 S50440000 1-30 47 S50227001 2-1 24 1-1-2 62 S50373001 7-2 30 S50441000 1-31 47 S50228001 2-1-1 24 1-2-2 62 S50374001 7-5 30 S50442001 30-1 50 S50229001 2-1-2 24 1-2-2 62 S50375001 7-6 30 S50443000 30-1-1 50 S50230001 4 24 1-2-2 62 S50376001 7-7 30 S50444001 30-2 50 S50231100 6 24 S50298101 15 22 S50377001 16 30 S50445000 30-2-1 50 S50233001 10 24 S50299101 22-1 20 S50378001 18 30 30-3 50 S50234901 20 24 S50300001 42 26 S50379001 21 30 30-3-1 54 S50235901 20-1 24 S50301001 42-1 26 S50380000 23 30 30-4 54 S50236001 20-1-2 24 S50303001 1-1-1 62 S50381000 24 30 S50446001 30-3 50 S50237001 20-2 24 S50304001 1-1-1 62 S50382001 25 30 S50447001 30-4 54 S50239001 20-2-4 24 S50309001 1-1-1 62 S50383001 29 30 S50448000 30-5 54 S50240001 1 22 S50311001 1-2-1 62 S50384101 32 32 S50451201 1-1 44 S50241001 2 22 S50313101 1-2-1 62 S50385001 39 32 S50453000 1-1-7 44 S50243001 5 22 S50317101 1-2-1 62 S50386001 40-5 30 S50455000 1-1-7-2 44 S50244001 5-1 22 S50322101 50 40 S50387001 40-6 30 S50456000 1-1-7-7 44 S50245001 6 22 S50323000 57 40 S50457000 1-1-8 44 S50246001 1-1 40 S50325001 57 42 S50458100 1 58 S50459100 2 58 S50460000 3 58 83 jintex.in

Page 88 — 索引/INDEX

索引/INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S50461000 4 58 S50525000 41 26 S51020000 87 26 S52761001 4 36 S50462000 5 58 S50527000 43 26 S51117001 1/4 75 S52763000 39 26 S50463000 7 58 S50528000 44 26 S51118001 1-16 40 S52764001 1 36 S50464000 7-1 58 S50529000 45 26 S51162001 28 20 S52770000 42-2 40 S50465000 9 58 S50530000 46 26 S51170001 10 40 S52778001 42 40 S50466000 11 58 S50531000 47 26 S51171001 1 42 S52943001 5-3 4 S50467000 16-1 58 S50532000 48 26 S51172001 52 22 S53181000 3 44 S50468000 18 58 S50533000 56 26 S51173001 6 10 S53902301 1 60 S50471000 24 58 S50536001 57 26 S51174001 16 6 S53907001 1 62 S50472000 24-2 58 S50537000 60 26 S51176001 1 14 S53996101 5-1 62 S50473000 24-3 58 S51178101 27-1 30 S53998001 5-2 62 S50474000 50-1-3 58 S50540001 61 26 S51179101 6 30 S54027001 50-1-1 50 50-2-3 58 S50541001 63 26 S51180001 16 30 50-2-1 50 51-1-3 50 S50542001 65 28 S51181001 35 38 51-1-1 52 51-2-3 52 S50543001 67 28 S51182101 51 30 51-2-1 54 51-3-3 54 S50544000 69-1 28 S51183001 40 30 51-3-1 54 51-4-3 56 S50545000 69-2 28 S51184001 31 30 51-4-1 56 S50476001 120-1 74 S50546000 72 28 S51185001 7 8 S54028001 50-1-2 50 S50477001 100 74 S50547000 73 28 S51190001 12 6 50-2-2 50 S50483100 52 48 S50548001 75 28 S51223001 6 14 51-1-2 52 S50484000 1-35 47 S50549000 77 28 S51225001 6 24 51-2-2 54 S50485100 50-1-7-2 50 S50550001 79 28 S51226001 2 42 51-3-2 54 50-2-7-2 52 S50551001 80 28 S51248101 66-2 77 51-4-2 56 51-1-7-2 52 S50552000 82 28 S51249101 77 S54501101 10 64 51-2-7-2 54 S50556000 17 26 S51250101 77 S54502101 27-2 18 51-3-7-2 54 S50557000 22 26 S51282001 54-5 68 10-1 64 51-4-7-2 56 S50558000 23 26 S51290001 54-3 70 S54503001 27-2-1 18 S50486100 50-1-7-3 50 S50650001 65 26 3/5 75 10-2 64 50-2-7-3 52 S50652001 55 26 S51351001 7/16 20 S54504001 33-3 18 51-1-7-3 52 S50656001 19 26 S51352001 18-1 75 S54506001 33-3-2 64 51-2-7-3 54 S50657001 1-1 46 1/2 20 10-2-1 18 51-3-7-3 54 S50658001 1-2 46 S51353001 9/16 75 S54507001 52 64 51-4-7-3 56 S50660001 1-3 46 S51354001 34-2 70 10-3 18 S50488100 3 47 S50666001 1-1 50 5/8 75 S54508001 13-2 64 S50498001 56 56 S50667001 1-2 46 S51355001 11/16 75 10-5 18 S50499000 56-2 56 S50668001 1-3 46 S51356001 3/4 75 S54509000 56 64 S50500000 30-6 54 S50632101 50-1 50 S51357001 7/8 75 10-6 18 S50501201 H-1 48 S50633100 50-1-7 50 S51358001 18-2 20 S54510001 57 64 S50502201 H-2 48 S50635100 50-2 50 34-3 70 10-7 18 S50503201 H-3 48 S50636101 51-1 52 1 70 S54511001 16-2 64 S50504301 H-4 48 S50637101 51-7 52 S51359001 34-5 75 10-9 18 S50505301 H-5 48 S50638101 51-2 54 29 75 S54512001 14-2 64 S50506301 H-6 48 S50639100 51-2-7 54 S51360001 34-4 75 10-10 18 S50507301 H-7 48 S50640101 51-3 54 32 62 S54513001 20-2 64 S50508301 H-8 48 S50641100 51-3-7 56 S51361001 1-1 62 10-11 18 S50509301 H-9 48 S50642101 51-4 56 S51362001 1-1 62 S54514101 46-5 64 S50510201 H-10 48 S50643100 51-4-7 58 S51363001 1-1 62 10-12 18 S50511201 35-9 38 S50644000 61 58 S51364001 1-2 62 S54515001 46-5-2 64 S50512001 35-10 38 S50644001 1-38 47 S51365001 1-2 14 10-12-1 18 S50513000 24 26 S50645000 1-25-2 47 S51366001 1-2 76 S54516101 46-5-1 64 S50514000 25 26 S50656201 1 44 S51418001 5 72 10-12-6 18 S50515000 26 26 S50657001 1 44 S51514101 76 S54517000 47-2 64 S50516001 27 26 S50660000 1-4 46 S51896001 80-1 44 10-13 18 S50517001 30 26 S50663001 77 S51901201 1-1-1 4 S54518101 46-6 76 S50518000 32 26 S50664001 66-1 77 S52248001 6 36 S54519001 7 18 S50519000 33 26 S50665001 77 S52431000 22-5 40 S54520001 7-2 76 S50520000 35 26 S52432001 39 40 S50521000 36 26 S52433001 39-1 40 S50522000 38 26 S52434001 39-4 40 S50524000 40 26 84 jintex.in

Page 89 — 索引 / INDEX

索引 / INDEX CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page S54520001 10-14 64 S54521001 7-3 36 10-15 64 S54522001 66-3 42 10-16 64 S54741001 9 24 S54763001 69 28 S54767000 150 74 S54768001 1-3 70 S54987001 46-5-6 18 10-12-5 64 S55344001 77 S55345002 76 S55346002 76 S55347002 76 S55348001 76 S55349001 76 S55350001 76 S55361100 151 74 S55663001 35 70 S55975001 62 32 S56251001 24-4 36 S58097001 24 36 S58098001 24-2 36 S58731000 1-23 60 S58971001 11-1 64 S58972000 1-1-5 64 S58973000 1-1-19 64 S58974000 1-1-11 44 S58978001 11-1-18 44 S58984000 4 44 S58987001 1-1-12 64 S58988001 11 64 S58989001 11 64 S59987001 17-1 40 SA0287000 63 58 U32744000 1-20 60 U34870000 1-7-5 44 XA2220050 1-1-9 44 Y42215591 1-11 60 Y44715591 1-25-3 47 Y44715591 1-12 60 85 jintex.in

Page 90

brother. パーツブック PARTS BOOK ブラザー工業株式会社 BROTHER INDUSTRIES, LTD Printed in Japan 118-H80 S96H80-101 2002.05.F (1) jintex.in

Page 2

Page 3

Page 4 — CONTENTS

Page 5 — A. 主体関係 / Machine body

Page 6 — A.主体関係 / Machine body

Page 7 — B. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 8 — B.針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 9 — C. Upper shaft mechanism

Page 10 — C.上軸関係 / Upper shaft mechanism

Page 11

Page 12 — D.針振関係 / Zigzag mechanism E.非常停止関係 / Emergency stop mechanism

Page 13 — F. 押工関係 / Presser foot mechanism

Page 14 — F.押工関係 / Presser foot mechanism

Page 15 — F. 押工関係 / Presser foot mechanism

Page 16 — F.押工関係 / Presser foot mechanism

Page 17 — 31. 送り関係 (-2, -3) / Feed mechanism (For "-2 & -3")

Page 18 — G1.送り関係 (-2,-3)/ Feed mechanism(For "-2 & -3")

Page 19 — 31. 送り関係 (-2, -3) / Feed mechanism (For "-2 & -3")

Page 20

Page 21 — G2 . 送り関係 (-5) / Feed mechanism (For "-5")

Page 22

Page 23 — H . カッター関係 / Cutter mechanism

Page 24

Page 25

Page 26 — J.糸切れ感知関係 / Thread breakage detector mechanism K.下軸関係 / Lower shaft mechanism

Page 27 — L. Rotary hook mechanism

Page 28 — L.カマ関係 / Rotary hook mechanism

Page 29 — M. Lubrication

Page 30 — M.給油潤滑関係 / Lubrication

Page 31

Page 32 — M.給油潤滑関係 / Lubrication

Page 33 — N. 糸通シ関係 / Threading mechanism

Page 34

Page 35 — N. 糸通シ関係 / Threading mechanism

Page 36 — N.糸通シ関係 / Threading mechanism

Page 37 — Bobbin winder mechanism

Page 38 — P.糸巻関係 / Bobbin winder mechanism

Page 39 — Q.上糸切り関係 / Upper thread trimmer mechanism

Page 40 — Q.上糸切り関係 / Upper thread trimmer mechanism

Page 41 — Q.上糸切り関係 / Upper thread trimmer mechanism

Page 42 — Q.上糸切り関係 / Upper thread trimmer mechanism

Page 43

Page 44 — R.下糸切り関係 / Lower thread trimmer mechanism

Page 45 — R. 下糸切り関係 / Lower thread trimmer mechanism

Page 46 — R.下糸切り関係 / Lower thread trimmer mechanism

Page 47

Page 48

Page 49 — U1. コントロールボックス関係 / Control box mechanism

Page 50 — U1.コントロールボックス関係 / Control box mechanism

Page 51 — U1.コントロールボックス関係 / Control box mechanism

Page 52 — U1.コントロールボックス関係 / Control box mechanism

Page 53

Page 54 — U2.コントロールボックス関係 / Control box mechanism

Page 55

Page 56 — U2.コントロールボックス関係 / Control box mechanism

Page 57 — U3. コントロールボックス関係 / Control box mechanism

Page 58 — U3.コントロールボックス関係 / Control box mechanism

Page 59 — U3 . コントロールボックス関係 / Control box mechanism

Page 60 — U3.コントロールボックス関係 / Control box mechanism

Page 61 — V. 電装品関係/Power supply equipment mechanism

Page 62

Page 64

Page 65 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 66 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 67 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 68 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 69 — Y. モータ関係 / Motor mechanism

Page 70 — Y. モータ関係 / Moter mechanism

Page 71

Page 72

Page 73 — Z2 . 付属 品 関係 / Accessories

Page 74 — Z2. 付属吕関係 / Accessories

Page 75 — Z2. 付属部品関係 / Accessories

Page 76 — Z2. 付属 品 関係 / Accessories

Page 77 — Z3. 付属部品関係 (オプション部品) / Accessories (Option parts)

Page 78 — Z3. 付属部品関係 (オプションパーツ)/ Accessories (Option parts)

Page 79 — Ga1 . ゲージ部品一覧表 / Gauge parts List

Page 80 — Ga2 .ゲージ部品一覧表 / Gauge parts List

Page 81 — Ga3. ゲージ部品一覧表 / Gauge parts List

Page 82 — Wa.警告ラベル/Warning labels

Page 73 — Z2 . 付属品関係 / Accessories

Page 76 — Z2. 付属品関係 / Accessories
