Brother HE-800A (90 pages) Parts Book (PDF)

Buttonhole · also listed as HE800A, 800ADownload PDF

Text index — Brother HE-800A (90 pages)

Page 6 — A.主体関係 / Machine body

Brother HE-800A (90 pages) parts on page 6
Ref	Part number	Part name	Qty
2	S50124001	FACE PLATE	1
3	062711012	SCREW, PAN SM4.76-32X10	4
4	S50125001	COVER, ;T/TAKE-UP LEVER	1
5	062680612	SCREW, PAN SM4.37-40X6	1
6	S50126001	REAR COVER	1
7	062711012	SCREW, PAN SM4.76-32X10	6
8	S50127001	TOP COVER	1
9	062711612	SCREW, PAN SM4.76-32X16	6
10	S50128001	COVER, ;R-HOOK	1
11	104450101	RUBBER CAP, 8	1
12	158879001	SHAFT, ;R-HOOK COVER	1
13	S00306001	SPRING, PLATE	1
14	025080132	WASHER, PLAIN S 8	1
15	048060342	RETAINING RING, E6	1
16	014760622	SET SCREW, SOCKET SM5.95	1
17	117143003	SCREW, FLAT SM4.37	2
19	021680202	NUT, 2 SM4.37	2
20	014760622	SET SCREW, SOCKET SM5.95	2
21	158830001	BED HINGE	2
22	158831001	PIN	2
23	158832000	PIN SUPPORT RUBBER	2
24	159150000	RUBBER CAP, 20.5	1
25	117934001	RUBBER CAP, 13.5	1
26	159150000	RUBBER CAP, 20.5	1
27	104449001	RUBBER CAP, 15.5	1
28	104451101	RUBBER CAP, 23.9	1
29	104450101	RUBBER CAP, 8	2
30	104450101	RUBBER CAP, 8	2
31	104450101	RUBBER CAP, 8	1
32	104449001	RUBBER CAP, 15.5	1
33	104449001	RUBBER CAP, 15.5	1
34	104450101	RUBBER CAP, 8	1
35	104450101	RUBBER CAP, 8	1
36	104450101	RUBBER CAP, 8	1
37	104450101	RUBBER CAP, 8	2
38	104450101	RUBBER CAP, 8	1
39	104449001	RUBBER CAP, 15.5	2
40	S32263001	RUBBER CAP, 8.5	3
55	S50131001	THREADING DIAGRAM	1
56	104449001	RUBBER CAP, 15.5	1
57	S50340000	BED BASE CUSHION	2
58	120263001	SCREW	2
59	117936001	RUBBER CAP, 9.4	1
60	S44629002	LABEL, E	1
	017606022		1
	117103003		2
	104450001		1

Page 8 — B.針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother HE-800A (90 pages) parts on page 8
Ref	Part number	Part name	Qty
1	S50132000	THREAD TAKE-UP CRANK	1
2	100250001	SCREW, SM7.14	1
3	014770622	SET SCREW, SOCKET (CP) SM6.35	1
4	110367001	WASHER, PLAIN SPECIAL 8	1
5	S50133001	THREAD TAKE-UP LEVER SET	1
5-1	145465001	SCREW, SM3.57-40X6 L	1
5-2	S50136001	NEEDLE BAR CLAMP SET	1
5-2-1	140004001	SCREW, SM3.57-40X7	1
5-3	S52943001	SUPPORT SHAFT	1
5-4	140430001	WICK, L=40	1
5-5	S50142000	WICK, 3X30	1
5-6	S50271000	WICK, 2X35	1
5-7	S50272000	WICK, 3X15	1
6	S52248001	SLIDE BLOCK, ;N-BAR BRACKET	1
7	014770622	SET SCREW, SOCKET (CP) SM6.35	2
8	014760622	SET SCREW, SOCKET SM5.95	1
9	S50143001	NEEDLE BAR BRACKET SET	1
9-1	S50144001	NEEDLE BAR BRACKET ASSY	1
9-2	159624001	SLIDE BLOCK, ;N-BAR BRACKET	1
9-3	S50146001	STOPPER PLATE	1
10	158888001	SUPPORT SHAFT, ;N-BAR BRACKET	1
11	014760622	SET SCREW, SOCKET SM5.95	1
12	S50147001	GUIDE, ;N-BAR BRACKET	1
13	014760622	SET SCREW, SOCKET SM5.95	1
14	S50180075	NEEDLE, NM75	1
14	S50180090	NEEDLE, NM90	1
14	S50180065	NEEDLE, NM65	1
14	S50180070	NEEDLE, NM70	1
14	S50180080	NEEDLE, NM80	1
14	S50180085	NEEDLE, NM85	1
14	S48371060	NEEDLE, NM60	1
14	S48371065	NEEDLE, NM65	1
14	S48371070	NEEDLE, NM70	1
14	S48371075	NEEDLE, NM75	1
14	S48371080	NEEDLE, NM80	1
14	S48371090	NEEDLE, NM90	1
15	S50148001	NEEDLE BAR ASSY	1
15-1	158885201	NEEDLE BAR	1
15-2	S50149101	THREAD GUIDE, ;N-BAR	1
16	140553102	SET SCREW, SM3.18	1
17	S50150001	CRANK ROD GUIDE	1
18	S31808001	SCREW, PAN SM4.37-40X25	1
19	150382001	BOLT, SOCKET SM4.37X18	2
20	S50152001	GUIDE, ;N-BAR	1
21	154965001	BOLT, SOCKET SM3.57X8	2
22	S50153001	STOPPER	1
23	153483001	SET SCREW, SM4.76	1
24	021710202	NUT, 2 SM4.76	1
25	013761410	SET SCREW, (CP) SM5.95X14	1
26	100022005	NUT, SM5.95	1
27	062681012	SCREW, PAN SM4.37-40X10	2
	15888001	SUPPORT SHAFT, N-BAR BRACKET	1

Page 10 — C.上軸関係 / Upper shaft mechanism

Brother HE-800A (90 pages) parts on page 10
Ref	Part number	Part name	Qty
1	S51176001	UPPER SHAFT ASSY	1
1-1	S50154001	UPPER SHAFT	1
1-2	048150142	RETAINING RING, EXTERNAL C15	2
1-3	072630260	BALL BEARING, 6302VV	1
4	S50155001	BUSH, F	1
5	158893000	BUSH, M	1
6	S51223001	SET SCREW COLLAR ASSY	1
6-1	S50156001	SET SCREW COLLAR	1
6-2	014780622	SET SCREW, SOCKET (CP) SM6.35	2
8	S50157001	PULLEY ASSY	1
9	014760622	SET SCREW, SOCKET SM5.95	2
10	S50159001	T-PULLEY ASSY, U	1
10-1	S50160001	T-PULLEY, U	1
10-2	S48034001	RING	2
10-3	014780622	SET SCREW, SOCKET (CP) SM6.35	2
11	S50161000	TIMMING BELT	1
12	S50162001	TENSION PULLEY ASSY	1
12-1	S50163001	PLATE, ;T-PULLEY	1
12-2	S50164001	TENSION PULLEY	1
12-3	S50165001	COLLAR	1
12-4	018102536	BOLT, SOCKET M10X25	1
12-5	021100302	NUT, 3 M10	1
12-6	048300242	RETAINING RING, INTERNAL C30	2
12-7	076200800	BALL BEARING, 6200ZZ	1
13	018061022	BOLT, SOCKET M6X10	2
14	025060232	WASHER, PLAIN M 6	2
15	S50166001	IDLER PULLEY	1
16	S50167001	SHAFT	1
17	S50168001	COLLAR	1
18	070608800	BALL BEARING 0608ZZ	2
19	048220242	RETAINING RING, INTERNAL C22	2
20	014760622	SET SCREW, SOCKET SM5.95	2
21	111865001	CAP, 6	1

Page 12 — D.針振関係 / Zigzag mechanism E.非常停止関係 / Emergency stop mechanism

Brother HE-800A (90 pages) parts on page 12
Ref	Part number	Part name	Qty
1	S50169001	MOTOR BRACKET	1
2	S37940001	POSITIONING PIN	2
3	062711212	SCREW, PAN SM4.76-32X12	4
4	062711612	SCREW, PAN SM4.76-32X16	1
5	018401222	BOLT, SOCKET M4X12	4
6	060300612	SCREW, BIND M3X6	2
7	S50170001	MOTOR LEVER	1
8	014760622	SET SCREW, SOCKET SM5.95	2
9	S50171001	LEVER SHAFT, ;MOTOR	1
10	014760622	SET SCREW, SOCKET SM5.95	1
11	S50172001	ZIGZAG CONNECTING ROD	1
12	S51190001	SHAFT, ;Z-CONNECTING ROD	1
13	014760622	SET SCREW, SOCKET SM5.95	1
14	S50174001	LEVER, ;ZIGZAG	1
15	118735001	WASHER, PLAIN 6	2
16	018061622	BOLT, SOCKET M6X16	1
17	S32521001	WASHER, THRUST	1
18	S50176001	ZIGZAG LEVER ASSY, F	1
18-1	S50178001	SHAFT, ;Z-LEVER	1
18-2	159625001	STUD	1
19	158945001	BUSH, F ;Z-LEVER	1
20	158946001	BUSH, R ;Z-LEVER	1
21	S50179001	PLATE, ;Z-SENSOR	1
1	S50182000	COVER, ;EM	1
2	062400806	SCREW, PAN M4X8	3

Page 14 — F.押工関係 / Presser foot mechanism

Brother HE-800A (90 pages) parts on page 14
Ref	Part number	Part name	Qty
1	S50183001	DRIVING ARM, ;PRESSER	1
2	018061022	BOLT, SOCKET M6X10	4
4	S43717201	GEAR, 15.75	1
5	014770622	SET SCREW, SOCKET (CP) SM6.35	2
6	S50184001	GUIDE BRACKET	1
7	S42116000	LINEAR BALL BEARING	2
8	S50185001	HOLDER, ;BEARING	1
9	018400822	BOLT, SOCKET M4X8	1
10	S50186001	GUIDE SHAFT	2
11	014760622	SET SCREW, SOCKET SM5.95	4
12	S50187001	PRESSER, ;DR-ARM	1
13	110367001	WASHER, PLAIN SPECIAL 8	1
14	014760622	SET SCREW, SOCKET SM5.95	1
15	018401222	BOLT, SOCKET M4X12	3
16	S51174001	CONNECTING ROD SET, ;P-LIFTER	1
16-1	S50188001	CONNECTING ROD ASSY, ;P-LIFTER	1
16-1-1	S50189001	CONNECTING ROD, ;P-LIFTER	1
16-1-2	S50190001	SHOULDER SCREW	1
16-1-3	S50191001	ROLLER	1
16-1-4	110161004	NUT, SM4.76	1
16-1-5	028050242	WASHER, SPRING 2-5	1
16-2	S50192001	SPACER	1
16-3	S00902001	WASHER, PLAIN L 4.6 (D)	1
16-4	117363001	BOLT, SM4.76	1
16-5	S38761001	LIFTER LEVER, ;KNEE	1
17	S50192001	SPACER	1
18	S00902001	WASHER, PLAIN L 4.6 (D)	1
19	117363001	BOLT, SM4.76	1
21	S50193001	LIFTER SHAFT, A	1
22	014760622	SET SCREW, SOCKET SM5.95	1
23	S50194001	LIFTER LEVER ASSY, ;P-BAR	1
23-1	S50195001	DRIVING LINK, ;U/TR	1
23-2	S38761001	LIFTER LEVER, ;KNEE	1
23-3	145478101	SHOULDER SCREW, SOCKET SM4.76	1
24	S50196001	LIFTER SHAFT	1
25	025080132	WASHER, PLAIN S 8	1
26	048060342	RETAINING RING, E6	1
27	014760622	SET SCREW, SOCKET SM5.95	1
28	145478101	SHOULDER SCREW, SOCKET SM4.76	2
29	S50197001	GUIDE BRACKET ASSY, ;P-BAR	1
29-1	S50198001	GUIDE BRACKET, ;P-BAR	1
29-2	S50199001	LIFTER LINK, ;P-BAR	1
29-3	145478101	SHOULDER SCREW, SOCKET SM4.76	1
29-4	014760622	SET SCREW, SOCKET SM5.95	1
30	111466101	PRESSER BAR	1
31	141208001	SPRING GUIDE	1
32	S50200001	SPRING, COMPRESSION	1
33	S31013001	ADJUSTING NUT, PRESSER	1
34	S31012001	ADJUSTING SCREW, PRESSER	1
35	140407001	WASHER	1
36	145472001	BUSH, P-BAR	1
37	S50201001	ROLLER BRACKET, ;P-BAR	1
38	S50202001	ROLLER	1
39	062671212	SCREW, PAN SM3.57-40X12	1
40	025060132	WASHER, PLAIN S 6	1
41	048060142	RETAINING RING, C6	1
42	S50203001	ROLLER	1
43	S50204001	ROLLER SHAFT	1
44	014760622	SET SCREW, SOCKET SM5.95	1
45	S37927000	GUIDE, ;N-BAR	1
46	100242003	SCREW, SM3.57-40X5	2

Page 16 — F.押工関係 / Presser foot mechanism

Brother HE-800A (90 pages) parts on page 16
Ref	Part number	Part name	Qty
47	155578000	RUBBER CAP, 7.2	2
48	S50205001	DOG, ;CLAMP SENSOR	1
49	060670512	SCREW, BIND SM3.57-40X5	2
50	S50206001	PLATE, ;CLAMP SENSOR	1
51	102538002	SCREW, FLAT SM3.57	1
52	025040232	WASHER, PLAIN M 4	3

Page 18 — G1.送り関係 (-2,-3)/ Feed mechanism(For "-2 & -3")

Brother HE-800A (90 pages) parts on page 18
Ref	Part number	Part name	Qty
1	S50207001	MOUNTING BRACKET, ;MOTOR	1
2	062761012	SCREW, PAN SM5.95-28X10	3
3	025060232	WASHER, PLAIN M 6	3
4	018401022	BOLT, SOCKET M4X10	4
5	S51418001	PULLEY ASSY, A	1
5-1	S50208001	PULLEY, A	1
5-2	014060632	SET SCREW, SOCKET (CP) M6X6	2
6	S51225001	PULLEY ASSY, B	1
6-1	S50110001	PULLEY, B	1
6-2	014060632	SET SCREW, SOCKET (CP) M6X6	2
8	S50209000	TIMING BELT	1
9	S50210001	SUPPORT SHAFT	1
10	070688850	BALL BEARING, 688ZZNR	2
11	S50211001	BELT HOLDER	1
12	018680822	BOLT, SOCKET SM4.37X8	2
13-1	S50212001	FEED ARM SUPPORT	1
14-1	S50213001	FEED GUIDE SHAFT, B	1
15	014760622	SET SCREW, SOCKET SM5.95	1
16-1	S50214001	SHAFT, A ;F-GUIDE	1
17	018681232	BOLT, SOCKET SM4.37-40X12	2
18	S12004000	LINEAR BUSH	3
19	S02460001	RETAINING RING, EXTERNAL C19	2
20-1	S35184001	STOPPER, BALL BEARING	2
21	060660416	SCREW, BIND SM3.18-40X4	2
22	S50215101	SUPPORT PLATE, FEED SENSOR	1
23	062680812	SCREW, PAN SM4.37-40X8	2
24	025680132	WASHER, PLAIN S 4.37	2
25	S50216001	SUPPORT SHAFT, ;F-ARM	1
26	012500536	SET SCREW, SOCKET (FT) M5X5	1
27-1	S51178101	FEED ARM ASSY	1
27-1-1	S50217001	FEED ARM	1
27-1-2	S50218001	SUPPORT PLATE	1
27-1-3	S50219101	CAM	1
27-1-4	018681022	BOLT, SOCKET SM4.37X10	2
27-1-5	018680522	BOLT, SOCKET SM4.37X5	2
27-1-6	110735002	WASHER	4
33-1	S50220001	LENGTH FEED PLATE, -2	1
33-2	S50225001	LENGTH FEED PLATE, -3	1
34	018681022	BOLT, SOCKET SM4.37X10	2
35	028680242	WASHER, SPRING 2-4.37	2
36	S50221001	FEED PRESSER PLATE	2
37	105130001	SCREW, SM3.57	4
38	S50222001	FEED ARM SUPPORT	1
39	S50223100	COVER	1
40	018680822	BOLT, SOCKET SM4.37X8	1
41	025680132	WASHER, PLAIN S 4.37	1
42	S50224001	COVER, ;F-MOTOR	1
43	062680612	SCREW, PAN SM4.37-40X6	2
44	159078001	SPRING	1
45	S50562001	SHOULDER SCREW, SM6.35	1
46-1	159765202	WORK CLAMP ASSY, 25RS	1
46-1-1	159762002	WORK CLAMP, 25RS	1
46-1-2	159926001	PIN, L	1
46-1-3	107401001	SPRING, PLATE	2

Page 20 — G1.送り関係 (-2,-3)/ Feed mechanism(For "-2 & -3")

Brother HE-800A (90 pages) parts on page 20
Ref	Part number	Part name	Qty
46-1-4	107404001	SCREW, SM1.98-64X2	2
46-1-5	159927001	PIN, S	1
46-2	S37100101	WORK CLAMP ASSY, 25RS W/F-G	1
46-3	S01467201	WORK CLAMP ASSY, 25-K	1
46-3-1	144630001	WORK CLAMP, 25-K	1
46-3-2	159926001	PIN, L	1
46-3-3	144707001	SPRING, PLATE	2
46-3-4	107404001	SCREW, SM1.98-64X2	2
46-3-5	159927001	PIN, S	1
46-4	S37102101	WORK CLAMP ASSY, 25-K W/F-G	1
47-1	159080000	FINGER GUARD, M	1
48	018502022	BOLT, SOCKET M5X20	1

Page 22 — G2.送り関係 (-5)/ Feed mechanism(For "-5")

Brother HE-800A (90 pages) parts on page 22
Ref	Part number	Part name	Qty
13-2	S54508001	FEED ARM SUPPORT, -5	1
14-2	S54512001	SHAFT, B-5 ;F-GUIDE	1
16-2	S54511001	SHAFT, A-5 ;F-GUIDE	1
20-2	S54513001	STOPPER PLATE, B ;B-BEARING	2
27-2	S54502101	FEED ARM ASSY, 5	1
27-2-1	S54503001	FEED ARM, 5	1
27-2-2	S50218001	SUPPORT PLATE	1
27-2-3	S50219101	CAM	1
27-2-4	018681022	BOLT, SOCKET SM4.37X10	2
27-2-5	018680522	BOLT, SOCKET SM4.37X5	2
27-2-6	110735002	WASHER	4
33-3	S54504001	LENGTH FEED PLATE ASSY, -5	1
33-3-1	S54505001	LENGTH FEED PLATE, -5	1
33-3-2	S54506001	SPACER, ;FEED PLATE	1
33-3-3	117160001	SCREW, FLAT SM4.37	2
46-5	S54514101	WORK CLAMP ASSY, 70	1
46-5-1	S54516101	WORK CLAMP HOLDER	1
46-5-2	S54515001	WORK CLAMP, 70	1
46-5-3	159926001	PIN, L	1
46-5-4	107401001	SPRING, PLATE	2
46-5-5	107404001	SCREW, SM1.98-64X2	2
46-5-6	S54987001	PIN, F	1
46-6	S54518101	WORK CLAMP ASSY, 70 W/F-G	1
47-2	S54517000	FINGER GUARD, 70	1
52	S54507001	FEED PLATE SUPPORT	1
53	018680822	BOLT, SOCKET SM4.37X8	2
56	S54509000	LINEAR BUSH, 9.53	1
57	S54510001	STOPPER PLATE, L-BUSH	1
58	062680612	SCREW, PAN SM4.37-40X6	1

Page 24 — H.カッター関係 / Cutter mechanism

Brother HE-800A (90 pages) parts on page 24
Ref	Part number	Part name	Qty
1	S50283001	CUTTER DRIVING ARM SHAFT	1
2	014760622	SET SCREW, SOCKET SM5.95	1
3	S50284001	CUTTER DRIVING SHAFT	1
4	S50285001	DRIVING SHAFT HOLDER ASSY	1
4-1	S50286001	CUTTER DRIVING SHAFT HOLDER	1
4-2	S50287001	CUTTER DRIVING LINK SHAFT	1
4-3	014780622	SET SCREW, SOCKET (CP) SM6.35	3
5	S50288001	CUTTER DRIVING LINK	1
6	102630001	SLIDE BLOCK, N-BAR GUIDE	1
7	S50120001	GUIDE, ;C-BAR	1
8	062761012	SCREW, PAN SM5.95-28X10	4
9	159117001	BUSH, ;C-DRIVING SHAFT	1
10	S50289001	ADJUSTING SCREW ASSY	1
10-1	S50290001	ADJUSTING SCREW	1
10-2	S50291001	SPRING, COMPRESSION	1
10-3	S50292001	CUSHION SUPPORT	1
10-4	S50293001	SHOULDER SCREW, SM3.57	1
11	021910302	NUT, 3 SM12.70	1
12	S50294001	CUTTER HOLDER	1
13	018681022	BOLT, SOCKET SM4.37X10	1
14	S50295001	CUTTER HOLDER, M	1
15	018680632	BOLT,SOCKET SM4.37X6	2
16	S50296001	CUTTER HOLDER, DL	1
17	153057102	SCREW, ROUND W/SOCKET SM4.37	2
18-1	S51352001	CUTTER, 1/2	1
18-2	S51358001	CUTTER, 1	1
19	S50297001	CUTTER HOLDER	1
20	115503001	SCREW, SM4.37	1
21	S41466001	SET SCREW COLLAR ASSY	1
21-1	S09212001	SET SCREW COLLAR	1
21-2	014770622	SET SCREW, SOCKET (CP) SM6.35	2
22	S50298101	CUTTER DRIVING ARM ASSY	1
22-1	S50299101	CUTTER DRIVING ARM	1
22-2	159104001	PIN	1
22-3	014680622	SET SCREW, SOCKET (CP) SM4.37	1
22-4	159379001	PIN, DOWEL BX6X18	1
23	S50300001	CUTTER LINK SHAFT	1
24	014760622	SET SCREW, SOCKET SM5.95	1
26	048060342	RETAINING RING, E6	1
27	110367001	WASHER, PLAIN SPECIAL 8	1
28	S51162001	CUTTER LINK BRACKET ASSY	1
29	018681232	BOLT, SOCKET SM4.37-40X12	1
31	S50362001	CUTTER SOLENOID BRACKET	1
32	062711412	SCREW, PAN SM4.76-32X14	4
33	018501022	BOLT, SOCKET M5X10	3
34	S50363000	STOPPER CUSHION	1
35	S50364001	STOPPER, ;SOL.	1
36	028080242	WASHER, SPRING 2-8	1
37	021080202	NUT, 2 M8	2
38	S50365101	SETTING PLATE, C-SENSOR	1
39	062710812	SCREW, PAN SM4.76-32X8	1
40	S50366001	SPRING	1
	S0283001
	S0284001
	S0285001
	S0286001
	S0287001
	S0288001
	15917001
	S0289001
	S0290001
	S0291001
	S0292001
	S0293001
	S0294001
	S0295001	カッターホルダ M
	S0296001	カッターホルダ DL
	S0297001
	S0298101
	01760622

Page 26 — J.糸切れ感知関係 / Thread breakage detector mechanism K.下軸関係 / Lower shaft mechanism

Brother HE-800A (90 pages) parts on page 26
Ref	Part number	Part name	Qty
1	S50273000	THREAD GUIDE	1
2	025060232	WASHER, PLAIN M 6	1
3	025350332	WASHER, PLAIN L 3.5	1
4	060670612	SCREW, BIND SM3.57-40X6	1
5	159145001	SHAFT, ;TR-BREAKAGE PERCEIVING	1
6	S51173001	CUTTER BAR FIXED PLATE ASSY	1
6-1	141619001	FIXEING PLATE, ;C-BAR	1
6-2	141620001	BALANCER	1
6-3	101671002	SCREW, SM4.37	1
7	014760622	SET SCREW, SOCKET SM5.95	1
10	S50274001	LEVER STOPPER	2
11	062400612	SCREW, PAN M4X6	2
12	S50275001	PLATE, ;TR-BREAKAGE SENSOR	1
13	062400612	SCREW, PAN M4X6	1
	S50240001	LOWER SHAFT	1
	S50241001	TIMMING PULLEY ASSY	1
	076002450	BALL BEARING, 6002DD	1
	183827001	SET SCREW COLLAR ASSY	1
	104521001	SET SCREW COLLAR	1
	014770622	SET SCREW, SOCKET (CP) SM6.35	2
	S50243001	BUSH ASSY, M	1
	S50244001	BUSH, M	1
	S38735001	OIL FEEDING PIPE	4
	142274101	RUBBER CAP, 4.2	4
	S50245001	COVER	1
	062670612	SCREW, PAN SM3.57-40X6	2

Page 28 — L.カマ関係 / Rotary hook mechanism

Brother HE-800A (90 pages) parts on page 28
Ref	Part number	Part name	Qty
1	S50226001	BUSH	1
2	S51226001	ROTARY HOOK JOINT SET	1
2-1	S50227001	JOINT ASSY, ;R-HOOK	1
2-1-1	S50228001	JOINT, ;R-HOOK	1
2-1-2	S50229000	FELT	1
2-1-3	014760622	SET SCREW, SOCKET SM5.95	4
4	S50230001	B-CASE HOLDER POSITION BRACKET	1
5	100644005	SCREW, SM4.37	2
6	S50232000	FELT	1
7	S50231100	COLLAR	1
8	S07478000	RUBBER PRESSER	1
9	S54741001	SCREW, SM6.35	1
10	S50233001	SPRING	1
11	S50111000	SPRING	1
20	S50234901	R-HOOK & B-CASE ASSY, W/BOX	1
20-1	S50235901	ROTARY HOOK ASSY, W/BOX	1
20-1-1	183526001	SCREW	2
20-1-2	S50236001	SCREW	1
20-1-3	183598001	SCREW	1
20-2	S50237001	BOBBIN CASE ASSY	1
20-2-1	S09477001	SPRING	1
20-2-2	180721001	SCREW	1
20-2-3	183507001	ADJUSTING SCREW	1
20-2-4	S50239001	SPRING, ANTI-SPIN	1
22	159158051	BOBBIN	1
21	S50239001	SPRING, ANTI-SPIN	1
	S50741001	SCREW, SM6.35	1

Page 30 — M.給油潤滑関係 / Lubrication

Brother HE-800A (90 pages) parts on page 30
Ref	Part number	Part name	Qty
1	144875001	PLUNGER	2
2	S52764001	SPRING, COMPRESSION	2
4	552907000	CORD HOLDER, 10N	2
5	062670612	SCREW, PAN SM3.57-40X6	2
6	025350132	WASHER, PLAIN S 3.5	2
7	112467002	SCREW, SM6.35X5	2
8	S50356001	OIL FILTER BRACKET ASSY	1
9	062680812	SCREW, PAN SM4.37-40X8	3
10	144872101	PUMP FILTER	1
11	144874001	SPRING	2
12	062670512	SCREW, PAN SM3.57-40X5	2
13	S50359001	TUBE SUPPORT, D	1
14	062680612	SCREW, PAN SM4.37-40X6	1
15	S50360001	FELT SUPPORT	1
16	060670612	SCREW, BIND SM3.57-40X6	2
17	S50556000	FELT	1
18	S50563000	WICK, 4X200	1
19	S50564000	WICK, 2X150	1
20	S50559001	TUBE SUPPORT	1
21	060670612	SCREW, BIND SM3.57-40X6	1
22	S50557000	OIL TUBE	1
23	S50558000	OIL TUBE, L=180	1
24	S50513000	PACKING, ;F-PLATE	1
25	S50514000	PACKING, ;R-COVER	1
26	S50515000	PACKING, ;T-COVER	1
27	S50516001	WICK BASE SUPPORT	1
28	062670612	SCREW, PAN SM3.57-40X6	2
29	159187000	FELT BASE, A	1
30	S50517001	CAP	1
31	062680712	SCREW, PAN SM4.37-40X7	2
32	S50518000	FELT	1
33	S50519000	OIL TERMINAL	1
34	062680612	SCREW, PAN SM4.37-40X6	2
35	S50520000	PACKING	1
36	S50521000	OIL CAP	1
37	159193000	OIL PIPE, B	1
38	S50522000	OIL TUBE	1
39	S52763000	WICK, 2X140	1
40	S50524000	WICK, 3X160	1
41	S50525000	WICK, 3X290	1
43	S50527000	OIL TUBE	1
44	S50528000	WICK, 3X280	1
45	S50529000	OIL TUBE, L=320	1
46	S50530000	WICK, 3X355	1
47	S50531000	OIL TUBE	1
48	S50532000	OIL TUBE	1
49	228475000	FASTENING BAND, 1.9X80	2
50	S00480000	CORD HOLDER, 5N	1
51	062670612	SCREW, PAN SM3.57-40X6	1
52	025350132	WASHER, PLAIN S 3.5	1
53	106436001	FELT	1
54	107149001	FELT	2
55	151927001	FELT, ;CLUTCH	1
56	S50533000	OIL TUBE ASSY	1
57	S50536001	FELT HOLDER	1
58	062670512	SCREW, PAN SM3.57-40X5	1
59	S25328001	FELT	1
60	S50537000	WICK, 4X50	1
61	S50538001	OIL WINDOW SUPPORT	1
62	S50539000	OIL REJECTOR	2
63	S50540001	TUBE SUPPORT	1
	14487101		1
	S50560000		1

Page 32 — M.給油潤滑関係 / Lubrication

Brother HE-800A (90 pages) parts on page 32
Ref	Part number	Part name	Qty
64	062680612	SCREW, PAN SM4.37-40X6	1
65	S50541001	TUBE SUPPORT, U	1
66	062670512	SCREW, PAN SM3.57-40X5	1
67	S50542001	TUBE SUPPORT, M	1
68	062400612	SCREW, PAN M4X6	1
69	S54763001	FELT SUPPORT ASSY	1
69-1	S50543001	FELT SUPPORT	1
69-2	S50544000	FELT	1
71	062400612	SCREW, PAN M4X6	1
72	S50545000	WICK, 3X180	1
73	S50546000	WICK, 3X370	1
74	S50537000	WICK, 4X50	1
75	S50547000	OIL TUBE	1
76	228475000	FASTENING BAND, 1.9X80	2
77	S50548001	TUBE SUPPORT, R	1
78	060670612	SCREW, BIND SM3.57-40X6	1
79	S50549000	FELT	1
80	S50550001	FELT SUPPORT	1
81	062670512	SCREW, PAN SM3.57-40X5	1
82	S50551001	TUBE SUPPORT	1
83	002300603	SCREW, PAN M3X6	1
84	S50552000	WICK, 4X70	1
87	S51020000	COLLAR	1
88	S25328001	FELT	2
	S050541001	TUBE SUPPORT, U	1
	S050542001	TUBE SUPPORT, M	1
	S050543001	FELT SUPPORT	1
	S050546000	WICK, 3X370	1
	S050551001	TUBE SUPPORT	1

Page 34 — N.糸通シ関係 / Threading mechanism

Brother HE-800A (90 pages) parts on page 34
Ref	Part number	Part name	Qty
1	S50368001	T-RELEASE DRIVING LEVER ASSY	1
1-1	S50369001	TENSION RELEASE DRIVING LEVER	1
1-2	S35095000	NEEDLE ROLLER, 4X13.8	1
1-3	014400432	SET SCREW, SOCKET (CP) M4X4	1
2	014760622	SET SCREW, SOCKET SM5.95	1
3	S50370001	TENSION RELEASE SHAFT	1
4	081005070	O RING, P5	1
5	S50371101	TENSION RELEASE CAM	1
6	014760622	SET SCREW, SOCKET SM5.95	1
7	S51185001	TENSION TAKE-UP LEVER ASSY	1
7-1	S50372001	LEVER	1
7-2	S50373001	ADJUSTING LEVER	1
7-3	060670512	SCREW, BIND SM3.57-40X5	1
7-4	100645003	WASHER	1
7-5	S50374001	LEVER LINK	1
7-6	S50375001	TENSION TAKE-UP LEVER	1
7-7	S50376001	SHOULDER SCREW, SM4.37	2
10	100645003	WASHER	1
11	062680612	SCREW, PAN SM4.37-40X6	1
14	025680234	WASHER, PLAIN S 4.37	1
15	S50376001	SHOULDER SCREW, SM4.37	1
16	S50377001	SOLENOID HOLDER	1
17	062670612	SCREW, PAN SM3.57-40X6	2
18	S50378001	PLATE	1
19	018300636	BOLT, SOCKET M3X6	1
20	062300502	SCREW, PAN M3X5	2
21	S50379001	T-RELEASE SOLENOID LINK	1
22	S25456001	PLUNGER PIN	1
23	S50380000	SPRING	1
24	S50381000	RUBBER	1
25	S50382001	TENSION RELEASE LINK	1
26	S50376001	SHOULDER SCREW, SM4.37	2
27	141590001	THREADING BAR, U	1
28	150553003	NUT, SM5.95	1
29	S50383001	THREAD RETAINER	1
30	062670612	SCREW, PAN SM3.57-40X6	2
31	S51184001	SUB THREAD TENSION ASSY	1
31-1	159219101	SUB TENSION STUD	1
31-2	145446001	DISC, TENSION	2
31-3	159805001	DISC PRESSER, TENSION	1
31-4	144103009	DISC PRESSER, ;TENSION	1
31-5	144110001	TENSION ADJUSTING SPRING	1
31-6	S30564000	WASHER	1
31-7	S30565003	TENSION NUT, RED	1
32	S50384101	TENSION RELEASE PIN	1
39	S50385001	TENSION RELEASE LEVER BRACKET	1
40	S51183001	TENSION STUD ASSY	1
40-1	145440001	TENSION STUD	1
40-2	145446001	DISC, TENSION	2
40-3	159805001	DISC PRESSER, TENSION	1
40-4	144103009	DISC PRESSER, ;TENSION	1
40-5	S50386001	TENSION SPRING	1
40-6	S50387001	COLLAR	1
40-7	S12441001	WASHER	1
40-8	S30565005	TENSION NUT	1
48	S50388001	TENSION RELEASE LEVER	1
49	114988001	SHOULDER SCREW, M4.37	1
50	S50389001	SPRING	1
51	S51182101	TENSION STUD BRACKET ASSY	1
51-1	S50390101	TENSION STUD BRACKET	1
51-2	S50391001	TENSION STUD, L	1
	014004032	アナツメ 4X4	1
	S50380001		1

Page 36 — N.糸通シ関係 / Threading mechanism

Brother HE-800A (90 pages) parts on page 36
Ref	Part number	Part name	Qty
51-3	100402004	SET SCREW, SM3.57	1
51-4	081014870	O RING, S14	1
51-5	145519001	THREAD TAKE-UP SPRING	1
51-6	145446001	DISC, TENSION	2
51-7	159805001	DISC PRESSER, TENSION	1
51-8	159221001	TENSION SPRING	1
51-9	S30564000	WASHER	1
51-10	S31032001	TENSION NUT	1
56	S50384101	TENSION RELEASE PIN	1
62	S55975001	SET SCREW, SOCKET SM5.95	1
63	159224001	THREAD GUIDE, ARM	1
64	S50392001	THREAD GUIDE, ;ARM	1
65	060670512	SCREW, BIND SM3.57-40X5	1
66	113316001	THREAD GUIDE	1
67	060670512	SCREW, BIND SM3.57-40X5	1
68	S50393000	THREADING PLATE	1
69	159917201	THREAD GUIDE, L ;ARM	1
70	112751003	SCREW, SM3.57X7	1
71	048060342	RETAINING RING, E6	1

Page 38 — P.糸巻関係 / Bobbin winder mechanism

Brother HE-800A (90 pages) parts on page 38
Ref	Part number	Part name	Qty
1	S50276001	B-WINDER SHAFT BRACKET ASSY	1
2	S50278001	BOBBIN WINDER SHAFT	1
3	S25410050	BOBBIN WINDER WHEEL	1
4	012400636	SET SCREW, SOCKET (FT) M4X6	2
5	S25789000	RUBBER RING, 29	1
6	S50279001	BOBBIN WINDER ARM SHAFT	1
7	025080132	WASHER, PLAIN S 8	1
8	048060342	RETAINING RING, E6	1
10	S25413101	BOBBIN PRESSER SHAFT ASSY	1
11	S25417001	SPRING	1
12	S25418101	SPRING	1
13	S50280001	BOBBIN WINDER STOPPER	1
14	062400816	SCREW, PAN M4X8	1
15	S25420051	BOBBIN PRESSER, R	1
16	062400816	SCREW, PAN M4X8	1
17	026040236	WASHER, PLAIN 4	1
18	S10174000	DUST GUARD PLATE	1
21	157968001	KNIFE	1
22	062400616	SCREW, PAN M4X6	1
23	047200642	PIN, SPRING ROLL AW2	1
24	S38736101	BOBBIN WINDER TENSION ASSY	1
24-1	145446001	DISC, TENSION	2
24-2	115188001	SPRING, TENSION	1
24-3	108265009	TENSION NUT	1
25	012400636	SET SCREW, SOCKET (FT) M4X6	1
26	048040342	RETAINING RING, E4	1
27	S50281000	BOBBIN WINDER PULLEY	1
28	014780622	SET SCREW, SOCKET (CP) SM6.35	2
29	S50282000	B-WINDER LEVER CUSHION	1

Page 40 — Q.上糸切り関係 / Upper thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 40
Ref	Part number	Part name	Qty
1	S50394001	FULCRUM SHAFT, ;U-TR	1
2	S21755001	SET SCREW COLLAR ASSY	1
2-1	110027001	SET SCREW COLLAR	1
2-2	014760622	SET SCREW, SOCKET SM5.95	2
3	S23337001	RUBBER CAP, 18.5	1
4	S52761001	WASHER, RECTANGLE 15X32X2.4	1
5	S19817001	SHOULDER SCREW, SM5.95	2
6	S51179101	THREAD TRIMMER LEVER SET, U	1
6-1	S50395001	U-THREAD TRIMMER LEVER ASSY	1
6-2	S50398001	STOP PLATE	1
6-3	S50399101	BACK PLATE	1
6-4	S50400001	COLLAR	2
6-5	062670712	SCREW, PAN SM3.57-40X7	2
6-6	S50401001	SPRING	1
6-7	S50402001	SPRING HOOK PLATE	1
6-8	062670512	SCREW, PAN SM3.57-40X5	1
7	S54519001	U-THREAD TRIMMER LEVER SET, B	1
7-1	S50395001	U-THREAD TRIMMER LEVER ASSY	1
7-2	S54520001	STOP PLATE, B	1
7-3	S54521001	BACK PLATE, B	1
7-4	S50400001	COLLAR	2
7-5	062670712	SCREW, PAN SM3.57-40X7	2
7-6	S50401001	SPRING	1
7-7	S50402001	SPRING HOOK PLATE	1
7-8	062670512	SCREW, PAN SM3.57-40X5	1
14	S02563001	SPRING	1
15	S02563001	SPRING	1
16	S51180001	SETTING PLATE ASSY	1
16-1	S50403001	SETTING PLATE	1
16-2	159343001	SUPPORT STUD	1
16-3	021680202	NUT, 2 SM4.37	1
16-4	025680132	WASHER, PLAIN S 4.37	1
17	062680612	SCREW, PAN SM4.37-40X6	2
18	025680232	WASHER, PLAIN M 4.37	2
22	S50404201	UPPER THREAD TRIMMER ASSY	1
22-1	S50405101	THREAD TRIMMER ASSY, D	1
22-2	S50113101	UPPER THREAD TRIMMER, M	1
22-3	141513001	UPPER THREAD TRIMMER, UPPER	1
22-4	141514001	SHOULDER SCREW, SM3.18	1
22-5	S52431000	U-THREAD TRIMMER STOPPER	1
23	100644005	SCREW, SM4.37	1
24	S58097001	OPENING CAM ASSY	1
24-1	S50408001	BRACKET, ;OPENING CAM	1
24-2	S58098001	OPENING CAM	1
24-3	018300836	BOLT, SOCKET M3X8	2
24-4	S56251001	WASHER, PLAIN	1
24-5	028030246	WASHER, SPRING 2-3	2
24-6	021300206	NUT, 2 M3	2
25	107093002	SCREW, SM4.37	2
26	025680232	WASHER, PLAIN M 4.37	1
27	028680242	WASHER, SPRING 2-4.37	1
28	S50410001	DRIVING LEVER, TR	2
29	S50411001	ROLLER, ;D-LEVER	1
30	S50412000	BALL BEARING	1
31	S50413001	SHOULDER SCREW	2
32	081012070	O RING, P12	2
	11007001	SET SCREW COLLAR	1
	021660202	NUT, 2 SM4.37	1
	062680232	SCREW, PAN SM4.37-40X6	2
	028680232	WASHER, SPRING 2-4.37	1

Page 42 — Q.上糸切り関係 / Upper thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 42
Ref	Part number	Part name	Qty
33	S50419001	LONGITUDINAL FEED ARM ASSY	1
33-1	S50414001	LONGITUDINAL FEED ARM	1
33-2	S50415001	PIN, ;L-FEED ARM	1
33-3	S50416001	ROLLER, ;L-FEED ARM	1
33-4	048040342	RETAINING RING, E4	2
33-5	014680622	SET SCREW, SOCKET (CP) SM4.37	1
34	018061622	BOLT, SOCKET M6X16	1
35	S51181001	DRIVING ARM ASSY, TR	1
35-1	S50417001	DRIVING ARM, TR	1
35-2	S50418001	SUPPORT PLATE	1
35-3	018681022	BOLT, SOCKET SM4.37X10	1
35-4	025680132	WASHER, PLAIN S 4.37	1
35-5	S50420001	ROLLER SHAFT	1
35-6	028050242	WASHER, SPRING 2-5	1
35-7	021500312	NUT, 3 M5	1
35-8	048060142	RETAINING RING, C6	1
35-9	S50511001	ROLLER, ;D-ARM	1
35-10	S50512001	STOPPER	1
35-11	018681022	BOLT, SOCKET SM4.37X10	1
35-12	025680132	WASHER, PLAIN S 4.37	1
36	018061622	BOLT, SOCKET M6X16	1

Page 44 — R.下糸切り関係 / Lower thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 44
Ref	Part number	Part name	Qty
1	S51171001	CAM LEVER ASSY, ;L-TR	1
1-1	S50246001	CAM LEVER, ;L-TR	1
1-2	107744001	ROLLER	1
1-3	141519001	ROLLER SHAFT	1
1-4	110161004	NUT, SM4.76	1
1-5	048030342	RETAINING RING, E3	1
2	159267001	CAM SHAFT, ;L-TR	1
3	110494001	WASHER, PLAIN 9.5	1
4	048080342	RETAINING RING, E8	1
5	014760622	SET SCREW, SOCKET SM5.95	1
10	S51170001	LOWER THREAD TRIMMER CAM ASSY	1
10-1	S50247001	LOWER THREAD TRIMMER CAM	1
10-2	S50411001	ROLLER, ;D-LEVER	1
10-3	145478101	SHOULDER SCREW, SOCKET SM4.76	1
10-4	S50248001	CONNECTIN ROD, ;L-TR	1
11	150491101	LEVER SHAFT	2
12	014760622	SET SCREW, SOCKET SM5.95	2
16	159269001	SHOULDER SCREW, SM4.37	1
17	S50249001	LINK ASSY, ;L-TR	1
17-1	S59987001	CONNECTING ROD, A	1
17-2	062680512	SCREW, PAN SM4.37-40X5	2
18	149127001	SHOULDER SCREW, SM6.35	1
19	S50252001	KNIFE DRIVING LEVER	1
20	113730001	SHOULDER SCREW, SM4.37	1
21	159272001	SHOULDER SCREW	1
22	S00903001	COLLAR	1
23	S00901001	WASHER, PLAIN L 6.4 (U)	1
24	S00902001	WASHER, PLAIN L 4.6 (D)	1
25	S50253001	LEVER ASSY	1
26	S50257001	COLLAR	1
27	S00712101	SCREW, SM4.37	1
28	S50258001	LOWER THREAD RETAINER	1
29	110215002	SCREW SM3.57	2
30	S50259101	FIXED KNIFE SET	1
30-1	S50260101	FIXED KNIFE ASSY	1
30-2	S50263001	MOVABLE KNIFE	1
30-3	S50264000	WASHER	1
30-4	025040132	WASHER, PLAIN S 4	1
30-5	060630312	SCREW, BIND SM2.38X3	1
31	060670412	SCREW, BIND SM3.57-40X4	2
32	S50265001	LOWER THREAD CLAMP PLATE ASSY	1
33	141514001	SHOULDER SCREW, SM3.18	1
34	025040132	WASHER, PLAIN S 4	1
35	S50269000	WASHER	1
36	S50270000	LOWER THREAD PRESSER	1
37	145371001	SHOULDER SCREW, SM2.38	1
38	110215002	SCREW SM3.57	1
39	S52432001	OPENING PLATE ASSY	1
39-1	S52433001	OPENING PLATE, A	1
39-2	110167001	ROLLER	1
39-3	110168001	ROLLER SHAFT	1
39-4	S52434001	OPENING PLATE, B	1
39-5	141514001	SHOULDER SCREW, SM3.18	1
39-6	123185001	SCREW 3.57X4.5	1
40	149127001	SHOULDER SCREW, SM6.35	1
41	105970001	SCREW, SM2.38	1
42	S52778001	BASE PLATE ASSY	1
42-1	S50303001	BASE PLATE	1
42-2	S52770000	COVER, ;B-PLATE	1
43	106629002	SCREW, SM4.37	4
49	S01696001	SCREW, FLAT SM3.57X6	2
	025040000	WASHER	1
	060640102	WASHER, PLAIN S 4	1
	S50270001	LOWER THREAD PRESSER	1

Page 46 — R.下糸切り関係 / Lower thread trimmer mechanism

Brother HE-800A (90 pages) parts on page 46
Ref	Part number	Part name	Qty
50	S50323000	BOBBIN PRESSER	1
51	S01998001	SET SCREW, SM3.57-40X6	1
52	S51172001	BOBBIN PRESSER BRACKET ASSY	1
52-1	S50324001	BOBBIN PRESSER BRACKET	1
52-2	107639001	SPRING HOOK, U	1
53	159924001	SHOULDER SCREW	1
54	062671612	SCREW, PAN SM3.57-40X16	1
55	021670202	NUT, 2 SM3.57	1
56	062680512	SCREW, PAN SM4.37-40X5	2
57	S50325001	AUXILIARY PLATE	1
58	S50326001	OPENING PLATE	1
59	105237002	SHOULDER SCREW, SM3.57	1
60	159113001	SHOULDER SCREW, SM3.18	1
61	159379001	PIN, DOWEL BX6X18	1
62	S50327001	SPRING, EXTENSION	2
63	S50328001	SPRING, PLATE	1
64	159379001	PIN, DOWEL BX6X18	1
65	S50329000	COVER	1
66-1	S50664001	NEEDLE PLATE, 1.4S	1
66-2	S51248101	NEEDLE PLATE, 1.2S-3	1
66-3	S54522001	NEEDLE PLATE, 1.4-50	1
	15924001

Page 48 — S.針位置検出器関係 / Synchronizer; T.操作パネル関係 / Operation panel mechanism

Brother HE-800A (90 pages) parts on page 48
Ref	Part number	Part name	Qty
1	S50657001	SYNCHRONIZER ASSY, H80	1
2	062400806	SCREW, PAN M4X8	2
4	S50354000	MAGNET ASSY, U	1
5	S38082001	MAGNET ASSY, U	1
6	062681412	SCREW, PAN SM4.37-40X14	2
7	025680132	WASHER, PLAIN S 4.37	2
1	S50656201	OPERATION PANEL SET	1
1-1	S50451201	OPERATION PANEL ASSY	1
1-1-1	S51901201	FRONT FRAME ASSY	1
1-1-2	S49492000	REAR FRAME	1
1-1-3	S49495000	PANEL SIDE COVER	1
1-1-4	S49496001	COVR GUIDE, ;SIDE	1
1-1-5	087310815	TAPTITE, CUP B M3X8	2
1-1-6	0A4400805	SCREW, PAN (S/P WASHER) M4X8	1
1-1-7	S50453000	PANEL PCB ASSY	1
1-1-7-1	S46703000	LED, PG5307S	6
1-1-7-2	S50455000	LED, BR5307S	1
1-1-7-3	S29023000	LED, GL9P040	6
1-1-7-4	S48579000	SWITCH, B3F-4050	8
1-1-7-5	U34870001	DIP SWITCH:KSP08	2
1-1-7-6	S30280000	BUZZER, PKB24SPC36	1
1-1-7-7	S50456000	CONNECTOR, ;XG4A-2031	1
1-1-8	S50457000	PANEL CABLE ASSY	1
1-1-9	XA2220050	BOARD PRESSER	2
1-1-10	087311015	TAPTITE, CUP B M3X10	2
1-1-11	S58974000	PRG/M HARNESS ASSY	1
1-1-12	S58987001	HARNESS SETTING PLATE	1
1-1-13	002301003	SCREW, PAN M3X10	2
1-1-14	021300206	NUT, 2 M3	1
1-2	062300806	SCREW, PAN M3X8	4
3	S53181000	PANEL CABLE ASSY, L	1
4	S58984000	PRG/M HARNESS ASSY, L	1
	S50565201	OPERATION PANEL SET	1
	S50563000	PANEL PCB ASSY	1
	XG2A-2031	CONNECTOR, XG4A-2031	1

Page 50 — U1.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 50
Ref	Part number	Part name	Qty
1	S50421001	BOX ASSY	1
1-1	S50566001	POWER SUPPLY BOX	1
1-2	S50567001	SETTING PLATE, ;M-PCB	1
1-3	S50568001	SETTING PLATE, ;AUX-PCB	1
1-4	S50660000	FAN MOTOR ASSY, DC	2
1-5	0A5403005	SCREW, PAN (S/P WASHER) M4X30	6
1-6	S47723201	TRANSFORMER ASSY	1
1-6-1	S47749101	SETTING PLATE, ;TRANSFORMER	2
1-7	025050236	WASHER, PLAIN M 5	4
1-8	028050246	WASHER, SPRING 2-5	4
1-9	018501236	BOLT, SOCKET M5X12	4
1-10	S43186000	BUSH, BU687B	1
1-11	S09142000	CORD CLAMP, 20-L	2
1-12	S43275000	CORD CLAMP, WS2NS	14
1-13	S43276000	CORD CLAMP, WS3NS	1
1-14	S50422000	CORD CLAMP, W2SWS	3
1-15	S43318000	CLAMP, LWS8S 2.5W	10
1-16	S51118001	CORD BUSH	1
1-17	S38820000	BUSHING, 35	1
1-18	S50423000	BUSHING, TB-1926	1
1-19	S42227009	RUBBER CAP, MG-3	1
1-20	S50424000	FRAGMENT PROTECTOR NET	1
1-21	008400604	SCREW, TRUSS M4X6	12
1-22	S00554000	SUPPORT, 6NS	23
1-23	S47721001	POWER SUPPLY PCB ACCY, EZ	1
1-23-1-1	J02443001	I-POWER MODULE, :PM20CSJ060	1
1-23-1-2	J03284001	TRANSISTOR, FET :FS5UM-18R	1
1-23-1-3	J03285001	TRANSISTOR, FET :FS3KM-18A	1
1-23-1-4	S47720000	DIODE ASSY, BR :20L6P45	1
1-23-1-5	J03324001	CAPACITOR, ALUM-ELEV :450B471	3
1-23-1-6	S47735000	TRANSFORMER, 28AG1L9AD	1
1-23-1-7	J02441001	RELAY, G2R-1A6V	1
1-23-1-8	S38201000	VARISTOR :V14D471	4
1-23-1-9	J03283001	SURGE ABSORBER, :DSA362M	1
1-23-1-10	S47733000	COIL, :NF10TP102	1
1-23-1-11	218469001	FUSE	2
1-23-1-12	J01684001	FUSE HOLDER, F062	4
1-23-1-13	J02727001	GLASS FUSE, 2A/250V	2
1-23-1-14	S47734000	CONNECTOR, B4P5-VB-2	3
1-23-1-15	J02449001	CONNECTOR, 5281-02A	1
1-23-1-16	S47730000	IPM CORD, P	1
1-23-1-17	S47728000	HARNESS, P DC 300V	1
1-23-1-18	S47727000	MOTOR HARNESS, P	1
1-23-1-19	S47725000	POWER SUPPLY HARNESS, P	1
1-23-1-20	S47726000	GROUND WIRE, P	1
1-23-1-21	J03296001	HEATSINK, ;PR1616-25-PB	1
1-23-1-22	S47729000	HEATSINK, ;OSH-1025-MP	1
1-23-1-23	221419001	SCREW	2
1-23-1-24	J03291001	CORE, ESD-R-25B	1
	S0421001	BOX ASSY	1
	S050566001	POWER SUPPLY BOX	1
	S050567001	SETTING PLATE, M-PCB	1
	S050568001	SETTING PLATE, AUX-PCB	1
	S05066000	FAN MOTOR ASSY, DC	2
	S050423000	BUSHING, TB-1926	1
	S50440000	FRAGMENT PROTECTOR NET	1
	S47710000	COIL, :NF10TP102	1

Page 51 — U1.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 51
Ref	Part number	Part name	Qty
1-23-3	S47694000	F-RESISTOR ASSY, MR-A40J101	1
1-23-4	0A5400805	SCREW, PAN (S/P WASHER) M4X8	1
1-23-5	S47693000	SPACER, 4EP-12	2
1-23-6	S47724000	SPACER, 7NS	5
1-23-7	229017001	SCREW, PAN (S/P WASHER) M4X10	4
1-23-8	J02343001	SCREW, PAN (S/P WASHER) M4X16	2
1-23-9	S39819000	CORD CLAMP, 1259	1
1-23-10	S40621000	EMI CORE, ESD-SR-15	1
1-24	S50425001	POWER SUPPLY PCB ASSY, EH	1
1-24-1	S38200000	TRANSISTOR, :2SK1938	2
1-24-2	232384001	SURGE ABSORBER :DSA362MA	1
1-24-3	S38201000	VARISTOR :V14D471	2
1-24-4	S08030000	FUSE, 5A :FB	1
1-24-5	153242000	FUSE, 6A	2
1-25	S50431001	SUB PCB ASSY	1
1-25-1	S38155000	TRANSISTOR, FET :2SK1306	5
1-25-2	S50645000	TRANSISTOR, FET :2SK1307	1
1-25-3	Y44715591	CAPACITOR, ALUM-ELEC :50B471	1
1-26	018401236	BOLT, SOCKET M4X12	5
1-27	S50437000	CORD, PER	1
1-28	S50438000	HARNESS, EX32	1
1-29	S50439000	HARNESS, EX26	1
1-30	S50440000	POWER SUPPLY HARNESS, AC	1
1-31	S50441000	POWER SUPPLY HARNESS, DC	1
1-32	S37059001	LABEL, PE	1
1-33	S37060001	LABEL, GROUNDING	2
1-34	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
1-35	S50484000	GROUND WIRE	1
1-36	0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
1-37	0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
1-38	S50644001	GROUND WIRE	1
3	S50488100	BOX SET, A2H	1
4	S20345001	RUBBER CAP, 14	2
5	S43186000	BUSH, BU687B	2
6	S38352101	LABEL, ELEC. SHOCK 4 LANG.	2
7	S38353101	LABEL, ELEC. SHOCK JPN.	2
8	S10820000	LABEL, 100V AC	1
9	S10820001	LABEL, 200V AC	1
10	S10820002	LABEL, 110V AC	1
11	S10820003	LABEL, 220V AC	1
12	S10820004	LABEL, 230V AC	1
13	S10820005	LABEL, 240V AC	1
14	S10820006	LABEL, 380V AC	1
15	S10820007	LABEL, 415V AC	1
16	S10820008	LABEL, 400V AC	1
31	S38146000	CONNECTOR, 3191-04R	1
32	228475000	FASTENING BAND, 1.9X80	1

Page 52 — U1.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 52
Ref	Part number	Part name	Qty
52	S50483100	CONVERSION HARNESS, B-OUT	2
53	S38146000	CONNECTOR, 3191-04R	2
101	0A5501005	SCREW, PAN (S/P WASHER) M5X10	3
102	J80814001	TREADLE UNIT, EZ	1
102-1	J03419001	TREADLE BASE ASSY, EZ-EXPORT	1
102-1-1	J01935001	SPRING, TWIST 28.8X30	1
102-1-2	J00649001	SPRING, EXTENSION 12.6X86	1
102-2	J80813001	PS PCB, EZ	1
102-3	J02130001	WASHER, WAVE 03X4.3X8	3
102-4	037401015	TAPPING SCREW, PAN V M4X10	3
103	J03417001	GROUND WIRE ASSY	1
104	229017001	SCREW, PAN (S/P WASHER) M4X10	1
H-1	S50501201	BOX SET, A1V	1
H-2	S50502201	BOX SET, A2V	1
H-3	S50503201	BOX SET, A3V	1
H-4	S50504301	BOX SET, B1V	1
H-5	S50505301	BOX SET, B2V	1
H-6	S50506301	BOX SET, C1V	1
H-7	S50507301	BOX SET, C2V	1
H-8	S50508301	BOX SET, C3V	1
H-9	S50509301	BOX SET, EV	1
H-10	S50510201	BOX SET, FV	1
	J0814001	TREADLE UNIT, EZ	1
	J0813001	PS CIRCUIT EZ	1

Page 54 — U2.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 54
Ref	Part number	Part name	Qty
30-1	S50442001	POWER SUPPLY SWITCH ASSY, A	1
30-1-1	S50443000	POWER SUPPLY CORD, A1	1
30-1-2	S38133000	POWER SUPPLY HARNESS	1
30-1-3	J02657001	PUSH SWITCH, 3P #17	1
30-1-4	224514001	INSULATION PLATE	2
30-1-5	218859001	BINDER, M150	3
30-1-6	S40623000	EMI CORE, TR-40-27	1
30-1-7	0A4401205	SCREW, PAN (S/P WASHER) M4X12	1
30-1-8	021040105	NUT, M4	1
30-2	S50444001	POWER SUPPLY SWITCH ASSY, B	1
30-2-1	S50445000	POWER SUPPLY CORD, B	1
30-2-2	S47595000	POWER SUPPLY HARNESS, EXP.	1
30-2-3	J02657001	PUSH SWITCH, 3P #17	1
30-2-4	224514001	INSULATION PLATE	2
30-2-5	218859001	BINDER, M150	3
30-2-6	S40623000	EMI CORE, TR-40-27	1
30-2-7	0A4401205	SCREW, PAN (S/P WASHER) M4X12	1
30-2-8	021040105	NUT, M4	1
30-3	S50446001	デンゲンSWクミC	1
30-3-1	S50445000	デンゲンコードB	1
30-3-2	S38118000		1
30-3-3	J02657001	3PオシSW#17	1
30-3-4	224514001		2
30-3-5	218859001	バインダM150	3
30-3-6	S40623000	EMIコアTR-40-27	1
30-3-7	0A4401205	+ナベザクミ4X12A	1
30-3-8	021040105	ナットM4	1
50-1	S50632101	ヘンカントランスB100ク	1
50-1-1	S54027001		1
50-1-2	S54028001		1
50-1-3	S50474000		2
50-1-4	S41964000		1
50-1-5	062500602	ナベコ5X6	4
50-1-6	S23618001	シメネジ6X10	4
50-1-7	S50633100	ヘンカントランスB100	1
50-1-7-1	S50649000	ヘンカントランスB	1
50-1-7-2	S50485100	TR-INハーネス	1
50-1-7-3	S50486100	TR-OUTハーネス	1
50-1-8	018060831	アナボルト6X8	4
50-1-9	025060236		4
50-1-10	028060246		4
50-1-11	S10820000		1
50-1-12	0A4400606	+ナベザクミ4X6DA	1
50-2	S50634101	TRANSFORMER ASSY, B110 ;CONV.	1
50-2-1	S54027001	BASE PLATE, TRANS.	1
50-2-2	S54028001	COVER, TRANS.	1
50-2-3	S50474000	HANDLE	2
50-2-4	S41964000	BUSH	1
50-2-5	062500602	SCREW, PAN M5X6	4
50-2-6	S23618001	SCREW, M6X10	4
50-2-7	S50635100	TRANSFORMER, B100 ;CONV.	1
50-2-7-1	S50649000	CONVERSION TRANSFORMER, B	1
	S50407001

Page 56 — U2.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 56
Ref	Part number	Part name	Qty
50-2-7-2	S50485100	HARNESS, TR-IN	1
50-2-7-3	S50486100	HARNESS, TR-OUT	1
50-2-8	018060831	BOLT, SOCKET M6X8	4
50-2-9	025060236	WASHER, PLAIN M 6	4
50-2-10	028060246	WASHER, SPRING 2-6	4
50-2-11	S10820002	LABEL, 110V AC	1
50-2-12	0A4400606	SCREW, PAN (S/P WASHER) M4X6	1
51-1	S50636101	TRANSFORMER ASSY, C240 ;CONV.	1
51-1-1	S54027001	BASE PLATE, TRANS.	1
51-1-2	S54028001	COVER, TRANS.	1
51-1-3	S50474000	HANDLE	2
51-1-4	S41964000	BUSH	1
51-1-5	062500602	SCREW, PAN M5X6	4
51-1-6	S23618001	SCREW, M6X10	4
51-1-7	S50637100	TRANSFORMER, C240 ;CONV.	1
51-1-7-1	S38128000	CONVERSION TRANSFORMER, C	1
51-1-7-2	S50485100	HARNESS, TR-IN	1
51-1-7-3	S50486100	HARNESS, TR-OUT	1
51-1-8	018060831	BOLT, SOCKET M6X8	4
51-1-9	025060236	WASHER, PLAIN M 6	4
51-1-10	028060246	WASHER, SPRING 2-6	4
51-1-11	S10820005	LABEL, 240V AC	1
51-1-12	0A4400606	SCREW, PAN (S/P WASHER) M4X6	1

Page 58 — U3.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 58
Ref	Part number	Part name	Qty
30-4	S50447001	POWER SUPPLY SWITCH ASSY, D	1
30-4-1	S50445000	POWER SUPPLY CORD, B	1
30-4-2	S38133000	POWER SUPPLY HARNESS	1
30-4-3	J02657001	PUSH SWITCH, 3P #17	1
30-4-4	224514001	INSULATION PLATE	2
30-4-5	218859001	BINDER, M150	3
30-4-6	S40623000	EMI CORE, TR-40-27	1
30-5	S50448000	POWER SUPPLY CORD, E	1
30-6	S50500000	AC CORD, F	1
51-2	S50638101	TRANSFORMER ASSY, C380 ;CONV.	1
51-2-1	S54027001	BASE PLATE, TRANS.	1
51-2-2	S54028001	COVER, TRANS.	1
51-2-3	S50474000	HANDLE	2
51-2-4	S41964000	BUSH	1
51-2-5	062500602	SCREW, PAN M5X6	4
51-2-6	S23618001	SCREW, M6X10	4
51-2-7	S50639100	TRANSFORMER, C380 ;CONV.	1
51-2-7-1	S38128000	CONVERSION TRANSFORMER, C	1
51-2-7-2	S50485100	HARNESS, TR-IN	1
51-2-7-3	S50486100	HARNESS, TR-OUT	1
51-2-8	018060831	BOLT, SOCKET M6X8	4
51-2-9	025060236	WASHER, PLAIN M 6	4
51-2-10	028060246	WASHER, SPRING 2-6	4
51-2-11	S10820006	LABEL, 380V AC	1
51-2-12	0A4400606	SCREW, PAN (S/P WASHER) M4X6	1
51-3	S50640101	TRANSFORMER ASSY, C400 ;CONV.	1
51-3-1	S54027001	BASE PLATE, TRANS.	1
51-3-2	S54028001	COVER, TRANS.	1
51-3-3	S50474000	HANDLE	2
51-3-4	S41964000	BUSH	1
51-3-5	062500602	SCREW, PAN M5X6	4
51-3-6	S23618001	SCREW, M6X10	4
51-3-7	S50641100	TRANSFORMER, C400 ;CONV.	1
51-3-7-1	S38128000	CONVERSION TRANSFORMER, C	1
51-3-7-2	S50485100	HARNESS, TR-IN	1
51-3-7-3	S50486100	HARNESS, TR-OUT	1
51-3-8	018060831	BOLT, SOCKET M6X8	4
51-3-9	025060236	WASHER, PLAIN M 6	4
51-3-10	028060246	WASHER, SPRING 2-6	4
51-3-11	S10820008	LABEL, 400V AC	1
51-3-12	0A4400606	SCREW, PAN (S/P WASHER) M4X6	1

Page 60 — U3.コントロールボックス関係 / Control box mechanism

Brother HE-800A (90 pages) parts on page 60
Ref	Part number	Part name	Qty
51-4	S50642101	TRANSFORMER ASSY, C415 ;CONV.	1
51-4-1	S54027001	BASE PLATE, TRANS.	1
51-4-2	S54028001	COVER, TRANS.	1
51-4-3	S50474000	HANDLE	2
51-4-4	S41964000	BUSH	1
51-4-5	062500602	SCREW, PAN M5X6	4
51-4-6	S23618001	SCREW, M6X10	4
51-4-7	S50643100	TRANSFORMER, C415 ;CONV.	1
51-4-7-1	S38128000	CONVERSION TRANSFORMER, C	1
51-4-7-2	S50485100	HARNESS, TR-IN	1
51-4-7-3	S50486100	HARNESS, TR-OUT	1
51-4-8	018060831	BOLT, SOCKET M6X8	4
51-4-9	025060236	WASHER, PLAIN M 6	4
51-4-10	028060246	WASHER, SPRING 2-6	4
51-4-11	S10820007	LABEL, 415V AC	1
51-4-12	0A4400606	SCREW, PAN (S/P WASHER) M4X6	1
56	S50498001	NOISE FILTER ASSY, EH	1
56-1	S40616001	NOISE FILTER ASSY, EMC	1
56-1-1	S40617000	CAPACITOR, CERAMIC:ECKDNA102MB	1
56-1-2	S40618000	CAPACITOR, POLYESTER :250B474	2
56-1-3	S40619000	TERMINAL BLOCK, 2P	1
56-1-4	414900001	HEADER 5219-03A	1
56-1-5	S35598000	COIL, SC0520J	1
56-2	S50499000	NOISE FILTER HARNESS	1
57	S40620000	SETTING PLATE, ;PCB	1
58	0A4400605	SCREW, PAN (S/P WASHER) M4X6	2
59	0A4400605	SCREW, PAN (S/P WASHER) M4X6	4

Page 62 — V.電装品関係 / Power supply equipment mechanism

Brother HE-800A (90 pages) parts on page 62
Ref	Part number	Part name	Qty
1	S50458100	PULSE MOTOR ASSY, FD	1
2	S50459100	PULSE MOTOR ASSY, FT	1
3	S50460000	PULSE MOTOR ASSY, N	1
4	S50461000	CUTTER SOLENOID	1
5	S50462000	TENSION RELEASE SOLENOID	1
6	228475000	FASTENING BAND, 1.9X80	1
7	S50463000	SENSOR ASSY	1
7-1	S50464000	SENSOR, GL-N12	1
8	062300806	SCREW, PAN M3X8	1
9	S50464000	SENSOR, GL-N12	1
10	062300806	SCREW, PAN M3X8	1
11	S50465000	SENSOR, GL-N12	1
12	062300806	SCREW, PAN M3X8	1
13	625010000	CORD HOLDER, NK-2N	1
14	062670812	SCREW, PAN SM3.57-40X8	1
15	025350132	WASHER, PLAIN S 3.5	1
16	S50466000	CUTTER SENSOR ASSY	1
16-1	S50467000	SENSOR, GL-N12	1
17	062300806	SCREW, PAN M3X8	1
18	S50468000	DC FAN MOTOR ASSY, 40	1
19	0A5302005	SCREW, PAN (S/P WASHER) M3X20	2
20	S00480000	CORD HOLDER, 5N	3
21	062670612	SCREW, PAN SM3.57-40X6	3
22	025350132	WASHER, PLAIN S 3.5	3
24	S50471000	LOCK SWITCH HARNESS ASSY, EM	1
24-1	S32335100	SWITCH :AVS311N	1
24-2	S50472000	SWITC HARNESS, EM	1
24-3	S50473000	SENSOR, GL-N12	1
25	062300806	SCREW, PAN M3X8	1
26	S10243000	CORD HOLDER, NK-3N	4
27	0A5400806	SCREW, PAN (S/P WASHER) M4X8	4
28	152969001	CORD SUPPORT	1
29	002300603	SCREW, PAN M3X6	1
30	228475000	FASTENING BAND, 1.9X80	2
31	218859001	BINDER, M150	1
50	S50565001	CORD BUSH	1
51	552907000	CORD HOLDER, 10N	2
52	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
53	552908000	CORD HOLDER, 14N	1
54	0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
55	552908000	CORD HOLDER, 14N	1
56	0A5401006	SCREW, PAN (S/P WASHER) M4X10	1
57	S38145000	GROUND WIRE, 2	1
59	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
60	S41216000	GROUND WIRE	1
61	S50644000	GROUND WIRE	1
63	SA0287000	TUBE, 30X350	1
23	S37055001	SPACER, 1 ;EM-SWITCH	1
900	S42653000	CORE :TFC-23-11-14	1
901	S40623000	EMI CORE, TR-40-27	3
902	0A5401206	SCREW, PAN (S/P WASHER) M4X12	3
903	021400106	NUT, 1 M4	3
904	S40623000	EMI CORE, TR-40-27	1
905	0A5401206	SCREW, PAN (S/P WASHER) M4X12	1
906	021400106	NUT, 1 M4	1
	S050458100	PULSE MOTOR ASSY, FD	1
	S050459100	PULSE MOTOR ASSY, FT	1
	S050460000	PULSE MOTOR ASSY, N	1
	S050463000	SENSOR ASSY	1
	S050464000	SENSOR, GL-N12	1
	S050465000	SENSOR, GL-N12	1
	S050466000	CUTTER SENSOR ASSY	1
	S050467000	SENSOR, GL-N12	1
	S050468000	DC FAN MOTOR ASSY, 40	1

Page 64 — W.プリント基板関係 / Printed circuit board mechanism

Brother HE-800A (90 pages) parts on page 64
Ref	Part number	Part name	Qty
1	S53902301	MAIN PCB ASSY	1
1-1	S08047000	REGULATOR, :SI3052V	1
1-2	S47664000	REGULATOR, :AN78L18M	6
1-3	S47665000	REGULATOR, :AN78M18F	1
1-4	S46454000	REGULATOR, :TA7810S	1
1-5	S46455000	TRANSITOR, FET :FK10KM-10	10
1-6	S38155000	TRANSISTOR, FET :2SK1306	1
1-7	S38200000	TRANSISTOR, :2SK1938	1
1-8	S47668000	DIODE, AR :PA905C6	1
1-9	S47669000	DIODE, BR :D5SB20	1
1-10	S47670000	DIODE, BR :SIZB60	9
1-11	Y42215591	CAPACITOR, ALUM-ELEC :50B221	5
1-12	Y44715591	CAPACITOR, ALUM-ELEC :50B471	4
1-13	S47673000	CAPACITOR, ALUM-ELEC :50B472	1
1-14	S47678000	CAPACITOR, ALUM-ELEC :450B101	1
1-15	S30209000	CAPACITOR, POLYESTER :400B105	1
1-16	S30205000	PHOTO COUPLER, :TLP112A	2
1-17	S42699000	PHOTO COUPLER, :TLP121	2
1-18	S43178000	PHOTO COUPLER, :PC9231	11
1-19	J02621001	PHOTO COUPLER, :TLP120	1
1-20	U32744000	DIP SWITCH:DSS708	2
1-21	S47680000	GLASS FUSE, 8A	1
1-22	S47681000	COIL, :SK40S120-700	1
1-23	S58731000	THERMISTOR ASSY	1
1-24	QA4301005	SCREW, PAN (S/P WASHER) M3X10	19
1-25	021300206	NUT, 2 M3	1
1-26	028030246	WASHER, SPRING 2-3	1
1-27	025030136	WASHER, PLAIN S 3	1
	S3902301	MAIN PCB ASSY	1

Page 66 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (90 pages) parts on page 66
Ref	Part number	Part name	Qty
1-1	S51361001	NEEDL PLATE SET, 1.2RB	1
1-1-1	S50304001	NEEDLE PLATE ASSY, 1.2S-RB	1
1-1-2	S50297001	CUTTER HOLDER	1
1-1-3	S50341001	POSITIONING PLATE	1
1-1	S51362001	NEEDLE PLATE SET, 1.4RB	1
1-1-1	S50309001	NEEDLE PLATE ASSY, 1.4S-RB	1
1-1-2	S50297001	CUTTER HOLDER	1
1-1-3	S50341001	POSITIONING PLATE	1
1-1	S51363001	NEEDLE PLATE SET, 1.6RB	1
1-1-1	S50311001	NEEDLE PLATE ASSY, 1.6S-RB	1
1-1-2	S50297001	CUTTER HOLDER	1
1-1-3	S50341001	POSITIONING PLATE	1
1-2	S51364001	NEEDLE PLATE SET, 1.2RB-3	1
1-2-1	S50313101	NEEDLE PLATE ASSY, 1.2-RB-3	1
1-2-2	S50297001	CUTTER HOLDER	1
1-2-3	S50341001	POSITIONING PLATE	1
1-2	S51365001	NEEDLE PLATE SET, 1.4RB-3	1
1-2-1	S50317101	NEEDLE PLATE ASSY, 1.4S-RB-3	1
1-2-2	S50297001	CUTTER HOLDER	1
1-2-3	S50341001	POSITIONING PLATE	1
1-2	S51366001	NEEDLE PLATE SET, 1.6RB-3	1
1-2-1	S50319101	NEEDLE PLATE ASSY, 1.6S-RB-3	1
1-2-2	S50297001	CUTTER HOLDER	1
1-2-3	S50341001	POSITIONING PLATE	1
2	J80081040	STANDING OPERATION 2-PEADL, #6	1
3	S47750000	HARNESS, ;S-OPE.	1
4	J80380040	STANDING OPERATION 3-PEDAL,#40	1
5	S53996101	AUXILIARY TABLE ASSY	1
5-1	S53997000	AUXILIARY TABLE	1
5-2	S53998001	AUX. TABLE SUPPORT	3
5-3	031351006	WOOD SCREW, ROUND M3.5X10	6
5-4	S13650001	BOTTOM FEED ARM, D	3
5-5	018680822	BOLT, SOCKET SM4.37X8	3
5-6	032422003	WOOD SCREW, ROUND M4.1X20	3
	S53997001	AUXILIARY TABLE	1

Page 67 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (90 pages) parts on page 67
Ref	Part number	Part name	Qty
	10-14	BRACKET
	10-15	SCREW
	10-1	SUPPORT
	10-4	BRACKET
	10-3	BRACKET
	10-12-1	BRACKET
	10-2-2	BRACKET
	10-2-1	BRACKET
	10-2	BRACKET
	10-12	BRACKET
	10-12-3	SCREW
	10-12-5	WASHER
	10-12-4	SCREW
	10-12-2	BRACKET
	10-13	BRACKET
	10-2-3	BRACKET
	10-16	BRACKET
	10-6	SHAFT
	10-9	SHAFT
	10-7	SPRING
	10-8	SPRING
	10-11	BRACKET
	10-5	BRACKET
	10-19	BRACKET
	10-10	SHAFT
	10-17	BRACKET
	10-18	BRACKET
	11-1	BASE
	11-4	SCREW
	11-2	BRACKET
	11-1-1	COVER
	11-3	SCREW
	11-1-5	PLATE
	11-1-9	BRACKET
	11-1-15	BRACKET
	11-1-16	BRACKET
	11-1-14	BRACKET
	11-1-13	BRACKET
	11-1-7	BRACKET
	11-1-4	PLATE
	11-1-8	COVER
	11-1-2	COVER
	11-1-3	PLATE
	11-1-10	BRACKET
	11-1-6	SCREW
	11-1-19	BRACKET
	11-1-12	BRACKET
	11-1-17	BRACKET
	11-1-18	BRACKET
	11-1-13	BRACKET
	11-1-11	BRACKET
	12	HARNESS
	13	CLAMP

Page 68 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother HE-800A (90 pages) parts on page 68
Ref	Part number	Part name	Qty
10	S54501101	EXCHANGE PARTS SET, -70	1
10-1	S54503001	FEED ARM, 5	1
10-2	S54504001	LENGTH FEED PLATE ASSY, -5	1
10-2-1	S54505001	LENGTH FEED PLATE, -5	1
10-2-2	S54506001	SPACER, ;FEED PLATE	1
10-2-3	117160001	SCREW, FLAT SM4.37	2
10-3	S54507001	FEED PLATE SUPPORT	1
10-4	018680822	BOLT, SOCKET SM4.37X8	2
10-5	S54508001	FEED ARM SUPPORT, -5	1
10-6	S54509000	LINEAR BUSH, 9.53	1
10-7	S54510001	STOPPER PLATE, L-BUSH	1
10-8	062680612	SCREW, PAN SM4.37-40X6	1
10-9	S54511001	SHAFT, A-5 ;F-GUIDE	1
10-10	S54512001	SHAFT, B-5 ;F-GUIDE	1
10-11	S54513001	STOPPER PLATE, B ;B-BEARING	2
10-12	S54514101	WORK CLAMP ASSY, 70	1
10-12-1	S54515001	WORK CLAMP, 70	1
10-12-2	159926001	PIN, L	1
10-12-3	107401001	SPRING, PLATE	2
10-12-4	107404001	SCREW, SM1.98-64X2	2
10-12-5	S54987001	PIN, F	1
10-12-6	S54516101	WORK CLAMP HOLDER	1
10-13	S54517000	FINGER GUARD, 70	1
10-14	S54520001	STOP PLATE, B	1
10-15	S54521001	BACK PLATE, B	1
10-16	S54522001	NEEDLE PLATE, 1.4-50	1
10-17	S50215101	SUPPORT PLATE, FEED SENSOR	1
10-18	228475000	FASTENING BAND, 1.9X80	1
10-19	S13597101	GAUGE, -5/BAS	1
11	S58988001	PROGRAMMER SET, A1	1
11	S58989001	PROGRAMMER SET, A2	1
11-1	S58971001	PROGRAMMER ASSY, A	1
11-1-1	S43250100	TOP COVER, PROGRAMMER	1
11-1-2	S43251000	LOWER COVER, PROGRAMMER	1
11-1-3	S43252000	SPACER, KEYBOARD	1
11-1-4	S43253000	RUBBER SHEET, KEYBOARD	1
11-1-5	S58972000	KEYBOARD SHEET	1
11-1-6	037301015	TAPPING SCREW, PAN V M3X10	4
11-1-7	S43255000	LCD COVER	1
11-1-8	S43256000	LCD	1
11-1-9	S43257000	INVERTER, LCD	1
11-1-10	037200615	TAPPING SCREW, PAN V M2X6	4
11-1-11	S43271000	MAGNET, A	1
11-1-12	S43272000	MAGNET, B	1
11-1-13	037300615	TAPPING SCREW, PAN V M3X6	6
11-1-14	S43267000	PROGRAMMER HARNESS	1
11-1-15	S43268000	INVERTER HARNESS	1
11-1-16	S43270000	CORD BUSH, KR51	1
11-1-17	S43981000	UNDER COVER, PROGRAMMER	2
11-1-18	S58978001	PROGRAMMER PCB ASSY, A	1
11-1-19	S58973000	PROM PROGRAMMER ASSY	1
11-2	S42890001	PROGRAMMER SUPPORT	1
11-3	032422003	WOOD SCREW, ROUND M4.1X20	2
11-4	0B1351606	WOOD SCREW, FLAT M3.5X16	2
12	S40621000	EMI CORE, ESD-SR-15	1
13	149809000	BEAD BAND, L=200	1

Page 70 — Y. モータ関係 / Moter mechanism

Brother HE-800A (90 pages) parts on page 70
Ref	Part number	Part name	Qty
1	J80863001	MOTOR ASSY, EH 240V/400W	1
1-3	076202801	BALL BEARING, 6202ZZ	2
1-7	203684001	WASHER WAVE M 0.3X27.5X34.9	11
1-8	J02537001	BOLT, HEX (S/P WASHER) M5X110	4
1-10	J02525001	MOTOR FAN, INV	1
1-11	014500632	SET SCREW, SOCKET (CP) M5X6	1
1-12	J02278001	PULLEY, Q90	1
1-13	216205000	KEY, 4X13#2	1
1-14	028100246	WASHER, SPRING 2-10	1
1-15	J02493001	NUT, 3M10X1.0	1
1-16	J03457001	SCREW, PAN (S/P WASHER) M5X20	4
1-17	J02989001	COLLOR, D51XT0.6XL9	4
1-18	J02991001	RUBBER CUSHION, INV	4
1-19	J02990001	GROUND WIRE ASSY, MOTOR	1
1-20	229017001	SCREW, PAN (S/P WASHER) M4X10	1
2	J00107001	BASE, MD806#2	1
3	J02517001	PIN, 9.9X116	1
4	J03275001	BOLT ASSY, LM10-V	1
5	021100206	NUT, 2M10	1
6	025100236	WASHER, PLAIN M 10	2
7	028100246	WASHER, SPRING 2-10	1
8	J03410001	SETTING PLATE, EZ-MOTOR	1
9	062401063	SCREW, PAN M4X10	1
10	028040245	WASHER, SPRING 2-4	1
11	025040173	WASHER, PLAIN S 4	1
13	002401006	SCREW, PAN M4X10	1
14	229017001	SCREW, PAN (S/P WASHER) M4X10	1

Page 72 — AA.カバー関係／Safety cover; Z1. 付属品関係 / Accessories

Brother HE-800A (90 pages) parts on page 72
Ref	Part number	Part name	Qty
1	J02513001	MOTOR COVER, INV	1
2	J00494001	SCREW, PAN (S/P WASHER) M4X14	3
3	J02515001	BELT COVER ASSY, INV	1
4	224508001	SCREW, PAN (S WASHER) M4X10	1
5	217071001	SCREW, PAN (S/P WASHER) M4X18	1
6	J02516001	BELT COVER, SUB INV	1
7	224508001	SCREW, PAN (S WASHER) M4X10	2
8	J02293001	FINGER PROTECTION BAR	1
9	224508001	SCREW, PAN (S WASHER) M4X10	1
10	J00351001	BELT HOLDER, 2	1
11	224508001	SCREW, PAN (S WASHER) M4X10	1
54	S02761309	COTTON STAND ASSY, 2	1
54-1	150189109	COTTON STAND BRACKET	1
54-2	S02773001	C-STAND BRACKET & SCREW SET	1
54-2-1	062060806	SCREW, PAN M6X8	2
54-2-2	031452206	WOOD SCREW, ROUND M4.5X22	3
54-3	S51283001	SPOOL STAND BASE	2
54-4	150182000	SPOOL MAT	2
54-5	S51282001	SPOOL CUSHION	2
54-6	S40639001	COLUMN PIPE W/CAP	1
54-6-1	150174000	COLUMN CAP	1
54-7	150173003	COLUMN JOINT	1
54-8	S21798001	SPOOL & SCREW SET	2
54-8-1	150179002	SPOOL SHAFT, B	2
54-8-2	028050246	WASHER, SPRING 2-5	2
54-8-3	021500106	NUT, 1 M5	2
54-9	S02778002	SPOOL HOLDER, 2	1
54-10	S02786002	THREAD HANGER ASSY, 2	1
54-10-1	S02787002	THREAD HANGER, 2	1
54-10-2	150183000	THREAD HANGER BASE	2
54-10-3	142990001	THREAD BUSH	2
54-11	150172003	COLUMN PIPE	1
54-12	S40641001	SPOOL SHAFT & SCREW SET, A	1
54-12-1	021500106	NUT, 1 M5	4
54-12-2	062501406	SCREW, PAN M5X14	1
54-12-3	062501406	SCREW, PAN M5X14	1
54-12-4	062501406	SCREW, PAN M5X14	2
54-12-5	026050136	WASHER, PLAIN S 5	2
	15018000	SPOOL MAT	2

Page 74 — Z2. 付属吕関係 / Accessories

Brother HE-800A (90 pages) parts on page 74
Ref	Part number	Part name	Qty
1	S50330101	BED BASE ASSY	1
1-1	S50331000	BED BASE	1
1-2	S50332000	OIL PACKING	1
1-3	S54768001	DRAIN PLATE	1
1-4	S50334000	PACKING	1
1-5	037401415	TAPPING SCREW, PAN V M4X14	3
1-6	081007070	O RING, P7	1
1-7	140518001	SCREW, SM7.94X10	1
1-8	S50335000	BED BASE CUSHION, A	5
1-9	S50336000	BED BASE CUSHION, B	4
1-10	S50337000	BED BASE CUSHION, C	2
2	S50338000	OIL STOPPER PLATE	1
3	S24250001	BOLT, M8X90	4
4	S50342000	NUT, FLANGE M8	4
6	028080246	WASHER, SPRING 2-8	4
7	101118001	WOOD SCREW, ROUND M4.5X20	3
8	S50339001	COLLAR	4
9	104449001	RUBBER CAP, 15.5	2
10	025050236	WASHER, PLAIN M 5	3
13	S50180475	NEEDLE ASSY, NM75 <#11 NM75>	1
13	S50180490	NEEDLE ASSY, NM90 <#14 NM90>	1
14	S18707153	BELT, VM WHITE	1
22-1	S13595101	GAUGE, -2	1
22-2	S13596101	GAUGE, -3	1
22-3	S13597101	GAUGE, -5/BAS	1
25	142443001	SCREW DRIVER, 1.9X52	1
26	118837001	SCREW DRIVER, 3.4X70	1
27	101572101	SCREW DRIVER, 5.5X190	1
32	159158051	BOBBIN	1
33	117466000	PINCETTE	1
34-1	S51290001	CUTTER, 3/8	1
34-2	S51354001	CUTTER, 5/8	1
34-3	S51358001	CUTTER, 1	1
34-4	S51360001	CUTTER, 32	1
34-5	S51359001	CUTTER, 29	1
35	S55663001	OIL TANK ASSY	1
36	114483002	OILER ASSY	1
37	159384009	HEAD REST	1
38	133740006	BOLT, SQUARE M6X70	4
39	021060106	NUT, 1 M6	8
40	025060336	WASHER, PLAIN L 6	4
41	S00617000	RUBBER COLLAR	4
42	146256001	CUSHION COLLAR	4
43	146255000	CUSHION	4

Page 76 — Z2. 付属品関係 / Accessories

Brother HE-800A (90 pages) parts on page 76
Ref	Part number	Part name	Qty
44	032461606	WOOD SCREW, ROUND M4.5X16	2
45	032422505	WOOD SCREW, ROUND M4.1X25	4
55	S50343000	BELT COVER	1
56	062401006	SCREW, PAN M4X10	3
57	025040236	WASHER, PLAIN M 4	1
58	104450101	RUBBER CAP, 8	2
59	S50344001	PLATE, BELT COVER	1
60	032461606	WOOD SCREW, ROUND M4.5X16	2
63	200190001	STAPLE	6
65	S37111001	EYE GUARD ASSY	1
65-1	S01700001	SCREW, FLAT SM3.18X7	2
65-2	025030232	WASHER, PLAIN M 3	2
65-3	021660102	NUT, 1 SM3.18	2
66	062710612	SCREW, PAN SM4.76-32X6	1
67	148847001	WASHER, PLAIN 4.76	1
68	S50345001	EYE GUARD SUPPORT	1
69	062680812	SCREW, PAN SM4.37-40X8	1
71	218469001	FUSE	2
72	S08030000	FUSE, 5A :FB	1
73	153242000	FUSE, 6A	2
74	J03411001	SETTING PLATE, EZ-TREADLE	1
75	J00353001	SCREW, PAN (S/P WASHER) M5X14	3
76	J02036001	BUSHING, V CORD	1
78	112525000	MAGNET	1
70	144226001	HEAD COVER	1
80	S50346001	TAPE GUARD WINDER ASSY	1
80-1	S51896001	TAPE GUARD ASSY	1
80-1-1	144998001	TAPE GUARD, B	1
80-1-2	105288002	SCREW, SM2.38	2
80-1-3	144997001	TAPE GUARD, F	1
80-1-4	122771051	SCREW, SM2.38	2
80-1-5	144999001	TAPE GUIDE, C	1
80-1-6	144628001	TAPE GUARD, F	1
80-1-7	122771051	SCREW, SM2.38	1
80-1-8	105970001	SCREW, SM2.38	1
80-1-9	110067001	COLLAR	1
80-1-10	143749001	TAPE GUIDE, LOWER	1
80-1-11	143748001	TAPE GUIDE, UPPER	1
80-1-12	062660412	SCREW, PAN SM3.18-40X4	2
80-2	143767102	TAPE WINDER ASSY	1
80-2-1	143980001	SCREW	1
80-2-2	108494001	WASHER	1
80-2-3	108495001	SPRING, COMPRESSION	1
80-2-4	100136001	NUT, TENSION	1
80-3	S50348001	TAPE GUIDE, U	1
80-4	062400812	SCREW, PAN M4X8	1
80-5	S50349001	TAPE WINDER SETTING PLATE	1
80-6	062400812	SCREW, PAN M4X8	1
80-7	107407003	SCREW, SM4.37X9	2
	S3711001	EYE GUARD ASSY	1
	143300001	SCREW	1

Page 77 — Z3. 付属部品関係 (オプション部品) / Accessories (Option parts)

Brother HE-800A (90 pages) parts on page 77
Ref	Part number	Part name	Qty
	100-6
	100-7
	100-5
	100-2
	100-1
	100-3
	100-4
	100-9
	100-10
	100-8
	100-11
	120-2
	120-3
	120-1
	130-2-4
	130-2-3
	130-2-5
	130-2-1
	130-2-2
	130-1-3
	130-1-5
	130-1-4
	130-1-2
	130-1-1
	131
	150
	151

Page 78 — Z3. 付属部品関係 (オプションパーツ)/ Accessories (Option parts)

Brother HE-800A (90 pages) parts on page 78
Ref	Part number	Part name	Qty
100	S50477001	RULER ASSY	1
100-1	S06139001	RULER, A	1
100-2	S06140001	RULER, B	1
100-3	062680512	SCREW, PAN SM4.37-40X5	2
100-4	025680232	WASHER, PLAIN M 4.37	2
100-5	146000001	THREAD TRIMMER SUPPORT	1
100-6	062670412	SCREW, PAN SM3.57-40X4	2
100-7	105161003	WASHER	2
100-8	141620001	BALANCER	1
100-9	101671002	SCREW, SM4.37	2
100-10	025680132	WASHER, PLAIN S 4.37	2
100-11	S36522001	SCREW, SM4.37	2
120	S50350001	RULER ASSY, 800E	1
120-1	S50476001	RULER	1
120-2	S36522001	SCREW, SM4.37	2
120-3	S50351001	RULER SPACER	1
130	133797101	CONNECTING ROD ASSY, L=210	1
130-1	119710001	CONNECTING ROD ASSY	1
130-1-1	119711001	CONNECTING ROD	2
130-1-2	021060106	NUT, 1 M6	2
130-1-3	119101001	CONNECTING ROD CLAMP	1
130-1-4	017841606	BOLT, SM7.94-18	1
130-1-5	133643006	NUT, SM7.94-18	1
130-2	133792101	JOINT ASSY	2
130-2-1	133793001	STUD	2
130-2-2	133794001	BODY	2
130-2-3	133795001	RING	2
130-2-4	021060106	NUT, 1 M6	2
130-2-5	028060243	WASHER, SPRING 2-6	2
131	114859001	COLLAR	1
150	S54767000	SHEET	1
151	S55361100	LABEL SET
	S54707000	SHEET	1

Page 79 — Ga1 . ゲージ部品一覧表 / Gauge parts List

Brother HE-800A (90 pages) parts on page 79
Ref	Part number	Part name	Qty
45 1/16	147967-001	Cutter	45
	S51117-001
	S51290-001
	S51351-001
	S51352-001
	S51353-001
	S51354-001
	S51355-001
	S51356-001
	S25642-001
	S51357-001
	S51358-001
	S51359-001
	S51360-001
	147987-001
	147941-001
	147233-001
	S01271-001
	S01272-001
	S01273-001
	S03280-001
	S01274-001
	S01275-001
	S01276-001
	S35630-001

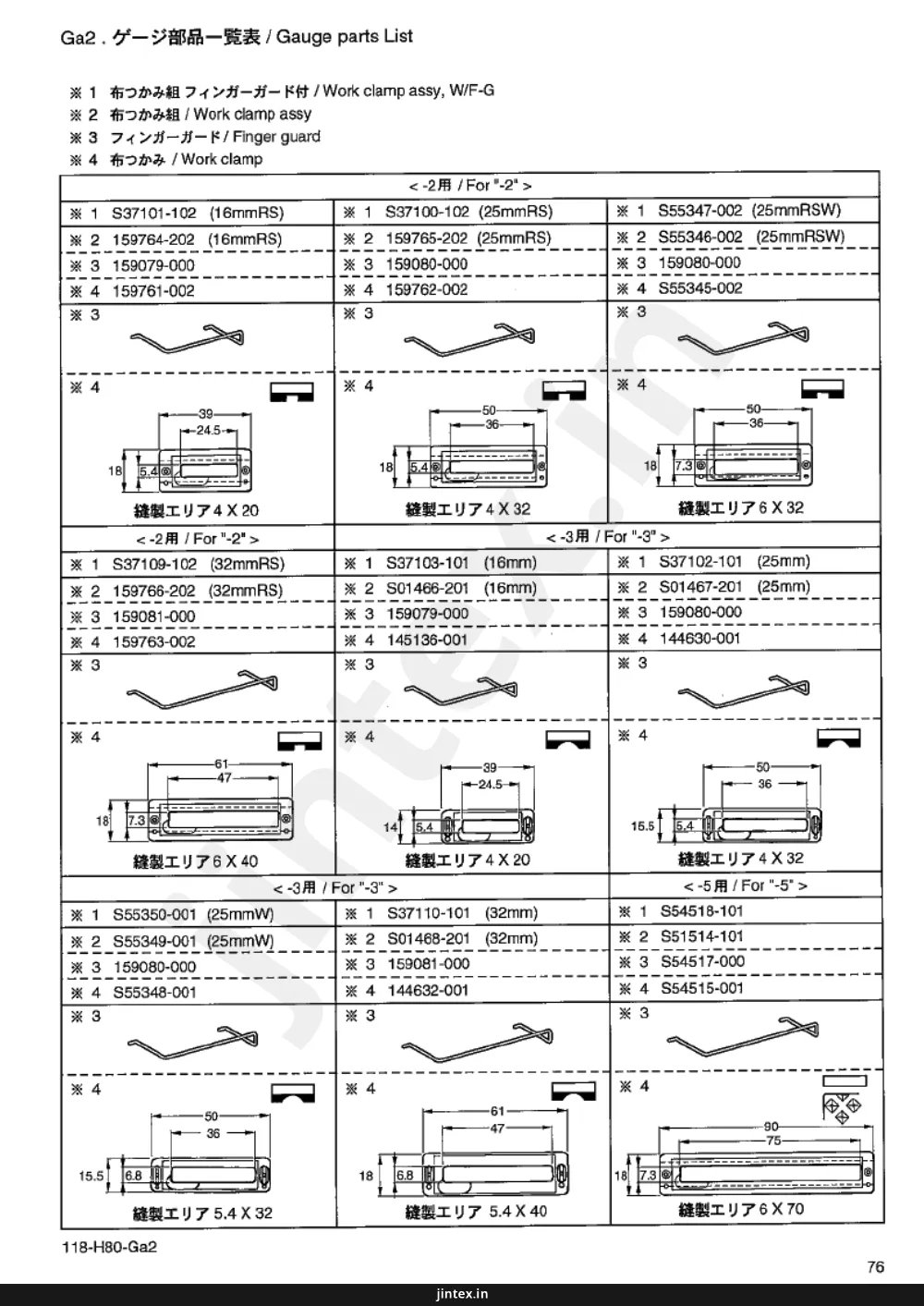

Page 80 — Ga2 .ゲージ部品一覧表 / Gauge parts List

Brother HE-800A (90 pages) parts on page 80
Ref	Part number	Part name	Qty
※1	S37101-102
※2	159764-202
※3	159079-000
※4	159761-002
※1	S37100-102
※2	159765-202
※3	159080-000
※4	159762-002
※1	S55347-002
※2	S55346-002
※3	159080-000
※4	S55345-002
※1	S37109-102
※2	159766-202
※3	159081-000
※4	159763-002
※1	S37103-101
※2	S01466-201
※3	159079-000
※4	145136-001
※1	S37102-101
※2	S01467-201
※3	159080-000
※4	144630-001
※1	S55350-001
※2	S55349-001
※3	159080-000
※4	S55348-001
※1	S37110-101
※2	S01468-201
※3	159081-000
※4	144632-001
※1	S54518-101
※2	S51514-101
※3	S54517-000
※4	S54515-001

Page 81 — Ga3. ゲージ部品一覧表 / Gauge parts List

Brother HE-800A (90 pages) parts on page 81
Ref	Part number	Part name	Qty
	S50663-001
	S50664-001
	S50665-001
	S51248-101
	S51249-101
	S51250-101
	S55344-001
	S54522-001
	S50321-001	Needle plate
	151843-001	Plastic plate
	S50322-101	Needle plate
	156612-001	Plastic plate

Page 82 — Wa.警告ラベル/Warning labels

Brother HE-800A (90 pages) parts on page 82
Ref	Part number	Part name	Qty
	S38353-101
	S38352-101	Label, elc. shock 4 lang.
	S38350-001
	S38349-001	Label, operation Eng.
	S36924-001	Mark,injury
	S37059-001	Mark, grounding
	S37060-001	Mark, grounding

Page 83

Brother HE-800A (90 pages) parts on page 83
Ref	Part number	Part name	Qty
28	002300603
44	002301003
66	002401006
46	008400604
34	012400636
34	012400636
14	012500536
4	013761410
14	014060632
14	014060632
6	014400432
66	014500632
20	014680622
38	014680622
2	014760622
2	014760622
4	014760622
4	014760622
4	014760622
6	014760622
8	014760622
8	014760622
8	014760622
8	014760622
10	014760622
10	014760622
10	014760622
10	014760622
10	014760622
10	014770622
6	014770622
20	014770622
34	014770622
6	014780622
74	017841606
50	018060831
52	018060831
54	018060831
54	018060831
56	018060831
56	018060831
6	018061022
10	018061022
8	018061622
38	018061622
36	018102536
19	018300636
36	018300836
10	018400822
14	018401022
8	018401222
10	018401236
20	018501022
48	018501236
16	018502022
14	018680522
18	018680522
20	018680632
14	018680822
14	018681022
14	018681022
18	018681022
20	018681022
38	018681022
38	018681022
14	018681232
20	018681232
50	021040105
50	021040105
50	021040105
70	021060106
74	021060106
74	021060106
20	021080202
66	021100206
6	021100302
36	021300206
44	021300206
60	021400106
58	021400106
58	021400106
68	021500106
38	021500312
72	021670202
42	021680202
20	021710202
24	021910302
60	025030136
72	025030232
40	025040132
40	025040173
66	025040232
72	025040236
70	025050236
70	025050236
10	025060132
10	025060132
6	025060232
50	025060236
52	025060236
54	025060236
54	025060236
54	025060236
56	025060236
70	025060336
14	025100236
26	025350132
14	025350332
14	025680132
14	025680132
36	025680132
38	025680132
38	025680132
44	025680132
74	025680132
36	025680232
36	025680232
74	025680232
30	025680234
34	026040236
68	026050136
36	028030246
60	028030246
66	028040245
10	028050242
38	028050242
46	028050246
68	028050246
74	028060243
50	028060246
52	028060246
54	028060246
54	028060246
54	028060246
56	028060246
20	028080242
70	028080246
66	028100246
14	028680242
30	028680242
62	031351006
68	031452206
62	032422003
72	032422505
72	032461606
64	037200615
64	037300615
64	037301015
48	037401015
34	047200642
40	048030342
34	048040342
38	048060142
2	048060142
38	048060142
2	048060342
40	048080342
6	048150142
6	048220242
6	048300242
8	060300612
14	060630312
40	060660416
40	060670412
12	060670512
30	060670512
32	060670512
32	060670512
22	060670612
26	060670612
26	060670612
68	062060806
30	062300502
44	062300806
58	062300806
58	062300806
58	062300806
58	062300806
58	062300806
22	062400612
22	062400612
28	062400612
28	062400612
34	062400616
8	062400806
72	062400812
72	062400812
34	062400816
34	062400816
72	062401006
66	062401063
50	062500602
50	062500602
52	062500602
54	062500602
54	062500602
56	062500602
68	062501406
68	062501406
68	062501406

Page 84 — 索引 / INDEX

Brother HE-800A (90 pages) parts on page 84
Ref	Part number	Part name	Qty
74	062670412
26	062670512
26	062670512
28	062670512
28	062670512
36	062670512
36	062670512
22	062670612
26	062670612
26	062670612
26	062670612
30	062670712
26	062670712
36	062670712
36	062670712
58	062670812
10	062671012
40	062671612
10	062680512
54	062680512
74	062680512
42	062680612
58	062680612
14	062680612
11	062680712
9	062680812
4	062681012
44	062681412
72	062710612
20	062710812
2	062711012
3	062711212
20	062711412
2	062711612
4	062761012
8	062761012
14	070608800
6	072630260
22	076002450
6	076200800
66	076202801
30	081005070
70	081007070
36	081012070
32	081014870
44	087310815
44	087311015
60	0A4301005
56	0A4400605
56	0A4400605
50	0A4400606
52	0A4400606
52	0A4400606
54	0A4400606
54	0A4400606
56	0A4400606
44	0A4400805
50	0A4400805
50	0A4400805
50	0A4401205
17	0A5300005
47	0A5400806
58	0A5400806
47	0A5401006
47	0A5401006
47	0A5401006
58	0A5401006
58	0A5401006
58	0A5401006
58	0A5401206
58	0A5401206
46	0A5403005
48	0B105501005
64	0B1351606
4	100022005
72	100136001
72	100242003
38	100250001
32	100402004
24	100644005
30	100645003
70	101118001
70	101572101
22	101671002
12	102538002
20	102630001
2	104449001
2	104449001
2	104449001
2	104449001
2	104449001
6	104450101
2	104451101
22	104521001
14	105130001
74	105161003
56	105237002
50	105288002
52	105970001
54	106436001
56	106629002
44	107093002
50	107149001
50	107401001
50	107401001
50	107401001
16	107404001
16	107404001
47	107407003
47	107639001
47	107744001
58	108265009
58	108494001
58	108495001
58	110027001
58	110067001
46	110161004
58	110167001
58	110168001
10	110215002
38	110367001
27	110494001
30	110735002
30	110735002
21	111466101
7	111865001
78	112467002
2	112525000
20	112751003
2	113316001
36	113730001
131	114483002
49	11459001
2	114988001
20	115188001
17	115503001
2	117143003
2	117160001
2	117160001
2	117363001
2	117363001
2	117466000
2	117934001
2	117936001
72	118735001
2	118837001
72	119101001
74	119710001
74	119711001
2	120263001
72	122771051
72	122771051
40	123165001
74	133643006
70	133740006
74	133792101
74	133793001
74	133794001
74	133795001
74	133797101
4	140004001
10	140407001
70	140518001
4	140553102
10	141208001
36	141513001
36	141514001
40	141514001
40	141519001
30	141590001
22	141619001
22	141620001
74	141620001
22	142274101
70	142443001
68	142990001
72	143748001
72	143767102
72	143767752
72	143980001
30	144103009
30	144103009
30	144110001
72	144226001
72	144628001
16	144630001
76	144632001
16	144707001
26	144872101
26	144874001
26	144875001
72	144970001
72	144990001
72	144999001
76	145136001
40	145371001
30	145440001
30	145446001
30	145446001
32	145446001
4	145465001
10	145472001
10	145478101
10	145478101
10	145478101
40	145478101
32	145519001

Page 85

Brother HE-800A (90 pages) parts on page 85
Ref	Part number	Part name	Qty
74	146000001
70	146255000
70	146256001
75	147233001
75	147941001
75	147987001
40	149127001
40	149809000
68	150172003
76	150173003
68	150179002
68	150179002
68	150182000
68	150183000
68	150189109
4	150382001
40	150491101
30	150553003
77	151843001
26	151927001
58	152969001
20	153057102
47	153242000
73	153483001
4	154965001
12	155578000
77	156612001
34	157968001
2	158830001
2	158831001
2	158832000
2	158879001
4	158885001
6	158893000
8	158945001
14	159078001
76	159079000
76	159080000
76	159081000
20	159104001
42	159113001
20	159117001
22	159145001
2	159150000
2	159158051
24	159187000
70	159193000
30	159219101
32	159221001
32	159241001
40	159267001
40	159272001
36	159343001
20	159379001
70	159384009
64	159624001
76	159625001
76	159761002
76	159762002
76	159763002
76	159764202
14	159765202
76	159766202
30	159805001
32	159917201
42	159924001
14	159926001
16	159927001
18	159927001
64	159927001
16	159927001
16	180721001
24	183507001
24	183526001
24	183598001
24	183827001
24	200190001
22	203684001
72	216205000
66	217071001
66	218469001
50	218859001
46	221419001
76	224508001
50	224514001
50	228475000
54	228475000
26	228475000
68	J00107001
76	J00351001
72	J00353001
68	J00494001
48	J00649001
48	J01684001
48	J01935001
72	J02036001
48	J02130001
66	J02278001
68	J02293001
47	J02343001
46	J02441001
46	J02443001
46	J02449001
46	J02493001
68	J02513001
68	J02516001
66	J02517001
66	J02525001
66	J02537001
60	J02621001
50	J02657001
50	J02727001
50	J02727001
54	J02727001
46	J02989001
66	J02989001
66	J02990001
66	J02991001
66	J03275001
46	J03283001
46	J03284001
48	J03285001
46	J03290001
46	J03296001
46	J03324001
66	J03410001
72	J03411001
48	J03417001
48	J03419001
66	J03457001
62	J80081040
62	J80380040
48	J80813001
48	J80814001
66	J80863001
2	S00306001
26	S00480000
58	S00554000
70	S00617000
40	S00712101
40	S00901001
10	S00902001
40	S00903001
75	S01271001
75	S01272001
75	S01273001
75	S01274001
75	S01275001
76	S01466201
16	S01467201
76	S01468201
40	S01686001
72	S01700001
42	S01998001
14	S02460001
36	S02563001
68	S02761309
68	S02773001
68	S02778002
68	S02787002
75	S03280001
74	S06139001
74	S06140001
24	S07478000
47	S08030000
72	S08040000
60	S09142000
46	S09212001
24	S09477001
34	S10174000
58	S10243000
47	S10820000
50	S10820001
47	S10820002
47	S10820003
47	S10820004
47	S10820005
52	S10820006
47	S10820007
54	S10820008
47	S10820009
56	S10820010
47	S10820011
54	S10820012
14	S12004000
70	S13595101
30	S12441001

Page 86

Brother HE-800A (90 pages) parts on page 86
Ref	Part number	Part name	Qty
70	S13596101
64	S13597101
70	S13650001
70	S18707153
36	S19817001
47	S20345001
36	S21755001
68	S21798001
36	S23337001
50	S23618001
52	S23618001
52	S23618001
54	S23618001
54	S23618001
56	S23618001
70	S24250001
26	S25328001
28	S25410050
34	S25413101
34	S25417001
34	S25418101
34	S25420051
30	S25456001
75	S25642001
34	S25789000
44	S29023000
60	S30205000
44	S30280000
30	S30564000
32	S30564000
30	S30565003
30	S30565005
10	S31012001
10	S31013001
32	S31032001
4	S31808001
2	S32263001
58	S32335100
8	S32521001
30	S35095000
14	S35184001
56	S35598000
75	S35630001
74	S36522001
74	S36522001
78	S36924001
58	S37055001
47	S37059001
78	S37060001
16	S37100101
76	S37100102
76	S37101102
16	S37102101
76	S37103101
76	S37109102
76	S37110101
72	S37111001
10	S37927000
8	S38082001
50	S38118000
52	S38128000
54	S38133000
54	S38145000
56	S38145000
47	S38155000
47	S38200000
60	S38200000
60	S38201000
46	S38201000
47	S38349001
78	S38350001
78	S3835101
78	S38352101
22	S38353101
34	S38735001
46	S38736101
46	S38820000
47	S39619000
56	S40616001
56	S40617000
56	S40618000
56	S40619000
56	S40620000
47	S40621000
64	S40622000
50	S40623000
50	S40623000
50	S40623000
54	S40623000
58	S40639001
68	S40639001
68	S40641001
58	S41216000
20	S41466000
50	S41964000
50	S41964000
52	S41964000
54	S41964000
54	S41964000
56	S41964000
10	S42116000
46	S42227009
58	S42653000
60	S42699000
64	S42890001
44	S43178000
46	S43186000
64	S43250100
64	S43251000
64	S43252000
64	S43253000
64	S43255000
64	S43256000
64	S43257000
64	S43267000
64	S43270000
64	S43271000
64	S43272000
48	S43275000
46	S43276000
46	S43318000
44	S43717201
62	S43981000
60	S44629002
44	S46454000
46	S46455000
46	S46703000
50	S47595000
60	S47664000
60	S47665000
60	S47668000
60	S47669000
60	S47670000
50	S47673000
46	S47678000
46	S47680000
46	S47691000
46	S47693000
47	S47694000
46	S47720000
46	S47721001
46	S47723201
46	S47724000
46	S47725000
46	S47726000
46	S47727000
46	S47728000
46	S47729000
46	S47730000
46	S47733000
46	S47734000
46	S47735000
46	S47749101
62	S47750000
6	S48034001
4	S48371060
4	S48371065
4	S48371070
4	S48371075
4	S48371080
4	S48371090
44	S48579000
44	S49492000
44	S49495000
44	S49496001
14	S50110001
24	S50111000
36	S50113101
20	S50120001
2	S50124001
2	S50126001
2	S50127001
2	S50128001
2	S50131001
4	S50132001
4	S50136001
4	S50142000
4	S50143001
4	S50144001
4	S50146001
4	S50147001
4	S50148001
4	S50149101
4	S50150001
4	S50152001
4	S50153001
6	S50154001
6	S50155001
6	S50156001
6	S50157001
6	S50159001
6	S50160001
6	S50161000
6	S50162001
6	S50163001
6	S50164001
6	S50165001
6	S50166001
6	S50167001
6	S50168001
8	S50169001
8	S50170001
8	S50171001
8	S50172001
8	S50174001
8	S50176001
8	S50178001
8	S50179001
4	S50180065
4	S50180070
4	S50180075
4	S50180080
4	S50180085
4	S50180090
70	S50180475
70	S50180490
8	S50182000
10	S50183001
10	S50184001
10	S50185001
10	S50186001
10	S50187001
10	S50188001

Page 87 — INDEX

Brother HE-800A (90 pages) parts on page 87
Ref	Part number	Part name	Qty
	S50189001
	S50190001
	S50191001
	S50192001
	S50193001
	S50193001
	S50194001
	S50195001
	S50196001
	S50197001
	S50198001
	S50199001
	S50200001
	S50201001
	S50202001
	S50203001
	S50204001
	S50205001
	S50206001
	S50207001
	S50208001
	S50209001
	S50210001
	S50211001
	S50212001
	S50213001
	S50214001
	S50215101
	S50216001
	S50217001
	S50218001
	S50219101
	S50220001
	S50221001
	S50222001
	S50223001
	S50224001
	S50225001
	S50226001
	S50227001
	S50228001
	S50229001
	S50230001
	S50231100
	S50233001
	S50234901
	S50235901
	S50236001
	S50237001
	S50239001
	S50240001
	S50241001
	S50243001
	S50244001
	S50245001
	S50246001
	S50247001
	S50248001
	S50249001
	S50252001
	S50253001
	S50257001
	S50258001
	S50259101
	S50260101
	S50263001
	S50264000
	S50265001
	S50269000
	S50270000
	S50271000
	S50272000
	S50273001
	S50274001
	S50275001
	S50276001
	S50278001
	S50279001
	S50281000
	S50282001
	S50283001
	S50284001
	S50285001
	S50286001
	S50287001
	S50288001
	S50289001
	S50290001
	S50291001
	S50292001
	S50293001
	S50294001
	S50295001
	S50296001
	S50297001
	S50298101
	S50299101
	S50300001
	S50301001
	S50303001
	S50304001
	S50309001
	S50311001
	S50313101
	S50317101
	S50322101
	S50323000
	S50325001
	S50326001
	S50327001
	S50329000
	S50329001
	S50330101
	S50331000
	S50332000
	S50334000
	S50335000
	S50336000
	S50337000
	S50339000
	S50340000
	S50341000
	S50341001
	S50342000
	S50343000
	S50344001
	S50345001
	S50346001
	S50348001
	S50349001
	S50350001
	S50351001
	S50354000
	S50356001
	S50359001
	S50360001
	S50362001
	S50363000
	S50364001
	S50365101
	S50366001
	S50368001
	S50369001
	S50370001
	S50371101
	S50372001
	S50373001
	S50374001
	S50375001
	S50376001
	S50377001
	S50378001
	S50379001
	S50380000
	S50381000
	S50382001
	S50383001
	S50384101
	S50385001
	S50386001
	S50387001
	S50388001
	S50389001
	S50390101
	S50391001
	S50392001
	S50393001
	S50394001
	S50395001
	S50398001
	S50399101
	S50400001
	S50401001
	S50402001
	S50403001
	S50404201
	S50405101
	S50408001
	S50410001
	S50411001
	S50412000
	S50413001
	S50414001
	S50415001
	S50416001
	S50417001
	S50418001
	S50419001
	S50420001
	S50421001
	S50422000
	S50423000
	S50424000
	S50425001
	S50431001
	S50437000
	S50438000
	S50439000
	S50440000
	S50441000
	S50442001
	S50443000
	S50444001
	S50445000
	S50446001
	S50447001
	S50448000
	S50451201
	S50453000
	S50455000
	S50456000
	S50457000
	S50458100
	S50459100
	S50460000

Page 88 — 索引/INDEX

Brother HE-800A (90 pages) parts on page 88
Ref	Part number	Part name	Qty
	S50461000
	S50462000
	S50463000
	S50464000
	S50465000
	S50466000
	S50467000
	S50468000
	S50471000
	S50472000
	S50473000
	S50474000
	50-2-3
	51-1-3
	51-2-3
	51-3-3
	51-4-3
	S50476001
	S50477001
	S50483100
	S50484000
	S50485100
	50-2-7-2
	51-1-7-2
	51-2-7-2
	51-3-7-2
	51-4-7-2
	S50486100
	50-2-7-3
	51-1-7-3
	51-2-7-3
	51-3-7-3
	51-4-7-3
	S50488100
	S50498001
	S50499000
	S50500000
	S50501201	H-1
	S50502201	H-2
	S50503201	H-3
	S50504301	H-4
	S50505301	H-5
	S50506301	H-6
	S50507301	H-7
	S50508301	H-8
	S50509301	H-9
	S50510201	H-10
	S50511201
	S50512001
	S50513000
	S50514000
	S50515000
	S50516001
	S50517001
	S50518000
	S50519000
	S50520000
	S50521000
	S50522000
	S50524000
	S50525000
	S50527000
	S50528000
	S50529000
	S50530000
	S50531000
	S50532000
	S50533000
	S50536001
	S50537000
	S50540001
	S50541001
	S50542001
	S50543001
	S50544000
	S50545000
	S50546000
	S50547000
	S50548001
	S50549000
	S50550001
	S50551001
	S50552000
	S50556000
	S50557000
	S50558000
	S50650001
	S50652001
	S50656001
	S50657001
	S50658001
	S50660001
	S50666001
	S50667001
	S50668001
	S50632101
	S50633100
	S50635100
	S50636101
	S50637100
	S50638101
	S50639100
	S50640101
	S50641100
	S50642101
	S50643100
	S50644000
	S50644001
	S50645000
	S50649000
	50-2-7-1
	S50656201
	S50657001
	S50660000
	S50663001
	S50664001
	S50665001
	S51020000
	S51117001
	S51118001
	S51162001
	S51170001
	S51171001
	S51172001
	S51173001
	S51174001
	S51176001
	S51178101
	S51179101
	S51180001
	S51181001
	S51182101
	S51183001
	S51184001
	S51185001
	S51190001
	S51223001
	S51225001
	S51226001
	S51248101
	S51249101
	S51250101
	S51282001
	S51290001
	3/5
	S51351001
	S51352001
	1/2
	S51353001
	S51354001
	5/8
	S51355001
	S51356001
	S51357001
	S51358001
	34-3
	1
	S51359001
	29
	S51360001
	32
	S51361001
	S51362001
	S51363001
	S51364001
	S51365001
	S51366001
	S51418001
	S51514101
	S51896001
	S51901201
	S52248001
	S52431000
	S52432001
	S52433001
	S52434001
	S52761001
	S52763000
	S52764001
	S52770000
	S52778001
	S52943001
	S53181000
	S53902301
	S53907001
	S53996101
	S53998001
	S54027001
	50-2-1
	51-1-1
	51-2-1
	51-3-1
	51-4-1
	S54028001
	50-2-2
	51-1-2
	51-2-2
	51-3-2
	51-4-2
	S54501101
	S54502101
	S54503001
	10-1
	S54504001
	10-2
	S54506001
	10-2-1
	S54507001
	10-3
	S54508001
	10-5
	S54509000
	10-6
	S54510001
	10-7
	S54511001
	10-9
	S54512001
	10-10
	S54513001
	10-11
	S54514101
	10-12
	S54515001
	10-12-1
	S54516101
	10-12-6
	S54517000
	10-13
	S54518101
	S54519001
	S54520001

Page 89 — 索引 / INDEX

Brother HE-800A (90 pages) parts on page 89
Ref	Part number	Part name	Qty
64	S54520001
36	S54521001
64	S54521001
42	S54522001
64	S54522001
24	S54741001
28	S54763001
74	S54767000
70	S54768001
18	S54987001
64	S54987001
	S55344001
	S55345002
	S55346002
	S55347002
	S55348001
	S55349001
	S55350001
74	S55361100
70	S55663001
32	S55975001
36	S56251001
36	S58097001
36	S58098001
60	S58731000
64	S58971001
64	S58972000
64	S58973000
44	S58974000
44	S58978001
44	S58984000
64	S58987001
64	S58988001
64	S58989001
40	S59987001
58	SA0287000
60	U32744000
44	U34870000
44	XA2220050
60	Y42215591
47	Y44715591
60	Y44715591

Page 6 — A.主体関係 / Machine body

Page 8 — B.針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 10 — C.上軸関係 / Upper shaft mechanism

Page 12 — D.針振関係 / Zigzag mechanism E.非常停止関係 / Emergency stop mechanism

Page 14 — F.押工関係 / Presser foot mechanism

Page 16 — F.押工関係 / Presser foot mechanism

Page 18 — G1.送り関係 (-2,-3)/ Feed mechanism(For "-2 & -3")

Page 20 — G1.送り関係 (-2,-3)/ Feed mechanism(For "-2 & -3")

Page 22 — G2.送り関係 (-5)/ Feed mechanism(For "-5")

Page 24 — H.カッター関係 / Cutter mechanism

Page 26 — J.糸切れ感知関係 / Thread breakage detector mechanism K.下軸関係 / Lower shaft mechanism

Page 28 — L.カマ関係 / Rotary hook mechanism

Page 30 — M.給油潤滑関係 / Lubrication

Page 32 — M.給油潤滑関係 / Lubrication

Page 34 — N.糸通シ関係 / Threading mechanism

Page 36 — N.糸通シ関係 / Threading mechanism

Page 38 — P.糸巻関係 / Bobbin winder mechanism

Page 40 — Q.上糸切り関係 / Upper thread trimmer mechanism

Page 42 — Q.上糸切り関係 / Upper thread trimmer mechanism

Page 44 — R.下糸切り関係 / Lower thread trimmer mechanism

Page 46 — R.下糸切り関係 / Lower thread trimmer mechanism

Page 48 — S.針位置検出器関係 / Synchronizer; T.操作パネル関係 / Operation panel mechanism

Page 50 — U1.コントロールボックス関係 / Control box mechanism

Page 51 — U1.コントロールボックス関係 / Control box mechanism

Page 52 — U1.コントロールボックス関係 / Control box mechanism

Page 54 — U2.コントロールボックス関係 / Control box mechanism

Page 56 — U2.コントロールボックス関係 / Control box mechanism

Page 58 — U3.コントロールボックス関係 / Control box mechanism

Page 60 — U3.コントロールボックス関係 / Control box mechanism

Page 62 — V.電装品関係 / Power supply equipment mechanism

Page 64 — W.プリント基板関係 / Printed circuit board mechanism

Page 66 — X1. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 67 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 68 — X2. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Page 70 — Y. モータ関係 / Moter mechanism

Page 72 — AA.カバー関係／Safety cover; Z1. 付属品関係 / Accessories

Page 74 — Z2. 付属吕関係 / Accessories

Page 76 — Z2. 付属 品 関係 / Accessories

Page 77 — Z3. 付属部品関係 (オプション部品) / Accessories (Option parts)

Page 78 — Z3. 付属部品関係 (オプションパーツ)/ Accessories (Option parts)

Page 79 — Ga1 . ゲージ部品一覧表 / Gauge parts List

Page 80 — Ga2 .ゲージ部品一覧表 / Gauge parts List

Page 81 — Ga3. ゲージ部品一覧表 / Gauge parts List

Page 82 — Wa.警告ラベル/Warning labels

Page 83

Page 84 — 索引 / INDEX

Page 85

Page 86

Page 87 — INDEX

Page 88 — 索引/INDEX

Page 89 — 索引 / INDEX

Brother HE-800A (90 pages) — parts catalog

Page 76 — Z2. 付属品関係 / Accessories
