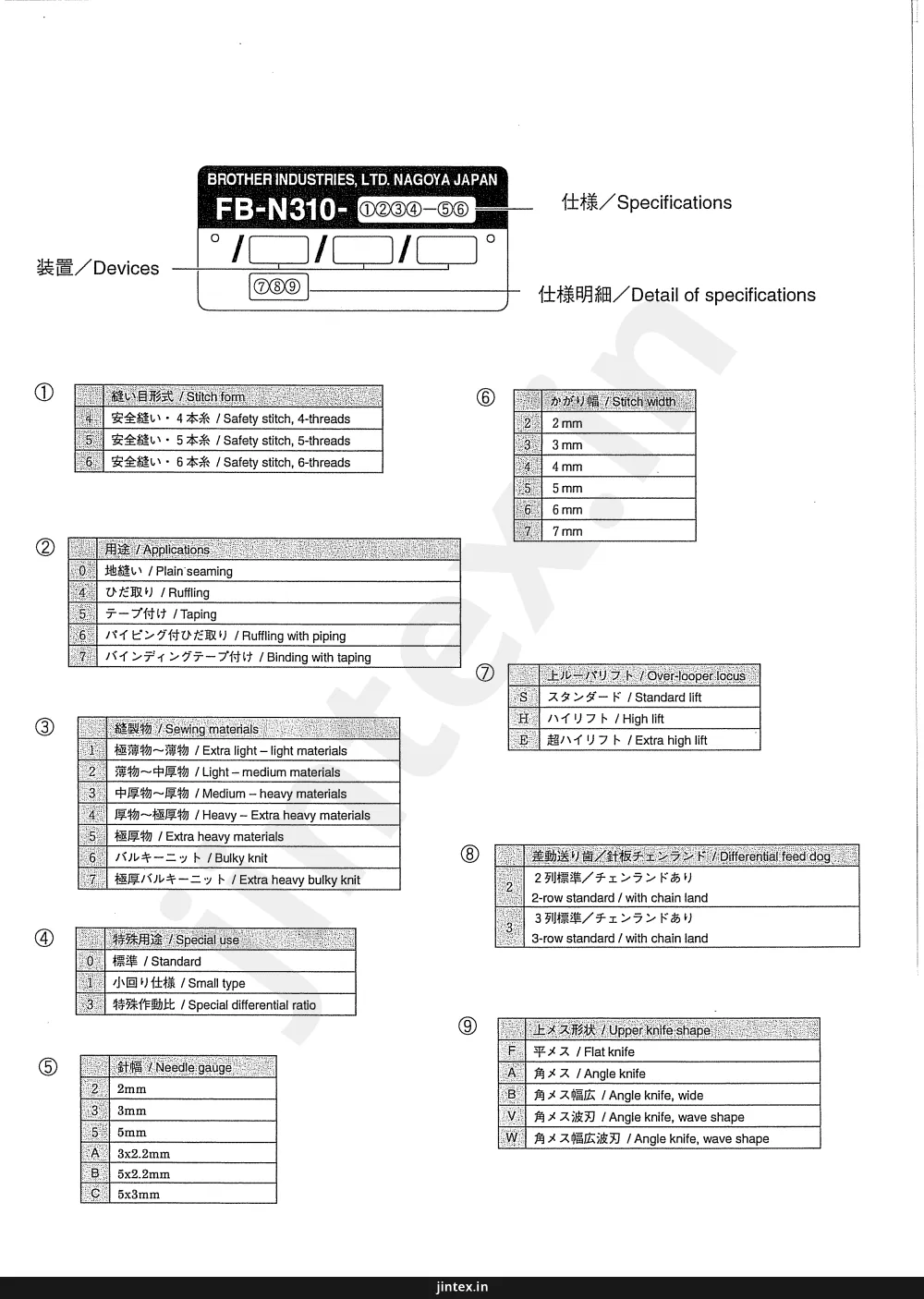

Page 3

Brother MA4-N31 (64 pages) parts on page 3

Ref	Part number	Part name	Qty
	4	安全縫い・4本糸/Safety stitch, 4-threads
	5	安全縫い・5本糸/Safety stitch, 5-threads
	6	安全縫い・6本糸/Safety stitch, 6-threads
		地縫い/Plain seaming
	4	ひだ取り/Ruffling
	5	テープ付け/Taping
	6	パイピング付ひだ取り/Ruffling with piping
	7	バインディングテープ付け/Binding with taping
	1	極薄物~薄物/Extra light - light materials
	2	薄物~中厚物/Light - medium materials
	3	中厚物~厚物/Medium - heavy materials
	4	厚物~極厚物/Heavy - Extra heavy materials
	5	極厚物/Extra heavy materials
	6	バルキーニット/Bulky knit
	7	極厚バルキーニット/Extra heavy bulky knit
		標準/Standard
	1	小回り仕様/Small type
	3	特殊作動比/Special differential ratio
	2	2mm
	3	3mm
	5	5mm
	A	3x2.2mm
	B	5x2.2mm
	C	5x3mm
	2	2 mm
	3	3 mm
	4	4 mm
	5	5 mm
	6	6 mm
	7	7 mm
	S	スタンダード/Standard lift
	H	ハイリフト/High lift
	E	超ハイリフト/Extra high lift
	2	2列標準/チェーンランドあり 2-row standard/with chain land
	3	3列標準/チェーンランドあり 3-row standard/with chain land
	F	平メス/Flat knife
	A	角メス/Angle knife
	B	角メス幅広/Angle knife, wide
	V	角メス波刃/Angle knife, wave shape
	W	角メス幅広波刃/Angle knife, wave shape

Page 4 — 目 次

Brother MA4-N31 (64 pages) parts on page 4

Ref	Part number	Part name	Qty
	A	フレーム関係
	B	駆動軸関係
	C	針棒関係
	D	針冷却関係
	E	縁カガリ定規関係
	F1	押工関係
	F2	押工関係
	G	送り関係
	H	上メス・下メス関係
	J	ラッパー関係
	K	上ルーパ関係
	L	下ルーパ関係
	M	二重環ルーバー
	N	給油潤滑関係
	P	糸調子関係
	Q1	ラフラー装置関係
	Q2	ラフラー装置関係
	Q3	ラフラー装置関係
	Z1	付属部品関係
	Z2	付属部品関係(オプションパーツ)
	Ga1	ゲージ部品一覧表
	Ga2	ゲージ部品一覧表
	Ga3	ゲージ部品一覧表
	Ga4	ゲージ部品一覧表
	Ga5	ゲージ部品一覧表
	Ga6	ゲージ部品一覧表
	Ga7	ゲージ部品一覧表
	Wa	警告ラベル

Page 6 — A. フレーム関係 / Machine body

Brother MA4-N31 (64 pages) parts on page 6

Ref	Part number	Part name	Qty
	70	70
	71	71
	72	72
	8	8
	12	12
	11	11
	3	3
	6	6
	4	4
	7	7
	2	2
	5	5
	69	69
	66	66
	9	9
	10	10
	79	79
	80	80
	67	67
	68	68
	59	59
	60	60
	75	75
	76	76
	58	58
	22-2	22-2
	22-1	22-1
	81	81
	20	20
	19	19
	21	21
	15	15
	13	13
	14	14
	93	93
	55	55
	74	74
	62	62
	24	24
	23	23
	52	52
	53	53
	63	63
	25-1	25-1
	26	26
	25-2	25-2
	25-3	25-3
	61	61
	35	35
	36	36
	94	94
	92	92
	40	40
	78	78
	77	77
	37	37
	51	51
	65	65
	64	64
	27	27
	27-8	27-8
	27-5	27-5
	27-7	27-7
	32	32
	27-9	27-9
	27-2	27-2
	27-6	27-6
	27-1	27-1
	27-3	27-3
	27-4	27-4
	28	28
	31	31
	49	49
	48	48
	46	46
	33	33
	34	34
	30	30
	29-1	29-1
	29-2	29-2
	44	44
	43	43
	38	38
	39	39
	41	41
	42	42

Page 7 — A. フレーム関係 / Machine body

Brother MA4-N31 (64 pages) parts on page 7

Ref	Part number	Part name	Qty
	S39605001	TOP COVER	1
	S02606020	OIL GAUGE WINDOW	1
	062401012	SCREW, PAN M4X10	6
	S39606020	PACKING	1
	081014670	O RING, PW14	1
	S23337001	RUBBER CAP, 18.5	1
	S39607001	SIDE COVER, FRAME	1
	062400812	SCREW, PAN M4X8	5
	S20345001	RUBBER CAP, 14	1
	S39608021	FACE PLATE COVER	1
	060400612	SCREW, BIND M4X6	1
	S20310001	COVER, B;FEED MECHANISM	1
	S20311000	PACKING	1
	060400612	SCREW, BIND M4X8	6
	S44778000	PACKING, FEED BAR	1
	018400832	BOLT, SOCKET M4X8	1
	S44779001	FEED BAR COVER	1
	060400812	SCREW, BIND M4X8	5
	S44535001	SCREW, BIND M4X8 SEAL	1
	S39564021	INSIDE COVER	1
	S44536000	PACKING, INSIDE COVER	1
	060401012	SCREW, BIND M4X10	3
	S23616101	SCREW, M4X10	1
	S44535001	SCREW, BIND M4X8 SEAL	1
	061400812	SCREW, FLAT M4X8	1
	S39611001	FRONT COVER ASSY, L	1
	S39612001	FRONT COVER, L	1
	S39613001	HINGE SHAFT, FRONT COVER	1
	S20319001	HINGE, FRONT COVER	1
	012400432	SET SCREW, SOCKET (FT) M4X4	2
	S20320101	STOPPER, FRONT COVER	1
	S20321001	SPRING, FRONT COVER	1
	060400612	SCREW, BIND M4X6	1
	S20327101	STOPPER PLATE, FRONT COVER	1
	060400612	SCREW, BIND M4X6	1
	060401412	SCREW, BIND M4X14	3
	S38305001	FRONT COVER, S	1
	S42050001	FRONT COVER, S	1
	062400612	SCREW, PAN M4X6	2
	012400832	SET SCREW, SOCKET (FT) M4X8	1
	012400432	SET SCREW, SOCKET (FT) M4X4	1
	S20324101	GUIDE, L F-VOVER	1
	060400612	SCREW, BIND M4X6	2
	S20325001	SPRING, PLATE	1
	060400612	SCREW, BIND M4X6	1
	S39562001	CLOTH PLATE	1
	S39623001	CLOTH PLATE SHAFT	1
	141183000	CLOTH PLATE SHEET	1
	100032003	SCREW, FLAT SM4.37-40X8	1
	100315002	WASHER	1
	S39624021	SET SCREW COLLAR	1
	012060632	SET SCREW, SOCKET (FT) M6X6	2
	S38301020	CLOTH PLATE, LOWER	1
	060400612	SCREW, BIND M4X6	4
	S20412000	RUBBER CAP, 3.7	2
	S39625151	SPRING, PLATE	1
	060400612	SCREW, BIND M4X6	2

Page 8 — A. フレーム関係 / Machine body

Brother MA4-N31 (64 pages) parts on page 8

Ref	Part number	Part name	Qty
	70	Screw
	71	Washer
	72	Bracket
	69	Screw
	66	Plate
	9	Cover
	8	Cover
	12	Screw
	11	Name Plate
	3	Knob
	4	Screw
	6	Washer
	7	Base Plate
	2	Cover
	5	Cover
	68	Screw
	67	Screw
	59	Spring
	60	Screw
	10	Cover
	75	Screw
	76	Screw
	79	Screw
	80	Screw
	58	Cover
	22-2	Screw
	22-1	Screw
	20	Screw
	81	Bracket
	15	Screw
	13	Gasket
	14	Cover
	21	Screw
	19	Screw
	24	Cover
	23	Cover
	93	Plate
	55	Screw
	74	Screw
	62	Screw
	52	Screw
	53	Screw
	63	Shaft
	25-1	Screw
	26	Screw
	25-2	Screw
	54	Screw
	25-3	Screw
	61	Screw
	35	Screw
	36	Screw
	94	Plate
	92	Cover
	40	Screw
	78	Screw
	77	Screw
	65	Washer
	64	Screw
	37	Cover
	27	Cover
	38	Screw
	39	Washer
	41	Washer
	42	Screw
	49	Screw
	51	Screw
	27-8	Screw
	27-9	Screw
	27-5	Cover
	27-7	Cover
	27-2	Spring
	27-6	Rod
	27-1	Base
	27-3	Cover
	27-4	Screw
	48	Screw
	46	Screw
	29-2	Cover
	31	Screw
	32	Screw
	29-1	Cover
	33	Plate
	34	Screw
	30	Screw
	44	Cover
	28	Screw

Page 9 — A. フレーム関係 / Machine body

Brother MA4-N31 (64 pages) parts on page 9

Ref	Part number	Part name	Qty
	156482000	CAP, 4	1
	062401212	SCREW, PAN M4X12	1
	021400212	NUT, 2 M4	1
	047602042	PIN, SPRING ROLL 6X10	1
	S20412000	RUBBER CAP, 3.7	1
	S39626021	CLOTH GUIDE	1
	060400612	SCREW, BIND M4X6	2
	060400512	SCREW, BIND M4X5	1
	S20338200	OIL PAN	1
	S20339000	PACKING	1
	S23350001	MACHINE BODY LEG	4
	017501212	BOLT, M5X12	4
	S23351001	WASHER	4
	S00075000	EYE GUARD	1
	060350812	SCREW, BIND M3.5X8	2
	025350332	WASHER, PLAIN L 3.5	2
	S20340001	EYE GUARD SUPPORT PLATE	1
	S20342001	SHOULDER SCREW, M4	1
	146598001	WASHER, BOWL SPRING	1
	025050132	WASHER, PLAIN S 5	1
	S20344001	RUBBER CAP, 16	1
	S20345001	RUBBER CAP, 14	1
	S23337001	RUBBER CAP, 18.5	1
	081009070	O RING P9	1
	S23357001	SCREW, M10	1
	S20346000	OIL RESERVOIR, N-BAR	1
	062401612	SCREW, PAN M4X16	1
	S20878000	RUBBER CAP, 5.3	1
	S39785001	THREADING DIAGRAM LABEL, D	1
	S39786001	THREADING DIAGRAM LABEL, E	1
	S39787001	THREADING DIAGRAM LABEL, F	1
	S25184001	THREADING DIAGRAM LABEL, DL	1
	S44821001	LABEL,CLEANING	1

Page 10 — B. 駆動軸関係 / Crankshaft mechanism

Brother MA4-N31 (64 pages) parts on page 10

Ref	Part number	Part name	Qty
	1	CRANKSHAFT
	3	FLANGE
	4	O-RING
	5	SCREW
	6	SCREW
	7	BALL BEARING
	10	COLLAR
	11	WASHER
	12	WASHER
	13	CRANKSHAFT
	14	CIR-CLIP
	15	BALL BEARING
	16	CRANKSHAFT
	17	BALL BEARING
	18	CRANKSHAFT
	20	FLANGE
	21	O-RING
	22	SCREW
	24-1	SYNCHRONIZER
	24-2	SYNCHRONIZER
	25	SCREW
	26	SCREW
	27	WASHER
	28	SCREW

Page 11 — B. 駆動軸関係 / Crankshaft mechanism

Brother MA4-N31 (64 pages) parts on page 11

Ref	Part number	Part name	Qty
	S54001001	<スタンダード、ハイリフト用>	1
	S54002001	<超ハイリフト用>	1
	S39629021	ベアリングフタ	1
	081031870	Oリング S31.5	1
	062400812	ナベコ M4X8	2
	061400812	平コウM4X8	1
	072600000	タマシクウケ6000	1
	S39630000	クドウシ メタル	1
	065550001	ヒラザガネ	1
	155559001	ヒラザガネ	1
	S46900001	ニジユウカンテンビンク	1
	048400242	トメワノウケC40	1
	076203000	タマシクウケ6203	1
	S27868001	タマシクウケ6203V	1
	S25081001	バネ	1
	S20362151	オイレジエクター クイルキリ	1
	S39631000	ベアリングサオ	1
	S20353000	Oリング	1
	062401012	ナベコM4X10	3
	S39775001	プーリー	1
	S39565101	プーリー	1
	012060632	アテバネ6X6	1
	012060632	アテバネ6X6	1
	028060242	ワッシャー 32-6	1
	018062532	アナトメボルト6X25	1

Page 12 — C. 針棒関係 / Needle bar mechanism

Brother MA4-N31 (64 pages) parts on page 12

Ref	Part number	Part name	Qty
1	1	NEEDLE BAR MECHANISM
1-1	1-1	NEEDLE BAR
1-2	1-2	NEEDLE BAR CONNECTING ROD
1-3-1	1-3-1	CONNECTING ROD PIN
1-3-2	1-3-2	CONNECTING ROD PIN
2	2	NEEDLE BAR CONNECTING ROD BUSH
3	3	NEEDLE BAR CONNECTING ROD BUSH
4	4	NEEDLE BAR CONNECTING ROD
5	5	CIRCLIP
6	6	CIRCLIP
7	7	NEEDLE BAR CONNECTING ROD
7-1	7-1	NEEDLE BAR CONNECTING ROD PIN
7-2	7-2	NEEDLE BAR CONNECTING ROD PIN
7-3	7-3	NEEDLE BAR CONNECTING ROD PIN
7-4	7-4	NEEDLE BAR CONNECTING ROD PIN
7-5	7-5	NEEDLE BAR CONNECTING ROD PIN
7-6	7-6	NEEDLE BAR CONNECTING ROD PIN
8	8	NEEDLE BAR CONNECTING ROD
9	9	NEEDLE BAR CONNECTING ROD BUSH
10	10	NEEDLE BAR CONNECTING ROD BUSH
11	11	NEEDLE BAR CONNECTING ROD BUSH
12	12	NEEDLE BAR CONNECTING ROD
12-1	12-1	NEEDLE BAR CONNECTING ROD PIN
13	13	NEEDLE BAR CONNECTING ROD PIN
15	15	NEEDLE BAR CONNECTING ROD
16	16	NEEDLE BAR CONNECTING ROD PIN
17	17	NEEDLE BAR CONNECTING ROD
18	18	NEEDLE BAR CONNECTING ROD
20	20	NEEDLE BAR CONNECTING ROD PIN
21	21	NEEDLE BAR CONNECTING ROD
22	22	NEEDLE BAR CONNECTING ROD PIN
23	23	NEEDLE BAR CONNECTING ROD
24	24	NEEDLE BAR CONNECTING ROD PIN
25	25	NEEDLE BAR CONNECTING ROD
26	26	NEEDLE BAR CONNECTING ROD PIN
27	27	NEEDLE BAR CONNECTING ROD
28	28	NEEDLE BAR CONNECTING ROD PIN
29	29	NEEDLE BAR CONNECTING ROD BUSH
30	30	NEEDLE BAR CONNECTING ROD
32	32	NEEDLE BAR CONNECTING ROD
33	33	NEEDLE BAR CONNECTING ROD PIN

Page 13 — C. 針棒関係 / Needle bar mechanism

Brother MA4-N31 (64 pages) parts on page 13

Ref	Part number	Part name	Qty
	S54003001	ハリクランクロッドクミS
	S54006001	ハリクランクロッドクミH
	S54007001	ハリクランクロッドクミE
1-1	018401622	アボルト4X16	2
1-2	S23342001	ナットガリ4X5	1
1-3-1	017061612	ボルト6X16	1
1-3-2	118735002	ワッシャー	1
2	S39644021	ハリジクメタルL	1
3	S39645021	ハリジクメタルR	1
4	S39646021	ハリジク	1
5	S39647000	ザガネ	1
6	146293001	トメワE10	1
7	S39566001	ハリボウ ウタクミ	1
7-1	S23342001	ナットガリ4X5	2
7-2	S46899001	ザガネツキボルト6X16	1
7-3	062350812	ナベコ3.5X8	1
7-4	S20391001	スペーサ	1
7-5	S20392000	フエルト	2
7-6	155162001	スペーサ	1
8	S39574001	ハリボウ	1
9	S39648021	ハリボウ ウメタルD	1
10	S39571021	ハリボウ ウメタルU	1
11	104450101	ゴムセン8	1
12	*	ハリドメメクミ	1
12-1	146427001	ナットメネシ3.18Xボルト	2
13	*	シンメシDCX27	2
15	S39649021	ハリイタササエタ	1
16	018062532	アボルト6X25	2
17	S39650051	ハリイタササエタF	1
18	S39652021	ハリイタササエタB	1
20	062401012	ナベコM4X10	4
21	S20415101	イトウハリウケ	1
22	S20416101	ボルト3.5X10	1
23	S20418051	オーバハリウケF	1
24	S23456101	ナベコ25X6	2
25	S38306051	ニジカンハリウケF	1
26	062350812	ナベコ3.5X8	1
27	S38307001	ニジカンハリウケB	1
28	062300812	ナベコ3X8	2
29	S39654051	ハリウケブラケット	1
30	062401012	ナベコM4X10	1
32	*	ハリイタ	1
33	100032003	サラネジ 4.37	2

Page 14 — D. 針冷却関係 / Needle cooler E. 縁カガリ定規関係 / Serging attachment

Brother MA4-N31 (64 pages) parts on page 14

Ref	Part number	Part name	Qty
1-1-1	1-1-1	OPTION PARTS
1-3	1-3	OPTION PARTS
1-4	1-4	OPTION PARTS
1	1	OPTION PARTS
1-9	1-9	OPTION PARTS
1-2	1-2	OPTION PARTS
1-3	1-3	OPTION PARTS
1-8	1-8	OPTION PARTS
1-1	1-1	OPTION PARTS
1-7	1-7	OPTION PARTS
1-6	1-6	OPTION PARTS
1-4	1-4	OPTION PARTS
2	2	OPTION PARTS
1-5	1-5	OPTION PARTS

Page 15 — D. 針冷却関係 / Needle cooler E. 縁ガリ定規関係 / Serging attachment

Brother MA4-N31 (64 pages) parts on page 15

Ref	Part number	Part name	Qty
	S43525001	"OPTION PARTS"	1
	S20468001	NEEDLE COOLER SET, S	1
	S20460000	FELT SUPPORT ASSY	1
	S23418002	CAP, SILICONE TANK	2
	060401012	SCREW, M4X5	1
	S06704001	SCREW, BIND M4X10	1
	S06704001	SILICONE OIL	1
	S32140001	"OPTION PARTS"	1
	S23896101	EDGE GUIDE ASSY	1
	S23773001	SETTING PLATE, ;EDGE GUIDE	1
	146598001	SHOULDER SCREW, M4	1
	S23897001	WASHER, BOWL SPRING	1
	021400212	EDGE GUIDE SUPPORT	1
	S21341001	NUT, 2 M4	1
	062300512	STOPPER	1
	146600001	SCREW, PAN M3X5	1
	062350612	EDGE GUIDE	1
	062401012	SCREW, PAN M3.5X6	1
	062401012	SCREW, PAN M4X10	1

Page 16 — F1. 押工関係 / Presser foot mechanism

Brother MA4-N31 (64 pages) parts on page 16

Ref	Part number	Part name	Qty
	1	Presser foot mechanism
	2	Presser bar assembly
	2-1	Presser bar spring
	2-2	Presser bar pin
	3	Washer
	4	Presser bar lifter
	5	Presser bar support
	6	Lever
	7	Spring
	8	Screw
	9	Spring
	10	Screw
	11	Lever
	12	Roller
	13	Screw
	14	Washer
	15	Spring
	16	Pin
	17	Screw
	18	Nut
	19	Hook
	20	Plate
	21	Presser foot holder
	21-1	Pin
	22	Screw
	23	Spring
	24	Presser foot
	25	Spring
	26	Shaft
	27	Clip
	28	Washer
	29	Pin
	30	Screw
	34	Lever
	35	Screw
	38-1	Spring
	38-2	Spring
	38-3	Spring
	38-4	Spring
	39	Spring
	40	Bracket
	41	Screw
	44	Taping guide

Page 17 — F1. 押工関係 / Presser foot mechanism

Brother MA4-N31 (64 pages) parts on page 17

Ref	Part number	Part name	Qty
	S39658001	ADJUSTING SCREW, PRESSER	1
	S39575001	PRESSER BAR ASSY	1
	S39577000	CUSHION	1
	047301642	SPRING PIN AW3	1
	105161004	WASHER, PLAIN	1
	S20476001	PRESSER SPRING	1
	S38308121	MAIN PRESSER ARM	1
	S39659021	PRESSER BAR LIFTER	1
	S39660001	SPRING, PRESSER BAR LIFTER	1
	S39661001	SHOULDER SCREW, M4	1
	S39662001	MAIN PRESSER ARM STOPPER	1
	060400612	SCREW, BIND M4X6	1
	S39663121	PRESSER FOOT LIFTER LEVER	1
	S39664101	COLLAR	1
	018062532	BOLT, SOCKET M6X25	1
	025060332	WASHER, PLAIN L 6	1
	S39665001	SPRING	1
	047502542	PIN, SPRING ROLL AW5	1
	S39770001	SCREW, M4	1
	021400212	NUT, 2 M4	2
	S20485001	PRESSER BAR LIFTER LINK	1
	S39666001	LIFTER LEVER, ;P-BAR	1
	S39667021	LIFTER ARM ASSY, ;P-BAR	1
	047401442	PIN, DOWEL ;AW4	1
	018061632	BOLT, SOCKET M6X16	1
	S39669101	SPRING	1
	S39670000	BUSH, ;P-ARM SHAFT	1
	012060632	SET SCREW, SOCKET (FT) M6X6	1
	S39671121	PRESSER ARM SHAFT	1
	048090342	RETAINING RING, E9	2
	S30562000	WASHER	1
	S39672001	PIN, ;P-ARM	1
	S46903001	SET SCREW, M4X5	1
	S37070121	FINGER GUARD, V	1
	060300412	SCREW, BIND M3X4	1
	S44744001	SPRING, TWIST	1
	S20115001	SPRING, TWIST	1
	S20117001	SPRING, TWIST	1
	S30889001	SPRING, TWIST	1
	060300612	SCREW, BIND M3X6	1
	S30888001	SUB PRESSER ARM	1
	062670712	SCREW, PAN SM3.57-40X7	1
	S23364000	TAPE GUIDE	1

Page 18 — F2. 押工関係 / Presser foot mechanism

Brother MA4-N31 (64 pages) parts on page 18

Ref	Part number	Part name	Qty
50-1-7	50-1	50-1-7
50-1-5	50-1	50-1-5
50-1-6	50-1	50-1-6
50-1-4	50-1	50-1-4
50-1-3	50-1	50-1-3
50-1-2	50-1	50-1-2
50-1-1	50-1	50-1-1
50-5-4	50-5	50-5-4
50-5-1-1	50-5	50-5-1-1
50-5-3	50-5	50-5-3
50-5-2	50-5	50-5-2
50-5-1	50-5	50-5-1
50-6-7	50-6	50-6-7
50-6-5	50-6	50-6-5
50-6-6	50-6	50-6-6
50-6-4	50-6	50-6-4
50-6-3	50-6	50-6-3
50-6-2	50-6	50-6-2
50-6-1	50-6	50-6-1
50-10-6	50-10	50-10-6
50-10-1	50-10	50-10-1
50-10-5	50-10	50-10-5
50-10-4	50-10	50-10-4
50-10-3	50-10	50-10-3
50-10-2	50-10	50-10-2
50-15-3	50-15	50-15-3
50-15-4	50-15	50-15-4
50-15-3	50-15	50-15-3
50-15-1	50-15	50-15-1
50-15-2	50-15	50-15-2
50-16-8	50-16	50-16-8
50-16-5	50-16	50-16-5
50-16-6	50-16	50-16-6
50-16-4	50-16	50-16-4
50-16-3	50-16	50-16-3
50-16-2	50-16	50-16-2
50-16-1	50-16	50-16-1
50-16-7	50-16	50-16-7

Page 19 — F2. 押工関係 / Presser foot mechanism

Brother MA4-N31 (64 pages) parts on page 19

Ref	Part number	Part name	Qty
	*	オサエグミ	1
	S19311101	オサエサエネシ	1
	*	オサエIF	1
	105288001	シメネジ 2.38	1
	S19307001	オサエIBサエネシ	1
	S19308001	2シュナット318-44	1
	S19309001	オサエBスプリングハネ	1
	062670712	ナベコ357-40X7	1
	*	オサエグミ	1
	S19311101	オサエサエネシ	3
	*	オサエIF	1
	106640001	シメネジ 3.18	1
	062670712	ナベコ357-40X7	1
	*	オサエグミ	1
	S19311101	オサエサエネシ	1
	*	オサエIF	1
	140530002	シメネジ 2.38	1
	S19307001	オサエIBサエネシ	1
	S19308001	2シュナット318-44	1
	S19309001	オサエBスプリングハネ	1
	062670712	ナベコ357-40X7	1
	*	オサエグミ	1
	S19311101	オサエサエネシ	1
	*	オサエIF	1
	105288001	シメネジ 2.38	1
	025660132	ヒラザガネショウ3.18	1
	106640001	シメネジ 3.18	1
	062670712	ナベコ357-40X7	1
	*	オサエグミ	1
	S19311101	オサエサエネシ	3
	*	オサエIF	1
	100080004	シメネジ 3.18	2
	062670712	ナベコ357-40X7	1
	*	ツメ	1
	S19368001	オサエトリツケイタ	1
	025030132	ヒラザガネショウ3	1
	150755001	シメネジ 3.18	1
	S30590001	オサエIBサエネシ	1
	500296002	ナツト	1
	047161042	スプリングピンAW1.6	1
	S53955001	オサエBネジナリハネ	1

Page 20 — G. 送り関係 / Feed mechanism

Brother MA4-N31 (64 pages) parts on page 20

Ref	Part number	Part name	Qty
22	22	Screw
20	20	Cover
21	21	Ring
19	19	Ring
8	8	Shaft
18	18	Washer
17	17	Bush
8-1	8-1	Shaft
57	57	Pin
55	55	Spring
54-1	54-1	Shaft
59	59	Ring
60	60	Screw
66	66	Spring
61	61	Arm
65	65	Screw
58	58	Arm
63	63	Washer
62	62	Screw
1-1	1-1	Shaft
1-3	1-3	Spring
1-2	1-2	Shaft
1-4	1-4	Screw
2	2	Screw
54	54	Shaft
56	56	Ring
31	31	Screw
30	30	Washer
26	26	Block
25-1	25-1	Spring
53	53	Screw
52	52	Arm
50	50	Arm
34	34	Screw
33	33	Lever
38	38	Washer
39	39	Bush
15	15	Shaft
16	16	Bush
51	51	Screw
29	29	Washer
32	32	Screw
27	27	Screw
36	36	Washer
37	37	Screw
35	35	Shaft
23	23	Frame
24	24	Block
40-1	40-1	Screw
40	40	Shaft
41	41	Washer
42	42	Screw
69	69	Screw
70	70	Screw
76	76	Screw
75-1	75-1	Screw
75	75	Shaft
9	9	Shaft
10	10	Spring
13	13	Washer
14	14	Washer
44	44	Arm
45	45	Arm
47	47	Spring
46	46	Arm
47	47	Spring
78	78	Screw
48-1	48-1	Screw
43	43	Arm
49	49	Washer
48-2	48-2	Screw
77	77	Arm

Page 21 — G. Feed mechanism

Brother MA4-N31 (64 pages) parts on page 21

Ref	Part number	Part name	Qty
	S39578001	ECCENTRIC WHEEL ASSY	1
	047301242	PIN, SPRING ROLL AW3	2
	047301242	PIN, SPRING ROLL AW3	1
	S39585001	SPRING, TWIST	1
	S39586001	SCREW, M3	1
	012060632	SET SCREW, SOCKET (FT) M6X6	2
	S39673020	BALANCE WEIGHT	1
	012060632	SET SCREW, SOCKET (FT) M6X6	2
	S39589021	FEED ARM ASSY	1
	018061632	BOLT, SOCKET M6X16	1
	S39674001	FEED ADJUSTING SHAFT	1
	S39675001	SPRING, COMPRESSION	1
	081005070	O RING, P5	1
	025710232	WASHER, PLAIN M 4.76	1
	025710232	WASHER, PLAIN M 4.76	1
	048040342	RETAINING RING, E4	1
	S39676121	FEED SHAFT	1
	S39677021	BUSH, 11.11-17	1
	S39678021	BUSH, L;FEED SHAFT	1
	S30562000	WASHER	1
	048090342	RETAINING RING, E9	1
	S39679001	CAP	1
	081020070	O RING, P20	1
	060400612	SCREW, BIND M4X6	3
	S50091001	FEED BRACKET ASSY	1
	S38312050	SLIDE BLOCK, F-LIFTING	1
	S44955001	SET SCREW COLLAR	1
	012060632	SET SCREW, SOCKET (FT) M6X6	1
	S39683000	SLIDE BLOCK, F-BAR	1
	S39684001	SHAFT, SLIDE BLOCK	1
	S39685001	SET SCREW COLLAR	1
	012400432	SET SCREW, SOCKET (FT) M4X4	1
	S20530001	WASHER	1
	004350812	SCREW, FLAT M3.5X8	1
	012400832	SET SCREW, SOCKET (FT) M4X8	1
	S42042021	MAIN FEED ARM	1
	018061632	BOLT, SOCKET M6X16	1
	S39773001	MAIN FEED LINK ASSY	1
	S39690021	WASHER	1
	S23360001	BOLT, M5X15	1
	S02573020	WASHER	1
	S39691001	NUT, M5	1
	S39769051	DIF. FEED ARM LINK ASSY	1
	018061632	BOLT, SOCKET M6X16	1
	S39690021	WASHER	1
	S23360001	BOLT, M5X15	1
	S38311100	COVER, FEED BAR GUIDE	1
	S39686000	FEED BAR GUIDE, L	1
	S39687000	FEED BAR GUIDE, R	1
	S39688001	FRAGMENT PROTECTOR PLATE	1
	S20526000	FRAGMENT PROTECTOR PLATE	3
	S43916001	BOLT, SOCKET M4X8 SEAL	4
	018400832	BOLT, SOCKET M4X8	2
	025040132	WASHER, PLAIN S 4	2
	S39692021	DIF. FEED ADJUSTING LINK	1
	S20543101	SCREW, M5	1
	S20544000	DIFFERENTIAL LINK LEVER	1
	018061432	BOLT, SOCKET M6X14	1
	S39593021	DIF. FEED ADJUSTING LEVER ASSY	1
	S39596021	NUT, ROUND M6	1
	S20547001	SPRING	1

Page 22

Brother MA4-N31 (64 pages) parts on page 22

Ref	Part number	Part name	Qty
	22	Screw
	20	Cover
	21	Washer
	19	Clip
	8	Shaft
	18	Washer
	17	Bush
	8-1	Feed rocker arm assembly
	57	Pin
	54	Feed eccentric shaft
	54-1	Feed eccentric shaft
	55	Spring
	60	Screw
	64	Screw
	66	Washer
	65	Screw
	62	Screw
	63	Washer
	1-3	Spring
	1-4	Screw
	1-1	Feed cam assembly
	1-2	Feed cam assembly
	2	Screw
	1	Feed rocker arm assembly
	58	Screw
	59	Washer
	61	Feed rocker arm assembly
	11	Washer
	12	Spring
	10	Feed dog
	13	Washer
	14	Feed dog
	9	Feed dog
	5	Feed rocker arm assembly
	25-1	Screw
	25-2	Screw
	6	Feed rocker arm assembly
	30	Washer
	31	Screw
	26	Nut
	53	Screw
	52	Feed rocker arm assembly
	56	O-ring
	50	Feed rocker arm assembly
	23	Feed dog assembly
	24	Block
	15	Shaft
	34	Screw
	33	Feed rocker arm assembly
	38	Washer
	39	Nut
	16	Bush
	32	Washer
	27	Screw
	29	Screw
	28	Bush
	51	Screw
	36	Washer
	37	Screw
	35	Feed rocker arm assembly
	40	Feed rocker arm assembly
	41	Washer
	42	Screw
	69	Screw
	70	Screw
	76	Screw
	75	Feed rocker arm assembly
	75-1	Screw
	44	Feed dog
	45	Feed dog
	47	Feed dog
	46	Feed dog
	78	Screw
	77	Feed dog assembly
	48-1	Screw
	43	Feed rocker arm assembly
	49	Washer
	48-2	Screw

Page 23 — G. 送り関係 / Feed mechanism

Brother MA4-N31 (64 pages) parts on page 23

Ref	Part number	Part name	Qty
	081005670	O RING, PW5	1
	047502542	PIN, SPRING ROLL AW5	1
	S39693001	DIFFERENTIAL STITCH CONTROL	1
	S20548001	COLLAR	2
	018061632	BOLT, SOCKET M6X16	2
	S25818051	STOPPER, ADJUSTING LEVER	2
	060350812	SCREW, BIND M3.5X8	2
	025350332	WASHER, PLAIN L 3.5	2
	S39694001	KNOB, SCREW	1
	S39695001	SET SCREW	1
	S20560001	WASHER, FLAT SPRING	1
	S23628101	FEED DOG SETTING BASE	1
	S23621101	BOLT, M3.5X8	1
	*	MAIN FEED DOG ASSY	1
	060630712	SCREW, BIND SM2.38-56X7	1
	S23621101	BOLT, M3.5X8	1
	*	DIFFERENTIAL FEED DOG	1
	S23621101	BOLT, M3.5X8	1

Page 24

Brother MA4-N31 (64 pages) parts on page 24

Ref	Part number	Part name	Qty
1	1-2-1	Screw
1	1-2-2	Washer
1	1-3	Pin
1	1-1	Screw
6	6-1	Spring
15	15-6	Knife
15	15-1	Knife
16	16-1	Screw
9	9-1	Bracket
10	10-1	Screw
11	11-1	Washer
18	18	Screw
19	19	Bracket
21	21	Screw
22	22	Lever
25	25	Holder
26	26	Screw
27	27	Spring
28	28	Bracket
29	29	Screw
15	15-2	Knife
9	9-2	Bracket
14	14	Washer
16	16-2	Screw
12	12	Bracket
13	13	Bracket
10	10-2	Screw
11	11-2	Washer

Page 25 — H. 上メス・下メス関係 / Knife mechanism

Brother MA4-N31 (64 pages) parts on page 25

Ref	Part number	Part name	Qty
1	S54011001	ウワメス クランク ロツド グミ
1-1	010401001	アナホルト4X16
1-2-1	017061612	ボルト6X16
1-2-2	118735002	サガネ
1-3	S23342001	アナトガリ4X5
2	S20571101	ウワメス サトウ ウデ
3	155247000	ダストシール
4	S39704021	ウワメス メタル
5	S39677021	ブツシ 11.11-17
6	S43527001	セツト カラークミ
6-1	012060632	アナホルト6X6
8	S20574001	ウワメス キナツト
9-1	S20589101	ウワメス キ
10-1	062401212	ナベコ4X12
11-1	025040132	ヒラサガネヨウ4
15-1	144074350	ウワメス
16-1	S23621101	ボルト35X8
9-2	S20590101	ウワメス
10-2	062402512	ナベコ4X25
11-2	125324001	ヒラサガネ ネダイ4ツメ
12	S20577001	ウワメス
13	S20578101	ウワメスサエ
14	025030132	ヒラサガネヨウ3
15-2	*	カクメス
16-2	062300412	ナベコ3X4
17	S20591101	シタメス トリツケダイ
18	062060812	ナベコ6X8
19	S39707001	シタメス トリツケダイ アンナイ
21	062060812	ナベコ6X8
22	*	シタメス
25	S39708001	シタメスサエ
26	017500812	ボルト5X8
27	S20585001	シタメス トリツケダイバネ
28	S39709021	シタメスバネウケ
29	060400812	バインド M4X8
15-2	S20896101	カクメス
15-3	S20897101	カクメス
15-4	S20579101	カクメス
15-5	S20898101	カクメス
15-6	S30890000	ウワメス

Page 26 — J. ラッパー関係 / Lapper mechanism

Brother MA4-N31 (64 pages) parts on page 26

Ref	Part number	Part name	Qty
4	4	Lapper
5	5	Plate
6	6	Screw
7	7	Bracket
8	8	Screw

Page 27 — J. ラッパー関係 / Lapper mechanism

Brother MA4-N31 (64 pages) parts on page 27

Ref	Part number	Part name	Qty
	S29824000	ラッパー-8クミ <テープ幅8mm>
	S29827000	ラッパー-10クミ <テープ幅1.0mm>
	S29835001	ラッパーアンナイタ
	S23418002	シメネジ 4X5
	S29831000	ラッパーアンナイタ
	060400612	バインド M4X6

Page 28 — K. 上ルーパ関係 / Over looper mechanism

Brother MA4-N31 (64 pages) parts on page 28

Ref	Part number	Part name	Qty
1	1-1	SCREW
1	1-2	SCREW
2	2	WASHER
3	3	SHAFT
4	4	SLEEVE
5	5	ROD
6-1	6-1	SPRING
7	7	WASHER
8	8	BOLT
9-1	9-1	LOOPER ROCK SHAFT
9-2	9-2	LOOPER ROCK SHAFT
9-2-1	9-2-1	BOLT
9-2-2	9-2-2	WASHER
9-3	9-3	LOOPER
9-4	9-4	SCREW
9-5	9-5	LOOPER ROCK SHAFT
9-6	9-6	SCREW
10	10	SCREW
11	11	RING
12	12	NEEDLE GUARD
13	13	SCREW
14	14	PIN

Page 29 — K. 上ルーバー関係 / Over looper mechanism

Brother MA4-N31 (64 pages) parts on page 29

Ref	Part number	Part name	Qty
	S54012001	ウワーパロットクミS	1
	018401622	アナボルト4X16	4
	S23346101	アナボルト6X14ホソメ	1
	S54015001	ウワーパロットクミHE	1
	018401622	アナボルト4X16	4
	S23346101	アナボルト6X14ホソメ	1
	S20598000	ロットストッパー	2
	S39728021	メタル11.11-18	1
	S39728021	メタル11.11-17	1
	S20601001	ウワーパシツク	1
	S43527001	セットカラークミ	1
	012060632	アナヒラ6X6	2
	S23626001	ザガネ	1
	017060812	ボルト6X8	1
	S52053001	ウワーパキコウウクミSH	1
	S52054001	ウワーパキコウクミ	1
	S52060001	ウワーパウデSHクミ	1
	S46903001	アタマツキトメネジ4X5	1
	S52062001	ウワーパキコウウクミSH	1
	S52054001	ウワーパキコウクミ	1
	S52063001	ウワーパウデEクミ	1
	012400432	アナボルト4X4	1
	S46899001	ザガネツキボルト6X16	1
	155162001	スペーサ	1
	S29700000	ウワーパアナイフエルト	2
	S23342001	アナトガリ4X5	1
	S52059001	ウワーパアンナイオサエ	1
	S20355002	シメネジ3X8.5	2
	018061432	アナボルト6X14	1
	155247000	ダストシール	1
	*	ウワーパ	1
	118550001	ミゾツキピン	1

Page 30 — L. 下ルーパ関係 / Under looper mechanism

Brother MA4-N31 (64 pages) parts on page 30

Ref	Part number	Part name	Qty
1	1-1	BOLT
3	3	WASHER
7	7	NUT
6	6	WASHER
9	9	COLLAR
5	5	LOOPER SHAFT
10	10	LOOPER
8	8	LOOPER ROCK SHAFT
2	2	SCREW
11	11	LOOPER DRIVING LEVER
12	12	SCREW
13	13	SPRING
14-1	14-1	NEEDLE PLATE
15	15	SCREW
14-2	14-2	NEEDLE PLATE

Page 31 — L. 下ルーバー関係 / Under looper mechanism

Brother MA4-N31 (64 pages) parts on page 31

Ref	Part number	Part name	Qty
	S54018001	シタルーパ ロッド グミ ISH	1
	018401622	アナボルト 4X16	4
	S54019001	シタルーパ ロッド グミ IE	1
	018401622	アナボルト 4X16	4
	012060632	アナビラ 6X6	2
	S20598000	ロッド フレット ドメ	2
	S46904001	シタルーパ シャフト	1
	S23626001	ザガネ	1
	017060812	ボルト 6X8	1
	S39728021	メタル 11.11-18	1
	S39677021	メタル 11.11-17	1
	155247000	ダストシール	1
	S20625151	シタルーパ トリツケダイ	1
	S23614101	フランジ ボルト 5X14	1
	148782001	スペーサー	1
	S20626001	シタルーパ	1
	060351012	バインド 3.5X10	1
	S20627001	シタルーパ	1

Page 32 — M. 二重環ルーパ関係 / Double chain stitch looper mechanism

Brother MA4-N31 (64 pages) parts on page 32

Ref	Part number	Part name	Qty
1	1	LOOPER SHAFT
3	3	LOOPER SHAFT HOLDER
4	4	LOOPER SHAFT COLLAR
5	5	SET SCREW
6	6	LOOPER SHAFT BRACKET
7	7	SCREW
8	8	WASHER
9	9	NUT
10	10	LOOPER SHAFT BRACKET
11	11	SCREW
12	12	LOOPER SHAFT BRACKET
12-1	12-1	SCREW
12-2	12-2	WASHER
14	14	LOOPER SHAFT BRACKET
14-1	14-1	SCREW
14-2	14-2	WASHER
15	15	LOOPER SHAFT BRACKET
16	16	PIN
17	17	SCREW
18	18	SCREW
19	19	WASHER
20	20	LOOPER SHAFT
21	21	LOOPER SHAFT COLLAR
22	22	LOOPER SHAFT BRACKET
23	23	WASHER
24	24	LOOPER
25	25	SCREW
26	26	SCREW
27	27	LOOPER
28	28	SCREW
29	29	SCREW
30	30	WASHER

Page 33 — M. 二重環ルーパ関係 / Double chain stitch looper mechanism

Brother MA4-N31 (64 pages) parts on page 33

Ref	Part number	Part name	Qty
	S39729021	ゼンゴロッドクミ	1
	S39732021	ゼンゴウデ	1
	S39733001	セットカラー	1
	012400432	アナヒラ4X4	2
	S29102001	ゼンゴロッドブッシュ	1
	S39734021	ゼンゴウデネジ	1
	S39690021	ザガネ	1
	021500216	2ユナット5	1
	S39735050	ゼンゴウデカクゴマ	1
	S20641001	ダンネジ 5	1
	S31881101	カクゴマキネスツキ	1
	018061432	アナボルト6X14	1
	155162001	スペーサ	1
	S44935101	ニジユカンクミ	1
	018061432	アナボルト6X14	1
	155162001	スペーサ	1
	S44937101	ニジユカンリンクミ	1
	S44939001	ニジユカンウデジク	1
	062300612	ナベコ3X6	1
	S23360001	ボルト5X15	1
	S57922001	ザガネ	1
	S39740001	ゼンゴジク	1
	S39741021	ゼンゴジクウデブシF	1
	S39742021	ゼンゴジクウデブシB	1
	155261000	ダストシール	1
	S20652001	ニジユカンルーパホルダ	1
	S23614101	フランジボルト5X14	1
	148782001	スペーサ	1
	S20653001	ニジユカンルーパ	1
	060350812	バインド 35X8	1
	S20654001	ルーパチョウセツザガネ	1
	S23456101	ナベコ25X6	1

Page 34 — N. Lubrication

Brother MA4-N31 (64 pages) parts on page 34

Ref	Part number	Part name	Qty
	20	Screw
	19	Washer
	21	Lubricating tube
	22	Lubricating tube
	29-2	Oil retainer
	29-1	Oil retainer
	25	Roller
	23	Oil wick
	24	Screw
	7	Screw
	9	Screw
	8-1	Clip
	8	Oil tube
	17	Screw
	15	Oil tube
	16	Screw
	29	Oil retainer
	11	Oil tube
	12	Screw
	10-1	Clip
	10	Oil tube
	6	Screw
	18	Knob
	13-1	Clip
	13	Oil tube
	2	Screw
	1	Oil cup
	3	Collar
	4	Shaft assembly
	4-1	Gear
	4-2	Screw
	4-4	Shaft
	4-3	Shaft
	4-5	Washer
	4-6	Screw
	4-7	Washer
	4-8	Clamp
	4-9	Screw

Page 35

Brother MA4-N31 (64 pages) parts on page 35

Ref	Part number	Part name	Qty
	S20655101	ウオーム	1
	012500532	アナヒラ5X5	2
	S39743001	カラー	1
	S39597001	トロコイドポンプクミ	1
	S20657001	ウオームホイール	1
	012400432	アナヒラ4X4	2
	S39599001	ポンプインナーロータークミ	1
	S39598000	ポンプケース	1
	S39601000	ポンプ タイフタ	1
	062400812	ナベコ4X8	3
	S39602000	ロカモウ	1
	S39603001	ロカモウオサエ	1
	062401212	ナベコ4X12	1
	018061432	アナホルト6X14	2
	S39744021	ハイユパイプツキテ	1
	S39745001	ビニルチュ-ブクミ	1
	147942001	ビニルチュ-ブトメガネ	2
	S20199001	ハイユパイプツキテ	1
	S39747001	ビニルチュ-ブクミ	1
	147942001	ビニルチュ-ブトメガネ	2
	S39751021	キユウパイプ	1
	S39744021	ハイユパイプツキテ	1
	S39749001	ビニルチュ-ブクミ	1
	147942001	ビニルチュ-ブトメガネ	2
	S20199001	ハイユパイプツキテ	1
	S39752021	ロツト キユウパイプ	1
	012400432	アナヒラ4X4	1
	012060632	アナヒラ6X6	1
	148084001	オイルゲージマト	1
	S20668200	ハリホウウリンクフエルト	1
	061400812	サラコM4X8	1
	S49337000	クミヒモ70	1
	S20671000	クミヒモ100	1
	S20669000	フエルト	1
	060400812	バインド M4X8	1
	S20392000	フエルト	1
	S43523000	フィルタークミ	1
	S43521000	ロカモウD	1
	S43522000	オイルフィルター	1

Page 36 — P. 糸調子関係 / Thread tension

Brother MA4-N31 (64 pages) parts on page 36

Ref	Part number	Part name	Qty
	19-5	Thread tension
	18	Thread tension
	14	Thread tension
	13	Thread tension
	12	Thread tension
	11	Thread tension
	10	Thread tension
	9	Thread tension
	8	Thread tension
	44-2	Thread tension
	40-2	Thread tension
	54	Screw
	53	Screw
	57	Screw
	55	Shaft
	62	Screw
	61	Nut
	60	Washer
	71	Screw
	72	Screw
	68	Screw
	66	Screw
	67	Lever
	65	Screw
	64	Washer
	73	Disc
	74	Disc
	70	Screw
	69	Lever
	1	Frame
	9	Shaft
	10	Washer
	11	Washer
	12	Washer
	13	Cap
	56	Bracket
	59	Screw
	58	Bracket
	44-1	Bracket
	45	Screw
	46	Lever
	47	Screw
	48	Lever
	49	Screw
	50	Screw
	33	Screw
	26	Lever
	37	Lever
	28	Screw
	29	Bracket
	30	Screw
	32	Screw
	31	Screw
	13	Disc
	14	Disc
	15	Disc
	16	Disc
	17	Disc
	19-3	Disc
	19-4	Disc
	19-1	Disc
	19-2	Disc
	43	Screw
	42	Lever
	51	Screw
	52	Screw
	21	Pin
	22	Pin
	23	Bracket
	24	Screw
	25	Lever
	27	Screw
	27	Screw
	63	Bracket
	75	Lever
	76	Screw

Page 37 — P. 糸調子関係 / Thread tension

Brother MA4-N31 (64 pages) parts on page 37

Ref	Part number	Part name	Qty
	S38328051	シュイトアンナイ	1
	S20676051	イトチョウシボウ	4
	S20677000	イトチョウシサラフエルト	4
	S20673001	イトチョウシサラ	8
	10832009	イトチョウシサラフエルト	4
	144103009	イトチョウシサラオサエ	4
	S20678001	イトチョウシバ ネL	1
	S32276001	イトチョウシバ ネLL	1
	S20679001	イトチョウシバ ネM	1
	S20679001	イトチョウシバ ネM	1
	S20681000	チョウシバ ネウエザガネ	4
	S20682103	イトチョウシナット.	1
	S20682101	イトチョウシナット.	1
	S20682104	イトチョウシナット.	1
	S20682102	イトチョウシナット.	1
	146592001	イトアンナイパイプ	2
	S23452002	アナヒラ4X3.2	2
	S20684101	イトアンナイダイ	1
	060400612	バインド M4X6	2
	S20685001	シタルパイトアンナイR	1
	S20686001	ウフルーパイトアンナイR	1
	S23418002	シメネジ 4X5	2
	S21133001	ウフルーパテンビンR	1
	S21134001	シタルーパテンビンR	1
	060400412	バインド M3X4	1
	S21137001	ルーパテンビンL	1
	060400612	バインド M4X6	2
	S21137001	ルーパイトアンナイM1	1
	S21136101	ウフルーパイトアンナイL	1
	060400612	バインド M4X6	1
	S20687001	シタルーパイトアンナイC	1
	S38329001	ハイトアンナイC	1
	060400612	バインド M4X6	1
	S21126001	ハイトアンナイB	1
	060400612	バインド M4X6	1
	S21130051	ハイトテンビンA	1
	060400612	バインド M4X6	1
	S21125001	ハイトアンナイA	1
	060400612	バインド M4X6	1
	S38330050	ハイトオサエホルダー	1
	146427001	アナトメネジ 3.18クボミ	2
	S20689001	ハイトオサエカラー	1
	S20690001	ハイトオサエバネ	1
	S20691001	ハイトオサエイタ	1
	S20743001	ハイトアンナイ	1
	060400612	バインド M3X6	1
	S20694001	DLイトアンナイB	1
	060400612	バインド M4X6	1
	S20695001	DLイトアンナイパイプ	1
	S20696001	イトアンナイパイプササエ	1
	060400612	バインド M4X6	1
	S20697001	DLチョウシライトアンナイ	1
	S20698121	イトチョウシボウ	1
	144504001	イトアンナイサラ	2
	158782151	プレテンションバネ	1
	155510001	イトチョウシナット	1
	S39756021	イトサハキドダイ	1
	028050242	ハネサガネ2-5	1
	S20342001	ダンネジ 4	1
	S20701001	テンビンイトサハキ	1
	S39757001	カラー	1

Page 38 — P . 糸調子関係 / Thread tension

Brother MA4-N31 (64 pages) parts on page 38

Ref	Part number	Part name	Qty
19-5	19-5	Thread tension knob
18	18	Spring
14	14	Washer
13	13	Washer
12	12	Washer
11	11	Washer
10	10	Washer
9	9	Thread tension stud
8	8	Base
54	54	Screw
53	53	Bracket
1	1	Bracket
13	13	Washer
14	14	Washer
15	15	Spring
16	16	Spring
17	17	Spring
19-3	19-3	Thread tension knob
19-4	19-4	Thread tension knob
57	57	Screw
55	55	Shaft
56	56	Bracket
62	62	Knob
61	61	Spring
60	60	Washer
59	59	Screw
58	58	Bracket
44-1	44-1	Bracket
45	45	Screw
40-1	40-1	Bracket
41	41	Screw
48	48	Screw
47	47	Screw
46	46	Bracket
43	43	Screw
51	51	Bracket
52	52	Screw
49	49	Screw
50	50	Bracket
33	33	Bracket
35	35	Screw
36	36	Bracket
26	26	Lever
27	27	Screw
21	21	Pin
22	22	Screw
23	23	Bracket
24	24	Screw
44-2	44-2	Bracket
40-2	40-2	Bracket
65	65	Screw
64	64	Washer
67	67	Bracket
71	71	Bracket
72	72	Screw
63	63	Bracket
73	73	Base
74	74	Screw
70	70	Screw
69	69	Bracket
37	37	Bracket
28	28	Bracket
29	29	Bracket
30	30	Screw
32	32	Screw
31	31	Bracket
32	32	Screw
76	76	Bracket
75	75	Screw

Page 39 — P. 糸調子関係 / Thread tension

Brother MA4-N31 (64 pages) parts on page 39

Ref	Part number	Part name	Qty
	060401412	バインド M4X14	1
	150813001	トダイオサエバネ	1
	062350612	ナベコ M3.5X6	1
	S20702001	DLテンビンアンナイ	2
	S20158101	ナベコ25X3	2
	S20703051	DLテンビンクミ	1
	S23452002	アナヒラ M4X3.2	2
	S20707001	DLトアンナイA	1
	060400612	バインド M4X6	1
	S20675001	チョウシライトアンナイ	1
	S20676051	イトチョウシスタッド	5
	S20677000	イトチョウシサラフェルト	5
	S20673001	イトチョウシサラ	10
	110832009	イトチョウシサラフェルト	5
	144103009	イトチョウシサラオサエ	5
	S20678001	イトチョウシバネ L	2
	S20681000	チョウシバネウエザガネ	5
	S20682103	イトチョウシナット	2
	S21129001	ハリトアンナイB	1
	S21128001	ハリトアンナイA	1

Page 40 — Q1. ラフラー装置関係 / Ruffing attachment

Brother MA4-N31 (64 pages) parts on page 40

Ref	Part number	Part name	Qty
	1-1-15	Bracket
	1-1-16	Screw
	1-1-27	Bracket
	1-1-26	Screw
	1-1-12	Shaft
	1-1-10	Plate
	1-1-9	Lever
	1-1-11	Screw
	1-1-2	Shaft
	1-1-1	Base
	1-1-17	Shaft
	1-1-18	Lever
	1-1-3	Shaft
	1-1-19	Lever
	1-1-4	Lever
	1-1	Base
	1-1-13	Screw
	1-1-14	Washer
	1-1-5	Screw
	1-1-6	Washer
	1-7	Shaft
	1-4	Bracket
	1-5	Screw
	1-2	Screw
	1-8	Washer
	1-1-24	Bracket
	1-1-25	Screw
	1-1-21	Screw
	1-1-22	Nut
	1-1-23	Spring
	1-1-20	Screw
	1-6	Knob
	1-1-28	Spring
	2-17	Screw
	2-18	Nut
	2-14	Bracket
	2-9	Lever
	2-11	Shaft
	2-12	Screw
	2-10	Nut
	2-13	Bracket
	2-2	Bracket
	2-5	Screw
	2-4	Washer
	2-6	Screw
	2-15	Bracket
	2-16	Screw
	2-1	Bracket
	2-3	Shaft
	2-7	Screw
	2-8	Nut

Page 41 — Q1. ラフラー装置関係 / Ruffling attachment

Brother MA4-N31 (64 pages) parts on page 41

Ref	Part number	Part name	Qty
	S30304001	ラフラーアッセン	1
	S21293001	ラフラーウチクミ	1
	S21294001	キシ オサエタイ	1
	S21295001	キシ オサエトリツケジク	1
	S21305001	ハバネウケ	1
	S23777101	アタマツキトメネジ 6	2
	S20676051	イトチョウシホウウ	1
	S23775001	コイルバネ	1
	S20681000	チョウシバネザガネ	1
	S20682105	イトチョウシナツト	1
	S21296001	キシ オサエ	1
	144784001	キシ オサエザガネ	1
	062300812	ナベコ 3X8	2
	S21297001	ラフラーウチクミダイ	1
	S21306001	ダンネジ 6	1
	S21307001	ハバネザガネ	2
	S21298001	キシ オサエアンナイ	1
	062400812	ナベコ 4X8	1
	S21299001	キシ オサエアゲ	1
	S23651002	アナヒラ6X6ホソメ	2
	S21300001	ハンドルトツケイツケ	1
	021060302	ナツト 3シ6	1
	062401612	ナベコ M4X16	1
	021400212	2シュナツト4	1
	S21301001	ハンドルモトシバネ	1
	S21302001	キシ オサエイトメバネU	1
	062400612	ナベコ M4X6	1
	S21303001	キシ オサエイトメバネD	1
	062350512	ナベコ 3.5X5	2
	S21304001	カラー	1
	018401222	アナホルト4X12	2
	S21590000	キシ アンナイ	1
	S23418002	シメネジ 4X5	2
	S23779001	ハンドル	1
	021060302	ナツト 3シ6	1
	102707002	サガネ	1
	S43530001	ラフラーオサエレントウクミ	1
	S21310001	キシ オサエアゲレバー	1
	S21311001	オサエアゲダイ	1
	S21312001	ピン 6.35	1
	062060632	アナヒラ6X6	1
	062350812	ナベコ 3.5X8	2
	S39795001	ワイヤートツケイツケ	1
	S21314001	フレキシブルワイヤークミ	1
	S23774001	ダンネジ 3.5	1
	S21315001	スタツド M4	1
	021400432	2シュナツト4	1
	S21316001	ワイヤーストツパー	1
	012400432	アナヒラ4X4	1
	S23349001	レバーチョウセイイツケ	1
	060400812	バインド M4X8	2
	S39796001	スペーサ	1
	060400812	バインド M4X8	1
	011502012	トメネジ 5X20ヒラ	2
	021500312	シュナツト5	2

Page 42 — Q2. ラフラー装置関係 / Ruffing attachment

Brother MA4-N31 (64 pages) parts on page 42

Ref	Part number	Part name	Qty
	3-1-1-12	3-1-1-12
	3-1-1-13	3-1-1-13
	3-1-1-11	3-1-1-11
	3-1-1	3-1-1
	3-1-4	3-1-4
	3-1-1-1-1	3-1-1-1-1
	3-1-1-2	3-1-1-2
	3-1-1-5	3-1-1-5
	3-1-1-7	3-1-1-7
	3-1-1-8	3-1-1-8
	3-1-1-10	3-1-1-10
	3-1-1-9	3-1-1-9
	3-1-1-6	3-1-1-6
	3-1-3	3-1-3
	3-1-2	3-1-2
	3-1	3-1
	3-2-1-13	3-2-1-13
	3-2-1-12	3-2-1-12
	3-2-1-11	3-2-1-11
	3-2-1	3-2-1
	3-2-1-5	3-2-1-5
	3-2-1-7	3-2-1-7
	3-2-1-8	3-2-1-8
	3-2-4	3-2-4
	3-2-1-10	3-2-1-10
	3-2-1-9	3-2-1-9
	3-2-1-4	3-2-1-4
	3-2-1-6	3-2-1-6
	3-2-3	3-2-3
	3-2-2	3-2-2
	3-2	3-2

Page 43 — Q2. ラフラー装置関係 / Ruffing attachment

Brother MA4-N31 (64 pages) parts on page 43

Ref	Part number	Part name	Qty
	S30135101	DIFFERENTIAL ADJUSTING SET	1
	S21373101	DIFFERENTIAL FEED ADJUSTER	1
	155197101	KNEE LIFTER SHAFT BRACKET	1
	S21375001	KNEE LIFTER SHAFT	1
	155199101	BRACKET, KNEE LIFTER	1
	017781412	BOLT, SM6.35X14	2
	148797001	KNEE LIFTER BAR, S	1
	014780622	SET SCREW, SOCKET (CP) SM6.35	1
	148798109	KNEE LIFTER PLATE, L	1
	017081606	BOLT, M8X16	1
	S21376001	KNEE LIFTER LEVER	1
	017781412	BOLT, SM6.35X14	2
	S21377001	SPRING, TWIST	1
	S21378001	COLLAR	2
	017781412	BOLT, SM6.35X14	4
	S21379001	CONNECTING BAR	1
	021400202	NUT, 2 M4	2
	062401012	SCREW, PAN M4X10	4
	S30135102	DIF.ADJUSTING SET, FULL	1
	S21380101	DIFFERENTIAL FEED ADJUSTER	1
	155197101	KNEE LIFTER SHAFT BRACKET	1
	S21375001	KNEE LIFTER SHAFT	1
	155199101	BRACKET, KNEE LIFTER	1
	017781412	BOLT, SM6.35X14	2
	148797001	KNEE LIFTER BAR, S	1
	014780622	SET SCREW, SOCKET (CP) SM6.35	1
	148798109	KNEE LIFTER PLATE, L	1
	S21376001	BOLT, M8X16	1
	017781412	KNEE LIFTER LEVER	1
	S21377001	BOLT, SM6.35X14	2
	S21378001	SPRING, TWIST	1
	017781412	COLLAR	2
	S21381001	BOLT, SM6.35X14	4
	021400202	CONNECTING BAR	1
	062401012	NUT, 2 M4	2
	062401012	SCREW, PAN M4X10	4

Page 44 — Q3. ラフラー装置関係 / Ruffing attachment

Brother MA4-N31 (64 pages) parts on page 44

Ref	Part number	Part name	Qty
4-1	4620	4-1
4-1-1	4630	4-1-1
4-1-2	5620	4-1-2
4-1-3	5630	4-1-3
4-1-4	4-1-4	4-1-4
4-2	4-2	4-2
4-3	4-3	4-3
4-4	4-4	4-4
4-5	4-5	4-5
4-6	4-6	4-6
4-6-1	4-6-1	4-6-1
4-6-1-1	4-6-1-1	4-6-1-1
4-6-1-2	4-6-1-2	4-6-1-2
4-6-2	4-6-2	4-6-2
4-8	4-8	4-8
4-9	4-9	4-9
5	5	5
5-1	5-1	5-1
5-2	5-2	5-2
5-3	5-3	5-3
5-4	5-4	5-4
5-5	5-5	5-5

Page 45 — Q3. ラフラー装置関係 / Ruffling attachment

Brother MA4-N31 (64 pages) parts on page 45

Ref	Part number	Part name	Qty
	S30303001	パイピング・パーツクミ PIPING PARTS ASSY	1
	143767102	テープワインダークミ TAPE WINDER ASSY	1
	143980001	ツマミネジ SCREW	1
	108494001	ザガネ WASHER	1
	108495001	テープワインダーオシハネ SPRING, COMPRESSION	1
	100136001	イトチョウシナット NUT, TENSION	1
	101118001	マルモクネジ 4.5X20 WOOD SCREW, ROUND M4.5X20	2
	S21318000	ラツパークミ LAPPER ASSY	1
	062400812	ナベコ4X8 SCREW, PAN M4X8	2
	025040232	ヒラザガネチユウ4 WASHER, PLAIN M 4	2
	S20130009	イトタテダイクミ COTTON STAND ASSY, W/SCREW	1
	S20131009	イトタテダイクミ COTTON STAND ASSY	1
	S20134001	シメネジ W476-24X10 SCREW, W4.76-24X10	1
	S20135001	イトタテボウ SPOOL PIN	1
	034422006	2+2サラモク41X20 WOOD SCREW, FLAT 2 M4.1X20	2
	S25019001	ラツパー・ダイ LAPPER BASE	1
	S23651002	アナヒラ6X6ホメ SET SCREW, SOCKET (FT) M6X5	2
	*	ラフラーゲージクミ RUFFLER GAUGE ASSY <For Piping>	1
	*	P. ラフラーゲージクミ PIPING RUFFLER GAUGE ASSY	1
	*	ハリト・メクミ NEEDLE CLAMP	1
	*	ハリイタ NEEDLE PLATE	1
	*	オサエイタ PRESSER FOOT ASSY	1
	*	シユオクリバクミ MAIN FEED DOG ASSY	1
	*	サトウオクリバ DIFFERENTIAL FEED DOG	1
1	S43539001	ラフラーシュウセット/Ruffler set	1
1	S30304001	ラフラークミ/Ruffler assy	1
2	S43530001	ラフラーオサエレンドウクミ/Riffling device set	2
3	S30135101	サドウチョウセツト/Differential adjusting set	3
5	S30296001	ラフラーゲージクミ/Ruffler gauge assy	5
1	S43539004	ラフラーシュウセット/Ruffler set	1
1	S30304001	ラフラークミ/Ruffler assy	1
2	S43530001	ラフラーオサエレンドウクミ/Riffling device set	2
3	S30135101	サドウチョウセツト/Differential adjusting set	3
5	S30296004	ラフラーゲージクミ/Ruffler gauge assy	5
1	S43540004	P.ラフラーシュウセット/Piping ruffler set	1
1	S30304001	ラフラークミ/Ruffler assy	1
2	S43530001	ラフラーオサエレンドウクミ/Riffling device set	2
3	S30135101	サドウチョウセツト/Differential adjusting set	3
4	S30303001	パイピングパークミ/Piping parts assy	4
5	S30297004	P.ラフラーゲージクミ/Piping ruffler gauge assy	5

Page 46 — Z1. 付属品関係 / Accessories

Brother MA4-N31 (64 pages) parts on page 46

Ref	Part number	Part name	Qty
1	1-1	Accessory
4	4	Accessory
10	10	Accessory
11	11	Accessory
12	12	Accessory
14	14	Accessory
5	5	Accessory
7	7	Accessory
8	8	Accessory
9	9	Accessory
13	13	Accessory
25	25	Accessory
41	41	Accessory
57	57	Accessory
58	58	Accessory
60	60	Accessory
59	59	Accessory
56	56	Accessory
48-1	48-1	Accessory
48-2	48-2	Accessory
29	29	Accessory
31	31	Accessory
32	32	Accessory
33	33	Accessory
27	27	Accessory
19	19	OIL 1 LITER
24	24	Accessory
69	69	OPTION PARTS
72	72	Accessory
70	70	Accessory
71	71	Accessory
67	67	Accessory
65	65	Accessory
66	66	Accessory
18	18	Accessory
40	40	Accessory

Page 47 — Z1. 付属部品関係 / Accessories

Brother MA4-N31 (64 pages) parts on page 47

Ref	Part number	Part name	Qty
	*	ミシンハリクミ	2
	*	ミシンハリ	8
	*	シタメス
	101572101	ネジ・マワシ5.5X190	1
	S01943001	6カクホウ・ウマ・ワシ1.6	1
	142002001	6カクホウ・ウマ・ワシ2	1
	149570001	6カクホウ・ウマ・ワシ5	1
	S23356001	メカ・ネジ・レンチ8X10	1
	S46907001	メカ・レンチ5X6	1
	S20723001	メカ・レンチ8	1
	117466000	ピンセット	1
	S24473000	イトトン	1
	S06701000	ポリ・オイル・クミ	1
	S55666002	オイルタンクBクミ	1
	142262001	クサリFクミ	1
	122991001	フゾクヒンポリフクロ	1
	S20718000	トウブ・ウケ	1
	S35997001	カクネ・ボルト8X85	4
	213650001	ワッシャー2.3X8.5X38ST	4
	028080242	ワッシャー・スプリング2-8	4
	021080106	ナット1シュ8	4
	147695000	ジヨーゴ	1
	144225002	トウブ・カバー	1
	147919051	ホウシンゴム	1
	147919052	ホウシンゴム	3
	183797009	ダスター・シュート・クミ	1
	031411304	マル・ネジ・4.1X13	3
	S23353001	ダスター・シュート・サトES	1
	062400612	ナベ・M4X6	2
	025040332	ヒラザ・ワッシャー・L4	2
	S38302020	ベルト・カバー	1
	062061412	ナベ・M6X14	3
	S20412000	ゴム・セン3.7	1
	S20118151	カラ・イメス	1
	060300512	バインド・M3X5	1
	147893009	オサエゲ・フミイタ	1
	021400106	ナット1シュ4	2
	062401406	ナベ・M4X14	2
	116016001	ペダル・トメ	2

Page 48 — Z2. 付属部品関係 / Accessories

Brother MA4-N31 (64 pages) parts on page 48

Ref	Part number	Part name	Qty
	42-5	42-5
	42-14-2	42-14-2
	42-14	42-14
	42-10-1	42-10-1
	42-10	42-10
	42-1	42-1
	42-27	42-27
	42-14-1	42-14-1
	42-6	42-6
	42-22	42-22
	42-25	42-25
	42-8	42-8
	42-7	42-7
	42-12	42-12
	42-26	42-26
	42-21	42-21
	42-13	42-13
	42-23	42-23
	42-24	42-24
	42-15	42-15
	42-18	42-18
	42-30	42-30
	42-32	42-32
	42-20	42-20
	42-19	42-19
	42-11	42-11
	42-29	42-29
	42-12	42-12
	42-31	42-31
	42-28	42-28
	42-16	42-16
	42-17	42-17
	42-2	42-2
	42-3	42-3
	42-4	42-4
	42-5	42-5
	64-11	64-11
	64-12	64-12
	64-2	64-2
	64-10	64-10
	64-6	64-6
	64-8	64-8
	64-2	64-2
	64-6	64-6
	64-8	64-8
	64-3	64-3
	64-8	64-8
	64-6	64-6
	64-8	64-8
	64-6	64-6
	64-7	64-7
	64-8	64-8
	64-9	64-9
	64-7	64-7
	64-8	64-8
	64-9	64-9
	64-7	64-7
	64-8	64-8
	64-4	64-4
	64-1	64-1
	64-6	64-6
	64-7	64-7
	64-8	64-8
	64-5	64-5
	64-9	64-9
	64-9	64-9
	64-8	64-8
	64-7	64-7
	64-6	64-6
	64-9	64-9

Page 49 — Z2. 付属部品関係 / Accessories

Brother MA4-N31 (64 pages) parts on page 49

Ref	Part number	Part name	Qty
	S45953001	COTTON STAND ASSY, 6DTHF	1
	150172023	COLUMN PIPE	1
	S36064021	COLUMN PIPE, D	1
	150206022	WASHER, PLAIN 16	1
	S36064021	NUT, M16	16
	S35635020	COLUMN CAP	2
	150173023	COLUMN JOINT	1
	S35826021	SCREW, PAN M5X14	2
	S35827021	NUT, 1 M5	2
	S02778022	SPOOL HOLDER, 2	1
	S45970001	THREAD HANGER ASSY, 2	1
	S35832021	SCREW, PAN (S/P WASHER) M5X14	1
	S35827021	NUT, 1 M5	1
	S02778009	SPOOL HOLDER, 3	1
	S35831021	SCREW, PAN (S/P WASHER) M5X30	1
	S35827021	NUT, 1 M5	1
	S45964001	THREAD HANGER ASSY, 3	1
	S35832021	SCREW, PAN (S/P WASHER) M5X14	1
	S35827021	NUT, 1 M5	1
	150179022	SPOOL SHAFT, B	2
	028050246	WASHER, SPRING 2-5	2
	S35827021	NUT, 1 M5	2
	126863021	SPOOL CUSHION	2
	150180021	SPOOL STAND BASE	2
	150182009	SPOOL MAT	2
	150185009	THREAD GUIDE HOLDER	1
	S35831021	SCREW, PAN (S/P WASHER) M5X30	1
	S35827021	NUT, 1 M5	1
	S04109001	SUPPORT BAR, ;TR-GUIDE	1
	S45961001	JOINT	1
	012060632	SET SCREW, SOCKET (FT) M6X6	2
	142999101	THREAD GUIDE, 5	1
	150188009	SPOOL HOLDER SUPPORT, A	1
	S35826021	SCREW, PAN M5X14	1
	S35827021	NUT, 1 M5	1
	031452206	WOOD SCREW, ROUND M4.5X22	1
	S45954001	COTTON STAND ASSY, 6DTHF	1
	S02783001	THREAD GUIDE, 6	1
	150194009	SPOOL HOLDER SUPPORT, B	1
	183798001	FULL SUBMERGED SET	1
	S20721001	HEAD PLATE SUPPORT	1
	153318201	BOLT	4
	S35997001	BOLT, M8X85	1
	S36007001	BOLT, M8X55	1
	017085502	BOLT, M8X55	1
	025080236	WASHER, PLAIN M 8	11
	028080242	WASHER, SPRING 2-8	7
	021080106	NUT, 1 M8	15
	213650001	WASHER, 2.3X8.5X38ST	8
	S20722001	DUSTER SHOOT SUPPORT, L	1
	060400812	SCREW, BIND M4X8	2
	060400812	SCREW, BIND M4X8	3

Page 50 — Ga1. ゲージ部品一覧表 / Gauge parts List

Brother MA4-N31 (64 pages) parts on page 50

Ref	Part number	Part name	Qty
	4010-22-S2F	-23-S2F -24-S2F -25-S2F	2
	4020-33-S3F	-34-S3F -35-S3F -36-H3F -37-H3F	3
	4030-54-S2F	-55-S2F -56-H3F -57-H3F	5
	4050-55-E3W	-56-E3W -57-E3W	3
	4420-24-S3F	-25-S3F	2
	151474-011	(2)	151474-011 (2)
	151474-014	(2)	151474-014 (2)
	151474-016	(2)	151474-016 (2)
	151474-018	(2)	151474-018 (2)
	151474-014	(2)	151474-014 (2)
2	S19304-101	(S19312-001)
2	S19313-201	(S30971-001)
2	S19317-101	(S19312-001)
2	S25557-001	(S19340-001)
2	S19334-001	(S19340-001)
2	S25548-101	(S19325-001)
押工組 Presser Foot Assy	S29146-001	2
押工組 Presser Foot Assy	S20404-001	2
押工組 Presser Foot Assy	S20406-001	2
押工組 Presser Foot Assy	S29631-001	2
押工組 Presser Foot Assy	S21104-001	2
押工組 Presser Foot Assy	S29146-001	2
3 針止メ組 Needle Clamp Assy	S25194-001	(2)
3 針止メ組 Needle Clamp Assy	S25195-001	(3)
3 針止メ組 Needle Clamp Assy	S19174-001	(4)
3 針止メ組 Needle Clamp Assy	S19175-001	(5)
3 針止メ組 Needle Clamp Assy	S20234-001	(3)
3 針止メ組 Needle Clamp Assy	S20235-001	(4)
3 針止メ組 Needle Clamp Assy	S20236-001	(5)
3 針止メ組 Needle Clamp Assy	S35651-001	(6)
3 針止メ組 Needle Clamp Assy	S27968-001	(7)
3 針止メ組 Needle Clamp Assy	S20231-001	(4)
3 針止メ組 Needle Clamp Assy	S20232-001	(5)
3 針止メ組 Needle Clamp Assy	S20233-001	(6)
3 針止メ組 Needle Clamp Assy	S25197-001	(7)
3 針止メ組 Needle Clamp Assy	S25200-001	(3)
3 針止メ組 Needle Clamp Assy	S25201-001	(5)
4 針板 Needle Plate	S19185-001	(5)
4 針板 Needle Plate	S19186-001	(6)
4 針板 Needle Plate	S19187-001	(7)
4 針板 Needle Plate	S25198-001	(4)
4 針板 Needle Plate	S25199-001	(5)
5 主送り歯組 Main Feed Dog Ass	S19221-201	(S19222-201) (S33172-001) L
5 主送り歯組 Main Feed Dog Ass	S20241-101	(S20242-101) (S20243-101) H
5 主送り歯組 Main Feed Dog Ass	S20239-101	(S20240-101) (S19223-101) F
5 主送り歯組 Main Feed Dog Ass	S19228-101	(S19229-001) (S19223-101) F
5 主送り歯組 Main Feed Dog Ass	S19224-201	(S19225-201) (S33172-001) L
6 差動送り歯 Differential Feed	S19245-001	5 主送り歯組 Main Feed Dog Assy
6 差動送り歯 Differential Feed	S20245-001	5 主送り歯組 Main Feed Dog Assy
6 差動送り歯 Differential Feed	S20244-001	5 主送り歯組 Main Feed Dog Assy
6 差動送り歯 Differential Feed	S25566-001	5 主送り歯組 Main Feed Dog Assy
6 差動送り歯 Differential Feed	S19247-001	5 主送り歯組 Main Feed Dog Assy
6 差動送り歯 Differential Feed	S19246-001	5 主送り歯組 Main Feed Dog Assy
7 上メス Upper Knife	7	上メス Upper knife 144074-350
7 上メス Upper Knife	角メス Angle knife S20898-101	7 上メス Upper Knife
7 上メス Upper Knife	上メス Upper knife 144074-350	7 上メス Upper Knife
8 下メス Lower Knife	S20899-001	(T=1.0)
8 下メス Lower Knife	S20582-001	(T=1.5)
8 下メス Lower Knife	S20899-001	(T=1.0)
8 下メス Lower Knife	S20582-001	(T=1.5)
8 下メス Lower Knife	S20583-001	(T=1.5)
8 下メス Lower Knife	S20582-001	(T=1.5)
9 上ルーパ Over Looper	S20421-001	L
9 上ルーパ Over Looper	S20423-001	(3,4,5) M
9 上ルーパ Over Looper	S20421-001	(6,7) L
9 上ルーパ Over Looper	S20423-001	(4,5) M
9 上ルーパ Over Looper	S20421-001	(6,7) L
9 上ルーパ Over Looper	S20429-001	Q
9 上ルーパ Over Looper	S20423-001	M

Page 51 — Ga2 . ゲージ部品一覧表 / Gauge parts List

Brother MA4-N31 (64 pages) parts on page 51

Ref	Part number	Part name	Qty
	4420-34-S3F-3S-S3F	Sub-Class
	4430-55-S3F-56-H3F	Sub-Class
	4520-34-S3F-35-S3F	Sub-Class
	4530-54-S3F-55-S3F-56-H3F	Sub-Class
	4620-35-H3F	Sub-Class
	151474-014 (2)	Needle (Q'ty)
	151474-014 (2)	Needle (Q'ty)
	151474-016 (2)	Needle (Q'ty)
	151474-014 (2)	Needle (Q'ty)
	S19321-101 (S19325-001)	Presser Foot Assy
	S19326-101 (S19325-001)	Presser Foot Assy
	S19330-201 (S30971-001)	Presser Foot Assy
	S20882-201 (S30971-001)	Presser Foot Assy
	S25550-001 (S25553-001)	Presser Foot Assy
	S20404-001	Presser Foot F
	S20406-001	Presser Foot F
	S20404-001	Presser Foot F
	S20406-001	Presser Foot F
	S20404-001	Presser Foot F
	S19497-001 (4) S19182-001 (5)	Needle Clamp Assy
	S19183-001 (5) S19184-001 (6)	Needle Clamp Assy
	S20235-001 (4) S20236-001 (5)	Needle Clamp Assy
	S20231-001 (4) S20232-001 (5) S20233-001 (6)	Needle Clamp Assy
	S19182-001 (5)	Needle Clamp Assy
	S19224-201 (S19225-201) (S33172-001) L	Main Feed Dog Assy
	S19226-101 (5) (S19227-101) (S19223-101) F	Main Feed Dog Assy
	S19224-201 (6) (S19225-201) (S33172-101) L	Main Feed Dog Assy
	S20241-101 (S20242-101) (S20243-101) H	Main Feed Dog Assy
	S20239-101 (S20240-101) (S19223-101) F	Main Feed Dog Assy
	S19224-201 (S19225-201) (S33172-001) L	Main Feed Dog Assy
	S19246-001	Differential Feed Dog
	S20245-001	Differential Feed Dog
	S20244-001	Differential Feed Dog
	S19246-001	Differential Feed Dog
	144074-350	Upper Knife
	S20582-001 (T=1.5)	Lower Knife
	S20423-001 M	Over Looper
	S20423-001 (4, 5) M S20421-001 (6) L	Over Looper
	S20423-001 M	Over Looper

Page 52 — Ga3 . ゲージ 部品 一覧表 / Gauge parts List

Brother MA4-N31 (64 pages) parts on page 52

Ref	Part number	Part name	Qty
	4630-55-S3F	Sub-Class
	4720-34-S2F	Sub-Class
	5010-22-S2F	Sub-Class
	5011-22-S2F	Sub-Class
	151474-014	Needle (Q'ty)	2
	151474-011	Needle (Q'ty)	2
	S25555-001	Presser Foot Assy
	S25560-101	Presser Foot Assy
	S19304-101	Presser Foot Assy
	S30586-101	Presser Foot Assy
	S20406-001	Needle Clamp Assy
	S20404-001	Needle Clamp Assy
	S29146-001	Needle Clamp Assy
	S19183-001	Needle Plate
	S19184-001	Needle Plate
	S25202-001	Needle Plate
	S25203-001	Needle Plate
	S25194-001	Needle Plate
	S25195-001	Needle Plate
	S19174-001	Needle Plate
	S19175-001	Needle Plate
	S19226-101	Main Feed Dog Assy
	S19224-201	Main Feed Dog Assy
	S19246-001	Differential Feed Dog
	S19245-001	Differential Feed Dog
	144074-350	Upper Knife
	S20582-001	Lower Knife
	S20899-001	Lower Knife
	S20582-001	Lower Knife
	S20423-001	Over Looper
	S20422-001	Over Looper

Page 53 — Ga4. ゲージ部品一覧表 / Gauge parts List

Brother MA4-N31 (64 pages) parts on page 53

Ref	Part number	Part name	Qty
5 Threads	5020-33-S2F	-34-S3F -35-S2F	5
5 Threads	5021-33-S2F	-34-S2F -35-S2F	5
5 Threads	5030-54-S3F	-55-S3F -56-H3F -57-H3F	5
5 Threads	5033-54-H3A	-55-H3A -56-H3A -57-H3A	5
5 Threads	5050-33-E2W	-35-E2W	5
	151474-014 (2)	Needle (Qty.)	3
	151474-014 (2)	Needle (Qty.)	5
	151474-016 (2)	Needle (Qty.)	3
	151474-018 (2)	Needle (Qty.)	3
	S19313-201	押工組 Presser Foot Assy
	S30594-101 (3, 4)	ツメ Stitch Tongue S30588-001 S30597-101 (5, 6) ツメ Stitch Tongue S30593-001
	S19317-101	Presser Foot Assy
	S25557-001	Presser Foot Assy
	S20404-001	針止メ組 Needle Clamp Assy
	S20404-001	Needle Clamp Assy
	S20406-001	Needle Clamp Assy
	S21104-001	Needle Clamp Assy
	S29631-001	Needle Clamp Assy
	S20234-001 (3)	4 針板 Needle Plate
	S19176-001 (3)	Needle Plate
	S20231-001 (4)	Needle Plate
	S25200-001 (3)	Needle Plate
	S20241-101	5 主送り歯組 Main Feed Dog Assy 主送り歯 Main Feed Dog 補助送り歯 Chain Feed Dog
	S19221-201	Main Feed Dog Assy
	S20239-101	Main Feed Dog Assy
	S35840-001	Main Feed Dog Assy
	S19228-101	Main Feed Dog Assy
	S20245-001	6 差動送り歯 Differential Feed Dog
	S19245-001	Differential Feed Dog
	S20244-001	Differential Feed Dog
	S35992-001	Differential Feed Dog
	S25566-001	Differential Feed Dog
	144074-350	7 上メス Upper Knife
	144074-350	上メス Upper knife
	S20896-101	角メス Angle knife
	S20898-101	角メス Angle knife
	S20899-001	8 下メス Lower Knife
	S20582-001 (T=1.5)	Lower Knife
	S20582-001 (T=1.5)	Lower Knife
	S20583-001 (T=1.5)	Lower Knife
	S20424-001 (3,4,5)	9 上ルーパ Over Looper
	S20428-001 (6,7)	Over Looper
	S20424-001	Over Looper
	S20424-001 (4,5)	Over Looper
	S20428-001 (6,7)	Over Looper
	S20428-001	Over Looper

Page 54 — Ga5 . ゲージ部品一覧表 / Gauge parts List

Brother MA4-N31 (64 pages) parts on page 54

Ref	Part number	Part name	Qty
1	151474-018	Needle
1	151474-014	Needle
	S19334-001	Presser Foot Assy
	S30525-001	Presser Foot Assy
	S25548-101	Presser Foot Assy
	S19321-101	Presser Foot Assy
	S21104-001	Needle Clamp Assy
	S29146-001	Needle Clamp Assy
	S20404-001	Needle Clamp Assy
	S19185-001	Needle Plate
	S19186-001	Needle Plate
	S19187-001	Needle Plate
	S25198-001	Needle Plate
	S25199-001	Needle Plate
	S19497-001	Needle Plate
	S19182-001	Needle Plate
	S19228-101	Main Feed Dog Assy
	S38595-001	Main Feed Dog Assy
	S19224-201	Main Feed Dog Assy
	S19247-001	Differential Feed Dog
	S19246-001	Differential Feed Dog
	S38597-001	Differential Feed Dog
	S20898-101	Upper Knife
	144074-350	Upper Knife
	S20583-001	Lower Knife
	S20582-001	Lower Knife
	S20438-101	Over Looper
	S20424-001	Over Looper

Page 55 — Ga6 . ゲージ部品一覧表 / Gauge parts List

Brother MA4-N31 (64 pages) parts on page 55

Ref	Part number	Part name	Qty
1	5430-55-S3F-56-H3F	Sub-Class	5
1	5520-34-S3F-35-S3F	Sub-Class	3
1	5530-54-S3F-55-S3F-56-H3F	Sub-Class	3
1	5620-35-S3F	Sub-Class	3
1	151474-014 (2)	Needle
1	151474-016 (2)	Needle
1	151474-014 (2)	Needle
2	S19326-101 (S19325-001)	Presser Foot Assy
2	S19330-201 (S30971-001)	Presser Foot Assy
2	S20882-201 (S30971-001)	Presser Foot Assy
2	S25550-001 (S25553-001)	Presser Foot Assy
3	S20406-001	Needle Clamp Assy
3	S20404-001	Needle Clamp Assy
3	S20406-001	Needle Clamp Assy
3	S20404-001	Needle Clamp Assy
4	S19183-001 (5)	Needle Plate
4	S19184-001 (6)	Needle Plate
4	S20236-001 (4)	Needle Plate
4	S20235-001 (4)	Needle Plate
4	S20232-001 (5)	Needle Plate
4	S20233-001 (6)	Needle Plate
4	S19182-001 (5)	Needle Plate
5	S19226-101 (5)	Main Feed Dog Assy
5	S19227-101	Main Feed Dog Assy
5	S19223-101	Main Feed Dog Assy
5	F	Main Feed Dog Assy
5	S19224-201 (6)	Main Feed Dog Assy
5	S19225-201	Main Feed Dog Assy
5	S33172-001	Main Feed Dog Assy
5	L	Main Feed Dog Assy
5	S20241-101	Main Feed Dog Assy
5	S20242-101	Main Feed Dog Assy
5	S20243-101	Main Feed Dog Assy
5	H	Main Feed Dog Assy
5	S20236-101	Main Feed Dog Assy
5	S20239-101	Main Feed Dog Assy
5	S19223-101	Main Feed Dog Assy
5	F	Main Feed Dog Assy
6	S19246-001	Differential Feed Dog
6	S20245-001	Differential Feed Dog
6	S20244-001	Differential Feed Dog
6	S19246-001	Differential Feed Dog
7	144074-350	Upper Knife
8	S20582-001 (T=1.5)	Lower Knife
9	S20424-001 (5)	Over Looper
9	S20428-001 (6)	Over Looper
9	C	Over Looper
9	S20424-001	Over Looper
9	B	Over Looper
9	S20424-001 (4, 5)	Over Looper
9	B	Over Looper
9	S20424-001 (6)	Over Looper
9	C	Over Looper
9	S20424-001	Over Looper
9	B	Over Looper

Page 56 — Ga7. ゲージ部品一覧表 / Gauge parts List

Brother MA4-N31 (64 pages) parts on page 56

Ref	Part number	Part name	Qty
	5630-55-S3F	56-H3F
	5720-34-S2F	-35-S2F
	6030-B5-H2F	6030-B5-H3F
	6430-B5-H3A	6430-B5-H3A
	151474-014	(2)	2
	151474-014	(2)	2
	151474-016	(3)	3
	151474-014	(3)	3
	S25555-001	(S25553-001)
	S25560-101	(S19312-001)
	S25562-101	(S19312-001)
	S31981-001	(S19325-001)
	S20406-001	S20404-001
	S29148-001	S29148-001
	S19183-001	(5)
	S19184-001	(6)
	S25202-001	(4)
	S25203-001	(5)
	S25204-001	S31975-001
	S31979-001	S31979-001
	S19226-101	(5)
	S19227-101	(S19223-101)
	F	F
	S19224-201	(6)
	S19225-201	(S33172-001)
	S19221-201	(S19222-201)
	(S33172-001)	L
	S19221-201	(S19222-201)
	(S33172-001)	L
	S20239-101	(S20240-101)
	(S19223-101)	F
	S19226-101	(S19227-101)
	(S19223-101)	F
	S19246-001	S19245-001
	S19245-001	S20244-001
	S19246-001	S19246-001
	144074-350	144074-350
	S20896-101	S20896-101
	S20582-001	(T=1.5)
	S20582-001	(T=1.5)
	S20582-001	(T=1.5)
	S20424-001	(5)
	B	B
	S20428-001	(6)
	C	C
	S20424-001	D
	S20430-001	D

Page 57 — Wa. 警告ラベル / Warning labels

Brother MA4-N31 (64 pages) parts on page 57

Ref	Part number	Part name	Qty
	S38350-001	操作注意ラベル・和
	S38349-001	Label, operation Eng.
	S37060-001	アースマーク Mark, grounding

Page 58 — INDEX

Brother MA4-N31 (64 pages) parts on page 58

Ref	Part number	Part name	Qty
31	004350812	G
2-17	011502012	Q1
43	012060632	A
26	012060632	B
25	012060632	B
25	012060632	F1
2	012060632	G
6	012060632	G
25-2	012060632	G
6-1	012060632	H
6-1	012060632	K
2	012060632	L
17	012060632	N
2-4	012060632	Q1
42-26	012060632	Z2
27-4	012400432	A
32	012400432	A
29	012400432	G
13	012400432	K
5	012400432	M
4-2	012400432	N
16	012400432	N
2-12	012400432	Q1
31	012400832	A
32	012400832	G
2	012500532	N
3-1-1-6	014780622	Q2
3-2-1-6	014780622	Q2
8	017060812	K
7	017060812	L
1-3-1	017061612	C
1-2-1	017061612	H
3-1-1-8	017081606	Q2
3-2-1-8	017081606	Q2
64-5	017085502	Z2
26	017500812	H
64	017501212	A
3-1-1-4	017781412	Q2
3-1-1-10	017781412	Q2
3-1-1-13	017781412	Q2
3-2-1-4	017781412	Q2
3-2-1-10	017781412	Q2
3-2-1-13	017781412	Q2
53	018061432	G
10	018061432	K
12-1	018061432	M
14-1	018061432	M
6	018061432	N
22	018061632	F1
8-1	018061632	G
34	018061632	G
40-1	018061632	G
60	018061632	G
28	018062532	B
16	018062532	C
13	018062532	F1
20	018400832	A
48-2	018400832	G
1-2	018401222	Q1
1-1	018401622	C
1-1	018401622	H
1-1	018401622	K
1-1	018401622	L
1-1-20	021060302	Q1
1-7	021060302	Q1
33	021080106	Z1
64-8	021080106	Z2
70	021400106	Z1
3-1-3	021400202	Q2
3-2-3	021400202	Q2
53	021400212	A
1-5	021400212	E
18	021400212	F1
1-1-22	021400212	Q1
2-10	021400432	Q1
9	021500216	M
2-18	021500312	Q1
50-16-3	025030132	F2
14	025030132	H
49	025040132	G
11-1	025040132	H
4-5	025040232	Q3
60	025040332	Z1
72	025050132	A
14	025060332	F1
64-6	025080236	Z2
68	025350332	A
63	025350332	G
50-10-4	025660132	F2
12	025710232	G
13	025710232	G
64	028050242	P
42-16	028050246	Z2
27	028060242	B
32	028080242	Z1
64-7	028080242	Z2
57	031411304	Z1
42-31	031452206	Z2
4-6-2	034422006	Q3
50-16-7	047161042	F2
1-1	047301242	G
1-2	047301242	G
2-2	047401642	F1
21-1	047401442	F1
16	047502542	F1
57	047502542	G
54	047602042	A
14	048040342	G
27	048090342	F1
19	048090342	G
14	048400242	B
46	060400612	A
50	060400612	A
59	060400612	A
10	060400612	F1
22	060400612	G
8	060400612	J
24	060400612	P
32	060400612	P
36	060400612	P
39	060400612	P
41	060400612	P
43	060400612	P
15	060400812	A
22-1	060400812	A
29	060400812	H
24	060400812	N
2-14	060400812	Q1
2-16	060400812	Q1
64-11	060400812	Z2
64-12	060400812	Z2
25-1	060401012	A
1-3	060401012	D
28	060401412	A
68	060401412	P
75-1	060630712	G
26	061400812	A
6	062060812	B
20	062060812	N
18	062060812	H
21	062060812	H
66	062061412	Z1
16-2	062300412	H
1-7	062300512	E
17	062300612	M
28	062300812	C
1-11	062300812	Q1
1-27	062350512	Q1
1-9	062350612	E
70	062350612	P
7-3	062350812	C
26	062350812	C
2-5	062350812	Q1
30	062400612	A
1-1-25	062400612	Q1
59	062400612	Z1
9	062400812	A
5	062400812	B
4-6	062400812	N
1-1-16	062400812	Q1
4-4	062400812	Q3
4	062401012	A
22	062401012	B
20	062401012	C
30	062401012	C
2	062401012	E
3-1-4	062401012	Q2
3-2-4	062401012	Q2
52	062401212	A
10-1	062401212	H
35	060300412	F1
30	060300412	P
92	060300512	Z1
39	060300612	F1
52	060300612	P
67	060350812	A
62	060350812	G
28	060350812	M
15	060351012	L
60	060400512	A
12	060400612	A
27-7	060400612	A
27-9	060400612	A
34	060400612	A
36	060400612	A

Page 59

Brother MA4-N31 (64 pages) parts on page 59

Ref	Part number	Part name	Qty
4-9	062401212	N
71	062401406	Z1
80	062401612	A
1-1-21	062401612	Q1
10-2	062402512	H
41	062670712	F1
50-1-7	062670712	F2
50-5-4	062670712	F2
50-6-7	062670712	F2
50-10-6	062670712	F2
50-15-4	062670712	F2
15	072600000	B
15	076203000	B
11	081005070	G
56	081005670	G
77	081009070	A
6	081014670	A
21	081020070	G
4	081031870	B
40	100032003	A
33	100032003	C
50-15-3	100080004	F2
4-1-4	100136001	Q3
41	100315002	A
4-2	101118001	Q3
5	101572101	Z1
1-8	102707002	Q1
11	104450101	C
3	105161004	F1
50-1-3	105288001	F2
50-10-3	106640001	F2
50-5-3	106640001	F2
50-10-5	106640001	F2
4-1-2	108494001	Q3
4-1-3	108495001	Q3
12	110832009	P
12	110832009	P
72	116016001	Z1
13	117466000	Z1
14	118550001	K
1-3-2	18735002	C
1-2-2	18735002	H
25	122991001	Z1
11-2	125324001	H
42-18	126863021	Z2
50-6-3	140530002	F2
39	141183000	A
8	142002001	Z1
24	142262001	Z1
42-27	142999101	Z2
4-1	143767102	Q3
4-1-1	143980001	Q3
7	144074350	Ga1
7	144074350	Ga2
7	144074350	Ga3
7	144074350	Ga4
7	144074350	Ga5
7	144074350	Ga6
15-1	144103009	H
13	144103009	P
13	144103009	P
41	144225002	Z1
60	144504001	P
1-1-10	144784001	Q1
6	146293001	C
12-1	146427001	C
47	146427001	P
21	146592001	P
71	146598001	A
1-3	146598001	E
1-8	146600001	E
69	147893009	Z1
48-1	147919051	Z1
48-2	147919052	Z1
8-1	147942001	N
10-1	147942001	N
13-1	147942001	N
18	148084001	N
13	148782001	L
26	148782001	M
3-1-1-5	148797001	Q2
3-2-1-5	148797001	Q2
3-1-1-7	148798109	Q2
3-2-1-7	148798109	Q2
9	149570001	Z1
42-1	150172023	Z2
42-6	150173023	Z2
42-15	150179022	Z2
42-19	150180021	Z2
42-20	150182020	Z2
42-21	150185009	Z2
42-28	150188009	Z2
42-32	150194009	Z2
42-3	150206022	Z2
50-16-4	150755001	F2
69	150813001	P
1	151474011	Ga1
1	151474014	Ga1
1	151474016	Ga1
1	151474018	Ga1
64-2	153318201	Z2
7-6	155162001	C
9-2-2	155162001	K
12-2	155162001	M
14-2	155162001	M
3-1-1-1	155197101	Q2
3-2-1-1	155197101	Q2
3-1-1-3	155199101	Q2
3-2-1-3	155199101	Q2
3	155247000	K
10	155247000	K
10	155247000	K
23	155261000	M
62	155510001	P
12	15559001	B
51	156482000	A
61	158782151	P
56	183797009	Z1
64-1	183798001	Z2
31	213650001	Z1
64-9	213650001	Z2
50-16-6	500296002	F2
66	S00075000	A
7	S01943001	Z1
38	S02573020	G
3	S02606020	A
42-9	S02778022	Z2
42-11	S02779009	Z2
42-27	S02783001	Z2
42-24	S04109001	Z2
18	S06701000	Z1
1-4	S06704001	D
4	S19174001	Ga1
4	S19174001	Ga3
4	S19175001	Ga1
4	S19175001	Ga3
4	S19177001	Ga4
4	S19178001	Ga4
4	S19182001	Ga2
4	S19182001	Ga5
4	S19183001	Ga2
4	S19183001	Ga3
4	S19183001	Ga6
4	S19184001	Ga2
4	S19184001	Ga3
4	S19184001	Ga6
4	S19185001	Ga1
4	S19185001	Ga5
4	S19186001	Ga1
4	S19186001	Ga5
4	S19187001	Ga1
4	S19187001	Ga5
5	S19221201	Ga1
5	S19221201	Ga3
5	S19221201	Ga4
5	S19221201	Ga7
5	S19222201	Ga1
5	S19222201	Ga3
5	S19222201	Ga4
5	S19222201	Ga7
5	S19223101	Ga1
5	S19223101	Ga2
5	S19223101	Ga3
5	S19223101	Ga4
5	S19223101	Ga5
5	S19223101	Ga6
5	S19223101	Ga7
5	S19224201	Ga1
5	S19224201	Ga2
5	S19224201	Ga3
5	S19224201	Ga5
5	S19224201	Ga6
5	S19225201	Ga1
5	S19225201	Ga2
5	S19225201	Ga2
5	S19225201	Ga3
5	S19225201	Ga5
5	S19225201	Ga6
5	S19226101	Ga2
5	S19226101	Ga3
5	S19226101	Ga6
5	S19226101	Ga7
5	S19227101	Ga2
5	S19227101	Ga3
5	S19227101	Ga6
5	S19227101	Ga7
5	S19228101	Ga1

Page 60 — INDEX

Brother MA4-N31 (64 pages) parts on page 60

Ref	Part number	Part name	Qty
	S19228101	Ga4 5
	S19228101	Ga5 5
	S19229001	Ga1 5
	S19229001	Ga4 5
	S19229001	Ga5 5
	S19245001	Ga1 6
	S19245001	Ga3 6
	S19245001	Ga4 6
	S19245001	Ga7 6
	S19246001	Ga1 6
	S19246001	Ga2 6
	S19246001	Ga3 6
	S19246001	Ga5 6
	S19246001	Ga6 6
	S19247001	Ga1 6
	S19247001	Ga5 6
	S19304101	Ga1 2
	S19304101	Ga3 2
	S19307001	F2 50-1-4
	S19307001	F2 50-1-4
	S19308001	F2 50-6-4
	S19308001	F2 50-1-5
	S19309001	F2 50-1-6
	S19309001	F2 50-6-6
	S19311101	F2 50-1-1
	S19311101	F2 50-5-1
	S19311101	F2 50-6-1
	S19311101	F2 50-10-1
	S19311101	F2 50-15-1
	S19312001	Ga1 2
	S19312001	Ga3 2
	S19312001	Ga4 2
	S19312001	Ga7 2
	S19313201	Ga1 2
	S19313201	Ga4 2
	S19317101	Ga1 2
	S19317101	Ga4 2
	S19321101	Ga1 2
	S19321101	Ga2 2
	S19325001	Ga1 2
	S19325001	Ga2 2
	S19325001	Ga5 2
	S19325001	Ga6 2
	S19325001	Ga7 2
	S19326101	Ga2 2
	S19326101	Ga6 2
	S19330201	Ga2 2
	S19330201	Ga6 2
	S19334001	Ga1 2
	S19334001	Ga4 2
	S19334001	Ga5 2
	S19340001	Ga1 2
	S19340001	Ga4 2
	S19340001	Ga5 2
	S19368001	F2 50-16-2
	S19497001	Ga2 4
	S19497001	Ga5 4
	S20115001	F1 38-2
	S20117001	F1 38-3
	S20118151	Z1 91
	S20130009	Q3 4-6
	S20131009	Q3 4-6-1
	S20134001	Q3 4-6-1-1
	S20135001	Q3 4-6-1-2
	S20158101	P 72
	S20199001	N 9
	S20199001	N 14
	S20231001	Ga1 4
	S20231001	Ga2 4
	S20231001	Ga4 4
	S20231001	Ga6 4
	S20232001	Ga1 4
	S20232001	Ga2 4
	S20232001	Ga4 4
	S20232001	Ga6 4
	S20233001	Ga2 4
	S20233001	Ga4 4
	S20233001	Ga6 4
	S20234001	Ga1 4
	S20234001	Ga2 4
	S20234001	Ga4 4
	S20234001	Ga6 4
	S20235001	Ga1 4
	S20235001	Ga2 4
	S20235001	Ga4 4
	S20235001	Ga6 4
	S20236001	Ga1 4
	S20236001	Ga2 4
	S20236001	Ga4 4
	S20236001	Ga6 4
	S20239101	Ga1 5
	S20239101	Ga2 5
	S20239101	Ga4 5
	S20239101	Ga6 5
	S20239101	Ga7 5
	S20240101	Ga1 5
	S20240101	Ga2 5
	S20240101	Ga4 5
	S20240101	Ga6 5
	S20241101	Ga1 5
	S20241101	Ga2 5
	S20241101	Ga4 5
	S20241101	Ga6 5
	S20242101	Ga1 5
	S20242101	Ga2 5
	S20242101	Ga4 5
	S20242101	Ga6 5
	S20243101	Ga1 5
	S20243101	Ga2 5
	S20243101	Ga4 5
	S20243101	Ga6 5
	S20244001	Ga1 6
	S20244001	Ga2 6
	S20244001	Ga4 6
	S20244001	Ga6 6
	S20245001	Ga1 6
	S20245001	Ga2 6
	S20245001	Ga4 6
	S20245001	Ga6 6
	S20310001	A 13
	S20311000	A 14
	S20319001	A 27-3
	S20320101	A 27-5
	S20321001	A 27-6
	S20324101	A 33
	S20325001	A 35
	S20327101	A 27-8
	S20338200	A 61
	S20339000	A 62
	S20340001	A 69
	S20342001	A 70
	S20344001	A 74
	S20345001	A 10
	S20345001	A 75
	S20346000	A 79
	S20353000	B 21
	S20355002	K 9-6
	S20356001	B 11
	S20361001	B 17
	S20362151	B 18
	S20391001	C 7-4
	S20392000	C 7-5
	S20392000	N 25
	S20404001	Ga1 3
	S20404001	Ga2 3
	S20404001	Ga3 3
	S20404001	Ga4 3
	S20404001	Ga5 3
	S20404001	Ga6 2
	S20404001	Ga6 3
	S20406001	Ga1 3
	S20406001	Ga2 3
	S20406001	Ga3 3
	S20406001	Ga4 3
	S20406001	Ga6 2
	S20406001	Ga6 3
	S20412000	A 48
	S20412000	A 55
	S20412000	Z1 67
	S20415101	C 21
	S20416101	C 22
	S20418051	C 23
	S20421001	Ga1 9
	S20421001	Ga2 9
	S20422001	Ga3 9
	S20423001	Ga1 9
	S20423001	Ga2 9
	S20423001	Ga3 9
	S20424001	Ga4 9
	S20424001	Ga5 9
	S20424001	Ga6 9
	S20428001	Ga4 9
	S20428001	Ga6 9
	S20429001	Ga1 9
	S20430001	Ga7 9
	S20438101	Ga4 9
	S20438101	Ga5 9
	S20460000	D 1-1-1
	S20468001	D 1-1
	S20476001	F1 4
	S20485001	F1 19
	S20526000	G 47
	S20530001	G 30
	S20543101	G 51
	S20544000	G 52
	S20547001	G 55
	S20548001	G 59
	S20560001	G 66
	S20571101	H 2
	S20574001	H 8
	S20577001	H 12

Page 61

Brother MA4-N31 (64 pages) parts on page 61

Ref	Part number	Part name	Qty
13	S20578101	H
15-4	S20579101	H
8	S20582001	Ga1
8	S20582001	Ga2
8	S20582001	Ga3
8	S20582001	Ga4
8	S20582001	Ga5
8	S20582001	Ga6
8	S20583001	Ga1
8	S20583001	Ga4
8	S20583001	Ga5
27	S20585001	H
9-1	S20589101	H
9-2	S20590101	H
17	S20591101	H
2	S20598000	K
3	S20598000	L
5	S20601001	K
11	S20625151	L
14-1	20626001	L
14-2	20627001	L
11	20641001	M
24	20652001	M
27	20653001	M
29	20654001	M
1	20655101	N
4-1	20657001	N
19	20668200	N
23	20669000	N
22	20670001	N
11	20673001	P
8	20675001	P
9	20676051	P
9	20676051	P
1-1-5	20676051	Q1
10	20677000	P
10	20677000	P
14	20678001	P
14	20678001	P
16	20679001	P
17	20679001	P
18	20681000	P
18	20681000	P
1-1-7	20681000	Q1
19-2	20682101	P
19-4	20682102	P
19-1	20682103	P
19-5	20682104	P
1-1-8	20682105	Q1
23	20684101	P
25	20685001	P
26	20686001	P
37	20687001	P
48	20689001	P
49	20690001	P
50	20691001	P
53	20694001	P
55	20695001	P
56	20696001	P
58	20697001	P
59	20698121	P
66	S20701001	P
71	S20702001	P
73	S20703051	P
75	S20707001	P
27	S20718000	Z1
64-1	S20721001	Z2
64-10	S20722001	Z2
12	S20723001	Z1
51	S20743001	P
40	S20769000	Z1
81	S20878000	A
2	S20882201	Ga2
15-2	S20896101	H
7	S20896101	Ga4
7	S20896101	Ga7
15-3	S20897101	H
15-5	S20898101	H
7	S20898101	Ga1
7	S20898101	Ga4
7	S20898101	Ga5
8	S20899001	Ga1
8	S20899001	Ga3
8	S20899001	Ga4
3	S21104001	Ga1
3	S21104001	Ga4
3	S21104001	Ga5
40-1	S21125001	P
44-1	S21126001	P
40-2	S21128001	P
40-2	S21129001	P
42	S21130051	P
28	S21133001	P
29	S21134001	P
31	S21135001	P
35	S21136101	P
33	S21137001	P
1-1	S21293001	Q1
1-1-1	S21294001	Q1
1-1-2	S21295001	Q1
1-1-9	S21296001	Q1
1-1-12	S21297001	Q1
1-1-15	S21298001	Q1
1-1-17	S21299001	Q1
1-1-19	S21300001	Q1
1-1-23	S21301001	Q1
1-1-24	S21302001	Q1
1-1-26	S21303001	Q1
1-1-28	S21304001	Q1
1-1-3	S21305001	Q1
1-1-13	S21306001	Q1
1-1-14	S21307001	Q1
2-1	S21310001	Q1
2-2	S21311001	Q1
2-3	S21312001	Q1
2-7	S21314001	Q1
2-9	S21315001	Q1
2-11	S21316001	Q1
4-3	S21318000	Q3
1-6	S21341001	E
3-1-1	S21373101	Q2
3-1-1-2	S21375001	Q2
3-2-1-2	S21375001	Q2
3-1-1-9	S21376001	Q2
3-2-1-9	S21376001	Q2
3-1-1-11	S21377001	Q2
3-2-1-11	S21377001	Q2
3-1-1-12	S21378001	Q2
3-2-1-12	S21378001	Q2
3-1-2	S21379001	Q2
3-2-1	S21380101	Q2
3-2-2	S21381001	Q2
1-4	S21590000	Q1
4	S23233001	Ga1
7	S2337001	A
76	S2337001	A
1-2	S23342001	C
7-1	S23342001	C
1-3	S23342001	H
1-2	S23346101	K
2-13	S23349001	Q1
63	S23350001	A
65	S23351001	A
58	S23353001	Z1
10	S23356001	Z1
78	S23357001	A
37	S23360001	G
42	S23360001	G
18	S23360001	M
44	S23364000	F1
1-2	S23418002	D
6	S23418002	J
1-2	S23773001	Q1
2-8	S23774001	Q1
1-1-6	S23775001	Q1
1-1-4	S23777101	Q1
1-6	S23779001	Q1
1-1	S23896101	E
1-4	S23897001	E
14	S24473000	Z1
4-8	S25019001	Q3
93	S25184001	A
4	S25194001	Ga1
4	S25194001	Ga3
4	S25194001	Ga3
4	S25195001	Ga1
4	S25195001	Ga3

Page 62 — 索引 / INDEX

Brother MA4-N31 (64 pages) parts on page 62

Ref	Part number	Part name	Qty
	S25196001	Ga1 4
	S25196001	Ga4 4
	S25197001	Ga1 4
	S25197001	Ga4 4
	S25198001	Ga1 4
	S25198001	Ga5 4
	S25199001	Ga1 4
	S25199001	Ga5 4
	S25200001	Ga1 4
	S25200001	Ga4 4
	S25201001	Ga1 4
	S25201001	Ga4 4
	S25202001	Ga3 4
	S25202001	Ga7 4
	S25203001	Ga3 4
	S25203001	Ga7 4
	S25204001	Ga7 4
	S25548101	Ga1 2
	S25548101	Ga5 2
	S25550001	Ga2 2
	S25550001	Ga6 2
	S25553001	Ga2 2
	S25553001	Ga3 2
	S25553001	Ga6 2
	S25553001	Ga7 2
	S25555001	Ga3 2
	S25555001	Ga7 2
	S25557001	Ga1 2
	S25557001	Ga4 2
	S25560101	Ga3 2
	S25560101	Ga7 2
	S25562101	Ga7 2
	S25566001	Ga1 6
	S25566001	Ga4 6
	S25818051	G 61
	S27868001	B 16
	S29102001	M 6
	S29146001	Ga1 3
	S29148001	Ga7 3
	S29631001	Ga1 3
	S29631001	Ga4 3
	S29700000	K 9-3
	S29824000	J 4
	S29827000	J 4
	S29831000	J 7
	S29835001	J 5
	S30135101	Q2 3-1
	S30135101	Q3 3
	S30135102	Q2 3-2
	S30135102	Q3 3
	S30296001	Q3 5
	S30296002	Q3 5
	S30296003	Q3 5
	S30296004	Q3 5
	S30296005	Q3 5
	S30296006	Q3 5
	S30297002	Q3 5
	S30297004	Q3 5
	S30297006	Q3 5
	S30303001	Q3 4
	S30304001	Q1 1
	S30304001	Q3 1
	S30525001	Ga5 2
	S30532001	Ga5 2
	S30562000	F1 28
	S30562000	G 18
	S30586101	Ga3 2
	S30588001	Ga4 2
	S30590001	F2 50-16-5
	S30592101	Ga3 2
	S30593001	Ga3 2
	S30593001	Ga4 2
	S30594101	Ga4 2
	S30888001	F1 40
	S30890000	F1 38-4
	S30971001	Ga1 2
	S30971001	Ga2 2
	S30971001	Ga4 2
	S30971001	Ga6 2
	S30971001	Ga6 2
	S31881101	M 12
	S31975001	Ga7 4
	S31979001	Ga7 4
	S31981001	Ga7 2
	S32140001	E 1
	S32276001	P 15
	S33172001	Ga1 5
	S33172001	Ga2 5
	S33172001	Ga3 5
	S33172001	Ga4 5
	S33172001	Ga5 5
	S33172001	Ga6 5
	S35635020	Z2 42-5
	S35651001	Ga1 4
	S35651001	Ga4 4
	S35826021	Z2 42-7
	S35826021	Z2 42-29
	S35827021	Z2 42-8
	S35827021	Z2 42-10-2
	S35827021	Z2 42-13
	S35827021	Z2 42-14-2
	S35827021	Z2 42-17
	S35827021	Z2 42-23
	S35827021	Z2 42-30
	S35831021	Z2 42-12
	S35831021	Z2 42-22
	S35832021	Z2 42-10-1
	S35832021	Z2 42-14-1
	S35840001	Ga4 5
	S35991001	Ga4 5
	S35992001	Ga4 6
	S35997001	Z1 29
	S35997001	Z2 64-3
	S36007001	Z2 64-4
	S36062021	Z2 42-4
	S36064021	Z2 42-2
	S37070121	F1 34
	S38301020	A 44
	S38302020	Z1 65
	S38305001	A 29-1
	S38306051	C 25
	S38307001	C 27
	S38308121	F1 5
	S38311100	G 43
	S38312050	G 24
	S38328051	P 1
	S38329001	P- 38
	S38330050	P 46
	S38595001	Ga5 5
	S38596001	Ga5 5
	S38597001	Ga5 6
	S39562001	A 37
	S39564021	A 23
	S39565101	B 24-2
	S39566001	C 7
	S39571021	C 10
	S39574001	C 8
	S39575001	F1 2
	S39577000	F1 2-1
	S39578001	G 1
	S39585001	G 1-3
	S39586001	G 1-4
	S39589021	G 8
	S39593021	G 54
	S39596021	G 54-1
	S39597001	N 4
	S39598000	N 4-4
	S39599001	N 4-3
	S39601000	N 4-5
	S39602000	N 4-7
	S39603001	N 4-8
	S39605001	A 2
	S39606020	A 5
	S39607001	A 8
	S39608021	A 11
	S39611001	A 27
	S39612001	A 27-1
	S39613001	A 27-2
	S39623001	A 38
	S39624021	A 42
	S39625151	A 49
	S39626021	A 58
	S39629021	B 3
	S39630000	B 10
	S39631000	B 20
	S39644021	C 2
	S39645021	C 3
	S39646021	C 4
	S39647000	C 5
	S39648021	C 9
	S39649021	C 15
	S39650001	C 17
	S39652021	C 18
	S39654051	C 29
	S39658001	F1 1
	S39659021	F1 6
	S39660001	F1 7
	S39661001	F1 8
	S39662001	F1 9
	S39663121	F1 11
	S39664101	F1 12
	S39665001	F1 15
	S39666001	F1 20
	S39667021	F1 21
	S39669101	F1 23
	S39670000	F1 24

Page 63

Brother MA4-N31 (64 pages) parts on page 63

Ref	Part number	Part name	Qty
26	S39671121	F1
29	S39672001	F1
5	S39673020	G
9	S39674001	G
10	S39675001	G
15	S39676121	G
16	S39677021	G
17	S39678021	G
20	S39679001	G
26	S39680001	G
27	S39684021	G
28	S39685001	G
44	S39686000	G
45	S39687000	G
46	S39688001	G
36	S39690021	G
8	S39691001	M
39	S39691001	G
50	S39692021	G
58	S39693001	G
64	S39694021	G
65	S39695001	G
4	S39704021	H
19	S39707001	H
25	S39708001	H
28	S39709021	K
3	S39728021	K
8	S39729021	L
1	S39732021	M
3	S39733001	M
4	S39734021	M
7	S39735050	M
10	S39740021	M
20	S39741021	M
21	S39742021	M
22	S39743001	M
3	39743001	N
7	39744021	N
8	S39745001	N
10	S39747001	N
13	S39749001	N
11	S39751021	N
15	S39752021	N
63	S39756021	P
67	S39757001	P
40	S39769051	G
17	S39770001	F1
35	S39773001	G
24-1	S39775001	B
92	S39785001	A
92	S39786001	A
92	S39787001	A
2-6	S39795001	Q1
2-15	S39796001	Q1
33	S42042021	G
29-2	S42050001	A
29-1	S43521000	N
29-2	S43522000	N
29	S43523000	N
1	S43525001	D
6	S43527001	H
2	S43530001	Q1
2	S43530001	Q3
40	S43539001	Q3
40	S43539003	Q3
40	S43539004	Q3
40	S43539005	Q3
40	S43539006	Q3
40	S43540001	Q3
40	S43540005	Q3
40	S43541001	Q3
40	S43541002	Q3
40	S43541003	Q3
40	S43541004	Q3
40	S43541005	Q3
40	S43542004	Q3
40	S43542005	Q3
40	S43542006	Q3
48-1	S43916001	G
22-2	S44535001	A
25-3	S44536000	A
24	S44744001	A
38-1	S44744001	F1
19	S44778000	A
21	S44779001	A
94	S44821001	A
14	S44935101	M
15	S44937101	M
16	S44939001	M
25-1	S44955001	G
42	S45953001	Z2
42	S45954001	Z2
42-25	S45961001	Z2
42-14	S45964001	Z2
42-10	S45970001	Z2
7-2	S46899001	C
9-2-1	S46900001	K
30	S46903001	F1
13	S46904001	K
5	S46904001	L
11	S46907001	Z1
21	S49337000	N
23	S50091001	K
9	S52053001	K
9-1	S52054001	K
9-5	S52059001	K
9-2	S52060001	K
9	S52062001	K
9-2	S52063001	K
50-16-8	S53955001	F2
1	S54001001	B
1	S54002001	B
1	S54003001	C
1	S54006001	C
1	S54007001	C
1	S54011001	H

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother MA4-N31 (64 pages) — parts catalog

• Page 1 (cover): This is the cover page for the Brother FB-N310 High Speed Safety Stitch Sewing Machine Parts Book.
• Page 2 (unknown): This page contains a watermark and no other discernible text or parts information.
• Page 3 (text): This page lists various specifications and applications for the Brother FB-N310 sewing machine, including stitch form, applications, sewing materials, special uses, needle gauge, stitch width, over-looper locus, differential feed dog, and upper knife shape.
• Page 4 (toc): This page is a table of contents for a parts book, listing various sections and their corresponding page numbers.
• Page 6 (diagram): This page displays a diagram of the machine body and related frame components, with numbered parts for identification.
• Page 7 (parts_list): This page lists parts for the machine body, including various screws, covers, and plates, with their corresponding part numbers and descriptions.
• Page 8 (diagram): This page displays a diagram of the machine body and related components, with numbered parts for identification.
• Page 9 (parts_list): This page lists parts for the Machine body, including screws, nuts, pins, rubber caps, and labels, with their corresponding part numbers, quantities, and descriptions.
• Page 10 (diagram): This page displays a diagram of the crankshaft mechanism, illustrating various components with reference numbers for identification.
• Page 11 (parts_list): This page lists parts for the Crankshaft mechanism, including part numbers, descriptions, and quantities for various components like bearings, rings, screws, and pulleys.
• Page 12 (diagram): This page displays a diagram of the needle bar mechanism, illustrating various components with reference numbers and part numbers for identification and assembly.
• Page 13 (parts_list): This page lists parts for the needle bar mechanism, including various screws, bolts, washers, and specialized components like needle plates and guards, with their corresponding part numbers and descriptions.
• Page 14 (diagram): This page contains diagrams and parts lists for the Needle cooler and Serging attachment, including option parts for both.
• Page 15 (parts_list): This page contains parts lists for the Needle cooler and Serging attachment sections, detailing part numbers, descriptions, and quantities.
• Page 16 (diagram): This page displays a diagram of the presser foot mechanism, detailing various components with their corresponding reference numbers and part numbers.
• Page 17 (parts_list): This page lists parts for the F1. Presser foot mechanism, including part numbers, descriptions, and quantities.
• Page 18 (diagram): This page displays diagrams and part numbers for various presser foot mechanisms, including parts for models 4020, 4030, 4420, 4430, 4720, 5020, 5030, 5420, 5720, 6030, 6430, 4010, 4520, 4530, 5010, 5520, 5530, 4050, 5050, 4620, 4630, 5620, 5630, 5051, and for small type machines.
• Page 19 (parts_list): This page lists parts for the Presser foot mechanism, including part numbers, descriptions, and quantities for various components.
• Page 20 (diagram): This page displays a diagram of the feed mechanism, with numbered parts and their corresponding references.
• Page 21 (parts_list): This page lists parts for the G. Feed mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 22 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with various parts numbered for identification.
• Page 23 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 24 (diagram): This page displays a diagram of the knife mechanism, including various parts and their reference numbers, with a section dedicated to optional parts for small type and angle knife.
• Page 25 (parts_list): This page lists parts for the Knife mechanism, including upper and lower knife parts, screws, washers, and bolts.
• Page 26 (diagram): This page displays a diagram of the Lapper mechanism for binding, with numbered parts including a lapper, a screw, and a bracket.
• Page 27 (parts_list): This page lists parts for the Lapper mechanism, including part numbers, descriptions in Japanese and English, and quantities.
• Page 28 (diagram): This page displays a diagram of the over looper mechanism and extra high lift components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 29 (parts_list): This page lists parts for the K. Over looper mechanism, including part numbers, quantities, descriptions in Japanese and English, and applicable models.
• Page 30 (diagram): This page displays a diagram of the under looper mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 31 (parts_list): This page lists parts for the under looper mechanism, including part numbers, descriptions, and quantities for different machine models.
• Page 32 (diagram): This page displays a diagram of the double chain stitch looper mechanism, with numbered parts indicated for identification.
• Page 33 (parts_list): This page lists parts for the Double chain stitch looper mechanism, including part numbers, descriptions, and quantities.
• Page 34 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 35 (parts_list): This page lists parts for lubrication, including part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of thread tension components for a sewing machine, specifically for "3 Needles", with various parts numbered from 1 to 76.
• Page 37 (parts_list): This page lists parts related to thread tension, including part numbers, descriptions, and quantities.
• Page 38 (diagram): This page displays a diagram of thread tension components for a sewing machine, including parts numbered 1 through 76, with specific callouts for "For "3 Needles"" configurations.
• Page 39 (parts_list): This page lists parts for thread tension, including screws, springs, and guides, with their corresponding codes and names.
• Page 40 (diagram): This page displays a diagram of the ruffling attachment components, with parts numbered from 1-1-1 to 2-18.
• Page 41 (parts_list): This page lists parts for the Ruffler attachment, including part numbers, descriptions, and quantities.
• Page 42 (diagram): This page displays diagrams for the "Ruffling attachment" for both semi-submerged and fully-submerged machine types, detailing various components with their respective part numbers and reference designators.
• Page 43 (parts_list): This page lists parts for the Ruffing attachment, including part numbers, descriptions, and quantities for various components like adjusting sets, knee lifters, brackets, bolts, nuts, and screws.
• Page 44 (diagram): This page displays a diagram of ruffling attachment components, including various screws, a spool holder, and different presser feet, with reference numbers and part numbers indicated for each item.
• Page 45 (parts_list): This page lists parts for Ruffler attachment, including piping parts, tape winder, screws, washers, nuts, and various assemblies like the needle clamp, needle plate, and presser foot. It also details parts for different machine models and configurations.
• Page 46 (diagram): This page displays a diagram of accessories and optional parts for a Brother sewing machine, including various tools, a cloth, a bottle of oil, and a foot pedal.
• Page 47 (parts_list): This page lists accessories for the Z1 sewing machine, including needles, screws, wrenches, and other components with their respective part numbers and descriptions.
• Page 48 (diagram): This page displays a diagram of accessories and option parts for the sewing machine, including various screws, nuts, washers, and mounting components with their corresponding part numbers.
• Page 49 (parts_list): This page lists parts for Z2. Accessories, including part numbers, descriptions, and quantities for various components like screws, nuts, washers, and specialized parts.
• Page 50 (parts_list): This page lists parts for sewing machines, categorized by application and sub-class, including needle gauges, presser foot assemblies, needle clamps, needle plates, feed dogs, knives, and loopers.
• Page 51 (parts_list): This page lists parts for sewing machine models under the Ga2. Gauge Parts List section, detailing various components like presser foot assy, needle clamp assy, needle plate, main feed dog assy, differential feed dog, upper knife, lower knife, and over looper, along with their respective part numbers and quantities.
• Page 52 (parts_list): This page lists parts for sewing machine models, categorized by application such as Ruffing W/Piping, Binding, and Thin. It includes part numbers, names, and quantities for various components like Presser Foot Assy, Needle Clamp Assy, Needle Plate, Feed Dogs, and Knives.
• Page 53 (parts_list): This page lists parts for sewing machines, categorized by application and thickness, including needle gauges, presser foot assemblies, needle clamps, needle plates, feed dogs, and knives.
• Page 54 (parts_list): This page lists parts for sewing machine models under the "Ga5" series, categorized by application like "5 Threads", "Extra Heavy", and "Ruffing". It includes part numbers, names, and diagrams for items such as needles, presser feet, needle clamps, needle plates, feed dogs, and knives.
• Page 55 (parts_list): This page lists parts for the Ga6 gauge, including presser foot assy, needle clamp assy, needle plate, main feed dog assy, differential feed dog, upper knife, lower knife, and over looper.
• Page 56 (parts_list): This page lists parts for various sewing machine applications including piping, binding, and ruffling, with part numbers, descriptions, and diagrams.
• Page 57 (parts_list): This page lists warning labels and their corresponding codes and sizes, including operation caution labels and grounding marks.
• Page 58 (index): This page is an index of part numbers and their corresponding reference numbers and page numbers in the catalog.
• Page 59 (parts_list): This page contains a parts list with columns for CODE, REF.NO, and page, listing various part numbers and their corresponding references and page numbers.
• Page 60 (index): This page is an index of machine parts, listing part numbers, reference numbers, and corresponding page numbers.
• Page 61 (parts_list): This page lists parts with codes such as S20578101, S20701001, and S21376001, along with their reference numbers and page numbers.
• Page 62 (index): This page is an index of parts for an industrial sewing machine, listing part codes, reference numbers, and corresponding page numbers.
• Page 63 (parts_list): This page contains a parts list with part numbers, reference numbers, and page numbers for various components, organized into columns for CODE, REF.NO, and page.
• Page 64 (cover): This is the cover page of the Brother Parts Book, featuring the Brother logo, a graphic of a screw, and the title "PARTS BOOK". It also includes the company name "BROTHER INDUSTRIES LTD" and printing information.

Page 1

FB-N310 パーツブック PARTS BOOK 超高速安全縫ミシン HIGH SPEED SAFETY STITCH SEWING MACHINE brother. jintex.in

Page 2

jinttex.in jintex.in

Page 3

BROTHER INDUSTRIES, LTD. NAGOYA JAPAN FB-N310- 1234-56 仕様/Specifications 装置/Devices 仕様明細/Detail of specifications 789 ① 縫い目形式/Stitch form 4 安全縫い・4本糸/Safety stitch, 4-threads 5 安全縫い・5本糸/Safety stitch, 5-threads 6 安全縫い・6本糸/Safety stitch, 6-threads ② 用途/Applications 0 地縫い/Plain seaming 4 ひだ取り/Ruffling 5 テープ付け/Taping 6 パイピング付ひだ取り/Ruffling with piping 7 バインディングテープ付け/Binding with taping ③ 縫製物/Sewing materials 1 極薄物~薄物/Extra light - light materials 2 薄物~中厚物/Light - medium materials 3 中厚物~厚物/Medium - heavy materials 4 厚物~極厚物/Heavy - Extra heavy materials 5 極厚物/Extra heavy materials 6 バルキーニット/Bulky knit 7 極厚バルキーニット/Extra heavy bulky knit ④ 特殊用途/Special use 0 標準/Standard 1 小回り仕様/Small type 3 特殊作動比/Special differential ratio ⑤ 針幅/Needle gauge 2 2mm 3 3mm 5 5mm A 3x2.2mm B 5x2.2mm C 5x3mm ⑥ かがり幅/Stitch width 2 2 mm 3 3 mm 4 4 mm 5 5 mm 6 6 mm 7 7 mm ⑦ 上ルーパ一リフト/Over-looper locus S スタンダード/Standard lift H ハイリフト/High lift E 超ハイリフト/Extra high lift ⑧ 差動送り歯/針板チェーンランド/Differential feed dog 2 2列標準/チェーンランドあり 2-row standard/with chain land 3 3列標準/チェーンランドあり 3-row standard/with chain land ⑨ 上メス形状/Upper knife shape F 平メス/Flat knife A 角メス/Angle knife B 角メス幅広/Angle knife, wide V 角メス波刃/Angle knife, wave shape W 角メス幅広波刃/Angle knife, wave shape jintex.in

Page 4 — 目 次

パーツブックご利用に際して 1. この本は、2001年12月のデータに基づいて作成されたものです。 2. 部品は予告なしに設計変更される場合があります。 3. 組単位で補給する部品は、[---] 破線で示してあります。 4. 部品コード欄が*となっている場合は、ゲージ部品一覧表 (45~51ページ)でお調べ下さい。 目 次 A. フレーム関係. B. 駆動軸関係. C. 針棒関係. D. 針冷却関係. E. 縁カガリ定規関係. F1. 押工関係. F2. 押工関係. G. 送り関係. H. 上メス・下メス関係. J. ラッパー関係. K. 上ルーパ関係. L. 下ルーパ関係. M. 二重環ルーバー. N. 給油潤滑関係. P. 糸調子関係. Q1. ラフラー装置関係. Q2. ラフラー装置関係. Q3. ラフラー装置関係. Z1. 付属部品関係. Z2. 付属部品関係(オプションパーツ) Ga1. ゲージ部品一覧表. Ga2. ゲージ部品一覧表. Ga3. ゲージ部品一覧表. Ga4. ゲージ部品一覧表. Ga5. ゲージ部品一覧表. Ga6. ゲージ部品一覧表. Ga7. ゲージ部品一覧表. Wa. 警告ラベル 1 5 7 9 9 11 13 15 19 21 23 25 27 29 31 35 37 39 41 43 45 46 47 48 49 50 51 jintex.in

Page 6 — A. フレーム関係 / Machine body

A. フレーム関係 / Machine body 70 71 72 8 12 11 3 6 4 7 2 5 69 66 9 10 79 80 59 67 68 60 75 76 58 22-2 22-1 81 20 19 21 15 13 14 93 55 74 62 24 23 52 53 63 25-1 26 25-2 25-3 61 35 36 94 92 40 78 77 37 51 65 64 27 27-8 27-5 27-7 32 27-9 27-2 27-6 27-1 27-3 27-4 28 31 49 48 46 33 34 30 29-1 29-2 44 43 38 39 41 42 < バインディング用 / For Binding > 1 878-N31-052 jintex.in

Page 7 — A. フレーム関係 / Machine body

A. フレーム関係 / Machine body REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 2 S39605001 1 ウツカバ TOP COVER 3 S02606020 1 ユリヨウケイマド OIL GAUGE WINDOW 4 062401012 6 ナベコM4X10 SCREW, PAN M4X10 5 S39606020 1 パツキン PACKING 6 081014670 1 Oリング PW14 O RING, PW14 7 S23337001 1 ゴムセン18.5 RUBBER CAP, 18.5 8 S39607001 1 ソクメンカバー SIDE COVER, FRAME 9 062400812 5 ナベコM4X8 SCREW, PAN M4X8 10 S20345001 1 ゴムセン14 RUBBER CAP, 14 11 S39608021 1 フエイスプレートカバー FACE PLATE COVER 12 060400612 1 バインドM4X6 SCREW, BIND M4X6 13 S20310001 1 オクリヨウカバ-B COVER, B;FEED MECHANISM 14 S20311000 1 パツキン PACKING 15 060400612 6 バインドM4X8 SCREW, BIND M4X8 19 S44778000 1 オクリヨウカバ-パツキン PACKING, FEED BAR 20 018400832 1 アナボルト4X8 BOLT, SOCKET M4X8 21 S44779001 1 フイードバーカバー FEED BAR COVER 22-1 060400812 5 バインドM4X8 SCREW, BIND M4X8 22-2 S44535001 1 バインドM4X8シール SCREW, BIND M4X8 SEAL 3 S39564021 1 ウチカバ INSIDE COVER 4 S44536000 1 ウチカバ-パツキン PACKING, INSIDE COVER 25-1 060401012 3 バインド M4X10 SCREW, BIND M4X10 25-2 S23616101 1 シメネジ4X10 SCREW, M4X10 25-3 S44535001 1 バインド M4X8シール SCREW, BIND M4X8 SEAL 26 061400812 1 サラコM4X8 SCREW, FLAT M4X8 27 S39611001 1 エカバ-Lクミ FRONT COVER ASSY, L 27-1 S39612001 1 エカバ-L FRONT COVER, L 27-2 S39613001 1 エカバ-ヒンジジク HINGE SHAFT, FRONT COVER 27-3 S20319001 1 エカバ-ヒンジ HINGE, FRONT COVER 27-4 012400432 2 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 27-5 S20320101 1 エカバ-ストツパ STOPPER, FRONT COVER 27-6 S20321001 1 エカバ-バネ SPRING, FRONT COVER 27-7 060400612 1 バインド M4X6 SCREW, BIND M4X6 27-8 S20327101 1 エカバ-メトイタ STOPPER PLATE, FRONT COVER 27-9 060400612 1 バインド M4X6 SCREW, BIND M4X6 28 060401412 3 バインド M4X14 SCREW, BIND M4X14 29-1 S38305001 1 エカバ-S FRONT COVER, S -9-2 S42050001 1 エカバ-S <For Binding> FRONT COVER, S 30 062400612 2 ナベコM4X6 SCREW, PAN M4X6 31 012400832 1 アナヒラ4X8 SET SCREW, SOCKET (FT) M4X8 32 012400432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 33 S20324101 1 エカバ-Lアンナイ GUIDE, L F-VOVER 34 060400612 2 バインド M4X6 SCREW, BIND M4X6 35 S20325001 1 エカバートメイタバネ SPRING, PLATE 36 060400612 1 バインド M4X6 SCREW, BIND M4X6 37 S39562001 1 クロスプレート CLOTH PLATE 38 S39623001 1 クロスプレートサシジク CLOTH PLATE SHAFT 39 141183000 1 クロスプレートシート CLOTH PLATE SHEET 40 100032003 1サラ4.37 SCREW, FLAT SM4.37-40X8 41 100315002 1ワツシヤー WASHER 42 S39624021 1 セツトカラー SET SCREW COLLAR 43 012060632 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 44 S38301020 1 クロスプレートシタ CLOTH PLATE, LOWER 46 060400612 4 バインド M4X6 SCREW, BIND M4X6 48 S20412000 2 ゴムセン3.7 RUBBER CAP, 3.7 49 S39625151 1 クロスプレートトメイタバネ SPRING, PLATE 50 060400612 2 バインド M4X6 SCREW, BIND M4X6 878-N31-052 jintex.in 2

Page 8 — A. フレーム関係 / Machine body

A. フレーム関係 / Machine body 70 71 72 8 12 11 3 4 69 66 9 7 6 2 68 67 59 5 60 10 75 76 79 80 58 22-2 22-1 20 81 15 13 14 21 19 24 23 93 55 74 62 52 53 63 25-1 26 25-2 54 25-3 61 35 36 94 92 40 78 77 65 64 37 27 38 39 41 42 49 51 27-8 27-9 27-5 27-7 27-2 27-6 27-3 27-1 27-4 < バインディング用 / For Binding > 29-2 31 32 48 46 30 29-1 33 34 28 44 3 jintex.in 878-N31-052

Page 9 — A. フレーム関係 / Machine body

A. フレーム関係 / Machine body REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 51 156482000 1 セン4 CAP, 4 52 062401212 1 ナベコ4X12 SCREW, PAN M4X12 53 021400212 1 シュナット4 NUT, 2 M4 54 047602042 1 スプリングピン6X20 PIN, SPRING ROLL 6X10 55 S20412000 1 ゴムセン3.7 RUBBER CAP, 3.7 58 S39626021 1 クロスペレートヌノアンナイ CLOTH GUIDE 59 060400612 2 バインド M4X6 SCREW, BIND M4X6 60 060400512 1 バインド M4X5 SCREW, BIND M4X5 61 S20338200 1 アブブラウケ OIL PAN 62 S20339000 1 パッキン PACKING 63 S23350001 4 ホンタイシチュウ MACHINE BODY LEG 64 017501212 4 ボルトM5X12 BOLT, M5X12 65 S23351001 4 サガネ WASHER 66 S00075000 1 アイガード EYE GUARD 67 060350812 2 バインド 35X8 SCREW, BIND M3.5X8 68 025350332 2 ヒラサガネタ13.5 WASHER, PLAIN L 3.5 69 S20340001 1 アイガードササエイト EYE GUARD SUPPORT PLATE 70 S20342001 1 タンネジ4 SHOULDER SCREW, M4 71 146598001 1 ハネサガネ WASHER, BOWL SPRING 72 025050132 1 ヒラサガネ5 WASHER, PLAIN S 5 74 S20344001 1 ゴムセン16 RUBBER CAP, 16 75 S20345001 1 ゴムセン14 RUBBER CAP, 14 76 S23337001 1 ゴムセン18.5 RUBBER CAP, 18.5 77 081009070 1 OリングP9 O RING P9 78 S23357001 1 シメネジ 10 SCREW, M10 79 S20346000 1 ハリホウアブブラウケ OIL RESERVOIR, N-BAR 80 062401612 1 ナベコM4X16 SCREW, PAN M4X16 81 S20878000 1 ゴムセン5.3 RUBBER CAP, 5.3 92 S39785001 1 イトオセツメイラベルD <For 5 Threads"> THREADING DIAGRAM LABEL, D 92 S39786001 1 イトオセツメイラベルE <For 4 Threads"> THREADING DIAGRAM LABEL, E 92 S39787001 1 イトオセツメイラベルF <For 6 Threads"> THREADING DIAGRAM LABEL, F 93 S25184001 1 DLイトオセツメイラベル THREADING DIAGRAM LABEL, DL 94 S44821001 1 セイソウシラベル LABEL,CLEANING 878-N31-052 jintex.in 4

Page 10 — B. 駆動軸関係 / Crankshaft mechanism

B. 駆動軸関係 / Crankshaft mechanism 1 3 6 4 13 12 7 11 10 15 14 5 25 24-1 16 17 18 21 20 22 <シンクロナイザ用 / For Synchronizer > 26 24-2 27 28 5 878-N31-103 jintex.in

Page 11 — B. 駆動軸関係 / Crankshaft mechanism

B. 駆動軸関係 / Crankshaft mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S54001001 1 <スタンダード、ハイリフト用> <For Srandard & High lift> 1 S54002001 1 <超ハイリフト用> CRANKSHAFT, R <For Extra High lift> クドウシ S CRANKSHAFT,S 3 S39629021 1 ベアリングフタ BEARING CAP 4 081031870 1 Oリング S31.5 O RING, S31.5 5 062400812 2 ナベコ M4X8 SCREW, PAN M4X8 6 061400812 1 平コウM4X8 SCREW, FLAT M4X8 7 072600000 1 タマシクウケ6000 BALL BEARING, 6000 8 S39630000 1 クドウシ メタル BUSH, CRANKSHAFT 9 065550001 1 ヒラザガネ WASHER, PLAIN 10 155559001 1 ヒラザガネ WASHER, PLAIN 11 S46900001 1 ニジユウカンテンビンク SHAFT, D/C STITCH THR/TAKE-UP 12 048400242 1 トメワノウケC40 RETAINING RING, INTERNAL C40 13 076203000 1 タマシクウケ6203 BALL BEARING, 6203 14 S27868001 1 タマシクウケ6203V BALL BEARING, 6203V 15 S25081001 1 バネ SPRING, WAVE 16 S20362151 1 オイレジエクター クイルキリ OIL REJECTOR, CRANKSHAFT 17 S39631000 1 ベアリングサオ HOLDER, BEARING 0 S20353000 1 Oリング O RING 21 062401012 3 ナベコM4X10 SCREW, PAN M4X10 22 S39775001 1 プーリー PULLEY 24-1 <シンクロナイザー用> <For Synchronizer> 24-2 S39565101 1 プーリー PULLEY 26 012060632 1 アテバネ6X6 SET SCREW, SOCKET (FT) M6X6 27 012060632 1 アテバネ6X6 SET SCREW, SOCKET (FT) M6X6 28 028060242 1 ワッシャー 32-6 WASHER, SPRING 2-6 25 018062532 1 アナトメボルト6X25 BOLT, SOCKET M6X25 878-N31-103 jintex.in 6

Page 12 — C. 針棒関係 / Needle bar mechanism

C. 針棒関係 / Needle bar mechanism 11 10 7 7-1 7-2 7-6 7-5 7-1 32 20 18 26 25 16 15 2 4 7-4 7-3 33 20 17 21 22 9 1-1 1-2 1-3-1 1-3-2 12-1 12-1 27 13 28 30 29 3 5 6 1 23 24 878-N31-118 7 jintex.in

Page 13 — C. 針棒関係 / Needle bar mechanism

C. 針棒関係 / Needle bar mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S54003001 1 <スタンダード、ハイリフト用> <For Standard lift> 1 S54006001 1 ハリクランクロッドクミS <スタンダード、ハイリフト用> NEEDLE D/CRANK ROD ASSY, S <For High lift> 1 S54007001 1 ハリクランクロッドクミH <超ハイリフト用> NEEDLE D/CRANK ROD ASSY, H <For Extra High lift> 1-1 018401622 2 ハリクランクロッドクミE NEEDLE D/CRANK ROD ASSY, E 1-2 S23342001 2 アボルト4X16 BOLT, SOCKET M4X16 1-3-1 017061612 1 ナットガリ4X5 SET SCREW, SOCKET (CN) M4X5 1-3-2 118735002 1 ボルト6X16 BOLT, M6X16 2 S39644021 1 ワッシャー WASHER, PLAIN 3 S39645021 1 ハリジクメタルL BUSH, L; NEEDLE SHAFT 4 S39646021 1 ハリジクメタルR BUSH, R; NEEDLE SHAFT 5 S39647000 1 ハリジク NEEDLE SHAFT 6 S39647000 1 ザガネ WASHER 146293001 1 トメワE10 RETAINING RING, E10 7 S39566001 1 ハリボウ ウタクミ NEEDLE BAR CLAMP ASSY 7-1 S23342001 2 ナットガリ4X5 SET SCREW, SOCKET (CN) M4X5 7-2 S46899001 1 ザガネツキボルト6X16 BOLT, (W/WASHER) M6X16 7-3 062350812 1 ナベコ3.5X8 SCREW, PAN M3.5X8 7-4 S20391001 1 スペーサ SPACER 7-5 S20392000 2 フエルト FELT 7-6 155162001 1 スペーサ SPACER 8 S39574001 1 ハリボウ NEEDLE BAR 9 S39648021 1 ハリボウ ウメタルD BUSH, D; NEEDLE BAR 10 S39571021 1 ハリボウ ウメタルU BUSH, U; NEEDLE BAR 11 104450101 1 ゴムセン8 RUBBER CAP, 8 12 * 1 ハリドメメクミ NEEDLE CLAMP ASSY 12-1 146427001 2 ナットメネシ3.18Xボルト SET SCREW, SOCKET (CP) SM3.18 13 * 2 シンメシDCX27 NEEDLE, DCX27 15 S39649021 1 ハリイタササエタ SUPPORT BRACKET, N-PLATE 16 018062532 2 アボルト6X25 BOLT, SOCKET M6X25 17 S39650051 1 ハリイタササエタF NEEDLE PLATE SUPPORT, F 18 S39652021 1 ハリイタササエタB NEEDLE PLATE SUPPORT, B 20 062401012 4 ナベコM4X10 SCREW, PAN M4X10 21 S20415101 1 イトウハリウケ NEEDLE GUARD, MOVABLE 22 S20416101 1 ボルト3.5X10 BOLT, M3.5X10 23 S20418051 1 オーバハリウケF NEEDLE GUARD, F 24 S23456101 2 ナベコ25X6 SCREW, PAN M2.5X6 25 S38306051 1 ニジカンハリウケF D-CHAIN STITCH N/GUARD, F 26 062350812 1 ナベコ3.5X8 SCREW, PAN M3.5X8 27 S38307001 1 ニジカンハリウケB D-CHAIN STITCH N/GUARD, B 28 062300812 2 ナベコ3X8 SCREW, PAN M3X8 29 S39654051 1 ハリウケブラケット NEEDLE GUARD BRACKET 30 062401012 1 ナベコM4X10 SCREW, PAN M4X10 32 * 1 ハリイタ NEEDLE PLATE 33 100032003 2 サラネジ 4.37 SCREW, FLAT SM4.37-40X8 878-N31-118 jintex.in 8

Page 14 — D. 針冷却関係 / Needle cooler E. 縁カガリ定規関係 / Serging attachment

D. 針冷却関係 / Needle cooler "オプション部品 / OPTION PARTS " 1-1-1 1-3 1-4 1 878-N31-124 E. 縁カガリ定規関係 / Serging attachment "オプション部品 / OPTION PARTS " 1-9 1-2 1-3 1-8 1-1 1-7 1-6 1-4 2 1-5 9 878-N31-236 jintex.in

Page 15 — D. 針冷却関係 / Needle cooler E. 縁ガリ定規関係 / Serging attachment

D. 針冷却関係 / Needle cooler REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S43525001 1 ” オプション部品” "OPTION PARTS" 1-1 S20468001 1 ハリレイヤクセットS NEEDLE COOLER SET, S 1-1-1 S20460000 1 フェルトサエツミ FELT SUPPORT ASSY 1-2 S23418002 2 シリコンタンクフタ CAP, SILICONE TANK 1-3 060401012 1 インドM4X10 SCREW, M4X5 1-4 S06704001 1 シリコンオイル SCREW, BIND M4X10 SILICONE OIL 878-N31-124 E. 縁ガリ定規関係 / Serging attachment REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S32140001 1 ” オプション部品” "OPTION PARTS" 1-1 S23896101 1 フチカケリジヨウキクミ EDGE GUIDE ASSY 1-2 S23773001 1 タンネシ SETTING PLATE, ;EDGE GUIDE 1-3 146598001 1 バネザガネ SHOULDER SCREW, M4 1-4 S23897001 1 ジヨウキトリツケイサエ WASHER, BOWL SPRING -5 021400212 1 シユナツト4 EDGE GUIDE SUPPORT 1-6 S21341001 1 ストツパー NUT, 2 M4 1-7 062300512 1 フチコメ3X5 STOPPER 1-8 146600001 1 フチカケリジヨウキ SCREW, PAN M3X5 1-9 062350612 1 フチコメM3.5X6 EDGE GUIDE 2 062401012 1 フチコメM4X10 SCREW, PAN M3.5X6 SCREW, PAN M4X10 878-N31-236 10 jintex.in

Page 16 — F1. 押工関係 / Presser foot mechanism

F1. 押工関係 / Presser foot mechanism < 小回り用 / For Small type > 41 40 < テーピング用 / For Taping > 44 1 4 9 6 7 8 29 5 34 35 2 2-1 2-2 3 30 26 22 21 21-1 39 38-1 19 17 18 16 15 14 13 11 12 20 23 24 25 27 28 38-2 38-4 38-3 878-N31-201 11 jintex.in

Page 17 — F1. 押工関係 / Presser foot mechanism

F1. 押工関係 / Presser foot mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S39658001 1 オサエチヨウセツネシ ADJUSTING SCREW, PRESSER 2 S39575001 1 オサエバ PRESSER BAR ASSY 2-1 S39577000 1 オサエクツシヨン CUSHION 2-2 047301642 1 スプリングピン AW3 SPRING PIN AW3 3 105161004 1 ザガネ WASHER, PLAIN 4 S20476001 1 オサエバネ PRESSER SPRING 5 S38308121 1 シユオサエデ MAIN PRESSER ARM 6 S39659021 1 オサエアゲ PRESSER BAR LIFTER 7 S39660001 1 オサエアゲバネ SPRING, PRESSER BAR LIFTER 8 S39661001 1 ダンネシ 4 SHOULDER SCREW, M4 9 S39662001 1 シユオサエデストツパ MAIN PRESSER ARM STOPPER 10 060400612 1 ハインド M4X6 SCREW, BIND M4X6 11 S39663121 1 オサエアゲレバー PRESSER FOOT LIFTER LEVER 12 S39664101 1 オサエアゲレバー カラー COLLAR 13 018062532 1 アナホルト6X25 BOLT, SOCKET M6X25 14 025060332 1 ヒラサガネタテイ 6 WASHER, PLAIN L 6 15 S39665001 1 オサエアゲレバーバネ SPRING 16 047502542 1 スプリングピン AW5 PIN, SPRING ROLL AW5 17 S39770001 1 シメネシ 4 SCREW, M4 18 021400212 2 シユナツト4 NUT, 2 M4 19 S20485001 1 オサエアゲリンク PRESSER BAR LIFTER LINK 20 S39666001 1 オサエアゲレバー LIFTER LEVER, ;P-BAR 21 S39667021 1 オサエアゲウデクミ LIFTER ARM ASSY, ;P-BAR 21-1 047401442 1 スプリングピン AW4 PIN, DOWEL ;AW4 22 018061632 1 アナホルト6X16 BOLT, SOCKET M6X16 23 S39669101 1 オサエアゲレバーバネ SPRING 24 S39670000 1 オサエアゲジユクメタル BUSH, ;P-ARM SHAFT 25 012060632 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 26 S39671121 1 オサエアゲ PRESSER ARM SHAFT 27 048090342 2 トメワE9 RETAINING RING, E9 28 S30562000 1 ザガネ WASHER 29 S39672001 1 オサエアゲピン PIN, ;P-ARM 30 S46903001 1 アタマツキメネシ 4X5 SET SCREW, M4X5 34 S37070121 1 ワインガー ド V FINGER GUARD, V 35 060300412 1 ハインド M3X4 SCREW, BIND M3X4 38-1 S44744001 1 オサエネシリバネ SPRING, TWIST 38-2 S20115001 <デ二ム用> <For Denim> 1 オサエネシリバネ SPRING, TWIST 38-3 S20117001 <デ二ムタテポケット用> <For Denim vertical pocket> 1 オサエネシリバネ SPRING, TWIST 38-4 S30889001 <小回り用> <For Small type> 1 オサエネシリバネ SPRING, TWIST 39 060300612 1 ハインド M3X6 SCREW, BIND M3X6 40 S30888001 <小回り用> <For Small type> 1 フクオサエウデ SUB PRESSER ARM 41 062670712 1 ナベ 357-40X7 SCREW, PAN SM3.57-40X7 44 S23364000 <テーピング用> <For Taping> 1 テープアンナイ TAPE GUIDE 878-N31-201 12 jintex.in

Page 18 — F2. 押工関係 / Presser foot mechanism

F2. 押工関係 / Presser foot mechanism 4020 4030 4420 4430 4720 5020 5030 5420 5720 6030 6430 50-1 50-1-7 50-1-5 50-1-6 50-1-4 50-1-3 50-1-2 50-1-1 4050 5050 50-5 50-5-4 50-5-1-1 50-5-3 50-5-2 50-5-1 50-5-1 4010 4520 4530 5010 5520 5530 50-6 50-6-7 50-6-5 50-6-6 50-6-4 50-6-3 50-6-2 50-6-1 4620 4630 5620 5630 50-10 50-10-6 50-10-1 50-10-5 50-10-4 50-10-3 50-10-2 5051 50-15 50-15-3 50-15-4 50-15-3 50-15-1 50-15-2 < 小回り用 / For Small type > 5010 5020 50-16-8 50-16-5 50-16-6 50-16-4 50-16-3 50-16-2 50-16-1 50-16-7 13 878-N31-201 jintex.in

Page 19 — F2. 押工関係 / Presser foot mechanism

F2. 押工関係 / Presser foot mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 50-1 <4020,4030,4420,4430,4720 5020,5030,5420,5430,5720 6030,6430> PRESSER FOOT ASSY 50-1-1 S19311101 1 オサエグミ SCREW 50-1-2 1 オサエサエネシ PRESSER FOOT, F 50-1-3 105288001 1 シメネジ 2.38 SCREW, SM2.38 50-1-4 S19307001 1 オサエIBサエネシ SCREW 50-1-5 S19308001 1 2シュナット318-44 NUT, 2 SM3.18-44 50-1-6 S19309001 1 オサエBスプリングハネ SPRING, TWIST 50-1-7 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-5 <4050,5050> PRESSER FOOT ASSY 50-5-1 S19311101 1 オサエグミ SCREW 50-5-2 1 オサエサエネシ PRESSER FOOT, F 50-5-3 106640001 1 シメネジ 3.18 SCREW, SM3.18 50-5-4 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-6 <4010,4520,4530,5010,5520 5530> PRESSER FOOT ASSY 50-6-1 S19311101 1 オサエグミ SCREW 50-6-2 1 オサエサエネシ PRESSER FOOT, F 50-6-3 140530002 1 オサエIF SCREW, SM2.38 50-6-4 S19307001 1 シメネジ 2.38 SCREW 50-6-5 S19308001 1 オサエIBサエネシ NUT, 2 SM3.18-44 50-6-6 S19309001 1 オサエBスプリングハネ SPRING, TWIST 50-6-7 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-10 <4620,4630,5620,5630> PRESSER FOOT ASSY 50-10-1 S19311101 1 オサエグミ SCREW 50-10-2 1 オサエサエネシ PRESSER FOOT, F 50-10-3 105288001 1 シメネジ 2.38 SCREW, SM2.38 50-10-4 025660132 1 ヒラザガネショウ3.18 WASHER, PLAIN S 3.18 50-10-5 106640001 1 シメネジ 3.18 SCREW, SM3.18 50-10-6 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-15 <5051> PRESSER FOOT ASSY 50-15-1 S19311101 1 オサエグミ SCREW 50-15-2 1 オサエサエネシ PRESSER FOOT, F 50-15-3 100080004 2 シメネジ 3.18 SCREW, SM3.18-44X6.5 50-15-4 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-16 <5010,5020 For Small type> PRESSER FOOT ASSY 50-16-1 * 1 ツメ STITCH TONGUE 50-16-2 S19368001 1 オサエトリツケイタ PRESSER FOOT PLATE 50-16-3 025030132 1 ヒラザガネショウ3 WASHER, PLAIN S 3 50-16-4 150755001 1 シメネジ 3.18 SCREW, SM3.18 50-16-5 S30590001 1 オサエIBサエネシ SUPPORT SCREW 50-16-6 500296002 1 ナツト NUT 50-16-7 047161042 1 スプリングピンAW1.6 PIN, SPRING ROLL AW1.6 50-16-8 S53955001 1 オサエBネジナリハネ SPRING, TWIST 878-N31-201 jintex.in 14

Page 20 — G. 送り関係 / Feed mechanism

G. 送り関係 / Feed mechanism 22 20 21 19 8 18 17 8-1 57 55 54-1 59 60 66 61 65 58 63 62 1-1 1-3 1-2 1-4 2 15 54 56 31 30 26 25-1 53 52 50 34 33 38 39 29 28 32 27 36 37 35 23 24 40-1 40 41 42 69 70 76 75-1 75 9 10 13 14 44 45 47 46 47 78 48-1 43 49 48-2 77 15 878-N31-202 jintex.in

Page 21 — G. Feed mechanism

G. 送り関係 / Feed mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S39578001 1 ヘンシンリンクミ ECCENTRIC WHEEL ASSY 1-1 047301242 2 スプリングピンAW3 PIN, SPRING ROLL AW3 1-2 047301242 1 スプリングピンAW3 PIN, SPRING ROLL AW3 1-3 S39585001 1 ラチェットメネジリバネ SPRING, TWIST 1-4 S39586001 1 バネトメネジ 3 SCREW, M3 2 012060632 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 5 S39673020 1 バランスウエイト BALANCE WEIGHT 6 012060632 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 8 S39589021 1 オクリウデクミ FEED ARM ASSY 8-1 018061632 1 アナボルト6X16 BOLT, SOCKET M6X16 9 S39674001 1 オクリウデコウセツボウ タンジク FEED ADJUSTING SHAFT 10 S39675001 1 ボダンククハネ SPRING, COMPRESSION 11 081005070 1 Oリング P5 O RING, P5 12 025710232 1 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 13 025710232 1 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 14 048040342 1 トメワE4 RETAINING RING, E4 15 S39676121 1 オクリリシク FEED SHAFT 16 S39677021 1 メタル11.11-17 BUSH, 11.11-17 17 S39678021 1 オクリシクメタルL BUSH, L;FEED SHAFT 18 S30562000 1 ザガネ WASHER 19 048090342 1 トメワE9 RETAINING RING, E9 20 S39679001 1 オクリシクメタルフタ CAP 21 081020070 1 Oリング P20 O RING, P20 22 060400612 3 バインドM4X6 SCREW, BIND M4X6 23 S50091001 1 オクリダイクミ FEED BRACKET ASSY 24 S38312050 1 ジヨウケオクリカクゴマ SLIDE BLOCK, F-LIFTING 25-1 S44955001 1 セットカラー SET SCREW COLLAR 25-2 012060632 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 26 S39683000 1 オクリダイクミ SLIDE BLOCK, F-BAR 27 S39684001 1 オクリダイカクゴマジーク SHAFT, SLIDE BLOCK 28 S39685001 1 セットカラー SET SCREW COLLAR 29 012400432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 30 S20530001 1 ザガネ WASHER 31 004350812 1 +サラコ35X8 SCREW, FLAT M3.5X8 32 012400832 1 アナヒラ4X8 SET SCREW, SOCKET (FT) M4X8 33 S42042021 1 シュオクリウデ MAIN FEED ARM 34 018061632 1 アナボルト6X16 BOLT, SOCKET M6X16 35 S39773001 1 シュオクリリンクミ MAIN FEED LINK ASSY 36 S39690021 1 ザガネ WASHER 37 S23360001 1 ボルト5X15 BOLT, M5X15 38 S02573020 1 ザガネ WASHER 39 S39691001 1 ナット5 NUT, M5 40 S39769051 1 サトウオクリウデリンククミ DIF. FEED ARM LINK ASSY 40-1 018061632 1 アナボルト6X16 BOLT, SOCKET M6X16 41 S39690021 1 ザガネ WASHER 42 S23360001 1 ボルト5X15 BOLT, M5X15 43 S38311100 1 オクリダイイアンナイバー COVER, FEED BAR GUIDE 44 S39686000 1 オクリダイイアンナイル FEED BAR GUIDE, L 45 S39687000 1 オクリダイイアンナIR FEED BAR GUIDE, R 46 S39688001 1 ホウシンイタサエ FRAGMENT PROTECTOR PLATE 47 S20526000 3 ホウシンイタ FRAGMENT PROTECTOR PLATE 48-1 S43916001 4 アナボルト4X8シール BOLT, SOCKET M4X8 SEAL 48-2 018400832 2 アナボルト4X8 BOLT, SOCKET M4X8 49 025040132 2 ヒラザガネヨウ4 WASHER, PLAIN S 4 50 S39692021 1 サトウウチヨウセツリンク DIF. FEED ADJUSTING LINK 51 S20543101 1 シメネジ 5 SCREW, M5 52 S20544000 1 サトウウリンクレバー DIFFERENTIAL LINK LEVER 53 018061432 1 アナボルト6X14 BOLT, SOCKET M6X14 54 S39593021 1 サトウウチヨウセツレバークミ DIF. FEED ADJUSTING LEVER ASSY 54-1 S39596021 1 マルナット6 NUT, ROUND M6 55 S20547001 1 レバーバネ SPRING 878-N31-202 16

Page 22

G. 送り関係 / Feed mechanism 17 878-N31-202 jintex.in

Page 23 — G. 送り関係 / Feed mechanism

G. 送り関係 / Feed mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 56 081005670 1 Oリング PW5 O RING, PW5 57 047502542 1 スプリングピン AW5 PIN, SPRING ROLL AW5 58 S39693001 1 サトウリヨウメモイタ DIFFERENTIAL STITCH CONTROL 59 S20548001 2 カラー COLLAR 60 018061632 2 アナボルト 6X16 BOLT, SOCKET M6X16 61 S25818051 2 チョウセツレバー ストツパ STOPPER, ADJUSTING LEVER 62 060350812 2 バインド 35X8 SCREW, BIND M3.5X8 63 025350332 2 ヒラザガネ 13.5 WASHER, PLAIN L 3.5 64 S39694001 1 セットネジ ツマミ KNOB, SCREW 65 S39695001 1 セットネジ SET SCREW 66 S20560001 1 ワッシャー フラット スプリング WASHER, FLAT SPRING 69 S23628101 1 シユオクリバ トリツケダイ FEED DOG SETTING BASE 70 S23621101 1 ポルト 35X8 BOLT, M3.5X8 75 * 1 シュオクリバクミ MAIN FEED DOG ASSY 75-1 060630712 1 バインド 238-56X7 SCREW, BIND SM2.38-56X7 76 S23621101 1 ポルト 35X8 BOLT, M3.5X8 77 * 1 サトウクリヨウバ DIFFERENTIAL FEED DOG 78 S23621101 1 ポルト 35X8 BOLT, M3.5X8 878-N31-202 jintex.in 18

Page 24

H. 上メス・下メス関係 / Knife mechanism 1-2-1 1-2-2 1-3 1-1 6 5 " オプション部品 / OPTION PARTS " < 小回り用 / For Small type > 15-6 2 8 11-1 10-1 17 22 25 26 16-1 15-1 9-1 18 19 21 27 28 29 < 角メス用 / For Angle knife > 15-2 9-2 14 16-2 12 13 11-2 10-2 878-N31-222 19 jintex.in

Page 25 — H. 上メス・下メス関係 / Knife mechanism

H. 上メス・下メス関係 / Knife mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S54011001 1 ウワメス クランク ロツド グミ UPPER KNIFE CRANK ROD ASSY, I 1-1 010401001 2 アナホルト4X16 BOLT, SOCKET M4X16 1-2-1 017061612 1 ボルト6X16 BOLT, M6X16 1-2-2 118735002 1 サガネ WASHER, PLAIN 1-3 S23342001 1 アナトガリ4X5 SET SCREW, SOCKET (CN) M4X5 2 S20571101 1 ウワメス サトウ ウデ UPPER KNIFE DIFFERENTIAL ARM 3 155247000 1 ダストシール DUST SEAL 4 S39704021 1 ウワメス メタル UPPER KNIFE BUSH, L 5 S39677021 1 ブツシ 11.11-17 BUSH, 11.11-17 6 S43527001 1 セツト カラークミ SET SCREW COLLAR ASSY 6-1 012060632 2 アナホルト6X6 SET SCREW, SOCKET (FT) M6X6 8 S20574001 1 ウワメス キナツト NUT 9-1 S20589101 1 <上メス用> <For Taping> 1 ウワメス キ UPPER KNIFE HOLDER 10-1 062401212 1 ナベコ4X12 SCREW, PAN M4X12 11-1 025040132 1 ヒラサガネヨウ4 WASHER, PLAIN S 4 15-1 144074350 1 ウワメス UPPER KNIFE 16-1 S23621101 1 ボルト35X8 BOLT, M3.5X8 9-2 S20590101 1 <角メス用> <For Taping> 1 ウワメス UPPER KNIFE HOLDER 10-2 062402512 1 ナベコ4X25 SCREW, PAN M4X25 11-2 125324001 1 ヒラサガネ ネダイ4ツメ WASHER 12 S20577001 1 ウワメス UPPER KNIFE PRESSER 13 S20578101 1 ウワメスサエ UPPER KNIFE PRESSER PLATE 14 025030132 1 ヒラサガネヨウ3 WASHER, PLAIN S 3 15-2 1 カクメス ANGLE KNIFE, NARROW 16-2 062300412 1 ナベコ3X4 SCREW, PAN M3X4 17 S20591101 1 シタメス トリツケダイ LOWER KNIFE HOLDER 18 062060812 1 ナベコ6X8 SCREW, PAN M6X8 19 S39707001 1 シタメス トリツケダイ アンナイ LOWER KNIFE HOLDER GUIDE 21 062060812 1 ナベコ6X8 SCREW, PAN M6X8 22 * 1 シタメス LOWER KNIFE 25 S39708001 1 シタメスサエ LOWER KNIFE PRESSER 26 017500812 1 ボルト5X8 BOLT, M5X8 27 S20585001 1 シタメス トリツケダイバネ SPRING, COMPRESSION 28 S39709021 1 シタメスバネウケ SPRING HOLDER 29 060400812 1 バインド M4X8 SCREW, BIND M4X8 "オプション部品" "OPTION PARTS" 15-2 S20896101 1 カクメス <幅狭> ANGLE KNIFE, NARROW 15-3 S20897101 1 カクメス <幅狭 波刃> ANGLE KNIFE, NARROW WAVE EDGE 15-4 S20579101 1 カクメス <幅広> ANGLE KNIFE, WIDE 15-5 S20898101 1 カクメス <幅広 波刃> ANGLE KNIFE, WIDE WAVE EDGE 15-6 S30890000 1 ウワメス <小回り用> UPPER KNIFE 878-N31-222 jintex.in 20

Page 26 — J. ラッパー関係 / Lapper mechanism

J. ラッパー関係 / Lapper mechanism < バインディング用 / For Binding > 5 4 6 7 8 878-N31-239 21 jintex.in

Page 27 — J. ラッパー関係 / Lapper mechanism

J. ラッパー関係 / Lapper mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 4 S29824000 1 <バインディング用> <For Binding> 4 S29827000 1 ラッパー-8クミ <テープ幅8mm> ラッパー-10クミ <テープ幅1.0mm> LAPPER ASSY, 8..................<Tape width 8mm> LAPPER ASSY, 10..................<Tape width 10mm> 5 S29835001 1 ラッパーアンナイタ LAPPER GUIDE PLATE 6 S23418002 1 シメネジ 4X5 SCREW, M4X5 7 S29831000 1 ラッパーアンナイタ LAPPER GUIDE ASSY 8 060400612 1 バインド M4X6 SCREW, BIND M4X6 878-N31-239 jintex.in 22

Page 28 — K. 上ルーパ関係 / Over looper mechanism

K. 上ルーパ関係 / Over looper mechanism < 組ハイリフト / EXTRA HIGH LIFT > 1 1-1 2 8 7 4 6 6-1 1-2 13 9-1 9-3 9-5 9-2-1 9-2-2 9-4 5 3 10 9 11 12 878-N31-307 23 jintex.in

Page 29 — K. 上ルーバー関係 / Over looper mechanism

K. 上ルーバー関係 / Over looper mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S54012001 1 <スタンダード用> <For Standard lift> 1-1 018401622 4 ウワーパロットクミS アナボルト4X16 アナボルト6X14ホソメ OVER LOOPER CON. ROD ASSY, S 1-2 S23346101 1 BOLT, SOCKET M4X16 BOLT, SOCKET M6X14 1 S54015001 <ハイリフト用> <For High lift> 1-1 018401622 4 ウワーパロットクミHE アナボルト4X16 BOLT, SOCKET M4X16 OVER LOOPER CON. ROD ASSY, HE 1-2 S23346101 1 アナボルト6X14ホソメ BOLT, SOCKET M6X14 2 S20598000 2 ロットストッパー ROD STOPPER 3 S39728021 1 メタル11.11-18 BUSH, 11.11-18 4 S39728021 1 メタル11.11-17 BUSH, 11.11-17 5 S20601001 1 ウワーパシツク OVER LOOPER SHAFT 6 S43527001 1 セットカラークミ SET SCREW COLLAR ASSY 6-1 012060632 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 7 S23626001 1 ザガネ WASHER 8 017060812 1 ボルト6X8 BOLT, M6X8 <スタンダード、ハイリフト用> <For Standard lift & High lift> 9 S52053001 1 ウワーパキコウウクミSH OVER LOOPER SET, SH 9-1 S52054001 1 ウワーパキコウクミ OVER LOOPER ASSY 9-2 S52060001 1 ウワーパウデSHクミ OVER LOOPER ARM ASSY, SH 13 S46903001 1 アタマツキトメネジ4X5 SET SCREW, M4X5 <超ハイリフト用> <For Extra high lift> 9 S52062001 1 ウワーパキコウウクミSH OVER LOOPER SET, E 9-1 S52054001 1 ウワーパキコウクミ OVER LOOPER ASSY 9-2 S52063001 1 ウワーパウデEクミ OVER LOOPER 13 012400432 1 アナボルト4X4 SET SCREW, SOCKET (FT) M4X4 9-2-1 S46899001 1 ザガネツキボルト6X16 BOLT, (W/WASHER) M6X16 9-2-2 155162001 1 スペーサ SPACER 9-3 S29700000 2 ウワーパアナイフエルト FELT 9-4 S23342001 1 アナトガリ4X5 SET SCREW, SOCKET (CN) M4X5 9-5 S52059001 1 ウワーパアンナイオサエ OVER LOOPER GUIDE SUPPORT 9-6 S20355002 2 シメネジ3X8.5 SCREW, M3X8.5 10 018061432 1 アナボルト6X14 BOLT, SOCKET M6X14 11 155247000 1 ダストシール DUST SEAL 12 * 1 ウワーパ OVER LOOPER 14 118550001 1 ミゾツキピン PIN, DOWEL 878-N31-307 24 jintex.in

Page 30 — L. 下ルーパ関係 / Under looper mechanism

L. 下ルーパ関係 / Under looper mechanism 1 1-1 3 7 6 9 5 10 8 2 11 12 13 14-1 15 < 3本針用 / For "3 Needles" > 14-2 25 878-N31-308 jintex.in

Page 31 — L. 下ルーバー関係 / Under looper mechanism

L. 下ルーバー関係 / Under looper mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S54018001 1 <スタンダード、ハイリフト用> <For Standard lift & High lift> 1-1 018401622 4 シタルーパ ロッド グミ ISH アナボルト 4X16 U/LOOPER CON. ROD ASSY, ISH BOLT, SOCKET M4X16 1 S54019001 1 <超ハイリフト用> <For Extra high lift> 1-1 018401622 4 シタルーパ ロッド グミ IE アナボルト 4X16 U/LOOPER CON. ROD ASSY, IE BOLT, SOCKET M4X16 2 012060632 2 アナビラ 6X6 SET SCREW, SOCKET (FT) M6X6 3 S20598000 2 ロッド フレット ドメ ROD STOPPER 5 S46904001 1 シタルーパ シャフト UNDER LOOPER SHAFT 6 S23626001 1 ザガネ WASHER 7 017060812 1 ボルト 6X8 BOLT, M6X8 8 S39728021 1 メタル 11.11-18 BUSH, 11.11-18 9 S39677021 1 メタル 11.11-17 BUSH, 11.11-17 10 155247000 1 ダストシール DUST SEAL 11 S20625151 1 シタルーパ トリツケダイ UNDER LOOPER HOLDER 12 S23614101 1 フランジ ボルト 5X14 BOLT, M5X14 13 148782001 1 スペーサー SPACER 14-1 S20626001 1 シタルーパ UNDER LOOPER 15 060351012 1 バインド 3.5X10 SCREW, BIND M3.5X10 14-2 S20627001 1 <3本針用> シタルーパ <For "3 Needles"> UNDER LOOPER 878-N31-308 jintex.in 26

Page 32 — M. 二重環ルーパ関係 / Double chain stitch looper mechanism

M. 二重環ルーパ関係 / Double chain stitch looper mechanism 878-N31-309 27 jintex.in

Page 33 — M. 二重環ルーパ関係 / Double chain stitch looper mechanism

M. 二重環ルーパ関係 / Double chain stitch looper mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S39729021 1 ゼンゴロッドクミ LONGITUDINAL FEED ROD ASSY 3 S39732021 1 ゼンゴウデ LONGITUDINAL FEED ARM 4 S39733001 1 セットカラー SET SCREW COLLAR 5 012400432 2 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 6 S29102001 1 ゼンゴロッドブッシュ LONGITUDINAL FEED ROD BUSH 7 S39734021 1 ゼンゴウデネジ LONGITUDINAL FEED SCREW 8 S39690021 1 ザガネ WASHER 9 021500216 1 2ユナット5 NUT, 2 M5 10 S39735050 1 ゼンゴウデカクゴマ LONGITUDINAL FEED SLIDE BLOCK 11 S20641001 1 ダンネジ 5 SHOULDER SCREW 5 12 S31881101 1 カクゴマキネスツキ SLIDE BLOCK HOLDER 12-1 018061432 1 アナボルト6X14 BOLT, SOCKET M6X14 12-2 155162001 1 スペーサ SPACER 14 S44935101 1 ニジユカンクミ D-CHAIN STITCH LOOPER LEVER 14-1 018061432 1 アナボルト6X14 BOLT, SOCKET M6X14 14-2 155162001 1 スペーサ SPACER 15 S44937101 1 ニジユカンリンクミ D-CHAIN STITCH LOOPER LINK 16 S44939001 1 ニジユカンウデジク SHAFT 17 062300612 1 ナベコ3X6 SCREW, PAN M3X6 18 S23360001 1 ボルト5X15 BOLT, M5X15 19 S57922001 1 ザガネ WASHER 20 S39740001 1 ゼンゴジク LONGITUDINAL FEED SHAFT 21 S39741021 1 ゼンゴジクウデブシF LONGITUDINAL FEED SHAFT BUSH,F 22 S39742021 1 ゼンゴジクウデブシB LONGITUDINAL FEED SHAFT BUSH, B 23 155261000 1 ダストシール DUST SEAL 24 S20652001 1 ニジユカンルーパホルダ D-CHAIN STITCH LOOPER HOLDER 25 S23614101 1 フランジボルト5X14 BOLT, M5X14 26 148782001 1 スペーサ SPACER 27 S20653001 1 ニジユカンルーパ D-CHAIN STITCH LOOPER 28 060350812 1 バインド 35X8 SCREW, BIND M3.5X8 29 S20654001 1 ルーパチョウセツザガネ WASHER 30 S23456101 1 ナベコ25X6 SCREW, PAN M2.5X6 878-N31-309 28 jintex.in

Page 34 — N. Lubrication

N. 給油潤滑関係 / Lubrication 20 19 21 22 29-2 29-1 25 23 24 7 9 8-1 8 17 15 16 29 11 12 10-1 10 6 18 13-1 13 2 1 3 4 4-1 4-2 4-4 4-3 4-5 4-6 4-7 4-8 4-9 878-N31-350 9 jintex.in

Page 35

N. 給油潤滑関係 / Lubrication REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S20655101 1 ウオーム WORM 2 012500532 2 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 3 S39743001 1 カラー COLLAR 4 S39597001 1 トロコイドポンプクミ PUMP ASSY 4-1 S20657001 1 ウオームホイール WORM WHEEL 4-2 012400432 2 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 4-3 S39599001 1 ポンプインナーロータークミ PUMP INNER ROTER ASSY 4-4 S39598000 1 ポンプケース PUMP CASE 4-5 S39601000 1 ポンプ タイフタ PUMP BODY COVER 4-6 062400812 3 ナベコ4X8 SCREW, PAN M4X8 4-7 S39602000 1 ロカモウ OIL FILTER 4-8 S39603001 1 ロカモウオサエ OIL FILTER FLANGE 4-9 062401212 1 ナベコ4X12 SCREW, PAN M4X12 6 018061432 2 アナホルト6X14 BOLT, SOCKET M6X14 7 S39744021 1 ハイユパイプツキテ OIL PIPE JOINT 8 S39745001 1 ビニルチュ-ブクミ OIL TUBE ASSY 8-1 147942001 2 ビニルチュ-ブトメガネ STOP RING 9 S20199001 1 ハイユパイプツキテ OIL PIPE JOINT 10 S39747001 1 ビニルチュ-ブクミ OIL TUBE ASSY 10-1 147942001 2 ビニルチュ-ブトメガネ STOP RING 11 S39751021 1 キユウパイプ OIL PIPE 12 S39744021 1 ハイユパイプツキテ OIL PIPE JOINT 13 S39749001 1 ビニルチュ-ブクミ OIL PIPE ASSY 13-1 147942001 2 ビニルチュ-ブトメガネ STOP RING 14 S20199001 1 ハイユパイプツキテ OIL PIPE JOINT 15 S39752021 1 ロツト キユウパイプ OIL PIPE 16 012400432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 17 012060632 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 18 148084001 1 オイルゲージマト OIL GAUGE WINDOW 19 S20668200 1 ハリホウウリンクフエルト FELT, ;N-BAR LINK 20 061400812 1 サラコM4X8 SCREW, FLAT M4X8 21 S49337000 1 クミヒモ70 WICK, L=70 22 S20671000 1 クミヒモ100 WICK, L=100 23 S20669000 1 フエルト FELT 24 060400812 1 バインド M4X8 SCREW, BIND M4X8 25 S20392000 1 フエルト FELT 29 S43523000 1 フィルタークミ FILTER ASSY 29-1 S43521000 1 ロカモウD FILTER, D 29-2 S43522000 1 オイルフィルター OIL FILTER 878-N31-350 30

Page 36 — P. 糸調子関係 / Thread tension

P. 糸調子関係 / Thread tension < 3本針用 / For "3 Needles" > 19-5 18 14 13 12 11 10 9 8 < 3本針用 / For "3 Needles" > 44-2 40-2 54 53 57 55 62 61 60 71 72 68 66 67 65 64 73 74 70 69 1 9 10 11 12 56 59 58 44-1 45 46 47 48 49 50 33 26 37 28 29 30 32 31 76 75 13 14 15 16 17 19-3 19-4 19-1 19-2 43 42 51 52 21 22 23 24 25 27 27 878-N31-418 31 Jinttex.in

Page 37 — P. 糸調子関係 / Thread tension

P. 糸調子関係 / Thread tension REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S38328051 1 シュイトアンナイ MAIN THREAD GUIDE 9 S20676051 4 イトチョウシボウ TENSION STUD 10 S20677000 4 イトチョウシサラフエルト FELT, T-DISC 11 S20673001 8 イトチョウシサラ TENSION DISC 12 10832009 4 イトチョウシサラフエルト FELT, T-DISC 13 144103009 4 イトチョウシサラオサエ DISC PRESSER, TENSION 14 S20678001 1 イトチョウシバ ネL TENSION SPRING, L 15 S32276001 1 イトチョウシバ ネLL TENSION SPRING, LL 16 S20679001 1 イトチョウシバ ネM TENSION SPRING, M 17 S20679001 1 イトチョウシバ ネM TENSION SPRING, M 18 S20681000 4 チョウシバ ネウエザガネ WASHER 19-1 S20682103 1 イトチョウシナット. <赤> TENSION NUT, RED 19-2 S20682101 1 イトチョウシナット. <水色> TENSION NUT, LIGHT BLUE 19-3 S20682104 1 イトチョウシナット. <黄> TENSION NUT, YELLOW 19-4 S20682102 1 イトチョウシナット. <緑> TENSION NUT, GREEN 21 146592001 2 イトアンナイパイプ THREAD GUIDE PIPE 22 S23452002 2 アナヒラ4X3.2 SET SCREW, SOCKET (FT) M4X3.2 23 S20684101 1 イトアンナイダイ THREAD GUIDE BRACKET 24 060400612 2 バインド M4X6 SCREW, BIND M4X6 25 S20685001 1 シタルパイトアンナイR UNDER LOOPER THREAD GUIDE, R 26 S20686001 1 ウフルーパイトアンナイR OVER LOOPER THREAD GUIDE, R 27 S23418002 2 シメネジ 4X5 SCREW, M4X5 28 S21133001 1 ウフルーパテンビンR OVER LOOPER THREAD TAKE-UP, R 29 S21134001 1 シタルーパテンビンR UNDER LOOPER THREAD TAKE-UP, R 30 060400412 1 バインド M3X4 SCREW, BIND M3X4 31 S21137001 1 ルーパテンビンL LOOPER THREAD TAKE-UP, L 32 060400612 2 バインド M4X6 SCREW, BIND M4X6 33 S21137001 1 ルーパイトアンナイM1 LOOPER THREAD GUIDE, M1 35 S21136101 1 ウフルーパイトアンナイL OVER LOOPER THREAD GUIDE, L 36 060400612 1 バインド M4X6 SCREW, BIND M4X6 37 S20687001 1 シタルーパイトアンナイC UNDER LOOPER THREAD GUIDE, C 38 S38329001 1 ハイトアンナイC NEEDLE THREAD GUIDE, C 39 060400612 1 バインド M4X6 SCREW, BIND M4X6 40-1 S21126001 1 ハイトアンナイB NEEDLE THREAD GUIDE, B 41 060400612 1 バインド M4X6 SCREW, BIND M4X6 42 S21130051 1 ハイトテンビンA NEEDLE THREAD TAKE-UP, A 43 060400612 1 バインド M4X6 SCREW, BIND M4X6 44-1 S21125001 1 ハイトアンナイA NEEDLE THREAD GUIDE, A 45 060400612 1 バインド M4X6 SCREW, BIND M4X6 46 S38330050 1 ハイトオサエホルダー NEEDLE THREAD PRESSER HOLDER 47 146427001 2 アナトメネジ 3.18クボミ SET SCREW, SOCKET (CP) SM3.18 48 S20689001 1 ハイトオサエカラー NEEDLE THREAD PRESSER COLLAR 49 S20690001 1 ハイトオサエバネ SPRING, COMPRESSION 50 S20691001 1 ハイトオサエイタ NEEDLE THREAD PRESSER PLATE 51 S20743001 1 ハイトアンナイ NEEDLE THREAD GUIDE 52 060400612 1 バインド M3X6 SCREW, BIND M3X6 53 S20694001 1 DLイトアンナイB CHAIN STITCH THREAD GUIDE, B 54 060400612 1 バインド M4X6 SCREW, BIND M4X6 55 S20695001 1 DLイトアンナイパイプ THREAD GUIDE PIPE 56 S20696001 1 イトアンナイパイプササエ PIPE SUPPORT, TR-GUIDE 57 060400612 1 バインド M4X6 SCREW, BIND M4X6 58 S20697001 1 DLチョウシライトアンナイ LOOPER THREAD GUIDE 59 S20698121 1 イトチョウシボウ TENSION STUD 60 144504001 2 イトアンナイサラ DISC, THREAD GUIDE 61 158782151 1 プレテンションバネ PRE-TENSION SPRING 62 155510001 1 イトチョウシナット TENSION NUT 63 S39756021 1 イトサハキドダイ THREAD HANDLER BRACKET 64 028050242 1 ハネサガネ2-5 WASHER, SPRING 2-5 65 S20342001 1 ダンネジ 4 SHOULDER SCREW, M4 66 S20701001 1 テンビンイトサハキ THREAD HANDLER 67 S39757001 1 カラー COLLAR 878-N31-418 32

Page 38 — P . 糸調子関係 / Thread tension

P . 糸調子関係 / Thread tension < 3本針用 / For "3 Needles" > 1 13 14 15 16 17 19-3 19-4 19-5 18 14 13 12 11 10 9 8 54 53 57 55 62 61 60 59 58 44-1 45 40-1 41 48 43 51 52 49 50 33 35 36 26 27 21 22 23 24 < 3本針用 / For "3 Needles" > 44-2 40-2 65 64 67 63 73 74 70 69 37 28 29 30 32 31 32 76 75 33 jintex.in 878-N31-418

Page 39 — P. 糸調子関係 / Thread tension

P. 糸調子関係 / Thread tension REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 68 060401412 1 バインド M4X14 SCREW, BIND M4X14 69 150813001 1 トダイオサエバネ SPRING 70 062350612 1 ナベコ M3.5X6 SCREW, PAN M3.5X6 71 S20702001 2 DLテンビンアンナイ THREAD TAKE-UP GUIDE 72 S20158101 2 ナベコ25X3 SCREW, PAN M2.5X3 73 S20703051 1 DLテンビンクミ THREAD TAKE-UP LEVER ASSY, DL 74 S23452002 2 アナヒラ M4X3.2 SET SCREW, SOCKET (FT) M4X3.2 75 S20707001 1 DLトアンナイA THREAD GUIDE, A ;DL 76 060400612 1 バインド M4X6 SCREW, BIND M4X6 8 S20675001 <3本針用> 1 チョウシライトアンナイ <For "3 Needles"> TENSION DISC THREAD GUIDE 9 S20676051 5 イトチョウシスタッド TENSION STUD 10 S20677000 5 イトチョウシサラフェルト FELT, T-DISC 11 S20673001 10 イトチョウシサラ TENSION DISC 12 110832009 5 イトチョウシサラフェルト FELT, ;T-DISC 13 144103009 5 イトチョウシサラオサエ DISC PRESSER, ;TENSION 14 S20678001 2 イトチョウシバネ L TENSION SPRING, L 18 S20681000 5 チョウシバネウエザガネ WASHER 19-5 S20682103 2 イトチョウシナット <赤> TENSION NUT, RED 40-2 S21129001 1 ハリトアンナイB NEEDLE THREAD GUIDE, B 44-2 S21128001 1 ハリトアンナイA NEEDLE THREAD GUIDE, A 878-N31-418 34 jintex.in

Page 40 — Q1. ラフラー装置関係 / Ruffing attachment

Q1. ラフラー装置関係 / Ruffing attachment 4420 4430 4620 4630 5420 5430 5620 5630 1-1-15 1-1-16 1-1-27 1-1-26 1-1-12 1-1-10 1-1-9 1-1-11 1-1-2 1-1-1 1-1-17 1-1-18 1-1-3 1-1-19 1-1-4 1-1 1 2 2-17 2-18 2-14 2-9 2-11 2-12 2-10 2-13 2-2 2-5 2-4 2-6 2-15 2-16 2-1 2-3 2-7 2-8 878-N31-940 35 jintex.in 1-1-13 1-1-14 1-1-5 1-1-6 1-7 1-4 1-5 1-2 1-8 1-1-24 1-1-25 1-1-21 1-1-22 1-1-23 1-1-20 1-2 1-6 1-1-28

Page 41 — Q1. ラフラー装置関係 / Ruffling attachment

Q1. ラフラー装置関係 / Ruffling attachment REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S30304001 1 ラフラーアッセン RUFFLER ASSY 1-1 S21293001 1 ラフラーウチクミ RUFFLER DEVICE SET 1-1-1 S21294001 1 キシ オサエタイ RUFFLING BLADE BRACKET 1-1-2 S21295001 1 キシ オサエトリツケジク RUFFLING BLADE BASE SHAFT 1-1-3 S21305001 1 ハバネウケ SPRING BASE 1-1-4 S23777101 2 アタマツキトメネジ 6 SET SCREW, M6 1-1-5 S20676051 1 イトチョウシホウウ TENSION STUD 1-1-6 S23775001 1 コイルバネ SPRING, COIL 1-1-7 S20681000 1 チョウシバネザガネ WASHER 1-1-8 S20682105 1 イトチョウシナツト TENSION NUT 1-1-9 S21296001 1 キシ オサエ RUFFLING BLADE 1-1-10 144784001 1 キシ オサエザガネ WASHER 1-1-11 062300812 2 ナベコ 3X8 SCREW, PAN M3X8 1-1-12 S21297001 1 ラフラーウチクミダイ RUFFLER BASE 1-1-13 S21306001 1 ダンネジ 6 SHOULDER SCREW, M6 1-1-14 S21307001 2 ハバネザガネ WASHER, SPRING 1-1-15 S21298001 1 キシ オサエアンナイ RUFFLING BLADE GUIDE 1-1-16 062400812 1 ナベコ 4X8 SCREW, PAN M4X8 1-1-17 S21299001 1 キシ オサエアゲ CLOTH PRESSER BAR LIFTER 1-1-18 S23651002 2 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X5 1-1-19 S21300001 1 ハンドルトツケイツケ HANDLE SETTING PLATE 1-1-20 021060302 1 ナツト 3シ6 NUT, 3 M6 1-1-21 062401612 1 ナベコ M4X16 SCREW, PAN M4X16 1-1-22 021400212 1 2シュナツト4 NUT, 2 M4 1-1-23 S21301001 1 ハンドルモトシバネ SPRING, TWIST 1-1-24 S21302001 1 キシ オサエイトメバネU SPRING, PLATE (U) 1-1-25 062400612 1 ナベコ M4X6 SCREW, PAN M4X6 1-1-26 S21303001 1 キシ オサエイトメバネD SPRING, PLATE (D) 1-1-27 062350512 2 ナベコ 3.5X5 SCREW, PAN M3.5X5 1-1-28 S21304001 1 カラー COLLAR 1-2 018401222 2 アナホルト4X12 BOLT, SOCKET M4X12 1-4 S21590000 1 キシ アンナイ RUFFLER GUIDE 1-5 S23418002 2 シメネジ 4X5 SCREW, M4X5 1-6 S23779001 1 ハンドル HANDLE 1-7 021060302 1 ナツト 3シ6 NUT, 3 M6 1-8 102707002 1 サガネ WASHER, PLAIN 4 2 S43530001 1 ラフラーオサエレントウクミ RUFFLER INTERLOCKING PARTS SET 2-1 S21310001 1 キシ オサエアゲレバー CLOTH PRESSER BAR LIFTER LEVER 2-2 S21311001 1 オサエアゲダイ PRESSER BAR LIFTER BRACKET 2-3 S21312001 1 ピン 6.35 PIN, 6.35 2-4 062060632 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 2-5 062350812 1 ナベコ 3.5X8 SCREW, PAN M3.5X8 2-6 S39795001 1 ワイヤートツケイツケ WIRE SETTING PLATE 2-7 S21314001 1 フレキシブルワイヤークミ FLEXIBLE WIRE ASSY 2-8 S23774001 1 ダンネジ 3.5 SHOULDER SCREW, M3.5 2-9 S21315001 1 スタツド M4 STUD, M4 2-10 021400432 1 2シュナツト4 NUT, 2 M4 2-11 S21316001 1 ワイヤーストツパー WIRE STOPPER 2-12 012400432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 2-13 S23349001 1 レバーチョウセイイツケ LEVER ADJUSTING PLATE 2-14 060400812 2 バインド M4X8 SCREW, BIND M4X8 2-15 S39796001 1 スペーサ SPACER 2-16 060400812 1 バインド M4X8 SCREW, BIND M4X8 2-17 011502012 2 トメネジ 5X20ヒラ SET SCREW, (FT) M5X20 2-18 021500312 2 シュナツト5 NUT, 3 M5 878-N31-940 jintex.in 36

Page 42 — Q2. ラフラー装置関係 / Ruffing attachment

Q2. ラフラー装置関係 / Ruffing attachment <半汎用 / For Semi-submerged > 4420 4430 4620 4630 5420 5430 5620 5630 3-1-1-12 3-1-1-13 3-1-1-11 3-1-1 3-1-4 3-1-1-1-1 3-1-1-2 3-1-1-5 3-1-1-7 3-1-1-8 3-1-1-10 3-1-1-9 3-1-1-6 3-1-3 3-1-2 3-1 < 全汎用 / For Fully-submerged > 3-2-1-13 3-2-1-12 3-2-1-11 3-2-1-1 3-2-1-5 3-2-1-7 3-2-1-8 3-2-4 3-2-1-10 3-2-1-9 3-2-1-4 3-2-1-6 3-2-3 3-2-2 3-2 3-2-1 37 878-N31-940 jintex.in

Page 43 — Q2. ラフラー装置関係 / Ruffing attachment

Q2. ラフラー装置関係 / Ruffing attachment REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 3-1 S30135101 1 <半汎用> <For Semi-submerged> 3-1-1 S21373101 1 サト゛ ウチヨウセツツ サト゛ ウチヨウセツツクミ DIFFERENTIAL ADJUSTING SET DIFFERENTIAL FEED ADJUSTER 3-1-1-1 155197101 1 ヒサ゛ アテヨコシ クケ KNEE LIFTER SHAFT BRACKET 3-1-1-2 S21375001 1 ヨコジク KNEE LIFTER SHAFT 3-1-1-3 155199101 1 ヒサ゛ アテツキテ BRACKET, KNEE LIFTER 3-1-1-4 017781412 2 ホ゛ルト 6.35X14 BOLT, SM6.35X14 3-1-1-5 148797001 1 ヒサ゛ アケタテジク S KNEE LIFTER BAR, S 3-1-1-6 014780622 1 アナトメネジ 6.35ホ゛ミ SET SCREW, SOCKET (CP) SM6.35 3-1-1-7 148798109 1 ヒサ゛ アテラ KNEE LIFTER PLATE, L 3-1-1-8 017081606 1 ホ゛ルト M8X16 BOLT, M8X16 3-1-1-9 S21376001 1 ヒサ゛ アテレハ゛ー KNEE LIFTER LEVER 3-1-1-10 017781412 2 ホ゛ルト 6.35X14 BOLT, SM6.35X14 3-1-1-11 S21377001 1 ヒサ゛ アテレハ゛ーハ゛ネ SPRING, TWIST 3-1-1-12 S21378001 2 ヨコジク トメクケ COLLAR 3-1-1-13 017781412 4 ホ゛ルト 6.35X14 BOLT, SM6.35X14 3-1-2 S21379001 1 ヒサ゛ アテリンク CONNECTING BAR 3-1-3 021400202 2 2シュナツト4 NUT, 2 M4 3-1-4 062401012 4 ナヘ゛コ M4X10 SCREW, PAN M4X10 3-2 S30135102 1 <全汎用> <For Fully-submerged> 3-2-1 S21380101 1 サト゛ ウチヨウセツツ DIF.ADJUSTING SET, FULL 3-2-1-1 155197101 1 サト゛ ウチヨウセツツクミ DIFFERENTIAL FEED ADJUSTER 3-2-1-2 S21375001 1 ヒサ゛ アテヨコシ クケ KNEE LIFTER SHAFT BRACKET 3-2-1-3 155199101 1 ヨコジク KNEE LIFTER SHAFT 3-2-1-4 017781412 1 ヒサ゛ アテツキテ BRACKET, KNEE LIFTER 3-2-1-5 148797001 2 ホ゛ルト 6.35X14 BOLT, SM6.35X14 3-2-1-6 014780622 1 ヒサ゛ アケタテジク S KNEE LIFTER BAR, S 3-2-1-7 148798109 1 アナトメネジ 6.35ホ゛ミ SET SCREW, SOCKET (CP) SM6.35 3-2-1-8 017081606 1 ヒサ゛ アテラ KNEE LIFTER PLATE, L 3-2-1-9 S21376001 1 ホ゛ルト M8X16 BOLT, M8X16 3-2-1-10 017781412 1 ヒサ゛ アテレハ゛ー KNEE LIFTER LEVER 3-2-1-11 S21377001 2 ホ゛ルト 6.35X14 BOLT, SM6.35X14 3-2-1-12 S21378001 1 ヒサ゛ アテレハ゛ーハ゛ネ SPRING, TWIST 3-2-1-13 017781412 2 ヨコジク トメクケ COLLAR 3-2-2 S21381001 4 ホ゛ルト 6.35X14 BOLT, SM6.35X14 3-2-3 021400202 1 ヒサ゛ アテリンク CONNECTING BAR 3-2-4 062401012 2 2シュナツト4 NUT, 2 M4 4 ナヘ゛コ M4X10 SCREW, PAN M4X10 878-N31-940 38

Page 44 — Q3. ラフラー装置関係 / Ruffing attachment

Q3. ラフラー装置関係 / Ruffing attachment 4 4620 4630 5620 5630 4-1 4-1-1 4-2 4-1-2 4-1-3 4-1-4 4-6 4-6-1 4-6-1-2 4-6-2 4-6-1-1 4-4 4-5 4-3 4-8 4-9 5 5-2 <パイピング用 / For Piping > 5-3 5-4 5-1 39 878-N31-940 jintex.in

Page 45 — Q3. ラフラー装置関係 / Ruffling attachment

Q3. ラフラー装置関係 / Ruffling attachment REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 4 S30303001 1 パイピング・パーツクミ PIPING PARTS ASSY 143767102 1 テープワインダークミ TAPE WINDER ASSY 4-1 143980001 1 ツマミネジ SCREW 4-1-1 108494001 1 ザガネ WASHER 4-1-2 108495001 1 テープワインダーオシハネ SPRING, COMPRESSION 4-1-3 100136001 1 イトチョウシナット NUT, TENSION 4-1-4 101118001 2 マルモクネジ 4.5X20 WOOD SCREW, ROUND M4.5X20 4-2 S21318000 1 ラツパークミ LAPPER ASSY 4-3 062400812 2 ナベコ4X8 SCREW, PAN M4X8 4-4 025040232 2 ヒラザガネチユウ4 WASHER, PLAIN M 4 4-5 S20130009 1 イトタテダイクミ COTTON STAND ASSY, W/SCREW 4-6 S20131009 1 イトタテダイクミ COTTON STAND ASSY 4-6-1 S20134001 1 シメネジ W476-24X10 SCREW, W4.76-24X10 4-6-1-1 S20135001 1 イトタテボウ SPOOL PIN 4-6-1-2 034422006 2+2サラモク41X20 WOOD SCREW, FLAT 2 M4.1X20 4-6-2 S25019001 1 ラツパー・ダイ LAPPER BASE 4-8 S23651002 2 アナヒラ6X6ホメ SET SCREW, SOCKET (FT) M6X5 4-9 5 * 1 ラフラーゲージクミ RUFFLER GAUGE ASSY <パイピング用> <For Piping> 5 * 1 P. ラフラーゲージクミ PIPING RUFFLER GAUGE ASSY 5-1 * 1 ハリト・メクミ NEEDLE CLAMP 5-2 * 1 ハリイタ NEEDLE PLATE 5-3 * 1 オサエイタ PRESSER FOOT ASSY 5-4 * 1 シユオクリバクミ MAIN FEED DOG ASSY 5-5 * 1 サトウオクリバ DIFFERENTIAL FEED DOG 4420-24,5420 4420-25,5420 4420-34,5420 REF. NO. 半沈 Semi- submerged 全沈 Fully- submerged 半沈 Semi- submerged 全沈 Fully- submerged 半沈 Semi- submerged 全沈 Fully- submerged ラフラーシュウセット/Ruffler set 1 S43539001 S43541001 S43539002 S43541002 S43539003 S43541003 ラフラークミ/Ruffler assy 1 S30304001 ← ← ← ← ← ← ラフラーオサエレンドウクミ/Riffling device set 2 S43530001 ← ← ← ← ← ← サドウチョウセツト/Differential adjusting set 3 S30135101 S30135102 S30135101 S30135102 S30135101 S30135102 ラフラーゲージクミ/Ruffler gauge assy 5 S30296001 ← S30296002 ← S30296003 ← 4420-55,5420 4420-56,5430 REF. NO. 半沈 Semi- submerged 全沈 Fully- submerged 半沈 Semi- submerged 全沈 Fully- submerged ラフラーシュウセット/Ruffler set 1 S43539004 S43541004 S43539005 S43541005 S43539006 S43541006 ラフラークミ/Ruffler assy 1 S30304001 ← ← ← ← ← ← ラフラーオサエレンドウクミ/Riffling device set 2 S43530001 ← ← ← ← ← ← サドウチョウセツト/Differential adjusting set 3 S30135101 S30135102 S30135101 S30135102 S30135101 S30135102 ラフラーゲージクミ/Ruffler gauge assy 5 S30296004 ← S30296005 ← S30296006 ← 4620-35,5620 4630-55,5630 4630-56,5630 REF. NO. 半沈 Semi- submerged 全沈 Fully- submerged 半沈 Semi- submerged 全沈 Fully- submerged 半沈 Semi- submerged 全沈 Fully- submerged P.ラフラーシュウセット/Piping ruffler set 1 S43540004 S43542004 S43540005 S43542005 S43540006 S43542006 ラフラークミ/Ruffler assy 1 S30304001 ← ← ← ← ← ← ラフラーオサエレンドウクミ/Riffling device set 2 S43530001 ← ← ← ← ← ← サドウチョウセツト/Differential adjusting set 3 S30135101 S30135102 S30135101 S30135102 S30135101 S30135102 パイピングパークミ/Piping parts assy 4 S30303001 ← ← ← ← ← ← P.ラフラーゲージクミ/Piping ruffler gauge assy 5 S30297004 ← S30297005 ← S30297006 ← 878-N31-940 40 jintex.in

Page 46 — Z1. 付属品関係 / Accessories

Z1. 付属品関係 / Accessories 1-1 4 10 11 12 14 5 7 8 9 13 25 brother 41 57 58 60 59 56 48-1 48-2 29 31 32 33 27 " オプション部品 / OPTION PARTS " 69 72 70 71 67 65 66 19 24 18 40 878-N31-910 41 jintex.in

Page 47 — Z1. 付属部品関係 / Accessories

Z1. 付属部品関係 / Accessories REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 * 2 ミシンハリクミ NEEDLE ASSY 1-1 * 8 ミシンハリ NEEDLE 4 * 1 シタメス LOWER KNIFE, T=1.5 5 101572101 1 ネジ・マワシ5.5X190 SCREW DRIVER, 5.5X190 7 S01943001 1 6カクホウ・ウマ・ワシ1.6 SCREW DRIVER, HEX. 1.6 8 142002001 1 6カクホウ・ウマ・ワシ2 HEXAGONAL WRENCH, 2 9 149570001 1 6カクホウ・ウマ・ワシ5 HEXAGONAL WRENCH, 5 10 S23356001 1 メカ・ネジ・レンチ8X10 DOUBLE WRENCH, 8X10 11 S46907001 1 メカ・レンチ5X6 WRENCH, 5X6 12 S20723001 1 メカ・レンチ8 DOUBLE WRENCH, 8 13 117466000 1 ピンセット PINCETTE 14 S24473000 1 イトトン THREADER 18 S06701000 1 ポリ・オイル・クミ POLY OILER ASSY 19 S55666002 1 オイルタンクBクミ OIL TANK ASSY, B 24 142262001 1 クサリFクミ CHAIN ASSY, F 25 122991001 1 フゾクヒンポリフクロ ACCESSORY BAG 27 S20718000 1 トウブ・ウケ HEAD PLATE 29 S35997001 4 カクネ・ボルト8X85 BOLT, M8X85 31 213650001 4 ワッシャー2.3X8.5X38ST WASHER, 2.3X8.5X38ST 32 028080242 4 ワッシャー・スプリング2-8 WASHER, SPRING 2-8 33 021080106 4 ナット1シュ8 NUT, 1 M8 40 147695000 1 ジヨーゴ FUNNEL 41 144225002 1 トウブ・カバー HEAD COVER 48-1 147919051 1 ホウシンゴム RUBBER CUSHION 48-2 147919052 3 ホウシンゴム RUBBER CUSHION 56 183797009 1 ダスター・シュート・クミ DUSTER SHUTE ASSY 57 031411304 3 マル・ネジ・4.1X13 WOOD SCREW, ROUND M4.1X13 58 S23353001 1 ダスター・シュート・サトES DUSTER SHOOT SUPPORT, S 59 062400612 2 ナベ・M4X6 SCREW, PAN M4X6 60 025040332 2 ヒラザ・ワッシャー・L4 WASHER, PLAIN L 4 65 S38302020 1 ベルト・カバー BELT COVER 66 062061412 3 ナベ・M6X14 SCREW, PAN M6X14 67 S20412000 1 ゴム・セン3.7 RUBBER CAP, 3.7 91 S20118151 1 カラ・イメス TRIMMING KNIFE 92 060300512 1 バインド・M3X5 SCREW, BIND M3X5 69 147893009 1 " オプション部品" "OPTION PARTS" TREADLE PEDAL 70 021400106 2 ナット・1シュ4 NUT, 1 M4 71 062401406 2 ナベ・M4X14 SCREW, PAN M4X14 72 116016001 2 ペダル・トメ PEDAL STOPPER 878-N31-910 42 jintex.in

Page 48 — Z2. 付属部品関係 / Accessories

Z2. 付属部品関係 / Accessories 42-5 42-14-2 42-14 42-10-1 42-10 42-1 42-27 42-14-1 42-6 42-22 42-25 42-8 42-7 42-12 42-26 42-21 42-13 42-23 42-24 42-15 42-18 < 6本糸用 / For "6 Threads" > 42-30 42-32 42-20 42-19 42-11 42-29 42-12 42-31 42-28 42-16 42-17 42-2 42-3 42-4 42-5 " オプション部品 / OPTION PARTS " 64-11 64-12 64-2 64-10 64-6 64-8 64-2 64-6 64-8 64-3 64-8 64-6 64-8 64-6 64-7 64-8 64-9 64-7 64-8 64-9 64-7 64-8 64-4 64-1 64-6 64-7 64-8 64-5 64-9 64-9 64-8 64-7 64-6 64-9 43 878-N31-910 jintex.in

Page 49 — Z2. 付属部品関係 / Accessories

Z2. 付属部品関係 / Accessories REF.NO CODE Q'TY HINMEI NAME OF PARTS RM 42 S45953001 1 イトタテタ イクミ5DTHF COTTON STAND ASSY, 6DTHF 42-1 150172023 1 コラムパイプ COLUMN PIPE 42-2 S36064021 1 コラムパイプ D COLUMN PIPE, D 42-3 150206022 1 ヒラザガネ16 WASHER, PLAIN 16 42-4 S36064021 16 カクナット M16 NUT, M16 42-5 S35635020 2 コラムキャップ COLUMN CAP 42-6 150173023 1 コラムジョイント COLUMN JOINT 42-7 S35826021 2 ナベコ 5X14 SCREW, PAN M5X14 42-8 S35827021 2 1シュナット5 NUT, 1 M5 42-9 S02778022 1 スプー ルホルダー -2 SPOOL HOLDER, 2 42-10 S45970001 1 スレッドハンガーグミ THREAD HANGER ASSY, 2 42-10-1 S35832021 1 ナベザミ5X14A SCREW, PAN (S/P WASHER) M5X14 42-10-2 S35827021 1 1シュナット5 NUT, 1 M5 42-11 S02778009 1 スプー ルホルダー -3 SPOOL HOLDER, 3 42-12 S35831021 1 ナベザミ5X30A SCREW, PAN (S/P WASHER) M5X30 42-13 S35827021 1 1シュナット5 NUT, 1 M5 42-14 S45964001 1 スレッドハンガーグミ3 THREAD HANGER ASSY, 3 42-14-1 S35832021 1 ナベザミ5X14A SCREW, PAN (S/P WASHER) M5X14 42-14-2 S35827021 1 1シュナット5 NUT, 1 M5 42-15 150179022 2 スプー ルシークB SPOOL SHAFT, B 42-16 028050246 2 バネガネ2-5 WASHER, SPRING 2-5 42-17 S35827021 2 1シュナット5 NUT, 1 M5 42-18 126863021 2 スプー ルクッション SPOOL CUSHION 42-19 150180021 2 ウケザラ SPOOL STAND BASE 42-20 150182009 2 スプー ルマット SPOOL MAT 42-21 150185009 1 イトアンナイホルダー THREAD GUIDE HOLDER 42-22 S35831021 1 ナベザミ5X30A SCREW, PAN (S/P WASHER) M5X30 42-23 S35827021 1 1シュナット5 NUT, 1 M5 42-24 S04109001 1 イトアンナイササエボウ SUPPORT BAR, ;TR-GUIDE 42-25 S45961001 1 ササエボウ ウツギテ JOINT 42-26 012060632 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 42-27 142999101 1 イトアンナイ5 THREAD GUIDE, 5 42-28 150188009 1 スプー ルホルダーサエA SPOOL HOLDER SUPPORT, A 42-29 S35826021 1 ナベコ5X14 SCREW, PAN M5X14 42-30 S35827021 1 1シュナット5 NUT, 1 M5 42-31 031452206 1 マルモク45X22 WOOD SCREW, ROUND M4.5X22 42 S45954001 <6本糸用> 1 イトタテタ イクミ6DTHF <For "6 Threads"> COTTON STAND ASSY, 6DTHF 42-27 S02783001 1 イトアンナイ6 THREAD GUIDE, 6 42-32 150194009 1 スプー ルホルダーサエB SPOOL HOLDER SUPPORT, B 64-1 183798001 " オプション部品 " 1 フルサブマーシセット "OPTION PARTS" FULL SUBMERGED SET 64-1 S20721001 1 トウブウケサエ HEAD PLATE SUPPORT 64-2 153318201 4 カクネマタアタボルト BOLT 64-3 S35997001 1 カクネボルト8X85 BOLT, M8X85 64-4 S36007001 1 カクネボルト8X55 BOLT, M8X55 64-5 017085502 1 ホボルトM8X55 BOLT, M8X55 64-6 025080236 11 ヒラザガネチユウ8 WASHER, PLAIN M 8 64-7 028080242 7 ハネガネ2-8 WASHER, SPRING 2-8 64-8 021080106 15 ナット1シュ8 NUT, 1 M8 64-9 213650001 8 72.3X8.5X38ST WASHER, 2.3X8.5X38ST 64-10 S20722001 1 ダスターシューサエL DUSTER SHOOT SUPPORT, L 64-11 060400812 2 ハインド M4X8 SCREW, BIND M4X8 64-12 060400812 3 ハインド M4X8 SCREW, BIND M4X8 878-N31-910 jintex.in 44

Page 50 — Ga1. ゲージ部品一覧表 / Gauge parts List

Ga1. ゲージ部品一覧表 / Gauge parts List 下記の表はサブクラスの番号順に並べてあります 用途 一般地縫用 (薄) 一般地縫 (中厚・厚) 極厚物用 ラフラー用 Application Thin Thin Medium Extra Heavy Ruffling 4本糸 4本糸 4本糸 4本糸 4 Threads 4 Threads 4 Threads 4 Threads サブクラス 4010-22-S2F 4020-33-S3F 4030-54-S2F 4050-55-E3W 4420-24-S3F Sub-Class -23-S2F -34-S3F -55-S2F -56-E3W -25-S3F -24-S2F -35-S3F -56-H3F -57-E3W -25-S2F -36-H3F -57-H3F 針巾 (mm) 2 3 5 3 5 2 Needle Gauge 1 針 (個数) 151474-011 (2) 151474-014 (2) 151474-016 (2) 151474-018 (2) 151474-014 (2) Needle (Q'ty) 2 押工組 S19304-101 S19313-201 S19317-101 S25557-001 S19334-001 S25548-101 Presser Foot (S19312-001) (S30971-001) (S19312-001) (S19340-001) (S19325-001) Assy 押工 F Presser Foot F S29146-001 S20404-001 S20406-001 S29631-001 S21104-001 S29146-001 3 針止メ組 Needle Clamp Assy S25194-001 (2) S25195-001 (3) S19174-001 (4) S19175-001 (5) S20234-001 (3) S20235-001 (4) S20236-001 (5) S35651-001 (6) S27968-001 (7) S20231-001 (4) S20232-001 (5) S20233-001 (6) S25197-001 (7) S25200-001 (3) S25201-001 (5) S19185-001 (5) S19186-001 (6) S19187-001 (7) S25198-001 (4) S25199-001 (5) 4 針板 Needle Plate 5 主送り歯組 Main Feed Dog Assy 主送り歯 Main Feed Dog 補助送り歯 Chain Feed Dog S19221-201 (S19222-201) (S33172-001) L S20241-101 (S20242-101) (S20243-101) H S20239-101 (S20240-101) (S19223-101) F S19228-101 (S19229-001) (S19223-101) F S19224-201 (S19225-201) (S33172-001) L 6 差動送り歯 Differential Feed Dog S19245-001 S20245-001 S20244-001 S25566-001 S19247-001 S19246-001 7 上メス Upper Knife 上メス Upper knife 144074-350 角メス Angle knife S20898-101 上メス Upper knife 144074-350 8 下メス Lower Knife (2) S20899-001 (T=1.0) (3,4,5) S20582-001 (T=1.5) (3) S20899-001 (T=1.0) (4,5,6,7) S20582-001 (T=1.5) S20583-001 (T=1.5) T=1.5 S20582-001 (T=1.5) 9 上ルーパ Over Looper S20421-001 L S20423-001 (3,4,5) M S20421-001 (6,7) S20423-001 (4,5) M S20421-001 (6,7) L S20429-001 Q S20423-001 M 45 jintex.in 878-N31-Ga1

Page 51 — Ga2 . ゲージ部品一覧表 / Gauge parts List

Ga2 . ゲージ部品一覧表 / Gauge parts List ラフラー用 Ruffling 4本糸 4 Threads テープ用 Taping 4本糸 4 Threads パイピング ラフラー用 Ruffling W/ Piping 4本糸 4 Threads 用途 Application サブクラス Sub-Class 4420-34-S3F -3S-S3F 4430-55-S3F -56-H3F 4520-34-S3F -35-S3F 4530-54-S3F -55-S3F -56-H3F 4620-35-H3F 針巾 (mm) Needle Gauge 3 5 3 5 3 1計(個数) Needle (Q'ty) 151474-014 (2) 151474-014 (2) 151474-016 (2) 151474-014 (2) 2 押工組 Presser Foot Assy S19321-101 (S19325-001) S19326-101 (S19325-001) S19330-201 (S30971-001) S20882-201 (S30971-001) S25550-001 (S25553-001) 押工F Presser Foot F S20404-001 S20406-001 S20404-001 S20406-001 S20404-001 3 止メ組 Needle Clamp Assy S19497-001 (4) S19182-001 (5) S19183-001 (5) S19184-001 (6) S20235-001 (4) S20236-001 (5) S20231-001 (4) S20232-001 (5) S20233-001 (6) S19182-001 (5) 4 針板 Needle Plate 5 主送り歯組 Main Feed Dog Assy 主送り歯 Main Feed Dog 補助送り歯 Chain Feed Dog S19224-201 (S19225-201) (S33172-001) L S19226-101 (5) (S19227-101) (S19223-101) F S19224-201 (6) (S19225-201) (S33172-101) L S20241-101 (S20242-101) (S20243-101) H S20239-101 (S20240-101) (S19223-101) F S19224-201 (S19225-201) (S33172-001) L 6 差動送り歯 Differential Feed Dog S19246-001 S20245-001 S20244-001 S19246-001 7 上メス Upper Knife 上メス Upper knife 144074-350 8 下メス Lower Knife T S20582-001 (T=1.5) 9 上ルーパ Over Looper S20423-001 M S20423-001 (4, 5) M S20421-001 (6) L S20423-001 M 878-N31-Ga2 46 jintex.in

Page 52 — Ga3 . ゲージ 部品 一覧表 / Gauge parts List

Ga3 . ゲージ 部品 一覧表 / Gauge parts List 用途 Application パイピングララー用 Ruffling W/ Piping バインディング用 Binding 一般地縫用 (薄) Thin 4本糸 4 Threads 4本糸 4 Threads 5本糸 5 Threads (小回り用) (For small type) サブクラス Sub-Class 4630-55-S3F -56-H3F 4720-34-S2F -35-S2F 5010-22-S2F -23-S2F -24-S2F -25-S2F 5011-22-S2F -23-S2F -24-S2F -25-S2F 針巾(mm) Needle Gauge 5 3 2 1針(個数) Needle (Q'ty) 151474-014 (2) 151474-011 (2) 2 押工組 Presser Foot Assy S25555-001 (S25555-001) S25560-101 (S19312-001) S19304-101 (S19312-001) S30586-101 (3, 4) ツメ Stitch Tongue S30588-001 S30592-101 (5, 6) ツメ Stitch Tongue S30593-001 押工 F Presser Foot F 3 針止メ組 Needle Clamp Assy S20406-001 S20404-001 S29146-001 4 針板 Needle Plate S19183-001 (5) S19184-001 (6) S25202-001 (4) S25203-001 (5) S25194-001 (2) S25195-001 (3) S19174-001 (4) S19175-001 (5) S25194-001 (2) S25195-001 (3) S19174-001 (4) S19175-001 (5) 5 主送り歯組 Main Feed Dog Assy S19226-101 (5) (S19227-101) (S19223-101) 主送り歯 Main Feed Dog 補助送り歯 Chain Feed Dog S19224-201 (6) (S19225-201) (S33172-001) L 6 差動送り歯 Differential Feed Dog S19246-001 S19245-001 7 上メス Upper Knife 上メス Upper knife 144074-350 8 下メス Lower Knife S20582-001 (T=1.5) (2) S20899-001 (T=1.0) (3, 4, 5) S20582-001 (T=1.5) 9 上ルーパ Over Looper S20423-001 M S20422-001 A 47 jintex.in 878-N31-Ga3

Page 53 — Ga4. ゲージ部品一覧表 / Gauge parts List

Ga4. ゲージ部品一覧表 / Gauge parts List 用途 Application 5本糸 5 Threads 一般地縫用 (薄・中厚) Thin Medium (小回り用) (For small type) 一般地縫用 (中厚・厚) Medium Thick 5本糸 5 Threads 極厚物用 Extra Heavy 5本糸 5 Threads サブクラス Sub-Class 5020-33-S2F -34-S3F -35-S2F 5021-33-S2F -34-S2F -35-S2F 5030-54-S3F -55-S3F -56-H3F -57-H3F 5033-54-H3A -55-H3A -56-H3A -57-H3A 5050-33-E2W -35-E2W 針巾(mm) Needle Gauge 3 5 3 1針(個数) Needle (Qty.) 151474-014 (2) 151474-016 (2) 151474-018 (2) 151474-014 (2) 2 押工組 Presser Foot Assy S19313-201 (S30971-001) S19317-101 (S19312-001) S25557-001 (S19340-001) S30594-101 (3, 4) ツメ Stitch Tongue S30588-001 S30597-101 (5, 6) ツメ Stitch Tongue S30593-001 押工 F Presser Foot F S20404-001 S20404-001 S20406-001 S21104-001 S29631-001 4 針板 Needle Plate S20234-001 (3) S20235-001 (4) S20236-001 (5) S35651-001 (6) S25196-001 (7) S19176-001 (3) S19177-001 (4) S19178-001 (5) S20231-001 (4) S20232-001 (5) S20233-001 (6) S25197-001 (7) S25200-001 (3) S25201-001 (5) 5 主送り歯組 Main Feed Dog Assy 主送り歯 Main Feed Dog 補助送り歯 Chain Feed Dog S20241-101 (S20242-101) (S20243-101) H S19221-201 (S19222-201) (S33172-001) L S20239-101 (S20240-101) (S19223-101) F S35840-001 (S35991-001) (S19223-101) F S19228-101 (S19229-001) (S19223-101) F 6 差動送り歯 Differential Feed Dog S20245-001 S19245-001 S20244-001 S35992-001 S25566-001 7 上メス Upper Knife 144074-350 上メス Upper knife 144074-350 角メス Angle knife S20896-101 角メス Angle knife S20898-101 8 下メス Lower Knife (3) S20899-001 (T=1.0) (4, 5, 6, 7) S20582-001 (T=1.5) S20582-001 (T=1.5) S20583-001 (T=1.5) 9 上ルーパ Over Looper S20424-001 (3,4,5) B S20428-001 (6,7) C S20424-001 B S20424-001 (4,5) B S20428-001 (6,7) C S20428-001 G 878 N31 Ga4 jintex.in 48

Page 54 — Ga5 . ゲージ部品一覧表 / Gauge parts List

Ga5 . ゲージ部品一覧表 / Gauge parts List 用途 Application 5本糸 5 Threads 極厚物用 Extra Heavy ラフラー用 Ruffling 5本糸 5 Threads サブクラス Sub-Class 5050-55-E3W -56-E3W -57-E3W 4050-55-E3W -56-E3W -57-E3W 5420-24-S3F -25-S3F 5420-34-S3F -35-S3F 針巾 (mm) Needle Gauge 5 2 3 1 151474-018 (2) 151474-014 (2) 針 Needle S19334-001 (S19340-001) S30525-001 (S30532-001) S25548-101 (S19325-001) S19321-101 (S19325-001) 2 押工組 Presser Foot Assy ツメ (Stitch Tongue) S21104-001 S29146-001 S20404-001 3 針止メ組 Needle Clamp Assy S19185-001 (5) S19186-001 (6) S19187-001 (7) S25198-001 (4) S25199-001 (5) S19497-001 (4) S19182-001 (5) 4 針板 Needle Plate 5 主送り歯組 Main Feed Dog Assy 主送り歯 Main Feed Dog 補助送り歯 Chain Feed Dog S19228-101 (S19229-001) (S19223-101) F S38595-001 (S38596-001) (S19223-101) F オプション部品 Option parts ウェツトスーツ用 For Wet suit S19224-201 (S19225-201) (S33172-001) L S19247-001 S19246-001 6 差動送り歯 Differential Feed Dog 2.5 1.0 2.5 1.0 1.6 1.0 S38597-001 1.6 1.0 7 上メス Upper Knife 角メス Angle Knife S20898-101 10 上メス Upper Knife 144074-350 8 下メス Lower Knife S20583-001 (T=1.5) T S20582-001 (T=1.5) 9 上ルーパ Over Looper S20438-101 G S20424-001 B 40 jintex.in 878 N21 Ga5

Page 55 — Ga6 . ゲージ部品一覧表 / Gauge parts List

Ga6 . ゲージ部品一覧表 / Gauge parts List 用途 Application ラッラー用 Ruffling 5本糸 5 Threads テープ用 Taping 5本糸 5 Threads パイピングラッラー用 Ruffling W / Piping 5本糸 5 Threads サブクラス Sub-Class 5430-55-S3F -56-H3F 5520-34-S3F -35-S3F 5530-54-S3F -55-S3F -56-H3F 5620-35-S3F 針巾(mm) Needle Gauge 5 3 3 1 針 Needle 151474-014 (2) S19326-101 (S19325-001) S19330-201 (S30971-001) S20882-201 (S30971-001) S25550-001 (S25553-001) S20406-001 S20404-001 S20406-001 S20404-001 2 押工組 Presser Foot Assy ツメ Stitch Tongue 3 止メ組 Needle Clamp Assy S19183-001 (5) S19184-001 (6) S20236-001 (4) S20235-001 (4) S20232-001 (5) S20233-001 (6) S19182-001 (5) 4 針板 Needle Plate 5 主送り組 Main Feed Dog Assy 主送り歯 Main Feed Dog 補助送り歯 hain Feed Dog S19226-101 (5) (S19227-101) (S19223-101) F S19224-201 (6) (S19225-201) (S33172-001) L S20241-101 (S20242-101) (S20243-101) H S20236-101 (S20239-101) (S19223-101) F 6 差動送り歯 Differential Feed Dog S19246-001 S20245-001 S20244-001 S19246-001 7 上メス Upper Knife 上メス Upper Knife 144074-350 8 下メス Lower Knife S20582-001 (T=1.5) T 9 上ルーパ Over Looper S20424-001 (5) B S20428-001 (6) C S20424-001 B S20424-001 (4, 5) B S20424-001 (6) C S20424-001 B 878-N31-Ga6 jintex.in 50

Page 56 — Ga7. ゲージ部品一覧表 / Gauge parts List

Ga7. ゲージ部品一覧表 / Gauge parts List 用途 Application パイピングラフラー用 Ruffling W/Piping 5本糸 5 Threads バインディング用 Binding 5本糸 5 Threads 3本針 一般地縫用(薄・中厚) 3 Needles Thin Medium 3本針 ラフラー用 3 Needles Ruffling サブクラス Sub-Class 5630-55-S3F -56-H3F 5720-34-S2F -35-S2F 6030-B5-H2F 6030-B5-H3F 6430-B5-H3A 針巾(mm) Needle Gauge 5 3 5, 2.2 1 針(個数) Needle (Qty) 151474-014 (2) 151474-014 (2) 151474-016 (3) 151474-014 (3) 2 押工組 Presser Foot Assy S25555-001 (S25553-001) S25560-101 (S19312-001) S25562-101 (S19312-001) S31981-001 (S19325-001) 押工F Presser Foot F 3 針止メ組 Needle Clamp Assy S20406-001 S20404-001 S29148-001 S29148-001 4 針板 Needle Plate S19183-001 (5) S19184-001 (6) S25202-001 (4) S25203-001 (5) S25204-001 S31975-001 S31979-001 5 主送り歯組 Main Feed Dog Assy 主送り歯 Main Feed Dog 補助送り歯 Chain Feed Dog S19226-101 (5) (S19227-101) (S19223-101) F S19224-201 (6) (S19225-201) (S33172-001) S19221-201 (S19222-201) (S33172-001) L S19221-201 (S19222-201) (S33172-001) L S20239-101 (S20240-101) (S19223-101) F S19226-101 (S19227-101) (S19223-101) F 6 差動送り歯 Differential Feed Dog S19246-001 S19245-001 S19245-001 S20244-001 S19246-001 7 上メス Upper Knife 上メス Upper knife 144074-350 角メス Angle knife S20896-101 7.8 8 下メス Lower Knife S20582-001 (T=1.5) S20582-001 (T=1.5) S20582-001 (T=1.5) 9 上ルーパ Over Looper S20424-001 (5) B S20428-001 (6) C S20424-001 D S20430-001 D 51 878-N31-Ga7 Jинтех.in

Page 57 — Wa. 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels 品名 / Name of parts Size(mm) Code ▲ 注意 動く部分でけがをする。 安全保護装置をつけて 試作作業をすること。 電源を切ってから、糸 通し、ボビンや針の交換、 掃除や調整をすること。 操作注意ラベル・和 40 X 64 S38350-001 ▲ CAUTION Moving parts may cause injury. Operate with safety devices Turn off main switch before threading, changing bobbin and needle, cleaning etc. Label, operation Eng. 40 X 64 S38349-001 アースマーク Mark, grounding Φ 12 S37060-001 878-N31-052 52

Page 58 — INDEX

索引 / INDEX CODE REF.NO page 004350812 G 31 16 011502012 Q1 2-17 36 012060632 A 43 2 B 26 6 B 25 6 F1 25 12 G 2 16 G 6 16 G 25-2 16 H 6-1 20 K 6-1 24 L 2 26 N 17 30 Q1 2-4 36 Z2 42-26 44 012400432 A 27-4 2 A 32 2 G 29 16 K 13 24 M 5 28 N 4-2 30 N 16 30 Q1 2-12 36 012400832 A 31 2 G 32 16 012500532 N 2 30 014780622 Q2 3-1-1-6 38 Q2 3-2-1-6 38 017060812 K 8 24 L 7 26 017061612 C 1-3-1 8 H 1-2-1 20 017081606 Q2 3-1-1-8 38 Q2 3-2-1-8 38 017085502 Z2 64-5 44 017500812 H 26 20 017501212 A 64 4 017781412 Q2 3-1-1-4 38 Q2 3-1-1-10 38 Q2 3-1-1-13 38 Q2 3-2-1-4 38 Q2 3-2-1-10 38 Q2 3-2-1-13 38 018061432 G 53 16 K 10 24 M 12-1 28 M 14-1 28 N 6 30 018061632 F1 22 12 G 8-1 16 G 34 16 G 40-1 16 G 60 18 018062532 B 28 6 C 16 8 F1 13 12 018400832 A 20 2 G 48-2 16 018401222 Q1 1-2 36 018401622 C 1-1 8 H 1-1 20 K 1-1 24 L 1-1 26 CODE REF.NO page 021060302 Q1 1-1-20 36 Q1 1-7 36 021080106 Z1 33 42 Z2 64-8 44 021400106 Z1 70 42 021400202 Q2 3-1-3 38 Q2 3-2-3 38 021400212 A 53 4 E 1-5 10 F1 18 12 Q1 1-1-22 36 021400432 Q1 2-10 36 021500216 M 9 28 021500312 Q1 2-18 36 025030132 F2 50-16-3 14 H 14 20 025040132 G 49 16 H 11-1 20 025040232 Q3 4-5 40 025040332 Z1 60 42 025050132 A 72 4 025060332 F1 14 12 025080236 Z2 64-6 44 025350332 A 68 4 G 63 18 025660132 F2 50-10-4 14 025710232 G 12 16 G 13 16 028050242 P 64 32 028050246 Z2 42-16 44 028060242 B 27 6 028080242 Z1 32 42 Z2 64-7 44 031411304 Z1 57 42 031452206 Z2 42-31 44 034422006 Q3 4-6-2 40 047161042 F2 50-16-7 14 047301242 G 1-1 16 G 1-2 16 047401642 F1 2-2 12 047401442 F1 21-1 12 047502542 F1 16 12 G 57 18 047602042 A 54 4 048040342 G 14 16 048090342 F1 27 12 G 19 16 048400242 B 14 6 028060242 B 6 6 N 20 30 062060812 H 18 20 H 21 20 062061412 Z1 66 42 062300412 H 16-2 20 062300512 E 1-7 10 062300612 M 17 28 062300812 C 28 8 Q1 1-11 36 062350512 Q1 1-27 3 062350612 E 1-9 10 P 70 34 062350812 C 7-3 8 C 26 8 Q1 2-5 36 062400612 A 30 2 Q1 1-1-25 36 Z1 59 42 062400812 A 9 2 B 5 6 N 4-6 30 Q1 1-1-16 36 Q3 4-4 40 062401012 A 4 2 B 22 6 C 20 8 C 30 8 E 2 10 Q2 3-1-4 38 Q2 3-2-4 38 062401212 A 52 4 H 10-1 20 CODE REF.NO page 060400612 A 46 2 A 50 2 A 59 4 F1 10 12 G 22 16 J 8 22 P 24 32 P 32 32 P 36 32 P 39 32 P 41 32 P 43 32 060400812 A 15 2 A 22-1 2 H 29 20 N 24 30 Q1 2-14 36 Q1 2-16 36 Z2 64-11 44 Z2 64-12 44 060401012 A 25-1 2 D 1-3 10 060401412 A 28 2 P 68 34 060630712 G 75-1 18 061400812 A 26 2 N 20 30 H 21 20 062060812 H 18 20 Z1 21 20 062061412 Z1 66 42 062300412 H 16-2 20 062300512 E 1-7 10 062300612 M 17 28 062300812 C 28 8 Q1 1-11 36 062350512 Q1 1-27 3 062350612 E 1-9 10 P 70 34 062350812 C 7-3 8 C 26 8 Q1 2-5 36 062400612 A 30 2 Q1 1-1-25 36 Z1 59 42 062400812 A 9 2 B 5 6 N 4-6 30 Q1 1-1-16 36 Q3 4-4 40 062401012 A 4 2 B 22 6 C 20 8 C 30 8 E 2 10 Q2 3-1-4 38 Q2 3-2-4 38 062401212 A 52 4 H 10-1 20 060300412 F1 35 12 P 30 32 060300512 Z1 92 42 060300612 F1 39 12 P 52 32 060350812 A 67 4 G 62 18 M 28 28 060351012 L 15 26 060400512 A 60 4 060400612 A 12 2 A 27-7 2 A 27-9 2 A 34 2 A 36 2 53 jintex.in

Page 59

CODE REF.NO page 062401212 N 4-9 30 062401406 Z1 71 42 062401612 A 80 4 Q1 1-1-21 36 062402512 H 10-2 20 062670712 F1 41 12 F2 50-1-7 14 F2 50-5-4 14 F2 50-6-7 14 F2 50-10-6 14 F2 50-15-4 14 072600000 B 15 6 076203000 B 15 6 081005070 G 11 16 081005670 G 56 18 081009070 A 77 4 081014670 A 6 2 081020070 G 21 16 081031870 B 4 6 100032003 A 40 2 C 33 8 100080004 F2 50-15-3 14 100136001 Q3 4-1-4 40 100315002 A 41 2 101118001 Q3 4-2 40 101572101 Z1 5 42 102707002 Q1 1-8 36 104450101 C 11 8 105161004 F1 3 12 105288001 F2 50-1-3 14 F2 50-10-3 14 106640001 F2 50-5-3 14 F2 50-10-5 14 108494001 Q3 4-1-2 40 108495001 Q3 4-1-3 40 110832009 P 12 32 P 12 34 116016001 Z1 72 42 117466000 Z1 13 42 118550001 K 14 24 18735002 C 1-3-2 8 H 1-2-2 20 122991001 Z1 25 42 125324001 H 11-2 20 126863021 Z2 42-18 44 140530002 F2 50-6-3 14 141183000 A 39 2 142002001 Z1 8 42 142262001 Z1 24 44 142999101 Z2 42-27 44 143767102 Q3 4-1 40 143980001 Q3 4-1-1 40 144074350 Ga1 7 45 Ga2 7 46 Ga3 7 47 Ga4 7 48 Ga5 7 49 Ga6 7 50 H 15-1 20 144103009 P 13 32 P 13 34 144225002 Z1 41 42 144504001 P 60 32 CODE REF.NO page 144784001 Q1 1-1-10 42 146293001 C 6 32 146427001 C 12-1 36 P 47 8 146592001 P 21 8 146598001 A 71 32 E 1-3 32 146600001 E 1-8 4 147893009 Z1 69 10 147919051 Z1 48-1 10 147919052 Z1 48-2 42 147942001 N 8-1 42 N 10-1 42 N 13-1 30 148084001 N 18 30 148782001 L 13 30 M 26 30 148797001 Q2 3-1-1-5 26 Q2 3-2-1-5 28 148798109 Q2 3-1-1-7 38 Q2 3-2-1-7 38 149570001 Z1 9 38 150172023 Z2 42-1 38 150173023 Z2 42-6 42 150179022 Z2 42-15 44 150180021 Z2 42-19 44 150182020 Z2 42-20 44 150185009 Z2 42-21 44 150188009 Z2 42-28 44 150194009 Z2 42-32 44 150206022 Z2 42-3 44 150755001 F2 50-16-4 44 150813001 P 69 44 151474011 Ga1 1 14 151474014 Ga1 1 34 151474016 Ga1 1 45 151474018 Ga1 1 45 153318201 Z2 64-2 45 155162001 C 7-6 45 K 9-2-2 44 M 12-2 8 M 14-2 24 155197101 Q2 3-1-1-1 28 Q2 3-2-1-1 28 155199101 Q2 3-1-1-3 38 Q2 3-2-1-3 38 155247000 K 3 38 K 10 38 10 20 155261000 M 23 24 155510001 P 62 26 15559001 B 12 28 156482000 A 51 32 158782151 P 61 6 183797009 Z1 56 4 183798001 Z2 64-1 32 213650001 Z1 31 42 Z2 64-9 44 500296002 F2 50-16-6 42 S00075000 A 66 44 S01943001 Z1 7 14 S02573020 G 38 16 S02606020 A 3 2 CODE REF.NO page S02778022 Z2 42-9 44 S02779009 Z2 42-11 44 S02783001 Z2 42-27 44 S04109001 Z2 42-24 44 S06701000 Z1 18 42 S06704001 D 1-4 10 S19174001 Ga1 4 45 Ga3 4 47 S19175001 Ga1 4 45 Ga3 4 47 S19177001 Ga4 4 48 S19178001 Ga4 4 48 S19182001 Ga2 4 46 Ga5 4 49 S19183001 Ga2 4 46 Ga3 4 47 Ga6 4 50 S19184001 Ga2 4 46 Ga3 4 47 Ga6 4 50 S19185001 Ga1 4 45 Ga5 4 49 S19186001 Ga1 4 45 Ga5 4 49 S19187001 Ga1 4 45 Ga5 4 49 S19221201 Ga1 5 45 Ga3 5 47 Ga4 5 48 Ga7 5 51 S19222201 Ga1 5 45 Ga3 5 47 Ga4 5 48 Ga7 5 51 S19223101 Ga1 5 45 Ga2 5 46 Ga3 5 47 Ga4 5 48 Ga5 5 49 Ga6 5 50 Ga7 5 51 S19224201 Ga1 5 45 Ga2 5 46 Ga3 5 47 Ga5 5 49 Ga6 5 50 S19225201 Ga1 5 45 Ga2 5 46 Ga2 5 46 Ga3 5 47 Ga5 5 49 Ga6 5 50 S19226101 Ga2 5 46 Ga3 5 47 Ga6 5 50 Ga7 5 51 S19227101 Ga2 5 46 Ga3 5 47 Ga6 5 50 Ga7 5 51 S19228101 Ga1 5 45 54

Page 60 — INDEX

索引 / INDEX CODE REF.NO page S19228101 Ga4 5 48 Ga5 5 49 S19229001 Ga1 5 45 Ga4 5 48 Ga5 5 49 S19245001 Ga1 6 45 Ga3 6 47 Ga4 6 48 Ga7 6 51 S19246001 Ga1 6 45 Ga2 6 46 Ga3 6 47 Ga5 6 49 Ga6 6 50 S19247001 Ga1 6 45 Ga5 6 49 S19304101 Ga1 2 45 Ga3 2 47 S19307001 F2 50-1-4 14 F2 50-1-4 14 S19308001 F2 50-6-4 14 F2 50-1-5 14 S19309001 F2 50-1-6 14 F2 50-6-6 14 S19311101 F2 50-1-1 14 F2 50-5-1 14 F2 50-6-1 14 F2 50-10-1 14 F2 50-15-1 14 S19312001 Ga1 2 45 Ga3 2 47 Ga4 2 48 Ga7 2 51 S19313201 Ga1 2 45 Ga4 2 48 S19317101 Ga1 2 45 Ga4 2 48 S19321101 Ga1 2 45 Ga2 2 46 S19325001 Ga1 2 45 Ga2 2 46 Ga5 2 49 Ga6 2 50 Ga7 2 51 S19326101 Ga2 2 46 Ga6 2 50 S19330201 Ga2 2 46 Ga6 2 50 S19334001 Ga1 2 45 Ga4 2 48 Ga5 2 49 S19340001 Ga1 2 45 Ga4 2 48 Ga5 2 49 S19368001 F2 50-16-2 14 S19497001 Ga2 4 46 Ga5 4 49 S20115001 F1 38-2 12 S20117001 F1 38-3 12 S20118151 Z1 91 42 S20130009 Q3 4-6 40 S20131009 Q3 4-6-1 40 S20134001 Q3 4-6-1-1 40 S20135001 Q3 4-6-1-2 40 S20158101 P 72 34 CODE REF.NO page S20199001 N 9 30 N 14 30 S20231001 Ga1 4 45 Ga2 4 46 Ga4 4 48 Ga6 4 50 S20232001 Ga1 4 45 Ga2 4 46 Ga4 4 48 Ga6 4 50 S20233001 Ga2 4 46 Ga4 4 48 Ga6 4 50 S20234001 Ga1 4 45 Ga2 4 46 Ga4 4 48 Ga6 4 50 S20235001 Ga1 4 45 Ga2 4 46 Ga4 4 48 Ga6 4 50 S20236001 Ga1 4 45 Ga2 4 46 Ga4 4 48 Ga6 4 50 S20239101 Ga1 5 45 Ga2 5 46 Ga4 5 48 Ga6 5 50 Ga7 5 51 S20240101 Ga1 5 45 Ga2 5 46 Ga4 5 48 Ga6 5 50 S20241101 Ga1 5 45 Ga2 5 46 Ga4 5 48 Ga6 5 50 S20242101 Ga1 5 45 Ga2 5 46 Ga4 5 48 Ga6 5 50 S20243101 Ga1 5 45 Ga2 5 46 Ga4 5 48 Ga6 5 50 S20244001 Ga1 6 45 Ga2 6 46 Ga4 6 48 Ga6 6 50 S20245001 Ga1 6 45 Ga2 6 46 Ga4 6 48 Ga6 6 50 S20310001 A 13 2 S20311000 A 14 2 S20319001 A 27-3 2 S20320101 A 27-5 2 S20321001 A 27-6 2 S20324101 A 33 2 S20325001 A 35 2 S20327101 A 27-8 2 S20338200 A 61 4 S20339000 A 62 4 CODE REF.NO page S20340001 A 69 4 S20342001 A 70 4 A 70 4 S20344001 A 74 4 S20345001 A 10 2 A 75 4 S20346000 A 79 4 S20353000 B 21 6 S20355002 K 9-6 24 S20356001 B 11 6 S20361001 B 17 6 S20362151 B 18 6 S20391001 C 7-4 8 S20392000 C 7-5 8 N 25 30 S20404001 Ga1 3 45 Ga2 3 46 Ga3 3 47 Ga4 3 48 Ga5 3 49 Ga6 2 50 Ga6 3 50 S20406001 Ga1 3 45 Ga2 3 46 Ga3 3 47 Ga4 3 48 Ga6 2 50 Ga6 3 50 S20412000 A 48 2 A 55 4 Z1 67 42 S20415101 C 21 8 S20416101 C 22 8 S20418051 C 23 8 S20421001 Ga1 9 45 Ga2 9 46 S20422001 Ga3 9 47 S20423001 Ga1 9 45 Ga2 9 46 Ga3 9 47 S20424001 Ga4 9 4 Ga5 9 49 Ga6 9 50 S20428001 Ga4 9 48 Ga6 9 50 S20429001 Ga1 9 45 S20430001 Ga7 9 51 S20438101 Ga4 9 48 Ga5 9 49 S20460000 D 1-1-1 10 S20468001 D 1-1 10 S20476001 F1 4 12 S20485001 F1 19 12 S20526000 G 47 16 S20530001 G 30 16 S20543101 G 51 16 S20544000 G 52 16 S20547001 G 55 16 S20548001 G 59 18 S20560001 G 66 18 S20571101 H 2 20 S20574001 H 8 20 S20577001 H 12 20 55 jintex.in

Page 61

CODE REF.NO page CODE REF.NO page CODE REF.NO page S20578101 H 13 20 S20701001 P 66 32 S21376001 Q2 3-1-1-9 38 S20579101 H 15-4 20 S20702001 P 71 34 Q2 3-2-1-9 38 S20582001 Ga1 8 45 S20703051 P 73 34 S21377001 Q2 3-1-1-11 38 Ga2 8 46 S20707001 P 75 34 Q2 3-2-1-11 38 Ga3 8 47 S20718000 Z1 27 42 S21378001 Q2 3-1-1-12 38 Ga4 8 48 S20721001 Z2 64-1 44 Q2 3-2-1-12 38 Ga5 8 49 S20722001 Z2 64-10 44 S21379001 Q2 3-1-2 38 Ga6 8 50 S20723001 Z1 12 42 S21378001 Q2 3-2-2 38 S20583001 Ga1 8 45 S20743001 P 51 32 S21590000 Q1 1-4 36 Ga4 8 48 S20769000 Z1 40 42 S23233001 Ga1 4 45 Ga5 8 49 S20878000 A 81 4 S2337001 A 7 2 S20585001 H 27 20 S20882201 Ga2 2 50 A 76 4 S20589101 H 9-1 20 Ga7 2 50 S23342001 C 1-2 8 S20590101 H 9-2 20 S20896101 H 15-2 20 C 7-1 8 S20591101 H 17 20 Ga4 7 48 H 1-3 20 S20598000 K 2 24 Ga7 7 51 K 9-4 24 L 3 26 S20897101 H 15-3 20 S23346101 K 1-2 24 S20601001 K 5 24 S20898101 H 15-5 20 S23349001 Q1 2-13 36 S20625151 L 11 26 Ga1 7 45 S23350001 A 63 4 20626001 L 14-1 26 Ga4 7 48 S23351001 A 65 4 20627001 L 14-2 26 Ga5 7 49 S23353001 Z1 58 42 20641001 M 11 28 S20899001 Ga1 8 45 S23356001 Z1 10 42 20652001 M 24 28 Ga3 8 47 S23357001 A 78 4 20653001 M 27 28 Ga4 8 48 S23360001 G 37 16 20654001 M 29 28 S21104001 Ga1 3 45 G 42 16 20655101 N 1 30 Ga4 3 48 M 18 28 20657001 N 4-1 30 Ga5 3 49 S23364000 F1 44 12 20668200 N 19 30 S21125001 P 40-1 32 S23418002 D 1-2 10 20669000 N 23 30 S21126001 P 44-1 32 G 6 22 20670001 N 22 30 S21128001 P 40-2 34 P 27 32 20673001 P 11 32 S21129001 P 40-2 34 Q1 1-5 36 S20675001 P 8 34 S21130051 P 42 32 S23452002 P 22 32 S20676051 P 9 32 S21133001 P 28 32 P 74 34 S20676051 P 9 34 S21134001 P 29 32 S23456101 C 24 8 S20677000 P 10 32 S21135001 P 31 32 M 30 28 S20677000 P 10 34 S21136101 P 35 32 S23614101 L 12 26 S20678001 P 14 32 S21137001 P 33 32 M 25 28 P 14 34 S21293001 Q1 1-1 36 S23616101 A 25-2 2 20679001 P 16 32 S21294001 Q1 1-1-1 36 S23621101 G 70 18 P 17 32 S21295001 Q1 1-1-2 36 G 76 18 S20681000 P 18 32 S21296001 Q1 1-1-9 36 G 78 18 P 18 34 S21297001 Q1 1-1-12 36 H 16-1 20 Q1 1-1-7 36 S21298001 Q1 1-1-15 36 S23626001 K 7 24 S20682101 P 19-2 32 S21299001 Q1 1-1-17 36 L 6 26 S20682102 P 19-4 32 S21300001 Q1 1-1-19 36 S23628101 G 69 18 S20682103 P 19-1 32 S21301001 Q1 1-1-23 36 S23651002 Q1 1-1-18 36 S20682104 P 19-5 32 S21302001 Q1 1-1-24 36 Q3 4-9 40 S20682105 Q1 1-1-8 36 S21303001 Q1 1-1-26 36 S23773001 Q1 1-2 36 S20684101 P 23 32 S21304001 Q1 1-1-28 36 S23774001 Q1 2-8 36 S20685001 P 25 32 S21305001 Q1 1-1-3 36 S23775001 Q1 1-1-6 36 S20686001 P 26 32 S21306001 Q1 1-1-13 36 S23777101 Q1 1-1-4 36 S20687001 P 37 32 S21307001 Q1 1-1-14 36 S23779001 Q1 1-6 36 S20689001 P 48 32 S21310001 Q1 2-1 36 S23896101 E 1-1 10 S20690001 P 49 32 S21311001 Q1 2-2 36 S23897001 E 1-4 10 S20691001 P 50 32 S21312001 Q1 2-3 36 S24473000 Z1 14 42 S20694001 P 53 32. S21314001 Q1 2-7 36 S25019001 Q3 4-8 40 S20695001 P 55 32 S21315001 Q1 2-9 36 S25184001 A 93 4 S20696001 P 56 32 S21316001 Q1 2-11 36 S25194001 Ga1 4 45 S20697001 P 58 32 S21318000 Q3 4-3 40 Ga3 4 47 S20698121 P 59 32 S21341001 E 1-6 10 Ga3 4 47 S21373101 Q2 3-1-1 38 S25195001 Ga1 4 45 S21375001 Q2 3-1-1-2 38 Ga3 4 47 Q2 3-2-1-2 38 jintex.in 56

Page 62 — 索引 / INDEX

索引 / INDEX CODE REF.NO page S25196001 Ga1 4 45 Ga4 4 48 S25197001 Ga1 4 45 Ga4 4 48 S25198001 Ga1 4 45 Ga5 4 49 S25199001 Ga1 4 45 Ga5 4 49 S25200001 Ga1 4 45 Ga4 4 48 S25201001 Ga1 4 45 Ga4 4 48 S25202001 Ga3 4 47 Ga7 4 51 S25203001 Ga3 4 47 Ga7 4 51 S25204001 Ga7 4 51 S25548101 Ga1 2 45 Ga5 2 49 S25550001 Ga2 2 46 Ga6 2 50 S25553001 Ga2 2 46 Ga3 2 47 Ga6 2 50 Ga7 2 51 S25555001 Ga3 2 47 Ga7 2 51 S25557001 Ga1 2 45 Ga4 2 48 S25560101 Ga3 2 47 Ga7 2 51 S25562101 Ga7 2 51 S25566001 Ga1 6 45 Ga4 6 48 S25818051 G 61 18 S27868001 B 16 6 S29102001 M 6 28 S29146001 Ga1 3 45 S29148001 Ga7 3 51 S29631001 Ga1 3 45 Ga4 3 48 S29700000 K 9-3 24 S29824000 J 4 22 S29827000 J 4 22 S29831000 J 7 22 S29835001 J 5 22 S30135101 Q2 3-1 38 Q3 3 40 S30135102 Q2 3-2 38 Q3 3 40 S30296001 Q3 5 40 S30296002 Q3 5 40 S30296003 Q3 5 40 S30296004 Q3 5 40 S30296005 Q3 5 40 S30296006 Q3 5 40 S30297002 Q3 5 40 S30297004 Q3 5 40 S30297006 Q3 5 40 S30303001 Q3 4 40 S30304001 Q1 1 36 Q3 1 40 S30525001 Ga5 2 49 CODE REF.NO page S30532001 Ga5 2 49 S30562000 F1 28 12 G 18 16 S30586101 Ga3 2 47 S30588001 Ga4 2 48 S30590001 F2 50-16-5 14 S30592101 Ga3 2 47 S30593001 Ga3 2 47 Ga4 2 48 S30594101 Ga4 2 48 S30888001 F1 40 12 S30890000 F1 38-4 12 S30971001 Ga1 2 45 Ga2 2 46 Ga4 2 48 Ga6 2 50 Ga6 2 50 S31881101 M 12 28 S31975001 Ga7 4 51 S31979001 Ga7 4 51 S31981001 Ga7 2 51 S32140001 E 1 10 S32276001 P 15 32 S33172001 Ga1 5 45 Ga2 5 46 Ga3 5 47 Ga4 5 48 Ga5 5 49 Ga6 5 50 S35635020 Z2 42-5 44 S35651001 Ga1 4 45 Ga4 4 48 S35826021 Z2 42-7 44 Z2 42-29 44 S35827021 Z2 42-8 44 Z2 42-10-2 44 Z2 42-13 44 Z2 42-14-2 44 Z2 42-17 44 Z2 42-23 44 Z2 42-30 44 S35831021 Z2 42-12 44 Z2 42-22 44 S35832021 Z2 42-10-1 44 Z2 42-14-1 44 S35840001 Ga4 5 48 S35991001 Ga4 5 48 S35992001 Ga4 6 48 S35997001 Z1 29 42 Z2 64-3 44 S36007001 Z2 64-4 44 S36062021 Z2 42-4 44 S36064021 Z2 42-2 44 S37070121 F1 34 12 S38301020 A 44 2 S38302020 Z1 65 42 S38305001 A 29-1 2 S38306051 C 25 8 S38307001 C 27 8 S38308121 F1 5 12 CODE REF.NO page S38311100 G 43 16 S38312050 G 24 16 S38328051 P 1 32 S38329001 P- 38 32 S38330050 P 46 32 S38595001 Ga5 5 49 S38596001 Ga5 5 49 S38597001 Ga5 6 49 S39562001 A 37 2 S39564021 A 23 2 S39565101 B 24-2 6 S39566001 C 7 8 S39571021 C 10 8 S39574001 C 8 8 S39575001 F1 2 12 S39577000 F1 2-1 12 S39578001 G 1 16 S39585001 G 1-3 16 S39586001 G 1-4 16 S39589021 G 8 1 S39593021 G 54 1 S39596021 G 54-1 1 S39597001 N 4 30 S39598000 N 4-4 30 S39599001 N 4-3 30 S39601000 N 4-5 30 S39602000 N 4-7 30 S39603001 N 4-8 30 S39605001 A 2 2 S39606020 A 5 2 S39607001 A 8 2 S39608021 A 11 2 S39611001 A 27 2 S39612001 A 27-1 2 S39613001 A 27-2 2 S39623001 A 38 2 S39624021 A 42 2 S39625151 A 49 2 S39626021 A 58 4 S39629021 B 3 6 S39630000 B 10 6 S39631000 B 20 6 S39644021 C 2 8 S39645021 C 3 8 S39646021 C 4 8 S39647000 C 5 8 S39648021 C 9 8 S39649021 C 15 8 S39650001 C 17 8 S39652021 C 18 8 S39654051 C 29 8 S39658001 F1 1 12 S39659021 F1 6 12 S39660001 F1 7 12 S39661001 F1 8 12 S39662001 F1 9 12 S39663121 F1 11 12 S39664101 F1 12 12 S39665001 F1 15 12 S39666001 F1 20 12 S39667021 F1 21 12 S39669101 F1 23 12 S39670000 F1 24 12 57 jintex.in

Page 63

CODE REF.NO page CODE REF.NO page CODE REF.NO page S39671121 F1 26 12 S43523000 N 29 30 S54012001 K 1 24 S39672001 F1 29 12 S43525001 D 1 10 S54015001 K 1 24 S39673020 G 5 16 S43527001 H 6 20 S54018001 L 1 26 S39674001 G 9 16 S43530001 Q1 2 36 S54019001 L 1 26 S39675001 G 10 16 S43530001 Q3 2 40 S55666002 Z1 19 42 S39676121 G 15 16 S43539001 Q3 40 S57922001 M 19 28 S39677021 G 16 16 S43539003 Q3 40 S39678021 G 17 16 S43539004 Q3 40 S39679001 G 20 16 S43539005 Q3 40 S39680001 G 26 16 S43539006 Q3 40 S39684021 G 27 16 S43540001 Q3 40 S39685001 G 28 16 S43540005 Q3 40 S39686000 G 44 16 S43541001 Q3 40 S39687000 G 45 16 S43541002 Q3 40 S39688001 G 46 16 S43541003 Q3 40 S39690021 G 36 16 S43541004 Q3 40 S39691001 M 8 28 S43541005 Q3 40 S39691001 G 39 16 S43542004 Q3 40 S39692021 G 50 16 S43542005 Q3 40 S39693001 G 58 18 S43542006 Q3 40 S39694021 G 64 18 S43916001 G 48-1 16 S39695001 G 65 18 S44535001 A 22-2 2 S39704021 H 4 20 S44536000 A 25-3 2 S39707001 H 19 20 S44744001 A 24 2 S39708001 H 25 20 S44744001 F1 38-1 12 S39709021 K 28 24 S44778000 A 19 2 S39728021 K 3 24 S44779001 A 21 2 S39729021 L 8 26 S44821001 A 94 4 S39732021 M 1 28 S44935101 M 14 28 S39733001 M 3 28 S44937101 M 15 28 S39734021 M 4 28 S44939001 M 16 28 S39735050 M 7 28 S45955001 G 25-1 16 S39740021 M 10 28 S45953001 Z2 42 44 S39741021 M 20 28 S45954001 Z2 42 44 S39742021 M 21 28 S45961001 Z2 42-25 44 S39743001 M 22 28 S45964001 Z2 42-14 44 39743001 N 3 30 S45970001 Z2 42-10 44 S39744021 N 7 30 S46899001 C 7-2 8 S39745001 N 12 30 S46900001 K 9-2-1 24 S39747001 N 8 30 S46903001 F1 30 12 S39749001 N 10 30 S46904001 K 13 24 S39751021 N 13 30 S46904001 L 5 26 S39752021 N 11 30 S46907001 Z1 11 42 S39756021 P 63 32 S49337000 N 21 30 S39757001 P 67 32 S50091001 K 23 24 S39769051 G 40 16 S52053001 K 9 24 S39770001 F1 17 12 S52054001 K 9-1 24 S39773001 G 35 16 S52059001 K 9-5 24 S39775001 B 24-1 6 S52060001 K 9-2 24 S39785001 A 92 4 S52062001 K 9 24 S39786001 A 92 4 S52063001 K 9-2 24 S39787001 A 92 4 S53955001 F2 50-16-8 14 S39795001 Q1 2-6 36 S54001001 B 1 6 S39796001 Q1 2-15 36 S54002001 B 1 6 S42042021 G 33 16 S54003001 C 1 8 S42050001 A 29-2 30 S54006001 C 1 8 S43521000 N 29-1 30 S54007001 C 1 8 S43522000 N 29-2 30 S54011001 H 1 20 58

Page 64 — PARTS BOOK

brother. パーツブック PARTS BOOK ブラザー工業株式会社 BROTHER INDUSTRIES LTD Printed in Japan 878-N31 S95N31-201 2002.02. (C) jintex.in
