Page 8 — A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | S39605001 | TOP COVER | 1 |
| 3 | S02606000 | OIL GAUGE WINDOW | 1 |
| 4 | 062401012 | SCREW, PAN M4X10 | 6 |
| 5 | S39606020 | PACKING | 1 |
| 7 | S23337009 | RUBBER CAP, 18.5 | 1 |
| 8 | S39607001 | FRAME SIDE COVER | 1 |
| 9 | 062400812 | SCREW, PAN M4X8 | 5 |
| 10 | S20345009 | RUBBER CAP, 14 | 1 |
| 11 | S39608021 | FACE PLATE COVER | 1 |
| 12 | 060400612 | SCREW, BIND M4X6 | 1 |
| 13 | S20310001 | COVER FOR FEED MECHANISM, B | 1 |
| 14 | S39771020 | PACKING | 1 |
| 15 | 060400812 | SCREW, BIND M4X8 | 6 |
| 21 | S39610021 | FEED BAR COVER | 1 |
| 22 | 060400812 | SCREW, BIND M4X8 | 6 |
| 23 | S39564021 | INSIDE COVER | 1 |
| 24 | S39563020 | INSIDE COVER PACKING | 1 |
| 25 | S23616101 | SCREW, M4X10 | 5 |
| 26 | 061400812 | SCREW, FLAT M4X8 | 1 |
| 27 | S39611001 | FRONT COVER ASSY, L | 1 |
| 27-1 | S39612001 | FRONT COVER, L | 1 |
| 27-2 | S39613001 | FRONT COVER HINGE SHAFT | 1 |
| 27-3 | S20319001 | FRONT COVER HINGE | 1 |
| 27-4 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 2 |
| 27-5 | S20320101 | FRONT COVER STOPPER | 1 |
| 27-6 | S20321001 | FRONT COVER SPRING | 1 |
| 27-7 | 060400612 | SCREW, BIND M4X6 | 1 |
| 27-8 | S20327101 | STOPPER PLATE, FRONT COVER | 1 |
| 27-9 | 060400612 | SCREW, BIND M4X6 | 1 |
| 28 | 060401412 | SCREW, BIND M4X14 | 3 |
| 29-1 | S38305001 | FRONT COVER, S | 1 |
| 30 | S23418002 | SCREW, M4X5 | 2 |
| 31 | 012400832 | SET SCREW, SOCKET (FT) M4X8 | 1 |
| 32 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 1 |
| 33 | S20324101 | FRONT COVER GUIDE, L | 1 |
| 34 | 060400612 | SCREW, BIND M4X6 | 2 |
| 35 | S20325001 | PLATE SPRING | 1 |
| 36 | 060400612 | SCREW, BIND M4X6 | 1 |
| 37 | S39562001 | CLOTH PLATE | 1 |
| 38 | S39623001 | CLOTH PLATE SHAFT | 1 |
| 39 | 141183000 | CLOTH PLATE SHEET | 1 |
| 40 | 100032003 | SCREW, FLAT SM4.37 | 1 |
| 41 | 100315002 | SPRING, WAVE | 1 |
| 42 | S39624021 | SET SCREW COLLAR | 1 |
| 43 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 2 |
| 44 | S38301020 | CLOTH PLATE, LOWER | 1 |
| 46 | 060400612 | SCREW, BIND M4X6 | 4 |
| 48 | S20412000 | RUBBER CAP, 3.7 | 2 |
| 49 | S39625051 | SPRING, PLATE | 1 |
| 50 | 060400612 | SCREW, BIND M4X6 | 2 |
| 51 | 156482000 | CAP, 4 | 1 |
| 52 | 062401212 | SCREW, PAN M4X12 | 1 |
| 53 | 021400212 | NUT, 2 M4 | 1 |
| 54 | 047602042 | PIN, SPRING ROLL 6X10 | 1 |
| 55 | S20412000 | RUBBER CAP, 3.7 | 1 |
| 58 | S39626021 | CLOTH GUIDE | 1 |
| 59 | 060400612 | SCREW, BIND M4X6 | 3 |
Page 10 — A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 61 | S20338200 | OIL PAN | 1 |
| 62 | S20339000 | PACKING | 1 |
| 63 | S23350001 | MACHINE BODY LEG | 4 |
| 64 | 017501212 | BOLT, M5X12 | 4 |
| 65 | S23351001 | WASHER | 4 |
| 66 | S00075000 | EYE GUARD | 1 |
| 67 | 060350812 | SCREW, BIND M3.5X8 | 2 |
| 68 | 025350332 | WASHER, PLAIN L 3.5 | 2 |
| 69 | S20340001 | EYE GUARD SUPPORT PLATE | 1 |
| 70 | S20342001 | SHOULDER SCREW, M4 | 1 |
| 71 | 146598001 | WASHER, SPRING | 1 |
| 72 | 025050132 | WASHER, PLAIN S 5 | 1 |
| 74 | 140325001 | RUBBER CAP, 10.3 | 1 |
| 75 | S20345009 | RUBBER CAP, 14 | 1 |
| 76 | S23337009 | RUBBER CAP, 18.5 | 1 |
| 77 | 081009070 | O RING, P9 | 1 |
| 78 | S23357001 | SCREW, M10 | 1 |
| 79 | S20346000 | NEEDLE BAR OIL RESERVOIR | 1 |
| 80 | 062401612 | SCREW, PAN M4X16 | 1 |
| 81 | S20878000 | RUBBER CAP, 5.3 | 1 |
| 92 | S39785001 | THREADING DIAGRAM LABEL, D | 1 |
| 92 | S39786001 | THREADING DIAGRAM LABEL, E | 1 |
| 92 | S39787001 | THREADING DIAGRAM LABEL, F | 1 |
| 93 | S25184001 | THREADING DIAGRAM LABEL, DL | 1 |
| 29-2 | S42050001 | FRONT COVER, S | 1 |
Page 12 — B. 駆動軸関係 / Crank shaft mechanism / Kurbelwelle / Mécanisme de vilebrequin / Mecanismo del cigüeñal
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 1 |
| 3 | S39629021 | BEARIG CAP | 1 |
| 4 | 081031870 | O RING S31.5 | 1 |
| 5 | 062400812 | SCREW, PAN M4X8 | 2 |
| 6 | 061400812 | SCREW, FLAT M4X8 | 1 |
| 7 | 072600000 | BALL BEARING, 6000 | 1 |
| 10 | S39630000 | CRANK SHAFT BUSH | 1 |
| 14 | 048400242 | RETAINING RING, C40 | 1 |
| 15 | 076203000 | BALL BEARING, 6203 | 1 |
| 16 | S27868001 | BALL BEARING, 6203V | 1 |
| 17 | S20361001 | SPRING, WAVE | 1 |
| 18 | S20362101 | CRANK SHAFT OIL REJECTOR | 1 |
| 20 | S39631000 | BEARING PRESSER | 1 |
| 21 | S20353000 | O RING | 1 |
| 22 | 062401012 | SCREW, PAN M4X10 | 3 |
| 24-1 | S39775001 | PULLEY | 1 |
| 25 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 1 |
| 27 | 028060242 | WASHER, SPRING 2-6 | 1 |
| 28 | 018062532 | BOLT, SOCKET M6X25 | 1 |
| 24-2 | S39565001 | PULLEY | 1 |
| 1-1 | S39761001 | CRANK SHAFT, SS ASSY | 1 |
| 1-2 | S39762001 | CRANK SHAFT, SH ASSY | 1 |
| 1-3 | S39763001 | CRANK SHAFT, SE ASSY | 1 |
Page 14 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | S39644021 | NEEDLE SHAFT BUSH, L | 1 |
| 3 | S39645021 | NEEDLE SHAFT BUSH, R | 1 |
| 4 | S39646021 | NEEDLE SHAFT | 1 |
| 5 | S39647000 | WASHER | 1 |
| 6 | 146293001 | RETAINING RING, E10 | 1 |
| 7 | S39566001 | NEEDLE BAR CLAMP ASSY | 1 |
| 7-1 | S23342001 | SET SCREW, SOCKET (CN) M4X5 | 2 |
| 7-2 | 017061612 | BOLT, M6X16 | 1 |
| 7-3 | 118735002 | WASHER | 1 |
| 7-4 | 062350812 | SCREW, PAN M3.5X8 | 1 |
| 7-5 | S20391001 | SPACER | 1 |
| 7-6 | S20392000 | FELT | 2 |
| 7-7 | 155162001 | SPACER | 1 |
| 8 | S39574001 | NEEDLE BAR | 1 |
| 9 | S39648021 | NEEDLE BAR BUSH, D | 1 |
| 10 | S39571021 | NEEDLE BAR BUSH, U | 1 |
| 11 | 104450101 | RUBBER CAP, 8 | 1 |
| 12 | ※ | NEEDLE CLAMP ASSY | 1 |
| 12-1 | 146427001 | SET SCREW, SOCKET (CP) SM3.18 | 2 |
| 13 | ※ | NEEDLE DCX27 | 2 |
| 13 | 151474016 | NEEDLE DCX27, #16 | 3 |
| 15 | S39649021 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 16 | 018062532 | BOLT, SOCKET M6X25 | 2 |
| 17 | S39650051 | NEEDLE PLATE SUPPORT, F | 1 |
| 18 | S39652021 | NEEDLE PLATE SUPPORT, B | 1 |
| 20 | 062401012 | SCREW, PAN M4X10 | 4 |
| 21 | S20415101 | MOVABLE NEEDLE GUARD | 1 |
| 22 | S20416101 | BOLT, M3.5X10 | 1 |
| 23 | S20418001 | NEEDLE GUARD (F) | 1 |
| 24 | S23456101 | SCREW, PAN M2.5X6 | 2 |
| 25 | S38306051 | CHAIN STITCH NEEDLE GUARD, F | 1 |
| 26 | 062350612 | SCREW, PAN M3.5X6 | 1 |
| 27 | S38307001 | CHAIN STITCH NEEDLE GUARD, B | 1 |
| 28 | 062300812 | SCREW, PAN M3X8 | 2 |
| 29 | S39654051 | NEEDLE GUARD BRACKET | 1 |
| 30 | 062401012 | SCREW, PAN M4X10 | 1 |
| 32 | ※ | NEEDLE PLATE | 1 |
| 33 | 100032003 | SCREW, FLAT SM4.37 | 2 |
| S39650021 | NEEDLE PLATE SUPPORT, F | 1 |
Page 16 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 34 | S39633011 | NEEDLE DRIVING CRANK ROD ASSY | 1 |
| 34 | S39633012 | NEEDLE DRIVING CRANK ROD ASSY | 1 |
| 34-1 | 018401622 | BOLT, SOCKET M4X16 | 2 |
| 34-2 | S23342001 | SET SCREW, SOCKET (CN) M4X5 | 1 |
| 34-3-1 | 017061612 | BOLT, M6X16 | 1 |
| 34-3-2 | 118735002 | WASHER | 1 |
| 35 | S39638011 | NEEDLE DRIVING CRANK ROD ASSY | 1 |
| 35 | S39638012 | NEEDLE DRIVING CRANK ROD ASSY | 1 |
| 35-1 | 018401622 | BOLT, SOCKET M4X16 | 2 |
| 35-2 | S23342001 | SET SCREW, SOCKET (CN) M4X5 | 1 |
| 35-3-1 | 017061612 | BOLT, M6X16 | 1 |
| 35-3-2 | 118735002 | WASHER | 1 |
| 36 | S39641011 | NEEDLE DRIVING CRANK ROD ASSY | 1 |
| 36 | S39641012 | NEEDLE DRIVING CRANK ROD ASSY | 1 |
| 36-1 | 018401622 | BOLT, SOCKET M4X16 | 2 |
| 36-2 | S23342001 | SET SCREW, SOCKET (CN) M4X5 | 1 |
| 36-3-1 | 017061612 | BOLT, M6X16 | 1 |
| 36-3-2 | 118735002 | WASHER | 1 |
Page 18 — D. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme de pied presseur / Mecanismo de la prensa tela
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S39658001 | PRESSER ADJUST SCREW | 1 |
| 2 | S39575001 | PRESSER BAR ASSY | 1 |
| 2-1 | S39577000 | CUSHION | 1 |
| 2-2 | 047301642 | PIN, SPRING ROLL AW3 | 1 |
| 3 | 105161004 | WASHER | 1 |
| 4 | S20476001 | PRESSER SPRING | 1 |
| 5 | S38308021 | MAIN PRESSER ARM | 1 |
| 6 | S39659021 | PRESSER BAR LIFTER | 1 |
| 7 | S39660001 | PRESSER BAR LIFTER SPRING | 1 |
| 8 | S39661001 | SHOULDER SCREW, M4 | 1 |
| 9 | S39662001 | MAIN PRESSER ARM STOPPER | 1 |
| 10 | 060400612 | SCREW, BIND M4X6 | 1 |
| 11 | S39663021 | PRESSER FOOT LIFTER LEVER | 1 |
| 12 | S39664001 | COLLAR | 1 |
| 13 | 018062532 | BOLT, SOCKET M6X25 | 1 |
| 14 | 025060332 | WASHER, PLAIN L 6 | 1 |
| 15 | S39665001 | SPRING | 1 |
| 16 | 047503242 | PIN, SPRING ROLL AW5 | 1 |
| 17 | S39770001 | SCREW, M4 | 1 |
| 18 | 021400212 | NUT, 2 M4 | 1 |
| 19 | S20485001 | PRESSER BAR LIFTER LINK | 1 |
| 20 | S39666001 | PRESSER BAR LIFTER LEVER | 1 |
| 21 | S39667021 | PRESSER BAR LIFTER ARM ASSY | 1 |
| 21-1 | 047401442 | PIN, SPRING ROLL AW4 | 1 |
| 22 | 018061632 | BOLT, M6X16 | 1 |
| 23 | S39669001 | SPRING | 1 |
| 24 | S39670000 | PRESSER ARM SHAFT BUSH | 1 |
| 25 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 1 |
| 26 | S39671021 | PRESSER ARM SHAFT | 1 |
| 27 | 048090342 | RETAINING RING, E9 | 2 |
| 28 | S30562000 | WASHER | 1 |
| 29 | S39672001 | PRESSER ARM PIN | 1 |
| 30 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 1 |
| 34 | S37070121 | FINGER GUARD, V | 1 |
| 35 | 060300412 | SCREW, BIND M3X4 | 1 |
| 38 | S20770101 | TWIST SPRING | 1 |
| 39 | 060300612 | SCREW, BIND M3X6 | 1 |
| 38-2 | S20115001 | TWIST SPRING | 1 |
| 38-3 | S20117001 | TWIST SPRING | 1 |
| 38-4 | S30889001 | TWIST SPRING | 1 |
| 44 | S23364000 | TAPE GUIDE | 1 |
Page 20 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 50-1 | S19313201 | PRESSER FOOT ASSY | 1 |
| 50-1-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-1-2 | S30971001 | PRESSER FOOT, F | 1 |
| 50-1-3 | 105288001 | SCREW, SM2.38 | 1 |
| 50-1-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-1-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-1-6 | S19309001 | TWIST SPRING | 1 |
| 50-1-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-2 | S19317101 | PRESSER FOOT ASSY | 1 |
| 50-2-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-2-2 | S19312001 | PRESSER FOOT, F | 1 |
| 50-2-3 | 105288001 | SCREW, SM2.38 | 1 |
| 50-2-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-2-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-2-6 | S19309001 | TWIST SPRING | 1 |
| 50-2-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-3 | S19321101 | PRESSER FOOT ASSY | 1 |
| 50-3-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-3-2 | S19325001 | PRESSER FOOT, F | 1 |
| 50-3-3 | S01295001 | SCREW, SM2.38X3.5 | 1 |
| 50-3-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-3-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-3-6 | S19309001 | TWIST SPRING | 1 |
| 50-3-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-4 | S19326101 | PRESSER FOOT ASSY | 1 |
| 50-4-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-4-2 | S19325001 | PRESSER FOOT, F | 1 |
| 50-4-3 | S01295001 | SCREW, SM2.38X3.5 | 1 |
| 50-4-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-4-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-4-6 | S19309001 | TWIST SPRING | 1 |
| 50-4-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-5 | S19334001 | PRESSER FOOT ASSY | 1 |
| 50-5-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 3 |
| 50-5-2 | S19340001 | PRESSER FOOT, F | 1 |
| 50-5-3 | 106640001 | SCREW, SM3.18 | 1 |
| 50-5-4 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
Page 22 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 50-6 | S19304101 | PRESSER FOOT ASSY | 1 |
| 50-6-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-6-2 | S19312001 | PRESSER FOOT, F | 1 |
| 50-6-3 | 105288001 | SCREW, SM2.38 | 1 |
| 50-6-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-6-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-6-6 | S19309001 | TWIST SPRING | 1 |
| 50-6-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-6-8 | 025630232 | WASHER, PLAIN M 2.38 | 1 |
| 50-7 | S19330201 | PRESSER FOOT ASSY | 1 |
| 50-7-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-7-2 | S30971001 | PRESSER FOOT, F | 1 |
| 50-7-3 | 111140002 | SCREW, SM2.38 | 1 |
| 50-7-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-7-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-7-6 | S19309001 | TWIST SPRING | 1 |
| 50-7-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-8 | S20882201 | PRESSER FOOT ASSY | 1 |
| 50-8-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-8-2 | S30971001 | PRESSER FOOT, F | 1 |
| 50-8-3 | 111140002 | SCREW, SM2.38 | 1 |
| 50-8-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-8-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-8-6 | S19309001 | TWIST SPRING | 1 |
| 50-8-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-9 | S25548101 | PRESSER FOOT ASSY | 1 |
| 50-9-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-9-2 | S19325001 | PRESSER FOOT, F | 1 |
| 50-9-3 | S01295001 | SCREW, SM2.38X3.5 | 1 |
| 50-9-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-9-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-9-6 | S19309001 | TWIST SPRING | 1 |
| 50-9-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-10 | S25550001 | PRESSER FOOT ASSY | 1 |
| 50-10-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-10-2 | S25553001 | PRESSER FOOT, F | 1 |
| 50-10-3 | S01295001 | SCREW, SM2.38X3.5 | 1 |
| 50-10-4 | 025660132 | WASHER, PLAIN S 3.18 | 1 |
| 50-10-5 | 106640001 | SCREW, SM3.18 | 1 |
| 50-10-6 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
Page 24 — D. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme de pied presseur / Mecanismo de la prensa tela
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 50-11 | S25555001 | PRESSER FOOT ASSY | 1 |
| 50-11-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-11-2 | S25553001 | PRESSER FOOT, F | 1 |
| 50-11-3 | S01295001 | SCREW, SM2.38X3.5 | 1 |
| 50-11-4 | 025660132 | WASHER, PLAIN S 3.18 | 1 |
| 50-11-5 | 106640001 | SCREW, SM3.18 | 1 |
| 50-11-6 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-12 | S25557001 | PRESSER FOOT ASSY | 1 |
| 50-12-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 3 |
| 50-12-2 | S19340001 | PRESSER FOOT, F | 1 |
| 50-12-3 | 106640001 | SCREW, SM3.18 | 1 |
| 50-12-4 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-13 | S25560101 | PRESSER FOOT ASSY | 1 |
| 50-13-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-13-2 | S19312001 | PRESSER FOOT, F | 1 |
| 50-13-3 | 105288001 | SCREW, SM2.38 | 1 |
| 50-13-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-13-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-13-6 | S19309001 | TWIST SPRING | 1 |
| 50-13-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-14 | S25562101 | PRESSER FOOT ASSY | 1 |
| 50-14-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 1 |
| 50-14-2 | S19312001 | PRESSER FOOT, F | 1 |
| 50-14-3 | 105288001 | SCREW, SM2.38 | 1 |
| 50-14-4 | S19307001 | PRESSER FOOT, B SUPPORT SCREW | 1 |
| 50-14-5 | S19308001 | NUT, 2 SM3.18-44 | 1 |
| 50-14-6 | S19309001 | TWIST SPRING | 1 |
| 50-14-7 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
| 50-15 | S30525001 | PRESSER FOOT ASSY | 1 |
| 50-15-1 | S19311101 | PRESSER FOOT SUPPORT SCREW | 3 |
| 50-15-2 | S30532001 | PRESSER FOOT, F | 1 |
| 50-15-3 | 100080004 | SCREW, SM3.18 | 2 |
| 50-15-4 | 062670712 | SCREW, PAN SM3.57-40X7 | 1 |
Page 26 — E . 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S39578001 | ECCENTRIC WHEEL ASSY | 1 |
| 1-1-1 | 047301242 | PIN, SPRING AW3 | 2 |
| 1-2-1 | 047301242 | PIN, SPRING AW3 | 1 |
| 1-3 | S39585001 | TWIST SPRING | 1 |
| 1-4 | S39586001 | SCREW, M3 | 1 |
| 2 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 2 |
| 5 | S39673020 | BALANCE WEIGHT | 1 |
| 6 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 2 |
| 8 | S39589021 | FEED ARM ASSY | 1 |
| 8-1 | 018061632 | BOLT, M6X16 | 1 |
| 9 | S39674001 | FEED ADJUST SHAFT | 1 |
| 10 | S39675001 | SPRING | 1 |
| 11 | 081005070 | O RING, P5 | 1 |
| 12 | 025710232 | WASHER, PLAIN M 4.76 | 1 |
| 13 | 025710232 | WASHER, PLAIN M 4.76 | 1 |
| 14 | 048040342 | RETAINING RING, E4 | 1 |
| 15 | S39676021 | FEED SHAFT | 1 |
| 16 | S39677021 | BUSH, 11.11-17 | 1 |
| 17 | S39678021 | FEED SHAFT BUSH, L | 1 |
| 18 | S30562000 | WASHER | 1 |
| 19 | 048090342 | RETAINING RING, E9 | 1 |
| 20 | S39679001 | FEED SHAFT BUSH CAP, L | 1 |
| 21 | 081020070 | O RING, P20 | 1 |
| 22 | 060400612 | SCREW, BIND M4X6 | 3 |
| 23 | S39680001 | FEED BAR ASSY | 1 |
| 24 | S38312050 | FEED LIFTING SLIDE BLOCK | 1 |
| 25 | 081010070 | O RING, P10 | 1 |
| 26 | S39683000 | FEED BAR SLIDE BLOCK | 1 |
| 27 | S39684021 | FEED BAR SLIDE BLOCK SHAFT | 1 |
| 28 | S39685001 | SET SCREW COLLAR | 1 |
| 29 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 1 |
| 30 | S20530001 | WASHER | 1 |
| 31 | 061350616 | SCREW, FLAT M3.5X6 | 1 |
| 32 | 012400832 | SET SCREW, SOCKET (FT) M4X8 | 1 |
| 33 | S42042021 | MAIN FEED ARM | 1 |
| 34 | 018061632 | BOLT, M6X16 | 1 |
| 35 | S39773001 | MAIN FEED LINK ASSY | 1 |
| 36 | S39690021 | WASHER | 1 |
| 37 | S23360001 | BOLT, M5X15 | 1 |
| 38 | S02573000 | WASHER | 1 |
| 39 | S39691001 | NUT, M5 | 1 |
| 40 | S39769051 | DIFF. FEED ARM LINK ASSY | 1 |
| 40-1 | 018061632 | BOLT, M6X16 | 1 |
| 41 | S39690021 | WASHER | 1 |
| 42 | S23360001 | BOLT, M5X15 | 1 |
| 43 | S38311100 | FEED BAR GUIDE COVER | 1 |
| 44 | S39686000 | FEED BAR GUIDE, L | 1 |
| 45 | S39687000 | FEED BAR GUIDE, R | 1 |
| 46 | S39688001 | FRAGMENT PROTECTOR PLATE | 1 |
| 47 | S20526000 | FRAGMENT PROTECTOR PLATE | 3 |
| 48 | 018400832 | BOLT, SOCKET M4X8 | 6 |
| 49 | 025040132 | WASHER, PLAIN S 4 | 2 |
| 50 | S39692021 | DIFFERENTIAL FEED ADJUST LINK | 1 |
| 51 | S20543101 | SCREW, M5 | 1 |
| 52 | S20544000 | DIFFERENTIAL LINK LEVER | 1 |
| 53 | 018061432 | BOLT, SOCKET M6X14 | 1 |
| 54 | S39593021 | DIFF. FEED ADJUST LEVER ASSY | 1 |
| 54-1 | S39596021 | NUT, ROUND M6 | 1 |
| 55 | S20547001 | SPRING | 1 |

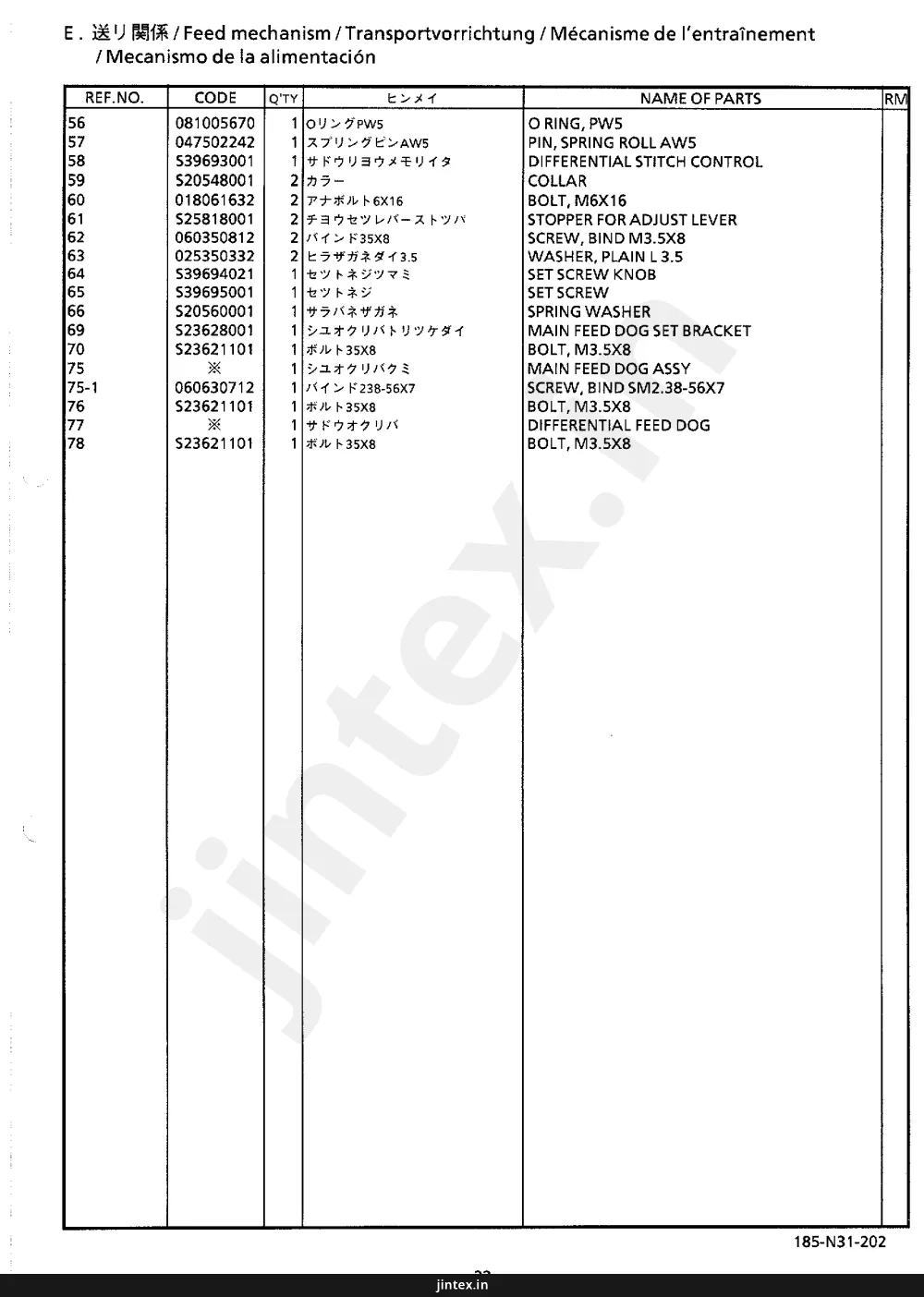

Page 28 — E. 送リ関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 56 | 081005670 | O RING, PW5 | 1 |
| 57 | 047502242 | PIN, SPRING ROLL AW5 | 1 |
| 58 | S39693001 | DIFFERENTIAL STITCH CONTROL | 1 |
| 59 | S20548001 | COLLAR | 2 |
| 60 | 018061632 | BOLT, M6X16 | 2 |
| 61 | S25818001 | STOPPER FOR ADJUST LEVER | 2 |
| 62 | 060350812 | SCREW, BIND M3.5X8 | 2 |
| 63 | 025350332 | WASHER, PLAIN L 3.5 | 2 |
| 64 | S39694021 | SET SCREW KNOB | 1 |
| 65 | S39695001 | SET SCREW | 1 |
| 66 | S20560001 | SPRING WASHER | 1 |
| 69 | S23628001 | MAIN FEED DOG SET BRACKET | 1 |
| 70 | S23621101 | BOLT, M3.5X8 | 1 |
| 75-1 | 060630712 | SCREW, BIND SM2.38-56X7 | 1 |
| 76 | S23621101 | BOLT, M3.5X8 | 1 |
| 78 | S23621101 | BOLT, M3.5X8 | 1 |
Page 30 — F. 上メス・下メス関係 / Knife machanism / Messer / Mécanisme du couteau / Mecanismo de la cuchilla
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | S20571101 | UPPER KNIFE DIFFERENTIAL ARM | 1 |
| 3 | 155247000 | DUST SEAL | 1 |
| 4 | S39704021 | UPPER KNIFE BUSH L | 1 |
| 5 | S39677021 | BUSH, 11.11-17 | 1 |
| 6 | S43527001 | SET COLLAR ASSY | 1 |
| 6-1 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 2 |
| 8 | S20574001 | NUT | 1 |
| 9-1 | S20589101 | UPPER KNIFE HOLDER | 1 |
| 10-1 | 062401212 | SCREW, PAN M4X12 | 1 |
| 11-1 | 025040132 | WASHER, PLAIN S 4 | 1 |
| 15-1 | 144074300 | UPPER KNIFE | 1 |
| 16-1 | S23621101 | BOLT, M3.5X8 | 1 |
| 17 | S20591101 | LOWER KNIFE HOLDER | 1 |
| 18 | 062060812 | SCREW, PAN M6X8 | 1 |
| 19 | S39707001 | LOWER KNIFE HOLDER GUIDE | 1 |
| 21 | 062060812 | SCREW, PAN M6X8 | 2 |
| 22 | ※ | LOWER KNIFE | 1 |
| 25 | S39708001 | LOWER KNIFE PRESSER | 1 |
| 26 | 017500812 | BOLT, M5X8 | 1 |
| 27 | S20585001 | SPRING | 1 |
| 28 | S39709021 | SPRING HOLDER | 1 |
| 29 | 062400812 | SCREW, PAN M4X8 | 1 |
| 30 | S39701011 | UPPER KNIFE CRANK ROD ASSY,I | 1 |
| 30 | S39701012 | UPPER KNIFE CRANK ROD ASSY, I | 1 |
| 30-1-1 | 018401622 | BOLT, SOCKET M4X16 | 2 |
| 30-2-1 | 017061612 | BOLT, M6X16 | 1 |
| 30-2-2 | 118735002 | WASHER | 1 |
| 30-3 | S23342001 | SET SCREW, SOCKET (CN) M4X5 | 1 |
| 9-2 | S20590101 | UPPER KNIFE HOLDER | 1 |
| 10-2 | 062402512 | SCREW, PAN M4X25 | 1 |
| 11-2 | 125324001 | WASHER, PLAIN L 4 | 1 |
| 12 | S20577001 | UPPER KNIFE PRESSER | 1 |
| 13 | S20578101 | UPPER KNIFE PRESSER PLATE | 1 |
| 14 | 025030132 | WASHER, PLAIN S 3 | 1 |
| 15-2 | ※ | ANGLE KNIFE | 1 |
| 16-2 | 062300412 | SCREW, PAN M3X4 | 1 |
| 15-2 | S20896101 | ANGLE KNIFE, NARROW | 1 |
| 15-3 | S20897101 | ANGLE KNIFE, NARROW WAVE EDGE | 1 |
| 15-4 | S20579101 | ANGLE KNIFE, WIDE | 1 |
| 15-5 | S20898101 | ANGLE KNIFE, WIDE WAVE EDGE | 1 |
Page 32 — G. 上ルーパ関係/Over looper mechanism / Oberen Greifer / Mecanismo del presillador superior
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | S20598000 | ROD STOPPER | 2 |
| 3 | S39717021 | OVER LOOPER SHAFT BUSH, F | 1 |
| 4 | S39677021 | BUSH, 11.11-17 | 1 |
| 5 | S39718021 | OVER LOOPER SHAFT | 1 |
| 6 | S43527001 | SET COLLAR ASSY | 1 |
| 6-1 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 2 |
| 10 | 018061432 | BOLT, SOCKET M6X14 | 2 |
| 11 | 155247000 | DUST SEAL | 1 |
| 12 | ※ | OVER LOOPER | 1 |
| 13 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 1 |
| 14 | 118550001 | DOWEL PIN | 1 |
| 8 | S30562000 | WASHER | 1 |
| 9-1 | S38313001 | OVER LOOPER MECHANISM ASSY, SH | 1 |
| 9-1-1-1 | S23342001 | SET SCREW, SOCKET (CN) M4X5 | 1 |
| 9-1-1-2 | 017061612 | BOLT, M6X16 | 1 |
| 9-1-1-3 | 118735002 | WASHER | 1 |
| 9-1-1-4 | 155162001 | SPACER | 1 |
| 9-1-2-1 | S38320000 | OVER LOOPER GUIDE HOLDER | 1 |
| 9-1-2-2 | S20355002 | SCREW, M3X8.5 | 2 |
| 9-1-3 | S29700000 | OVER LOOPER GUIDE FELT | 2 |
| 9-2 | S38322001 | OVER LOOPER MECHANISM ASSY, E | 1 |
| 9-2-1-1 | S23342001 | SET SCREW, SOCKET (CN) M4X5 | 1 |
| 9-2-1-2 | 017061612 | BOLT, M6X16 | 1 |
| 9-2-1-3 | 118735002 | WASHER | 1 |
| 9-2-1-4 | 155162001 | SPACER | 1 |
| 9-2-2-1 | S38320000 | OVER LOOPER GUIDE HOLDER | 1 |
| 9-2-2-2 | S20355002 | SCREW, M3X8.5 | 2 |
| 9-2-3 | S29700000 | OVER LOOPER GUIDE FELT | 2 |
| 18 | S39711011 | OVER LOOPER CONNECTING ROD | 1 |
| 18 | S39711012 | OVER LOOPER CONNECTING ROD | 1 |
| 18-1-1 | 018401622 | BOLT, SOCKET M4X16 | 4 |
| 18-2 | 018061432 | BOLT, SOCKET M6X14 | 1 |
| 19 | S39715011 | OVER LOOPER CONNECTING ROD | 1 |
| 19 | S39715012 | OVER LOOPER CONNECTING ROD | 1 |
| 19-1-1 | 018401622 | BOLT, SOCKET M4X16 | 4 |
| 19-2 | 018061432 | BOLT, SOCKET M6X14 | 1 |
Page 34 — H. 下ループ関係 / Under loop mechanism / Unterer Greifer / Mécanisme du boucleur inférieur / Mecanismo del presilladora inferior
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 2 |
| 3 | S20598000 | ROD STOPPER | 2 |
| 5 | S20622001 | UNDER LOOPER SHAFT | 1 |
| 6 | S23626001 | WASHER | 1 |
| 7 | 017060812 | BOLT, M6X8 | 1 |
| 8 | S39728021 | UNDER LOOPER SHAFT BUSH, F | 1 |
| 9 | S39677021 | BUSH, 11.11-17 | 1 |
| 10 | 155247000 | DUST SEAL | 1 |
| 11 | S20625001 | UNDER LOOPER HOLDER | 1 |
| 12 | S23614101 | BOLT, M5X14 | 1 |
| 13 | 148782001 | SPACER | 1 |
| 14-1 | S20626001 | UNDER LOOPER | 1 |
| 15 | 060351012 | SCREW, BIND M3.5X10 | 1 |
| 14-2 | S20627001 | UNDER LOOPER | 1 |
| 16 | S39724011 | UNDER LOOPER CONNECTING ROD | 1 |
| 16 | S39724012 | UNDER LOOPER CONNECTING ROD | 1 |
| 16-1-1 | 018401622 | BOLT, SOCKET M4X16 | 4 |
| 17 | S39726011 | UNDER LOOPER CONNECTING ROD | 1 |
| 17 | S39726012 | UNDER LOOPER CONNECTING ROD | 1 |
| 17-1-1 | 018401622 | BOLT, SOCKET M4X16 | 4 |
Page 36 — J. 二重環ルーパ関係 / Double chain stitch looper mechanism / Doppelkettenstichgreifer / Mécanisme du boucleur pour point de chainette double / Mecanismo del presilladora de double cadeneta
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S39729021 | LONGITUDINAL FEED ROD ASSY | 1 |
| 3 | S39732021 | LONGITUDINAL FEED ARM | 1 |
| 4 | S39733021 | SET SCREW COLLAR | 1 |
| 5 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 2 |
| 6 | S29102001 | LONGITUDINAL FEED ROD BUSH | 1 |
| 7 | S39734021 | LONGITUDINAL FEED SCREW | 1 |
| 8 | S39690021 | WASHER | 1 |
| 9 | 021500216 | NUT, 2 M5 | 1 |
| 10 | S39735050 | LONGITUDINAL FEED SLIDE BLOCK | 1 |
| 11 | S20641001 | SHOULDER SCREW 5 | 1 |
| 12 | S31881101 | SLIDE BLOCK HOLDER | 1 |
| 12-1 | 018061432 | BOLT, SOCKET M6X14 | 1 |
| 12-2 | 155162001 | SPACER | 1 |
| 15 | S39736001 | CHAIN STITCH LOOPER LINK ASSY | 1 |
| 16 | S20645101 | CHAIN STITCH LOOPER LEVER ASSY | 1 |
| 16-1 | 018061432 | BOLT, SOCKET M6X14 | 1 |
| 16-2 | 155162001 | SPACER | 1 |
| 17 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 1 |
| 18 | S23360001 | BOLT, M5X15 | 1 |
| 19 | S39690021 | WASHER | 1 |
| 20 | S39740021 | LONGITUDINAL FEED SHAFT | 1 |
| 21 | S39741021 | LONGITUDINAL FEED SHAFT BUSH,F | 1 |
| 22 | S39742021 | LONGITUDINAL FEED SHAFT BUSH,B | 1 |
| 23 | 155261000 | DUST SEAL | 1 |
| 24 | S20652001 | CHAIN STITCH LOOPER HOLDER | 1 |
| 25 | S23614101 | BOLT, M5X14 | 1 |
| 26 | 148782001 | SPACER | 1 |
| 27 | S20653001 | CHAIN STITCH LOOPER | 1 |
| 28 | 060351012 | SCREW, BIND M3.5X10 | 1 |
| 29 | S20654001 | WASHER | 1 |
| 30 | S23456101 | SCREW, PAN M2.5X6 | 1 |
Page 38 — K. 給油潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S20655101 | WORM | 1 |
| 2 | 012500532 | SET SCREW, SOCKET (FT) M5X5 | 2 |
| 3 | S39743001 | COLLAR | 1 |
| 4 | S39597001 | PUMP ASSY | 1 |
| 4-1 | S20657001 | WORM WHEEL | 1 |
| 4-2 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 2 |
| 4-3 | S39599001 | PUMP INNER ROTER ASSY | 1 |
| 4-4 | S39598000 | PUMP CASE | 1 |
| 4-5 | S39601000 | PUMP BODY COVER | 1 |
| 4-6 | 062400812 | SCREW, PAN M4X8 | 3 |
| 4-7 | S39602000 | OIL FILTER | 1 |
| 4-8 | S39603001 | OIL FILTER FLANGE | 1 |
| 4-9 | 062401212 | SCREW, PAN M4X12 | 1 |
| 6 | 018061432 | BOLT, SOCKET M6X14 | 2 |
| 7 | S39744021 | OIL PIPE JOINT | 1 |
| 8 | S39745001 | OIL TUBE ASSY | 1 |
| 8-1 | 147942001 | STOP RING | 2 |
| 9 | S20199001 | OIL PIPE JOINT | 1 |
| 10 | S39747001 | OIL TUBE ASSY | 1 |
| 10-1 | 147942001 | STOP RING | 2 |
| 11 | S39751021 | OIL PIPE | 1 |
| 12 | S39744021 | OIL PIPE JOINT | 1 |
| 13 | S39749001 | OIL PIPE ASSY | 1 |
| 13-1 | 147942001 | STOP RING | 2 |
| 14 | S20199001 | OIL PIPE JOINT | 2 |
| 15 | S39752021 | OIL PIPE | 1 |
| 16 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 1 |
| 17 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 1 |
| 18 | 148084001 | OIL GAUGE WINDOW | 1 |
| 19 | S20668000 | NEEDLE BAR LINK FELT | 1 |
| 20 | 061400812 | SCREW, FLAT M4X8 | 1 |
| 21 | S20671000 | WICK (L=100) | 1 |
| 22 | S20671000 | WICK (L=100) | 1 |
| 23 | S20669000 | FELT | 1 |
| 24 | 060400812 | SCREW, BIND M4X8 | 1 |
| 29 | S43523000 | OIL FILTER ASSY | 1 |
| 29-1 | S43521000 | OIL FILTER, D | 1 |
| 29-2 | S43522000 | OIL FILTER | 1 |
Page 40 — L. 糸調子関係/Thread tension / Fadernspannung / Tension du fil / Tensión del hilo
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S38328051 | MAIN THREAD GUIDE | 1 |
| 9 | S20676001 | TENSION STUD | 4 |
| 10 | S20677000 | TENSION DISC FELT | 4 |
| 11 | S20673001 | TENSION DISC | 8 |
| 12 | 110832009 | TENSION DISC FELT | 4 |
| 13 | 144103009 | TENSION DISC PRESSER | 4 |
| 14-1 | S20678001 | TENSION SPRING, L | 1 |
| 14-2 | S20679001 | TENSION SPRING, M | 1 |
| 15 | S32276001 | TENSION SPRING, LL | 1 |
| 18 | S20681000 | WASHER | 4 |
| 19-1 | S20682103 | TENSION NUT, RED | 1 |
| 19-2 | S20682101 | TENSION NUT, LIGHT BLUE | 1 |
| 19-3 | S20682104 | TENSION NUT, YELLOW | 1 |
| 19-4 | S20682102 | TENSION NUT, GREEN | 1 |
| 21 | 146592001 | THREAD GUIDE PIPE | 2 |
| 22 | S23452002 | SET SCREW, SOCKET (FT) M4X3.2 | 2 |
| 23 | S20684101 | THREAD GUIDE BRACKET | 1 |
| 24 | 060400612 | SCREW, BIND M4X6 | 2 |
| 25 | S20685001 | UNDER LOOPER THREAD GUIDE, R | 1 |
| 26 | S20686001 | OVER LOOPER THREAD GUIDE, R | 1 |
| 27 | S23418002 | SCREW, M4X5 | 2 |
| 28 | S21133001 | OVER LOOPER THREAD TAKE-UP, R | 1 |
| 29 | S21134001 | UNDER LOOPER THREAD TAKE-UP,R | 1 |
| 30 | 060300412 | SCREW, BIND M3X4 | 1 |
| 31 | S21135001 | LOOPER THREAD TAKE-UP, L | 1 |
| 32 | 060400612 | SCREW, BIND M4X6 | 2 |
| 33 | S21137001 | LOOPER THREAD GUIDE, M1 | 1 |
| 35 | S21136101 | OVER LOOPER THREAD GUIDE, L | 1 |
| 36 | 060400612 | SCREW, BIND M4X6 | 1 |
| 37 | S20687001 | UNDER LOOPER THREAD GUIDE, L | 1 |
| 38 | S38329001 | NEEDLE THREAD GUIDE, C | 1 |
| 39 | 060400612 | SCREW, BIND M4X6 | 1 |
| 40 | S21126001 | NEEDLE THREAD GUIDE, B | 1 |
| 41 | 060400612 | SCREW, BIND M4X6 | 1 |
| 42 | S21130001 | NEEDLE THREAD TAKE-UP, A | 1 |
| 43 | 060400612 | SCREW, BIND M4X6 | 2 |
| 44 | S21125001 | NEEDLE THREAD GUIDE, A | 1 |
| 45 | 060400612 | SCREW, BIND M4X6 | 1 |
| 46 | S38330050 | NEEDLE THREAD PRESSER HOLDER | 1 |
| 47 | 146427001 | SET SCREW, SOCKET (CP) SM3.18 | 2 |
| 48 | S20689001 | NEEDLE THREAD PRESSER COLLAR | 1 |
| 49 | S20690001 | SPRING | 1 |
| 50 | S20691001 | NEEDLE THREAD PRESSER PLATE | 1 |
| 51 | S20743001 | NEEDLE THREAD GUIDE | 1 |
| 52 | 060300512 | SCREW, BIND M3X5 | 1 |
| 53 | S20694001 | LOOPER THREAD GUIDE | 1 |
| 54 | 060400612 | SCREW, BIND M4X6 | 1 |
| 55 | S20695001 | THREAD GUIDE PIPE | 1 |
| 56 | S20696001 | THREAD GUIDE PIPE SUPPORT | 1 |
| 57 | 060400612 | SCREW, BIND M4X6 | 1 |
| 58 | S20697001 | LOOPER THREAD GUIDE | 1 |
| 59 | S20698121 | TENSION STUD | 1 |
| 60 | 144504001 | THREAD GUIDE DISC | 2 |
| 61 | 158782101 | PRE TENSION SPRING | 1 |
| 62 | 155510001 | TENSION NUT | 1 |
| 63 | S39756021 | THREAD HANDLER BRACKET | 1 |
| 64 | 028050242 | WASHER, SPRING 2-5 | 1 |
| 65 | S20342001 | SHOULDER SCREW, M4 | 1 |
| 66 | S20701001 | THREAD HANDLER | 1 |
Page 42 — L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 67 | S39757001 | COLLAR | 1 |
| 68 | 060401412 | SCREW, BIND M4X14 | 1 |
| 69 | 150813001 | SPRING | 1 |
| 70 | 062350612 | SCREW, PAN M3.5X6 | 1 |
| 71 | S20702001 | THREAD TAKE-UP GUIDE | 2 |
| 72 | S20158101 | SCREW, PAN M2.5X3 | 2 |
| 73 | S20703001 | THREAD TAKE-UP ASSY | 1 |
| 74 | S23452002 | SET SCREW, SOCKET (FT) M4X3.2 | 2 |
| 75 | S20707001 | CHAIN STITCH THREAD GUIDE | 1 |
| 76 | 060400612 | SCREW, BIND M4X6 | 1 |
| 8 | S20675001 | TENSION DISC THREAD GUIDE | 1 |
| 9 | S20676001 | TENSION STUD | 5 |
| 10 | S20677000 | TENSION DISC FELT | 5 |
| 11 | S20673001 | TENSION DISC | 10 |
| 12 | 110832009 | TENSION DISC FELT | 5 |
| 13 | 144103009 | TENSION DISC PRESSER | 5 |
| 18 | S20681000 | WASHER | 5 |
| 19-5 | S20682103 | TENSION NUT, RED | 2 |
Page 44 — M . 針冷却装置 / Needle cooler / Nadelkühlungsvorrichtung / Mécanisme du refroidisseur d'aiguille / Mecanismo del enfriador de aguja
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S43525001 | NEEDLE COOLER SET, S | 1 |
| 1-1 | S20468001 | FELT SUPPORT ASSY | 1 |
| 1-1-1 | S20460000 | SILICONE TANK CAP | 1 |
| 1-2 | S23418002 | SCREW, M4X5 | 2 |
| 1-3 | 060401012 | SCREW, BIND M4X10 | 1 |
| 1-4 | S06704001 | SILICONE OIL | 1 |
| 1 | S20130009 | COTTON STAND WITH SCREW | 1 |
| 1-1 | S20131009 | COTTON STAND ASSY | 1 |
| 1-1-1 | S20134001 | SCREW, W4.76-24X10 | 1 |
| 1-1-2 | S20135001 | SPOOL PIN | 1 |
| 1-2 | 034422006 | WOOD SCREW, FLAT 2 M4.1X20 | 2 |
Page 46 — P. テープワインダー関係 / Tape winder mechanism / Bandaufwickelvorrichtung / Mécanisme de l'enrooouleur de ruban / Mecanismo bobinador de cinta
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 143767002 | TAPE WINDER ASSY | 1 |
| 1-1 | 143980001 | SCREW | 1 |
| 1-2 | 108494001 | WASHER | 1 |
| 1-3 | 108495001 | SPRING | 1 |
| 1-4 | 100136001 | TENSION NUT | 1 |
| 2 | 101118001 | WOOD SCREW, ROUND M4.5X20 | 2 |
| 1 | S21318000 | LAPPER ASSY | 1 |
| 2 | 062400812 | SCREW, PAN M4X8 | 2 |
| 3 | 025040232 | WASHER, PLAIN M 4 | 2 |
| 10 | S25019001 | LAPPER BASE | 1 |
| 11 | S23651002 | SET SCREW, SOCKET (FT) M6X6 | 2 |
| 4 | S29824000 | LAPPER ASSY, 8 | 1 |
| 4 | S29827000 | LAPPER ASSY, 10 | 1 |
| 5 | S29835001 | LAPPER GUIDE PLATE | 1 |
| 6 | S23418002 | SCREW, M4X5 | 1 |
| 7 | S29831000 | LAPPER GUIDE ASSY | 1 |
| 8 | 062400612 | SCREW, PAN M4X6 | 1 |
Page 48 — R. ラフラー装置 / Ruffling attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | S30134001 | RUFFLER ASSY | 1 |
| 1 | S21293001 | RUFFLER ATTACHMENT ASSY | 1 |
| 1-1 | S21294001 | RUFFLING BLADE BRACKET | 1 |
| 1-2 | S21295001 | RUFFLING BLADE BASE SHAFT | 1 |
| 1-3 | S21305001 | SPRING BASE | 1 |
| 1-4 | S23777101 | SET SCREW, M6 | 2 |
| 1-5 | S20676001 | TENSION STUD | 1 |
| 1-7 | S23775001 | COIL SPRING | 1 |
| 1-8 | S20681000 | WASHER | 1 |
| 1-9 | S20682105 | TENSION NUT | 1 |
| 1-10 | S21296001 | RUFFLING BLADE | 1 |
| 1-11 | 144784001 | WASHER | 1 |
| 1-12 | 062300812 | SCREW, PAN M3X8 | 2 |
| 1-13 | S21297001 | RUFFLER BASE | 1 |
| 1-14 | S21306001 | STUD SCREW 6 | 1 |
| 1-15 | S21307001 | WASHER, SPRING | 2 |
| 1-16 | S21298001 | RUFFLING BLADE GUIDE | 1 |
| 1-17 | 062350812 | SCREW, PAN M3.5X8 | 1 |
| 1-18 | S21299001 | CLOTH PRESSER BAR LIFTER | 1 |
| 1-19 | S23651002 | SET SCREW, SOCKET (FT) M6X6 | 2 |
| 1-20 | S21300001 | HANDLE SET PLATE | 1 |
| 1-21 | 021060302 | NUT, 3 M6 | 1 |
| 1-22 | 062401612 | SCREW, PAN M4X16 | 1 |
| 1-23 | 021400212 | NUT, 2 M4 | 1 |
| 1-24 | S21301001 | SPRING | 1 |
| 1-25 | S21302001 | SPRING PLATE (U) | 1 |
| 1-26 | 062350612 | SCREW, PAN M3.5X6 | 1 |
| 1-27 | S21303001 | SPRING PLATE (D) | 1 |
| 1-28 | 062350512 | SCREW, PAN M3.5X5 | 2 |
| 1-29 | S21304001 | COLLAR | 1 |
| 2 | 018401632 | BOLT M4X16 | 1 |
| 3 | 018401032 | BOLT 4X10 | 1 |
| 4 | S21590000 | RUFFLER GUIDE | 1 |
| 5 | S23418002 | SCREW, M4X5 | 2 |
| 6 | S23779001 | HANDLE | 1 |
| 7 | 021060302 | NUT, 3 M6 | 1 |
| 28 | 102707002 | WASHER, PLAIN 4 | 2 |
| B | S43530001 | RUFFLER INTERLOCKING PARTS SET | 1 |
| 8 | S21310001 | CLOTH PRESSER BAR LIFTER LEVER | 1 |
| 9 | S21311001 | PRESSER BAR LIFTER BRACKET | 1 |
| 10 | S21312001 | PIN 6.35 | 1 |
| 11 | 012060632 | SET SCREW, SOCKET (FT) M6X6 | 1 |
| 12 | 062350812 | SCREW, PAN M3.5X8 | 2 |
| 13 | S39795001 | WIRE SET PLATE | 1 |
| 14 | S21314001 | FLEXIBLE WIRE ASSY | 1 |
| 15 | S23774001 | SHOULDER SCREW, M3.5 | 1 |
| 16 | S21315001 | STUD M4 | 1 |
| 17 | 021400212 | NUT, 2 M4 | 1 |
| 18 | S21316001 | WIRE STOPPER | 1 |
| 19 | 012400432 | SET SCREW, SOCKET (FT) M4X4 | 1 |
| 29 | S39796001 | SPACER | 1 |
Page 50 — R. ラフラー装置 / Ruffing attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C | S30135001 | DIFFERENTIAL FEED ADJUSTER SET | 1 |
| 20-1 | S21373001 | DIFFERENTIAL FEED ADJUSTER ASSY | 1 |
| 20-1-1 | 155197101 | KNEE LIFTER SHAFT BRACKET | 1 |
| 20-1-2 | S21375001 | KNEE LIFTER SHAET | 1 |
| 20-1-3 | 155199101 | KNEE LIFTER BRACKET | 1 |
| 20-1-4 | 017781012 | BOLT, SM6.35X10 | 2 |
| 20-1-5 | 148797001 | KNEE LIFTER BAR (S) | 1 |
| 20-1-6 | 014780622 | SET SCREW, SOCKET (CP) SM6.35 | 1 |
| 20-1-7 | 148798009 | KNEE LIFTER PLATE (L) | 1 |
| 20-1-8 | 100463001 | BOLT, SM7.94 | 1 |
| 20-1-9 | S21376001 | KNEE LIFTER LEVER | 1 |
| 20-1-10 | 017781012 | BOLT, SM6.35X10 | 2 |
| 20-1-11 | S21377001 | SPRING | 1 |
| 20-1-12 | S21378001 | COLLAR | 2 |
| 20-1-13 | 017781012 | BOLT, SM6.35X10 | 4 |
| 21 | S21379001 | CONNECTING BAR | 1 |
| 23 | 062401012 | SCREW, PAN M4X10 | 4 |
| 25 | 021400202 | NUT, 2 M4 | 2 |
| D | S30135002 | DIFFERENTIAL FEED ADJUSTER SET | 1 |
| 20-2 | S21380001 | DIFFERENTIAL FEED ADJUSTER ASSY | 1 |
| 20-2-1 | 155197101 | KNEE LIFTER SHAFT BRACKET | 1 |
| 20-2-2 | S21375001 | KNEE LIFTER SHAET | 1 |
| 20-2-3 | 155199101 | KNEE LIFTER BRACKET | 1 |
| 20-2-4 | 017781012 | BOLT, SM6.35X10 | 2 |
| 20-2-5 | 148797001 | KNEE LIFTER BAR (S) | 1 |
| 20-2-6 | 014780622 | SET SCREW, SOCKET (CP) SM6.35 | 1 |
| 20-2-7 | 148798009 | KNEE LIFTER PLATE (L) | 1 |
| 20-2-8 | 100463001 | BOLT, SM7.94 | 1 |
| 20-2-9 | S21376001 | KNEE LIFTER LEVER | 1 |
| 20-2-10 | 017781012 | BOLT, SM6.35X10 | 2 |
| 20-2-11 | S21377001 | SPRING | 1 |
| 20-2-12 | S21378001 | COLLAR | 2 |
| 20-2-13 | 017781012 | BOLT, SM6.35X10 | 4 |
| 22 | S21381001 | CONNECTING BAR | 1 |
| 23 | 062401012 | SCREW, PAN M4X10 | 4 |
| 25 | 021400202 | NUT, 2 M4 | 2 |
Page 52 — Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DCX27 | NEEDLE DCX27 | 2 |
| 4 | LOWER KNIFE | LOWER KNIFE | 1 |
| 5 | 101572101 | SCREW DRIVER, 5.5X190 | 1 |
| 7 | S01943001 | SCREW DRIVER, 1.6 | 1 |
| 8 | 142002001 | HEXAGONAL WRENCH, 2 | 1 |
| 9 | 149570001 | HEXAGONAL WRENCH, 5 | 1 |
| 10 | S23356001 | DOUBLE WRENCH, 8X10 | 1 |
| 11 | S23363001 | WRENCH, 6 | 1 |
| 12 | S20723001 | DOUBLE WRENCH, 8 | 1 |
| 13 | 117466000 | PINCETTE | 1 |
| 14 | S24473000 | THREADER | 1 |
| 18 | S06701000 | POLY OILER ASSY | 1 |
| 19 | 145277205 | OIL TANK | 1 |
| 24 | 142262001 | CHAIN, F ASSY | 1 |
| 27 | S20718000 | HEAD PLATE | 1 |
| 29 | S35997001 | BOLT, M8X85 | 4 |
| 31 | 213650001 | WASHER, 2.3X8.5X38ST | 4 |
| 32 | 028080242 | WASHER, SPRING 2-8 | 4 |
| 33 | 021080106 | NUT, 1 M8 | 4 |
| 40 | S20769000 | FUNNEL | 1 |
| 41 | 144225002 | HEAD COVER | 1 |
| 48-1 | 147919001 | RUBBER CUSHION | 1 |
| 48-2 | 147919002 | RUBBER CUSHION | 3 |
| 56 | 183797009 | DUSTER CHUTE ASSY | 1 |
| 57 | 031411304 | WOOD SCREW, ROUND M4.1X13 | 3 |
| 58 | S23353001 | DUSTER SHOOT SUPPORT, S | 1 |
| 59 | 062400612 | SCREW, PAN M4X6 | 2 |
| 60 | 025040332 | WASHER, PLAIN L 4 | 2 |
| 65 | S38302020 | BELT COVER | 1 |
| 66 | 062061412 | SCREW, PAN M6X14 | 3 |
| 67 | S20412000 | RUBBER CAP, 3.7 | 1 |
| 69 | 147893009 | 1 | |
| 70 | 021400106 | 2 | |
| 71 | 062401406 | ナベコ4X14 | 2 |
| 72 | 116016001 | 2 | |
| 91 | S20118101 | TRIMMING KNIFE | 1 |
| 92 | 060300512 | SCREW, BIND M3X5 | 1 |
| 69 | 147893009 | TREADLE PEDAL | 1 |
| 70 | 021400106 | NUT, 1 M4 | 2 |
| 71 | 062401406 | SCREW, PAN M4X14 | 2 |
| 72 | 116016001 | PEDAL STOPPER | 2 |
Page 53 — Z. 付属 品 関係 / Accessories / Zubehör / Accessoires / Accesorios
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42-2-17-1 | |||
| 42-2-18-1 | |||
| 42-2-7-1 | |||
| 42-2-18-2 | |||
| 42-2-16 | |||
| 42-2-6 | |||
| 42-2-12 | |||
| 42-2-19-1 | |||
| 42-2-5 | |||
| 42-2-10-1 | |||
| 42-2-3 | |||
| 42-2-2 | |||
| 42-2-1 | |||
| 42-2-20-1 | |||
| 42-2-20-2 | |||
| 42-2-13 | |||
| 42-2-17-1 | |||
| 42-2-19-2 | |||
| 42-2-7 | |||
| 42-2-9 | |||
| 42-2-17-4 | |||
| 42-2-11 | |||
| 42-2-15 | |||
| 42-2-18-1 | |||
| 42-2-20-3 | |||
| 42-2-10-2 | |||
| 42-2-10-3 | |||
| 42-2-17-2 | |||
| 42-2-19-3 | |||
| 42-2-18-3 | |||
| 42-2-8 | |||
| 42-2-4-1 | |||
| 42-2-4-2 | |||
| 42-2-14 |
Page 54 — Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42-2 | S29864109 | COTTON STAND ASSY, 6DTHF | 1 |
| 42-2-1 | 150180001 | SPOOL STAND BASE | 6 |
| 42-2-2 | 150182000 | SPOOL MAT | 6 |
| 42-2-3 | 126863001 | SPOOL CUSHION | 6 |
| 42-2-4 | S02775001 | PIPE SCREW SET, A | 1 |
| 42-2-4-1 | 150206002 | WASHER, PLAIN 16 | 1 |
| 42-2-4-2 | S38648001 | NUT, U5/8-28 | 1 |
| 42-2-5 | S04109001 | THREAD GUIDE SUPPORT BAR | 1 |
| 42-2-6 | S02783001 | THREAD GUIDE, 6 | 1 |
| 42-2-7 | S40640001 | COLUMN PIPE WITH CAP | 1 |
| 42-2-7-1 | 150174000 | COLUMN CAP | 1 |
| 42-2-8 | 156112003 | COLUMN PIPE, D | 1 |
| 42-2-9 | 150173003 | COLUMN JOINT | 1 |
| 42-2-10 | S21798001 | SPOOL SCREW SET | 6 |
| 42-2-10-1 | 150179002 | SPOOL SHAFT, B | 6 |
| 42-2-10-2 | 028050246 | WASHER, SPRING 2-5 | 6 |
| 42-2-10-3 | 021500106 | NUT, 1 M5 | 6 |
| 42-2-11 | 150185009 | THREAD GUIDE HOLDER | 1 |
| 42-2-12 | 138843001 | JOINT | 1 |
| 42-2-13 | 150188009 | SPOOL HOLDER SUPPORT, A | 1 |
| 42-2-14 | 150194009 | SPOOL HOLDER SUPPORT, B | 1 |
| 42-2-15 | S02779009 | SPOOL HOLDER, 3 | 2 |
| 42-2-16 | S02788009 | THREAD HANGER ASSY, 3 | 2 |
| 42-2-17 | S40641001 | SPOOL SCREW SET, A | 1 |
| 42-2-17-1 | 021500106 | NUT, 1 M5 | 4 |
| 42-2-17-2 | S37038001 | SCREW, PAN (P WASHER) M5X14 | 1 |
| 42-2-17-3 | S37037001 | SCREW, PAN (P WASHER) M5X32 | 1 |
| 42-2-17-4 | 062501406 | SCREW, PAN M5X14 | 2 |
| 42-2-18 | S40642001 | SPOOL SHAFT SCREW SET, B | 1 |
| 42-2-18-1 | 021500106 | NUT, 1 M5 | 2 |
| 42-2-18-2 | S37038001 | SCREW, PAN (P WASHER) M5X14 | 1 |
| 42-2-18-3 | S37037001 | SCREW, PAN (P WASHER) M5X32 | 1 |
| 42-2-19 | S40643001 | HOLDER JOINT SCREW SET | 1 |
| 42-2-19-1 | 014060632 | SET SCREW, SOCKET (CP) M6X6 | 2 |
| 42-2-19-2 | 021500106 | NUT, 1 M5 | 1 |
| 42-2-19-3 | S37037001 | SCREW, PAN (P WASHER) M5X32 | 1 |
| 42-2-20 | S40644001 | HOLDER JOINT SCREW SET | 2 |
| 42-2-20-1 | 021500106 | NUT, 1 M5 | 1 |
| 42-2-20-2 | 031452206 | WOOD SCREW, ROUND M4.5X22 | 1 |
| 42-2-20-3 | 062501006 | SCREW, PAN M5X10 | 1 |
| 521798001 | SPOOL SCREW SET | 6 | |
| 540641001 | SPOOL SCREW SET, A | 1 | |
| 537038001 | SCREW, PAN (P WASHER) M5X14 | 1 |
Page 56 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42-1 | S29855109 | COTTON STAND ASSY, 5DTHF | 1 |
| 42-1-1 | 150180001 | SPOOL STAND BASE | 5 |
| 42-1-2 | 150182000 | SPOOL MAT | 5 |
| 42-1-3 | 126863001 | SPOOL CUSHION | 5 |
| 42-1-4 | S02775001 | PIPE SCREW SET, A | 1 |
| 42-1-4-1 | 150206002 | WASHER, PLAIN 16 | 1 |
| 42-1-4-2 | S38648001 | NUT, U5/8-28 | 1 |
| 42-1-5 | S04109001 | THREAD GUIDE SUPPORT BAR | 1 |
| 42-1-6 | 142999101 | THREAD GUIDE, 5 | 1 |
| 42-1-7 | S40640001 | COLUMN PIPE WITH CAP | 1 |
| 42-1-7-1 | 150174000 | COLUMN CAP | 1 |
| 42-1-8 | 156112003 | COLUMN PIPE, D | 1 |
| 42-1-9 | 150173003 | COLUMN JOINT | 1 |
| 42-1-10 | S21798001 | SPOOL SCREW SET | 5 |
| 42-1-10-1 | 150179002 | SPOOL SHAFT, B | 5 |
| 42-1-10-2 | 028050246 | WASHER, SPRING 2-5 | 5 |
| 42-1-10-3 | 021500106 | NUT, 1 M5 | 5 |
| 42-1-11 | 150185009 | THREAD GUIDE HOLDER | 1 |
| 42-1-12 | 138843001 | JOINT | 1 |
| 42-1-13 | 150188009 | SPOOL HOLDER SUPPORT, A | 1 |
| 42-1-14 | S02778002 | SPOOL HOLDER, 2 | 1 |
| 42-1-15 | S02786002 | THREAD HANGER ASSY, 2 | 1 |
| 42-1-16 | S02779009 | SPOOL HOLDER, 3 | 1 |
| 42-1-17 | S02788009 | THREAD HANGER ASSY, 3 | 1 |
| 42-1-18 | S40641001 | SPOOL SCREW SET, A | 1 |
| 42-1-18-1 | 021500106 | NUT, 1 M5 | 4 |
| 42-1-18-2 | S37038001 | SCREW, PAN (P WASHER) M5X14 | 1 |
| 42-1-18-3 | S37037001 | SCREW, PAN (P WASHER) M5X32 | 1 |
| 42-1-18-4 | 062501406 | SCREW, PAN M5X14 | 2 |
| 42-1-19 | S40642001 | SPOOL SHAFT SCREW SET, B | 1 |
| 42-1-19-1 | 021500106 | NUT, 1 M5 | 2 |
| 42-1-19-2 | S37038001 | SCREW, PAN (P WASHER) M5X14 | 1 |
| 42-1-19-3 | S37037001 | SCREW, PAN (P WASHER) M5X32 | 1 |
| 42-1-20 | S40643001 | HOLDER JOINT SCREW SET | 1 |
| 42-1-20-1 | 014060632 | SET SCREW, SOCKET (CP) M6X6 | 2 |
| 42-1-20-2 | 021500106 | NUT, 1 M5 | 1 |
| 42-1-20-3 | S37037001 | SCREW, PAN (P WASHER) M5X32 | 1 |
| 42-1-21 | S40644001 | HOLDER JOINT SCREW SET | 1 |
| 42-1-21-1 | 021500106 | NUT, 1 M5 | 1 |
| 42-1-21-2 | 031452206 | WOOD SCREW, ROUND M4.5X22 | 1 |
| 42-1-21-3 | 062501006 | SCREW, PAN M5X10 | 1 |
| 64 | 183798001 | FULL SUBMERGED SET | 1 |
| 64-1 | S20721001 | HEAD PLATE SUPPORT | 1 |
| 64-2 | 153318201 | BOLT | 4 |
| 64-3 | S35997001 | BOLT, M8X85 | 1 |
| 64-4 | S36007001 | BOLT, M8X55 | 1 |
| 64-5 | 017085502 | BOLT, M8X55 | 1 |
| 64-6 | 025080236 | WASHER, PLAIN M 8 | 11 |
| 64-7 | 028080242 | WASHER, SPRING 2-8 | 7 |
| 64-8 | 021080106 | NUT, 1 M8 | 15 |
| 64-9 | 213650001 | WASHER, 2.3X8.5X38ST | 8 |
| 64-10 | S20722001 | DUSTER SHOOT SUPPORT, L | 1 |
| 64-11 | 060400812 | SCREW, BIND M4X8 | 2 |
| 64-12 | 060400812 | SCREW, BIND M4X8 | 3 |
Page 57 — Ga1. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151474-011 | Needle (Qty.) | 2 |
| 1 | 151474-014 | Needle (Qty.) | 2 |
| 1 | 151474-016 | Needle (Qty.) | 2 |
| 2 | S19304-101 | Presser Foot Assy | |
| 2 | S19313-201 | Presser Foot Assy | |
| 2 | S19317-101 | Presser Foot Assy | |
| 3 | S29146-001 | Needle Clamp Assy | |
| 3 | S20404-001 | Needle Clamp Assy | |
| 3 | S20406-001 | Needle Clamp Assy | |
| 4 | S25194-001 | Needle Plate | 2 |
| 4 | S19174-001 | Needle Plate | 4 |
| 4 | S25195-001 | Needle Plate | 3 |
| 4 | S19175-001 | Needle Plate | 5 |
| 4 | S20234-001 | Needle Plate | 3 |
| 4 | S20236-001 | Needle Plate | 5 |
| 4 | S20235-001 | Needle Plate | 4 |
| 4 | S25196-001 | Needle Plate | 7 |
| 4 | S20231-001 | Needle Plate | 4 |
| 4 | S20233-001 | Needle Plate | 6 |
| 4 | S20232-001 | Needle Plate | 5 |
| 4 | S25197-001 | Needle Plate | 7 |
| 5 | S19221-201 | Main Feed Dog Assy | |
| 5 | S20241-101 | Main Feed Dog Assy | |
| 5 | S20239-101 | Main Feed Dog Assy | |
| 6 | S19245-001 | Differential Feed Dog | |
| 6 | S20245-001 | Differential Feed Dog | |
| 6 | S20244-001 | Differential Feed Dog | |
| 7 | 144074-300 | Upper Knife | |
| 8 | S20582-001 | Lower Knife | |
| 8 | S20899-001 | Lower Knife | |
| 8 | S20582-001 | Lower Knife | |
| 9 | S20422-001 | Over Looper | |
| 9 | S20421-001 | Over Looper | |
| 9 | S20424-001 | Over Looper | |
| 9 | S20428-001 | Over Looper | |
| 9 | S20421-001 | Over Looper | |
| 9 | S20423-001 | Over Looper | |
| 9 | S20424-001 | Over Looper | |
| 9 | S20428-001 | Over Looper | |
| 9 | S20421-001 | Over Looper | |
| 9 | S20423-001 | Over Looper | |
| 151474-011 (2) | Needle (Qty.) | ||
| 151474-014 (2) | Needle (Qty.) | ||
| 151474-016 (2) | Needle (Qty.) | ||
| S25194-001 (2) | Needle Plate | ||
| S25195-001 (3) | Needle Plate | ||
| S19174-001 (4) | Needle Plate | ||
| S19175-001 (5) | Needle Plate | ||
| S20234-001 (3) | Needle Plate | ||
| S20235-001 (4) | Needle Plate | ||
| S20236-001 (5) | Needle Plate | ||
| S25196-001 (7) | Needle Plate | ||
| S20231-001 (4) | Needle Plate | ||
| S20232-001 (5) | Needle Plate | ||
| S20233-001 (6) | Needle Plate | ||
| S25197-001 (7) | Needle Plate | ||
| S20422-001, A | Over Looper | ||
| S20421-001, L | Over Looper | ||
| S20424-001, B | Over Looper | ||
| S20428-001, C | Over Looper | ||
| S20423-001, M | Over Looper | ||
| 185-N31 | Over Looper |
Page 58 — Ga2. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151474-014 (2) | Needle (Qty.) | 2 |
| 2 | S25548-101 | Presser Foot Assy | |
| 2 | S19321-101 | Presser Foot Assy | |
| 2 | S19326-101 | Presser Foot Assy | |
| 3 | S29146-001 | Needle Clamp Assy | |
| 3 | S20404-001 | Needle Clamp Assy | |
| 3 | S20406-001 | Needle Clamp Assy | |
| 4 | S25198-001 (4) | Needle Plate | 4 |
| 4 | S25199-001 (5) | Needle Plate | 5 |
| 4 | S19497-001 (4) | Needle Plate | 4 |
| 4 | S19182-001 (5) | Needle Plate | 5 |
| 4 | S19183-001 (5) | Needle Plate | 5 |
| 4 | S19184-001 (6) | Needle Plate | 6 |
| 5 | S19224-201 | Main Feed Dog Assy | |
| 5 | S19226-101 | Main Feed Dog Assy | |
| 6 | S19246-001 | Differential Feed Dog | |
| 7 | 144074-300 | Knife | |
| 8 | S20582-001 | Lower Knife | |
| 9 | S20424-001, B | Over Looper | |
| 9 | S20423-001, M | Over Looper | |
| 9 | S20424-001, B | Over Looper | |
| 9 | S20423-001, M | Over Looper | |
| 9 | S20424-001, B | Over Looper | (5) |
| 9 | S20428-001, C | Over Looper | (6) |
| 9 | S20423-001, M | Over Looper |
Page 59 — Ga3 . ゲージ 部品 一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151474-014 | Needle (Qty.) | 2 |
| 2 | S25550-001 | Presser Foot Assy | |
| 2 | S25555-001 | Presser Foot Assy | |
| 2 | S19330-201 | Presser Foot Assy | |
| 3 | S20404-001 | Needle Clamp Assy | |
| 3 | S20406-001 | Needle Clamp Assy | |
| 4 | S19182-001 | Needle Plate | 5 |
| 4 | S19183-001 | Needle Plate | 5 |
| 4 | S19184-001 | Needle Plate | 6 |
| 4 | S20235-001 | Needle Plate | 4 |
| 4 | S20236-001 | Needle Plate | 5 |
| 5 | S19224-201 | Main Feed Dog Assy | |
| 5 | S19226-101 | Main Feed Dog Assy | |
| 5 | S20241-101 | Main Feed Dog Assy | |
| 6 | S19246-001 | Differential Feed Dog | |
| 6 | S20245-001 | Differential Feed Dog | |
| 7 | 144074-300 | Upper Knife | |
| 8 | S20582-001 | Lower Knife | |
| 9 | S20424-001 | Over Looper | B |
| 9 | S20423-001 | Over Looper | M |
| 9 | S20424-001 | Over Looper | B |
| 9 | S20423-001 | Over Looper | M |
| 9 | S20428-001 | Over Looper | C |
| 9 | S20424-001 | Over Looper | B |
| 9 | S20423-001 | Over Looper | M |
| 151474-014 (2) | Needle (Qty.) | ||
| S19182-001 (5) | Needle Plate | ||
| S19183-001 (5) | Needle Plate | ||
| S19184-001 (6) | Needle Plate | ||
| S20235-001 (4) | Needle Plate | ||
| S20236-001 (5) | Needle Plate | ||
| S20424-001, B | Over Looper | ||
| S20423-001, M | Over Looper | ||
| S20428-001, C | Over Looper |
Page 60 — Ga4. ゲージ 部品 一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151474-016 | Needle | (2) |
| 1 | 151474-018 | Needle | (2) |
| 1 | 151474-014 | Needle | (2) |
| 2 | S20882-201 | Presser Foot Assy | |
| 2 | S25557-001 | Presser Foot Assy | |
| 2 | S25560-101 | Presser Foot Assy | |
| 3 | S20406-001 | Needle Clamp Assy | |
| 3 | S29631-001 | Needle Clamp Assy | |
| 3 | S20404-001 | Needle Clamp Assy | |
| 4 | S20231-001 | Needle Plate | (4) |
| 4 | S20233-001 | Needle Plate | (6) |
| 4 | S20232-001 | Needle Plate | (5) |
| 4 | S25200-001 | Needle Plate | (3) |
| 4 | S25201-001 | Needle Plate | (5) |
| 4 | S25202-001 | Needle Plate | (4) |
| 4 | S25203-001 | Needle Plate | (5) |
| 5 | S20239-101 | Main Feed Dog Assy | |
| 5 | S19228-101 | Main Feed Dog Assy | |
| 5 | S19221-201 | Main Feed Dog Assy | |
| 6 | S20244-001 | Differential Feed Dog | |
| 6 | S25566-001 | Differential Feed Dog | |
| 6 | S19245-001 | Differential Feed Dog | |
| 7 | 144074-300 | Upper Knife | |
| 7 | S20898-101 | Angle Knife | |
| 7 | 144074-300 | Upper Knife | |
| 8 | S20582-001 | Lower Knife | |
| 8 | S20583-001 | Lower Knife | |
| 8 | S20582-001 | Lower Knife | |
| 9 | S20424-001 | Over Looper | (4,5) |
| 9 | S20428-001 | Over Looper | (6) |
| 9 | S20423-001 | Over Looper | (4,5) |
| 9 | S20421-001 | Over Looper | (6) |
| 9 | S20438-001 | Over Looper | |
| 9 | S20429-001 | Over Looper | |
| 9 | S20424-001 | Over Looper | |
| 9 | S20423-001 | Over Looper | |
| 151474-016 (2) | Needle (Qty.) | ||
| 151474-018 (2) | Needle (Qty.) | ||
| 151474-014 (2) | Needle (Qty.) | ||
| S20231-001 (4) | Needle Plate | ||
| S20233-001 (6) | Needle Plate | ||
| S20232-001 (5) | Needle Plate | ||
| S25200-001 (3) | Needle Plate | ||
| S25201-001 (5) | Needle Plate | ||
| S25202-001 (4) | Needle Plate | ||
| S25203-001 (5) | Needle Plate | ||
| S20424-001, B | Over Looper | ||
| S20423-001, M | Over Looper | ||
| S20428-001, C | Over Looper | ||
| S20421-001, L | Over Looper | ||
| S20438-001, G | Over Looper | ||
| S20429-001, Q | Over Looper |
Page 61 — Ga5. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151474-018 (2) | Needle (Qty.) | 2 |
| 1 | 151474-016 (3) | Needle (Qty.) | 3 |
| 2 | S19334-001 | Presser Foot Assy | |
| 2 | S30525-001 | Presser Foot Assy | |
| 2 | S25562-101 | Presser Foot Assy | |
| 3 | S21104-001 | Needle Clamp Assy | |
| 3 | S29148-001 | Needle Clamp Assy | |
| 4 | S19185-001 (5) | Needle Plate | 5 |
| 4 | S19187-001 (7) | Needle Plate | 7 |
| 4 | S19186-001 (6) | Needle Plate | 6 |
| 4 | S25204-001 | Needle Plate | |
| 4 | S31975-001 | Needle Plate | |
| 5 | S19228-101 | Main Feed Dog Assy | |
| 5 | S19221-201 | Main Feed Dog Assy | |
| 5 | S20239-101 | Main Feed Dog Assy | |
| 6 | S19247-001 | Differential Feed Dog | |
| 6 | S19245-001 | Differential Feed Dog | |
| 6 | S20244-001 | Differential Feed Dog | |
| 7 | S20898-101 | Angle Knife | |
| 7 | 144074-300 | Upper Knife | |
| 8 | S20583-001 | Lower Knife | |
| 8 | S20582-001 | Lower Knife | |
| 9 | S20438-001, G | Over Looper | |
| 9 | S20429-001, Q | Over Looper | |
| 9 | S20438-001, G | Over Looper | |
| 9 | S20430-001, D | Over Looper |
Page 62 — Wa . 警告ラベル / Warning labels / Warnschilder / Etiquettes d'avertissement / Etiquetas de advertencia
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S38350-001 | |||
| S38349-001 | Label, operation Eng. | ||
| S37060-001 | Mark, grounding |
Page 63
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S00075000 | A -66 | ||
| S01295001 | D -50-3-3 | ||
| S01295001 | D -50-4-3 | ||
| S01295001 | D -50-9-3 | ||
| S01295001 | D -50-10-3 | ||
| S01295001 | D -50-11-3 | ||
| S01943001 | E -38 | ||
| S02573000 | A -3 | ||
| S02606000 | Z -7 | ||
| S02775001 | Z -42-1-4 | ||
| S02775001 | Z -42-1-14 | ||
| S02778002 | Z -42-1-16 | ||
| S02779009 | Z -42-2-15 | ||
| S02779009 | Z -42-2-16 | ||
| S02783001 | Z -42-2-6 | ||
| S02786002 | Z -42-1-15 | ||
| S02788009 | Z -42-1-17 | ||
| S02788009 | Z -42-2-16 | ||
| S04109001 | Z -42-1-5 | ||
| S04109001 | Z -42-2-5 | ||
| S06701000 | Z -18 | ||
| S06704001 | M -1-4 | ||
| S19174001 | Ga1-4 | ||
| S19175001 | Ga1-4 | ||
| S19182001 | Ga2-4 | ||
| S19182001 | Ga3-4 | ||
| S19183001 | Ga2-4 | ||
| S19183001 | Ga3-4 | ||
| S19184001 | Ga2-4 | ||
| S19184001 | Ga3-4 | ||
| S19185001 | Ga5-4 | ||
| S19186001 | Ga5-4 | ||
| S19187001 | Ga5-4 | ||
| S19221201 | Ga1-5 | ||
| S19221201 | Ga4-5 | ||
| S19221201 | Ga5-5 | ||
| S19224201 | Ga2-5 | ||
| S19224201 | Ga3-5 | ||
| S19226101 | Ga2-5 | ||
| S19226101 | Ga3-5 | ||
| S19228101 | Ga4-5 | ||
| S19228101 | Ga5-5 | ||
| S19245001 | Ga1-6 | ||
| S19245001 | Ga4-6 | ||
| S19245001 | Ga5-6 | ||
| S19246001 | Ga2-6 | ||
| S19246001 | Ga3-6 | ||
| S19247001 | Ga5-6 | ||
| S19307001 | D -50-1-4 | ||
| S19307001 | D -50-2-4 | ||
| S19307001 | D -50-3-4 | ||
| S19307001 | D -50-4-4 | ||
| S19307001 | D -50-6-4 | ||
| S19307001 | D -50-7-4 | ||
| S19307001 | D -50-8-4 | ||
| S19307001 | D -50-9-4 | ||
| S19307001 | D -50-13-4 | ||
| S19307001 | D -50-14-4 | ||
| S19308001 | D -50-1-5 | ||
| S19308001 | D -50-2-5 | ||
| S19308001 | D -50-3-5 | ||
| S19308001 | D -50-4-5 | ||
| S19308001 | D -50-6-5 | ||
| S19308001 | D -50-7-5 | ||
| S19308001 | D -50-8-5 | ||
| S19308001 | D -50-9-5 | ||
| S19308001 | D -50-13-5 | ||
| S19308001 | D -50-14-5 | ||
| S19309001 | D -50-1-6 | ||
| S19309001 | D -50-2-6 | ||
| S19309001 | D -50-3-6 | ||
| S19309001 | D -50-4-6 | ||
| S19309001 | D -50-6-6 | ||
| S19309001 | D -50-7-6 | ||
| S19309001 | D -50-8-6 | ||
| S19309001 | D -50-13-6 | ||
| S19309001 | D -50-14-6 | ||
| S19311101 | D -50-1-1 | ||
| S19311101 | D -50-2-1 | ||
| S19311101 | D -50-3-1 | ||
| S19311101 | D -50-4-1 | ||
| S19311101 | D -50-5-1 | ||
| S19311101 | D -50-6-1 | ||
| S19311101 | D -50-7-1 | ||
| S19311101 | D -50-8-1 | ||
| S19311101 | D -50-9-1 | ||
| S19311101 | D -50-10-1 | ||
| S19311101 | D -50-11-1 | ||
| S19311101 | D -50-12-1 | ||
| S19311101 | D -50-13-1 | ||
| S19312001 | D -50-14-1 | ||
| S19312001 | D -50-2-2 | ||
| S19312001 | D -50-6-2 | ||
| S19312001 | D -50-13-2 | ||
| S19312001 | D -50-14-2 | ||
| S19313201 | D -50-1 | ||
| S19313201 | Ga1-2 | ||
| S19317101 | D -50-2 | ||
| S19317101 | Ga1-2 | ||
| S19321101 | D -50-3 | ||
| S19321101 | Ga2-2 | ||
| S19325001 | D -50-3-2 | ||
| S19325001 | D -50-4-2 | ||
| S19325001 | D -50-9-2 | ||
| S19326101 | D -50-4 | ||
| S19326101 | Ga2-2 | ||
| S19330201 | D -50-7 | ||
| S19330201 | Ga3-2 | ||
| S19334001 | D -50-5 | ||
| S19334001 | Ga5-2 | ||
| S19340001 | D -50-5-2 | ||
| S19340001 | D -50-12-2 | ||
| S19497001 | Ga2-4 | ||
| S20115001 | D -38-2 | ||
| S20117001 | D -38-3 | ||
| S20118101 | Z -91 | ||
| S20130009 | N -1 | ||
| S20131009 | N -1-1 | ||
| S20134001 | N -1-1-1 | ||
| S20135001 | N -1-1-2 | ||
| S20158101 | L -72 | ||
| S20199001 | K -9 | ||
| S20199001 | K -14 | ||
| S20231001 | Ga1-4 | ||
| S20231001 | Ga4-4 | ||
| S20232001 | Ga1-4 | ||
| S20232001 | Ga4-4 | ||
| S20233001 | Ga1-4 | ||
| S20233001 | Ga4-4 | ||
| S20234001 | Ga1-4 | ||
| S20235001 | Ga1-4 | ||
| S20235001 | Ga3-4 | ||
| S20236001 | Ga1-4 | ||
| S20236001 | Ga4-4 | ||
| S20239101 | Ga1-5 | ||
| S20239101 | Ga4-5 | ||
| S20239101 | Ga5-5 | ||
| S20241101 | Ga1-5 | ||
| S20241101 | Ga3-5 | ||
| S20244001 | Ga1-6 | ||
| S20244001 | Ga4-6 | ||
| S20244001 | Ga5-6 | ||
| S20245001 | Ga1-6 | ||
| S20245001 | Ga3-6 | ||
| S20310001 | A -13 | ||
| S20319001 | A -27-3 | ||
| S20320101 | A -27-5 | ||
| S20321001 | A -27-6 | ||
| S20324101 | A -33 | ||
| S20325001 | A -35 | ||
| S20327101 | A -27-8 | ||
| S20338200 | A -61 | ||
| S20339000 | A -62 | ||
| S20340001 | A -69 | ||
| S20342001 | A -70 | ||
| S20342001 | L -65 | ||
| S20345009 | A -10 | ||
| S20345009 | A -75 | ||
| S20346000 | A -79 | ||
| S20355002 | G -9-1-2-2 | ||
| S20355002 | G -9-2-2-2 | ||
| S20361001 | B -17 | ||
| S20362101 | B -18 | ||
| S20391001 | C -7-5 | ||
| S20392000 | C -7-6 | ||
| S20404001 | Ga1-3 | ||
| S20404001 | Ga2-3 | ||
| S20404001 | Ga3-3 | ||
| S20404001 | Ga4-3 | ||
| S20406001 | Ga1-3 | ||
| S20412000 | A -48 | ||
| S20412000 | A -55 | ||
| S20412000 | Z -67 | ||
| S20415101 | C -21 | ||
| S20416101 | C -22 | ||
| S20418001 | C -23 | ||
| S20421001 | Ga1-9 | ||
| S20421001 | Ga4-9 | ||
| S20422001 | Ga1-9 | ||
| S20423001 | Ga1-9 | ||
| S20423001 | Ga2-9 |
Page 64
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S20423001 | Ga3-9 | ||
| S20424001 | Ga4-9 | ||
| S20424001 | Ga1-9 | ||
| S20424001 | Ga2-9 | ||
| S20424001 | Ga3-9 | ||
| S20424001 | Ga4-9 | ||
| S20428001 | Ga1-9 | ||
| S20428001 | Ga2-9 | ||
| S20428001 | Ga3-9 | ||
| S20428001 | Ga4-9 | ||
| S20429001 | Ga4-9 | ||
| S20429001 | Ga5-9 | ||
| S20430001 | Ga5-9 | ||
| S20438001 | Ga4-9 | ||
| S20438001 | Ga5-9 | ||
| S20460000 | M - 1-1-1 | ||
| S20468001 | M - 1-1 | ||
| S20476001 | D - 4 | ||
| S20485001 | D - 19 | ||
| S20526000 | E - 47 | ||
| S20530001 | E - 30 | ||
| S20543101 | E - 51 | ||
| S20544000 | E - 52 | ||
| S20547001 | E - 55 | ||
| S20548001 | E - 59 | ||
| S20560001 | E - 66 | ||
| S20571101 | F - 2 | ||
| S20574001 | F - 8 | ||
| S20577001 | F - 12 | ||
| S20578101 | F - 13 | ||
| S20579101 | F - 15-4 | ||
| S20582001 | Ga1-8 | ||
| S20582001 | Ga2-8 | ||
| S20582001 | Ga3-8 | ||
| S20582001 | Ga4-8 | ||
| S20582001 | Ga5-8 | ||
| S20583001 | Ga4-8 | ||
| S20583001 | Ga5-8 | ||
| S20585001 | F - 27 | ||
| S20589101 | F - 9-1 | ||
| S20590101 | F - 9-2 | ||
| S20591101 | F - 17 | ||
| S20598000 | G - 2 | ||
| S20598000 | H - 3 | ||
| S20622001 | H - 5 | ||
| S20625001 | H - 11 | ||
| S20626001 | H - 14-1 | ||
| S20627001 | H - 14-2 | ||
| S20641001 | J - 11 | ||
| S20645101 | J - 16 | ||
| S20652001 | J - 24 | ||
| S20653001 | J - 27 | ||
| S20654001 | J - 29 | ||
| S20655101 | K - 1 | ||
| S20657001 | K - 4-1 | ||
| S20668000 | K - 19 | ||
| S20669000 | K - 23 | ||
| S20671000 | K - 21 | ||
| S20671000 | K - 22 | ||
| S20673001 | L - 11 | ||
| S20673001 | L - 11 | ||
| S20675001 | L - 8 | ||
| S20676001 | L - 9 | ||
| S20676001 | L - 9 | ||
| S20677000 | L - 1-5 | ||
| S20678001 | L - 10 | ||
| S20678001 | L - 10 | ||
| S20679001 | L - 14-1 | ||
| S20681000 | L - 14-2 | ||
| S20681000 | L - 18 | ||
| S20681000 | L - 18 | ||
| S20682101 | R - 1-8 | ||
| S20682102 | L - 19-2 | ||
| S20682102 | L - 19-4 | ||
| S20682103 | L - 19-5 | ||
| S20682103 | L - 19-5 | ||
| S20682104 | L - 19-3 | ||
| S20682105 | R - 1-9 | ||
| S20684101 | L - 23 | ||
| S20685001 | L - 25 | ||
| S20686001 | L - 26 | ||
| S20687001 | L - 37 | ||
| S20689001 | L - 48 | ||
| S20690001 | L - 49 | ||
| S20691001 | L - 50 | ||
| S20694001 | L - 53 | ||
| S20695001 | L - 55 | ||
| S20696001 | L - 56 | ||
| S20697001 | L - 58 | ||
| S20698121 | L - 59 | ||
| S20701001 | L - 66 | ||
| S20702001 | Z - 71 | ||
| S20703001 | L - 73 | ||
| S20707001 | L - 75 | ||
| S20718000 | Z - 27 | ||
| S20721001 | Z - 64-1 | ||
| S20722001 | Z - 64-10 | ||
| S20723001 | Z - 12 | ||
| S20743001 | L - 51 | ||
| S20769000 | Z - 40 | ||
| S20770101 | D - 38 | ||
| S20878000 | A - 81 | ||
| S20882201 | D - 50-8 | ||
| S20882201 | Ga4-2 | ||
| S20896101 | F - 15-2 | ||
| S20897101 | F - 15-3 | ||
| S20898101 | F - 15-5 | ||
| S20898101 | Ga4-7 | ||
| S20898101 | Ga5-7 | ||
| S20899001 | Ga1-8 | ||
| S21104001 | Ga5-3 | ||
| S21125001 | L - 44 | ||
| S21126001 | L - 40 | ||
| S21130001 | L - 42 | ||
| S21133001 | L - 28 | ||
| S21134001 | L - 29 | ||
| S21135001 | L - 31 | ||
| S21136101 | L - 35 | ||
| S21137001 | L - 33 | ||
| S21293001 | R - 1 | ||
| S21294001 | R - 1-1 | ||
| S21295001 | R - 1-2 | ||
| S21296001 | R - 1-10 | ||
| S21297001 | R - 1-13 | ||
| S21298001 | R - 1-16 | ||
| S21299001 | R - 1-18 | ||
| S21300001 | R - 1-20 | ||
| S21301001 | R - 1-24 | ||
| S21302001 | R - 1-25 | ||
| S21303001 | R - 1-27 | ||
| S21304001 | R - 1-29 | ||
| S21305001 | R - 1-3 | ||
| S21306001 | R - 1-14 | ||
| S21307001 | R - 1-15 | ||
| S21310001 | R - 8 | ||
| S21311001 | R - 9 | ||
| S21312001 | R - 10 | ||
| S21314001 | R - 14 | ||
| S21315001 | R - 16 | ||
| S21316001 | R - 18 | ||
| S21318000 | Q - 1 | ||
| S21373001 | R - 20-1 | ||
| S21375001 | R - 20-1-2 | ||
| S21375001 | R - 20-2-2 | ||
| S21376001 | R - 20-1-9 | ||
| S21376001 | R - 20-2-9 | ||
| S21377001 | R - 20-1-11 | ||
| S21377001 | R - 20-2-11 | ||
| S21378001 | R - 20-1-12 | ||
| S21378001 | R - 20-2-12 | ||
| S21379001 | R - 21 | ||
| S21380001 | R - 20-2 | ||
| S21381001 | R - 22 | ||
| S21590000 | R - 4 | ||
| S21798001 | Z - 42-1-10 | ||
| S21798001 | Z - 42-2-10 | ||
| S23337009 | A - 7 | ||
| S23337009 | A - 76 | ||
| S23342001 | C - 7-1 | ||
| S23342001 | C - 34-2 | ||
| S23342001 | C - 35-2 | ||
| S23342001 | C - 36-2 | ||
| S23342001 | F - 30-3 | ||
| S23342001 | G - 9-1-1-1 | ||
| S23342001 | G - 9-2-1-1 | ||
| S23350001 | A - 63 | ||
| S23351001 | A - 65 | ||
| S23353001 | Z - 58 | ||
| S23356001 | Z - 10 | ||
| S23357001 | A - 78 | ||
| S23360001 | E - 37 | ||
| S23360001 | E - 42 | ||
| S23360001 | J - 18 | ||
| S23363001 | Z - 11 | ||
| S23364000 | D - 44 | ||
| S23418002 | A - 30 | ||
| S23418002 | L - 27 | ||
| S23418002 | M - 1-2 | ||
| S23418002 | Q - 6 | ||
| S23418002 | R - 5 | ||
| S23452002 | L - 22 | ||
| S23452002 | L - 74 | ||
| S23456101 | C - 24 | ||
| S23456101 | J - 30 | ||
| S23614101 | H - 12 | ||
| S23614101 | J - 25 | ||
| S23616101 | A - 25 | ||
| S23621101 | E - 70 | ||
| S23621101 | E - 76 |
Page 65
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S23621101 | E - 78 | ||
| S23621101 | F - 16-1 | ||
| S23626001 | H -6 | ||
| S23628001 | E -69 | ||
| S23651002 | Q - 11 | ||
| S23651002 | R - 1-19 | ||
| S23774001 | R - 15 | ||
| S23775001 | R - 1-7 | ||
| S23777101 | R - 1-4 | ||
| S23779001 | R -6 | ||
| S24473000 | Z - 14 | ||
| S25019001 | Q - 10 | ||
| S25184001 | A - 93 | ||
| S25194001 | Gal-4 | ||
| S25195001 | Gal-4 | ||
| S25196001 | Gal-4 | ||
| S25197001 | Gal-4 | ||
| S25198001 | Ga2-4 | ||
| S25199001 | Ga2-4 | ||
| S25200001 | Ga4-4 | ||
| S25201001 | Ga4-4 | ||
| S25202001 | Ga4-4 | ||
| S25203001 | Ga4-4 | ||
| S25204001 | Ga5-4 | ||
| S25548101 | D - 50-9 | ||
| S25548101 | Ga2-2 | ||
| S25550001 | D - 50-10 | ||
| S25550001 | Ga3-2 | ||
| S25553001 | D - 50-10-2 | ||
| S25553001 | D - 50-11-2 | ||
| S25557001 | D - 50-12 | ||
| S25557001 | Ga4-2 | ||
| S25560101 | D - 50-13 | ||
| S25560101 | Ga4-2 | ||
| S25562101 | D - 50-14 | ||
| S25562101 | Ga5-2 | ||
| S25566001 | Ga4-6 | ||
| S25818001 | E - 61 | ||
| S27868001 | B - 16 | ||
| S29102001 | J - 6 | ||
| S29146001 | Ga1-3 | ||
| S29146001 | Ga2-3 | ||
| S29146001 | Ga5-3 | ||
| S29631001 | Ga4-3 | ||
| S29700000 | G - 9-1-3 | ||
| S29700000 | G - 9-2-3 | ||
| S29824000 | Q -4 | ||
| S29827000 | Q -7 | ||
| S29831000 | Q -5 | ||
| S29835001 | Q -5 | ||
| S29855109 | Z - 42-1 | ||
| S29864109 | Z - 42-2 | ||
| S30134001 | R - A | ||
| S30135001 | R - C | ||
| S30135002 | R - D | ||
| S30525001 | D - 50-15 | ||
| S30525001 | Ga5-2 | ||
| S30532001 | D - 50-15-2 | ||
| S30562000 | D - 28 | ||
| S30562000 | E - 18 | ||
| S30562000 | G -8 | ||
| S30889001 | D - 38-4 | ||
| S30971001 | D - 50-7-2 | ||
| S30971001 | D - 50-7-2 | ||
| S30971001 | D - 50-8-2 | ||
| S31881101 | J - 12 | ||
| S31975001 | Ga5-4 | ||
| S32276001 | L - 15 | ||
| S35997001 | Z - 29 | ||
| S35997001 | Z - 64-3 | ||
| S36007001 | Z - 64-4 | ||
| S37037001 | Z-42-1-18-3 | ||
| S37037001 | Z-42-1-20-3 | ||
| S37037001 | Z-42-1-17-3 | ||
| S37037001 | Z-42-2-18-3 | ||
| S37037001 | Z-42-2-19-3 | ||
| S37038001 | Z-42-1-18-2 | ||
| S37038001 | Z-42-1-19-2 | ||
| S37038001 | Z-42-2-17-2 | ||
| S37038001 | Z-42-2-18-2 | ||
| S37060001 | Wa | ||
| S37070121 | D - 34 | ||
| S38301020 | A - 44 | ||
| S38302020 | Z - 65 | ||
| S38305001 | A - 29-1 | ||
| S38306051 | C - 25 | ||
| S38307001 | C - 27 | ||
| S38308021 | D - 5 | ||
| S3831100 | E - 43 | ||
| S38312050 | E - 24 | ||
| S38313001 | G - 9-1 | ||
| S38320000 | G - 9-1-2-1 | ||
| S38320000 | G - 9-2-2-1 | ||
| S38322001 | G - 9-2 | ||
| S38328051 | L - 1 | ||
| S38329001 | L - 38 | ||
| S38330050 | L - 46 | ||
| S38349001 | Wa | ||
| S38350001 | Wa | ||
| S38648001 | Z - 42-1-4-2 | ||
| S38648001 | Z - 42-2-4-2 | ||
| S39562001 | A - 37 | ||
| S39563020 | A - 24 | ||
| S39564021 | A - 23 | ||
| S39565001 | B - 24-2 | ||
| S39566001 | C -7 | ||
| S39571021 | C - 10 | ||
| S39574001 | C -8 | ||
| S39577000 | D - 2-1 | ||
| S39578001 | E - 1 | ||
| S39585001 | E - 1-3 | ||
| S39586001 | E - 1-4 | ||
| S39589021 | E - 8 | ||
| S39593021 | E - 54 | ||
| S39596021 | E - 54-1 | ||
| S39597001 | K - 4 | ||
| S39598000 | K - 4-4 | ||
| S39599001 | K - 4-3 | ||
| S39601000 | K - 4-5 | ||
| S39602000 | K - 4-7 | ||
| S39603001 | K - 4-8 | ||
| S39605001 | A - 2 | ||
| S39606020 | A - 5 | ||
| S39607001 | A - 8 | ||
| S39608021 | A - 11 | ||
| S39610021 | A - 21 | ||
| S39611001 | A - 27 | ||
| S39612001 | A - 27-1 | ||
| S39613001 | A - 27-2 | ||
| S39623001 | A - 38 | ||
| S39624021 | A - 42 | ||
| S39625051 | A - 49 | ||
| S39626021 | A - 58 | ||
| S39629021 | B - 3 | ||
| S39630000 | B - 10 | ||
| S39631000 | B - 20 | ||
| S39633011 | C - 34 | ||
| S39633012 | C - 34 | ||
| S39638011 | C - 35 | ||
| S39638012 | C - 35 | ||
| S39641011 | C - 36 | ||
| S39641012 | C - 36 | ||
| S39644021 | C - 2 | ||
| S39645021 | C - 3 | ||
| S39646021 | C - 4 | ||
| S39647000 | C - 5 | ||
| S39648021 | C - 9 | ||
| S39649021 | C - 15 | ||
| S39650051 | C - 17 | ||
| S39652021 | C - 18 | ||
| S39654051 | C - 29 | ||
| S39658001 | D - 1 | ||
| S39659021 | D - 6 | ||
| S39660001 | D - 7 | ||
| S39661001 | D - 8 | ||
| S39662001 | D - 9 | ||
| S39663021 | D - 11 | ||
| S39664001 | D - 12 | ||
| S39665001 | D - 15 | ||
| S39666001 | D - 20 | ||
| S39667021 | D - 21 | ||
| S39669001 | D - 23 | ||
| S39670000 | D - 24 | ||
| S39671021 | D - 26 | ||
| S39672001 | D - 29 | ||
| S39673020 | E - 5 | ||
| S39674001 | E - 9 | ||
| S39675001 | E - 10 | ||
| S39676021 | E - 15 | ||
| S39677021 | E - 16 | ||
| S39677021 | F - 5 | ||
| S39677021 | G - 4 | ||
| S39677021 | H - 9 | ||
| S39678021 | E - 17 | ||
| S39679001 | E - 20 | ||
| S39680001 | E - 23 | ||
| S39683000 | E - 26 | ||
| S39684021 | E - 27 | ||
| S39685001 | E - 28 | ||
| S39686000 | E - 44 | ||
| S39687000 | E - 45 | ||
| S39688001 | E - 46 | ||
| S39690021 | E - 36 | ||
| S39690021 | E - 41 | ||
| S39690021 | J - 8 |
Page 66
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S39690021 | J -19 | ||
| S39691001 | E -39 | ||
| S39692021 | E -50 | ||
| S39693001 | E -58 | ||
| S39694021 | E -64 | ||
| S39695001 | E -65 | ||
| S39701011 | F -30 | ||
| S39701012 | F -30 | ||
| S39704021 | F -4 | ||
| S39707001 | F -19 | ||
| S39708001 | F -25 | ||
| S39711011 | G -18 | ||
| S39711012 | G -18 | ||
| S39715011 | G -19 | ||
| S39715012 | G -19 | ||
| S39717021 | G -3 | ||
| S39718021 | G -5 | ||
| S39724011 | H -16 | ||
| S39724012 | H -16 | ||
| S39726011 | H -17 | ||
| S39726012 | H -17 | ||
| S39728021 | H -8 | ||
| S39729021 | J -1 | ||
| S39732021 | J -3 | ||
| S39733021 | J -4 | ||
| S39734021 | J -7 | ||
| S39735050 | J -10 | ||
| S39736001 | J -15 | ||
| S39740021 | J -20 | ||
| S39741021 | J -21 | ||
| S39742021 | J -22 | ||
| S39743001 | K -3 | ||
| S39744021 | K -7 | ||
| S39745001 | K -8 | ||
| S39747001 | K -10 | ||
| S39749001 | K -13 | ||
| S39751021 | K -11 | ||
| S39752021 | K -15 | ||
| S39756021 | L -63 | ||
| S39757001 | L -67 | ||
| S39761001 | B -1-1 | ||
| S39762001 | B -1-2 | ||
| S39763001 | B -1-3 | ||
| S39769051 | E -40 | ||
| S39770001 | D -17 | ||
| S39771020 | A -14 | ||
| S39773001 | E -35 | ||
| S39775001 | B -24-1 | ||
| S39785001 | A -92 | ||
| S39786001 | A -92 | ||
| S39787001 | A -92 | ||
| S39795001 | R -13 | ||
| S39796001 | R -29 | ||
| S40640001 | Z -42-1-7 | ||
| S40641001 | Z -42-1-18 | ||
| S40642001 | Z -42-1-19 | ||
| S40643001 | Z -42-1-20 | ||
| 54064001 | Z -42-1-21 | ||
| S42042021 | E -33 | ||
| S42050001 | A -29-2 | ||
| S43521000 | K -29-1 | ||
| S43522000 | K -29-2 | ||
| S43523000 | K -29 | ||
| S43525001 | M -1 | ||
| S43527001 | F -6 | ||
| S43530001 | R -B | ||
| 012060632 | A -43 | ||
| 012400432 | A -27-4 | ||
| 012500532 | A -32 | ||
| 014060632 | Z-42-1-20-1 | ||
| 014780622 | R -20-1-6 | ||
| 017060812 | H -7 | ||
| 017061612 | C -7-2 | ||
| 017501212 | A -64 | ||
| 017781012 | R -20-1-4 | ||
| 018061432 | E -53 | ||
| 018061632 | D -22 | ||
| 018062532 | B -28 | ||
| 018400832 | E -48 | ||
| 018401032 | R -3 | ||
| 018401622 | C -34-1 | ||
| 021060302 | R -1-21 | ||
| 021080106 | Z -33 | ||
| 021400106 | Z -70 | ||
| 021400202 | R -25 | ||
| 021400212 | A -53 | ||
| 021500106 | Z-42-1-10-3 | ||
| 021500216 | J -9 | ||
| 025030132 | F -14 | ||
| 025040132 | E -49 | ||
| 025040232 | Q -3 | ||
| 025040332 | Z -60 | ||
| 025050132 | A -72 | ||
| 025060332 | D -14 | ||
| 025080236 | Z -64-6 | ||
| 025350332 | A -68 | ||
| 025630232 | D -50-6-8 | ||
| 025660132 | D -50-10-4 | ||
| 025710232 | E -12 | ||
| 028050242 | L -64 | ||
| 028050246 | Z-42-1-10-2 | ||
| 028060242 | B -27 | ||
| 028080242 | Z -64-7 |
Page 67
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 031411304 | Z -57 | ||
| 031452206 | Z-42-1-21-2 | ||
| 034422006 | N -1-2 | ||
| 047301242 | E -1-1-1 | ||
| 047301642 | D -2-1 | ||
| 047401442 | D -21-1 | ||
| 047502242 | E -57 | ||
| 047503242 | D -16 | ||
| 047602042 | A -54 | ||
| 048040342 | E -14 | ||
| 048090342 | D -27 | ||
| 048400242 | B -14 | ||
| 060300412 | D -35 | ||
| 060300512 | L -52 | ||
| 060300612 | L -52 | ||
| 060300612 | D -39 | ||
| 060350812 | A -67 | ||
| 060351012 | H -15 | ||
| 060400612 | J -28 | ||
| 060400612 | A -12 | ||
| 060400612 | A -27-7 | ||
| 060400612 | A -27-9 | ||
| 060400612 | A -34 | ||
| 060400612 | A -36 | ||
| 060400612 | A -46 | ||
| 060400612 | A -50 | ||
| 060400612 | A -59 | ||
| 060400812 | D -10 | ||
| 060400812 | E -22 | ||
| 060400812 | L -24 | ||
| 060400812 | L -32 | ||
| 060400812 | L -36 | ||
| 060400812 | L -39 | ||
| 060400812 | L -41 | ||
| 060400812 | L -43 | ||
| 060400812 | L -45 | ||
| 060400812 | L -54 | ||
| 060400812 | L -57 | ||
| 060400812 | L -76 | ||
| 060400812 | A -15 | ||
| 060400812 | A -22 | ||
| 060400812 | K -24 | ||
| 060400812 | Z -64-11 | ||
| 060400812 | Z -64-12 | ||
| 060401012 | M -3 | ||
| 060401412 | A -28 | ||
| 060401412 | L -68 | ||
| 060630712 | E -75-1 | ||
| 061350616 | E -31 | ||
| 061400812 | A -26 | ||
| 061400812 | B -6 | ||
| 061400812 | K -20 | ||
| 062060812 | F -18 | ||
| 062060812 | F -21 | ||
| 062061412 | Z -66 | ||
| 062300412 | F -16-2 | ||
| 062300812 | C -28 | ||
| 062300812 | R -1-12 | ||
| 062350512 | R -1-28 | ||
| 062350612 | C -26 | ||
| 062350612 | L -70 | ||
| 062350812 | R -1-26 | ||
| 062350812 | R -1-17 | ||
| 062350812 | R -12 | ||
| 062400612 | Q -8 | ||
| 062400612 | Z -59 | ||
| 062400812 | A -9 | ||
| 062400812 | B -5 | ||
| 062401012 | C -29 | ||
| 062401012 | K -4-6 | ||
| 062401012 | Q -2 | ||
| 062401012 | A -4 | ||
| 062401012 | B -22 | ||
| 062401012 | C -20 | ||
| 062401012 | C -30 | ||
| 062401012 | R -23 | ||
| 062401012 | R -23 | ||
| 062401212 | A -52 | ||
| 062401406 | F -10-1 | ||
| 062401406 | K -4-9 | ||
| 062401406 | Z -71 | ||
| 062401406 | Z -71 | ||
| 062401612 | A -80 | ||
| 062401612 | R -1-22 | ||
| 062402512 | F -10-2 | ||
| 062501006 | Z-42-1-21,3 | ||
| 062501006 | Z-42-2-20-3 | ||
| 062501406 | Z-42-1-18-4 | ||
| 062501406 | Z-42-2-17-4 | ||
| 062670712 | D -50-1-7 | ||
| 062670712 | D -50-2-7 | ||
| 062670712 | D -50-3-7 | ||
| 062670712 | D -50-4-7 | ||
| 062670712 | D -50-5-4 | ||
| 062670712 | D -50-6-7 | ||
| 062670712 | D -50-7-7 | ||
| 062670712 | D -50-8-7 | ||
| 062670712 | D -50-9-7 | ||
| 062670712 | D -50-10-6 | ||
| 062670712 | D -50-11-6 | ||
| 062670712 | D -50-12-4 | ||
| 062670712 | D -50-13-7 | ||
| 062670712 | D -50-14-7 | ||
| 062670712 | D -50-15-4 | ||
| 072600000 | B -7 | ||
| 076203000 | B -15 | ||
| 081005070 | E -11 | ||
| 081005670 | E -56 | ||
| 081009070 | A -77 | ||
| 081010070 | E -25 | ||
| 081020070 | E -21 | ||
| 081031870 | B -4 | ||
| 100032003 | A -40 | ||
| 100032003 | C -33 | ||
| 100080004 | D -50-15-3 | ||
| 100136001 | P -1-4 | ||
| 100315002 | A -41 | ||
| 100463001 | R -20-1-8 | ||
| 100463001 | R -20-2-8 | ||
| 101118001 | P -2 | ||
| 101572101 | Z -5 | ||
| 102707002 | R -28 | ||
| 104450101 | C -11 | ||
| 105161004 | D -3 | ||
| 105288001 | D -50-1-3 | ||
| 105288001 | D -50-2-3 | ||
| 105288001 | D -50-13-3 | ||
| 105288001 | D -50-14-3 | ||
| 105288001 | D -50-5-3 | ||
| 105288001 | D -50-10-5 | ||
| 105288001 | D -50-11-5 | ||
| 105288001 | D -50-12-3 | ||
| 106640001 | D -50-13-3 | ||
| 106640001 | D -50-14-3 | ||
| 106640001 | D -50-5-3 | ||
| 106640001 | D -50-10-5 | ||
| 106640001 | D -50-11-5 | ||
| 106640001 | D -50-12-3 | ||
| 108494001 | P -1-2 | ||
| 108495001 | P -1-3 | ||
| 110832009 | L -12 | ||
| 110832009 | L -12 | ||
| 111140002 | D -50-7-3 | ||
| 111140002 | D -50-8-3 | ||
| 116016001 | Z -72 | ||
| 116016001 | Z -72 | ||
| 117466000 | Z -13 | ||
| 118550001 | G -14 | ||
| 118735002 | C -7-3 | ||
| 118735002 | C -34-3-2 | ||
| 118735002 | C -35-3-2 | ||
| 118735002 | C -36-3-2 | ||
| 125324001 | F -11-2 | ||
| 126863001 | Z -42-1-3 | ||
| 126863001 | Z -42-2-3 | ||
| 138843001 | Z -42-1-12 | ||
| 138843001 | Z -42-2-12 | ||
| 140325001 | A -74 | ||
| 141183000 | A -39 | ||
| 142002001 | Z -8 | ||
| 142262001 | Z -24 | ||
| 142999101 | Z -42-1-6 | ||
| 143767002 | P -1 | ||
| 143980001 | P -1-1 | ||
| 144074300 | F -15-1 | ||
| 144074300 | Ga1-7 | ||
| 144074300 | Ga2-7 | ||
| 144074300 | Ga3-7 | ||
| 144074300 | Ga4-7 | ||
| 144074300 | Ga5-7 | ||
| 144103009 | L -13 | ||
| 144225002 | Z -41 | ||
| 144504001 | L -60 | ||
| 144784001 | R -1-11 | ||
| 145277205 | Z -19 | ||
| 146293001 | C -6 | ||
| 146427001 | C -12-1 | ||
| 146427001 | L -47 | ||
| 146592001 | L -21 | ||
| 146598001 | A -71 | ||
| 147893009 | Z -69 | ||
| 147893009 | Z -69 | ||
| 147919001 | Z -48-1 | ||
| 147919002 | Z -48-2 |
Page 68
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 147942001 | K - 8-1 | ||
| 147942001 | K - 10-1 | ||
| 147942001 | K - 13-1 | ||
| 148084001 | K - 18 | ||
| 148782001 | H - 13 | ||
| 148782001 | J - 26 | ||
| 148797001 | R - 20-1-5 | ||
| 148797001 | R - 20-2-5 | ||
| 148798009 | R - 20-1-5 | ||
| 148798009 | R - 20-2-7 | ||
| 149570001 | Z -9 | ||
| 150173003 | Z -42-1-9 | ||
| 150173003 | Z -42-2-9 | ||
| 150174000 | Z -42-1-7-1 | ||
| 150174000 | Z -42-2-7-1 | ||
| 150179002 | Z-42-1-10-1 | ||
| 150179002 | Z-42-2-10-1 | ||
| 150180001 | Z -42-1-1 | ||
| 150180001 | Z -42-2-1 | ||
| 150182000 | Z -42-1-2 | ||
| 150182000 | Z -42-2-2 | ||
| 150185009 | Z -42-1-11 | ||
| 150185009 | Z -42-2-11 | ||
| 150188009 | Z -42-1-13 | ||
| 150188009 | Z -42-2-13 | ||
| 150194009 | Z -42-1-14 | ||
| 150206002 | Z -42-2-14 | ||
| 150206002 | Z -42-1-4-1 | ||
| 150813001 | L - 69 | ||
| 151474011 | Ga1-1 | ||
| 151474011 | Ga1-1 | ||
| 151474011 | Ga2-1 | ||
| 151474011 | Ga3-1 | ||
| 151474011 | Ga4-1 | ||
| 151474016 | C - 13 | ||
| 151474016 | Ga1-1 | ||
| 151474016 | Ga4-1 | ||
| 151474016 | Ga5-1 | ||
| 151474018 | Ga4-1 | ||
| 151474018 | Ga5-1 | ||
| 153318201 | C - 64-2 | ||
| 155162001 | C -7-7 | ||
| 155162001 | G -9-1-1-4 | ||
| 155162001 | G -9-2-1-4 | ||
| 155162001 | J - 12-2 | ||
| 155162001 | J - 16-2 | ||
| 155197101 | R - 20-1-1 | ||
| 155197101 | R - 20-2-1 | ||
| 155199101 | R -20-2-3 | ||
| 155199101 | R -20-2-3 | ||
| 155247000 | F -3 | ||
| 155247000 | G -11 | ||
| 155247000 | H -10 | ||
| 155261000 | J -23 | ||
| 155510001 | L -62 | ||
| 156112003 | Z -42-1-8 | ||
| 156112003 | Z -42-2-8 | ||
| 156482000 | A -51 | ||
| 158782101 | L -61 | ||
| 183797009 | Z -56 | ||
| 183798001 | Z -64 | ||
| 213650001 | Z -31 | ||
| 213650001 | Z -64-9 |
Brother MA4-N31 — parts catalog
- Page 1 (cover): This is the cover page for the Brother MA4-N31 sewing machine parts book, listing the title in multiple languages and featuring an illustration of a screw.
- Page 2 (toc): This page contains the table of contents for the parts book, listing various sections and their corresponding page numbers.
- Page 3 (toc): This page is a table of contents for a parts book, listing sections like "Machine body", "Crank shaft mechanism", "Needle bar mechanism", and "Index" with corresponding page numbers.
- Page 4 (toc): This page contains the table of contents for the parts list, detailing sections from "Maschinengehäuse" to "Verzeichnis" with corresponding page numbers.
- Page 5 (toc): This page contains the table of contents for the manual, listing various mechanisms and parts with their corresponding page numbers.
- Page 7 (diagram): This page displays a diagram of machine body and related components, with numbered parts for identification.
- Page 8 (parts_list): This page lists parts for the machine body and frame, including various screws, covers, and plates with their corresponding part numbers and descriptions.
- Page 9 (diagram): This page displays a diagram of machine body and related components, with numbered parts indicated for reference.
- Page 10 (parts_list): This page lists machine parts with reference numbers, codes, quantities, Japanese descriptions, and English names. It includes parts like oil pan, packing, bolts, washers, eye guards, screws, rubber caps, O-rings, and labels for different thread counts.
- Page 11 (diagram): This page displays a diagram of the crank shaft mechanism, also known as the Kurbelwelle or Mecanismo del cigüeñal, with various components labeled with reference numbers.
- Page 12 (parts_list): This page lists parts for the crank shaft mechanism, including various screws, bearings, rings, and shafts, with their corresponding part numbers and descriptions.
- Page 13 (diagram): This page displays a diagram of the needle bar mechanism, showing various components with their corresponding reference numbers and part numbers.
- Page 14 (parts_list): This page lists parts for needle bar mechanism, including needle shaft bushes, washers, retaining rings, set screws, bolts, spacers, and needle plate support brackets, with corresponding part numbers and descriptions.
- Page 15 (diagram): This page displays a diagram of the needle bar mechanism, including various components labeled with reference numbers and part numbers.
- Page 16 (parts_list): This page lists parts for the needle bar mechanism, including codes, quantities, and names in Japanese and English, with associated part numbers and descriptions.
- Page 17 (diagram): This page displays a diagram of the presser foot mechanism, detailing various components with reference numbers and part numbers for identification and assembly.
- Page 18 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
- Page 19 (diagram): This page displays diagrams of presser foot mechanisms, including parts labeled with reference numbers and part numbers.
- Page 20 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays diagrams of presser foot mechanisms, including parts numbered 61-62, 81-82, 83-84, 67-68, and 75-76, with corresponding part numbers and descriptions.
- Page 22 (parts_list): This page lists parts for the Presser foot mechanism, including part numbers, quantities, and names, with items grouped by sub-assembly.
- Page 23 (diagram): This page displays diagrams of presser foot mechanisms, including parts numbered 77, 78, 85, 86, 89, 90, 95, and 92(B), with associated part numbers and reference numbers.
- Page 24 (parts_list): This page lists parts for the presser foot mechanism, including part numbers, descriptions, and quantities.
- Page 25 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 26 (parts_list): This page lists parts for the feed mechanism/transportvorrichtung/mecanismo de la alimentación, including part numbers, descriptions, and quantities.
- Page 27 (diagram): This page displays a diagram of the feed mechanism, including various components like screws, springs, and levers, with reference numbers for each part.
- Page 28 (parts_list): This page lists parts for the feed mechanism, including O-rings, pins, collars, bolts, and washers, with their corresponding part numbers and descriptions.
- Page 29 (diagram): This page displays a diagram of the knife mechanism for a sewing machine, with various parts labeled with reference numbers and some part numbers indicated.
- Page 30 (parts_list): This page lists parts for the knife mechanism, including upper and lower knife parts, screws, bolts, and washers, with part numbers, descriptions, and quantities.
- Page 31 (diagram): This page displays a diagram of the over looper mechanism with various parts labeled with reference numbers and part numbers.
- Page 32 (parts_list): This page lists parts for the G. Upper Looper Mechanism / Overen Greifer / Mecanismo del presillador superior, including part numbers, descriptions, and quantities.
- Page 33 (diagram): This page displays a diagram of the under looper mechanism, detailing various components with reference numbers and part numbers.
- Page 34 (parts_list): This page lists parts for the under loop mechanism, including part numbers, descriptions, and quantities for various components like screws, shafts, and bolts.
- Page 35 (diagram): This page displays a diagram of the double chain stitch looper mechanism, detailing various components with reference numbers and part numbers.
- Page 36 (parts_list): This page lists parts for the Double chain stitch looper mechanism, including part numbers, descriptions, and quantities.
- Page 37 (diagram): This page displays a diagram of lubrication and related components for a sewing machine, with numbered parts including screws, tubes, and various fittings.
- Page 38 (parts_list): This page lists parts for lubrication and related components, including various screws, pumps, oil pipes, and filters, with their corresponding codes and names.
- Page 39 (diagram): This page displays a diagram of thread tension and related components for a sewing machine, with numbered parts and their corresponding references.
- Page 40 (parts_list): This page lists parts for thread tension components, including part numbers, descriptions, and quantities.
- Page 41 (diagram): This page displays a diagram of thread tension components and related parts for a sewing machine, with numbered references for each part.
- Page 42 (parts_list): This page lists parts for thread tension, including part numbers, descriptions, and quantities. It contains items such as collars, screws, springs, and tension discs.
- Page 43 (diagram): This page contains diagrams and parts lists for the Needle cooler and Gimp guide mechanism.
- Page 44 (parts_list): This page contains parts lists for two sections: M. Needle cooler and N. Gimp guide mechanism.
- Page 45 (diagram): This page contains diagrams and parts lists for the tape winder mechanism and the lapper mechanism of an industrial sewing machine.
- Page 46 (parts_list): This page contains parts lists for the Tape Winder Mechanism and the Lapper Mechanism, including part numbers, descriptions, and quantities.
- Page 47 (diagram): This page displays a diagram of the ruffling attachment, also known as the "Ruffler attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido". It includes numbered parts with their corresponding part numbers and descriptions.
- Page 48 (parts_list): This page lists parts for Ruffler attachment / Ruffling attachment / Kräuselvorrichtung / Accesorio de fruncido, including part numbers, descriptions, and quantities.
- Page 49 (diagram): This page displays diagrams for the Ruffing attachment, including parts for semi-submerged and full-submerged applications, with part numbers and descriptions.
- Page 50 (parts_list): This page lists parts for the R. ラフラー装置 / Ruffing attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido, with part numbers, descriptions, and quantities.
- Page 51 (diagram): This page displays a diagram of various sewing machine accessories and parts, including screwdrivers, a chain, oil, and other components, with reference numbers for identification.
- Page 52 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and reference numbers. It covers various components like needles, knives, screws, wrenches, and more.
- Page 53 (diagram): This page contains a diagram of various sewing machine accessories and their corresponding part numbers, including items like 42-2-16, 42-2-6, and 42-2-12.
- Page 54 (parts_list): This page lists accessories and parts for sewing machines, including part numbers, descriptions, and quantities.
- Page 56 (parts_list): This page lists parts for the Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios section, including part numbers, codes, quantities, and names.
- Page 57 (parts_list): This page lists parts for sewing machine gauge components, including presser foot assembly, needle clamp assembly, needle plate, main feed dog assembly, differential feed dog, lower knife, and over looper, with corresponding part numbers and diagrams.
- Page 58 (parts_list): This page contains a parts list for various sewing machine components, including presser foot assy, needle clamp assy, needle plate, main feed dog assy, differential feed dog, knives, and over looper, with corresponding part numbers and models.
- Page 59 (parts_list): This page contains a parts list for various sewing machine components, including needles, presser feet, and loopers, with corresponding part numbers and descriptions.
- Page 60 (parts_list): This page contains a parts list for gauge parts, including part numbers, descriptions, and application details for various sewing machine components.
- Page 61 (parts_list): This page contains a parts list for gauge parts, including needle width, needle quantity, presser foot assembly, needle clamp assembly, needle plate, main feed dog assembly, differential feed dog, lower knife, and over looper. It lists part numbers and corresponding model applications.
- Page 62 (parts_list): This page lists warning labels and grounding marks with their corresponding sizes and part numbers.
- Page 63 (index): This page is an index of parts for industrial sewing machines, listing part numbers, reference numbers, and corresponding page numbers.
- Page 64 (parts_list): This page contains a parts list for various sewing machine components, including part numbers, reference numbers, and corresponding page numbers.
- Page 65 (parts_list): This page contains a parts list with columns for Code, Ref. No., and Page. It lists various part numbers and their corresponding reference numbers and page locations.
- Page 66 (parts_list): This page contains a parts list with part numbers, reference numbers, and page numbers for various sewing machine components. It includes parts from S39690021 to S40643001 and other codes like 012060632 to 028080242.
- Page 67 (parts_list): This page contains a parts list with part numbers, reference numbers, and page numbers for various sewing machine components, organized into three columns.
- Page 68 (parts_list): This page contains a parts list with codes, reference numbers, and page numbers for various sewing machine components.
- Page 69 (unknown): This page contains a watermark and a footer indicating it is from the library of Superior Sewing Machine & Supply LLC, with the website jintex.in.
- Page 70 (cover): This is the cover page of a Brother parts book, featuring the Brother logo and the title in multiple languages: Parts Book, Teilekatalog, Livre des Pieces, and Libro de Referencia de Piezas. It also includes the company's address and contact information, along with a part number and date.
