Parts index — Brother MA4-N31tap a row to open its page

Page 2 — 目 次

Brother MA4-N31 parts on page 2

Ref	Part number	Part name	Qty
	A	フレーム関係
	B	駆動軸関係
	C	針棒関係
	D	押工関係
	E	送り関係
	F	上メス・下メス関係
	G	上ルーパ関係
	H	下ルーパ関係
	J	二重環ルーパ関係
	K	給油潤滑関係
	L	糸調子関係
	M	針冷却装置
	N	ヒモ案内関係
	P	テープワインダー関係
	Q	ラッパー関係
	R	ラフラー装置
	Z	付属品関係
	Ga1	ゲージ部品一覧表
	Ga2	ゲージ部品一覧表
	Ga3	ゲージ部品一覧表
	Ga4	ゲージ部品一覧表
	Ga5	ゲージ部品一覧表
	Wa	警告ラベル
	目次	目次

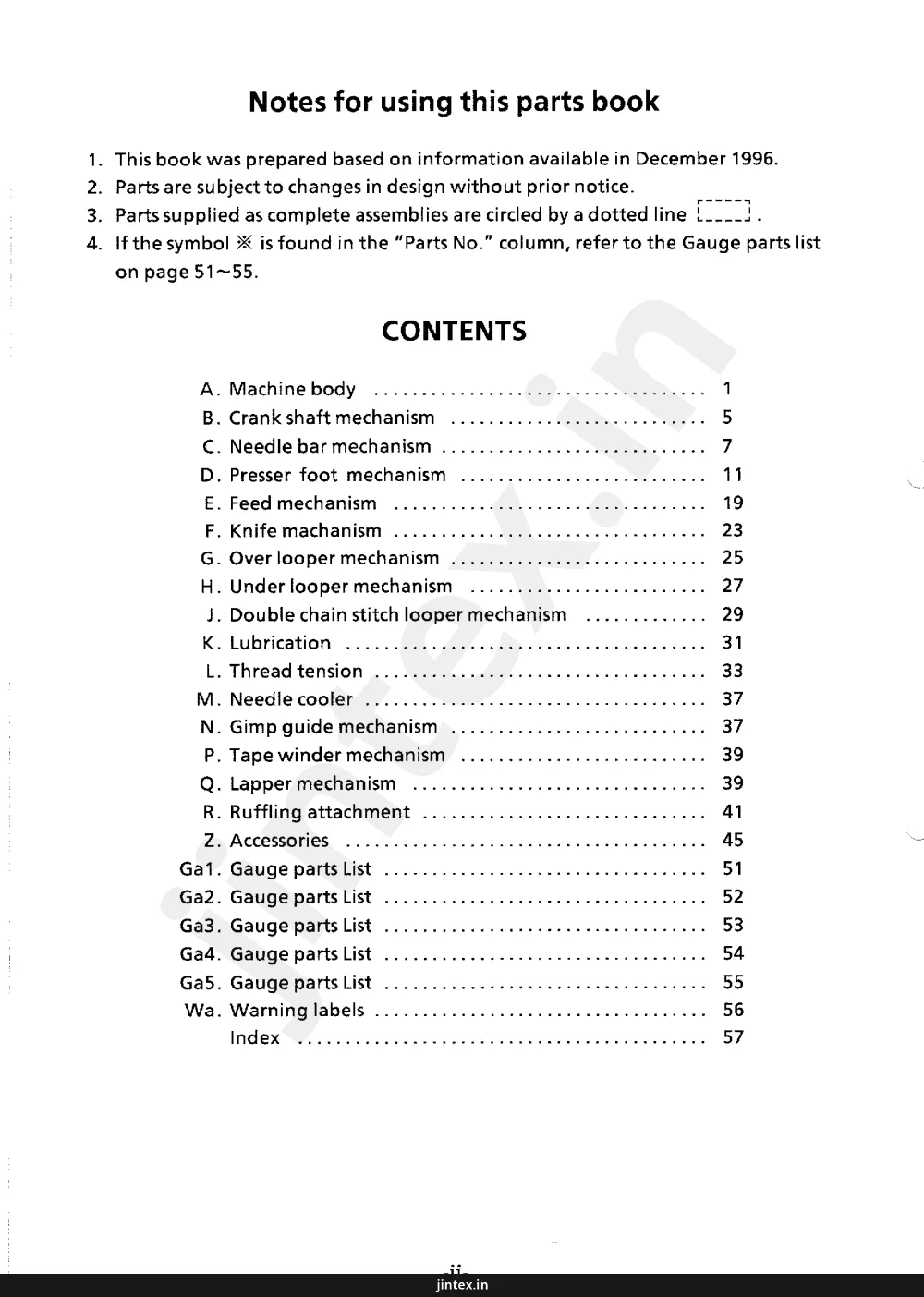

Page 3 — CONTENTS

Brother MA4-N31 parts on page 3

Ref	Part number	Part name	Qty
	A	Machine body
	B	Crank shaft mechanism
	C	Needle bar mechanism
	D	Presser foot mechanism
	E	Feed mechanism
	F	Knife mechanism
	G	Over looper mechanism
	H	Under looper mechanism
	J	Double chain stitch looper mechanism
	K	Lubrication
	L	Thread tension
	M	Needle cooler
	N	Gimp guide mechanism
	P	Tape winder mechanism
	Q	Lapper mechanism
	R	Ruffing attachment
	Z	Accessories
	Ga1	Gauge parts List
	Ga2	Gauge parts List
	Ga3	Gauge parts List
	Ga4	Gauge parts List
	Ga5	Gauge parts List
	Wa	Warning labels
	Index	Index

Page 4 — INHALTSVERZEICHNIS

Brother MA4-N31 parts on page 4

Ref	Part number	Part name	Qty
	A	Maschinengehäuse
	B	Kurbelwelle
	C	Nadelstangenvorrichtung
	D	Stoffdrückerfuß
	E	Transportvorrichtung
	F	Messer
	G	Oberen Greifer
	H	Unterer Greifer
	J	Doppelkettstichgreifer
	K	Schmierung
	L	Faderspannung
	M	Nadelkühlungsvorrichtung
	N	Schnurführung
	P	Bandaufwickelvorrichtung
	Q	Falz-mechanismus
	R	Kräuselvorrichtung
	Z	Zubehör
	Ga1	Lehrenliste
	Ga2	Lehrenliste
	Ga3	Lehrenliste
	Ga4	Lehrenliste
	Ga5	Lehrenliste
	Wa	Warnschilder
	Verzeichnis

Page 5 — TABLE DES MATIERES

Brother MA4-N31 parts on page 5

Ref	Part number	Part name	Qty
	1	Corps de la machine
	5	Mécanisme de vilebrequin
	7	Mécanisme de la barre à aiguille
	11	Mécanisme de pied presseur
	19	Mécanisme de l'entraînement
	23	Mécanisme du couteau
	25	Mécanisme du boucleur supérieur
	27	Mécanisme du boucleur inférieur
	29	Mécanisme du boucleur pour point de chaînette double
	31	Lubrification
	33	Tension du fil
	37	Mécanisme du refroidisseur d'aiguille
	37	Mécanisme de guide-fil
	39	Mécanisme de l'enrouleur de ruban
	39	Mécanisme à rabat
	41	Accessoire pour fronces
	45	Accessoires
	51	Liste des Pièces decartment
	52	Liste des Pièces decartment
	53	Liste des Pièces decartment
	54	Liste des Pièces decartment
	55	Liste des Pièces decartment
	56	Etiquettes d'avertissement
	57	Index

Page 7 — A. フレーム関係 / Machine body / Maschinenengehäuse / Corps de la machine /Cuerpo de la máquina

Brother MA4-N31 parts on page 7

Ref	Part number	Part name	Qty
	70	Screw
	71	Washer
	72	Bracket
	69	Screw
	66	Screw
	9	Cover
	8	Support
	12	Screw
	11	Name Plate
	7	Knob
	3	Knob
	4	Screw
	2	Gasket
	5	Cover
	68	Screw
	67	Washer
	59	Screw
	75	Screw
	76	Screw
	10	Screw
	79	Screw
	80	Screw
	58	Screw
	15	Screw
	13	Gasket
	14	Filter
	22	Screw
	81	Screw
	21	Base Plate
	93	Screw
	74	Pin
	52	Screw
	53	Washer
	55	Screw
	63	Shaft
	24	Cover
	62	Cover
	23	Screw
	26	Screw
	25	Screw
	54	Pin
	40	Screw
	78	Screw
	77	Screw
	37	Bracket
	65	Washer
	64	Screw
	61	Screw
	35	Screw
	36	Screw
	27	Arm Assembly
	32	Screw
	27-8	Cover
	27-5	Bracket
	27-7	Screw
	27-9	Screw
	38	Screw
	39	Washer
	41	Washer
	42	Washer
	43	Screw
	49	Bracket
	51	Screw
	31	Screw
	27-2	Spring
	27-6	Shaft
	27-3	Lever
	27-1	Lever
	27-4	Screw
	44	Base Cover
	50	Screw
	48	Screw
	46	Screw
	30	Cover
	29	Bracket
	33	Screw
	34	Screw
	28	Screw

Page 8 — A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina

Brother MA4-N31 parts on page 8

Ref	Part number	Part name	Qty
	S39605001	ウワカバー	1
	S02606000	ユリヨウケイマド	1
	062401012	ナベコ M4X10	6
	S39606020	パッキン	1
	S23337009	ゴムセン 18.5	1
	S39607001	ソクメンカバー	1
	062400812	ナベコ 4X8	5
	S20345009	ゴムセン 14	1
	S39608021	メンイタカバー	1
	060400612	バインド M4X6	1
	S20310001	オクリキコウカバーB	1
	S39771020	パッキン	1
	060400612	バインド M4X8	6
	S39610021	オクリダイカバー	1
	060400612	バインド M4X8	6
	S39564021	ウチカバー	1
	S39563020	ウチカバーパツキン	1
	S23616101	シメネジ 4X10	5
	061400812	サラコ M4X8	1
	S39611001	マエカバーLクミ	1
	S39612001	マエカバーL	1
	S39613001	マエカバーヒンジジク	1
	S20319001	マエカバーヒンジ	1
	012400432	アナヒラ 4X4	2
	S20320101	マエカバー ストツパ	1
	S20321001	マエカバーバネ	1
	060400612	バインド M4X6	1
	S20327101	マエカバー メイタ	1
	060400612	バインド M4X6	1
	060401412	バインド M4X14	3
	S38305001	マエカバーS	1
	S23418002	シメネジ 4X5	2
	012400832	アナヒラ 4X8	1
	012400432	アナヒラ 4X4	1
	S20324101	マエカバーアンナイ	1
	060400612	バインド M4X6	2
	S20325001	マエカバー メイタバネ	1
	060400612	バインド M4X6	1
	S39562001	クロスプレート	1
	S39623001	クロスプレート サエジク	1
	141183000	クロスプレートシート	1
	100032003	サラネジ 4.37	1
	100315002	スプリング	1
	S39624021	セットカラー	1
	012060632	アナヒラ 6X6	2
	S38301020	クロスプレートシタ	1
	060400612	バインド M4X6	4
	S20412000	ゴムセン 3.7	2
	S39625051	クロスプレート メイタバネ	1
	060400612	バインド M4X6	2
	156482000	セン 4	1
	062401212	ナベコ M4X12	2
	021400212	2シュナット 4	1
	047602042	スプリングピン 6X20	1
	S20412000	ゴムセン 3.7	1
	S39626021	クロスプレートヌノアンナイ	1
	060400612	バインド M4X6	3

Page 9 — A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina

Brother MA4-N31 parts on page 9

Ref	Part number	Part name	Qty
	70	Screw
	71	Washer
	72	Bracket
	69	Screw
	66	Plate
	9	Cover
	8	Support
	12	Screw
	11	Name Plate
	7	Cap
	4	Screw
	2	Cover
	3	Cap
	5	Gasket
	59	Screw
	68	Screw
	67	Washer
	75	Screw
	76	Washer
	10	Screw
	79	Screw
	80	Washer
	58	Screw
	15	Screw
	13	Gasket
	14	Plate
	22	Screw
	81	Bracket
	21	Screw
	93	Screw
	74	Screw
	52	Screw
	53	Washer
	55	Screw
	63	Shaft
	24	Plate
	23	Screw
	26	Screw
	25	Washer
	54	Pin
	40	Screw
	78	Screw
	77	Washer
	37	Bracket
	65	Spring
	64	Screw
	61	Screw
	35	Screw
	36	Washer
	27	Cover
	32	Screw
	27-8	Cover
	27-5	Bracket
	27-7	Screw
	27-9	Bracket
	31	Screw
	27-2	Shaft
	27-6	Spring
	27-3	Lever
	27-1	Shaft
	27-4	Screw
	38	Screw
	39	Washer
	41	Washer
	42	Washer
	43	Screw
	49	Bracket
	51	Screw
	48	Screw
	46	Screw
	30	Plate
	29	Cover
	33	Screw
	34	Washer
	44	Cover
	28	Screw

Page 10 — A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina

Brother MA4-N31 parts on page 10

Ref	Part number	Part name	Qty
	S20338200	アブラウケ
	S20339000	パツキン
	S23350001	ホンタイシチュウ
	017501212	ボルト 5X12
	S23351001	ザガネ
	S00075000	アイガード
	060350812	バインド 35X8
	025350332	ヒラザガネダイ 3.5
	S20340001	アイガードササエイタ
	S20342001	ダンネジ 4
	146598001	バネザガネ
	025050132	ヒラザガネヨウ 5
	140325001	ゴムセン 10.3
	S20345009	ゴムセン 14
	S23337009	ゴムセン 18.5
	081009070	Oリング P9
	S23357001	シメネジ 10
	S20346000	ハリボウアブラウケ
	062401612	ナベコ M4X16
	S20878000	ゴムセン 5.3
	S39785001	イトトオシセツメライベルD
	S39786001	イトトオシセツメライベルE
	S39787001	イトトオシセツメライベルF
	S25184001	DLイトトオシセツメライベル
	S42050001	マエカバー S

Page 11

Brother MA4-N31 parts on page 11

Ref	Part number	Part name	Qty
	1	Crank shaft
	2	Crank shaft
	3	Crank shaft support
	4	O-ring
	5	Screw
	6	Screw
	7	Bearing
	10	Pulley
	14	Circlip
	15	Bearing
	16	Bearing
	17	Collar
	18	Collar
	20	Crank shaft support
	21	O-ring
	22	Crank shaft support
	24	Crank shaft support
	25	Screw
	27	Screw
	28	Washer

Page 12 — B. 駆動軸関係 / Crank shaft mechanism / Kurbelwelle / Mécanisme de vilebrequin / Mecanismo del cigüeñal

Brother MA4-N31 parts on page 12

Ref	Part number	Part name	Qty
	012060632	アナヒラ6X6
	S39629021	ベアリングフタ
	081031870	Oリング S31.5
	062400812	ナベコ4X8	2
	061400812	サラコM4X8
	072600000	タマジクウケ6000
	S39630000	クドウジクメタル
	048400242	トメワアツヨウC40
	076202000	タマジクウケ6203
	S27868001	タマジクウケ6203V
	S20361001	ナミバネ
	S20362101	クドウジオイルキリ
	S39631000	ベアリングオサエ
	S20353000	Oリング
	062401012	ナベコM4X10	3
	S39775001	プーリー
	012060632	アナヒラ6X6
	028060242	バネザガネ2-6
	018062532	アナボルト6X25
	S39565001	プーリー
	S39761001	クドウジクSSクミ
	S39762001	クドウジクSHクミ
	S39763001	クドウジクSEクミ

Page 13 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja

Brother MA4-N31 parts on page 13

Ref	Part number	Part name	Qty
	11	11
	10	10
	7	7
	7-2	7-2
	7-1-a	7-1-a
	7-7	7-7
	7-3	7-3
	7-6	7-6
	7-1	7-1
	33	33
	32	32
	20	20
	18	18
	26	26
	25	25
	17	17
	16	16
	15	15
	2	2
	4	4
	7-5	7-5
	7-4	7-4
	8	8
	9	9
	34-3-1	34-3-1
	35-3-1	35-3-1
	36-3-1	36-3-1
	34-3-2	34-3-2
	35-3-2	35-3-2
	36-3-2	36-3-2
	34-2	34-2
	35-2	35-2
	36-2	36-2
	3	3
	5	5
	6	6
	34	34
	35	35
	36	36
	34-1	34-1
	35-1	35-1
	36-1	36-1
	12-1	12-1
	12	12
	27	27
	13	13
	28	28
	29	29
	30	30
	21	21
	22	22
	23	23
	24	24

Page 14 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja

Brother MA4-N31 parts on page 14

Ref	Part number	Part name	Qty
	S39644021	NEEDLE SHAFT BUSH, L	1
	S39645021	NEEDLE SHAFT BUSH, R	1
	S39646021	NEEDLE SHAFT	1
	S39647000	WASHER	1
	146293001	RETAINING RING, E10	1
	S39566001	NEEDLE BAR CLAMP ASSY	1
	S23342001	SET SCREW, SOCKET (CN) M4X5	2
	017061612	BOLT, M6X16	1
	118735002	WASHER	1
	062350812	SCREW, PAN M3.5X8	1
	S20391001	SPACER	1
	S20392000	FELT	2
	155162001	SPACER	1
	S39574001	NEEDLE BAR	1
	S39648021	NEEDLE BAR BUSH, D	1
	S39571021	NEEDLE BAR BUSH, U	1
	104450101	RUBBER CAP, 8	1
	※	NEEDLE CLAMP ASSY	1
	146427001	SET SCREW, SOCKET (CP) SM3.18	2
	※	NEEDLE DCX27	2
	151474016	NEEDLE DCX27, #16	3
	S39649021	NEEDLE PLATE SUPPORT BRACKET	1
	018062532	BOLT, SOCKET M6X25	2
	S39650021	NEEDLE PLATE SUPPORT, F	1
	S39652021	NEEDLE PLATE SUPPORT, B	1
	062401012	SCREW, PAN M4X10	4
	S20415101	MOVABLE NEEDLE GUARD	1
	S20416101	BOLT, M3.5X10	1
	S20418001	NEEDLE GUARD (F)	1
	S23456101	SCREW, PAN M2.5X6	2
	S38306051	CHAIN STITCH NEEDLE GUARD, F	1
	062350612	SCREW, PAN M3.5X6	1
	S38307001	CHAIN STITCH NEEDLE GUARD, B	1
	062300812	SCREW, PAN M3X8	2
	S39654051	NEEDLE GUARD BRACKET	1
	062401012	SCREW, PAN M4X10	1
	※	NEEDLE PLATE	1
	100032003	SCREW, FLAT SM4.37	2

Page 15 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja

Brother MA4-N31 parts on page 15

Ref	Part number	Part name	Qty
11	11	Needle bar mechanism
10	10	Needle bar mechanism
7	7	Needle bar mechanism
7-2	7-2	Needle bar mechanism
7-1	7-1	Needle bar mechanism
7-7	7-7	Needle bar mechanism
7-6	7-6	Needle bar mechanism
7-1	7-1	Needle bar mechanism
7-5	7-5	Needle bar mechanism
7-4	7-4	Needle bar mechanism
34-3-2	34-3-2	Needle bar mechanism
35-3-2	35-3-2	Needle bar mechanism
36-3-2	36-3-2	Needle bar mechanism
2	2	Needle bar mechanism
4	4	Needle bar mechanism
3	3	Needle bar mechanism
34-2	34-2	Needle bar mechanism
35-2	35-2	Needle bar mechanism
36-2	36-2	Needle bar mechanism
5	5	Needle bar mechanism
6	6	Needle bar mechanism
8	8	Needle bar mechanism
9	9	Needle bar mechanism
34-1	34-1	Needle bar mechanism
35-1	35-1	Needle bar mechanism
36-1	36-1	Needle bar mechanism
34	34	Needle bar mechanism
35	35	Needle bar mechanism
36	36	Needle bar mechanism
33	33	Needle bar mechanism
32	32	Needle bar mechanism
20	20	Needle bar mechanism
18	18	Needle bar mechanism
26	26	Needle bar mechanism
25	25	Needle bar mechanism
17	17	Needle bar mechanism
16	16	Needle bar mechanism
15	15	Needle bar mechanism
12-1	12-1	Needle bar mechanism
12	12	Needle bar mechanism
27	27	Needle bar mechanism
28	28	Needle bar mechanism
13	13	Needle bar mechanism
23	23	Needle bar mechanism
24	24	Needle bar mechanism
29	29	Needle bar mechanism
30	30	Needle bar mechanism
21	21	Needle bar mechanism
22	22	Needle bar mechanism

Page 16 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja

Brother MA4-N31 parts on page 16

Ref	Part number	Part name	Qty
34	S39633011	NEEDLE DRIVING CRANK ROD ASSY	1
34	S39633012	NEEDLE DRIVING CRANK ROD ASSY	1
34-1	018401622	BOLT, SOCKET M4X16	2
34-2	S23342001	SET SCREW, SOCKET (CN) M4X5	1
34-3-1	017061612	BOLT, M6X16	1
34-3-2	118735002	WASHER	1
35	S39638011	NEEDLE DRIVING CRANK ROD ASSY	1
35	S39638012	NEEDLE DRIVING CRANK ROD ASSY	1
35-1	018401622	BOLT, SOCKET M4X16	2
35-2	S23342001	SET SCREW, SOCKET (CN) M4X5	1
35-3-1	017061612	BOLT, M6X16	1
35-3-2	118735002	WASHER	1
36	S39641011	NEEDLE DRIVING CRANK ROD ASSY	1
36	S39641012	NEEDLE DRIVING CRANK ROD ASSY	1
36-1	018401622	BOLT, SOCKET M4X16	2
36-2	S23342001	SET SCREW, SOCKET (CN) M4X5	1
36-3-1	017061612	BOLT, M6X16	1
36-3-2	118735002	WASHER	1

Page 17 — D. 押工関係/Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

Brother MA4-N31 parts on page 17

Ref	Part number	Part name	Qty
1	1	Presser foot mechanism
4	4	Presser foot mechanism
5	5	Presser foot mechanism
7	7	Presser foot mechanism
8	8	Presser foot mechanism
9	9	Presser foot mechanism
10	10	Presser foot mechanism
11	11	Presser foot mechanism
12	12	Presser foot mechanism
13	13	Presser foot mechanism
14	14	Presser foot mechanism
15	15	Presser foot mechanism
16	16	Presser foot mechanism
17	17	Presser foot mechanism
18	18	Presser foot mechanism
19	19	Presser foot mechanism
20	20	Presser foot mechanism
21	21	Presser foot mechanism
21-1	21-1	Presser foot mechanism
22	22	Presser foot mechanism
23	23	Presser foot mechanism
24	24	Presser foot mechanism
25	25	Presser foot mechanism
26	26	Presser foot mechanism
27	27	Presser foot mechanism
28	28	Presser foot mechanism
29	29	Presser foot mechanism
30	30	Presser foot mechanism
34	34	Presser foot mechanism
35	35	Presser foot mechanism
38	38	Presser foot mechanism
38-2	38-2	Presser foot mechanism
39	39	Presser foot mechanism
44	44	Presser foot mechanism
81	81	Presser foot mechanism
82	82	Presser foot mechanism
83	83	Presser foot mechanism
84	84	Presser foot mechanism
85	85	Presser foot mechanism
86	86	Presser foot mechanism
92	92	Presser foot mechanism
93	93	Presser foot mechanism

Page 18 — D. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme de pied presseur / Mecanismo de la prensa tela

Brother MA4-N31 parts on page 18

Ref	Part number	Part name	Qty
	S39658001	PRESSER ADJUST SCREW	1
	S39575001	PRESSER BAR ASSY	1
	S39577000	CUSHION	1
	047301642	PIN, SPRING ROLL AW3	1
	105161004	WASHER	1
	S20476001	PRESSER SPRING	1
	S38308021	MAIN PRESSER ARM	1
	S39659021	PRESSER BAR LIFTER	1
	S39660001	PRESSER BAR LIFTER SPRING	1
	S39661001	SCREW, BIND, M4	1
	S39662001	MAIN PRESSER ARM STOPPER	1
	060400612	SCREW, BIND M4X6	1
	S39663021	PRESSER FOOT LIFTER LEVER	1
	S39664001	COLLAR	1
	018062532	BOLT, SOCKET M6X25	1
	025060332	WASHER, PLAIN L 6	1
	S39665001	SPRING	1
	047503242	PIN, SPRING ROLL AW5	1
	S39770001	SCREW, M4	1
	021400212	NUT, 2 M4	1
	S20485001	PRESSER BAR LIFTER LINK	1
	S39666001	PRESSER BAR LIFTER LEVER	1
	S39667021	PRESSER BAR LIFTER ARM ASSY	1
	047401442	PIN, SPRING ROLL AW4	1
	018061632	BOLT, M6X16	1
	S39669001	SPRING	1
	S39670000	PRESSER ARM SHAFT BUSH	1
	012060632	SET SCREW, SOCKET (FT) M6X6	1
	S39671021	PRESSER ARM SHAFT	1
	048090342	RETAINING RING, E9	2
	S30562000	WASHER	1
	S39672001	PRESSER ARM PIN	1
	012060432	SET SCREW, SOCKET (FT) M4X4	1
	S37070121	FINGER GUARD, V	1
	060300412	SCREW, BIND M3X4	1
	S20770101	TWIST SPRING	1
	060300612	SCREW, BIND M3X6	1
	S20115001	TWIST SPRING	1
	S20117001	TWIST SPRING	1
	S30889001	TWIST SPRING	1
	S23364000	TAPE GUIDE	1

Page 19 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

Brother MA4-N31 parts on page 19

Ref	Part number	Part name	Qty
63	50-1	Presser foot mechanism
64	50-1	Presser foot mechanism
65	50-2	Presser foot mechanism
66	50-2	Presser foot mechanism
69	50-3	Presser foot mechanism
70	50-3	Presser foot mechanism
71	50-4	Presser foot mechanism
72	50-4	Presser foot mechanism
92	50-5	Presser foot mechanism
93	50-5	Presser foot mechanism

Page 20 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

Brother MA4-N31 parts on page 20

Ref	Part number	Part name	Qty
50-1	S19313201	PRESSER FOOT ASSY	1
50-1-1	S19311101	PRESSER FOOT SUPPORT SCREW	1
50-1-2	S30971001	PRESSER FOOT, F	1
50-1-3	105288001	SCREW, SM2.38	1
50-1-4	S19307001	PRESSER FOOT, B SUPPORT SCREW	1
50-1-5	S19308001	NUT, 2 SM3.18-44	1
50-1-6	S19309001	TWIST SPRING	1
50-1-7	062670712	SCREW, PAN SM3.57-40X7	1
50-2	S19317101	PRESSER FOOT ASSY	1
50-2-1	S19311101	PRESSER FOOT SUPPORT SCREW	1
50-2-2	S19312001	PRESSER FOOT, F	1
50-2-3	105288001	SCREW, SM2.38	1
50-2-4	S19307001	PRESSER FOOT, B SUPPORT SCREW	1
50-2-5	S19308001	NUT, 2 SM3.18-44	1
50-2-6	S19309001	TWIST SPRING	1
50-2-7	062670712	SCREW, PAN SM3.57-40X7	1
50-3	S19321101	PRESSER FOOT ASSY	1
50-3-1	S19311101	PRESSER FOOT SUPPORT SCREW	1
50-3-2	S19325001	PRESSER FOOT, F	1
50-3-3	S01295001	SCREW, SM2.38X3.5	1
50-3-4	S19307001	PRESSER FOOT, B SUPPORT SCREW	1
50-3-5	S19308001	NUT, 2 SM3.18-44	1
50-3-6	S19309001	TWIST SPRING	1
50-3-7	062670712	SCREW, PAN SM3.57-40X7	1
50-4	S19326101	PRESSER FOOT ASSY	1
50-4-1	S19311101	PRESSER FOOT SUPPORT SCREW	1
50-4-2	S19325001	PRESSER FOOT, F	1
50-4-3	S01295001	SCREW, SM2.38X3.5	1
50-4-4	S19307001	PRESSER FOOT, B SUPPORT SCREW	1
50-4-5	S19308001	NUT, 2 SM3.18-44	1
50-4-6	S19309001	TWIST SPRING	1
50-4-7	062670712	SCREW, PAN SM3.57-40X7	1
50-5	S19334001	PRESSER FOOT ASSY	1
50-5-1	S19311101	PRESSER FOOT SUPPORT SCREW	3
50-5-2	S19340001	PRESSER FOOT, F	1
50-5-3	106640001	SCREW, SM3.18	1
50-5-4	062670712	SCREW, PAN SM3.57-40X7	1

Page 21 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

Brother MA4-N31 parts on page 21

Ref	Part number	Part name	Qty
61	50-6	Presser foot mechanism
81	50-7	Presser foot mechanism
83	50-8	Presser foot mechanism
67	50-9	Presser foot mechanism
75	50-10	Presser foot mechanism

Page 22 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa

Brother MA4-N31 parts on page 22

Ref	Part number	Part name	Qty
50-6	519304101	オサエエミ	1
50-6-1	519311101	オサエササエネジ	1
50-6-2	519312001	オサエF	1
50-6-3	105288001	シメネジ 2.38	1
50-6-4	519307001	オサエBササエネジ	1
50-6-5	519308001	2 シユナツト 318-44	1
50-6-6	519309001	オサエBネジリバネ	1
50-6-7	062670712	ナベコ 357-40X7	1
50-6-8	025630232	ヒラザガネチユウ 2.38	1
50-7	519330201	オサエエミ	1
50-7-1	519311101	オサエササエネジ	1
50-7-2	530971001	オサエF	1
50-7-3	111140002	シメネジ 2.38	1
50-7-4	519307001	オサエBササエネジ	1
50-7-5	519308001	2 シユナツト 318-44	1
50-7-6	519309001	オサエBネジリバネ	1
50-7-7	062670712	ナベコ 357-40X7	1
50-8	520882201	オサエエミ	1
50-8-1	519311101	オサエササエネジ	1
50-8-2	530971001	オサエF	1
50-8-3	111140002	シメネジ 2.38	1
50-8-4	519307001	オサエBササエネジ	1
50-8-5	519308001	2 シユナツト 318-44	1
50-8-6	519309001	オサエBネジリバネ	1
50-8-7	062670712	ナベコ 357-40X7	1
50-9	525548101	オサエエミ	1
50-9-1	519311101	オサエササエネジ	1
50-9-2	519325001	オサエF	1
50-9-3	501295001	シメネジ 2.38X3.5	1
50-9-4	519307001	オサエBササエネジ	1
50-9-5	519308001	2 シユナツト 318-44	1
50-9-6	519309001	オサエBネジリバネ	1
50-9-7	062670712	ナベコ 357-40X7	1
50-10	525550001	オサエエミ	1
50-10-1	519311101	オサエササエネジ	1
50-10-2	525553001	オサエF	1
50-10-3	501295001	シメネジ 2.38X3.5	1
50-10-4	025660132	ヒラザガネシヨウ 3.18	1
50-10-5	106640001	シメネジ 3.18	1
50-10-6	062670712	ナベコ 357-40X7	1

Page 23 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

Brother MA4-N31 parts on page 23

Ref	Part number	Part name	Qty
78	50-11	77
86	50-12	85
90	50-13	89
	50-14	95
	50-15	92(B)

Page 24 — D. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme de pied presseur / Mecanismo de la prensa tela

Brother MA4-N31 parts on page 24

Ref	Part number	Part name	Qty
	S25555001	オサエクレミ
	S19311101	オサエササエネジ
	S25553001	オサエF
	S01295001	シメネジ2.38X3.5
	025660132	ヒラザガネショウ3.18
	106640001	シメネジ3.18
	062670712	ナベコ357-40X7
	S25557001	オサエクレミ
	S19311101	オサエササエネジ
	S19340001	オサエF
	106640001	シメネジ3.18
	062670712	ナベコ357-40X7
	S25560101	オサエクレミ
	S19311101	オサエササエネジ
	S19312001	オサエF
	105288001	シメネジ2.38
	S19307001	オサエBササエネジ
	S19308001	2 シユナツト318-44
	S19309001	オサエBネジナリバネ
	062670712	ナベコ357-40X7
	S25562101	オサエクレミ
	S19311101	オサエササエネジ
	S19312001	オサエF
	105288001	シメネジ2.38
	S19307001	オサエBササエネジ
	S19308001	2 シユナツト318-44
	S19309001	オサエBネジナリバネ
	062670712	ナベコ357-40X7
	S30525001	オサエクレミ
	S19311101	オサエササエネジ
	S30532001	オサエF
	100080004	シメネジ3.18
	062670712	ナベコ357-40X7

Page 25

Brother MA4-N31 parts on page 25

Ref	Part number	Part name	Qty
22	22	SCREW
20	20	COVER
21	21	O-RING
19	19	CIR-CLIP
8	8	SHAFT
18	18	COLLAR
17	17	COLLAR
8-1	8-1	SHAFT ASSEMBLY
57	57	PIN
55	55	SPRING
60	60	SCREW
66	66	SPRING
64	64	SPRING
65	65	SCREW
62	62	SCREW
63	63	WASHER
58	58	PLATE
59	59	PLATE
61	61	PLATE
1-2-1	1-2-1	BASE
1-3	1-3	BRACKET
1-4	1-4	SCREW
2	2	BASE
54	54	SHAFT
54-1	54-1	SHAFT
56	56	O-RING
1	1	ARM
11	11	WASHER
12	12	SPRING
10	10	SPRING
13	13	SPRING
14	14	SPRING
9	9	SPRING
44	44	BRACKET
45	45	PLATE
47	47	PLATE
46	46	PLATE
47	47	PLATE
48	48	SCREW
49	49	WASHER
48	48	SCREW
43	43	BRACKET
77	77	BRACKET
78	78	SCREW
70	70	SCREW
69	69	HOLDER
75-1	75-1	SHAFT
75	75	SHAFT
40	40	SHAFT
40-1	40-1	SHAFT
41	41	WASHER
42	42	SCREW
5	5	BRACKET
25	25	WASHER
24	24	BRACKET
26	26	BLOCK
30	30	WASHER
31	31	SCREW
53	53	SCREW
52	52	ARM
23	23	FRAME
35	35	LINKAGE ASSEMBLY
36	36	WASHER
37	37	SCREW
32	32	COLLAR
27	27	SHAFT
29	29	COLLAR
28	28	COLLAR
50	50	COLLAR
51	51	COLLAR
33	33	BRACKET
38	38	WASHER
39	39	COLLAR
16	16	COLLAR
15	15	SHAFT
34	34	BRACKET

Page 26

Brother MA4-N31 parts on page 26

Ref	Part number	Part name	Qty
	S39578001	ヘンシンリンクミ
	047301242	スプリングピン AW3	2
	047301242	スプリングピン AW3	1
	S39585001	ラチェツトトメネジリバネ	1
	S39586001	バネトメネジリ3	1
	012060632	アナヒラ6X6	2
	S39673020	バランスウエイト	1
	012060632	アナヒラ6X6	2
	S39589021	オクリウデクミ	1
	018061632	アナボルト6X16	1
	S39674001	オクリチョウセツボタンジク	1
	S39675001	スプリング	1
	081005070	Oリング P5	1
	025710232	ヒラガネチユウ4.76	1
	025710232	ヒラガネチユウ4.76	1
	048040342	トメワE4	1
	S39676021	オクリジク	1
	S39677021	メタル11.11-17	1
	S39678021	オクリジクメタルL	1
	S30562000	ザガネ	1
	048090342	トメワE9	1
	S39679001	オクリジクメタルLフタ	1
	081020070	Oリング P20	1
	060400612	バインドM4X6	3
	S39680001	オクリダイクミ	1
	S38312050	ジヨウゲオクリカクゴマ	1
	081010070	Oリング P10	1
	S39683000	オクリダイカクゴマ	1
	S39684001	セツトカラーオクリコマジク	1
	S39685001	セツトカラー	1
	012400432	アナヒラ4X4	1
	S20530001	ザガネ	1
	061350616	サラコ35X6	1
	012400832	アナヒラ4X8	1
	S42042021	シユオク リウデ	1
	018061632	アナボルト6X16	1
	S39773001	シユオク リツククミ	1
	S39690021	ザガネ	1
	S23360001	ボルト5X15	1
	S02573000	ザガネ	1
	S39691001	ナツト5	1
	S39769051	サドウオクリウデリンククミ	1
	018061632	アナボルト6X16	1
	S39690021	ザガネ	1
	S23360001	ボルト5X15	1
	S39681100	オクリダイアンナイカバー	1
	S39686000	オクリダイアンナイL	1
	S39687000	オクリダイアンナイR	1
	S39688001	ボウジンイタササエ	1
	S20526000	ボウジンイタ	3
	018400832	アナボルト4X8	6
	025040132	ヒラガネシヨウ4	2
	S39692021	サドウチヨウセツリンク	1
	S20543101	シメネジ	1
	S20544000	サドウリンクレバー	1
	018061432	アナボルト6X14	1
	S39593021	サドウチヨウセツレバークミ	1
	S39596021	マルナツト6	1
	S20547001	レバーバネ	1

Page 27 — E. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación

Brother MA4-N31 parts on page 27

Ref	Part number	Part name	Qty
2	2	SCREW
1-1-1	1-1-1	SCREW
1-3	1-3	SCREW
1-4	1-4	SCREW
1-2-1	1-2-1	SCREW
5	5	SCREW
6	6	SCREW
8	8	SCREW
8-1	8-1	SCREW
9	9	SCREW
10	10	SCREW
11	11	SCREW
12	12	SCREW
13	13	SCREW
14	14	SCREW
15	15	SCREW
16	16	SCREW
17	17	SCREW
18	18	SCREW
19	19	SCREW
20	20	SCREW
21	21	SCREW
22	22	SCREW
23	23	SCREW
24	24	SCREW
25	25	SCREW
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	SCREW
30	30	SCREW
31	31	SCREW
32	32	SCREW
33	33	SCREW
34	34	SCREW
35	35	SCREW
36	36	SCREW
37	37	SCREW
38	38	SCREW
39	39	SCREW
40	40	SCREW
40-1	40-1	SCREW
41	41	SCREW
42	42	SCREW
43	43	SCREW
44	44	SCREW
45	45	SCREW
46	46	SCREW
47	47	SCREW
48	48	SCREW
49	49	SCREW
50	50	SCREW
51	51	SCREW
52	52	SCREW
53	53	SCREW
54	54	SCREW
54-1	54-1	SCREW
55	55	SCREW
56	56	SCREW
57	57	SCREW
58	58	SCREW
59	59	SCREW
60	60	SCREW
61	61	SCREW
62	62	SCREW
63	63	SCREW
64	64	SCREW
65	65	SCREW
66	66	SCREW
69	69	SCREW
70	70	SCREW
75	75	SCREW
75-1	75-1	SCREW
76	76	SCREW
77	77	SCREW
78	78	SCREW

Page 28 — E. 送リ関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación

Brother MA4-N31 parts on page 28

Ref	Part number	Part name	Qty
56	081005670	O RING, PW5	1
57	047502242	PIN, SPRING ROLL AWS	1
58	S39693001	DIFFERENTIAL STITCH CONTROL	1
59	S20548001	COLLAR	2
60	018061632	BOLT, M6X16	2
61	S25818001	STOPPER FOR ADJUST LEVER	2
62	060350812	SCREW, BIND M3.5X8	2
63	025350332	WASHER, PLAIN L 3.5	2
64	S3969021	SET SCREW KNOB	1
65	S39695001	SET SCREW	1
66	S20560001	SPRING WASHER	1
69	S23628001	MAIN FEED DOG SET BRACKET	1
70	S23621101	BOLT, M3.5X8	1
75	※	MAIN FEED DOG ASSY	1
75-1	060630712	SCREW, BIND SM2.38-56X7	1
76	S23621101	BOLT, M3.5X8	1
77	※	DIFFERENTIAL FEED DOG	1
78	S23621101	BOLT, M3.5X8	1

Page 29 — F. 上メス・下メス関係 / Knife mechanism / Messer / Mécanisme du couteau / Mecanismo de la cuchilla

Brother MA4-N31 parts on page 29

Ref	Part number	Part name	Qty
30	30-2-1	SCREW
30	30-2-2	WASHER
30	30-3	KNIFE HOLDER
30	30-1-1	SCREW
6	6-1	SCREW
5	5	SLEEVE
4	4	SHAFT
3	3	SHAFT
2	2	KNIFE HOLDER
8	8	PIN
11-1	11-1	SCREW
10-1	10-1	SPRING
17	17	GUIDE
22	22	BLADE
25	25	CLAMP
26	26	SCREW
16-1	16-1	SPRING
15-1	15-1	SPRING
9-1	9-1	SPRING
28	28	CLAMP
27	27	SHAFT
18	18	SCREW
19	19	BRACKET
21	21	SCREW
9-2	9-2	BRACKET
15-2	15-2	SPRING
14	14	WASHER
16-2	16-2	SPRING
12	12	BRACKET
13	13	BRACKET
11-2	11-2	SPRING
10-2	10-2	SCREW
29	29	SCREW

Page 30 — F. 上メス・下メス関係 / Knife machanism / Messer / Mécanisme du couteau / Mecanismo de la cuchilla

Brother MA4-N31 parts on page 30

Ref	Part number	Part name	Qty
	520571101	ウワメスサドウデ	1
	155247000	ダストシール	1
	539704021	ウワメス メタルL	1
	539677021	メタル 11.11-17	1
	543527001	セットカラークミ	1
	012060632	アナヒラ 6X6	2
	520574001	ウワメスダキナット	1
	520589101	ウワメスダキ	1
	062401212	ナベコ 4X12	1
	025040132	ヒラザガネショウ4	1
	144074300	ウワメス	1
	523621101	ボルト 35X8	1
	520591101	シタメストリツケダイ	1
	062060812	ナベコ 6X8	1
	539707001	シタメストリツケダイアンナイ	1
	062060812	ナベコ 6X8	2
	539708001	シタメスオサエ	1
	017500812	ボルト 5X8	1
	520585001	シタメストリツケダイバネ	1
	539709021	シタメスバネウケ	1
	062400812	ナベコ 4X8	1
	539701011	ウワメスクランククロツドクミ।	1
	539701012	ウワメスクランククロツドクミ।	1
	018401622	アナボルト 4X16	2
	017061612	ボルト 6X16	1
	118735002	ザガネ	1
	523342001	アナトガリ4X5	1
	520590101	ウワメスダキ	1
	062402512	ナベコ 4X25	1
	125324001	ヒラザガネダイアツ	1
	520577001	ウワメスオサエ	1
	520578101	ウワメスオサエイヤ	1
	025030132	ヒラザガネショウ3	1
	062300412	ナベコ 3X4	1
	520896101	カクメス 幅狭	1
	520897101	カクメス 幅狭 波刃	1
	520579101	カクメス 幅広	1
	520898101	カクメス 幅広 波刃	1

Page 31 — G. 上ルーパ関係 / Over looper mechanism / Oberen Greifer / Mécanisme du boucleur supérieur / Mecanismo del presilladora superior

Brother MA4-N31 parts on page 31

Ref	Part number	Part name	Qty
18	18-1-1	19-1-1
19	19-1-1	18-1-1
2	2	O RING
18-2	18-2	19-2
19-2	19-2	18-2
9-1-2-2	9-1-2-2	9-2-2-2
9-2-2-2	9-2-2-2	9-1-2-2
9-1-1-2	9-1-1-2	9-2-1-2
9-2-1-2	9-2-1-2	9-1-1-2
9-1-1-1	9-1-1-1	9-2-1-1
9-2-1-1	9-2-1-1	9-1-1-1
9-1-3	9-1-3	9-2-3
9-2-3	9-2-3	9-1-3
9-1-2-1	9-1-2-1	9-2-1-1
9-1-1-3	9-1-1-3	9-2-1-3
9-2-1-3	9-2-1-3	9-1-1-3
9-1	9-1	9-2
9-2	9-2	9-1
12	12	Lever
13	13	Screw
14	14	Pin
5	5	Shaft
8	8	Washer
10	10	Screw
3	3	Shaft
4	4	Tube
6-1	6-1	Screw
6	6	Bracket
1	1	Looper

Page 32 — G. 上ルーパ関係/Over looper mechanism / Oberen Greifer / Mecanismo del presillador superior

Brother MA4-N31 parts on page 32

Ref	Part number	Part name	Qty
	S20598000	ロッドフレドメ	2
	S39717021	ウワルーパジクメタルF	1
	S39677021	メタル11.11-17	1
	S39718021	ウワルーパジク	1
	S43527001	セツトカラクーミ	1
	012060632	アナヒラ6X6	2
	018061432	アナホルト6X14	2
	155247000	ダストシール	1
	012400432	アナヒラ4X4	1
	118550001	ミゾツキビン	1
	S30562000	ザガネ	1
	S38313001	ウワルーパコウクミSH	1
	S23342001	アナトガリ4X5	1
	017061612	ボルト6X16	1
	118735002	ザガネ	1
	155162001	スペーサ	1
	S38320000	ウワルーパンナイオサエ	1
	S20355002	シメネジ3X8.5	2
	S29700000	ウワルーパンナイフエルト	2
	S38322001	ウワルーパコウクミE	1
	S23342001	アナトガリ4X5	1
	017061612	ボルト6X16	1
	118735002	ザガネ	1
	155162001	スペーサ	1
	S38320000	ウワルーパンナイオサエ	1
	S20355002	シメネジ3X8.5	2
	S29700000	ウワルーパンナイフエルト	2
	S39711011	ウワルーパロツドクミS	1
	S39711012	ウワルーパロツドクミS	1
	018401622	アナホルト4X16	4
	018061432	アナホルト6X14	1
	S39715011	ウワルーパロツドクミHE	1
	S39715012	ウワルーパロツドクミHE	1
	018401622	アナホルト4X16	4
	018061432	アナホルト6X14	1

Page 33 — H. 下ルーパ関係 / Under looper mechanism / Unterer Greifer / Mécanisme du boucleur inférieur / Mecanismo del presillador inferior

Brother MA4-N31 parts on page 33

Ref	Part number	Part name	Qty
16	16-1-1	16-1-1
17	17-1-1	17-1-1
3	3	3
7	7	7
6	6	6
9	9	9
2	2	2
14-1	14-1	14-1
5	5	5
8	8	8
10	10	10
11	11	11
12	12	12
13	13	13
95	95	95
14-2	14-2	14-2
15	15	15

Page 34 — H. 下ループ関係 / Under loop mechanism / Unterer Greifer / Mécanisme du boucleur inférieur / Mecanismo del presilladora inferior

Brother MA4-N31 parts on page 34

Ref	Part number	Part name	Qty
	012060632	SET SCREW, SOCKET (FT) M6X6	2
	S20598000	ROD STOPPER	2
	S20622001	UNDER LOOP SHAFT	1
	S23626001	WASHER	1
	017060812	BOLT, M6X8	1
	S39728021	UNDER LOOP SHAFT BUSH, F	1
	S39677021	BUSH, 11.11-17	1
	155247000	DUST SEAL	1
	S20625001	UNDER LOOP HOLDER	1
	S23614101	BOLT, M5X14	1
	148782001	SPACER	1
	S20626001	UNDER LOOP	1
	060351012	SCREW, BIND M3.5X10	1
	S20627001	UNDER LOOP	1
	S39724011	UNDER LOOP CONNECTING ROD	1
	S39724012	UNDER LOOP CONNECTING ROD	1
	018401622	BOLT, SOCKET M4X16	4
	S39726011	UNDER LOOP CONNECTING ROD	1
	S39726012	UNDER LOOP CONNECTING ROD	1
	018401622	BOLT, SOCKET M4X16	4

Page 35 — J. 二重環ルーパ関係 / Double chain stitch looper mechanism / Doppelkettenstichgreifer / Mécanisme du boucleur pour point de chaînette double / Mecanismo del presilladora de double cadeneta

Brother MA4-N31 parts on page 35

Ref	Part number	Part name	Qty
	1	1
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	12-1	12-1
	12-2	12-2
	15	15
	16	16
	16-1	16-1
	16-2	16-2
	18	18
	19	19
	20	20
	21	21
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30

Page 36 — J. 二重環ルーパ関係 / Double chain stitch looper mechanism / Doppelkettenstichgreifer / Mécanisme du boucleur pour point de chainette double / Mecanismo del presilladora de double cadeneta

Brother MA4-N31 parts on page 36

Ref	Part number	Part name	Qty
1	S39729021	ゼンゴロッドクミ	1
3	S39732021	ゼンゴウデ	1
4	S39733021	セットカラー	1
5	012400432	アナヒラ4X4	2
6	S29102001	ゼンゴロッドブツシユ	1
7	S39734021	ゼンゴウデネジ	1
8	S39690021	ザガネ	1
9	021500216	2シュナツト5	1
10	S39735050	ゼンゴウデカクゴマ	1
11	S20641001	ダンネジ5	1
12	S31881101	カクゴマダキネジツキ	1
12-1	018061432	アナホルト6X14	1
12-2	155162001	スペーサ	1
15	S39736001	ニジユウカンリンククミ	1
16	S20645101	ニジユウカンウデクミ	1
16-1	018061432	アナホルト6X14	1
16-2	155162001	スペーサ	1
17	012400432	アナヒラ4X4	1
18	S23360001	ボルト5X15	1
19	S39690021	ザガネ	1
20	S39740021	ゼンゴジク	1
21	S39741021	ゼンゴジクメタルF	1
22	S39742021	ゼンゴジクメタルB	1
23	155261000	ダストシール	1
24	S20652001	ニジユウカンルーパホルダ	1
25	S23614101	フランジボルト5X14	1
26	148782001	スペーサ	1
27	S20653001	ニジユウカンルーパ	1
28	060351012	バインド3.5X10	1
29	S20654001	ルーパチヨウセツザガネ	1
30	S23456101	ナベコ25X6	1

Page 37

Brother MA4-N31 parts on page 37

Ref	Part number	Part name	Qty
	20	Screw
	19	Plate
	21	Tube
	22	Tube
	17	Screw
	15	Tube
	16	Cap
	13-1	Clamp
	14	Screw
	13	Tube assembly
	12	Screw
	11	Bracket
	2	Nut
	3	Washer
	29-2	Filter
	29-1	Filter
	4	Shaft assembly
	10-1	Clip
	4-1	Collar
	4-2	Screw
	4-4	Shaft housing
	23	Block
	24	Screw
	10	Tube assembly
	8	Tube assembly
	8-1	Clamp
	9	Screw
	6	Screw
	4-3	Shaft
	4-5	Plate
	4-6	Screw
	4-7	Ring
	4-8	Ring
	4-9	Screw
	18	Knob

Page 38 — K. 給油潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación

Brother MA4-N31 parts on page 38

Ref	Part number	Part name	Qty
	S20655101	WORM	1
	012500532	SET SCREW, SOCKET (FT) M5X5	2
	S39743001	COLLAR	1
	S39597001	PUMP ASSY	1
	S20657001	WORM WHEEL	1
	012400432	SET SCREW, SOCKET (FT) M4X4	2
	S39599001	PUMP INNER ROTER ASSY	1
	S39598000	PUMP CASE	1
	S39601000	PUMP BODY COVER	1
	062400812	SCREW, PAN M4X8	3
	S39602000	OIL FILTER	1
	S39603001	OIL FILTER FLANGE	1
	062401212	SCREW, PAN M4X12	2
	018061432	BOLT, SOCKET M6X14	2
	S39744001	OIL PIPE JOINT	1
	S39745001	OIL TUBE ASSY	1
	147942001	STOP RING	2
	S20199001	OIL PIPE JOINT	1
	S39747001	OIL TUBE ASSY	1
	147942001	STOP RING	2
	S39751021	OIL PIPE	1
	S39744001	OIL PIPE JOINT	1
	S39749001	OIL PIPE ASSY	1
	147942001	STOP RING	2
	S20199001	OIL PIPE JOINT	2
	S39752021	OIL PIPE	1
	012400432	SET SCREW, SOCKET (FT) M4X4	1
	012060632	SET SCREW, SOCKET (FT) M6X6	1
	148084001	OIL GAUGE WINDOW	1
	S20668000	NEEDLE BAR LINK FELT	1
	061400812	SCREW, FLAT M4X8	1
	S20671000	WICK (L=100)	1
	S20671000	WICK (L=100)	1
	S20669000	FELT	1
	060400812	SCREW, BIND M4X8	1
	S43523000	OIL FILTER ASSY	1
	S43521000	OIL FILTER, D	1
	S43522000	OIL FILTER	1

Page 39 — L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo

Brother MA4-N31 parts on page 39

Ref	Part number	Part name	Qty
	1	1
	14-1	14-1
	14-2	14-2
	15	15
	19-3	19-3
	19-4	19-4
	54	54
	53	53
	9	9
	10	10
	11	11
	12	12
	13	13
	19	19
	19-1	19-1
	19-2	19-2
	57	57
	55	55
	56	56
	44	44
	45	45
	40	40
	41	41
	38	38
	39	39
	21	21
	62	62
	61	61
	60	60
	59	59
	58	58
	46	46
	47	47
	43	43
	42	42
	22	22
	25	25
	23	23
	24	24
	72	72
	71	71
	48	48
	51	51
	52	52
	68	68
	66	66
	67	67
	63	63
	65	65
	64	64
	35	35
	36	36
	26	26
	27	27
	27	27
	73	73
	74	74
	70	70
	69	69
	37	37
	28	28
	29	29
	30	30
	31	31
	32	32
	76	76
	75	75

Page 40 — L. 糸調子関係/Thread tension / Fadernspannung / Tension du fil / Tensión del hilo

Brother MA4-N31 parts on page 40

Ref	Part number	Part name	Qty
	S38328051	MAIN THREAD GUIDE	1
	S20676001	TENSION STUD	4
	S20677000	TENSION DISC FELT	4
	S20673001	TENSION DISC	8
	110832009	TENSION DISC FELT	4
	144103009	TENSION DISC PRESSER	4
	S20678001	TENSION SPRING, L	1
	S20679001	TENSION SPRING, M	1
	S32276001	TENSION SPRING, LL	1
	S20681000	WASHER	4
	S20682103	TENSION NUT, RED	1
	S20682101	TENSION NUT, LIGHT BLUE	1
	S20682104	TENSION NUT, YELLOW	1
	S20682102	TENSION NUT, GREEN	1
	146592001	THREAD GUIDE PIPE	2
	S23452002	SET SCREW, SOCKET (FT) M4X3.2	1
	S20684101	THREAD GUIDE BRACKET	1
	060400612	SCREW, BIND M4X6	2
	S20685001	UNDER LOOPER THREAD GUIDE, R	1
	S20686001	OVER LOOPER THREAD GUIDE, R	1
	S23418002	SCREW, M4X5	2
	S21133001	OVER LOOPER TAKE-UP, R	1
	S21134001	UNDER LOOPER THREAD TAKE-UP,R	1
	060300412	SCREW, BIND M3X4	1
	S21137001	LOOPER THREAD TAKE-UP, L	1
	060400612	SCREW, BIND M4X6	2
	S21137001	LOOPER THREAD GUIDE, M1	1
	S21136101	OVER LOOPER THREAD GUIDE, L	1
	060400612	SCREW, BIND M4X6	1
	S20687001	UNDER LOOPER THREAD GUIDE, L	1
	S38329001	NEEDLE THREAD GUIDE, C	1
	060400612	SCREW, BIND M4X6	1
	S21126001	NEEDLE THREAD GUIDE, B	1
	060400612	SCREW, BIND M4X6	1
	S21130001	NEEDLE THREAD TAKE-UP, A	1
	060400612	SCREW, BIND M4X6	2
	S21125001	NEEDLE THREAD GUIDE, A	1
	060400612	SCREW, BIND M4X6	1
	S38330050	NEEDLE THREAD PRESSER HOLDER	1
	146427001	SET SCREW, SOCKET (CP) SM3.18	2
	S20689001	NEEDLE THREAD PRESSER COLLAR	1
	S20690001	SPRING	1
	S20691001	NEEDLE THREAD PRESSER PLATE	1
	S20743001	NEEDLE THREAD GUIDE	1
	060300512	SCREW, BIND M3X5	1
	S20694001	LOOPER THREAD GUIDE	1
	060400612	SCREW, BIND M4X6	1
	S20695001	THREAD GUIDE PIPE	1
	S20696001	THREAD GUIDE PIPE SUPPORT	1
	060400612	SCREW, BIND M4X6	1
	S20697001	LOOPER THREAD GUIDE	1
	S20698121	TENSION STUD	1
	144504001	THREAD GUIDE DISC	2
	158782101	PRE TENSION SPRING	1
	155510001	TENSION NUT	1
	S39756021	THREAD HANDLER BRACKET	1
	028050242	WASHER, SPRING 2-5	1
	S20342001	SHOULDER SCREW, M4	1
	S20701001	THREAD HANDLER	1

Page 41 — L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo

Brother MA4-N31 parts on page 41

Ref	Part number	Part name	Qty
	1	THREAD TENSION ASSEMBLY
	9	SPRING
	10	WASHER
	11	WASHER
	12	SPRING
	13	SPRING
	14-1	SPRING
	14-2	SPRING
	15	SPRING
	18	SPRING
	19-1	SPRING
	19-2	SPRING
	19-3	SPRING
	19-4	SPRING
	21	SPRING
	22	SPRING
	23	BRACKET
	24	SCREW
	25	BRACKET
	26	HOOK
	27	SCREW
	28	SCREW
	29	SCREW
	30	SCREW
	31	BRACKET
	32	SCREW
	33	BRACKET
	35	SCREW
	36	SCREW
	37	BRACKET
	38	BRACKET
	39	SCREW
	40	BRACKET
	41	SCREW
	42	BRACKET
	43	SCREW
	44	BRACKET
	45	BRACKET
	46	SPRING
	47	SPRING
	48	SPRING
	49	SPRING
	50	SPRING
	51	BRACKET
	52	BRACKET
	53	BRACKET
	54	SCREW
	55	ROD
	56	BRACKET
	57	SCREW
	58	BRACKET
	59	SCREW
	60	WASHER
	61	SPRING
	62	SPRING
	63	BRACKET
	64	WASHER
	65	SCREW
	66	BRACKET
	67	SPRING
	68	BRACKET
	69	SCREW
	70	SCREW
	71	BRACKET
	72	SCREW
	73	BASE
	74	SPRING
	75	BRACKET
	76	SCREW

Page 42 — L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo

Brother MA4-N31 parts on page 42

Ref	Part number	Part name	Qty
	S39757001	カラー	1
	060401412	バインド M4X14	1
	150813001	ダイオサエバネ	1
	062350612	ナベコ M3.5X6	1
	S20702001	DLテンビンイトアンナイ	2
	S20158101	ナベコ 25X3	2
	S20703001	DLテンビンクミ	1
	S23452002	アナヒラ4X3.2	2
	S20707001	DLイトアンナイA	1
	060400612	バインド M4X6	1
	S20675001	チョウシライトアンナイ	1
	S20676001	イトチョウシボウ	5
	S20677000	イトチョウシサラフエルト	5
	S20673001	イトチョウシサラ	10
	11083009	イトチョウシサラフエルト	5
	144103009	イトチョウシサラオサエ	5
	S20681000	チョウシバネウエザガネ	5
	S20682103	イトチョウシナツト 赤	2

Page 43

Brother MA4-N31 parts on page 43

Ref	Part number	Part name	Qty
	1-1-1	Needle cooler / Nadelkühlungsvorrichtung / Mécanisme du refroidisseur d'aiguille / Mecanismo del enfriador de aguja
	1-2	Needle cooler / Nadelkühlungsvorrichtung / Mécanisme du refroidisseur d'aiguille / Mecanismo del enfriador de aguja
	1-1	Needle cooler / Nadelkühlungsvorrichtung / Mécanisme du refroidisseur d'aiguille / Mecanismo del enfriador de aguja
	1-4	Needle cooler / Nadelkühlungsvorrichtung / Mécanisme du refroidisseur d'aiguille / Mecanismo del enfriador de aguja
	75	Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo
	76	Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo
	77	Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo
	78	Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo
	1-1	Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo
	1-1-1	Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo
	1-2	Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo
	1	Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo

Page 44

Brother MA4-N31 parts on page 44

Ref	Part number	Part name	Qty
	S43525001	<オプション用>
	S20468001	ハリレイヤクセットS
	S20460000	フェルトササエクリミ
	S23418002	シリコンタンクフタ
	060401012	シメネジ4X5
	S06704001	バインドM4X10
	S06704001	シリコンオイル
	S20130009	イトタテダイクミネジツキ
	S20131009	イトタテダイクミ
	S20134001	シメネジW476-24X10
	S20135001	イトタテボウ
	034422006	+2サラモク41X20

Page 45

Brother MA4-N31 parts on page 45

Ref	Part number	Part name	Qty
	1	Tape winder mechanism
	1-1	Tape winder mechanism
	1-2	washer
	1-3	spring
	1-4	washer
	2	screw
	3	washer
	4	Lapper mechanism
	5	screw
	6	screw
	7	screw
	8	screw
	10	screw
	11	screw

Page 46

Brother MA4-N31 parts on page 46

Ref	Part number	Part name	Qty
	143767002	テープワインダークミ	1
	143980001	ツマミネジ	1
	108494001	ザガネ	1
	108495001	テープワインダオシバネ	1
	100136001	イトチョウクシナツト	1
	101118001	マルモクネジ4.5X20	2
	S21318000	ラツパークミ	1
	062400812	ナベコ4X8	2
	025040232	ヒラザガネチユウ4	2
	S25019001	ラツパーダイ	1
	S23651002	アナヒラ6X6ホスメ	2
	S29824000	ラツパー8クミ	1
	S29827000	ラツパー10クミ	1
	S29835001	ラツパーアンナイイタ	1
	S23418002	シメネジ4X5	1
	S29831000	テープアンナイクミ	1
	062400612	ナベコM4X6	1

Page 47

Brother MA4-N31 parts on page 47

Ref	Part number	Part name	Qty
	1-1	BASE
	1-2	SUPPORT
	1-3	BRACKET
	1-4	BRACKET
	1-5	SPRING
	1-6	ADJUSTING KNOB
	1-7	SPRING
	1-8	WASHER
	1-9	SPRING GUIDE
	1-10	LEVER
	1-11	BRACKET
	1-12	SCREW
	1-13	GUIDE
	1-14	SCREW
	1-15	WASHER
	1-16	GUIDE
	1-17	SCREW
	1-18	SHAFT
	1-19	SCREW
	1-20	BRACKET
	1-21	NUT
	1-22	SCREW
	1-23	NUT
	1-24	SPRING
	1-25	BRACKET
	1-26	BRACKET
	1-27	BRACKET
	1-28	BRACKET
	1-29	BRACKET
	2	SPRING
	3	SPRING
	4	BRACKET
	5	SCREW
	6	ADJUSTING KNOB
	7	NUT
	8	BRACKET
	9	BRACKET
	10	PIN
	11	BRACKET
	12	SCREW
	13	BRACKET
	14	PIN
	15	SCREW
	16	BRACKET
	17	NUT
	18	COLLAR
	19	SCREW
	28	WASHER
	29	PLATE

Page 48 — R. ラフラー装置 / Ruffling attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido

Brother MA4-N31 parts on page 48

Ref	Part number	Part name	Qty
	S30134001	RUFFLER ASSY	1
	S21293001	RUFFLER ATTACHMENT ASSY	1
	S21294001	RUFFLING BLADE BRACKET	1
	S21295001	RUFFLING BLADE BASE SHAFT	1
	S21305001	SPRING BASE	1
	S23777101	SET SCREW, M6	2
	S20676001	TENSION STUD	1
	S23775001	COIL SPRING	1
	S20681000	WASHER	1
	S20682105	TENSION NUT	1
	S21296001	RUFFLING BLADE	1
	144784001	WASHER	1
	062300812	SCREW, PAN M3X8	2
	S21297001	RUFFLER BASE	1
	S21306001	STUD SCREW 6	1
	S21307001	WASHER, SPRING	2
	S21298001	RUFFLING BLADE GUIDE	1
	062350812	SCREW, PAN M3.5X8	1
	S21299001	CLOTH PRESSER LIFTER	1
	S23651002	SET SCREW, SOCKET (FT) M6X6	2
	S21300001	HANDLE SET PLATE	1
	021060302	NUT, 3 M6	1
	062401612	SCREW, PAN M4X16	1
	021400212	NUT, 2 M4	1
	S21301001	SPRING	1
	S21302001	SPRING PLATE (U)	1
	062350612	SCREW, PAN M3.5X6	1
	S21303001	SPRING PLATE (D)	1
	062350512	SCREW, PAN M3.5X5	2
	S21304001	COLLAR	1
	018401632	BOLT M4X16	1
	018401032	BOLT 4X10	1
	S21590000	RUFFLER GUIDE	1
	S23418002	SCREW, M4X5	2
	S23779001	HANDLE	1
	021060302	NUT, 3 M6	1
	102707002	WASHER, PLAIN 4	2
	S43530001	RUFFLER INTERLOCKING PARTS SET	1
	S21310001	CLOTH PRESSER BAR LIFTER LEVER	1
	S21311001	PRESSER BAR LIFTER BRACKET	1
	012060632	PIN 6.35	1
	062060632	SET SCREW, SOCKET (FT) M6X6	1
	062350812	SCREW, PAN M3.5X8	2
	S39795001	WIRE SET PLATE	1
	S21314001	FLEXIBLE WIRE ASSY	1
	S23774001	SHOULDER SCREW, M3.5	1
	S21315001	STUD M4	1
	021400212	NUT, 2 M4	1
	S21316001	WIRE STOPPER	1
	012400432	SET SCREW, SOCKET (FT) M4X4	1
	S39796001	SPACER	1

Page 49 — R. ラフラー装置 /Ruffling attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorios de fruncido

Brother MA4-N31 parts on page 49

Ref	Part number	Part name	Qty
67	20-1-12	20-1-12
68	20-1-13	20-1-13
69	20-1-12	20-1-12
70	20-1-11	20-1-11
71	20-1-1	20-1-1
72	20-1-12	20-1-12
75	20-1-13	20-1-13
76	20-1-12	20-1-12
77	20-1-11	20-1-11
78	20-1	20-1
20-1-2	20-1-2	20-1-2
20-1-9	20-1-9	20-1-9
20-1-3	20-1-3	20-1-3
20-1-10	20-1-10	20-1-10
20-1-5	20-1-5	20-1-5
20-1-4	20-1-4	20-1-4
20-1-6	20-1-6	20-1-6
20-1-7	20-1-7	20-1-7
20-1-8	20-1-8	20-1-8
23	23	23
25	25	25
21	21	21
20-2-13	20-2-13	20-2-13
20-2-12	20-2-12	20-2-12
20-2-12	20-2-12	20-2-12
20-2-11	20-2-11	20-2-11
20-2-1	20-2-1	20-2-1
20-2-2	20-2-2	20-2-2
20-2-10	20-2-10	20-2-10
20-2-9	20-2-9	20-2-9
20-2-3	20-2-3	20-2-3
20-2-5	20-2-5	20-2-5
20-2-7	20-2-7	20-2-7
20-2-8	20-2-8	20-2-8
23	23	23
20-2-4	20-2-4	20-2-4
20-2-6	20-2-6	20-2-6
25	25	25
22	22	22
20-2	20-2	20-2

Page 50 — R. ラフラー装置 / Ruffing attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido

Brother MA4-N31 parts on page 50

Ref	Part number	Part name	Qty
	S30135001	サドウチヨウセツト	1
	S21373001	サドウチヨウセツクミ	1
	155197101	ヒザアテヨコジクウケ	1
	S21375001	ヨコジク	1
	155199101	ヒザアテツギテ	1
	017781012	ボルト 6.35×10	2
	148797001	ヒザアゲテジクS	1
	014780622	アナトメネジ 6.35クボミ	1
	148798009	ヒザアテL	1
	100463001	カクボルト 7.94	1
	S21376001	ヒザアテレバー	1
	017781012	ボルト 6.35×10	2
	S21377001	ヒザアテレバーバネ	1
	S21378001	ヨコジクメク	2
	017781012	ボルト 6.35×10	4
	S21379001	ヒザアテリンク	1
	062401012	ナベコ M4X10	4
	021400202	2シュナツト 4	2
	S30135002	サドウチヨウセツト	1
	S21380001	サドウチヨウセツンウチクミ	1
	155197101	ヒザアテヨコジクウケ	1
	S21375001	ヨコジク	1
	155199101	ヒザアテツギテ	1
	017781012	ボルト 6.35×10	2
	148797001	ヒザアゲテジクS	1
	014780622	アナトメネジ 6.35クボミ	1
	148798009	ヒザアテL	1
	100463001	カクボルト 7.94	1
	S21376001	ヒザアテレバー	1
	017781012	ボルト 6.35×10	2
	S21377001	ヒザアテレバーバネ	1
	S21378001	ヨコジクメク	2
	017781012	ボルト 6.35×10	4
	S21381001	ヒザアテリンク	1
	062401012	ナベコ M4X10	4
	021400202	2シュナツト 4	2

Page 51

Brother MA4-N31 parts on page 51

Ref	Part number	Part name	Qty
	1	SCREW DRIVER
	4	SCREW DRIVER
	5	SCREW DRIVER
	7	SCREW DRIVER
	8	SCREW DRIVER
	9	SCREW DRIVER
	10	SCREW DRIVER
	11	SCREW DRIVER
	12	SCREW DRIVER
	13	SCREW DRIVER
	14	SCREW DRIVER
	18	NEEDLE THREADER
	19	OIL BOTTLE
	24	CHAIN
	25	COVER
	27	BASE
	29	SCREW
	31	WASHER
	32	WASHER
	33	WASHER
	41	COVER
	48-1	BASE PLATE
	48-2	BASE PLATE
	56	BRACKET
	57	SCREW
	58	BRACKET
	59	SCREW
	60	WASHER
	65	BASE
	66	SCREW
	67	BASE
	69	PEDAL
	70	PEDAL
	71	SCREW
	72	WASHER
	91	CLIP
	92	SCREW

Page 52 — Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother MA4-N31 parts on page 52

Ref	Part number	Part name	Qty
1	DCX27	NEEDLE	2
4	LOWER KNIFE	LOWER KNIFE	1
5	101572101	SCREW DRIVER, 5.5X190	1
7	501943001	SCREW DRIVER, 1.6	1
8	142002001	HEXAGONAL WRENCH, 2	1
9	149570001	HEXAGONAL WRENCH, 5	1
10	523356001	DOUBLE WRENCH, 8X10	1
11	523363001	WRENCH, 6	1
12	520723001	DOUBLE WRENCH, 8	1
13	117466000	PINCETTE	1
14	524473000	THREADER	1
18	506701000	POLY OILIER ASSY	1
19	145277205	OIL TANK	1
24	142262001	CHAIN, F ASSY	1
27	520718000	HEAD PLATE	1
29	535997001	BOLT, M8X85	4
31	213650001	WASHER, 2.3X8.5X38ST	4
32	028080242	WASHER, SPRING 2-8	4
33	021080106	NUT, 1 M8	4
40	520769000	FUNNEL	1
41	144225002	HEAD COVER	1
48-1	147919001	RUBBER CUSHION	1
48-2	147919002	RUBBER CUSHION	3
56	183797009	DUSTER CHUTE ASSY	1
57	031411304	WOOD SCREW, ROUND M4.1X13	3
58	523353001	DUSTER SHOOT SUPPORT, S	1
59	062400612	SCREW, PAN M4X6	2
60	025040332	WASHER, PLAIN L4	2
65	538302020	BELT COVER	1
66	062061412	SCREW, PAN M6X14	3
67	520412000	RUBBER CAP, 3.7	1
69	147893009	オサエゲフミイタ	1
70	021400106	ナツト1シュ4	2
71	062401406	ナベコ4X14	2
72	116016001	ベタルトメ	2
91	520118101	TRIMMING KNIFE	1
92	060300512	SCREW, BIND M3X5	1
69	147893009	TREADLE PEDAL	1
70	021400106	NUT, 1 M4	2
71	062401406	SCREW, PAN M4X14	2
72	116016001	PEDAL STOPPER	2

Page 53 — Z. 付属 品 関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother MA4-N31 parts on page 53

Ref	Part number	Part name	Qty
	42-2-17-1	42-2-17-1
	42-2-18-1	42-2-18-1
	42-2-7-1	42-2-7-1
	42-2-18-2	42-2-18-2
	42-2-16	42-2-16
	42-2-6	42-2-6
	42-2-12	42-2-12
	42-2-19-1	42-2-19-1
	42-2-5	42-2-5
	42-2-10-1	42-2-10-1
	42-2-3	42-2-3
	42-2-2	42-2-2
	42-2-1	42-2-1
	42-2-20-1	42-2-20-1
	42-2-20-2	42-2-20-2
	42-2-13	42-2-13
	42-2-17-1	42-2-17-1
	42-2-19-2	42-2-19-2
	42-2-7	42-2-7
	42-2-9	42-2-9
	42-2-17-4	42-2-17-4
	42-2-11	42-2-11
	42-2-15	42-2-15
	42-2-18-1	42-2-18-1
	42-2-20-3	42-2-20-3
	42-2-10-2	42-2-10-2
	42-2-10-3	42-2-10-3
	42-2-17-2	42-2-17-2
	42-2-19-3	42-2-19-3
	42-2-18-3	42-2-18-3
	42-2-8	42-2-8
	42-2-4-1	42-2-4-1
	42-2-4-2	42-2-4-2
	42-2-14	42-2-14

Page 54 — Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother MA4-N31 parts on page 54

Ref	Part number	Part name	Qty
	529864109	COTTON STAND ASSY, 6DTH	1
	150180001	SPOOL STAND BASE	6
	150182000	SPOOL MAT	6
	126863001	SPOOL CUSHION	6
	502775001	PIPE SCREW SET, A	1
	150206002	WASHER, PLAIN 16	1
	S38648001	NUT, U5/8-28	1
	S04109001	THREAD GUIDE SUPPORT BAR	1
	502783001	THREAD GUIDE, 6	1
	540640001	COLUMN PIPE WITH CAP	1
	150174000	COLUMN PIPE	1
	156112003	COLUMN PIPE, D	1
	150173003	COLUMN JOINT	1
	521798001	SPOOL SCREW SET	6
	150179002	SPOOL SHAFT, B	6
	028050246	WASHER, SPRING 2-5	6
	021500106	NUT, 1 M5	6
	150185009	THREAD GUIDE HOLDER	1
	138843001	JOINT	1
	150188009	SPOOL HOLDER SUPPORT, A	1
	150194009	SPOOL HOLDER SUPPORT, B	1
	502779009	SPOOL HOLDER, 3	2
	502788009	THREAD HANGER ASSY, 3	2
	540641001	SPOOL SCREW SET, A	1
	021500106	NUT, 1 M5	4
	537038001	SCREW, PAN (P WASHER) M5X14	1
	537037001	SCREW, PAN (P WASHER) M5X32	1
	062501406	SCREW, PAN M5X14	1
	540642001	SPOOL SHAFT SCREW SET, B	1
	021500106	NUT, 1 M5	2
	537038001	SCREW, PAN (P WASHER) M5X14	1
	537037001	SCREW, PAN (P WASHER) M5X32	1
	540643001	HOLDER JOINT SCREW SET	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	021500106	NUT, 1 M5	1
	537037001	SCREW, PAN (P WASHER) M5X32	1
	540644001	HOLDER JOINT SCREW SET	2
	021500106	NUT, 1 M5	1
	031452206	WOOD SCREW, ROUND M4.5X22	1
	062501006	SCREW, PAN M5X10	1

Page 56 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Brother MA4-N31 parts on page 56

Ref	Part number	Part name	Qty
	S29855109	COTTON STAND ASSY, 5DTHF	1
	1501800001	SPOOL STAND BASE	5
	1501820000	SPOOL MAT	5
	126863001	SPOOL CUSHION	5
	S02775001	PIPE SCREW SET, A	1
	150206002	WASHER, PLAIN 16	1
	S38648001	NUT, U5/8-28	1
	S04109001	THREAD GUIDE SUPPORT BAR	1
	142999101	THREAD GUIDE, 5	1
	S40640001	COLUMN PIPE WITH CAP	1
	150174000	COLUMN CAP	1
	156112003	COLUMN PIPE, D	1
	150173003	COLUMN JOINT	1
	S21798001	SPOOL SCREW SET	5
	150179002	SPOOL SHAFT, B	5
	028050246	WASHER, SPRING 2-5	5
	021500106	NUT, 1 M5	5
	150185009	THREAD GUIDE HOLDER	1
	138843001	JOINT	1
	150188009	SPOOL HOLDER SUPPORT, A	1
	S02778002	SPOOL HOLDER, 2	1
	S02786002	THREAD HANGER ASSY, 2	1
	S02779009	SPOOL HOLDER, 3	1
	S02788009	THREAD HANGER ASSY, 3	1
	S40641001	SPOOL SCREW SET, A	1
	021500106	NUT, 1 M5	4
	S37038001	SCREW, PAN (P WASHER) M5X14	1
	S37037001	SCREW, PAN (P WASHER) M5X32	1
	002501406	SCREW, PAN M5X14	2
	S40642001	SPOOL SHAFT SCREW SET, B	1
	021500106	NUT, 1 M5	2
	S37038001	SCREW, PAN (P WASHER) M5X14	1
	S37037001	SCREW, PAN (P WASHER) M5X32	1
	S40643001	HOLDER JOINT SCREW SET	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	021500106	NUT, 1 M5	1
	S37037001	SCREW, PAN (P WASHER) M5X32	1
	S40644001	HOLDER JOINT SCREW SET	1
	021500106	NUT, 1 M5	1
	031452206	WOOD SCREW, ROUND M4.5X22	1
	062501006	SCREW, PAN M5X10	1
	183798001	FULL SUBMERGED SET	1
	S20721001	HEAD PLATE SUPPORT	1
	153318201	BOLT	4
	S35997001	BOLT, M8X85	1
	S36007001	BOLT, M8X55	1
	017085502	BOLT, M8X55	1
	025080236	WASHER, PLAIN M 8	11
	028080242	WASHER, SPRING 2-8	7
	021080106	NUT, 1 M8	15
	213650001	WASHER, 2.3X8.5X38ST	8
	S20722001	DUSTER SHOOT SUPPORT, L	1
	060400812	SCREW, BIND M4X8	2
	060400812	SCREW, BIND M4X8	3

Page 57 — Ga1. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment

Brother MA4-N31 parts on page 57

Ref	Part number	Part name	Qty
	151474-011 (2)	Needle (Qty.)
	151474-014 (2)	Needle (Qty.)
	151474-016 (2)	Needle (Qty.)
	S19304-101	Presser Foot Assy
	S19313-201	Presser Foot Assy
	S19317-101	Presser Foot Assy
	S29146-001	Needle Clamp Assy
	S20404-001	Needle Clamp Assy
	S20406-001	Needle Clamp Assy
	S25194-001 (2)	Needle Plate
	S25195-001 (3)	Needle Plate
	S19174-001 (4)	Needle Plate
	S19175-001 (5)	Needle Plate
	S20234-001 (3)	Needle Plate
	S20235-001 (4)	Needle Plate
	S20236-001 (5)	Needle Plate
	S25196-001 (7)	Needle Plate
	S20231-001 (4)	Needle Plate
	S20232-001 (5)	Needle Plate
	S20233-001 (6)	Needle Plate
	S25197-001 (7)	Needle Plate
	S19221-201	Main Feed Dog Assy
	S20241-101	Main Feed Dog Assy
	S20239-101	Main Feed Dog Assy
	S19245-001	Differential Feed Dog
	S20245-001	Differential Feed Dog
	S20244-001	Differential Feed Dog
	144074-300	Upper Knife
	S20582-001	Lower Knife
	S20899-001	Lower Knife
	S20582-001	Lower Knife
	S20422-001, A	Over Looper
	S20421-001, L	Over Looper
	S20424-001, B	Over Looper
	S20421-001, L	Over Looper
	S20424-001, B	Over Looper
	S20421-001, L	Over Looper
	S20428-001, C	Over Looper
	S20423-001, M	Over Looper
	S20428-001, C	Over Looper
	S20423-001, M	Over Looper
	185-N31	Over Looper

Page 58 — Ga2. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment

Brother MA4-N31 parts on page 58

Ref	Part number	Part name	Qty
	S25548-101	Presser Foot Assy
	S19321-101	Presser Foot Assy
	S19326-101	Presser Foot Assy
	S29146-001	Needle Clamp Assy
	S20404-001	Needle Clamp Assy
	S20406-001	Needle Clamp Assy
	S25198-001 (4)	Needle Plate
	S25199-001 (5)	Needle Plate
	S19497-001 (4)	Needle Plate
	S19182-001 (5)	Needle Plate
	S19183-001 (5)	Needle Plate
	S19184-001 (6)	Needle Plate
	S19224-201	Main Feed Dog Assy
	S19226-101	Main Feed Dog Assy
	S19246-001	Differential Feed Dog
	S20582-001	Lower Knife
	S20424-001, B	Over Looper
	S20423-001, M	Over Looper
	S20424-001, B	Over Looper
	S20423-001, M	Over Looper
	S20424-001, B	Over Looper
	S20423-001, M	Over Looper
	S20428-001, C	Over Looper

Page 59 — Ga3 . ゲージ 部品 一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores

Brother MA4-N31 parts on page 59

Ref	Part number	Part name	Qty
	151474-014 (2)	Needle (Qty.)
	S25550-001	Presser Foot Assy
	S25555-001	Presser Foot Assy
	S19330-201	Presser Foot Assy
	S20404-001	Needle Clamp Assy
	S20406-001	Needle Clamp Assy
	S20404-001	Needle Clamp Assy
	S19182-001 (5)	Needle Plate
	S19183-001 (5)	Needle Plate
	S19184-001 (6)	Needle Plate
	S20235-001 (4)	Needle Plate
	S20236-001 (5)	Needle Plate
	S19224-201	Main Feed Dog Assy
	S19226-101	Main Feed Dog Assy
	S20241-101	Main Feed Dog Assy
	S19246-001	Differential Feed Dog
	S20245-001	Differential Feed Dog
	144074-300	Upper Knife
	S20582-001	Lower Knife
	S20424-001, B	Over Looper
	S20423-001, M	Over Looper
	S20424-001, B	Over Looper
	S20423-001, M	Over Looper
	S20424-001, B	Over Looper
	S20423-001, M	Over Looper
	S20428-001, C	Over Looper

Page 60 — Ga4. ゲージ 部品 一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores

Brother MA4-N31 parts on page 60

Ref	Part number	Part name	Qty
	151474-016 (2)	Needle (Qty.)
	151474-018 (2)	Needle (Qty.)
	151474-014 (2)	Needle (Qty.)
	S20882-201	Presser Foot Assy
	S25557-001	Presser Foot Assy
	S25560-101	Presser Foot Assy
	S20406-001	Needle Clamp Assy
	S29631-001	Needle Clamp Assy
	S20404-001	Needle Clamp Assy
	S20231-001 (4)	Needle Plate
	S20233-001 (6)	Needle Plate
	S20232-001 (5)	Needle Plate
	S25200-001 (3)	Needle Plate
	S25201-001 (5)	Needle Plate
	S25202-001 (4)	Needle Plate
	S25203-001 (5)	Needle Plate
	S20239-101	Main Feed Dog Assy
	S19228-101	Main Feed Dog Assy
	S19221-201	Main Feed Dog Assy
	S20244-001	Differential Feed Dog
	S25566-001	Differential Feed Dog
	S19245-001	Differential Feed Dog
	144074-300	Upper Knife
	S20898-101	Angle Knife
	144074-300	Upper Knife
	S20582-001	Lower Knife
	S20583-001	Lower Knife
	S20582-001	Lower Knife
	S20424-001, B	Over Looper
	S20423-001, M	Over Looper
	S20428-001, C	Over Looper
	S20421-001, L	Over Looper
	S20438-001, G	Over Looper
	S20429-001, Q	Over Looper
	S20424-001, B	Over Looper
	S20423-001, M	Over Looper

Page 61 — Ga5. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores

Brother MA4-N31 parts on page 61

Ref	Part number	Part name	Qty
	151474-018 (2)	Needle (Qty.)	5
	151474-016 (3)	Needle (Qty.)	5, 2.2
	S19334-001	Presser Foot Assy
	S30525-001	Presser Foot Assy
	S25562-101	Presser Foot Assy
	S21104-001	Needle Clamp Assy
	S29148-001	Needle Clamp Assy
	S19185-001 (5)	Needle Plate
	S19187-001 (7)	Needle Plate
	S19186-001 (6)	Needle Plate
	S25204-001	Needle Plate
	S31975-001	Needle Plate
	S19228-101	Main Feed Dog Assy
	S19221-201	Main Feed Dog Assy
	S20239-101	Main Feed Dog Assy
	S19247-001	Differential Feed Dog
	S19245-001	Differential Feed Dog
	S20244-001	Differential Feed Dog
	S20898-101	Angle Knife
	144074-300	Upper Knife
	S20583-001	Lower Knife
	S20582-001	Lower Knife
	S20438-001, G	Over Looper
	S20429-001, Q	Over Looper
	S20438-001, G	Over Looper
	S20430-001, D	Over Looper

Page 62

Brother MA4-N31 parts on page 62

Ref	Part number	Part name	Qty
	S38350-001	操作注意ラベル・和
	S38349-001	Label, operation Eng.
	S37060-001	アースマーク Mark, grounding

Page 63

Brother MA4-N31 parts on page 63

Ref	Part number	Part name	Qty
	S00075000	A -66
	S01295001	D -50-3-3
	S01295001	D -50-4-3
	S01295001	D -50-9-3
	S01295001	D -50-10-3
	S01295001	D -50-11-3
	S01943001	E -38
	S02573000	A -3
	S02606000	Z -7
	S02775001	Z -42-1-4
	S02775001	Z -42-1-14
	S02778002	Z -42-1-16
	S02779009	Z -42-2-15
	S02779009	Z -42-2-16
	S02783001	Z -42-2-6
	S02786002	Z -42-1-15
	S02788009	Z -42-1-17
	S02788009	Z -42-2-16
	S04109001	Z -42-1-5
	S04109001	Z -42-2-5
	S06701000	Z -18
	S06704001	M -1-4
	S19174001	Ga1-4
	S19175001	Ga1-4
	S19182001	Ga2-4
	S19182001	Ga3-4
	S19183001	Ga2-4
	S19183001	Ga3-4
	S19184001	Ga2-4
	S19184001	Ga3-4
	S19185001	Ga5-4
	S19186001	Ga5-4
	S19187001	Ga5-4
	S19221201	Ga1-5
	S19221201	Ga4-5
	S19221201	Ga5-5
	S19224201	Ga2-5
	S19224201	Ga3-5
	S19226101	Ga2-5
	S19226101	Ga3-5
	S19228101	Ga4-5
	S19228101	Ga5-5
	S19245001	Ga1-6
	S19245001	Ga4-6
	S19245001	Ga5-6
	S19246001	Ga2-6
	S19246001	Ga3-6
	S19247001	Ga5-6
	S19307001	D -50-1-4
	S19307001	D -50-2-4
	S19307001	D -50-3-4
	S19307001	D -50-4-4
	S19307001	D -50-6-4
	S19307001	D -50-7-4
	S19307001	D -50-8-4
	S19307001	D -50-9-4
	S19307001	D -50-13-4
	S19307001	D -50-14-4
	S19308001	D -50-1-5
	S19308001	D -50-2-5
	S19308001	D -50-3-5
	S19308001	D -50-4-5
	S19308001	D -50-6-5
	S19308001	D -50-7-5
	S19308001	D -50-8-5
	S19308001	D -50-9-5
	S19308001	D -50-13-5
	S19308001	D -50-14-5
	S19309001	D -50-1-6
	S19309001	D -50-2-6
	S19309001	D -50-3-6
	S19309001	D -50-4-6
	S19309001	D -50-6-6
	S19309001	D -50-7-6
	S19309001	D -50-8-6
	S19309001	D -50-13-6
	S19309001	D -50-14-6
	S19311101	D -50-1-1
	S19311101	D -50-2-1
	S19311101	D -50-3-1
	S19311101	D -50-4-1
	S19311101	D -50-5-1
	S19311101	D -50-6-1
	S19311101	D -50-7-1
	S19311101	D -50-8-1
	S19311101	D -50-9-1
	S19311101	D -50-10-1
	S19311101	D -50-11-1
	S19311101	D -50-12-1
	S19311101	D -50-13-1
	S19312001	D -50-14-1
	S19312001	D -50-2-2
	S19312001	D -50-6-2
	S19312001	D -50-13-2
	S19312001	D -50-14-2
	S19313201	D -50-1
	S19313201	Ga1-2
	S19317101	D -50-2
	S19317101	Ga1-2
	S19321101	D -50-3
	S19321101	Ga2-2
	S19325001	D -50-3-2
	S19325001	D -50-4-2
	S19325001	D -50-9-2
	S19326101	D -50-4
	S19326101	Ga2-2
	S19330201	D -50-7
	S19330201	Ga3-2
	S19334001	D -50-5
	S19334001	Ga5-2
	S19340001	D -50-5-2
	S19340001	D -50-12-2
	S19497001	Ga2-4
	S20115001	D -38-2
	S20117001	D -38-3
	S20118101	Z -91
	S20130009	N -1
	S20131009	N -1-1
	S20134001	N -1-1-1
	S20135001	N -1-1-2
	S20158101	L -72
	S20199001	K -9
	S20199001	K -14
	S20231001	Ga1-4
	S20231001	Ga4-4
	S20232001	Ga1-4
	S20232001	Ga4-4
	S20233001	Ga1-4
	S20233001	Ga4-4
	S20234001	Ga1-4
	S20235001	Ga1-4
	S20235001	Ga3-4
	S20236001	Ga1-4
	S20236001	Ga4-4
	S20239101	Ga1-5
	S20239101	Ga4-5
	S20239101	Ga5-5
	S20241101	Ga1-5
	S20241101	Ga3-5
	S20244001	Ga1-6
	S20244001	Ga4-6
	S20244001	Ga5-6
	S20245001	Ga1-6
	S20245001	Ga3-6
	S20310001	A -13
	S20319001	A -27-3
	S20320101	A -27-5
	S20321001	A -27-6
	S20324101	A -33
	S20325001	A -35
	S20327101	A -27-8
	S20338200	A -61
	S20339000	A -62
	S20340001	A -69
	S20342001	A -70
	S20342001	L -65
	S20345009	A -10
	S20345009	A -75
	S20346000	A -79
	S20355002	G -9-1-2-2
	S20355002	G -9-2-2-2
	S20361001	B -17
	S20362101	B -18
	S20391001	C -7-5
	S20392000	C -7-6
	S20404001	Ga1-3
	S20404001	Ga2-3
	S20404001	Ga3-3
	S20404001	Ga4-3
	S20406001	Ga1-3
	S20412000	A -48
	S20412000	A -55
	S20412000	Z -67
	S20415101	C -21
	S20416101	C -22
	S20418001	C -23
	S20421001	Ga1-9
	S20421001	Ga4-9
	S20422001	Ga1-9
	S20423001	Ga1-9
	S20423001	Ga2-9

Page 64

Brother MA4-N31 parts on page 64

Ref	Part number	Part name	Qty
	S20423001	Ga3-9
	S20424001	Ga4-9
	S20424001	Ga1-9
	S20424001	Ga2-9
	S20424001	Ga3-9
	S20424001	Ga4-9
	S20428001	Ga1-9
	S20428001	Ga2-9
	S20428001	Ga3-9
	S20428001	Ga4-9
	S20429001	Ga4-9
	S20429001	Ga5-9
	S20430001	Ga5-9
	S20438001	Ga4-9
	S20438001	Ga5-9
	S20460000	M - 1-1-1
	S20468001	M - 1-1
	S20476001	D - 4
	S20485001	D - 19
	S20526000	E - 47
	S20530001	E - 30
	S20543101	E - 51
	S20544000	E - 52
	S20547001	E - 55
	S20548001	E - 59
	S20560001	E - 66
	S20571101	F - 2
	S20574001	F - 8
	S20577001	F - 12
	S20578101	F - 13
	S20579101	F - 15-4
	S20582001	Ga1-8
	S20582001	Ga2-8
	S20582001	Ga3-8
	S20582001	Ga4-8
	S20582001	Ga5-8
	S20583001	Ga4-8
	S20583001	Ga5-8
	S20585001	F - 27
	S20589101	F - 9-1
	S20590101	F - 9-2
	S20591101	F - 17
	S20598000	G - 2
	S20598000	H - 3
	S20622001	H - 5
	S20625001	H - 11
	S20626001	H - 14-1
	S20627001	H - 14-2
	S20641001	J - 11
	S20645101	J - 16
	S20652001	J - 24
	S20653001	J - 27
	S20654001	J - 29
	S20655101	K - 1
	S20657001	K - 4-1
	S20668000	K - 19
	S20669000	K - 23
	S20671000	K - 21
	S20671000	K - 22
	S20673001	L - 11
	S20673001	L - 11
	S20675001	L - 8
	S20676001	L - 9
	S20676001	L - 9
	S20677000	L - 1-5
	S20678001	L - 10
	S20678001	L - 10
	S20679001	L - 14-1
	S20681000	L - 14-2
	S20681000	L - 18
	S20681000	L - 18
	S20682101	R - 1-8
	S20682102	L - 19-2
	S20682102	L - 19-4
	S20682103	L - 19-5
	S20682103	L - 19-5
	S20682104	L - 19-3
	S20682105	R - 1-9
	S20684101	L - 23
	S20685001	L - 25
	S20686001	L - 26
	S20687001	L - 37
	S20689001	L - 48
	S20690001	L - 49
	S20691001	L - 50
	S20694001	L - 53
	S20695001	L - 55
	S20696001	L - 56
	S20697001	L - 58
	S20698121	L - 59
	S20701001	L - 66
	S20702001	Z - 71
	S20703001	L - 73
	S20707001	L - 75
	S20718000	Z - 27
	S20721001	Z - 64-1
	S20722001	Z - 64-10
	S20723001	Z - 12
	S20743001	L - 51
	S20769000	Z - 40
	S20770101	D - 38
	S20878000	A - 81
	S20882201	D - 50-8
	S20882201	Ga4-2
	S20896101	F - 15-2
	S20897101	F - 15-3
	S20898101	F - 15-5
	S20898101	Ga4-7
	S20898101	Ga5-7
	S20899001	Ga1-8
	S21104001	Ga5-3
	S21125001	L - 44
	S21126001	L - 40
	S21130001	L - 42
	S21133001	L - 28
	S21134001	L - 29
	S21135001	L - 31
	S21136101	L - 35
	S21137001	L - 33
	S21293001	R - 1
	S21294001	R - 1-1
	S21295001	R - 1-2
	S21296001	R - 1-10
	S21297001	R - 1-13
	S21298001	R - 1-16
	S21299001	R - 1-18
	S21300001	R - 1-20
	S21301001	R - 1-24
	S21302001	R - 1-25
	S21303001	R - 1-27
	S21304001	R - 1-29
	S21305001	R - 1-3
	S21306001	R - 1-14
	S21307001	R - 1-15
	S21310001	R - 8
	S21311001	R - 9
	S21312001	R - 10
	S21314001	R - 14
	S21315001	R - 16
	S21316001	R - 18
	S21318000	Q - 1
	S21373001	R - 20-1
	S21375001	R - 20-1-2
	S21375001	R - 20-2-2
	S21376001	R - 20-1-9
	S21376001	R - 20-2-9
	S21377001	R - 20-1-11
	S21377001	R - 20-2-11
	S21378001	R - 20-1-12
	S21378001	R - 20-2-12
	S21379001	R - 21
	S21380001	R - 20-2
	S21381001	R - 22
	S21590000	R - 4
	S21798001	Z - 42-1-10
	S21798001	Z - 42-2-10
	S23337009	A - 7
	S23337009	A - 76
	S23342001	C - 7-1
	S23342001	C - 34-2
	S23342001	C - 35-2
	S23342001	C - 36-2
	S23342001	F - 30-3
	S23342001	G - 9-1-1-1
	S23342001	G - 9-2-1-1
	S23350001	A - 63
	S23351001	A - 65
	S23353001	Z - 58
	S23356001	Z - 10
	S23357001	A - 78
	S23360001	E - 37
	S23360001	E - 42
	S23360001	J - 18
	S23363001	Z - 11
	S23364000	D - 44
	S23418002	A - 30
	S23418002	L - 27
	S23418002	M - 1-2
	S23418002	Q - 6
	S23418002	R - 5
	S23452002	L - 22
	S23452002	L - 74
	S23456101	C - 24
	S23456101	J - 30
	S23614101	H - 12
	S23614101	J - 25
	S23616101	A - 25
	S23621101	E - 70
	S23621101	E - 76

Page 65

Brother MA4-N31 parts on page 65

Ref	Part number	Part name	Qty
	S23621101	E - 78
	S23621101	F - 16-1
	S23626001	H -6
	S23628001	E -69
	S23651002	Q - 11
	S23651002	R - 1-19
	S23774001	R - 15
	S23775001	R - 1-7
	S23777101	R - 1-4
	S23779001	R -6
	S24473000	Z - 14
	S25019001	Q - 10
	S25184001	A - 93
	S25194001	Gal-4
	S25195001	Gal-4
	S25196001	Gal-4
	S25197001	Gal-4
	S25198001	Ga2-4
	S25199001	Ga2-4
	S25200001	Ga4-4
	S25201001	Ga4-4
	S25202001	Ga4-4
	S25203001	Ga4-4
	S25204001	Ga5-4
	S25548101	D - 50-9
	S25548101	Ga2-2
	S25550001	D - 50-10
	S25550001	Ga3-2
	S25553001	D - 50-10-2
	S25553001	D - 50-11-2
	S25557001	D - 50-12
	S25557001	Ga4-2
	S25560101	D - 50-13
	S25560101	Ga4-2
	S25562101	D - 50-14
	S25562101	Ga5-2
	S25566001	Ga4-6
	S25818001	E - 61
	S27868001	B - 16
	S29102001	J - 6
	S29146001	Ga1-3
	S29146001	Ga2-3
	S29146001	Ga5-3
	S29631001	Ga4-3
	S29700000	G - 9-1-3
	S29700000	G - 9-2-3
	S29824000	Q -4
	S29827000	Q -7
	S29831000	Q -5
	S29835001	Q -5
	S29855109	Z - 42-1
	S29864109	Z - 42-2
	S30134001	R - A
	S30135001	R - C
	S30135002	R - D
	S30525001	D - 50-15
	S30525001	Ga5-2
	S30532001	D - 50-15-2
	S30562000	D - 28
	S30562000	E - 18
	S30562000	G -8
	S30889001	D - 38-4
	S30971001	D - 50-7-2
	S30971001	D - 50-7-2
	S30971001	D - 50-8-2
	S31881101	J - 12
	S31975001	Ga5-4
	S32276001	L - 15
	S35997001	Z - 29
	S35997001	Z - 64-3
	S36007001	Z - 64-4
	S37037001	Z-42-1-18-3
	S37037001	Z-42-1-20-3
	S37037001	Z-42-1-17-3
	S37037001	Z-42-2-18-3
	S37037001	Z-42-2-19-3
	S37038001	Z-42-1-18-2
	S37038001	Z-42-1-19-2
	S37038001	Z-42-2-17-2
	S37038001	Z-42-2-18-2
	S37060001	Wa
	S37070121	D - 34
	S38301020	A - 44
	S38302020	Z - 65
	S38305001	A - 29-1
	S38306051	C - 25
	S38307001	C - 27
	S38308021	D - 5
	S3831100	E - 43
	S38312050	E - 24
	S38313001	G - 9-1
	S38320000	G - 9-1-2-1
	S38320000	G - 9-2-2-1
	S38322001	G - 9-2
	S38328051	L - 1
	S38329001	L - 38
	S38330050	L - 46
	S38349001	Wa
	S38350001	Wa
	S38648001	Z - 42-1-4-2
	S38648001	Z - 42-2-4-2
	S39562001	A - 37
	S39563020	A - 24
	S39564021	A - 23
	S39565001	B - 24-2
	S39566001	C -7
	S39571021	C - 10
	S39574001	C -8
	S39577000	D - 2-1
	S39578001	E - 1
	S39585001	E - 1-3
	S39586001	E - 1-4
	S39589021	E - 8
	S39593021	E - 54
	S39596021	E - 54-1
	S39597001	K - 4
	S39598000	K - 4-4
	S39599001	K - 4-3
	S39601000	K - 4-5
	S39602000	K - 4-7
	S39603001	K - 4-8
	S39605001	A - 2
	S39606020	A - 5
	S39607001	A - 8
	S39608021	A - 11
	S39610021	A - 21
	S39611001	A - 27
	S39612001	A - 27-1
	S39613001	A - 27-2
	S39623001	A - 38
	S39624021	A - 42
	S39625051	A - 49
	S39626021	A - 58
	S39629021	B - 3
	S39630000	B - 10
	S39631000	B - 20
	S39633011	C - 34
	S39633012	C - 34
	S39638011	C - 35
	S39638012	C - 35
	S39641011	C - 36
	S39641012	C - 36
	S39644021	C - 2
	S39645021	C - 3
	S39646021	C - 4
	S39647000	C - 5
	S39648021	C - 9
	S39649021	C - 15
	S39650051	C - 17
	S39652021	C - 18
	S39654051	C - 29
	S39658001	D - 1
	S39659021	D - 6
	S39660001	D - 7
	S39661001	D - 8
	S39662001	D - 9
	S39663021	D - 11
	S39664001	D - 12
	S39665001	D - 15
	S39666001	D - 20
	S39667021	D - 21
	S39669001	D - 23
	S39670000	D - 24
	S39671021	D - 26
	S39672001	D - 29
	S39673020	E - 5
	S39674001	E - 9
	S39675001	E - 10
	S39676021	E - 15
	S39677021	E - 16
	S39677021	F - 5
	S39677021	G - 4
	S39677021	H - 9
	S39678021	E - 17
	S39679001	E - 20
	S39680001	E - 23
	S39683000	E - 26
	S39684021	E - 27
	S39685001	E - 28
	S39686000	E - 44
	S39687000	E - 45
	S39688001	E - 46
	S39690021	E - 36
	S39690021	E - 41
	S39690021	J - 8

Page 66

Brother MA4-N31 parts on page 66

Ref	Part number	Part name	Qty
	S39690021	J -19
	S39691001	E -39
	S39692021	E -50
	S39693001	E -58
	S39694021	E -64
	S39695001	E -65
	S39701011	F -30
	S39701012	F -30
	S39704021	F -4
	S39707001	F -19
	S39708001	F -25
	S39711011	G -18
	S39711012	G -18
	S39715011	G -19
	S39715012	G -19
	S39717021	G -3
	S39718021	G -5
	S39724011	H -16
	S39724012	H -16
	S39726011	H -17
	S39726012	H -17
	S39728021	H -8
	S39729021	J -1
	S39732021	J -3
	S39733021	J -4
	S39734021	J -7
	S39735050	J -10
	S39736001	J -15
	S39740021	J -20
	S39741021	J -21
	S39742021	J -22
	S39743001	K -3
	S39744021	K -7
	S39745001	K -8
	S39747001	K -10
	S39749001	K -13
	S39751021	K -11
	S39752021	K -15
	S39756021	L -63
	S39757001	L -67
	S39761001	B -1-1
	S39762001	B -1-2
	S39763001	B -1-3
	S39769051	E -40
	S39770001	D -17
	S39771020	A -14
	S39773001	E -35
	S39775001	B -24-1
	S39785001	A -92
	S39786001	A -92
	S39787001	A -92
	S39795001	R -13
	S39796001	R -29
	S40640001	Z -42-1-7
	S40641001	Z -42-1-18
	S40642001	Z -42-1-19
	S40643001	Z -42-1-20
	54064001	Z -42-1-21
	S42042021	E -33
	S42050001	A -29-2
	S43521000	K -29-1
	S43522000	K -29-2
	S43523000	K -29
	S43525001	M -1
	S43527001	F -6
	S43530001	R -B
	012060632	A -43
	012400432	A -27-4
	012500532	A -32
	014060632	Z-42-1-20-1
	014780622	R -20-1-6
	017060812	H -7
	017061612	C -7-2
	017501212	A -64
	017781012	R -20-1-4
	018061432	E -53
	018061632	D -22
	018062532	B -28
	018400832	E -48
	018401032	R -3
	018401622	C -34-1
	021060302	R -1-21
	021080106	Z -33
	021400106	Z -70
	021400202	R -25
	021400212	A -53
	021500106	Z-42-1-10-3
	021500216	J -9
	025030132	F -14
	025040132	E -49
	025040232	Q -3
	025040332	Z -60
	025050132	A -72
	025060332	D -14
	025080236	Z -64-6
	025350332	A -68
	025630232	D -50-6-8
	025660132	D -50-10-4
	025710232	E -12
	028050242	L -64
	028050246	Z-42-1-10-2
	028060242	B -27
	028080242	Z -64-7

Page 67

Brother MA4-N31 parts on page 67

Ref	Part number	Part name	Qty
	031411304	Z -57
	031452206	Z-42-1-21-2
	034422006	N -1-2
	047301242	E -1-1-1
	047301642	D -2-1
	047401442	D -21-1
	047502242	E -57
	047503242	D -16
	047602042	A -54
	048040342	E -14
	048090342	D -27
	048400242	B -14
	060300412	D -35
	060300512	L -52
	060300612	L -52
	060300612	D -39
	060350812	A -67
	060351012	H -15
	060400612	J -28
	060400612	A -12
	060400612	A -27-7
	060400612	A -27-9
	060400612	A -34
	060400612	A -36
	060400612	A -46
	060400612	A -50
	060400612	A -59
	060400812	D -10
	060400812	E -22
	060400812	L -24
	060400812	L -32
	060400812	L -36
	060400812	L -39
	060400812	L -41
	060400812	L -43
	060400812	L -45
	060400812	L -54
	060400812	L -57
	060400812	L -76
	060400812	A -15
	060400812	A -22
	060400812	K -24
	060400812	Z -64-11
	060400812	Z -64-12
	060401012	M -3
	060401412	A -28
	060401412	L -68
	060630712	E -75-1
	061350616	E -31
	061400812	A -26
	061400812	B -6
	061400812	K -20
	062060812	F -18
	062060812	F -21
	062061412	Z -66
	062300412	F -16-2
	062300812	C -28
	062300812	R -1-12
	062350512	R -1-28
	062350612	C -26
	062350612	L -70
	062350812	R -1-26
	062350812	R -1-17
	062350812	R -12
	062400612	Q -8
	062400612	Z -59
	062400812	A -9
	062400812	B -5
	062401012	C -29
	062401012	K -4-6
	062401012	Q -2
	062401012	A -4
	062401012	B -22
	062401012	C -20
	062401012	C -30
	062401012	R -23
	062401012	R -23
	062401212	A -52
	062401406	F -10-1
	062401406	K -4-9
	062401406	Z -71
	062401406	Z -71
	062401612	A -80
	062401612	R -1-22
	062402512	F -10-2
	062501006	Z-42-1-21,3
	062501006	Z-42-2-20-3
	062501406	Z-42-1-18-4
	062501406	Z-42-2-17-4
	062670712	D -50-1-7
	062670712	D -50-2-7
	062670712	D -50-3-7
	062670712	D -50-4-7
	062670712	D -50-5-4
	062670712	D -50-6-7
	062670712	D -50-7-7
	062670712	D -50-8-7
	062670712	D -50-9-7
	062670712	D -50-10-6
	062670712	D -50-11-6
	062670712	D -50-12-4
	062670712	D -50-13-7
	062670712	D -50-14-7
	062670712	D -50-15-4
	072600000	B -7
	076203000	B -15
	081005070	E -11
	081005670	E -56
	081009070	A -77
	081010070	E -25
	081020070	E -21
	081031870	B -4
	100032003	A -40
	100032003	C -33
	100080004	D -50-15-3
	100136001	P -1-4
	100315002	A -41
	100463001	R -20-1-8
	100463001	R -20-2-8
	101118001	P -2
	101572101	Z -5
	102707002	R -28
	104450101	C -11
	105161004	D -3
	105288001	D -50-1-3
	105288001	D -50-2-3
	105288001	D -50-13-3
	105288001	D -50-14-3
	105288001	D -50-5-3
	105288001	D -50-10-5
	105288001	D -50-11-5
	105288001	D -50-12-3
	106640001	D -50-13-3
	106640001	D -50-14-3
	106640001	D -50-5-3
	106640001	D -50-10-5
	106640001	D -50-11-5
	106640001	D -50-12-3
	108494001	P -1-2
	108495001	P -1-3
	110832009	L -12
	110832009	L -12
	111140002	D -50-7-3
	111140002	D -50-8-3
	116016001	Z -72
	116016001	Z -72
	117466000	Z -13
	118550001	G -14
	118735002	C -7-3
	118735002	C -34-3-2
	118735002	C -35-3-2
	118735002	C -36-3-2
	125324001	F -11-2
	126863001	Z -42-1-3
	126863001	Z -42-2-3
	138843001	Z -42-1-12
	138843001	Z -42-2-12
	140325001	A -74
	141183000	A -39
	142002001	Z -8
	142262001	Z -24
	142999101	Z -42-1-6
	143767002	P -1
	143980001	P -1-1
	144074300	F -15-1
	144074300	Ga1-7
	144074300	Ga2-7
	144074300	Ga3-7
	144074300	Ga4-7
	144074300	Ga5-7
	144103009	L -13
	144225002	Z -41
	144504001	L -60
	144784001	R -1-11
	145277205	Z -19
	146293001	C -6
	146427001	C -12-1
	146427001	L -47
	146592001	L -21
	146598001	A -71
	147893009	Z -69
	147893009	Z -69
	147919001	Z -48-1
	147919002	Z -48-2

Page 68

Brother MA4-N31 parts on page 68

Ref	Part number	Part name	Qty
	147942001	K - 8-1
	147942001	K - 10-1
	147942001	K - 13-1
	148084001	K - 18
	148782001	H - 13
	148782001	J - 26
	148797001	R - 20-1-5
	148797001	R - 20-2-5
	148798009	R - 20-1-5
	148798009	R - 20-2-7
	149570001	Z -9
	150173003	Z -42-1-9
	150173003	Z -42-2-9
	150174000	Z -42-1-7-1
	150174000	Z -42-2-7-1
	150179002	Z-42-1-10-1
	150179002	Z-42-2-10-1
	150180001	Z -42-1-1
	150180001	Z -42-2-1
	150182000	Z -42-1-2
	150182000	Z -42-2-2
	150185009	Z -42-1-11
	150185009	Z -42-2-11
	150188009	Z -42-1-13
	150188009	Z -42-2-13
	150194009	Z -42-1-14
	150206002	Z -42-2-14
	150206002	Z -42-1-4-1
	150813001	L - 69
	151474011	Ga1-1
	151474011	Ga1-1
	151474011	Ga2-1
	151474011	Ga3-1
	151474011	Ga4-1
	151474016	C - 13
	151474016	Ga1-1
	151474016	Ga4-1
	151474016	Ga5-1
	151474018	Ga4-1
	151474018	Ga5-1
	153318201	C - 64-2
	155162001	C -7-7
	155162001	G -9-1-1-4
	155162001	G -9-2-1-4
	155162001	J - 12-2
	155162001	J - 16-2
	155197101	R - 20-1-1
	155197101	R - 20-2-1
	155199101	R -20-2-3
	155199101	R -20-2-3
	155247000	F -3
	155247000	G -11
	155247000	H -10
	155261000	J -23
	155510001	L -62
	156112003	Z -42-1-8
	156112003	Z -42-2-8
	156482000	A -51
	158782101	L -61
	183797009	Z -56
	183798001	Z -64
	213650001	Z -31
	213650001	Z -64-9

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother MA4-N31 — parts catalog

• Page 1 (cover): This is the cover page for the Brother MA4-N31 sewing machine parts book, listing the title in multiple languages and featuring an illustration of a screw.
• Page 2 (toc): This page contains the table of contents for the parts book, listing various sections and their corresponding page numbers.
• Page 3 (toc): This page is a table of contents for a parts book, listing sections like "Machine body", "Crank shaft mechanism", "Needle bar mechanism", and "Index" with corresponding page numbers.
• Page 4 (toc): This page contains the table of contents for the parts list, detailing sections from "Maschinengehäuse" to "Verzeichnis" with corresponding page numbers.
• Page 5 (toc): This page contains the table of contents for the manual, listing various mechanisms and parts with their corresponding page numbers.
• Page 7 (diagram): This page displays a diagram of machine body and related components, with numbered parts for identification.
• Page 8 (parts_list): This page lists parts for the machine body and frame, including various screws, covers, and plates with their corresponding part numbers and descriptions.
• Page 9 (diagram): This page displays a diagram of machine body and related components, with numbered parts indicated for reference.
• Page 10 (parts_list): This page lists machine parts with reference numbers, codes, quantities, Japanese descriptions, and English names. It includes parts like oil pan, packing, bolts, washers, eye guards, screws, rubber caps, O-rings, and labels for different thread counts.
• Page 11 (diagram): This page displays a diagram of the crank shaft mechanism, also known as the Kurbelwelle or Mecanismo del cigüeñal, with various components labeled with reference numbers.
• Page 12 (parts_list): This page lists parts for the crank shaft mechanism, including various screws, bearings, rings, and shafts, with their corresponding part numbers and descriptions.
• Page 13 (diagram): This page displays a diagram of the needle bar mechanism, showing various components with their corresponding reference numbers and part numbers.
• Page 14 (parts_list): This page lists parts for needle bar mechanism, including needle shaft bushes, washers, retaining rings, set screws, bolts, spacers, and needle plate support brackets, with corresponding part numbers and descriptions.
• Page 15 (diagram): This page displays a diagram of the needle bar mechanism, including various components labeled with reference numbers and part numbers.
• Page 16 (parts_list): This page lists parts for the needle bar mechanism, including codes, quantities, and names in Japanese and English, with associated part numbers and descriptions.
• Page 17 (diagram): This page displays a diagram of the presser foot mechanism, detailing various components with reference numbers and part numbers for identification and assembly.
• Page 18 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
• Page 19 (diagram): This page displays diagrams of presser foot mechanisms, including parts labeled with reference numbers and part numbers.
• Page 20 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
• Page 21 (diagram): This page displays diagrams of presser foot mechanisms, including parts numbered 61-62, 81-82, 83-84, 67-68, and 75-76, with corresponding part numbers and descriptions.
• Page 22 (parts_list): This page lists parts for the Presser foot mechanism, including part numbers, quantities, and names, with items grouped by sub-assembly.
• Page 23 (diagram): This page displays diagrams of presser foot mechanisms, including parts numbered 77, 78, 85, 86, 89, 90, 95, and 92(B), with associated part numbers and reference numbers.
• Page 24 (parts_list): This page lists parts for the presser foot mechanism, including part numbers, descriptions, and quantities.
• Page 25 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 26 (parts_list): This page lists parts for the feed mechanism/transportvorrichtung/mecanismo de la alimentación, including part numbers, descriptions, and quantities.
• Page 27 (diagram): This page displays a diagram of the feed mechanism, including various components like screws, springs, and levers, with reference numbers for each part.
• Page 28 (parts_list): This page lists parts for the feed mechanism, including O-rings, pins, collars, bolts, and washers, with their corresponding part numbers and descriptions.
• Page 29 (diagram): This page displays a diagram of the knife mechanism for a sewing machine, with various parts labeled with reference numbers and some part numbers indicated.
• Page 30 (parts_list): This page lists parts for the knife mechanism, including upper and lower knife parts, screws, bolts, and washers, with part numbers, descriptions, and quantities.
• Page 31 (diagram): This page displays a diagram of the over looper mechanism with various parts labeled with reference numbers and part numbers.
• Page 32 (parts_list): This page lists parts for the G. Upper Looper Mechanism / Overen Greifer / Mecanismo del presillador superior, including part numbers, descriptions, and quantities.
• Page 33 (diagram): This page displays a diagram of the under looper mechanism, detailing various components with reference numbers and part numbers.
• Page 34 (parts_list): This page lists parts for the under loop mechanism, including part numbers, descriptions, and quantities for various components like screws, shafts, and bolts.
• Page 35 (diagram): This page displays a diagram of the double chain stitch looper mechanism, detailing various components with reference numbers and part numbers.
• Page 36 (parts_list): This page lists parts for the Double chain stitch looper mechanism, including part numbers, descriptions, and quantities.
• Page 37 (diagram): This page displays a diagram of lubrication and related components for a sewing machine, with numbered parts including screws, tubes, and various fittings.
• Page 38 (parts_list): This page lists parts for lubrication and related components, including various screws, pumps, oil pipes, and filters, with their corresponding codes and names.
• Page 39 (diagram): This page displays a diagram of thread tension and related components for a sewing machine, with numbered parts and their corresponding references.
• Page 40 (parts_list): This page lists parts for thread tension components, including part numbers, descriptions, and quantities.
• Page 41 (diagram): This page displays a diagram of thread tension components and related parts for a sewing machine, with numbered references for each part.
• Page 42 (parts_list): This page lists parts for thread tension, including part numbers, descriptions, and quantities. It contains items such as collars, screws, springs, and tension discs.
• Page 43 (diagram): This page contains diagrams and parts lists for the Needle cooler and Gimp guide mechanism.
• Page 44 (parts_list): This page contains parts lists for two sections: M. Needle cooler and N. Gimp guide mechanism.
• Page 45 (diagram): This page contains diagrams and parts lists for the tape winder mechanism and the lapper mechanism of an industrial sewing machine.
• Page 46 (parts_list): This page contains parts lists for the Tape Winder Mechanism and the Lapper Mechanism, including part numbers, descriptions, and quantities.
• Page 47 (diagram): This page displays a diagram of the ruffling attachment, also known as the "Ruffler attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido". It includes numbered parts with their corresponding part numbers and descriptions.
• Page 48 (parts_list): This page lists parts for Ruffler attachment / Ruffling attachment / Kräuselvorrichtung / Accesorio de fruncido, including part numbers, descriptions, and quantities.
• Page 49 (diagram): This page displays diagrams for the Ruffing attachment, including parts for semi-submerged and full-submerged applications, with part numbers and descriptions.
• Page 50 (parts_list): This page lists parts for the R. ラフラー装置 / Ruffing attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido, with part numbers, descriptions, and quantities.
• Page 51 (diagram): This page displays a diagram of various sewing machine accessories and parts, including screwdrivers, a chain, oil, and other components, with reference numbers for identification.
• Page 52 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and reference numbers. It covers various components like needles, knives, screws, wrenches, and more.
• Page 53 (diagram): This page contains a diagram of various sewing machine accessories and their corresponding part numbers, including items like 42-2-16, 42-2-6, and 42-2-12.
• Page 54 (parts_list): This page lists accessories and parts for sewing machines, including part numbers, descriptions, and quantities.
• Page 56 (parts_list): This page lists parts for the Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios section, including part numbers, codes, quantities, and names.
• Page 57 (parts_list): This page lists parts for sewing machine gauge components, including presser foot assembly, needle clamp assembly, needle plate, main feed dog assembly, differential feed dog, lower knife, and over looper, with corresponding part numbers and diagrams.
• Page 58 (parts_list): This page contains a parts list for various sewing machine components, including presser foot assy, needle clamp assy, needle plate, main feed dog assy, differential feed dog, knives, and over looper, with corresponding part numbers and models.
• Page 59 (parts_list): This page contains a parts list for various sewing machine components, including needles, presser feet, and loopers, with corresponding part numbers and descriptions.
• Page 60 (parts_list): This page contains a parts list for gauge parts, including part numbers, descriptions, and application details for various sewing machine components.
• Page 61 (parts_list): This page contains a parts list for gauge parts, including needle width, needle quantity, presser foot assembly, needle clamp assembly, needle plate, main feed dog assembly, differential feed dog, lower knife, and over looper. It lists part numbers and corresponding model applications.
• Page 62 (parts_list): This page lists warning labels and grounding marks with their corresponding sizes and part numbers.
• Page 63 (index): This page is an index of parts for industrial sewing machines, listing part numbers, reference numbers, and corresponding page numbers.
• Page 64 (parts_list): This page contains a parts list for various sewing machine components, including part numbers, reference numbers, and corresponding page numbers.
• Page 65 (parts_list): This page contains a parts list with columns for Code, Ref. No., and Page. It lists various part numbers and their corresponding reference numbers and page locations.
• Page 66 (parts_list): This page contains a parts list with part numbers, reference numbers, and page numbers for various sewing machine components. It includes parts from S39690021 to S40643001 and other codes like 012060632 to 028080242.
• Page 67 (parts_list): This page contains a parts list with part numbers, reference numbers, and page numbers for various sewing machine components, organized into three columns.
• Page 68 (parts_list): This page contains a parts list with codes, reference numbers, and page numbers for various sewing machine components.
• Page 69 (unknown): This page contains a watermark and a footer indicating it is from the library of Superior Sewing Machine & Supply LLC, with the website jintex.in.
• Page 70 (cover): This is the cover page of a Brother parts book, featuring the Brother logo and the title in multiple languages: Parts Book, Teilekatalog, Livre des Pieces, and Libro de Referencia de Piezas. It also includes the company's address and contact information, along with a part number and date.

Page 1 — MA4-N31

HB MA4-N31 パーツブック PARTS BOOK TEILEKATALOG LIVRE DES PIECES LIBRO DE REFERENCIA DE PIEZAS 超高速安全缝ミシン HIGH SPEED SAFETY STITCH SEWING MACHINE HOCHLEISTUNGS-SICHERHEITSnAHTMASCHINE SURJETEUSE GRANDE VITESSE - POINT SAFETY OVERLOCK CON PUNTADA DE SEGURIDAD brother. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 2 — 目 次

パーツブックご利用に際して 1. この本は、1996年12月のデータに基づいて作成されたものです。 2. 部品は予告なしに設計変更される場合があります。 3. 組単位で補給する部品は、[---] 破線で示しております。 4. 部品コード欄が※となっている場合は、ゲージ部品一覧表(51~55ページ)でお 調べ下さい。 目 次 A. フレーム関係 1 B. 駆動軸関係 5 C. 針棒関係 7 D. 押工関係 11 E. 送り関係 19 F. 上メス・下メス関係 23 G. 上ルーパ関係 25 H. 下ルーパ関係 27 J. 二重環ルーパ関係 29 K. 給油潤滑関係 31 L. 糸調子関係 33 M. 針冷却装置 37 N. ヒモ案内関係 37 P. テープワインダー関係 39 Q. ラッパー関係 39 R. ラフラー装置 41 Z. 付属品関係 45 Ga1. ゲージ部品一覧表 51 Ga2. ゲージ部品一覧表 52 Ga3. ゲージ部品一覧表 53 Ga4. ゲージ部品一覧表 54 Ga5. ゲージ部品一覧表 55 Wa. 警告ラベル 56 目次 57 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3 — CONTENTS

Notes for using this parts book 1. This book was prepared based on information available in December 1996. 2. Parts are subject to changes in design without prior notice. 3. Parts supplied as complete assemblies are circled by a dotted line [---]. 4. If the symbol * is found in the "Parts No." column, refer to the Gauge parts list on page 51~55. CONTENTS A. Machine body ...Machine body B. Crank shaft mechanism C. Needle bar mechanism D. Presser foot mechanism E. Feed mechanism F. Knife mechanism G. Over looper mechanism H. Under looper mechanism J. Double chain stitch looper mechanism K. Lubrication L. Thread tension M. Needle cooler N. Gimp guide mechanism P. Tape winder mechanism Q. Lapper mechanism R. Ruffing attachment Z. Accessories Ga1. Gauge parts List Ga2. Gauge parts List Ga3. Gauge parts List Ga4. Gauge parts List Ga5. Gauge parts List Wa. Warning labels Index 1 5 7 11 19 23 25 27 29 31 33 37 37 39 39 41 45 51 52 53 54 55 56 57 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 4 — INHALTSVERZEICHNIS

Hinweise zur Verwendung dieser Teileliste 1. Dieses Buch basiert auf den Informationen vom Dezember 1996. 2. Modelländerungen sind vorbehalten. 3. Die Teile, die als kompletter Satz geliefert werden, sind mit einer [---] gestrichelten Linie umrandet. 4. Dieses Zeichen * in der Spalte "Parts No. (Teil-nummer)" verweist auf die Lehrenliste 51~55. INHALTSVERZEICHNIS A. Maschinengehäuse B. Kurbelwelle C. Nadelstangenvorrichtung D. Stoffdrückerfuß E. Transportvorrichtung F. Messer G. Oberen Greifer H. Unterer Greifer J. Doppelkettstichgreifer K. Schmierung L. Faderspannung M. Nadelkühlungsvorrichtung N. Schnurführung P. Bandaufwickelvorrichtung Q. Falz-mechanismus R. Kräuselvorrichtung Z. Zubehör Ga1. Lehrenliste Ga2. Lehrenliste Ga3. Lehrenliste Ga4. Lehrenliste Ga5. Lehrenliste Wa. Warnschilder Verzeichnis 1 5 7 11 19 23 25 27 29 31 33 37 37 39 39 41 45 51 52 53 54 55 56 57 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 5 — TABLE DES MATIERES

Notes sur l'utilisation de ce manuel de pièces détachées 1. Ce manuel a été fait d'après les renseignements valables au mois de Décembre 1996. 2. Les pièces peuvent être sujettes à des modifications sans préavis. 3. Les pièces fournies en tant qu'assemblages complets sont encadrées avec un trait pointillé [ ]. 4. Si le symbole se trouve dans la colonne "Parts No. (No de pièce)" veuillez la vous référer à la liste des Pièces decartment page 51~55. TABLE DES MATIERES A. Corps de la machine 1 B. Mécanisme de vilebrequin 5 C. Mécanisme de la barre à aiguille 7 D. Mécanisme de pied presseur 11 E. Mécanisme de l'entraînement 19 F. Mécanisme du couteau 23 G. Mécanisme du boucleur supérieur 25 H. Mécanisme du boucleur inférieur 27 J. Mécanisme du boucleur pour point de chaînette double 29 K. Lubrification 31 L. Tension du fil 33 M. Mécanisme du refroidisseur d'aiguille 37 N. Mécanisme de guide-fil 37 P. Mécanisme de l'enrouleur de ruban 39 Q. Mécanisme à rabat 39 R. Accessoire pour fronces 41 Z. Accessoires 45 Ga1. Liste des Pièces decartment 51 Ga2. Liste des Pièces decartment 52 Ga3. Liste des Pièces decartment 53 Ga4. Liste des Pièces decartment 54 Ga5. Liste des Pièces decartment 55 Wa. Etiquettes d'avertissement 56 Index 57 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 7 — A. フレーム関係 / Machine body / Maschinenengehäuse / Corps de la machine /Cuerpo de la máquina

A. フレーム関係 / Machine body / Maschinenengehäuse / Corps de la machine /Cuerpo de la máquina 70 71 72 8 12 11 7 3 4 69 66 9 2 10 5 68 67 59 75 76 79 80 59 15 13 14 22 81 21 93 74 52 53 55 63 24 62 23 26 25 54 40 77 37 65 64 61 35 36 27 78 32 27-8 27-5 27-7 27-9 38 39 41 42 43 49 31 27-2 27-6 27-3 27-1 27-4 44 48 46 30 29 33 34 28 From the library of: Superior Sewing Machine & Supply LLC 185-N31-052 Jintez.in

Page 8 — A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina

A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina REF. NO. CODE QTY ヒンメイ NAME OF PARTS RM 2 S39605001 1 ウワカバー TOP COVER 3 S02606000 1 ユリヨウケイマド OIL GAUGE WINDOW 4 062401012 6 ナベコ M4X10 SCREW, PAN M4X10 5 S39606020 1 パッキン PACKING 7 S23337009 1 ゴムセン 18.5 RUBBER CAP, 18.5 8 S39607001 1 ソクメンカバー FRAME SIDE COVER 9 062400812 5 ナベコ 4X8 SCREW, PAN M4X8 10 S20345009 1 ゴムセン 14 RUBBER CAP, 14 11 S39608021 1 メンイタカバー FACE PLATE COVER 12 060400612 1 バインド M4X6 SCREW, BIND M4X6 13 S20310001 1 オクリキコウカバーB COVER FOR FEED MECHANISM, B 14 S39771020 1 パッキン PACKING 15 060400612 6 バインド M4X8 SCREW, BIND M4X8 21 S39610021 1 オクリダイカバー FEED BAR COVER 22 060400612 6 バインド M4X8 SCREW, BIND M4X8 23 S39564021 1 ウチカバー INSIDE COVER 24 S39563020 1 ウチカバーパツキン INSIDE COVER PACKING 25 S23616101 5 シメネジ 4X10 SCREW, M4X10 26 061400812 1 サラコ M4X8 SCREW, FLAT M4X8 27 S39611001 1 マエカバーLクミ FRONT COVER ASSY, L 27-1 S39612001 1 マエカバーL FRONT COVER, L 27-2 S39613001 1 マエカバーヒンジジク FRONT COVER HINGE SHAFT 27-3 S20319001 1 マエカバーヒンジ FRONT COVER HINGE 27-4 012400432 2 アナヒラ 4X4 SET SCREW, SOCKET (FT) M4X4 27-5 S20320101 1 マエカバー ストツパ FRONT COVER STOPPER 27-6 S20321001 1 マエカバーバネ FRONT COVER SPRING 27-7 060400612 1 バインド M4X6 SCREW, BIND M4X6 27-8 S20327101 1 マエカバー メイタ STOPPER PLATE, FRONT COVER 27-9 060400612 1 バインド M4X6 SCREW, BIND M4X6 28 060401412 3 バインド M4X14 SCREW, BIND M4X14 29-1 S38305001 1 マエカバーS FRONT COVER, S 30 S23418002 2 シメネジ 4X5 SCREW, M4X5 31 012400832 1 アナヒラ 4X8 SET SCREW, SOCKET (FT) M4X8 32 012400432 1 アナヒラ 4X4 SET SCREW, SOCKET (FT) M4X4 33 S20324101 1 マエカバーアンナイ FRONT COVER GUIDE, L 34 060400612 2 バインド M4X6 SCREW, BIND M4X6 35 S20325001 1 マエカバー メイタバネ PLATE SPRING 36 060400612 1 バインド M4X6 SCREW, BIND M4X6 37 S39562001 1 クロスプレート CLOTH PLATE 38 S39623001 1 クロスプレート サエジク CLOTH PLATE SHAFT 39 141183000 1 クロスプレートシート CLOTH PLATE SHEET 40 100032003 1 サラネジ 4.37 SCREW, FLAT SM4.37 41 100315002 1 スプリング SPRING, WAVE 42 S39624021 1 セットカラー SET SCREW COLLAR 43 012060632 2 アナヒラ 6X6 SET SCREW, SOCKET (FT) M6X6 44 S38301020 1 クロスプレートシタ CLOTH PLATE, LOWER 46 060400612 4 バインド M4X6 SCREW, BIND M4X6 48 S20412000 2 ゴムセン 3.7 RUBBER CAP, 3.7 49 S39625051 1 クロスプレート メイタバネ SPRING, PLATE 50 060400612 2 バインド M4X6 SCREW, BIND M4X6 51 156482000 1 セン 4 CAP, 4 52 062401212 2 ナベコ M4X12 SCREW, PAN M4X12 53 021400212 1 2シュナット 4 NUT, 2 M4 54 047602042 1 スプリングピン 6X20 PIN, SPRING ROLL 6X10 55 S20412000 1 ゴムセン 3.7 RUBBER CAP, 3.7 58 S39626021 1 クロスプレートヌノアンナイ CLOTH GUIDE 59 060400612 3 バインド M4X6 SCREW, BIND M4X6 185-N31-052 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 9 — A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina

A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina 70 71 72 8 12 11 7 4 69 66 9 2 N 3 5 59 68 67 59 75 76 10 79 80 58 15 13 14 22 81 21 93 74 52 53 55 63 24 23 26 25 54 40 78 77 37 65 61 35 36 64 27 32 27-8 27-5 27-7 27-9 38 39 41 42 43 49 31 27-2 27-6 27-3 27-1 27-4 48 46 30 29 33 34 44 28 185-N31-052 From the library of: Superior Sewing Machine & Supply LLC Jjtex.in

Page 10 — A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina

A. フレーム関係 / Machine body / Maschinengehäuse / Corps de la machine /Cuerpo de la máquina REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 61 S20338200 1 アブラウケ OIL PAN 62 S20339000 1 パツキン PACKING 63 S23350001 4 ホンタイシチュウ MACHINE BODY LEG 64 017501212 4 ボルト 5X12 BOLT, M5X12 65 S23351001 4 ザガネ WASHER 66 S00075000 1 アイガード EYE GUARD 67 060350812 2 バインド 35X8 SCREW, BIND M3.5X8 68 025350332 2 ヒラザガネダイ 3.5 WASHER, PLAIN L 3.5 69 S20340001 1 アイガードササエイタ EYE GUARD SUPPORT PLATE 70 S20342001 1 ダンネジ 4 SHOULDER SCREW, M4 71 146598001 1 バネザガネ WASHER, SPRING 72 025050132 1 ヒラザガネヨウ 5 WASHER, PLAIN 5 74 140325001 1 ゴムセン 10.3 RUBBER CAP, 10.3 75 S20345009 1 ゴムセン 14 RUBBER CAP, 14 76 S23337009 1 ゴムセン 18.5 RUBBER CAP, 18.5 77 081009070 1 Oリング P9 O RING, P9 78 S23357001 1 シメネジ 10 SCREW, M10 79 S20346000 1 ハリボウアブラウケ NEEDLE BAR OIL RESERVOIR 80 062401612 1 ナベコ M4X16 SCREW, PAN M4X16 81 S20878000 1 ゴムセン 5.3 RUBBER CAP, 5.3 92 S39785001 1 イトトオシセツメライベルD <5本糸用> <FOR "5 THREADS"> THREADING DIAGRAM LABEL, D 92 S39786001 1 イトトオシセツメライベルE <4本糸用> <FOR "4 THREADS"> THREADING DIAGRAM LABEL, E 92 S39787001 1 イトトオシセツメライベルF <6本糸用> <FOR "6 THREADS"> THREADING DIAGRAM LABEL, F 93 S25184001 1 DLイトトオシセツメライベル <二重環糸用> <FOR DOUBLE CHAIN STITCH> THREADING DIAGRAM LABEL, DL 29-2 S42050001 1 マエカバー S <バインディング用> <FOR BINDING> FRONT COVER, S From the library of: Superior Sewing Machine & Supply LLC 185-N31-052 jintex.in

Page 11

B. 駆動軸関係 / Crank shaft mechanism / Kurbelwelle / Mécanisme de vilebrequin / Mecanismo del cigüeñal 7 10 6 3 4 5 1 2 14 15 27 28 24 22 25 20 16 17 18 21 185-N31-103 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 12 — B. 駆動軸関係 / Crank shaft mechanism / Kurbelwelle / Mécanisme de vilebrequin / Mecanismo del cigüeñal

B. 駆動軸関係 / Crank shaft mechanism / Kurbelwelle / Mécanisme de vilebrequin / Mecanismo del cigüeñal REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RIM 2 012060632 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 3 S39629021 1 ベアリングフタ BEARIG CAP 4 081031870 1 Oリング S31.5 O RING S31.5 5 062400812 2 ナベコ4X8 SCREW, PAN M4X8 6 061400812 1 サラコM4X8 SCREW, FLAT M4X8 7 072600000 1 タマジクウケ6000 BALL BEARING, 6000 10 S39630000 1 クドウジクメタル CRANK SHAFT BUSH 14 048400242 1 トメワアツヨウC40 RETAINING RING, C40 15 076202000 1 タマジクウケ6203 BALL BEARING, 6203 16 S27868001 1 タマジクウケ6203V BALL BEARING, 6203V 17 S20361001 1 ナミバネ SPRING, WAVE 18 S20362101 1 クドウジオイルキリ CRANK SHAFT OIL REJECTOR 20 S39631000 1 ベアリングオサエ BEARING PRESSER 21 S20353000 1 Oリング O RING 22 062401012 3 ナベコM4X10 SCREW, PAN M4X10 24-1 S39775001 1 プーリー PULLEY 25 012060632 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 27 028060242 1 バネザガネ2-6 WASHER, SPRING 2-6 28 018062532 1 アナボルト6X25 BOLT, SOCKET M6X25 24-2 S39565001 1 <シンクロナイザ用> プーリー <FOR SYNCHRONIZER> PULLEY 1-1 S39761001 1 <スタンダード用> <62~72, 75~78, 81~84, 89, 90(-2~-5)> クドウジクSSクミ <FOR STANDARD> CRANK SHAFT, SS ASSY 1-2 S39762001 1 <ハイリフト用> <63,7,65-6,7,66-6,7,71-6,7,77-6,83-6,84-6,95-5> クドウジクSHクミ <FOR HIGH-LIFT> CRANK SHAFT, SH ASSY 1-3 S39763001 1 <超ハイリフト用> <85, 86, 92, 93> クドウジクSEクミ <FOR EXTRA HIGH-LIFT> CRANK SHAFT, SE ASSY From the library of: Superior Sewing Machine & Supply LLC jintex.in 185-N31-103

Page 13 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja

C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja 11 10 7 7-2 7-1-a 7-7 7-3 7-6 7-1 33 32 20 18 26 25 17 16 15 2 4 7-5 7-4 8 9 34-3-1 35-3-1 36-3-1 34-3-2 35-3-2 36-3-2 34-2 35-2 36-2 3 5 6 34 35 36 34-1 35-1 36-1 12-1 12 27 13 28 29 30 21 22 23 24 185-N31-118 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 14 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja

C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 2 S39644021 1 ハリジクメタルL NEEDLE SHAFT BUSH, L 3 S39645021 1 ハリジクメタルR NEEDLE SHAFT BUSH, R 4 S39646021 1 ハリジク NEEDLE SHAFT 5 S39647000 1 ザガネ WASHER 6 146293001 1 トメワE10 RETAINING RING, E10 7 S39566001 1 ハリボウダキクミ NEEDLE BAR CLAMP ASSY 7-1 S23342001 2 アナトガリ 4X5 SET SCREW, SOCKET (CN) M4X5 7-2 017061612 1 ボルト 6X16 BOLT, M6X16 7-3 118735002 1 ザガネ WASHER 7-4 062350812 1 ナベコ 3.5X8 SCREW, PAN M3.5X8 7-5 S20391001 1 スペーサ SPACER 7-6 S20392000 2 フェルト FELT 7-7 155162001 1 スペーサ SPACER 8 S39574001 1 ハリボウ NEEDLE BAR 9 S39648021 1 ハリボウメタルD NEEDLE BAR BUSH, D 10 S39571021 1 ハリボウメタルU NEEDLE BAR BUSH, U 11 104450101 1 ゴムセン8 RUBBER CAP, 8 12 ※ 1 ハリドメクミ NEEDLE CLAMP ASSY 12-1 146427001 2 アナトメネジ3.18クボミ SET SCREW, SOCKET (CP) SM3.18 13 ※ 2 ミシンハリDCX27 NEEDLE DCX27 13 151474016 3 ミシンハリDCX27 <95> NEEDLE DCX27, #16 15 S39649021 1 ハリイタササエダイ NEEDLE PLATE SUPPORT BRACKET 16 018062532 2 アナホルト 6X25 BOLT, SOCKET M6X25 17 S39650021 1 ハリイタササエダイF NEEDLE PLATE SUPPORT, F 18 S39652021 1 ハリイタササエダイB NEEDLE PLATE SUPPORT, B 20 062401012 4 ナベコ M4X10 SCREW, PAN M4X10 21 S20415101 1 イドウハリウケ MOVABLE NEEDLE GUARD 22 S20416101 1 ボルト 3.5X10 BOLT, M3.5X10 23 S20418001 1 オーバーハリウケF NEEDLE GUARD (F) 24 S23456101 2 ナベコ 25X6 SCREW, PAN M2.5X6 25 S38306051 1 ニジユウカンハリウケ F CHAIN STITCH NEEDLE GUARD, F 26 062350612 1 ナベコ M3.5X6 SCREW, PAN M3.5X6 27 S38307001 1 ニジユウカンハリウケ B CHAIN STITCH NEEDLE GUARD, B 28 062300812 2 ナベコ 3X8 SCREW, PAN M3X8 29 S39654051 1 ハリウケブラケット NEEDLE GUARD BRACKET 30 062401012 1 ナベコ M4X10 SCREW, PAN M4X10 32 ※ 1 ハリイタ NEEDLE PLATE 33 100032003 2 サラネジ4.37 SCREW, FLAT SM4.37 From the library: Superior Sewing Machine & Supply LLC 185-N31-118 Jinttex.in

Page 15 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja

C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja 11 10 7 7-2 7-1 7-7 7-6 7-1 33 32 20 18 26 25 17 16 15 2 4 7-5 7-4 34-3-2 35-3-2 36-3-2 8 9 34-2 35-2 36-2 12-1 12 27 28 29 30 21 22 3 34-1 35-1 36-1 34 35 36 13 23 24 185-N31-118 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 16 — C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja

C. 針棒関係 / Needle bar mechanism / Nadelstangenvorrichtung / Mécanisme de la barre à aiguille / Mecanismo de la barra de aguja REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 34 S39633011 1 "スタンダード用" <赤> ハリクランクロツドクミS <青> ハリクランクロツドクミS FOR "STANDARD" <RED> NEEDLE DRIVING CRANK ROD ASSY <BLUE> NEEDLE DRIVING CRANK ROD ASSY 34 S39633012 1 34-1 018401622 2 アナボルト 4X16 BOLT, SOCKET M4X16 34-2 S23342001 1 アナトガリ 4X5 SET SCREW, SOCKET (CN) M4X5 34-3-1 017061612 1 ボルト 6X16 BOLT, M6X16 34-3-2 118735002 1 ザガネ WASHER 35 S39638011 1 "ハ イリフト用" <赤> ハリクランクロツドクミH <青> ハリクランクロツドクミH FOR "HIGH-LIFT" <RED> NEEDLE DRIVING CRANK ROD ASSY <BLUE> NEEDLE DRIVING CRANK ROD ASSY 35 S39638012 1 35-1 018401622 2 アナボルト 4X16 BOLT, SOCKET M4X16 35-2 S23342001 1 アナトガリ 4X5 SET SCREW, SOCKET (CN) M4X5 35-3-1 017061612 1 ボルト 6X16 BOLT, M6X16 35-3-2 118735002 1 ザガネ WASHER 36 S39641011 1 "超 ハイリフト用" <赤> ハリクランクロツドクミE <青> ハリクランクロツドクミE FOR "EXTRA HIGH-LIFT" <RED> NEEDLE DRIVING CRANK ROD ASSY <BLUE> NEEDLE DRIVING CRANK ROD ASSY 36 S39641012 1 36-1 018401622 2 アナボルト 4X16 BOLT, SOCKET M4X16 36-2 S23342001 1 アナトガリ 4X5 SET SCREW, SOCKET (CN) M4X5 36-3-1 017061612 1 ボルト 6X16 BOLT, M6X16 36-3-2 118735002 1 ザガネ WASHER 185-N31-118 ☆ 駆動軸とロッドは、同色(赤色・青色の2種類)の組合せで選択組付けをしています。 ご注交の際にに色を種類の上、部品コードを指定して下さい。 ☆ The crank shaft and rod are to be selected and installed to parts of the same color (2 types; red and blue). Be sure to check the color before specifying the part no. ☆ Die Kurbelwelle und die Stange müssen mit Teilen der gleichen Farbe kombiniert werden (zwei Typen; rot und blau). Vor dem Angeben der Teilenummer muß daher die Farbe kontrolliert werden. ☆ Le vilebrequin et la bielle doivent être choisis et montés sur des pièces de la même couleur (2 types; rouge et vert). Veiller à bien vérifier la couleur avant d'indiquer le code numéroté de pièce. ☆ El cigüeñal y la varilla se deben seleccionar e instalar con las piezas del mismo color (dos tipos; rojas y azules). Antes de especificar el código de pieza se debe verificar el color. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17 — D. 押工関係/Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

D. 押工関係/Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela 1 4 8 7 29 5 30 26 2 2-2 2-1 3 35 34 13 14 11 12 85 86 92 93 38-2 22 21 21-1 39 38 19 17 18 16 15 27 25 24 20 23 81 82 83 84 44 185-N31-201 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 18 — D. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme de pied presseur / Mecanismo de la prensa tela

D. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme de pied presseur / Mecanismo de la prensa tela REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S39658001 1 オサエチヨウセツネジ PRESSER ADJUST SCREW 2 S39575001 1 オサエボウクミ PRESSER BAR ASSY 2-1 S39577000 1 オサエクツシヨン CUSHION 2-2 047301642 1 スプリングピンAW3 PIN, SPRING ROLL AW3 3 105161004 1 ザガネ WASHER 4 S20476001 1 オサエアバネ PRESSER SPRING 5 S38308021 1 シュオサエアウデ MAIN PRESSER ARM 6 S39659021 1 オサエアゲバネ PRESSER BAR LIFTER 7 S39660001 1 オサエアゲバネ PRESSER BAR LIFTER SPRING 8 S39661001 1 ダンネジ4 SCREW, BIND, M4 9 S39662001 1 シユオサエアウデストツパ MAIN PRESSER ARM STOPPER 10 060400612 1 バインドM4X6 SCREW, BIND M4X6 11 S39663021 1 オサエアシアゲレバー PRESSER FOOT LIFTER LEVER 12 S39664001 1 オサエアシアゲレバーカラー COLLAR 13 018062532 1 アナホルト6X25 BOLT, SOCKET M6X25 14 025060332 1 ヒラサガネダイ6 WASHER, PLAIN L 6 15 S39665001 1 オサエアシアゲレバーバネ SPRING 16 047503242 1 スプリングピンAW5 PIN, SPRING ROLL AW5 17 S39770001 1 シメネジ4 SCREW, M4 18 021400212 1 2シユナツト4 NUT, 2 M4 19 S20485001 1 オサエアゲリンク PRESSER BAR LIFTER LINK 20 S39666001 1 オサエアゲレバー PRESSER BAR LIFTER LEVER 21 S39667021 1 オサエアゲウデクミ PRESSER BAR LIFTER ARM ASSY 21-1 047401442 1 スプリングピンAW4 PIN, SPRING ROLL AW4 22 018061632 1 アナホルト6X16 BOLT, M6X16 23 S39669001 1 オサエアゲレバーバネ SPRING 24 S39670000 1 オサエアゲウデメタル PRESSER ARM SHAFT BUSH 25 012060632 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 26 S39671021 1 オサエアウデジク PRESSER ARM SHAFT 27 048090342 2 トメワE9 RETAINING RING, E9 28 S30562000 1 ザガネ WASHER 29 S39672001 1 オサエアウデピン PRESSER ARM PIN 30 012060432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 34 S37070121 1 フィンガーガードV FINGER GUARD, V 35 060300412 1 バインドM3X4 SCREW, BIND M3X4 38 S20770101 1 オサエネジリバネ TWIST SPRING 39 060300612 1 バインド M3X6 SCREW, BIND M3X6 38-2 S20115001 1 <デニム用> オサエネジリバネ <FOR HEAVY MATERIALS> TWIST SPRING 38-3 S20117001 1 <デニム用> オサエネジリバネ <FOR HEAVY MATERIALS, VERTICAL> TWIST SPRING 38-4 S30889001 1 <小回り用> オサエネジリバネ <FOR SMALL TYPE> TWIST SPRING 44 S23364000 1 <テープ付け用> テープアンナイ <FOR TAPING> TAPE GUIDE 185-N31-201 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 19 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela 63 64 50-1 -7 -5 -6 -4 -3 -2 -1 69 70 50-3 -7 -5 -6 -4 -3 -2 -1 65 66 50-2 -7 -5 -6 -4 -3 -2 -1 71 72 50-4 -7 -5 -6 -4 -3 -2 -1 92 93 50-5 -1 -4 -3 -2 -1 185-N31-201 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 20 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 50-1 S19313201 1 <63,64> オサエクミ PRESSER FOOT ASSY 50-1-1 S19311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-1-2 S30971001 1 オサエF PRESSER FOOT, F 50-1-3 105288001 1 シメネジ2.38 SCREW, SM2.38 50-1-4 S19307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-1-5 S19308001 1 2シユナツト318-44 NUT, 2 SM3.18-44 50-1-6 S19309001 1 オサエBネジリバネ TWIST SPRING 50-1-7 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-2 S19317101 1 <65,66> オサエクミ PRESSER FOOT ASSY 50-2-1 S19311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-2-2 S19312001 1 オサエF PRESSER FOOT, F 50-2-3 105288001 1 シメネジ2.38 SCREW, SM2.38 50-2-4 S19307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-2-5 S19308001 1 2シユナツト318-44 NUT, 2 SM3.18-44 50-2-6 S19309001 1 オサエBネジリバネ TWIST SPRING 50-2-7 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-3 S19321101 1 <69,70> オサエクミ PRESSER FOOT ASSY 50-3-1 S19311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-3-2 S19325001 1 オサエF PRESSER FOOT, F 50-3-3 S01295001 1 シメネジ2.38X3.5 SCREW, SM2.38X3.5 50-3-4 S19307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-3-5 S19308001 1 2シユナツト318-44 NUT, 2 SM3.18-44 50-3-6 S19309001 1 オサエBネジリバネ TWIST SPRING 50-3-7 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-4 S19326101 1 <71,72> オサエクミ PRESSER FOOT ASSY 50-4-1 S19311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-4-2 S19325001 1 オサエF PRESSER FOOT, F 50-4-3 S01295001 1 シメネジ2.38X3.5 SCREW, SM2.38X3.5 50-4-4 S19307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-4-5 S19308001 1 2シユナツト318-44 NUT, 2 SM3.18-44 50-4-6 S19309001 1 オサエBネジリバネ TWIST SPRING 50-4-7 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-5 S19334001 1 <92,93> オサエクミ PRESSER FOOT ASSY 50-5-1 S19311101 3 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-5-2 S19340001 1 オサエF PRESSER FOOT, F 50-5-3 106640001 1 シメネジ3.18 SCREW, SM3.18 50-5-4 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 From the library of: Superior Sewing Machine & Supply LLC jintex.in 185-N31-201

Page 21 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela 61 62 50-6 81 82 50-7 83 84 50-8 67 68 50-9 75 76 50-10 185-N31-201 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 22 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa

D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 50-6 519304101 1 オサエエミ PRESSER FOOT ASSY 50-6-1 519311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-6-2 519312001 1 オサエF PRESSER FOOT, F 50-6-3 105288001 1 シメネジ 2.38 SCREW, SM2.38 50-6-4 519307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-6-5 519308001 1 2 シユナツト 318-44 NUT, 2 SM3.18-44 50-6-6 519309001 1 オサエBネジリバネ TWIST SPRING 50-6-7 062670712 1 ナベコ 357-40X7 SCREW, PAN SM3.57-40X7 50-6-8 025630232 1 ヒラザガネチユウ 2.38 WASHER, PLAIN M 2.38 <61,62> 50-7 519330201 1 オサエエミ PRESSER FOOT ASSY 50-7-1 519311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-7-2 530971001 1 オサエF PRESSER FOOT, F 50-7-3 111140002 1 シメネジ 2.38 SCREW, SM2.38 50-7-4 519307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-7-5 519308001 1 2 シユナツト 318-44 NUT, 2 SM3.18-44 50-7-6 519309001 1 オサエBネジリバネ TWIST SPRING 50-7-7 062670712 1 ナベコ 357-40X7 SCREW, PAN SM3.57-40X7 <81,82> 50-8 520882201 1 オサエエミ PRESSER FOOT ASSY 50-8-1 519311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-8-2 530971001 1 オサエF PRESSER FOOT, F 50-8-3 111140002 1 シメネジ 2.38 SCREW, SM2.38 50-8-4 519307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-8-5 519308001 1 2 シユナツト 318-44 NUT, 2 SM3.18-44 50-8-6 519309001 1 オサエBネジリバネ TWIST SPRING 50-8-7 062670712 1 ナベコ 357-40X7 SCREW, PAN SM3.57-40X7 <83,84> 50-9 525548101 1 オサエエミ PRESSER FOOT ASSY 50-9-1 519311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-9-2 519325001 1 オサエF PRESSER FOOT, F 50-9-3 501295001 1 シメネジ 2.38X3.5 SCREW, SM2.38X3.5 50-9-4 519307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-9-5 519308001 1 2 シユナツト 318-44 NUT, 2 SM3.18-44 50-9-6 519309001 1 オサエBネジリバネ TWIST SPRING 50-9-7 062670712 1 ナベコ 357-40X7 SCREW, PAN SM3.57-40X7 <67,68> 50-10 525550001 1 オサエエミ PRESSER FOOT ASSY 50-10-1 519311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-10-2 525553001 1 オサエF PRESSER FOOT, F 50-10-3 501295001 1 シメネジ 2.38X3.5 SCREW, SM2.38X3.5 50-10-4 025660132 1 ヒラザガネシヨウ 3.18 WASHER, PLAIN S 3.18 50-10-5 106640001 1 シメネジ 3.18 SCREW, SM3.18 50-10-6 062670712 1 ナベコ 357-40X7 SCREW, PAN SM3.57-40X7 <75,76> 185-N31-201 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23 — D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela

D. 押工関係 / Presser foot mechanism / Stoffdrückerfuß / Mécanisme de pied presseur / Mecanismo de la prensa tela 77 78 50-11 -6 -1 3 85 86 50-12 -1 -4 -3 -2 89 90 50-13 -7 -5 -6 -4 -3 -2 95 50-14 -7 -5 -6 -4 -3 -2 92(B) 50-15 -3 -4 -3 -2 -1 185-N31-201 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 24 — D. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme de pied presseur / Mecanismo de la prensa tela

D. 押工関係/Presser foot mechanism/Stoffdrückerfuß/Mécanisme de pied presseur / Mecanismo de la prensa tela REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 50-11 S25555001 1 <77,78> オサエクレミ PRESSER FOOT ASSY 50-11-1 S19311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-11-2 S25553001 1 オサエF PRESSER FOOT, F 50-11-3 S01295001 1 シメネジ2.38X3.5 SCREW, SM2.38X3.5 50-11-4 025660132 1 ヒラザガネショウ3.18 WASHER, PLAIN S 3.18 50-11-5 106640001 1 シメネジ3.18 SCREW, SM3.18 50-11-6 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-12 S25557001 1 <85,86> オサエクレミ PRESSER FOOT ASSY 50-12-1 S19311101 3 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-12-2 S19340001 1 オサエF PRESSER FOOT, F 50-12-3 106640001 1 シメネジ3.18 SCREW, SM3.18 50-12-4 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-13 S25560101 1 <89,90> オサエクレミ PRESSER FOOT ASSY 50-13-1 S19311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-13-2 S19312001 1 オサエF PRESSER FOOT, F 50-13-3 105288001 1 シメネジ2.38 SCREW, SM2.38 50-13-4 S19307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-13-5 S19308001 1 2 シユナツト318-44 NUT, 2 SM3.18-44 50-13-6 S19309001 1 オサエBネジナリバネ TWIST SPRING 50-13-7 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-14 S25562101 1 <95> オサエクレミ PRESSER FOOT ASSY 50-14-1 S19311101 1 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-14-2 S19312001 1 オサエF PRESSER FOOT, F 50-14-3 105288001 1 シメネジ2.38 SCREW, SM2.38 50-14-4 S19307001 1 オサエBササエネジ PRESSER FOOT, B SUPPORT SCREW 50-14-5 S19308001 1 2 シユナツト318-44 NUT, 2 SM3.18-44 50-14-6 S19309001 1 オサエBネジナリバネ TWIST SPRING 50-14-7 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 50-15 S30525001 1 <92(B)> オサエクレミ PRESSER FOOT ASSY 50-15-1 S19311101 3 オサエササエネジ PRESSER FOOT SUPPORT SCREW 50-15-2 S30532001 1 オサエF PRESSER FOOT, F 50-15-3 100080004 2 シメネジ3.18 SCREW, SM3.18 50-15-4 062670712 1 ナベコ357-40X7 SCREW, PAN SM3.57-40X7 From the library of: Superior Sewing Machine & Supply LLC 185-N31-201 jintex.in

Page 25

E. 送リ関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación 185-N31-202 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 26

E. 送り関係 / Feed mechanism / Transportvorrichtung / Mecanismo de la alimentación REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S39578001 1 ヘンシンリンクミ ECCENTRIC WHEEL ASSY 1-1-1 047301242 2 スプリングピン AW3 PIN, SPRING AW3 1-2-1 047301242 1 スプリングピン AW3 PIN, SPRING AW3 1-3 S39585001 1 ラチェツトトメネジリバネ TWIST SPRING 1-4 S39586001 1 バネトメネジリ3 SCREW, M3 2 012060632 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 5 S39673020 1 バランスウエイト BALANCE WEIGHT 6 012060632 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 8 S39589021 1 オクリウデクミ FEED ARM ASSY 8-1 018061632 1 アナボルト6X16 BOLT, M6X16 9 S39674001 1 オクリチョウセツボタンジク FEED ADJUST SHAFT 10 S39675001 1 スプリング SPRING 11 081005070 1 Oリング P5 O RING, P5 12 025710232 1 ヒラガネチユウ4.76 WASHER, PLAIN M 4.76 13 025710232 1 ヒラガネチユウ4.76 WASHER, PLAIN M 4.76 14 048040342 1 トメワE4 RETAINING RING, E4 15 S39676021 1 オクリジク FEED SHAFT 16 S39677021 1 メタル11.11-17 BUSH, 11.11-17 17 S39678021 1 オクリジクメタルL FEED SHAFT BUSH, L 18 S30562000 1 ザガネ WASHER 19 048090342 1 トメワE9 RETAINING RING, E9 20 S39679001 1 オクリジクメタルLフタ FEED SHAFT BUSH CAP, L 21 081020070 1 Oリング P20 O RING, P20 22 060400612 3 バインドM4X6 SCREW, BIND M4X6 23 S39680001 1 オクリダイクミ FEED BAR ASSY 24 S38312050 1 ジヨウゲオクリカクゴマ FEED SLIDING BLOCK 25 081010070 1 Oリング P10 O RING, P10 26 S39683000 1 オクリダイカクゴマ FEED BAR SLIDE BLOCK 27 S39684001 1 セツトカラーオクリコマジク SET-COLLAR FEED SLIDE BLOCK SHAFT 28 S39685001 1 セツトカラー SET-COLLAR 29 012400432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 30 S20530001 1 ザガネ WASHER 31 061350616 1 サラコ35X6 SCREW, FLAT M3.5X6 32 012400832 1 アナヒラ4X8 SET SCREW, SOCKET (FT) M4X8 33 S42042021 1 シユオク リウデ MAIN FEED ARM 34 018061632 1 アナボルト6X16 BOLT, M6X16 35 S39773001 1 シユオク リツククミ MAIN FEED LINK ASSY 36 S39690021 1 ザガネ WASHER 37 S23360001 1 ボルト5X15 BOLT, M5X15 38 S02573000 1 ザガネ WASHER 39 S39691001 1 ナツト5 NUT, M5 40 S39769051 1 サドウオクリウデリンククミ DIFF. FEED ARM LINK ASSY 40-1 018061632 1 アナボルト6X16 BOLT, M6X16 41 S39690021 1 ザガネ WASHER 42 S23360001 1 ボルト5X15 BOLT, M5X15 43 S39681100 1 オクリダイアンナイカバー FEED BAR GUIDE COVER 44 S39686000 1 オクリダイアンナイL FEED BAR GUIDE, L 45 S39687000 1 オクリダイアンナイR FEED BAR GUIDE, R 46 S39688001 1 ボウジンイタササエ FRAGMENT PROTECTOR PLATE 47 S20526000 3 ボウジンイタ FRAGMENT PROTECTOR PLATE 48 018400832 6 アナボルト4X8 BOLT, SOCKET M4X8 49 025040132 2 ヒラガネシヨウ4 WASHER, PLAIN S 4 50 S39692021 1 サドウチヨウセツリンク DIFFERENTIAL FEED ADJUST LINK 51 S20543101 1 シメネジ SCREW, M5 52 S20544000 1 サドウリンクレバー DIFFERENTIAL LINK LEVER 53 018061432 1 アナボルト6X14 BOLT, SOCKET M6X14 54 S39593021 1 サドウチヨウセツレバークミ DIFF. FEED ADJUST LEVER ASSY 54-1 S39596021 1 マルナツト6 NUT, ROUND M6 55 S20547001 1 レバーバネ SPRING From the library of: Superior Sewing Machine & Supply LLC 185-N31-202 jintex.in

Page 27 — E. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación

E. 送り関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación 185-N31-202 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 28 — E. 送リ関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación

E. 送リ関係 / Feed mechanism / Transportvorrichtung / Mécanisme de l'entraînement / Mecanismo de la alimentación REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 56 081005670 1 OリングPW5 O RING, PW5 57 047502242 1 スプリングピンAW5 PIN, SPRING ROLL AWS 58 S39693001 1 サドウリヨウメモリイタ DIFFERENTIAL STITCH CONTROL 59 S20548001 2 カラー COLLAR 60 018061632 2 アナボルト 6X16 BOLT, M6X16 61 S25818001 2 チョウセツレバー ストツパ STOPPER FOR ADJUST LEVER 62 060350812 2 バインド35X8 SCREW, BIND M3.5X8 63 025350332 2 ヒラザガネダイ 3.5 WASHER, PLAIN L 3.5 64 S3969021 1 セットネジツマミ SET SCREW KNOB 65 S39695001 1 セットネジ SET SCREW 66 S20560001 1 サラバネザガネ SPRING WASHER 69 S23628001 1 シュオクリバトツリツケダイ MAIN FEED DOG SET BRACKET 70 S23621101 1 ボルト 35X8 BOLT, M3.5X8 75 ※ 1 シュオクリバクミ MAIN FEED DOG ASSY 75-1 060630712 1 バインド 238-56X7 SCREW, BIND SM2.38-56X7 76 S23621101 1 ボルト 35X8 BOLT, M3.5X8 77 ※ 1 サドウオクリバ DIFFERENTIAL FEED DOG 78 S23621101 1 ボルト 35X8 BOLT, M3.5X8 From the library of: Superior Sewing Machine & Supply LLC 185-N31-202 jintex.in

Page 29 — F. 上メス・下メス関係 / Knife mechanism / Messer / Mécanisme du couteau / Mecanismo de la cuchilla

F. 上メス・下メス関係 / Knife mechanism / Messer / Mécanisme du couteau / Mecanismo de la cuchilla 30-2-1 30-2-2 30-3 30-1-1 6 6-1 5 3 4 2 8 11-1 10-1 17 22 25 26 16-1 15-1 9-1 28 27 18 19 21 9-2 15-2 14 16-2 12 13 11-2 10-2 From the library of: Superior Sewing Machine & Supply LLC jintex.in 185-N31-222

Page 30 — F. 上メス・下メス関係 / Knife machanism / Messer / Mécanisme du couteau / Mecanismo de la cuchilla

F. 上メス・下メス関係 / Knife machanism / Messer / Mécanisme du couteau / Mecanismo de la cuchilla REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 2 520571101 1 ウワメスサドウデ UPPER KNIFE DIFFERENTIAL ARM 3 155247000 1 ダストシール DUST SEAL 4 539704021 1 ウワメス メタルL UPPER KNIFE BUSH L 5 539677021 1 メタル 11.11-17 BUSH, 11.11-17 6 543527001 1 セットカラークミ SET COLLAR ASSY 6-1 012060632 2 アナヒラ 6X6 SET SCREW, SOCKET (FT) M6X6 8 520574001 1 ウワメスダキナット NUT 9-1 520589101 1 ウワメスダキ UPPER KNIFE HOLDER 10-1 062401212 1 ナベコ 4X12 SCREW, PAN M4X12 11-1 025040132 1 ヒラザガネショウ4 WASHER, PLAIN S 4 15-1 144074300 1 ウワメス UPPER KNIFE 16-1 523621101 1 ボルト 35X8 BOLT, M3.5X8 17 520591101 1 シタメストリツケダイ LOWER KNIFE HOLDER 18 062060812 1 ナベコ 6X8 SCREW, PAN M6X8 19 539707001 1 シタメストリツケダイアンナイ LOWER KNIFE HOLDER GUIDE 21 062060812 2 ナベコ 6X8 SCREW, PAN M6X8 22 ※ 1 シタメス LOWER KNIFE 25 539708001 1 シタメスオサエ LOWER KNIFE PRESSER 26 017500812 1 ボルト 5X8 BOLT, M5X8 27 520585001 1 シタメストリツケダイバネ SPRING 28 539709021 1 シタメスバネウケ SPRING HOLDER 29 062400812 1 ナベコ 4X8 SCREW, PAN M4X8 30 539701011 1 ウワメスクランククロツドクミ। <RED> UPPER KNIFE CRANK ROD ASSY, I 30 539701012 1 ウワメスクランククロツドクミ। <BLUE> UPPER KNIFE CRANK ROD ASSY, I 30-1-1 018401622 2 アナボルト 4X16 BOLT, SOCKET M4X16 30-2-1 017061612 1 ボルト 6X16 BOLT, M6X16 30-2-2 118735002 1 ザガネ WASHER 30-3 523342001 1 アナトガリ4X5 SET SCREW, SOCKET (CN) M4X5 <デニム用> <FOR HEAVY MATERIALS> 9-2 520590101 1 ウワメスダキ UPPER KNIFE HOLDER 10-2 062402512 1 ナベコ 4X25 SCREW, PAN M4X25 11-2 125324001 1 ヒラザガネダイアツ WASHER, PLAIN L 4 12 520577001 1 ウワメスオサエ UPPER KNIFE PRESSER 13 520578101 1 ウワメスオサエイヤ UPPER KNIFE PRESSER PLATE 14 025030132 1 ヒラザガネショウ3 WASHER, PLAIN S 3 15-2 ※ 1 カクメス ANGLE KNIFE 16-2 062300412 1 ナベコ 3X4 SCREW, PAN M3X4 <オプションパーツ> <OPTION PARTS> 15-2 520896101 1 カクメス 幅狭 ANGLE KNIFE, NARROW 15-3 520897101 1 カクメス 幅狭 波刃 ANGLE KNIFE, NARROW WAVE EDGE 15-4 520579101 1 カクメス 幅広 ANGLE KNIFE, WIDE 15-5 520898101 1 カクメス 幅広 波刃 ANGLE KNIFE, WIDE WAVE EDGE 185-N31-222 ☆ 駆動軸とロッドは、同色(赤色・青色の2種類)の組合せで選択組付けをしています。 ご注文の際には色を確認の上、部品コードを指定して下さい。 ☆ The crank shaft and rod are to be selected and installed to parts of the same color (2 types; red and blue). Be sure to check the color before specifying the part no. ☆ Die Kurbelwelle und die Stange müssen mit Teilen der gleichen Farbe kombiniert werden (zwei Typen; rot und blau). Vor dem Angaben der Teilenummer muß die Farbe kontrolliert werden. ☆ Le vilebrequin et la bielle doivent être choisis et montés sur des pièces de la même couleur (2 types; rouge et vert). Veiller à bien vérifier la couleur avant d'indiquer le code numéroté de pièce. ☆ El cigüeñal y la varilla se deben seleccionar e instalar con las piezas del mismo color (dos tipos; rojas y azules). Antes de especificar el código de pieza se debe verificar el color. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 31 — G. 上ルーパ関係 / Over looper mechanism / Oberen Greifer / Mécanisme du boucleur supérieur / Mecanismo del presilladora superior

G. 上ルーパ関係 / Over looper mechanism / Oberen Greifer / Mécanisme du boucleur supérieur / Mecanismo del presilladora superior 18 19 2 18-1-1 19-1-1 6 6-1 2 14 13 18-2 18-2 19-1-1 19-1-1 9-1-2-2 9-2-2-2 5 9-1-1-2 9-2-1-2 9-1-1-1 9-2-1-1 9-1-3 9-2-3 9-1-2-1 9-2-1-1 9-1-1-3 9-2-1-3 11 9-1-1 9-1 9-2 12 3 10 ☆ 駆動軸とロッドは、同色(赤色・青色の2種類)の組合せで選択組付けをしています。 ご注文の際には色を確認の上、部品コードを指定して下さい。 ☆ The crank shaft and rod are to be selected and installed to parts of the same color (2 types; red and blue). Be sure to check the color before specifying the part no. ☆ Die Kurbelwelle und die Stange müssen mit Teilen der gleichen Farbe kombiniert werden (zwei Typen; rot und blau). Vor dem Angeben der Teilenummer muß daher die Farbe kontrolliert werden. ☆ Le vilebrequin et la bielle doivent être choisis et montés sur des pièces de la même couleur (2 types; rouge et vert). Veiller à bien vérifier la couleur avant d'indiquer le code numéroté de pièce. ☆ El cigüeñal y la varilla se deben seleccionar e instalar con las piezas del mismo color (dos tipos; rojas y azules). Antes de especificar el código de pieza se debe verificar el color. From the library: Superior Sewing Machine & Supply LLC jintex.in 185-N31-307

Page 32 — G. 上ルーパ関係/Over looper mechanism / Oberen Greifer / Mecanismo del presillador superior

G. 上ルーパ関係/Over looper mechanism / Oberen Greifer / Mecanismo del presillador superior REF. NO. CODE QTY ヒンメイ NAME OF PARTS RM 2 S20598000 2 ロッドフレドメ ROD STOPPER 3 S39717021 1 ウワルーパジクメタルF OVER LOOPER SHAFT BUSH, F 4 S39677021 1 メタル11.11-17 BUSH, 11.11-17 5 S39718021 1 ウワルーパジク OVER LOOPER SHAFT 6 S43527001 1 セツトカラクーミ SET COLLAR ASSY 6-1 012060632 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 10 018061432 2 アナホルト6X14 BOLT, SOCKET M6X14 11 155247000 1 ダストシール DUST SEAL 12 ※ 1 ウワルーパ OVER LOOPER 13 012400432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 14 118550001 1 ミゾツキビン DOWEL PIN 8 S30562000 1 ザガネ FOR "HIGH-LIFT" WASHER "スタンダード、ハイリフト用" FOR "STANDARD & HIGH-LIFT" 9-1 S38313001 1 ウワルーパコウクミSH OVER LOOPER MECHANISM ASSY, SH 9-1-1-1 S23342001 1 アナトガリ4X5 SET SCREW, SOCKET (CN) M4X5 9-1-1-2 017061612 1 ボルト6X16 BOLT, M6X16 9-1-1-3 118735002 1 ザガネ WASHER 9-1-1-4 155162001 1 スペーサ SPACER 9-1-2-1 S38320000 1 ウワルーパンナイオサエ OVER LOOPER GUIDE HOLDER 9-1-2-2 S20355002 2 シメネジ3X8.5 SCREW, M3X8.5 9-1-3 S29700000 2 ウワルーパンナイフエルト OVER LOOPER GUIDE FELT "超ハイリフト用" FOR "EXTRA HIGH-LIFT" 9-2 S38322001 1 ウワルーパコウクミE OVER LOOPER MECHANISM ASSY, E 9-2-1-1 S23342001 1 アナトガリ4X5 SET SCREW, SOCKET (CN) M4X5 9-2-1-2 017061612 1 ボルト6X16 BOLT, M6X16 9-2-1-3 118735002 1 ザガネ WASHER 9-2-1-4 155162001 1 スペーサ SPACER 9-2-2-1 S38320000 1 ウワルーパンナイオサエ OVER LOOPER GUIDE HOLDER 9-2-2-2 S20355002 2 シメネジ3X8.5 SCREW, M3X8.5 9-2-3 S29700000 2 ウワルーパンナイフエルト OVER LOOPER GUIDE FELT "スタンダード用" FOR "STANDARD" 18 S39711011 1 ウワルーパロツドクミS <RED> OVER LOOPER CONNECTING ROD 18 S39711012 1 ウワルーパロツドクミS <BLUE> OVER LOOPER CONNECTING ROD 18-1-1 018401622 4 アナホルト4X16 BOLT, SOCKET M4X16 18-2 018061432 1 アナホルト6X14 BOLT, SOCKET M6X14 "超ハイリフト,ハイリフト用" FOR "HIGH-LIFT, EXTRA HIGH-LIFT" 19 S39715011 1 ウワルーパロツドクミHE <RED> OVER LOOPER CONNECTING ROD 19 S39715012 1 ウワルーパロツドクミHE <BLUE> OVER LOOPER CONNECTING ROD 19-1-1 018401622 4 アナホルト4X16 BOLT, SOCKET M4X16 19-2 018061432 1 アナホルト6X14 BOLT, SOCKET M6X14 From the library of: Superior Sewing Machine & Supply LLC 185-N31-307 jintex.in

Page 33 — H. 下ルーパ関係 / Under looper mechanism / Unterer Greifer / Mécanisme du boucleur inférieur / Mecanismo del presillador inferior

H. 下ルーパ関係 / Under looper mechanism / Unterer Greifer / Mécanisme du boucleur inférieur / Mecanismo del presillador inferior 16 17 3 16-1-1 17-1-1 3 7 6 9 2 14-1 5 8 10 11 12 13 95 14-2 185-N31-308 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 34 — H. 下ループ関係 / Under loop mechanism / Unterer Greifer / Mécanisme du boucleur inférieur / Mecanismo del presilladora inferior

H. 下ループ関係 / Under loop mechanism / Unterer Greifer / Mécanisme du boucleur inférieur / Mecanismo del presilladora inferior REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 2 012060632 2 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 3 S20598000 2 ロッドフレドメ ROD STOPPER 5 S20622001 1 シタルーバジク UNDER LOOP SHAFT 6 S23626001 1 ザガネ WASHER 7 017060812 1 ボルト 6X8 BOLT, M6X8 8 S39728021 1 シタルーバジクメタル F UNDER LOOP SHAFT BUSH, F 9 S39677021 1 メタル 11-17 BUSH, 11.11-17 10 155247000 1 ダストシール DUST SEAL 11 S20625001 1 シタルーバトリツケダイ UNDER LOOP HOLDER 12 S23614101 1 フランジボルト 5X14 BOLT, M5X14 13 148782001 1 スペーサ SPACER 14-1 S20626001 1 シタルーバ UNDER LOOP 15 060351012 1 バインド 3.5X10 SCREW, BIND M3.5X10 <3本針用> <FOR 3 NEEDLES> 14-2 S20627001 1 シタルーバ UNDER LOOP "スタンダード、ハイリフト用" FOR "STANDARD & HIGH-LIFT" 16 S39724011 1 シタルーバ ロッドクミISH <RED> UNDER LOOP CONNECTING ROD <赤> 16 S39724012 1 シタルーバ ロッドクミISH <BLUE> UNDER LOOP CONNECTING ROD <青> 16-1-1 018401622 4 アナボルト 4X16 BOLT, SOCKET M4X16 "超ハイリフト用" FOR "EXTRA HIGH-LIFT" 17 S39726011 1 シタルーバ ロッドクミISH <RED> UNDER LOOP CONNECTING ROD <赤> 17 S39726012 1 シタルーバ ロッドクミIE <BLUE> UNDER LOOP CONNECTING ROD <青> 17-1-1 018401622 4 アナボルト 4X16 BOLT, SOCKET M4X16 185-N31-308 ☆ 駆動軸とロッドは、同色 (赤色・青色の2種類) の組合せで選択組付けをしています。 ☆ The crank shaft and rod are to be selected and installed to parts of the same color (2 types; red and blue). ☆ Die Kurbelwelle und die Stange müssen mit Teilen der gleichen Farbe kombiniert werden (zwei Typen; rot und blau). ☆ Le vilebrequin et la bielle doivent être choisis et montés sur des pièces de la même couleur (2 types; rouge et vert). ☆ El cigüeñal y la varilla se deben seleccionar e instalar con las piezas del mismo color (dos tipos; rojas y azules). From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 35 — J. 二重環ルーパ関係 / Double chain stitch looper mechanism / Doppelkettenstichgreifer / Mécanisme du boucleur pour point de chaînette double / Mecanismo del presilladora de double cadeneta

J. 二重環ルーパ関係 / Double chain stitch looper mechanism / Doppelkettenstichgreifer / Mécanisme du boucleur pour point de chaînette double / Mecanismo del presilladora de double cadeneta 1 3 4 5 6 7 8 9 10 11 12 12-1 12-2 16 16-1 16-2 15 18 19 20 21 23 24 25 26 27 28 29 30 185-N31-309 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 36 — J. 二重環ルーパ関係 / Double chain stitch looper mechanism / Doppelkettenstichgreifer / Mécanisme du boucleur pour point de chainette double / Mecanismo del presilladora de double cadeneta

J. 二重環ルーパ関係 / Double chain stitch looper mechanism / Doppelkettenstichgreifer / Mécanisme du boucleur pour point de chainette double / Mecanismo del presilladora de double cadeneta REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S39729021 1 ゼンゴロッドクミ LONGITUDINAL FEED ROD ASSY 3 S39732021 1 ゼンゴウデ LONGITUDINAL FEED ARM 4 S39733021 1 セットカラー SET SCREW COLLAR 5 012400432 2 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 6 S29102001 1 ゼンゴロッドブツシユ LONGITUDINAL FEED ROD BUSH 7 S39734021 1 ゼンゴウデネジ LONGITUDINAL FEED SCREW 8 S39690021 1 ザガネ WASHER 9 021500216 1 2シュナツト5 NUT, 2 M5 10 S39735050 1 ゼンゴウデカクゴマ LONGITUDINAL FEED SLIDE BLOCK 11 S20641001 1 ダンネジ5 SHOULDER SCREW 5 12 S31881101 1 カクゴマダキネジツキ SLIDE BLOCK HOLDER 12-1 018061432 1 アナホルト6X14 BOLT, SOCKET M6X14 12-2 155162001 1 スペーサ SPACER 15 S39736001 1 ニジユウカンリンククミ CHAIN STITCH LOOPER LINK ASSY 16 S20645101 1 ニジユウカンウデクミ CHAIN STITCH LOOPER LEVER ASSY 16-1 018061432 1 アナホルト6X14 BOLT, SOCKET M6X14 16-2 155162001 1 スペーサ SPACER 17 012400432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 18 S23360001 1 ボルト5X15 BOLT, M5X15 19 S39690021 1 ザガネ WASHER 20 S39740021 1 ゼンゴジク LONGITUDINAL FEED SHAFT 21 S39741021 1 ゼンゴジクメタルF LONGITUDINAL FEED SHAFT BUSH,F 22 S39742021 1 ゼンゴジクメタルB LONGITUDINAL FEED SHAFT BUSH,B 23 155261000 1 ダストシール DUST SEAL 24 S20652001 1 ニジユウカンルーパホルダ CHAIN STITCH LOOPER HOLDER 25 S23614101 1 フランジボルト5X14 BOLT, M5X14 26 148782001 1 スペーサ SPACER 27 S20653001 1 ニジユウカンルーパ CHAIN STITCH LOOPER 28 060351012 1 バインド3.5X10 SCREW, BIND M3.5X10 29 S20654001 1 ルーパチヨウセツザガネ WASHER 30 S23456101 1 ナベコ25X6 SCREW, PAN M2.5X6 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in 185-N31-309

Page 37

K. 給油潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación 15 16 13-1 14 17 13-1 20 19 21 22 13 12 2 3 29 29-2 29-1 4 10-1 4-1 4-2 4-4 23 24 10-1 10 8 8-1 9 8-1 6 4-3 4-5 4-6 4-7 4-9 4-8 18 185-N31-350 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 38 — K. 給油潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación

K. 給油潤滑関係 / Lubrication / Schmierung / Lubrication / Lubricación REF. NO. CODE QTY ヒンメイ NAME OF PARTS RM 1 S20655101 1 ウオーム WORM 2 012500532 2 アナヒラ5X5 SET SCREW, SOCKET (FT) M5X5 3 S39743001 1 カラー COLLAR 4 S39597001 1 トロコイドポンプクミ PUMP ASSY 4-1 S20657001 1 ウオームホイール WORM WHEEL 4-2 012400432 2 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 4-3 S39599001 1 ポンプロータークミ PUMP INNER ROTER ASSY 4-4 S39598000 1 ポンプケース PUMP CASE 4-5 S39601000 1 ポンプタイフタ PUMP BODY COVER 4-6 062400812 3 ナベコ4X8 SCREW, PAN M4X8 4-7 S39602000 1 ロカモウ OIL FILTER 4-8 S39603001 1 ロカモウフエサエ OIL FILTER FLANGE 4-9 062401212 2 ナベコ4X12 SCREW, PAN M4X12 6 018061432 2 アナホルト6X14 BOLT, SOCKET M6X14 7 S39744001 1 ハイパイプツヅキテ OIL PIPE JOINT 8 S39745001 1 ビニルチューブクミ OIL TUBE ASSY 8-1 147942001 2 ビニルチューブトメガネ STOP RING 9 S20199001 1 ハイパイプツヅキテ OIL PIPE JOINT 10 S39747001 1 ビニルチューブクミ OIL TUBE ASSY 10-1 147942001 2 ビニルチューブトメガネ STOP RING 11 S39751021 1 キュウユパイプ OIL PIPE 12 S39744001 1 ハイパイプツヅキテ OIL PIPE JOINT 13 S39749001 1 ビニルチューブクミ OIL PIPE ASSY 13-1 147942001 2 ビニルチューブトメガネ STOP RING 14 S20199001 2 ハイパイプツヅキテ OIL PIPE JOINT 15 S39752021 1 ロッドキュウユパイプ OIL PIPE 16 012400432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 17 012060632 1 アナヒラ6X6 SET SCREW, SOCKET (FT) M6X6 18 148084001 1 オイルゲージマド OIL GAUGE WINDOW 19 S20668000 1 ハリボウリンクフエルト NEEDLE BAR LINK FELT 20 061400812 1 サラコM4X8 SCREW, FLAT M4X8 21 S20671000 1 クミヒモ100 WICK (L=100) 22 S20671000 1 クミヒモ100 WICK (L=100) 23 S20669000 1 フエルト FELT 24 060400812 1 バインドM4X8 SCREW, BIND M4X8 29 S43523000 1 フイルタークミ OIL FILTER ASSY 29-1 S43521000 1 ロカモウD OIL FILTER, D 29-2 S43522000 1 オイルフイルター OIL FILTER From the library of: Superior Sewing Machine & Supply LLC jintex.in 185-N31-350

Page 39 — L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo

L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo 1 14-1 14-2 15 19-3 19-4 54 53 9 10 11 12 13 19 19-1 19-2 57 55 56 44 45 40 41 38 39 21 62 61 60 59 58 46 47 43 42 22 25 23 24 72 71 48 51 52 68 66 67 63 65 64 35 36 26 27 27 73 74 70 69 37 28 29 30 32 31 76 75 185-N31-418 From the library of: Superior Sewing Machine & Supply LLC Jinte x.in

Page 40 — L. 糸調子関係/Thread tension / Fadernspannung / Tension du fil / Tensión del hilo

L. 糸調子関係/Thread tension / Fadernspannung / Tension du fil / Tensión del hilo REF. NO. CODE QTY ヒンメイ NAME OF PARTS RM 1 S38328051 1 シュイトアンナイ MAIN THREAD GUIDE 9 S20676001 4 イトチョウシボウ TENSION STUD 10 S20677000 4 イトチョウシサラフエルト TENSION DISC FELT 11 S20673001 8 イトチョウシサラ TENSION DISC 12 110832009 4 イトチョウシサラフエルト TENSION DISC FELT 13 144103009 4 イトチョウシサラオサエ TENSION DISC PRESSER 14-1 S20678001 1 イトチョウシバネL TENSION SPRING, L 14-2 S20679001 1 イトチョウシバネM TENSION SPRING, M 15 S32276001 1 イトチョウシバネLL TENSION SPRING, LL 18 S20681000 4 チヨウシバネウエザガネ WASHER 19-1 S20682103 1 イトチョウシナツト 赤 TENSION NUT, RED 19-2 S20682101 1 イトチョウシナツト 水色 TENSION NUT, LIGHT BLUE 19-3 S20682104 1 イトチョウシナツト 黄 TENSION NUT, YELLOW 19-4 S20682102 1 イトチョウシナツト 緑 TENSION NUT, GREEN 21 146592001 2 イトアンナイパイプ THREAD GUIDE PIPE 22 S23452002 1 アナヒラ4X3.2 SET SCREW, SOCKET (FT) M4X3.2 23 S20684101 1 イトアンナイ ドダイ THREAD GUIDE BRACKET 24 060400612 2 バインド M4X6 SCREW, BIND M4X6 25 S20685001 1 シタルーパイトアンナイR UNDER LOOPER THREAD GUIDE, R 26 S20686001 1 ウワーパイトアンナイR OVER LOOPER THREAD GUIDE, R 27 S23418002 2 シメネジ 4X5 SCREW, M4X5 28 S21133001 1 ウワーパテンビンR OVER LOOPER TAKE-UP, R 29 S21134001 1 シタルーパテンビンR UNDER LOOPER THREAD TAKE-UP,R 30 060300412 1 バインド M3X4 SCREW, BIND M3X4 31 S21137001 1 ルーパテンビンL LOOPER THREAD TAKE-UP, L 32 060400612 2 バインド M4X6 SCREW, BIND M4X6 33 S21137001 1 ルーパイトアンナイ M1 LOOPER THREAD GUIDE, M1 35 S21136101 1 ウワーパイトアンナイ L OVER LOOPER THREAD GUIDE, L 36 060400612 1 バインド M4X6 SCREW, BIND M4X6 37 S20687001 1 シタルーパイトアンナイL UNDER LOOPER THREAD GUIDE, L 38 S38329001 1 ハイトアンナイ C NEEDLE THREAD GUIDE, C 39 060400612 1 バインド M4X6 SCREW, BIND M4X6 40 S21126001 1 ハイトアンナイ B NEEDLE THREAD GUIDE, B 41 060400612 1 バインド M4X6 SCREW, BIND M4X6 42 S21130001 1 ハイトテンビンA NEEDLE THREAD TAKE-UP, A 43 060400612 2 バインド M4X6 SCREW, BIND M4X6 44 S21125001 1 ハイトアンナイ A NEEDLE THREAD GUIDE, A 45 060400612 1 バインド M4X6 SCREW, BIND M4X6 46 S38330050 1 ハイトオサエホルダー NEEDLE THREAD PRESSER HOLDER 47 146427001 2 アナメネジ3.18クボミ SET SCREW, SOCKET (CP) SM3.18 48 S20689001 1 ハイトオサエカラー NEEDLE THREAD PRESSER COLLAR 49 S20690001 1 ハイトオサエバネ SPRING 50 S20691001 1 ハイトオサエイタ NEEDLE THREAD PRESSER PLATE 51 S20743001 1 ハイトアンナイ NEEDLE THREAD GUIDE 52 060300512 1 バインド M3X5 SCREW, BIND M3X5 53 S20694001 1 ルーパイトアンナイ LOOPER THREAD GUIDE 54 060400612 1 バインド M4X6 SCREW, BIND M4X6 55 S20695001 1 DLイトアンナイパイプ THREAD GUIDE PIPE 56 S20696001 1 イトアンナイパイプササエ THREAD GUIDE PIPE SUPPORT 57 060400612 1 バインド M4X6 SCREW, BIND M4X6 58 S20697001 1 DLチョウシライトアンナイ LOOPER THREAD GUIDE 59 S20698121 1 イトチョウシボウ TENSION STUD 60 144504001 2 イトアンナイサラ THREAD GUIDE DISC 61 158782101 1 プレテンションバネ PRE TENSION SPRING 62 155510001 1 イトチョウシナツト TENSION NUT 63 S39756021 1 イトサバキダイ THREAD HANDLER BRACKET 64 028050242 1 バネザガネ2-5 WASHER, SPRING 2-5 65 S20342001 1 ダンネジ4 SHOULDER SCREW, M4 66 S20701001 1 テンビンイトサバキ THREAD HANDLER From the library of: Superior Sewing Machine & Supply LLC 185-N31-418 jintex.in

Page 41 — L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo

L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo 1 9 10 11 12 13 14-1 14-2 15 19-3 19-4 19-1 19-2 18 44 45 40 41 54 53 57 55 56 59 58 62 61 60 46 47 43 42 48 38 39 21 22 25 23 24 72 71 68 66 67 63 65 64 73 74 70 69 49 50 33 35 36 26 27 32 37 28 29 30 31 32 76 75 From the library of: Superior Sewing Machine & Supply LLC 185-N31-418 Jinttex.in

Page 42 — L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo

L. 糸調子関係 / Thread tension / Fadenspannung / Tension du fil / Tensión del hilo REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 67 S39757001 1 カラー COLLAR 68 060401412 1 バインド M4X14 SCREW, BIND M4X14 69 150813001 1 ダイオサエバネ SPRING 70 062350612 1 ナベコ M3.5X6 SCREW, PAN M3.5X6 71 S20702001 2 DLテンビンイトアンナイ THREAD TAKE-UP GUIDE 72 S20158101 2 ナベコ 25X3 SCREW, PAN M2.5X3 73 S20703001 1 DLテンビンクミ THREAD TAKE-UP ASSY 74 S23452002 2 アナヒラ4X3.2 SET SCREW, SOCKET (FT) M4X3.2 75 S20707001 1 DLイトアンナイA CHAIN STITCH THREAD GUIDE 76 060400612 1 バインド M4X6 SCREW, BIND M4X6 <3本針用> <FOR 3 NEEDLES> 8 S20675001 1 チョウシライトアンナイ TENSION DISC THREAD GUIDE 9 S20676001 5 イトチョウシボウ TENSION STUD 10 S20677000 5 イトチョウシサラフエルト TENSION DISC FELT 11 S20673001 10 イトチョウシサラ TENSION DISC 12 11083009 5 イトチョウシサラフエルト TENSION DISC FELT 13 144103009 5 イトチョウシサラオサエ TENSION DISC PRESSER 18 S20681000 5 チョウシバネウエザガネ WASHER 19-5 S20682103 2 イトチョウシナツト 赤 TENSION NUT, RED From the library of: Superior Sewing Machine & Supply LLC 185-N31-418 jintex.in

Page 43

M. 針冷却装置 / Needle cooler / Nadelkühlungsvorrichtung / Mécanisme du refroidisseur d'aiguille / Mecanismo del enfriador de aguja <オプションパーツ/OPTION PARTS> 1-1-1- 1-3- 1-2- 1-1- 1-4- 185-N31-124 N. ヒモ案内関係 / Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo 75 76 77 78 1-1- 1-1-1- 1-2 1 185-N31-220 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 44

M. 針冷却装置 / Needle cooler / Nadelkühlungsvorrichtung / Mécanisme du refroidisseur d'aiguille / Mecanismo del enfriador de aguja REF.NO. CODE QTY ヒンメイ NAME OF PARTS RM 1 S43525001 1 <オプション用> <FOR OPTION> 1-1 S20468001 1 ハリレイヤクセットS NEEDLE COOLER SET, S 1-1-1 S20460000 1 フェルトササエクリミ FELT SUPPORT ASSY 1-2 S23418002 1 シリコンタンクフタ SILICONE TANK CAP 1-3 060401012 2 シメネジ4X5 SCREW, M4X5 1-4 S06704001 1 バインドM4X10 SCREW, BIND M4X10 1 シリコンオイル SILICONE OIL 185-N31-124 N. ヒモ案内関係 / Gimp guide mechanism / Schnurführung / Mécanisme de guide-fil / Mecanismo guía del hilo REF.NO. CODE QTY ヒンメイ NAME OF PARTS RM 1 S20130009 1 イトタテダイクミネジツキ COTTON STAND WITH SCREW 1-1 S20131009 1 イトタテダイクミ COTTON STAND ASSY 1-1-1 S20134001 1 シメネジW476-24X10 SCREW, W476-24X10 1-1-2 S20135001 1 イトタテボウ SPOOL PIN 1-2 034422006 2 +2サラモク41X20 WOOD SCREW, FLAT 2 M4.1X20 From the library of: Superior Sewing Machine & Supply LLC 185-N31-220 jintex.in

Page 45

P. テープワインダー関係/Tape winder mechanism / Bandaufwickelvorrichtung / Mécanisme de l'enrouleur de ruban / Mecanismo bobinador de cinta 75 76 77 78 89 90 1 1-1 1-2 1-3 1-4 2 Q. ラッパー関係/Lapper mechanism / Falz-mechanismus / Mécanisme à rabat / Mecanismo de solapado 185-N31-221 75 76 77 78 2 3 10 11 89 90 5 4 6 7 8 185-N31-239 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 46

P. テープワインダー関係 / Tape winder mechanism / Bandaufwickelvorrichtung / Mécanisme de l'enrouleur de ruban / Mecanismo bobinador de cinta REF.NO. CODE Q'TY HINMEI NAME OF PARTS RM 1 143767002 1 テープワインダークミ TAPE WINDER ASSY 1-1 143980001 1 ツマミネジ SCREW 1-2 108494001 1 ザガネ WASHER 1-3 108495001 1 テープワインダオシバネ SPRING 1-4 100136001 1 イトチョウクシナツト TENSION NUT 2 101118001 2 マルモクネジ4.5X20 WOOD SCREW, ROUND M4.5X20 185-N31-221 Q. ラッパー関係 / Lapper mechanism / Falz-mechanismus / Mécanisme à rabat / Mecanismo de solapado REF.NO. CODE Q'TY HINMEI NAME OF PARTS RM 1 S21318000 1 ラツパークミ LAPPER ASSY 2 062400812 2 ナベコ4X8 SCREW, PAN M4X8 3 025040232 2 ヒラザガネチユウ4 WASHER, PLAIN M 4 10 S25019001 1 ラツパーダイ LAPPER BASE 11 S23651002 2 アナヒラ6X6ホスメ SET SCREW, SOCKET (FT) M6X6 <バインデイング用> <FOR BINDING> 4 S29824000 1 ラツパー8クミ LAPPER ASSY, 8 4 S29827000 1 ラツパー10クミ LAPPER ASSY, 10 5 S29835001 1 ラツパーアンナイイタ LAPPER GUIDE PLATE 6 S23418002 1 シメネジ4X5 SCREW, M4X5 7 S29831000 1 テープアンナイクミ LAPPER GUIDE ASSY 8 062400612 1 ナベコM4X6 SCREW, PAN M4X6 185-N31-239 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 47

R. ラフラー装置 / Ruffling attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido 67 68 69 70 71 72 75 76 77 78 16 19 18 17 B 1-28 1-27 1-13 1-10 1-11 1-12 1-2 1-1 1-18 1-19 A 9 12 11 13 1-16 1-17 1-25 1-26 1-22 1-23 1-20 1-3 1-4 29 1-14 1-15 1-5 28 2 3 1-21 1 1-24 7 6 4 5 185-N31-230 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 48 — R. ラフラー装置 / Ruffling attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido

R. ラフラー装置 / Ruffling attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido REF.NO. CODE Q'TY ヒンメイ NAME OF PARTS RM A S30134001 1 ラフラークミ RUFFLER ASSY 1 S21293001 1 ラフラーアタッチメントクミ RUFFLER ATTACHMENT ASSY 1-1 S21294001 1 キジオサエタイ RUFFLING BLADE BRACKET 1-2 S21295001 1 キジオサエトリツケケジク RUFFLING BLADE BASE SHAFT 1-3 S21305001 1 バネウケ SPRING BASE 1-4 S23777101 2 アタマツキトメネジ6 SET SCREW, M6 1-5 S20676001 1 イトチヨウシンボウ TENSION STUD 1-7 S23775001 1 コイルバネ COIL SPRING 1-8 S20681000 1 チョウシバネウエザガネ WASHER 1-9 S20682105 1 イトチヨウシナツト TENSION NUT 1-10 S21296001 1 キジオサエ RUFFLING BLADE 1-11 144784001 1 キジオサエザガネ WASHER 1-12 062300812 2 ナベコ3.5X8 SCREW, PAN M3X8 1-13 S21297001 1 ラフラーソウチツケダイ RUFFLER BASE 1-14 S21306001 1 ダンネジ6 STUD SCREW 6 1-15 S21307001 2 バネザガネ WASHER, SPRING 1-16 S21298001 1 キジオサエアンナイ RUFFLING BLADE GUIDE 1-17 062350812 1 ナベコ3.5X8 SCREW, PAN M3.5X8 1-18 S21299001 1 キジオサエアゲ CLOTH PRESSER LIFTER 1-19 S23651002 2 アナヒラ6X6ホソメ SET SCREW, SOCKET (FT) M6X6 1-20 S21300001 1 ハンドルツトツケタイタ HANDLE SET PLATE 1-21 021060302 1 ナット3シュ6 NUT, 3 M6 1-22 062401612 1 ナベコM4X16 SCREW, PAN M4X16 1-23 021400212 1 2シュナット4 NUT, 2 M4 1-24 S21301001 1 ハンドルモドシバネ SPRING 1-25 S21302001 1 キジオサエタイトメバネU SPRING PLATE (U) 1-26 062350612 1 ナベコM3.5X6 SCREW, PAN M3.5X6 1-27 S21303001 1 キジオサエタイトメバネD SPRING PLATE (D) 1-28 062350512 2 ナベコ3.5X5 SCREW, PAN M3.5X5 1-29 S21304001 1 カラー COLLAR 2 018401632 1 アナボルトM4X16 BOLT M4X16 3 018401032 1 アナボルト4X10 BOLT 4X10 4 S21590000 1 キジアンナイ RUFFLER GUIDE 5 S23418002 2 シメネジ4X5 SCREW, M4X5 6 S23779001 1 ハンドル HANDLE 7 021060302 1 ナット3シュ6 NUT, 3 M6 28 102707002 2 ザガネ WASHER, PLAIN 4 B S43530001 1 ラフラーオサエレンドウクミ RUFFLER INTERLOCKING PARTS SET 8 S21310001 1 キジオサエアゲ CLOTH PRESSER BAR LIFTER LEVER 9 S21311001 1 オサエアゲダイ PRESSER BAR LIFTER BRACKET 10 012060632 1 ピン6.35 PIN 6.35 11 062060632 1 アナコ3.5X6 SET SCREW, SOCKET (FT) M6X6 12 062350812 2 ナベコ3.5X8 SCREW, PAN M3.5X8 13 S39795001 1 ワイヤートリツケイタ WIRE SET PLATE 14 S21314001 1 フレキシブルワイヤークミ FLEXIBLE WIRE ASSY 15 S23774001 1 ダンネジ3.5 SHOULDER SCREW, M3.5 16 S21315001 1 スツドM4 STUD M4 17 021400212 1 2シュナット4 NUT, 2 M4 18 S21316001 1 ワイヤーストツパー WIRE STOPPER 19 012400432 1 アナヒラ4X4 SET SCREW, SOCKET (FT) M4X4 29 S39796001 1 スペーサ SPACER From the library of: Superior Sewing Machine & Supply LLC jintex.in 185-N31-230

Page 49 — R. ラフラー装置 /Ruffling attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorios de fruncido

R. ラフラー装置 /Ruffling attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorios de fruncido 67 半沈用 /FOR SEMI-SUBMERGED 68 69 70 71 72 75 76 77 78 20-1-12 20-1-13 20-1-1 20-1-12 20-1-13 20-1-12 20-1-11 20-1-1 20-1-2 20-1-10 20-1-7 20-1-8 23 20-1-9 20-1-3 20-1-4 20-1-6 25 21 オプションパーツ /OPTION PARTS 全沈用 /FOR FULL-SUBMERGED 20-2-13 20-2-12 20-2-12 20-2-11 20-2-1 20-2-2 20-2-10 20-2-9 20-2-5 20-2-7 20-2-8 23 20-2-4 20-2-6 20-2-3 25 22 20-2 D 185-N31-230 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 50 — R. ラフラー装置 / Ruffing attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido

R. ラフラー装置 / Ruffing attachment / Kräuselvorrichtung / Accessoire pour fronces / Accesorio de fruncido REF.NO. CODE Q'TY ヒンメイ <FOR SEMI-SUBMERGED> RM C S30135001 1 サドウチヨウセツト DIFFERENTIAL FEED ADJUSTER SET 20-1 S21373001 1 サドウチヨウセツクミ DIFFERENTIAL FEED ADJUSTER ASSY 20-1-1 155197101 1 ヒザアテヨコジクウケ KNEE LIFTER SHAFT BRACKET 20-1-2 S21375001 1 ヨコジク KNEE LIFTER SHAFT 20-1-3 155199101 1 ヒザアテツギテ KNEE LIFTER BRACKET 20-1-4 017781012 2 ボルト 6.35×10 BOLT, SM6.35X10 20-1-5 148797001 1 ヒザアゲテジクS KNEE LIFTER BAR (S) 20-1-6 014780622 1 アナトメネジ 6.35クボミ SET SCREW, SOCKET (CP) SM6.35 20-1-7 148798009 1 ヒザアテL KNEE LIFTER PLATE (L) 20-1-8 100463001 1 カクボルト 7.94 BOLT, SM7.94 20-1-9 S21376001 1 ヒザアテレバー KNEE LIFTER LEVER 20-1-10 017781012 2 ボルト 6.35×10 BOLT, SM6.35X10 20-1-11 S21377001 1 ヒザアテレバーバネ SPRING 20-1-12 S21378001 2 ヨコジクメク COLLAR 20-1-13 017781012 4 ボルト 6.35×10 BOLT, SM6.35X10 21 S21379001 1 ヒザアテリンク CONNECTING BAR 23 062401012 4 ナベコ M4X10 SCREW, PAN M4X10 25 021400202 2 2シュナツト 4 NUT, 2 M4 <全汎用> <FOR FULL-SUBMERGED> D S30135002 1 サドウチヨウセツト DIFFERENTIAL FEED ADJUSTER SET 20-2 S21380001 1 サドウチヨウセツンウチクミ DIFFERENTIAL FEED ADJUSTER ASSY 20-2-1 155197101 1 ヒザアテヨコジクウケ KNEE LIFTER SHAFT BRACKET 20-2-2 S21375001 1 ヨコジク KNEE LIFTER SHAFT 20-2-3 155199101 1 ヒザアテツギテ KNEE LIFTER BRACKET 20-2-4 017781012 2 ボルト 6.35×10 BOLT, SM6.35X10 20-2-5 148797001 1 ヒザアゲテジクS KNEE LIFTER BAR (S) 20-2-6 014780622 1 アナトメネジ 6.35クボミ SET SCREW, SOCKET (CP) SM6.35 20-2-7 148798009 1 ヒザアテL KNEE LIFTER PLATE (L) 20-2-8 100463001 1 カクボルト 7.94 BOLT, SM7.94 20-2-9 S21376001 1 ヒザアテレバー KNEE LIFTER LEVER 20-2-10 017781012 2 ボルト 6.35×10 BOLT, SM6.35X10 20-2-11 S21377001 1 ヒザアテレバーバネ SPRING 20-2-12 S21378001 2 ヨコジクメク COLLAR 20-2-13 017781012 4 ボルト 6.35×10 BOLT, SM6.35X10 22 S21381001 1 ヒザアテリンク CONNECTING BAR 23 062401012 4 ナベコ M4X10 SCREW, PAN M4X10 25 021400202 2 2シュナツト 4 NUT, 2 M4 From the library of: Superior Sewing Machine & Supply LLC 185-N31-230 jintex.in

Page 51

Z. 付属 品 関係 / Accessories / Zubehör / Accessoires / Accesorios 25 4 1 5 7 8 9 13 14 41 10 11 12 24 57 58 60 59 56 91 92 29 48-1 48-2 27 19 31 32 33 <OPTION PARTS> 67 65 66 69 71 72 70 ◎ 付属 品 の 明細 は 変 更 す る こ と が あ り ま す。 ◎ The details of included accessories are subject to change. ◎ Änderungen in der Aufstellung der Mitgelieferten Zubehöre sind vorbehalten. ◎ Les détails des accessoires inclus sont sujets à des changements. ◎ Los detalles des accesorios incluidos pueden variar. From the library of: Superior Sewing Machine & Supply LLC jintex.in 185-N31-910

Page 52 — Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios

Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios REF. NO. CODE Q'TY ヒンメイ NAME OF PARTS RM 1 ※ 2 ミシンハリDCX27 NEEDLE DCX27 4 ※ 1 シタメス LOWER KNIFE 5 101572101 1 ネジワマワシ5.5X190 SCREW DRIVER, 5.5X190 7 501943001 1 6カクボウネジナワシ1.6 SCREW DRIVER, 1.6 8 142002001 1 6カクボウスパナ2 HEXAGONAL WRENCH, 2 9 149570001 1 6カクボウスパナ5 HEXAGONAL WRENCH, 5 10 523356001 1 6カクボウレンチ8X10 DOUBLE WRENCH, 8X10 11 523363001 1 スパナ6 WRENCH, 6 12 520723001 1 メガネレンチ8 DOUBLE WRENCH, 8 13 117466000 1 ピンセット PINCETTE 14 524473000 1 イトトオシ THREADER 18 506701000 1 ポリ オイラークミ POLY OILIER ASSY 19 145277205 1 オイルタンク OIL TANK 24 142262001 1 クサリFクミ CHAIN, F ASSY 27 520718000 1 トウブウケ HEAD PLATE 29 535997001 4 カケネボルト8X85 BOLT, M8X85 31 213650001 4 ワ2.3X8.5X38ST WASHER, 2.3X8.5X38ST 32 028080242 4 バネザガネ2-8 WASHER, SPRING 2-8 33 021080106 4 ナツト1シュ8 NUT, 1 M8 40 520769000 1 ジョーゴ FUNNEL 41 144225002 1 トウブカバー HEAD COVER 48-1 147919001 1 ボウシンゴム RUBBER CUSHION 48-2 147919002 3 ボウシンゴム RUBBER CUSHION 56 183797009 1 ダスターシュー トクミ DUSTER CHUTE ASSY 57 031411304 3 マルモクネジ4.1X13 WOOD SCREW, ROUND M4.1X13 58 523353001 1 ダスターシュー トササエS DUSTER SHOOT SUPPORT, S 59 062400612 2 ナベコM4X6 SCREW, PAN M4X6 60 025040332 2 ヒラザガネダイ4 WASHER, PLAIN L4 65 538302020 1 ベルトカバー BELT COVER 66 062061412 3 ナベコM6X14 SCREW, PAN M6X14 67 520412000 1 ゴムセン3.7 RUBBER CAP, 3.7 69 147893009 1 オサエゲフミイタ 70 021400106 2 ナツト1シュ4 71 062401406 2 ナベコ4X14 72 116016001 2 ベタルトメ 91 520118101 1 カラクイメス TRIMMING KNIFE 92 060300512 1 バインドM3X5 SCREW, BIND M3X5 <OPTION PARTS> 69 147893009 1 TREADLE PEDAL 70 021400106 2 NUT, 1 M4 71 062401406 2 SCREW, PAN M4X14 72 116016001 2 PEDAL STOPPER From the library of: Superior Sewing Machine & Supply LLC 185-N31-910 jintex.in

Page 53 — Z. 付属 品 関係 / Accessories / Zubehör / Accessoires / Accesorios

Z. 付属 品 関係 / Accessories / Zubehör / Accessoires / Accesorios 95 42-2-17-1 42-2-18-1 42-2-7-1 42-2-18-2 42-2-16 42-2-6 42-2-12 42-2-19-1 42-2-5 42-2-10-1 42-2-3 42-2-2 42-2-1 42-2-20-1 42-2-20-2 42-2-13 42-2-17-1 42-2-19-2 42-2-7 42-2-9 42-2-17-4 42-2-11 42-2-15 42-2-18-1 42-2-20-3 42-2-10-2 42-2-10-3 42-2-17-2 42-2-19-3 42-2-18-3 42-2-8 42-2-4-1 42-2-4-2 42-2-14 ◎ 付属品の明細は変更することがあります。 ◎ The details of included accessories are subject to change. ◎ Änderungen in der Aufstellung der Mitgelieferten Zubehöre sind vorbehalten. ◎ Les détails des accessoires inclus sont sujets à des changements. ◎ Los detalles des accesorios incluidos pueden variar. From the library of: Superior Sewing Machine & Supply LLC jintex.in 185-N31-910

Page 54 — Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios

Z. 付属関係 / Accessories / Zubehör / Accessoires / Accesorios REF. NO. CODE Q'TY <95> NAME OF PARTS RM 42-2 529864109 1 イトタテダイクミ6DTHF COTTON STAND ASSY, 6DTH 42-2-1 150180001 6 ウケザラ SPOOL STAND BASE 42-2-2 150182000 6 スプールマット SPOOL MAT 42-2-3 126863001 6 スプールクッション SPOOL CUSHION 42-2-4 502775001 1 パイプネジセット A PIPE SCREW SET, A 42-2-4-1 150206002 1 ヒラザガネ 16 WASHER, PLAIN 16 42-2-4-2 S38648001 1 6カクナット U5/8 NUT, U5/8-28 42-2-5 S04109001 1 イトアンナイサエボウ THREAD GUIDE SUPPORT BAR 42-2-6 502783001 1 イトアンナイ 6 THREAD GUIDE, 6 42-2-7 540640001 1 コラムパイプキャツプツキ COLUMN PIPE WITH CAP 42-2-7-1 150174000 1 コラムパイプ COLUMN PIPE 42-2-8 156112003 1 コラムパイプ D COLUMN PIPE, D 42-2-9 150173003 1 コラムジョイント COLUMN JOINT 42-2-10 521798001 6 スプールネジセット SPOOL SCREW SET 42-2-10-1 150179002 6 スプールジク B SPOOL SHAFT, B 42-2-10-2 028050246 6 バネザガネ 2-5 WASHER, SPRING 2-5 42-2-10-3 021500106 6 1 シユナツト 5 NUT, 1 M5 42-2-11 150185009 1 イトアンナイホルダー THREAD GUIDE HOLDER 42-2-12 138843001 1 サエボウツキテ JOINT 42-2-13 150188009 1 スプールホルダーササエ A SPOOL HOLDER SUPPORT, A 42-2-14 150194009 1 スプールホルダーササエ B SPOOL HOLDER SUPPORT, B 42-2-15 502779009 2 スプールホルダー-3 SPOOL HOLDER, 3 42-2-16 502788009 2 スレッドハンガーグミ 3 THREAD HANGER ASSY, 3 42-2-17 540641001 1 スプールジクネジセット A SPOOL SCREW SET, A 42-2-17-1 021500106 4 1 シユナツト 5 NUT, 1 M5 42-2-17-2 537038001 1 ナベコヒラ5X14 SCREW, PAN (P WASHER) M5X14 42-2-17-3 537037001 1 ナベコヒラ5X32 SCREW, PAN (P WASHER) M5X32 42-2-17-4 062501406 1 ナベコ 5X14 SCREW, PAN M5X14 42-2-18 540642001 1 スプールジクネジセット B SPOOL SHAFT SCREW SET, B 42-2-18-1 021500106 2 1 シユナツト 5 NUT, 1 M5 42-2-18-2 537038001 1 ナベコヒラ5X14 SCREW, PAN (P WASHER) M5X14 42-2-18-3 537037001 1 ナベコヒラ5X32 SCREW, PAN (P WASHER) M5X32 42-2-19 540643001 1 ホルダージガネネジセット HOLDER JOINT SCREW SET 42-2-19-1 014060632 2 アナトメ 6X6クボミ SET SCREW, SOCKET (CP) M6X6 42-2-19-2 021500106 1 1 シユナツト 5 NUT, 1 M5 42-2-19-3 537037001 1 ナベコヒラ5X32 SCREW, PAN (P WASHER) M5X32 42-2-20 540644001 2 ホルダージガネネジセット HOLDER JOINT SCREW SET 42-2-20-1 021500106 1 1 シユナツト 5 NUT, 1 M5 42-2-20-2 031452206 1 マルモク 45X22 WOOD SCREW, ROUND M4.5X22 42-2-20-3 062501006 1 ナベコ 5X10 SCREW, PAN M5X10 From the library of: Superior Sewing Machine & Supply LLC jintex.in 185-N31-910

Page 56 — Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios

Z. 付属品関係 / Accessories / Zubehör / Accessoires / Accesorios REF. NO. CODE QTY ヒンメイ NAME OF PARTS RM 42-1 S29855109 1 イトタテダイクミ5DTHF COTTON STAND ASSY, 5DTHF 42-1-1 1501800001 5 ウケザラ SPOOL STAND BASE 42-1-2 1501820000 5 スプールマット SPOOL MAT 42-1-3 126863001 5 スプールクッション SPOOL CUSHION 42-1-4 S02775001 1 パイプネジセット A PIPE SCREW SET, A 42-1-4-1 150206002 1 ヒラザガネ 16 WASHER, PLAIN 16 42-1-4-2 S38648001 1 6カクナット U5/8 NUT, U5/8-28 42-1-5 S04109001 1 イトアンナイサエボウ THREAD GUIDE SUPPORT BAR 42-1-6 142999101 1 イトアンナイ THREAD GUIDE, 5 42-1-7 S40640001 1 コラムパイプキャップツキ COLUMN PIPE WITH CAP 42-1-7-1 150174000 1 コラムキャップ COLUMN CAP 42-1-8 156112003 1 コラムパイプ D COLUMN PIPE, D 42-1-9 150173003 1 コラムジョイント COLUMN JOINT 42-1-10 S21798001 5 スプールネジセット SPOOL SCREW SET 42-1-10-1 150179002 5 スプールジク B SPOOL SHAFT, B 42-1-10-2 028050246 5 バネザガネ2-5 WASHER, SPRING 2-5 42-1-10-3 021500106 5 1シュナツト 5 NUT, 1 M5 42-1-11 150185009 1 イトアンナイホルダー THREAD GUIDE HOLDER 42-1-12 138843001 1 サエボウツキテ JOINT 42-1-13 150188009 1 スプールホルダーササエ A SPOOL HOLDER SUPPORT, A 42-1-14 S02778002 1 スプールホルダー-2 SPOOL HOLDER, 2 42-1-15 S02786002 1 スレッドハンガーケミ2 THREAD HANGER ASSY, 2 42-1-16 S02779009 1 スプールホルダー-3 SPOOL HOLDER, 3 42-1-17 S02788009 1 スレッドハンガーケミ3 THREAD HANGER ASSY, 3 42-1-18 S40641001 1 スプールネジセット A SPOOL SCREW SET, A 42-1-18-1 021500106 4 1シュナツト 5 NUT, 1 M5 42-1-18-2 S37038001 1 ナベコヒラザ5X14 SCREW, PAN (P WASHER) M5X14 42-1-18-3 S37037001 1 ナベコヒラザ5X32 SCREW, PAN (P WASHER) M5X32 42-1-18-4 002501406 2 ナベコ5X14 SCREW, PAN M5X14 42-1-19 S40642001 1 スプールネジクセット B SPOOL SHAFT SCREW SET, B 42-1-19-1 021500106 2 1シュナツト 5 NUT, 1 M5 42-1-19-2 S37038001 1 ナベコヒラザ5X14 SCREW, PAN (P WASHER) M5X14 42-1-19-3 S37037001 1 ナベコヒラザ5X32 SCREW, PAN (P WASHER) M5X32 42-1-20 S40643001 1 ホルダーツギテネジセット HOLDER JOINT SCREW SET 42-1-20-1 014060632 2 アナトメ6X6クボミ SET SCREW, SOCKET (CP) M6X6 42-1-20-2 021500106 1 1シュナツト 5 NUT, 1 M5 42-1-20-3 S37037001 1 ナベコヒラザ5X32 SCREW, PAN (P WASHER) M5X32 42-1-21 S40644001 1 ホルダーツギテネジセット HOLDER JOINT SCREW SET 42-1-21-1 021500106 1 1シュナツト 5 NUT, 1 M5 42-1-21-2 031452206 1 マルモク45X22 WOOD SCREW, ROUND M4.5X22 42-1-21-3 062501006 1 ナベコ5X10 SCREW, PAN M5X10 <オプションパーツ> <OPTION PARTS> 64 183798001 1 フルサブマージセット FULL SUBMERGED SET 64-1 S20721001 1 トウブウケサエ HEAD PLATE SUPPORT 64-2 153318201 4 カクネマルアタマボルト BOLT 64-3 S35997001 1 カクネボルト BX85 BOLT, M8X85 64-4 S36007001 1 カクネボルト BX55 BOLT, M8X55 64-5 017085502 1 ボルト M8X55 BOLT, M8X55 64-6 025080236 11 ヒラザガネチュウ 8 WASHER, PLAIN M 8 64-7 028080242 7 バネザガネ 2-8 WASHER, SPRING 2-8 64-8 021080106 15 ナツト 1シュ8 NUT, 1 M8 64-9 213650001 8 ワ2.3X8.5X38ST WASHER, 2.3X8.5X38ST 64-10 S20722001 1 ダスターシュー トサエ L DUSTER SHOOT SUPPORT, L 64-11 060400812 2 バインド M4X8 SCREW, BIND M4X8 64-12 060400812 3 バインド M4X8 SCREW, BIND M4X8 185-N31-910 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 57 — Ga1. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment

Ga1. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores 用途 Application 一般地縫用(薄) Thin 一般地縫用(薄・中厚) Thin Medium 一般地縫用(厚) Thick サブクラス Sub-Classs 61-2, -3 -4, -5 62-2, -3 -4, -5 63-3, -4 -5, -7 64-3, -4 -5 65-4, -5 -6, -7 66-4, -5 -6, -7 針幅(mm) Needle width 2 3 5 1, 針(個数) Needle (Qty.) 151474-011 (2) 151474-014 (2) 151474-016 (2) 2, 押工組 Presser Foot Assy S19304-101 S19313-201 S19317-101 3, 針止メ組 Needle Clamp Assy S29146-001 S20404-001 S20406-001 4, 針板 Needle Plate S25194-001 (2) S25195-001 (3) S19174-001 (4) S19175-001 (5) S20234-001 (3) S20235-001 (4) S20236-001 (5) S25196-001 (7) S20231-001 (4) S20232-001 (5) S20233-001 (6) S25197-001 (7) 5, 主送り歯組 Main Feed Dog Assy S19221-201 S20241-101 S20239-101 6, 差動送り歯 Differential Feed Dog S19245-001 S20245-001 S20244-001 7, メス Knife 上メス / Upper Knife 144074-300 8, 下メス Lower Knife S20582-001 T=1.5 S20899-001 T=1.0 S20582-001 9, 上ルーパ Over Looper S20422-001, A S20421-001, L (3, 4, 5) S20424-001, B (3, 4) S20421-001, L (4, 5) S20424-001, B (4) S20421-001, L (7) S20428-001, C (5, 6, 7) S20423-001, M (6, 7) S20428-001, C (5, 6, 7) S20423-001, M 185-N31 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 58 — Ga2. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment

Ga2. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'Piezas de calibradores 用途 ラフラー用 Application Ruffling サブクラス 67-4, -5 68-5 69-4, -5 70-5 71-5, -6 72-5 Sub-Classs 針幅 (mm) 2 3 5 Needdle width 1, 針 (個数) 151474-014 (2) Needle (Qty.) 2, 押工組 S25548-101 S19321-101 S19326-101 Presser Foot Assy 3, 針止メ組 S29146-001 S20404-001 S20406-001 Needle Clamp Assy 4, 針板 S25198-001 (4) S19497-001 (4) S19183-001 (5) Needle Plate S25199-001 (5) S19182-001 (5) S19184-001 (6) 5, S19224-201 S19226-101 主送り歯組 Main Feed Dog Assy 6, S19246-001 差動送り歯 Differential Feed Dog 7, メス 上メス Knife / Upper Knife 144074-300 8, 下メス S20582-001 Lower Knife T=1.5 9, S20424-001, B S20423-001, M S20424-001, B S20423-001, M (5) S20424-001, B S20423-001, M 上ルーパ (6) Over Looper S20428-001, C 18S-N31 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 59 — Ga3 . ゲージ 部品 一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores

Ga3 . ゲージ 部品 一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores 用途 Application バィピングフラワー用 Ruffing W/Piping テープ用 Taping サブクラス Sub-Classs 75-5 76-5 77-5,-6 78-5 81-4,-5 82-5 針幅 (mm) Needle width 3 5 3 1, 針 (個数) Needle (Qty.) 151474-014 (2) 2, 押工組 Presser Foot Assy S25550-01 S25555-001 S19330-201 3, 針止メ組 Needle Clamp Assy S20404-001 S20406-001 S20404-001 4, 針板 Needle Plate S19182-001 (5) S19183-001 (5) S19184-001 (6) S20235-001 (4) S20236-001 (5) 5, 主送リ歯組 Main Feed Dog Assy S19224-201 S19226-101 S20241-101 6, 差動送リ歯 Differential Feed Dog S19246-001 S20245-001 7, メス Knife 上メス / Upper Knife 144074-300 8, 下メス Lower Knife S20582-001 T=1.5 9, 上ルーパ Over Looper S20424-001, B S20423-001, M (5) S20424-001, B S20423-001, M (6) S20428-001, C S20424-001, B S20423-001, M 185-N31 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 60 — Ga4. ゲージ 部品 一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores

Ga4 . ゲージ 部品 一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores 用途 Application テープ用 Taping デニム用 Heavy Materials バインディング用 Binding サブクラス Sub-Classs 83-4, -5 -6 85-3, -5 86-5 89-4, -5 90-4, -5 針幅 (mm) Needle width 5 3 3 1, 針 (個数) Needle (Qty.) 151474-016 (2) 151474-018 (2) 151474-014 (2) 2, 押工組 Presser Foot Assy S20882-201 S25557-001 S25560-101 3, 針止メ組 Needle Clamp Assy S20406-001 S29631-001 S20404-001 4, 針板 Needle Plate S20231-001 (4) S20233-001 (6) S20232-001 (5) S25200-001 (3) S25201-001 (5) S25202-001 (4) S25203-001 (5) 5, 主送り歯組 Main Feed Dog Assy S20239-101 S19228-101 S19221-201 6, 差動送り歯 Differential Feed Dog S20244-001 S25566-001 S19245-001 7, メス Knife 上メス / Upper Knife 144074-300 角メス / Angle Knife S20898-101 10 上メス / Upper Knife 144074-300 8, 下メス Lower Knife S20582-001 S20583-001 S20582-001 T=1.5 T=1.5 9, (4,5) S20424-001, B (4,5) S20423-001, M (6) S20428-001, C (6) S20421-001, L (4,5) S20438-001, G (6) S20429-001, Q (4,5) S20424-001, B (6) S20423-001, M 185-N31 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 61 — Ga5. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores

Ga5. ゲージ部品一覧表 / Gauge parts List / Lehrenliste / Liste des Pièces decartment / Lista d'ePiezas de calibradores 一般地縫用(薄・中厚) 用途 デニム用 Thin Medium Application Heavy Materials サブクラス 92-5, -6 92-5(B) 92-7(B) 95-5 95-5(B) Sub-Classs -7 -6(B) 針幅 (mm) 5 5, 2.2 Needdle width 1, 針 (個数) 151474-018 (2) 151474-016 (3) Needle (Qty.) 2, 押工組 S19334-001 S30525-001 S25562-101 Presser Foot Assy 3, 針止メ組 S21104-001 S29148-001 Needle Clamp Assy 4, 針板 S19185-001 (5) S19187-001 (7) S25204-001 S31975-001 Needle Plate S19186-001 (6) 5, S19228-101 S19221-201 S20239-101 主送り歯組 Main Feed Dog Assy 6, S19247-001 S19245-001 S20244-001 差動送り歯 Differential Feed Dog 7, メス 角メス 10 上メス Knife / Angle Knife / Upper Knife S20898-101 144074-300 8, 下メス S20583-001 S20582-001 Lower Knife T=1.5 T=1.5 9, S20438-001, G S20429-001, Q S20438-001, G S20430-001, D 土ルーパ Over Looper 185-N31 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 62

Wa . 警告ラベル / Warning labels / Warnschilder / Etiquettes d'avertissement / Etiquetas de advertencia 品名/Name of parts Size(mm) Code ▲注意 動く部分でけがをする。 安全保護装置をつけて 確実作業をすること。 電源を切ってから、※ 直し、ホビンや針の交換、 掃除や調整をすること。 操作注意ラベル・和 40 × 64 S38350-001 A CAUTION Moving parts may cause injury. Operate with safety devices. Turn off main switch before threading, changing bobbin and needles, cleaning etc. Label, operation Eng. 40 × 64 S38349-001 アースマーク Mark, grounding $12 S37060-001 From the library of: Superior Sewing Machine & Supply LLC jintex.in 185-N31-052

Page 63

索引/INDEX/VERZEICHNIS /INDEX/INDICE CODE REF.NO. Page CODE REF.NO. Page CODE REF.NO. Page S00075000 A -66 4 S19308001 D -50-4-5 14 S20199001 K -14 32 S01295001 D -50-3-3 14 D -50-6-5 16 S20231001 Ga1-4 51 D -50-4-3 14 D -50-7-5 16 Ga4-4 54 D -50-9-3 16 D -50-8-5 16 S20232001 Ga1-4 51 D -50-10-3 16 D -50-9-5 16 Ga4-4 54 D -50-11-3 18 D -50-13-5 18 S20233001 Ga1-4 51 S01943001 E -38 20 S19309001 D -50-14-5 18 Ga4-4 54 S02573000 A -3 2 D -50-1-6 14 S20234001 Ga1-4 51 S02606000 Z -7 20 D -50-2-6 14 S20235001 Ga1-4 51 S02775001 Z -42-1-4 48 D -50-3-6 14 Ga3-4 53 Z -42-1-14 50 D -50-4-6 14 S20236001 Ga1-4 51 S02778002 Z -42-1-16 50 D -50-6-6 16 Ga4-4 54 S02779009 Z -42-2-15 48 D -50-7-6 16 S20239101 Ga1-5 51 Z -42-2-16 50 D -50-8-6 16 Ga4-5 54 S02783001 Z -42-2-6 48 D -50-13-6 18 Ga5-5 55 S02786002 Z -42-1-15 50 D -50-14-6 18 S20241101 Ga1-5 51 S02788009 Z -42-1-17 50 S19311101 D -50-1-1 14 Ga3-5 53 Z -42-2-16 48 D -50-2-1 14 S20244001 Ga1-6 51 S04109001 Z -42-1-5 50 D -50-3-1 14 Ga4-6 54 Z -42-2-5 48 D -50-4-1 14 Ga5-6 55 S06701000 Z -18 46 D -50-5-1 14 S20245001 Ga1-6 51 S06704001 M -1-4 38 D -50-6-1 16 Ga3-6 53 S19174001 Ga1-4 51 D -50-7-1 16 S20310001 A -13 2 S19175001 Ga1-4 51 D -50-8-1 16 S20319001 A -27-3 2 S19182001 Ga2-4 52 D -50-9-1 16 S20320101 A -27-5 2 Ga3-4 53 D -50-10-1 16 S20321001 A -27-6 2 S19183001 Ga2-4 52 D -50-11-1 18 S20324101 A -33 2 Ga3-4 53 D -50-12-1 18 S20325001 A -35 2 S19184001 Ga2-4 52 D -50-13-1 18 S20327101 A -27-8 2 Ga3-4 53 S19312001 D -50-14-1 18 S20338200 A -61 4 S19185001 Ga5-4 55 D -50-2-2 14 S20339000 A -62 4 S19186001 Ga5-4 55 D -50-6-2 16 S20340001 A -69 4 S19187001 Ga5-4 55 D -50-13-2 18 S20342001 A -70 4 S19221201 Ga1-5 51 D -50-14-2 18 L -65 34 Ga4-5 54 S19313201 D -50-1 14 S20345009 A -10 2 Ga5-5 55 Ga1-2 51 A -75 4 S19224201 Ga2-5 52 S19317101 D -50-2 14 S20346000 A -79 4 Ga3-5 53 Ga1-2 51 S20355002 G -9-1-2-2 26 S19226101 Ga2-5 52 S19321101 D -50-3 14 G -9-2-2-2 26 Ga3-5 53 S20361001 B -17 6 S19228101 Ga4-5 54 S19325001 D -50-3-2 14 S20362101 B -18 6 Ga5-5 55 S19326101 D -50-4-2 14 S20391001 C -7-5 8 S19245001 Ga1-6 51 S19330201 D -50-9-2 16 S20392000 C -7-6 8 Ga4-6 54 D -50-7 16 S20404001 Ga1-3 51 Ga5-6 55 Ga3-2 53 Ga2-3 52 S19246001 Ga2-6 52 S19334001 D -50-5 14 Ga3-3 53 Ga3-6 53 Ga5-2 55 Ga4-3 54 S19247001 Ga5-6 55 S19340001 D -50-5-2 14 S20406001 Ga1-3 51 S19307001 D -50-1-4 14 D -50-12-2 18 Ga2-3 52 D -50-2-4 14 S19497001 Ga2-4 52 Ga3-3 53 D -50-3-4 14 S20115001 D -38-2 12 Ga4-3 54 D -50-4-4 14 S20117001 D -38-3 12 S20412000 A -48 2 D -50-6-4 16 S20118101 Z -91 46 A -55 2 D -50-7-4 16 S20130009 N -1 38 Z -67 46 D -50-8-4 16 S20131009 N -1-1 38 S20415101 C -21 8 D -50-9-4 16 S20134001 N -1-1-1 38 S20416101 C -22 8 D -50-13-4 18 S20135001 N -1-1-2 38 S20418001 C -23 8 D -50-14-4 18 S20158101 L -72 36 S20421001 Ga1-9 51 S19308001 D -50-1-5 14 S20199001 K -9 32 Ga4-9 54 D -50-2-5 14 S20422001 Ga1-9 51 D -50-3-5 14 S20423001 Ga1-9 51 Ga2-9 52 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 64

CODE REF.NO. Page S20423001 Ga3-9 53 S20424001 Ga4-9 54 Ga1-9 51 Ga2-9 52 Ga3-9 53 Ga4-9 54 S20428001 Ga1-9 51 Ga2-9 52 Ga3-9 53 Ga4-9 54 S20429001 Ga4-9 54 Ga5-9 55 S20430001 Ga5-9 55 S20438001 Ga4-9 54 Ga5-9 55 S20460000 M - 1-1-1 38 S20468001 M - 1-1 38 S20476001 D - 4 12 S20485001 D - 19 12 S20526000 E - 47 20 S20530001 E - 30 20 S20543101 E - 51 20 S20544000 E - 52 20 S20547001 E - 55 20 S20548001 E - 59 22 S20560001 E - 66 24 S20571101 F - 2 24 S20574001 F - 8 24 S20577001 F - 12 24 S20578101 F - 13 24 S20579101 F - 15-4 24 S20582001 Ga1-8 51 Ga2-8 52 Ga3-8 53 Ga4-8 54 Ga5-8 55 S20583001 Ga4-8 54 Ga5-8 55 S20585001 F - 27 24 S20589101 F - 9-1 24 S20590101 F - 9-2 24 S20591101 F - 17 24 S20598000 G - 2 26 H - 3 28 S20622001 H - 5 28 S20625001 H - 11 28 S20626001 H - 14-1 28 S20627001 H - 14-2 28 S20641001 J - 11 30 S20645101 J - 16 30 S20652001 J - 24 30 S20653001 J - 27 30 S20654001 J - 29 30 S20655101 K - 1 32 S20657001 K - 4-1 32 S20668000 K - 19 32 S20669000 K - 23 32 S20671000 K - 21 32 K - 22 32 S20673001 L - 11 34 L - 11 36 S20675001 L - 8 36 S20676001 L - 9 34 CODE REF.NO. Page S20676001 L - 9 36 S20677000 L - 1-5 42 S20678001 L - 10 34 L - 10 36 S20679001 L - 14-1 34 S20681000 L - 14-2 34 L - 18 34 L - 18 36 S20682101 R - 1-8 42 S20682102 L - 19-2 34 L - 19-4 34 S20682103 L - 19-5 34 L - 19-5 36 S20682104 L - 19-3 34 S20682105 R - 1-9 42 S20684101 L - 23 34 S20685001 L - 25 34 S20686001 L - 26 34 S20687001 L - 37 34 S20689001 L - 48 34 S20690001 L - 49 34 S20691001 L - 50 34 S20694001 L - 53 34 S20695001 L - 55 34 S20696001 L - 56 34 S20697001 L - 58 34 S20698121 L - 59 34 S20701001 L - 66 34 S20702001 Z - 71 36 S20703001 L - 73 36 S20707001 L - 75 36 S20718000 Z - 27 46 S20721001 Z - 64-1 50 S20722001 Z - 64-10 50 S20723001 Z - 12 46 S20743001 L - 51 34 S20769000 Z - 40 46 S20770101 D - 38 12 S20878000 A - 81 4 S20882201 D - 50-8 16 Ga4-2 54 S20896101 F - 15-2 24 S20897101 F - 15-3 24 S20898101 F - 15-5 24 Ga4-7 54 Ga5-7 55 S20899001 Ga1-8 51 S21104001 Ga5-3 55 S21125001 L - 44 34 S21126001 L - 40 34 S21130001 L - 42 34 S21133001 L - 28 34 S21134001 L - 29 34 S21135001 L - 31 34 S21136101 L - 35 34 S21137001 L - 33 34 S21293001 R - 1 42 S21294001 R - 1-1 42 S21295001 R - 1-2 42 S21296001 R - 1-10 42 S21297001 R - 1-13 42 S21298001 R - 1-16 42 S21299001 R - 1-18 42 CODE REF.NO. Page S21300001 R - 1-20 42 S21301001 R - 1-24 42 S21302001 R - 1-25 42 S21303001 R - 1-27 42 S21304001 R - 1-29 42 S21305001 R - 1-3 42 S21306001 R - 1-14 42 S21307001 R - 1-15 42 S21310001 R - 8 42 S21311001 R - 9 42 S21312001 R - 10 42 S21314001 R - 14 42 S21315001 R - 16 42 S21316001 R - 18 42 S21318000 Q - 1 40 S21373001 R - 20-1 44 S21375001 R - 20-1-2 44 R - 20-2-2 44 R - 20-1-9 44 S21376001 R - 20-2-9 44 R - 20-1-11 44 S21377001 R - 20-2-11 44 R - 20-1-12 44 S21378001 R - 20-2-12 44 R - 21 44 S21379001 R - 20-2 44 S21380001 R - 22 44 S21381001 R - 4 42 S21590000 Z - 42-1-10 50 S21798001 Z - 42-2-10 48 S23337009 A - 7 2 A - 76 4 S23342001 C - 7-1 8 C - 34-2 10 C - 35-2 10 C - 36-2 10 F - 30-3 24 G - 9-1-1-1 26 G - 9-2-1-1 26 S23350001 A - 63 4 S23351001 A - 65 4 S23353001 Z - 58 46 S23356001 Z - 10 46 S23357001 A - 78 4 S23360001 E - 37 20 E - 42 20 J - 18 30 S23363001 Z - 11 46 S23364000 D - 44 12 S23418002 A - 30 2 L - 27 34 M - 1-2 38 Q - 6 40 R - 5 42 S23452002 L - 22 34 L - 74 36 S23456101 C - 24 8 J - 30 30 S23614101 H - 12 28 J - 25 30 S23616101 A - 25 2 S23621101 E - 70 22 E - 76 22 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 65

CODE REF.NO. Page S23621101 E - 78 22 F - 16-1 24 S23626001 H -6 28 S23628001 E -69 22 S23651002 Q - 11 40 R - 1-19 42 S23774001 R - 15 42 S23775001 R - 1-7 42 S23777101 R - 1-4 42 S23779001 R -6 42 S24473000 Z - 14 46 S25019001 Q - 10 40 S25184001 A - 93 4 S25194001 Gal-4 51 S25195001 Gal-4 51 S25196001 Gal-4 51 S25197001 Gal-4 51 S25198001 Ga2-4 52 S25199001 Ga2-4 52 S25200001 Ga4-4 54 S25201001 Ga4-4 54 S25202001 Ga4-4 54 S25203001 Ga4-4 54 S25204001 Ga5-4 55 S25548101 D - 50-9 16 Ga2-2 52 S25550001 D - 50-10 16 Ga3-2 53 S25553001 D - 50-10-2 16 D - 50-11-2 18 S25557001 D - 50-12 18 Ga4-2 54 S25560101 D - 50-13 18 Ga4-2 54 S25562101 D - 50-14 18 Ga5-2 55 S25566001 Ga4-6 54 S25818001 E - 61 22 S27868001 B - 16 6 S29102001 J - 6 30 S29146001 Ga1-3 51 Ga2-3 52 Ga5-3 55 S29631001 Ga4-3 54 S29700000 G - 9-1-3 26 G - 9-2-3 26 S29824000 Q -4 40 S29827000 Q -7 40 S29831000 Q -5 40 S29835001 Q -5 40 S29855109 Z - 42-1 50 S29864109 Z - 42-2 48 S30134001 R - A 42 S30135001 R - C 44 S30135002 R - D 44 S30525001 D - 50-15 18 Ga5-2 55 S30532001 D - 50-15-2 18 S30562000 D - 28 20 E - 18 20 G -8 26 CODE REF.NO. Page S30889001 D - 38-4 12 S30971001 D - 50-7-2 14 D - 50-7-2 16 D - 50-8-2 16 S31881101 J - 12 30 S31975001 Ga5-4 55 S32276001 L - 15 34 S35997001 Z - 29 46 Z - 64-3 50 S36007001 Z - 64-4 50 S37037001 Z-42-1-18-3 50 Z-42-1-20-3 50 Z-42-1-17-3 48 Z-42-2-18-3 48 Z-42-2-19-3 48 S37038001 Z-42-1-18-2 50 Z-42-1-19-2 50 Z-42-2-17-2 48 Z-42-2-18-2 48 S37060001 Wa 56 S37070121 D - 34 12 S38301020 A - 44 2 S38302020 Z - 65 46 S38305001 A - 29-1 2 S38306051 C - 25 8 S38307001 C - 27 8 S38308021 D - 5 12 S3831100 E - 43 20 S38312050 E - 24 20 S38313001 G - 9-1 26 S38320000 G - 9-1-2-1 26 G - 9-2-2-1 26 S38322001 G - 9-2 26 S38328051 L - 1 34 S38329001 L - 38 34 S38330050 L - 46 34 S38349001 Wa 56 S38350001 Wa 56 S38648001 Z - 42-1-4-2 50 Z - 42-2-4-2 48 S39562001 A - 37 2 S39563020 A - 24 2 S39564021 A - 23 2 S39565001 B - 24-2 6 S39566001 C -7 8 S39571021 C - 10 8 S39574001 C -8 8 S39577000 D - 2-1 12 S39578001 E - 1 20 S39585001 E - 1-3 20 S39586001 E - 1-4 20 S39589021 E - 8 20 S39593021 E - 54 20 S39596021 E - 54-1 20 S39597001 K - 4 32 S39598000 K - 4-4 32 S39599001 K - 4-3 32 S39601000 K - 4-5 32 S39602000 K - 4-7 32 S39603001 K - 4-8 32 S39605001 A - 2 2 CODE REF.NO. Page S39606020 A - 5 2 S39607001 A - 8 2 S39608021 A - 11 2 S39610021 A - 21 2 S39611001 A - 27 2 S39612001 A - 27-1 2 S39613001 A - 27-2 2 S39623001 A - 38 2 S39624021 A - 42 2 S39625051 A - 49 2 S39626021 A - 58 2 S39629021 B - 3 6 S39630000 B - 10 6 S39631000 B - 20 6 S39633011 C - 34 10 S39633012 C - 34 10 S39638011 C - 35 10 S39638012 C - 35 10 S39641011 C - 36 10 S39641012 C - 36 10 S39644021 C - 2 8 S39645021 C - 3 8 S39646021 C - 4 8 S39647000 C - 5 8 S39648021 C - 9 8 S39649021 C - 15 8 S39650051 C - 17 8 S39652021 C - 18 8 S39654051 C - 29 8 S39658001 D - 1 12 S39659021 D - 6 12 S39660001 D - 7 12 S39661001 D - 8 12 S39662001 D - 9 12 S39663021 D - 11 12 S39664001 D - 12 12 S39665001 D - 15 12 S39666001 D - 20 12 S39667021 D - 21 12 S39669001 D - 23 12 S39670000 D - 24 12 S39671021 D - 26 12 S39672001 D - 29 12 S39673020 E - 5 20 S39674001 E - 9 20 S39675001 E - 10 20 S39676021 E - 15 20 S39677021 E - 16 20 F - 5 24 G - 4 26 H - 9 28 S39678021 E - 17 20 S39679001 E - 20 20 S39680001 E - 23 20 S39683000 E - 26 20 S39684021 E - 27 20 S39685001 E - 28 20 S39686000 E - 44 20 S39687000 E - 45 20 S39688001 E - 46 20 S39690021 E - 36 20 E - 41 20 J - 8 30 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 66

CODE REF.NO. Page S39690021 J -19 30 S39691001 E -39 20 S39692021 E -50 20 S39693001 E -58 22 S39694021 E -64 22 S39695001 E -65 22 S39701011 F -30 24 S39701012 F -30 24 S39704021 F -4 24 S39707001 F -19 24 S39708001 F -25 24 S39711011 G -18 26 S39711012 G -18 26 S39715011 G -19 26 S39715012 G -19 26 S39717021 G -3 26 S39718021 G -5 26 S39724011 H -16 28 S39724012 H -16 28 S39726011 H -17 28 S39726012 H -17 28 S39728021 H -8 28 S39729021 J -1 30 S39732021 J -3 30 S39733021 J -4 30 S39734021 J -7 30 S39735050 J -10 30 S39736001 J -15 30 S39740021 J -20 30 S39741021 J -21 30 S39742021 J -22 30 S39743001 K -3 32 S39744021 K -7 32 K -12 32 S39745001 K -8 32 S39747001 K -10 32 S39749001 K -13 32 S39751021 K -11 32 S39752021 K -15 32 S39756021 L -63 34 S39757001 L -67 36 S39761001 B -1-1 6 S39762001 B -1-2 6 S39763001 B -1-3 6 S39769051 E -40 20 S39770001 D -17 12 S39771020 A -14 2 S39773001 E -35 20 S39775001 B -24-1 6 S39785001 A -92 4 S39786001 A -92 4 S39787001 A -92 4 S39795001 R -13 42 S39796001 R -29 42 S40640001 Z -42-1-7 50 Z -42-2-7 48 S40641001 Z -42-1-18 50 Z -42-2-17 48 S40642001 Z -42-1-19 50 Z -42-2-18 48 S40643001 Z -42-1-20 50 Z -42-2-19 48 CODE REF.NO. Page 54064001 Z -42-1-21 50 Z -42-2-20 48 S42042021 E -33 20 S42050001 A -29-2 4 S43521000 K -29-1 32 S43522000 K -29-2 32 S43523000 K -29 32 S43525001 M -1 38 S43527001 F -6 24 G -6 26 S43530001 R -B 42 012060632 A -43 2 B -2 6 B -25 6 D -25 12 E -2 20 E -6 20 F -6-1 24 G -6-1 26 H -2 28 K -17 32 R -11 42 012400432 A -27-4 2 A -32 2 D -30 12 E -29 20 G -13 26 J -5 30 J -17 30 K -4-2 32 R -19 42 A -31 2 E -32 20 K -2 32 012500532 A -32 2 014060632 Z-42-1-20-1 50 Z-42-2-19-1 48 R -20-1-6 44 R -20-2-6 44 C -35-1 10 C -36-3-1 10 C -35-3-1 10 C -36-3-1 10 F -30-1-1 24 G -18-1-1 26 G -19-1-1 26 H -16-1-1 28 H -17-1-1 28 017060812 H -7 28 017061612 C -7-2 8 C -34-3-1 10 C -35-3-1 10 C -36-3-1 10 F -30-2-1 24 G -9-1-1-2 26 G -9-2-1-2 26 017501212 A -64 4 017781012 R -20-1-4 44 R -20-1-10 44 R -20-1-13 44 R -20-2-4 44 R -20-2-10 44 R -20-2-13 44 018061432 E -53 20 G -10 26 G -18-2 26 G -19-2 26 J -12-1 30 J -16-1 30 K -6 32 CODE REF.NO. Page 018061632 D -22 12 E -8-1 20 E -34 20 E -40-1 20 E -60 22 018062532 B -28 6 C -16 8 D -13 12 018400832 E -48 20 018401032 R -3 42 018401622 C -34-1 10 C -35-1 10 F -36-1-1 24 G -30-1-1 26 G -19-1-1 26 H -16-1-1 28 H -17-1-1 28 021060302 R -1-21 42 R -7 42 021080106 Z -33 46 Z -64-8 50 021400106 Z -70 46 Z -70 46 021400202 R -25 44 R -25 44 021400212 A -53 2 D -18 12 R -1-23 42 021500106 Z-42-1-10-3 50 Z-42-1-18-1 50 Z-42-1-19-1 50 Z-42-1-20-2 50 Z-42-1-21-1 50 Z-42-2-10-3 48 Z-42-2-17-1 48 Z-42-2-18-1 48 Z-42-2-19-2 48 Z-42-2-20-1 48 021500216 J -9 30 025030132 F -14 24 025040132 E -49 20 F -11-1 24 025040232 Q -3 40 025040332 Z -60 46 025050132 A -72 4 025060332 D -14 12 025080236 Z -64-6 50 025350332 A -68 4 E -63 22 025630232 D -50-6-8 16 025660132 D -50-10-4 16 D -50-11-4 18 025710232 E -12 20 E -13 20 028050242 L -64 34 028050246 Z-42-1-10-2 50 Z-42-2-10-2 48 028060242 B -27 6 Z -32 46 Z -64-7 50 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 67

CODE REF.NO. Page CODE REF.NO. Page CODE REF.NO. Page 031411304 Z -57 46 062350512 R -1-28 42 101572101 Z -5 46 031452206 Z-42-1-21-2 50 062350612 C -26 8 102707002 R -28 42 034422006 N -1-2 38 L -70 36 104450101 C -11 8 047301242 E -1-1-1 20 R -1-26 42 105161004 D -3 12 047301642 D -2-1 20 062350812 R -1-17 42 105288001 D -50-1-3 14 047401442 D -21-1 12 R -12 42 D -50-2-3 14 047502242 E -57 22 062400612 Q -8 40 D -50-13-3 18 047503242 D -16 12 Z -59 46 D -50-14-3 18 047602042 A -54 2 062400812 A -9 2 D -50-5-3 14 048040342 E -14 20 B -5 6 D -50-10-5 16 048090342 D -27 12 062401012 C -29 24 D -50-11-5 18 048400242 B -14 6 K -4-6 32 D -50-12-3 18 060300412 D -35 12 Q -2 40 106640001 D -50-13-3 18 060300512 L -52 34 062401012 A -4 2 D -50-14-3 18 060300612 L -52 34 B -22 6 D -50-5-3 14 060300612 D -39 12 C -20 8 D -50-10-5 16 060350812 A -67 4 C -30 8 D -50-11-5 18 060351012 H -15 28 R -23 44 D -50-12-3 18 060400612 J -28 30 R -23 44 108494001 P -1-2 40 A -12 2 062401212 A -52 2 108495001 P -1-3 40 A -27-7 2 062401406 K -4-9 32 110832009 L -12 34 A -27-9 2 Z -71 46 L -12 36 A -34 2 Z -71 46 111140002 D -50-7-3 16 A -36 2 062401612 A -80 4 D -50-8-3 16 A -46 2 R -1-22 42 116016001 Z -72 46 A -50 2 062402512 F -10-2 24 Z -72 46 060400812 A -59 2 062501006 Z-42-1-21,3 50 117466000 Z -13 46 D -10 12 Z-42-2-20-3 48 118550001 G -14 26 060401012 M -3 38 062670712 D -50-1-7 14 118735002 C -7-3 8 060401412 A -28 2 D -50-2-7 14 C -34-3-2 10 060630712 E -75-1 22 D -50-3-7 14 C -35-3-2 10 061350616 E -31 20 D -50-4-7 14 C -36-3-2 10 061400812 A -26 2 D -50-5-4 14 F -30-2-2 24 B -6 6 D -50-6-7 16 G -9-1-1-3 26 K -20 32 D -50-7-7 16 G -9-2-1-3 26 062060812 F -18 24 D -50-8-7 16 125324001 F -11-2 24 F -21 24 D -50-9-7 16 126863001 Z -42-1-3 50 062061412 Z -66 46 D -50-10-6 16 Z -42-2-3 48 062300412 F -16-2 24 D -50-11-6 18 138843001 Z -42-1-12 50 062300812 C -28 8 D -50-12-4 18 Z -42-2-12 48 R -1-12 42 D -50-13-7 18 140325001 A -74 4 072600000 B -7 6 D -50-14-7 18 141183000 A -39 2 076203000 B -15 6 D -50-15-4 18 142002001 Z -8 46 081005070 E -11 20 142262001 Z -24 46 081005670 E -56 22 142999101 Z -42-1-6 50 081009070 A -77 4 143767002 P -1 40 081010070 E -25 20 143980001 P -1-1 40 081020070 E -21 20 144074300 F -15-1 24 081031870 B -4 6 Ga1-7 51 100032003 A -40 2 Ga2-7 52 C -33 8 Ga3-7 53 100080004 D -50-15-3 18 Ga4-7 54 100136001 P -1-4 40 Ga5-7 55 100315002 A -41 2 144103009 L -13 34 100463001 R -20-1-8 44 144225002 Z -41 46 R -20-2-8 44 144504001 L -60 34 101118001 P -2 40 144784001 R -1-11 42 145277205 Z -19 46 146293001 C -6 8 146427001 C -12-1 8 L -47 34 146592001 L -21 34 146598001 A -71 4 147893009 Z -69 46 Z -69 46 147919001 Z -48-1 46 147919002 Z -48-2 46 From the library of: Superior Sewing Machine & Supply LLC Jintex.in

Page 68

CODE REF.NO. Page 147942001 K - 8-1 32 K - 10-1 32 K - 13-1 32 148084001 K - 18 32 148782001 H - 13 28 J - 26 30 148797001 R - 20-1-5 44 R - 20-2-5 44 148798009 R - 20-1-5 44 R - 20-2-7 44 149570001 Z -9 46 150173003 Z -42-1-9 50 Z -42-2-9 48 150174000 Z -42-1-7-1 50 Z -42-2-7-1 48 150179002 Z-42-1-10-1 50 Z-42-2-10-1 48 150180001 Z -42-1-1 50 Z -42-2-1 48 150182000 Z -42-1-2 50 Z -42-2-2 48 150185009 Z -42-1-11 50 Z -42-2-11 48 150188009 Z -42-1-13 50 Z -42-2-13 48 150194009 Z -42-1-14 50 150206002 Z -42-2-14 48 Z -42-1-4-1 50 150813001 L - 69 36 151474011 Ga1-1 51 Ga1-1 51 Ga2-1 52 Ga3-1 53 Ga4-1 54 151474016 C - 13 8 Ga1-1 51 Ga4-1 54 Ga5-1 55 151474018 Ga4-1 54 Ga5-1 55 153318201 C - 64-2 50 155162001 C -7-7 8 G -9-1-1-4 26 G -9-2-1-4 26 J - 12-2 30 J - 16-2 30 155197101 R - 20-1-1 44 R - 20-2-1 44 155199101 R -20-2-3 44 R -20-2-3 44 155247000 F -3 24 G -11 26 H -10 28 155261000 J -23 30 155510001 L -62 34 156112003 Z -42-1-8 50 Z -42-2-8 48 156482000 A -51 2 158782101 L -61 34 183797009 Z -56 46 183798001 Z -64 50 213650001 Z -31 46 Z -64-9 50 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 69

jintex.in From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 70

brother. パーツブック PARTS BOOK TEILEKATALOG LIVRE DES PIECES LIBRO DE REFERENCIA DE PIEZAS ブラザー工業株式会社 BROTHER INDUSTRIES,LTD. 〒467 名古屋市瑞穂区河岸1丁目1番1号 TEL(052)824-2392 Printed in Japan / Gedruckt in Japan / Imprimé au Japon / Impreso en Japón 185-N31 S95N31-001 1996.12 B ① From the library of: Superior Sewing Machine & Supply LLC jintex.in
