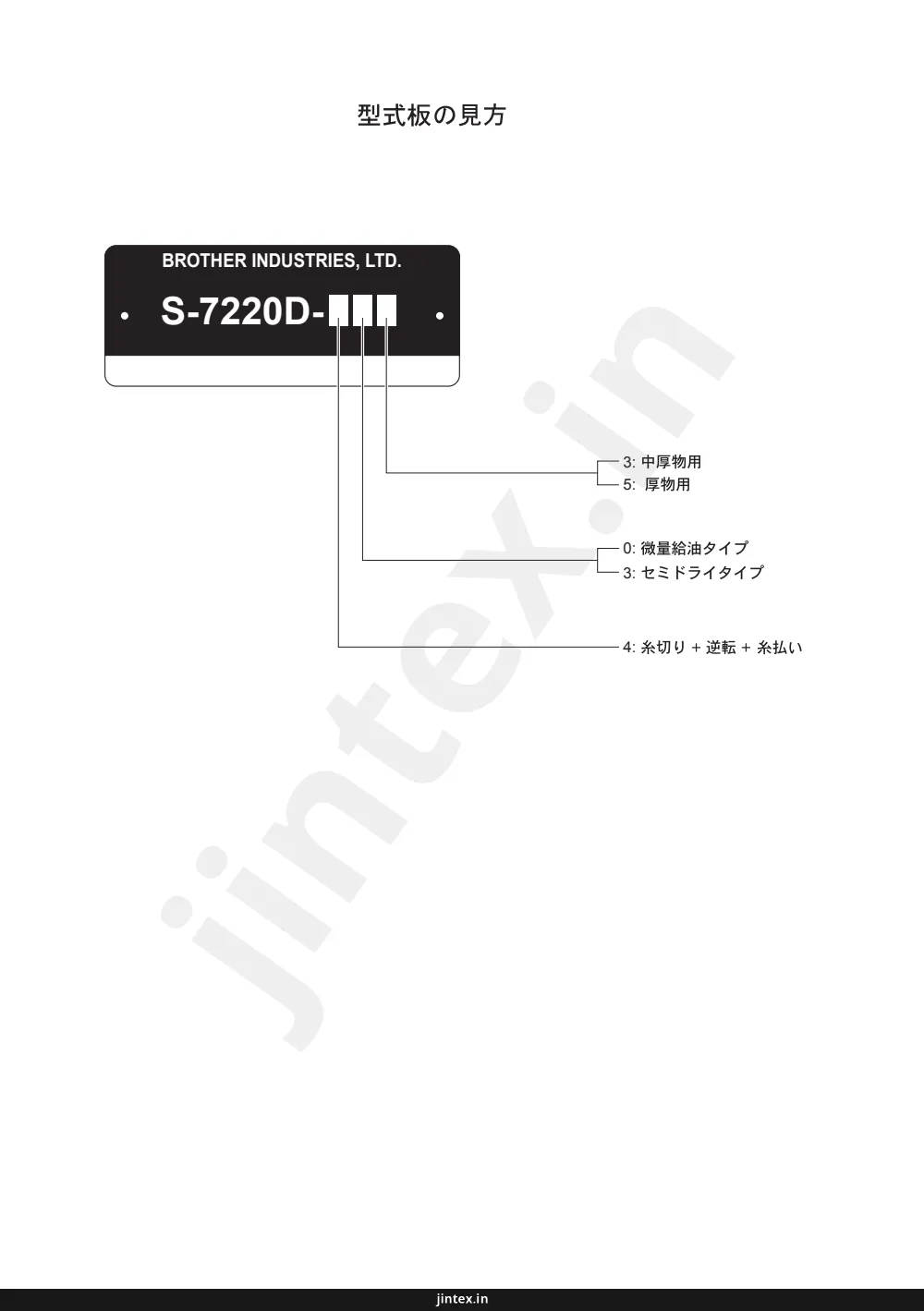

Page 7 — A. 主体関係 / Machine body

Brother S-7220D parts on page 7
Ref	Part number	Part name	Qty
1	SA1106001	STAND R	1
2	SA2170001	STAND RF	1
3	SA1107001	STAND L	2
4	SB9815101	MOTOR COVER	1
5	0A4501606	SCREW PAN (S/P WASHER) M5X16	3
6	SA7336102	SIDE PLATE	1
7	SB3849001	WASHER_PLAIN_M_5	2
8	062501216	SCREW PAN M5X12	8
9	104450101	RUBBER CAP, 8	2
10	S32263001	RUBBER CAP, 8.5	1
11	104450101	RUBBER CAP, 8	1
12	104449001	RUBBER CAP, 15.5	3
13	S12717000	RUBBER CAP, 11.5	1
14	117936001	RUBBER CAP, 9.4	1
15	117936001	RUBBER CAP, 9.4	1
16	159150000	RUBBER CAP, 20.5	1
17	SA7814001	RUBBER CAP 20	1
18	SB3850001	RULER PLATE	1
19	062400616	SCREW PAN M4X6	1

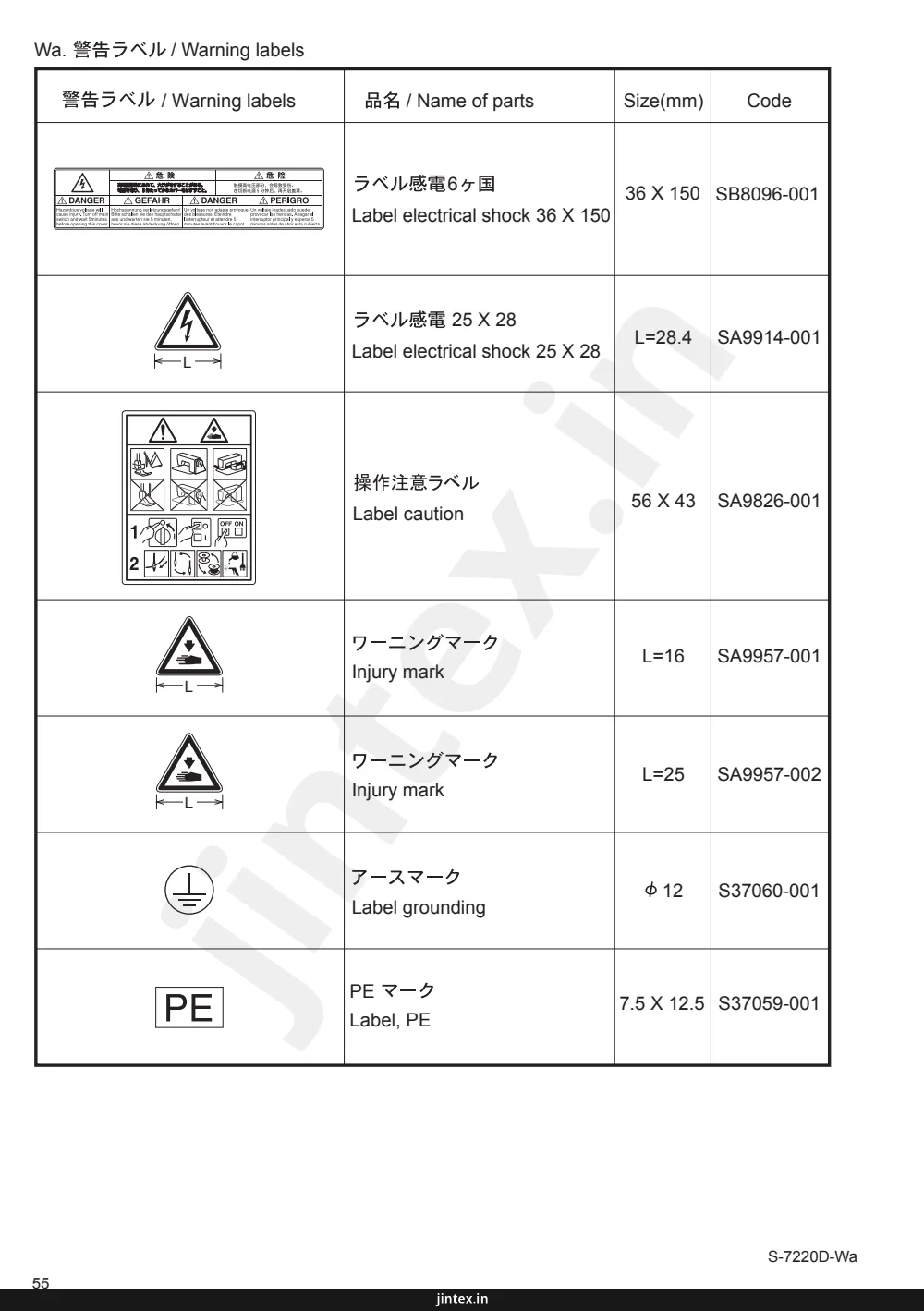

20	SA9826001	LABEL CAUTION	1
21	S37060001	LABEL, GROUNDING	1
22	SA9957001	INJURY MARK	1
23	SA9957002	INJURY MARK	1
24	062500616	SCREW PAN M5X6	2
25	SB2408101	CORD HOLDER	1

Page 9 — B1. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7220D parts on page 9
Ref	Part number	Part name	Qty
1	SB9830001	UPPER SHAFT ASSY	1
2	S25235001	SCREW M8	1
3	S23651001	SET SCREW SOCKET (FT) M6X6	3
4	S25236001	SET SCREW SOCKET (FT) M6X10	1
5	SA1120001	BOBBIN WINDER DRIVING WHEEL	1
6	S23651001	SET SCREW SOCKET (FT) M6X6	2
7	110367001	WASHER, PLAIN SPECIAL 8	1
8+	SB2914001	NEEDLE BAR CONNECTING ROD SET	1
9+	SA7628001	NEEDLE BAR CRANK	1
8+	SB2916001	NEEDLE BAR CONNECTING ROD SET	1
9+	SA7626001	NEEDLE BAR CRANK	1
10	SB2915101	NEEDLE BAR CONNECTING ROD SET	1
11	SA7628001	NEEDLE BAR CRANK	1
12	SA8061001	SET SCREW SOCKET(CP)M3X4 SEAL	1
13	SA2422001	SCREW, SM3.57L	1
14	012400436	SET SCREW SOCKET (FT) M4X4	2
15	SA2161001	WASHER	1
16	048060342	RETAINING RING E6	1
17	SA7239101	STOPPER PIN	1
18	012500536	SET SCREW SOCKET (FT) M5X5	1
19	012061036	SET SCREW SOCKET (FT) M6X10	2
20	SA9650101	NEEDLE BAR CLAMP	1
21	140004001	SCREW, SM3.57-40X7	1
22	SB1029101	SLIDE BLOCK D	1
25	140553102	SET SCREW, SM3.18	1
26	SB1537001	JOINT UNIT	1
27	S23651001	SET SCREW SOCKET (FT) M6X6	2
28	SA2250101	TIMING PULLEY U	1
29	S38712001	FLANGE	1
30	S38713100	FAN	1
31	SA2404001	SCREW, PAN (S WASHER) M4X35	3
32	151594001	NEEDLE BAR THREAD GUIDE	1
34	151267001	SCREW, FLAT SM4.37-40X8	2
35	180018251	SLIDE PLATE ASSY	1
36	114561001	SPRING, PLATE	1
37	SA9523001	SCREW SM2.38	2
38	SA5278001	LOWER SHAFT ASSY	1
39	048120142	RETAINING RING EXTERNAL C12	1
40	S25401100	OIL SEAL	1
41	SA1317101	OIL SEAL	1
42	SB2403001	LOWER SHAFT GEAR ASSY	1
43	S23651001	SET SCREW SOCKET (FT) M6X6	2
44	SA2251001	TIMING PULLEY D	1
45	S23651001	SET SCREW SOCKET (FT) M6X6	2
46	SA2378001	SPACER,4.8	2
	* P.57-60

Page 11 — B1. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7220D parts on page 11
Ref	Part number	Part name	Qty
47	SA1150201	BEARING BUSH ASSY	1
48	S23651001	SET SCREW SOCKET (FT) M6X6	2
49	SA2252201	TIMING BELT	1
50	S23651001	SET SCREW SOCKET (FT) M6X6	2
51	SA2254101	LOWER SHAFT BUSH	1
52	SB1538001	BALL BEARING RADIAL 6200ZZ	1

Page 13 — B2. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Brother S-7220D parts on page 13
Ref	Part number	Part name	Qty
1	SA8058501	TENSION PULLEY UNIT	1
2	S50165001	COLLAR	1
3	018102536	BOLT SOCKET M10X25	1
4	021100302	NUT 3 M10	1
5	SA8059101	PULLEY BASE	1
6	SA8060201	TENSION PULLEY PLATE	1
7	018061036	BOLT SOCKET M6X10	2
8	025060136	WASHER PLAIN S 6	2
9	SA9763101	TENSION PULLEY ASSY	1
10	018061032	BOLT SOCKET M6X10	2

Page 15 — C. 針送り関係 / Needle feed mechanism

Brother S-7220D parts on page 15
Ref	Part number	Part name	Qty
1	SA7358101	N F REGULATOR ARM D	1
2	S23651001	SET SCREW SOCKET (FT) M6X6	2
3	110367001	WASHER, PLAIN SPECIAL 8	1
4	SA7359101	N F REGULATOR CONNECTING ROD	1
5	151308102	STUD 12.5	1
6	012500536	SET SCREW SOCKET (FT) M5X5	2
7	SA7361101	N F REGULATOR ARM U	1
8	018501436	BOLT SOCKET M5X14	1
9	SA7725001	REGULATOR ARM ELECTRIC PIN	1
10	110367001	WASHER, PLAIN SPECIAL 8	1
11	S20356001	WASHER, PLAIN 10	1
12	SA7362401	NEEDLE FEED REGULATOR UNIT	1
13	SA7364101	FEED REGULATOR LINK STUD S	2
14	012500536	SET SCREW SOCKET (FT) M5X5	7
15	S23651001	SET SCREW SOCKET (FT) M6X6	3
16	SA7368001	LINK S ASSY	1
17	SA7842001	SCREW M4	3
18	048080142	RETAINING RING EXTERNAL C8	2
19	110367001	WASHER, PLAIN SPECIAL 8	3
20	SA7370201	LINK L	1
21	SA7371201	N F CONNECTING ROD ASSY	1
22	SA7374001	LINK STUD ASSY	1
23	113024000	PUSHER	1
24	014300432	SET SCREW SOCKET (CP) M3X4	1
25	SA7377201	NEEDLE FEED ARM R	1
26	062061616	SCREW PAN M6X16	1
27+	SA7378101	N F ECCENTRIC WHEEL W/SCREW	1
27+	SA7380101	N F ECCENTRIC WHEEL W/SCREW	1
28	S23651001	SET SCREW SOCKET (FT) M6X6	3
29	SA7382001	HOLDER	1
30	062350616	SCREW PAN M3.5X6	2
31	SA7383301	N F REGULATOR SHAFT BUSH	1
32	012060536	SET SCREW, SOCKET (FT) M6X5	1
33	SA7384201	FEED REGULATOR SUPPORT ASSY	1
34	113024000	PUSHER	1
35	012400436	SET SCREW SOCKET (FT) M4X4	1
36	012060536	SET SCREW, SOCKET (FT) M6X5	2
37	SA8356001	SUPPORTER	1
38	062501216	SCREW PAN M5X12	1
39	SB3849001	WASHER_PLAIN_M_5	1
40	SA8026001	NEEDLE FEED SHAFT	1
41	012060536	SET SCREW, SOCKET (FT) M6X5	1
42	012060536	SET SCREW, SOCKET (FT) M6X5	1
43	SA7984001	N FEED SHAFT METAL R	1
44	SA7986001	N FEED SHAFT METAL L	1
45	SA7985001	N FEED SHAFT METAL	1
46	SA4588001	SET COLLAR	2
47	012500536	SET SCREW SOCKET (FT) M5X5	4

Page 17 — C. 針送り関係 / Needle feed mechanism

Brother S-7220D parts on page 17
Ref	Part number	Part name	Qty
48+	SA7403401	N-BAR BASE UNIT	1
49	SA4499001	WICK HOLDER	1
50	062400616	SCREW PAN M4X6	1
51	SA4346001	WICK 3X3	1
52	SA4503001	WICK SETTING PLATE	1
53	060400416	SCREW, BIND M4X4	1
48+	SA7390401	N-BAR BASE UNIT	1
54	012400436	SET SCREW SOCKET (FT) M4X4	1
55	012400436	SET SCREW SOCKET (FT) M4X4	1
56	SA7842001	SCREW M4	2
57	110367001	WASHER, PLAIN SPECIAL 8	2
58	014500536	SET SCREW SOCKET (CP) M5X5	1
59	018061636	BOLT SOCKET M6X16	1
60	SA7558001	NF ARM SHAFT	1
61	SA4302001	WASHER	1
62	SA7401201	N-F ARM SHAFT STOPPER	1
63	048040142	RETAINING RING EXTERNAL C4	1
64	SA4295001	BUSH,R	1
65	SA4294001	BUSH,L	1
66	062500616	SCREW PAN M5X6	1
67	SA8403001	SLIDE BLOCK GUIDE	1
68	018501636	BOLT SOCKET M5X16	1
69	SA4298001	NEEDLE BAR BRACKET GUIDE	1
70	062401216	SCREW PAN M4X12	2
71	SA4300001	RUBBER PACKING	1
72	SA4301001	RUBBER PACKING PLATE	1
73	S25310101	SCREW, FLAT M4	3

Page 19 — D. 押え関係 / Presser foot mechanism

Brother S-7220D parts on page 19
Ref	Part number	Part name	Qty
1+	SA9359001	PRESSER BAR	1
2+	S13561101	PRESSER BAR SPRING	1
1+	SA1173101	PRESSER BAR	1
2+	141728001	PRESSER BAR SPRING	1
3	SA7242001	PRESSER BAR BUSH	1
4	062500616	SCREW PAN M5X6	1
5	026050136	WASHER PLAIN S 5	1
6	SB2265002	PRESSER ADJUSTING SCREW ASSY	1
7	SA7607101	SPRING GUIDE	1
8	140407001	WASHER	1
11	S13385001	SCREW, SM3.57-40X10	1
12	025350132	WASHER PLAIN S 3.5	1
13	SA8100001	FINGER GUARD	1
14	SA4483001	PRESSER BAR LIFTER LEVER	1
15	SA7407201	KNEE LIFTER CONNECTING ROD	1
16	SA1179001	SHOULDER SCREW, M5	1
17	SA7406201	KNEE LIFTER LEVER	1
18	SA1181101	PRESSER BAR LIFTER LEVER SHAFT	1
19	012500536	SET SCREW SOCKET (FT) M5X5	1
20	SA9154001	TENSION RELEASE PLATE	1
21	SA8069001	T-RELEASE PLATE	1
22	018400532	BOLT SOCKET M4X5	1
23	025040232	WASHER PLAIN M 4	1
24	SA1186001	P-BAR LIFTER LEVER SPRING	1
25	S07350001	WASHER PLAIN	1
26	048050342	RETAINING RING E5	2
27	SA1179001	SHOULDER SCREW, M5	1
28	SA2165001	SHOULDER SCREW, M6	1
29	SA7408101	KNEE LIFTER BAR	1
30	SA1179001	SHOULDER SCREW, M5	1
31	S31006002	LIFTING LEVER	1
32	S39051001	SCREW, PAN (S/P W) M3.5X12	1
33	S45837001	PRESSER BAR LIFTER CRANK	1
34	SB2919001	PRESSER BAR GUIDE BRACKET ASSY	1
35	SA8903001	SCREW M4X12	1
36	SA4256201	ADJUSTING SCREW M6	1
37	021060306	NUT 3 M6	1
	P.57-60

Page 21 — E. 送り関係 / Feed mechanism

Brother S-7220D parts on page 21
Ref	Part number	Part name	Qty
1+	SA7428102	STITCH LENGTH DIAL 4	1
1+	SA7426102	STITCH LENGTH DIAL 5	1
2	SA7858001	FEED REGULATING STUD ASSY	1
3	SA4494001	SCREW SM4.76	1
4	108549001	O RING	1
5	S50098201	POSITIONING PIN	1
6	100328001	NOTCH SPRING	1
7	SA7660001	FEED REGULATOR ASSY	1
8	SA2849001	F-REGULATOR CONNECTING ROD	1
9	151308102	STUD 12.5	1
10	012500536	SET SCREW SOCKET (FT) M5X5	1
11	SA7635001	FEED REGULATOR SHAFT	1
12	012060636	SET SCREW SOCKET (FT) M6X6	2
13	SA1206001	REVERSE SEWING SHAFT	1
14	S25469100	BUSH DRY :L=12	2
15	025100132	WASHER PLAIN S 10	1
16	048080342	RETAINING RING E8	1
17	SA1207001	SPACER	1
18	062500816	SCREW PAN M5X8	2
19	SA7321002	REVERSE LEVER	1
20	062501416	SCREW PAN M5X14	1
21	SA1209001	REVERSE LEVER SPRING	1
22	153132000	NYLON TUBE L=13.5	1
23	SA1210101	HANDLE SHAFT ARM ASSY	1
24	012500536	SET SCREW SOCKET (FT) M5X5	1
25	018501636	BOLT SOCKET M5X16	1
26	SA9746001	FEED REGULATOR SHAFT ARM	1
27	SA7661101	FEED REGULATOR SHAFT	1
28	018061636	BOLT SOCKET M6X16	1
29	SA2851001	ECCENTRIC PIN	1
30	012500536	SET SCREW SOCKET (FT) M5X5	1
31	SA7670001	FEED REGULATOR SHAFT R ASSY	1
32	SA7253101	FEED REGULATOR SHAFT BUSH(L)	1
33	012060536	SET SCREW, SOCKET (FT) M6X5	1
34	SA1269001	OIL SEAL	1
35	SA7697101	CONNECTING ROD S	1
36	SA1218001	FEED REGULATOR SHAFT JOINT	1
37	151308102	STUD 12.5	1
38	012500536	SET SCREW SOCKET (FT) M5X5	1
39	SA9823101	FEED REGULATOR ASSY	1
40	SA9824001	FEED LINK SHAFT	1
41	012500536	SET SCREW SOCKET (FT) M5X5	2
42	SA1223001	LEVEL FEED CONNECTING ROD	1
43	SA7254001	LINK SHAFT	1
44	012500536	SET SCREW SOCKET (FT) M5X5	2
45	S16335001	LEVEL FEED LINK ASSY	1
46	S16337001	FEED ROCKER ARM LINK ASSY	1
47	156958021	FEED ROCK ARM SHAFT	1
48	SA1225001	FEED ROCK ARM	1
49	048040342	RETAINING RING E4	1
50+	SA1261001	ECCENTRIC WHEEL, W/SCREW	1
50+	SA1263001	ECCENTRIC WHEEL, W/SCREW	1
51	S25236001	SET SCREW SOCKET (FT) M6X10	2
52	S12915001	ROLLER BEARING RADIAL 25	1

Page 23 — E. 送り関係 / Feed mechanism

Brother S-7220D parts on page 23
Ref	Part number	Part name	Qty
53	S25321001	HOLDER	1
54	062350616	SCREW PAN M3.5X6	2
55	062501416	SCREW PAN M5X14	1
56	SA1226401	FEED REGULATOR SHAFT L	1
57	104449001	RUBBER CAP, 15.5	1
58	SA1227501	FEED REGULATOR SUPPORT SHAFT	1
59	SA1228001	RUBBER CAP, 14.5	1
60	012060536	SET SCREW, SOCKET (FT) M6X5	2
61	SA1229101	SET SCREW (FT) M6X6	1
62	S23651001	SET SCREW SOCKET (FT) M6X6	2
63	SA2377001	RUBBER CAP LABEL	1
64	S34352101	RUBBER CAP, 13.5	1
65	SA1230001	FEED ROCK SHAFT ASSY	1
66	SA7255101	FEED SHAFT BUSH(R)	1
67	SA1237101	OIL SEAL	1
68	SA1233101	FEED SHAFT BUSH L	1
69	012061036	SET SCREW SOCKET (FT) M6X10	1
70	156243021	THRUST RING	1
71	048150142	RETAINING RING EXTERNAL C15	1
72	SA1234001	SET SCREW COLLAR	1
73	S23651001	SET SCREW SOCKET (FT) M6X6	2
74	SA7674001	FEED BAR	1
75	SA7330001	FEED ROCK BRACKET ARM	1
76	SA2400101	FEED BAR SET	1
77	014300432	SET SCREW SOCKET (CP) M3X4	1
78	158722001	WASHER PLAIN 4.2	1
79	SA1242001	SET SCREW 5X7	1
80	SA7257001	SCREW 5X12	2
82	100080004	SCREW, SM3.18-44X6.5	2
83+	SA9661101	F-LIFTING ECCENTRIC WHEEL ASSY	1
84+	SA1247101	ECCENTRIC WHEEL, W/SCREW	1
83+	SA9666101	F-LIFTING ECCENTRIC WHEEL ASSY	1
84+	SA1251101	ECCENTRIC WHEEL W/SCREW	1
85	S25236001	SET SCREW SOCKET (FT) M6X10	2
86	S25339301	FEED BAR ARM PRESSER	1
87	062300616	SCREW PAN M3X6	2
88	SA2401001	LIFTING FEED SHAFT ASSY	1
89	014300432	SET SCREW SOCKET (CP) M3X4	1
90	SA1242001	SET SCREW 5X7	1
91	S47508101	DIAL LOCK LEVER	1
92	S39830101	SPRING	1
93	SA7422001	ROCK LEVER PIN	1
94	SA9672001	CONDENSED STOPPER	1
95	021060306	NUT 3 M6	1
96	SA7664201	SPRING HOOK ARM ASSY	1
97	S23651001	SET SCREW SOCKET (FT) M6X6	2
98	S25427101	SHOULDER SCREW, M4	1
99	SA7675001	SPRING ASSY	1
100	SA7676001	SPRING	1
101	SA3114001	VINYL TUBE	1
102	SA7679001	SPRING SET PLATE	1
103	062500816	SCREW PAN M5X8	1
104	048100142	RETAINING RING EXTERNAL C10	1
	* P.57-60		1

Page 25 — F. 膝上げ関係 / Knee lifter mechanism

Brother S-7220D parts on page 25
Ref	Part number	Part name	Qty
1	SB3854101	KNEE LIFTER ASSY	1
2	SB1603001	KNEE LIFTER BRACKET	1
3	SB1604001	BOLT 6X15	1
4	SB1605001	BOLT 6X24	1
5	SB3480001	KNEE LIFTER BAR	1
6	SB1607001	KNEE LIFTER PLATE	1
7	SB1608001	KNEE LIFTER SUPPORT
8	SB1609001	KNEE LIFTER PLATE STOPPER	1
9	SB1610001	BOLT 6X12	1
10	SB1611001	KNEE LIFTER PLATE COVER	1

Page 27 — G. 逆転関係 / Quick reverse mechanism

Brother S-7220D parts on page 27
Ref	Part number	Part name	Qty
1	SB9913001	QUICK REVERSE SOLENOID ASSY	1
2	SA7904001	SOLENOID PLATE F	1
3	SA7907001	SOLENOID PLATE B	1
4	062500816	SCREW PAN M5X8	4
5	SB4177001	SOLENOID BASE	1
6	062500816	SCREW PAN M5X8	4
7	062061016	SCREW PAN M6X10	2
8	SA9813001	SOLENOID LEVER	1
9	SA2844101	SOLENOID LEVER SHAFT	1
10	SA2848001	SET COLLAR ASSY	2
11	012500536	SET SCREW SOCKET (FT) M5X5	4
12	SA2992001	PIN	1
13	153138001	WASHER, PLAIN 6.5	1
14	048060142	RETAINING RING EXTERNAL C6	1
15	SA7854001	RUBBER CUSHION	1
16	012061036	SET SCREW SOCKET (FT) M6X10	1
17	012500536	SET SCREW SOCKET (FT) M5X5	1

Page 29 — H. かま関係 / Rotary hook mechanism

Brother S-7220D parts on page 29
Ref	Part number	Part name	Qty
1	SA9682101	ROTARY HOOK SHAFT	1
2	SA9945201	SCREW CAP W/HOLE ASSY	1
3	SA8471201	PUMP BUSH UNIT	1
4	SA8472201	PUMP BUSH ASSY	1
5	081025870	O RING S25	1
6	SA7320001	OIL SEAL	1
7	142274201	RUBBER CAP 4.2	1
8	SA9684001	OIL SEAL	1
9	SA7554101	BEARING BUSH ASSY	1
10	S23651001	SET SCREW SOCKET (FT) M6X6	2
11	SA1284101	OIL SEAL	1
12	SA1285001	ROTARY HOOK SHAFT GEAR BUSH	1
13	012061036	SET SCREW SOCKET (FT) M6X10	1
14	SB2405001	ROTARY HOOK SHAFT GEAR ASSY	1
15	S23651001	SET SCREW SOCKET (FT) M6X6	2
16+	SA7830001	HOOK STOPPER	1
17+	SB1305001	ROTARY HOOK ASSY W/BOX SB3338	1
18	146290001	BOBBIN	1
16+	SA7829001	HOOK STOPPER	1
17+	SB1677001	ROTARY HOOK ASSY W/BOX SB1678	1
19	117132001	BOBBIN	1
20	SA8903001	SCREW M4X12	1
21	S20553101	BOBBIN CASE ASSY	1
22	183291001	TENSION SPRING	1
23	183292101	ADJUSTING SCREW	1
24	183293001	SET SCREW	1
25	148967101	ANTI-SPIN SPRING	1
26	SA1719001	ROTARY HOOK SET, W/BOX S53203	1
27	SA1718001	ROTARY HOOK ASSY, W/BOX S53203	1
28	S24904201	BOBBIN CASE ASSY, 1.7	1
29	S24905101	TENSION SPRING	1
30	183809001	ADJUSTING SCREW	1
31	183810001	SET SCREW	1
32	183811001	ANTI-SPIN SPRING	1
33	S23848001	BOBBIN, 1.7	1

Page 31 — J. 給油潤滑関係 / Lubrication

Brother S-7220D parts on page 31
Ref	Part number	Part name	Qty
1	SA4270001	FELT	1
2	SA6025001	FELT SUPPORT	1
3	081004070	O RING P4	1
4	144875001	PLUNGER	1
5	S25380601	CAP SCREW PUMP	1
6	S52764001	SPRING COMPRESSION	1
7	104821001	RUBBER CAP, 10.5	1
8	SA9792001	ADJUSTING SCREW	1
9	081004870	O RING S4	1
10	140327001	RUBBER CAP, 6.3	1
11	S25382001	OIL FEEDING PIPE	2
12	SA8985101	OIL TANK ASSY	1
13	SA8990001	OIL FEEDING PIPE 9	1
14	S51815001	OIL FEEDING PIPE 8.6	1
15	SA1303101	SCREW M8	1
16	081008070	O RING P8	1
17	SA8989001	OIL FEEDING PIPE	1
18	081006670	O RING PW6	1
19	SA8987001	FILTER	1
20	SA8991001	RUBBER CAP 35-12	1
21	SA1300001	VINYL TUBE	1
22	SA8997001	VINYL TUBE L=122	1
23	SA8992001	VINYL TUBE L=110	1
24	104450101	RUBBER CAP, 8	1
25	0A5501205	SCREW PAN (S/P WASHER) M5X12	2
26	SA6130001	OIL TUBE ASSY	1
27	SA7562001	VINYL TUBE	1
28	S25382001	OIL FEEDING PIPE	1
29	SB9823001	TUBE HOLDER L	1
30	060500616	SCREW BIND M5X6	1
31	062500816	SCREW PAN M5X8	1
32	SA7337001	TUBE HOLDER R	1
33	060400516	SCREW BIND M4X5	1
34	SA1306001	SUB TANK ASSY	1
35	SA1307001	SUB TANK	1
36	S51815001	OIL FEEDING PIPE 8.6	1
37	081022870	O RING S22	1
38	SA9795101	FLOAT ASSY	1
39	S47509001	OIL GAUGE WINDOW	1
40	SA4552101	BED BOTTOM COVER UNIT	1
41	SA1311201	BED BOTTOM COVER ASSY	1
42	S51272100	OIL WINDOW B-COVER	1
43	081015870	O RING S15	1
44	SA1313101	WINDOW COVER	1
45	062500616	SCREW PAN M5X6	4
46	SA1303101	SCREW M8	1
47	081008070	O RING P8	1
48	SA1315301	BOTTOM COVER FELT	1
49	062400616	SCREW PAN M4X6	3
50	025040332	WASHER PLAIN L 4	3
51	SA1314001	BOTTOM COVER PACKING	1
52	062501216	SCREW PAN M5X12	9
53	SA9694001	CORD HOLDER PLATE	1
54	062500616	SCREW PAN M5X6	1
55	081029870	O RING S29	1

Page 33 — J. 給油潤滑関係 / Lubrication

Brother S-7220D parts on page 33
Ref	Part number	Part name	Qty
56	SA7503001	VINYL TUBE L=65	1
57	SA7505001	VINYL TUBE L=95	1
58	SA7410301	TUBE GUIDE	1
59	062500616	SCREW PAN M5X6	2
60	S08004021	WICK SUPPORT	1
61	SA1321701	OIL PAN ASSY	1
62	SA1322401	OIL PAN	1
63	149578000	BUSH	4
64	SA1323101	KNEE LIFTER SHAFT L	1
65	SA1324001	KNEE LIFTER SHAFT R	1
66	SA1325101	KNEE LIFTER	1
67	SA1326101	KNEE LIFTER, R	1
68	S25344001	BOLT M6	2
69	SB0687001	SET SCREW M6X24	2
70	021060306	NUT 3 M6	2
71	SA3508001	TWIST SPRING	1
72	146293001	RETAINING RING E10	2
73	SA1327101	KNEE LIFTER CONNECTING ROD	1
74	SA1179001	SHOULDER SCREW, M5	2

Page 35 — K. 糸通し関係 / Threading mechanism

Brother S-7220D parts on page 35
Ref	Part number	Part name	Qty
1	SB6626001	PRE-TENSION SUB ASSY	1
2	SB6627001	THREAD GUIDE	1
3	012500536	SET SCREW SOCKET (FT) M5X5
4	SA1359001	SPOOL PIN	1
5	SA1229101	SET SCREW (FT) M6X6	1
6	SA1343001	TENSION RELEASE STUD	1
7	S01419000	TENSION RELEASE PIN	1
8	116112001	THREAD GUIDE	1
9	012500536	SET SCREW SOCKET (FT) M5X5	1
10	SA1345001	ARM THREAD GUIDE, R	1
11	060500616	SCREW BIND M5X6	1
12	SA9854001	THREAD TAKE-UP LEVER COVER	1
13	SB0544001	WASHER	1
14	062500816	SCREW PAN M5X8	1
15	SB9816001	FACE PLATE ASSY	1
16	SA7413001	FACE PLATE PACKING	1
17	SA7849001	RUBBER CAP	2
18	SA7271001	FACE PLATE THREAD GUIDE	1
19	060350616	SCREW BIND M3.5X6	1
20	062501816	SCREW, PAN M5X18	3
21+	SA7273202	THREAD TENSION BRACKET ASSY	1
22+	SA7275001	TENSION SPRING	1
21+	SA9788001	THREAD TENSION BRACKET ASSY	1
22+	S04632101	TENSION SPRING	1
23	SA9786001	TENSION BRACKET ASSY	1
24	100402004	SET SCREW SM3.57	1
25	116922201	TENSION STUD	1
26	145446002	DISC TENSION	2
27	159805001	TENSION DISC PRESSER	1
28	S12441001	WASHER	1
29	S31032002	TENSION NUT	1
30	S02620401	THREAD TAKE-UP SPRING	1

Page 37 — L. 糸巻関係 / Bobbin winder mechanism

Brother S-7220D parts on page 37
Ref	Part number	Part name	Qty
1	SB3529301	BOBBIN WINDER UNIT	1
2	SA1992101	BOBBIN WINDER FIXED SCREW	3
3	SA1359001	SPOOL PIN	1
4	SA1360101	KNIFE	1
5	062500616	SCREW PAN M5X6	1
6	SB3571101	BOBBIN WINDER TENSION ASSY	1

Page 39 — M. 糸切り関係 / Thread trimmer mechanism

Brother S-7220D parts on page 39
Ref	Part number	Part name	Qty
1	SA7552201	THREAD TRIMMER CAM	1
2	154567000	SPACER 5.3	2
3	014771032	SET SCREW SOCKET SM6.35-40X10	2
4	S45900101	FIXED KNIFE	1
5	102843004	SCREW, FLAT SM3.57	1
6	012300632	SET SCREW SOCKET (FT) M3X6	1
7	142274201	RUBBER CAP, 4.2	1
8	154569001	LOWER THREAD FINGER	1
9	026040236	WASHER PLAIN M 4	1
10	062400616	SCREW PAN M4X6	1
11	SA9643001	HOLDER M-KNIFE	1
12	S25426101	THREAD TRIMMER CONNECTING ROD	1
13	060401016	SCREW BIND M4X10	2
14	SA5329001	COLLAR	2
15	100645003	WASHER	2
16	021400306	NUT 3 M4	2
17	SA9755001	THREAD TRIMMER LEVER	1
18	SA7285101	LEVER STOPPER	1
19	SA7341401	THREAD TRIMMER STOPPER BASE	1
20	062400616	SCREW PAN M4X6	1
21+	159541001	MOVABLE KNIFE	1
21+	159915001	MOVABLE KNIFE, S	1
22	148537101	SCREW, FLAT (W/SOCKET) SM4.37	2
23	062501416	SCREW PAN M5X14	1
24	SA7287001	KNIFE HOLDER PRESSER PLATE	1
25	004301016	SCREW FLAT M3X10	3
26	SB3802001	FORKED SHAFT	1
27	SA9710001	FORKED SHAFT BUSG	1
28	012060536	SET SCREW, SOCKET (FT) M6X5	1
29	SA1362201	THREAD TRIMMER LEVER UNIT	1
30	SA1363001	THREAD TRIMMER LEVER ASSY	1
31	SA2258101	ROLLER SHAFT, C ASSY	1
32	105234003	NUT SM4.37	1
33	S23651001	SET SCREW SOCKET (FT) M6X6	1
34	SA9371101	THREAD TRIMMER LEVER SPRING	1
35	154593321	THREAD TRIMMER CAM LEVER SHAFT	1
36	154594000	COLLAR	1
37	S25434000	RUBBER CUSHION	1
38	154595001	SPRING, EXTENSION	1
39	154596000	CUSHION	1
40	110367001	WASHER, PLAIN SPECIAL 8	1
41	048060342	RETAINING RING E6	1
42	SA1366101	CAM LEVER SHAFT BUSH	1
43	012060536	SET SCREW, SOCKET (FT) M6X5	1
44	SB9915001	THREAD TRIMMER SOLENOID ASSY	1
45	SB9914001	THREAD TRIMMER SOLENOID	1
46	SA9715101	THREAD TRIMMER SOLENOID BASE	1
47	SA9800101	SOLENOID LEVER	1
48	018062536	BOLT SOCKET M6X25	1
49	SA9801001	COLLAR	1
50	SA9827001	WASHER PLAIN	2
51	021060306	NUT 3 M6	1
52	SA9716001	PIN	1
53	026050136	WASHER PLAIN S 5	1
54	048050142	RETAINING RING EXTERNAL C5	1
55	062400816	SCREW PAN M4X8	4
56	062501216	SCREW PAN M5X12	3
57	S38687000	CONNECTOR 5557-14R	1

Page 41 — M. 糸切り関係 / Thread trimmer mechanism

Brother S-7220D parts on page 41
Ref	Part number	Part name	Qty
58	SB8436001	GROUND WIRE AWG8	1
59	062400816	SCREW PAN M4X8	1
60	SB4155001	BAND	3
61	SA1394101	CORD HOLDER U3	1
62	062500816	SCREW PAN M5X8	1

Page 43 — N. 糸緩め関係 / Tension release mechanism

Brother S-7220D parts on page 43
Ref	Part number	Part name	Qty
1	SB0434001	TENSION RELEASE WIRE	1
2	SA7414101	WIRE HOLDER U	1
3	062500816	SCREW PAN M5X8	2
4	SA1373001	WIRE HOLDER, U	1
5	060400516	SCREW BIND M4X5	1
6	154607101	WIRE HOLDER D	1
7	060400816	SCREW BIND M4X8	2
8	110161004	NUT SM4.76	2

Page 45 — P. 糸払い関係 / Thread wiper mechanism

Brother S-7220D parts on page 45
Ref	Part number	Part name	Qty
1	SA9777002	THREAD WIPER SET	1
2	SA9768102	THREAD WIPER DEVICE ASSY	1
3	SB2084001	THREAD WIPER SOLENOID	1
4	SA9771001	THREAD WIPER SPRING	1
5	S41205001	WASHER, PLAIN	1
6	062300616	SCREW PAN M3X6	2
7	026030136	WASHER PLAIN S 3	2
8	SB4155001	BAND	1
9	SA9356001	THREAD WIPER BASE	1
10	SA9773001	SOLENOID COVER	1
11	060400516	SCREW BIND M4X5	1
12	SA9774001	THREAD WIPER CRANK ASSY	1
13	048040342	RETAINING RING E4	1
14	SA9352001	WIPER SPRING	1
15	SA9778101	THREAD WIPER ROD	1
16	110735002	WASHER	1
17	048030342	RETAINING RING E3	1
18	S25456001	PLUNGER PIN	1
19	SB4244001	THREAD WIPER	1
20	060400516	SCREW BIND M4X5	1
21	146288021	THREAD WIPER STUD COLLAR	1
22	SA8085001	WASHER	1
23	S25456001	PLUNGER PIN	2
24	S41207000	SPACER RUBBER	1
25	SA1394101	CORD HOLDER U3	2
26	062500816	SCREW PAN M5X8	2

Page 47 — Q1. コントロールボックス関係 / Control box

Brother S-7220D parts on page 47
Ref	Part number	Part name	Qty
1	SC0068001	MAIN PCB ASSY 84D	1
2	SB3275001	GLASS FUSE 10A-50T100H	2
3	0A4400806	SCREW PAN (S/P WASHER) M4X8	7
4	SC0069001	POWER PCB ASSY 84D	1
5	0A5400806	SCREW PAN (S/P WASHER) M4X8	4
6	S37060001	LABEL GROUNDING	3
7	S37059001	LABEL, PE	1
8	SB8096001	LABEL ELECTRICAL SHOCK 36X150	1
9	J04100001	CEMENT RESISTOR ASSY 401220#6	1
10	0A5400806	SCREW PAN (S/P WASHER) M4X8	2
11+	SB4587301	TREADLE UNIT-US	1
11+	SB3817401	TREADLE UNIT-EX	1
12	J00353001	SCREW PAN (S/P WASHER) M5X14	4
13	SA9893001	BOLT M8X65	4
14	021080206	NUT 2 M8	8
15	025080336	WASHER PLAIN L 8	4
16	028080246	WASHER SPRING 2-8	4
17	SC0298001	EARTH CORD SCREW TIE ASSY	1
18	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
19	J02825001	REPEATE CABLE TIE, RF140	1
20	SC0296001	CE FILTER UNIT TYPE8	1
21	SB7074001	CE FILTER CASE	1
22	SB7065001	CE FILTER PCB ASSY TYPE3	1
23	S03816001	WOOD SCREW M4.5X16	4
24	SC0185001	FERRITE CORE GRFC-13	1
25	LNA409001	FERRITE CORE GRFC-6	1

Page 49 — Q2. コントロールボックス関係 / Control box

Brother S-7220D parts on page 49
Ref	Part number	Part name	Qty
1+	SA9616001	POWER SWITCH ASSY SJT	1
1+	SA9831001	POWER SWITCH ASSY SJT#2	1
2	SA9535001	POWER SUPPLY SWITCH ASSY CCC	1
3+	BMP3010-1000000-2ST1	TRANSFORMER BOX	1
3+	BMP3010-1000000-AST1	TRANSFORMER BOX	1
4	SA9914001	LABEL ELECTRICAL SHOCK 25X28	1

Page 51 — R. 逆転スイッチ関係 / Quick reverse switch mechanism

Brother S-7220D parts on page 51
Ref	Part number	Part name	Qty
1	SB9827001	R-ACTUATOR ASSY	1
2	SB4178001	SWITCH SETTING BASE	1
3	SA9723001	REVERSE SWITCH BRACKET	1
4	SB4123001	ACTUATOR	1
5	SA9724001	REVERSE SWITCH SPRING	1
6	SB9883001	R-SWITCH ASSY	1
7	060300606	SCREW BIND M3X6	1
8	SB4155001	BAND	1
9	062500816	SCREW PAN M5X8	2
10	062500816	SCREW PAN M5X8	3
11	SA2689101	CORD HOLDER	1
12	SA1394101	CORD HOLDER U3	2

Page 53 — S. 電装部品関係 / Power supply equipment

Brother S-7220D parts on page 53
Ref	Part number	Part name	Qty
1	SB0100001	SAFETY SWITCH ASSY	1
2	SA7325001	MICRO SWITCH ASSY	1
3	SA7292101	SAFETY SWITCH PLATE	1
4	SA9865001	SAFETY SWITCH BASE	1
5	SA9866001	SAFETY SWITCH LEVER	1
6	SA9867001	SAFETY SWITCH SPRING	1
7	SA7293001	SCREW PAN (S/P W) M3X12	2
8	S04159000	BAND 1M	1
9	062060816	SCREW PAN M6X8	1
10	025060136	WASHER PLAIN S 6	1

Page 55 — T. 操作パネル関係 / Operation panel

Brother S-7220D parts on page 55
Ref	Part number	Part name	Qty
1+	SC0066001	OPERATION PANEL ASSY	1
1+	SC0066002	OPERATION PANEL ASSY	1

Page 57 — U. モーター関係 / Motor mechanism

Brother S-7220D parts on page 57
Ref	Part number	Part name	Qty
1+	SB8903001	MOTOR ASSY	1
1+	SB9946001	MOTOR ASSY EU	1
2	SA2354001	SCREW PAN M5X18	3
3	SB8940101	PULLEY	1
4	060501016	SCREW BIND M5X10	3
5	SB4155001	BAND	2
6	SA9452001	PULLEY WASHER	3

Page 59 — Z. 付属品関係 / Accessories

Brother S-7220D parts on page 59
Ref	Part number	Part name	Qty
1	146290001	BOBBIN	1
2	SA7453201	TIMING GAUGE	1
3	117132001	BOBBIN	1
4	SA7454301	TIMING GAUGE	1
5	S06055009	HEAD REST, S	1
6	SB3831001	KNEE LIFTER COMPLYING BAR	1
7	SC0031001	RUBBER HINGE ASSY	1
8	SB3627001	HEAD HINGE	2
9	SB3628001	RUBBER CUSHION	2
10	SA1962001	HEAD CUSHION...	2
11	SA1963001	HEAD CUSHION...	2
12	SA8239301	OIL TANK ASSY	1
13	SB1270001	OIL WARNING LABEL EN	1
14	SB1271101	OIL WARNING LABEL JP	1
15	144226001	HEAD COVER	1
16	S02763702	COTTON STAND ASSY 2DR	1
17	S51283001	SPOOL STAND BASE	2
18	150182000	SPOOL MAT	2
19	S51282101	SPOOL CUSHION	2
20	S02747101	SPRING	1
21	150179002	SPOOL SHAFT B	2
22	SB4117001	WASHER SPRING 2-5	2
23	SB4119001	NUT 2 M5	2
24	SA6607001	SPOOL HOLDER 2	1
25	SA6607001	SPOOL HOLDER 2	1
26	150183000	THREAD HANGER BASE	2
27	142990001	THREAD BUSH	2
28	SA6609001	SPOOL HOLDER SUPPORTER	2
29	062061603	SCREW PAN M6X16	2
30	S40765001	CONNECTING ROD ASSY	1
31	021060103	NUT 1 M6	2
32	017081603	BOLT M8X16	2
33	021080103	NUT 1 M8	2
34	S36119021	NUT 1 M6	2
35	S36121021	WASHER SPRING 2-6	2
36	SB6659101	GREASE UNIT	1

Page 60 — Wa. 警告ラベル / Warning labels

Brother S-7220D parts on page 60
Ref	Part number	Part name	Qty
	SB8096-001	Label electrical shock 36 X 150
	SA9914-001	Label electrical shock 25 X 28
	SA9826-001	Label caution
	SA9957-001	Injury mark
	SA9957-002	Injury mark
	S37060-001	Label grounding
	S37059-001	Label, PE

Page 61 — 警告ラベル / Warning labels

Brother S-7220D parts on page 61
Ref	Part number	Part name	Qty
	SB1271-101	Oil warning label JP
	SB1270-001	Oil warning label EN

Page 62 — Sp. 仕様別部品一覧表 / Different parts list

Brother S-7220D parts on page 62
Ref	Part number	Part name
B1-23+	SA7449101	Needle bar
B1-23+	SA7450101	Needle bar
B1-24+	DBX1 (#14)	Needle
B1-24+	DBX1 (#22)	Needle
B1-33+	143855001	Needle plate (DBX1)
B1-33+	148842001	Needle plate (DBX1)
D-2+	S13561101	Presser bar spring
D-2+	141728001	Presser bar spring
D-10+	SA4484001	Presser foot assy
D-10+	SA4489001	Presser foot assy
E-81+	159521001	Feed dog
E-81+	159525001	Feed dog
H-16+	SA7830001	Hook stopper
H-16+	SA7829001	Hook stopper
H-17+	SB1305001	Rotary hook assy, w/box
H-17+	SB1677001	Rotary hook assy, w/box
H-18	146290001	Bobbin
H-19	117132001	Bobbin
B1-23+	SA7449101	Needle bar
B1-23+	SA7450101	Needle bar
B1-24+	DBX1 (#14)	Needle
B1-24+	DBX1 (#22)	Needle
B1-33+	143855001	Needle plate (DBX1)
B1-33+	S13101001	Needle plate (DBX1)
D-2+	S13561101	Presser bar spring
D-2+	141728001	Presser bar spring
D-10+	SA4484001	Presser foot assy
D-10+	SA4489001	Presser foot assy
E-81+	159521001	Feed dog
E-81+	S13102101	Feed dog
H-16+	SA7830001	Hook stopper
H-16+	SA7829001	Hook stopper
H-17+	SB1305001	Rotary hook assy, w/box
H-17+	SB1677001	Rotary hook assy, w/box
H-18	146290001	Bobbin
H-19	117132001	Bobbin
B1-23+	SA7450101	Needle bar
B1-23+	SA7450101	Needle bar
B1-24+	DPX5 (#14)	Needle
B1-24+	DPX5 (#22)	Needle
B1-33+	143855001	Needle plate (DPX5)
B1-33+	S13101001	Needle plate (DPX5)
D-2+	S13561101	Presser bar spring
D-2+	141728001	Presser bar spring
D-9+	SA8110001	Presser foot assy
D-9+	SA8111001	Presser foot assy
E-81+	159521001	Feed dog
E-81+	S13102101	Feed dog
H-16+	SA7830001	Hook stopper
H-16+	SA7829001	Hook stopper
H-17+	SB1305001	Rotary hook assy, w/box
H-17+	SB1677001	Rotary hook assy, w/box
H-18	146290001	Bobbin
H-19	117132001	Bobbin

Page 63 — Ga. ゲージ部品一覧表 / Gauge parts list

Brother S-7220D parts on page 63
Ref	Part number	Part name
143855N	143855-001
	S03357-001
	159521-001
	159522-001
	SA4484-001
S01988N	S01988-001
	159914-001
	SA8110-001
	S01988N	Needle plate

Page 64 — Ga. ゲージ部品一覧表 / Gauge parts list

Brother S-7220D parts on page 64
Ref	Part number	Part name	Qty
	143857-001
	159523-001
	SA4484-001
	SA8110-001
	143857N	Needle plate

Page 65 — Ga. ゲージ部品一覧表 / Gauge parts list

Brother S-7220D parts on page 65
Ref	Part number	Part name
148842N	148842-001
S13101N	S13101-001
S01988N	S01988-001
SA8240	SA8240-001
	159525-001	Feed dog
	SA4489-001	Presser foot assy
	S13102-101	Feed dog
	SA8111-001	Presser foot assy
	S13101N	Needle plate
	S01989-001	Feed dog
	S01988N	Needle plate
	SA8277-001	Feed dog
	SA8370-001	Presser foot assy
	SA8240	Needle plate
	SA8423-001	Presser foot assy

Page 66

Brother S-7220D parts on page 66
Ref	Part number	Part name
42	0A4400806	Q1 - 18
34	004301016	M - 25
10	012060536	C - 32
48	025080336	Q1 - 15
14	141728001	D - 2+
16	025100132	E - 15
24	142274201	H - 7
10	012060536	C - 36
40	026030132	P - 7
54	142990001	Z - 27
10	012060536	C - 41
40	026030136	P - 7
57	143855001	Sp
10	012060536	C - 42
34	026050136	S - 5
58	143857001	Ga
16	012060536	E - 33
34	026040236	M - 53
59	143857001	Ga
18	012060536	E - 60
42	048030342	Q1 - 16
59	143857001	Ga
16	012060636	E - 12
12	048040142	C - 63
54	144226001	Z - 15
4	012060636	E - 19
12	048040142	C - 63
26	144875001	J - 4
18	012060636	E - 69
16	048040342	P - 49
30	145446002	K - 26
34	012061036	G - 22
16	048040342	P - 49
40	146288021	P - 21
24	012061036	H - 13
34	048050142	M - 54
24	146290001	H - 18
34	012300632	M - 6
30	062501816	K - 20
54	146290001	Z - 1
4	012400436	B1 - 14
26	081004070	J - 3
57	146293001	Sp
10	012500536	C - 54
26	081006670	J - 18
34	148537101	M - 72
12	012500536	C - 55
26	081008070	J - 16
57	148842001	Ga
10	012500536	C - 54
26	081015870	J - 43
24	148967101	H - 25
12	012500536	C - 55
26	081022870	J - 37
28	149578000	J - 63
10	012500536	C - 14
24	081025870	H - 5
54	149770002	Z - 21
14	012500536	D - 19
26	081029870	J - 55
54	150182000	Z - 18
16	012500536	E - 10
42	0A4400806	Q1 - 3
54	150183000	Z - 26
16	012500536	E - 24
42	0A4501606	A - 5
54	150183001	Z - 26
16	012500536	E - 30
42	0A5400806	Q1 - 5
10	151308102	C - 5
16	012500536	E - 38
42	0A5501205	Q1 - 10
16	151308102	E - 37
16	012500536	E - 41
18	100080004	E - 82
4	151594001	B1 - 32
16	012500536	E - 44
34	100645003	M - 15
4	151594001	B1 - 32
22	012500536	G - 11
34	102843004	M - 5
4	151594001	B1 - 32
22	012500536	G - 17
34	104449001	A - 12
4	151594001	B1 - 32
30	012500536	K - 3
18	104449001	E - 57
4	151594001	B1 - 32
30	012500536	K - 9
11	104450101	A - 9
4	151594001	B1 - 32
10	014300432	C - 24
26	104821001	J - 7
34	154567000	M - 2
18	014300432	E - 77
34	105234003	M - 32
34	154569001	M - 8
18	014300432	E - 89
16	108549001	E - 4
34	154593321	M - 35
12	014500536	C - 58
38	110161004	N - 8
34	154594000	M - 36
34	014771032	M - 3
4	110367001	B1 - 7
34	154595001	M - 39
54	017081603	Z - 32
4	110367001	B1 - 7
34	154595001	M - 39
8	018061032	B2 - 10
10	110367001	C - 3
34	154595001	M - 39
8	018061036	B2 - 7
10	110367001	C - 10
57	159522001	Sp
12	018061636	C - 59
10	110367001	C - 19
58	159523001	Ga
16	018061636	E - 28
12	110367001	C - 57
57	159525001	Sp
34	018062536	M - 48
40	110735002	P - 16
60	159526001	Ga
8	018102536	B2 - 3
10	113024000	C - 23
60	159526001	Ga
14	018400532	D - 22
4	114561001	B1 - 36
34	159541001	M - 21+
10	018501436	C - 8
30	116112001	K - 8
30	159580001	K - 27
12	018501636	C - 68
26	116922201	K - 25
58	159915001	Ga
54	021060103	Z - 31
24	117132001	H - 19
34	159915001	M - 21+
14	021060306	D - 37
24	117936001	A - 14
4	180018251	B1 - 35
18	021060306	E - 95
24	117936001	A - 15
24	183291001	H - 22
28	021060306	J - 70
4	140004001	B1 - 21
24	183292101	H - 23
34	021060306	M - 51
26	140327001	J - 10
24	183293001	H - 24
54	021080103	Z - 33
14	140407001	D - 8
24	183809001	H - 30
42	021080206	Q1 - 14
4	140553102	B1 - 25
24	183810001	H - 31
8	021100302	B2 - 4
22	153138001	G - 13
24	183811001	H - 32
34	021400306	M - 16
22	153138001	G - 11
44	BMP3010-1000000-AST1	Q2 - 3+
14	025040232	D - 23
22	153138001	G - 17
44	BMP3010-1000000-AST1	Q2 - 3+
26	025040332	J - 50
34	060401016	J - 13
8	025060136	B2 - 8

Page 67 — 索引 / Index

Brother S-7220D parts on page 67
Ref	Part number	Part name
44	J00353001	Q2 - 3+
42	J02825001	Q1 - 12
42	J04100001	Q1 - 9
42	LNA409001	Q1 - 25
30	S01419000	K - 7
58	S01988001	Ga
60	S01989001	Ga
30	S02620401	K - 30
54	S02747101	Z - 20
54	S02763702	Z - 16
58	S03357001	Ga
42	S03816001	Q1 - 23
48	S04159000	S - 8
30	S04632101	K - 22+
54	S06055009	Z - 5
14	S07350001	D - 25
28	S08004021	J - 60
30	S12441001	K - 28
2	S12717000	A - 13
16	S12915001	E - 52
57	S13101001	Sp
60	S13101001	Ga
57	S13102101	Sp
60	S13102101	Ga
14	S1335001	D - 11
14	S13561101	D - 2+
57	S13561101	Sp
16	S16335001	E - 45
16	S16337001	E - 46
10	S20356001	C - 11
24	S20553101	H - 21
4	S23651001	B1 - 3
4	S23651001	B1 - 6
4	S23651001	B1 - 27
4	S23651001	B1 - 43
4	S23651001	B1 - 45
6	S23651001	B1 - 50
10	S23651001	C - 2
10	S23651001	C - 15
10	S23651001	C - 28
18	S23651001	E - 62
18	S23651001	E - 97
24	S23651001	H - 10
24	S23651001	H - 15
24	S23848001	H - 33
24	S24904201	H - 28
24	S24905101	H - 29
4	S25235001	B1 - 2
4	S25236001	B1 - 4
16	S25236001	E - 51
18	S25236001	E - 85
12	S25310101	C - 73
18	S25321001	E - 53
18	S25339301	E - 86
28	S25344001	J - 68
26	S25380601	J - 5
26	S25382001	J - 11
26	S25382001	J - 28
4	S25401100	B1 - 40
34	S25426101	M - 12
18	S25427101	E - 98
34	S25434000	M - 37
40	S25456001	P - 18
16	S25469100	E - 14
14	S31006002	D - 31
2	S32263001	A - 10
18	S352101	E - 64
54	S36119021	Z - 34
54	S36121021	Z - 35
42	S37059001	Q1 - 7
55	S37059001	Wa
2	S37060001	A - 21
42	S37060001	Q1 - 6
55	S37060001	Wa
34	S38687000	W - 57
4	S38712001	B1 - 29
4	S38713100	B1 - 30
14	S39051001	D - 32
18	S39830101	E - 92
54	S40765001	Z - 30
40	S41205001	P - 5
40	S41207000	P - 24
14	S45837001	D - 33
34	S45900101	D - 4
18	S47508101	E - 91
16	S50098201	E - 5
8	S50165001	B2 - 2
8	S50165001	B2 - 2
26	S51272100	J - 42
54	S51282101	Z - 19
54	S51283001	Z - 17
26	S51815001	J - 14
26	S52764001	J - 6
2	SA1106001	A - 1
2	SA1107001	A - 3
4	SA1120001	B1 - 5
6	SA1150201	B1 - 47
14	SA1173101	D - 1+
14	SA1179001	D - 16
14	SA1179001	D - 27
14	SA1179001	D - 30
16	SA1206001	E - 13
16	SA1207001	E - 17
16	SA1209001	E - 21
16	SA1210101	E - 23
16	SA1218001	E - 36
16	SA1223001	E - 42
16	SA1225001	E - 48
18	SA1226401	E - 56
18	SA1227501	E - 58
18	SA1228001	E - 59
18	SA1229101	E - 61
18	SA1230001	E - 65
18	SA1233101	E - 68
18	SA1234001	E - 72
18	SA1237101	E - 67
18	SA1242001	E - 79
18	SA1247101	E - 84+
18	SA1251101	E - 84+
16	SA1261001	E - 50+
16	SA1263001	E - 50+
12	SA1284101	H - 11
12	SA1285001	H - 12
26	SA1300001	J - 21
26	SA1303101	J - 15
26	SA1306001	J - 46
26	SA1307001	J - 34
26	SA1311201	J - 41
26	SA1313101	J - 44
26	SA1314001	J - 51
26	SA1315301	J - 48
4	SA1317101	B1 - 41
28	SA1321701	J - 61
28	SA1322401	J - 62
28	SA1323101	J - 64
28	SA1324001	J - 65
28	SA1325101	J - 66
28	SA1326101	J - 67
28	SA1327101	J - 73
30	SA1345001	K - 10
30	SA1359001	K - 6
32	SA1360101	L - 3
32	SA1362201	M - 29
34	SA1363001	M - 30
34	SA1366101	M - 42
38	SA1373001	N - 4
36	SA1394101	M - 61
24	SA1718001	H - 27
24	SA1719001	H - 26
54	SA1962001	Z - 10
54	SA1963001	Z - 11
32	SA1992101	L - 2
4	SA2161001	B1 - 15
14	SA2165001	D - 28
2	SA2170001	A - 2
4	SA2250101	B1 - 28
16	SA2849001	E - 8
16	SA2851001	E - 29
22	SA2992001	G - 12
18	SA3114001	E - 101
28	SA3508001	J - 71
14	SA4256201	D - 36
26	SA4270001	J - 1
12	SA4294001	C - 65
12	SA4295001	C - 64
12	SA4298001	C - 69
12	SA4300001	C - 71
12	SA4301001	C - 72
12	SA4302001	C - 61
12	SA4346001	C - 51
14	SA4483001	D - 14
57	SA4484001	Sp
58	SA4484001	Ga
57	SA4489001	Sp
60	SA4489001	Ga
16	SA4494001	E - 3
12	SA4499001	C - 49
12	SA4503001	C - 52
26	SA4552101	J - 40
10	SA4588001	C - 46
4	SA5278001	B1 - 38
34	SA5837001	M - 33
14	SA5900101	D - 33
26	SA6025001	J - 2
26	SA6130001	J - 26
54	SA6607001	Z - 24
54	SA6609001	Z - 28
4	SA7239101	B1 - 17
14	SA7242001	D - 3
16	SA7253101	E - 32
16	SA7254001	E - 43
18	SA7255101	E - 66
18	SA7257001	E - 80
30	SA7271001	K - 18
30	SA7273202	K - 21+
30	SA7275001	K - 22+
34	SA7285101	M - 18
34	SA7287001	M - 24
48	SA7292101	S - 3
48	SA7293001	S - 7
24	SA7320001	H - 6
16	SA7321002	E - 19
48	SA7325001	S - 2
18	SA7330001	E - 75
2	SA7336102	A - 6
26	SA7337001	J - 32
34	SA7341401	M - 19
10	SA7358101	C - 1
10	SA7359101	C - 4
10	SA7361101	C - 7
10	SA7362401	C - 12
10	SA7364101	C - 13
10	SA7368001	C - 16
10	SA7370201	C - 20
10	SA7371201	C - 21
10	SA7374001	C - 22
10	SA7377201	C - 25
10	SA7378101	C - 27+

Page 68

Brother S-7220D parts on page 68
Ref	Part number	Part name
- 27+	SA7380101	C
- 29	SA7382001	C
- 31	SA7383301	C
- 33	SA7384201	C
- 48+	SA7390401	C
- 62	SA7401201	C
- 48+	SA7403401	C
- 17	SA7406201	D
- 15	SA7407201	D
- 29	SA7408101	D
- 58	SA7410301	J
- 16	SA7413001	K
- 2	SA7414101	N
- 93	SA7422001	E
- 1+	SA7426102	E
- 1+	SA7428102	E
	SA7449101	Sp
	SA7450101	Sp
- 2	SA7453201	Z
- 4	SA7454301	Z
- 56	SA7503001	J
- 57	SA7505001	J
- 1	SA7552201	M
- 9	SA7554101	H
- 27	SA7562001	J
- 27	SA7562001	J
- 9+	SA7600001	B1
- 9+	SA7600001	B1
- 11	SA7600001	B1
- 11	SA7635001	E
- 7	SA7660001	E
- 27	SA7661101	E
- 96	SA7664201	E
- 31	SA7670001	E
- 74	SA7674001	E
- 99	SA7675001	E
- 100	SA7676001	E
- 102	SA7679001	E
- 35	SA7697101	E
- 9	SA7725001	C
- 17	SA7814001	A
- 16+	SA7829001	H
	SA7830001	Sp
- 16+	SA7830001	H
- 17	SA7840001	C
- 17	SA7840001	C
- 17	SA7840001	K
- 15	SA7854001	G
- 2	SA7858001	E
- 2	SA7904001	G
- 3	SA7907001	G
- 43	SA7984001	C
- 45	SA7985001	C
- 44	SA7986001	C
- 40	SA8026001	C
- 1	SA8058501	B2
- 5	SA8059101	B2
- 6	SA8060201	B2
- 12	SA8061001	B1
- 21	SA8069001	D
- 22	SA8085001	P
- 13	SA8100001	D
	SA8110001	Sp
	SA8110001	Ga
	SA8111001	Sp
	SA8111001	Ga
- 12	SA8239301	Z
	SA8240001	Ga
	SA8356001	Ga
	SA8370001	Ga
- 67	SA8403001	C
	SA8423001	Ga
- 3	SA8471201	H
- 4	SA8472201	H
- 35	SA8903001	D
- 12	SA8985101	J
- 19	SA8987001	J
- 17	SA8989001	J
- 20	SA8990001	J
- 23	SA8991001	J
- 22	SA8997001	J
- 20	SA9154001	D
- 14	SA9352001	P
- 9	SA9356001	P
- 14	SA9359001	P
- 34	SA9371101	D
- 67	SA9452001	C
- 37	SA9535001	B1
- 2	SA9551001	Q2
- 1+	SA9616001	Q2
- 11	SA9643001	M
- 20	SA9650101	B1
- 83+	SA9661101	B1
- 83+	SA9661101	E
- 94	SA9672001	E
- 1	SA9682101	H
- 8	SA9684001	H
- 53	SA9694001	J
- 27	SA9710001	M
- 46	SA9716001	M
- 52	SA9716001	M
- 3	SA9723001	R
- 5	SA9724001	R
- 26	SA9746001	C
- 17	SA9755001	M
- 9	SA9763101	B2
- 2	SA9768102	P
- 4	SA9771001	P
- 10	SA9773001	P
- 12	SA9774001	P
- 1	SA9777002	P
- 15	SA9778101	P
- 23+	SA9786001	K
- 21+	SA9788001	K
- 8	SA9792001	J
- 38	SA9795101	J
- 47	SA9800101	M
- 49	SA9801001	M
- 8	SA9813001	D
- 39	SA9823101	E
- 40	SA9824001	E
- 20	SA9826001	A
- 50	SA9827001	M
- 1+	SA9831001	Q2
- 12	SA9854001	K
- 4	SA9865001	S
- 5	SA9866001	S
- 6	SA9867001	S
- 13	SA9893001	Q1
- 4	SA9914001	Q2
- 2	SA9945201	H
- 22	SA9957001	A
- 23	SA9957002	A
- 1	SB0100001	S
- 1	SB0434001	N
- 13	SB0544001	K
- 69	SB0687001	J
- 22	SB1029101	B1
- 13	SB1270001	Z
- 14	SB1271101	Z
- 17+	SB1305001	H
- 26	SB1537001	B1
- 52	SB1538001	B1
- 3	SB1604001	F
- 4	SB1605001	F
- 6	SB1607001	F
- 7	SB1608001	F
- 8	SB1609001	F
- 9	SB1610001	F
- 10	SB1611001	F
- 17+	SB1677001	H
- 3	SB2084001	P
- 6	SB2265002	D
- 42	SB2403001	B1
- 14	SB2405001	H
- 25	SB2408101	A
- 8+	SB2914001	B1
- 10	SB2915101	B1
- 8+	SB2916001	B1
- 34	SB2919001	D
- 2	SB3275001	Q1
- 5	SB3480001	F
- 1	SB3529301	L
- 6	SB3571101	L
- 8	SB3627001	Z
- 9	SB3628001	Z
- 26	SB3802001	M
- 11+	SB3817401	Q1
- 6	SB3831001	Z
- 7	SB3849001	A
- 18	SB3850001	A
- 1	SB3854101	F
- 22	SB4117001	Z
- 23	SB4119001	Z
- 4	SB4123001	R
- 60	SB4155001	M
- 8	SB4177001	R
- 5	SB4178001	R
- 2	SB4179001	U
- 6	SB4180001	R
- 19	SB4244001	P
- 11+	SB4587301	Q1
- 1	SB6626001	K
- 2	SB6627001	K
- 36	SB6695101	Z
- 22	SB7065001	Q1
- 21	SB7074001	Q1
- 8	SB8096001	Q1
- 58	SB8436001	M
- 1+	SB8903001	U
- 3	SB8940101	U
- 4	SB9815101	A
- 15	SB9816001	K
- 29	SB9823001	J
- 1	SB9827001	R
- 1	SB9830001	B1
- 6	SB9883001	R
- 1	SB9913001	G
- 45	SB9914001	M
- 44	SB9915001	M
- 1+	SB9946001	U
- 7	SC0031001	Z
- 1+	SC0066001	T
- 1+	SC0066002	T
- 1	SC0068001	Q1
- 4	SC0069001	Q1
- 20	SC0185001	Q1
- 20	SC0296001	Q1
- 17	SC0298001	Q1

Page 7 — A. 主体関係 / Machine body

Page 9 — B1. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 11 — B1. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 13 — B2. 針棒・天秤関係 / Needle bar and thread take-up mechanism

Page 15 — C. 針送り関係 / Needle feed mechanism

Page 17 — C. 針送り関係 / Needle feed mechanism

Page 19 — D. 押え関係 / Presser foot mechanism

Page 21 — E. 送り関係 / Feed mechanism

Page 23 — E. 送り関係 / Feed mechanism

Page 25 — F. 膝上げ関係 / Knee lifter mechanism

Page 27 — G. 逆転関係 / Quick reverse mechanism

Page 29 — H. かま関係 / Rotary hook mechanism

Page 31 — J. 給油潤滑関係 / Lubrication

Page 33 — J. 給油潤滑関係 / Lubrication

Page 35 — K. 糸通し関係 / Threading mechanism

Page 37 — L. 糸巻関係 / Bobbin winder mechanism

Page 39 — M. 糸切り関係 / Thread trimmer mechanism

Page 41 — M. 糸切り関係 / Thread trimmer mechanism

Page 43 — N. 糸緩め関係 / Tension release mechanism

Page 45 — P. 糸払い関係 / Thread wiper mechanism

Page 47 — Q1. コントロールボックス関係 / Control box

Page 49 — Q2. コントロールボックス関係 / Control box

Page 51 — R. 逆転スイッチ関係 / Quick reverse switch mechanism

Page 53 — S. 電装部品関係 / Power supply equipment

Page 55 — T. 操作パネル関係 / Operation panel

Page 57 — U. モーター関係 / Motor mechanism

Page 59 — Z. 付属品関係 / Accessories

Page 60 — Wa. 警告ラベル / Warning labels

Page 61 — 警告ラベル / Warning labels

Page 62 — Sp. 仕様別部品一覧表 / Different parts list

Page 63 — Ga. ゲージ部品一覧表 / Gauge parts list

Page 64 — Ga. ゲージ部品一覧表 / Gauge parts list

Page 65 — Ga. ゲージ部品一覧表 / Gauge parts list

Page 66

Page 67 — 索引 / Index

Page 68

Brother S-7220D — parts catalog
