Brother SL-737A Parts Book (PDF)
Text index — Brother SL-737A
Page 6 — A . 主体関係 / Machine body B. 膝上げ関係 / Knee lifter mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | 104829101 | BED LEG, L | 1 |
| 4 | 104830101 | BED LEG, S | 1 |
| 5 | 104830101 | BED LEG, S | 2 |
| 7 | S02499009 | REAR COVER | 1 |
| 8 | 062681012 | SCREW, PAN SM4.37-40X10 | 7 |
| 9 | 104449001 | RUBBER CAP, 15.5 | 2 |
| 10 | 104450101 | RUBBER CAP, 8 | 2 |
| 11 | 104832001 | RUBBER CAP, 10.7 | 1 |
| 12 | 104821001 | RUBBER CAP, 10.5 | 2 |
| 13 | 142274101 | RUBBER CAP, 4.2 | 1 |
| 14 | 108520001 | RUBBER CAP, 19.8 | 1 |
| 15 | 104451101 | RUBBER CAP, 23.9 | 1 |
| 24 | 156217001 | RUBBER CAP, 8.5 | 1 |
| 25 | S09621151 | RULER PLATE | 1 |
| 26 | 062670612 | SCREW, PAN SM3.57-40X6 | 1 |
| 29 | 100645003 | WASHER | 1 |
| 30 | 104450101 | RUBBER CAP, 8 | 2 |
| 31 | 062680812 | SCREW, PAN SM4.37-40X8 | 1 |
| 32 | 062760812 | SCREW, PAN SM5.95-28X8 | 3 |
| 33 | 157969001 | STUD | 1 |
| 27 | S16615002 | REAR COVER UNIT | 1 |
| 27-1 | S11589000 | DUST SEAL | 1 |
| 31 | 017681012 | BOLT, SM4.37X10 | 1 |
| 40 | S38350001 | LABEL, OPERATION JPN | 1 |
| 41 | S38349001 | LABEL, OPERATION ENG | 1 |
| 42 | S37060021 | LABEL, GROUNDING | 1 |
| S34758001 | 1 | ||
| 146039001 | 1 | ||
| 100463001 | 1 | ||
| 017762013 | ボルト5.95X20 | 1 | |
| 104619002 | 1 | ||
| S34756001 | 1 | ||
| 114967001 | 1 | ||
| 110087001 | 1 | ||
| S31885001 | 1 |
Page 8 — C . 針棒・天秤関係 / Needle bar and thread take-up mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S02523001 | UPPER SHAFT | 1 |
| 2 | S02805001 | UPPER SHAFT BUSH, L | 1 |
| 4 | 140726000 | UPPER SHAFT BUSH, M | 1 |
| 5 | 013760610 | SET SCREW, (CP) SM5.95 | 1 |
| 6 | S02524001 | UPPER SHAFT BUSH, R | 1 |
| 7 | 181916121 | SET SCREW COLLAR ASSY | 1 |
| 7-1 | 100251001 | SET SCREW, (CP) SM6.35-40X6.5 | 2 |
| 9 | 104464001 | SCREW, SM7.14-28 | 1 |
| 12 | 013781012 | SET SCREW, (CP) SM6.35 | 1 |
| 13 | 110367001 | WASHER, PLAIN SPECIAL 8 | 1 |
| 14 | 117242001 | NEEDLE BAR BUSH, U | 1 |
| 16 | 100260001 | SET SCREW, SM5.95-28X4 | 1 |
| 19 | 140553102 | SET SCREW, SM3.18 | 1 |
| 20 | 102630001 | NEEDLE BAR GUIDE SLIDE BLOCK | 1 |
| 22 | * | NEEDLE PLATE | 1 |
| 23 | 100032004 | SCREW, FLAT SM4.37-40X8 | 2 |
| 24 | 180018151 | SLIDE PLATE ASSY | 1 |
| 24-1 | 114561001 | SPRING, PLATE | 1 |
| 24-2 | 122771051 | SCREW, SM2.38 | 2 |
| 25 | S02538109 | PULLEY | 1 |
| 26 | S33689002 | SET SCREW, (CP) SM5.95-28X14 | 2 |
| 8-1 | S02525001 | THREAD TAKE-UP CRANK ASSY | 1 |
| 8-1-1 | S02526000 | THREAD TAKE-UP CRANK | 1 |
| 8-1-2 | 100251001 | SET SCREW, (CP) SM6.35-40X6.5 | 2 |
| 10 | 014771032 | SET SCREW, SOCKET(CP)SM6.35X10 | 1 |
| 11-1 | S34295001 | NEEDLE BAR CONNECTING ROD ASSY | 1 |
| 11-1-1 | 145465001 | SCREW, SM3.57-40X6 L | 1 |
| 11-1-2 | 140004001 | SCREW, SM3.57-40X7 | 1 |
| 11-1-3 | 147777000 | NEEDLE BEARING | 1 |
| 11-1-4 | 145624000 | FELT | 1 |
| 11-1-5 | 155488000 | WICK, L=90 | 1 |
| 11-1-6 | 158727001 | WICK, 4X4 L=27 | 1 |
| 15-1 | 145468001 | NEEDLE BAR BUSH, D | 1 |
| 17-1 | S14815001 | NEEDLE BAR, DP | 1 |
| 17-1 | S14811001 | NEEDLE BAR, DB | 1 |
| 18 | 107415011 | NEEDLE, DPX5 | 1 |
| 18 | 100265031 | NEEDLE DBX1 | 1 |
| 21-1 | S14814001 | THREAD GUIDE, N-BAR | 1 |
| 15-3 | 117117001 | NEEDLE BAR BUSH, D | 1 |
| 17-3 | S06324001 | NEEDLE BAR | 1 |
| 18 | 100265034 | NEEDLE DBX1 | 1 |
| 21-3 | 144577001 | THREAD GUIDE, NEEDLE BAR | 1 |
| 27 | 062630412 | SCREW, PAN SM2.38-56X4 | 1 |
| 28 | 180166001 | NEEDLE CLAMP ASSY | 1 |
| 28-1 | 114930001 | NEEDLE CLAMP | 1 |
| 28-2 | 114928001 | SCREW, SM3.57 | 1 |
| 15-4 | 145468001 | NEEDLE BAR BUSH, D | 1 |
| 17-4 | S04628001 | NEEDLE BAR | 1 |
| 21-4 | 151594001 | NEEDL BAR THREAD GUIDE | 1 |
| 18 | 100265031 | NEEDLE DBX1 | 1 |
Page 10 — C . 針棒・天秤関係 / Needle bar and thread take-up mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8-2 | S00909001 | THREAD TAKE-UP CRANK ASSY | 1 |
| 8-2-1 | S00910000 | THREAD TAKE-UP CRANK | 1 |
| 8-2-2 | 100251001 | SET SCREW, (CP) SM6.35-40X6.5 | 2 |
| 11-2 | S34290001 | NEEDLE BAR CONNECTING ROD ASSY | 1 |
| 11-2-1 | S13163001 | SCREW, M3.5 L | 1 |
| 11-2-2 | 140004001 | SCREW, SM3.57-40X7 | 1 |
| 11-2-3 | 147777000 | NEEDLE BEARING | 1 |
| 11-2-4 | 145624000 | FELT | 1 |
| 11-2-5 | 155488000 | WICK, L=90 | 1 |
| 11-2-6 | 158727001 | WICK, 4X4 L=27 | 1 |
| 15-2 | 147326001 | NEEDLE BAR BUSH, D :-5 | 1 |
| 17-2 | S02811001 | NEEDLE BAR | 1 |
| 18 | 107415022 | NEEDLE, DPX5 | 1 |
| 18 | 100265042 | NEEDLE DBX1 | 1 |
| 21-2 | 151594001 | NEEDL BAR THREAD GUIDE | 1 |
| 117-737-101 | NEEDL BAR THREAD GUIDE |
Page 12 — D. 押え関係 / Presser foot mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 111466101 | PRESSER BAR | 1 |
| 2 | 145472021 | PRESSER BAR BUSH | 1 |
| 3 | S31012001 | PRESSER ADJUSTING SCREW | 1 |
| 4 | 141208001 | SPRING GUIDE | 1 |
| 6 | 140407001 | WASHER | 1 |
| 7 | * | PRESSER FOOT ASSY | 1 |
| 8 | S13385001 | SCREW, SM3.57-40X10 | 1 |
| 10 | 145580001 | LIFTER LEVER, P-BAR | 1 |
| 12 | S46734001 | W-CLAMP LEVER LIFTER SHAFT | 1 |
| 13 | S01998001 | SET SCREW, SM3.57-40X6 | 1 |
| 14-1 | S02546302 | TENSION RELEASE PLATE | 1 |
| 15-1 | S46736001 | W-CLAMP LIFTER LEVER SPRING | 1 |
| 16 | 109763002 | WASHER | 1 |
| 17 | 048040342 | RETAINING RING, E4 | 2 |
| 20 | 145476001 | KNEE LIFTER CONNECTING ROD | 1 |
| 21 | 145478101 | SHOULDER SCREW, SOCKET SM4.76 | 3 |
| 22 | 145479002 | KNEE LIFTER LEVER | 1 |
| 24 | S02548001 | KNEE LIFTER BAR | 1 |
| 25 | S31006001 | LIFTING LEVER | 1 |
| 26 | S39051001 | SCREW, PAN (S/P W) M3.5X12 | 1 |
| 28 | S31952001 | PRESSER BAR LIFTER CRANK | 1 |
| 29 | 150384101 | FINGER GUARD | 1 |
| 30 | 025350132 | WASHER, PLAIN S 3.5 | 1 |
| 31 | S31013001 | PRESSER ADJUSTING NUT | 1 |
| 35 | S00879001 | PRESSER BAR GUIDE BRACKET | 1 |
| 36 | 142403001 | BOLT, (CP) SM5.95-28X10 | 1 |
| 5-1 | 147514001 | PRESSER BAR SPRING | 1 |
| 5-2 | 141728001 | PRESSER BAR SPRING | 1 |
| 23 | 145480101 | SHOULDER SCREW, SM6.35 | 1 |
| 32 | 154347001 | SPRING | 1 |
| 33 | S31010001 | SHOULDER SCREW, SM6.35 | 1 |
| 14-2 | S13655101 | TENSION RELEASE PLATE | 1 |
| 15-2 | S46737001 | SPRING, B | 1 |
Page 14 — E . 送り関係 / Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | S02554001 | LEVEL FEED CONNECTING ROD | 1 |
| 3 | 156948001 | HOLDER | 1 |
| 4 | S55431001 | SCREW, FLAT M3.57-40X5 | 2 |
| 5 | S05898101 | LEVEL FEED REGULATOR ASSY | 1 |
| 5-1 | 156950200 | LEVEL FEED REGULATOR | 1 |
| 5-2 | 156951001 | FEED LINK STUD | 2 |
| 5-3 | 014680632 | SET SCREW, SOCKET (CP) SM4.37 | 2 |
| 8 | 156952021 | FEED ROCKER LINK ASSY | 1 |
| 9 | 156954021 | FEED ROCKER ARM LINK ASSY | 1 |
| 10 | 156956001 | LINK SHAFT | 1 |
| 11 | 144458001 | SET SCREW, SM3.57-40X4.5 | 1 |
| 12 | 156957100 | FEED ROCKER ARM | 1 |
| 13 | 062711212 | SCREW, PAN SM4.76-32X12 | 1 |
| 14 | 156958001 | FEED ROCK ARM SHAFT | 1 |
| 15 | S47265001 | SET SCREW, SOCKET (CP) SM4.37 | 1 |
| 16 | 158021102 | F-REGULATOR CONNECT. ROD ASSY | 1 |
| 19 | 156966101 | PIN | 1 |
| 20 | 048060342 | RETAINING RING, E6 | 1 |
| 21 | S47265001 | SET SCREW, SOCKET (CP) SM4.37 | 1 |
| 22 | 156967121 | FEED REGULATOR SHAFT, L | 1 |
| 23 | 118734001 | FEED REGULATOR SHAFT | 1 |
| 24 | 118735001 | WASHER | 1 |
| 25 | 014760632 | SET SCREW, SOCKET (CP)SM5.95X6 | 2 |
| 26 | 156969101 | FEED REGULATOR | 1 |
| 27 | 156970021 | FEED REGULATOR SHAFT | 1 |
| 28 | S02556001 | WASHER | 1 |
| 29 | 048070342 | RETAININ RING, E7 | 1 |
| 30 | 014761030 | SET SCREW, SOCKET(CP)SM5.95X10 | 1 |
| 31 | 151308101 | STUD, 12.5 | 1 |
| 32 | S47264001 | SET SCREW, SOCKET (CP) SM4.37 | 1 |
| 33 | S02557100 | LEVER | 1 |
| 34 | S07959001 | BOLT, SOCKET SM4.76-32X14 | 1 |
| 35 | 151308101 | STUD, 12.5 | 1 |
| 36 | S47264001 | SET SCREW, SOCKET (CP) SM4.37 | 1 |
| 38 | S32920101 | REVERSE STITCHING LEVER ASSY | 1 |
| 40 | 147504201 | SPACER | 1 |
| 41 | 025100132 | WASHER, PLAIN S 10 | 1 |
| 42 | 048080342 | RETAINING RING, E8 | 1 |
| 44 | 062670712 | SCREW, PAN SM3.57-40X7 | 3 |
| 45 | S02562001 | SPRING HOOK | 1 |
| 46 | S02563001 | SPRING, EXTENSION | 1 |
| 49 | 153132000 | NYLON TUBE, L=13.5 | 1 |
| 51 | 145502001 | POSITIONING PIN | 1 |
| 52 | 100328001 | NOTCH SPRING | 1 |
| 53 | S02568101 | FEED ROCKER SHAFT | 1 |
| 55 | S31014000 | BUSH, 19.3 | 1 |
| 56 | 224485000 | RING, 2X15X22ST | 1 |
| 57 | 048150142 | RETAINING RING, EXTERNAL C15 | 1 |
| 58 | 183493001 | F-SHAFT SET SCREW COLLAR ASSY | 1 |
| 58-1 | 101706001 | SET SCREW 6.35 | 2 |
| 59 | 156244020 | FEED ROCKER BRACKET ARM | 1 |
| 60 | 062681212 | SCREW, PAN SM4.37-40X12 | 2 |
| 61 | S02569121 | FEED BAR ASSY | 1 |
| 62 | S25349021 | FEED BAR STUD | 1 |
| 63 | 158722001 | WASHER, PLAIN 4.2 | 1 |
| 64 | 120990001 | SET SCREW, (CP) SM4.37-40X8 | 2 |
| 66 | 100080003 | SCREW, SM3.18-44X6.5 | 2 |
| 67 | S02574101 | FEED LIFTING ROCKER SHAFT | 1 |
| 68 | S31014000 | BUSH, 19.3 | 1 |
Page 15 — E . 送り関係 / Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 69 | 224485000 | RING, 2X15X22ST | 1 |
| 70 | 048150142 | RETAINING RING, EXTERNAL C15 | 1 |
| 71 | 180322001 | FEED LIFTING ARM ASSY | 1 |
| 71-1 | 062681412 | SCREW, PAN SM4.37-40X14 | 1 |
| 72 | 183493001 | F-SHAFT SET SCREW COLLAR ASSY | 1 |
| 72-1 | 101706001 | SET SCREW 6.35 | 2 |
| 73 | S02575000 | F-LIFTING ROCK SHAFT CRANK | 1 |
| 74 | 062711212 | SCREW, PAN SM4.76-32X12 | 1 |
| 75 | 147509001 | SHOULDER SCREW, SM7.14 | 1 |
| 76 | 104689002 | NUT 7.14 | 1 |
| 77 | 118758021 | CONNECTING ROD, V-FEEDING | 1 |
| 79 | 159690001 | FEED CAM STOPPER | 1 |
| 80 | 062670412 | SCREW, PAN SM3.57-40X4 | 1 |
| 84 | S04228001 | SPRING HOOK | 1 |
| 1 | S02552021 | L-FEED ECCENT. WHEEL, W/SCREW | 1 |
| 1-1 | 013761410 | SET SCREW, (CP) SM5.95X14 | 2 |
| 37-1 | S02558201 | EXTENSION SPRING | 1 |
| 50-1 | S31015001 | STITCH LENGTH DIAL ASSY | 1 |
| 50-1-1 | S06999021 | ADJUSTING SCREW | 1 |
| 50-1-2 | S31016001 | STITCH LENGTH DIAL, 4 | 1 |
| 50-1-3 | S21514101 | SCREW, SM4.76 | 1 |
| 50-1-4 | 108549001 | O RING | 1 |
| 78 | S02576021 | ECCENTRIC WHEEL W/SCREW | 1 |
| 78-1 | 151604001 | SET SCREW, SM5.95 | 2 |
| 78-2 | 047200642 | PIN, SPRING ROLL AW2 | 1 |
| 1 | 156946001 | LEVEL FEED ECCENTRIC WHEEL W/S | 1 |
| 1-1 | 013761410 | SET SCREW, (CP) SM5.95X14 | 2 |
| 37-2 | S03818101 | EXTENSION SPRING, H | 1 |
| 50-2 | S31018001 | STITCH LENGTH DIAL ASSY, 5 | 1 |
| 50-2-1 | S06999001 | ADJUSTING SCREW | 1 |
| 50-2-2 | S31019001 | STITCH LENGTH DIAL, 5 | 1 |
| 50-2-3 | S21514101 | SCREW, SM4.76 | 1 |
| 50-2-4 | 108549001 | O RING | 1 |
| 78 | 159706001 | ECCENTRIC WHEEL W/SCREW | 1 |
| 78-1 | 151604001 | SET SCREW, SM5.95 | 2 |
| 78-2 | 047200642 | PIN, SPRING ROLL AW2 | 1 |
| 1 | 156946001 | LEVEL FEED ECCENTRIC WHEEL W/S | 1 |
| 1-1 | 013761410 | SET SCREW, (CP) SM5.95X14 | 2 |
| 37-2 | S03818101 | EXTENSION SPRING, H | 1 |
| 50-2 | S31018001 | STITCH LENGTH DIAL ASSY, 5 | 1 |
| 50-2-1 | S06999001 | ADJUSTING SCREW | 1 |
| 50-2-2 | S31019001 | STITCH LENGTH DIAL, 5 | 1 |
| 50-2-3 | S21514101 | SCREW, SM4.76 | 1 |
| 50-2-4 | 108549001 | O RING | 1 |
| 78 | 159708001 | ECCENTRIC WHEEL W/SCREW | 1 |
| 78-1 | 151604001 | SET SCREW, SM5.95 | 2 |
| 78-2 | 047200642 | PIN, SPRING ROLL AW2 | 1 |
Page 16 — E . 送り関係 / Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 39-1 | S33681001 | SHAFT, R-LEVER | 1 |
| 43-1 | S33680001 | O RING | 1 |
| 81 | S02578101 | REVERSE STITCHING LEVER PLATE | 1 |
| 82 | 100511003 | SCREW, SM4.76 | 1 |
| 39-2 | S32922021 | SHAFT, R-LEVER | 1 |
| 43-2 | 104564001 | O RING | 1 |
| 83 | S37333001 | SCREW, PAN SM4.76-32X14 | 1 |
| 85 | 213765001 | WAVE RING, 02X10.5X20 | 1 |
| 86 | 153484001 | WASHER, PLAIN 4.76 | 1 |
| 87 | 028050240 | WASHER, SPRING 2-5 | 1 |
| 90 | S14163001 | FEED BAR SET | 1 |
| 90-1 | S14173001 | FEED BAR ASSY | 1 |
| 90-2 | S14174001 | UD-FEED ARM ASSY | 1 |
| 90-2-1 | 062681412 | SCREW, PAN SM4.37-40X14 | 1 |
| 90-3 | S14166001 | UD-FEED ARM LINK | 1 |
| 90-4 | S14167001 | SCREW, SM3.57 | 2 |
Page 18 — F1. 押上げ関係 / Work clamp lifter mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 146157001 | P-BAR LIFTER CYLINDER ASSY | 1 |
| 2 | 147141001 | SUPPORT SCREW, CYLINDER | 2 |
| 3 | 028060242 | WASHER, SPRING 2-6 | 2 |
| 4 | 140668001 | DRIVING LINK, PISTON | 1 |
| 5 | 140627001 | ROD JOINT, PISTON | 1 |
| 6 | 146986001 | CONNECTING LINK PIN | 1 |
| 7 | 048040342 | RETAINING RING, E4 | 2 |
| 8 | 146039001 | KNEE LIFTER BRACKET | 1 |
| 9 | 100463001 | BOLT, SQUARE SM7.94 | 1 |
| 10 | 017762013 | BOLT, SM5.95X20 | 1 |
| 11 | 183961151 | P-FOOT LIFTER SOLENOID SET, T | 1 |
| 11-1-1 | S54025001 | CUSHION | 1 |
| 11-1-2 | S54024001 | CUSHION RING | 1 |
| 11-2 | S42198051 | PRESSER FOOT LIFTER ROD ASSY | 1 |
| 11-3 | S42199051 | P-FOOT LIFTER LEVER ASSY | 1 |
| 11-4 | S41955051 | ROD JOINT ASSY | 1 |
| 11-5 | S42200051 | WOOD SCREW | 4 |
| 12 | S02595101 | PRESSER FOOT LIFTER LINK | 1 |
| 13 | 146367001 | BOLT, SM5.95 | 1 |
| 14 | S02596001 | SPRING, TWIST | 1 |
Page 20 — F2 . 押え上げ関係 / Work clamp lifter mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-2 | S40832051 | P-FOOT LIFTER SOLENOID ASSY | 1 |
| 11-2-1 | S16622059 | PRES. FOOT LIFTER SOLENOID | 1 |
| 11-2-2 | S16627153 | SOLENOID BRACKET | 1 |
| 11-2-3 | S16628053 | SOLENOID SETTING PLATE | 1 |
| 11-2-4 | 062780812 | SCREW, PAN SM6.35-28X8 | 1 |
| 11-2-5 | S16625050 | RUBBER STOPPER | 1 |
| 11-2-6 | S16629151 | SOLENOID STOPPER | 1 |
| 11-2-7 | 018761832 | BOLT, SOCKET SM5.95-28X14 | 3 |
| 11-2-8 | S16630051 | PIN | 1 |
| 11-2-9 | 048050142 | RETAINING RING, C5 | 2 |
| 11-2-11 | 062671012 | SCREW, PAN SM3.57-40X10 | 2 |
| 11-2-13 | 002300603 | SCREW, PAN M3X6 | 1 |
| 11-2-17-2 | 143549050 | TERMINAL PIN, MALE | 3 |
| 11-2-18 | S02745001 | WASHER | 1 |
| 11-2-19 | 062680663 | SCREW, PAN SM4.37-40X6 | 1 |
| 11-2-20 | 142268001 | CORD HOLDER, L | 1 |
| 11-2-21 | 062670612 | SCREW, PAN SM3.57-40X6 | 1 |
| 11-2-25 | S02592059 | TERMINAL BLOCK COVER | 1 |
| 11-2-26 | 062670612 | SCREW, PAN SM3.57-40X6 | 2 |
| 11-2-27 | 143522000 | NYLON CONNECTOR | 1 |
| 11-2-28 | S38652051 | CONNECTOR COVER | 1 |
| 11-2-29 | S05981000 | B-HARNESS ASSY, 100 :2 | 1 |
| 11-2-29-1 | 143549050 | TERMINAL PIN, MALE | 2 |
| 11-2-29-2 | 146046000 | NYLON CONNECTOR | 1 |
| 11-2-30 | S05982000 | W-HARNESS ASSY, 100 | 1 |
| 11-2-30-1 | 143549050 | TERMINAL PIN, MALE | 1 |
| 11-2-30-2 | 143548000 | TERMINAL PIN, FEMALE | 1 |
| 11-2-30-3 | 146194000 | NYLON CONNECTOR | 1 |
| 20 | S32923001 | SHAFT, P-FOOT LIFTER | 1 |
| 21 | 025100132 | WASHER, PLAIN S 10 | 2 |
| 22 | 110197001 | SET SCREW COLLAR | 1 |
| 23 | 153675001 | SET SCREW, SOCKET SM4.37 | 2 |
| 24 | S32924001 | ARM, P-FOOT LIFTER | 1 |
| 25 | 062711212 | SCREW, PAN SM4.76-32X12 | 1 |
| 26 | S16641001 | STUD, L | 2 |
| 27 | 062781412 | SCREW, PAN SM6.35-28X14 | 1 |
| 28 | S16642001 | STUD, S | 2 |
| 29 | 062781012 | SCREW, PAN SM6.35-28X10 | 3 |
| 30 | S16643009 | COVER | 1 |
| 31 | 062670812 | SCREW, PAN SM3.57-40X8 | 2 |
| 32 | 048080342 | RETAINING RING, E8 | 1 |
Page 22 — G . かま関係 / Rotary hook mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 180891001 | UPPER SHAFT BEVEL GEAR ASSY | 1 |
| 1-1-1 | 100251001 | SET SCREW, (CP) SM6.35-40X6.5 | 2 |
| 1-2 | 180892001 | VERTICAL BEVEL GEAR ASSY, U | 1 |
| 1-2-1 | 100251001 | SET SCREW, (CP) SM6.35-40X6.5 | 2 |
| 2-1 | 180885001 | VERTICAL BEVEL GEAR ASSY, D | 1 |
| 2-1-1 | 100251001 | SET SCREW, (CP) SM6.35-40X6.5 | 2 |
| 2-2 | 180886001 | LOWER SHAFT BEVEL GEAR ASSY | 1 |
| 2-2-1 | 100251001 | SET SCREW, (CP) SM6.35-40X6.5 | 2 |
| 3 | 145516001 | VERTICAL SHAFT | 1 |
| 4 | 142708020 | VERTICAL SHAFT BUSH, U | 1 |
| 5 | 013760610 | SET SCREW, (CP) SM5.95 | 1 |
| 6 | S31026020 | VERTICAL SHAFT BUSH, D | 1 |
| 7 | 013761410 | SET SCREW, (CP) SM5.95X14 | 1 |
| 8 | 154552001 | LOWER SHAFT | 1 |
| 9 | 118761021 | LOWER SHAFT BUSH, L | 1 |
| 10 | 014680632 | SET SCREW, SOCKET (CP) SM4.37 | 1 |
| 11 | 104520000 | LOWER SHAFT BUSH, R | 1 |
| 12 | 121007001 | SCREW | 1 |
| 13 | 181995001 | SET SCREW COLLAR ASSY | 1 |
| 13-1 | 101706001 | SET SCREW 6.35 | 2 |
| 15 | 062681212 | SCREW, PAN SM4.37-40X12 | 1 |
| 16 | * | ROTARY HOOK ASSY | 1 |
| 17 | S03245001 | BOBBIN CASE ASSY | 1 |
| 17-1 | 183388001 | TENSION SPRING | 1 |
| 17-2 | 183389001 | ADJUSTING SCREW | 1 |
| 17-3 | 183390001 | SET SCREW | 1 |
| 17-4 | S03246001 | ANTI-SPIN SPRING | 1 |
| 19 | S31027000 | LOWER SHAFT BUSH, M | 1 |
| 14-1 | S02602001 | HOOK STOPPER | 1 |
| 18-1 | 146290001 | BOBBIN | 1 |
| 14-2 | 159324001 | HOOK STOPPER | 1 |
| 18-2 | 117132001 | BOBBIN | 1 |
Page 24 — H . 給油潤滑関係 / Lubrication
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S02604000 | FACE PLATE PACKING | 1 |
| 2 | 104449001 | RUBBER CAP, 15.5 | 2 |
| 3-1 | S02605000 | REAR COVER PACKING | 1 |
| 3-2 | S16645000 | PACKING, REAR COVER | 1 |
| 4 | S02606000 | OIL GAUGE WINDOW | 1 |
| 5 | 081014670 | O RING, PW14 | 1 |
| 6 | S32925100 | OIL STOPPER PLATE | 1 |
| 7 | 062670612 | SCREW, PAN SM3.57-40X6 | 2 |
| 8 | 111865009 | CAP, 6 | 1 |
| 9 | 108804001 | WICK, 4X4 L=510 | 1 |
| 10 | 101487000 | OIL SEAL | 1 |
| 11 | 146333001 | OIL REGULATING VALVE | 1 |
| 12 | 146327001 | FELT, 7X10 | 1 |
| 14 | 081001670 | O RING, PW1 | 1 |
| 16 | 109173101 | OIL HOLE CAP SCREW, SM4.37-40 | 1 |
| 17 | 145751001 | FELT | 1 |
| 18 | 145534001 | ADJUSTING SCREW, SM4.37-40X19 | 1 |
| 19 | 116794001 | SPRING, COMPRESSION | 1 |
| 20 | 107155001 | FELT | 1 |
| 21 | S06684001 | OIL REJECTOR ASSY | 1 |
| 21-1 | S02608001 | OIL REJECTOR | 1 |
| 21-2 | 014680432 | SET SCREW, SOCKET (CP) SM4.37 | 2 |
| 26 | S40016001 | OIL TUBE, 2X25 | 1 |
| 29 | 183850101 | PUMP BODY ASSY | 1 |
| 29-1 | S32348001 | PUMP BODY | 1 |
| 29-2 | 144869102 | PUMP LEG | 1 |
| 29-3 | 148849001 | PUMP PROPELLER | 1 |
| 29-4 | 144874001 | SPRING | 2 |
| 29-5 | 062670812 | SCREW, PAN SM3.57-40X8 | 4 |
| 29-6 | 144875001 | PLUNGER | 1 |
| 29-7 | 144876001 | SPRING, COMPRESSION | 1 |
| 29-8 | 112467002 | SCREW, SM6.35X5 | 1 |
| 29-9 | 144878001 | OIL TUBE JOINT, B | 1 |
| 30 | 144872101 | PUMP FILTER | 1 |
| 31 | 062680812 | SCREW, PAN SM4.37-40X8 | 3 |
| 32 | S02609100 | OIL TUBE, U | 1 |
| 33 | S32349001 | OIL TUBE ASSY, D | 1 |
| 34 | 145543001 | TUBE ASSY | 1 |
| 35 | 145547001 | TUBE HOLDER | 1 |
| 36 | 062670616 | SCREW, PAN SM3.57-40X6 | 1 |
| 37 | 145737001 | FELT SUPPORT | 1 |
| 38 | * | OIL PAN | 1 |
| 38-1 | 149578000 | BUSH | 1 |
| 39 | 146040001 | PACKING | 1 |
| 40 | 140518001 | SCREW, SM7.94X10 | 1 |
| 41 | 081007070 | O RING, P7 | 1 |
| 42 | 146196001 | OIL STOPPER | 1 |
| 43 | 146253000 | TUBE | 2 |
| 44 | 081004070 | O RING P4 | 1 |
| 46 | S40017000 | WICK, L=360 | 1 |
| 47 | S08003000 | WICK, L=380 | 1 |
| 48 | S08004001 | WICK SUPPORT | 1 |
| 49 | S43669000 | WICK, 8 L=320 | 1 |
| 51 | S32926001 | HOLDER, OIL STOPPER | 1 |
Page 26 — H . 給油潤滑関係 / Lubrication
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 52 | S58944001 | OIL REJECTOR | 1 |
| 45-1 | 111863001 | NEEDLE BAR CORK | 1 |
| 45-1 | 111863001 | NEEDLE BAR CORK | 1 |
| 53 | S14168001 | SPRING | 1 |
| 45-2 | S04630000 | NEEDLE BAR CORK | 1 |
Page 28 — J . 糸通し関係 / Threading mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 183378001 | PRE-TENSION ASSY, B | 1 |
| 1-1 | S02611001 | THREAD GUIDE | 1 |
| 1-2 | S02612001 | THREAD GUIDE TENSION STUD | 1 |
| 1-3 | 144504001 | THREAD GUIDE DISC | 2 |
| 1-4 | 154562001 | PRE-TENSION SPRING, B | 1 |
| 1 | 183377001 | PRE-TENSION ASSY, A | 1 |
| 1-1 | S02611001 | THREAD GUIDE | 1 |
| 1-2 | S02612001 | THREAD GUIDE TENSION STUD | 1 |
| 1-3 | 144504001 | THREAD GUIDE DISC | 2 |
| 1-4 | 154560001 | PRE-TENSION SPRING, A | 1 |
| 2 | 014680632 | SET SCREW, SOCKET (CP) SM4.37 | 1 |
| 3 | 147557101 | SPOOL PIN | 1 |
| 4 | S12699000 | TENSION RELEASE PIN | 1 |
| 4 | S10437000 | TENSION RELEASE PIN | 1 |
| 5 | S55976001 | SET SCREW, SM5.95 | 1 |
| 6 | S07972001 | TENSION RELEASE STUD | 1 |
| 7 | 111469101 | THREAD GUIDE | 1 |
| 8 | 062680812 | SCREW, PAN SM4.37-40X8 | 1 |
| 9 | 145522101 | ARM THREAD GUIDE, R | 1 |
| 10 | S19056001 | SCREW, BIND SM3.57-40X6 | 1 |
| 11 | S58910001 | THREAD TAKE-UP COVER | 1 |
| 12 | 062680812 | SCREW, PAN SM4.37-40X8 | 1 |
| 13 | S02615002 | FACE PLATE | 1 |
| 14 | 062671212 | SCREW, PAN SM3.57-40X12 | 3 |
| 15 | S02617001 | FACE PLATE THREAD GUIDE | 1 |
| 16 | 060670612 | SCREW, BIND SM3.57-40X6 | 1 |
| 17 | 100573001 | THREAD GUIDE, D | 1 |
| 18 | S55654001 | THREAD TENSION BRACKET ASSY | 1 |
| 18-1 | S40938001 | THREAD TENSION BRACKET | 1 |
| 18-2 | 116922001 | TENSION STUD | 1 |
| 18-3 | 100402004 | SET SCREW, SM3.57 | 1 |
| 18-4 | S02620001 | THREAD TAKE-UP SPRING | 1 |
| 18-5 | 145446001 | DISC, TENSION | 2 |
| 18-6 | 159805001 | TENSION DISC PRESSER | 1 |
| 18-7 | 104525001 | TENSION SPRING | 1 |
| 18-8 | S12441001 | WASHER | 1 |
| 18-9 | S31032001 | TENSION NUT | 1 |
| 18-10 | 114294001 | O-RING | 1 |
| 20 | S06323001 | FACE PLATE THREAD GUIDE, D | 1 |
| 21 | 062680712 | SCREW, PAN SM4.73-40X7 | 1 |
| 22 | 100645003 | WASHER | 1 |
Page 30 — J. 糸通し関係 / Threading mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17 | 148901001 | THREAD GUIDE, D | 1 |
| 18 | S55655001 | THREAD TENSION BRACKET ASSY | 1 |
| 18-1 | S40938001 | THREAD TENSION BRACKET | 1 |
| 18-2 | 116922001 | TENSION STUD | 1 |
| 18-3 | 100402004 | SET SCREW, SM3.57 | 1 |
| 18-4 | S02620001 | THREAD TAKE-UP SPRING | 1 |
| 18-5 | 145446001 | DISC, TENSION | 2 |
| 18-6 | 159805001 | TENSION DISC PRESSER | 1 |
| 18-7 | S04632001 | TENSION SPRING | 1 |
| 18-8 | S12441001 | WASHER | 1 |
| 18-9 | S31032001 | TENSION NUT | 1 |
| 18-10 | 114294001 | O-RING | 1 |

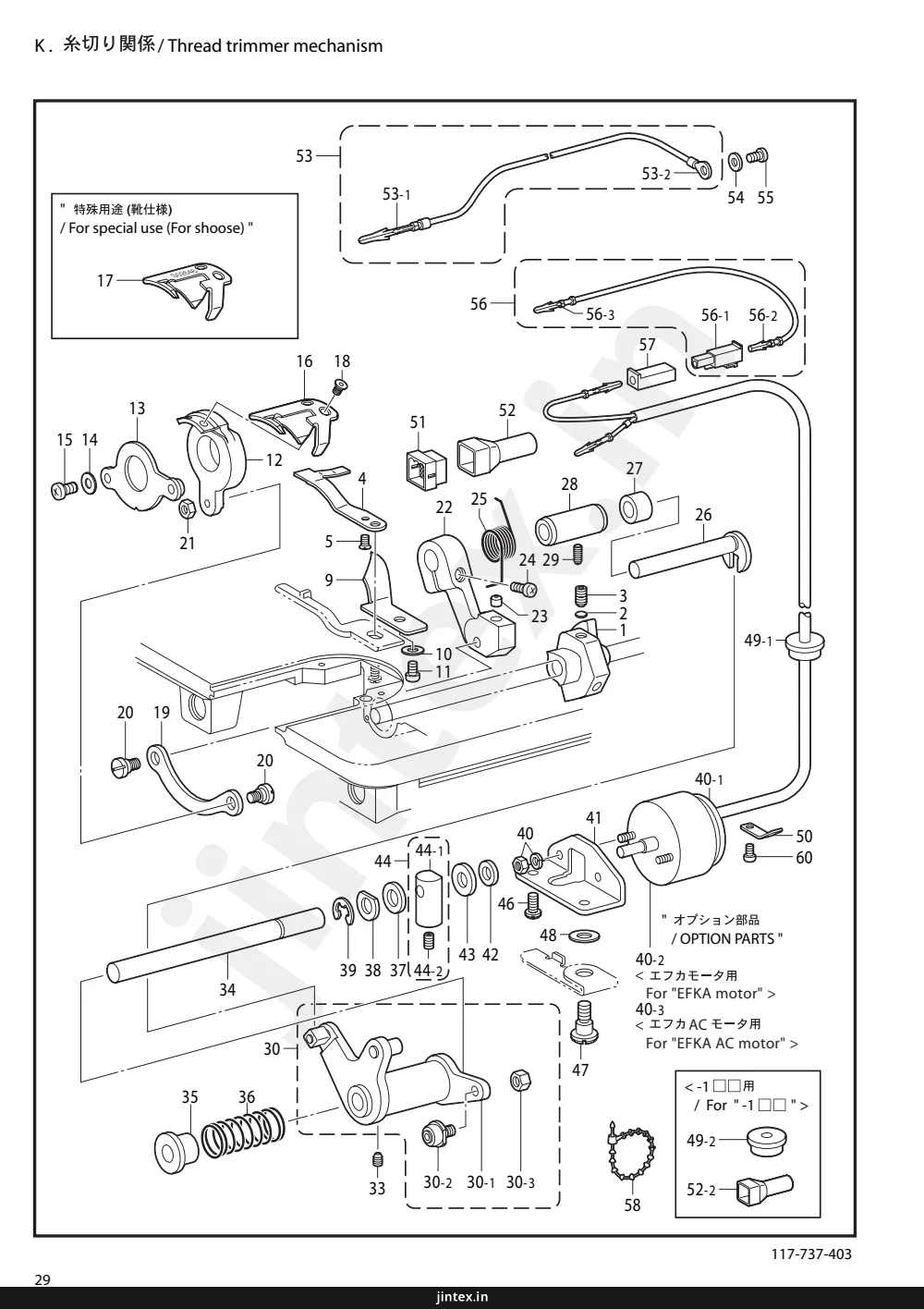

Page 32 — K . 糸切り関係 / Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S00337021 | THREAD TRIMMER CAM | 1 |
| 2 | 154567000 | SPACER, 5.3 | 2 |
| 3 | 014771032 | SET SCREW, SOCKET(CP)SM6.35X10 | 2 |
| 4 | S02637001 | FIXED KNIFE | 1 |
| 5 | 102843004 | SCREW, FLAT SM3.57 | 1 |
| 9 | S02643001 | LOWER THREAD FINGER | 1 |
| 10 | 100645003 | WASHER | 1 |
| 11 | 062680712 | SCREW, PAN SM4.73-40X7 | 1 |
| 12 | 154570001 | MOVABLE KNIFE HOLDER | 1 |
| 13 | 154571001 | KNIFE HOLDER PRESSER ASSY | 1 |
| 14 | 100645003 | WASHER | 2 |
| 15 | 062681212 | SCREW, PAN SM4.37-40X12 | 2 |
| 16 | S02645001 | MOVABLE KNIFE | 1 |
| 17 | S02646001 | MOVABLE KNIFE, S | 1 |
| 18 | 148537101 | SCREW, FLAT (W/SOCKET) SM4.37 | 2 |
| 19 | 154576003 | THREAD TRIMMER CONNECTING ROD | 1 |
| 20 | 151987002 | SHOULDER SCREW, SM4.37 | 2 |
| 21 | 102571003 | NUT, SM4.37 | 1 |
| 22 | 154577001 | THREAD TRIMMER LEVER | 1 |
| 23 | S25437000 | LEVER STOPPER | 1 |
| 24 | 062711412 | SCREW, PAN SM4.76-32X14 | 1 |
| 25 | 154579001 | SPRING | 1 |
| 26 | S02647001 | FORKED SHAFT | 1 |
| 27 | S02648001 | COLLAR | 1 |
| 28 | 154581001 | FORKED SHAFT BUSH | 1 |
| 29 | 121007001 | SCREW | 1 |
| 30 | S58962001 | THREAD TRIMMER CAM LEVERUNIT | 1 |
| 30-1 | S58963001 | THREAD TRIMMER CAM LEVER ASSY | 1 |
| 30-2 | 154590001 | ROLLER SHAFT, C ASSY | 1 |
| 30-3 | 105234003 | NUT SM4.37 | 1 |
| 33 | 014770632 | SET SCREW, SOCKET(CP) SM6.35X6 | 1 |
| 34 | 154593201 | THREAD TRIMMER CAM LEVER SHAFT | 1 |
| 35 | 154594000 | COLLAR | 1 |
| 36 | 154595001 | SPRING, EXTENSION | 1 |
| 37 | 154596000 | CUSHION | 1 |
| 38 | 110367001 | WASHER, PLAIN SPECIAL 8 | 1 |
| 39 | 048060342 | RETAINING RING, E6 | 1 |
| 40-1 | S02815009 | THREAD TRIMMER SOLENOID | 1 |
| 40-2 | S04201009 | THREAD TRIMMER SOLENOID | 1 |
| 40-3 | S07818009 | THREAD TRIMMER SOLENOID | 1 |
| 41 | 154598001 | TREAD TRIMMER SOLENID BASE | 1 |
| 42 | 154599000 | SOLENOID CUSHION | 1 |
| 43 | S02652001 | WASHER | 1 |
| 44 | S23836001 | SOLENOID LEVER ASSY | 1 |
| 44-1 | S02654001 | SOLENOID LEVER | 1 |
| 44-2 | 014680632 | SET SCREW, SOCKET (CP) SM4.37 | 1 |
| 46 | 110201001 | SCREW, SM6.35 | 1 |
| 47 | S02655002 | SHOULDER SCREW, SM6.35 | 1 |
| 48 | 155559001 | WASHER, PLAIN | 1 |
| 50 | S02657101 | CORD HOLDER | 1 |
| 51 | 153969000 | NYLON CONNECTOR, 12P | 1 |
| 53 | S02682001 | GROUND WIRE ASSY | 1 |
Page 34 — K . 糸切り関係 / Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 53-1 | S03328000 | TERMINAL PIN, L :MALE | 1 |
| 53-2 | 204569001 | TERMINAL, 4.5X14 | 1 |
| 54 | S02745001 | WASHER | 1 |
| 55 | 062680663 | SCREW, PAN SM4.37-40X6 | 1 |
| 56 | S11210000 | W-CORD ASSY, S | 1 |
| 56-1 | S11684000 | CONNECTOR, 3191-01R1 | 1 |
| 56-2 | 143548000 | TERMINAL PIN, FEMALE | 1 |
| 56-3 | 143549000 | TERMINAL PIN, MALE | 1 |
| 57 | S11683000 | CONNECTOR, 3191-01P1 | 1 |
| 60 | 062670612 | SCREW, PAN SM3.57-40X6 | 1 |
| 49-1 | 146020001 | CORD BUSH | 1 |
| 52-1 | S03815001 | CONNECTOR CAP, 6 | 1 |
| 58 | 340400001 | BEAD BAND | 1 |
| 49-2 | 157984001 | CORD BUSH | 1 |
| 52-2 | 153970001 | CONNECTOR CAP, 3 | 1 |
Page 36 — L. 逆転関係 / Quick reverse mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S02597009 | QUICK REVERSE SOLENOID ASSY | 1 |
| 1-1 | 143549000 | TERMINAL PIN, MALE | 2 |
| 2 | S02600000 | SOLENOID LEVER | 1 |
| 3 | S07959001 | BOLT, SOCKET SM4.76-32X14 | 1 |
| 4 | 062711012 | SCREW, PAN SM4.76-32X10 | 4 |
| 5 | 140647101 | CORD HOLDER | 1 |
| 6 | 146253000 | TUBE | 2 |
| 10 | S04204009 | QUICK REVERSE SOLENOID ASSY | 1 |
| 11 | S07816009 | QUICK REVERSE SOLENOID ASSY | 1 |
| 1 | S02658000 | TENSION RELEASE LEVER | 1 |
| 2 | S02659101 | TENSION RELEASE WIRE | 1 |
| 3 | 110161004 | NUT, SM4.76 | 2 |
| 4 | 154606001 | WIRE HOLDER, D | 1 |
| 5 | 062670812 | SCREW, PAN SM3.57-40X8 | 2 |
| 6 | 154607101 | WIRE HOLDER, D | 1 |
| 7 | 060670612 | SCREW, BIND SM3.57-40X6 | 2 |
| 8 | S02660101 | WIRE HOLDER, U | 1 |
| 9 | 062671612 | SCREW, PAN SM3.57-40X16 | 2 |
| 11 | S03670101 | SPRING | 1 |
| 10-1 | 155347001 | TENSION RELEASE WIRE GUIDE | 1 |
| 10-2 | 157985001 | TENSION RELEASE WIRE GUIDE | 1 |
Page 38 — N . 糸払い関係 / Thread wiper mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S41202151 | THREAD WIPER SOLENOID ASSY | 1 |
| 1-2 | S02664051 | THREAD WIPER SWITCH | 1 |
| 1-3 | S02665050 | TERMINAL CONNECTOR | 1 |
| 1-4 | 143549050 | TERMINAL PIN, MALE | 2 |
| 1 | S42195051 | THREAD WIPER SOLENOID ASSY, EF | 1 |
| 1-2 | S02664051 | THREAD WIPER SWITCH | 1 |
| 1-3 | S02665050 | TERMINAL CONNECTOR | 1 |
| 1 | S42196051 | THREAD WIPER SOLENOID ASSY | 1 |
| 1-2 | S02664051 | THREAD WIPER SWITCH | 1 |
| 1-3 | S02665050 | TERMINAL CONNECTOR | 1 |
| 1-4 | 143549050 | TERMINAL PIN, MALE | 2 |
| 3 | S41206001 | THREAD WIPER SPRING | 1 |
| 4 | S41207000 | SPACER RUBBER | 1 |
| 5 | S25449201 | SOLENOID SETTING PLATE | 1 |
| 6 | 062300616 | SCREW, PAN M3X6 | 3 |
| 7 | 140647101 | CORD HOLDER | 1 |
| 8 | 062300616 | SCREW, PAN M3X6 | 1 |
| 9 | 062300616 | SCREW, PAN M3X6 | 2 |
| 10 | S33609101 | SOLENOID SETTING BASE | 1 |
| 11 | 062681012 | SCREW, PAN SM4.37-40X10 | 2 |
| 12 | 062400616 | SCREW, PAN M4X6 | 2 |
| 13 | 026040236 | WASHER, PLAIN 4 | 2 |
| 14 | S33610101 | SOLENOID COVER | 1 |
| 15 | 060400616 | SCREW, BIND M4X6 | 1 |
| 16 | S02672002 | THREAD WIPER SUPPORT | 1 |
| 17 | S25452001 | THREAD WIPER CRANK ASSY | 1 |
| 18 | 048040342 | RETAINING RING, E4 | 1 |
| 19 | S25454001 | SET SCREW COLLAR | 1 |
| 20 | S25279001 | SET SCREW, (CP) M3.5-5 | 1 |
| 21 | S02678001 | WIPER SPRING | 1 |
| 22 | S02679002 | THREAD WIPER LINK | 1 |
| 23 | 110735002 | WASHER | 1 |
| 24 | 048030342 | RETAINING RING, E3 | 1 |
| 25 | S59890001 | BOLT, SOCKET SM4.37-40X8 | 2 |
| 26 | S25456001 | PLUNGER PIN | 1 |
| 27 | S02681101 | THREAD WIPER | 1 |
| 28 | 060400516 | SCREW, BIND M4X5 | 1 |
| 29 | 146288001 | THREAD WIPER STUD COLLAR | 1 |
| 30 | 025750132 | WASHER, PLAIN S 5.56 | 1 |
| 31 | S41207001 | SPACER, RUBBER | 1 |
| 32 | 149097000 | SILENT SHEET | 1 |
| 33 | S25456001 | PLUNGER PIN | 2 |
Page 40 — P . 針位置検出器関係 / Synchronizer Q . コントロールボックス関係 / Control box mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S02684101 | SPEED COMMAND PLATE, 24 | 1 |
| 2 | S02685001 | NEEDLE UPPER POSITIONING PLATE | 1 |
| 3 | 100645003 | WASHER | 2 |
| 4 | 062681612 | SCREW, PAN SM4.37-40X16 | 2 |
| 5 | 237939001 | SYNCHRONIZER ASSY, #13G2 | 1 |
| 6 | S03327000 | SYNCHRONIZER PACKING | 1 |
| 7 | S02687201 | SYNCHRONIZER SUPPORT | 1 |
| 8 | 062630712 | SCREW, PAN SM2.38-56X7 | 2 |
| 10 | 113431002 | WASHER,PLAIN | 1 |
| 11 | 062711012 | SCREW, PAN SM4.76-32X10 | 1 |
| 12 | 140647101 | CORD HOLDER | 1 |
| 13 | 062670612 | SCREW, PAN SM3.57-40X6 | 1 |
| 19 | S07885000 | SYNCHRONIZER SUPPORT PACKING | 1 |
| 21 | 148825001 | SLIP RING JOINT | 1 |
| 22 | 062711412 | SCREW, PAN SM4.76-32X14 | 2 |
| 23 | S04229001 | SYNCHRONIZER HOLDER BAR | 1 |
| 24 | 014680632 | SET SCREW, SOCKET (CP) SM4.37 | 1 |
| 25 | 142268001 | CORD HOLDER, L | 1 |
| 1 | S09624009 | PANEL, E0 | 1 |
| 2 | S34448001 | PANEL SUPPORT BRACKET | 2 |
| 3 | 014680432 | SET SCREW, SOCKET (CP) SM4.37 | 2 |
Page 42 — R . 膝スイッチ関係 (オプション部品) / Knee switch mechanism (Option parts)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S07045009 | KNEE LIFTER SWITCH ASSY | 1 |
| 1-1 | 142026003 | KNEE SWITCH SHAFT | 1 |
| 1-2 | 142027001 | BRACKET | 1 |
| 1-3 | 100463001 | BOLT, SQUARE SM7.94 | 1 |
| 1-4 | 114967001 | KNEE LIFTER PLATE STOPPER | 1 |
| 1-5 | 110087001 | BOLT, SM5.95-28X8 | 1 |
| 1-6 | S07027001 | K-LIFTER SWITCH SETTING PLATE | 1 |
| 1-7 | 062401006 | SCREW, PAN M4X10 | 4 |
| 1-8 | 025040233 | WASHER, PLAIN M 4 | 4 |
| 1-9 | 028040243 | WASHER, SPRING 2-4 | 4 |
| 1-10 | 021400164 | NUT, 1 M4 | 4 |
| 1-11 | S07030009 | SWITCH & HARNESS ASSY | 1 |
| 1-11-1 | S07031009 | FOOT SWITCH ASSY | 1 |
| 1-11-1-1 | 143549000 | TERMINAL PIN, MALE | 2 |
| 1-11-1-2 | 143548000 | TERMINAL PIN, FEMALE | 1 |
| 1-11-2 | 146046000 | NYLON CONNECTOR | 2 |
| 1-11-3 | 146194000 | NYLON CONNECTOR | 1 |
| 1-12 | 149799000 | BEAD BAND, S | 1 |
| 2 | 034422503 | WOOD SCREW, FLAT M4.1X25 | 4 |
| 4 | S05981000 | B-HARNESS ASSY, 100 :2 | 1 |
| 4-1 | 143549000 | TERMINAL PIN, MALE | 2 |
| 4-2 | 146046000 | NYLON CONNECTOR | 1 |
| 5 | S05982000 | W-HARNESS ASSY, 100 | 1 |
| 5-1 | 143549000 | TERMINAL PIN, MALE | 1 |
| 5-2 | 143548000 | TERMINAL PIN, FEMALE | 1 |
| 5-3 | 146194000 | NYLON CONNECTOR | 1 |
| S32901001 | <-3ロロ,-4ロロ,-7ロロ, -8ロロ,-9ロロ,-Bロロ用> | ||
| S32906000 | Rスイッチクミ | ||
| S32910000 | Rスイッチクミ | ||
| S32916000 | Rスイッチクミ | ||
| S32902101 | Rスイッチササエ | ||
| S32903000 | Rスイッチダイ | ||
| S32904000 | |||
| S32905000 | Rスイッチバネ | ||
| 060300606 | バインド3X6 | ||
| 062670612 | ナベコ357-40X6 | ||
| S02704001 | |||
| S02701101 | <- ロ3用> コードオサエU1 | ||
| S02702101 | <- 4ロロ,-7ロロ,-8ロロ, -9ロロ,-Bロロ用> |
Page 44 — T . 空圧関係 / Air pressure mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 151126201 | AIR UNIT & VALVE ASSY | 1 |
| 1-1 | 151153201 | AIR UNIT ASSY | 1 |
| 1-2 | 151127200 | SOLENOID VALVE | 1 |
| 1-3 | 140682001 | SILENCER | 1 |
| 1-4 | 151147001 | ELBOW ASSY, 1/8 | 1 |
| 1-5 | 142037000 | SPEED CONTROLLER CONNECTOR | 1 |
| 1-6 | 142038001 | SPEED CONTROLLER | 1 |
| 1-7 | 140543000 | CONNECTOR, 1/8 | 1 |
| 1-8 | 154214101 | AIR UNIT HOLDER PLATE | 1 |
| 1-9 | 140540000 | AIR TUBE | 1 |
| 1-10 | 143488001 | NYLON CONNECTOR | 1 |
| 1-11 | 143489001 | CONNECTOR CAP | 1 |
| 1-12 | 154215001 | INSULATION TUBE | 1 |
| 1-13 | 143549000 | TERMINAL PIN, MALE | 2 |
| 1-14 | 002501003 | SCREW, PAN M5X10 | 2 |
| 1-15 | 028050243 | WASHER, SPRING 2-5 | 2 |
| 2 | 151154000 | AIR TUBE, L=430 | 1 |
| 3 | 101118001 | WOOD SCREW, ROUND M4.5X20 | 2 |
| 4 | 200190001 | STAPLE | 8 |
| 6 | S05247101 | AIR UNIT & HARNESS ASSY | 1 |
| 6-1 | 154172001 | PRESSER FOOT LIFTER CORD ASSY | 1 |
| 6-1-1 | 143499000 | NYLON CONNECTOR | 1 |
| 6-1-2 | 143489001 | CONNECTOR CAP | 1 |
| 6-1-3 | 143548000 | TERMINAL PIN, FEMALE | 2 |
| 6-1-4 | 143549000 | TERMINAL PIN, MALE | 2 |
| 6-2 | S05981000 | B-HARNESS ASSY, 100 :2 | 1 |
| 6-2-1 | 143549000 | TERMINAL PIN, MALE | 2 |
| 6-2-2 | 146046000 | NYLON CONNECTOR | 1 |
| 6-3 | S05982000 | W-HARNESS ASSY, 100 | 1 |
| 6-3-1 | 143549000 | TERMINAL PIN, MALE | 1 |
| 6-3-2 | 143548000 | TERMINAL PIN, FEMALE | 1 |
| 6-3-3 | 146194000 | NYLON CONNECTOR | 1 |
| 6-4 | 143522000 | NYLON CONNECTOR | 1 |
| 6-5 | 220077001 | PLUG COVER, #14 | 1 |
Page 46 — U1. オプションパーツ / Option parts; U2. オプションパーツ / Option parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-1 | 183496471 | OIL PAN ASSY | 1 |
| 1-1-1 | 146036101 | KNEE LIFTER SHAFT | 1 |
| 1-1-2 | S09635001 | KNEE LIFTER | 1 |
| 1-1-3 | 146367001 | BOLT, SM5.95 | 1 |
| 1-1-4 | 104885101 | SET SCREW, SM5.95-28X24 | 2 |
| 1-1-5 | 100022004 | NUT, SM5.95 | 2 |
| 1-1-6 | S15889001 | TWIST SPRING | 1 |
| 1-1-7 | 146293001 | RETAINING RING, E10 | 1 |
| 1-1-8 | 149580571 | OIL PAN | 1 |
| 1-1-8-1 | 149578000 | BUSH | 2 |
| 1-1-9 | 146040001 | PACKING | 1 |
| 1-1-10 | 140518001 | SCREW, SM7.94X10 | 1 |
| 1-1-11 | 081007070 | O RING, P7 | 1 |
| 1-2 | 181430601 | OIL PAN ASSY | 1 |
| 1-2-1 | 146036101 | KNEE LIFTER SHAFT | 1 |
| 1-2-2 | 146037001 | KNEE LIFTER | 1 |
| 1-2-3 | 146367001 | BOLT, SM5.95 | 1 |
| 1-2-4 | 104885101 | SET SCREW, SM5.95-28X24 | 2 |
| 1-2-5 | 100022004 | NUT, SM5.95 | 2 |
| 1-2-6 | 146985001 | SPRING | 2 |
| 1-2-7 | 146293001 | RETAINING RING, E10 | 1 |
| 1-2-8 | 149581501 | OIL PAN | 1 |
| 1-2-8-1 | 149578000 | BUSH | 2 |
| 1-2-9 | 146040001 | PACKING | 1 |
| 1-2-10 | 140518001 | SCREW, SM7.94X10 | 1 |
| 1-2-11 | 081007070 | O RING, P7 | 1 |
| 1-2-12 | 146157001 | P-BAR LIFTER CYLINDER ASSY | 1 |
| 1-2-13 | 147141001 | SUPPORT SCREW, CYLINDER | 2 |
| 1-2-14 | 028060242 | WASHER, SPRING 2-6 | 2 |
| 1-2-15 | 140668001 | DRIVING LINK, PISTON | 1 |
| 1-2-16 | 140627001 | ROD JOINT, PISTON | 1 |
| 1-2-17 | 146986001 | CONNECTING LINK PIN | 1 |
| 1-2-18 | 048040342 | RETAINING RING, E4 | 2 |
| 1-2-19 | 146039001 | KNEE LIFTER BRACKET | 1 |
| 1-2-20 | 100463001 | BOLT, SQUARE SM7.94 | 1 |
| 1-2-21 | 017762013 | BOLT, SM5.95X20 | 1 |
Page 48 — U3. オプションパーツ /Option parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1-3 | 183379301 | OIL PAN ASSY | 1 |
| 1-3-1 | 146036101 | KNEE LIFTER SHAFT | 1 |
| 1-3-2 | S02595101 | PRESSER FOOT LIFTER LINK | 1 |
| 1-3-3 | 146367001 | BOLT, SM5.95 | 1 |
| 1-3-4 | S02596001 | SPRING, TWIST | 1 |
| 1-3-5 | 146293001 | RETAINING RING, E10 | 1 |
| 1-3-6 | 149580571 | OIL PAN | 1 |
| 1-3-6-1 | 149578000 | BUSH | 2 |
| 1-3-7 | 146040001 | PACKING | 1 |
| 1-3-8 | 140518001 | SCREW, SM7.94X10 | 1 |
| 1-3-9 | 081007070 | O RING, P7 | 1 |
| 4 | 291657013 | SENSOR#2-2 | 1 |
| BMP2070121F1000 | BI PANEL ASSY, F-20 | 1 | |
| BMP2070122F1000 | BI PANEL ASSY, F-40 | 2 | |
| BMP2070123F1000 | BI PANEL ASSY, F-100 | 3 |
Page 50 — W. 糸払いセット / Thread wiper set
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 183881101 | THREAD WIPER SET | 1 |
| 1-1 | S41202151 | THREAD WIPER SOLENOID ASSY | 1 |
| 1-1-2 | S02664051 | THREAD WIPER SWITCH | 1 |
| 1-1-3 | S02665000 | TERMINAL CONNECTOR | 1 |
| 1-1-4 | 143549050 | TERMINAL PIN, MALE | 2 |
| 1-3 | S41206001 | THREAD WIPER SPRING | 1 |
| 1-4 | S41207000 | SPACER RUBBER | 1 |
| 1-5 | S25449201 | SOLENOID SETTING PLATE | 1 |
| 1-6 | 062300616 | SCREW, PAN M3X6 | 3 |
| 1-7 | 140647101 | CORD HOLDER | 1 |
| 1-8 | 062300616 | SCREW, PAN M3X6 | 1 |
| 1-9 | 062300616 | SCREW, PAN M3X6 | 2 |
| 1-10 | S33609101 | SOLENOID SETTING BASE | 1 |
| 1-11 | 062681012 | SCREW, PAN SM4.37-40X10 | 2 |
| 1-12 | 062400616 | SCREW, PAN M4X6 | 2 |
| 1-13 | 026040236 | WASHER, PLAIN 4 | 2 |
| 1-14 | S33610101 | SOLENOID COVER | 1 |
| 1-15 | 060400616 | SCREW, BIND M4X6 | 1 |
| 1-16 | S02672002 | THREAD WIPER SUPPORT | 1 |
| 1-17 | S25452001 | THREAD WIPER CRANK ASSY | 1 |
| 1-18 | 048040342 | RETAINING RING, E4 | 1 |
| 1-19 | S25454001 | SET SCREW COLLAR | 1 |
| 1-20 | S25279001 | SET SCREW, (CP) M3.5-5 | 1 |
| 1-21 | S02678001 | WIPER SPRING | 1 |
| 1-22 | S02679002 | THREAD WIPER LINK | 1 |
| 1-23 | 110735002 | WASHER | 1 |
| 1-24 | 048030342 | RETAINING RING, E3 | 1 |
| 1-25 | S59890001 | BOLT, SOCKET SM4.37-40X8 | 2 |
| 1-26 | S25456001 | PLUNGER PIN | 1 |
| 1-27 | S02681101 | THREAD WIPER | 1 |
| 1-28 | 060400516 | SCREW, BIND M4X5 | 1 |
| 1-29 | 146288001 | THREAD WIPER STUD COLLAR | 1 |
| 1-30 | 025750132 | WASHER, PLAIN S 5.56 | 1 |
| 1-31 | S41207001 | SPACER, RUBBER | 1 |
| 1-32 | 149097000 | SILENT SHEET | 1 |
| 1-33 | S25456001 | PLUNGER PIN | 2 |
Page 52 — X1 .電磁押上げセット / Presser foot lifting solenoid set
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 183970001 | P-FOOT LIFTER SOLENOID SET, 1S | 1 |
| 1-1 | 183961151 | P-FOOT LIFTER SOLENOID SET, T | 1 |
| 1-1-1-1 | S54025001 | CUSHION | 1 |
| 1-1-1-2 | S54024001 | CUSHION RING | 1 |
| 1-1-2 | S42198051 | PRESSER FOOT LIFTER ROD ASSY | 1 |
| 1-1-3 | S42199051 | P-FOOT LIFTER LEVER ASSY | 1 |
| 1-1-4 | S41955051 | ROD JOINT ASSY | 1 |
| 1-1-5 | S42200051 | WOOD SCREW | 4 |
| 1-2 | S02595101 | PRESSER FOOT LIFTER LINK | 1 |
| 1-3 | 146367001 | BOLT, SM5.95 | 1 |
| 1-4 | S02596001 | SPRING, TWIST | 1 |
| 1-5 | S16250001 | KNEE LIFTER COMPLYING BAR ASSY | 1 |
| 1-6 | 154347001 | SPRING | 1 |
| 1-7 | S31010001 | SHOULDER SCREW, SM6.35 | 1 |
| 1-8 | S07015001 | CLIP | 1 |
| 1-9 | S07045009 | KNEE LIFTER SWITCH ASSY | 1 |
| 1-9-1 | 142026003 | KNEE SWITCH SHAFT | 1 |
| 1-9-2 | 142027001 | BRACKET | 1 |
| 1-9-3 | 100463001 | BOLT, SQUARE SM7.94 | 1 |
| 1-9-4 | 114967001 | KNEE LIFTER PLATE STOPPER | 1 |
| 1-9-5 | 110087001 | BOLT, SM5.95-28X8 | 1 |
| 1-9-6 | S07027001 | K-LIFTER SWITCH SETTING PLATE | 1 |
| 1-9-7 | 062401006 | SCREW, PAN M4X10 | 4 |
| 1-9-8 | 025040233 | WASHER, PLAIN M 4 | 4 |
| 1-9-9 | 028040243 | WASHER, SPRING 2-4 | 4 |
| 1-9-10 | 021400164 | NUT, 1 M4 | 4 |
| 1-9-11 | S07030009 | SWITCH & HARNESS ASSY | 1 |
| 1-9-11-1 | S07031009 | FOOT SWITCH ASSY | 1 |
| 1-9-11-1-1 | 143549000 | TERMINAL PIN, MALE | 2 |
| 1-9-11-1-2 | 143548000 | TERMINAL PIN, FEMALE | 1 |
| 1-9-11-2 | 146046000 | NYLON CONNECTOR | 2 |
| 1-9-11-3 | 146194000 | NYLON CONNECTOR | 1 |
| 1-9-12 | 149799000 | BEAD BAND, S | 1 |
| 1-10 | 034422503 | WOOD SCREW, FLAT M4.1X25 | 4 |
Page 54 — X2 . 電磁押上げセット / Presser foot lifting solenoid set
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 183969001 | P-FOOT LIFTER SOLENOID SET, 1T | 1 |
| 2-1 | 183961151 | P-FOOT LIFTER SOLENOID SET, T | 1 |
| 3 | 183967001 | P-FOOT LIFTER SOLENOID SET, 1D | 1 |
| 3-1 | 183962151 | P-FOOT LIFTER SOLENOID SET, 4 | 1 |
| 4 | 183968001 | P-FOOT LIFTER SOLENOID SET, 1E | 1 |
| 4-1 | 183963151 | P-FOOT LIFTER SOLENOID SET, 5 | 1 |
| 1-1-1-1 | S54025001 | CUSHION | 1 |
| 1-1-1-2 | S54024001 | CUSHION RING | 1 |
| 1-1-2 | S42198051 | PRESSER FOOT LIFTER ROD ASSY | 1 |
| 1-1-3 | S42199051 | P-FOOT LIFTER LEVER ASSY | 1 |
| 1-1-4 | S41955051 | ROD JOINT ASSY | 1 |
| 1-1-5 | S42200051 | 4 | |
| 1-2 | S02595101 | PRESSER FOOT LIFTER LINK | 1 |
| 1-3 | 146367001 | BOLT, SM5.95 | 1 |
| 1-4 | S02596001 | SPRING, TWIST | 1 |
| 1-5 | S16250001 | KNEE LIFTER COMPLYING BAR ASSY | 1 |
| 1-6 | 154347001 | SPRING | 1 |
| 1-7 | S31010001 | SHOULDER SCREW, SM6.35 | 1 |
| 1-8 | S07015001 | CLIP | 1 |
Page 56 — X3 . 電磁押え上げセット / Presser foot lifting solenoid set
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 183947001 | PRES. FOOT LIFTER SOL. SET A | 1 |
| 1-1 | S40832051 | P-FOOT LIFTER SOLENOID ASSY | 1 |
| 1-2 | S07045009 | KNEE LIFTER SWITCH ASSY | 1 |
| 1-2-1 | 142026003 | KNEE SWITCH SHAFT | 1 |
| 1-2-2 | 142027001 | BRACKET | 1 |
| 1-2-3 | 100463001 | BOLT, SQUARE SM7.94 | 1 |
| 1-2-4 | 114967001 | KNEE LIFTER PLATE STOPPER | 1 |
| 1-2-5 | 110087001 | BOLT, SM5.95-28X8 | 1 |
| 1-2-6 | S07027001 | K-LIFTER SWITCH SETTING PLATE | 1 |
| 1-2-7 | 062401006 | SCREW, PAN M4X10 | 4 |
| 1-2-8 | 025040233 | WASHER, PLAIN M 4 | 4 |
| 1-2-9 | 028040243 | WASHER, SPRING 2-4 | 4 |
| 1-2-10 | 021400164 | NUT, 1 M4 | 4 |
| 1-2-11 | S07030009 | SWITCH & HARNESS ASSY | 1 |
| 1-2-11-1 | S07031009 | FOOT SWITCH ASSY | 1 |
| 1-2-11-1-1 | 143549000 | TERMINAL PIN, MALE | 2 |
| 1-2-11-1-2 | 143548000 | TERMINAL PIN, FEMALE | 1 |
| 1-2-11-2 | 146046000 | NYLON CONNECTOR | 2 |
| 1-2-11-3 | 146194000 | NYLON CONNECTOR | 1 |
| 1-2-12 | 149799000 | BEAD BAND, S | 1 |
| 1-3 | 034422503 | WOOD SCREW, FLAT M4.1X25 | 4 |
| 1-4 | S32924001 | ARM, P-FOOT LIFTER | 1 |
| 1-5 | 062711212 | SCREW, PAN SM4.76-32X12 | 1 |
| 1-6 | S16641001 | STUD, L | 2 |
| 1-7 | 062781412 | SCREW, PAN SM6.35-28X14 | 1 |
| 1-8 | S16642001 | STUD, S | 2 |
| 1-9 | 062781012 | SCREW, PAN SM6.35-28X10 | 3 |
| 1-10 | S16643009 | COVER | 1 |
| 1-11 | 062670812 | SCREW, PAN SM3.57-40X8 | 2 |
| 1-12 | S16644102 | REAR COVER SET | 1 |
| 1-12-1 | S16615002 | REAR COVER UNIT | 1 |
| 1-12-1-1 | S11589000 | DUST SEAL | 1 |
| 1-12-2 | S32923001 | SHAFT, P-FOOT LIFTER | 1 |
| 1-12-3 | 025100132 | WASHER, PLAIN S 10 | 2 |
| 1-12-4 | 110197001 | SET SCREW COLLAR | 1 |
| 1-12-5 | 153675001 | SET SCREW, SOCKET SM4.37 | 2 |
| 1-12-6 | S16645000 | PACKING, REAR COVER | 1 |
| 1-12-7 | 048080342 | RETAINING RING, E8 | 1 |
Page 58 — X4 . 電磁押上げセット / Presser foot lifting solenoid set
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 183948001 | PRES. FOOT LIFTER SOL. SET B | 1 |
| 1-1 | S40832051 | P-FOOT LIFTER SOLENOID ASSY | 1 |
| 1-4 | S32924001 | ARM, P-FOOT LIFTER | 1 |
| 1-5 | 062711212 | SCREW, PAN SM4.76-32X12 | 1 |
| 1-6 | S16641001 | STUD, L | 2 |
| 1-7 | 062781412 | SCREW, PAN SM6.35-28X14 | 1 |
| 1-8 | S16642001 | STUD, S | 2 |
| 1-9 | 062781012 | SCREW, PAN SM6.35-28X10 | 3 |
| 1-10 | S16643009 | COVER | 1 |
| 1-11 | 062670812 | SCREW, PAN SM3.57-40X8 | 2 |
| 1-12 | S16644102 | REAR COVER SET | 1 |
| 1-12-1 | S16615002 | REAR COVER UNIT | 1 |
| 1-12-1-1 | S11589000 | DUST SEAL | 1 |
| 1-12-2 | S32923001 | SHAFT, P-FOOT LIFTER | 1 |
| 1-12-3 | 025100132 | WASHER, PLAIN S 10 | 2 |
| 1-12-4 | 110197001 | SET SCREW COLLAR | 1 |
| 1-12-5 | 153675001 | SET SCREW, SOCKET SM4.37 | 2 |
| 1-12-6 | S16645000 | PACKING, REAR COVER | 1 |
| 1-12-7 | 048080342 | RETAINING RING, E8 | 1 |
Page 60 — Z . 付属 品 関係 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | S17774001 | SCREW-DRIVER, 4.7X250 | 1 |
| 34 | S80028201 | RUBBER HINGE ASSY | 1 |
| 34-1 | 143882001 | HEAD HINGE | 2 |
| 34-2 | 143910009 | RUBBER CUSHION | 2 |
| 34-3 | S55367201 | HEAD CUSHION...... | 2 |
| 34-4 | S55367202 | HEAD CUSHION...... | 2 |
| 34-5 | 109714000 | NAIL | 4 |
| 51 | S55663001 | OIL TANK ASSY | 1 |
| 52 | S35732021 | HEAD COVER | 1 |
| 53 | S02763502 | COTTON STAND ASSY, 2DR | 1 |
| 53-1 | 156112003 | COLUMN PIPE, D | 1 |
| 53-2-1 | 150206002 | WASHER, PLAIN 16 | 1 |
| 53-2-2 | S38648001 | NUT, U5/8-28 | 1 |
| 53-2-3 | 150174000 | COLUMN CAP | 1 |
| 53-2-4 | S01005000 | RUBBER WASHER | 2 |
| 53-2-5 | S02747101 | SPRING | 1 |
| 53-3 | 150172003 | COLUMN PIPE | 1 |
| 53-4 | 150173003 | COLUMN JOINT | 1 |
| 53-5 | 150174000 | COLUMN CAP | 1 |
| 53-6 | S02778002 | SPOOL HOLDER, 2 | 1 |
| 53-7-1 | 150179002 | SPOOL SHAFT, B | 2 |
| 53-7-2 | 028050246 | WASHER, SPRING 2-5 | 2 |
| 53-7-3 | 021500106 | NUT, 1 M5 | 2 |
| 53-8 | S51283001 | SPOOL STAND BASE | 2 |
| 53-9 | 150182000 | SPOOL MAT | 2 |
| 53-10 | S51282101 | SPOOL CUSHION | 2 |
| 53-11 | S02786002 | THREAD HANGER ASSY, 2 | 1 |
| 53-11-1 | S02787002 | THREAD HANGER, 2 | 1 |
| 53-11-2 | 150183000 | THREAD HANGER BASE | 2 |
| 53-11-3 | 142990001 | THREAD BUSH | 2 |
| 53-12-1 | 021500106 | NUT, 1 M5 | 4 |
| 53-12-2 | S37038001 | SCREW, PAN(S/P WASHER) M5X14 | 1 |
| 53-12-3 | S37037001 | SCREW, PAN (S/P WASHER) M5X32 | 1 |
| 53-12-4 | 062501406 | SCREW, PAN M5X14 | 2 |
| 56 | 031451603 | WOOD SCREW, ROUND M4.5X16 | 2 |
| 94 | S18707141 | BELT, VM WHITE ...... | 1 |
| 94 | S18707142 | BELT, VM WHITE ...... | 1 |
| 8 | SA1656011 | NEEDLE 4PIECE ASSY, 100265 ......<#11> | 1 |
| 8-1 | 100265031 | NEEDLE, DBX1 | 4 |
| 10-1 | 146290001 | BOBBIN | 3 |
| 8 | SA1752011 | NEEDLE 4PIECE ASSY, 107415 ......<#11> | 1 |
| 8-1 | 107415011 | NEEDLE, DPX5 | 4 |
| 10-1 | 146290001 | BOBBIN | 3 |
| 8 | SA1656022 | NEEDLE 4PIECE ASSY, 100265 ......<#22> | 1 |
| 8-1 | 100265042 | NEEDLE, DBX1 | 4 |
| 8 | SA1752022 | NEEDLE 4PIECE ASSY, 107415 ......<#22> | 1 |
| 8-1 | 107415022 | NEEDLE, DPX5 | 4 |
| 10-2 | 117132001 | BOBBIN | 3 |
Page 62 — Z . 付属 品 関係 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-1 | S09634000 | KNEE LIFTER COMPLYING BAR | 1 |
| 23-2 | S16250001 | KNEE LIFTER COMPLYING BAR ASSY | 1 |
| 24 | S07015001 | CLIP | 1 |
| 45 | S14420110 | BOBBIN WINDER ASSY | 1 |
| 45-1 | 117965002 | BOBBIN WINDER GUIDE BASE ASSY | 1 |
| 45-2 | 145446003 | DISC, TENSION | 2 |
| 45-3 | 100401001 | TENSION SPRING | 1 |
| 45-4 | 100136001 | TENSION NUT | 1 |
| 45-5 | 149168001 | SCREW, W/FLANGE SM4.37 | 1 |
| 45-6 | S14423001 | SPRING | 1 |
| 45-7 | S15133001 | BOBBIN WINDER SHAFT | 1 |
| 45-8 | S14424001 | BOBBIN WINDER WHEEL | 1 |
| 45-9 | 151602002 | SET SCREW, SM4.37 | 1 |
| 45-10 | 100656002 | BOBBIN PRESSER | 1 |
| 45-11 | 100657001 | SCREW, SM3.18-40X14 | 1 |
| 45-12 | 100659001 | SHOULDER SCREW, SM3.18 | 1 |
| 45-13 | 100662001 | BOBBIN WINDER WHEEL STOPPER | 1 |
| 45-14 | 100664001 | WHEEL STOPPER HOLDER | 1 |
| 45-15 | S39086001 | SCREW, PAN SM3.57-40X3.5 | 1 |
| 45-16 | 142711001 | WASHER, VFS 6.5 | 2 |
| 45-17 | S14422001 | BOBBIN WINDER SHAFT SUPPORT | 1 |
| 47 | 183661209 | BELT COVER UNIT | 1 |
| 47-1 | 183658509 | BELT COVER ASSY, A | 1 |
| 47-1-1 | S15172109 | BELT COVER | 1 |
| 47-1-1-1 | S15164001 | KNIFE | 1 |
| 47-1-1-2 | 062680512 | SCREW, PAN SM4.37-40X5 | 1 |
| 47-2 | 100666002 | WOOD SCREW, ROUND M5.5X20 | 2 |
| 47-3 | 025750132 | WASHER, PLAIN S 5.56 | 2 |
| 47-4 | S37264001 | BELT COVER D LID, S | 1 |
| 47-5 | S14428009 | BELT COVER, D | 1 |
| 47-6 | S34101101 | BELT COVER, US | 1 |
| 105 | 183657109 | PARTS ASSY | 1 |
| 105-2 | 142443001 | SCREW-DRIVER, 1.9X52 | 1 |
| 105-3 | 118837001 | SCREW-DRIVER, 3.4X70 | 1 |
| 105-4 | 100887001 | WRENCH, 8X9 | 1 |
| 105-5 | 142002001 | HEXAGONAL WRENCH, 2 | 1 |
| 105-6 | 142721001 | HEXAGONAL WRENCH, 3 | 1 |
| 105-7 | S06055009 | HEAD REST, S | 1 |
| 105-8 | 112525000 | MAGNET | 1 |
| 105 | 183845101 | PARTS ASSY | |
| 105-2 | 142443001 | SCREW-DRIVER, 1.9X52 | 1 |
| 105-3 | 118837001 | SCREW-DRIVER, 3.4X70 | 1 |
| 105-4 | 100887001 | WRENCH, 8X9 | 1 |
| 105-5 | 142002001 | HEXAGONAL WRENCH, 2 | 1 |
| 105-7 | S06055009 | HEAD REST, S | 1 |
| 105-8 | 112525000 | MAGNET | 1 |
Page 64 — Z . 付属 品 関係 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 105 | 183753101 | PARTS ASSY | 1 |
| 105-2 | 142443001 | SCREW-DRIVER, 1.9X52 | 1 |
| 105-3 | 118837001 | SCREW-DRIVER, 3.4X70 | 1 |
| 105-4 | 100887001 | WRENCH, 8X9 | 1 |
| 105-5 | 142002001 | HEXAGONAL WRENCH, 2 | 1 |
| 105-6 | 142721001 | HEXAGONAL WRENCH, 3 | 1 |
| 105-8 | 112525000 | MAGNET | 1 |
| 105 | 183846101 | PARTS ASSY | |
| 105-2 | 142443001 | SCREW-DRIVER, 1.9X52 | 1 |
| 105-3 | 118837001 | SCREW-DRIVER, 3.4X70 | 1 |
| 105-4 | 100887001 | WRENCH, 8X9 | 1 |
| 105-5 | 142002001 | HEXAGONAL WRENCH, 2 | 1 |
| 105-7 | S06055009 | HEAD REST, S | 1 |
| 105-8 | 112525000 | MAGNET | 1 |
Page 65 — Sp . 仕様別部品一覧表 / Different parts List
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-17 | S14811001 | Needle bar | |
| C-18 | 100265031 | Needle | |
| C-22 | S03000201 | Needle plate | |
| D-5 | 147514001 | Presser bar spring | |
| D-7 | 153037201 | Presser foot assy | |
| E-65 | S02748001 | Feed dog | |
| G-14 | S02602001 | Hook stopper | |
| G-16 | SA1709001 | Rotary hook assy, w/box | |
| G-18 | 146290001 | Bobbin | |
| C-17 | S14811001 | Needle bar | |
| C-18 | 100265031 | Needle | |
| C-22 | S03884301 | Needle plate | |
| D-5 | 147514001 | Presser bar spring | |
| D-7 | 153037201 | Presser foot assy | |
| E-65 | S03885001 | Feed dog | |
| G-14 | S02602001 | Hook stopper | |
| G-16 | SA1709001 | Rotary hook assy, w/box | |
| G-18 | 146290001 | Bobbin | |
| S02811001 | 針棒 / Needle bar | ||
| 100265042 | ミシン針 / Needle | ||
| 145971001 | 針板 / Needle plate | ||
| 147245001 | 針板 / Needle plate | ||
| 141728001 | 押えバネ / Presser bar spring | ||
| 145157101 | 押え組 / Presser foot assy | ||
| S02742001 | 送り歯 / Feed dog | ||
| S02743001 | 送り歯 / Feed dog | ||
| 159324001 | 内かま止め / Hook stopper | ||
| SA1931001 | かま箱組 / Rotary hook assy, w/box | ||
| SA1704001 | かま箱組 / Rotary hook assy, w/box | ||
| 117132001 | ボビン / Bobbin | ||
| S14815001 | ミシン針 / Needle | ||
| 107415022 | 針板 / Needle plate | ||
| 150789101 | 押え組 / Presser foot assy | ||
| S36902001 | 送り歯 / Feed dog | ||
| 150793001 | 内かま止め / Hook stopper |
Page 66 — Ga1. ゲージ部品一覧表 (薄・中厚物用 : 3枚菌) / Gauge parts List (Light & medium-weight materials :3ROW)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B12 | 153147-001 | ||
| B14 | 146233-001 | ||
| NB14M | S29649-001 | ||
| NB16M | S29646-001 | ||
| B14 | 146050-001 | ||
| B14 | 147238-001 | ||
| B16 | 153190-001 | ||
| B16 | 147239-001 | ||
| 146231-001 | |||
| S07649-001 | |||
| S02742-001 | |||
| S36902-001 | Slot | ||
| S36905-001 | Chamfering(L) | ||
| S38189-001 | Chamfering(S) | ||
| S36906-001 | Slot | ||
| S38187-001 | Chamfering(S) | ||
| S38188-001 | Chamfering(S) | ||
| S01904-001 | Teflon |
Page 67 — Ga2. ゲージ部品一覧表 (薄・中厚物用 : 3枚菌) / Gauge parts List (Light & medium-weight materials :3ROW)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S29645-001 | |||
| 145971-001 | |||
| S29645-001 | |||
| 100266-001 | |||
| 146232-001 | |||
| 141096-001 | |||
| S11222-001 | |||
| S07649-001 | |||
| S02742-001 | |||
| 146231-001 | |||
| 117442-001 | |||
| S07649-001 | |||
| S02742-001 | |||
| S36902-001 | Slot | ||
| S36905-001 | Chamfering(L) | ||
| S38189-001 | Chamfering(S) | ||
| S36906-001 | Slot | ||
| S38187-001 | Chamfering(S) | ||
| S38188-001 | Chamfering(S) | ||
| S01904-001 | Teflon |
Page 68 — Ga3. ゲージ部品一覧表 (厚物用 : 3枚菌) / Gauge parts List (Difficult-to-sew materials & Shin-gosen : 3ROW)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B22 | 100267-001 | Needle plate | |
| P:2.1 H:6.7 | S02743-001 | Feed dog | |
| S36904-001 | Presser foot assy | ||
| 145157-101 | Presser foot assy | ||
| B26 | 111241-001 | Needle plate | |
| S36905-001 | Presser foot assy | ||
| 113280-101 | Presser foot assy | ||
| B26 | 147245-001 | Needle plate | |
| C26 | 111508-001 | Needle plate | |
| P:1.6 H:6.8 | 154742-001 | Feed dog | |
| C26 | 147322-001 | Needle plate | |
| P:2.1 H:6.7 | S02743-001 | Feed dog | |
| C26M | 529644-001 | Needle plate |
Page 69 — Ga4. ゲージ部品一覧表 (厚物用 : 4枚菌) / Gauge parts List (Diffcult-to-sew materials & Shin-gosen : 4ROW)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S38760-001 | Needle plate | ||
| S02748-001 | Feed dog | ||
| S38190-101 | Presser foot assy | ||
| S35777-101 | Presser foot assy (slot) | ||
| S35776-101 | Needle plate | ||
| AB12N1 | S38760-001 | ||
| AB14M1 | S35776-101 |
Page 70 — Ga5. ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts List (Light & medium-weight materials : 4ROW)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E12N1 | S03882-201 | R: 1, T: 2.1, α 1.2 | |
| E14N1 | S03883-201 | R: 1, T: 2.1, α 1.4 | |
| E14N1 | 159859-201 | R: 1 (Slot), T: 2.1, α 1.4 | |
| E12 | S01107-101 | R: 1, T: 2.1, α 1.2 | |
| AB14N1 | S02999-201 | R: 0.2, T: 2.1, α 1.4 | |
| AB16N1 | S03000-201 | R: 0.2, T: 2.1, α 1.4 | |
| S03885-001 | P: 0.9, H: 6 | ||
| S02748-001 | P: 0.9, H: 6 | ||
| S02744-001 | P: 1.15, H: 6 | ||
| S36902-001 | Slot | ||
| S36905-001 | Chamfering(L) | ||
| S38189-001 | Chamfering(S) | ||
| S36906-101 | Slot | ||
| S38187-001 | Chamfering(S) | ||
| S38188-001 | Chamfering(S) | ||
| S01904-001 | Teflon |
Page 71 — Ga6. ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts List (Light & medium-weight materials : 4ROW)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A14N1 | 146053-201 | ||
| A14N1 | 100603-201 | ||
| E16N1 | S03884-301 | ||
| E16M1 | S29648-101 | ||
| E18N1 | 111859-301 | ||
| E18M1 | S29647-101 | ||
| 111898-001 | |||
| S03885-001 | |||
| 111860-101 | |||
| S36902-001 | Slot | ||
| S36905-001 | Chamfering(L) | ||
| S38189-001 | Chamfering(S) | ||
| S36906-001 | Slot | ||
| S38187-001 | Chamfering(S) | ||
| S38188-001 | Chamfering(S) | ||
| S01904-001 | Teflon |
Page 72 — Ga7. ゲージ部品一覧表 (薄・中厚物用 : 4枚菌) / Gauge parts List (Light & medium-weight materials : 4ROW)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 111859-301 | |||
| S29647-101 | |||
| S30103-001 | |||
| S03885-001 | |||
| 111860-101 | |||
| S25822-001 | |||
| S36902-001 | |||
| 153037-201 | |||
| S36905-001 | |||
| 113280-101 | |||
| S38189-001 | |||
| 147531-101 | |||
| S36906-001 | |||
| 111856-101 | |||
| S38187-001 | |||
| 140957-101 | |||
| S38188-001 | |||
| 143711-101 | |||
| S01904-001 | |||
| E18M1 | 529647-101 | Needle plate | |
| S3885-001 | Feed dog |
Page 73 — Ga8 . ゲージ部品一覧表 (厚物用：4枚歯) / Gauge parts List (Diffcult-to-sew materials & Shin-gosen : 4ROW)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H26 | 150792-001 | ||
| H26 | S25821-001 | ||
| 150793-001 | |||
| S25822-001 | |||
| S36903-001 | |||
| 150789-101 |
Page 74 — Wa. 警告ラベル / Warning labels
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S38350-001 | |||
| S38349-001 | Label, operation Eng. | ||
| S37060-021 | Label, grounding |
Page 77
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14 | 146157001 | F1-1 | |
| 38 | 146194000 | R -1-11-3 | |
| 48 | 146194000 | X1-1-9-11-3 | |
| 52 | 146194000 | X3-1-2-11-3 | |
| 16 | 146194050 | F2-11-2-30-3 | |
| 62 | 146231001 | Ga1- | |
| 63 | 146232001 | Ga2- | |
| 62 | 146233001 | Ga1- | |
| 20 | 146253000 | H -43 | |
| 20 | 146288001 | H -43 | |
| 34 | 146288001 | N -29 | |
| 46 | 146288001 | W -1-29 | |
| 18 | 146290001 | G -18-1 | |
| 56 | 146290001 | Z -10-1 | |
| 56 | 146290001 | Z -10-1 | |
| 61 | 146290001 | Sp- | |
| 61 | 146290001 | Sp- | |
| 61 | 146290001 | Sp- | |
| 61 | 146290001 | Sp- | |
| 42 | 146293001 | U2-1-2-7 | |
| 42 | 146293001 | U1-1-1-7 | |
| 44 | 146293001 | U3-1-3-5 | |
| 20 | 146327001 | H -12 | |
| 20 | 146333001 | H -11 | |
| 42 | 146367001 | U2-1-2-3 | |
| 14 | 146367001 | F1-13 | |
| 42 | 146985001 | U1-1-3 | |
| 44 | 146985001 | U3-1-3 | |
| 48 | 146985001 | X1-1-3 | |
| 50 | 146985001 | X2-1-3 | |
| 42 | 146985001 | U2-1-2-6 | |
| 14 | 146986001 | F1-6 | |
| 42 | 146986001 | U2-1-2-17 | |
| 42 | 147141001 | U2-1-2-13 | |
| 14 | 147141001 | F1-2 | |
| 61 | 147154001 | Sp- | |
| 62 | 147238001 | Ga1- | |
| 62 | 147239001 | Ga1- | |
| 61 | 147245001 | Sp- | |
| 64 | 147245001 | Ga3- | |
| 64 | 147322001 | Ga3- | |
| 6 | 147326001 | C -15-2 | |
| 10 | 147504201 | E -40 | |
| 11 | 147509001 | E -75 | |
| 8 | 147514001 | D -5-1 | |
| 61 | 147514001 | Sp- | |
| 62 | 147531101 | Ga1- | |
| 63 | 147531101 | Ga2- | |
| 66 | 147531101 | Ga5- | |
| 67 | 147531101 | G6- | |
| 68 | 147531101 | G7- | |
| 24 | 147557101 | J -3 | |
| 4 | 14777000 | C -11-1-3 | |
| 6 | 14777000 | C -11-2-3 | |
| 28 | 148537101 | K -18 | |
| 36 | 148825001 | P -21 | |
| 20 | 148849001 | H -29-3 | |
| 26 | 148901001 | J -17 | |
| 34 | 149097000 | N -32 | |
| 58 | 149578000 | Z -45-5 | |
| 42 | 149578000 | U2-1-2-8-1 | |
| 42 | 149580571 | U1-1-1-8-1 | |
| 42 | 149580571 | U1-1-1-8 | |
| 44 | 149580571 | U3-1-3-6 | |
| 44 | 149581501 | U3-1-3 | |
| 38 | 149799000 | R -1-12 | |
| 56 | 150172003 | Z -53-3 | |
| 56 | 150172003 | Z -53-3 | |
| 56 | 150174000 | Z -53-4 | |
| 56 | 150179002 | Z -53-2-3 | |
| 56 | 150182000 | Z -53-5 | |
| 56 | 150206002 | Z -53-7-1 | |
| 56 | 150384101 | Z -53-9 | |
| 8 | 150789101 | D -29 | |
| 61 | 150792001 | Sp- | |
| 69 | 150793001 | Ga8- | |
| 69 | 150793001 | G8- | |
| 61 | 150793001 | Sp- | |
| 69 | 150793001 | G8- | |
| 40 | 151126201 | T -1 | |
| 40 | 151127200 | T -1-2 | |
| 40 | 151147001 | T -1-4 | |
| 40 | 151153201 | T -1-1 | |
| 40 | 151154000 | T -2 | |
| 10 | 151272001 | E -31 | |
| 10 | 151308101 | E -35 | |
| 4 | 151594001 | C -21-4 | |
| 58 | 151602002 | Z -45-9 | |
| 6 | 151604001 | C -21-2 | |
| 28 | 151987002 | K -20 | |
| 61 | 153037201 | Sp- | |
| 11 | 151604001 | E -78-1 | |
| 11 | 151987002 | E -78-1 | |
| 11 | 151987002 | E -78-1 | |
| 28 | 151987002 | K -20 | |
| 61 | 153037201 | Sp- | |
| 30 | 157984001 | K -49-2 | |
| 32 | 157985001 | M -10-2 | |
| 10 | 158021102 | E -16 | |
| 10 | 158722001 | E -63 | |
| 4 | 158727001 | C -11-1-6 | |
| 18 | 159324001 | G -14-2 | |
| 67 | 153132000 | G6- | |
| 68 | 153147001 | Ga7- | |
| 69 | 153190001 | G8- | |
| 69 | 153484001 | G8- | |
| 16 | 153675001 | F2-23 | |
| 28 | 153969000 | K -51 | |
| 30 | 153970001 | K -52-2 | |
| 28 | 153969000 | K -51 | |
| 30 | 153970001 | K -52-2 | |
| 40 | 154172001 | T -6-1 | |
| 40 | 154214101 | T -1-8 | |
| 40 | 154215001 | T -1-12 | |
| 8 | 154347001 | D -32 | |
| 48 | 154347001 | X1-1-6 | |
| 50 | 154347001 | X2-1-6 | |
| 18 | 154552001 | G -8 | |
| 24 | 154560001 | J -1-4 | |
| 28 | 154567000 | K -2 | |
| 28 | 154570001 | K -2 | |
| 28 | 154571001 | K -13 | |
| 28 | 154576003 | K -19 | |
| 28 | 154577001 | K -22 | |
| 28 | 154579001 | K -25 | |
| 28 | 154581001 | K -28 | |
| 28 | 154590001 | K -30-2 | |
| 28 | 154593201 | K -34 | |
| 28 | 154594000 | K -35 | |
| 28 | 154595001 | K -36 | |
| 28 | 154596000 | K -37 | |
| 28 | 154598001 | K -41 | |
| 28 | 154599000 | K -42 | |
| 32 | 154606001 | M -4 | |
| 32 | 154607101 | M -6 | |
| 64 | 154742001 | Ga3- | |
| 32 | 155347001 | M -10-1 | |
| 4 | 155488000 | C -11-1-5 | |
| 28 | 155559001 | K -48 | |
| 56 | 156112003 | Z -53-1 | |
| 2 | 156217001 | A -24 | |
| 10 | 156244020 | E -59 | |
| 11 | 156946001 | E -1 | |
| 10 | 156948001 | E -3 | |
| 10 | 156950200 | E -5-1 | |
| 10 | 156951001 | E -5-2 | |
| 10 | 156952021 | E -8 | |
| 10 | 156954021 | E -9 | |
| 10 | 156956001 | E -10 | |
| 10 | 156957100 | E -12 | |
| 10 | 156958001 | E -14 | |
| 10 | 15696101 | E -19 | |
| 10 | 156967121 | E -22 | |
| 10 | 156969101 | E -26 | |
| 10 | 156970021 | E -27 | |
| 2 | 157969001 | A -33 | |
| 4 | 180018151 | C -24 | |
| 4 | 180166001 | C -28 | |
| 11 | 180322001 | E -71 | |
| 18 | 180885001 | G -2-1 | |
| 18 | 180886001 | G -2-2 | |
| 18 | 180891001 | G -1-1 | |
| 18 | 180920001 | G -1-2 | |
| 42 | 181430601 | U2-1-2 | |
| 4 | 181612121 | C -7 | |
| 18 | 181995001 | G -13 | |
| 24 | 183377001 | J -1 | |
| 24 | 183378001 | J -1 | |
| 44 | 183379301 | U3-1-3 | |
| 18 | 183388001 | G -17-1 | |
| 18 | 183389001 | G -17-2 | |
| 18 | 183390001 | G -17-3 | |
| 10 | 183493001 | E -58 | |
| 11 | 183493001 | E -72 | |
| 42 | 183496471 | U1-1 | |
| 58 | 183657109 | Z -105 | |
| 58 | 183658509 | Z -47-1 | |
| 58 | 183661209 | Z -47 | |
| 60 | 183753101 | Z -105 | |
| 58 | 183845101 | Z -105 | |
| 60 | 183846101 | Z -105 | |
| 20 | 183850101 | H -29 | |
| 46 | 183881101 | W -1 | |
| 52 | 183947001 | X3-1 | |
| 54 | 183948001 | X4-2 | |
| 14 | 183961151 | F1-11 | |
| 48 | 183961151 | X1-1-1 | |
| 50 | 183961151 | X2-2-1 | |
| 50 | 183962151 | X2-3-1 | |
| 50 | 183963151 | X2-4-1 | |
| 50 | 183967001 | X2-3 | |
| 50 | 183968001 | X2-4 | |
| 50 | 183969001 | X2-2 | |
| 48 | 183970001 | X1-1 | |
| 40 | 200190001 | T -4 | |
| 30 | 204569001 | K -53-2 | |
| 12 | 213765001 | E -85 | |
| 40 | 220077001 | T -6-5 | |
| 10 | 224485000 | E -56 | |
| 11 | 224485000 | E -69 | |
| 36 | 237939001 | P -5 | |
| 44 | 291657013 | V -4 | |
| 30 | 340400001 | K -58 | |
| 28 | S00337021 | K -1 | |
| 8 | S00879001 | D -35 | |
| 6 | S00909001 | C -8-2 | |
| 6 | S00910000 | C -8-2-1 | |
| 56 | S01005000 | Z -53-2-4 | |
| 66 | S01107101 | Ga5- | |
| 62 | S01904001 | Ga1- | |
| 63 | S01904001 | Ga2- | |
| 66 | S01904001 | Ga5- | |
| 67 | S01904001 | G6- | |
| 68 | S01904001 | G7- | |
| 8 | S01998001 | D -13 |
Page 78 — 索引 / INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | S02499009 | A -7 | |
| 4 | S02523001 | C -1 | |
| 4 | S02524001 | C -6 | |
| 4 | S02525001 | C -8-1 | |
| 4 | S02526000 | C -8-1-1 | |
| 4 | S02538109 | C -25 | |
| 8 | S02546302 | D -14-1 | |
| 8 | S02548001 | D -24 | |
| 11 | S02552021 | E -1 | |
| 10 | S02554001 | E -2 | |
| 10 | S02556001 | E -37-1 | |
| 10 | S02562001 | E -45 | |
| 10 | S02563001 | E -46 | |
| 10 | S02568101 | E -53 | |
| 10 | S0259121 | E -61 | |
| 10 | S02574101 | E -67 | |
| 11 | S02575000 | E -73 | |
| 11 | S02576021 | E -78 | |
| 12 | S02578101 | E -81 | |
| 16 | S02592059 | F2-11-2-25 | |
| 14 | S02595101 | F1-12 | |
| 14 | S02596001 | F1-14 | |
| 32 | S02597009 | L -1 | |
| 32 | S02600000 | L -2 | |
| 18 | S02602001 | G -14-1 | |
| 20 | S02604000 | H -1 | |
| 20 | S02605000 | H -3-1 | |
| 20 | S02606000 | H -4 | |
| 20 | S02608001 | H -21-1 | |
| 20 | S02609100 | H -32 | |
| 24 | S02611001 | J -1-1 | |
| 24 | S02612001 | J -1-2 | |
| 24 | S02615002 | J -13 | |
| 24 | S02617001 | J -15 | |
| 24 | S02620001 | J -18-4 | |
| 28 | S02637001 | K -4 | |
| 28 | S02643001 | K -9 | |
| 28 | S02645001 | K -16 | |
| 28 | S02646001 | K -17 | |
| 28 | S02647001 | K -26 | |
| 28 | S02648001 | K -27 | |
| 28 | S02652001 | K -43 | |
| 28 | S02654001 | K -44-1 | |
| 28 | S02655002 | K -47 | |
| 28 | S02657101 | K -50 | |
| 32 | S02658000 | M -1 | |
| 32 | S02659101 | M -2 | |
| 32 | S02660101 | M -8 | |
| 34 | S02664051 | N -1-2 | |
| 46 | S02665000 | W -1-1-2 | |
| 46 | S02665050 | W -1-1-3 | |
| 34 | S02672002 | N -16 | |
| 34 | S02678001 | N -21 | |
| 34 | S02679002 | N -22 | |
| 46 | S02681101 | W -27 | |
| 34 | S02682001 | K -53 | |
| 36 | S02684101 | P -1 | |
| 36 | S02685001 | P -2 | |
| 36 | S02687201 | P -7 | |
| 38 | S02701101 | S -3-1 | |
| 38 | S02702101 | S -3-2 | |
| 38 | S02704001 | S -5 | |
| 61 | S02742001 | Sp- | |
| 61 | S02743001 | Sp- | |
| 66 | S02744001 | Ga5- | |
| 30 | S02745001 | K -54 | |
| 16 | S02747101 | F2-11-2-18 | |
| 61 | S02748001 | Sp- | |
| 66 | S02999201 | Ga5- | |
| 18 | S03245001 | G -17 | |
| 18 | S03246001 | G -17-4 | |
| 36 | S03327000 | P -6 | |
| 30 | S03328000 | K -53-1 | |
| 32 | S03670101 | M -11 | |
| 30 | S03815001 | K -52-1 | |
| 11 | S03818101 | E -37-2 | |
| 66 | S03882201 | Ga5- | |
| 66 | S03883201 | Ga5- | |
| 61 | S03884301 | Sp- | |
| 67 | S03885001 | Sp- | |
| 28 | S04201009 | K -40-2 | |
| 32 | S04228001 | E -84 | |
| 36 | S04229001 | P -23 | |
| 4 | S04628001 | C -17-4 | |
| 58 | S04630000 | H -45-2 | |
| 26 | S04632001 | J -18-7 | |
| 10 | S04635001 | E -5 | |
| 38 | S05247101 | T -6 | |
| 10 | S05898101 | E -5 | |
| 40 | S05981000 | R -4 | |
| 16 | S05981050 | F2-11-2-29 | |
| 38 | S05982000 | S -5 | |
| 40 | S05982050 | T -6-3 | |
| 58 | S06055009 | Z -105-7 | |
| 24 | S06323001 | J -20 | |
| 4 | S06324001 | C -17-3 | |
| 20 | S06684001 | H -21 | |
| 11 | S06999001 | E -50-2-1 | |
| 11 | S06999021 | E -50-1-1 | |
| 48 | S07015001 | K -1-8 | |
| 58 | S07027001 | R -1-6 | |
| 38 | S07030009 | R -1-11 | |
| 38 | S07045009 | R -1 | |
| 63 | S07649001 | Ga1- | |
| 32 | S07816009 | L -11 | |
| 28 | S07818009 | K -40-3 | |
| 36 | S07885000 | P -19 | |
| 10 | S07959001 | E -34 | |
| 24 | S07972001 | J -6 | |
| 20 | S08003000 | H -47 | |
| 20 | S08004001 | H -48 | |
| 2 | S09621151 | A -25 | |
| 36 | S09624009 | Q -1 | |
| 58 | S09634000 | Z -23-1 | |
| 42 | S09635001 | U1-1-1-2 | |
| 24 | S10437000 | J -4 | |
| 30 | S11210000 | K -56 | |
| 63 | S1122001 | Ga2- | |
| 30 | S11683000 | K -57 | |
| 30 | S11684000 | K -56-1 | |
| 24 | S12441001 | J -18-8 | |
| 24 | S12699000 | J -4 | |
| 6 | S13163001 | C -11-2-1 | |
| 8 | S13385001 | D -8 | |
| 8 | S13655101 | D -14-2 | |
| 12 | S14163001 | E -90 | |
| 12 | S14166001 | E -90-3 | |
| 12 | S14167001 | E -90-4 | |
| 22 | S14168001 | H -53 | |
| 12 | S14173001 | E -90-1 | |
| 12 | S14174001 | E -90-2 | |
| 58 | S14420110 | Z -45 | |
| 58 | S14422001 | Z -45-17 | |
| 58 | S14423001 | Z -45-6 | |
| 58 | S14424001 | Z -45-8 | |
| 58 | S14428009 | Z -47-5 | |
| 4 | S14811001 | C -17-1 | |
| 61 | S14811001 | Sp- | |
| 4 | S14814001 | C -17-1 | |
| 4 | S14815001 | C -17-1 | |
| 58 | S15133001 | Z -45-7 | |
| 58 | S15164001 | Z -47-1-1-1 | |
| 58 | S15172109 | Z -47-1-1 | |
| 42 | S15889001 | U1-1-1-6 | |
| 48 | S16250001 | X1-1-5 | |
| 16 | S1662050 | F2-11-2-16 | |
| 16 | S16625050 | F2-11-2-5 | |
| 16 | S16627153 | F2-11-2-2 | |
| 16 | S16628053 | F2-11-2-3 | |
| 16 | S16629151 | F2-11-2-6 | |
| 16 | S16630051 | F2-11-2-8 | |
| 16 | S16632050 | F2-11-2-16 | |
| 16 | S16641001 | F2-26 | |
| 16 | S16642001 | F2-28 | |
| 16 | S16643009 | F2-30 | |
| 52 | S16644102 | X3-1-12 | |
| 20 | S16645000 | H -3-2 |
Page 79
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S16645000 | X3-1-12-6 | ||
| S32904000 | S-1-3 | ||
| S38187001 | G6- | ||
| S51282101 | Z-53-10 | ||
| S17774001 | Z-3 | ||
| S32905000 | S-1-4 | ||
| S38188001 | G7- | ||
| S51283001 | Z-53-8 | ||
| S17774001 | Z-3 | ||
| S32906000 | S-1-8 | ||
| S38188001 | Ga1- | ||
| S54024001 | X1-1-1-2 | ||
| S18707141 | Z-94 | ||
| S32910000 | S-1-8 | ||
| S38188001 | Ga2- | ||
| S54024001 | X1-1-1-2 | ||
| S18707142 | Z-94 | ||
| S32916000 | S-1-8 | ||
| S38189001 | Ga5- | ||
| S54024001 | X1-1-1-2 | ||
| S19056001 | J-10 | ||
| S32920101 | E-38 | ||
| S38189001 | G6- | ||
| S54025001 | X1-1-1-1 | ||
| S21514101 | E-50-1-3 | ||
| S32922021 | E-39-2 | ||
| S38188001 | G7- | ||
| S54025001 | X1-1-1-1 | ||
| E-50-3 | |||
| S32923001 | F2-20 | ||
| S38189001 | Ga1- | ||
| S54025001 | X2-1-1-1 | ||
| E-50-2-3 | |||
| X4-2-4 | |||
| S38189001 | Ga2- | ||
| S55367201 | Z-34-4 | ||
| S23836001 | K-44 | ||
| S32924001 | F2-24 | ||
| S38189001 | Ga5- | ||
| S55367202 | Z-34-4 | ||
| S25234901 | E-20 | ||
| X3-1-4 | |||
| S38189001 | G6- | ||
| S55431001 | E-4 | ||
| W-1-20 | |||
| S32924001 | X4-2-4 | ||
| S38189001 | G7- | ||
| S55654001 | J-18 | ||
| S25249021 | E-62 | ||
| S32925101 | G-6 | ||
| S38190101 | Ga4- | ||
| S55655001 | J-18 | ||
| S25349021 | E-62 | ||
| S32926001 | H-6 | ||
| S38349001 | A-41 | ||
| S55663001 | Z-51 | ||
| S25449001 | N-5 | ||
| S33609101 | N-10 | ||
| S38349001 | Wa- | ||
| S55976001 | J-5 | ||
| W-1-5 | |||
| W-1-10 | |||
| S38350001 | A-40 | ||
| S58910001 | J-11 | ||
| S25452001 | N-17 | ||
| S33610101 | N-14 | ||
| S38350001 | Wa- | ||
| S58962001 | K-30 | ||
| W-1-17 | |||
| W-1-14 | |||
| S38648001 | Z-53-2-2 | ||
| S58963001 | K-30-1 | ||
| S25454001 | N-19 | ||
| S33680001 | E-43-1 | ||
| S38651050 | F2-2-17-1 | ||
| S59890001 | N-25 | ||
| W-1-19 | |||
| S33681001 | E-39-1 | ||
| S38652051 | F2-2-11-2-28 | ||
| W-1-25 | |||
| S25456001 | N-26 | ||
| S33690002 | C-26 | ||
| S38760001 | Ga4- | ||
| S80028201 | Z-34 | ||
| N-33 | |||
| S34101101 | Z-47-6 | ||
| S39051001 | D-26 | ||
| SA1656011 | Z-8 | ||
| W-1-26 | |||
| S34290001 | C-11-2 | ||
| S39086001 | Z-45-15 | ||
| SA1656022 | Z-8 | ||
| W-1-33 | |||
| S34295001 | C-11-1 | ||
| S40016001 | H-26 | ||
| SA1704001 | Sp- | ||
| S25821001 | G8- | ||
| S34756001 | B-5 | ||
| S40017000 | H-46 | ||
| Sp- | |||
| S25822001 | G7- | ||
| S34758001 | B-8 | ||
| S40820051 | F2-2-11-2 | ||
| SA1709001 | Sp- | ||
| G8- | |||
| S34758001 | B-8 | ||
| S40832051 | X3-1-1 | ||
| Sp- | |||
| S29644001 | Ga3- | ||
| S35732021 | Z-52 | ||
| S40832051 | X4-2-1 | ||
| SA1752011 | Z-8 | ||
| S29645001 | Ga2- | ||
| S3577101 | G6- | ||
| S40834059 | F2-2-17 | ||
| SA1752022 | Z-8 | ||
| Ga2- | |||
| S35777101 | Ga4- | ||
| S40938001 | J-18-1 | ||
| SA1931001 | Sp- | ||
| S29646001 | Ga1- | ||
| S36900001 | Sp- | ||
| S40938001 | J-18-1 | ||
| Sp- | |||
| S29647101 | G6- | ||
| S36901001 | Sp- | ||
| S41202151 | N-1 | ||
| Sp- | |||
| G7- | |||
| S36902001 | Ga1- | ||
| S41202151 | W-1-1 | ||
| S29648101 | G6- | ||
| S36902001 | Ga2- | ||
| S41206001 | N-3 | ||
| S29649001 | Ga1- | ||
| Ga5- | |||
| S41206001 | W-1-3 | ||
| S30103001 | G7- | ||
| G6- | |||
| S41207000 | N-4 | ||
| S31006001 | D-25 | ||
| G7- | |||
| S41207000 | W-1-4 | ||
| S31010001 | D-33 | ||
| S36903001 | Sp- | ||
| S41207001 | N-31 | ||
| X1-1-7 | |||
| G8- | |||
| S41207001 | W-1-31 | ||
| X2-1-7 | |||
| S36904001 | Ga3- | ||
| S41955051 | F1-11-4 | ||
| S31012001 | D-3 | ||
| S36905001 | Ga1- | ||
| S41955051 | X1-1-1-4 | ||
| S31013001 | D-31 | ||
| Ga2- | |||
| S41955051 | X2-1-1-4 | ||
| S31014000 | E-55 | ||
| Ga3- | |||
| S42195051 | N-1 | ||
| E-68 | |||
| S36906001 | Ga5- | ||
| S42195051 | N-1 | ||
| S31015001 | E-50-1 | ||
| G6- | |||
| S42198051 | F1-11-2 | ||
| S31016001 | E-50-1-2 | ||
| G7- | |||
| S42198051 | X1-1-1-2 | ||
| S31018001 | E-50-2 | ||
| S36906001 | Ga1- | ||
| S42198051 | X2-1-1-2 | ||
| E-50-2 | |||
| Ga2- | |||
| S42199051 | F1-11-3 | ||
| S31019001 | E-0-2-2 | ||
| Ga3- | |||
| S42199051 | X1-1-1-3 | ||
| E-50-2-2 | |||
| Ga5- | |||
| S42199051 | X2-1-1-3 | ||
| S31026020 | G-6 | ||
| G6- | |||
| S42200051 | F1-11-5 | ||
| S31027000 | G-19 | ||
| S36906101 | Ga5- | ||
| S42200051 | X1-1-1-5 | ||
| S31032001 | J-18-9 | ||
| S37037001 | Z-53-12-3 | ||
| S42200051 | X2-1-1-5 | ||
| S31032001 | J-18-9 | ||
| S37038001 | Z-53-12-2 | ||
| S43669000 | H-49 | ||
| S31885001 | B-8-8 | ||
| S37060021 | A-42 | ||
| S46734001 | D-12 | ||
| S31952001 | D-28 | ||
| W-1-25 | |||
| S46736001 | D-15-1 | ||
| S32348001 | H-29-1 | ||
| S37264001 | Z-47-4 | ||
| S46737001 | D-15-2 | ||
| S32349001 | H-33 | ||
| S37333001 | E-83 | ||
| S47264001 | E-32 | ||
| S32901001 | S-1 | ||
| S38187001 | Ga1- | ||
| S47264001 | E-36 | ||
| S32902101 | S-1-1 | ||
| Ga2- | |||
| S47265001 | E-15 | ||
| S32903000 | S-1-2 | ||
| Ga5- | |||
| S47265001 | E-21 |
Brother SL-737A — parts catalog
- Page 1 (cover): This is the cover page for the Brother SL-737A Parts Book, which describes the Single Needle Straight Lock Stitcher with Thread Trimmer.
- Page 2 (text): This page lists additional functions for the Brother SL-737A sewing machine, categorized into 'Additional function 1' and 'Additional function 2', along with their corresponding indications and applications for different material types.
- Page 3 (toc): This page is a table of contents for a parts book, listing various machine components and their corresponding page numbers. It also includes introductory notes on how to use the book.
- Page 4 (toc): This page is a table of contents for a parts book, listing various machine components and their corresponding page numbers, along with notes on how to use the book.
- Page 5 (diagram): This page contains diagrams and parts lists for the machine body and knee lifter mechanism, with part numbers and descriptions for various components.
- Page 6 (parts_list): This page contains parts lists for the Machine body and Knee lifter mechanism sections of an industrial sewing machine.
- Page 7 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism, detailing various parts with their corresponding reference numbers and some specific uses.
- Page 8 (parts_list): This page lists parts for the needle bar and thread take-up mechanism, including part numbers, descriptions, quantities, and reference numbers.
- Page 9 (diagram): This page displays a diagram of the needle bar and thread take-up mechanism, detailing various components with their respective part numbers and descriptions.
- Page 10 (parts_list): This page lists parts for the needle bar and thread take-up mechanism, including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of the presser foot mechanism, illustrating various components with their corresponding reference numbers and part numbers.
- Page 12 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 13 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with various parts numbered for identification.
- Page 14 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, quantities, and references.
- Page 15 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, quantities, and reference numbers.
- Page 16 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, and quantities.
- Page 17 (diagram): This page displays a diagram of the work clamp lifter mechanism, showing various parts labeled with reference numbers and some part numbers.
- Page 18 (parts_list): This page lists parts for the work clamp lifter mechanism, including part numbers, descriptions, quantities, and model applicability for items like cylinder assemblies, screws, washers, and bolts.
- Page 19 (diagram): This page displays a diagram of the work clamp lifter mechanism, detailing various components with their corresponding part numbers and reference indicators.
- Page 20 (parts_list): This page lists parts for the F2. Work clamp lifter mechanism, including reference numbers, codes, quantities, descriptions, and names of parts.
- Page 21 (diagram): This page displays a diagram of the rotary hook mechanism, detailing various components with reference numbers and some part numbers.
- Page 22 (parts_list): This page lists parts for the Rotary hook mechanism, including part numbers, descriptions, quantities, and names of parts.
- Page 23 (diagram): This page displays a diagram of lubrication components for industrial sewing machines, including various parts with reference numbers and some specific use cases.
- Page 24 (parts_list): This page contains a parts list for lubrication and related components, with columns for reference number, code, quantity, part name, and name of parts.
- Page 25 (diagram): This page displays a diagram of lubrication components for industrial sewing machines, including various parts labeled with reference numbers and some specific uses indicated.
- Page 26 (parts_list): This page lists parts for lubrication, including oil ejectors, needle bar corks, and springs, with part numbers, descriptions, and quantities.
- Page 27 (diagram): This page displays a diagram of the threading mechanism and associated parts, including components numbered 1 through 18, with specific sub-components like 1-1, 1-2, 1-3, 1-4, and 18-1 through 18-9.
- Page 28 (parts_list): This page lists parts for the Threading mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 29 (diagram): This page displays a diagram of the threading mechanism, including various components labeled with reference numbers and part numbers, along with their descriptions and applicable models.
- Page 30 (parts_list): This page lists parts for the threading mechanism, including thread guides, tension brackets, set screws, and O-rings, with their corresponding part numbers and quantities.
- Page 31 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding details.
- Page 32 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, quantities, and reference numbers.
- Page 33 (diagram): This page displays a diagram of the thread trimmer mechanism, detailing various components with their reference numbers and some part names.
- Page 34 (parts_list): This page lists parts for the thread trimmer mechanism, including terminal pins, screws, washers, cord assemblies, connectors, cord bushes, and bead bands, with their corresponding part numbers and quantities.
- Page 35 (diagram): This page contains diagrams and parts lists for the Quick reverse mechanism and Tension release mechanism of an industrial sewing machine.
- Page 36 (parts_list): This page lists parts for Quick reverse mechanism and Tension release mechanism, including part numbers, descriptions, and quantities.
- Page 37 (diagram): This page displays a diagram of the thread wiper mechanism, with numbered parts and their corresponding details.
- Page 38 (parts_list): This page lists parts for the thread wiper mechanism, including part numbers, descriptions, quantities, and applicable models.
- Page 39 (diagram): This page contains diagrams for the Synchronizer and Control box mechanism, with numbered parts for identification.
- Page 40 (parts_list): This page lists parts for the Synchronizer and Control box mechanism, including part numbers, descriptions, and quantities.
- Page 41 (diagram): This page displays diagrams for knee switch mechanisms, including optional parts and quick reverse switch mechanisms, with associated part numbers and descriptions.
- Page 42 (parts_list): This page lists parts for the R. Knee switch mechanism (Option parts) and S. Quick reverse switch mechanism.
- Page 43 (diagram): This page displays a diagram of the air pressure mechanism for the T. series, with various components labeled with part numbers and reference numbers.
- Page 44 (parts_list): This page lists parts for air pressure mechanism, including part numbers, descriptions, and quantities.
- Page 45 (diagram): This page displays diagrams and part information for optional parts, specifically U1 and U2 sections, with detailed illustrations and part numbers.
- Page 46 (parts_list): This page lists option parts for U1 and U2 sections, including part numbers, descriptions, and quantities.
- Page 47 (diagram): This page displays diagrams of optional parts and operation panel mechanisms, including part numbers and reference numbers for various components.
- Page 48 (parts_list): This page contains two parts lists. The first list details option parts with reference numbers, codes, quantities, and names in Japanese and English. The second list, titled 'Operation panel mechanism', details parts for domestic and export use, including part numbers, names, and supply part numbers.
- Page 49 (diagram): This page displays a diagram of the thread wiper set, with various components labeled with reference numbers and part numbers.
- Page 50 (parts_list): This page lists parts for the Thread Wiper Set, including part numbers, descriptions, quantities, and reference numbers.
- Page 51 (diagram): This page displays a diagram of the presser foot lifting solenoid set, detailing various components with their respective part numbers and references.
- Page 52 (parts_list): This page lists parts for the Presser foot lifting solenoid set, including reference numbers, codes, quantities, and names of parts.
- Page 53 (diagram): This page displays a diagram of the presser foot lifting solenoid set, with various components labeled with reference numbers and some parts specified for different regions or motor types.
- Page 54 (parts_list): This page lists parts for the Presser foot lifting solenoid set, including part numbers, descriptions, and quantities for different models and applications.
- Page 55 (diagram): This page displays a diagram of the presser foot lifting solenoid set, with various components labeled with reference numbers and part numbers.
- Page 56 (parts_list): This page lists parts for the X3. Electromagnetic lifting set / Presser foot lifting solenoid set, including reference numbers, codes, quantities, and part names in both Japanese and English.
- Page 57 (diagram): This page displays a diagram of the Presser foot lifting solenoid set, with various components labeled with reference numbers and part numbers.
- Page 58 (parts_list): This page lists parts for the X4. Presser foot lifting solenoid set, including part numbers, descriptions, and quantities.
- Page 59 (diagram): This page displays a diagram of various accessories and parts for an industrial sewing machine, including tools, bobbins, oil, and mounting components, with corresponding part numbers and reference indicators.
- Page 60 (parts_list): This page lists accessories for the sewing machine, including various screws, nuts, washers, and specialized parts like needle assemblies and bobbins, with their corresponding part numbers and descriptions.
- Page 61 (diagram): This page displays a diagram of various accessories and parts for an industrial sewing machine, including tools, bobbins, and other components, with corresponding part numbers and reference indicators.
- Page 62 (parts_list): This page lists accessories and their corresponding part numbers, including descriptions and quantities, for various machine models.
- Page 63 (diagram): This page displays a diagram of accessories and related parts for the sewing machine, including various tools, bobbins, oil, and other components labeled with part numbers and reference numbers.
- Page 64 (parts_list): This page lists accessories for the sewing machine, including part numbers, descriptions, quantities, and applicable models.
- Page 65 (parts_list): This page lists parts for Japanese and export use, categorized by material thickness: thin-weight, medium-weight, and heavy-weight. It includes reference numbers, part names, and corresponding part numbers for each category.
- Page 66 (parts_list): This page lists gauge parts for light and medium-weight materials for 3-row applications, including needle plates, feed dogs, and presser feet with their respective part numbers and diagrams.
- Page 67 (parts_list): This page lists gauge parts for light and medium-weight materials for 3-row configurations, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and descriptions.
- Page 68 (parts_list): This page lists gauge parts for heavy-weight materials for 3-row applications, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
- Page 69 (parts_list): This page lists gauge parts for 4-row machines, including needle plates, feed dogs, and presser foot assemblies for difficult-to-sew and new materials.
- Page 70 (parts_list): This page lists gauge parts for light and medium-weight materials for 4-row machines, including needle plates, feed dogs, and presser feet with their corresponding part numbers and diagrams.
- Page 71 (parts_list): This page lists gauge parts for light and medium-weight materials for 4-row applications, including needle plates, feed dogs, and presser foot assemblies with their respective part numbers and diagrams.
- Page 72 (parts_list): This page lists gauge parts for light and medium-weight materials for 4-needle/4-row sewing machines, including needle plates, feed dogs, and presser feet with their respective part numbers and diagrams.
- Page 73 (parts_list): This page lists gauge parts for heavy-weight materials for 4-row applications, including needle plates, feed dogs, and presser feet with their respective part numbers and dimensions.
- Page 74 (parts_list): This page lists warning labels with their names, sizes, and codes, including operation labels and grounding labels.
- Page 77 (index): This page is an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and corresponding page numbers.
- Page 78 (index): This page contains an index of parts for an industrial sewing machine, listing part codes, reference numbers, and corresponding page numbers.
- Page 79 (index): This page contains an index of part numbers and their corresponding reference numbers and page numbers. It lists parts such as S16645000, S17774001, S18707141, and many others, along with their associated codes and page references.
- Page 80 (cover): This is the cover page of the Brother Industries, Ltd. Parts Book, printed in Japan. It features the Brother logo and a graphic of a screw, along with the title "PARTS BOOK".
