Page 1 — JK-797
JACK JK-797 产品使用说明书&产品零件图册 Manual book & parts book JACK 杰克 jintex.in
Parts index — Jack JK-797DItap a row to open its page
Page 4 — CONTENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 使用说明 | ||
| 19 | 一、机壳部分 Frame Components | ||
| 21 | 二、罩壳部分(1) Cover Components(1) | ||
| 23 | 三、罩壳部分(2) Cover Components(2) | ||
| 25 | 四、曲轴部件 Crankshaft Drive Components | ||
| 27 | 五、针杆机构 Needle Drive Mechanism | ||
| 29 | 六、上弯针机构 Upper Looper Drive Mechanism | ||
| 31 | 七、下弯针机构 Lower Looper Drive Mechanism | ||
| 33 | 八、送布机构(1) Feed Mechanism(1) | ||
| 37 | 九、送布机构(2) Feed Mechanism(2) | ||
| 39 | 十、上刀机构 Knife Drive Mechanism | ||
| 41 | 十一、压脚机构 Presser Foot Mechanism | ||
| 43 | 十二、紧线机构 Thread Tension Mechanism | ||
| 45 | 十三、挑线机构 Thread Guide & Thread Mechanism | ||
| 47 | 十四、润滑机构(1) Lubrication Mechanism(1) | ||
| 49 | 十五、润滑机构(2) Lubrication Mechanism(2) | ||
| 51 | 十六、H.R.装置 H.R.Device | ||
| 53 | 十七、线架装置 Thread Stand | ||
| 55 | 十八、托盘附属品装置 Parts For Semi-submerged Installation | ||
| 57 | 十九、专用部件 (1) Specific Parts(1) | ||
| 59 | 二十、专用部件 (2) Specific Parts(2) | ||
| 61 | 二十一、专用部件 (3) Specific Parts(3) | ||
| 63 | 二十二、专用部件 (4) Specific Parts(4) | ||
| 65 | 二十三、专用部件 (5) Specific Parts(5) | ||
| 67 | 二十四、随机附件部分 Accessories Assemblies | ||
| 69 | 标准度量零件表Standard measurement part list |
Page 10 — Presser foot pressure
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | ① | adjusting nut | |
| 2 | ② | adjusting nut |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | ① | 调节螺母 | |
| 2 | ② | 调节螺母 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| ① | needle thread knob | ||
| ② | lower looper knob | ||
| ③ | upper looper knob |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DCx27 | Organ |
Page 22
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK-797-3-504-02/233N | Needle height | ||
| JK-797-3-504-02-233 | Needle height | ||
| JK-797-3-505-12/233 | Needle height | ||
| JK-797-3-504-04/433 | Needle height | ||
| JK-797-4-514-03/33N | Needle height | ||
| JK-797-4-514-04/433 | Needle height |
Page 23 — 1
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PIN | |
| 2 | 2 | SCREW | |
| 3 | 3 | PIN | |
| 4 | 4 | PIN | |
| 5 | 5 | COVER | |
| 6 | 6 | PIN | |
| 7 | 7 | NAME PLATE | |
| 8 | 8 | SCREW | |
| 9 | 9 | BUSHING | |
| 10 | 10 | PIN | |
| 11 | 11 | SCREW | |
| 12 | 12 | SCREW |
Page 24 — 一、机壳部分/Machine Bed Frame
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2010020 | P03010 | 销5×16 | |
| 2101820 | P03017 | 销5×10 | |
| 2402990 | P03018 | 销4×40 | |
| 2400940 | P01001 | 定位销 | |
| 2403250 | 20513008 | 过线管 | |
| 2700470 | 206S30001 | 支柱 | |
| 2106790 | R03001 | 铆钉 | |
| 007019A0 | 207S11007 | 螺钉M4×7.5 | |
| 2403100 | 20722004 | 油塞 | |
| 301261 | 缝头 | ||
| 301501 | 797机壳(喷漆) | ||
| 403S11051 | 复合槽圆柱头螺钉 |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Screw | |
| 2 | 2 | Screw | |
| 3 | 3 | Cover | |
| 4 | 4 | Screw | |
| 5 | 5 | Cap | |
| 6 | 6 | Cap | |
| 7 | 7 | Screw | |
| 8 | 8 | Cover | |
| 9 | 9 | Screw | |
| 10 | 10 | Screw | |
| 11 | 11 | Screw | |
| 12 | 12 | Screw | |
| 13 | 13 | Screw | |
| 14 | 14 | Label | |
| 15 | 15 | Bracket | |
| 16 | 16 | Bracket | |
| 17 | 17 | Screw | |
| 18 | 18 | Spring | |
| 19 | 19 | Lever | |
| 20 | 20 | Screw | |
| 21 | 21 | Screw | |
| 22 | 22 | Screw | |
| 23 | 23 | Screw | |
| 24 | 24 | Screw | |
| 25 | 25 | Screw | |
| 26 | 26 | Screw | |
| 27 | 27 | Screw | |
| 28 | 28 | Screw | |
| 29 | 29 | Screw | |
| 30 | 30 | Label | |
| 31 | 31 | Screw | |
| 32 | 32 | Cap |
Page 26 — 二、罩壳部件(1) Cover Components(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 301262 | 上罩 | ||
| S04060 | 螺钉M4×10 | ||
| 20422001 | 上罩油封 | ||
| 20622003 | 减震垫 | ||
| 20711055 | 油标盖 | ||
| 20722002 | 油塞 | ||
| 301263 | 前罩(右) | ||
| 20412002 | 前罩(左) | ||
| 207S11011 | 螺钉M4×5 | ||
| 207S14002 | 螺钉M3×12 | ||
| 207S14003 | 螺钉M3×4 | ||
| 20401002 | 铰链 | ||
| 207S11008 | 螺钉M4×12 | ||
| 20426002 | 销 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20712002 | 锁紧板 | ||
| 207S11009 | 螺钉M3×4.5 | ||
| 20427001 | 弹簧 | ||
| 20412003 | 卡片 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20612004 | 前罩板上盖1 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20712005 | 前盖板 | ||
| S04060 | 螺钉M4×10 | ||
| 207S11008 | 螺钉M4×12 | ||
| 207S11008 | 螺钉M4×12 | ||
| 301264 | 侧盖件 | ||
| 2070201100 | 压脚杆组件 | ||
| 207S17005 | 螺钉M4×10 | ||
| 20131063 | 警告牌 | ||
| 20437006 | 穿线指示标 | ||
| 21022003 | 油窗垫 |
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8 | 8 | SCREW | |
| 7 | 7 | BRACKET | |
| 10 | 10 | BRACKET | |
| 27 | 27 | SCREW | |
| 9 | 9 | BRACKET | |
| 6 | 6 | SCREW | |
| 5 | 5 | BRACKET | |
| 4 | 4 | BRACKET | |
| 24 | 24 | SCREW | |
| 20 | 20 | BRACKET | |
| 23 | 23 | SCREW | |
| 1 | 1 | BRACKET | |
| 3 | 3 | SCREW | |
| 2 | 2 | BRACKET | |
| 11 | 11 | BRACKET | |
| 22 | 22 | BRACKET | |
| 21 | 21 | BRACKET | |
| 16 | 16 | BRACKET | |
| 25 | 25 | BRACKET | |
| 19 | 19 | PIN | |
| 17 | 17 | BRACKET | |
| 18 | 18 | SCREW | |
| 26 | 26 | SCREW | |
| 12 | 12 | BRACKET | |
| 13 | 13 | BRACKET | |
| 15 | 15 | BRACKET | |
| 14 | 14 | SCREW |
Page 28 — 三、罩壳部件(2) Cover Components(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20711005 | 防护罩 | ||
| 207S11015 | 螺钉M3×6 | ||
| W01011 | 垫圈 3 | ||
| 20112098 | 托架 | ||
| 207S20002 | 螺钉M4 | ||
| 20128015 | 波形垫圈 | ||
| 301265 | 支架 | ||
| 207S13003 | 螺钉M6×25 | ||
| 20412004 | 布料挡板 | ||
| 208S15002 | 螺钉M5×5.5 | ||
| 20412014 | 挡油板 | ||
| 301266 | 盖板 | ||
| 20430001 | 盖板螺丝 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20422010 | 密封垫 | ||
| 20401004 | 缝台侧盖 | ||
| 207S14003 | 螺钉M3×4 | ||
| 207S14009 | 螺钉M3×3 | ||
| 20426003 | 转动销 | ||
| 207S14009 | 螺钉M3×3 | ||
| 20427002 | 板弹簧 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20426004 | 销 | ||
| 207S14009 | 螺钉M3×3 | ||
| 2041200600 | 盖板组件 | ||
| 207S11011 | 螺钉M4×5 | ||
| 2041204200 | KS组件 |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Shaft | |
| 2 | 2 | Bracket | |
| 3 | 3 | Spacer | |
| 4 | 4 | Housing | |
| 5 | 5 | Screw | |
| 6 | 6 | Screw | |
| 7 | 7 | Screw | |
| 8 | 8 | Washer | |
| 9 | 9 | Screw | |
| 10 | 10 | Pulley | |
| 11 | 11 | Bearing | |
| 12 | 12 | Bearing | |
| 13 | 13 | Pulley | |
| 14 | 14 | Spacer | |
| 15 | 15 | Pulley | |
| 16 | 16 | O-ring | |
| 17 | 17 | Switch | |
| 18 | 18 | Cover | |
| 19 | 19 | Screw | |
| 20 | 20 | O-ring | |
| 21 | 21 | Housing | |
| 22 | 22 | Screw | |
| 23 | 23 | Screw | |
| 24 | 24 | Screw | |
| 25 | 25 | Bearing | |
| 26 | 26 | Wire Harness | |
| 27 | 27 | Screw | |
| 28 | 28 | Retaining Ring | |
| 29 | 29 | Pulley |
Page 30 — 四、主轴部件 Crankshaft Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400357 | 主轴 | |
| 2 | 2013001000 | LED灯组件 | |
| 3 | S10013 | 螺钉M6×6 | |
| 4 | 20709035 | 平衡块 | |
| 5 | 207S11017 | 螺钉M3×8 | |
| 6 | 20401005 | 平衡块 | |
| 7 | 207S11017 | 螺钉M3×8 | |
| 8 | 20428002 | 垫片 | |
| 9 | 207S11011 | 螺钉M4×5 | |
| 10 | B04029 | 轴承6202ZLB | |
| 11 | 20729001 | 卡簧 | |
| 12 | B04005 | 轴承6203LLU | |
| 13 | B04005 | 轴承6203LLU | |
| 14 | W03003 | 垫圈32 | |
| 15 | 20103002 | 主轴中轴套 | |
| 16 | 001025 | 0型圈17×1.8 | |
| 17 | 20711210 | R型线夹 | |
| 18 | 20711056 | 电机罩(新颜色) | |
| 19 | 2073301200 | 包缝直驱电机 | |
| 20 | 001028 | 0型圈41×1.8 | |
| 21 | 20708015 | 轴承端盖 | |
| 22 | S04060 | 螺钉M4×10 | |
| 23 | S01011 | 螺钉M5×10 | |
| 24 | W02004 | Φ6.1弹垫 | |
| 25 | 20403001 | 衬圈 | |
| 26 | 207S11007 | 螺钉 | |
| 27 | 207S11026 | 螺钉 | |
| 28 | 20403017 | 中轴套 | |
| 29 | 304026 | 手轮(喷漆) |
Page 31
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14 | 14 | 14 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 | |
| 19 | 19 | 19 | |
| 20 | 20 | 20 | |
| 21 | 21 | 21 | |
| 22 | 22 | 22 | |
| 23 | 23 | 23 | |
| 24 | 24 | 24 | |
| 25 | 25 | 25 | |
| 26 | 26 | 26 | |
| 27 | 27 | 27 | |
| 28 | 28 | 28 | |
| 29 | 29 | 29 | |
| 30 | 30 | 30 | |
| 31 | 31 | 31 | |
| 32 | 32 | 32 | |
| 33 | 33 | 33 | |
| 34 | 34 | 34 | |
| 35 | 35 | 35 | |
| 36 | 36 | 36 | |
| 37 | 37 | 37 | |
| 38 | 38 | 38 | |
| 39 | 39 | 39 | |
| 40 | 40 | 40 | |
| 23 | 23 | 2针(2-needle) | |
| 23 | 23 | 1针(1-needle) |

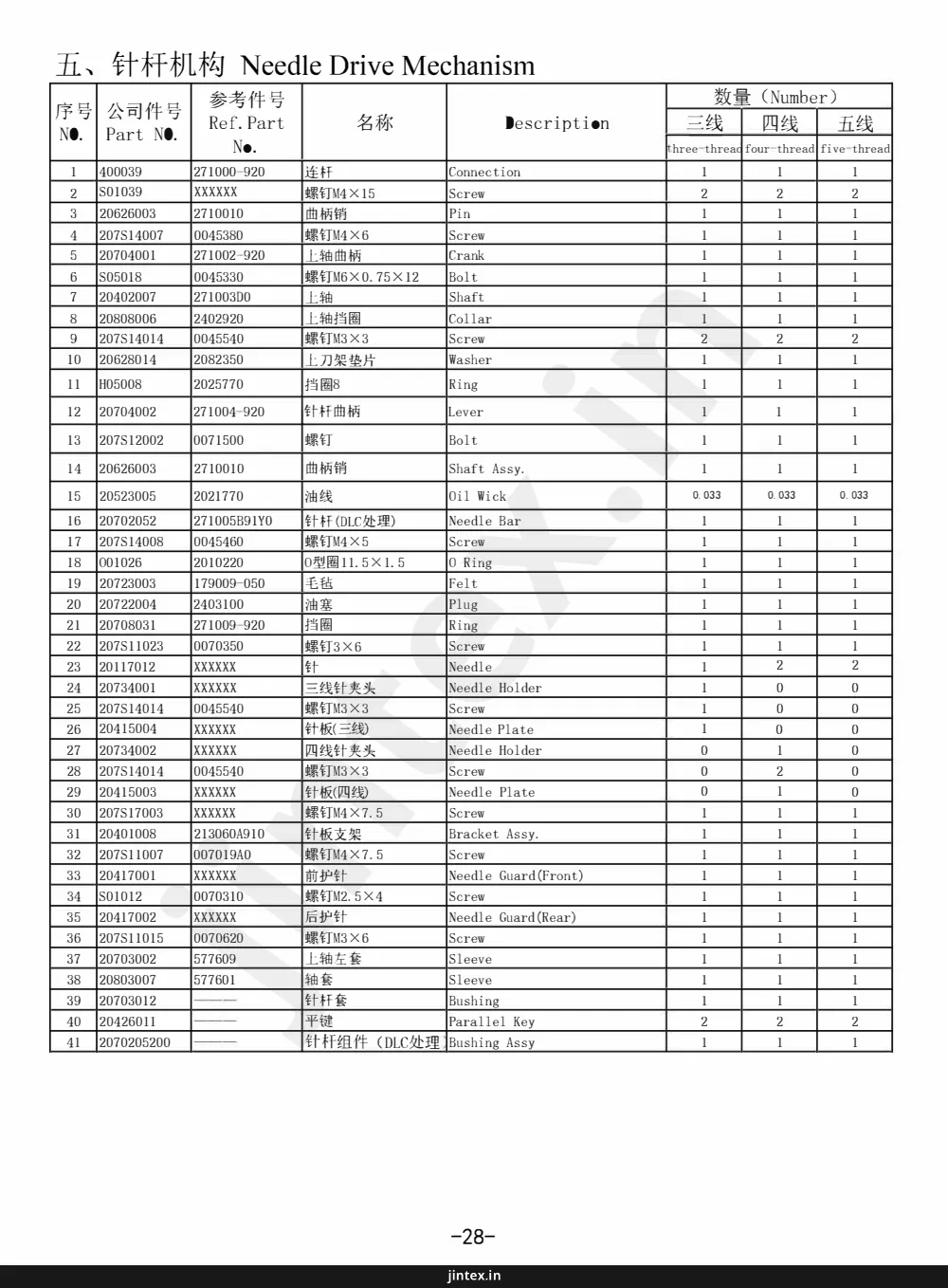

Page 32 — 五、针杆机构 Needle Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400039 | 连杆 | ||
| S01039 | 螺钉M4×15 | ||
| 20626003 | 曲柄销 | ||
| 207S14007 | 螺钉M4×6 | ||
| 20704001 | 上轴曲柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20704002 | 上轴 | ||
| 20808006 | 挡圈 | ||
| 207S14014 | 螺钉M5×3 | ||
| 20828014 | 上刀架垫片 | ||
| H05008 | 挡圈8 | ||
| 20704002 | 针杆曲柄 | ||
| 207S12002 | 螺钉 | ||
| 20626003 | 曲柄销 | ||
| 20523005 | 油线 | ||
| 20702052 | 针杆(DLC处理) | ||
| 207S14008 | 螺钉M4×5 | ||
| 001026 | O型圈11.5×1.5 | ||
| 20723003 | 毛毡 | ||
| 20722004 | 油塞 | ||
| 20708031 | 挡圈 | ||
| 207S11023 | 螺钉3×6 | ||
| 20117012 | 针 | ||
| 20734001 | 三线针夹头 | ||
| 207S14014 | 螺钉M3×3 | ||
| 20415004 | 针板(三线) | ||
| 20734002 | 四线针夹头 | ||
| 207S14014 | 螺钉M3×3 | ||
| 20415003 | 针板(四线) | ||
| 207S17003 | 螺钉M4×7.5 | ||
| 20401008 | 针板支架 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 20417001 | 前护针 | ||
| S01012 | 螺钉M2.5×4 | ||
| 20417002 | 后护针 | ||
| 207S11015 | 螺钉M3×6 | ||
| 20703002 | 上轴套 | ||
| 20803007 | 轴套 | ||
| 20703012 | 针杆套 | ||
| 20426011 | 平键 | ||
| 2070205200 | 针杆组件(DLC处理) |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Lever assembly | |
| 2 | 2 | Lever assembly | |
| 3 | 3 | Lever assembly | |
| 4 | 4 | Lever assembly | |
| 5 | 5 | Lever assembly | |
| 6 | 6 | Lever assembly | |
| 7 | 7 | Lever assembly | |
| 8 | 8 | Lever assembly | |
| 9 | 9 | Lever assembly | |
| 10 | 10 | Lever assembly | |
| 11 | 11 | Lever assembly | |
| 12 | 12 | Lever assembly | |
| 13 | 13 | Lever assembly | |
| 14 | 14 | Lever assembly | |
| 16 | 16 | Lever assembly | |
| 17 | 17 | Lever assembly | |
| 18 | 18 | Lever assembly | |
| 19 | 19 | Lever assembly | |
| 20 | 20 | Lever assembly | |
| 21 | 21 | Lever assembly | |
| 22 | 22 | Lever assembly | |
| 23 | 23 | Lever assembly | |
| 25 | 25 | Lever assembly | |
| 26 | 26 | Lever assembly | |
| 27 | 27 | Lever assembly | |
| 28 | 28 | Lever assembly | |
| 29 | 29 | Lever assembly | |
| 30 | 30 | Lever assembly | |
| 31 | 31 | Lever assembly | |
| 32 | 32 | Lever assembly | |
| 33 | 33 | Lever assembly | |
| 34 | 34 | Lever assembly | |
| 35 | 35 | Lever assembly | |
| 36 | 36 | Lever assembly | |
| 37 | 37 | Lever assembly | |
| 38 | 38 | Lever assembly | |
| 39 | 39 | Lever assembly | |
| 40 | 40 | Lever assembly |
Page 34 — 六、上弯针机构 Upper Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 271500-920 | 400043 | 连接杆 | |
| S01039 | 螺钉M4×15 | ||
| S01039 | 螺钉M4×15 | ||
| 271502-920 | 400036 | 上弯针摆曲柄 | |
| 271503-930 | 400037 | 上弯针摆曲柄 | |
| 0045330 | S05018 | 螺钉M6×0.75×12 | |
| 2715350 | 20402010 | 上弯针轴 | |
| 210586A0 | 20622019 | 油封 | |
| 2401020 | 20428008 | 垫片 | |
| 240201-920 | 20408001 | 紧圈 | |
| 0071100 | 207S13006 | 螺钉M4×9 | |
| 2403120 | 20428009 | 垫圈 | |
| 271505-920 | 20705003 | 连接杆 | |
| 0071500 | 207S12002 | 螺钉 | |
| 2715460 | 20726004 | 销组件 | |
| 2021760 | 20523005 | 油线 | |
| 0045450 | 207S14010 | 螺钉M3×4 | |
| 271533B910 | 2040205000 | 上弯针滑杆组件 | |
| 179130-050 | 20623005 | 上弯针滑杆套油毡 | |
| 0070541 | 207S11025 | 螺钉M3.5×6.7 | |
| XXXXXX | 20417003 | 上弯针 | |
| 271510M0 | 20401009 | 上弯针座 | |
| XXXXXX | 21323007 | 油线 | |
| 0045100 | 207S11026 | 螺钉M6×16 | |
| 2715190 | 121223001 | 过滤塞 | |
| 2715340 | 400348 | 弯针座盖板 | |
| 0070330 | 207S11027 | 螺钉M2.5×8 | |
| 0070390 | 207S17004 | 螺钉M2.5×6 | |
| 2745890 | 20723005 | 吸油棉 | |
| 2745880 | 20712017 | 压板 | |
| 0070080 | 207S11020 | 螺钉M3×4 | |
| 0084210 | --- | 油封指示标 | |
| 20803010 | 钢套 | ||
| 20403004 | 钢套 | ||
| 20712066 | 连杆垫片 | ||
| S02007 | 螺钉M3×5 |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | SCREW | |
| 3 | 3 | SCREW | |
| 6 | 6 | SHAFT | |
| 7 | 7 | COLLAR | |
| 8 | 8 | TUBE | |
| 9 | 9 | WASHER | |
| 10 | 10 | NUT | |
| 11 | 11 | SCREW | |
| 13 | 13 | SHAFT | |
| 14 | 14 | SCREW | |
| 15 | 15 | BRACKET | |
| 16 | 16 | LEVER | |
| 17 | 17 | SCREW | |
| 18 | 18 | COLLAR | |
| 19 | 19 | SHAFT | |
| 20 | 20 | SPRING | |
| 21 | 21 | SCREW |
Page 36 — Lower Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400043 | 下弯针连杆 | |
| 2 | S01039 | 螺钉M4×15 | |
| 3 | S01039 | 螺钉M4×15 | |
| 6 | 400338 | 下弯针球曲柄 | |
| 7 | S05018 | 螺钉M6×0.75×12 | |
| 8 | 20402008 | 下弯针轴 | |
| 9 | 20628006 | 垫片 | |
| 10 | W02001 | Φ5.1弹垫 | |
| 11 | 207S11004 | 螺钉M5×9.5 | |
| 13 | 2072201700 | 油封 | |
| 14 | 20401011 | 下弯针组件 | |
| 15 | 207S13009 | 螺钉M5×12 | |
| 16 | XXXXXX | 下弯针 | |
| 17 | S01029 | 螺钉M3.5×7.5 | |
| 18 | 20803010 | 铜套 | |
| 19 | 20403006 | 铜套 | |
| 20 | 20712066 | 连杆垫片 | |
| 21 | 20403006 | 螺钉M3×5 |
Page 37
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | BEARING | |
| 3 | 3 | COLLAR | |
| 4 | 4 | KEY | |
| 5 | 5 | SPRING | |
| 6 | 6 | BRACKET | |
| 7 | 7 | SHAFT | |
| 8 | 8 | BEARING | |
| 9 | 9 | WASHER | |
| 10 | 10 | SCREW | |
| 11 | 11 | SPRING | |
| 12 | 12 | COLLAR | |
| 13 | 13 | SCREW | |
| 14 | 14 | SCREW | |
| 15 | 15 | HANDLE | |
| 16 | 16 | SPRING | |
| 17 | 17 | WASHER | |
| 18 | 18 | SHAFT | |
| 19 | 19 | SPRING | |
| 20 | 20 | COLLAR | |
| 21 | 21 | BEARING | |
| 22 | 22 | COLLAR | |
| 23 | 23 | COLLAR | |
| 24 | 24 | COLLAR | |
| 25 | 25 | SCREW | |
| 26 | 26 | BRACKET | |
| 27 | 27 | SHAFT | |
| 28 | 28 | SPRING | |
| 29 | 29 | BRACKET | |
| 30 | 30 | SCREW | |
| 31 | 31 | SHAFT | |
| 32 | 32 | BRACKET | |
| 33 | 33 | BRACKET | |
| 34 | 34 | BRACKET | |
| 35 | 35 | SCREW | |
| 36 | 36 | BRACKET | |
| 37 | 37 | SCREW | |
| 38 | 38 | BRACKET | |
| 39 | 39 | SCREW | |
| 40 | 40 | GEAR | |
| 41 | 41 | BRACKET | |
| 42 | 42 | SCREW | |
| 43 | 43 | WASHER | |
| 44 | 44 | SPRING | |
| 45 | 45 | SCREW | |
| 46 | 46 | SCREW | |
| 47 | 47 | SCREW | |
| 48 | 48 | SCREW | |
| 49 | 49 | SHAFT | |
| 50 | 50 | BRACKET | |
| 51 | 51 | SCREW | |
| 52 | 52 | BRACKET | |
| 53 | 53 | SCREW | |
| 54 | 54 | BRACKET | |
| 55 | 55 | SCREW | |
| 56 | 56 | SCREW | |
| 57 | 57 | BRACKET | |
| 58 | 58 | SCREW | |
| 59 | 59 | BRACKET | |
| 60 | 60 | COLLAR | |
| 61 | 61 | SPRING | |
| 62 | 62 | BEARING | |
| 63 | 63 | COLLAR | |
| 64 | 64 | SCREW | |
| 65 | 65 | SCREW | |
| 66 | 66 | BRACKET | |
| 67 | 67 | SCREW | |
| 68 | 68 | SCREW | |
| 69 | 69 | COLLAR | |
| 70 | 70 | COLLAR | |
| 71 | 71 | COLLAR | |
| 72 | 72 | SHAFT | |
| 73 | 73 | SCREW | |
| 74 | 74 | BEARING |
Page 38 — 八、送布机构(1) Feed Mechanism(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20405001 | 差动连杆 | ||
| 20410001 | 差动偏心轮 | ||
| 20426006 | 偏心销 | ||
| 20427005 | 平弹簧 | ||
| S12002 | 螺钉M3×4 | ||
| 20412008 | 棘爪 | ||
| 20427006 | 弹簧 | ||
| 207S20005 | 螺钉M2 | ||
| 20425001 | 棘爪 | ||
| 207S14012 | 螺钉M5×5 | ||
| S12009 | 螺钉M5×10 | ||
| 20410002 | 调节偏心轮 | ||
| 2040800200 | 调节块组件 | ||
| 207S14006 | 螺钉M5×5 | ||
| 20426007 | 调节杆 | ||
| 20427007 | 调节杆弹簧 | ||
| 20628008 | 开针轴垫片 | ||
| 20622009 | 开针轴O型圈 | ||
| 20629006 | 卡簧 | ||
| 20404004 | 差动曲柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20628014 | 上刀架垫片 | ||
| 20808006 | 挡圈 | ||
| 207S14014 | 螺钉M3×3 | ||
| 20404005 | 挡杆 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 20409003 | 滑块 | ||
| H05006 | 卡簧 | ||
| 20409004 | 导向滑架 | ||
| S04060 | 螺钉M4×10 | ||
| 400347 | 牙架组件 | ||
| 2041400600 | 送布齿组件 | ||
| 20414006 | 送布齿 | ||
| 20414003 | 辅助送布牙 | ||
| S01063 | 一字螺钉 | ||
| S01029 | 螺钉M3.5×7.5 | ||
| 20409002 | 滑块 | ||
| 20414007 | 差动送布牙 |
Page 39
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SHAFT | ||
| 2 | BEARING HOUSING | ||
| 3 | BEARING | ||
| 4 | SHAFT | ||
| 5 | SPRING | ||
| 6 | BRACKET | ||
| 7 | SHAFT | ||
| 8 | BEARING | ||
| 9 | COLLAR | ||
| 10 | COLLAR | ||
| 11 | SPRING | ||
| 12 | SHAFT | ||
| 13 | SCREW | ||
| 14 | BRACKET | ||
| 15 | HANDLE | ||
| 16 | SPRING | ||
| 17 | SHAFT | ||
| 18 | BEARING | ||
| 19 | SPRING | ||
| 20 | SHAFT | ||
| 21 | COLLAR | ||
| 22 | BEARING | ||
| 23 | COLLAR | ||
| 24 | SHAFT | ||
| 25 | BRACKET | ||
| 26 | BRACKET | ||
| 27 | SHAFT | ||
| 28 | BEARING | ||
| 29 | BRACKET | ||
| 30 | SCREW | ||
| 31 | BRACKET | ||
| 32 | BRACKET | ||
| 33 | SCREW | ||
| 34 | BRACKET | ||
| 35 | SCREW | ||
| 36 | BRACKET | ||
| 37 | BRACKET | ||
| 38 | BRACKET | ||
| 39 | SCREW | ||
| 40 | BRACKET | ||
| 41 | BRACKET | ||
| 42 | SCREW | ||
| 43 | WASHER | ||
| 44 | SCREW | ||
| 45 | SCREW | ||
| 46 | SCREW | ||
| 47 | BRACKET | ||
| 48 | SCREW | ||
| 49 | SHAFT | ||
| 50 | BRACKET | ||
| 51 | SCREW | ||
| 52 | BRACKET | ||
| 53 | SCREW | ||
| 54 | BRACKET | ||
| 55 | SCREW | ||
| 56 | BRACKET | ||
| 57 | BRACKET | ||
| 58 | SCREW | ||
| 59 | BRACKET | ||
| 60 | SHAFT | ||
| 61 | COLLAR | ||
| 62 | BEARING | ||
| 63 | SCREW | ||
| 64 | SCREW | ||
| 65 | BRACKET | ||
| 66 | BRACKET | ||
| 67 | BRACKET | ||
| 68 | SCREW | ||
| 69 | SHAFT | ||
| 70 | COLLAR | ||
| 71 | BEARING | ||
| 72 | BEARING | ||
| 73 | BRACKET | ||
| 74 | BRACKET |
Page 40 — 八、送布机构(1) Feed Mechanism(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S01029 | 螺钉M3.5×7.5 | ||
| 20409005 | 滑块 | ||
| 20424001 | 滚针轴承 | ||
| 20405002 | 连接轴 | ||
| 20403002 | 衬套 | ||
| 20428005 | 垫片 | ||
| 204S12001 | 六角头螺栓M5X10 | ||
| 20426008 | 连接销 | ||
| 20428006 | 垫片 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20402004 | 主送布轴 | ||
| 400358 | 定位块 | ||
| 207S13008 | 螺钉M4×16 | ||
| 20426009 | 导架导向 | ||
| 204S2001 | 轴位螺钉M4 | ||
| 20722007 | 油封 | ||
| 20426010 | 限位销 | ||
| 207S14007 | 螺钉M4×6 | ||
| 400676 | 定位片 | ||
| 207S11019 | 螺钉M4×7.5 | ||
| 20402005 | 偏心轴 | ||
| 207S14007 | 螺钉M4×6 | ||
| 20622010 | O型圈 | ||
| 20708008 | 紧固圈 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20408004 | 紧固圈 | ||
| 207S14007 | 螺钉M4×6 | ||
| 20709011 | 滑柱 | ||
| 20428010 | 垫片 | ||
| S02007 | 螺钉M3×5 | ||
| 20703002 | 套筒 | ||
| 20703001 | 套筒 | ||
| 20803007 | 套筒 | ||
| 20403015 | 套筒 | ||
| 20403016 | 套筒 | ||
| 2040500100 | 送料组件 |
Page 41
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Lever | ||
| 2 | Bracket | ||
| 3 | Screw | ||
| 4 | Lever | ||
| 5 | Pin | ||
| 6 | Washer | ||
| 7 | Lever | ||
| 8 | Spring | ||
| 9 | Lever | ||
| 10 | Screw | ||
| 11 | Screw | ||
| 12 | Screw | ||
| 13 | Bracket | ||
| 14 | Screw | ||
| 15 | Screw | ||
| 16 | Screw | ||
| 17 | Washer | ||
| 18 | Spring | ||
| 19 | Bracket | ||
| 20 | Clip | ||
| 21 | Pulley | ||
| 22 | Washer | ||
| 23 | Screw | ||
| 24 | Bush | ||
| 25 | Washer |
Page 42 — 九、送布机构(2) Feed Mechanism(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20405003 | 调差连杆 | ||
| 20404006 | 调差曲柄 | ||
| S05018 | 螺钉M6×0.75×12 | ||
| 207S20006 | 螺钉M5×5 | ||
| 20402006 | 调差杆 | ||
| 20622010 | O型圈 | ||
| 20412010 | 调差杆 | ||
| 204S20002 | 螺钉M4 | ||
| 20427008 | 弹簧 | ||
| 207S20007 | 螺钉 | ||
| 20412011 | 调节板 | ||
| 207S11007 | 螺钉M4×7.5 | ||
| 207S16002 | 止动螺母 | ||
| 30228009 | 垫片 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20702007 | 调差杆 | ||
| 20737001 | 指示标 | ||
| 20727005 | 弹簧 | ||
| 20709007 | 调差销 | ||
| H05018 | 卡簧3.5 | ||
| 2071600100 | 调节螺母 | ||
| 20728003 | 弹簧垫片 | ||
| 207S30001 | 螺钉 | ||
| 20403007 | 铜套 | ||
| 20728005 | 垫片 |
Page 43
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14 | 14 | 14 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 | |
| 19 | 19 | 19 | |
| 20 | 20 | 20 | |
| 21 | 21 | 21 | |
| 22 | 22 | 22 | |
| 23 | 23 | 23 | |
| 24 | 24 | 24 | |
| 25 | 25 | 25 | |
| 26 | 26 | 26 |
Page 44 — 十、上刀机构 Knife Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400041 | 上刀连杆 | |
| 2 | S01039 | 螺钉M4×15 | |
| 3 | 20704012 | 上刀曲柄 | |
| 4 | S05018 | 螺钉M6×0.75×12 | |
| 5 | 20626003 | 曲柄销 | |
| 6 | 207S14007 | 螺钉M4×6 | |
| 7 | 20402009 | 上刀轴 | |
| 8 | 2072201700 | 油封 | |
| 9 | 30208001 | 紧圈 | |
| 10 | S10003 | 螺钉M6×0.75×5 | |
| 11 | 20719007 | 上刀 | |
| 12 | 211S12002 | 螺钉M3.5×7.5 | |
| 13 | 20701014 | 上刀座 | |
| 14 | 20726005 | 销 | |
| 15 | S04019 | 螺钉M4×12 | |
| 16 | 20419001 | 下刀 | |
| 17 | 20412012 | 定位夹片 | |
| 18 | 207S11007 | 螺钉M4×7.5 | |
| 19 | 20401013 | 下刀座 | |
| 20 | 207S14001 | 螺钉M4×4 | |
| 21 | 20427009 | 弹簧 | |
| 22 | 20412013 | 盖板 | |
| 23 | S01027 | 螺钉M3×6 | |
| 24 | 20403008 | 铜套 | |
| 25 | 20803010 | 铜套 |
Page 45
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 29 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 31 | JK-797-3-504-52D | JK-797-3-504-52D |
Page 46 — 十一、压脚机构 Presser Foot Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 274000-B0 | 20701016 | 压脚臂 | |
| 2085490 | 20626016 | 销 | |
| 0045940 | S10011 | 螺钉M4X0.5X4 | |
| 2740010 | 20802013 | 压脚轴 | |
| --- | 20703030 | 压脚轴套 | |
| 0071050 | 207S11016 | 螺钉M4×16 | |
| 274003-921 | 20608004 | 指压脚复位圈 | |
| 0045340 | S05017 | 螺钉M6×0.75×13.5 | |
| --- | 20712007 | 抬压脚小杠杆 | |
| 274005A0 | 20427013 | 小杠杆挡簧 | |
| 2740060 | 20616001 | 弯钩 | |
| 2740070 | 20712023 | 抬压脚杠杆 | |
| 0070600 | 207S20008 | 轴位螺钉M10 | |
| 2740080 | 20727007 | 弹簧 | |
| 2740090 | 20712024 | 角板 | |
| 007020A0 | S04060 | 螺钉M4×10 | |
| 0071750 | 207S11031 | 螺钉M5×24 | |
| 0048050 | N01004 | 六角螺母M5 | |
| 2087730 | 20719054 | 弹簧 | |
| 274014A1 | 20702014 | 调节螺杆 | |
| 2740150 | 207S16003 | 调节螺母 | |
| 274016A0 | 20612034 | 压杆扳手 | |
| 0071710 | 207S20009 | 轴位螺钉M4 | |
| 2740170 | 20627010 | 弹簧 | |
| 2740100 | 20712030 | 挡板 | |
| 0070190 | 207S11007 | 螺钉M4×7.5 | |
| 274018-92B0 | 20416001 | 压脚支架 | |
| 0070130 | 207S11030 | 一字平头螺钉M3.5X8 | |
| 2740190 | 20712048 | 弹簧簧片 | |
| 0050890 | 207S11009 | 螺钉M3×4.5 | |
| 2740330 | 20712026 | 压脚护手 | |
| 2740200 | 20712048 | 板簧 | |
| 0070080 | 207S11020 | 螺钉M3×4 | |
| 0070090 | 207S11009 | 螺钉M3×4.5 | |
| --- | WO1006 | GB/T97.1-1985垫圈4 | |
| --- | 20703031 | 轴套 |
Page 47
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 needle | |
| 2 | 2 | 2 needle | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14 | 14 | 14 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 |
Page 48 — 十二、紧线机构 Thread Tension Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 210529-9T0 | 2111300500 | 夹线器组件 (红点) | |
| 208447-UA | 301S16006 | 调压螺母 | |
| 208448 | 30111006 | 调压止动套 | |
| 208450-UA | 30111005 | 调压止动盖 | |
| 2103 19 | 21311161 | 夹线片 | |
| 208449 | 20623008 | 夹线片垫 | |
| 5082A | 201S30016 | 夹线螺钉 | |
| 20137 | 20727011 | 调压簧 | |
| 210531-9U | 2111300600 | 夹线器组件 (蓝点) | |
| 201086 | 30127013 | 调压簧 (弱) | |
| 275000 | 20713001 | 过线板 | |
| 7019 | 207S11007 | 螺钉 M4×7.5 | |
| 2750010 | 20712015 | 过线板 | |
| 202849 | 20612052 | 前过线板 | |
| 4009-HC | 206S11005 | 螺钉 | |
| 210530-9U | 2111300800 | 夹线器组件 (黄点) | |
| 210532-9U | 2111300700 | 夹线器组件 (绿点) | |
| 20712032 | 过线片 |
Page 49
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JK-797-3-504-D-52D1 | 1針(1-needle) | ||
| JK-797-3-504-D-52D1 | 2針(2-needle) | ||
| JK-797-3-504-D-52D1 | 1針(1-needle) | ||
| JK-797-3-504-D-52D1 | 2針(2-needle) | ||
| JK-797-3-504-D-52D1 | 1針(1-needle) | ||
| JK-797-3-504-D-52D1 | 2針(2-needle) | ||
| JK-797-3-504-D-52D1 | 2針(2-needle) | ||
| JK-797-3-504-D-52D1 | 1針(1-needle) | ||
| JK-797-3-504-D-52D1 | 2針(2-needle) |
Page 50 — 十三、挑战机构 Thread Guide & Thread Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20701010 | 托架 | ||
| 207S11019 | 螺钉M4×7.5 | ||
| 20713002 | 过线 | ||
| 20713003 | 过线 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20713004 | 过线(一针) | ||
| 20713005 | 过线(二针) | ||
| 207S11019 | 螺钉M4×7.5 | ||
| 20813002 | 挑线杆(一针) | ||
| 20813004 | 挑线杆(两针标准) | ||
| 20813004 | 挑线杆(两针厚) | ||
| 207S11015 | 螺钉M3×6 | ||
| S02007 | 螺钉M3×5 | ||
| 20712016 | 支架 | ||
| 20113015 | 过线 | ||
| W01011 | 垫片 | ||
| 201S11006 | 一字螺钉M3×4 | ||
| 20413001 | 过线 | ||
| 20713010 | 过线 | ||
| 207S11017 | 螺钉M4×7.5 | ||
| 20713011 | 过线 | ||
| 207S11020 | 螺钉M3×4 | ||
| 20413002 | 过线 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20713013 | 过线 | ||
| 20413003 | 过线 | ||
| 20713006 | 托架 | ||
| 20713007 | 压线板 | ||
| 20727002 | 弹簧 | ||
| 207S20003 | 轴位螺钉M2 | ||
| 20713038 | 过线 | ||
| 20713018 | 过线 | ||
| 207S11024 | 一字螺钉M3.5×6 |
Page 51
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | WASHER | |
| 3 | 3 | SCREW | |
| 4 | 4 | SCREW | |
| 5 | 5 | WASHER | |
| 6 | 6 | GASKET | |
| 7 | 7 | HOUSING | |
| 8 | 8 | FILTER | |
| 9 | 9 | O-RING | |
| 10 | 10 | FLANGE | |
| 11 | 11 | SCREW | |
| 12 | 12 | O-RING | |
| 13 | 13 | BRACKET ASSEMBLY | |
| 14 | 14 | SHAFT | |
| 15 | 15 | SCREW | |
| 16 | 16 | SCREW | |
| 17 | 17 | SHAFT | |
| 18 | 18 | CAM | |
| 19 | 19 | FILTER | |
| 20 | 20 | FILTER | |
| 21 | 21 | SCREW | |
| 22 | 22 | HOUSING | |
| 23 | 23 | SCREW | |
| 24 | 24 | CLAMP | |
| 25 | 25 | TUBE | |
| 26 | 26 | BRACKET | |
| 27 | 27 | BRACKET | |
| 28 | 28 | FILTER | |
| 29 | 29 | O-RING | |
| 30 | 30 | JOINT | |
| 31 | 31 | SCREW | |
| 32 | 32 | TUBE | |
| 33 | 33 | WASHER | |
| 34 | 34 | WASHER | |
| 35 | 35 | HOUSING | |
| 36 | 36 | BRACKET | |
| 37 | 37 | SCREW | |
| 38 | 38 | BRACKET | |
| 39 | 39 | PIN | |
| 40 | 40 | SCREW | |
| 41 | 41 | FLANGE | |
| 42 | 42 | WASHER | |
| 43 | 43 | SCREW |
Page 52 — 十四、润滑机构(1) Lubrication Mechanism(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20401014 | 油盘 | 1 | |
| 20528014 | 橡胶垫片 | 1 | |
| 207S13002 | 螺钉 | 1 | |
| 207S13009 | 螺钉M5×12 | 4 | |
| 20628018 | 垫片 | 4 | |
| 20422009 | 密封圈 | 1 | |
| 20437009 | 油窗指示标 | 1 | |
| 20736004 | 滤油器 | 1 | |
| 20836001 | 油管接头 | 1 | |
| 300140 | 过滤窗盖 | 1 | |
| 207S11008 | 十字螺钉M4X12 | 3 | |
| 001010 | 0型密封圈 | 1 | |
| 20820001 | 油泵 | 1 | |
| 20725002 | 蜗轮 | 1 | |
| 207S15002 | 螺钉M8X4.5 | 2 | |
| 0045220 | 螺钉 | 1 | |
| 212978-910 | 转子轴 | 1 | |
| 2129810 | 转子 | 1 | |
| 2094080 | 滤油网 | 1 | |
| 2094090 | 滤油网 | 1 | |
| 0070120 | 螺钉 | 3 | |
| 2094100 | 卡箍 | 1 | |
| 0070110 | 螺钉 | 1 | |
| 0048000 | 螺母 | 1 | |
| 0045290 | 螺栓 | 2 | |
| 20622010 | 0型密封圈 | 1 | |
| S10009 | 内六角螺钉M6X8 | 1 | |
| 20425002 | 蜗杆 | 1 | |
| 207S14006 | 螺钉M5×5 | 1 | |
| 20436001 | 油管接头 | 2 | |
| 20420004 | 接头螺钉 | 1 | |
| 12921005 | 油管Φ4×Φ6 | 0.25m | |
| 20429001 | 油管卡簧 | 2 | |
| 20436001 | 油管接头 | 1 | |
| 206S30009 | 接头螺钉 | 1 | |
| 12921005 | 油管Φ4×Φ6 | 0.1m | |
| 20429001 | 油管卡簧 | 2 | |
| 204200500 | 分油管 | 1 | |
| 20709014 | 滚珠 | 2 | |
| 207S30002 | 组合螺钉M4×16 | 1 | |
| 30131004 | 指示标 | 1 | |
| 20122033 | 垫片 | 5 | |
| S05004 | 螺钉M5×14 | 2 | |
| 20401014 | 油盘 | 1 | |
| 20528014 | 橡胶垫片 | 1 | |
| 207S13002 | 螺钉 | 1 | |
| 207S13009 | 螺钉M5×12 | 4 | |
| 20628018 | 垫片 | 4 | |
| 20422009 | 密封圈 | 1 | |
| 20437009 | 油窗指示标 | 1 | |
| 20736004 | 滤油器 | 1 | |
| 20836001 | 油管接头 | 1 | |
| 300140 | 过滤窗盖 | 1 | |
| 207S11008 | 十字螺钉M4X12 | 3 | |
| 001010 | 0型密封圈 | 1 | |
| 20820001 | 油泵 | 1 | |
| 20725002 | 蜗轮 | 1 | |
| 207S15002 | 螺钉M8X4.5 | 2 | |
| 0045220 | 螺钉 | 1 | |
| 212978-910 | 转子轴 | 1 | |
| 2129810 | 转子 | 1 | |
| 2094080 | 滤油网 | 1 | |
| 2094090 | 滤油网 | 1 | |
| 0070120 | 螺钉 | 3 | |
| 2094100 | 卡箍 | 1 | |
| 0070110 | 螺钉 | 1 | |
| 0048000 | 螺母 | 1 | |
| 0045290 | 螺栓 | 2 | |
| 20622010 | 0型密封圈 | 1 | |
| S10009 | 内六角螺钉M6X8 | 1 | |
| 20425002 | 蜗杆 | 1 | |
| 207S14006 | 螺钉M5×5 | 1 | |
| 20436001 | 油管接头 | 2 | |
| 20420004 | 接头螺钉 | 1 | |
| 12921005 | 油管Φ4×Φ6 | 0.25m | |
| 20429001 | 油管卡簧 | 2 | |
| 20436001 | 油管接头 | 1 | |
| 206S30009 | 接头螺钉 | 1 | |
| 12921005 | 油管Φ4×Φ6 | 0.1m | |
| 20429001 | 油管卡簧 | 2 | |
| 204200500 | 分油管 | 1 | |
| 20709014 | 滚珠 | 2 | |
| 207S30002 | 组合螺钉M4×16 | 1 | |
| 30131004 | 指示标 | 1 | |
| 20122033 | 垫片 | 5 | |
| S05004 | 螺钉M5×14 | 2 | |
| 20401014 | 油盘 | 1 | |
| 20528014 | 橡胶垫片 | 1 | |
| 207S13002 | 螺钉 | 1 | |
| 207S13009 | 螺钉M5×12 | 4 | |
| 20628018 | 垫片 | 4 | |
| 20422009 | 密封圈 | 1 | |
| 20437009 | 油窗指示标 | 1 | |
| 20736004 | 滤油器 | 1 | |
| 20836001 | 油管接头 | 1 | |
| 300140 | 过滤窗盖 | 1 | |
| 207S11008 | 十字螺钉M4X12 | 3 | |
| 001010 | 0型密封圈 | 1 | |
| 20820001 | 油泵 | 1 | |
| 20725002 | 蜗轮 | 1 | |
| 207S15002 | 螺钉M8X4.5 | 2 | |
| 0045220 | 螺钉 | 1 | |
| 212978-910 | 转子轴 | 1 | |
| 2129810 | 转子 | 1 | |
| 2094080 | 滤油网 | 1 | |
| 2094090 | 滤油网 | 1 | |
| 0070120 | 螺钉 | 3 | |
| 2094100 | 卡箍 | 1 | |
| 0070110 | 螺钉 | 1 | |
| 0048000 | 螺母 | 1 | |
| 0045290 | 螺栓 | 2 | |
| 20622010 | 0型密封圈 | 1 | |
| S10009 | 内六角螺钉M6X8 | 1 | |
| 20425002 | 蜗杆 | 1 | |
| 207S14006 | 螺钉M5×5 | 1 | |
| 20436001 | 油管接头 | 2 | |
| 20420004 | 接头螺钉 | 1 | |
| 12921005 | 油管Φ4×Φ6 | 0.25m | |
| 20429001 | 油管卡簧 | 2 | |
| 20436001 | 油管接头 | 1 | |
| 206S30009 | 接头螺钉 | 1 | |
| 12921005 | 油管Φ4×Φ6 | 0.1m | |
| 20429001 | 油管卡簧 | 2 | |
| 204200500 | 分油管 | 1 | |
| 20709014 | 滚珠 | 2 | |
| 207S30002 | 组合螺钉M4×16 | 1 | |
| 30131004 | 指示标 | 1 | |
| 20122033 | 垫片 | 5 | |
| S05004 | 螺钉M5×14 | 2 |
Page 53 — 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | STEERING SPINDLE ASSEMBLY | |
| 2 | 2 | LINKAGE ROD | |
| 3 | 3 | SPRING PIN | |
| 4 | 4 | WASHER | |
| 5 | 5 | SPRING PIN | |
| 6 | 6 | SPRING PIN | |
| 7 | 7 | BOLT | |
| 8 | 8 | WASHER | |
| 10 | 10 | LINKAGE ROD | |
| 11 | 11 | BOLT | |
| 12 | 12 | WASHER | |
| 13 | 13 | SPRING PIN |
Page 54 — 十五、润滑机构(2) Lubrication Mechanism(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20521009 | 油管接头 | ||
| 20721011 | 油管Φ2×Φ4 | ||
| 2071203800 | 针吸油组件 | ||
| 20622010 | O型圈 | ||
| 20723007 | 油棉 | ||
| 207S11019 | 螺钉M4×5 | ||
| 20721010 | 过油管组件 | ||
| 20709016 | 橡胶塞 | ||
| 207S14001 | 螺钉M4×4 | ||
| 20626007 | 过油销组件 | ||
| 20709015 | 橡胶塞 | ||
| 207S14001 | 螺钉M4×4 |
Page 55
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | SCREW | |
| 3 | 3 | BRACKET | |
| 4 | 4 | LEVER | |
| 5 | 5 | COVER | |
| 6 | 6 | HOUSING | |
| 7 | 7 | SCREW | |
| 8 | 8 | WASHER | |
| 9 | 9 | COVER | |
| 10 | 10 | SPRING | |
| 11 | 11 | SCREW | |
| 12 | 12 | SPRING | |
| 13 | 13 | SPRING | |
| 14 | 14 | BRACKET | |
| 15 | 15 | PIN |
Page 56 — 十六、H.R.装置 H.R.Device
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20711014 | 上硅油盒 | ||
| S 04060 | 螺钉M4×10 | ||
| 20712040 | 过线 | ||
| 20723008 | 油毡 | ||
| 20711015 | 上硅油盒盖 | ||
| 20411002 | 下硅油盒 | ||
| 20412008 | 螺栓 | ||
| 001027 | O型圈 | ||
| 20411003 | 下硅油盒盖 | ||
| 2041100400 | 针型冷却器 | ||
| 20420009 | 连接螺钉 | ||
| 207S11011 | 螺钉M4×5 | ||
| 20523005 | 油线 | ||
| 20423006 | 油棉 | ||
| 20726010 | 大头针 |
Page 57
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 |
Page 58 — 十七、线架部件 /Thread Spool Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4835 | 20631018 | 过线棒 | |
| 293A | 20131019 | 过线棒 | |
| 293B | 20131019 | 棒帽 | |
| 293C | 21131008 | 上管 | |
| 4021 | 201S16006 | 导线环螺母 | |
| --- | 21131009 | 导线架(短) | |
| 505-PA | 20131018 | 过线环 | |
| 505APA | 20131021 | 棒架螺钉 | |
| 7102 | 21131010 | 棒架 | |
| 512 | 201S16004 | 螺母 | |
| 4022 | 20131022 | 棒架螺钉 | |
| 380A | 201S16004 | 螺母 | |
| 201252 | 21131011 | 导线环 | |
| 4803 | 21131020 | 导线环螺钉 | |
| 381-PA | 21131012 | 导线架(长) | |
| 507 | 20131011 | 导线棒 | |
| 382-PA | 20631019 | 过线棒 | |
| 4803 | 21131013 | 固定器 | |
| 502-PA | S04050 | 螺钉M5×15 | |
| 503-PA | 21131014 | 套 | |
| 504-PA | N01030 | 套螺母 | |
| 4012 | 21131015 | 线圈定位套 | |
| 4803 | 20131006 | 线扎棒 | |
| 527-PA | 21131010 | 线盘垫 | |
| 527APA | 21131016 | 线盘 | |
| 4021 | 21131017 | 托线架(长) | |
| --- | 201S16004 | 螺母 | |
| 506 | 20128018 | 垫圈 | |
| 386 | 21131018 | 下管 | |
| 509 | 201S16005 | 螺母 | |
| --- | 20128025 | 下管垫圈 | |
| --- | 21131019 | 托线架(短) | |
| --- | 20122049 | 防震垫 | |
| --- | 20631020 | 过线棒 | |
| --- | 2113101700 | 线架组件 | |
| --- | 2113101800 | 线架组件 | |
| --- | 2113101900 | 线架组件 | |
| --- | 2113101900 | 线架组件 |
Page 59
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BASE PLATE | |
| 2 | 2 | BRACKET | |
| 3 | 3 | COVER | |
| 4 | 4 | SCREW | |
| 5 | 5 | WASHER | |
| 6 | 6 | SCREW | |
| 7 | 7 | BRACKET | |
| 8 | 8 | BAR | |
| 9 | 9 | SCREW | |
| 10 | 10 | BRACKET | |
| 11 | 11 | BRACKET | |
| 12 | 12 | SCREW | |
| 14 | 14 | POST | |
| 15 | 15 | SCREW | |
| 16 | 16 | SCREW |
Page 60 — 十八、托盘附属品 Parts For Semi-submerged Installation
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2760170 | 20401018 | 托盘 | |
| 20722009 | 托盘防震连接垫 | ||
| 2063360 | 20131028 | 托盘固定螺母 | |
| 20131029 | 垫圈 | ||
| 4512 | 20131027 | 托盘内六角螺钉 | |
| 20131030 | 防震套 | ||
| 205468-PA | 20131032 | 排料槽I | |
| 205469-PA | 21231007 | 排料槽II | |
| 4904 | 20131034 | 排料槽座螺钉 | |
| 205470-PA | 21231005 | 排料槽座 | |
| 4905 | 421S30004 | 排料槽螺钉 | |
| 30122031 | 减振垫圈 | ||
| 2054730 | 20131026 | 托盘防震连接垫 | |
| 2123100400 | 落料斗组件 | ||
| 20728006 | 垫片 |
Page 61
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | JK-797-3-504-02 | 04 | |
| 2 | JK-797-3-504-02 | 04 | |
| 3 | JK-797-3-504-02 | 04 | |
| 4 | JK-797-3-504-02 | 04 | |
| 5 | JK-797-3-504-02 | 04 | |
| 6 | JK-797-3-504-02 | 04 | |
| 7 | JK-797-3-505-12 | 04 | |
| 8 | JK-797-3-505-12 | 04 | |
| 9 | JK-797-3-505-12 | 04 | |
| 10 | JK-797-3-505-12 | 04 | |
| 11 | JK-797-3-505-12 | 04 | |
| 12 | JK-797-4-514-92M2 | 04 | |
| 13 | JK-797-4-514-92M2 | 04 | |
| 14 | JK-797-4-514-92M2 | 04 | |
| 15 | JK-797-4-514-92M2 | 04 | |
| 16 | JK-797-4-514-92M2 | 04 | |
| 17 | JK-797-4-514-92M2 | 04 | |
| 18 | JK-797-4-514-92M2 | 04 | |
| 19 | JK-797-4-514-92M2 | 04 | |
| 20 | JK-797-4-514-92M2 | 04 | |
| 21 | JK-797-4-514-92M2 | 04 | |
| 22 | JK-797-4-514-92M2 | 04 | |
| 23 | JK-797-4-514-92M2 | 04 | |
| 24 | JK-797-4-514-92M2 | 04 | |
| 26 | JK-797-4-514-92M2 | 04 | |
| 27 | JK-797-4-514-92M2 | 04 | |
| 28 | JK-797-4-514-92M2 | 04 | |
| 29 | JK-797-4-514-92M2 | 04 | |
| 30 | JK-797-4-514-92M2 | 04 | |
| 31 | JK-797-4-514-92M2 | 04 | |
| 32 | JK-797-4-514-92M2 | 04 | |
| 33 | JK-797-4-514-92M2 | 04 | |
| 34 | JK-797-4-514-92M2 | 04 | |
| 35 | JK-797-4-514-92M2 | 04 | |
| 36 | JK-797-4-514-92M2 | 04 | |
| 37 | JK-797-4-514-92M2 | 04 | |
| 38 | JK-797-4-514-92M2 | 04 | |
| 39 | JK-797-4-514-92M2 | 04 | |
| 40 | JK-797-4-514-92M2 | 04 | |
| 41 | JK-797-4-514-92M2 | 40mm | |
| 42 | JK-797-4-514-92M2 | 04 | |
| 43 | JK-797-4-514-92M2 | 04 | |
| 44 | JK-797-4-514-92M2 | 04 | |
| 45 | JK-797-4-514-92M2 | 04 |
Page 62 — 十九、专用部件(1) Specific Parts(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| XXXXXX | 压脚 | ||
| XXXXXX | 压脚爪 | ||
| 20416010 | 辅助压脚 | ||
| 207S11033 | 螺钉M1X2.3 | ||
| 20712031 | 辅助压脚板 | ||
| 207S11034 | 螺钉M1X2.3 | ||
| XXXXXX | 压脚 | ||
| XXXXXX | 压脚 | ||
| 20712068 | 辅助压脚 | ||
| 207S11034 | 螺钉M1X2.3 | ||
| 20728004 | 垫圈 | ||
| 2070103900 | 下摆导向组件 | ||
| 20112051 | 送料支架 | ||
| 20112052 | 铰链 | ||
| 201S20002 | 螺钉 | ||
| 20128027 | 垫圈 | ||
| 201S16003 | 螺母 | ||
| 2106820 | 垫圈 | ||
| 0050530 | 螺钉 | ||
| 20126020 | 铰链销 | ||
| 20112053 | 铰链弹簧 | ||
| 201S11011 | 螺钉 | ||
| 0070200 | 螺钉 | ||
| 2012520 | 垫圈 | ||
| 20612041 | 固定块 | ||
| 206S11018 | 螺钉 | ||
| 20612042 | 挡板 | ||
| 206S11011 | 螺钉 | ||
| 206S11012 | 螺钉 | ||
| 20612043 | 支架 | ||
| 201S12001 | 螺钉 | ||
| 20128020 | 垫片 | ||
| 206S11010 | 螺钉 | ||
| 20628016 | 垫片 | ||
| 20612044 | 角板 | ||
| 206S11013 | 螺钉 | ||
| 2130950 | 挡板 | ||
| 0012290 | 螺钉 | ||
| 0050570 | 螺钉 | ||
| 20612040 | 导向片 | ||
| 20612048 | 挡板 | ||
| 20628020 | 螺钉 | ||
| 20612049 | 弹簧片 | ||
| 20612050 | 垫块 |
Page 63 — JK-797-3-504-52D/MC310, 311
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | JK-797-3-504-52D | JK-797-3-504-52D/MC310, 311 | |
| 14 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 2 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 3 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 4 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 5 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 6 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 7 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 8 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 9 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 10 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 11 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 12 | JK-797-3-504-52D | JK-797-3-504-52D | |
| 13 | JK-797-3-504-52D | JK-797-3-504-52D |
Page 64 — 二十、专用部件(2) Specific Parts(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| XXXXXX | 压脚组件 | ||
| 2771790 | 固定块 | ||
| 0070310 | 螺钉 | ||
| 213677A0 | 挡板A | ||
| 0056150 | 螺钉 | ||
| 213678A0 | 挡板B | ||
| 0029220 | 螺钉 | ||
| 2136720 | 压脚 | ||
| XXXXXX | 压脚爪 | ||
| 2740190 | 弹簧片 | ||
| 0050890 | 螺钉 | ||
| 2116000 | 压脚板 | ||
| 0050300 | 螺钉 | ||
| 274025A0 | 压脚护手 |
Page 65
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PULLEY | |
| 2 | 2 | BRACKET | |
| 3 | 3 | SPRING | |
| 4 | 4 | SPRING | |
| 5 | 5 | SPRING | |
| 6 | 6 | SPRING | |
| 7 | 7 | SPRING | |
| 8 | 8 | SCREW | |
| 9 | 9 | BRACKET | |
| 10 | 10 | BRACKET | |
| 11 | 11 | BRACKET | |
| 12 | 12 | SCREW | |
| 13 | 13 | BRACKET | |
| 14 | 14 | SCREW | |
| 15 | 15 | BRACKET | |
| 16 | 16 | SCREW | |
| 17 | 17 | BRACKET | |
| 18 | 18 | SCREW | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SCREW | |
| 21 | 21 | BRACKET | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 24 | 24 | SCREW | |
| 25 | 25 | NEEDLE BAR | |
| 26 | 26 | BRACKET | |
| 27 | 27 | BRACKET | |
| 28 | 28 | SCREW |
Page 66 — 二十一、专用部件(3) Specific Parts(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2071100600 | 风扇组件 | ||
| XXXXXX | 压脚组件 | ||
| 2136640 | 挡板 A | ||
| 0029220 | 螺钉 | ||
| 2136650 | 挡板 B | ||
| 0029220 | 螺钉 | ||
| 2136660 | 挡板 C | ||
| 0029220 | 螺钉 | ||
| 213659-910 | 压脚 | ||
| XXXXXX | 压脚爪 | ||
| 2740190 | 弹簧片 | ||
| 0050890 | 螺钉 | ||
| 2116000 | 压脚板 | ||
| 0050300 | 螺钉 | ||
| 2746010 | 固定块 | ||
| 204S11003 | 螺钉 | ||
| 20412043 | 挡板 A | ||
| 204S11002 | 螺钉 | ||
| 20401021 | 挡板 B | ||
| 204S11004 | 螺钉 | ||
| XXXXXX | 压脚 | ||
| 20416006 | 压脚爪 | ||
| 20412044 | 压脚板 | ||
| 207S11034 | 螺钉 | ||
| 2052690 | 销子 | ||
| 2750000 | 过线架 | ||
| 350188A0 | 衬圈 | ||
| 0070720 | 螺钉 |
Page 67
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PULLEY | |
| 2 | 2 | BRACKET | |
| 3 | 3 | SPRING | |
| 4 | 4 | SPRING | |
| 5 | 5 | SPRING | |
| 6 | 6 | SPRING | |
| 7 | 7 | SPRING | |
| 8 | 8 | SPRING | |
| 9 | 9 | SPRING | |
| 10 | 10 | SPRING | |
| 11 | 11 | SPRING | |
| 12 | 12 | SCREW | |
| 13 | 13 | BRACKET | |
| 14 | 14 | SCREW | |
| 15 | 15 | BRACKET | |
| 16 | 16 | SCREW | |
| 17 | 17 | BRACKET | |
| 18 | 18 | SPRING | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SCREW | |
| 21 | 21 | BRACKET | |
| 22 | 22 | BRACKET | |
| 23 | 23 | SCREW | |
| 24 | 24 | SCREW | |
| 25 | 25 | NEEDLE BAR | |
| 26 | 26 | BRACKET | |
| 27 | 27 | SPRING | |
| 28 | 28 | SCREW |
Page 68 — 二十二、专用部件(4) Specific Parts(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2726240 | 偏心轴 | ||
| 2403110 | 垫片 | ||
| 2726280 | 垫片 | ||
| 272626-920 | 曲柄 | ||
| 0045310 | 螺栓 | ||
| 2011070 | 滑块 | ||
| 0073580 | 螺钉 | ||
| 0048200 | 螺母 | ||
| 2726250 | 支架 | ||
| 0045150 | 螺栓 | ||
| 2042930 | 垫片 | ||
| 2024330 | 垫片 | ||
| 5131180 | 汽缸 | ||
| 5270110 | 控制阀 | ||
| 2726270 | 块 |
Page 69 — 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15 | EH001A | SET UP INSTRUCTION | |
| 1 | JK-797-4-514-92M2 | 多用途 (Versatile) | |
| 2 | 2 | SET UP INSTRUCTION | |
| 41 | 3 | Fabric edge guide | |
| 3 | 4 | Fabric edge guide | |
| 4 | 5 | Fabric edge guide | |
| 5 | 6 | Fabric edge guide | |
| 6 | 7 | Fabric edge guide | |
| 7 | 8 | Fabric edge guide | |
| 8 | 9 | Fabric edge guide | |
| 9 | 10 | Fabric edge guide | |
| 10 | 11 | Fabric edge guide | |
| 11 | 12 | Fabric edge guide | |
| 12 | 13 | Fabric edge guide | |
| 13 | 14 | Fabric edge guide | |
| 14 | 16 | Fabric edge guide | |
| 16 | 17 | Fabric edge guide | |
| 17 | 18 | Fabric edge guide | |
| 18 | 19 | Fabric edge guide | |
| 19 | 20 | Fabric edge guide | |
| 20 | 21 | Fabric edge guide | |
| 21 | 23 | Fabric edge guide | |
| 23 | 24 | Fabric edge guide | |
| 24 | 25 | Fabric edge guide | |
| 25 | 26 | Fabric edge guide | |
| 26 | 27 | Fabric edge guide | |
| 27 | 28 | Fabric edge guide | |
| 28 | 29 | Fabric edge guide | |
| 29 | 30 | Fabric edge guide | |
| 30 | 31 | Fabric edge guide | |
| 31 | 32 | Fabric edge guide | |
| 32 | 33 | Fabric edge guide | |
| 33 | 34 | Fabric edge guide | |
| 34 | 36 | Fabric edge guide | |
| 36 | 37 | Fabric edge guide | |
| 37 | 38 | Fabric edge guide | |
| 38 | 39 | Fabric edge guide | |
| 39 | 40 | Fabric edge guide | |
| 40 | 41 | Fabric edge guide |
Page 70 — 二十三、专用部件(5) Specific Parts(5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 270174-910 | 缝台组件 | ||
| 270170-910 | 缝台 | ||
| 2042180 | 弹簧垫片 | ||
| 200162A0 | 垫片 | ||
| 0050530 | 螺钉 | ||
| 005121A0 | 螺钉 | ||
| 0030910 | 螺母 | ||
| 2048880 | 弹簧垫片 | ||
| 0048080 | 螺母 | ||
| 2701730 | 缝台支架 | ||
| 007022A0 | 螺钉 | ||
| 2403050 | 橡胶垫 | ||
| 3050140 | 支架 | ||
| 0070080 | 螺钉 | ||
| 2052690 | 销子 | ||
| XXXXXX | 压脚 | ||
| XXXXXX | 压脚爪 | ||
| 2105840 | 压脚板 | ||
| 2105850 | 垫片 | ||
| 0050300 | 螺钉 | ||
| 2403120 | 垫片 | ||
| 2106800 | 送料支架 | ||
| 2106810 | 铰链 | ||
| 0051840 | 螺钉 | ||
| 2011910 | 垫片 | ||
| 0030440 | 螺母 | ||
| 2106820 | 垫片 | ||
| 0050530 | 螺钉 | ||
| 2106830 | 铰链销 | ||
| 2106840 | 铰链弹簧 | ||
| 0029060 | 螺钉 | ||
| 0070200 | 螺钉M4X8 | ||
| 2012520 | 垫圈4 | ||
| 2106870 | 挡料板座 | ||
| 0050880 | 螺钉M4X7.5 | ||
| 1670660 | 垫片 | ||
| 0012020 | 螺钉 | ||
| 1670660 | 垫片 | ||
| 2046670 | 挡料板 |
Page 71
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TOOL | ||
| 2 | TOOL | ||
| 3 | TOOL | ||
| 4 | BRACKET | ||
| 5 | BRACKET | ||
| 6 | RESERVOIR | ||
| 7 | CAP | ||
| 8 | FUNNEL | ||
| 9 | BRACKET | ||
| 10 | BOX | ||
| 11 | BRACKET | ||
| 12 | BRACKET | ||
| 13 | BRACKET | ||
| 14 | BRACKET | ||
| 15 | BRACKET | ||
| 16 | BRACKET | ||
| 17 | CHAIN | ||
| 18 | BRACKET | ||
| 19 | PIN | ||
| 20 | WIRE | ||
| 21 | BRACKET | ||
| 22 | BELT | ||
| 23 | BRACKET | ||
| 24 | SCREW | ||
| 25 | WASHER | ||
| 26 | NUT | ||
| 27 | BRACKET | ||
| 28 | BRACKET | ||
| 29 | BRACKET | ||
| 30 | MOTOR |
Page 72 — 二十四、随机附件部分 Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20731047 | 螺丝刀 | ||
| 10131004 | 螺丝刀(小) | ||
| 20131044 | 直柄内六角螺丝刀(1.5mm) | ||
| 121131002 | 机头罩 | ||
| 20131002 | 机头塑料袋 | ||
| 20731048 | 油壶(灰) | ||
| 20131038 | 小油壶(尖嘴) | ||
| 20131039 | 漏斗 | ||
| 20131051 | 镊子(JACK) | ||
| 20131055 | 附件盒 | ||
| 20131043 | JK795-1908扳手(8mm) | ||
| 20131042 | JK795-1907扳手(7mm) | ||
| 20131046 | 内六角扳手(2mm) | ||
| 30131012 | 内六角扳手(4mm) | ||
| 20131056 | 内六角扳手(6mm) | ||
| 20131047 | 内六角扳手(5mm) | ||
| 20131054 | JK795-1919脚踏板链 | ||
| S10005 | 螺钉 | ||
| --- | 机针 | ||
| 20131052 | 线勾 | ||
| --- | DI直驱专用部件 | ||
| --- | 皮带 | ||
| 20412022 | 落料斗固定板 | ||
| 207S13008 | 螺钉 | ||
| --- | 弹簧垫片 | ||
| W01009 | 垫片 | ||
| N01001 | 螺母 | ||
| 20730335 | 拉杆 | ||
| 20730027 | 直驱控制器(T19) | ||
| 20130089 | 塑壳调速器 |
Jack JK-797DI — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-797 manual book & parts book, featuring an image of the sewing machine and the JACK logo.
- Page 2 (text): This page contains a prologue in both Chinese and English, thanking the customer for their purchase and providing instructions on how to use the manual.
- Page 3 (text): This page contains safety precautions for operating the sewing machine, including warnings about removing parts, placing items on the machine, and maintenance procedures. It also includes a note about clutch type motors and illustrations of the machine's pedal and power switch.
- Page 4 (toc): This page is a table of contents for a sewing machine parts catalog, listing various components and their corresponding page numbers. It includes sections like "User Manual", "Cover Components", "Crankshaft Drive Components", "Needle Drive Mechanism", and "Standard measurement part list".
- Page 5 (diagram): This page contains a schematic diagram of the machine table with various dimensions and notes regarding motor dimensions.
- Page 6 (text): This page provides instructions on lubricating the sewing machine, indicating the correct oil level should be between lines H and L, and to add oil when it drops below line L. It also shows an illustration of a hand pouring oil into the machine.
- Page 7 (text): This page provides instructions on manual lubrication for the sewing machine, detailing when and how to apply oil, and shows an illustration of the lubrication process with a bottle of high-speed sewing machine oil.
- Page 8 (text): This page provides instructions on filling the HR device with silicone oil to prevent needle thread breakage and fabric damage, and notes the recommended silicone oil brand.
- Page 9 (diagram): This page illustrates the threading process for the sewing machine, detailing steps with numbered diagrams and corresponding text instructions in both Chinese and English.
- Page 10 (diagram): This page illustrates how to adjust the presser foot pressure on a sewing machine, with numbered indicators for adjusting nut 1 and nut 2, and labels for 'Light' and 'Heavy' pressure.
- Page 11 (diagram): This page shows a diagram illustrating how to adjust the differential feed ratio on an industrial sewing machine, with labels in both Chinese and English.
- Page 12 (text): This page describes how to adjust the top feed pressure on the JK-797T sewing machine, with instructions in both Chinese and English.
- Page 13 (diagram): This page illustrates how to adjust the top feed front-to-back motion on the JK-797T sewing machine, showing the use of adjusting nuts labeled 1 and 2.
- Page 14 (text): This page describes how to adjust the stitch length on a sewing machine, including instructions in both Chinese and English, and a diagram illustrating the process.
- Page 15 (diagram): This page shows a diagram illustrating how to adjust thread tension using knobs labeled 1, 2, and 3, with instructions in both English and Chinese for tightening and loosening the thread.
- Page 16 (text): This page contains instructions for cleaning the sewing machine, focusing on the needle plate and feed rows, along with a diagram illustrating the process.
- Page 17 (text): This page provides instructions on how to replace the needle on a sewing machine, including a diagram illustrating the correct and incorrect needle insertion, and specifies the standard needle type as Organ DCx27.
- Page 18 (diagram): This page contains a diagram illustrating the oil circulation system during operation, with labels in English and Chinese.
- Page 19 (text): This page describes the maintenance procedure for checking and replacing the oil filter every six months, including Chinese and English instructions and an illustration of the process.
- Page 20 (diagram): This page contains a diagram illustrating the process of replacing the oil in the machine, with accompanying text in both English and Chinese.
- Page 21 (diagram): This page provides instructions and diagrams for replacing the lower knife on an industrial sewing machine, including steps for removal and installation, and correct sharpening angles.
- Page 22 (text): This page contains a table of parameters for the JK797 sewing machine, including settings for needle height, looper distance, and feed dog adjustments, along with a list of error codes and their descriptions.
- Page 23 (diagram): This page displays a diagram of machine components with numbered parts, including a main housing, various fasteners, and a bracket assembly.
- Page 24 (parts_list): This page lists parts for the Machine Bed Frame, including part numbers, descriptions, and quantities for different machine types.
- Page 25 (diagram): This page displays a diagram of various components of an industrial sewing machine, with numbered references for each part.
- Page 26 (parts_list): This page lists cover components for an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 27 (diagram): This page contains a diagram of sewing machine parts, with numbered components and some parts specified for KS models.
- Page 28 (parts_list): This page lists cover components for an industrial sewing machine, including part numbers, descriptions, and quantities for different machine models.
- Page 29 (diagram): This page displays a diagram of various components of an industrial sewing machine, including a shaft, bearings, pulleys, and fasteners, with each part labeled with a reference number for identification.
- Page 30 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including part numbers, descriptions, and quantities for different machine types.
- Page 31 (diagram): This page displays a diagram of various sewing machine components, including needle bars, presser feet, and thread guides, with corresponding reference numbers for identification.
- Page 32 (parts_list): This page lists parts for the Needle Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 33 (diagram): This page displays a diagram of sewing machine parts, with numbered components and a legend indicating parts for three-thread and four-thread configurations.
- Page 34 (parts_list): This page lists parts for the Upper Looper Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 35 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification.
- Page 36 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 37 (diagram): This page displays a diagram of various machine parts, including components like shafts, bearings, brackets, and fasteners, each identified by a reference number.
- Page 38 (parts_list): This page lists parts for the Feed Mechanism (1) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 39 (diagram): This page displays a diagram of various machine parts, including components numbered from 1 to 74, with a page number of -33- and a website address jintez.in at the bottom.
- Page 40 (parts_list): This page lists parts for the Feed Mechanism (1) of an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 41 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 25, with associated components and fasteners.
- Page 42 (parts_list): This page lists parts for the Feed Mechanism (2) of an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 43 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 26, with associated reference numbers.
- Page 44 (parts_list): This page lists parts for the Knife Drive Mechanism, including part numbers, descriptions, and quantities for different thread types.
- Page 45 (diagram): This page displays a diagram of various sewing machine parts, including levers, springs, screws, and housings, with reference numbers for identification.
- Page 46 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 47 (diagram): This page displays diagrams for 1-needle and 2-needle sewing machine components, with numbered parts for identification.
- Page 48 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 49 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding part numbers and descriptions, including variations for different needle configurations and life cycles.
- Page 50 (parts_list): This page lists parts for the Thread Guide & Thread Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 51 (diagram): This page displays a diagram of various machine parts, including screws, filters, and housings, with corresponding reference numbers for identification.
- Page 52 (parts_list): This page lists parts for the Lubrication Mechanism (1) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 53 (diagram): This page contains a diagram of various machine components, including a steering spindle assembly and linkage parts, with numbered references for each part.
- Page 54 (parts_list): This page lists parts for Lubrication Mechanism (2), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 55 (diagram): This page contains a diagram of various machine components, including screws, brackets, and housings, with reference numbers for each part.
- Page 56 (parts_list): This page lists parts for H.R. Device, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 57 (diagram): This page contains a diagram of various machine components, with numbered references for each part.
- Page 58 (parts_list): This page lists thread spool assemblies with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 59 (diagram): This page displays a diagram of various machine components, including screws, brackets, and a long bar, with corresponding reference numbers for identification.
- Page 60 (parts_list): This page lists parts for semi-submerged installation, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 61 (diagram): This page contains diagrams of parts for plain seaming and blindstitch hemming, with part numbers and reference numbers indicated.
- Page 62 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 63 (diagram): This page displays a diagram of machine components with reference numbers, part numbers, and descriptions for models MC310 and 311.
- Page 64 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 65 (diagram): This page displays diagrams of various sewing machine parts, including components for models JK-797-3-504-52D/MC501, JK-797-3-504-52D/MC, and JK-797-3-504-D-52D1/MC, with reference numbers and part identifiers.
- Page 66 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 67 (diagram): This page displays diagrams of various parts for sewing machine models JK-797-3-504-52D/MC501, JK-797-3-504-52D/MC, and JK-797-3-504-D-52D1/MC400, 401. It includes numbered illustrations of components with their corresponding part numbers and descriptions.
- Page 68 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 69 (diagram): This page displays a diagram of the JK-797-4-514-92M2 versatile sewing machine, illustrating various components and their reference numbers, including a fabric edge guide.
- Page 70 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 71 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 30, illustrating components such as a reservoir, tools, chains, and structural elements.
- Page 72 (parts_list): This page lists accessories and their part numbers, including screwdrivers, wrenches, oil containers, tweezers, attachment boxes, chains, screws, and more, with quantities specified for different machine types.
- Page 74 (cover): This is the cover page for JACK SEWING MACHINE CO., LTD., featuring their slogan "Leading in global sales" and contact information including a phone number, website, and social media links.
Page 2
开头语 衷心感谢您购买本公司产品！ 使用缝纫机之前，请 认真阅读此说明书。本说明书介绍了缝纫机日常使用、 维护与安全有关注意事项。请您仔细加以保管，以便 日后查阅。如产品规格或外观经过改良可能会与说明书 略有不同，恕不另行通知。 PROLOGUE Thanking you for your purchase our products sincerely, please reading the manual book before operation, the book introduce some points how to operate, maintenance, and safe. Please keep it carefully for reading in the further; you will be not informed if the file has been revised. Please set sample as standard. - i - jintex.in
Page 3
为了安全 对于缝纫机本身各种装置,我们充分考虑到它的安全性。请遵照基本的操作方法,安全地进行工作。 ●拆除为保证安全所设置的装置,零件的情况下使用,是非常危险的,请绝对不要拆除后使用。 ●缝纫机在使用时,请不要在缝纫机台板上放置工具及缝纫时不必要的物品。 ●在对缝纫机进行维修、调节、清扫、穿线、换针等工作时,为防止发生事故,务必请切断电源,在确认即便踩下缝纫机踏板,缝纫机也不会转动之后,再进行操作。 -注意- 使用离合式马达的情况下,在关掉电源①后因惯性作用会继续旋转。这时如不注意踩缝纫机踏板②,缝纫机会突然动,这很危险的。 请在关掉电源后,仍继续踩踏踏板②,直至缝纫机完全停下来为止。 OBSERVE THESE SAFETY PRECAUTIONS Though Our takes the utmost care to produce safe sewing machines and devices, operators should follow these basic safety rules. ● To prevent accidents,do not remove safety devices or parts while operating the machine. ● Do not leave tools or other unnecessary objects on the machine table while operating the machine. ● Before maintenance,adjusting, cleaning, threading or replacing the needle, and to prevent accidents,be sure the power is turned off.Check that the machine will not operate when the pedal is pressed. Note In case a clutch type motor is used, it will keep on rotating by inertia after turning off power supply. ① If the machine pedal ② is stepped on inadvertently, it is dangerous because the machine will move unexpectedly.keep on stepping on the pedal ② until the machine comes to a stop after turning off power supply. ● 在离开缝纫机台时,务必请关掉电源。 ● 停电时也请务必关掉电源。 ● 为了总是安全地,运转良好的使用缝纫机,日常的点检是不可缺少的,请予以注意。 Turn the power off before leaving the machine table. In the event of a power failure,be sure to turn the machine off. Check that the machine is securely groundee. - ii - jintex.in
Page 4 — CONTENTS
目录 CONTENTS 使用说明 1 一、机壳部分 Frame Components 19 二、罩壳部分(1) Cover Components(1) 21 三、罩壳部分(2) Cover Components(2) 23 四、曲轴部件 Crankshaft Drive Components 25 五、针杆机构 Needle Drive Mechanism 27 六、上弯针机构 Upper Looper Drive Mechanism 29 七、下弯针机构 Lower Looper Drive Mechanism 31 八、送布机构(1) Feed Mechanism(1) 33 九、送布机构(2) Feed Mechanism(2) 37 十、上刀机构 Knife Drive Mechanism 39 十一、压脚机构 Presser Foot Mechanism 41 十二、紧线机构 Thread Tension Mechanism 43 十三、挑线机构 Thread Guide & Thread Mechanism 45 十四、润滑机构(1) Lubrication Mechanism(1) 47 十五、润滑机构(2) Lubrication Mechanism(2) 49 十六、H.R.装置 H.R.Device 51 十七、线架装置 Thread Stand 53 十八、托盘附属品装置 Parts For Semi-submerged Installation 55 十九、专用部件 (1) Specific Parts(1) 57 二十、专用部件 (2) Specific Parts(2) 59 二十一、专用部件 (3) Specific Parts(3) 61 二十二、专用部件 (4) Specific Parts(4) 63 二十三、专用部件 (5) Specific Parts(5) 65 二十四、随机附件部分 Accessories Assemblies 67 标准度量零件表Standard measurement part list 69 jintex.in
Page 5 — Schematic diagram of the machine table
在使用之前 BEFORE OPERATING 台板加工图 Schematic diagram of the machine table 请参照下图进行台板加工 Cut the table referring to the diagram 228.5 265 69 36 66 128 33 145 15 120 318 170 182 57 295 160 118 105 50 64 81 45 215 23 20 270 110 (470) 550 4-012 3-09 4-012.5 5 3-025 1.5 4-027 3.6 注 ●使用类似于日本产的马达时---306mm ●使用类似于德国 EFKA 与 QUICK 公司马达时---334mm Note ●Dimension of motors in Japan---306mm ●Dimension of EFK motor---334mm -1- jintex.in
Page 6 — 供 油 Lubrication
在 使用 之前 BEFORE OPERATING 供 油 Lubrication 加油量是使油面处于H线与L线之间为好。 当油面低于L线时,就要及时补充机油。 After filling the oil pan, the oil sufrace should lie between (H) and (L) lines. Add oil, when the oil surface reaches or goes below (L). 高速缝纫机油 High speed sewing machine oil - 2 - jintex.in
Page 7 — 手动给油 Manual lubrication
在使用之前 BEFORE OPERATING 手动给油 Manual lubrication Apply 2 or 3 drops of oil by hand when the machine is used for the first time or has been left unused for some time. 高速缝纫机油 High-speed sewing machine oil - 3 - jintex.in
Page 8
在使用之前 BEFORE OPERATING 为防止断线, 尽早给HR装置供油。 注: 关于购买硅油, 请询问代理店或与公司 营业部联系。 给HR装置供油 Filling the HR device with silicon oil Fill the HR device with oil before it is too low in order to prevent needle thread breakage and fabric damage. Note: Use Pegasus recommended silicone oil. (UNION CARBIDE CORPORATION) UCCL-45(350) - 4 - jintex.in
Page 9 — Threading
在使用之前 BEFORE OPERATING 穿线方法 Threading 打开压脚杆及机壳(三处)。 Open three covers. Swing the presser foot aside. 把机上原有的线与缝纫 用线绑结在一起。 Knot the preset thread and the thread being used together to thread the machine. 针线 将线拉到针眼前,剪掉 结头再次穿好针线。 Needle thread Trim the knots off neatly before passing through the eye of the needle to rethread. 若机上原来没有线,请参照穿 线图正确进行穿线。 Be sure to thread the machine correctly by referring to the threading diagram. 穿线图 Threading diagram 弯针线 线拉出接头后,用剪刀齐 接头。 Looper thread Trim the knots off neatly after passing through the eye of the looper. - 5 - jintex.in
Page 10 — Presser foot pressure
试 TEST SEWING 缝 压脚压力的调节 Presser foot pressure 压脚压力的调节,松动螺母①,调节螺母②, 在送布得到稳定状态下尽可能使用较弱的压 力为好。 Loosen the adjusting nut ① and turn the adjusting nut ② to adjust the presser foot pressure. It should be as light as possible, yet be sufficient to obtain the proper stitch formation. Light 强 Heavy - 6 - jintex.in
Page 11
差动比的调节 Diff. feed ratio adjustment 试 缝 TEST SEWING 差动比的调节螺母① 调节螺母②。 Loosen the adjusting nut ① and turn the adjusting nut ② to adjust the differential feed ratio. 伸展 To stretch 收缩 To shrink -7-
Page 12 — Adjusting the top feed pressure
JK-797T 试 缝 TEST SEWING 上送布牙压力的调节 Adjusting the top feed pressure 请松动螺母①拧动螺母②,对上送布 牙压力进行调节。 在能得到稳定的线迹的范围内,请尽 量调松。 Loosen the adjusting nut ① and turn the adjusting nut ② to adjust the top feed pressure. It should be as light as possible, yet be sufficient to obtain the proper stitch formation. 器 Heavy Light - 8 - jintex.in
Page 13 — Adjusting the top feed front-to-back motion
JK-797T 试 缝 TEST SEWING 上送布牙前后量的调节 Adjusting the top feed front-to-back motion 请松动螺母①后拧动螺母②来调节 送布牙的前后量。 After loosening the adjusting nut ①, turn the adjusting nut ② to adjust the top feed front-to-back motion. 少 To feed less 多 To feed more - 9 - jintex.in
Page 14 — Stitch length adjustment
试 TEST SEWING 缝 针脚长度的调节 Stitch length adjustment 1、握住按钮,旋转手轮,按钮会陷进更深处。 2、这时边握住按钮,边转动手轮,使标准标 记 Aligning Mark 记号对准所希望的数值。 While pressing the push button, turn the handwheel to seek the position at which the push button goes further into the depth. Then, keeping the push button pressed, turn the handwheel and set the desired scale to the aligning mark. 变大 Coarse 手轮 Handwheel 变小 Fine 注:针脚长度的调节务请在调节差动比之后 进行。 Note: Stitch length adjustment must only be made after the differential feed ratio has been changed. 按钮 Push Button - 10 - jintex.in
Page 15
- II - Thread tension Make tension adjustments with the needle thread knob①, the lower looper knob②, and the upper looper knob③. TEST SEWING 试 缝 松开 To loosen 拧紧 To tighten
Page 16 — Cleaning the machine
MAINTENANCE DURING USE 缝纫机的清扫 Cleaning the machine 缝纫机的清扫, 以针板槽及送牙周围为主。 Mainly the slots of the needle plate and the feed rows should be cleaned. - 12 - jintex.in
Page 17
MAINTENANCE DURING USE 换 针 Replacing the needle 准确辨认针的前后,请将针凹向着后方, 即背向操作者进行安装。 针要牢固的插到孔的最深处。 OK! NO! OK! NO! 针凹部分 Scarf * Check the needle carefully to see that the scarf is turned to the rear of the machine. * Insert the needle to the proper depth, and fasten securely. 标准使用针:风琴DCx27 Standard needle: Organ DC X 27 请使用放在附件盒里红色柄 的螺丝刀。 Be sure to use the red-handled box driver packaged in the accessory box. 【注】不要移动螺钉。 【Note】Do not remove the screw. - 13 - jintex.in
Page 18
- 14 - OK! (Operating) (运转中) Checking the oil circulation MAINTENANCE DURING USE 使用中的保养 jintex.in
Page 19
使用中的保养 MAINTENANCE DURING USE 检查油质量,更换油 Checking and replacing the oil filter 机油每6个月检查并更换。 Check and replace the oil filter every six months. - 15 - jintex.in
Page 20
- 91 - 供油請參見第2頁。 Replace the oil one month after the first use and every six months there after. 机油的更换,请在使用开始1个月后更换一次,然后,每6个月更换一次。 MAINTENANCE DURING USE 使用中的保养 换机油 Replacing the oil jintex.in
Page 21
MAINTENANCE DURING USE 下刀片的更换 Replacing the lower knife 卸下下刀片 To remove the lower knife 松开螺丝 Loosen the screw 4 取下下刀片 Remove the lower knife. 把下刀架推想左边,用螺丝 ①暂时固定 Temporarily screw ① after sliding the lower knife holder to the left. 安装下刀片 To replace the lower knife 转动手轮将上刀移动对准如右 图所示位置 Turn the handwheel until the upper knife is at the lowest point. (See the right figure.) 拧紧螺丝 Tighten the screw. 5 1 装入下刀片。(右图参照) Insert the lower knife. (See the right figure.) 松开螺丝⑤,下刀架则向右 移动 Loosening the screw ⑤ makes the lower knife holder slide to the right. - 17 - jintex.in 下刀片正确的研磨角度 Correct angles to resharpen the lower knife 75° 62° 下刀刃 Cutting edge of the lower knife B 上刀片 Upper knife 针板表面 A Top surface of the needle plate A 下刀片 Lower knife 使针板表面A与下刀刃B处于相同 水平位置 Level of Ⓐ = Level of Ⓑ 装好下刀片后进行剪线,确认 剪切状况 Check cutting action of knives.
Page 22
JK797调整基准表 机型 机针高度 下弯针引量 出量 高度 上弯针 弯针架左 右位置 上弯针座安装方 向 二重环弯针引 量 Subclass Needle height Lower looper- needle setting distance Upper looper- needle setting distance Upper looper- height Looper position of the left and right Upper looper breacket installation direction Double chase stitch looper- needle setting distance Feed dog height Auxiliary feed dog height Feeding eccentrici ty Speed JK-797-3-504-02/233N 10.5 3.8 4.4-4.7 10.9 left 左 针板上面水平 0.8 0.8 0.35-2 JK-797-3-504-02-233 10.5 3.8 4.4-4.7 10.9 left 左 针板上面水平 0.8 0.8 0.35-2 JK-797-3-505-12/233 10.5 3.8 4.4-4.7 10.9 left 左 针板上面水平 0.8 0.8 0.35-2 JK-797-3-504-04/433 11.9 4.2 4.4-4.7 11.5 right 右 针板上面水平 1 0.3 0.35-2 JK-797-4-514-03/33N 10.5 3.8 5.4-5.7 10.6 left 左 针板上面水平 0.8 0.8 0.35-2 JK-797-4-514-04/433 11.9 4.2 5.4-5.7 11.1 right 右 针板上面水平 1 0.3 0.35-2 参数表 Parameter list 错误代码 一览表 List of error codes 参数 Parameter 参数作用 function 参数说明 description 电机发生堵转故障 rotor problem 电机过载或欠压 over-current or under-voltage 电机因过载,请减轻负荷后重启电机; Please reduce the load capacity and then restart the motor 请检查缝料是否太厚; Please check if the sewing material is too heavy 检查针杆是否缺油润滑; Please check if the machine needs lubrication. 主板读取参数错误 The board can not read the parameter 电机霍尔信号出错 Hall signal error 过流量或者欠压 over-current or under-voltage 电机过载或欠压 over-current or under-voltage 请检查供电电压是否正常; Please check the voltage 一般是负荷过大或者控制器故障引起的,若重启后也不能解决,建议 联系经销商解决; Because of supercharge or controller failure, if turn on the motor again can't solve the problem, please contact the local agent 检查10芯电插针是否松动或者脱落; Please check if the 10core line connect well or not 出现此种状况,需要关闭电源,稍后在打开电源开关即可; Please turn off the power and then turn it on again. 若重启后也不能解决,建议联系经销商解决; If can't solve the problem, please contact the local agent 请检查电机十芯插头连接是否可靠,霍尔信号线是否有点线,插针是 否退出或者变形; Please check if the 10core line connect well or not, please check if the connect line of hall is well or not 定针位出错 Needle position with probe 请检查定位器插头连接是否可靠。 《如果定位器损坏或者不需要定位功能时,当报E5,按住右键S约 3S,就可以进入参数设置界面,把M设置成0,即可关闭定位针功能》 Please check if the positioner connect well. (if the positioner damage or don't need needle position function and with Er5 code, please keeping press S around 3seconds, enter parameter model, set M value into 0 can turn off the function 注意:系统报错误后,机器将无法运行,显示 Note: If the control box give the error code made the machine can't run, please don't turn on the power till the problem solved - 18 - jintex.in
Page 23 — 1
1 5 9 1 7 2 11 4 3 6 12 8 10 -19- jintex.in
Page 24 — 一、机壳部分/Machine Bed Frame
一、机壳部分/Machine Bed Frame 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 四线 五线 three-thread four-thread five-thread 1 P03010 2010020 销5×16 Pin 1 1 1 2 P03017 2101820 销5×10 Pin 1 1 1 3 P03018 2402990 销4×40 Pipe 1 1 1 4 P01001 2400940 定位销 Pin 2 2 2 5 20513008 2403250 过线管 Pipe 2 2 2 6 206S30001 2700470 支柱 Bed Pin 4 4 4 7 R03001 2106790 铆钉 Pin 2 2 2 8 207S11007 007019A0 螺钉M4×7.5 Screw 2 2 2 9 20722004 2403100 油塞 Plug 1 1 1 10 301261 缝头 Bracket 1 1 1 11 301501 797机壳(喷漆) machine frame 1 1 1 12 403S11051 复合槽圆柱头螺钉 Screw 1 1 1 -20- jintex.in
Page 25
2 5 6 32 2 1 4 3 29 27 28 21 22 20 19 25 26 23 11 10 7 31 17 9 8 16 14 15 30 12 13 18 -21- jintex.in
Page 26 — 二、罩壳部件(1) Cover Components(1)
二、罩壳部件(1) Cover Components(1) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Name 数量 (Number) Description 三线 three-thread 四线 four-thread 五线 five-thread 1 301262 270148-SD0 上罩 Top Cover 1 1 1 2 S04060 XXXXXX 螺钉M4×10 Screw 4 4 4 3 20422001 2701490 上罩油封 Gasket 1 1 1 4 20622003 2403050 减震垫 Rubber Cushion 3 3 3 5 20711055 2064571 油标盖 Oil Sight Window 1 1 1 6 20722002 2066820 油塞 Gasket 1 1 1 7 301263 270150-UD0 前罩(右) Front Cover (Right) 1 1 1 8 20412002 2701510 前罩(左) Front Cover (Left) 1 1 1 9 207S11011 007018A0 螺钉M4×5 Screw 2 2 2 10 207S14002 0045740 螺钉M3×12 Screw 1 1 1 11 207S14003 0045350 螺钉M3×4 Screw 1 1 1 12 20401002 270014A0 铰链 Hinge 1 1 1 13 207S11008 007021A0 螺钉M4×12 Screw 2 2 2 14 20426002 270043A0 销 Pin 1 1 1 15 207S14001 0045430 螺钉M4×4 Screw 2 2 2 16 20712002 2700180 锁紧板 Latch 1 1 1 17 207S11009 0070090 螺钉M3×4.5 Screw 1 1 1 18 20427001 2403010 弹簧 Spring 1 1 1 19 20412003 2701520 卡片 Latch 1 1 1 20 207S11011 007018A0 螺钉M4×5 Screw 1 1 1 21 20612004 2100440 前罩板上盖1 Flat Spring 1 1 1 22 207S11011 007018A0 螺钉M4×5 Screw 1 1 1 23 20712005 2701530 前盖板 Cover 1 1 1 24 S04060 XXXXXX 螺钉M4×10 Screw 2 2 2 25 207S11008 007021A0 螺钉M4×12 Screw 1 1 1 26 207S11008 007022A0 螺钉M4×12 Screw 1 1 1 27 301264 270083B9U0 侧盖件 Side Cover Assy. 1 1 1 28 2070201100 274011-910 压脚杆组件 Presser Bar 1 1 1 29 207S17005 XXXXXX 螺钉M4×10 Screw 4 4 4 30 20131063 9A31261 警告牌 Label 1 1 1 31 20437006 XXXXXX 穿线指示标 Threading Diagram 1 1 1 32 21022003 XXXXXX 油窗垫 Oil window mat 1 1 1 -22- jintex.in
Page 27
3 KS机型专用 For KS models 除KS机型 Except KS model -23- jintex.in
Page 28 — 三、罩壳部件(2) Cover Components(2)
三、罩壳部件(2) Cover Components(2) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20711005 270032 防护罩 Eye Guard 1 1 1 2 207S11015 0070620 螺钉M3×6 Screw 2 2 2 3 W01011 2028750 垫圈 3 Washer 2 2 2 4 20112098 2700341 托架 Bracket 1 1 1 5 207S20002 0070660 螺钉M4 Screw 1 1 1 6 20128015 2103070 波形垫圈 Washer 1 1 1 7 301265 2700680 支架 Bracket 1 1 1 8 207S13003 0045110 螺钉M6×25 Bolt 3 3 3 9 20412004 2701670 布料挡板 Fabric Guide 1 1 1 10 208S15002 0073550 螺钉M5×5.5 Screw 2 2 2 11 20412014 2701790 挡油板 Cover 1 1 1 12 301266 270166-SD0 盖板 Cover Assy. 1 1 1 13 20430001 2701450 盖板螺丝 Cover 1 1 1 14 207S11007 007019A0 螺钉M4×7.5 Screw 4 4 4 15 20422010 2701750 密封垫 Gasket 1 1 1 16 20401004 213062A0 缝台侧盖 Side Cover 1 1 1 17 207S14003 0045960 螺钉M3×4 Screw 1 1 1 18 207S14009 -- 螺钉M3×3 Screw 1 1 1 19 20426003 3069200 转动销 Pin 1 1 1 20 207S14009 -- 螺钉M3×3 Screw 1 1 1 21 20427002 2130630 板弹簧 Flat Spring 1 1 1 22 207S11011 0071960 螺钉M4×5 Screw 1 1 1 23 20426004 2132730 销 Pin 1 1 1 24 207S14009 -- 螺钉M3×3 Screw 1 1 1 25 2041200600 213094-910 盖板组件 Cover 1 1 1 26 207S11011 007017A0 螺钉M4×5 Screw 2 2 2 27 2041204200 -- KS组件 KS component 1 1 1 -24- jintex.in
Page 29
4 26 2 17 1 10 9 8 25 11 28 12 24 23 22 21 20 3 7 6 5 4 13 14 15 16 19 29 18 27 -25- jintex.in
Page 30 — 四、主轴部件 Crankshaft Drive Mechanism
四、主轴部件 Crankshaft Drive Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400357 270522A0 主轴 Crankshaft 1 1 1 2 2013001000 LED灯组件 LED ASSY 1 1 1 3 S10013 0045220 螺钉M6×6 Screw 2 2 2 4 20709035 2705020 平衡块 Balance Weight 1 1 1 5 207S11017 0070110 螺钉M3×8 Screw 2 2 2 6 20401005 2705240 平衡块 Balance Weight 1 1 1 7 207S11017 0070110 螺钉M3×8 Screw 2 2 2 8 20428002 2405030 垫片 Washer 1 1 1 9 207S11011 0071430 螺钉M4×5 Screw 1 1 1 10 B04029 2403300 轴承6202ZLB Ball Bearing 1 1 1 11 20729001 2403350 卡簧 Ring 1 1 1 12 B04005 2115260 轴承6203LLU Ball Bearing 1 1 1 13 B04005 2115260 轴承6203LLU Ball Bearing 1 1 1 14 W03003 2403060 垫圈32 Washer 1 1 1 15 20103002 2100560 主轴中轴套 Oil Seal 1 1 1 16 001025 2100570 0型圈17×1.8 O Ring 1 1 1 17 20711210 R型线夹 R thread clamp 2 2 2 18 20711056 电机罩(新颜色) 1 1 1 19 2073301200 包缝直驱电机 1 1 1 20 001028 2400340 0型圈41×1.8 O Ring 1 1 1 21 20708015 2115280 轴承端盖 Right Cover 1 1 1 22 S04060 螺钉M4×10 Screw 3 3 3 23 S01011 螺钉M5×10 Screw 3 3 3 24 W02004 2042930 Φ6.1弹垫 Washer 1 1 1 25 20403001 2705230 衬圈 Spacer 1 1 1 26 207S11007 螺钉 Screw 3 3 3 27 207S11026 螺钉 Screw 2 2 2 28 20403017 中轴套 Sleeve 1 1 1 29 304026 手轮(喷漆) Tandwheel 1 1 1 -26- jintex.in
Page 31
5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 四线 four-thread 三线 three-thread 2针(2-needle) 1针(1-needle) -27- jintex.in
Page 32 — 五、针杆机构 Needle Drive Mechanism
五、针杆机构 Needle Drive Mechanism 序号 No. 公司件号 Part No. 参考件号 Ref. Part No. 名称 Name 数量 (Number) Description 三线 three-thread 四线 four-thread 五线 five-thread 1 400039 271000-920 连杆 Connection 1 1 1 2 S01039 XXXXXX 螺钉M4×15 Screw 2 2 2 3 20626003 2710010 曲柄销 Pin 1 1 1 4 207S14007 0045380 螺钉M4×6 Screw 1 1 1 5 20704001 271002-920 上轴曲柄 Crank 1 1 1 6 S05018 0045330 螺钉M6×0.75×12 Bolt 1 1 1 7 20704002 2710010 上轴 Shaft 1 1 1 8 20808006 2402920 挡圈 Collar 1 1 1 9 207S14014 0045540 螺钉M5×3 Screw 2 2 2 10 20828014 2082350 上刀架垫片 Washer 1 1 1 11 H05008 2025770 挡圈8 Ring 1 1 1 12 20704002 271004-920 针杆曲柄 Lever 1 1 1 13 207S12002 0071500 螺钉 Bolt 1 1 1 14 20626003 2710010 曲柄销 Shaft Assy. 1 1 1 15 20523005 2021770 油线 Oil Wick 0.033 0.033 0.033 16 20702052 271005B91Y0 针杆(DLC处理) Needle Bar 1 1 1 17 207S14008 0045460 螺钉M4×5 Screw 1 1 1 18 001026 2010220 O型圈11.5×1.5 O Ring 1 1 1 19 20723003 179009-050 毛毡 Felt 1 1 1 20 20722004 2403100 油塞 Plug 1 1 1 21 20708031 271009-920 挡圈 Ring 1 1 1 22 207S11023 0070350 螺钉3×6 Screw 1 1 1 23 20117012 XXXXXX 针 Needle 2 2 2 24 20734001 XXXXXX 三线针夹头 Needle Holder 1 0 0 25 207S14014 0045540 螺钉M3×3 Screw 1 0 0 26 20415004 XXXXXX 针板(三线) Needle Plate 1 0 0 27 20734002 XXXXXX 四线针夹头 Needle Holder 0 1 0 28 207S14014 0045540 螺钉M3×3 Screw 0 2 0 29 20415003 XXXXXX 针板(四线) Needle Plate 0 1 0 30 207S17003 XXXXXX 螺钉M4×7.5 Screw 1 1 1 31 20401008 213060A910 针板支架 Bracket Assy. 1 1 1 32 207S11007 007019A0 螺钉M4×7.5 Screw 1 1 1 33 20417001 XXXXXX 前护针 Needle Guard(Front) 1 1 1 34 S01012 0070310 螺钉M2.5×4 Screw 1 1 1 35 20417002 XXXXXX 后护针 Needle Guard(Rear) 1 1 1 36 207S11015 0070620 螺钉M3×6 Screw 1 1 1 37 20703002 577609 上轴套 Sleeve 1 1 1 38 20803007 577601 轴套 Sleeve 1 1 1 39 20703012 针杆套 Bushing 1 1 1 40 20426011 平键 Parallel Key 2 2 2 41 2070205200 针杆组件(DLC处理) Bushing Assy 1 1 1 -28- jintex.in
Page 33
6 三线 three-thread 6 四线 four-thread 7 -29- jintex.in
Page 34 — 六、上弯针机构 Upper Looper Drive Mechanism
六、上弯针机构 Upper Looper Drive Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 four-thread 四线 five-thread 五线 three-thread 1 400043 271500-920 连接杆 Connection 1 1 1 2 S01039 螺钉M4×15 Screw 2 2 2 3 S01039 螺钉M4×15 Screw 2 2 2 6 400036 271502-920 上弯针摆曲柄 Crank 1 0 0 7 400037 271503-930 上弯针摆曲柄 Crank 0 1 1 8 S05018 0045330 螺钉M6×0.75×12 Bolt 1 1 1 9 20402010 2715350 上弯针轴 Shaft 1 1 1 10 20622019 210586A0 油封 Oil Seal 1 1 1 11 20428008 2401020 垫片 Washer 1 1 1 12 20408001 240201-920 紧圈 Collar 1 1 1 13 207S13006 0071100 螺钉M4×9 Bolt 1 1 1 14 20428009 2403120 垫圈 Washer 1 1 1 16 20705003 271505-920 连接杆 Lever 1 1 1 17 207S12002 0071500 螺钉 Bolt 1 1 1 18 20726004 2715460 销组件 Pin Assy. 1 1 1 19 20523005 2021760 油线 Oil Wick 0.3m 0.3m 0.3m 20 207S14010 0045450 螺钉M3×4 Screw 1 1 1 21 2040205000 271533B910 上弯针滑杆组件 Upper Looper Holder Assy. 1 1 0 22 20623005 179130-050 上弯针滑杆套油毡 Felt 1 1 1 23 207S11025 0070541 螺钉M3.5×6.7 Screw 1 1 1 25 20417003 XXXXXX 上弯针 Upper Looper 1 1 1 26 20401009 271510M0 上弯针座 Upper Looper Holder Base 1 1 1 27 21323007 XXXXXX 油线 Oil Wick 0.04m 0.04m 0.04m 28 207S11026 0045100 螺钉M6×16 Bolt 2 2 2 29 121223001 2715190 过滤塞 Folter 1 1 1 30 400348 2715340 弯针座盖板 Cover 1 1 1 31 207S11027 0070330 螺钉M2.5×8 Screw 1 1 1 32 207S17004 0070390 螺钉M2.5×6 Screw 1 1 1 33 20723005 2745890 吸油棉 Felt 1 1 1 34 20712017 2745880 压板 Bracket Assy. 1 1 1 35 207S11020 0070080 螺钉M3×4 Screw 1 1 1 36 - 0084210 油封指示标 Oil Seal 1 1 1 37 20803010 钢套 Sleeve 1 1 1 38 20403004 钢套 Sleeve 1 1 1 39 20712066 连杆垫片 Washer 1 1 1 40 S02007 螺钉M3×5 Screw 2 2 2 -30- jintex.in
Page 35
7 20 21 18 6 7 19 16 13 15 14 8 1 2 3 17 -31- jintex.in
Page 36 — Lower Looper Drive Mechanism
七、下弯针机构 Lower Looper Drive Mechanism 序号 公司件号 参考件号 名称 Description 数量 (Number) NO. Part NO. Ref. Part No. 三线 四线 五线 three-thread four-thread five-thread 1 400043 271500-920 下弯针连杆 Connection 1 1 1 2 S01039 — 螺钉M4×15 Screw 2 2 2 3 S01039 — 螺钉M4×15 Screw 2 2 2 6 400338 272010-920 下弯针球曲柄 Crank 1 1 1 7 S05018 0045330 螺钉M6×0.75×12 Bolt 1 1 1 8 20402008 271504B0 下弯针轴 Shaft 1 1 1 9 20628006 2403380 垫片 Washer 1 1 1 10 W02001 3030670 Φ5.1弹垫 Washer 1 1 1 11 207S11004 0071740 螺钉M5×9.5 Bolt 1 1 1 13 2072201700 — 油封 Oil Seal 1 1 1 14 20401011 272011-910 下弯针组件 Lower Looper Holder 1 1 1 15 207S13009 0045010 螺钉M5×12 Bolt 1 1 1 16 XXXXXX XXXXXX 下弯针 Lower Looper 1 1 1 17 S01029 — 螺钉M3.5×7.5 Screw 1 1 1 18 20803010 — 铜套 Sleeve 1 1 1 19 20403006 — 铜套 Sleeve 1 1 1 20 20712066 — 连杆垫片 Washer 1 1 1 21 20403006 — 螺钉M3×5 Screw 2 2 2 -32- jintex.in
Page 37
8 -33- jintex.in
Page 38 — 八、送布机构(1) Feed Mechanism(1)
八、送布机构(1) Feed Mechanism(1) 数量 (Number) 序号 公司件号 参考件号 名称 Description 三线 四线 五线 NO. Part NO. Ref. Part No. three-thread four-thread five-thread 1 20405001 2726020 差动连杆 Connection 1 1 1 2 20410001 2725960 差动偏心轮 Eccentric 1 1 1 3 20426006 2101290 偏心销 Guide/Feed Eccentric 1 1 1 4 20427005 210130A0 Flat Spring 1 1 1 5 S12002 — 螺钉M3×4 Screw 2 2 2 6 20412008 2725990 棘爪 Ratchet 1 1 1 7 20427006 2726130 弹簧 Spring 1 1 1 8 207S20005 0070380 螺钉M2 Screw 1 1 1 9 20425001 2726000 棘爪 Ratchet 1 1 1 10 207S14012 — 螺钉M5×5 Screw 1 1 1 11 S12009 0045720 螺钉M5×10 Screw 1 1 1 12 20410002 272597-910 调节偏心轮 Eccentric 1 1 1 13 2040800200 272595-910 调节块组件 Regulator 1 1 1 14 207S14006 0045140 螺钉M5×5 Screw 2 2 2 15 20426007 2726100 调节杆 Push Botton 1 1 1 16 20427007 2405171 调节杆弹簧 Spring 1 1 1 17 20628008 2404840 开针轴垫片 Washer 2 2 2 18 20622009 2000200 开针轴O型圈 O Ring 1 1 1 19 20629006 2025220 卡簧 Ring 1 1 1 20 20404004 272603-920 差动曲柄 Crank 1 1 1 21 S05018 0045330 螺钉M6×0.75×12 Bolt 1 1 1 22 20628014 2082350 上刀架垫片 Washer 1 1 1 23 20808006 2402920 挡圈 Collar 1 1 1 24 207S14014 0045540 螺钉M3×3 Screw 2 2 2 25 20404005 272581-910 挡杆 Crank 1 1 1 26 S05018 0045330 螺钉M6×0.75×12 Bolt 1 1 1 27 20409003 2725830 滑块 Slider 1 1 1 28 H05006 2016290 卡簧 Ring 1 1 1 29 20409004 2725840 导向滑架 Guide 1 1 1 30 S04060 — 螺钉M4×10 Screw 2 2 2 31 400347 2725800 牙架组件 Feed Bar Assy. 1 1 0 32 2041400600 XXXXXX 送布齿组件 Main Feed Dog Assy. 1 1 0 33 20414006 XXXXXX 送布齿 Main Feed Dog 1 1 0 34 20414003 XXXXXX 辅助送布牙 Auxiliary Feed Dog 1 1 0 35 S01063 — 一字螺钉 Screw 1 1 1 36 S01029 — 螺钉M3.5×7.5 Screw 1 1 1 37 20409002 — 滑块 Block 1 1 1 38 20414007 XXXXXX 差动送布牙 Differential Feed Dog 1 1 1 -34- jintex.in
Page 39
8 -33- jintex.in
Page 40 — 八、送布机构(1) Feed Mechanism(1)
八、送布机构(1) Feed Mechanism(1) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Name 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread Description 39 S01029 螺钉M3.5×7.5 Screw 1 1 1 40 20409005 2726050 滑块 Block 1 1 1 41 20424001 240454-20 滚针轴承 Needle Bearing 1 1 1 42 20405002 2725790 连接轴 Link 1 1 1 43 20403002 2726090 衬套 Bushing 1 1 1 44 20428005 2405040 垫片 Washer 1 1 1 45 204S12001 0072910 六角头螺栓M5X10 Bolt 1 1 1 46 20426008 2726040 连接销 Pin 1 1 1 47 20428006 2405050 垫片 Washer 2 2 2 48 207S11011 0071430 螺钉M4×5 Screw 2 2 2 49 20402004 2725780 主送布轴 Shaft 1 1 1 50 400358 2726070 定位块 Block 1 1 1 51 207S13008 0045280 螺钉M4×16 Bolt 2 2 2 52 20426009 2726110 导架导向 Guide 1 1 1 53 204S2001 0072920 轴位螺钉M4 Screw 1 1 1 54 20722007 油封 Oil Seal 2 2 2 55 20426010 2725920 限位销 Guide 2 2 2 56 207S14007 0045380 螺钉M4×6 Screw 2 2 2 57 400676 2725930 定位片 Guide 1 1 1 58 207S11019 0070820 螺钉M4×7.5 Screw 2 2 2 59 20402005 2725870 偏心轴 Eccentric Pin 1 1 1 60 207S14007 0045840 螺钉M4×6 Screw 1 1 1 61 20622010 2401850 O型圈 O Ring 1 1 1 62 20708008 2403030 紧固圈 Collar 1 1 1 63 207S14001 0045430 螺钉M4×4 Screw 1 1 1 64 20408004 2404040 紧固圈 Collar 2 2 2 65 207S14007 0045380 螺钉M4×6 Screw 1 1 1 66 20709011 2725260 滑柱 Block 1 1 1 67 20428010 2400550 垫片 Washer 1 1 1 68 S02007 0070410 螺钉M3×5 Screw 1 1 1 69 20703002 套筒 Sleeve 1 1 1 70 20703001 套筒 Sleeve 1 1 1 71 20803007 套筒 Sleeve 1 1 1 72 20403015 套筒 Sleeve 1 1 1 73 20403016 套筒 Sleeve 1 1 1 74 2040500100 送料组件 Feed Assy. 1 1 1 -36- jintex.in
Page 41
9 -37- jintex.in
Page 42 — 九、送布机构(2) Feed Mechanism(2)
九、送布机构(2) Feed Mechanism(2) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) three-thread four-thread five-thread 1 20405003 2725880 调差连杆 Link 1 1 1 2 20404006 272589-920 调差曲柄 Lever 1 1 1 3 S05018 0045330 螺钉M6×0.75×12 Bolt 1 1 1 4 207S20006 0070580 螺钉M5×5 Screw 1 1 1 5 20402006 2725900 调差杆 Shaft 1 1 1 6 20622010 2041850 O型圈 O Ring 1 1 1 7 20412010 2725910 调差杆 Lever 1 1 1 8 204S20002 0071390 螺钉M4 Screw 1 1 1 9 20427008 2726140 弹簧 Spring 1 1 1 10 207S20007 007019A0 螺钉 Screw 1 1 1 11 20412011 2725860 调节板 Regulator Plate 1 1 1 12 207S11007 007019A0 螺钉M4×7.5 Screw 3 3 3 13 207S16002 2526580 止动螺母 Stopper 2 2 2 14 30228009 3034480 垫片 Washer 2 2 2 15 207S11011 007018A0 螺钉M4×5 Screw 2 2 2 16 20702007 272538A0 调差杆 Adjusting Bar 1 1 1 17 20737001 2403220 指示标 Seal 1 1 1 18 20727005 2405590 弹簧 Spring 1 1 1 19 20709007 272539A0 调差销 Pin 1 1 1 20 H05018 2005550 卡簧3.5 Ring 1 1 1 21 2071600100 2520690 调节螺母 Nut 1 1 1 22 20728003 2113010 弹簧垫片 Spring 1 1 1 23 207S30001 0070590 螺钉 Screw 1 1 1 24 20403007 铜套 Sleeve 1 1 1 25 20728005 垫片 Spring 1 1 1 -38- jintex.in
Page 43
10 6 3 4 5 26 1 2 11 10 25 9 11 10 7 15 12 13 16 14 17 18 19 20 22 21 23 24 -39- jintex.in
Page 44 — 十、上刀机构 Knife Drive Mechanism
十、上刀机构 Knife Drive Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 400041 273000-920 上刀连杆 Connection 1 1 1 2 S01039 螺钉M4×15 Screw 2 2 2 3 20704012 273001-920 上刀曲柄 Crank 1 1 1 4 S05018 0045330 螺钉M6×0.75×12 Bolt 1 1 1 5 20626003 2710010 曲柄销 Pin 1 1 1 6 207S14007 0045380 螺钉M4×6 Screw 1 1 1 7 20402009 273004A0 上刀轴 Upper Knife Lever 1 1 1 8 2072201700 油封 Oil seal 1 1 1 9 30208001 240235-920 紧圈 Collar 2 2 2 10 S10003 0045470 螺钉M6×0.75×5 Screw 2 2 2 11 20719007 XXXXXX 上刀 Upper Knife 1 1 1 12 211S12002 螺钉M3.5×7.5 Screw 1 1 1 13 20701014 179712-050 上刀座 Upper Knife Clamp 1 1 1 14 20726005 2730060 销 Pin 1 1 1 15 S04019 螺钉M4×12 Screw 1 1 1 16 20419001 XXXXXX 下刀 Lower Knife 1 1 1 17 20412012 213264-910 定位夹片 Lower Knife Clamp 1 1 1 18 207S11007 0070190 螺钉M4×7.5 Screw 1 1 1 19 20401013 2730270 下刀座 Lower Knife Holder 1 1 1 20 207S14001 0045430 螺钉M4×4 Screw 1 1 1 21 20427009 2405180 弹簧 Spring 1 1 1 22 20412013 2130840 盖板 Cover 1 1 1 23 S01027 0070100 螺钉M3×6 Screw 1 1 1 24 20403008 铜套 Sleeve 1 1 1 25 20803010 铜套 Sleeve 1 1 1 -40- jintex.in
Page 45
11 16 40 17 15 18 7 8 13 12 14 6 5 9 10 4 3 2 20 21 1 19 24 23 26 22 25 27 28 32 34 33 JK-797-3-504-52D Except JK-797-3-504-52D 31 30 JK-797-3-504-52D Except JK-797-3-504-52D 29 JK-797-3-504-52D Except JK-797-3-504-52D -41- jintex.in
Page 46 — 十一、压脚机构 Presser Foot Mechanism
十一、压脚机构 Presser Foot Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Name 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20701016 274000-B0 压脚臂 Presser Arm 1 1 1 2 20626016 2085490 销 Pin 1 1 1 3 S10011 0045940 螺钉M4X0.5X4 Screw 1 1 1 4 20802013 2740010 压脚轴 Shaft 1 1 1 5 20703030 --- 压脚轴套 Bushing 1 1 1 6 207S11016 0071050 螺钉M4×16 Screw 1 1 1 7 20608004 274003-921 指压脚复位圈 Collar 1 1 1 8 S05017 0045340 螺钉M6×0.75×13.5 Bolt 1 1 1 9 20712007 --- 抬压脚小杠杆 Lever 1 1 1 10 20427013 274005A0 小杠杆挡簧 Spring 1 1 1 11 20616001 2740060 弯钩 Link 1 1 1 12 20712023 2740070 抬压脚杠杆 Lever 1 1 1 13 207S20008 0070600 轴位螺钉M10 Screw 1 1 1 14 20727007 2740080 弹簧 Spring 1 1 1 15 20712024 2740090 角板 Stopper 1 1 1 16 S04060 007020A0 螺钉M4×10 Screw 2 2 2 17 207S11031 0071750 螺钉M5×24 Screw 1 1 1 18 N01004 0048050 六角螺母M5 Nut 1 1 1 19 20719054 2087730 弹簧 Spring 1 1 1 20 20702014 274014A1 调节螺杆 Adjusting Screw 1 1 1 21 207S16003 2740150 调节螺母 Nut 1 1 1 22 20612034 274016A0 压杆扳手 Lever 1 1 1 23 207S20009 0071710 轴位螺钉M4 Screw 1 1 1 24 20627010 2740170 弹簧 Spring 1 1 1 25 20712030 2740100 挡板 Stopper 1 1 1 26 207S11007 0070190 螺钉M4×7.5 Screw 1 1 1 27 20416001 274018-92B0 压脚支架 Holder 1 1 1 28 207S11030 0070130 一字平头螺钉M3.5X8 Screw 1 1 1 29 20712048 2740190 弹簧簧片 Flat Spring 1 1 1 30 207S11009 0050890 螺钉M3×4.5 Screw 1 1 1 31 20712026 2740330 压脚护手 Finger Guard 1 1 1 32 20712048 2740200 板簧 Stopper 1 1 1 33 207S11020 0070080 螺钉M3×4 Screw 1 1 1 34 207S11009 0070090 螺钉M3×4.5 Screw 1 1 1 35 WO1006 --- GB/T97.1-1985垫圈4 Screw 1 1 1 36 20703031 --- 轴套 Bushing 2 2 2 -42- jintex.in
Page 47
12 1 针 (1-needle) 2 针 (2-needle) -43- jintex.in
Page 48 — 十二、紧线机构 Thread Tension Mechanism
十二、紧线机构 Thread Tension Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Name 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 2111300500 210529-9T0 夹线器组件 (红点) Tension Spring Assy. (Red) 1 1 1 2 301S16006 208447-UA 调压螺母 Knob 1 1 1 3 30111006 208448 调压止动套 Rachet 1 1 1 4 30111005 208450-UA 调压止动盖 Cup 1 1 1 5 21311161 2103 19 夹线片 Tension Disc 2 2 2 6 20623008 208449 夹线片垫 Felt 1 1 1 7 201S30016 5082A 夹线螺钉 Screw Stud 1 1 1 8 20727011 20137 调压簧 Spring 1 1 1 9 2111300600 210531-9U 夹线器组件 (蓝点) Tension Spring Assy. (Bule) 1 1 1 10 30127013 201086 调压簧 (弱) Spring 1 1 1 11 20713001 275000 过线板 Thread Guide 1 1 1 12 207S11007 7019 螺钉 M4×7.5 Screw 2 2 2 13 20712015 2750010 过线板 Thread Guide 1 1 1 14 20612052 202849 前过线板 Tension Guide 3 4 4 15 206S11005 4009-HC 螺钉 Screw 1 1 0 16 2111300800 210530-9U 夹线器组件 (黄点) Tension Spring Assy. (Yellow) 0 0 1 17 2111300700 210532-9U 夹线器组件 (绿点) Tension Spring Assy. (Green) 1 1 1 18 20712032 过线片 Thread Disc 1 1 1 -44- jintex.in
Page 49
13 1 8 2 5 3 1針(1-needle) JK-797-3-504-D-52D1 Except JK-797-3-504-D-52D1 6 7 2針(2-needle) JK-797-3-504-D-52D1 12 4 2針(2-needle) JK-797-3-504-D-52D1 9 1針(1-needle) JK-797-3-504-D-52D1 Except JK-797-3-504-D-52D1 10 2針(2-needle) 標準(Standard life) JK-797-3-504-D-52D1 11 2針(2-needle) 高,超高 High life, Extra-high life 25 18 15 14 16 17 26 19 20 21 22 23 24 27 28 29 30 1針(1-needle) JK-797-3-504-D-52D1 Except JK-797-3-504-D-52D1 2針(2-needle) JK-797-3-504-D-52D1 33 31 32 33 -45- jintex.in
Page 50 — 十三、挑战机构 Thread Guide & Thread Mechanism
十三、挑战机构 Thread Guide & Thread Mechanism 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20701010 2750150 托架 Bracket 1 1 1 2 207S11019 0070820 螺钉M4×7.5 Screw 1 1 1 3 20713002 275013A0 过线 Thread Guide 1 0 0 4 20713003 2750130 过线 Thread Guide 1 1 1 5 207S14001 0045430 螺钉M4×4 Screw 1 1 1 6 20713004 2750180 过线(一针) Thread Guide 1 0 0 7 20713005 275018A0 过线(二针) Thread Guide 1 1 0 8 207S11019 0070820 螺钉M4×7.5 Screw 1 1 1 9 20813002 275016A0 挑线杆(一针) Needle Thread Take-up 1 0 0 10 20813004 275017A0 挑线杆(两针标准) Needle Thread Take-up 0 1 0 11 20813004 275106A0 挑线杆(两针厚) Needle Thread Take-up 0 1 0 12 207S11015 0070620 螺钉M3×6 Screw 1 1 1 13 S02007 0070410 螺钉M3×5 Screw 1 1 1 14 20712016 2750040 支架 Bracket 1 1 1 15 20113015 2750470 过线 Thread Guide 2 2 2 16 W01011 2028750 垫片 Washer 2 2 2 17 201S11006 0070080 一字螺钉M3×4 Screw 2 2 2 18 20413001 2751070 过线 Thread Guide 1 1 1 19 20713010 2750050 过线 Thread Take-up 1 1 1 20 207S11017 0070190 螺钉M4×7.5 Screw 1 1 1 21 20713011 2750060 过线 Thread Guide 1 1 1 22 207S11020 0070080 螺钉M3×4 Screw 1 1 1 23 20413002 2751080 过线 Thread Take-up 1 1 1 24 207S11011 0070180 螺钉M4×5 Screw 1 1 1 25 20713013 2570100 过线 Thread Guide 1 1 1 26 20413003 2751090 过线 Thread Guide 1 1 1 27 20713006 2750110 托架 Thread Retainer Bracket 1 1 1 28 20713007 2750120 压线板 Thread Retainer 1 1 1 29 20727002 2403260 弹簧 Spring 1 1 1 30 207S20003 0071630 轴位螺钉M2 Screw 1 1 1 31 20713038 275019A0 过线 Thread Guide 1 0 0 32 20713018 275019B0 过线 Thread Guide 1 1 1 33 207S11024 0070120 一字螺钉M3.5×6 Screw 1 1 1 -46- jintex.in
Page 51
14 41 11 10 12 8 9 39 40 38 37 36 13 14 15 16 17 18 21 19 20 22 23 24 26 33 32 37 31 30 42 35 25 7 6 5 4 3 2 1 43 -47- jintex.in
Page 52 — 十四、润滑机构(1) Lubrication Mechanism(1)
十四、润滑机构(1) Lubrication Mechanism(1) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20401014 274587-910 油盘 Oil Reservoir Assy. 1 1 1 2 20528014 202287A0 橡胶垫片 Washer 1 1 1 3 207S13002 0053138B0 螺钉 Screw 1 1 1 4 207S13009 0045310 螺钉M5×12 Bolt 4 4 4 5 20628018 2403390 垫片 Washer 4 4 4 6 20422009 2745830 密封圈 Gasket 1 1 1 7 20437009 2745390 油窗指示标 Oil Sight Gauge 1 1 1 8 20736004 滤油器 Filter Element 1 1 1 9 20836001 274528A0 油管接头 Joint 1 1 1 10 300140 210201-SD0 过滤窗盖 Cover 1 1 1 11 207S11008 007021A0 十字螺钉M4X12 Screw 3 3 3 12 001010 2064310 0型密封圈 O Ring 1 1 1 13 20820001 274546-910 油泵 Pump Assy. 1 1 1 14 20725002 2116180 蜗轮 Worm Wheel 1 1 1 15 207S15002 0050600 螺钉M8X4.5 Screw 2 2 2 16 0045220 螺钉 Screw 1 1 1 17 212978-910 转子轴 Rotor (Inside) Shaft 1 1 1 18 2129810 转子 Rotor (Outside) 1 1 1 19 2094080 滤油网 Filter (Inside) 1 1 1 20 2094090 滤油网 Filter (Outside) 1 1 1 21 0070120 螺钉 Screw 3 3 3 22 2094100 卡箍 Clamp 1 1 1 23 0070110 螺钉 Screw 1 1 1 24 0048000 螺母 Nut 1 1 1 25 0045290 螺栓 Bolt 2 2 2 26 20622010 2041850 0型密封圈 O Ring 1 1 1 27 S10009 0045220 内六角螺钉M6X8 Screw 1 1 1 28 20425002 274507A0 蜗杆 Worm 1 1 1 29 207S14006 0045140 螺钉M5×5 Screw 1 1 1 30 20436001 2001360 油管接头 Joint 2 2 2 31 20420004 2745860 接头螺钉 Joint Screw 1 1 1 32 12921005 1L700400000 油管Φ4×Φ6 Tube 0.25m 0.25m 0.25m 33 20429001 2021990 油管卡簧 Clamp 2 2 2 34 20436001 2001360 油管接头 Joint 1 1 1 35 206S30009 2403280 接头螺钉 Joint Screw 1 1 1 36 12921005 2068400 油管Φ4×Φ6 Tube 0.1m 0.1m 0.1m 37 20429001 2021990 油管卡簧 Clamp 2 2 2 38 204200500 274591-910 分油管 Oil Distributor Assy. 1 1 1 39 20709014 2102140 滚珠 Ball 2 2 2 40 207S30002 004211-HU0 组合螺钉M4×16 Screw 1 1 1 41 30131004 9A30020 指示标 Filter seal 1 1 1 42 20122033 240263 垫片 Washer 5 5 5 43 S05004 螺钉M5×14 Screw 2 2 2 -48- jintex.in
Page 53 — 15
15 -49- jintex.in
Page 54 — 十五、润滑机构(2) Lubrication Mechanism(2)
十五、润滑机构(2) Lubrication Mechanism(2) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20521009 2745920 油管接头 Joint 1 1 1 2 20721011 2745200 油管Φ2×Φ4 Tube 0.34m 0.34m 0.34m 3 2071203800 274584-910 针吸油组件 Joint Assy. 1 1 1 4 20622010 2041850 O型圈 O Ring 1 1 1 5 20723007 --- 油棉 Felt 1 1 1 6 207S11019 --- 螺钉M4×5 Screw 1 1 1 7 20721010 274516-910 过油管组件 Pipe Assy. 1 1 1 8 20709016 2400970 橡胶塞 Rubber plug 2 2 2 10 207S14001 0045430 螺钉M4×4 Screw 1 1 1 11 20626007 274517B910 过油销组件 Pipe Assy. 1 1 1 12 20709015 2400970 橡胶塞 Rubber plug 1 1 1 13 207S14001 0045430 螺钉M4×4 Screw 1 1 1 -50- jintex.in
Page 55
16 -51- jintex.in
Page 56 — 十六、H.R.装置 H.R.Device
十六、H.R.装置 H.R.Device 数量 (Number) 序号 公司件号 参考件号 名称 Description 三线 四线 五线 NO. Part NO. Ref. Part No. three-thread four-thread five-thread 1 20711014 2755000 上硅油盒 Silicone Oil Reservoir(Upper) 1 1 1 2 S 04060 --- 螺钉M4×10 Screw 1 1 1 3 20712040 2755020 过线 Thread Guide 1 1 1 4 20723008 2755030 油毡 Felt 1 1 1 5 20711015 2755010 上硅油盒盖 Cover 1 1 1 6 20411002 2755700 下硅油盒 Silicone Oil Reservoir(Lower) 1 1 1 7 20412008 2755720 螺栓 Joint Screw 1 1 1 8 001027 2089490 O型圈 O Ring 1 1 1 9 20411003 2755710 下硅油盒盖 Cover 2 2 2 10 2041100400 275576-910 针型冷却器 Needle Cooler 1 1 1 11 20420009 2755730 连接螺钉 Joint Screw 1 1 1 12 207S11011 007017A0 螺钉M4×5 Screw 1 1 1 13 20523005 2021740 油线 Oil Wick 1 1 1 14 20423006 2130900 油棉 Felt 1 1 1 15 20726010 2107660 大头针 Pin 1 1 1 -52- jintex.in
Page 57
17 1 2 3 4 5 6 7 14 12 11 9 10 15 16 17 18 21 20 19 22 23 24 25 26 27 28 29 13 32 33 31 30 jintex.in
Page 58 — 十七、线架部件 /Thread Spool Assemblies
十七、线架部件 /Thread Spool Assemblies 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20631018 4835 过线棒 Thread guide 1 0 0 2 20131019 293A 过线棒 Thread guide 0 0 1 3 20131019 293B 棒帽 Rod cap 1 1 1 4 21131008 293C 上管 Upper thread column 1 1 1 5 201S16006 4021 导线环螺母 Thread guide hook nut 2 4 4 6 21131009 --- 导线架(短) Thread spool tray bracket 0 2 1 7 20131018 505-PA 过线环 Thread guide hook 3 4 5 8 20131021 505APA 棒架螺钉 Screw 2 2 2 9 21131010 7102 棒架 Clamp plate 1 1 1 10 201S16004 512 螺母 Nut 4 4 4 11 20131022 4022 棒架螺钉 Screw 2 2 2 12 201S16004 380A 螺母 Nut 4 4 4 13 21131011 201252 导线环 Thread guide hook 2 2 2 14 21131020 4803 导线环螺钉 Screw 2 4 4 15 21131012 381-PA 导线架(长) Thread spool tray bracket 1 0 1 16 20131011 507 导线棒 Thread guide bar 1 1 1 17 20631019 382-PA 过线棒 Thread guide 0 1 0 18 21131013 4803 固定器 Thread guide joint 1 1 1 19 S04050 502-PA 螺钉M5×15 Screw 2 2 2 20 21131014 503-PA 套 Bushing 1 1 1 21 N01030 504-PA 套螺母 Nut 2 2 2 22 21131015 4012 线圈定位套 Spool Cushion 3 4 5 23 20131006 4803 线扎棒 Spool pin 3 4 5 24 21131010 527-PA 线盘垫 Spool tray cushing 3 4 5 25 21131016 527APA 线盘 Spool tray 3 4 5 26 21131017 4021 托线架(长) Thread spool tray bracket 1 0 1 27 201S16004 --- 螺母 Nut 3 4 5 28 20128018 506 垫圈 Washer 3 4 5 29 21131018 386 下管 Lower thread cloumn 1 1 1 30 201S16005 509 螺母 Nut 1 1 1 31 20128025 --- 下管垫圈 Lower washer 2 2 2 32 21131019 --- 托线架(短) Thread spool tray bracket 0 2 1 33 20122049 --- 防震垫 Plate dog link washer 2 2 2 34 20631020 --- 过线棒 Thread guide 0 0 1(六线) 35 2113101700 --- 线架组件 Thread stand component 1 0 0 35 2113101800 --- 线架组件 Thread stand component 0 1 0 35 2113101900 --- 线架组件 Thread stand component 0 0 1(六线) 35 2113101900 --- 线架组件 Thread stand component 0 0 1(六线) -54- jintex.in
Page 59
18 3 2 14 1 9 10 11 15 7 16 4 5 12 6 8 -55- jintex.in
Page 60 — 十八、托盘附属品 Parts For Semi-submerged Installation
十八、托盘附属品 Parts For Semi-submerged Installation 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20401018 2760170 托盘 Rest Board 1 1 1 2 20722009 179483-050 托盘防震连接垫 Cushion Rubber 2 2 2 3 20131028 2063360 托盘固定螺母 Nut 4 4 4 4 20131029 - 垫圈 Spacer 16 16 16 5 20131027 4512 托盘内六角螺钉 Bolt 4 4 4 6 20131030 - 防震套 Washer 4 4 4 7 20131032 205468-PA 排料槽I Waste Chute (Top) 1 1 1 8 21231007 205469-PA 排料槽II Waste Chute (Lower) 1 1 1 9 20131034 4904 排料槽座螺钉 Screw 4 4 4 10 21231005 205470-PA 排料槽座 Waste Chute Bracket 1 1 1 11 421S30004 4905 排料槽螺钉 Screw 4 4 4 12 30122031 - 减振垫圈 Spring Washer 8 8 8 14 20131026 2054730 托盘防震连接垫 Cushion Rubber Assy. 2 2 2 15 2123100400 落料斗组件 Waste Chute Assy. 1 1 1 16 20728006 垫片 Gasket 4 4 4 jintex.in
Page 61
19 普通缝 (Plain seaming) JK-797-3-504-02, 04 JK-797-4-514-03, 04 卷边缝 (Blindstitch hemming) JK-797-3-505-12 JK-797-4-514-92M2 41 40mm -57- jintex.in
Page 62 — 十九、专用部件(1) Specific Parts(1)
十九、专用部件(1) Specific Parts(1) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 XXXXXX XXXXXX 压脚 Presser Foot 1 1 1 2 XXXXXX XXXXXX 压脚爪 Presser Foot Finger 1 1 1 3 20416010 2115570 辅助压脚 Fabric Guide 1 1 1 4 207S11033 0013330 螺钉M1X2.3 Screw 1 1 1 5 20712031 2116000 辅助压脚板 Presser Foot Auxiliary Plate 1 1 1 6 207S11034 0050300 螺钉M1X2.3 Screw 1 1 1 7 XXXXXX XXXXXX 压脚 Presser Foot 1 1 1 8 XXXXXX XXXXXX 压脚 Presser Foot Finger 1 1 1 9 20712068 2105840 辅助压脚 Presser Foot Auxiliary Plate 1 1 1 10 207S11034 0050300 螺钉M1X2.3 Screw 1 1 1 11 20728004 2105850 垫圈 Washer 1 1 1 12 2070103900 下摆导向组件 Hem guide Assy. 1 1 1 13 20112051 2106800 送料支架 Bracket 1 1 1 14 20112052 2106810 铰链 Hinge guide bracket 1 1 1 15 201S20002 0051840 螺钉 Screw 1 1 1 16 20128027 2011910 垫圈 Spring 1 1 1 17 201S16003 0030440 螺母 Nut 1 1 1 18 2106820 垫圈 Washer 1 1 1 19 0050530 螺钉 Screw 1 1 1 20 20126020 2106830 铰链销 Pin 1 1 1 21 20112053 2106840 铰链弹簧 Flat Spring 1 1 1 22 201S11011 0029060 螺钉 Screw 1 1 1 23 0070200 螺钉 Screw 1 1 1 24 2012520 垫圈 Washer 1 1 1 26 20612041 205361A0 固定块 Bracket 1 1 1 27 206S11018 0050570 螺钉 Screw 1 1 1 28 20612042 2106890 挡板 Bracket 1 1 1 29 206S11011 0051570 螺钉 Screw 2 2 2 30 206S11012 0024300 螺钉 Screw 1 1 1 31 20612043 2106900 支架 Bracket 1 1 1 32 201S12001 0050880 螺钉 Bolt 2 2 2 33 20128020 1670660 垫片 Washer 2 2 2 34 206S11010 0029050 螺钉 Screw 1 1 1 35 20628016 1371420 垫片 Washer 1 1 1 36 20612044 2106920 角板 Stopper 1 1 1 37 206S11013 0012060 螺钉 Screw 1 1 1 38 2130950 挡板 Auxiliary Plate 1 1 1 39 0012290 螺钉 Screw 1 1 1 40 0050570 螺钉 Screw 1 1 1 41 20612040 201211C910 导向片 Guide Assy. (40mm) 1 1 1 42 20612048 2058350 挡板 Guide 1 1 1 43 20628020 0052990 螺钉 Screw 1 1 1 44 20612049 303312A0 弹簧片 Clamp 1 1 1 45 20612050 3033130 垫块 Stopper 1 1 1 -58- jintex.in
Page 63 — JK-797-3-504-52D/MC310, 311
20 JK-797-3-504-52D JK-797-3-504-52D/MC310, 311 1 7 6 2 3 14 13 12 11 4 5 9 8 -59- jintex.in
Page 64 — 二十、专用部件(2) Specific Parts(2)
二十、专用部件(2) Specific Parts(2) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量(Number) 三线 四线 五线 three-thread four-thread five-thread 1 XXXXXX 压脚组件 Presser Foot Assy. 1 1 1 2 2771790 固定块 Bracket 1 1 1 3 0070310 螺钉 Screw 2 2 2 4 213677A0 挡板A Guide A 1 1 1 5 0056150 螺钉 Screw 1 1 1 6 213678A0 挡板B Guide B 1 1 1 7 0029220 螺钉 Screw 2 2 2 8 2136720 压脚 Presser Foot 1 1 1 9 XXXXXX 压脚爪 Presser Foot Finger 1 1 1 10 2740190 弹簧片 Flate Spring 1 1 1 11 0050890 螺钉 Screw 1 1 1 12 2116000 压脚板 Presser Foot Auxiliary Plate 1 1 1 13 0050300 螺钉 Screw 1 1 1 14 274025A0 压脚护手 Finger Guard 1 1 1 -60- jintex.in
Page 65
21 JK-797-3-504-52D/MC501 JK-797-3-504-52D/MC JK-797-3-504-D-52D1/MC JK-797-3-504-D-52D1/MC400, 401 -61- jintex.in
Page 66 — 二十一、专用部件(3) Specific Parts(3)
二十一、专用部件(3) Specific Parts(3) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Name 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 2071100600 305276-910 风扇组件 Fan Assy. 1 1 1 2 XXXXXX 压脚组件 Presser Foot Assy. 1 1 1 3 2136640 挡板 A Guide A 1 1 1 4 0029220 螺钉 Screw 2 2 2 5 2136650 挡板 B Guide B 1 1 1 6 0029220 螺钉 Screw 1 1 1 7 2136660 挡板 C Guide C 1 1 1 8 0029220 螺钉 Screw 1 1 1 9 213659-910 压脚 Presser Foot 1 1 1 10 XXXXXX 压脚爪 Presser Foot Finger 1 1 1 11 2740190 弹簧片 Flat Spring 1 1 1 12 0050890 螺钉 Screw 1 1 1 13 2116000 压脚板 Presser Foot Auxiliary Plate 1 1 1 14 0050300 螺钉 Screw 1 1 1 15 2746010 固定块 Bracket 1 1 1 16 204S11003 0070310 螺钉 Screw 1 1 1 17 20412043 2136740 挡板 A Guide A 1 1 1 18 204S11002 0056150 螺钉 Screw 2 2 2 19 20401021 2746020 挡板 B Guide B 1 1 1 20 204S11004 0029220 螺钉 Screw 1 1 1 21 XXXXXX XXXXXX 压脚 Presser Foot 1 1 1 22 20416006 XXXXXX 压脚爪 Presser Foot Finger 1 1 1 23 20412044 2780210 压脚板 Presser Foot Auxiliary Plate 1 1 1 24 207S11034 0050300 螺钉 Screw 1 1 1 25 2052690 销子 Pin 1 1 1 26 2750000 过线架 Thread Guide 1 1 1 27 350188A0 衬圈 Spacer 2 2 2 28 0070720 螺钉 Screw 2 2 2 -62- jintex.in
Page 67
22 JK-797-3-504-52D/MC501 JK-797-3-504-52D/MC JK-797-3-504-D-52D1/MC JK-797-3-504-D-52D1/MC400, 401 -61- jintex.in
Page 68 — 二十二、专用部件(4) Specific Parts(4)
二十二、专用部件(4) Specific Parts(4) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量(Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 2726240 偏心轴 Shoulder Pin 1 1 1 2 2403110 垫片 Washer 2 2 2 3 2726280 垫片 Washer 1 1 1 4 272626-920 曲柄 Lever 1 1 1 5 0045310 螺栓 Bolt 1 1 1 6 2011070 滑块 Block 1 1 1 7 0073580 螺钉 Screw 1 1 1 8 0048200 螺母 Nut 1 1 1 9 2726250 支架 Bracket 1 1 1 10 0045150 螺栓 Bolt 2 2 2 11 2042930 垫片 Washer 2 2 2 12 2024330 垫片 Washer 2 2 2 13 5131180 汽缸 Air Cylinder 2 2 2 14 5270110 控制阀 Speed Controller 2 2 2 15 2726270 块 Lever 1 1 1 -64- jintex.in
Page 69 — 23
23 多用途 (Versatile) JK-797-4-514-92M2 1 2 SET UP INSTRUCTION 装配说明书 15 EH001A 11 10 8 9 7 6 3 4 5 12 13 14 16 17 18 19 20 21 当定规 (Fabric edge guide) 41 39 40 38 37 23 25 26 28 29 24 30 31 32 33 34 36 -65- jintex.in
Page 70 — 二十三、专用部件(5) Specific Parts(5)
二十三、专用部件(5) Specific Parts(5) 序号 NO. 公司件号 Part NO. 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 2041202900 270174-910 270170-910 缝台组件 缝台 Cloth Plate Assy. Cloth Plate 1 1 1 1 1 1 3 20412032 2042180 弹簧垫片 Flat Spring 1 1 1 4 20412033 200162A0 垫片 Washer 1 1 1 5 204S11001 0050530 螺钉 Screw 2 2 2 6 204S12002 005121A0 螺钉 Screw 1 1 1 7 204S16002 0030910 螺母 Nut 1 1 1 8 20428013 2048880 弹簧垫片 Spring 2 2 2 9 204S16001 0048080 螺母 Nut 2 2 2 10 20412034 2701730 缝台支架 Bracket 1 1 1 11 207S11018 007022A0 螺钉 Screw 2 2 2 12 20622003 2403050 橡胶垫 Rubber Cushion 2 2 2 13 20412035 3050140 支架 Bracket 2 2 2 14 207S11012 0070080 螺钉 Screw 1 1 1 15 2052690 销子 Pin 1 1 1 16 XXXXXX 压脚 Presser Foot 1 1 1 17 XXXXXX 压脚爪 Presser Foot Finger 1 1 1 18 2105840 压脚板 Presser Foot Auxiliary Plate 1 1 1 19 2105850 垫片 Washer 1 1 1 20 0050300 螺钉 Screw 1 1 1 21 2403120 垫片 Washer 1 1 1 23 20112051 2106800 送料支架 Bracket 1 1 1 24 20112052 2106810 铰链 Hinge 1 1 1 25 201S20002 0051840 螺钉 Screw 1 1 1 26 20128027 2011910 垫片 Spring 1 1 1 27 201S16003 0030440 螺母 Nut 1 1 1 28 2106820 垫片 Washer 1 1 1 29 0050530 螺钉 Screw 1 1 1 30 20126020 2106830 铰链销 Pin 1 1 1 31 20112053 2106840 铰链弹簧 Flat Spring 1 1 1 32 201S11011 0029060 螺钉 Screw 1 1 1 33 S01010 0070200 螺钉M4X8 Screw 1 1 1 34 W02002 2012520 垫圈4 Washer 1 1 1 36 20112056 2106870 挡料板座 Edge Guide Bracket 1 1 1 37 201S12001 0050880 螺钉M4X7.5 Bolt 2 2 2 38 20128020 1670660 垫片 Washer 2 2 2 39 201S11010 0012020 螺钉 Screw 1 1 1 40 20128020 1670660 垫片 Washer 1 1 1 41 20112054 2046670 挡料板 Edge Guide 1 1 1 -66- jintex.in
Page 71
24 DI -67- jintex.in
Page 72 — 二十四、随机附件部分 Accessories Assemblies
二十四、随机附件部分 Accessories Assemblies 序号 Ref. No 公司件号 Part No 参考件号 Ref. Part No. 名称 Description 数量 (Number) 三线 Three-thread 四线 Four-thread 五线 Five-thread 1 20731047 KY15 螺丝刀 screwdriver 1 1 1 2 10131004 KY14 螺丝刀(小) Screwdriver (S) 1 1 1 3 20131044 --- 直柄内六角螺丝刀(1.5mm) Hexagonal wrench/1.5mm 1 1 1 4 121131002 KY01 机头罩 Machine head cover 1 1 1 5 20131002 --- 机头塑料袋 Plastic machine head bag 1 1 1 6 20731048 KY02 油壶(灰) Oil container 1 1 1 7 20131038 KY03 小油壶(尖嘴) Oil container 2 2 2 8 20131039 KY04 漏斗 Tundish 1 1 1 9 20131051 KY18 镊子(JACK) Tweezers 1 1 1 10 20131055 附件盒 Attachment box 1 1 1 11 20131043 KY09 JK795-1908扳手(8mm) Wrench/8mm 1 1 1 12 20131042 KY08 JK795-1907扳手(7mm) Wrench/7mm 1 1 1 13 20131046 KY10 内六角扳手(2mm) Hexagonal wrench/2mm 1 1 1 14 30131012 KY11 内六角扳手(4mm) Hexagonal wrench/4mm 1 1 1 15 20131056 KY13 内六角扳手(6mm) Hexagonal wrench/6mm 1 1 1 16 20131047 KY12 内六角扳手(5mm) Hexagonal wrench/5mm 1 1 1 17 20131054 KY21-A JK795-1919脚踏板链 Chain 1 1 1 18 S10005 SK216 螺钉 Screw 4 4 4 19 见标准零件表 --- 机针 Needle 4 4 4 20 20131052 --- 线勾 Needle threader 0 0 1 21 --- --- DI直驱专用部件 DI Special Parts 1 1 1 22 --- --- 皮带 Belt 1 1 1 23 20412022 --- 落料斗固定板 Waste Chute Fixing Plate 1 1 1 24 207S13008 --- 螺钉 Screw 4 4 4 25 --- --- 弹簧垫片 Spring washer 4 4 4 26 W01009 --- 垫片 Washer 4 4 4 27 N01001 --- 螺母 Nut 4 4 4 28 20730335 --- 拉杆 Pull rod 1 1 1 29 20730027 --- 直驱控制器(T19) Direct drive controller(T19) 1 1 1 30 20130089 --- 塑壳调速器 Plastic shell governor 1 1 1 -68- jintex.in
Page 74
杰克缝纫机 全球销量遥遥领先 Leading in global sales 400-8876-858 www.chinajack.com JACK G+ YouTube f JACK SEWING MACHINE CO.,LTD. 2020年2月份 Edition:February,2020 杰克缝纫机股份有限公司 中国浙江省台州市椒江区三甲街道东海大道1008号 电话:0086-576-88177788 88177789 传真:0086-576-88177758 产品标准代号:Q/TK 007-2017 资料如有更改,恕不另行通知,以实样为准 JACK SEWING MACHINE CO.,LTD. NO.1008,DONGHAI AVENUE EAST,JIAOJIANG DISTRICT,TAIZHOU CITY, ZHEJIANG TEL: 0086-576-88177782 88177767 E-mail: sales@chinajack.com FAX: 0086-576-88177787 www.chinajack.com Standard code of the products:Q/TK 007-2017 You will be not informed if the file has been revised. Please set sample as standard. jintex.in
