Jack JK-797DI Parts Book (PDF)
Text index — Jack JK-797DI
Page 24 — 一、机壳部分/Machine Bed Frame
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | P03010 | Pin | 1 / 1 / 1 |
| 2 | P03017 | Pin | 1 / 1 / 1 |
| 3 | P03018 | Pipe | 1 / 1 / 1 |
| 4 | P01001 | Pin | 2 / 2 / 2 |
| 5 | 20513008 | Pipe | 2 / 2 / 2 |
| 6 | 206S30001 | Bed Pin | 4 / 4 / 4 |
| 7 | R03001 | Pin | 2 / 2 / 2 |
| 8 | 207S11007 | Screw | 2 / 2 / 2 |
| 9 | 20722004 | Plug | 1 / 1 / 1 |
| 10 | 301261 | Bracket | 1 / 1 / 1 |
| 11 | 301501 | machine frame | 1 / 1 / 1 |
| 12 | 403S11051 | Screw | 1 / 1 / 1 |
Page 26 — 二、罩壳部件(1) Cover Components(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 301262 | Top Cover | 1/1/1 |
| 2 | S04060 | Screw | 4/4/4 |
| 3 | 20422001 | Gasket | 1/1/1 |
| 4 | 20622003 | Rubber Cushion | 3/3/3 |
| 5 | 20711055 | Oil Sight Window | 1/1/1 |
| 6 | 20722002 | Gasket | 1/1/1 |
| 7 | 301263 | Front Cover(Right) | 1/1/1 |
| 8 | 20412002 | Front Cover(Left) | 1/1/1 |
| 9 | 207S11011 | Screw | 2/2/2 |
| 10 | 207S14002 | Screw | 1/1/1 |
| 11 | 207S14003 | Screw | 1/1/1 |
| 12 | 20401002 | Hinge | 1/1/1 |
| 13 | 207S11008 | Screw | 2/2/2 |
| 14 | 20426002 | Pin | 1/1/1 |
| 15 | 207S14001 | Screw | 2/2/2 |
| 16 | 20712002 | Latch | 1/1/1 |
| 17 | 207S11009 | Screw | 1/1/1 |
| 18 | 20427001 | Spring | 1/1/1 |
| 19 | 20412003 | Latch | 1/1/1 |
| 20 | 207S11011 | Screw | 1/1/1 |
| 21 | 20612004 | Flat Spring | 1/1/1 |
| 22 | 207S11011 | Screw | 1/1/1 |
| 23 | 20712005 | Cover | 1/1/1 |
| 24 | S04060 | Screw | 2/2/2 |
| 25 | 207S11008 | Screw | 1/1/1 |
| 26 | 207S11008 | Screw | 1/1/1 |
| 27 | 301264 | Side Cover Assy. | 1/1/1 |
| 28 | 2070201100 | Presser Bar | 1/1/1 |
| 29 | 207S17005 | Screw | 4/4/4 |
| 30 | 20131063 | Label | 1/1/1 |
| 31 | 20437006 | Threading Diagram | 1/1/1 |
| 32 | 21022003 | Oil window mat | 1/1/1 |
Page 28 — 三、罩壳部件(2) Cover Components(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20711005 | |||
| 207S11015 | 螺钉M3×6 | ||
| W01011 | |||
| 20112098 | |||
| 207S20002 | 螺钉M4 | ||
| 20128015 | |||
| 301265 | |||
| 207S13003 | 螺钉M6×25 | ||
| 20412004 | |||
| 208S15002 | 螺钉M5×5.5 | ||
| 20412014 | |||
| 301266 | |||
| 20430001 | |||
| 207S11007 | 螺钉M4×7.5 | ||
| 20422010 | |||
| 20401004 | |||
| 207S14003 | 螺钉M3×4 | ||
| 207S14009 | 螺钉M3×3 | ||
| 20426003 | |||
| 207S14009 | 螺钉M3×3 | ||
| 20427002 | |||
| 207S11011 | 螺钉M4×5 | ||
| 20426004 | |||
| 207S14009 | 螺钉M3×3 | ||
| 2041200600 | |||
| 207S11011 | 螺钉M4×5 | ||
| 2041204200 | KS组件 |
Page 30 — 四、主轴部件 Crankshaft Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400357 | Crankshaft | 1 / 1 / 1 |
| 2 | 2013001000 | LED ASSY | 1 / 1 / 1 |
| 3 | S10013 | Screw | 2 / 2 / 2 |
| 4 | 20709035 | Balance Weight | 1 / 1 / 1 |
| 5 | 207S11017 | Screw | 2 / 2 / 2 |
| 6 | 20401005 | Balance Weight | 1 / 1 / 1 |
| 7 | 207S11017 | Screw | 2 / 2 / 2 |
| 8 | 20428002 | Washer | 1 / 1 / 1 |
| 9 | 207S11011 | Screw | 1 / 1 / 1 |
| 10 | B04029 | Ball Bearing | 1 / 1 / 1 |
| 11 | 20729001 | Ring | 1 / 1 / 1 |
| 12 | B04005 | Ball Bearing | 1 / 1 / 1 |
| 13 | B04005 | Ball Bearing | 1 / 1 / 1 |
| 14 | W03003 | Washer | 1 / 1 / 1 |
| 15 | 20103002 | Oil Seal | 1 / 1 / 1 |
| 16 | 001025 | O Ring | 1 / 1 / 1 |
| 17 | 20711210 | R thread clamp | 2 / 2 / 2 |
| 18 | 20711056 | 1 / 1 / 1 | |
| 19 | 2073301200 | 1 / 1 / 1 | |
| 20 | 001028 | O Ring | 1 / 1 / 1 |
| 21 | 20708015 | Right Cover | 1 / 1 / 1 |
| 22 | S04060 | Screw | 3 / 3 / 3 |
| 23 | S01011 | Screw | 3 / 3 / 3 |
| 24 | W02004 | Washer | 1 / 1 / 1 |
| 25 | 20403001 | Spacer | 1 / 1 / 1 |
| 26 | 207S11007 | Screw | 3 / 3 / 3 |
| 27 | 207S11026 | Screw | 2 / 2 / 2 |
| 28 | 20403017 | Sleeve | 1 / 1 / 1 |
| 29 | 304026 | Tandwheel | 1 / 1 / 1 |
Page 32 — 五、针杆机构 Needle Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400039 | Connection | 1/1/1 |
| 2 | S01039 | Screw | 2/2/2 |
| 3 | 20626003 | Pin | 1/1/1 |
| 4 | 207S14007 | Screw | 1/1/1 |
| 5 | 20704001 | Crank | 1/1/1 |
| 6 | S05018 | Bolt | 1/1/1 |
| 7 | 20402007 | Shaft | 1/1/1 |
| 8 | 20808006 | Collar | 1/1/1 |
| 9 | 207S14014 | Screw | 2/2/2 |
| 10 | 20628014 | Washer | 1/1/1 |
| 11 | H05008 | Ring | 1/1/1 |
| 12 | 20704002 | Lever | 1/1/1 |
| 13 | 207S12002 | Bolt | 1/1/1 |
| 14 | 20626003 | Shaft Assy. | 1/1/1 |
| 15 | 20523005 | Oil Wick | 0.033/0.033/0.033 |
| 16 | 20702052 | Needle Bar | 1/1/1 |
| 17 | 207S14008 | Screw | 1/1/1 |
| 18 | 001026 | O Ring | 1/1/1 |
| 19 | 20723003 | Felt | 1/1/1 |
| 20 | 20722004 | Plug | 1/1/1 |
| 21 | 20708031 | Ring | 1/1/1 |
| 22 | 207S11023 | Screw | 1/1/1 |
| 23 | 20117012 | Needle | 1/2/2 |
| 24 | 20734001 | Needle Holder | 1/0/0 |
| 25 | 207S14014 | Screw | 1/0/0 |
| 26 | 20415004 | Needle Plate | 1/0/0 |
| 27 | 20734002 | Needle Holder | 0/1/0 |
| 28 | 207S14014 | Screw | 0/2/0 |
| 29 | 20415003 | Needle Plate | 0/1/0 |
| 30 | 207S17003 | Screw | 1/1/1 |
| 31 | 20401008 | Bracket Assy. | 1/1/1 |
| 32 | 207S11007 | Screw | 1/1/1 |
| 33 | 20417001 | Needle Guard(Front) | 1/1/1 |
| 34 | S01012 | Screw | 1/1/1 |
| 35 | 20417002 | Needle Guard(Rear) | 1/1/1 |
| 36 | 207S11015 | Screw | 1/1/1 |
| 37 | 20703002 | Sleeve | 1/1/1 |
| 38 | 20803007 | Sleeve | 1/1/1 |
| 39 | 20703012 | Bushing | 1/1/1 |
| 40 | 20426011 | Parallel Key | 2/2/2 |
| 41 | 2070205200 | Bushing Assy | 1/1/1 |
| 20828014 |
Page 34 — 六、上弯针机构 Upper Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400043 | Connection | 1 | 1 | 1 |
| 2 | S01039 | Screw | 2 | 2 | 2 |
| 3 | S01039 | Screw | 2 | 2 | 2 |
| 6 | 400036 | Crank | 1 | 0 | 0 |
| 7 | 400037 | Crank | 0 | 1 | 1 |
| 8 | S05018 | Bolt | 1 | 1 | 1 |
| 9 | 20402010 | Shaft | 1 | 1 | 1 |
| 10 | 20622019 | Oil Seal | 1 | 1 | 1 |
| 11 | 20428008 | Washer | 1 | 1 | 1 |
| 12 | 20408001 | Collar | 1 | 1 | 1 |
| 13 | 207S13006 | Bolt | 1 | 1 | 1 |
| 14 | 20428009 | Washer | 1 | 1 | 1 |
| 16 | 20705003 | Lever | 1 | 1 | 1 |
| 17 | 207S12002 | Bolt | 1 | 1 | 1 |
| 18 | 20726004 | Pin Assy. | 1 | 1 | 1 |
| 19 | 20523005 | Oil Wick | 0.3m | 0.3m | 0.3m |
| 20 | 207S14010 | Screw | 1 | 1 | 1 |
| 21 | 2040205000 | Upper Looper Holder Assy. | 1 | 1 | 0 |
| 22 | 20623005 | Felt | 1 | 1 | 1 |
| 23 | 207S11025 | Screw | 1 | 1 | 1 |
| 25 | 20417003 | Upper Looper | 1 | 1 | 1 |
| 26 | 20401009 | Upper Looper Holder Base | 1 | 1 | 1 |
| 27 | 21323007 | Oil Wick | 0.04m | 0.04m | 0.04m |
| 28 | 207S11026 | Bolt | 2 | 2 | 2 |
| 29 | 121223001 | Folter | 1 | 1 | 1 |
| 30 | 400348 | Cover | 1 | 1 | 1 |
| 31 | 207S11027 | Screw | 1 | 1 | 1 |
| 32 | 207S17004 | Screw | 1 | 1 | 1 |
| 33 | 20723005 | Felt | 1 | 1 | 1 |
| 34 | 20712017 | Bracket Assy. | 1 | 1 | 1 |
| 35 | 207S11020 | Screw | 1 | 1 | 1 |
| 37 | 20803010 | Sleeve | 1 | 1 | 1 |
| 38 | 20403004 | Sleeve | 1 | 1 | 1 |
| 39 | 20712066 | Washer | 1 | 1 | 1 |
| 40 | S02007 | Screw | 2 | 2 | 2 |
Page 36 — Lower Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400043 | Connection | 1 / 1 / 1 |
| 2 | S01039 | Screw | 2 / 2 / 2 |
| 3 | S01039 | Screw | 2 / 2 / 2 |
| 6 | 400338 | Crank | 1 / 1 / 1 |
| 7 | S05018 | Bolt | 1 / 1 / 1 |
| 8 | 20402008 | Shaft | 1 / 1 / 1 |
| 9 | 20628006 | Washer | 1 / 1 / 1 |
| 10 | W02001 | Washer | 1 / 1 / 1 |
| 11 | 207S11004 | Bolt | 1 / 1 / 1 |
| 13 | 2072201700 | Oil Seal | 1 / 1 / 1 |
| 14 | 20401011 | Lower Looper Holder Assy | 1 / 1 / 1 |
| 15 | 207S13009 | Bolt | 1 / 1 / 1 |
| 16 | XXXXXX | Lower Looper | 1 / 1 / 1 |
| 17 | S01029 | Screw | 1 / 1 / 1 |
| 18 | 20803010 | Sleeve | 1 / 1 / 1 |
| 19 | 20403006 | Sleeve | 1 / 1 / 1 |
| 20 | 20712066 | Washer | 1 / 1 / 1 |
| 21 | 20403006 | Screw | 2 / 2 / 2 |
Page 38 — 八、送布机构(1) Feed Mechanism(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20405001 | Connection | 1 / 1 / 1 |
| 2 | 20410001 | Eccentric | 1 / 1 / 1 |
| 3 | 20426006 | Guide/Feed Eccentric | 1 / 1 / 1 |
| 4 | 20427005 | Flat Spring | 1 / 1 / 1 |
| 5 | S12002 | Screw | 2 / 2 / 2 |
| 6 | 20412008 | Ratchet | 1 / 1 / 1 |
| 7 | 20427006 | Spring | 1 / 1 / 1 |
| 8 | 207S20005 | Screw | 1 / 1 / 1 |
| 9 | 20425001 | Ratchet | 1 / 1 / 1 |
| 10 | 207S14012 | Screw | 1 / 1 / 1 |
| 11 | S12009 | Screw | 1 / 1 / 1 |
| 12 | 20410002 | Eccentric | 1 / 1 / 1 |
| 13 | 2040800200 | Regulator | 1 / 1 / 1 |
| 14 | 207S14006 | Screw | 2 / 2 / 2 |
| 15 | 20426007 | Push Botton | 1 / 1 / 1 |
| 16 | 20427007 | Spring | 1 / 1 / 1 |
| 17 | 20628008 | Washer | 2 / 2 / 2 |
| 18 | 20622009 | O Ring | 2 / 2 / 2 |
| 19 | 20629006 | Ring | 1 / 1 / 1 |
| 20 | 20404004 | Crank | 1 / 1 / 1 |
| 21 | S05018 | Bolt | 1 / 1 / 1 |
| 22 | 20628014 | Washer | 1 / 1 / 1 |
| 23 | 20808006 | Collar | 1 / 1 / 1 |
| 24 | 207S14014 | Screw | 2 / 2 / 2 |
| 25 | 20404005 | Crank | 1 / 1 / 1 |
| 26 | S05018 | Bolt | 1 / 1 / 1 |
| 27 | 20409003 | Slider | 1 / 1 / 1 |
| 28 | H05006 | Ring | 1 / 1 / 1 |
| 29 | 20409004 | Guide | 1 / 1 / 1 |
| 30 | S04060 | Screw | 2 / 2 / 2 |
| 31 | 400347 | Feed Bar Assy. | 1 / 1 / 1 |
| 32 | 2041400600 | Main Feed Dog Assy. | 1 / 1 / 0 |
| 33 | 20414006 | Main Feed Dog | 1 / 1 / 0 |
| 34 | 20414003 | Auxiliary Feed Dog | 1 / 1 / 0 |
| 35 | S01063 | Screw | 1 / 1 / 1 |
| 36 | S01029 | Screw | 1 / 1 / 1 |
| 37 | 20409002 | Block | 1 / 1 / 1 |
| 38 | 20414007 | Differential Feed Dog | 1 / 1 / 1 |
Page 40 — 八、送布机构(1) Feed Mechanism(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S01029 | Screw | 1/1/1 | |
| 40 | 20409005 | Block | 1/1/1 |
| 41 | 20424001 | Needle Bearing | 1/1/1 |
| 42 | 20405002 | Link | 1/1/1 |
| 43 | 20403002 | Bushing | 1/1/1 |
| 44 | 20428005 | Washer | 1/1/1 |
| 45 | 204S12001 | Bolt | 1/1/1 |
| 46 | 20426008 | Pin | 1/1/1 |
| 47 | 20428006 | Washer | 2/2/2 |
| 48 | 207S11011 | Screw | 2/2/2 |
| 49 | 20402004 | Shaft | 1/1/1 |
| 50 | 400358 | Block | 1/1/1 |
| 51 | 207S13008 | Bolt | 2/2/2 |
| 52 | 20426009 | Guide | 1/1/1 |
| 53 | 204S2001 | Screw | 1/1/1 |
| 20722007 | Oil Seal | 2/2/2 | |
| 55 | 20426010 | Guide | 2/2/2 |
| 56 | 207S14007 | Screw | 2/2/2 |
| 57 | 400676 | Guide | 1/1/1 |
| 58 | 207S11019 | Screw | 2/2/2 |
| 59 | 20402005 | Eccentric Pin | 1/1/1 |
| 60 | 207S14007 | Screw | 1/1/1 |
| 61 | 20622010 | O Ring | 1/1/1 |
| 62 | 20708008 | Collar | 1/1/1 |
| 63 | 207S14001 | Screw | 1/1/1 |
| 64 | 20408004 | Collar | 2/2/2 |
| 65 | 207S14007 | Screw | 1/1/1 |
| 66 | 20709011 | Block | 1/1/1 |
| 67 | 20428010 | Washer | 1/1/1 |
| 68 | S02007 | Screw | 1/1/1 |
| 20703002 | Sleeve | 1/1/1 | |
| 20703001 | Sleeve | 1/1/1 | |
| 20803007 | Sleeve | 1/1/1 | |
| 20403015 | Sleeve | 1/1/1 | |
| 20403016 | Sleeve | 1/1/1 | |
| 2040500100 | Feed Assy. | 1/1/1 |
Page 42 — 九、送布机构(2) Feed Mechanism(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2725880 | Link | 1 / 1 / 1 |
| 2 | 272589-920 | Lever | 1 / 1 / 1 |
| 3 | 0045330 | Bolt | 1 / 1 / 1 |
| 4 | 0070580 | Screw | 1 / 1 / 1 |
| 5 | 2725900 | Shaft | 1 / 1 / 1 |
| 6 | 2041850 | O Ring | 1 / 1 / 1 |
| 7 | 2725910 | Lever | 1 / 1 / 1 |
| 8 | 0071390 | Screw | 1 / 1 / 1 |
| 9 | 2726140 | Spring | 1 / 1 / 1 |
| 10 | 007019A0 | Screw | 1 / 1 / 1 |
| 11 | 2725860 | Regulator Plate | 1 / 1 / 1 |
| 12 | 007019A0 | Screw | 3 / 3 / 3 |
| 13 | 2526580 | Stopper | 2 / 2 / 2 |
| 14 | 3034480 | Washer | 2 / 2 / 2 |
| 15 | 007018A0 | Screw | 2 / 2 / 2 |
| 16 | 272538A0 | Adjusting Bar | 1 / 1 / 1 |
| 17 | 2403220 | Seal | 1 / 1 / 1 |
| 18 | 2405590 | Spring | 1 / 1 / 1 |
| 19 | 272539A0 | Pin | 1 / 1 / 1 |
| 20 | 2005550 | Ring | 1 / 1 / 1 |
| 21 | 2520690 | Nut | 1 / 1 / 1 |
| 22 | 2113010 | Spring | 1 / 1 / 1 |
| 23 | 0070590 | Screw | 1 / 1 / 1 |
| 24 | 20403007 | Sleeve | 1 / 1 / 1 |
| 25 | 20728005 | Spring | 1 / 1 / 1 |
Page 44 — 十、上刀机构 Knife Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400041 | Connection | 1/1/1 |
| 2 | S01039 | Screw | 2/2/2 |
| 3 | 20704012 | Crank | 1/1/1 |
| 4 | S05018 | Bolt | 1/1/1 |
| 5 | 20626003 | Pin | 1/1/1 |
| 6 | 207S14007 | Screw | 1/1/1 |
| 7 | 20402009 | Upper Knife Lever | 1/1/1 |
| 9 | 2072201700 | Oil seal | 1/1/1 |
| 10 | 30208001 | Collar | 2/2/2 |
| 11 | S10003 | Screw | 2/2/2 |
| 12 | 20719007 | Upper Knife | 1/1/1 |
| 13 | 211S12002 | Screw | 1/1/1 |
| 14 | 20701014 | Upper Knife Clamp | 1/1/1 |
| 15 | 20726005 | Pin | 1/1/1 |
| 16 | S04019 | Screw | 1/1/1 |
| 17 | 20419001 | Lower Knife | 1/1/1 |
| 18 | 20412012 | Lower Knife Clamp | 1/1/1 |
| 19 | 207S11007 | Screw | 1/1/1 |
| 20 | 20401013 | Lower Knife Holder | 1/1/1 |
| 21 | 207S14001 | Screw | 1/1/1 |
| 22 | 20427009 | Spring | 1/1/1 |
| 23 | 20412013 | Cover | 1/1/1 |
| 24 | S01027 | Screw | 1/1/1 |
| 25 | 20403008 | Sleeve | 1/1/1 |
| 26 | 20803010 | Sleeve | 1/1/1 |
Page 46 — 十一、压脚机构 Presser Foot Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20701016 | Presser Arm | 1 / 1 / 1 |
| 2 | 20626016 | Pin | 1 / 1 / 1 |
| 3 | S10011 | Screw | 1 / 1 / 1 |
| 4 | 20802013 | Shaft | 1 / 1 / 1 |
| 5 | 20703030 | Bushing | 1 / 1 / 1 |
| 6 | 207S11016 | Screw | 1 / 1 / 1 |
| 7 | 20608004 | Collar | 1 / 1 / 1 |
| 8 | S05017 | Bolt | 1 / 1 / 1 |
| 9 | 20712007 | Lever | 1 / 1 / 1 |
| 10 | 20427013 | Spring | 1 / 1 / 1 |
| 11 | 20616001 | Link | 1 / 1 / 1 |
| 12 | 20712023 | Lever | 1 / 1 / 1 |
| 13 | 207S20008 | Screw | 1 / 1 / 1 |
| 14 | 20727007 | Spring | 1 / 1 / 1 |
| 15 | 20712024 | Stopper | 1 / 1 / 1 |
| 16 | S04060 | Screw | 2 / 2 / 2 |
| 17 | 207S11031 | Screw | 1 / 1 / 1 |
| 18 | N01004 | Nut | 1 / 1 / 1 |
| 19 | 20719054 | Spring | 1 / 1 / 1 |
| 20 | 20702014 | Adjusting Screw | 1 / 1 / 1 |
| 21 | 207S16003 | Nut | 1 / 1 / 1 |
| 22 | 20612034 | Lever | 1 / 1 / 1 |
| 23 | 207S20009 | Screw | 1 / 1 / 1 |
| 24 | 20627010 | Spring | 1 / 1 / 1 |
| 25 | 20712030 | Stopper | 1 / 1 / 1 |
| 26 | 207S11007 | Screw | 1 / 1 / 1 |
| 27 | 20416001 | Holder | 1 / 1 / 1 |
| 28 | 207S11030 | Screw | 1 / 1 / 1 |
| 29 | 20712048 | Flat Spring | 1 / 1 / 1 |
| 30 | 207S11009 | Screw | 1 / 1 / 1 |
| 31 | 20712026 | Finger Guard | 1 / 1 / 1 |
| 32 | 20712048 | Stopper | 1 / 1 / 1 |
| 33 | 207S11020 | Screw | 1 / 1 / 1 |
| 34 | 207S11009 | Screw | 1 / 1 / 1 |
| 35 | WO1006 | Screw | 1 / 1 / 1 |
| 36 | 20703031 | Bushing | 2 / 2 / 2 |
Page 48 — 十二、紧线机构 Thread Tension Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 210529-9T0 | Tension Spring Assy.(Red) | 1 / 1 / 1 |
| 2 | 208447-UA | Knob | 1 / 1 / 1 |
| 3 | 208448 | Rachet | 1 / 1 / 1 |
| 4 | 208450-UA | Cup | 1 / 1 / 1 |
| 5 | 210319 | Tension Disc | 2 / 2 / 2 |
| 6 | 208449 | Felt | 1 / 1 / 1 |
| 7 | 5082A | Screw Stud | 1 / 1 / 1 |
| 8 | 20137 | Spring | 1 / 1 / 1 |
| 9 | 210531-9U | Tension Spring Assy.(Bule) | 1 / 1 / 1 |
| 10 | 201086 | Spring | 1 / 1 / 1 |
| 11 | 275000 | Thread Guide | 1 / 1 / 1 |
| 12 | 7019 | Screw | 2 / 2 / 2 |
| 13 | 2750010 | Thread Guide | 1 / 1 / 1 |
| 14 | 202849 | Tension Guide | 3 / 4 / 4 |
| 15 | 4009-HC | Screw | 1 / 1 / 0 |
| 16 | 210530-9U | Tension Spring Assy.(Yellow) | 0 / 0 / 1 |
| 17 | 210532-9U | Tension Spring Assy.(Green) | 1 / 1 / 1 |
| 18 | 20712032 | Thread Disc | 1 / 1 / 1 |
Page 50 — 十三、挑战机构 Thread Guide & Thread Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20701010 | Bracket | 1/1/1 |
| 2 | 207S11019 | Screw | 1/1/1 |
| 3 | 20713002 | Thread Guide | 1/0/0 |
| 4 | 20713003 | Thread Guide | 1/1/1 |
| 5 | 207S14001 | Screw | 1/1/1 |
| 6 | 20713004 | Thread Guide | 1/0/0 |
| 7 | 20713005 | Thread Guide | 0/1/0 |
| 8 | 207S11019 | Screw | 1/1/1 |
| 9 | 20813002 | Needle Thread Take-up | 1/0/0 |
| 10 | 20813004 | Needle Thread Take-up | 0/1/0 |
| 11 | 20813004 | Needle Thread Take-up | 0/1/0 |
| 12 | 207S11015 | Screw | 1/1/1 |
| 13 | S02007 | Screw | 1/1/1 |
| 14 | 20712016 | Bracket | 1/1/1 |
| 15 | 20113015 | Thread Guide | 2/2/2 |
| 16 | W01011 | Washer | 2/2/2 |
| 17 | 201S11006 | Screw | 2/2/2 |
| 18 | 20413001 | Thread Guide | 1/1/1 |
| 19 | 20713010 | Thread Take-up | 1/1/1 |
| 20 | 207S11007 | Screw | 1/1/1 |
| 21 | 20713011 | Thread Guide | 1/1/1 |
| 22 | 207S11020 | Screw | 1/1/1 |
| 23 | 20413002 | Thread Take-up | 1/1/1 |
| 24 | 207S11011 | Screw | 1/1/1 |
| 25 | 20713013 | Thread Guide | 1/1/1 |
| 26 | 20413003 | Thread Guide | 1/1/1 |
| 27 | 20713006 | Thread Retainer Bracket | 1/1/1 |
| 28 | 20713007 | Thread Retainer | 1/1/1 |
| 29 | 20727002 | Spring | 1/1/1 |
| 30 | 207S20003 | Screw | 1/1/1 |
| 31 | 20713038 | Thread Guide | 1/0/0 |
| 32 | 20713018 | Thread Guide | 1/1/1 |
| 33 | 207S11024 | Screw | 1/1/1 |
| 207S11017 | 螺钉M4×7.5 |
Page 52 — 十四、润滑机构(1) Lubrication Mechanism(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20401014 | Oil Reservoir Assy. | 1/1/1 |
| 2 | 20528014 | Washer | 1/1/1 |
| 3 | 207S13002 | Screw | 1/1/1 |
| 4 | 207S13009 | Bolt | 4/4/4 |
| 5 | 20628018 | Washer | 4/4/4 |
| 6 | 20422009 | Gasket | 1/1/1 |
| 7 | 20437009 | Oil Sight Gauge | 1/1/1 |
| 8 | 20736004 | Filter Element | 1/1/1 |
| 9 | 20836001 | Joint | 1/1/1 |
| 10 | 300140 | Cover | 1/1/1 |
| 11 | 207S11008 | Screw | 3/3/3 |
| 12 | 001010 | O Ring | 1/1/1 |
| 13 | 20820001 | Pump Assy. | 1/1/1 |
| 14 | 20725002 | Worm Wheel | 1/1/1 |
| 15 | 207S15002 | Screw | 2/2/2 |
| 26 | 20622010 | O Ring | 1/1/1 |
| 27 | S10009 | Screw | 1/1/1 |
| 28 | 20425002 | Worm | 1/1/1 |
| 29 | 207S14006 | Screw | 1/1/1 |
| 30 | 20436001 | Joint | 2/2/2 |
| 31 | 20420004 | Joint Screw | 1/1/1 |
| 32 | 12921005 | Tube | 0.25m/0.25m/0.25m |
| 33 | 20429001 | Clamp | 2/2/2 |
| 34 | 20436001 | Joint | 1/1/1 |
| 35 | 206S30009 | Joint Screw | 1/1/1 |
| 36 | 12921005 | Tube | 0.1m/0.1m/0.1m |
| 37 | 20429001 | Clamp | 2/2/2 |
| 38 | 2042000500 | Oil Distributor Assy. | 1/1/1 |
| 39 | 20709014 | Ball | 2/2/2 |
| 40 | 207S30002 | Screw | 1/1/1 |
| 41 | 30131004 | Filter seal | 1/1/1 |
| 42 | 20122033 | Washer | 5/5/5 |
| 43 | S05004 | Screw | 2/2/2 |
| 0045220 | 1 | ||
| 212978-910 | 1 | ||
| 2129810 | 1 | ||
| 2094080 | 1 | ||
| 2094090 | 1 | ||
| 0070120 | 3 | ||
| 2094100 | 1 | ||
| 0070110 | 1 | ||
| 0048000 | 1 | ||
| 0045290 | 2 | ||
| 204200500 | 1 |
Page 54 — 十五、润滑机构(2) Lubrication Mechanism(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20521009 | Joint | 1 / 1 / 1 |
| 2 | 20721011 | Tube | 0.34m / 0.34m / 0.34m |
| 3 | 2071203800 | Joint Assy. | 1 / 1 / 1 |
| 4 | 20622010 | O Ring | 1 / 1 / 1 |
| 5 | 20723007 | Felt | 1 / 1 / 1 |
| 6 | 207S11019 | Screw | 1 / 1 / 1 |
| 7 | 20721010 | Pipe Assy. | 1 / 1 / 1 |
| 8 | 20709016 | Rubber plug | 2 / 2 / 2 |
| 10 | 207S14001 | Screw | 1 / 1 / 1 |
| 11 | 20626007 | Pipe Assy. | 1 / 1 / 1 |
| 12 | 20709015 | Rubber plug | 1 / 1 / 1 |
| 13 | 207S14001 | Screw | 1 / 1 / 1 |

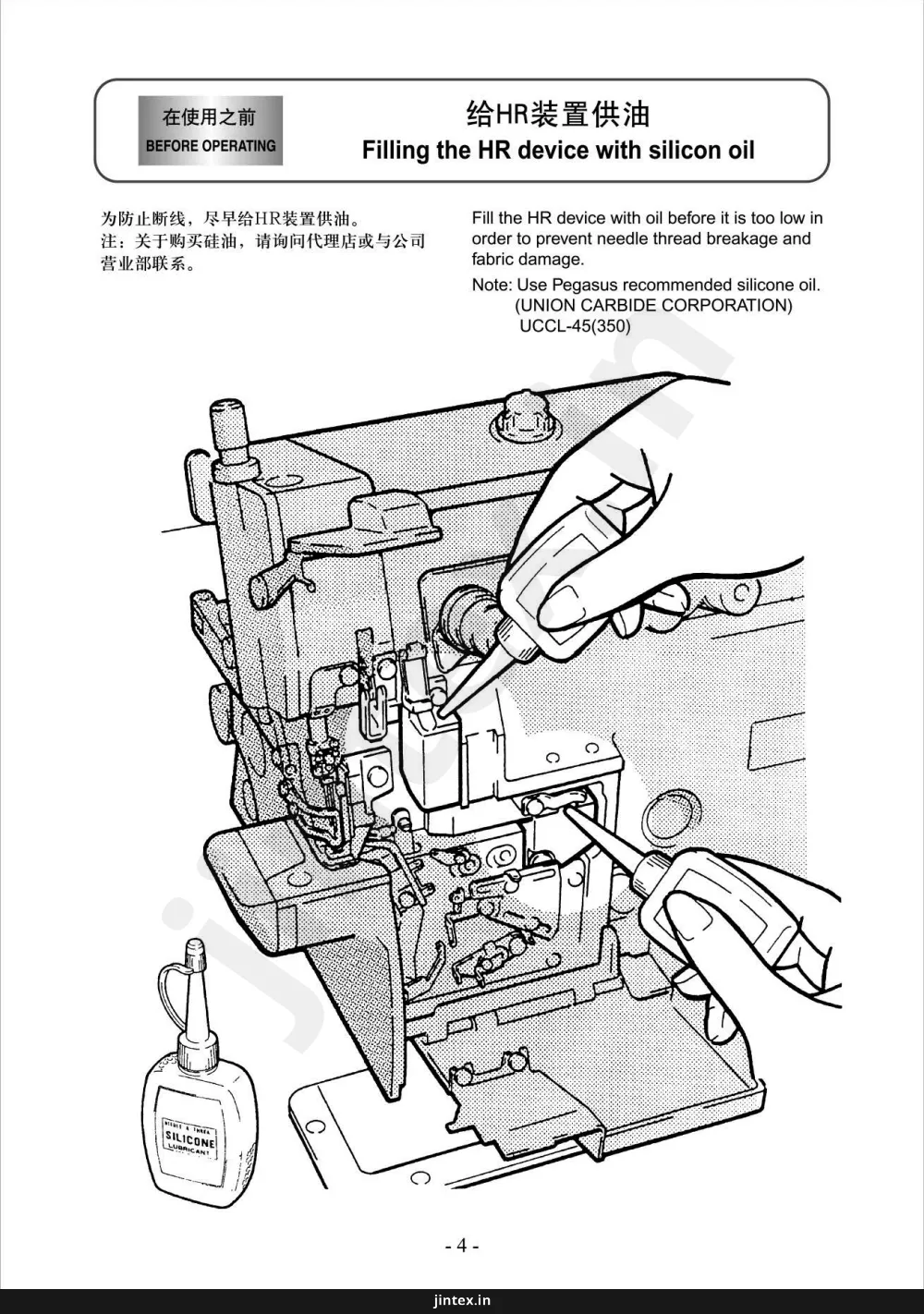

Page 56 — 十六、H.R.装置 H.R.Device
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20711014 | Silicone Oil Reservoir(Upper) | 1 / 1 / 1 |
| 2 | S 04060 | Screw | 1 / 1 / 1 |
| 3 | 20712040 | Thread Guide | 1 / 1 / 1 |
| 4 | 20723008 | Felt | 1 / 1 / 1 |
| 5 | 20711015 | Cover | 1 / 1 / 1 |
| 6 | 20411002 | Silicone Oil Reservoir(Lower) | 1 / 1 / 1 |
| 7 | 20420008 | Joint Screw | 1 / 1 / 1 |
| 8 | 001027 | O Ring | 1 / 1 / 1 |
| 9 | 20411003 | Cover | 2 / 2 / 2 |
| 10 | 2041100400 | Needle Cooler | 1 / 1 / 1 |
| 11 | 20420009 | Joint Screw | 1 / 1 / 1 |
| 12 | 207S11011 | Screw | 1 / 1 / 1 |
| 13 | 20523005 | Oil Wick | 1 / 1 / 1 |
| 14 | 20423006 | Felt | 1 / 1 / 1 |
| 15 | 20726010 | Pin | 1 / 1 / 1 |
| 20412008 |
Page 58 — 十七、线架部件 /Thread Spool Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20631018 | Thread guide | 1 / 0 / 0 |
| 2 | 30113019 | Thread guide | 0 / 0 / 1 |
| 3 | 20131019 | Rod cap | 1 / 1 / 1 |
| 4 | 21131008 | Upper thread column | 1 / 1 / 1 |
| 5 | 201S16006 | Thread guide hook nut | 2 / 4 / 4 |
| 6 | 21131009 | Thread spool tray bracket | 0 / 2 / 1 |
| 7 | 20131018 | Thread guide hook | 3 / 4 / 5 |
| 8 | 20131021 | Screw | 2 / 2 / 2 |
| 9 | 21131010 | Clamp plate | 1 / 1 / 1 |
| 10 | 201S16004 | Nut | 4 / 4 / 4 |
| 11 | 20131022 | Screw | 2 / 2 / 2 |
| 12 | 201S16004 | Nut | 4 / 4 / 4 |
| 13 | 21131011 | Thread guide hook | 2 / 2 / 2 |
| 14 | 20131020 | Screw | 2 / 4 / 4 |
| 15 | 21131012 | Thread spool tray bracket | 1 / 0 / 1 |
| 16 | 20131011 | Thread guide bar | 1 / 1 / 1 |
| 17 | 20631019 | Thread guide | 0 / 1 / 0 |
| 18 | 21131013 | Thread guide joint | 1 / 1 / 1 |
| 19 | S04050 | Screw | 2 / 2 / 2 |
| 20 | 21131014 | Bushing | 1 / 1 / 1 |
| 21 | N01030 | Nut | 2 / 2 / 2 |
| 22 | 21131015 | Spool Cushion | 3 / 4 / 5 |
| 23 | 20131006 | Spool pin | 3 / 4 / 5 |
| 24 | 20131010 | Spool tray cushing | 3 / 4 / 5 |
| 25 | 21131016 | Spool tray | 3 / 4 / 5 |
| 26 | 21131017 | Thread spool tray bracket | 1 / 0 / 1 |
| 27 | 201S16004 | Nut | 3 / 4 / 5 |
| 28 | 20128018 | Washer | 3 / 4 / 5 |
| 29 | 21131018 | Lower thread cloumn | 1 / 1 / 1 |
| 30 | 201S16005 | Nut | 1 / 1 / 1 |
| 31 | 20128025 | Lower washer | 2 / 2 / 2 |
| 32 | 21131019 | Thread spool tray bracket | 0 / 2 / 1 |
| 33 | 20122049 | Plate dog link washer | 2 / 2 / 2 |
| 34 | 20631020 | Thread guide | 0 / 0 / 1（六线） |
| 35 | 2113101700 | Thread stand component | 1 / 0 / 0 |
| 35 | 2113101800 | Thread stand component | 0 / 1 / 0 |
| 35 | 2113101900 | Thread stand component | 0 / 0 / 1 |
| 35 | 2113101900 | Thread stand component | 0 / 0 / 1（六线） |
Page 60 — 十八、托盘附属品 Parts For Semi-submerged Installation
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20401018 | Rest Board | 1 / 1 / 1 |
| 2 | 20722009 | Cushion Rubber | 2 / 2 / 2 |
| 3 | 20131028 | Nut | 4 / 4 / 4 |
| 4 | 20131029 | Spacer | 16 / 16 / 16 |
| 5 | 20131027 | Bolt | 4 / 4 / 4 |
| 6 | 20131030 | Washer | 4 / 4 / 4 |
| 7 | 20131032 | Waste Chute(Top) | 1 / 1 / 1 |
| 8 | 21231007 | Waste Chute(Lower) | 1 / 1 / 1 |
| 9 | 20131034 | Screw | 4 / 4 / 4 |
| 10 | 21231005 | Waste Chute Bracket | 1 / 1 / 1 |
| 11 | 421S30004 | Screw | 4 / 4 / 4 |
| 12 | 30122031 | Spring Washer | 8 / 8 / 8 |
| 14 | 20131026 | Cushion Rubber Assy. | 2 / 2 / 2 |
| 15 | 2123100400 | Waste Chute Assy. | 1 / 1 / 1 |
| 16 | 20728006 | Gasket | 4 / 4 / 4 |
Page 62 — 十九、专用部件(1) Specific Parts(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | Presser Foot | 1/1/1 |
| 2 | XXXXXX | Presser Foot Finger | 1/1/1 |
| 3 | 2115570 | Fabric Guide | 1/1/1 |
| 4 | 0013330 | Screw | 1/1/1 |
| 5 | 2116000 | Presser Foot Auxiliary Plate | 1/1/1 |
| 6 | 0050300 | Screw | 1/1/1 |
| 7 | XXXXXX | Presser Foot | 1/1/1 |
| 8 | XXXXXX | Presser Foot Finger | 1/1/1 |
| 9 | 2105840 | Presser Foot Auxiliary Plate | 1/1/1 |
| 10 | 0050300 | Screw | 1/1/1 |
| 11 | 2105850 | Washer | 1/1/1 |
| 12 | ———— | Hem guide Assy. | 1/1/1 |
| 13 | 2106800 | Bracket | 1/1/1 |
| 14 | 2106810 | Hinge guide bracket | 1/1/1 |
| 15 | 0051840 | Screw | 1/1/1 |
| 16 | 2011910 | Spring | 1/1/1 |
| 17 | 0030440 | Nut | 1/1/1 |
| 18 | 2106820 | Washer | 1/1/1 |
| 19 | 0050530 | Screw | 1/1/1 |
| 20 | 2106830 | Pin | 1/1/1 |
| 21 | 2106840 | Flat Spring | 1/1/1 |
| 22 | 0029060 | Screw | 1/1/1 |
| 23 | 0070200 | Screw | 1/1/1 |
| 24 | 2012520 | Washer | 1/1/1 |
| 26 | 205361A0 | Bracket | 1/1/1 |
| 27 | 0050570 | Screw | 1/1/1 |
| 28 | 2106890 | Bracket | 1/1/1 |
| 29 | 0051570 | Screw | 2/2/2 |
| 30 | 0024300 | Screw | 1/1/1 |
| 31 | 2106900 | Bracket | 1/1/1 |
| 32 | 0050880 | Bolt | 2/2/2 |
| 33 | 1670660 | Washer | 2/2/2 |
| 34 | 0029050 | Screw | 1/1/1 |
| 35 | 1371420 | Washer | 1/1/1 |
| 36 | 2106920 | Stopper | 1/1/1 |
| 37 | 0012060 | Screw | 1/1/1 |
| 38 | 2130950 | Auxiliary Plate | 1/1/1 |
| 39 | 0012290 | Screw | 2/2/2 |
| 40 | 0050570 | Screw | 1/1/1 |
| 41 | 201211C910 | Guide Assy.(40mm) | 1/1/1 |
| 42 | 2058350 | Guide | 1/1/1 |
| 43 | 0052990 | Screw | 1/1/1 |
| 44 | 303312A0 | Clamp | 1/1/1 |
| 45 | 3033130 | Stopper | 1/1/1 |
Page 64 — 二十、专用部件(2) Specific Parts(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | ———— | Presser Foot Assy. | 1 / 1 / 1 |
| 2 | 2771790 | Bracket | 1 / 1 / 1 |
| 3 | 0070310 | Screw | 2 / 2 / 2 |
| 4 | 213677A0 | Guide A | 1 / 1 / 1 |
| 5 | 0056150 | Screw | 2 / 2 / 2 |
| 6 | 213678A0 | Guide B | 1 / 1 / 1 |
| 7 | 0029220 | Screw | 2 / 2 / 2 |
| 8 | 2136720 | Presser Foot | 1 / 1 / 1 |
| 9 | XXXXXX | Presser Foot Finger | 1 / 1 / 1 |
| 10 | 2740190 | Flate Spring | 1 / 1 / 1 |
| 11 | 0050890 | Screw | 1 / 1 / 1 |
| 12 | 2116000 | Presser Foot Auxiliary Plate | 1 / 1 / 1 |
| 13 | 0050300 | Screw | 1 / 1 / 1 |
| 14 | 274025A0 | Finger Guard | 1 / 1 / 1 |
Page 66 — 二十一、专用部件(3) Specific Parts(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305276-910 | Fan Assy. | 1 / 1 / 1 |
| 2071100600 | |||
| XXXXXX | |||
| 2136640 | 挡板 A | ||
| 0029220 | |||
| 2136650 | 挡板 B | ||
| 2136660 | 挡板 C | ||
| 213659-910 | |||
| 2740190 | |||
| 0050890 | |||
| 2116000 | |||
| 0050300 | |||
| 2746010 | |||
| 204S11003 | |||
| 20412043 | 挡板 A | ||
| 204S11002 | |||
| 20401021 | 挡板 B | ||
| 204S11004 | |||
| 20416006 | |||
| 20412044 | |||
| 207S11034 | |||
| 2052690 | |||
| 2750000 | |||
| 350188A0 | |||
| 0070720 |
Page 68 — 二十二、专用部件(4) Specific Parts(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2726240 | Shoulder Pin | 1/1/1 (three/four/five-thread) |
| 2 | 2403110 | Washer | 2/2/2 (three/four/five-thread) |
| 3 | 2726280 | Washer | 1/1/1 (three/four/five-thread) |
| 4 | 272626-920 | Lever | 1/1/1 (three/four/five-thread) |
| 5 | 0045310 | Bolt | 1/1/1 (three/four/five-thread) |
| 6 | 2011070 | Block | 1/1/1 (three/four/five-thread) |
| 7 | 0073580 | Screw | 1/1/1 (three/four/five-thread) |
| 8 | 0048200 | Nut | 1/1/1 (three/four/five-thread) |
| 9 | 2726250 | Bracket | 1/1/1 (three/four/five-thread) |
| 10 | 0045150 | Bolt | 2/2/2 (three/four/five-thread) |
| 11 | 2042930 | Washer | 2/2/2 (three/four/five-thread) |
| 12 | 2024330 | Washer | 2/2/2 (three/four/five-thread) |
| 13 | 5131180 | Air Cylinder | 1/1/1 (three/four/five-thread) |
| 14 | 5270110 | Speed Controller | 2/2/2 (three/four/five-thread) |
| 15 | 2726270 | Lever | 1/1/1 (three/four/five-thread) |
Page 70 — 二十三、专用部件(5) Specific Parts(5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | ——— | Cloth Plate Assy. | 1 / 1 / 1 |
| 2 | 2041202900 | Cloth Plate | 1 / 1 / 1 |
| 3 | 20412032 | Flat Spring | 1 / 1 / 1 |
| 4 | 20412033 | Washer | 1 / 1 / 1 |
| 5 | 204S11001 | Screw | 2 / 2 / 2 |
| 6 | 204S12002 | Screw | 1 / 1 / 1 |
| 7 | 204S16002 | Nut | 1 / 1 / 1 |
| 8 | 20428013 | Spring | 2 / 2 / 2 |
| 9 | 204S16001 | Nut | 2 / 2 / 2 |
| 10 | 20412034 | Bracket | 1 / 1 / 1 |
| 11 | 207S11018 | Screw | 2 / 2 / 2 |
| 12 | 20622003 | Rubber Cushion | 2 / 2 / 2 |
| 13 | 20412035 | Bracket | 1 / 1 / 1 |
| 14 | 207S11012 | Screw | 2 / 2 / 2 |
| 15 | 2052690 | Pin | 1 / 1 / 1 |
| 16 | XXXXXX | Presser Foot | 1 / 1 / 1 |
| 17 | ——— | Presser Foot Finger | 1 / 1 / 1 |
| 18 | 2105840 | Presser Foot Auxiliary Plate | 1 / 1 / 1 |
| 19 | 2105850 | Washer | 1 / 1 / 1 |
| 20 | 0050300 | Screw | 1 / 1 / 1 |
| 21 | 2403120 | Washer | 1 / 1 / 1 |
| 23 | 20112051 | Bracket | 1 / 1 / 1 |
| 24 | 20112052 | Hinge | 1 / 1 / 1 |
| 25 | 201S20002 | Screw | 1 / 1 / 1 |
| 26 | 20128027 | Spring | 1 / 1 / 1 |
| 27 | 201S16003 | Nut | 1 / 1 / 1 |
| 28 | 2106820 | Washer | 1 / 1 / 1 |
| 29 | 0050530 | Screw | 1 / 1 / 1 |
| 30 | 20126020 | Pin | 1 / 1 / 1 |
| 31 | 20112053 | Flat Spring | 1 / 1 / 1 |
| 32 | 201S11011 | Screw | 1 / 1 / 1 |
| 33 | S01010 | Screw | 1 / 1 / 1 |
| 34 | W02002 | Washer | 1 / 1 / 1 |
| 36 | 20112056 | Edge Guide Bracket | 1 / 1 / 1 |
| 37 | 201S12001 | Bolt | 2 / 2 / 2 |
| 38 | 20128020 | Washer | 2 / 2 / 2 |
| 39 | 201S11010 | Screw | 1 / 1 / 1 |
| 40 | 20128020 | Washer | 1 / 1 / 1 |
| 41 | 20112054 | Edge Guide | 1 / 1 / 1 |
| 270174-910 | |||
| 270170-910 | |||
| 2042180 | |||
| 200162A0 | |||
| 005121A0 | |||
| 0030910 | |||
| 2048880 | |||
| 0048080 | |||
| 2701730 | |||
| 007022A0 | |||
| 2403050 | |||
| 3050140 | |||
| 0070080 | |||
| 2106800 | |||
| 2106810 | |||
| 0051840 | |||
| 2011910 | |||
| 0030440 | |||
| 2106830 | |||
| 2106840 | |||
| 0029060 | |||
| 0070200 | 螺钉M4X8 | ||
| 2012520 | |||
| 2106870 | |||
| 0050880 | 螺钉M4X7.5 | ||
| 1670660 | |||
| 0012020 | |||
| 2046670 |
Page 72 — 二十四、随机附件部分 Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20731047 | screwdriver | 1 / 1 / 1 |
| 2 | 10131004 | Screwdriver (S) | 1 / 1 / 1 |
| 3 | 20131044 | Hexagonal wrench/1.5mm | 1 / 1 / 1 |
| 4 | 121131002 | Machine head cover | 1 / 1 / 1 |
| 5 | 20131062 | Plastic machine head bag | 1 / 1 / 1 |
| 6 | 20731048 | Oil container | 1 / 1 / 1 |
| 7 | 20131038 | Oil container | 2 / 2 / 2 |
| 8 | 20131039 | Tundish | 1 / 1 / 1 |
| 9 | 20131051 | Tweezers | 1 / 1 / 1 |
| 10 | 20131055 | Attachment box | 1 / 1 / 1 |
| 11 | 20131043 | Wrench/8mm | 1 / 1 / 1 |
| 12 | 20131042 | Wrench/7mm | 1 / 1 / 1 |
| 13 | 20131046 | Hexagonal wrench/2mm | 1 / 1 / 1 |
| 14 | 30131012 | Hexagonal wrench/4mm | 1 / 1 / 1 |
| 15 | 20131056 | Hexagonal wrench/6mm | 1 / 1 / 1 |
| 16 | 20131047 | Hexagonal wrench/5mm | 1 / 1 / 1 |
| 17 | 20131054 | Chain | 1 / 1 / 1 |
| 18 | S10005 | Screw | 4 / 4 / 4 |
| 19 | 见标准零件表 | Needle | 4 / 4 / 4 |
| 20 | 20131052 | Needle threader | 0 / 0 / 1 |
| 23 | 20412022 | Waste Chute Fixing Plate | 1 / 1 / 1 |
| 24 | 207S13008 | Screw | 4 / 4 / 4 |
| 26 | W01009 | Washer | 4 / 4 / 4 |
| 27 | N01001 | Nut | 4 / 4 / 4 |
| 28 | 20730335 | Pull rod | 1 / 1 / 1 |
| 29 | 20730027 | Direct drive controller(T19) | 1 / 1 / 1 |
| 30 | 20130089 | Plastic shell governor | 1 / 1 / 1 |
| 20131002 |
Page 73 — JK-797 GAUGE PARTS LIST (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20415001 | NEEDLE PLATE | ||
| 2041400100 | MAIN FEED DOG ASSY. | ||
| 2041600100 | PRESSER FOOT | ||
| 20417003 | UPPER LOOPER | ||
| 20417004 | LOWER LOOPER | ||
| 20415004 | NEEDLE PLATE | ||
| 2041400600 | MAIN FEED DOG ASSY. | ||
| 2041600200 | PRESSER FOOT | ||
| 20417003 | UPPER LOOPER | ||
| 20417004 | LOWER LOOPER | ||
| 20415003 | NEEDLE PLATE | ||
| 2041400600 | MAIN FEED DOG ASSY. | ||
| 2041600300 | PRESSER FOOT | ||
| 20417003 | UPPER LOOPER | ||
| 20417006 | LOWER LOOPER | ||
| 20619002 | UPPER KNIFE | ||
| 20419001 | LOWER KNIFE | ||
| 20417001 | NEEDLE GUARD FRONT | ||
| 20417002 | NEEDLE GUARD REAR | ||
| 20734001 | NEEDLE HOLDER | ||
| DCX27 #9 | NEEDLE | ||
| 20619002 | UPPER KNIFE | ||
| 20419001 | LOWER KNIFE | ||
| 20417001 | NEEDLE GUARD FRONT | ||
| 20417002 | NEEDLE GUARD REAR | ||
| 20734001 | NEEDLE HOLDER | ||
| DCX27 #9 | NEEDLE | ||
| 20619002 | UPPER KNIFE | ||
| 20419001 | LOWER KNIFE | ||
| 20417001 | NEEDLE GUARD FRONT | ||
| 20417002 | NEEDLE GUARD REAR | ||
| 20734002 | NEEDLE HOLDER | ||
| DCX27 #9 | NEEDLE |
Jack JK-797DI — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-797 manual book & parts book, featuring an image of the sewing machine and the JACK logo.
- Page 2 (text): This page contains a prologue in both Chinese and English, thanking the customer for their purchase and providing instructions on how to use the manual.
- Page 3 (text): This page contains safety precautions for operating the sewing machine, including warnings about removing parts, placing items on the machine, and maintenance procedures. It also includes a note about clutch type motors and illustrations of the machine's pedal and power switch.
- Page 4 (toc): This page is a table of contents for a sewing machine parts catalog, listing various components and their corresponding page numbers. It includes sections like "User Manual", "Cover Components", "Crankshaft Drive Components", "Needle Drive Mechanism", and "Standard measurement part list".
- Page 5 (diagram): This page contains a schematic diagram of the machine table with various dimensions and notes regarding motor dimensions.
- Page 6 (text): This page provides instructions on lubricating the sewing machine, indicating the correct oil level should be between lines H and L, and to add oil when it drops below line L. It also shows an illustration of a hand pouring oil into the machine.
- Page 7 (text): This page provides instructions on manual lubrication for the sewing machine, detailing when and how to apply oil, and shows an illustration of the lubrication process with a bottle of high-speed sewing machine oil.
- Page 8 (text): This page provides instructions on filling the HR device with silicone oil to prevent needle thread breakage and fabric damage, and notes the recommended silicone oil brand.
- Page 9 (diagram): This page illustrates the threading process for the sewing machine, detailing steps with numbered diagrams and corresponding text instructions in both Chinese and English.
- Page 10 (diagram): This page illustrates how to adjust the presser foot pressure on a sewing machine, with numbered indicators for adjusting nut 1 and nut 2, and labels for 'Light' and 'Heavy' pressure.
- Page 11 (diagram): This page shows a diagram illustrating how to adjust the differential feed ratio on an industrial sewing machine, with labels in both Chinese and English.
- Page 12 (text): This page describes how to adjust the top feed pressure on the JK-797T sewing machine, with instructions in both Chinese and English.
- Page 13 (diagram): This page illustrates how to adjust the top feed front-to-back motion on the JK-797T sewing machine, showing the use of adjusting nuts labeled 1 and 2.
- Page 14 (text): This page describes how to adjust the stitch length on a sewing machine, including instructions in both Chinese and English, and a diagram illustrating the process.
- Page 15 (diagram): This page shows a diagram illustrating how to adjust thread tension using knobs labeled 1, 2, and 3, with instructions in both English and Chinese for tightening and loosening the thread.
- Page 16 (text): This page contains instructions for cleaning the sewing machine, focusing on the needle plate and feed rows, along with a diagram illustrating the process.
- Page 17 (text): This page provides instructions on how to replace the needle on a sewing machine, including a diagram illustrating the correct and incorrect needle insertion, and specifies the standard needle type as Organ DCx27.
- Page 18 (diagram): This page contains a diagram illustrating the oil circulation system during operation, with labels in English and Chinese.
- Page 19 (text): This page describes the maintenance procedure for checking and replacing the oil filter every six months, including Chinese and English instructions and an illustration of the process.
- Page 20 (diagram): This page contains a diagram illustrating the process of replacing the oil in the machine, with accompanying text in both English and Chinese.
- Page 21 (diagram): This page provides instructions and diagrams for replacing the lower knife on an industrial sewing machine, including steps for removal and installation, and correct sharpening angles.
- Page 22 (text): This page contains a table of parameters for the JK797 sewing machine, including settings for needle height, looper distance, and feed dog adjustments, along with a list of error codes and their descriptions.
- Page 23 (diagram): This page displays a diagram of machine components with numbered parts, including a main housing, various fasteners, and a bracket assembly.
- Page 24 (parts_list): This page lists parts for the Machine Bed Frame, including part numbers, descriptions, and quantities for different machine types.
- Page 25 (diagram): This page displays a diagram of various components of an industrial sewing machine, with numbered references for each part.
- Page 26 (parts_list): This page lists cover components for an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 27 (diagram): This page contains a diagram of sewing machine parts, with numbered components and some parts specified for KS models.
- Page 28 (parts_list): This page lists cover components for an industrial sewing machine, including part numbers, descriptions, and quantities for different machine models.
- Page 29 (diagram): This page displays a diagram of various components of an industrial sewing machine, including a shaft, bearings, pulleys, and fasteners, with each part labeled with a reference number for identification.
- Page 30 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including part numbers, descriptions, and quantities for different machine types.
- Page 31 (diagram): This page displays a diagram of various sewing machine components, including needle bars, presser feet, and thread guides, with corresponding reference numbers for identification.
- Page 32 (parts_list): This page lists parts for the Needle Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 33 (diagram): This page displays a diagram of sewing machine parts, with numbered components and a legend indicating parts for three-thread and four-thread configurations.
- Page 34 (parts_list): This page lists parts for the Upper Looper Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 35 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification.
- Page 36 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 37 (diagram): This page displays a diagram of various machine parts, including components like shafts, bearings, brackets, and fasteners, each identified by a reference number.
- Page 38 (parts_list): This page lists parts for the Feed Mechanism (1) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 39 (diagram): This page displays a diagram of various machine parts, including components numbered from 1 to 74, with a page number of -33- and a website address jintez.in at the bottom.
- Page 40 (parts_list): This page lists parts for the Feed Mechanism (1) of an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 41 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 25, with associated components and fasteners.
- Page 42 (parts_list): This page lists parts for the Feed Mechanism (2) of an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 43 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 26, with associated reference numbers.
- Page 44 (parts_list): This page lists parts for the Knife Drive Mechanism, including part numbers, descriptions, and quantities for different thread types.
- Page 45 (diagram): This page displays a diagram of various sewing machine parts, including levers, springs, screws, and housings, with reference numbers for identification.
- Page 46 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 47 (diagram): This page displays diagrams for 1-needle and 2-needle sewing machine components, with numbered parts for identification.
- Page 48 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 49 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding part numbers and descriptions, including variations for different needle configurations and life cycles.
- Page 50 (parts_list): This page lists parts for the Thread Guide & Thread Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 51 (diagram): This page displays a diagram of various machine parts, including screws, filters, and housings, with corresponding reference numbers for identification.
- Page 52 (parts_list): This page lists parts for the Lubrication Mechanism (1) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 53 (diagram): This page contains a diagram of various machine components, including a steering spindle assembly and linkage parts, with numbered references for each part.
- Page 54 (parts_list): This page lists parts for Lubrication Mechanism (2), including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 55 (diagram): This page contains a diagram of various machine components, including screws, brackets, and housings, with reference numbers for each part.
- Page 56 (parts_list): This page lists parts for H.R. Device, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 57 (diagram): This page contains a diagram of various machine components, with numbered references for each part.
- Page 58 (parts_list): This page lists thread spool assemblies with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 59 (diagram): This page displays a diagram of various machine components, including screws, brackets, and a long bar, with corresponding reference numbers for identification.
- Page 60 (parts_list): This page lists parts for semi-submerged installation, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 61 (diagram): This page contains diagrams of parts for plain seaming and blindstitch hemming, with part numbers and reference numbers indicated.
- Page 62 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 63 (diagram): This page displays a diagram of machine components with reference numbers, part numbers, and descriptions for models MC310 and 311.
- Page 64 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 65 (diagram): This page displays diagrams of various sewing machine parts, including components for models JK-797-3-504-52D/MC501, JK-797-3-504-52D/MC, and JK-797-3-504-D-52D1/MC, with reference numbers and part identifiers.
- Page 66 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 67 (diagram): This page displays diagrams of various parts for sewing machine models JK-797-3-504-52D/MC501, JK-797-3-504-52D/MC, and JK-797-3-504-D-52D1/MC400, 401. It includes numbered illustrations of components with their corresponding part numbers and descriptions.
- Page 68 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 69 (diagram): This page displays a diagram of the JK-797-4-514-92M2 versatile sewing machine, illustrating various components and their reference numbers, including a fabric edge guide.
- Page 70 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 71 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 30, illustrating components such as a reservoir, tools, chains, and structural elements.
- Page 72 (parts_list): This page lists accessories and their part numbers, including screwdrivers, wrenches, oil containers, tweezers, attachment boxes, chains, screws, and more, with quantities specified for different machine types.
- Page 73 (parts_list): Page 69 of the JK-797 gauge parts list gives maker part numbers for needle plates, feed dogs, presser feet, loopers, knives, needle guards, needle holders and needles across three JK-797 machine variants.
- Page 74 (cover): This is the cover page for JACK SEWING MACHINE CO., LTD., featuring their slogan "Leading in global sales" and contact information including a phone number, website, and social media links.
