JACK JK-T1900G 产品零件图册 Parts book JACK 杰克 股票代码 快速服务100% 603337 jintex.in
Parts index — Jack JK-T1900Gtap a row to open its page
Page 3 — CONTENTS 目 录

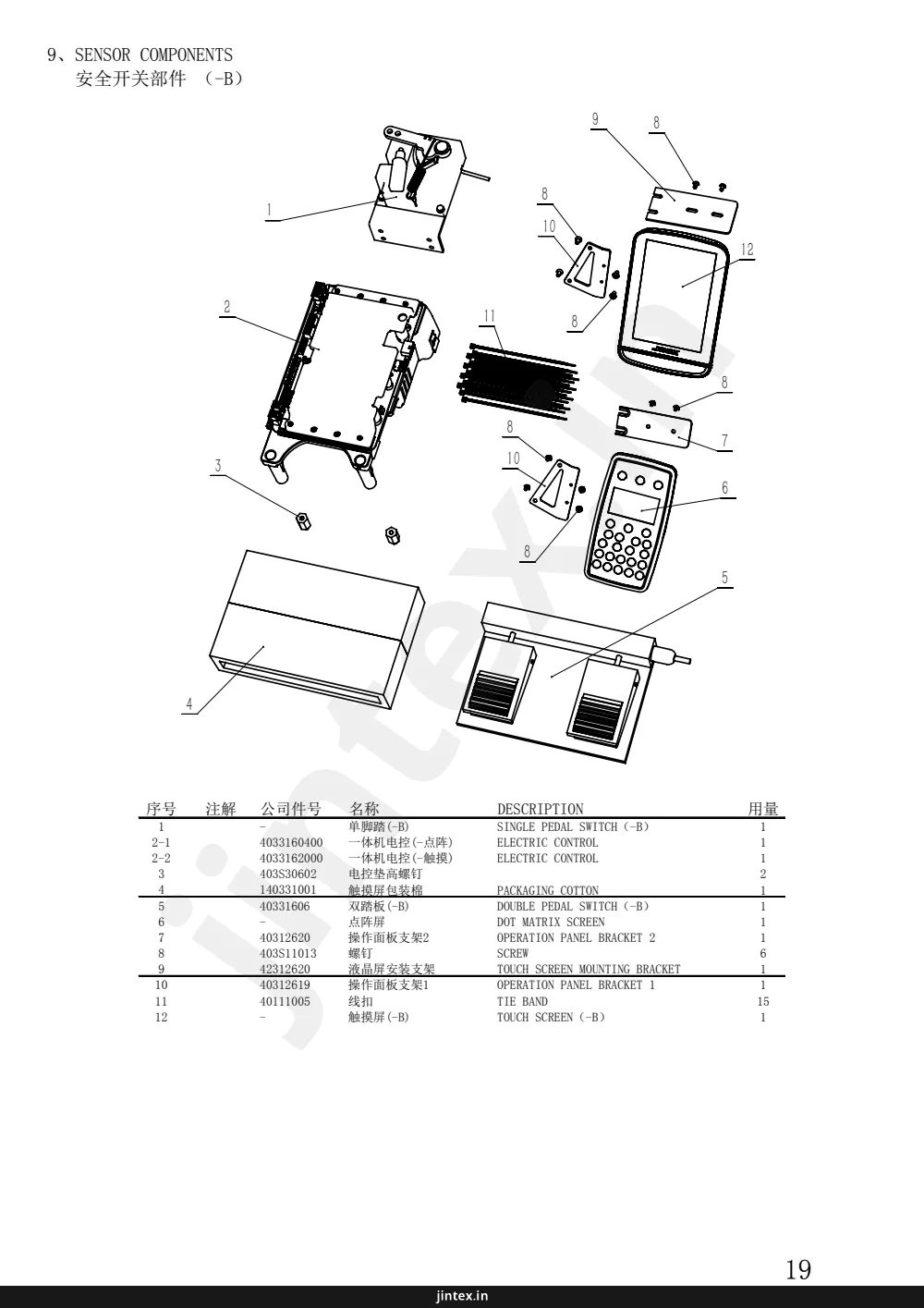

| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | FRAME & MISCELLANEOUS COVER COMPONENTS. 机身及罩壳部件 | ||
| 3 | MAIN SHAFT & NEEDLE BAR COMPONENTS. 上轴针杆部件 | ||
| 5 | PRESSER LIFTER & WIPER COMPONENTS. 抬压及拨线部件 | ||
| 7 | SHUTTLE DRIVER SHAFT COMPONENTS. 下轴部件 | ||
| 9 | THREAD TENSION COMPONENTS. 紧线部件 | ||
| 11 | THREAD TRIMMER MECHANISM COMPONENTS. 剪线部件 | ||
| 13 | FEED MECHANISM COMPONENTS. 送料部件 | ||
| 15 | PRESSER MECHANISM COMPONENTS. 中压脚部件(1906G专用部件) | ||
| 17 | SENSOR COMPONENTS. 安全开关部件 | ||
| 20 | THREAD STAND COMPONENTS. 线架部件 | ||
| 21 | TABLE STAND COMPONENTS. 台板机架部件 | ||
| 23 | ACCESSORIE PART COMPONENTS. 附件部件 | ||
| 25 | ACCESSORIES PARTS FOR 1903G SUBBCLASSES. 1903G 附件 | ||
| 27 | EXCLUSIVE PARTS FOR 1903G. 1903G 专用部件 | ||
| 29 | FOOT PRESS LIST. 压脚清单 | ||
| 31 | EXCLUSIVE PARTS FOR 1906GHQ. 1906GHQ专用部件 | ||
| 33 | SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-D. 1900G-D物联网专用部件 | ||
| 35 | SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-B. 1900G-B物联网专用部件 |
Page 4 — 1、FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | FRAME | ||
| 2 | COVER | ||
| 3 | COVER | ||
| 4 | SCREW | ||
| 5 | BRACKET | ||
| 6 | SCREW | ||
| 7 | WASHER | ||
| 8 | PLATE | ||
| 9 | BRACKET | ||
| 10 | SCREW | ||
| 11 | COVER | ||
| 12 | SCREW | ||
| 13 | COVER | ||
| 14 | PLATE | ||
| 15-1 | COVER | ||
| 15-2 | COVER | ||
| 16 | COVER | ||
| 17 | COVER | ||
| 18 | SCREW | ||
| 19 | BRACKET | ||
| 20 | BRACKET | ||
| 21 | COVER | ||
| 22 | SCREW | ||
| 23 | SCREW | ||
| 24 | TUBE | ||
| 25 | SCREW | ||
| 26 | SCREW | ||
| 27 | BRACKET | ||
| 28 | SCREW | ||
| 29 | BRACKET | ||
| 30 | BRACKET | ||
| 31 | SCREW | ||
| 32 | BRACKET | ||
| 33 | BRACKET | ||
| 34 | BRACKET | ||
| 35 | COVER | ||
| 36 | COVER | ||
| 37 | SCREW | ||
| 38 | SCREW | ||
| 39 | BRACKET | ||
| 40 | SCREW | ||
| 41 | BRACKET | ||
| 42 | SCREW | ||
| 43 | BRACKET | ||
| 44 | TUBE | ||
| 45 | BRACKET |
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40311601 | 后罩 | ||
| S04079 | 镙钉 M4×10 | ||
| 303592 | 顶盖 | ||
| 403S11009 | 镙钉 M6×12 | ||
| 303593 | 侧盖板 | ||
| 403S11013 | 侧盖板 | ||
| 40312615 | 侧盖板支 | ||
| 40312601 | 底座左盖板 | ||
| 303594 | 底座左盖板(喷漆) | ||
| 40312602 | 底座右盖板 | ||
| 303595 | 底座右盖板(喷漆) | ||
| 403S11011 | 镙钉 M4×6 | ||
| 40301602 | 面板 | ||
| 303596 | 面板(喷漆) | ||
| 13837002 | 商标 | ||
| 403S11026 | 镙钉 M5×16 | ||
| 40322601 | 面板垫 | ||
| 140312004 | 梭床罩组件 | ||
| 930000024 | 梭床罩组件(喷漆) | ||
| 14031200500 | 连接臂组件 | ||
| 40127014 | 梭床罩弹片 | ||
| 4033160900 | 绕线器组件 | ||
| 403S11015 | 镙钉 | ||
| 11419001 | 切线刀 | ||
| 403S11020 | 镙钉 M3×6 | ||
| 4031360100 | 绕线夹线器组件 | ||
| 40313012 | 过线钩 | ||
| 403S11019 | 镙钉 M4×8 | ||
| 40313004 | 过线钩 | ||
| 403S110004 | NUT M4 | ||
| 41712078 | 左线钩 | ||
| 40213010 | 右线钩 | ||
| 40113004 | 过线板 | ||
| 40313003 | 过线板 | ||
| 40112002 | 防护罩 | ||
| 300674 | 防护罩(喷漆) | ||
| 403S11017 | 镙钉 M3×8 | ||
| 40330025 | LED灯 | ||
| 40312622 | LED灯安装板 | ||
| 413S13011 | 镙钉 M4×12 | ||
| 40122015 | 面板塞 D13×4 | ||
| 40322019 | 油塞 D21×9 | ||
| 40122006 | 油塞 D8.5×6 | ||
| 40322014 | 针杆油塞 D7×10 | ||
| 40122016 | 油塞 D10.5×5 | ||
| 40322021 | 油塞 D15×9 | ||
| 40122007 | 油塞 D16×6.5 | ||
| 41322018 | 油塞 D16.5×10 | ||
| 413S14003 | 镙钉 M6×5 | ||
| 40326001 | 支承销 |
Page 6 — 2、MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 5 | NEEDLE BAR | |
| 4 | 4 | NEEDLE BAR BUSH | |
| 3 | 3 | NEEDLE BAR GUIDE | |
| 7 | 7 | SCREW | |
| 6 | 6 | NEEDLE BAR CONNECTING PIECE | |
| 8 | 8 | CONNECTING ROD | |
| 9 | 9 | CONNECTING ROD | |
| 10 | 10 | PIN | |
| 11 | 11 | BRACKET | |
| 12 | 12 | SHAFT | |
| 13 | 13 | BRACKET | |
| 14 | 14 | SHAFT | |
| 15 | 15 | BRACKET | |
| 16 | 16 | SCREW | |
| 17 | 17 | CAP | |
| 18 | 18 | CAP | |
| 19 | 19 | BEARING | |
| 20 | 20 | BEARING | |
| 21 | 21 | COLLAR | |
| 22 | 22 | COLLAR | |
| 23 | 23 | GEAR | |
| 24 | 24 | GEAR | |
| 25 | 25 | SHAFT | |
| 26 | 26 | PIN | |
| 27 | 27 | SPRING | |
| 28 | 28 | WHEEL | |
| 29 | 29 | PIN | |
| 30 | 30 | BEARING | |
| 31 | 31 | BRACKET | |
| 32 | 32 | BRACKET | |
| 33 | 33 | BRACKET | |
| 34 | 34 | GEAR | |
| 35 | 35 | RING | |
| 36 | 36 | COLLAR | |
| 37 | 37 | SCREW | |
| 38 | 38 | PIN | |
| 39 | 39 | BRACKET | |
| 40 | 40 | SHAFT | |
| 41 | 41 | COLLAR | |
| 42 | 42 | COLLAR | |
| 43 | 43 | COLLAR | |
| 44 | 44 | BEARING | |
| 45 | 45 | BEARING | |
| 46 | 46 | BRACKET | |
| 47 | 47 | COLLAR | |
| 48 | 48 | COLLAR | |
| 49 | 49 | COLLAR | |
| 50 | 50 | HOUSING | |
| 51 | 51 | HOUSING | |
| 52 | 52 | HOUSING | |
| 1 | 1 | SHAFT |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40302601 | 主轴 | ||
| 40303016 | 针杆下套 | ||
| 40302015 | 针杆 | ||
| 40304015 | 针杆连接柱组件 | ||
| 40303015 | 针杆上套 | ||
| 40313009 | 下过线 | ||
| 201S11005 | SO12SCREW | ||
| 40317011 | 机针DP×5 #11 | ||
| 40517001 | 机针DP×17 #14 | ||
| 40117001 | 机针DP×5 #16 | ||
| 40319006 | 机针DP×17 #19 | ||
| 4033800400 | 挑线杆组件 | ||
| 14033800100 | 挑线杆组件 | ||
| 14033800200 | 挑线杆组件 | ||
| 403S14005 | 螺钉 M6×8 | ||
| 41709001 | 滑块 | ||
| 403S13015 | 螺钉 M4×16 | ||
| 41709002 | 滑块导向 | ||
| 40328018 | 垫片 | ||
| 40510001 | 针杆曲柄 | ||
| 40310005 | 针杆曲柄 | ||
| 403S14006 | 螺钉 M6×0.75×6 | ||
| 403S13008 | 螺钉 M8×12 | ||
| 403S13007 | 曲柄定位螺钉 | ||
| B10002 | 上轴轴承 | ||
| 40303012 | 轴承套 | ||
| 40335002 | 绕线轮 | ||
| 403S14008 | 螺钉 M5×8 | ||
| 40325010 | 上轴转动齿轮 | ||
| 40325011 | 手轮齿轮 | ||
| 40326602 | 手轮传动齿轮 | ||
| P03002 | 销 2×5.5 | ||
| 40327004 | 弹簧 | ||
| 4031160600 | 手轮组件 | ||
| 403S11003 | 螺钉 M6×8 | ||
| 42305001 | 连杆 | ||
| 40310007 | 偏心轮 | ||
| 40312064 | 连杆挡板 | ||
| 403S17001 | 螺钉 M3×6 | ||
| 40324014 | 滚针轴承 | ||
| 40328027 | 连接轴承挡圈 | ||
| 40323007 | 油毡 | ||
| 403S11021 | 挡板油塞 | ||
| 403S25604 | 螺钉 M6×4.5 | ||
| 40326026 | 摆齿 | ||
| 40322024 | 摆齿轴 | ||
| 41728001 | 油封 | ||
| H05008 | 垫片 | ||
| 40322602 | 卡簧 | ||
| 40312067 | 上轴油封 | ||
| 40312066 | 平行块 | ||
| 40312066 | 固定板 | ||
| 403S11023 | 螺钉 M5×14 | ||
| B04009 | 轴承 | ||
| 40303601 | 轴承套 | ||
| 40301023 | 传动连接块 | ||
| 40301024 | 传动连接块 | ||
| 40322028 | 减震橡胶 |
Page 8 — 3、PRESSER LIFTER & WIPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | MOTOR | |
| 2 | 2 | SCREW | |
| 3 | 3 | BEARING | |
| 4 | 4 | BRACKET | |
| 5 | 5 | SCREW | |
| 6 | 6 | WASHER | |
| 7 | 7 | SCREW | |
| 8 | 8 | BRACKET | |
| 9 | 9 | SCREW | |
| 10 | 10 | BRACKET | |
| 11 | 11 | SCREW | |
| 12 | 12 | BRACKET | |
| 13 | 13 | SCREW | |
| 14 | 14 | BRACKET | |
| 15 | 15 | PIN | |
| 16 | 16 | NUT | |
| 17 | 17 | SPRING | |
| 18 | 18 | SHAFT | |
| 19 | 19 | SCREW | |
| 20 | 20 | WASHER | |
| 21 | 21 | NUT | |
| 22 | 22 | SCREW | |
| 23 | 23 | NUT | |
| 24 | 24 | SHAFT | |
| 25 | 25 | SHAFT | |
| 26 | 26 | BRACKET | |
| 27 | 27 | SCREW | |
| 28 | 28 | SCREW | |
| 29 | 29 | BRACKET | |
| 30 | 30 | SCREW | |
| 31 | 31 | NUT | |
| 32 | 32 | BRACKET | |
| 33 | 33 | BUSHING | |
| 34 | 34 | NUT | |
| 35 | 35 | SHAFT | |
| 36 | 36 | SCREW | |
| 37 | 37 | BRACKET | |
| 38 | 38 | BUSHING | |
| 39 | 39 | SPRING | |
| 40 | 40 | SPRING | |
| 41 | 41 | SPRING | |
| 42 | 42 | BUSHING | |
| 43 | 43 | PIN | |
| 44 | 44 | PIN | |
| 45 | 45 | BRACKET | |
| 46 | 46 | SCREW | |
| 47 | 47 | BUSHING | |
| 48 | 48 | BRACKET | |
| 49 | 49 | SHAFT | |
| 50 | 50 | WASHER | |
| 51 | 51 | SCREW | |
| 52 | 52 | BRACKET | |
| 53 | 53 | SCREW | |
| 54 | 54 | SCREW | |
| 55 | 55 | BRACKET | |
| 56 | 56 | SCREW | |
| 57 | 57 | NUT |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40333601 | 剪线电机 | ||
| 40333604 | 剪线电机 | ||
| 403S11026 | 螺钉M5×16 | 4 | |
| 40324009 | 轴承6000ZZNR | ||
| 4031211800 | 抬压脚传感器板组件 | ||
| 403S11026 | 螺钉M5×4 | ||
| 40328019 | 垫片 | 2 | |
| 403S11011 | 螺钉M4×8 | ||
| 40312069 | 拉簧 | ||
| 403S11027 | 螺钉M4×7.5 | ||
| 40312603 | 传感器安装板 | ||
| 403S13011 | 螺钉M4×8 | ||
| 413S13026 | 传感器螺钉组件 | ||
| 40312068 | 拔线曲柄 | ||
| 40326016 | 拔线曲柄轴 | ||
| 403S11016 | 螺钉M6×8 | ||
| 40127019 | 弹簧 | ||
| 40312604 | 拔线连接杆 | ||
| 403S20010 | 螺母M5 | ||
| 403S16006 | 螺钉M5 | ||
| 40303017 | 滚筒 | 2 | |
| 403S20009 | 轴位螺钉 M4 | ||
| 403S16005 | 螺母 M4 | ||
| 40305013 | 拨线转动曲柄 M4 | 2 | |
| 40326017 | 曲柄轴 | ||
| 40305014 | 抬压脚曲柄 | ||
| S05030 | 螺钉M6×18 | ||
| 403S20011 | 轴位螺钉 M5 | ||
| 40312605 | 抬压脚传动杆 | 2 | |
| 403S20012 | 轴位螺钉 M6 | ||
| 403S16007 | 螺母 M6 | ||
| 40312008 | 连接杆 | ||
| 403S20013 | 轴位螺钉 M6 | 2 | |
| 403S16008 | 螺母 M6 | ||
| 40312606 | 扫线调节杆 | ||
| 403S20014 | 扫线螺钉 | ||
| 4031215200 | 扫线连接板组件 | ||
| 40328042 | 垫片 | ||
| 40127011 | 弹簧 | ||
| 40328018 | 垫片 | ||
| 40129001 | 卡簧4.7 | ||
| 40326039 | 扫线连接板销 | ||
| 403S14015 | 止动螺钉 | ||
| 403S13021 | 止动螺钉 | ||
| 40312154 | 扫线连接拉板 | ||
| 40108011 | 护油冒 | 2 | |
| 40122012 | 护油冒 | ||
| 40312078 | 扫线杆固定架 | ||
| W01001 | 垫片 | ||
| W02008 | 弹垫2-4 | ||
| 403S11012 | 螺钉 M4×10 | ||
| 4031207700 | 扫线杆组件 | ||
| 403S20016 | 轴位螺钉 M5 | ||
| 40108004 | E形挡圈4 | ||
| 4051201500 | 扫线杆组件 | ||
| 40527014 | 弹簧 | ||
| 405S11007 | 螺钉 SM3/32"×56×3 | 2 |
Page 10 — 4、SHUTTLE DRIVER SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SHUTTLE DRIVER SHAFT | ||
| 2 | BEARING | ||
| 3 | CIR-CLIP | ||
| 4 | WASHER | ||
| 5 | SCREW | ||
| 6 | BEARING | ||
| 7 | BEARING | ||
| 8 | OIL SEAL | ||
| 9 | CIR-CLIP | ||
| 10 | COLLAR | ||
| 11 | BEARING | ||
| 12 | CIR-CLIP | ||
| 13 | SHUTTLE DRIVER SHAFT HOUSING | ||
| 14 | BEARING | ||
| 15 | WASHER | ||
| 16 | CIR-CLIP | ||
| 17 | SCREW | ||
| 18 | BRACKET | ||
| 19 | BRACKET | ||
| 20 | WASHER | ||
| 21 | BEARING | ||
| 22 | CIR-CLIP | ||
| 23 | SHUTTLE DRIVER SHAFT HOUSING | ||
| 24 | PIN | ||
| 25 | PIN | ||
| 26 | SCREW | ||
| 27 | PIN | ||
| 28 | PIN | ||
| 29 | PIN | ||
| 30 | BRACKET | ||
| 31 | SCREW | ||
| 32 | COVER | ||
| 33 | GASKET | ||
| 34 | CLAMP | ||
| 35 | SCREW | ||
| 36 | SCREW | ||
| 37 | WASHER | ||
| 38 | COVER | ||
| 39 | PIPE JOINT | ||
| 40 | SCREW | ||
| 41 | BEARING | ||
| 42 | CAP | ||
| 43 | COVER | ||
| 44 | SCREW | ||
| 45 | WASHER | ||
| 46 | SCREW | ||
| 47 | WASHER | ||
| 48 | COVER | ||
| 49 | SCREW | ||
| 50 | BRACKET | ||
| 51 | BRACKET | ||
| 52 | WASHER | ||
| 53 | COVER | ||
| 54 | PLUG | ||
| 55 | SHAFT | ||
| 56 | CLAMP | ||
| 57 | SCREW | ||
| 58 | SCREW | ||
| 59 | CABLE TIE | ||
| 60 | SHAFT | ||
| 61 | SHAFT | ||
| 62 | SHAFT |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40302602 | 下轴 | ||
| 40324602 | 轴承 | ||
| S10015 | 螺钉 M4×6 | ||
| 40325601 | 下轴齿轮 | ||
| 403s11016 | 螺钉 M6×6 | ||
| 40302603 | 偏心轴 | ||
| 40322609 | O型圈 | ||
| 40322610 | O型圈 | ||
| 403s14005 | 螺钉 M6×8 | ||
| 40322603 | 下轴油封 | ||
| 40308003 | 挡圈 | ||
| 116S14003 | 螺钉 SM1/4×40 L=4.5 | ||
| 4031800700 | 梭架组件 | ||
| 40324010 | 滚针轴承 | ||
| 40328020 | 梭架滚针 | ||
| 40322031 | 油封 | ||
| 41723011 | 油毡 | ||
| 401s13005 | 螺钉 SM3/16×28 L=12.0 | ||
| 40118503 | 摆梭 | ||
| 40118501 | 摆梭 | ||
| 40118501 | 摆梭 | ||
| 40318501 | 摆梭 | ||
| 41718018 | 摆梭 | ||
| 40118004 | 梭心 | ||
| 41718004 | 梭心 | ||
| 40318011 | BOBBIN CASE ASM. (RACING PREVE) | ||
| 41718004 | BOBBIN CASE ASM. (RACING PREVE) | ||
| 40318004 | 梭壳 | ||
| 40318006 | 梭床盖 | ||
| 403s11030 | 螺钉 M6×12 | ||
| 40326019 | 梭架调节销 | ||
| 403s11011 | 螺钉 M4×6 | ||
| 40322026 | 橡皮塞 | ||
| 403s14014 | 螺钉 M6×6 | ||
| 403s14021 | 螺钉 M6×10 | ||
| 40312079 | 油管压板 | ||
| 403s13013 | 螺钉 M4×6 | ||
| 40322607 | 油箱盖 | ||
| 40301604 | 油箱上盖 | ||
| 40311015 | 油管夹 | ||
| 413s13011 | 螺钉 M4×8 | ||
| 20122033 | 垫片 | ||
| 206S30009 | 过油螺钉 M6×15.5 | ||
| 20736007 | 油管接头 | ||
| 41736001 | 导管 L | ||
| 20429001 | 油管卡簧 | ||
| 140311001 | 加油帽 | ||
| 40122016 | 橡皮塞 | ||
| 40322606 | 密封垫 | ||
| 40301603 | 油箱底盖 | ||
| 40347601 | 环形磁铁 | ||
| 406s11001 | 放油螺钉 | ||
| 001031 | O型圈 | ||
| 14036002 | 回油嘴 | ||
| 403s11015 | 油箱底盖螺钉 | ||
| 40312613 | 液位窗支架 | ||
| 40311604 | 油箱盖 | ||
| 40322605 | 油塞 | ||
| 4031101700 | 油管组件 | ||
| 40322027 | 橡皮塞 | ||
| 403S11013 | 螺钉 M4×8 | ||
| 40311016 | 电线夹 | ||
| 403s13011 | 螺钉 M4×8 | ||
| 403s11028 | 螺钉 M4×8 | ||
| 40111005 | 线扣 | ||
| 14021001 | 油管 | ||
| 12921002 | 维尼龙油管 | ||
| 41723026 | 油线 |
Page 12 — 5. THREAD TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | FRAME | |
| 2 | 2 | BRACKET | |
| 3 | 3 | WASHER | |
| 4 | 4 | SPRING WASHER | |
| 5 | 5 | SCREW | |
| 6 | 6 | COVER | |
| 7 | 7 | SCREW | |
| 8 | 8 | WASHER | |
| 9 | 9 | CONNECTOR | |
| 10 | 10 | SHAFT | |
| 11 | 11 | SPRING | |
| 12 | 12 | WASHER | |
| 13 | 13 | SPRING | |
| 14 | 14 | TENSION POST | |
| 15 | 15 | SPRING | |
| 16 | 16 | TENSION ASSEMBLY | |
| 17 | 17 | CLAMP | |
| 18 | 18 | SCREW |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4033002400 | 松线电磁铁组件 | ||
| 41712099 | 电磁铁安装板 | ||
| W01001 | 平垫圈 4 | ||
| W02008 | 弹垫2-4 | ||
| L02031 | 六角头螺栓全螺纹 C级 M4×8 | ||
| 40311609 | 松线电磁铁外罩 | ||
| 417S30012 | 段螺钉 7-3 | ||
| 41722021 | O形圈P7 | ||
| 61905001 | 接插件 | ||
| 40326041 | 松线杆 | ||
| H05029 | 开口挡圈E4(进口) | ||
| W01009 | 平垫圈5 | ||
| 41727013 | 弹簧 | ||
| 4033161000 | 薄料夹线器组件 | ||
| 4033161100 | 厚料夹线器组件 | ||
| 403S14016 | 螺钉 M6×16 | ||
| 4013100400 | 张力控制器 | ||
| 40311015 | 油管夹 | ||
| 403S13011 | 螺钉 M4×8 |
Page 14 — 6. THREAD TRIMMER MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | THREAD SPOOL HOLDER | |
| 2 | 2 | SPRING | |
| 3 | 3 | THREAD GUIDE | |
| 4 | 4 | SPRING | |
| 5 | 5 | SPRING | |
| 6 | 6 | SPRING | |
| 7 | 7 | SPRING | |
| 8 | 8 | NUT | |
| 9 | 9 | SPRING | |
| 10 | 10 | SPRING | |
| 11 | 11 | SPRING | |
| 12 | 12 | SPRING | |
| 13 | 13 | SPRING | |
| 14 | 14 | SPRING | |
| 15 | 15 | SPRING |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42310001 | 剪线凸轮 | ||
| 403s14017 | 螺钉 M5×5 | ||
| 40312101 | 连接板 | ||
| 40326016 | 线曲柄轴 | ||
| 403s14005 | 螺钉 M6×8 | ||
| 40303019 | 滚珠 | ||
| 403s20009 | 轴位螺钉 | ||
| 403s16005 | 螺母 M4 | ||
| 40312608 | 线杆连杆 | ||
| 403s20010 | 轴位螺钉 | ||
| 403s16006 | 螺母 M5 | ||
| 4031560100 | 针板组件 | ||
| 4031560200 | 针板组件 | ||
| 4031560300 | 针板组件 | ||
| 4051560100 | 针板组件 | ||
| 14031500700 | 针板组件(短线头) | ||
| 1403NS17001 | 螺钉 M4×6 | ||
| 401S17006 | 螺钉SCREW SM3/32"×56×2.5 | ||
| 40115002 | 针孔板 | ||
| 40315025 | 针孔板 | ||
| 40315033 | 针孔板 | ||
| 40515001 | 针孔板 | ||
| 40515007 | 针孔板 | ||
| 140315008 | 针孔板(短线头) | ||
| 140515002 | 针孔板(短线头钩扣) | ||
| 140315009 | 针孔板(短线头厚料) |
Page 16 — 7、FEED MECHANISM COMPONENTS 送料部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 45 | 45 | ||
| 46 | 46 | ||
| 47 | 47 |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40325603 | Y向送料轴 | ||
| 40303007 | 后衬套 | ||
| 40312092 | Y向电机固定板 | ||
| 40333603 | Y向同步电机 | ||
| 40333603 | Y向同步电机 | ||
| 40333606 | Y向同步电机 | ||
| 40328016 | 防油垫 | ||
| 40325013 | Y向送料齿轮 | ||
| 40128021 | 垫圈 | ||
| 403S13016 | 螺钉 M4×20 | ||
| 403S13015 | 螺钉 M4×16 | ||
| 403S14018 | 螺钉 M6×6 | ||
| 4230460100 | 横向供给支架组件 | ||
| 116S14004 | 螺钉 M6×6 | ||
| 40312618 | 螺钉 SM11/64"×40 | ||
| 403S11059 | 螺钉 SM11/64"×40 | ||
| 40312617 | Y向感光片转接板 | ||
| 403S11027 | 螺钉 M4×7.5 | ||
| 413S13026 | 螺钉组件 M3×8.5 | ||
| 40312611 | Y向感光板 | ||
| 403S16015 | 螺母 SM15/64"×28 | ||
| 403S11011 | 螺钉 M4×6 | ||
| 40333602 | X向同步电机(-B) | ||
| 40333602 | X向同步电机(-D) | ||
| 40325012 | X向供给齿轮 | ||
| 40312035 | X向感应器固定板 | ||
| 403S11043 | 螺钉组件 M4×12 | ||
| 40312139 | X向感光板 | ||
| 42304602 | 供给支架底座 | ||
| 42304602 | 供给支架底座 | ||
| 402S30018 | 螺钉 M5×8 | ||
| 42302002 | 摇杆轴 | ||
| 42325001 | X向供给摇杆 | ||
| 403S14005 | 螺钉 M6×6 | ||
| 40312610 | 供给压板 | ||
| 42312607 | 供给压板 | ||
| 403S17002 | 螺钉 M4×6 | ||
| 14030100200 | 供给架组件 | ||
| S05028 | 螺钉 M6×14 | ||
| S05042 | 螺钉 M6×22 | ||
| 40128014 | 垫圈 | ||
| 40315001 | 供给金属板 | ||
| 403S13003 | 螺钉 M6×8 | ||
| 40128034 | 垫圈 | ||
| 40312623 | 供给压板 | ||
| 403S11035 | 螺钉 M3×5 | ||
| 40109004 | 手工脚架滚珠 | ||
| 40312612 | 支架板 | ||
| 403S13011 | 螺钉 M4×8 | ||
| 40327027 | 弹簧 | ||
| 42327003 | 弹簧 |
Page 18 — 8、PRESSER MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | PRESSER MECHANISM COMPONENTS | ||
| 2 | 中压脚部件(1906G 专用部件) | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 |
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42312603 | 电机安装板 | ||
| 403S11009 | 螺钉 M6×12 | ||
| 42333601 | 中压脚电机（-B） | ||
| 42333602 | 中压脚电机（-D） | ||
| S05133 | 螺钉 M4×12 | ||
| W02002 | 弹簧垫圈4 | ||
| 42301601 | 拨叉 | ||
| 403S14017 | 螺钉 M5×5 | ||
| B04020 | 深沟球轴承695ZZ | ||
| 42328601 | 垫片 | ||
| 42312604 | 杠杆 | ||
| 423S20601 | 轴位螺钉 M5 | ||
| 403S16006 | 六角螺母 M5 | ||
| 42302601 | 导向杆 | ||
| 42309601 | 中压脚导向滑块 | ||
| 4230160200 | 切换装置支架组件 | ||
| 41728001 | 垫圈10 | ||
| 403S20013 | 轴位螺钉 M6 | ||
| 42312605 | 中压脚连杆 | ||
| 403S20010 | 轴位螺钉 M5 | ||
| 423S17601 | 螺钉 M4×6 | ||
| 42301603 | 连接块 | ||
| 403S14006 | 螺钉 M6×6 | ||
| 42302602 | 压紧杆 | ||
| 42316603 | 中压脚 | ||
| W01001 | 平垫圈4 | ||
| W02008 | 弹垫2-4 | ||
| 417S15011 | 螺钉 SM9/64″×40×12 | ||
| 42301604 | 面板 | ||
| 303597 | 面板(喷漆) | ||
| W02001 | 弹簧垫圈5 | ||
| 403S11026 | 螺钉 M5×16 | ||
| 413S11002 | 螺钉 M5×10 | ||
| 136S13001 | 螺钉 M5×35 | ||
| 42311602 | 电机前罩 | ||
| ------ | 开关 | ||
| 403S11013 | 螺钉 M4×8 | ||
| 42311601 | 电机后罩 | ||
| 403S11011 | 螺钉 M4×6 | ||
| 42312606 | 辅助板 | ||
| 42312020 | 辅助板支撑板 | ||
| 417S15003 | 螺钉 M4×6 | ||
| 41722010 | 辅助板缓冲胶垫 | ||
| 407N01002 | 自锁螺母 | ||
| W01013 | 平垫圈 | ||
| S05004 | 螺钉 M5×14 | ||
| 41711017 | 电线夹16 | ||
| 403S13011 | 螺钉 M4×8 |
Page 20 — 9、SENSOR COMPONENTS 安全开关部件（-D）
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SENSOR COMPONENTS | |
| 2 | 2 | SENSOR COMPONENTS | |
| 3 | 3 | SENSOR COMPONENTS | |
| 4 | 4 | SENSOR COMPONENTS | |
| 5 | 5 | SENSOR COMPONENTS | |
| 6 | 6 | SENSOR COMPONENTS | |
| 7 | 7 | SENSOR COMPONENTS | |
| 8 | 8 | SENSOR COMPONENTS | |
| 9 | 9 | SENSOR COMPONENTS | |
| 10 | 10 | SENSOR COMPONENTS | |
| 11 | 11 | SENSOR COMPONENTS | |
| 12 | 12 | SENSOR COMPONENTS | |
| 13 | 13 | SENSOR COMPONENTS | |
| 14 | 14 | SENSOR COMPONENTS | |
| 15 | 15 | SENSOR COMPONENTS |
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40312619 | 操作面板支架1 | ||
| 40312625 | 电控安装架(上) | ||
| 40312626 | 电控安装架(下) | ||
| 4033161600 | 一体机电控(-D闭环) | ||
| 403S11009 | 螺钉 | ||
| S04028 | 螺钉 | ||
| 403S11013 | 螺钉 | ||
| 40111005 | 线扣 | ||
| 40331617 | 单脚踏(-D) | ||
| 140331001 | 液晶屏包装棉 | ||
| 40331621 | 触摸屏(-D) | ||
| 42312620 | 液晶屏安装支架 | ||
| 40331618 | 双踏板(-D) | ||
| 40312620 | 操作面板支架2 | ||
| 40331619 | 点阵屏 |
Page 22 — 9、SENSOR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4033160400 | 单脚踏(-B) | ||
| 4033162000 | 一体机电控（点阵） | ||
| 403S30602 | 电控垫高螺钉 | ||
| 140331001 | 触摸屏包装棉 | ||
| 40331606 | 双踏板(-B) | ||
| 40312620 | 操作面板支架2 | ||
| 403S11013 | 螺钉 | ||
| 42312620 | 液晶屏安装支架 | ||
| 40312619 | 操作面板支架1 | ||
| 40111005 | 线扣 |
Page 23 — 10、THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1383100300 | 过线架组件 | ||
| ...... | 线架缓冲支架 | ||
| ...... | 线轴 | ||
| ...... | 线盘软垫 | ||
| ...... | 线盘 | ||
| ...... | 螺钉 | ||
| ...... | 过线架固定夹 | ||
| ...... | 线架支撑套 | ||
| ...... | 线架 | ||
| ...... | 线架支撑管 1 | ||
| ...... | 支撑管接头 | ||
| ...... | 螺钉 | ||
| ...... | 螺母 | ||
| ...... | 线架支撑管 2 | ||
| ...... | 过线套 | ||
| ...... | 弹簧垫圈 | ||
| ...... | 螺母 | ||
| ...... | 螺母 | ||
| ...... | 垫片 |
Page 24 — 11、TABLE STAND COMPONENTS 台板机架部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TABLE STAND COMPONENTS | ||
| 2 | TABLE STAND COMPONENTS | ||
| 3 | TABLE STAND COMPONENTS | ||
| 4 | TABLE STAND COMPONENTS | ||
| 5 | TABLE STAND COMPONENTS | ||
| 6 | TABLE STAND COMPONENTS | ||
| 7 | TABLE STAND COMPONENTS | ||
| 8 | TABLE STAND COMPONENTS | ||
| 9 | TABLE STAND COMPONENTS | ||
| 10 | TABLE STAND COMPONENTS | ||
| 11 | TABLE STAND COMPONENTS | ||
| 12 | TABLE STAND COMPONENTS | ||
| 13 | TABLE STAND COMPONENTS | ||
| 14 | TABLE STAND COMPONENTS | ||
| 15 | TABLE STAND COMPONENTS | ||
| 16 | TABLE STAND COMPONENTS | ||
| 17 | TABLE STAND COMPONENTS | ||
| 18 | TABLE STAND COMPONENTS | ||
| 19 | TABLE STAND COMPONENTS | ||
| 20 | TABLE STAND COMPONENTS | ||
| 21 | TABLE STAND COMPONENTS | ||
| 22 | TABLE STAND COMPONENTS | ||
| 23 | TABLE STAND COMPONENTS | ||
| 24 | TABLE STAND COMPONENTS | ||
| 25 | TABLE STAND COMPONENTS | ||
| 26 | TABLE STAND COMPONENTS | ||
| 27 | TABLE STAND COMPONENTS | ||
| 28 | TABLE STAND COMPONENTS | ||
| 29 | TABLE STAND COMPONENTS | ||
| 30 | TABLE STAND COMPONENTS | ||
| 31 | TABLE STAND COMPONENTS | ||
| 32 | TABLE STAND COMPONENTS | ||
| 33 | TABLE STAND COMPONENTS | ||
| 34 | TABLE STAND COMPONENTS |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400-06886 | TABLE | 1 | |
| 400-06886 | TABLE | 1 | |
| SK-3515201-SE | WOOD SCREW D=5.1 L=32 | 4 | |
| 141-18053 | T-STAND COMPL. | 1 | |
| 141-18053 | T-STAND COMPL. | 1 | |
| 141-18152 | UPPER STAND ASM., RIGHT | 1 | |
| 141-18151 | STAND ASM., RIGHT | (1) | |
| B8101-210-AAB | UPPER STAND ASM., LEFT | (1) | |
| B8105-210-AAA | STAND ASM., LEFT | (1) | |
| 111-58300 | STAND SIDE SUPPORT | (1) | |
| 111-58409 | STAND SIDE SUPPORT | (1) | |
| 111-58607 | RUBBER CAP | (2) | |
| 170-07402 | NUT | (2) | |
| 111-58516 | UPPER STAND PLATE | (2) | |
| SL-9082091-SE | WASHER HEXAGONAL BOLT | (12) | |
| 138-17754 | Z-STAND PEDAL ASM | (1) | |
| 111-59001 | PEDAL SHAFT BRACKET | (2) | |
| B8153-771-000 | PEDAL CONNECTING ROD | (1) | |
| D8113-555-B00 | PEDAL BUSHING | (2) | |
| GPF-06080000 | PEDAL ADJUSTING PLATE | (1) | |
| GPF-060600A0 | PEDAL ASM. | (1) | |
| SM-9061201-SE | SCREW M6 L=12 | (2) | |
| WP-0671016-SE | WASHER 6.7×13×1 | (2) | |
| WS-0621210-KR | SPRING WASHER 6.2×11.4×1.2 | (2) | |
| SM-9082023-SE | SCREW M8 L=20 | (2) | |
| WP-0871602-SE | WASHER 8.7×18×1.6 | (4) | |
| WS-0861410-KR | SPRING WASHER 8.6×15×1.4 | (2) | |
| NM-6080721-SE | NUT M8 | (2) | |
| B8108-555-0A0 | ADJUSTING SCREW ASM. WITH CAP | (4) | |
| NM-6120001-SE | NUT M12 | (4) | |
| WP-1302501-SE | WASHER M12 | (4) | |
| WS-1253010-KN | SPRING WASHER 12.5×21.5×3 | (4) | |
| 111-55108 | DRAWER | 1 | |
| 111-55207 | DRAWER SUPPORT | 2 | |
| D8204-555-D00 | DRAWER STOPPER | 1 | |
| SK-3311601-SE | WOOD SCREW D=3.1 L=16 | 6 |
Page 26 — 12、ACCESSORIE PART COMPONENTS 附件部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 10 | 10 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26~28 | 26~28 | ||
| 29~31 | 29~31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 45 | 45 | ||
| 46 | 46 | ||
| 47 | 47 |
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40331612 | HEAD-COVER | 1 | |
| 40312621 | SAFETY PLATE ASM | 1 | |
| 40312127 | SAFETY PLATE TRANSFER | 1 | |
| 40911006 | SAFETY PLATE BASE | 1 | |
| 403s11051 | SCREW M4 L=6 | 2 | |
| 40928002 | WASHER 4.5X10X0.8 | 2 | |
| 40128026 | SPRING WASHER 6.1X12.2X1.5 | 5 | |
| 11411029 | GREA SE-B-TUBE | 1 | |
| N01007 | NUT M6 | 10 | |
| 140628001 | WASHER | 5 | |
| 40931009 | BOLT M6 L=60 | 5 | |
| 40311002 | HEAD SUPPORT BAR | 1 | |
| 20131038 | OILER (CONTAINING) | 1 | |
| 40311011 | OIL CAN | 1 | |
| 40311010 | OIL MANL MANAGEMENT | 1 | |
| 403s30015 | WOOD SCREW D=3.1 L=16 | 4 | |
| 10131002 | SCREW DRIVER, LARGE | 1 | |
| 10131003 | SCREW DRIVER, MIDDLE | 1 | |
| 10131004 | SCREW DRIVER, SMALL | 1 | |
| 40931025 | WRENCH (9-11) | 1 | |
| 30131010 | HEXAGONAL WRENGH , SMALL | 4 | |
| 20131047 | HEXAGONAL WRENGH , LARGE | 4 | |
| 30131012 | HEXAGONAL SRANNER | 4 | |
| 40117001 | NEEDLE DPX5 #16 | 1 | |
| NEEDLE DPX17 #19 | NEEDLE DPX17 #19 | 4 | |
| NEEDLE DPX5 #11 | NEEDLE DPX5 #11 | 4 | |
| NEEDLE DPX17 #14 | NEEDLE DPX17 #14 | 4 | |
| 30131006 | WRENCH (8-10) | 1 | |
| 40118004 | BOBBIN | 3 | |
| 403310010 | BOLT M6 L=60 | 1 | |
| 40312001 | BED HINGE | 2 | |
| 40322003 | HINGE RUBBER | 2 | |
| 1011101200 | OILER (CONTAINING) | 1 | |
| 40312320 | SUPPORT PLATE | 1 | |
| 403S30601 | MATS SCREW | 2 | |
| 40322608 | MATS | 3 |
Page 28 — 13、 ACCESSORIES PARTS FOR 1903G SUBCLASSES 1903G 附件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11 | ACCESSORIES PARTS FOR 1903G SUBCLASSES | ||
| 12 | 1903G 附件 | ||
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4091102000 | BUTTON TRAY ASM | ||
| 300941 | BUTTON TRAY BASE | ||
| s10009 | SCREW M6 L=8 | ||
| 403s30014 | WOODSCREW D=4.1 L=12 | ||
| ------ | BUTTON RISING BAR ASM | ||
| 40128021 | WASHER 4.8X11.5X2 | ||
| 405s11008 | SCREW 3/16-32 L=6.5 | ||
| 40512020 | INSTALLING BASE | ||
| 40527017 | BUTTON RISING BAR | ||
| 301s11014 | SCREW | ||
| 40928021 | WASHER 4X8X1.2 |
Page 30 — 14、EXCLUSIVE PARTS FOR 1903G 1903G 专用部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 32 | 32 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 45 | 45 | ||
| 46 | 46 |
Page 31
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14051200600 | 横向供给支架组件 | ||
| 40512602 | 供给压板 | ||
| 40527005 | 弹簧 | ||
| 4052800300 | 爪脚提升板组件 | ||
| 40128014 | 垫圈 | ||
| 413S13023 | 螺钉 M6×12 | ||
| 140512005 | 控制提升板 | ||
| 405S12002 | 螺钉 SM15/64"×28 | ||
| 40504005 | 曲柄 | ||
| 40503020 | 滚筒 | ||
| 405S20001 | 螺钉 SM15/64"×28 | ||
| 405S16001 | 滚花螺母 | ||
| 405S30004 | 调节螺柱 | ||
| 40503002 | 轴套 | ||
| 40527015 | 弹簧 | ||
| 40512007 | 安装板 | ||
| 403S13011 | 螺钉 M4×8 | ||
| 40512010 | 安装板 | ||
| 4051601200 | 钮钳组件 | ||
| 409S12001 | 螺钉 SM3/16"×32 | ||
| W01013 | 垫片 | ||
| 40527016 | 护手 | ||
| 405S15001 | 螺钉 SM9/64"×40 | ||
| 40515005 | 送料板 | ||
| 405S12003 | 螺钉 SM11/64"×40 | ||
| 40501202 | 钮扣转接头 | ||
| 40516202 | 左压脚 | ||
| 40516201 | 右压脚 | ||
| 409S14002 | 螺钉 SM11/64"×40 | ||
| 405S11009 | 螺钉 SM3/16"×32 | ||
| 405S11202 | 螺钉 SM3/16"×32 | ||
| 40928005 | 垫圈 | ||
| 40512201 | 辅助板 | ||
| 40512212 | 调节扳手安装板 | ||
| 405S11008 | 螺钉 SM3/16"×32 | ||
| 4051601300 | 钮钳组件 | ||
| 40527016 | 护手 | ||
| 405S15001 | 螺钉 SM9/64"×40 | ||
| N01024 | 母 M4 | ||
| 40528201 | 垫片 | ||
| 40515201 | 送料板 | ||
| 40501202 | 钮扣转接头 | ||
| 40516012 | 左压脚 | ||
| 40516013 | 右压脚 | ||
| 409S14002 | 螺钉 SM11/64"×40 | ||
| 409S11005 | 螺钉 | ||
| 405S11202 | 螺钉 SM3/16"×32 | ||
| 40928005 | 垫圈 | ||
| 40512021 | 辅助板 | ||
| 40512212 | 调节扳手安装板 | ||
| 405S11008 | 螺钉 SM3/16"×32 | ||
| 40527016 | 护手 | ||
| 405S15001 | 螺钉 SM9/64"×40 | ||
| N01024 | 母 M4 | ||
| 40528201 | 垫片 | ||
| 4051601800 | 钮钳组件 | ||
| 40315007 | 送料板 |
Page 32 — 15、FOOT PRESS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | FOOT PRESS | ||
| 2 | BRACKET | ||
| 3 | SPRING | ||
| 4 | BRACKET | ||
| 5 | BRACKET | ||
| 6 | FOOT PRESS | ||
| 7 | BRACKET | ||
| 8 | BRACKET | ||
| 9 | FOOT PRESS | ||
| 10 | FOOT PRESS | ||
| 11 | BRACKET | ||
| 12 | BRACKET | ||
| 13 | FOOT PRESS | ||
| 14 | BRACKET | ||
| 15 | BRACKET | ||
| 16 | FOOT PRESS | ||
| 17 | SCREW | ||
| 18 | WASHER | ||
| 19 | NUT | ||
| 20 | FOOT PRESS | ||
| 21 | BRACKET | ||
| 22 | BRACKET | ||
| 23 | BRACKET | ||
| 24 | SCREW | ||
| 25 | BRACKET | ||
| 26 | BRACKET | ||
| 27 | BRACKET | ||
| 28 | BRACKET | ||
| 30 | FOOT PRESS | ||
| 31 | FOOT PRESS | ||
| 32 | FOOT PRESS | ||
| 33 | BRACKET | ||
| 34 | BRACKET | ||
| 35 | SCREW |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40315002 | 送料板 | ||
| 40316001 | 左压脚 | ||
| 40316002 | 右压脚 | ||
| 40315026 | 送料板 | ||
| 40316036 | 左压脚 | ||
| 40316035 | 右压脚 | ||
| 40315005 | 送料板 | ||
| 4031600300 | 圆形压脚组件 | ||
| LEFT PRESSER FOOT | 1 | ||
| RIGHT PRESSER FOOT | 1 | ||
| 140315006 | 送料板 | ||
| 140316006 | 左压脚 | ||
| 140316004 | 右压脚 | ||
| 40315035 | 送料板 | ||
| 140315002 | 压脚板 | ||
| 40316034 | 左压脚架 | ||
| 40316033 | 右压脚架 | ||
| 403S13001 | 螺钉 M4×8 | ||
| W02002 | 弹垫 | ||
| 409S14002 | 螺钉 SM11/64"×40 | ||
| 403S13001 | 螺钉 M4×8 | ||
| W02002 | 弹垫 | ||
| 40515036 | 送料板 | ||
| 42316001 | 左压脚架 | ||
| 42316002 | 右压脚架 | ||
| 40316049 | 通用压脚块(大) | ||
| 403S11020 | 螺钉 M3×6 | ||
| 40316051 | 压脚辅助块(大) | ||
| 40616050 | 通用压脚块(小) | ||
| 40316052 | 压脚辅助块(小) | ||
| 40316053 | 角铁 | ||
| 40316054 | 支架 | ||
| 40326043 | 销子 | ||
| 40316034 | 左压脚架 | ||
| 40316033 | 右压脚架 | ||
| 403S13001 | 螺钉 M4×8 | ||
| W02002 | 弹垫 | ||
| 409S14002 | 螺钉 SM11/64"×40 | ||
| 42315601 | 送料板(50×60) | ||
| 42316601 | 压脚板(50×60) | ||
| 40316034 | 左压脚架 | ||
| 40316033 | 右压脚架 | ||
| 403S13001 | 螺钉 M4×8 | ||
| W02002 | 弹垫 | ||
| 409S14002 | 螺钉 SM11/64"×40 | ||
| 42315603 | 送料板(50×30) | ||
| 42315602 | 压脚板 | ||
| 42316602 | 压脚板(50×30) |
Page 34 — 16、EXCLUSIVE PARTS FOR 1906GHQ 1906GHQ专用部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 17 | 17 | ||
| 16 | 16 | ||
| 18 | 18 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14231200300 | 气动供给架组件 | ||
| 417S30033 | 螺栓(带垫圈)M4×8(切换) | ||
| H03003 | GB/T 894.1挡圈5.6 | ||
| 41709012 | 气缸接头 | ||
| 41726002 | 气缸接头轴 | ||
| 42536004 | 气管接头 | ||
| 142345002 | 排气调速接头 | ||
| 142345003 | 气缸组件 | ||
| H03019 | 轴用挡圈C5 | ||
| W01013 | 垫圈4.5 | ||
| 142312006 | 电磁阀安装板 | ||
| 421S13017 | 螺钉带垫M5×10 | ||
| 42130096 | 手动开关 | ||
| 141845004 | 气源处理元件 | ||
| 40736045 | 螺纹直通 | ||
| 142345001 | 消声器 | ||
| 41845222 | 螺纹直通 | ||
| 407S04053 | 十字半圆头螺钉 | ||
| 41845212 | 电磁阀 | ||
| 40736036 | 气管接头(Y型三通) | ||
| 41845223 | 气管Φ4×2.5透明蓝 | ||
| 142330002 | 电磁阀转接线 | ||
| 409S14002 | 螺钉 SM11/64"×40 | ||
| W02002 | 弹垫 | ||
| 403S13001 | 螺钉 M4×8 | ||
| 40316034 | 左压脚架 | ||
| 40316033 | 右压脚架 | ||
| 42316601 | 压脚板(50×60) | ||
| 42315601 | 送料板(50×60) | ||
| 403S30020 | 螺钉 | ||
| N01013 | 螺母M3 |
Page 36 — 17、SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-D 1900G-D物联网专用部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Cable assembly | |
| 2 | 2 | Bracket | |
| 3 | 3 | Washer | |
| 4 | 4 | Screw | |
| 5 | 5 | Screw | |
| 6 | 6 | Cable assembly |
Page 37
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 403S13015 | 滚花内六角圆柱头螺钉 | ||
| 140301003 | 大豪物联网支架 | ||
| 40128021 | 垫片 | ||
| 140330005 | 大豪物联网电路板 | ||
| 403S11017 | 复合槽圆柱头螺钉 | ||
| 140330004 | 大豪物联网连接线 |
Page 38 — 18、SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-B 1900G-B物联网专用部件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Cable assembly | |
| 2 | 2 | Screw | |
| 3 | 3 | Component | |
| 4 | 4 | Washer |
Page 39
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 140330014 | 鲍麦物联网连接线 | ||
| 403S11017 | 复合槽圆柱头螺钉 | ||
| 40128021 | 垫片 | ||
| 141830042 | 鲍麦物联网电路板 |
Jack JK-T1900G — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-T1900G parts book, featuring an image of the sewing machine and its model number.
- Page 2 (unknown): This page contains a watermark and a website address at the bottom.
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing sections like 'FRAME & MISCELLANEOUS COVER COMPONENTS' and 'MAIN SHAFT & NEEDLE BAR COMPONENTS' with corresponding page numbers.
- Page 4 (cover): This page contains the title and a diagram of frame and miscellaneous cover components for an industrial sewing machine.
- Page 5 (parts_list): This page lists parts for an industrial sewing machine, including various screws, covers, plates, and hooks, with their corresponding part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of main shaft and needle bar components, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page contains a parts list for industrial sewing machine components, including part numbers, descriptions, and quantities. It also includes notes regarding specific machine models and needle types.
- Page 8 (diagram): This page displays a diagram of presser lifter and wiper components, with numbered parts indicated for identification.
- Page 9 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including motors, screws, bearings, sensors, and plates, with their corresponding part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of shuttle driver shaft components, with numbered parts and their corresponding details.
- Page 11 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 62.
- Page 12 (diagram): This page displays a diagram of thread tension components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page contains a parts list for a sewing machine, including part numbers, names, descriptions, and quantities. It also includes a note about specific models using certain parts.
- Page 14 (diagram): This page displays a diagram of thread trimmer mechanism components, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, and quantities. It also contains notes regarding specific model compatibility for certain parts.
- Page 16 (diagram): This page displays a diagram of the feed mechanism components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, motors, sensors, and plates, with their corresponding part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of presser mechanism components for the 1906G model, with numbered parts indicated.
- Page 19 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It covers items from motor mounting plates and screws to auxiliary plates and wire clips.
- Page 20 (diagram): This page displays a diagram of sensor components, labeled with reference numbers from 1 to 15, illustrating various parts of the machine.
- Page 21 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 22 (parts_list): This page lists sensor components, including single pedal switches, electric controls, packaging cotton, double pedal switches, dot matrix screens, operation panel brackets, screws, touch screen mounting brackets, tie bands, and touch screens, with their corresponding part numbers and quantities.
- Page 23 (diagram): This page displays a diagram of thread stand components, along with a parts list detailing reference numbers, part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of table stand components, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for a sewing machine, including tables, screws, washers, springs, nuts, and drawer components, with their corresponding part numbers and quantities.
- Page 26 (diagram): This page displays a diagram of accessory part components, with numbered parts and their corresponding references.
- Page 27 (parts_list): This page lists parts for an industrial sewing machine, including screws, washers, bolts, oilers, and mats, with their corresponding part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of accessory parts for the 1903G sub-classes, with numbered components and their corresponding part numbers and descriptions.
- Page 29 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details items like button trays, screws, washers, and mounting bases.
- Page 30 (diagram): This page displays a diagram of exclusive parts for the 1903G sewing machine, with numbered components indicated.
- Page 31 (parts_list): This page lists parts for the 1903GS and 1903GAK sewing machines, including part numbers, descriptions, and quantities.
- Page 32 (parts_list): This page lists and illustrates foot press components for an industrial sewing machine, with reference numbers, part numbers, and descriptions.
- Page 33 (parts_list): This page lists parts for models 1900GH, 1900GM, 1900GY, 1900GX, 1906GS, and 1906GP, including feed plates, presser feet, screws, and washers.
- Page 34 (diagram): This page displays a diagram of exclusive parts for the 1906GHQ model, with numbered components and their corresponding part numbers and descriptions.
- Page 35 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details items such as pneumatic supply frame assembly, bolts, connectors, shafts, and various screws and nuts.
- Page 36 (diagram): This page displays a diagram of special purpose parts for the 1900G-D model, including a cable assembly, circuit board, screws, and washers, with reference numbers for each component.
- Page 37 (parts_list): This page lists parts for the machine, including part numbers, descriptions, and quantities. The parts include screws, supports, washers, circuit boards, and connection lines.
- Page 38 (diagram): This page displays a diagram of special purpose parts for the 1900G-B internet device, including cables, screws, and mounting components.
- Page 39 (parts_list): This page lists parts for the Internet of Things Support (DAO MAI) and Internet of Things Circuit Boards (DAO MAI), including part numbers, descriptions, and quantities.
- Page 40 (cover): This is the cover page for a JACK sewing machine parts catalog, featuring the company name, slogan, contact information, and a QR code.
Page 2
jinttex.in jintex.in
Page 3 — CONTENTS 目 录
CONTENTS 目 录 1、FRAME & MISCELLANEOUS COVER COMPONENTS. 1 机身及罩壳部件 2、MAIN SHAFT & NEEDLE BAR COMPONENTS. 3 上轴针杆部件 3、PRESSER LIFTER & WIPER COMPONENTS. 5 抬压及拨线部件 4、SHUTTLE DRIVER SHAFT COMPONENTS. 7 下轴部件 5、THREAD TENSION COMPONENTS. 9 紧线部件 6、THREAD TRIMMER MECHANISM COMPONENTS. 11 剪线部件 7、FEED MECHANISM COMPONENTS. 13 送料部件 8、PRESSER MECHANISM COMPONENTS. 15 中压脚部件(1906G专用部件) 9、SENSOR COMPONENTS. 17 安全开关部件 10、THREAD STAND COMPONENTS. 20 线架部件 11、TABLE STAND COMPONENTS. 21 台板机架部件 12、ACCESSORIE PART COMPONENTS. 23 附件部件 13、ACCESSORIES PARTS FOR 1903G SUBBCLASSES. 25 1903G 附件 14、EXCLUSIVE PARTS FOR 1903G. 27 1903G 专用部件 15、FOOT PRESS LIST. 29 压脚清单 16、EXCLUSIVE PARTS FOR 1906GHQ. 31 1906GHQ专用部件 17、SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-D. 33 1900G-D物联网专用部件 18、SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-B. 35 1900G-B物联网专用部件 jintex.in
Page 4 — 1、FRAME & MISCELLANEOUS COVER COMPONENTS
1、FRAME & MISCELLANEOUS COVER COMPONENTS 机身及罩壳部件 1 jintex.in
Page 5
序号 注解 公司件号 名称 DESCRIPTION 用量 1 40311601 后罩 REAR COW 1 2 S04079 镙钉 M4×10 HEAD COVER 4 3 303592 顶盖 HEAD COVER (SPRAY-PAINTER) 1 4 403S11009 镙钉 M6×12 SCREW M6×12 8 5 303593 侧盖板 THE SIDE COVER 1 6 403S11013 侧盖板 THE SIDE COVER (SPRAY-PAINTER) 5 7 40312615 侧盖板支 THE SIDE COVER SUPPORT 2 8 40312601 底座左盖板 LEFT COVER PLATE OF BASE 1 303594 底座左盖板(喷漆) LEFT COVER PLATE OF BASE (SPRAY-PAINTER) 1 9 40312602 底座右盖板 RIGHT COVER PLATE OF BASE 1 303595 底座右盖板(喷漆) RIGHT COVER PLATE OF BASE (SPRAY-PAINTER) 4 10 403S11011 镙钉 M4×6 SCREW M4×6 1 11 40301602 面板 FRONT-PANEL 1 303596 面板(喷漆) FRONT-PANEL (SPRAY-PAINTER) 1 12 13837002 商标 TRADE MARK 1 13 403S11026 镙钉 M5×16 SCREW M5×16 4 14 40322601 面板垫 FRONT-PANEL PAD 1 15-1 140312004 梭床罩组件 SHUTTLE RACE COVER 1 930000024 梭床罩组件(喷漆) SHUTTLE RACE COVER (SPRAY-PAINTER) 1 15-2 14031200500 连接臂组件 PITMAN ARM 1 16 40127014 梭床罩弹片 SHUTTLE RACE COVER SPRING 1 17 4033160900 绕线器组件 BOBBIN WINDER 1 18 403S11015 镙钉 SCREW M4×11 3 19 11419001 切线刀 THREAD CUTTER 1 20 403S11020 镙钉 M3×6 SCREW M3×6 1 21 4031360100 绕线夹线器组件 BOBBIN WINDER TENSION ASM 1 22 40313012 过线钩 BUTTON THREAD HOOK 1 23 403S11019 镙钉 M4×8 SCREW M4×8 3 24 40313004 过线钩 THREAD HOOK 1 25 403S110004 NUT M4 1 26 41712078 左线钩 LEFT THREAD HOOK 1 27 40213010 右线钩 RIGHT THREAD HOOK 1 28 40113004 过线板 THREAD GUIDE PLATE (TWO HOLE) 1 29 40313003 过线板 THREAD GUIDE PLATE 1 30 40112002 防护罩 PROTECTIVE 1 300674 防护罩(喷漆) PROTECTIVE (SPRAY-PAINTER) 1 31 403S11017 镙钉 M3×8 SCREW M3×8 2 32 40330025 LED灯 LED 1 33 40312622 LED灯安装板 LED LIGHTS MOUNTING PLATE 1 34 413S13011 镙钉 M4×12 SCREW M4×12 2 35 40122015 面板塞 D13×4 RUBBER PLUG D13×4 1 36 40322019 油塞 D21×9 RUBBER PLUG D21×9 2 37 40122006 油塞 D8.5×6 RUBBER PLUG D8.5×6 2 38 40322014 针杆油塞 D7×10 RUBBER PLUG D7×10 1 39 40122016 油塞 D10.5×5 RUBBER PLUG D10.5×5 3 40 40322021 油塞 D15×9 RUBBER PLUG D15×9 1 41 40122007 油塞 D16×6.5 RUBBER PLUG D16×6.5 1 42 41322018 油塞 D16.5×10 RUBBER PLUG D16.5×10 4 43 413S14003 镙钉 M6×5 SCREW M6×5 2 44 40326001 支承销 HINGE STUD 2 2
Page 6 — 2、MAIN SHAFT & NEEDLE BAR COMPONENTS
2、MAIN SHAFT & NEEDLE BAR COMPONENTS 上轴针杆部件 3 jintex.in
Page 7
序号 注解 公司件号 DESCRIPTION 用量 1 40302601 主轴 MAIN SHAFT 1 2 40303016 针杆下套 NEEDLE ROD LOWER METAL 1 3 40302015 针杆 NEEDLE ROD BAR 1 4 40304015 针杆连接柱组件 BEARING 1 5 40303015 针杆上套 NEEDLE ROD METAL 1 6 40313009 下过线 THREAD GUIDE 1 7 201S11005 SO12SCREW 1 8-1 40317011 机针DP×5 #11 NEEDLE DP×5 #11 1 8-2 40517001 机针DP×17 #14 NEEDLE DP×17 #14 1 8-3 40117001 机针DP×5 #16 NEEDLE DP×5 #16 1 8-4 40319006 机针DP×17 #19 NEEDLE DP×17 #19 1 9-1 4033800400 挑线杆组件 THREAD TAKE UP LEVER ASM 1 9-2 1900G专用 14033800100 挑线杆组件 THREAD TAKE UP LEVER ASM 1 9-3 1903G专用 14033800200 挑线杆组件 THREAD TAKE UP LEVER ASM 1 10 403S14005 螺钉 M6×8 SCREW M6×8 13 11 41709001 滑块 SLIDE BLOCK 1 12 403S13015 螺钉 M4×16 SCREW M4×16 2 13 41709002 滑块导向 SLIDE BLOCK 1 14 40328018 垫片 WASHER 1 15-1 40510001 针杆曲柄 COUNTER WEIGHT 1 15-2 1900G专用 40310005 针杆曲柄 COUNTER WEIGHT 1 16 403S14006 螺钉 M6×0.75×6 SCREW M6×0.75×6 5 17 403S13008 螺钉 M8×12 SCREW M8×12 1 18 403S13007 曲柄定位螺钉 COUNTER WEIGHT SCREW A 1 19 B10002 上轴轴承 BEARING 2 20 40303012 轴承套 BEARING BUSH -A 2 21 40335002 绕线轮 BTW-DRIVING-WHEEL 1 22 403S14008 螺钉 M5×8 SCREW M5×8 2 23 40325010 上轴转动齿轮 GEAR A 1 24 40325011 手轮齿轮 GEAR B 1 25 40326602 手轮传动齿轮 GEAR C 1 26 P03002 SPING PIN 2×5.5 1 27 40327004 弹簧 SPRING 1 28 4031160600 手轮组件 PULLEY 1 29 403S11003 螺钉 M6×8 SCREW M6×8 1 30 42305001 连杆 CONNECTINGROD 1 31 40310007 偏心轮 ECCENTRIC 1 32 40312064 连杆挡板 CRANK-ROD-SUPPORT-PLATE 1 33 403S17001 螺钉 M3×6 SCREW M3×6 3 34 40324014 滚针轴承 NEEDLE ROLLER BEARING 1 35 40328027 连接轴承挡圈 CONNECTTHEBEARINGRETAINER 2 36 40323007 油毡 LINOLEUM 2 37 403S11021 挡板油塞 PLUG D=6.7 L=6 2 38 403S25604 螺钉 M6×4.5 SCREW M6×4.5 1 39 40326026 摆齿 OSCILLATOR 1 40 40322024 摆齿轴 PENDULUMGEARSHAFT 1 41 41728001 油封 OIL SEAL 2 42 H05008 垫片 WASHER 1 43 40322602 卡簧 E-SHAPEDSNAP RING (8mm) 1 44 40312067 上轴油封 THE SHAFT SEAL 1 45 40312066 平行块 AC SERVO MOTOR 2 46 40312066 固定板 CRANK BALANCER-FIX-PLATE 1 47 403S11023 螺钉 M5×14 SCREW M5×14 1 48 B04009 轴承 BEARING 2 49 40303601 轴承套 BEARING BUSH -B 1 50 40301023 传动连接块 COUPLING 1 1 51 40301024 传动连接块 COUPLING 2 1 52 40322028 减震橡胶 DAMPING RUBBER 1 备注: 1900GM使用DP×5 11号机针; 1900GL、1903G、1903GAK、1906GS、1906GP使用DP×17 14号机针; 1900GS、1900GY使用DP×5 16号机针; 1906GH、1900GH、1900GN使用DP×17 19号机针; 4 jintex.in
Page 8 — 3、PRESSER LIFTER & WIPER COMPONENTS
3、PRESSER LIFTER & WIPER COMPONENTS 抬压及拨线部件 jintex.in 5
Page 9
序号 注解 公司件号 名称 DESCRIPTION 用量 1-1 —B 40333601 剪线电机 PRESSER LIFTING MOTOR 1 1-2 —D 40333604 剪线电机 PRESSER LIFTING MOTOR 1 2 403S11026 螺钉M5×16 SCREW M5×16 4 3 40324009 轴承6000ZZNR BTW BEARING 1 4 4031211800 抬压脚传感器板组件 SENSOR SLIT ASM 1 5 403S11026 螺钉M5×4 SCREW M5×4 1 6 40328019 垫片 WASHER 2 7 403S11011 螺钉M4×8 SCREW M4×8 1 8 40312069 拉簧 HOOK COVER PUSH SPRING 1 9 403S11027 螺钉M4×7.5 SCREW M4×7.5 1 10 40312603 传感器安装板 SENSOR INSTALLING BASE 1 11 403S13011 螺钉M4×8 SCREW M4×8 1 12 传感器 PHTO SENSOR 1 13 413S13026 传感器螺钉组件 HINGE SCREW 1 14 40312068 拔线曲柄 LIFTER LINK A ASM 1 15 40326016 拔线曲柄轴 CONNECTING SHAFT 1 16 403S11016 螺钉M6×8 SCREW M6×8 1 17 40127019 弹簧 SPRING 1 18 40312604 拔线连接杆 LIFTER LINK B 1 19 403S20010 螺母M5 NUT M5 1 20 403S16006 螺钉M5 SHOULDER SCREW M5 1 21 40303017 滚筒 NEEDLE CAM ROLLER A 2 22 403S20009 轴位螺钉 M4 SHOULDER SCREW M4 1 23 403S16005 螺母 M4 NUT M4 1 24 40305013 拨线转动曲柄 M4 CONNECTING ARM 2 25 40326017 曲柄轴 CONNECTING SHAFT 1 26 40305014 抬压脚曲柄 LOWERING ARM 1 27 S05030 螺钉M6×18 SCREW M6×18 1 28 403S20011 轴位螺钉 M5 SHOULDER SCREW M5 1 29 40312605 抬压脚传动杆 LOWERING FOOT 2 30 403S20012 轴位螺钉 M6 SHOULDER SCREW M6 1 31 403S16007 螺母 M6 NUT M6 1 32 40312008 连接杆 CONNECTING LINK 1 33 403S20013 轴位螺钉 M6 SHOULDER SCREW M6 2 34 403S16008 螺母 M6 NUT M6 1 35 40312606 扫线调节杆 WIPER CONNECTING LINK 1 36 403S20014 扫线螺钉 WIPER SCREW 1 37 4031215200 扫线连接板组件 WIPER CONNECTING-ARM-ASM 1 38 40328042 垫片 WASHER 1 39 40127011 弹簧 SPRING 1 40 40328018 垫片 WASHER 1 41 40129001 卡簧4.7 RETAINING RING 4.7 1 42 40326039 扫线连接板销 WIPER CONNECTING-LINK-SHAFT 1 43 403S14015 止动螺钉 STOPPER SCREW 1 44 403S13021 止动螺钉 WIPER -STOPPER 1 45 40312154 扫线连接拉板 WIPER CONNECTING-PLATE 1 46 40108011 护油冒 WIPER BASE PLATE 2 47 40122012 护油冒 WIPER BASE PLATE 1 48 40312078 扫线杆固定架 WIPER BASE PLATE 1 49 W01001 垫片 WASHER 1 50 W02008 弹垫2-4 WASHER 2-4 1 51 403S11012 螺钉 M4×10 SCREW M4×10 1 52 4031207700 扫线杆组件 WIPER C ASM 1 53 403S20016 轴位螺钉 M5 SHOULDER SCREW M5 1 54 40108004 E形挡圈4 THRUST COLLAR ASM 1 55 4051201500 扫线杆组件 WIPER BASE PLATE 1 56 40527014 弹簧 SPRING 1 57 405S11007 螺钉 SM3/32"×56×3 SCREW SM3/32"×56×3 2 6
Page 10 — 4、SHUTTLE DRIVER SHAFT COMPONENTS
4、SHUTTLE DRIVER SHAFT COMPONENTS 下轴部件 36 35 34 38 36 39 40 37 42 41 33 30 27 28 29 8 45 46 47 43 11 48 49 57 34 56 57 58 34 54 53 2 3 5 10 4 3 2 1 10 5 3 31 17 16 15 14 15 16 26 25 24 19 18 20 21 22 23 55 60 61 62 59 7 jintex.in
Page 11
序号 注解 公司件号 名称 DESCRIPTION 用量 1 40302602 下轴 LOWER SHAFT 1 2 40324602 轴承 BEARING 2 3 S10015 螺钉 M4×6 SCREW M4×6 4 4 40325601 下轴齿轮 SHAFT GEAR 1 5 403s11016 螺钉 M6×6 SCREW M6×6 2 6 40302603 偏心轴 OSCILLATOR SHAFT 1 7 40322609 O型圈 O-RINGS 2 8 40322610 O型圈 O-RINGS 2 9 403s14005 螺钉 M6×8 SCREW M6×8 2 10 40322603 下轴油封 THE SHAFT SEAL 2 11 40308003 挡圈 THRUST-COLLAR 1 12 116S14003 螺钉 SM1/4×40 L=4.5 SCREW SM1/4×40 L=4.5 2 13 4031800700 梭架组件 SHUTTLE ASM. 1 14 40324010 滚针轴承 BEARING 2 15 40328020 梭架滚针 SHUTTLE BEARING RING 2 16 40322031 油封 SHUTTLE OLL SEAL 1 17 41723011 油毡 ONCE THROUGH OLL 2 18 401s13005 螺钉 SM3/16×28 L=12.0 SCREW SM3/16×28 L=12.0 1 19-1 40118503 摆梭 SUTTLE-DRIVER 1 19-2 190GN专用 40118501 摆梭 SUTTLE-DRIVER 1 20-1 40118501 摆梭 SUTTLE 1 20-2 1900GH, 1906GH专用 40318501 摆梭 SUTTLE 1 20-3 190GN专用 41718018 摆梭 SUTTLE 1 21-1 40118004 梭心 BOBBIN 1 21-2 190GN专用 41718004 梭心 BOBBIN 1 22-1 40318011 BOBBIN CASE ASM. (RACING PREVE) 1 22-2 190GN专用 4171801700 BOBBIN CASE ASM. (RACING PREVE) 1 23-1 40318004 梭壳 INNER HOOK PRESSER ASM. 1 23-2 1900GH, 190GN, 1906GH专用 40318006 梭床盖 INNER HOOK PRESSER ASM. 1 24 403s11030 螺钉 M6×12 SHUTTLE-ASM-SCREW 1 25 40326019 梭架调节销 SHUTTLE -PACE-ADJUSTING 1 26 403s11011 螺钉 M4×6 SCREW M4×6 2 27 40322026 橡皮塞 RUBBER PLUG 1 28 403s14014 螺钉 M6×6 SCREW M6×6 1 29 403s14021 螺钉 M6×10 SCREW M6×10 1 30 40312079 油管压板 OIL-PIPE-HOLDER 1 31 403s13013 螺钉 M4×6 SCREW M4×6 5 32 40322607 油箱盖 GASKET 1 33 40301604 油箱上盖 TANK COVER 1 34 40311015 油管夹 CABLE CLIP 1 35 413s13011 螺钉 M4×8 SCREW M4×8 7 36 20122033 垫片 GASKET 2 37 206S30009 过油螺钉 M6×15.5 TERMINAL 1 38 20736007 油管接头 SCREW M6×15.5 1 39 41736001 导管 L TERMINAL L 1 40 20429001 油管卡簧 TUBING CIRCLIP 6 41 140311001 加油帽 FILLER LOCKING CAP 1 42 40122016 橡皮塞 RUBBER PLUG 1 43 40322606 密封垫 GASKET 1 44 40301603 油箱底盖 THE TANK BOTTOM COVER 1 45 40347601 环形磁铁 RING MAGNET 1 46 406s11001 放油螺钉 SCREW 1 47 001031 O型圈 O-RINGS 1 48 14036002 回油嘴 BACK TO THE NOZZLE 1 49 403s11015 油箱底盖螺钉 SCREW 4 50 40312613 液位窗支架 LIQUID LEVEL WINDOW STENTS 1 51 40311604 油箱盖 LIQUID LEVEL WINDOW 1 52 40322605 油塞 OIL PLUG 1 53 4031101700 油管组件 OIL TANK ASM. 1 54 40322027 橡皮塞 RUBBER PLUG 1 55 403S11013 螺钉 M4×8 SCREW M4×8 2 56 40311016 电线夹 CABLE CLIP 1 57 403s13011 螺钉 M4×8 SCREW M4×8 1 58 403s11028 螺钉 M4×8 SCREW M4×8 2 59 40111005 线扣 CABLE CLIP 3 60 14021001 油管 TUBING 2 61 12921002 维尼龙油管 VINYLON TUBING 0.8M 62 41723026 油线 OIL GROOVE 0.8 3M
Page 12 — 5. THREAD TENSION COMPONENTS
5. THREAD TENSION COMPONENTS 紧线部件 9 17 18 7 8 6 7 8 11 13 12 15 10 14 5 4 3 2 1 9 jintex.in
Page 13
序号 注解 公司件号 名称 DESCRIPTION 用量 1 4033002400 松线电磁铁组件 TENSION RELEASE SOLENOID 1 2 41712099 电磁铁安装板 SETTING PLATE SOLENOID 1 3 W01001 平垫圈 4 WASHER PLANT 4 2 4 W02008 弹垫2-4 WASHER SPRING2-4 2 5 L02031 六角头螺栓全螺纹 C级 M4×8 BOLT M4×8 2 6 40311609 松线电磁铁外罩 SOLENOID COVER 1 7 417S30012 段螺钉 7-3 SHOULDE SCREW 7-3 2 8 41722021 O形圈P7 O RING P7 3 9 61905001 接插件 CONNECTOR 1 10 40326041 松线杆 TENTION RELEASE BAR 1 11 H05029 开口挡圈E4(进口) PATAINING RING E4 1 12 W01009 平垫圈5 WASHER PLANT 5 1 13 41727013 弹簧 SPRING COMPRESSION 1 14-1 4033161000 薄料夹线器组件 SECOND THREAD TENTION ASM 1 14-2 4033161100 厚料夹线器组件 SECOND THREAD TENTION ASM 1 15 403S14016 螺钉 M6×16 SCREW M6×16 1 16 4013100400 张力控制器 FIRT THREAD TENTION ASM 1 17 40311015 油管夹 TUBING CLAMPS 1 18 403S13011 螺钉 M4×8 SCREW M4×8 1 备注: 1900GS、1900GM、1900GL、1906GS、1906GP、1900GY使用4033161000薄料夹线器组件; 1903G、1903GAK、1900GH、1900GN使用4033161100厚料夹线器组件。
Page 14 — 6. THREAD TRIMMER MECHANISM COMPONENTS
6. THREAD TRIMMER MECHANISM COMPONENTS 剪线部件 1 2 2 3 4 5 6 7 8 9 10 11 12 13 14 15 jintex.in ㅈ
Page 15
序号 注解 公司件号 名称 DESCRIPTION 用量 1 42310001 剪线凸轮 THREAD TRIMMER CAM 1 2 403s14017 螺钉 M5×5 SCREW M5×5 2 3 40312101 连接板 THREAD TRIMMER LINK ASM. 1 4 40326016 线曲柄轴 THREAD TRIMMER SHAFT 1 5 403s14005 螺钉 M6×8 SCREW M6×8 2 6 40303019 滚珠 NEEDLE CAM ROLLER A 1 7 403s20009 轴位螺钉 SHOULDER SCREW 1 8 403s16005 螺母 M4 NUT M4 1 9 40312608 线杆连杆 CONNECTING BAR 2 10 403s20010 轴位螺钉 SHOULDER SCREW 1 11 403s16006 螺母 M5 NUT M5 1 12-1 4031560100 针板组件 NEEDLE PLATE ASM 1 12-2 4031560200 针板组件 NEEDLE PLATE ASM 1 12-3 4031560300 针板组件 NEEDLE PLATE ASM 1 12-4 4051560100 针板组件 NEEDLE PLATE ASM 1 12-5 14031500700 针板组件(短线头) NEEDLE PLATE ASM 1 13 1403NS17001 螺钉 M4×6 SCREW M4×6 1 14 401S17006 螺钉SCREW SM3/32"×56×2.5 SCREW SM3/32"×56×2.5 4 15-1 40115002 针孔板 NEEDLE HOLE GUIDE (2) 15-2 40315025 针孔板 NEEDLE HOLE GUIDE (1) 15-3 40315033 针孔板 NEEDLE HOLE GUIDE (1) 15-4 40515001 针孔板 NEEDLE HOLE GUIDE (1) 15-5 40515007 针孔板 NEEDLE HOLE GUIDE (1) 15-6 140315008 针孔板(短线头) NEEDLE HOLE GUIDE (1) 15-7 140515002 针孔板(短线头钩扣) NEEDLE HOLE GUIDE 1 15-8 140315009 针孔板(短线头厚料) NEEDLE HOLE GUIDE 1 备注: (1)1900GS、1900GL、1900GK、1900GS、1906GP使用4031560100针板组件; 1900GN使用4035160300针板组件; 1900GM使用40315025小针板; (2) 1900GM、1900GL使用40315025小针板; 1903G使用40515001小针板; 1903GAK使用40515007小针板; 1906GS、1906GP、1900GS、1900GY使用40115002小针板; 1906GH、1900GH使用40315033小针板。 (3)小针板属于针板组件但是可以单独购买。 jintex.in 究
Page 16 — 7、FEED MECHANISM COMPONENTS 送料部件
7、FEED MECHANISM COMPONENTS 送料部件 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 jintex.in
Page 17
序号 注 解 公司件号 名称 DESCRIPTION 用量 1 40325603 Y向送料轴 Y FEED ARM 1 2 40303007 后衬套 BUSHING REAR 1 3 40312092 Y向电机固定板 Y FEED MOTOR BASE 1 4 40333603 Y向同步电机 Y FEED MOTOR 2 5-1 40333603 Y向同步电机 Y FEED MOTOR 1 5-2 40333606 Y向同步电机 Y FEED MOTOR 1 6 40328016 防油垫 OIL PAD 1 7 40325013 Y向送料齿轮 Y FEED GEAR 1 8 40128021 垫圈 WASHER 8 9 403S13016 螺钉 M4×20 SCREW M4×20 6 10 403S13015 螺钉 M4×16 SCREW M4×16 2 11 403S14018 螺钉 M6×6 SCREW M6×6 4 12 4230460100 横向供给支架组件 CLOTH FEED SUPPORT ASSEMBLY 1 13 116S14004 螺钉 M6×6 SCREW M6×6 2 14 40312618 螺钉 SM11/64"×40 SCREW SM11/64"×40 1 15 403S11059 螺钉 SM11/64"×40 SCREW SM11/64"×40 1 16 40312617 Y向感光片转接板 SENSOR INSTALLING BASE 1 17 403S11027 螺钉 M4×7.5 SCREW M4×7.5 3 18 视频传感器 X SENSOR X 1 19 413S13026 螺钉组件 M3×8.5 SCREW M3×8.5 1 20 40312611 Y向感光板 LENGTHWISE FEED SENSOR SLIT Y 1 21 403S16015 螺母 SM15/64"×28 NUT SM15/64"×28 5 22 403S11011 螺钉 M4×6 SCREW M4×6 1 23-1 40333602 X向同步电机(-B) X FEED MOTOR 1 23-2 40333602 X向同步电机(-D) X FEED MOTOR 1 24 40325012 X向供给齿轮 X FEED GEAR 1 25 40312035 X向感应器固定板 SENSOR PLATE 1 26 视频传感器 X SENSOR X 1 27 403S11043 螺钉组件 M4×12 SCREW M4×12 1 28 40312139 X向感光板 LENGTHWISE FEED SENSOR SLIT X 1 29-1 42304602 供给支架底座 CLOTH FEED PLATE 1 29-2 42304602 供给支架底座 CLOTH FEED PLATE 1 30 402S30018 螺钉 M5×8 SCREW M5×8 3 31 42302002 摇杆轴 FEED DRIVING ARM SHAFT 1 32 42325001 X向供给摇杆 CLOTH FEED ARM 1 33 403S14005 螺钉 M6×6 SCREW M6×6 1 34-1 40312610 供给压板 CLOTH FEED PRESSER PLATE 2 34-2 42312607 供给压板 CLOTH FEED PRESSER PLATE 1 35 403S17002 螺钉 M4×6 SCREW M4×6 6 36 14030100200 供给架组件 FEED BRACKET 1 37-1 S05028 螺钉 M6×14 SCREW M6×14 1 37-2 S05042 螺钉 M6×22 SCREW M6×22 1 38 40128014 垫圈 WASHER 1 39 40315001 供给金属板 FEED PLATE 1 40 403S13003 螺钉 M6×8 SCREW M6×8 1 41 40128034 垫圈 WASHER 1 42 40312623 供给压板 FEED PRESSER PLATE 1 43 403S11035 螺钉 M3×5 SCREW M3×5 2 44 40109004 手工脚架滚珠 WORK CLAMP FOOT MOUNTING BASE 4 45 40312612 支架板 SUPPORT PLATE 1 46 403S13011 螺钉 M4×8 SCREW M4×8 2 47-1 40327027 弹簧 SPRING (2) 47-2 42327003 弹簧 SPRING (2) 备注: 42304602供给支架底座、42312607供给压板为1900GL、1906GS、1906GP专用零件; S05042螺钉 M6×22为1900GL、1906GP专用零件; 42327003弹簧为1906GP、1906GS专用零件; 40327027弹簧、42327003弹簧为4230460100横向供给支架组件的子零件。
Page 18 — 8、PRESSER MECHANISM COMPONENTS
8、PRESSER MECHANISM COMPONENTS 中压脚部件(1906G 专用部件) 35 33 2 34 3 4 5 40 37 38 27 41 39 40 36 31 32 7 6 11 28 15 13 12 14 17 16 18 27 29 20 27 19 20 20 44 43 21 24 25 22 30 27 26 27 23 jintex.in
Page 19
序号 注解 公司件号 名称 DESCRIPTION 用量 1 42312603 电机安装板 MOTOR MOUNTING PLATE 1 2 403S11009 螺钉 M6×12 SCREW M6×12 4 3 42333601 中压脚电机（-B） MEDIUM PRESSURE FOOT MOTOR 1 3-1 42333602 中压脚电机（-D） MEDIUM PRESSURE FOOT MOTOR 1 4 S05133 螺钉 M4×12 SCREW M4×12 4 5 W02002 弹簧垫圈4 WASHER SPRING 1 6 42301601 拨叉 FORK 1 7 403S14017 螺钉 M5×5 SCREW M5×5 2 8 B04020 深沟球轴承695ZZ BEARING 695ZZ 2 9 42328601 垫片 WASHER 2 10 42312604 杠杆 LEVERAGE 1 11 423S20601 轴位螺钉 M5 SHOULDER SCREW M5 1 12 403S16006 六角螺母 M5 NUT M5 2 13-1 42302601 导向杆 SWITCHING DEVICE SUPPORT 1 13-2 42309601 中压脚导向滑块 SWITCHING DEVICE SUPPORT 1 13-3 4230160200 切换装置支架组件 SWITCHING DEVICE SUPPORT 1 14 41728001 垫圈10 WASHER 1 15 403S20013 轴位螺钉 M6 SHOULDER SCREW M6 1 16 42312605 中压脚连杆 MEDIUM PRESSURE FOOT CONNECTING ROD 1 17 403S20010 轴位螺钉 M5 SHOULDER SCREW M5 1 18 423S17601 螺钉 M4×6 SCREW M4×6 1 19 42301603 连接块 CONNECTING PIECE 1 20 403S14006 螺钉 M6×6 SCREW M6×6 3 21 42302602 压紧杆 PRESSER BAR 1 22 42316603 中压脚 MEDIUM PRESSURE FOOT 1 23 W01001 平垫圈4 WASHER 1 24 W02008 弹垫2-4 WASHER SPRING 1 25 417S15011 螺钉 SM9/64″×40×12 SCREW SM9/64″×40×12 1 26 42301604 面板 PANEL 1 303597 面板(喷漆) PANEL (SPRAY-PAINTED) 1 27 W02001 弹簧垫圈5 WASHER SPRING 11 28 403S11026 螺钉 M5×16 SCREW M5×16 1 29 413S11002 螺钉 M5×10 SCREW M5×10 2 30 136S13001 螺钉 M5×35 SCREW M5×35 4 31 42311602 电机前罩 BEFORE THE MOTOR COVER 1 32 ------ 开关 SWITCH 6 33 403S11013 螺钉 M4×8 SCREW M4×8 1 34 42311601 电机后罩 AFTER THE MOTOR COVER 1 35 403S11011 螺钉 M4×6 SCREW M4×6 2 36 42312606 辅助板 AUXILIARY PLATE 1 37 42312020 辅助板支撑板 AUXILIARY PLATE BRACKET 4 38 417S15003 螺钉 M4×6 SCREW M4×6 4 39 41722010 辅助板缓冲胶垫 AUXILIARY PLATE CUSHION 4 40 407N01002 自锁螺母 CAULKING NUT 4 41 W01013 平垫圈 WASHER 4 42 S05004 螺钉 M5×14 SCREW M5×14 4 43 41711017 电线夹16 WIRE CLIP 4 44 403S13011 螺钉 M4×8 SCREW M4×8 4 jintex.in
Page 20 — 9、SENSOR COMPONENTS 安全开关部件（-D）
9、SENSOR COMPONENTS 安全开关部件（-D） 2 5 6 4 5 3 8 1 7 12 7 11 10 14 7 1 7 7 15 9 13 jintex.in
Page 21
序号 注解 公司件号 名称 DESCRIPTION 用量 1 40312619 操作面板支架1 OPERATION PANEL BRACKET 1 1 2 40312625 电控安装架(上) ELECTRIC CONTROL MOUNTING BRACKET 1 1 3 40312626 电控安装架(下) ELECTRIC CONTROL MOUNTING BRACKET 2 1 4 4033161600 一体机电控(-D闭环) ELECTRIC CONTROL (-D) 1 5 403S11009 螺钉 SCREW 1 6 S04028 螺钉 SCREW 4 7 403S11013 螺钉 SCREW 4 8 40111005 线扣 TIE BAND 6 9 40331617 单脚踏(-D) SINGLE PEDAL SWITCH (-D) 15 10 140331001 液晶屏包装棉 PACKAGING COTTON 1 11 40331621 触摸屏(-D) TOUCH SCREEN (-D) 1 12 42312620 液晶屏安装支架 TOUCH SCREEN MOUNTING BRACKET 1 13 40331618 双踏板(-D) DOUBLE PEDAL SWITCH (-D) 1 14 40312620 操作面板支架2 OPERATION PANEL BRACKET 2 1 15 40331619 点阵屏 DOT MATRIX SCREEN 1 jintex.in 78
Page 22 — 9、SENSOR COMPONENTS
9、SENSOR COMPONENTS 安全开关部件（-B） 序号 注解 公司件号 名称 DESCRIPTION 用量 1 - SINGLE PEDAL SWITCH (-B) 1 2-1 4033160400 单脚踏(-B) ELECTRIC CONTROL 1 2-2 4033162000 一体机电控（点阵） ELECTRIC CONTROL 1 3 403S30602 电控垫高螺钉 2 4 140331001 触摸屏包装棉 PACKAGING COTTON 1 5 40331606 双踏板(-B) DOUBL PEDAL SWITCH (-B) 1 6 - 点阵屏 DOT MATRIX SCREEN 1 7 40312620 操作面板支架2 OPERATION PANEL BRACKET 2 1 8 403S11013 螺钉 SCREW 6 9 42312620 液晶屏安装支架 TOUCH SCREEN MOUNTING BRACKET 1 10 40312619 操作面板支架1 OPERATION PANEL BRACKET 1 1 11 40111005 线扣 TIE BAND 15 12 触摸屏(-B) TOUCH SCREEN (-B) 1 jintex.in 19
Page 23 — 10、THREAD STAND COMPONENTS
10、THREAD STAND COMPONENTS 线架部件 REF. NO. NOTE PART NO. 名 称 D E S C R I P T I O N Qty. 1 1383100300 过线架组件 THREAD STAND ASM. 1 2 线架缓冲支架 SPOOL RETAINER (2) 3 线轴 SPOOL PIN (2) 4 线盘软垫 SPOOL REST CUSHION (2) 5 线盘 SPOOL REST (2) 6 螺钉 SCREW M6 L=16 (2) 7 过线架固定夹 THREAD GUIDE ARM JOINT (2) 8 线架支撑套 SPOOL REST ROD RUBBER CAP (1) 9 线架 SPOOL REST ARM (2) 10 线架支撑管 1 SPOOL REST ROD, UPPER (1) 11 支撑管接头 SPOOL REST ROD JOINT (1) 12 螺钉 SCREW M5 L=14 (2) 13 螺母 NUT M5 (2) 14 线架支撑管 2 SPOOL REST ROD, LOWER (1) 15 过线套 THREAD GUIDE (2) 16 弹簧垫圈 SPRING WASHER (2) 17 螺母 NUT M6 (1) 18 螺母 NUT M16X1.5 (2) 19 垫片 WASHER 17X30X2.6 (2) jintex.in
Page 24 — 11、TABLE STAND COMPONENTS 台板机架部件
11、TABLE STAND COMPONENTS 台板机架部件 1 2 31 32 33 34 6 7 13 12 13 10 11 30 29 28 27 9 16 17 15 22 20 21 18 19 23 24 25 26 13 3 4 5 13 10 30 29 28 27 11 13 10 jintex.in ㅋ
Page 25
序号 注解 公司件号 DESCRIPTION 名称 用量 同类编号 1-1 - - TABLE 台板 1 400-06886 1-2 GR 140532001 TABLE 台板 1 400-06886 2 - - WOOD SCREW D=5.1 L=32 自攻螺丝 4 SK-3515201-SE 3-1 普通 - - T-STAND COMPL. 桌脚组件 1 141-18053 3-2 GR 4053200200 T-STAND COMPL. 桌脚组件 1 141-18053 4 - - UPPER STAND ASM., RIGHT 右桌脚上支架 1 141-18152 5 - - STAND ASM., RIGHT 右桌脚下支架 (1) 141-18151 6 - - UPPER STAND ASM., LEFT 左桌脚上支架 (1) B8101-210-AAB 7 - - STAND ASM., LEFT 左桌脚下支架 (1) B8105-210-AAA 8 - - STAND SIDE SUPPORT 桌脚横撑 (1) 111-58300 9 - - STAND SIDE SUPPORT 桌脚横撑 (1) 111-58409 10 - - RUBBER CAP 橡胶套 (2) 111-58607 11 - - NUT 螺母 (2) 170-07402 12 - - UPPER STAND PLATE 调节压板 (2) 111-58516 13 - - WASHER HEXAGONAL BOLT 螺钉 (12) SL-9082091-SE 14 - - Z-STAND PEDAL ASM 踏板组件 (1) 138-17754 15 - - PEDAL SHAFT BRACKET 踏板支架 (2) 111-59001 16 - - PEDAL CONNECTING ROD 踏板连接轴 (1) B8153-771-000 17 - - PEDAL BUSHING 踏板轴衬 (2) D8113-555-B00 18 - - PEDAL ADJUSTING PLATE 踏板调节板 (1) GPF-06080000 19 - - PEDAL ASM. 踏板 (1) GPF-060600A0 20 - - SCREW M6 L=12 螺钉M6×12 (2) SM-9061201-SE 21 - - WASHER 6.7×13×1 垫片 (2) WP-0671016-SE 22 - - SPRING WASHER 6.2×11.4×1.2 弹簧垫片 (2) WS-0621210-KR 23 - - SCREW M8 L=20 螺钉M8×20 (2) SM-9082023-SE 24 - - WASHER 8.7×18×1.6 垫片 (4) WP-0871602-SE 25 - - SPRING WASHER 8.6×15×1.4 弹簧垫片 (2) WS-0861410-KR 26 - - NUT M8 螺母 (2) NM-6080721-SE 27 - - ADJUSTING SCREW ASM. WITH CAP 带垫调节螺钉 (4) B8108-555-0A0 28 - - NUT M12 螺母M12 (4) NM-6120001-SE 29 - - WASHER M12 垫片 (4) WP-1302501-SE 30 - - SPRING WASHER 12.5×21.5×3 弹簧垫片 (4) WS-1253010-KN 31 - - DRAWER 抽屉 1 111-55108 32 - - DRAWER SUPPORT 抽屉支架 2 111-55207 33 - - DRAWER STOPPER 抽屉挡板 1 D8204-555-D00 34 - - WOOD SCREW D=3.1 L=16 木螺钉 6 SK-3311601-SE
Page 26 — 12、ACCESSORIE PART COMPONENTS 附件部件
12、ACCESSORIE PART COMPONENTS 附件部件 1 2 3 6 8 5 7 4 17 19 21 20 22 26~28 23 29~31 25、32 44 18 13 42 43 45 33 16 15 10 14 46 47 jintex.in 3
Page 27
序号 注解 公司件号 DESCRIPTION 名称 用量 1 40331612 HEAD-COVER 机头罩 1 2 ------ ------ 1 3 40312621 SAFETY PLATE ASM 防护罩组件 1 4 40312127 SAFETY PLATE TRANSFER 防护罩转接板 1 5 40911006 SAFETY PLATE BASE 防护罩安装板 1 6 403s11051 SCREW M4 L=6 螺钉 2 8 40928002 WASHER 4.5X10X0.8 垫圈 2 10 40128026 SPRING WASHER 6.1X12.2X1.5 弹簧垫片 5 13 11411029 GREA SE-B-TUBE 润滑脂 1 14 N01007 NUT M6 螺母 10 15 140628001 WASHER 垫片 5 16 40931009 BOLT M6 L=60 螺栓 5 17 40311002 HEAD SUPPORT BAR 机头支撑柱 1 18 20131038 OILER (CONTAINING) 油壶 1 19 40311011 OIL CAN 回油油壶 1 20 40311010 OIL MANL MANAGEMENT 油壶接头 1 21 403s30015 WOOD SCREW D=3.1 L=16 木螺钉 4 22 10131002 SCREW DRIVER, LARGE 大螺丝刀 1 23 10131003 SCREW DRIVER, MIDDLE 中螺丝刀 1 24 10131004 SCREW DRIVER, SMALL 小螺丝刀 1 25 40931025 WRENCH (9-11) 扳手 1 26 30131010 HEXAGONAL WRENGH , SMALL 小内六角扳手 4 27 20131047 HEXAGONAL WRENGH , LARGE 大内六角扳手 4 28 30131012 HEXAGONAL SRANNER 中内六角扳手 4 29 40117001 NEEDLE DPX5 #16 机针DPX5 #16 1 -- -- NEEDLE DPX17 #19 机针DPX17 #19 4 -- -- NEEDLE DPX5 #11 机针DPX5 #11 4 -- -- NEEDLE DPX17 #14 机针DPX17 #14 4 31 30131006 WRENCH (8-10) 扳手 1 32 40118004 BOBBIN 梭心 3 33 403310010 BOLT M6 L=60 螺栓 1 42 40312001 BED HINGE 铰接板 2 43 40322003 HINGE RUBBER 铰接板橡胶座 2 44 1011101200 OILER (CONTAINING) 油壶 1 45 40312320 SUPPORT PLATE 支撑板 1 46 403S30601 MATS SCREW 脚垫螺钉 2 47 40322608 MATS 脚垫 3 jintex.in
Page 28 — 13、 ACCESSORIES PARTS FOR 1903G SUBCLASSES 1903G 附件
13、 ACCESSORIES PARTS FOR 1903G SUBCLASSES 1903G 附件 11 14 12 13 15 17 21 18 16 20 19 jintex.in
Page 29
序号 注解 公司件号 DESCRIPTION 名称 用量 11 4091102000 BUTTON TRAY ASM 纽扣盒 1 12 300941 BUTTON TRAY BASE 纽扣盘固定座 1 13 s10009 SCREW M6 L=8 螺钉M6X8 1 14 403s30014 WOODSCREW D=4.1 L=12 木螺钉 2 15 ------ BUTTON RISING BAR ASM 松线板组件 1 16 40128021 WASHER 4.8X11.5X2 垫圈4.8X11.5X2 2 17 405s11008 SCREW 3/16-32 L=6.5 螺钉3/16-32 L=6.5 1 18 40512020 INSTALLING BASE 安装板 1 19 40527017 BUTTON RISING BAR 纽扣松紧板 1 20 301s11014 SCREW 螺钉 1 21 40928021 WASHER 4X8X1.2 垫圈4X8X1.2 2
Page 30 — 14、EXCLUSIVE PARTS FOR 1903G 1903G 专用部件
14、EXCLUSIVE PARTS FOR 1903G 1903G 专用部件 jintex.in 7
Page 31
序号 注解 公司件号 名称 DESCRIPTION 用量 1 14051200600 横向供给支架组件 CLOTH FEED 1 2 40512602 供给压板 CLOTH FEED PRESSER PLATE 1 3 40527005 弹簧 SPRING 1 4 4052800300 爪脚提升板组件 FOOT LIFT PLATE 1 5 40128014 垫圈 WASHER 2 6 413S13023 螺钉 M6×12 SCREW M6×12 1 7 140512005 控制提升板 CONTROL PANEL 1 8 405S12002 螺钉 SM15/64"×28 SCREW SM15/64"×28 2 9 40504005 曲柄 CRANK 1 10 40503020 滚筒 ROLLER 1 11 405S20001 螺钉 SM15/64"×28 SCREW SM15/64"×28 1 12 405S16001 滚花螺母 KNRLED NUT 1 13 405S30004 调节螺柱 ADJUST THE STUD 1 14 40503002 轴套 SHAFT SLEEVE 1 15 40527015 弹簧 SPRING 1 16 40512007 安装板 MOUNTING PLATE 1 17 403S13011 螺钉 M4×8 SCREW M4×8 2 18 40512010 安装板 MOUNTING PLATE 1 19 4051601200 钮钳组件 TOGGLE CLAMP 1 20 409S12001 螺钉 SM3/16"×32 SCREW SM3/16"×32 2 21 W01013 垫片 WASHER 5 22 40527016 护手 HAND GUARD 1 23 405S15001 螺钉 SM9/64"×40 SCREW SM9/64"×40 2 24 40515005 送料板 FEED PLATE 1 25 405S12003 螺钉 SM11/64"×40 SCREW SM11/64"×40 1 1903GSK专用 26 40501202 钮扣转接头 CLOTH FEED 1 27 40516202 左压脚 LEFT PRESSER FOOT 1 28 40516201 右压脚 RIGHT PRESSER FOOT 1 29 409S14002 螺钉 SM11/64"×40 SCREW SM11/64"×40 2 30 405S11009 螺钉 SM3/16"×32 SCREW SM3/16"×32 1 31 405S11202 螺钉 SM3/16"×32 SCREW SM3/16"×32 2 32 40928005 垫圈 WASHER 5 33 40512201 辅助板 THE AUXILIARY PLATE 1 34 40512212 调节扳手安装板 ADJUSTING WRENCH MOUNTING PLATE 1 35 405S11008 螺钉 SM3/16"×32 SCREW SM3/16"×32 2 36 4051601300 钮钳组件 TOGGLE CLAMP 1 37 40527016 护手 HAND GUARD 1 38 405S15001 螺钉 SM9/64"×40 SCREW SM9/64"×40 2 39 N01024 母 M4 NUT M4 1 40 40528201 垫片 WASHER 1 41 40515201 送料板 FEED PLATE 1 1903GAK专用 26 40501202 钮扣转接头 CLOTH FEED 1 44 40516012 左压脚 LEFT PRESSER FOOT 1 45 40516013 右压脚 RIGHT PRESSER FOOT 1 29 409S14002 螺钉 SM11/64"×40 SCREW SM11/64"×40 2 30 409S11005 螺钉 SCREW 1 31 405S11202 螺钉 SM3/16"×32 SCREW SM3/16"×32 2 32 40928005 垫圈 WASHER 5 46 40512021 辅助板 THE AUXILIARY PLATE 1 34 40512212 调节扳手安装板 ADJUSTING WRENCH MOUNTING PLATE 1 35 405S11008 螺钉 SM3/16"×32 SCREW SM3/16"×32 2 37 40527016 护手 HAND GUARD 1 38 405S15001 螺钉 SM9/64"×40 SCREW SM9/64"×40 2 39 N01024 母 M4 NUT M4 1 40 40528201 垫片 WASHER 1 42 4051601800 钮钳组件 TOGGLE CLAMP 1 43 40315007 送料板 HAND GUARD 1 jintex.in
Page 32 — 15、FOOT PRESS LIST
15、FOOT PRESS LIST 压脚清单 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 30 31 32 33 34 35 29 jintex.in
Page 33
序号 注解 公司件号 名称 DESCRIPTION 用量 1 40315002 送料板 FEED PLATE 1 2 40316001 左压脚 LEFT PRESSER FOOT 1 3 40316002 右压脚 RIGHT PRESSER FOOT 1 1900GH 4 40315026 送料板 FEED PLATE 1 5 40316036 左压脚 LEFT PRESSER FOOT 1 6 40316035 右压脚 RIGHT PRESSER FOOT 1 1900GM 7 40315005 送料板 FEED PLATE 1 8 4031600300 圆形压脚组件 1 9 LEFT PRESSER FOOT 1 RIGHT PRESSER FOOT 1 1900GY 10 140315006 送料板 FEED PLATE 1 11 140316006 左压脚 LEFT PRESSER FOOT 1 12 140316004 右压脚 RIGHT PRESSER FOOT 1 1900GX 13 40315035 送料板 FEED PLATE 1 14 140315002 压脚板 PRESSER FOOT PLATE 1 15 40316034 左压脚架 LEFT PRESSER FOOT RACK 1 16 40316033 右压脚架 RIGHT PRESSER FOOT RACK 1 17 403S13001 螺钉 M4×8 SCREW M4×8 4 18 W02002 弹垫 SPRING WASHER 4 19 409S14002 螺钉 SM11/64"×40 SCREW SM11/64"×40 2 1900GN 17 403S13001 螺钉 M4×8 SCREW M4×8 4 18 W02002 弹垫 SPRING WASHER 4 20 40515036 送料板 FEED PLATE 1 21 42316001 左压脚架 LEFT PRESSER FOOT RACK 1 22 42316002 右压脚架 RIGHT PRESSER FOOT RACK 1 23 40316049 通用压脚块(大) 适用压脚块(大) PRESSER FOOT BLOCK (BIG) 8 24 403S11020 螺钉 M3×6 SCREW M3×6 2 25 40316051 压脚辅助块(大) PRESSER FOOT SUPPORT BLOCK(BIG) 1 26 40616050 通用压脚块(小) PRESSER FOOT BLOCK (SMALL) 1 27 40316052 压脚辅助块(小) PRESSER FOOT SUPPORT BLOCK(SMALL) 1 28 40316053 角铁 ANGLE IRON 2 29 40316054 支架 SUPPORT 2 30 40326043 销子 DOWEL 2 1906GS 15 40316034 左压脚架 LEFT PRESSER FOOT RACK 1 16 40316033 右压脚架 RIGHT PRESSER FOOT RACK 1 17 403S13001 螺钉 M4×8 SCREW M4×8 4 18 W02002 弹垫 SPRING WASHER 4 19 409S14002 螺钉 SM11/64"×40 SCREW SM11/64"×40 2 29 42315601 送料板(50×60) FEED PLATE (50×60) 1 30 42316601 压脚板(50×60) PRESSER FOOT PLATE (50×60) 1 1906GP 15 40316034 左压脚架 LEFT PRESSER FOOT RACK 1 16 40316033 右压脚架 RIGHT PRESSER FOOT RACK 1 17 403S13001 螺钉 M4×8 SCREW M4×8 4 18 W02002 弹垫 SPRING WASHER 4 19 409S14002 螺钉 SM11/64"×40 SCREW SM11/64"×40 2 31 42315603 送料板(50×30) FEED PLATE (50×30) 1 32 42315602 FEE DPRESSER FOOT 1 33 42316602 压脚板(50×30) PRESSER FOOT PLATE (50×30) 1 jintex.in
Page 34 — 16、EXCLUSIVE PARTS FOR 1906GHQ 1906GHQ专用部件
16、EXCLUSIVE PARTS FOR 1906GHQ 1906GHQ专用部件 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 17 16 18 18 19 20 21 22 23 24 25 26 27 28 29 jintex.in 日
Page 35
序号 注解 公司件号 名称 DESCRIPTION 用量 1 14231200300 气动供给架组件 PNEUMATIC SUPPLY FRAME ASSEMBLY 1 2 417S30033 螺栓(带垫圈)M4×8(切换) BOLT (WITH WASHER)M4×8 (SWITCH) 2 3 H03003 GB/T 894.1挡圈5.6 GB/T 894. 1RING5. 6 4 4 41709012 气缸接头 CYLINDER CONNECTOR 2 5 41726002 气缸接头轴 CYLINDER CONNECTOR SHAFT 2 6 42536004 气管接头 TRACHEAL CONNECTOR 2 7 142345002 排气调速接头 EXHAUST SPEED REGULATING CONNECTOR 2 8 142345003 气缸组件 CYLINDER ASSEMBLY 2 9 H03019 轴用挡圈C5 SHAFT RETAINING RING C5 2 10 W01013 垫圈4.5 GASKETS 4. 5 2 11 142312006 电磁阀安装板 SOLENOID VALVE MOUNTING PLATE 1 12 421S13017 螺钉带垫M5×10 SCREW WITH CUSHION M5×10 2 13 42130096 手动开关 MANUAL SWITCH 1 14 141845004 气源处理元件 GAS SOURCE PROCESSING ELEMENT 1 15 40736045 螺纹直通 THREADED STRAIGHT JOINT 1 16 142345001 消声器 MUFFLER 2 17 41845222 螺纹直通 THREAD THROUGH 3 18 407S04053 十字半圆头螺钉 CROSS RECESSED HEAD SCREW 2 19 41845212 电磁阀 MAGNETIC VALVE 1 20 40736036 气管接头(Y型三通) TRACHEAL JOINT (TYPE Y TEE) 2 21 41845223 气管Φ4×2.5透明蓝 TRACHEA Φ4×2.5 CLEAR BLUE 3M 22 142330002 电磁阀转接线 SOLENOID VALVE CONNECTION 1 23 409S14002 螺钉 SM11/64"×40 SCREW SM11/64"×40 2 24 W02002 弹垫 SPRING WASHER 4 25 403S13001 螺钉 M4×8 SCREW M4×8 1 26 40316034 左压脚架 LEFT PRESSER FOOT RACK 1 27 40316033 右压脚架 RIGHT PRESSER FOOT RACK 1 28 42316601 压脚板(50×60) PRESSER FOOT PLATE (50×60) 1 29 42315601 送料板(50×60) FEED PLATE (50×60) 1 30 403S30020 螺钉 SCREW 3 31 N01013 螺母M3 NUT M3 2 jintex.in
Page 36 — 17、SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-D 1900G-D物联网专用部件
17、SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-D 1900G-D物联网专用部件 1 1 2 3 4 5 6 jintex.in B
Page 37
序号 注解 公司件号 名称 DESCRIPTION 用量 1 403S13015 滚花内六角圆柱头螺钉 SCREW M4×16 2 2 140301003 大豪物联网支架 INTERNET OF THINGS SUPPORT (DA HAO) 1 3 40128021 垫片 WASHER 2 4 140330005 大豪物联网电路板 INTERNET OF THINGS CIRCUIT BOARDS (DA HAO) 1 5 403S11017 复合槽圆柱头螺钉 SCREW M3×8 2 6 140330004 大豪物联网连接线 INTERNET OF THINGS CONNECTION (DA HAO) 1
Page 38 — 18、SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-B 1900G-B物联网专用部件
18、SPACIAL PURPOSE PARTS OF THE INTERNET FOR 1900G-B 1900G-B物联网专用部件 jintex.in
Page 39
序号 注解 公司件号 名称 DESCRIPTION 用量 1 140330014 鲍麦物联网连接线 INTERNET OF THINGS SUPPORT (DAO MAI) 1 2 403S11017 复合槽圆柱头螺钉 SCREW M3×8 4 3 40128021 垫片 WASHER 4 4 141830042 鲍麦物联网电路板 INTERNET OF THINGS CIRCUIT BOARDS (DAO MAI) 1 jintex.in
Page 40
杰克缝纫机 全球销量遥遥领先 400-8876-858 www.chinajack.com JACK 杰克缝纫机股份有限公司 中国浙江省台州市椒江区三甲街道东海大道东段1008号 电话:4008890100 传真:0086-576-88177758 产品标准代号:Q/TK 007-2017 资料如有更改,恕不另行通知,以实样为准 JACK SEWING MACHINE CO.,LTD. NO.1008, DONGHAI AVENUE EAST, JIAOJIANG DISTRICT,TAIZHOU CITY, ZHEJIANG TEL: 4008890100 FAX:0086-576-88177758 Standard code of the products:Q/TK 007-2017 You will be not informed if the file has been revised. Please set sample as standard. jintex.in
