Page 16 — 7、FEED MECHANISM COMPONENTS
送料部件
Jack JK-T1900G parts on page 16| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | |
| 2 | 2 | |
| 3 | 3 | |
| 4 | 4 | |
| 5 | 5 | |
| 6 | 6 | |
| 7 | 7 | |
| 8 | 8 | |
| 9 | 9 | |
| 10 | 10 | |
| 11 | 11 | |
| 12 | 12 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 16 | 16 | |
| 17 | 17 | |
| 18 | 18 | |
| 19 | 19 | |
| 20 | 20 | |
| 21 | 21 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 25 | 25 | |
| 26 | 26 | |
| 27 | 27 | |
| 28 | 28 | |
| 29 | 29 | |
| 30 | 30 | |
| 31 | 31 | |
| 32 | 32 | |
| 33 | 33 | |
| 34 | 34 | |
| 35 | 35 | |
| 36 | 36 | |
| 37 | 37 | |
| 38 | 38 | |
| 39 | 39 | |
| 40 | 40 | |
| 41 | 41 | |
| 42 | 42 | |
| 43 | 43 | |
| 44 | 44 | |
| 45 | 45 | |
| 46 | 46 | |
| 47 | 47 | |
7、FEED MECHANISM COMPONENTS
送料部件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
jintex.in
Page 17
Jack JK-T1900G parts on page 17| Ref | Part number | Part name | Qty |
|---|
| 40325603 | Y向送料轴 | |
| 40303007 | 后衬套 | |
| 40312092 | Y向电机固定板 | |
| 40333603 | Y向同步电机 | |
| 40333603 | Y向同步电机 | |
| 40333606 | Y向同步电机 | |
| 40328016 | 防油垫 | |
| 40325013 | Y向送料齿轮 | |
| 40128021 | 垫圈 | |
| 403S13016 | 螺钉 M4×20 | |
| 403S13015 | 螺钉 M4×16 | |
| 403S14018 | 螺钉 M6×6 | |
| 4230460100 | 横向供给支架组件 | |
| 116S14004 | 螺钉 M6×6 | |
| 40312618 | 螺钉 SM11/64"×40 | |
| 403S11059 | 螺钉 SM11/64"×40 | |
| 40312617 | Y向感光片转接板 | |
| 403S11027 | 螺钉 M4×7.5 | |
| 413S13026 | 螺钉组件 M3×8.5 | |
| 40312611 | Y向感光板 | |
| 403S16015 | 螺母 SM15/64"×28 | |
| 403S11011 | 螺钉 M4×6 | |
| 40333602 | X向同步电机(-B) | |
| 40333602 | X向同步电机(-D) | |
| 40325012 | X向供给齿轮 | |
| 40312035 | X向感应器固定板 | |
| 403S11043 | 螺钉组件 M4×12 | |
| 40312139 | X向感光板 | |
| 42304602 | 供给支架底座 | |
| 42304602 | 供给支架底座 | |
| 402S30018 | 螺钉 M5×8 | |
| 42302002 | 摇杆轴 | |
| 42325001 | X向供给摇杆 | |
| 403S14005 | 螺钉 M6×6 | |
| 40312610 | 供给压板 | |
| 42312607 | 供给压板 | |
| 403S17002 | 螺钉 M4×6 | |
| 14030100200 | 供给架组件 | |
| S05028 | 螺钉 M6×14 | |
| S05042 | 螺钉 M6×22 | |
| 40128014 | 垫圈 | |
| 40315001 | 供给金属板 | |
| 403S13003 | 螺钉 M6×8 | |
| 40128034 | 垫圈 | |
| 40312623 | 供给压板 | |
| 403S11035 | 螺钉 M3×5 | |
| 40109004 | 手工脚架滚珠 | |
| 40312612 | 支架板 | |
| 403S13011 | 螺钉 M4×8 | |
| 40327027 | 弹簧 | |
| 42327003 | 弹簧 | |
序号 注 解 公司件号 名称 DESCRIPTION 用量
1 40325603 Y向送料轴 Y FEED ARM 1
2 40303007 后衬套 BUSHING REAR 1
3 40312092 Y向电机固定板 Y FEED MOTOR BASE 1
4 40333603 Y向同步电机 Y FEED MOTOR 2
5-1 40333603 Y向同步电机 Y FEED MOTOR 1
5-2 40333606 Y向同步电机 Y FEED MOTOR 1
6 40328016 防油垫 OIL PAD 1
7 40325013 Y向送料齿轮 Y FEED GEAR 1
8 40128021 垫圈 WASHER 8
9 403S13016 螺钉 M4×20 SCREW M4×20 6
10 403S13015 螺钉 M4×16 SCREW M4×16 2
11 403S14018 螺钉 M6×6 SCREW M6×6 4
12 4230460100 横向供给支架组件 CLOTH FEED SUPPORT ASSEMBLY 1
13 116S14004 螺钉 M6×6 SCREW M6×6 2
14 40312618 螺钉 SM11/64"×40 SCREW SM11/64"×40 1
15 403S11059 螺钉 SM11/64"×40 SCREW SM11/64"×40 1
16 40312617 Y向感光片转接板 SENSOR INSTALLING BASE 1
17 403S11027 螺钉 M4×7.5 SCREW M4×7.5 3
18 视频传感器 X SENSOR X 1
19 413S13026 螺钉组件 M3×8.5 SCREW M3×8.5 1
20 40312611 Y向感光板 LENGTHWISE FEED SENSOR SLIT Y 1
21 403S16015 螺母 SM15/64"×28 NUT SM15/64"×28 5
22 403S11011 螺钉 M4×6 SCREW M4×6 1
23-1 40333602 X向同步电机(-B) X FEED MOTOR 1
23-2 40333602 X向同步电机(-D) X FEED MOTOR 1
24 40325012 X向供给齿轮 X FEED GEAR 1
25 40312035 X向感应器固定板 SENSOR PLATE 1
26 视频传感器 X SENSOR X 1
27 403S11043 螺钉组件 M4×12 SCREW M4×12 1
28 40312139 X向感光板 LENGTHWISE FEED SENSOR SLIT X 1
29-1 42304602 供给支架底座 CLOTH FEED PLATE 1
29-2 42304602 供给支架底座 CLOTH FEED PLATE 1
30 402S30018 螺钉 M5×8 SCREW M5×8 3
31 42302002 摇杆轴 FEED DRIVING ARM SHAFT 1
32 42325001 X向供给摇杆 CLOTH FEED ARM 1
33 403S14005 螺钉 M6×6 SCREW M6×6 1
34-1 40312610 供给压板 CLOTH FEED PRESSER PLATE 2
34-2 42312607 供给压板 CLOTH FEED PRESSER PLATE 1
35 403S17002 螺钉 M4×6 SCREW M4×6 6
36 14030100200 供给架组件 FEED BRACKET 1
37-1 S05028 螺钉 M6×14 SCREW M6×14 1
37-2 S05042 螺钉 M6×22 SCREW M6×22 1
38 40128014 垫圈 WASHER 1
39 40315001 供给金属板 FEED PLATE 1
40 403S13003 螺钉 M6×8 SCREW M6×8 1
41 40128034 垫圈 WASHER 1
42 40312623 供给压板 FEED PRESSER PLATE 1
43 403S11035 螺钉 M3×5 SCREW M3×5 2
44 40109004 手工脚架滚珠 WORK CLAMP FOOT MOUNTING BASE 4
45 40312612 支架板 SUPPORT PLATE 1
46 403S13011 螺钉 M4×8 SCREW M4×8 2
47-1 40327027 弹簧 SPRING (2)
47-2 42327003 弹簧 SPRING (2)
备注: 42304602供给支架底座、42312607供给压板为1900GL、1906GS、1906GP专用零件;
S05042螺钉 M6×22为1900GL、1906GP专用零件;
42327003弹簧为1906GP、1906GS专用零件;
40327027弹簧、42327003弹簧为4230460100横向供给支架组件的子零件。
Page 18 — 8、PRESSER MECHANISM COMPONENTS
Jack JK-T1900G parts on page 18| Ref | Part number | Part name | Qty |
|---|
| 1 | PRESSER MECHANISM COMPONENTS | |
| 2 | 中压脚部件(1906G 专用部件) | |
| 3 | 3 | |
| 4 | 4 | |
| 5 | 5 | |
| 6 | 6 | |
| 7 | 7 | |
| 8 | 8 | |
| 9 | 9 | |
| 10 | 10 | |
| 11 | 11 | |
| 12 | 12 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 16 | 16 | |
| 17 | 17 | |
| 18 | 18 | |
| 19 | 19 | |
| 20 | 20 | |
| 21 | 21 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 25 | 25 | |
| 26 | 26 | |
| 27 | 27 | |
| 28 | 28 | |
| 29 | 29 | |
| 30 | 30 | |
| 31 | 31 | |
| 32 | 32 | |
| 33 | 33 | |
| 34 | 34 | |
| 35 | 35 | |
| 36 | 36 | |
| 37 | 37 | |
| 38 | 38 | |
| 39 | 39 | |
| 40 | 40 | |
| 41 | 41 | |
| 42 | 42 | |
| 43 | 43 | |
| 44 | 44 | |
8、PRESSER MECHANISM COMPONENTS
中压脚部件(1906G 专用部件)
35
33
2
34
3
4
5
40
37
38
27
41
39
40
36
31
32
7
6
11
28
15
13
12
14
17
16
18
27
29
20
27
19
20
20
44
43
21
24
25
22
30
27
26
27
23
jintex.in
Page 19
Jack JK-T1900G parts on page 19| Ref | Part number | Part name | Qty |
|---|
| 42312603 | 电机安装板 | |
| 403S11009 | 螺钉 M6×12 | |
| 42333601 | 中压脚电机（-B） | |
| 42333602 | 中压脚电机（-D） | |
| S05133 | 螺钉 M4×12 | |
| W02002 | 弹簧垫圈4 | |
| 42301601 | 拨叉 | |
| 403S14017 | 螺钉 M5×5 | |
| B04020 | 深沟球轴承695ZZ | |
| 42328601 | 垫片 | |
| 42312604 | 杠杆 | |
| 423S20601 | 轴位螺钉 M5 | |
| 403S16006 | 六角螺母 M5 | |
| 42302601 | 导向杆 | |
| 42309601 | 中压脚导向滑块 | |
| 4230160200 | 切换装置支架组件 | |
| 41728001 | 垫圈10 | |
| 403S20013 | 轴位螺钉 M6 | |
| 42312605 | 中压脚连杆 | |
| 403S20010 | 轴位螺钉 M5 | |
| 423S17601 | 螺钉 M4×6 | |
| 42301603 | 连接块 | |
| 403S14006 | 螺钉 M6×6 | |
| 42302602 | 压紧杆 | |
| 42316603 | 中压脚 | |
| W01001 | 平垫圈4 | |
| W02008 | 弹垫2-4 | |
| 417S15011 | 螺钉 SM9/64″×40×12 | |
| 42301604 | 面板 | |
| 303597 | 面板(喷漆) | |
| W02001 | 弹簧垫圈5 | |
| 403S11026 | 螺钉 M5×16 | |
| 413S11002 | 螺钉 M5×10 | |
| 136S13001 | 螺钉 M5×35 | |
| 42311602 | 电机前罩 | |
| ------ | 开关 | |
| 403S11013 | 螺钉 M4×8 | |
| 42311601 | 电机后罩 | |
| 403S11011 | 螺钉 M4×6 | |
| 42312606 | 辅助板 | |
| 42312020 | 辅助板支撑板 | |
| 417S15003 | 螺钉 M4×6 | |
| 41722010 | 辅助板缓冲胶垫 | |
| 407N01002 | 自锁螺母 | |
| W01013 | 平垫圈 | |
| S05004 | 螺钉 M5×14 | |
| 41711017 | 电线夹16 | |
| 403S13011 | 螺钉 M4×8 | |
序号 注解 公司件号 名称 DESCRIPTION 用量
1 42312603 电机安装板 MOTOR MOUNTING PLATE 1
2 403S11009 螺钉 M6×12 SCREW M6×12 4
3 42333601 中压脚电机（-B） MEDIUM PRESSURE FOOT MOTOR 1
3-1 42333602 中压脚电机（-D） MEDIUM PRESSURE FOOT MOTOR 1
4 S05133 螺钉 M4×12 SCREW M4×12 4
5 W02002 弹簧垫圈4 WASHER SPRING 1
6 42301601 拨叉 FORK 1
7 403S14017 螺钉 M5×5 SCREW M5×5 2
8 B04020 深沟球轴承695ZZ BEARING 695ZZ 2
9 42328601 垫片 WASHER 2
10 42312604 杠杆 LEVERAGE 1
11 423S20601 轴位螺钉 M5 SHOULDER SCREW M5 1
12 403S16006 六角螺母 M5 NUT M5 2
13-1 42302601 导向杆 SWITCHING DEVICE SUPPORT 1
13-2 42309601 中压脚导向滑块 SWITCHING DEVICE SUPPORT 1
13-3 4230160200 切换装置支架组件 SWITCHING DEVICE SUPPORT 1
14 41728001 垫圈10 WASHER 1
15 403S20013 轴位螺钉 M6 SHOULDER SCREW M6 1
16 42312605 中压脚连杆 MEDIUM PRESSURE FOOT CONNECTING ROD 1
17 403S20010 轴位螺钉 M5 SHOULDER SCREW M5 1
18 423S17601 螺钉 M4×6 SCREW M4×6 1
19 42301603 连接块 CONNECTING PIECE 1
20 403S14006 螺钉 M6×6 SCREW M6×6 3
21 42302602 压紧杆 PRESSER BAR 1
22 42316603 中压脚 MEDIUM PRESSURE FOOT 1
23 W01001 平垫圈4 WASHER 1
24 W02008 弹垫2-4 WASHER SPRING 1
25 417S15011 螺钉 SM9/64″×40×12 SCREW SM9/64″×40×12 1
26 42301604 面板 PANEL 1
303597 面板(喷漆) PANEL (SPRAY-PAINTED) 1
27 W02001 弹簧垫圈5 WASHER SPRING 11
28 403S11026 螺钉 M5×16 SCREW M5×16 1
29 413S11002 螺钉 M5×10 SCREW M5×10 2
30 136S13001 螺钉 M5×35 SCREW M5×35 4
31 42311602 电机前罩 BEFORE THE MOTOR COVER 1
32 ------ 开关 SWITCH 6
33 403S11013 螺钉 M4×8 SCREW M4×8 1
34 42311601 电机后罩 AFTER THE MOTOR COVER 1
35 403S11011 螺钉 M4×6 SCREW M4×6 2
36 42312606 辅助板 AUXILIARY PLATE 1
37 42312020 辅助板支撑板 AUXILIARY PLATE BRACKET 4
38 417S15003 螺钉 M4×6 SCREW M4×6 4
39 41722010 辅助板缓冲胶垫 AUXILIARY PLATE CUSHION 4
40 407N01002 自锁螺母 CAULKING NUT 4
41 W01013 平垫圈 WASHER 4
42 S05004 螺钉 M5×14 SCREW M5×14 4
43 41711017 电线夹16 WIRE CLIP 4
44 403S13011 螺钉 M4×8 SCREW M4×8 4
jintex.in
Page 20 — 9、SENSOR COMPONENTS
安全开关部件（-D）
Jack JK-T1900G parts on page 20| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | SENSOR COMPONENTS | |
| 2 | 2 | SENSOR COMPONENTS | |
| 3 | 3 | SENSOR COMPONENTS | |
| 4 | 4 | SENSOR COMPONENTS | |
| 5 | 5 | SENSOR COMPONENTS | |
| 6 | 6 | SENSOR COMPONENTS | |
| 7 | 7 | SENSOR COMPONENTS | |
| 8 | 8 | SENSOR COMPONENTS | |
| 9 | 9 | SENSOR COMPONENTS | |
| 10 | 10 | SENSOR COMPONENTS | |
| 11 | 11 | SENSOR COMPONENTS | |
| 12 | 12 | SENSOR COMPONENTS | |
| 13 | 13 | SENSOR COMPONENTS | |
| 14 | 14 | SENSOR COMPONENTS | |
| 15 | 15 | SENSOR COMPONENTS | |
9、SENSOR COMPONENTS
安全开关部件（-D）
2
5
6
4
5
3
8
1
7
12
7
11
10
14
7
1
7
7
15
9
13
jintex.in
Page 21
Jack JK-T1900G parts on page 21| Ref | Part number | Part name | Qty |
|---|
| 40312619 | 操作面板支架1 | |
| 40312625 | 电控安装架(上) | |
| 40312626 | 电控安装架(下) | |
| 4033161600 | 一体机电控(-D闭环) | |
| 403S11009 | 螺钉 | |
| S04028 | 螺钉 | |
| 403S11013 | 螺钉 | |
| 40111005 | 线扣 | |
| 40331617 | 单脚踏(-D) | |
| 140331001 | 液晶屏包装棉 | |
| 40331621 | 触摸屏(-D) | |
| 42312620 | 液晶屏安装支架 | |
| 40331618 | 双踏板(-D) | |
| 40312620 | 操作面板支架2 | |
| 40331619 | 点阵屏 | |
序号 注解 公司件号 名称 DESCRIPTION 用量
1 40312619 操作面板支架1 OPERATION PANEL BRACKET 1 1
2 40312625 电控安装架(上) ELECTRIC CONTROL MOUNTING BRACKET 1 1
3 40312626 电控安装架(下) ELECTRIC CONTROL MOUNTING BRACKET 2 1
4 4033161600 一体机电控(-D闭环) ELECTRIC CONTROL (-D) 1
5 403S11009 螺钉 SCREW 1
6 S04028 螺钉 SCREW 4
7 403S11013 螺钉 SCREW 4
8 40111005 线扣 TIE BAND 6
9 40331617 单脚踏(-D) SINGLE PEDAL SWITCH (-D) 15
10 140331001 液晶屏包装棉 PACKAGING COTTON 1
11 40331621 触摸屏(-D) TOUCH SCREEN (-D) 1
12 42312620 液晶屏安装支架 TOUCH SCREEN MOUNTING BRACKET 1
13 40331618 双踏板(-D) DOUBLE PEDAL SWITCH (-D) 1
14 40312620 操作面板支架2 OPERATION PANEL BRACKET 2 1
15 40331619 点阵屏 DOT MATRIX SCREEN 1
jintex.in 78
Page 22 — 9、SENSOR COMPONENTS
Jack JK-T1900G parts on page 22| Ref | Part number | Part name | Qty |
|---|
| 4033160400 | 单脚踏(-B) | |
| 4033162000 | 一体机电控（点阵） | |
| 403S30602 | 电控垫高螺钉 | |
| 140331001 | 触摸屏包装棉 | |
| 40331606 | 双踏板(-B) | |
| 40312620 | 操作面板支架2 | |
| 403S11013 | 螺钉 | |
| 42312620 | 液晶屏安装支架 | |
| 40312619 | 操作面板支架1 | |
| 40111005 | 线扣 | |
9、SENSOR COMPONENTS
安全开关部件（-B）
序号
注解
公司件号
名称
DESCRIPTION
用量
1
-
SINGLE PEDAL SWITCH (-B)
1
2-1
4033160400
单脚踏(-B)
ELECTRIC CONTROL
1
2-2
4033162000
一体机电控（点阵）
ELECTRIC CONTROL
1
3
403S30602
电控垫高螺钉
2
4
140331001
触摸屏包装棉
PACKAGING COTTON
1
5
40331606
双踏板(-B)
DOUBL
PEDAL SWITCH (-B)
1
6
-
点阵屏
DOT MATRIX SCREEN
1
7
40312620
操作面板支架2
OPERATION PANEL BRACKET 2
1
8
403S11013
螺钉
SCREW
6
9
42312620
液晶屏安装支架
TOUCH SCREEN MOUNTING BRACKET
1
10
40312619
操作面板支架1
OPERATION PANEL BRACKET 1
1
11
40111005
线扣
TIE BAND
15
12
触摸屏(-B)
TOUCH SCREEN (-B)
1
jintex.in
19
Page 23 — 10、THREAD STAND COMPONENTS
Jack JK-T1900G parts on page 23| Ref | Part number | Part name | Qty |
|---|
| 1383100300 | 过线架组件 | |
| ...... | 线架缓冲支架 | |
| ...... | 线轴 | |
| ...... | 线盘软垫 | |
| ...... | 线盘 | |
| ...... | 螺钉 | |
| ...... | 过线架固定夹 | |
| ...... | 线架支撑套 | |
| ...... | 线架 | |
| ...... | 线架支撑管 1 | |
| ...... | 支撑管接头 | |
| ...... | 螺钉 | |
| ...... | 螺母 | |
| ...... | 线架支撑管 2 | |
| ...... | 过线套 | |
| ...... | 弹簧垫圈 | |
| ...... | 螺母 | |
| ...... | 螺母 | |
| ...... | 垫片 | |
10、THREAD STAND COMPONENTS
线架部件
REF. NO.
NOTE
PART NO.
名 称
D E S C R I P T I O N
Qty.
1
1383100300
过线架组件
THREAD STAND ASM.
1
2
线架缓冲支架
SPOOL RETAINER
(2)
3
线轴
SPOOL PIN
(2)
4
线盘软垫
SPOOL REST CUSHION
(2)
5
线盘
SPOOL REST
(2)
6
螺钉
SCREW M6 L=16
(2)
7
过线架固定夹
THREAD GUIDE ARM JOINT
(2)
8
线架支撑套
SPOOL REST ROD RUBBER CAP
(1)
9
线架
SPOOL REST ARM
(2)
10
线架支撑管 1
SPOOL REST ROD, UPPER
(1)
11
支撑管接头
SPOOL REST ROD JOINT
(1)
12
螺钉
SCREW M5 L=14
(2)
13
螺母
NUT M5
(2)
14
线架支撑管 2
SPOOL REST ROD, LOWER
(1)
15
过线套
THREAD GUIDE
(2)
16
弹簧垫圈
SPRING WASHER
(2)
17
螺母
NUT M6
(1)
18
螺母
NUT M16X1.5
(2)
19
垫片
WASHER 17X30X2.6
(2)
jintex.in
Page 24 — 11、TABLE STAND COMPONENTS
台板机架部件
Jack JK-T1900G parts on page 24| Ref | Part number | Part name | Qty |
|---|
| 1 | TABLE STAND COMPONENTS | |
| 2 | TABLE STAND COMPONENTS | |
| 3 | TABLE STAND COMPONENTS | |
| 4 | TABLE STAND COMPONENTS | |
| 5 | TABLE STAND COMPONENTS | |
| 6 | TABLE STAND COMPONENTS | |
| 7 | TABLE STAND COMPONENTS | |
| 8 | TABLE STAND COMPONENTS | |
| 9 | TABLE STAND COMPONENTS | |
| 10 | TABLE STAND COMPONENTS | |
| 11 | TABLE STAND COMPONENTS | |
| 12 | TABLE STAND COMPONENTS | |
| 13 | TABLE STAND COMPONENTS | |
| 14 | TABLE STAND COMPONENTS | |
| 15 | TABLE STAND COMPONENTS | |
| 16 | TABLE STAND COMPONENTS | |
| 17 | TABLE STAND COMPONENTS | |
| 18 | TABLE STAND COMPONENTS | |
| 19 | TABLE STAND COMPONENTS | |
| 20 | TABLE STAND COMPONENTS | |
| 21 | TABLE STAND COMPONENTS | |
| 22 | TABLE STAND COMPONENTS | |
| 23 | TABLE STAND COMPONENTS | |
| 24 | TABLE STAND COMPONENTS | |
| 25 | TABLE STAND COMPONENTS | |
| 26 | TABLE STAND COMPONENTS | |
| 27 | TABLE STAND COMPONENTS | |
| 28 | TABLE STAND COMPONENTS | |
| 29 | TABLE STAND COMPONENTS | |
| 30 | TABLE STAND COMPONENTS | |
| 31 | TABLE STAND COMPONENTS | |
| 32 | TABLE STAND COMPONENTS | |
| 33 | TABLE STAND COMPONENTS | |
| 34 | TABLE STAND COMPONENTS | |
11、TABLE STAND COMPONENTS
台板机架部件
1
2
31
32
33
34
6
7
13
12
13
10
11
30
29
28
27
9
16
17
15
22
20
21
18
19
23
24
25
26
13
3
4
5
13
10
30
29
28
27
11
13
10
jintex.in
ㅋ
Page 25
Jack JK-T1900G parts on page 25| Ref | Part number | Part name | Qty |
|---|
| 400-06886 | TABLE | 1 |
| 400-06886 | TABLE | 1 |
| SK-3515201-SE | WOOD SCREW D=5.1 L=32 | 4 |
| 141-18053 | T-STAND COMPL. | 1 |
| 141-18053 | T-STAND COMPL. | 1 |
| 141-18152 | UPPER STAND ASM., RIGHT | 1 |
| 141-18151 | STAND ASM., RIGHT | (1) |
| B8101-210-AAB | UPPER STAND ASM., LEFT | (1) |
| B8105-210-AAA | STAND ASM., LEFT | (1) |
| 111-58300 | STAND SIDE SUPPORT | (1) |
| 111-58409 | STAND SIDE SUPPORT | (1) |
| 111-58607 | RUBBER CAP | (2) |
| 170-07402 | NUT | (2) |
| 111-58516 | UPPER STAND PLATE | (2) |
| SL-9082091-SE | WASHER HEXAGONAL BOLT | (12) |
| 138-17754 | Z-STAND PEDAL ASM | (1) |
| 111-59001 | PEDAL SHAFT BRACKET | (2) |
| B8153-771-000 | PEDAL CONNECTING ROD | (1) |
| D8113-555-B00 | PEDAL BUSHING | (2) |
| GPF-06080000 | PEDAL ADJUSTING PLATE | (1) |
| GPF-060600A0 | PEDAL ASM. | (1) |
| SM-9061201-SE | SCREW M6 L=12 | (2) |
| WP-0671016-SE | WASHER 6.7×13×1 | (2) |
| WS-0621210-KR | SPRING WASHER 6.2×11.4×1.2 | (2) |
| SM-9082023-SE | SCREW M8 L=20 | (2) |
| WP-0871602-SE | WASHER 8.7×18×1.6 | (4) |
| WS-0861410-KR | SPRING WASHER 8.6×15×1.4 | (2) |
| NM-6080721-SE | NUT M8 | (2) |
| B8108-555-0A0 | ADJUSTING SCREW ASM. WITH CAP | (4) |
| NM-6120001-SE | NUT M12 | (4) |
| WP-1302501-SE | WASHER M12 | (4) |
| WS-1253010-KN | SPRING WASHER 12.5×21.5×3 | (4) |
| 111-55108 | DRAWER | 1 |
| 111-55207 | DRAWER SUPPORT | 2 |
| D8204-555-D00 | DRAWER STOPPER | 1 |
| SK-3311601-SE | WOOD SCREW D=3.1 L=16 | 6 |
序号 注解 公司件号 DESCRIPTION 名称 用量 同类编号
1-1 - - TABLE 台板 1 400-06886
1-2 GR 140532001 TABLE 台板 1 400-06886
2 - - WOOD SCREW D=5.1 L=32 自攻螺丝 4 SK-3515201-SE
3-1 普通 - - T-STAND COMPL. 桌脚组件 1 141-18053
3-2 GR 4053200200 T-STAND COMPL. 桌脚组件 1 141-18053
4 - - UPPER STAND ASM., RIGHT 右桌脚上支架 1 141-18152
5 - - STAND ASM., RIGHT 右桌脚下支架 (1) 141-18151
6 - - UPPER STAND ASM., LEFT 左桌脚上支架 (1) B8101-210-AAB
7 - - STAND ASM., LEFT 左桌脚下支架 (1) B8105-210-AAA
8 - - STAND SIDE SUPPORT 桌脚横撑 (1) 111-58300
9 - - STAND SIDE SUPPORT 桌脚横撑 (1) 111-58409
10 - - RUBBER CAP 橡胶套 (2) 111-58607
11 - - NUT 螺母 (2) 170-07402
12 - - UPPER STAND PLATE 调节压板 (2) 111-58516
13 - - WASHER HEXAGONAL BOLT 螺钉 (12) SL-9082091-SE
14 - - Z-STAND PEDAL ASM 踏板组件 (1) 138-17754
15 - - PEDAL SHAFT BRACKET 踏板支架 (2) 111-59001
16 - - PEDAL CONNECTING ROD 踏板连接轴 (1) B8153-771-000
17 - - PEDAL BUSHING 踏板轴衬 (2) D8113-555-B00
18 - - PEDAL ADJUSTING PLATE 踏板调节板 (1) GPF-06080000
19 - - PEDAL ASM. 踏板 (1) GPF-060600A0
20 - - SCREW M6 L=12 螺钉M6×12 (2) SM-9061201-SE
21 - - WASHER 6.7×13×1 垫片 (2) WP-0671016-SE
22 - - SPRING WASHER 6.2×11.4×1.2 弹簧垫片 (2) WS-0621210-KR
23 - - SCREW M8 L=20 螺钉M8×20 (2) SM-9082023-SE
24 - - WASHER 8.7×18×1.6 垫片 (4) WP-0871602-SE
25 - - SPRING WASHER 8.6×15×1.4 弹簧垫片 (2) WS-0861410-KR
26 - - NUT M8 螺母 (2) NM-6080721-SE
27 - - ADJUSTING SCREW ASM. WITH CAP 带垫调节螺钉 (4) B8108-555-0A0
28 - - NUT M12 螺母M12 (4) NM-6120001-SE
29 - - WASHER M12 垫片 (4) WP-1302501-SE
30 - - SPRING WASHER 12.5×21.5×3 弹簧垫片 (4) WS-1253010-KN
31 - - DRAWER 抽屉 1 111-55108
32 - - DRAWER SUPPORT 抽屉支架 2 111-55207
33 - - DRAWER STOPPER 抽屉挡板 1 D8204-555-D00
34 - - WOOD SCREW D=3.1 L=16 木螺钉 6 SK-3311601-SE
Page 26 — 12、ACCESSORIE PART COMPONENTS
附件部件
Jack JK-T1900G parts on page 26| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | |
| 2 | 2 | |
| 3 | 3 | |
| 4 | 4 | |
| 5 | 5 | |
| 6 | 6 | |
| 7 | 7 | |
| 8 | 8 | |
| 10 | 10 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 16 | 16 | |
| 17 | 17 | |
| 18 | 18 | |
| 19 | 19 | |
| 20 | 20 | |
| 21 | 21 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 25 | 25 | |
| 26~28 | 26~28 | |
| 29~31 | 29~31 | |
| 32 | 32 | |
| 33 | 33 | |
| 42 | 42 | |
| 43 | 43 | |
| 44 | 44 | |
| 45 | 45 | |
| 46 | 46 | |
| 47 | 47 | |

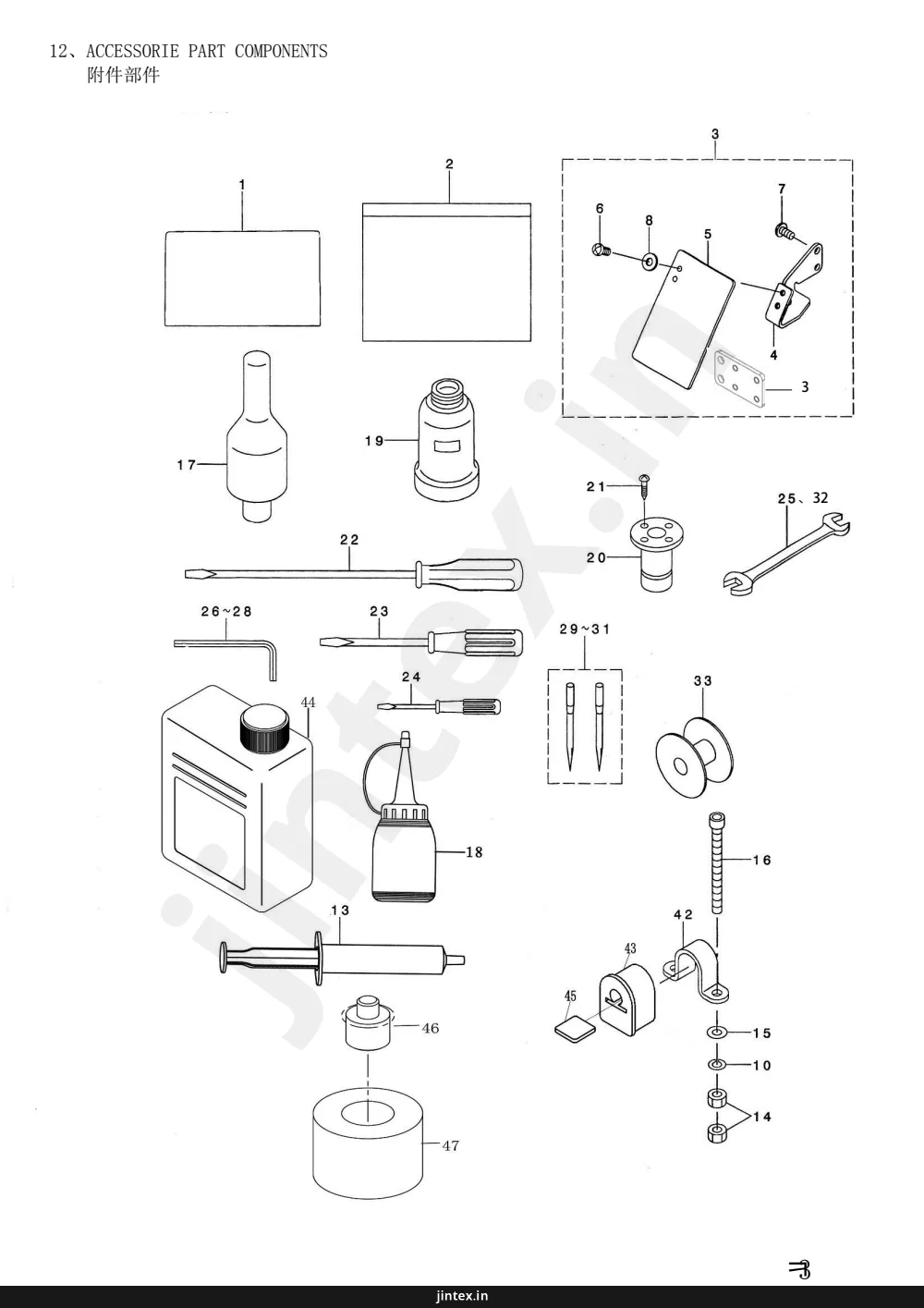

12、ACCESSORIE PART COMPONENTS
附件部件
1
2
3
6
8
5
7
4
17
19
21
20
22
26~28
23
29~31
25、32
44
18
13
42
43
45
33
16
15
10
14
46
47
jintex.in
3
Page 27
Jack JK-T1900G parts on page 27| Ref | Part number | Part name | Qty |
|---|
| 40331612 | HEAD-COVER | 1 |
| 40312621 | SAFETY PLATE ASM | 1 |
| 40312127 | SAFETY PLATE TRANSFER | 1 |
| 40911006 | SAFETY PLATE BASE | 1 |
| 403s11051 | SCREW M4 L=6 | 2 |
| 40928002 | WASHER 4.5X10X0.8 | 2 |
| 40128026 | SPRING WASHER 6.1X12.2X1.5 | 5 |
| 11411029 | GREA SE-B-TUBE | 1 |
| N01007 | NUT M6 | 10 |
| 140628001 | WASHER | 5 |
| 40931009 | BOLT M6 L=60 | 5 |
| 40311002 | HEAD SUPPORT BAR | 1 |
| 20131038 | OILER (CONTAINING) | 1 |
| 40311011 | OIL CAN | 1 |
| 40311010 | OIL MANL MANAGEMENT | 1 |
| 403s30015 | WOOD SCREW D=3.1 L=16 | 4 |
| 10131002 | SCREW DRIVER, LARGE | 1 |
| 10131003 | SCREW DRIVER, MIDDLE | 1 |
| 10131004 | SCREW DRIVER, SMALL | 1 |
| 40931025 | WRENCH (9-11) | 1 |
| 30131010 | HEXAGONAL WRENGH , SMALL | 4 |
| 20131047 | HEXAGONAL WRENGH , LARGE | 4 |
| 30131012 | HEXAGONAL SRANNER | 4 |
| 40117001 | NEEDLE DPX5 #16 | 1 |
| NEEDLE DPX17 #19 | NEEDLE DPX17 #19 | 4 |
| NEEDLE DPX5 #11 | NEEDLE DPX5 #11 | 4 |
| NEEDLE DPX17 #14 | NEEDLE DPX17 #14 | 4 |
| 30131006 | WRENCH (8-10) | 1 |
| 40118004 | BOBBIN | 3 |
| 403310010 | BOLT M6 L=60 | 1 |
| 40312001 | BED HINGE | 2 |
| 40322003 | HINGE RUBBER | 2 |
| 1011101200 | OILER (CONTAINING) | 1 |
| 40312320 | SUPPORT PLATE | 1 |
| 403S30601 | MATS SCREW | 2 |
| 40322608 | MATS | 3 |
序号 注解 公司件号 DESCRIPTION 名称 用量
1 40331612 HEAD-COVER 机头罩 1
2 ------ ------ 1
3 40312621 SAFETY PLATE ASM 防护罩组件 1
4 40312127 SAFETY PLATE TRANSFER 防护罩转接板 1
5 40911006 SAFETY PLATE BASE 防护罩安装板 1
6 403s11051 SCREW M4 L=6 螺钉 2
8 40928002 WASHER 4.5X10X0.8 垫圈 2
10 40128026 SPRING WASHER 6.1X12.2X1.5 弹簧垫片 5
13 11411029 GREA SE-B-TUBE 润滑脂 1
14 N01007 NUT M6 螺母 10
15 140628001 WASHER 垫片 5
16 40931009 BOLT M6 L=60 螺栓 5
17 40311002 HEAD SUPPORT BAR 机头支撑柱 1
18 20131038 OILER (CONTAINING) 油壶 1
19 40311011 OIL CAN 回油油壶 1
20 40311010 OIL MANL MANAGEMENT 油壶接头 1
21 403s30015 WOOD SCREW D=3.1 L=16 木螺钉 4
22 10131002 SCREW DRIVER, LARGE 大螺丝刀 1
23 10131003 SCREW DRIVER, MIDDLE 中螺丝刀 1
24 10131004 SCREW DRIVER, SMALL 小螺丝刀 1
25 40931025 WRENCH (9-11) 扳手 1
26 30131010 HEXAGONAL WRENGH , SMALL 小内六角扳手 4
27 20131047 HEXAGONAL WRENGH , LARGE 大内六角扳手 4
28 30131012 HEXAGONAL SRANNER 中内六角扳手 4
29 40117001 NEEDLE DPX5 #16 机针DPX5 #16 1
-- -- NEEDLE DPX17 #19 机针DPX17 #19 4
-- -- NEEDLE DPX5 #11 机针DPX5 #11 4
-- -- NEEDLE DPX17 #14 机针DPX17 #14 4
31 30131006 WRENCH (8-10) 扳手 1
32 40118004 BOBBIN 梭心 3
33 403310010 BOLT M6 L=60 螺栓 1
42 40312001 BED HINGE 铰接板 2
43 40322003 HINGE RUBBER 铰接板橡胶座 2
44 1011101200 OILER (CONTAINING) 油壶 1
45 40312320 SUPPORT PLATE 支撑板 1
46 403S30601 MATS SCREW 脚垫螺钉 2
47 40322608 MATS 脚垫 3
jintex.in
Page 28 — 13、 ACCESSORIES PARTS FOR 1903G SUBCLASSES
1903G 附件
Jack JK-T1900G parts on page 28| Ref | Part number | Part name | Qty |
|---|
| 11 | ACCESSORIES PARTS FOR 1903G SUBCLASSES | |
| 12 | 1903G 附件 | |
| 13 | | |
| 14 | | |
| 15 | | |
| 16 | | |
| 17 | | |
| 18 | | |
| 19 | | |
| 20 | | |
| 21 | | |
13、 ACCESSORIES PARTS FOR 1903G SUBCLASSES
1903G 附件
11
14
12
13
15
17
21
18
16
20
19
jintex.in
Page 29
Jack JK-T1900G parts on page 29| Ref | Part number | Part name | Qty |
|---|
| 4091102000 | BUTTON TRAY ASM | |
| 300941 | BUTTON TRAY BASE | |
| s10009 | SCREW M6 L=8 | |
| 403s30014 | WOODSCREW D=4.1 L=12 | |
| ------ | BUTTON RISING BAR ASM | |
| 40128021 | WASHER 4.8X11.5X2 | |
| 405s11008 | SCREW 3/16-32 L=6.5 | |
| 40512020 | INSTALLING BASE | |
| 40527017 | BUTTON RISING BAR | |
| 301s11014 | SCREW | |
| 40928021 | WASHER 4X8X1.2 | |
序号 注解 公司件号 DESCRIPTION 名称 用量
11 4091102000 BUTTON TRAY ASM 纽扣盒 1
12 300941 BUTTON TRAY BASE 纽扣盘固定座 1
13 s10009 SCREW M6 L=8 螺钉M6X8 1
14 403s30014 WOODSCREW D=4.1 L=12 木螺钉 2
15 ------ BUTTON RISING BAR ASM 松线板组件 1
16 40128021 WASHER 4.8X11.5X2 垫圈4.8X11.5X2 2
17 405s11008 SCREW 3/16-32 L=6.5 螺钉3/16-32 L=6.5 1
18 40512020 INSTALLING BASE 安装板 1
19 40527017 BUTTON RISING BAR 纽扣松紧板 1
20 301s11014 SCREW 螺钉 1
21 40928021 WASHER 4X8X1.2 垫圈4X8X1.2 2
Page 30 — 14、EXCLUSIVE PARTS FOR 1903G
1903G 专用部件
Jack JK-T1900G parts on page 30| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | |
| 2 | 2 | |
| 3 | 3 | |
| 4 | 4 | |
| 5 | 5 | |
| 5 | 5 | |
| 6 | 6 | |
| 7 | 7 | |
| 8 | 8 | |
| 9 | 9 | |
| 10 | 10 | |
| 11 | 11 | |
| 12 | 12 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 16 | 16 | |
| 17 | 17 | |
| 18 | 18 | |
| 19 | 19 | |
| 20 | 20 | |
| 21 | 21 | |
| 21 | 21 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 25 | 25 | |
| 26 | 26 | |
| 27 | 27 | |
| 28 | 28 | |
| 29 | 29 | |
| 30 | 30 | |
| 31 | 31 | |
| 32 | 32 | |
| 32 | 32 | |
| 32 | 32 | |
| 33 | 33 | |
| 34 | 34 | |
| 35 | 35 | |
| 36 | 36 | |
| 37 | 37 | |
| 38 | 38 | |
| 39 | 39 | |
| 40 | 40 | |
| 41 | 41 | |
| 42 | 42 | |
| 43 | 43 | |
| 44 | 44 | |
| 45 | 45 | |
| 46 | 46 | |
14、EXCLUSIVE PARTS FOR 1903G
1903G 专用部件
jintex.in
7
