| Ref | Part number | Part name | Qty |
|---|---|---|---|
| (1) | Cotton stand | ||
| (2) | washer | ||
| (3) | nut |
3-8. Installing the cotton stand 3. INSTALLATION (1) Cotton stand NOTE: Fit the washer (2), and then securely tighten the nut (3) so that the cotton stand does not move. 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| (1) | Solenoid valve assembly | ||
| (2) | Washers [2 pcs.] | ||
| (3) | Wood screws [2 pcs.] | ||
| (4) | Rubber hose |
3. INSTALLATION 3-9. Installing the pneumatic unit (pneumatic specifications) Install underneath the work table. (1) Solenoid valve assembly (2) Washers [2 pcs.] (3) Wood screws [2 pcs.] (4) Rubber hose After installing the pneumatic unit, adjust the air pressure. (Refer to "10-16. Adjusting the air pressure".) NOTE: Make sure that the pneumatic unit does not touch the control box or the work table leg. Connect each air tube to the position with the corresponding number. Cylinder R (1A) (1B) Cylinder L (2A) (2B) (2A) (2B) Upper knob Lower knob Manual button <Adjusting the speed controller> You can use the valve knobs to adjust the lifting and lowering speeds. The valve knobs should be adjusted so that the left and right sides of the work clamp operate at the same speed. When the upper knob is tightened, the lifting speed becomes slower. When it is loosened, the lifting speed becomes faster. When the lower knob is tightened, the lowering speed becomes slower. When it is loosened, the lowering speed becomes faster. You can operate the work clamp while the power is turned off by pressing the manual button. 12 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| (1) | (1) | Eye guard assembly | |
| (2) | (2) | Plain washers | 2 pcs. |
| (3) | (3) | Screws | 2 pcs. |
| (1) | (1) | Motor cover R | |
| (2) | (2) | Screws | 4 pcs. |
| (3) | (3) | Motor cover L | |
| (4) | (4) | Screws | 4 pcs. |
| (5) | (5) | Motor cover | |
| (6) | (6) | Screws | 4 pcs. |
3. INSTALLATION 3-10. Installing the eye guard CAUTION Attach all safety devices before using the sewing machine. If the machine is used without these devices attached, injury may result. (1) Eye guard assembly (2) Plain washers [2 pcs.] (3) Screws [2 pcs.] 3-11. Installing the motor cover (1) Motor cover R (2) Screws [4 pcs.] (3) Motor cover L (4) Screws [4 pcs.] (5) Motor cover (6) Screws [4 pcs.] NOTE: Be careful not to clamp the cords when installing the motor cover. 13 jintex.in
3. INSTALLATION 3-12. Lubrication CAUTION Do not connect the power cord until lubrication is complete. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that they do not get into your eyes or onto your skin. If the oil and grease get into your eyes or onto your skin, inflammation can result. Furthermore, do not drink or eat the lubricating oil or grease. They may cause diarrhea or vomiting. Keep the oil out of the reach of children. The sewing machine should always be lubricated and the oil supply replenished before it is used for the first time, and also after long periods of non-use. Use only the lubricating oil specified by Jack 1. Fill the arm-side oil tank with oil. 2. Move the work clamp arm (1) as far as it will go to the right when looking from the front of the sewing machine, and then slide the outer cover L (2) into the inner cover L (3) so that the lubrication hole in the bed is visible. Pour oil into the bed side oil tank through this hole. NOTE: Be sure to fill the machine with oil when the oil level is down to about one-third full in the oil sight glass. If the oil drops below the one-third level, there is the danger that the machine may seize during operation. (4) (5) 3. Pour oil in through the two holes (4) of the shuttle race base assembly so that the felt is lightly moistened. NOTE: If there is no more oil on the felt of the shuttle race base assembly, problems with sewing may result. 4. If using the liquid cooling tank (5), fill it with silicon oil (100 mm²/s). 14 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | (1) | Plain washer | |
| 2 | (2) | Machine head fixing bolt |
3. INSTALLATION 3-13. Installing the machine head fixing bolt When transporting the sewing machine, secure the machine head to the table with the machine head fixing bolt. (1) Plain washer (2) Machine head fixing bolt NOTE: When operating the sewing machine, remove the machine head fixing bolt. 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| (1) | set screw | ||
| (2) | needle | ||
| (1) | tension discs | ||
| (2) | machine pulley | ||
| (3) | thread take-up |
4. PREPARATION BEFORE SEWING 4. PREPARATION BEFORE SEWING 4-1. Installing the needle CAUTION Turn off the power switch before installing the needle. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. 1. Loosen the set screw (1). 2. Insert the needle (2) in a straight line as far as it will go, making sure that the long groove on the needle is at the front, and then securely tighten the set screw (1). 4-2. Threading the upper thread Thread the upper thread correctly as shown in the illustration below. When using threading mode for threading, the tension discs (1) will open so that the thread can be threaded more easily. (Refer to following page.) [If using cotton thread or spun thread] (3) 8 9 6 10 11 12 40mm (1) (2) [If using synthetic thread] Turn the machine pulley (2) and raise the thread take-up (3) to its highest position before threading the upper thread. (This will make threading easier and it will prevent the thread from coming out at the sewing start.) When threading the thread through the needle, allow a distance of approximately 40 mm between the needle hole and the end of the thread. If the trailing length of the thread is too long, it may cause the thread to become tangled. 16
4. PREPARATION BEFORE SEWING <Threading mode> Threading mode is safe because the sewing machine will not start even when the foot switch is depressed. 1 Turn on the power switch. 2 Press the home position key Press the threading key, and the key ! The work clamp will drop. 3 Threading the thread. 4 Ending threading mode Press the threading key, and the key change ! The work clamp will return to where it was before threading mode was started. 17 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| (1) | bobbin winder shaft | ||
| (2) | bobbin presser arm | ||
| (3) | tire position key | ||
| (4) | bobbin winder key | ||
| (5) | bobbin winder key | ||
| (6) | knife | ||
| (7) | screw | ||
| (8) | bobbin presser | ||
| (9) | set screw | ||
| (10) | bobbin winder tension assembly |
4. PREPARATION BEFORE SEWING 4-3. Winding the lower thread CAUTION Do not touch any of the moving parts or press any objects against the machine while winding the lower thread. Injury or damage to the sewing machine may result. (2) (1) (3) ON OFF (4) (5) (6) (7) (8) (9) (10) For case A For case B 1. Place the bobbin onto the bobbin winder shaft (1). 2. Thread the thread as shown in the illustration, wind the thread around the bobbin several times, and then press the bobbin presser arm (2). 3. Turn on the power switch. 4. Press the tire position key (3), the sewing machine move to the tire position. 5. Check that the needle does not touch the clamp, and then press the bobbin winder key (4), the bobbin winder key (4) change to the bobbin winder key (5), and it keep in the state "ON", depress the foot switch to the 2nd step, and it will start wind. (If using a two-pedal foot switch, depressing the start switch two-pedal foot switch) 6. Once winding of set amount of lower thread (80%-90% of the bobbin capacity) is completed, the bobbin presser arm (2) will return automatically. 7. Remove the bobbin, hook the thread onto the knife (6), and then pull the bobbin in the direction of the arrow to cut the thread. Adjusting the bobbin winding amount Loosen the screw (7) and move the bobbin presser (8) to adjust. If the thread winds onto the bobbin unevenly Loosen the set screw (9) and move the bobbin winder tension assembly (10)up and down to adjust. * For case A, move the bobbin winder tension assembly (10)down, and for case B, move it upward. 18 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| (1) | shuttle race cover | ||
| (2) | slot | ||
| (3) | thread hole | ||
| (4) | lever thread hole |
4. PREPARATION BEFORE SEWING 4-4. Installing the bobbin case A CAUTION Turn off the power switch before installing the bobbin case. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. (3) (2) (1) (4) 30mm 1. Pull the shuttle race cover (1) downward to open it. 2. While holding the bobbin so that the thread winds to the right, insert the bobbin into the bobbin case. 3. Pass the thread through the slot (2) and pull it out from the thread hole (3). 4. Check that the bobbin turns in the direction of the arrow when the thread is pulled. 5. Pass the thread through the lever thread hole (4), and then pull out approximately 30 mm of thread. 6. Hold the latch on the bobbin case and insert the bobbin case into the rotary hook. 19 Jinttex.in
4. PREPARATION BEFORE SEWING 4-5. Thread tension [Thread tension reference] Specifications Heavy-weight materials (-01) Medium-weight materials (-02) Upper thread #20 or similar #50 or similar Lower thread #20 or similar #50 or similar Upper thread tension (N) 1.4-1.8 0.8-1.2 Lower thread tension (N) 0.2-0.3 Pre-tension (N) 0.1-0.6 0.1-0.3 Needle DP x 17 #19 DP x 5 #16 Normal sewing speed 2,000 rpm 2,000 rpm 4-5-1. Lower thread tension Adjust the thread tension to the weakest possible tension by turning the thread tension nut (1) until the bobbin case will not drop by its own weight while the thread end coming out of the bobbin case is held. (1) Stronger Weaker 4-5-2. Upper thread tension 1. Turn the tension nut (1) (main tension) to adjust the tension as appropriate for the material being sewn. 2. Use the tension nut (2) (sub tension) to adjust the upper thread trailing length to about 40 mm. (2) Stronger Weaker 20 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 47 | key | |
| 1 | 59 | key | |
| 1 | 61 | key | |
| 1 | 112 | key | |
| 1 | 130 | key | |
| (1) | time position key | ||
| (4) | work clamp switch | ||
| (2) | start switch | ||
| (3) | work clamp |
5. SEWING 5. SEWING CAUTION Turn off the power switch at the following times. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. • When threading the needle • When replacing the bobbin and needle • When not using the machine and when leaving the machine unattended Do not touch any of the moving parts or press any objects against the machine while sewing, as this may result in personal injury or damage to the machine. (1) 1. Turn on the power switch. 2. Press the ← or → key to turn on the page, and press the data key to select the sewing program. 1st step 2nd step 3. Press the time position key(1), the sewing machine will move to the loading position. (4) (2) 4. Place the article to be sewn underneath the work clamp (3). 5. Depress the foot switch to the 1st step. (If using a two-pedal foot switch, depress the work clamp switch (4).) • The work clamp (3) will drop. 6. Depress the foot switch to the 2nd step. (If using a two-pedal foot switch, depress the start switch (2).) • The sewing machine will start sewing. 7. When sewing is complete, the thread will be trimmed and the work clamp (3) will rise. Use a work clamp that hold the article being sewn firmly, without allowing it to slip. If using the standard work clamp and feed plate and the article being sewn is slipping, take measures to stop the work clamp and feed plate from being slippery. 21 jintex.in
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| (1) | STOP switch | ||
| (1) | thread wiper switch | ||
| (2) | thread wiper |

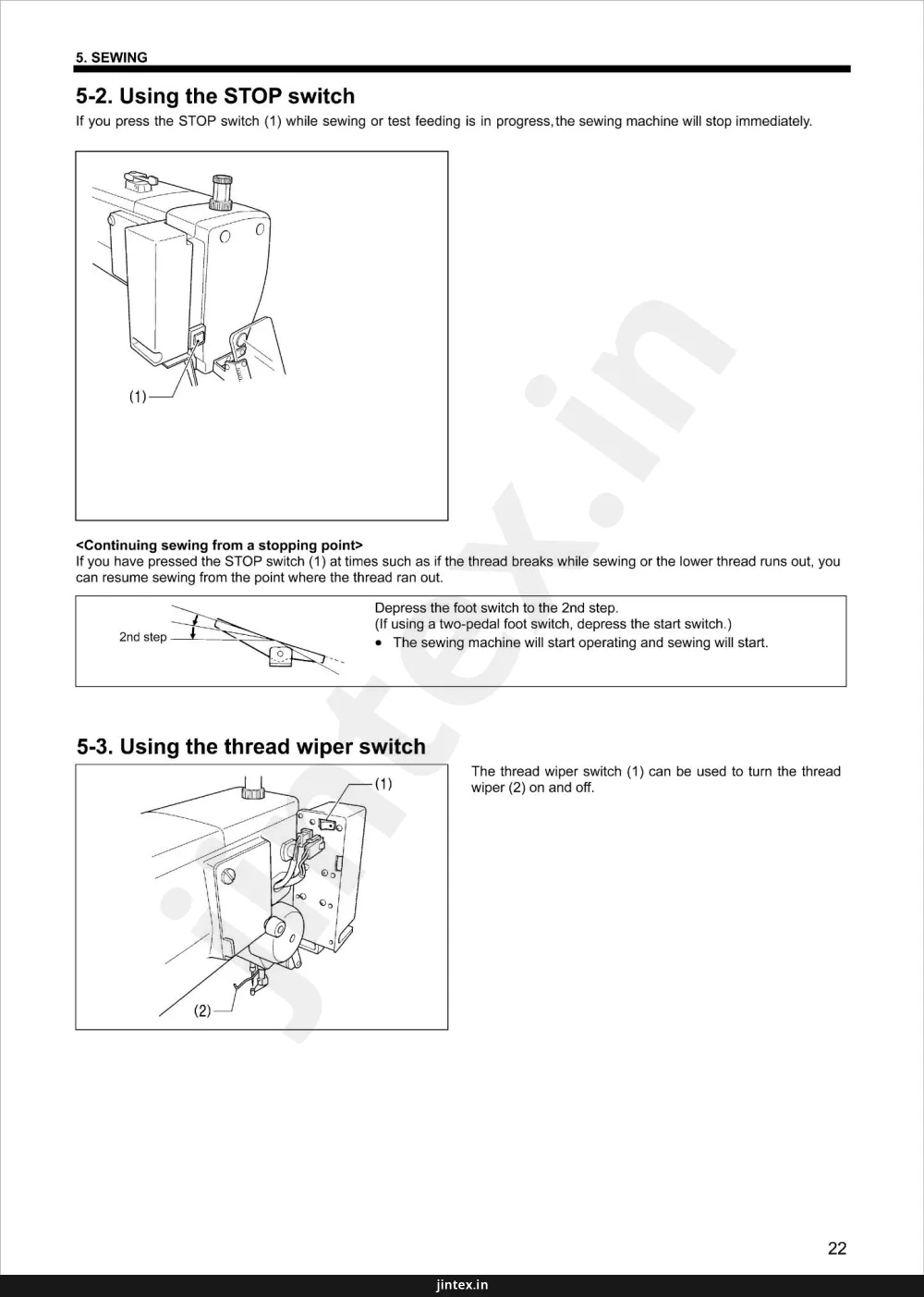

5. SEWING 5-2. Using the STOP switch If you press the STOP switch (1) while sewing or test feeding is in progress, the sewing machine will stop immediately. (1) «Continuing sewing from a stopping point> If you have pressed the STOP switch (1) at times such as if the thread breaks while sewing or the lower thread runs out, you can resume sewing from the point where the thread ran out. Depress the foot switch to the 2nd step. (If using a two-pedal foot switch, depress the start switch.) • The sewing machine will start operating and sewing will start. 2nd step 5-3. Using the thread wiper switch The thread wiper switch (1) can be used to turn the thread wiper (2) on and off. (1) (2) jintex.in 22
6. CLEANING 6. CLEANING A CAUTION Turn off the power switch before carrying out cleaning. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that they do not get into your eyes or onto your skin. If the oil and grease get into your eyes or onto your skin, inflammation can result. Furthermore, do not drink or eat the lubricating oil or grease. They may cause diarrhea or vomiting. Keep the oil out of the reach of children. 6-1. Cleaning the rotary hook 1. Pull the shuttle race cover downward to open it, and then remove the bobbin case. (1) (3) (2) 2. Open the setting claw (1) in the direction indicated by the arrow, and then remove the shuttle race base (2) and the shuttle hook (3). (4) 3. Clean all the dust and thread ends from around the driver (4), the top of the rotary hook thread guide and the shuttle race. 23 jintex.in
6. CLEANING 6-2. Cleaning the control box air inlet ports Use a vacuum cleaner to clean the filter in the air inlet ports (2) of the control box (1) at least once a month. (1) (2) 6-3. Draining the oil 1. Remove and empty the waste oil tank (1) whenever it is full. 2. After emptying the waste oil tank (1), screw it back into its original position. (1) 6-4. Cleaning the eye guard Wipe the eye guard clean with a soft cloth. NOTE: Do not use solvents such as kerosene or thinner to clean the eye guard. 6-5. Checking the needle Always check that the tip of the needle is not broken and also that the needle is not bent before starting sewing. 6-6. Lubrication Lubricate the sewing machine while referring to "3-11. Lubrication". jintex.in 24
7. STANDARD ADJUSTMENTS CAUTION Maintenance and inspection of the sewing machine should only be carried out by a qualified technician. Ask your Brother dealer or a qualified electrician to carry out any maintenance and inspection of the electrical system. Turn off the power switch and disconnect the power cord before carrying out the following operations: If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result. Inspection, adjustment and maintenance Replacing consumable parts such as the rotary hook 7-1. Checking the machine head switch Hold the machine head with both hands when tilting it back or returning it to its original position. In addition, do not apply excessive force when tilting head. The sewing machine may become unbalanced and fall down, and serious injury or damage to the machine may result. If the power switch needs to be left on when carrying out some adjustments, be extremely careful to observe all safety precautions. If any safety devices have been removed, be absolutely sure to re-install them to their original positions and check that they operate correctly before using the machine. Check that the machine head switch is turned on as shown in the illustration. 25 Jintez.in
