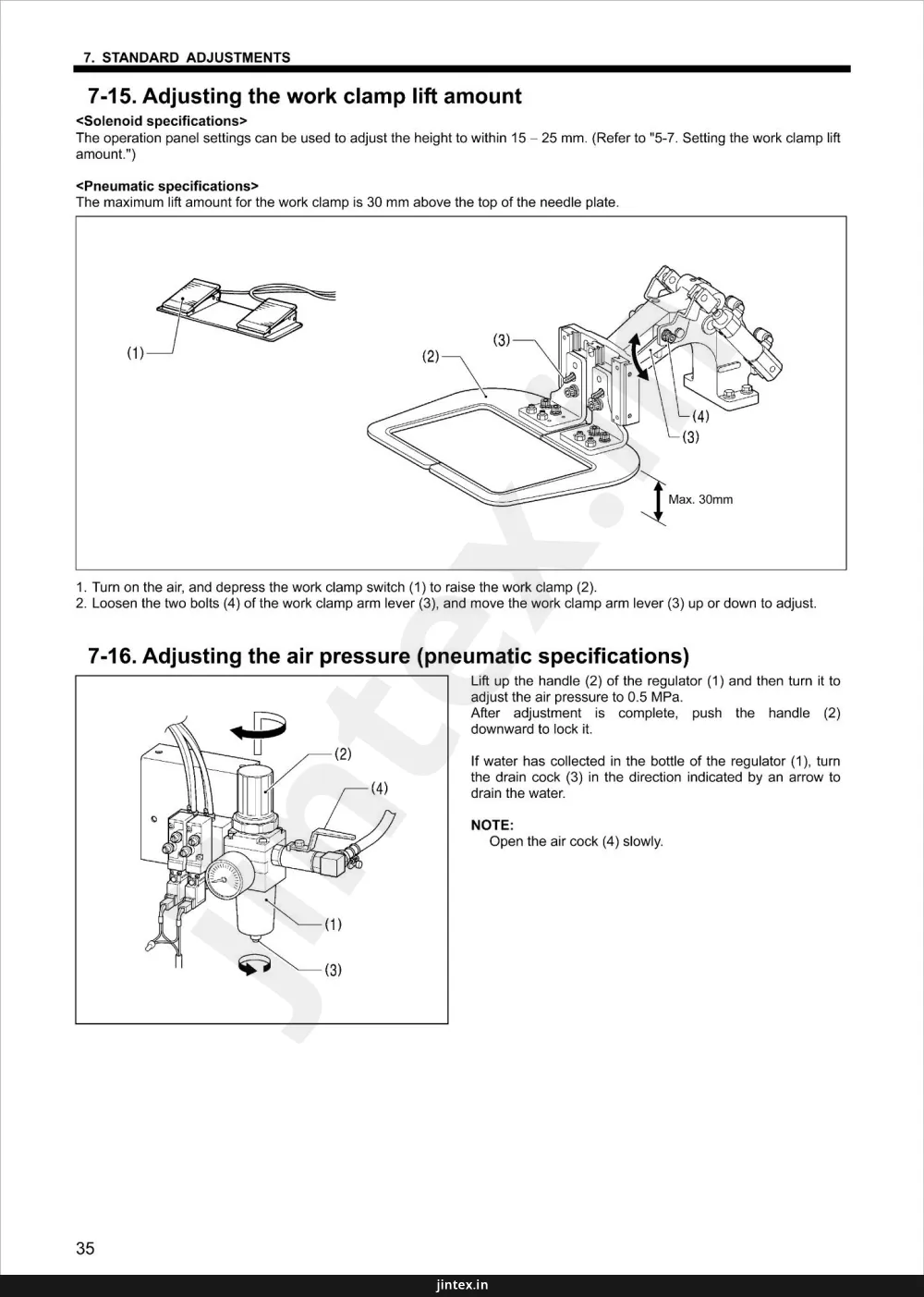

- Page 40 (text): This page contains instructions for adjusting the work clamp lift amount and air pressure on an industrial sewing machine, including diagrams and numbered steps.
- Page 41 (text): This page contains troubleshooting information for common problems with the sewing machine, including issues with the work clamp, thread wiper, and thread winding, along with their causes and remedies.
- Page 42 (text): This page contains troubleshooting information for common sewing machine problems, including causes and remedies with corresponding reference page numbers.
- Page 43 (text): This page contains troubleshooting information for common sewing machine problems, including issues with upper thread trimming, stitch finish, thread tension, and machine operation, along with their causes, remedies, and corresponding reference pages.
- Page 44 (unknown): This page contains a watermark and no other discernible information.
- Page 45 (cover): This is the cover page of a parts book, titled "PARTS BOOK" in English and "零件样本" in Chinese.
- Page 46 (diagram): This page contains diagrams and descriptions for two types of work clamp lifters: solenoid-type and pneumatic-type, labeled as S and A respectively, with reference number 1.
- Page 48 (diagram): This page displays a diagram of machine body components, with numbered parts indicated by reference numbers.
- Page 49 (parts_list): This page lists parts for the machine body, including part numbers, descriptions, quantities, and remarks, with items such as bushings, pins, rubber caps, screws, and labels.
- Page 50 (diagram): This page displays a diagram of the upper shaft and needle bar mechanism, illustrating various components with reference numbers for identification.
- Page 51 (parts_list): This page lists parts for the Upper shaft and needle bar mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 52 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 53 (parts_list): This page lists parts for the Feed Mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 54 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with various parts numbered for identification.
- Page 55 (parts_list): This page lists parts for the C2, Feed mechanism section, including part numbers, descriptions, quantities, and remarks.
- Page 56 (diagram): This page displays a diagram of the feed mechanism, with numbered parts and their corresponding details.
- Page 57 (parts_list): This page lists parts for the C2, Feed mechanism section, including part numbers, descriptions, quantities, and reference numbers.
- Page 58 (diagram): This page displays a diagram of the feed mechanism for a solenoid type sewing machine, with numbered parts and their corresponding references.
- Page 59 (parts_list): This page lists parts for the C3, Feed mechanism (T1310) with part numbers, descriptions, quantities, and remarks.
- Page 60 (diagram): This page displays a diagram of the feed mechanism for pneumatic type sewing machines, including parts for models 311G and 326G.
- Page 61 (parts_list): This page contains a parts list for the C4, Feed mechanism section of an industrial sewing machine, listing part numbers, descriptions, quantities, and remarks.
- Page 62 (diagram): This page displays a diagram of the work clamp lifter mechanism, illustrating various components with reference numbers for identification.
- Page 63 (parts_list): This page lists parts for the D1, Work clamp lifter mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 64 (diagram): This page displays a diagram of the work clamp lifter mechanism for solenoid type machines, with numbered parts for identification.
- Page 65 (parts_list): This page lists parts for the D2, Work clamp lifter mechanism (T1310), including part numbers, descriptions, quantities, and remarks.
- Page 66 (diagram): This page displays a diagram of the work clamp lifter mechanism for pneumatic type machines, with numbered parts and their corresponding references.
- Page 67 (parts_list): This page lists parts for the D3, Work clamp lifter mechanism, including part numbers, descriptions, and quantities.
- Page 68 (diagram): This page displays a diagram of the lower shaft mechanism, illustrating various components with reference numbers for identification.
- Page 69 (parts_list): This page lists parts for the Lower shaft mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 70 (diagram): This page displays a diagram of the lubrication system for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 71 (parts_list): This page lists parts for the lubrication system, including various screws, covers, and oil tubes, with their corresponding part numbers, quantities, and remarks.
- Page 72 (diagram): This page displays a diagram of the lubrication system (F. 供油润滑装置 / Lubrication) for an industrial sewing machine, with various components numbered for identification.
- Page 73 (parts_list): This page lists parts for the lubrication system, including screws, washers, and felt beds, with their corresponding part numbers, descriptions, quantities, and reference numbers.
- Page 74 (diagram): This page displays a diagram of the threading mechanism for an industrial sewing machine, with numbered parts and their corresponding labels.
- Page 75 (parts_list): This page lists parts for the Threading mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 76 (diagram): This page displays a diagram of the bobbin winder mechanism, illustrating various components with reference numbers.
- Page 77 (parts_list): This page contains a parts list for the Bobbin winder mechanism, listing part numbers, descriptions, quantities, and remarks for various components.
- Page 78 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding details.
- Page 79 (parts_list): This page lists parts for the Thread Trimmer Mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 80 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
- Page 81 (parts_list): This page lists parts for the J, Cutting Device/Thread Trimmer Mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 82 (diagram): This page displays a diagram of the thread wiper mechanism, with numbered parts and their corresponding references.
- Page 83 (parts_list): This page lists parts for the K, Thread wiper mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 84 (diagram): This page displays a diagram of the tension release mechanism, with numbered parts and their corresponding details.
- Page 85 (parts_list): This page lists parts for the Tension Release Mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 86 (diagram): This page displays a diagram of the air pressure mechanism, illustrating various components with reference numbers.
- Page 87 (parts_list): This page contains a parts list for air pressure mechanisms, detailing part numbers, descriptions, quantities, and remarks for various components.
- Page 88 (diagram): This page displays a diagram of the power supply equipment mechanism, illustrating various components and their connections with reference numbers.
- Page 89 (parts_list): This page lists parts for the Q, Electrical Components/Power Supply Equipment Mechanism section, including part numbers, descriptions, quantities, and remarks.
- Page 90 (diagram): This page displays a diagram of the motor mechanism, with numbered parts and their corresponding references.
- Page 91 (parts_list): This page contains a parts list for the S, 马达装置/Motor mechanism section, listing part numbers, descriptions, quantities, and remarks for various components.
- Page 92 (diagram): This page displays diagrams for foot switch pedal mechanisms, including a solenoid type and a pneumatic type, with numbered parts for reference.
- Page 93 (parts_list): This page lists parts for a Foot switch pedal mechanism, including part numbers, descriptions, quantities, and remarks for solenoid and pneumatic types.
- Page 94 (diagram): This page displays a diagram of accessories and parts for an industrial sewing machine, with numbered components and their corresponding references.
- Page 95 (parts_list): This page lists parts for Z, Accessories, including part numbers, descriptions, and quantities.
- Page 96 (diagram): This page displays a diagram of accessories and parts for an industrial sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 97 (parts_list): This page lists parts for Z, Accessories, including various bolts, washers, and a holder absorber cover, with part numbers, descriptions, quantities, and remarks.
- Page 98 (parts_list): This page lists various presser feet and needle hole plates with their corresponding part numbers and dimensions, including a note that the asterisk symbol indicates standard parts.
Page 1 — SAFETY INSTRUCTIONS
Thank you very much for buying a JACK sewing machine. Before using your new machine, please read the safety instructions below and the explanations given in the instruction manual.
With industrial sewing machines, it is normal to carry out work while positioned directly in front of moving parts such as the needle and thread take-up lever, and consequently there is always a danger of injury that can be caused by these parts. Follow the instructions from training personnel and instructors regarding safe and correct operation before operating the machine so that you will know how to use it correctly.
SAFETY INSTRUCTIONS
[1] Safety indications and their meanings
This instruction manual and the indications and symbols that are used on the machine itself are provided in order to ensure safe operation of this machine and to prevent accidents and injury to yourself or other people.
The meanings of these indications and symbols are given below.
Indications
DANGER
The instructions which follow this term indicate situations where failure to follow the instructions may result in death or serious injury.
CAUTION
The instructions which follow this term indicate situations where failure to follow the instructions could cause injury when using the machine or physical damage to equipment and surroundings.
Symbols
This symbol (A) indicates something that you should be careful of. The picture inside the triangle indicates the nature of the caution that must be taken.
(For example, the symbol at left means "beware of injury".)
This symbol (O) indicates something that you must not do.
This symbol (1) indicates something that you must do. The picture inside the circle indicates the nature of the thing that must be done.
(For example, the symbol at left means "you must make the ground connection".)
jintex.in
i
Page 2
[2] Notes on safety
DANGER
Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from the wall outlet before opening the cover of the control box. Touching areas where high voltages are present can result in severe injury.
CAUTION
Environmental requirements
Use the sewing machine in an area which is free from sources of strong electrical noise such as electrical line noise or static electrical noise.
Sources of strong electrical noise may cause problems with correct operation.
Any fluctuations in the power supply voltage should be within ±10% of the rated voltage for the machine.
Voltage fluctuations which are greater than this may cause problems with correct operation.
The power supply capacity should be greater than the requirements for the sewing machine's power consumption.
Insufficient power supply capacity may cause problems with correct operation.
The pneumatic delivery capability should be greater than the requirements for the sewing machine's total air consumption.
Insufficient pneumatic delivery capability may cause problems with correct operation.
The ambient temperature should be within the range of 5°C to 35°C during use.
Temperatures which are lower or higher than this may cause problems with correct operation.
The relative humidity should be within the range of 45% to 85% during use, and no dew formation should occur in any devices.
Excessively dry or humid environments and dew formation may cause problems with correct operation.
In the event of an electrical storm, turn off the power and disconnect the power cord from the wall outlet. Lightning may cause problems with correct operation.
Installation
Machine installation should only be carried out by a qualified technician.
Contact your Brother dealer or a qualified electrician for any electrical work that may need to be done.
The sewing machine weighs approximately 88 kg.
The installation should be carried out by two or more people.
Do not connect the power cord until installation is complete. If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result.
Hold the machine head with both hands when tilting it back or returning it to its original position.
Furthermore, do not apply excessive force when tilting back the machine head. The sewing machine may become unbalanced and fall down, and serious injury or damage to the sewing machine may result.
Be sure to connect the ground. If the ground connection is not secure, you run a high risk of receiving a serious electric shock, and problems with correct operation may also occur.
All cords should be secured at least 25 mm away from any moving parts. Furthermore, do not excessively bend the cords or secure them too firmly with staples, otherwise there is the danger that fire or electric shocks could occur.
Install the safety covers to the machine head and motor.
If using a work table which has casters, the casters should be secured in such a way so that they cannot move.
Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that they do not get into your eyes or onto your skin. If the oil and grease get into your eyes or onto your skin, inflammation can result.
Furthermore, do not drink or eat the lubricating oil or grease. They may cause diarrhea or vomiting.
Keep the oil out of the reach of children.
ii
jintex.in
Page 3
CAUTION
Sewing
This sewing machine should only be used by
operators who have received the necessary training
in safe use beforehand.
The sewing machine should not be used for any
applications other than sewing.
Be sure to wear protective goggles when using the
machine.
If goggles are not worn, there is the danger that if a
needle breaks, parts of the broken needle may enter
your eyes and injury may result.
Turn off the power switch at the following times. If the
foot switch is depressed by mistake, the sewing
machine might start operating and injury could result.
When threading the needle
When replacing the bobbin and needle
When not using the machine and when leaving the
machine unattended
If using a work table which has casters, the casters
should be secured in such a way so that they cannot
move.
Attach all safety devices before using the sewing
machine. If the machine is used without these
devices attached, injury may result.
Do not touch any of the moving parts or press any
objects against the machine while sewing, as this
may result in personal injury or damage to the
machine.
If an error occurs in machine operation, or if abnormal
noises or smells are noticed, immediately turn off the
power switch. Then contact your nearest Brother
dealer or a qualified technician.
If the machine develops a problem, contact your
nearest Brother dealer or a qualified technician.
Cleaning
Turn off the power switch before carrying out
cleaning. If the foot switch is depressed by mistake,
the sewing machine might start operating and injury
could result.
Be sure to wear protective goggles and gloves when
handling the lubricating oil and grease, so that they
do not get into your eyes or onto your skin. If the oil
gets into your eyes or onto your skin,
inflammation can result.
Furthermore, do not drink or eat the lubricating oil or
grease. They may cause diarrhea or vomiting.
Keep the oil out of the reach of children.
Maintenance and inspection
Maintenance and inspection of the sewing machine
should only be carried out by a qualified technician.
Ask your Brother dealer or a qualified electrician to
carry out any maintenance and inspection of the
electrical system.
Turn off the power switch and disconnect the power
cord before carrying out the following operations. If
the foot switch is depressed by mistake, the sewing
machine might start operating and injury could result.
Inspection, adjustment and maintenance
Replacing consumable parts such as the rotary
hook
Disconnect the air hoses from the supply and wait
for the pressure gauge to drop to "0"
before carrying out inspection, adjustment and repair
of any parts which use the pneumatic equipment.
Hold the machine head with both hands when tilting it
back or returning it to its original position.
Furthermore, do not apply excessive force when
tilting back the machine head. The sewing machine
may become unbalanced and fall down, and serious
injury or damage to the sewing machine may result.
If the power switch needs to be left on when carrying
out some adjustment, be extremely careful to observe
all safety precautions.
Use only the proper replacement parts as specified
by Brother.
If any safety devices have been removed, be
absolutely sure to re-install them to their original
positions and check that they operate correctly before
using the machine.
Any problems in machine operation which result from
unauthorized modifications to the machine will not be
covered by the warranty.
jintex.in
iii
Page 4
[3] Warning labels
The following warning labels appear on the sewing machine.
Please follow the instructions on the labels at all times when using the machine. If the labels have been removed or are
difficult to read, please contact your nearest Brother dealer.
1
▲ 危険
高電圧部分にふれて、大けがを
することがある。電源を切り、5分たって
からカバーをはずすこと。
A DANGER
Hazardous voltage
will cause injury.
Turn off main switch
and wait 5minutes
before opening this
cover.
▲ GEFAHR
Verletzungsgefahr!
Bitte schalten Sie den
hauptschalter aus und
warten Sie 5 minuten,
bevor sie diese
abdeckung öffnen.
▲ 危険
触れる高電圧部分、会导致受伤。
在切断电源5分钟后,
再开启盖罩。
A PELIGRO
Un voltaje inadecuado
puede provocar las
heridas.Apagar el
interruptor principal y
esperar 5 minutos antes
de abrir esta cubierta.
2
▲ 注意
触れる運動部分、易造成受伤。
所以在装
上安全保护装置后,再进行缝纫操作。
在切断电源后,进行穿线,
机针和做扫,调整工作。
A CAUTION
Moving parts may cause injury. Operate with safe-
ty devices. Turn off main switch before threading,
changing bobbin and needle,cleaning etc.
3
▲
Be careful not to get your hand caught when
tilting back the machine head and returning it to
its original position.
4
PE
Be sure to connect the ground. If the ground
connection is not secure, you run a high risk of
receiving a serious electric shock, and problems
with correct operation may also occur.
5
Direction of operation
Safety devices
Devices such as eye guard,
finger guard, thread take-up
cover, motor cover, tension
release solenoid cover, inner
cover, outer cover, fixed cover
and gas spring support cover
Motor cover
Tension release
solenoid cover
Inner cover L
Outer cover
Fixed cover L
Thread take-up cover
Motor cover L
Eye guard
Inner cover R
Outer cover
Fixed cover R
4
Motor cover R
3
Finger guard
Gas spring support cover
iv
jintex.in
Page 5 — CONTENTS
CONTENTS
1. NAMES OF MAJOR PARTS
2. SPECIFICATIONS
3. INSTALLATION
3-1. Table processing diagram
3-2. Installing the control box
3-3. Installing the oil pan
3-4. Installing the machine head
3-5. Tilting the sewing machine head
3-6. Installing the treadle unit (solenoid specifications)
3-7. Installing the two-pedal foot switch (pneumatic specifications)
3-8. Installing the cotton stand
3-9. Installing the pneumatic unit(pneumatic specifications)
3-10. Installing the eye guard
3-11. Installing the motor cover
3-12. Lubrication
3-13. Installing the machine head fixing bolt
4. PREPARATION BEFOR SEWING
4-1. Installing the needle
4-2. Threading the upper thread
4-3. Winding the lower thread
4-4. Installing the bobbin case
4-5. Thread tension
4-5-1. Lower thread tension
4-5-2. Upper thread tension
5. SEWING
5-1. Sewing
5-2. Using the STOP switch
5-3. Using the thread wiper switch
6. CLEANING
6-1. Cleaning the rotary hook
6-2. Cleaning the control box air inlet ports
6-3. Draining the oil
6-4. Cleaning the eye guard
6-5. Checking the needle
6-6. Lubrication
7. STANDARD ADJUSTMENTS
7-1. Checking the machine head switch
7-2. Thread take-up spring
7-3. Arm thread guide R
7-4. Adjusting the needle bar height
7-5. Adjusting the needle bar lift amount
7-6. Adjusting the driver needle guard
7-7. Adjusting the needle clearance
7-8. Adjusting the shuttle race thread guide
7-9. Rotary hook lubrication amount
7-10. Adjusting the position of the movable knife
7-11. Replaceing the movable and fixed knives
7-12. Adjusting the thread wiper
7-13. Presser foot installation position
7-14. Chaning the intermittent stroke
7-15. Adjusting the work clamp lift amoun
7-16. Adjusting the air pressure(pneumatic specification)
8. TROUBLESHOOTING
jintex.in
Page 6 — 1. NAMES OF MAJOR PARTS
1. NAMES OF MAJOR PARTS
1. NAMES OF MAJOR PARTS
(9)
(10)
(15)
(11)
(8)
(14)
(3)
(13)
(4)
(2)
(1)
(12)
Two-pedal foot switch
(6)
(5)
(7)
(1) Power switch
(2) Control box
(3) USBslot
(4) Operation panel
(5) Foot switch (solenoid specifications)
(6) Work clamp switch (pneumatic specifications)
(7) Start switch (pneumatic specifications)
(8) STOP switch
(9) Thread wiper switch
(10) Pulley
(11) Cotton stand
(12) Solenoid valve (pneumatic specifications)
Safety devices:
(13) Finger guard
(14) Eye guard
(15) Thread take-up cover
(16) Motor cover
1
jintex.in
Page 7 — 2. SPECIFICATIONS
2. SPECIFICATIONS
T1310
T2210 A
S Solenoid-type work clamp lifter
A Pneumatic-type work clamp lifter
Sewing machine
Lock stitch, pattern tacking sewing machine (with large shuttle hook)
Stitch formation
Single needle lock stitch
Max. sewing speed
2,700 rpm
Sewing area (XxY)
T1310: Max. 130 x 100 mm,
T2210: Max. 220 x 100 mm
Feed mechanism
Intermittent feed, pulse motor drive
Stitch length
0.05-12.7 mm
No. of stitches
500,000-stitch internal memory (*)
Maximum no. of stitches
20,000 stitches (per program)
No. of sewing data items
that can be stored
Internal memory: 512 (*)
Work clamp lift method
Solenoid specifications: Pulse motor drive method
Pneumatic specifications: Pneumatic method
Work clamp height
Solenoid specifications: Max. 25 mm, pneumatic specifications: Max. 30 mm
2-step work clamp
Solenoid specifications: Integrated-type work clamp
Pneumatic specifications: Separate-type work clamp
Intermittent presser foot lift
amount
22 mm
Intermittent stroke
2-4.5 mm, 4.5-10 mm or 0 (Default setting 3 mm)
Rotary hook
Double-capacity shuttle hook (standard shuttle hook sold separately)
Wiper device
Standard equipment
Thread trimmer
Standard equipment
Data storage method
Internal memory (Flash memory)
User programs
50
Cycle programs
999
Motor
750 W
AC servo motor
Weights
Machine head approx. 88 kg, operation panel approx. 0.6 kg
Control box 14.2-16.2 kg (Differs depending on destination)
Power supply
Single-phase 100 V/220 V, Three-phase 200 V/220 V/380 V/400 V 400 VA
Air pressure
0.5 MPa 1.8 l/min.
* The number of data items and stitches that can be stored will vary depending on the number of stitches in each program.
2
jintex.in
Page 8
3. INSTALLATION
3. INSTALLATION
CAUTION
Machine installation should only be carried out by a
qualified technician.
Contact your Brother dealer or a qualified electrician
for any electrical work that may need to be done.
The sewing machine head weighs approximately
88kg. The installation should be carried out by two or
more people.
Do not connect the power cord until installation is
complete.
If the foot switch is depressed by mistake, the sewing
machine might start operating and injury could result.
Hold the machine head with both hands when tilting it
back or returning it to its original position.
Furthermore, do not apply excessive force when tilting
back the machine head. The sewing machine may
become unbalanced and fall down, and serious injury
or damage to the sewing machine may result.
All cords should be secured at least 25 mm away from
any moving parts. Furthermore, do not excessively
bend the cords or secure them too firmly staples, as
otherwise there is the danger that fire or electric
shocks could occur.
Be sure to connect the ground. If the ground
connection is not secure, you run a high risk of
receiving a serious electric shock, and problems with
correct operation may also occur.
Install the safety covers to the machine head and
motor.
3-1. Table processing diagram
• The thickness of the table should be at least 40 mm, and it should be strong enough to bear the weight and vibration of the
sewing machine.
• If the distance A between the insides of the legs is less than 740 mm, move the control box installation position to the left (B =
261mm).
• Check that the control box is at least 10 mm away from the leg. If the control box and the leg are too close together, it may result
in incorrect sewing machine operation.
(155)
(365)
1200
(800)
A(740)
386
B(261)
390.8 ±0.2
10
85.7
42.5
4-R20
Control box
mounting hole
4-08
$25 depth4
40±0.2
$50
4-R10
175
316±0.2
33.5
60
240
126
188
387 266
118
Treadle unit
mounting hole
$25 depth4
4-08
4-037.5 depth 5.5
21
45
262
483
(195)
Cotton stand
hole
255
620
Operation
panel
cord hole
8
40
3
jintex.in
Page 9 — 3. INSTALLATION
3. INSTALLATION
3-2. Installing the control box
Remove the eight screws (1), and then
remove the control box cover (2).
(3) Control box
(4) Bolts [4 pcs.]
(5) Plain washers [4 pcs.]
(6) Nuts [8 pcs.]
3-3. Installing the oil pan
For solenoid specifications, install the
treadle unit mounting bolt (A) before
installing the oil pan.
(1) Oil pan
(2) Nails [7 pcs.]
(3) Rubber cushions [4 pcs.]
(4) Waste oil tank
4
jintex.in
Page 10 — 3-4. Installing the machine head
3. INSTALLATION
3-4. Installing the machine head
(1) Pins [2 pcs.]
(2) Set screws [2 pcs.]
(3) Hinge rubber assemblies [2 pcs.]
Place the machine head gently on top of
the oil pan and the rubber cushions.
NOTE:
Be careful not to get the cords
clamped between the machine head
and the oil pan.
When holding the machine head, do
not hold it by the pulse motor. This
may cause problems with operation
of the pulse motor.
Pulse motor
Approx. 20 mm
(1)
(3)
(1)
(2)
(3)
(4) Hinge holders [2 pcs.]
(5) Bolts [4 pcs.]
(6) Plain washers [4 pcs.]
(7) Nuts [4 pcs.]
(8) Head rest
(9) Bolts with washer [4 pcs.]
5
jintex.in
Page 11 — 3. INSTALLATION
3. INSTALLATION
(10) Auxiliary plate
(11) Bolts with washer [10 pcs.]
Loosen the bolts with washer (12) and
adjust so that the auxiliary plate (10) and
the needle plate are at the same height.
NOTE:
Install the auxiliary plate so that it is
horizontal.
Needle plate
(10)
(12)
(11)
(11)
Work clamp arm
Move the work clamp arm all the way to
the right when looking from the front of
the sewing machine (the direction of the
arrow in the illustration), and then gently
tilt back the machine head.
NOTE:
Two or more people should tilt back the
machine head, and it should be tilted
gently while being held with both
hands.
6
jintex.in
Page 12 — 3. INSTALLATION
3. INSTALLATION
(13) Gas spring holders [2 pcs.]
(14) Spacer
(15) Bolt
(16) Nut
(17) Gas spring
(18) Shaft collars [2 pcs.]
(19) Gas spring shaft D
(20) Plain washers [2 pcs.]
(21) Retaining rings E [2 pcs.]
(22) Bolts [2 pcs.]
(23) Plain washers (medium) [2 pcs.]
(24) Plain washers (large) [2 pcs.]
(25) Spring washers [2 pcs.]
(26) Nuts [2 pcs.]
(27) Gas spring shaft U
(28) Set screw
NOTE:
For solenoid specifications, the bolts
(22), plain washers (23), plain washers
(24), spring washers (25) and nuts (26)
in the places marked with * are also
used to install the treadle unit.
(29) Gas spring support cover
(30) Bolts with washer [6 pcs.]
7
jintex.in
Page 13 — 3. INSTALLATION
3. INSTALLATION
(33)
(31)
(32)
Figure 1
Oil pan
M3 X 20
• Gently return the machine head to its original position.
• Loosen the screw (31). Move the machine head switch (32) to the position shown in the illustration, and then secure the machine
head switch (32) with the screw (31) and the accessory M3x20 screw (33).
• Check that the machine head switch (32) is turned on as shown in figure 1.
8
jintex.in
Page 14 — 3-5. Tilting the sewing machine head
3. INSTALLATION
3-5. Tilting the sewing machine head
(1)
CAUTION
(2)
1. Move the presser arm assembly (1) as far as it will go in the direction of the arrow in the illustration (to the right when looking
from the front of the sewing machine).
2. Stand at the left side of the table, and gently tilt the machine head towards you.
NOTE:
Always be sure to move the work clamp arm all the way to the right before tilting back the machine head. If you try to tilt back the
machine head while the work clamp arm is still on the left side, it may damage the outer cover L (2).
9
jintex.in
Page 15 — 3. INSTALLATION
3. INSTALLATION
3-6. Installing the treadle unit (solenoid specifications)
(1) Treadle unit
(2) Bolts [3 pcs.]
(3) Plain washers [3 pcs.]
(4) Spring washers [3 pcs.]
(5) Nuts [3 pcs.]
NOTE:
Install the bolt for mounting hole A before installing the oil
pan. (Refer to "3-3. Installing the oil pan.")
Mounting hole B is used to install the gas spring supports
with the bolt, plain washer, spring washer and nut. (Refer
to "3-4. Installing the machine head".)
Use a commercially-available foot switch and connecting rod.
If changing the mounting position for the treadle unit, use the
accessory bolts, plain washers, spring washers and nuts.
<Foot switch operating method>
When the foot switch is depressed to the 1st step, the work
clamp is lowered, and when it is depressed to the 2nd step, the
sewing machine starts sewing.
1st step
2nd step
3-7. Installing the two-pedal foot switch (pneumatic specifications)
(1) Foot switch
Insert the connector for the foot switch (1) into P6 (FOOT) on
the main P.C. board.
<Foot switch operating method>
When the work clamp switch (left) is depressed, both work
clamps are lowered, and when the start switch (right) is
depressed, the sewing machine starts sewing.
Work clamp switch (2-step)
Start switch
10
jintex.in
Page 16 — 3. INSTALLATION
3-8. Installing the cotton stand
3. INSTALLATION
(1) Cotton stand
NOTE:
Fit the washer (2), and then securely
tighten the nut (3) so that the cotton
stand does not move.
11
Page 17 — 3-9. Installing the pneumatic unit (pneumatic specifications)
3. INSTALLATION
3-9. Installing the pneumatic unit (pneumatic specifications)
Install underneath the work table.
(1) Solenoid valve assembly
(2) Washers [2 pcs.]
(3) Wood screws [2 pcs.]
(4) Rubber hose
After installing the pneumatic unit, adjust
the air pressure.
(Refer to "10-16. Adjusting the air
pressure".)
NOTE:
Make sure that the pneumatic unit
does not touch the control box or the
work table leg.
Connect each air tube to the position with the corresponding number.
Cylinder R
(1A)
(1B)
Cylinder L
(2A)
(2B)
(2A)
(2B)
Upper knob
Lower knob
Manual button
<Adjusting the speed controller>
You can use the valve knobs to adjust the lifting and lowering speeds.
The valve knobs should be adjusted so that the left and right sides of the work clamp operate at the same speed.
When the upper knob is tightened, the lifting speed becomes slower. When it is loosened, the lifting speed becomes faster.
When the lower knob is tightened, the lowering speed becomes slower. When it is loosened, the lowering speed becomes
faster.
You can operate the work clamp while the power is turned off by pressing the manual button.
12
jintex.in
Page 18 — 3. INSTALLATION
3. INSTALLATION
3-10. Installing the eye guard
CAUTION
Attach all safety devices before using the sewing machine.
If the machine is used without these devices attached, injury may result.
(1) Eye guard assembly
(2) Plain washers [2 pcs.]
(3) Screws [2 pcs.]
3-11. Installing the motor cover
(1) Motor cover R
(2) Screws [4 pcs.]
(3) Motor cover L
(4) Screws [4 pcs.]
(5) Motor cover
(6) Screws [4 pcs.]
NOTE:
Be careful not to clamp the cords when
installing the motor cover.
13
jintex.in
Page 19 — 3-12. Lubrication
3. INSTALLATION
3-12. Lubrication
CAUTION
Do not connect the power cord until lubrication is complete.
If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result.
Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that they do not get into
your eyes or onto your skin. If the oil and grease get into your eyes or onto your skin, inflammation can result.
Furthermore, do not drink or eat the lubricating oil or grease. They may cause diarrhea or vomiting.
Keep the oil out of the reach of children.
The sewing machine should always be lubricated and the oil supply replenished before it is used for the first time, and also after
long periods of non-use.
Use only the lubricating oil specified by Jack
1. Fill the arm-side oil tank with oil.
2. Move the work clamp arm (1) as far as it will go to the right when looking from the front of the sewing machine, and then slide the
outer cover L (2) into the inner cover L (3) so that the lubrication hole in the bed is visible. Pour oil into the bed side oil tank
through this hole.
NOTE:
Be sure to fill the machine with oil when the oil level is down to about one-third full in the oil sight glass. If the oil drops below the
one-third level, there is the danger that the machine may seize during operation.
(4)
(5)
3. Pour oil in through the two holes (4) of the shuttle race base assembly so that the felt is lightly moistened.
NOTE:
If there is no more oil on the felt of the shuttle race base assembly, problems with sewing may result.
4. If using the liquid cooling tank (5), fill it with silicon oil (100 mm²/s).
14
jintex.in
Page 20 — 3-13. Installing the machine head fixing bolt
3. INSTALLATION
3-13. Installing the machine head fixing bolt
When transporting the sewing machine, secure the machine head to the table with the machine head fixing bolt.
(1) Plain washer
(2) Machine head fixing bolt
NOTE:
When operating the sewing machine,
remove the machine head fixing bolt.
15
Page 21 — 4. PREPARATION BEFORE SEWING
4. PREPARATION BEFORE SEWING
4. PREPARATION BEFORE SEWING
4-1. Installing the needle
CAUTION
Turn off the power switch before installing the needle.
If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result.
1. Loosen the set screw (1).
2. Insert the needle (2) in a straight line as far as it will go,
making sure that the long groove on the needle is at the
front, and then securely tighten the set screw (1).
4-2. Threading the upper thread
Thread the upper thread correctly as shown in the illustration below.
When using threading mode for threading, the tension discs (1) will open so that the thread can be threaded more easily.
(Refer to following page.)
[If using cotton thread or spun thread]
(3)
8
9
6
10
11
12 40mm
(1)
(2)
[If using synthetic thread]
Turn the machine pulley (2) and raise the thread take-up (3) to its highest position before threading the upper thread.
(This will make threading easier and it will prevent the thread from coming out at the sewing start.)
When threading the thread through the needle, allow a distance of approximately 40 mm between the needle hole and the
end of the thread.
If the trailing length of the thread is too long, it may cause the thread to become tangled.
16
Page 22 — 4. PREPARATION BEFORE SEWING
4. PREPARATION BEFORE SEWING
<Threading mode>
Threading mode is safe because the sewing machine will not start even when the foot switch is depressed.
1
Turn on the power switch.
2
Press the home position key
Press the threading key, and the key
!
The work clamp will drop.
3
Threading the thread.
4
Ending threading mode
Press the threading key, and the key change
!
The work clamp will return to where it was before
threading mode was started.
17
jintex.in
Page 23 — 4-3. Winding the lower thread
4. PREPARATION BEFORE SEWING
4-3. Winding the lower thread
CAUTION
Do not touch any of the moving parts or press any objects against the machine while winding the lower thread.
Injury or damage to the sewing machine may result.
(2)
(1)
(3)
ON
OFF
(4)
(5)
(6)
(7)
(8)
(9)
(10)
For case A
For case B
1. Place the bobbin onto the bobbin winder shaft (1).
2. Thread the thread as shown in the illustration, wind the thread
around the bobbin several times, and then press the bobbin presser
arm (2).
3. Turn on the power switch.
4. Press the tire position key (3), the sewing machine move to the
tire position.
5. Check that the needle does not touch the clamp, and then press
the bobbin winder key (4), the bobbin winder key (4) change to
the bobbin winder key (5), and it keep in the
state "ON", depress the foot switch to the 2nd step, and it will
start wind.
(If using a two-pedal foot switch, depressing the start switch
two-pedal foot switch)
6. Once winding of set amount of lower thread (80%-90% of the
bobbin capacity) is completed, the bobbin presser arm (2) will
return automatically.
7. Remove the bobbin, hook the thread onto the knife (6), and then
pull the bobbin in the direction of the arrow to cut the thread.
Adjusting the bobbin winding amount
Loosen the screw (7) and move the bobbin presser (8) to
adjust.
If the thread winds onto the bobbin unevenly
Loosen the set screw (9) and move the bobbin winder
tension assembly (10)up and down to adjust.
* For case A, move the bobbin winder tension assembly
(10)down, and for case B, move it upward.
18
jintex.in
Page 24 — 4-4. Installing the bobbin case
4. PREPARATION BEFORE SEWING
4-4. Installing the bobbin case
A CAUTION
Turn off the power switch before installing the bobbin case.
If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result.
(3)
(2)
(1)
(4)
30mm
1. Pull the shuttle race cover (1) downward to open it.
2. While holding the bobbin so that the thread winds to the right, insert the bobbin into the bobbin case.
3. Pass the thread through the slot (2) and pull it out from the thread hole (3).
4. Check that the bobbin turns in the direction of the arrow when the thread is pulled.
5. Pass the thread through the lever thread hole (4), and then pull out approximately 30 mm of thread.
6. Hold the latch on the bobbin case and insert the bobbin case into the rotary hook.
19
Jinttex.in
Page 25 — 4-5. Thread tension
4. PREPARATION BEFORE SEWING
4-5. Thread tension
[Thread tension reference]
Specifications
Heavy-weight materials (-01)
Medium-weight materials (-02)
Upper thread
#20 or similar
#50 or similar
Lower thread
#20 or similar
#50 or similar
Upper thread tension (N)
1.4-1.8
0.8-1.2
Lower thread tension (N)
0.2-0.3
Pre-tension (N)
0.1-0.6
0.1-0.3
Needle
DP x 17 #19
DP x 5 #16
Normal sewing speed
2,000 rpm
2,000 rpm
4-5-1. Lower thread tension
Adjust the thread tension to the weakest possible tension by
turning the thread tension nut (1) until the bobbin case will
not drop by its own weight while the thread end coming out
of the bobbin case is held.
(1)
Stronger
Weaker
4-5-2. Upper thread tension
1. Turn the tension nut (1) (main tension) to adjust the
tension as appropriate for the material being sewn.
2. Use the tension nut (2) (sub tension) to adjust the upper
thread trailing length to about 40 mm.
(2)
Stronger
Weaker
20
jintex.in
Page 26 — 5. SEWING
5. SEWING
5. SEWING
CAUTION
Turn off the power switch at the following times.
If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result.
• When threading the needle
• When replacing the bobbin and needle
• When not using the machine and when leaving the machine unattended
Do not touch any of the moving parts or press any objects against the machine while sewing, as this may result in
personal injury or damage to the machine.
(1)
1. Turn on the power switch.
2. Press the ← or → key to turn on the page, and press the
data key to select the sewing program.
1st step
2nd step
3. Press the time position key(1), the sewing machine will
move to the loading position.
(4)
(2)
4. Place the article to be sewn underneath the work clamp
(3).
5. Depress the foot switch to the 1st step.
(If using a two-pedal foot switch, depress the work
clamp switch (4).)
• The work clamp (3) will drop.
6. Depress the foot switch to the 2nd step.
(If using a two-pedal foot switch, depress the start switch
(2).)
• The sewing machine will start sewing.
7. When sewing is complete, the thread will be trimmed
and the work clamp (3) will rise.
Use a work clamp that hold the article being sewn firmly, without allowing it to slip.
If using the standard work clamp and feed plate and the article being sewn is slipping, take measures to stop the work
clamp and feed plate from being slippery.
21
jintex.in
Page 27 — 5. SEWING
5. SEWING
5-2. Using the STOP switch
If you press the STOP switch (1) while sewing or test feeding is in progress, the sewing machine will stop immediately.
(1)
«Continuing sewing from a stopping point>
If you have pressed the STOP switch (1) at times such as if the thread breaks while sewing or the lower thread runs out, you can resume sewing from the point where the thread ran out.
Depress the foot switch to the 2nd step.
(If using a two-pedal foot switch, depress the start switch.)
• The sewing machine will start operating and sewing will start.
2nd step
5-3. Using the thread wiper switch
The thread wiper switch (1) can be used to turn the thread
wiper (2) on and off.
(1)
(2)
jintex.in
22
Page 28 — 6. CLEANING
6. CLEANING
6. CLEANING
A CAUTION
Turn off the power switch before carrying out cleaning.
If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result.
Be sure to wear protective goggles and gloves when handling the lubricating oil and grease, so that they do not get
into your eyes or onto your skin. If the oil and grease get into your eyes or onto your skin, inflammation can result.
Furthermore, do not drink or eat the lubricating oil or grease. They may cause diarrhea or vomiting.
Keep the oil out of the reach of children.
6-1. Cleaning the rotary hook
1. Pull the shuttle race cover downward to open it, and then
remove the bobbin case.
(1)
(3)
(2)
2. Open the setting claw (1) in the direction indicated by the
arrow, and then remove the shuttle race base (2) and the
shuttle hook (3).
(4)
3. Clean all the dust and thread ends from around the driver
(4), the top of the rotary hook thread guide and the
shuttle race.
23
jintex.in
Page 29 — 6. CLEANING
6. CLEANING
6-2. Cleaning the control box air inlet ports
Use a vacuum cleaner to clean the filter in the air inlet ports
(2) of the control box (1) at least once a month.
(1)
(2)
6-3. Draining the oil
1. Remove and empty the waste oil tank (1) whenever it is
full.
2. After emptying the waste oil tank (1), screw it back into
its original position.
(1)
6-4. Cleaning the eye guard
Wipe the eye guard clean with a soft cloth.
NOTE:
Do not use solvents such as kerosene or thinner to clean
the eye guard.
6-5. Checking the needle
Always check that the tip of the needle is not broken and
also that the needle is not bent before starting sewing.
6-6. Lubrication
Lubricate the sewing machine while referring to "3-11. Lubrication".
jintex.in
24
Page 30 — 7. STANDARD ADJUSTMENTS
7. STANDARD ADJUSTMENTS
CAUTION
Maintenance and inspection of the sewing machine
should only be carried out by a qualified technician.
Ask your Brother dealer or a qualified electrician to
carry out any maintenance and inspection of the
electrical system.
Turn off the power switch and disconnect the power
cord before carrying out the following operations:
If the foot switch is depressed by mistake, the sewing
machine might start operating and injury could result.
Inspection, adjustment and maintenance
Replacing consumable parts such as the rotary
hook
7-1. Checking the machine head switch
Hold the machine head with both hands when tilting it
back or returning it to its original position.
In addition, do not apply excessive force when tilting
head. The sewing machine may
become unbalanced and fall down, and serious injury
or damage to the machine may result.
If the power switch needs to be left on when carrying
out some adjustments, be extremely careful to
observe all safety precautions.
If any safety devices have been removed, be
absolutely sure to re-install them to their original
positions and check that they operate correctly
before using the machine.
Check that the machine head switch is turned on as shown
in the illustration.
25
Jintez.in
Page 31 — 7-2. Thread take-up spring
7. STANDARD ADJUSTMENTS
7-2. Thread take-up spring
Specifications
Heavy-weight materials (-01)
Medium-weight materials (-02)
Thread take-up spring
height (mm)
7-10
Thread take-up spring
tension (N)
0.6-1.2
0.2-0.5
<Thread take-up spring height>
Loosen the set screw (1) and turn the adjuster to adjust.
<Thread take-up spring tension>
Turn the tension stud (2) with a screwdriver to adjust the
tension.
NOTE:
If the thread tension spring is not adjusted correctly, the upper thread trailing length will be uneven after thread trimming.
7-3. Arm thread guide R
More thread
Less thread
(1)
Index mark
The standard position of arm thread guide R (1) is when the
screw (2) is aligned with the index mark.
Loosen the screw (2) and move arm thread guide R (1) to
adjust.
When sewing heavy material, move arm thread guide R
(1) to the left. (The thread take-up amount will become
greater.)
When sewing light material, move arm thread guide R
(1) to the right. (The thread take-up amount will become
less.)
26
jintex.in
Page 32
7. STANDARD ADJUSTMENTS
7-4. Adjusting the needle bar height
(1)
A
DP X 17
(DP X 5)
(2)
(3)
Turn the machine pulley to move the needle bar to the lowest position. Then remove the rubber plug (2), loosen the screw
(3) and then move the needle bar up or down to adjust so that the second reference line from the bottom of the needle bar
(reference line A) is aligned with the lower edge of the needle bar bush (1).
If using a DP X 5 needle, use the highest reference line (reference line a).
7-5. Adjusting the needle bar lift amount
Needle center
(1)
(3)
(2)
b
B
(DP X 5)
DP X 17
Turn the machine pulley to raise the needle bar from the lowest position until the lowest reference line on the needle bar
(reference line B) is aligned with the lower edge of the needle bar bush (1), and then loosen the bolt (2) and move the driver
(3) so that the tip of the rotary hook is aligned with the center of the needle.
If using a DP X 5 needle, use the second reference line from the top of the needle bar (reference line b).
7-6. Adjusting the driver needle guard
Needle center
Rotary hook tip
(1)
(3)
(2)
Turn the machine pulley to align the tip of the rotary hook with the center of the needle, and then loosen the set screw (2)
and turn the eccentric shaft (3) to adjust so that the driver needle guard (1) is touching the needle.
NOTE:
If it crosses the needle more than necessary, it will place a load on the needle, or it may cause poor thread tension.
Furthermore, if it does not cross the needle at all, the tip of the rotary hook will interfere with the needle and skipped
stitches may occur.
27
jintex.in
Page 33 — 7. STANDARD ADJUSTMENTS
7. STANDARD ADJUSTMENTS
7-7. Adjusting the needle clearance
0.01 - 0.08mm
(1)
(2)
Turn the machine pulley to align the tip of the rotary hook with the center of the needle, and then loosen the set screw (1)
and turn the eccentric shaft (2) to adjust so that the clearance between the needle and the rotary hook is 0.01 - 0.08 mm.
7-8. Adjusting the shuttle race thread guide
(1)
Install the shuttle race thread guide (1) by pushing it in the direction of the arrow so that the needle groove is aligned with
the center of the needle plate hole.
NOTE:
If the shuttle race thread guide is in the wrong position, thread breakages, soiled thread or tangling of the thread may
occur.
The position of the shuttle race thread guide is adjusted at the time of shipment from the factory. It should not be
changed if possible.
7-9. Rotary hook lubrication amount
More oil
Less oil
(1)
Aligned
The optimum position is when the head of the set screw (1)
is aligned with the edge of the bed. The rotary hook
lubrication amount can be adjusted within three turns to the
right from that position.
• If the set screw (1) is turned clockwise, the lubrication
amount becomes smaller.
• If the set screw (1) is turned counterclockwise, the
lubrication amount becomes greater.
28
Page 34 — 7-10. Adjusting the position of the movable knife
7. STANDARD ADJUSTMENTS
7-10. Adjusting the position of the movable knife
<View from side of thread trimmer cam>
(1)
(2)
(3)
(4)
(5)
Reverse position
(6)
9.5-9.9mm
(8)
(9)
(7)
4. Loosen the bolt (7).
5. Move the thread trimming rod H (9) forward or back to adjust so that the distance from the ridge line on the right side of
the needle plate to the movable knife (8) is 9.5 – 9.9 mm.
6. After tightening the bolt (7), check the above position once more.
29
jintex.in
Page 35 — 7. STANDARD ADJUSTMENTS
7. STANDARD ADJUSTMENTS
(1)
(11)
(5)
(10)
(3)
(4)
0-1 mm
(8)
(12)
7. Turn the pulley (1) by hand to move the needle bar to its lowest position.
8. Loosen the nut (10), tighten the set screw (11) until the collar (3) is touching the inside of the groove in the thread trimmer
cam (4), and then turn it back in the counterclockwise direction by approximately 1/4 of a turn.
9. Tighten the nut (10), and then check that the collar (3) is not touching the inside of the groove in the thread trimmer cam
(4). In addition, push the driving lever (5) by hand toward the thread trimmer cam until the collar (3) touches the groove of
the thread trimmer cam (4), and then check that the driving lever (5) returns smoothly to its original position when it is
released.
10. Check that there is a gap of about 0 - 1 mm between the outside of the hole in the movable knife (8) and the ridge line on
the shuttle race thread guide (12) when there is still play between the parts.
jintex.in
30
Page 36 — 7-11. Replacing the movable and fixed knives
7. STANDARD ADJUSTMENTS
7-11. Replacing the movable and fixed knives
(2)
(1)
(3)
(4)
(5)
(7)
(6)
1. Loosen the two bolts (1) and then remove the feed plate (2).
2. Open the shuttle race cover, remove the two screws (3) and the two flat screws (4), and then remove the needle plate (5).
3. Remove the movable knife (6) and the fixed knife (7).
(10)
(8)
(9)
(6)
0.5mm
1.0mm
(11)
(7)
(5)
(12)
(13)
4. Install the new fixed knife (7) in the position shown in the illustration.
5. Apply grease to the outside of the collar (8) and to the shoulder screw (9), and then install the new movable knife (6)
together with the thrust washer (10) and the movable knife spacer (11).
6. Check that the movable knife (6) and fixed knife (7) cut the thread cleanly. Replace the movable knife spacer with
accessory spacers (t=0.2, 0.3, 0.4) so that the knives trim the thread accurately.
* If the knife pressure is too weak and the thread is not completely cut, use a thinner movable knife spacer.
* If the knife pressure is too strong and the movable knife (1) turns stiffly, use a thicker movable knife spacer.
7. Apply grease to the pin (12), place it into the movable knife connecting plate (13), and install it to the needle plate (5).
8. Check that the needle is aligned with the center of the needle hole.
31
jintex.in
Page 37 — 7. STANDARD ADJUSTMENTS
7. STANDARD ADJUSTMENTS
7-12. Adjusting the thread wiper
(4)
(1)
(3)
15mm
(2)
(2)
Approx. 2mm
Approx. 3mm
1. Loosen the two screws (3) and shift the entire solenoid setting plate (4) up or down to adjust so that the thread wiper (2) is
15 mm in front of the needle center when the plunger (1) of the thread wiper solenoid is driven to the full stroke.
2. Loosen the screw (5) and adjust the position of the thread wiper (2) so that the distance from the thread wiper to the tip of
the needle is approximately 2 mm and the tip of the thread wiper (2) is approximately 3 mm from the center of the needle
when the thread wiper (2) passes below the needle during operation.
Note: Check that the thread wiper (2) does not touch the finger guard.
7-13. Presser foot installation position
(1)
(2)
22mm
Install the presser foot (1) with the screw (2) so that the
distance from the bottom of the presser foot to the top of the
needle plate is 22 mm when the sewing machine is stopped
and the presser foot (1) is raised.
jintex.in
32
Page 38 — 7-14. Changing the intermittent stroke
7. STANDARD ADJUSTMENTS
7-14. Changing the intermittent stroke
The intermittent stroke can be adjusted to within 2 - 10 mm by adjusting the position of the stepping clamp connecting rod
and changing the installation position of stepping clamp link A.
<Changing the installation position of stepping clamp link A>
(1)
(3)
(2)
A
(3)
B
C
(2)
(1)
1. Remove the face plate.
2. Remove the two screws (1) and the two shoulder screws (2), and then remove stepping clamp link A (3).
3. Change the installation position for stepping clamp link A (3) to either A, B or C above.
If the position of the stepping clamp connecting rod is adjusted as described in the following at any one of the installation
positions, the adjustment range for the intermittent stroke will as given in the following table.
Installation position
Intermittent stroke range
A
2-4.5mm
B
4.5-10mm
C
0 mm (Presser foot does not move up and down)
33
Jinttex.in
Page 39
7. STANDARD ADJUSTMENTS
<Stepping clamp connecting rod position adjustment>
(2)
(4)
(3)
(1)
b
(DP X 5)
(5)
B
DP X 17
(6)
Index mark
(7)
(4)
(6)
1. Loosen the screw (1), and then open the cover (2).
2. Loosen the nut (3), and then adjust the position of the stepping clamp connecting rod (4).
• When the stepping clamp connecting rod (4) is raised, the intermittent stroke will increase.
• When the stepping clamp connecting rod (4) is lowered, the intermittent stroke will decrease.
Next, adjust the needle bar and presser foot timing.
3. Turn the machine pulley to raise the needle bar from the lowest position until the lowest reference line on the needle bar
(reference line B) is aligned with the lower edge of the needle bar bush (5).
(If using a DP x 5 needle, align with the second reference line from the top (reference line b).)
4. Open the top cover and loosen the two set screws (6).
5. Align the index marks on the stepping clamp cam (7) and the stepping clamp connecting rod (4), and then tighten the set
screws (6).
Check the following after changing the intermittent stroke.
(2)
(3)
(1)
Needle plate
(4)
(6)
(7)
(5)
1. With the intermittent presser foot (1) lowered, turn the pulley to move the intermittent presser foot (1) to its lowest
position.
2. Check that the presser foot (1) does not touch the needle plate and that the presser bar clamp (2) does not touch
the presser bar bush (3).
<If they are touching>
Remove the motor cover (4).
Loosen the nut (5), and turn the bolt (6) until it is pressing against the intermittent drive lever (7), and then adjust until
the two points mentioned above are not touching.
jintex.in
34
Page 40 — 7-15. Adjusting the work clamp lift amount
7-16. Adjusting the air pressure (pneumatic specifications)
7. STANDARD ADJUSTMENTS
7-15. Adjusting the work clamp lift amount
<Solenoid specifications>
The operation panel settings can be used to adjust the height to within 15 – 25 mm. (Refer to "5-7. Setting the work clamp lift
amount.")
<Pneumatic specifications>
The maximum lift amount for the work clamp is 30 mm above the top of the needle plate.
(1)
(2)
(3)
(4)
(3)
Max. 30mm
1. Turn on the air, and depress the work clamp switch (1) to raise the work clamp (2).
2. Loosen the two bolts (4) of the work clamp arm lever (3), and move the work clamp arm lever (3) up or down to adjust.
7-16. Adjusting the air pressure (pneumatic specifications)
Lift up the handle (2) of the regulator (1) and then turn it to
adjust the air pressure to 0.5 MPa.
After adjustment is complete, push the handle (2)
downward to lock it.
If water has collected in the bottle of the regulator (1), turn
the drain cock (3) in the direction indicated by an arrow to
drain the water.
NOTE:
Open the air cock (4) slowly.
35
jintex.in
Page 41 — 8. TROUBLESHOOTING
8. TROUBLESHOOTING
8. TROUBLESHOOTING
• Please check the following points before calling for repairs or service.
• If the following remedies do not fix the problem, turn off the power switch and consult a qualified technician or the place of
purchase.
CAUTION
Turn off the power switch and disconnect the power cord before carrying out troubleshooting.
If the foot switch is depressed by mistake, the sewing machine might start operating and injury could result.
Problem
Cause
Remedy
Reference
Work clamp does not
lift.
Air tube of presser lifter cylinder is bent
or damaged (Pneumatic specifications).
Apply a suitable amount of grease to the
sliding parts of the work clamp.
Work clamp does not
drop.
Work clamp moves stiffly.
Apply a suitable amount of grease to the
sliding parts of the work clamp.
Air tube of presser lifter cylinder is bent
or damaged (Pneumatic specifications).
Straighten the bend in the tube or
replace the tube.
Work clamp lift amount
is incorrect.
Work clamp lift amount setting at
operation panel is incorrect (Solenoid
specifications).
Change the work clamp lift amount
setting.
Work clamp does not
lift to the maximum
height.
Work clamp arm stopper position is
incorrect (Solenoid specifications).
Adjust the position of the work clamp
arm lever.
P. 35
Cylinder joint position is incorrect.
(Pneumatic specifications)
Adjust the position of the cylinder joint.
Thread wiper does
not operate correctly.
The thread wiper is obstructing the
needle.
Adjust the height of the thread wiper.
P. 32
Adjust the stroke of the thread wiper.
P. 32
Thread wiper position is incorrect.
Lower thread winds
to one side.
Bobbin winder tension assembly height
is incorrect.
Adjust the height of the bobbin winder
tension assembly.
P. 18
Lower thread winding
amount is incorrect.
Bobbin presser position is incorrect.
Adjust the position of the bobbin presser.
P. 18
Thread slips out of
the needle.
Stitches being skipped at the sewing
start.
Refer to "Skipped stitches occur".
P. 37
Upper thread length is irregular.
Adjust the sub-tension.
P. 20
Position of shuttle race thread guide is
incorrect
Adjust the position of the shuttle race
thread guide.
P. 28
36
jintex.in
Page 42
8. TROUBLESHOOTING
Problem
Cause
Remedy
Reference
Upper thread breaks.
Upper thread tension is too strong.
Adjust the upper thread tension.
P. 20
Needle is incorrectly installed.
Install the needle correctly.
P. 16
Thread is too thick for the needle.
Select a thread that matches the needle.
P. 20
Thread take-up spring tension and
height are incorrect.
Adjust the tension and height of the
thread take-up spring.
P. 26
Damage or burring of the rotary hook,
needle hole plate or needle.
Repair or replace the problem part.
P. 16
Thread breaking from heat (Synthetic
thread)
Use a cooling tank.
P. 16
Thread is threaded incorrectly.
Thread the thread correctly.
P. 16
Lower thread breaks.
Lower thread tension is too strong.
Adjust the lower thread tension.
P. 20
Damage to corners of needle hole plate
or bobbin case.
Repair or replace the problem part.
Skipped stitches occur.
Clearance between needle and rotary
hook tip is too great.
Adjust the needle clearance.
P. 28
Needle and rotary hook timing is
incorrect.
Adjust the needle bar lift amount.
P. 27
The driver is covering the needle more
than necessary.
Adjust the driver needle guard.
P. 27
Needle is bent.
Replace the needle.
P. 16
Needle is incorrectly installed.
Install the needle correctly.
P. 16
Needle is broken.
Clearance between needle and rotary
hook tip is too great.
Adjust the needle clearance.
P. 28
Adjust the needle bar lift amount.
P. 27
Needle is bent.
Replace the needle.
P. 20
Needle deflection
Select a needle that is suitable for the
sewing conditions.
Reduce the sewing speed.
P. 20
Needle is too thin.
Select a needle that is suitable for the
sewing conditions.
P. 20
Thread jamming.
Thread take-up spring tension and
height are incorrect.
Adjust the tension and height of the
thread take-up spring.
P. 26
Needle and rotary hook timing is
incorrect.
Adjust the needle bar lift amount.
P. 27
Shuttle race thread guide is not
separating the threads.
Adjust the position of the shuttle race
thread guide.
P. 28
37
jintex.in
Page 43
8. TROUBLESHOOTING
Problem
Cause
Remedy
Reference
Upper thread is not
trimmed.
Movable knife is not cutting cleanly.
Replace with a new one.
P. 31
Fixed knife is not cutting cleanly.
Sharpen the fixed knife or replace it
with a new one.
P. 31
Movable knife is not picking up the
upper thread.
Adjust the position of the shuttle race
thread guide.
P. 28
Movable knife is not picking up the
upper thread because the last stitch is
being skipped.
Refer to "Skipped stitches occur".
P. 37
Movable knife position is incorrect.
Adjust the position of the movable
knife.
P. 29
Sub-tension is too weak.
Turn the sub-tension nut to adjust the
tension.
P. 20
Poor stitch finish on
underside of material.
Shuttle race thread guide is not
separating the threads enough.
Adjust the position of the shuttle race
thread guide.
P. 28
Incorrect tightening of the upper thread
Adjust the upper thread tension.
P. 20
Upper thread length is irregular.
Adjust the sub-tension.
P. 20
Incorrect tightening of
the thread
Upper thread tension is too weak.
Adjust the upper thread tension.
P. 20
Lower thread tension is too weak.
Adjust the lower thread tension.
P. 20
Thread take-up spring tension and
height are incorrect.
Adjust the tension and height of the
thread take-up spring.
P. 26
Position of arm thread guide R is
incorrect.
Adjust the position of arm thread guide
R.
P. 26
Upper thread length is
irregular.
Thread take-up spring tension and
height are incorrect.
Adjust the tension and height of the
thread take-up spring.
P. 26
Sub-tension is too weak.
Turn the sub-tension nut to adjust the
tension.
P. 20
Fixed knife is not cutting cleanly.
Sharpen the fixed knife or replace it
with a new one.
P. 31
Sewing machine does
not operate when the
power is turned on and
the foot switch is
depressed.
Machine head switch does not work.
Check if the machine head switch cord
is disconnected.
P. 8
If the machine head switch is
malfunctioning, replace it with a new
one.
38
jintex.in
Page 44
jintex.in
jintex.in
Page 45
零件样本
PARTS BOOK
jintex.in
Page 46
T1310
1
S: 电磁式拾压脚 / Solenoid-type work clamp lifter
A: 空压式拾压脚 / Pneumatic-type work clamp lifter
T2210A
1
jintex.in
Page 48
A. 机体部分 / Machine body
1
jintex.in
Page 49 — A、机体部分/Machine body
A、机体部分/Machine body
序号
No.
件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41703001
SA4594001
轴套U
BUSHING U
1
T1310
2
41729001
117608001
开口销
DOWEL PIN
1
3
41722001
SA4596001
橡皮塞 20-15
RUBBER CAP 20-15
1
4
41722002
117934001
橡皮塞 13.5
RUBBER CAP, 13.5
1
5
41722003
104821001
橡皮塞 10.5
RUBBER CAP, 10.5
3
6
41711050
SA4597001
马达盖 R
MOTOR COVER R
1
7
S04038
062061016
螺钉 M6×10
SCREW PAN M6×10
4
8
41711051
SA4598001
马达盖 L
MOTOR COVER L
1
9
S04038
062061016
螺钉 M6×10
SCREW PAN M6×10
4
10
41701001
SA4600001
面板
FACE PLATE
1
11
41722004
104449001
橡皮塞 15.5
RUBBER CAP, 15.5
1
12
41712003
SA4601001
面板垫片
F-PLATE PACKING
1
13
S04038
062061016
螺钉 M6×10
SCREW PAN M6×10
3
14
41712004
SA4603101
大旋钮盖
SHUTTLE RACE COVER
1
15
41712005
SA6272001
大旋钮盖挂钩 D
SHUTTLE RACE COVER HOOK D
1
16
S02031
004300513
螺钉 M3×5
SCREW, PLAT M3×5
2
17
4171220200
SA6207001
板螺母
NUT PLATE
1
18
4171220200
SA6207001
铰链
HINGE
1
19
N01013
021300103
螺母
STEPPING COVER
2
23
41712007
SA3200101
挑线杆防护罩
THREAD TAKE-UP COVER
1
24
S04079
062401006
螺钉 M4×10
SCREW PAN M4×10
1
25
41712008
SA4604001
间歇盖板
STEPPING COVER
1
26
417S30012
SA3306001
段螺钉 7-3
SHOULDER SCREW, 7-3
1
27
41728020
120265002
弹簧垫圈
SPRING WASHER
1
28
41728035
S07350002
垫圈
WASHER PLAIN
1
29
41711005
S36475000
螺钉 M5
SCREW, M5
1
30
41737001
S36924001
警告标记
MARK, INJRY
1
31
41737002
SA2040001
<用于日本>
<For Japan only>
操作注意标签(日/英)
LABEL, CAYTION JPN/END
1
31
41737003
SA2040001
<用于日本以外>
<For Except Japan>
操作注意标签(中/英)
LABEL, CAYTION CHN/END
1
32
41737004
S37060001
接地标记
LABEL, GROUNDING
1
33
41722009
S20164001
橡皮塞 13
RUBBER CAP, 13
1
34
41712009
S02445001
护指器
FINGER GUARD
1
35
41728025
025350332
平垫圈 L3.5
WASHER PLAIN L3.5
2
36
41712010
SA4605001
机头撑杆
HEAD REST
1
37
417S30037
S42446001
螺栓 M6×14
BOLT, SOCKET (S/P WASHER) M6×14
4
38
S04075
062300506
螺钉 M3×5
SCREW PAN M3×5
4
39
41722006
SA6194001
橡皮塞 26
RUBBER CAP 26
1
40
41722007
S44010001
橡皮塞 11.5
RUBBER CAP 11.5
2
41
41722008
SA6441001
橡皮盖
RUBBER CAP
2
42
41722009
S20164001
橡皮塞 13
RUBBER CAP 13
1
43
41722013
104450101
橡皮塞 8
RUBBER CAP 8
2
2
jintex.in
Page 50 — B. Upper shaft and needle bar mechanism
B. 上轴·针杆装置 / Upper shaft and needle bar mechanism
46
45
47
48
38
41
37
44
44
39
40
33
34
1
11
8
9
10
5
6
7
24
21
20
19
25
27
26
2
3
13
14
12
14
14
14
18
17
16
15
17
17
52
30
28
29
31
32
35
36
43
42
43
49
50
51
3
jintex.in
Page 51 — B、上轴・针杆装置/Upper shaft and needle bar mechanism
B、上轴・针杆装置/Upper shaft and needle bar mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41702001
SA4606001
上轴
UPPER SHUFT
1
2
4170501100
SA3499001
曲柄轴组件
CRANK ROD ASSY
1
3
S05124
018501636
螺栓 M5×16
BOLT SOCKET M5×16
2
4
41724001
SA4172001
滚针轴承 K15×18×14
NEEDLE BEARING:BLUE
2
4
41724001
SA4173001
滚针轴承 K15×18×14
NEEDLE BEARING:BLACK
2
4
41724001
SA4174001
滚针轴承 K15×18×14
NEEDLE BEARING:GRAY
2
4
41724001
SA4175001
滚针轴承 K15×18×14
NEEDLE BEARING:YELLOW
2
5
41703002
SA3206001
轴承套
BALL BEARING BUSH
1
6
B10014
SA4179001
轴承 6904DDUNR
BALL BEARING 6904DDUNR
1
7
B06005
SA4180001
轴承 R-6904DDU
BALL BEARING R-6904DDU
1
8
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
2
9
41703002
SA3206001
轴承套
BALL BEARING BUSH
1
10
B10012
SA4177001
轴承 6904DDUNR
BALL BEARING 6904DDUNR
1
11
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
2
12
41703004
SA4608101
管接头 G
JOINT G
1
13
B10013
SA4178001
轴承 6204DDUNR
BALL BEARING 6204DDUNR
1
14
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
4
15
417S30002
S25235001
螺钉 M8
SCREW, M8
1
16
41704001
SA4609101
针杆曲柄 G
THREAD TAKE-UP CRANK G
1
17
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
4
18
41712133
110367001
垫圈 8
WASHER, PLAIN SPECIAL 8
1
19
4170501200
SA6182001
针杆连杆组件 FK
THREAD TAKE-UP LEVEL FK SET
1
20
417S17003
SA2958001
螺钉 M5×6
SCREW FLAT M5×6
1
21
S09019
012500536
螺钉 M5×5
SET SCREW SOCKET (FT) M5×5
1
22
S04078
062400816
螺钉 M4×8
SCREW PAN M4×8
1
23
417S14001
145465001
螺钉 SM3.57-40×6L
SCREW SM3.57-40×6L
1
24
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
25
41709001
142211001
滑块
SLIDE BLOCK
1
26
41709002
SA3528001
滑块导向 B
SLIDE BLOCK GUIDE
1
27
S05118
018401636
螺钉 M4×16
BOLT SOCKET M4×16
2
28
41702002
SA4622001
针杆
NEEDLE BAR
1
29
417S15002
144458001
螺钉 SM3.57-40×4.5
SET SCREW, SM3.57-40×4.5
1
30
41703005
SA4666001
针杆轴套 UK
NEEDLE BAR BUSH UK
1
31
41703006
SA3224001
针杆轴套 D
NEEDLE BAR BUSH D
1
32
41217002
*P. 67
机针
NEEDLE
1
33
12411002
S38713100
叶轮
FAN
1
34
S04078
062400816
螺钉 M4×8
SCREW PAN M4×8
3
35
41225010
SA6108001
齿轮 R
PULLEY GEAR R
1
36
S09019
012500536
螺钉 M5×5
SET SCREW SOCKET (FT) M5×5
2
37
41702003
SA4626001
上轮轴
PULLEY SHUFT
1
38
41703007
SA4627001
上轮轴套
PULLEY BUSH
1
39
41727001
SA4628001
上轮弹簧
PULLEY SPRING
1
40
41703008
SA4629001
上轮基座
PULLEY BASE
1
41
P03027
047401242
弹簧销 4×12
PIN SPRING ROLL AW4
1
42
41725002
SA4624001
齿轮
PULLEY GEARL
1
43
S09019
012500536
螺钉 M5×5
SET SCREW SOCKET (FT) M5×5
2
44
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
2
45
41711001
SA4630001
上轮
PULLEY
1
46
S04079
062401006
螺钉 M4×10
SCREW PAN M4×10
3
47
41728024
SA5158001
垫圈 L4
WASHER PLAIN L4
1
48
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
49
S05124
018501636
螺栓 M5×16
BOLT SOCKET M5×16
4
50
41712011
SA5230001
惯性轮 2
FRIES WHEEL 2
2
51
417S30021
062401016
螺钉 M4×10
SCREW PAN M4×10
3
52
S09041
012060536
螺钉 M6×5
SET SCREW SOCKET (FT) M6×5
1
4
jintex.in
Page 52
C1 . 送料装置 / Feed mechanism
5
jintex.in
Page 53 — C1、送料装置/Feed mechanism
C1、送料装置/Feed mechanism
No.
序号
公司件号
Part. No.
参考件号
Ref. No.
零件部件名称
NAME OF PARTS
数量
Amt.
备注
1
41701002
SA5229101
送料基座组件
FEED BRACKET ASSY
1
2
41701006
SA4637001
X-LM 导向
X-LM GUIDE
1
3
S05114
018301436
螺栓 M3×14
BOLT SOCKET M3×14
15
4
41701003
SA4635101
送布台(X)
FEED BRACKET X
1
5
S05113
018300636
螺栓 M3×6
BOLT SOCKET M3×6
8
6
S02032
061300616
螺钉 M3×6
SCREW FLAT M3×6
8
7
41709004
SA4636101
传感器板(X)
X-SENSOR PLATE
1
8
S02032
061300616
螺钉 M3×6
SCREW FLAT M3×6
2
9
41709005
SA4641001
皮带支架
X-BELT HOLDER
1
10
S05116
018400836
螺栓 M4×8
BOLT SOCKET M4×8
2
11
41735001
SA4649001
X-GT 皮带
X-GT BELT
1
12
41712012
SA4640001
X-LM 传感器板(X)
X-LM SENSOR PLATE
1
13
S05116
018400836
螺栓 M4×8
BOLT SOCKET M4×8
2
14
41702004
SA4639001
Y-球轴(Y)
Y-BALL SPLINE
1
15
B06006
076000600
球轴承 6000VV
BALL BEARING RADIAL 6000W
1
16
41728001
S20356001
平垫圈 10
WASHER PLAIN 10
1
17
H03008
048100142
轴用挡圈 C10
RETAINING RING EXTERNAL C10
1
18
4173500200
SA4638001
X-左轮组件
X-LEFT PULLEY
1
19
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
20
B06007
076806606
球轴承 6806VV
BALL BEARING 6806VV
2
21
H01004
048420242
孔用挡圈 C42
RETAINING RING EXTERNAL C42
2
22
41701004
SA4642001
X-轮基座
X-PULLEY BRACKET
1
23
S05124
018501636
螺栓 M5×16
BOLT SOCKET M5×16
2
24
W01009
025050236
平垫圈 M5
WASHER PLAIN M5
2
25
4173500300
SA4643001
X-右轮组件
X-RIGHT PULLEY ASSY
1
26
41728001
S20356001
平垫圈 10
WASHER PLAIN 10
1
27
B10015
SA4647001
球轴承 6900ZZNR
BALL BEARING 6900ZZNR
2
28
41702005
SA4648001
X-轮支点轴
X-PULLEY FULCRUM SHAFT
1
29
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
30
41712013
SA4650001
Y-LM 导向
Y-LM GUIDE
1
31
S05119
018402036
螺栓 M4×20
BOLT SOCKET M4×20
2
32
41712007
SA4651101
Y-LM 垫片
Y-LM SPACER
2
33
41728002
SA4652101
Y-传感器板
Y-SENSOR PLATE
1
34
S02032
061300616
螺钉 M3×6
SCREW FLAT M3×6
16
35
S05119
018402036
螺栓 M4×20
BOLT SOCKET M4×20
16
36
W01001
025040236
平垫圈 M4
WASHER PLAIN M4
8
37
W02008
028040246
弹簧垫圈 2-4
WASHER SPRING 2-4
8
38
41709032
挡块
CLAMP H-POSITION
2
T1310
39
S05119
018402036
螺栓 M4×20
BOLT SOCKET M4×20
2
T1310
40
41711062
固定板
HOLDER PLATE
2
41
41726020
SA5220001
调节销
ADJUST PIN
2
42
S09005
012030536
螺钉 M3×5
SCREW FLAT M3×5
4
6
Page 54
C2 . 送料装置 / Feed mechanism
7
jintex.in
Page 55 — C2、送料装置/Feed mechanism
C2、送料装置/Feed mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
零
部
件
名
称
NAME OF PARTS
数量
Amt.
备注
1
S05111
018062036
螺栓 M6×20
BOLT SOCKET M6×20
4
2
41725003
SA4653001
X-送布齿轮
X-FEED GEAR
1
3
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
4
B10015
SA4647001
球轴承 6900ZZNR
BALL BEARING 6900ZZNR
2
5
41725004
SA4654001
Y-送布齿轮
Y-FEED GEAR
1
6
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
7
B10015
SA4647001
球轴承 6900ZZNR
BALL BEARING 6900ZZNR
2
8
H05033
048080342
挡圈 E8
RETAINING RING E8
1
9
4173501100
SA4655101
Y-轮组件
Y-PULLEY ASSY
1
10
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
11
41703009
SA4658001
Y-轮轴套
Y-PULLEY COLLAR
1
12
41702006
SA4659001
Y-驱动轴
Y-PULLEY DRIVING SHAFT
1
13
41701005
SA4661001
Y-轮基座
Y-PULLEY BRACKET
1
14
B10015
SA4647001
球轴承 6900ZZNR
BALL BEARING 6900ZZNR
2
15
4173502100
SA4655101
基座带轮组件
Y-PULLEY ASSY
1
16
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
17
41702007
SA4662001
Y-轮支点轴
Y-PULLEY FULCRUM SHAFT
1
18
41735005
SA4663001
Y-GT 皮带
Y-GT BELT
1
19
41712014
SA4664001
Y-皮带支架板
BELT SUPPORT PLATEY
1
20
41712015
SA4665001
Y-皮带支撑板
Y-BELT WORK CLAMP PLATE
1
21
S05116
018400836
螺栓 M4×8
BOLT SOCKET M4×8
4
22
417S30031
SA2972001
螺钉 M6×18
BOLT SOCKET (S/P WASHER) M6×14
2
23
S05119
018402036
螺栓 M4×20
BOLT SOCKET M4×20
4
24
41711061
SA4667101
盖板
COVER RAIL
2
25
41712017
SA4671001
固定盖(R)
FIXATION R
1
26
41712018
SA4672001
固定盖(L)
FIXATION L
1
27
417S30021
062401016
螺钉 M4×10
SCREW FAN M4×10
12
28
417S30009
062400416
螺钉 M4×6
SCREW FAN M4×6
4
29
4171201900
SA4860101
内盖组件 R
INSIDE COVER R ASSY
1
30
4171202000
SA4861101
内盖组件 L
INSIDE COVER L ASSY
2
31
4171202100
SA4670101
外盖组件
OUTSIDE COVER ASSY
1
32
41711002
SA4673001
Y-皮带轮盖
BELT COVER Y
1
33
417S30025
0A5401006
螺栓(带垫圈) M4×10DB
SCREW PAN (S/P WASHER) M4×10
4
34
41712022
SA4675201
补助板
AUXILIARY PLATE
1
35
41722010
SA4677101
补助板缓冲
AUXILIARY PLATE CUSHION
10
36
417S15003
S23849001
螺钉 M4×16
SCREW M4×16
10
37
N01015
021400216
六角螺母 M4
NUT 2 M4
10
38
41712023
SA4676001
补助板支架
AUXILIARY PLATE BRACKET
6
39
417S30007
SA4244001
螺栓 M6×14
BOLT SOCKET (S/P WASHER) M6×14
6
40
41712024
SA6434001
补助板支架 U
SUPPORT PLATE GUIDE U
2
41
41712025
SA6435001
补助板支架 D
SUPPORT PLATE GUIDE D
2
42
417S30035
S55484002
螺栓(带垫圈) M5×10
BOLT SOCKET (S/P WASHER) M5×10
4
43
417S30037
SA4244001
螺栓 M6×14
BOLT SOCKET (S/P WASHER) M6×14
4
44
41722011
SA4679101
蛇纹管
BELLOW
1
45
41712026
SA4680101
蛇纹管支架 R
BELLOW PRESSER R
1
46
41712027
SA4681001
蛇纹管支架 F
BELLOW PRESSER F
1
47
41712060
SA4682001
板螺母
BELLOW NUT
2
48
S04036
062300416
螺钉 M3×4
SCREW FAN M3×4
4
49
S04080
062400416
螺钉 M4×4
SCREW FAN M4×4
4
50
41730041
SA4820201
脉冲马达组件 X
PULSE MOTOR ASSY X
1
51
4172029
SA4684001
马达安装板
MOTOR BRACKET PLATE
1
52
S05048
018401036
螺钉 M4×10
BOLT SOCKET M4×10
4
53
41725005
SA3707001
驱动齿轮 16
GEAR 16
1
54
S09041
012060536
螺钉 M6×5
SET SCREW SOCKET (FT) M6×5
2
55
41730042
SA4823101
脉冲马达组件 Y
PULSE MOTOR ASSY Y
1
56
41712029
SA4684001
马达安装板
MOTOR BRACKET PLATE
1
57
S05048
018401036
螺钉 M4×10
BOLT SOCKET M4×10
4
58
41725005
SA3707001
驱动齿轮 16
GEAR 16
1
59
S09041
012060536
螺钉 M6×5
SET SCREW SOCKET (FT) M6×5
2
60
417S30037
SA4244001
螺栓 M6×14
BOLT SOCKET (S/P WASHER) M6×14
6
61
41712030
SA6306001
盖连接板
COVER CONNECT PLATE
1
8
jintex.in
Page 56 — C2 .送料装置 / Feed mechanism
C2 . 送料装置 / Feed mechanism
9
jintex.in
Page 57 — C2、送料装置/Feed mechanism
C2、送料装置/Feed mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
零
NAME OF PARTS
数量
Amt.
备注
62
417S15006
S23418002
螺钉 M4×5
SCREW M4×5
2
63
41728012
118735001
垫圈
WASHER
4
64
41737005
SA4224001
注意符号 30×40
MARK ATTENTION 30×40
2
65
41712100
SA6450101
轴承支架座
BEARING HOLDER BASE
1
66
S05121
018501036
螺栓 M5×10
BOLT SOCKET M5×10
2
67
4171210100
SA6451101
轴承支架组件
BEARING HOLDER ASSY
1
67
41712101
SA6449001
轴承支架
BEARING HOLDER
1
67
41724005
调心球轴承 126
BALL BEARING 126
1
68
S05048
018401036
螺钉 M4×10
BOLT SOCKET M4×10
2
10
Page 58 — C3 . 送料装置 / Feed mechanism
C3 . 送料装置 / Feed mechanism
< 电磁式 / For Solenoid type >
32
31
22
17
15
14
24
21
13
34
36
35
26
40
44
42
41
43
39
37
45
39
40
43
49
54
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
27
28
29
30
33
34
35
36
38
50
46
47
48
51
52
53
55
11
jintex.in
Page 59
C3、送料装置/Feed mechanism (T1310)
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
<电磁式>
NAME OF PARTS
<For Solenoid type>
数量
Amt.
备注
1
41701006
SA4686101
压脚臂
WORK CLAMP
1
2
41711007
SA4687101
滑块
SLIDER
1
3
H03008
048100142
轴用挡圈 C10
RETAINING RING EXTERNAL C10
1
4
41712031
SA4688001
滑块支架
SUPPORT SLIDER
1
5
41726001
SA4689001
滑块支架轴
SUPPORT SHAFT SLIDER
1
6
H03018
048040142
轴用挡圈 C4
RETAINING RING EXTERNAL C4
2
7
41712032
SA4690001
压脚柄 R
WORK CLAMP LIFTER LEVER R
1
8
41712033
SA4691001
压脚柄 L
WORK CLAMP LIFTER LEVER L
1
9
41702012
SA4692001
压脚臂轩轴
WORK CLAMP LIFTER SHAFT
1
10
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
11
H03006
048080142
轴用挡圈 C8
RETAINING RING EXTERNAL C8
1
12
41712133
110367001
垫圈 8
WASHER PLAIN SPECIAL 8
1
13
41708002
SA3231001
紧固 B
SET SCREW COLLAR B
1
14
S09041
012060536
螺钉 M6×5
SET SCREW SOCKET (FT) M6×5
2
15
41712034
SA4696001
连杆
CONNECTING ROD
2
16
41702021
SA4693001
弹簧挂钩轴A
SPRING HOLDER SHAFT A
1
17
417S30003
SA4697001
段螺钉 M5
SHOULDER SCREW M5
2
18
41702009
SA4694001
弹簧挂钩轴B
SPRING HOLDER SHAFT B
1
19
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
20
41727002
SA4695001
弹簧
SPRING LIFT
1
21
41712035
SA4698001
连接板
CONNECTING LINK
2
22
417S12002
SA4700001
弹簧挂钩
WORK CLAMP SPRING HOLDER
2
23
N01017
021500216
六角螺母 M5
NUT 2 M5
2
24
41727003
SA4701001
弹簧
WORK CLAMP SPRING
2
25
41712036
SA4702001
压脚臂轩杆 R
WORK CLAMP LIFTER LEVER R
1
26
41712037
SA4703001
压脚臂轩杆 L
WORK CLAMP LIFTER LEVER L
1
27
41702012
SA4692001
压脚臂轩轴
WORK CLAMP LIFTER SHAFT
1
28
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
29
H03006
048080142
轴用挡圈 C8
RETAINING RING EXTERNAL C8
1
30
41712133
110367001
垫圈 8
WASHER PLAIN SPECIAL 8
1
31
41708002
SA3231001
紧固 B
SET SCREW COLLAR B
1
32
S09041
012060536
螺钉 M6×5
SET SCREW SOCKET (FT) M6×5
2
33
41712038
SA4699001
定位
STOPPER
2
34
S05120
018500836
螺栓 M5×8
BOLT SOCKET M5×8
4
35
W01009
025050236
平垫圈 M5
WASHER PLAIN M5
4
36
W02001
028050246
弹簧垫圈 2-5
WASHER SPRING 2-5
4
37
4170901300
SA4863001
压脚导向组件 A
WORK CLAMP GUIDE A ASSY
1
38
417S15003
S23849001
螺钉 M4×16
SCREW M4×16
2
39
4170901400
SA4864001
压脚导向组件 B
WORK CLAMP GUIDE B ASSY
2
40
417S30034
S55482001
螺栓(带垫圈) M4×14
BOLT SOCKET (S/P WASHER) M4×14
4
41
4170901500
SA4712001
压脚滑块组件 R
WORK CLAMP SLIDER ASSY R
1
42
4170901600
SA4714001
压脚滑块组件 L
WORK CLAMP SLIDER ASSY L
1
43
41724002
SA4706101
压脚挡板组件
WORK CLAMP RETAINER ASSY
4
44
41712039
SA4708001
压脚
WORK CLAMP
1
45
417S30036
S55485001
螺栓(带垫圈) M5×12
BOLT SOCKET (S/P WASHER) M5×12
2
46
S09009
012501031
螺钉 M5×10
SET SCREW SOCKET (FT) M5×10
2
47
N01017
021500216
六角螺母 M5
NUT 2 M5
2
48
417S20001
SA4709001
定位段螺钉
SHOULDER SCREW
2
49
41712040
SA4866101
压板组件 1310
WORK CLAMP 1310 ASSY
1
50
417S30035
S55484002
螺栓(带垫圈) M5×10
BOLT SOCKET (S/P WASHER) M5×10
2
51
L01011
017501616
螺栓 M5×16
BOLT M5×16
4
52
W01009
025050236
平垫圈 M5
WASHER PLAIN M5
4
53
W02001
028050246
弹簧垫圈 2-5
WASHER SPRING 2-5
4
54
41712041
SA4715001
送料板 1310
FEED PLATE 1310
1
55
417S30035
S55484002
螺栓(带垫圈) M5×10
BOLT SOCKET (S/P WASHER) M5×10
2
12
Page 60 — C4 . 送料装置 / Feed mechanism
C4 . 送料装置 / Feed mechanism
< 空压式 / For Penumatic type >
19
18
13
11
9
8
7
9
19
9
8
7
9
5
10
14
17
15
12
23
33
25
22
26
20
26
22
23
34
35
32
28
24
29
30
31
27
< 用于 311G / For 311G >
38
39
37
43
40
42
41
44
< 用于 326G / For 326G >
46
39
45
39
47
40
42
41
44
13
Jinttex.in
Page 61
C4、送料装置/Feed mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41701006
SA4686101
压脚臂
WORK CLAMP
1
2
41702011
SA4717001
气缸轴
CYLINDER SHAFT
1
3
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
5
41730035
SA4719001
气缸组件 R
AIR CYLINDER ASSY
2
6
H03019
048050142
轴用挡圈 C5
RETAINING RING EXTERNAL C5
2
7
41709012
SA4720001
气缸接头
CYLINDER JOINT
2
8
41726002
SA4721001
气缸接头轴
CYLINDER JOINT SHAFT
2
9
H05027
048060142
轴用挡圈 C6
RETAINING RING EXTERNAL C6
4
10
41712042
SA4722001
压脚柄(气压)
WORK CLAMP LIFTER R AIR
1
11
41712043
SA4723001
压脚柄 L(气压)
WORK CLAMP LIFTER L AIR
1
12
41712044
SA4724001
压脚臂(气压)
WORK CLAMP LIFTER SHAFT AIR
2
13
417S30033
S5479001
螺栓(带垫圈) M4×8
BOLT SOCKET (S/P WASHER) M4×8
2
14
41702012
SA4692001
压脚杆轴
WORK CLAMP LIFTER SHAFT
1
15
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
16
H03006
048080142
轴用挡圈 C8
RETAINING RING EXTERNAL C8
1
17
41712133
110367001
垫圈 8
WASHER PLAIN SPECIAL 8
1
18
41708002
SA3231001
紧固B
SET SCREW COLLAR B
1
19
S09041
012060536
螺钉 M6×5
SET SCREW SOCKET (FT) M6×5
2
20
4170901300
SA4863001
压脚导向组件 A
WORK CLAMP GUIDE A ASSY
1
21
417S3003
S23849001
螺钉 M4×16
SCREW M4×16
2
22
4170901400
SA4864001
压脚导向组件 B
WORK CLAMP GUIDE B ASSY
2
23
417S30034
S54882001
螺栓(带垫圈) M4×14
BOLT SOCKET (S/P WASHER) M4×14
4
24
4170901500
SA4715001
压脚滑块组件 R
WORK CLAMP SLIDER ASSY R
1
25
4170901600
SA4714001
压脚滑块组件 L
WORK CLAMP SLIDER ASSY L
1
26
41724002
SA4706101
压脚挡板组件
WORK CLAMP RETAINER ASSY
4
27
41712045
SA4725001
压脚 R
WORK CLAMP R
1
28
417S30036
S55485001
螺栓(带垫圈) M5×12
BOLT SOCKET (S/P WASHER) M5×12
1
29
S09009
012501031
螺钉 M5×10
SET SCREW SOCKET (FT) M5×10
2
30
N01017
021500216
六角螺母 M5
NUT 2 M5
2
31
417S20001
SA4709001
定位螺钉
SHOULDER SCREW
2
32
41712046
SA4726001
压脚 L
WORK CLAMP L
1
33
417S30036
S55485001
螺栓(带垫圈) M5×12
BOLT SOCKET (S/P WASHER) M5×12
1
34
S09009
012501031
螺钉 M5×10
SET SCREW SOCKET (FT) M5×10
2
35
N01017
021500216
六角螺母 M5
NUT 2 M5
2
36
417S20001
SA4709001
定位螺钉
SHOULDER SCREW
2
《用于1310》
<For 1310>
37
41712047
SA4868101
压板组件 1310R
WORK CLAMP 311R ASSY
1
38
417S30035
SA4869101
压板组件 1310L
WORK CLAMP 311L ASSY
1
39
417S30035
S55484002
螺栓(带垫圈) M5×10
BOLT SOCKET (S/P WASHER) M5×10
4
40
L01011
017501616
螺栓 M5×16
BOLT M5×16
4
41
W01009
025050236
平垫圈 M5
WASHER PLAIN M5
4
42
W02001
028050246
弹簧垫圈 2-5
WASHER SPRING 2-5
4
43
41712049
SA4715001
送料板 1310
FEED PLATE 311G
1
44
417S30035
S55484002
螺栓(带垫圈) M5×10
BOLT SOCKET (S/P WASHER) M5×10
2
《用于2210》
<For 2210>
45
41712050
SA4870101
压板组件 2210R
WORK CLAMP 2210R ASSY
1
46
41712051
SA4871101
压板组件 2210L
WORK CLAMP 2210L ASSY
1
39
417S30035
S55484002
螺栓(带垫圈) M5×10
BOLT SOCKET (S/P WASHER) M5×10
4
40
L02006
017501616
螺栓 M5×16
BOLT M5×16
4
41
W01009
025050236
平垫圈 M5
WASHER PLAIN M5
4
42
W02001
028050246
弹簧垫圈 2-5
WASHER SPRING 2-5
4
44
417S30035
S55484002
螺栓(带垫圈) M5×10
BOLT SOCKET (S/P WASHER) M5×10
2
47
41712052
SA4852001
送料板 2210
FEED PLATE 2210
1
14
jintex.in
Page 62 — D1 . 拾压装置 / Work clamp lifter mechanism
D1 . 拾压装置 / Work clamp lifter mechanism
12
11
9
8
2
10
7
6
3
15
13
14
16
17
19
18
20
19
20
19
20
30
29 28
27
25
26
24
21
22
19
20
23
49
50
52
51
48
47
54
55
58
57
56
59
46
45
38
39
42
41
40
32
33
34
35
36
43
44
15
jintex.in
Page 63 — D1、拾压脚装置/Work clamp lifter mechanism
D1、拾压脚装置/Work clamp lifter mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41710001
SA4759001
凸轮
STEPPING CLAMP CAM
1
2
41705001
SA4760001
连杆
STEPPING CLAMP CON. ROD
1
3
41728003
SA4763001
垫圈
WASHER STEPPING CLAMP CAM
1
4
B06008
62303000
轴承 6805VV
BALL BEARING 6805VV
1
5
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
2
6
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
2
7
41726003
SA4761001
滚轮轴
ROLLER SHAFT STEPPING CLAMP
1
8
41703010
SA4762001
滚轮
ROLLER STEPPING CLAMP
1
9
41728004
SA4302001
垫圈
WASHER
2
10
N01021
021060106
螺母 M6
NUT 1 M6
1
11
41709017
SA4764001
压臂 R
STEPPING CLAMP ARM R
1
12
L02032
017061216
螺钉 M6×12
BOLT M6×12
1
13
41702013
SA4765001
压臂 F
STEPPING CLAMP ARM F
1
14
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
15
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
1
16
41703011
SA4766001
压臂轴套 F
BUSH STEPPING CLAMP F
1
17
41703012
SA4767001
压臂轴套 R
BUSH STEPPING CLAMP R
1
18
41712053
SA4768001
间歇连杆 A
STEPPING CLAMP LINK A
1
19
417S30007
SA4769001
段螺钉 6
SHOULDER SCREW 6
4
20
S04036
062300416
螺钉 M4×4
SCREW PAN M4×4
4
21
41712054
SA4770001
间歇连杆 B
STEPPING CLAMP LINK B
1
22
41712055
SA4772001
间歇连杆
STEPPING CLAMP LINK
1
23
41726004
SA4773001
联杆轴
SHAFT STEPPING CLAMP LINK
1
24
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
25
S09006
012400436
螺钉 M4×4
SET SCREW SOCKET (FT) M4×4
1
26
41709018
SA4777001
联接板
STEPPING CLAMP LIFTER LINK
1
27
41702014
SA4771001
联接板轴
SHAFT STEPPING CLAMP LIFTER LINK
1
28
41728031
SA2161001
垫圈
WASHER
1
29
H03006
048080142
固定挡圈 C8
RETAINING RING EXTERNAL C8
1
30
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
31
S09006
012400436
螺钉 M4×4
SET SCREW SOCKET (FT) M4×4
1
32
41709019
SA4779001
间歇提升杆
STEPPING CLAMP LIFTER
1
33
41703013
SA4781001
提升杆滚轮
ROLLER STEPPING CLAMP LIFTER
1
34
41726005
141362001
滚轮轴
ROLLER
1
35
41702015
SA4780001
提升杆轴
SHAFT STEPPING CLAMP LIFTER
1
36
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
37
S02039
S25310101
螺钉 M4
SCREW FLAT M4
1
38
41702016
SA4775001
提升连杆
STEPPING CLAMP LIFTER ROD
1
39
417S12003
SA4853001
提升连杆接头
JOINT STEPPING CLAMP LIFTER
1
40
417050200
SA2663001
接头组件 R
BALL JOINT ASSY
2
41
N01012
021060306
六角螺母 M6
NUT 3 M6
1
42
417S16001
SA3227001
螺母 M6×0.75
NUT (FT) M6
1
43
417S30008
SA4776001
段螺钉
SHOULDER SCREW
1
44
417S12005
S32462002
段螺钉 B M6
SHOULDER SCREW B M6
1
45
L01007
017065002
螺钉 M6×50
BOLT M6×50
1
46
N01021
021060106
螺母 M6
NUT 1 M6
1
47
41709020
SA4778001
压紧杆头
PRESSER BAR CLAMP
1
48
S05116
018400836
螺钉 M4×8
BOLT SOCKET M4×8
1
49
129S30003
SA1174001
调节螺栓 M14
PRESSER ADJUSTING SCREW M14
1
50
129S16001
SA1175001
调节螺母 M14
ADJUST SCREW NUT
1
51
41727004
SA5300001
弹簧
PRESSER BAR SPRING
1
52
41702017
S10112001
弹簧导向
PRESSER BAR SPRING GUIDE
1
53
41703014
SA5301001
弹簧套管套
COLLAR PRESSER BAR SPRING
1
54
41703015
SA2195001
压紧杆轴套
PRESSER BAR BUSH
1
55
S09041
012060536
螺钉 M6×5
SET SCREW SOCKET (FT) M6×5
1
56
41702018
111466101
压紧杆
PRESSER BAR
1
57
41716001
*P. 67
压脚
WORK CLAMP
1
58
417S15011
S13399001
螺钉 SM3.57×12
SCREW SM3.57×12
1
59
41728032
151439102
垫圈
WASHER
1
16
Page 64 — D2 . 抬压装置 / Work clamp lifter mechanism
D2 . 抬压装置 / Work clamp lifter mechanism
< 电磁式 / For Solenoid type >
10 6 13
1
2
7
8
11
12
9
16
17
15
32
31
33
36
35 34
37
42
47
52
57
46
51
45
44
43
49
48
50
19
24
25
25
23
58
21
22
20
27
28
29
30
18
59
40
26
28
39
38
53
54
55
56
17
jintex.in
Page 65 — D2、拾压脚装置/Work clamp lifter mechanism (T1310)
D2、拾压脚装置/Work clamp lifter mechanism (T1310)
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
<电磁式>
<For Solenoid type>
1
41724004
SA4729001
滑杆轴套
SLIDE BUSH
1
2
S05048
018401036
螺钉 M4×10
BOLT SOCKET M4×10
4
3
41712056
SA4731001
压脚提升板组件
WORK CLAMP LIFTER PATE ASSY
1
4
41712057
SA4734001
底座板 E
SEAT E
1
5
S04080
062400416
螺钉 M4×4
SCREW PAN M4×4
1
6
41709021
SA4736001
压脚提升杆
WORK CLAMP LIFTER LEVER
1
7
41726006
152744001
销
PIN
1
8
41709022
102630001
压脚提升滑块
NEEDLE BAR GUIDE SLIDE BLOCK
1
9
41702019
SA4737001
提升滑杆 B
WORK CLAMP LEVER SHAFT B
1
10
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
11
41728001
S20356001
平垫圈 E8
WASHER PLAIN E8
1
12
H05033
048080342
挡圈 E8
RETAINING RING E8
1
13
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
14
41729002
118208001
带槽销
DOWEL PIN
1
15
41712058
SA4738001
压脚提升杆
WORK CLAMP LIFTER PATE ASSY
1
16
417S20010
SA3438001
段螺钉
SHOULDER SCREW
1
17
41727005
SA4739001
弹簧
PRESSER BAR SPRING
1
18
41701008
SA4741101
马达座
MOTOR BRACKET
1
19
S05121
018501036
螺钉 M5×10
BOLT SOCKET M5×10
2
20
41730043
SA4826201
脉冲马达组件 P
PULSE MOTOR ASSY P
1
21
41730044
SA4828001
马达端线 P
MOTOR HARNESS P
1
22
S05048
018401036
螺钉 M4×10
BOLT SOCKET M4×10
4
23
41725009
SA4743001
驱动齿轮
WORK CLAMP DRIVING GEAR
1
24
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
25
41702020
SA4744001
压脚支点轴
WORK CLAMP FULCRUM SHAFT
1
26
B10015
SA4647001
球轴承 6900ZZNR
BALL BEARING 6900ZZNR
2
27
H05008
048100142
挡圈 C10
RETAINING RING EXTERNAL C10
1
28
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
2
29
W01001
025040236
平垫圈 M4
WASHER PLAIN M4
1
30
41725010
SA4745001
凸轮齿轮
WORK CLAMP CAM GEAR
1
31
S10021
016061031
螺钉 M6×10
SET SCREW SOCKET (CN) M6×10
1
32
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
33
41710002
SA4746001
压脚凸轮
WORK CLAMP CAM
1
34
41724017
S35079000
滚针 3×11.8
NEEDLE ROLLER 3×11.8
1
35
S10021
016061031
螺钉 M6×10
SET SCREW SOCKET (CN) M6×10
1
36
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
37
4170301700
SA4747001
压脚原点挡块
WORK CLAMP H-POSITION DOG
1
38
S05115
018400636
螺栓 M4×6
BOLT SOCKET M4×6
1
39
41702025
SA4748001
压脚柄轴
WORK CLAMP LEVER SHAFT
1
40
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
41
41709023
SA6210001
间歇驱动杆
STEPPING W-CLAMP DRIVING LEVER
1
42
41702022
SA3441001
拾压滚轮轴
W-CLAMP LIFTER ROLLER SHAFT
1
43
B04026
070696800
轴承 R-696ZZ
BALL BEARING RADIAL 696ZZ
1
44
41728005
109763001
垫圈
WASHER
1
45
S09019
012500536
螺钉 M5×5
SET SCREW SOCKET (FT) M5×5
1
46
41728001
S20356001
平垫圈 10
WASHER PLAIN 10
1
47
41712061
SA4752001
凸轮定位
WORK CLAMP CAM STOPPER
1
48
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
2
49
41712062
SA4753001
压脚传感器板
WORK CLAMP SENSOR PLATE
1
50
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
2
51
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
52
41737005
SA4224001
注意符号 30×40
MARK ATTENTION 30×40
1
53
S05110
018061236
螺栓 M6×12
BOLT SOCKET M6×12
2
18
jintex.in
Page 66 — D3 . 拾压装置 / Work clamp lifter mechanism
D3 . 拾压装置 / Work clamp lifter mechanism
< 空压式 / For Penumatic type >
15
14
21
35
25
24
23
22
34
33
11
10
12
13
1
8
7
8
2
29
20
3
26
27
31
30
32
31
19
6
4
5
9
11
18
17
10
28
jintex.in
Page 67
D3、抬压脚装置/Work clamp lifter mechanism
序号
No.
公司件号
Part. No.
参考件号Ref.
No.
零部件名称
零
<空气式>
NAME OF PARTS
<For Pneumatic type>
数量
Amt.
备注
1
41701008
SA4741101
马达座
MOTOR BRACKET
1
2
41712063
SA4742001
压脚马达板
WORK CLAMP MOTOR PLATE
1
3
S05121
018501036
螺栓 M5×10
BOLT SOCKET M5×10
2
4
41730043
SA4826201
脉冲马达组件 P
PULSE MOTOR ASSY P
1
5
41730044
SA4828001
马达端线 P
MOTOR HARNESS P
1
6
S05048
018401036
螺栓 M4×10
BOLT SOCKET M4×10
4
7
4172009
SA4743001
驱动齿轮
WORK CLAMP DRIVING GEAR
1
8
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
9
41702020
SA4744001
压脚支点轴
WORK CLAMP FULCRUM SHAFT
1
10
41724011
048100142
球轴承 6900ZZNR
BALL BEARING 6900ZZNR
2
11
H03008
048100142
轴用挡圈 C10
RETAINING RING EXTERNAL C10
1
12
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
1
13
W01001
025040236
平垫圈 M4
WASHER PLAIN M4
1
14
41725010
SA4745001
凸轮齿轮
WORK CLAMP CAM GEAR
1
15
S10021
016061031
螺钉 M6×10
SET SCREW SOCKET (CN) M6×10
1
16
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
17
4170301700
SA4747001
压脚顶点挡块
WORK CLAMP H-POSITION DOG
1
18
S05115
018400636
螺栓 M4×6
BOLT SOCKET M4×6
1
19
41702025
SA4748001
压脚柄轴
WORK CLAMP LEVER SHAFT
1
20
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
21
41709023
SA6210001
间歇驱动杆
STEPPING W-CLAMP DRIVING LEVER
1
22
41702022
SA3441001
抬压脚滚轮轴
W-CLAMP LIFTER ROLLER SHAFT
1
23
41724018
070696800
轴承 R-696ZZ
BALL BEARING RADIAL 696ZZ
1
24
41728005
109763003
垫圈
WASHER
1
25
S09019
012500536
螺钉 M5×5
SET SCREW SOCKET (FT) M5×5
1
26
41712062
SA4753001
压脚传感器板
WORK CLAMP SENSOR PLATE
1
27
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
2
28
41737005
SA4224001
注意符号 30×40
MARK ATTENTION 30×40
1
29
S05110
018061236
橡胶套 29
RUBBER CAP 29
2
30
41722012
159163000
橡胶套 10.5
RUBBER CAP 10.5
1
31
41722003
104821001
带槽销
PIN DOWEL
1
32
P01011
118550001
带销销
PIN DOWEL
1
33
41708004
SA4757001
紧圈
SET SCREW COLLAR
1
34
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
35
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
20
Jinte
x.in
Page 68 — E. 下轴装置 / Lower shaft mechanism
E. 下轴装置 / Lower shaft mechanism
43
16
17
18
23
30
14 15
31
32
33
34
42
19
29
21
20
16
35
36
37
38
39
45
46
47
44
12
8
7
8
13
11
10
14
15
41
40
1
4
2
9
3
5
6
6
9
21
jintex.in
Page 69 — E、下轴装置/Lower shaft mechanism
E、下轴装置/Lower shaft mechanism
No.
序号
公司件号
Part. No.
参考件号
Ref. No.
零件名称
NAME OF PARTS
数量
Amt.
备注
1
417S30011
SA3226001
段螺钉
SHOULDER SCREW
1
2
417S16001
SA3227001
螺母 M6×0.75
NUT (FT) M6
1
3
41725011
SA3228101
摆动齿轮
ROCK GEAR
1
4
41702027
SA4782001
摆动齿轮轴
ROCK GEAR SHAFT
1
5
41708002
SA3231001
紧固 B
SET SCREW COLLAR B
1
6
S09041
012060536
螺钉 M6×5
SET SCREW SOCKET (FT) M6×5
2
7
41708006
SA3233001
紧固
SET SCREW COLLAR
1
8
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
2
9
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
2
10
417020200
SA4783001
下轴组件
LOWER SHAFT ASSY
1
11
S09019
012500536
螺钉 M5×5
SET SCREW SOCKET (FT) M5×5
1
12
41703019
SA6216001
下轴轴套
LOWER SHAFT BUSH
1
13
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
14
41702029
SA3238101
旋拧调节轴
ADJUSTING STUD
1
15
41722015
081003670
O形圈 PW3
O RING PW3
2
16
41701009
SA6220001
大旋径基座组件 G
SHUTTLE RACE BASE ASSY G
1
17
41712190
S02429201
旋拧线导向
SHUTTLE RACE THREAD GUIDE
1
18
417S15007
SA4199001
螺钉 M3×4
SCREW M3×4
2
19
4172601500
SA3241001
大旋径固定柄
S-RACE BASE SETTING CLAW
2
20
41727006
152684101
弹簧
COMPRESSION SPRING
2
21
W01002
026030236
垫圈 M3
WASHER PLAIN M3
2
22
S04082
062300616
螺钉 M3×6
SCREW PAN M3×6
2
23
41723013
153050000
油毡
S-RACE BASE FELT
2
29
41723012
S59886001
油毡 L=360
FELT L=360
2
30
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
31
H05032
048070342
挡圈 E7
RETAINING RING E7
1
32
41718001
SA3284101
梭托 D
DRIVER D
1
33
S05122
018501232
螺栓 M5×12
BOLT SOCKET M5×12
1
34
41718002
*P. 66
外旋梭
SHUTTLE RACE BASE
1
35
417180300
*P. 66
梭芯套组件
BOBBIN CASE ASSY
1
36
41727015
*P. 66
调节弹簧
TENSION SPRING
1
37
417S30005
*P. 66
螺钉
SCREW
1
38
41727016
*P. 66
防空转弹簧
ANTI-SPIN SPRING
1
39
41718004
*P. 66
梭芯
BOBBIN
1
40
41703020
SA3283101
紧固 R
SET SCREW COLLAR R
1
41
S09019
012500536
螺钉 M5×5
SET SCREW SOCKET (FT) M5×5
1
42
41718005
*P. 66
中旋梭
SHUTTLE HOOK
1
43
12923018
S32557001
油线 4×4 L=400
WICK 4×4 L=400
1
44
41711027
SA3278001
轴圈
BUSH
1
45
41711028
SA3276001
垫片
SPACER COLLER
2
46
41724008
滚针轴承 K8×12×11
NEEDLE BEARING
2
47
41729005
切口卡簧
RETAINING RING
2
22
jintex.in
Page 70
F. 供油润滑装置 / Lubrication
27
26 25
16
14
3
5
4
6
2
62
27
39
40
47 46
15
37
38
40
29
28
54
19
11
12
18
13
35 34
42
42
42
55
42
55
41
7
1
61
42
20
53
22
52
50
43
30
31
32
33
68
67
66
64
65
63
65
21
60
45
23
24
8
9
10
59 58
56
57
51
69
23
jintex.in
Page 71
F、供油润滑装置/Lubrication
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
417S30022
SA3244001
螺钉
SET SCREW
1
2
41712065
SA4785001
曲柄盖
CRANK COVER
1
3
S04038
062061016
螺钉 M6×10
SCREW PAN M6×10
3
4
41712066
SA4787001
曲柄供油板
CRANK WICK PLATE
1
5
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
2
6
41723008
SA5294001
毡油线 L=90
FLAT WICK L=90
1
7
41723005
SA4786101
油毡
FELT
1
8
41712067
SA3503201
下轴给油支架
LOWER SHAFT WICK SUPPORT
1
9
41723006
SA3504201
下轴齿轮油毡
LOWER SHAFT GEAR FELT
1
10
S05115
018400636
螺栓 M4×6
BOLT SOCKET M4×6
2
11
41712068
SA4788001
油线支架
WICK SUPPORT
1
12
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
1
13
41723008
SA6593001
油线 L=180
FLAT WICK L=180
1
14
41723009
SA5292001
油管 φ2.5 L=780
WICK TUBE L=780
1
15
12921002
S07459100
油管 φ3×φ5 L=240
OIL TUBE L=240
1
16
12921002
S07459100
油管 φ3×φ5 L=210
OIL TUBE L=210
1
17
41712069
SA6087001
油线挂钩
WICK SUPPORT
1
18
41712070
104567101
油线支架
WICK SUPPORT
1
19
4171100300
S49992000
油视窗
OIL GAUGE WINDOW
1
20
4171100400
152948001
油视窗
OIL GAUGE WINDOW
1
21
12921002
S50529000
油管 φ3×φ5 L=320
OIL TUBE L=320
1
22
12921002
S07459100
油管 φ3×φ5 L=240
OIL TUBE L=240
1
23
12921018
SA5292101
油线 4×4 L=680
WICK L=680
1
24
12921002
S53175000
油管 φ3×φ5 L=450
OIL TUBE L=450
1
25
12921002
SA5072001
油管 φ3×φ5 L=120
OIL TUBE L=120
1
26
12923019
S45849000
油线 6×6 L=300
WICK 6×6 L=300
1
27
41723011
S09043000
油毡
FELT
4
28
12923018
S49982000
油线 4×4 L=400
WICK 4×4 L=400
1
29
12921002
S48189000
油管 φ3×φ5 L=280
OIL TUBE L=280
1
30
41712071
SA3246001
齿轮油毡支架
GEAR WICK SUPPORT
1
31
41723031
SA3280001
油毡
GEAR FELT
1
32
41712072
SA4789101
油线夹 B
LOWER SHAFT WICK SUPPORT B
1
33
S04035
062060816
螺钉 M6×8
SCREW PAN M6×8
1
34
41712073
145547001
回油管管托
TUBE HOLDER
1
35
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
1
36
12923018
S49957000
油线 4×4 L=700
WICK 4×4 L=1370
1
37
12921005
SA4791101
油管 φ4×φ6 L=620
OIL TUBE L=620
1
39
41711014
149547000
压线板
CORD HOLDER 4N
1
39
41711015
525567000
电线夹 #8
CORD HOLDER #8
1
40
417S30025
0A5401006
螺栓(带垫圈)M4×10DB
SCREW PAN (S/P WASHER) M4×10
2
41
41711016
525664000
电线夹 #6
CORD HOLDER #6
1
42
417S30025
0A5401006
螺栓(带垫圈)M4×10DB
SCREW PAN (S/P WASHER) M4×10
5
43
41712074
SA5259001
油盖
OIL COVER
1
45
417S30021
062401016
螺钉 M4×10
SCREW PAN M4×10
1
46
41736001
S38265000
接管头 L
TERMINAL L
1
47
41722016
142274101
橡皮塞 4.2
RUBBER CAP 4.2
5
50
12921003
SA6263001
油管 φ5×φ8 L=320
OIL TUBE L=320
1
51
4172302100
SA6260001
油毡组件
FELT ASSY
1
52
41723009
S00400000
油线 φ2.5 L=200
WICK 2.5×200
1
53
12921002
SA6579001
油管 φ3×φ5 L=110
OIL TUBE L=110
1
54
41736002
SA5339101
油嘴管
OIL FEEDING PIPE
1
55
41711015
525567000
电线夹 #8
CORD HOLDER #8
3
56
41712075
SA3242001
油毡支架
FELT HOLDER
1
57
417S15009
S44924001
固定螺钉 M3×5.5
SCREW M3×5.5
2
58
41711012
SA3274101
油毡支架
FELT HOLDER
1
59
417S15010
S47307001
螺钉 M3×4
SCREW M3×4
2
60
12921002
SA6577001
油管 φ3×φ5 L=300
OIL TUBE L=300
1
61
41711017
552907000
电线夹 #10
CORD HOLDER #10
1
62
41712014
SA6572001
油线 L=140
WICK L=140
1
63
41712110
SA6581001
油毡压板 L
WICK SUPPORT L
1
64
41723024
SA6583001
底板油毡 L
FELT BEDL
1
24
jintex.in
Page 72 — F. 供油润滑装置 / Lubrication
F. 供油润滑装置 / Lubrication
25
jintex.in
Page 73 — F、供油润滑装置/Lubrication
F、供油润滑装置/Lubrication
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
零
部件名称
NAME OF PARTS
数量
Amt.
备注
注
65
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
3
66
W02008
028040246
弹簧垫圈 2-4
WASHER SPRING 2-4
3
67
41712130
SA6582001
油毡压板 R
WICK SUPPORT R
1
68
41723018
SA6584001
底板油毡 R
FELT BED R
1
69
S02039
S25310101
螺钉 M4
SCREW FLAT M4
3
26
Page 74 — G . 穿线装置 / Threading mechanism
G . 穿线装置 / Threading mechanism
27
jintex.in
Page 75 — G、穿线装置/Threading mechanism
G、穿线装置/Threading mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
零部
件
名称
NAME OF PARTS
数量
Amt.
备注
1
41712077
SA3250001
过线导向 A
ARM THREAD GUIDE A
1
2
S04030
062500616
螺钉 M5×6
SCREW PAN M5×6
1
3
41712078
SA4333001
过线导向 B
ARM THREAD GUIDE B
1
4
S04030
062500616
螺钉 M5×6
SCREW PAN M5×6
1
5
41712079
SA6391001
过线器 C
ARM THREAD GUIDE C
1
6
S04030
062500616
螺钉 M5×6
SCREW PAN M5×6
1
7
41702030
153049001
面线导向杆
UPPER THREAD GUIDE STUD
1
8
41713001
SA3254001
夹线杆
TENSION BRACKET
1
9
41713002
*P. 66
调节弹簧
THREAD TAKE-UP SPRING
1
10
41713003
SA3255001
夹线杆轴
TENSION STUD
1
11
129S30013
S31032001
压线螺母
TENSION NUT
1
12
41713005
159805001
夹线压盘
TENSION DISC PRESSER
1
13
41713006
145446001
夹线盘
DISC TENSION
1
14
417S15012
100402004
固定螺钉 SM3.57
SET SCREW SM3.75
1
15
417S10004
SA4143001
螺钉 M6×6
SET SCREW (FT) M6×6
1
16
41702031
S12699000
松线销
TENSION RELEASE PIN
1
17
41713007
SA3256001
夹线杆轴 A
TENSION STUD A
1
18
41713006
145446001
夹线盘
DISC TENSION
2
19
41712080
159224001
线钩
THREAD GUIDE ARM
1
20
41726014
*P. 67
针杆线导向
NEEDLE BAR THREAD GUIDE
1
21
41712082
SA3258001
针杆轴套线导向 D
N-BAR BUSH THREAD GUIDE D
1
22
41203018
152881001
线冷却组件
NEEDLE COOLER ASSY
1
23
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
24
41223043
152883000
油毡 8×15.5
FELT 8×15.5
1
25
41213008
152884001
过线钩
NEEDLE COOLER THREAD GUIDE
1
26
409S11017
062670412
螺钉 SM3.57-40×4
SCREW PAN SM3.57-40×4
1
27
41713009
100136001
夹线螺母
TENSION NUT
1
28
41713010
SA4146001
弹簧
SUB TENSION SPRING
1
29
41713011
S12441001
止动垫圈
WASHER
1
30
41713012
*P. 66
夹线簧
TENSION SPRING
1
28
Page 76 — H . 卷线装置 / Bobbin winder mechanism
H . 卷线装置 / Bobbin winder mechanism
13
15
14
26
21
3
4
2
9
10
25
27
6
7
8
25
22
24
23
28
11
19
30
29
1
31
32
33
34
35
36
37
39
38
39
29
jintex.in
Page 77 — H、卷线装置/Bobbin winder mechanism
H、卷线装置/Bobbin winder mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41701010
SA4795001
顶盖
TOP COVER
1
2
41702033
SA3290001
卷线手柄
SHAFT BW-LEVER
1
3
S09019
012500536
螺钉 M5×5
SET SCREW SOCKET (FT) M5×5
1
4
41709026
SA3291001
卷线手柄
BOBBIN WINDER LEVER
1
5
41702034
SA4171001
弹簧挂钩
SPRING HOOK
1
6
41712084
152936001
板弹簧
PLATE SPRING
1
7
41712085
152937001
垫圈
WASHER
1
8
S04077
062350616
螺钉 M3.5×6
SCREW PAN M3.5×6
1
9
W01015
159486001
垫圈
WASHER
1
10
H05006
048050342
挡圈 E5
RETAINING RING E5
1
11
41702035
SA3293001
垫片
SPACER COLLER
1
12
41709027
SA1984001
卷线压柄轴
BOBBIN PRESSER ARM
1
13
S04081
062401216
螺钉 M4×12
SCREW PAN 4×12
1
14
41712086
SA3294001
卷线压杆
BOBBIN PRESSER
1
15
417S15006
S23418002
螺钉 M4×5
SCREW M4×5
1
16
41709028
SA3295001
卷线卡爪
CLAW B-WINDER
1
17
H05006
012400436
螺钉 M4×4
SET SCREW SOCKET (FT) M4×4
2
18
41727007
S10438001
弹簧
SPRING TWIST
1
19
H05006
048050342
挡圈 E5
RETAINING RING E5
2
20
41708025
SA3296001
垫片
SPACER COLLER
1
21
41702036
SA3296001
卷线轴
BOBBIN WINDER SHAFT
1
22
41703021
SA3297001
卷线器
WHEEL B-WINDER
1
23
41722017
120448001
橡皮圈
BOBBIN WINDER RUBBER BAND
1
24
S09006
012400436
螺钉 M4×4
SET SCREW SOCKET (FT) M4×4
2
25
W01015
159486001
垫圈
WASHER
2
26
41711063
SA1988001
卷线座
BOBBIN SUPPORT
1
27
41727008
S10268001
拉簧
SPRING
1
28
41702037
SA3298001
止动轴
STPPER SHAFT B-WINDER
1
29
41719001
SA3299001
切刀
KNIFE
1
30
S04030
062500616
螺钉 M5×6
SCREW PAN M5×6
1
31
1291301100
SA1994101
卷线器夹线组件
BOBBIN WINDER TENSION ASSY
1
32
12913007
145446002
夹线盘
DISC TENSION
1
33
12927016
100401022
夹线弹簧
TENSION SPRING
2
34
129S30013
S31032001
压线螺母
TENSION NUT
1
35
12928014
12441001
止动垫圈
WASHER
1
36
S09019
012500536
螺钉 M5×5
SET SCREW SOCKET (FT) M5×5
1
37
S04038
062061016
螺钉 M6×10
SCREW PAN M6×10
6
38
41704002
SA4797101
卷线驱动轮
DRIVING WHEEL B-WINDER
1
39
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
2
30
Jinttex.in
Page 78 — J. Thread trimmer mechanism
J. 切线装置 / Thread trimmer mechanism
31
jintex.in
Page 79 — J、切线装置/Thread trimmer mechanism
J、切线装置/Thread trimmer mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41710003
SA3301101
切线凸轮
THREAD TRIMMER CAM
1
2
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
2
3
41712087
SA4798001
电磁铁安装板
SETTING PLATE SOLENOID
1
4
41730001
SA5135001
切线电磁铁
THREAD TRIMMER SOLENOID
1
5
L02031
017400802
螺栓 M4×8
BOLT M4×8
2
6
W02008
028040246
弹簧垫圈 2-4
WASHER SPRING 2-4
2
7
W01001
025040236
平垫圈 M4
WASHER PLAIN M4
2
8
41702038
SA3307001
电磁铁杆
SOLENOID LEVER
1
9
S09006
012400436
螺钉 M4×4
SET SCREW SOCKET (FT) M4×4
1
10
41722020
154590000
电磁铁缓冲垫圈
SOLENOID CUSHION
1
11
41720033
S02145001
垫圈
WASHER
1
12
11211005
S04159000
垫圈 1M
BAND 1M
1
13
417S30035
S55484002
螺钉(带垫圈) M5×10
BOLT SCREW SOCKET (S/P WASHER) M5×10
2
14
41712088
SA4799001
驱动压杆
PUSHING LEVER D-LEVER
1
15
417S30012
SA3306001
段螺钉 7-3
SHOULDER SCREW 7-3
1
16
4171211100
SA3309101
切线驱动杆组件
TR-DRIVING LEVER
1
17
41703022
SA3310001
切线滚轮
COLLAR TR-TRIMMER
1
18
41702039
SA3311001
切线滚轮轴
COLLAR SHAFT
1
19
417S12009
S46903001
螺钉 M4×5
SET SCREW M4×5
1
20
H05029
048040342
挡圈 E4
RETAINING RING E4
1
21
41702040
SA3315001
切线杆 V
THREAD TRIMMER RODV
1
22
4170500300
S32465001
接头组件
BALL JOINT ASSY
2
23
N01021
021060106
螺母 M6
NUT 1 M6
2
24
417S12005
S32462001
段螺钉 B M6
SHOULDER SCREW B M6
1
25
N01012
021060306
六角螺母 M6
NUT 3 M6
1
26
S10018
S23651001
固定螺钉 M6×0.75-6
SET SCREW SOCKET (FT) M6×6
1
27
41703023
231071001
导套 8×15
BUSH 8×15
1
28
41702041
SA3312001
驱动杆导向轴
GUIDE SHAFT
1
29
41727009
SA3313101
弹簧
SPRING COMPRESSION
1
30
41722018
154590000
减震垫圈
CUSHION
1
31
417S12005
S32462001
段螺钉 B M6
SHOULDER SCREW B M6
1
32
N01012
021060306
六角螺母 M6
NUT 3 M6
1
33
417S10003
S25475101
螺钉 M6×19
SET SCREW M6×19
1
34
N01021
021060106
螺母 M6
NUT 1 M6
1
35
41712089
SA4546001
切线杆 V
THREAD TRIMMER LEVER V
1
36
41712090
SA3317001
切线杆 H
THREAD TRIMMER LEVER H
1
37
41712091
SA4801001
切线杆 H
THREAD TRIMMER ROD H
1
38
4170500300
S32465001
接头组件
BALL JOINT ASSY
2
39
N01021
021060106
螺母 M6
NUT 1 M6
2
40
417S12005
S32462001
段螺钉 B M6
SHOULDER SCREW B M6
1
41
N01012
021060306
六角螺母 M6
NUT 3 M6
1
42
41702042
SA3319101
切线杆轴
SHAFT TR-TRIMMER LEVER
1
43
41728023
SA4545001
垫片
SPACER
1
44
H03006
048080142
轴用挡圈 C8
RETAINING RING EXTERNAL C8
2
45
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
46
4172092
SA3320101
弹簧挂钩
SPRING HOOK
2
47
41727010
SA3321001
切线复位弹簧
SPRING EXTENSION
1
48
S05123
018501236
螺栓 M5×12
BOLT SOCKET M5×12
1
49
W02001
028050246
弹簧垫圈 2-5
WASHER SPRING 2-5
1
50
41728028
146354002
垫圈 5
WASHER PLAIN 5
1
51
41709029
SA3324001
动刀曲柄
MOVING KNIFE LEVER
1
52
417S12007
SA3325001
段螺钉 6.35-6
SHOULDER SCREW 6.35-6
1
53
41702043
SA4802001
动刀杆轴
SHAFT MOVABLE KNIFE LEVER
1
54
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (FT) M6×6
1
55
41712093
SA3327101
动刀连杆
M-KNIFE CONNECTING PLATE
1
56
417S30013
SA354001
段螺钉 6.1-8
SHOULDER SCREW 6-1.8
1
57
41715001
SA5157001
针板A
NEEDLE PLATE A
1
58
4170903000
SA3330001
动刀组件 F
MOVABLE KNIFE ASSY F
1
59
417S30014
SA4518001
段螺钉
MOVABLE KNIFE SHOULDER SCREW
1
60
41728007
SA4519001
动刀圈套
THRUST WASHER
1
61
41728008
S00705001
动刀圈套
MOVABLE KNIFE COLLAR
1
32
jintex.in
Page 80 — J. 切线装置 / Thread trimmer mechanism
J. 切线装置 / Thread trimmer mechanism
33
jintex.in
Page 81 — J, 切线装置/Thread trimmer mechanism
J, 切线装置/Thread trimmer mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
零
62
41728009
SA6297001
垫片 0.2
62
41728009
SA3334001
垫片 0.3
62
41728009
SA6398001
垫片 0.4
63
41719002
SA3335001
定刀 F
64
S04036
062300416
螺钉 M3×4
65
W01002
026030236
垫圈 M3
66
41712094
*P. 66
针孔板
67
417S17001
100360003
螺钉 SM2.38
68
S02039
S25310101
螺钉 M4
69
417S15008
SA3538001
螺钉 M4×8
70
41712095
SA6273001
大旋盖挡钩 U
71
W02007
028030246
弹簧垫圈 2-3
72
W01002
026030236
垫圈 M3
73
S04036
062300416
螺钉 M3×4
NAME OF PARTS
数量
Amt.
备注
1
1
1
FIXED KNIFE F
SCREW PAN M3×4
WASHER PLAIN M3
NEEDLE HOLE PLATE
SCREW
SCREW FLAT M4
SCREW M4×8
SHUTTLE BASE COVER HOOK U
WASHER SPRING 2-3
WASHER PLAIN M3
SCREW PAN M3×4
2
2
1
2
2
2
1
2
2
2
34
Page 82 — K . 扫线装置 / Thread wiper mechanism
K . 扫线装置 / Thread wiper mechanism
35
jintex.in
Page 83 — K、扫线装置/Thread wiper mechanism
K、扫线装置/Thread wiper mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41730002
SA5208001
扫线电磁铁组件
THREAD WIPER SOLENOID ASSY
1
2
41727011
S41206001
挡线弹簧
THREAD WIPER SPRING
1
3
41728011
S41205001
平垫圈
WASHER PLAIN
1
4
41726007
S25456001
柱塞销
PLUNGER PIN
3
5
41712210
SA5217001
扫线电磁铁安装板
T-WIPER SOLENOID SETTING PLATE
1
6
41711011
SA4806001
电磁铁盖
SOLENOID COVER
1
7
S04082
062300616
螺钉 M3×6
SCREW PAN M3×6
8
8
41712096
SA5218001
扫线轴托架
THREAD WIPER SHAFT BRACKET
1
9
S05116
018400836
螺栓 M4×8
BOLT SOCKET M4×8
1
10
W01001
025040236
平垫圈 M4
WASHER PLAN M4
1
11
4170204400
SA1967001
扫线曲柄组件
THREAD WIPER CRANK ASSY
1
12
H05029
048040342
挡圈
RETAINING RING
1
13
41708007
S25454001
螺纹紧圈
SET SCREW COLLAR
1
14
417S15005
S25279001
螺钉 M3.5-5
SET SCREW (CP)M3.5-5
1
15
41727012
SA2287001
挡簧
SPRING
1
16
41722019
149097000
消音垫
SILENT SHEET
1
17
41712097
SA5219001
扫线杆
THREAD WIPER ROD
1
18
W01024
110735001
垫圈
WASHER
1
19
H05002
048030342
挡圈 E3
RETAINING RING E3
1
20
41712098
S10470101
扫线钢丝
WIPER
1
21
417S15013
060400516
螺钉 M4×5
SCREW BIND M4×5
1
22
41708008
146288001
挡线轴挡圈
THREAD WIPER STUD COLLAR
1
23
41728034
S03677001
垫圈
WASHER
1
24
41730003
SA5213001
停止开关组件
STOP SWITCH ASSY
1
25
417S30036
S55485001
螺栓(带垫圈) M5×12
BOLT SOCKET (S/P WASHER)M5×12
2
36
Page 84 — L. Tension release mechanism
L. 松线装置 / Tension release mechanism
37
jintex.in
Page 85 — I、松线装置/Tension release mechanism
I、松线装置/Tension release mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41730004
SA4855001
松线电磁铁HV
TENSION RELEASE SOLENOID HV
1
2
L02031
017400802
螺栓 M4×8
BOLT M4×8
2
3
W02008
028040246
弹簧垫圈 2-4
WASHER SPRING 2-4
2
4
W01001
025040236
平垫圈 M4
WASHER PLAIN M4
2
5
L02036
017401415
螺栓 M4×14
BOLT M4×14
1
6
N01024
021400306
六角螺母 M4
NUT 3 M4
1
7
W01001
025040236
平垫圈 M4
WASHER PLANT M4
1
8
41722020
154599000
电磁铁缓冲垫圈
SOLENOID CUSHION
1
9
41712099
SA6389001
电磁铁安装板
SETTING PLATE SOLENOID
1
10
11211005
S04159000
线夹 1M
BAND 1M
1
11
41702045
SA3347001
松线杆
TENSION RELEASE BAR
1
12
H05029
048040342
挡圈 E4
RETAINING RING E4
1
13
W01009
025050236
平垫圈 M5
WASHER PLAIN M5
1
14
41727013
SA3348001
弹簧
SPRING COMPRESSION
1
15
41711013
SA3349001
电磁铁盖
SOLENOID COVER
1
16
417S30012
SA3306001
段螺钉 7-3
SHOULDE SCREW 7-3
2
17
41752021
081007070
O形圈 P7
O RING P7
2
18
11211005
218859001
电线夹 M150
BINDER M150
1
jintex.in
38
Page 86
P. 空压装置 / Air pressure mechanism
18
27
19
26
25
17
29
28
12
1
14
11
3
4
6
5
2
11
10
9
16
14
11
3
4
23
12
24
6
5
9
10
22
11
30
39
jintex.in
Page 87 — P、空压装置/Air pressure mechanism
P、空压装置/Air pressure mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
<空压式>
NAME OF PARTS
<For Pneumatic type>
数量
Amt.
备注
1
4173001100
SA5281001
电磁阀组件 2A
SOLENOID VALVE ASSY 2A
1
2
40730066
SA5289001
双通汇流板
MANIFOLD2
1
3
40730082
S39116100
电磁阀 SY3120-5L0ZD-C4
VALVE SY3120-5L0ZD-C4
2
4
40728003
SA5283001
消声器
SILENCER
1
5
40730045
SA5282001
气压阀
AIR VALVE
1
6
417S30026
S09228000
管接头
JOINT
1
10
40730046
SA6573001
手动阀
VALVE
1
11
407S12002
153274001
汇流板密封螺钉
SCREW
2
12
41712106
SA5286001
阀安装板
SETTING PLATE VALVE
1
14
417S30024
018503036
螺栓 M5×30
BOLT SOCKET M5×30
2
15
41730022
SA5191001
阀门接线2连接件
VALVE HARNESS X2 ASSY
2
16
4073001000
149796001
橡胶带接头
AIR HOSE, W/CONNECTOR
1
17
61911006
SA6405001
空气管 R
AIR TUBE R
1
18
61911006
SA6405001
空气管 R
AIR TUBE R
1
28
61911006
SA6405002
空气管 R
AIR TUBE R
1
29
61911006
SA6406002
空气管 L
AIR TUBE L
1
19
41711008
SA6407001
保护用弹性管 470S (Φ1SPIRAL 470S
1
20
417S30015
03242003
木螺钉 M4.1×20
WOOD SCREW, ROUND 2 M4.1×20
2
21
W01001
025040236
平垫圈 M4
WASHER PLAIN M4
2
25
41711016
525664000
电线夹 #6
CORD HOLDER, #6
1
26
417S30025
0A5401006
螺栓(带垫圈)M4×10DB
SCREW PAN (S/P WASHER) M4×10
1
27
11211005
228475000
电线夹 1.9×80
FASTENING BAND, 1.9×80
3
24
4173003100
SA5288001
电磁阀组件 5A
SOLENOID VALVE ASSY 5A
1
22
41730032
SA5290001
集合管 5
CORD HOLDER #5
1
23
41730033
S53982000
隔板
BLANKING PLATE ASSY
3
3
40730082
S39116100
电磁阀 SY3120-5L0ZD-C4
VALVE SY3120-5L0ZD-C4
2
4
40728003
SA5283001
消声器
SILENCER
1
5
40730045
SA5282001
气压阀
AIR VALVE
1
6
417S30026
S09228000
管接头
JOINT
1
10
40730046
SA6573001
手动阀
VALVE
1
11
407S12002
153274001
汇流板密封螺钉
SCREW
2
12
41712106
SA5286001
阀安装板
SETTING PLATE VALVE
1
14
417S30024
018503036
螺栓 M5×30
BOLT SOCKET M5×30
2
30
41730031
SA5192001
阀门接线5连接件
VALVE HARNESS X5 ASSY
1
40
Jinttex.in
Page 88 — Q. 电气部品装置 / Power supply equipment mechanism
Q. 电气部品装置 / Power supply equipment mechanism
41
jintex.in
Page 89
Q、电气部品装置/Power supply equipment mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41711015
525567000
电线夹 #8
CORD HOLDER #8
3
2
41711014
149547000
压线板
CORD HOLDER 4N
1
3
41711015
525567000
电线夹 #8
CORD HOLDER #8
3
4
417S30025
0A5401006
螺栓(带垫圈) M4×10DB
SCREW PAN(S/P WASHER) M4×10DB
7
5
4173000500
SA1830001
H-POSITION SENSOR ASSY
1
6
S04076
062300816
螺钉 M3×8
SCREW PAN M3×8
3
7
41730006
SA3481001
机头开关组件
SWITCH ASSY MACHINE HEAD
1
8
417S30023
0A5301605
螺栓(带垫圈) M3×16DB
SCREW PAN(S/P WASHER) M4×16DB
2
9
417S30025
0A5401006
螺栓(带垫圈) M4×10DB
SCREW PAN(S/P WASHER) M4×10DB
2
10
41730030
SA4824001
头部检出复合件
HEAD DETECTOR UNIT ASSY
1
11
41730008
SA5210001
电磁铁接线
THREAD WIPER SOLENOID HARNESS
1
12
41730008
SA5214001
开关接线
STOP SWITCH HARNESS
1
13
41730009
SA5261001
接地线 450
GROUND WIRE 450
1
14
417S30025
0A5401006
螺栓(带垫圈) M4×10DB
SCREW PAN(S/P WASHER) M4×10DB
1
15
41711025
554482000
电线夹 #12
CORD HOLDER #12
1
16
41711025
554482000
电线夹 #12
CORD HOLDER #12
1
17
417S30025
0A5401006
螺栓(带垫圈) M4×10DB
SCREW PAN(S/P WASHER) M4×10
2
18
41711019
218859001
电线 M150
BINDER M150
2
19
11211005
S04159000
线夹 1M
BAND 1M
1
20
41711009
SA6560101
保护用螺纹管 140SS (中)
SPIRAL TUBE 140SS
2
21
11211005
S04159000
线夹 1M
BAND 1M
2
42
Jinte
Jinte.in
Page 90 — S . 马达装置 / Motor mechanism
S . 马达装置 / Motor mechanism
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
43
jintex.in
Page 91 — S、马达装置/Motor mechanism
S、马达装置/Motor mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
4173004700
J80991001
马达组件 CDD-430D
MOTOR ASSY CDD-430D
1
2
41730048
J03955001
鼓 CDD
DRUM CDD
1
3
S09044
014400632
螺钉 M4×6
SET SCREW SOCKET (CP) M4×6
1
4
41730049
J03956001
磁铁 180P36
MAGNET 180P36
1
5
41730050
J03957001
MR传感器组件 180P
MR SENSOR ASSY 180P
1
6
S13003
0A4300805
螺栓(带垫圈) M3×8DA
SCREW PAN (S/P WASHER) M3×8
1
7
41730051
J03958001
屏蔽板 CDD
SHIELD PLATE CDD
1
8
417S30017
0A4261005
螺栓(带垫圈) M2.6×10
SCREW PAN (S/P WASHER) M2.6×10
3
9
41730052
J04488001
ENC基板组件 430D#2
NEC PCB ASSY 430D#2
1
10
417S30018
0A5300606
螺栓(带垫圈) M3×6DB
SCREW PAN (S/P WASHER) M3×6
3
11
41712118
J04230001
电线固定夹 CDD-HT
CORD HOLDER CDD-HT
1
12
417S30019
0A4401005
螺栓(带垫圈) M4×10DA
SCREW PAN (S/P WASHER) M4×10
3
13
41730053
J04388001
编码器盖 430D
ENCODER COVER 430D
1
14
S13003
0A4300805
螺栓(带垫圈) M3×8DA
SCREW PAN (S/P WASHER) M3×8
3
15
41709003
J04303001
同步轮组件 430D
PULLEY HOLDER ASSY 430D
1
16
S09045
014500632
螺钉 M5×6
SET SCREW SOCKET (CP) M5×6
2
44
Page 92 — T . 踏板关系 / Foot switch pedal mechanism
T . 踏板关系 / Foot switch pedal mechanism
< 电磁式 / For solenoid type >
< 空压式 / For Pneumatic type >
1
2
6
7
3
5
8
4
5
45
jintex.in
Page 93 — T、踏板关系/Foot switch pedal mechanism
T、踏板关系/Foot switch pedal mechanism
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
<电磁式>
1
4173001200
SA3519101
脚踏复合件 A
<气压式>
2
4173004500
SA6038001
2连脚踏开关组件
3
41727018
S38168001
弹簧
4
41727018
S38170001
弹簧
5
41730046
S36260000
开关 VX
6
41712115
S38174000
脚踏板
7
41712116
S38175001
脚踏护板
8
41712117
S38176101
弹簧板
NAME OF PARTS
<For Solenoid type>
TREADLE UINT. A ASSY
<For Pneumatic type>
2-PEDAL FOOT SWITCH SW ASSY
SPRING COMPRESSION 10×30
FOOT PEDAL SPRING
PIN BUTTON MICRO SWITCH VX
FOOT PEDAL
PROTECTION PLATE PEDAL
SPRING PLATE
数量
Amt.
1
1
1
2
3
2
2
备注
46
jintex.in
Page 94 — Z. 附件 / Accessories
Z. 附件 / Accessories
47
jintex.in
Page 95
Z、附件/Accessories
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
1
41711060
SA4842001
马达盖
MOTOR COVER
1
3
S04038
062061016
螺钉 M6×10
SCREW PAN M6×10
4
4
41711031
SA4844001
油盘
OIL PAN
1
5
41711006
154467001
废油回收壶盖
DUST OILER
1
6
417S30010
037301215
螺钉 M3×12
TAPPING SCREW PAN V M3×12
1
7
41722005
SA3540001
缓冲橡胶垫
RUBBER CUSHION
2
8
101S30010
109714000
钉
NAIL
3
9
11631008
114486002
油壶
OILER
7
10
20131076
122991001
附属品塑料袋
ACCESSORY BAG
1
11
41231018
S06706001
硅油
SILICONE OIL
1
12
41718004
SA4633001
梭芯 LAN
BOBBIN LAN
1
13
41217002
*P. 67
机针组件(4支装)
NEEDLE 4PIECE ASSY
1
14
41217002
*P. 67
机针
NEEDLE
4
15
41231016
114483002
油壶组件
OILER ASSY
1
16
41231017
S55663001
油罐组件
OIL TANK ASSY
1
17
10131004
142443001
小起子 1.9×52
SCREW-DRIVER 1.9×52
1
18
10131003
118837001
起子 3.4×70
SCREW-DRIVER 3.4×70
1
19
10131002
101572102
起子 5.5×190
SCREW-DRIVER 5.5×190
1
20
30131005
107779001
扳手 6×7
WRENCH 6×7
1
21
41731011
100887001
扳手 8×9
WRENCH 8×9
1
22
11631003
107780001
扳手 10×12
WRENCH 10×12
1
23
30131007
S07783001
内六角扳手 1.5
HEXAGONAL WRENCH 1.5
1
24
20131046
142002001
内六角扳手 2
HEXAGONAL WRENCH 2
1
25
30331010
154125001
内六角扳手 2.5
HEXAGONAL WRENCH 2.5
1
26
30131010
142721001
内六角扳手 3
HEXAGONAL WRENCH 3
1
27
30131012
118064001
内六角扳手 4
HEXAGONAL WRENCH 4
1
28
20131047
150335001
内六角扳手 5
HEXAGONAL WRENCH 5
1
29
1013100700
S40574209
线架组件 2DTHF
COTTON STAND ASSY 2DTHF
1
76
30112024
200190001
U形卡钉
STAPLE 10×20
7
78
40131017
144226001
机头罩
HEAD COVER
1
79
S05088
032461606
螺栓 M6×45
BOLT SOCKET M6×45
4
82
417S30010
032461606
木螺钉 M4.5×16
WOOD SCREW ROUND 2 M4.5×16
2
83
4121208100
S44483001
铰链组件
HINGE ASSY
1
84
41212082
S44484001
护眼板铰链
EYE GUARD HINGE
1
88
41211005
S44485001
护眼板
EYE GUARD
1
89
412S17004
061660806
螺钉 SM3.18-40×8
SCREW FLAT SM3.18-40×8
2
90
412S16012
021660102
螺母 M3.18
NUT M3.18
2
91
41228047
026030232
平垫圈 M3
WASHER PLAIN M3
2
92
41211005
S44486101
护眼板架 A
EYE GUARD HOLDER A
2
93
401S11022
062670512
螺钉 SM3.57-40×5
SCREW PAN SM3.57-40×5
2
94
S04035
062400616
螺钉 M4×6
SCREW PAN M4×6
2
95
W01024
110735001
垫圈
WASHER
2
97
41722033
SA3395001
橡胶铰链
RUBBER CUSHION
2
98
41712131
SA3392001
垫片
SPACER
2
99
41726019
SA3384001
机头支承销
PIN
2
100
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (CP) M6×6
2
101
41712132
SA3385001
接头铰座
HINGE HOLDER
2
102
S05112
018066036
螺栓 M6×50
BOLT SOCKET M6×50
4
103
41728030
213650001
垫圈 2.3×8.5×38
WASHER 2.3×8.5×38
4
105
N01021
021060106
螺母 M6
NUT 1 M6
4
106
41722005
SA3540001
缓冲橡胶垫
RUBBER CUSHION
4
107
41730010
SA4845001
缓冲器
SHOCK ABSORBER GAS
1
108
41712113
SA4846001
缓冲器支架
HOLDER ABSORBER
2
109
41703027
SA5251001
垫圈
SPACER
1
110
S05117
018064031
螺钉 M6×40
BOLT SOCKET M6×40
1
111
N01021
021060106
螺母 M6
NUT 1 M6
1
112
41702023
SA4847001
轴 U
SHAFT U
1
113
S10019
012060636
螺钉 M6×6
SET SCREW SOCKET (CP) M6×6
1
48
Page 96 — Z. 附件 / Accessories
Z. 附件 / Accessories
10
78
23
24
25
26
27
28
19
18
17
16
15
11
20
21
22
76
79
83
84
93
89
92
94
95
9190
88
<电磁式>
/ For Solenoid type >
123
13
14
12
3
1
82
124
103
105
125
126
106
8
7
102
97 98
99
101
100
4
5
6
9
106
128
129
129
119
108
118
112
113
107
111
116
114 115
117
110
109
49
jintex.in
Page 97
Z、附件/Accessories
序号
No.
公司件号
Part. No.
参考件号
Ref. No.
零部件名称
NAME OF PARTS
数量
Amt.
备注
114
41702024
S17974001
轴 D
SHAFT D
1
115
41703028
S17975100
轴套 GS
SHAFT COLLAR GAS
2
116
41728018
025080132
垫圈 S8
WASHER PLAIN S8
2
117
H05031
048060342
挡圈 E6
RETAINING RING E6
2
118
S05112
SA3387001
螺栓 M6×60
BOLT SOCKET M6×60
2
119
W01003
025060236
平垫圈 M6
WASHER PLAIN M6
2
120
41728030
213650001
垫圈 2.3×8.5×38
WASHER 2.3×8.5×38
2
121
W02009
028060246
弹簧垫圈 2-6
WASHER SPRING 2-6
2
122
N010021
021060106
螺母 M6
NUT 1 M6
2
<电磁式>
<For Solenoid type>
123
S05112
119755001
螺栓 M6×60
BOLT M6×60
2
124
W01003
025060236
平垫圈 M6
WASHER PLAIN M6
2
125
W02009
028060246
弹簧垫圈 2-6
WASHER SPRING 2-6
2
126
N01021
021060106
螺母 M6
NUT 1 M6
2
128
41712114
SA6261001
支架盖
HOLDER ABSORBER COVER
1
129
417S30033
S55479001
螺栓(带垫圈) M4×8
BOLT SOCKET(S/P WASHER) M5×32
6
50
Page 98 — Ga. I模具一览表 / Gauge parts list
Ga. I模具一览表 / Gauge parts list
压脚 / Presser foot
A / S42843-001
* B / S42844-001
C / S42845-001
D / S42846-001
E / S42847-001
F / 157237-001
G / 158592-001
J / S42848-001
A-CUT / S40214-001
B-L / S49448-001
XA / S42849-101
H / SA4811-001
*
针孔板 / Needle hole plate
2.4 C0.4 / SA3336-001
* 2.2 / SA5221-001
* 3.0 C1.5 / SA5222-001
*
印有*记号的为标准零部件
The * symbol is for Standard parts.
51
jintex.in
