Jack JK-T2284B Parts Book (PDF)
Text index — Jack JK-T2284B
Page 10 — PTTERN CAM TABLE FOR 2288N AND 2288N-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22568851 | Needle rocking cam A | ||
| 22568950 | Needle rocking cam B | ||
| 22569057 | Needle rocking cam C | ||
| 22569156 | Needle rocking cam D | ||
| 22568255 | Needle rocking cam E | ||
| 22569354 | Needle rocking cam F | ||
| 22569453 | Needle rocking cam G | ||
| 22569552 | Needle rocking cam H | ||
| 22569651 | Needle rocking cam J | ||
| 22569750 | Needle rocking cam K | ||
| 22569859 | Needle rocking cam L |
Page 11 — 2288N，2288N-7花样凸轮一览表
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22568851 | 针摆动凸轮 A | ||
| 22568950 | 针摆动凸轮 B | ||
| 22569057 | 针摆动凸轮 C | ||
| 22569156 | 针摆动凸轮 D | ||
| 22568255 | 针摆动凸轮 E | ||
| 22569354 | 针摆动凸轮 F | ||
| 22569453 | 针摆动凸轮 G | ||
| 22569552 | 针摆动凸轮 H | ||
| 22569651 | 针摆动凸轮 J | ||
| 22569750 | 针摆动凸轮 K | ||
| 22569859 | 针摆动凸轮 L |
Page 30 — 33. MOTOR PULLEY AND BELT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MTKP0130000 | MTKP0130000 | ||
| MTKP0125000 | MTKP0125000 | ||
| MTKP0120000 | MTKP0120000 | ||
| MTKP0115000 | MTKP0115000 | ||
| MTKP0110000 | MTKP0110000 | ||
| MTKP0105000 | MTKP0105000 | ||
| MTKP0100000 | MTKP0100000 | ||
| MTKP0095000 | MTKP0095000 | ||
| MTKP0090000 | MTKP0090000 | ||
| MTKP0085000 | MTKP0085000 | ||
| MTKP0080000 | MTKP0080000 | ||
| MTKP0075000 | MTKP0075000 | ||
| MTKP0070000 | MTKP0070000 | ||
| MTKP0065000 | MTKP0065000 | ||
| MTKP0060000 | MTKP0060000 | ||
| MTKP0055000 | MTKP0055000 | ||
| MTJVM00460A | MTJVM00460A | ||
| MTJVM00450A | MTJVM00450A | ||
| MTJVM00440A | MTJVM00440A | ||
| MTJVM00430A | MTJVM00430A | ||
| MTJVM00420A | MTJVM00420A |
Page 31 — For the sewing machine with a thread trimmer
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MTKPO130000 | MTKPO130000 | 5480 | |
| MTKPO125000 | MTKPO125000 | 5270 | |
| MTKPO120000 | MTKPO120000 | 5060 | |
| MTKPO115000 | MTKPO115000 | 4850 | |
| MTKPO110000 | MTKPO110000 | 4630 | |
| MTKPO105000 | MTKPO105000 | 4440 | |
| MTKPO100000 | MTKPO100000 | 4250 | |
| MTKPO095000 | MTKPO095000 | 4000 | |
| MTKPO090000 | MTKPO090000 | 3820 | |
| MTKPO085000 | MTKPO085000 | 3610 | |
| MTKPO080000 | MTKPO080000 | 3390 | |
| MTKPO075000 | MTKPO075000 | 3160 | |
| MTKPO070000 | MTKPO070000 | 2950 | |
| MTKPO065000 | MTKPO065000 | 2740 | |
| MTKPO060000 | MTKPO060000 | 2530 | |
| MTKPO055000 | MTKPO055000 | 2320 | |
| MTJVMO0460A | MTJVMO0460A | ||
| MTJVMO0450A | MTJVMO0450A | ||
| MTJVMO0440A | MTJVMO0440A | ||
| MTJVMO0430A | MTJVMO0430A | ||
| MTJVMO0420A | MTJVMO0420A |
Page 41 — VI. SPARE PARTS 备用零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23506009 | ||
| 2 | SS5090610SP | ||
| 3 | 23506108 | ||
| 4 | SS6080360SP |
Page 59 — 1.机壳部件 (1) Frame & Miscellilaneous cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ1001 | Arm side cover compl. | 1 |
| 2 | QZ1002 | Gasket | 1 |
| 3 | QZ1003 | Face plate compl. | 1 |
| 4 | QZ1004 | Gasket | 1 |
| 5 | QZ1005 | Tension release window plate | 1 |
| 6 | QZ1006 | Gasket | 1 |
| 7 | QZ1007 | Balance cover base | 1 |
| 8 | QZ1008 | Balance cover | 1 |
| 9 | QZ1009 | Spring guard | 1 |
| 10 | QZ1010 | Balance thread guide A | 1 |
| 11 | QZ1011 | Rubber plug | 1 |
| 12 | QZ1012 | Screw 11/64-40 L=8 | 1 |
| 13 | QZ1013 | Thread guide pin | 2 |
| 14 | QZ1014 | Spring guard | 1 |
| 15 | QZ1015 | Arm oil shield | 1 |
| 16 | QZ1016 | Rubber plug | 1 |
| 17 | QZ1017 | Take-up thread cutter | 1 |
| 18 | QZ1018 | Side plate | 1 |
| 19 | QZ1019 | Gasket | 1 |
| 20 | QZ1020 | Oil sight window | 1 |
| 21 | QZ1021 | Rubber stopper | 1 |
| 22 | QZ1022 | Plug D=8 L=4.5 | 1 |
| 23 | QZ1023 | Rubber plug | 2 |
| 24 | QZ1024 | Screw 3/16-28 L=10 | 1 |
| 25 | QZ1025 | Toothed washer D=5.3 | 1 |
| 26 | QZ1026 | Screw 3/16-28 L=14 | 5 |
| 27 | QZ1027 | Screw 11/16-40 L=8 | 7 |
| 28 | QZ1028 | Screw 1/8-44 L=3.8 | 1 |
| 29 | QZ1029 | High screw D=6.35 H=7.5 | 1 |
| 30 | QZ1030 | Waved washer 6.4x11x0.3 | 1 |
| 31 | QZ1031 | Washer 6.5x11x1 | 1 |
| 32 | QZ1032 | Screw 11/64-40 L=9 | 2 |
| 33 | QZ1033 | Screw 9/64-40 L=7 | 1 |
| 34 | QZ1034 | Screw 3/16-28 L=6 | 4 |
| 35 | QZ1035 | Screw 3/16-28 L=6 | 1 |
| 36 | QZ1036 | Driving stopper rubber | 2 |
| 37 | QZ1037 | Rubber plug | 1 |
| 38 | QZ1038 | Plug | 1 |
| 39 | QZ1039 | Thread release | 1 |
| 40 | QZ1040 | Balance thread guide T | 1 |
| 41 | QZ1041 | Screw 3/46-28 L=10 | 8 |
| 42 | QZ1042 | Rubber plug | 1 |
| 43 | QZ1043 | Screw 9/64-40 L=3.5 | 1 |
| 44 | QZ1044 | Cable clip C | 1 |
| 45 | QZ1045 | "Cord holder,large" | 2 |
| 46 | QZ1046 | Cable holder | 1 |
| 47 | QZ1047 | Screw 3/16-28 L=10 | 1 |
| 48 | QZ1048 | Thread tension asm. | 1 |
| 49 | QZ1049 | Thread tension asm. | 1 |
| 50 | QZ1050 | Thread tension disk compl | 1 |
| 51 | QZ1051 | Thread tension rod asm | (1) |
| 52 | QZ1052 | Take-up spring | (1) |
| 53 | QZ1053 | Thread tension post asm | (1) |
| 54 | QZ1054 | Felt | (2) |
| 55 | QZ1055 | Thread disc holder | (1) |
| 56 | QZ1056 | Thread tension pin asm | (1) |
| 57 | QZ1057 | Tension spring | (1) |
| 58 | QZ1058 | Tension spring | (1) |
| 59 | QZ1059 | Tension nut | (1) |
| 60 | QZ1060 | Screw 9/64-40 L=5.5 | (1) |
| 61 | QZ1061 | Rotating stopper | (1) |
| 62 | QZ1062 | Support balance | 1 |
| 63 | QZ1063 | Support balance base | 1 |
| 64 | QZ1064 | Mounting base | 1 |
| 65 | QZ1065 | Pre-tension controller asm | 1 |
| 66 | QZ1066 | Screw 11/64-40 L=6.5 | 1 |
| 67 | QZ1067 | Operation seal | 1 |
| 68 | QZ1068 | Screw 11/64-40 L=5.0 | 1 |
| 69 | QZ1069 | Screw 1/8-40 L=7 | 2 |
| 70 | QZ1070 | Washer 3.3x6x0.5 | 2 |
| 71 | QZ1071 | Screw 11/64-40 L=9 | 2 |
| 72 | QZ1072 | Rubber plug | 1 |
| 73 | QZ1073 | Thread guide bar | 1 |
| 74 | QZ1074 | Timming gaug D | 1 |
| 75 | QZ1075 | Operation seal | 1 |
| 76 | QZ1076 | Attention seal | 1 |
Page 61 — 2.机壳部件 (2) Frame & Misceilaneous cover components(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ2001 | Support plate | 1 |
| 2 | QZ2002 | Helical gear box cover asm. | 1 |
| 3 | QZ2003 | Helical gear box cover | (1) |
| 4 | QZ2004 | Bed screw stud | (2) |
| 5 | QZ2005 | Nut 5/16-24 | (2) |
| 6 | QZ2006 | Connecting screw | (1) |
| 7 | QZ2007 | Bed plate | 1 |
| 8 | QZ2008 | Bed slide | 1 |
| 9 | QZ2009 | Bed slide spring | 1 |
| 10 | QZ2010 | Screw 11/64-40 L=5 | 2 |
| 11 | QZ2011 | Oil shield plate | 1 |
| 12 | QZ2012 | Oil shield rubber | 1 |
| 13 | QZ2013 | Helical bevel gear box cover | 1 |
| 14 | QZ2014 | Ground wire asm. | 1 |
| 15 | QZ2015 | Screw 11/64-40 L=12 | 2 |
| 16 | QZ2016 | Screw 9/64-40 L=7.5 | 2 |
| 17 | QZ2017 | Screw 9/64-40 L=7.5 | 2 |
| 18 | QZ2018 | Screw 3/32-56 L=1.9 | 2 |
| 19 | QZ2019 | Rubber plug | 1 |
| 20 | QZ2020 | Resistance pack as asm. | 1 |
| 21 | QZ2021 | Helical bevel gear box cover | 1 |
| 22 | QZ2022 | Gasket | 1 |
| 23 | QZ2023 | Nylon cap | 1 |
| 24 | QZ2024 | Screw 11/64-40 L=9 | 3 |
| 25 | QZ2025 | Screw 3/16-28 L=12 | 1 |
| 26 | QZ2026 | Screw 11/64-40 L=9 | 4 |
| 27 | QZ2027 | Resistance pack al asm. | 1 |
| 28 | QZ2028 | Ground mark | 1 |
| 29 | QZ2029 | Washer 5x10.5x1 | 1 |
| 30 | QZ2030 | Spring washer 5.1x9.2x1.3 | 1 |
| 31 | QZ2031 | "Safety label,1(small)." | 1 |
| 32 | QZ2032 | "Safety label.,3(small)." | 1 |
| 33 | QZ2033 | Needle plate | 1 |
| 34 | QZ2034 | Caution label(16) | 1 |
| 35 | QZ2035 | Attention seal | 1 |
| 36 | QZ2036 | Needle plate | 1 |
| 37 | QZ2037 | Resistance pack asm. | 1 |
Page 63 — 3.机壳部件 (3) Frame & Miscelilaneous cover components(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ3001 | Bobbin device asm. | 1 |
| 2 | QZ3002 | Bobbin fitting basis compl. | (1) |
| 3 | QZ3003 | Bobbin shaft compl. | (1) |
| 4 | QZ3004 | Bobbin cam shaft compl. | (1) |
| 5 | QZ3005 | Bobbin lever | (1) |
| 6 | QZ3006 | Adjusting plate | (1) |
| 7 | QZ3007 | Latch spring | (1) |
| 8 | QZ3008 | Pressur foot spring | (1) |
| 9 | QZ3009 | Vertical roller washer | (2) |
| 10 | QZ3010 | Rubber ring | (1) |
| 11 | QZ3011 | Cushion | (1) |
| 12 | QZ3012 | Spring | (1) |
| 13 | QZ3013 | Retaining ring | (1) |
| 14 | QZ3014 | E-ring | (1) |
| 15 | QZ3015 | Rubber ring | (1) |
| 16 | QZ3016 | Screw 11/64-40 L=4 | (1) |
| 17 | QZ3017 | Oil reservoir base | (1) |
| 18 | QZ3018 | O-ring | (1) |
| 19 | QZ3019 | Packing | 1 |
| 20 | QZ3020 | Driving wheel | 1 |
| 21 | QZ3021 | Screw 1/4-40 L=6 | 2 |
| 22 | QZ3022 | Thread guide | 1 |
| 23 | QZ3023 | Screw 11/64-40 L=7.8 | 1 |
| 24 | QZ3024 | Thread cutter | 1 |
| 25 | QZ3025 | Screw 9/64-40 L=6 | 2 |
| 26 | QZ3026 | Bobbin thread tension asm | 1 |
| 27 | QZ3027 | Thread tension nut | (1) |
| 28 | QZ3028 | Thread tension spring | (1) |
| 29 | QZ3029 | Bobbin winder tension disc | (2) |
| 30 | QZ3030 | Bobbin thread tension rod asm. | (1) |
| 31 | QZ3031 | Nut 11/64-40 | (1) |
| 32 | QZ3032 | Screw 3/16-28 L=10 | 3 |
Page 65 — 4.上軸部件 Main shaft.needle bar component
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | LJQZ4001 | Main shaft | 1 |
| 2 | QZ4002 | Thrust collar asm. | 1 |
| 3 | QZ4003 | Thrust collar asm. | (1) |
| 4 | QZ4004 | Bearing D=20X47 | (1) |
| 5 | QZ4005 | Screw 1/4-40 L=6 | (2) |
| 6 | QZ4006 | Oil seal collar | 1 |
| 7 | QZ4007 | Sprocket | 1 |
| 8 | QZ4008 | Hand wheel | 1 |
| 9 | QZ4009 | Balance | 1 |
| 10 | QZ4010 | "Main shaft bushing,front" | 1 |
| 11 | QZ4011 | "Main shaft bushing,intermediate" | 1 |
| 12 | QZ4012 | Oil seal | 1 |
| 13 | QZ4013 | Counterweight | 1 |
| 14 | QZ4014 | Counterweight protecting plate | 1 |
| 15 | QZ4015 | Needle bar crank | 1 |
| 16 | QZ4016 | Take-up counterweight asm | 1 |
| 17 | QZ4017 | Timing belt | 1 |
| 18 | QZ4018 | Pin | 1 |
| 19 | QZ4019 | Oil wick | 1 |
| 20 | QZ4020 | Rubber ring | 1 |
| 21 | QZ4021 | Screw 15/64-28 L=10.5 | 1 |
| 22 | QZ4022 | Screw 15/64-28 L=11 | 1 |
| 23 | QZ4023 | Rubber ring | 1 |
| 24 | QZ4024 | Screw 15/64-28 L=15 | 2 |
| 25 | QZ4025 | Screw 1/4-40 L=6 | 2 |
| 26 | QZ4026 | Screw 9/32-28 L=16 | 1 |
| 27 | QZ4027 | Rubber ring | 1 |
| 28 | QZ4028 | Rubber ring | 1 |
| 29 | QZ4029 | Screw 1/4-40 L=6 | 2 |
| 30 | QZ4030 | Screw 1/4-40 L=6 | 2 |
| 31 | QZ4031 | Screw 9/64-40 L=8.6 | 3 |
| 32 | QZ4032 | Thrust collar asm, D=14.72 W=12 | 1 |
| 33 | QZ4033 | Hand wheel asm | 1 |
| 34 | QZ4034 | Hand wheel compl | (1) |
| 35 | QZ4035 | (B) Magnet fitting base b asm. | (1) |
| 36 | QZ4036 | (A) Magnet fitting base a asm | (1) |
| 37 | QZ4037 | Screw 15/64-28 L=15 | (2) |
| 38 | QZ4038 | Screw 11/64-40 L=12 | 2 |
| 39 | QZ4039 | Washer 4.5x10x0.8 | 2 |
| 40 | QZ4040 | Dynamo stator | 1 |
| 41 | QZ4041 | Screw | 2 |
| 42 | QZ4042 | Needle bar crank rod asm | 1 |
| 43 | QZ4043 | Needle bar connection | 1 |
| 44 | QZ4044 | Thread rack | 1 |
| 45 | QZ4045 | Needle rod | 1 |
| 46 | QZ4046 | Neede bar connection guide | 1 |
| 47 | QZ4047 | Crank rod guide | 1 |
| 48 | QZ4048 | "Needle bearing,a" | 1 |
| 49 | QZ4049 | Needle bearing | 1 |
| 50 | QZ4050 | Needle bearing | 1 |
| 51 | QZ4051 | Needddle bearing | 1 |
| 52 | QZ4052 | Needle 438 #75 | 1 |
| 53 | QZ4053 | Screw 1/8-44 L=4.9 | 1 |
| 54 | QZ4054 | Screw 9/64-40 L=8.5 | 1 |
| 55 | QZ4055 | Screw 11/64-40 L=9 | 2 |
| 56 | QZ4056 | Screw 11/64-40 L=7 | 2 |
| 57 | QZ4057 | Screw 3/32-56 L=3 | 1 |
| 58 | QZ4058 | Needle bar yoke asm | 1 |
| 59 | QZ4059 | Needle bar yoke | (1) |
| 60 | QZ4060 | Shaft | (1) |
| 61 | QZ4061 | "Needle bar bushing upper D=7" | (1) |
| 62 | QZ4062 | "Needle bar bushing lower D=7" | (1) |
| 63 | QZ4063 | Spring pin | (1) |
| 64 | QZ4064 | Feed rocker shaft bushing | 1 |
| 65 | QZ4065 | Needle bar yoke presser | 1 |
| 66 | QZ4066 | Screw | 1 |
| 67 | QZ4067 | Guide pin | 1 |
| 68 | QZ4068 | "Shaft bushing rear" | 1 |
| 69 | QZ4069 | Screw 3/16-28 L=7 | 1 |
| 70 | QZ4070 | Oil wick | 0.1 |
| 71 | QZ4071 | Balance V | 1 |
| 72 | QZ4072 | Needle 134sux 70 | 1 |
| 73 | QZ4073 | Needle DPX5 #10 | 1 |
| 74 | QZ4074 | Needle rod | 1 |
| 75 | QZ4075 | Needle rod thread rack | 1 |
Page 67 — 5. 针杆调节部件 (1) Needle vibrator & Adjustment components(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ5001 | Drive link asm. | 1 |
| 2 | QZ5002 | Drive link | (1) |
| 3 | QZ5003 | Link | (1) |
| 4 | QZ5004 | Shaft | (1) |
| 5 | QZ5005 | Shaft | (1) |
| 6 | QZ5006 | Shaft | (1) |
| 7 | QZ5007 | Shaft connection asm. | (1) |
| 8 | QZ5008 | Shaft connection asm. | (1) |
| 9 | QZ5009 | Screw 3/16-28 L=14 | (1) |
| 10 | QZ5010 | Washer 5.1x7.5x0.5 | (1) |
| 11 | QZ5011 | Link | (1) |
| 12 | QZ5012 | Pin D | (1) |
| 13 | QZ5013 | Pin | (1) |
| 14 | QZ5014 | Pin B | (1) |
| 15 | QZ5015 | Pin C | (1) |
| 16 | QZ5016 | Thrust collar asm. | (1) |
| 17 | QZ5017 | Screw 11/64-40 L=8.5 | (1) |
| 18 | QZ5018 | Screw 9/64-40 L=5.5 | (2) |
| 19 | QZ5019 | Screw 11/64-40 L=8.5 | (1) |
| 20 | QZ5020 | Needle vibrating cam asm. | 1 |
| 21 | QZ5021 | Needle vibrating cam | (1) |
| 22 | QZ5022 | Needle vibrating rod | (1) |
| 23 | QZ5023 | Cam cover | (1) |
| 24 | QZ5024 | Screw 11/64-40 L=8.5 | (2) |
| 25 | QZ5025 | A Screw gear A | 1 |
| 26 | QZ5026 | B Screw gear B | 1 |
| 27 | QZ5027 | C Screw gear C | 1 |
| 28 | QZ5028 | D Screw gear D | 1 |
| 29 | QZ5029 | Needle vibrating cam shaft | 1 |
| 30 | QZ5030 | Bushing | 1 |
| 31 | QZ5031 | (A) Drive link guide A | 1 |
| 32 | QZ5032 | (B) Drive link guide B | 1 |
| 33 | QZ5033 | (A) Pin A | 1 |
| 34 | QZ5034 | (B) Pin B | 1 |
| 35 | QZ5035 | (C) Pin B | 1 |
| 36 | QZ5036 | (D) Pin D | 1 |
| 37 | QZ5037 | Screw 1/4-40 L=6 | 2 |
| 38 | QZ5038 | Screw 1/4-40 L=8.5 | 1 |
| 39 | QZ5039 | Rubber ring | 1 |
| 40 | QZ5040 | Thrust collar asm. D=10.32 W=1 | 1 |
| 41 | QZ5041 | Thrust collar asm. D=10.32 W=1 | 1 |
| 42 | QZ5042 | Screw 15/64-28 L=7 | 1 |
| 43 | QZ5043 | Screw 1/4-40 L=4.2 | 1 |
| 44 | QZ5044 | Screw 1/4-40 L=8 | 1 |
| 45 | QZ5045 | E Screw gear E | 1 |
| 46 | QZ5046 | Snap ring M10 | 1 |
Page 69 — 6. Needle vibrator & Adjustment components(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ6001 | Base asm. | 1 |
| 2 | QZ6002 | Base mounting plate | (1) |
| 3 | QZ6003 | Shaft | (1) |
| 4 | QZ6004 | Needle position adjusting base | (1) |
| 5 | QZ6005 | arm | (1) |
| 6 | QZ6006 | Shaft | (1) |
| 7 | QZ6007 | Shaft | (1) |
| 8 | QZ6008 | Shaft | (1) |
| 9 | QZ6009 | Shaft | (1) |
| 10 | QZ6010 | Stopper asm. | (1) |
| 11 | QZ6011 | Nut | (1) |
| 12 | QZ6012 | Nut stopper | (1) |
| 13 | QZ6013 | Lever asm. | (1) |
| 14 | QZ6014 | Spring | (1) |
| 15 | QZ6015 | Oil shield | (1) |
| 16 | QZ6016 | Hand stop crank shaft ball | (1) |
| 17 | QZ6017 | Waved washer 8.5x12.5x0.3 | (3) |
| 18 | QZ6018 | Nut 15/64-28 | (1) |
| 19 | QZ6019 | Screw 9/64-40 L=6 | (3) |
| 20 | QZ6020 | Washer | (2) |
| 21 | QZ6021 | Waved washer | (1) |
| 22 | QZ6022 | Snap ring M10 | (1) |
| 23 | QZ6023 | Nut 15/64-28 | (1) |
| 24 | QZ6024 | E-ring | (1) |
| 25 | QZ6025 | E-ring 4 | (1) |
| 26 | QZ6026 | Screw 9/64-40 L=5.0 | (1) |
| 27 | QZ6027 | Hinge screw D=8 H=4 | (1) |
| 28 | QZ6028 | Knob asm. | 1 |
| 29 | QZ6029 | Knob asm. | (1) |
| 30 | QZ6030 | Lever stopper | (2) |
| 31 | QZ6031 | Screw 9/64-40 L=6 | (2) |
| 32 | QZ6032 | Washer 3.7x8x1 | (2) |
| 33 | QZ6033 | Lever | 1 |
| 34 | QZ6034 | Scale plate asm. | (1) |
| 35 | QZ6035 | Scale plate | (1) |
| 36 | QZ6036 | Scale mounting base compl | (1) |
| 37 | QZ6037 | Screw 1/8-44 L=2.5 | (2) |
| 38 | QZ6038 | Lever asm. | 1 |
| 39 | QZ6039 | Lever | (1) |
| 40 | QZ6040 | Knob | (1) |
| 41 | QZ6041 | Lever stopper | (2) |
| 42 | QZ6042 | Screw 9/64-40 L=3.5 | (2) |
| 43 | QZ6043 | Washer 3.7x8x1 | (2) |
| 44 | QZ6044 | Key | 1 |
| 45 | QZ6045 | Spring | 1 |
| 46 | QZ6046 | Screw 3/16-28 L=10 | 4 |
| 47 | QZ6047 | Screw 9/64-40 L=8.5 | 1 |
| 48 | QZ6048 | Screw 3/16-32 L=6.5 | 1 |
| 49 | QZ6049 | Washer | 1 |
| 50 | QZ6050 | Waved washer | 1 |
| 51 | QZ6051 | Washer | 1 |
| 52 | QZ6052 | Washer 3.7x6x1 | 1 |
Page 71 — 7.压脚部件 Presser bar & Feed regulator components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ7001 | Presser foot asm. | 1 |
| 2 | QZ7002 | Presser foot asm. | (1) |
| 3 | QZ7003 | Presser foot(lower) | (1) |
| 4 | QZ7004 | Presser foot(upper) | (1) |
| 5 | QZ7005 | Presser pin | (1) |
| 6 | QZ7006 | Spring | (1) |
| 7 | QZ7007 | Screw 9/64-40 L=7.5 | (1) |
| 8 | QZ7008 | Finger cover | (1) |
| 9 | QZ7009 | Hand lifter cam compl | 1 |
| 10 | QZ7010 | Lifting lever | 1 |
| 11 | QZ7011 | Lifting lever link | 1 |
| 12 | QZ7012 | Hinge screw | 2 |
| 13 | QZ7013 | Lifting lever connecting rod | 1 |
| 14 | QZ7014 | Lifting lever link arm | 1 |
| 15 | QZ7015 | Swivel | 1 |
| 16 | QZ7016 | Connecting rod hinge screw | 1 |
| 17 | QZ7017 | Presser bar | 1 |
| 18 | QZ7018 | Presser bar guide bracket | 1 |
| 19 | QZ7019 | Presser spring regulator | 1 |
| 20 | QZ7020 | Presser guide bar | 1 |
| 21 | QZ7021 | Presser spring | 1 |
| 22 | QZ7022 | "Presser bar bushing,lower" | 1 |
| 23 | QZ7023 | Hand lifter | 1 |
| 24 | QZ7024 | Screw | 1 |
| 25 | QZ7025 | Lifting lever gasket | 1 |
| 26 | QZ7026 | Hinge pin | 1 |
| 27 | QZ7027 | snap ring | 1 |
| 28 | QZ7028 | "Connecting rod,vertical" | 1 |
| 29 | QZ7029 | Knee lifting link step-screw | 1 |
| 30 | QZ7030 | Knee lifting link spring | 1 |
| 31 | QZ7031 | E-ring | 1 |
| 32 | QZ7032 | Hinge screw D=6.35 H=3 | 1 |
| 33 | QZ7033 | Screw 9/64-40 L=8.5 | 1 |
| 34 | QZ7034 | Presser spring T | 1 |
| 35 | QZ7035 | Rubber ring | 1 |
| 36 | QZ7036 | Hinge screw D=6.35 H=2.7 | 1 |
| 37 | QZ7037 | Nut 3/16-32 | 1 |
| 38 | QZ7038 | E-ring 6 | 1 |
| 39 | QZ7039 | Screw | 1 |
| 40 | QZ7040 | Screw 15/64-28 L=4.7 | 1 |
| 41 | QZ7041 | Presser foot asm. | 1 |
| 42 | QZ7042 | Presser foot asm. | (1) |
| 43 | QZ7043 | Presser foot asm.(lower) | (1) |
| 44 | QZ7044 | Presser foot asm.(upper) | (1) |
| 45 | QZ7045 | Presser pin | (1) |
| 46 | QZ7046 | Screw 9/64-40 L=7.5 | (1) |
| 47 | QZ7047 | Spring | (1) |
| 48 | QZ7048 | Finger cover | (1) |
| 49 | QZ7049 | Screw 11/64-40 L=10.5 | 1 |
| 50 | QZ7050 | Presser asm. | 1 |
| 51 | QZ7051 | Presser foot(upper) | (1) |
| 52 | QZ7052 | Presser foot(lower) | (1) |
| 53 | QZ7053 | Presser pin | (1) |
| 54 | QZ7054 | Safety cover | (1) |
| 55 | QZ7055 | Spring | (1) |
| 56 | QZ7056 | Screw 9/64-40 L=7.5 | (1) |
| 57 | QZ7057 | Nut | 1 |
Page 73 — 8.倒缝部件 Feed mechanism & Condense components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ8001 | Lever | 1 |
| 2 | QZ8002 | Shaft | 1 |
| 3 | QZ8003 | Bushing | 1 |
| 4 | QZ8004 | Condense stopper arm asm. | 1 |
| 5 | QZ8005 | Feed driving asjuster | 1 |
| 6 | QZ8006 | Knob asm. | 1 |
| 7 | QZ8007 | Knob | (1) |
| 8 | QZ8008 | Adjusting screw base | (1) |
| 9 | QZ8009 | Adjusting screw | (1) |
| 10 | QZ8010 | Stopper | (1) |
| 11 | QZ8011 | Shaft | (1) |
| 12 | QZ8012 | Stopper dial plate | (1) |
| 13 | QZ8013 | Screw 11/64-40 L=3.5 | (2) |
| 14 | QZ8014 | Waved washer | (1) |
| 15 | QZ8015 | Screw 11/64-40 L=7 | (1) |
| 16 | QZ8016 | Feed dial | 1 |
| 17 | QZ8017 | Adjusting screw | 1 |
| 18 | QZ8018 | Feed reversal link | 1 |
| 19 | QZ8019 | Pin | 1 |
| 20 | QZ8020 | Scale plate | 1 |
| 21 | QZ8021 | Spring suspension | 1 |
| 22 | QZ8022 | Torsion spring | 1 |
| 23 | QZ8023 | Tension spring rack B | 1 |
| 24 | QZ8024 | Reverse feed lever stopper | 1 |
| 25 | QZ8025 | Oil seal | 1 |
| 26 | QZ8026 | Pin | 1 |
| 27 | QZ8027 | Spring | 1 |
| 28 | QZ8028 | Screw 3/16-28 L=18 | 1 |
| 29 | QZ8029 | Spring washer 5.1x9.2x1.3 | 1 |
| 30 | QZ8030 | Screw 3/16-32 L=6.5 | 1 |
| 31 | QZ8031 | Screw 3/16-28 L=14 | 1 |
| 32 | QZ8032 | Thrust collar asm. D=10.32 W=1 | 1 |
| 33 | QZ8033 | Screw 3/16-28 L=14 | 1 |
| 34 | QZ8034 | Screw 3/16-32 L=6 | 2 |
| 35 | QZ8035 | Screw 3/16-28 L=18 | 1 |
| 36 | QZ8036 | Rubber ring | 1 |
| 37 | QZ8037 | Hinge screw D=6 H=3.2 | 1 |
| 38 | QZ8038 | Nut 3/16-28 | 1 |
| 39 | QZ8039 | Feed variable arm B | 1 |
| 40 | QZ8040 | Screw 3/16-28 L=15.5 | 1 |
| 41 | QZ8041 | Screw 3/16-28 L=6 | 2 |
| 42 | QZ8042 | Rubber plunger | 1 |
Page 75 — 9. Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ9001 | Feed reversal link | 1 |
| 2 | QZ9002 | Tension spring rack | 1 |
| 3 | QZ9003 | Feed base | 1 |
| 4 | QZ9004 | Screw 15/64-28 L=4.7 | 1 |
| 5 | QZ9005 | Felt | 1 |
| 6 | QZ9006 | Link | 1 |
| 7 | QZ9007 | Balance weight compl. | 1 |
| 8 | QZ9008 | Feed dog | 1 |
| 9 | QZ9009 | Feed base shaft | 1 |
| 10 | QZ9010 | Spacer | 2 |
| 11 | QZ9011 | Feed rocker | 1 |
| 12 | QZ9012 | Link shaft | 1 |
| 13 | QZ9013 | Hinge screw D=6 H=3.2 | 2 |
| 14 | QZ9014 | Nut 3/16-28 | 2 |
| 15 | QZ9015 | Screw 11/64-40 L=11 | 1 |
| 16 | QZ9016 | Screw 1/8-40 L=7 | 2 |
| 17 | QZ9017 | Screw 3/16-28 L=9 | 2 |
| 18 | QZ9018 | Screw 3/16-28 L=14 | 2 |
| 19 | QZ9019 | Screw 3/16-28 L=14 | 1 |
| 20 | QZ9020 | E-ring 3 | 1 |
| 21 | QZ9021 | Thrust collar asm.D=11.11 W=1 | 1 |
| 22 | QZ9022 | Thrust collar D=11.1 W=1 | (1) |
| 23 | QZ9023 | Screw 1/4-40 L=7 | (1) |
| 24 | QZ9024 | Screw 1/4-40 L=8 | 2 |
| 25 | QZ9025 | Screw 1/8-44 L=6.4 | 2 |
| 26 | QZ9026 | Hinge screw D=9 H=7 | 2 |
| 27 | QZ9027 | Nut 9/32-28 | 2 |
| 28 | QZ9028 | Screw 3/16-28 L=15.5 | 1 |
| 29 | QZ9029 | Screw 11/64-40 L=8.5 | 4 |
| 30 | QZ9030 | Screw 11/64-40 L=7 | 1 |
| 31 | QZ9031 | Screw | 2 |
| 32 | QZ9032 | Feed rocker shaft | 1 |
| 33 | QZ9033 | "Bushing,front" | 1 |
| 34 | QZ9034 | "Feed rocker shaft bushing,fro" | 1 |
| 35 | QZ9035 | Eccentric cam | 1 |
| 36 | QZ9036 | Rod | 1 |
| 37 | QZ9037 | Side disc plate | 1 |
| 38 | QZ9038 | Bushing | 1 |
| 39 | QZ9039 | Needle bearing | 1 |
| 40 | QZ9040 | Bearing | 1 |
| 41 | QZ9041 | Bearing | 1 |
| 42 | QZ9042 | Bearing | 1 |
| 43 | QZ9043 | Connecting rod | 1 |
| 44 | QZ9044 | Feed rocker shaft crank | 1 |
| 45 | QZ9045 | Feed driving rocker | 1 |
| 46 | QZ9046 | Plate A | 1 |
| 47 | QZ9047 | Stopper plate | 1 |
| 48 | QZ9048 | Plate B | 1 |
| 49 | QZ9049 | Feed variable shaft | 1 |
| 50 | QZ9050 | Bushing | 1 |
| 51 | QZ9051 | Feed variable arm C | 1 |
| 52 | QZ9052 | Feed dricing rocker block | 2 |
| 53 | QZ9053 | Pin | 1 |
| 54 | QZ9054 | Tension spring | 1 |
| 55 | QZ9055 | Screw 3/16-28 L=14 | 1 |
| 56 | QZ9056 | Washer | 2 |
| 57 | QZ9057 | Reverse feed limiter | 1 |
| 58 | QZ9058 | Screw 11/64-40 L=11 | 1 |
| 59 | QZ9059 | Feed dog | 1 |
| 60 | QZ9060 | Screw 15/64-28 L=7 | 2 |
| 61 | QZ9061 | Feed dog | 1 |
Page 77 — 10.下轴部件 Hook driving shaft & Hook components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ10001 | "Hook compl.,right" | 1 |
| 2 | QZ10002 | Hook compl.V | 1 |
| 3 | QZ10003 | Hook compl.V(plastic hook) | 1 |
| 4 | QZ10004 | Hook compl.V(hard point) | 1 |
| 5 | QZ10005 | Hook combination(hard point) | 1 |
| 6 | QZ10006 | Hook asm.(plastic) | 1 |
| 7 | QZ10007 | Rotating hook V asm. | (1) |
| 8 | QZ10008 | Outer hook V | (1) |
| 9 | QZ10009 | Inner hook presser v-s | (1) |
| 10 | QZ10010 | Hook gib screw | (2) |
| 11 | QZ10011 | Reverse plate V | (1) |
| 12 | QZ10012 | Hook counter balance screw | (1) |
| 13 | QZ10013 | Inner hook V | (1) |
| 14 | QZ10014 | Screw 11/64-40 L=4 | (2) |
| 15 | QZ10015 | Screw 11/64-40 L=4.5 | (2) |
| 16 | QZ10016 | Hook shaft | 1 |
| 17 | QZ10017 | Hook shaft bushing | 1 |
| 18 | QZ10018 | Hook shaft bushing | 1 |
| 19 | QZ10019 | Bushing gap | 1 |
| 20 | QZ10020 | Gasket | 1 |
| 21 | QZ10021 | Inner hook stopper | 1 |
| 22 | QZ10022 | Screw 15/64-28 L=7 | 1 |
| 23 | QZ10023 | Screw 1/4-40 L=8 | 4 |
| 24 | QZ10024 | Screw 1/4-40 L=7 | 2 |
| 25 | QZ10025 | Screw 15/64-28 L=7 | 3 |
| 26 | QZ10026 | Screw 15/64-28 L=8 | 1 |
| 27 | QZ10027 | Bearing D=9.52x22.22 | 1 |
| 28 | QZ10028 | Screw 1/4-40 L=8 | 2 |
| 29 | QZ10029 | Screw 1/4-40 L=8 | 2 |
| 30 | QZ10030 | Screw 1/8-44 L=6 | 2 |
| 31 | QZ10031 | Screw 11/64-40 L=9 | 1 |
| 32 | QZ10032 | Oil seal screw | 1 |
| 33 | QZ10033 | Oil wick | 1 |
| 34 | QZ10034 | Gear asm.large | 1 |
| 35 | QZ10035 | Bobbin case asm. | 1 |
| 36 | QZ10036 | Bobbin case spring | (1) |
| 37 | QZ10037 | Bobbin case compl. | (1) |
| 38 | QZ10038 | "Bushing,front" | 1 |
| 39 | QZ10039 | Lc-601-1/Latch lever | 1 |
| 40 | QZ10040 | Lc-602-2/Latch | 1 |
| 41 | QZ10041 | Sms-801-B/Setscrew pick-up | 1 |
| 42 | QZ10042 | Lsp-4/Latch spring | 1 |
| 43 | QZ10043 | Lsp-1/Latch pin | 1 |
| 44 | QZ10044 | Tsp-604-B/Tension spring | 1 |
| 45 | QZ10045 | Sms-608-B/Tension screw | 1 |
| 46 | QZ10046 | Sms-609-B/Setscrew tension sp | 1 |
| 47 | QZ10047 | "Helical gear A,A" | 1 |
| 48 | QZ10048 | "Helical gear A,B" | 1 |
| 49 | QZ10049 | "Helical gear A,C" | 1 |
| 50 | QZ10050 | "Helical gear A,D" | 1 |
| 51 | QZ10051 | Front screw | 1 |
| 52 | QZ10052 | Bushing | 1 |
| 53 | QZ10053 | Shaft | 1 |
| 54 | QZ10054 | Hook driving shaft | 1 |
| 55 | QZ10055 | Pinion asm. | 1 |
| 56 | QZ10056 | Bobbin S | 1 |
| 57 | QZ10057 | "Bushing,intermediate" | 1 |
| 58 | QZ10058 | Helical gear B | 1 |
| 59 | QZ10059 | Reverse plate | 1 |
| 60 | QZ10060 | V Reverse plate V | 1 |
| 61 | QZ10061 | "Bushing,rear" | 1 |
| 62 | QZ10062 | Hook driving shaft sprocket | 1 |
| 63 | QZ10063 | Rubber ring | 1 |
| 64 | QZ10064 | Inner presser V-S4 | 1 |
Page 79 — 11.供油部件 Lubrication components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ11001 | Oil supply pipe asm. | 1 |
| 2 | QZ11002 | Oil supply pipe | 1 |
| 3 | QZ11003 | Distributor | 1 |
| 4 | QZ11004 | Felt asm. | 1 |
| 5 | QZ11005 | Felt presser | 1 |
| 6 | QZ11006 | Gasket | 1 |
| 7 | QZ11007 | Oil tube | 1 |
| 8 | QZ11008 | Bushing | 1 |
| 9 | QZ11009 | Screw 11/64-40 L=5 | 1 |
| 10 | QZ11010 | Upright shaft | 1 |
| 11 | QZ11011 | Pump driving screw | 1 |
| 12 | QZ11012 | Pump driving gear A | 1 |
| 13 | QZ11013 | Plunger thrust plate | 1 |
| 14 | QZ11014 | Plunger spring | 1 |
| 15 | QZ11015 | Plunger | 1 |
| 16 | QZ11016 | Oil regulating screw | 1 |
| 17 | QZ11017 | Oil return tube holder | 1 |
| 18 | QZ11018 | Oil tank | 1 |
| 19 | QZ11019 | Oil regulating screw | 1 |
| 20 | QZ11020 | Spring | 1 |
| 21 | QZ11021 | Oil felt guide | 1 |
| 22 | QZ11022 | Screw 15/64-28 L=7 | 1 |
| 23 | QZ11023 | Screw 11/64-40 L=7 | 1 |
| 24 | QZ11024 | Connecting screw | 1 |
| 25 | QZ11025 | Screw 11/64-40 L=11 | 2 |
| 26 | QZ11026 | Screw 1/4-40 L=4.5 | 2 |
| 27 | QZ11027 | Screw 1/4-40 L=4.5 | 2 |
| 28 | QZ11028 | Screw 11/64-40 L=7 | 1 |
| 29 | QZ11029 | Connecting screw | 1 |
| 30 | QZ11030 | Oil wick | 0.2 |
| 31 | QZ11031 | Nut 15/64-28 | 1 |
| 32 | QZ11032 | Screw 11/64-40 L=5 | 1 |
| 33 | QZ11033 | Oil tube | 0.33 |
| 34 | QZ11034 | Connecting screw | 2 |
| 35 | QZ11035 | Screw 11/64-40 L=14 | 2 |
| 36 | QZ11036 | Connecting screw | 1 |
| 37 | QZ11037 | Oil tube | 0.3 |
| 38 | QZ11038 | Screw 11/64-40 L=5 | 1 |
| 39 | QZ11039 | Rubber ring | 1 |
| 40 | QZ11040 | Thrust collar asm. | 1 |
| 41 | QZ11041 | Lubricating oil pump asm. | 1 |
| 42 | QZ11042 | Oil pump installing base | (1) |
| 43 | QZ11043 | Rubber joint | (1) |
| 44 | QZ11044 | Rubber joint | (1) |
| 45 | QZ11045 | Lubricating oil pump | (1) |
| 46 | QZ11046 | Oil pump impeller | (1) |
| 47 | QZ11047 | Oil pump impeller cover | (1) |
| 48 | QZ11048 | Screw m3x0.5 L=10 | (3) |
| 49 | QZ11049 | Washer | (3) |
| 50 | QZ11050 | Nut m3x0.5 | (3) |
| 51 | QZ11051 | Lubricating Oil pump cover | (3) |
| 52 | QZ11052 | Screw | (5) |
| 53 | QZ11053 | Cable band | 1 |
| 54 | QZ11054 | Oil wick | 0.2 |
| 55 | QZ11055 | Oil regulating valve asm. | 1 |
| 56 | QZ11056 | Oil regulating valve | (1) |
| 57 | QZ11057 | Wiper link joint | (1) |
| 58 | QZ11058 | Oil tube | (0.18) |
| 59 | QZ11059 | Oil tube | (0.14) |
| 60 | QZ11060 | Oil adjusting screw | (1) |
| 61 | QZ11061 | Nut 11/64-40 | (1) |
| 62 | QZ11062 | Washer | (2) |
| 63 | QZ11063 | Screw 11/64-40 L=14 | (1) |
Page 81 — 12. Thread stand components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ16001 | Thread stand asm. | 1 |
| 2 | QZ16002 | "Spool rest rod,lower" | (1) |
| 3 | QZ16003 | "spool rest rod,upper" | (1) |
| 4 | QZ16004 | Thread guide arm B | (2) |
| 5 | QZ16005 | Spool rest rod joint | (1) |
| 6 | QZ16006 | Thread guide arm joint | (2) |
| 7 | QZ16007 | Spool rest rod cap | (1) |
| 8 | QZ16008 | Spool pin | (2) |
| 9 | QZ16009 | Spool rest | (2) |
| 10 | QZ16010 | Spool rest cushion | (2) |
| 11 | QZ16011 | Spool retainer | (2) |
| 12 | QZ16012 | Nut | (1) |
| 13 | QZ16013 | Thread guide | (2) |
| 14 | QZ16014 | Washer 16x30x2.6 | (2) |
| 15 | QZ16015 | Screw M5 L=14 | (2) |
| 16 | QZ16016 | Nut M5 | (2) |
| 17 | QZ16017 | Screw M6 L=16 | (2) |
| 18 | QZ16018 | Nut M5 | (2) |
| 19 | QZ16019 | Cord staple | (3) |
Page 83 — 13. 皮带罩部件 Belt cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ18001 | Belt cover A | 1 |
| 2 | QZ18002 | Belt cover B | 1 |
| 3 | QZ18003 | Belt cover support stud | 1 |
| 4 | QZ18004 | Belt cover press plate | 1 |
| 5 | QZ18005 | Screw 15/64-28 L=9 | 3 |
| 6 | QZ18006 | Screw 11/64-40 L=4.3 | 3 |
| 7 | QZ18007 | Wood screw D=4.8 L=25 | 1 |
| 8 | QZ18008 | Washer 5x10.5x1 | 1 |
| 9 | QZ18009 | Synchronizer support asm. | 1 |
| 10 | QZ18010 | Synchronizer support asm. | (1) |
| 11 | QZ18011 | Washer 4.5x10x0.8 | (1) |
Page 85 — 14. Oil reservoir & Knee lifter components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ19001 | Oil reservoir asm. | 1 |
| 2 | QZ19002 | Oil reservoir | (1) |
| 3 | QZ19003 | Oil reservoir gasket | (1) |
| 4 | QZ19004 | Rubber cushion | (4) |
| 5 | QZ19005 | "Connecting rot,vertical" | (1) |
| 6 | QZ19006 | Bracket | (1) |
| 7 | QZ19007 | Knee press rod | (1) |
| 8 | QZ19008 | Spring | (1) |
| 9 | QZ19009 | Rubber plug | (1) |
| 10 | QZ19010 | Rubber plug | (1) |
| 11 | QZ19011 | Screw | (1) |
| 12 | QZ19012 | Nut M6 | (2) |
| 13 | QZ19013 | Screw M6 L=30 | (2) |
| 14 | QZ19014 | Screw M6 L=17.5 | (1) |
| 15 | QZ19015 | Screw M6 L=20 | (2) |
| 16 | QZ19016 | E-ring 10 | (1) |
| 17 | QZ19017 | Oil revervoir base | 1 |
| 18 | QZ19018 | Knee press lifter rod | 1 |
| 19 | QZ19019 | Oil reservoir magnet | 1 |
| 20 | QZ19020 | Knee press plate asm. | 1 |
| 21 | QZ19021 | Knee press plate | (1) |
| 22 | QZ19022 | Knee press plate cover | (1) |
| 23 | QZ19023 | Knee lifter plate rod | (1) |
| 24 | QZ19024 | Rubber | (1) |
| 25 | QZ19025 | Knee press plate holder | (1) |
Page 87 — Exclusive parts for 2286N
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ20001 | Needle plate | |
| 2 | QZ20002 | Needle vibrating cam A | |
| 3 | QZ20003 | Worm wheel compl. | |
| 4 | QZ20004 | Worm wheel hub | |
| 5 | QZ20005 | Worm wheel | |
| 6 | QZ20006 | Screw 11/64-40 L=10.5 | |
| 7 | QZ20007 | Shaft | |
| 8 | QZ20008 | Screw 11/64-40 L=4 | |
| 9 | QZ20009 | Worm A | |
| 10 | QZ20010 | Worm B | |
| 11 | QZ20011 | Worm C | |
| 12 | QZ20012 | Worm D | |
| 13 | QZ20013 | Needle vibrating rod | |
| 14 | QZ20014 | Rod guide | |
| 15 | QZ20015 | Feed cam roller | |
| 16 | QZ20016 | Feed cam roller | |
| 17 | QZ20017 | Feed cam roller | |
| 18 | QZ20018 | Feed cam roller | |
| 19 | QZ20019 | Feed cam roller | |
| 20 | QZ20020 | Screw 1/4-40 L=6 | |
| 21 | QZ20021 | Screw 1/4-40 L=8 | |
| 22 | QZ20022 | Screw 1/4-40 L=8.5 | |
| 23 | QZ20023 | Swing wide graduation asm. | |
| 24 | QZ20024 | Swing wide graduation | |
| 25 | QZ20025 | Scale mounting base compl. | |
| 26 | QZ20026 | Screw 1/8-44 L=2.5 | |
| 27 | QZ20027 | Presser asm. | |
| 28 | QZ20028 | Presser a asm. | |
| 29 | QZ20029 | Presser lower A | |
| 30 | QZ20030 | Presser upper | |
| 31 | QZ20031 | Presser pin A | |
| 32 | QZ20032 | Spring | |
| 33 | QZ20033 | Screw 9/64-40 L=7.5 | |
| 34 | QZ20034 | Safety cover | |
| 35 | QZ20035 | Feed dog | |
| 36 | QZ20036 | Resistance pack al asm. | |
| 37 | QZ20037 | Resistance pack af asm. | |
| 38 | QZ20038 | Timing gauge E | |
| 39 | QZ20039 | Taping foot | |
| 40 | QZ20040 | Taping presser asm. | |
| 41 | QZ20041 | Safety cover | |
| 42 | QZ20042 | Presser foot asm. | |
| 43 | QZ20043 | Presser foot(upper) | |
| 44 | QZ20044 | Presser foot(lower) | |
| 45 | QZ20045 | Safety cover | |
| 46 | QZ20046 | Presser pin | |
| 47 | QZ20047 | Spring | |
| 48 | QZ20048 | Screw 9/64-40 L=7.5 | |
| 49 | QZ20049 | Screw 11/64-40 L=14 |
Page 89 — 16.2288N专用零件(1) Exclusive parts for 2288N(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ24001 | Position change base asm. | 1 |
| 2 | QZ24002 | Needle position change base | (1) |
| 3 | QZ24003 | Fitting plate | (1) |
| 4 | QZ24004 | Chaning stopper | (1) |
| 5 | QZ24005 | Adjusting arm | (1) |
| 6 | QZ24006 | Packing | (1) |
| 7 | QZ24007 | Shaft | (1) |
| 8 | QZ24008 | Lever asm. | (1) |
| 9 | QZ24009 | Shaft | (1) |
| 10 | QZ24010 | Shaft | (1) |
| 11 | QZ24011 | Shaft | (1) |
| 12 | QZ24012 | Shaft | (1) |
| 13 | QZ24013 | Stopper asm. | (1) |
| 14 | QZ24014 | Spring | (1) |
| 15 | QZ24015 | Oil shield | (1) |
| 16 | QZ24016 | Nut | (1) |
| 17 | QZ24017 | Nut stopper | (1) |
| 18 | QZ24018 | Roller | (1) |
| 19 | QZ24019 | Hand stop crank shaft ball | (1) |
| 20 | QZ24020 | Hand stop crank shaft ball | (1) |
| 21 | QZ24021 | Spring | (1) |
| 22 | QZ24022 | Nut 15/64-28 | (1) |
| 23 | QZ24023 | Nut 15/64-28 | (1) |
| 24 | QZ24024 | Snap ring M10 | (1) |
| 25 | QZ24025 | E-ring | (1) |
| 26 | QZ24026 | E-ring 4 | (1) |
| 27 | QZ24027 | Hinge scew D=8 H=4 | (1) |
| 28 | QZ24028 | Screw M5x0.8 L=16 | (1) |
| 29 | QZ24029 | Screw 9/64-40 L=5.0 | (1) |
| 30 | QZ24030 | Screw 9/64-40 L=6 | (3) |
| 31 | QZ24031 | Washer | (2) |
| 32 | QZ24032 | Waved washer 8.5x12.5x0.3 | (3) |
| 33 | QZ24033 | Waved washer | (1) |
| 34 | QZ24034 | Scale mounting asm. | 1 |
| 35 | QZ24035 | Scale position change lever | (1) |
| 36 | QZ24036 | Scale | (1) |
| 37 | QZ24037 | Screw 1/8-44 L=2.5 | (2) |
| 38 | QZ24038 | Side cober asm. | 1 |
| 39 | QZ24039 | Changing lever asm. | 1 |
| 40 | QZ24040 | Needle position change lever | (1) |
| 41 | QZ24041 | Screw 9/64-40 L=3.5 | (2) |
| 42 | QZ24042 | Washer 3.7x8x1 | (2) |
| 43 | QZ24043 | Lever stopper | (2) |
| 44 | QZ24044 | Knob | (1) |
| 45 | QZ24045 | Cam cover | 1 |
| 46 | QZ24046 | Cam cover packing | 1 |
| 47 | QZ24047 | Screw 3/16-28 L=10 | 4 |
| 48 | QZ24048 | Window plate | 1 |
| 49 | QZ24049 | Window plate packing | 1 |
| 50 | QZ24050 | Washer | 1 |
| 51 | QZ24051 | Waved washer | 2 |
| 52 | QZ24052 | Washer | 1 |
| 53 | QZ24053 | Screw 3/16-32 L=6.5 | 1 |
| 54 | QZ24054 | Knob | 1 |
| 55 | QZ24055 | Screw 3/16-28 L=14 | 1 |
| 56 | QZ24056 | Spring washer 5.1x9.2x1.3 | 1 |
| 57 | QZ24057 | Washer 5x10.5x1 | 1 |
| 58 | QZ24058 | Resistance pack al asm. | 1 |
| 59 | QZ24059 | Resistance pack al asm. | 1 |
Page 91 — 17.2288N专用零件(2) Exclusive parts for 2288N(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ25001 | Needle plate | 1 |
| 2 | QZ25002 | Presser asm. | 1 |
| 3 | QZ25003 | Presser foot asm. | (1) |
| 4 | QZ25004 | Safety cover | (1) |
| 5 | QZ25005 | Arm shaft oil pipe asm. | 1 |
| 6 | QZ25006 | Arm shaft oil pipe | (1) |
| 7 | QZ25007 | Rubber joint | (2) |
| 8 | QZ25008 | Head support rod asm. | 1 |
| 9 | QZ25009 | Timing gauge e | 1 |
| 10 | QZ25010 | Socket screw keys | 1 |
| 11 | QZ25011 | Rubber plug | 1 |
| 12 | QZ25012 | Rubber plug | 3 |
| 13 | QZ25013 | Rubber plug | 2 |
| 14 | QZ25014 | Plug | 2 |
| 15 | QZ25015 | Rubber plug D=17.5 L=5 | 1 |
| 16 | QZ25016 | Rubber plug | 1 |
| 17 | QZ25017 | Needle driving cam a asm. | 1 |
| 18 | QZ25018 | Needle driving cam b asm. | 1 |
| 19 | QZ25019 | Needle vibrating cam asm .c | 1 |
| 20 | QZ25020 | Needle driving cam d asm. | 1 |
| 21 | QZ25021 | Needle driving cam e asm. | 1 |
| 22 | QZ25022 | Needle vibrating cam asm .f | 1 |
| 23 | QZ25023 | Needle vibrating cam asm .g | 1 |
| 24 | QZ25024 | Needle vibrating cam asm .h | 1 |
| 25 | QZ25025 | Needle vibrating cam asm .j | 1 |
| 26 | QZ25026 | Needle vibrating cam asm .k | 1 |
| 27 | QZ25027 | Needle vibrating cam asm .l | 1 |
| 28 | QZ25028 | "Cam roller,a" | (1) |
| 29 | QZ25029 | "Cam roller,b" | (1) |
| 30 | QZ25030 | "Cam roller,c" | (1) |
| 31 | QZ25031 | "Cam roller,d" | (1) |
| 32 | QZ25032 | Thrust collar D=14 W=10.5 | 1 |
| 33 | QZ25033 | Screw 1/4-40 L=7 | 2 |
| 34 | QZ25034 | Cam shaft | 1 |
| 35 | QZ25035 | "Bushing,a" | 1 |
| 36 | QZ25036 | "Bushing,b" | 1 |
| 37 | QZ25037 | Cam shaft gear a | 1 |
| 38 | QZ25038 | Cam shaft gear b | 1 |
| 39 | QZ25039 | Cam shaft gear b | 1 |
| 40 | QZ25040 | Cam shaft gear d | 1 |
| 41 | QZ25041 | Cam folder asm. | 1 |
| 42 | QZ25042 | Cam arm | 1 |
| 43 | QZ25043 | Driving shaft | 1 |
| 44 | QZ25044 | Driving shaft metal a | 1 |
| 45 | QZ25045 | "Bushing ,b" | 1 |
| 46 | QZ25046 | Driving arm | 1 |
| 47 | QZ25047 | Driving rod | 1 |
| 48 | QZ25048 | Worm wheel compl. | 1 |
| 49 | QZ25049 | Cam roller shaft | 1 |
| 50 | QZ25050 | "Driving pin ,a" | 1 |
| 51 | QZ25051 | "Driving pin ,b" | 1 |
| 52 | QZ25052 | "Driving pin ,c" | 1 |
| 53 | QZ25053 | "Driving pin ,d" | 1 |
| 54 | QZ25054 | Screw 11/64-40 L=4 | 2 |
| 55 | QZ25055 | Screw 1/4-40 L=6 | 4 |
| 56 | QZ25056 | Feed lever shaft | 1 |
| 57 | QZ25057 | "Feed changing link,a" | 1 |
| 58 | QZ25058 | Worm asm.a | 1 |
| 59 | QZ25059 | Worm b | 1 |
| 60 | QZ25060 | Worm | 1 |
| 61 | QZ25061 | Worm | 1 |
| 62 | QZ25062 | Thrust collar D=14 W=10.5 | 2 |
| 63 | QZ25063 | Screw 1/4-40 L=6 | (4) |
| 64 | QZ25064 | Screw m5x1.8 L=14 | 1 |
| 65 | QZ25065 | Screw m5x1.8 L=14 | 3 |
| 66 | QZ25066 | Screw m5x6 | 2 |
| 67 | QZ25067 | Screw 11/64-40 L=4 | 2 |
| 68 | QZ25068 | Screw 11/64-40 L=4 | 2 |
| 69 | QZ25069 | Screw 1/4-40 L=7 | 2 |
| 70 | QZ25070 | Screw | 2 |
| 71 | QZ25071 | Screw 15/64-28 L=17 | 1 |
| 72 | QZ25072 | Plug | 1 |
| 73 | QZ25073 | Feed dog | 1 |
| 74 | QZ25074 | Presser foot asm. | 1 |
| 75 | QZ25075 | Presser foot (upper) | (1) |
| 76 | QZ25076 | Presser foot (lower) | (1) |
| 77 | QZ25077 | Presser pin | (1) |
| 78 | QZ25078 | Safety cover | (1) |
| 79 | QZ25079 | Spring | (1) |
| 80 | QZ25080 | Screw 9/64-40 L=7.5 | (1) |
| 81 | QZ25081 | Worm E | 1 |
Page 93 — 18. 2284N(-7),2284C-7专用零件(1) Exclusive parts for 2284N(-7),2284C(-7)(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ29001 | Needle driving arm asm. | 1 |
| 2 | QZ29002 | Dia pin a | (1) |
| 3 | QZ29003 | Dia pin b | (1) |
| 4 | QZ29004 | Dia pin c | (1) |
| 5 | QZ29005 | Dia pin d | (1) |
| 6 | QZ29006 | Needle driving rod | (1) |
| 7 | QZ29007 | Screw M5 L=4 | (2) |
| 8 | QZ29008 | Thread trimmer shaft | (1) |
| 9 | QZ29009 | Needle cam arm | (1) |
| 10 | QZ29010 | Needle driving arm | (1) |
| 11 | QZ29011 | Screw M5X6 | (2) |
| 12 | QZ29012 | Screw M5X0.8 L=14 | (1) |
| 13 | QZ29013 | Needle driving shaft | (1) |
| 14 | QZ29014 | Screw M5 L=4 | 4 |
| 15 | QZ29015 | "Metal,front" | 2 |
| 16 | QZ29016 | Plug | 1 |
| 17 | QZ29017 | Washer | 1 |
| 18 | QZ29018 | Snap ring M10 | 1 |
| 19 | QZ29019 | Change over basis asm. | 1 |
| 20 | QZ29020 | Roller | (1) |
| 21 | QZ29021 | E-ring 4 | (2) |
| 22 | QZ29022 | E-ring | (2) |
| 23 | QZ29023 | Rubber ring | (1) |
| 24 | QZ29024 | Spring | (1) |
| 25 | QZ29025 | Change over slide shaft | (1) |
| 26 | QZ29026 | Change over lever asm. | (1) |
| 27 | QZ29027 | Change over lever | (1) |
| 28 | QZ29028 | Pin | (1) |
| 29 | QZ29029 | Screw 9/64-40 L=8.5 | (1) |
| 30 | QZ29030 | Change over basis | (1) |
| 31 | QZ29031 | Gasket | 1 |
| 32 | QZ29032 | Screw | 4 |
| 33 | QZ29033 | Feed lever shaft | 1 |
| 34 | QZ29034 | Feed change link a | 1 |
| 35 | QZ29035 | Needle cam | 1 |
| 36 | QZ29036 | Screw 11/64-40 L=14 | 3 |
| 37 | QZ29037 | Timing Gauge e | 1 |
| 38 | QZ29038 | Rubber plug | 1 |
| 39 | QZ29039 | Needle cam roller shaft | 2 |
| 40 | QZ29040 | Needle cam roller A | 2 |
| 41 | QZ29041 | Needle cam roller B | 2 |
| 42 | QZ29042 | Needle cam roller C | 2 |
| 43 | QZ29043 | Needle cam roller D | 2 |
| 44 | QZ29044 | Worm wheel compl. | 1 |
| 45 | QZ29045 | Screw 1/4-40 L=6 | 4 |
| 46 | QZ29046 | Worm A | 1 |
| 47 | QZ29047 | Worm B | 1 |
| 48 | QZ29048 | Worm C | 1 |
| 49 | QZ29049 | Worm D | 1 |
| 50 | QZ29050 | Screw 11/64-40 L=8 | 1 |
| 51 | QZ29051 | Needle plate | 1 |
| 52 | QZ29052 | Feed dog | 1 |
| 53 | QZ29053 | Arm shaft oil pipe | 1 |
| 54 | QZ29054 | Rubber plug | 1 |
| 55 | QZ29055 | Oil shield | 1 |
| 56 | QZ29056 | Resistance pack al asm. | 1 |
| 57 | QZ29057 | Resistance pack al asm. | 1 |
Page 95 — 19.2284N(-7),2284C-7专用零件(2) Exclusive parts for 2284N(-7),2284C(-7)(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | QZ30001 | Swing wide graduation asm. | 1 |
| 2 | QZ30002 | Fitting plate compl | (1) |
| 3 | QZ30003 | Swing wide graduation | (1) |
| 4 | QZ30004 | Screw 1/8-44 L=2.5 | (2) |
| 5 | QZ30005 | Presser asm. | 1 |
| 6 | QZ30006 | Presser foot asm. | (1) |
| 7 | QZ30007 | Safety cover | (1) |
| 8 | QZ30008 | Presser foot asm. | 1 |
| 9 | QZ30009 | Presser foot (upper) | (1) |
| 10 | QZ30010 | Presser foot(lower) | (1) |
| 11 | QZ30011 | Presser pin | (1) |
| 12 | QZ30012 | Safety cover | (1) |
| 13 | QZ30013 | Spring | (1) |
| 14 | QZ30014 | Screw9/64-40 L=7.5 | (1) |
| 15 | QZ30015 | Adjusting pick-up | 1 |
| 16 | QZ30016 | Screw M4X0.7 L=0.5 | 2 |
| 17 | QZ30017 | Side cover asm. | 1 |
| 18 | QZ30018 | Changing lever asm. | 1 |
| 19 | QZ30019 | Needle position change lever | (1) |
| 20 | QZ30020 | Screw 9/64-40 L=3.5 | (2) |
| 21 | QZ30021 | Washer 3.7x8x1 | (2) |
| 22 | QZ30022 | Lever stopper | (2) |
| 23 | QZ30023 | Knob | (1) |
| 24 | QZ30024 | Change base asm. | 1 |
| 25 | QZ30025 | Needle position change base | (1) |
| 26 | QZ30026 | Hinge screw D=8 H=4 | (1) |
| 27 | QZ30027 | Waved washer 8.5x12.5x0.3 | (3) |
| 28 | QZ30028 | Nut 15/64-28 | (1) |
| 29 | QZ30029 | Change base fitting plate | (1) |
| 30 | QZ30030 | arm | (1) |
| 31 | QZ30031 | Shaft | (1) |
| 32 | QZ30032 | Screw 9/64-40 L=6 | (3) |
| 33 | QZ30033 | Washer | (2) |
| 34 | QZ30034 | Waved washer | (1) |
| 35 | QZ30035 | Snap ring M10 | (1) |
| 36 | QZ30036 | Shaft | (1) |
| 37 | QZ30037 | Shaft | (1) |
| 38 | QZ30038 | Shaft | (1) |
| 39 | QZ30039 | Shaft | (1) |
| 40 | QZ30040 | Nut 15/64-28 | (1) |
| 41 | QZ30041 | Stopper asm. | (1) |
| 42 | QZ30042 | E-ring | 1 |
| 43 | QZ30043 | Nut | (1) |
| 44 | QZ30044 | Nut stopper | (1) |
| 45 | QZ30045 | Lever asm. | (1) |
| 46 | QZ30046 | E-ring 4 | (1) |
| 47 | QZ30047 | Hand stop crank shaft ball | (1) |
| 48 | QZ30048 | Spring | (1) |
| 49 | QZ30049 | Oil shield | (1) |
| 50 | QZ30050 | Screw 9/64-40 L=5.0 | (1) |
| 51 | QZ30051 | Packing | (1) |
| 52 | QZ30052 | Roller | (1) |
| 53 | QZ30053 | Adjusting pick-up screw | (1) |
Jack JK-T2284B — parts catalog
- Page 1 (cover): This is the cover page for the JACK JK-2284 series manual and parts book, featuring an image of the sewing machine and the JACK logo.
- Page 2 (text): This page contains important safety information for operating and maintaining the sewing machine, including warnings about electrical hazards, proper usage, and maintenance procedures.
- Page 3 (text): This page contains important safety instructions for operating and maintaining the sewing machine, including warnings about electrical hazards, proper usage, and authorized personnel for repairs.
- Page 4 (toc): This page contains the table of contents for the sewing machine manual, listing sections from "Precautions before operating the sewing machine" to "Causes and handling of poor stitching", along with corresponding page numbers. It also lists several part numbers and their associated models.
- Page 5 (toc): This page is a table of contents for a sewing machine manual, listing 34 sections with corresponding page numbers, and also lists model numbers with their respective page numbers.
- Page 6 (text): This page lists safety precautions for operating a sewing machine, including warnings about electrical hazards, moving parts, and proper shutdown procedures.
- Page 7 (text): This page contains safety instructions for operating a sewing machine, including warnings about electric shock and personal injury.
- Page 8 (text): This page contains important cautions and warnings before operating the sewing machine, including instructions for initial setup, voltage confirmation, and safe operation practices. It also includes a section in Chinese with similar cautionary advice.
- Page 9 (text): This page contains specifications for various sewing machine models, including zigzag type, stitch diagram, sewing speed, zigzag width, feed pitch, needle type, oil used, and noise levels. It also includes notes regarding sewing speed limitations based on zigzag width and specific model usage.
- Page 10 (parts_list): This page contains a parts list for needle rocking cams for models 2288N and 2288N-7, detailing stitch patterns, number of stitches, zigzag width, and part numbers.
- Page 11 (parts_list): Table listing cam patterns for models 2288N and 2288N-7, giving each stitch pattern name, part number, cam name, maximum needle swing, pattern width, pattern needle count, and stitch pattern drawing.
- Page 12 (diagram): Page 5 of a sewing machine manual showing setup of the oil pan and hinge in the table, and attaching the belt cover with warning text and exploded diagrams.
- Page 13 (text): This page contains instructions for attaching belt covers and installing a market-available needle positioner, along with lubrication instructions for the sewing machine.
- Page 14 (text): This page contains instructions for adjusting the amount of oil in the hook and inserting the needle, along with warnings and diagrams.
- Page 15 (text): This page provides instructions on how to wind the bobbin thread, including warnings and step-by-step guidance with diagrams.
- Page 16 (text): This page contains instructions for threading the machine head and placing a bobbin into the bobbin case, with accompanying diagrams and warnings.
- Page 17 (text): This page details the adjustment methods for the thread tension on an industrial sewing machine, covering needle thread tension and bobbin thread tension, with accompanying diagrams and instructions.
- Page 18 (text): This page details how to adjust the zigzag width on sewing machines, including specific part numbers for different machine types and warnings about potential damage.
- Page 19 (text): This page contains instructions for adjusting the needle position and the presser foot pressure and height, with warnings and diagrams for models 2280N, 2281N, and 2286N.
- Page 20 (text): This page contains instructions for adjusting the micro-lifting mechanism of the presser foot and adjusting the stitch length, with diagrams and numbered steps in both English and Chinese.

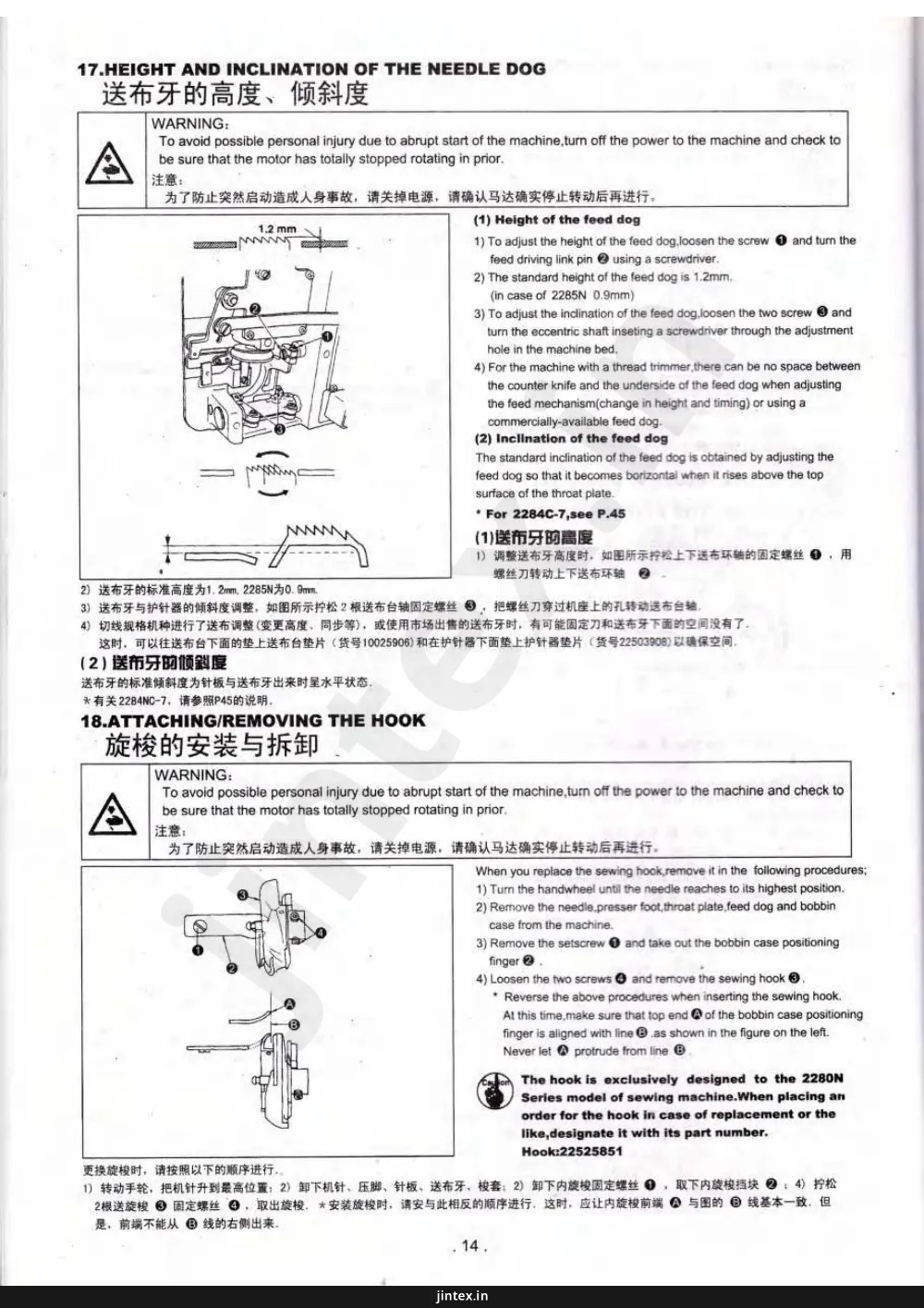

- Page 21 (text): This page details the height and inclination adjustments for the needle dog, along with instructions for attaching and removing the sewing hook, including a specific part number for the hook.
- Page 22 (text): This page provides instructions for adjusting the needle bar height and the needle-to-hook timing and needle guard, including warnings and step-by-step guidance with diagrams.
- Page 23 (text): This page contains instructions for adjusting the needle guard and installing the control panel, along with a diagram and parts list for the control panel components.
- Page 24 (text): This page contains instructions for adjusting the pedal and the needle stop position, including warnings and detailed steps in both English and Chinese.
- Page 25 (text): This page contains instructions on how to adjust the needle stop position and how to use the one-touch type reverse feed switch lever, along with diagrams illustrating these procedures.
- Page 26 (text): This page provides instructions for adjusting the thread trimmer, including initial positioning and timing adjustments, with accompanying diagrams and warnings.
- Page 27 (text): This page details the adjustment procedures for the needle thread feeding device and the position of the wiper on an industrial sewing machine, including warnings and step-by-step instructions with diagrams.
- Page 28 (text): This page details the procedure for replacing the pattern cam on model 2288N, including instructions for removal, attachment, and lubrication, along with a list of recommended greases.
- Page 29 (text): This page contains instructions for adjusting the sewing machine, specifically focusing on uneven material feed and stitch length adjustment for the 2285N model.
- Page 30 (parts_list): This page lists motor pulley part numbers and their corresponding sewing speeds at 50Hz and 60Hz, along with belt lengths and belt part numbers.
- Page 31 (parts_list): This page contains a parts list for sewing machine motors and belts, including part numbers, dimensions, and specifications for different models.
- Page 32 (text): This page lists troubles and corrective measures for industrial sewing machines, including thread breakage, stitch skipping, loose stitches, and needle breakage, along with corresponding causes and solutions.
- Page 33 (text): This page lists common sewing problems, their causes, and solutions, including broken stitches, loose stitches, and skipped stitches, with corresponding reference page numbers.
- Page 34 (cover): This page is the cover of the manual for the 2282N, 2282-7 High-speed, 1-needle, Lockstitch, Standard Zigzag Stitching Machine with Lower Knife.
- Page 35 (text): This page contains specifications for the sewing machine, including stitch type, speed, needle throw, and feeding amount, along with installation instructions related to the power supply voltage.
- Page 36 (text): This page contains instructions for changing the supply voltage and installing the electrical box, along with a diagram illustrating the electrical box installation.
- Page 37 (text): This page contains instructions and diagrams for connecting the power cable and connecting the cords for the sewing machine motor, including warnings and detailed steps in both English and Chinese.
- Page 38 (text): This page contains instructions for changing the knife height and adjusting the knife pressure on a sewing machine, including warnings and diagrams.
- Page 39 (text): This page describes the installation and adjustment of the knife start switch and pedal operation for the sewing machine.
- Page 40 (text): This page contains instructions for replacing the knives and the power fuse on a sewing machine, including warnings and diagrams.
- Page 41 (diagram): This page displays a diagram of spare parts for an industrial sewing machine, listing four parts with their corresponding part numbers and descriptions.
- Page 42 (text): This page contains specifications for the 2280NU, 2286NU, and 2288NU sewing machines, including details on stitch type, speed, width, length, needle, presser foot lift, and oil type, as well as information on the height and inclination of the feed dog.
- Page 43 (diagram): This page contains diagrams illustrating adjustments for feed dog height and inclination, with accompanying text in Chinese.
- Page 44 (text): This page contains specifications for the 2284N, 2284N-7, 2284NU, and 2284NU-7 sewing machines, including details on stitch type, speed, needle throw, feeding amount, needle type, presser foot lift, and lubricating oil. It also includes a table (Table 1) detailing zigzag width and corresponding sewing speeds for different models.
- Page 45 (text): This page contains specifications for sewing machine models 2284N, 2284N-7, 2284NU, and 2284NU-7, including stitch type, maximum speed, maximum oscillation width, maximum feed, needle type, presser foot height, and oil type. It also includes a table detailing the relationship between stitch width and speed for different models and a warning about turning off the power before maintenance.
- Page 46 (text): This page contains instructions in English and Chinese for operating the changeover point on a sewing machine, including steps for adjusting the needle position, using the changeover lever, and troubleshooting.
- Page 47 (toc): This page contains the table of contents for the 2284C-7 sewing machine manual, listing sections like Specifications, Installation, Operating Procedure, Maintenance, and Sewing Machine Table, along with their corresponding page numbers.
- Page 48 (text): This page contains installation instructions for the control box, including replacing cover setscrews and fixing the power cable, with accompanying diagrams and warnings.
- Page 49 (text): This page contains instructions for fixing the hinge of the machine head, installing the hook cover guide stopper, and adjusting the lever adjuster, along with diagrams illustrating these steps.
- Page 50 (text): This page contains operating procedures and maintenance instructions for a sewing machine, including how to open the hook cover and warnings about potential personal injury.
- Page 51 (text): This page contains instructions for adjusting the clearance between the hook cover and the machine bed, and for adjusting the amount of oil in the hook, with accompanying diagrams and warnings.
- Page 52 (text): This page details the height and inclination adjustments for the feed dog on an industrial sewing machine, including warnings and step-by-step instructions in both English and Chinese, along with diagrams illustrating the adjustments.
- Page 53 (text): This page contains instructions for replacing the hook cover guide pin and information about making a sewing machine table, including required dimensions and support specifications.
- Page 54 (diagram): This page contains a diagram illustrating various mounting positions and hole specifications, including table support and stand installation positions, with detailed dimensions and labels like A, B, C, D, E, and F.
- Page 55 (diagram): This page contains a diagram illustrating the dimensions and installation details for an auxiliary sewing machine table, including specific measurements and notes on assembly.
- Page 57 (text): This page contains instructions on how to use the parts list, including explanations of codes and symbols used in the catalog.
- Page 58 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated.
- Page 59 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 60 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated.
- Page 61 (parts_list): This page contains a parts list for a sewing machine, detailing parts such as support plates, helical gear box covers, screws, nuts, and labels, along with their corresponding part numbers and quantities.
- Page 62 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated.
- Page 63 (parts_list): This page contains a parts list for a sewing machine, detailing parts such as bobbin device assembly, bobbin fitting basis, and various screws and nuts, along with their corresponding part numbers and quantities.
- Page 64 (diagram): This page displays a diagram of the main shaft and needle bar components, with numbered parts and their corresponding references.
- Page 65 (parts_list): This page contains a parts list for industrial sewing machine components, detailing part numbers, names, descriptions, and quantities for various items.
- Page 66 (diagram): This page displays a diagram of needle vibrator and adjustment components, with various parts numbered for identification.
- Page 67 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 68 (diagram): This page displays a diagram of needle vibrator and adjustment components, with numbered parts for identification.
- Page 69 (parts_list): This page contains a parts list for sewing machine components, including part numbers, descriptions, and quantities for items such as shafts, nuts, screws, and washers.
- Page 70 (diagram): This page displays a diagram of presser bar and feed regulator components, with numbered parts and their corresponding references.
- Page 71 (parts_list): This page contains a parts list for various sewing machine components, including presser foot assemblies, screws, springs, and other hardware, with part numbers, descriptions, and quantities.
- Page 72 (diagram): This page displays a diagram of the feed mechanism and condense components, with numbered parts for identification.
- Page 73 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including levers, shafts, bushings, screws, springs, and nuts, with their corresponding part numbers and quantities.
- Page 74 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 75 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 76 (diagram): This page displays a diagram of hook driving shaft and hook components, with various parts numbered for identification.
- Page 77 (parts_list): This page contains a parts list for sewing machine components, detailing part numbers, descriptions, and quantities for various items like hooks, screws, and bearings.
- Page 78 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with various parts numbered for identification.
- Page 79 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, names, descriptions, and quantities.
- Page 80 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
- Page 81 (parts_list): This page contains a parts list for a sewing machine, detailing part numbers, descriptions, and quantities for various components.
- Page 82 (diagram): This page displays a diagram of belt cover components, with numbered parts including screws, washers, and brackets.
- Page 83 (parts_list): This page lists parts for a sewing machine, including part numbers like QZ18001 to QZ18011, their descriptions such as 'Belt cover A' and 'Screw', and quantities.
- Page 84 (diagram): This page displays a diagram of oil reservoir and knee lifter components, with numbered parts for identification.
- Page 85 (parts_list): This page contains a parts list for various components of a sewing machine, including oil reservoirs, brackets, screws, nuts, and plates, with their corresponding part numbers and descriptions.
- Page 86 (diagram): This page displays a diagram of exclusive parts for the 2286N model sewing machine, with various components numbered for identification.
- Page 87 (parts_list): This page contains a parts list for sewing machine components, detailing part numbers, names, and descriptions.
- Page 88 (diagram): This page displays a diagram of exclusive parts for model 2288N, with various components labeled with reference numbers.
- Page 89 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 90 (diagram): This page contains a diagram of exclusive parts for the 2288N sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 91 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including needle plates, presser feet, safety covers, shafts, screws, and worms, with their corresponding part numbers and quantities.
- Page 92 (diagram): This page displays a diagram of exclusive parts for models 2284N(-7) and 2284C(-7), with numbered components indicated.
- Page 93 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It covers items from QZ29001 to QZ29057.
- Page 94 (diagram): This page displays a diagram of exclusive parts for sewing machine models 2284N(-7) and 2284C(-7)(2), with various components labeled with reference numbers.
- Page 95 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It covers items from part number QZ30001 to QZ30053.
- Page 96 (cover): This is the cover page for a JACK sewing machine parts catalog, featuring the company's slogan "Leading in global sales", contact information, and social media links.
