Jack JK-T2284B — parts catalog

Page 16

Jack JK-T2284B parts on page 16
RefPart numberPart nameQty
2280N-72280N-7
2280N2280N

8.THREADING THE MACHINE HEAD 梭心的安装方法 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后在运行。 Inserting and removing the bobbin case 1) Turn the handwheel by hand to raise the needle to the highest point. 2) Raise the bobbin case latch and hold it between your two fingers as shown in the figure on the left. 3) Insert the bobbin case as it is being held into the sewing hook shaft as it will go by putting your hand from the under of the oil reservoir. 4) Release the bobbin case latch to let it steadily rest in the closing position. Reverse the above procedures when removing the bobbin case. 图示: 1) 转动手轮,让机针到达最高位置。2) 如图所示,提起梭心套的把手 ① ●取出时将梭心套的把手拉起,把梭心套即可以取出。 3) 从油槽的下方伸进梭心轴上。4) 确实的扣好梭套把手. Placing a bobbin into bobbin case 1) Take a bobbin by your right hand with the thread drawn out about 5 cm and place it into the bobbin case as illustrated. 2) Thread the bobbin case in the order of the numbers and pull it out through the thread path as illustrated. 3) Make sure that the bobbin rotates in the bobbin case in the direction shown by arrow. 梭心装入的穿线方法 1) 把梭心上的线头拉出5cm左右,如图所示插入梭套。 2) 把线按槽沟的号码顺序穿过,把线从穿线口拉出。 3) 手拉底线,梭心如箭头方向旋转。 9.THREADING THE MACHINE HEAD 上线的穿线方法 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后在运行。 1) Turn the handwheel by hand to raise the needle to the highest point. 2) Pass the thread in the order of the numbers as illustrated. 3) Pull out the thread about 10 cm from the needle after passing it through the needle. 1) 转动手轮,把机针升到最高位置。2) 把线按所示的号码穿线。3) 把穿过针的缝线拉出10cm左右。 .9. jintex.in

Page 17

10.ADJUSTING THE THREAD TENSION 线张力的调整方法 WARNING: In case of thread-breakage,it may occur that the thread tangles on the thread take-up lever,In this case remove the thread tangling around the thread take-up lever by raising the thread take-up cover. At this time,be careful not to cut your fingers with the knife. 注意:发生断线时,有时绕线杆上会绕线.这时,请打开绕线杆防护罩取下卷线的机线.此时,请不要被刀切伤. (1) Adjusting the needle thread tension 1) Adujust the needle thread tension using the tension nut Turning clockwise increases the needle thread tension,or counterclockwise decrease it. 1.If the thread tension of the pretension disc is too low, the thread may slip out of teh rotary tension. Adjust the thread tension of the pretension,using the pretension adjusting nut taking care of tension balance between the pretension and the rotary tension. 2.After adjusting the needle thread tension,draw the thread in the direction F to check that the rotary tension smoothly rotates with no thread slippage. If the thread slips out of rotary tension,tighten the pretension adjusting nut (1) 上线张力用线张力螺母 调整. 向右转动. 变强 向左转动. 变弱 1) 绕线张力器 切断锁边 将线张力 旋钮 调至 线张力 调至 2) 设定了上线张力之后,把线张力 旋钮 向F方向拉出,确认 线张力器 可以顺畅转动,如果调 出 线张力 打滑,则 拧紧 线张力 调 整螺母 ④ 进行调整. (2) Adjusting the thread take-up spring 1) To change the tension of the thread take-up spring,firmly tighten the screw which fastens the tension post socket to the machine arm and insert the blade of a screwdriver into the slot in the tension post to adjust the tension of the thread take-up spring. Turn it clockwise to increase. Turn it counterclockwise to decrease. 2) To change the amount of thread taken by the thread take-up spring ,loosen the clamping screw of the tension post socket and turn tension post socket Adjustable range of the amount of thread taken by the thread take-up spring 6 to 10 mm (2) 越线弹簧的调整 1) 改变挑线弹簧的强度时,请把线张力螺固定螺钉 拧紧,把螺丝刀插入线张力杆 的沟槽进行调整 向右转动 变强 2) 改变挑线弹簧的挑线量时,请拧松线张力杆固定螺钉 ,转动线张力杆座 挑线量范围 6-10 mm ③ ,线 (3) Adjusting the bobbin thread tension 1) The tension of the bobbin thread is adjusted by turning the tension adjusting screw Turn it clockwise to increase. Turn it counterclockwise to decrease. (3) 底线张力调整 1) 底线张力可转动拨套的线张力螺丝 进行调整. 向右转动 变强 向左转动 变弱 jintex.in

Page 18 — 11.ADJUSTING THE ZIGZAG WIDTH

Jack JK-T2284B parts on page 18
RefPart numberPart nameQty
22580369Presser foot
10041010Throat plate
10047017Feed dog
22548663Presser foot
22548010Throat plate
22548119Feed dog
22580369Presser foot
22581409Throat plate
22540009Feed dog

11.ADJUSTING THE ZIGZAG WIDTH 针摆动幅度的调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再进行. the needle eyelet when the needle throws to the leftmost end of its zigzag stroke,If the zigzag width is set to 10 mm,run the machine at the speed of 4,000 rpm or less. Presser foot 22580369 Throat plate 10041010 Feed dog 10047017 2286N出厂时摆动幅东规定为8mm,但是要换下列的压脚、针板、送 布齿以及变更止动器的位置,最大可以调整到10mm.左摆时,调整针杆 高度,让针尖穿过孔上端.但是,调整到10mm后,转速 控制在4,000rpm以下. (1) Adjusting the zigzag width The zigzag width is adjusted by the knob 1) Push the lever with your finger. 2) Turn the knob as you are pushing the lever and set the pointing line to a desired zigzag width which is indicated by the zigzag width scale in mm. 3) Release the lever,and the knob will be locked up in the given position. For the 2281NA (narrow width type), the max.zigzag width has been factory-limited to 5 mm and for the 2281NB(wide width type) to 8 mm. However, 2281NA can be converted to 2281NB by replacing follow- ing parts and changing the position of the stopper(changing the zigzag width and the position of the needel). 压脚 针板 送布牙 22580369 10041010 10047017 A type B type Presser foot 22548663 22580369 Throat plate 22548010 22581409 Feed dog 22548119 22540009 When replacing the gauges,adjust the zigzag width and the feeding amount in accordance will the shape of the gauge. (1) 摆动幅度调整 摆动幅度用摆动幅度旋钮 来进行调整. 1) 用手按压旋钮 2) 按住旋钮的状态下转动旋钮,把指示线对准刻度板 的数字(mm). 3) 手松开旋钮后,旋钮即被其刻度位置固定. 2281NA(窄型机)出厂时,最大摆动幅度固定为5mm,2281NB (宽型机)规定为8mm.但是,更换以下零件和变更止动器位置(变 更摆动幅度、和针位置)之后,2281NA可以改造为2281NB型机,同样也可 以把2281NB型机单地改造为A型机. A side is normally used For the 2285N model of sewing machine,the zigzag width has been factory-limited to 6 mm. However, the zigzag width can be adjusted up to the maximum of 8 mm by changing the position of the stopper. Take care not to tighten the screws and too firm causing the breakage of the knob. 圆筒部用A圈 2285N出厂时摆动幅度规定为6mm,但是改变止动器的位置,可以最多调 整到8mm. 固定螺丝、⑤万向轴套,根据摆动幅度调节组合旋钮,请 勿过紧. . 11 jintex.in

Page 19

2280N, 2281N, 2286N (2) Changing the needle position The models 2280N, 2281N, 2286N and 2288N have the needle position changing lever by which the needle position can be changed as desired. When changing the position of needle entry, move the needle position changing lever as whown in the figure on the left. (2) 改变针位图 ★ 2280, 2281N, 2286N, 2288N上用曲柄针位图改变摆杆. 改变落针位置时,请如图所示那样移动变更针位置手柄. 2280N Loosen screw with a 4 mm hexagon wrench key supplied with the and change the position of needle entry by moving needle position changing lever 1.When operating the machine, screw has to be tightened without fall. 2.When sewing an inverse pattern, the lever has to be positioned at the center of its adjustment range. 用附属的4mm六角扳手拧松螺丝,移动针位置变更杆,可以变 更针的落针位置. 1.运转时,请一定紧固螺丝. 2.反转花样时,一定要把杆放在中央. 12.ADJUSTING PRESSURE OF THE PRESSER FOOT 压脚压力的调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再进行. 1) Turn the presser spring regulator clockwise to increase the pressure given by the presser foot. 2) Turn the presser spring regulator counterclockwise to decrease it. * Refer to page 22 for the pressure of the presser foot of the 2285N model of sewing machine. 1) 向右方向转动压脚调节螺丝,压力变大 2) 向左方向转动压脚调节螺丝,压力变小 * 2285N机请参照P. 22 13.ADJUSTING THE HEIGHT OF THE PRESSER BAR 压脚杆高度的调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再进行. 1) To change the height of the presser bar or the inclination of the presser foot, loosen the presser bar connection screw and perform the adjustment, properly. 2) After the adjustment, securely tighten the screw. 1) 变更压脚杆高度和压脚角度时,拧松压脚轴套固定螺丝进行调整 2) 调整后,把固定螺丝拧紧 12 jintex.in

Page 20

14.ADJUSTING THE MICRO-LIFTING MECHANISM OF THE PRESSER FOOT 压脚微量浮起调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再进行。 Some type of material needs to be sewn with the presser foot slightly lifted. In this case,perform this adjustment following the procedure described below. 1) Loosen the setscrew 1 in the presser foot micro-lifter. 2) Turn the presser foot micro-lifting screw 2 clockwise through the hole in the face plate until the presser foot is raised as desired. Than,tighten the screw 1. If you do not use the micro-lifting mechanism of the presser foot,fully return the presser foot micro-lifting screw 2 to its home position. 根据需要调整的材料的需要,浮起压脚进行缝参照下列调整方法。 1) 旋松压脚浮起固定螺丝 1。 2) 压脚的孔部,向右方向转动压脚浮起螺丝 2,把压脚升到需要 高度后拧紧固定螺丝 1。 页使用时,请压脚微起螺丝 2 返回原位置。 15.ADJUSTING THE STITCH LENGTH 送布长度的调整 1) Turn the stitch length dial 1 in the direction of the arrow so that the number corresponding to the desired stitch length meets the marker dot A engraved on the machine arm. 2) Numbers on the stitch length dial are calibrated in "mm". 3) To change the stitch length from a larger value to a small value,turn the stitch lenght dial 1 while pressing the feed lever 2 in the direction of arrow. To perform reverse feed stitching,press down the feed lever 2.The sewing machine performs reverse feed stitching as long as you keep the feed lever held pressed.The feed lever will return to its home position and the sewing machine will run in the normal stitching direction when you release the feed lever. 1) 旋钮表盘方向转动调节刻度盘 1,把希望的数字对准机臂刻 点 A 2) 刻度的数字为mm。 3) 从大向小变更送布刻度时,顺 the 箭头方向按住送布杆 2,同时转动 送布调节盘 1。 倒缝时,向下压住送布拨杆,并拉住机臂下方,用手松开 倒缝,让送布的针迹变小)也可以进行。 16.ADJUSTING THE DENSER STITCHING 压缩针脚的调整 Stitch length can be reduced at the start or end of sewing.This feature is used for fastening stitch. 1) If you turn the dial with the feed lever held pressed down,the feed lever will move.Adjust the stitch length for denser stitching taking the graduation which meets the top surface of the feed ever reference. 2) Turn the dial in the "+" direction to reduce the reverse feed stitch length(i.e.the feeding stitch length gradually changes to the normal one). "+" means "normal feed stitch length is 2 mm" and "-"1 means "reverse feed stitch length is 2 mm". 3) The denser stitching can be adjusted under the normal stitching mode (when the one-touch type reverse feed switch is actuated,the feed will not move in the reverse direction but the normal feed stitch length will be reduced). 开始缝纫和缝纫结束时让针迹的间距缩短,以及缝纫结束时等进行加固时使用。 1) 按下倒缝拨杆的同时转动拨盘,倒缝送布杆便移动,把刻度对准送布杆上的面调整密缝针迹。 2) 向+"方向转动刻度盘,倒缝的针迹变小(正常送布的附件)。 +2表示(正送布2mm),-2表示(送布2mm)。 3) 密缝调整(让倒缝针迹变小,不进行倒缝,让正常的针迹变小)也可以进行。 * 刻度值最大的数字,请边缝边调整。 .13. jintex.in

Page 21 — 17.HEIGHT AND INCLINATION OF THE NEEDLE DOG

Jack JK-T2284B parts on page 21
RefPart numberPart nameQty
10025906送布垫片
22503908护针器垫片
22525851Hook

17.HEIGHT AND INCLINATION OF THE NEEDLE DOG 送布牙的高度、倾斜度 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再进行。 (1) Height of the feed dog 1.2 mm 1) To adjust the height of the feed dog,loosen the screw ① and turn the feed driving link pin ② using a screwdriver. 2) The standard height of the feed dog is 1.2mm. (in case of 2285N 0.9mm) 3) To adjust the inclination of the feed dog,loosen the two screw ③ and turn the eccentric shaft inserting a screwdriver through the adjustment hole in the machine bed. 4) For the machine with a thread trimmer, there can be no space between the counter knife and the underside of the feed dog when adjusting the feed mechanism(change in height and timing) or using a commercially-available feed dog. (2) Inclination of the feed dog The standard inclination of the feed dog is obtained by adjusting the feed dog so that it becomes horizontal when it rises above the top surface of the throat plate. * For 2284C-7,see P.45 (1)送布牙高度 1)调整送布牙高度时,如图所示拧松上下送布环轴的固定螺丝 ①,用 螺丝刀转动上下送布环轴 2)送布牙的标准高度为1.2mm,2285N为0.9mm。 3)送布牙与护针器的倾斜度调整,如图所示拧松固定螺丝 ③,把螺丝刀穿过机座上的孔转动 4)切线规格机种进行了送布调整(变更高度、同步等),或使用市场出售的送布牙时,有可能固定刀和送 布垫片(货号10025906)和在护针器下面垫上护针器垫片(货号22503908)以确保空间。 18.ATTACHING/REMOVING THE HOOK 旋梭的安装与拆卸 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再进行。 When you replace the sewing hook,remove it in the following procedures; 1) Turn the handwheel until the needle reaches to its highest position. 2) Remove the needle,presser foot,throat plate,feed dog and bobbin case from the machine. 3) Remove the setscrew ① and take out the bobbin case positioning finger ②. 4) Loosen the two screws ③ and remove the sewing hook ④. * Reverse the above procedures when inserting the sewing hook. At this time,make sure that top end A of the bobbin case positioning finger is aligned with line B as shown in the figure on the left. Never let A protrude from line B Caution The hook is exclusively designed to the 2280N Series model of sewing machine.When placing an order for the hook in case of replacement or the like,designate it with its part number. Hook:22525851 更换旋梭时,请按照以下的顺序进行。 1)转动手轮,把机针升到最高位置;2)卸下机针、压脚、针板、送布牙、梭套;2)卸下内旋梭固定螺丝 ①,取下内旋梭挡块 ②;4)拧松 2根送布梭 ③ 固定螺丝 ④,取出旋梭。* 安装旋梭时,请与此相反的顺序进行。这时,应让内旋梭前端 A 与图的 B 线基本一致,但 是,前端不能从 B 线的右侧出来。 .14. jintex.in

Page 22 — 19.ADJUSTING HEIGHT OF THE NEEDLE BAR 20.ADJUSTING THE NEEDLE-TO-HOOK TIMING AND THE NEEDLE GUARD

Jack JK-T2284B parts on page 22
RefPart numberPart nameQty
11timing gauge
22timing gauge

19.ADJUSTING HEIGHT OF THE NEEDLE BAR 针杆高度的调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再进行. 1) Set the zigzag width to "0",Bring the needle to the center of the zigzag stroke. 2) Rremove the presser foot,throat plate,semicircle plate and feed dog. 3) Place a semicircle plate on the plane,to which the throat plate is to be attached,of the bed.Loosen the screw ① and adjust so that a height difference of timing gauge 1 is provided between the lowest end of the needle bar and the top surface of the semicircle plate. 1.Thickness of the semicircle plate is different from that of the throat plate.So,be sure to use the semicircle plate when adjusting the height of the needle bar. Be sure to perform the adjustment with zigzag width set to zero and with the needle positioned at the center of the zigzag stroke. 2.For the 2280N and 2282N,use the timing gauge on which the indication "D" is engraved. For the other types of models (2285N, 2286N, 2281N, 2288N, 2284N and 2284NU), use the timing gauge on which the indication "E" is engraved. 1.因针幅和目牙宽度不同,所以调 2 2280N、2282N请使用带有D刻印的 the timing gauge on which the indication "E" is 调 (请使用带有E刻印的同步规 20.ADJUSTING THE NEEDLE-TO-HOOK TIMING AND THE NEEDLE GUARD 针和旋梭的同步以及针板的调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后进行. (1) Positioning the hook 1) After the completion of the adjustment of the needle bar height,adjust the hook using timing gauge 2 so that the blade point of the hook is aligned with the center of the needle. 2) At this time,the blade point of the hook should slightly come in contact with the needle when the needle guard does not touch the needle. (2) Confirmation Maximize the zigzag width(standard zigzag width of 2280N:5mm, standard zigzag width of 2286N:8mm).Bring the needle to the leftmost position of the zigzag stroke.Now,confirm that the top end of the needle - If the zigzag width is set to 10mm or the needle bar height is different from the standard one,re-adjust the height of the needle bar. .15. jintex.in

Page 23 — 22.INSTALLING THE CONTROL PANEL

Jack JK-T2284B parts on page 23
RefPart numberPart nameQty
1SS7110840SPSS7110840SP
2WP0450801SDWP0450801SD
3WT0530002KSWT0530002KS
4SS7120910SPSS7120910SP
5WP0531001SCWP0531001SC

0-0.05 mm (3) 针板的调整 1) Maximize the zigzag width.Bend the needle guard to adjust so that the needle does not come into contact with the blade point of the both at the leftmost and rightmost positions of the zigzag stroke.At this time,adjust the clearance provided between the needle and the blade point of the hook to 0 to 0.05mm. 2) The needle guard functions to keep the needle away from the blade point of the hook,thereby preventing damage to the blade point of the hook,whenever you have replaced the hook with a new one,be sure to adjust the position of the needle guard. 2) 护针器是防止旋梭尖和针相碰损伤旋梭尖的装置,因此更换旋梭后一定要调整护针器的位置。 针和旋梭尖的间隙为0-0.05mm。 21.AUXILIARY THREAD TAKE-UP LEVER 辅助挑线杆 0-1 mm The 2280N series model of sewing machine is equipped with an auxiliary thread take-up lever in accordance with the destination to be delivered. The standard dimensions for installing the auxiliary thread take-up lever are shown in the figure on the left.For the normal operation of the sewing machine,it is not necessary to adjust the auxiliary thread take-up lever.Be sure not to remove it. Position the auxiliary thread take-up lever so that the wire is spaced approximately 0 to 1 mm away from the top end of the thread eyelet of the needle bar when the needle bar is in the lowest position of its stroke. 2280N系列有的出口装有辅助挑线杆。 标准安装尺寸如左图所示,一般不需要调整,同时也 标准值为针杆在最下方时,针杆线孔上端线翼0-1mm。 (最适值应根据线的种类不同) (The optimum value of the distance between the wire and the thread eyelet of the needle bar slightly varies in accordance with the type of thread to be used.) 22.INSTALLING THE CONTROL PANEL 控制盘的安装 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关闭电源,请确认马达确实停止转动后再进行。 CP-160B CP-60B ① SS7110840SP ② WP0450801SD ③ WT0530002KS ④ SS7120910SP ⑤ WP0531001SC . 16 . jintex.in

Page 24

23. ADJUSTING THE PEDAL 踏板的安装 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再进行。 (1) Attaching the connecting rod 1) Move the pedal adjusting plate 3 in the direction of the arrow to make the motor control lever ① and the pedal connecting rod ② straight. (2) Inclination of the pedal 1) Inclination of the pedal can be adjusted by changing the length of the pedal connecting rod. 2) Loosen the adjusting screw ④, and move up or down the connecting rod ② to change its length as desired. (1) 连接杆的安装 1) 向箭头方向移动踏板调节板 ③,让马达控制杆 ① 和连接杆 ② 成一 直线。 (2) 踏板的角度 1) 调节连接杆的长度既可以改变踏板的角度。 2) 拧松调节螺丝 ④,移动连接杆 ② 进行调节。 24. HOW TO OPERATE THE PEDAL 踏板的操作 The pedal is operated in four stages. 1) Lightly depress the front part of the pedal for low-speed operation 2) Further depress the front part of the pedal for high-speed operation (Note that the sewing machine will enter the high-speed operation mode after the completion of reverse feed stitching if the automatic reverse feed stitching function is specified with the corresponding switch.) 3) Bring the pedal back to its neutral position, and the sewing machine will stop running (The needle stops in the highest/lowest position.) 4) Strongly depress the back part of the pedal, and the thread trimmer will be actuated. * Lightly depress the back part of the pedal, and the presser foot will go up. Further depress the back part of the pedal, and the thread trimmer will be actuated. 踏板有4级操作: 1) 向前轻轻踩踏板为低速缝纫 2) 在继续往前踩踏板为高速缝纫 A:(但是,设定了自动倒缝功能后, 会进入倒缝缝纫机停止 ◎ * 向后轻轻踩踏板,为 五缝纫操作 ◎ 切线动作。 25. ADJUSTING THE STOP POSITION OF THE NEEDLE 机针停止位置的调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再进行。 (1) Stop position of the needle after thread trimming 1) The needle stops at the standard stop position when red marker dot @ engraved on the machine arm is aligned with white marker dot @ engraved on the handwheel. 2) Stop the needle at the highest position of its stroke,loosen the screw ①,and adjust the stop position of the needle after thread trimming by moving the screw ① within the slot. ① Move the screw in the direction @ to advance the timing to . 17. jintex.in

Page 25

make the needle stop. ② Move the screw in the direction to retard the timing to make the needle stop. Do not operate the sewing machine with the screw ① loosened.Only loosen the screw ② and do not remove it. (1) 切线后的停止位置 1) 标准的机针停止位置是机架的刻点和飞轮的白刻点对齐的位置。 2) 让机针上升到停止位置,拧紧螺丝①,在长孔范围进行调整。 ①向方向移动机针停止提前。 ②向方向移动机针停止推移 拧紧螺丝① 状态下不能运转缝纫机。 此螺丝只能拧松不能拧下来。 (2) 下停止位置 1) 踏板从前踩踏的机针下停止位置与 下停止之后拧松螺丝②,在长孔范围内进行调整:向方向移动机针停止位置提前,向方向移动机针停止位置推移 (2) The lowest stop position of the needle When you return the pedal to its neutral position after having depressed the front part of it, the needle stops at the lowest stop position.As in the case of the adjustment of the hightest stop position of the needle,stop the lowest stop position of its stroke, loosen the screw ②, and adjust the lowest stop position of the needle by moving the screw ② within the slot.Move the screw in the direction to advance the timing to make the needle stop or in the direction to retard it. Do not operate the sewing machine with the screw ① loosened.Only loosen the screw ② and do not remove it. 26. ONE-TOUCH TYPE REVERSE FEED SWITCH LEVER 触摸手 动倒缝 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再运行。 (1) How to use the reverse feed switch lever 1) Press down the swith lever ①,and the machine will immediately run in the reverse direction. 2) Reverse stitching is performed as long as you keep the lever held pressed down. 3) Release the swith lever, and the machine will immediately run in the normal direction. (1) 使用方法 1) 按开关拨杆,缝纫机立即变为倒车,进行倒缝。 2) 按下拨杆的时间,可以进行倒缝。 3) 放开拨杆,则立即返回正缝。 (2) Height of the reverse feed switch lever 1) Adjust the height of the switch lever ① for your convenience. 2) Loosen the screw ②,and adjust the height of the switch lever as desired by moving it up or down. (2) 开关拨杆的高度 1) 请把开关拨杆的高度调整到使用方便的位置。 2) 拧松螺丝②,上下移动就可以调整高度。 18. jintex.in

Page 26 — 27. ADJUSTING THE THREADER TRIMMER

Jack JK-T2284B parts on page 26
RefPart numberPart nameQty
1moving knife pin
2marker dot
3nut
4roller
5screws

27. ADJUSTING THE THREADER TRIMMER 切线的调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再运行。 (1) Initial position of the moving knife When the moving knife is in its initial position, the moving knife pin should be aligned with the engraved marker dot 2 as shown in the figure on the left. (1) the initial position of the moving knife 移动刀的初期位置如图所示,让移动刀销钉与刻点一致。 * If the initial position of the moving knife is not correct Loosen the nut 3, and move the moving knife to the right or left until the pin 1 meets the marker dot 2. Then,tighten the nut 3. * 初期位置不正确时 拧松螺母 3,左右移动,调整 ① - ② 在合适的位置拧紧螺母 3. (2) Adjusting the thread trimming timing Put the roller 4 in the cam groove, Now, gradually turn the handwheel in the reverse direction. The handwheel will go no further when the red marker dot 1 engraved on the machine arm is aligned with the red marker dot 2 engraved on the handwheel. To adjust the thread trimming cam,align the red marker dot on the machine arm with the red marker dot on the handwheel,put the roller in the groove of the thread trimming cam,and turn the handwheel in the direction opposite to the direction of rotation of the hook driving shaft until it will go no further.Now,tighten the two screws 5. (2) 切线同步的调整 把凸块 4 旋入凸轮槽的状态,静静的逆转飞轮时,机架的刻点 ① 和飞 轮的红刻点 ② 对准位置,飞轮不能转动。 调整切线凸轮时,机架罩和飞轮的红刻点对齐,凸轮旋入凸轮槽的状态 下,慢慢向与下轴转动相反的方向转,在停止的位置把螺丝 ⑤ 固定起 来。 19. jintex.in

Page 27

28. NEEDLE THREAD FEEDING DEVICE 切线的调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再运行。 (1) Position of the feeding wire Adjust the installing position of the feeding wire so that a distance of 8 to 12 mm is provided between the guide portion of the thread guide A and the top end of the wire. Then,tighten the two screw . (1) 拉线钢丝的位置 安装拉线钢丝 时,请把挑线杆导向器 和钢丝前端的距离调整 为8-12mm,然后固定好固定螺丝 (2个)。 (2) Adjusting the stroke of the feeding wire 1) Increase the feeding amount of the needle thread if the needle thread fails to interlace with the bobbin thread or is likely to slip out of the needle eyelet at the start of sewing. 2) To increase the feeding amount of the needle thread,loosen the screw in the feeding stopper and move down the stopper. If the feeding amount of the needle thread is excessive,the thread will be likely to break. When the needle wire is not used Pull up the stopper knob,turn it counterclockwise and fit the top end of the knob in the hole located above the knob. 2) 把拉线量增大时,请拧松拉线挡块 的固定螺丝 ,向 下移动 调整。 注意 拉线量过大时,会容易发生短线现象 * 拉线钢丝不能动时 向上拉抬拉线挡块旋钮 ,左右转动让其前端进入上方的孔内 29. POSITION OF THE WIPER 拔线器的位置 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后在运行。 1) Align the red marker dot engraved on the amchine arm with the white marker dot engraved on the handwheel(the 2nd white marker dot in terms of the direction of rotation of the sewing machine). 2) Move the rod in the direction of the arrow,and adjust the clamping screw so that an approximate 2 mm clearance is provided between the top end of the needle and the wiper . 1) 把机臂的红刻点 对准手轮的白刻点 (缝纫机旋转方向的第二个 白刻点)。 2) 沿箭头方向转动杆 ,把针杆前端和拨线杆 的间隙调整为2mm左右 ,然后再紧固定螺丝 。 . 20. jintex.in

Page 28

Jack JK-T2284B parts on page 28
RefPart numberPart nameQty
2cover
4cam
5roller
9pin
10roller

30. REPLACING THE PATTERN CAM FOR 2288N 2288N花样凸轮的更换 WARNING: To avoid possible personal injury due to abrupt start of the machine, turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再运行. 1) Replacing the pattern cam 1) Remove the four screws and remove the cover 2) Remove the three screws with a 4 mm hexagon wrench. Key supplied with the machine. Then, remove the cam and the roller . (1) 花样凸轮的拆卸方法 1) 卸下4个固定螺丝,再卸下防护罩 2) 用附庸的4mm扳手卸下3个固定螺丝,然后卸下凸轮和 凸块 2) Attaching procedure of the pattern cam 1) Attach a new roller to the pin, put the cam over the shaft and press the cam until it comes in contact with the roller. 2) Turning the cam by means of the slot in, thrust the roller in the groove on the cam. 3) Then, lightly turn the cam by hand to make the hole A to be aligned with the pin B and fit the pin in the hole. (The shaft protrudes from the cam by approximately 2mm.) 4) Tighten the screws and attach the cover in position. The cam and roller have to be always replaced together. (3) Application of grease 1) When replacing a cam or periodically once every six months, replenish grease to the cam components. 2) Apply grease to pin, roller and inside cam groove. 3) Use Lithium-based grease. Lithium-based grease No.2 Manufacturers Name of grease ESSO Listan 2,Beacon 2 SHELL Albania NIPPON SEKIYU Multinock 2,Epinock 2 KYODO SEKIYU Rezonix 2 IDEMITSU KOSAN Koronex 2 (3) 润滑脂的加油 1) 更换凸轮后和每半年更换一次润滑脂。 2) 润滑脂加油地点有:销钉、凸块、凸轮沟 3) 请使用锂系润滑脂。 锂系2号润滑脂 厂家名称 品名 EESO Listan 2,Bescon 2 壳牌石油 Albania 日本石油 Multinock 2, Epinock 2 共同石油 Rezonix 2 山光兴产 Koronex 2 . 21 . jintex.in

Page 29

31. ADJUSTING 2285N MODEL OF SEWING MACHINE 2285N的调整 WARNING: To avoid possible personal injury due to abrupt start of the machine,turn off the power to the machine and check to be sure that the motor has totally stopped rotating in prior. 注意: 为了防止突然启动造成人身事故,请关掉电源,请确认马达确实停止转动后再运行。 (1) Adjusting uneven material feed of the right and left presser foot of the 2285N 1) If the right and left wings of the presser foot fail to feed the material uniformly, loosen the clamp screw 2 and tighten or loosen the pressure adjusting screw 1 of the wing of which pressure is lower than the other wing so that both wings of the presser foot evenly apply pressure to the material. Note that this adjustment will be invalid when the presser spring regulator has been excessively tightened.After the completion of the adjustmeng,tighten the clamp screw 2 . (1) 左右送布不同调整 1) 左右送布不同时,请拆松压脚压力固定螺丝 2,把送布力弱的压脚压力调整螺丝 1 拧紧,把压力强的调整螺丝拧松,但是要注意压力过强的 话,有可能不能调整,请调整结束后再把固定螺丝 2 拧紧。 2) Fox 2285N model of sewing mchine,uneven material feed caused by a pressure difference between the right and left wings of the presser foot cannot be adjusted when the pressure of the presser foot has been excessively increased. The standard pressure( approximately 24.5N) is obtained when the top end of the presser spring regulator rises above the seat by 27mm. 2) 2285N压脚压力过大的话,左右送布就不能调整。 标准为底座到调整螺丝上端的距离为27mm(约24.5N)。 (2) Adjusting the stitch length 1) Tilt the machine head away from you. 2) Loosen the nut 1. 3) Move the rod to the left to increase the stitch length,or to the right to decrease it. 4) Securely tighten the nut 1. 5) Lift the machine head properly. (2) 缝纫机调整 1) 把缝纫机向后方放倒。 2) 拧松螺母 1。 3) 再弄长缝纫时,向左移动,弄短缝纫时,向右移动杆。 4) 把螺母 1 拧紧。 5) 缝纫机放回原位置。 .22 jintex.in

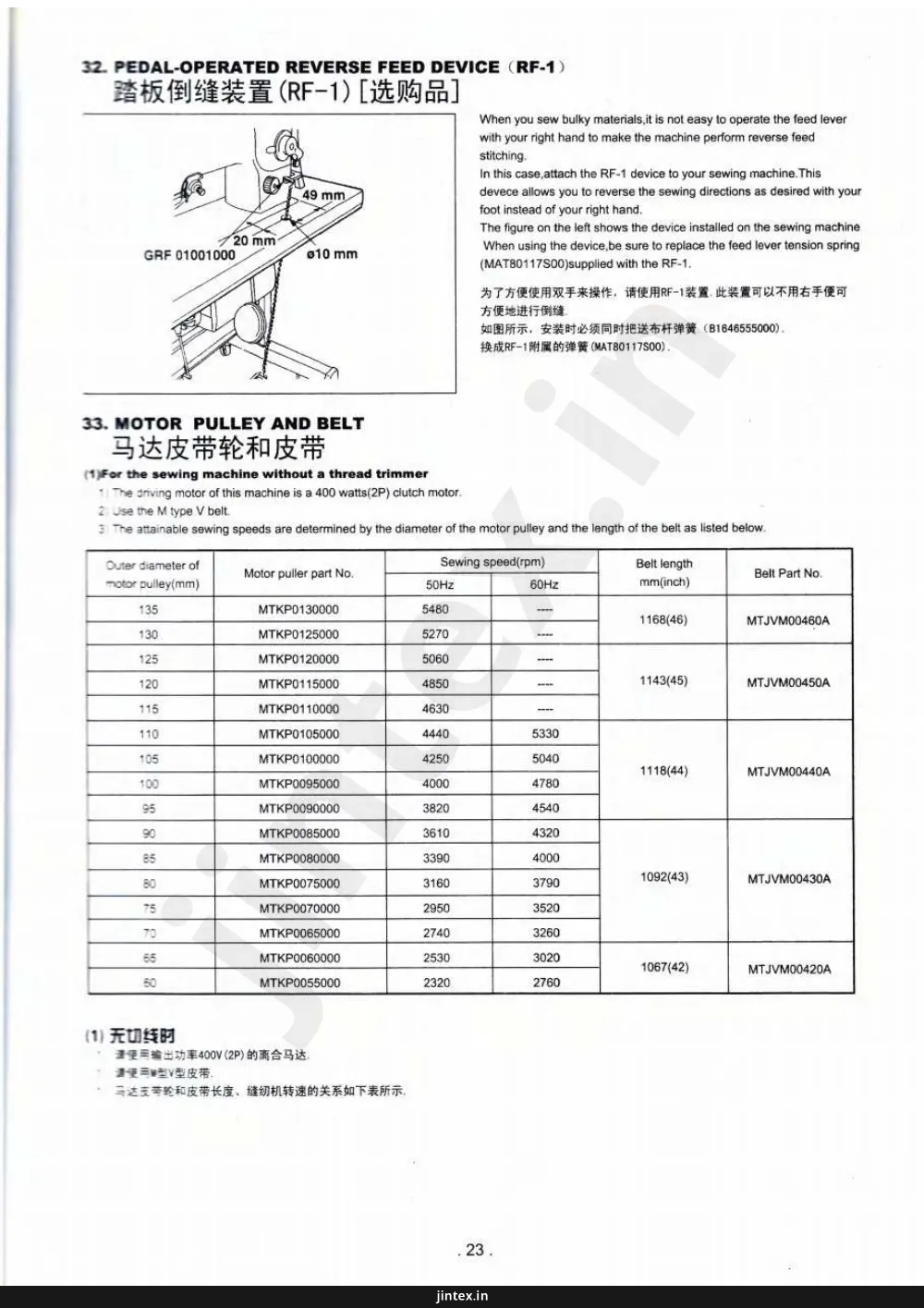

Page 30 — 33. MOTOR PULLEY AND BELT

Jack JK-T2284B parts on page 30
RefPart numberPart nameQty
MTKP0130000MTKP0130000
MTKP0125000MTKP0125000
MTKP0120000MTKP0120000
MTKP0115000MTKP0115000
MTKP0110000MTKP0110000
MTKP0105000MTKP0105000
MTKP0100000MTKP0100000
MTKP0095000MTKP0095000
MTKP0090000MTKP0090000
MTKP0085000MTKP0085000
MTKP0080000MTKP0080000
MTKP0075000MTKP0075000
MTKP0070000MTKP0070000
MTKP0065000MTKP0065000
MTKP0060000MTKP0060000
MTKP0055000MTKP0055000
MTJVM00460AMTJVM00460A
MTJVM00450AMTJVM00450A
MTJVM00440AMTJVM00440A
MTJVM00430AMTJVM00430A
MTJVM00420AMTJVM00420A

32. PEDAL-OPERATED REVERSE FEED DEVICE (RF-1) 踏板倒缝装置(RF-1)[选购品] When you sew bulky materials, it is not easy to operate the feed lever with your right hand to make the machine perform reverse feed stitching. In this case,attach the RF-1 device to your sewing machine.This devece allows you to reverse the sewing directions as desired with your right hand. The figure on the left shows the device installed on the sewing machine (MAT80117S00)supplied with the RF-1. 为了方便使用双手操作,请使用RF-1装置,此装置可以不用右手便可 方便地进行倒缝. 如图所示,安装时必须同时换紧送布杆弹簧(B1646555000). 换RF-1附属的弹簧(MAT80117S00). 33. MOTOR PULLEY AND BELT 马达皮带轮和皮带 (1)For the sewing machine without a thread trimmer 1. The driving motor of this machine is a 400 watts(2P) clutch motor. 2. Use the M type V belt. 3. The attainable sewing speeds are determined by the diameter of the motor pulley and the length of the belt as listed below. Outer diameter of motor pulley(mm) Motor puller part No. Sewing speed(rpm) Belt length mm(inch) Belt Part No. 135 MTKP0130000 5480 1168(46) MTJVM00460A 130 MTKP0125000 5270 125 MTKP0120000 5060 1143(45) MTJVM00450A 120 MTKP0115000 4850 115 MTKP0110000 4630 110 MTKP0105000 4440 5330 105 MTKP0100000 4250 5040 1118(44) MTJVM00440A 100 MTKP0095000 4000 4780 95 MTKP0090000 3820 4540 90 MTKP0085000 3610 4320 85 MTKP0080000 3390 4000 1092(43) MTJVM00430A 80 MTKP0075000 3160 3790 75 MTKP0070000 2950 3520 70 MTKP0065000 2740 3260 65 MTKP0060000 2530 3020 1067(42) MTJVM00420A 60 MTKP0055000 2320 2760 (1)无切线时 ·量使用输出功率400V(2P)的离合马达. ·请使用M型V型皮带. ·马达皮带轮和皮带长度、缝纫机转速的关系如下表所示. .23. jintex.in
