Jack JK-T9820 Parts Book (PDF)

Eyelet Buttonhole · also listed as 9820Download PDF

Text index — Jack JK-T9820

Page 7 — A. 机体部分 / Machine body

Jack JK-T9820 parts on page 7
Ref	Part number	Part name	Qty
1	CSA5746001	MAIN PLATE	1
2	CSA5747001	MAIN PLATE PACKING	1
3	C 062501216	SCREW PAN M5X12	4
4	CSA5749001	REAR COVER	1
5	CSA5750001	REAR COVER PACKING	1
6	C 062501216	SCREW PAN M5X12	5
7	CSA5751001	BELT COVER	1
8	C0A4401606	SCREW PAN (S/P WASHER) M4X16	4
9	CSA5752201	BED BASE	1
10	CSA5753001	BED BASE CUSHION	3
11	CSA7556001	SPACER 4X6.5	3
12	C 060401216	SCREW BIND M4X12	3
13	C047502242	PIN SPRING ROLL AW5	1
14	C 158827009	BED BASE CUSHION, A	4
15	CS21728001	BOLT M6X80	4
16	C 159458009	RUBBER SHEET	4
17	C115947101	WASHER PLAIN 6.35	4
18	C025060336	WASHER PLAIN L 6	4
19	C021060106	NUT 1 M6	4
20	CSA5754001	GS SPRING	1
21	CSA5763001	GS SUPPORT PLATE	1
22	CS55477001	BOLT SOCKET (S/P WASHER)M6X16	2
23	CS35218101	SUPPORT PIN, F :GS	1
24	C048080142	RETAINING RING EXTERNAL C8	2
25	CSA5764001	GS SUPPORT SHAFT	1
26	C048080142	RETAINING RING EXTERNAL C8	2
27	C154465001	DUST OILER SUPPORT ASSY	1
28	C114486002	OILER	1
29	C062500816	SCREW PAN M5X8	2
30	CSA5765101	HINGE LEVER SHAFT	1
31	C014060836	SET SCREW SOCKET (CP) M6X8	1
32	CSA5766001	HINGE SUPPORT SHAFT	1
33	C014060836	SET SCREW SOCKET (CP) M6X8	1
34	CSA5791101	HEAD SUPPORT LEVER	1
35	CSA5792001	SPRING TWIST A	1
36	CSA5802001	HINGE B	2
37	C014060836	SET SCREW SOCKET (CP) M6X8	2
38	CSA7044001	BED HINGE SHAFT	2
39	C014060836	SET SCREW SOCKET (CP) M6X8	2
40	CSA5803001	NEEDLE GUIDE COVER	1
41	C 062400816	SCREW PAN M4X8	4
42	CSA5804001	FINGER GUARD	1
43	CS35221101	SHOULDER SCREW M4	2
44	C 021400206	NUT 2 M4	2
45	C107017001	WAVE WASHER	2
46	C028040246	WASHER SPRING 2-4	2
47	CSA5805001	BED COVER	1
48	C004401003	SCREW, FLAT M4X10	2
49	CS58636001	BOLT SOCKET (S/P WASHER)M8X30	1
50	C104833001	RUBBER CAP, 4.3	1
51	C104833001	RUBBER CAP, 4.3	2
52	CS32263001	RUBBER CAP, 8.5	1
53	CS32263001	RUBBER CAP, 8.5	2
54	CS32263001	RUBBER CAP, 8.5	1
55	C104821001	RUBBER CAP, 10.5	2
56	C150756000	RUBBER CAP, 18.5	2
57	C150756000	RUBBER CAP, 18.5	1
58	C150756000	RUBBER CAP, 18.5	1
59	C150756000	RUBBER CAP, 18.5	1
60	C158882001	RUBBER CAP, 22	4
61	CSA5810001	RUBBER CAP 23.5	1
62	CSA5811001	RUBBER CAP 38.5	1

Page 9 — A. 机体部分 / Machine body

Jack JK-T9820 parts on page 9
Ref	Part number	Part name	Qty
63	CSA5819001	RUBBER CAP	1
64	CSA5820001	CORD BUSH	1
65	CSA5821001	Z-WINDOW COVER	1
66	CS35221101	SHOULDER SCREW M4	1
67	107017001	WAVE WASHER	1
68	CSA0793001	LABEL, CAUTION CHN/ENG	1
69	CSA0792001	LABEL, CAUTION JPN/ENG	1
70	CS36924001	INJURY MARK	6
71	CS37060001	LABEL, GROUNDING	4
	C 107017001	弹簧垫圈 WAVE WASHER	1

Page 11 — B. 针杆 · 挑线杆装置 / Needle bar and thread take-up mechanism

Jack JK-T9820 parts on page 11
Ref	Part number	Part name	Qty
1	CSA5936001	CRANK ROD UNIT	1
2	CSA5570001	BALL BEARING 608ZZ	2
3	CSA6652001	NEEDLE BAR CRANK	1
4	C 145465001	SCREW, SM3.57-40X6 L	1
5	CSA6653001	SLIDE BLOCK 8X10D	1
6	CSA6654101	SLIDE BLOCK GUIDE D	1
7	018401036	BOLT SOCKET M4X10	5
8	CSA6655001	SLIDE BLOCK GUIDE F	1
9	018401036	BOLT SOCKET M4X10	4
10	CS35332001	NEEDLE BAR CLAMP	2
11	CS59242001	NEEDLE BAR BRACKET SCREW	2
12	CSA6656001	WASHER 8X21X1.5	2
13	CSA6657001	NEEDLE BAR ASSY L	1
15	CSA6659001	NEEDLE BAR YARN FEEDER S	1
16	CS41310101	NEEDLE GUIDE, A	1
17	CS41251101	NEEDLE THREAD HOLDER PLATE, A	1
18	141514002	SHOULDER SCREW, SM3.18	1
19	CS35118101	TENSION SPRING	1
20	140553102	SET SCREW, SM3.18	1
21	CSA4857016	NEEDLE, DO x 558-NY2 (#16)	1
21	CSA4857014	NEEDLE, DO x 558-NY2 (#14)	1
21	CSA4857018	NEEDLE, DO x 558-NY2 (#18)	1
21	CS35133016	NEEDLE, DO x 558 (#16)	1
21	CS35133014	NEEDLE, DO x 558 (#14)	1
21	CS35133018	NEEDLE, DO x 558 (#18)	1
22	CSA5830001	NEEDLE BAR BUSH U ASSY	1
26	CSA5833001	NEEDLE BAR BUSH HOLDER BASE C	1
27	018402036	BOLT SOCKET M4X20	3
28	CSA5834001	ZIGZAG HORIZON LINK	1
29	CSA5835001	NEEDLE BAR BLOCK BRACKET ASSY	1
31	CS59242001	NEEDLE BAR BRACKET SCREW	1
32	CS35113001	NEEDLE BAR BLOCK COLLAR	1
34	CSA5837001	NEEDLE BAR GUAND BLOCK ASSY	1
35	CSA7609001	PULLEY FLANGE	1
36	CS06696004	SCREW, FLAT M3X6	4
37	CSA5907001	NEEDLE BAR GUIDE COLLAR	2
38	014400532	SET SCREW SOCKET (CP) M4X5	2
39	CS35137001	NEEDLE BAR GUIDE	2
40	CS35136001	NEEDLE BAR GUIDE SPRING	2
41	CSA5908001	NEEDLE BAR GUIDE SUPPORT PLATE	2
42	062300616	SCREW PAN M3X6	2
43	CSA5919001	BALL BEARING 6805ZZNR	2
44	CSA5920001	NEEDLE BAR GUARD NUT	1
45	CS59242001	NEEDLE BAR BRACKET SCREW	1
46	CSA5923001	GEAR NUT COVER	1
47	CSA7531001	THREAD TAKE-UP LEVER UNIT	1
50	CSA5843001	WICK 2X2	1
51	CSA5849001	OIL TUBE	1
52	228475000	FASTENING BAND 1.9X80	1
53	CS25328001	FELT	1
54	CSA5850001	ROLLER	1
55	CSA5865001	ROLLER SHAFT	1
56	012500536	SET SCREW SOCKET (FT) M5X5	1
57	CSA5842001	THREAD GUIDE	1
	C018401036	螺栓 M4X10	5
	C141514002	段螺钉 SM3.18	1
	C140553102	固定螺钉 SM3.18	1
	C018402036	螺栓 M4X20	3
	C014400532	螺钉 M4X5	2
	C062300616	螺钉 M3X6	2
	C228475000	电线夹 1.9X80	1
	C012500536	螺钉 M5X5	1

Page 13 — B. 针杆 · 挑线杆装置 / Needle bar and thread take-up mechanism

Jack JK-T9820 parts on page 13
Ref	Part number	Part name	Qty
58	CSA5880001	THREAD TAKE-UP L SUPPORT SHAFT	1
59	C 014060636	SET SCREW SOCKET (CP) M6X6	1
60	CSA5889001	NEEDLE BAR GUARD	1
61	018400636	BOLT SOCKET M4X6	2
61	C 01400636	螺栓 M4X6 BOLT SOCKET M4X6	2

Page 15 — C. Upper shaft mechanism

Jack JK-T9820 parts on page 15
Ref	Part number	Part name	Qty
1	CSA5890001	UPPER SHAFT	1
2	CSA5893001	UPPER SHAFT CRANK	1
3	CSA5571001	BALL BEARING 6004ZZNR	1
4	CS23651001	SET SCREW SOCKET (FT) M6X6	4
5	CS25235001	SCREW M8	1
6	CSA5897001	SPACER 34X42	1
7	CSA6661001	BALANCE COLLAR	1
8	CSA5572001	BALL BEARING 6004ZZ	1
9	CS23651001	SET SCREW SOCKET (FT) M6X6	2
10	CSA6662001	HYPOID GEAR ASSY	1
11	CS23651001	SET SCREW SOCKET (FT) M6X6	4
12	CSA5573001	BALL BEARING 6204ZZNR	1
13	CSA5564001	BEARING COLLAR	1
14	CS23651001	SET SCREW SOCKET (FT) M6X6	2
15	CSA6667001	BALL BEARING 6304ZZ	1
16	CSA5564001	BEARING COLLAR	1
17	CS23651001	SET SCREW SOCKET (FT) M6X6	2
18	CSA5549001	TIMING PULLEY ASSY	1
19	CS23651001	SET SCREW SOCKET (FT) M6X6	2
20	048520242	RETAINING RING INTERNAL C52	1
21	CSA6668001	ORTHOGONAL SHAFT	1
22	CSA6669001	BALL BEARING 6202DDUNR	1
23	CSA6671001	CAM ROLLER TAKE-UP	1
24	CS23651001	SET SCREW SOCKET (FT) M6X6	2
25	CSA6673001	ZIGZAG CAM	1
26	CS23651001	SET SCREW SOCKET (FT) M6X6	2
27	CSA6674001	BALL BEARING 6002ZZNR	1
28	048150142	RETAINING RING EXTERNAL C15	1
29	CSA4629001	PULLEY BASE	1
30	CS23651001	SET SCREW SOCKET (FT) M6X6	2
31	CSA6676001	PULLEY	1
32	062401016	SCREW PAN M4X10	3
33	CSA5158101	WASHER PLAIN L 4	3
	C048520242	孔用挡圈 C52	1
	C048150142	轴用挡圈 C15	1
	C062401016	螺钉 M4X10	3

Page 17 — D. 针摆装置 / Zigzag mechanism

Jack JK-T9820 parts on page 17
Ref	Part number	Part name	Qty
1	CSA6677001	ZIGZAG UNIT	1
2	CSA6678001	ZIGZAG FORK ASSY	1
7	CSA6682001	ZIGZAG CONNECTING ROD ASSY	1
8	CSA6684001	SHOULDER SCREW M6	1
9	CSA6685001	ZIGZAG CRANK SCREW	1
10	021060106	NUT 1 M6	2
11	CSA6686001	ZIGZAG CRANK	1
12	155559001	WASHER PLAIN	1
13	S35251101	NUT M6	1
14	CSA6687001	ZIGZAG FORK SUPPORT SHAFT	1
15	012061036	SET SCREW SOCKET (FT) M6X10	1
16	CSA6688001	N-POSITION CONTROL PLATE ASSY	1
17	CS35252001	Z-ECCENTRIC PIN	1
18	CSA6691001	ZIGZAG DRIVING LEVER	1
19	018061636	BOLT SOCKET M6X16	1
20	CSA6692001	SPACER	1
21	CSA6693001	ZIGZAG COAXIAL ROCK SHAFT	1
22	012500536	SET SCREW SOCKET (FT) M5X5	2
23	156482000	CAP, 4	1
24	CSA6694001	ZIGZAG LEVER	1
25	CS35332001	NEEDLE BAR CLAMP	1
26	018301236	BOLT SOCKET M3X12	1
	C 021060106	螺母 M6	2
	C 155559001		1
	CS35251101	螺母 M6	1
	C 012061036	螺钉 M6X10	1
	C 018061636	螺栓 M6X16	1
	C 012500536	螺钉 M5X5	2
	C 156482000		1
	C 018301236	螺栓 M3X12	1

Page 19 — E. 针杆摆动装置 / Needle bar rocking mechanism

Jack JK-T9820 parts on page 19
Ref	Part number	Part name	Qty
1	CSA6542001	PULSE MOTOR ASSY R	1
2	C J03663001	LABEL, HIGH TEMP. 13X20	1
3	CS55487001	BOLT SOCKET (S/P WASHER)M5X16	4
4	CSA6695001	THETA M PULLEY ASSY	1
5	012060636	SET SCREW SOCKET (FT) M6X6	2
7	CS35284101	TENSION PULLEY	1
8	CSA5574001	BALL BEARING 6000ZZ	1
9	048260242	RETAINING RING INTERNAL C26	2
10	CSA5552001	T PULLEY HOLDER ASSY	1
11	048100142	RETAINING RING EXTERNAL C10	1
12	CS55481001	BOLT SOCKET (S/P WASHER)M4X12	2
13	CSA6699001	DRIVING LOOPER SHAFT ASSY	1
14	CSA6702001	BALL BEARING 6201ZZ	1
15	048320242	RETAINING RING INTERNAL C32	1
16	CSA6703001	SET SCREW COLLAR	1
17	012060636	SET SCREW SOCKET (FT) M6X6	2
18	CSA6704001	MOTOR STOPPER	1
19	018061236	BOLT SOCKET M6X12	2
20	CSA6705001	BALL BEARING 6001ZZNR	1
21	CSA6707001	V-PULLEY T-PULLEY U ASSY	1
22	018401636	BOLT SOCKET M4X16	1
24	CSA6711001	TENSION PULLEY U	1
25	CSA5574001	BALL BEARING 6000ZZ	1
26	048260242	RETAINING RING INTERNAL C26	2
27	CSA5552001	T PULLEY HOLDER ASSY	1
28	048100142	RETAINING RING EXTERNAL C10	1
29	CS55481001	BOLT SOCKET (S/P WASHER)M4X12	2
30	CSA6712001	T BELT 580-5GT	1
31	CSA6713001	T BELT 810-5GT	1
32	CSA6714001	RUBBER CAP 32.5	1
	C012060636	螺钉 M6X6	2
	C048260242	孔用挡圈 C26	2
	C048100142	轴用挡圈 C10	1
	C048320242	孔用挡圈 C32	1
	C018061236	螺钉 M6X12	2
	C018401636	螺钉 M4X16	1

Page 21 — F1. 压脚装置 / Presser foot mechanism

Jack JK-T9820 parts on page 21
Ref	Part number	Part name	Qty
1	CSA5690001	FEED BAR	1
2	CSA5677001	OPENING CONNECTING ROD ASSY L	1
3	CSA7176001	FULCRUM LEVER PLATE	1
4	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
5	CSA5557001	ROCKER LEVER	1
6	CSA5579001	OPENING DRIVING LEVER ASSY L	1
7	109763002	WASHER	1
8	048050342	RETAINING RING E5	1
9	CSA5678001	OPENING CONNECTING ROD ASSY R	1
10	CSA7176001	FULCRUM LEVER PLATE	1
11	102630001	NEEDLE BAR GUIDE SLIDE BLOCK	1
12	CSA5557001	ROCKER LEVER	1
13	CSA5578001	OPENING DRIVING LEVER ASSY R	1
14	109763002	WASHER	1
15	048050342	RETAINING RING E5	1
16	CSA7527001	SHOULDER SCREW M5	6
17	CS35429101	EXTENSION SPRING	1
18	CSA5583001	STOPPER PLATE OPENING	2
19	026040236	WASHER PLAIN M 4	2
20	062400816	SCREW PAN M4X8	2
21	062301016	SCREW PAN M3X10	2
22	CS34968000	SPEED NUT M3	2
23	CS35328001	STOPPER PLATE	2
24	CS34969001	ROD PIN, B :CYLINDER	2
25	048030342	RETAINING RING E3	4
26	CSA5584001	CYLINDER SCREW	2
27	048050142	RETAINING RING EXTERNAL C5	2
28	CS35239101	CLAMP LEVER SHAFT	2
29	CS35240001	CLAMP LEVER, B	2
30	018501236	BOLT SOCKET M5X12	2
31	CSA5582001	CLAMP DRIVING LEVER	2
32	062501202	SCREW PAN M5X12	2
34	CS35350000	CYLINDER 16X10	1
35	CS53488000	JOINT	1
36	CS13955000	AIR BOLSTER	1
37	CSA5558001	CLAMP CYLINDER ROD	1
38	CS35457001	SPRING HOOK, L	1
40	CS35350000	CYLINDER 16X10	1
41	CS53488000	JOINT	1
42	CS13955000	AIR BOLSTER	1
43	CSA5558001	CLAMP CYLINDER ROD	1
44	CS35458001	SPRING HOOK, R	1
45	CS35305001	CYLINDER ROD PIN	2
46	048030342	RETAINING RING E3	4
47	CS35304001	CLAMP CYLINDER SUPPORT	2
48	014400532	SET SCREW SOCKET (CP) M4X5	2
49	CS35456101	SPRING	2
50	CSA5675001	GUIDE PLATE A	5
51	CSA5676001	GUIDE PLATE B	1
52	CS06696004	SCREW, FLAT M3X6	13
53	CS35327001	OPENING CYLINDER STOPPER	2
54	017401616	BOLT M4X16	2
55	021400202	NUT 2 M4	2
56	062400816	SCREW PAN M4X8	4
57	028040242	WASHER SPRING 2-4	4
58	CS12004000	LINEAR BUSH	4
59	CS02460001	RETAINING RING, EXTERNAL C19	8
60	CSA5692001	Y BEARING	1
61	CS12004000	LINEAR BUSH	1
62	CS02460001	RETAINING RING, EXTERNAL C19	2
63	CSA5691001	Y GUIDE SHAFT	1
64	012500536	SET SCREW SOCKET (FT) M5X5	2
	C 102630001		1
	C 109763002	打开驱动杆组件 L	1
	C 048050342		1
	C 026040236	平垫圈 M4	2
	C 062400816	螺钉 M4X8	2
	C 062301016	螺钉 M3X10	2
	C 048030342	挡圈 E3	4
	C 048050142	轴用挡圈 C5	2
	C 018501236	螺钉 M5X12	2
	C 062501202	螺钉 M5X12	2
	CS53480000		1
	C 014400532	螺钉 M4X5	2
	C 017401616	螺栓 M4X16	2
	C 021400202	六角螺母 M4	2
	C 028040242		4
	C 012500536	螺钉 M5X5	2

Page 23 — F1. 压脚部件 / Presser foot mechanism

Jack JK-T9820 parts on page 23
Ref	Part number	Part name	Qty
65	CSA5681001	AIR TUBE 4X2.5-24	1
66	CSA5682001	AIR TUBE 4X2.5-23	1
67	CSA5683001	AIR TUBE 4X2.5-15	1
68	CSA5684001	AIR TUBE 4X2.5-16	1
69	CSA7973001	AIR TUBE 4X2.5-21	1
70	CSA7974001	AIR TUBE 4X2.5-22	1
71	CSA7975001	AIR TUBE 4X2.5-18	1
72	CS12104000	UNION Y4	1
73	CS04557000	BAND, PLT1M	5
74	CSA5688101	SPIRAL L	1
75	CSA5435001	GROUND WIRE 550	1
76	C 052400606	SCREW, PAN (S/P WASHER) M4X6	1
77	CSA6727001	PLATE PRESSER	2
78	CS35324201	SHOULDER SCREW M4	2
79	CS36345000	WASHER, BENDING	2
81	CSA7043001	CYLINDER ASSY T 16X15	1
82	CSA1828001	JOINT, KQ2T04-M5	2
83	CS34970001	CYLINDER ROD OPENING	1
85	CSA7050001	CYLINDER ASSY L 16X15	1
86	CS11426000	ELBOW UNION 4M5	2
87	CS34970001	CYLINDER ROD OPENING	1
89	CSA5679001	CYLINDER ASSY B 16X30	1
90	CS12150000	TUBE ELBOW, M-5HL-4	2
91	CSA6527001	LOWER OFF SENSOR ASSY	1
92	CS34914101	T-TRIM. CYLINDER SUPPORT PLATE	1
93	CS34913001	THREAD TRIMMER CYLINDER CLAW	1
94	C018400836	BOLT SOCKET M4X8	2
95	CSA5680001	AIR TUBE 4X2.5-19	1
96	CSA5561001	AIR TUBE 4X2.5-20	1
97	CSA7053001	G-THREAD TAKE-UP GUIDE COLLER	1
98	CSA7054001	G-THREAD TAKE-UP GUIDE SHAFT	1
99	C048050142	RETAINING RING EXTERNAL C5	1
100	C014400532	SET SCREW SOCKET (CP) M4X5	1
101	CSA7555001	FEED BAR PLATE SPRING	1
102	C062400816	SCREW PAN M4X8	2
81	CSA7043001	CYLINDER ASSY T 16X15	2
82	CSA1828001	JOINT, KQ2T04-M5	4
83	CS34970001	CYLINDER ROD OPENING	2
103	CSA6719001	CYLINDER ASSY 10X15	1
104	CS12150000	TUBE ELBOW, M-5HL-4	2
105	CSA6720001	AUX CLAMP S HOLDER	1
106	CS35351001	CYLINDER ROD	1
107	C062400816	SCREW PAN M4X8	2
108	CSA6721001	AUX CLAMP CONNECTING ROD ASSY	1
109	C025060236	WASHER PLAIN M 6	1
110	C048060142	RETAINING RING EXTERNAL C6	1
111	CSA6726001	CYLINDER ROD PIN	1
112	C048030342	RETAINING RING E3	2
113	CSA7131001	AIR TUBE 4X2.5-150	2
114	CSA7795001	QUICK EXHAUST	2
115	CSA7793001	SPEED CONTROLLER	2
116	CSA7976001	AIR TUBE 4X2.5-25	1
117	CSA7977001	AIR TUBE 4X2.5-26	1
118	CSA7978001	AIR TUBE 4X2.5-27	2
	CSA7970001		1
	CSA34970001		1
	CSA34914101		1
	CSA34913001		1
	CSA7711001	空气管 4X2.5-150	2

Page 25 — F2. 压脚装置 / Presser foot mechanism

Jack JK-T9820 parts on page 25
Ref	Part number	Part name	Qty
1	CSA7079001	WORK CLAMP PLATE R30 UNIT	1
2	CSA7080001	WORK CLAMP PLATE R ASSY	1
4	CSA7082101	WORK CLAMP PLATE L30 UNIT	1
5	CSA7083001	WORK CLAMP PLATE L ASSY	1
7	CSA7149001	PLATE SPRING	1
8	CS35326101	SCREW M3.5	1
9	CSA7150101	THREAD TRIMMER A	1
10	CSA7151101	THREAD TRIMMER B	1
11	CS35326101	SCREW M3.5	1
12	CSA7055001	WORK CLAMP PLATE RS30 UNIT	1
13	CSA7056001	WORK CLAMP PLATE RS ASSY	1
15	CS35330001	WORK CLAMP PLATE, R	1
16	CSA7060001	WORK CLAMP PLATE LS30 UNIT	1
17	CSA7061001	WORK CLAMP PLATE LS ASSY	1
20	CS35329001	WORK CLAMP PLATE, L	1
19	CS06696004	SCREW, FLAT M3X6	2
21	CS35315001	OPENING SLIDE BLOCK	1
22	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
23	C060020416	SCREW BIND M2X4	2
24	CSA5673001	NEEDLE PLATE R-42	1
25	CS06696004	SCREW, FLAT M3X6	2
26	CS39932101	CLOTH WORK CLAMP, R-30	1
27	CS35236000	WASHER, BENDING 3.2	1
28	CS35235001	SUPPORT PIN, CLAMP	1
29	C021300306	NUT 3 M3	1
30	CSA5560001	CLAMP SHAFT HOLDER	1
31	C062400816	SCREW PAN M4X8	2
32	CSA5674001	CLAMP FULCRUM SHAFT	1
33	C048060142	RETAINING RING EXTERNAL C6	2
34	CSA5585001	CLAMP LEVER R	1
35	C018501236	BOLT SOCKET M5X12	1
36	CSA5576001	CLAMP ARM R	1
37	C014400532	SET SCREW SOCKET (CP) M4X5	2
38	CSA7550001	CROTH GUIDE R	1
39	CS35326101	SCREW M3.5	1
40	CS35315001	OPENING SLIDE BLOCK	1
41	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
42	C060020416	SCREW BIND M2X4	2
43	CSA5672001	NEEDLE PLATE L-42	1
44	CS39931101	CLOTH WORK CLAMP, L-30	1
45	CS35236000	WASHER, BENDING 3.2	1
46	CS35235001	SUPPORT PIN, CLAMP	1
47	C021300306	NUT 3 M3	1
48	CSA5560001	CLAMP SHAFT HOLDER	1
49	C062400816	SCREW PAN M4X8	2
50	CSA5674001	CLAMP FULCRUM SHAFT	1
51	C048060142	RETAINING RING EXTERNAL C6	2
52	CSA5671001	CLAMP LEVER L	1
53	C018501236	BOLT SOCKET M5X12	1
54	CSA5577001	CLAMP ARM L	1
55	C014400532	SET SCREW SOCKET (CP) M4X5	2
56	CSA7551001	CROTH GUIDE L	1
57	CS35326101	SCREW M3.5	1

Page 27 — F3. 压脚部件 / Presser foot mechanism

Jack JK-T9820 parts on page 27
Ref	Part number	Part name	Qty
1	CSA6728001	WORK CLAMP PLATE R2230 UNIT	1
2	CSA6731001	NEEDLE PLATE L 2230R	1
3	CSA6732001	WORK CLAMP R-JL2230	1
4	CSA6738001	WORK CLAMP PLATE L2230 UNIT	1
5	CSA6739001	WORK CLAMP PLATE JL ASSY	1
6	CSA6741001	NEEDLE PLATE L 2230L	1
7	CSA6742001	WORK CLAMP L-JL2230	1
8	CSA7187001	WORK CLAMP PLATE R1826 ASSY	1
9	CSA7105001	NEEDLE PLATE L1826R	1
10	CSA7095001	WORK CLAMP R-JL1826	1
11	CSA7186001	WORK CLAMP PLATE L1826 ASSY	1
12	CSA6739001	WORK CLAMP PLATE JL ASSY	1
13	CSA7100001	NEEDLE PLATE L1826L	1
14	CSA7090001	WORK CLAMP L-JL1826	1
15	CSA6729001	WORK CLAMP PLATE JR UNIT	1
17	CS35315001	OPENING SLIDE BLOCK	1
18	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
19	C060020416	SCREW BIND M2X4	2
20	CS06696004	SCREW, FLAT M3X6	2
21	CS35236000	WASHER, BENDING 3.2	1
22	CS35235001	SUPPORT PIN, CLAMP	1
23	C021300306	NUT 3 M3	1
24	CSA5560001	CLAMP SHAFT HOLDER	1
25	C062400816	SCREW PAN M4X8	2
26	CSA6733001	CLAMP FULCRUM SHAFT J	1
27	C048060142	RETAINING RING EXTERNAL C6	2
28	CSA5585001	CLAMP LEVER R	1
29	C018501236	BOLT SOCKET M5X12	1
30	CSA6734001	CLAMP ARM R-J	1
31	C014400532	SET SCREW SOCKET (CP) M4X5	2
32	CSA7550001	CROTH GUIDE R	1
33	CS35326101	SCREW M3.5	1
34	CSA6735001	AUX CLAMP ARM	1
35	C048060142	RETAINING RING EXTERNAL C6	1
36	CSA6736001	SUB AUX CLAMP WRIST	1
37	C018401036	BOLT SOCKET M4X10	1
38	CS05356000	BUTTON CLAMP, A	1
39	CSA6737001	AUX CLAMP TSWIST SPRING	1
41	CS35315001	OPENING SLIDE BLOCK	1
42	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
43	C060020416	SCREW BIND M2X4	2
44	CS06696004	SCREW, FLAT M3X6	2
45	CS35236000	WASHER, BENDING 3.2	1
46	CS35235001	SUPPORT PIN, CLAMP	1
47	C021300306	NUT 3 M3	1
48	CSA5560001	CLAMP SHAFT HOLDER	1
49	C062400816	SCREW PAN M4X8	2
50	CSA5674001	CLAMP FULCRUM SHAFT	1
51	C048060142	RETAINING RING EXTERNAL C6	2
52	CSA5671001	CLAMP LEVER L	1
53	C018501236	BOLT SOCKET M5X12	1
54	CSA6743001	CLAMP ARM L-J	1
55	C014400532	SET SCREW SOCKET (CP) M4X5	2
56	CSA7551001	CROTH GUIDE L	1
57	CS35326101	SCREW M3.5	1
58	CSA7152001	SUPPORT WORK CLAMP ARM L	1
	C01401036	螺栓 M4X10	1
	CS0350000	扣夹 A	1

Page 29 — G. 送布装置 / Feed mechanism

Jack JK-T9820 parts on page 29
Ref	Part number	Part name	Qty
1	CSA6744001	FEED BAR COVER L	1
2	CSA6745001	FEED BAR COVER R	1
3	CSA8121001	FEED BAR COVER U ASSY	1
4	C 004401003	SCREW, FLAT M4X10	12
5	CSA6747001	X FEED SHAFT HOLDER S	1
6	CSA6748001	X FEED SHAFT HOLDER N	1
7	CSA6749001	X RACK	2
8	C018501636	BOLT SOCKET M5X16	4
9	CSA6750001	Y FEED GUIDE SHAFT	2
10	C012060636	SET SCREW SOCKET (FT) M6X6	4
11	CSA6751101	X FEED GUIDE SHAFT A	1
12	CSA6752101	X FEED GUIDE SHAFT B	1
13	C012060636	SET SCREW SOCKET (FT) M6X6	2
14	C018401636	BOLT SOCKET M4X16	4
15	C025040136	WASHER PLAIN S 4	4
16	CS35183000	LINEAR BUSH, 12	4
17	CSA5562001	BALL BEARING STOPPER	4
18	C062300416	SCREW PAN M3X4	4
19	CSA6753001	Y FEED ASSY	1
20	CSA6754001	Y FEED BASE	1
21	CSA6521001	PULSE MOTOR ASSY Y	1
22	CSA6522001	MOTOR HARNESS Y	1
23	C018401436	BOLT SOCKET M4X14	4
24	C026040136	WASHER PLAIN S 4	4
25	CSA6755001	DRIVING GEAR 20	1
26	C012060636	SET SCREW SOCKET (FT) M6X6	2
27	CSA6756001	Y PULLEY SUPPORT	1
28	C3A6001001	BOLT SOCKET (S/P WASHER) M5X20	2
29	CSA6757001	Y TIMING PULLEY ASSY	2
30	C012060636	SET SCREW SOCKET (FT) M6X6	4
31	C048160242	RETAINING RING INTERNAL C16	2
32	CSA6760001	Y PULLEY SHAFT R	1
33	C530138001	BALL BEARING MICRO 8	2
34	C018502536	BOLT SOCKET M5X25	1
35	C048080142	RETAINING RING EXTERNAL C8	2
36	CSA6761001	Y PULLEY SHAFT F	1
37	C070688850	BALL BEARING RADIAL 688ZZ	2
38	CSA6762001	IDLER GEAR 40	1
39	C012060636	SET SCREW SOCKET (FT) M6X6	2
40	CSA6763001	T BELT 320-5GT	1
41	CSA6764001	BELT HOLDER	1
42	C018400836	BOLT SOCKET M4X8	2
43	CSA6765001	Y DRIVING SHAFT HOLDER	1
44	C018501636	BOLT SOCKET M5X16	1
45	C018061636	BOLT SOCKET M6X16	3
46	CSA6766001	Y SHAFT	1
47	CSA6767001	Y SHAFT HOLDER	1
48	C018501436	BOLT SOCKET M5X14	1
49	CS12004000	LINEAR BUSH	2
50	CSA5562001	BALL BEARING STOPPER	2
51	C062300416	SCREW PAN M3X4	2
52	CS55476001	BOLT SOCKET (S/P WASHER)M6X12	2
53	CSA6768001	X FEED ASSY	1
54	CSA6517001	PULSE MOTOR ASSY X	1
55	CSA6518001	MOTOR HARNESS X	1
56	CSA4197001	FEED GEAR	1
57	C012060636	SET SCREW SOCKET (FT) M6X6	2
58	C018401436	BOLT SOCKET M4X14	4
59	C026040136	WASHER PLAIN S 4	4
60	CSA6769001	X MOTOR SUPPORT	1
61	CSA6770001	IDLER GEAR	2
62	C012060636	SET SCREW SOCKET (FT) M6X6	4
63	CSA6771001	BALL BEARING 6001ZZ	2
	CSA55476001	螺栓(带垫圈) M6X12	2

Page 31 — G. 送布装置 / Feed mechanism

Jack JK-T9820 parts on page 31
Ref	Part number	Part name	Qty
64	C048280242	RETAINING RING INTERNAL C28	2
65	CSA6772001	X IDLER GEAR SHAFT	1
66	018061636	BOLT SOCKET M6X16	3
67	J03663001	LABEL, HIGH TEMP. 13X20	2
68	048060342	RETAINING RING E6	1
70	008401204	SCREW TRUSS M4X12	2
69	CSA5584001	CYLINDER SCREW	1
	C018061636	螺栓 M6X16	3
	C J03663001	高温标签 13X20	2
	C048060342	挡圈 E6	1
	C008401204	螺钉 M4X12	2

Page 33 — H. 切刀装置 / Cutter mechanism

Jack JK-T9820 parts on page 33
Ref	Part number	Part name	Qty
1	CSA6773101	HAMMER BRACKET ASSY	1
6	CS35091101	KNOB SCREW M5	1
7	018401036	BOLT SOCKET M4X10	4
8	CSA6776301	CUTTER DRIVING SHAFT ASSY	1
9	CSA6777001	CUTTER DRIVING SHAFT	1
10	CSA6778301	BUSH C-SHAFT ASSY	1
13	CSA6781001	GUIDE BLOCK	1
14	018401236	BOLT SOCKET M4X12	2
15	CSA6782001	DRIVING SHAFT PRESSER	1
16	CSA6783001	SPRINNG HOOK PIN U	1
17	CSA6784001	SPRINNG EXTENSION	1
18	CSA6785001	SPRINNG HOOK PIN D	1
19	CSA6786001	BOLT 4	2
20	021400206	NUT 2 M4	2
21	018061236	BOLT SOCKET M6X12	3
22	081050870	O RING S50	1
23	CSA6787001	CUTTER ARM ASSY	1
25	CSA6789001	C-SENSOR PIN	1
26	012500536	SET SCREW SOCKET (FT) M5X5	1
27	CSA6790001	C-ARM SLIDE BLOCK	1
28	CSA5563001	C-ARM PIN	1
29	014060836	SET SCREW SOCKET (CP) M6X8	2
30	CSA6791001	C-ARM SHAFT	1
31	012061036	SET SCREW SOCKET (FT) M6X10	2
32	CSA6792001	SET SCREW COLLAR ASSY	1
33	CSA6793001	SET SCREW COLLAR	1
34	014060836	SET SCREW SOCKET (CP) M6X8	2
35	CSA6794001	CUTTER LEVER ASSY	1
36	CSA6795001	CUTTER LINK	1
38	CSA5563001	C-ARM PIN	1
39	014500836	SET SCREW SOCKET (CP) M5X8	2
40	014060836	SET SCREW SOCKET (CP) M6X8	2
41	CSA5563001	C-ARM PIN	1
42	CSA6797001	CUTTER REVER SHAFT	1
43	CSA6798001	BUSH C-LEVER SHAFT	1
44	012061036	SET SCREW SOCKET (FT) M6X10	1
45	CSA6799001	CYLINDER SUPPORT SHAFT	1
46	014060836	SET SCREW SOCKET (CP) M6X8	2
47	CSA6800001	HAMMER SPACER	1
48	014400536	SET SCREW SOCKET(CP) M4X5	1
49	CSA6801301	KNIFE BRACKET UNIT	1
52	CS35097101	KNIFE BLOCK HOLDER	1
53	018501636	BOLT SOCKET M5X16	1
54	CS35098000	BLOCK STOPPER PLATE	1
55	062300416	SCREW PAN M3X4	1
56	018501636	BOLT SOCKET M5X16	3
57	CSA6804001	ECCENTRIC PIN	1
58	CSA6805001	KNIFE GARBAGE JOINT	1
59	CSA6985001	TUBE GUIDE	1
60	062400816	SCREW PAN M4X8	1
61	CSA6806001	KNIFE 2.8X4.3-42	1
	C 018401036	螺栓 M4X10
	C021400206	六角螺母 M4
	C018061236	螺栓 M6X12
	C081050870	O形圈 S50
	C012500536	螺钉 M5X5
	C014060836	固定螺钉 M6X8
	C012061036	螺钉 M6X10
	C014400536	螺钉 M4X5
	CS35091001
	C018501636	螺栓 M5X16
	C062300416	螺钉 M3X4
	C062400816	螺钉 M4X8
	C* P. 102	切刀 2.8X4.3-42

Page 35 — J. 下轴装置 / Lower shaft mechanism

Jack JK-T9820 parts on page 35
Ref	Part number	Part name	Qty
1	CSA6807001	LOWER SHAFT	1
3	CSA6809001	LOWER SHAFT TENSION PULLEY A	1
4	CSA6810001	LOWER SHAFT TENSION PULLEY B	1
5	CSA5571001	BALL BEARING 6004ZZNR	1
6	CS23651001	SET SCREW SOCKET (FT) M6X6	2
7	CS47270001	BOLT SOCKET (S/P WASHER)M6X30	3
8	CSA5573001	BALL BEARING 6204ZZNR	2
9	CSA5564001	BEARING COLLAR	2
10	CS23651001	SET SCREW SOCKET (FT) M6X6	4
11	CSA6812001	T BELT 375-5GT	1
13	CSA6814001	LOWER SHAFT CAM	1
14	CS23651001	SET SCREW SOCKET (FT) M6X6	2
15	104833001	RUBBER CAP, 4.3	1
16	CSA6815001	T BELT 1115-5GT	1
18	CSA6817001	IDLER PULLEY ASSY	1
19	CSA5570001	BALL BEARING 608ZZ	2
20	048220242	RETAINING RING INTERNAL C22	2
21	CS50168001	COLLAR	1
22	CSA6819001	IDLER PULLEY SHAFT	1
23	012061036	SET SCREW SOCKET (FT) M6X10	1
25	CSA6821001	TENSION PULLEY COLLER	1
26	CSA5572001	BALL BEARING 6004ZZ	2
27	048200142	RETAINING RING EXTERNAL C20	1
28	018084036	BOLT SOCKET M8X40	1
29	CSA6822001	CAM COVER	1
30	062500816	SCREW PAN M5X8	3
31	CSA6823001	LOWER THREADER LABEL	1
32	CSA6824001	LOWER SHAFT COVER ASSY	1
33	CSA6825001	LOWER SHAFT COVER	1
34	CSA6826001	LOWER SHAFT COVER FELT A	2
35	CSA6827001	LOWER SHAFT COVER FELT B	1
36	228475000	FASTENING BAND 1.9X80	8
37	062400816	SCREW PAN M4X8	2
38	CS10243000	CORD HOLDER, NK-3N	1
39	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
	C104833001		1
	C048220242	孔用挡圈 C22	2
	C012061036	螺钉 M6X10	1
	C04820144	轴用挡圈 C20	1
	C018084036	螺栓 M8X40	1
	C062500816	螺钉 M5X8	3
	C228475000	电线夹 1.9X80	8
	C062400816	螺钉 M4X8	2
	C0A4400806	螺栓(带垫圈) M4X8DA	1

Page 37 — K. 弯针装置 / Looper mechanism

Jack JK-T9820 parts on page 37
Ref	Part number	Part name	Qty
1	CSA6828001	LOOPER LEVER SHAFT	1
2	C014500836	SET SCREW SOCKET (CP) M5X8	2
4	CSA6829001	LOOPER LEVER ASSY	1
5	CSA6830001	LOOPER LEVER	1
6	CSA6831001	SHAFT 6.35	2
7	012500536	SET SCREW SOCKET (FT) M5X5	2
7	C012500536	螺钉 M5X5	2
8	CSA6834001	LOOPER DRIVING PLATE	1
9	CSA6835001	WICK 2X2	1
10	CSA6836001	WICK 2X2	1
11	CSA5565001	OIL TUBE	1
12	CSA6837001	LOOPER TUBE CLAMP A	1
13	C060300816	SCREW BIND M3X8	1
14	CSA6838001	WICK 3X3	1
15	CSA6839001	OIL TUBE	1
16	CSA6840001	LOOPER TUBE CLAMP B	1
17	C060300816	SCREW BIND M3X8	1
18	CSA6832101	LOWER SHAFT CAM COLLER	1
19	CSA6833001	LOOPER CAM ROLLER SHAFT	1
20	CS12718000	CHEMICAL FELT	1
21	014060632	SET SCREW SOCKET (CP) M6X6	1
21	C014060632	固定螺钉 M6X6	1

Page 39 — L. 双链式弯针装置 / Double chain stitch looper mechanism

Jack JK-T9820 parts on page 39
Ref	Part number	Part name	Qty
1	CSA6841101	LOOPER BASE ASSY	1
2	C018400636	BOLT SOCKET M4X6	2
3	CSA6844001	INPUT PIN 4	1
4	CSA5571001	BALL BEARING 6004ZZNR	2
5	CSA6845001	LOOPER PULLEY ASSY	1
6	C062351615	SCREW PAN M3.5X16	1
7	CSA6848001	LOOPER DRIVING SHAFT	1
8	CSA6849001	LOOPER DRIVING SHAFT ASSY	1
10	C018301436	BOLT SOCKET M3X14	1
11	CSA6851001	SPREADER LINK SHAFT	1
12	CSA6852001	LOOPER LINK CLAMP	1
13	C060401416	SCREW BIND M4X14	1
14	C026040136	WASHER PLAIN S 4	1
15	CSA6853001	LS SLIDE GUIDE	1
16	C004401003	SCREW, FLAT M4X10	2
17	CSA7204101	LOOPER LINK UNIT	1
19	CS52832000	FELT	1
20	CSA6857001	WICK 2X2	1
21	CSA6858001	LOOPER LINK FASTENING SCREW	2
23	CSA6859001	SPREADER LINK BASE	1
24	C060401016	SCREW BIND M4X10	1
25	CSA6860001	SPREADER CAM LINK	1
26	CS35018001	CAM LINK COLLOR	1
27	CS35014001	SHOULDER SCREW, M4	1
28	CS35019001	SHOULDER SCREW, M4	1
29	CSA6861001	SPREADER DRIVING CAM	1
31	CSA6863001	LS HOLDER BASE	1
32	CSA6864001	SPRING GUIDE SCREW	2
33	CSA6865001	HOLDER PRESSER SHAFT	1
34	C014060836	SET SCREW SOCKET (CP) M6X8	1
35	C012500536	SET SCREW SOCKET (FT) M5X5	1
36	CSA6866001	THREAD TRIMMER LEVER BRACKET	1
37	C062301016	SCREW PAN M3X10	1
38	C021300306	NUT 3 M3	1
39	CSA6867001	U THREAD TRIMMER SPRING	1
40	CSA7064001	UPPER MOVABLE KNIFE	1
41	C060300416	SCREW BIND M3X4	1
42	CS35029001	UPPER MOVABLE KNIFE, A	1
43	CS37723101	UPPER MOVABLE KNIFE, B	1
44	105288001	SCREW SM2.38	1
45	CS35410001	LOOPER, R	1
46	CSA7547101	EYE LOOPER	1
47	CS35412101	SPREADER, R	1
48	CS35413101	SPREADER, L	1
49	CS35032101	SCREW, M2.6X5.5	2
50	CS35034001	SPREADER STOPPER, R	1
51	CS35033001	SPREADER STOPPER, L	1
52	CS35032101	SCREW, M2.6X5.5	2
53	CS37724001	SCREW, SM2.38	1
54	CS47932001	NUT, SM2.38-56	1
	C0301436	螺钉 M3X14	1
	C 105288001	螺钉 SM2.38	1

Page 41 — L. 双链式弯针装置 / Double chain stitch looper mechanism

Jack JK-T9820 parts on page 41
Ref	Part number	Part name	Qty
55	CS35035101	SPRING, TWIST :R	1
56	CS35036101	SPRING, TWIST :L	1
57	CSA6872001	NEEDLE GUARD U	1
58	018300836	BOLT SOCKET M3X8	1
59	025030136	WASHER PLAIN S 3	1
60	CSA7063001	GIMP THREAD GUIDE C	1
61	CSA7578001	GIMP THREAD GUIDE C ASSY	1
60	CSA7063001	GIMP THREAD GUIDE C	1
63	CSA7613001	GIMP THREAD CLAMP PLATE	1
64	CSA7614001	GIMP THREAD TENSION SPRING	1
65	062300506	SCREW PAN M3X5	1
66	025030236	WASHER PLAIN M 3	1
67	CSA7615001	COLLAR 3	1
68	CSA6873001	GIMP THREAD GUIDE C-J ASSY	1
62	CSA6874001	GIMP THREAD GUIDE C-J	1
63	CSA7613001	GIMP THREAD CLAMP PLATE	1
64	CSA7614001	GIMP THREAD TENSION SPRING	1
65	062300506	SCREW PAN M3X5	1
66	025030236	WASHER PLAIN M 3	1
67	CSA7615001	COLLAR 3	1
69	060400516	SCREW BIND M4X5	1
70	CSA7065001	THROAT PLATE 1.6	1
70	CS37752001	THROAT PLATE, 1.8-J	1
71	CS35326101	SCREW M3.5	1
72	CSA6875001	VERTICAL PIN	1
73	014300832	SET SCREW SOCKET (CP) M3X8	1
74	CSA6876001	THREAD GUIDE PLATE	1
75	CSA6877001	COLLAR	1
76	CSA6878001	L TR TAKE-UP SPRING SUPPORT	1
77	062402016	SCREW PAN M4X20	1
78	CSA6879001	SPRING GUIDE SHAFT	1
79	021400316	NUT 3 M4	1
80	CSA6880001	THREAD TAKE-UP SPRING	1
81	CSA6881001	L TR TAKE-UP SPRING SUPPORT	2
82	060300816	SCREW BIND M3X8	1
83	0A4300805	SCREW PAN (S/P WASHER) M3X8	1
84	060300816	SCREW BIND M3X8	1
85	CS37725001	COMPRESSIONSPRING	1
91	CSA6868101	LOWER THREAD PRESSER J ASSY	1
86	CSA7634101	EYE LOOPER, B	1
87	CS49078001	LOOPER, L-S	1
88	CS35472101	SPREADER, LB	1
89	CS49079001	SPREADER, L-S	1
90	CSA7546001	THROAT PLATE, 1.1	1
	C 018300836	螺栓 M3X8	1
	C 025030136	平垫圈 S3	1
	C 062300506	螺钉 M3X5	1
	C 025030236	平垫圈 M3	1
	C 060400516	螺钉 M4X5	1
	C 014300832	螺钉 M3X8	1
	C 062400916	螺钉 M4X20	1
	C 021400316	六角螺母 M4	1
	C 060300816	螺钉 M3X8	1
	C 0A4300805	螺栓(带垫圈) M3X8DA	1

Page 43 — M. 分纱装置 / Spreader mechanism

Jack JK-T9820 parts on page 43
Ref	Part number	Part name	Qty
1	CSA6882001	SPREADER LEVER SHAFT	1
2	C014500836	SET SCREW SOCKET (CP) M5X8	2
3	CSA6883101	SPREADER LEVER A ASSY	1
5	CSA6885001	SPREADER LEVER FELT	1
6	CSA5565001	OIL TUBE	1
7	CSA6886001	WICK 2X2	1
8	CSA6887001	SPREADER TUBE CLAMP	1
9	C 228475000	FASTENING BAND 1.9X80	2
10	C 060400516	SCREW BIND M4X5	1
11	CSA8001001	WICK 2X2	1
12	CSA6888001	SPREADER LEVER B ASSY	1
14	CSA6890001	SHAFT 6X15.5	2
15	C048060142	RETAINING RING EXTERNAL C6	2
16	C012500536	SET SCREW SOCKET (FT) M5X5	2
17	C 062400816	SCREW PAN M4X8	2
18	C 025040236	WASHER PLAIN M 4	2
19	CSA6891001	ECCENTRIC PIN	1
20	CS25279101	SET SCREW (CP) M3.5-5	1
21	CSA6892001	SLIDE BLOCK 6X8	2

Page 45 — N. 供油润滑装置 / Lubrication

Jack JK-T9820 parts on page 45
Ref	Part number	Part name	Qty
1	CSA6893001	OIL PLATE ASSY	1
4	CS35001000	NYLON RIVET	8
5	CSA6896001	OIL TUBE	1
6	CSA6897001	WICK 3X3	1
7	CSA6898001	WICK 3X3	1
8	CSA6899001	WICK 6X6	1
9	CS00480000	CORD HOLDER, 5N	1
10	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
11	062400816	SCREW PAN M4X8	4
12	CSA6900001	OIL TUBE	1
13	CSA6901101	WICK 3X3	1
14	146202000	CORD HOLDER, 6N	1
15	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
16	CS10243000	CORD HOLDER, NK-3N	1
17	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
18	149547000	CORD HOLDER, 4N	1
19	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
20	CSA6902001	TUBE SUPPORT	1
21	018400636	BOLT SOCKET M4X6	2
22	CS10243000	CORD HOLDER, NK-3N	1
23	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
24	CSA6903001	OIL STOPPER	1
25	CSA6904001	FELT HOLDER ASSY	1
27	CSA6906001	N-BAR YOKE FELT	2
28	CSA6907001	SLIDE BLOCK FELT D	1
29	CSA6908001	WICK 2X2	1
30	CS35001000	NYLON RIVET	1
31	018400636	BOLT SOCKET M4X6	2
32	CSA6909001	OIL TUBE	1
33	CSA6910001	WICK 2X2	1
34	CS56911000	OIL JOINT S	1
35	CS51020000	COLLAR	1
36	CS10243000	CORD HOLDER, NK-3N	2
37	0A4400806	SCREW PAN (S/P WASHER) M4X8	2
38	CSA6911001	OIL PLATE	1
39	062400616	SCREW PAN M4X6	2
40	CS49992000	OIL GAUGE WINDOW	1
41	CS00480000	CORD HOLDER, 5N	2
42	552907000	CORD HOLDER #10	2
43	0A4400806	SCREW PAN (S/P WASHER) M4X8	4
44	CSA6912001	WICK 2X2	2
45	CSA6913001	WICK 2X2	1
46	CS29700000	FELT	4
47	153050000	S-RACE BASE FELT	1
48	CSA6914001	WICK 2X2	1
49	CS29700000	FELT	6
50	CSA6915001	FELT ASSY	1
51	CSA6918001	OIL TUBE	1
52	CSA6919001	TUBE GUIDE	1
53	018400836	BOLT SOCKET M4X8	1
54	CS25328001	FELT	1
55	CSA8279001	OIL TUBE	1
56	CSA6920001	SUB-TANK UNIT	1
57	CSA3040001	OIL FEEDING PIPE	1
58	CSA3060001	VALVE PACKING	1
59	CSA6922001	OIL CONNECROR 6.5-3.8	1
60	104450101	RUBBER CAP, 8	1
61	CSA6923001	OIL TUBE	1
62	CSA6924001	WICK 6X6	1
63	CSA6925001	OIL TUBE	1
64	CSA6926001	WICK 3X3	1
65	CSA6927001	OIL TUBE	1
66	CSA6928001	WICK 6X6	1
	C0A4400806	螺栓(带垫圈) M4X8DA	1
	C 062400816	螺钉 M4X8	4
	C 146202000	尼龙线夹 6N	1
	C 149547000		1
	C018400636	螺栓 M4X6	2
	CSA6905001		1
	C062400616	螺钉 M4X6	2
	CSA4992000		1
	CS52907000		2
	C 153050000		1
	C018400836	螺栓 M4X8	1
	CSA25328001		1
	C 104450101		1

Page 47 — N. 供油润滑装置 / Lubrication

Jack JK-T9820 parts on page 47
Ref	Part number	Part name	Qty
67	CSA6929001	TUBE CLIP SPRING	1
68	CS55481001	BOLT SOCKET (S/P WASHER)M4X12	2
69	C 149287000	CORD HOLDER, 7N	4
70	C0A4400806	SCREW PAN (S/P WASHER) M4X8	4
71	CSA6930001	TUBE SUPPORT B	1
72	C 062500816	SCREW PAN M5X8	1
73	CS25328001	FELT	1
74	C 112753001	FELT	1
75	CS00480000	CORD HOLDER, 5N	1
76	C0A4400806	SCREW PAN (S/P WASHER) M4X8	1
77	CSA6886001	WICK 2X2	1
78	CSA5567001	WICK 2X2	1
79	CSA5566001	WICK 2X2	1
80	CSA5567001	WICK 2X2	1
81	C 107155001	FELT	2
82	CSA6932001	LOOPER BASE OIL PLATE ASSY	1
86	C060400516	SCREW BIND M4X5	2
87	CSA6936001	WICK	1
88	CSA6937101	WICK 2X2	1
89	CSA6938001	GIMP THREAD WASTE PLATE ASSY	1
90	CSA6939001	GIMP THREAD WASTE PLATE	1
91	CSA6940001	LOOPER LINK FELT	1
92	C228475000	FASTENING BAND 1.9X80	2
93	CSA6941001	WICK 2X2	1
94	C060400816	SCREW BIND M4X8	1
95	CSA7178001	OIL TUBE	1
96	CSA6942001	PARTITION	1
97	C018400636	BOLT SOCKET M4X6	2
98	CSA8009001	WICK	1
99	CS02657101	CORD HOLDER	1
100	CSA8011001	WICK 6X6	1
101	CS56911000	OIL JOINT S	2
102	CS51020000	COLLAR	2
103	CSA8101001	OIL TUBE	1

Page 49 — P1. 穿线装置 / Threading mechanism

Jack JK-T9820 parts on page 49
Ref	Part number	Part name	Qty
2	CSA6944001	TOP COVER	1
3	CSA6945001	PACKING TOP COVER	1
5	CSA6947101	CYLINDER JOINT A	1
6	CSA6948101	CYLINDER SETTING PLATE A	1
7	CSA6949001	CYLINDER ASSY 10-30	1
8	CS11426000	ELBOW UNION 4M5	2
9	CSA6950001	AIR TUBE 4X2.5-11	1
10	CSA7134001	AIR TUBE 4X2.5-12	1
11	062500816	SCREW PAN M5X8	2
12	CSA6951001	T-TAKE-UP LEVER DRIVING PLATE	1
13	CSA6952001	THREAD TAKE-UP LEVER PLATE	1
14	060400516	SCREW BIND M4X5	1
15	CSA6953001	THREAD TAKE-UP LEVER BASE	1
16	CSA6954001	COLLAR A	1
17	CSA7494001	WASHER	1
18	018401036	BOLT SOCKET M4X10	1
19	021400206	NUT 2 M4	1
20	062500816	SCREW PAN M5X8	2
21	CSA6955001	COLLAR B	1
22	CSA7494001	WASHER	1
23	018401036	BOLT SOCKET M4X10	1
24	CSA6956101	IMPACT SUPPORT PLATE	1
25	CSA6957001	IMPACT SUPPORT SHAFT	1
26	048060142	RETAINING RING EXTERNAL C6	1
27	025060236	WASHER PLAIN M 6	1
28	CSA6958001	SPRING COMPRESSION A	1
29	CS05356000	BUTTON CLAMP, A	1
30	062500816	SCREW PAN M5X8	2
31	CSA6959001	UPPER THREAD GUIDE A	1
32	062500816	SCREW PAN M5X8	1
33	CSA6960101	THREAD GUIDE ROD A	1
34	CSA6961001	TENSION U ASSY	1
35	CSA6962001	TENSION STUD U	1
36	145446001	DISC, TENSION	2
37	159805001	TENSION DISC PRESSER	1
38	144103009	TENSION DISC PRESSER	1
39	159221101	TENSION SPRING	1
40	CS20682102	TENSION NUT	1
41	CS20681000	WASHER	1
42	152873001	TENSION RELEASE PIN	1
43	012500536	SET SCREW SOCKET (FT) M5X5	1
45	CSA3345001	SETTING PLATE,SOLENOID	1
46	154599000	SOLENOID CUSHION	1
47	017401415	BOLT M4X14	1
48	021400306	NUT 3 M4	1
49	102707002	WASHER	1
50	CSA6538001	U-TENSION RELEASE SOLENOID	1
51	017400802	BOLT M4X8	2
52	028040246	WASHER SPRING 2-4	2
53	025040236	WASHER PLAIN M 4	2
54	062500816	SCREW PAN M5X8	2
55	CS20698221	TENSION STUD	1
56	144504001	THREAD GUIDE DISC	2
57	154562101	PRE-TENSION SPRING B	1
58	155510001	TENSION NUT	1
59	CSA6963001	SEWING THREAD RETAINER GUIDE	2
60	062500816	SCREW PAN M5X8	4
61	CSA5568001	THREAD SPOOL PIN	1
62	021500216	NUT 1 M5	1
63	149547000	CORD HOLDER, 4N	3
64	0A4400806	SCREW PAN (S/P WASHER) M4X8	3
65	CS00480000	CORD HOLDER, 5N	1
66	0A4400806	SCREW PAN (S/P WASHER) M4X8	1
	C 062500816	螺钉 M5X8	2
	C 060400516	螺钉 M4X5	1
	C 018401036	螺栓 M4X10	1
	C 021400206	六角螺母 M4	1
	C 048060142	轴用挡圈 C6	1
	C 025060236	平垫圈 M6	1
	C 145446001		2
	C 159805001		1
	C 144103009		1
	C 159221101		1
	C 152873001		1
	C 012500536	螺钉 M5X5	1
	C 154599000		1
	C 017401415	螺栓 M4X14	1
	C 021400306	六角螺母 M4	1
	C 102707002		1
	C 017400802	螺钉 M4X8	2
	C 028040246		2
	C 025040236	平垫圈 M4	2
	C 144504001		2
	C 154562101	小夹线弹簧 B	1
	C 155510001		1
	C 021500216	六角螺母 M5	1
	C 149547000		3
	C0A4400806	螺栓(带垫圈) M4X8DA	3

Page 51 — P1. 穿线装置 / Threading mechanism

Jack JK-T9820 parts on page 51
Ref	Part number	Part name	Qty
67	C 104821001	RUBBER CAP, 10.5	1
68	C 228475000	FASTENING BAND 1.9X80	1
69	C 062501216	SCREW PAN M5X12	9
70	CSA6965001	2 PEDAL THREAD GUIDE PIPE	1
71	C 062500816	SCREW PAN M5X8	2
72	CSA6966001	PIPE CLAMP PLATE	1
73	C 062400816	SCREW PAN M4X8	2

Page 53 — P2. 穿线装置 / Threading mechanism

Jack JK-T9820 parts on page 53
Ref	Part number	Part name	Qty
2	CSA7067101	L-THREAD RELEASE PLATE	1
4	CSA6971001	L-THREAD TAKE-UP GUIDE LENER	1
5	CSA6974001	LOWER THREAD GUIDE C	1
6	060400516	SCREW BIND M4X5	2
7	CSA6969101	L-THREAD GUIDE ADJUST PLATE	1
8	CSA6970001	TWIST SPRING B	1
9	048080142	RETAINING RING EXTERNAL C8	1
10	CSA6972001	LOWER THREAD GUIDE A	1
11	062400816	SCREW PAN M4X8	2
12	CSA6973001	LOWER THREAD GUIDE B	1
13	060400516	SCREW BIND M4X5	2
14	CSA7175201	L-THREAD TENSION SHAFT ASSY	1
15	CSA6975101	TENSION STUD D	1
16	CSA8094001	TENSION NUT	1
17	145446001	DISC, TENSION	2
18	159805001	TENSION DISC PRESSER	1
19	154562101	PRE-TENSION SPRING B	1
20	CSA3227001	NUT(FT),M6	1
21	CSA6977001	TENSION RELEASE PIN	1
22	CS52431000	U-THREAD TRIMMER STOPPER	1
23	047301042	PIN SPRING ROLL AW3	1
25	CSA6979001	LOWER SOLENOID SETTING PLATE	1
26	CSA6539001	L-TENSION RELEASE SOLENOID	1
27	017400802	BOLT M4X8	2
28	028040246	WASHER SPRING 2-4	2
29	025040236	WASHER PLAIN M 4	2
30	CSA6980001	LOWER SOLENOID SHAFT	1
31	155559001	WASHER PLAIN	1
32	154599000	SOLENOID CUSHION	1
33	CS04159000	BAND, 1M	1
34	018400836	BOLT SOCKET M4X8	2
35	026040136	WASHER PLAIN S 4	2
36	018400836	BOLT SOCKET M4X8	3
37	CSA8095001	WASHER	1
	C 060400516	螺钉 M4X5	2
	C 048080142	轴用挡圈 C8	1
	C 062400816	螺钉 M4X8	2
	C 145446001		2
	C 159805001		1
	C 154562101	小夹线弹簧 B	1
	C047301042	弹簧 AW3	1
	C017400802	螺栓 M4X8	2
	C028040246		2
	C025040236	平垫圈 M4	2
	C 155559001		1
	C 154599000		1
	C018400836	螺栓 M4X8	2
	C026040136	平垫圈 S4	2

Page 55 — P3. 穿线装置 / Threading mechanism

Jack JK-T9820 parts on page 55
Ref	Part number	Part name	Qty
1	CSA7068001	GIMP THREAD TAKE-UP G-L ASSY	1
2	CSA7069001	GIMP THREAD TAKE-UP G-HOLDER	1
3	CSA7070001	G-THREAD TAKE-UP GUIDE PLATE	1
4	CSA7071001	GIMP THREAD TAKE-UP G-E PLATE	1
5	CSA7072001	SHOULDER SCREW M4	1
6	C021400306	NUT 3 M4	1
7	C 158722001	WASHER PLAIN 4.2	1
8	CSA7073001	GIMP THREAD GUIDE	1
9	C062300416	SCREW PAN M3X4	1
10	CSA7074001	SPRING TORSION	2
11	CSA6981001	GIMP THREAD GUIDE PIPE	1
12	CS20696001	THREAD GUIDE PIPE SUPPORT	1
13	C062400816	SCREW PAN M4X8	1
11	CSA6981001	GIMP THREAD GUIDE PIPE	1
12	CS20696001	THREAD GUIDE PIPE SUPPORT	1
13	C062400816	SCREW PAN M4X8	1
17	CSA6982001	GIMP THREAD GUIDE J	1
18	C018400836	BOLT SOCKET M4X8	2
19	CSA6983101	GIMP THREAD CLAMP ASSY	1
20	CSA6984001	GIMP THREAD CLAMP PLATE	1
21	CSA6537001	GIMP THREAD SOLENOID	1
22	C048025346	RETAINING RING E2.5	1
23	C081003870	O RING S3	2
24	C062260406	SCREW PAN M2.6X4	2
25	C145446002	DISC, TENSION	1
26	CSA6986101	GIMP THREAD SHAFT	1
27	C014300332	SET SCREW SOCKET (CP) M3X3	2
28	CSA6987001	GIMP THREAD CLAMP	1
29	C062400816	SCREW PAN M4X8	2
30	CS04557000	BAND, PLT1M	1
31	C018400836	BOLT SOCKET M4X8	2
32	CSA6981001	GIMP THREAD GUIDE PIPE	1
33	CS20696001	THREAD GUIDE PIPE SUPPORT	1
34	C062400816	SCREW PAN M4X8	1
	C04557000	挡圈 E2.5	1

Page 57 — Q1. 切线装置 / Thread trimmer mechanism

Jack JK-T9820 parts on page 57
Ref	Part number	Part name	Qty
1	CSA7526001	THREAD TRIMMER LINK LEVER ASSY	1
2	CSA7778001	LINK LEVER ROLLER	1
3	C137191051	STOP RING	1
4	CSA5693001	SHOULDER SCREW M4	1
5	CS34906100	BUSH TR TRIMMER ARM	1
6	C062260516	SCREW PAN M2.6X5	2
7	CS34905101	THREAD CUTTER LEVER ARM	1
8	C018401036	BOLT SOCKET M4X10	1
9	CS37858000	NEEDLE PIN, 4X8	1
10	CS34903001	SPRING HOOK	1
11	CS34883001	SPRING, EXTENSION	1
12	CS34902001	SPRING HOOK	1
13	C021350106	NUT 1 M3.5	1
14	C062260516	SCREW PAN M2.6X5	1
15	CS34901001	THREAD TRIMMER ARM	1
16	CS34900001	OPENER, ;T-NIPPER	1
17	C153219001	COLLAR, ;MOVABLE KNIFE	1
18	CS34899001	MOVABLE KNIFE ASSY	1
19	CS34898001	PIN, SPRING 1.4	1
20	C141542001	SCREW 3.18	3
21	CSA7076001	THREAD HANDLER	1
22	CS01694001	SCREW, FLAT SM2.38X4	1
23	CS34896001	BRACKET, ;FIXED KNIFE	1
24	C061300416	SCREW FLAT M3X4	2
25	CS34895001	FIXED KNIFE	1
26	C018260832	BOLT, SOCKET M2.6X8	2
27	CS34894001	THREAD GUIDE PLATE	1
28	CS34893001	SETTING BRACKET FIXED KNIFE	1
29	C062300512	SCREW PAN M3X5	2
30	CS34889101	THREAD NIPPER ASSY	1
31	CS34890001	THREAD NIPPER, U	1
32	CS34891101	THREAD NIPPER, D	1
33	CS34888101	THREAD NIPPER, M	1
34	CS34892001	OPENER PIN	1
35	C062020416	SCREW PAN M2X4	2
36	C021020106	NUT 1 M2	2
37	C542515001	SCREW M2.6X3.5	2
38	CS34887001	SPRING, PLATE ;F-KNIFE	1
39	CS34886001	SPRING, U PLATE ;F-KNIFE	1
40	CSA7077001	PRESSER PLATE U	1
41	C060400516	SCREW BIND M4X5	2
42	C152904001	SCREW, SM4.37	1
43	C104336003	SCREW, SM2.38	1
44	CS34884000	OPENER SPRING	1
45	C060630312	SCREW BIND SM2.38-56X3	2
46	C021400306	NUT 3 M4	1
47	C062300416	SCREW PAN M3X4	2

Page 59 — Q2. 切线装置 / Thread trimmer mechanism

Jack JK-T9820 parts on page 59
Ref	Part number	Part name	Qty
1	CSA6988001	MOVABLE KNIFE R	1
2	CSA6989001	MOVABLE KNIFE L	1
3	CSA6990101	THREAD HANDLER	1
4	CSA6991001	MOVABLE KNIFE DRIVING PLATE	1
5	CSA6992001	THREAD TRIMMER LINK A ASSY	1
6	CSA6994001	THREAD TRIMMER LINK B ASSY	1
7	CS37660101	SHOULDER SCREW, M4	1
8	021400202	NUT 2 M4	1
9	CS37654000	WAVE WASHER	1
10	CS37655101	KNIFE SUPPORT WASHER	1
11	141542001	SCREW 3.18	2
12	CSA6996001	THREAD TRIMMER L-LEVER J ASSY	1
13	CSA7778001	LINK LEVER ROLLER	1
14	137191051	STOP RING	1
15	CSA5693001	SHOULDER SCREW M4	1
16	021400306	NUT 3 M4	1
17	CSA6998101	SPRING HOOK	1
18	CSA6999101	THREAD TRIMMER SPRING	1
19	CS34902001	SPRING HOOK	1
20	021350106	NUT 1 M3.5	1
21	062260516	SCREW PAN M2.6X5	1
22	062300416	SCREW PAN M3X4	2
23	CSA7001001	BUSH TR TRIMMER ARM	1
24	062260516	SCREW PAN M2.6X5	2
25	CSA7002101	THREAD TRIMMER LEVER ARM B	1
26	CS21716001	SCREW, BUTTON HEAD M4X10	1
27	CS37858000	NEEDLE PIN, 4X8	1
28	CSA7003001	WORK CLAMP PLATE JU	1
29	060400516	SCREW BIND M4X5	2
30	153787001	SCREW, SM2.38	2
	C021400202	六角螺母 M4	1
	C141542001		2
	C137191051		1
	C021400306	六角螺母 M4	1
	CSA3490201		1
	C021350106	螺母 M3.5	1
	C062260516	螺钉 M2.6X5	1
	C062300416	螺钉 M3X4	2
	C060400516	螺钉 M4X5	2
	C153787001	螺钉 SM2.38	2

Page 61 — R. 面线剪切装置 / Upper thread trimmer mechanism

Jack JK-T9820 parts on page 61
Ref	Part number	Part name	Qty
2	CSA7005001	CYLINDER SETTING PLATE	1
3	CSA7006001	HAMMER GUIDE PLATE	1
4	018400636	BOLT SOCKET M4X6	2
5	CSA7007001	HAMMER	1
6	CS12053000	BOLT, CQ2 M3X25	2
7	CSA7008001	CYLINDER ASSY	1
10	CSA7011001	JOINT KJH04-M3	2
11	018501236	BOLT SOCKET M5X12	2
	C 018400636	螺栓 M4X6	2
	C018501236	螺栓 M5X12	2

Page 63 — S1. 控制箱装置 / Control box mechanism

Jack JK-T9820 parts on page 63
Ref	Part number	Part name	Qty
1	CSA6364001	CF CAP ASSY	1
2	CSA3720101	TRANSFORMER LOW VOLTAGE	1
3	CSA3808101	TRANSFORMER HIGH VOLTAGE	1
4	CSA6554001	PCB ASSY MAIN 982	1
5	CSA3739501	PCB ASSY PMD	1
6	CSA3744001	TRANSISTOR FET:FS10ASJ-2	3
7	CSA3722001	TRANSISTOR FET:FX20KMJ-2	1
8	CS49484000	TRANSISTOR FET:FS10KMJ-2	1
9	CSA3806001	HARNESS MAIN POWER SUPPLY	1
10	CS37059001	LABEL, PE	1
11	CS37060001	LABEL, GROUNDING	3
12	CJ04115001	LABEL, ELEC. SHOCK 6 LANG.	1
13	CSA3581101	PCB ASSY NF	1
14	CSA3796001	HARNESS NF OUT	1
	CSA49484000	MOSFETFS10KMJ-2	1
	CSA37059001	PE标记	1
	CSA37060001		3

Page 65 — S2. 控制箱装置 (电源马达基板) / Control box mechanism (Power supply motor PCB)

Jack JK-T9820 parts on page 65
Ref	Part number	Part name	Qty
1	CSA3755201	PCB ASSY POWER SUPPLY MOTOR	1
2	CSA3765001	VARISTOR:V10D101	1
3	CSA3766001	VARISTOR:V10D241	1
4	CSA3767001	VARISTOR:V14D511	1
5	CSA3768001	VARISTOR:V14D561	1
6	CSA3762001	VARISTOR:V14D911	1
7	CSA3769001	VARISTOR:V5D121	1
8	CSA3770001	VARISTOR:V5D330	1
9	CSA3771001	VARISTOR:V5D820	1
10	CSA3794001	G FUSE S 15A	3
11	CSA3795001	G FUSE S 6A	2
12	CSA7794001	G FUSE S 3A	3

Page 67 — T. 开关装置 / Power switch mechanism

Jack JK-T9820 parts on page 67
Ref	Part number	Part name	Qty
1	CSA3813001	POWER SUPPLY SWITCH ASSY,1P-JP	1
2	CSA3822001	VOLTAGE SELECT HARNESS 100V	1
3	CSA3819001	POWER SUPPLY SWITCH ASSY,3P-JP	1
4	CSA3825001	VOLTAGE SELECT HARNESS 200V	1
6	CSA3816001	POWER SUPPLY SWITCH ASSY,3P-L	1
7	CSA3812001	VOLTAGE SELECT HARNESS 220V	1
8	CSA3809001	POWER SUPPLY SWITCH ASSY,1P	1
7	CSA3812001	VOLTAGE SELECT HARNESS 220V	1
10	CSA3827001	VOLTAGE SELECT HARNESS 380V	1
11	CSA3789101	VOLTAGE SELECT HARNESS H220V	1
12	CSA4510001	POWER SUPPLY SWITCH ASSY,3P-H	1
13	CSA3838001	HARNESS ASSY, AC IN EC	1
14	CSA3828001	VOLTAGE SELECT HARNESS 400V	1

Page 69 — U1. 空压装置 / Air pressure mechanism

Jack JK-T9820 parts on page 69
Ref	Part number	Part name	Qty
2	CS35360000	CYLINDER ASSY, 63X100	1
3	CS35426100	ELBOW 10-4	2
4	CSA7016001	CYLINDER ROD	1
5	CSA7017001	CYLINDER ROD SHAFT	1
6	C014060836	SET SCREW SOCKET (CP) M6X8	1
7	CSA7018001	AIR TUBE 10X6.5-6A	1
8	CSA7019001	AIR TUBE 10X6.5-5A	1
9	CSA7020001	AIR TUBE 10X6.5-5	1
10	CSA7021001	AIR TUBE 10X6.5-6	1
11	CSA7022001	UNION KQ2LE10-5	1
12	CSA8040001	UNION KQ2LE10-6	1
13	CSA7023001	AIR TUBE 4X2.5-13	1
14	CSA7159001	AIR TUBE 4X2.5-14	1
15	CS00480000	CORD HOLDER, 5N	1
16	C0A4400806	SCREW PAN (S/P WASHER) M4X8	1
17	CSA7024001	AIR TUBE 4X2.5-2	1
18	CS34569000	VENTURI TUBE	1
19	CSA7027001	AIR TUBE 16X12-80	1
20	CSA7028001	KNIFE TRASH TUBE	1
21	C525567000	CORD HOLDER #8	1
22	C0A4400806	SCREW PAN (S/P WASHER) M4X8	1
23	C552908000	CORD HOLDER #14	1
24	C0A4401206	SCREW PAN (S/P WASHER) M4X12	1
25	C554482000	CORD HOLDER #12	2
26	C0A4401206	SCREW PAN (S/P WASHER) M4X12	2
27	CSA8119001	AIR UNIT SET	1
28	CSA7583001	FR UNIT AW30	1
29	CSA7584001	T SPACER	1
30	CSA7585001	SPACER	2
31	CSA7586001	R UNIT AR30	1
32	CS59219000	HALF UNION, 08-PT1/4	1
33	CSA7587001	ELBOW KQ2L10-02S	1
34	CSA7588001	ELBOW PT 1/4	1
35	CSA7589001	MIDDLE NIPPLE 1/4	1
36	CSA6573001	BALL VALVE V03 1/4	1
37	CSA7595001	MIDDLE NIPPLE 1/4	1
38	CSA7580001	SETTING PLATE	1
39	C031553202	WOOD SCREW ROUND M5.5X32	2
40	CSA8003001	AIR CONNECTOR	1
	C52567000		1

Page 71 — U2. 空压装置 / Air pressure mechanism

Jack JK-T9820 parts on page 71
Ref	Part number	Part name	Qty
1	CSA7085001	SOLENOID VALVE 4 ASSY	1
2	CS39116100	VALVE VQZ2151S-5	1
3	CS53982000	BLANKING PLATE ASSY	1
4	CSA7032001	MANIFOLD 5	1
5	CS39115100	VALVE, VQZ2151-5	3
6	CS14159000	ELBOW 1/8-8	1
7	CSA5283001	SILENCER AN103-1	1
8	153274001	CAP, 1/8	2
9	CSA7033001	PLUG 4	1
10	0A4403506	SCREW PAN (S/P WASHER) M4X35	2
11	CSA7031001	SOLENOID VALVE 5 ASSY	1
2	CS39116100	VALVE VQZ2151S-5	2
4	CSA7032001	MANIFOLD 5	1
5	CS39115100	VALVE, VQZ2151-5	3
6	CS14159000	ELBOW 1/8-8	1
7	CSA5283001	SILENCER AN103-1	1
8	153274001	CAP, 1/8	2
9	CSA7033001	PLUG 4	1
10	0A4403506	SCREW PAN (S/P WASHER) M4X35	2
12	CSA7034001	AIR TUBE 8X5-1	1
13	CSA7035001	AIR TUBE 10X6.5-4	1
14	CSA6525001	VALVE HARNESS ASSY X5	1
15	CSA8120101	CUTTER VALVE SET	1
16	CSA7591101	VALVE ASSY	1
17	CSA7592101	VALVE VF5120-5G-03	1
18	CSA7593001	ELBOW KQ2L10-03S	3
19	CSA7594001	SILENCER AN303-03	1
20	CSA7598001	SILENCER ASN2-02	1
21	CSA7596001	JOINT 3/8X1/4-M5	1
22	CSA7597001	ELBOW KJL04-M5	1
23	0A4404006	SCREW PAN (S/P WASHER) M4X40	3
24	CSA7581001	VALVE SETTING PLATE	1
25	031553202	WOOD SCREW ROUND M5.5X32	2
26	CSA6526101	HAMMER VALVE HARNESS	1
27	CS00470000	CORD HOLDER, 16N	2
28	0A5401006	SCREW PAN (S/P WASHER) M4X10	2
29	CSA7046001	HOSE JOINT	1
30	CSA7047001	OIL TUBE	1
31	228475000	FASTENING BAND 1.9X80	1
32	012500536	SET SCREW SOCKET (FT) M5X5	1
	C 153274001		2
	C0A4403506	螺栓(带垫圈) M4X35DA	2
	CSA7570001	接头 3/8X1/4-M5	1
	C0A4404006	螺栓(带垫圈) M4X40DA	3
	C03155202	木螺钉 M5.5X32	2
	C0A5401006	螺栓(带垫圈) M4X10DB	2
	C228475000	电线夹 1.9X80	1
	C012500536	螺钉 M5X5	1

Page 73 — V. 电气部品装置 / Power supply equipment mechanism

Jack JK-T9820 parts on page 73
Ref	Part number	Part name	Qty
1	CSA6530001	Y-POSITION SENSOR	1
2	C062300816	SCREW PAN M3X8	1
3	CS10243000	CORD HOLDER, NK-3N	1
4	C0A4400806	SCREW PAN (S/P WASHER) M4X8	1
5	CSA6618001	DC FAN MOTOR ASSY 40	1
6	CSA5696001	FAN HOLDER	1
7	C0A5302005	SCREW PAN (S/P WASHER) M3X20	4
8	C018400836	BOLT SOCKET M4X8	2
10	CSA5729001	SAFETY SWITCH PLATE	1
11	CSA5730001	SAFETY SWITCH BASE	1
12	CSA5731001	SAFETY SWITCH SPRING	1
13	CSA5732001	SAFETY SWITCH LEVER	1
14	CSA6533001	SWITCH ASSY MACHINE HEAD	1
15	CSA7293001	SCREW, PAN (S/P W) M3X12	2
16	CS04159000	BAND, 1M	1
17	C018400836	BOLT SOCKET M4X8	2
18	C025040236	WASHER PLAIN M 4	2
19	C525664000	CORD HOLDER #6	1
20	C0A4400806	SCREW PAN (S/P WASHER) M4X8	1
21	CSA5733001	CORD HOLDER	1
22	C062400816	SCREW PAN M4X8	2
23	CSA5734101	CUTTER SENSOR ASSY	1
24	C062400816	SCREW PAN M4X8	2
25	C340400001	BEAD BAND	1
26	CSA6531101	STOP SWITCH HARNESS	1
27	CSA7488001	SWITCH HW1B-M211B	1
28	CSA5737001	SWITCH COVER	1
29	C0A4400806	SCREW PAN (S/P WASHER) M4X8	3
30	CSA5738001	CORD BUSH	1
31	C625010000	NYLON CLAMP NK-2N	1
32	C0A4400806	SCREW PAN (S/P WASHER) M4X8	1
33	149547000	CORD HOLDER, 4N	4
34	C0A4400806	SCREW PAN (S/P WASHER) M4X8	4
35	CS10243000	CORD HOLDER, NK-3N	1
36	C0A4400806	SCREW PAN (S/P WASHER) M4X8	1
37	CSA5740001	ZIGZAG SENSOR ASSY	1
38	CSA5741001	SENSOR SETTING PLATE	1
39	C062300816	SCREW PAN M3X8	1
40	C062400816	SCREW PAN M4X8	2
41	228475000	FASTENING BAND 1.9X80	5
42	CSA6532001	CONNECT HARNESS ASSY	1
43	CSA6535001	UP SOLENOID HARNESS	1
44	CSA6536001	SOLENOID HARNESS	1
45	CSA5434001	GROUND WIRE 700	1
46	CSA6636001	QUICK TUBE ASSY 40X800	1
47	CSA7119001	HEAD DETECTION UNIT ASSY	1
49	CSA5433001	GROUND WIRE 40	1
	C149547000
	C228475000	电线夹 1.9X80

Page 75 — W. 操作盘装置 / Operation panel mechanism

Jack JK-T9820 parts on page 75
Ref	Part number	Part name	Qty
1	CSA6547001	OPERATION PANEL ASSY	1
2	CSA6550001	PANEL SHEET	1
3	CSA5148001	PCB ASSY PANEL	1
4	CSA5360001	LIGHT PLATE ASSY	1
5	CSA6546001	PANEL HARNESS	1
6	0B0452006	WOOD SCREW ROUND M4.5X20	4
7	J03974001	LAMP HOLDER	1
8	J04146001	DIFFUSION SHEET 75PBA	1
	C0B0452006	圆木螺钉 M4.5X20	4
	CJ03974001		1
	CJ04146001	薄膜 75PBA	1

Page 77 — X. 马达装置 / Motor mechanism

Jack JK-T9820 parts on page 77
Ref	Part number	Part name	Qty
1	CSA7476001	MOTOR ASSY CDD HATOME	1
2	C J03955001	DRUM CDD	1
3	C 014400632	SET SCREW SOCKET (CP) M4X6	2
4	C J03956001	MAGNET 180P36	1
5	C J03957001	MR SENSOR ASSY 180P	1
6	C0A4300806	SCREW PAN (S/P WASHER) M3X8	2
7	C J03958001	SHIELD PLATE CDD	1
8	C0A4261006	SCREW PAN (S/P WASHER) M2.6X10	3
9	CSA7480001	ENC PCB ASSY HATOME	1
10	C0A5300606	SCREW PAN (S/P WASHER) M3X6	3
11	C J04230001	CORD HOLDER CDD-HT	1
12	C0A4401006	SCREW PAN (S/P WASHER) M4X10	3
13	C J04388001	ENCORDER COVER 430D	1
14	C0A4300806	SCREW PAN (S/P WASHER) M3X8	3
15	C J04303001	PULLEY HOLDER ASSY 430D	1
16	C 014500632	SET SCREW SOCKET (CP) M5X6	2
17	C018501636	BOLT SOCKET M5X16	5
18	CSA7012001	MOTOR COVER	1
19	C J03663001	LABEL, HIGH TEMP. 13X20	1
20	CSA7013001	MOTOR HOLDRER	1
21	CS58636001	BOLT SOCKET (S/P WASHER)M8X30	3
22	CSA5549001	TIMING PULLEY ASSY	1
23	CS23651001	SET SCREW SOCKET (FT) M6X6	2
24	CSA7014001	BELT GUIDE	1
25	C062400816	SCREW PAN M4X8	2
	CS8636001	螺钉(带垫圈) M8X30	3

Page 79 — Y. 踏板开关关系 / Foot switch pedal mechanism

Jack JK-T9820 parts on page 79
Ref	Part number	Part name	Qty
1	CSA6567101	TREADLE UNIT B ASSY	1
2	CSA7121001	HAND START SWITCH UNIT	1
3	CSA7122001	HAND START SWITCH ASSY	1
4	CS39914001	SWITCH LEVER SPRING	1
5	CSA7123001	HAND START SWITCH	1
6	CS02699001	MICRO SWITCH	2
7	CS34922101	SHOULDER SCREW M4	1
8	CS34966001	SHOULDER SCREW M4	2
9	C021400202	NUT 2 M4	3
10	C146124001	SCREW, SM2.38	2
11	C060300616	SCREW BIND M3X6	2
12	CS04557000	BAND, PLT1M	1
13	C060400816	SCREW BIND M4X8	2
14	CSA7124001	HAND SWITCH SETTING PLATE	1
15	CS55485001	BOLT SOCKET (S/P WASHER)M5X12	2
16	CS10243000	CORD HOLDER, NK-3N	3
17	C0A4400806	SCREW PAN (S/P WASHER) M4X8	3
18	C228475000	FASTENING BAND 1.9X80	2
19	CS42838301	2-PEDAL FOOT SWITCH 2	1
20	CS38170001	FOOT PEDAL SPRING	2
21	CS36260000	PIN BUTTON MICRO SWITCH, VX	2
22	CS38174000	FOOT PEDAL	2
23	CS38175101	PROTECTION PLATE PEDAL	2
24	CS38176101	SPRING, PLATE	2
25	CSA3784001	CONVERSION HARNESS FOOT SW	1
	CS4500001	螺钉 SM2.38	3
	CS54850001	尼龙夹 NK-3N	2

Page 81 — AA1. 附属装置 / Attachment set

Jack JK-T9820 parts on page 81
Ref	Part number	Part name	Qty
1	CSA7750001	EXCHANGE PARTS SET L1422	1
2	CSA7748001	L1422-PLATE R ASSY	1
3	CSA7728001	WORK CLAMP PLATE R1422 ASSY	1
4	CSA7102001	NEEDLE PLATE L1422R	1
5	CSA7092001	WORK CLAMP R-JL1422	1
6	CSA7749001	WORK CLAMP PLATE L1422 ASSY	1
7	CSA7097001	NEEDLE PLATE L1422L	1
8	CSA7087001	WORK CLAMP L-JL1422	1
9	CS37704001	HAMMER, S16	1
10	CS37706001	HAMMER, S20	1
1	CSA7752001	EXCHANGE PARTS SET L2230	1
2	CSA7751001	L2230-PLATE R ASSY	1
3	CSA6728001	WORK CLAMP PLATE R2230 UNIT	1
4	CSA6731001	NEEDLE PLATE L 2230R	1
5	CSA6732001	WORK CLAMP R-JL2230	1
6	CSA6738001	WORK CLAMP PLATE L2230 UNIT	1
7	CSA6741001	NEEDLE PLATE L 2230L	1
8	CSA6742001	WORK CLAMP L-JL2230	1
9	CS37708001	HAMMER, S24	1
10	CS42053001	HAMMER, S28	1
1	CSA7756001	EXCHANGE PARTS SET L2634	1
2	CSA7754001	L2634-PLATE R ASSY	1
3	CSA7753001	WORK CLAMP PLATE R2634 ASSY	1
4	CSA7103001	NEEDLE PLATE L2634R	1
5	CSA7093001	WORK CLAMP R-JL2634	1
6	CSA7755001	WORK CLAMP PLATE L2634 ASSY	1
7	CSA7098001	NEEDLE PLATE L2634L	1
8	CSA7088001	WORK CLAMP L-JL2634	1
9	CS37198001	HAMMER, 28	1
10	CS37200001	HAMMER, 32	1
1	CSA7764001	EXCHANGE PARTS SET L3442	1
2	CSA7758001	L3442-PLATE R ASSY	1
3	CSA7757001	WORK CLAMP PLATE R3442 ASSY	1
4	CSA7104001	NEEDLE PLATE L3442R	1
5	CSA7094001	WORK CLAMP R-JL3442	1
6	CSA7762001	WORK CLAMP PLATE L3442 ASSY	1
7	CSA7099001	NEEDLE PLATE L3442L	1
8	CSA7089001	WORK CLAMP L-JL3442	1
9	CS37202001	HAMMER, 36	1
10	CSA7106001	HAMMER 42	1
1	CSA7771001	EXCHANGE PARTS SET L1826	1
2	CSA7768001	L1826-PLATE R ASSY	1
3	CSA7187001	WORK CLAMP PLATE R1826 ASSY	1
4	CSA7105001	NEEDLE PLATE L1826R	1
5	CSA7095001	WORK CLAMP R-JL1826	1
6	CSA7186001	WORK CLAMP PLATE L1826 ASSY	1
7	CSA7100001	NEEDLE PLATE L1826L	1
8	CSA7090001	WORK CLAMP L-JL1826	1
9	CS37706001	HAMMER, S20	1
10	CS37708001	HAMMER, S24	1

Page 83 — AA1. 附属装置 / Attachment set

Jack JK-T9820 parts on page 83
Ref	Part number	Part name	Qty
11	CSA6729001	WORK CLAMP PLATE JR UNIT	1
12	CS35315001	OPENING SLIDE BLOCK	1
13	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
14	C060020416	SCREW BIND M2X4	2
15	CS06696004	SCREW, FLAT M3X6	2
16	CS35236000	WASHER, BENDING 3.2	1
17	CS35235001	SUPPORT PIN, CLAMP	1
18	021300306	NUT 3 M3	1
19	CSA5560001	CLAMP SHAFT HOLDER	1
20	C062400816	SCREW PAN M4X8	2
21	CSA6733001	CLAMP FULCRUM SHAFT J	1
22	C048060142	RETAINING RING EXTERNAL C6	2
23	CSA5585001	CLAMP LEVER R	1
24	C018501236	BOLT SOCKET M5X12	1
25	CSA6734001	CLAMP ARM R-J	1
26	014400536	SET SCREW SOCKET(CP) M4X5	2
27	CSA7550001	CROTH GUIDE R	1
28	CS35326101	SCREW M3.5	1
29	CSA6735001	AUX CLAMP ARM	1
30	C048060142	RETAINING RING EXTERNAL C6	1
31	CSA6736001	SUB AUX CLAMP WRIST	1
32	C018401036	BOLT SOCKET M4X10	1
33	CS05356000	BUTTON CLAMP, A	1
34	CSA6737001	AUX CLAMP TSWIST SPRING	1
35	CSA6988001	MOVABLE KNIFE R	1
36	CSA6989001	MOVABLE KNIFE L	1
37	CSA6990001	THREAD HANDLER	1
38	C153787001	SCREW, SM2.38	2
39	CSA6991001	MOVABLE KNIFE DRIVING PLATE	1
40	CSA6992001	THREAD TRIMMER LINK A ASSY	1
41	CSA6994001	THREAD TRIMMER LINK B ASSY	1
42	CS37660101	SHOULDER SCREW, M4	1
43	021400206	NUT 2 M4	1
44	CS37654000	WAVE WASHER	1
45	CS37655101	KNIFE SUPPORT WASHER	1
46	C141542001	SCREW 3.18	2
47	CSA6996001	THREAD TRIMMER L-LEVER J ASSY	1
48	CSA7778001	LINK LEVER ROLLER	1
49	137191051	STOP RING	1
50	CSA5693001	SHOULDER SCREW M4	1
51	021400306	NUT 3 M4	1
52	CSA6998001	SPRING HOOK	1
53	CSA6999001	THREAD TRIMMER SPRING	1
54	CS34902001	SPRING HOOK	1
55	021350106	NUT 1 M3.5	1
56	062260406	SCREW PAN M2.6X4	1
57	062300416	SCREW PAN M3X4	2
58	CSA7001001	BUSH TR TRIMMER ARM	1
59	062260516	SCREW PAN M2.6X5	2
60	CSA7002001	THREAD TRIMMER LEVER ARM B	1
61	CS21716001	SCREW, BUTTON HEAD M4X10	1
62	CS37858000	NEEDLE PIN, 4X8	1
63	CSA7003001	WORK CLAMP PLATE JU	1
64	060400516	SCREW BIND M4X5	2
65	CSA6739001	WORK CLAMP PLATE JL ASSY	1
66	CS35315001	OPENING SLIDE BLOCK	1
67	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
68	C060020416	SCREW BIND M2X4	2
69	CS06696004	SCREW, FLAT M3X6	2
70	CS35236000	WASHER, BENDING 3.2	1
71	CS35235001	SUPPORT PIN, CLAMP	1
72	021300306	NUT 3 M3	1
73	CSA5560001	CLAMP SHAFT HOLDER	1
	C021300306	螺母 M3	1
	C014400536	螺钉 M4X5	2
	CSA675001		1
	C0401036	螺栓 M4X10	1
	CSA6987001		1
	C021400206	六角螺母 M4	1
	C137191051		1
	C021350106	螺母 M3.5	1
	C062260406	螺钉 M2.6X4	1
	C062300416	螺钉 M3X4	2
	C062260516	螺钉 M2.6X5	2
	C06000516	螺钉 M4X5	2

Page 85 — AA1. 附属装置 / Attachment set

Jack JK-T9820 parts on page 85
Ref	Part number	Part name	Qty
74	C062400816	SCREW PAN M4X8	2
75	CSA5674001	CLAMP FULCRUM SHAFT	1
76	C048060142	RETAINING RING EXTERNAL C6	2
77	CSA5671001	CLAMP LEVER L	1
78	C018501236	BOLT SOCKET M5X12	1
79	CSA6743001	CLAMP ARM L-J	1
80	C014400536	SET SCREW SOCKET(CP) M4X5	2
81	CSA7551001	CROTH GUIDE L	1
82	CS35326101	SCREW M3.5	1

Page 87 — AA2. 附属装置 / Attachment set

Jack JK-T9820 parts on page 87
Ref	Part number	Part name	Qty
1	CSA7773001	EXCHANGE PARTS SET -2	1
2	CSA7131001	AIR TUBE 4X2.5-150	2
3	CSA6718001	AUX CLAMP C-SUPPORT ASSY	1
4	CSA6719001	CYLINDER ASSY 10X15	1
5	CS12150000	TUBE ELBOW, M-5HL-4	2
6	CSA6720001	AUX CLAMP S HOLDER	1
7	CS35351001	CYLINDER ROD	1
8	C062400816	SCREW PAN M4X8	2
9	CSA6721001	AUX CLAMP CONNECTING ROD ASSY	1
10	C048050142	RETAINING RING EXTERNAL C5	1
11	CSA6726001	CYLINDER ROD PIN	1
12	C048030342	RETAINING RING E3	2
13	CSA6800001	HAMMER SPACER	1
14	C014400536	SET SCREW SOCKET(CP) M4X5	1
15	CSA6868001	LOWER THREAD PRESSER J ASSY	1
16	CS37724001	SCREW, SM2.38	1
17	CS37725001	COMPRESSIONSPRING	1
18	CS47932001	NUT, SM2.38-56	1
19	C060300816	SCREW BIND M3X8	1
20	CS37723101	UPPER MOVABLE KNIFE, B	1
21	CSA6873001	GIMP THREAD GUIDE C-J ASSY	1
22	CSA7613001	GIMP THREAD CLAMP PLATE	1
23	CSA7614001	GIMP THREAD TENSION SPRING	1
24	C062300506	SCREW PAN M3X5	1
25	C025030236	WASHER PLAIN M 3	1
26	CSA7615001	COLLAR 3	1
27	CS37752001	THROAT PLATE, 1.8-J	1
28	CSA7067101	L-THREAD RELEASE PLATE	1
29	CSA6982001	GIMP THREAD GUIDE J	1
30	CSA6983001	GIMP THREAD CLAMP ASSY	1
31	CSA6984001	GIMP THREAD CLAMP PLATE	1
32	CSA6537001	GIMP THREAD SOLENOID	1
33	C048025346	RETAINING RING E2.5	1
34	C081003870	O RING S3	2
35	C062260406	SCREW PAN M2.6X4	2
36	C145446001	DISC, TENSION	1
37	CSA6986001	GIMP THREAD SHAFT	1
38	C014300332	SET SCREW SOCKET (CP) M3X3	2
39	CSA6987001	GIMP THREAD CLAMP	1
40	C062400816	SCREW PAN M4X8	2
41	CS04557000	BAND PLT1M	1
42	C018400836	BOLT SOCKET M4X8	2
	CSA868001		1

Page 89 — AA3. 附属装置 / Attachment set

Jack JK-T9820 parts on page 89
Ref	Part number	Part name	Qty
1	CSA7777001	WORK CLAMP SET L26W	1
2	CSA7775001	WORK CLAMP ASSY L-L26W	1
3	CS43408001	WORK CLAMP, L-L3W	1
4	CSA7726001	CLAMP ARM L-JW	1
5	CS35235001	SUPPORT PIN, CLAMP	1
6	CS35236000	WASHER, BENDING 3.2	1
7	C021300306	NUT 3 M3	1
8	CSA7776001	WORK CLAMP ASSY R-L26W	1
9	CS43409001	WORK CLAMP, R-L3W	1
10	CSA7727001	CLAMP ARM R-JW	1
11	CS35235001	SUPPORT PIN, CLAMP	1
12	CS35236000	WASHER, BENDING 3.2	1
13	C021300306	NUT 3 M3	1
1	CSA7781001	WORK CLAMP SET L30W	1
2	CSA7779001	WORK CLAMP ASSY L-L30W	1
3	CS43410001	WORK CLAMP, L-L4W	1
4	CSA7726001	CLAMP ARM L-JW	1
5	CS35235001	SUPPORT PIN, CLAMP	1
6	CS35236000	WASHER, BENDING 3.2	1
7	C021300306	NUT 3 M3	1
8	CSA7780001	WORK CLAMP ASSY R-L30W	1
9	CS43411001	WORK CLAMP, R-L4W	1
10	CSA7727001	CLAMP ARM R-JW	1
11	CS35235001	SUPPORT PIN, CLAMP	1
12	CS35236000	WASHER, BENDING 3.2	1
13	C021300306	NUT 3 M3	1

Page 91 — AA4. 附属装置 / Attachment set

Jack JK-T9820 parts on page 91
Ref	Part number	Part name	Qty
1	CSA7784001	EXCHANGE PARTS SET 01	1
2	CSA7782001	PLATE ASSY RS 01	1
3	CSA7055001	WORK CLAMP PLATE RS30 UNIT	1
4	CSA7056001	WORK CLAMP PLATE RS ASSY	1
6	CS35315001	OPENING SLIDE BLOCK	1
7	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
8	C060020416	SCREW BIND M2X4	2
9	CSA5673001	NEEDLE PLATE R-42	1
10	CS06696004	SCREW, FLAT M3X6	2
11	CS39932101	CLOTH WORK CLAMP, R-30	1
12	CS35236000	WASHER, BENDING 3.2	1
13	CS35235001	SUPPORT PIN, CLAMP	1
14	C021300306	NUT 3 M3	1
15	CSA5560001	CLAMP SHAFT HOLDER	1
16	C062400816	SCREW PAN M4X8	2
17	CSA5674001	CLAMP FULCRUM SHAFT	1
18	C048060142	RETAINING RING EXTERNAL C6	2
19	CSA5585001	CLAMP LEVER R	1
20	C018501236	BOLT SOCKET M5X12	1
21	CSA5576001	CLAMP ARM R	1
22	C014400536	SET SCREW SOCKET(CP) M4X5	2
23	CSA7550001	CROTH GUIDE R	1
24	CS35326101	SCREW M3.5	1
25	CS35330001	WORK CLAMP PLATE, R	1
26	CSA7526001	THREAD TRIMMER LINK LEVER ASSY	1
27	CSA7778001	LINK LEVER ROLLER	1
28	C137191051	STOP RING	1
29	CSA5693001	SHOULDER SCREW M4	1
30	CS34906100	BUSH TR TRIMMER ARM	1
31	C062260516	SCREW PAN M2.6X5	2
32	CS34905101	THREAD CUTTER LEVER ARM	1
33	C018401036	BOLT SOCKET M4X10	1
34	CS37858000	NEEDLE PIN, 4X8	1
35	CS34903001	SPRING HOOK	1
36	CS34883001	SPRING, EXTENSION	1
37	CS34902001	SPRING HOOK	1
38	C021350106	NUT 1 M3.5	1
39	C062260406	SCREW PAN M2.6X4	1
40	CS34901001	THREAD TRIMMER ARM	1
41	CS34900001	OPENER, ;T-NIPPER	1
42	C153219001	COLLAR, ;MOVABLE KNIFE	1
43	CS34899001	MOVABLE KNIFE ASSY	1
44	CS34898001	PIN, SPRING 1.4	1
45	C141542001	SCREW 3.18	3
46	CSA7076001	THREAD HANDLER	1
47	CS01694001	SCREW, FLAT SM2.38X4	1
48	CS34896001	BRACKET, ;FIXED KNIFE	1
49	C061300416	SCREW FLAT M3X4	2
50	CS34895001	FIXED KNIFE	1
51	C018260832	BOLT, SOCKET M2.6X8	2
52	CS34894001	THREAD GUIDE PLATE	1
53	CS34893001	SETTING BRACKET FIXED KNIFE	1
54	C062300512	SCREW PAN M3X5	2
55	CS34889101	THREAD NIPPER ASSY	1
56	CS34890001	THREAD NIPPER, U	1
57	CS34891101	THREAD NIPPER, D	1
58	CS34888101	THREAD NIPPER, M	1
59	CS34892001	OPENER PIN	1
60	C062020416	SCREW PAN M2X4	2
61	C021020106	NUT 1 M2	2

Page 93 — AA4. 附属装置 / Attachment set

Jack JK-T9820 parts on page 93
Ref	Part number	Part name	Qty
62	C 542515001	SCREW M2.6X3.5	2
63	CS34887001	SPRING, PLATE ;F-KNIFE	1
64	CS34886001	SPRING, U PLATE ;F-KNIFE	1
65	CSA7077001	PRESSER PLATE U	1
66	C060400516	SCREW BIND M4X5	2
67	C152904001	SCREW, SM4.37	1
68	C104336003	SCREW, SM2.38	1
69	CS34884000	OPENER SPRING	1
70	C060630312	SCREW BIND SM2.38-56X3	2
71	C021400306	NUT 3 M4	1
72	C062300416	SCREW PAN M3X4	2
73	CSA7060001	WORK CLAMP PLATE LS30 UNIT	1
74	CSA7061001	WORK CLAMP PLATE LS ASSY	1
75	CS35315001	OPENING SLIDE BLOCK	1
76	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
77	C060020416	SCREW BIND M2X4	2
78	CSA5672001	NEEDLE PLATE L-42	1
79	CS06696004	SCREW, FLAT M3X6	2
80	CS39931101	CLOTH WORK CLAMP, L-30	1
81	CS35236000	WASHER, BENDING 3.2	1
82	CS35235001	SUPPORT PIN, CLAMP	1
83	C021300306	NUT 3 M3	1
84	CSA5560001	CLAMP SHAFT HOLDER	1
85	C062400816	SCREW PAN M4X8	2
86	CSA5674001	CLAMP FULCRUM SHAFT	1
87	C048060142	RETAINING RING EXTERNAL C6	2
88	CSA5671001	CLAMP LEVER L	1
89	C018501236	BOLT SOCKET M5X12	1
90	CSA5577001	CLAMP ARM L	1
91	C014400536	SET SCREW SOCKET(CP) M4X5	2
92	CSA7551001	CROTH GUIDE L	1
93	CS35326101	SCREW M3.5	1
94	CS35329001	WORK CLAMP PLATE, L	1
95	CSA7783001	EXCHANGE PARTS SET 01	1
96	CSA7578001	GIMP THREAD GUIDE C ASSY	1
97	CSA7063001	GIMP THREAD GUIDE C	1
98	CSA7613001	GIMP THREAD CLAMP PLATE	1
99	CSA7614001	GIMP THREAD TENSION SPRING	1
100	C062300506	SCREW PAN M3X5	1
101	C025030236	WASHER PLAIN M 3	1
102	CSA7615001	COLLAR 3	1
103	CSA7064001	UPPER MOVABLE KNIFE	1
104	C060300416	SCREW BIND M3X4	1
105	CS35029001	UPPER MOVABLE KNIFE, A	1
106	CSA7065001	THROAT PLATE 1.6	1
107	CSA6971001	L-THREAD TAKE-UP GUIDE LENER	1
108	CSA6974001	LOWER THREAD GUIDE C	1
109	CSA7068001	GIMP THREAD TAKE-UP G-L ASSY	1
110	CSA7069001	GIMP THREAD TAKE-UP G-HOLDER	1
111	CSA7070001	G-THREAD TAKE-UP GUIDE PLATE	1
112	CSA7071001	GIMP THREAD TAKE-UP G-E PLATE	1
113	CSA7072001	SHOULDER SCREW M4	1
114	C021400306	NUT 3 M4	1
115	C158722001	WASHER PLAIN 4.2	1
116	CSA7073001	GIMP THREAD GUIDE	1
117	C062300416	SCREW PAN M3X4	1
118	CSA7074001	SPRING TORSION	2
120	CSA7053001	G-THREAD TAKE-UP GUIDE COLLER	1
121	CSA7054001	G-THREAD TAKE-UP GUIDE SHAFT	1
122	C048050142	RETAINING RING EXTERNAL C5	1
123	C014400536	SET SCREW SOCKET(CP) M4X5	1
	C06040051	螺钉 M4X5	2
	C06020416	螺钉 M2X4	2
	C062400416	螺钉 M4X8	2
	CSA567001	夹臂 L	1
	CSA7579001	芯线导向 C	1
	CSA7020001	上动刀 A	1
	CSA7067001		1

Page 95 — AA4. 附属装置 / Attachment set

Jack JK-T9820 parts on page 95
Ref	Part number	Part name	Qty
124	CSA7555001	FEED BAR PLATE SPRING	1
125	C 062400816	SCREW PAN M4X8	2
126	CS37195001	HAMMER, 22	1
127	CS37199001	HAMMER, 30	1
128	CSA5584001	CYLINDER SCREW	1

Page 97 — AA5. 附属装置 / Attachment set

Jack JK-T9820 parts on page 97
Ref	Part number	Part name	Qty
1	CSA7804001	EXCHANGE PARTS SET D13 00	1
2	CSA7802001	WORK CLAMP PLATE ASSY RD13	1
3	CSA7080001	WORK CLAMP PLATE R ASSY	1
5	CS41340001	NEEDLE PLATE, RD13	1
6	CS41337001	WORK CLAMP, D13	1
7	CSA7803101	WORK CLAMP PLATE ASSY LD13	1
8	CSA7083001	WORK CLAMP PLATE L ASSY	1
10	CSA7149001	PLATE SPRING	1
11	CS35326101	SCREW M3.5	1
12	CSA7150101	THREAD TRIMMER A	1
13	CSA7151101	THREAD TRIMMER B	1
14	CS35326101	SCREW M3.5	1
15	CSA7808001	EXCHANGE PARTS SET SD13 01	1
16	CSA7806001	PLATE RSD13 ASSY	1
17	CSA7805001	WORK CLAMP PLATE ASSY RSD13	1
18	CSA7056001	WORK CLAMP PLATE RS ASSY	1
20	CS41340001	NEEDLE PLATE, RD13	1
21	CS41337001	WORK CLAMP, D13	1
22	CSA7526001	THREAD TRIMMER LINK LEVER ASSY	1
23	CSA7778001	LINK LEVER ROLLER	1
24	137191051	STOP RING	1
25	CSA5693001	SHOULDER SCREW M4	1
26	CS34906100	BUSH TR TRIMMER ARM	1
27	062260516	SCREW PAN M2.6X5	2
28	CS34905101	THREAD CUTTER LEVER ARM	1
29	018401036	BOLT SOCKET M4X10	1
30	CS37858000	NEEDLE PIN, 4X8	1
31	CS34903001	SPRING HOOK	1
32	CS34883001	SPRING, EXTENSION	1
33	CS34902001	SPRING HOOK	1
34	021350106	NUT 1 M3.5	1
35	062260406	SCREW PAN M2.6X4	1
36	CS34901001	THREAD TRIMMER ARM	1
37	CS34900001	OPENER, ;T-NIPPER	1
38	153219001	COLLAR, ;MOVABLE KNIFE	1
39	CS34899001	MOVABLE KNIFE ASSY	1
40	CS34898001	PIN, SPRING 1.4	1
41	141542001	SCREW 3.18	3
42	CSA7076001	THREAD HANDLER	1
43	CS01694001	SCREW, FLAT SM2.38X4	1
44	CS34896001	BRACKET, ;FIXED KNIFE	1
45	061300416	SCREW FLAT M3X4	2
46	CS34895001	FIXED KNIFE	1
47	018260832	BOLT, SOCKET M2.6X8	2
48	CS34894001	THREAD GUIDE PLATE	1
49	CS34893001	SETTING BRACKET FIXED KNIFE	1
50	062300512	SCREW PAN M3X5	2
51	CS34889101	THREAD NIPPER ASSY	1
52	CS34890001	THREAD NIPPER, U	1
53	CS34891101	THREAD NIPPER, D	1
54	CS34888101	THREAD NIPPER, M	1
55	CS34892001	OPENER PIN	1
56	062020416	SCREW PAN M2X4	2
57	021020106	NUT 1 M2	2
58	542515001	SCREW M2.6X3.5	2
59	CS34886001	SPRING, U PLATE ;F-KNIFE	1
60	CSA7077001	PRESSER PLATE U	1
61	060400516	SCREW BIND M4X5	2
62	152904001	SCREW, SM4.37	1
63	104336003	SCREW, SM2.38	1
64	CS34884000	OPENER SPRING	1
	C137191051		1
	CSA34906100		1
	C062260516	螺钉 M2.6X5	2
	C018401036	螺栓 M4X10	1
	CSA902001		1
	C021350106	螺母 M3.5	1
	C062260406	螺钉 M2.6X4	1
	C153219001		1
	C141542001		3
	C061300416	螺钉 M3X4	2
	C018260832	螺栓 M2.6X8	2
	C062300512	螺钉 M3X5	2
	C062020416	螺钉 M2X4	2
	C021020106	螺母 M2	2
	C542515001	螺钉 M2.6X3.5	2
	C060400516	螺钉 M4X5	2
	C152904001	螺钉 SM4.37	1
	C104336003	螺钉 SM2.38	1

Page 99 — AA5. 附属装置 / Attachment set

Jack JK-T9820 parts on page 99
Ref	Part number	Part name	Qty
65	C060630312	SCREW BIND SM2.38-56X3	2
66	C021400306	NUT 3 M4	1
67	C062300416	SCREW PAN M3X4	2
68	CSA7807001	WORK CLAMP PLATE ASSY LSD13	1
69	CSA7061001	WORK CLAMP PLATE LS ASSY	1
71	CS34887001	SPRING, PLATE ;F-KNIFE	1
72	CS35315001	OPENING SLIDE BLOCK	1
73	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
74	C060020416	SCREW BIND M2X4	2
75	CS06696004	SCREW, FLAT M3X6	2
76	CS35236000	WASHER, BENDING 3.2	1
77	CS35235001	SUPPORT PIN, CLAMP	1
78	C021300306	NUT 3 M3	1
79	CSA5560001	CLAMP SHAFT HOLDER	1
80	C062400816	SCREW PAN M4X8	2
81	CSA5674001	CLAMP FULCRUM SHAFT	1
82	C048060142	RETAINING RING EXTERNAL C6	2
83	CSA5585001	CLAMP LEVER R	1
84	C018501236	BOLT SOCKET M5X12	1
85	CSA6734001	CLAMP ARM R-J	1
86	C014400536	SET SCREW SOCKET(CP) M4X5	2
87	CSA7550001	CROTH GUIDE R	1
88	CS35326101	SCREW M3.5	1
89	CS35315001	OPENING SLIDE BLOCK	1
90	CS35316001	SLIDE BLOCK SUPPORT PLATE	1
91	C060020416	SCREW BIND M2X4	2
92	CS41341001	NEEDLE PLATE, LD13	1
93	CS06696004	SCREW, FLAT M3X6	2
94	CS41337001	WORK CLAMP, D13	1
95	CS35236000	WASHER, BENDING 3.2	1
96	CS35235001	SUPPORT PIN, CLAMP	1
97	C021300306	NUT 3 M3	1
98	CSA5560001	CLAMP SHAFT HOLDER	1
99	C062400816	SCREW PAN M4X8	2
100	CSA5674001	CLAMP FULCRUM SHAFT	1
101	C048060142	RETAINING RING EXTERNAL C6	2
102	CSA5671001	CLAMP LEVER L	1
103	C018501236	BOLT SOCKET M5X12	1
104	CSA6743001	CLAMP ARM L-J	1
105	C014400536	SET SCREW SOCKET(CP) M4X5	2
106	CSA7551001	CROTH GUIDE L	1
107	CS35326101	SCREW M3.5	1

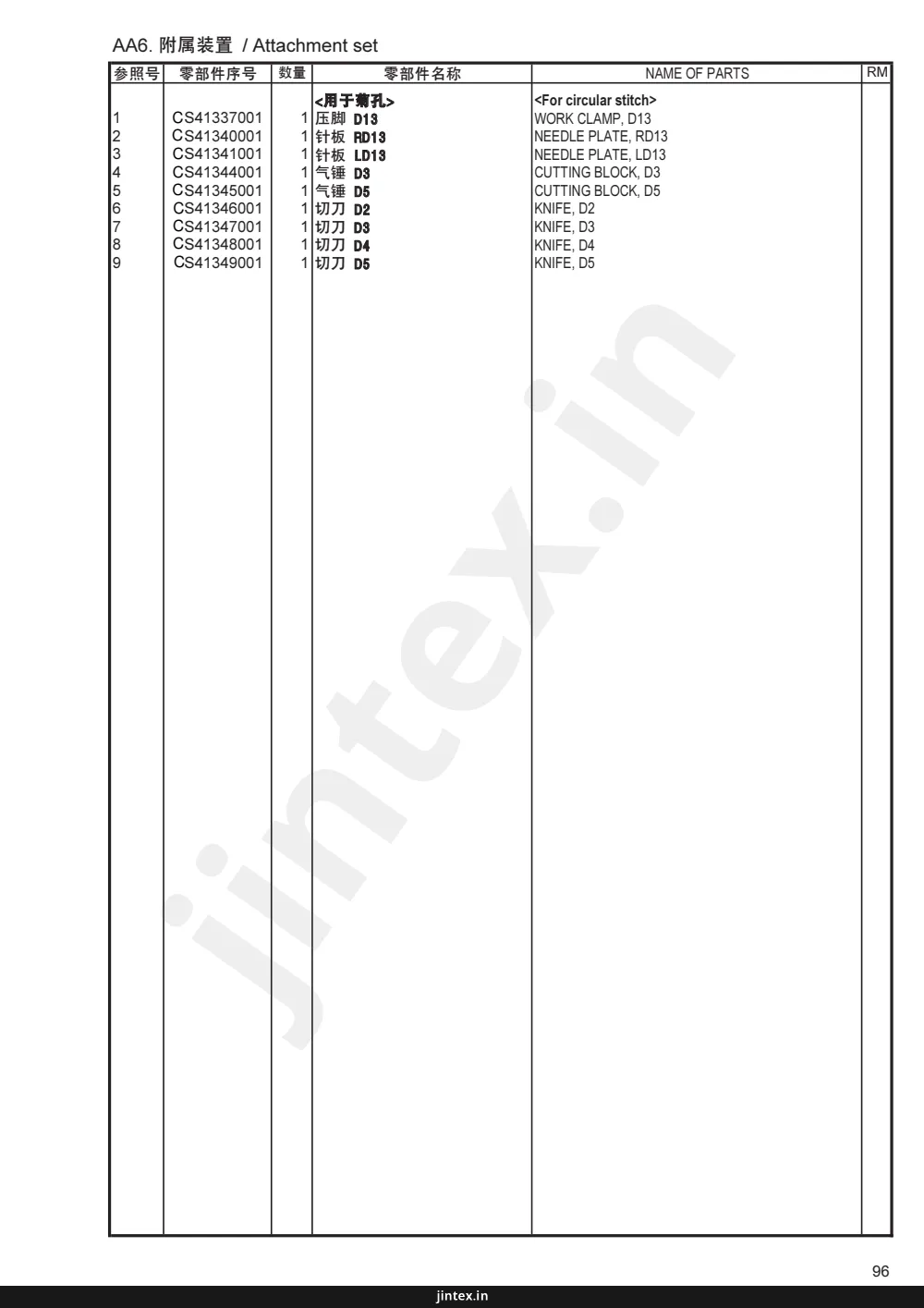

Page 101 — AA6. 附属装置 / Attachment set

Jack JK-T9820 parts on page 101
Ref	Part number	Part name	Qty
1	CS41337001	WORK CLAMP, D13	1
2	CS41340001	NEEDLE PLATE, RD13	1
3	CS41341001	NEEDLE PLATE, LD13	1
4	CS41344001	CUTTING BLOCK, D3	1
5	CS41345001	CUTTING BLOCK, D5	1
6	CS41346001	KNIFE, D2	1
7	CS41347001	KNIFE, D3	1
8	CS41348001	KNIFE, D4	1
9	CS41349001	KNIFE, D5	1

Page 103 — Z. 附件 / Accessories

Jack JK-T9820 parts on page 103
Ref	Part number	Part name	Qty
1	CSA5568001	THREAD SPOOL PIN	1
2	C021500216	NUT 2 M5	1
3	CS07558409	COTTON STAND ASSY 3DRTHF	1
4	CS51283001	SPOOL STAND BASE	3
5	C150182000	SPOOL MAT	3
6	CS51282101	SPOOL CUSHION	3
7	CS04109001	THREAD GUIDE SUPPORT BAR	1
8	C142997001	THREAD GUIDE, 3	1
9	C150206002	WASHER PLAIN 16	1
10	CSA6629001	NUT M16	1
11	C150174000	COLUMN CAP	1
12	CS01005000	RUBBER WASHER	2
13	CS02747101	SPRING	1
14	C150172003	COLUMN PIPE	1
15	C150174000	COLUMN CAP	1
16	C156112003	COLUMN PIPE D	1
17	C150207001	COLUMN PIPE W/SCREW	1
18	C150206000	WASHER PLAIN 16	1
19	CSA6606001	COLUMN JOINT	1
20	C150179002	SPOOL SHAFT B	3
21	C028050244	WASHER SPRING 2-5	3
22	C021500104	NUT 1 M5	3
23	C150188009	SPOOL HOLDER SUPPORT, A	1
24	CSA6610001	SPOOL HOLDER 3	1
25	CSA6610001	SPOOL HOLDER 3	1
26	C150183000	THREAD HANGER BASE	3
27	C142990001	THREAD BUSH	3
28	CSA6609001	SPOOL HOLDER SUPPORTER	2
29	CSA6615001	THREAD GUIDE HOLDER	1
30	C138843001	JOINT	1
31	C021500104	NUT 1 M5	2
32	C062061604	SCREW PAN M6X16	2
33	C062501404	SCREW PAN M5X14	2
34	C014060632	SET SCREW SOCKET (CP) M6X6	2
35	C021500104	NUT 1 M5	1
36	CS37037001	SCREW PAN (S/P WASHER) M5X32	1
37	C062061004	SCREW PAN M6X10	1
38	C021500104	NUT 1 M5	1
39	C031452204	WOOD SCREW ROUND M4.5X22	1
40	C062501004	SCREW PAN M5X10	1
41	CSA7037001	THREADER	1
42	C149796001	AIR HOSE, W/CONNECTOR	1
43	CSA1741016	NEEDLE 10PIECE ASSY, S35133	1
43	CSA1741014	NEEDLE 10PIECE ASSY, S35133	1
43	CSA1741018	NEEDLE 10PIECE ASSY, S35133	1
43	CSA4858016	NEEDLE 4PIECE ASSY, SA4857	1
43	CSA4858014	NEEDLE 4PIECE ASSY, SA4857	1
43	CSA4858018	NEEDLE 4PIECE ASSY, SA4857	1

Page 105 — Z. 附件 / Accessories

Jack JK-T9820 parts on page 105
Ref	Part number	Part name	Qty
44	C 118837001	SCREW-DRIVER, 3.4X70	1
45	C 101572102	SCREW-DRIVER 5.5X190	1
46	C 114483002	OILER ASSY	1
47	C 117466000	PINCETTE	1
48	CS55663001	OIL TANK ASSY	1
49	CSA3950001	SOCKET WRENCH	1
50	CSA4103001	EYE GUARD SET, D	1
62	C062400616	SCREW PAN M4X6	2
63	C026040136	WASHER PLAIN S 4	2
64	CSA7038001	PIN 4	2
65	C 158581000	CORD HOLDER, 24N	1
66	CS11817000	CLAMP, NK-18N	1
67	C032461606	WOOD SCREW ROUND 2 M4.5X16	2
68	CS04557000	BAND, PLT1M	1
69	C 133740006	BOLT SQUARE M6X70	3
70	C021060106	NUT 1 M6	3
71	C025060236	WASHER PLAIN M 6	3
72	C028060246	WASHER SPRING 2-6	3
73	CSA7127001	SUBMERGE SET	1
74	CSA7128001	ANGLE L	2
75	C 133740006	BOLT SQUARE M6X70	10
76	C025060236	WASHER PLAIN M 6	10
77	C028060246	WASHER SPRING 2-6	10
78	C021060106	NUT 1 M6	10
79	CSA7129001	BED SUPPORT PLATE P	4
80	C 119755001	BOLT, M6X60	4
81	C 159458009	RUBBER SHEET	12
82	C025060336	WASHER PLAIN L 6	4
83	C021060106	NUT 1 M6	4
84	CS42445001	BOLT SOCKET (S/P WASHER)M8X25	16
85	CSA2929001	RUBBER CAP, 12.5	4
86	CS55477001	BOLT SOCKET (S/P WASHER)M6X16	3
	C06240616	螺钉 M4X6	2
	C09246106	木螺钉 M4.5X16	2
	C 13740006	螺栓 M6X70	10
	CSA4245001	螺钉 M8X25	16

Page 106 — Sp. 不同规格零部件一览表 / Different parts list

Jack JK-T9820 parts on page 106
Ref	Part number	Part name	Qty
	CS37679-001
	CS37677-101
	CSA5245-101
	CSA7086-001
	CSA7537-001
	CS37680-001
	CS37678-101
	CSA5244-101
	CSA7091-001
	CSA7536-001
	CS35455-201
	CS39929-101
	CS35197-101
	CS39931-101
	CS35454-201
	CS39930-101
	CS35198-101
	CS39932-101
	CSA7087-001
	CSA7090-001
	CSA6742-001
	CSA7088-001
	CSA7089-001
	CSA7092-001
	CSA7095-001
	CSA6732-001
	CSA7093-001
	CSA7094-001
	CS43408-001
	CS43410-001
	CS43409-001
	CS43411-001
	CS7087-001	Work clamp
	CS7092-001	Work clamp

Page 107 — Sp . 不同规格零部件一览表 / Different parts list

Jack JK-T9820 parts on page 107
Ref	Part number	Part name	Qty
	CS37211-001
	CS37683-101(L-50)	CS37681-101(SL-50)
	CS37684-101(R-50)	CS37682-101(SR-50)
	CSA5672-001(L-42)	CSA7534-001
	CSA5673-001(R-42)	CSA7535-001
	CSA7097-001	CSA7100-001
	CSA7102-001	CSA7105-001
	CSA6741-001	CSA7098-001
	CSA6731-001	CSA7103-001
	CSA7099-001	CSA7104-001
	CS37210-001
	CS37209-001
	CS37208-001
	CS37194-001
	CS35092-001
	CS37195-001
	CS37196-001
	CS37197-001
	CS37198-001
	CS37199-001
	CS37200-001
	CS37201-001
	CS37202-001
	CS35093-001
	CSA7106-001
	CS35479-001
	L1826	S20
	CS37706-001	S24
	CS37708-001
	L2230	S22
	CS42053-001

Page 108 — Sp . 不同规格零部件一览表 / Different parts list

Jack JK-T9820 parts on page 108
Ref	Part number	Part name	Qty
	CS35438-101
	CS35436-101
	CS35481-101
	CS35483-101
	CS35409-101(S)
	CSA7107-001
	CSA6806-001
	CSA7108-001
	CSA7109-001
	CSA7110-001
	CSA7111-001(S)
	CSA7546-001
	CSA7065-001
	CSA7567-001
	CS37752-001
	CSA7568-001
	CSA37752-001

Page 109 — Wa. 警告标签 / Warning labels

Jack JK-T9820 parts on page 109
Ref	Part number	Part name	Qty
	CJ04115-001	Label, elec. shock 6 lang
	CSA0792-001	Label, caution Jpn / Eng
	CSA0793-001	Label, caution Chn / Eng
	CS36924-001	Mark, injury
	CJ03663-001	Label, high temp
	CS37060-001	Label, grounding
	CS37059-001	Label, PE

Page 110 — 索引 / Index

Jack JK-T9820 parts on page 110
Ref	Part number	Part name
-48	C004401003	A
-4	C004401003	G
-16	C004401003	L
-70	C008401204	G
-5	C012060636	E
-17	C012060636	E
-10	C012060636	G
-13	C012060636	G
-26	C012060636	G
-30	C012060636	G
-39	C012060636	G
-57	C012060636	G
-62	C012060636	G
-15	C012061036	D
-31	C012061036	H
-44	C012061036	H
-23	C012061036	J
-56	C012500536	B
-22	C012500536	D
-64	C012500536	F1
-26	C012500536	H
-7	C012500536	K
-35	C012500536	L
-16	C012500536	M
-43	C012500536	P1
-32	C012500536	U2
-21	C014060632	K
-34	C014060632	Z
-59	C014060636	B
-31	C014060836	A
-33	C014060836	A
-37	C014060836	A
-39	C014060836	A
-29	C014060836	H
-34	C014060836	H
-40	C014060836	H
-46	C014060836	H
-34	C014060836	L
-6	C014060836	U1
-27	C014300332	P3
-73	C014300832	L
-38	C014400532	B
-48	C014400532	F1
-100	C014400532	F1
-37	C014400532	F2
-55	C014400532	F2
-31	C014400532	F3
-55	C014400532	F3
-26	C014400536	AA1
-80	C014400536	AA1
-14	C014400536	AA2
-22	C014400536	AA4
-91	C014400536	AA4
-123	C014400536	AA4
-86	C014400536	AA5
-105	C014400536	AA5
-3	C014400632	X
-16	C014500632	X
-39	C014500836	H
-2	C014500836	K
-2	C014500836	M
-51	C017400802	P1
-27	C017400802	P2
-47	C017401415	P1
-54	C017401616	F1
-19	C018061236	E
-19	C018061636	D
-45	C018061636	G
-66	C018061636	G
-28	C018084036	J
-26	C018260832	Q1
-58	C018300306	L
-26	C018301236	G
-10	C018301436	L
-61	C018400636	B
-2	C018400636	L
-21	C018400636	N
-31	C018400636	N
-97	C018400636	N
-4	C018400636	R
-94	C018400836	F1
-42	C018400836	G
-53	C018400836	N
-34	C018400836	P2
-36	C018400836	P2
-18	C018400836	P3
-31	C018400836	P3
-8	C018400836	V
-17	C018400836	V
-42	C018400836	AA2
-7	C018401036	B
-9	C018401036	B
-37	C018401036	F3
-7	C018401036	H
-18	C018401036	P1
-23	C018401036	P1
-8	C018401036	Q1
-32	C018401036	AA1
-33	C018401036	AA4
-29	C018401036	AA5
-14	C018401236	H
-23	C018401436	G
-58	C018401436	G
-22	C018401636	E
-14	C018401636	G
-27	C018402036	B
-30	C018501236	F1
-53	C018501636	H
-56	C018501636	H
-17	C018501636	X
-34	C018502536	G
-36	C021020106	Q1
-61	C021020106	AA4
-57	C021020106	AA5
-19	C021060106	A
-10	C021060106	D
-70	C021060106	Z
-78	C021060106	Z
-83	C021060106	Z
-29	C021300302	F2
-23	C021300302	F3
-47	C021300302	F3
-18	C021500106	AA1
-72	C021500106	AA1
-7	C021500106	AA3
-14	C021500106	AA4
-78	C021500106	AA5
-97	C021500106	AA5
-13	C021350106	Q1
-20	C021350106	Q2
-55	C021350106	AA1
-38	C021350106	AA4
-34	C021350106	AA5
-55	C021400202	F1
-8	C021400202	F1
-15	C021400306	F1
-110	C021400306	F1
-33	C021400306	F2
-51	C021400306	F2
-27	C021400306	F3
-35	C021400306	F3
-51	C021400306	F3
-15	C021400306	M
-26	C021400306	P1
-22	C021400306	AA1
-30	C021400306	AA1
-76	C021400306	AA1
-18	C021400306	AA4
-87	C021400306	AA4
-82	C021400306	AA5
-101	C021400306	AA5
-2	C021500106	Z
-62	C021500216	P1
-59	C025030136	L
-66	C025030236	L
-25	C025030236	AA2
-101	C025030236	AA4
-15	C025040136	G
-18	C025040236	M
-53	C025040236	P1
-29	C025040236	P2
-18	C025040236	V
-109	C025060236	F1
-27	C025060236	P1
-71	C026040136	Z
-76	C026040136	Z
-18	C026040136	A
-82	C026040136	Z
-24	C026040136	G
-59	C026040136	G
-14	C026040136	L
-35	C026040136	P2
-63	C026040136	Z
-19	C026040236	F1
-57	C028040242	F1
-46	C028040246	A
-52	C028040246	P1
-21	C028050244	Z
-72	C028060246	Z
-77	C028060246	Z
-39	C031452204	Z
-39	C031553202	U1
-25	C031553202	U2
-67	C032461606	Z
-23	C047301042	P2
-13	C047502242	A
-22	C048025346	P3
-25	C048030342	F1
-46	C048030342	F1
-112	C048030342	F1
-12	C048030342	AA2
-27	C048050142	F1
-99	C048050142	F1
-8	C048050342	F1
-15	C048060142	F1
-68	C048060342	G
-24	C048080142	A
-26	C048080142	A
-35	C048080142	G
-9	C048100142	P2
-11	C048150142	E
-28	C048150142	E
-28	C048160242	C
-31	C048160242	G
-27	C048200142	J
-20	C048220242	J
-9	C048260242	E
-26	C048260242	E

Page 111 — 索引 / Index

Jack JK-T9820 parts on page 111
Ref	Part number	Part name	Qty
	C048280242	G
	C048320242	E
	C048520242	C
	C052400606	F1
	C060020416	F2
	C060020416	F2
	C060020416	F3
	C060020416	F3
	C060020416	AA1
	C060020416	AA1
	C060020416	AA4
	C060020416	AA4
	C060020416	AA5
	C062300416	H
	C062300416	P3
	C062300416	Q1
	C062300416	Q2
	C062300416	AA1
	C062300416	AA4
	C062300416	AA5
	C062300506	L
	C062300506	AA2
	C062300506	AA4
	C062300512	Q1
	C062300512	AA4
	C062300516	V
	C062300516	V
	C062301016	F1
	C062301016	L
	C062351615	L
	C062400616	N
	C062400616	Z
	C062400816	A
	C062400816	F1
	C062400816	F1
	C062400816	F1
	C062400816	F1
	C062400816	F2
	C062400816	F2
	C062400816	F3
	C062400816	F3
	C062400816	H
	C062400816	J
	C062400816	M
	C062400816	N
	C062400816	P1
	C062400816	P2
	C062400816	P3
	C062400816	P3
	C062400816	P3
	C062400816	V
	C062400816	V
	C062400816	X
	C062400816	AA1
	C062400816	AA1
	C062400816	AA2
	C062400816	AA2
	C062400816	AA4
	C062400816	AA4
	C062400816	AA4
	C062400816	AA5
	C062400816	AA5
	C062401016	C
	C062402016	L
	C062500816	A
	C062500816	J
	C062500816	N
	C062500816	P1
	C062500816	P1
	C062500816	P1
	C062500816	P1
	C062500816	P1
	C062500816	P3
	C062500816	AA1
	C062500816	AA2
	C062500816	AA4
	C062500816	AA5
	C062260516	Q1
	C062260516	Q1
	C062260516	Q2
	C062260612	Q2
	C062260612	AA1
	C062260612	AA4
	C062260612	AA5
	C062300416	G
	C062300416	G
	C062500816	P1
	C062500816	P1
	C062501004	Z
	C062501202	F1
	C062501216	A
	C062501404	Z
	C070688850	G
	C081003870	P3
	C081003870	AA2
	C081050870	H
	C081050870	AA2
	C081050870
	COA4261006	X
	COA4261006	X
	COA4300805	L
	COA4300806	X
	COA4400806	J
	COA4400806	N
	COA4400806	N
	COA4400806	N
	COA4400806	N
	COA4400806	N
	COA4400806	N
	COA4400806	N
	COA4400806	N
	COA4400806	N
	COA4400806	P1
	COA4401006	X
	COA4401206	U1
	COA4401606	A
	COA4403506	V
	COA4404006	U2
	COA5300606	X
	COA5401006	U2
	COB0452006	W
	C101572102	Z
	C102630001	F1
	C107155001	N
	C109763002	F1
	C109763002	F1
	C112753001	N
	C114483002	Z
	C114486002	A
	C115947101	A
	C117466000	Z
	C118837001	Z
	C119755001	Z
	C133740006	Z
	C133740006	Z
	C137191051	Q1
	C1404336003	Q1
	C1404336003	AA4
	C1404336003	AA5
	C140450101	N
	C1404821001	A
	C1404821001	P1
	C1404833001	A
	C1404833001	A
	C1404833001	J
	C140553102	B
	C141514002	B
	C141542001	Q1
	C141542001	Q2
	C141542001	AA1
	C141542001	AA4
	C141542001	AA5
	C142990001	Z
	C142997001	Z
	C144103009	P1
	C144504001	P1
	C145446001	P1
	C145446002	P2
	C145465001	B
	C146124001	Y
	C146202000	N
	C149287000	N
	C149547000	N
	C149796001	Z
	C150172003	Z
	C150174000	Z
	C150179002	Z
	C150182000	Z
	C150183000	Z
	C150188009	Z
	C150206000	Z
	C150207002	F1
	C150756000	A
	C150756000	A
	C150756000	A
	C150756000	A
	C152873001	P1
	C152904001	Q1
	C152904001	AA4
	C152904001	AA5
	C153050000	N
	C153219001	Q1
	C153219001	AA4
	C153219001	AA5

Page 112 — 索引 / Index

Jack JK-T9820 parts on page 112
Ref	Part number	Part name	Qty
	C153274001	U2 - 8
	C153787001	Q2 - 30
	C153787001	AA1 - 47
	C154465001	A - 27
	C154562101	P1 - 57
	C154562101	P2 - 19
	C154590000	P1 - 46
	C154590000	P2 - 32
	C155510001	P1 - 58
	C15559001	D - 12
	C15559001	P2 - 31
	C156112003	Z - 16
	C156482000	D - 23
	C1565810002	C - 65
	C158722001	P3 - 7
	C158722001	AA4 - 115
	C158798001	A - 14
	C159221101	P1 - 39
	C159458009	A - 16
	C159458009	Z - 81
	C159805001	P1 - 37
	C159805001	P2 - 18
	C228475000	B - 52
	C228475000	J - 36
	C228475000	M - 9
	C228475000	N - 92
	C228475000	P1 - 68
	C228475000	U2 - 31
	C228475000	V - 41
	C228475000	Y - 18
	C340400001	V - 25
	C3A6001001	G - 28
	C525567000	U1 - 21
	C525664000	V - 19
	C530138001	G - 33
	C542515001	Q1 - 37
	C542515001	AA4 - 62
	C542515001	AA5 - 58
	C552907000	N - 42
	C552908000	U1 - 23
	C554482000	U1 - 25
	C625010000	V - 31
	CJ03663001	E - 2
	CJ03663001	G - 67
	CJ03663001	X - 19
	CJ03663001	Wa
	CJ03955001	X - 2
	CJ03956001	X - 4
	CJ03974001	W - 7
	CJ04115001	S1 - 12
	CJ04115001	Wa
	CJ04146001	W - 8
	CJ04230001	X - 11
	CJ04303001	X - 15
	CJ04388001	X - 13
	CS00470000	U2 - 27
	CS00480000	N - 9
	CS00480000	N - 41
	CS00480000	P1 - 65
	CS00480000	U1 - 15
	CS01005000	Z - 12
	CS01694001	Q1 - 22
	CS01694001	AA4 - 47
	CS01694001	AA5 - 43
	CS02460001	F1 - 59
	CS02460001	F1 - 62
	CS02657101	N - 99
	CS02699001	Y - 6
	CS02747101	Z - 13
	CS04109001	V - 16
	CS04557000	V - 13
	CS04557000	Y - 12
	CS04557000	P2 - 70
	CS04557000	AA2 - 41
	CS05356000	F3 - 38
	CS05356000	F3 - 38
	CS06696004	F1 - 29
	CS06696004	F1 - 52
	CS06696004	F2 - 19
	CS06696004	F2 - 25
	CS06696004	F3 - 44
	CS06696004	AA1 - 15
	CS06696004	AA1 - 69
	CS06696004	AA4 - 10
	CS06696004	AA4 - 79
	CS07558409	Z - 3
	CS10243000	J - 38
	CS11426000	F1 - 86
	CS11817000	P1 - 8
	CS12004000	F1 - 58
	CS12004000	F1 - 61
	CS12053000	G - 49
	CS12104000	F1 - 72
	CS12150000	R - 6
	CS12718000	F1 - 90
	CS13955000	F1 - 104
	CS14159000	P1 - 41
	CS20681000	P1 - 40
	CS20682102	P1 - 40
	CS20696001	P3 - 12
	CS20696221	P1 - 55
	CS21716001	Q2 - 26
	CS21716001	AA1 - 61
	CS21728001	A - 15
	CS23651001	C - 4
	CS23651001	C - 9
	CS23651001	C - 11
	CS23651001	C - 14
	CS23651001	C - 17
	CS23651001	C - 19
	CS23651001	C - 24
	CS23651001	C - 26
	CS23651001	C - 30
	CS23651001	J - 6
	CS23651001	J - 10
	CS23651001	J - 14
	CS25235001	X - 23
	CS25279101	M - 20
	CS25328001	B - 53
	CS25328001	N - 54
	CS25328001	N - 73
	CS29700000	N - 46
	CS29700000	N - 49
	CS32263001	A - 52
	CS32263001	A - 53
	CS32263001	A - 54
	CS34569000	U1 - 18
	CS34883001	Q1 - 11
	CS34883001	AA4 - 36
	CS34883001	AA5 - 32
	CS34884000	Q1 - 44
	CS34884000	AA4 - 64
	CS34884000	AA5 - 64
	CS34886001	Q1 - 39
	CS34886001	AA4 - 59
	CS34886001	AA5 - 55
	CS34887001	Q1 - 38
	CS34887001	AA4 - 63
	CS34887001	AA5 - 71
	CS34888101	Q1 - 33
	CS34888101	AA4 - 58
	CS34888101	AA5 - 54
	CS34889101	Q1 - 30
	CS34889101	AA4 - 55
	CS34889101	AA5 - 51
	CS34890001	Q1 - 31
	CS34890001	AA4 - 56
	CS34890001	AA5 - 52
	CS34891101	Q1 - 32
	CS34891101	AA4 - 57
	CS34891101	AA5 - 53
	CS34896001	F1 - 22
	CS34900001	Q1 - 16
	CS34900001	AA4 - 41
	CS34900001	AA5 - 37
	CS34901001	Q1 - 15
	CS34901001	AA4 - 40
	CS34901001	AA5 - 36
	CS34902001	Q1 - 12
	CS34902001	Q2 - 19
	CS34902001	AA1 - 54
	CS34902001	AA4 - 37
	CS34902001	AA5 - 33
	CS34903001	Q1 - 10
	CS34903001	AA4 - 35
	CS34903001	AA5 - 31
	CS34905101	Q1 - 7
	CS34905101	AA4 - 32
	CS34905101	AA5 - 28
	CS34906100	Q1 - 5
	CS34906100	AA4 - 30
	CS34906100	AA5 - 26
	CS34913001	F1 - 93
	CS34914101	F1 - 92
	CS34922101	Y - 7
	CS34966001	Y - 8
	CS34968000	F1 - 22
	CS34969001	F1 - 24
	CS34970001	F1 - 83
	CS35001000	N - 4
	CS35001000	N - 30
	CS35014001	L - 27
	CS35018001	L - 26
	CS35019001	L - 28
	CS35029001	L - 42
	CS35029001	AA4 - 105
	CS35032101	L - 49
	CS35033001	L - 51
	CS35034001	L - 50
	CS35035101	L - 55
	CS35036101	L - 56
	CS35091101	H - 6
	CS35092001	Sp
	CS35093001	Sp
	CS35097101	H - 52
	CS35098000	H - 54
	CS35113001	B - 32
	CS35118101	B - 19
	CS35133014	B - 21
	CS35133016	B - 21
	CS35133018	B - 21
	CS35136001	B - 40
	CS35137001	B - 39
	CS35183000	G - 16
	CS35197101	Sp
	CS35198101	Sp

Page 113 — 索引 / Index

Jack JK-T9820 parts on page 113
Ref	Part number	Part name
-23	CS35218101	A
-43	CS35221101	A
-66	CS35221101	A
-28	CS35235001	F2
-46	CS35235001	F2
-22	CS35235001	F3
-46	CS35235001	F3
-17	CS35235001	AA1
-71	CS35235001	AA1
-5	CS35235001	AA3
-11	CS35235001	AA3
-13	CS35235001	AA4
-82	CS35235001	AA4
-77	CS35235001	AA5
-96	CS35235001	AA5
-27	CS35236000	F2
-45	CS35236000	F2
-21	CS35236000	F3
-45	CS35236000	F3
-16	CS35236000	AA1
-70	CS35236000	AA1
-6	CS35236000	AA3
-12	CS35236000	AA3
-81	CS35236000	AA4
-76	CS35236000	AA5
-95	CS35236000	AA5
-28	CS35239101	F1
-29	CS35240001	F1
-13	CS35251101	D
-17	CS35252001	D
-10	CS35320001	B
-25	CS35320001	D
-34	CS35350000	F1
-40	CS35350000	F1
-106	CS35351001	F1
-2	CS35360000	U1
	CS35409101	Sp
-45	CS35410001	L
-47	CS35412101	L
-48	CS35413101	L
-3	CS35426100	U1
-17	CS35429101	F1
	CS35436101	Sp
	CS35438101	Sp
	CS35454201	Sp
	CS35455201	Sp
-49	CS35456101	F1
-38	CS35470001	F1
-88	CS35472101	L
	CS35479001	Sp
	CS35481101	Sp
	CS35483101	Sp
-21	CS36260000	Y
-79	CS36345000	F1
-70	CS36924001	A
	CS36924001	Wa
-36	CS37037001	Z
-10	CS37059001	S1
	CS37059001	Wa
-71	CS37060001	A
-11	CS37060001	S1
	CS37060001	Wa
	CS37194001	Sp
-126	CS37195001	AA4
	CS37196001	Sp
	CS37197001	Sp
-9	CS37198001	AA1
	CS37198001	Sp
-127	CS37199001	AA4
	CS37199001	Sp
-10	CS37200001	AA1
	CS37201001	Sp
-9	CS37202001	AA1
	CS37208001	Sp
	CS37209001	Sp
-82	CS35326101	AA1
-24	CS35326101	AA4
-93	CS35326101	AA4
-11	CS35326101	AA5
-14	CS35326101	AA5
-88	CS35326101	AA5
-107	CS35326101	AA5
-53	CS35327001	F1
-23	CS35328001	F1
-20	CS35329001	F2
-15	CS35330001	F2
-25	CS35330001	AA4
-10	CS35332001	B
-34	CS35350000	F1
-40	CS35350000	F1
-106	CS35351001	F1
-2	CS35360000	U1
	CS35409101	Sp
-45	CS35410001	L
-47	CS35412101	L
-48	CS35413101	L
-3	CS35426100	U1
-17	CS35429101	F1
	CS35436101	Sp
	CS35438101	Sp
	CS35454201	Sp
	CS35455201	Sp
-49	CS35456101	F1
-38	CS35470001	F1
-88	CS35472101	L
	CS35479001	Sp
	CS35481101	Sp
	CS35483101	Sp
-21	CS36260000	Y
-79	CS36345000	F1
-70	CS36924001	A
	CS36924001	Wa
-36	CS37037001	Z
-10	CS37059001	S1
	CS37059001	Wa
-71	CS37060001	A
-11	CS37060001	S1
	CS37060001	Wa
	CS37194001	Sp
-126	CS37195001	AA4
	CS37196001	Sp
	CS37197001	Sp
-9	CS37198001	AA1
	CS37198001	Sp
-127	CS37199001	AA4
	CS37199001	Sp
-10	CS37200001	AA1
	CS37201001	Sp
-9	CS37202001	AA1
	CS37208001	Sp
	CS37209001	Sp
	CS37210001	Sp
	CS37211001	Sp
-9	CS37654000	Q2
-7	CS37655101	Q2
-7	CS37660101	Q2
	CS37677101	Sp
	CS37678101	Sp
	CS37679001	Sp
	CS37680001	Sp
	CS37681101	Sp
	CS37682101	Sp
	CS37683101	Sp
	CS37684101	Sp
	CS37701001	Sp
	CS37702001	Sp
	CS37703001	Sp
-9	CS37704001	AA1
	CS37704001	Sp
	CS37705001	Sp
-9	CS37706001	AA1
	CS37706001	Sp
	CS37707001	Sp
-9	CS37708001	AA1
	CS37708001	Sp
	CS37709001	Sp
-43	CS37723101	L
-53	CS37724001	L
-85	CS37725001	L
-70	CS37752001	L
-9	CS37858000	Q1
-2	CS37858000	Q2
-62	CS37858000	AA1
-34	CS37858000	AA4
-30	CS37858000	AA5
-20	CS38170001	Y
-22	CS38174000	Y
-23	CS38175101	Y
-24	CS38176101	Y
-5	CS39115100	U2
-5	CS39116100	U2
-4	CS39914001	Y
	CS39929101	Sp
	CS39930101	Sp
-4	CS39931101	F2
-80	CS39931101	AA4
	CS39931101	Sp
-26	CS39932101	F2
-11	CS39932101	AA4
	CS39932101	Sp
-17	CS41251101	B
-16	CS41310101	B
-94	CS41337001	AA5
-1	CS41337001	AA6
-5	CS41340001	AA5
-20	CS41340001	AA5
-2	CS41340001	AA6
-92	CS41341001	AA5
-3	CS41341001	AA6
-4	CS41344001	AA6
-5	CS41345001	AA6
-6	CS41346001	AA6
-7	CS41347001	AA6
-8	CS41348001	AA6
-9	CS41349001	AA6
-10	CS42053001	AA1
-84	CS42445001	Z
-19	CS42838301	Y
-3	CS43408001	AA3
	CS43408001	Sp
-9	CS43409001	AA3
	CS43409001	Sp
-3	CS43410001	AA3
	CS43410001	Sp
-9	CS43411001	AA3
	CS43411001	Sp
-7	CS47270001	J
-54	CS47932001	L
-18	CS47932001	AA2
-87	CS49078001	L
-89	CS49079001	L
-8	CS49484000	S1
-21	CS50168001	J
-35	CS51020000	N
-102	CS51020000	N
-6	CS51282101	Z
-4	CS51283001	Z
-22	CS52431000	P2
-19	CS52832000	L
-35	CS53488000	F1
-41	CS53488000	F1
-3	CS53982000	U2
-52	CS5476001	G
-22	CS55477001	A
-86	CS55477001	Z
-12	CS55481001	E
-29	CS55481001	E
-68	CS55481001	N
-15	CS55485001	Y
-48	CS55663001	Z
-34	CS56911000	N
-101	CS56911000	N
-49	CS58636001	A
-21	CS58636001	X
-32	CS59219000	U1
-11	CS59242001	B
-31	CS59242001	B
-45	CS59242001	B
-69	CSA0792001	A
-68	CSA0793001	A
	CSA0793001	Wa

Page 114 — 索引 / Index

Jack JK-T9820 parts on page 114
Ref	Part number	Part name
- 43	CSA1741014	Z
- 43	CSA1741016	Z
- 43	CSA1741018	Z
- 82	CSA1828001	F1
- 85	CSA2929001	Z
- 57	CSA3040001	N
- 58	CSA3060001	N
- 20	CSA3227001	P2
- 45	CSA3345001	P1
- 13	CSA3581101	S1
- 2	CSA3720101	S1
- 7	CSA3722001	S1
- 5	CSA3739501	S1
- 6	CSA3744001	S1
- 1	CSA3755201	S2
- 6	CSA3762001	S2
- 2	CSA3765001	S2
- 4	CSA3767001	S2
- 5	CSA3768001	S2
- 7	CSA3769001	S2
- 8	CSA3770001	S2
- 9	CSA3771001	S2
- 25	CSA3784001	Y
- 11	CSA3789101	T
- 10	CSA3794001	S2
- 11	CSA3795001	S2
- 14	CSA3796001	S1
- 9	CSA3806001	S1
- 3	CSA3808101	S1
- 8	CSA3809001	T
- 7	CSA3812001	T
- 1	CSA3813001	T
- 6	CSA3816001	T
- 3	CSA3819001	T
- 2	CSA3822001	T
- 4	CSA3825001	T
- 10	CSA3827001	T
- 13	CSA3838009	T
- 49	CSA3950001	Z
- 50	CSA4103001	Z
- 56	CSA4197001	G
- 12	CSA4510001	T
- 29	CSA4629001	C
- 21	CSA4857014	B
- 21	CSA4857016	B
- 21	CSA4857018	B
- 43	CSA4858014	Z
- 43	CSA4858016	Z
- 3	CSA5148001	W
- 33	CSA5158101	C
	CSA5244101	Sp
	CSA5245101	Sp
- 7	CSA5283001	U2
- 4	CSA5360001	W
- 49	CSA5433101	V
- 45	CSA5434001	V
- 75	CSA5435001	F1
- 18	CSA5549001	C
- 10	CSA5552001	E
- 27	CSA5552001	E
- 5	CSA5557001	F1
- 37	CSA5558001	F1
- 30	CSA5560001	F2
- 48	CSA5560001	F2
- 24	CSA5560001	F3
- 19	CSA5560001	AA1
- 73	CSA5560001	AA1
- 15	CSA5560001	AA4
- 84	CSA5560001	AA4
- 96	CSA5561001	F1
- 50	CSA5562001	F1
- 26	CSA5563001	F1
- 69	CSA5564001	G
- 28	CSA5564001	H
- 13	CSA5565001	C
- 16	CSA5565001	C
- 9	CSA5565001	J
- 11	CSA5565001	K
- 6	CSA5565001	M
- 79	CSA5567001	N
- 78	CSA5567001	N
- 80	CSA5567001	N
- 5	CSA5568001	Q1
- 2	CSA5570001	J
- 3	CSA5571001	C
- 5	CSA5571001	C
- 8	CSA5572001	C
- 26	CSA5572001	J
- 12	CSA5573001	C
- 8	CSA5573001	J
- 8	CSA5574001	E
- 25	CSA5574001	E
- 36	CSA5576001	F2
- 54	CSA5576001	F2
- 21	CSA5577001	AA4
- 90	CSA5577001	AA4
- 13	CSA5578001	F1
- 6	CSA5579001	F1
- 31	CSA5580001	F1
- 18	CSA5583001	F1
- 26	CSA5584001	F1
- 43	CSA5672001	F2
- 78	CSA5672001	AA4
	CSA5672001	Sp
- 24	CSA5673001	F2
- 9	CSA5673001	AA4
	CSA5673001	Sp
- 32	CSA5674001	F2
- 50	CSA5674001	F2
- 50	CSA5674001	F3
- 75	CSA5674001	AA1
- 17	CSA5674001	AA4
- 86	CSA5674001	AA4
- 81	CSA5674001	AA5
- 50	CSA5675001	F1
- 51	CSA5676001	F1
- 2	CSA5677001	F1
- 9	CSA5678001	F1
- 89	CSA5679001	F1
- 95	CSA5680001	F1
- 65	CSA5681001	F1
- 66	CSA5682001	F1
- 67	CSA5683001	F1
- 68	CSA5684001	F1
- 74	CSA5688101	F1
- 1	CSA5690001	F1
- 63	CSA5691001	F1
- 60	CSA5692001	F1
- 4	CSA5693001	Q1
- 15	CSA5693001	Q2
- 50	CSA5693001	AA1
- 6	CSA5696001	V
- 10	CSA5729001	V
- 11	CSA5730001	V
- 12	CSA5731001	V
- 13	CSA5732001	V
- 21	CSA5733001	V
- 23	CSA5734101	V
- 28	CSA5737001	V
- 30	CSA5738001	V
- 37	CSA5740001	V
- 38	CSA5741001	V
- 1	CSA5746001	A
- 2	CSA5747001	A
- 4	CSA5749001	A
- 5	CSA5750001	A
- 7	CSA5751001	A
- 9	CSA5752201	A
- 10	CSA5753001	A
- 20	CSA5754001	A
- 21	CSA5763001	A
- 25	CSA5764001	A
- 30	CSA5765101	A
- 32	CSA5766001	A
- 34	CSA5791101	A
- 35	CSA5792001	A
- 36	CSA5802001	A
- 40	CSA5803001	A
- 42	CSA5804001	A
- 47	CSA5805001	A
- 61	CSA5810001	A
- 62	CSA5811001	A
- 63	CSA5819001	A
- 64	CSA5820001	A
- 65	CSA5821001	A
- 22	CSA5830001	B
- 26	CSA5833001	B
- 28	CSA5834001	B
- 29	CSA5835001	B
- 34	CSA5837001	B
- 57	CSA5842001	B
- 50	CSA5843001	B
- 51	CSA5849001	B
- 54	CSA5850001	B
- 55	CSA5850001	B
- 58	CSA5865001	B
- 60	CSA5880001	B
- 1	CSA5890001	C
- 2	CSA5893001	C
- 6	CSA5897001	C
- 37	CSA5907001	B
- 41	CSA5908001	B
- 43	CSA5919001	B
- 44	CSA5920001	B
- 46	CSA5923001	B
- 1	CSA5936001	B
- 1	CSA6364001	S1
- 54	CSA6517001	G
- 55	CSA6518001	G
- 21	CSA6521001	G
- 22	CSA6522001	G
- 14	CSA6525001	U2
- 26	CSA6526101	U2
- 91	CSA6527001	F1
- 1	CSA6530001	V
- 26	CSA6531101	V
- 42	CSA6532001	V
- 14	CSA6533001	V
- 43	CSA6535001	V
- 44	CSA6536001	V
- 21	CSA6537001	P3
- 50	CSA6538001	P1
- 26	CSA6539001	P2
- 1	CSA6542001	E
- 5	CSA6546001	W
- 1	CSA6547001	W
- 2	CSA6550001	W
- 4	CSA6554001	S1
- 1	CSA6567101	Y
- 36	CSA6573001	U1
- 19	CSA6606001	Z
- 28	CSA6609001	Z
- 24	CSA6610001	Z
- 25	CSA6615001	Z
- 5	CSA6618001	V
- 10	CSA6629001	Z
- 46	CSA6636001	V
- 3	CSA6652001	B
- 5	CSA6653001	B
- 6	CSA6654101	B
- 8	CSA6655001	B
- 12	CSA6656001	B

Page 116 — 索引 / Index

Jack JK-T9820 parts on page 116
Ref	Part number	Part name
44	CSA6955001	P1 - 21
44	CSA6956101	P1 - 24
44	CSA6957001	P1 - 25
44	CSA6958001	P1 - 28
44	CSA6959001	P1 - 31
44	CSA6960101	P1 - 33
44	CSA6961001	P1 - 34
44	CSA6962001	P1 - 35
44	CSA6963001	P1 - 59
46	CSA6965001	P1 - 70
46	CSA6966001	P1 - 72
48	CSA6969101	P2 - 7
48	CSA6970001	P2 - 8
48	CSA6971001	P2 - 4
48	CSA6972001	P2 - 10
48	CSA6973001	P2 - 12
48	CSA6974001	P2 - 5
48	CSA6975101	P2 - 15
48	CSA6977001	P2 - 21
48	CSA6979001	P2 - 25
48	CSA6980001	P3 - 30
50	CSA6981001	P3 - 32
50	CSA6982001	P3 - 17
82	CSA6983001	AA2 - 29
50	CSA6983001	P3 - 19
50	CSA6984001	P3 - 20
28	CSA6985001	H - 59
82	CSA6986001	AA2 - 37
50	CSA6986101	P3 - 26
50	CSA6987001	P3 - 28
54	CSA6988001	Q2 - 1
54	CSA6989001	Q2 - 2
78	CSA6990001	AA1 - 37
54	CSA6990101	Q2 - 3
54	CSA6991001	Q2 - 4
54	CSA6992001	Q2 - 5
54	CSA6994001	Q2 - 6
54	CSA6996001	Q2 - 12
78	CSA6998001	AA1 - 52
54	CSA6998101	Q2 - 17
78	CSA6999001	AA1 - 53
54	CSA7001001	Q2 - 18
54	CSA7001001	Q2 - 23
78	CSA7002001	AA1 - 60
54	CSA7002101	Q2 - 25
54	CSA7003001	Q2 - 28
56	CSA7005001	R - 2
56	CSA7006001	R - 3
56	CSA7007001	R - 5
56	CSA7008001	R - 7
56	CSA7011001	R - 10
72	CSA7012001	X - 18
72	CSA7013001	X - 20
72	CSA7014001	X - 24
64	CSA7016001	U1 - 4
64	CSA7017001	U1 - 5
64	CSA7018001	U1 - 6
64	CSA7019001	U1 - 7
64	CSA7020001	U1 - 9
64	CSA7021001	U1 - 10
64	CSA7023001	U1 - 11
64	CSA7024001	U1 - 13
64	CSA7027001	U1 - 17
64	CSA7028001	U1 - 19
64	CSA7031001	U1 - 20
66	CSA7032001	U1 - 22
66	CSA7033001	U2 - 9
66	CSA7034001	U2 - 12
66	CSA7035001	U2 - 13
98	CSA7037001	Z - 41
100	CSA7038001	Z - 64
18	CSA7040001	F1 - 81
66	CSA7045001	U2 - 29
66	CSA7046001	U2 - 30
18	CSA7050001	F1 - 85
18	CSA7054001	F1 - 97
20	CSA7055001	F2 - 12
20	CSA7056001	F2 - 13
20	CSA7060001	F2 - 16
20	CSA7061001	F2 - 17
94	CSA7063001	AA5 - 69
88	CSA7064001	AA4 - 97
36	CSA7065001	L - 60
34	CSA7067101	L - 40
103	CSA7068001	Sp
20	CSA7069001	F2 - 2
78	CSA7070001	AA1 - 28
50	CSA7071001	P3 - 1
50	CSA7072001	P3 - 2
50	CSA7073001	P3 - 3
50	CSA7074001	P3 - 10
52	CSA7076001	Q1 - 21
52	CSA7077001	Q1 - 40
20	CSA7079001	F2 - 2
20	CSA7080001	F2 - 2
20	CSA7082101	F2 - 4
20	CSA7083001	F2 - 5
66	CSA7085001	U2 - 1
101	CSA7086001	Sp
76	CSA7087001	AA1 - 8
76	CSA7088001	AA1 - 8
76	CSA7089001	AA1 - 8
22	CSA7090001	F3 - 14
101	CSA7091001	Sp
76	CSA7092001	AA1 - 5
76	CSA7093001	AA1 - 5
76	CSA7094001	AA1 - 5
76	CSA7095001	AA1 - 5
76	CSA7097001	AA1 - 7
76	CSA7098001	AA1 - 7
76	CSA7099001	AA1 - 7
22	CSA7100001	F3 - 13
76	CSA7102001	AA1 - 4
76	CSA7103001	AA1 - 4
76	CSA7104001	AA1 - 4
22	CSA7105001	F3 - 9
76	CSA7106001	AA1 - 10
103	CSA7107001	Sp
103	CSA7108001	Sp
103	CSA7109001	Sp
103	CSA7110001	Sp
103	CSA7111001	Sp
68	CSA7119001	V - 47
74	CSA7121001	Y - 2
74	CSA7122001	Y - 3
74	CSA7123001	Y - 5
74	CSA7124001	Y - 14
100	CSA7127001	Z - 73
100	CSA7128001	Z - 74
100	CSA7129001	Z - 79
18	CSA7131001	F1 - 113
44	CSA7134001	P1 - 10
44	CSA7149001	P1 - 10
20	CSA7150101	F2 - 9
20	CSA7151101	F2 - 10
22	CSA7152001	F3 - 58
64	CSA7159001	U1 - 14
48	CSA7175201	P2 - 14
16	CSA7176001	F1 - 3
42	CSA7178001	N - 95
22	CSA7186001	F3 - 11
22	CSA7187001	F3 - 8
34	CSA7204101	L - 17
68	CSA7293001	V - 15
72	CSA7476001	X - 1
72	CSA7480001	X - 9
68	CSA7488001	V - 27
44	CSA7494001	P1 - 17
52	CSA7526001	Q1 - 1
16	CSA7527001	F1 - 16
6	CSA7531001	B - 47
102	CSA7534001	Sp
102	CSA7535001	Sp
101	CSA7536001	Sp
101	CSA7537001	Sp
36	CSA7546001	L - 90
34	CSA7547101	L - 46
20	CSA7550001	F2 - 38
20	CSA7551001	F2 - 56
18	CSA7555001	F1 - 101
2	CSA7556001	A - 11
103	CSA7567001	Sp
103	CSA7568001	Sp
66	CSA7580001	U1 - 38
66	CSA7581001	U2 - 24
64	CSA7583001	U1 - 28

Page 117

Jack JK-T9820 parts on page 117
Ref	Part number	Part name
64	CSA7584001	U1 - 29
64	CSA7585001	U1 - 30
64	CSA7586001	U1 - 31
64	CSA7587001	U1 - 33
64	CSA7588001	U1 - 34
64	CSA7589001	U1 - 35
66	CSA7591101	U2 - 16
66	CSA7592101	U2 - 17
66	CSA7593001	U2 - 18
66	CSA7594001	U2 - 19
64	CSA7595001	U1 - 37
66	CSA7596001	U2 - 21
66	CSA7597001	U2 - 22
66	CSA7598001	U2 - 20
6	CSA7609001	B - 35
36	CSA7613001	L - 63
36	CSA7614001	L - 64
36	CSA7615001	L - 67
36	CSA7634101	L - 86
84	CSA7726001	AA3 - 4
84	CSA7727001	AA3 - 10
76	CSA7728001	AA1 - 3
76	CSA7748001	AA1 - 2
76	CSA7749001	AA1 - 6
76	CSA7750001	AA1 - 1
76	CSA7751001	AA1 - 2
76	CSA7752001	AA1 - 1
76	CSA7753001	AA1 - 3
76	CSA7754001	AA1 - 2
76	CSA7755001	AA1 - 6
76	CSA7756001	AA1 - 1
76	CSA7757001	AA1 - 3
76	CSA7758001	AA1 - 2
76	CSA7762001	AA1 - 6
76	CSA7764001	AA1 - 1
76	CSA7768001	AA1 - 2
76	CSA7771001	AA1 - 1
82	CSA7773001	AA2 - 1
84	CSA7775001	AA3 - 2
84	CSA7776001	AA3 - 8
84	CSA7777001	AA3 - 1
52	CSA7778001	Q1 - 2
54	CSA7778001	Q2 - 13
78	CSA7778001	AA1 - 48
86	CSA7778001	AA4 - 27
92	CSA7778001	AA5 - 23
84	CSA7779001	AA3 - 2
84	CSA7780001	AA3 - 8
84	CSA7781001	AA3 - 1
86	CSA7782001	AA4 - 2
88	CSA7783001	AA4 - 95
86	CSA7784001	AA4 - 1
18	CSA7793001	F1 - 115
60	CSA7794001	S2 - 12
18	CSA7795001	F1 - 114
92	CSA7802001	AA5 - 2
92	CSA7803101	AA5 - 7
92	CSA7804001	AA5 - 1
92	CSA7805001	AA5 - 17
92	CSA7806001	AA5 - 16
94	CSA7807001	AA5 - 68
92	CSA7808001	AA5 - 15
18	CSA7973001	F1 - 69
18	CSA7974001	F1 - 70
18	CSA7975001	F1 - 71
18	CSA7976001	F1 - 116
18	CSA7977001	F1 - 117
18	CSA7978001	F1 - 118
38	SA8001001	M - 11
64	SA8003001	U1 - 40
42	CSA8009001	N - 98
42	SA8011001	N - 100
64	CSA8040001	U1 - 12
48	SA8094001	P2 - 16
48	SA8095001	P2 - 37
42	SA8101001	N - 103
64	SA8119001	U1 - 27
66	SA8120101	U2 - 15
24	SA8121001	G - 3
40	CSA8279001	N - 55

Page 7 — A. 机体部分 / Machine body

Page 9 — A. 机体部分 / Machine body

Page 11 — B. 针杆 · 挑线杆装置 / Needle bar and thread take-up mechanism

Page 13 — B. 针杆 · 挑线杆装置 / Needle bar and thread take-up mechanism

Page 15 — C. Upper shaft mechanism

Page 17 — D. 针摆装置 / Zigzag mechanism

Page 19 — E. 针杆摆动装置 / Needle bar rocking mechanism

Page 21 — F1. 压脚装置 / Presser foot mechanism

Page 23 — F1. 压脚部件 / Presser foot mechanism

Page 25 — F2. 压脚装置 / Presser foot mechanism

Page 27 — F3. 压脚部件 / Presser foot mechanism

Page 29 — G. 送布装置 / Feed mechanism

Page 31 — G. 送布装置 / Feed mechanism

Page 33 — H. 切刀装置 / Cutter mechanism

Page 35 — J. 下轴装置 / Lower shaft mechanism

Page 37 — K. 弯针装置 / Looper mechanism

Page 39 — L. 双链式弯针装置 / Double chain stitch looper mechanism

Page 41 — L. 双链式弯针装置 / Double chain stitch looper mechanism

Page 43 — M. 分纱装置 / Spreader mechanism

Page 45 — N. 供油润滑装置 / Lubrication

Page 47 — N. 供油润滑装置 / Lubrication

Page 49 — P1. 穿线装置 / Threading mechanism

Page 51 — P1. 穿线装置 / Threading mechanism

Page 53 — P2. 穿线装置 / Threading mechanism

Page 55 — P3. 穿线装置 / Threading mechanism

Page 57 — Q1. 切线装置 / Thread trimmer mechanism

Page 59 — Q2. 切线装置 / Thread trimmer mechanism

Page 61 — R. 面线剪切装置 / Upper thread trimmer mechanism

Page 63 — S1. 控制箱装置 / Control box mechanism

Page 65 — S2. 控制箱装置 (电源马达基板) / Control box mechanism (Power supply motor PCB)

Page 67 — T. 开关装置 / Power switch mechanism

Page 69 — U1. 空压装置 / Air pressure mechanism

Page 71 — U2. 空压装置 / Air pressure mechanism

Page 73 — V. 电气部品装置 / Power supply equipment mechanism

Page 75 — W. 操作盘装置 / Operation panel mechanism

Page 77 — X. 马达装置 / Motor mechanism

Page 79 — Y. 踏板开关关系 / Foot switch pedal mechanism

Page 81 — AA1. 附属装置 / Attachment set

Page 83 — AA1. 附属装置 / Attachment set

Page 85 — AA1. 附属装置 / Attachment set

Page 87 — AA2. 附属装置 / Attachment set

Page 89 — AA3. 附属装置 / Attachment set

Page 91 — AA4. 附属装置 / Attachment set

Page 93 — AA4. 附属装置 / Attachment set

Page 95 — AA4. 附属装置 / Attachment set

Page 97 — AA5. 附属装置 / Attachment set

Page 99 — AA5. 附属装置 / Attachment set

Page 101 — AA6. 附属装置 / Attachment set

Page 103 — Z. 附件 / Accessories

Page 105 — Z. 附件 / Accessories

Page 106 — Sp. 不同规格零部件一览表 / Different parts list

Page 107 — Sp . 不同规格零部件一览表 / Different parts list

Page 108 — Sp . 不同规格零部件一览表 / Different parts list

Page 109 — Wa. 警告标签 / Warning labels

Page 110 — 索引 / Index

Page 111 — 索引 / Index

Page 112 — 索引 / Index

Page 113 — 索引 / Index

Page 114 — 索引 / Index

Page 116 — 索引 / Index

Page 117

Jack JK-T9820 — parts catalog
