Jack JK-T9820 — Part Book | Jintex

Jack JK-T9820 — parts catalog

Page 16 — D . 针摆装置 / Zigzag mechanism

Jack JK-T9820 parts on page 16
RefPart numberPart nameQty
11Zigzag mechanism
22Zigzag mechanism
77Zigzag mechanism
88Zigzag mechanism
99Zigzag mechanism
1010Zigzag mechanism
1111Zigzag mechanism
1212Zigzag mechanism
1313Zigzag mechanism
1414Zigzag mechanism
1515Zigzag mechanism
1616Zigzag mechanism
1717Zigzag mechanism
1818Zigzag mechanism
1919Zigzag mechanism
2020Zigzag mechanism
2121Zigzag mechanism
2222Zigzag mechanism
2323Zigzag mechanism
2424Zigzag mechanism
2525Zigzag mechanism
2626Zigzag mechanism

D . 针摆装置 / Zigzag mechanism 17 1 13 12 11 8 9 7 2 22 21 23 10 15 14 16 25 10 20 19 18 24 22 11 jintex.in

Page 17 — D. 针摆装置 / Zigzag mechanism

Jack JK-T9820 parts on page 17
RefPart numberPart nameQty
CSA6677001针摆复合件1
CSA6678001针摆叉组件1
CSA6682001针摆连接杆组件1
CSA6684001段螺钉 M61
CSA6685001双头螺栓1
C 021060106螺母 M62
CSA6686001针摆曲柄1
C 155559001平垫圈1
CS35251101螺母 M61
CSA6687001针摆叉轴1
C 012061036螺钉 M6X101
CSA6688001针位调整板组件1
CS35252001针摆偏心销1
CSA6691001针摆驱动杆1
C 018061636螺栓 M6X161
CSA6692001垫圈1
CSA6693001针摆动轴1
C 012500536螺钉 M5X52
C 156482000橡胶皮 41
CSA6694001针摆臂1
CS35332001针杆抱箍1
C 018301236螺栓 M3X121

D. 针摆装置 / Zigzag mechanism 参照号 零件序号 数量 零件部件名称 NAME OF PARTS RM 1 CSA6677001 1 针摆复合件 ZIGZAG UNIT 2 CSA6678001 1 针摆叉组件 ZIGZAG FORK ASSY 7 CSA6682001 1 针摆连接杆组件 ZIGZAG CONNECTING ROD ASSY 8 CSA6684001 1 段螺钉 M6 SHOULDER SCREW M6 9 CSA6685001 1 双头螺栓 ZIGZAG CRANK SCREW 10 C 021060106 2 螺母 M6 NUT 1 M6 11 CSA6686001 1 针摆曲柄 ZIGZAG CRANK 12 C 155559001 1 平垫圈 WASHER PLAIN 13 CS35251101 1 螺母 M6 NUT M6 14 CSA6687001 1 针摆叉轴 ZIGZAG FORK SUPPORT SHAFT 15 C 012061036 1 螺钉 M6X10 SET SCREW SOCKET (FT) M6X10 16 CSA6688001 1 针位调整板组件 N-POSITION CONTROL PLATE ASSY 17 CS35252001 1 针摆偏心销 Z-ECCENTRIC PIN 18 CSA6691001 1 针摆驱动杆 ZIGZAG DRIVING LEVER 19 C 018061636 1 螺栓 M6X16 BOLT SOCKET M6X16 20 CSA6692001 1 垫圈 SPACER 21 CSA6693001 1 针摆动轴 ZIGZAG COAXIAL ROCK SHAFT 22 C 012500536 2 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 23 C 156482000 1 橡胶皮 4 CAP, 4 24 CSA6694001 1 针摆臂 ZIGZAG LEVER 25 CS35332001 1 针杆抱箍 NEEDLE BAR CLAMP 26 C 018301236 1 螺栓 M3X12 BOLT SOCKET M3X12 12

Page 18 — E . 针杆摆动装置 / Needle bar rocking mechanism

Jack JK-T9820 parts on page 18
RefPart numberPart nameQty
3030Belt
3232Pulley
2020Washer
2121Pulley
2929Screw
2727Bracket
2222Screw
1717Screw
2626Circlip
2424Pulley
1616Shaft
1414Spring
2525Bearing
1515Circlip
2828Washer
1313Shaft
11Motor
1010Lever
33Screw
44Pulley
1818Bracket
1212Screw
1919Screw
55Pulley
99Circlip
77Collar
88Washer
1111Washer
3131Belt

E . 针杆摆动装置 / Needle bar rocking mechanism 30 32 20 21 29 27 22 17 26 16 24 14 25 15 26 13 28 1 10 3 4 18 12 19 5 9 7 8 9 11 31 13 jintex.in

Page 19 — E. 针杆摆动装置 / Needle bar rocking mechanism

Jack JK-T9820 parts on page 19
RefPart numberPart nameQty
CSA6542001脉冲马达组件 R1
C J03663001高温标签 13X201
CS55487001螺钉(带垫圈) 5X164
CSA6695001送布轮组件 M1
C012060636螺钉 M6X62
CS35284101张力轮1
CSA5574001轴承 6000ZZ1
C048260242孔用挡圈 C262
CSA5552001支架组件1
C048100142轴用挡圈 C101
CS55481001螺钉(带垫圈) M4X122
CSA6699001弯针移动轴组件1
CSA6702001轴承 6201ZZ1
C048320242孔用挡圈 C321
CSA6703001紧圈1
C012060636螺钉 M6X62
CSA6704001马达定位1
C018061236螺钉 M6X122
CSA6705001轴承 6001ZZNR1
CSA6707001竖轴张力轮组件 U1
C018401636螺钉 M4X161
CSA6711001张力轮 U1
CSA5574001轴承 6000ZZ1
C048260242孔用挡圈 C262
CSA5552001支架组件1
C048100142轴用挡圈 C101
CS55481001螺钉(带垫圈) M4X122
CSA6712001T皮带 580-5GT1
CSA6713001T皮带 810-5GT1
CSA6714001橡胶塞 32.51

E. 针杆摆动装置 / Needle bar rocking mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 CSA6542001 1 脉冲马达组件 R PULSE MOTOR ASSY R 2 C J03663001 1 高温标签 13X20 LABEL, HIGH TEMP. 13X20 3 CS55487001 4 螺钉(带垫圈) 5X16 BOLT SOCKET (S/P WASHER)M5X16 4 CSA6695001 1 送布轮组件 M THETA M PULLEY ASSY 5 C012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 7 CS35284101 1 张力轮 TENSION PULLEY 8 CSA5574001 1 轴承 6000ZZ BALL BEARING 6000ZZ 9 C048260242 2 孔用挡圈 C26 RETAINING RING INTERNAL C26 10 CSA5552001 1 支架组件 T PULLEY HOLDER ASSY 11 C048100142 1 轴用挡圈 C10 RETAINING RING EXTERNAL C10 12 CS55481001 2 螺钉(带垫圈) M4X12 BOLT SOCKET (S/P WASHER)M4X12 13 CSA6699001 1 弯针移动轴组件 DRIVING LOOPER SHAFT ASSY 14 CSA6702001 1 轴承 6201ZZ BALL BEARING 6201ZZ 15 C048320242 1 孔用挡圈 C32 RETAINING RING INTERNAL C32 16 CSA6703001 1 紧圈 SET SCREW COLLAR 17 C012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 18 CSA6704001 1 马达定位 MOTOR STOPPER 19 C018061236 2 螺钉 M6X12 BOLT SOCKET M6X12 20 CSA6705001 1 轴承 6001ZZNR BALL BEARING 6001ZZNR 21 CSA6707001 1 竖轴张力轮组件 U V-PULLEY T-PULLEY U ASSY 22 C018401636 1 螺钉 M4X16 BOLT SOCKET M4X16 24 CSA6711001 1 张力轮 U TENSION PULLEY U 25 CSA5574001 1 轴承 6000ZZ BALL BEARING 6000ZZ 26 C048260242 2 孔用挡圈 C26 RETAINING RING INTERNAL C26 27 CSA5552001 1 支架组件 T PULLEY HOLDER ASSY 28 C048100142 1 轴用挡圈 C10 RETAINING RING EXTERNAL C10 29 CS55481001 2 螺钉(带垫圈) M4X12 BOLT SOCKET (S/P WASHER)M4X12 30 CSA6712001 1 T皮带 580-5GT T BELT 580-5GT 31 CSA6713001 1 T皮带 810-5GT T BELT 810-5GT 32 CSA6714001 1 橡胶塞 32.5 RUBBER CAP 32.5 Jintex.in 14

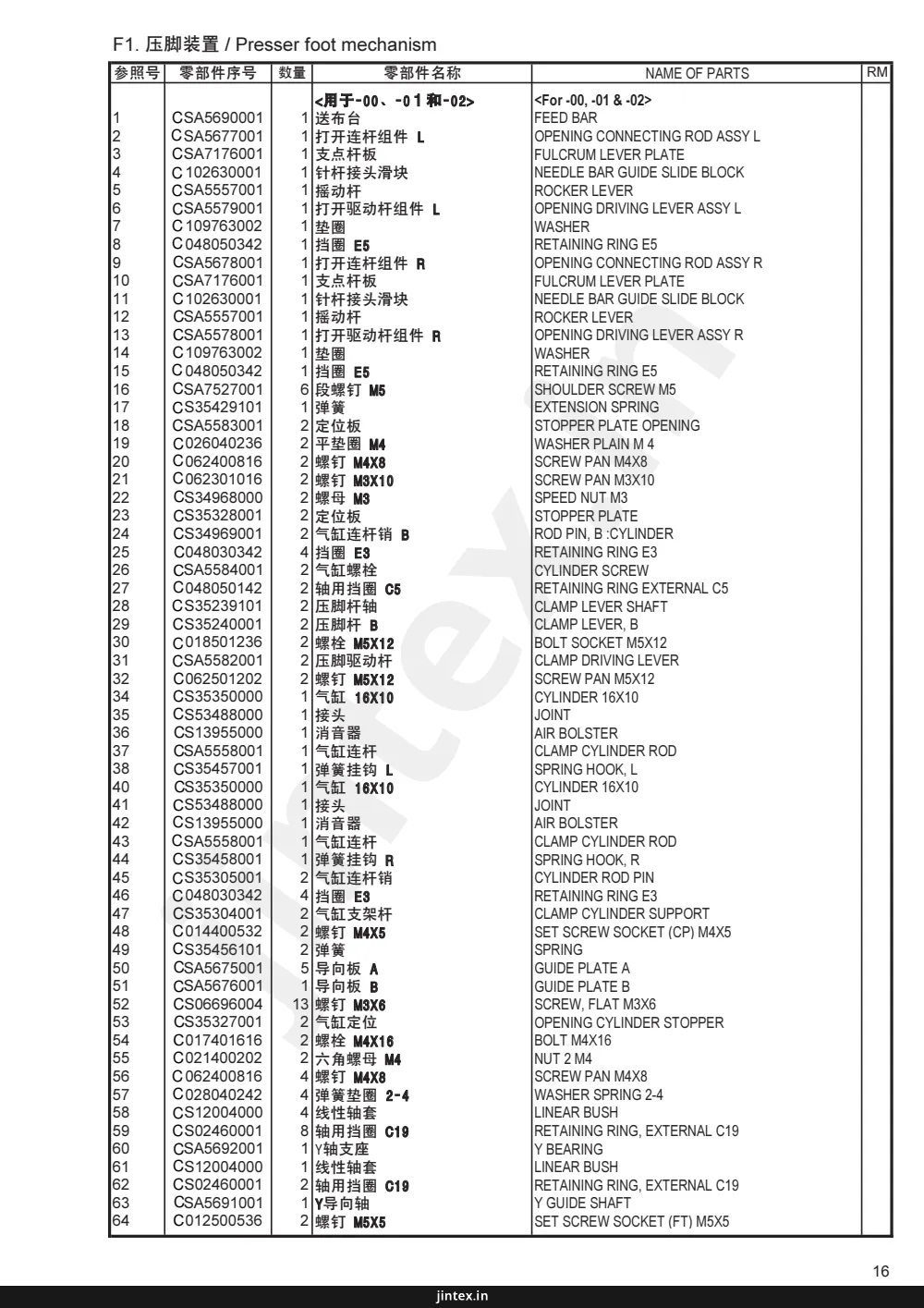

Page 21 — F1. 压脚装置 / Presser foot mechanism

Jack JK-T9820 parts on page 21
RefPart numberPart nameQty
CSA5690001<用于-00、-01 和-02>1
CSA5677001送布台1
CSA7176001打开连杆组件 L1
C 102630001支点杆板1
CSA5557001针接头滑块1
CSA5579001摇动杆1
C 109763002打开驱动杆组件 L1
C 048050342垫圈1
CSA5678001挡圈 E51
CSA7176001打开连杆组件 R1
C 102630001支点杆板1
CSA5557001针接头滑块1
CSA5578001摇动杆1
C 109763002打开驱动杆组件 R1
C 048050342垫圈1
CSA7527001挡圈 E56
CS35429101弹簧1
CSA5583001定位板2
C 026040236平垫圈 M42
C 062400816螺钉 M4X82
C 062301016螺钉 M3X102
CS34968000螺母 M32
CSA5579001定位板2
CS34969001气缸连杆销 B2
C 048030342挡圈 E34
CSA5584001气缸安装架2
C 048050142轴用挡圈 C52
CS35239101压脚杆轴2
CS35240001压脚杆 B2
C 018501236螺钉 M5X122
CSA5582001压脚驱动杆2
C 062501202螺钉 M5X122
CS35350000气缸 16X101
CS53480000接头1
CS13955000消音器1
CSA5558001气缸连杆1
CS35457001弹簧挂钩 L1
CS35350000气缸 16X101
CS53480000接头1
CS13955000消音器1
CSA5558001气缸连杆1
CS35458001弹簧挂钩 R1
CS35305001气缸连杆销2
C 048030342挡圈 E34
CS35304001气缸支架杆2
C 014400532螺钉 M4X52
CS35456101弹簧2
CSA5675001导向板 A5
CSA5676001导向板 B1
CS06696004螺钉 M3X613
CS35327001气缸定位2
C 017401616螺栓 M4X162
C 021400202六角螺母 M42
C 062400816螺钉 M4X84
C 028040242弹簧垫圈 2-44
CS12004000线性轴套4
CS02460001轴用挡圈 C198
CSA5692001Y轴套1
CS12004000线性轴套1
CS02460001轴用挡圈 C192
CSA5691001Y导向轴1
C 012500536螺钉 M5X52

F1. 压脚装置 / Presser foot mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 CSA5690001 1 <用于-00、-01 和-02> <For -00, -01 & -02> 2 CSA5677001 1 送布台 FEED BAR 3 CSA7176001 1 打开连杆组件 L OPENING CONNECTING ROD ASSY L 4 C 102630001 1 支点杆板 FULCRUM LEVER PLATE 5 CSA5557001 1 针接头滑块 NEEDLE BAR GUIDE SLIDE BLOCK 6 CSA5579001 1 摇动杆 ROCKER LEVER 7 C 109763002 1 打开驱动杆组件 L OPENING DRIVING LEVER ASSY L 8 C 048050342 1 垫圈 WASHER 9 CSA5678001 1 挡圈 E5 RETAINING RING E5 10 CSA7176001 1 打开连杆组件 R OPENING CONNECTING ROD ASSY R 11 C 102630001 1 支点杆板 FULCRUM LEVER PLATE 12 CSA5557001 1 针接头滑块 NEEDLE BAR GUIDE SLIDE BLOCK 13 CSA5578001 1 摇动杆 ROCKER LEVER 14 C 109763002 1 打开驱动杆组件 R OPENING DRIVING LEVER ASSY R 15 C 048050342 1 垫圈 WASHER 16 CSA7527001 6 挡圈 E5 RETAINING RING E5 17 CS35429101 1 弹簧 EXTENSION SPRING 18 CSA5583001 2 定位板 STOPPER PLATE OPENING 19 C 026040236 2 平垫圈 M4 WASHER PLAIN M4 20 C 062400816 2 螺钉 M4X8 SCREW PAN M4X8 21 C 062301016 2 螺钉 M3X10 SCREW PAN M3X10 22 CS34968000 2 螺母 M3 SPEED NUT M3 23 CSA5579001 2 定位板 STOPPER PLATE 24 CS34969001 2 气缸连杆销 B ROD PIN, B :CYLINDER 25 C 048030342 4 挡圈 E3 RETAINING RING E3 26 CSA5584001 2 气缸安装架 CYLINDER SUPPORT 27 C 048050142 2 轴用挡圈 C5 RETAINING RING EXTERNAL C5 28 CS35239101 2 压脚杆轴 CLAMP LEVER SHAFT 29 CS35240001 2 压脚杆 B CLAMP LEVER, B 30 C 018501236 2 螺钉 M5X12 BOLT SOCKET M5X12 31 CSA5582001 2 压脚驱动杆 CLAMP DRIVING LEVER 32 C 062501202 2 螺钉 M5X12 SCREW PAN M5X12 34 CS35350000 1 气缸 16X10 CYLINDER 16X10 35 CS53480000 1 接头 JOINT 36 CS13955000 1 消音器 AIR BOLSTER 37 CSA5558001 1 气缸连杆 CLAMP CYLINDER ROD 38 CS35457001 1 弹簧挂钩 L SPRING HOOK, L 40 CS35350000 1 气缸 16X10 CYLINDER 16X10 41 CS53480000 1 接头 JOINT 42 CS13955000 1 消音器 AIR BOLSTER 43 CSA5558001 1 气缸连杆 CLAMP CYLINDER ROD 44 CS35458001 1 弹簧挂钩 R SPRING HOOK, R 45 CS35305001 2 气缸连杆销 CYLINDER ROD PIN 46 C 048030342 4 挡圈 E3 RETAINING RING E3 47 CS35304001 2 气缸支架杆 CLAMP CYLINDER SUPPORT 48 C 014400532 2 螺钉 M4X5 SET SCREW SOCKET (CP) M4X5 49 CS35456101 2 弹簧 SPRING 50 CSA5675001 5 导向板 A GUIDE PLATE A 51 CSA5676001 1 导向板 B GUIDE PLATE B 52 CS06696004 13 螺钉 M3X6 SCREW, FLAT M3X6 53 CS35327001 2 气缸定位 OPENING CYLINDER STOPPER 54 C 017401616 2 螺栓 M4X16 BOLT M4X16 55 C 021400202 2 六角螺母 M4 NUT 2 M4 56 C 062400816 4 螺钉 M4X8 SCREW PAN M4X8 57 C 028040242 4 弹簧垫圈 2-4 WASHER SPRING 2-4 58 CS12004000 4 线性轴套 LINEAR BUSH 59 CS02460001 8 轴用挡圈 C19 RETAINING RING, EXTERNAL C19 60 CSA5692001 1 Y轴套 Y BEARING 61 CS12004000 1 线性轴套 LINEAR BUSH 62 CS02460001 2 轴用挡圈 C19 RETAINING RING, EXTERNAL C19 63 CSA5691001 1 Y导向轴 Y GUIDE SHAFT 64 C 012500536 2 螺钉 M5X5 SET SCREW SOCKET (FT) M5X5 16 jintex.in

Page 23 — F1. 压脚部件 / Presser foot mechanism

Jack JK-T9820 parts on page 23
RefPart numberPart nameQty
CSA5681001空气管 4X2.5-241
CSA5682001空气管 4X2.5-231
CSA5683001空气管 4X2.5-151
CSA5684001空气管 4X2.5-161
CSA7973001空气管 4X2.5-211
CSA7974001空气管 4X2.5-221
CSA7975001空气管 4X2.5-181
CS12104000结合接头 Y41
CS04557000电线夹 PLT1M5
CSA5688101螺旋卷线 L1
CSA5435001接地线 5501
C 052400606螺钉(垫圈3点) M4X61
CSA6727001板夹2
CS35324201段螺钉 M42
CS36345000垫圈2
CSA7043001气缸组件 T 16X151
CSA1828001接管头 KQ2T04-M52
CSA7970001气缸杆1
CSA7050001气缸组件 L 16X151
CS11426000弯管接头 4M52
CSA34970001气缸杆1
CSA5679001气缸组件 B 16X301
CS12150000管接头 M-5HL-42
CSA6527001感应器连接组件1
CSA34914101气缸支架1
CSA34913001气缸手柄1
C018400836螺栓 M4X82
CSA5680001空气管 4X2.5-191
CSA5561001空气管 4X2.5-201
CSA7053001轴套1
CSA7054001短轴1
C048050142轴用挡圈 C51
C014400532螺钉 M4X51
CSA7555001板弹簧1
C062400816螺钉 M4X82
CSA7043001气缸组件 T 16X152
CSA1828001接管头 KQ2T04-M54
CSA34970001气缸杆2
CSA6719001气缸组件 10X151
CS12150000管接头 M-5HL-42
CSA6720001辅助压脚 S 支架2
CS35351001气缸杆1
C062400816螺钉 M4X82
CSA6721001气缸杆销1
C025060236平垫圈 M61
C048060142轴用挡圈 C61
CSA6726001气缸连杆销1
C048030342挡圈 E32
CSA7711001空气管 4X2.5-1502
CSA7795001快速排气管2
CSA7793001速控 42
CSA7976001空气管 4X2.5-251
CSA7977001空气管 4X2.5-261
CSA7978001空气管 4X2.5-272

F1. 压脚部件 / Presser foot mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 65 CSA5681001 1 空气管 4X2.5-24 AIR TUBE 4X2.5-24 66 CSA5682001 1 空气管 4X2.5-23 AIR TUBE 4X2.5-23 67 CSA5683001 1 空气管 4X2.5-15 AIR TUBE 4X2.5-15 68 CSA5684001 1 空气管 4X2.5-16 AIR TUBE 4X2.5-16 69 CSA7973001 1 空气管 4X2.5-21 AIR TUBE 4X2.5-21 70 CSA7974001 1 空气管 4X2.5-22 AIR TUBE 4X2.5-22 71 CSA7975001 1 空气管 4X2.5-18 AIR TUBE 4X2.5-18 72 CS12104000 1 结合接头 Y4 UNION Y4 73 CS04557000 5 电线夹 PLT1M BAND, PLT1M 74 CSA5688101 1 螺旋卷线 L SPIRAL L 75 CSA5435001 1 接地线 550 GROUND WIRE 550 76 C 052400606 1 螺钉(垫圈3点) M4X6 SCREW, PAN (S/P WASHER) M4X6 77 CSA6727001 2 板夹 PLATE PRESSER 78 CS35324201 2 段螺钉 M4 SHOULDER SCREW M4 79 CS36345000 2 垫圈 WASHER, BENDING <用于-00和-01> <For -00 & -01> 81 CSA7043001 1 气缸组件 T 16X15 CYLINDER ASSY T 16X15 82 CSA1828001 2 接管头 KQ2T04-M5 JOINT, KQ2T04-M5 83 CSA7970001 1 气缸杆 CYLINDER ROD OPENING 85 CSA7050001 1 气缸组件 L 16X15 CYLINDER ASSY L 16X15 86 CS11426000 2 弯管接头 4M5 ELBOW UNION 4M5 87 CSA34970001 1 气缸杆 CYLINDER ROD OPENING <用于-01和-02> <For -01 & -02> 89 CSA5679001 1 气缸组件 B 16X30 CYLINDER ASSY B 16X30 90 CS12150000 2 管接头 M-5HL-4 TUBE ELBOW, M-5HL-4 91 CSA6527001 1 感应器连接组件 LOWER OFF SENSOR ASSY 92 CSA34914101 1 气缸支架 T-TRIM. CYLINDER SUPPORT PLATE 93 CSA34913001 1 气缸手柄 THREAD TRIMMER CYLINDER CLAW 94 C018400836 2 螺栓 M4X8 BOLT SOCKET M4X8 95 CSA5680001 1 空气管 4X2.5-19 AIR TUBE 4X2.5-19 96 CSA5561001 1 空气管 4X2.5-20 AIR TUBE 4X2.5-20 <用于-01> <For -01> 97 CSA7053001 1 轴套 G-THREAD TAKE-UP GUIDE COLLER 98 CSA7054001 1 短轴 G-THREAD TAKE-UP GUIDE SHAFT 99 C048050142 1 轴用挡圈 C5 RETAINING RING EXTERNAL C5 100 C014400532 1 螺钉 M4X5 SET SCREW SOCKET (CP) M4X5 101 CSA7555001 1 板弹簧 FEED BAR PLATE SPRING 102 C062400816 2 螺钉 M4X8 SCREW PAN M4X8 <用于-02> <For -02> 81 CSA7043001 2 气缸组件 T 16X15 CYLINDER ASSY T 16X15 82 CSA1828001 4 接管头 KQ2T04-M5 JOINT, KQ2T04-M5 83 CSA34970001 2 气缸杆 CYLINDER ROD OPENING 103 CSA6719001 1 气缸组件 10X15 CYLINDER ASSY 10X15 104 CS12150000 2 管接头 M-5HL-4 TUBE ELBOW, M-5HL-4 105 CSA6720001 2 辅助压脚 S 支架 AUX CLAMP S HOLDER 106 CS35351001 1 气缸杆 CYLINDER ROD 107 C062400816 2 螺钉 M4X8 SCREW PAN M4X8 108 CSA6721001 1 气缸杆销 AUX CLAMP CONNECTING ROD ASSY 109 C025060236 1 平垫圈 M6 WASHER PLAIN M6 110 C048060142 1 轴用挡圈 C6 RETAINING RING EXTERNAL C6 111 CSA6726001 1 气缸连杆销 CYLINDER ROD PIN 112 C048030342 2 挡圈 E3 RETAINING RING E3 113 CSA7711001 2 空气管 4X2.5-150 AIR TUBE 4X2.5-150 114 CSA7795001 2 快速排气管 QUICK EXHAUST 115 CSA7793001 2 速控 4 SPEED CONTROLLER 116 CSA7976001 1 空气管 4X2.5-25 AIR TUBE 4X2.5-25 117 CSA7977001 1 空气管 4X2.5-26 AIR TUBE 4X2.5-26 118 CSA7978001 2 空气管 4X2.5-27 AIR TUBE 4X2.5-27 18 jintex.in

Page 24 — F2 . 压脚装置 / Presser foot mechanism

Jack JK-T9820 parts on page 24
RefPart numberPart nameQty
44Presser foot mechanism
55Presser foot mechanism
11Presser foot mechanism
22Presser foot mechanism
1212Presser foot mechanism
1313Presser foot mechanism
1616Presser foot mechanism
1717Presser foot mechanism
88Presser foot mechanism
99Presser foot mechanism
1010Presser foot mechanism
1111Presser foot mechanism
1515Presser foot mechanism
1919Presser foot mechanism
2020Presser foot mechanism
2121Presser foot mechanism
2222Presser foot mechanism
2323Presser foot mechanism
2424Presser foot mechanism
2525Presser foot mechanism
2626Presser foot mechanism
2727Presser foot mechanism
2828Presser foot mechanism
2929Presser foot mechanism
3030Presser foot mechanism
3131Presser foot mechanism
3232Presser foot mechanism
3333Presser foot mechanism
3434Presser foot mechanism
3535Presser foot mechanism
3636Presser foot mechanism
3737Presser foot mechanism
3838Presser foot mechanism
3939Presser foot mechanism
4040Presser foot mechanism
4141Presser foot mechanism
4242Presser foot mechanism
4343Presser foot mechanism
4444Presser foot mechanism
4545Presser foot mechanism
4646Presser foot mechanism
4747Presser foot mechanism
4848Presser foot mechanism
4949Presser foot mechanism
5050Presser foot mechanism
5151Presser foot mechanism
5252Presser foot mechanism
5353Presser foot mechanism
5454Presser foot mechanism
5555Presser foot mechanism
5656Presser foot mechanism
5757Presser foot mechanism

F2 . 压脚装置 / Presser foot mechanism <-00 > 54 53 45 46 47 44 51 50 55 56 19 43 48 8 11 9 10 40 41 42 5 4 36 35 34 27 37 26 29 30 33 32 25 24 38 2 21 22 23 1 <-00 > <-01 > 54 53 45 46 47 44 51 50 56 19 43 48 57 20 49 55 16 36 35 34 27 37 15 26 29 30 33 32 25 24 38 17 13 21 22 23 12 <-01 > 19 jintex.in

Page 25 — F2. 压脚装置 / Presser foot mechanism

Jack JK-T9820 parts on page 25
RefPart numberPart nameQty
CSA7079001压脚总组件 R301
CSA7080001布压板组件 R1
CSA7082101压脚总组件 L301
CSA7083001布压板组件 L1
CSA7149001板弹簧1
CS35326101螺钉 M3.51
CSA7150101切线 A1
CSA7151101切线 B1
CS35326101螺钉 M3.51
CSA7055001压脚总组件 RS301
CSA7056001布压板组件 RS1
CS35330001压料板 R1
CSA7060001压脚总组件 LS301
CSA7061001布压板组件 LS1
CS35329001压料板 L1
CS06696004螺钉 M3X62
CS35315001角块1
CS35316001角块支撑板1
C060020416螺钉 M2X42
CSA5673001针板 R-421
CS06696004螺钉 M3X62
CS39932101压布 R-301
CS35236000垫圈 3.21
CS35235001支撑销1
C021300306螺母 M31
CSA5560001夹轴承受板1
C062400816螺钉 M4X82
CSA5674001支点轴1
C048060142轴用挡圈 C62
CSA5585001夹杆 R1
C018501236螺栓 M5X121
CSA5576001夹臂 R1
C014400532螺钉 M4X52
CSA7550001布挡板 R1
CS35326101螺钉 M3.51
CS35315001角块1
CS35316001角块支撑板1
C060020416螺钉 M2X42
CSA5672001针板 L-421
CS39931101压布 L-301
CS35236000垫圈 3.21
CS35235001支撑销1
C021300306螺母 M31
CSA5560001夹轴承受板1
C062400816螺钉 M4X82
CSA5674001支点轴1
C048060142轴用挡圈 C62
CSA5671001夹杆 L1
C018501236螺栓 M5X121
CSA5577001夹臂 L1
C014400532螺钉 M4X52
CSA7551001布挡板 L1
CS35326101螺钉 M3.51

F2. 压脚装置 / Presser foot mechanism 参照号 零件序号 数量 零件名称 NAME OF PARTS RM 1 CSA7079001 1 <用于-00> 1 压脚总组件 R30 <For -00> WORK CLAMP PLATE R30 UNIT 2 CSA7080001 1 布压板组件 R WORK CLAMP PLATE R ASSY 4 CSA7082101 1 压脚总组件 L30 WORK CLAMP PLATE L30 UNIT 5 CSA7083001 1 布压板组件 L WORK CLAMP PLATE L ASSY 7 CSA7149001 1 板弹簧 PLATE SPRING 8 CS35326101 1 螺钉 M3.5 SCREW M3.5 9 CSA7150101 1 切线 A THREAD TRIMMER A 10 CSA7151101 1 切线 B THREAD TRIMMER B 11 CS35326101 1 螺钉 M3.5 SCREW M3.5 12 CSA7055001 1 <用于-01> 1 压脚总组件 RS30 <For -01> WORK CLAMP PLATE RS30 UNIT 13 CSA7056001 1 布压板组件 RS WORK CLAMP PLATE RS ASSY 15 CS35330001 1 压料板 R WORK CLAMP PLATE, R 16 CSA7060001 1 压脚总组件 LS30 WORK CLAMP PLATE LS30 UNIT 17 CSA7061001 1 布压板组件 LS WORK CLAMP PLATE LS ASSY 20 CS35329001 1 压料板 L WORK CLAMP PLATE, L 19 CS06696004 2 螺钉 M3X6 SCREW, FLAT M3X6 21 CS35315001 1 角块 OPENING SLIDE BLOCK 22 CS35316001 1 角块支撑板 SLIDE BLOCK SUPPORT PLATE 23 C060020416 2 螺钉 M2X4 SCREW BIND M2X4 24 CSA5673001 1 针板 R-42 NEEDLE PLATE R-42 25 CS06696004 2 螺钉 M3X6 SCREW, FLAT M3X6 26 CS39932101 1 压布 R-30 CLOTH WORK CLAMP, R-30 27 CS35236000 1 垫圈 3.2 WASHER, BENDING 3.2 28 CS35235001 1 支撑销 SUPPORT PIN, CLAMP 29 C021300306 1 螺母 M3 NUT 3 M3 30 CSA5560001 1 夹轴承受板 CLAMP SHAFT HOLDER 31 C062400816 2 螺钉 M4X8 SCREW PAN M4X8 32 CSA5674001 1 支点轴 CLAMP FULCRUM SHAFT 33 C048060142 2 轴用挡圈 C6 RETAINING RING EXTERNAL C6 34 CSA5585001 1 夹杆 R CLAMP LEVER R 35 C018501236 1 螺栓 M5X12 BOLT SOCKET M5X12 36 CSA5576001 1 夹臂 R CLAMP ARM R 37 C014400532 2 螺钉 M4X5 SET SCREW SOCKET (CP) M4X5 38 CSA7550001 1 布挡板 R CROTH GUIDE R 39 CS35326101 1 螺钉 M3.5 SCREW M3.5 40 CS35315001 1 角块 OPENING SLIDE BLOCK 41 CS35316001 1 角块支撑板 SLIDE BLOCK SUPPORT PLATE 42 C060020416 2 螺钉 M2X4 SCREW BIND M2X4 43 CSA5672001 1 针板 L-42 NEEDLE PLATE L-42 44 CS39931101 1 压布 L-30 CLOTH WORK CLAMP, L-30 45 CS35236000 1 垫圈 3.2 WASHER, BENDING 3.2 46 CS35235001 1 支撑销 SUPPORT PIN, CLAMP 47 C021300306 1 螺母 M3 NUT 3 M3 48 CSA5560001 1 夹轴承受板 CLAMP SHAFT HOLDER 49 C062400816 2 螺钉 M4X8 SCREW PAN M4X8 50 CSA5674001 1 支点轴 CLAMP FULCRUM SHAFT 51 C048060142 2 轴用挡圈 C6 RETAINING RING EXTERNAL C6 52 CSA5671001 1 夹杆 L CLAMP LEVER L 53 C018501236 1 螺栓 M5X12 BOLT SOCKET M5X12 54 CSA5577001 1 夹臂 L CLAMP ARM L 55 C014400532 2 螺钉 M4X5 SET SCREW SOCKET (CP) M4X5 56 CSA7551001 1 布挡板 L CROTH GUIDE L 57 CS35326101 1 螺钉 M3.5 SCREW M3.5 jintex.in 20

Page 26 — F3 . 压脚装置 / Presser foot mechanism

Jack JK-T9820 parts on page 26
RefPart numberPart nameQty
4L2230Presser foot mechanism
11L1826Presser foot mechanism
44Presser foot mechanism
77Presser foot mechanism
4444Presser foot mechanism
4545Presser foot mechanism
4646Presser foot mechanism
4747Presser foot mechanism
5454Presser foot mechanism
5353Presser foot mechanism
5252Presser foot mechanism
5151Presser foot mechanism
5050Presser foot mechanism
4848Presser foot mechanism
5656Presser foot mechanism
5757Presser foot mechanism
66Presser foot mechanism
4141Presser foot mechanism
4242Presser foot mechanism
4343Presser foot mechanism
55Presser foot mechanism
11Presser foot mechanism
1515Presser foot mechanism
3030Presser foot mechanism
2929Presser foot mechanism
2828Presser foot mechanism
3131Presser foot mechanism
2222Presser foot mechanism
2121Presser foot mechanism
2323Presser foot mechanism
2020Presser foot mechanism
22Presser foot mechanism
3232Presser foot mechanism
2626Presser foot mechanism
2727Presser foot mechanism
3535Presser foot mechanism
3737Presser foot mechanism
2525Presser foot mechanism
3636Presser foot mechanism
3434Presser foot mechanism
3939Presser foot mechanism
3838Presser foot mechanism
1414Presser foot mechanism
1313Presser foot mechanism
4949Presser foot mechanism
1212Presser foot mechanism
88Presser foot mechanism
33Presser foot mechanism
1010Presser foot mechanism
99Presser foot mechanism

F3 . 压脚装置 / Presser foot mechanism < -02 : L2230 > 4 47 7 46 54 53 52 45 44 51 50 48 56 57 6 41 42 43 5 1 15 30 29 28 31 22 21 23 20 2 32 26 27 35 37 25 36 34 39 38 < -02 : L2230 > < -02 : L1826 > 54 53 52 11 45 47 14 46 51 55 44 50 57 56 13 48 49 12 8 15 3 29 28 31 22 21 23 24 27 35 20 26 37 9 32 25 36 34 39 38 < -02 : L1826 > 21 jintex.in

Page 27 — F3. 压脚部件 / Presser foot mechanism

Jack JK-T9820 parts on page 27
RefPart numberPart nameQty
CSA6728001<用于-02: L2230>1
CSA6731001压脚板组件 R22301
CSA6732001针板 L2230R1
CSA6738001压布板 R-JL22301
CSA6739001压脚板组件 L22301
CSA6741001针板 L2230L1
CSA6742001压布板 L-JL22301
CSA7187001<用于-02: L1826>1
CSA7105001压脚板组件 R18261
CSA7090001针板 L1826R1
CSA7186001压布板 R-JL18261
CSA6739001压脚板组件 L18261
CSA7100001针板 L-JL1
CSA7090001压布板 L-JL18261
CSA6729001布压板组件 JR1
CS35315001角块1
CS35316001角块支撑板1
C060020416螺钉 M3X42
CS06696004螺钉 M3X62
CS35236000垫圈 3.21
CS35235001支撑销1
C021300306螺母 M31
CSA5560001夹轴承受板1
C062400816螺钉 M4X82
CSA6733001支点轴 J1
C048060142轴用挡圈 C62
CSA5585001夹杆 R1
C018501236螺栓 M5X121
CSA6734001夹臂 R-J1
C014400532螺钉 M4X52
CSA7550001布挡板 R1
CS35326101螺钉 M3.51
CSA6735001辅助压脚臂1
C048060142轴用挡圈 C61
CSA6736001辅助压脚杆1
C01401036螺栓 M4X101
CS0350000扣夹 A1
CSA6737001回复弹簧1
CS35315001角块1
CS35316001角块支撑板1
C060020416螺钉 M2X42
CS06696004螺钉 M3X62
CS35236000垫圈 3.21
CS35235001支撑销1
C021300306螺母 M31
CSA5560001夹轴承受板1
C062400816螺钉 M4X82
CSA5674001支点轴1
C048060142轴用挡圈 C62
CSA5671001夹杆 L1
C018501236螺栓 M5X121
CSA6743001夹臂 L-J1
C014400532螺钉 M4X52
CSA7551001布挡板 L1
CS35326101螺钉 M3.51
CSA7152001<选购件> 辅助压脚杆 L1

F3. 压脚部件 / Presser foot mechanism 参照号 零件部件序号 数量 零件部件名称 NAME OF PARTS RM 1 CSA6728001 1 <用于-02: L2230> <For -02 : L2230> 2 CSA6731001 1 压脚板组件 R2230 WORK CLAMP PLATE R2230 UNIT 3 CSA6732001 1 针板 L2230R NEEDLE PLATE L 2230R 4 CSA6738001 1 压布板 R-JL2230 WORK CLAMP PLATE R-JL2230 5 CSA6739001 1 压脚板组件 L2230 WORK CLAMP PLATE L2230 UNIT 6 CSA6741001 1 针板 L2230L NEEDLE PLATE L 2230L 7 CSA6742001 1 压布板 L-JL2230 WORK CLAMP L-JL2230 8 CSA7187001 1 <用于-02: L1826> <For -02: L1826> 9 CSA7105001 1 压脚板组件 R1826 WORK CLAMP PLATE R1826 ASSY 10 CSA7090001 1 针板 L1826R NEEDLE PLATE L1826R 11 CSA7186001 1 压布板 R-JL1826 WORK CLAMP R-JL1826 12 CSA6739001 1 压脚板组件 L1826 WORK CLAMP PLATE L1826 ASSY 13 CSA7100001 1 针板 L-JL NEEDLE PLATE L-JL ASSY 14 CSA7090001 1 压布板 L-JL1826 WORK CLAMP L-JL1826 15 CSA6729001 1 布压板组件 JR WORK CLAMP PLATE JR UNIT 17 CS35315001 1 角块 OPENING SLIDE BLOCK 18 CS35316001 1 角块支撑板 SLIDE BLOCK SUPPORT PLATE 19 C060020416 2 螺钉 M3X4 SCREW BIND M3X4 20 CS06696004 2 螺钉 M3X6 SCREW, FLAT M3X6 21 CS35236000 1 垫圈 3.2 WASHER, BENDING 3.2 22 CS35235001 1 支撑销 SUPPORT PIN, CLAMP 23 C021300306 1 螺母 M3 NUT 3 M3 24 CSA5560001 1 夹轴承受板 CLAMP SHAFT HOLDER 25 C062400816 2 螺钉 M4X8 SCREW PAN M4X8 26 CSA6733001 1 支点轴 J CLAMP FULCRUM SHAFT J 27 C048060142 2 轴用挡圈 C6 RETAINING RING EXTERNAL C6 28 CSA5585001 1 夹杆 R CLAMP LEVER R 29 C018501236 1 螺栓 M5X12 BOLT SOCKET M5X12 30 CSA6734001 1 夹臂 R-J CLAMP ARM R-J 31 C014400532 2 螺钉 M4X5 SET SCREW SOCKET (CP) M4X5 32 CSA7550001 1 布挡板 R CROTH GUIDE R 33 CS35326101 1 螺钉 M3.5 SCREW M3.5 34 CSA6735001 1 辅助压脚臂 AUX CLAMP ARM 35 C048060142 1 轴用挡圈 C6 RETAINING RING EXTERNAL C6 36 CSA6736001 1 辅助压脚杆 SUB AUX CLAMP WRIST 37 C01401036 1 螺栓 M4X10 BOLT SOCKET M4X10 38 CS0350000 1 扣夹 A BUTTON CLAMP, A 39 CSA6737001 1 回复弹簧 AUX CLAMP TS WIST SPRING 41 CS35315001 1 角块 OPENING SLIDE BLOCK 42 CS35316001 1 角块支撑板 SLIDE BLOCK SUPPORT PLATE 43 C060020416 2 螺钉 M2X4 SCREW BIND M2X4 44 CS06696004 2 螺钉 M3X6 SCREW, FLAT M3X6 45 CS35236000 1 垫圈 3.2 WASHER, BENDING 3.2 46 CS35235001 1 支撑销 SUPPORT PIN, CLAMP 47 C021300306 1 螺母 M3 NUT 3 M3 48 CSA5560001 1 夹轴承受板 CLAMP SHAFT HOLDER 49 C062400816 2 螺钉 M4X8 SCREW PAN M4X8 50 CSA5674001 1 支点轴 CLAMP FULCRUM SHAFT 51 C048060142 2 轴用挡圈 C6 RETAINING RING EXTERNAL C6 52 CSA5671001 1 夹杆 L CLAMP LEVER L 53 C018501236 1 螺栓 M5X12 BOLT SOCKET M5X12 54 CSA6743001 1 夹臂 L-J CLAMP ARM L-J 55 C014400532 2 螺钉 M4X5 SET SCREW SOCKET (CP) M4X5 56 CSA7551001 1 布挡板 L CROTH GUIDE L 57 CS35326101 1 螺钉 M3.5 SCREW M3.5 <选购件> <Option parts> 58 CSA7152001 1 辅助压脚杆 L SUPPORT WORK CLAMP ARM L jintex.in 22

Page 28

Jack JK-T9820 parts on page 28
RefPart numberPart nameQty
1SHAFT
2BRACKET
3COVER
4SCREW
5SHAFT
6BRACKET
7BRACKET
8SCREW
9SCREW
10BRACKET
11SHAFT
12SHAFT
13SCREW
14SCREW
15SCREW
16SLEEVE
17BRACKET
18SCREW
19SHAFT
20BRACKET
21MOTOR
22CONNECTOR
23SCREW
24WASHER
25GEAR
26SCREW
27BRACKET
28SCREW
29PULLEY
30SCREW
31BEARING
32SHAFT
33BEARING
34SCREW
35RING
36SHAFT
37RING
38SHAFT
39GEAR
40BELT
41BRACKET
42SCREW
43BRACKET
44SCREW
45SCREW
46SHAFT
47BRACKET
48SCREW
49BRACKET
50BRACKET
51SCREW
52SCREW
53MOTOR
54MOTOR
55CONNECTOR
56SHAFT
57SCREW
58SCREW
59WASHER
60BRACKET
61GEAR
62SCREW
63BEARING
64RING
65SHAFT
66SCREW
67BRACKET
68RING
69SCREW
70SCREW

G . 送布装置 / Feed mechanism < -01 > 69 23 jintex.in

Page 29 — G. 送布装置 / Feed mechanism

Jack JK-T9820 parts on page 29
RefPart numberPart nameQty
CSA6744001送料台盖 L1
CSA6745001送料台盖 R1
CSA8121001送料台盖组件 U1
C 004401003螺钉 M4X1012
CSA6747001X送布轴架 S1
CSA6748001X送布轴架 N1
CSA6749001X齿条2
C018501636螺栓 M5X164
CSA6750001Y送布导向轴2
C012060636螺钉 M6X64
CSA6751101X送布导向轴 A1
CSA6752101X送布导向轴 B1
C012060636螺钉 M6X62
C018501636螺栓 M4X164
C025040136平垫圈 S44
CS35183000直线形轴套 124
CSA5562001定位板4
C062300416螺钉 M3X44
CSA6753001Y送料组件1
CSA6754001Y送料基座1
CSA6521001脉冲马达组件 Y1
CSA6522001马达接线 Y1
C018401436螺栓 M4X144
C026040136平垫圈 S44
CSA6755001驱动齿轮 201
C012060636螺钉 M6X62
CSA6756001Y轮基座1
C3A6001001螺栓(带垫圈) M5X202
CSA6757001Y同步带轮组件2
C012060636螺钉 M6X64
C048160242轴用挡圈 C162
CSA6760001Y手轮轴 R1
C530138001微型轴承 82
C018502536螺栓 M5X251
C048080142轴用挡圈 C82
CSA6761001Y手轮轴 F1
C070688850R球轴承 688ZZ2
CSA6762001空转齿轮 401
C012060636螺钉 M6X62
CSA6763001T皮带 320-5GT1
CSA6764001皮带支板1
C018400836螺栓 M4X82
CSA6765001Y驱动轴支架1
C018501636螺栓 M5X161
C018061636螺栓 M6X163
CSA6766001Y轴1
CSA6767001Y轴支架1
C018501436螺栓 M5X141
CS12004000线性轴套2
CSA5562001定位板2
C062300416螺钉 M3X42
CSA55476001螺栓(带垫圈) M6X122
CSA6768001X送料组件1
CSA6517001X脉冲马达组件 X1
CSA6518001马达接线 X1
CSA4197001送料齿轮1
C012060636螺钉 M6X62
C018401436螺栓 M4X144
C026040136平垫圈 S44
CSA6769001X马达支座1
CSA6770001空转齿轮2
C012060636螺钉 M6X64
CSA6771001轴承 6001ZZ2

G. 送布装置 / Feed mechanism 参照号 零件部件号 数量 零件部件名称 NAME OF PARTS RM 1 CSA6744001 1 送料台盖 L FEED BAR COVER L 2 CSA6745001 1 送料台盖 R FEED BAR COVER R 3 CSA8121001 1 送料台盖组件 U FEED BAR COVER U ASSY 4 C 004401003 12 螺钉 M4X10 SCREW, FLAT M4X10 5 CSA6747001 1 X送布轴架 S X FEED SHAFT HOLDER S 6 CSA6748001 1 X送布轴架 N X FEED SHAFT HOLDER N 7 CSA6749001 2 X齿条 X RACK 8 C018501636 4 螺栓 M5X16 BOLT SOCKET M5X16 9 CSA6750001 2 Y送布导向轴 Y FEED GUIDE SHAFT 10 C012060636 4 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 11 CSA6751101 1 X送布导向轴 A X FEED GUIDE SHAFT 12 CSA6752101 1 X送布导向轴 B X FEED GUIDE SHAFT 13 C012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 14 C018501636 4 螺栓 M4X16 BOLT SOCKET M4X16 15 C025040136 4 平垫圈 S4 WASHER PLAIN S4 16 CS35183000 4 直线形轴套 12 LINEAR BUSH, 12 17 CSA5562001 4 定位板 BALL BEARING STOPPER 18 C062300416 4 螺钉 M3X4 SCREW PAN M3X4 19 CSA6753001 1 Y送料组件 Y FEED ASSY 20 CSA6754001 1 Y送料基座 Y FEED BASE 21 CSA6521001 1 脉冲马达组件 Y PULSE MOTOR ASSY Y 22 CSA6522001 1 马达接线 Y MOTOR HARNESS Y 23 C018401436 4 螺栓 M4X14 BOLT SOCKET M4X14 24 C026040136 4 平垫圈 S4 WASHER PLAIN S4 25 CSA6755001 1 驱动齿轮 20 DRIVING GEAR 20 26 C012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 27 CSA6756001 1 Y轮基座 Y PULLEY SUPPORT 28 C3A6001001 2 螺栓(带垫圈) M5X20 BOLT SOCKET (S/P WASHER) M5X20 29 CSA6757001 2 Y同步带轮组件 Y TIMING PULLEY ASSY 30 C012060636 4 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 31 C048160242 2 轴用挡圈 C16 RETAINING RING INTERNAL C16 32 CSA6760001 1 Y手轮轴 R Y PULLEY SHAFT 33 C530138001 2 微型轴承 8 BALL BEARING MICRO 8 34 C018502536 1 螺栓 M5X25 BOLT SOCKET M5X25 35 C048080142 2 轴用挡圈 C8 RETAINING RING EXTERNAL C8 36 CSA6761001 1 Y手轮轴 F Y PULLEY SHAFT F 37 C070688850 2 R球轴承 688ZZ BALL BEARING RADIAL 688ZZ 38 CSA6762001 1 空转齿轮 40 IDLER GEAR 40 39 C012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 40 CSA6763001 1 T皮带 320-5GT T BELT 320-5GT 41 CSA6764001 1 皮带支板 BELT HOLDER 42 C018400836 2 螺栓 M4X8 BOLT SOCKET M4X8 43 CSA6765001 1 Y驱动轴支架 Y DRIVING SHAFT HOLDER 44 C018501636 1 螺栓 M5X16 BOLT SOCKET M5X16 45 C018061636 3 螺栓 M6X16 BOLT SOCKET M6X16 46 CSA6766001 1 Y轴 Y SHAFT 47 CSA6767001 1 Y轴支架 Y SHAFT HOLDER 48 C018501436 1 螺栓 M5X14 BOLT SOCKET M5X14 49 CS12004000 2 线性轴套 LINEAR BUSH 50 CSA5562001 2 定位板 BALL BEARING STOPPER 51 C062300416 2 螺钉 M3X4 SCREW PAN M3X4 52 CSA55476001 2 螺栓(带垫圈) M6X12 BOLT SOCKET (S/P WASHER)M6X12 53 CSA6768001 1 X送料组件 X FEED ASSY 54 CSA6517001 1 X脉冲马达组件 X PULSE MOTOR ASSY X 55 CSA6518001 1 马达接线 X MOTOR HARNESS X 56 CSA4197001 1 送料齿轮 FEED GEAR 57 C012060636 2 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 58 C018401436 4 螺栓 M4X14 BOLT SOCKET M4X14 59 C026040136 4 平垫圈 S4 WASHER PLAIN S4 60 CSA6769001 1 X马达支座 X MOTOR SUPPORT 61 CSA6770001 2 空转齿轮 IDLER GEAR 62 C012060636 4 螺钉 M6X6 SET SCREW SOCKET (FT) M6X6 63 CSA6771001 2 轴承 6001ZZ BALL BEARING 6001ZZ jintex.in 24

Page 30 — G . 送布装置 / Feed mechanism

Jack JK-T9820 parts on page 30
RefPart numberPart nameQty
1SHAFT
2BRACKET
3COVER
4SCREW
5BRACKET
6SHAFT
7BRACKET
8SHAFT
9SHAFT
10BRACKET
11SHAFT
12SHAFT
13BRACKET
14SCREW
15WASHER
16SLEEVE
17BRACKET
18SCREW
19SHAFT
20BRACKET
21MOTOR
22CONNECTOR
23SCREW
24WASHER
25GEAR
26SCREW
27BRACKET
28SCREW
29PULLEY
30SCREW
31BEARING
32SHAFT
33BEARING
34SCREW
35RING
36SHAFT
37BEARING
38SHAFT
39GEAR
40BELT
41BRACKET
42SCREW
43BRACKET
44SCREW
45SCREW
46SHAFT
47BRACKET
48SCREW
49BRACKET
50SLEEVE
51SCREW
52BRACKET
53MOTOR
54MOTOR
55CONNECTOR
56SHAFT
57SCREW
58SHAFT
59SCREW
60BRACKET
61GEAR
62SCREW
63BEARING
64RING
65SHAFT
66SCREW
67BRACKET
68RING
69SCREW
70SCREW

G . 送布装置 / Feed mechanism < -01 > 25 jintex.in
