Page 18 — 6.1、X送料装置(丝杆传动)/X Feed mechanism (Screw drive)
Jack MS-90A parts on page 18| Ref | Part number | Part name | Qty |
|---|
| 1 | 421S13027 | 螺钉M5×12(带垫圈) | 2 |
| 2 | 407N1002 | 自锁螺母M4 | 2 |
| 930000021 | 丝杆Y拖链支架 | 1 |
| 41811027 | 塑料拖链1825 | 1 |
| S05059 | 螺钉M4×12(镀镍) | 2 |
| 42136014 | 安装板直通接管(带螺纹) | 2 |
| 407N1002 | 自锁螺母M4 | 2 |
| 141811001 | 小拖链 | 1 |
| S05057 | 螺钉M4×6(镀镍) | 2 |
| S05059 | 螺钉M4×12(镀镍) | 2 |
| S04078 | 螺钉M4×8 | 5 |
| 930000022 | 丝杆电机罩 | 1 |
| S05124 | 螺栓M5×16(滚花,镀镍) | 4 |
| 41833016 | X丝杆伺服电机 | 1 |
| 930000020 | 线罩 | 1 |
| 417S30025 | 十字槽盘头螺钉M4×10DB | 8 |
| 4182401600 | 丝杆组件 | 1 |
| 41730851 | 传感器 | 1 |
| 421S13049 | 螺钉M3×12 | 1 |
| 1.4181E+10 | 丝杆拖链导板组件 | 1 |
| 417S15008 | 螺钉M4×8 | 4 |
| 41708005 | M5螺纹套 | 8 |
| S05040 | 螺栓M6×16 | 4 |
| 42128040 | 垫片M6 | 4 |
| 41801052 | 丝杆送料联接座 | 2 |
| 421S13065 | 螺栓M5×16(滚花,镀镍)(带垫圈) | 8 |
| S04082 | 螺钉M3×6 | 4 |
| S05116 | 螺钉M4×8 | 2 |
| 41812146 | 储油脂盒安装板 | 1 |
| 41836011 | 铜卡套式直通油管接头M6 | 1 |
| 41836018 | 直角油管接头90度M6 | 1 |
| 41842041 | Y丝杠储油脂盒 | 1 |
| 41822016 | O型圈17×2.65 | 2 |
| 41842042 | 活芯子 | 1 |
| 41812145 | 储油脂盒盖板 | 1 |
| S04076 | 螺钉M3×8 | 4 |
| S04125 | 十字槽盘头螺钉M4/50 | 1 |
| 141812027 | 垫块 | 1 |
| N01024 | 六角螺母M4 | 1 |
| 41836501 | 管接头PU4(直通) | 1 |
| 41812134 | Y拖链后支架 | 1 |
| S05115 | 螺栓(带垫圈)M4×6 | 2 |
| 417S30034 | 螺钉(带垫圈)M4×14 | 2 |
| 141830005 | 低压驱动器 | 1 |
| S05116 | 螺栓M4×8(滚花,镀镍)(切换) | 2 |
6.1、X送料装置(丝杆传动)/X Feed mechanism (Screw drive)
序号
Ref.No.
件号
Part.No
对象描述
Description
数量
Amt.
备注
Remarts
1
421S13027
螺钉M5×12(带垫圈)
SCREW M5×12
2
2
407N1002
自锁螺母M4
NUT M4
2
3
930000021
丝杆Y拖链支架
Y LEAD SCREW CHAIN BRACKET
1
141812008
4
41811027
塑料拖链1825
PLASTIC DRAG CHAIN 1825
1
5
S05059
螺钉M4×12(镀镍)
SCREW M4×12
2
6
42136014
安装板直通接管(带螺纹)
MOUNTING PLATE THROUGH PIPE
2
7
407N002
自锁螺母M4
NUT M4
2
8
141811001
小拖链
LITTLE PLASTIC DRAG CHAIN
1
9
S05057
螺钉M4×6(镀镍)
SCREW M4×6
2
10
S05059
螺钉M4×12(镀镍)
SCREW M4×12
2
11
S04078
螺钉M4×8
SCREW M4×10
5
12
930000022
丝杆电机罩
SCREW MOTOR COVER
1
141812010
13
S05124
螺栓M5×16(滚花,镀镍)
SCREW M5×10
4
14
41833016
X丝杆伺服电机
X SCREW SERVO MOTOR
1
15
930000020
线罩
COVER WIRE
1
141812024
16
417S30025
十字槽盘头螺钉M4×10DB
PHILLIPS PAN HEAD SCREW M4×10
8
17
4182401600
丝杆组件
SCREW COMPONENTS
1
18
41730851
传感器
SENSOR
1
19
421S13049
螺钉M3×12
SCREW M3×12
1
20
1.4181E+10
丝杆拖链导板组件
LEAD SCREW CHAIN GUIDE COMPONENTS
1
22
417S15008
螺钉M4×8
COUNTERSUNK HEAD SCREW M4×8
4
23
41708005
M5螺纹套
THREAD BUSHING M5
8
24
S05040
螺栓M6×16
SCREW M6×16
4
25
42128040
垫片M6
WASHER M6
4
26
41801052
丝杆送料联接座
SCREW FEEDING BASE CONNECTING SEAT
2
27
421S13065
螺栓M5×16(滚花,镀镍)(带垫圈)
SCREW M5×16
8
28
S04082
螺钉M3×6
SCREW M3×6
4
29
S05116
螺钉M4×8
SCREW M4×8
2
30
41812146
储油脂盒安装板
GREASE STORAGE BOX MOUNTING PLATE
1
31
41836011
铜卡套式直通油管接头M6
COPPER CARD-TYPE DIRECT TUBING JOINT M6
1
32
41836018
直角油管接头90度M6
LUBRICATING NIPPLE M6
1
33
41842041
Y丝杠储油脂盒
Y LEAD SCREW GREASE STORAGE BOX
1
34
41822016
O型圈17×2.65
O-SHAPED RING
2
35
41842042
活芯子
PISTON
1
36
41812145
储油脂盒盖板
GREASE STORAGE COVER PLATE
1
37
S04076
螺钉M3×8
SCREW M3×8
4
38
S04125
十字槽盘头螺钉M4/50
SCREW M4X50
1
39
141812027
垫块
PADDING BLOCK
1
40
N01024
六角螺母M4
HEX NUT
1
41
41836501
管接头PU4(直通)
GES POPE JOINT
1
42
41812134
Y拖链后支架
Y DRAG CHAIN LATER SUPPORT
1
43
S05115
螺栓(带垫圈)M4×6
SCREW M4×6
2
44
417S30034
螺钉(带垫圈)M4×14
SCREW M4×14
2
45
141830005
低压驱动器
DRIVE
1
46
S05116
螺栓M4×8(滚花,镀镍)(切换)
SCREW M4×8
2
jintex.in
え
Page 20 — 6.2、X送料装置(同步带传动)/X Feed mechanism(Screw drive)
Jack MS-90A parts on page 20| Ref | Part number | Part name | Qty |
|---|
| 141811006 | 线槽盖40L700 | |
| S05057 | 螺钉M4×6 | 3 |
| W01001 | 平垫圈4 | 3 |
| 425S10001 | 方形螺母块 | 10 |
| 141811005 | 线槽4030L120 | 1 |
| 141811004 | 线槽4030L480 | 1 |
| 417S15008 | 螺钉M4×8 | 4 |
| 41828012 | 垫圈4 | 4 |
| 141842008 | 小坦克链挡板 | 1 |
| N01013 | 螺母M3 | 2 |
| S02127 | 沉头螺钉M3×10 | 2 |
| 141831028 | 特氟龙胶带50 | 1 |
| 4184205000 | 同步带送料模组 | 1 |
| 41837614 | 机械防撞标贴 | 2 |
| S05035 | 螺钉M5×25 | 2 |
| S05124 | 螺栓M5×16 | 2 |
| 41833500 | 模组电机 | 1 |
| 10122005 | 孔塞 | 1 |
| 141842001 | X传感器安装板 | 1 |
| W01001 | 平垫圈4 | 2 |
| S05010 | 螺钉M4×12 | 2 |
| 41730851 | 传感器 | 1 |
| S04076 | 螺钉M3×8 | 1 |
| S05040 | 螺栓M6×16 | 4 |
| 42128040 | 垫片M6 | 4 |
| 417S30034 | 螺栓M4×14(带垫圈) | 8 |
| 41801052 | 送料联接座 | 2 |
| 425S10001 | 方形螺母块 | 8 |
6.2、X送料装置(同步带传动)/X Feed mechanism(Screw drive)
序号
Ref.No.
件号
Part.No
对象描述
Description
数量
Amt.
备注
Remarts
1
141811006
线槽盖40L700
TRUNKING 40L700
1
2
S05057
螺钉M4×6
SCREW M4×6
3
3
W01001
平垫圈4
PLAIN WASHER4
3
4
425S10001
方形螺母块
SQUARE NUT BLOCK
10
5
141811005
线槽4030L120
TRUNKING 4030L120
1
6
141811004
线槽4030L480
TRUNKING 4030L480
1
7
417S15008
螺钉M4×8
SCREW M4×8
4
8
41828012
垫圈4
PLAIN WASHER4
4
9
141842008
小坦克链挡板
PANZER CHAIN BAFFLE
1
10
N01013
螺母M3
NUT M3
2
11
S02127
沉头螺钉M3×10
SCREW M3×10
2
12
141831028
特氟龙胶带50
TEFLON TAPE 50
1
13
4184205000
同步带送料模组
SYNCHORONOUS BELT FEED MECHANISM
1
14
41837614
机械防撞标贴
MECHANICAL ANTI-COLLISION LABELING
2
15
S05035
螺钉M5×25
SCREW M5×25
2
16
S05124
螺栓M5×16
SCREW M5×16
2
17
41833500
模组电机
X STEPPER MOTOR
1
18
10122005
孔塞
DUST PLUG
1
19
141842001
X传感器安装板
X SENSOR MOUNTING PLATE
1
20
W01001
平垫圈4
PLAIN WASHER4
2
21
S05010
螺钉M4×12
SCREW M4×12
2
22
41730851
传感器
SENSOR
1
23
S04076
螺钉M3×8
SCREW M3×8
1
24
S05040
螺栓M6×16
SCREW M6×16
4
25
42128040
垫片M6
WASHER M6
4
26
417S30034
螺栓M4×14(带垫圈)
SCREW M4×14
8
27
41801052
送料联接座
FEEDING BASE CONNECTING SEAT
2
28
425S10001
方形螺母块
SQUARE NUT BLOCK
8
처
Jinttex.in

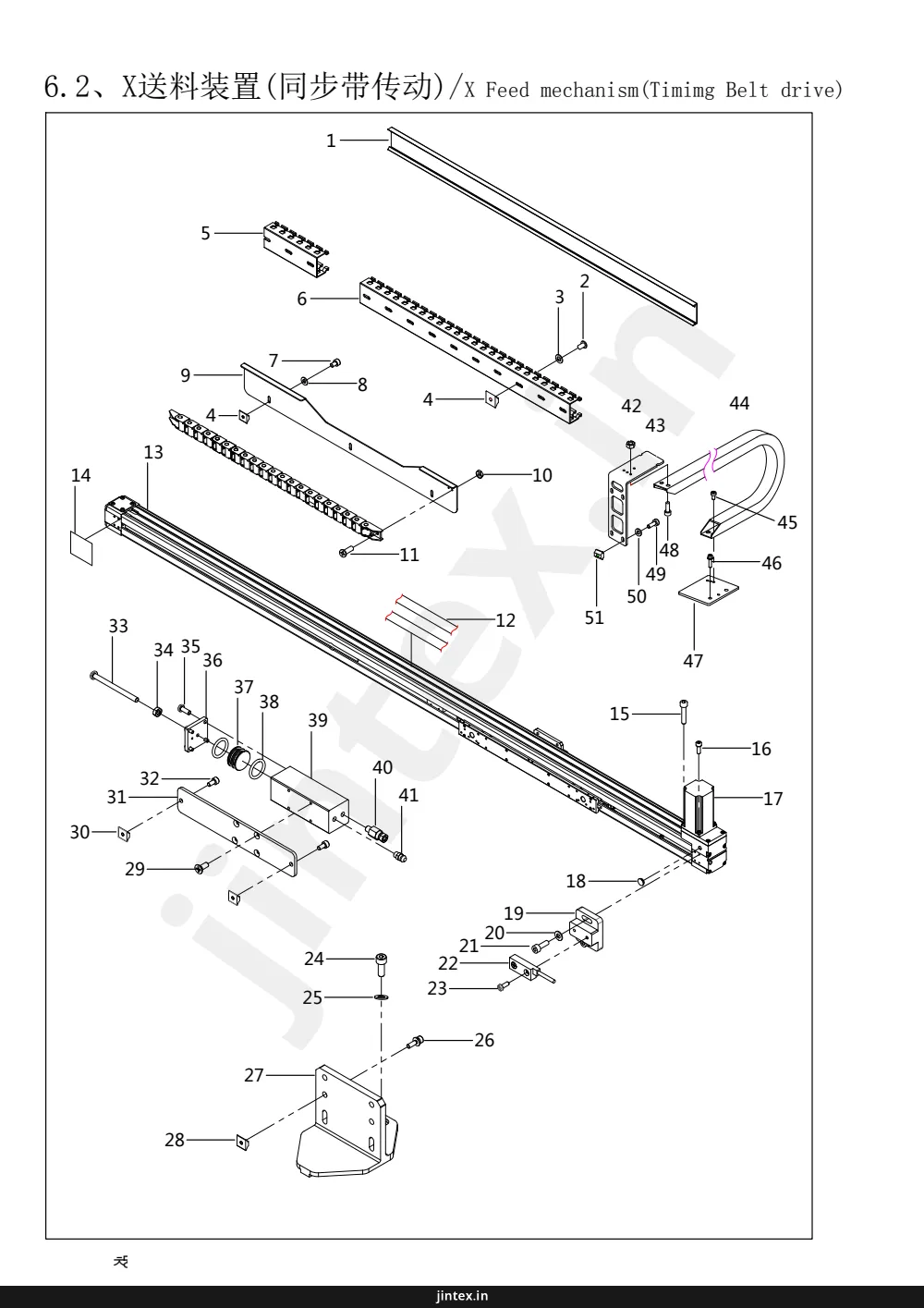

Page 21 — 6.2、X送料装置(同步带传动)/X Feed mechanism(Timing Belt drive)
Jack MS-90A parts on page 21| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | |
| 2 | 2 | |
| 3 | 3 | |
| 4 | 4 | |
| 5 | 5 | |
| 6 | 6 | |
| 7 | 7 | |
| 8 | 8 | |
| 9 | 9 | |
| 10 | 10 | |
| 11 | 11 | |
| 12 | 12 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 16 | 16 | |
| 17 | 17 | |
| 18 | 18 | |
| 19 | 19 | |
| 20 | 20 | |
| 21 | 21 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 25 | 25 | |
| 26 | 26 | |
| 27 | 27 | |
| 28 | 28 | |
| 29 | 29 | |
| 30 | 30 | |
| 31 | 31 | |
| 32 | 32 | |
| 33 | 33 | |
| 34 | 34 | |
| 35 | 35 | |
| 36 | 36 | |
| 37 | 37 | |
| 38 | 38 | |
| 39 | 39 | |
| 40 | 40 | |
| 41 | 41 | |
| 42 | 42 | |
| 43 | 43 | |
| 44 | 44 | |
| 45 | 45 | |
| 46 | 46 | |
| 47 | 47 | |
| 48 | 48 | |
| 49 | 49 | |
| 50 | 50 | |
| 51 | 51 | |
6.2、X送料装置(同步带传动)/X Feed mechanism(Timing Belt drive)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
关
jintex.in
Page 22 — 6.2、X送料装置(同步带传动)/X Feed mechanism (Screw drive)
Jack MS-90A parts on page 22| Ref | Part number | Part name | Qty |
|---|
| S02032 | 螺钉M3×6(镀镍) | |
| 425S10001 | 方形螺母块 | |
| 141812035 | 储油脂盒安装板(长) | |
| S05116 | 螺栓M4×8(滚花,镀镍)(切换) | |
| S04125 | 十字槽盘头螺钉M4/50 | |
| N01024 | 六角螺母M4 | |
| S04076 | 螺钉M3X8 | |
| 41812145 | 储油脂盒盖板 | |
| 41842042 | 活芯子 | |
| 41822016 | O型圈17×2.65 | |
| 41842041 | Y丝杠油脂盒 | |
| 41836011 | 铜卡套式直通油管接头M6 | |
| 41836018 | 直角油管接头90度M6 | |
| 407N01002 | 自锁螺母M4 | |
| 41812141 | Y拖链支架 | |
| 41811027 | 塑料拖链1825 | |
| S05115 | 螺栓(带垫圈)M4×6 | |
| 417S30034 | 螺钉(带垫圈)M4X14 | |
| 41812134 | Y拖链后支架 | |
| 422S15501 | 螺钉M4×10 | |
| 417S30302 | 螺钉(带垫圈)M4×12 | |
| 41728024 | 垫圈L4 | |
| 425S10001 | 方形螺母块 | |
6.2、X送料装置(同步带传动)/X Feed mechanism (Screw drive)
序号
Ref.No.
件号
Part.No
对象描述
Description
数量
Amt.
备注
Remarts
29
S02032
螺钉M3×6(镀镍)
SCREW M3X6
4
30
425S10001
方形螺母块
SQUARE NUT BLOCK
2
31
141812035
储油脂盒安装板(长)
GREASE STORAGE BOX MOUNTING PLATE(LONG)
1
32
S05116
螺栓M4×8(滚花,镀镍)(切换)
SCREW M4X8
2
33
S04125
十字槽盘头螺钉M4/50
SCREW M4X50
1
34
N01024
六角螺母M4
HEX NUT
1
35
S04076
螺钉M3X8
SCREW M3X8
4
36
41812145
储油脂盒盖板
GREASE STORAGE COVER PLATE
1
37
41842042
活芯子
PISTON
1
38
41822016
O型圈17×2.65
O-SHAPED RING
2
39
41842041
Y丝杠油脂盒
Y LEAD SCREW GREASE STORAGE BOX
1
40
41836011
铜卡套式直通油管接头M6
COPPER CARD-TYPE DIRECT TUBING JOINT M6
1
41
41836018
直角油管接头90度M6
LUBRICATING NIPPLE M6
1
42
407N01002
自锁螺母M4
SELF-LOCKING NUT M4
2
43
41812141
Y拖链支架
Y CHAIN BRACKET
1
44
41811027
塑料拖链1825
PLASTIC DRAG CHAIN 1825
1
45
S05115
螺栓(带垫圈)M4×6
SCREW M4×6
2
46
417S30034
螺钉(带垫圈)M4X14
SCREW M4×14
2
47
41812134
Y拖链后支架
Y DRAG CHAIN LATER SUPPORT
1
48
422S15501
螺钉M4×10
SCREW M4×10
2
49
417S30302
螺钉(带垫圈)M4×12
SCREW ( WITH WASHER) M4×12
2
50
41728024
垫圈L4
GASKET L4
2
51
425S10001
方形螺母块
SQUARE NUT BLOCK
2
jintex.in
ㅈ
Page 23 — 7、送料装置 / Feed mechanism (Screw drive)
Jack MS-90A parts on page 23| Ref | Part number | Part name | Qty |
|---|
| 1 | BRACKET | |
| 2 | SHAFT | |
| 3 | BEARING | |
| 4 | BRACKET | |
| 5 | BRACKET | |
| 6 | BRACKET | |
| 7 | BRACKET | |
| 8 | BRACKET | |
| 9 | SCREW | |
| 10 | SHAFT | |
| 11 | SCREW | |
| 12 | BRACKET | |
| 13 | BRACKET | |
| 14 | BRACKET | |
| 15 | SHAFT | |
| 16 | BRACKET | |
| 17 | BEARING | |
| 18 | BEARING | |
| 19 | SCREW | |
| 20 | SCREW | |
| 21 | PIN | |
| 22 | BRACKET | |
| 23 | BRACKET | |
| 25 | BRACKET | |
| 26 | SCREW | |
| 29 | SCREW | |
| 30 | BRACKET | |
| 31 | BEARING | |
| 32 | SHAFT | |
| 33 | BRACKET | |
| 34 | SCREW | |
| 35 | SCREW | |
| 36 | BRACKET | |
| 37 | BRACKET | |
7、送料装置 / Feed mechanism (Screw drive)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
26
29
30
31
32
33
34
35
36
37
jintex.in
Page 24 — 7、送料装置(丝杆传动)/Feed mechanism (Screw drive)
Jack MS-90A parts on page 24| Ref | Part number | Part name | Qty |
|---|
| 41801044 | Y丝杆同步驱动座 | |
| 40322021 | 橡皮塞15 | |
| 413S13013 | 螺栓M6×25 | |
| N01021 | M6螺母 | |
| B01033 | 轴承6203 | |
| 41801042 | Y丝杆支撑端轴承座 | |
| S05040 | 螺栓M6×16 | |
| S05133 | 螺钉M4×12(镀镍) | |
| 41808011 | 挡圈 | |
| 41824015 | Y丝杆组件 | |
| 421S13059 | 螺栓 M5×20(滚花,镀镍) | |
| 41801041 | Y丝杆固定端轴承座组件 | |
| S05139 | 螺栓M8×55 | |
| 41801040 | Y丝杆电机座 | |
| 41826016 | 圆柱销8×30 | |
| S05074 | 螺栓M8×20 | |
| 4180301200 | 梅花联轴器组件 | |
| 41833013 | Y伺服电机 | |
| S05040 | 螺栓M6×16 | |
| 41836011 | 铜卡套式直通油管接头M6 | |
| 41821011 | 油管 | |
| 12912326 | 管夹 | |
| 417S30025 | 螺栓M4×10DB | |
| 41812667 | 油管支架 | |
| 417S30025 | 螺栓(带垫圈)M4×10DB | |
| S05124 | 螺栓 M5×16(滚花,镀镍) | |
| 41824012 | Y导轨 | |
| 40322021 | 橡皮塞15 | |
| S05088 | 螺钉M6×45 | |
| 41812028 | Y限位板B | |
| N01021 | M6螺母 | |
| 417S30036 | 螺钉M5×12 | |
| 41826011 | 圆柱销6×15 | |
| S05123 | 螺钉5×12 | |
7、送料装置(丝杆传动)/Feed mechanism (Screw drive)
序号
Ref.No.
件号
Part.No
对象描述
Description
数量
Amt.
备注
Remarks
1
41801044
Y丝杆同步驱动座
Y ROD SYNCHRONIZES THE DRIVE SEAT
1
2
40322021
橡皮塞15
RUBBER CAP 15
2
3
413S13013
螺栓M6×25
SCREW M6×25
2
4
N01021
M6螺母
NUT M6
2
5
B01033
轴承6203
BALL BEARING 6203
1
6
41801042
Y丝杆支撑端轴承座
Y SCREW SUPPORT BEARING PEDESTAL
1
7
S05040
螺栓M6×16
SCREW M6×16
4
8
S05133
螺钉M4×12(镀镍)
SCREW M4×12
1
9
41808011
挡圈
CLOSING RING
1
10
41824015
Y丝杆组件
Y SCREW COMPONENTS
1
11
421S13059
螺栓 M5×20(滚花,镀镍)
SCREW M5×20
4
12
41801041
Y丝杆固定端轴承座组件
Y SCREW ROD FIXED END BEARING ASSEMBLY
1
13
S05139
螺栓M8×55
SCREW M8×55
4
14
41801040
Y丝杆电机座
SCREW MOTOR STAND
1
15
41826016
圆柱销8×30
PIN 8×30
1
16
S05074
螺栓M8×20
SCREW 8×20
4
17
4180301200
梅花联轴器组件
COMPONENT OF CLUBS COUPLING
1
18
41833013
Y伺服电机
Y SERVO MOTOR
1
19
S05040
螺栓M6×16
SCREW M6×16
4
20
41836011
铜卡套式直通油管接头M6
COPPER CARD-TYPE DIRECT TUBING JOINT M6
1
21
41821011
油管
OIL TUBE
1
22
12912326
管夹
PIPE CLAMP
1
23
417S30025
螺栓M4×10DB
SCREW(WITH SHIM) M4×10DB
1
25
41812667
油管支架
TUBING SUPPORT
1
26
417S30025
螺栓(带垫圈)M4×10DB
SCREW M4×20
2
29
S05124
螺栓 M5×16(滚花,镀镍)
SCREW M5×16
22
30
41824012
Y导轨
Y GUIDE RAIL
2
31
40322021
橡皮塞15
RUBBER CAP 15
2
32
S05088
螺钉M6×45
SCREW M6×45
2
33
41812028
Y限位板B
Y LOCATION-LIMITED PLATE B
2
34
N01021
M6螺母
NUT M6
2
35
417S30036
螺钉M5×12
SCREW M5×12
4
36
41826011
圆柱销6×15
PIN 6×15
2
37
S05123
螺钉5×12
SCREW M5×12
16
FF
Page 25 — 8、送料装置(夹具C)/Feed mechanism (fixture C)
Jack MS-90A parts on page 25| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | |
| 2 | 2 | |
| 3 | 3 | |
| 4 | 4 | |
| 5 | 5 | |
| 6 | 6 | |
| 7 | 7 | |
| 8 | 8 | |
| 9 | 9 | |
| 10 | 10 | |
| 11 | 11 | |
| 12 | 12 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 16 | 16 | |
| 17 | 17 | |
| 18 | 18 | |
| 19 | 19 | |
| 20 | 20 | |
| 21 | 21 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 25 | 25 | |
| 26 | 26 | |
| 27 | 27 | |
| 28 | 28 | |
| 29 | 29 | |
| 30 | 30 | |
| 31 | 31 | |
| 32 | 32 | |
| 33 | 33 | |
| 34 | 34 | |
| 35 | 35 | |
| 36 | 36 | |
| 37 | 37 | |
| 38 | 38 | |
| 39 | 39 | |
| 40 | 40 | |
| 41 | 41 | |
| 42 | 42 | |
| 43 | 43 | |
| 44 | 44 | |
8、送料装置(夹具C)/Feed mechanism (fixture C)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
E
jintex.in
Page 26 — 8、送料装置(夹具C)/Feed mechanism(fixture C)
Jack MS-90A parts on page 26| Ref | Part number | Part name | Qty |
|---|
| 41826013 | 导杆Φ8 | |
| 41845011 | 气缸CQ2B16-10 | |
| 42230519 | 微型接头M-5HLH-4 | |
| S05048 | 螺钉M4×10 | |
| 41801012 | 气缸导杆块 | |
| 41812022 | 模板压板 | |
| 417S15008 | 螺栓 M4×8(滚花,镀镍) | |
| S17005 | 螺栓M5×10(公制圆杯螺丝) | |
| 41828012 | 垫圈4 | |
| 41826014 | 模板定位销 | |
| S10019 | 螺钉 M6×6(镀铬) | |
| S05048 | 螺钉 M4×10(镀镍) | |
| 41842016 | 限位销支座 | |
| 41826015 | 模板限位销 | |
| 41826000 | 平盖 | |
| S17005 | 螺栓M5×10(公制圆杯螺丝) | |
| S05123 | 螺栓 M5×12(滚花,镀镍) | |
| W01009 | 垫圈5 | |
| 41842038 | 顶柱 | |
| S05068 | 螺钉M5×20 | |
| 41728004 | 垫圈 | |
| 41842037 | 顶柱气缸安装板 | |
| 41830211 | 气缸CQ2B12-5SM | |
| 421S17001 | 螺钉M4×16 | |
| 42230519 | 微型接头M-5HLH-4 | |
| S05065 | 螺钉M4×40 | |
| W02008 | 弹簧垫圈2-4 | |
| 42128003 | 垫圈 | |
| S05067 | 螺钉M4×10 | |
| 41842218 | 夹具连接板B | |
| W01009 | 垫圈5 | |
| S05123 | 螺钉M5×12 | |
| 41730441 | 气缸CU16-15D | |
| 401727 | 接头 | |
| 42226811 | 接头销 | |
| S05123 | 螺栓M5×12 | |
| 42212607 | 夹紧杆挡板 | |
| 42212813 | 夹紧杆 | |
| 42228811 | 转动垫圈 | |
| 42212538 | 夹具安装板L | |
| 42226812 | 夹紧销 | |
| 42212800 | 塑料托板 | |
| 417S17852 | 螺栓M5×15 | |
| 42212820 | 透明托板 | |
8、送料装置(夹具C)/Feed mechanism(fixture C)
序号
Ref.No.
件号
Part.No
对象描述
Description
数量
Amt.
备注
Remarks
1
41826013
导杆Φ8
GUIDE ROD Φ8
4
2
41845011
气缸CQ2B16-10
AIR CYLINDER CQ2B16-10
2
3
42230519
微型接头M-5HLH-4
MICRO PIPE CONNECTION M-5HLH-4
4
4
S05048
螺钉M4×10
SCREW M4×10
8
413S13017
5
41801012
气缸导杆块
AIR CYLINDER GUIDE BAR
2
6
41812022
模板压板
TEMPLATE LINKING PIECE
2
7
417S15008
螺栓 M4×8(滚花,镀镍)
SCREW M4×8
2
403S11013
8
S17005
螺栓M5×10(公制圆杯螺丝)
SCREW M5×10
4
9
41828012
垫圈4
WASHER 4
2
10
41826014
模板定位销
TEMPLATE POSITIONING TAPER PIN
2
11
S10019
螺钉 M6×6(镀铬)
SCREW M6×6
1
12
S05048
螺钉 M4×10(镀镍)
SCREW M4×10
2
413S13017
13
41842016
限位销支座
LIMIT PIN SUPPORT
1
14
41826015
模板限位销
TEMPLATE PIN
1
15
41826000
平盖
PLANKER
1
16
S17005
螺栓M5×10(公制圆杯螺丝)
SCREW M5×10
10
17
S05123
螺栓 M5×12(滚花,镀镍)
SCREW M5×12
8
18
W01009
垫圈5
WASHER 5
8
19
41842038
顶柱
TOP PILLAR
2
20
S05068
螺钉M5×20
SCREW M5×20
4
114S13001
21
41728004
垫圈
PIN
4
22
41842037
顶柱气缸安装板
TOP PILLAR AIR CYLINDER MOUNTING PLATE
2
23
41830211
气缸CQ2B12-5SM
AIR CYLINDER
2
24
421S17001
螺钉M4×16
SCREW M4×16
8
25
42230519
微型接头M-5HLH-4
MICRO PIPE CONNECTION M-5HLH-4
2
26
S05065
螺钉M4×40
SCREW M4×40
4
27
W02008
弹簧垫圈2-4
SPRING WASHER 2-4
4
28
42128003
垫圈
WASHER
4
29
S05067
螺钉M4×10
SCREW M4×10
12
30
41842218
夹具连接板B
FIXTURE CONNECTING PIATE B
2
31
W01009
垫圈5
WASHER 5
10
32
S05123
螺钉M5×12
SCREW M5×12
10
33
41730441
气缸CU16-15D
AIR CYLINDER CU16-15D
2
34
401727
接头
JOINT
2
35
42226811
接头销
JOINT PIN
2
36
S05123
螺栓M5×12
SCREW M5×12
6
夹扣式
(选配)
37
42212607
夹紧杆挡板
CLAMPING ROD BAFFLE
2
38
42212813
夹紧杆
Clamping rod
2
39
42228811
转动垫圈
ROTARY WASHER
6
40
42212538
夹具安装板L
FIXTURE MOUNTING PLATE L
2
41
42226812
夹紧销
CLAMPING PIN
30
42
42212800
塑料托板
PLASTIC BRACKET
15
43
417S17852
螺栓M5×15
SCREW M5×15
30
44
42212820
透明托板
TRANSPARENT PALLET
3
jintex.in
Page 27 — 8.1、送料装置(压框夹具S)/Feed mechanism(Clamping fixture S)
Jack MS-90A parts on page 27| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | |
| 2 | 2 | |
| 3 | 3 | |
| 4 | 4 | |
| 5 | 5 | |
| 6 | 6 | |
| 7 | 7 | |
| 8 | 8 | |
| 9 | 9 | |
| 10 | 10 | |
| 11 | 11 | |
| 12 | 12 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 16 | 16 | |
| 17 | 17 | |
| 18 | 18 | |
| 19 | 19 | |
| 20 | 20 | |
| 21 | 21 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 25 | 25 | |
8.1、送料装置(压框夹具S)/Feed mechanism(Clamping fixture S)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
jintex.in
Page 28 — 8.1、送料装置 (压框夹具S)/Feed mechanism (Clamping fixture S)
Jack MS-90A parts on page 28| Ref | Part number | Part name | Qty |
|---|
| 42536004 | 气管接头(直角) | |
| 41845224 | 气管φ4×2.5黑色 | |
| 42536003 | 气管接头(三通) | |
| 417S30023 | 螺钉(带垫圈) M3×16DB | |
| 40736036 | 气管接头(三通) | |
| 42536003 | 气管接头(三通) | |
| 41845223 | 气管φ4×2.5透明蓝 | |
| 42536004 | 气管接头(直角) | |
| 4254500400 | 气缸 | |
| S05124 | 内六角平头螺钉M5×16 | |
| 41728028 | 平垫圈5 | |
| S05123 | 内六角平头螺钉M5×12 | |
| 42526008 | 限位销 | |
| S05059 | 内六角平头螺钉M4×12 | |
| 42512028 | 限位支座 | |
| S09019 | 螺钉M5×6 | |
| 41842502 | 压框架 | |
| S05068 | 螺钉M5×20 | |
| 41728004 | 垫圈 | |
| 41842038 | 顶柱 | |
| 421S17001 | 螺钉M4×12 | |
| 41842037 | 顶柱气缸安装板 | |
| 41845017 | 气缸CQ2A12-5SM | |
| 42230519 | 微型接头M-5HLH-4 | |
| 41836501 | 接头PU4 | |
8.1、送料装置 (压框夹具S)/Feed mechanism (Clamping fixture S)
序号
Ref.No.
件号
Part.No
对象描述
Description
数量
Amt.
备注
Remarts
1
42536004
气管接头(直角)
GES POPE JOINT(90°)
2
2
41845224
气管φ4×2.5黑色
GES POPE φ4×2.5 (BLACK)
4.2
3
42536003
气管接头(三通)
GES POPE JOINT(THREE-WAY PIPE)
2
4
417S30023
螺钉(带垫圈) M3×16DB
SCREW M3X16DB
2
5
40736036
气管接头(三通)
GES POPE JOINT(THREE-WAY PIPE)
2
6
42536003
气管接头(三通)
GES POPE JOINT(THREE-WAY PIPE)
2
7
41845223
气管φ4×2.5透明蓝
GES POPE φ4×2.5 (BLUE)
4.2
8
42536004
气管接头(直角)
GES POPE JOINT(90°)
2
9
4254500400
气缸
AIR CYLINDER
4
10
S05124
内六角平头螺钉M5×16
INTERNAL HEXAGONAL FLAT HEAD SCREW M5×20
16
11
41728028
平垫圈5
PLAIN WASHER 5
8
12
S05123
内六角平头螺钉M5×12
INTERNAL HEXAGONAL FLAT HEAD SCREW M5×12
8
13
42526008
限位销
SPACER PIN
1
14
S05059
内六角平头螺钉M4×12
INTERNAL HEXAGONAL FLAT HEAD SCREW M4×12
4
15
42512028
限位支座
LIMIT PIN SUPPORT
1
16
S09019
螺钉M5×6
SCREW M5×6
1
17
41842502
压框架
COMPRESSION FRAME
1
18
S05068
螺钉M5×20
SCREW M5×20
4
114S13001
19
41728004
垫圈
PIN
2
20
41842038
顶柱
TOP PILLAR
4
21
421S17001
螺钉M4×12
SCREW M4×12
8
22
41842037
顶柱气缸安装板
TOP PILLAR AIR CYLINDER MOUNTING PLATE
2
23
41845017
气缸CQ2A12-5SM
AIR CYLINDER
2
24
42230519
微型接头M-5HLH-4
MICRO PIPE CONNECTION M-5HLH-4
2
25
41836501
接头PU4
WEASAND CONNECTOR PU4
1
jintex.in
71
Page 29 — 8. 2、送料装置(夹扣夹S)/Feed mechanism(Clamping fixture S)
Jack MS-90A parts on page 29| Ref | Part number | Part name | Qty |
|---|
| 1 | Pneumatic fittings | |
| 2 | Screw | |
| 3 | Mounting plate | |
| 4 | Screw | |
| 5 | Washer | |
| 6 | Washer | |
| 7 | Pneumatic fitting | |
| 8 | Cylinder | |
| 9 | Bracket | |
| 10 | Bracket | |
| 11 | Bracket | |
| 12 | Screw | |
| 13 | Screw | |
| 14 | Screw | |
| 15 | Screw | |
| 16 | Screw | |
| 17 | Screw | |
| 18 | Screw | |
| 19 | Rod | |
| 20 | Rod | |
| 21 | Guide rail | |
| 22 | Screw | |
| 23 | Screw | |
| 24 | Guide rail | |
| 25 | Screw | |
8. 2、送料装置(夹扣夹S)/Feed mechanism(Clamping fixture S)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
71
jintex.in
Page 30 — 8.2、送料装置(夹扣夹具S)/Feed mechanism (Clamping fixture S)
Jack MS-90A parts on page 30| Ref | Part number | Part name | Qty |
|---|
| 141845002 | 三通气管接头(T型) | |
| 407S04053 | 螺钉M3×25 | |
| 401727 | 接头 | |
| S05065 | 螺钉M4×40 | |
| W02008 | 弹簧垫圈2-4 | |
| 42128003 | 垫圈 | |
| 42536004 | 气管接头(直角) | |
| 41730441 | 气缸CU16-15D | |
| 42212607 | 夹紧杆挡板 | |
| 42212813 | 夹紧杆 | |
| 42212538 | 夹具安装板L | |
| 42228811 | 转动垫圈 | |
| S05123 | 螺钉M5×12 | |
| 42226811 | 接头销 | |
| S05123 | 螺钉M5×12 | |
| W01009 | 垫圈5 | |
| 41842218 | 夹具联接板B | |
| S05067 | 螺钉M5×10 | |
| 41845223 | 气管φ4×2.5透明蓝 | |
| 41845224 | 气管φ4×2.5黑色 | |
| 42212800 | 塑料托板 | |
| 42226812 | 夹紧销 | |
| 417S17852 | 螺钉M5×15 | |
| 42212820 | 透明托板 | |
| 41836501 | 管接头PU4 | |
8.2、送料装置(夹扣夹具S)/Feed mechanism (Clamping fixture S)
序号
Ref.No.
件号
Part.No
对象描述
Description
数量
Amt.
备注
Remarts
1
141845002
三通气管接头(T型)
PIPE CONNECT(THREE-WAY PIPE)
2
2
407S04053
螺钉M3×25
SCREW M3×25
2
3
401727
接头
JOINT
2
4
S05065
螺钉M4×40
SCREW M4×40
4
5
W02008
弹簧垫圈2-4
SPRING WASHER 2-4
4
6
42128003
垫圈
PIN
4
7
42536004
气管接头(直角)
PIPE CONNECT
4
8
41730441
气缸CU16-15D
AIR CYLINDER CU16-15D
2
9
42212607
夹紧杆挡板
CLAMPING ROD BAFFLE
2
10
42212813
夹紧杆
CLAMPING ROD
2
11
42212538
夹具安装板L
FIXTURE MOUNTING PLATE L
2
12
42228811
转动垫圈
ROTARY WASHER
6
13
S05123
螺钉M5×12
BOLT M5×12
6
14
42226811
接头销
JOINT PIN
2
15
S05123
螺钉M5×12
SCREW M5×12
10
16
W01009
垫圈5
WASHER 5
10
17
41842218
夹具联接板B
FIXTURE CONNECTING PIATE B
2
18
S05067
螺钉M5×10
SCREW M5×10
12
19
41845223
气管φ4×2.5透明蓝
GES POPE φ4×2.5 ( BLUE )
4.2
20
41845224
气管φ4×2.5黑色
GES POPE φ4×2.5 ( BLACK )
4.2
21
42212800
塑料托板
PLASTIC BRACKET
15
22
42226812
夹紧销
CLAMPING PIN
30
23
417S17852
螺钉M5×15
SCREW M5×15
30
24
42212820
透明托板
TRANSPARENT PALLET
3
25
41836501
管接头PU4
WEASAND CONNECTOR PU4
2
jintex.in
