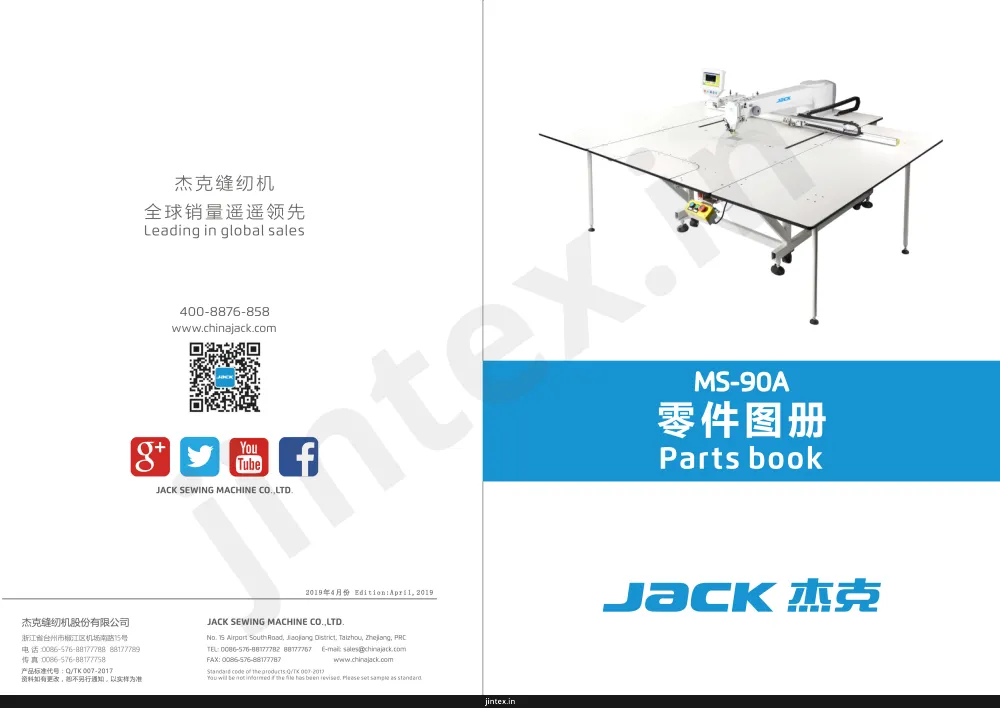

Jack MS-90A Parts Book (PDF)
Text index — Jack MS-90A
Page 4 — 1、机体部分/Machine body
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 303883 | HEAD COVER | 1 |
| 2 | 41812212 | HEAD COVER | 1 |
| 3 | S04028 | SCREW M5×8 | 3 |
| 4 | 41722009 | RUBBER CAP 13 | 1 |
| 5 | 301760 | THREAD TAKE UP LEVER COVER | 1 |
| 6 | S04078 | SCREW M4×8 | 1 |
| 7 | 10122005 | TAKE UP LEVER DOWEL RUBBER CAP | 9 |
| 8 | 304206 | Y REAR COVER | 1 |
| 9 | 417S30025 | SCREW(WITH SHIM) M4×10DB | 4 |
| 10 | 304205 | UPPER COVER PLATE R | 1 |
| 11 | 417S30025 | SCREW(WITH SHIM) M4×10DB | 6 |
| 12 | 41811003 | REAR COVER | 1 |
| 13 | S04099 | SCREW M6×16 | 4 |
| 14 | 304166 | HEAD | 1 |
| 15 | 304167 | FOUNDATION SUPPORT | 1 |
| 16 | 304168 | BASEPLATE FRONT SEAT | 1 |
| 17 | 41722004 | RUBBER CAP 15.5 | 2 |
| 18 | 41845232 | T PIPE CONNECTION KJT04 | 1 |
| 19 | 417S30023 | SCREW(WITH SHIM) M3X16DB | 2 |
| 20 | 41828013 | BIG SCREW | 4 |
| 21 | S05138 | SCREW M16×75 | 4 |
| 22 | N04003 | HEX FLANGE NUT M16 | 4 |
| 23 | S05137 | SCREW M20×70 | 2 |
| 24 | S05275 | SCREW M20×55 | 4 |
| 25 | L02083 | HEX HEAD CAP SCREW M20X70 | 2 |
| 26 | S05276 | SCREW M14X45 | 4 |
| 27 | P02011 | LOCATIN PIN 16×50 | 2 |
| 28 | P02012 | LOCATIN PIN 12×50 | 2 |
| 29 | 41812008 | HEAD WIRE PLATE | 1 |
| 30 | 417S30033 | HEXAGON HEAD SCREW | 1 |
| 31 | 40622014 | OIL SEAL | 1 |
Page 6 — 2、机体部分(面板)/Machine body(Table structure)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S05068 | SCREW M5×20 | 12 |
| 2 | 407N01001 | SELFLOCKING OUT M5 | 8 |
| 3 | 41832624 | TABLE-BOARD OPENING AND CLOSING | 1 |
| 4 | 41812644 | OPENING AND CLOSINGTABLE-BOARD LIMIT PLATE | 1 |
| 5 | S05124 | SCREW M5×16 | 2 |
| 6 | 41831011 | HINGE 4 | 2 |
| 7 | 418S16014 | KNURLED THREAD SLEEVE M6 | 10 |
| 8 | 41832011 | TABLE-BOARD | 1 |
| 9 | 41728028 | WASHER M5 | 12 |
| 10 | 42231512 | CLAMPING FIXTURE | 2 |
| 11 | 407N01001 | SELFLOCKING OUT M5 | 4 |
| 12 | 41832604 | CIRCULAR COVER PLATE | 1 |
| 13 | 41832022 | TABLE COVER PLATE | 1 |
| 14 | S05124 | SCREW M5×16 | 12 |
| 15 | 418S16015 | KNURLED THREAD SLEEVE M4 | 6 |
| 16 | 418S16015 | KNURLED THREAD SLEEVE M4 | 7 |
| 17 | 304210 | MESA LEFT BRACKET COMPONENTS | 1 |
| 18 | 41822012 | BUFFER WASHER | 8 |
| 19 | 304211 | MESA RIGHT BRACKET COMPONENTS | 1 |
| 20 | W01009 | WASHER M5 | 16 |
| 21 | S05123 | SCREW M5×12 | 16 |
| 22 | 417S30037 | SCREW M6×14 | 6 |
| 23 | 304209 | MESA BRACKET | 1 |
| 24 | 41822012 | BUFFER WASHER | 4 |
| 25 | 4181204800 | COUNTERTOP SUPPORT PLATE ASSEMBLY | 4 |
| 26 | 41728028 | WASHER M5 | 8 |
| 27 | S05123 | SCREW M5×12 | 8 |
| 28 | 304207 | MESA LEFT FIXED SUPPORT | 1 |
| 29 | 417S30037 | SCREW M6×14 | 11 |
| 30 | 41728028 | WASHER M5 | 20 |
| 31 | S05123 | SCREW M5×12 | 20 |
| 32 | 304208 | MESA RIGHT FIXED SUPPORT | 1 |
| 33 | 418S17211 | SCREW 5X6 | 4 |
Page 8 — 3、旋棱油盘/ Machine body (Rotating shuttle oil pan)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 417S15008 | SCREW M4×8 | 4 |
| 2 | 41815011 | PINHOLE PLATE φ1.8T2.0 | 1 |
| 3 | 41815015 | NEEDLE PLATE | 1 |
| 4 | 417S17001 | SCREW SM2.38 | 2 |
| 5 | 41811005 | COVER THE SHUTTLE | 1 |
| 6 | 11401020 | MAGNET | 4 |
| 7 | S02039 | SCREW M4×9 | 8 |
| 8 | 41811004 | TABLE FRONT COVER | 1 |
| 9 | S09019 | SCREW M5×5 | 2 |
| 10 | 41831019 | STRONG MAGNET 6×12 | 2 |
| 11 | 41845012 | AIR CYLINDER MPEF10×10 | 1 |
| 12 | 42230519 | MICRO PIPE CONNECTION M-5HLH-4 | 1 |
| 13 | 41828014 | FRONT COVER WASHER | 2 |
| 14 | 41812101 | FRONT COVER SUBPLATE | 2 |
| 15 | 41812053 | OIL BAFFLE PLATE | 1 |
| 16 | 41812055 | THE PLATE NUT | 4 |
| 17 | 421S11009 | SCREW M4×6（CORSS FITTING) | 1 |
| 18 | 304212 | ROTATING SHUTTLE FRONT COVER | 1 |
| 19 | 418S30014 | ROTARY KNOB SCREW | 1 |
| 20 | 41831012 | C0PPER HINGE 1.5 | 2 |
| 21 | S02032 | SCREW M3×6 | 8 |
| 22 | W01001 | WASHER M4 | 4 |
| 23 | S05116 | BOLT M4×8 | 4 |
| 24 | 12923018 | THE OIL LINE 4×4（0.2m） | 1 |
| 25 | S05115 | BOLT M4×6 | 1 |
| 26 | N01013 | NUT M3 | 1 |
| 27 | 41812006 | MAGNET FIXING PLATE | 1 |
| 28 | 41831616 | SQUARE MAGNET | 1 |
| 29 | 114S17001 | TOOL HOLDER PLATE SCREW | 1 |
Page 10 — 4、上轴装置/Upper shaft bar mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41802015 | UPPER SHAFT | 1 |
| 2 | 41703002 | BEARING SLEEVE | 1 |
| 3 | S10018 | CONCAVE END TIGHTENING SCREW M6×6 | 2 |
| 4 | B01024 | BALL BEARING 61804 | 1 |
| 5 | 41703002 | BEARING SLEEVE | 1 |
| 6 | B10014 | BALL BEARING 6904DDUNR | 1 |
| 7 | B06005 | BALL BEARING R-6904DDU | 1 |
| 8 | S10018 | CONCAVE END TIGHTENING SCREW M6×6 | 2 |
| 9 | 41803212 | BEARING SLEEVE | 1 |
| 10 | B01029 | BALL BEARING 6204DDUNR | 1 |
| 11 | S10019 | SCREW M6×6 | 2 |
| 12 | 41801048 | UPPER SHAFT BALL BEARING ARM STAND | 1 |
| 13 | 41801049 | UPPER SHAFT BALL BEARING SUPPORT | 1 |
| 14 | 417S30306 | SCREW(WITH SHIM)M5×15 | 3 |
| 15 | B10014 | BALL BEARING 6904DDUNR | 1 |
| 16 | 41703002 | BEARING SLEEVE | 1 |
| 17 | S10018 | CONCAVE END TIGHTENING SCREW M6×6 | 2 |
| 18 | 4183502000 | UPPER SHAFT SYNCHRONOUS WHEEL UNIT | 1 |
| 19 | S10019 | SCREW M6×6 | 4 |
| 20 | 41835021 | SYNCHRONOUS BELT S5M | 1 |
| 21 | S10024 | SCREW M6×10 | 4 |
| 22 | 41803214 | COUPLING FOR COUPLING A | 1 |
| 23 | 41803215 | COUPLING FOR COUPLING B | 1 |
| 24 | 40322028 | SHOCK-REDUCING RUBBER | 1 |
| 25 | B02007 | BALL BEARING 6305NR | 1 |
| 26 | 41801043 | TENSIONONG WHEEL BRACKET | 1 |
| 27 | S05124 | SCREW M5×16 | 4 |
| 28 | S05124 | SCREW M5×16 | 4 |
| 29 | W01009 | WASHER | 4 |
| 30 | S10033 | SET SCREW M6×30 | 1 |
| 31 | 417S30306 | BOLT(WITH WASHERS) M5×15 | 2 |
| 32 | H01009 | BEAD FLANGE | 2 |
| 33 | B06006 | BALL BEARING 6000-VV | 2 |
| 34 | 41728001 | PLAIN WASHER 10 | 2 |
| 35 | 41803013 | TENSION PULLEY | 1 |
| 36 | 41826017 | TENSION AXIS | 1 |
| 37 | S10019 | SCREW M6×6 | 4 |
Page 12 — 5、针杆装置/Needle bar mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 135S11002 | NEEDLE BAR CRANK POSITIONING SCREW | 1 |
| 2 | 101S15004 | NEEDLE BAR CRANK TIGHTENING SCREW | 1 |
| 3 | 116S14003 | PIN LEVER CRANK PIN POSITIONING SCREW | 2 |
| 4 | 41804011 | NEEDLE BAR CRANK A | 1 |
| 5 | 41712133 | WASHER 8 | 2 |
| 6 | 41838212 | TAKE UP LEVER | 1 |
| 7 | 41808211 | CLOSING RING B | 1 |
| 8 | 114S14001 | SCREW BOLT | 2 |
| 9 | 41805213 | PICK LINE CONNECTING ROD | 1 |
| 10 | S10019 | SCREW M6X6 | 2 |
| 11 | 41804216 | NEEDLE BAR CONNECTION COLUMN | 1 |
| 12 | 42224005 | NEEDLE BEARING | 2 |
| 13 | 101S17001 | NEEDLE BAR CRANK SCREW (LEVOROTATION) | 1 |
| 14 | S04078 | SCREW M4×8 | 1 |
| 15 | 41704100 | THE NEEDLE BAR JOINT | 1 |
| 16 | 41803222 | NEEDLE ROD AND CONNECTING ROD COPPER SLEEVE | 1 |
| 17 | 41805215 | NEEDLE BAR CONNECTING ROD | 1 |
| 18 | 41804215 | PICK UP THE CRAKE PARTS | 1 |
| 19 | B06016 | BEARING 618VV | 1 |
| 20 | B04031 | BEARING 619/8-ZZ | 1 |
| 21 | B04030 | BEARING 628/6-ZZ | 1 |
| 22 | 41811221 | WASHER | 2 |
| 23 | 41813214 | OVER LINE SLEEVE | 1 |
| 24 | 41709002 | SLIDING BLOCK GUIDE B | 1 |
| 25 | 41709001 | SLIDING BLOCK | 1 |
| 26 | S05118 | SCREW M4×16 | 2 |
| 27 | 41703005 | NEEDLE BAR SHAFT SLEEVE UK | 1 |
| 28 | 41702061 | NEEDLE BAR(DLC) | 1 |
| 29 | 42203508 | NEEDLE ROD BUSHING D | 1 |
| 30 | 417S15002 | SCREW SM3.57-40×4.5 | 1 |
| 31 | 41726014 | NEEDLE GUARD | 1 |
| 32 | 42217503 | NEEDLE DP×5 9# | 1 |
| 33 | S09019 | SCREW M5×5 | 1 |
| 34 | 40325010 | TURN THE GEAR ON THE SHAFT | 1 |
| 35 | S09019 | SCREW M5×5 | 2 |
| 36 | 40325011 | HAND WHEEL SHAFT GEAR | 1 |
| 37 | S09019 | SCREW M5×5 | 2 |
| 38 | S10019 | SCREW M6×6 | 1 |
| 39 | 41803020 | HAND WHEEL AXIE SLEEVE | 1 |
| 40 | 41827214 | SPRING | 1 |
| 41 | P03002 | PIN 4X16 | 1 |
| 42 | 41802212 | THE HAND WHEEL | 1 |
| 43 | 40311003 | HAND WHEEL | 1 |
| 44 | 403S11003 | HAND WHEEL SET SCREW | 1 |
| 101S14001 | 针杆曲柄A | ||
| 4183801100 |
Page 14 — 6、X送料装置/X Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41842029 | X FEEDING BASE L14 | 1 |
| 2 | 41824013 | X GUIDE RAIL L14 | 1 |
| 3 | 41825012 | X RACK L14 | 1 |
| 4 | 41842031 | GUIDE RACK CONNECTING SEAT YL14 | 1 |
| 5 | 418S16012 | SQUARE NUT 20M4 | 34 |
| 6 | S05118 | SCREW M4×16 | 34 |
| 7 | 41812017 | X GUIDE BAFFLE | 2 |
| 8 | S04038 | SCREW M6×10 | 4 |
| 9 | S05048 | SCREW M4×10 | 8 |
| 10 | 41728024 | WASHER M4 | 8 |
| 11 | 41812020 | X SENSOR MOUNTING PLATE | 1 |
| 12 | 41730851 | SENSOR | 1 |
| 13 | S05048 | SCREW M4×10 | 2 |
| 14 | W01001 | WASHER M4 | 2 |
| 15 | S04076 | SCREW M3×8 | 1 |
| 16 | 41833011 | X STEPPING MOTOR B | 1 |
| 17 | S05010 | SCREW M4×12 | 4 |
| 18 | 41842017 | MOTOR SAFETY SEAT | 1 |
| 19 | B01025 | BALL BEARING 6200 | 1 |
| 20 | 41812272 | MOTOR MOUNTING BRACKET | 1 |
| 21 | 42225515 | X FEEDING RACK 14 | 1 |
| 22 | S05118 | SCREW M4×16 | 29 |
| 23 | W01001 | WASHER M4 | 31 |
| 25 | 418S16011 | SQUARE NUT 20M5 | 18 |
| 24 | S05111 | SCREW M6×20 | 4 |
| 26 | S05121 | SCREW M5×10 | 2 |
| 27 | S05123 | SCREW M5×12 | 2 |
| 28 | 41728028 | WASHER 5 | 4 |
| 29 | 41812026 | GEAR PLATE | 1 |
| 30 | S02031 | SCREW M3×5 | 2 |
| 31 | 42224515 | ROLLER GUIDE WHEEL | 1 |
| 32 | 41712133 | WASHER 8 | 1 |
| 33 | 41828011 | WASHER 8 | 1 |
| 34 | 41842018 | GUIDE WHEEL COVER | 1 |
| 35 | S05116 | SCREW M4×8 | 2 |
| 36 | 41826011 | PIN 6×15 | 1 |
Page 16 — 6、X送料装置(齿轮齿条传动)/X Feed mechanism (Gear-ract drive)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 37 | S05040 | SCREW M6×16 | 4 |
| 38 | 41811027 | PLASTIC DRAG CHAIN 1825 | 1 |
| 39 | 417S30033 | SCREW M4×8 | 2 |
| 40 | 41812141 | Y DRAG CHAIN FRONT SUPPORT | 1 |
| 41 | 41812142 | X DRAG CHAIN LATER SUPPORT | 1 |
| 42 | 304213 | X MOTOR COVER | 1 |
| 43 | 417S30025 | SCREW(WITH SHIM) M4×10DB | 3 |
| 44 | 418S16012 | SQUARE NUT 20M4 | 4 |
| 45 | S05048 | SCREW M4×10 | 4 |
| 46 | S05116 | SCREW M4×8 | 2 |
| 47 | 4181203000 | X DRAG CHAIN SUPPORT COMPONENTS | 1 |
| 48 | 417S15008 | SCREW M4×8 | 3 |
| 49 | 42211526 | PLASTIC DRAG CHAIN 0616 | 1 |
| 50 | 42211527 | PLASTIC DRAG CHAIN 0616 JOINT | 1 |
| 51 | 417S15008 | SCREW M4×8 | 4 |
| 52 | 41801046 | FEEDING BASE CONNECTING SEAT | 2 |
| 53 | 417S13301 | SCREW M5×12 | 2 |
| 54 | S05123 | SCREW M5×12 | 4 |
| 55 | S17005 | SCREW M5×10(COUNTERSUNK HEAD) | 8 |
| 56 | 41812134 | Y DRAG CHAIN LATER SUPPORT | 1 |
| 57 | 417S15008 | SCREW M4×8 | 2 |
| 58 | N01008 | NUT M8 | 1 |
| 59 | 422S15501 | SCREW M4×10 | 2 |
| 60 | N01024 | NUT M4 | 2 |
| 61 | 41708005 | THREAD BUSHING | 4 |
| 62 | 418S16013 | KNURLED THREAD SLEEVE M5 | 6 |
| 63 | 417S30034 | SCREW M4×14 | 2 |
| 64 | 42128040 | WASHER M6 | 6 |
| 65 | 304826 | X RIGHT DUST SHIELD | 1 |
| 66 | S04028 | SCREW M5×8 | 1 |
| 67 | W02001 | STAINLESS STEEL PAD M5 | 1 |
| 68 | W01009 | WASHER 5 | 1 |
| 69 | 41812222 | PLATE NUT | 1 |
| 70 | 304825 | X RIGHT DUST SHIELD | 1 |
| 71 | 418S16012 | SQUARE NUT 20M4 | 8 |
| 72 | 421S13012 | SCREW M4×10 | 8 |
| 41812144 | 螺钉(带垫圈)M4×10DB | ||
| 413S13017 | 螺栓 M4×8(滚花,镀镍) | ||
| 403S11013 | |||
| 41812434 | 螺钉M5×8(镀亮光铬) | ||
| 41812432 | 不锈钢垫圈M5 |
Page 18 — 6.1、X送料装置(丝杆传动)/X Feed mechanism (Screw drive)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 421S13027 | SCREW M5×12 | 2 |
| 2 | 407N1002 | NUT M4 | 2 |
| 3 | 930000021 | Y LEAD SCREW CHAIN BRACKET | 1 |
| 4 | 41811027 | PLASTIC DRAG CHAIN 1825 | 1 |
| 5 | S05059 | SCREW M4×12 | 2 |
| 6 | 42136014 | MOUNTING PLATE THROUGH PIPE | 2 |
| 7 | 407N1002 | NUT M4 | 2 |
| 8 | 141811001 | LITTLE PLASTIC DRAG CHAIN | 1 |
| 9 | S05057 | SCREW M4×6 | 2 |
| 10 | S05059 | SCREW M4×12 | 2 |
| 11 | S04078 | SCREW M4×10 | 5 |
| 12 | 930000022 | SCREW MOTOR COVER | 1 |
| 13 | S05124 | SCREW M5×10 | 4 |
| 14 | 41833016 | X SCREW SERVO MOTOR | 1 |
| 15 | 930000020 | COVER WIRE | 1 |
| 16 | 417S30025 | PHILLIPS PAN HEAD SCREW M4×10 | 8 |
| 17 | 4182401600 | SCREW COMPONENTS | 1 |
| 18 | 41730851 | SENSOR | 1 |
| 19 | 421S13049 | SCREW M3×12 | 1 |
| 20 | 1.4181E+10 | LEAD SCREW CHAIN GUIDE COMPONENTS | 1 |
| 22 | 417S15008 | COUNTERSUNK HEAD SCREW M4×8 | 4 |
| 23 | 41708005 | THREAD BUSHING M5 | 8 |
| 24 | S05040 | SCREW M6×16 | 4 |
| 25 | 42128040 | WASHER M6 | 4 |
| 26 | 41801052 | SCREW FEEDING BASE CONNECTING SEAT | 2 |
| 27 | 421S13065 | SCREW M5×16 | 8 |
| 28 | S04082 | SCREW M3×6 | 4 |
| 29 | S05116 | SCREW M4×8 | 2 |
| 30 | 41812146 | GREASE STORAGE BOX MOUNTING PLATE | 1 |
| 31 | 41836011 | COPPER CARD-YYPE DIRECT TUBING JOINT M6 | 1 |
| 32 | 41836018 | LUBRICATING NIPPLE M6 | 1 |
| 33 | 41842041 | Y LEAD SCREW GREASE STORAGE BOX | 1 |
| 34 | 41822016 | O-SHAPED RING | 2 |
| 35 | 41842042 | PISTON | 1 |
| 36 | 41812145 | GREASE STORAGE COVER PLATE | 1 |
| 37 | S04076 | SCREW M3X8 | 4 |
| 38 | S04125 | SCREW M4X50 | 1 |
| 39 | 141812027 | PADDING BLOCK | 1 |
| 40 | N01024 | HEX NUT | 1 |
| 41 | 41836501 | GES POPE JOINT | 1 |
| 42 | 41812134 | Y DRAG CHAIN LATER SUPPORT | 1 |
| 43 | S05115 | SCREW M4×6 | 2 |
| 44 | 417S30034 | SCREW M4X14 | 2 |
| 45 | 141830005 | DRIVE | 1 |
| 46 | S05116 | SCREW M4×8 | 2 |
Page 20 — 6.2、X送料装置(同步带传动)/X Feed mechanism(Screw drive)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141811006 | TRUNKING 40L700 | 1 |
| 2 | S05057 | SCREW M4×6 | 3 |
| 3 | W01001 | PLAIN WASHER4 | 3 |
| 4 | 425S10001 | SQUARE NUT BLOCK | 10 |
| 5 | 141811005 | TRUNKING 4030L120 | 1 |
| 6 | 141811004 | TRUNKING 4030L480 | 1 |
| 7 | 417S15008 | SCREW M4×8 | 4 |
| 8 | 41828012 | PLAIN WASHER4 | 4 |
| 9 | 141842008 | PANZER CHAIN BAFFLE | 1 |
| 10 | N01013 | NUT M3 | 2 |
| 11 | S02127 | SCREW M3×10 | 2 |
| 12 | 141831028 | TEFLON TAPE 50 | 1 |
| 13 | 4184205000 | SYNCHORONOUS BELT FEED MECHANISM | 1 |
| 14 | 41837614 | MECHANICAL ANTI-COLLISION LABELING | 2 |
| 15 | S05035 | SCREW M5×25 | 2 |
| 16 | S05124 | SCREW M5×16 | 2 |
| 17 | 41833500 | X STEPPER MOTOR | 1 |
| 18 | 10122005 | DUST PLUG | 1 |
| 19 | 141842001 | X SENSOR MOUNTING PLATE | 1 |
| 20 | W01001 | PLAIN WASHER4 | 2 |
| 21 | S05010 | SCREW M4×12 | 2 |
| 22 | 41730851 | SENSOR | 1 |
| 23 | S04076 | SCREW M3×8 | 1 |
| 24 | S05040 | SCREW M6×16 | 4 |
| 25 | 42128040 | WASHER M6 | 4 |
| 26 | 417S30034 | SCREW M4×14 | 8 |
| 27 | 41801052 | FEEDING BASE CONNECTING SEAT | 2 |
| 28 | 425S10001 | SQUARE NUT BLOCK | 8 |
Page 22 — 6.2、X送料装置(同步带传动)/X Feed mechanism (Screw drive)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29 | S02032 | SCREW M3X6 | 4 |
| 30 | 425S10001 | SQUARE NUT BLOCK | 2 |
| 31 | 141812035 | GREASE STORAGE BOX MOUNTING PLATE(LONG) | 1 |
| 32 | S05116 | SCREW M4X8 | 2 |
| 33 | S04125 | SCREW M4X50 | 1 |
| 34 | N01024 | HEX NUT | 1 |
| 35 | S04076 | SCREW M3X8 | 4 |
| 36 | 41812145 | GREASE STORAGE COVER PLATE | 1 |
| 37 | 41842042 | PISTON | 1 |
| 38 | 41822016 | O-SHAPED RING | 2 |
| 39 | 41842041 | Y LEAD SCREW GREASE STORAGE BOX | 1 |
| 40 | 41836011 | COPPER CARD-YYPE DIRECT TUBING JOINT M6 | 1 |
| 41 | 41836018 | LUBRICATING NIPPLE M6 | 1 |
| 42 | 407N01002 | SELF-LOCKING NUT M4 | 2 |
| 43 | 41812141 | Y CHAIN BRACKET | 1 |
| 44 | 41811027 | PLASTIC DRAG CHAIN 1825 | 1 |
| 45 | S05115 | SCREW M4×6 | 2 |
| 46 | 417S30034 | SCREW M4×14 | 2 |
| 47 | 41812134 | Y DRAG CHAIN LATER SUPPORT | 1 |
| 48 | 422S15501 | SCREW M4×10 | 2 |
| 49 | 417S30302 | SCREW (WITH WASHER) M4×12 | 2 |
| 50 | 41728024 | GASKET L4 | 2 |
| 51 | 425S10001 | SQUARE NUT BIOCK | 2 |
Page 24 — 7、送料装置(丝杆传动)/Feed mechanism (Screw drive)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41801044 | Y ROD SYNCHRONIZES THE DRIVE SEAT | 1 |
| 2 | 40322021 | RUBBER CAP 15 | 2 |
| 3 | 413S13013 | SCREW M6×25 | 2 |
| 4 | N01021 | NUT M6 | 2 |
| 5 | B01033 | BALL BEARING 6203 | 1 |
| 6 | 41801042 | Y SCREW SUPPORT BEARING PEDESTAL | 1 |
| 7 | S05040 | SCREW M6×16 | 4 |
| 8 | S05133 | SCREW M4×12 | 1 |
| 9 | 41808011 | CLOSING RING | 1 |
| 10 | 41824015 | Y SCREW COMPONENTS | 1 |
| 11 | 421S13059 | SCREW M5×20 | 4 |
| 12 | 41801041 | Y SCREW ROD FIXED END BEARING ASSEMBLY | 1 |
| 13 | S05139 | SCREW M8×55 | 4 |
| 14 | 41801040 | SCREW MOTOR STAND | 1 |
| 15 | 41826016 | PIN 8×30 | 2 |
| 16 | S05074 | SCREW 8×20 | 4 |
| 17 | 4180301200 | COMPONENT OF CLUBS COUPLING | 1 |
| 18 | 41833013 | Y SERVO MOTOR | 1 |
| 19 | S05040 | SCREW M6×16 | 4 |
| 20 | 41836011 | COPPER CARD-YYPE DIRECT TUBING JOINT M6 | 1 |
| 21 | 41821011 | OIL TUBE | 1 |
| 22 | 12912326 | PIPE CLAMP | 1 |
| 23 | 417S30025 | SCREW(WITH SHIM) M4×10DB | 1 |
| 25 | 41812667 | TUBING SUPPORT | 1 |
| 26 | 417S30025 | SCREW M4×20 | 2 |
| 29 | S05124 | SCREW M5×16 | 22 |
| 30 | 41824012 | Y GUIDE RAIL | 2 |
| 31 | 40322021 | RUBBER CAP 15 | 2 |
| 32 | S05088 | SCREW M6×45 | 2 |
| 33 | 41812028 | Y LOCATION-LIMITED PLATE B | 2 |
| 34 | N01021 | NUT M6 | 2 |
| 35 | 417S30036 | SCREW M5X12 | 4 |
| 36 | 41826011 | PIN 6×15 | 2 |
| 37 | S05123 | SCREW M5X12 | 16 |
Page 26 — 8、送料装置(夹具C)/Feed mechanism(fixture C)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41826013 | GUIDE ROD Φ8 | 4 |
| 2 | 41845011 | AIR CYLINDER CQ2B16-10 | 2 |
| 3 | 42230519 | MICRO PIPE CONNECTION M-5HLH-4 | 4 |
| 4 | S05048 | SCREW M4X10 | 8 |
| 5 | 41801012 | AIR CYLINDER GUIDE BAR | 2 |
| 6 | 41812022 | TEMPLATE LINKING PIECE | 2 |
| 7 | 417S15008 | SCREW M4X8 | 2 |
| 8 | S17005 | SCREW M5X10 | 4 |
| 9 | 41828012 | WASHER 4 | 2 |
| 10 | 41826014 | TEMPLATE POSITIONING TAPER PIN | 2 |
| 11 | S10019 | SCREW M6×6 | 1 |
| 12 | S05048 | SCREW M4×10 | 2 |
| 13 | 41842016 | LIMIT PIN SUPPORT | 1 |
| 14 | 41826015 | TEMPLATE PIN | 1 |
| 15 | 41842220 | PLANKER | 1 |
| 16 | S17005 | SCREW M5×10 | 10 |
| 17 | S05123 | SCREW M5×12 | 8 |
| 18 | W01009 | WASHER 5 | 8 |
| 19 | 41842038 | TOP PILLAR | 2 |
| 20 | S05068 | SCREW M5×20 | 4 |
| 21 | 41728004 | PIN | 4 |
| 22 | 41842037 | TOP PILLAR AIR CYLINDER MOUNTING PLATE | 2 |
| 23 | 41830211 | AIR CYLINDER | 2 |
| 24 | 421S17001 | SCREW M4×16 | 8 |
| 25 | 42230519 | MICRO PIPE CONNECTION M-5HLH-4 | 2 |
| 26 | S05065 | SCREW M4×40 | 4 |
| 27 | W02008 | SPRING WASHER 2-4 | 4 |
| 28 | 42128003 | WASHER | 4 |
| 29 | S05067 | SCREW M4×10 | 12 |
| 30 | 41842218 | FIXTURE CONNECTING PIATE B | 2 |
| 31 | W01009 | WASHER 5 | 10 |
| 32 | S05123 | SCREW M5×12 | 10 |
| 33 | 41730441 | AIR CYLINDER CU16-15D | 2 |
| 34 | 401727 | JOINT | 2 |
| 35 | 42226811 | JOINT PIN | 2 |
| 36 | S05123 | SCREW M5×12 | 6 |
| 37 | 42212607 | CLAMPING ROD BAFFLE | 2 |
| 38 | 42212813 | Clamping rod | 2 |
| 39 | 42228811 | ROTARY WASHER | 6 |
| 40 | 42212538 | FIXTURE MOUNTING PLATE L | 2 |
| 41 | 42226812 | CLAMPING PIN | 30 |
| 42 | 42212800 | PLASTIC BRACKET | 15 |
| 43 | 417S17852 | SCREW M5×15 | 30 |
| 44 | 42212820 | TRANSPARENT PALLET | 3 |
Page 28 — 8.1、送料装置 (压框夹具S)/Feed mechanism (Clamping fixture S)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 42536004 | GES POPE JOINT(90°) | 2 |
| 2 | 41845224 | GES POPE φ4×2.5（BLACK） | 4.2 |
| 3 | 42536003 | GES POPE JOINT(THREE-WAY PIPE) | 2 |
| 4 | 417S30023 | SCREW M3X16DB | 2 |
| 5 | 40736036 | GES POPE JOINT(THREE-WAY PIPE) | 2 |
| 6 | 42536003 | GES POPE JOINT(THREE-WAY PIPE) | 2 |
| 7 | 41845223 | GES POPE φ4×2.5（BLUE） | 4.2 |
| 8 | 42536004 | GES POPE JOINT(90°) | 2 |
| 9 | 4254500400 | AIR CYLINDER | 4 |
| 10 | S05124 | INTERNAL HEXAGONAL FLAT HEAD SCREW M5×20 | 16 |
| 11 | 41728028 | PLAIN WASHER 5 | 8 |
| 12 | S05123 | INTERNAL HEXAGONAL FLAT HEAD SCREW M5×12 | 8 |
| 13 | 42526008 | SPACER PIN | 1 |
| 14 | S05059 | INTERNAL HEXAGONAL FLAT HEAD SCREW M4×12 | 4 |
| 15 | 42512028 | LIMIT PIN SUPPORT | 1 |
| 16 | S09019 | SCREW M5×6 | 1 |
| 17 | 41842502 | COMPRESSION FRAME | 1 |
| 18 | S05068 | SCREW M5×20 | 4 |
| 19 | 41728004 | PIN | 4 |
| 20 | 41842038 | TOP PILLAR | 2 |
| 21 | 421S17001 | SCREW M4×12 | 8 |
| 22 | 41842037 | TOP PILLAR AIR CYLINDER MOUNTING PLATE | 2 |
| 23 | 41845017 | AIR CYLINDER | 2 |
| 24 | 42230519 | MICRO PIPE CONNECTION M-5HLH-4 | 2 |
| 25 | 41836501 | WEASAND CONNECTOR PU4 | 1 |
Page 30 — 8.2、送料装置(夹扣夹具S)/Feed mechanism (Clamping fixture S)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141845002 | PIPE CONNECT(THREE-WAY PIPE) | 2 |
| 2 | 407S04053 | SCREW M3×25 | 2 |
| 3 | 401727 | JOINT | 2 |
| 4 | S05065 | SCREW M4×40 | 4 |
| 5 | W02008 | SPRING WASHER 2-4 | 4 |
| 6 | 42128003 | PIN | 4 |
| 7 | 42536004 | PIPE CONNECT | 4 |
| 8 | 41730441 | AIR CYLINDER CU16-15D | 2 |
| 9 | 42212607 | CLAMPING ROD BAFFLE | 2 |
| 10 | 42212813 | CLAMPING ROD | 2 |
| 11 | 42212538 | FIXTURE MOUNTING PLATE L | 2 |
| 12 | 42228811 | ROTARY WASHER | 6 |
| 13 | S05123 | BOLT M5×12 | 6 |
| 14 | 42226811 | JOINT PIN | 2 |
| 15 | S05123 | SCREW M5×12 | 10 |
| 16 | W01009 | WASHER 5 | 10 |
| 17 | 41842218 | FIXTURE CONNECTING PIATE B | 2 |
| 18 | S05067 | SCREW M5×10 | 12 |
| 19 | 41845223 | GES POPE φ4×2.5（BLUE） | 4.2 |
| 20 | 41845224 | GES POPE φ4×2.5（BLACK） | 4.2 |
| 21 | 42212800 | PLASTIC BRACKET | 15 |
| 22 | 42226812 | CLAMPING PIN | 30 |
| 23 | 417S17852 | SCREW M5×15 | 30 |
| 24 | 42212820 | TRANSPARENT PALLET | 3 |
| 25 | 41836501 | WEASAND CONNECTOR PU4 | 2 |
Page 32 — 8.3、送料装置(压框夹具T)/Feed mechanism (Clamping fixture T)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41836501 | WEASAND CONNECTOR PU4 | 2 |
| 2 | 41845223 | BLUE WEASAND φ4×2.5 | 1.2 |
| 3 | 41845224 | BLACK WEASAND φ4×2.5 | 1.2 |
| 4 | 41811500 | PANZER CHAIN | 1 |
| 5 | S02127 | SCREW M3×10 | 2 |
| 6 | 41842504 | PANZER CHAIN PLATE | 1 |
| 7 | N08008 | NUT M3 | 2 |
| 8 | 141831029 | TEFLON TAPE 0.13×25 | 1 |
| 9 | 407S17001 | SCREW M4×10 | 4 |
| 10 | 42536004 | WEASAND CONNECTOR | 2 |
| 11 | S05124 | SCREW M5×16 | 16 |
| 12 | 41842503 | PANZER CHAIN SHIM | 4 |
| 13 | 41845223 | BLUE WEASAND φ4×2.5 | 1 |
| 14 | 41845224 | BLACK WEASAND φ4×2.5 | 1 |
| 15 | 42536003 | WEASAND CONNECTOR | 6 |
| 16 | 41842502 | PRESS FRAME | 1 |
| 17 | 4254500400 | CYLINDER | 4 |
| 18 | S09019 | SCREW M5×5 | 1 |
| 19 | 42512028 | LIMIT BEARING | 1 |
| 20 | 42526008 | LIMIT PIN | 1 |
| 21 | S05059 | SCREW M4×12 | 4 |
| 22 | S05124 | SCREW M5×16 | 8 |
| 23 | 41728028 | WASHER 5 | 8 |
| 24 | 41826211 | COLUMN | 2 |
| 25 | 41812258 | COLUMN CYLINDER PLATE | 2 |
| 26 | 41830211 | CYLINDER | 2 |
| 27 | 42230519 | WEASAND CONNECTOR M-5HLH-4 | 2 |
| 28 | S05215 | BOLT M3×26 | 8 |
| 29 | 407N01001 | SELF LOCKING NUT M5 | 4 |
| 30 | 41828612 | WASHER | 4 |
| 31 | S05218 | SCREW M5×22 | 4 |
Page 34 — 8.4、送料装置(夹扣夹具T)/Feed mechanism (Clamping fixture T)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41836501 | WEASAND CONECTOR PU4 | 2 |
| 2 | 41845223 | BLUE WEASAND φ4×2.5 | 1.2 |
| 3 | 41845224 | BLACK WEASAND φ4×2.5 | 1.2 |
| 4 | 41811500 | PANZER CHAIN | 1 |
| 5 | S02127 | SCREW M3×10 | 2 |
| 6 | N08008 | NUT M3 | 2 |
| 7 | 42536003 | WEASAND CONNECTOR | 2 |
| 8 | S05121 | BOLT M5×10 | 12 |
| 9 | 41842218 | CLAMP CONNEATION PLATE B | 2 |
| 10 | W01009 | WASHER | 8 |
| 11 | S05123 | BOLT M5×12 | 8 |
| 12 | 42212813 | PRESS BAR | 2 |
| 13 | 42228811 | MOVING WASHER | 6 |
| 14 | 42212538 | CLAMP INSTALLATION BOARD L | 2 |
| 15 | 42212607 | PRESS BAR BAFFLE | 2 |
| 16 | S05123 | BOLT M5×12 | 6 |
| 17 | 42226811 | PIN | 2 |
| 18 | 401727 | CONNCTER | 2 |
| 19 | 41730441 | CYLINDER CU16-15D | 2 |
| 20 | 42536004 | WEASAND CONNECTOR | 2 |
| 21 | 42128003 | WASHER | 4 |
| 22 | W02008 | SPRING WASHER | 4 |
| 23 | S05065 | SCREW M4×40 | 4 |
| 24 | 41711014 | CORD GRIP 6.4 | 3 |
| 25 | 417S30025 | BOLT M4×10 | 3 |
| 26 | 41842510 | PANZER CHAIN SHIM | 3 |
| 27 | 41842504 | PANZER CHAIN PLATE | 1 |
| 28 | 407S04001 | SCREW M4×16 | 3 |
| 29 | 141831029 | TEFLON TAPE 0.13×25 | 1 |
| 30 | 41845224 | BLUE WEASAND φ4×2.5 | 1 |
| 31 | 41845223 | BLUE WEASAND φ4×2.5 | 1 |
| 32 | 141812049 | FILLER PIECE | 1 |
| 33 | 141812048 | CLAMP INDUCTOR | 1 |
| 34 | 141842007 | SUPPORT BLOCK | 1 |
| 35 | W01001 | WASHER4 | 2 |
| 36 | S05116 | SCREW M4×8 | 2 |
| 37 | S02039 | SCREW M4×9 | 1 |
Page 36 — 9、拾压脚装置/Work clamp lifter mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41833213 | MEDIUM PRESSURE FOOT MOTOR | 1 |
| 2 | S05123 | SCREW M5×12 | 4 |
| 3 | 41801217 | MOTOR MOUNTING PLATE | 1 |
| 4 | S05124 | SCREW M5×16 | 4 |
| 5 | B01028 | BEARING 628/8 | 1 |
| 6 | 41803228 | MEDIUM PRESSURE FOOT COUPLING | 1 |
| 7 | S10019 | SCREW M6×6 | 4 |
| 8 | 41802224 | MEDIUM PRESSURE FOOT DRIVE SHAFT | 1 |
| 9 | 41804211 | MEDIUM PRESSURE FOOT JOINTED ARM | 1 |
| 10 | S09019 | SCREW M5×5 | 1 |
| 11 | S05118 | SCREW M4×16 | 1 |
| 12 | 41826212 | LINK PIN | 1 |
| 13 | B01028 | BALL BEARING 628/8 | 2 |
| 14 | 41805212 | MEDIUM PRESSURE FOOT LINK | 1 |
| 15 | 41826212 | LINK PIN | 1 |
| 16 | S05133 | SCREW M4×12 | 1 |
| 17 | 41809211 | MEDIUM PRESSURE FOOT PRESSURE ROD GUIDE FRAME | 1 |
| 18 | S09019 | SCREW M5×5 | 1 |
| 19 | 41803025 | PRESS THE SHAFT SLEEVE | 1 |
| 20 | S09019 | SCREW M5×5 | 1 |
| 21 | 41802228 | PRESS THE SHAFT D | 1 |
| 22 | 42216505 | MEDIUM PRESSURE FOOT | 1 |
| 23 | 41728025 | FLAT WASHER L3.5 | 1 |
| 24 | 417S15011 | SCREW SM3.57X12 | 1 |
| 25 | 303887 | MEDIUM PRESSURE FOOT SIDE COVER | 1 |
| 26 | S04028 | SCREW M5X8 | 4 |
| 27 | 41822101 | VALVE RUBER | 1 |
Page 38 — 10、下轴装置/Lower shaft mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14222007 | RUBBER CAP 18 | 1 |
| 2 | 41803012 | SPACER SLEEVE | 1 |
| 3 | 12922001 | RUBBER CAP 12.5 | 1 |
| 4 | B10020 | BALL BEARING 6201ZZNR | 1 |
| 5 | 1372500100 | LARGE GEAR ASSEMBLY | 1 |
| 6 | S10019 | SCREW M6X6 | 2 |
| 7 | 13703034 | LOWER DRIVE SHAFT OIL SEAL SLEEVE | 1 |
| 8 | 13722022 | LIFT THE SHAFT OIL SEAL | 1 |
| 9 | B01010 | NEEDLE BEARING 6003 | 1 |
| 10 | 11403013 | BEARING SLEEVE | 1 |
| 11 | 101S15002 | SCREW | 2 |
| 12 | 41802016 | LOWER SYNCHRONOUS WHEEL SHAFT | 1 |
| 13 | 11403013 | BEARING SLEEVE | 1 |
| 14 | 101S15002 | SCREW | 2 |
| 15 | B01010 | NEEDLE BEARING 6003 | 1 |
| 16 | B10012 | NEEDLE BEARING 6004DDUNR | 1 |
| 17 | 41835018 | LOWER SYNCHRONOUS WHEEL | 1 |
| 18 | S10019 | SCREW M6X6 | 2 |
| 19 | 41809011 | LOCATING HOOK SUPPORT | 1 |
| 20 | 42212555 | SHUTTLE LOCATING HOOK | 1 |
| 21 | 116S11005 | SCREW | 1 |
| 22 | S05048 | SCREW M4×10 | 2 |
| 23 | 41818101 | HOOKING COMPONENT | 1 |
| 41818201 | HOOKING COMPONENT | 1 | |
| 24 | 42218002 | SPINDLE SLEEVE ASSEMBLY | 1 |
| 25 | 10818501 | BIG BOBBIN | 1 |
| 26 | 41822011 | OIL SEAL 0820 | 1 |
| 27 | 41803023 | LOWER SHAFT PLUNGER SLEEVE | 1 |
| 28 | S09006 | SCREW M4X4 | 1 |
| 29 | 11403016 | LOWER SHAFT BEARING SLEEVE | 1 |
| 30 | 113S14002 | SCREW | 2 |
| 31 | B02006 | BEEL BEARING | 1 |
| 32 | 1142201400 | OIL SEAL COMPONENT | 1 |
| 33 | 41803015 | SHAFT SLEEVE IN THE LOWER SHAFT | 1 |
| 34 | S10019 | SCREW M6X6 | 2 |
| 35 | 41825011 | BEVEL WHEEL | 1 |
| 36 | 141803006 | LOWER SHAGT OIL CORE SLEEVE | 1 |
| 37 | 141823001 | LOWER SHAGT OIL LIMITING CORE | 1 |
| 38 | 41802017 | LOWER SHAFT | 1 |
| 39 | 41822015 | RUBBER CAP φ27 | 1 |
| 40 | 42508003 | SHRINK RING | 1 |
| 41 | 141822002 | O-ring | 1 |

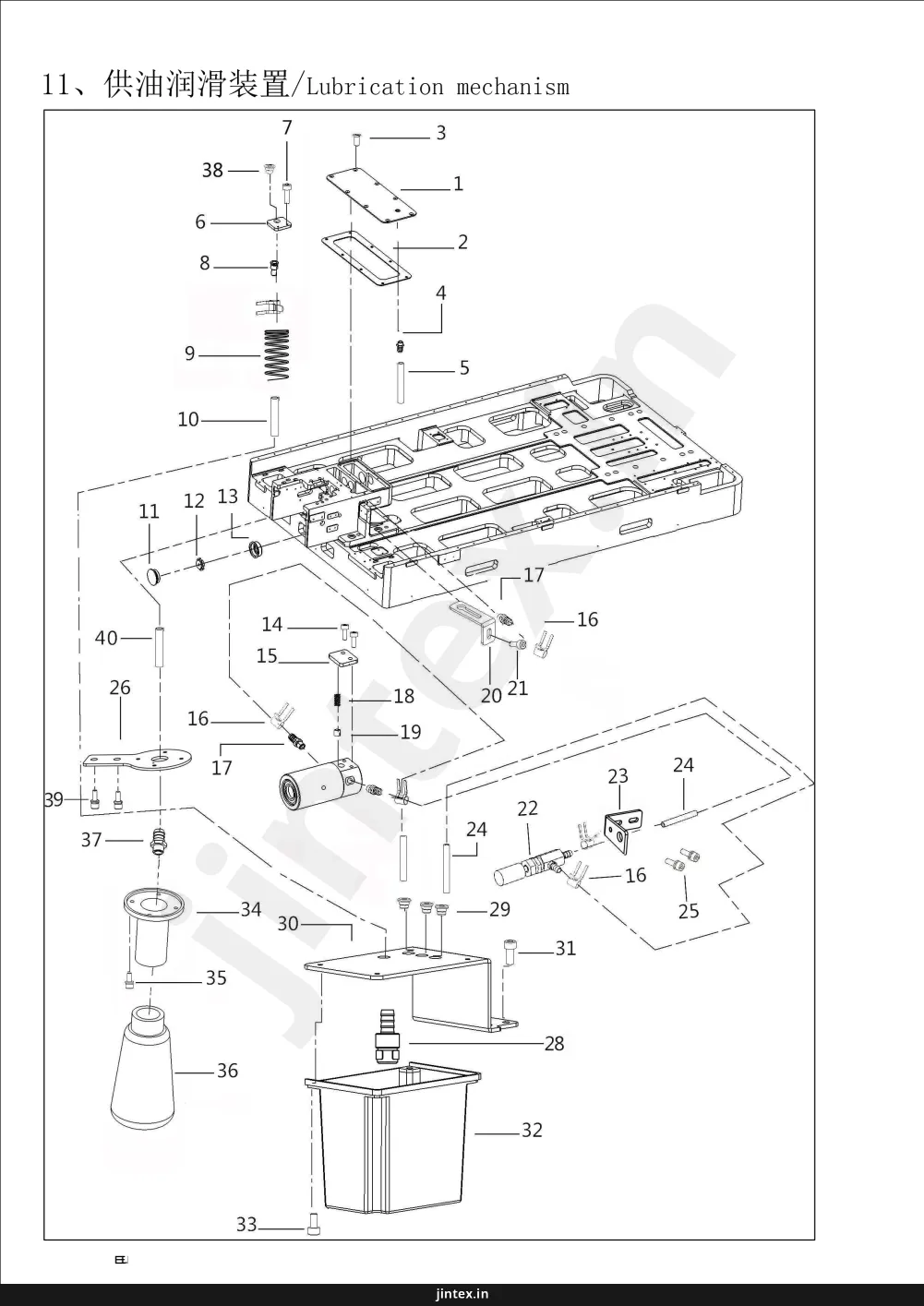

Page 40 — 11、供油润滑装置/Lubrication mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4181203600 | GEARBOX COVRE PLATE ASSEMBLY | 1 |
| 2 | 41812035 | GEARBOX COVRE PLATE | 1 |
| 3 | S02039 | SCREW M4×9 | 8 |
| 4 | 41736303 | OIL TUBE MOUTH B | 1 |
| 5 | 12921005 | OIL TUBE φ4Xφ6 (0.05m) | 1 |
| 6 | 41812011 | OIL FILLER MOUNTING PLATE | 1 |
| 7 | S05133 | SCREW M4×12 | 2 |
| 8 | 13121001 | OIL FILLER | 1 |
| 9 | 41827424 | TUBING SHEATH SPRING | 1 |
| 10 | 11421006 | OIL TUBE φ8Xφ10(0.3m) | 1 |
| 11 | 41711004 | OIL WINDOW | 1 |
| 12 | 41711022 | SEPARATION BLADE | 1 |
| 13 | 41722031 | RUBBER RING | 1 |
| 14 | S05094 | SCREW M3X8 | 2 |
| 15 | 41812093 | PLUNGER SPRING CLAMP | 1 |
| 16 | 11412055 | Φ5.7 TUBING CIRCLIP | 4 |
| 17 | 41836015 | OIL TUBE MOUTH M5 | 3 |
| 18 | 11427021 | PLUNGER SPRING | 1 |
| 19 | 10526003 | PLUNGER | 1 |
| 20 | 41812043 | OIL TUBE SUPPORT | 1 |
| 21 | S05048 | SCREW M4×10 | 1 |
| 22 | 42236513 | REGULATING VALVE | 2 |
| 23 | 41812042 | OIL CONTROL VALVE MOUNTING PLATE | 1 |
| 24 | 12921002 | VINYLON TUBING （φ3xφ5） | 2 |
| 25 | 417S30302 | SCREW(WITH WASHER) M4X12DB | 2 |
| 26 | 41812014 | AFTER OIL CAN MOUNTING PLATE | 1 |
| 28 | 4183601700 | FILTER UNIT | 1 |
| 29 | 40322027 | RUBBER CAP | 3 |
| 30 | 41812012 | OIL CUP MOUNTING PLATE | 1 |
| 31 | 417S30037 | SCREW M6×14 | 4 |
| 32 | 41811228 | OIL CUP | 1 |
| 33 | S05121 | SCREW M5X10 | 4 |
| 34 | 40311010 | OILER JOINT | 1 |
| 35 | S05192 | SCREW M3X6 | 4 |
| 36 | 40311011 | AFTER OIL CAN | 1 |
| 37 | 12936004 | NOZZLE TUBE | 1 |
| 38 | 41722003 | RUBBER CAP 10.5 | 1 |
| 39 | 417S30306 | SCREW M5×15 | 2 |
| 40 | 12921006 | VINYLON TUBING （φ6xφ8） | 0.3m |
Page 42 — 12、穿线装置/Threading mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41712077 | THE THREAD GUIDE A | 1 |
| 2 | S04028 | SCREW M5×8 | 1 |
| 3 | 41712078 | THE THREAD GUID B | 1 |
| 4 | S04028 | SCREW M5×8 | 1 |
| 5 | 41712079 | A THREAD C | 1 |
| 6 | S04028 | SCREW M5×8 | 1 |
| 7 | S12001 | SCREW M6×8 | 1 |
| 8 | 41702031 | LOOSE THREAD PIN | 1 |
| 9 | 4181361200 | THE MAIN BINDER COMPONENT | 1 |
| 10 | 4171301400 | ACCESSORY WIRE HOLDER ASSEMBLY | 1 |
| 11 | 41713301 | CASING THREAD HOOK | 1 |
| 12 | 41722320 | DAMPING RUBBER | 1 |
| 13 | N01024 | HEX NUT | 1 |
| 14 | 41813622 | ARM THREAD GUIDE SPRING | 1 |
| 15 | 41313013 | A SPOOL | 1 |
| 16 | 14222007 | RUBBER CAP 18 | 1 |
| 17 | 421S13012 | BOLT (with washer) M4×10 | 1 |
Page 44 — 13、卷线装置/Bobbin winder mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41719001 | CUTTER | 1 |
| 2 | S04028 | SCREW M5×8 | 1 |
| 3 | S05119 | SCREW M4×20 | 4 |
| 4 | 41803219 | REEL DRIVING WHEEL | 1 |
| 5 | S09019 | SCREW M5×5 | 2 |
| 6 | 41831222 | AUTOMATIC WINDER | 1 |
| 7 | S05035 | SCREW M5×25 | 4 |
| 8 | 407N01001 | SELF-LOCKING NUT | 4 |
| 9 | 41728028 | GASKET | 4 |
Page 46 — 14、切线装置/Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 4181901100 | KNIFE COMPONENTS | 1 |
| 2 | S05010 | SCREW M4×12 | 2 |
| 3 | 41803017 | SHAFT SLEEVE 0508 | 1 |
| 4 | 417S12005 | SCREW M6 | 2 |
| 5 | 41802021 | TANGENT CONNENTING ROD | 1 |
| 6 | S05010 | SCREW M4×12 | 1 |
| 7 | 41804022 | TANGENT OSCILLATING BAR | 1 |
| 8 | 41804021 | TANGENT DRIVE OSCILLATING BAR | 1 |
| 9 | S05010 | SCREW M4×12 | 1 |
| 10 | 41812044 | TANGENT MOTOR MOUNTING PLATE | 1 |
| 11 | S05040 | SCREW M6×16 | 4 |
| 12 | 42230534 | TANGENT MOTOR | 1 |
| 13 | S05010 | SCREW M4×12 | 4 |
| 14 | 4170500300 | ADAPTER ASSEMBLY | 2 |
| 15 | N01021 | NUT M6 | 2 |
| 16 | 407S04002 | SCREW M3×8 | 1 |
| 17 | 41819015 | MOVING BLADE | 1 |
| 18 | S05047 | SCREW M3×4 | 2 |
| 19 | S09042 | SCREW M3×4 | 1 |
| 20 | 41819016 | STATIONARY KNIFE | 1 |
| 21 | 41819020 | MOVING BLADE ROD | 1 |
| 22 | 4181901100-03 | SCREW M3×4 | 2 |
| 23 | S09042 | SCREW M3×4 | 1 |
| 24 | 4181901100-01 | SCREW M1.6×1.5 | 2 |
| 25 | 4181901100-02 | WASHER | 2 |
| 26 | 41812519 | WIRE SHEET | 1 |
| 27 | 41812518 | WIRE SHEET MOUNTING PLATE | 1 |
| 28 | 41812517 | STATIONARY KNIFE MOUNTING PLATE | 1 |
Page 48 — 15、挡线部件/Stop line components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41812094 | BUCKLE LINE FORK WIDTH | 1 |
| 2 | 41842036 | STOP LINE MOUNTING PLATE | 1 |
| 3 | S05119 | SCREW M4X20 | 2 |
| 4 | 41803021 | LONG SHAFT SLEEVE 0508 | 1 |
| 5 | 41804014 | STOP LINE CRANK | 1 |
| 6 | 41830013 | STOP LINE ELECTROMAGNET | 1 |
| 6 | 41812087 | STOP LINE DRIVE CONNENTING ROD | 1 |
| 6 | 418S30015 | SCREW PIN | 1 |
| 7 | S05116 | SCREW M4X8 | 3 |
| 8 | 418S20012 | AXIS OF A SCREW M3 | 1 |
| 9 | S05215 | SCREW M3X25 | 1 |
| 10 | 41811014 | PARTIALITY STOP COLLAR | 2 |
| 11 | 41804015 | STOP LINE SUPPORT | 1 |
| 12 | 413S13016 | SCREW M4X8 | 2 |
| 13 | W02015 | FLAT GASKET | 2 |
| 14 | W01097 | FLAT GASKET 4 | 2 |
Page 50 — 16、扫线装置/Thread wiper mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41830217 | Sweeping electromagnet | 1 |
| 2 | 41822212 | D-shape cushion | 1 |
| 3 | 41828212 | D-shape washer | 1 |
| 4 | 41811213 | Electromagnet cover | 1 |
| 6 | W01002 | M3 washer | 1 |
| 7 | 4181226100 | Mounting plate component | 1 |
| 8 | 41822213 | Buffer block | 1 |
| 9 | W01002 | M3 washer | 4 |
| 10 | S04082 | Screw M3×6 | 4 |
| 11 | 41826215 | Pin | 1 |
| 12 | 41803223 | Copper washer | 1 |
| 13 | 418S20213 | Head screw B | 1 |
| 14 | 41812264 | Drive swinging rod | 1 |
| 15 | 41803225 | Casing tube | 1 |
| 16 | 41827212 | Torsional spring | 1 |
| 17 | 418S20212 | Head screw A | 1 |
| 18 | 41812235 | Sweeping connection rod | 1 |
| 19 | H03057 | Split washer 3 | 1 |
| 20 | 4180421400 | Sweeping crank component | 1 |
| 21 | H05006 | washer 5 | 1 |
| 22 | 41827211 | Sweeping steel wire | 1 |
| 23 | 41803220 | Spool washer | 1 |
| 24 | 417S15013 | Screw M4×5 | 1 |
| 25 | 417S30302 | Bolt (with washer) M4×12 | 2 |
| 26 | 41845232 | T-pipe coupling | 1 |
| 27 | S01591 | Screw M3×18 | 1 |
| 28 | W01002 | M3 washer | 1 |
Page 52 — 17、松线装置/Tension release mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41830464 | Thread-loosing electromagnet HV | 1 |
| 2 | 41722020 | Buffering washer | 1 |
| 3 | W01001 | M4 gasket | 1 |
| 4 | N01024 | Hex nut M4 | 1 |
| 5 | L02071 | Hex head bolt M4×18 | 1 |
| 6 | H05029 | Retainer ring E4 | 1 |
| 7 | W01009 | Washer 5 | 1 |
| 8 | 41826220 | Thread-loosing rod | 1 |
| 9 | 41727013 | Spring | 1 |
| 10 | 114S11003 | Screw 3/16-28 L=10 | 2 |
| 11 | S10009 | Concave set screw M6×8 | 1 |
Page 54 — 18、大压脚装置/External work clamp mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41845016 | THE STROKE CAN ADJUST THE CYLINDER 12-17D | 1 |
| 2 | 418S13001 | SCREW M3×55 | 2 |
| 3 | 41845231 | CONTACK ASL4-M5 | 2 |
| 4 | 41803024 | BAG PRESSER FOOT CYLINDER COUPLING | 1 |
| 5 | S10007 | CONCAVE SIDE SET SCREW M4X4 | 4 |
| 6 | 41809213 | BAG PRESSER FOOT PUSH ROD GUIDE | 1 |
| 7 | S05133 | SCREW M4×12 | 1 |
| 8 | 41802220 | BAG PRESSER FOOT PUSH ROD | 1 |
| 9 | 11403007 | UNDER THE NEELE BAR SET | 1 |
| 10 | 41822101 | VALVE RUBBER | 1 |
| 11 | S05192 | WASHER L3.5 | 2 |
| 12 | S05133 | SCREW M4×12 | 2 |
| 13 | 41728025 | FLAT GASKET L3.5 | 2 |
| 14 | 41812143 | COPPER PIPE MOUNTING PLATE | 1 |
| 15 | 41816031 | BAG PRESSER FOOT D | 1 |
| 16 | 41821014 | COPPER PIPE D | 1 |
| 17 | 41801064 | COPPER PIPE PLTEN | 1 |
Page 56 — 19、断线感应装置/Thread breakage detector mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41711054 | SENSOR INSULATION | 1 |
| 2 | 42212837 | INDUCTION OF COPPER | 1 |
| 3 | 62800016 | SINGLE CORE WIRES | 2.5m |
| 4 | 41711053 | SENSOR INSULATION | 1 |
| 5 | S04078 | SCREW M4×8 | 1 |
| 6 | W01001 | WASHER M4 | 1 |
Page 58 — 20、控制箱装置(双丝杆)/Control box mechanism(Two Lead
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41833013 | Y SERVO MOTOR | 1 |
| 2 | 41833212 | SINDLE MOTOR | 1 |
| 3 | 41833213 | MEDIUM VOLTAGE STEPPING MOTOR | 1 |
| 4 | 42230534 | SHEAR WIRE MOTOR | 1 |
| 5 | 41833016 | X LEAD SCREW SERVO MOTOR | 1 |
| 6 | 417S30302 | SCREW M4×12 | 4 |
| 7 | 41830032 | ELECTRONIC CONTROL (SPARK) | 1 |
Page 60 — 21、开关装置/Switch mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41812060 | POWER SWITCH STAND | 1 |
| 2 | S05124 | SCREW M5×16 | 2 |
| 3 | 41830021 | PATCH BOARD A01 | 1 |
| 4 | 417S30025 | SCREW (WITH WASHER)M4×10DB | 2 |
| 5 | 41830213 | AND BUTTON SWITCH | 1 |
| 6 | 417S30025 | SCREW (WITH WASHER)M4×10DB | 2 |
| 7 | 407N01002 | SELF-LOCKING NUT | 2 |
| 8 | 99200037 | POWER LINE 3M | 1 |
| 9 | 42230512 | MAIN POWER SWITCH LINE (5M) | 1 |
Page 62 — 22、空压装置/Air pressure mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41845021 | DOUBLE-PASS CONFLUENCE PLATE 100M6F | 1 |
| 2 | 41845212 | SOLENOID VALVE 4V1106B | 4 |
| 3 | 41845222 | THREADED THROUGH APC4-01 | 8 |
| 4 | 40736021 | JOINT PL802 | 1 |
| 5 | 41845219 | BEPT MALE HOLLOW PLUG ABP02 | 3 |
| 6 | 41845214 | SILENCER PAL02 | 2 |
| 7 | 41845213 | PLATE | 2 |
| 8 | 42122001 | QUICK CHANGE PLUG | 2 |
| 9 | 421S11013 | SCREW (WITH WASHER) M4×35 | 4 |
| 10 | 41845022 | CONNECT THE PIPE THROUGH THE PIPE | 1 |
| 11 | 41730650 | GAS SOURCE PROCESSING ELEMENTS | 1 |
| 12 | 417S30025 | SCREW M4×10 | 2 |
| 13 | 42130096 | SWITCH VHK3 | 1 |
| 14 | 42236512 | PIPE CONNECT | 1 |
| 15 | 42212620 | POTHOOK | 1 |
| 16 | 417S30037 | SCREW M6×14 | 1 |
| 17 | 40730001 | AIR GUN | 1 |
| 18 | 40736018 | THREADED THROUGH APC4-02 | 1 |
| 19 | 42211540 | WINDPIPE CU0604B-1 | 1 |
| 20 | 40736022 | GAS-TYPE FITTING APG6 | 1 |
| 21 | 42221503 | WINDPIPE φ8 | 10 |
| 22 | 41845223 | WINDPIPE Φ4x2.5 TRANSPARENT BLUE | 16 |
| 23 | 41845224 | WINDPIPE Φ4x2.5 BLACK | 18 |
| 24 | 40736036 | GAS-TYPE FITTING APY4(Y THREE LINKS) | 4 |
Page 64 — 23、电气部分装/Power supply equipment mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41711026 | WIRE CLIP 23 | 2 |
| 2 | 417S30025 | SCREW (WITH WASHER) M4×10DB | 2 |
| 3 | 41812023 | Y SENSOR MOUNT | 1 |
| 4 | 41730851 | SENSOR | 1 |
| 5 | S04076 | SCREW M3×8 | 1 |
| 6 | 12912326 | COPPER WIRE CLIP | 1 |
| 7 | 417S30302 | SCREW (WITH WASHER) M4×12 | 2 |
| 8 | 42230004 | X SENSOR CONNECTOR A | 1 |
| 9 | 42230005 | X SENSOR CONNECTOR B | 1 |
| 10 | 4181202900 | Y INDUCTOR | 1 |
| 11 | S05133 | SCREW M4×12 | 2 |
| 12 | 41812082 | RFID MOUNTING PLATE | 1 |
| 13 | 417S30302 | SCREW (WITH WASHER) M4×12DB | 2 |
| 14 | S05094 | SCREW M3×8 | 4 |
| 15 | 41730070 | LED LIGHT (TD-5) | 2 |
| 16 | 42230816 | WIRE 3C | 3 |
| 17 | 41730022 | WIRE2C | 9 |
| 18 | 42230816 | WIRE 3C | 2 |
| 20 | 421S11012 | SCREW M3×8 | 4 |
| 22 | 41830012 | AIR FAN | 1 |
| 23 | 41811013 | FAN DUST SCREEN COVER ASSEMBLY | 2 |
| 24 | 407S04001 | SCREW M4×16 | 4 |
| 25 | 407N01002 | SELF-LOCKING NUT | 8 |
| 26 | S02039 | SCREW M4×9 | 4 |
| 27 | 41811021 | TRUNKING 3030L690 | 1 |
| 28 | 41811022 | TRUNKING 4030L650 | 1 |
| 29 | 41811023 | TRUNKING 4030L1150 | 2 |
| 30 | 41811024 | TRUNKING 3050L300 | 2 |
| 31 | 41811025 | TRUNKING 3050L650 | 1 |
| 32 | 417S30025 | SCREW M4×10 | 21 |
| 33 | 417S30025 | SCREW (WITH WASHER) M4×10DB | 2 |
| 34 | 41830039 | RFID MOUNTING | 1 |
Page 66 — 24、操作界面装置/Operation interface mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41811214 | PUSH BUTTON SWITCH BOX | 1 |
| 2 | 41830214 | BOTTON SWITCH | 2 |
| 3 | 41830215 | EMERGENCY STOP BOTTON | 1 |
| 4 | 41811216 | SWITCH IDENTIFICATION BOX | 2 |
| 5 | 41812061 | SWITCH BOX PLATE A | 1 |
| 6 | 417S30302 | SCREW(WITH WASHER) M4X12 | 4 |
| 7 | 41812062 | SWITCH BOX PLATE B | 1 |
| 8 | S05116 | SCREW M4×8 | 3 |
| 9 | W01001 | WASHER M4 | 3 |
| 10 | 417S30306 | SCREW(WITH WASHER) M5X15 | 3 |
| 11 | 304058 | OPERATING SCREEN SUPPORT | 1 |
| 12 | 417S30036 | SCREW M5X12 | 4 |
| 13 | 417S30025 | SCREW(WITH WASHER) M4X10 | 6 |
| 14 | 304057 | DISPLAY STAND ASSEMBLY | 1 |
| 15 | 417S30306 | SCREW M5X15 | 4 |
| 17 | 4073000900 | PRESSURE REGULATOR | 1 |
| 18 | 42230519 | MICRO PIPE CONNECTION M-5HLH-4 | 2 |
| 19 | 417S30033 | SCREW(WITH WASHER) M4X8 | 2 |
| 20 | 41811215 | OUTLET | 2 |
| 21 | 41830040 | DISPLAY SCREENS | 1 |
Page 68 — 25、机架部件/Table mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 417S17852 | SCREW M5X15 | 16 |
| 2 | 41831016 | ELECTRIC CONTROL CABNET HINGE | 4 |
| 3 | 304223 | ELECTRIC CONTROL CABNET LEFT DOOR COMPONENTS | 1 |
| 4 | 41728028 | WASHER M5 | 8 |
| 5 | 407N01001 | SELF-LOCKING NUT M5 | 16 |
| 6 | 41831014 | ELECTRIC CONTROL CABINET LOCT | 1 |
| 41812096 | LATCH PLATE | 2 | |
| 7 | 304224 | ELECTRIC CONTROL CABNET RIGHT DOOR COMPONENTS | 1 |
| 8 | S05123 | SCREW M5X12 | 4 |
| 9 | 41728028 | WASHER M5 | 4 |
| 10 | 417S30025 | SCREW(WITH WASHER) M4X10 | 4 |
| 11 | 41831013 | FAN NET | 1 |
| 12 | 41831212 | FOOT PAD | 4 |
| 13 | 304219 | STAND BACK COVER COMPONENTS | 1 |
| 14 | 41812131 | FRAME REAR COVER PLATE B | 4 |
| 15 | 417S30033 | SCREW M4X8 | 8 |
| 16 | 304222 | THE REAR SIDE COVER OF THE RACK | 1 |
| 17 | S05088 | SCREW M6X45 | 6 |
| 18 | 701S13002 | SCREW M8X12 | 16 |
| 19 | 42232502 | TRUNDLE | 4 |
| 20 | 41728028 | WASHER M5 | 8 |
| 21 | S05083 | SCREW M5X30 | 8 |
| 22 | 304221 | THE REAR SIDE COVER OF THE RACK | 1 |
| 23 | 304215 | RACK COMPONENTS | 1 |
| 24 | S05123 | SCREW M5X12 | 8 |
| 25 | 41728028 | WASHER M5 | 8 |
| 26 | 304217 | FRAME COVER COMPONENTS | 1 |
| 27 | 41812013 | FRAME COVER PLATE | 2 |
| 28 | 417S30036 | SCREW M5X12 | 4 |
| 29 | 41803018 | LOCATING SLEEVE | 4 |
| 30 | 41822014 | DAMPING RUBBER PAD | 4 |
| 31 | 41803019 | PIPE SHROUD | 8 |
| 32 | 417S13301 | SCREW M5X12 | 8 |
| 33 | 41728028 | WASHER M5 | 8 |
| 34 | S05083 | SCREW M5X30 | 8 |
| 35 | 41728028 | WASHER M5 | 4 |
| 36 | S05123 | SCREW M5X12 | 4 |
| 37 | 304216 | FRAME SIDE COVER | 2 |
Page 70 — 26、辅助台面装置/Auxiliary table mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41832015 | LEFT AUXILIARY TABLE | 1 |
| 2 | 41832021 | RIGHT AUXILIARY TABLE | 1 |
| 3 | 41812079 | HINGE PLATE | 8 |
| 4 | S05035 | SCREW M5X25 | 24 |
| 5 | 41728028 | WASHER M5 | 24 |
| 6 | 407N01001 | SELF-LOCKING NUT M5 | 24 |
| 7 | 41831213 | HINGE 5 | 8 |
| 8 | 418S17211 | SCREW 5X6 | 64 |
| 9 | S05035 | SCREW M5X25 | 16 |
| 10 | 41812080 | AUXILIARY SUPPORT HINGE BRACKET | 4 |
| 11 | 41728028 | WASHER M5 | 16 |
| 12 | 407N01001 | SELF-LOCKING NUT M5 | 16 |
| 13 | 303905 | SUPPORT COLUMN ASSEMBLY | 4 |
| 14 | 41832020 | FOOT PAD M12 | 4 |
| 15 | 417S30304 | SCREW M6X20 | 8 |
| 17 | 4181205100 | REAR PANEL SUPPORT PANEL ASSEMBLY | 1 |
| 18 | 41822012 | BUFFRE WASHER | 2 |
| 19 | S05124 | SCREW M5X16 | 3 |
| 20 | 41832012 | BACK TABLE | 1 |
| 21 | 418S16014 | KNURLED THREAD SLEEVE | 1 |
| 22 | 417S30037 | SCREW M6X14 | 1 |
| 23 | 417S30037 | SCREW M6X14 | 4 |
| 24 | 41812009 | 5-INCH HINGE GASKET | 8 |
Page 72 — 27、附件/Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 42211812 | HEAD SUPPORT | 1 |
| 2 | 10818501 | COP LATCH | 3 |
| 3 | 42217504 | NEEDLE DP×5 8# | 4 |
| 4 | 10131004 | SCREW DRIVER LARGR | 1 |
| 5 | 10131003 | SCREW DRIVER MIDDLE | 1 |
| 6 | 10131002 | SCREW DRIVER SMALL | 1 |
| 7 | 30131005 | WRENCH （6mm～7mm） | 1 |
| 8 | 30131006 | WRENCH （8mm～10mm） | 1 |
| 9 | 41712355 | NEEDLE PLATE SPECIAL SCREWDRIVER | 1 |
| 10 | 30131007 | INTERNAL HEXAGONAL WRENCH (1.5mm) | 1 |
| 11 | 20131046 | INTERNAL HEXAGONAL WRENCH (2mm) | 1 |
| 12 | 30131010 | INTERNAL HEXAGONAL WRENCH (2.5mm) | 1 |
| 13 | 30131012 | INTERNAL HEXAGONAL WRENCH (3mm) | 1 |
| 14 | 20131047 | INTERNAL HEXAGONAL WRENCH (4mm) | 1 |
| 15 | 20131056 | INTERNAL HEXAGONAL WRENCH (5mm) | 1 |
| 16 | 1013100700 | WIRE FRAME COMPONENT | 1 |
| 17 | 11631008 | OILER ASM | 1 |
| 18 | 20131038 | SMALL OILER ASM | 1 |
| 19 | 915305 | INDUSTRIAL WHITE OIL | 1 |
| 19 | 1011101200 | TANK COMPONENTS | 1 |
| 20 | 20131051 | TWEEZERS | 1 |
| 21 | 11411029 | INJECTOR | 1 |
| 22 | 20131076 | 15X9 BAG | 6 |
| 23 | 20131077 | 20X15 BAG | 2 |
| 24 | 41731015 | ACCESSORY CASE | 1 |
| 25 | 40736001 | SCREWED JOINT | 1 |
| 26 | 40730010 | SPIRAL TUBE | 6 |
| 27 | 41816211 | BIG PRESSER FOOT B | 4 |
| 28 | 41811015 | BIG PRESSER FOOT C | 3 |
| 29 | 41830017 | ELECTRONIC TAG CARD | 30 |
| 30 | 141831040 | PART MAP BOOK | 1 |
| 31 | 141831017 | X FEEDING ACCESSORY BOX | 1 |
| 32 | 42230854 | USB | 1 |
Page 74 — 28、点笔装置 (选配) /Pint pen mechanism (SELECTABLE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41708002 | HEAD SUPPORT | 1 |
| 2 | S10019 | COP LATCH | 2 |
| 3 | 41722020 | NEEDLE DP×5 8# | 1 |
| 4 | 41845231 | SCREW DRIVER LARGR | 2 |
| 5 | S05119 | SCREW DRIVER MIDDLE | 2 |
| 6 | 41809304 | SCREW DRIVER SMALL | 1 |
| 7 | 41830304 | WRENCH （ 6mm～7mm ） | 1 |
| 8 | N02030 | WRENCH （ 8mm～10mm ） | 1 |
| 9 | 41712355 | NEEDLE PLATE SPECIAL SCREWDRIVER | 1 |
| 10 | 41811302 | INTERNAL HEXAGONAL WRENCH ( 1.5mm ) | 1 |
| 11 | 418S16304 | INTERNAL HEXAGONAL WRENCH ( 2mm ) | 1 |
| 12 | 41730022 | INTERNAL HEXAGONAL WRENCH (2.5mm) | 1 |
| 13 | 41845222 | INTERNAL HEXAGONAL WRENCH (3mm) | 2 |
| 14 | 41845212 | INTERNAL HEXAGONAL WRENCH (4mm) | 1 |
| 15 | 41845224 | INTERNAL HEXAGONAL WRENCH (5mm) | 1 |
| 16 | 41845223 | WIRE FRAME COMPONENT | 1 |
Jack MS-90A — parts catalog
- Page 1 (cover): This is the cover page for the JACK MS-90A Parts Book, published in April 2019. It features contact information for JACK SEWING MACHINE CO., LTD. and a large image of the sewing machine.
- Page 3 (diagram): This page displays a diagram of the machine body, with various components labeled with reference numbers for identification.
- Page 4 (parts_list): This page lists parts for the machine body, including part numbers, descriptions, quantities, and remarks.
- Page 5 (diagram): This page displays a diagram of the machine body, specifically the table structure, with various components labeled with reference numbers.
- Page 6 (parts_list): This page lists parts for the machine body (table structure) of an industrial sewing machine, including part numbers, descriptions, quantities, and remarks.
- Page 7 (diagram): This page displays a diagram of the rotating shuttle oil pan assembly, with numbered parts and their corresponding references.
- Page 8 (parts_list): This page lists parts for the machine body (rotating shuttle oil pan), including part numbers, descriptions, quantities, and remarks.
- Page 9 (diagram): This page displays a diagram of the upper shaft mechanism, with numbered parts indicated for reference.
- Page 10 (parts_list): This page lists parts for the upper shaft bar mechanism, including various bearings, screws, washers, and couplings, with their corresponding part numbers, descriptions, quantities, and remarks.
- Page 11 (diagram): This page displays a diagram of the needle bar mechanism, illustrating various components with reference numbers for identification.
- Page 12 (parts_list): This page lists parts for the needle bar mechanism, including screws, washers, bearings, and other components with their part numbers and descriptions.
- Page 13 (diagram): This page displays a diagram of the X Feed mechanism, with various parts numbered for identification.
- Page 14 (parts_list): This page lists parts for the X Feed mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 15 (diagram): This page displays a diagram of the X Feed mechanism, illustrating various components with reference numbers for identification.
- Page 16 (parts_list): This page lists parts for the X Feed mechanism (Gear-rack drive), including part numbers, descriptions, quantities, and remarks.
- Page 17 (diagram): This page displays a diagram of the X Feed mechanism (Screw drive) with various components labeled with reference numbers.
- Page 18 (parts_list): This page contains a parts list for the X Feed mechanism (Screw drive) with part numbers, descriptions, quantities, and remarks.
- Page 19 (diagram): This page displays a diagram of the X Feed mechanism with timing belt drive, illustrating various components with reference numbers.
- Page 20 (parts_list): This page lists parts for the X Feed mechanism (Screw drive) with part numbers, descriptions, quantities, and remarks.
- Page 21 (diagram): This page displays a diagram of the X Feed mechanism with a timing belt drive, illustrating various components with reference numbers.
- Page 22 (parts_list): This page lists parts for the X Feed mechanism (Screw drive) with part numbers, descriptions, quantities, and remarks.
- Page 23 (diagram): This page displays a diagram of the feed mechanism (screw drive) with numbered parts, including components like brackets, shafts, screws, and bearings.
- Page 24 (parts_list): This page contains a parts list for the Feed mechanism (Screw drive) with part numbers, descriptions, quantities, and remarks.
- Page 25 (diagram): This page displays a diagram of the feed mechanism (fixture C) with numbered parts, including components like brackets, screws, and plates.
- Page 26 (parts_list): This page lists parts for the Feed mechanism (fixture C) with part numbers, descriptions, quantities, and remarks.
- Page 27 (diagram): This page displays a diagram of the feed mechanism (clamping fixture S) with numbered parts.
- Page 28 (parts_list): This page lists parts for the Feed mechanism (Clamping fixture S) with part numbers, descriptions, quantities, and remarks.
- Page 29 (diagram): This page displays a diagram of the feed mechanism (clamping fixture S) with numbered parts.
- Page 30 (parts_list): This page contains a parts list for the Feed mechanism (Clamping fixture S) with items including pipe connectors, screws, washers, and plates.
- Page 31 (diagram): This page displays a diagram of the feed mechanism (clamping fixture T) with numbered parts.
- Page 32 (parts_list): This page lists parts for the Feed mechanism (Clamping fixture T) with part numbers, descriptions, quantities, and remarks.
- Page 33 (diagram): This page displays a diagram of the feed mechanism (clamping fixture T) with numbered parts, including components like chains, fixtures, and mounting brackets.
- Page 34 (parts_list): This page lists parts for the Feed mechanism (Clamping fixture T) with part numbers, descriptions, quantities, and remarks.
- Page 35 (diagram): This page displays a diagram of the work clamp lifter mechanism, with numbered parts indicated.
- Page 36 (parts_list): This page lists parts for the Work clamp lifter mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 37 (diagram): This page displays a diagram of the lower shaft mechanism, with numbered parts and their corresponding references.
- Page 38 (parts_list): This page lists parts for the lower shaft mechanism, including various screws, bearings, seals, and sleeves, with their corresponding part numbers, descriptions, quantities, and remarks.
- Page 39 (diagram): This page displays a diagram of the lubrication mechanism, with numbered parts and their corresponding references.
- Page 40 (parts_list): This page lists parts for the lubrication mechanism, including part numbers, descriptions, quantities, and remarks. It contains 40 items.
- Page 41 (diagram): This page displays a diagram of the threading mechanism, with numbered parts indicated by reference numbers.
- Page 42 (parts_list): This page lists parts for the Threading mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 43 (diagram): This page displays a diagram of the bobbin winder mechanism, with numbered parts indicated by reference numbers.
- Page 44 (parts_list): This page lists parts for the Bobbin winder mechanism, including cutters, screws, wheels, and nuts, with their corresponding part numbers, descriptions, quantities, and remarks.
- Page 45 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
- Page 46 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 47 (diagram): This page displays a diagram of stop line components for an industrial sewing machine, with numbered parts indicated.
- Page 48 (parts_list): This page lists stop line components with their reference numbers, part numbers, descriptions, quantities, and remarks.
- Page 49 (diagram): This page displays a diagram of the thread wiper mechanism, with numbered parts indicated for identification.
- Page 50 (parts_list): This page lists parts for the Thread wiper mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 51 (diagram): This page displays a diagram of the tension release mechanism, with numbered parts including a bolt, nuts, washers, a spring, a shaft, and a roller.
- Page 52 (parts_list): This page lists parts for the Tension release mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 53 (diagram): This page displays a diagram of the external work clamp mechanism, with numbered parts indicated.
- Page 54 (parts_list): This page lists parts for the external work clamp mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 55 (diagram): This page displays a diagram of the thread breakage detector mechanism, with numbered parts and their corresponding references.
- Page 56 (parts_list): This page lists parts for the thread breakage detector mechanism, including sensor insulation, induction of copper, single core wires, screws, and washers, with their respective part numbers, descriptions, quantities, and remarks.
- Page 57 (diagram): This page displays a diagram of the control box mechanism with two lead screws, illustrating various components labeled with reference numbers.
- Page 58 (parts_list): This page lists parts for the control box mechanism (two lead) with part numbers, descriptions, quantities, and remarks.
- Page 59 (diagram): This page displays a diagram of a switch mechanism with numbered parts, including a mounting bracket, a battery, a switch box, and associated wiring.
- Page 60 (parts_list): This page lists parts for switch mechanisms, including part numbers, descriptions, quantities, and remarks.
- Page 62 (parts_list): This page lists parts for the Air pressure mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 63 (diagram): This page displays a diagram of power supply equipment mechanisms, with numbered parts and their corresponding references.
- Page 64 (parts_list): This page lists parts for the Power Supply Equipment Mechanism, including various screws, clips, sensors, mounts, and wiring components with their respective part numbers, descriptions, quantities, and remarks.
- Page 65 (diagram): This page displays a diagram of the operation interface mechanism, illustrating various components with reference numbers.
- Page 66 (parts_list): This page lists parts for the operation interface mechanism, including push button switch boxes, buttons, screws, and display screens, with their corresponding part numbers and quantities.
- Page 67 (diagram): This page displays a diagram of the table mechanism, with numbered parts indicated by lines and arrows.
- Page 68 (parts_list): This page contains a parts list for the "25、机架部件/Table mechanism" section, detailing 37 items with their reference numbers, part numbers, descriptions, quantities, and remarks.
- Page 69 (diagram): This page displays a diagram of the auxiliary table mechanism, with numbered parts indicating components like the table top, legs, and various fasteners.
- Page 70 (parts_list): This page contains a parts list for the auxiliary table mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 71 (diagram): This page displays a diagram of accessories and parts for an industrial sewing machine, with numbered items indicating specific components.
- Page 72 (parts_list): This page lists accessories and parts for an industrial sewing machine, including various tools, fasteners, and components with their part numbers, descriptions, quantities, and remarks.
- Page 73 (diagram): This page displays a diagram of the pint pen mechanism (selectable) with numbered parts.
- Page 74 (parts_list): This page lists parts for the Pint pen mechanism (SELECTABLE) including part numbers, descriptions, quantities, and remarks.
