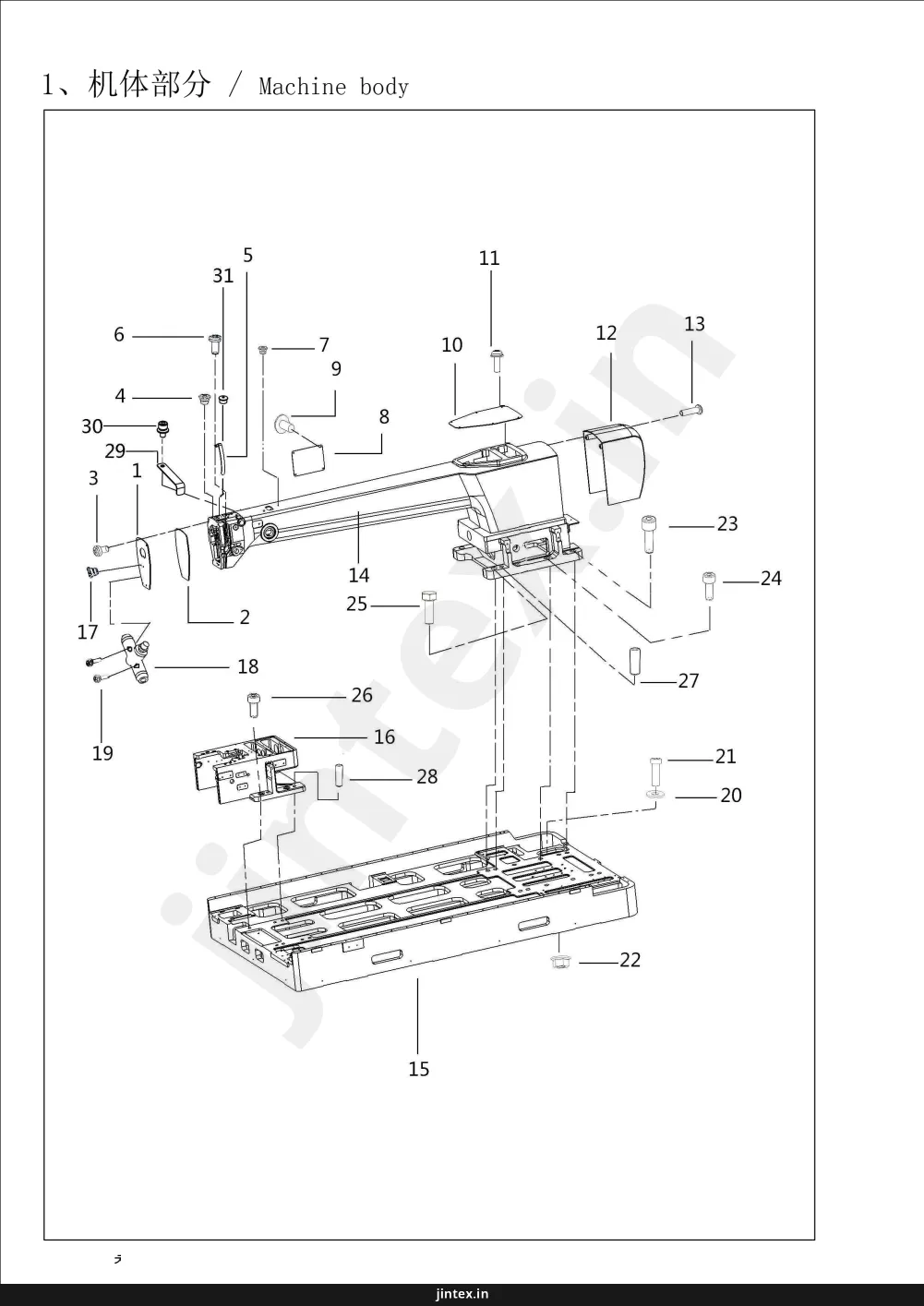

Page 3 — 1、机体部分 / Machine body

Jack MS-90A parts on page 3
Ref	Part number	Part name
31	31	5
6	6	4
30	30	29
1	1	3
17	17	19
18	18	26
2	2	16
28	28	26
7	7	9
8	8	14
10	10	11
12	12	13
25	25	14
23	23	24
27	27	21
20	20	21
15	15	22

Page 4 — 1、机体部分/Machine body

Jack MS-90A parts on page 4
Part number	Part name	Qty
303883	面板
41812212	面板垫片
S04028	螺钉M5×8 (镀铬)	3
41722009	橡胶塞 13	1
301760	绕线杆防护罩(喷漆)	1
S04078	螺钉 M4×8(镀镍)	1
10122005	绕线连杆销螺孔塞	9
304206	Y型盖板	1
417S30025	螺栓(带垫圈)M4×10DB	4
304205	上盖板R	1
417S30025	螺栓(带垫圈)M4×10DB	6
41811003	后罩	1
S04099	螺钉M6×16(镀镍)	4
304166	机头	1
304167	基座	1
304168	底板前座	1
41722004	橡胶塞15.5	2
41845232	T形接管KJT04	1
417S30023	螺栓(带垫圈) M3X16DB	2
41828013	大垫圈	4
S05138	螺栓M16×75	4
N04003	法兰螺母M16	4
S05137	螺栓M20×70	2
S05275	螺栓M20×55	4
L02083	外六角螺栓M20×70	2
S05276	螺栓M14X45	4
P02011	销子16×50	2
P02012	销子12×50	2
41812008	机头电线板	1
417S30033	内六角圆柱头螺钉M4×8	1
40622014	油封	1

Page 5 — 2、机体部分 (台面) / Machine body (Table structure)

Jack MS-90A parts on page 5
Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33

Page 6 — 2、机体部分(面板)/Machine body(Table structure)

Jack MS-90A parts on page 6
Ref	Part number	Part name	Qty
	S05068	螺栓 M5×20(滚花,镀镍)
	407N01001	自锁螺母M5
	41832624	开合台面
	41812644	开合台面限位板
	S05124	螺栓 M5×16(滚花,镀镍)
	41831011	合页4寸
	418S16014	滚花螺纹套M6
	41832011	台面
	41728028	垫圈M5
	42231512	压紧夹具
	407N01001	自锁螺母M5
	41832604	圆形盖板
	41832022	台面盖板
	S05124	螺栓 M5×16(滚花,镀镍)
	418S16015	滚花螺纹套M4
	418S16015	滚花螺纹套M4
	304210	台面左托架组件
	41822012	减振垫圈
	304211	台面右托架组件
	W01009	垫圈M5
	S05123	螺栓 M5×12(滚花,镀镍)
	417S30037	螺栓 M6×14
	304209	台面中支架
	41822012	减振垫圈
	4181204800	台面支撑板组件
	41728028	垫圈M5
	S05123	螺栓 M5×12(滚花,镀镍)
	304207	台面左固定支架
	417S30037	螺栓 M6×14
	41728028	垫圈M5
	S05123	M5×12(滚花,镀镍)
	304208	台面右固定支架
	418S17211	沉头5×6

Page 7 — 3、旋梭油盘 / Rotating shuttle oil pan

Jack MS-90A parts on page 7
Ref	Part number	Part name
1	1	Screw
2	2	Washer
3	3	Oil pan
4	4	Optional
5	5	Gasket
6	6	Screw
7	7	Screw
8	8	Base plate
9	9	Screw
10	10	Oil pipe
11	11	Oil nozzle
12	12	Screw
13	13	Screw
14	14	Screw
15	15	Screw
16	16	Bracket
17	17	Screw
18	18	Oil pan bracket
19	19	Screw
20	20	Screw
21	21	Screw
22	22	Screw
23	23	Screw
24	24	Main body
25	25	Screw
26	26	Screw
27	27	Bracket
28	28	Screw
29	29	Screw

Page 8 — 3、旋棱油盘/ Machine body (Rotating shuttle oil pan)

Jack MS-90A parts on page 8
Ref	Part number	Part name	Qty
	417S15008	螺钉M4×8
	41815011	针孔板φ1.8T2.0
	41815015	针板
	417S17001	螺钉 SM2.38
	41811005	旋棱上盖板
	11401020	磁铁
	S02039	螺钉 M4×9(镀锌)
	41811004	台面前盖板
	S09019	螺钉 M5×5(镀锌)
	41831019	强力磁铁6×12
	41845012	气缸MPEF10×10
	42230519	微型接头M-5HLH-4
	41828014	前盖板垫圈
	41812101	前盖板垫板
	41812053	挡油板
	41812055	板螺母M3
	421S11009	螺钉M4×6 (十字)
	304212	旋棱前盖
	418S30014	旋钮螺钉M4
	41831012	铜合页1.5寸
	S02032	螺钉 M3×6(镀锌)
	W01001	垫片M4
	S05116	螺钉 M4×8(滚花,镀锌)
	12923018	油线4×4 (0.2m)
	S05115	螺钉M4×6(滚花,镀锌)
	N01013	螺母M3(镀锌)
	41812006	磁铁固定板
	41831616	方形磁铁
	114S17001	刀架压板螺钉

Page 9 — 4、上轴装置 / Upper shaft mechanism

Jack MS-90A parts on page 9
Ref	Part number	Part name	Qty
	1	Shaft
	2	Bearing
	3	Washer
	4	Bearing
	5	Bearing
	6	Bearing
	7	Bearing
	8	Bearing
	9	Bearing
	10	Bearing
	11	Bearing
	12	Bearing
	13	Bearing
	14	Screw
	15	Bearing
	16	Bearing
	17	Bearing
	18	Bearing
	19	Bearing
	20	Shaft
	21	Bearing
	22	Bearing
	23	Bearing
	24	Bearing
	25	Bearing
	26	Bearing
	27	Motor
	28	Bearing
	29	Screw
	30	Shaft
	31	Screw
	32	Bearing
	33	Bearing
	34	Bearing
	35	Bearing
	36	Bearing
	37	Bearing

Page 10 — 4、上轴装置/Upper shaft bar mechanism

Jack MS-90A parts on page 10
Ref	Part number	Part name	Qty
	41802015	上轴
	41703002	轴承套
	S10018	凹端紧定螺钉 M6×6 发黑
	B01024	轴承61804
	41703002	轴承套
	B10014	轴承 6904DDUNR
	B06005	轴承 R-6904DDU
	S10018	凹端紧定螺钉 M6×6 发黑
	41803212	轴承套
	B01029	轴承 6204DDUNR
	S10019	螺钉 M6×6(镀铬)(进口)
	41801048	上轴轴承安装座
	41801049	上轴轴承支架
	417S30306	螺栓(带垫圈) M5×15
	B10014	轴承 6904DDUNR
	41703002	轴承套
	S10018	凹端紧定螺钉 M6×6 发黑
	4183502000	上轴同步轮组件
	S10019	螺钉 M6×6(镀铬)
	41835021	同步带S5M
	S10024	螺钉 M6×10(镀铬)
	41803214	联轴器抱箍A
	41803215	联轴器抱箍B
	40322028	减震橡胶
	B02007	轴承6305NR
	41801043	张紧轮支架
	S05124	螺栓 M5×16(滚花,镀镍)
	S05124	螺栓 M5×16(滚花,镀镍)
	W01009	垫圈5
	S10033	紧定螺钉M6×30
	417S30306	螺栓(带垫圈)M5×15
	H01009	挡圈26
	B06006	轴承6000-VV
	41728001	平垫圈10
	41803013	张紧轮
	41826017	张紧轴
	S10019	螺钉 M6×6(镀铬)(进口)

Page 11 — 5、针杆装置 / Needle bar mechanism

Jack MS-90A parts on page 11
Ref	Part number	Part name
1	1	NEEDLE BAR MECHANISM
2	2	SHAFT
3	3	WASHER
4	4	WASHER
5	5	WASHER
6	6	NEEDLE BAR
7	7	NEEDLE BAR BUSH
8	8	NEEDLE BAR BUSH
9	9	CONNECTING ROD
10	10	SCREW
11	11	SCREW
12	12	BEARING
13	13	BEARING
14	14	NEEDLE BAR GUIDE
15	15	SCREW
16	16	SCREW
17	17	SCREW
18	18	SCREW
19	19	SCREW
20	20	SCREW
21	21	SCREW
22	22	SCREW
23	23	SCREW
24	24	BRACKET
25	25	SCREW
26	26	SCREW
27	27	NEEDLE BAR
28	28	NEEDLE BAR
29	29	NEEDLE BAR
30	30	NEEDLE BAR
31	31	NEEDLE BAR
32	32	NEEDLE BAR
33	33	SCREW
34	34	BEARING
35	35	SCREW
36	36	SCREW
37	37	SCREW
38	38	SCREW
39	39	SHAFT
40	40	SPRING
41	41	SCREW
42	42	SHAFT
43	43	GEAR
44	44	GEAR

Page 12 — 5、针杆装置/Needle bar mechanism

Jack MS-90A parts on page 12
Part number	Part name	Qty
135S11002	针杆曲柄定位螺钉
101S15004	针杆曲柄紧定螺钉
116S14003	针杆曲柄销定位螺钉	2
101S14001	针杆曲柄A
41712133	垫圈 8	2
41838212	挑线杆	1
41808211	挡圈 B	1
4183801100	挑线连杆组
114S14001	紧定螺钉	2
41805213	挑线连杆	1
S10019	螺钉 M6×6(镀铬)	1
41804216	针杆连接柱	1
4183801100	挑线连杆组
42224005	滚针轴承	2
101S17001	挑线曲柄螺钉(左旋)	1
S04078	螺钉 M4×8(镀镍)	1
41704100	针杆接头	1
41803222	针杆连杆铜套	1
41805215	针杆连杆	1
41804215	挑线曲柄分部件	1
4183801100	挑线连杆组
B06016	轴承618VV	1
B04031	轴承619/8-ZZ	1
B04030	轴承628/6-ZZ	1
41811221	垫圈	2
41813214	过线套	1
41709002	滑块导向 B	1
41709001	滑块	1
S05118	螺栓 M4×16(滚花,镀镍)	2
41703005	针杆轴套 UK	1
41702061	针杆(DLC)	1
42203508	针棒轴套D	1
417S15002	螺钉 SM3.57-40×4.5	1
41726014	针套	1
42217503	机针DP×5 9#	1
S09019	螺钉 M5×5(镀镍)	1
40325010	上轴转动齿轮	1
S09019	螺钉 M5×5(镀镍)	2
40325011	手轮轴齿轮	1
S09019	螺钉 M5×5(镀镍)	2
S10019	螺钉 M6×6(镀铬)	1
41803020	手轮轴套B	1
41827214	弹簧	1
P03002	销4×16	1
41802212	手轮轴	1
40311003	手轮(仿手印)	1
403S11003	手轮固定螺钉	1

Page 13 — 6、X送料装置/X Feed mechanism

Jack MS-90A parts on page 13
Ref	Part number	Part name
66	66	66
67	67	67
68	68	68
69	69	69
70	70	70
71	71	71
72	72	72
65	65	65
41	41	41
60	60	60
40	40	40
39	39	39
59	59	59
45	45	45
44	44	44
45	45	45
23	23	23
22	22	22
1	1	1
3	3	3
4	4	4
2	2	2
6	6	6
5	5	5
7	7	7
8	8	8
16	16	16
17	17	17
9	9	9
10	10	10
62	62	62
61	61	61
42	42	42
43	43	43
27	27	27
28	28	28
18	18	18
58	58	58
33	33	33
19	19	19
35	35	35
26	26	26
20	20	20
21	21	21
32	32	32
31	31	31
29	29	29
34	34	34
30	30	30
36	36	36
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
24	24	24
25	25	25
37	37	37
52	52	52
53	53	53
54	54	54
55	55	55
49	49	49
51	51	51
50	50	50
48	48	48
47	47	47
38	38	38
56	56	56
57	57	57
63	63	63
64	64	64

Page 14 — 6、X送料装置/X Feed mechanism

Jack MS-90A parts on page 14
Ref	Part number	Part name	Qty
	4182029	X送料基座L14
	41824013	X导轨L14
	41825012	X齿条L14
	41842031	导轨齿条连接座YL14(压紧方式)
	418S16012	方形螺母块20M4
	S05118	螺栓 M4×16(滚花,镀镍)
	41812017	X导轨挡板
	S04038	螺钉M6×10
	S05048	螺钉M4×10
	41728024	垫片M4
	41812020	X传感器安装板
	41730851	传感器
	S05048	螺钉M4×10
	W01001	垫片M4
	S04076	螺钉M3×8(镀镍)
	41833011	X步进电机B
	S05010	螺钉M4×12
	41842017	电机安装座
	B01025	轴承6200
	41812272	电机座安装支架
	42225515	X送料齿轮14
	S05118	螺栓 M4×16(滚花,镀镍)
	W01001	垫片M4
	418S16011	方形螺母块20M5
	S05111	螺栓M6×20
	S05121	螺栓M5×10
	S05123	螺栓 M5×12(滚花,镀镍)
	41728028	垫圈5
	41812026	齿轮盖板
	S02031	螺钉M3×5
	42224515	滚针导向轮
	41712133	垫圈8
	41828011	垫圈8
	41842018	导向轮盖
	S05116	螺栓 M4×8(滚花,镀镍)
	41826011	圆柱销6×15

Page 15

Jack MS-90A parts on page 15
Ref	Part number	Part name	Qty
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	65	65
	23	23
	22	22
	41	41
	60	60
	40	40
	39	39
	59	59
	45	45
	44	44
	45	45
	49	49
	51	51
	50	50
	48	48
	38	38
	47	47
	56	56
	57	57
	63	63
	64	64
	52	52
	37	37
	24	24
	53	53
	25	25
	55	55
	54	54
	1	1
	12	12
	11	11
	13	13
	14	14
	15	15
	3	3
	9	9
	10	10
	61	61
	62	62
	4	4
	2	2
	5	5
	6	6
	7	7
	8	8
	16	16
	17	17
	42	42
	43	43
	27	27
	28	28
	18	18
	58	58
	33	33
	19	19
	35	35
	26	26
	20	20
	32	32
	31	31
	21	21
	29	29
	30	30
	36	36
	34	34

Page 16 — 6、X送料装置(齿轮齿条传动)/X Feed mechanism (Gear-ract drive)

Jack MS-90A parts on page 16
Ref	Part number	Part name	Qty
	S05040	螺栓M6×16
	41811027	塑料拖链1825
	417S30033	螺钉M4×8
	41812141	Y拖链前支架
	41812142	X拖链后支架
	304213	X电机罩
	41812144	螺钉(带垫圈)M4×10DB
	418S16012	方形螺母块20M4
	S05048	螺钉M4×10
	413S13017	螺栓 M4×8(滚花,镀镍)
	4181203000	X右拖链支架组件
	417S15008	螺钉M4×8
	403S11013	塑料拖链0616
	42211527	塑料拖链0616接头
	417S15008	螺钉M4×8
	403S11013	送料基座联接座
	417S13301	螺栓M5×12
	S05123	螺栓 M5×12(滚花,镀镍)
	S17005	螺栓M5×10
	41812134	Y拖链后支架
	417S15008	螺钉M4×8
	403S11013	螺母M8
	422S15501	螺钉M4×10
	N01024	螺母M4
	41708005	螺纹套
	418S16013	滚花螺纹套M5
	417S30034	螺钉(带垫圈)M4×14
	42128040	垫片M6
	304826	X右防尘罩(喷漆)
	41812434	螺钉M5×8(镀亮光铬)
	41812432	不锈钢垫圈M5
	W01009	垫圈5
	41812222	板螺母
	304825	X左防尘罩(喷漆)
	41812432	方形螺母块20M4
	421S13012	螺钉带垫M4×10

Page 17 — 6.1、X送料装置(丝杠传动)/X Feed mechanism(Screw drive)

Jack MS-90A parts on page 17
Ref	Part number	Part name	Qty
	44	44
	43	43
	42	42
	1	1
	2	2
	3	3
	6	6
	7	7
	8	8
	4	4
	28	28
	5	5
	29	29
	30	30
	31	31
	32	32
	33	33
	16	16
	15	15
	14	14
	13	13
	12	12
	11	11
	10	10
	9	9
	39	39
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	24	24
	25	25
	26	26
	23	23
	46	46
	45	45
	27	27
	38	38
	37	37
	36	36
	35	35
	34	34
	41	41
	40	40

Page 18 — 6.1、X送料装置(丝杆传动)/X Feed mechanism (Screw drive)

Jack MS-90A parts on page 18
Ref	Part number	Part name	Qty
1	421S13027	螺钉M5×12(带垫圈)	2
2	407N1002	自锁螺母M4	2
	930000021	丝杆Y拖链支架	1
	41811027	塑料拖链1825	1
	S05059	螺钉M4×12(镀镍)	2
	42136014	安装板直通接管(带螺纹)	2
	407N1002	自锁螺母M4	2
	141811001	小拖链	1
	S05057	螺钉M4×6(镀镍)	2
	S05059	螺钉M4×12(镀镍)	2
	S04078	螺钉M4×8	5
	930000022	丝杆电机罩	1
	S05124	螺栓M5×16(滚花,镀镍)	4
	41833016	X丝杆伺服电机	1
	930000020	线罩	1
	417S30025	十字槽盘头螺钉M4×10DB	8
	4182401600	丝杆组件	1
	41730851	传感器	1
	421S13049	螺钉M3×12	1
	1.4181E+10	丝杆拖链导板组件	1
	417S15008	螺钉M4×8	4
	41708005	M5螺纹套	8
	S05040	螺栓M6×16	4
	42128040	垫片M6	4
	41801052	丝杆送料联接座	2
	421S13065	螺栓M5×16(滚花,镀镍)(带垫圈)	8
	S04082	螺钉M3×6	4
	S05116	螺钉M4×8	2
	41812146	储油脂盒安装板	1
	41836011	铜卡套式直通油管接头M6	1
	41836018	直角油管接头90度M6	1
	41842041	Y丝杠储油脂盒	1
	41822016	O型圈17×2.65	2
	41842042	活芯子	1
	41812145	储油脂盒盖板	1
	S04076	螺钉M3×8	4
	S04125	十字槽盘头螺钉M4/50	1
	141812027	垫块	1
	N01024	六角螺母M4	1
	41836501	管接头PU4(直通)	1
	41812134	Y拖链后支架	1
	S05115	螺栓(带垫圈)M4×6	2
	417S30034	螺钉(带垫圈)M4×14	2
	141830005	低压驱动器	1
	S05116	螺栓M4×8(滚花,镀镍)(切换)	2

Page 19 — 6.2、X送料装置(同步带传动)/X Feed mechanism(Timing Belt drive)

Jack MS-90A parts on page 19
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51

Page 20 — 6.2、X送料装置(同步带传动)/X Feed mechanism(Screw drive)

Jack MS-90A parts on page 20
Part number	Part name	Qty
141811006	线槽盖40L700
S05057	螺钉M4×6	3
W01001	平垫圈4	3
425S10001	方形螺母块	10
141811005	线槽4030L120	1
141811004	线槽4030L480	1
417S15008	螺钉M4×8	4
41828012	垫圈4	4
141842008	小坦克链挡板	1
N01013	螺母M3	2
S02127	沉头螺钉M3×10	2
141831028	特氟龙胶带50	1
4184205000	同步带送料模组	1
41837614	机械防撞标贴	2
S05035	螺钉M5×25	2
S05124	螺栓M5×16	2
41833500	模组电机	1
10122005	孔塞	1
141842001	X传感器安装板	1
W01001	平垫圈4	2
S05010	螺钉M4×12	2
41730851	传感器	1
S04076	螺钉M3×8	1
S05040	螺栓M6×16	4
42128040	垫片M6	4
417S30034	螺栓M4×14(带垫圈)	8
41801052	送料联接座	2
425S10001	方形螺母块	8

Page 21 — 6.2、X送料装置(同步带传动)/X Feed mechanism(Timing Belt drive)

Jack MS-90A parts on page 21
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51

Page 22 — 6.2、X送料装置(同步带传动)/X Feed mechanism (Screw drive)

Jack MS-90A parts on page 22
Ref	Part number	Part name	Qty
	S02032	螺钉M3×6(镀镍)
	425S10001	方形螺母块
	141812035	储油脂盒安装板(长)
	S05116	螺栓M4×8(滚花,镀镍)(切换)
	S04125	十字槽盘头螺钉M4/50
	N01024	六角螺母M4
	S04076	螺钉M3X8
	41812145	储油脂盒盖板
	41842042	活芯子
	41822016	O型圈17×2.65
	41842041	Y丝杠油脂盒
	41836011	铜卡套式直通油管接头M6
	41836018	直角油管接头90度M6
	407N01002	自锁螺母M4
	41812141	Y拖链支架
	41811027	塑料拖链1825
	S05115	螺栓(带垫圈)M4×6
	417S30034	螺钉(带垫圈)M4X14
	41812134	Y拖链后支架
	422S15501	螺钉M4×10
	417S30302	螺钉(带垫圈)M4×12
	41728024	垫圈L4
	425S10001	方形螺母块

Page 23 — 7、送料装置 / Feed mechanism (Screw drive)

Jack MS-90A parts on page 23
Ref	Part number	Part name	Qty
	1	BRACKET
	2	SHAFT
	3	BEARING
	4	BRACKET
	5	BRACKET
	6	BRACKET
	7	BRACKET
	8	BRACKET
	9	SCREW
	10	SHAFT
	11	SCREW
	12	BRACKET
	13	BRACKET
	14	BRACKET
	15	SHAFT
	16	BRACKET
	17	BEARING
	18	BEARING
	19	SCREW
	20	SCREW
	21	PIN
	22	BRACKET
	23	BRACKET
	25	BRACKET
	26	SCREW
	29	SCREW
	30	BRACKET
	31	BEARING
	32	SHAFT
	33	BRACKET
	34	SCREW
	35	SCREW
	36	BRACKET
	37	BRACKET

Page 24 — 7、送料装置(丝杆传动)/Feed mechanism (Screw drive)

Jack MS-90A parts on page 24
Ref	Part number	Part name	Qty
	41801044	Y丝杆同步驱动座
	40322021	橡皮塞15
	413S13013	螺栓M6×25
	N01021	M6螺母
	B01033	轴承6203
	41801042	Y丝杆支撑端轴承座
	S05040	螺栓M6×16
	S05133	螺钉M4×12(镀镍)
	41808011	挡圈
	41824015	Y丝杆组件
	421S13059	螺栓 M5×20(滚花,镀镍)
	41801041	Y丝杆固定端轴承座组件
	S05139	螺栓M8×55
	41801040	Y丝杆电机座
	41826016	圆柱销8×30
	S05074	螺栓M8×20
	4180301200	梅花联轴器组件
	41833013	Y伺服电机
	S05040	螺栓M6×16
	41836011	铜卡套式直通油管接头M6
	41821011	油管
	12912326	管夹
	417S30025	螺栓M4×10DB
	41812667	油管支架
	417S30025	螺栓(带垫圈)M4×10DB
	S05124	螺栓 M5×16(滚花,镀镍)
	41824012	Y导轨
	40322021	橡皮塞15
	S05088	螺钉M6×45
	41812028	Y限位板B
	N01021	M6螺母
	417S30036	螺钉M5×12
	41826011	圆柱销6×15
	S05123	螺钉5×12

Page 25 — 8、送料装置(夹具C)/Feed mechanism (fixture C)

Jack MS-90A parts on page 25
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44

Page 26 — 8、送料装置(夹具C)/Feed mechanism(fixture C)

Jack MS-90A parts on page 26
Ref	Part number	Part name	Qty
	41826013	导杆Φ8
	41845011	气缸CQ2B16-10
	42230519	微型接头M-5HLH-4
	S05048	螺钉M4×10
	41801012	气缸导杆块
	41812022	模板压板
	417S15008	螺栓 M4×8(滚花,镀镍)
	S17005	螺栓M5×10(公制圆杯螺丝)
	41828012	垫圈4
	41826014	模板定位销
	S10019	螺钉 M6×6(镀铬)
	S05048	螺钉 M4×10(镀镍)
	41842016	限位销支座
	41826015	模板限位销
	41826000	平盖
	S17005	螺栓M5×10(公制圆杯螺丝)
	S05123	螺栓 M5×12(滚花,镀镍)
	W01009	垫圈5
	41842038	顶柱
	S05068	螺钉M5×20
	41728004	垫圈
	41842037	顶柱气缸安装板
	41830211	气缸CQ2B12-5SM
	421S17001	螺钉M4×16
	42230519	微型接头M-5HLH-4
	S05065	螺钉M4×40
	W02008	弹簧垫圈2-4
	42128003	垫圈
	S05067	螺钉M4×10
	41842218	夹具连接板B
	W01009	垫圈5
	S05123	螺钉M5×12
	41730441	气缸CU16-15D
	401727	接头
	42226811	接头销
	S05123	螺栓M5×12
	42212607	夹紧杆挡板
	42212813	夹紧杆
	42228811	转动垫圈
	42212538	夹具安装板L
	42226812	夹紧销
	42212800	塑料托板
	417S17852	螺栓M5×15
	42212820	透明托板

Page 27 — 8.1、送料装置(压框夹具S)/Feed mechanism(Clamping fixture S)

Jack MS-90A parts on page 27
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25

Page 28 — 8.1、送料装置 (压框夹具S)/Feed mechanism (Clamping fixture S)

Jack MS-90A parts on page 28
Ref	Part number	Part name	Qty
	42536004	气管接头(直角)
	41845224	气管φ4×2.5黑色
	42536003	气管接头(三通)
	417S30023	螺钉(带垫圈) M3×16DB
	40736036	气管接头(三通)
	42536003	气管接头(三通)
	41845223	气管φ4×2.5透明蓝
	42536004	气管接头(直角)
	4254500400	气缸
	S05124	内六角平头螺钉M5×16
	41728028	平垫圈5
	S05123	内六角平头螺钉M5×12
	42526008	限位销
	S05059	内六角平头螺钉M4×12
	42512028	限位支座
	S09019	螺钉M5×6
	41842502	压框架
	S05068	螺钉M5×20
	41728004	垫圈
	41842038	顶柱
	421S17001	螺钉M4×12
	41842037	顶柱气缸安装板
	41845017	气缸CQ2A12-5SM
	42230519	微型接头M-5HLH-4
	41836501	接头PU4

Page 29 — 8. 2、送料装置(夹扣夹S)/Feed mechanism(Clamping fixture S)

Jack MS-90A parts on page 29
Ref	Part number	Part name	Qty
	1	Pneumatic fittings
	2	Screw
	3	Mounting plate
	4	Screw
	5	Washer
	6	Washer
	7	Pneumatic fitting
	8	Cylinder
	9	Bracket
	10	Bracket
	11	Bracket
	12	Screw
	13	Screw
	14	Screw
	15	Screw
	16	Screw
	17	Screw
	18	Screw
	19	Rod
	20	Rod
	21	Guide rail
	22	Screw
	23	Screw
	24	Guide rail
	25	Screw

Page 30 — 8.2、送料装置(夹扣夹具S)/Feed mechanism (Clamping fixture S)

Jack MS-90A parts on page 30
Ref	Part number	Part name	Qty
	141845002	三通气管接头(T型)
	407S04053	螺钉M3×25
	401727	接头
	S05065	螺钉M4×40
	W02008	弹簧垫圈2-4
	42128003	垫圈
	42536004	气管接头(直角)
	41730441	气缸CU16-15D
	42212607	夹紧杆挡板
	42212813	夹紧杆
	42212538	夹具安装板L
	42228811	转动垫圈
	S05123	螺钉M5×12
	42226811	接头销
	S05123	螺钉M5×12
	W01009	垫圈5
	41842218	夹具联接板B
	S05067	螺钉M5×10
	41845223	气管φ4×2.5透明蓝
	41845224	气管φ4×2.5黑色
	42212800	塑料托板
	42226812	夹紧销
	417S17852	螺钉M5×15
	42212820	透明托板
	41836501	管接头PU4

Page 31 — 8.3、送料装置(压框夹具T)/Feed mechanism(Clamping fixture T)

Jack MS-90A parts on page 31
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31

Page 32 — 8.3、送料装置(压框夹具T)/Feed mechanism (Clamping fixture T)

Jack MS-90A parts on page 32
Ref	Part number	Part name	Qty
	41836501	管接头PU4
	41845223	气管φ4×2.5透明蓝
	41845224	气管φ4×2.5黑色
	41811500	小坦克链
	S02127	沉头螺钉M3×10
	41842504	拖链导板
	N08008	自锁螺母M3
	141831029	特氟龙胶带0.13×25
	407S17001	沉头螺钉M4×10
	42536004	气管接头
	S05124	螺钉M5×16
	41842503	拖链导板垫块
	41845223	气管φ4×2.5透明蓝
	41845224	气管φ4×2.5黑色
	42536003	气管接头
	41842502	压框架
	4254500400	气缸
	S09019	螺钉M5×5
	42512028	限位支座
	42526008	限位销
	S05059	螺钉M4×12
	S05124	螺钉M5×16
	41728028	垫圈5
	41826211	顶柱
	41812258	顶柱气缸安装板
	41830211	气缸
	42230519	微型接头M-5HLH-4
	S05215	螺栓M3×26
	407N01001	自锁螺母M5
	41828612	平垫圈
	S05218	螺钉M5×22

Page 33 — 8. 4、送料装置(夹扣夹具T)/Feed mechanism (Clamping fixture T)

Jack MS-90A parts on page 33
Ref	Part number	Part name
1	1	2
2	2	3
3	3	2
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37

Page 34 — 8.4、送料装置(夹扣夹具T)/Feed mechanism (Clamping fixture T)

Jack MS-90A parts on page 34
Ref	Part number	Part name	Qty
	41836501	管接头PU4
	41845223	气管φ4×2.5透明蓝
	41845224	气管φ4×2.5黑色
	41811500	小坦克链
	S02127	沉头螺钉M3×10
	N08008	自锁螺母M3
	42536003	气管接头
	S05121	螺栓M5×10
	41842218	夹具连接板B
	W01009	垫圈5
	S05123	螺栓M5×12
	42212813	夹紧杆
	42228811	转动垫圈
	42212538	夹具安装板L
	42212607	夹紧挡板
	S05123	螺栓M5×12
	42226811	接头销
	401727	接头
	41730441	气缸CU16-15D
	42536004	气管接头
	42128003	垫圈
	W02008	弹簧垫圈2-4
	S05065	螺钉M4×40
	41711014	电线夹6.4
	417S30025	螺栓(带垫圈)M4×10
	41842510	夹扣专用垫块
	41842504	拖链导板
	407S04001	沉头螺钉M4×16
	141831029	特氟龙胶带0.13×25
	41845224	气管φ4×2.5黑色
	41845223	气管φ4×2.5透明蓝
	141812049	垫板
	141812048	夹扣感应片
	141842007	支撑座
	W01001	垫圈4
	S05116	螺钉M4×8
	S02039	螺钉M4×9

Page 35 — 9、抬压脚装置/Work clamp lifter mechanism

Jack MS-90A parts on page 35
Ref	Part number	Part name
1	1	MOTOR
2	2	BRACKET
3	3	BASE
4	4	SHAFT
5	5	BEARING
6	6	SHAFT
7	7	SHAFT
8	8	SHAFT
9	9	SHAFT
10	10	SHAFT
11	11	SHAFT
12	12	SHAFT
13	13	BEARING
14	14	SHAFT
15	15	SHAFT
16	16	SHAFT
17	17	BRACKET
18	18	SHAFT
19	19	SHAFT
20	20	SHAFT
21	21	SHAFT
22	22	SHAFT
23	23	SHAFT
24	24	SHAFT
25	25	BRACKET
26	26	SCREW
27	27	SHAFT

Page 36 — 9、拾压脚装置/Work clamp lifter mechanism

Jack MS-90A parts on page 36
Ref	Part number	Part name	Qty
1	41833213	中压脚电机	1
2	S05123	螺钉 M5×12(滚花,镀镍)	4
3	41801217	中压脚电机安装座	1
4	S05124	螺钉 M5×16(滚花,镀镍)	4
5	B01028	轴承628/8	1
6	41803228	中压脚电机联轴器	1
7	S10019	螺钉 M6×6(镀铬)	4
8	41802224	中压脚驱动轴	1
9	41804211	中压脚摇杆	1
10	S09019	螺钉 M5×5(镀镍)	1
11	S05118	螺钉 M4×16(镀镍)	1
12	41826212	连杆销	1
13	B01028	轴承628/8	2
14	41805212	中压脚连杆	1
15	41826212	连杆销	1
16	S05133	螺钉 M4×12(镀镍)	1
17	41809211	中压脚杆导架	1
18	S09019	螺钉 M5×5(镀镍)	1
19	41803025	压紧杆轴套	1
20	S09019	螺钉 M5×5(镀镍)	1
21	41802228	压紧杆D	1
22	42216505	中压脚	1
23	41728025	平垫圈L3.5	1
24	417S15011	螺钉SM3.57×12	1
	303887	中压脚侧盖(喷漆)	1
26	S04028	螺钉M5×8(镀亮光铬)	4
27	41822101	橡胶垫	1

Page 37 — 10、下轴装置/Lower shaft mechanism

Jack MS-90A parts on page 37
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41

Page 38 — 10、下轴装置/Lower shaft mechanism

Jack MS-90A parts on page 38
Part number	Part name	Qty
14222007	橡皮塞18
41803012	挡套
12922001	橡皮塞φ12.5
B10020	轴承 6201ZZNR
1372500100	大齿轮组件
S10019	螺钉 M6X6(镀铬)	2
13703034	下主动轴油封中套
13722022	挡油封
B01010	滚针轴承6003
11403013	轴承套
101S15002	送料轴挡圈螺钉	2
41802016	下同步轮轴
11403013	轴承套
101S15002	送料轴挡圈螺钉	2
B01010	轴承6003
B10012	轴承 6004DDUNR
41835018	下同步轮
S10019	螺钉 M6X6(镀铬)	2
41809011	定位勾支座
42212555	旋梭定位勾
116S11005	牙架曲柄螺钉
S05048	螺钉 M4×10(镀铬)	2
41818101	广旋旋组件HSM-B1HTR(1Q)
41818201	旋组件DSH2-BTR(JKMBJ)
42218002	梭芯套组件
10818501	梭心605.609大梭心
41822011	油封0820
41803023	下轴柱塞轴套
S09006	螺钉 M4X4
11403016	下轴轴承套
113S14002	螺钉	2
B02006	轴承6001
1142201400	油封组件
41803015	下轴中轴套
S10019	螺钉 M6X6(镀铬)	2
41825011	斜齿轮
141803006	下轴油芯套
141823001	下轴限油芯
41802017	下轴C
41822015	橡皮塞φ27
42508003	挑线连杆销紧圈
141822002	O形圈3.6×0.8

Page 39 — 11、供油润滑装置/Lubrication mechanism

Jack MS-90A parts on page 39
Ref	Part number	Part name
1	1	PLATE
2	2	GASKET
3	3	SCREW
4	4	SCREW
5	5	PIN
6	6	BRACKET
7	7	SPRING
8	8	SCREW
9	9	SPRING
10	10	PLUNGER
11	11	WASHER
12	12	SCREW
13	13	BEARING
14	14	SCREW
15	15	SPRING
16	16	BRACKET
17	17	MOTOR
18	18	SCREW
19	19	SCREW
20	20	SCREW
21	21	SCREW
22	22	VALVE
23	23	BRACKET
24	24	PIN
25	25	SCREW
26	26	BRACKET
28	28	BRACKET
29	29	SCREW
30	30	BRACKET
31	31	SCREW
32	32	RESERVOIR
33	33	PLUG
34	34	BASE
35	35	PIPE
36	36	BOTTLE
37	37	VALVE
38	38	BRACKET
39	39	SCREW
40	40	SCREW

Page 40 — 11、供油润滑装置/Lubrication mechanism

Jack MS-90A parts on page 40
Part number	Part name	Qty
4181203600	齿轮箱盖板组件
41812035	齿轮箱盖板
S02039	螺钉 M4×9 (镀镍)	8
41736303	油管嘴B	1
12921005	油管φ4×φ6 (0.05m)	1
41812011	加油口安装板	1
S05133	螺钉 M4×12	2
13121001	加油口	1
41827424	油管护套弹簧	1
11421006	油管φ8×φ10(0.3m)	1
41711004	油窗盖	1
41711022	挡片	1
41722031	橡胶圈	1
S05094	螺钉 M3×8	2
41812093	柱塞弹簧压板	1
11412055	Φ5.7油管卡簧	4
41836015	油管嘴M5	3
11427021	柱塞弹簧	1
10526003	柱塞	1
41812043	油管支架	1
S05048	螺钉 M4×10	1
42236513	调节阀	2
41812042	油量调节阀安装板	1
12921002	维尼龙油管(φ3×φ5)	2
417S30302	螺钉M4×12DB	2
41812014	废油壶安装板	1
4183601700	滤网组件	1
40322027	橡胶罩	3
41812012	油杯安装板	1
417S30037	螺钉 M6×14(滚花,镀镍)	4
41811228	油杯	1
S05121	螺钉 M5×10	4
40311010	油壶接头	1
S05192	螺钉 M3×6	4
40311011	接油壶	1
12936004	油嘴管	1
41722003	橡胶塞10.5	1
417S30306	螺钉M5×15	2
12921006	维尼龙油管(φ6×φ8)	0.3m

Page 41 — 12、穿线装置/Threading mechanism

Jack MS-90A parts on page 41
Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17

Page 42 — 12、穿线装置/Threading mechanism

Jack MS-90A parts on page 42
Ref	Part number	Part name
1	41712077	过线导向 A
2	S04028	螺钉 M5×8(镀亮光铬)
3	41712078	过线导向 B
4	S04028	螺钉 M5×8(镀亮光铬)
5	41712079	过线器 C
6	S04028	螺钉 M5×8(镀亮光铬)
7	S12001	尖端紧定螺钉 M6×8
8	41702031	松线销
9	4181361200	主夹线器组件
10	4171301400	副夹线器组件
11	41713301	机壳线钩
12	41722320	减震橡皮
13	N01024	六角螺母 M4(厚度2.2,镀镍)
14	41813622	过线导向弹簧
15	41313013	过线轴
16	14222007	橡皮塞 18
17	421S13012	螺钉(带垫)M4×10

Page 43 — 13、卷线装置/Bobbin winder mechanism

Jack MS-90A parts on page 43
Ref	Part number	Part name
1	1	Bobbin winder mechanism
2	2	Screw
3	3	Screw
4	4	Shaft
5	5	Bearing
6	6	Bobbin winder
7	7	Screw
8	8	Spring
9	9	Pin

Page 44 — 13、卷线装置/Bobbin winder mechanism

Jack MS-90A parts on page 44
Ref	Part number	Part name	Qty
	41719001	切刀
	S04028	螺钉 M5×8(镀亮光铬)
	S05119	螺栓M4×20(滚花,镀镍)
	41803219	卷线驱动轮
	S09019	螺钉 M5×5(镀铬)
	41831222	自动绕线器BOSHITE
	S05035	M5×25螺钉
	407N01001	自锁螺母M5
	41728028	垫片M5

Page 45 — 14、切线装置/Thread trimmer mechanism

Jack MS-90A parts on page 45
Ref	Part number	Part name
4	4	Bolt
3	3	Washer
9	9	Pin
8	8	Lever
5	5	Shaft
14	14	Nut
15	15	Lever
7	7	Lever
6	6	Screw
11	11	Screw
10	10	Base
1	1	Shaft
2	2	Screw
16	16	Spring
17	17	Pin
18	18	Lever
19	19	Lever
20	20	Lever
21	21	Shaft
22	22	Lever
23	23	Screw
24	24	Screw
25	25	Lever
26	26	Lever
27	27	Lever
28	28	Base
12	12	Shaft
13	13	Connector

Page 46 — 14、切线装置/Thread trimmer mechanism

Jack MS-90A parts on page 46
Ref	Part number	Part name	Qty
	4181901100	切刀组件
	S05010	螺钉 M4×12(镀镍)
	41803017	轴套0508
	417S12005	段螺钉B M6
	41802021	切线连杆
	S05010	螺钉 M4×12(镀镍)
	41804022	切线摆杆
	41804021	切线驱动摆杆
	S05010	螺钉 M4×12(镀镍)
	41812044	切线电机安装板
	S05040	螺栓M6×16
	42230534	切线电机
	S05010	螺钉 M4×12(镀镍)
	4170500300	接头组件
	N01021	螺母M6
	407S04002	内六角沉头螺钉M3×8
	41819015	动刀
	S05047	内六角螺钉M3×4
	S09042	螺钉M3×4
	41819016	定刀
	41819020	动刀杆
	4181901100-03	十字槽盘头螺钉M3×4
	S09042	螺钉M3×4
	4181901100-01	十字槽盘头螺钉M1.6×1.5
	4181901100-02	垫片
	41812519	压线片
	41812518	压线片安装板
	41812517	定刀安装板

Page 47 — 15、挡线部件/Stop line components

Jack MS-90A parts on page 47
Ref	Part number	Part name	Qty
	1	挡线部件/Stop line components
	2	挡线部件/Stop line components
	3	挡线部件/Stop line components
	4	挡线部件/Stop line components
	5	挡线部件/Stop line components
	6	挡线部件/Stop line components
	7	挡线部件/Stop line components
	8	挡线部件/Stop line components
	9	挡线部件/Stop line components
	10	挡线部件/Stop line components
	11	挡线部件/Stop line components
	12	挡线部件/Stop line components
	13	挡线部件/Stop line components
	14	挡线部件/Stop line components

Page 48 — 15、挡线部件/Stop line components

Jack MS-90A parts on page 48
Ref	Part number	Part name	Qty
	41812094	挡线叉窄
	41842036	挡线安装板
	S05119	螺钉M4X20
	41803021	长轴套0508
	41804014	挡线曲柄
	41830013	挡线电磁铁
	41812087	挡线驱动连杆
	S050915	螺钉
	S05116	螺栓 M4×8(滚花,镀镍)
	418S20012	轴位螺钉M3
	S05215	螺钉M3X25
	41811014	偏心限位套
	41804015	挡线支架
	413S13016	螺钉M4×8
	W01015	垫片
	W01097	平垫圈4

Page 49 — 16、扫线装置/Thread wiper mechanism

Jack MS-90A parts on page 49
Ref	Part number	Part name	Qty
	1	Thread wiper mechanism
	2
	3
	4
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28

Page 50 — 16、扫线装置/Thread wiper mechanism

Jack MS-90A parts on page 50
Ref	Part number	Part name	Qty
	41830217	扫线电磁铁
	41822212	D形缓冲垫
	41828212	D形垫圈
	41811213	电磁铁盖
	W01002	M3垫片
	4181226100	扫线电磁铁安装板组件
	41822213	缓冲块
	W01002	M3垫片
	S04082	螺钉M3×6
	41826215	销子
	41803223	铜垫圈
	418S20213	轴位螺钉B
	41812264	驱动摆杆
	41803225	套管
	41827212	扭簧
	418S20212	轴位螺钉A
	41812235	扫线连杆
	H03057	开口挡圈3
	4180421400	扫线曲柄组件
	H05006	挡圈5
	41827211	扫线钢丝
	41803220	扫线轴挡圈
	417S15013	螺钉M4×5
	417S30302	螺栓(带垫圈)M4×12
	41845232	T形接管KJT04
	S01591	螺钉M3×18
	W01002	M3垫片

Page 51 — 17、松线装置/Tension release mechanism

Jack MS-90A parts on page 51
Ref	Part number	Part name
1	1	Roller
2	2	Washer
3	3	Washer
4	4	Nut
5	5	Bolt
6	6	Circlip
7	7	Washer
8	8	Shaft
9	9	Spring
10	10	Screw
11	11	Bush

Page 52 — 17、松线装置/Tension release mechanism

Jack MS-90A parts on page 52
Ref	Part number	Part name	Qty
	41830464	松线电磁铁HV
	41722020	缓冲垫圈
	W01001	M4垫片
	N01024	六角螺母M4
	L02071	六角头螺栓M4×18
	H05029	挡圈E4
	W01009	垫圈5
	41826220	松线杆
	41727013	弹簧
	114S11003	螺钉3/16-28 L=10
	S10009	凹端紧定螺钉M6×8

Page 53 — 18、大压脚装置/External work clamp mechanism

Jack MS-90A parts on page 53
Ref	Part number	Part name	Qty
	1	External work clamp mechanism
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17

Page 54 — 18、大压脚装置/External work clamp mechanism

Jack MS-90A parts on page 54
Ref	Part number	Part name	Qty
	41845016	行程可调节气缸12-17D
	418S13001	螺钉M3×55
	41845231	接头ASL4-M5
	41803024	大压脚气缸联轴器
	S10007	凹端紧定螺钉 M4×4H 发黑
	41809213	大压脚压杆导架
	S05133	螺钉 M4×12(镀镍)
	41802220	大压脚压杆
	41403007	针杆下套
	41822101	橡胶垫
	S05192	螺钉M3×6
	S05133	螺钉 M4×12(镀镍)
	41728025	平垫圈L3.5
	41812143	铜管安装板
	41816031	大压脚D(小型金属)
	41821014	铜管D
	41801064	铜管压板

Page 55 — 19、断线感应装置/Thread breakage detector mechanism

Jack MS-90A parts on page 55
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6

Page 56 — 19、断线感应装置/Thread breakage detector mechanism

Jack MS-90A parts on page 56
Part number	Part name	Qty
41711054	传感器内绝缘片
42212837	感应铜片
62800016	导线单芯(0.2mm)	2.5m
41711053	传感器外绝缘片
S04078	螺钉M4×8(镀镍)	1
W01001	垫片M4	1

Page 57 — 20、控制箱装置(双丝杆)/Control box mechanism (Two Lead Screws)

Jack MS-90A parts on page 57
Ref	Part number	Part name	Qty
	1	Control box mechanism (Two Lead Screws)
	2	Control box mechanism (Two Lead Screws)
	3	Control box mechanism (Two Lead Screws)
	4	Control box mechanism (Two Lead Screws)
	5	Control box mechanism (Two Lead Screws)
	6	Control box mechanism (Two Lead Screws)
	7	Control box mechanism (Two Lead Screws)

Page 58 — 20、控制箱装置(双丝杆)/Control box mechanism(Two Lead

Jack MS-90A parts on page 58
Ref	Part number	Part name
1	41833013	Y伺服电机
2	41833212	主轴电机
3	41833213	中压步进电机(含光编)
4	42230534	切线电机
5	41833016	X丝杆伺服电机
6	417S30302	内六角圆柱头螺钉M4×12
7	41830032	星火电控V2BP款

Page 59 — 21、开关装置/Switch mechanism

Jack MS-90A parts on page 59
Ref	Part number	Part name
1	1	Battery
2	2	Mounting Bracket
3	3	Switch Box
4	4	Screw
5	5	Switch
6	6	Screw
7	7	Screw
8	8	Wire
9	9	Wire

Page 60 — 21、开关装置/Switch mechanism

Jack MS-90A parts on page 60
Ref	Part number	Part name	Qty
	41812060	电源开关支架
	S05124	螺栓 M5×16(滚花,镀镍)
	41830021	插线板A01
	417S30025	螺栓(带垫圈)M4×10DB
	41830213	押扣开关
	417S30025	螺栓(带垫圈)M4×10DB
	407N01002	自锁螺母M4
	99200037	电源线3m
	42230512	主电源开关线(5M)

Page 62 — 22、空压装置/Air pressure mechanism

Jack MS-90A parts on page 62
Ref	Part number	Part name	Qty
	41845021	双通汇流板100M6F
	41845212	电磁阀4V1106B
	41845222	螺纹直通APC4-01
	40736021	接头PL802
	41845219	内六角接头ABP02
	41845214	消音器PAL02
	41845213	盖板
	42122001	快换插头
	421S11013	螺栓 M4×35(带垫圈)
	41845022	气管接头穿板直通PM8
	41730650	气源处理元件
	417S30025	螺钉M4×10
	42130096	手动开关VHK3
	42236512	气管接头APC8-02
	42212620	挂钩
	417S30037	螺栓 M6×14(滚花,镀镍)
	40730001	气枪
	40736018	螺纹直通APC4-02
	42211540	气管TCU0604B-1
	40736022	气管接头APG6
	42221503	气管φ8
	41845223	气管φ4×2.5透明蓝
	41845224	气管φ4×2.5黑色
	40736036	气管接头APY4(Y型三通)

Page 63 — 23、电气部分装置/Power supply equipment mechanism

Jack MS-90A parts on page 63
Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
20	20	20
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34

Page 64 — 23、电气部分装/Power supply equipment mechanism

Jack MS-90A parts on page 64
Ref	Part number	Part name	Qty
	41711026	电线夹23
	417S30025	螺栓(带垫圈)M4×10DB
	41812023	Y传感器安装座
	41730851	传感器
	S04076	螺钉M3×8(镀镍)
	12912326	铜线夹
	417S30302	螺栓(带垫圈)M4×12
	42230004	X传感器连接件A
	42230005	X传感器连接件B
	4181202900	Y感应片组件
	S05133	螺栓M4×12
	41812082	射频识别器安装板
	417S30302	螺栓(带垫圈)M4×12
	S05094	螺钉 M3×8 (镀铬)
	41730070	LED灯(TD-5)
	42230816	导线3C
	41730022	电磁阀接线
	42230816	导线3C
	421S11012	M3×8螺钉
	41830012	风扇
	41811013	风扇防尘网罩组件
	407S04001	4X16(沉头十字)
	407N01002	自锁螺母M4
	S02039	4X9(沉头一字)
	41811021	线槽3030L690
	41811022	线槽4030L650
	41811023	线槽4030L1150
	41811024	线槽3050L300
	41811025	线槽3050L650
	417S30025	螺钉M4×10
	417S30025	螺栓(带垫圈)M4×10DB
	41830039	射频识别器

Page 65 — 24、操作界面装置/Operation interface mechanism

Jack MS-90A parts on page 65
Ref	Part number	Part name	Qty
	1	Control box
	2	Button
	3	Button
	4	Button
	5	Mounting plate
	6	Screw
	7	Bracket
	8	Screw
	9	Screw
	10	Screw
	11	Screw
	12	Screw
	13	Screw
	14	Support
	15	Screw
	17	Solenoid valve
	18	Connector
	19	Connector
	20	Connector
	21	Control panel

Page 66 — 24、操作界面装置/Operation interface mechanism

Jack MS-90A parts on page 66
Ref	Part number	Part name
1	41811214	按钮开关盒
2	41830214	按钮开关
3	41830215	急停开关
4	41811216	开关标牌框
5	41812061	按钮盒安装板A
6	417S30302	螺钉M4×12(带垫圈)
7	41812062	按钮盒安装板B
8	S05116	螺栓M4×8(带花,镀镍)
9	W01001	垫片M4
10	417S30306	螺栓M5×15(带垫片)
11	304058	操作屏支架
12	417S30036	螺钉M5X12
13	417S30025	螺钉M4X10(带垫圈)
14	304057	显示屏支架组件
15	417S30306	螺栓M5×15(滚花,镀镍)
17	4073000900	压力调节器
18	42230519	微型接头M-5HLH-4
19	417S30033	M4X8(带垫圈)
20	41811215	出线口
21	41830040	显示屏

Page 67 — 25、机架部件/Table mechanism

Jack MS-90A parts on page 67
Ref	Part number	Part name
1	1	Screw
2	2	Bracket
3	3	Screw
4	4	Screw
5	5	Screw
6	6	Handle
7	7	Cover
8	8	Screw
9	9	Bracket
10	10	Spring
11	11	Screw
12	12	Screw
13	13	Screw
14	14	Bracket
15	15	Screw
16	16	Frame
17	17	Screw
18	18	Screw
19	19	Motor
20	20	Screw
21	21	Screw
22	22	Cover
23	23	Screw
24	24	Screw
25	25	Screw
26	26	Bracket
27	27	Screw
28	28	Screw
29	29	Screw
30	30	Bracket
31	31	Screw
32	32	Screw
33	33	Screw
34	34	Screw
35	35	Screw
36	36	Screw
37	37	Frame

Page 68 — 25、机架部件/Table mechanism

Jack MS-90A parts on page 68
Ref	Part number	Part name	Qty
1	417S17852	螺钉M5×15	10
2	41831016	电控柜合页	4
3	304223	电控柜左门组件	1
4	41728028	垫圈M5	8
5	407N01001	自锁螺母M5	16
6	41831014	电控柜锁	1
6	41812096	插销固定板	2
7	304224	电控柜右门组件	1
8	S05123	螺钉M5×12	4
9	41728028	垫圈M5	4
10	417S30025	螺栓(带垫圈)M4×10DB	4
11	41831013	风扇网罩	1
12	41831212	脚垫	4
13	304219	机架后盖组件	1
14	41812131	机架后盖固定板B	4
15	417S30033	螺钉M4×8	8
16	304222	机架后侧盖	1
17	S05088	螺钉M6X45	6
18	701S13002	螺钉M8×12	16
19	42232502	脚轮	4
20	41728028	垫圈M5	8
21	S05083	螺钉M5X30	8
22	304221	机架后侧盖	1
23	304215	机架组件	1
24	S05123	螺钉M5X12	8
25	41728028	垫圈M5	8
26	304217	机架前盖组件	1
27	41812013	机架前盖支架板	2
28	417S30036	螺栓(带垫圈)M5X12	4
29	41803018	定位套	4
30	41822014	减振橡胶垫	4
31	41803019	管套	8
32	417S13301	螺钉M5X12	8
33	41728028	垫圈M5	8
34	S05083	螺钉M5X30	8
35	41728028	垫圈M5	4
36	S05123	螺钉M5X12	4
37	304216	机架侧盖	2

Page 69 — 26、辅助台面装置/Auxiliary table mechanism

Jack MS-90A parts on page 69
Ref	Part number	Part name	Qty
	1	Table top
	2	Leg
	3	Mounting plate
	4	Screw
	5	Washer
	6	Nut
	7	Bracket
	8	Screw
	9	Screw
	10	Bracket
	11	Washer
	12	Nut
	13	Leg
	14	Foot
	15	Screw
	17	Bracket
	18	Screw
	19	Screw
	20	Bracket
	21	Screw
	22	Screw
	23	Screw
	24	Mounting plate

Page 70 — 26、辅助台面装置/Auxiliary table mechanism

Jack MS-90A parts on page 70
Ref	Part number	Part name
1	41832015	左辅助台面
2	41832021	右辅助台面
3	41812079	合页固定板
4	S05035	螺栓M5X25
5	41728028	垫圈5
6	407N01001	自锁螺母M5
7	41831213	合页5寸
8	418S17211	沉头5X6
9	S05035	螺栓M5X25
10	41812080	辅助支撑铰链支架
11	41728028	垫圈5
12	407N01001	自锁螺母M5
13	303905	支撑柱组件
14	41832020	脚垫M12
15	417S30304	螺栓M6X20
17	4181205100	后辅助台面支撑板组件
18	41822012	减振垫圈
19	S05124	螺栓 M5×16(滚花,镀镍)
20	41832012	后辅助台面
21	418S16014	滚花螺纹套M6
22	417S30037	螺栓 M6×14(滚花,镀镍)
23	417S30037	螺栓 M6×14(滚花,镀镍)
24	41812009	5寸合页垫片

Page 71 — 27、附件/Accessories

Jack MS-90A parts on page 71
Ref	Part number	Part name
4	4	Screw
5	5	Screwdriver
6	6	Screwdriver
7	7	Wrench
8	8	Wrench
9	9	Wrench
10	10	Allen Wrench
11	11	Allen Wrench
12	12	Allen Wrench
13	13	Allen Wrench
14	14	Allen Wrench
15	15	Allen Wrench
16	16	Stand
17	17	Oil Can
18	18	Oil Can
19	19	Oil Can
20	20	Tweezers
21	21	Needle
22	22	Needle
23	23	Needle
24	24	Needle
25	25	Bobbin
26	26	Belt
27	27	Base
28	28	Base
29	29	Ring
30	30	Manual
31	31	Base
32	32	USB Drive
2	2	Bobbin Case
3	3	Needle

Page 72 — 27、附件/Accessories

Jack MS-90A parts on page 72
Part number	Part name	Qty
42211812	机头支撑
10818501	梭心605.609大梭心
42217504	机针DP×5 8#
10131004	螺丝刀(小)
10131003	螺丝刀(中)
10131002	螺丝刀(大)
30131005	扳手(6mm~7mm)
30131006	扳手(8mm~10mm)
41712355	针板专用螺丝刀
30131007	内六角扳手(1.5mm)
20131046	内六角扳手(2mm)
30131010	内六角扳手(2.5mm)
30131012	内六角扳手(3mm)
20131047	内六角扳手(4mm)
20131056	内六角扳手(5mm)
1013100700	线架组件
11631008	油壶
20131038	小油壶
915305	工业白油
1011101200	油箱组件
20131051	镊子
11411029	注射器
20131076	15×9袋	6
20131077	20×15袋	2
41731015	花样机附件箱
40736001	螺纹套管接头
40730010	螺旋气管	6
41816211	大压脚B	4
41811015	大压脚C	3
41830017	电子标签卡	30
141831040	零件图册
141831017	横梁纸箱
42230854	U盘

Page 73 — 28、点笔装置 (选配) /Pint pen mechanism (SELECTABLE)

Jack MS-90A parts on page 73
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16

Page 74 — 28、点笔装置 (选配) /Pint pen mechanism (SELECTABLE)

Jack MS-90A parts on page 74
Ref	Part number	Part name	Qty
	41708002	紧圈B
	S10019	螺钉M6×6
	41722020	电磁铁缓冲垫圈
	41845231	接头ASL4-M5
	S05119	螺栓M4×20
	41809304	气缸垫块
	41830304	气缸CMDD16×25
	N02030	螺母M8×1
	41712355	点笔弹簧
	41811302	点笔笔芯
	418516304	点笔杆锁帽
	41730022	电磁阀接线
	41845222	螺纹直通APC4-01
	41845212	电磁阀4V110-06-B
	41845224	气管φ4×2.5黑色
	41845223	气管φ4×2.5透明蓝

Jack MS-90A — parts catalog

Page 1 — MS-90A 零件图册 Parts book

杰克缝纫机全球销量遥遥领先 Leading in global sales 400-8876-858 www.chinajack.com JACK SEWING MACHINE CO., LTD. 2019年4月份 Edition:April, 2019 杰克缝纫机股份有限公司浙江省台州市椒江区机场南路15号电话:0086-576-88177788 88177789 传真:0086-576-88177758 产品标准代号:Q/TK 007-2017 资料如有更改,恕不另行通知,以实样为准 JACK SEWING MACHINE CO., LTD. No. 15 Airport South Road, Jiaojiang District, Taizhou, Zhejiang, PRC TEL: 0086-576-88177788 88177767 E-mail: sales@chinajack.com FAX: 0086-576-88177758 www.chinajack.com Standard code of the products:Q/TK 007-2017 You will be not informed if the file has been revised. Please set sample as standard. MS-90A 零件图册 Parts book JACK 杰克 jintex.in

Page 3 — 1、机体部分 / Machine body

1、机体部分 / Machine body 3 jintex.in

Page 4 — 1、机体部分/Machine body

1、机体部分/Machine body 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 303883 面板 HEAD COVER 1 41812211 2 41812212 面板垫片 HEAD COVER 1 3 S04028 螺钉M5×8 (镀铬) SCREW M5×8 3 4 41722009 橡胶塞 13 RUBBER CAP 13 1 5 301760 绕线杆防护罩(喷漆) THREAD TAKE UP LEVER COVER 1 13512006 6 S04078 螺钉 M4×8(镀镍) SCREW M4×8 1 7 10122005 绕线连杆销螺孔塞 TAKE UP LEVER DOWEL RUBBER CAP 9 8 304206 Y型盖板 Y-REAR COVER 1 41812089 9 417S30025 螺栓(带垫圈)M4×10DB SCREW(WITH SHIM) M4×10DB 4 10 304205 上盖板R UPPER COVER PLATE R 1 41812058 11 417S30025 螺栓(带垫圈)M4×10DB SCREW(WITH SHIM) M4×10DB 6 12 41811003 后罩 REAR COVER 1 13 S04099 螺钉M6×16(镀镍) SCREW M6×16 4 14 304166 机头 HEAD 1 141801012 15 304167 基座 FOUNDATION SUPPORT 1 141801013 16 304168 底板前座 BASEPLATE FRONT SEAT 1 141801014 17 41722004 橡胶塞15.5 RUBBER CAP 15.5 2 18 41845232 T形接管KJT04 T PIPE CONNECTION KJT04 1 19 417S30023 螺栓(带垫圈) M3X16DB SCREW(WITH SHIM) M3X16DB 2 20 41828013 大垫圈 BIG SCREW 4 21 S05138 螺栓M16×75 SCREW M16×75 4 22 N04003 法兰螺母M16 HEX FLANGE NUT M16 4 23 S05137 螺栓M20×70 SCREW M20×70 2 24 S05275 螺栓M20×55 SCREW M20×55 4 25 L02083 外六角螺栓M20×70 HEX HEAD CAP SCREW M20X70 2 26 S05276 螺栓M14X45 SCREW M14X45 4 27 P02011 销子16×50 LOCATIN PIN 16×50 2 28 P02012 销子12×50 LOCATIN PIN 12×50 2 29 41812008 机头电线板 HEAD WIRE PLATE 1 30 417S30033 内六角圆柱头螺钉M4×8 HEXAGON HEAD SCREW 1 31 40622014 油封 OIL SEAL 1 jintex.in =

Page 5 — 2、机体部分 (台面) / Machine body (Table structure)

2、机体部分 (台面) / Machine body (Table structure) 1 1 7 8 2 3 4 5 6 10 11 12 33 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 32 30 31 29 E jintex.in

Page 6 — 2、机体部分(面板)/Machine body(Table structure)

2、机体部分(面板)/Machine body(Table structure) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 S05068 螺栓 M5×20(滚花,镀镍) SCREW M5×20 12 2 407N01001 自锁螺母M5 SELFBLOCKING OUT M5 8 3 41832624 开合台面 TABLE-BOARD OPENING AND CLOSING 1 4 41812644 开合台面限位板 OPENING AND CLOSINGTABLE-BOARD LIMIT PLATE 1 5 S05124 螺栓 M5×16(滚花,镀镍) SCREW M5×16 2 6 41831011 合页4寸 HINGE 4 2 7 418S16014 滚花螺纹套M6 KNURLED THREAD SLEEVE M6 10 8 41832011 台面 TABLE-BOARD 1 9 41728028 垫圈M5 WASHER M5 12 10 42231512 压紧夹具 CLAMPING FIXTURE 2 11 407N01001 自锁螺母M5 SELFBLOCKING OUT M5 4 12 41832604 圆形盖板 CIRCULAR COVER PLATE 1 13 41832022 台面盖板 TABLE COVER PLATE 1 14 S05124 螺栓 M5×16(滚花,镀镍) SCREW M5×16 12 15 418S16015 滚花螺纹套M4 KNURLED THREAD SLEEVE M4 6 16 418S16015 滚花螺纹套M4 KNURLED THREAD SLEEVE M4 7 17 304210 台面左托架组件 MESA LEFT BRACKET COMPONENTS 1 4181213600 18 41822012 减振垫圈 BUFFER WASHER 8 19 304211 台面右托架组件 MESA RIGHT BRACKET COMPONENTS 1 4181213800 20 W01009 垫圈M5 WASHER M5 16 21 S05123 螺栓 M5×12(滚花,镀镍) SCREW M5×12 16 22 417S30037 螺栓 M6×14 SCREW M6×14 6 23 304209 台面中支架 MESA BRACKET 1 41812135 24 41822012 减振垫圈 BUFFER WASHER 4 25 4181204800 台面支撑板组件 COUNTERTOP SUPPORT PLATE ASSEMBLY 4 26 41728028 垫圈M5 WASHER M5 8 27 S05123 螺栓 M5×12(滚花,镀镍) SCREW M5×12 8 28 304207 台面左固定支架 MESA LEFT FIXED SUPPORT 1 41812046 29 417S30037 螺栓 M6×14 SCREW M6×14 11 30 41728028 垫圈M5 WASHER M5 20 31 S05123 M5×12(滚花,镀镍) SCREW M5×12 20 32 304208 台面右固定支架 MESA RIGHT FIXED SUPPORT 1 41812047 33 418S17211 沉头5×6 SCREW 5×6 4 jintex.in I

Page 7 — 3、旋梭油盘 / Rotating shuttle oil pan

3、旋梭油盘 / Rotating shuttle oil pan 1 2 5 3 4 选配 6 7 8 9 10 11 12 17 16 24 26 25 27 28 29 18 19 20 21 15 22 23 jintex.in 2

Page 8 — 3、旋棱油盘/ Machine body (Rotating shuttle oil pan)

3、旋棱油盘/ Machine body (Rotating shuttle oil pan) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 417S15008 螺钉M4×8 SCREW M4×8 4 2 41815011 针孔板φ1.8T2.0 PINHOLE PLATE φ1.8T2.0 1 3 41815015 针板 NEEDLE PLATE 1 4 417S17001 螺钉 SM2.38 SCREW SM2.38 2 5 41811005 旋棱上盖板 COVER THE SHUTTLE 1 6 11401020 磁铁 MAGNET 4 7 S02039 螺钉 M4×9(镀锌) SCREW M4×9 8 8 41811004 台面前盖板 TABLE FRONT COVER 1 9 S09019 螺钉 M5×5(镀锌) SCREW M5×5 2 10 41831019 强力磁铁6×12 STRONG MAGNET 6×12 2 11 41845012 气缸MPEF10×10 AIR CYLINDER MPEF10×10 1 12 42230519 微型接头M-5HLH-4 MICRO PIPE CONNECTION M-5HLH-4 1 13 41828014 前盖板垫圈 FRONT COVER WASHER 2 选配 14 41812101 前盖板垫板 FRONT COVER SUBPLATE 2 15 41812053 挡油板 OIL BAFFLE PLATE 1 16 41812055 板螺母M3 THE PLATE NUT 4 17 421S11009 螺钉M4×6 (十字) SCREW M4×6 ( CORSS FITTING) 1 18 304212 旋棱前盖 ROTATING SHUTTLE FRONT COVER 1 41812054 19 418S30014 旋钮螺钉M4 ROTARY KNOB SCREW 1 20 41831012 铜合页1.5寸 COPPER HINGE 1.5 2 21 S02032 螺钉 M3×6(镀锌) SCREW M3×6 8 22 W01001 垫片M4 WASHER M4 4 23 S05116 螺钉 M4×8(滚花,镀锌) BOLT M4×8 4 421S13035 24 12923018 油线4×4 (0.2m) THE OIL LINE 4×4 (0.2m) 1 25 S05115 螺钉M4×6(滚花,镀锌) BOLT M4×6 1 26 N01013 螺母M3(镀锌) NUT M3 1 27 41812006 磁铁固定板 MAGNET FIXING PLATE 1 28 41831616 方形磁铁 SQUARE MAGNET 1 29 114S17001 刀架压板螺钉 TOOL HOLDER PLATE SCREW 1 L jintex.in

Page 9 — 4、上轴装置 / Upper shaft mechanism

4、上轴装置 / Upper shaft mechanism jintex.in L

Page 10 — 4、上轴装置/Upper shaft bar mechanism

4、上轴装置/Upper shaft bar mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 41802015 上轴 UPPER SHAFT 1 2 41703002 轴承套 BEARING SLEEVE 1 3 S10018 凹端紧定螺钉 M6×6 发黑 CONCAVE END TIGHTENING SCREW M6×6 2 4 B01024 轴承61804 BALL BEARING 61804 1 5 41703002 轴承套 BEARING SLEEVE 1 6 B10014 轴承 6904DDUNR BALL BEARING 6904DDUNR 1 7 B06005 轴承 R-6904DDU BALL BEARING R-6904DDU 1 8 S10018 凹端紧定螺钉 M6×6 发黑 CONCAVE END TIGHTENING SCREW M6×6 2 9 41803212 轴承套 BEARING SLEEVE 1 10 B01029 轴承 6204DDUNR BALL BEARING 6204DDUNR 1 11 S10019 螺钉 M6×6(镀铬)(进口) SCREW M6×6 2 12 41801048 上轴轴承安装座 UPPER SHAFT BALL BEARING ARM STAND 1 13 41801049 上轴轴承支架 UPPER SHAFT BALL BEARING SUPPORT 1 14 417S30306 螺栓(带垫圈) M5×15 SCREW(WITH SHIM)M5×15 3 15 B10014 轴承 6904DDUNR BALL BEARING 6904DDUNR 1 16 41703002 轴承套 BEARING SLEEVE 1 17 S10018 凹端紧定螺钉 M6×6 发黑 CONCAVE END TIGHTENING SCREW M6×6 2 18 4183502000 上轴同步轮组件 UPPER SHAFT SYNCHRONOUS WHEEL UNIT 1 19 S10019 螺钉 M6×6(镀铬) SCREW M6×6 4 20 41835021 同步带S5M SYNCHRONOUS BELT S5M 1 21 S10024 螺钉 M6×10(镀铬) SCREW M6×10 4 22 41803214 联轴器抱箍A COUPLING FOR COUPLING A 1 23 41803215 联轴器抱箍B COUPLING FOR COUPLING B 1 24 40322028 减震橡胶 SHOCK-REDUCING RUBBER 1 25 B02007 轴承6305NR BALL BEARING 6305NR 1 26 41801043 张紧轮支架 TENSIONONG WHEEL BRACKET 1 27 S05124 螺栓 M5×16(滚花,镀镍) SCREW M5×16 4 28 S05124 螺栓 M5×16(滚花,镀镍) SCREW M5×16 4 29 W01009 垫圈5 WASHER 4 30 S10033 紧定螺钉M6×30 SET SCREW M6×30 1 31 417S30306 螺栓(带垫圈)M5×15 BOLT(WITH WASHERS) M5×15 2 32 H01009 挡圈26 BEAD FLANGE 2 33 B06006 轴承6000-VV BALL BEARING 6000-VV 2 34 41728001 平垫圈10 PLAIN WASHER 10 2 35 41803013 张紧轮 TENSION PULLEY 1 36 41826017 张紧轴 TENSION AXIS 1 37 S10019 螺钉 M6×6(镀铬)(进口) SCREW M6×6 4 jintex.in

Page 11 — 5、针杆装置 / Needle bar mechanism

5、针杆装置 / Needle bar mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 E jintex.in

Page 12 — 5、针杆装置/Needle bar mechanism

5、针杆装置/Needle bar mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 135S11002 针杆曲柄定位螺钉 NEEDLE BAR CRANK POSITIONING SCREW 1 2 101S15004 针杆曲柄紧定螺钉 NEEDLE BAR CRANK TIGHTENING SCREW 1 3 116S14003 针杆曲柄销定位螺钉 PIN LEVER CRANK PIN POSITIONING SCREW 2 101S14001 4 41804011 针杆曲柄A NEEDLE BAR CRANK A 1 5 41712133 垫圈 8 WASHER 8 2 6 41838212 挑线杆 TAKE UP LEVER 1 4183801100 7 41808211 挡圈 B CLOSING RING B 1 挑线连杆组 8 114S14001 紧定螺钉 SCREW BOLT 2 件A内部零件 9 41805213 挑线连杆 PICK LINE CONNECTING ROD 1 10 S10019 螺钉 M6×6(镀铬) SCREW M6×6 1 11 41804216 针杆连接柱 NEEDLE BAR CONNECTION COLUMN 1 4183801100 12 42224005 滚针轴承 NEEDLE BEARING 2 挑线连杆组 13 101S17001 挑线曲柄螺钉(左旋) NEEDLE BAR CRANK SCREW (LEVOROTATION) 1 件A内部零件 14 S04078 螺钉 M4×8(镀镍) SCREW M4×8 1 15 41704100 针杆接头 THE NEEDLE BAR JOINT 1 16 41803222 针杆连杆铜套 NEEDLE ROD AND CONNECTING ROD COPPER 1 17 41805215 针杆连杆 NEEDLE BAR CONNECTING ROD 1 18 41804215 挑线曲柄分部件 PICK UP THE CRAKE PARTS 1 4183801100 19 B06016 轴承618VV BEARING 618VV 1 挑线连杆组 20 B04031 轴承619/8-ZZ BEARING 619/8-ZZ 1 件A内部零件 21 B04030 轴承628/6-ZZ BEARING 628/6-ZZ 1 22 41811221 垫圈 WASHER 2 23 41813214 过线套 OVER LINE SLEEVE 1 24 41709002 滑块导向 B SLIDING BLOCK GUIDE B 1 25 41709001 滑块 SLIDING BLOCK 1 26 S05118 螺栓 M4×16(滚花,镀镍) SCREW M4×16 2 27 41703005 针杆轴套 UK NEEDLE BAR SHAFT SLEEVE UK 1 28 41702061 针杆(DLC) NEEDLE BAR(DLC) 1 29 42203508 针棒轴套D NEEDLE ROD BUSHING D 1 30 417S15002 螺钉 SM3.57-40×4.5 SCREW SM3.57-40×4.5 1 31 41726014 针套 NEEDLE GUARD 1 32 42217503 机针DP×5 9# NEEDLE DP×5 9# 1 33 S09019 螺钉 M5×5(镀镍) SCREW M5×5 1 34 40325010 上轴转动齿轮 TURN THE GEAR ON THE SHAFT 1 35 S09019 螺钉 M5×5(镀镍) SCREW M5×5 2 齿轮自带 36 40325011 手轮轴齿轮 HAND WHEEL SHAFT GEAR 1 37 S09019 螺钉 M5×5(镀镍) SCREW M5×5 2 齿轮自带 38 S10019 螺钉 M6×6(镀铬) SCREW M6×6 1 39 41803020 手轮轴套B HAND WHEEL AXIE SLEEVE 1 40 41827214 弹簧 SPRING 1 41 P03002 销4×16 PIN 4X16 1 42 41802212 手轮轴 THE HAND WHEEL 1 43 40311003 手轮(仿手印) HAND WHEEL 1 44 403S11003 手轮固定螺钉 HAND WHEEL SET SCREW 1 jintex.in

Page 13 — 6、X送料装置/X Feed mechanism

6、X送料装置/X Feed mechanism jintex.in

Page 14 — 6、X送料装置/X Feed mechanism

6、X送料装置/X Feed mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 4182029 X送料基座L14 X FEEDING BASE L14 1 2 41824013 X导轨L14 X GUIDE RAIL L14 1 3 41825012 X齿条L14 X RACK L14 1 4 41842031 导轨齿条连接座YL14(压紧方式) GUIDE RACK CONNECTING SEAT YL14 1 5 418S16012 方形螺母块20M4 SQUARE NUT 20M4 34 6 S05118 螺栓 M4×16(滚花,镀镍) SCREW M4×16 34 7 41812017 X导轨挡板 X GUIDE BAFFLE 2 8 S04038 螺钉M6×10 SCREW M6×10 4 9 S05048 螺钉M4×10 SCREW M4×10 8 413S13017 10 41728024 垫片M4 WASHER M4 8 11 41812020 X传感器安装板 X SENSOR MOUNTING PLATE 1 12 41730851 传感器 SENSOR 1 13 S05048 螺钉M4×10 SCREW M4×10 2 413S13017 14 W01001 垫片M4 WASHER M4 2 15 S04076 螺钉M3×8(镀镍) SCREW M3×8 1 16 41833011 X步进电机B X STEPPING MOTOR B 1 17 S05010 螺钉M4×12 SCREW M4×12 4 18 41842017 电机安装座 MOTOR SAFETY SEAT 1 19 B01025 轴承6200 BALL BEARING 6200 1 20 41812272 电机座安装支架 MOTOR MOUNTING BRACKET 1 21 42225515 X送料齿轮14 X FEEDING RACK 14 1 22 S05118 螺栓 M4×16(滚花,镀镍) SCREW M4×16 29 23 W01001 垫片M4 WASHER M4 31 25 418S16011 方形螺母块20M5 SQUARE NUT 20M5 18 24 S05111 螺栓M6×20 SCREW M6×20 4 26 S05121 螺栓M5×10 SCREW M5×10 2 27 S05123 螺栓 M5×12(滚花,镀镍) SCREW M5×12 2 28 41728028 垫圈5 WASHER 5 4 29 41812026 齿轮盖板 GEAR PLATE 1 30 S02031 螺钉M3×5 SCREW M3×5 2 31 42224515 滚针导向轮 ROLLER GUIDE WHEEL 1 32 41712133 垫圈8 WASHER 8 1 33 41828011 垫圈8 WASHER 8 1 34 41842018 导向轮盖 GUIDE WHEEL COVER 1 35 S05116 螺栓 M4×8(滚花,镀镍) SCREW M4×8 2 36 41826011 圆柱销6×15 PIN 6×15 1 jintex.in

Page 15

6、X送料装置/X Feed mechanism jintex.in

Page 16 — 6、X送料装置(齿轮齿条传动)/X Feed mechanism (Gear-ract drive)

6、X送料装置(齿轮齿条传动)/X Feed mechanism (Gear-ract drive) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 37 S05040 螺栓M6×16 SCREW M6×16 4 38 41811027 塑料拖链1825 PLASTIC DRAG CHAIN 1825 1 39 417S30033 螺钉M4×8 SCREW M4×8 2 40 41812141 Y拖链前支架 Y DRAG CHAIN FRONT SUPPORT 1 41 41812142 X拖链后支架 X DRAG CHAIN LATER SUPPORT 1 42 304213 X电机罩 X MOTOR COVER 1 41812144 43 417S30025 螺钉(带垫圈)M4×10DB SCREW(WITH SHIM) M4×10DB 3 44 418S16012 方形螺母块20M4 SQUARE NUT 20M4 4 45 S05048 螺钉M4×10 SCREW M4×10 4 413S13017 46 S05116 螺栓 M4×8(滚花,镀镍) SCREW M4×8 2 47 4181203000 X右拖链支架组件 X DRAG CHAIN SUPPORT COMPONENTS 1 48 417S15008 螺钉M4×8 SCREW M4×8 3 403S11013 49 42211526 塑料拖链0616 PLASTIC DRAG CHAIN 0616 1 50 42211527 塑料拖链0616接头 PLASTIC DRAG CHAIN 0616 JOINT 1 51 417S15008 螺钉M4×8 SCREW M4×8 4 403S11013 52 41801046 送料基座联接座 FEEDING BASE CONNECTING SEAT 2 53 417S13301 螺栓M5×12 SCREW M5×12 2 54 S05123 螺栓 M5×12(滚花,镀镍) SCREW M5×12 4 55 S17005 螺栓M5×10 SCREW M5×10(COUNTERSUNK HEAD) 8 56 41812134 Y拖链后支架 Y DRAG CHAIN LATER SUPPORT 1 57 417S15008 螺钉M4×8 SCREW M4×8 2 403S11013 58 N01008 螺母M8 NUT M8 1 59 422S15501 螺钉M4×10 SCREW M4×10 2 60 N01024 螺母M4 NUT M4 2 61 41708005 螺纹套 THREAD BUSHING 4 62 418S16013 滚花螺纹套M5 KNURLED THREAD SLEEVE M5 6 63 417S30034 螺钉(带垫圈)M4×14 SCREW M4×14 2 64 42128040 垫片M6 WASHER M6 6 65 304826 X右防尘罩(喷漆) X RIGHT DUST SHIELD 1 41812434 66 S04028 螺钉M5×8(镀亮光铬) SCREW M5×8 1 41812432 67 W02001 不锈钢垫圈M5 STAINLESS STEEL PAD M5 1 68 W01009 垫圈5 WASHER 5 1 69 41812222 板螺母 PLATE NUT 1 70 304825 X左防尘罩(喷漆) X RIGHT DUST SHIELD 1 41812432 71 418S16012 方形螺母块20M4 SQUARE NUT 20M4 8 72 421S13012 螺钉带垫M4×10 SCREW M4×10 8 jintex.in

Page 17 — 6.1、X送料装置(丝杠传动)/X Feed mechanism(Screw drive)

6.1、X送料装置(丝杠传动)/X Feed mechanism(Screw drive) 44 43 42 1 2 3 6 7 8 4 28 5 29 30 31 32 33 16 15 14 13 12 11 10 9 39 17 18 19 20 21 22 24 25 26 23 46 45 27 38 37 36 35 34 41 40 关 jintex.in

Page 18 — 6.1、X送料装置(丝杆传动)/X Feed mechanism (Screw drive)

6.1、X送料装置(丝杆传动)/X Feed mechanism (Screw drive) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 421S13027 螺钉M5×12(带垫圈) SCREW M5×12 2 2 407N1002 自锁螺母M4 NUT M4 2 3 930000021 丝杆Y拖链支架 Y LEAD SCREW CHAIN BRACKET 1 141812008 4 41811027 塑料拖链1825 PLASTIC DRAG CHAIN 1825 1 5 S05059 螺钉M4×12(镀镍) SCREW M4×12 2 6 42136014 安装板直通接管(带螺纹) MOUNTING PLATE THROUGH PIPE 2 7 407N002 自锁螺母M4 NUT M4 2 8 141811001 小拖链 LITTLE PLASTIC DRAG CHAIN 1 9 S05057 螺钉M4×6(镀镍) SCREW M4×6 2 10 S05059 螺钉M4×12(镀镍) SCREW M4×12 2 11 S04078 螺钉M4×8 SCREW M4×10 5 12 930000022 丝杆电机罩 SCREW MOTOR COVER 1 141812010 13 S05124 螺栓M5×16(滚花,镀镍) SCREW M5×10 4 14 41833016 X丝杆伺服电机 X SCREW SERVO MOTOR 1 15 930000020 线罩 COVER WIRE 1 141812024 16 417S30025 十字槽盘头螺钉M4×10DB PHILLIPS PAN HEAD SCREW M4×10 8 17 4182401600 丝杆组件 SCREW COMPONENTS 1 18 41730851 传感器 SENSOR 1 19 421S13049 螺钉M3×12 SCREW M3×12 1 20 1.4181E+10 丝杆拖链导板组件 LEAD SCREW CHAIN GUIDE COMPONENTS 1 22 417S15008 螺钉M4×8 COUNTERSUNK HEAD SCREW M4×8 4 23 41708005 M5螺纹套 THREAD BUSHING M5 8 24 S05040 螺栓M6×16 SCREW M6×16 4 25 42128040 垫片M6 WASHER M6 4 26 41801052 丝杆送料联接座 SCREW FEEDING BASE CONNECTING SEAT 2 27 421S13065 螺栓M5×16(滚花,镀镍)(带垫圈) SCREW M5×16 8 28 S04082 螺钉M3×6 SCREW M3×6 4 29 S05116 螺钉M4×8 SCREW M4×8 2 30 41812146 储油脂盒安装板 GREASE STORAGE BOX MOUNTING PLATE 1 31 41836011 铜卡套式直通油管接头M6 COPPER CARD-TYPE DIRECT TUBING JOINT M6 1 32 41836018 直角油管接头90度M6 LUBRICATING NIPPLE M6 1 33 41842041 Y丝杠储油脂盒 Y LEAD SCREW GREASE STORAGE BOX 1 34 41822016 O型圈17×2.65 O-SHAPED RING 2 35 41842042 活芯子 PISTON 1 36 41812145 储油脂盒盖板 GREASE STORAGE COVER PLATE 1 37 S04076 螺钉M3×8 SCREW M3×8 4 38 S04125 十字槽盘头螺钉M4/50 SCREW M4X50 1 39 141812027 垫块 PADDING BLOCK 1 40 N01024 六角螺母M4 HEX NUT 1 41 41836501 管接头PU4(直通) GES POPE JOINT 1 42 41812134 Y拖链后支架 Y DRAG CHAIN LATER SUPPORT 1 43 S05115 螺栓(带垫圈)M4×6 SCREW M4×6 2 44 417S30034 螺钉(带垫圈)M4×14 SCREW M4×14 2 45 141830005 低压驱动器 DRIVE 1 46 S05116 螺栓M4×8(滚花,镀镍)(切换) SCREW M4×8 2 jintex.in え

Page 19 — 6.2、X送料装置(同步带传动)/X Feed mechanism(Timing Belt drive)

6.2、X送料装置(同步带传动)/X Feed mechanism(Timing Belt drive) 1 5 6 7 9 4 13 14 33 34 35 36 31 30 29 2 3 4 11 12 37 38 39 40 41 24 25 27 28 15 16 17 18 19 20 21 22 23 26 42 43 44 45 46 47 48 49 50 51 元 jintex.in

Page 20 — 6.2、X送料装置(同步带传动)/X Feed mechanism(Screw drive)

6.2、X送料装置(同步带传动)/X Feed mechanism(Screw drive) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 141811006 线槽盖40L700 TRUNKING 40L700 1 2 S05057 螺钉M4×6 SCREW M4×6 3 3 W01001 平垫圈4 PLAIN WASHER4 3 4 425S10001 方形螺母块 SQUARE NUT BLOCK 10 5 141811005 线槽4030L120 TRUNKING 4030L120 1 6 141811004 线槽4030L480 TRUNKING 4030L480 1 7 417S15008 螺钉M4×8 SCREW M4×8 4 8 41828012 垫圈4 PLAIN WASHER4 4 9 141842008 小坦克链挡板 PANZER CHAIN BAFFLE 1 10 N01013 螺母M3 NUT M3 2 11 S02127 沉头螺钉M3×10 SCREW M3×10 2 12 141831028 特氟龙胶带50 TEFLON TAPE 50 1 13 4184205000 同步带送料模组 SYNCHORONOUS BELT FEED MECHANISM 1 14 41837614 机械防撞标贴 MECHANICAL ANTI-COLLISION LABELING 2 15 S05035 螺钉M5×25 SCREW M5×25 2 16 S05124 螺栓M5×16 SCREW M5×16 2 17 41833500 模组电机 X STEPPER MOTOR 1 18 10122005 孔塞 DUST PLUG 1 19 141842001 X传感器安装板 X SENSOR MOUNTING PLATE 1 20 W01001 平垫圈4 PLAIN WASHER4 2 21 S05010 螺钉M4×12 SCREW M4×12 2 22 41730851 传感器 SENSOR 1 23 S04076 螺钉M3×8 SCREW M3×8 1 24 S05040 螺栓M6×16 SCREW M6×16 4 25 42128040 垫片M6 WASHER M6 4 26 417S30034 螺栓M4×14(带垫圈) SCREW M4×14 8 27 41801052 送料联接座 FEEDING BASE CONNECTING SEAT 2 28 425S10001 方形螺母块 SQUARE NUT BLOCK 8 처 Jinttex.in

Page 21 — 6.2、X送料装置(同步带传动)/X Feed mechanism(Timing Belt drive)

6.2、X送料装置(同步带传动)/X Feed mechanism(Timing Belt drive) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 关 jintex.in

Page 22 — 6.2、X送料装置(同步带传动)/X Feed mechanism (Screw drive)

6.2、X送料装置(同步带传动)/X Feed mechanism (Screw drive) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 29 S02032 螺钉M3×6(镀镍) SCREW M3X6 4 30 425S10001 方形螺母块 SQUARE NUT BLOCK 2 31 141812035 储油脂盒安装板(长) GREASE STORAGE BOX MOUNTING PLATE(LONG) 1 32 S05116 螺栓M4×8(滚花,镀镍)(切换) SCREW M4X8 2 33 S04125 十字槽盘头螺钉M4/50 SCREW M4X50 1 34 N01024 六角螺母M4 HEX NUT 1 35 S04076 螺钉M3X8 SCREW M3X8 4 36 41812145 储油脂盒盖板 GREASE STORAGE COVER PLATE 1 37 41842042 活芯子 PISTON 1 38 41822016 O型圈17×2.65 O-SHAPED RING 2 39 41842041 Y丝杠油脂盒 Y LEAD SCREW GREASE STORAGE BOX 1 40 41836011 铜卡套式直通油管接头M6 COPPER CARD-TYPE DIRECT TUBING JOINT M6 1 41 41836018 直角油管接头90度M6 LUBRICATING NIPPLE M6 1 42 407N01002 自锁螺母M4 SELF-LOCKING NUT M4 2 43 41812141 Y拖链支架 Y CHAIN BRACKET 1 44 41811027 塑料拖链1825 PLASTIC DRAG CHAIN 1825 1 45 S05115 螺栓(带垫圈)M4×6 SCREW M4×6 2 46 417S30034 螺钉(带垫圈)M4X14 SCREW M4×14 2 47 41812134 Y拖链后支架 Y DRAG CHAIN LATER SUPPORT 1 48 422S15501 螺钉M4×10 SCREW M4×10 2 49 417S30302 螺钉(带垫圈)M4×12 SCREW ( WITH WASHER) M4×12 2 50 41728024 垫圈L4 GASKET L4 2 51 425S10001 方形螺母块 SQUARE NUT BLOCK 2 jintex.in ㅈ

Page 23 — 7、送料装置 / Feed mechanism (Screw drive)

7、送料装置 / Feed mechanism (Screw drive) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 29 30 31 32 33 34 35 36 37 jintex.in

Page 24 — 7、送料装置(丝杆传动)/Feed mechanism (Screw drive)

7、送料装置(丝杆传动)/Feed mechanism (Screw drive) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 41801044 Y丝杆同步驱动座 Y ROD SYNCHRONIZES THE DRIVE SEAT 1 2 40322021 橡皮塞15 RUBBER CAP 15 2 3 413S13013 螺栓M6×25 SCREW M6×25 2 4 N01021 M6螺母 NUT M6 2 5 B01033 轴承6203 BALL BEARING 6203 1 6 41801042 Y丝杆支撑端轴承座 Y SCREW SUPPORT BEARING PEDESTAL 1 7 S05040 螺栓M6×16 SCREW M6×16 4 8 S05133 螺钉M4×12(镀镍) SCREW M4×12 1 9 41808011 挡圈 CLOSING RING 1 10 41824015 Y丝杆组件 Y SCREW COMPONENTS 1 11 421S13059 螺栓 M5×20(滚花,镀镍) SCREW M5×20 4 12 41801041 Y丝杆固定端轴承座组件 Y SCREW ROD FIXED END BEARING ASSEMBLY 1 13 S05139 螺栓M8×55 SCREW M8×55 4 14 41801040 Y丝杆电机座 SCREW MOTOR STAND 1 15 41826016 圆柱销8×30 PIN 8×30 1 16 S05074 螺栓M8×20 SCREW 8×20 4 17 4180301200 梅花联轴器组件 COMPONENT OF CLUBS COUPLING 1 18 41833013 Y伺服电机 Y SERVO MOTOR 1 19 S05040 螺栓M6×16 SCREW M6×16 4 20 41836011 铜卡套式直通油管接头M6 COPPER CARD-TYPE DIRECT TUBING JOINT M6 1 21 41821011 油管 OIL TUBE 1 22 12912326 管夹 PIPE CLAMP 1 23 417S30025 螺栓M4×10DB SCREW(WITH SHIM) M4×10DB 1 25 41812667 油管支架 TUBING SUPPORT 1 26 417S30025 螺栓(带垫圈)M4×10DB SCREW M4×20 2 29 S05124 螺栓 M5×16(滚花,镀镍) SCREW M5×16 22 30 41824012 Y导轨 Y GUIDE RAIL 2 31 40322021 橡皮塞15 RUBBER CAP 15 2 32 S05088 螺钉M6×45 SCREW M6×45 2 33 41812028 Y限位板B Y LOCATION-LIMITED PLATE B 2 34 N01021 M6螺母 NUT M6 2 35 417S30036 螺钉M5×12 SCREW M5×12 4 36 41826011 圆柱销6×15 PIN 6×15 2 37 S05123 螺钉5×12 SCREW M5×12 16 FF

Page 25 — 8、送料装置(夹具C)/Feed mechanism (fixture C)

8、送料装置(夹具C)/Feed mechanism (fixture C) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 E jintex.in

Page 26 — 8、送料装置(夹具C)/Feed mechanism(fixture C)

8、送料装置(夹具C)/Feed mechanism(fixture C) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 41826013 导杆Φ8 GUIDE ROD Φ8 4 2 41845011 气缸CQ2B16-10 AIR CYLINDER CQ2B16-10 2 3 42230519 微型接头M-5HLH-4 MICRO PIPE CONNECTION M-5HLH-4 4 4 S05048 螺钉M4×10 SCREW M4×10 8 413S13017 5 41801012 气缸导杆块 AIR CYLINDER GUIDE BAR 2 6 41812022 模板压板 TEMPLATE LINKING PIECE 2 7 417S15008 螺栓 M4×8(滚花,镀镍) SCREW M4×8 2 403S11013 8 S17005 螺栓M5×10(公制圆杯螺丝) SCREW M5×10 4 9 41828012 垫圈4 WASHER 4 2 10 41826014 模板定位销 TEMPLATE POSITIONING TAPER PIN 2 11 S10019 螺钉 M6×6(镀铬) SCREW M6×6 1 12 S05048 螺钉 M4×10(镀镍) SCREW M4×10 2 413S13017 13 41842016 限位销支座 LIMIT PIN SUPPORT 1 14 41826015 模板限位销 TEMPLATE PIN 1 15 41826000 平盖 PLANKER 1 16 S17005 螺栓M5×10(公制圆杯螺丝) SCREW M5×10 10 17 S05123 螺栓 M5×12(滚花,镀镍) SCREW M5×12 8 18 W01009 垫圈5 WASHER 5 8 19 41842038 顶柱 TOP PILLAR 2 20 S05068 螺钉M5×20 SCREW M5×20 4 114S13001 21 41728004 垫圈 PIN 4 22 41842037 顶柱气缸安装板 TOP PILLAR AIR CYLINDER MOUNTING PLATE 2 23 41830211 气缸CQ2B12-5SM AIR CYLINDER 2 24 421S17001 螺钉M4×16 SCREW M4×16 8 25 42230519 微型接头M-5HLH-4 MICRO PIPE CONNECTION M-5HLH-4 2 26 S05065 螺钉M4×40 SCREW M4×40 4 27 W02008 弹簧垫圈2-4 SPRING WASHER 2-4 4 28 42128003 垫圈 WASHER 4 29 S05067 螺钉M4×10 SCREW M4×10 12 30 41842218 夹具连接板B FIXTURE CONNECTING PIATE B 2 31 W01009 垫圈5 WASHER 5 10 32 S05123 螺钉M5×12 SCREW M5×12 10 33 41730441 气缸CU16-15D AIR CYLINDER CU16-15D 2 34 401727 接头 JOINT 2 35 42226811 接头销 JOINT PIN 2 36 S05123 螺栓M5×12 SCREW M5×12 6 夹扣式 (选配) 37 42212607 夹紧杆挡板 CLAMPING ROD BAFFLE 2 38 42212813 夹紧杆 Clamping rod 2 39 42228811 转动垫圈 ROTARY WASHER 6 40 42212538 夹具安装板L FIXTURE MOUNTING PLATE L 2 41 42226812 夹紧销 CLAMPING PIN 30 42 42212800 塑料托板 PLASTIC BRACKET 15 43 417S17852 螺栓M5×15 SCREW M5×15 30 44 42212820 透明托板 TRANSPARENT PALLET 3 jintex.in

Page 27 — 8.1、送料装置(压框夹具S)/Feed mechanism(Clamping fixture S)

8.1、送料装置(压框夹具S)/Feed mechanism(Clamping fixture S) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in

Page 28 — 8.1、送料装置 (压框夹具S)/Feed mechanism (Clamping fixture S)

8.1、送料装置 (压框夹具S)/Feed mechanism (Clamping fixture S) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 42536004 气管接头(直角) GES POPE JOINT(90°) 2 2 41845224 气管φ4×2.5黑色 GES POPE φ4×2.5 (BLACK) 4.2 3 42536003 气管接头(三通) GES POPE JOINT(THREE-WAY PIPE) 2 4 417S30023 螺钉(带垫圈) M3×16DB SCREW M3X16DB 2 5 40736036 气管接头(三通) GES POPE JOINT(THREE-WAY PIPE) 2 6 42536003 气管接头(三通) GES POPE JOINT(THREE-WAY PIPE) 2 7 41845223 气管φ4×2.5透明蓝 GES POPE φ4×2.5 (BLUE) 4.2 8 42536004 气管接头(直角) GES POPE JOINT(90°) 2 9 4254500400 气缸 AIR CYLINDER 4 10 S05124 内六角平头螺钉M5×16 INTERNAL HEXAGONAL FLAT HEAD SCREW M5×20 16 11 41728028 平垫圈5 PLAIN WASHER 5 8 12 S05123 内六角平头螺钉M5×12 INTERNAL HEXAGONAL FLAT HEAD SCREW M5×12 8 13 42526008 限位销 SPACER PIN 1 14 S05059 内六角平头螺钉M4×12 INTERNAL HEXAGONAL FLAT HEAD SCREW M4×12 4 15 42512028 限位支座 LIMIT PIN SUPPORT 1 16 S09019 螺钉M5×6 SCREW M5×6 1 17 41842502 压框架 COMPRESSION FRAME 1 18 S05068 螺钉M5×20 SCREW M5×20 4 114S13001 19 41728004 垫圈 PIN 2 20 41842038 顶柱 TOP PILLAR 4 21 421S17001 螺钉M4×12 SCREW M4×12 8 22 41842037 顶柱气缸安装板 TOP PILLAR AIR CYLINDER MOUNTING PLATE 2 23 41845017 气缸CQ2A12-5SM AIR CYLINDER 2 24 42230519 微型接头M-5HLH-4 MICRO PIPE CONNECTION M-5HLH-4 2 25 41836501 接头PU4 WEASAND CONNECTOR PU4 1 jintex.in 71

Page 29 — 8. 2、送料装置(夹扣夹S)/Feed mechanism(Clamping fixture S)

8. 2、送料装置(夹扣夹S)/Feed mechanism(Clamping fixture S) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 71 jintex.in

Page 30 — 8.2、送料装置(夹扣夹具S)/Feed mechanism (Clamping fixture S)

8.2、送料装置(夹扣夹具S)/Feed mechanism (Clamping fixture S) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 141845002 三通气管接头(T型) PIPE CONNECT(THREE-WAY PIPE) 2 2 407S04053 螺钉M3×25 SCREW M3×25 2 3 401727 接头 JOINT 2 4 S05065 螺钉M4×40 SCREW M4×40 4 5 W02008 弹簧垫圈2-4 SPRING WASHER 2-4 4 6 42128003 垫圈 PIN 4 7 42536004 气管接头(直角) PIPE CONNECT 4 8 41730441 气缸CU16-15D AIR CYLINDER CU16-15D 2 9 42212607 夹紧杆挡板 CLAMPING ROD BAFFLE 2 10 42212813 夹紧杆 CLAMPING ROD 2 11 42212538 夹具安装板L FIXTURE MOUNTING PLATE L 2 12 42228811 转动垫圈 ROTARY WASHER 6 13 S05123 螺钉M5×12 BOLT M5×12 6 14 42226811 接头销 JOINT PIN 2 15 S05123 螺钉M5×12 SCREW M5×12 10 16 W01009 垫圈5 WASHER 5 10 17 41842218 夹具联接板B FIXTURE CONNECTING PIATE B 2 18 S05067 螺钉M5×10 SCREW M5×10 12 19 41845223 气管φ4×2.5透明蓝 GES POPE φ4×2.5 ( BLUE ) 4.2 20 41845224 气管φ4×2.5黑色 GES POPE φ4×2.5 ( BLACK ) 4.2 21 42212800 塑料托板 PLASTIC BRACKET 15 22 42226812 夹紧销 CLAMPING PIN 30 23 417S17852 螺钉M5×15 SCREW M5×15 30 24 42212820 透明托板 TRANSPARENT PALLET 3 25 41836501 管接头PU4 WEASAND CONNECTOR PU4 2 jintex.in

Page 31 — 8.3、送料装置(压框夹具T)/Feed mechanism(Clamping fixture T)

8.3、送料装置(压框夹具T)/Feed mechanism(Clamping fixture T) 24 31 30 25 29 26 27 28 3 2 1 10 9 4 5 11 12 6 13 15 23 14 22 18 21 19 20 17 16 车 jintex.in

Page 32 — 8.3、送料装置(压框夹具T)/Feed mechanism (Clamping fixture T)

8.3、送料装置(压框夹具T)/Feed mechanism (Clamping fixture T) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 41836501 管接头PU4 WEASAND CONNECTOR PU4 2 2 41845223 气管φ4×2.5透明蓝 BLUE WEASAND φ4×2.5 1.2 3 41845224 气管φ4×2.5黑色 BLACK WEASAND φ4×2.5 1.2 4 41811500 小坦克链 PANZER CHAIN 1 5 S02127 沉头螺钉M3×10 SCREW M3×10 2 6 41842504 拖链导板 PANZER CHAIN PLATE 1 7 N08008 自锁螺母M3 NUT M3 2 8 141831029 特氟龙胶带0.13×25 TEFLON TAPE 0.13×25 1 9 407S17001 沉头螺钉M4×10 SCREW M4×10 4 10 42536004 气管接头 WEASAND CONNECTOR 2 11 S05124 螺钉M5×16 SCREW M5×16 16 12 41842503 拖链导板垫块 PANZER CHAIN SHIM 4 13 41845223 气管φ4×2.5透明蓝 BLUE WEASAND φ4×2.5 1 14 41845224 气管φ4×2.5黑色 BLACK WEASAND φ4×2.5 4 15 42536003 气管接头 WEASAND CONNECTOR 6 16 41842502 压框架 PRESS FRAME 1 17 4254500400 气缸 CYLINDER 4 18 S09019 螺钉M5×5 SCREW M5×5 1 19 42512028 限位支座 LIMIT BEARING 1 20 42526008 限位销 LIMIT PIN 1 21 S05059 螺钉M4×12 SCREW M4×12 4 22 S05124 螺钉M5×16 SCREW M5×16 8 23 41728028 垫圈5 WASHER 5 8 24 41826211 顶柱 COLUMN 2 25 41812258 顶柱气缸安装板 COLUMN CYLINDER PLATE 2 26 41830211 气缸 CYLINDER 2 27 42230519 微型接头M-5HLH-4 WEASAND CONNECTOR M-5HLH-4 2 28 S05215 螺栓M3×26 BOLT M3×26 8 29 407N01001 自锁螺母M5 SELF LOCKING NUT M5 4 30 41828612 平垫圈 WASHER 4 31 S05218 螺钉M5×22 SCREW M5×22 4 jintex.in EX

Page 33 — 8. 4、送料装置(夹扣夹具T)/Feed mechanism (Clamping fixture T)

8. 4、送料装置(夹扣夹具T)/Feed mechanism (Clamping fixture T) 27 3 2 1 28 4 5 26 29 25 24 7 6 20 23 22 21 8 19 32 18 9 17 16 15 11 12 13 14 31 30 33 34 35 36 37 jintex.in

Page 34 — 8.4、送料装置(夹扣夹具T)/Feed mechanism (Clamping fixture T)

8.4、送料装置(夹扣夹具T)/Feed mechanism (Clamping fixture T) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 41836501 管接头PU4 WEASAND CONECTOR PU4 2 2 41845223 气管φ4×2.5透明蓝 BLUE WEASAND φ4×2.5 1.2 3 41845224 气管φ4×2.5黑色 BLACK WEASAND φ4×2.5 1.2 4 41811500 小坦克链 PANZER CHAIN 1 5 S02127 沉头螺钉M3×10 SCREW M3×10 2 6 N08008 自锁螺母M3 NUT M3 2 7 42536003 气管接头 WEASAND CONNECTOR 2 8 S05121 螺栓M5×10 BOLT M5×10 12 9 41842218 夹具连接板B CLAMP CONNEATION PLATE B 2 10 W01009 垫圈5 WASHER 8 11 S05123 螺栓M5×12 BOLT M5×12 8 12 42212813 夹紧杆 PRESS BAR 2 13 42228811 转动垫圈 MOVING WASHER 6 14 42212538 夹具安装板L CLAMP INSTALLATION BOARD L 2 15 42212607 夹紧挡板 PRESS BAR BAFFLE 2 16 S05123 螺栓M5×12 BOLT M5×12 6 17 42226811 接头销 PIN 2 18 401727 接头 CONINCTER 2 19 41730441 气缸CU16-15D CYLINDER CU16-15D 2 20 42536004 气管接头 WEASAND CONNECTOR 2 21 42128003 垫圈 WASHER 4 22 W02008 弹簧垫圈2-4 SPRING WASHER 4 23 S05065 螺钉M4×40 SCREW M4×40 4 24 41711014 电线夹6.4 CORD GRIP 6.4 3 25 417S30025 螺栓(带垫圈)M4×10 BOLT M4×10 3 26 41842510 夹扣专用垫块 PANZER CHAIN SHIM 3 27 41842504 拖链导板 PANZER CHAIN PLATE 1 28 407S04001 沉头螺钉M4×16 SCREW M4×16 3 29 141831029 特氟龙胶带0.13×25 TEFLON TAPE 0.13×25 1 30 41845224 气管φ4×2.5黑色 BLUE WEASAND φ4×2.5 1 31 41845223 气管φ4×2.5透明蓝 BLUE WEASAND φ4×2.5 1 32 141812049 垫板 FILLER PIECE 1 33 141812048 夹扣感应片 CLAMP INDUCTOR 1 34 141842007 支撑座 SUPPORT BLOCK 1 35 W01001 垫圈4 WASHER4 2 36 S05116 螺钉M4×8 SCREW M4×8 1 37 S02039 螺钉M4×9 SCREW M4×9 1 jintex.in EF

Page 35 — 9、抬压脚装置/Work clamp lifter mechanism

9、抬压脚装置/Work clamp lifter mechanism 26 25 1 2 3 4 5 6 8 7 10 9 11 12 13 14 15 16 17 18 19 20 21 24 22 23 EE jintex.in

Page 36 — 9、拾压脚装置/Work clamp lifter mechanism

9、拾压脚装置/Work clamp lifter mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41833213 中压脚电机 MEDIUM PRESSURE FOOT MOTOR 1 2 S05123 螺钉 M5×12(滚花,镀镍) SCREW M5×12 4 3 41801217 中压脚电机安装座 MOTOR MOUNTING PLATE 1 4 S05124 螺钉 M5×16(滚花,镀镍) SCREW M5×16 4 5 B01028 轴承628/8 BEARING 628/8 1 6 41803228 中压脚电机联轴器 MEDIUM PRESSURE FOOT COUPLING 1 7 S10019 螺钉 M6×6(镀铬) SCREW M6×6 4 8 41802224 中压脚驱动轴 MEDIUM PRESSURE FOOT DRIVE SHAFT 1 9 41804211 中压脚摇杆 MEDIUM PRESSURE FOOT JOINTED ARM 1 10 S09019 螺钉 M5×5(镀镍) SCREW M5×5 1 11 S05118 螺钉 M4×16(镀镍) SCREW M4×16 1 12 41826212 连杆销 LINK PIN 1 13 B01028 轴承628/8 BALL BEARING 628/8 2 14 41805212 中压脚连杆 MEDIUM PRESSURE FOOT LINK 1 15 41826212 连杆销 LINK PIN 1 16 S05133 螺钉 M4×12(镀镍) SCREW M4×12 1 17 41809211 中压脚杆导架 MEDIUM PRESSURE FOOT PRESSURE ROD GUIDE 1 18 S09019 螺钉 M5×5(镀镍) SCREW M5×5 1 19 41803025 压紧杆轴套 PRESS THE SHAFT SLEEVE 1 20 S09019 螺钉 M5×5(镀镍) SCREW M5×5 1 21 41802228 压紧杆D PRESS THE SHAFT D 1 22 42216505 中压脚 MEDIUM PRESSURE FOOT 1 23 41728025 平垫圈L3.5 FLAT WASHER L3.5 1 24 417S15011 螺钉SM3.57×12 SCREW SM3.57X12 1 25 303887 中压脚侧盖(喷漆) MEDIUM PRESSURE FOOT SIDE COVER 1 41812259 26 S04028 螺钉M5×8(镀亮光铬) SCREW M5X8 4 27 41822101 橡胶垫 VALVE RUBER 1 jintex.in E

Page 37 — 10、下轴装置/Lower shaft mechanism

10、下轴装置/Lower shaft mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 jintex.in

Page 38 — 10、下轴装置/Lower shaft mechanism

10、下轴装置/Lower shaft mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 14222007 橡皮塞18 RUBBER CAP 18 1 2 41803012 挡套 SPACER SLEEVE 1 3 12922001 橡皮塞φ12.5 RUBBER CAP 12.5 1 4 B10020 轴承 6201ZZNR BALL BEARING 6201ZZNR 1 5 1372500100 大齿轮组件 LARGE GEAR ASSEMBLY 1 6 S10019 螺钉 M6X6(镀铬) SCREW M6X6 2 7 13703034 下主动轴油封中套 LOWER DRIVE SHAFT OIL SEAL SLEEVE 1 8 13722022 挡油封 LIFT THE SHAFT OIL SEAL 1 9 B01010 滚针轴承6003 NEEDLE BEARING 6003 1 10 11403013 轴承套 BEARING SLEEVE 1 11 101S15002 送料轴挡圈螺钉 SCREW 2 12 41802016 下同步轮轴 LOWER SYNCHRONOUS WHEEL SHAFT 1 13 11403013 轴承套 BEARING SLEEVE 1 14 101S15002 送料轴挡圈螺钉 SCREW 2 15 B01010 轴承6003 NEEDLE BEARING 6003 1 16 B10012 轴承 6004DDUNR NEEDLE BEARING 6004DDUNR 1 17 41835018 下同步轮 LOWER SYNCHRONOUS WHEEL 1 18 S10019 螺钉 M6X6(镀铬) SCREW M6X6 2 19 41809011 定位勾支座 LOCATING HOOK SUPPORT 1 20 42212555 旋梭定位勾 SHUTTLE LOCATING HOOK 1 21 116S11005 牙架曲柄螺钉 SCREW 1 22 S05048 螺钉 M4×10(镀铬) SCREW M4×10 2 413S13017 23 41818101 广旋旋组件HSM-B1HTR(1Q) HOOKING COMPONENT 1 41818201 旋组件DSH2-BTR(JKMBJ) HOOKING COMPONENT 1 德盛(含梭芯组件) 24 42218002 梭芯套组件 SPINDLE SLEEVE ASSEMBLY 1 25 10818501 梭心605.609大梭心 BIG BOBBIN 1 26 41822011 油封0820 OIL SEAL 0820 1 27 41803023 下轴柱塞轴套 LOWER SHAFT PLUNGER SLEEVE 1 28 S09006 螺钉 M4X4 SCREW M4X4 1 29 11403016 下轴轴承套 LOWER SHAFT BEARING SLEEVE 1 30 113S14002 螺钉 SCREW 2 113S14020 31 B02006 轴承6001 BEEL BEARING 1 32 1142201400 油封组件 OIL SEAL COMPONENT 1 33 41803015 下轴中轴套 SHAFT SLEEVE IN THE LOWER SHAFT 1 34 S10019 螺钉 M6X6(镀铬) SCREW M6X6 2 35 41825011 斜齿轮 BEVEL WHEEL 1 36 141803006 下轴油芯套 LOWER SHAGT OIL CORE SLEEVE 1 37 141823001 下轴限油芯 LOWER SHAGT OIL LIMITING CORE 1 38 41802017 下轴C LOWER SHAFT 1 39 41822015 橡皮塞φ27 RUBBER CAP φ27 1 40 42508003 挑线连杆销紧圈 SHRINK RING 1 41 141822002 O形圈3.6×0.8 O-ring 1 jintex.in

Page 39 — 11、供油润滑装置/Lubrication mechanism

11、供油润滑装置/Lubrication mechanism 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 29 30 31 32 33 34 35 36 37 39 40 B. jintex.in

Page 40 — 11、供油润滑装置/Lubrication mechanism

11、供油润滑装置/Lubrication mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 4181203600 齿轮箱盖板组件 GEARBOX COVRE PLATE ASSEMBLY 1 2 41812035 齿轮箱盖板 GEARBOX COVRE PLATE 1 3 S02039 螺钉 M4×9 (镀镍) SCREW M4×9 8 4 41736303 油管嘴B OIL TUBE MOUTH B 1 5 12921005 油管φ4×φ6 (0.05m) OIL TUBE φ4×φ6 (0.05m) 1 6 41812011 加油口安装板 OIL FILLER MOUNTING PLATE 1 7 S05133 螺钉 M4×12 SCREW M4×12 2 8 13121001 加油口 OIL FILLER 1 9 41827424 油管护套弹簧 TUBING SHEATH SPRING 1 10 11421006 油管φ8×φ10(0.3m) OIL TUBE φ8×φ10(0.3m) 1 11 41711004 油窗盖 OIL WINDOW 1 12 41711022 挡片 SEPARATION BLADE 1 13 41722031 橡胶圈 RUBBER RING 1 14 S05094 螺钉 M3×8 SCREW M3×8 2 15 41812093 柱塞弹簧压板 PLUNGER SPRING CLAMP 1 16 11412055 Φ5.7油管卡簧 Φ5.7 TUBING CIRCLIP 4 17 41836015 油管嘴M5 OIL TUBE MOUTH M5 3 18 11427021 柱塞弹簧 PLUNGER SPRING 1 19 10526003 柱塞 PLUNGER 1 20 41812043 油管支架 OIL TUBE SUPPORT 1 21 S05048 螺钉 M4×10 SCREW M4×10 1 413S13017 22 42236513 调节阀 REGULATING VALVE 2 23 41812042 油量调节阀安装板 OIL CONTROL VALVE MOUNTING PLATE 1 24 12921002 维尼龙油管(φ3×φ5) VINYLON TUBING ( φ3×φ5 ) 2 25 417S30302 螺钉M4×12DB SCREW(WITH WASHER) M4X12DB 2 26 41812014 废油壶安装板 AFTER OIL CAN MOUNTING PLATE 1 28 4183601700 滤网组件 FILTER UNIT 1 29 40322027 橡胶罩 RUBBER CAP 3 30 41812012 油杯安装板 OIL CUP MOUNTING PLATE 1 31 417S30037 螺钉 M6×14(滚花,镀镍) SCREW M6×14 4 32 41811228 油杯 OIL CUP 1 33 S05121 螺钉 M5×10 SCREW M5×10 4 34 40311010 油壶接头 OILER JOINT 1 35 S05192 螺钉 M3×6 SCREW M3×6 4 36 40311011 接油壶 AFTER OIL CAN 1 37 12936004 油嘴管 NOZZLE TUBE 1 38 41722003 橡胶塞10.5 RUBBER CAP 10.5 1 39 417S30306 螺钉M5×15 SCREW M5×15 2 40 12921006 维尼龙油管(φ6×φ8) VINYLON TUBING ( φ6×φ8 ) 0.3m jintex.in 田

Page 41 — 12、穿线装置/Threading mechanism

12、穿线装置/Threading mechanism 1 2 16 15 10 9 7 8 5 6 11 13 12 17 14 3 4 jintex.in

Page 42 — 12、穿线装置/Threading mechanism

12、穿线装置/Threading mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41712077 过线导向 A THE THREAD GUIDE A 1 2 S04028 螺钉 M5×8(镀亮光铬) SCREW M5×8 1 3 41712078 过线导向 B THE THREAD GUID B 1 4 S04028 螺钉 M5×8(镀亮光铬) SCREW M5×8 1 5 41712079 过线器 C A THREAD C 1 6 S04028 螺钉 M5×8(镀亮光铬) SCREW M5×8 1 7 S12001 尖端紧定螺钉 M6×8 SCREW M6×8 1 8 41702031 松线销 LOOSE THREAD PIN 1 9 4181361200 主夹线器组件 THE MAIN BINDER COMPONENT 1 4221350200 10 4171301400 副夹线器组件 ACCESSORY WIRE HOLDER ASSEMBLY 1 11 41713301 机壳线钩 CASING THREAD HOOK 1 12 41722320 减震橡皮 DAMPING RUBBER 1 13 N01024 六角螺母 M4(厚度2.2,镀镍) HEX NUT 1 14 41813622 过线导向弹簧 ARM THREAD GUIDE SPRING 1 15 41313013 过线轴 A SPOOL 1 16 14222007 橡皮塞 18 RUBBER CAP 18 1 17 421S13012 螺钉(带垫)M4×10 BOLT (with washer) M4×10 1 jintex.in

Page 43 — 13、卷线装置/Bobbin winder mechanism

13、卷线装置/Bobbin winder mechanism 2 1 5 4 7 9 8 BOSHITE www.boshite.net 3 6 6 ID jintex.in

Page 44 — 13、卷线装置/Bobbin winder mechanism

13、卷线装置/Bobbin winder mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41719001 切刀 CUTTER 1 2 S04028 螺钉 M5×8(镀亮光铬) SCREW M5×8 1 3 S05119 螺栓M4×20(滚花,镀镍) SCREW M4×20 4 4 41803219 卷线驱动轮 REEL DRIVING WHEEL 1 5 S09019 螺钉 M5×5(镀铬) SCREW M5×5 2 6 41831222 自动绕线器BOSHITE AUTOMATIC WINDER 1 7 S05035 M5×25螺钉 SCREW M5×25 4 8 407N01001 自锁螺母M5 SELF-LOCKING NUT 4 9 41728028 垫片M5 GASKET 4 jintex.in IF

Page 45 — 14、切线装置/Thread trimmer mechanism

14、切线装置/Thread trimmer mechanism 正 jintex.in

Page 46 — 14、切线装置/Thread trimmer mechanism

14、切线装置/Thread trimmer mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 4181901100 切刀组件 KNIFE COMPONENTS 1 标准件 2 S05010 螺钉 M4×12(镀镍) SCREW M4×12 1 3 41803017 轴套0508 SHAFT SLEEVE 0508 1 4 417S12005 段螺钉B M6 SCREW M6 2 5 41802021 切线连杆 TANGENT CONNNENTING ROD 1 6 S05010 螺钉 M4×12(镀镍) SCREW M4×12 1 7 41804022 切线摆杆 TANGENT OSCILLATING BAR 1 8 41804021 切线驱动摆杆 TANGENT DRIVE OSCILLATING BAR 1 9 S05010 螺钉 M4×12(镀镍) SCREW M4×12 1 10 41812044 切线电机安装板 TANGENT MOTOR MOUNTING PLATE 1 11 S05040 螺栓M6×16 SCREW M6×16 4 12 42230534 切线电机 TANGENT MOTOR 1 13 S05010 螺钉 M4×12(镀镍) SCREW M4×12 4 14 4170500300 接头组件 ADAPTER ASSEMBLY 2 15 N01021 螺母M6 NUT M6 2 16 407S04002 内六角沉头螺钉M3×8 SCREW M3×8 1 17 41819015 动刀 MOVING BLADE 1 18 S05047 内六角螺钉M3×4 SCREW M3×4 2 19 S09042 螺钉M3×4 SCREW M3×4 1 20 41819016 定刀 STATIONARY KNIFE 1 21 41819020 动刀杆 MOVING BLADE ROD 1 22 4181901100-03 十字槽盘头螺钉M3×4 SCREW M3×4 1 23 S09042 螺钉M3×4 SCREW M3×4 1 24 4181901100-01 十字槽盘头螺钉M1.6×1.5 SCREW M1.6×1.5 2 25 4181901100-02 垫片 WASHER 2 26 41812519 压线片 WIRE SHEET 1 27 41812518 压线片安装板 WIRE SHEET MOUNTING PLATE 1 28 41812517 定刀安装板 STATIONARY KNIFE MOUNTING PLATE 1 jintex.in III

Page 47 — 15、挡线部件/Stop line components

15、挡线部件/Stop line components 1 12 13 14 7 11 10 2 9 4 5 6 8 7 12 jintex.in

Page 48 — 15、挡线部件/Stop line components

15、挡线部件/Stop line components 序号件号对象描述 Description 数量备注 Ref.No. Part.No Amt. Remarts 1 41812094 挡线叉窄 BUCKLE LINE FORK WIDTH 1 2 41842036 挡线安装板 STOP LINE MOUNTING PLATE 1 3 S05119 螺钉M4X20 SCREW M4X20 2 4 41803021 长轴套0508 LONG SHAFT SLEEVE 0508 1 5 41804014 挡线曲柄 STOP LINE CRANK 1 6 41830013 挡线电磁铁 STOP LINE ELECTROMAGNET 1 6 41812087 挡线驱动连杆 STOP LINE DRIVE CONENNTING ROD 1 配套 6 S050915 螺钉 SCREW PIN 1 7 S05116 螺栓 M4×8(滚花,镀镍) SCREW M4X8 3 8 418S20012 轴位螺钉M3 AXIS OF A SCREW M3 1 9 S05215 螺钉M3X25 SCREW M3X25 1 10 41811014 偏心限位套 PARTIALITY STOP COLLAR 1 11 41804015 挡线支架 STOP LINE SUPPORT 2 12 413S13016 螺钉M4×8 SCREW M4X8 2 13 W01015 垫片 FLAT GASKET 2 14 W01097 平垫圈4 FLAT GASKET 4 2 11 jintex.in 표

Page 49 — 16、扫线装置/Thread wiper mechanism

16、扫线装置/Thread wiper mechanism 1 2 3 4 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 9 10 7 표 jintex.in

Page 50 — 16、扫线装置/Thread wiper mechanism

16、扫线装置/Thread wiper mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 41830217 扫线电磁铁 Sweeping electromagnet 1 2 41822212 D形缓冲垫 D-shape cushion 1 3 41828212 D形垫圈 D-shape washer 1 4 41811213 电磁铁盖 Electromagnet cover 1 6 W01002 M3垫片 M3 washer 1 7 4181226100 扫线电磁铁安装板组件 Mounting plate component 1 8 41822213 缓冲块 Buffer block 1 9 W01002 M3垫片 M3 washer 4 10 S04082 螺钉M3×6 Screw M3×6 4 11 41826215 销子 Pin 1 12 41803223 铜垫圈 Copper washer 1 13 418S20213 轴位螺钉B Head screw B 1 14 41812264 驱动摆杆 Drive swinging rod 1 15 41803225 套管 Casing tube 1 16 41827212 扭簧 Torsional spring 1 17 418S20212 轴位螺钉A Head screw A 1 18 41812235 扫线连杆 Sweeping connection rod 1 19 H03057 开口挡圈3 Split washer 3 1 20 4180421400 扫线曲柄组件 Sweeping crank component 1 21 H05006 挡圈5 washer 5 1 22 41827211 扫线钢丝 Sweeping steel wire 1 23 41803220 扫线轴挡圈 Spool washer 1 24 417S15013 螺钉M4×5 Screw M4×5 2 25 417S30302 螺栓(带垫圈)M4×12 Bolt (with washer) M4×12 2 26 41845232 T形接管KJT04 T-pipe coupling 1 27 S01591 螺钉M3×18 Screw M3×18 1 28 W01002 M3垫片 M3 washer 1 jintex.in ID

Page 51 — 17、松线装置/Tension release mechanism

17、松线装置/Tension release mechanism 6 7 8 9 10 1 2 3 4 5 11 页 jintex.in

Page 52 — 17、松线装置/Tension release mechanism

17、松线装置/Tension release mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41830464 松线电磁铁HV Thread-loos ing electromagnet HV 1 2 41722020 缓冲垫圈 Buffering washer 1 3 W01001 M4垫片 M4 gasket 1 4 N01024 六角螺母M4 Hex nut M4 1 5 L02071 六角头螺栓M4×18 Hex head bolt M4×18 1 6 H05029 挡圈E4 Retainer ring E4 1 7 W01009 垫圈5 Washer 5 1 8 41826220 松线杆 Thread-loos ing rod 1 9 41727013 弹簧 Spring 2 10 114S11003 螺钉3/16-28 L=10 Screw 3/16-28 L=10 1 11 S10009 凹端紧定螺钉M6×8 Concave set screw M6×8 1 jintex.in

Page 53 — 18、大压脚装置/External work clamp mechanism

18、大压脚装置/External work clamp mechanism 2 3 1 5 4 6 7 10 8 9 11 12 13 14 16 15 17 jintex.in

Page 54 — 18、大压脚装置/External work clamp mechanism

18、大压脚装置/External work clamp mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41845016 行程可调节气缸12-17D THE STROKE CAN ADJUST THE CYLINDER 12-17D 1 2 418S13001 螺钉M3×55 SCREW M3×55 1 3 41845231 接头ASL4-M5 CONTACK ASL4-M5 2 4 41803024 大压脚气缸联轴器 BAG PRESSER FOOT CYLINDER COUPLING 1 5 S10007 凹端紧定螺钉 M4×4H 发黑 CONCAVE SIDE SET SCREW M4X4 4 6 41809213 大压脚压杆导架 BAG PRESSER FOOT PUSH ROD GUIDE 1 7 S05133 螺钉 M4×12(镀镍) SCREW M4×12 1 8 41802220 大压脚压杆 BAG PRESSER FOOT PUSH ROD 1 9 41403007 针杆下套 UNDER THE NEELE BAR SET 1 10 41822101 橡胶垫 VALVE RUBBER 1 11 S05192 螺钉M3×6 WASHER L3.5 2 12 S05133 螺钉 M4×12(镀镍) SCREW M4×12 2 13 41728025 平垫圈L3.5 FLAT GASKET L3.5 2 14 41812143 铜管安装板 COPPER PIPE MOUNTING PLATE 1 15 41816031 大压脚D(小型金属) BAG PRESSER FOOT D 1 16 41821014 铜管D COPPER PIPE D 1 17 41801064 铜管压板 COPPER PIPE PLTEN 1 jintex.in ㅎ

Page 55 — 19、断线感应装置/Thread breakage detector mechanism

19、断线感应装置/Thread breakage detector mechanism 1 2 3 4 5 6 호 jintex.in

Page 56 — 19、断线感应装置/Thread breakage detector mechanism

19、断线感应装置/Thread breakage detector mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41711054 传感器内绝缘片 SENSOR INSULATION 1 2 42212837 感应铜片 INDUCTION OF COPPER 1 3 62800016 导线单芯(0.2mm) SINGLE CORE WIRES 2.5m 4 41711053 传感器外绝缘片 SENSOR INSULATION 1 5 S04078 螺钉M4×8(镀镍) SCREW M4×8 1 6 W01001 垫片M4 WASHER M4 1 jintex.in 호

Page 57 — 20、控制箱装置(双丝杆)/Control box mechanism (Two Lead Screws)

20、控制箱装置(双丝杆)/Control box mechanism (Two Lead Screws) 1 2 3 4 5 6 7 20 jintex.in

Page 58 — 20、控制箱装置(双丝杆)/Control box mechanism(Two Lead

20、控制箱装置(双丝杆)/Control box mechanism(Two Lead 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41833013 Y伺服电机 Y SERVO MOTOR 1 2 41833212 主轴电机 SPINDLE MOTOR 1 3 41833213 中压步进电机(含光编) MEDIUM VOLTAGE STEPPING MOTOR 1 4 42230534 切线电机 SHEAR WIRE MOTOR 1 5 41833016 X丝杆伺服电机 X LEAD SCREW SERVO MOTOR 1 6 417S30302 内六角圆柱头螺钉M4×12 SCREW M4×12 4 7 41830032 星火电控V2BP款 ELECTRONIC CONTROL (SPARK) 1 jintex.in ã

Page 59 — 21、开关装置/Switch mechanism

21、开关装置/Switch mechanism 2 1 4 7 3 5 6 8 9 jintex.in

Page 60 — 21、开关装置/Switch mechanism

21、开关装置/Switch mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41812060 电源开关支架 POWER SWITCH STAND 1 2 S05124 螺栓 M5×16(滚花,镀镍) SCREW M5×16 1 3 41830021 插线板A01 PATCH BOARD A01 1 4 417S30025 螺栓(带垫圈)M4×10DB SCREW (WITH WASHER)M4×10DB 2 5 41830213 押扣开关 AND BUTTON SWITCH 1 6 417S30025 螺栓(带垫圈)M4×10DB SCREW (WITH WASHER)M4×10DB 2 7 407N01002 自锁螺母M4 SELF-LOCKING NUT 2 8 99200037 电源线3m POWER LINE 3M 1 9 42230512 主电源开关线(5M) MAIN POWER SWITCH LINE (5M) 1 jintex.in a

Page 62 — 22、空压装置/Air pressure mechanism

22、空压装置/Air pressure mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 41845021 双通汇流板100M6F DOUBLE-PASS CONFLUENCE PLATE 100M6F 1 2 41845212 电磁阀4V1106B SOLENOID VALVE 4V1106B 4 3 41845222 螺纹直通APC4-01 THREADED THROUGH APC4-01 8 4 40736021 接头PL802 JOINT PL802 1 5 41845219 内六角接头ABP02 BEPT MALE HOLLOW PLUG ABP02 3 6 41845214 消音器PAL02 SILENCER PAL02 2 7 41845213 盖板 PLATE 2 8 42122001 快换插头 QUICK CHANGE PLUG 2 9 421S11013 螺栓 M4×35(带垫圈) SCREW (WITH WASHER) M4×35 4 10 41845022 气管接头穿板直通PM8 CONNECT THE PIPE THROUGH THE PIPE 1 11 41730650 气源处理元件 GAS SOURCE PROCESSING ELEMENTS 1 12 417S30025 螺钉M4×10 SCREW M4×10 2 13 42130096 手动开关VHK3 SWITCH VHK3 1 14 42236512 气管接头APC8-02 PIPE CONNECT 1 15 42212620 挂钩 POTHOOK 1 16 417S30037 螺栓 M6×14(滚花,镀镍) SCREW M6×14 1 17 40730001 气枪 AIR GUN 1 18 40736018 螺纹直通APC4-02 THREADED THROUGH APC4-02 1 19 42211540 气管TCU0604B-1 WINDPIPE CU0604B-1 1 20 40736022 气管接头APG6 GAS-TYPE FITTING APG6 1 21 42221503 气管φ8 WINDPIPE φ8 10 22 41845223 气管φ4×2.5透明蓝 WINDPIPE φ4×2.5 TRANSPARENT BLUE 16 23 41845224 气管φ4×2.5黑色 WINDPIPE φ4×2.5 BLACK 18 24 40736036 气管接头APY4(Y型三通) GAS-TYPE FITTING APY4(Y THREE LINKS) 4 jintex.in LI区

Page 63 — 23、电气部分装置/Power supply equipment mechanism

23、电气部分装置/Power supply equipment mechanism 2 1 3 4 15 16 24 23 22 25 29 32 28 5 6 7 10 11 8 12 13 14 18 30 30 33 31 26 27 29 25 23 LD jintex.in

Page 64 — 23、电气部分装/Power supply equipment mechanism

23、电气部分装/Power supply equipment mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 41711026 电线夹23 WIRE CLIP 23 2 2 417S30025 螺栓(带垫圈)M4×10DB SCREW (WITH WASHER) M4×10DB 2 3 41812023 Y传感器安装座 Y SENSOR MOUNT 1 4 41730851 传感器 SENSOR 1 5 S04076 螺钉M3×8(镀镍) SCREW M3×8 1 6 12912326 铜线夹 COPPER WIRE CLIP 1 7 417S30302 螺栓(带垫圈)M4×12 SCREW (WITH WASHER) M4×12 2 8 42230004 X传感器连接件A X SENSOR CONNECTOR A 1 9 42230005 X传感器连接件B X SENSOR CONNECTOR B 1 10 4181202900 Y感应片组件 Y INDUCTOR 1 11 S05133 螺栓M4×12 SCREW M4×12 2 12 41812082 射频识别器安装板 RFID MOUNTING PLATE 1 13 417S30302 螺栓(带垫圈)M4×12 SCREW (WITH WASHER) M4×12DB 2 14 S05094 螺钉 M3×8 (镀铬) SCREW M3×8 4 15 41730070 LED灯(TD-5) LED LIGHT (TD-5) 2 16 42230816 导线3C WIRE 3C 3 17 41730022 电磁阀接线 WIRE2C 9 18 42230816 导线3C WIRE 3C 2 20 421S11012 M3×8螺钉 SCREW M3×8 4 22 41830012 风扇 AIR FAN 1 23 41811013 风扇防尘网罩组件 FAN DUST SCREEN COVER ASSEMBLY 2 24 407S04001 4X16(沉头十字) SCREW M4×16 4 25 407N01002 自锁螺母M4 SELF-LOCKING NUT 8 26 S02039 4X9(沉头一字) SCREW M4×9 4 27 41811021 线槽3030L690 TRUNKING 3030L690 1 28 41811022 线槽4030L650 TRUNKING 4030L650 1 29 41811023 线槽4030L1150 TRUNKING 4030L1150 2 30 41811024 线槽3050L300 TRUNKING 3050L300 2 31 41811025 线槽3050L650 TRUNKING 3050L650 1 32 417S30025 螺钉M4×10 SCREW M4×10 21 33 417S30025 螺栓(带垫圈)M4×10DB SCREW (WITH WASHER) M4×10DB 2 34 41830039 射频识别器 RFID MOUNTING 1 jintex.in LF

Page 65 — 24、操作界面装置/Operation interface mechanism

24、操作界面装置/Operation interface mechanism 11- 12- 13- 21 19 17 14 15 3 2 6 10 7 8 4 9 5 1 20 LIE jintex.in

Page 66 — 24、操作界面装置/Operation interface mechanism

24、操作界面装置/Operation interface mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41811214 按钮开关盒 PUSH BUTTON SWITCH BOX 1 2 41830214 按钮开关 BOTTON SWITCH 1 3 41830215 急停开关 EMERGENCY STOP BOTTON 1 4 41811216 开关标牌框 SWITCH IDENTIFICATION BOX 2 5 41812061 按钮盒安装板A SWITCH BOX PLATE A 1 6 417S30302 螺钉M4×12(带垫圈) SCREW(WITH WASHER) M4X12 4 7 41812062 按钮盒安装板B SWITCH BOX PLATE B 1 8 S05116 螺栓M4×8(带花,镀镍) SCREW M4×8 3 9 W01001 垫片M4 WASHER M4 3 10 417S30306 螺栓M5×15(带垫片) SCREW(WITH WASHER) M5X15 3 11 304058 操作屏支架 OPERATING SCREEN SUPPORT 1 4181241300 12 417S30036 螺钉M5X12 SCREW M5X12 4 13 417S30025 螺钉M4X10(带垫圈) SCREW(WITH WASHER) M4X10 6 14 304057 显示屏支架组件 DISPLAY STAND ASSEMBLY 1 4181241000 15 417S30306 螺栓M5×15(滚花,镀镍) SCREW M5X15 4 17 4073000900 压力调节器 PRESSURE REGULATOR 1 18 42230519 微型接头M-5HLH-4 MICRO PIPE CONNECTION M-5HLH-4 2 19 417S30033 M4X8(带垫圈) SCREW(WITH WASHER) M4X8 2 20 41811215 出线口 OUTLET 2 21 41830040 显示屏 DISPLAY SCREENS 1 jintex.in LI

Page 67 — 25、机架部件/Table mechanism

25、机架部件/Table mechanism 1 2 8 9 14 15 21 37 36 35 34 33 17 32 31 30 29 20 16 28 27 26 25 24 6 7 10 11 13 12 19 18 5 20 21 22 23 LI Jinte x.in

Page 68 — 25、机架部件/Table mechanism

25、机架部件/Table mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 417S17852 螺钉M5×15 SCREW M5X15 10 2 41831016 电控柜合页 ELECTRIC CONTROL CABINET HINGE 4 3 304223 电控柜左门组件 ELECTRIC CONTROL CABINET LEFT DOOR 1 4181207400 4 41728028 垫圈M5 WASHER M5 8 5 407N01001 自锁螺母M5 SELF-LOCKING NUT M5 16 6 41831014 电控柜锁 ELECTRIC CONTROL CABINET LOCT 1 41812096 插销固定板 LATCH PLATE 2 焊接在机架 7 304224 电控柜右门组件 ELECTRIC CONTROL CABINET RIGHT DOOR COMPONENTS 1 41812075 8 S05123 螺钉M5×12 SCREW M5X12 4 9 41728028 垫圈M5 WASHER M5 4 10 417S30025 螺栓(带垫圈)M4×10DB SCREW(WITH WASHER) M4X10 4 11 41831013 风扇网罩 FAN NET 1 12 41831212 脚垫 FOOT PAD 4 13 304219 机架后盖组件 STAND BACK COVER COMPONENTS 1 4181206800 14 41812131 机架后盖固定板B FRAME REAR COVER PLATE B 4 15 417S30033 螺钉M4×8 SCREW M4X8 8 16 304222 机架后侧盖 THE REAR SIDE COVER OF THE RACK 1 41812072 17 S05088 螺钉M6X45 SCREW M6X45 6 18 701S13002 螺钉M8×12 SCREW M8X12 16 19 42232502 脚轮 TRUNDLE 4 20 41728028 垫圈M5 WASHER M5 8 21 S05083 螺钉M5X30 SCREW M5X30 8 22 304221 机架后侧盖 THE REAR SIDE COVER OF THE RACK 1 41812071 23 304215 机架组件 RACK COMPONENTS 1 4183201400 24 S05123 螺钉M5X12 SCREW M5X12 8 25 41728028 垫圈M5 WASHER M5 8 26 304217 机架前盖组件 FRAME COVER COMPONENTS 1 4181206600 27 41812013 机架前盖支架板 FRAME COVER PLATE 2 28 417S30036 螺栓(带垫圈)M5X12 SCREW M5X12 4 29 41803018 定位套 LOCATING SLEEVE 4 30 41822014 减振橡胶垫 DAMPING RUBBER PAD 4 31 41803019 管套 PIPE SHROUD 8 32 417S13301 螺钉M5X12 SCREW M5X12 8 33 41728028 垫圈M5 WASHER M5 8 34 S05083 螺钉M5X30 SCREW M5X30 8 35 41728028 垫圈M5 WASHER M5 4 36 S05123 螺钉M5X12 SCREW M5X12 4 37 304216 机架侧盖 FRAME SIDE COVER 2 41812064 jintex.in LIL

Page 69 — 26、辅助台面装置/Auxiliary table mechanism

26、辅助台面装置/Auxiliary table mechanism 1 19 20 21 18 22 4 17 23 9 2 10 11 12 15 13 24 7 8 3 5 6 14 LL jintex.in

Page 70 — 26、辅助台面装置/Auxiliary table mechanism

26、辅助台面装置/Auxiliary table mechanism 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41832015 左辅助台面 LEFT AUXILIARY TABLE 1 2 41832021 右辅助台面 RIGHT AUXILIARY TABLE 1 3 41812079 合页固定板 HINGE PLATE 8 4 S05035 螺栓M5X25 SCREW M5X25 24 5 41728028 垫圈5 WASHER M5 24 6 407N01001 自锁螺母M5 SELF-LOCKING NUT M5 24 7 41831213 合页5寸 HINGE 5 8 8 418S17211 沉头5X6 SCREW 5X6 64 9 S05035 螺栓M5X25 SCREW M5X25 16 10 41812080 辅助支撑铰链支架 AUXILIARY SUPPORT HINGE BRACKET 4 11 41728028 垫圈5 WASHER M5 16 12 407N01001 自锁螺母M5 SELF-LOCKING NUT M5 16 13 303905 支撑柱组件 SUPPORT COLUMN ASSEMBLY 4 4183201600 14 41832020 脚垫M12 FOOT PAD M12 4 15 417S30304 螺栓M6X20 SCREW M6X20 8 17 4181205100 后辅助台面支撑板组件 REAR PANEL SUPPORT PANEL ASSEMBLY 1 18 41822012 减振垫圈 BUFFRE WASHER 2 19 S05124 螺栓 M5×16(滚花,镀镍) SCREW M5X16 3 20 41832012 后辅助台面 BACK TABLE 1 21 418S16014 滚花螺纹套M6 KNURLED THREAD SLEEVE 1 22 417S30037 螺栓 M6×14(滚花,镀镍) SCREW M6X14 1 23 417S30037 螺栓 M6×14(滚花,镀镍) SCREW M6X14 1 24 41812009 5寸合页垫片 5-INCH HINGE GASKET 8 jintex.in LID

Page 71 — 27、附件/Accessories

27、附件/Accessories 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 LL Jinttex.in

Page 72 — 27、附件/Accessories

27、附件/Accessories 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarks 1 42211812 机头支撑 HEAD SUPPORT 1 2 10818501 梭心605.609大梭心 COP LATCH 3 3 42217504 机针DP×5 8# NEEDLE DP×5 8# 4 4 10131004 螺丝刀(小) SCREW DRIVER LARGR 1 5 10131003 螺丝刀(中) SCREW DRIVER MIDDLE 1 6 10131002 螺丝刀(大) SCREW DRIVER SMALL 1 7 30131005 扳手(6mm~7mm) WRENCH (6mm~7mm) 1 8 30131006 扳手(8mm~10mm) WRENCH (8mm~10mm) 1 9 41712355 针板专用螺丝刀 NEEDLE PLATE SPECIAL SCREWDRIVER 1 10 30131007 内六角扳手(1.5mm) INTERNAL HEXAGONAL WRENCH (1.5mm) 1 11 20131046 内六角扳手(2mm) INTERNAL HEXAGONAL WRENCH (2mm) 1 12 30131010 内六角扳手(2.5mm) INTERNAL HEXAGONAL WRENCH (2.5mm) 1 13 30131012 内六角扳手(3mm) INTERNAL HEXAGONAL WRENCH (3mm) 1 14 20131047 内六角扳手(4mm) INTERNAL HEXAGONAL WRENCH (4mm) 1 15 20131056 内六角扳手(5mm) INTERNAL HEXAGONAL WRENCH (5mm) 1 16 1013100700 线架组件 WIRE FRAME COMPONENT 1 17 11631008 油壶 OILER ASM 1 18 20131038 小油壶 SMALL OILER ASM 1 19 915305 工业白油 INDUSTRIAL WHITE OIL 1 19 1011101200 油箱组件 TANK COMPONENTS 1 20 20131051 镊子 TWEIZERS 1 21 11411029 注射器 INJECTOR 1 22 20131076 15×9袋 15X9 BAG 6 23 20131077 20×15袋 20X15 BAG 2 24 41731015 花样机附件箱 ACCESSORY CASE 1 25 40736001 螺纹套管接头 SCREWED JOINT 1 26 40730010 螺旋气管 SPIRAL TUBE 6 27 41816211 大压脚B BIG PRESSER FOOT B 4 28 41811015 大压脚C BIG PRESSER FOOT C 3 29 41830017 电子标签卡 ELECTRONIC TAG CARD 30 30 141831040 零件图册 PART MAP BOOK 1 31 141831017 横梁纸箱 X FEEDING ACCESSORY BOX 1 32 42230854 U盘 USB 1 JININEX.in L区

Page 73 — 28、点笔装置 (选配) /Pint pen mechanism (SELECTABLE)

28、点笔装置 (选配) /Pint pen mechanism (SELECTABLE) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 LD jintex.in

Page 74 — 28、点笔装置 (选配) /Pint pen mechanism (SELECTABLE)

28、点笔装置 (选配) /Pint pen mechanism (SELECTABLE) 序号 Ref.No. 件号 Part.No 对象描述 Description 数量 Amt. 备注 Remarts 1 41708002 紧圈B HEAD SUPPORT 1 2 S10019 螺钉M6×6 COP LATCH 1 3 41722020 电磁铁缓冲垫圈 NEEDLE DP×5 8# 1 4 41845231 接头ASL4-M5 SCREW DRIVER LARGR 2 5 S05119 螺栓M4×20 SCREW DRIVER MIDDLE 2 6 41809304 气缸垫块 SCREW DRIVER SMALL 1 7 41830304 气缸CMDD16×25 WRENCH ( 6mm ~ 7mm ) 1 8 N02030 螺母M8×1 WRENCH ( 8mm ~ 10mm ) 1 9 41712355 点笔弹簧 NEEDLE PLATE SPECIAL SCREWDRIVER 1 10 41811302 点笔笔芯 INTERNAL HEXAGONAL WRENCH ( 1.5mm ) 1 11 418516304 点笔杆锁帽 INTERNAL HEXAGONAL WRENCH ( 2mm ) 1 12 41730022 电磁阀接线 INTERNAL HEXAGONAL WRENCH ( 2.5mm ) 1 0.45m 13 41845222 螺纹直通APC4-01 INTERNAL HEXAGONAL WRENCH ( 3mm ) 2 14 41845212 电磁阀4V110-06-B INTERNAL HEXAGONAL WRENCH ( 4mm ) 1 15 41845224 气管φ4×2.5黑色 INTERNAL HEXAGONAL WRENCH ( 5mm ) 1 3m 16 41845223 气管φ4×2.5透明蓝 WIRE FRAME COMPONENT 1 3m jintex.in LE

Ref	Part number	Part name
31	31	5
6	6	4
30	30	29
1	1	3
17	17	19
18	18	26
2	2	16
28	28	26
7	7	9
8	8	14
10	10	11
12	12	13
25	25	14
23	23	24
27	27	21
20	20	21
15	15	22

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33

Ref	Part number	Part name
66	66	66
67	67	67
68	68	68
69	69	69
70	70	70
71	71	71
72	72	72
65	65	65
41	41	41
60	60	60
40	40	40
39	39	39
59	59	59
45	45	45
44	44	44
45	45	45
23	23	23
22	22	22
1	1	1
3	3	3
4	4	4
2	2	2
6	6	6
5	5	5
7	7	7
8	8	8
16	16	16
17	17	17
9	9	9
10	10	10
62	62	62
61	61	61
42	42	42
43	43	43
27	27	27
28	28	28
18	18	18
58	58	58
33	33	33
19	19	19
35	35	35
26	26	26
20	20	20
21	21	21
32	32	32
31	31	31
29	29	29
34	34	34
30	30	30
36	36	36
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
24	24	24
25	25	25
37	37	37
52	52	52
53	53	53
54	54	54
55	55	55
49	49	49
51	51	51
50	50	50
48	48	48
47	47	47
38	38	38
56	56	56
57	57	57
63	63	63
64	64	64

Ref	Part number	Part name	Qty
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	65	65
	23	23
	22	22
	41	41
	60	60
	40	40
	39	39
	59	59
	45	45
	44	44
	45	45
	49	49
	51	51
	50	50
	48	48
	38	38
	47	47
	56	56
	57	57
	63	63
	64	64
	52	52
	37	37
	24	24
	53	53
	25	25
	55	55
	54	54
	1	1
	12	12
	11	11
	13	13
	14	14
	15	15
	3	3
	9	9
	10	10
	61	61
	62	62
	4	4
	2	2
	5	5
	6	6
	7	7
	8	8
	16	16
	17	17
	42	42
	43	43
	27	27
	28	28
	18	18
	58	58
	33	33
	19	19
	35	35
	26	26
	20	20
	32	32
	31	31
	21	21
	29	29
	30	30
	36	36
	34	34

Ref	Part number	Part name	Qty
	44	44
	43	43
	42	42
	1	1
	2	2
	3	3
	6	6
	7	7
	8	8
	4	4
	28	28
	5	5
	29	29
	30	30
	31	31
	32	32
	33	33
	16	16
	15	15
	14	14
	13	13
	12	12
	11	11
	10	10
	9	9
	39	39
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	24	24
	25	25
	26	26
	23	23
	46	46
	45	45
	27	27
	38	38
	37	37
	36	36
	35	35
	34	34
	41	41
	40	40

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31

Ref	Part number	Part name
31	31	5
6	6	4
30	30	29
1	1	3
17	17	19
18	18	26
2	2	16
28	28	26
7	7	9
8	8	14
10	10	11
12	12	13
25	25	14
23	23	24
27	27	21
20	20	21
15	15	22

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33

Ref	Part number	Part name
66	66	66
67	67	67
68	68	68
69	69	69
70	70	70
71	71	71
72	72	72
65	65	65
41	41	41
60	60	60
40	40	40
39	39	39
59	59	59
45	45	45
44	44	44
45	45	45
23	23	23
22	22	22
1	1	1
3	3	3
4	4	4
2	2	2
6	6	6
5	5	5
7	7	7
8	8	8
16	16	16
17	17	17
9	9	9
10	10	10
62	62	62
61	61	61
42	42	42
43	43	43
27	27	27
28	28	28
18	18	18
58	58	58
33	33	33
19	19	19
35	35	35
26	26	26
20	20	20
21	21	21
32	32	32
31	31	31
29	29	29
34	34	34
30	30	30
36	36	36
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
24	24	24
25	25	25
37	37	37
52	52	52
53	53	53
54	54	54
55	55	55
49	49	49
51	51	51
50	50	50
48	48	48
47	47	47
38	38	38
56	56	56
57	57	57
63	63	63
64	64	64

Ref	Part number	Part name	Qty
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	65	65
	23	23
	22	22
	41	41
	60	60
	40	40
	39	39
	59	59
	45	45
	44	44
	45	45
	49	49
	51	51
	50	50
	48	48
	38	38
	47	47
	56	56
	57	57
	63	63
	64	64
	52	52
	37	37
	24	24
	53	53
	25	25
	55	55
	54	54
	1	1
	12	12
	11	11
	13	13
	14	14
	15	15
	3	3
	9	9
	10	10
	61	61
	62	62
	4	4
	2	2
	5	5
	6	6
	7	7
	8	8
	16	16
	17	17
	42	42
	43	43
	27	27
	28	28
	18	18
	58	58
	33	33
	19	19
	35	35
	26	26
	20	20
	32	32
	31	31
	21	21
	29	29
	30	30
	36	36
	34	34

Ref	Part number	Part name	Qty
	44	44
	43	43
	42	42
	1	1
	2	2
	3	3
	6	6
	7	7
	8	8
	4	4
	28	28
	5	5
	29	29
	30	30
	31	31
	32	32
	33	33
	16	16
	15	15
	14	14
	13	13
	12	12
	11	11
	10	10
	9	9
	39	39
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	24	24
	25	25
	26	26
	23	23
	46	46
	45	45
	27	27
	38	38
	37	37
	36	36
	35	35
	34	34
	41	41
	40	40

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31

Ref	Part number	Part name
31	31	5
6	6	4
30	30	29
1	1	3
17	17	19
18	18	26
2	2	16
28	28	26
7	7	9
8	8	14
10	10	11
12	12	13
25	25	14
23	23	24
27	27	21
20	20	21
15	15	22

Ref	Part number	Part name
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33

Ref	Part number	Part name
66	66	66
67	67	67
68	68	68
69	69	69
70	70	70
71	71	71
72	72	72
65	65	65
41	41	41
60	60	60
40	40	40
39	39	39
59	59	59
45	45	45
44	44	44
45	45	45
23	23	23
22	22	22
1	1	1
3	3	3
4	4	4
2	2	2
6	6	6
5	5	5
7	7	7
8	8	8
16	16	16
17	17	17
9	9	9
10	10	10
62	62	62
61	61	61
42	42	42
43	43	43
27	27	27
28	28	28
18	18	18
58	58	58
33	33	33
19	19	19
35	35	35
26	26	26
20	20	20
21	21	21
32	32	32
31	31	31
29	29	29
34	34	34
30	30	30
36	36	36
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
24	24	24
25	25	25
37	37	37
52	52	52
53	53	53
54	54	54
55	55	55
49	49	49
51	51	51
50	50	50
48	48	48
47	47	47
38	38	38
56	56	56
57	57	57
63	63	63
64	64	64

Ref	Part number	Part name	Qty
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	65	65
	23	23
	22	22
	41	41
	60	60
	40	40
	39	39
	59	59
	45	45
	44	44
	45	45
	49	49
	51	51
	50	50
	48	48
	38	38
	47	47
	56	56
	57	57
	63	63
	64	64
	52	52
	37	37
	24	24
	53	53
	25	25
	55	55
	54	54
	1	1
	12	12
	11	11
	13	13
	14	14
	15	15
	3	3
	9	9
	10	10
	61	61
	62	62
	4	4
	2	2
	5	5
	6	6
	7	7
	8	8
	16	16
	17	17
	42	42
	43	43
	27	27
	28	28
	18	18
	58	58
	33	33
	19	19
	35	35
	26	26
	20	20
	32	32
	31	31
	21	21
	29	29
	30	30
	36	36
	34	34

Ref	Part number	Part name	Qty
	44	44
	43	43
	42	42
	1	1
	2	2
	3	3
	6	6
	7	7
	8	8
	4	4
	28	28
	5	5
	29	29
	30	30
	31	31
	32	32
	33	33
	16	16
	15	15
	14	14
	13	13
	12	12
	11	11
	10	10
	9	9
	39	39
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	24	24
	25	25
	26	26
	23	23
	46	46
	45	45
	27	27
	38	38
	37	37
	36	36
	35	35
	34	34
	41	41
	40	40

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
