Juki DDL-9000 Parts Book (PDF)

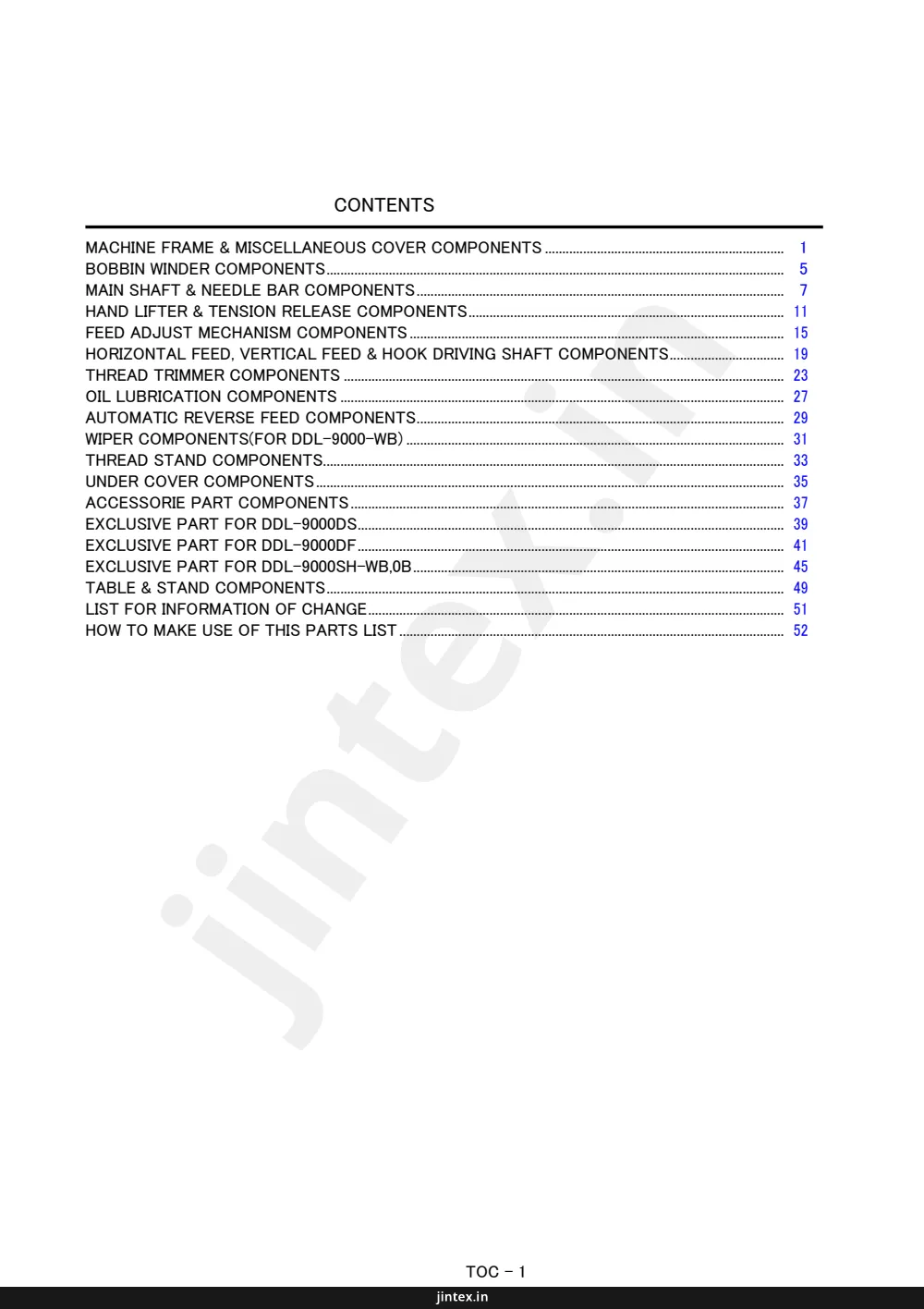

Text index — Juki DDL-9000
Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23600208 | SIDE PLATE | 1 |
| 2 | 23600307 | FACE PLATE | 1 |
| 3 | 23600406 | FACE PLATE PACKING | 1 |
| 4 | 23600505 | THREAD TAKE-UP LEVER COVER | 1 |
| 5 | 23600604 | PULLEY COVER | 1 |
| 6 | 23600703 | BED STUD A | 1 |
| 7 | 23600802 | BED STUD B | 1 |
| 8 | 22954705 | CORD FIXING METAL FITTING | 2 |
| 9 | 23601305 | AIR-DISCHARGING CAP | 1 |
| 10 | 22902506 | FACE PLATE | 1 |
| 11 | 40022407 | CORD HOLDER | 1 |
| 12 | 22901250 | SLIDE PLATE ASM. | 1 |
| 13 | 22902753 | SLIDE PLATE ASM. | 1 |
| 14 | 22901201 | SLIDE PLATE | 1 |
| 15 | 22902704 | SLIDE PLATE | 1 |
| 16 | 22901300 | SLIDE PLATE SPRING | 1 |
| 17 | SS6060210SP | SCREW 3/32-56 L= 1.9 | 2 |
| 18 | CM300200003 | ATTENTION LABEL | 1 |
| 19 | 22902605 | RULER STOP SEAT | 1 |
| 20 | 22901409 | NEEDLE BAR UPPER BUSH CAP | 1 |
| 21 | B3538112000 | OIL RETURN TUBE HOLDER | 1 |
| 22 | CM301300001 | SAFETY LABEL | 1 |
| 23 | CM300200001 | ATTENTION SEAL | 1 |
| 24 | 23601057 | EARTH CORD ASM. | 1 |
| 25 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 26 | SL6052592TN | BOLT | 4 |
| 27 | SS2110915SP | SCREW 11/64-40 L=8.5 | 1 |
| 28 | SS2110920TP | SCREW 11/64-40 L=8.5 | 1 |
| 29 | SS4110715SP | SCREW 11/64-40 L=7 | 1 |
| 30 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 31 | SS4120915SP | SCREW 3/16-28 L=9 | 7 |
| 32 | SS4120915SP | SCREW 3/16-28 L=9 | 3 |
| 33 | SS4120915SP | SCREW 3/16-28 L=9 | 1 |
| 34 | SS4150915SP | SCREW 15/64-28 L=9 | 2 |
| 35 | SS4150915SP | SCREW 15/64-28 L=9 | 2 |
| 36 | SS7110540SP | SCREW 11/64-40 L=5 | 2 |
| 37 | TA0850604R0 | RUBBER PLUG | 1 |
| 38 | TA0850604R0 | RUBBER PLUG | 1 |
| 39 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 1 |
| 40 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 |
| 41 | TA1250705R0 | RUBBER PLUG | 1 |
| 42 | TA1270502R0 | RUBBER PLUG | 2 |
| 43 | TA1470704R0 | RUBBER PLUG | 1 |
| 44 | M6022350AAA | RESISTOR PACK AA ASM. | 1 |
| 45 | M6022350AAL | RESISTOR PACK AL ASM. | 1 |
| 46 | M6022350AAF | RESISTOR PACK AF ASM. | 1 |
Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 47 | WP0501016SD | WASHER 5X10.5X1 | 1 |
| 48 | CM600100101 | WEEE MARK LABEL S | 1 |
| 49 | 23627359 | THREAD TENSION ASM. | 1 |
| 50 | 23626005 | THREAD TENSION NUT | 1 |
| 51 | B3115552000 | TENSION POST | 1 |
| 52 | B3120125000 | ROTATING STOPPER | 1 |
| 53 | B3126012000 | THREAD TENSION DISK | 2 |
| 54 | B3128012000 | TAKE-UP SPRING | 1 |
| 55 | B3129012A00 | TENSION SPRING | 1 |
| 56 | B3132552000 | THREAD TENSION DISK PRESSER | 1 |
| 57 | B3111126000 | TENSION POST SOCKET | 1 |
| 58 | SS8090670SP | SCREW 9/64-40 L= 5.5 | 1 |
| 59 | 23626104 | ARM THREAD GUIDE A | 1 |
| 60 | 22920607 | ARM THREAD GUIDE B | 1 |
| 61 | 22945463 | THREAD TENSION ASM. ,NO.1 | 1 |
| 62 | 22945414 | THREAD TENSION POST | 1 |
| 63 | 22945604 | THREAD TENSION GUIDE | 1 |
| 64 | 22945505 | THREAD TENSION SPRING | 1 |
| 65 | 22945703 | THREAD TENSION NUT | 1 |
| 66 | 22945802 | THREAD TENSION DISK | 2 |
| 67 | SS4110715SP | SCREW 11/64-40 L=7 | 1 |
| 68 | SS6110610TP | SCREW 11/64-40 L=6 | 1 |
| 69 | SS6110610TP | SCREW 11/64-40 L=6 | 1 |
| 70 | SS8150710TP | SCREW 15/64-28 L=7 | 1 |
| 71 | 23638059 | SAFETY SWITCH ASM. | 1 |
| 72 | 23638000 | SAFETY SWITCH BASE | 1 |
| 73 | 23638109 | SAFETY SWITCH ARM | 1 |
| 74 | 23638208 | SAFETY SWITCH SPRING | 1 |
| 75 | 23638307 | SAFETY SWITCH ARM SHAFT | 1 |
| 76 | 23638406 | SAFETY SWITCH NUT | 1 |
| 77 | 23638554 | SAFETY SWITCH CORD ASM. | 1 |
| 78 | EA9500B0100 | CABLE BAND | 1 |
| 79 | SM4021201SC | SCREW M2 L=12 | 2 |
| 80 | 22901805 | GROUND MARK | 1 |
| 81 | SS4110615SP | SCREW 11/64-40 L=6 | 1 |
| 82 | 23629900 | AIR-DISCHARGING | 1 |
| 83 | R0080150200 | RUBBER RING | 1 |
| 84 | B3118552F00 | TENSION RELEASING PIN | 1 |
| 85 | B1109012I0B | THROAT PLATE (I) | 1 |
| 86 | 11028008 | THROAT PLATE | 1 |
| 87 | B1109552000 | THROAT PLATE | 1 |
| 88 | SS4121215SP | SCREW 3/16-28 L=12 | 1 |
Page 8 — BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40023021 | BOBBIN WINDER UNIT | 1 |
| 2 | 26260109 | BTW_BASE | 1 |
| 3 | 26260208 | BTW_CAM_PLATE | 1 |
| 4 | 26260307 | BTW_BASE_SHAFT | 1 |
| 5 | 26260406 | BTW_SHAFT_BASE | 1 |
| 6 | 26260505 | BTW_CAM_LEVER | 1 |
| 7 | 26260604 | BTW_WHEEL | 1 |
| 8 | 26260802 | BTW_BEARING_SPACER | 1 |
| 9 | 26261008 | BTW_LEVER_SHAFT | 1 |
| 10 | 26261206 | BTW_SPACER | 1 |
| 11 | 26261305 | BTW_BEARING | 2 |
| 12 | 26261503 | BTW_WHEEL_RUBBER | 1 |
| 13 | 26261602 | BOBBIN_SPRING | 1 |
| 14 | 26261701 | BTW_SPRING | 1 |
| 15 | 40011144 | BTW_TORSION_SPRING | 1 |
| 16 | 40014837 | BTW_SHAFT | 1 |
| 17 | 40023022 | BTW LEVER | 1 |
| 18 | RC0560711KP | RETAINING RING | 1 |
| 19 | RE0400000K0 | E-RING 4 | 1 |
| 20 | SM5040655SN | SCREW | 1 |
| 21 | SM8040802TP | SCREW M4X8 | 2 |
| 22 | SM8050502TP | SCREW M5 L=5 | 1 |
| 23 | WP0450826SC | WASHER 4.5X10X0.8 | 1 |
| 24 | SS6121030SN | SCREW 3/16-28 L=10 | 3 |
| 25 | 10502300 | THREAD CUTTER | 1 |
| 26 | 40023291 | THREAD GUIDE NO.1 | 1 |
| 27 | SS4150915SP | SCREW 15/64-28 L=9 | 1 |
| 28 | SS6090620TP | SCREW | 2 |
| 29 | 23636657 | BOBBIN THREAD TENSION ASM. | 1 |
| 30 | 11072402 | THREAD TENSION NUT | 1 |
| 31 | 14113450 | BOBBIN THREAD TENSION ROD ASM. | 1 |
| 32 | B3126012000 | THREAD TENSION DISK | 2 |
| 33 | D7133555B00 | CONNECTING ROD SPRING | 1 |
| 34 | NS6110530SP | NUT 11/64-40 | 1 |
Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23604010 | MAIN SHAFT | 1 |
| 2 | 23604168 | COUNTER WEIGHT ASM. | 1 |
| 3 | 23604119 | COUNTER WEIGHT | 1 |
| 4 | SS7681650TP | SCREW 9/32-28 L=16 | 1 |
| 5 | SS8681650TP | SCREW 9/32-28 L=16 | 1 |
| 6 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 7 | SS6111440SP | SCREW 11/64-40 L=14.0 | 2 |
| 8 | 40051473 | COUPLING ASM. | 1 |
| 9 | SM80608A2TP | L=8SCREW M6 L=8 | 4 |
| 10 | 23604457 | HAND WHEEL ASM. | 1 |
| 11 | 40044906 | HAND WHEEL ASM. | 1 |
| 12 | SM8060812TP | SCREW M6 L=8 | 2 |
| 13 | 23604804 | BALANCE PLATE | 1 |
| 14 | 23604655 | MAGNET BASE COMPL. ,A | 1 |
| 15 | SL4040881SC | SCREW M4 L=8 | 2 |
| 16 | SL4040881SC | SCREW M4 L=8 | 1 |
| 17 | 23605009 | HAND WHEEL WASHER | 2 |
| 18 | 23604754 | MAGNET BASE COMPL. ,B | 1 |
| 19 | 23605256 | BEARING COMPL. | 1 |
| 20 | SM80608A2TP | L=8SCREW M6 L=8 | 2 |
| 21 | SB120000800 | BEARING | 1 |
| 22 | 40039946 | SPROCKET ASM. | 1 |
| 23 | 23607302 | TIMING BELT | 1 |
| 24 | SM8060812TP | SCREW M6 L=8 | 2 |
| 25 | 23608003 | NEEDLE BAR METAL,UPPER | 1 |
| 26 | 23608102 | NEEDLE BAR METAL,LOWER | 1 |
| 27 | 22939508 | NEEDLE BAR | 1 |
| 28 | 11141207 | NEEDLE BAR B | 1 |
| 29 | 22906457 | NEEDLE BAR HOLDER ASM. | 1 |
| 30 | 22906408 | NEEDLE ROD HOLDER | 1 |
| 31 | SS6090670TP | SCREW 9/64-40 L=6 | 1 |
| 32 | B1414555000 | SLIDE BLOCK | 1 |
| 33 | MDB100B1400 | NEEDLE DBX1 #14 | 1 |
| 34 | MDB100B1100 | NEEDLE DBX1 #11 | 1 |
| 35 | MC200500750 | NEEDLE 134 NM75 | 1 |
| 36 | SS7080510TP | SCREW 1/8-44 L=4.5 | 1 |
| 37 | 23622061 | THREAD TAKE-UP ASM. | 1 |
| 38 | 23622400 | THREAD TAKE-UP CRANK SHAFT | 1 |
| 39 | 40010434 | THRUST_COLLAR_ASM. | 1 |
| 40 | 22891204 | BEARING SUPPORT | 2 |
| 41 | SB307000200 | BEARING | 2 |
| 42 | SS6151920TP | SCREW 15/64-28 L=19.0 | 1 |
| 43 | 40028014 | AC SERVO MOTOR | 1 |
| 44 | M68014710A0 | SYNC ASM. | 1 |
| 45 | EA9500B0100 | CABLE BAND | 2 |
| 46 | SL4040881SC | SCREW M4 L=8 | 2 |
| 47 | SL6052592TN | BOLT | 4 |
Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 23626203 | NEEDLE BAR THREAD GUIDE | 1 |
| 49 | 22906309 | NEEDLE BAR THREAD GUIDE | 1 |
| 50 | 40020455 | BTW DRIVING WHEEL | 1 |
Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23609001 | BUSHING | 1 |
| 2 | 23609100 | PRESSER BAR THREAD GUIDE | 1 |
| 3 | 23609209 | PRESSER SPRING REGULATOR | 1 |
| 4 | 23609357 | LIFTING LEVER CONNECT ROD ASM. | 1 |
| 5 | 23609308 | LIFTING LEVER CONNECT ROD | 1 |
| 6 | 23609456 | LIFTING LINK COMPL. | 1 |
| 7 | 23609605 | PLATE | 1 |
| 8 | 22908008 | LIFTING PLATE | 1 |
| 9 | SM6040602TP | SCREW M4 L=6 | 1 |
| 10 | RE0500000K0 | E-RING | 1 |
| 11 | RE0500000K0 | E-RING | 1 |
| 12 | 23609704 | LIFTING LEVER LINK | 1 |
| 13 | 23609803 | CONNECTING ROD | 1 |
| 14 | 23609902 | CONNECTING ROD GUIDE | 1 |
| 15 | 23610108 | PRESSER BAR GUIDE BRACKET | 1 |
| 16 | 23610207 | PRESSER BAR | 1 |
| 17 | 23610306 | PRESSER GUIDE BAR | 1 |
| 18 | 23610405 | GUIDE BRACKET PLATE | 1 |
| 19 | 22908701 | LINK SHAFT | 2 |
| 20 | 22908909 | HINGE SCREW | 1 |
| 21 | 22907604 | PRESSER SPRING REGULATOR NUT | 1 |
| 22 | 22907802 | HAND LIFTER | 1 |
| 23 | 22908552 | HAND LIFTER CAM ASM. | 1 |
| 24 | 22907406 | PRESSER SPRING | 1 |
| 25 | B1521555000 | SCREW | 1 |
| 26 | B15240120BA | PRESSER FOOT ASM. | 1 |
| 27 | B15245520BA | PRESSER FOOT ASM. | 1 |
| 28 | RE0500000K0 | E-RING | 3 |
| 29 | RO037180100 | RUBBER RING | 1 |
| 30 | SD0720331SP | HINGE SCREW D= 7.24 H= 3.3 | 1 |
| 31 | SS4121015SP | SCREW 3/16-28 L=10 | 1 |
| 32 | SS6090910SP | SCREW 9/64-40 L=9 | 1 |
| 33 | SS7091110TP | SCREW 9/64-40 L=10.5 | 1 |
| 34 | WP0501016SD | WASHER 5X10.5X1 | 1 |
| 35 | SS7111810TP | SCREW 11/64-40 L=18 | 1 |
| 36 | 23626351 | THREAD TENSION RELEASE WIRE | 1 |
| 37 | 23626807 | TENSION RELEASE RETURN SPRING | 1 |
| 38 | 23626906 | WIRE HOLDER BRACKET | 1 |
| 39 | 22920102 | TENSION RELEASE SHAFT | 1 |
| 40 | 22920300 | THREAD RELEASE SUPPORTING PIN | 1 |
| 41 | 11018405 | TENSION RELEASE PIN SPRING | 1 |
| 42 | 22944508 | WIRE PRESSER A | 2 |
| 43 | SS4120615SP | SCREW 3/16-28 L=6 | 2 |
| 44 | NS6620310SP | NUT 3/16-32 | 2 |
| 45 | RE0500000K0 | E-RING | 2 |
| 46 | SS4110715SP | SCREW 11/64-40 L=7 | 2 |
| 47 | NS6150310SP | NUT 15/64-28 | 1 |
Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 23610801 | BOLT | 1 |
| 49 | WP0621016SD | WASHER 6.2X13X1 | 1 |
| 50 | RO044240100 | RUBBER RING | 1 |
| 51 | 23611056 | MINUTE LIFTING DEVICE ASM. | 1 |
| 52 | 23611106 | HAND LIFTER | 1 |
| 53 | 23610504 | STOPPER BASE | 1 |
| 54 | 23610652 | STOPPER SCREW ASM. | 1 |
| 55 | 11244019 | STOPPER COLLAR | 1 |
| 56 | 23610702 | STOPPER SCREW NUT | 1 |
| 57 | 11433802 | SET SCREW | 1 |
| 58 | WP0480856SP | WASHER 4.8X8.4X0.8 | 1 |
Page 18 — FEED ADJUST MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40033391 | ADJUSTING LINK ASM. | 1 |
| 2 | 40033392 | ADJUSTING LINK | 1 |
| 3 | 40033393 | ADJUSTING LINK PIN | 2 |
| 4 | SM8040412TP | SET SCREW M4 L=4 | 4 |
| 5 | 23612450 | FEED CHANGING SHAFT ARM ASM.,A | 1 |
| 6 | SS6661110SP | SCREW 1/4-40 L=11 | 1 |
| 7 | 23612609 | FEED CHANGING SHAFT OIL SEAL | 1 |
| 8 | 23612765 | THRUST COLLAR ASM. | 1 |
| 9 | 23612716 | THRUST COLLAR | 1 |
| 10 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 11 | 23612807 | METAL,A | 1 |
| 12 | 40052274 | METAL B | 1 |
| 13 | 23613052 | FEED CHANGING SHAFT ARM ASM.,B | 1 |
| 14 | 23613003 | FEED CHANGING SHAFT ARM,B | 1 |
| 15 | SS6121610SP | SCREW 3/16-28 L=15.5 | 1 |
| 16 | 23613102 | FEED CHANGING SHAFT ARM B PIN | 1 |
| 17 | 23613201 | FEED ADJUSTING ROD | 1 |
| 18 | 23613300 | FEED ADJUSTING BASE | 1 |
| 19 | 23613409 | FEED ADJUSTING PIN | 1 |
| 20 | 23613508 | ADJUSTING BASE SHAFT METAL | 1 |
| 21 | 23613607 | FEED LEVER | 1 |
| 22 | 23613706 | FEED LEVER SHAFT | 1 |
| 23 | 23613805 | FEED LEVER SHAFT METAL | 1 |
| 24 | 23613953 | FEED LEVER ARM ASM. | 1 |
| 25 | SS6121610SP | SCREW 3/16-28 L=15.5 | 1 |
| 26 | 23614001 | FEED ADJUSTING SPRING | 1 |
| 27 | 23614308 | FEED LEVER SPRING | 1 |
| 28 | 40023289 | SPRING SUSPENSION | 1 |
| 29 | 22912000 | FEED REGULATOR PIN | 1 |
| 30 | 11071909 | FEED DIAL | 1 |
| 31 | 22952501 | BACK LEVER STOPPER | 1 |
| 32 | 22911804 | FEED REGULATOR SCREW | 1 |
| 33 | 22912109 | FEED REGULATOR PIN SPRING | 1 |
| 34 | CS111101ESH | COLLAR ASM. D=11.11 W=10 | 1 |
| 35 | SS8660330SP | SCREW 1/4-40 L= 3.0 | 2 |
| 36 | NS6110310SP | NUT 11/64-40 | 1 |
| 37 | NS6150310SP | NUT 15/64-28 | 1 |
| 38 | RE0500000K0 | E-RING | 1 |
| 39 | RE0500000K0 | E-RING | 1 |
| 40 | RO092270200 | RUBBER RING | 1 |
| 41 | SM8060812TP | SCREW M6 L=8 | 2 |
| 42 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 43 | SS6121840SP | SCREW 3/16-28 L=18 | 1 |
| 44 | SS6121860SP | SCREW 3/16-28 L=18 | 1 |
| 45 | SS6151920TP | SCREW 15/64-28 L=19.0 | 2 |
| 46 | 23614407 | FEED DIAL RUBBER | 1 |
| 47 | 23630007 | TUBE | 0.09 |
Page 20 — FEED ADJUST MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 23612104 | ADJUSTING LINK CONNECTING LINK | 1 |
| 49 | 40012032 | ADJUSTING LINK FULCRUM SHAFT | 2 |
| 50 | 23612500 | FEED CHANGING SHAFT | 1 |
Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23616055 | FEED ROCKER CAM ASM. | 1 |
| 2 | 23616006 | FEED ROCKER CAM | 1 |
| 3 | SS8151150TP | SCREW 15/64-28 L=10.5 | 2 |
| 4 | 23616105 | FEED ROCKER ROD | 1 |
| 5 | 23616204 | FEED ROCKER CAM PLATE | 1 |
| 6 | 23616303 | CONNECTING LINK,A | 2 |
| 7 | 23616402 | CONNECTING LINK,B | 2 |
| 8 | 23616550 | FEED ROCKER ARM ASM. | 1 |
| 9 | 23616501 | FEED ROCKER ARM | 1 |
| 10 | SS6121610SP | SCREW 3/16-28 L=15.5 | 1 |
| 11 | 23616600 | FEED ROCKER SHAFT | 1 |
| 12 | 23616709 | FEED ROCKER SHAFT METAL | 1 |
| 13 | 23616857 | FEED ROCKER BASE ARM ASM. | 1 |
| 14 | 23616808 | FEED ROCKER BASE ARM | 1 |
| 15 | SS7121410TP | SCREW 3/16-28 L=14 | 1 |
| 16 | WP0480856SP | WASHER 4.8X8.4X0.8 | 1 |
| 17 | 23616907 | FEED ROCKER BASE SHAFT | 1 |
| 18 | 23617053 | FEED BASE COMPL. | 1 |
| 19 | 22911002 | WALKING FOOT PIN B | 1 |
| 20 | 22911101 | WALKING FOOT PIN C | 1 |
| 21 | 40029963 | OIL SEAL | 1 |
| 22 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 23 | 22904106 | MAIN SHAFT THRUST COLLAR | 1 |
| 24 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 25 | B1613012I00 | FEED DOG I | 1 |
| 26 | 23614506 | FEED DOG A | 1 |
| 27 | B1613012I00 | FEED DOG I | 1 |
| 28 | B412352200A | NEEDLE ROLLAR A | 1 |
| 29 | B412352200B | NEEDLE ROLLAR B | 1 |
| 30 | B412352200C | NEEDLE ROLLAR C | 1 |
| 31 | RC0150001KP | RETAINING RING 13.8 | 1 |
| 32 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 33 | SS6090620TP | SCREW | 1 |
| 34 | SS6090620TP | SCREW | 1 |
| 35 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 36 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 37 | 23618051 | FEED DRIVING CAM ASM. | 1 |
| 38 | 23618002 | FEED DRIVING CAM | 1 |
| 39 | SS8151150TP | SCREW 15/64-28 L=10.5 | 2 |
| 40 | 23618101 | FEED DRIVING CAM THRUST BUSH | 2 |
| 41 | 40022668 | FEED DRIVING BASE ARM | 1 |
| 42 | 23618309 | FEED DRIVING CAM PLATE | 1 |
| 43 | 23618408 | FEED DRIVING BASE SHAFT | 1 |
| 44 | 40011711 | FEED DRIVING SHAFT | 1 |
| 45 | 40044875 | BEARING SUPPORT ASM. | 1 |
| 46 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 47 | 23618804 | OIL SEAL | 1 |
Page 24 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SB32000060A | BEARING | 1 |
| 49 | SB32000060B | BEARING | 1 |
| 50 | SB32000060C | BEARING | 1 |
| 51 | SB117000400 | BEARING | 1 |
| 52 | SB120001000 | BEARING | 1 |
| 53 | 23618705 | OIL SEAL | 1 |
| 54 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 55 | SS6110710TP | SCREW 11/64-40 L= 6.5 | 1 |
| 56 | 23620008 | HOOK SHAFT | 1 |
| 57 | 23620156 | HOOK SHAFT METAL COMPL. | 1 |
| 58 | 23620206 | OIL SEAL | 2 |
| 59 | 23620354 | BEARING SUPPORT ASM. | 1 |
| 60 | SS6110650TP | SCREW 11/64-40 L=5.5 | 2 |
| 61 | 23620503 | GEAR,LARGE | 1 |
| 62 | 23620701 | GEAR,SMALL(A) | 1 |
| 63 | 23620800 | GEAR,SMALL(B) | 1 |
| 64 | 23620909 | GEAR,SMALL(C) | 1 |
| 65 | 23621006 | GEAR,SMALL(D) | 1 |
| 66 | 11038759 | BOBBIN CASE ASM. | 1 |
| 67 | 11038809 | BOBBIN CASE HOLDER | 1 |
| 68 | 11141355 | HOOK ASM. C | 1 |
| 69 | 11038650 | HOOK ASM. | 1 |
| 70 | 22890008 | HOOK DRIVING SHAFT OIL SEAL | 1 |
| 71 | B9117012000 | BOBBIN | 1 |
| 72 | 22964001 | BOBBIN A | 1 |
| 73 | 23620404 | HOOK SHAFT REAR METAL | 1 |
| 74 | SS6111010TP | SCREW 11/64-40 L= 9.5 | 1 |
| 75 | SS8661030SP | SCREW 1/4-40 L=10 | 2 |
| 76 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 77 | 22916555 | OIL SEAL SCREW ASM. | 1 |
| 78 | 22916506 | SET SCREW | 1 |
| 79 | 11015906 | OIL WICK | 1 |
| 80 | 40031608 | SPROCKET ASM. | 1 |
| 81 | 40031605 | SPROCKET | 1 |
| 82 | 40031607 | SPROCKET SUPPORT ASM. | 1 |
| 83 | 40031606 | SPROCKET SUPPORT | 1 |
| 84 | SS8150822TP | SCREW 15/64-28 L=8 | 2 |
| 85 | SS7112420SP | SCREW 11/64-40 L=24 | 3 |
| 86 | 23619158 | FEED DRIVING CAM ASM. F | 1 |
| 87 | 23619109 | FEED DRIVING CAM F | 1 |
| 88 | SS8151150TP | SCREW 15/64-28 L=10.5 | 2 |
| 89 | 23621303 | HOOK ASM. K | 1 |
Page 26 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23623051 | KNIFE UNIT | 1 |
| 2 | 23623002 | KNIFE INSTALLING BASE | 1 |
| 3 | 11040052 | MOVING KNIFE ASM. | 1 |
| 4 | 11040409 | MOVING KNIFE HINGE SCREW | 1 |
| 5 | 11040508 | FORKED BASE FOR KNIFE | 1 |
| 6 | 11313103 | THREAD GUIDE FOR KNIFE | 1 |
| 7 | D2406555D0H | COUNTER KNIFE | 1 |
| 8 | SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 |
| 9 | SS2060210SP | SCREW 3/32-56 L=2.3 | 1 |
| 10 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 11 | 23623168 | THREAD TRIMMER DRIVING UNIT | 1 |
| 12 | 23623150 | KNIFE DRIVING ARM ASM. | 1 |
| 13 | 23623200 | MOVING KNIFE LINK PIN | 1 |
| 14 | 23623358 | CLUTCH PLATE ASM. | 1 |
| 15 | 23623556 | BASE PLATE ASM. | 1 |
| 16 | 23623705 | PICKER LINK | 1 |
| 17 | 23623804 | DRIVING ARM STOPPER | 1 |
| 18 | 11040953 | ROLLER ARM ASM. | 1 |
| 19 | 22949002 | ROLLER ARM SEAT | 1 |
| 20 | 22949101 | ROLLER FULCRUM SHAFT | 1 |
| 21 | 22949200 | ROLLER RETURN SPRING | 1 |
| 22 | 11043700 | KNIFE RETURN SPRING, B | 1 |
| 23 | 22949408 | CLUTCH SPRING | 1 |
| 24 | 22950000 | PICKER LINK PIN | 1 |
| 25 | NS6150310SP | NUT 15/64-28 | 1 |
| 26 | NS6150810SP | NUT 15/64-28 | 1 |
| 27 | RE0400000K0 | E-RING 4 | 2 |
| 28 | RE0600000K0 | E-RING 6 | 2 |
| 29 | SS4110715SP | SCREW 11/64-40 L=7 | 2 |
| 30 | SS7090610SP | SCREW 9/64-40 L=6 | 1 |
| 31 | WP0621016SH | WASHER | 1 |
| 32 | 23623903 | PIN | 1 |
| 33 | 23624000 | MOVING KNIFE LINK | 1 |
| 34 | 23624158 | PICKER ARM ASM. | 1 |
| 35 | 23624109 | PICKER ARM | 1 |
| 36 | 23624257 | THREAD TAKE-UP PICKER ASM. | 1 |
| 37 | SS6090620TP | SCREW | 2 |
| 38 | 23624356 | SOLENOID ASM. | 1 |
| 39 | 23624307 | SOLENOID | 1 |
| 40 | 23624406 | SOLENOID BASE | 1 |
| 41 | 11043304 | SOLENOID RUBBER | 1 |
| 42 | HK03464000B | PIN CONTACT | 2 |
| 43 | NM6040000SN | NUT M4 | 2 |
| 44 | NS6660410SH | NUT | 1 |
| 45 | NS6660430SP | NUT 1/4-40 | 1 |
| 46 | WP0450000SD | WASHER 4.5X8X0.5 | 2 |
| 47 | 23624554 | DRIVING BLOCK ASM. | 1 |
Page 28 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 23624505 | DRIVING BLOCK | 1 |
| 49 | SS6110710TP | SCREW 11/64-40 L= 6.5 | 1 |
| 50 | 11042850 | THREAD TRIMMER CAM ASM. | 1 |
| 51 | SS6660610TP | SCREW 1/4-40 L=6 | 2 |
| 52 | 22950950 | CAM COLLAR ASM. | 1 |
| 53 | SS8110520TP | SCREW 11/64-40 L= 4.5 | 1 |
| 54 | 40023290 | SOLENOID BASE STUD | 2 |
| 55 | SD0600321SP | HINGE SCREW D=6 H=3.2 | 1 |
| 56 | SD0630275SP | HINGE SCREW D= 6.35 H= 2.7 | 1 |
| 57 | SD0641452TP | HINGE SCREW D=6.35 H=14.5 | 1 |
| 58 | SS4110715SP | SCREW 11/64-40 L=7 | 2 |
| 59 | SS4150915SP | SCREW 15/64-28 L=9 | 2 |
| 60 | SS4150915SP | SCREW 15/64-28 L=9 | 2 |
Page 30 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40011344 | GEAR BOX COVER | 1 |
| 2 | 23628100 | GEAR BOX PACKING | 1 |
| 3 | 23628357 | FLOATER ASM. | 1 |
| 4 | 23628555 | OIL TANK ASM. | 1 |
| 5 | 23628704 | FLOATER CASE | 1 |
| 6 | 23629108 | OIL SIGHT WINDOW | 1 |
| 7 | 23629256 | OIL WICK SUPPORT ASM. | 1 |
| 8 | 23629207 | OIL WICK SUPPORT | 1 |
| 9 | 23629702 | OIL WICK | 0.25 |
| 10 | 23629306 | PIPE STOPPER A | 4 |
| 11 | 23629405 | PIPE STOPPER B | 3 |
| 12 | 23629504 | DISTRIBUTOR | 1 |
| 13 | 23629603 | OIL INLET | 1 |
| 14 | 23629801 | LUBRICATION CONNECTOR | 2 |
| 15 | 23630106 | TUBE B | 0.25 |
| 16 | RO068190100 | RUBBER RING | 1 |
| 17 | 23630007 | TUBE | 0.57 |
| 18 | 23630007 | TUBE | 0.04 |
| 19 | 23630007 | TUBE | 0.07 |
| 20 | CQ200000001 | OIL WICK | 0.75 |
| 21 | 23630007 | TUBE | 0.38 |
| 22 | 23630106 | TUBE B | 0.23 |
| 23 | 23630304 | FELT | 1 |
| 24 | 22925101 | OIL FELT PRESSER | 1 |
| 25 | RO098240100 | RUBBER RING | 1 |
| 26 | RO195240100 | RUBBER RING | 1 |
| 27 | SS4121015SP | SCREW 3/16-28 L=10 | 2 |
| 28 | SS4121015SP | SCREW 3/16-28 L=10 | 10 |
| 29 | SS6090620TP | SCREW | 1 |
| 30 | 23630205 | SCREW | 1 |
| 31 | WP0501016SD | WASHER 5X10.5X1 | 2 |
| 32 | WS0510002KP | SPRING WASHER 5.1X9.2X1.3 | 2 |
| 33 | 23628209 | OIL ADJUSTING SCREW | 1 |
| 34 | RO029180100 | RUBBER RING | 1 |
| 35 | 23628803 | PLUNGER | 1 |
| 36 | 23628902 | PLUNGER SPRING | 1 |
| 37 | 23629009 | PLUNGER SCREW | 1 |
| 38 | 23630452 | OIL FILTER ASM. | 1 |
| 39 | 23630403 | OIL FILTER | 1 |
| 40 | 23630502 | OIL FILTER STOPPER | 1 |
| 41 | 23630601 | OIL FILTER JOINT | 2 |
| 42 | 23630007 | TUBE | 0.09 |
| 43 | 23630106 | TUBE B | 0.04 |
| 44 | 23629405 | PIPE STOPPER B | 2 |
| 45 | 40024644 | MAGNET WASHER | 1 |
| 46 | ST4040821SS | TAPPING SCREW | 1 |
| 47 | 23604705 | MAGNET | 1 |
Page 32 — AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23631054 | REVERSE FEED SOLENOID BASE ASM | 1 |
| 2 | 23631005 | REVERSE FEED SOLENOID | 1 |
| 3 | 23631104 | REVERSE FEED SOLENOID PLUNGER | 1 |
| 4 | 23631203 | REVERSE FEED SOLENOID BASE | 1 |
| 5 | D2468555B00 | RUBBER PLUNGER | 1 |
| 6 | HK03464000B | PIN CONTACT | 2 |
| 7 | RE1200000K0 | E-RING 12 | 1 |
| 8 | SS7110740TP | SCREW 11/64-40 L=7 | 4 |
| 9 | WP1703001SC | WASHER 17X30X3 | 1 |
| 10 | 23631302 | REVERSE FEED ARM | 1 |
| 11 | 23631757 | REVERSE FEED SWITCH ASM. | 1 |
| 12 | 23631708 | REVERSE FEED SWITCH COVER | 1 |
| 13 | 23631807 | REVERSE FEED SWITCH SHAFT | 1 |
| 14 | 23631906 | REVERSE FEED SWITCH SUPPORT | 1 |
| 15 | 23632003 | REVERSE FEED SWITCH BASE | 1 |
| 16 | 23632102 | REVERSE FEED SWITCH BASE GUIDE | 1 |
| 17 | 23632359 | REVERSE FEED CORD ASM. | 1 |
| 18 | EA9500B0100 | CABLE BAND | 1 |
| 19 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 20 | 23632656 | OPTION SWITCH ASM. | 1 |
| 21 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 22 | 23631708 | REVERSE FEED SWITCH COVER | 1 |
| 23 | 23631807 | REVERSE FEED SWITCH SHAFT | 1 |
| 24 | 23631906 | REVERSE FEED SWITCH SUPPORT | 1 |
| 25 | 23632607 | OPTION SWITCH BASE | 1 |
| 26 | 23632102 | REVERSE FEED SWITCH BASE GUIDE | 1 |
| 27 | 23632250 | REVERSE FEED CORD ASM. | 1 |
| 28 | EA9500B0100 | CABLE BAND | 1 |
| 29 | WP0501016SD | WASHER 5X10.5X1 | 1 |
| 30 | 22962906 | PLUNGER ARM PIN | 1 |
| 31 | NS6110350SP | NUT 11/64-40 | 2 |
| 32 | SD0951501SP | HINGE SCREW D= 9.53 H=15 | 1 |
| 33 | SS4120915SP | SCREW 3/16-28 L=9 | 1 |
| 34 | SS4150915SP | SCREW 15/64-28 L=9 | 2 |
Page 34 — WIPER COMPONENTS(FOR DDL-9000-WB)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23633167 | WIPER ASM. | 1 |
| 2 | 23633159 | WIPER BASE ASM. | 1 |
| 3 | 23633209 | WIPER LINK B | 1 |
| 4 | 23633357 | WIPER SHAFT ASM. | 1 |
| 5 | 22955504 | WIPER COVER | 1 |
| 6 | 11110301 | WIPER SOLENOID | 1 |
| 7 | 22955900 | WIPER RUBBER A | 1 |
| 8 | 22956007 | WIPER RUBBER B | 1 |
| 9 | 22956106 | WIPER LINK A | 1 |
| 10 | 22956205 | WIPER HINGE SCREW COLLAR | 1 |
| 11 | 22956304 | WIPER SPRING | 1 |
| 12 | 22956809 | WIPER COLLAR | 1 |
| 13 | 22956908 | WIPER LINK B HINGE SCREW | 1 |
| 14 | 22957005 | WIPER | 1 |
| 15 | 22957203 | WIPER LINK COLLAR | 1 |
| 16 | 22957104 | WIPER SOLENOID SHAFT | 1 |
| 17 | HA000590000 | POWER SWITCH | 1 |
| 18 | HK03464000B | PIN CONTACT | 2 |
| 19 | HW200390000 | ELECTRIC WIRE | 0.04 |
| 20 | HW500070000 | 2-CORE CABTYRE CORD | 1.3 |
| 21 | NS6090310SP | NUT 9/64-40 | 1 |
| 22 | NS6110310SP | NUT 11/64-40 | 1 |
| 23 | RE0250000K0 | E-RING 2.5 | 1 |
| 24 | RE0500000K0 | E-RING | 1 |
| 25 | SD0650321TP | HINGE SCREW D=6.5 H=3.2 | 1 |
| 26 | SL4030631SC | SCREW M3X6 | 1 |
| 27 | SL4030641SE | SCREW | 3 |
| 28 | SS6090540SP | SCREW 9/64-40 L= 5.0 | 1 |
| 29 | SS4120915SP | SCREW 3/16-28 L=9 | 2 |
Page 36 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22930358 | THREAD STAND ASM. | 1 |
| 2 | 22931109 | SPOOL RETAINER | 2 |
| 3 | 22931000 | SPOOL PIN | 2 |
| 4 | 22930903 | SPOOL REST CUSHION | 2 |
| 5 | 22930804 | SPOOL REST | 2 |
| 6 | SM6061610SC | SCREW M6 L=16 | 2 |
| 7 | 22930705 | THREAD GUIDE ARM JOINT | 2 |
| 8 | 22931406 | SPOOL REST ROD RUBBER CAP | 1 |
| 9 | 22930507 | SPOOL REST ARM | 2 |
| 10 | 22930408 | SPOOL REST ROD, UPPER | 1 |
| 11 | 22931307 | SPOOL REST ROD JOINT | 1 |
| 12 | SM4051405SE | SCREW M5 L=14 | 2 |
| 13 | NM6050001SE | NUT M5 | 2 |
| 14 | 22930309 | SPOOL REST ROD, LOWER | 1 |
| 15 | 22931208 | THREAD GUIDE | 2 |
| 16 | WS0510002KN | SPRING WASHER | 2 |
| 17 | NM6050001SE | NUT M5 | 2 |
| 18 | NM6160511SE | NUT M16X1.5 | 1 |
| 19 | WP1612616SE | WASHER 16X30X2.6 | 2 |
| 20 | WS1643202KR | SPRING WASHER | 1 |
Page 38 — UNDER COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23639057 | UNDER COVER ASM. | 1 |
| 2 | 23639008 | UNDER COVER | 1 |
| 3 | 23639156 | BRACKET ASM. | 1 |
| 4 | 23639107 | BRACKET | 1 |
| 5 | NM6060001SE | NUT M6 | 2 |
| 6 | SM8063012TR | SCREW M6 L=30 | 2 |
| 7 | 23639206 | CONNECTING ROT | 1 |
| 8 | 23639305 | KNEE PRESS ROD | 1 |
| 9 | 23639404 | SHAFT | 1 |
| 10 | 23639503 | SPRING | 1 |
| 11 | 23639602 | CONNECTING ROD | 1 |
| 12 | 10162600 | RUBBER CUSHION | 2 |
| 13 | 11047107 | RUBBER CUSHION | 2 |
| 14 | 22932453 | BRACKET ASM. | 1 |
| 15 | 22932404 | BRACKET | 1 |
| 16 | SM9062053SR | SCREW M6 L=20 | 2 |
| 17 | NS6150310SP | NUT 15/64-28 | 2 |
| 18 | RE1000000K0 | E-RING 10 | 2 |
| 19 | RE1000000K0 | E-RING 10 | 1 |
| 20 | SD0720331SP | HINGE SCREW D= 7.24 H= 3.3 | 2 |
| 21 | SM9061853SR | SCREW M6 L=17.5 | 1 |
| 22 | SM9061853SR | SCREW M6 L=17.5 | 1 |
| 23 | WP0650876SD | WASHER 6.5X13X0.8 | 2 |
| 24 | 22934251 | KNEE PAD PLATE ASM. | 1 |
| 25 | 22934301 | KNEE PAD PLATE SUPPORT | 1 |
| 26 | 22934400 | KNEE PAD PLATE RUBBER | 1 |
| 27 | 22934509 | KNEE PAD PLATE COVER | 1 |
| 28 | 22934608 | KNEE PAD UPRIGHT SHAFT | 1 |
| 29 | SM9061203SE | SCREW M6 L=12 | 1 |
| 30 | 22934202 | KNEE PAD PLATE | 1 |
Page 40 — ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23639750 | ACCESSORIE BAG ASM. | 1 |
| 2 | 23639958 | ACCESSORIE BAG ASM. ,A | 1 |
| 3 | 22931604 | FRAME SUPPORT BAR | 1 |
| 4 | 22932800 | ACCESSORIE BAG | 1 |
| 5 | 22933105 | SCREW DRIVER,MIDDLE | 1 |
| 6 | 22933204 | SCREW DRIVER,SMALL | 1 |
| 7 | 22958300 | NEEDLE THREAD GUIDE PIN | 1 |
| 8 | 23639701 | KNEE LIFTER PRESSER ROD | 1 |
| 9 | 22926356 | HINGE COMPL. | 2 |
| 10 | 22958052 | RUBBER HINGE ASM. | 1 |
| 11 | 22926000 | RUBBER CUSHION | 2 |
| 12 | 22958003 | FRAME BUBBER CUSHION | 2 |
| 13 | 22926208 | NAIL | 8 |
| 14 | 22926356 | HINGE COMPL. | 2 |
| 15 | 22926505 | WASHER | 2 |
| 16 | 22932909 | BOBBIN | 1 |
| 17 | 22964001 | BOBBIN A | 1 |
| 18 | B91210120A0 | OILER ASM. | 1 |
| 19 | MDFRX1600C0 | DEFRIX OIL NO.1(600CC) | 1 |
| 20 | MDB100B1402 | NEEDLE DBX1#14-2 | 1 |
| 21 | MDB100B1102 | NEEDLE DBX1#11-2 | 1 |
| 22 | MC200500752 | 1 | |
| 23 | 22933006 | SCREW DRIVER,LARGE | 1 |
| 24 | 22933303 | VINYL COVER | 1 |
Page 42 — EXCLUSIVE PART FOR DDL-9000DS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11030301 | CABLE HOLDER | 1 |
| 2 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 3 | M6023350AAA | RESISTOR PACK AA ASM. | 1 |
| 4 | 23608706 | NEEDLE BAR LOWER METAL D | 1 |
| 5 | 22887004 | NEEDLE BAR (B) | 1 |
| 6 | 22886907 | NEEDLE BAR (A) | 1 |
| 7 | 22889851 | HOOK DRIVING SHAFT BEARING ASM | 1 |
| 8 | SS6110420TP | SCREW 11/64-40 L=4.8 | 2 |
| 9 | 22890404 | RP HOOK C | 1 |
| 10 | 22890206 | RP HOOK | 1 |
| 11 | 22890305 | RP HOOK S | 1 |
| 12 | 22964001 | BOBBIN A | 1 |
| 13 | 23630700 | OIL SIGHT WINDOW D | 1 |
| 14 | 22896302 | BOBBIN CASE HOLDER | 1 |
| 15 | 22896252 | BOBBIN CASE ASM. | 1 |
| 16 | 23624653 | KNIFE UNIT D | 1 |
| 17 | 11040052 | MOVING KNIFE ASM. | 1 |
| 18 | 22896104 | THREAD GUIDE FOR KNIFE | 1 |
| 19 | 23623002 | KNIFE INSTALLING BASE | 1 |
| 20 | 11040409 | MOVING KNIFE HINGE SCREW | 1 |
| 21 | 22896005 | FORKED BASE FOR KNIFE | 1 |
| 22 | 22895908 | COUNTER KNIFE | 1 |
| 23 | SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 |
| 24 | SS2060210SP | SCREW 3/32-56 L=2.3 | 1 |
| 25 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
Page 44 — EXCLUSIVE PART FOR DDL-9000DF
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11030301 | CABLE HOLDER | 1 |
| 2 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 3 | 11001906 | THROAT PLATE K | 1 |
| 4 | M6023350AAF | RESISTOR PACK AF ASM. | 1 |
| 5 | 23608706 | NEEDLE BAR LOWER METAL D | 1 |
| 6 | 22886907 | NEEDLE BAR (A) | 1 |
| 7 | 22887004 | NEEDLE BAR (B) | 1 |
| 8 | MDB1SFB0900 | NEEDLE DBX1SF #9 | 1 |
| 9 | MC200500650 | NEEDLE 134 NM65 | 1 |
| 10 | MDB100B0900 | NEEDLE DBX1 #9 | 1 |
| 11 | D1524555DBB | PRESSER FOOT ASM. | 1 |
| 12 | 11162104 | SPRING | 1 |
| 13 | SS4090610SP | SCREW 9/64-40 L=6 | 1 |
| 14 | SS7111410TP | SCREW 11/64-40 L=14 | 1 |
| 15 | D1613155W00 | FEED DOG W | 1 |
| 16 | 22889851 | HOOK DRIVING SHAFT BEARING ASM | 1 |
| 17 | SS6110420TP | SCREW 11/64-40 L=4.8 | 2 |
| 18 | 22890404 | RP HOOK C | 1 |
| 19 | 22890206 | RP HOOK | 1 |
| 20 | 22890305 | RP HOOK S | 1 |
| 21 | 23627458 | THREAD TENSION ASM. F | 1 |
| 22 | 23626005 | THREAD TENSION NUT | 1 |
| 23 | B3132552000 | THREAD TENSION DISK PRESSER | 1 |
| 24 | B3126012000 | THREAD TENSION DISK | 2 |
| 25 | B3111126000 | TENSION POST SOCKET | 1 |
| 26 | B3115552000 | TENSION POST | 1 |
| 27 | B3120125000 | ROTATING STOPPER | 1 |
| 28 | D3129555D00 | THREAD TENSION SPRING | 1 |
| 29 | D3128555D00 | TAKE-UP SPRING | 1 |
| 30 | SS8090670SP | SCREW 9/64-40 L= 5.5 | 1 |
| 31 | 11305513 | ARM THREAD GUIDE, C | 1 |
| 32 | 11403805 | THREAD GUIDE C FITTING PLATE | 1 |
| 33 | 11404209 | SPACER | 1 |
| 34 | 11404308 | NUT | 1 |
| 35 | 23630700 | OIL SIGHT WINDOW D | 1 |
| 36 | 22940506 | FEED DIAL | 1 |
| 37 | B1109012I0B | THROAT PLATE (I) | 1 |
| 38 | B1613012I00 | FEED DOG I | 1 |
| 39 | 22964001 | BOBBIN A | 1 |
| 40 | 22896302 | BOBBIN CASE HOLDER | 1 |
| 41 | 22896252 | BOBBIN CASE ASM. | 1 |
| 42 | 23624653 | KNIFE UNIT D | 1 |
| 43 | 11040052 | MOVING KNIFE ASM. | 1 |
| 44 | 22896104 | THREAD GUIDE FOR KNIFE | 1 |
| 45 | 23623002 | KNIFE INSTALLING BASE | 1 |
| 46 | 11040409 | MOVING KNIFE HINGE SCREW | 1 |
| 47 | 22896005 | FORKED BASE FOR KNIFE | 1 |
Page 46 — EXCLUSIVE PART FOR DDL-9000DF
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 22895908 | COUNTER KNIFE | 1 |
| 49 | SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 |
| 50 | SS2060210SP | SCREW 3/32-56 L=2.3 | 1 |
| 51 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
Page 48 — EXCLUSIVE PART FOR DDL-9000SH-WB,0B
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11400801 | THROAT PLATE J | 1 |
| 2 | SS4090610SP | SCREW 9/64-40 L=6 | 1 |
| 3 | SS7111410TP | SCREW 11/64-40 L=14 | 1 |
| 4 | 11305513 | ARM THREAD GUIDE, C | 1 |
| 5 | M6024350AAF | RESISTOR PACK AF ASM. | 1 |
| 6 | 23645609 | NEEDLE BAR METAL,LOWER H | 1 |
| 7 | 11091303 | NEEDLE BAR | 1 |
| 8 | MDB100B2100 | NEEDLE DBX1 #21 | 1 |
| 9 | MC200501300 | NEEDLE 134 NM130 | 1 |
| 10 | 23645807 | THROAT PLATE H | 1 |
| 11 | B1505552000A | PRESSER SPRING | 1 |
| 12 | D1524555EBL | PRESSER FOOT ASM. | 1 |
| 13 | 11403003 | FEED J | 1 |
| 14 | 23646003 | POSITIONING FINGER H | 1 |
| 15 | 11092251 | LUBRICATING BOBBIN ASM. | 1 |
| 16 | 23645559 | THREAD TAKE-UP ASM. ,H | 1 |
| 17 | 23645252 | KNIFE UNIT H | 1 |
| 18 | 23645203 | KNIFE INSTALLING BASE H | 1 |
| 19 | 23645401 | THREAD GUIDE FOR KNIFE H | 1 |
| 20 | 11409257 | MOVING KNIFE J ASM. | 1 |
| 21 | 11095601 | KNIFE BRANCH | 1 |
| 22 | 11409604 | FIX KNIFE | 1 |
| 23 | SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 |
| 24 | SD0500131TP | HINGE SCREW D=5 H=1.25 | 1 |
| 25 | SS2060210SP | SCREW 3/32-56 L=2.3 | 1 |
| 26 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 27 | 23623176 | THREAD TRIMMER DRIVING UNIT H | 1 |
| 28 | 11040953 | ROLLER ARM ASM. | 1 |
| 29 | 11041407 | ROLLER FULCRUM SHAFT | 1 |
| 30 | 22949200 | ROLLER RETURN SPRING | 1 |
| 31 | 11042306 | PICKER LINK PIN | 1 |
| 32 | 11043700 | KNIFE RETURN SPRING, B | 1 |
| 33 | 11094307 | ROLLER ARM BRACKET | 1 |
| 34 | 11094406 | SPRING | 1 |
| 35 | 23623150 | KNIFE DRIVING ARM ASM. | 1 |
| 36 | 23623200 | MOVING KNIFE LINK PIN | 1 |
| 37 | 23623358 | CLUTCH PLATE ASM. | 1 |
| 38 | 23623556 | BASE PLATE ASM. | 1 |
| 39 | 23623705 | PICKER LINK | 1 |
| 40 | 23623804 | DRIVING ARM STOPPER | 1 |
| 41 | NS6150310SP | NUT 15/64-28 | 1 |
| 42 | NS6150810SP | NUT 15/64-28 | 1 |
| 43 | RE0400000K0 | E-RING 4 | 2 |
| 44 | RE0600000K0 | E-RING 6 | 2 |
| 45 | SS4110715SP | SCREW 11/64-40 L=7 | 2 |
| 46 | SS7090610SP | SCREW 9/64-40 L=6 | 1 |
Page 50 — EXCLUSIVE PART FOR DDL-9000SH-WB,0B
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 47 | WP0621016SH | WASHER | 1 |
| 48 | 23645153 | SOLENOID ASM. ,H | 1 |
| 49 | 23645005 | SOLENOID BASE H | 1 |
| 50 | 23645104 | SOLENOID H | 1 |
| 51 | 11043304 | SOLENOID RUBBER | 1 |
| 52 | HK03464000B | PIN CONTACT | 2 |
| 53 | NM6040000SN | NUT M4 | 2 |
| 54 | NS6660410SH | NUT | 1 |
| 55 | NS6660430SP | NUT 1/4-40 | 1 |
| 56 | WP0430800SC | WASHER M4 | 2 |
| 57 | 23626062 | THREAD TENSION ASM. ,H | 1 |
| 58 | 23626005 | THREAD TENSION NUT | 1 |
| 59 | 22921209 | THREAD TENSION POST | 1 |
| 60 | 22921407 | ROTATION STOPPER | 1 |
| 61 | 22921506 | THREAD TENSION DISK | 2 |
| 62 | 22921605 | THREAD TAKE-UP SPRING | 1 |
| 63 | 22921803 | DISK STOPPER | 1 |
| 64 | 22945307 | THREAD TENSION POST BASE | 1 |
| 65 | 22962005 | THREAD TENSION SPRING | 1 |
| 66 | SS8090670SP | SCREW 9/64-40 L= 5.5 | 1 |
| 67 | 11073954 | THREAD TENSION ASM. | 1 |
| 68 | 11403805 | THREAD GUIDE C FITTING PLATE | 1 |
| 69 | B1418415H00 | NEEDLE BAR THREAD GUIDE | 1 |
| 70 | B1419553000 | NEEDLE BAR THREAD GUIDE | 1 |
| 71 | 11404308 | NUT | 1 |
| 72 | WP0371016SD | WASHER 3.7X8X1 | 1 |
| 73 | 23619059 | VERTICAL FEED CAM H ASM. | 1 |
| 74 | 23619000 | VERTICAL FEED CAM H | 1 |
| 75 | SS8151150TP | SCREW 15/64-28 L=10.5 | 2 |
Page 52 — TABLE & STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23642200 | TABLE | 1 |
| 2 | 11157567 | T LEG JUNCTION | 1 |
| 3 | 11159365 | T STAND JUNCTION | 1 |
| 4 | 11159357 | T-STAND ASM. | 1 |
| 5 | 11156007 | CASE | 1 |
| 6 | 11155801 | CASE MAGNET | 1 |
| 7 | 11155751 | CASE ASM. B | 1 |
| 8 | 11155108 | DRAWER | 1 |
| 9 | 11155207 | DRAWER SUPPORT | 2 |
| 10 | 11073103 | RUBBER CUSHION | 1 |
| 11 | 11075900 | RUBBER SPACER | 2 |
| 12 | 11075801 | RUBBER SPACER | 2 |
| 13 | B8210012000 | CUSHION SET NAIL | 4 |
| 14 | B8210012000 | CUSHION SET NAIL | 4 |
| 15 | D8226555E00 | FRAME RUBBER CUSHION A | 2 |
| 16 | D8204555D00 | DRAWER STOPPER | 1 |
| 17 | SK3311600SE | WOOD SCREW D=3.1 L=16 | 6 |
| 18 | SK3513200SC | WOOD SCREW D=5.1 L=32 | 4 |
| 19 | SK3382001SC | WOOD SCREW D=3.8 L=20 | 4 |
| 20 | GPK700010A0 | 3-JOINT PEDAL, 70 | 1 |
| 21 | GPK710010A0 | 2-PEDAL ASM., 71 | 1 |
Page 53 — LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22 | CM-3002001-A1 | CM-3002001-A1 | |
| 24 | CM-3002000-01 | CM-3002000-01 | |
| 25 | CM-3002000-B1 | CM-3002000-B1 | |
| 7 | 236-04200 | ||
| 8 | 236-04309 | ||
| 8 | 400-51473 | ||
| 10 | 236-04408 | ||
| 11 | 400-44906 | ||
| 20 | SM-8060812-TP | SM-8060812-TP | |
| 20 | SM-80608A2-TP | SM-80608A2-TP | |
| 21 | SM-8060812-TP | SM-8060812-TP | |
| 9 | SM-80608A2-TP | SM-80608A2-TP | |
| 22 | 236-07054 | ||
| 22 | 400-39946 | ||
| 12 | 236-12906 | ||
| 12 | 400-52274 | ||
| 27 | B1613-052-000 | B1613-052-000 | |
| 27 | B1613-012-100 | B1613-012-100 | |
| 45 | 236-18606 | ||
| 45 | 400-44875 | ||
| 8 | SS-8110510-SP | SS-8110510-SP | |
| 8 | SS-6110420-TP | SS-6110420-TP | |
| 17 | SS-8110510-SP | SS-8110510-SP | |
| 17 | SS-6110420-TP | SS-6110420-TP | |
| 22 | CM-3013000-01 | CM-3013000-01 |
Page 55 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | 10162600 | 36 | |
| 5 | 10502300 | 6 | |
| 2 | 11001906 | 42 | |
| 4 | 11015906 | 22 | |
| 3 | 11018405 | 12 | |
| 12 | 11028008 | 4 | |
| 55 | 11030301 | 40 | |
| 1 | 11030301 | 42 | |
| 31 | 11038650 | 22 | |
| 66 | 11038759 | 22 | |
| 67 | 11038809 | 22 | |
| 3 | 11040052 | 24 | |
| 17 | 11040052 | 40 | |
| 43 | 11040052 | 42 | |
| 4 | 11040409 | 24 | |
| 20 | 11040409 | 40 | |
| 46 | 11040409 | 42 | |
| 5 | 11040508 | 24 | |
| 18 | 11040953 | 24 | |
| 28 | 11040953 | 46 | |
| 29 | 11041407 | 46 | |
| 31 | 11042306 | 46 | |
| 50 | 11042850 | 26 | |
| 41 | 11043304 | 24 | |
| 51 | 11043304 | 48 | |
| 22 | 11043700 | 24 | |
| 32 | 11043700 | 46 | |
| 13 | 11047107 | 36 | |
| 30 | 11071909 | 16 | |
| 30 | 11072402 | 6 | |
| 10 | 11073103 | 50 | |
| 67 | 11073954 | 48 | |
| 12 | 11075801 | 50 | |
| 11 | 11075900 | 50 | |
| 7 | 11091303 | 46 | |
| 15 | 11092251 | 46 | |
| 33 | 11094307 | 46 | |
| 34 | 11094406 | 46 | |
| 21 | 11095601 | 46 | |
| 6 | 11110301 | 32 | |
| 27-28 | 11141207 | 8 | |
| 68-69 | 11141355 | 22 | |
| 8 | 11155108 | 50 | |
| 9 | 11155207 | 50 | |
| 7 | 11155751 | 50 | |
| 6 | 22901201 | 2 | |
| 5 | 22901250 | 2 | |
| 2 | 22901300 | 2 | |
| 4 | 22901409 | 2 | |
| 3 | 22901805 | 4 | |
| 12 | 22902506 | 2 | |
| 2 | 22902704 | 2 | |
| 2 | 22902753 | 2 | |
| 6 | 22904106 | 20 | |
| 10 | 22904155 | 20 | |
| 13 | 22906309 | 10 | |
| 32 | 22906408 | 8 | |
| 68 | 22906457 | 8 | |
| 33 | 22907406 | 12 | |
| 34 | 22907604 | 12 | |
| 71 | 22907802 | 12 | |
| 20 | 22908008 | 12 | |
| 22 | 22908552 | 12 | |
| 57 | 22908701 | 12 | |
| 31 | 22908909 | 12 | |
| 5-6 | 22911002 | 20 | |
| 6-7 | 22911101 | 20 | |
| 5-6 | 22911804 | 16 | |
| 6-7 | 22912000 | 16 | |
| 7 | 22912109 | 16 | |
| 16 | 22916506 | 22 | |
| 70 | 22916555 | 22 | |
| 9~11 | 22920102 | 12 | |
| 18~20 | 22920200 | 12 | |
| 9~11 | 22920300 | 4 | |
| 18~20 | 22920607 | 48 | |
| 9~11 | 22921209 | 48 | |
| 18~20 | 22921407 | 48 | |
| 9~11 | 22921506 | 48 | |
| 18~20 | 22921605 | 48 | |
| 40 | 22921803 | 48 | |
| 22 | 22925101 | 28 | |
| 48 | 22926000 | 38 | |
| 21 | 22926208 | 38 | |
| 47 | 22926356 | 38 | |
| 18 | 22926505 | 38 | |
| 44 | 22930309 | 34 | |
| 15 | 22930358 | 34 | |
| 41 | 22930408 | 34 | |
| 14 | 22930507 | 34 |
Page 56 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7 | 22930705 | ||
| 5 | 22930804 | ||
| 4 | 22930903 | ||
| 3 | 22931000 | ||
| 2 | 22931109 | ||
| 15 | 22931208 | ||
| 11 | 22931307 | ||
| 3 | 22931406 | ||
| 3 | 22931604 | ||
| 15 | 22932404 | ||
| 14 | 22932453 | ||
| 4 | 22932800 | ||
| 16 | 22932909 | ||
| 23 | 22933006 | ||
| 5 | 22933105 | ||
| 6 | 22933204 | ||
| 24 | 22933303 | ||
| 30 | 22934202 | ||
| 24 | 22934251 | ||
| 25 | 22934301 | ||
| 26 | 22934400 | ||
| 27 | 22934509 | ||
| 28 | 22934608 | ||
| 27-28 | 22939508 | ||
| 36 | 22940506 | ||
| 42 | 22944508 | ||
| 48 | 22945307 | ||
| 4 | 22945414 | ||
| 4 | 22945463 | ||
| 4 | 22945505 | ||
| 4 | 22945604 | ||
| 4 | 22945703 | ||
| 4 | 22945802 | ||
| 24 | 22949002 | ||
| 24 | 22949101 | ||
| 24 | 22949200 | ||
| 46 | 22949200 | ||
| 24 | 22949408 | ||
| 24 | 22950000 | ||
| 26 | 22950950 | ||
| 16 | 22952501 | ||
| 2 | 22954705 | ||
| 32 | 22955504 | ||
| 32 | 22955900 | ||
| 32 | 22956007 | ||
| 12 | 23609357 | ||
| 12 | 23609456 | ||
| 12 | 23609605 | ||
| 12 | 23609704 | ||
| 12 | 23609803 | ||
| 12 | 23609902 | ||
| 12 | 23610108 | ||
| 12 | 23610207 | ||
| 12 | 23610306 | ||
| 12 | 23610405 | ||
| 14 | 23610504 | ||
| 14 | 23610652 | ||
| 14 | 23610702 | ||
| 14 | 23610801 | ||
| 14 | 23611056 | ||
| 14 | 23611106 | ||
| 18 | 23612104 | ||
| 16 | 23612450 | ||
| 18 | 23612500 | ||
| 16 | 23612609 | ||
| 16 | 23612716 | ||
| 16 | 23612765 | ||
| 16 | 23612807 | ||
| 16 | 23613003 | ||
| 16 | 23613052 | ||
| 16 | 23613102 | ||
| 16 | 23613201 | ||
| 16 | 23613300 | ||
| 16 | 23613409 | ||
| 16 | 23613508 | ||
| 16 | 23613607 | ||
| 16 | 23613706 | ||
| 16 | 23613805 | ||
| 16 | 23613953 | ||
| 16 | 23614001 | ||
| 16 | 23614308 | ||
| 16 | 23614407 | ||
| 20 | 23614506 | ||
| 20 | 23616006 | ||
| 20 | 23616055 | ||
| 20 | 23616105 | ||
| 20 | 23616204 | ||
| 20 | 23616303 | ||
| 20 | 23616402 | ||
| 20 | 23616501 |
Page 57 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8 | 23616550 | ||
| 11 | 23616600 | ||
| 12 | 23616709 | ||
| 14 | 23616808 | ||
| 13 | 23616857 | ||
| 17 | 23616907 | ||
| 18 | 23617053 | ||
| 38 | 23618002 | ||
| 37 | 23618051 | ||
| 40 | 23618101 | ||
| 42 | 23618309 | ||
| 43 | 23618408 | ||
| 53 | 23618705 | ||
| 47 | 23618804 | ||
| 74 | 23619000 | ||
| 73 | 23619059 | ||
| 87 | 23619109 | ||
| 86 | 23619158 | ||
| 56 | 23620008 | ||
| 57 | 23620156 | ||
| 58 | 23620206 | ||
| 59 | 23620354 | ||
| 73 | 23620404 | ||
| 61 | 23620503 | ||
| 62~65 | 23620701 | ||
| 62~65 | 23620800 | ||
| 62~65 | 23620909 | ||
| 62~65 | 23621006 | ||
| 68~69 | 23621303 | ||
| 37 | 23622061 | ||
| 38 | 23622400 | ||
| 2 | 23623002 | ||
| 19 | 23623002 | ||
| 45 | 23623002 | ||
| 1 | 23623051 | ||
| 12 | 23623150 | ||
| 35 | 23623150 | ||
| 11 | 23623168 | ||
| 27 | 23623176 | ||
| 13 | 23623200 | ||
| 36 | 23623200 | ||
| 14 | 23623358 | ||
| 37 | 23623358 | ||
| 15 | 23623556 | ||
| 38 | 23623556 | ||
| 16 | 23623705 | ||
| 39 | 23623705 | ||
| 17 | 23623804 | ||
| 40 | 23623804 | ||
| 32 | 23623903 | ||
| 33 | 23624000 | ||
| 35 | 23624109 | ||
| 34 | 23624158 | ||
| 36 | 23624257 | ||
| 39 | 23624307 | ||
| 38 | 23624356 | ||
| 40 | 23624406 | ||
| 48 | 23624505 | ||
| 47 | 23624554 | ||
| 16 | 23624653 | ||
| 42 | 23624653 | ||
| 50 | 23626005 | ||
| 22 | 23626005 | ||
| 58 | 23626005 | ||
| 57 | 23626062 | ||
| 59 | 23626104 | ||
| 48 | 23626203 | ||
| 36 | 23626351 | ||
| 37 | 23626807 | ||
| 38 | 23626906 | ||
| 49 | 23627359 | ||
| 21 | 23627458 | ||
| 2 | 23628100 | ||
| 33 | 23628209 | ||
| 3 | 23628357 | ||
| 4 | 23628555 | ||
| 5 | 23628704 | ||
| 35 | 23628803 | ||
| 36 | 23628902 | ||
| 37 | 23629009 | ||
| 6 | 23629108 | ||
| 8 | 23629207 | ||
| 7 | 23629256 | ||
| 10 | 23629306 | ||
| 44 | 23629405 | ||
| 12 | 23629504 | ||
| 13 | 23629603 | ||
| 9 | 23629702 | ||
| 14 | 23629801 | ||
| 82 | 23629900 | ||
| 47 | 23630007 | ||
| 42 | 23630007 | ||
| 43 | 23630106 | ||
| 30 | 23630205 | ||
| 23 | 23630304 | ||
| 39 | 23630403 | ||
| 38 | 23630452 | ||
| 40 | 23630502 | ||
| 41 | 23630601 | ||
| 13 | 23630700 | ||
| 35 | 23630700 | ||
| 2 | 23631005 | ||
| 1 | 23631054 | ||
| 3 | 23631104 | ||
| 4 | 23631203 | ||
| 10 | 23631302 | ||
| 22 | 23631708 | ||
| 11 | 23631757 | ||
| 23 | 23631807 | ||
| 24 | 23631906 | ||
| 15 | 23632003 | ||
| 26 | 23632102 | ||
| 27 | 23632250 | ||
| 17 | 23632359 | ||
| 25 | 23632607 | ||
| 20 | 23632656 | ||
| 2 | 23633159 | ||
| 1 | 23633167 | ||
| 3 | 23633209 | ||
| 4 | 23633357 | ||
| 29 | 23636657 | ||
| 72 | 23638000 | ||
| 71 | 23638059 | ||
| 73 | 23638109 | ||
| 74 | 23638208 | ||
| 75 | 23638307 | ||
| 76 | 23638406 | ||
| 77 | 23638554 | ||
| 2 | 23639008 | ||
| 1 | 23639057 | ||
| 4 | 23639107 | ||
| 3 | 23639156 | ||
| 7 | 23639206 | ||
| 8 | 23639305 | ||
| 9 | 23639404 |
Page 58 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10 | 23639503 | ||
| 11 | 23639602 | ||
| 8 | 23639701 | ||
| 1-2 | 23639750 | ||
| 1-2 | 23639958 | ||
| 1 | 23642200 | ||
| 49 | 23645005 | ||
| 50 | 23645104 | ||
| 48 | 23645153 | ||
| 18 | 23645203 | ||
| 17 | 23645252 | ||
| 19 | 23645401 | ||
| 16 | 23645559 | ||
| 6 | 23645609 | ||
| 1-10 | 23645807 | ||
| 14 | 23646003 | ||
| 2 | 26260109 | ||
| 3 | 26260208 | ||
| 4 | 26260307 | ||
| 5 | 26260406 | ||
| 6 | 26260505 | ||
| 7 | 26260604 | ||
| 8 | 26260802 | ||
| 9 | 26261008 | ||
| 10 | 26261206 | ||
| 11 | 26261305 | ||
| 12 | 26261503 | ||
| 13 | 26261602 | ||
| 14 | 26261701 | ||
| 39 | 40010434 | ||
| 15 | 40011144 | ||
| 1 | 40011344 | ||
| 44 | 40011711 | ||
| 18 | 40012032 | ||
| 6 | 40014837 | ||
| 10 | 40020455 | ||
| 2 | 40022407 | ||
| 20 | 40022668 | ||
| 6 | 40023021 | ||
| 6 | 40023022 | ||
| 16 | 40023289 | ||
| 26 | 40023290 | ||
| 6 | 40023291 | ||
| 28 | 40024644 | ||
| 8 | 40028014 | ||
| 21 | 40029963 | ||
| 81 | 40031605 | ||
| 83 | 40031606 | ||
| 82 | 40031607 | ||
| 80 | 40031608 | ||
| 1 | 40033391 | ||
| 2 | 40033392 | ||
| 3 | 40033393 | ||
| 22 | 40039946 | ||
| 45 | 40044875 | ||
| 11 | 40044906 | ||
| 8 | 40051473 | ||
| 12 | 40052274 | ||
| 85-87 | B11090120B | ||
| 3-37 | B11090120B | ||
| 85-87 | B1109552000 | ||
| 32 | B141455000 | ||
| 69 | B1418415H00 | ||
| 70 | B1419553000 | ||
| 11 | B1505552000A | ||
| 25 | B1521550000 | ||
| 26-27 | B15240120BA | ||
| 26-27 | B15245520BA | ||
| 25-27 | B1613012100 | ||
| 15-38 | B1613012100 | ||
| 57 | B3111126000 | ||
| 25 | B3111126000 | ||
| 51 | B3115552000 | ||
| 26 | B3115552000 | ||
| 84 | B3118552F00 | ||
| 52 | B3120125000 | ||
| 27 | B3120125000 | ||
| 53 | B3126012000 | ||
| 32 | B3126012000 | ||
| 24 | B3126012000 | ||
| 54 | B3128012000 | ||
| 55 | B3129012A00 | ||
| 56 | B3132552000 | ||
| 23 | B3132552000 | ||
| 21 | B3538112000 | ||
| 28-30 | B412352200A | ||
| 28-30 | B412352200B | ||
| 28-30 | B412352200C | ||
| 14 | B8210012000 | ||
| 71 | B9117012000 | ||
| 18 | B91210120A0 | ||
| 23 | CM300200001 | ||
| 18 | CM300200003 | ||
| 22 | CM301300001 | ||
| 48 | CM600100101 | ||
| 20 | CQ200000001 | ||
| 34 | CS111110ESH | ||
| 11 | D1524555DBB | ||
| 12 | D1524555EBL | ||
| 15-38 | D1613155W00 | ||
| 7 | D2406555D0H | ||
| 5 | D2468555B00 | ||
| 29 | D3128555D00 | ||
| 28 | D3129555D00 | ||
| 33 | D7133555B00 | ||
| 16 | D8204555D00 | ||
| 15 | D8226555E00 | ||
| 78 | EA9500B0100 | ||
| 45 | EA9500B0100 | ||
| 28 | EA9500B0100 | ||
| 20 | GPK700010A0 | ||
| 21 | GPK710010A0 | ||
| 17 | HA000590000 | ||
| 42 | HK03464000B | ||
| 6 | HK03464000B | ||
| 18 | HK03464000B | ||
| 52 | HK03464000B | ||
| 19 | HW200390000 | ||
| 20 | HW500070000 | ||
| 44-46 | M6022350AAA | ||
| 44-46 | M6022350AAF | ||
| 44-46 | M6022350AAL | ||
| 3 | M6023350AAA | ||
| 4 | M6023350AAF | ||
| 5 | M6024350AAF | ||
| 44 | M68014710A0 | ||
| 8-10 | MC200500650 | ||
| 33-35 | MC200500750 | ||
| 20-22 | MC200500752 | ||
| 8-9 | MC200501300 | ||
| 8-10 | MDB100B0900 | ||
| 33-35 | MDB100B1100 | ||
| 20-22 | MDB100B1102 | ||
| 33-35 | MDB100B1400 | ||
| 20-22 | MDB100B1402 |
Page 59 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8~9 | MDB100B2100 | ||
| 26 | RO195240100 | ||
| 50 | SS2060210SP | ||
| 8~10 | MDB1SFB0900 | ||
| 51 | SB117000400 | ||
| 25 | SS2060210SP | ||
| 19 | MDFRX1600C0 | ||
| 21 | SB120000800 | ||
| 27 | SS2110915SP | ||
| 43 | NM6040000SN | ||
| 52 | SB120001000 | ||
| 28 | SS2110920TP | ||
| 53 | NM6040000SN | ||
| 41 | SB307000200 | ||
| 32 | SS4080620TP | ||
| 17 | NM6050001SE | ||
| 48~50 | SB32000060A | ||
| 10 | SS4080620TP | ||
| 5 | NM6060001SE | ||
| 48~50 | SB32000060B | ||
| 25 | SS4080620TP | ||
| 18 | NM6160511SE | ||
| 48~50 | SB32000060C | ||
| 51 | SS4080620TP | ||
| 21 | NS6090310SP | ||
| 8 | SD0460703TP | ||
| 26 | SS4080620TP | ||
| 36 | NS6110310SP | ||
| 23 | SD0460703TP | ||
| 13 | SS4090610SP | ||
| 22 | NS6110310SP | ||
| 49 | SD0460703TP | ||
| 2 | SS4090610SP | ||
| 31 | NS6110350SP | ||
| 23 | SD0460703TP | ||
| 81 | SS4110615SP | ||
| 34 | NS6110530SP | ||
| 24 | SD0500131TP | ||
| 67 | SS4110715SP | ||
| 47 | NS6150310SP | ||
| 55 | SD0600321SP | ||
| 67 | SS4110715SP | ||
| 37 | NS6150310SP | ||
| 56 | SD0630275SP | ||
| 46 | SS4110715SP | ||
| 25 | NS6150310SP | ||
| 57 | SD0641452TP | ||
| 58 | SS4110715SP | ||
| 17 | NS6150310SP | ||
| 25 | SD0650321TP | ||
| 58 | SS4110715SP | ||
| 41 | NS6150310SP | ||
| 30 | SD0720331SP | ||
| 45 | SS4110715SP | ||
| 26 | NS6150810SP | ||
| 20 | SD0720331SP | ||
| 30 | SS4120615SP | ||
| 44 | NS6150810SP | ||
| 32 | SD0951501SP | ||
| 43 | SS4120615SP | ||
| 44 | NS6660410SH | ||
| 17 | SK3382001SC | ||
| 2 | SS4120615SP | ||
| 44 | NS6660410SH | ||
| 19 | SK3513200SC | ||
| 2 | SS4120615SP | ||
| 54 | NS6660410SH | ||
| 18 | SK3513200SC | ||
| 33 | SS4120915SP | ||
| 45 | NS6660430SP | ||
| 26 | SL4030631SC | ||
| 33 | SS4120915SP | ||
| 55 | NS6660430SP | ||
| 46 | SL4040881SC | ||
| 29 | SS4120915SP | ||
| 31 | RC0150001KP | ||
| 26 | SL60502592TN | ||
| 31 | SS4121015SP | ||
| 18 | RC0560711KP | ||
| 47 | SL60502592TN | ||
| 28 | SS4121015SP | ||
| 23 | RE0250000K0 | ||
| 79 | SM4021201SC | ||
| 88 | SS4121215SP | ||
| 19 | RE0400000K0 | ||
| 12 | SM4051405SE | ||
| 35 | SS4150915SP | ||
| 27 | RE0400000K0 | ||
| 12 | SM4051405SE | ||
| 27 | SS4150915SP | ||
| 43 | RE0400000K0 | ||
| 20 | SM5040655SN | ||
| 60 | SS4150915SP | ||
| 45 | RE0500000K0 | ||
| 9 | SM6040602TP | ||
| 34 | SS4150915SP | ||
| 39 | RE0500000K0 | ||
| 6 | SM6061610SC | ||
| 17 | SS6060210SP | ||
| 24 | RE0500000K0 | ||
| 4 | SM8040412TP | ||
| 28 | SS6090540SP | ||
| 28 | RE0600000K0 | ||
| 21 | SM8040802TP | ||
| 28 | SS6090620TP | ||
| 44 | RE0600000K0 | ||
| 22 | SM8050502TP | ||
| 34 | SS6090620TP | ||
| 19 | RE1000000K0 | ||
| 24 | SM8060812TP | ||
| 37 | SS6090620TP | ||
| 7 | RE1200000K0 | ||
| 41 | SM8060812TP | ||
| 29 | SS6090620TP | ||
| 34 | RO029180100 | ||
| 20 | SM80608A2TP | ||
| 31 | SS6090670TP | ||
| 29 | RO037180100 | ||
| 6 | SM8063012TR | ||
| 42 | SS6090670TP | ||
| 50 | RO044240100 | ||
| 29 | SM9061203SE | ||
| 54 | SS6090670TP | ||
| 16 | RO068190100 | ||
| 22 | SM9061853SR | ||
| 54 | SS6090670TP | ||
| 83 | RO080150200 | ||
| 16 | SM9062053SR | ||
| 32 | SS6090910SP | ||
| 40 | RO092270200 | ||
| 9 | SS2060210SP | ||
| 8 | SS6110420TP | ||
| 25 | RO098240100 | ||
| 24 | SS2060210SP | ||
| 17 | SS6110420TP |
Page 60 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 69 | SS6110610TP | SS6110610TP | 4 |
| 60 | SS6110650TP | SS6110650TP | 22 |
| 55 | SS6110710TP | SS6110710TP | 22 |
| 49 | SS6110710TP | SS6110710TP | 26 |
| 74 | SS61111010TP | SS61111010TP | 22 |
| 7 | SS6111440SP | SS6111440SP | 8 |
| 24 | SS6121000SN | SS6121000SN | 6 |
| 25 | SS6121610SP | SS6121610SP | 16 |
| 10 | SS6121610SP | SS6121610SP | 20 |
| 43 | SS6121840SP | SS6121840SP | 16 |
| 44 | SS6121860SP | SS6121860SP | 16 |
| 42 | SS6151920TP | SS6151920TP | 8 |
| 45 | SS6151920TP | SS6151920TP | 16 |
| 51 | SS6660610TP | SS6660610TP | 26 |
| 6 | SS6661110SP | SS6661110SP | 16 |
| 36 | SS7080510TP | SS7080510TP | 8 |
| 30 | SS7090610SP | SS7090610SP | 24 |
| 46 | SS7090610SP | SS7090610SP | 46 |
| 33 | SS7091110TP | SS7091110TP | 12 |
| 35 | SS7110540SP | SS7110540SP | 2 |
| 36 | SS7110740TP | SS7110740TP | 20 |
| 21 | SS7110740TP | SS7110740TP | 30 |
| 14 | SS7111410TP | SS7111410TP | 42 |
| 3 | SS7111410TP | SS7111410TP | 46 |
| 35 | SS7111810TP | SS7111810TP | 12 |
| 85 | SS7112420SP | SS7112420SP | 22 |
| 15 | SS7121410TP | SS7121410TP | 20 |
| 4 | SS7681650TP | SS7681650TP | 8 |
| 58 | SS8090670SP | SS8090670SP | 4 |
| 30 | SS8090670SP | SS8090670SP | 42 |
| 66 | SS8090670SP | SS8090670SP | 48 |
| 53 | SS8110520TP | SS8110520TP | 26 |
| 70 | SS8150710TP | SS8150710TP | 4 |
| 84 | SS8150822TP | SS8150822TP | 22 |
| 88 | SS8151150TP | SS8151150TP | 20 |
| 75 | SS8151150TP | SS8151150TP | 22 |
| 35 | SS8151150TP | SS8151150TP | 48 |
| 6 | SS8660330SP | SS8660330SP | 16 |
| 10 | SS8660610TP | SS8660610TP | 8 |
| 24 | SS8660610TP | SS8660610TP | 16 |
| 76 | SS8660610TP | SS8660610TP | 20 |
| 76 | SS8660810TP | SS8660810TP | 20 |
| 75 | SS8660810TP | SS8660810TP | 22 |
| 5 | SS8661030SP | SS8661030SP | 22 |
| SS8681650TP | SS8681650TP | 8 | |
| 46 | ST4040821SS | ST4040821SS | 28 |
| 38 | TA0850604R0 | TA0850604R0 | 2 |
| 40 | TA1250406R0 | TA1250406R0 | 2 |
| 41 | TA1250705R0 | TA1250705R0 | 2 |
| 42 | TA1270502R0 | TA1270502R0 | 2 |
| 43 | TA1470704R0 | TA1470704R0 | 2 |
| 72 | WP0371016SD | WP0371016SD | 48 |
| 56 | WP0430800SC | WP0430800SC | 48 |
| 46 | WP0450000SD | WP0450000SD | 24 |
| 23 | WP0450826SC | WP0450826SC | 6 |
| 58 | WP0480856SP | WP0480856SP | 14 |
| 16 | WP0480856SP | WP0480856SP | 20 |
| 47 | WP0501016SD | WP0501016SD | 4 |
| 34 | WP0501016SD | WP0501016SD | 12 |
| 31 | WP0501016SD | WP0501016SD | 28 |
| 29 | WP0501016SD | WP0501016SD | 30 |
| 49 | WP0621016SD | WP0621016SD | 14 |
| 31 | WP0621016SH | WP0621016SH | 24 |
| 47 | WP0621016SH | WP0621016SH | 48 |
| 23 | WP0650876SD | WP0650876SD | 36 |
| 19 | WP1612616SE | WP1612616SE | 34 |
| 9 | WP1703001SC | WP1703001SC | 30 |
| 16 | WS0510002KN | WS0510002KN | 34 |
| 32 | WS0510002KP | WS0510002KP | 28 |
| 20 | WS1643202KR | WS1643202KR | 34 |
Juki DDL-9000 — parts catalog
- Page 1 (cover): This page is the cover for the parts list of the DDL-9000 model, published on October 9, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of the machine frame and miscellaneous cover components for an industrial sewing machine.
- Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, and quantities.
- Page 5 (diagram): This page displays a diagram of machine frame and miscellaneous cover components for an industrial sewing machine.
- Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, and quantities.
- Page 7 (diagram): This page illustrates the components of a bobbin winder for an industrial sewing machine, showing an exploded view of the assembly with reference numbers.
- Page 8 (parts_list): This page lists bobbin winder components, including part numbers, names, and quantities.
- Page 9 (diagram): This page contains a diagram illustrating the components of the main shaft and needle bar, with various parts numbered for reference.
- Page 10 (parts_list): This page lists components for the Main Shaft & Needle Bar, including various screws, shafts, bearings, and needles, with part numbers, names, and quantities.
- Page 11 (diagram): This page contains a diagram illustrating the components of the main shaft and needle bar, with various parts numbered for reference.
- Page 12 (parts_list): This page lists components for the Main Shaft & Needle Bar, including part numbers, names, and quantities for items like the Needle Bar Thread Guide and BTW Driving Wheel.
- Page 13 (diagram): This page contains a diagram illustrating the components of the hand lifter and tension release system, with reference numbers pointing to specific parts.
- Page 14 (parts_list): This page lists components for the Hand Lifter & Tension Release, including part numbers, names, and quantities.
- Page 15 (diagram): This page contains a diagram illustrating the components of the hand lifter and tension release system, with reference numbers pointing to specific parts.
- Page 16 (parts_list): This page lists components for the Hand Lifter & Tension Release, including bolts, washers, rubber rings, and various assembly parts with their corresponding part numbers and quantities.
- Page 17 (diagram): This page contains a diagram of the feed adjust mechanism components, with numbered references for each part.
- Page 18 (parts_list): This page lists components for the FEED ADJUST MECHANISM, including part numbers, names, and quantities.
- Page 19 (diagram): This page contains a diagram of the feed adjust mechanism components, with numbered references to parts.
- Page 20 (parts_list): This page lists components for the FEED ADJUST MECHANISM, including part numbers, names, and quantities.
- Page 21 (diagram): This page contains a diagram illustrating components of the horizontal feed, vertical feed, and hook driving shaft for an industrial sewing machine. It includes numbered references to various parts.
- Page 22 (parts_list): This page lists components for the horizontal feed, vertical feed, and hook driving shaft, including part numbers, names, quantities, and remarks.
- Page 23 (diagram): This page displays a diagram of horizontal feed, vertical feed, and hook driving shaft components, with numbered parts for identification.
- Page 24 (parts_list): This page lists components for horizontal feed, vertical feed, and hook driving shafts, including bearings, oil seals, screws, shafts, gears, bobbin cases, hooks, and sprockets, with part numbers, names, and quantities.
- Page 25 (diagram): This page contains a diagram illustrating the components of a thread trimmer, with reference numbers pointing to various parts.
- Page 26 (parts_list): This page lists components for the thread trimmer, including knives, screws, springs, and solenoids, with part numbers, names, and quantities.
- Page 27 (diagram): This page contains a diagram illustrating the components of a thread trimmer, with reference numbers pointing to various parts.
- Page 28 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities, with reference numbers ranging from 48 to 60.
- Page 29 (diagram): This page displays a diagram of oil lubrication components, illustrating various parts with reference numbers for identification.
- Page 30 (parts_list): This page lists oil lubrication components with their part numbers, names, remarks, and quantities.
- Page 31 (diagram): This page contains a diagram illustrating the automatic reverse feed components of a sewing machine, with numbered references pointing to various parts.
- Page 32 (parts_list): This page lists automatic reverse feed components, including part numbers, names, quantities, and remarks for items like solenoids, switches, screws, and washers.
- Page 33 (diagram): This page displays a diagram of wiper components for the DDL-9000-WB model, with numbered parts indicated.
- Page 34 (parts_list): This page lists wiper components for the DDL-9000-WB sewing machine, including part numbers, names, and quantities.
- Page 35 (diagram): This page contains a diagram illustrating the components of a thread stand, with reference numbers pointing to various parts.
- Page 36 (parts_list): This page lists thread stand components, including part numbers, names, and quantities, with reference numbers from 1 to 20.
- Page 37 (diagram): This page contains a diagram of under cover components for a sewing machine, with numbered reference points.
- Page 38 (parts_list): This page lists components for the under cover, including part numbers, descriptions, and quantities.
- Page 39 (diagram): This page displays a diagram of accessory part components for an industrial sewing machine, with numbered illustrations of various parts.
- Page 40 (parts_list): This page lists accessory part components for a sewing machine, including part numbers, descriptions, remarks, and quantities.
- Page 41 (diagram): This page displays a diagram of exclusive parts for the DDL-9000DS sewing machine, with numbered components indicating their respective part numbers and descriptions.
- Page 42 (parts_list): This page lists exclusive parts for the DDL-9000DS sewing machine, including part numbers, descriptions, and quantities.
- Page 43 (diagram): This page displays a diagram of exclusive parts for the DDL-9000DF sewing machine, with various components labeled with reference numbers.
- Page 44 (parts_list): This page lists exclusive parts for the DDL-9000DF sewing machine, including part numbers, descriptions, remarks, and quantities.
- Page 45 (diagram): This page displays a diagram of exclusive parts for the DDL-9000DF sewing machine, with various components numbered for identification.
- Page 46 (parts_list): This page lists exclusive parts for the DDL-9000DF, including part numbers, names, and quantities.
- Page 48 (parts_list): This page lists parts for the DDL-9000SH-WB,0B sewing machine, including part numbers, names, remarks, and quantities.
- Page 49 (diagram): This page displays a diagram of exclusive parts for the DDL-9000SH-WB,0B sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 50 (parts_list): This page lists exclusive parts for the DDL-9000SH-WB,0B sewing machine, including washers, solenoids, nuts, screws, and thread tension components with their respective part numbers and quantities.
- Page 51 (diagram): This page displays a diagram of table and stand components for an industrial sewing machine, with numbered parts indicated.
- Page 52 (parts_list): This page lists table and stand components with their part numbers, descriptions, remarks, and quantities.
- Page 53 (parts_list): This page lists added and obsoleted parts with their corresponding revision numbers, page numbers, reference numbers, and part numbers.
- Page 54 (text): This page provides instructions on how to use the parts list, explaining various codes and symbols used in the catalog, including explanations for asterisks, #01 codes, numerical quantities, and parenthetical notations.
- Page 55 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers from diagrams.
- Page 56 (index): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 57 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, page numbers, and reference numbers across multiple columns.
- Page 58 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 59 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers from diagrams.
- Page 60 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers.
