Page 1 — PARTS LIST
MODEL : DDL-9000 List No : 1259-07 PARTS LIST Published:09/10/2017 jintex.in
Juki DDL-9000 — parts catalog
- Page 1 (cover): This page is the cover for the parts list of the DDL-9000 model, published on October 9, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of the machine frame and miscellaneous cover components for an industrial sewing machine.
- Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, and quantities.
- Page 5 (diagram): This page displays a diagram of machine frame and miscellaneous cover components for an industrial sewing machine.
- Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, and quantities.
- Page 7 (diagram): This page illustrates the components of a bobbin winder for an industrial sewing machine, showing an exploded view of the assembly with reference numbers.
Page 2 — CONTENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS | MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS | 1 | |
| BOBBIN WINDER COMPONENTS | BOBBIN WINDER COMPONENTS | 5 | |
| MAIN SHAFT & NEEDLE BAR COMPONENTS | MAIN SHAFT & NEEDLE BAR COMPONENTS | 7 | |
| HAND LIFTER & TENSION RELEASE COMPONENTS | HAND LIFTER & TENSION RELEASE COMPONENTS | 11 | |
| FEED ADJUST MECHANISM COMPONENTS | FEED ADJUST MECHANISM COMPONENTS | 15 | |
| HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS | HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS | 19 | |
| THREAD TRIMMER COMPONENTS | THREAD TRIMMER COMPONENTS | 23 | |
| OIL LUBRICATION COMPONENTS | OIL LUBRICATION COMPONENTS | 27 | |
| AUTOMATIC REVERSE FEED COMPONENTS | AUTOMATIC REVERSE FEED COMPONENTS | 29 | |
| WIPER COMPONENTS(FOR DDL-9000-WB) | WIPER COMPONENTS(FOR DDL-9000-WB) | 31 | |
| THREAD STAND COMPONENTS | THREAD STAND COMPONENTS | 33 | |
| UNDER COVER COMPONENTS | UNDER COVER COMPONENTS | 35 | |
| ACCESSORIE PART COMPONENTS | ACCESSORIE PART COMPONENTS | 37 | |
| EXCLUSIVE PART FOR DDL-9000DS | EXCLUSIVE PART FOR DDL-9000DS | 39 | |
| EXCLUSIVE PART FOR DDL-9000DF | EXCLUSIVE PART FOR DDL-9000DF | 41 | |
| EXCLUSIVE PART FOR DDL-9000SH-WB,0B | EXCLUSIVE PART FOR DDL-9000SH-WB,0B | 45 | |
| TABLE & STAND COMPONENTS | TABLE & STAND COMPONENTS | 49 | |
| LIST FOR INFORMATION OF CHANGE | LIST FOR INFORMATION OF CHANGE | 51 | |
| HOW TO MAKE USE OF THIS PARTS LIST | HOW TO MAKE USE OF THIS PARTS LIST | 52 |
CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

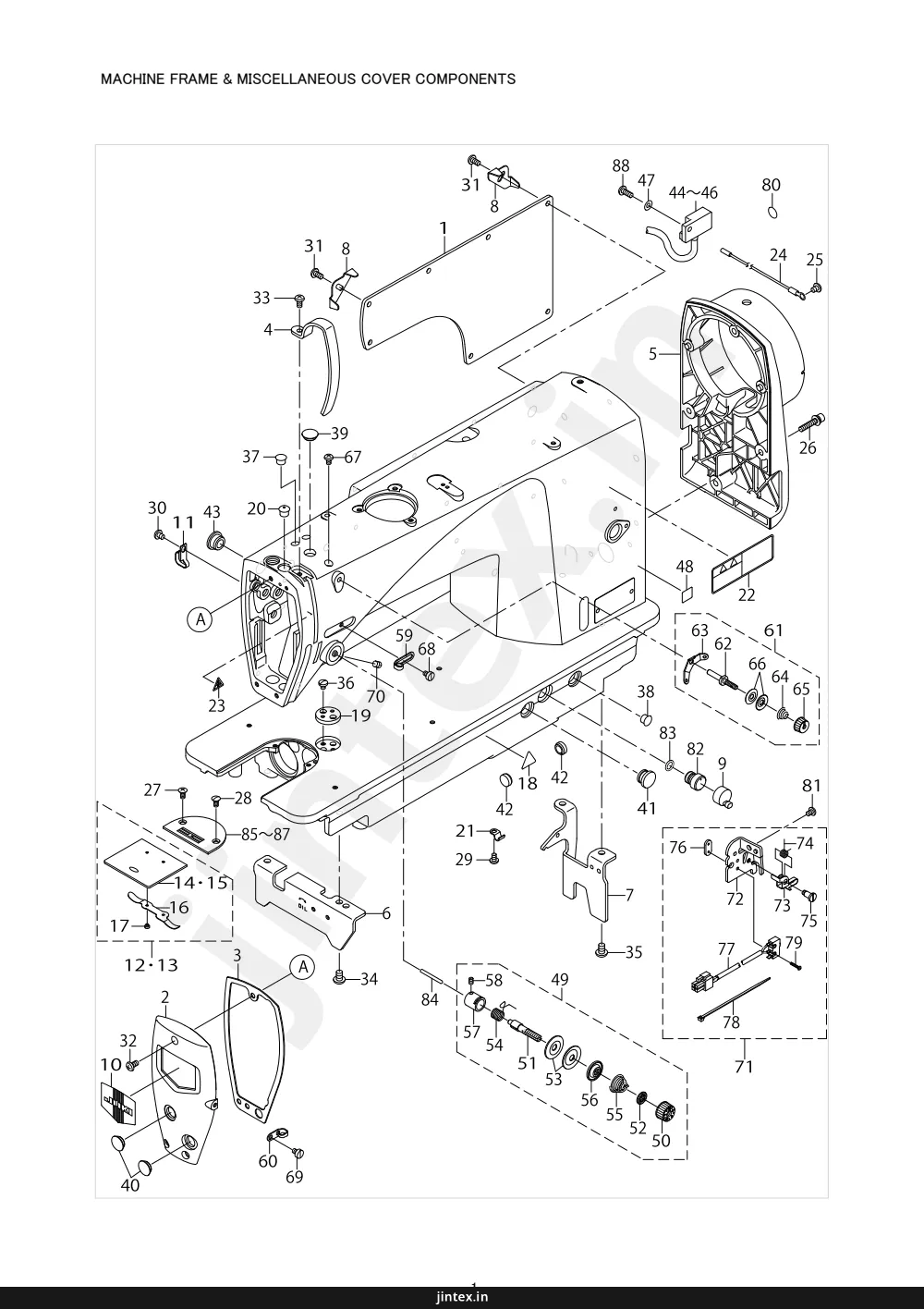

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 88 47 44~46 80 31 8 1 24 25 33 4 5 39 67 26 37 30 43 20 11 48 22 A 61 59 63 62 68 66 64 36 70 38 65 23 19 83 82 9 18 42 81 27 28 42 41 85~87 21 76 74 29 14 15 72 73 16 6 75 17 77 79 3 12 13 A 34 58 49 2 84 57 78 54 32 51 10 53 71 56 55 52 50 60 69 40 jintex.in
Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 23600208 | SIDE PLATE | |
| 2 | 23600307 | FACE PLATE | |
| 3 | 23600406 | FACE PLATE PACKING | |
| 4 | 23600505 | THREAD TAKE-UP LEVER COVER | |
| 5 | 23600604 | PULLEY COVER | |
| 6 | 23600703 | BED STUD A | |
| 7 | 23600802 | BED STUD B | |
| 8 | 22954705 | CORD FIXING METAL FITTING | |
| 9 | 23601305 | AIR-DISCHARGING CAP | |
| 10 | 22902506 | FACE PLATE | |
| 11 | 40022407 | CORD HOLDER | |
| 12 | 22901250 | SLIDE PLATE ASM. | |
| 13 | 22902753 | SLIDE PLATE ASM. | |
| 14 | 22901201 | SLIDE PLATE | |
| 15 | 22902704 | SLIDE PLATE | |
| 16 | 22901300 | SLIDE PLATE SPRING | |
| 17 | SS6060210SP | SCREW 3/32-56 L=1.9 | |
| 18 | CM300200003 | ATTENTION LABEL | |
| 19 | 22902605 | RULER STOP SEAT | |
| 20 | 22901409 | NEEDLE BAR UPPER BUSH CAP | |
| 21 | B3538112000 | OIL RETURN TUBE HOLDER | |
| 22 | CM301300001 | SAFETY LABEL | |
| 23 | CM300200001 | ATTENTION SEAL | |
| 24 | 23601057 | EARTH CORD ASM. | |
| 25 | SS4120615SP | SCREW 3/16-28 L=6 | |
| 26 | SL6052592TN | BOLT | |
| 27 | SS2110915SP | SCREW 11/64-40 L=8.5 | |
| 28 | SS2110920TP | SCREW 11/64-40 L=8.5 | |
| 29 | SS4110715SP | SCREW 11/64-40 L=7 | |
| 30 | SS4120615SP | SCREW 3/16-28 L=6 | |
| 31 | SS4120915SP | SCREW 3/16-28 L=9 | |
| 32 | SS4120915SP | SCREW 3/16-28 L=9 | |
| 33 | SS4120915SP | SCREW 3/16-28 L=9 | |
| 34 | SS4150915SP | SCREW 15/64-28 L=9 | |
| 35 | SS4150915SP | SCREW 15/64-28 L=9 | |
| 36 | SS7110540SP | SCREW 11/64-40 L=5 | |
| 37 | TA0850604R0 | RUBBER PLUG | |
| 38 | TA0850604R0 | RUBBER PLUG | |
| 39 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | |
| 40 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | |
| 41 | TA1250705R0 | RUBBER PLUG | |
| 42 | TA1270502R0 | RUBBER PLUG | |
| 43 | TA1470704R0 | RUBBER PLUG | |
| 44 | M6022350AA | RESISTOR PACK AA ASM. | |
| 45 | M6022350AL | RESISTOR PACK AL ASM. | |
| 46 | M6022350AF | RESISTOR PACK AF ASM. |
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23600208 SIDE PLATE 1 2 23600307 FACE PLATE 1 3 23600406 FACE PLATE PACKING 1 4 23600505 THREAD TAKE-UP LEVER COVER 1 5 23600604 PULLEY COVER 1 6 23600703 BED STUD A 1 7 23600802 BED STUD B 1 8 22954705 CORD FIXING METAL FITTING 2 9 23601305 AIR-DISCHARGING CAP 1 10 22902506 FACE PLATE 1 11 40022407 CORD HOLDER 1 12 22901250 SLIDE PLATE ASM. EXCEPT JH 1 13 22902753 SLIDE PLATE ASM. FOR JH 1 14 22901201 SLIDE PLATE EXCEPT JH * 1 15 22902704 SLIDE PLATE FOR JH * 1 16 22901300 SLIDE PLATE SPRING * 1 17 SS6060210SP SCREW 3/32-56 L=1.9 * 2 18 CM300200003 ATTENTION LABEL 1 19 22902605 RULER STOP SEAT 1 20 22901409 NEEDLE BAR UPPER BUSH CAP 1 21 B3538112000 OIL RETURN TUBE HOLDER 1 22 CM301300001 SAFETY LABEL 1 23 CM300200001 ATTENTION SEAL 1 24 23601057 EARTH CORD ASM. FOR GENERAL EXPORT,JA,JE 1 25 SS4120615SP SCREW 3/16-28 L=6 FOR GENERAL EXPORT,JA,JE 1 26 SL6052592TN BOLT 4 27 SS2110915SP SCREW 11/64-40 L=8.5 1 28 SS2110920TP SCREW 11/64-40 L=8.5 1 29 SS4110715SP SCREW 11/64-40 L=7 1 30 SS4120615SP SCREW 3/16-28 L=6 7 31 SS4120915SP SCREW 3/16-28 L=9 3 32 SS4120915SP SCREW 3/16-28 L=9 1 33 SS4120915SP SCREW 3/16-28 L=9 2 34 SS4150915SP SCREW 15/64-28 L=9 2 35 SS4150915SP SCREW 15/64-28 L=9 2 36 SS7110540SP SCREW 11/64-40 L=5 2 37 TA0850604R0 RUBBER PLUG 1 38 TA0850604R0 RUBBER PLUG 1 39 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 40 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 41 TA1250705R0 RUBBER PLUG 1 42 TA1270502R0 RUBBER PLUG 2 43 TA1470704R0 RUBBER PLUG 1 44 M6022350AA RESISTOR PACK AA ASM. FOR JA 1 45 M6022350AL RESISTOR PACK AL ASM. FOR GENERAL EXPORT, USE IN JAPAN,JH 1 46 M6022350AF RESISTOR PACK AF ASM. FOR JE 1 jintex.in
Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS jintex.in
Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| WP0501016SD | WASHER 5X10.5X1 | 1 | |
| CM600100101 | WEEE MARK LABEL S | ||
| 23627359 | THREAD TENSION ASM. | 1 | |
| 23626005 | THREAD TENSION NUT | 1 | |
| B3115552000 | TENSION POST | 1 | |
| B3120125000 | ROTATING STOPPER | 1 | |
| B3126012000 | THREAD TENSION DISK | 2 | |
| B3128012000 | TAKE-UP SPRING | 1 | |
| B312902A00 | TENSION SPRING | 1 | |
| B3132552000 | THREAD TENSION DISK PRESSER | 1 | |
| B3111126000 | TENSION POST SOCKET | 1 | |
| SS8090670SP | SCREW 9/64-40 L= 5.5 | 1 | |
| 23626104 | ARM THREAD GUIDE A | 1 | |
| 22920607 | ARM THREAD GUIDE B | 1 | |
| 22945463 | THREAD TENSION ASM.,NO.1 | 1 | |
| 22945414 | THREAD TENSION POST | 1 | |
| 22945604 | THREAD TENSION GUIDE | 1 | |
| 22945505 | THREAD TENSION SPRING | 1 | |
| 22945703 | THREAD TENSION NUT | 1 | |
| 22945802 | THREAD TENSION DISK | 2 | |
| SS4110715SP | SCREW 11/64-40 L=7 | 1 | |
| SS6110610TP | SCREW 11/64-40 L=6 | 1 | |
| SS6110610TP | SCREW 11/64-40 L=6 | 1 | |
| SS8150710TP | SCREW 15/64-28 L=7 | 1 | |
| 23638059 | SAFETY SWITCH ASM. | 1 | |
| 23638000 | SAFETY SWITCH BASE | 1 | |
| 23638109 | SAFETY SWITCH ARM | 1 | |
| 23638208 | SAFETY SWITCH SPRING | 1 | |
| 23638307 | SAFETY SWITCH ARM SHAFT | 1 | |
| 23638406 | SAFETY SWITCH NUT | 1 | |
| 23638554 | SAFETY SWITCH CORD ASM. | 1 | |
| EA9500B0100 | CABLE BAND | 1 | |
| SM4021201SC | SCREW M2 L=12 | 2 | |
| 22901805 | GROUND MARK | ||
| SS4110615SP | SCREW 11/64-40 L=6 | 1 | |
| 23629900 | AIR-DISCHARGING | 1 | |
| R0080150200 | RUBBER RING | 1 | |
| B3118552F00 | TENSION RELEASING PIN | 1 | |
| B1109012I0B | THROAT PLATE (I) | ||
| 11028008 | THROAT PLATE | ||
| B1109552000 | THROAT PLATE | ||
| SS4121215SP | SCREW 3/16-28 L=12 | 1 |
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 47 WP0501016SD WASHER 5X10.5X1 1 48 CM600100101 WEEE MARK LABEL S FOR JE 1 49 23627359 THREAD TENSION ASM. 1 50 23626005 THREAD TENSION NUT * 1 51 B3115552000 TENSION POST * 1 52 B3120125000 ROTATING STOPPER * 1 53 B3126012000 THREAD TENSION DISK * 2 54 B3128012000 TAKE-UP SPRING * 1 55 B312902A00 TENSION SPRING * 1 56 B3132552000 THREAD TENSION DISK PRESSER * 1 57 B3111126000 TENSION POST SOCKET * 1 58 SS8090670SP SCREW 9/64-40 L= 5.5 * 1 59 23626104 ARM THREAD GUIDE A 1 60 22920607 ARM THREAD GUIDE B 1 61 22945463 THREAD TENSION ASM.,NO.1 * 1 62 22945414 THREAD TENSION POST * 1 63 22945604 THREAD TENSION GUIDE * 1 64 22945505 THREAD TENSION SPRING * 1 65 22945703 THREAD TENSION NUT * 1 66 22945802 THREAD TENSION DISK * 2 67 SS4110715SP SCREW 11/64-40 L=7 1 68 SS6110610TP SCREW 11/64-40 L=6 1 69 SS6110610TP SCREW 11/64-40 L=6 1 70 SS8150710TP SCREW 15/64-28 L=7 1 71 23638059 SAFETY SWITCH ASM. 1 72 23638000 SAFETY SWITCH BASE * 1 73 23638109 SAFETY SWITCH ARM * 1 74 23638208 SAFETY SWITCH SPRING * 1 75 23638307 SAFETY SWITCH ARM SHAFT * 1 76 23638406 SAFETY SWITCH NUT * 1 77 23638554 SAFETY SWITCH CORD ASM. * 1 78 EA9500B0100 CABLE BAND * 1 79 SM4021201SC SCREW M2 L=12 * 2 80 22901805 GROUND MARK FOR GENERAL EXPORT,JA,JE 1 81 SS4110615SP SCREW 11/64-40 L=6 1 82 23629900 AIR-DISCHARGING 1 83 R0080150200 RUBBER RING 1 84 B3118552F00 TENSION RELEASING PIN 1 85 B1109012I0B THROAT PLATE (I) FOR JE,GENERAL EXPORT 1 86 11028008 THROAT PLATE FOR USE IN JAPAN 1 87 B1109552000 THROAT PLATE FOR JA,JH 1 88 SS4121215SP SCREW 3/16-28 L=12 1 jintex.in
Page 7 — BOBBIN WINDER COMPONENTS
BOBBIN WINDER COMPONENTS 20 23 17 10 2 9 13 1 4 16 3 14 6 22 11 8 15 11 5 18 19 21 7 21 12 30 33 32 29 31 34 27 26 28 25 24 jintex.in
