Parts index — Juki DDL-9000tap a row to open its page

Page 2 — CONTENTS

Juki DDL-9000 parts on page 2

Ref	Part number	Part name	Qty
	MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS	MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS	1
	BOBBIN WINDER COMPONENTS	BOBBIN WINDER COMPONENTS	5
	MAIN SHAFT & NEEDLE BAR COMPONENTS	MAIN SHAFT & NEEDLE BAR COMPONENTS	7
	HAND LIFTER & TENSION RELEASE COMPONENTS	HAND LIFTER & TENSION RELEASE COMPONENTS	11
	FEED ADJUST MECHANISM COMPONENTS	FEED ADJUST MECHANISM COMPONENTS	15
	HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS	HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS	19
	THREAD TRIMMER COMPONENTS	THREAD TRIMMER COMPONENTS	23
	OIL LUBRICATION COMPONENTS	OIL LUBRICATION COMPONENTS	27
	AUTOMATIC REVERSE FEED COMPONENTS	AUTOMATIC REVERSE FEED COMPONENTS	29
	WIPER COMPONENTS(FOR DDL-9000-WB)	WIPER COMPONENTS(FOR DDL-9000-WB)	31
	THREAD STAND COMPONENTS	THREAD STAND COMPONENTS	33
	UNDER COVER COMPONENTS	UNDER COVER COMPONENTS	35
	ACCESSORIE PART COMPONENTS	ACCESSORIE PART COMPONENTS	37
	EXCLUSIVE PART FOR DDL-9000DS	EXCLUSIVE PART FOR DDL-9000DS	39
	EXCLUSIVE PART FOR DDL-9000DF	EXCLUSIVE PART FOR DDL-9000DF	41
	EXCLUSIVE PART FOR DDL-9000SH-WB,0B	EXCLUSIVE PART FOR DDL-9000SH-WB,0B	45
	TABLE & STAND COMPONENTS	TABLE & STAND COMPONENTS	49
	LIST FOR INFORMATION OF CHANGE	LIST FOR INFORMATION OF CHANGE	51
	HOW TO MAKE USE OF THIS PARTS LIST	HOW TO MAKE USE OF THIS PARTS LIST	52

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000 parts on page 4

Ref	Part number	Part name	Qty
1	23600208	SIDE PLATE
2	23600307	FACE PLATE
3	23600406	FACE PLATE PACKING
4	23600505	THREAD TAKE-UP LEVER COVER
5	23600604	PULLEY COVER
6	23600703	BED STUD A
7	23600802	BED STUD B
8	22954705	CORD FIXING METAL FITTING
9	23601305	AIR-DISCHARGING CAP
10	22902506	FACE PLATE
11	40022407	CORD HOLDER
12	22901250	SLIDE PLATE ASM.
13	22902753	SLIDE PLATE ASM.
14	22901201	SLIDE PLATE
15	22902704	SLIDE PLATE
16	22901300	SLIDE PLATE SPRING
17	SS6060210SP	SCREW 3/32-56 L=1.9
18	CM300200003	ATTENTION LABEL
19	22902605	RULER STOP SEAT
20	22901409	NEEDLE BAR UPPER BUSH CAP
21	B3538112000	OIL RETURN TUBE HOLDER
22	CM301300001	SAFETY LABEL
23	CM300200001	ATTENTION SEAL
24	23601057	EARTH CORD ASM.
25	SS4120615SP	SCREW 3/16-28 L=6
26	SL6052592TN	BOLT
27	SS2110915SP	SCREW 11/64-40 L=8.5
28	SS2110920TP	SCREW 11/64-40 L=8.5
29	SS4110715SP	SCREW 11/64-40 L=7
30	SS4120615SP	SCREW 3/16-28 L=6
31	SS4120915SP	SCREW 3/16-28 L=9
32	SS4120915SP	SCREW 3/16-28 L=9
33	SS4120915SP	SCREW 3/16-28 L=9
34	SS4150915SP	SCREW 15/64-28 L=9
35	SS4150915SP	SCREW 15/64-28 L=9
36	SS7110540SP	SCREW 11/64-40 L=5
37	TA0850604R0	RUBBER PLUG
38	TA0850604R0	RUBBER PLUG
39	TA1250406R0	RUBBER PLUG D=12.5 L=4
40	TA1250406R0	RUBBER PLUG D=12.5 L=4
41	TA1250705R0	RUBBER PLUG
42	TA1270502R0	RUBBER PLUG
43	TA1470704R0	RUBBER PLUG
44	M6022350AA	RESISTOR PACK AA ASM.
45	M6022350AL	RESISTOR PACK AL ASM.
46	M6022350AF	RESISTOR PACK AF ASM.

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000 parts on page 6

Ref	Part number	Part name	Qty
	WP0501016SD	WASHER 5X10.5X1	1
	CM600100101	WEEE MARK LABEL S
	23627359	THREAD TENSION ASM.	1
	23626005	THREAD TENSION NUT	1
	B3115552000	TENSION POST	1
	B3120125000	ROTATING STOPPER	1
	B3126012000	THREAD TENSION DISK	2
	B3128012000	TAKE-UP SPRING	1
	B312902A00	TENSION SPRING	1
	B3132552000	THREAD TENSION DISK PRESSER	1
	B3111126000	TENSION POST SOCKET	1
	SS8090670SP	SCREW 9/64-40 L= 5.5	1
	23626104	ARM THREAD GUIDE A	1
	22920607	ARM THREAD GUIDE B	1
	22945463	THREAD TENSION ASM.,NO.1	1
	22945414	THREAD TENSION POST	1
	22945604	THREAD TENSION GUIDE	1
	22945505	THREAD TENSION SPRING	1
	22945703	THREAD TENSION NUT	1
	22945802	THREAD TENSION DISK	2
	SS4110715SP	SCREW 11/64-40 L=7	1
	SS6110610TP	SCREW 11/64-40 L=6	1
	SS6110610TP	SCREW 11/64-40 L=6	1
	SS8150710TP	SCREW 15/64-28 L=7	1
	23638059	SAFETY SWITCH ASM.	1
	23638000	SAFETY SWITCH BASE	1
	23638109	SAFETY SWITCH ARM	1
	23638208	SAFETY SWITCH SPRING	1
	23638307	SAFETY SWITCH ARM SHAFT	1
	23638406	SAFETY SWITCH NUT	1
	23638554	SAFETY SWITCH CORD ASM.	1
	EA9500B0100	CABLE BAND	1
	SM4021201SC	SCREW M2 L=12	2
	22901805	GROUND MARK
	SS4110615SP	SCREW 11/64-40 L=6	1
	23629900	AIR-DISCHARGING	1
	R0080150200	RUBBER RING	1
	B3118552F00	TENSION RELEASING PIN	1
	B1109012I0B	THROAT PLATE (I)
	11028008	THROAT PLATE
	B1109552000	THROAT PLATE
	SS4121215SP	SCREW 3/16-28 L=12	1

Page 8 — BOBBIN WINDER COMPONENTS

Juki DDL-9000 parts on page 8

Ref	Part number	Part name	Qty
	40023021	BOBBIN WINDER UNIT	1
	26260109	BTW_BASE	1
	26260208	BTW_CAM_PLATE	1
	26260307	BTW_BASE_SHAFT	1
	26260406	BTW_SHAFT_BASE	1
	26260505	BTW_CAM_LEVER	1
	26260604	BTW_WHEEL	1
	26260802	BTW_BEARING_SPACER	1
	26261008	BTW_LEVER_SHAFT	1
	26261206	BTW_SPACER	1
	26261305	BTW_BEARING	2
	26261503	BTW_WHEEL_RUBBER	1
	26261602	BOBBIN_SPRING	1
	26261701	BTW_SPRING	1
	40011144	BTW_TORSION_SPRING	1
	40014837	BTW_SHAFT	1
	40023022	BTW LEVER	1
	RC0560711KP	RETAINING RING	1
	RE0400000K0	E-RING 4	1
	SM5040655SN	SCREW	1
	SM8040802TP	SCREW M4X8	2
	SM8050502TP	SCREW M5 L=5	1
	WP0450826SC	WASHER 4.5X10X0.8	1
	SS6121030SN	SCREW 3/16-28 L=10	3
	10502300	THREAD CUTTER	1
	40023291	THREAD GUIDE NO.1	1
	SS4150915SP	SCREW 15/64-28 L=9	1
	SS6090620TP	SCREW	2
	23636657	BOBBIN THREAD TENSION ASM.	1
	11072402	THREAD TENSION NUT	1
	14113450	BOBBIN THREAD TENSION ROD ASM.	1
	B3126012000	THREAD TENSION DISK	2
	D7133555B00	CONNECTING ROD SPRING	1
	NS6110530SP	NUT 11/64-40	1

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000 parts on page 10

Ref	Part number	Part name	Qty
	23604010	MAIN SHAFT	1
	23604168	COUNTER WEIGHT ASM.	1
	23604119	COUNTER WEIGHT	1
	SS7681650TP	SCREW 9/32-28 L=16	1
	SS8681650TP	SCREW 9/32-28 L=16	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	SS6111440SP	SCREW 11/64-40 L=14.0	2
	40051473	COUPLING ASM.	1
	SM80608A2TP	L=8SCREW M6 L=8	4
	23604457	HAND WHEEL ASM.	1
	40044906	HAND WHEEL ASM.	1
	SM8060812TP	SCREW M6 L=8	2
	23604804	BALANCE PLATE	1
	23604655	MAGNET BASE COMPL. ,A	1
	SL4040881SC	SCREW M4 L=8	2
	SL4040881SC	SCREW M4 L=8	1
	23605009	HAND WHEEL WASHER	2
	23604754	MAGNET BASE COMPL. ,B	1
	23605256	BEARING COMPL.	1
	SM80608A2TP	L=8SCREW M6 L=8	2
	SB120000800	BEARING	1
	40039946	SPROCKET ASM.	1
	23607302	TIMING BELT	1
	SM8060812TP	SCREW M6 L=8	2
	23608003	NEEDLE BAR METAL,UPPER	1
	23608102	NEEDLE BAR METAL,LOWER	1
	22939508	NEEDLE BAR
	11141207	NEEDLE BAR B
	22906457	NEEDLE BAR HOLDER ASM.	1
	22906408	NEEDLE ROD HOLDER	1
	SS6090670TP	SCREW 9/64-40 L=6	1
	B1414555000	SLIDE BLOCK	1
	MDB100B1400	NEEDLE DBX1 #14
	MDB100B1100	NEEDLE DBX1 #11
	MC200500750	NEEDLE 134 NM75
	SS7080510TP	SCREW 1/8-44 L=4.5	1
	23622061	THREAD TAKE-UP ASM.	1
	23622400	THREAD TAKE-UP CRANK SHAFT	1
	40010434	THRUST_COLLAR_ASM.	1
	22891204	BEARING SUPPORT	2
	SB307000200	BEARING	2
	SS6151920TP	SCREW 15/64-28 L=19.0	1
	40028014	AC SERVO MOTOR	1
	M68014710A0	SYNC ASM.	1
	EA9500B0100	CABLE BAND	2
	SL4040881SC	SCREW M4 L=8	2
	SL6052592TN	BOLT	4

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000 parts on page 12

Ref	Part number	Part name	Qty
48	23626203	NEEDLE BAR THREAD GUIDE	1
49	22906309	NEEDLE BAR THREAD GUIDE	1
50	40020455	BTW DRIVING WHEEL	1

Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000 parts on page 14

Ref	Part number	Part name	Qty
	23609001	BUSHING	1
	23609100	PRESSER BAR THREAD GUIDE	1
	23609209	PRESSER SPRING REGULATOR	1
	23609357	LIFTING LEVER CONNECT ROD ASM.	1
	23609308	LIFTING LEVER CONNECT ROD
	23609456	LIFTING LINK COMPL.
	23609605	PLATE
	22908008	LIFTING PLATE
	SM6040602TP	SCREW M4 L=6
	RE0500000K0	E-RING
	RE0500000K0	E-RING
	23609704	LIFTING LEVER LINK	1
	23609803	CONNECTING ROD	1
	23609902	CONNECTING ROD GUIDE	1
	23610108	PRESSER BAR GUIDE BRACKET	1
	23610207	PRESSER BAR	1
	23610306	PRESSER GUIDE BAR	1
	23610405	GUIDE BRACKET PLATE	1
	22908701	LINK SHAFT	2
	22908909	HINGE SCREW	1
	22907604	PRESSER SPRING REGULATOR NUT	1
	22907802	HAND LIFTER	1
	22908552	HAND LIFTER CAM ASM.	1
	22907406	PRESSER SPRING	1
	B1521555000	SCREW	1
	B15240120BA	PRESSER FOOT ASM.
	B15245520BA	PRESSER FOOT ASM.
	RE0500000K0	E-RING	3
	RO037180100	RUBBER RING	1
	SD0720331SP	HINGE SCREW D= 7.24 H= 3.3	1
	SS4121015SP	SCREW 3/16-28 L=10	1
	SS6090910SP	SCREW 9/64-40 L=9	1
	SS7091110TP	SCREW 9/64-40 L=10.5	1
	WP0501016SD	WASHER 5X10.5X1	1
	SS7111810TP	SCREW 11/64-40 L=18	1
	23626351	THREAD TENSION RELEASE WIRE	1
	23626807	TENSION RELEASE RETURN SPRING	1
	23626906	WIRE HOLDER BRACKET	1
	22920102	TENSION RELEASE SHAFT	1
	22920300	THREAD RELEASE SUPPORTING PIN	1
	11018405	TENSION RELEASE PIN SPRING	1
	22944508	WIRE PRESSER A	2
	SS4120615SP	SCREW 3/16-28 L=6	2
	NS6620310SP	NUT 3/16-32	2
	RE0500000K0	E-RING	2
	SS4110715SP	SCREW 11/64-40 L=7	2
	NS6150310SP	NUT 15/64-28	1

Page 18 — FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000 parts on page 18

Ref	Part number	Part name	Qty
	40033391	ADJUSTING LINK ASM.	1
	40033392	ADJUSTING LINK	1
	40033393	ADJUSTING LINK PIN	2
	SM8040412TP	SET SCREW M4 L=4	4
	23612450	FEED CHANGING SHAFT ARM ASM.,A	1
	SS6661110SP	SCREW 1/4-40 L=11	1
	23612609	FEED CHANGING SHAFT OIL SEAL	1
	23612765	THRUST COLLAR ASM.	1
	23612716	THRUST COLLAR	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	23612807	METAL,A	1
	40052274	METAL B	1
	23613052	FEED CHANGING SHAFT ARM ASM.,B	1
	23613003	FEED CHANGING SHAFT ARM,B	1
	SS6121610SP	SCREW 3/16-28 L=15.5	1
	23613102	FEED CHANGING SHAFT ARM B PIN	1
	23613201	FEED ADJUSTING ROD	1
	23613300	FEED ADJUSTING BASE	1
	23613409	FEED ADJUSTING PIN	1
	23613508	ADJUSTING BASE SHAFT METAL	1
	23613607	FEED LEVER	1
	23613706	FEED LEVER SHAFT	1
	23613805	FEED LEVER SHAFT METAL	1
	23613953	FEED LEVER ARM ASM.	1
	SS6121610SP	SCREW 3/16-28 L=15.5	1
	23614001	FEED ADJUSTING SPRING	1
	23614308	FEED LEVER SPRING	1
	40023289	SPRING SUSPENSION	1
	22912000	FEED REGULATOR PIN	1
	11071909	FEED DIAL	1
	22952501	BACK LEVER STOPPER	1
	22911804	FEED REGULATOR SCREW	1
	22912109	FEED REGULATOR PIN SPRING	1
	CS111101ESH	COLLAR ASM. D=11.11 W=10	1
	SS8660330SP	SCREW 1/4-40 L= 3.0	2
	NS6110310SP	NUT 11/64-40	1
	NS6150310SP	NUT 15/64-28	1
	RE0500000K0	E-RING	1
	RE0500000K0	E-RING	1
	RO092270200	RUBBER RING	1
	SM8060812TP	SCREW M6 L=8	2
	SS6090670TP	SCREW 9/64-40 L=6	2
	SS6121840SP	SCREW 3/16-28 L=18	1
	SS6121860SP	SCREW 3/16-28 L=18	1
	SS6151920TP	SCREW 15/64-28 L=19.0	2
	23614407	FEED DIAL RUBBER	1
	23630007	TUBE	0.09

Page 20 — FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000 parts on page 20

Ref	Part number	Part name	Qty
48	23612104	ADJUSTING LINK CONNECTING LINK	1
49	40012032	ADJUSTING LINK FULCRUM SHAFT	2
50	23612500	FEED CHANGING SHAFT	1

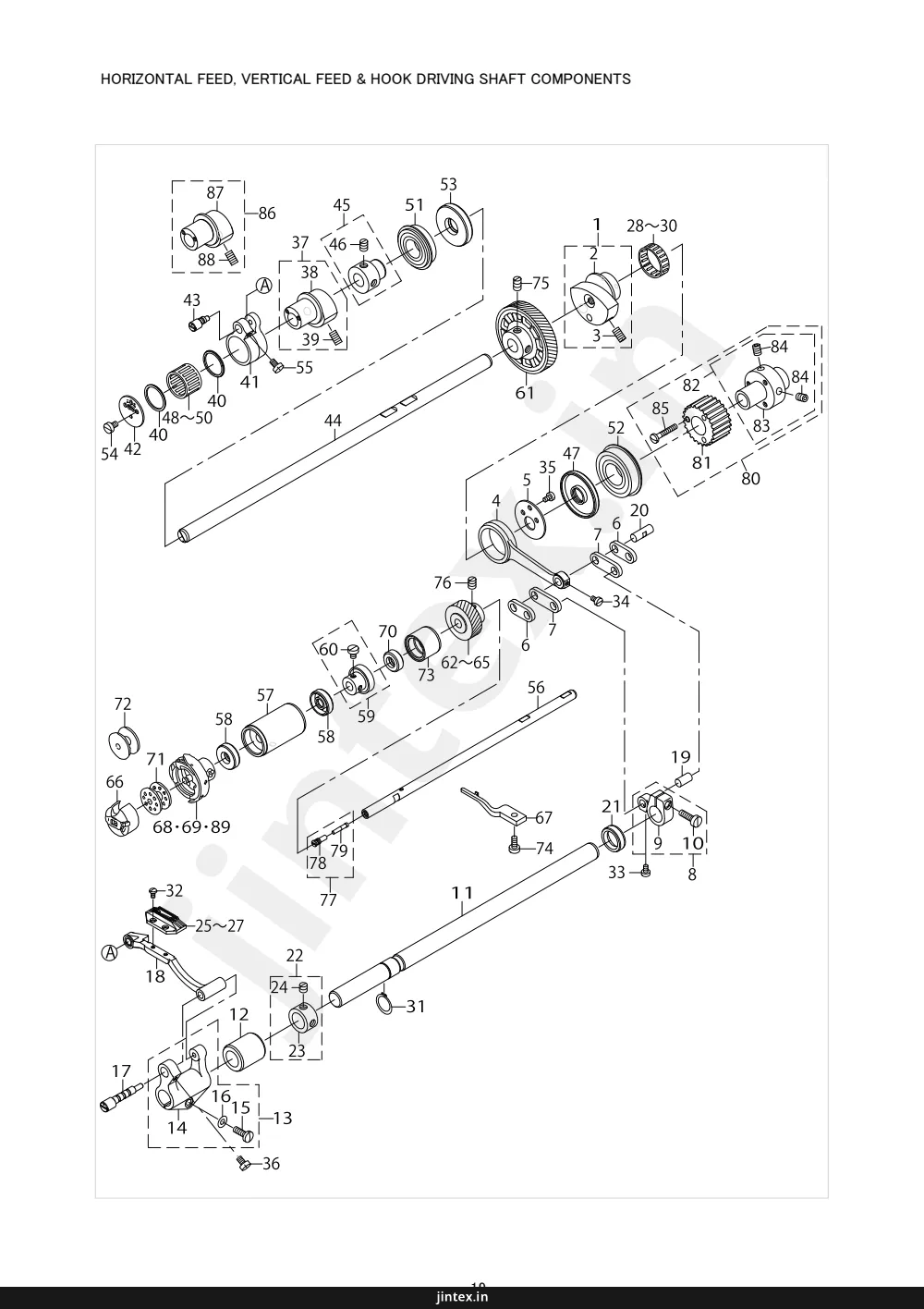

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000 parts on page 22

Ref	Part number	Part name	Qty
	23616055	FEED ROCKER CAM ASM.	1
	23616006	FEED ROCKER CAM	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	23616105	FEED ROCKER ROD	1
	23616204	FEED ROCKER CAM PLATE	1
	23616303	CONNECTING LINK,A	2
	23616402	CONNECTING LINK,B	2
	23616550	FEED ROCKER ARM ASM.	1
	23616501	FEED ROCKER ARM	1
	SS6121610SP	SCREW 3/16-28 L=15.5	1
	23616600	FEED ROCKER SHAFT	1
	23616709	FEED ROCKER SHAFT METAL	1
	23616857	FEED ROCKER BASE ARM ASM.	1
	23616808	FEED ROCKER BASE ARM	1
	SS7121410TP	SCREW 3/16-28 L=14	1
	WP0480856SP	WASHER 4.8X8.4X0.8	1
	23616907	FEED ROCKER BASE SHAFT	1
	23617053	FEED BASE COMPL.	1
	22911002	WALKING FOOT PIN B	1
	22911101	WALKING FOOT PIN C	1
	40029963	OIL SEAL	1
	22904155	MAIN SHAFT THRUST COLLAR ASM.	1
	22904106	MAIN SHAFT THRUST COLLAR	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	B1613012I00	FEED DOG I
	23614506	FEED DOG A
	B1613012I00	FEED DOG I
	B412352200A	NEEDLE ROLLAR A
	B412352200B	NEEDLE ROLLAR B
	B412352200C	NEEDLE ROLLAR C
	RC0150001KP	RETAINING RING 13.8	1
	SS4080620TP	SCREW 1/8-44 L=6	2
	SS6090620TP	SCREW	1
	SS6090620TP	SCREW	1
	SS6090670TP	SCREW 9/64-40 L=6	2
	SS7110740TP	SCREW 11/64-40 L=7	1
	23618051	FEED DRIVING CAM ASM.	1
	23618002	FEED DRIVING CAM	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	23618101	FEED DRIVING CAM THRUST BUSH	2
	40022668	FEED DRIVING BASE ARM	1
	23618309	FEED DRIVING CAM PLATE	1
	23618408	FEED DRIVING BASE SHAFT	1
	40011711	FEED DRIVING SHAFT	1
	40044875	BEARING SUPPORT ASM.	1
	SS8660810TP	SCREW 1/4-40 L=8	2
	23618804	OIL SEAL	1

Page 23

Juki DDL-9000 parts on page 23

Ref	Part number	Part name	Qty
1	28~30	BEARING
2	2	COLLAR
3	3	SCREW
4	4	CONNECTING ROD
5	5	SCREW
6	6	SCREW
7	7	LINK
8	8	SCREW
9	9	COLLAR
10	10	COLLAR
11	11	SHAFT
12	12	COLLAR
13	13	SCREW
14	14	BRACKET
15	15	WASHER
16	16	SCREW
17	17	SCREW
18	18	BRACKET
19	19	COLLAR
20	20	SCREW
21	21	COLLAR
22	22	COLLAR
23	23	COLLAR
24	24	COLLAR
25~27	25~27	BRACKET
31	31	COLLAR
32	32	BRACKET
33	33	SCREW
34	34	SCREW
35	35	SCREW
36	36	SCREW
37	37	COLLAR
38	38	COLLAR
39	39	COLLAR
40	40	BEARING
40	40	BEARING
41	41	COLLAR
42	42	COLLAR
43	43	COLLAR
44	44	SHAFT
45	45	COLLAR
46	46	COLLAR
47	47	COLLAR
48~50	48~50	BEARING
51	51	BEARING
52	52	BEARING
53	53	COLLAR
54	54	COLLAR
55	55	COLLAR
56	56	SHAFT
57	57	COLLAR
58	58	COLLAR
59	59	COLLAR
60	60	COLLAR
61	61	COLLAR
62~65	62~65	COLLAR
66	66	COLLAR
67	67	LINK
68	68	COLLAR
69	69	COLLAR
70	70	COLLAR
71	71	COLLAR
72	72	COLLAR
73	73	COLLAR
74	74	SCREW
75	75	COLLAR
76	76	COLLAR
77	77	COLLAR
78	78	COLLAR
79	79	COLLAR
80	80	BEARING
81	81	GEAR
82	82	COLLAR
83	83	COLLAR
84	84	SCREW
84	84	SCREW
85	85	COLLAR
86	86	COLLAR
87	87	COLLAR
88	88	COLLAR
89	89	COLLAR

Page 24 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000 parts on page 24

Ref	Part number	Part name	Qty
	SB32000060A	BEARING
	SB32000060B	BEARING
	SB32000060C	BEARING
	SB117000400	BEARING
	SB120001000	BEARING
	23618705	OIL SEAL
	SS6090670TP	SCREW 9/64-40 L=6
	SS6110710TP	SCREW 11/64-40 L= 6.5
	23620008	HOOK SHAFT
	23620156	HOOK SHAFT METAL COMPL.
	23620206	OIL SEAL
	23620354	BEARING SUPPORT ASM.
	SS6110650TP	SCREW 11/64-40 L=5.5
	23620503	GEAR,LARGE
	23620701	GEAR,SMALL(A)
	23620800	GEAR,SMALL(B)
	23620909	GEAR,SMALL(C)
	23621006	GEAR,SMALL(D)
	11038759	BOBBIN CASE ASM.
	11038809	BOBBIN CASE HOLDER
	11141355	HOOK ASM. C
	11038650	HOOK ASM.
	22890008	HOOK DRIVING SHAFT OIL SEAL
	B9117012000	BOBBIN
	22964001	BOBBIN A
	23620404	HOOK SHAFT REAR METAL
	SS6111010TP	SCREW 11/64-40 L= 9.5
	SS8661030SP	SCREW 1/4-40 L=10
	SS8660810TP	SCREW 1/4-40 L=8
	22916555	OIL SEAL SCREW ASM.
	22916506	SET SCREW
	11015906	OIL WICK
	40031608	SPROCKET ASM.
	40031605	SPROCKET
	40031607	SPROCKET SUPPORT ASM.
	40031606	SPROCKET SUPPORT
	SS8150822TP	SCREW 15/64-28 L=8
	SS7112420SP	SCREW 11/64-40 L=24
	23619158	FEED DRIVING CAM ASM. F
	23619109	FEED DRIVING CAM F
	SS8151150TP	SCREW 15/64-28 L=10.5
	23621303	HOOK ASM. K

Page 26 — THREAD TRIMMER COMPONENTS

Juki DDL-9000 parts on page 26

Ref	Part number	Part name	Qty
	23623051	KNIFE UNIT	1
	23623002	KNIFE INSTALLING BASE	1
	11040052	MOVING KNIFE ASM.	1
	11040409	MOVING KNIFE HINGE SCREW	1
	11040508	FORKED BASE FOR KNIFE	1
	11313103	THREAD GUIDE FOR KNIFE	1
	D2406555D0H	COUNTER KNIFE	1
	SD0460703TP	HINGE SCREW D=4.6 H=7	1
	SS2060210SP	SCREW 3/32-56 L=2.3	1
	SS4080620TP	SCREW 1/8-44 L=6	2
	23623168	THREAD TRIMMER DRIVING UNIT	1
	23623150	KNIFE DRIVING ARM ASM.	1
	23623200	MOVING KNIFE LINK PIN	1
	23623358	CLUTCH PLATE ASM.	1
	23623556	BASE PLATE ASM.	1
	23623705	PICKER LINK	1
	23623804	DRIVING ARM STOPPER	1
	11040953	ROLLER ARM ASM.	1
	22949002	ROLLER ARM SEAT	1
	22949101	ROLLER FULCRUM SHAFT	1
	22949200	ROLLER RETURN SPRING	1
	11043700	KNIFE RETURN SPRING, B	1
	22949408	CLUTCH SPRING	1
	22950000	PICKER LINK PIN	1
	NS6150310SP	NUT 15/64-28	1
	NS6150810SP	NUT 15/64-28	1
	RE0400000K0	E-RING 4	2
	RE0600000K0	E-RING 6	2
	SS4110715SP	SCREW 11/64-40 L=7	2
	SS7090610SP	SCREW 9/64-40 L=6	1
	WP0621016SH	WASHER	1
	23623903	PIN	1
	23624000	MOVING KNIFE LINK	1
	23624158	PICKER ARM ASM.	1
	23624109	PICKER ARM	1
	23624257	THREAD TAKE-UP PICKER ASM.	1
	SS6090620TP	SCREW	2
	23624356	SOLENOID ASM.	1
	23624307	SOLENOID	1
	23624406	SOLENOID BASE	1
	11043304	SOLENOID RUBBER	1
	HK03464000B	PIN CONTACT	2
	NM6040000SN	NUT M4	2
	NS6660410SH	NUT	1
	NS6660430SP	NUT 1/4-40	1
	WP0450000SD	WASHER 4.5X8X0.5	2
	23624554	DRIVING BLOCK ASM.	1

Page 28 — THREAD TRIMMER COMPONENTS

Juki DDL-9000 parts on page 28

Ref	Part number	Part name	Qty
48	23624505	DRIVING BLOCK	1
49	SS6110710TP	SCREW 11/64-40 L= 6.5	1
50	11042850	THREAD TRIMMER CAM ASM.	1
51	SS6660610TP	SCREW 1/4-40 L=6	2
52	22950950	CAM COLLAR ASM.	1
53	SS8110520TP	SCREW 11/64-40 L= 4.5	1
54	40023290	SOLENOID BASE STUD	2
55	SD0600321SP	HINGE SCREW D=6 H=3.2	1
56	SD0630275SP	HINGE SCREW D= 6.35 H= 2.7	1
57	SD0641452TP	HINGE SCREW D=6.35 H=14.5	1
58	SS4110715SP	SCREW 11/64-40 L=7	2
59	SS4150915SP	SCREW 15/64-28 L=9	2
60	SS4150915SP	SCREW 15/64-28 L=9	2

Page 29

Juki DDL-9000 parts on page 29

Ref	Part number	Part name	Qty
	1	OIL PAN
	2	GASKET
	3	FILTER ELEMENT
	4	OIL LEVEL GAUGE
	5	OIL LEVEL GAUGE TUBE
	6	OIL LEVEL GAUGE HOLDER
	7	OIL PUMP ASSEMBLY
	8	BRACKET
	9	BRACKET
	10	CLAMP
	11	CLAMP
	12	HOSE JOINT
	13	O-RING
	14	HOSE JOINT
	15	TUBE
	16	TUBE
	17	TUBE
	18	TUBE
	19	TUBE
	20	TUBE
	21	TUBE
	22	TUBE
	23	PLATE
	24	SPRING CLIP
	25	WASHER
	26	WASHER
	27	WASHER
	28	WASHER
	29	SCREW
	30	PLUG
	31	PLUG
	32	PLUG
	33	SCREW
	34	WASHER
	35	PLUG
	36	SPRING
	37	PLUG
	38	HOSE JOINT
	39	HOSE JOINT
	40	WASHER
	41	HOSE JOINT
	42	HOSE JOINT
	43	TUBE
	44	CLAMP
	45	GASKET
	46	SCREW
	47	GASKET

Page 30

Juki DDL-9000 parts on page 30

Ref	Part number	Part name	Qty
	40011344	GEAR BOX COVER	1
	23628100	GEAR BOX PACKING	1
	23628357	FLOATER ASM.	1
	23628555	OIL TANK ASM.	1
	23628704	FLOATER CASE	1
	23629108	OIL SIGHT WINDOW	1
	23629256	OIL WICK SUPPORT ASM.	1
	23629207	OIL WICK SUPPORT
	23629702	OIL WICK
	23629306	PIPE STOPPER A	4
	23629405	PIPE STOPPER B	3
	23629504	DISTRIBUTOR	1
	23629603	OIL INLET	1
	23629801	LUBRICATION CONNECTOR	2
	23630106	TUBE B	0.25
	RO068190100	RUBBER RING	1
	23630007	TUBE	0.57
	23630007	TUBE	0.04
	23630007	TUBE	0.07
	CQ2000000001	OIL WICK	0.75
	23630007	TUBE	0.38
	23630106	TUBE B	0.23
	23630304	FELT	1
	22925101	OIL FELT PRESSER	1
	RO098240100	RUBBER RING	1
	RO195240100	RUBBER RING	1
	SS4121015SP	SCREW 3/16-28 L=10	2
	SS4121015SP	SCREW 3/16-28 L=10	10
	SS6090620TP	SCREW	1
	23630205	SCREW	1
	WP0501016SD	WASHER 5X10.5X1	2
	WS0510002KP	SPRING WASHER 5.1X9.2X1.3	2
	23628209	OIL ADJUSTING SCREW	1
	RO029180100	RUBBER RING	1
	23628803	PLUNGER	1
	23628902	PLUNGER SPRING	1
	23629009	PLUNGER SCREW
	23630452	OIL FILTER ASM.
	23630403	OIL FILTER
	23630502	OIL FILTER STOPPER
	23630601	OIL FILTER JOINT
	23630007	TUBE
	23630106	TUBE B
	23629405	PIPE STOPPER B
	40024644	MAGNET WASHER	1
	ST4040821SS	TAPPING SCREW	1
	23604705	MAGNET	1

Page 32 — AUTOMATIC REVERSE FEED COMPONENTS

Juki DDL-9000 parts on page 32

Ref	Part number	Part name	Qty
1	23631054	REVERSE FEED SOLENOID BASE ASM	1
2	23631005	REVERSE FEED SOLENOID	1
3	23631104	REVERSE FEED SOLENOID PLUNGER	1
4	23631203	REVERSE FEED SOLENOID BASE	1
5	D2468555B00	RUBBER PLUNGER	1
6	HK03464000B	PIN CONTACT	2
7	RE1200000K0	E-RING 12	1
8	SS7110740TP	SCREW 11/64-40 L=7	4
9	WP1703001SC	WASHER 17X30X3	1
10	23631302	REVERSE FEED ARM	1
11	23631757	REVERSE FEED SWITCH ASM.	1
12	23631708	REVERSE FEED SWITCH COVER	1
13	23631807	REVERSE FEED SWITCH SHAFT	1
14	23631906	REVERSE FEED SWITCH SUPPORT	1
15	23632003	REVERSE FEED SWITCH BASE	1
16	23632102	REVERSE FEED SWITCH BASE GUIDE	1
17	23632359	REVERSE FEED CORD ASM.	1
18	EA9500B0100	CABLE BAND	1
19	SS7110740TP	SCREW 11/64-40 L=7	1
20	23632656	OPTION SWITCH ASM.	1
21	SS7110740TP	SCREW 11/64-40 L=7	1
22	23631708	REVERSE FEED SWITCH COVER	1
23	23631807	REVERSE FEED SWITCH SHAFT	1
24	23631906	REVERSE FEED SWITCH SUPPORT	1
25	23632607	OPTION SWITCH BASE	1
26	23632102	REVERSE FEED SWITCH BASE GUIDE	1
27	23632250	REVERSE FEED CORD ASM.	1
28	EA9500B0100	CABLE BAND	1
29	WP0501016SD	WASHER 5X10.5X1	1
30	22962906	PLUNGER ARM PIN	1
31	NS6110350SP	NUT 11/64-40	2
32	SD0951501SP	HINGE SCREW D= 9.53 H=15	1
33	SS4120915SP	SCREW 3/16-28 L=9	1
34	SS4150915SP	SCREW 15/64-28 L=9	2

Page 33 — WIPER COMPONENTS(FOR DDL-9000-WB)

Juki DDL-9000 parts on page 33

Ref	Part number	Part name	Qty
1	1	COVER
2	2	BRACKET
3	3	BRACKET
4	4	SHAFT
5	5	COVER
6	6	COVER
7	7	WASHER
8	8	SPRING
9	9	BRACKET
10	10	COLLAR
11	11	SPRING
12	12	COLLAR
13	13	SHAFT
14	14	PIN
15	15	SPRING
16	16	BRACKET
17	17	BRACKET
18	18	CONNECTOR
19	19	BRACKET
20	20	BRACKET
21	21	WASHER
22	22	NUT
23	23	NUT
24	24	CIRCLIP
25	25	BOLT
26	26	BOLT
27	27	BOLT
28	28	WASHER
29	29	BOLT

Page 34 — WIPER COMPONENTS(FOR DDL-9000-WB)

Juki DDL-9000 parts on page 34

Ref	Part number	Part name	Qty
	23633167	WIPER ASM.	1
	23633159	WIPER BASE ASM.	1
	23633209	WIPER LINK B	1
	23633357	WIPER SHAFT ASM.	1
	22955504	WIPER COVER	1
	11110301	WIPER SOLENOID	1
	22955900	WIPER RUBBER A	1
	22956007	WIPER RUBBER B	1
	22956106	WIPER LINK A	1
	22956205	WIPER HINGE SCREW COLLAR	1
	22956304	WIPER SPRING	1
	22956809	WIPER COLLAR	1
	22956908	WIPER LINK B HINGE SCREW	1
	22957005	WIPER	1
	22957203	WIPER LINK COLLAR	1
	22957104	WIPER SOLENOID SHAFT	1
	HA000590000	POWER SWITCH	1
	HK03464000B	PIN CONTACT	2
	HW200390000	ELECTRIC WIRE	0.04
	HW500070000	2-CORE CABTYRE CORD	1.3
	NS6090310SP	NUT 9/64-40	1
	NS6110310SP	NUT 11/64-40	1
	RE0250000K0	E-RING 2.5	1
	RE0500000K0	E-RING	1
	SD0650321TP	HINGE SCREW D=6.5 H=3.2	1
	SL4030631SC	SCREW M3X6	1
	SL4030641SE	SCREW	3
	SS6090540SP	SCREW 9/64-40 L= 5.0	1
	SS4120915SP	SCREW 3/16-28 L=9	2

Page 36 — THREAD STAND COMPONENTS

Juki DDL-9000 parts on page 36

Ref	Part number	Part name	Qty
1	22930358	THREAD STAND ASM.	1
2	22931109	SPOOL RETAINER	2
3	22931000	SPOOL PIN	2
4	22930903	SPOOL REST CUSHION	2
5	22930804	SPOOL REST	2
6	SM6061610SC	SCREW M6 L=16	2
7	22930705	THREAD GUIDE ARM JOINT	2
8	22931406	SPOOL REST ROD RUBBER CAP	1
9	22930507	SPOOL REST ARM	2
10	22930408	SPOOL REST ROD, UPPER	1
11	22931307	SPOOL REST ROD JOINT	1
12	SM4051405SE	SCREW M5 L=14	2
13	NM6050001SE	NUT M5	2
14	22930309	SPOOL REST ROD, LOWER	1
15	22931208	THREAD GUIDE	2
16	WS0510002KN	SPRING WASHER	2
17	NM6050001SE	NUT M5	2
18	NM6160511SE	NUT M16X1.5	1
19	WP1612616SE	WASHER 16X30X2.6	2
20	WS1643202KR	SPRING WASHER	1

Page 38 — UNDER COVER COMPONENTS

Juki DDL-9000 parts on page 38

Ref	Part number	Part name	Qty
	23639057	UNDER COVER ASM.	1
	23639008	UNDER COVER	1
	23639156	BRACKET ASM.	1
	23639107	BRACKET	1
	NM6060001SE	NUT M6	2
	SM8063012TR	SCREW M6 L=30	2
	23639206	CONNECTING ROT	1
	23639305	KNEE PRESS ROD	1
	23639404	SHAFT	1
	23639503	SPRING	1
	23639602	CONNECTING ROD	1
	10162600	RUBBER CUSHION	2
	11047107	RUBBER CUSHION	2
	22932453	BRACKET ASM.	1
	22932404	BRACKET	1
	SM9062053SR	SCREW M6 L=20	2
	NS6150310SP	NUT 15/64-28	1
	RE1000000K0	E-RING 10	2
	RE1000000K0	E-RING 10	2
	SD0720331SP	HINGE SCREW D= 7.24 H= 3.3	2
	SM9061853SR	SCREW M6 L=17.5	1
	SM9061853SR	SCREW M6 L=17.5	1
	WP0650876SD	WASHER 6.5X13X0.8	2
	22934251	KNEE PAD PLATE ASM.	1
	22934301	KNEE PAD PLATE SUPPORT	1
	22934400	KNEE PAD PLATE RUBBER	1
	22934509	KNEE PAD PLATE COVER	1
	22934608	KNEE PAD UPRIGHT SHAFT	1
	SM9061203SE	SCREW M6 L=12	1
	22934202	KNEE PAD PLATE	1

Page 39 — ACCESSORIE PART COMPONENTS

Juki DDL-9000 parts on page 39

Ref	Part number	Part name	Qty
1	1	1
1	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
20	20	20
21	21	21
22	22	22
16	16	16
17	17	17
18	18	18
19	19	19
23	23	23
24	24	24

Page 40 — ACCESSORIE PART COMPONENTS

Juki DDL-9000 parts on page 40

Ref	Part number	Part name	Qty
	23639750	ACCESSORIE BAG ASM.
	23639958	ACCESSORIE BAG ASM.,A
	22931604	FRAME SUPPORT BAR
	22932800	ACCESSORIE BAG
	22933105	SCREW DRIVER,MIDDLE
	22933204	SCREW DRIVER,SMALL
	22958300	NEEDLE THREAD GUIDE PIN
	23639701	KNEE LIFTER PRESSER ROD
	22926356	HINGE COMPL.
	22958052	RUBBER HINGE ASM.
	22926000	RUBBER CUSHION
	22958003	FRAME BUBBER CUSHION
	22926208	NAIL
	22926356	HINGE COMPL.
	22926505	WASHER
	22932909	BOBBIN
	22964001	BOBBIN A
	B91210120A0	OILER ASM.
	MDFRX1600C0	DEFRIX OIL NO.1(600CC)
	MDB100B1402	NEEDLE DBX1#14-2
	MDB100B1102	NEEDLE DBX1#11-2
	MC200500752	134 #75-2
	22933006	SCREW DRIVER,LARGE
	22933303	VINYL COVER

Page 41 — EXCLUSIVE PART FOR DDL-9000DS

Juki DDL-9000 parts on page 41

Ref	Part number	Part name	Qty
1	1	Lever
2	2	Screw
3	3	Switch
4	4	Shaft
5.6	5.6	Shaft
7	7	Motor
8	8	Screw
9~11	9~11	Bobbin Case
12	12	Bobbin
13	13	Cover
14	14	Lever
15	15	Bobbin Case
16	16	Shaft
17	17	Lever
18	18	Lever
19	19	Base
20	20	Screw
21	21	Lever
22	22	Lever
23	23	Screw
24	24	Screw
25	25	Screw

Page 43

Juki DDL-9000 parts on page 43

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3.37	3.37	3.37
4	4	4
5	5	5
6.7	6.7	6.7
8~10	8~10	8~10
11	11	11
12	12	12
13	13	13
14	14	14
15.38	15.38	15.38
16	16	16
17	17	17
18~20	18~20	18~20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
45	45	45
46	46	46
47	47	47
48	48	48
49	49	49
50	50	50
51	51	51

Page 44 — EXCLUSIVE PART FOR DDL-9000DF

Juki DDL-9000 parts on page 44

Ref	Part number	Part name	Qty
	11030301	CABLE HOLDER	1
	SS4120615SP	SCREW 3/16-28 L=6
	11001906	THROAT PLATE K	1
	M6023350AAF	RESISTOR PACK AF ASM.	1
	23608706	NEEDLE BAR LOWER METAL D	1
	22886907	NEEDLE BAR (A)
	22887004	NEEDLE BAR (B)
	MDB1SFB0900	NEEDLE DBX1SF #9
	MC20050650	NEEDLE 134 NM65
	MDB100B0900	NEEDLE DBX1 #9
	D152455DBB	PRESSER FOOT ASM.	1
	11162104	SPRING	1
	SS4090610SP	SCREW 9/64-40 L=6	1
	SS7111410TP	SCREW 11/64-40 L=14	1
	D1613155W00	FEED DOG W
	22889851	HOOK DRIVING SHAFT BEARING ASM	2
	SS6110420TP	SCREW 11/64-40 L=4.8
	22890404	RP HOOK C
	22890206	RP HOOK
	22890305	RP HOOK S
	23627458	THREAD TENSION ASM. F	1
	23626005	THREAD TENSION NUT
	B313255000	THREAD TENSION DISK PRESSER
	B3126012000	THREAD TENSION DISK
	B3111126000	TENSION POST SOCKET
	B3115552000	TENSION POST
	B3120125000	ROTATING STOPPER
	D312855D00	THREAD TENSION SPRING
	D312855D00	TAKE-UP SPRING
	SS8090670SP	SCREW 9/64-40 L=5.5
	11305513	ARM THREAD GUIDE, C	1
	11403805	THREAD GUIDE C FITTING PLATE	1
	11404209	SPACER	1
	11404308	NUT	1
	23630700	OIL SIGHT WINDOW D	1
	22940506	FEED DIAL	1
	B110901210B	THROAT PLATE (I)
	B1613012100	FEED DOG I
	22964001	BOBBIN A	1
	22896302	BOBBIN CASE HOLDER	1
	22896252	BOBBIN CASE ASM.	1
	23624653	KNIFE UNIT D	1
	11040052	MOVING KNIFE ASM.
	22896104	THREAD GUIDE FOR KNIFE
	23623002	KNIFE INSTALLING BASE
	11040409	MOVING KNIFE HINGE SCREW
	22896005	FORKED BASE FOR KNIFE

Page 45

Juki DDL-9000 parts on page 45

Ref	Part number	Part name	Qty
	1	1
	2	2
	3.37	3.37
	4	4
	5	5
	6.7	6.7
	8~10	8~10
	11	11
	12	12
	13	13
	14	14
	15.38	15.38
	16	16
	17	17
	18~20	18~20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51

Page 46 — EXCLUSIVE PART FOR DDL-9000DF

Juki DDL-9000 parts on page 46

Ref	Part number	Part name	Qty
48	22895908	COUNTER KNIFE	1
49	SD0460703TP	HINGE SCREW D=4.6 H=7	1
50	SS2060210SP	SCREW 3/32-56 L=2.3	1
51	SS4080620TP	SCREW 1/8-44 L=6	2

Page 48 — EXCLUSIVE PART FOR DDL-9000SH-WB,0B

Juki DDL-9000 parts on page 48

Ref	Part number	Part name	Qty
	11400801	THROAT PLATE J	1
	SS4090610SP	SCREW 9/64-40 L=6	1
	SS7111410TP	SCREW 11/64-40 L=14	1
	11305513	ARM THREAD GUIDE, C	1
	M6024350AAF	RESISTOR PACK AF ASM.	1
	23645609	NEEDLE BAR METAL,LOWER H	1
	11091303	NEEDLE BAR	1
	MDB100B2100	NEEDLE DBX1 #21
	MC200501300	NEEDLE 134 NM130	1
	23645807	THROAT PLATE H	1
	B1505552000A	PRESSER SPRING	1
	D1524555EBL	PRESSER FOOT ASM.	1
	11403003	FEED J	1
	23646003	POSITIONING FINGER H	1
	11092251	LUBRICATING BOBBIN ASM.	1
	23645559	THREAD TAKE-UP ASM. ,H	1
	23645252	KNIFE UNIT H
	23645203	KNIFE INSTALLING BASE H
	23645401	THREAD GUIDE FOR KNIFE H
	11092577	MOVING KNIFE J ASM.
	11095601	KNIFE BRANCH
	11409604	FIX KNIFE
	SD0460703TP	HINGE SCREW D=4.6 H=7
	SD0500131TP	HINGE SCREW D=5 H=1.25
	SS2060210SP	SCREW 3/32-56 L=2.3
	SS4080620TP	SCREW 1/8-44 L=6
	23623176	THREAD TRIMMER DRIVING UNIT H	1
	11040953	ROLLER ARM ASM.
	11041407	ROLLER FULCRUM SHAFT
	22949200	ROLLER RETURN SPRING
	11042306	PICKER LINK PIN
	11043700	KNIFE RETURN SPRING, B
	11094307	ROLLER ARM BRACKET
	11094406	SPRING
	23623150	KNIFE DRIVING ARM ASM.
	23623200	MOVING KNIFE LINK PIN
	23623358	CLUTCH PLATE ASM.
	23623556	BASE PLATE ASM.
	23623705	PICKER LINK
	23623804	DRIVING ARM STOPPER
	NS6150310SP	NUT 15/64-28
	NS6150810SP	NUT 15/64-28
	RE0400000K0	E-RING 4
	RE0600000K0	E-RING 6
	SS4110715SP	SCREW 11/64-40 L=7
	SS7090610SP	SCREW 9/64-40 L=6

Page 49

Juki DDL-9000 parts on page 49

Ref	Part number	Part name	Qty
	1.10	EXCLUSIVE PART FOR DDL-9000SH-WB,0B
	5
	27
	38
	40
	31
	39
	47
	41
	36
	42
	43
	29
	46
	28
	30
	33
	48
	49
	50
	51
	56
	53
	54
	55
	52
	11
	3
	2
	12
	34
	37
	44
	16
	17
	23
	21
	24
	20
	19
	18
	26
	22
	25
	66
	64
	62
	59
	61
	63
	65
	60
	58
	57
	73
	74
	75
	68
	72
	71
	4
	67
	69
	70

Page 50

Juki DDL-9000 parts on page 50

Ref	Part number	Part name	Qty
	WP0621016SH	WASHER	1
	23645153	SOLENOID ASM. ,H	1
	23645005	SOLENOID BASE H	1
	23645104	SOLENOID H	1
	11043304	SOLENOID RUBBER	1
	HK03464000B	PIN CONTACT	2
	NM6040000SN	NUT M4	2
	NS6660410SH	NUT	1
	NS6660430SP	NUT 1/4-40	1
	WP0430800SC	WASHER M4	2
	23626062	THREAD TENSION ASM. ,H	1
	23626005	THREAD TENSION NUT	1
	22921209	THREAD TENSION POST	1
	22921407	ROTATION STOPPER	1
	22921506	THREAD TENSION DISK	1
	22921805	THREAD TAKE-UP SPRING	1
	22921803	DISK STOPPER	1
	22945307	THREAD TENSION POST BASE	1
	22962005	THREAD TENSION SPRING	1
	SS8090670SP	SCREW 9/64-40 L= 5.5	1
	11073954	THREAD TENSION ASM.	1
	11403805	THREAD GUIDE C FITTING PLATE	1
	B1418415H00	NEEDLE BAR THREAD GUIDE	1
	B1419553000	NEEDLE BAR THREAD GUIDE	1
	11404308	NUT	1
	WP0371016SD	WASHER 3.7X8X1	1
	23619059	VERTICAL FEED CAM H ASM.	1
	23619000	VERTICAL FEED CAM H	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2

Page 51 — TABLE & STAND COMPONENTS

Juki DDL-9000 parts on page 51

Ref	Part number	Part name	Qty
1	1	TABLE TOP
2	2	STAND LEG
3	3	STAND LEG
4	4	STAND LEG
5	5	COVER
6	6	COVER
7	7	COVER
8	8	DRAWER
9	9	DRAWER SLIDE
10	10	BRACKET
11	11	BRACKET
12	12	BRACKET
13	13	BRACKET
14	14	BRACKET
15	15	BRACKET
16	16	BRACKET
17	17	BRACKET
18	18	BRACKET
19	19	SCREW
20	20	FOOT REST BRACKET
21	21	FOOT REST

Page 52 — TABLE & STAND COMPONENTS

Juki DDL-9000 parts on page 52

Ref	Part number	Part name	Qty
	23642200	TABLE	1
	11157567	T LEG JUNCTION
	11159365	T STAND JUNCTION
	11159357	T-STAND ASM.
	11156007	CASE	1
	11155801	CASE MAGNET	1
	11155751	CASE ASM. B	1
	11155108	DRAWER	2
	11155207	DRAWER SUPPORT	1
	11073103	RUBBER CUSHION
	11075900	RUBBER SPACER	2
	11075801	RUBBER SPACER	2
	B8210012000	CUSHION SET NAIL	4
	B8210012000	CUSHION SET NAIL	4
	D8226555E00	FRAME RUBBER CUSHION A	2
	D8204555D00	DRAWER STOPPER	1
	SK3311600SE	WOOD SCREW D=3.1 L=16	6
	SK3513200SC	WOOD SCREW D=5.1 L=32	4
	SK3382001SC	WOOD SCREW D=3.8 L=20	4
	GPK700010A0	3-JOINT PEDAL, 70
	GPK710010A0	2-PEDAL ASM., 71

Page 53 — LIST FOR INFORMATION OF CHANGE

Juki DDL-9000 parts on page 53

Ref	Part number	Part name	Qty
22	CM-3002001-A1	CM-3002001-A1
24	CM-3002000-01	CM-3002000-01
25	CM-3002000-B1	CM-3002000-B1
7	236-04200	236-04200
8	236-04309	236-04309
8	400-51473	400-51473
10	236-04408	236-04408
11	400-44906	400-44906
20	SM-8060812-TP	SM-8060812-TP
20	SM-80608A2-TP	SM-80608A2-TP
21	SM-8060812-TP	SM-8060812-TP
9	SM-80608A2-TP	SM-80608A2-TP
22	236-07054	236-07054
22	400-39946	400-39946
12	236-12906	236-12906
12	400-52274	400-52274
27	B1613-052-000	B1613-052-000
27	B1613-012-100	B1613-012-100
45	236-18606	236-18606
45	400-44875	400-44875
8	SS-8110510-SP	SS-8110510-SP
8	SS-6110420-TP	SS-6110420-TP
17	SS-8110510-SP	SS-8110510-SP
17	SS-6110420-TP	SS-6110420-TP
22	CM-3013000-01	CM-3013000-01

Page 55 — NUMERICAL INDEX OF PARTS

Juki DDL-9000 parts on page 55

Ref	Part number	Part name	Qty
6	10162600	11155801	36
5	10502300	11156007	6
2	11001906	11157567	42
4	11015906	11159357	22
3	11018405	11159365	12
12	11028008	11162104	4
55	11030301	11244019	40
1	11030301	11305513	42
31	11038650	11305513	22
66	11038759	11313103	22
67	11038809	11400801	22
3	11040052	11403003	24
17	11040052	11403805	40
43	11040052	11403805	42
4	11040409	11404209	24
20	11040409	11404308	40
46	11040409	11404308	42
5	11040508	11409257	24
18	11040953	11409604	24
28	11040953	11433802	46
29	11041407	14113450	46
31	11042306	22886907	46
50	11042850	22886907	26
41	11043304	22887004	24
51	11043304	22887004	48
22	11043700	22889851	24
32	11043700	22889851	46
13	11047107	22890008	36
30	11071909	22890206	16
30	11072402	22890206	6
10	11073103	22890305	50
67	11073954	22890305	48
12	11075801	22890404	50
11	11075900	22890404	50
7	11091303	22891204	46
15	11092251	22895908	46
33	11094307	22895908	46
34	11094406	22896005	46
21	11095601	22896005	46
6	11110301	22896104	32
27-28	11141207	22896104	8
68-69	11141355	22896252	22
8	11155108	22896252	50
9	11155207	22896302	50
7	11155751	22896302	50
6	22901201	14-15	2
5	22901250	12-13	2
2	22901300	16	2
4	22901409	20	2
3	22901805	80	4
12	22902506	10	2
2	22902704	14-15	2
2	22902753	12-13	2
6	22904106	23	20
10	22904155	22	20
13	22906309	49	10
32	22906408	30	8
68	22906457	29	8
33	22907406	24	12
34	22907604	21	12
71	22907802	22	12
20	22908008	8	12
22	22908552	23	12
57	22908701	19	12
31	22908909	20	12
5-6	22911002	19	20
6-7	22911101	20	20
5-6	22911804	32	16
6-7	22912000	29	16
7	22912109	33	16
16	22916506	78	22
70	22916555	77	22
9~11	22920102	39	12
18~20	22920200	40	12
9~11	22920300	60	4
18~20	22920607	59	48
9~11	22921209	60	48
18~20	22921407	59	48
9~11	22921506	61	48
18~20	22921605	62	48
40	22921803	63	48
22	22925101	24	28
48	22926000	11	38
21	22926208	13	38
47	22926356	14	38
18	22926505	15	38
44	22930309	14	34
15	22930358	1	34
41	22930408	10	34
14	22930507	9	34

Page 56 — NUMERICAL INDEX OF PARTS

Juki DDL-9000 parts on page 56

Ref	Part number	Part name	Qty
7	22930705	22956106
5	22930804	22956205
4	22930903	22956304
3	22931000	22956809
2	22931109	22956908
15	22931208	22957005
11	22931307	22957104
3	22931406	22957203
3	22931604	22958003
15	22932404	22958052
14	22932453	22958300
4	22932800	22962005
16	22932909	22962906
23	22933006	22964001
5	22933105	22964001
6	22933204	22964001
24	22933303	22964001
30	22934202	23600208
24	22934251	23600307
25	22934301	23600406
26	22934400	23600505
27	22934509	23600604
28	22934608	23600703
27-28	22939508	23600802
36	22940506	23601057
42	22944508	23601305
48	22945307	23602010
4	22945414	23604119
4	22945463	23604168
4	22945505	23604457
4	22945604	23604655
4	22945703	23604705
4	22945802	23604754
24	22949002	23604804
24	22949101	23605009
24	22949200	23605256
46	22949200	23607302
24	22949408	23608003
24	22950000	23608102
26	22950950	23608706
16	22952501	23608706
2	22954705	23609001
32	22955504	23609100
32	22955900	23609209
32	22956007	23609308
12	23609357	22956106
12	23609456	22956205
12	23609605	22956304
12	23609704	22956809
12	23609803	22956908
12	23609902	22957005
12	23610108	22957104
12	23610207	22957203
12	23610306	22958003
12	23610405	22958052
14	23610504	22958300
14	23610652	22962005
14	23610702	22962906
14	23610801	22964001
14	23611056	22964001
14	23611106	22964001
18	23612104	22964001
16	23612450	23600208
18	23612500	23600307
16	23612609	23600406
16	23612716	23600505
16	23612765	23600604
16	23612807	23600703
16	23613003	23600802
16	23613052	23601057
16	23613102	23601305
16	23613201	23602010
16	23613300	23604119
16	23613409	23604168
16	23613508	23604457
16	23613607	23604655
16	23613706	23604705
16	23613805	23604754
16	23613953	23604804
16	23614001	23605009
16	23614308	23605256
16	23614407	23607302
20	23614506	23608003
20	23616006	23608102
20	23616055	23608706
20	23616105	23608706
20	23616204	23609001
20	23616303	23609100
20	23616402	23609209
20	23616501	23609308

Page 57 — NUMERICAL INDEX OF PARTS

Juki DDL-9000 parts on page 57

Ref	Part number	Part name	Qty
8	23616550	23616550
11	23616600	23616600
12	23616709	23616709
14	23616808	23616808
13	23616857	23616857
17	23616907	23616907
18	23617053	23617053
38	23618002	23618002
37	23618051	23618051
40	23618101	23618101
42	23618309	23618309
43	23618408	23618408
53	23618705	23618705
47	23618804	23618804
74	23619000	23619000
73	23619059	23619059
87	23619109	23619109
86	23619158	23619158
56	23620008	23620008
57	23620156	23620156
58	23620206	23620206
59	23620354	23620354
73	23620404	23620404
61	23620503	23620503
62~65	23620701	23620701
62~65	23620800	23620800
62~65	23620909	23620909
62~65	23621006	23621006
68~69	23621303	23621303
37	23622061	23622061
38	23622400	23622400
2	23623002	23623002
19	23623002	23623002
45	23623002	23623002
1	23623051	23623051
12	23623150	23623150
35	23623150	23623150
11	23623168	23623168
27	23623176	23623176
13	23623200	23623200
36	23623200	23623200
14	23623358	23623358
37	23623358	23623358
15	23623556	23623556
38	23623556	23623556
16	23623705	23623705
39	23623705	23623705
17	23623804	23623804
40	23623804	23623804
32	23623903	23623903
33	23624000	23624000
35	23624109	23624109
34	23624158	23624158
36	23624257	23624257
39	23624307	23624307
38	23624356	23624356
40	23624406	23624406
48	23624505	23624505
47	23624554	23624554
16	23624653	23624653
42	23624653	23624653
50	23626005	23626005
22	23626005	23626005
58	23626005	23626005
57	23626062	23626062
59	23626104	23626104
48	23626203	23626203
36	23626351	23626351
37	23626807	23626807
38	23626906	23626906
49	23627359	23627359
21	23627458	23627458
2	23628100	23628100
33	23628209	23628209
3	23628357	23628357
4	23628555	23628555
5	23628704	23628704
35	23628803	23628803
36	23628902	23628902
37	23629009	23629009
6	23629108	23629108
8	23629207	23629207
7	23629256	23629256
10	23629306	23629306
44	23629405	23629405
12	23629504	23629504
13	23629603	23629603
9	23629702	23629702
14	23629801	23629801
82	23629900	23629900
47	23630007	23630007
42	23630007	23630007
43	23630106	23630106
30	23630205	23630205
23	23630304	23630304
39	23630403	23630403
38	23630452	23630452
40	23630502	23630502
41	23630601	23630601
13	23630700	23630700
35	23630700	23630700
2	23631005	23631005
1	23631054	23631054
3	23631104	23631104
4	23631203	23631203
10	23631302	23631302
22	23631708	23631708
11	23631757	23631757
23	23631807	23631807
24	23631906	23631906
15	23632003	23632003
26	23632102	23632102
27	23632250	23632250
17	23632359	23632359
25	23632607	23632607
20	23632656	23632656
2	23633159	23633159
1	23633167	23633167
3	23633209	23633209
4	23633357	23633357
29	23636657	23636657
72	23638000	23638000
71	23638059	23638059
73	23638109	23638109
74	23638208	23638208
75	23638307	23638307
76	23638406	23638406
77	23638554	23638554
2	23639008	23639008
1	23639057	23639057
4	23639107	23639107
3	23639156	23639156
7	23639206	23639206
8	23639305	23639305
9	23639404	23639404

Page 58 — NUMERICAL INDEX OF PARTS

Juki DDL-9000 parts on page 58

Ref	Part number	Part name	Qty
10	23639503
11	23639602
8	23639701
1-2	23639750
1-2	23639958
1	23642200
49	23645005
50	23645104
48	23645153
18	23645203
17	23645252
19	23645401
16	23645559
6	23645609
1-10	23645807
14	23646003
2	26260109
3	26260208
4	26260307
5	26260406
6	26260505
7	26260604
8	26260802
9	26261008
10	26261206
11	26261305
12	26261503
13	26261602
14	26261701
39	40010434
15	40011144
1	40011344
44	40011711
18	40012032
6	40014837
10	40020455
2	40022407
20	40022668
6	40023021
6	40023022
16	40023289
26	40023290
6	40023291
28	40024644
8	40028014
21	40029963
81	40031605
83	40031606
82	40031607
80	40031608
1	40033391
2	40033392
3	40033393
22	40039946
45	40044875
11	40044906
8	40051473
12	40052274
85-87	B11090120B
3-37	B11090120B
85-87	B1109552000
32	B141455000
69	B1418415H00
70	B1419553000
11	B1505552000A
25	B1521550000
26-27	B15240120BA
26-27	B15245520BA
25-27	B1613012100
15-38	B1613012100
57	B3111126000
25	B3111126000
51	B3115552000
26	B3115552000
84	B3118552F00
52	B3120125000
27	B3120125000
53	B3126012000
32	B3126012000
24	B3126012000
54	B3128012000
55	B3129012A00
56	B3132552000
23	B3132552000
21	B3538112000
28-30	B412352200A
28-30	B412352200B
28-30	B412352200C
14	B8210012000
71	B9117012000
18	B91210120A0
23	CM300200001
18	CM300200003
22	CM301300001
48	CM600100101
20	CQ200000001
34	CS111110ESH
11	D1524555DBB
12	D1524555EBL
15-38	D1613155W00
7	D2406555D0H
5	D2468555B00
29	D3128555D00
28	D3129555D00
33	D7133555B00
16	D8204555D00
15	D8226555E00
78	EA9500B0100
45	EA9500B0100
28	EA9500B0100
20	GPK700010A0
21	GPK710010A0
17	HA000590000
42	HK03464000B
6	HK03464000B
18	HK03464000B
52	HK03464000B
19	HW200390000
20	HW500070000
44-46	M6022350AAA
44-46	M6022350AAF
44-46	M6022350AAL
3	M6023350AAA
4	M6023350AAF
5	M6024350AAF
44	M68014710A0
8-10	MC200500650
33-35	MC200500750
20-22	MC200500752
8-9	MC200501300
8-10	MDB100B0900
33-35	MDB100B1100
20-22	MDB100B1102
33-35	MDB100B1400
20-22	MDB100B1402

Page 59 — NUMERICAL INDEX OF PARTS

Juki DDL-9000 parts on page 59

Ref	Part number	Part name	Qty
8~9	MDB100B2100	46
26	RO195240100	28
50	SS2060210SP	44
8~10	MDB1SFB0900	42
51	SB117000400	22
25	SS2060210SP	46
19	MDFRX1600C0	38
21	SB120000800	8
27	SS2110915SP	2
43	NM6040000SN	24
52	SB120001000	22
28	SS2110920TP	2
53	NM6040000SN	48
41	SB307000200	8
32	SS4080620TP	20
17	NM6050001SE	34
48~50	SB32000060A	22
10	SS4080620TP	24
5	NM6060001SE	36
48~50	SB32000060B	22
25	SS4080620TP	40
18	NM6160511SE	34
48~50	SB32000060C	22
51	SS4080620TP	44
21	NS6090310SP	32
8	SD0460703TP	24
26	SS4080620TP	46
36	NS6110310SP	16
23	SD0460703TP	40
13	SS4090610SP	42
22	NS6110310SP	32
49	SD0460703TP	44
2	SS4090610SP	46
31	NS6110350SP	30
23	SD0460703TP	46
81	SS4110615SP	4
34	NS6110530SP	6
24	SD0500131TP	46
67	SS4110715SP	2
47	NS6150310SP	12
55	SD0600321SP	26
67	SS4110715SP	4
37	NS6150310SP	16
56	SD0630275SP	26
46	SS4110715SP	12
25	NS6150310SP	24
57	SD0641452TP	26
58	SS4110715SP	24
17	NS6150310SP	36
25	SD0650321TP	32
58	SS4110715SP	26
41	NS6150310SP	46
30	SD0720331SP	12
45	SS4110715SP	46
26	NS6150810SP	24
20	SD0720331SP	36
30	SS4120615SP	2
44	NS6150810SP	46
32	SD0951501SP	30
43	SS4120615SP	12
44	NS6660410SH	12
17	SK3382001SC	50
2	SS4120615SP	40
44	NS6660410SH	24
19	SK3513200SC	50
2	SS4120615SP	42
54	NS6660410SH	48
18	SK3513200SC	50
33	SS4120915SP	2
45	NS6660430SP	24
26	SL4030631SC	32
33	SS4120915SP	30
55	NS6660430SP	48
46	SL4040881SC	8
29	SS4120915SP	32
31	RC0150001KP	20
26	SL60502592TN	2
31	SS4121015SP	12
18	RC0560711KP	6
47	SL60502592TN	8
28	SS4121015SP	28
23	RE0250000K0	32
79	SM4021201SC	4
88	SS4121215SP	4
19	RE0400000K0	6
12	SM4051405SE	34
35	SS4150915SP	2
27	RE0400000K0	24
12	SM4051405SE	34
27	SS4150915SP	6
43	RE0400000K0	46
20	SM5040655SN	6
60	SS4150915SP	26
45	RE0500000K0	12
9	SM6040602TP	12
34	SS4150915SP	30
39	RE0500000K0	16
6	SM6061610SC	34
17	SS6060210SP	2
24	RE0500000K0	32
4	SM8040412TP	16
28	SS6090540SP	32
28	RE0600000K0	24
21	SM8040802TP	6
28	SS6090620TP	6
44	RE0600000K0	46
22	SM8050502TP	6
34	SS6090620TP	20
19	RE1000000K0	36
24	SM8060812TP	8
37	SS6090620TP	24
7	RE1200000K0	30
41	SM8060812TP	16
29	SS6090620TP	28
34	RO029180100	28
20	SM80608A2TP	8
31	SS6090670TP	8
29	RO037180100	12
6	SM8063012TR	36
42	SS6090670TP	16
50	RO044240100	14
29	SM9061203SE	36
54	SS6090670TP	20
16	RO068190100	28
22	SM9061853SR	36
54	SS6090670TP	22
83	RO080150200	4
16	SM9062053SR	36
32	SS6090910SP	12
40	RO092270200	16
9	SS2060210SP	24
8	SS6110420TP	40
25	RO098240100	28
24	SS2060210SP	40
17	SS6110420TP	42

Page 60

Juki DDL-9000 parts on page 60

Ref	Part number	Part name	Qty
69	SS6110610TP	SS6110610TP	4
60	SS6110650TP	SS6110650TP	22
55	SS6110710TP	SS6110710TP	22
49	SS6110710TP	SS6110710TP	26
74	SS61111010TP	SS61111010TP	22
7	SS6111440SP	SS6111440SP	8
24	SS6121000SN	SS6121000SN	6
25	SS6121610SP	SS6121610SP	16
10	SS6121610SP	SS6121610SP	20
43	SS6121840SP	SS6121840SP	16
44	SS6121860SP	SS6121860SP	16
42	SS6151920TP	SS6151920TP	8
45	SS6151920TP	SS6151920TP	16
51	SS6660610TP	SS6660610TP	26
6	SS6661110SP	SS6661110SP	16
36	SS7080510TP	SS7080510TP	8
30	SS7090610SP	SS7090610SP	24
46	SS7090610SP	SS7090610SP	46
33	SS7091110TP	SS7091110TP	12
35	SS7110540SP	SS7110540SP	2
36	SS7110740TP	SS7110740TP	20
21	SS7110740TP	SS7110740TP	30
14	SS7111410TP	SS7111410TP	42
3	SS7111410TP	SS7111410TP	46
35	SS7111810TP	SS7111810TP	12
85	SS7112420SP	SS7112420SP	22
15	SS7121410TP	SS7121410TP	20
4	SS7681650TP	SS7681650TP	8
58	SS8090670SP	SS8090670SP	4
30	SS8090670SP	SS8090670SP	42
66	SS8090670SP	SS8090670SP	48
53	SS8110520TP	SS8110520TP	26
70	SS8150710TP	SS8150710TP	4
84	SS8150822TP	SS8150822TP	22
88	SS8151150TP	SS8151150TP	20
75	SS8151150TP	SS8151150TP	22
35	SS8151150TP	SS8151150TP	48
6	SS8660330SP	SS8660330SP	16
10	SS8660610TP	SS8660610TP	8
24	SS8660610TP	SS8660610TP	16
76	SS8660610TP	SS8660610TP	20
76	SS8660810TP	SS8660810TP	20
75	SS8660810TP	SS8660810TP	22
5	SS8661030SP	SS8661030SP	22
	SS8681650TP	SS8681650TP	8
46	ST4040821SS	ST4040821SS	28
38	TA0850604R0	TA0850604R0	2
40	TA1250406R0	TA1250406R0	2
41	TA1250705R0	TA1250705R0	2
42	TA1270502R0	TA1270502R0	2
43	TA1470704R0	TA1470704R0	2
72	WP0371016SD	WP0371016SD	48
56	WP0430800SC	WP0430800SC	48
46	WP0450000SD	WP0450000SD	24
23	WP0450826SC	WP0450826SC	6
58	WP0480856SP	WP0480856SP	14
16	WP0480856SP	WP0480856SP	20
47	WP0501016SD	WP0501016SD	4
34	WP0501016SD	WP0501016SD	12
31	WP0501016SD	WP0501016SD	28
29	WP0501016SD	WP0501016SD	30
49	WP0621016SD	WP0621016SD	14
31	WP0621016SH	WP0621016SH	24
47	WP0621016SH	WP0621016SH	48
23	WP0650876SD	WP0650876SD	36
19	WP1612616SE	WP1612616SE	34
9	WP1703001SC	WP1703001SC	30
16	WS0510002KN	WS0510002KN	34
32	WS0510002KP	WS0510002KP	28
20	WS1643202KR	WS1643202KR	34

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki DDL-9000 — parts catalog

• Page 1 (cover): This page is the cover for the parts list of the DDL-9000 model, published on October 9, 2017.
• Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
• Page 3 (diagram): This page displays a diagram of the machine frame and miscellaneous cover components for an industrial sewing machine.
• Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, and quantities.
• Page 5 (diagram): This page displays a diagram of machine frame and miscellaneous cover components for an industrial sewing machine.
• Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, and quantities.
• Page 7 (diagram): This page illustrates the components of a bobbin winder for an industrial sewing machine, showing an exploded view of the assembly with reference numbers.
• Page 8 (parts_list): This page lists bobbin winder components, including part numbers, names, and quantities.
• Page 9 (diagram): This page contains a diagram illustrating the components of the main shaft and needle bar, with various parts numbered for reference.
• Page 10 (parts_list): This page lists components for the Main Shaft & Needle Bar, including various screws, shafts, bearings, and needles, with part numbers, names, and quantities.
• Page 11 (diagram): This page contains a diagram illustrating the components of the main shaft and needle bar, with various parts numbered for reference.
• Page 12 (parts_list): This page lists components for the Main Shaft & Needle Bar, including part numbers, names, and quantities for items like the Needle Bar Thread Guide and BTW Driving Wheel.
• Page 13 (diagram): This page contains a diagram illustrating the components of the hand lifter and tension release system, with reference numbers pointing to specific parts.
• Page 14 (parts_list): This page lists components for the Hand Lifter & Tension Release, including part numbers, names, and quantities.
• Page 15 (diagram): This page contains a diagram illustrating the components of the hand lifter and tension release system, with reference numbers pointing to specific parts.
• Page 17 (diagram): This page contains a diagram of the feed adjust mechanism components, with numbered references for each part.
• Page 18 (parts_list): This page lists components for the FEED ADJUST MECHANISM, including part numbers, names, and quantities.
• Page 19 (diagram): This page contains a diagram of the feed adjust mechanism components, with numbered references to parts.
• Page 20 (parts_list): This page lists components for the FEED ADJUST MECHANISM, including part numbers, names, and quantities.
• Page 21 (diagram): This page contains a diagram illustrating components of the horizontal feed, vertical feed, and hook driving shaft for an industrial sewing machine. It includes numbered references to various parts.
• Page 22 (parts_list): This page lists components for the horizontal feed, vertical feed, and hook driving shaft, including part numbers, names, quantities, and remarks.
• Page 23 (diagram): This page displays a diagram of horizontal feed, vertical feed, and hook driving shaft components, with numbered parts for identification.
• Page 24 (parts_list): This page lists components for horizontal feed, vertical feed, and hook driving shafts, including bearings, oil seals, screws, shafts, gears, bobbin cases, hooks, and sprockets, with part numbers, names, and quantities.
• Page 25 (diagram): This page contains a diagram illustrating the components of a thread trimmer, with reference numbers pointing to various parts.
• Page 26 (parts_list): This page lists components for the thread trimmer, including knives, screws, springs, and solenoids, with part numbers, names, and quantities.
• Page 27 (diagram): This page contains a diagram illustrating the components of a thread trimmer, with reference numbers pointing to various parts.
• Page 28 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities, with reference numbers ranging from 48 to 60.
• Page 29 (diagram): This page displays a diagram of oil lubrication components, illustrating various parts with reference numbers for identification.
• Page 30 (parts_list): This page lists oil lubrication components with their part numbers, names, remarks, and quantities.
• Page 31 (diagram): This page contains a diagram illustrating the automatic reverse feed components of a sewing machine, with numbered references pointing to various parts.
• Page 32 (parts_list): This page lists automatic reverse feed components, including part numbers, names, quantities, and remarks for items like solenoids, switches, screws, and washers.
• Page 33 (diagram): This page displays a diagram of wiper components for the DDL-9000-WB model, with numbered parts indicated.
• Page 34 (parts_list): This page lists wiper components for the DDL-9000-WB sewing machine, including part numbers, names, and quantities.
• Page 35 (diagram): This page contains a diagram illustrating the components of a thread stand, with reference numbers pointing to various parts.
• Page 36 (parts_list): This page lists thread stand components, including part numbers, names, and quantities, with reference numbers from 1 to 20.
• Page 37 (diagram): This page contains a diagram of under cover components for a sewing machine, with numbered reference points.
• Page 38 (parts_list): This page lists components for the under cover, including part numbers, descriptions, and quantities.
• Page 39 (diagram): This page displays a diagram of accessory part components for an industrial sewing machine, with numbered illustrations of various parts.
• Page 40 (parts_list): This page lists accessory part components for a sewing machine, including part numbers, descriptions, remarks, and quantities.
• Page 41 (diagram): This page displays a diagram of exclusive parts for the DDL-9000DS sewing machine, with numbered components indicating their respective part numbers and descriptions.
• Page 42 (parts_list): This page lists exclusive parts for the DDL-9000DS sewing machine, including part numbers, descriptions, and quantities.
• Page 43 (diagram): This page displays a diagram of exclusive parts for the DDL-9000DF sewing machine, with various components labeled with reference numbers.
• Page 44 (parts_list): This page lists exclusive parts for the DDL-9000DF sewing machine, including part numbers, descriptions, remarks, and quantities.
• Page 45 (diagram): This page displays a diagram of exclusive parts for the DDL-9000DF sewing machine, with various components numbered for identification.
• Page 46 (parts_list): This page lists exclusive parts for the DDL-9000DF, including part numbers, names, and quantities.
• Page 48 (parts_list): This page lists parts for the DDL-9000SH-WB,0B sewing machine, including part numbers, names, remarks, and quantities.
• Page 49 (diagram): This page displays a diagram of exclusive parts for the DDL-9000SH-WB,0B sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 50 (parts_list): This page lists exclusive parts for the DDL-9000SH-WB,0B sewing machine, including washers, solenoids, nuts, screws, and thread tension components with their respective part numbers and quantities.
• Page 51 (diagram): This page displays a diagram of table and stand components for an industrial sewing machine, with numbered parts indicated.
• Page 52 (parts_list): This page lists table and stand components with their part numbers, descriptions, remarks, and quantities.
• Page 53 (parts_list): This page lists added and obsoleted parts with their corresponding revision numbers, page numbers, reference numbers, and part numbers.
• Page 54 (text): This page provides instructions on how to use the parts list, explaining various codes and symbols used in the catalog, including explanations for asterisks, #01 codes, numerical quantities, and parenthetical notations.
• Page 55 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers from diagrams.
• Page 56 (index): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 57 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, page numbers, and reference numbers across multiple columns.
• Page 58 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 59 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers from diagrams.
• Page 60 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers.

Page 1 — PARTS LIST

MODEL : DDL-9000 List No : 1259-07 PARTS LIST Published:09/10/2017 jintex.in

Page 2 — CONTENTS

CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 88 47 44~46 80 31 8 1 24 25 33 4 5 39 67 26 37 30 43 20 11 48 22 A 61 59 63 62 68 66 64 36 70 38 65 23 19 83 82 9 18 42 81 27 28 42 41 85~87 21 76 74 29 14 15 72 73 16 6 75 17 77 79 3 12 13 A 34 58 49 2 84 57 78 54 32 51 10 53 71 56 55 52 50 60 69 40 jintex.in

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23600208 SIDE PLATE 1 2 23600307 FACE PLATE 1 3 23600406 FACE PLATE PACKING 1 4 23600505 THREAD TAKE-UP LEVER COVER 1 5 23600604 PULLEY COVER 1 6 23600703 BED STUD A 1 7 23600802 BED STUD B 1 8 22954705 CORD FIXING METAL FITTING 2 9 23601305 AIR-DISCHARGING CAP 1 10 22902506 FACE PLATE 1 11 40022407 CORD HOLDER 1 12 22901250 SLIDE PLATE ASM. EXCEPT JH 1 13 22902753 SLIDE PLATE ASM. FOR JH 1 14 22901201 SLIDE PLATE EXCEPT JH * 1 15 22902704 SLIDE PLATE FOR JH * 1 16 22901300 SLIDE PLATE SPRING * 1 17 SS6060210SP SCREW 3/32-56 L=1.9 * 2 18 CM300200003 ATTENTION LABEL 1 19 22902605 RULER STOP SEAT 1 20 22901409 NEEDLE BAR UPPER BUSH CAP 1 21 B3538112000 OIL RETURN TUBE HOLDER 1 22 CM301300001 SAFETY LABEL 1 23 CM300200001 ATTENTION SEAL 1 24 23601057 EARTH CORD ASM. FOR GENERAL EXPORT,JA,JE 1 25 SS4120615SP SCREW 3/16-28 L=6 FOR GENERAL EXPORT,JA,JE 1 26 SL6052592TN BOLT 4 27 SS2110915SP SCREW 11/64-40 L=8.5 1 28 SS2110920TP SCREW 11/64-40 L=8.5 1 29 SS4110715SP SCREW 11/64-40 L=7 1 30 SS4120615SP SCREW 3/16-28 L=6 7 31 SS4120915SP SCREW 3/16-28 L=9 3 32 SS4120915SP SCREW 3/16-28 L=9 1 33 SS4120915SP SCREW 3/16-28 L=9 2 34 SS4150915SP SCREW 15/64-28 L=9 2 35 SS4150915SP SCREW 15/64-28 L=9 2 36 SS7110540SP SCREW 11/64-40 L=5 2 37 TA0850604R0 RUBBER PLUG 1 38 TA0850604R0 RUBBER PLUG 1 39 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 40 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 41 TA1250705R0 RUBBER PLUG 1 42 TA1270502R0 RUBBER PLUG 2 43 TA1470704R0 RUBBER PLUG 1 44 M6022350AA RESISTOR PACK AA ASM. FOR JA 1 45 M6022350AL RESISTOR PACK AL ASM. FOR GENERAL EXPORT, USE IN JAPAN,JH 1 46 M6022350AF RESISTOR PACK AF ASM. FOR JE 1 jintex.in

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS jintex.in

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 47 WP0501016SD WASHER 5X10.5X1 1 48 CM600100101 WEEE MARK LABEL S FOR JE 1 49 23627359 THREAD TENSION ASM. 1 50 23626005 THREAD TENSION NUT * 1 51 B3115552000 TENSION POST * 1 52 B3120125000 ROTATING STOPPER * 1 53 B3126012000 THREAD TENSION DISK * 2 54 B3128012000 TAKE-UP SPRING * 1 55 B312902A00 TENSION SPRING * 1 56 B3132552000 THREAD TENSION DISK PRESSER * 1 57 B3111126000 TENSION POST SOCKET * 1 58 SS8090670SP SCREW 9/64-40 L= 5.5 * 1 59 23626104 ARM THREAD GUIDE A 1 60 22920607 ARM THREAD GUIDE B 1 61 22945463 THREAD TENSION ASM.,NO.1 * 1 62 22945414 THREAD TENSION POST * 1 63 22945604 THREAD TENSION GUIDE * 1 64 22945505 THREAD TENSION SPRING * 1 65 22945703 THREAD TENSION NUT * 1 66 22945802 THREAD TENSION DISK * 2 67 SS4110715SP SCREW 11/64-40 L=7 1 68 SS6110610TP SCREW 11/64-40 L=6 1 69 SS6110610TP SCREW 11/64-40 L=6 1 70 SS8150710TP SCREW 15/64-28 L=7 1 71 23638059 SAFETY SWITCH ASM. 1 72 23638000 SAFETY SWITCH BASE * 1 73 23638109 SAFETY SWITCH ARM * 1 74 23638208 SAFETY SWITCH SPRING * 1 75 23638307 SAFETY SWITCH ARM SHAFT * 1 76 23638406 SAFETY SWITCH NUT * 1 77 23638554 SAFETY SWITCH CORD ASM. * 1 78 EA9500B0100 CABLE BAND * 1 79 SM4021201SC SCREW M2 L=12 * 2 80 22901805 GROUND MARK FOR GENERAL EXPORT,JA,JE 1 81 SS4110615SP SCREW 11/64-40 L=6 1 82 23629900 AIR-DISCHARGING 1 83 R0080150200 RUBBER RING 1 84 B3118552F00 TENSION RELEASING PIN 1 85 B1109012I0B THROAT PLATE (I) FOR JE,GENERAL EXPORT 1 86 11028008 THROAT PLATE FOR USE IN JAPAN 1 87 B1109552000 THROAT PLATE FOR JA,JH 1 88 SS4121215SP SCREW 3/16-28 L=12 1 jintex.in

Page 7 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS 20 23 17 10 2 9 13 1 4 16 3 14 6 22 11 8 15 11 5 18 19 21 7 21 12 30 33 32 29 31 34 27 26 28 25 24 jintex.in

Page 8 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40023021 BOBBIN WINDER UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * 1 13 26261602 BOBBIN_SPRING * 1 14 26261701 BTW_SPRING * 1 15 40011144 BTW_TORSION_SPRING * 1 16 40014837 BTW_SHAFT * 1 17 40023022 BTW LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE0400000K0 E-RING 4 * 1 20 SM5040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 2 22 SM8050502TP SCREW M5 L=5 * 1 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 SS6121030SN SCREW 3/16-28 L=10 3 25 10502300 THREAD CUTTER 1 26 40023291 THREAD GUIDE NO.1 1 27 SS4150915SP SCREW 15/64-28 L=9 1 28 SS6090620TP SCREW 2 29 23636657 BOBBIN THREAD TENSION ASM. 1 30 11072402 THREAD TENSION NUT * 1 31 14113450 BOBBIN THREAD TENSION ROD ASM. * 1 32 B3126012000 THREAD TENSION DISK * 2 33 D7133555B00 CONNECTING ROD SPRING * 1 34 NS6110530SP NUT 11/64-40 * 1 -6-

Page 9 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 39 16 41 11 40 12 40 42 41 13 15 17 10 38 15 37 17 25 14 18 46 30 45 31 44 29 32 26 48 47 43 9 27･28 36 24 8 49 33～35 7 22 20 2 21 50 23 6 3 5 19 6 4 1 -7-

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23604010 MAIN SHAFT 1 2 23604168 COUNTER WEIGHT ASM. 1 3 23604119 COUNTER WEIGHT * 1 4 SS7681650TP SCREW 9/32-28 L=16 * 1 5 SS8681650TP SCREW 9/32-28 L=16 * 1 6 SS8660610TP SCREW 1/4-40 L=6 * 2 7 SS6111440SP SCREW 11/64-40 L=14.0 2 8 40051473 COUPLING ASM. 1 9 SM80608A2TP L=8SCREW M6 L=8 * 4 10 23604457 HAND WHEEL ASM. 1 11 40044906 HAND WHEEL ASM. * 1 12 SM8060812TP SCREW M6 L=8 * 2 13 23604804 BALANCE PLATE * 1 14 23604655 MAGNET BASE COMPL. ,A * 1 15 SL4040881SC SCREW M4 L=8 * 2 16 SL4040881SC SCREW M4 L=8 * 1 17 23605009 HAND WHEEL WASHER * 2 18 23604754 MAGNET BASE COMPL. ,B * 1 19 23605256 BEARING COMPL. 1 20 SM80608A2TP L=8SCREW M6 L=8 * 2 21 SB120000800 BEARING 1 22 40039946 SPROCKET ASM. 1 23 23607302 TIMING BELT 1 24 SM8060812TP SCREW M6 L=8 2 25 23608003 NEEDLE BAR METAL,UPPER 1 26 23608102 NEEDLE BAR METAL,LOWER 1 27 22939508 NEEDLE BAR EXCEPT JE 1 28 11141207 NEEDLE BAR B FOR JE 1 29 22906457 NEEDLE BAR HOLDER ASM. 1 30 22906408 NEEDLE ROD HOLDER * 1 31 SS6090670TP SCREW 9/64-40 L=6 * 1 32 B1414555000 SLIDE BLOCK 1 33 MDB100B1400 NEEDLE DBX1 #14 FOR GENERAL EXPORT,JA,JH 1 34 MDB100B1100 NEEDLE DBX1 #11 FOR USE IN JAPAN 1 35 MC200500750 NEEDLE 134 NM75 FOR JE 1 36 SS7080510TP SCREW 1/8-44 L=4.5 1 37 23622061 THREAD TAKE-UP ASM. 1 38 23622400 THREAD TAKE-UP CRANK SHAFT 1 39 40010434 THRUST_COLLAR_ASM. 1 40 22891204 BEARING SUPPORT 2 41 SB307000200 BEARING 2 42 SS6151920TP SCREW 15/64-28 L=19.0 1 43 40028014 AC SERVO MOTOR 1 44 M68014710A0 SYNC ASM. 1 45 EA9500B0100 CABLE BAND 2 46 SL4040881SC SCREW M4 L=8 2 47 SL6052592TN BOLT 4 -8-

Page 11 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 39 16 41 11 40 12 40 42 41 13 15 17 10 38 15 37 17 25 14 18 46 30 45 31 44 29 32 26 48 47 43 9 27･28 36 24 8 49 33～35 7 22 20 2 21 50 23 6 3 5 19 6 4 1 -9-

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23626203 NEEDLE BAR THREAD GUIDE 1 49 22906309 NEEDLE BAR THREAD GUIDE 1 50 40020455 BTW DRIVING WHEEL 1 - 10 -

Page 13 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS 52 53 51 56 48 55 54 58 57 20 47 25 30 12 49 29 23 4 5 22 11 9 6 19 7 28 3 10 8 21 13 42 17 24 46 43 36 28 38 18 39 2 15 14 45 37 50 35 32 1 45 34 33 16 40 31 26･27 41 42 46 44 - 11 -

Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23609001 BUSHING 1 2 23609100 PRESSER BAR THREAD GUIDE 1 3 23609209 PRESSER SPRING REGULATOR 1 4 23609357 LIFTING LEVER CONNECT ROD ASM. 1 5 23609308 LIFTING LEVER CONNECT ROD * 1 6 23609456 LIFTING LINK COMPL. * 1 7 23609605 PLATE * 1 8 22908008 LIFTING PLATE * 1 9 SM6040602TP SCREW M4 L=6 * 1 10 RE0500000K0 E-RING * 1 11 RE0500000K0 E-RING * 1 12 23609704 LIFTING LEVER LINK 1 13 23609803 CONNECTING ROD 1 14 23609902 CONNECTING ROD GUIDE 1 15 23610108 PRESSER BAR GUIDE BRACKET 1 16 23610207 PRESSER BAR 1 17 23610306 PRESSER GUIDE BAR 1 18 23610405 GUIDE BRACKET PLATE 1 19 22908701 LINK SHAFT 2 20 22908909 HINGE SCREW 1 21 22907604 PRESSER SPRING REGULATOR NUT 1 22 22907802 HAND LIFTER 1 23 22908552 HAND LIFTER CAM ASM. 1 24 22907406 PRESSER SPRING 1 25 B1521555000 SCREW 1 26 B15240120BA PRESSER FOOT ASM. EXCEPT JA 1 27 B15245520BA PRESSER FOOT ASM. FOR JA 1 28 RE0500000K0 E-RING 3 29 RO037180100 RUBBER RING 1 30 SD0720331SP HINGE SCREW D= 7.24 H= 3.3 1 31 SS4121015SP SCREW 3/16-28 L=10 1 32 SS6090910SP SCREW 9/64-40 L=9 1 33 SS7091110TP SCREW 9/64-40 L=10.5 1 34 WP0501016SD WASHER 5X10.5X1 1 35 SS7111810TP SCREW 11/64-40 L=18 1 36 23626351 THREAD TENSION RELEASE WIRE 1 37 23626807 TENSION RELEASE RETURN SPRING 1 38 23626906 WIRE HOLDER BRACKET 1 39 22920102 TENSION RELEASE SHAFT 1 40 22920300 THREAD RELEASE SUPPORTING PIN 1 41 11018405 TENSION RELEASE PIN SPRING 1 42 22944508 WIRE PRESSER A 2 43 SS4120615SP SCREW 3/16-28 L=6 2 44 NS6620310SP NUT 3/16-32 2 45 RE0500000K0 E-RING 2 46 SS4110715SP SCREW 11/64-40 L=7 2 47 NS6150310SP NUT 15/64-28 1 - 12 -

Page 15 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS 52 53 51 56 48 55 54 58 57 20 47 25 30 12 49 29 23 4 5 22 11 9 6 19 7 28 3 10 8 21 13 42 17 24 46 43 36 28 38 18 39 14 2 15 45 37 50 35 32 1 45 34 33 16 40 31 26･27 41 42 46 44 - 13 -

Page 17 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS 33 29 32 30 42 40 43 31 46 44 34 41 18 20 21 19 27 35 25 22 28 36 23 13 14 17 24 12 47 37 16 50 15 26 8 10 7 39 11 48 49 38 5 9 4 3 45 4 3 6 49 2 1 45 - 15 -

Page 18 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40033391 ADJUSTING LINK ASM. 1 2 40033392 ADJUSTING LINK * 1 3 40033393 ADJUSTING LINK PIN * 2 4 SM8040412TP SET SCREW M4 L=4 * 4 5 23612450 FEED CHANGING SHAFT ARM ASM.,A 1 6 SS6661110SP SCREW 1/4-40 L=11 * 1 7 23612609 FEED CHANGING SHAFT OIL SEAL 1 8 23612765 THRUST COLLAR ASM. 1 9 23612716 THRUST COLLAR * 1 10 SS8660610TP SCREW 1/4-40 L=6 * 2 11 23612807 METAL,A 1 12 40052274 METAL B 1 13 23613052 FEED CHANGING SHAFT ARM ASM.,B 1 14 23613003 FEED CHANGING SHAFT ARM,B * 1 15 SS6121610SP SCREW 3/16-28 L=15.5 * 1 16 23613102 FEED CHANGING SHAFT ARM B PIN 1 17 23613201 FEED ADJUSTING ROD 1 18 23613300 FEED ADJUSTING BASE 1 19 23613409 FEED ADJUSTING PIN 1 20 23613508 ADJUSTING BASE SHAFT METAL 1 21 23613607 FEED LEVER 1 22 23613706 FEED LEVER SHAFT 1 23 23613805 FEED LEVER SHAFT METAL 1 24 23613953 FEED LEVER ARM ASM. 1 25 SS6121610SP SCREW 3/16-28 L=15.5 1 26 23614001 FEED ADJUSTING SPRING 1 27 23614308 FEED LEVER SPRING 1 28 40023289 SPRING SUSPENSION 1 29 22912000 FEED REGULATOR PIN 1 30 11071909 FEED DIAL 1 31 22952501 BACK LEVER STOPPER 1 32 22911804 FEED REGULATOR SCREW 1 33 22912109 FEED REGULATOR PIN SPRING 1 34 CS111101ESH COLLAR ASM. D=11.11 W=10 1 35 SS8660330SP SCREW 1/4-40 L= 3.0 * 2 36 NS6110310SP NUT 11/64-40 1 37 NS6150310SP NUT 15/64-28 1 38 RE0500000K0 E-RING 1 39 RE0500000K0 E-RING 1 40 RO092270200 RUBBER RING 1 41 SM8060812TP SCREW M6 L=8 2 42 SS6090670TP SCREW 9/64-40 L=6 2 43 SS6121840SP SCREW 3/16-28 L=18 1 44 SS6121860SP SCREW 3/16-28 L=18 1 45 SS6151920TP SCREW 15/64-28 L=19.0 2 46 23614407 FEED DIAL RUBBER 1 47 23630007 TUBE 0.09 - 16 -

Page 19 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS 33 29 32 30 42 40 43 46 44 31 34 41 18 20 21 19 27 35 25 22 28 36 23 13 17 24 14 12 47 37 16 50 15 26 8 39 10 7 48 49 11 38 5 9 4 3 45 4 3 6 49 2 1 45 - 17 -

Page 20 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23612104 ADJUSTING LINK CONNECTING LINK 1 49 40012032 ADJUSTING LINK FULCRUM SHAFT 2 50 23612500 FEED CHANGING SHAFT 1 - 18 -

Page 21 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS 87 53 86 45 51 1 28～30 37 46 88 2 38 A 75 43 39 3 84 55 84 41 82 40 61 48～50 85 44 52 83 40 54 42 47 81 35 5 80 4 20 6 7 76 34 70 7 60 6 62～65 73 57 56 72 58 59 58 71 19 66 21 68･69･89 67 79 74 9 10 78 33 8 32 77 11 25～27 A 22 18 24 12 31 23 17 16 15 14 13 36 - 19 -

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23616055 FEED ROCKER CAM ASM. 1 2 23616006 FEED ROCKER CAM * 1 3 SS8151150TP SCREW 15/64-28 L=10.5 * 2 4 23616105 FEED ROCKER ROD 1 5 23616204 FEED ROCKER CAM PLATE 1 6 23616303 CONNECTING LINK,A 2 7 23616402 CONNECTING LINK,B 2 8 23616550 FEED ROCKER ARM ASM. 1 9 23616501 FEED ROCKER ARM * 1 10 SS6121610SP SCREW 3/16-28 L=15.5 * 1 11 23616600 FEED ROCKER SHAFT 1 12 23616709 FEED ROCKER SHAFT METAL 1 13 23616857 FEED ROCKER BASE ARM ASM. 1 14 23616808 FEED ROCKER BASE ARM * 1 15 SS7121410TP SCREW 3/16-28 L=14 * 1 16 WP0480856SP WASHER 4.8X8.4X0.8 * 1 17 23616907 FEED ROCKER BASE SHAFT 1 18 23617053 FEED BASE COMPL. 1 19 22911002 WALKING FOOT PIN B 1 20 22911101 WALKING FOOT PIN C 1 21 40029963 OIL SEAL 1 22 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 23 22904106 MAIN SHAFT THRUST COLLAR * 1 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 B1613012I00 FEED DOG I FOR GENERAL EXPORT,JE,JH 1 26 23614506 FEED DOG A FOR USE IN JAPAN 1 27 B1613012I00 FEED DOG I FOR JA 1 28 B412352200A NEEDLE ROLLAR A SELECTIVE PART 1 29 B412352200B NEEDLE ROLLAR B SELECTIVE PART 1 30 B412352200C NEEDLE ROLLAR C SELECTIVE PART 1 31 RC0150001KP RETAINING RING 13.8 1 32 SS4080620TP SCREW 1/8-44 L=6 2 33 SS6090620TP SCREW 1 34 SS6090620TP SCREW 1 35 SS6090670TP SCREW 9/64-40 L=6 2 36 SS7110740TP SCREW 11/64-40 L=7 1 37 23618051 FEED DRIVING CAM ASM. 1 38 23618002 FEED DRIVING CAM * 1 39 SS8151150TP SCREW 15/64-28 L=10.5 * 2 40 23618101 FEED DRIVING CAM THRUST BUSH 2 41 40022668 FEED DRIVING BASE ARM 1 42 23618309 FEED DRIVING CAM PLATE 1 43 23618408 FEED DRIVING BASE SHAFT 1 44 40011711 FEED DRIVING SHAFT 1 45 40044875 BEARING SUPPORT ASM. 1 46 SS8660810TP SCREW 1/4-40 L=8 * 2 47 23618804 OIL SEAL 1 - 20 -

Page 23

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS Jinte.in

Page 24 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SB32000060A BEARING SELECTIVE PART 1 49 SB32000060B BEARING SELECTIVE PART 1 50 SB32000060C BEARING SELECTIVE PART 1 51 SB117000400 BEARING 1 52 SB120001000 BEARING 1 53 23618705 OIL SEAL 1 54 SS6090670TP SCREW 9/64-40 L=6 2 55 SS6110710TP SCREW 11/64-40 L= 6.5 1 56 23620008 HOOK SHAFT 1 57 23620156 HOOK SHAFT METAL COMPL. 1 58 23620206 OIL SEAL 2 59 23620354 BEARING SUPPORT ASM. 1 60 SS6110650TP SCREW 11/64-40 L=5.5 * 2 61 23620503 GEAR,LARGE 1 62 23620701 GEAR,SMALL(A) SELECTIVE PART 1 63 23620800 GEAR,SMALL(B) SELECTIVE PART 1 64 23620909 GEAR,SMALL(C) SELECTIVE PART 1 65 23621006 GEAR,SMALL(D) SELECTIVE PART 1 66 11038759 BOBBIN CASE ASM. 1 67 11038809 BOBBIN CASE HOLDER 1 68 11141355 HOOK ASM. C FOR GENERAL EXPORT,JE,JA 1 69 11038650 HOOK ASM. FOR USE IN JAPAN,JH 1 70 22890008 HOOK DRIVING SHAFT OIL SEAL 1 71 B9117012000 BOBBIN EXCEPT USE IN JAPAN 1 72 22964001 BOBBIN A FOR USE IN JAPAN 1 73 23620404 HOOK SHAFT REAR METAL 1 74 SS6111010TP SCREW 11/64-40 L= 9.5 1 75 SS8661030SP SCREW 1/4-40 L=10 2 76 SS8660810TP SCREW 1/4-40 L=8 2 77 22916555 OIL SEAL SCREW ASM. 1 78 22916506 SET SCREW * 1 79 11015906 OIL WICK * 1 80 40031608 SPROCKET ASM. 1 81 40031605 SPROCKET * 1 82 40031607 SPROCKET SUPPORT ASM. * 1 83 40031606 SPROCKET SUPPORT * 1 84 SS8150822TP SCREW 15/64-28 L=8 * 2 85 SS7112420SP SCREW 11/64-40 L=24 * 3 86 23619158 FEED DRIVING CAM ASM. F OPTIONAL PARTS 1 87 23619109 FEED DRIVING CAM F * 1 88 SS8151150TP SCREW 15/64-28 L=10.5 * 2 89 23621303 HOOK ASM. K OPTIONAL PARTS 1 - 22 -

Page 25 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS 8 10 11 1 5 7 15 32 4 9 3 6 17 59 23 29 2 24 58 33 16 31 55 14 34 25 56 35 28 13 52 36 22 50 A 37 53 12 26 57 27 27 28 51 20 21 54 30 18 43 40 46 38 19 45 A 44 41 60 42 49 39 47 48 - 23 -

Page 26 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23623051 KNIFE UNIT 1 2 23623002 KNIFE INSTALLING BASE * 1 3 11040052 MOVING KNIFE ASM. * 1 4 11040409 MOVING KNIFE HINGE SCREW * 1 5 11040508 FORKED BASE FOR KNIFE * 1 6 11313103 THREAD GUIDE FOR KNIFE * 1 7 D2406555D0H COUNTER KNIFE * 1 8 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 9 SS2060210SP SCREW 3/32-56 L=2.3 * 1 10 SS4080620TP SCREW 1/8-44 L=6 * 2 11 23623168 THREAD TRIMMER DRIVING UNIT 1 12 23623150 KNIFE DRIVING ARM ASM. * 1 13 23623200 MOVING KNIFE LINK PIN * 1 14 23623358 CLUTCH PLATE ASM. * 1 15 23623556 BASE PLATE ASM. * 1 16 23623705 PICKER LINK * 1 17 23623804 DRIVING ARM STOPPER * 1 18 11040953 ROLLER ARM ASM. * 1 19 22949002 ROLLER ARM SEAT * 1 20 22949101 ROLLER FULCRUM SHAFT * 1 21 22949200 ROLLER RETURN SPRING * 1 22 11043700 KNIFE RETURN SPRING, B * 1 23 22949408 CLUTCH SPRING * 1 24 22950000 PICKER LINK PIN * 1 25 NS6150310SP NUT 15/64-28 * 1 26 NS6150810SP NUT 15/64-28 * 1 27 RE0400000K0 E-RING 4 * 2 28 RE0600000K0 E-RING 6 * 2 29 SS4110715SP SCREW 11/64-40 L=7 * 2 30 SS7090610SP SCREW 9/64-40 L=6 * 1 31 WP0621016SH WASHER * 1 32 23623903 PIN 1 33 23624000 MOVING KNIFE LINK 1 34 23624158 PICKER ARM ASM. 1 35 23624109 PICKER ARM * 1 36 23624257 THREAD TAKE-UP PICKER ASM. * 1 37 SS6090620TP SCREW * 2 38 23624356 SOLENOID ASM. 1 39 23624307 SOLENOID * 1 40 23624406 SOLENOID BASE * 1 41 11043304 SOLENOID RUBBER * 1 42 HK03464000B PIN CONTACT * 2 43 NM6040000SN NUT M4 * 2 44 NS6660410SH NUT * 1 45 NS6660430SP NUT 1/4-40 * 1 46 WP0450000SD WASHER 4.5X8X0.5 * 2 47 23624554 DRIVING BLOCK ASM. 1 - 24 -

Page 27 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS 8 10 11 1 5 7 15 32 4 9 3 6 17 59 23 29 2 24 58 33 16 31 55 14 34 25 56 35 28 13 52 36 22 50 A 37 53 12 26 57 27 27 28 51 20 21 54 30 18 43 40 46 38 19 45 A 44 41 60 42 49 39 47 48 - 25 -

Page 28 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23624505 DRIVING BLOCK * 1 49 SS6110710TP SCREW 11/64-40 L= 6.5 * 1 50 11042850 THREAD TRIMMER CAM ASM. 1 51 SS6660610TP SCREW 1/4-40 L=6 * 2 52 22950950 CAM COLLAR ASM. 1 53 SS8110520TP SCREW 11/64-40 L= 4.5 * 1 54 40023290 SOLENOID BASE STUD 2 55 SD0600321SP HINGE SCREW D=6 H=3.2 1 56 SD0630275SP HINGE SCREW D= 6.35 H= 2.7 1 57 SD0641452TP HINGE SCREW D=6.35 H=14.5 1 58 SS4110715SP SCREW 11/64-40 L=7 2 59 SS4150915SP SCREW 15/64-28 L=9 2 60 SS4150915SP SCREW 15/64-28 L=9 2 - 26 -

Page 29

OIL LUBRICATION COMPONENTS jintex.in

Page 30

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40011344 GEAR BOX COVER 1 2 23628100 GEAR BOX PACKING 1 3 23628357 FLOATER ASM. 1 4 23628555 OIL TANK ASM. 1 5 23628704 FLOATER CASE 1 6 23629108 OIL SIGHT WINDOW 1 7 23629256 OIL WICK SUPPORT ASM. 1 8 23629207 OIL WICK SUPPORT * 1 9 23629702 OIL WICK * 0.25 10 23629306 PIPE STOPPER A 4 11 23629405 PIPE STOPPER B 3 12 23629504 DISTRIBUTOR 1 13 23629603 OIL INLET 1 14 23629801 LUBRICATION CONNECTOR 2 15 23630106 TUBE B 0.25 16 RO068190100 RUBBER RING 1 17 23630007 TUBE 0.57 18 23630007 TUBE 0.04 19 23630007 TUBE 0.07 20 CQ2000000001 OIL WICK 0.75 21 23630007 TUBE 0.38 22 23630106 TUBE B 0.23 23 23630304 FELT 1 24 22925101 OIL FELT PRESSER 1 25 RO098240100 RUBBER RING 1 26 RO195240100 RUBBER RING 1 27 SS4121015SP SCREW 3/16-28 L=10 2 28 SS4121015SP SCREW 3/16-28 L=10 10 29 SS6090620TP SCREW 1 30 23630205 SCREW 1 31 WP0501016SD WASHER 5X10.5X1 2 32 WS0510002KP SPRING WASHER 5.1X9.2X1.3 2 33 23628209 OIL ADJUSTING SCREW 1 34 RO029180100 RUBBER RING 1 35 23628803 PLUNGER 1 36 23628902 PLUNGER SPRING 1 37 23629009 PLUNGER SCREW * 1 38 23630452 OIL FILTER ASM. * 1 39 23630403 OIL FILTER * 1 40 23630502 OIL FILTER STOPPER * 2 41 23630601 OIL FILTER JOINT * 0.09 42 23630007 TUBE * 0.04 43 23630106 TUBE B * 2 44 23629405 PIPE STOPPER B * 1 45 40024644 MAGNET WASHER 1 46 ST4040821SS TAPPING SCREW 1 47 23604705 MAGNET 1 jintex.in 20

Page 31 — AUTOMATIC REVERSE FEED COMPONENTS

AUTOMATIC REVERSE FEED COMPONENTS 8 1 32 4 2 34 10 30 3 6 9 7 5 33 31 29 16 18 12 15 11 19 17 14 13 26 28 22 25 20 21 24 27 23 - 29 -

Page 32 — AUTOMATIC REVERSE FEED COMPONENTS

AUTOMATIC REVERSE FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23631054 REVERSE FEED SOLENOID BASE ASM 1 2 23631005 REVERSE FEED SOLENOID * 1 3 23631104 REVERSE FEED SOLENOID PLUNGER * 1 4 23631203 REVERSE FEED SOLENOID BASE * 1 5 D2468555B00 RUBBER PLUNGER * 1 6 HK03464000B PIN CONTACT * 2 7 RE1200000K0 E-RING 12 * 1 8 SS7110740TP SCREW 11/64-40 L=7 * 4 9 WP1703001SC WASHER 17X30X3 * 1 10 23631302 REVERSE FEED ARM 1 11 23631757 REVERSE FEED SWITCH ASM. 1 12 23631708 REVERSE FEED SWITCH COVER * 1 13 23631807 REVERSE FEED SWITCH SHAFT * 1 14 23631906 REVERSE FEED SWITCH SUPPORT * 1 15 23632003 REVERSE FEED SWITCH BASE * 1 16 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 17 23632359 REVERSE FEED CORD ASM. * 1 18 EA9500B0100 CABLE BAND * 1 19 SS7110740TP SCREW 11/64-40 L=7 * 1 20 23632656 OPTION SWITCH ASM. OPTIONAL PARTS 1 21 SS7110740TP SCREW 11/64-40 L=7 * 1 22 23631708 REVERSE FEED SWITCH COVER * 1 23 23631807 REVERSE FEED SWITCH SHAFT * 1 24 23631906 REVERSE FEED SWITCH SUPPORT * 1 25 23632607 OPTION SWITCH BASE * 1 26 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 27 23632250 REVERSE FEED CORD ASM. * 1 28 EA9500B0100 CABLE BAND * 1 29 WP0501016SD WASHER 5X10.5X1 FOR 0B TYPE 1 30 22962906 PLUNGER ARM PIN 1 31 NS6110350SP NUT 11/64-40 2 32 SD0951501SP HINGE SCREW D= 9.53 H=15 1 33 SS4120915SP SCREW 3/16-28 L=9 1 34 SS4150915SP SCREW 15/64-28 L=9 2 - 30 -

Page 33 — WIPER COMPONENTS(FOR DDL-9000-WB)

WIPER COMPONENTS(FOR DDL-9000-WB) 1 5 26 29 25 21 9 3 23 6 7 10 11 13 22 24 4 12 28 19 17 2 14 18 20 27 jintex.in

Page 34 — WIPER COMPONENTS(FOR DDL-9000-WB)

WIPER COMPONENTS(FOR DDL-9000-WB) No. Parts No. Parts name Remarks Level Cons Qty 1 23633167 WIPER ASM. 1 2 23633159 WIPER BASE ASM. * 1 3 23633209 WIPER LINK B * 1 4 23633357 WIPER SHAFT ASM. * 1 5 22955504 WIPER COVER * 1 6 11110301 WIPER SOLENOID * 1 7 22955900 WIPER RUBBER A * 1 8 22956007 WIPER RUBBER B * 1 9 22956106 WIPER LINK A * 1 10 22956205 WIPER HINGE SCREW COLLAR * 1 11 22956304 WIPER SPRING * 1 12 22956809 WIPER COLLAR * 1 13 22956908 WIPER LINK B HINGE SCREW * 1 14 22957005 WIPER * 1 15 22957203 WIPER LINK COLLAR * 1 16 22957104 WIPER SOLENOID SHAFT * 1 17 HA000590000 POWER SWITCH * 1 18 HK03464000B PIN CONTACT * 2 19 HW200390000 ELECTRIC WIRE * 0.04 20 HW500070000 2-CORE CABTYRE CORD * 1.3 21 NS6090310SP NUT 9/64-40 * 1 22 NS6110310SP NUT 11/64-40 * 1 23 RE0250000K0 E-RING 2.5 * 1 24 RE0500000K0 E-RING * 1 25 SD0650321TP HINGE SCREW D=6.5 H=3.2 * 1 26 SL4030631SC SCREW M3X6 * 1 27 SL4030641SE SCREW * 3 28 SS6090540SP SCREW 9/64-40 L= 5.0 * 1 29 SS4120915SP SCREW 3/16-28 L=9 2 - 32 -

Page 35 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS 1 6 7 8 9 2 15 10 3 13 15 11 12 4 14 6 7 5 9 19 16 19 17 20 16 17 18 - 33 -

Page 36 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22930358 THREAD STAND ASM. 1 2 22931109 SPOOL RETAINER * 2 3 22931000 SPOOL PIN * 2 4 22930903 SPOOL REST CUSHION * 2 5 22930804 SPOOL REST * 2 6 SM6061610SC SCREW M6 L=16 * 2 7 22930705 THREAD GUIDE ARM JOINT * 2 8 22931406 SPOOL REST ROD RUBBER CAP * 1 9 22930507 SPOOL REST ARM * 2 10 22930408 SPOOL REST ROD, UPPER * 1 11 22931307 SPOOL REST ROD JOINT * 1 12 SM4051405SE SCREW M5 L=14 * 2 13 NM6050001SE NUT M5 * 2 14 22930309 SPOOL REST ROD, LOWER * 1 15 22931208 THREAD GUIDE * 2 16 WS0510002KN SPRING WASHER * 2 17 NM6050001SE NUT M5 * 2 18 NM6160511SE NUT M16X1.5 * 1 19 WP1612616SE WASHER 16X30X2.6 * 2 20 WS1643202KR SPRING WASHER * 1 - 34 -

Page 37 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS 12 1 13 14 15 16 A 16 17 28 29 27 7 24 25 22 30 9 11 19 23 26 23 17 20 18 20 4 10 3 5 5 6 6 8 18 21 A - 35 -

Page 38 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23639057 UNDER COVER ASM. * 1 2 23639008 UNDER COVER * 1 3 23639156 BRACKET ASM. * 1 4 23639107 BRACKET * 1 5 NM6060001SE NUT M6 * 2 6 SM8063012TR SCREW M6 L=30 * 2 7 23639206 CONNECTING ROT * 1 8 23639305 KNEE PRESS ROD * 1 9 23639404 SHAFT * 1 10 23639503 SPRING * 1 11 23639602 CONNECTING ROD * 1 12 10162600 RUBBER CUSHION * 2 13 11047107 RUBBER CUSHION * 2 14 22932453 BRACKET ASM. * 1 15 22932404 BRACKET * 1 16 SM9062053SR SCREW M6 L=20 * 2 17 NS6150310SP NUT 15/64-28 * 1 18 RE1000000K0 E-RING 10 * 2 19 RE1000000K0 E-RING 10 * 2 20 SD0720331SP HINGE SCREW D= 7.24 H= 3.3 * 2 21 SM9061853SR SCREW M6 L=17.5 * 1 22 SM9061853SR SCREW M6 L=17.5 * 1 23 WP0650876SD WASHER 6.5X13X0.8 * 2 24 22934251 KNEE PAD PLATE ASM. 1 25 22934301 KNEE PAD PLATE SUPPORT * 1 26 22934400 KNEE PAD PLATE RUBBER * 1 27 22934509 KNEE PAD PLATE COVER * 1 28 22934608 KNEE PAD UPRIGHT SHAFT * 1 29 SM9061203SE SCREW M6 L=12 * 1 30 22934202 KNEE PAD PLATE * 1 Jinttex.in

Page 39 — ACCESSORIE PART COMPONENTS

ACCESSORIE PART COMPONENTS 1 1.2 4 9 3 8 6 7 5 10 11 14 12 13 15 20~22 16 17 18 19 23 24 jintex.in

Page 40 — ACCESSORIE PART COMPONENTS

ACCESSORIE PART COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23639750 ACCESSORIE BAG ASM. EXCEPT USE IN JAPAN 1 2 23639958 ACCESSORIE BAG ASM.,A FOR USE IN JAPAN 1 3 22931604 FRAME SUPPORT BAR 1 4 22932800 ACCESSORIE BAG 1 5 22933105 SCREW DRIVER,MIDDLE 1 6 22933204 SCREW DRIVER,SMALL 1 7 22958300 NEEDLE THREAD GUIDE PIN 1 8 23639701 KNEE LIFTER PRESSER ROD 1 9 22926356 HINGE COMPL. FOR USE IN JAPAN 2 10 22958052 RUBBER HINGE ASM. EXCEPT USE IN JAPAN 1 11 22926000 RUBBER CUSHION 2 12 22958003 FRAME BUBBER CUSHION 2 13 22926208 NAIL 8 14 22926356 HINGE COMPL. 2 15 22926505 WASHER 2 16 22932909 BOBBIN EXCEPT USE IN JAPAN 1 17 22964001 BOBBIN A FOR USE IN JAPAN 1 18 B91210120A0 OILER ASM. 1 19 MDFRX1600C0 DEFRIX OIL NO.1(600CC) 1 20 MDB100B1402 NEEDLE DBX1#14-2 FOR GENERAL EXPORT,JA,JH 1 21 MDB100B1102 NEEDLE DBX1#11-2 FOR USE IN JAPAN 1 22 MC200500752 134 #75-2 FOR JE 1 23 22933006 SCREW DRIVER,LARGE 1 24 22933303 VINYL COVER 1 jintex.in

Page 41 — EXCLUSIVE PART FOR DDL-9000DS

EXCLUSIVE PART FOR DDL-9000DS 2 1 5.6 4 13 3 7 8 9~11 12 15 16 21 20 17 19 18 22 23 24 25 jintex.in

Page 42 — EXCLUSIVE PART FOR DDL-9000DS

EXCLUSIVE PART FOR DDL-9000DS No. Parts No. Parts name Remarks Level Cons Qty 1 11030301 CABLE HOLDER 1 2 SS4120615SP SCREW 3/16-28 L=6 1 3 M6023350AAA RESISTOR PACK AA ASM. 1 4 23608706 NEEDLE BAR LOWER METAL D 1 5 22887004 NEEDLE BAR (B) FOR JE 1 6 22886907 NEEDLE BAR (A) EXCEPT JE 1 7 22889851 HOOK DRIVING SHAFT BEARING ASM 1 8 SS6110420TP SCREW 11/64-40 L=4.8 * 2 9 22890404 RP HOOK C FOR GENERAL EXPORT,JE,JA 1 10 22890206 RP HOOK FOR USE IN JAPAN 1 11 22890305 RP HOOK S FOR JH 1 12 22964001 BOBBIN A 1 13 23630700 OIL SIGHT WINDOW D 1 14 22896302 BOBBIN CASE HOLDER 1 15 22896252 BOBBIN CASE ASM. 1 16 23624653 KNIFE UNIT D 1 17 11040052 MOVING KNIFE ASM. * 1 18 22896104 THREAD GUIDE FOR KNIFE * 1 19 23623002 KNIFE INSTALLING BASE * 1 20 11040409 MOVING KNIFE HINGE SCREW * 1 21 22896005 FORKED BASE FOR KNIFE * 1 22 22895908 COUNTER KNIFE * 1 23 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 24 SS2060210SP SCREW 3/32-56 L=2.3 * 1 25 SS4080620TP SCREW 1/8-44 L=6 * 2 jintex.in

Page 43

EXCLUSIVE PART FOR DDL-9000DF 3.37 2 1 4 12 6.7 5 42 49 47 51 48 46 50 43 44 11 13 14 18~20 16 17 15.38 39 41 8~10 21 25 29 26 24 23 28 27 30 32 33 34 31 36 22 35 40 jintex.in

Page 44 — EXCLUSIVE PART FOR DDL-9000DF

EXCLUSIVE PART FOR DDL-9000DF No. Parts No. Parts name Remarks Level Cons Qty 1 11030301 CABLE HOLDER 1 2 SS4120615SP SCREW 3/16-28 L=6 FOR USE IN JAPAN 1 3 11001906 THROAT PLATE K 1 4 M6023350AAF RESISTOR PACK AF ASM. 1 5 23608706 NEEDLE BAR LOWER METAL D 1 6 22886907 NEEDLE BAR (A) EXCEPT JE 1 7 22887004 NEEDLE BAR (B) FOR JE 1 8 MDB1SFB0900 NEEDLE DBX1SF #9 FOR USE IN JAPAN 1 9 MC20050650 NEEDLE 134 NM65 FOR JE 1 10 MDB100B0900 NEEDLE DBX1 #9 FOR GENERAL EXPORT,JA,JH 1 11 D152455DBB PRESSER FOOT ASM. 1 12 11162104 SPRING 1 13 SS4090610SP SCREW 9/64-40 L=6 1 14 SS7111410TP SCREW 11/64-40 L=14 1 15 D1613155W00 FEED DOG W FOR USE IN JAPAN 1 16 22889851 HOOK DRIVING SHAFT BEARING ASM 2 17 SS6110420TP SCREW 11/64-40 L=4.8 * 1 18 22890404 RP HOOK C FOR GENERAL EXPORT,JE,JA 1 19 22890206 RP HOOK FOR USE IN JAPAN 1 20 22890305 RP HOOK S FOR,JH 1 21 23627458 THREAD TENSION ASM. F 1 22 23626005 THREAD TENSION NUT * 1 23 B313255000 THREAD TENSION DISK PRESSER * 2 24 B3126012000 THREAD TENSION DISK * 1 25 B3111126000 TENSION POST SOCKET * 1 26 B3115552000 TENSION POST * 1 27 B3120125000 ROTATING STOPPER * 1 28 D312855D00 THREAD TENSION SPRING * 1 29 D312855D00 TAKE-UP SPRING * 1 30 SS8090670SP SCREW 9/64-40 L=5.5 * 1 31 11305513 ARM THREAD GUIDE, C 1 32 11403805 THREAD GUIDE C FITTING PLATE 1 33 11404209 SPACER 1 34 11404308 NUT 1 35 23630700 OIL SIGHT WINDOW D 1 36 22940506 FEED DIAL 1 37 B110901210B THROAT PLATE (I) EXCEPT USE IN JAPAN 1 38 B1613012100 FEED DOG I EXCEPT USE IN JAPAN 1 39 22964001 BOBBIN A 1 40 22896302 BOBBIN CASE HOLDER 1 41 22896252 BOBBIN CASE ASM. 1 42 23624653 KNIFE UNIT D 1 43 11040052 MOVING KNIFE ASM. * 1 44 22896104 THREAD GUIDE FOR KNIFE * 1 45 23623002 KNIFE INSTALLING BASE * 1 46 11040409 MOVING KNIFE HINGE SCREW * 1 47 22896005 FORKED BASE FOR KNIFE * 1 jintex.in 49

Page 45

EXCLUSIVE PART FOR DDL-9000DF 3.37 2 1 4 12 6.7 5 42 49 51 47 48 46 50 43 44 11 14 13 18~20 16 17 15.38 39 21 41 29 25 26 24 23 28 27 30 36 31 32 33 34 40 35 jintex.in

Page 46 — EXCLUSIVE PART FOR DDL-9000DF

EXCLUSIVE PART FOR DDL-9000DF No. Parts No. Parts name Remarks Level Cons Qty 48 22895908 COUNTER KNIFE * 1 49 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 50 SS2060210SP SCREW 3/32-56 L=2.3 * 1 51 SS4080620TP SCREW 1/8-44 L=6 * 2

Page 48 — EXCLUSIVE PART FOR DDL-9000SH-WB,0B

EXCLUSIVE PART FOR DDL-9000SH-WB,0B No. Parts No. Parts name Remarks Level Cons Qty 1 11400801 THROAT PLATE J 1 2 SS4090610SP SCREW 9/64-40 L=6 1 3 SS7111410TP SCREW 11/64-40 L=14 1 4 11305513 ARM THREAD GUIDE, C 1 5 M6024350AAF RESISTOR PACK AF ASM. 1 6 23645609 NEEDLE BAR METAL,LOWER H 1 7 11091303 NEEDLE BAR 1 8 MDB100B2100 NEEDLE DBX1 #21 EXCEPT JE 1 9 MC200501300 NEEDLE 134 NM130 FOR JE 1 10 23645807 THROAT PLATE H EXCHANGING PARTS (FOR DDL-9000SH-WB) 1 11 B1505552000A PRESSER SPRING 1 12 D1524555EBL PRESSER FOOT ASM. 1 13 11403003 FEED J 1 14 23646003 POSITIONING FINGER H 1 15 11092251 LUBRICATING BOBBIN ASM. 1 16 23645559 THREAD TAKE-UP ASM. ,H 1 17 23645252 KNIFE UNIT H * 1 18 23645203 KNIFE INSTALLING BASE H * 1 19 23645401 THREAD GUIDE FOR KNIFE H * 1 20 11092577 MOVING KNIFE J ASM. * 1 21 11095601 KNIFE BRANCH * 1 22 11409604 FIX KNIFE * 1 23 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 24 SD0500131TP HINGE SCREW D=5 H=1.25 * 1 25 SS2060210SP SCREW 3/32-56 L=2.3 * 1 26 SS4080620TP SCREW 1/8-44 L=6 * 2 27 23623176 THREAD TRIMMER DRIVING UNIT H 1 28 11040953 ROLLER ARM ASM. * 1 29 11041407 ROLLER FULCRUM SHAFT * 1 30 22949200 ROLLER RETURN SPRING * 1 31 11042306 PICKER LINK PIN * 1 32 11043700 KNIFE RETURN SPRING, B * 1 33 11094307 ROLLER ARM BRACKET * 1 34 11094406 SPRING * 1 35 23623150 KNIFE DRIVING ARM ASM. * 1 36 23623200 MOVING KNIFE LINK PIN * 1 37 23623358 CLUTCH PLATE ASM. * 1 38 23623556 BASE PLATE ASM. * 1 39 23623705 PICKER LINK * 1 40 23623804 DRIVING ARM STOPPER * 1 41 NS6150310SP NUT 15/64-28 * 1 42 NS6150810SP NUT 15/64-28 * 2 43 RE0400000K0 E-RING 4 * 2 44 RE0600000K0 E-RING 6 * 2 45 SS4110715SP SCREW 11/64-40 L=7 * 1 46 SS7090610SP SCREW 9/64-40 L=6 * 1 jintex.in 46

Page 49

EXCLUSIVE PART FOR DDL-9000SH-WB,0B 1.10 5 27 38 40 31 39 47 41 36 A 42 43 29 46 28 30 33 A 48 49 50 51 56 53 54 55 52 11 3 2 12 34 37 44 16 17 23 21 24 20 19 18 26 22 25 66 64 62 59 61 63 65 60 58 57 73 74 75 68 72 71 4 67 69 70 jintex.in

Page 50

EXCLUSIVE PART FOR DDL-9000SH-WB,0B No. Parts No. Parts name Remarks Level Cons Qty 47 WP0621016SH WASHER 1 48 23645153 SOLENOID ASM. ,H 1 49 23645005 SOLENOID BASE H 1 50 23645104 SOLENOID H 1 51 11043304 SOLENOID RUBBER 1 52 HK03464000B PIN CONTACT 2 53 NM6040000SN NUT M4 2 54 NS6660410SH NUT 1 55 NS6660430SP NUT 1/4-40 1 56 WP0430800SC WASHER M4 2 57 23626062 THREAD TENSION ASM. ,H 1 58 23626005 THREAD TENSION NUT 1 59 22921209 THREAD TENSION POST 1 60 22921407 ROTATION STOPPER 1 61 22921506 THREAD TENSION DISK 1 62 22921805 THREAD TAKE-UP SPRING 1 63 22921803 DISK STOPPER 1 64 22945307 THREAD TENSION POST BASE 1 65 22962005 THREAD TENSION SPRING 1 66 SS8090670SP SCREW 9/64-40 L= 5.5 1 67 11073954 THREAD TENSION ASM. 1 68 11403805 THREAD GUIDE C FITTING PLATE 1 69 B1418415H00 NEEDLE BAR THREAD GUIDE 1 70 B1419553000 NEEDLE BAR THREAD GUIDE 1 71 11404308 NUT 1 72 WP0371016SD WASHER 3.7X8X1 1 73 23619059 VERTICAL FEED CAM H ASM. 1 74 23619000 VERTICAL FEED CAM H 1 75 SS8151150TP SCREW 15/64-28 L=10.5 2 jintex.in

Page 51 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS jintex.in

Page 52 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23642200 TABLE 1 2 11157567 T LEG JUNCTION FOR JT-D950 1 3 11159365 T STAND JUNCTION FOR JT-D952 1 4 11159357 T-STAND ASM. FOR JT-D95J,-D95K 1 5 11156007 CASE 1 6 11155801 CASE MAGNET 1 7 11155751 CASE ASM. B 1 8 11155108 DRAWER 2 9 11155207 DRAWER SUPPORT 1 10 11073103 RUBBER CUSHION EXCEPT AK TYPE 2 11 11075900 RUBBER SPACER 2 12 11075801 RUBBER SPACER 2 13 B8210012000 CUSHION SET NAIL 4 14 B8210012000 CUSHION SET NAIL 4 15 D8226555E00 FRAME RUBBER CUSHION A 2 16 D8204555D00 DRAWER STOPPER 1 17 SK3311600SE WOOD SCREW D=3.1 L=16 6 18 SK3513200SC WOOD SCREW D=5.1 L=32 4 19 SK3382001SC WOOD SCREW D=3.8 L=20 4 20 GPK700010A0 3-JOINT PEDAL, 70 FOR JT-D95J,-D95K 1 21 GPK710010A0 2-PEDAL ASM., 71 FOR JT-D95J,-D95K 1 jintex.in

Page 53 — LIST FOR INFORMATION OF CHANGE

LIST FOR INFORMATION OF CHANGE As to the place changed,refer to the corresponding Rev.No. When previous parts(Obsolete part)and new parts(Added parts)are not interchangeable with each other. In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は,該当Rev.版をご参照ください。 部品の互換性がない変更の場合は,削除された品番でも、ご注文できます。 29327400 No.1259-07.Rev.No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. No. 頁 No. Parts No. 品番 Rev. Page Ref. No. 頁 No. Parts No. 品番 D 06 2 22 CM-3002001-A1 A 07 2 22 CM-3013000-01 D 06 2 24 CM-3002000-01 D 06 2 25 CM-3002000-B1 D 06 6 7 236-04200 D 06 6 8 236-04309 A 07 6 8 400-51473 D 06 6 10 236-04408 A 07 6 11 400-44906 D 06 6 20 SM-8060812-TP A 07 6 20 SM-80608A2-TP D 06 6 21 SM-8060812-TP A 07 6 9 SM-80608A2-TP D 06 6 22 236-07054 A 07 6 22 400-39946 D 06 10 12 236-12906 A 07 10 12 400-52274 D 06 12 27 B1613-052-000 A 07 12 27 B1613-012-100 D 06 12 45 236-18606 A 07 12 45 400-44875 D 06 24 8 SS-8110510-SP A 07 24 8 SS-6110420-TP D 06 26 17 SS-8110510-SP A 07 26 17 SS-6110420-TP jintex.in

Page 54

HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1)"*"mark...means this part is changed from the previous parts book. As to the detail of the change, refer to the "List for information of change". 2)"#01"...refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 1. "注記"欄の記号説明 1) "*"印...前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は、“変更情報リスト”を参照してください。 2) "#01"...ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ（単位メートル）を表します。 3.数量欄の（ ）は、組部品を構成している子部品であることを意味します。 4.イラストページのーーー一枠は、組構成であることを意味します。 jintex.in

Page 55 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 10162600 36 11155801 50 6 22901201 2 14-15 10502300 6 25 11156007 50 5 22901250 2 12-13 11001906 42 3-37 11157567 50 2 22901300 2 16 11015906 22 79 11159357 50 4 22901409 2 20 11018405 12 41 11159365 50 3 22901805 4 80 11028008 4 85~87 11162104 42 12 22902506 2 10 11030301 40 1 11244019 14 55 22902704 2 14-15 11030301 42 1 11305513 42 31 22902753 2 12-13 11038650 22 68-69 11305513 46 4 22904106 20 23 11038759 22 66 11313103 24 6 22904155 20 22 11038809 22 67 11400801 46 1-10 22906309 10 49 11040052 24 3 11403003 46 13 22906408 8 30 11040052 40 17 11403805 42 32 22906457 8 29 11040052 42 43 11403805 48 68 22907406 12 24 11040409 24 4 11404209 42 33 22907604 12 21 11040409 40 20 11404308 42 34 22907802 12 22 11040409 42 46 11404308 48 71 22908008 12 8 11040508 24 5 11409257 46 20 22908552 12 23 11040953 24 18 11409604 46 22 22908701 12 19 11040953 46 28 11433802 14 57 22908909 12 20 11041407 46 29 14113450 6 31 22911002 20 19 11042306 46 31 22886907 40 5-6 22911101 20 20 11042850 26 50 22886907 42 6-7 22911804 16 32 11043304 24 41 22887004 40 5-6 22912000 16 29 11043304 48 51 22887004 42 6-7 22912109 16 33 11043700 24 22 22889851 40 7 22916506 22 78 11043700 46 32 22889851 42 16 22916555 22 77 11047107 36 13 22890008 22 70 22920102 12 39 11071909 16 30 22890206 40 9~11 22920200 12 40 11072402 6 30 22890206 42 18~20 22920300 4 60 11073103 50 10 22890305 40 9~11 22920607 48 59 11073954 48 67 22890305 42 18~20 22921209 48 60 11075801 50 12 22890404 40 9~11 22921407 48 59 11075900 50 11 22890404 42 18~20 22921506 48 61 11091303 46 7 22891204 8 40 22921605 48 62 11092251 46 15 22895908 40 22 22921803 48 63 11094307 46 33 22895908 44 48 22925101 28 24 11094406 46 34 22896005 40 21 22926000 38 11 11095601 46 21 22896005 42 47 22926208 38 13 11110301 32 6 22896104 40 18 22926356 38 14 11141207 8 27-28 22896104 42 44 22926505 38 15 11141355 22 68-69 22896252 40 15 22930309 34 14 11155108 50 8 22896252 42 41 22930358 34 1 11155207 50 9 22896302 40 14 22930408 34 10 11155751 50 7 22896302 42 40 22930507 34 9 INDEX - 1 jintex.in

Page 56 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22930705 34 7 22956106 32 9 23609357 12 4 22930804 34 5 22956205 32 10 23609456 12 6 22930903 34 4 22956304 32 11 23609605 12 7 22931000 34 3 22956809 32 12 23609704 12 12 22931109 34 2 22956908 32 13 23609803 12 13 22931208 34 15 22957005 32 14 23609902 12 14 22931307 34 11 22957104 32 16 23610108 12 15 22931406 34 3 22957203 32 15 23610207 12 16 22931604 38 3 22958003 38 12 23610306 12 17 22932404 36 15 22958052 38 10 23610405 12 18 22932453 36 14 22958300 38 7 23610504 14 53 22932800 38 4 22962005 48 65 23610652 14 54 22932909 38 16 22962906 30 30 23610702 14 56 22933006 38 23 22964001 22 72 23610801 14 48 22933105 38 5 22964001 38 17 23611056 14 51 22933204 38 6 22964001 40 12 23611106 14 52 22933303 38 24 22964001 42 39 23612104 18 48 22934202 36 30 23600208 2 1 23612450 16 5 22934251 36 24 23600307 2 2 23612500 18 50 22934301 36 25 23600406 2 3 23612609 16 7 22934400 36 26 23600505 2 4 23612716 16 9 22934509 36 27 23600604 2 5 23612765 16 8 22934608 36 28 23600703 2 6 23612807 16 11 22939508 8 27-28 23600802 2 7 23613003 16 14 22940506 42 36 23601057 2 24 23613052 16 13 22944508 12 42 23601305 2 9 23613102 16 16 22945307 48 64 23602010 8 1 23613201 16 17 22945414 4 61 23604119 8 3 23613300 16 18 22945463 4 63 23604168 8 2 23613409 16 19 22945505 4 64 23604457 8 10 23613508 16 20 22945604 4 63 23604655 8 14 23613607 16 21 22945703 4 65 23604705 28 47 23613706 16 22 22945802 4 66 23604754 8 18 23613805 16 23 22949002 24 19 23604804 8 13 23613953 16 24 22949101 24 20 23605009 8 17 23614001 16 26 22949200 24 21 23605256 8 19 23614308 16 27 22949200 46 30 23607302 8 23 23614407 16 46 22949408 24 23 23608003 8 25 23614506 20 25~27 22950000 24 24 23608102 8 26 23616006 20 2 22950950 26 52 23608706 40 4 23616055 20 1 22952501 16 31 23608706 42 5 23616105 20 4 22954705 2 8 23609001 12 1 23616204 20 5 22955504 32 5 23609100 12 2 23616303 20 6 22955900 32 7 23609209 12 3 23616402 20 7 22956007 32 8 23609308 12 5 23616501 20 9 INDEX - 2 jintex.in

Page 57 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 23616550 20 8 23623705 24 16 23630007 16 47 23616600 20 11 23623705 46 39 23630007 28 42 23616709 20 12 23623804 24 17 23630106 28 43 23616808 20 14 23623804 46 40 23630205 28 30 23616857 20 13 23623903 24 32 23630304 28 23 23616907 20 17 23624000 24 33 23630403 28 39 23617053 20 18 23624109 24 35 23630452 28 38 23618002 20 38 23624158 24 34 23630502 28 40 23618051 20 37 23624257 24 36 23630601 28 41 23618101 20 40 23624307 24 39 23630700 40 13 23618309 20 42 23624356 24 38 23630700 42 35 23618408 20 43 23624406 24 40 23631005 30 2 23618705 22 53 23624505 26 48 23631054 30 1 23618804 20 47 23624554 24 47 23631104 30 3 23619000 48 74 23624653 40 16 23631203 30 4 23619059 48 73 23624653 42 42 23631302 30 10 23619109 22 87 23626005 4 50 23631708 30 22 23619158 22 86 23626005 42 22 23631757 30 11 23620008 22 56 23626005 48 58 23631807 30 23 23620156 22 57 23626062 48 57 23631906 30 24 23620206 22 58 23626104 4 59 23632003 30 15 23620354 22 59 23626203 10 48 23632102 30 26 23620404 22 73 23626351 12 36 23632250 30 27 23620503 22 61 23626807 12 37 23632359 30 17 23620701 22 62~65 23626906 12 38 23632607 30 25 23620800 22 62~65 23627359 4 49 23632656 30 20 23620909 22 62~65 23627458 42 21 23633159 32 2 23621006 22 62~65 23628100 28 2 23633167 32 1 23621303 22 68~69 23628209 28 33 23633209 32 3 23622061 8 37 23628357 28 3 23633357 32 4 23622400 8 38 23628555 28 4 23636657 6 29 23623002 24 2 23628704 28 5 23638000 4 72 23623002 40 19 23628803 28 35 23638059 4 71 23623002 42 45 23628902 28 36 23638109 4 73 23623051 24 1 23629009 28 37 23638208 4 74 23623150 24 12 23629108 28 6 23638307 4 75 23623150 46 35 23629207 28 8 23638406 4 76 23623168 24 11 23629256 28 7 23638554 4 77 23623176 46 27 23629306 28 10 23639008 36 2 23623200 24 13 23629405 28 44 23639057 36 1 23623200 46 36 23629504 28 12 23639107 36 4 23623358 24 14 23629603 28 13 23639156 36 3 23623358 46 37 23629702 28 9 23639206 36 7 23623556 24 15 23629801 28 14 23639305 36 8 23623556 46 38 23629900 4 82 23639404 36 9 INDEX - 3 jintex.in

Page 58 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 23639503 36 10 40029963 20 21 B91210120A0 38 18 23639602 36 11 40031605 22 81 CM300200001 2 23 23639701 38 8 40031606 22 83 CM300200003 2 18 23639750 38 1-2 40031607 22 82 CM301300001 2 22 23639958 38 1-2 40031608 22 80 CM600100101 4 48 23642200 50 1 40033391 16 1 CQ200000001 28 20 23645005 48 49 40033392 16 2 CS111110ESH 16 34 23645104 48 50 40033393 16 3 D1524555DBB 42 11 23645153 48 48 40039946 8 22 D1524555EBL 46 12 23645203 46 18 40044875 20 45 D1613155W00 42 15-38 23645252 46 17 40044906 8 11 D2406555D0H 24 7 23645401 46 19 40051473 8 8 D2468555B00 30 5 23645559 46 16 40052274 16 12 D3128555D00 42 29 23645609 46 6 B11090120B 4 85-87 D3129555D00 42 28 23645807 46 1-10 B11090120B 42 3-37 D7133555B00 6 33 23646003 46 14 B1109552000 4 85-87 D8204555D00 50 16 26260109 6 2 B141455000 8 32 D8226555E00 50 15 26260208 6 3 B1418415H00 48 69 EA9500B0100 4 78 26260307 6 4 B1419553000 48 70 EA9500B0100 8 45 26260406 6 5 B1505552000A 46 11 EA9500B0100 30 28 26260505 6 6 B1521550000 12 25 GPK700010A0 50 20 26260604 6 7 B15240120BA 12 26-27 GPK710010A0 30 21 26260802 6 8 B15245520BA 12 26-27 HA000590000 32 17 26261008 6 9 B1613012100 20 25-27 HK03464000B 24 42 26261206 6 10 B1613012100 42 15-38 HK03464000B 30 6 26261305 6 11 B3111126000 4 57 HK03464000B 32 18 26261503 6 12 B3111126000 42 25 HK03464000B 48 52 26261602 6 13 B3115552000 4 51 HW200390000 32 19 26261701 6 14 B3115552000 42 26 HW500070000 32 20 40010434 8 39 B3118552F00 4 84 M6022350AAA 2 44-46 40011144 6 15 B3120125000 4 52 M6022350AAF 2 44-46 40011344 28 1 B3120125000 42 27 M6022350AAL 2 44-46 40011711 20 44 B3126012000 4 53 M6023350AAA 40 3 40012032 18 49 B3126012000 6 32 M6023350AAF 42 4 40014837 6 50 B3126012000 42 24 M6024350AAF 46 5 40020455 10 50 B3128012000 4 54 M68014710A0 8 44 40022407 2 11 B3129012A00 4 55 MC200500650 42 8-10 40022668 20 41 B3132552000 4 56 MC200500750 8 33-35 40023021 6 1 B3132552000 42 23 MC200500752 38 20-22 40023022 6 17 B3538112000 2 21 MC200501300 46 8-9 40023289 16 28 B412352200A 20 28-30 MDB100B0900 42 8-10 40023290 26 54 B412352200B 20 28-30 MDB100B1100 8 33-35 40023291 6 26 B412352200C 20 28-30 MDB100B1102 38 20-22 40024644 28 45 B8210012000 50 14 MDB100B1400 8 33-35 40028014 8 43 B9117012000 22 71 MDB100B1402 38 20-22 INDEX - 4 jintex.in

Page 59 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. MDB100B2100 46 8~9 RO195240100 28 26 SS2060210SP 44 50 MDB1SFB0900 42 8~10 SB117000400 22 51 SS2060210SP 46 25 MDFRX1600C0 38 19 SB120000800 8 21 SS2110915SP 2 27 NM6040000SN 24 43 SB120001000 22 52 SS2110920TP 2 28 NM6040000SN 48 53 SB307000200 8 41 SS4080620TP 20 32 NM6050001SE 34 17 SB32000060A 22 48~50 SS4080620TP 24 10 NM6060001SE 36 5 SB32000060B 22 48~50 SS4080620TP 40 25 NM6160511SE 34 18 SB32000060C 22 48~50 SS4080620TP 44 51 NS6090310SP 32 21 SD0460703TP 24 8 SS4080620TP 46 26 NS6110310SP 16 36 SD0460703TP 40 23 SS4090610SP 42 13 NS6110310SP 32 22 SD0460703TP 44 49 SS4090610SP 46 2 NS6110350SP 30 31 SD0460703TP 46 23 SS4110615SP 4 81 NS6110530SP 6 34 SD0500131TP 46 24 SS4110715SP 2 67 NS6150310SP 12 47 SD0600321SP 26 55 SS4110715SP 4 67 NS6150310SP 16 37 SD0630275SP 26 56 SS4110715SP 12 46 NS6150310SP 24 25 SD0641452TP 26 57 SS4110715SP 24 58 NS6150310SP 36 17 SD0650321TP 32 25 SS4110715SP 26 58 NS6150310SP 46 41 SD0720331SP 12 30 SS4110715SP 46 45 NS6150810SP 24 26 SD0720331SP 36 20 SS4120615SP 2 30 NS6150810SP 46 44 SD0951501SP 30 32 SS4120615SP 12 43 NS6660410SH 12 44 SK3382001SC 50 17 SS4120615SP 40 2 NS6660410SH 24 44 SK3513200SC 50 19 SS4120615SP 42 2 NS6660410SH 48 54 SK3513200SC 50 18 SS4120915SP 2 33 NS6660430SP 24 45 SL4030631SC 32 26 SS4120915SP 30 33 NS6660430SP 48 55 SL4040881SC 8 46 SS4120915SP 32 29 RC0150001KP 20 31 SL60502592TN 2 26 SS4121015SP 12 31 RC0560711KP 6 18 SL60502592TN 8 47 SS4121015SP 28 28 RE0250000K0 32 23 SM4021201SC 4 79 SS4121215SP 4 88 RE0400000K0 6 19 SM4051405SE 34 12 SS4150915SP 2 35 RE0400000K0 24 27 SM4051405SE 34 12 SS4150915SP 6 27 RE0400000K0 46 43 SM5040655SN 6 20 SS4150915SP 26 60 RE0500000K0 12 45 SM6040602TP 12 9 SS4150915SP 30 34 RE0500000K0 16 39 SM6061610SC 34 6 SS6060210SP 2 17 RE0500000K0 32 24 SM8040412TP 16 4 SS6090540SP 32 28 RE0600000K0 24 28 SM8040802TP 6 21 SS6090620TP 6 28 RE0600000K0 46 44 SM8050502TP 6 22 SS6090620TP 20 34 RE1000000K0 36 19 SM8060812TP 8 24 SS6090620TP 24 37 RE1200000K0 30 7 SM8060812TP 16 41 SS6090620TP 28 29 RO029180100 28 34 SM80608A2TP 8 20 SS6090670TP 8 31 RO037180100 12 29 SM8063012TR 36 6 SS6090670TP 16 42 RO044240100 14 50 SM9061203SE 36 29 SS6090670TP 20 54 RO068190100 28 16 SM9061853SR 36 22 SS6090670TP 22 54 RO080150200 4 83 SM9062053SR 36 16 SS6090910SP 12 32 RO092270200 16 40 SS2060210SP 24 9 SS6110420TP 40 8 RO098240100 28 25 SS2060210SP 40 24 SS6110420TP 42 17 INDEX - 5 jintex.in

Page 60

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SS6110610TP 4 69 ST4040821SS 28 46 SS6110650TP 22 60 TA0850604R0 2 38 SS6110710TP 22 55 TA1250406R0 2 40 SS6110710TP 26 49 TA1250705R0 2 41 SS61111010TP 22 74 TA1270502R0 2 42 SS6111440SP 8 7 TA1470704R0 2 43 SS6121000SN 6 24 WP0371016SD 48 72 SS6121610SP 16 25 WP0430800SC 48 56 SS6121610SP 20 10 WP0450000SD 24 46 SS6121840SP 16 43 WP0450826SC 6 23 SS6121860SP 16 44 WP0480856SP 14 58 SS6151920TP 8 42 WP0480856SP 20 16 SS6151920TP 16 45 WP0501016SD 4 47 SS6660610TP 26 51 WP0501016SD 12 34 SS6661110SP 16 6 WP0501016SD 28 31 SS7080510TP 8 36 WP0501016SD 30 29 SS7090610SP 24 30 WP0621016SD 14 49 SS7090610SP 46 46 WP0621016SH 24 31 SS7091110TP 12 33 WP0621016SH 48 47 SS7110540SP 2 35 WP0650876SD 36 23 SS7110740TP 20 36 WP1612616SE 34 19 SS7110740TP 30 21 WP1703001SC 30 9 SS7111410TP 42 14 WS0510002KN 34 16 SS7111410TP 46 3 WS0510002KP 28 32 SS7111810TP 12 35 WS1643202KR 34 20 SS7112420SP 22 85 SS7121410TP 20 15 SS7681650TP 8 4 SS8090670SP 4 58 SS8090670SP 42 30 SS8090670SP 48 66 SS8110520TP 26 53 SS8150710TP 4 70 SS8150822TP 22 84 SS8151150TP 20 88 SS8151150TP 22 75 SS8151150TP 48 35 SS8660330SP 16 6 SS8660610TP 8 10 SS8660610TP 16 24 SS8660610TP 20 76 SS8660810TP 20 76 SS8660810TP 22 75 SS8661030SP 22 5 SS8681650TP 8 INDEX - 6 jintex.in
