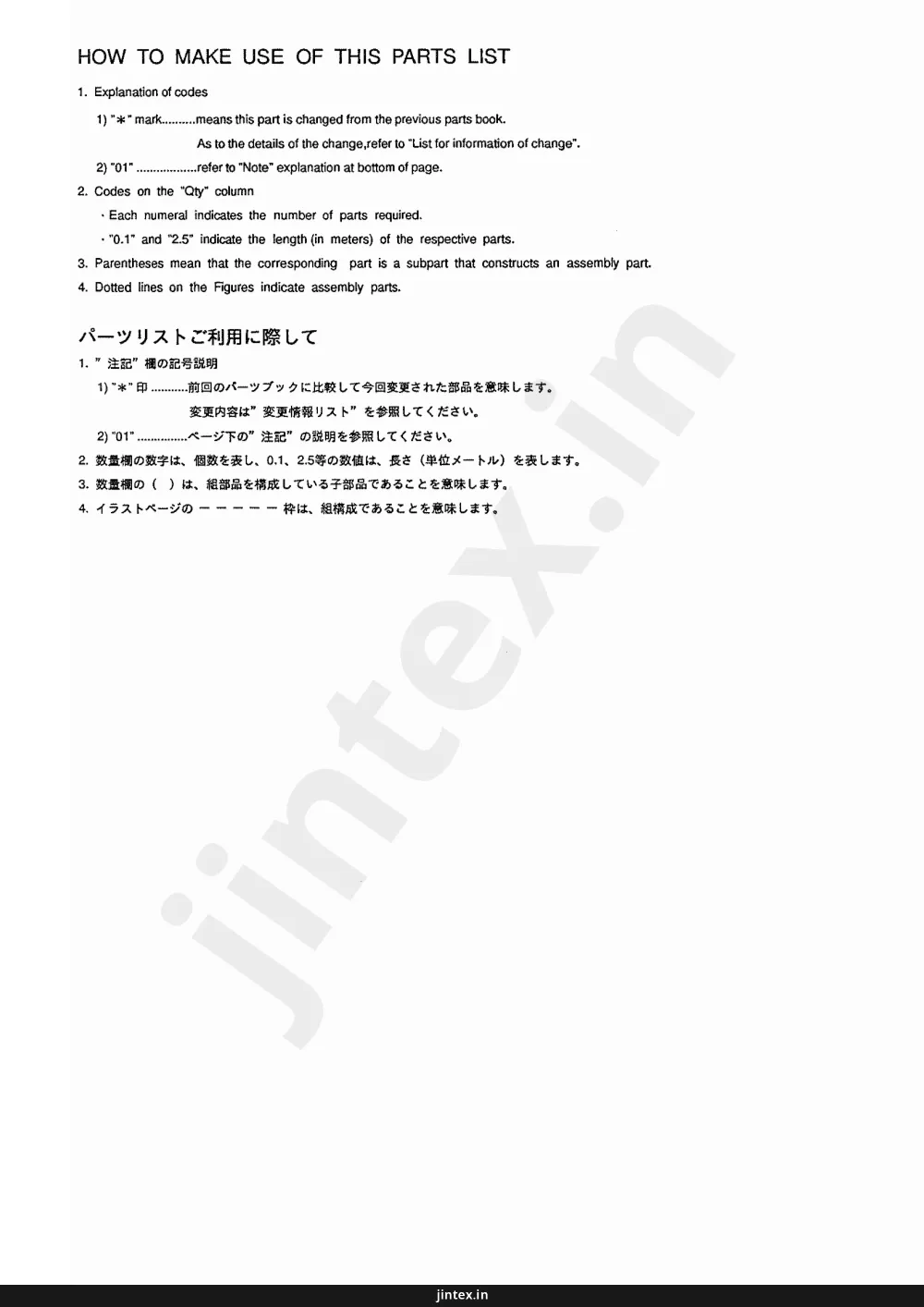

Page 7

Juki LBH-781K parts on page 7

Ref	Part number	Part name	Qty
1	B1137-771-000	FRAME SIDE COVER B
2	B1137-771-00A	FRAME SIDE COVER B
3	SS-4111015-SP	SCREW 11/64-40 L=10
4	WP-0450000-SD	WASHER 4.5X8X0.5
5	CM-3002001-01	SAFETY LABEL, 1(SMALL).
6	SS-4111015-SP	SCREW 11/64-40 L=10
7	400-09028	ARM SUPPORT ROD
8	SS-8110510-SP	SCREW 11/64-40 L=5
9	B1120-761-000	PIN
10	B1118-761-000	RUBBER CUSHION
11	B1116-771-000	SIDE COVER (C)
12	400-09010	ARM SIDE COVER (C)
13	B1152-771-000	SIDE COVER GASKET (C)
14	SS-4110915-SP	SCREW 11/64-40 L=9
15	B1138-771-000	FRAME SIDE COVER C
16	B1138-771-00A	FRAME SIDE COVER C
17	SS-4112215-SP	SCREW 11/64-40 L=22
18	SS-4111415-SP	SCREW 11/64-40 L=14
19	B1155-771-000	CUSHION
20	B1144-771-000	FRAME SIDE COVER GASKET (C)
21	B1153-781-000	LEFT SIDE COVER
22	400-08995	LEFT SIDE COVER
23	B1145-771-000	SIDE COVER GASKET
24	SS-4110915-SP	SCREW 11/64-40 L=9
25	B1123-581-000	THREAD TAKE-UP LEVER OIL GUARD
26	400-09039	THREAD TAKE-UP LEVER COVER
27	SS-4090515-SP	SCREW 9/64-40 L=5
28	B1112-771-0A0	FACE COVER COMPLETE
29	B1112-771-0AA	FACE COVER COMPLETE
30	B1149-771-000	GASKET
31	B1151-771-000	FACE PLATE GASKET (B)
32	SS-4111415-SP	SCREW 11/64-40 L=14
33	SS-4110915-SP	SCREW 11/64-40 L=9
34	TA-1250705-RO	RUBBER PLUG
35	B1103-771-000-A	TOP COVER
36	B1103-771-00A	TOP COVER
37	B1106-771-000	WORM GEAR SHAFT METAL
38	100-04109	GROUND MARK
39	SS-6120620-TP	SCREW
40	B1110-771-000	TOP COVER GASKET, FRONT
41	B1117-771-000	OIL FELT
42	400-09050	MAIN SHAFT THRUST SEEL
43	SS-4111815-SP	SCREW 11/64 L=18
44	TA-0750704-RO	RUBBER PLUG
45	B1106-761-000	GEAR CASE COVER
46	400-09030	GEAR CASE COVER
47	B3125-155-000	DISK SPRING
48	SD-0640261-SP	HINGE SCREW D=6.35 H=2.6
49	SS-7111310-SP	SCREW 11/64-40 L=12.8
50	400-09311	HAND STOP LATCH
51	SS-4110715-SP	SCREW 11/64-40 L=7
52	400-09038	BALL SCREW
53	NS-6120310-SP	NUT 3/16-28
54	TA-2101002-RO	RUBBER PLUG
55	B1104-771-000	TOP COVER GASKET, REAR
56	400-09370	ARM OIL SHIELD
57	SS-4110715-SP	SCREW 11/64-40 L=7
58	B2743-771-000	KNIFE STOP LEVER SHAFT GUIDE
59	TA-1050504-RO	RUBBER PLUG
60	B1111-771-000	SIDE COVER (A) GASKET
61	B1114-771-000	SIDE COVER A
62	400-09008	ARM SIDE COVER (A)
63	SS-4110915-SP	SCREW 11/64-40 L=9
64	B1133-771-000	OIL SIGHT WINDOW GASKET
65	B1115-771-0A0	SIDE COVER ASM. B
66	400-09009	ARM SIDE COVER (B)
67	SS-4110915-SP	SCREW 11/64-40 L=9
68	B1128-771-000	SIDE COVER A
69	B1128-771-00A	SIDE COVER A
70	SS-4111015-SP	SCREW 11/64-40 L=10
71	WP-0450000-SD	WASHER 4.5X8X0.5
72	CM-3002001-A1	SAFETY LABEL, 3 (SMALL).
73	400-09034	BED SLIDE
74	400-09036	BED SCREW STUD A
75	400-09035	BED OIL SHIELD ASM.
76	400-09384	BED OIL SHIELD STUD
77	SS-4110515-SP	SCREW 11/64-40 L=5
78	CM-3002000-B1	LABEL(16)
79	CM-3002000-01	ATTENTION SEAL
80	400-09014	OIL SIGHT WINDOW

Page 9

Juki LBH-781K parts on page 9

Ref	Part number	Part name	Qty
1	400-52419	SAFETY PLATE ASM.	1
2	260-37200	SAFETY PLATE	(1)
3	SM-4040655-SP	SCREW M4 L=6	(2)
4	WP-0450801-SD	WASHER 4.5X10X0.8	(2)
5	400-52354	SAFETY PLATE INSTALLING BASE	(1)
6	SS-6111140-SP	SCREW 11/64-40 L=11	(1)
7	NS-6110310-SP	NUT 11/64-40	10
8	WP-0501016-SC	WASHER 5X10.5X1	5
9	SK-3452000-SE	WOOD SCREW D=4.5 L=20	5
10	B7272-781-000	COVER MOUNTING BRACKET B	2
11	400-09421	COVER MOUNTING BRACKET A	2
12	262-36703	COVER MOUNTING BRACKET C	1
13	137-72504	MOTOR PULLEY COVER	1
14	CM-3002000-A3	LABEL, (31.5)	2
15	400-09458	PULLEY COVER	1
16	SS-7110710-SP	SCREW 11/64-40 L=7	10
17	WP-0480856-SP	WASHER 4.8X8.4X0.8	10

Page 11

Juki LBH-781K parts on page 11

Ref	Part number	Part name	Qty
1	B1404-761-000	HINGE STUD
2	SS-8150822-TP	SCREW 15/64-28 L=8
3	CQ-2520000-00	OIL WICK
4	400-09087	OIL WICK HOLDER
5	SS-7090510-SP	SCREW 9/64-40 L= 4.6
6	B1147-125-000	OIL WICK SNAP RING
7	BP-6000000-00	VINYL PIPE
8	400-08610	MAIN SHAFT
9	CM-3003000-01	DIRECTION LABEL
10	B1901-761-BA0	THREAD TAKE-UP LEVER ASM., CER
11	B1901-761-0A0	THREAD TAKE-UP LEVER ASM.
12	B1203-771-000	NEEDLE BAR CRANK
13	B1204-761-000	NEEDLE BAR CRANK CONNECTING RO
14	B1905-541-B00	NEEDLE BEARING
15	B1903-552-000	LEFT SCREW
16	B2615-232-000	OIL FELT WASHER
17	B1223-771-000	NEEDLE ROD CRANK WASHER
18	400-09048	COUNTERWEIGHT ASM.
19	SS-8681650-TP	SCREW 9/32-28 L=16
20	SS-8660512-TP	SCREW 1/4-40 L=5
21	SS-7681750-TP	SCREW 9/32-28 L=16.5
22	B1204-771-000-A	BUSHING, FRONT
23	SS-8150822-TP	SCREW 15/64-28 L=8
24	B1203-012-000	OIL FELT
25	B3541-012-000	OIL WICK
26	261-00701	KNIFE BAR DRIVING CONNECTING
27	B2722-761-000	KNIFE BAR DRIVING ECCENTRIC
28	SS-8660810-TP	SCREW 1/4-40 L=8
29	B1208-552-000-A	OIL SEAL
30	261-04703	MAIN SHAFT BUSHING INTERMEDIA
31	SS-8150822-TP	SCREW 15/64-28 L=8
32	B2920-761-0A0	WORM ASM.
33	SS-8660610-TP	SCREW 1/4-40 L=6
34	CS-147121B-SH	THRUST COLLAR ASM. D=14.72 W=1
35	SS-8660530-TP	SCREW 1/4-40 L=4.5
36	400-09400	MAIN SHAFT THRUST COLLAR ASM.
37	SS-8660530-TP	SCREW 1/4-40 L=4.5
38	B1256-781-0A0	UPPER SHAFT REAR METAL ASM.
39	B1256-781-0B0	UPPER SHAFT REAR METAL
40	B1208-552-000-A	OIL SEAL
41	400-09426	BEARING RETAINER
42	SS-7110910-TP	SCREW 11/64-40 L=8.5
43	B1257-781-000	FELT B
44	B1252-781-0B0	LOOSE PULLEY ASM.
45	RC-3000001-KP	RETAINING RING 30
46	B1255-781-00B	WASHER B
47	B1229-771-000	MAIN SHAFT THRUST WASHER (C)
48	SS-8150822-TP	SCREW 15/64-28 L=8
49	SS-7090410-SP	SCREW 9/64-40 L= 3.5
50	B1254-781-000	MAIN SHAFT THRUST SEEL
51	B1227-771-000	GASKET
52	B1220-771-000	THRUST WASHER A
53	B1225-771-000	BEARING
54	SS-7660510-SP	SCREW 1/4-40 L=5.0
55	SS-8660512-TP	SCREW 1/4-40 L=5
56	400-09049	DRIVING PULLEY
57	B1224-771-00C	SCREW (C)
58	B1231-771-000	STOP CAM PRESSURE SPRING
59	400-09070	STOP-MOTION CAM PIN SLIDE BLOC
60	B1212-232-000	BAKELITE SEGMENT
61	400-09069	STOP-MOTION CAM POSITION PIN
62	B1208-771-000	STOP MOTION CAM
63	400-09058	STOP MOTION CAM PRESSER PLATE
64	SS-7110710-SP	SCREW 11/64-40 L=7
65	CQ-2520000-00	OIL WICK
66	B3541-012-000	OIL WICK

Page 13

Juki LBH-781K parts on page 13

Ref	Part number	Part name	Qty
1	B1810-771-0A0	BOBBIN CASE ASM.
2	B1810-761-C00	BOBBIN CASE LATCH LEVER
3	B1810-761-B00	BOBBIN CASE LATCH
4	B1810-761-F00	LATCH SPRING
5	B1810-761-G00	LATCH STOP SCREW
6	B1810-761-D00	HINGE PIN
7	B1810-771-E00	TENSION SPRING
8	B1810-761-J00	TENSION SCREW
9	B1810-761-H00	CLAMP SCREW
10	400-09148	BOBBIN
11	B1808-771-0AC	HOOK ASM.
12	261-00404	BOBBIN CASE POSITIONING PLATE
13	SS-9110515-SP	SCREW 11/64-40 L=5
14	B1805-771-0A0	HOOK SLEEVE ASM.
15	SS-8660612-TP	SCREW 1/4-40 L=6
16	B1812-771-0A0	OIL WICK ASM.
17	NS-6090310-SP	NUT 9/64-40
18	B1806-771-000	ADJUSTING SCREW
19	B1804-761-0A0	BUSHING ASM., FRONT
20	CQ-2520000-00	OIL WICK
21	SS-8150822-TP	SCREW 15/64-28 L=8
22	B1803-761-000	BUSHING, INTERMEDIATE
23	B1446-761-CA0	PINION ASM.
24	SS-8660610-TP	SCREW 1/4-40 L=6
25	B1306-771-0C0	GEAR & PINION ASM.
26	B1306-771-0B0	GEAR & PINION ASM. UPPER
27	B1305-771-0A0	GEAR ASM.
28	SS-6660712-TP	SCREW 1/4-40 L= 7.0
29	B1306-771-0A0	PINION ASM.
30	SS-6660712-TP	SCREW 1/4-40 L= 7.0
31	B1307-771-0B0	GEAR & PINION ASM. LOWER
32	B1307-771-0A0	GEAR ASM.
33	SS-6660712-TP	SCREW 1/4-40 L= 7.0
34	B1308-771-0A0	PINION ASM.
35	SS-6660712-TP	SCREW 1/4-40 L= 7.0
36	B1223-771-000	NEEDLE ROD CRANK WASHER
37	229-05202	UPRIGHT SHAFT BUSHING, LOWER
38	400-09071	UPRIGHT SHAFT
39	400-09072	UPRIGHT SHAFT BUSHING
40	400-09150	HOOK DRIVING SHAFT
41	SS-8150822-TP	SCREW 15/64-28 L=8
42	B1223-771-000	NEEDLE ROD CRANK WASHER
43	B1802-771-0A0	BUSHING ASM., REAR
44	CQ-2020000-00	OIL WICK
45	TA-0850604-RO	RUBBER PLUG
46	400-09442	HOOK OIL SUPPLY RUBBER ASM.
47	400-09443	BUSHING
48	400-09444	OIL ADJUSTING RUBBER
49	400-09156	HOOK OIL ADJUSTING SCREW
50	400-09157	POSITIONING SCREW
51	400-09153	OIL SUPPLY FELT HOLDER
52	SS-4150715-SP	SCREW 15/64-28 L=7
53	B1812-771-000	OIL SUPPLY FELT
54	B1810-771-0BA	BOBBIN CASE ASM.
55	B1814-761-000	SPRING
56	400-09155	PLATE SPRING

Page 15

Juki LBH-781K parts on page 15

Ref	Part number	Part name	Qty
1	400-09129	PRESSER SPRING REGULATOR
2	400-09119	PRESSER BAR
3	B1507-761-000	PRESSER SPRING
4	B1506-761-000	PRESSER BAR GUIDE BRACKET
5	SS-7111310-SP	SCREW 11/64-40 L=12.8
6	B1505-761-0A0	PRESSER BAR POSITION BRACKET A
7	SS-8660810-TP	SCREW 1/4-40 L=8
8	400-09121	SLEEVE
9	400-09123	SLIDE ROLLER
10	B1503-771-000	CONNECTING PIN
11	B1502-771-AA0-A	BRACKET ASM.
12	400-09122	BRACKET
13	400-09132	FINGER GUARD
14	SS-7090710-SP	SCREW 9/64-40 L= 6.8
15	SS-4091520-SP	SCREW 9/64-40 L=15
16	SS-7110710-SP	SCREW 11/64-40 L=7
17	400-09122	WORK CLAMP BRACKET
18	SS-2110920-TP	SCREW 11/64-40 L=8.5
19	SS-7110840-SP	SCREW 11/64-40 L=7.8
20	SS-7110840-SP	SCREW 11/64-40 L=7.8
21	400-09190	NEEDLE THREAD TRIMMER GUIDE (A
22	B1552-781-0A0-A	PRESSER ASM.
23	B1511-771-0A0-B	PRESSER FOOT ASM.
24	B1511-771-000-B	PRESSER FOOT
25	B1509-761-000	WORK CLAMP CHECK SPRING
26	B1510-771-00B	WORK CLAMP CHECK SPRING SET PI
27	B1512-761-000	WORK CLAMP CHECK HOLDER SPRING
28	B1552-781-000-A	PRESSER
29	SS-6060210-SP	SCREW 3/32-56 L= 1.9
30	B1508-771-A00	WORK CLAMP CHECK, KNIT GOOD
31	B1613-771-A00-A	WORK CLAMP CARRIER
32	400-09445	WORK CLAMP CARRIER
33	B1607-763-0A0	BRACKET COVER
34	SS-7110810-SP	SCREW 11/64-40 L=8
35	B1611-771-0A0	WORK CLAMP ARM BRACKET ASM.
36	SS-6151440-SP	SCREW 15/64-28 L=14
37	B1606-763-000	WORK CLAMP CARRIER BRACKET PIT
38	SD-0870601-SP	HINGE SCREW D= 8.73 H= 6.0
39	261-05908	WORK CLAMP ARM SLIDE ROD
40	B1612-763-000	WORK CLAMP CARIER BRACKET GUID
41	SS-6111010-TP	SCREW 11/64-40 L= 9.5
42	B1551-781-000	WORK CLAMP
43	B1517-771-000	CONNECTING PIN
44	SS-7090920-SP	SCREW 9/64-40 L= 8.5
45	B1516-771-000	BEARING ARM
46	SS-6150710-SP	SCREW 15/64-28 L=7
47	SS-8150920-SP	SET-SCREW
48	400-09137	LENGTH REGULATING HINGE STUD
49	400-09134	LENGTH REGULATING SHAFT GUIDE
50	NS-6150310-SP	NUT 15/64-28
51	B1603-763-0A0	LENGTH REGULATING SCALE ASM.
52	400-09144	LENGTH REGULATING SHAFT CRANK
53	SM-6061602-TP	SCREW M6 L=16
54	WP-0651308-SD	WASHER 6.5X13X0.8
55	400-09146	BELL CRANK ROLLER STUD
56	400-09143	ROLLER
57	SD-0790203-SP	HINGE SCREW D=7.94 H=2
58	NS-6150310-SP	NUT 15/64-28
59	400-09178	NEEDLE THREAD TRIMMER GUIDE (B

Page 17

Juki LBH-781K parts on page 17

Ref	Part number	Part name	Qty
1	B1414-232-000	SQUARE BLOCK	1
2	B1410-771-000	STUD	1
3	NS-6150310-SP	NUT 15/64-28	1
4	400-09082	BUSHING	1
5	SS-8151150-SP	SCREW 15/64-28 L=10.5	2
6	R0-1482402-00	RUBBER RING	1
7	B3541-012-000	OIL WICK	1
8	B1411-771-0A0	FRAME ROCK SHAFT CRANK ASM., F	1
9	261-06906	FRAME NEEDLE BAR SHAFT	(1)
10	PT-0302000-S0	TAPERED PIN 3.0X20	(2)
11	400-09099	NEEDLE BAR CRANK (FRONT)	(1)
12	400-09452	NEEDLE BAR CRANK (REARE) ASM.	1
13	SS-7151210-SP	SCREW 15/64-28 L=12	(1)
14	SD-0790801-SP	HINGE SCREW D=7.94 H=8	1
15	NS-6160520-SP	NUT 1/4-24	1
16	B1415-761-000	NEEDLE BAR PITMAN	1
17	B1416-761-000	ROCK SHAFT CONNECTION GUIDE	1
18	SS-6111620-SP	SCREW 11/64-40 L=16.0	2
19	SS-8111251-SP	SCREW 11/64-40 L=12.0	1
20	NS-6110310-SP	NUT 11/64-40	1
21	B1445-761-0A0	NEEDLE DRIVING GEAR ASM.	1
22	CS-095101C-SH	THRUST COLLAR ASM. D=9.53 W=10	1
23	SS-8150920-SP	SET-SCREW	(1)
24	SS-8150710-SP	SCREW 15/64-28 L=7	(1)
25	B1447-761-0A0	KNIFE DRIVING SHAFT ASM.	1
26	CQ-2020000-00	OIL WICK	(0.21)
27	400-09091	KNIFE DRIVING SHAFT	(1)
28	CS-095101B-SH	THRUST COLLAR ASM. D=9.53 W=10	1
29	SS-8150710-SP	SCREW 15/64-28 L=7	(2)
30	B1403-771-000	NEEDLE BAR FRAME	1
31	SS-8150822-TP	SCREW 15/64-28 L=8	1
32	B1404-771-000	HINGE STUD	1
33	CQ-2520000-00	OIL WICK	0.26
34	400-08075	POSITION BRACKET	1
35	SS-5110810-SP	SCREW 11/64-40 L=8	2
36	B1406-771-000	OIL FELT, FOR NEEDLE BAR	2
37	400-09085	OIL FELT UPPER	1
38	SS-7090520-SP	SCREW 9/64-40 L= 4.5	2
39	B1402-761-0A0	NEEDLE BAR CONNECTION	1
40	SS-7090910-TP	SCREW 9/64-40 L= 8.5	(1)
41	400-09086	OIL FELT RETAINER	1
42	400-09083	NEEDLE BAR	1
43	400-09093	NEEDLE BAR BOBBIN THREAD GUIDE	1
44	SS-4080415-SP	SCREW 1/8-44 L=4	1
45	MDP-5J0B1100	NEEDLE DPX5 #11J	1
46	B1451-771-00A	NEEDLE BAR THREAD GUIDE	1
47	MC-2005E07-50	NEEDLE 134SES 75	1
48	MDP-5J0B1400	NEEDLE DPX5 #14J	1
49	SS-8150920-SP	SET-SCREW	1
50	MC-2005007-50	NEEDLE 134 NM75	1
51	400-09077	BUSHING	1
52	CQ-2520000-00	OIL WICK	0.25

Page 19

Juki LBH-781K parts on page 19

Ref	Part number	Part name	Qty
1	400-09092	STITCH WIDTH REGULATING SCREW
2	SS-9201973-CP	SCREW 5/16-18 L=19
3	NM-6080721-SE	NUT M8
4	NS-6200520-SP	NUT 5/16-18
5	400-09078	NEEDLE THROW REPOSITIONING LEV
6	SS-7121210-SP	SCREW 3/16-28 L=12
7	400-09107	REPOSITIONING LIVER TRIP PIN A
8	400-09110	PIN
9	400-09109	ROLLER
10	400-09108	REPOSITIONING LEVER TRIP PIN
11	B1432-761-000	SWING ARM STOPPER RUBBER
12	400-09106	REGULATING HINGE PIN
13	400-09111	REGULATING LEVER ASM.
14	400-09113	BELL CRANK
15	400-09115	REGULATING LEVER SHAFT
16	CQ-3030000-00	OIL WICK
17	NS-6110310-SP	NUT 11/64-40
18	SS-8111251-SP	SCREW 11/64-40 L=12.0
19	400-09114	REGULATING LEVER BRACKET
20	400-09112	REGULATING LEVER
21	SS-4080415-SP	SCREW 1/8-44 L=4
22	400-09118	SPRING
23	SS-4080415-SP	SCREW 1/8-44 L=4
24	400-09117	BARRED WIDTH INDICATOR
25	SS-7151210-SP	SCREW 15/64-28 L=12
26	SD-0790432-SP	HINGE SCREW D= 7.94 H= 4.3
27	400-09116	ROLLER
28	B1425-771-000	BEARING BRACKET
29	NS-6110310-SP	NUT 11/64-40
30	SS-8111251-SP	SCREW 11/64-40 L=12.0
31	B1424-761-000	NEEDLE THROW REPOSITIONING SHA
32	SS-7150940-SP	SCREW 15/64-28 L=9
33	B1421-761-0A0	BEARING BRACKET ASM.
34	CQ-2520000-00	OIL WICK
35	400-09105	CONNECTING PIN
36	B1418-761-0A0	CONNECTING FORKED LINK PIN ASM
37	CQ-2520000-00	OIL WICK
38	400-09103	CONNECTING FORKED LINK PIN
39	NS-6110310-SP	NUT 11/64-40
40	B1419-761-0A0	CONNECTING STUD ASM.
41	CQ-2520000-00	OIL WICK
42	400-09104	CONNECTING STUD
43	400-09089	SUSPENSION SCREW
44	261-00008	CONNECTING FORKED LINK
45	B1427-771-000	SPRING
46	NS-6150310-SP	NUT 15/64-28
47	400-09094	SWING ARM STOPPER ASM
48	400-09081	SEAM WIDTH INDICATOR
49	SS-4080415-SP	SCREW 1/8-44 L=4
50	400-09094	SWING ARM STOPPER ASM
51	400-09102	REGULATING LEVER CONNECTION
52	261-00107	REPOSITIONING LIVER LINK
53	SS-8111251-SP	SCREW 11/64-40 L=12.0
54	B1426-771-000	SPRING
55	SD-0640471-SP	HINGE SCREW D= 6.35 H= 4.7

Page 21

Juki LBH-781K parts on page 21

Ref	Part number	Part name	Qty
1	B2001-771-0A0	NEEDLE THREAD TRIMMER ASM.	1
2	B2001-771-000	NEEDLE THREAD TRIMMER, LOWER	(1)
3	B2005-761-000	POSITION PIN	(1)
4	B2002-771-0A0	NEEDLE THREAD TRIMMER, UPPER	(1)
5	B2003-771-000	NEEDLE THREAD PRESSER SPRING	(1)
6	SD-0400191-TP	HINGE SCREW D=4 H=1.9	(1)
7	SS-7110510-SP	SCREW 11/64-40 L=5	2
8	SS-150715-SP	SCREW 15/64-28 L=7	1
9	400-09179	NEEDLE THREAD TRIMMER SHAFT GU	1
10	B2063-781-0B0-A	THREAD TRIMMER HOLDER ASM.	1
11	SM-8061002-TP	SCREW M6 L=10	(2)
12	400-09160	THREAD TRIMMER HOLDER ASM.	1
13	SM-8061002-TP	SCREW M6 L=10	2
14	400-08607	LIMITTING PLATE	1
15	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
16	400-09168	DRAIVING CAM SPRING	1
17	400-09169	DRAIVING CAM SPRING AXLE	1
18	SD-0450401-SP	HINGE SCREW D=4.5 H=4	1
19	400-08608	DRIVING CAM INSTALING PLATE	1
20	SD-0790303-SP	HINGE SCREW D=7.94 H=3.0	1
21	400-09167	DIFFERENTIAL FEED CAM	1
22	SS-7090710-SP	SCREW 9/64-40 L=6.8	2
23	PS-0300102-KO	SPRING PIN 3.0X10	1
24	B2010-771-000	BRACKET	2
25	400-09163	THREAD TRIMMER SPRING A	1
26	SS-6621212-TP	SCREW 3/16-32 L=12.0	4
27	400-09330	THREAD SHAFT GUIDE BASE	1
28	400-09164	THREAD TRIMMER SPRING B	1
29	B2007-771-0B0	NEEDLE THREAD TRIMMER SHAFT AS	1
30	400-09193	NEEDLE THREAD TRIMMER SHAFT	(1)
31	260-23200	CAM ROLL	(1)
32	SS-6080610-TP	SCREW 1/8-44 L=6	(1)
33	400-09195	STUD	(1)
34	400-09196	SUSPENSION SCREW	(1)
35	400-09186	LATCH PRESSER ARM	1
36	SS-7090710-SP	SCREW 9/64-40 L=6.8	2
37	400-09191	SPACER	1
38	400-09181	LOCKING BRACKET LATCH ASM.	1
39	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
40	B2030-771-000	THREAD TRIMMING SHAFT SEGMENT	1
41	SD-0641003-SP	HINGE SCREW D=6.35 H=10	1
42	NS-6110310-SP	NUT 11/64-40	1
43	NS-6080210-SP	NUT 1/8-44	1
44	NS-6080340-SP	NUT 1/8-44	1
45	400-09188	ROLLER	1
46	B2032-771-000	STUD	1
47	SS-7110840-SP	SCREW 11/64-40 L=7.8	2

Page 23

Juki LBH-781K parts on page 23

Ref	Part number	Part name	Qty
1	B2401-771-0AO	NEEDLE PLATE ASM.
2	B2402-771-000	NEEDLE PLATE
3	SS-2090510-SP	SCREW 9/64-40 L=5
4	B2401-771-0BO	THROAT PLATE BASE ASM.
5	B2406-771-0AO	BOBBIN THREAD TRIMMER BLADE AS
6	SS-6090320-SP	SCREW 9/64-40 L= 3.2
7	B2408-771-000-A	COUNTER KNIFE
8	SS-4080310-SP	SCREW 1/8-44 L=3.4
9	B2404-771-000	BOBBIN THREAD TRIMMER LEVER
10	SS-7110570-SP	SCREW 11/64-40 L=4.8
11	WP-0451016-SP	WASHER 4.5X20X1
12	B2405-771-000	BOBBIN THREAD PULLER
13	SS-6090440-SP	SCREW 9/64-40 L=4.0
14	SS-6090630-TP	SCREW 9/64-40 L=6
15	400-09218	BOBBIN PICKER STOPPER
16	B2416-771-000	PRESSER PLATE
17	SS-7110540-SP	SCREW 11/64-40 L=7.8
18	400-09220	BOBBIN PICKER PRESSER PLATE
19	SD-0630272-SP	HINGE SCREW
20	B2422-771-000	BOBBIN PICKER BRACKET
21	SS-7090620-TP	SCREW 9/64-40 L=6.1
22	400-09217	BOBBIN PICKER BRACKET SHAFT
23	400-09215	BOBBIN WINDER TRIP LATCH
24	400-09223	SAFETY STOPPER
25	SS-6110610-TP	SCREW 11/64-40 L=6
26	400-09222	PRESSER PLATE ADJUSTING SPRING
27	400-09219	PRESSER PLATE MOUNTING BASE
28	400-09214	BOBBIN THREAD TRIMMER LINK
29	NS-6120310-SP	NUT 3/16-28
30	400-09221	PRESSER PLATE ADJUSTING SCREW
31	SD-0640321-SP	HINGE SCREW D= 6.35 H= 3.2
32	SD-0640602-SP	HINGE SCREW D=6.35 H= 6.0
33	B2417-771-000	BOBBIN THREAD GUIDE
34	SS-4090415-SP	SCREW 9/64-40 L=4
35	NS-6150310-SP	NUT 15/64-28
36	SD-0790602-SP	HINGE SCREW D= 7.94 H= 6
37	400-09210	BOBBIN THREAD TRIMMER DRIVING
38	NS-6150310-SP	NUT 15/64-28
39	SS-7110570-SP	SCREW 11/64-40 L=4.8
40	400-09211	CONNECTING LINK
41	B2414-761-000	STOP SCREW
42	NS-6680320-SP	NUT 9/32-28
43	B2416-761-000	HING STUD
44	SS-8150822-TP	SCREW 15/64-28 L=8
45	400-09209	BOBBIN THREAD TRIMMER DRIVING
46	SD-0790641-SP	HINGE SCREW D= 7.94 H= 6.4
47	B2412-047-000	BALL SCREW
48	SS-7110710-SP	SCREW 11/64-40 L=7

Page 25

Juki LBH-781K parts on page 25

Ref	Part number	Part name	Qty
1	400-09302	KNIFE STOP LEVER BRACKET
2	PS-0300182-KF	SPRING PIN 3X18
3	SS-7110740-TP	SCREW 11/64-40 L=7
4	B2729-771-000	KNIFE STOP LEVER
5	SS-6110420-TP	SCREW 11/64-40 L=4.8
6	400-09300	KNIFE STOP LEVER HINGE STUD
7	B2731-761-000	THREAD CHECK WIRE
8	SS-7110840-SP	SCREW 11/64-40 L=7.8
9	B2702-771-000-A	KNIFE BAR
10	400-09280	KNIFE ROD GUIDE PLATE A
11	SS-7110740-SP	SCREW 11/64-40 L=7
12	400-09290	HINGE STUD
13	B2706-761-000	KNIFE BAR CONNECTING LINK
14	B2705-761-000	HINGE SCREW
15	NS-6660430-SP	NUT 1/4-40
16	400-09284	KNIFE BAR POSITIONING BRACKET
17	SS-7110840-SP	SCREW 11/64-40 L=7.8
18	B2701-761-000	KNIFE HOLDER
19	B2740-771-000	THRUST WASHER
20	SM-6061202-TP	SCREW M6 L=12
21	B2702-047-L00-A	KNIFE 1/2
22	WP-0501016-SD	WASHER 5X10.5X1
23	SS-7620750-SP	SCREW 3/16-32 L= 6.5
24	B2751-781-000	KNIFE BAR DRIVING LEVER
25	SS-7110810-SP	SCREW 11/64-40 L= 8.0
26	B2710-771-000	SPRING
27	SD-0550501-SP	HINGE SCREW D=5.5 H=5
28	400-09264	KNIFE BAR STOPPER ASM.
29	400-09265	KNIFE BAR STOPPER
30	400-09266	STOPPER BUSH
31	NS-6740510-SP	NUT 3/8-28
32	SD-0790201-SD	HINGE SCREW D=7.9 H=2.0
33	NS-6700540-SP	NUT 5/16-24
34	400-09294	KNIFE BAR DRIVING CRANK NUT
35	B2718-761-000	TENSION SPRING
36	400-09292	LATCH
37	SS-7161040-SP	SCREW 1/4-24 L= 9.5
38	400-09291	KNIFE BAR DRIVING CRANK
39	CQ-2520000-00	OIL WICK
40	B3537-122-000	OIL WICK HOLDER
41	SS-4090610-SP	SCREW 9/64-40 L=6
42	SM-6062002-TP	SCREW M6 L=20
43	SD-1110905-TH	HINGE SCREW D=11.11 H= 9.0
44	261-05809	KNIFE BAR DRIVING CRANK SHAFT
45	400-09304	SPACER
46	400-09441	KNIFE BAR DRIVING LEVER BELL C
47	SS-8111610-SP	SCREW 11/64-40 L=15.5
48	NS-6110310-SP	NUT 11/64-40
49	SD-1110905-TH	HINGE SCREW D=11.11 H= 9.0
50	400-09277	HOOK PIN NUT
51	400-09278	HOOK PIN
52	B2416-761-000	HING STUD
53	SS-8150822-TP	SCREW 15/64-28 L=8
54	B2725-761-000	TENSION SPRING
55	B2724-761-000	RATCHET PAWL (B)
56	B2723-761-0A0-A	HOOK DIFFERENTIAL CLICK A ASM.
57	B2723-761-000-A	HOOK DIFFERENTIAL CLICK A
58	101-20004	SPRING SUSPENSION
59	B1110-280-000	THREAD CUTTING LINK SPRING RAC
60	B2726-761-000-A	TENSION SPRING
61	SD-0530221-SP	HINGE SCREW D= 5.3 H= 2.2
62	400-09270	DRIVING ROD
63	400-09299	TENSION SPRING
64	400-09305	SUSPENSION SCREW
65	400-09274	FINGER
66	SS-7090710-SP	SCREW 9/64-40 L= 6.8
67	400-09303	POSITIONING PIN (B)
68	NS-6200520-SP	NUT 5/16-18
69	B2709-771-000	KNIFE BAR DRIVING LEVER SHAFT

Page 27

Juki LBH-781K parts on page 27

Ref	Part number	Part name	Qty
1	B2935-761-000	SPUR GEAR (152)
2	B2916-761-0A0	SPUR GEAR BUSHING ASM.
3	B2917-761-000	SPUR GEAR BUSHING PIN
4	SS-7120910-TP	SCREW 3/16-28 L=9
5	B2913-761-0A0	CLUTCH COLLAR ASM.
6	SS-8660610-TP	SCREW 1/4-40 L=6
7	SS-8660410-SP	SCREW 1/4-40 L=4.2
8	400-09314	CLUTCH COLLAR
9	B2919-761-000	FEED CAM DRIVING WORM WHEEL
10	400-09316	FEED CAM DRIVING WORM WHEEL SH
11	B3542-771-000	OIL FELT
12	261-07201	CAM DRIVING STUD
13	B2934-761-000	SPUR GEAR (123)
14	B2915-761-B00	HANDLE CRANK BEVEL GEAR, LEFT
15	B2915-761-AA0	HANDLE CRANK BEVEL GEAR ASM.
16	SS-8660610-TP	SCREW 1/4-40 L=6
17	CS-111101D-SH	THRUST COLLAR ASM. D=11.11 W=1
18	SS-8660530-TP	SCREW 1/4-40 L=4.5
19	400-09318	HANDLE CRANK SHAFT
20	B2923-761-000	HANDLE CRANK
21	400-09319	HANDLE CRANK
22	SS-8150510-TP	SCREW 15/64-28 L=4.7
23	SS-8620610-SP	SCREW 3/16-32 L=6
24	400-09320	HANDLE
25	400-09321	HANDLE SHAFT
26	B2910-761-0A0	FEED CAM DRIVING GEAR ASM.
27	SS-8660610-TP	SCREW 1/4-40 L=6
28	NM-6120001-CP	NUT M12
29	B2909-761-000	THRUST WASHER
30	400-09312	FEED CAM SHAFT
31	B2901-771-00C	FEED CAM
32	WP-0982616-SP	WASHER 9.8X24.0X2.6
33	SS-9241513-CP	SCREW 3/8-18 L=15
34	SS-7111410-TP	SCREW 11/64-40 L=14
35	B2902-761-B00	BAR TRIPPING SEGMENT NO.2 (B)
36	WP-0480856-SP	WASHER 4.8X 8.4X0.8
37	SS-6111610-SP	SCREW 11/64-40 L=16
38	B2904-771-000	KNIFE TRIPPING SEGMENT
39	400-09309	TENSION RELEASE TRIPPING SEGME
40	400-09310	TENSION RELEASE TRIPPING SEGME
41	B2906-761-B00	TRIPPING SEGMENT NO.2, UNDER 8
42	261-00909	BAR TRIPPING SEGMENT NO.1
43	B2903-761-B00	BAR TRIPPING SEGMENT NO.2 (B)
44	261-00800	LOW-SPEED CAM
45	261-04604	STOPPER CAM
46	B2914-761-000	CLUTCH SPRING

Page 28 — 12. STOP-MOTION COMPONENTS

Juki LBH-781K parts on page 28

Ref	Part number	Part name	Qty
1	262-12308	BELT COVER SETSCREW	1
2	B2653-771-000	TENSION SPRING	1
3	B2615-232-000	STOP LINK ROD HINGE SCREW	1
4	261-07807	UPPER SHAFT STOPPER	1
5	NS-6620310-SP	NUT 3/16-32	1
6	261-07300	STOPPER PIN	1
7	B2611-232-000	STOP LINK CONNECTING SCREW	1
8	261-07508	STOP LINK ROD HINGE STUD	1
9	B2604-771-000-B	STOP MOTION LEVER	1
10	400-09228	BELT SHIFTER	1
11	SS-4150715-SP	SCREW 15/64-28 L=7	2
12	WP-0650876-SD	WASHER 6.5X13X0.8	2
13	400-09254	INSTALLING BASE PIN	1
14	RC-1200001-KP	C-SHAPED SNAP RING	1
15	RC-1200001-KP	C-SHAPED SNAP RING	1
16	B2648-232-000	STOP PIN	1
17	400-09229	LATCH (A)	1
18	SM-6061602-TP	SCREW M6 L=16	1
19	WS-0610002-KP	SPRING WASHER	1
20	SM-6062002-TP	SCREW M6 L=20	1
21	NS-6150430-SP	NUT 15/64-28	1
22	SS-6150430-SP	SCREW 15/64-28 L=30	1
23	400-09249	STOP LINK ROD	1
24	400-09251	STOP LINK ROD PRESSURE SPRING	1
25	400-09252	SPRING SUPPORT NUT	1
26	NS-6240630-SP	NUT 3/8-18	1
27	B2601-761-000-A	STOP MOTION LEVER BRACKET	1
28	SM-6102002-TP	SCREW M10 L=20	2

Page 29 — 13. TRIPPING LEVER COMPONENTS

Juki LBH-781K parts on page 29

Ref	Part number	Part name	Qty
1	400-09255	STARTING LINK COMPL.
2	400-09256	STARTING LINK ASM.
3	400-09257	SAFETY BASE
4	SS-7110710-SP	SCREW 11/64-40 L=7
5	B2416-761-000	HING STUD
6	SS-8150822-TP	SCREW 15/64-28 L=8
7	400-09233	HINGE SCREW
8	NS-6150310-SP	NUT 15/64-28
9	400-09245	STARTING LINK DRIVING ROD
10	SD-0790451-SP	HINGE SCREW D= 7.94 H= 4.5
11	CS-079101B-SH	THRUST COLLAR ASM. D=7.94 W=10
12	SS-7110740-TP	SCREW 11/64-40 L=7
13	SS-8110510-SP	SCREW 11/64-40 L=5
14	400-09247	CRANK SHAFT TENSION SPRING
15	400-09241	HAND STOP CRANK SHAFT
16	SS-6111010-TP	SCREW 11/64-40 L=9.5
17	B2608-761-000	HAND STOP CRANK SHAFT BALL
18	B2611-761-000	CRANK SHAFT PRESSURE SPRING
19	400-09242	HAND STOP ROD B
20	B2610-761-0AO	HAND STOP CRANK ASM.
21	B2610-761-0AA	HAND STOP CRANK ASM.
22	SS-8150510-TP	SCREW 15/64-28 L=4.7
23	B2617-771-000	TRIPPING LEVER TENSION SPRING
24	400-09262	WASHER
25	SS-7150940-SP	SCREW 15/64-28 L=9
26	NM-6060001-CP	NUT M6
27	400-09238	LATCH (B)
28	SM-6062002-TP	SCREW M6 L=20
29	WS-0610002-KP	SPRING WASHER
30	B2651-781-000-A	TRIPPING LEVER
31	400-09243	TRIPPING DOG
32	400-09116	ROLLER
33	SD-0640471-SP	HINGE SCREW D= 6.35 H= 4.7
34	400-09260	TRIPPING LEVER HINGE PIN ASM.
35	400-09261	TRIPPING LEVER HINGE PIN
36	RC-1021011-KP	RETAINING RING 10.2

Page 31

Juki LBH-781K parts on page 31

Ref	Part number	Part name	Qty
	B3404-771-000	PRESSER BAR LIFTING ROD, LONG	1
	RE-0500000-KO	E-RING	2
	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3	2
	B3402-771-0A0	LEVER ASM., FRONT	1
	B3406-761-000	LINK	1
	PD-0201000-0B	SPLIT PIN	2
	B3408-771-0A0	LEVER ASM., REAR	1
	B3403-761-000	PRESSER BAR LIFTING ROD	1
	400-09262	WASHER	1
	SS-8150822-TP	SCREW 15/64-28 L=8	1
	400-09357	LIFTING LEVER STOPPER	1
	261-06658	LIFTING LEVER ASM.	1
	WP-0740516-SP	WASHER 7.4X11.8X0.5	1
	B3451-781-000	PRESSER FOOT LIFTING SPRING	1
	262- 12308	BELT COVER SETSCREW	2
	400-09348	BOBBIN WINDER TENSION ASM.	1
	262-16507	BOBBIN WINDER TENSION NUT	(1)
	262-16606	BOBBIN WINDER TENSION SPRING	(1)
	229~-45802	THREAD TENSION DISK	(2)
	262-16705	BOBBIN WINDER TENSION POST	(1)
	262-16705	BOBBIN WINDER TENSION POST	(1)
	400-09349	BOBBIN WINDER TENSION	(1)
	SS-7110840-SP	SCREW 11/64-40 L=7.8	4
	SS-7110840-SP	SCREW 11/64-40 L=7.8	2
	261-03150	BOBBIN WINDER ASM.	1
	261-03101	BOBBIN WINDER BRACKET	(1)
	261-04208	NUT	(1)
	261-04307	NUT	(1)
	261-03705	BOBBIN WINDER SPRING	(1)
	SD-0450401-SP	HINGE SCREW D= 4.5 H= 4	(1)
	261 ~-03903	BOBBIN STOP SPRING	(1)
	SS-6090620-SP	SCREW 9/64-40 L=6	(3)
	261-03309	PULLEY SHAFT BASE	(1)
	261-03507	BOBBIN WINDER SHAFT	(1)
	261~-04109	COLLAR	(1)
	SD-0790433-TP	HINGE SCREW D= 7.94 H= 4.3	(i)
	261-03408	BOBBIN WINDER SHAFT BUSHING	(1)
	SS-8120740-SP	SCREW 3/16-28 L=7	(2)
	261-03200	BOBBIN WINDER DRIVING PULLEY	(1)
	WP-0651056-SD	WASHER 6.5X11X1	(1)
	261-03606	BOBBIN WINDER TRIP LATCH	(1)
	261-03804	BOBIN GUIDE SPRING	(1)
	SS-7090520-SP	SCREW 9/64-40 L= 4.5	(2)
	261-04000	ADJUSTING SCREW	(1)
	261-04505	NUT	(1)
	261-04406	BOBBIN GUIDE SHAFT	(1)
	400-09260	TRIPPING LEVER HINGE PIN ASM.	1
	400-09261	TRIPPING LEVER HINGE PIN	(1)
	RC-1021011-KP	RETAINING RING 10.2	(1)

Page 32 — 15. THREAD TENSION COMPONENTS

Juki LBH-781K parts on page 32

Ref	Part number	Part name	Qty
	1	THREAD TENSION COMPONENT
	2	NUT
	3	SPRING
	4	SCREW
	5	WASHER
	6	ARM
	7	SCREW
	8	SPRING
	9	WASHER
	10	BRACKET
	11	SHAFT
	12	NUT
	13	SHAFT
	14	LEVER
	15	SCREW
	16	SPRING
	17	WASHER
	18	BRACKET
	19	SHAFT
	20	SCREW
	21	NUT
	22	WASHER
	23	RING
	24	SHAFT
	25	SPRING
	26	THREAD GUIDE
	27	THREAD GUIDE
	28	THREAD GUIDE
	29	THREAD GUIDE
	30	THREAD GUIDE
	31	THREAD GUIDE
	32	THREAD GUIDE
	33	THREAD GUIDE
	34	SPRING
	35	SPRING
	36	SHAFT
	37	THREAD GUIDE
	38	SPRING
	39	CAP
	40	CAP
	41	WASHER
	42	SPRING
	43	WASHER
	44	PIN
	45	SHAFT
	46	SHAFT
	47	NUT
	48	BRACKET
	49	SCREW
	50	BRACKET
	51	BRACKET
	52	SPRING
	53	SHAFT
	54	SCREW
	55	SHAFT
	56	PIN
	57	SCREW
	58	BRACKET
	59	SHAFT
	60	SHAFT
	61	SHAFT
	62	SCREW
	63	SPRING
	64	SPRING
	65	SPRING
	66~73	THREAD GUIDE ASSEMBLY

Page 33

Juki LBH-781K parts on page 33

Ref	Part number	Part name	Qty
	400-09325	TENSION RELEASE LINK	1
	SD-0640391-TP	HINGE SCREW D= 6.35 H= 3.9	1
	B3152-781-000	TENSION RELEASE LEVER	1
	SS-6660712-TP	SCREW 1/4-40 L= 7.0	2
	SD-0640241-SP	HINGE SCREW D= 6.35 H= 3.9	1
	400-09165	BLOCKING LINK	1
	SD-0640391-TP	HINGE SCREW D= 6.35 H= 3.9	1
	400-09166	BLOCKING ARM SPRING	1
	SD-0790311-TP	HINGE SCREW D= 7.94 H= 3.1	1
	400-08611	BLOCKING ARM	1
	400-08609	BLOCKING ARM BRACKET	1
	NS-6110310-SP	NUT 11/64-40	2
	NS-6120310-SP	NUT 3/16-28	1
	B3116-771-000	TENSION RELEASE LEVER	1
	SS-7621040-SP	SCREW 3/16-32 L= 9.5	1
	CS-079101D-SH	THRUST COLLAR ASM. D=7.94 W= 10	(2)
	400-09327	THREAD TENSION KNOB, RED	(1)
	SS-8110520-TP	SCREW 11/64-40 L= 4.5	(1)
	400-09328	TENSION RELEASE ROD	1
	SD-0500301-SP	HINGE SCREW D= 5 H= 3	(1)
	NS-6090310-SP	NUT 9/64-40	(1)
	400-09329	TENSION RELEASE ROD	(1)
	RO-0952001-00	RUBBER RING	(1)
	B3107-771-00B	TENSION RELEASE LEVER COLLAR N	1
	SS-6111610-SP	SCREW 11/64-40 L=16	1
	B3110-771-0A0	TENSION CONTROLLER NO.2 ASM.	1
	119-56703	THREAD TENSION KNOB, RED	(1)
	B3112-704-000	TENSION SPRING BUSHING	(1)
	B3101-804-000	TENSION SPRING, RED	(1)
	B3107-804-000	THREAD TENSION DISK PRESSER	(1)
	B3126-012-000	THREAD TENSION DISK	(2)
	B3111-761-000	TENSION POST NO.3	(1)
	B3112-761-000	THREAD TAKE-UP SPRING	(1)
	B3110-771-000	TENSION POST SOCKET	(1)
	SS-8090670-SP	SCREW 9/64-40 L= 5.5	(1)
	B3106-771-000	TENSION RELEASE LEVER SHAFT	(1)
	SS-7110840-SP	SCREW 11/64-40 L= 7.8	1
	B3120-771-000	THREAD PULLING WIRE	1
	B3103-771-0A0	TENSION CONTROLLER NO. 1 ASM.	1
	119-56703	THREAD TENSION KNOB, RED	(1)
	B3112-704-000	TENSION SPRING BUSHING	(1)
	B2017-372-000	TENSION SPRING NO.1	(1)
	B3107-804-000	THREAD TENSION DISK PRESSER	(1)
	B3126-012-000	THREAD TENSION DISK	(2)
	B3103-761-000	TENSION RELEASE PIN NO.2	(1)
	B2017-372-000	TENSION SPRING	(1)
	NS-6160520-SP	NUT 1/4-24	(1)
	B3102-771-000	TENSION RELEASE ARM ASM.	(1)
	SS-9660940-TP	SCREW 1/4-40 L= 8.5	(1)
	SS-4150715-SP	SCREW 15/64-28 L=7	1
	B111-232-000	THREAD GUIDE PLATE	1
	B3117-771-000	SPRING	1
	CS-0790720-TH	THRUST COLLAR ASM.	(2)
	SS-7090720-TP	SCREW 9/64-40 L= 6.8	(2)
	400-09339	TENSION RELEASE ROD	1
	PS-0300182-KF	SPRING PIN 3X18	1
	SS-4110715-SP	SCREW 11/64-40 L=7	1
	229-20706	TWO EYELET	1
	400-09037	TAKE UP THREAD GUIDE	1
	SS-7090710-SP	SCREW 9/64-40 L= 6.8	1
	400-09340	NEEDLE BAR THREAD GUIDE	1
	SS-7110840-SP	SCREW 11/64-40 L= 7.8	1
	B3118-771-000	TENSION THREAD GUIDE, NO.2	1
	B3114-771-000	THREAD GUIDE	(1)
	NS-6090310-SP	NUT 9/64-40	2
	B3118-552-D00	TENSION RELEASE PIN, NO.2	(1)
	B3118-552-F00	TENSION RELEASE PIN D	(1)
	B3118-552-B00	TENSION RELEASE PIN A	(1)
	B3118-552-C00	TENSION RELEASE PIN B	(1)
	229-20904	TENSION RELEASE PIN C	(1)
	B3118-552-F00	TENSION RELEASE PIN	(1)
	B3118-552-G00	TENSION RELEASE PIN E	(1)
	B3118-552-H00	THREAD RELEASE PIN H	(1)

Page 34 — 16. LUBRICATION MECHANISM COMPONENTS

Juki LBH-781K parts on page 34

Ref	Part number	Part name	Qty
1	1	NEEDLE BAR LUBRICATING DEVICE
2	2	NEEDLE BAR LUBRICATING DEVICE
3	3	NEEDLE BAR LUBRICATING DEVICE
4	4	NEEDLE BAR LUBRICATING DEVICE
5	5	NEEDLE BAR LUBRICATING DEVICE
6	6	NEEDLE BAR LUBRICATING DEVICE
7	7	NEEDLE BAR LUBRICATING DEVICE
8	8	NEEDLE BAR LUBRICATING DEVICE
9	9	NEEDLE BAR LUBRICATING DEVICE
10	10	NEEDLE BAR LUBRICATING DEVICE
11	11	NEEDLE BAR LUBRICATING DEVICE
12	12	NEEDLE BAR LUBRICATING DEVICE
13	13	NEEDLE BAR LUBRICATING DEVICE
14	14	NEEDLE BAR LUBRICATING DEVICE
15	15	NEEDLE BAR LUBRICATING DEVICE
16	16	NEEDLE BAR LUBRICATING DEVICE
17	17	NEEDLE BAR LUBRICATING DEVICE
18	18	NEEDLE BAR LUBRICATING DEVICE
19	19	NEEDLE BAR LUBRICATING DEVICE
20	20	NEEDLE BAR LUBRICATING DEVICE
21	21	NEEDLE BAR LUBRICATING DEVICE
22	22	NEEDLE BAR LUBRICATING DEVICE
23	23	NEEDLE BAR LUBRICATING DEVICE
24	24	NEEDLE BAR LUBRICATING DEVICE
25	25	NEEDLE BAR LUBRICATING DEVICE
26	26	NEEDLE BAR LUBRICATING DEVICE
27	27	NEEDLE BAR LUBRICATING DEVICE
28	28	NEEDLE BAR LUBRICATING DEVICE
29	29	NEEDLE BAR LUBRICATING DEVICE
30	30	NEEDLE BAR LUBRICATING DEVICE
31	31	NEEDLE BAR LUBRICATING DEVICE
32	32	NEEDLE BAR LUBRICATING DEVICE
33	33	NEEDLE BAR LUBRICATING DEVICE
34	34	NEEDLE BAR LUBRICATING DEVICE
35	35	NEEDLE BAR LUBRICATING DEVICE
36	36	NEEDLE BAR LUBRICATING DEVICE
37	37	NEEDLE BAR LUBRICATING DEVICE
38	38	NEEDLE BAR LUBRICATING DEVICE
39	39	NEEDLE BAR LUBRICATING DEVICE
40	40	NEEDLE BAR LUBRICATING DEVICE
41	41	NEEDLE BAR LUBRICATING DEVICE
42	42	NEEDLE BAR LUBRICATING DEVICE
43	43	NEEDLE BAR LUBRICATING DEVICE
44	44	NEEDLE BAR LUBRICATING DEVICE
45	45	NEEDLE BAR LUBRICATING DEVICE
46	46	NEEDLE BAR LUBRICATING DEVICE
47	47	NEEDLE BAR LUBRICATING DEVICE
48	48	NEEDLE BAR LUBRICATING DEVICE
49	49	NEEDLE BAR LUBRICATING DEVICE
50	50	NEEDLE BAR LUBRICATING DEVICE
51	51	NEEDLE BAR LUBRICATING DEVICE
52	52	NEEDLE BAR LUBRICATING DEVICE
53	53	NEEDLE BAR LUBRICATING DEVICE
54	54	NEEDLE BAR LUBRICATING DEVICE
55	55	NEEDLE BAR LUBRICATING DEVICE
56	56	NEEDLE BAR LUBRICATING DEVICE
57	57	NEEDLE BAR LUBRICATING DEVICE
58	58	NEEDLE BAR LUBRICATING DEVICE
59	59	NEEDLE BAR LUBRICATING DEVICE
60	60	NEEDLE BAR LUBRICATING DEVICE
61	61	NEEDLE BAR LUBRICATING DEVICE
62	62	NEEDLE BAR LUBRICATING DEVICE
63	63	NEEDLE BAR LUBRICATING DEVICE
64	64	NEEDLE BAR LUBRICATING DEVICE
65	65	NEEDLE BAR LUBRICATING DEVICE
66	66	NEEDLE BAR LUBRICATING DEVICE
67	67	NEEDLE BAR LUBRICATING DEVICE
68	68	NEEDLE BAR LUBRICATING DEVICE
69	69	NEEDLE BAR LUBRICATING DEVICE
70	70	NEEDLE BAR LUBRICATING DEVICE
71	71	NEEDLE BAR LUBRICATING DEVICE
72	72	NEEDLE BAR LUBRICATING DEVICE
73	73	NEEDLE BAR LUBRICATING DEVICE
74	74	NEEDLE BAR LUBRICATING DEVICE
75	75	NEEDLE BAR LUBRICATING DEVICE
76	76	NEEDLE BAR LUBRICATING DEVICE
77	77	NEEDLE BAR LUBRICATING DEVICE
78	78	NEEDLE BAR LUBRICATING DEVICE
79	79	NEEDLE BAR LUBRICATING DEVICE
80	80	NEEDLE BAR LUBRICATING DEVICE
81	81	NEEDLE BAR LUBRICATING DEVICE
82	82	NEEDLE BAR LUBRICATING DEVICE

Page 35

Juki LBH-781K parts on page 35

Ref	Part number	Part name	Qty
	400-09374	OIL FELT HOLDER
	B3549-771-000	OIL FELT RETURN FELT (A)
	B3568-771-000	OIL RETURN TUBE
	B3571-771-000	PIPE HOLDER
	SS-7110710-SP	SCREW 11/64-40 L=7
	SS-7110910-TP	PIPE GUIDE (A)
	400-09369	PIPE HOLDER
	BP-6000000-00	VINYL PIPE	0.1
	BP-5000000-00	VINYL PIPE	0.05
	BP-3000000-00	VINYL PIPE	0.55
	SQ-1110402-MZ	CONNECTING SCREW	4
	B3534-012-000	GASKET	1
	B3534-155-000	PLUNGER	1
	B1214-038-000	PLUNGER SPRING	1
	400-09361	THRUST PLATE	1
	SS-4150715-SP	SCREW 15/64-28 L=7	1
	400-09373	OIL FELT GUIDE	1
	SS-7110710-SP	SCREW 11/64-40 L=7	1
	B3560-771-000	OIL FELT	1
	B1135-771-0A0	OIL SHIELD	1
	SS-4110515-SP	SCREW 11/64-40 L=5	1
	B3561-771-000	OIL UNWOVEN CLOTH	1
	B1148-771-000	OIL FELT	1
	B1147-771-000	OIL FELT	1
	B3563-771-000-A	OIL SHIELD	1
	SS-4110515-SP	SCREW 11/64-40 L=5	2
	B1124-771-000	CUSHION	1
	B1154-781-000	BELT GUARD	1
	B1154-781-00A	BELT GUARD	1
	SS-4110815-SP	SCREW 11/64-40 L=8	2
	400-09001	PLATE SPRING	1
	400-09365	SET NUT	1
	B1156-781-000	RUBBER BUSHING	0.1
	BP-8000000-00	VINYL TUBE, WHITE D=8	0.1
	CQ-3030000-00	OIL WICK	1
	400-09360	OIL PUMP BASE	1
	SS-4110815-SP	SCREW 11/64-40 L=8	1
	B3570-771-000	FILTER OIL FELT	2
	B3546-771-000	OIL FELT	1
	400-09375	SPRING	1
	400-09366	FILTER SCREEN	1
	400-09379	BUSHING HOLDER	1
	SS-7090910-SP	SCREW 9/64-40 L=8.5	1
	NS-6090310-SP	NUT 9/64-40	8
	NS-6150310-SP	NUT 15/64-28	1
	400-08996	DRIVING PIN BASE	1
	B1151-781-0A0-A	MACHINE BASE ASM.	1
	B1151-781-0AA-A	MACHINE BASE ASM.	1
	B1151-781-000-A	MACHINE BASE	(1)
	B1151-781-00A	HEAD BASE	(2)
	400-08996	GUIDE PIN	(4)
	400-09035	RUBBER CUSHION	(4)
	SS-7111120-SP	SCREW 11/64-40 L=10.5	(4)
	B1122-761-000	HINGE HOLDER	(2)
	261-09207	HINGE HOLDER	(2)
	B1120-761-000	PIN	(2)
	SM-6062002-TP	SCREW M6 L=20	(4)
	WP-0621016-SD	WASHER 6.2X13X1	(4)
	SS-6741010-SP	SCREW 3/8-28 L=10	(4)
	B8219-125-000	OIL DRAIN CAP GASKET	(2)
	400-09244	STARTING LEVER PRESSURE SPRING	(1)
	SM-9082003-CP	SCREW M8 L=20	(1)
	NS-6150310-SP	NUT 15/64-28	(1)
	400-09235	STOP SCREW ASM.	(1)
	NM-6080721-SE	NUT M8	(1)
	SS-7151210-SP	SCREW 15/64-28 L=12	(1)
	400-09231	STARTING LINK SHAFT	(1)
	SS-9150860-SP	SCREW 15/64-28 L=8	(1)
	SS-8150710-SP	SCREW 15/64-28 L=7	(1)
	261-07409	STARTING LINK	(1)
	B2655-781-000	STARTING LEVER	(1)
	RE-0600000-KO	E-RING 6	1
	B7160-781-0A0	SHIFTER DRIVING PIN	1
	SS-7112420-SP	SCREW 11/64-40 L=24	3
	B1133-761-000	MACHINE BASE FELT PAD	4
	B1153-771-000	MACHINE BASE SCREW STUD	4
	WP-0612056-SD	WASHER 6.2X13X2	4
	B8213-012-000	BED HINGE CONNECTION	2
	BP-3000000-00	VINYL PIPE	0.13
	BP-5000000-00	VINYL PIPE, WHITE D=8	0.05
	BP-5000000-00	VINYL TUBE, WHITE D=4	0.1
	BP-4000000-00	VINYL TUBE, WHITE D=4	0.03

Page 36 — 17. SPEED TRANSMITTER COMPONENTS

Juki LBH-781K parts on page 36

Ref	Part number	Part name	Qty
1	93403-10016	BOLT
2	90105-06017	BOLT
3	90105-06017	BOLT
4	90105-06017	BOLT
5	90105-06017	BOLT
6	90105-06017	BOLT
7	90105-06017	BOLT
8	90105-06017	BOLT
9	90105-06017	BOLT
10	90105-06017	BOLT
11	90105-06017	BOLT
12	90105-06017	BOLT
13	90105-06017	BOLT
14	93306-20617	BEARING
15	93306-20617	BEARING
16	93403-10016	BOLT
17	90105-06017	BOLT
18	90201-06001	WASHER
19	90105-06017	BOLT
20	90105-06017	BOLT
21	54611-26800	BRACKET, SPEED TRANSMITTER
22	90601-10001	CIRCLIP
23	90105-06017	BOLT
24	90201-06001	WASHER
25	90105-06017	BOLT
26	90105-06017	BOLT
27	90105-06017	BOLT
28	90105-06017	BOLT
29	93306-20617	BEARING
30	90201-06001	WASHER
31	90105-06017	BOLT
32	90105-06017	BOLT
33	54612-26800	SHAFT, SPEED TRANSMITTER
34	93306-20617	BEARING
35	54613-26800	PULLEY, SPEED TRANSMITTER
36	54614-26800	PULLEY, SPEED TRANSMITTER
37	93306-20617	BEARING
38	90201-06001	WASHER
39	90105-06017	BOLT
40	94511-17070	SPRING, COMPRESSION
41	54615-26800	BRACKET, SPEED TRANSMITTER
42	90105-06017	BOLT
43	90105-06017	BOLT
44	90105-06017	BOLT
45	90105-06017	BOLT
46	90105-06017	BOLT
47	90105-06017	BOLT
48	90105-06017	BOLT
49	90105-06017	BOLT
50	90105-06017	BOLT
51	90105-06017	BOLT
52	90105-06017	BOLT
53	90105-06017	BOLT
54	90105-06017	BOLT
55	54616-26800	LEVER, SPEED TRANSMITTER
56	90105-06017	BOLT
57	90105-06017	BOLT
58	90105-06017	BOLT
59	90105-06017	BOLT
60	90105-06017	BOLT
61	54617-26800	BRACKET, SPEED TRANSMITTER
62	90105-06017	BOLT

Page 37

Juki LBH-781K parts on page 37

Ref	Part number	Part name	Qty
	B7180-781-0A0	TENSION PULLEY ASM.	(1)
	400-000388	TENSION PULLEY BRACKET	(1)
	NS-6150430-SP	NUT 15/64-28	(1)
	400-000392	TENSION LEVER	(1)
	B4419-372-000	NIPPER BAR ACTUATING LEVER SPR	(1)
	400-000393	FIXING PAWL	(1)
	SD-0450211-SP	HINGE SCREW D= 4.50 H= 2.1	(1)
	B7186-781-000	RATCHET	(1)
	SS-7110710-SP	SCREW 11/64-40 L=7	(2)
	400-000395	LEVER COLLAR	(1)
	400-000391	TENSION SPRING	(1)
	400-000390	TENSION PULLEY LINK	(1)
	SD-0902501-SP	HINGE SCREW D=9 H=25	(1)
	SB-11500002-00	BEARING	(1)
	400-000389	TENSION PULLEY	(1)
	SD-1501101-SP	HINGE SCREW D=14.5 H=11	(1)
	SM-6061202-TP	SCREW M6 L=12	2
	WP-0651056-SH	WASHER 6.5X11X1	3
	SS-9152130-CP	SCREW 15/64-28 L=20.5	3
	B7151-781-0A0-B	SPEED TRANSMITTER ASM.	(1)
	B7151-781-000-A	SPEED TRANSMITTER BRACKET	(1)
	RE-1200000-KO	E-RING 12	(1)
	SM-6061202-TP	SCREW M6 L=12	(2)
	B1221-771-00A	HIGH SPEED WASHER FOR BEARING	(1)
	400-000235	STOP SCREW ASM.	(1)
	NS-6150310-SP	NUT 15/64-28	(1)
	B7158-781-000	SHIFTER STOPPER BRACKET	(1)
	SM-6061202-TP	SCREW M6 L=12	(2)
	SB-11500002-00	BEARING	(2)
	RC-3500002-KP	RETAINING RING 35	(2)
	B7155-781-000	ACCELERATING PULLEY	(1)
	SS-8150710-SP	SCREW 15/64-28 L=7	(2)
	B7154-781-000	HIGH-SPEED PULLEY	(1)
	SB-14500004-00	BEARING	(2)
	B7156-781-000-A	LOW-SPEED PULLEY	(1)
	B7152-781-000-A	SPEED TRANSMITTER SHAFT	(1)
	WP-1502500-SC	WASHER 15X24X2.5	(1)
	SS-7151210-SP	SCREW 15/64-28 L=12	2
	B7159-781-000	SHIFTER TENSION SPRING	(1)
	261-01253	SHIFTER BASE ASM.	(1)
	261-01204	SHIFTER BASE	(1)
	NS-6150310-SP	NUT 15/64-28	(3)
	261-02004	SHIFTER CAM SPRING	(1)
	NS-6160520-SP	NUT 1/4-24	(2)
	261-02202	SHIFTER TENSION SPRING	(1)
	261-01402	SHIFTER DRIVING ARM	(1)
	261-02509	SHIFTER DRIVING ARM SCREW	(3)
	261-02103	SHIFTER CAM ROLLER STUD	(1)
	261-02301	SHIFTER CAM ROLLER	(1)
	SS-6080610-TP	SCREW 1/8-44 L=6	(1)
	261-01600	SHIFTER INSTALLING PLATE	(1)
	SD-0790802-SP	HINGE SCREW D= 7.94 H= 8.0	(2)
	261-01501	SHIFTER HOLDING ARM	(1)
	261-01709	SPEED TRANSMITTER SHIFTER	(1)
	SS-7161040-SP	SCREW 1/4-24 L= 9.5	(2)
	261-01303	SHIFTER PIN	(1)
	NS-6150430-SP	NUT 15/64-28	(1)
	261-01808	SHIFTER CAM INSTALLING BASE	(1)
	SS-7110910-SP	SCREW 11/64-40 L=8.5	(2)
	261-01907	SHIFTER CAM	(1)
	261-02400	SHIFTER CAM SUSPENSION	(1)

Page 38 — 18. MOTOR PULLEY COMPONENTS

Juki LBH-781K parts on page 38

Ref	Part number	Part name	Qty
1	MTJ-MS000000	MOUNTING BOLT	4
2	B7109-771-000	SPACER	4
3	400-09401	MOTOR BASE PLATE	1
4	WP-0850002-SC	WASHER 8.5X18X1.6	4
5	NS-6200520-SP	NUT 5/16-18	8
6	400-09397	MOTOR PULLEY FOR 50HZ 3000SPM	1
7	400-09398	MOTOR PULLEY FOR 60HZ 3000SPM	1
8	400-09415	MOTOR PULLEY FOR 50HZ 3000SPM	1
9	B7257-781-000-A	MOTOR PULLEY (60HZ 3300-USE)	1
10	SS-8150710-SP	SCREW 15/64-28 L=7	2
11	MTJ-VM004200	V-BELT, 42 INCH	1
12	MTJ-VM004300	V-BELT, 43 INCH	1
13	MTJ-VM004400	V-BELT, 44 INCH	1
14	B7252-781-000	BELT	1

Page 39 — 19. THREAD STAND COMPONENTS

Juki LBH-781K parts on page 39

Ref	Part number	Part name	Qty
	229-30358	THREAD STAND ASM.
	229-31109	SPOOL RETAINER
	229-31000	SPOOL PIN
	229-30903	SPOOL REST CUSHION
	229-30804	SPOOL REST
	SM-6061610-SC	SCREW M6 L=16
	229-30705	THREAD GUIDE ARM JOINT
	229-31406	SPOOL REST ROD RUBBER CAP
	229-30507	SPOOL REST ARM
	229-30408	SPOOL REST ROD, UPPER
	229-31307	SPOOL REST ROD JOINT
	SM-4051405-SE	SCREW M5 L=14
	NM-6050001-SE	NUT M5
	229-30309	SPOOL REST ROD, LOWER
	229-30556	THREAD STANDING ARM ASM.
	WS-0510002-KN	SPRING WASHER
	NM-6050001-SE	NUT M5
	NM-6160511-SE	NUT M16X1.5
	WP-1612616-SE	WASHER 16X30X2.6
	WS-1643202-KR	SPRING WASHER

Page 40 — 20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784 LBH-782 LBH-783 LBH-784專門部品

Juki LBH-781K parts on page 40

Ref	Part number	Part name	Qty
	1	LBH-782
	2	LBH-782
	3	LBH-782
	4	LBH-782
	5	LBH-782
	6	LBH-782
	7	LBH-782
	8	LBH-782
	9	LBH-783
	10	LBH-783
	11	LBH-783
	12	LBH-783
	13	LBH-783
	14	LBH-783
	15	LBH-783
	16	LBH-783
	17	LBH-784
	18	LBH-784
	19	LBH-784
	20	LBH-784
	21	LBH-784
	22	LBH-784
	23	LBH-784
	24	LBH-784
	25	LBH-784
	26	LBH-784
	27	LBH-784
	28	LBH-784
	29	LBH-784
	30	LBH-784
	31	LBH-784
	32	LBH-784
	33	LBH-784
	34	LBH-784
	35	LBH-784
	36	LBH-784
	37	LBH-784
	38	LBH-784
	39	LBH-784
	40	LBH-784

Page 41

Juki LBH-781K parts on page 41

Ref	Part number	Part name	Qty
	B1511-772-0B0	WORK CLAMP CHECK HOLDER ASM.	1
	B2702-047-Q00-A	KNIFE 1	1
	B1608-772-000	LENGTH REGULATING SHAFT GUIDE	1
	B2930-761-000	SPUR GEAR (100)	1
	B2931-761-000	SPUR GEAR (190)	1
	B1552-782-000	WORK CLAMP CHECK, 2	1
01	B1508-772-A00	WORK CLAMP CHECK (2A)
01	B1613-771-A00-A	WORK CLAMP CARRIER
	B1511-773-0B0	WORK CLAMP CHECK HOLDER ASM.	1
	B2702-047-S00-A	KNIFE 1-1/4"	1
	B1608-761-000	LENGTH REGULATING SHAFT GUIDE	1
	B2948-761-000	SPUR GEAR (88)	1
	B2949-761-000	SPUR GEAR (212)	1
	B1552-783-000	WORK CLAMP CHECK, 3	1
01	B1608-773-A00	WORK CLAMP CHECK (3A)
01	B1613-771-A00-A	WORK CLAMP CARRIER
	B1513-774-000	WORK CLAMP BRACKET	1
	B1551-784-000-A	WORK CLAMP ARM (4)	1
	B1511-774-0A0	WORK CLAMP CHECK HOLDER ASM.	1
	B1552-784-000	WORK CLAMP CHECK	1
	B2402-774-000	THROAT PLATE	1
	SS-2090530-SP	SCREW 9/64-40 L=4.8	2
	B2401-774-0A0	THROAT PLATE BASE ASM.	1
	SS-5090320-SP	SCREW 9/64-40 L=3.2	1
	B1611-774-0A0	WORK CLAMP ARM BRACKET ASM.	1
	SS-6151440-SP	SCREW 15/64-28 L=14	(1)
	B1606-774-000	WORK CLAMP CARRIER PITMAN	1
	SD-0870401-SP	HINGE SCREW D=8.73 H=4	1
	B1605-774-000	FEED ADJUSTING SHAFT	1
	B2745-774-00B-A	KNIFE 1-1/2"	1
	B2745-774-00A-A	KNIFE 1-3/8"	1
	B2944-761-000	SPUR GEAR (74)	1
	B2945-761-000	SPUR GEAR 252	1
	B1603-774-0A0	LENGTH REGULATING ARM ASM.	1
	B1608-774-000	LENGTH REGULATING SHAFT GUIDE	1
	B1612-774-000	WORK CLAMP ARM BRACKET GUIDE	1
	400-09447	WORK CLAMP CARRIER (4)	1
	B1609-774-000	WORK CLAMP ARM SLIDE ROD	1
	B1516-774-000	WORK CLAMP ARM BEARING BRACKET	1
	SD-0790203-SP	HINGE SCREW D=7.94 H=2	1

Page 42 — 21. SPECIAL ORDER PARTS

Juki LBH-781K parts on page 42

Ref	Part number	Part name	Qty
	1	TAPE REEL COMPONENTS
	2	TAPE REEL COMPONENTS
	3	TAPE REEL COMPONENTS
	4	TAPE REEL COMPONENTS
	5	TAPE REEL COMPONENTS
	6	TAPE REEL COMPONENTS
	7	TAPE REEL COMPONENTS
	8	TAPE REEL COMPONENTS
	9	TAPE REEL COMPONENTS
	10	TAPE REEL COMPONENTS
	11	TAPE REEL COMPONENTS
	12	TAPE REEL COMPONENTS
	13	TAPE REEL COMPONENTS
	14	TAPE REEL COMPONENTS
	15	TAPE REEL COMPONENTS
	16	BUTTON-HOLING MEASURING GAUGES
	17	BUTTON-HOLING MEASURING GAUGES
	18	BUTTON-HOLING MEASURING GAUGES
	19	BUTTON-HOLING MEASURING GAUGES
	20	BUTTON-HOLING MEASURING GAUGES
	21	BUTTON-HOLING MEASURING GAUGES
	22	KNIFE FOR SPECIAL
	31	KNIFE FOR SPECIAL
	32	KNIFE FOR SPECIAL
	33	KNIFE FOR SPECIAL
	34	KNIFE FOR SPECIAL
	37	KNIFE FOR SPECIAL
	38	KNIFE FOR SPECIAL
	56	KNIFE FOR SPECIAL
	57	HOOK OIL SHIELD COMPONENTS
	58	HOOK OIL SHIELD COMPONENTS
	59	HOOK OIL SHIELD COMPONENTS
	60	HOOK OIL SHIELD COMPONENTS
	61	HOOK OIL SHIELD COMPONENTS
	62	HOOK OIL SHIELD COMPONENTS
	63	HOOK OIL SHIELD COMPONENTS
	64	HOOK OIL SHIELD COMPONENTS
	65	COVER COMPONENTS
	66	COVER COMPONENTS
	67	COVER COMPONENTS
	68	COVER COMPONENTS
	69	COVER COMPONENTS
	70	COVER COMPONENTS
	71	COVER COMPONENTS
	72	COVER COMPONENTS

Page 43

Juki LBH-781K parts on page 43

Ref	Part number	Part name	Qty
	B9201-761-0A0	REINFORCING TAPE ATCHMENT ASM.	(1)
	B9204-047-0A0	TAPE ATTACHMENT SUPPORT PLATE	(1)
	SS-4090810-SP	SCREW 9/64-40 L=8	(1)
	B9205-047-000	ADJUSTING FELT	(2)
	B9201-761-0B0	REINFORCING TAPE ATTACHMENT AS	(1)
	NS-6700540-SP	NUT 5/16-24	(1)
	B9202-761-0A0	TAPE GUIDE PLATE ASM.	(1)
	SS-5110740-TP	SCREW 11/64-40 L=6.5	(1)
	SS-7090510-SP	SCREW 9/64-40 L=4.6	(2)
	WP-0450000-SD	WASHER 4.5X8X0.5	(2)
	B9206-761-000	TAPE RETAINER	(1)
	B9207-761-000	TAPE RETAINER SPRING	(1)
	SS-6060210-SP	SCREW 3/32-56 L=1.9	(2)
	B9205-761-000	SPACER FOR TAPE RETAINER	(1)
	SS-5060410-SP	SCREW 3/32-56 L=3.5	(2)
	B9402-771-000	MEASURING GAUGE, CROSSWISE	(1)
	SS-6110610-TP	SCREW 11/64-40 L=6	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	B9401-761-000	DISTANCE MEASURING GAUGE	(1)
	SS-7110840-SP	SCREW 11/64-40 L=7.8	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	B2745-771-F00	KNIFE 1/4" (FLUOROCARBON)	1
	B2745-771-K00	KNIFE 3/8" (FLUOROCARBON)	1
	B2745-771-L00	KNIFE 1/2"	1
	B2745-771-M00	KNIFE 5/8"	1
	B2745-771-N00	KNIFE 3/4"	1
	B2745-771-P00	KNIFE 7/8" (FLUOROCARBON)	1
	B2745-771-Q00	KNIFE 1"	1
	B2745-771-R00	KNIFE 1-1/8" (FLUOROCARBON)	1
	B2745-771-S00	KNIFE 1-1/4"	1
	B2745-771-T00	KNIFE 9/16" (FLUOROCARBON)	1
	B2746-771-000	KNIFE GUARD	1
	B2402-771-00B	THROAT PLATE (FLUOROCARBON)	1
	B2745-771-P0B	KNIFE 7/8"	1
	B2745-771-Q0B	KNIFE 1"	1
	B2745-771-R0B	KNIFE 1-1/8	1
	B2745-771-S0B	KNIFE 1-1/4	1
	B2702-047-F00	KNIFE 1/4"	1
	B2702-047-K00-A	KNIFE 3/8	1
	B2702-047-L00	KNIFE (7/16)	1
	B2702-047-L0A	KNIFE 1/2	1
	B2702-047-V0B	KNIFE 1/2	1
	B2702-047-V00	KNIFE 9/16	1
	B2702-047-M0A	KNIFE 5/8	1
	B2702-047-M00-A	KNIFE 5/8	1
	B2702-047-A00	KNIFE 11/16	1
	B2702-047-N0A	KNIFE 3/4	1
	B2702-047-N00	KNIFE 3/4"	1
	B2702-047-C00	KNIFE 13/16	1
	B2702-047-C00	KNIFE 7/8	1
	B2702-047-Q00-A	KNIFE 1	1
	B2702-047-R00	KNIFE 1-1/8	1
	B2702-047-S0A	KNIFE 1-1/4	1
	B2702-047-S00-A	KNIFE 1-1/4	1
	B2702-047-U00	KNIFE (1-1/2)	1
	B1157-771-0A0	HOOK OIL SHIELD ASM.	(1)
	B1157-771-000	HOOK OIL SHIELD	(1)
	B1158-771-000	HOOK OIL SHIELD SPRING	(1)
	B1159-771-000	SPRING SET PLATE	(1)
	SS-5090610-SP	SCREW 9/64-40 L=6	(2)
	B1161-771-000	HOOK OIL SHIELD HINGE	(1)
	B1161-771-000	HINGE PIN	(1)
	B1160-771-000	SCREW 11/64-40 L=5	(2)
	SS-7110510-SP	SCREW 11/64-40 L=7	4
	SS-7110710-SP	SCREW 11/64-40 L=7	4
	WP-0480856-SP	WASHER 4.8X8.4X0.8	4
	B7272-781-000	COVER MOUNTING BRACKET B	1
	WP-0501016-SC	WASHER 5X10.5X1	2
	SK-3452000-SE	WOOD SCREW D=4.5 L=20	2
	NS-6110310-SP	NUT 11/64-40	4
	B7273-781-000	SPEED TRANSMITTER COVER	1
	262-36703	COVER MOUNTING BRACKET C	1

Page 44 — 22. EXCHANGING PARTS

Juki LBH-781K parts on page 44

Ref	Part number	Part name	Qty
A	B2936-761-000	Small gear	54
B	B2938-761-000	Small gear	62
C	B2940-761-000	Small gear	66
D	B2942-761-000	Small gear	70
E	B2944-761-000	Small gear	74
F	B2946-761-000	Small gear	79
G	B2928-761-000	Small gear	83
H	B2948-761-000	Small gear	88
I	B2950-761-000	Small gear	93
J	B2930-761-000	Small gear	100
K	B2952-761-000	Small gear	105
L	B2932-761-000	Small gear	110
M	B2954-761-000	Small gear	115
N	B2934-761-000	Small gear	123
	B2956-761-000	Small gear	130
A	B2937-761-000	Large gear	345
B	B2939-761-000	Large gear	300
C	B2941-761-000	Large gear	285
D	B2943-761-000	Large gear	268
E	B2945-761-000	Large gear	252
F	B2947-761-000	Large gear	238
G	B2929-761-000	Large gear	225
H	B2949-761-000	Large gear	212
I	B2951-761-000	Large gear	200
J	B2931-761-000	Large gear	190
K	B2953-761-000	Large gear	180
L	B2933-761-000	Large gear	170
M	B2955-761-000	Large gear	160
N	B2935-761-000	Large gear	152
	B2957-761-000	Large gear	145
1	B2702-047-F00	Knife
2	B2702-047-K00-A	Knife
3	B2702-047-L00-A	Knife
3	B1552-781-000-A	Work clamp check
4	B2702-047-V00	Knife
5	B2702-047-M00-A	Knife
6	B2702-047-P00	Knife
7	B2702-047-P00	Knife
7	B1552-782-000	Work clamp check
8	B2702-047-Q00-A	Knife
9	B2702-047-S00-A	Knife
9	B1552-783-000	Work clamp check
10	B2745-774-00A-A	Knife
10	B1552-784-000	Work clamp check
11	B2745-774-008-A	Knife
4	B2402-771-000	Throat plate
11	B2402-774-000	Throat plate

Page 45 — 23. EXCLUSIVE PARTS FOR LBH-781-K

Juki LBH-781K parts on page 45

Ref	Part number	Part name	Qty
	D1508-771-K00-A	LATCH WORK CLAMP CHECK
	D2402-772-K00	THROAT PLATE (K)
	B1808-761-0AB	HOOK ASM.
	B3110-772-TA0	THREAD TENSION NO.3 ASM. K
	SS-8090670-SP	SCREW 9/64-40 L= 5.5
	B3110-771-000	TENSION POST SOCKET
	B3111-761-000	TENSION POST NO.3
	B3112-761-000	THREAD TAKE-UP SPRING
	B3126-012-000	THREAD TENSION DISK
	B3107-804-000	THREAD TENSION DISK PRESSER
	B3129-012-A00	TENSION SPRING
	B3120-125-000	ROTATING STOPPER
	B3119-771-000	THREAD TENSION NUT
	D9101-771-K00	HOOK TIMING GAUGE (K)
	D1508-771-K0B	WORK CLAMP CHECK 5/8"
	D1508-771-K0C	WORK CLAMP CHECK 1/2"
	D1508-771-KOE	WORK CLAMP CHECK 5/8"
	D1508-771-KOF	WORK CLAMP CHECK 1/2"
	D1508-771-KOH	WORK CLAMP CHECK

Page 46 — 24. EXCLUSIVE PARTS FOR LBH-782-K,LBH-783-K

Juki LBH-781K parts on page 46

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38

Page 47

Juki LBH-781K parts on page 47

Ref	Part number	Part name	Qty
	B2702-047-Q00-A	KNIFE 1	1
	B1608-772-000	LENGTH REGULATING SHAFT GUIDE	l
	B1511-772-0B0	WORK CLAMP CHECK HOLDER ASM.	j
	D1508-772-K00	WORK CLAMP CHECK (2K)	i
	D2402-772-K00	THROAT PLATE (K)	1
	B1808-761-04B	HOOK ASN.	l
	B2931-761-000	SPUR GEAR (190)	1
	B2930-761-000	SPUR GEAR (100)	1
	D3110-772-TAO	THREAD TENSION NO.3 ASM. K	i
	SS-8090670-SP	SCREW 9/64-40 L= 5.5	(1)
	B3110-771-000	TENSION POST SOCKET	(1)
	B3111-761-000	TENSION POST NO.3	(1)
	B3112-761-000	THREAD TAKE-UP SPRING	(1)
	B3126-012-000	THREAD TENSION DISK	(2)
	B3107-804-000	THREAD TENSION DISK PRESSER	(1)
	B3129-012-A00	TENSION SPRING	(1)
	B3120-125-000	ROTATING STOPPER	(1)
	B3119-771-000	THREAD TENSION NUT	(1)
	D9101-771-KO0	HOOK TIMING GAUGE (K)	l
	B1511-773-0B0	WORK CLAMP CHECK HOLDER ASM.	l
	D1508-773-KO0O	WORK CLAMP CHECK (3K)	l
	D2402-772-K00	THROAT PLATE (K)	1
	B2949-761-000	SPUR GEAR (212)	l
	B2948-761-000	SPUR GEAR (88)	l
	B1808-761-0AB	HOOK ASM.	l
	B2702-047-SO0-A	KNIFE 1-1/4”	I
	Bl608-762-000	LENGTH REGULATING SHAFT GUIDE	l
	D3110-772-TAO	THREAD TENSION NO.3 ASM. K	l
	SS-8090670-SP	SCREW 9/64-40 L= 5.5	(1)
	B3110-771-000	TENSION POST SOCKET	(1)
	B3111-761-000	TENSION POST NO.3	(1)
	B3112-761-000	THREAD TAKE-UP SPRING	(1)
	B3126-012-000	THREAD TENSION DISK	(1)
	B3107-804-000	THREAD TENSION DISK PRESSER	(1)
	B3129-012-A00	TENSION SPRING	(1)
	B3120-125-000	ROTATING STOPPER	(1)
	B3119-771-000	THREAD TENSION NUT	(1)
	D9101-771-KO0	HOOK TIMING GAUGE (K)	l

Page 48 — 25. EXCLUSIVE PARTS FOR LBH-784-K

Juki LBH-781K parts on page 48

Ref	Part number	Part name	Qty
	1	ARM
	2	FRAME
	3	SHAFT
	4	BOBBIN CASE
	5	BRACKET
	6	LINK
	8	SCREW
	9	BRACKET
	10	BRACKET
	11	PLATE
	12	PLATE
	13	PLATE
	14	BRACKET
	15	SCREW
	16	BRACKET
	17	PLATE
	18	SHAFT
	19	GEAR
	20	GEAR
	21	SHAFT
	22	SPRING
	23	SPRING CASE
	24	SHAFT
	25	SPRING
	26	WASHER
	27	SPRING
	28	SPRING
	29	SPRING
	30	SPRING
	31	BASE PLATE
	32	SCREW
	33	BRACKET
	34	BASE PLATE
	35	BRACKET
	36	SPRING
	37	BRACKET
	38	SCREW
	39	BRACKET
	40	SCREW
	41	WASHER
	42	SPRING
	43	SCREW
	44	ARM
	45	PIN

Page 49

Juki LBH-781K parts on page 49

Ref	Part number	Part name	Qty
	B1513-774-000	WORK CLAMP BRACKET	1
	B1551-784-000-A	WORK CLAMP ARM (4)	1
	B1609-774-000	WORK CLAMP ARM SLIDE ROD	1
	B1808-761-0AB	HOOK ASM.	1
	D9101-771-KOO	HOOK TIMING GAUGE (K)	1
	B1606-774-000	WORK CLAMP CARRIER PITMAN	1
	SD-0870401-SP	HINGE SCREW D= 8.73 H= 4	1
	B1605-774-000	FEED ADJUSTING SHAFT	1
	B2745-774-00B-A	KNIFE 1-1/2”	1
	B2745-774-00A-A	KNIFE 1-3/8”	1
	Di508-774-K00	WORK CLAMP CHECK, K	1
	400-09447	WORK CLAMP CARRIER(4)	1
	B1612-774-000	WORK CLAMP ARM BRACKET GUIDE	1
	B1516-774-000	WORK CLAMP ARM BEARING BRACKET	1
	Bi611-774-0A0	WORK CLAMP ARM BRACKET ASM.	1
	SS-6151440-SP	SCREW 15/64-28 L=14	(1)
	B1608~-774-000	LENGTH REGULATING SHAFT GUIDE	1
	B1603-774-0A0	LENGTH REGULATING ARM ASM.	1
	B2944-761-000	SPUR GEAR (74)	1
	B2945-761-000	SPUR GEAR 252	1
	D3110-772-TAO	THREAD TENSION NO.3 ASN. K	1
	SS-8090670-SP	SCREW 9/64-40 L= 5.5	(1)
	B3110-771-000	TENSION POST SOCKET	(1)
	B3110-761-000	TENSION POST SOCKET	(1)
	B3112-761-000	THREAD TAKE-UP SPRING	(1)
	B3126-012-000	THREAD TENSION DISK	(2)
	B3107-804-000	THREAD TENSION DISK PRESSER	(1)
	B3129-012-A00	TENSION SPRING	(1)
	B3120-125-000	ROTATING STOPPER	(1)
	B3119-771-000	THREAD TENSION NUT	(1)
	D2401-774-KCO	NEEDLE PLATE ASM.	1
	SS-2090530-SP	SCREW 9/64-40 L= 4.8	(2)
	D2402-774-K0O	THROAT PLATE, K	(1)
	B2401-774-0A0	THROAT PLATE BASE ASM.	(1)
	B2406-771-0A0	BOBBIN THREAD TRIMMER BLADE AS	(1)
	SS-5090320-SP	SCREW 9/64-40 L= 3.2	QQ)
	B2408-771-000-A	COUNTER KNIFE	(1)
	SS-4080310-SP	SCREW 1/8-44 L=3.4	(2)
	B2405-771-000	BOBBIN THREAD PULLER	(1)
	SS-6090440-SP	SCREW 9/64-40 L= 4.0	(2)
	B2404-771-000	BOBBIN THREAD TRIMMER LEVER	(1)
	WP-0451016-SP	WASHER 4.5X20X1	(1)
	SS-5090320-SP	SCREW 9/64-40 L= 3.2	(1)
	Bi511-774-0A0	WORK CLAMP CHECK HOLDER ASM.	I
	SD-0790203-SP	HINGE SCREW D=7.94 H=2	I

Page 50 — 26. LIST FOR INFORMATION OF CHANGE

Juki LBH-781K parts on page 50

Ref	Part number	Part name	Qty
	B3155-781-0A0	1
A} 20	400-52419	1
D	3/SS-4110715-SP	3
A} 20	SH-4040655-SP	3
dD; 19	S$D-0601021-SP	5
D| 19	139-43204	6
D| 19	WP-0740516-SP	7
D|i19	262-26407	8
D 19	B3155-781-000	5
A | 20	400-52354	5
D| 19	B3121-372-000	10
DB} 19	P$-0200062-KH	11
D 193	NS-6110310-SP	12
Di; 19	NS-6120310-SP	13
D | 19 30	D2611-555-BO0-Afll	4
A | 20 30	B3571-771-000	4
D/] 19 38/	B3120-761-0A0	16

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki LBH-781K — parts catalog

• Page 1 (cover): This is the cover page for the JUKI 1-Needle, Lockstitch Straight Button-holing Machine parts list, covering models LBH-781, LBH-781-K, LBH-782, LBH-782-K, LBH-783, LBH-783-K, LBH-784, and LBH-784-K.
• Page 2 (unknown): This page is blank except for a watermark and a footer.
• Page 3 (text): This page provides instructions on how to use the parts list, explaining codes, quantity column interpretations, and symbols for assembly parts.
• Page 4 (toc): This page is a table of contents listing 18 sections of components for an industrial sewing machine, including frame, main shaft, hook driving shaft, presser bar, needle bar, overedging width adjusting, needle thread trimmer, bobbin thread trimmer, knife bar, feed cam, stop-motion, tripping lever, lifting lever, thread tension, lubrication mechanism, speed transmitter, and motor pulley components.
• Page 5 (toc): This page is a table of contents listing various sections related to thread stand components, exclusive parts for different LBH models, special order parts, exchanging parts, and a numerical index of parts, along with their corresponding page numbers.
• Page 6 (diagram): This page displays a diagram of the frame and miscellaneous cover components of a sewing machine, with various parts labeled with reference numbers.
• Page 7 (parts_list): This page lists various parts including frame side covers, screws, washers, safety labels, arm support rods, pins, rubber cushions, side cover gaskets, face covers, gaskets, rubber plugs, top covers, worm gear shaft metals, ground marks, oil felts, main shaft thrust seals, gear case covers, disk springs, hinge screws, hand stop latches, ball screws, nuts, knife stop lever shaft guides, oil sight window gaskets, bed slides, bed screw studs, bed oil shield assemblies, bed oil shield studs, labels, and attention seals.
• Page 8 (diagram): This page displays a diagram of frame and miscellaneous cover components, including various parts with their corresponding reference numbers.
• Page 9 (parts_list): This page lists parts for a sewing machine, including safety plates, screws, washers, nuts, covers, and a label, with their respective part numbers, descriptions, and quantities.
• Page 10 (diagram): This page displays an exploded view diagram of various components, including shafts, gears, and other mechanical parts, with reference numbers indicating their positions.
• Page 11 (parts_list): This page is a parts list detailing various components for an industrial sewing machine, including screws, oil wicks, shafts, levers, and other mechanical parts, with their respective part numbers, descriptions, and quantities.
• Page 12 (diagram): This page displays a diagram of the hook driving shaft components with various parts labeled with reference numbers.
• Page 13 (parts_list): This page lists various parts for a sewing machine, including bobbin case components, screws, bushings, gears, and shafts, with their part numbers, descriptions, and quantities.
• Page 14 (diagram): This page illustrates the components of the presser bar and work clamp carrier, showing an exploded view of various parts and their reference numbers.
• Page 15 (parts_list): This page lists parts for a sewing machine, including presser components, screws, work clamp parts, and length regulating parts, with their corresponding part numbers, descriptions, and quantities.
• Page 16 (diagram): This page illustrates the components of the needle bar frame, showing various parts and their reference numbers.
• Page 17 (parts_list): This page lists various parts for an industrial sewing machine, including square blocks, studs, nuts, bushings, screws, rubber rings, oil wicks, frame rock shaft crank assemblies, needle bar cranks, needle bar pitmans, thrust collars, set-screws, knife driving shafts, needle bar frames, hinge studs, position brackets, oil felts, needle bars, and needle thread guides, along with their part numbers, descriptions, and quantities.
• Page 18 (diagram): This page illustrates the overedging width adjusting components of an industrial sewing machine with a detailed diagram.
• Page 19 (parts_list): This page lists parts for an industrial sewing machine, including screws, nuts, levers, pins, rollers, springs, and brackets, with their part numbers, descriptions, and quantities.
• Page 20 (diagram): This page displays a diagram of needle thread trimmer components for an industrial sewing machine, with various parts labeled with reference numbers.
• Page 21 (parts_list): This page lists parts for a sewing machine, including needle thread trimmers, screws, springs, brackets, and nuts, with their respective part numbers, descriptions, and quantities.
• Page 22 (diagram): This page illustrates the components of the bobbin thread trimmer assembly with a detailed diagram.
• Page 23 (parts_list): This page lists various parts for an industrial sewing machine, including needle plates, screws, bobbin thread trimmers, and other components, with their part numbers, descriptions, and quantities.
• Page 24 (diagram): This page displays a diagram of knife bar components for an industrial sewing machine.
• Page 25 (parts_list): This page lists parts for a sewing machine, including various knife components, screws, springs, and other related hardware, with their part numbers, descriptions, and quantities.
• Page 26 (diagram): This page illustrates the feed cam and tripping segment components of an industrial sewing machine, showing various gears, shafts, and associated hardware with reference numbers.
• Page 27 (parts_list): This page lists various parts including gears, bushings, screws, collars, shafts, and other components, along with their part numbers, descriptions, and quantities.
• Page 28 (parts_list): This page illustrates and lists the components for the stop-motion mechanism, including various screws, nuts, springs, and levers.
• Page 29 (diagram): This page illustrates the components of the tripping lever assembly with a detailed diagram and a corresponding parts list.
• Page 30 (diagram): This page illustrates the lifting lever and bobbin winder components with a detailed diagram.
• Page 31 (parts_list): This page lists parts for a sewing machine, including various screws, levers, springs, and bobbin winder components, with their corresponding part numbers and quantities.
• Page 32 (diagram): This page displays a diagram of thread tension components, with numbered parts and their corresponding references.
• Page 33 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like tension release links, hinge screws, blocking links, and various pins and screws.
• Page 34 (diagram): This page displays a diagram of lubrication mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 35 (parts_list): This page lists parts for a sewing machine, including various screws, pipes, filters, and machine base components, with their corresponding part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of speed transmitter components, with numbered parts and their corresponding references.
• Page 37 (parts_list): This page lists parts for the sewing machine, including tension pulleys, screws, nuts, bearings, and various shifter components, with their corresponding part numbers and descriptions.
• Page 38 (diagram): This page displays a diagram of motor pulley components, along with a parts list detailing mounting bolts, spacers, base plates, washers, nuts, motor pulleys for different specifications, screws, and V-belts.
• Page 39 (diagram): This page displays a diagram of thread stand components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
• Page 40 (diagram): This page displays diagrams of exclusive parts for LBH-782, LBH-783, and LBH-784 sewing machines, with numbered parts for each model.
• Page 41 (parts_list): This page contains a parts list for various components of a sewing machine, including work clamp check holders, knives, gears, and screws, with part numbers, descriptions, and quantities.
• Page 42 (diagram): This page displays diagrams and part information for special order parts, including tape reel components, button-holing measuring gauges, knife for special use, hook oil shield components, and cover components.
• Page 43 (parts_list): This page lists various parts for an industrial sewing machine, including screws, knives, and covers, with their corresponding part numbers and descriptions.
• Page 44 (parts_list): This page lists changing gears and parts used in connection with knives, including work clamp checks and throat plates, with their corresponding part numbers.
• Page 45 (parts_list): This page lists exclusive parts for the LBH-781-K model sewing machine, including part numbers, descriptions, and quantities.
• Page 46 (diagram): This page displays diagrams of exclusive parts for LBH-782-K and LBH-783-K sewing machines, with numbered components for each model.
• Page 47 (parts_list): This page lists parts for sewing machine models, including part numbers, descriptions, and quantities. It also notes that parts not listed are the same as those for model LBH-781.
• Page 48 (diagram): This page displays a diagram of exclusive parts for the LBH-784-K sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 49 (parts_list): This page lists parts for a sewing machine, including reference numbers, part numbers, descriptions, and quantities. It also notes that parts not listed are the same as those for model LBH-781.
• Page 50 (text): This page lists changes to parts, indicating added, obsoleted, or corrected parts with their corresponding part numbers and revision information.
• Page 51 (index): This page is a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers within the catalog.
• Page 52 (index): This page is a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers within the catalog.
• Page 53 (index): Numerical index of parts with part numbers, page references, and reference numbers.
• Page 54 (index): This page is a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers within the catalog.
• Page 55 (unknown): This page contains a watermark and a website address at the bottom.
• Page 56 (cover): This is the cover page of a JUKI CORPORATION parts catalog, indicating it was printed in Japan and last updated in February 2007.

Page 1

JUKI 1-Needle,Lockstitch Straight Button-holing Machine 一本針本縫眠り穴かがりミシン LBH-781 LBH-781-K LBH-782 LBH-782-K LBH-783 LBH-783-K LBH-784 LBH-784-K PARTS LIST BE078130PJA No.0158-20 jintex.in

Page 2

jintex.in

Page 3

HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark...........means this part is changed from the previous parts book. As to the details of the change,refer to "List for information of change". 2) "01" ............refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. "注記" 欄の記号説明 1) "*" 印 ............前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は" 変更情報リスト" を参照してください。 2) "01" ............ページ下の" 注記" の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル) を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページの---- ---- ---- 枠は、組構成であることを意味します。 jintex.in

Page 4 — CONTENTS

CONTENTS 目 次 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1) 頭部外装関係(1) 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2) 頭部外装関係(2) 3. MAIN SHAFT COMPONENTS 上軸関係 4. HOOK DRIVING SHAFT COMPONENTS 下軸関係 5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS 押さえ棒・布送り関係 6. NEEDLE BAR FRAME COMPONENTS 針棒摺動台関係 7. OVEREDGING WIDTH ADJUSTING COMPONENTS かがり幅調節関係 8. NEEDLE THREAD TRIMMER COMPONENTS 上糸切り関係 9. BOBBIN THREAD TRIMMER COMPONENTS 下糸切り関係 10. KNIFE BAR COMPONENTS メス棒関係 11. FEED CAM & TRIPPING SEGMENT COMPONENTS 主カム・閉止め関係 12. STOP-MOTION COMPONENTS 遮断装置関係 13. TRIPPING LEVER COMPONENTS 手動停止関係 14. LIFTING LEVER & BOBBIN WINDER COMPONENTS 押さえ上げ・糸巻関係 15. THREAD TENSION COMPONENTS 糸調子関係 16. LUBRICATION MECHANISM COMPONENTS 給油装置関係 17. SPEED TRANSMITTER COMPONENTS 減速機関係 18. MOTOR PULLEY COMPONENTS モータープーリ関係 1 3 5 7 9 11 13 15 17 19 21 23 24 25 27 29 31 33 jintex.in

Page 5

19. THREAD STAND COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 6 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1)

1. FRAME & MISCELLANEOUS COVER COMPONENTS (1) 頭部外装関係 (1) - 1 - jintex.in

Page 7

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B1137-771-000 FRAME SIDE COVER B 1 2 01 B1137-771-00A FRAME SIDE COVER B 1 3 SS-4111015-SP SCREW 11/64-40 L=10 1 4 WP-0450000-SD WASHER 4.5X8X0.5 2 5 02 CM-3002001-01 SAFETY LABEL, 1(SMALL). 1 6 SS-4111015-SP SCREW 11/64-40 L=10 1 7 400-09028 ARM SUPPORT ROD 1 8 SS-8110510-SP SCREW 11/64-40 L=5 1 9 B1120-761-000 PIN 1 10 B1118-761-000 RUBBER CUSHION 1 11 B1116-771-000 SIDE COVER (C) 1 12 01 400-09010 ARM SIDE COVER (C) 1 13 B1152-771-000 SIDE COVER GASKET (C) 1 14 SS-4110915-SP SCREW 11/64-40 L=9 7 15 B1138-771-000 FRAME SIDE COVER C 1 16 01 B1138-771-00A FRAME SIDE COVER C 1 17 SS-4112215-SP SCREW 11/64-40 L=22 1 18 SS-4111415-SP SCREW 11/64-40 L=14 1 19 B1155-771-000 CUSHION 2 20 B1144-771-000 FRAME SIDE COVER GASKET (C) 2 21 B1153-781-000 LEFT SIDE COVER 1 22 01 400-08995 LEFT SIDE COVER 1 23 B1145-771-000 SIDE COVER GASKET 3 24 SS-4110915-SP SCREW 11/64-40 L=9 1 25 B1123-581-000 THREAD TAKE-UP LEVER OIL GUARD 1 26 01 400-09039 THREAD TAKE-UP LEVER COVER 1 27 SS-4090515-SP SCREW 9/64-40 L=5 2 28 B1112-771-0A0 FACE COVER COMPLETE 1 29 01 B1112-771-0AA FACE COVER COMPLETE 1 30 B1149-771-000 GASKET 1 31 B1151-771-000 FACE PLATE GASKET (B) 1 32 SS-4111415-SP SCREW 11/64-40 L=14 2 33 SS-4110915-SP SCREW 11/64-40 L=9 1 34 TA-1250705-RO RUBBER PLUG 2 35 B1103-771-000-A TOP COVER 1 36 01 B1103-771-00A TOP COVER 1 37 B1106-771-000 WORM GEAR SHAFT METAL 2 38 100-04109 GROUND MARK 1 39 SS-6120620-TP SCREW 4 40 B1110-771-000 TOP COVER GASKET, FRONT 1 41 B1117-771-000 OIL FELT 2 42 400-09050 MAIN SHAFT THRUST SEEL 1 43 SS-4111815-SP SCREW 11/64 L=18 6 44 TA-0750704-RO RUBBER PLUG 6 45 B1106-761-000 GEAR CASE COVER 1 46 01 400-09030 GEAR CASE COVER 1 47 B3125-155-000 DISK SPRING 1 48 SD-0640261-SP HINGE SCREW D=6.35 H=2.6 1 49 SS-7111310-SP SCREW 11/64-40 L=12.8 1 50 400-09311 HAND STOP LATCH 1 51 SS-4110715-SP SCREW 11/64-40 L=7 2 52 400-09038 BALL SCREW 1 53 NS-6120310-SP NUT 3/16-28 1 54 TA-2101002-RO RUBBER PLUG 1 55 B1104-771-000 TOP COVER GASKET, REAR 1 56 400-09370 ARM OIL SHIELD 1 57 SS-4110715-SP SCREW 11/64-40 L=7 1 58 B2743-771-000 KNIFE STOP LEVER SHAFT GUIDE 1 59 TA-1050504-RO RUBBER PLUG 1 60 B1111-771-000 SIDE COVER (A) GASKET 1 61 B1114-771-000 SIDE COVER A 1 62 01 400-09008 ARM SIDE COVER (A) 1 63 SS-4110915-SP SCREW 11/64-40 L=9 6 64 B1133-771-000 OIL SIGHT WINDOW GASKET 1 65 B1115-771-0A0 SIDE COVER ASM. B 1 66 01 400-09009 ARM SIDE COVER (B) 1 67 SS-4110915-SP SCREW 11/64-40 L=9 4 68 B1128-771-000 SIDE COVER A 1 69 01 B1128-771-00A SIDE COVER A 1 70 SS-4111015-SP SCREW 11/64-40 L=10 2 71 WP-0450000-SD WASHER 4.5X8X0.5 2 72 03 CM-3002001-A1 SAFETY LABEL, 3 (SMALL). 1 73 400-09034 BED SLIDE 1 74 400-09036 BED SCREW STUD A 2 75 400-09035 BED OIL SHIELD ASM. 1 76 400-09384 BED OIL SHIELD STUD 1 77 SS-4110515-SP SCREW 11/64-40 L=5 1 78 02 CM-3002000-B1 LABEL(16) 1 79 02 CM-3002000-01 ATTENTION SEAL 1 80 400-09014 OIL SIGHT WINDOW 1 NOTE (注記) 01....FOR URBAN WHITE 02....FOR USE IN JAPAN 03....FOR EXPORT(EXCEPT JE) - 2 - jintex.in

Page 8 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)

2. FRAME & MISCELLANEOUS COVER COMPONENTS (2) 頭部外装関係 (2) 3 4 2 6 5 1 16 10 17 7 12 7 8 9 14 8 9 16 17 15 11 7 8 9 16 17 14 8 9 13 11 7 10 7 8 9 16 17 -3- jintex.in

Page 9

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 *01 400-52419 SAFETY PLATE ASM. 1 2 260-37200 SAFETY PLATE (1) 3 * SM-4040655-SP SCREW M4 L=6 (2) 4 WP-0450801-SD WASHER 4.5X10X0.8 (2) 5 * 400-52354 SAFETY PLATE INSTALLING BASE (1) 6 01 SS-6111140-SP SCREW 11/64-40 L=11 (1) 7 01 NS-6110310-SP NUT 11/64-40 10 8 01 WP-0501016-SC WASHER 5X10.5X1 5 9 01 SK-3452000-SE WOOD SCREW D=4.5 L=20 5 10 01 B7272-781-000 COVER MOUNTING BRACKET B 2 11 01 400-09421 COVER MOUNTING BRACKET A 2 12 01 262-36703 COVER MOUNTING BRACKET C 1 13 01 137-72504 MOTOR PULLEY COVER 1 14 01 CM-3002000-A3 LABEL, (31.5) 2 15 01 400-09458 PULLEY COVER 1 16 01 SS-7110710-SP SCREW 11/64-40 L=7 10 17 01 WP-0480856-SP WASHER 4.8X8.4X0.8 10 NOTE (注記) 01...FOR USE IN JAPAN - 4 - jintex.in

Page 10

上軸関係 COMPONENTS 65 1 2 6 3 4 5 7 8 10 14 17 11 13 15 14 12 16 19 20 18 23 21 24 25 22 26 28 27 29 30 31 32 33 34 35 37 36 48 66 47 39 43 40 42 41 44 45 38 46 49 54 55 56 50 51 52 53 52 57 9 58 59 60 61 62 63 64 -5- jintex.in

Page 11

REF. NO NOTE PART NO. D E S C R I P T I O N Qty 1 B1404-761-000 HINGE STUD 1 2 SS-8150822-TP SCREW 15/64-28 L=8 1 3 CQ-2520000-00 OIL WICK 0.38 4 400-09087 OIL WICK HOLDER 1 5 SS-7090510-SP SCREW 9/64-40 L= 4.6 2 6 B1147-125-000 OIL WICK SNAP RING 1 7 BP-6000000-00 VINYL PIPE 0.03 8 400-08610 MAIN SHAFT 1 9 CM-3003000-01 DIRECTION LABEL 1 10 01 B1901-761-BA0 THREAD TAKE-UP LEVER ASM., CER 1 11 B1901-761-0A0 THREAD TAKE-UP LEVER ASM. 1 12 B1203-771-000 NEEDLE BAR CRANK 1 13 B1204-761-000 NEEDLE BAR CRANK CONNECTING RO 1 14 02 B1905-541-B00 NEEDLE BEARING 2 15 B1903-552-000 LEFT SCREW 1 16 B2615-232-000 OIL FELT WASHER 1 17 B1223-771-000 NEEDLE ROD CRANK WASHER 1 18 400-09048 COUNTERWEIGHT ASM. 1 19 SS-8681650-TP SCREW 9/32-28 L=16 (1) 20 SS-8660512-TP SCREW 1/4-40 L=5 (2) 21 SS-7681750-TP SCREW 9/32-28 L=16.5 1 22 B1204-771-000-A BUSHING, FRONT 1 23 SS-8150822-TP SCREW 15/64-28 L=8 2 24 B1203-012-000 OIL FELT 1 25 B3541-012-000 OIL WICK 1 26 261-00701 KNIFE BAR DRIVING CONNECTING 1 27 B2722-761-000 KNIFE BAR DRIVING ECCENTRIC 1 28 SS-8660810-TP SCREW 1/4-40 L=8 2 29 B1208-552-000-A OIL SEAL 1 30 261-04703 MAIN SHAFT BUSHING INTERMEDIA 1 31 SS-8150822-TP SCREW 15/64-28 L=8 1 32 B2920-761-0A0 WORM ASM. 1 33 SS-8660610-TP SCREW 1/4-40 L=6 (2) 34 CS-147121B-SH THRUST COLLAR ASM. D=14.72 W=1 1 35 SS-8660530-TP SCREW 1/4-40 L=4.5 (2) 36 400-09400 MAIN SHAFT THRUST COLLAR ASM. 1 37 SS-8660530-TP SCREW 1/4-40 L=4.5 (4) 38 B1256-781-0A0 UPPER SHAFT REAR METAL ASM. 1 39 B1256-781-0B0 UPPER SHAFT REAR METAL (1) 40 B1208-552-000-A OIL SEAL (1) 41 400-09426 BEARING RETAINER (1) 42 SS-7110910-TP SCREW 11/64-40 L=8.5 (3) 43 B1257-781-000 FELT B (1) 44 B1252-781-0B0 LOOSE PULLEY ASM. (1) 45 RC-3000001-KP RETAINING RING 30 (1) 46 02 B1255-781-00B WASHER B 2 47 B1229-771-000 MAIN SHAFT THRUST WASHER (C) 1 48 SS-8150822-TP SCREW 15/64-28 L=8 1 49 SS-7090410-SP SCREW 9/64-40 L= 3.5 3 50 B1254-781-000 MAIN SHAFT THRUST SEEL 1 51 B1227-771-000 GASKET 1 52 B1220-771-000 THRUST WASHER A 2 53 B1225-771-000 BEARING 1 54 SS-7660510-SP SCREW 1/4-40 L=5.0 1 55 SS-8660512-TP SCREW 1/4-40 L=5 1 56 400-09049 DRIVING PULLEY 1 57 02 B1224-771-00C SCREW (C) 1 58 B1231-771-000 STOP CAM PRESSURE SPRING 1 59 400-09070 STOP-MOTION CAM PIN SLIDE BLOC 2 60 B1212-232-000 BAKELITE SEGMENT 1 61 400-09069 STOP-MOTION CAM POSITION PIN 1 62 B1208-771-000 STOP MOTION CAM 1 63 400-09058 STOP MOTION CAM PRESSER PLATE 1 64 SS-7110710-SP SCREW 11/64-40 L=7 3 65 CQ-2520000-00 OIL WICK 0.4 66 B3541-012-000 OIL WICK 1 NOTE (註記) 01....SPECIAL ORDER PARTS 特別注文部品 02....SELECTIVE PARTS 選択部品 -6- jintex.in

Page 12 — 4. HOOK DRIVING SHAFT COMPONENTS

4. HOOK DRIVING SHAFT COMPONENTS 下軸関係 27 29 25 26 31 33 34 28 30 36 32 35 41 39 38 41 37 12 2 3 4 7 19 22 16 17 18 20 8 6 5 9 13 1 10 11 15 14 21 46 48 21 21 47 56 24 23 42 43 44 21 45 49 50 55 51 53 52 54 40 -7- jintex.in

Page 13

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B1810-771-0A0 BOBBIN CASE ASM. 1 2 B1810-761-C00 BOBBIN CASE LATCH LEVER (1) 3 B1810-761-B00 BOBBIN CASE LATCH (1) 4 B1810-761-F00 LATCH SPRING (1) 5 B1810-761-G00 LATCH STOP SCREW (1) 6 B1810-761-D00 HINGE PIN (1) 7 B1810-771-E00 TENSION SPRING (1) 8 B1810-761-J00 TENSION SCREW (1) 9 B1810-761-H00 CLAMP SCREW (1) 10 400-09148 BOBBIN 1 11 B1808-771-0AC HOOK ASM. 1 12 261-00404 BOBBIN CASE POSITIONING PLATE 1 13 SS-9110515-SP SCREW 11/64-40 L=5 1 14 B1805-771-0A0 HOOK SLEEVE ASM. 1 15 SS-8660612-TP SCREW 1/4-40 L=6 (4) 16 B1812-771-0A0 OIL WICK ASM. 1 17 NS-6090310-SP NUT 9/64-40 1 18 B1806-771-000 ADJUSTING SCREW 1 19 B1804-761-0A0 BUSHING ASM., FRONT 1 20 CQ-2520000-00 OIL WICK (0.03) 21 SS-8150822-TP SCREW 15/64-28 L=8 3 22 B1803-761-000 BUSHING, INTERMEDIATE 1 23 01 B1446-761-CA0 PINION ASM. 1 24 SS-8660610-TP SCREW 1/4-40 L=6 (2) 25 B1306-771-0C0 GEAR & PINION ASM. 1 26 B1306-771-0B0 GEAR & PINION ASM. UPPER (1) 27 B1305-771-0A0 GEAR ASM. (1) 28 SS-6660712-TP SCREW 1/4-40 L= 7.0 (2) 29 B1306-771-0A0 PINION ASM. (1) 30 SS-6660712-TP SCREW 1/4-40 L= 7.0 (2) 31 B1307-771-0B0 GEAR & PINION ASM. LOWER (1) 32 B1307-771-0A0 GEAR ASM. (1) 33 SS-6660712-TP SCREW 1/4-40 L= 7.0 (2) 34 B1308-771-0A0 PINION ASM. (1) 35 SS-6660712-TP SCREW 1/4-40 L= 7.0 (2) 36 B1223-771-000 NEEDLE ROD CRANK WASHER 1 37 229-05202 UPRIGHT SHAFT BUSHING, LOWER 1 38 400-09071 UPRIGHT SHAFT 1 39 400-09072 UPRIGHT SHAFT BUSHING 1 40 400-09150 HOOK DRIVING SHAFT 1 41 SS-8150822-TP SCREW 15/64-28 L=8 2 42 B1223-771-000 NEEDLE ROD CRANK WASHER 1 43 B1802-771-0A0 BUSHING ASM., REAR 1 44 CQ-2020000-00 OIL WICK (0.1) 45 TA-0850604-RO RUBBER PLUG 1 46 400-09442 HOOK OIL SUPPLY RUBBER ASM. 1 47 400-09443 BUSHING (1) 48 400-09444 OIL ADJUSTING RUBBER (1) 49 400-09156 HOOK OIL ADJUSTING SCREW 1 50 400-09157 POSITIONING SCREW 1 51 400-09153 OIL SUPPLY FELT HOLDER 1 52 SS-4150715-SP SCREW 15/64-28 L=7 1 53 B1812-771-000 OIL SUPPLY FELT 1 54 02 B1810-771-0BA BOBBIN CASE ASM. 1 55 02 B1814-761-000 SPRING (1) 56 400-09155 PLATE SPRING 1 NOTE (注記) 01....SELECTIVE PARTS 02....SPECIAL ORDER PARTS FOR SYNTHETIC THREAD -8- jintex.in

Page 14 — 5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS

5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS 押さえ棒・布送り関係 1 2 3 5 4 6 7 15 11 16 14 17 19 18 20 59 21 8 9 10 13 12 35 39 42 43 45 44 40 41 47 46 50 49 36 37 38 27 23 24 25 26 22 48 51 28 29 57 30 31 34 56 52 54 55 53 32 33 58 - 9 - jintex.in

Page 15

REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-09129 PRESSER SPRING REGULATOR 1 2 400-09119 PRESSER BAR 1 3 B1507-761-000 PRESSER SPRING 1 4 B1506-761-000 PRESSER BAR GUIDE BRACKET 1 5 SS-7111310-SP SCREW 11/64-40 L=12.8 2 6 B1505-761-0A0 PRESSER BAR POSITION BRACKET A 1 7 SS-8660810-TP SCREW 1/4-40 L=8 (1) 8 400-09121 SLEEVE 1 9 400-09123 SLIDE ROLLER 1 10 B1503-771-000 CONNECTING PIN 1 11 B1502-771-AA0-A BRACKET ASM. 1 12 400-09122 BRACKET (1) 13 400-09132 FINGER GUARD (1) 14 SS-7090710-SP SCREW 9/64-40 L= 6.8 (1) 15 SS-4091520-SP SCREW 9/64-40 L=15 1 16 SS-7110710-SP SCREW 11/64-40 L=7 1 17 400-09122 WORK CLAMP BRACKET 1 18 SS-2110920-TP SCREW 11/64-40 L=8.5 1 19 SS-7110840-SP SCREW 11/64-40 L=7.8 1 20 SS-7110840-SP SCREW 11/64-40 L=7.8 1 21 400-09190 NEEDLE THREAD TRIMMER GUIDE (A 1 22 B1552-781-0A0-A PRESSER ASM. 1 23 01 B1511-771-0A0-B PRESSER FOOT ASM. (1) 24 B1511-771-000-B PRESSER FOOT (1) 25 B1509-761-000 WORK CLAMP CHECK SPRING (2) 26 B1510-771-00B WORK CLAMP CHECK SPRING SET PI (2) 27 B1512-761-000 WORK CLAMP CHECK HOLDER SPRING (1) 28 B1552-781-000-A PRESSER (1) 29 SS-6060210-SP SCREW 3/32-56 L= 1.9 (2) 30 02 B1508-771-A00 WORK CLAMP CHECK, KNIT GOOD 1 31 02 B1613-771-A00-A WORK CLAMP CARRIER 1 32 400-09445 WORK CLAMP CARRIER 1 33 B1607-763-0A0 BRACKET COVER 1 34 SS-7110810-SP SCREW 11/64-40 L=8 2 35 B1611-771-0A0 WORK CLAMP ARM BRACKET ASM. 1 36 SS-6151440-SP SCREW 15/64-28 L=14 (2) 37 B1606-763-000 WORK CLAMP CARRIER BRACKET PIT 1 38 SD-0870601-SP HINGE SCREW D= 8.73 H= 6.0 1 39 261-05908 WORK CLAMP ARM SLIDE ROD 1 40 B1612-763-000 WORK CLAMP CARIER BRACKET GUID 1 41 SS-6111010-TP SCREW 11/64-40 L= 9.5 2 42 B1551-781-000 WORK CLAMP 1 43 B1517-771-000 CONNECTING PIN 1 44 SS-7090920-SP SCREW 9/64-40 L= 8.5 1 45 B1516-771-000 BEARING ARM 1 46 SS-6150710-SP SCREW 15/64-28 L=7 1 47 SS-8150920-SP SET-SCREW 1 48 400-09137 LENGTH REGULATING HINGE STUD 1 49 400-09134 LENGTH REGULATING SHAFT GUIDE 1 50 NS-6150310-SP NUT 15/64-28 1 51 B1603-763-0A0 LENGTH REGULATING SCALE ASM. 1 52 400-09144 LENGTH REGULATING SHAFT CRANK 1 53 SM-6061602-TP SCREW M6 L=16 (1) 54 WP-0651308-SD WASHER 6.5X13X0.8 (1) 55 400-09146 BELL CRANK ROLLER STUD (1) 56 400-09143 ROLLER 1 57 SD-0790203-SP HINGE SCREW D=7.94 H=2 1 58 NS-6150310-SP NUT 15/64-28 1 59 400-09178 NEEDLE THREAD TRIMMER GUIDE (B 1 NOTE (注記) 01....THE SIZE OF THE BUTTONHOLE VARIES ACCORDING TO THE WOR CLAMP CHECK, SO FOR FURTHER DETAILS PLEASE REFER TO PAGE 39,22-(2). 02....SPECIAL ORDER PARTS FOR LIGHT WEIGHT KNIT MATERIALS. (PLEASE USE THE WORK CLAMP CHECK AND THE WORK CLAMP CARRIER TOGETHER AS A PAIR.) - 10 - jintex.in

Page 16 — 6. NEEDLE BAR FRAME COMPONENTS

6. NEEDLE BAR FRAME COMPONENTS 針棒揺動台関係 7 6 5 8 9 11 10 1 2 3 30 32 31 33 36 37 38 35 39 40 34 41 38 36 42 46 43 47 44 45 48 50 51 12 13 15 16 18 17 19 20 25 23 26 27 24 49 29 22 21 28 - 11 - jintex.in

Page 17

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B1414-232-000 SQUARE BLOCK 1 2 B1410-771-000 STUD 1 3 NS-6150310-SP NUT 15/64-28 1 4 400-09082 BUSHING 1 5 SS-8151150-SP SCREW 15/64-28 L=10.5 2 6 R0-1482402-00 RUBBER RING 1 7 B3541-012-000 OIL WICK 1 8 B1411-771-0A0 FRAME ROCK SHAFT CRANK ASM., F 1 9 261-06906 FRAME NEEDLE BAR SHAFT (1) 10 PT-0302000-S0 TAPERED PIN 3.0X20 (2) 11 400-09099 NEEDLE BAR CRANK (FRONT) (1) 12 400-09452 NEEDLE BAR CRANK (REARE) ASM. 1 13 SS-7151210-SP SCREW 15/64-28 L=12 (1) 14 SD-0790801-SP HINGE SCREW D=7.94 H=8 1 15 NS-6160520-SP NUT 1/4-24 1 16 B1415-761-000 NEEDLE BAR PITMAN 1 17 B1416-761-000 ROCK SHAFT CONNECTION GUIDE 1 18 SS-6111620-SP SCREW 11/64-40 L=16.0 2 19 SS-8111251-SP SCREW 11/64-40 L=12.0 1 20 NS-6110310-SP NUT 11/64-40 1 21 B1445-761-0A0 NEEDLE DRIVING GEAR ASM. 1 22 CS-095101C-SH THRUST COLLAR ASM. D=9.53 W=10 1 23 SS-8150920-SP SET-SCREW (1) 24 SS-8150710-SP SCREW 15/64-28 L=7 (1) 25 B1447-761-0A0 KNIFE DRIVING SHAFT ASM. 1 26 CQ-2020000-00 OIL WICK (0.21) 27 400-09091 KNIFE DRIVING SHAFT (1) 28 CS-095101B-SH THRUST COLLAR ASM. D=9.53 W=10 1 29 SS-8150710-SP SCREW 15/64-28 L=7 (2) 30 B1403-771-000 NEEDLE BAR FRAME 1 31 SS-8150822-TP SCREW 15/64-28 L=8 1 32 B1404-771-000 HINGE STUD 1 33 CQ-2520000-00 OIL WICK 0.26 34 400-08075 POSITION BRACKET 1 35 SS-5110810-SP SCREW 11/64-40 L=8 2 36 B1406-771-000 OIL FELT, FOR NEEDLE BAR 2 37 400-09085 OIL FELT UPPER 1 38 SS-7090520-SP SCREW 9/64-40 L= 4.5 2 39 B1402-761-0A0 NEEDLE BAR CONNECTION 1 40 SS-7090910-TP SCREW 9/64-40 L= 8.5 (1) 41 400-09086 OIL FELT RETAINER 1 42 400-09083 NEEDLE BAR 1 43 400-09093 NEEDLE BAR BOBBIN THREAD GUIDE 1 44 SS-4080415-SP SCREW 1/8-44 L=4 1 45 MDP-5J0B1100 NEEDLE DPX5 #11J 1 46 01 B1451-771-00A NEEDLE BAR THREAD GUIDE 1 47 02 MC-2005E07-50 NEEDLE 134SES 75 1 48 03 MDP-5J0B1400 NEEDLE DPX5 #14J 1 49 SS-8150920-SP SET-SCREW 1 50 04 MC-2005007-50 NEEDLE 134 NM75 1 51 400-09077 BUSHING 1 52 CQ-2520000-00 OIL WICK 0.25 NOTE (注記) 01....SPECIAL ORDER PARTS FOR SYNTHETIC THREAD 02....SPECIAL ORDER PARTS 03....FOR EXPORT 04....FOR JE - 12 - jintex.in

Page 18 — 7. OVEREDGING WIDTH ADJUSTING COMPONENTS

7. OVEREDGING WIDTH ADJUSTING COMPONENTS かがり幅調節関係 - 13 - jintex.in

Page 19

REF_NO NOTE PART_NO. DESCRIPTION Qty 1 400-09092 STITCH WIDTH REGULATING SCREW 3 2 SS-9201973-CP SCREW 5/16-18 L=19 1 3 NM-6080721-SE NUT M8 1 4 NS-6200520-SP NUT 5/16-18 3 5 400-09078 NEEDLE THROW REPOSITIONING LEV 1 6 SS-7121210-SP SCREW 3/16-28 L=12 2 7 400-09107 REPOSITIONING LIVER TRIP PIN A 1 8 400-09110 PIN (1) 9 400-09109 ROLLER (1) 10 400-09108 REPOSITIONING LEVER TRIP PIN (1) 11 B1432-761-000 SWING ARM STOPPER RUBBER 1 12 400-09106 REGULATING HINGE PIN 1 13 400-09111 REGULATING LEVER ASM. (1) 14 400-09113 BELL CRANK (1) 15 400-09115 REGULATING LEVER SHAFT (1) 16 CQ-3030000-00 OIL WICK (0.1) 17 NS-6110310-SP NUT 11/64-40 (1) 18 SS-8111251-SP SCREW 11/64-40 L=12.0 (1) 19 400-09114 REGULATING LEVER BRACKET (1) 20 400-09112 REGULATING LEVER (1) 21 SS-4080415-SP SCREW 1/8-44 L=4 2 22 400-09118 SPRING 1 23 SS-4080415-SP SCREW 1/8-44 L=4 2 24 400-09117 BARRED WIDTH INDICATOR 1 25 SS-7151210-SP SCREW 15/64-28 L=12 2 26 SD-0790432-SP HINGE SCREW D= 7.94 H= 4.3 1 27 400-09116 ROLLER 1 28 B1425-771-000 BEARING BRACKET 1 29 NS-6110310-SP NUT 11/64-40 2 30 SS-8111251-SP SCREW 11/64-40 L=12.0 2 31 B1424-761-000 NEEDLE THROW REPOSITIONING SHA 1 32 SS-7150940-SP SCREW 15/64-28 L=9 2 33 B1421-761-0A0 BEARING BRACKET ASM. 2 34 CQ-2520000-00 OIL WICK (0.1) 35 400-09105 CONNECTING PIN (1) 36 B1418-761-0A0 CONNECTING FORKED LINK PIN ASM 1 37 CQ-2520000-00 OIL WICK (0.1) 38 400-09103 CONNECTING FORKED LINK PIN (1) 39 NS-6110310-SP NUT 11/64-40 2 40 B1419-761-0A0 CONNECTING STUD ASM. 1 41 CQ-2520000-00 OIL WICK (0.1) 42 400-09104 CONNECTING STUD (1) 43 400-09089 SUSPENSION SCREW 2 44 261-00008 CONNECTING FORKED LINK 1 45 B1427-771-000 SPRING 1 46 NS-6150310-SP NUT 15/64-28 1 47 400-09094 SWING ARM STOPPER ASM 1 48 400-09081 SEAM WIDTH INDICATOR 1 49 SS-4080415-SP SCREW 1/8-44 L=4 2 50 400-09094 SWING ARM STOPPER ASM 1 51 400-09102 REGULATING LEVER CONNECTION 1 52 261-00107 REPOSITIONING LIVER LINK 1 53 SS-8111251-SP SCREW 11/64-40 L=12.0 2 54 B1426-771-000 SPRING 1 55 SD-0640471-SP HINGE SCREW D= 6.35 H= 4.7 1 - 14 - jintex.in

Page 20 — 8. NEEDLE THREAD TRIMMER COMPONENTS

8. NEEDLE THREAD TRIMMER COMPONENTS 上糸切り関係 14 15 16 17 18 24 26 12 9 8 11 13 10 7 6 5 4 3 2 1 23 19 20 21 22 27 28 30 34 25 24 26 36 35 37 323133 29 38 39 42 43 44 45 40 41 46 47 - 15 - jintex.in

Page 21

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 B2001-771-0A0 NEEDLE THREAD TRIMMER ASM. 1 2 B2001-771-000 NEEDLE THREAD TRIMMER, LOWER (1) 3 B2005-761-000 POSITION PIN (1) 4 B2002-771-0A0 NEEDLE THREAD TRIMMER, UPPER (1) 5 B2003-771-000 NEEDLE THREAD PRESSER SPRING (1) 6 SD-0400191-TP HINGE SCREW D=4 H=1.9 (1) 7 SS-7110510-SP SCREW 11/64-40 L=5 2 8 SS-150715-SP SCREW 15/64-28 L=7 1 9 400-09179 NEEDLE THREAD TRIMMER SHAFT GU 1 10 B2063-781-0B0-A THREAD TRIMMER HOLDER ASM. 1 11 SM-8061002-TP SCREW M6 L=10 (2) 12 400-09160 THREAD TRIMMER HOLDER ASM. 1 13 SM-8061002-TP SCREW M6 L=10 2 14 400-08607 LIMITTING PLATE 1 15 SS-7110840-SP SCREW 11/64-40 L=7.8 2 16 400-09168 DRAIVING CAM SPRING 1 17 400-09169 DRAIVING CAM SPRING AXLE 1 18 SD-0450401-SP HINGE SCREW D=4.5 H=4 1 19 400-08608 DRIVING CAM INSTALING PLATE 1 20 SD-0790303-SP HINGE SCREW D=7.94 H=3.0 1 21 400-09167 DIFFERENTIAL FEED CAM 1 22 SS-7090710-SP SCREW 9/64-40 L=6.8 2 23 PS-0300102-KO SPRING PIN 3.0X10 1 24 B2010-771-000 BRACKET 2 25 400-09163 THREAD TRIMMER SPRING A 1 26 SS-6621212-TP SCREW 3/16-32 L=12.0 4 27 400-09330 THREAD SHAFT GUIDE BASE 1 28 400-09164 THREAD TRIMMER SPRING B 1 29 B2007-771-0B0 NEEDLE THREAD TRIMMER SHAFT AS 1 30 400-09193 NEEDLE THREAD TRIMMER SHAFT (1) 31 260-23200 CAM ROLL (1) 32 SS-6080610-TP SCREW 1/8-44 L=6 (1) 33 400-09195 STUD (1) 34 400-09196 SUSPENSION SCREW (1) 35 400-09186 LATCH PRESSER ARM 1 36 SS-7090710-SP SCREW 9/64-40 L=6.8 2 37 01 400-09191 SPACER 1 38 400-09181 LOCKING BRACKET LATCH ASM. 1 39 SS-7110840-SP SCREW 11/64-40 L=7.8 2 40 B2030-771-000 THREAD TRIMMING SHAFT SEGMENT 1 41 SD-0641003-SP HINGE SCREW D=6.35 H=10 1 42 NS-6110310-SP NUT 11/64-40 1 43 NS-6080210-SP NUT 1/8-44 1 44 NS-6080340-SP NUT 1/8-44 1 45 400-09188 ROLLER 1 46 B2032-771-000 STUD 1 47 SS-7110840-SP SCREW 11/64-40 L=7.8 2 NOTE (注記) 01...DEPENDING ON THE MACHINE FRAME. 0~2 SETS OF THIS PART WILL BE USED. ミシン頭部により0~2枚使用します。 - 16 - jintex.in

Page 22 — 9. BOBBIN THREAD TRIMMER COMPONENTS

9. BOBBIN THREAD TRIMMER COMPONENTS 下糸切り関係 - 17 -

Page 23

REF. NO NOTE PART NO. D E S C R I P T I O N Qty 1 B2401-771-0AO NEEDLE PLATE ASM. ハリイタダイクミ 1 2 B2402-771-000 NEEDLE PLATE ハリイタ (1) 3 SS-2090510-SP SCREW 9/64-40 L=5 マルサラネジ 9/64-40 L=5 (2) 4 B2401-771-0BO THROAT PLATE BASE ASM. ハリイタダイクミ (1) 5 B2406-771-0AO BOBBIN THREAD TRIMMER BLADE AS シタイトキリメス クミ (1) 6 SS-6090320-SP SCREW 9/64-40 L= 3.2 トラスネジ 9/64-40 L=3.2 (1) 7 B2408-771-000-A COUNTER KNIFE コテイメス (1) 8 SS-4080310-SP SCREW 1/8-44 L=3.4 ナベネジ 1/8-44 L=3.4 (2) 9 B2404-771-000 BOBBIN THREAD TRIMMER LEVER シタイトキリウデ (1) 10 SS-7110570-SP SCREW 11/64-40 L=4.8 マルヒラネジ 11/64-40 L=4.8 (1) 11 WP-0451016-SP WASHER 4.5X20X1 ヒラザガネ 4.5X20X1 (1) 12 B2405-771-000 BOBBIN THREAD PULLER シタイトタグリウデ (1) 13 SS-6090440-SP SCREW 9/64-40 L=4.0 ヒラネジ 9/64-40 L=4 (2) 14 SS-6090630-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 6=6 4 15 400-09218 BOBBIN PICKER STOPPER ホビンオサエストッパー 1 16 B2416-771-000 PRESSER PLATE シタイトキリメスオサエ 1 17 SS-7110540-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 18 400-09220 BOBBIN PICKER PRESSER PLATE ホビンオサエオシイタ 1 19 SD-0630272-SP HINGE SCREW ダンネジ D=6.35 H=2.7 1 20 B2422-771-000 BOBBIN PICKER BRACKET ホビンオサエウデ 1 21 SS-7090620-TP SCREW 9/64-40 L=6.1 マルヒラネジ 9/64-40 L=6.1 1 22 400-09217 BOBBIN PICKER BRACKET SHAFT ホビンオサエジク 1 23 400-09215 BOBBIN WINDER TRIP LATCH ホビンオサエ 1 24 400-09223 SAFETY STOPPER アンゼンストッパー 1 25 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 1 26 400-09222 PRESSER PLATE ADJUSTING SPRING オシイタチョウセツバネ 1 27 400-09219 PRESSER PLATE MOUNTING BASE オシイタトリツケダイ 1 28 400-09214 BOBBIN THREAD TRIMMER LINK シタイトキリリンク 1 29 NS-6120310-SP NUT 3/16-28 ロツカクナツト 3/16-28 1 30 400-09221 PRESSER PLATE ADJUSTING SCREW チョウセツネジ 1 31 SD-0640321-SP HINGE SCREW D= 6.35 H= 3.2 ダンネジ D=6.35 H=3.2 1 32 SD-0640602-SP HINGE SCREW D=6.35 H= 6.0 ダンネジ D=6.35 H=6 1 33 B2417-771-000 BOBBIN THREAD GUIDE シタイトウケ 1 34 SS-4090415-SP SCREW 9/64-40 L=4 ナベネジ 9/64-40 L=4 2 35 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 36 SD-0790602-SP HINGE SCREW D= 7.94 H= 6 ダンネジ D=7.94 H=6 1 37 400-09210 BOBBIN THREAD TRIMMER DRIVING シタイトキリレバー 1 38 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 39 SS-7110570-SP SCREW 11/64-40 L=4.8 マルヒラネジ 11/64-40 L=4.8 1 40 400-09211 CONNECTING LINK イトキリクトウリンク 1 41 B2414-761-000 STOP SCREW シタイトキリリンクジク 1 42 NS-6680320-SP NUT 9/32-28 ロツカクナツト 9/32-28 1 43 B2416-761-000 HING STUD シタイトキリクトウウデジク 1 44 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 1 45 400-09209 BOBBIN THREAD TRIMMER DRIVING シタイトキリクトウウデ 1 46 SD-0790641-SP HINGE SCREW D= 7.94 H= 6.4 ダンネジ D=7.94 H=6.4 1 47 B2412-047-000 BALL SCREW シタイトキリアンナイピン 1 48 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 - 18 - jintex.in

Page 24 — 10. KNIFE BAR COMPONENTS

10. KNIFE BAR COMPONENTS メス棒関係 - 19 - jintex.in

Page 25

REF. NO NOTE PART NO. D E S C R I P T I O N Qty 1 400-09302 KNIFE STOP LEVER BRACKET 1 2 PS-0300182-KF SPRING PIN 3X18 1 3 SS-7110740-TP SCREW 11/64-40 L=7 2 4 B2729-771-000 KNIFE STOP LEVER 1 5 SS-6110420-TP SCREW 11/64-40 L=4.8 2 6 400-09300 KNIFE STOP LEVER HINGE STUD 1 7 B2731-761-000 THREAD CHECK WIRE 1 8 SS-7110840-SP SCREW 11/64-40 L=7.8 1 9 B2702-771-000-A KNIFE BAR 1 10 02 400-09280 KNIFE ROD GUIDE PLATE A 1 11 SS-7110740-SP SCREW 11/64-40 L=7 2 12 400-09290 HINGE STUD 1 13 B2706-761-000 KNIFE BAR CONNECTING LINK 1 14 B2705-761-000 HINGE SCREW 1 15 NS-6660430-SP NUT 1/4-40 1 16 02 400-09284 KNIFE BAR POSITIONING BRACKET 1 17 SS-7110840-SP SCREW 11/64-40 L=7.8 2 18 B2701-761-000 KNIFE HOLDER 1 19 B2740-771-000 THRUST WASHER 1 20 SM-6061202-TP SCREW M6 L=12 2 21 01 B2702-047-L00-A KNIFE 1/2 1 22 WP-0501016-SD WASHER 5X10.5X1 1 23 SS-7620750-SP SCREW 3/16-32 L= 6.5 1 24 B2751-781-000 KNIFE BAR DRIVING LEVER 1 25 SS-7110810-SP SCREW 11/64-40 L= 8.0 1 26 B2710-771-000 SPRING 1 27 SD-0550501-SP HINGE SCREW D=5.5 H=5 1 28 400-09264 KNIFE BAR STOPPER ASM. 1 29 400-09265 KNIFE BAR STOPPER (1) 30 400-09266 STOPPER BUSH (1) 31 NS-6740510-SP NUT 3/8-28 1 32 SD-0790201-SD HINGE SCREW D=7.9 H=2.0 1 33 NS-6700540-SP NUT 5/16-24 1 34 400-09294 KNIFE BAR DRIVING CRANK NUT 1 35 B2718-761-000 TENSION SPRING 1 36 400-09292 LATCH 1 37 SS-7161040-SP SCREW 1/4-24 L= 9.5 1 38 400-09291 KNIFE BAR DRIVING CRANK 1 39 CQ-2520000-00 OIL WICK 0.4 40 B3537-122-000 OIL WICK HOLDER 1 41 SS-4090610-SP SCREW 9/64-40 L=6 1 42 SM-6062002-TP SCREW M6 L=20 4 43 SD-1110905-TH HINGE SCREW D=11.11 H= 9.0 1 44 261-05809 KNIFE BAR DRIVING CRANK SHAFT 1 45 02 400-09304 SPACER 1 46 400-09441 KNIFE BAR DRIVING LEVER BELL C 1 47 SS-8111610-SP SCREW 11/64-40 L=15.5 1 48 NS-6110310-SP NUT 11/64-40 1 49 SD-1110905-TH HINGE SCREW D=11.11 H= 9.0 1 50 400-09277 HOOK PIN NUT 1 51 400-09278 HOOK PIN 1 52 B2416-761-000 HING STUD 1 53 SS-8150822-TP SCREW 15/64-28 L=8 1 54 B2725-761-000 TENSION SPRING 1 55 B2724-761-000 RATCHET PAWL (B) 1 56 B2723-761-0A0-A HOOK DIFFERENTIAL CLICK A ASM. 1 57 B2723-761-000-A HOOK DIFFERENTIAL CLICK A (1) 58 101-20004 SPRING SUSPENSION (1) 59 B1110-280-000 THREAD CUTTING LINK SPRING RAC (1) 60 B2726-761-000-A TENSION SPRING 1 61 SD-0530221-SP HINGE SCREW D= 5.3 H= 2.2 1 62 400-09270 DRIVING ROD 1 63 400-09299 TENSION SPRING 1 64 400-09305 SUSPENSION SCREW 1 65 400-09274 FINGER 1 66 SS-7090710-SP SCREW 9/64-40 L= 6.8 2 67 400-09303 POSITIONING PIN (B) 1 68 NS-6200520-SP NUT 5/16-18 1 69 B2709-771-000 KNIFE BAR DRIVING LEVER SHAFT 1 NOTE (注記) 01....THE SIZE OF THE BUTTONHOLE VARIES ACCORDING TO THE KNIFE, SO FOR FURTHER DETAILS PLEASE REFER TO PAGE 39,22-(2). 02....SELECTIVE PARTS - 20 - jintex.in

Page 26 — 11. FEED CAM & TRIPPING SEGMENT COMPONENTS

11. FEED CAM & TRIPPING SEGMENT COMPONENTS 主カム・閉止め関係 - 21 - jintex.in

Page 27

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 B2935-761-000 SPUR GEAR (152) 1 2 B2916-761-0A0 SPUR GEAR BUSHING ASM. 2 3 B2917-761-000 SPUR GEAR BUSHING PIN (4) 4 SS-7120910-TP SCREW 3/16-28 L=9 (4) 5 B2913-761-0A0 CLUTCH COLLAR ASM. 2 6 SS-8660610-TP SCREW 1/4-40 L=6 (1) 7 SS-8660410-SP SCREW 1/4-40 L=4.2 (1) 8 400-09314 CLUTCH COLLAR (1) 9 B2919-761-000 FEED CAM DRIVING WORM WHEEL 1 10 400-09316 FEED CAM DRIVING WORM WHEEL SH 1 11 B3542-771-000 OIL FELT 1 12 261-07201 CAM DRIVING STUD 1 13 01 B2934-761-000 SPUR GEAR (123) 1 14 B2915-761-B00 HANDLE CRANK BEVEL GEAR, LEFT 1 15 B2915-761-AA0 HANDLE CRANK BEVEL GEAR ASM. 1 16 SS-8660610-TP SCREW 1/4-40 L=6 (2) 17 CS-111101D-SH THRUST COLLAR ASM. D=11.11 W=1 1 18 SS-8660530-TP SCREW 1/4-40 L=4.5 (2) 19 400-09318 HANDLE CRANK SHAFT 1 20 B2923-761-000 HANDLE CRANK 1 21 04 400-09319 HANDLE CRANK 1 22 SS-8150510-TP SCREW 15/64-28 L=4.7 2 23 SS-8620610-SP SCREW 3/16-32 L=6 1 24 400-09320 HANDLE 1 25 400-09321 HANDLE SHAFT 1 26 B2910-761-0A0 FEED CAM DRIVING GEAR ASM. 1 27 SS-8660610-TP SCREW 1/4-40 L=6 (2) 28 NM-6120001-CP NUT M12 1 29 B2909-761-000 THRUST WASHER 1 30 400-09312 FEED CAM SHAFT 1 31 B2901-771-00C FEED CAM 1 32 WP-0982616-SP WASHER 9.8X24.0X2.6 1 33 SS-9241513-CP SCREW 3/8-18 L=15 1 34 SS-7111410-TP SCREW 11/64-40 L=14 4 35 02 B2902-761-B00 BAR TRIPPING SEGMENT NO.2 (B) 1 36 WP-0480856-SP WASHER 4.8X 8.4X0.8 10 37 SS-6111610-SP SCREW 11/64-40 L=16 10 38 B2904-771-000 KNIFE TRIPPING SEGMENT 1 39 400-09309 TENSION RELEASE TRIPPING SEGME 1 40 400-09310 TENSION RELEASE TRIPPING SEGME 1 41 03 B2906-761-B00 TRIPPING SEGMENT NO.2, UNDER 8 1 42 261-00909 BAR TRIPPING SEGMENT NO.1 2 43 02 B2903-761-B00 BAR TRIPPING SEGMENT NO.2 (B) 1 44 261-00800 LOW-SPEED CAM 1 45 261-04604 STOPPER CAM 1 46 B2914-761-000 CLUTCH SPRING 2 NOTE (注記) 01....FOR EXCHANGING GEARS, PLEASE REFER TO PAGE 39,22-(1). 02....SPECIAL ORDER PARTS FOR 80% BARTACKING 03....SPECIAL ORDER PARTS FOR LESS THAN 80 STITCHES 04....FOR URBAN WHITE - 22 -

Page 28 — 12. STOP-MOTION COMPONENTS

12. STOP-MOTION COMPONENTS 遮断装置関係 2 1 11 12 10 4 6 5 7 9 15 3 8 27 28 24 23 22 21 25 26 13 18 17 19 20 REF. NO NOTE PART NO. DESCRIPTION Qty. 1 262-12308 BELT COVER SETSCREW ベルトカバーメネジ 1 2 B2653-771-000 TENSION SPRING ツキアゲバネレンクバネ 1 3 B2615-232-000 STOP LINK ROD HINGE SCREW ツキアゲボレンクネジ 1 4 261-07807 UPPER SHAFT STOPPER ウワジクストッパー 1 5 NS-6620310-SP NUT 3/16-32 ロツカクナツト 3/16-32 1 6 261-07300 STOPPER PIN ストッパーピン 1 7 B2611-232-000 STOP LINK CONNECTING SCREW ストッパーレンクネジ 1 8 261-07508 STOP LINK ROD HINGE STUD ツキアゲボウアンナイ 1 9 B2604-771-000-B STOP MOTION LEVER シャダソウフレム 1 10 400-09228 BELT SHIFTER ベルトシフター 1 11 SS-4150715-SP SCREW 15/64-28 L=7 ナベネジ 15/64-28 L=7 2 12 WP-0650876-SD WASHER 6.5X13X0.8 ヒラザガネ 6.5X13X0.8 2 13 400-09254 INSTALLING BASE PIN シャダソウウチトリツケダイピン 1 14 RC-1200001-KP C-SHAPED SNAP RING Cガタトメワ 1 15 RC-1200001-KP C-SHAPED SNAP RING Cガタトメワ 1 16 B2648-232-000 STOP PIN キドーリンクチョーセツボルトアテガネ 1 17 400-09229 LATCH (A) フック A 1 18 SM-6061602-TP SCREW M6 L=16 ロツカクアナボルト 1 19 WS-0610002-KP SPRING WASHER バネザガネ 1 20 SM-6062002-TP SCREW M6 L=20 ロツカクアナボルト M6 L=20 1 21 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 22 SS-6150430-SP SCREW 15/64-28 L=30 ヒラネジ 15/64-28 L=30 1 23 400-09249 STOP LINK ROD ツキアゲボウ 1 24 400-09251 STOP LINK ROD PRESSURE SPRING ツキアゲボウヨウアツシュクバネ 1 25 400-09252 SPRING SUPPORT NUT バネウケナツト 1 26 NS-6240630-SP NUT 3/8-18 ロツカクナツト 3/8-18 1 27 B2601-761-000-A STOP MOTION LEVER BRACKET シャダソウウチトリツケダイ 1 28 SM-6102002-TP SCREW M10 L=20 ロツカクアナボルト M10 L=20 2 - 23 - jintex.in

Page 29 — 13. TRIPPING LEVER COMPONENTS

13. TRIPPING LEVER COMPONENTS 手動停止関係 7 5 6 1 2 3 4 8 9 10 11 12 13 34 35 36 14 24 25 15 16 17 18 19 20 21 22 23 26 30 31 32 33 27 28 29 REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-09255 STARTING LINK COMPL. キド・ワンシンクデ(ケツゴウ) 1 2 400-09256 STARTING LINK ASM. キド・ワンシンクデ(クミ) (1) 3 400-09257 SAFETY BASE スノキリメスアンゼンバン 1 4 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 5 B2416-761-000 HING STUD シタイキリ クトーウデジク 1 6 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 2 7 400-09233 HINGE SCREW キド・ワンシンロットジク 2 8 NS-6150310-SP NUT 15/64-28 ロッカクナット 15/64-28 2 9 400-09245 STARTING LINK DRIVING ROD キド・ワンシンウデロット 1 10 SD-0790451-SP HINGE SCREW D= 7.94 H= 4.5 ダンネジ D=7.94 H=4.5 1 11 CS-079101B-SH THRUST COLLAR ASM. D=7.94 W=10 スラストウケ D=7.94 W=10 1 12 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 13 SS-8110510-SP SCREW 11/64-40 L=5 トメネジ 11/64-40 L=5 (1) 14 400-09247 CRANK SHAFT TENSION SPRING シュト・ウテイシハンドバネ 1 15 400-09241 HAND STOP CRANK SHAFT シュト・ウテイシハンドジク 1 16 SS-6111010-TP SCREW 11/64-40 L=9.5 ヒラネジ 11/64-40 L=9.5 2 17 B2608-761-000 HAND STOP CRANK SHAFT BALL シュト・ウテイシハンドタマ 1 18 B2611-761-000 CRANK SHAFT PRESSURE SPRING シュト・ウテイシハンドバネ 1 19 400-09242 HAND STOP ROD B シュト・ウテイシホウボウ B 1 20 01 B2610-761-0AO HAND STOP CRANK ASM. シュト・ウテイシハンドクミ 1 21 02 B2610-761-0AA HAND STOP CRANK ASM. シュト・ウテイシハンドクミ_W 1 22 SS-8150510-TP SCREW 15/64-28 L=4.7 トメネジ 15/64-28 L=4.7 2 23 B2617-771-000 TRIPPING LEVER TENSION SPRING フックヒキハズシレバーバネ 1 24 400-09262 WASHER フック C 1 25 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 1 26 NM-6060001-CP NUT M6 ロッカクナット M6 1 27 400-09238 LATCH (B) フック B 1 28 SM-6062002-TP SCREW M6 L=20 ロッカクアナボルト M6 L=20 2 29 WS-0610002-KP SPRING WASHER バネザガネ 1 30 B2651-781-000-A TRIPPING LEVER フックヒキハズシレバー 1 31 400-09243 TRIPPING DOG フック C 1 32 400-09116 ROLLER フリハズシヘンカンローラー 1 33 SD-0640471-SP HINGE SCREW D= 6.35 H= 4.7 ダンネジ D=6.35 H=4.7 1 34 400-09260 TRIPPING LEVER HINGE PIN ASM. フックヒキハズシレバーヒンジク(クミ) (1) 35 400-09261 TRIPPING LEVER HINGE PIN フックヒキハズシレバーヒンジク (1) 36 RC-1021011-KP RETAINING RING 10.2 Cガタトメワ 10.2 (1) NOTE (注記) 01....SELECTIVE PARTS 選択部品 02....FOR URBAN WHITE アーバンホワイト用 - 24 - jintex.in

Page 30 — 14. LIFTING LEVER & BOBBIN WINDER COMPONENTS

14. LIFTING LEVER & BOBBIN WINDER COMPONENTS 押さえ上げ・糸巻関係 14 2 1 3 4 6 5 2 7 3 12 8 11 47 49 48 10 13 9 16 15 15 17 18 19 20 21 22 23 24 26 29 30 31 38 32 35 34 37 33 36 44 41 40 45 46 39 42 43 25 27 28 - 25 - jintex.in

Page 31

REF, NO NOTE _ PART NO.) De DESCRIPTION lll lllsi re a on! oe 1 B3404-771-000 | PRESSER BAR LIFTING ROD, LONG AHLTy” aADYI 1 2 RE-0500000-KO E-RING EX’ Abxy 5 2 3 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 A yZy D=7.24 H=3.3 2 4 B3402-771-0A0 LEVER ASM., FRONT APTI” VY ILIV - FS 1 5 B3406-761-000 LINK tx7x" V7 1 6 PD-0201000-0B SPLIT PIN Wey 2X10 2 7 B3408-771-0A0 LEVER ASM., REAR APLIT” YY Hn’~ FS 1 8 B3403-761-000 | PRESSER BAR LIFTING ROD HPLTW? BVI 1 9 400-09262 WASHER TYIUENRK YUN $Y IF WR 1 10 SS-8150822-TP SCREW 15/64-28 L=8 bxRy” 15/64-28 L=8 1 il 400-09357 LIFTING LEVER STOPPER APLIT” Rhy -F¥ 7 1 12 261-06658 LIFTING LEVER ASM. EPITT’ Vn’ -(P8) 1 13 WP-0740516-SP WASHER 7.4X11.8X0.5 ut oe = 67.4K11.8X0.5 1 14 B3451-781-000 PRESSER FOOT LIFTING SPRING FHLTI’ VN - WR l 15 262- 12308 BELT COVER SETSCREW A* WAN ~p RR 2 16 400-09348 BOBBIN WINDER TENSION ASM. JAE bTYFAR 4 (FS) 1 17 262-16507 BOBBIN WINDER TENSION NUT Abd bFaVIIVE (1) 18 262-16606 BOBBIN WINDER TENSION SPRING ADVE DF aIIN F (1) 19 229~-45802 THREAD TENSION DISK RB ALFAPF AVIV F (2) 20 262-16705 BOBBIN WINDER TENSION POST ApVEAhFSIIV' Y (1) 21 262-16705 BOBBIN WINDER TENSION POST ATT FBIIE Y (1) 22 400-09349 BOBBIN WINDER TENSION YALhT VFA 4 (1) 23 SS-7110840-SP SCREW 11/64-40 L=7.8 Wesky” 11/64-40 L=7.8 4 24 SS-7110840-SP SCREW 11/64-40 L=7.8 WEIR’ 11/64-40 L=7.8 2 25 261-03150 BOBBIN WINDER ASM. YR4 pVE(73) 1 26 261-03101 BOBBIN WINDER BRACKET AbVERYIIA 4 (1) 27 261-04208 NUT Be VIVA Jty) (1) 28 261-04307 NUT SS OLECSE AN (1) 29 261-03705 BOBBIN WINDER SPRING AbTET? -VER IN F (1) 30 SD-0450401-SP HINGE SCREW D= 4.5 H= 4 a yay D=4.5 H=4 (1) 31 261 ~-03903 BOBBIN STOP SPRING BL’ yhan’ (1) 32 SS-6090620-SP SCREW 9/64-40 L=6 kok" 9/64-40 L=6 (3) 33 261-03309 PULLEY SHAFT BASE 4DVEY TH TOFPVIFIA (1) 34 261-03507 BOBBIN WINDER SHAFT AbveEy 7 (1) 35 261~-04109 COLLAR ApVEY ING- (1) 36 SD-0790433-TP HINGE SCREW D= 7.94 H= 4.3 a ¥sy D=7.94 H=4.3 (i) 37 261-03408 BOBBIN WINDER SHAFT BUSHING AbITEY TF" FOF (1) 38 SS-8120740-SP SCREW 3/16-28 L=7 bxRY 3/16-28 L=7 (2) 39 261-03200 BOBBIN WINDER DRIVING PULLEY ApVET? -Y- (1) 40 WP-0651056-SD WASHER 6.5X11X1 “ov WR 6. SXLIXI (1) 4] 261-03606 BOBBIN WINDER TRIP LATCH Re v7yyt (1) 42 261-03804 BOBIN GUIDE SPRING Be VIVIAN 3 (1) 43 SS-7090520-SP SCREW 9/64-40 L= 4.5 WhEFKY” 9/64-40 L=4.5 (2) 44 261-04000 ADJUSTING SCREW ADVEV AVF aIVLIEY’ (1) 45 261-04505 NUT AbVEVadFavLIT} (1) 46 261-04406 BOBBIN GUIDE SHAFT Rev (1) 47 400-09260 TRIPPING LEVER HINGE PIN ASM. FYTLERR YN -Y" CPR) 1 48 400-09261 TRIPPING LEVER HINGE PIN TIIENK JUN -HF (1) 49 RC-1021011-KP RETAINING RING 10.2 Ch’ ZbXY 10.2 (1) — 26 —

Page 32 — 15. THREAD TENSION COMPONENTS

15. THREAD TENSION COMPONENTS 糸調子関係 1 2 3 13 15 5 6 7 4 14 13 10 12 11 66~73 35 34 23 33 32 31 30 29 28 27 26 36 19 18 21 22 25 20 24 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 - 27 - jintex.in

Page 33

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 400-09325 TENSION RELEASE LINK 1 2 SD-0640391-TP HINGE SCREW D= 6.35 H= 3.9 1 3 B3152-781-000 TENSION RELEASE LEVER 1 4 SS-6660712-TP SCREW 1/4-40 L= 7.0 2 5 SD-0640241-SP HINGE SCREW D= 6.35 H= 3.9 1 6 400-09165 BLOCKING LINK 1 7 SD-0640391-TP HINGE SCREW D= 6.35 H= 3.9 1 8 400-09166 BLOCKING ARM SPRING 1 9 SD-0790311-TP HINGE SCREW D= 7.94 H= 3.1 1 10 400-08611 BLOCKING ARM 1 11 400-08609 BLOCKING ARM BRACKET 1 12 NS-6110310-SP NUT 11/64-40 2 13 NS-6120310-SP NUT 3/16-28 1 14 B3116-771-000 TENSION RELEASE LEVER 1 15 SS-7621040-SP SCREW 3/16-32 L= 9.5 1 16 CS-079101D-SH THRUST COLLAR ASM. D=7.94 W= 10 (2) 17 400-09327 THREAD TENSION KNOB, RED (1) 18 SS-8110520-TP SCREW 11/64-40 L= 4.5 (1) 19 400-09328 TENSION RELEASE ROD 1 20 SD-0500301-SP HINGE SCREW D= 5 H= 3 (1) 21 NS-6090310-SP NUT 9/64-40 (1) 22 400-09329 TENSION RELEASE ROD (1) 23 RO-0952001-00 RUBBER RING (1) 24 B3107-771-00B TENSION RELEASE LEVER COLLAR N 1 25 SS-6111610-SP SCREW 11/64-40 L=16 1 26 B3110-771-0A0 TENSION CONTROLLER NO.2 ASM. 1 27 119-56703 THREAD TENSION KNOB, RED (1) 28 B3112-704-000 TENSION SPRING BUSHING (1) 29 B3101-804-000 TENSION SPRING, RED (1) 30 B3107-804-000 THREAD TENSION DISK PRESSER (1) 31 B3126-012-000 THREAD TENSION DISK (2) 32 B3111-761-000 TENSION POST NO.3 (1) 33 B3112-761-000 THREAD TAKE-UP SPRING (1) 34 B3110-771-000 TENSION POST SOCKET (1) 35 SS-8090670-SP SCREW 9/64-40 L= 5.5 (1) 36 B3106-771-000 TENSION RELEASE LEVER SHAFT (1) 37 SS-7110840-SP SCREW 11/64-40 L= 7.8 1 38 B3120-771-000 THREAD PULLING WIRE (1) 39 B3103-771-0A0 TENSION CONTROLLER NO. 1 ASM. 1 40 119-56703 THREAD TENSION KNOB, RED (1) 41 B3112-704-000 TENSION SPRING BUSHING (1) 42 B2017-372-000 TENSION SPRING NO.1 (1) 43 B3107-804-000 THREAD TENSION DISK PRESSER (1) 44 B3126-012-000 THREAD TENSION DISK (2) 45 B3103-761-000 TENSION RELEASE PIN NO.2 (1) 46 B2017-372-000 TENSION SPRING (1) 47 NS-6160520-SP NUT 1/4-24 (1) 48 B3102-771-000 TENSION RELEASE ARM ASM. (1) 49 SS-9660940-TP SCREW 1/4-40 L= 8.5 (1) 50 SS-4150715-SP SCREW 15/64-28 L=7 1 51 B111-232-000 THREAD GUIDE PLATE 1 52 B3117-771-000 SPRING 1 53 CS-0790720-TH THRUST COLLAR ASM. (2) 54 SS-7090720-TP SCREW 9/64-40 L= 6.8 (2) 55 400-09339 TENSION RELEASE ROD 1 56 PS-0300182-KF SPRING PIN 3X18 1 57 SS-4110715-SP SCREW 11/64-40 L=7 1 58 229-20706 TWO EYELET 1 59 400-09037 TAKE UP THREAD GUIDE 1 60 SS-7090710-SP SCREW 9/64-40 L= 6.8 1 61 400-09340 NEEDLE BAR THREAD GUIDE 1 62 SS-7110840-SP SCREW 11/64-40 L= 7.8 1 63 B3118-771-000 TENSION THREAD GUIDE, NO.2 1 64 B3114-771-000 THREAD GUIDE (1) 65 NS-6090310-SP NUT 9/64-40 2 66 01 B3118-552-D00 TENSION RELEASE PIN, NO.2 (1) 67 01 B3118-552-F00 TENSION RELEASE PIN D (1) 68 01 B3118-552-B00 TENSION RELEASE PIN A (1) 69 01 B3118-552-C00 TENSION RELEASE PIN B (1) 70 01 229-20904 TENSION RELEASE PIN C (1) 71 01 B3118-552-F00 TENSION RELEASE PIN (1) 72 01 B3118-552-G00 TENSION RELEASE PIN E (1) 73 01 B3118-552-H00 THREAD RELEASE PIN H (1) NOTE (注記) 01...SELECTIVE PARTS 選択部品 - 28 - jintex.in

Page 34 — 16. LUBRICATION MECHANISM COMPONENTS

16. LUBRICATION MECHANISM COMPONENTS 給油装置関係 19 20 21 22 23 24 28 29 30 17 18 9 16 15 14 13 10 2 8 12 7 34 35 10 11 12 37 36 38 39 40 41 44 42 43 31 32 33 25 26 47 48 78 27 6 53 51 54 55 52 56 73 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 75 76 46 74 72 75 76 45 77 79 80 81 82 - 29 - jintex.in

Page 35

REF NO NOTE PART NO DESCRIPTION Qty 1 400-09374 OIL FELT HOLDER メンイタフエルトオタエ I 2 B3549-771-000 OIL FELT RETURN FELT (A) カンシューフエルト A I 3 B3568-771-000 OIL RETURN TUBE カンシューパイプ I 4 B3571-771-000 PIPE HOLDER カンリユウパイプ トメカク I 5 * SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 6 02 SS-7110910-TP PIPE GUIDE (A) パイプアンナイ A 1 7 400-09369 PIPE HOLDER パイプアンナイ 1 8 BP-6000000-00 VINYL PIPE ビニールパイプ 0.1 9 BP-5000000-00 VINYL PIPE ビニールパイプ 0.05 10 BP-3000000-00 VINYL PIPE ビニールパイプ 0.55 11 SQ-1110402-MZ CONNECTING SCREW チューブレンケツテス 4 12 B3534-012-000 GASKET アラシヤー 1 13 B3534-155-000 PLUNGER アラシヤー 1 14 B1214-038-000 PLUNGER SPRING アラシヤーオタエハネ 1 15 400-09361 THRUST PLATE アラシヤーヤークネウケ 1 16 SS-4150715-SP SCREW 15/64-28 L=7 ナベネジ 15/64-28 L=7 1 17 400-09373 OIL FELT GUIDE フエルトアンナイ 1 18 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 19 B3560-771-000 OIL FELT ウオームギヤー キユウフエルト 1 20 B1135-771-0A0 OIL SHIELD アララウケ 1 21 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 22 B3561-771-000 OIL UNWOVEN CLOTH ウツクシヤクフエルト A 1 23 B1148-771-000 OIL FELT アブラフエルト B 1 24 B1147-771-000 OIL FELT クモジヤクシヨーブハン 1 25 B3563-771-000-A OIL SHIELD クモジヤク 1 26 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 2 27 B1124-771-000 CUSHION ヒンクククツシヨン 1 28 B1154-781-000 BELT GUARD ベルトカバー 1 29 B1154-781-00A BELT GUARD ベルトカバー 1 30 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 2 31 400-09001 PLATE SPRING ベルトカバー トメカク 1 32 400-09365 SET NUT ベルトカバー ゴムアツクス 1 33 B1156-781-000 RUBBER BUSHING ビニールパイプ 8 0.1 34 BP-8000000-00 VINYL TUBE, WHITE D=8 ユシン 0.1 35 CQ-3030000-00 OIL WICK キユウスダイ 1 36 400-09360 OIL PUMP BASE ナベネジ 11/64-40 L=8 1 37 SS-4110815-SP SCREW 11/64-40 L=8 キユウスダイフイルター 2 38 B3570-771-000 FILTER OIL FELT キユウスモウフエルト 1 39 B3546-771-000 OIL FELT キユウスダイフエルト 1 40 400-09375 SPRING キユウスアミ 1 41 400-09366 FILTER SCREEN キユウエアミナケ 1 42 400-09379 BUSHING HOLDER マルヒラネジ 9/64-40 L=8.5 1 43 SS-7090910-SP SCREW 9/64-40 L=8.5 ロクカクナツト 9/64-40 1 44 NS-6090310-SP NUT 9/64-40 ロクカクナツト 15/64-28 8 45 NS-6150310-SP NUT 15/64-28 グドービンタイ 1 46 02 400-08996 DRIVING PIN BASE トウアベース (クミ) 1 47 B1151-781-0A0-A MACHINE BASE ASM. トウアベース (クミ) 1 48 01 B1151-781-0AA-A MACHINE BASE ASM. トウアベース (1) 49 B1151-781-000-A MACHINE BASE トウアベース (1) 50 01 B1151-781-00A HEAD BASE ガイドピン (2) 51 400-08996 GUIDE PIN トウアサタエゴ A (4) 52 400-09035 RUBBER CUSHION マルヒラネジ 11/64-40 L=10.5 (4) 53 SS-7111120-SP SCREW 11/64-40 L=10.5 ヒンクジククケ (4) 54 B1122-761-000 HINGE HOLDER ヒンジジククケ (2) 55 01 261-09207 HINGE HOLDER ヒンジジククケ (2) 56 B1120-761-000 PIN ピン (2) 57 SM-6062002-TP SCREW M6 L=20 ロクカクアナツト M6 L=20 (4) 58 WP-0621016-SD WASHER 6.2X13X1 ヒラガネ 6.2X13X1 (4) 59 SS-6741010-SP SCREW 3/8-28 L=10 ヒラガネ 3/8-28 L=10 (4) 60 B8219-125-000 OIL DRAIN CAP GASKET ハイエナフアツキン (2) 61 400-09244 STARTING LEVER PRESSURE SPRING キドウリンハネ (1) 62 SM-9082003-CP SCREW M8 L=20 ロツカクナツト M8 L=20 (1) 63 NS-6150310-SP NUT 15/64-28 ロクカクナツト 15/64-28 (1) 64 400-09235 STOP SCREW ASM. キドウリンストツパー(クミ) (1) 65 NM-6080721-SE NUT M8 ロクカクナツト M8 (1) 66 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 (1) 67 400-09231 STARTING LINK SHAFT キドウリンクジク (1) 68 SS-9150860-SP SCREW 15/64-28 L=8 ロクカクアナツト 15/64-28 L=8 (1) 69 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (1) 70 261-07409 STARTING LINK キドウリンク (1) 71 B2655-781-000 STARTING LEVER キドウレバー (1) 72 02 RE-0600000-KO E-RING 6 Eガタトメワ 6 1 73 02 B7160-781-0A0 SHIFTER DRIVING PIN フツタークドピンクミ 1 74 02 SS-7112420-SP SCREW 11/64-40 L=24 マルヒラネジ 11/64-40 L=24 3 75 B1133-761-000 MACHINE BASE FELT PAD トウアベースザフエルト 4 76 B1153-771-000 MACHINE BASE SCREW STUD トウアベース スタツド 4 77 WP-0612056-SD WASHER 6.2X13X2 4 78 B8213-012-000 BED HINGE CONNECTION ヒンジジク 2 79 BP-3000000-00 VINYL PIPE ビニールパイプ 0.13 80 BP-5000000-00 VINYL PIPE, WHITE D=8 ビニールパイプ 8 0.05 81 BP-5000000-00 VINYL TUBE, WHITE D=4 ビニールパイプ 0.1 82 BP-4000000-00 VINYL TUBE, WHITE D=4 ビニールパイプ 0.03 NOTE (注記) 01...FOR URBAN WHITE 02...ACCESSORY PARTS 付属吕 - 30 - jintex.in

Page 36 — 17. SPEED TRANSMITTER COMPONENTS

17. SPEED TRANSMITTER COMPONENTS 減速機関係 - 31 - jintex.in

Page 37

REF. NO NOTE PART NO. DESCRIPTION Qty. B7180-781-0A0 TENSION PULLEY ASM. (1) 400-000388 TENSION PULLEY BRACKET (1) NS-6150430-SP NUT 15/64-28 (1) 400-000392 TENSION LEVER (1) B4419-372-000 NIPPER BAR ACTUATING LEVER SPR (1) 400-000393 FIXING PAWL (1) SD-0450211-SP HINGE SCREW D= 4.50 H= 2.1 (1) B7186-781-000 RATCHET (1) SS-7110710-SP SCREW 11/64-40 L=7 (2) 400-000395 LEVER COLLAR (1) 400-000391 TENSION SPRING (1) 400-000390 TENSION PULLEY LINK (1) SD-0902501-SP HINGE SCREW D=9 H=25 (1) SB-11500002-00 BEARING (1) 400-000389 TENSION PULLEY (1) SD-1501101-SP HINGE SCREW D=14.5 H=11 (1) SM-6061202-TP SCREW M6 L=12 2 01 WP-0651056-SH WASHER 6.5X11X1 3 01 SS-9152130-CP SCREW 15/64-28 L=20.5 3 B7151-781-0A0-B SPEED TRANSMITTER ASM. (1) B7151-781-000-A SPEED TRANSMITTER BRACKET (1) RE-1200000-KO E-RING 12 (1) SM-6061202-TP SCREW M6 L=12 (2) B1221-771-00A HIGH SPEED WASHER FOR BEARING (1) 400-000235 STOP SCREW ASM. (1) NS-6150310-SP NUT 15/64-28 (1) B7158-781-000 SHIFTER STOPPER BRACKET (1) SM-6061202-TP SCREW M6 L=12 (2) SB-11500002-00 BEARING (2) RC-3500002-KP RETAINING RING 35 (2) B7155-781-000 ACCELERATING PULLEY (1) SS-8150710-SP SCREW 15/64-28 L=7 (2) B7154-781-000 HIGH-SPEED PULLEY (1) SB-14500004-00 BEARING (2) B7156-781-000-A LOW-SPEED PULLEY (1) B7152-781-000-A SPEED TRANSMITTER SHAFT (1) WP-1502500-SC WASHER 15X24X2.5 (1) SS-7151210-SP SCREW 15/64-28 L=12 2 01 B7159-781-000 SHIFTER TENSION SPRING (1) 261-01253 SHIFTER BASE ASM. (1) 261-01204 SHIFTER BASE (1) NS-6150310-SP NUT 15/64-28 (3) 261-02004 SHIFTER CAM SPRING (1) NS-6160520-SP NUT 1/4-24 (2) 261-02202 SHIFTER TENSION SPRING (1) 261-01402 SHIFTER DRIVING ARM (1) 261-02509 SHIFTER DRIVING ARM SCREW (3) 261-02103 SHIFTER CAM ROLLER STUD (1) 261-02301 SHIFTER CAM ROLLER (1) SS-6080610-TP SCREW 1/8-44 L=6 (1) 261-01600 SHIFTER INSTALLING PLATE (1) SD-0790802-SP HINGE SCREW D= 7.94 H= 8.0 (2) 261-01501 SHIFTER HOLDING ARM (1) 261-01709 SPEED TRANSMITTER SHIFTER (1) SS-7161040-SP SCREW 1/4-24 L= 9.5 (2) 261-01303 SHIFTER PIN (1) NS-6150430-SP NUT 15/64-28 (1) 261-01808 SHIFTER CAM INSTALLING BASE (1) SS-7110910-SP SCREW 11/64-40 L=8.5 (2) 261-01907 SHIFTER CAM (1) 261-02400 SHIFTER CAM SUSPENSION (1) NOTE (注記) 01...ACCESSORY PARTS 付属

Page 38 — 18. MOTOR PULLEY COMPONENTS

18. MOTOR PULLEY COMPONENTS モータープーリー関係 REF. NO. NOTE PART NO. DESCRIPTION Qty 1 MTJ-MS000000 MOUNTING BOLT 4 2 B7109-771-000 SPACER 4 3 400-09401 MOTOR BASE PLATE 1 4 WP-0850002-SC WASHER 8.5X18X1.6 4 5 NS-6200520-SP NUT 5/16-18 8 6 01 400-09397 MOTOR PULLEY FOR 50HZ 3000SPM 1 7 01 400-09398 MOTOR PULLEY FOR 60HZ 3000SPM 1 8 01 400-09415 MOTOR PULLEY FOR 50HZ 3000SPM 1 9 01 B7257-781-000-A MOTOR PULLEY (60HZ 3300-USE) 1 10 SS-8150710-SP SCREW 15/64-28 L=7 2 11 01 MTJ-VM004200 V-BELT, 42 INCH 1 12 01 MTJ-VM004300 V-BELT, 43 INCH 1 13 01 MTJ-VM004400 V-BELT, 44 INCH 1 14 B7252-781-000 BELT 1 NOTE (注記) 01...SPECIAL ORDER PARTS 特別注文部品 - 33 - jintex.in

Page 39 — 19. THREAD STAND COMPONENTS

19. THREAD STAND COMPONENTS 糸立装置関係 REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 229-30358 THREAD STAND ASM. イトタテツチ(クミ) (1) 2 229-31109 SPOOL RETAINER イトマキレツトメ (2) 3 229-31000 SPOOL PIN イトマキウケ (2) 4 229-30903 SPOOL REST CUSHION イトマキウケラクツシヨン (2) 5 229-30804 SPOOL REST イトマキウケラ (2) 6 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=16 (2) 7 229-30705 THREAD GUIDE ARM JOINT イトタテホウシメカク (2) 8 229-31406 SPOOL REST ROD RUBBER CAP イトタテホウウエゴム (1) 9 229-30507 SPOOL REST ARM イトタテウデ (1) 10 229-30408 SPOOL REST ROD, UPPER イトタテウデ(ウエ) (1) 11 229-31307 SPOOL REST ROD JOINT イトタテウデウヅキテ (1) 12 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2) 13 NM-6050001-SE NUT M5 ロツカクナット M5 (2) 14 229-30309 SPOOL REST ROD, LOWER イトタテウデ(シタ) (1) 15 229-30556 THREAD STANDING ARM ASM. イトタテウデ(クミ) (1) 16 WS-0510002-KN SPRING WASHER ハネザガネ 5.1X9.2X1.3 (2) 17 NM-6050001-SE NUT M5 ロツカクナット M5 (2) 18 NM-6160511-SE NUT M16X1.5 ロツカクナット M16X1.5 1シュ (1) 19 WP-1612616-SE WASHER 16X30X2.6 ヒラサガネ (2) 20 WS-1643202-KR SPRING WASHER ハネザガネ 16.4X26.6X3.2 (1) - 34 - jintex.in

Page 40 — 20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784 LBH-782 LBH-783 LBH-784專門部品

20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784 LBH-782 LBH-783 LBH-784專門部品 (1) LBH-782 (2) LBH-783 1 2 9 10 3 4 5 12 13 11 6 7 14 8 15 16 (3) LBH-784 17 39 18 38 19 40 36 37 20 22 26 35 32 21 25 23 34 33 24 27 29 28 30 31 - 35 - jintex.in

Page 41

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 B1511-772-0B0 WORK CLAMP CHECK HOLDER ASM. オサエラケ クミ 1 2 B2702-047-Q00-A KNIFE 1 メス 1 1 3 B1608-772-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 4 B2930-761-000 SPUR GEAR (100) コーカンハグルマ 100 1 5 B2931-761-000 SPUR GEAR (190) コーカンハグルマ 190 1 6 B1552-782-000 WORK CLAMP CHECK, 2 オサエ 1 7 01 B1508-772-A00 WORK CLAMP CHECK (2A) オサエ (2A) 1 8 01 B1613-771-A00-A WORK CLAMP CARRIER ヌノクリイタ 1 9 B1511-773-0B0 WORK CLAMP CHECK HOLDER ASM. オサエラケ クミ 1 10 B2702-047-S00-A KNIFE 1-1/4" メス(1-1/4") 1 11 B1608-761-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 12 B2948-761-000 SPUR GEAR (88) コーカンハグルマ 88 1 13 B2949-761-000 SPUR GEAR (212) コーカンハグルマ 212 1 14 B1552-783-000 WORK CLAMP CHECK, 3 オサエ 1 15 01 B1608-773-A00 WORK CLAMP CHECK (3A) オサエ (3A) 1 16 01 B1613-771-A00-A WORK CLAMP CARRIER ヌノクリイタ 1 17 B1513-774-000 WORK CLAMP BRACKET ヌノクリイタ 1 18 B1551-784-000-A WORK CLAMP ARM (4) オサエウデ (4) 1 19 B1511-774-0A0 WORK CLAMP CHECK HOLDER ASM. オサエフク クミ 1 20 B1552-784-000 WORK CLAMP CHECK オサエ 1 21 B2402-774-000 THROAT PLATE ハリイタ 1 22 SS-2090530-SP SCREW 9/64-40 L=4.8 マルサラネジ 9/64-40 L=4.8 2 23 B2401-774-0A0 THROAT PLATE BASE ASM. ハリイタ イ クミ 1 24 SS-5090320-SP SCREW 9/64-40 L=3.2 トラスネジ 9/64-40 L=3.2 1 25 B1611-774-0A0 WORK CLAMP ARM BRACKET ASM. ヌノクリイタ イ クミ 1 26 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 (1) 27 B1606-774-000 WORK CLAMP CARRIER PITMAN ヌノクリロット 1 28 SD-0870401-SP HINGE SCREW D=8.73 H=4 タンネジ D=8.73 H=4 1 29 B1605-774-000 FEED ADJUSTING SHAFT オクリチョウセツシフク 1 30 B2745-774-00B-A KNIFE 1-1/2" メス(1-1/2") 1 31 B2745-774-00A-A KNIFE 1-3/8" メス(1-3/8") 1 32 B2944-761-000 SPUR GEAR (74) コーカンハグルマ 74 1 33 B2945-761-000 SPUR GEAR 252 コーカンハグルマ 252 1 34 B1603-774-0A0 LENGTH REGULATING ARM ASM. ヌノクリナガサアームクミ 1 35 B1608-774-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 36 B1612-774-000 WORK CLAMP ARM BRACKET GUIDE ヌノクリイタ イアンナイタ 1 37 400-09447 WORK CLAMP CARRIER (4) ヌノクリイタ (4) 1 38 B1609-774-000 WORK CLAMP ARM SLIDE ROD ヌノクリイタ 1 39 B1516-774-000 WORK CLAMP ARM BEARING BRACKET オサエウデ シジウデ 1 40 SD-0790203-SP HINGE SCREW D=7.94 H=2 タンネジ D=7.94 H=2 1 NOTE (注記) 01...SPECIAL ORDER PARTS FOR LIGHT 薄物ニット用特別注文部品 WEIGHT KNIT MATERIALS. (押さえと布送り板は一緒にご使用 (PLEASE USE THE WORK CLAMP ください。) CHECK AND THE WORK CLAMP CARRIER TOGETHER AS A PAIR.) ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THESE USED IN MODEL LBH-781. 上記以外の部品はLBH-781と同じです。 - 36 - jintex.in

Page 42 — 21. SPECIAL ORDER PARTS

21. SPECIAL ORDER PARTS 特別注文部品 (1) TAPE REEL COMPONENTS テープ装置関係 1 2 3 4 14 15 13 12 11 5 6 7 8 9 10 (2) BUTTON-HOLING MEASURING GAUGES ボタン間隔ゲージ 17 18 16 19 20 21 (3) KNIFE FOR SPECIAL 特別用メス 22 ? 31 32 33 38 ? 56 34 ? 37 (4) HOOK OIL SHIELD COMPONENTS 釜カバー関係 57 6158 59 60 64 62 63 (5) COVER COMPONENTS カバー関係 65 66 67 70 68 72 69 68 69 71 - 37 - jintex.in

Page 43

REF. NO NOTE DESCRIPTION Qty. 1 B9201-761-0A0 REINFORCING TAPE ATCHMENT ASM. (1) 2 B9204-047-0A0 TAPE ATTACHMENT SUPPORT PLATE (1) 3 SS-4090810-SP SCREW 9/64-40 L=8 (1) 4 B9205-047-000 ADJUSTING FELT (2) 5 B9201-761-0B0 REINFORCING TAPE ATTACHMENT AS (1) 6 NS-6700540-SP NUT 5/16-24 (1) 7 B9202-761-0A0 TAPE GUIDE PLATE ASM. (1) 8 SS-5110740-TP SCREW 11/64-40 L=6.5 (1) 9 SS-7090510-SP SCREW 9/64-40 L=4.6 (2) 10 WP-0450000-SD WASHER 4.5X8X0.5 (2) 11 B9206-761-000 TAPE RETAINER (1) 12 B9207-761-000 TAPE RETAINER SPRING (1) 13 SS-6060210-SP SCREW 3/32-56 L=1.9 (2) 14 B9205-761-000 SPACER FOR TAPE RETAINER (1) 15 SS-5060410-SP SCREW 3/32-56 L=3.5 (2) 16 B9402-771-000 MEASURING GAUGE, CROSSWISE (1) 17 SS-6110610-TP SCREW 11/64-40 L=6 (2) 18 WP-0501016-SD WASHER 5X10.5X1 (2) 19 B9401-761-000 DISTANCE MEASURING GAUGE (1) 20 SS-7110840-SP SCREW 11/64-40 L=7.8 (2) 21 WP-0501016-SD WASHER 5X10.5X1 (2) 22 01 B2745-771-F00 KNIFE 1/4" (FLUOROCARBON) 1 23 01 B2745-771-K00 KNIFE 3/8" (FLUOROCARBON) 1 24 01 B2745-771-L00 KNIFE 1/2" 1 25 01 B2745-771-M00 KNIFE 5/8" 1 26 01 B2745-771-N00 KNIFE 3/4" 1 27 01 B2745-771-P00 KNIFE 7/8" (FLUOROCARBON) 1 28 01 B2745-771-Q00 KNIFE 1" 1 29 01 B2745-771-R00 KNIFE 1-1/8" (FLUOROCARBON) 1 30 01 B2745-771-S00 KNIFE 1-1/4" 1 31 01 B2745-771-T00 KNIFE 9/16" (FLUOROCARBON) 1 32 B2746-771-000 KNIFE GUARD 1 33 B2402-771-00B THROAT PLATE (FLUOROCARBON) 1 34 02 B2745-771-P0B KNIFE 7/8" 1 35 02 B2745-771-Q0B KNIFE 1" 1 36 02 B2745-771-R0B KNIFE 1-1/8 1 37 02 B2745-771-S0B KNIFE 1-1/4 1 38 B2702-047-F00 KNIFE 1/4" 1 39 B2702-047-K00-A KNIFE 3/8 1 40 B2702-047-L00 KNIFE (7/16) 1 41 B2702-047-L0A KNIFE 1/2 1 42 B2702-047-V0B KNIFE 1/2 1 43 B2702-047-V00 KNIFE 9/16 1 44 B2702-047-M0A KNIFE 5/8 1 45 B2702-047-M00-A KNIFE 5/8 1 46 B2702-047-A00 KNIFE 11/16 1 47 B2702-047-N0A KNIFE 3/4 1 48 B2702-047-N00 KNIFE 3/4" 1 49 B2702-047-C00 KNIFE 13/16 1 50 B2702-047-C00 KNIFE 7/8 1 51 B2702-047-Q00-A KNIFE 1 1 52 B2702-047-R00 KNIFE 1-1/8 1 53 B2702-047-S0A KNIFE 1-1/4 1 54 B2702-047-S00-A KNIFE 1-1/4 1 55 B2702-047-U00 KNIFE (1-1/2) 1 56 B1157-771-0A0 HOOK OIL SHIELD ASM. (1) 57 B1157-771-000 HOOK OIL SHIELD (1) 58 B1158-771-000 HOOK OIL SHIELD SPRING (1) 59 B1159-771-000 SPRING SET PLATE (1) 60 SS-5090610-SP SCREW 9/64-40 L=6 (2) 61 B1161-771-000 HOOK OIL SHIELD HINGE (1) 62 B1161-771-000 HINGE PIN (1) 63 B1160-771-000 SCREW 11/64-40 L=5 (2) 64 SS-7110510-SP SCREW 11/64-40 L=7 (4) 65 SS-7110710-SP SCREW 11/64-40 L=7 (4) 66 WP-0480856-SP WASHER 4.8X8.4X0.8 (4) 67 B7272-781-000 COVER MOUNTING BRACKET B (1) 68 WP-0501016-SC WASHER 5X10.5X1 (2) 69 SK-3452000-SE WOOD SCREW D=4.5 L=20 (2) 70 NS-6110310-SP NUT 11/64-40 (4) 71 B7273-781-000 SPEED TRANSMITTER COVER (1) 72 262-36703 COVER MOUNTING BRACKET C (1) NOTE (注記) 01...FOR FLUOROCARBON ワッヅン用 02...FOR HEAVY WEIGHT METERIALS 厚物用 - 38 - jintex.in

Page 44 — 22. EXCHANGING PARTS

22. EXCHANGING PARTS 交換部品 (1) TABLE OF CHANGING GEARS 交換歯車一覧表 1. Small gear 小歯車 2. Large gear 大歯車 Set Stitch No. Part No. Stitch No. Part No. B2936-761-000 345 B2937-761-000 A 54 B 62 B2938-761-000 300 B2939-761-000 C 66 B2940-761-000 285 B2941-761-000 D 70 B2942-761-000 268 B2943-761-000 E 74 B2944-761-000 252 B2945-761-000 F 79 B2946-761-000 238 B2947-761-000 G 83 B2928-761-000 225 B2929-761-000 H 88 B2948-761-000 212 B2949-761-000 I 93 B2950-761-000 200 B2951-761-000 J 100 B2930-761-000 190 B2931-761-000 K 105 B2952-761-000 180 B2953-761-000 L 110 B2932-761-000 170 B2933-761-000 M 115 B2954-761-000 160 B2955-761-000 N 123 B2934-761-000 152 B2935-761-000 0 130 B2956-761-000 145 B2957-761-000 (2) TABLE SHOWING PARTS USED IN CONNECTION WITH KNIVES ヌメ関連表 Knife Work clamp check Throat plate メス 押え 針板 A B C No. Size (mm) Part No. 品番 Part No. 品番 Part No. 品番 1 1/4" (6.35) B2702-047-F00 2 3/8" (9.53) B2702-047-K00-A 3 1/2" (12.7) B2702-047-L00-A B1552-781-000-A 4 9/16" (14.29) B2702-047-V00 B2402-771-000 5 5/8" (15.88) B2702-047-M00-A 6 3/4" (19.05) B2702-047-P00 7 7/8" (22.23) B2702-047-P00 B1552-782-000 8 1" (25.4) B2702-047-Q00-A 9 1-1/4" (31.75) B2702-047-S00-A B1552-783-000 10 1-3/8" (34.9) B2745-774-00A-A B1552-784-000 B2402-774-000 11 1-1/2" (38.1) B2745-774-008-A Note (注釈) Standard model machine is used as the standard for work clamp check and throat plate. 押えと針板は標準数機を基準にしています。 - 39 - jintex.in

Page 45 — 23. EXCLUSIVE PARTS FOR LBH-781-K

23. EXCLUSIVE PARTS FOR LBH-781-K LBH-781-K専用部品 (1) LBH-781-K REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 D1508-771-K00-A LATCH WORK CLAMP CHECK ハリイタ 2K 1 2 D2402-772-K00 THROAT PLATE (K) カマ カセンョー クミ 1 3 B1808-761-0AB Hook ASM. TVヨー ダイ2 イトチョー クミ 1 4 B3110-772-TA0 THREAD TENSION NO.3 ASM. K トメネジ 9/64-40 L=5.5 (1) 5 SS-8090670-SP SCREW 9/64-40 L= 5.5 イトチョーシボー・ダイ (1) 6 B3110-771-000 TENSION POST SOCKET イトチョーシボー (1) 7 B3111-761-000 TENSION POST NO.3 イトトリハネ (1) 8 B3112-761-000 THREAD TAKE-UP SPRING イトチョーシサラ (2) 9 B3126-012-000 THREAD TENSION DISK イトチョーシサラ オサエ (1) 10 B3107-804-000 THREAD TENSION DISK PRESSER イトチョーシハネ A (1) 11 B3129-012-A00 TENSION SPRING イトチョーシサラ カイテンド・メ (1) 12 B3120-125-000 ROTATING STOPPER イトチョーシサナブト (1) 13 B3119-771-000 THREAD TENSION NUT カマ タイミング ゲージ K 1 14 D9101-771-K00 Hook TIMING GAUGE (K) メリヤス オサエ 5/8 (ヘーダンヨー) 1 15 01 D1508-771-K0B WORK CLAMP CHECK 5/8" メリヤス オサエ 1/2 (ヘーダンヨー) 1 16 01 D1508-771-K0C WORK CLAMP CHECK 1/2" ダンプ オサエ 5/8 1 17 02 D1508-771-KOE WORK CLAMP CHECK 5/8" ダンプ オサエ 1/2 1 18 02 D1508-771-KOF WORK CLAMP CHECK 1/2" マエタテ オサエ 1 19 03 D1508-771-KOH WORK CLAMP CHECK NOTE (注記) 01....SPECIAL ORDER PARTS FOR FLAT 段部用特別注文部品 02....SPECIAL ORDER PARTS 段部用特別注文部品 FOR UNEVEN THICKNESS 03....SPECIAL ORDER PARTS FOR FRONT 前立て用特別注文部品 ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE OF MODEL LBH-781. 上記以外の部品はLBH-781と共通です。 - 40 - jintex.in

Page 46 — 24. EXCLUSIVE PARTS FOR LBH-782-K,LBH-783-K

24. EXCLUSIVE PARTS FOR LBH-782-K,LBH-783-K LBH-782-K,LBH-783-K専用部品 (1) LBH-782-K 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 (2) LBH-783-K 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 - 41 - jintex.in

Page 47

REF. NO NOTE __ _ PARTNO.le DESCRIPTLON LLL LLL.ey ALF LLL OY. l B2702-047-Q00-A KNIFE 1 4% 1 l 2 B1608-772-000 LENGTH REGULATING SHAFT GUIDE RIAD HH HI l 3 B1511-772-0B0 WORK CLAMP CHECK HOLDER ASM. K¥LTY WS j 4 D1508-772-K00 WORK CLAMP CHECK (2K) FHL K i 5 D2402-772-K00 THROAT PLATE (K) nV{H 2K 1 6 B1808-761-04B HOOK ASN. HY Peya- FF l 7 B2931-761-000 SPUR GEAR (190) I-#Y NW 190 1 8 B2930-761-000 SPUR GEAR (100) 1-tY 7” Ww 100 1 9 D3110-772-TAO THREAD TENSION NO.3 ASM. K TVa- 4°42 {pFfa-¥ 7% i 10 SS-8090670-SP SCREW 9/64-40 L= 5.5 pRRY 9/64-40 L=5.5 (1) ll B3110-771-000 | TENSION POST SOCKET 4bF3-9¥ -2°4 (1) 12 B3111-761-000 TENSION POST NO.3 4bFf3-YB - (1) 13 B3112-761-000 THREAD TAKE-UP SPRING Abpyn’ 3 (1) 14 B3126-012-000 THREAD TENSION DISK 4>Ff3-399 (2) 15 B3107-804-000 THREAD TENSION DISK PRESSER 4hF3-YF5 FFL (1) 16 B3129-012-A00 TENSION SPRING 4hF3a-IN RA (1) 17 B3120-125-000 ROTATING STOPPER AbFa-IFF WFYI) 2 (1) 18 B3119-771-000 THREAD TENSION NUT ApF3a-IFIh (1) 19 D9101-771-KO0 HOOK TIMING GAUGE (K) by May or -y K 20 B1511-773-0B0 WORK CLAMP CHECK HOLDER ASM. RHL7Y JE l 21 D1508-773-KO0O WORK CLAMP CHECK (3K) Hr K l 22 D2402-772-K00 THROAT PLATE (K) NY{A 2K 1 23 B2949-761-000 SPUR GEAR (212) 3-HY WW 212 l 24 B2948-761-000 SPUR GEAR (88) a-PY rn" WY 88 l 25 B1808-761-0AB HOOK ASM. WY Beya- FE l 26 B2702-047-SO0-A KNIFE 1-1/4” X2(1-174") I 27 Bl608-762-000 LENGTH REGULATING SHAFT GUIDE RIAIY FH IY l 28 D3110-772-TAO THREAD TENSION NO.3 ASM. K TVa- 4°42 4pF3-9 7S l 29 SS-8090670-SP SCREW 9/64-40 L= 5.5 bARY 9/64-40 L=5.5 (1) 30 B3110-771-000 TENSION POST SOCKET Apfa-I"" -4° 4 (1) 31 B3111-761-000 TENSION POST NO.3 4h¥3-3e" - (1) 32 B3112-761-000 THREAD TAKE-UP SPRING Abby R (1) 33 B3126-012-000 THREAD TENSION DISK AbFa-FF (1) 34 B3107-804-000 THREAD TENSION DISK PRESSER AbF43-JFF AFT (1) 35 B3129-012-A00 TENSION SPRING ADFA-IN FA (1) 36 B3120-125-000 ROTATING STOPPER AbF3A-I9S PAF > (1) 37 B3119-771-000 THREAD TENSION NUT AhFa-PI} (1) 38 D9101-771-KO0 HOOK TIMING GAUGE (K) DY B47 -y K l NOTE (¥€i2) ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE OF MODEL LBH-781 ERC UAAO MB aatKLBH-781 LHMCT. — 42 —

Page 48 — 25. EXCLUSIVE PARTS FOR LBH-784-K

25. EXCLUSIVE PARTS FOR LBH-784-K LBH-784-K専用部品 (1) LBH-784-K 22 23 24 25 26 21 27 28 29 30 31 32 33 32 34 35 36 37 38 39 40 40 41 42 43 1 44 45 2 3 6 8 5 9 10 11 12 13 14 15 16 17 18 19 20 - 43 - jintex.in

Page 49

REF.NOQ_ _NOTE __ _ PART NO.) le DESCRIPTION © oll llli A a cn.) 1 B1513-774-000 WORK CLAMP BRACKET RFLII I 2 B1551-784-000-A WORK CLAMP ARM (4) THIF” (4) I 3 B1609-774-000 WORK CLAMP ARM SLIDE ROD RIRVVY’ 7 l 4 B1808-761-0AB HOOK ASM. hy peya- 73 i 5 D9101-771-KOO HOOK TIMING GAUGE (K) DY May n-y K ] 6 B1606-774-000 WORK CLAMP CARRIER PITMAN R/FT VOI” 1 7 SD-0870401-SP HINGE SCREW D= 8.73 H= 4 AY y¥zy D=8.73 H=4 I 8 B1605-774-000 FEED ADJUSTING SHAFT APVFBVWY 7 1 9 B2745-774-00B-A KNIFE 1-1/2” X2( 1-1/2”) 1 10 B2745-774-00A-A KNIFE 1-3/8” 2%( 1-3/8” ) 1 il Di508-774-K00 WORK CLAMP CHECK, K AFT 1 12 400-09447 WORK CLAMP CARRIER(4) RIAPIAA(4) l 13 B1612-774-000 WORK CLAMP ARM BRACKET GUIDE RIRDIN 4 FYIAAZ 1 14 B1516-774-000 WORK CLAMP ARM BEARING BRACKET AILS WH OF l 15 Bi611-774-0A0 | WORK CLAMP ARM BRACKET ASM. RIKI’ 4 PR i 16 SS-6151440-SP SCREW 15/64-28 L=14 747 15/64-28 L=14 (1) 17 B1608~-774-000 LENGTH REGULATING SHAFT GUIDE RIRIY HF Hy 1 18 B1603-774-0A0 LENGTH REGULATING ARM ASM. RAAF? YL IZ 1 19 B2944-761-000 SPUR GEAR (74) I-tY AW 74 1 20 B2945-761-000 SPUR GEAR 252 1-HY DW 252 1 21 D3110-772-TAO | THREAD TENSION NO.3 ASN. K TVa- 3°42 4bF3-¥ 7S i 22 SS-8090670-SP SCREW 9/64-40 L= 5.5 bxRY 9/64-40 L=5.5 (1) 23 B3110-771-000 TENSION POST SOCKET AbF3-Y# -24 (1) 24 B3110-761-000 TENSION POST SOCKET 4hf3-9 F -24 (1) 25 B3112-761-000 THREAD TAKE-UP SPRING Appyn® Zz (1) 26 B3126-012-000 THREAD TENSION DISK 4hF3-Y95 (2) 27 B3107-804-000 THREAD TENSION DISK PRESSER AbF3-YF5 AFL (1) 28 B3129-012-A00 TENSION SPRING AbFA-INW RA (1) 29 B3120-125-000 ROTATING STOPPER 4p>F3-995 MFPs (1) 30 B3119-771-000 THREAD TENSION NUT AbFa-IFIp (1) 31 D2401-774-KCO | NEEDLE PLATE ASM. NYGBA 4 FR i 32 SS-2090530-SP SCREW 9/64-40 L= 4.8 Wey’ 9/64-40 L=4.8 (2) 33 D2402-774-K0O THROAT PLATE, K nV4X 4K (1) 34 B2401-774-0A0 THROAT PLATE BASE ASM. NYIH 4 FS (1) 35 B2406-771-0A0 BOBBIN THREAD TRIMMER BLADE AS YRLbEY AZ FZ (1) 36 SS-5090320-SP SCREW 9/64-40 L= 3.2 boZkY 9/64-40 L=3.2 QQ) 37 B2408-771-000-A COUNTER KNIFE TF4{RZ (1) 38 SS-4080310-SP SCREW 1/8-44 L=3.4 Fn RY 1/8-44 L=3.4 (2) 39 B2405-771-000 BOBBIN THREAD PULLER Yah BO OF (1) 40 SS-6090440-SP SCREW 9/64-40 L= 4.0 U7kY 9/64-40 L=4 (2) 41 B2404-771-000 BOBBIN THREAD TRIMMER LEVER YEA pRY OF (1) 42 WP-0451016-SP WASHER 4.5X20X1 “oF W % 4.5X20X1 (1) 43 SS-5090320-SP SCREW 9/64-40 L= 3.2 bIZzRY 9/64-40 L=3.2 (1) 44 Bi511-774-0A0 WORK CLAMP CHECK HOLDER ASM. AFLTY 73 I 45 SD-0790203-SP HINGE SCREW D=7.94 H=2 ayay D=7.94 H=2 I NOTE (Ea) ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE OF MODEL LBH-781 LeAAO SB ttLBH-78lLée RAUCH, — 44—

Page 50 — 26. LIST FOR INFORMATION OF CHANGE

26. LIST FOR INFORMATION OF CHANGE EER RUAL As to the place changed,refer to the corresponding Rev.No. When previous parts({Obsoleted part)and new parts(Added parts)are not interchangeable with each other: in this case,even obsoleted parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders, REGAG, RaRev. No. MeCSBcKaui. BaOFREKGVAEOSSL, MRA METH, CELTS, BEO78130PJA No.0158-[20|---Rev.No. *A:Added parts#iBm/D: Obsoleted partsRBS/E:Erratumil f Rev. iPagelRef. Parts No. Rev.iPagelRef. Parts No, » * No. | A INo, aa = * o. | A INe. aa = 0:19 4 1}B3155-781-0A0 A} 20 4 1|/400-52419 D 19 4 3/SS-4110715-SP A} 20 4 3)}SH-4040655-SP dD; 19 4 5|S$D-0601021-SP D| 19 4 6|/139-43204 D| 19 4 7|WP-0740516-SP D|i19 4 8|262-26407 D 19 4 $|/B3155-781-000 A | 20 4 5|400-52354 D| 19 4; 10;B3121-372-000 DB} 19 4} 11;{P$-0200062-KH D 193 4 12);NS-6110310-SP Di; 19 4) 13}NS-6120310-SP D | 19 30 4/D2611-555-BO0-Afll A | 20 30 4|B3571-771-000 D/] 19 38/ 16|/B3120-761-0A0 y, —~ 45 ~

Page 51 — NUMERICAL INDEX OF PARTS

NUMERICAL IN DEX OF PARTS 385 PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF Et H _NO Bat wm NO ae wm _NO Bit HNO BP-3000000-00 30 10 B1223-771-000 42 B1603-774-0A0 44 18 82408-771-000-A 18 7 BP-3000000-00 30 79 B1224-771-00C 57 Bi605-774-000 36 29 B2408-771-000-A 44 37 BP-4000000-00 30 82 B1225-771-000 53 B1605-774-000 44 8 B2412-047-000 18 47 BP-5000000-00 30 9 B1227-771-000 51 B1606-763-000 10 37 B2414-761-000 18 41 BP-5000000-00 30 80 B1229-771-000 47 B1606-774-000 36 27 B2416-761-000 18 43 BP-6000000-00 6 7 B1231-771-000 58 B1606-774-000 44 6 B2416-761-000 20 52 BP-6000000-00 30 8 B1252-781 -0B0 44 B1607-763-0A0 10 33 B2416-761-000 24 5 BP-8000000-00 30 34 B1254-781-000 50 B1608~-761-000 36 11 B2416-771-000 18 16 BP-8000000-00 30 81 B1255-781-00B 46 B1608-762-000 42 27 B2417-771-000 18 33 ABMNONMMMMMO B1103-771-00A 36 | B1256-781-OA0-A 38 B1608-772-000 3603 B2422-771-000 18 20 bb B1103-771-000-A 35 | B1256-781-000-A 39 B1608-772-000 42 2 B2601-761-000-A 23 27 B1104-771-000 55 | B1i257-781-000 43 B1608-774-000 36 35 B2604-771-000-B 23 9 B1106-761-000 45 | B1305-771-0A0 27 B1608-774-000 44 17 B2608-761-000 24 17 DAHMAN NNN B1106-771-000 37 | B1306-771-0A0 29 B1609-774-000 36 «638 B2610-761-O0AA 24 21 B1110-280-000 59 | B1306-771-0B0 26 B1609-774-000 44 3 B2610-761-0A0 24 20 bo OGD B1110-771-000 40 | B1306-771-0C0 25 B1611-771~-0A0 10 35 B2611-232-000 23 7 B1111-232-000 51 | B1307-771-0A0 32 B1611-774-0A0 36 25 B2611-761-000 24 18 to B1111-771-000 60 | B1307-771-OB0 31 B1611-774-0A0 44 15 B2613-232-000 23 3 BM112-771-OAA 29 | B1308-771-0A0 34 B1612-763-000 10 40 B2615-232-000 6 16 B1112-771-0A0 28 | B1402-761-0A0 39 B1612-774-000 36 36 B2617-771-000 24 23 OHO —_ B1114-771-000 61 B1403-771-000 12 30 B1612-774-000 44 13 B2648-232-000 23 16 B1115-771-0A0 65 | B1404-761-000 6 1 B1613-771-A00-A 10 31 B2651-781-000-A 24 30 B1116-771-000 Il {| B1404-771-000 12 32 B1613-771-A00-A 36 8 B2653-771-000 23 2 B1117-771-000 4] B1406-761-000 12 36 B1613-771-A00-A 36 16 B2655-781-000 30 71 N NMN MN NONMO B1118-761-000 10 | B1410-771-000 12 2 B1802-771-0A0 8 43 B2701-761-000 20 18 81120-761-000 9 | B1411-771-0A0 12 8 B1803-761-000 8 22 B2702-047-A00 38 47 B1120-761-000 56 | B1414-232-000 12 1 B1804-761-0A0 8 19 B2702-047-C00 38 50 CON B1122-761-000 54 | B1415-761-000 12 16 B1805-771-0A0 8 14 B2702-047-F00 38 38 oo 81123-581-000 25 | B1416-761-000 12 17 B1806-771-000 8 18 B2702-047-100 38 40 B1124-771-000 27 | B1418-761-0A0 14 36 B1808-761-OAB 40 3 82702-047-K00-A 38 39 i. NOH B1128-771-00A 69 | Bl419-761-0A0 14 40 B1808-761-0AB 42 6 B2702-047-LOA 38 41 B1128-771-000 68 | Bl421-761-0A0 14 33 B1808~-761-OAB 42 25 B2702-047-LO0-A 20 2] B1133-761-000 75 | Bl424-761-000 14 3] B1808-761-0AB 4 B2702-047-LO0-A 38 42 Ww ay B1133-771-000 64 | B1425-771-000 14 28 B1808-771-0AC 11 B2702-047-M0A 38 45 B1135-771-0A0 30 20 | B1426-771-000 14 54 B1810-761-B00 3 B2702-047-MO0-A 38 46 B1137-771-00A 2 | Bl427-771-000 14 45 B1810-761-C00 2 B2702-047-NOA 38 48 B1137-771-000 l B1432-761-000 14 iil B1810-761-D00 6 B2702-047-NO0 38 49 B1138-771-00A 16 | Bl445-761-0A0 12 21 B1810-761-F00 4 B2702-047-P00 38 51 B1138-771-000 15 | Bl446-761-CAO 8 23 B1810-761~-G00 5 B2702-047-Q00-A 36 2 B1144-771-000 20 | Bl447-761-0A0 12 25 B1810-761-H00 9 B2702-047-Q00-A 38 52 MOOCMOOMO B1145-771-000 23 | Bi451-771-00A 12 46 BI810-761-J00 8 B2702-047-Q00-A 42 1 B1 147-125-000 6 | Bi502-771-AAO-A 10 11 B1810-771-E00 7 B2702-047-ROO0 38 53 OS B1147-771-000 24 | Bi503-771-000 1d 10 B1810-771-0A0 1 B2702-047-SOA 38 54 WOM to B1148-771-000 23 | B1505-761-0A0 10 «6 B1810-771-OBA 54 B2702-047-SO00-A 36 10 OTONM MNMN MONMON B1149~771-000 30 | B1506-761-000 10 «4 B1812-761-000 53 B2702-047-S00-A 38 55 B1I151-771-000 31 | B1507-761-000 10 «3 Bi812-771-0A0 16 B2702-047-SO0-A 42 26 MN BI151-781-OAA-A 30 48 {| B1508-771-A00 10 30 Bl814-761-000 55 B2702-047-U00 38 56 B1151-781-0A0-A 30 47 | B1508-772-A00 36 7 B1901-761-BA0 10 B2702-047-VOB 38 43 Bli51-781-00A 30 50 | B1508-773-A00 36 15 B1901-761-0A0 1] B2702-047-V00 38 44 B1151~-781-000-A 30 49 | B1509-761-000 10. 25 81903-552-000 15 B2702-047-W00 38 57 B1152-771-000 2 13 | B1510-771-00B 10 26 B1905~-541~B00 14 B2705-761-000 20 14 DOHMH B1153-771-000 30 76 j B1511-771-OA0-B 10 23 B2001-771~-0A0 16 l B2706-761-000 20 13 B1 153-781-000 2 2i B1511-771-000-B 10 24 B2001-771-000 16 2 B2709-771-000 20 69 B1154-781-00A 30 29 | B1511-772-0B0 36 1} B2002-771-0A0 16 4 B2710-771-000 20 26 B1154-781-000 30 28 | Bl5i1-772-0B0 42 3 B2003~771-000 16 5 B2718-761-000 20 35 B1155-771-000 2 19 | Bl5i1-773-0B0 36 9 B2005-761-000 16 3 B2722-761-000 6 27 B1156-781-000 30 33 | B1511-773-0B0 42 20 B2007-771-OBO 16 29 B2723-761-OA0-A 20 56 B1157-771-0A0 38 57 | BI511-774-0A0 36 19 B2010-771-000 16 24 B2723-761-000-A 20 57 B1157-771-000 38 58 | BI511-774-0A0 44 44 B2017-372-000 28 42 B2724-761-000 20 55 B1158-771-000 38 59 | B1512-761-000 10 27 B2019-372-000 28 46 B2725-761-000 20 54 B1159-771-000 38 60 | BI513-774-000 36 17 B2030-771-000 16 40 B2726-761-000-A 20 60 B1160-771-000 38 63 | B1513-774-000 44 1 B2032-771-000 16 46 B2729-771-000 20 4 BlI61-771-000 38 62 | B1516-771-000 10 45 B2063-781-0B0-A 16 10 B2731-761-000 20 7 B1203-012-000 6 24 | B1516-774-000 36 39 B2401-771-0A0 18 | B2740-771-000 20 19 B1203-771-000 6 12 | B1516-774-000 44 14 B2401-771-0B0 18 4 B2743-77 1-000 2 58 B1204-761-000 6 13 | B1517-761-000 10 43 B2401-774-0A0 36 23 B2745-771-F00 38 22 B1204-771-000-A 6 22 | B1551-781-000 10 42 B2401-774-0A0 44 34 B2745-771-HOO 8=638 = 3] B1208-552-000-A 6 29 | BI551-784-000-A 36 18 B2402-771-00B 38 33 B2745-771-K00 38 23 B1208-552-000-A 6 40 | B1551-784-000-A 44 2 B2402-771-000 18 2 B2745-771-L00 38 24 B1208-771-000 6 62 | BI552-781-OAO-A 10 22 B2402-774-000 36 21 B2745-771-M00 38 25 B1212-232-000 6 60 | BI552-781-000-A 10 28 B2404-77 1-000 18 9 B2745-771-NOO 38 26 B1214-038-000 30 14 | Bl552-782-000 36 6 B2404-771-000 44 4] B2745-771-POB 38 34 B1220-771-000 6 52 | Bl552-783-000 36 14 B2405~-771-~-000 18 12 B2745-771-P00 38 27 B1221-771-00A 32 24 | B1552-784-000 36 20 B2405-771-000 44 39 B2745-771-Q0B 38 35 B1223-771-000 6 17 | B1603-763-0A0 10 5] B2406-771-0A0 18 5 B2745-771-Q00 38 28 B1223-771-000 8 36 | B1603-774-0A0 36 34 B2406-771-0A0 44 35 B2745-771-ROB 38 36 — 46 —

Page 52 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS 5 PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF sate HNO Sat HNO GE NO cate HNO B2745-771-ROO 38 29 | B3118-552-FOO0 28 71 | B9402-771-000 38 16 NS-6110310-SP 14 17 B2745-771-SOB 38 37 | B3118-552-G00 28 72 NS-6110310-SP 14 29 B2745-771-S00 38 30 | B3118-552-HOO 28 73 | CM-3002000-A3 4 14 NS-6110310-SP 14 39 B2745-774-O00A-A 36 31 | B3118-771-000 28 63 | CM-3002000-B1 2 78 NS-6110310-SP 16 42 B2745-774-O00A-A 44 10 | B3119-771-000 40 13 } CM-3002000-01 2 79 NS-6110310-SP 20 48 B2745-774-O0B-A 36 30 | B3119-771-000 42 18 | CM-3002001-Al 2 72 NS-6110310-SP 28 12 B2745-774-O0B-A 44 9 | B3119-771-000 42 37 | CM-3002001-01 2 5 NS-6110310-SP 38 70 B2746-771-000 38 32 | B3119-771-000 44 30 | CM-5003000-01 6 9 NS-6120310-SP 2 53 B2751-781-000 20 24 | B3120-125-000 40 12 | CQ-2020000-00 8 44 NS-6120310-SP 18 29 B2901-771-00C 22 31 | B3120-125-000 42 17 | CQ-2020000-00 12 26 NS-6120310-SP 28 13 B2902-761-B00 22 35 | B3120-125-000 42 36 | CQ-2520000-00 6 3 NS-6150310-SP 10 50 B2903-761-B00 22 43 | B3120-125-000 44 29 | CQ-2520000-00 6 65 NS-6150310-SP 10 58 B2904-771-000 22 38 B3120-771-000 28 38 CQ-2520000-00 8 20 NS-6150310-SP 12 3 B2906-761-B00 22 41 | B3125~-155-000 2 47 | CQ-2520000-00 12 33 NS-6150310-SP 14 46 B2909-761-000 22 29 B3126-012-000 28 31 CQ-2520000-00 12 52 NS-6150310-SP 18 35 B2910-761-OAO0 22 26 | B3126-012-000 28 44 | CQ-2520000-00 14 34 NS-6150310-SP 18 38 B2913-761-0A0 22 «65 B3126-012-000 40 9 CQ-2520000-00 14 37 NS-6150310-SP 24 8 B2914-761-000 22 46 | B3126-012-000 42 14 | CQ-2520000-00 14 4] NS-6150310-SP 30 45 B2915-761-AAO 22 15 B3126-012-000 42 33 CQ-2520000-00 20 39 NS-6150310-SP 30 63 B2915-761-B00 22 14 | B3126-012-000 44 26 | CQ-3030000-00 14 16 NS-6150310-SP 32 26 B2916-761-0OA0 22 2 | B3129-012-A00 40 11 {| CQ-3030000-00 30 35 NS-6150310-SP 32 43 B2917-761-000 22 3 B3129-012-A00 42 16 CS-0790720-TH 28 53 NS-6150430-SP 23 2] B2919-761-000 22 9 | B3129-012-A00 42 35 | CS-O79101B-SH 24 11 NS-6150430-SP 32 3 B2920-761-0A0 6 32 | B3129-012-A00 44 28 | CS-079101D-SH 28 16 NS-6150430-SP 32 58 B2923-761-000 22 20 | B3152-781-000 28 3 | CS-O95101B-SH 12 28 NS-6160520-SP 12 15 B2930-761-000 36 4 | B3402-771-0A0 26 4 | CS-O95101C-SH 12 22 NS-6160520-SP 28 47 B2930-761-000 42 8 | B3403-761-000 26 8 {| CS-111101D-SH 22 17 NS-6160520-SP 32 45 B2931-761-000 36 5 | B3404-771-000 26 1 | CS-147121B-SH 6 34 NS-6200520-SP 14 4 B2931-761-000 42 7 | B3406-761-000 26 5 NS-6200520-SP 20 68 B2934-761-000 22 13 | B3408-771-0A0 26 7 | DI508-771-KOB 40 15 NS-6200520-SP 33 5 B2935-761-000 22 1 | B3451-781-000 26 14 | DI508-771-KOC 40 16 NS-6240630-SP 23 26 B2944-761-000 36 32 | B3534-012-000 30 12 | DI508-771-KOE 40 17 NS-6620310-SP 23 § B2944-761-000 44 19 | B3534-155-000 30 13 | DI508-771-KOF 40 18 NS-6660430-SP 20 15 B2945-761-000 36 33 | B3537-122-000 20 40 | DI508-771-KOH 40 19 NS-6680320-SP 18 42 B2945-761-000 44 20 | B3541-012-000 6 25 | DI508-771-KO0-A 40 1 NS-6700540-SP 20 33 B2948-761-000 36 12 | B3541-012-000 6 66 | D1508-772-K00 42 4 NS-6700540-SP 38 6 B2948-761-000 42 24 | B3541-012-000 12 7 | DI508-773-KOO 42 21 NS-6740510-SP 20 31 B2949-761-000 36 13 | B3542-771-000 22 11 | DI508-774-KOO 44 11 B2949-761-000 42 23 | B3546-771-000 30 39 | D2401-774-KCO 44 3] PD-0201000-0B 26 6 B3101-804-000 28 29 B3549-771-000 30 2 02402-772-K00 40 2 PS-0300102-K0 16 23 B3102-771-0A0 28 48 | B3560-771-000 30 19 | D2402-772-K00 42 5 PS-0300182-KF 20 2 B3103-761-000 28 45 | B3561-771-000 30 22 | D2402-772-K0O0 42 22 PS-0300182-KF 28 56 B3103-771-0A0 28 39 | B3563-771-000-A 30 25 | D2402-774-K00 44 33 PT-0302000-SO 12 10 B3106-771-000 28 36 | B3568-771-000 30 3 | D3110-772-TAO 40 4 B3107-771-00B 28 24 | B3570-771-000 30 38 | D3110-772-TAO 42 9 RC-1021011-KP 24 36 B3107-804-000 28 30 | B3571-771-000 30 4 | D3110-772-TAO 42 28 RC-1021011-KP 26 49 B3107-804-000 28 43 | B4419-372-000 32 5 | D3110-772-TAO 44 2) RC-1200001-KP 23 14 B3107-804-000 40 10 | B7I109-771-000 33 2 | D9101-771-K00 40 14 RC-1200001-KP 23 15 B3107-804-000 42 15 | BY151-781-0A0-B 32 20 | D9101-771-K00 42 19 RC-3000001-KP 6 45 B3107-804-000 42 34 | B7I51-781-000-A 32 21 | D9101-771-K00 42 38 RC-3500002-KP 32 30 B3107-804-000 44 27 | B7I152-781-000-A 32 36 | D9101-771-KO0 44 656 RE-0500000-KO 26 2 B3110-761-000 44 24 j| B7153-781-000 32 37 RE-0600000-K0 30 72 B3110-771-0A0 28 26 4} B7154-781-000 32 33 | MC-2005E07-50 12 47 RE-1200000-KO0 32 22 B3110-771-000 28 34 | B7155-781-000 32 31 | MC-2005007-50 12 50 RO-0952001-00 28 23 B3110-771-000 40 6 {| B7156-781-000-A 32 35 | MDP-5J0B1100 12 45 RO-1482402-00 12 6 B3110-771-000 42 11 | B7158-781-000 32 27 | MDP-5J0B1400 12 48 B3110-771-000 42 30 | B7159-781-000 32 40 | MTJ-MSO00000 33. SB-1150002-00 32 14 B3110-771-000 44 23 | B7160-781-0A0 30 73 |} MTJ-VM004200 33 11 SB-1150002-00 32 29 B3111-761-000 28 32 | B7180-781-0A0 32 1 | MTJ-VM004300 33 12 SB-1450004-00 32 34 B3111-761-000 40 7 | B7186-781-000 32 8 | MTJ-VM004400 33 13 SD-0400191-TP 16 6 B3111-761-000 42 12 | B7252-781-000 33 14 SD-0450211-SP 32 7 B3111-761-000 42 31 | B7257-781-000-A 33 9 | NM-6050001-SE 34 13 SD-0450401-SP 16 18 B3112-704-000 28 28 | B7272-781-000 4 10 | NM-6050001-SE 34 17 SD-0450401-SP 26 30 B3112-704-000 28 41 | B7272-781-000 38 67 | NM-6060001-CP 24 26 SD-0500301-SP 28 20 B3112-761-000 28 33 | B7273-781-000 38 71 | NM-6080721-SE 14 3 SD-0530221-SP 20 61 B3112-761-000 40 8 | B8213-012-000 30 78 | NM-6080721-SE 30 65 SD-0550501-SP 20 27 B3112-761-000 42 13 | B8219-125-000 30 60 | NM-6120001-CP 22 28 SD-0630272-SP 18 19 B3112-761-000 42 32 | B9201-761-0A0 38 1 | NM-6160511-SE 34 18 SD-0640241-SP 28 5 B3112-761-000 44 25 | B9201-761-O0B0 38 5 j NS-6080210-SP 16 43 SD-0640261-SP 2 48 B3114-771-000 28 64 | B9202-761-0A0 38 7 | NS-6080340-SP 16 44 SD-0640321-SP 18 31 B3116-771-000 28 14 | B9204-047-0A0 38 2 | NS-6090310-SP 8 17 SD-0640391-TP 28 2 B3117-771-000 28 52 | B9205-047-000 38 4 | NS-6090310-SP 28 21 SD-0640391-TP 28 7 B3118-552-A00 28 67 | B9205-761-000 38 14 | NS-6090310-SP 28 65 SD-0640471-SP 14 55 B3118-552-B00 28 68 | B9206-~761-000 38 11 | NS-6090310-SP 30 44 SD-0640471-SP 24 33 B3118-552-CO0 28 69 | B9207-761-000 38 12 | NS-6110310-SP 4 7 SD-0640602-SP 18 32 B3118-552-D00 28 66 B$401-761-000 38 19 NS-6110310-SP 12 20 SD-0641003-SP 16 41 ~47 —

Page 53 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS Bel| PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF BR NO Bak HNO ek BH _NO ait iw _NO SD-0720331-SP 26 3 SS~-4112215-SP 2 (7 SS~7110810-SP 20 25 SS-8660530-TP 6 35 SD-0790201-SD 20 32 SS~4150715-SP 8 52 SS~7110840-SP 10 19 SS~8660530-TP 6 37 SD-0790203-SP 10 57 SS-4150715-SP 16 8 SS-7110840-SP 10 20 SS~8660530-TP 22 18 $D-0790203-SP 36 40 SS-4150715-SP 230s 11 SS-7110840-SP 16 15 SS-8660610-TP 6 33 SD-0790203-SP 44 465 SS-4150715-SP 28 50 SS-7110840~-SP 16 39 SS-8660610-TP 8 24 S$D-0790303-SP 16 20 SS-4150715-SP 30 16 SS~-7110840-SP 16 47 SS~8660610-TP 22 6 SD-0790311-TP 28 9 SS-5060410-SP 38 15 SS-7110840-SP 18 17 SS-8660610-TP 22 16 SD-0790432-SP 14 26 | SS-5090320-SP 18 6 | SS-7110840-SP 20 8 | SS-8660610-TP 22 27 S$D-0790433-TP 26 36 SS-5090320-SP 36 24 SS-7110840~-SP 20 17 S8S-8660612-TP 8 15 SD-0790451-SP 24 10 | SS-5090320-SP 44 36 | SS-7110840-SP 26 23 | SS-8660810-TP 6 28 SD-0790602-SP 18 36 SS-5090320-SP 44 43 SS-7110840-SP 26 24 SS-8660810-TP 10 = SD-0790641-SP_ 18 46 | SS-5090610-SP 38 61 | SS-7110840-SP 28 37 | SS-8681650-TP 6 19 SD-0790801-SP 12 14 SS-5110740-TP 38 8 SS~7110840-SP 28 62 SS-9150860-SP 30 68 SD-0790802-SP 32 53 SS-5110810-SP 10 34 S8S-7110840-SP 38 20 S5S-9152130-CP 32 19 SD-0870401-SP 36 28 SS-5110810-SP 12 35 SS-7110910~SP 32 60 SS-9201973-CP 144 2 SD-0870401-SP_ 44 7 | SS-6060210-SP 10 29 | SS-7110910-TP 6 42 | SS-9241513-CP 22 33 SD-0870601-SP 10 38 8S-6060210-SP 38 13 SS-7110910-TP 30.6 SS-9660940-TP 28 49 SD-0902501-SP 32 13 | SS-6080610-TP 16 32 | SS-7111120-SP 30 53 SD-1110905-TH 20 43 SS-6080610-TP 32 5] SS-7111310~SP 2 49 TA-0750704-RO 2 44 SD-1110905-TH 20 49 | SS-6090440-SP 18 13 | SS-7111310-SP 10 5 | TA-0850604-RO 8 45 SB-1501101-SP 32 16 SS-6090440-SP 44 40 SS-7111410-TP 22 34 TA~1050504-R0 2 59 SK-3452000-SE 4 9 SS-6090620-SP 26 32 SS-7112420-SP 30 74 TA-1250705-RO 2 34 SK-3452000-SE 38 69 | SS-6090630-TP 18 14 | SS-7120910-TP 22 4 | TA-2101002-RO 2 54 SH-4040655-SP 4 3 SS-6110420-TP 20 5 SS-7150940-SP 14 32 SH-4051405-SE 34 12 SS-6110610-TP 18 25 SS-7150940-SP 24 25 WP -0450000-SD 2 #4 SH-6061202-TP 20 20 SS-6110610-TP 38 17 $S-7151210-SP 12 13 We-0450000-SD 2 Ti SM-6061202-TP 32 17 | SS-6111010-TP 10 41 | SS-7151210-SP 14 25 | WP-0450000-SD 38 10 SU-6061202-TP 32 23 SS-6111010-TP 24 16 $S$-7151210-SP 30 «66 WP-0450801-SD 4 4 SH-6061202-TP 32 28 SS-6111140-SP 4 6 SS-7151210-SP 32 39 WP-0451016~-SP 18 li SH-6061602-TP 10 «53 SS-6111610-SP 22 37 SS~-7161040-SP 20 37 WP-O0451016-SP 44 42 SH-6061602-TP 23 18 | SS-6111610-SP 28 25 | SS-7161040-SP 32 56 | WP-0480856-SP 4 17 SH-6061610-SC 34 6 S$S-6111620-SP 12 18 SS-7620750-SP 20 23 WP-0480856-SP 22 36 SH-6062002-TP 20 42 SS-6120620-TP 2 39 $S-7621040-SP 28 15 WP-0480856-SP 38 66 SH-6062002-TP 23 20 SS-6121210-SP 14 6 S$S-7660510-SP 6 54 WP-0501016-SC 4 8 SH-6062002-TP 24 28 SS-6151440-SP 10 36 SS-7681750-TP 6 21 WP-0501016-SC 38 68 SH-6062002-TP 30 57 | SS-6151440-SP 36 26 | SS-8090670-SP 28 35 | WP-0501016-SD 20 22 SH-6102002-TP 23 28 SS-6151440-SP 44 16 SS~8090670-SP 40 § WP-O501016-SD 38 18 SU-8061002-TP 16 11 | SS-6153040-SP 23 22 | SS-8090670-SP 42 10 | WP-0501016-SD 38 21 SH-8061002-TP 16 13 SS-6621212-TP 16 26 SS -8090670-SP 42 29 We-0612056-SD 30 77 SH-9082003-CP 30 62 | SS-6660712-TP 8 28 j SS-8090670-SP 44 22 | WP-0621016-SD 30 58 $Q-1110402-MZ 30 11 §S-6660712-TP 8 30 SS-8110510-SP 2 8 WP-0650876-SD 10 54 SS-2090510-SP 18 3 | SS-6660712-TP 8 33 | SS-8110510-SP 24 13 | WP-0650876-SD 23 12 SS-2090530-SP 36 22 SS-6660712-TP 8 35 S$S-8110520-TP 28 17 WR-O0651056-SD 26 40 SS-2090530-SP 44 32 SS-6660712-TP 28 4 S8S-8111251-SP 12 19 WR-0651056-SH 32 18 $S-2110920-TP 10 «18 SS-6741010-SP 30 59 SS-8111251-SP 14 18 WR-0740516-SP 26 13 $5-4080310-SP 18 8 SS-7090410-SP 6 49 SS-8111251-SP 14 30 We-0850002-SC 33 4 SS-4080310-SP 44 38 | SS-7090510-SP 6 5 | SS-8111251-SP 14 53 | WP-0982616-SP 22 32 SS-4080415-SP 12 44 SS-7090510-SP 38 9 SS-8111610-SP 20 47 WP-1502500-SC 32 38 $S-4080415-SP 14 21 SS-7090520-SP 12 38 $S-8120740-SP 26 38 WP-1612616-SE 34 19 $S-4080415-SP 14 23 SS-7090520-SP 26 43 SS-8150510-TP 22 22 WS-0510002-KN 34 16 SS-4080415-SP 14 49 SS-7090620-TP 18 21 S$S-8150510-TP 24 22 WS-0610002-KP 23 19 SS-4090415-SP 18 34 S8-7090710-SP 10 14 SS-8150710-SP 10 46 WS-0610002-KP 24 29 SS-4090515-SP 2 27 SS~-70907 10-SP 16 22 SS-8150710-SP 12 24 WS-1643202-KR 34 20 SS-4090610-SP 20 41 SS~70907 10-SP 16 36 SS~8150710-SP 12 29 SS-4090810-SP 38 3 | SS-7090710-SP 20 66 | SS-8150710-SP 30 69 | 100-04109 2 38 S$-4091520-SP 10 15 SS-7090710-SP 28 60 SS-8150710-SP 32 32 101-20004 20 58 $8-4110515-SP 2 77 SS-7090720-TP 28 54 SS-8150710-SP 33 10 119-56703 28 27 SS-4110515-SP_ 8 13 | SS-7090910-SP 30 43 | SS-8150822-TP 6 2 | 119-56703 28 40 $S-4110515-SP 30 21 SS-7090910-TP 12 40 S$S-8150822-TP 6 23 137-72504 4 13 SS-4110515-SP 30 26 | SS-7090920-SP 10 44 | SS-8150822-TP 6 31 SS-4110715-SP 2 51 SS-7110510-SP 16 7 SS-8150822-TP 6 48 229-05202 8 37 SS-4110715-SP_ 2 57 | SS-7110510-SP 38 64 | SS-8150822-TP 8 21 | 229-20706 28 58 SS-4110715-SP 28 57 SS-7110570-SP 18 10 SS~8150822-TP 8 41 229-20904 28 70 SS-4110815-SP 30 30 S$-7110570-SP 18 39 SS-8150822-TP 12 31 229-30309 34 14 SS-4110815-SP 30 37 SS-7110710-SP 4 16 SS-8150822-TP 18 44 229- 30358 34] SS-4110915-SP 2 14 SS-7110710-SP 6 64 SS-8150822-TP 20 53 229-30408 34 10 SS-4110915-SP 2 24 +} SS-7110710-SP 10 16 | SS-8150822-TP 24 6 | 229-30507 34 9 SS-4110915-SP 2 33-—«|: SS-7110710-SP 18 48 | SS-8150822-TP 26 10 | 229-30556 34 15 §S~-4110915-SP 2 63 SS-7110710-SP 20 11 S$§-8150920-SP 10 47 229-30705 34 7 SS-4110915-SP 2 67 SS-71]0710-SP 24 4 $$-8150920-SP 12 23 229-30804 34 85 SS-4111015-SP 2 3 SS-7110710-SP 30 5 SS -8150920-SP 12 49 229-30903 34 4 $S-4111015-SP 2 6 SS-7110710-SP 30 18 S$S-8151150-SP 12 5 229-31000 34 3 SS-4111015-SP 2 70 SS-7110710-SP = 32 9 SS-86206 10-SP 22 «23 229-31109 34 2 SS-4111415-SP 2 18 SS-7110710-SP 38 65 SS-8660410-SP 22 #7 229-31307 34 il SS-4111415-SP 2 32-—«|-:« SS-7110740-TP 20 3 | SS-8660512-TP 6 20 | 229-31406 34 «8 SS-4111815-SP 2 43 SS-7110740-TP 24 12 S5~-8660512-TP 6 55 229~-45802 26 19 — 48 —

Page 54 — NUMERICAL INDEX OF PARTS 585

NUMERICAL INDEX OF PARTS 585 PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF HR NO Bae Ww NO ae Hw NO BS HNO 260-23200 16 31 400-09034 2 73 400-0918} 16 38 400-09327 28 18 260-37200 4 2 400-09035 30 52 400-09186 16 35 400-09328 28 19 261-00008 14 44 400-09036 2 74 400-09188 16 45 400-09329 28 22 261-00107 14 52 400-09037 28 59 400-09190 10) «(21 400-09330 16 27 261-00404 8 12 400-09038 2 52 400-09191 16 37 400-09339 28 55 261-00701 6 26 400-09039 2 26 400-09193 16 30 400-09340 28 6} 261-00800 22 44 400-09048 6 18 400-09195 16 33 400-09348 26 16 261-00909 22 42 400-09049 6 56 400-09196 16 34 400-09349 26 22 261-01204 32 42 400-09050 2 42 400-09209 18 45 400-09357 26 il 261-01253 32 4l 400-09058 6 63 400-09210 18 37 400-09360 30 36 261-01303 32 57 400-09069 6 61 400-0921 18 40 40900-09361 30 615 261-01402 32 «47 400-09070 6 59 400-09214 18 28 400-09363 2 75 261-01501 32 54 400-09071 8 38 400-09215 18 23 400-09366 30 4] 261-01600 32 52 400-09072 8 39 400-09217 18 22 400-09369 30 vi 261-01709 32 55 400-09075 12 34 400-09218 18 15 400-09370 2 56 261-01808 32 59 400-09077 12 5] 4000-09219 18 27 400-09373 30 17 261-01907 32 6] 400-09078 14 5 400-09220 18 18 400-09374 30 ] 261-02004 32 44 400-09081 14 48 400-09221 18 30 400-09375 30 640 261-02103 32 49 400-09082 12 4 400-09222 18 26 400-09379 30 42 261-02202 32 «446 400-09083 12 42 400-09223 18 24 400-09384 2 76 261-02301 32 50 400-09085 12 37 400-09228 23 10 4090-09388 32 2 261-02400 32 62 400-09086 12 41 400~-09229 23° «17 4900-09389 32 15 261-02509 32 48 400-09087 6 4 400-0923} 30 «67 4900-09390 32 12 261-03101 26 26 400-09089 14 43 400-09233 24 7 400-09391 32 11 261-03150 26 25 400-09091 12 27 400-09235 30 «64 400-09392 32 4 261-03200 26 39 400-09092 14 1 400-09235 32 25 400-09393 326 261-03309 26 33 400-09093 12 43 400-09238 24 27 400-09395 32 10 261-03408 26 37 400-09094 14 47 400-09241 24 15 400-09397 a8 6 261-03507 26 34 400-09094 14 50 400-09242 24 19 400-09398 oy 261-03606 26 4} 400-09099 12 ti 400-09243 24 3) 400-09400 6 36 261-03705 26 «29 400-09102 14 61 400-09244 30 «61 400-09401 33.0 3 261-03804 26 42 400-09103 14 38 400-09245 24 9 400-09415 33.8 261-03903 26 31 400-09104 14 42 400-09247 24 14 400-0942] 4 il 261-04000 26 44 400-09105 14 35 400-09249 23 23 400-09426 6 41 261-04109 26 35 400-09106 14 12 400-09251 23 24 400-09441 20 46 261-04208 26 27 400-09107 14 7 400-09252 23 25 400-09442 8 46 261-04307 26 «28 400-09108 14 10 400-09254 23 13 400-09443 8 47 261-04406 26 646 400-09109 14 9 400-09255 24 ] 400-09444 8 48 261-04505 26 45 400-09110 14. 8 400-09256 24 2 400-09445 10 632 261-04604 22 45 400-09111 14 13 400-09259 24 3 400-09447 36 637 261-04703 6 30 400-09112 14 20 400-09260 24 34 400-09447 44 2 261-05809 20 44 400-09113 14 14 400-09260 26 47 400-09452 12 12 261-05908 10 39 400-09114 14 19 400-0926] 24 35 400-09458 4 i5 261-06658 26 12 400-09115 14 15 400-09261 26 48 400-52354 4 5 261-06807 23. «4 400-09116 14. 27 400-09262 24 24 400-52419 4 ] 261-06906 12 9 | 400-09116 24 32 400-09262 2606 «9 261-07201 22 12 400-09117 14 24 400-09264 20 28 2611-07300 23. 6 | 400-09118 14 22 400-09265 20 29 261-07409 30 670 400-09119 10 2 400-09266 20 30 261-07508 23.8 400-0912] 10 «68 400-09270 20 62 261~-09207 30 655 400-09122 10 17 400-09274 20 «65 262-12308 23 1 400-09123 10 «9 400-09277 20 50 262-12308 26 «#15 400-09129 10 1 400-09278 20 51 262-16507 26 «(17 400-09131 10 12 400-09280 20 10 262-16606 26 18 400-09132 i0 13 400-09284 20 16 262-16705 26 20 400-09134 10 49 400-09290 20 12 262-16705 26 «21 400-09137 10 48 400-09291 20 38 262-36703 4 12 400-09143 10 «56 400-09292 20 36 262-36703 38 72 400-09144 10 52 400-09294 20 34 400-09146 10. «55 400-09299 20 63 400-08607 16 14 400-09148 8 10 400~-09300 20 «6 400-08608 16 19 400-09150 8 40 400-09302 20 1 400-08609 28 il 400-09153 8 5) 400-09303 20 67 400-08610 6 8 400-09155 8 56 400-09304 20 45 400-08611 28 10 400-09156 8 49 400-09305 20 64 400-08994 30 46 400-09157 8 50 400-09309 22 39 400-08995 2 22 400-09160 16 12 400-09310 22 40 400-08996 30 51 400-09163 16 25 400-09311 2 50 400-09001 30 «31 400-09164 16 28 400-09312 22 30 400-09003 30 32 400-09165 28 866 400-09314 22 868 400-09008 2 62 400-09166 28 8 400-09316 22 10 400-09009 2 66 400-09167 16 2) 400-09318 22 19 400-09010 2 12 400-09168 16 «(16 400-09319 22 2) 400-09014 2 80 400-09169 16 7 400-09320 22 24 400-09028 2 7 400-09178 10 659 400-09321 22 25 400-09030 2 46 400-09179 16 9 400-09325 28 ] — 49—

Page 55

jinttex.in jintex.in

Page 56

JUKI JUKI CORPORATION Copyright © 1996-2007 JUKI CORP. 本 書の 内容 を 無断 で 転載 、 複写 すること を 禁止 します。 All rights reserved throughout the world. JUKI株式会社 お い 求 め 、 ご 相 談 は To order or for further information, please contact ; ※このパーツリストは商品改良のため予告なく変更する事があります。 * The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、2007年2月現在の商品仕様で編集したものです。 * This parts list is edited in accordance with the product specifications as of February 2007. Printed in Japan jintex.in
