Juki LBH-781K Parts Book (PDF)
Text index — Juki LBH-781K
Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1137-771-000 | FRAME SIDE COVER B | 1 |
| 2 | B1137-771-00A | FRAME SIDE COVER B | 1 |
| 3 | SS-4111015-SP | SCREW 11/64-40 L=10 | 1 |
| 4 | WP-0450000-SD | WASHER 4.5X8X0.5 | 2 |
| 5 | CM-3002001-01 | SAFETY LABEL, 1(SMALL). | 1 |
| 6 | SS-4111015-SP | SCREW 11/64-40 L=10 | 1 |
| 7 | 400-09028 | ARM SUPPORT ROD | 1 |
| 8 | SS-8110510-SP | SCREW 11/64-40 L=5 | 1 |
| 9 | B1120-761-000 | PIN | 1 |
| 10 | B1118-761-000 | RUBBER CUSHION | 1 |
| 11 | B1116-771-000 | SIDE COVER (C) | 1 |
| 12 | 400-09010 | ARM SIDE COVER (C) | 1 |
| 13 | B1152-771-000 | SIDE COVER GASKET (C) | 1 |
| 14 | SS-4110915-SP | SCREW 11/64-40 L=9 | 7 |
| 15 | B1138-771-000 | FRAME SIDE COVER C | 1 |
| 16 | B1138-771-00A | FRAME SIDE COVER C | 1 |
| 17 | SS-4112215-SP | SCREW 11/64-40 L=22 | 1 |
| 18 | SS-4111415-SP | SCREW 11/64-40 L=14 | 1 |
| 19 | B1155-771-000 | CUSHION | 2 |
| 20 | B1144-771-000 | FRAME SIDE COVER GASKET (C) | 2 |
| 21 | B1153-781-000 | LEFT SIDE COVER | 1 |
| 22 | 400-08995 | LEFT SIDE COVER | 1 |
| 23 | B1145-771-000 | SIDE COVER GASKET | 1 |
| 24 | SS-4110915-SP | SCREW 11/64-40 L=9 | 3 |
| 25 | B1123-581-000 | THREAD TAKE-UP LEVER OIL GUARD | 1 |
| 26 | 400-09039 | THREAD TAKE-UP LEVER COVER | 1 |
| 27 | SS-4090515-SP | SCREW 9/64-40 L=5 | 2 |
| 28 | B1112-771-0A0 | FACE COVER COMPLETE | 1 |
| 29 | B1112-771-0AA | FACE COVER COMPLETE | 1 |
| 30 | B1149-771-000 | GASKET | 1 |
| 31 | B1151-771-000 | FACE PLATE GASKET (B) | 1 |
| 32 | SS-4111415-SP | SCREW 11/64-40 L=14 | 2 |
| 33 | SS-4110915-SP | SCREW 11/64-40 L=9 | 1 |
| 34 | TA-1250705-RO | RUBBER PLUG | 2 |
| 35 | B1103-771-000-A | TOP COVER | 1 |
| 36 | B1103-771-00A | TOP COVER | 1 |
| 37 | B1106-771-000 | WORM GEAR SHAFT METAL | 2 |
| 38 | 100-04109 | GROUND MARK | 1 |
| 39 | SS-6120620-TP | SCREW | 4 |
| 40 | B1110-771-000 | TOP COVER GASKET, FRONT | 1 |
| 41 | B1117-771-000 | OIL FELT | 2 |
| 42 | 400-09050 | MAIN SHAFT THRUST SEEL | 1 |
| 43 | SS-4111815-SP | SCREW 11/64 L=18 | 6 |
| 44 | TA-0750704-RO | RUBBER PLUG | 6 |
| 45 | B1106-761-000 | GEAR CASE COVER | 1 |
| 46 | 400-09030 | GEAR CASE COVER | 1 |
| 47 | B3125-155-000 | DISK SPRING | 1 |
| 48 | SD-0640261-SP | HINGE SCREW D=3.65 H=2.6 | 1 |
| 49 | SS-7111310-SP | SCREW 11/64-40 L=12.8 | 1 |
| 50 | 400-09311 | HAND STOP LATCH | 1 |
| 51 | SS-4110715-SP | SCREW 11/64-40 L=7 | 2 |
| 52 | 400-09038 | BALL SCREW | 1 |
| 53 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 54 | TA-2101002-RO | RUBBER PLUG | 1 |
| 55 | B1104-771-000 | TOP COVER GASKET, REAR | 1 |
| 56 | 400-09370 | ARM OIL SHIELD | 1 |
| 57 | SS-4110715-SP | SCREW 11/64-40 L=7 | 1 |
| 58 | B2743-771-000 | KNIFE STOP LEVER SHAFT GUIDE | 1 |
| 59 | TA-1050504-RO | RUBBER PLUG | 1 |
| 60 | B1111-771-000 | SIDE COVER (A) GASKET | 1 |
| 61 | B1114-771-000 | SIDE COVER (A) | 1 |
| 62 | 400-09008 | ARM SIDE COVER (A) | 1 |
| 63 | SS-4110915-SP | SCREW 11/64-40 L=9 | 6 |
| 64 | B1133-771-000 | OIL SIGHT WINDOW GASKET | 1 |
| 65 | B1115-771-0A0 | SIDE COVER ASM. B | 1 |
| 66 | 400-09009 | ARM SIDE COVER (B) | 1 |
| 67 | SS-4110915-SP | SCREW 11/64-40 L=9 | 4 |
| 68 | B1128-771-000 | SIDE COVER A | 1 |
| 69 | B1128-771-00A | SIDE COVER A | 1 |
| 70 | SS-4111015-SP | SCREW 11/64-40 L=10 | 2 |
| 71 | WP-0450000-SD | WASHER 4.5X8X0.5 | 2 |
| 72 | CM-3002001-A1 | SAFETY LABEL., 3 (SMALL). | 1 |
| 73 | 400-09034 | BED SLIDE | 1 |
| 74 | 400-09036 | BED SCREW STUD A | 2 |
| 75 | 400-09363 | BED OIL SHIELD ASM. | 1 |
| 75 | 400-09035 | BED OIL SHIELD ASM. | |
| 76 | 400-09384 | BED OIL SHIELD STUD | 1 |
| 77 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 78 | CM-3002000-B1 | LABEL(16) | 1 |
| 79 | CM-3002000-01 | ATTENTION SEAL | 1 |
| 80 | 400-09014 | OIL SIGHT WINDOW | 1 |

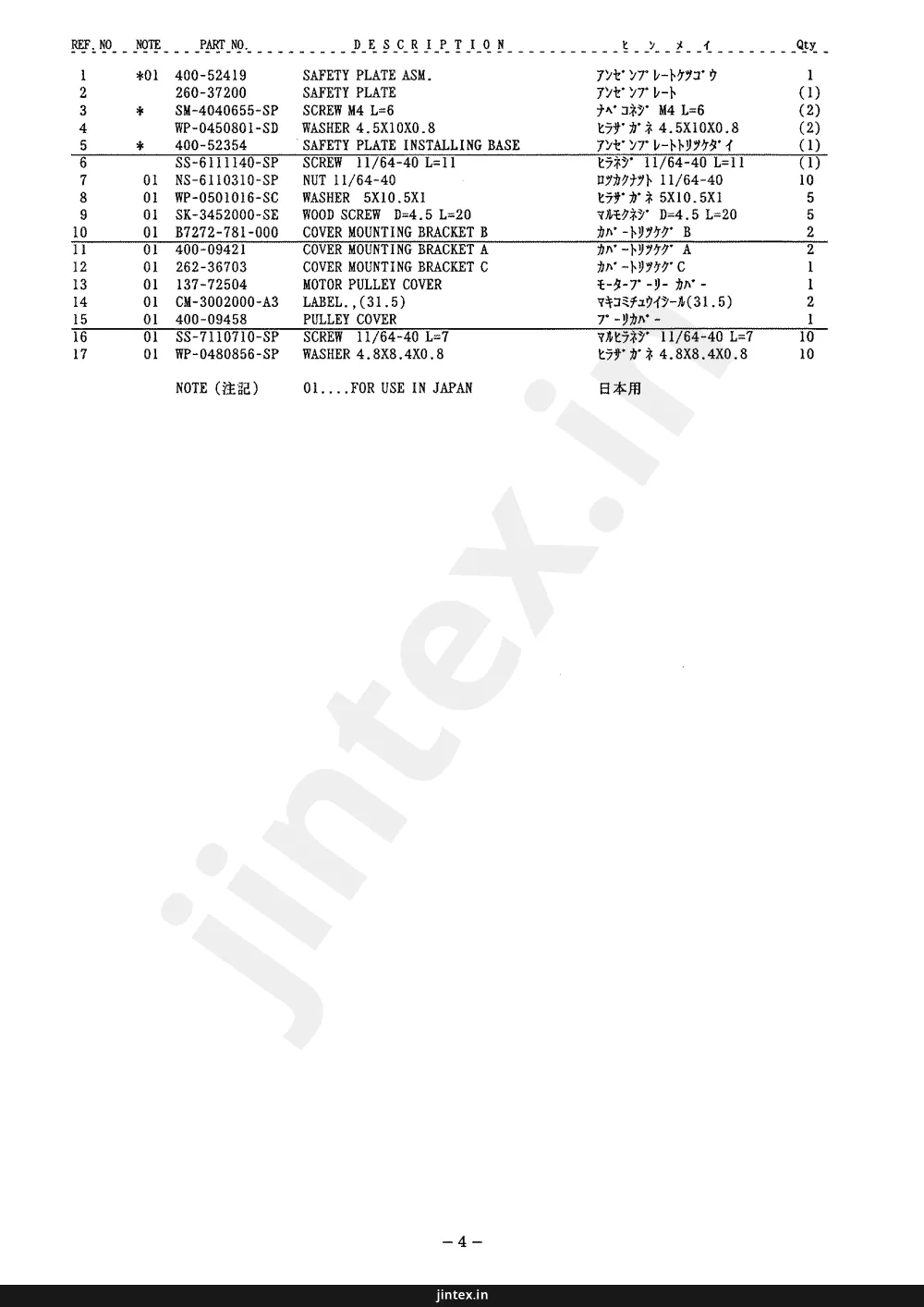

Page 9 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-52419 | SAFETY PLATE ASM. | 1 |
| 2 | 260-37200 | SAFETY PLATE | (1) |
| 3 | SM-4040655-SP | SCREW M4 L=6 | (2) |
| 4 | WP-0450801-SD | WASHER 4.5X10X0.8 | (2) |
| 5 | 400-52354 | SAFETY PLATE INSTALLING BASE | (1) |
| 6 | SS-6111140-SP | SCREW 11/64-40 L=11 | (1) |
| 7 | NS-6110310-SP | NUT 11/64-40 | 10 |
| 8 | WP-0501016-SC | WASHER 5X10.5X1 | 5 |
| 9 | SK-3452000-SE | WOOD SCREW D=4.5 L=20 | 5 |
| 10 | B7272-781-000 | COVER MOUNTING BRACKET B | 2 |
| 11 | 400-09421 | COVER MOUNTING BRACKET A | 2 |
| 12 | 262-36703 | COVER MOUNTING BRACKET C | 1 |
| 13 | 137-72504 | MOTOR PULLEY COVER | 1 |
| 14 | CM-3002000-A3 | LABEL.,(31.5) | 2 |
| 15 | 400-09458 | PULLEY COVER | 1 |
| 16 | SS-7110710-SP | SCREW 11/64-40 L=7 | 10 |
| 17 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 10 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1404-761-000 | HINGE STUD | 1 |
| 2 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 3 | CQ-2520000-00 | OIL WICK | 0.38 |
| 4 | 400-09087 | OIL WICK HOLDER | 1 |
| 5 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | 2 |
| 6 | B1147-125-000 | OIL WICK SNAP RING | 1 |
| 7 | BP-6000000-00 | VINYL PIPE | 0.03 |
| 8 | 400-08610 | MAIN SHAFT | 1 |
| 9 | CM-5003000-01 | DIRECTION LABEL | 1 |
| 10 | B1901-761-BA0 | THREAD TAKE-UP LEVER ASM., CER | 1 |
| 11 | B1901-761-0A0 | THREAD TAKE-UP LEVER ASM. | 1 |
| 12 | B1203-771-000 | NEEDLE BAR CRANK | 1 |
| 13 | B1204-761-000 | NEEDLE BAR CRANK CONNECTING RO | 1 |
| 14 | B1905-541-B00 | NEEDLE BEARING | 2 |
| 15 | B1903-552-000 | LEFT SCREW | 1 |
| 16 | B2615-232-000 | OIL FELT WASHER | 1 |
| 17 | B1223-771-000 | NEEDLE ROD CRANK WASHER | 1 |
| 18 | 400-09048 | COUNTERWEIGHT ASM. | 1 |
| 19 | SS-8681650-TP | SCREW 9/32-28 L=16 | (1) |
| 20 | SS-8660512-TP | SCREW 1/4-40 L=5 | (2) |
| 21 | SS-7681750-TP | SCREW 9/32-28 L=16.5 | 1 |
| 22 | B1204-771-000-A | BUSHING, FRONT | 1 |
| 23 | SS-8150822-TP | SCREW 15/64-28 L=8 | 2 |
| 24 | B1203-012-000 | OIL FELT | 1 |
| 25 | B3541-012-000 | OIL WICK | 1 |
| 26 | 261-00701 | KNIFE BAR DRIVING CONNECTING | 1 |
| 27 | B2722-761-000 | KNIFE BAR DRIVING ECCENTRIC | 1 |
| 28 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 29 | B1208-552-000-A | OIL SEAL | 1 |
| 30 | 261-04703 | MAIN SHAFT BUSHING INTERMEDIA | 1 |
| 31 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 32 | B2920-761-0A0 | WORM ASM. | 1 |
| 33 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 34 | CS-147121B-SH | THRUST COLLAR ASM. D=14.72 W=1 | 1 |
| 35 | SS-8660530-TP | SCREW 1/4-40 L= 4.5 | (2) |
| 36 | 400-09400 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 37 | SS-8660530-TP | SCREW 1/4-40 L= 4.5 | (4) |
| 38 | B1256-781-0A0-A | UPPER SHAFT REAR METAL ASM. | 1 |
| 38 | B1256-781-0A0 | UPPER SHAFT REAR METAL ASM. | |
| 39 | B1256-781-000-A | UPPER SHAFT REAR METAL | (1) |
| 40 | B1208-552-000-A | OIL SEAL | (1) |
| 41 | 400-09426 | BEARING RETAINER | (1) |
| 42 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | (3) |
| 43 | B1257-781-000 | FELT B | (1) |
| 44 | B1252-781-0B0 | LOOSE PULLEY ASM. | (1) |
| 45 | RC-3000001-KP | RETAINING RING 30 | (1) |
| 46 | B1255-781-00B | WASHER B | 2 |
| 47 | B1229-771-000 | MAIN SHAFT THRUST WASHER (C) | 1 |
| 48 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 49 | SS-7090410-SP | SCREW 9/64-40 L= 3.5 | 3 |
| 50 | B1254-781-000 | MAIN SHAFT THRUST SEEL | 1 |
| 51 | B1227-771-000 | GASKET | 1 |
| 52 | B1220-771-000 | THRUST WASHER A | 2 |
| 53 | B1225-771-000 | BEARING | 1 |
| 54 | SS-7660510-SP | SCREW 1/4-40 L=5.0 | 1 |
| 55 | SS-8660512-TP | SCREW 1/4-40 L=5 | 1 |
| 56 | 400-09049 | DRIVING PULLEY | 1 |
| 57 | B1224-771-00C | SCREW (C) | 1 |
| 58 | B1231-771-000 | STOP CAM PRESSURE SPRING | 1 |
| 59 | 400-09070 | STOP-MOTION CAM PIN SLIDE BLOC | 2 |
| 60 | B1212-232-000 | BAKELITE SEGMENT | 1 |
| 61 | 400-09069 | STOP-MOTION CAM POSITION PIN | 1 |
| 62 | B1208-771-000 | STOP MOTION CAM | 1 |
| 63 | 400-09058 | STOP MOTION CAM PRESSER PLATE | 1 |
| 64 | SS-7110710-SP | SCREW 11/64-40 L=7 | 3 |
| 65 | CQ-2520000-00 | OIL WICK | 0.4 |
| 66 | B3541-012-000 | OIL WICK | 1 |
Page 13 — 4. HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1810-771-0A0 | BOBBIN CASE ASM. | 1 |
| 2 | B1810-761-C00 | BOBBIN CASE LATCH LEVER | (1) |
| 3 | B1810-761-B00 | BOBBIN CASE LATCH | (1) |
| 4 | B1810-761-F00 | LATCH SPRING | (1) |
| 5 | B1810-761-G00 | LATCH STOP SCREW | (1) |
| 6 | B1810-761-D00 | HINGE PIN | (1) |
| 7 | B1810-771-E00 | TENSION SPRING | (1) |
| 8 | B1810-761-J00 | TENSION SCREW | (1) |
| 9 | B1810-761-H00 | CLAMP SCREW | (1) |
| 10 | 400-09148 | BOBBIN | 1 |
| 11 | B1808-771-0AC | HOOK ASM. | 1 |
| 12 | 261-00404 | BOBBIN CASE POSITIONING PLATE | 1 |
| 13 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 14 | B1805-771-0A0 | HOOK SLEEVE ASM. | 1 |
| 15 | SS-8660612-TP | SCREW 1/4-40 L=6 | (4) |
| 16 | B1812-771-0A0 | OIL WICK ASM. | 1 |
| 17 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 18 | B1806-771-000 | ADJUSTING SCREW | 1 |
| 19 | B1804-761-0A0 | BUSHING ASM., FRONT | 1 |
| 20 | CQ-2520000-00 | OIL WICK | (0.03) |
| 21 | SS-8150822-TP | SCREW 15/64-28 L=8 | 3 |
| 22 | B1803-761-000 | BUSHING, INTERMEDIATE | 1 |
| 23 | B1446-761-CA0 | PINION ASM. | 1 |
| 24 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 25 | B1306-771-0C0 | GEAR & PINION ASM. | 1 |
| 26 | B1306-771-0B0 | GEAR & PINION ASM. UPPER | (1) |
| 27 | B1305-771-0A0 | GEAR ASM. | (1) |
| 28 | SS-6660712-TP | SCREW 1/4-40 L= 7.0 | (2) |
| 29 | B1306-771-0A0 | PINION ASM. | (1) |
| 30 | SS-6660712-TP | SCREW 1/4-40 L= 7.0 | (2) |
| 31 | B1307-771-0B0 | GEAR & PINION ASM. LOWER | (1) |
| 32 | B1307-771-0A0 | GEAR ASM. | (1) |
| 33 | SS-6660712-TP | SCREW 1/4-40 L= 7.0 | (2) |
| 34 | B1308-771-0A0 | PINION ASM. | (1) |
| 35 | SS-6660712-TP | SCREW 1/4-40 L= 7.0 | (2) |
| 36 | B1223-771-000 | NEEDLE ROD CRANK WASHER | 1 |
| 37 | 229-05202 | UPRIGHT SHAFT BUSHING, LOWER | 1 |
| 38 | 400-09071 | UPRIGHT SHAFT | 1 |
| 39 | 400-09072 | UPRIGHT SHAFT BUSHING | 1 |
| 40 | 400-09150 | HOOK DRIVING SHAFT | 1 |
| 41 | SS-8150822-TP | SCREW 15/64-28 L=8 | 2 |
| 42 | B1223-771-000 | NEEDLE ROD CRANK WASHER | 1 |
| 43 | B1802-771-0A0 | BUSHING ASM., REAR | 1 |
| 44 | CQ-2020000-00 | OIL WICK | (0.1) |
| 45 | TA-0850604-RO | RUBBER PLUG | 1 |
| 46 | 400-09442 | HOOK OIL SUPPLY RUBBER ASM. | 1 |
| 47 | 400-09443 | BUSHING | (1) |
| 48 | 400-09444 | OIL ADJUSTING RUBBER | (1) |
| 49 | 400-09156 | HOOK OIL ADJUSTING SCREW | 1 |
| 50 | 400-09157 | POSITIONING SCREW | 1 |
| 51 | 400-09153 | OIL SUPPLY FELT HOLDER | 1 |
| 52 | SS-4150715-SP | SCREW 15/64-28 L=7 | 1 |
| 53 | B1812-761-000 | OIL SUPPLY FELT | 1 |
| 54 | B1810-771-0BA | BOBBIN CASE ASM. | 1 |
| 55 | B1814-761-000 | SPRING | (1) |
| 56 | 400-09155 | PLATE SPRING | 1 |
Page 15 — 5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-09129 | PRESSER SPRING REGULATOR | 1 |
| 2 | 400-09119 | PRESSER BAR | 1 |
| 3 | B1507-761-000 | PRESSER SPRING | 1 |
| 4 | B1506-761-000 | PRESSER BAR GUIDE BRACKET | 1 |
| 5 | SS-7111310-SP | SCREW 11/64-40 L=12.8 | 2 |
| 6 | B1505-761-0A0 | PRESSER BAR POSITION BRACKET A | 1 |
| 7 | SS-8660810-TP | SCREW 1/4-40 L=8 | (1) |
| 8 | 400-09121 | SLEEVE | 1 |
| 9 | 400-09123 | SLIDE ROLLER | 1 |
| 10 | B1503-771-000 | CONNECTING PIN | 1 |
| 11 | B1502-771-AA0-A | BRACKET ASM. | |
| 12 | 400-09122 | BRACKET | |
| 13 | 400-09132 | FINGER GUARD | |
| 14 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | |
| 15 | SS-4091520-SP | SCREW 9/64-40 L=15 | |
| 18 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | |
| 19 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | |
| 21 | 400-09190 | NEEDLE THREAD TRIMMER GUIDE (A | |
| 24 | B1511-771-000-B | PRESSER FOOT | |
| 25 | B1509-761-000 | WORK CLAMP CHECK SPRING | |
| 27 | B1512-761-000 | WORK CLAMP CHECK HOLDER SPRING | |
| 28 | B1552-781-000-A | PRESSER | |
| 29 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | |
| 31 | B1613-771-A00-A | WORK CLAMP CARRIER | |
| 32 | 400-09445 | WORK CLAMP CARRIER | |
| 33 | B1607-763-0A0 | BRACKET COVER | |
| 36 | SS-6151440-SP | SCREW 15/64-28 L=14 | |
| 37 | B1606-763-000 | WORK CLAMP CARRIER BRACKET PIT | |
| 38 | SD-0870601-SP | HINGE SCREW D= 8.73 H= 6.0 | |
| 39 | 261-05908 | WORK CLAMP ARM SLIDE ROD | |
| 40 | B1612-763-000 | WORK CLAMP CARIER BRACKET GUID | |
| 41 | SS-6111010-TP | SCREW 11/64-40 L= 9.5 | |
| 42 | B1551-781-000 | WORK CLAMP | |
| 44 | SS-7090920-SP | SCREW 9/64-40 L= 8.5 | |
| 45 | B1516-771-000 | BEARING ARM | |
| 47 | SS-8150920-SP | SET-SCREW | |
| 48 | 400-09137 | LENGTH REGULATING HINGE STUD | |
| 49 | 400-09134 | LENGTH REGULATING SHAFT GUIDE | |
| 50 | NS-6150310-SP | NUT 15/64-28 | |
| 52 | 400-09144 | LENGTH REGULATING SHAFT CRANK | |
| 53 | SM-6061602-TP | SCREW M6 L=16 | |
| 55 | 400-09146 | BELL CRANK ROLLER STUD | |
| 56 | 400-09143 | ROLLER | |
| 57 | SD-0790203-SP | HINGE SCREW D=7.94 H=2 | |
| 59 | 400-09178 | NEEDLE THREAD TRIMMER GUIDE (B |
Page 17 — 6. NEEDLE BAR FRAME COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1414-232-000 | SQUARE BLOCK | 1 |
| 2 | B1410-771-000 | STUD | 1 |
| 3 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 4 | 400-09082 | BUSHING | 1 |
| 5 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 2 |
| 6 | R0-1482402-00 | RUBBER RING | 1 |
| 7 | B3541-012-000 | OIL WICK | 1 |
| 8 | B1411-771-0A0 | FRAME ROCK SHAFT CRANK ASM., F | 1 |
| 9 | 261-06906 | FRAME NEEDLE BAR SHAFT | (1) |
| 10 | PT-0302000-S0 | TAPERED PIN 3.0X20 | (2) |
| 11 | 400-09099 | NEEDLE BAR CLANK (FRONT) | (1) |
| 12 | 400-09452 | NEEDLE BAR CRANK (REARE) ASM. | 1 |
| 13 | SS-7151210-SP | SCREW 15/64-28 L=12 | (1) |
| 14 | SD-0790801-SP | HINGE SCREW D=7.94 H=8 | 1 |
| 15 | NS-6160520-SP | NUT 1/4-24 | 1 |
| 16 | B1415-761-000 | NEEDLE BAR PITMAN | 1 |
| 17 | B1416-761-000 | ROCK SHAFT CONNECTION GUIDE | 1 |
| 18 | SS-6111620-SP | SCREW 11/64-40 L=16.0 | 2 |
| 19 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | 1 |
| 20 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 21 | B1445-761-0A0 | NEEDLE DRIVING GEAR ASM. | 1 |
| 22 | CS-095101C-SH | THRUST COLLAR ASM. D=9.53 W=10 | 1 |
| 23 | SS-8150920-SP | SET-SCREW | (1) |
| 24 | SS-8150710-SP | SCREW 15/64-28 L=7 | (1) |
| 25 | B1447-761-0A0 | KNIFE DRIVING SHAFT ASM. | 1 |
| 26 | CQ-2020000-00 | OIL WICK | (0.21) |
| 27 | 400-09091 | KNIFE DRIVING SHAFT | (1) |
| 28 | CS-095101B-SH | THRUST COLLAR ASM. D=9.53 W=10 | 1 |
| 29 | SS-8150710-SP | SCREW 15/64-28 L=7 | (2) |
| 30 | B1403-771-000 | NEEDLE BAR FRAME | 1 |
| 31 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 32 | B1404-771-000 | HINGE STUD | 1 |
| 33 | CQ-2520000-00 | OIL WICK | 0.26 |
| 34 | 400-09075 | POSITION BRACKET | 1 |
| 35 | SS-5110810-SP | SCREW 11/64-40 L=8 | 2 |
| 36 | B1406-761-000 | OIL FELT, FOR NEEDLE BAR | 2 |
| 37 | 400-09085 | OIL FELT UPPER | 1 |
| 38 | SS-7090520-SP | SCREW 9/64-40 L= 4.5 | 2 |
| 39 | B1402-761-0A0 | NEEDLE BAR CONNECTION | 1 |
| 40 | SS-7090910-TP | SCREW 9/64-40 L= 8.5 | (1) |
| 41 | 400-09086 | OIL FELT RETAINER | 1 |
| 42 | 400-09083 | NEEDLE BAR | 1 |
| 43 | 400-09093 | NEEDLE BAR BOBBIN THREAD GUIDE | 1 |
| 44 | SS-4080415-SP | SCREW 1/8-44 L=4 | 1 |
| 45 | MDP-5J0B1100 | NEEDLE DPX5 #11J | 1 |
| 46 | B1451-771-00A | NEEDLE BAR THREAD GUIDE | 1 |
| 47 | MC-2005E07-50 | NEEDLE 134SES 75 | 1 |
| 48 | MDP-5J0B1400 | NEEDLE DPX5 #14J | 1 |
| 49 | SS-8150920-SP | SET-SCREW | 1 |
| 50 | MC-2005007-50 | NEEDLE 134 NM75 | 1 |
| 51 | 400-09077 | BUSHING | 1 |
| 52 | CQ-2520000-00 | OIL WICK | 0.25 |
Page 19 — 7. OVEREDGING WIDTH ADJUSTING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-09092 | STITCH WIDTH REGULATING SCREW | 3 |
| 2 | SS-9201973-CP | SCREW 5/16-18 L=19 | 1 |
| 3 | NM-6080721-SE | NUT M8 | 1 |
| 4 | NS-6200520-SP | NUT 5/16-18 | 3 |
| 5 | 400-09078 | NEEDLE THROW REPOSITIONING LEV | 1 |
| 6 | SS-6121210-SP | SCREW 3/16-28 L=12 | 2 |
| 7 | 400-09107 | REPOSITIONING LIVER TRIP PIN A | 1 |
| 8 | 400-09110 | PIN | (1) |
| 9 | 400-09109 | ROLLER | (1) |
| 10 | 400-09108 | REPOSITIONING LEVER TRIP PIN | (1) |
| 11 | B1432-761-000 | SWING ARM STOPPER RUBBER | 1 |
| 12 | 400-09106 | REGULATING HINGE PIN | 1 |
| 13 | 400-09111 | REGULATING LEVER ASM. | 1 |
| 14 | 400-09113 | BELL CRANK | (1) |
| 15 | 400-09115 | REGULATING LEVER SHAFT | (1) |
| 16 | CQ-3030000-00 | OIL WICK | (0.1) |
| 17 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 18 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | (1) |
| 19 | 400-09114 | REGULATING LEVER BRACKET | (1) |
| 20 | 400-09112 | REGULATING LEVER | (1) |
| 21 | SS-4080415-SP | SCREW 1/8-44 L=4 | 2 |
| 22 | 400-09118 | SPRING | 1 |
| 23 | SS-4080415-SP | SCREW 1/8-44 L=4 | 2 |
| 24 | 400-09117 | BARRED WIDTH INDICATOR | 1 |
| 25 | SS-7151210-SP | SCREW 15/64-28 L=12 | 2 |
| 26 | SD-0790432-SP | HINGE SCREW D= 7.94 H= 4.3 | 1 |
| 27 | 400-09116 | ROLLER | 1 |
| 28 | B1425-771-000 | BEARING BRACKET | 1 |
| 29 | NS-6110310-SP | NUT 11/64-40 | 2 |
| 30 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | 2 |
| 31 | B1424-761-000 | NEEDLE THROW REPOSITIONING SHA | 1 |
| 32 | SS-7150940-SP | SCREW 15/64-28 L=9 | 2 |
| 33 | B1421-761-0A0 | BEARING BRACKET ASM. | 2 |
| 34 | CQ-2520000-00 | OIL WICK | (0.1) |
| 35 | 400-09105 | CONNECTING PIN | (1) |
| 36 | B1418-761-0A0 | CONNECTING FORKED LINK PIN ASM | 1 |
| 37 | CQ-2520000-00 | OIL WICK | (0.1) |
| 38 | 400-09103 | CONNECTING FORKED LINK PIN | (1) |
| 39 | NS-6110310-SP | NUT 11/64-40 | 2 |
| 40 | B1419-761-0A0 | CONNECTING STUD ASM. | 1 |
| 41 | CQ-2520000-00 | OIL WICK | (0.1) |
| 42 | 400-09104 | CONNECTING STUD | (1) |
| 43 | 400-09089 | SUSPENSION SCREW | 2 |
| 44 | 261-00008 | CONNECTING FORKED LINK | 1 |
| 45 | B1427-771-000 | SPRING | 1 |
| 46 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 47 | 400-09094 | SWING ARM STOPPER ASM | 1 |
| 48 | 400-09081 | SEAM WIDTH INDICATOR | 1 |
| 49 | SS-4080415-SP | SCREW 1/8-44 L=4 | 2 |
| 50 | 400-09094 | SWING ARM STOPPER ASM | 1 |
| 51 | 400-09102 | REGULATING LEVER CONNECTION | 1 |
| 52 | 261-00107 | REPOSITIONING LIVER LINK | 1 |
| 53 | SS-8111251-SP | SCREW 11/64-40 L=12.0 | 2 |
| 54 | B1426-771-000 | SPRING | 1 |
| 55 | SD-0640471-SP | HINGE SCREW D= 6.35 H= 4.7 | 1 |
Page 21 — 8. NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2001-771-0A0 | NEEDLE THREAD TRIMMER ASM. | 1 |
| 2 | B2001-771-000 | NEEDLE THREAD TRIMMER,LOWER | (1) |
| 3 | B2005-761-000 | POSITION PIN | (1) |
| 4 | B2002-771-0A0 | NEEDLE THREAD TRIMMER, UPPER | (1) |
| 5 | B2003-771-000 | NEEDLE THREAD PRESSER SPRING | (1) |
| 6 | SD-0400191-TP | HINGE SCREW D=4 H=1.9 | (1) |
| 7 | SS-7110510-SP | SCREW 11/64-40 L=5 | 2 |
| 8 | SS-4150715-SP | SCREW 15/64-28 L=7 | 1 |
| 9 | 400-09179 | NEEDLE THREAD TRIMMER SHAFT GU | 1 |
| 10 | B2063-781-0B0-A | THREAD TRIMMER HOLDER ASM. | 1 |
| 11 | SM-8061002-TP | SCREW M6 L=10 | (2) |
| 12 | 400-09160 | THREAD TRIMMER HOLDER ASM. | 1 |
| 13 | SM-8061002-TP | SCREW M6 L=10 | 2 |
| 14 | 400-08607 | LIMITTING PLATE | 1 |
| 15 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 16 | 400-09168 | DRAIVING CAM SPRING | 1 |
| 17 | 400-09169 | DRAIVING CAM SPRING AXLE | 1 |
| 18 | SD-0450401-SP | HINGE SCREW D= 4.5 H= 4 | 1 |
| 19 | 400-08608 | DRIVING CAM INSTALING PLATE | 1 |
| 20 | SD-0790303-SP | HINGE SCREW D= 7.94 H= 3.0 | 1 |
| 21 | 400-09167 | DIFFERENTIAL FEED CAM | 1 |
| 22 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 2 |
| 23 | PS-0300102-KO | SPRING PIN 3.0X10 | 1 |
| 24 | B2010-771-000 | BRACKET | 2 |
| 25 | 400-09163 | THREAD TRIMMER SPRING A | 1 |
| 26 | SS-6621212-TP | SCREW 3/16-32 L=12.0 | 4 |
| 27 | 400-09330 | THREAD SHAFT GUIDE BASE | 1 |
| 28 | 400-09164 | THREAD TRIMMER SPRING B | 1 |
| 29 | B2007-771-0B0 | NEEDLE THREAD TRIMMER SHAFT AS | 1 |
| 30 | 400-09193 | NEEDLE THREAD TRIMMER SHAFT | (1) |
| 31 | 260-23200 | CAM ROLL | (1) |
| 32 | SS-6080610-TP | SCREW 1/8-44 L=6 | (1) |
| 33 | 400-09195 | STUD | (1) |
| 34 | 400-09196 | SUSPENSION SCREW | (1) |
| 35 | 400-09186 | LATCH PRESSER ARM | 1 |
| 36 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 2 |
| 37 | 400-09191 | SPACER | 1 |
| 38 | 400-09181 | LOCKING BRACKET LATCH ASM. | 1 |
| 39 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 40 | B2030-771-000 | THREAD TRIMMING SHAFT SEGMENT | 1 |
| 41 | SD-0641003-SP | HINGE SCREW D=6.35 H=10 | 1 |
| 42 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 43 | NS-6080210-SP | NUT 1/8-44 | 1 |
| 44 | NS-6080340-SP | NUT 1/8-44 | 1 |
| 45 | 400-09188 | ROLLER | 1 |
| 46 | B2032-771-000 | STUD | 1 |
| 47 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
Page 23 — 9. BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2401-771-0AO | NEEDLE PLATE ASM. | 1 |
| 2 | B2402-771-000 | NEEDLE PLATE | (1) |
| 3 | SS-2090510-SP | SCREW 9/64-40 L=5 | (2) |
| 4 | B2401-771-0BO | THROAT PLATE BASE ASM. | (1) |
| 5 | B2406-771-0AO | BOBBIN THREAD TRIMMER BLADE AS | (1) |
| 6 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | (1) |
| 7 | B2408-771-000-A | COUNTER KNIFE | (1) |
| 8 | SS-4080310-SP | SCREW 1/8-44 L=3.4 | (2) |
| 9 | B2404-771-000 | BOBBIN THREAD TRIMMER LEVER | (1) |
| 10 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | (1) |
| 11 | WP-0451016-SP | WASHER 4.5X20X1 | (1) |
| 12 | B2405-771-000 | BOBBIN THREAD PULLER | (1) |
| 13 | SS-6090440-SP | SCREW 9/64-40 L= 4.0 | (2) |
| 14 | SS-6090630-TP | SCREW 9/64-40 L=6 | 4 |
| 15 | 400-09218 | BOBBIN PICKER STOPPER | 1 |
| 16 | B2416-771-000 | PRESSER PLATE | 1 |
| 17 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 18 | 400-09220 | BOBBIN PICKER PRESSER PLATE | 1 |
| 19 | SD-0630272-SP | HINGE SCREW | 1 |
| 20 | B2422-771-000 | BOBBIN PICKER BRACKET | 1 |
| 21 | SS-7090620-TP | SCREW 9/64-40 L=6.1 | 1 |
| 22 | 400-09217 | BOBBIN PICKER BRACKET SHAFT | 1 |
| 23 | 400-09215 | BOBBIN WINDER TRIP LATCH | 1 |
| 24 | 400-09223 | SAFETY STOPPER | 1 |
| 25 | SS-6110610-TP | SCREW 11/64-40 L=6 | 1 |
| 26 | 400-09222 | PRESSER PLATE ADJUSTING SPRING | 1 |
| 27 | 400-09219 | PRESSER PLATE MOUNTING BASE | 1 |
| 28 | 400-09214 | BOBBIN THREAD TRIMMER LINK | 1 |
| 29 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 30 | 400-09221 | PRESSER PLATE ADJUSTING SCREW | 1 |
| 31 | SD-0640321-SP | HINGE SCREW D= 6.35 H= 3.2 | 1 |
| 32 | SD-0640602-SP | HINGE SCREW D= 6.35 H= 6.0 | 1 |
| 33 | B2417-771-000 | BOBBIN THREAD GUIDE | 1 |
| 34 | SS-4090415-SP | SCREW 9/64-40 L=4 | 2 |
| 35 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 36 | SD-0790602-SP | HINGE SCREW D= 7.94 H= 6 | 1 |
| 37 | 400-09210 | BOBBIN THREAD TRIMMER DRIVING | 1 |
| 38 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 39 | SS-7110570-SP | SCREW 11/64-40 L= 4.8 | 1 |
| 40 | 400-09211 | CONNECTING LINK | 1 |
| 41 | B2414-761-000 | STOP SCREW | 1 |
| 42 | NS-6680320-SP | NUT 9/32-28 | 1 |
| 43 | B2416-761-000 | HING STUD | 1 |
| 44 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 45 | 400-09209 | BOBBIN THREAD TRIMMER DRIVING | 1 |
| 46 | SD-0790641-SP | HINGE SCREW D= 7.94 H= 6.4 | 1 |
| 47 | B2412-047-000 | BALL SCREW | 1 |
| 48 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
Page 25 — 10. KNIFE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-09302 | KNIFE STOP LEVER BRACKET | 1 |
| 2 | PS-0300182-KF | SPRING PIN 3X18 | 1 |
| 3 | SS-7110740-TP | SCREW 11/64-40 L=7 | 2 |
| 4 | B2729-771-000 | KNIFE STOP LEVER | 1 |
| 5 | SS-6110420-TP | SCREW 11/64-40 L=4.8 | 2 |
| 6 | 400-09300 | KNIFE STOP LEVER HINGE STUD | 1 |
| 7 | B2731-761-000 | THREAD CHECK WIRE | 1 |
| 8 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 9 | B2702-771-000-A | KNIFE BAR | 1 |
| 10 | 400-09280 | KNIFE ROD GUIDE PLATE A | 1 |
| 11 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 12 | 400-09290 | HINGE STUD | 1 |
| 13 | B2706-761-000 | KNIFE BAR CONNECTING LINK | 1 |
| 14 | B2705-761-000 | HINGE SCREW | 1 |
| 15 | NS-6660430-SP | NUT 1/4-40 | 1 |
| 16 | 400-09284 | KNIFE BAR POSITIONING BRACKET | 1 |
| 17 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 18 | B2701-761-000 | KNIFE HOLDER | 1 |
| 19 | B2740-771-000 | THRUST WASHER | 1 |
| 20 | SM-6061202-TP | SCREW M6 L=12 | 2 |
| 21 | B2702-047-L00-A | KNIFE 1/2 | 1 |
| 22 | WP-0501016-SD | WASHER 5X10.5X1 | 1 |
| 23 | SS-7620750-SP | SCREW 3/16-32 L= 6.5 | 1 |
| 24 | B2751-781-000 | KNIFE BAR DRIVING LEVER | 1 |
| 25 | SS-7110810-SP | SCREW 11/64-40 L= 8.0 | 1 |
| 26 | B2710-771-000 | SPRING | 1 |
| 27 | SD-0550501-SP | HINGE SCREW D=5.5 H=5 | 1 |
| 28 | 400-09264 | KNIFE BAR STOPPER ASM. | 1 |
| 29 | 400-09265 | KNIFE BAR STOPPER | (1) |
| 30 | 400-09266 | STOPPER BUSH | (1) |
| 31 | NS-6740510-SP | NUT 3/8-28 | 1 |
| 32 | SD-0790201-SD | HINGE SCREW D=7.9 H=2.0 | 1 |
| 33 | NS-6700540-SP | NUT 5/16-24 | 1 |
| 34 | 400-09294 | KNIFE BAR DRIVING CRANK NUT | 1 |
| 35 | B2718-761-000 | TENSION SPRING | 1 |
| 36 | 400-09292 | LATCH | 1 |
| 37 | SS-7161040-SP | SCREW 1/4-24 L= 9.5 | 1 |
| 38 | 400-09291 | KNIFE BAR DRIVING CRANK | 1 |
| 39 | CQ-2520000-00 | OIL WICK | 0.4 |
| 40 | B3537-122-000 | OIL WICK HOLDER | 1 |
| 41 | SS-4090610-SP | SCREW 9/64-40 L=6 | 1 |
| 42 | SM-6062002-TP | SCREW M6 L=20 | 4 |
| 43 | SD-1110905-TH | HINGE SCREW D=11.11 H= 9.0 | 1 |
| 44 | 261-05809 | KNIFE BAR DRIVING CRANK SHAFT | 1 |
| 45 | 400-09304 | SPACER | 1 |
| 46 | 400-09441 | KNIFE BAR DRIVING LEVER BELL C | 1 |
| 47 | SS-8111610-SP | SCREW 11/64-40 L=15.5 | 1 |
| 48 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 49 | SD-1110905-TH | HINGE SCREW D=11.11 H= 9.0 | 1 |
| 50 | 400-09277 | HOOK PIN NUT | 1 |
| 51 | 400-09278 | HOOK PIN | 1 |
| 52 | B2416-761-000 | HING STUD | 1 |
| 53 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 54 | B2725-761-000 | TENSION SPRING | 1 |
| 55 | B2724-761-000 | RATCHET PAWL (B) | 1 |
| 56 | B2723-761-0A0-A | HOOK DIFFERENTIAL CLICK A ASM. | 1 |
| 57 | B2723-761-000-A | HOOK DIFFERENTIAL CLICK A | (1) |
| 58 | 101-20004 | SPRING SUSPENSION | (1) |
| 59 | B1110-280-000 | THREAD CUTTING LINK SPRING RAC | (1) |
| 60 | B2726-761-000-A | TENSION SPRING | 1 |
| 61 | SD-0530221-SP | HINGE SCREW D= 5.3 H= 2.2 | 1 |
| 62 | 400-09270 | DRIVING ROD | 1 |
| 63 | 400-09299 | TENSION SPRING | 1 |
| 64 | 400-09305 | SUSPENSION SCREW | 1 |
| 65 | 400-09274 | FINGER | 1 |
| 66 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 2 |
| 67 | 400-09303 | POSITIONING PIN (B) | 1 |
| 68 | NS-6200520-SP | NUT 5/16-18 | 1 |
| 69 | B2709-771-000 | KNIFE BAR DRIVING LEVER SHAFT | 1 |
Page 27 — 11. FEED CAM & TRIPPING SEGMENT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2935-761-000 | SPUR GEAR (152) | 1 |
| 2 | B2916-761-0A0 | SPUR GEAR BUSHING ASM. | 2 |
| 3 | B2917-761-000 | SPUR GEAR BUSHING PIN | (4) |
| 4 | SS-7120910-TP | SCREW 3/16-28 L=9 | (4) |
| 5 | B2913-761-0A0 | CLUTCH COLLAR ASM. | 2 |
| 6 | SS-8660610-TP | SCREW 1/4-40 L=6 | (1) |
| 7 | SS-8660410-SP | SCREW 1/4-40 L= 4.2 | (1) |
| 8 | 400-09314 | CLUTCH COLLAR | (1) |
| 9 | B2919-761-000 | FEED CAM DRIVING WORM WHEEL | 1 |
| 10 | 400-09316 | FEED CAM DRIVING WORM WHEEL SH | 1 |
| 11 | B3542-771-000 | OIL FELT | 1 |
| 12 | 261-07201 | CAM DRIVING STUD | 1 |
| 13 | B2934-761-000 | SPUR GEAR (123) | 1 |
| 14 | B2915-761-B00 | HANDLE CRANK BEVEL GEAR, LEFT | 1 |
| 15 | B2915-761-AA0 | HANDLE CRANK BEVEL GEAR ASM., | 1 |
| 16 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 17 | CS-111101D-SH | THRUST COLLAR ASM. D=11.11 W=1 | 1 |
| 18 | SS-8660530-TP | SCREW 1/4-40 L= 4.5 | (2) |
| 19 | 400-09318 | HANDLE CRANK SHAFT | 1 |
| 20 | B2923-761-000 | HANDLE CRANK | 1 |
| 21 | 400-09319 | HANDLE CRANK | 1 |
| 22 | SS-8150510-TP | SCREW 15/64-28 L= 4.7 | 2 |
| 23 | SS-8620610-SP | SCREW 3/16-32 L=6 | 1 |
| 24 | 400-09320 | HANDLE | 1 |
| 25 | 400-09321 | HANDLE SHAFT | 1 |
| 26 | B2910-761-0A0 | FEED CAM DRIVING GEAR ASM. | 1 |
| 27 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 28 | NM-6120001-CP | NUT M12 | 1 |
| 29 | B2909-761-000 | THRUST WASHER | 1 |
| 30 | 400-09312 | FEED CAM SHAFT | 1 |
| 31 | B2901-771-00C | FEED CAM | 1 |
| 32 | WP-0982616-SP | WASHER 9.8X24.0X2.6 | 1 |
| 33 | SS-9241513-CP | SCREW 3/8-18 L=15 | 1 |
| 34 | SS-7111410-TP | SCREW 11/64-40 L=14 | 4 |
| 35 | B2902-761-B00 | BAR TRIPPING SEGMENT NO.2 (B) | 1 |
| 36 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 10 |
| 37 | SS-6111610-SP | SCREW 11/64-40 L=16 | 10 |
| 38 | B2904-771-000 | KNIFE TRIPPING SEGMENT | 1 |
| 39 | 400-09309 | TENSION RELEASE TRIPPING SEGME | 1 |
| 40 | 400-09310 | TENSION RELEASE TRIPPING SEGME | 1 |
| 41 | B2906-761-B00 | TRIPPING SEGMENT NO.2, UNDER 8 | 1 |
| 42 | 261-00909 | BAR TRIPPING SEGMENT NO.1 | 2 |
| 43 | B2903-761-B00 | BAR TRIPPING SEGMENT NO.2 (B) | 1 |
| 44 | 261-00800 | LOW-SPEED CAM | 1 |
| 45 | 261-04604 | STOPPER CAM | 1 |
| 46 | B2914-761-000 | CLUTCH SPRING | 2 |
Page 28 — 12. STOP-MOTION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 262-12308 | BELT COVER SETSCREW | 1 |
| 2 | B2653-771-000 | TENSION SPRING | 1 |
| 3 | B2613-232-000 | STOP LINK ROD HINGE SCREW | 1 |
| 4 | 261-06807 | UPPER SHAFT STOPPER | 1 |
| 5 | NS-6620310-SP | NUT 3/16-32 | 1 |
| 6 | 261-07300 | STOPPER PIN | 1 |
| 7 | B2611-232-000 | STOP LINK CONNECTING SCREW | 1 |
| 8 | 261-07508 | STOP LINK ROD HINGE STUD | 1 |
| 9 | B2604-771-000-B | STOP MOTION LEVER | 1 |
| 10 | 400-09228 | BELT SHIFTER | 1 |
| 11 | SS-4150715-SP | SCREW 15/64-28 L=7 | 2 |
| 12 | WP-0650876-SD | WASHER 6.5X13X0.8 | 2 |
| 13 | 400-09254 | INSTALLING BASE PIN | 1 |
| 14 | RC-1200001-KP | C-SHAPED SNAP RING | 1 |
| 15 | RC-1200001-KP | C-SHAPED SNAP RING | 1 |
| 16 | B2648-232-000 | STOP PIN | 1 |
| 17 | 400-09229 | LATCH (A) | 1 |
| 18 | SM-6061602-TP | SCREW M6 L=16 | 1 |
| 19 | WS-0610002-KP | SPRING WASHER | 1 |
| 20 | SM-6062002-TP | SCREW M6 L=20 | 1 |
| 21 | NS-6150430-SP | NUT 15/64-28 | 1 |
| 22 | SS-6153040-SP | SCREW 15/64-28 L=30 | 1 |
| 23 | 400-09249 | STOP LINK ROD | 1 |
| 24 | 400-09251 | STOP LINK ROD PRESSURE SPRING | 1 |
| 25 | 400-09252 | SPRING SUPPORT NUT | 1 |
| 26 | NS-6240630-SP | NUT 3/8-18 | 1 |
| 27 | B2601-761-000-A | STOP MOTION LEVER BRACKET | 1 |
| 28 | SM-6102002-TP | SCREW M10 L=20 | 2 |
Page 29 — 13. TRIPPING LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-09255 | STARTING LINK COMPL. | 1 |
| 2 | 400-09256 | STARTING LINK ASM. | (1) |
| 3 | 400-09259 | SAFETY BASE | (1) |
| 4 | SS-7110710-SP | SCREW 11/64-40 L=7 | (1) |
| 5 | B2416-761-000 | HING STUD | 1 |
| 6 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 7 | 400-09233 | HINGE SCREW | 2 |
| 8 | NS-6150310-SP | NUT 15/64-28 | 2 |
| 9 | 400-09245 | STARTING LINK DRIVING ROD | 1 |
| 10 | SD-0790451-SP | HINGE SCREW D= 7.94 H= 4.5 | 1 |
| 11 | CS-079101B-SH | THRUST COLLAR ASM. D=7.94 W=10 | 1 |
| 12 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 13 | SS-8110510-SP | SCREW 11/64-40 L=5 | (1) |
| 14 | 400-09247 | CRANK SHAFT TENSION SPRING | 1 |
| 15 | 400-09241 | HAND STOP CRANK SHAFT | 1 |
| 16 | SS-6111010-TP | SCREW 11/64-40 L= 9.5 | 2 |
| 17 | B2608-761-000 | HAND STOP CRANK SHAFT BALL | 1 |
| 18 | B2611-761-000 | CRANK SHAFT PRESSURE SPRING | 1 |
| 19 | 400-09242 | HAND STOP ROD B | 1 |
| 20 | B2610-761-0AO | HAND STOP CRANK ASM. | 1 |
| 21 | B2610-761-0AA | HAND STOP CRANK ASM. | 1 |
| 22 | SS-8150510-TP | SCREW 15/64-28 L= 4.7 | 2 |
| 23 | B2617-771-000 | TRIPPING LEVER TENSION SPRING | 1 |
| 24 | 400-09262 | WASHER | 1 |
| 25 | SS-7150940-SP | SCREW 15/64-28 L=9 | 1 |
| 26 | NM-6060001-CP | NUT M6 | 1 |
| 27 | 400-09238 | LATCH (B) | 1 |
| 28 | SM-6062002-TP | SCREW M6 L=20 | 2 |
| 29 | WS-0610002-KP | SPRING WASHER | 1 |
| 30 | B2651-781-000-A | TRIPPING LEVER | 1 |
| 31 | 400-09243 | TRIPPING DOG | 1 |
| 32 | 400-09116 | ROLLER | 1 |
| 33 | SD-0640471-SP | HINGE SCREW D= 6.35 H= 4.7 | 1 |
| 34 | 400-09260 | TRIPPING LEVER HINGE PIN ASM. | 1 |
| 35 | 400-09261 | TRIPPING LEVER HINGE PIN | (1) |
| 36 | RC-1021011-KP | RETAINING RING 10.2 | (1) |
Page 31 — 14. LIFTING LEVER & BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3404-771-000 | PRESSER BAR LIFTING ROD, LONG | 1 |
| 2 | RE-0500000-KO | E-RING | 2 |
| 3 | SD-0720331-SP | HINGE SCREW D= 7.24 H= 3.3 | 2 |
| 4 | B3402-771-0A0 | LEVER ASM., FRONT | 1 |
| 5 | B3406-761-000 | LINK | 1 |
| 6 | PD-0201000-0B | SPLIT PIN | 2 |
| 7 | B3408-771-0A0 | LEVER ASM., REAR | 1 |
| 8 | B3403-761-000 | PRESSER BAR LIFTING ROD | 1 |
| 9 | 400-09262 | WASHER | 1 |
| 10 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 11 | 400-09357 | LIFTING LEVER STOPPER | 1 |
| 12 | 261-06658 | LIFTING LEVER ASM. | 1 |
| 13 | WP-0740516-SP | WASHER 7.4X11.8X0.5 | 1 |
| 14 | B3451-781-000 | PRESSER FOOT LIFTING SPRING | 1 |
| 15 | 262- 12308 | BELT COVER SETSCREW | 2 |
| 16 | 400-09348 | BOBBIN WINDER TENSION ASM. | 1 |
| 17 | 262-16507 | BOBBIN WINDER TENSION NUT | (1) |
| 18 | 262-16606 | BOBBIN WINDER TENSION SPRING | (1) |
| 19 | 229~-45802 | THREAD TENSION DISK | (2) |
| 20 | 262-16705 | BOBBIN WINDER TENSION POST | (1) |
| 21 | 262-16705 | BOBBIN WINDER TENSION POST | (1) |
| 22 | 400-09349 | BOBBIN WINDER TENSION | (1) |
| 23 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 4 |
| 24 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 25 | 261-03150 | BOBBIN WINDER ASM. | 1 |
| 26 | 261-03101 | BOBBIN WINDER BRACKET | (1) |
| 27 | 261-04208 | NUT | (1) |
| 28 | 261-04307 | NUT | (1) |
| 29 | 261-03705 | BOBBIN WINDER SPRING | (1) |
| 30 | SD-0450401-SP | HINGE SCREW D= 4.5 H= 4 | (1) |
| 31 | 261 ~-03903 | BOBBIN STOP SPRING | (1) |
| 32 | SS-6090620-SP | SCREW 9/64-40 L=6 | (3) |
| 33 | 261-03309 | PULLEY SHAFT BASE | (1) |
| 34 | 261-03507 | BOBBIN WINDER SHAFT | (1) |
| 35 | 261~-04109 | COLLAR | (1) |
| 36 | SD-0790433-TP | HINGE SCREW D= 7.94 H= 4.3 | (1) |
| 37 | 261-03408 | BOBBIN WINDER SHAFT BUSHING | (1) |
| 38 | SS-8120740-SP | SCREW 3/16-28 L=7 | (2) |
| 39 | 261-03200 | BOBBIN WINDER DRIVING PULLEY | (1) |
| 40 | WP-0651056-SD | WASHER 6.5X11X1 | (1) |
| 41 | 261-03606 | BOBBIN WINDER TRIP LATCH | (1) |
| 42 | 261-03804 | BOBIN GUIDE SPRING | (1) |
| 43 | SS-7090520-SP | SCREW 9/64-40 L= 4.5 | (2) |
| 44 | 261-04000 | ADJUSTING SCREW | (1) |
| 45 | 261-04505 | NUT | (1) |
| 46 | 261-04406 | BOBBIN GUIDE SHAFT | (1) |
| 47 | 400-09260 | TRIPPING LEVER HINGE PIN ASM. | 1 |
| 48 | 400-09261 | TRIPPING LEVER HINGE PIN | (1) |
| 49 | RC-1021011-KP | RETAINING RING 10.2 | (1) |
Page 33 — 15. THREAD TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-09325 | TENSION RELEASE LINK | 1 |
| 2 | SD-0640391-TP | HINGE SCREW D= 6.35 H= 3.9 | 1 |
| 3 | B3152-781-000 | TENSION RELEASE LEVER | 1 |
| 4 | SS-6660712-TP | SCREW 1/4-40 L= 7.0 | 2 |
| 5 | SD-0640241-SP | HINGE SCREW D= 6.35 H= 2.4 | 1 |
| 6 | 400-09165 | BLOCKING LINK | 1 |
| 7 | SD-0640391-TP | HINGE SCREW D= 6.35 H= 3.9 | 1 |
| 8 | 400-09166 | BLOCKING ARM SPRING | 1 |
| 9 | SD-0790311-TP | HINGE SCREW D= 7.94 H= 3.1 | 1 |
| 10 | 400-08611 | BLOCKING ARM | 1 |
| 11 | 400-08609 | BLOCKING ARM BRACKET | 1 |
| 12 | NS-6110310-SP | NUT 11/64-40 | 2 |
| 13 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 14 | B3116-771-000 | TENSION RELEASE LEVER | 1 |
| 15 | SS-7621040-SP | SCREW 3/16-32 L= 9.5 | 1 |
| 16 | CS-0791010-SH | THRUST COLLAR ASM. D=7.94 W=10 | 1 |
| 17 | SS-8110520-TP | SCREW 11/64-40 L= 4.5 | (2) |
| 18 | 400-09327 | TENSION RELEASE LEVER CRANK AS | 1 |
| 19 | 400-09328 | TENSION RELEASE CRANK NO.2 | (1) |
| 20 | SD-0500301-SP | HINGE SCREW D= 5 H= 3 | (1) |
| 21 | NS-6090310-SP | NUT 9/64-40 | (1) |
| 22 | 400-09329 | TENSION RELEASE ROD | (1) |
| 23 | RO-0952001-00 | RUBBER RING | 1 |
| 24 | B3107-771-00B | TENSION RELEASE LEVER COLLAR N | 1 |
| 25 | SS-6111610-SP | SCREW 11/64-40 L=16 | 1 |
| 26 | B3110-771-0A0 | TENSION CONTROLLER NO.2 ASM. | 1 |
| 27 | 119-56703 | THREAD TENSION KNOB, RED | (1) |
| 28 | B3112-704-000 | TENSION SPRING BUSHING | (1) |
| 29 | B3101-804-000 | TENSION SPRING, RED | (1) |
| 30 | B3107-804-000 | THREAD TENSION DISK PRESSER | (1) |
| 31 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 32 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 33 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 34 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 35 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 36 | B3106-771-000 | TENSION RELEASE LEVER SHAFT | 1 |
| 37 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 38 | B3120-771-000 | THREAD PULLING WIRE | 1 |
| 39 | B3103-771-0A0 | TENSION CONTROLLER NO. 1 ASM. | 1 |
| 40 | 119-56703 | THREAD TENSION KNOB, RED | (1) |
| 41 | B3112-704-000 | TENSION SPRING BUSHING | (1) |
| 42 | B2017-372-000 | TENSION SPRING NO.1 | (1) |
| 43 | B3107-804-000 | THREAD TENSION DISK PRESSER | (1) |
| 44 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 45 | B3103-761-000 | TENSION RELEASE PIN NO.2 | (1) |
| 46 | B2019-372-000 | TENSION POST NO.2 | (1) |
| 47 | NS-6160520-SP | NUT 1/4-24 | (1) |
| 48 | B3102-771-0A0 | TENSION RELEASE ARM ASM. | 1 |
| 49 | SS-9660940-TP | SCREW 1/4-40 L=8.5 | (1) |
| 50 | SS-4150715-SP | SCREW 15/64-28 L=7 | 1 |
| 51 | B1111-232-000 | THREAD GUIDE PLATE | 1 |
| 52 | B3117-771-000 | SPRING | 1 |
| 53 | CS-0790720-TH | THRUST COLLAR ASM. | 1 |
| 54 | SS-7090720-TP | SCREW 9/64-40 L=6.8 | (2) |
| 55 | 400-09339 | TENSION RELEASE ROD | 1 |
| 56 | PS-0300182-KF | SPRING PIN 3X18 | 1 |
| 57 | SS-4110715-SP | SCREW 11/64-40 L=7 | 1 |
| 58 | 229-20706 | TWO EYELET | 1 |
| 59 | 400-09037 | TAKE-UP THREAD GUIDE | 1 |
| 60 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 1 |
| 61 | 400-09340 | NEEDLE BAR THREAD GUIDE | 1 |
| 62 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 63 | B3118-771-000 | TENSION THREAD GUIDE, NO.2 | 1 |
| 64 | B3114-771-000 | THREAD GUIDE | 1 |
| 65 | NS-6090310-SP | NUT 9/64-40 | 2 |
| 66 | B3118-552-D00 | TENSION RELEASE PIN, NO.2 | 1 |
| 67 | B3118-552-A00 | TENSION RELEASE PIN A | 1 |
| 68 | B3118-552-B00 | TENSION RELEASE PIN B | 1 |
| 69 | B3118-552-C00 | TENSION RELEASE PIN C | 1 |
| 70 | 229-20904 | TENSION RELEASE PIN | 1 |
| 71 | B3118-552-F00 | TENSION RELEASING PIN | 1 |
| 72 | B3118-552-G00 | TENSION RELEASE PIN | 1 |
| 73 | B3118-552-H00 | THREAD RELEASE PIN | 1 |
| CS-079101D-SH | THRUST COLLAR ASM. D=7.94 W= 10 | (2) | |
| B3102-771-000 | TENSION RELEASE ARM ASM. | (1) | |
| B111-232-000 | THREAD GUIDE PLATE | 1 |
Page 35 — 16. LUBRICATION MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-09374 | OIL FELT HOLDER | 1 |
| 2 | B3549-771-000 | OIL RETURN FELT (A) | 1 |
| 3 | B3568-771-000 | OIL RETURN TUBE | 1 |
| 4 | B3571-771-000 | PIPE HOLDER | 1 |
| 5 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 6 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | 4 |
| 400-09369 | PIPE HOLDER | ||
| BP-6000000-00 | VINYL PIPE | 0.1 | |
| BP-5000000-00 | VINYL PIPE | 0.05 | |
| BP-3000000-00 | VINYL PIPE | 0.55 | |
| SQ-1110402-MZ | CONNECTING SCREW | 4 | |
| B3534-012-000 | GASKET | 1 | |
| B3534-155-000 | PLUNGER | 1 | |
| B1214-038-000 | PLUNGER SPRING | 1 | |
| 400-09361 | THRUST PLATE | 1 | |
| SS-4150715-SP | SCREW 15/64-28 L=7 | 1 | |
| 400-09373 | OIL FELT GUIDE | 1 | |
| B3560-771-000 | OIL FELT | 1 | |
| B1135-771-0A0 | OIL SHIELD | 1 | |
| SS-4110515-SP | SCREW 11/64-40 L=5 | 1 | |
| B3561-771-000 | OIL UNWOVEN CLOTH | 1 | |
| B1148-771-000 | OIL FELT | 1 | |
| B1147-771-000 | OIL FELT | 1 | |
| B3563-771-000-A | OIL SHIELD | 1 | |
| B1124-771-000 | CUSHION | 1 | |
| B1154-781-000 | BELT GUARD | 1 | |
| B1154-781-00A | BELT GUARD | 1 | |
| SS-4110815-SP | SCREW 11/64-40 L=8 | 2 | |
| 400-09001 | PLATE SPRING | 1 | |
| 400-09365 | SET NUT | 1 | |
| B1156-781-000 | RUBBER BUSHING | 0.1 | |
| BP-8000000-00 | VINYL TUBE, WHITE D=8 | 0.1 | |
| CQ-3030000-00 | OIL WICK | 1 | |
| 400-09360 | OIL PUMP BASE | 1 | |
| B3570-771-000 | FILTER OIL FELT | 2 | |
| B3546-771-000 | OIL FELT | 1 | |
| 400-09375 | SPRING | 1 | |
| 400-09366 | FILTER SCREEN | 1 | |
| 400-09379 | BUSHING HOLDER | 1 | |
| SS-7090910-SP | SCREW 9/64-40 L=8.5 | 1 | |
| NS-6090310-SP | NUT 9/64-40 | 8 | |
| NS-6150310-SP | NUT 15/64-28 | 1 | |
| 400-08996 | DRIVING PIN BASE | 1 | |
| B1151-781-0A0-A | MACHINE BASE ASM. | 1 | |
| B1151-781-0AA-A | MACHINE BASE ASM. | 1 | |
| B1151-781-000-A | MACHINE BASE | (1) | |
| B1151-781-00A | HEAD BASE | (2) | |
| 400-09035 | RUBBER CUSHION | (4) | |
| SS-7111120-SP | SCREW 11/64-40 L=10.5 | (4) | |
| B1122-761-000 | HINGE HOLDER | (2) | |
| 261-09207 | HINGE HOLDER | (2) | |
| B1120-761-000 | PIN | (2) | |
| SM-6062002-TP | SCREW M6 L=20 | (4) | |
| WP-0621016-SD | WASHER 6.2X13X1 | (4) | |
| SS-6741010-SP | SCREW 3/8-28 L=10 | (4) | |
| B8219-125-000 | OIL DRAIN CAP GASKET | (2) | |
| 400-09244 | STARTING LEVER PRESSURE SPRING | (1) | |
| SM-9082003-CP | SCREW M8 L=20 | (1) | |
| 400-09235 | STOP SCREW ASM. | (1) | |
| NM-6080721-SE | NUT M8 | (1) | |
| SS-7151210-SP | SCREW 15/64-28 L=12 | (1) | |
| 400-09231 | STARTING LINK SHAFT | (1) | |
| SS-9150860-SP | SCREW 15/64-28 L=8 | (1) | |
| SS-8150710-SP | SCREW 15/64-28 L=7 | (1) | |
| 261-07409 | STARTING LINK | (1) | |
| B2655-781-000 | STARTING LEVER | (1) | |
| RE-0600000-KO | E-RING 6 | 1 | |
| B7160-781-0A0 | SHIFTER DRIVING PIN | 1 | |
| SS-7112420-SP | SCREW 11/64-40 L=24 | 3 | |
| B1133-761-000 | MACHINE BASE FELT PAD | 4 | |
| B1153-771-000 | MACHINE BASE SCREW STUD | 4 | |
| WP-0612056-SD | WASHER 6.2X13X2 | 4 | |
| B8213-012-000 | BED HINGE CONNECTION | 2 | |
| BP-4000000-00 | VINYL TUBE, WHITE D=4 | 0.03 |
Page 36 — 17. SPEED TRANSMITTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 93403-10016 | BOLT | |
| 2 | 90105-06017 | BOLT | |
| 3 | 90105-06017 | BOLT | |
| 4 | 90105-06017 | BOLT | |
| 5 | 90105-06017 | BOLT | |
| 6 | 90105-06017 | BOLT | |
| 7 | 90105-06017 | BOLT | |
| 8 | 90105-06017 | BOLT | |
| 9 | 90105-06017 | BOLT | |
| 10 | 90105-06017 | BOLT | |
| 11 | 90105-06017 | BOLT | |
| 12 | 90105-06017 | BOLT | |
| 13 | 90105-06017 | BOLT | |
| 14 | 93306-20617 | BEARING | |
| 15 | 93306-20617 | BEARING | |
| 16 | 93403-10016 | BOLT | |
| 17 | 90105-06017 | BOLT | |
| 18 | 90201-06001 | WASHER | |
| 19 | 90105-06017 | BOLT | |
| 20 | 90105-06017 | BOLT | |
| 21 | 54611-26800 | BRACKET, SPEED TRANSMITTER | |
| 22 | 90601-10001 | CIRCLIP | |
| 23 | 90105-06017 | BOLT | |
| 24 | 90201-06001 | WASHER | |
| 25 | 90105-06017 | BOLT | |
| 26 | 90105-06017 | BOLT | |
| 27 | 90105-06017 | BOLT | |
| 28 | 90105-06017 | BOLT | |
| 29 | 93306-20617 | BEARING | |
| 30 | 90201-06001 | WASHER | |
| 31 | 90105-06017 | BOLT | |
| 32 | 90105-06017 | BOLT | |
| 33 | 54612-26800 | SHAFT, SPEED TRANSMITTER | |
| 34 | 93306-20617 | BEARING | |
| 35 | 54613-26800 | PULLEY, SPEED TRANSMITTER | |
| 36 | 54614-26800 | PULLEY, SPEED TRANSMITTER | |
| 37 | 93306-20617 | BEARING | |
| 38 | 90201-06001 | WASHER | |
| 39 | 90105-06017 | BOLT | |
| 40 | 94511-17070 | SPRING, COMPRESSION | |
| 41 | 54615-26800 | BRACKET, SPEED TRANSMITTER | |
| 42 | 90105-06017 | BOLT | |
| 43 | 90105-06017 | BOLT | |
| 44 | 90105-06017 | BOLT | |
| 45 | 90105-06017 | BOLT | |
| 46 | 90105-06017 | BOLT | |
| 47 | 90105-06017 | BOLT | |
| 48 | 90105-06017 | BOLT | |
| 49 | 90105-06017 | BOLT | |
| 50 | 90105-06017 | BOLT | |
| 51 | 90105-06017 | BOLT | |
| 52 | 90105-06017 | BOLT | |
| 53 | 90105-06017 | BOLT | |
| 54 | 90105-06017 | BOLT | |
| 55 | 54616-26800 | LEVER, SPEED TRANSMITTER | |
| 56 | 90105-06017 | BOLT | |
| 57 | 90105-06017 | BOLT | |
| 58 | 90105-06017 | BOLT | |
| 59 | 90105-06017 | BOLT | |
| 60 | 90105-06017 | BOLT | |
| 61 | 54617-26800 | BRACKET, SPEED TRANSMITTER | |
| 62 | 90105-06017 | BOLT |
Page 37 — 17. SPEED TRANSMITTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B7180-781-0A0 | TENSION PULLEY ASM. | 1 |
| 2 | 400-09388 | TENSION PULLEY BRACKET | (1) |
| 3 | NS-6150430-SP | NUT 15/64-28 | (1) |
| 4 | 400-09392 | TENSION LEVER | (1) |
| 5 | B4419-372-000 | NIPPER BAR ACTUATING LEVER SPR | (1) |
| 6 | 400-09393 | FIXING PAWL | (1) |
| 7 | SD-0450211-SP | HINGE SCREW D= 4.50 H= 2.1 | (1) |
| 8 | B7186-781-000 | RATCHET | (1) |
| 9 | SS-7110710-SP | SCREW 11/64-40 L=7 | (2) |
| 10 | 400-09395 | LEVER COLLAR | (1) |
| 11 | 400-09391 | TENSION SPRING | (1) |
| 12 | 400-09390 | TENSION PULLEY LINK | (1) |
| 13 | SD-0902501-SP | HINGE SCREW D=9 H=25 | (1) |
| 14 | SB-1150002-00 | BEARING | (1) |
| 15 | 400-09389 | TENSION PULLEY | (1) |
| 16 | SD-1501101-SP | HINGE SCREW D=14.5 H=11 | (1) |
| 17 | SM-6061202-TP | SCREW M6 L=12 | 2 |
| 18 | WP-0651056-SH | WASHER 6.5X11X1 | 3 |
| 19 | SS-9152130-CP | SCREW 15/64-28 L=20.5 | 3 |
| 20 | B7151-781-0A0-B | SPEED TRANSMITTER ASM. | 1 |
| 21 | B7151-781-000-A | SPEED TRANSMITTER BRACKET | (1) |
| 22 | RE-1200000-KO | E-RING 12 | (1) |
| 23 | SM-6061202-TP | SCREW M6 L=12 | (2) |
| 24 | B1221-771-00A | HIGH SPEED WASHER FOR BEARING | (1) |
| 25 | 400-09235 | STOP SCREW ASM. | (1) |
| 26 | NS-6150310-SP | NUT 15/64-28 | (1) |
| 27 | B7158-781-000 | SHIFTER STOPPER BRACKET | (1) |
| 28 | SM-6061202-TP | SCREW M6 L=12 | (2) |
| 29 | SB-1150002-00 | BEARING | (2) |
| 30 | RC-3500002-KP | RETAINING RING 35 | (2) |
| 31 | B7155-781-000 | ACCELERATING PULLEY | (1) |
| 32 | SS-8150710-SP | SCREW 15/64-28 L=7 | (2) |
| 33 | B7154-781-000 | HIGH-SPEED PULLEY | (1) |
| 34 | SB-1450004-00 | BEARING | (2) |
| 35 | B7156-781-000-A | LOW-SPEED PULLEY | (1) |
| 36 | B7152-781-000-A | SPEED TRANSMITTER SHAFT | (1) |
| 37 | B7153-781-000 | SLEEVE | (1) |
| 38 | WP-1502500-SC | WASHER 15X24X2.5 | (1) |
| 39 | SS-7151210-SP | SCREW 15/64-28 L=12 | 2 |
| 40 | B7159-781-000 | SHIFTER TENSION SPRING | 1 |
| 41 | 261-01253 | SHIFTER BASE ASM. | 1 |
| 42 | 261-01204 | SHIFTER BASE | (1) |
| 43 | NS-6150310-SP | NUT 15/64-28 | (3) |
| 44 | 261-02004 | SHIFTER CAM SPRING | (1) |
| 45 | NS-6160520-SP | NUT 1/4-24 | (2) |
| 46 | 261-02202 | SHIFTER TENSION SPRING | (1) |
| 47 | 261-01402 | SHIFTER DRIVING ARM | (1) |
| 48 | 261-02509 | SHIFTER DRIVING ARM SCREW | (3) |
| 49 | 261-02103 | SHIFTER CAM ROLLER STUD | (1) |
| 50 | 261-02301 | SHIFTER CAM ROLLER | (1) |
| 51 | SS-6080610-TP | SCREW 1/8-44 L=6 | (1) |
| 52 | 261-01600 | SHIFTER INSTALLING PLATE | (1) |
| 53 | SD-0790802-SP | HINGE SCREW D= 7.94 H= 8.0 | (2) |
| 54 | 261-01501 | SHIFTER HOLDING ARM | (1) |
| 55 | 261-01709 | SPEED TRANSMITTER SHIFTER | (1) |
| 56 | SS-7161040-SP | SCREW 1/4-24 L= 9.5 | (2) |
| 57 | 261-01303 | SHIFTER PIN | (1) |
| 58 | NS-6150430-SP | NUT 15/64-28 | (1) |
| 59 | 261-01808 | SHIFTER CAM INSTALLING BASE | (1) |
| 60 | SS-7110910-SP | SCREW 11/64-40 L=8.5 | (2) |
| 61 | 261-01907 | SHIFTER CAM | (1) |
| 62 | 261-02400 | SHIFTER CAM SUSPENSION | (1) |
Page 38 — 18. MOTOR PULLEY COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MTJ-MS000000 | MOUNTING BOLT | 4 |
| 2 | B7109-771-000 | SPACER | 4 |
| 3 | 400-09401 | MOTOR BASE PLATE | 1 |
| 4 | WP-0850002-SC | WASHER 8.5X18X1.6 | 4 |
| 5 | NS-6200520-SP | NUT 5/16-18 | 8 |
| 6 | 400-09397 | MOTOR PULLEY FOR 50HZ 3000SPM | 1 |
| 7 | 400-09398 | MOTOR PULLEY FOR 60HZ 3000SPM | 1 |
| 8 | 400-09415 | MOTOR PULLEY FOR 50HZ 3300SPM | 1 |
| 9 | B7257-781-000-A | MOTOR PULLEY (60HZ 3300-USE) | 1 |
| 10 | SS-8150710-SP | SCREW 15/64-28 L=7 | 2 |
| 11 | MTJ-VM004200 | V-BELT, 42 INCH | 1 |
| 12 | MTJ-VM004300 | V-BELT, 43 INCH | 1 |
| 13 | MTJ-VM004400 | V-BELT, 44 INCH | 1 |
| 14 | B7252-781-000 | BELT | 1 |
Page 39 — 19. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-30358 | THREAD STAND ASM. | 1 |
| 229-31109 | SPOOL RETAINER | ||
| 229-31000 | SPOOL PIN | ||
| 229-30903 | SPOOL REST CUSHION | ||
| 229-30804 | SPOOL REST | ||
| SM-6061610-SC | SCREW M6 L=16 | ||
| 229-30705 | THREAD GUIDE ARM JOINT | ||
| 229-31406 | SPOOL REST ROD RUBBER CAP | ||
| 229-30507 | SPOOL REST ARM | ||
| 229-30408 | SPOOL REST ROD, UPPER | ||
| 229-31307 | SPOOL REST ROD JOINT | ||
| SM-4051405-SE | SCREW M5 L=14 | ||
| NM-6050001-SE | NUT M5 | ||
| 229-30309 | SPOOL REST ROD, LOWER | ||
| 229-30556 | THREAD STANDING ARM ASM. | ||
| WS-0510002-KN | SPRING WASHER | ||
| NM-6160511-SE | NUT M16X1.5 | ||
| WP-1612616-SE | WASHER 16X30X2.6 | ||
| WS-1643202-KR | SPRING WASHER |
Page 41 — 20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784 LBH-782 LBH-783 LBH-784專門部品
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1511-772-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 01 | B1608-773-A00 | WORK CLAMP CHECK (3A) | |
| 2 | B2702-047-Q00-A | KNIFE 1 | 1 |
| 3 | B1608-772-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 4 | B2930-761-000 | SPUR GEAR (100) | 1 |
| 5 | B2931-761-000 | SPUR GEAR (190) | 1 |
| 6 | B1552-782-000 | WORK CLAMP CHECK, 2 | 1 |
| 7 | B1508-772-A00 | WORK CLAMP CHECK (2A) | 1 |
| 8 | B1613-771-A00-A | WORK CLAMP CARRIER | 1 |
| 9 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 10 | B2702-047-S00-A | KNIFE 1-1/4" | 1 |
| 11 | B1608-761-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 12 | B2948-761-000 | SPUR GEAR (88) | 1 |
| 13 | B2949-761-000 | SPUR GEAR (212) | 1 |
| 14 | B1552-783-000 | WORK CLAMP CHECK, 3 | 1 |
| 15 | B1508-773-A00 | WORK CLAMP CHECK (3A) | 1 |
| 16 | B1613-771-A00-A | WORK CLAMP CARRIER | 1 |
| 17 | B1513-774-000 | WORK CLAMP BRACKET | 1 |
| 18 | B1551-784-000-A | WORK CLAMP ARM (4) | 1 |
| 19 | B1511-774-0A0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 20 | B1552-784-000 | WORK CLAMP CHECK | 1 |
| 21 | B2402-774-000 | THROAT PLATE | 1 |
| 22 | SS-2090530-SP | SCREW 9/64-40 L= 4.8 | 2 |
| 23 | B2401-774-0A0 | THROAT PLATE BASE ASM. | 1 |
| 24 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | 1 |
| 25 | B1611-774-0A0 | WORK CLAMP ARM BRACKET ASM. | 1 |
| 26 | SS-6151440-SP | SCREW 15/64-28 L=14 | (1) |
| 27 | B1606-774-000 | WORK CLAMP CARRIER PITMAN | 1 |
| 28 | SD-0870401-SP | HINGE SCREW D= 8.73 H= 4 | 1 |
| 29 | B1605-774-000 | FEED ADJUSTING SHAFT | 1 |
| 30 | B2745-774-00B-A | KNIFE 1-1/2" | 1 |
| 31 | B2745-774-00A-A | KNIFE 1-3/8" | 1 |
| 32 | B2944-761-000 | SPUR GEAR (74) | 1 |
| 33 | B2945-761-000 | SPUR GEAR 252 | 1 |
| 34 | B1603-774-0A0 | LENGTH REGULATING ARM ASM. | 1 |
| 35 | B1608-774-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 36 | B1612-774-000 | WORK CLAMP ARM BRACKET GUIDE | 1 |
| 37 | 400-09447 | WORK CLAMP CARRIER(4) | 1 |
| 38 | B1609-774-000 | WORK CLAMP ARM SLIDE ROD | 1 |
| 39 | B1516-774-000 | WORK CLAMP ARM BEARING BRACKET | 1 |
| 40 | SD-0790203-SP | HINGE SCREW D=7.94 H=2 | 1 |
Page 43 — 21. SPECIAL ORDER PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B9201-761-0A0 | REINFORCING TAPE ATCHMNT ASM. | 1 |
| 2 | B9204-047-0A0 | TAPE ATTACHMENT SUPPORT PLATE | (1) |
| 3 | SS-4090810-SP | SCREW 9/64-40 L=8 | (1) |
| 4 | B9205-047-000 | ADJUSTING FELT | (2) |
| 5 | B9201-761-0B0 | REINFORCING TAPE ATTACHMENT AS | (1) |
| 6 | NS-6700540-SP | NUT 5/16-24 | (1) |
| 7 | B9202-761-0A0 | TAPE GUIDE PLATE ASM. | (1) |
| 8 | SS-5110740-TP | SCREW 11/64-40 L= 6.5 | (1) |
| 9 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | (2) |
| 10 | WP-0450000-SD | WASHER 4.5X8X0.5 | (2) |
| 11 | B9206-761-000 | TAPE RETAINER | (1) |
| 12 | B9207-761-000 | TAPE RETAINER SPRING | (1) |
| 13 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (2) |
| 14 | B9205-761-000 | SPACER FOR TAPE RETAINER | (1) |
| 15 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | (2) |
| 16 | B9402-771-000 | MEASURING GAUGE, CROSSWISE | 1 |
| 17 | SS-6110610-TP | SCREW 11/64-40 L=6 | 2 |
| 18 | WP-0501016-SD | WASHER 5X10.5X1 | 2 |
| 19 | B9401-761-000 | DISTANCE MEASURING GAUGE | 1 |
| 20 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 2 |
| 21 | WP-0501016-SD | WASHER 5X10.5X1 | 2 |
| 22 | B2745-771-F00 | KNIFE 1/4"(FLUOROCARBON) | 1 |
| 23 | B2745-771-K00 | KNIFE 3/8"(FLUOROCARBON) | 1 |
| 24 | B2745-771-L00 | KNIFE 1/2" | 1 |
| 25 | B2745-771-M00 | KNIFE 5/8" | 1 |
| 26 | B2745-771-N00 | KNIFE 3/4" | 1 |
| 27 | B2745-771-P00 | KNIFE 7/8"(FLUOROCARBON) | 1 |
| 28 | B2745-771-Q00 | KNIFE 1" | 1 |
| 29 | B2745-771-R00 | KNIFE 1-1/8"(FLUOROCARBON) | 1 |
| 30 | B2745-771-S00 | KNIFE 1-1/4" | 1 |
| 31 | B2745-771-H00 | KNIFE 9/16" (FLUOROCARBON) | 1 |
| 32 | B2746-771-000 | KNIFE GUARD | 1 |
| 33 | B2402-771-00B | THROAT PLATE (FLUOROCARBON) | 1 |
| 34 | B2745-771-P0B | KNIFE 7/8" | 1 |
| 35 | B2745-771-Q0B | KNIFE 1" | 1 |
| 36 | B2745-771-R0B | KNIFE 1-1/8 | 1 |
| 37 | B2745-771-S0B | KNIFE 1-1/4 | 1 |
| 38 | B2702-047-F00 | KNIFE 1/4" | 1 |
| 39 | B2702-047-K00-A | KNIFE 3/8 | 1 |
| 40 | B2702-047-I00 | KNIFE (7/16) | 2 |
| 41 | B2702-047-L0A | KNIFE (1/2) | 1 |
| 42 | B2702-047-L00-A | KNIFE 1/2 | 1 |
| 43 | B2702-047-V0B | KNIFE 14 | 1 |
| 44 | B2702-047-V00 | KNIFE 9/16" | 1 |
| 45 | B2702-047-M0A | KNIFE (5/8) | 1 |
| 46 | B2702-047-M00-A | KNIFE 5/8 | 1 |
| 47 | B2702-047-A00 | KNIFE 11/16 | 1 |
| 48 | B2702-047-N0A | KNIFE 3/4" | 1 |
| 49 | B2702-047-N00 | KNIFE 3/4" | 1 |
| 50 | B2702-047-C00 | KNIFE 13/16 | 1 |
| 51 | B2702-047-P00 | KNIFE 7/8" | 1 |
| 52 | B2702-047-Q00-A | KNIFE 1 | 1 |
| 53 | B2702-047-R00 | KNIFE 1-1/8 | 1 |
| 54 | B2702-047-S0A | KNIFE 1-1/4 | 1 |
| 55 | B2702-047-S00-A | KNIFE 1-1/4" | 1 |
| 56 | B2702-047-U00 | KNIFE (1-1/2) | 1 |
| 57 | B1157-771-0A0 | HOOK OIL SHIELD ASM. | 1 |
| 58 | B1157-771-000 | HOOK OIL SHIELD | 1 |
| 59 | B1158-771-000 | HOOK OIL SHIELD SPRING | 1 |
| 60 | B1159-771-000 | SPRING SET PLATE | 1 |
| 61 | SS-5090610-SP | SCREW 9/64-40 L=6 | 2 |
| 62 | B1161-771-000 | HOOK OIL SHIELD HINGE | 1 |
| 63 | B1160-771-000 | HINGE PIN | 1 |
| 64 | SS-7110510-SP | SCREW 11/64-40 L=5 | 2 |
| 65 | SS-7110710-SP | SCREW 11/64-40 L=7 | 4 |
| 66 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 67 | B7272-781-000 | COVER MOUNTING BRACKET B | 1 |
| 68 | WP-0501016-SC | WASHER 5X10.5X1 | 2 |
| 69 | SK-3452000-SE | WOOD SCREW D=4.5 L=20 | 2 |
| 70 | NS-6110310-SP | NUT 11/64-40 | 4 |
| 71 | B7273-781-000 | SPEED TRANSMITTER COVER | 1 |
| 72 | 262-36703 | COVER MOUNTING BRACKET C | 1 |
Page 44 — 22. EXCHANGING PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | B2936-761-000 | ||
| B | B2938-761-000 | ||
| C | B2940-761-000 | ||
| D | B2942-761-000 | ||
| E | B2944-761-000 | ||
| F | B2946-761-000 | ||
| G | B2928-761-000 | ||
| H | B2948-761-000 | ||
| I | B2950-761-000 | ||
| J | B2930-761-000 | ||
| K | B2952-761-000 | ||
| L | B2932-761-000 | ||
| M | B2954-761-000 | ||
| N | B2934-761-000 | ||
| O | B2956-761-000 | ||
| B2937-761-000 | |||
| B2939-761-000 | |||
| B2941-761-000 | |||
| B2943-761-000 | |||
| B2945-761-000 | |||
| B2947-761-000 | |||
| B2929-761-000 | |||
| B2949-761-000 | |||
| B2951-761-000 | |||
| B2931-761-000 | |||
| B2953-761-000 | |||
| B2933-761-000 | |||
| B2955-761-000 | |||
| B2935-761-000 | |||
| B2957-761-000 | |||
| 1 | B2702-047-F00 | ||
| 2 | B2702-047-K00-A | ||
| 3 | B2702-047-L00-A | ||
| 4 | B2702-047-V00 | ||
| 5 | B2702-047-M00-A | ||
| 6 | B2702-047-N00 | ||
| 7 | B2702-047-P00 | ||
| 8 | B2702-047-Q00-A | ||
| 9 | B2702-047-S00-A | ||
| 10 | B2745-774-00A-A | ||
| 11 | B2745-774-00B-A | ||
| B1552-781-000-A | |||
| B1552-782-000 | |||
| B1552-783-000 | |||
| B1552-784-000 | |||
| B2402-771-000 | |||
| B2402-774-000 |
Page 45 — 23. EXCLUSIVE PARTS FOR LBH-781-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1508-771-K00-A | LATCH WORK CLAMP CHECK | 1 |
| 2 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 3 | B1808-761-0AB | HOOK ASM. | 1 |
| 4 | D3110-772-TA0 | THREAD TENSION NO.3 ASM. K | 1 |
| 5 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 6 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 7 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 8 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 9 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 10 | B3107-804-000 | THREAD TENSION DISK PRESSER | (1) |
| 11 | B3129-012-A00 | TENSION SPRING | (1) |
| 12 | B3120-125-000 | ROTATING STOPPER | (1) |
| 13 | B3119-771-000 | THREAD TENSION NUT | (1) |
| 14 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 15 | D1508-771-K0B | WORK CLAMP CHECK 5/8" | 1 |
| 16 | D1508-771-K0C | WORK CLAMP CHECK 1/2" | 1 |
| 17 | D1508-771-KOE | WORK CLAMP CHECK 5/8" | 1 |
| 18 | D1508-771-KOF | WORK CLAMP CHECK 1/2" | 1 |
| 19 | D1508-771-KOH | WORK CLAMP CHECK | 1 |
Page 47 — 24. EXCLUSIVE PARTS FOR LBH-782-K,LBH-783-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702-047-Q00-A | KNIFE 1 | 1 |
| 2 | B1608-772-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 3 | B1511-772-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 4 | D1508-772-K00 | WORK CLAMP CHECK (2K) | 1 |
| 5 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 6 | B1808-761-0AB | HOOK ASM. | 1 |
| 7 | B2931-761-000 | SPUR GEAR (190) | 1 |
| 8 | B2930-761-000 | SPUR GEAR (100) | 1 |
| 9 | D3110-772-TAO | THREAD TENSION NO.3 ASM. K | 1 |
| 10 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 11 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 12 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 13 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 14 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 15 | B3107-804-000 | THREAD TENSION DISK PRESSER | (1) |
| 16 | B3129-012-A00 | TENSION SPRING | (1) |
| 17 | B3120-125-000 | ROTATING STOPPER | (1) |
| 18 | B3119-771-000 | THREAD TENSION NUT | (1) |
| 19 | D9101-771-KO0 | HOOK TIMING GAUGE (K) | 1 |
| 20 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 21 | D1508-773-K00 | WORK CLAMP CHECK (3K) | 1 |
| 22 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 23 | B2949-761-000 | SPUR GEAR (212) | 1 |
| 24 | B2948-761-000 | SPUR GEAR (88) | 1 |
| 25 | B1808-761-0AB | HOOK ASM. | 1 |
| 26 | B2702-047-SO0-A | KNIFE 1-1/4" | 1 |
| 27 | B1608-762-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 28 | D3110-772-TAO | THREAD TENSION NO.3 ASM. K | 1 |
| 29 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 30 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 31 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 32 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 33 | B3126-012-000 | THREAD TENSION DISK | (1) |
| 34 | B3107-804-000 | THREAD TENSION DISK PRESSER | (1) |
| 35 | B3129-012-A00 | TENSION SPRING | (1) |
| 36 | B3120-125-000 | ROTATING STOPPER | (1) |
| 37 | B3119-771-000 | THREAD TENSION NUT | (1) |
| 38 | D9101-771-KO0 | HOOK TIMING GAUGE (K) | 1 |
| B1808-761-04B | HOOK ASN. | l | |
| D1508-773-KO0O | WORK CLAMP CHECK (3K) | l | |
| Bl608-762-000 | LENGTH REGULATING SHAFT GUIDE | l |
Page 49 — 25. EXCLUSIVE PARTS FOR LBH-784-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1513-774-000 | WORK CLAMP BRACKET | 1 |
| 2 | B1551-784-000-A | WORK CLAMP ARM (4) | 1 |
| 3 | B1609-774-000 | WORK CLAMP ARM SLIDE ROD | 1 |
| 4 | B1808-761-0AB | HOOK ASM. | 1 |
| 5 | D9101-771-KOO | HOOK TIMING GAUGE (K) | 1 |
| 6 | B1606-774-000 | WORK CLAMP CARRIER PITMAN | 1 |
| 7 | SD-0870401-SP | HINGE SCREW D= 8.73 H= 4 | 1 |
| 8 | B1605-774-000 | FEED ADJUSTING SHAFT | 1 |
| 9 | B2745-774-00B-A | KNIFE 1-1/2" | 1 |
| 10 | B2745-774-00A-A | KNIFE 1-3/8" | 1 |
| 11 | D1508-774-K00 | WORK CLAMP CHECK, K | 1 |
| 12 | 400-09447 | WORK CLAMP CARRIER(4) | 1 |
| 13 | B1612-774-000 | WORK CLAMP ARM BRACKET GUIDE | 1 |
| 14 | B1516-774-000 | WORK CLAMP ARM BEARING BRACKET | 1 |
| 15 | B1611-774-0A0 | WORK CLAMP ARM BRACKET ASM. | 1 |
| 16 | SS-6151440-SP | SCREW 15/64-28 L=14 | (1) |
| 17 | B1608~-774-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 18 | B1603-774-0A0 | LENGTH REGULATING ARM ASM. | 1 |
| 19 | B2944-761-000 | SPUR GEAR (74) | 1 |
| 20 | B2945-761-000 | SPUR GEAR 252 | 1 |
| 21 | D3110-772-TAO | THREAD TENSION NO.3 ASM. K | 1 |
| 22 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 23 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 24 | B3110-761-000 | TENSION POST SOCKET | (1) |
| 25 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 26 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 27 | B3107-804-000 | THREAD TENSION DISK PRESSER | (1) |
| 28 | B3129-012-A00 | TENSION SPRING | (1) |
| 29 | B3120-125-000 | ROTATING STOPPER | (1) |
| 30 | B3119-771-000 | THREAD TENSION NUT | (1) |
| 31 | D2401-774-KCO | NEEDLE PLATE ASM. | 1 |
| 32 | SS-2090530-SP | SCREW 9/64-40 L= 4.8 | (2) |
| 33 | D2402-774-K0O | THROAT PLATE, K | (1) |
| 34 | B2401-774-0A0 | THROAT PLATE BASE ASM. | (1) |
| 35 | B2406-771-0A0 | BOBBIN THREAD TRIMMER BLADE AS | (1) |
| 36 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | (1) |
| 37 | B2408-771-000-A | COUNTER KNIFE | (1) |
| 38 | SS-4080310-SP | SCREW 1/8-44 L=3.4 | (2) |
| 39 | B2405-771-000 | BOBBIN THREAD PULLER | (1) |
| 40 | SS-6090440-SP | SCREW 9/64-40 L= 4.0 | (2) |
| 41 | B2404-771-000 | BOBBIN THREAD TRIMMER LEVER | (1) |
| 42 | WP-0451016-SP | WASHER 4.5X20X1 | (1) |
| 43 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | (1) |
| 44 | B1511-774-0A0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 45 | SD-0790203-SP | HINGE SCREW D=7.94 H=2 | 1 |
| Di508-774-K00 | WORK CLAMP CHECK, K | 1 | |
| Bi611-774-0A0 | WORK CLAMP ARM BRACKET ASM. | 1 | |
| Bi511-774-0A0 | WORK CLAMP CHECK HOLDER ASM. | I |
Page 50 — 26. LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B3155-781-0A0 | |||
| A} 20 | 400-52419 | ||
| D | 3/SS-4110715-SP | ||
| A} 20 | SH-4040655-SP | ||
| dD; 19 | S$D-0601021-SP | ||
| D| 19 | 139-43204 | ||
| D| 19 | WP-0740516-SP | ||
| D|i19 | 262-26407 | ||
| D 19 | B3155-781-000 | ||
| A | 20 | 400-52354 | ||
| D| 19 | B3121-372-000 | ||
| DB} 19 | P$-0200062-KH | ||
| D 193 | NS-6110310-SP | ||
| Di; 19 | NS-6120310-SP | ||
| D | 19 30 | D2611-555-BO0-Afll | ||
| A | 20 30 | B3571-771-000 | ||
| D/] 19 38/ | B3120-761-0A0 |
Juki LBH-781K — parts catalog
- Page 1 (cover): This is the cover page for the JUKI 1-Needle, Lockstitch Straight Button-holing Machine parts list, covering models LBH-781, LBH-781-K, LBH-782, LBH-782-K, LBH-783, LBH-783-K, LBH-784, and LBH-784-K.
- Page 2 (unknown): This page is blank except for a watermark and a footer.
- Page 3 (text): This page provides instructions on how to use the parts list, explaining codes, quantity column interpretations, and symbols for assembly parts.
- Page 4 (toc): This page is a table of contents listing 18 sections of components for an industrial sewing machine, including frame, main shaft, hook driving shaft, presser bar, needle bar, overedging width adjusting, needle thread trimmer, bobbin thread trimmer, knife bar, feed cam, stop-motion, tripping lever, lifting lever, thread tension, lubrication mechanism, speed transmitter, and motor pulley components.
- Page 5 (toc): This page is a table of contents listing various sections related to thread stand components, exclusive parts for different LBH models, special order parts, exchanging parts, and a numerical index of parts, along with their corresponding page numbers.
- Page 6 (diagram): This page displays a diagram of the frame and miscellaneous cover components of a sewing machine, with various parts labeled with reference numbers.
- Page 7 (parts_list): This page lists various parts including frame side covers, screws, washers, safety labels, arm support rods, pins, rubber cushions, side cover gaskets, face covers, gaskets, rubber plugs, top covers, worm gear shaft metals, ground marks, oil felts, main shaft thrust seals, gear case covers, disk springs, hinge screws, hand stop latches, ball screws, nuts, knife stop lever shaft guides, oil sight window gaskets, bed slides, bed screw studs, bed oil shield assemblies, bed oil shield studs, labels, and attention seals.
- Page 8 (diagram): This page displays a diagram of frame and miscellaneous cover components, including various parts with their corresponding reference numbers.
- Page 9 (parts_list): This page lists parts for a sewing machine, including safety plates, screws, washers, nuts, covers, and a label, with their respective part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays an exploded view diagram of various components, including shafts, gears, and other mechanical parts, with reference numbers indicating their positions.
- Page 11 (parts_list): This page is a parts list detailing various components for an industrial sewing machine, including screws, oil wicks, shafts, levers, and other mechanical parts, with their respective part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of the hook driving shaft components with various parts labeled with reference numbers.
- Page 13 (parts_list): This page lists various parts for a sewing machine, including bobbin case components, screws, bushings, gears, and shafts, with their part numbers, descriptions, and quantities.
- Page 14 (diagram): This page illustrates the components of the presser bar and work clamp carrier, showing an exploded view of various parts and their reference numbers.
- Page 15 (parts_list): This page lists parts for a sewing machine, including presser components, screws, work clamp parts, and length regulating parts, with their corresponding part numbers, descriptions, and quantities.
- Page 16 (diagram): This page illustrates the components of the needle bar frame, showing various parts and their reference numbers.
- Page 17 (parts_list): This page lists various parts for an industrial sewing machine, including square blocks, studs, nuts, bushings, screws, rubber rings, oil wicks, frame rock shaft crank assemblies, needle bar cranks, needle bar pitmans, thrust collars, set-screws, knife driving shafts, needle bar frames, hinge studs, position brackets, oil felts, needle bars, and needle thread guides, along with their part numbers, descriptions, and quantities.
- Page 18 (diagram): This page illustrates the overedging width adjusting components of an industrial sewing machine with a detailed diagram.
- Page 19 (parts_list): This page lists parts for an industrial sewing machine, including screws, nuts, levers, pins, rollers, springs, and brackets, with their part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of needle thread trimmer components for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 21 (parts_list): This page lists parts for a sewing machine, including needle thread trimmers, screws, springs, brackets, and nuts, with their respective part numbers, descriptions, and quantities.
- Page 22 (diagram): This page illustrates the components of the bobbin thread trimmer assembly with a detailed diagram.
- Page 23 (parts_list): This page lists various parts for an industrial sewing machine, including needle plates, screws, bobbin thread trimmers, and other components, with their part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of knife bar components for an industrial sewing machine.
- Page 25 (parts_list): This page lists parts for a sewing machine, including various knife components, screws, springs, and other related hardware, with their part numbers, descriptions, and quantities.
- Page 26 (diagram): This page illustrates the feed cam and tripping segment components of an industrial sewing machine, showing various gears, shafts, and associated hardware with reference numbers.
- Page 27 (parts_list): This page lists various parts including gears, bushings, screws, collars, shafts, and other components, along with their part numbers, descriptions, and quantities.
- Page 28 (parts_list): This page illustrates and lists the components for the stop-motion mechanism, including various screws, nuts, springs, and levers.
- Page 29 (diagram): This page illustrates the components of the tripping lever assembly with a detailed diagram and a corresponding parts list.
- Page 30 (diagram): This page illustrates the lifting lever and bobbin winder components with a detailed diagram.
- Page 31 (parts_list): This page lists parts for a sewing machine, including various screws, levers, springs, and bobbin winder components, with their corresponding part numbers and quantities.
- Page 32 (diagram): This page displays a diagram of thread tension components, with numbered parts and their corresponding references.
- Page 33 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like tension release links, hinge screws, blocking links, and various pins and screws.
- Page 34 (diagram): This page displays a diagram of lubrication mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 35 (parts_list): This page lists parts for a sewing machine, including various screws, pipes, filters, and machine base components, with their corresponding part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of speed transmitter components, with numbered parts and their corresponding references.
- Page 37 (parts_list): This page lists parts for the sewing machine, including tension pulleys, screws, nuts, bearings, and various shifter components, with their corresponding part numbers and descriptions.
- Page 38 (diagram): This page displays a diagram of motor pulley components, along with a parts list detailing mounting bolts, spacers, base plates, washers, nuts, motor pulleys for different specifications, screws, and V-belts.
- Page 39 (diagram): This page displays a diagram of thread stand components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 40 (diagram): This page displays diagrams of exclusive parts for LBH-782, LBH-783, and LBH-784 sewing machines, with numbered parts for each model.
- Page 41 (parts_list): This page contains a parts list for various components of a sewing machine, including work clamp check holders, knives, gears, and screws, with part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays diagrams and part information for special order parts, including tape reel components, button-holing measuring gauges, knife for special use, hook oil shield components, and cover components.
- Page 43 (parts_list): This page lists various parts for an industrial sewing machine, including screws, knives, and covers, with their corresponding part numbers and descriptions.
- Page 44 (parts_list): This page lists changing gears and parts used in connection with knives, including work clamp checks and throat plates, with their corresponding part numbers.
- Page 45 (parts_list): This page lists exclusive parts for the LBH-781-K model sewing machine, including part numbers, descriptions, and quantities.
- Page 46 (diagram): This page displays diagrams of exclusive parts for LBH-782-K and LBH-783-K sewing machines, with numbered components for each model.
- Page 47 (parts_list): This page lists parts for sewing machine models, including part numbers, descriptions, and quantities. It also notes that parts not listed are the same as those for model LBH-781.
- Page 48 (diagram): This page displays a diagram of exclusive parts for the LBH-784-K sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 49 (parts_list): This page lists parts for a sewing machine, including reference numbers, part numbers, descriptions, and quantities. It also notes that parts not listed are the same as those for model LBH-781.
- Page 50 (text): This page lists changes to parts, indicating added, obsoleted, or corrected parts with their corresponding part numbers and revision information.
- Page 51 (index): This page is a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers within the catalog.
- Page 52 (index): This page is a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers within the catalog.
- Page 53 (index): Numerical index of parts with part numbers, page references, and reference numbers.
- Page 54 (index): This page is a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers within the catalog.
- Page 55 (unknown): This page contains a watermark and a website address at the bottom.
- Page 56 (cover): This is the cover page of a JUKI CORPORATION parts catalog, indicating it was printed in Japan and last updated in February 2007.
