Juki LBH-781K — parts catalog

Page 1

JUKI 1-Needle,Lockstitch Straight Button-holing Machine 一本針本縫眠り穴かがりミシン LBH-781 LBH-781-K LBH-782 LBH-782-K LBH-783 LBH-783-K LBH-784 LBH-784-K PARTS LIST BE078130PJA No.0158-20 jintex.in

Page 2

jintex.in

Page 3

HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark...........means this part is changed from the previous parts book. As to the details of the change,refer to "List for information of change". 2) "01" ............refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. "注記" 欄の記号説明 1) "*" 印 ............前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は" 変更情報リスト" を参照してください。 2) "01" ............ページ下の" 注記" の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル) を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページの---- ---- ---- 枠は、組構成であることを意味します。 jintex.in

Page 4 — CONTENTS

CONTENTS 目 次 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1) 頭部外装関係(1) 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2) 頭部外装関係(2) 3. MAIN SHAFT COMPONENTS 上軸関係 4. HOOK DRIVING SHAFT COMPONENTS 下軸関係 5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS 押さえ棒・布送り関係 6. NEEDLE BAR FRAME COMPONENTS 針棒摺動台関係 7. OVEREDGING WIDTH ADJUSTING COMPONENTS かがり幅調節関係 8. NEEDLE THREAD TRIMMER COMPONENTS 上糸切り関係 9. BOBBIN THREAD TRIMMER COMPONENTS 下糸切り関係 10. KNIFE BAR COMPONENTS メス棒関係 11. FEED CAM & TRIPPING SEGMENT COMPONENTS 主カム・閉止め関係 12. STOP-MOTION COMPONENTS 遮断装置関係 13. TRIPPING LEVER COMPONENTS 手動停止関係 14. LIFTING LEVER & BOBBIN WINDER COMPONENTS 押さえ上げ・糸巻関係 15. THREAD TENSION COMPONENTS 糸調子関係 16. LUBRICATION MECHANISM COMPONENTS 給油装置関係 17. SPEED TRANSMITTER COMPONENTS 減速機関係 18. MOTOR PULLEY COMPONENTS モータープーリ関係 1 3 5 7 9 11 13 15 17 19 21 23 24 25 27 29 31 33 jintex.in

Page 5

19. THREAD STAND COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 6 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS (1)

1. FRAME & MISCELLANEOUS COVER COMPONENTS (1) 頭部外装関係 (1) - 1 - jintex.in

Page 7

Juki LBH-781K parts on page 7
RefPart numberPart nameQty
1B1137-771-000FRAME SIDE COVER B
2B1137-771-00AFRAME SIDE COVER B
3SS-4111015-SPSCREW 11/64-40 L=10
4WP-0450000-SDWASHER 4.5X8X0.5
5CM-3002001-01SAFETY LABEL, 1(SMALL).
6SS-4111015-SPSCREW 11/64-40 L=10
7400-09028ARM SUPPORT ROD
8SS-8110510-SPSCREW 11/64-40 L=5
9B1120-761-000PIN
10B1118-761-000RUBBER CUSHION
11B1116-771-000SIDE COVER (C)
12400-09010ARM SIDE COVER (C)
13B1152-771-000SIDE COVER GASKET (C)
14SS-4110915-SPSCREW 11/64-40 L=9
15B1138-771-000FRAME SIDE COVER C
16B1138-771-00AFRAME SIDE COVER C
17SS-4112215-SPSCREW 11/64-40 L=22
18SS-4111415-SPSCREW 11/64-40 L=14
19B1155-771-000CUSHION
20B1144-771-000FRAME SIDE COVER GASKET (C)
21B1153-781-000LEFT SIDE COVER
22400-08995LEFT SIDE COVER
23B1145-771-000SIDE COVER GASKET
24SS-4110915-SPSCREW 11/64-40 L=9
25B1123-581-000THREAD TAKE-UP LEVER OIL GUARD
26400-09039THREAD TAKE-UP LEVER COVER
27SS-4090515-SPSCREW 9/64-40 L=5
28B1112-771-0A0FACE COVER COMPLETE
29B1112-771-0AAFACE COVER COMPLETE
30B1149-771-000GASKET
31B1151-771-000FACE PLATE GASKET (B)
32SS-4111415-SPSCREW 11/64-40 L=14
33SS-4110915-SPSCREW 11/64-40 L=9
34TA-1250705-RORUBBER PLUG
35B1103-771-000-ATOP COVER
36B1103-771-00ATOP COVER
37B1106-771-000WORM GEAR SHAFT METAL
38100-04109GROUND MARK
39SS-6120620-TPSCREW
40B1110-771-000TOP COVER GASKET, FRONT
41B1117-771-000OIL FELT
42400-09050MAIN SHAFT THRUST SEEL
43SS-4111815-SPSCREW 11/64 L=18
44TA-0750704-RORUBBER PLUG
45B1106-761-000GEAR CASE COVER
46400-09030GEAR CASE COVER
47B3125-155-000DISK SPRING
48SD-0640261-SPHINGE SCREW D=6.35 H=2.6
49SS-7111310-SPSCREW 11/64-40 L=12.8
50400-09311HAND STOP LATCH
51SS-4110715-SPSCREW 11/64-40 L=7
52400-09038BALL SCREW
53NS-6120310-SPNUT 3/16-28
54TA-2101002-RORUBBER PLUG
55B1104-771-000TOP COVER GASKET, REAR
56400-09370ARM OIL SHIELD
57SS-4110715-SPSCREW 11/64-40 L=7
58B2743-771-000KNIFE STOP LEVER SHAFT GUIDE
59TA-1050504-RORUBBER PLUG
60B1111-771-000SIDE COVER (A) GASKET
61B1114-771-000SIDE COVER A
62400-09008ARM SIDE COVER (A)
63SS-4110915-SPSCREW 11/64-40 L=9
64B1133-771-000OIL SIGHT WINDOW GASKET
65B1115-771-0A0SIDE COVER ASM. B
66400-09009ARM SIDE COVER (B)
67SS-4110915-SPSCREW 11/64-40 L=9
68B1128-771-000SIDE COVER A
69B1128-771-00ASIDE COVER A
70SS-4111015-SPSCREW 11/64-40 L=10
71WP-0450000-SDWASHER 4.5X8X0.5
72CM-3002001-A1SAFETY LABEL, 3 (SMALL).
73400-09034BED SLIDE
74400-09036BED SCREW STUD A
75400-09035BED OIL SHIELD ASM.
76400-09384BED OIL SHIELD STUD
77SS-4110515-SPSCREW 11/64-40 L=5
78CM-3002000-B1LABEL(16)
79CM-3002000-01ATTENTION SEAL
80400-09014OIL SIGHT WINDOW

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B1137-771-000 FRAME SIDE COVER B 1 2 01 B1137-771-00A FRAME SIDE COVER B 1 3 SS-4111015-SP SCREW 11/64-40 L=10 1 4 WP-0450000-SD WASHER 4.5X8X0.5 2 5 02 CM-3002001-01 SAFETY LABEL, 1(SMALL). 1 6 SS-4111015-SP SCREW 11/64-40 L=10 1 7 400-09028 ARM SUPPORT ROD 1 8 SS-8110510-SP SCREW 11/64-40 L=5 1 9 B1120-761-000 PIN 1 10 B1118-761-000 RUBBER CUSHION 1 11 B1116-771-000 SIDE COVER (C) 1 12 01 400-09010 ARM SIDE COVER (C) 1 13 B1152-771-000 SIDE COVER GASKET (C) 1 14 SS-4110915-SP SCREW 11/64-40 L=9 7 15 B1138-771-000 FRAME SIDE COVER C 1 16 01 B1138-771-00A FRAME SIDE COVER C 1 17 SS-4112215-SP SCREW 11/64-40 L=22 1 18 SS-4111415-SP SCREW 11/64-40 L=14 1 19 B1155-771-000 CUSHION 2 20 B1144-771-000 FRAME SIDE COVER GASKET (C) 2 21 B1153-781-000 LEFT SIDE COVER 1 22 01 400-08995 LEFT SIDE COVER 1 23 B1145-771-000 SIDE COVER GASKET 3 24 SS-4110915-SP SCREW 11/64-40 L=9 1 25 B1123-581-000 THREAD TAKE-UP LEVER OIL GUARD 1 26 01 400-09039 THREAD TAKE-UP LEVER COVER 1 27 SS-4090515-SP SCREW 9/64-40 L=5 2 28 B1112-771-0A0 FACE COVER COMPLETE 1 29 01 B1112-771-0AA FACE COVER COMPLETE 1 30 B1149-771-000 GASKET 1 31 B1151-771-000 FACE PLATE GASKET (B) 1 32 SS-4111415-SP SCREW 11/64-40 L=14 2 33 SS-4110915-SP SCREW 11/64-40 L=9 1 34 TA-1250705-RO RUBBER PLUG 2 35 B1103-771-000-A TOP COVER 1 36 01 B1103-771-00A TOP COVER 1 37 B1106-771-000 WORM GEAR SHAFT METAL 2 38 100-04109 GROUND MARK 1 39 SS-6120620-TP SCREW 4 40 B1110-771-000 TOP COVER GASKET, FRONT 1 41 B1117-771-000 OIL FELT 2 42 400-09050 MAIN SHAFT THRUST SEEL 1 43 SS-4111815-SP SCREW 11/64 L=18 6 44 TA-0750704-RO RUBBER PLUG 6 45 B1106-761-000 GEAR CASE COVER 1 46 01 400-09030 GEAR CASE COVER 1 47 B3125-155-000 DISK SPRING 1 48 SD-0640261-SP HINGE SCREW D=6.35 H=2.6 1 49 SS-7111310-SP SCREW 11/64-40 L=12.8 1 50 400-09311 HAND STOP LATCH 1 51 SS-4110715-SP SCREW 11/64-40 L=7 2 52 400-09038 BALL SCREW 1 53 NS-6120310-SP NUT 3/16-28 1 54 TA-2101002-RO RUBBER PLUG 1 55 B1104-771-000 TOP COVER GASKET, REAR 1 56 400-09370 ARM OIL SHIELD 1 57 SS-4110715-SP SCREW 11/64-40 L=7 1 58 B2743-771-000 KNIFE STOP LEVER SHAFT GUIDE 1 59 TA-1050504-RO RUBBER PLUG 1 60 B1111-771-000 SIDE COVER (A) GASKET 1 61 B1114-771-000 SIDE COVER A 1 62 01 400-09008 ARM SIDE COVER (A) 1 63 SS-4110915-SP SCREW 11/64-40 L=9 6 64 B1133-771-000 OIL SIGHT WINDOW GASKET 1 65 B1115-771-0A0 SIDE COVER ASM. B 1 66 01 400-09009 ARM SIDE COVER (B) 1 67 SS-4110915-SP SCREW 11/64-40 L=9 4 68 B1128-771-000 SIDE COVER A 1 69 01 B1128-771-00A SIDE COVER A 1 70 SS-4111015-SP SCREW 11/64-40 L=10 2 71 WP-0450000-SD WASHER 4.5X8X0.5 2 72 03 CM-3002001-A1 SAFETY LABEL, 3 (SMALL). 1 73 400-09034 BED SLIDE 1 74 400-09036 BED SCREW STUD A 2 75 400-09035 BED OIL SHIELD ASM. 1 76 400-09384 BED OIL SHIELD STUD 1 77 SS-4110515-SP SCREW 11/64-40 L=5 1 78 02 CM-3002000-B1 LABEL(16) 1 79 02 CM-3002000-01 ATTENTION SEAL 1 80 400-09014 OIL SIGHT WINDOW 1 NOTE (注記) 01....FOR URBAN WHITE 02....FOR USE IN JAPAN 03....FOR EXPORT(EXCEPT JE) - 2 - jintex.in

Page 8 — 2. FRAME & MISCELLANEOUS COVER COMPONENTS (2)

2. FRAME & MISCELLANEOUS COVER COMPONENTS (2) 頭部外装関係 (2) 3 4 2 6 5 1 16 10 17 7 12 7 8 9 14 8 9 16 17 15 11 7 8 9 16 17 14 8 9 13 11 7 10 7 8 9 16 17 -3- jintex.in

Page 9

Juki LBH-781K parts on page 9
RefPart numberPart nameQty
1400-52419SAFETY PLATE ASM.1
2260-37200SAFETY PLATE(1)
3SM-4040655-SPSCREW M4 L=6(2)
4WP-0450801-SDWASHER 4.5X10X0.8(2)
5400-52354SAFETY PLATE INSTALLING BASE(1)
6SS-6111140-SPSCREW 11/64-40 L=11(1)
7NS-6110310-SPNUT 11/64-4010
8WP-0501016-SCWASHER 5X10.5X15
9SK-3452000-SEWOOD SCREW D=4.5 L=205
10B7272-781-000COVER MOUNTING BRACKET B2
11400-09421COVER MOUNTING BRACKET A2
12262-36703COVER MOUNTING BRACKET C1
13137-72504MOTOR PULLEY COVER1
14CM-3002000-A3LABEL, (31.5)2
15400-09458PULLEY COVER1
16SS-7110710-SPSCREW 11/64-40 L=710
17WP-0480856-SPWASHER 4.8X8.4X0.810

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 *01 400-52419 SAFETY PLATE ASM. 1 2 260-37200 SAFETY PLATE (1) 3 * SM-4040655-SP SCREW M4 L=6 (2) 4 WP-0450801-SD WASHER 4.5X10X0.8 (2) 5 * 400-52354 SAFETY PLATE INSTALLING BASE (1) 6 01 SS-6111140-SP SCREW 11/64-40 L=11 (1) 7 01 NS-6110310-SP NUT 11/64-40 10 8 01 WP-0501016-SC WASHER 5X10.5X1 5 9 01 SK-3452000-SE WOOD SCREW D=4.5 L=20 5 10 01 B7272-781-000 COVER MOUNTING BRACKET B 2 11 01 400-09421 COVER MOUNTING BRACKET A 2 12 01 262-36703 COVER MOUNTING BRACKET C 1 13 01 137-72504 MOTOR PULLEY COVER 1 14 01 CM-3002000-A3 LABEL, (31.5) 2 15 01 400-09458 PULLEY COVER 1 16 01 SS-7110710-SP SCREW 11/64-40 L=7 10 17 01 WP-0480856-SP WASHER 4.8X8.4X0.8 10 NOTE (注記) 01...FOR USE IN JAPAN - 4 - jintex.in

Page 10

上軸関係 COMPONENTS 65 1 2 6 3 4 5 7 8 10 14 17 11 13 15 14 12 16 19 20 18 23 21 24 25 22 26 28 27 29 30 31 32 33 34 35 37 36 48 66 47 39 43 40 42 41 44 45 38 46 49 54 55 56 50 51 52 53 52 57 9 58 59 60 61 62 63 64 -5- jintex.in

Page 11

Juki LBH-781K parts on page 11
RefPart numberPart nameQty
1B1404-761-000HINGE STUD
2SS-8150822-TPSCREW 15/64-28 L=8
3CQ-2520000-00OIL WICK
4400-09087OIL WICK HOLDER
5SS-7090510-SPSCREW 9/64-40 L= 4.6
6B1147-125-000OIL WICK SNAP RING
7BP-6000000-00VINYL PIPE
8400-08610MAIN SHAFT
9CM-3003000-01DIRECTION LABEL
10B1901-761-BA0THREAD TAKE-UP LEVER ASM., CER
11B1901-761-0A0THREAD TAKE-UP LEVER ASM.
12B1203-771-000NEEDLE BAR CRANK
13B1204-761-000NEEDLE BAR CRANK CONNECTING RO
14B1905-541-B00NEEDLE BEARING
15B1903-552-000LEFT SCREW
16B2615-232-000OIL FELT WASHER
17B1223-771-000NEEDLE ROD CRANK WASHER
18400-09048COUNTERWEIGHT ASM.
19SS-8681650-TPSCREW 9/32-28 L=16
20SS-8660512-TPSCREW 1/4-40 L=5
21SS-7681750-TPSCREW 9/32-28 L=16.5
22B1204-771-000-ABUSHING, FRONT
23SS-8150822-TPSCREW 15/64-28 L=8
24B1203-012-000OIL FELT
25B3541-012-000OIL WICK
26261-00701KNIFE BAR DRIVING CONNECTING
27B2722-761-000KNIFE BAR DRIVING ECCENTRIC
28SS-8660810-TPSCREW 1/4-40 L=8
29B1208-552-000-AOIL SEAL
30261-04703MAIN SHAFT BUSHING INTERMEDIA
31SS-8150822-TPSCREW 15/64-28 L=8
32B2920-761-0A0WORM ASM.
33SS-8660610-TPSCREW 1/4-40 L=6
34CS-147121B-SHTHRUST COLLAR ASM. D=14.72 W=1
35SS-8660530-TPSCREW 1/4-40 L=4.5
36400-09400MAIN SHAFT THRUST COLLAR ASM.
37SS-8660530-TPSCREW 1/4-40 L=4.5
38B1256-781-0A0UPPER SHAFT REAR METAL ASM.
39B1256-781-0B0UPPER SHAFT REAR METAL
40B1208-552-000-AOIL SEAL
41400-09426BEARING RETAINER
42SS-7110910-TPSCREW 11/64-40 L=8.5
43B1257-781-000FELT B
44B1252-781-0B0LOOSE PULLEY ASM.
45RC-3000001-KPRETAINING RING 30
46B1255-781-00BWASHER B
47B1229-771-000MAIN SHAFT THRUST WASHER (C)
48SS-8150822-TPSCREW 15/64-28 L=8
49SS-7090410-SPSCREW 9/64-40 L= 3.5
50B1254-781-000MAIN SHAFT THRUST SEEL
51B1227-771-000GASKET
52B1220-771-000THRUST WASHER A
53B1225-771-000BEARING
54SS-7660510-SPSCREW 1/4-40 L=5.0
55SS-8660512-TPSCREW 1/4-40 L=5
56400-09049DRIVING PULLEY
57B1224-771-00CSCREW (C)
58B1231-771-000STOP CAM PRESSURE SPRING
59400-09070STOP-MOTION CAM PIN SLIDE BLOC
60B1212-232-000BAKELITE SEGMENT
61400-09069STOP-MOTION CAM POSITION PIN
62B1208-771-000STOP MOTION CAM
63400-09058STOP MOTION CAM PRESSER PLATE
64SS-7110710-SPSCREW 11/64-40 L=7
65CQ-2520000-00OIL WICK
66B3541-012-000OIL WICK

REF. NO NOTE PART NO. D E S C R I P T I O N Qty 1 B1404-761-000 HINGE STUD 1 2 SS-8150822-TP SCREW 15/64-28 L=8 1 3 CQ-2520000-00 OIL WICK 0.38 4 400-09087 OIL WICK HOLDER 1 5 SS-7090510-SP SCREW 9/64-40 L= 4.6 2 6 B1147-125-000 OIL WICK SNAP RING 1 7 BP-6000000-00 VINYL PIPE 0.03 8 400-08610 MAIN SHAFT 1 9 CM-3003000-01 DIRECTION LABEL 1 10 01 B1901-761-BA0 THREAD TAKE-UP LEVER ASM., CER 1 11 B1901-761-0A0 THREAD TAKE-UP LEVER ASM. 1 12 B1203-771-000 NEEDLE BAR CRANK 1 13 B1204-761-000 NEEDLE BAR CRANK CONNECTING RO 1 14 02 B1905-541-B00 NEEDLE BEARING 2 15 B1903-552-000 LEFT SCREW 1 16 B2615-232-000 OIL FELT WASHER 1 17 B1223-771-000 NEEDLE ROD CRANK WASHER 1 18 400-09048 COUNTERWEIGHT ASM. 1 19 SS-8681650-TP SCREW 9/32-28 L=16 (1) 20 SS-8660512-TP SCREW 1/4-40 L=5 (2) 21 SS-7681750-TP SCREW 9/32-28 L=16.5 1 22 B1204-771-000-A BUSHING, FRONT 1 23 SS-8150822-TP SCREW 15/64-28 L=8 2 24 B1203-012-000 OIL FELT 1 25 B3541-012-000 OIL WICK 1 26 261-00701 KNIFE BAR DRIVING CONNECTING 1 27 B2722-761-000 KNIFE BAR DRIVING ECCENTRIC 1 28 SS-8660810-TP SCREW 1/4-40 L=8 2 29 B1208-552-000-A OIL SEAL 1 30 261-04703 MAIN SHAFT BUSHING INTERMEDIA 1 31 SS-8150822-TP SCREW 15/64-28 L=8 1 32 B2920-761-0A0 WORM ASM. 1 33 SS-8660610-TP SCREW 1/4-40 L=6 (2) 34 CS-147121B-SH THRUST COLLAR ASM. D=14.72 W=1 1 35 SS-8660530-TP SCREW 1/4-40 L=4.5 (2) 36 400-09400 MAIN SHAFT THRUST COLLAR ASM. 1 37 SS-8660530-TP SCREW 1/4-40 L=4.5 (4) 38 B1256-781-0A0 UPPER SHAFT REAR METAL ASM. 1 39 B1256-781-0B0 UPPER SHAFT REAR METAL (1) 40 B1208-552-000-A OIL SEAL (1) 41 400-09426 BEARING RETAINER (1) 42 SS-7110910-TP SCREW 11/64-40 L=8.5 (3) 43 B1257-781-000 FELT B (1) 44 B1252-781-0B0 LOOSE PULLEY ASM. (1) 45 RC-3000001-KP RETAINING RING 30 (1) 46 02 B1255-781-00B WASHER B 2 47 B1229-771-000 MAIN SHAFT THRUST WASHER (C) 1 48 SS-8150822-TP SCREW 15/64-28 L=8 1 49 SS-7090410-SP SCREW 9/64-40 L= 3.5 3 50 B1254-781-000 MAIN SHAFT THRUST SEEL 1 51 B1227-771-000 GASKET 1 52 B1220-771-000 THRUST WASHER A 2 53 B1225-771-000 BEARING 1 54 SS-7660510-SP SCREW 1/4-40 L=5.0 1 55 SS-8660512-TP SCREW 1/4-40 L=5 1 56 400-09049 DRIVING PULLEY 1 57 02 B1224-771-00C SCREW (C) 1 58 B1231-771-000 STOP CAM PRESSURE SPRING 1 59 400-09070 STOP-MOTION CAM PIN SLIDE BLOC 2 60 B1212-232-000 BAKELITE SEGMENT 1 61 400-09069 STOP-MOTION CAM POSITION PIN 1 62 B1208-771-000 STOP MOTION CAM 1 63 400-09058 STOP MOTION CAM PRESSER PLATE 1 64 SS-7110710-SP SCREW 11/64-40 L=7 3 65 CQ-2520000-00 OIL WICK 0.4 66 B3541-012-000 OIL WICK 1 NOTE (註記) 01....SPECIAL ORDER PARTS 特別注文部品 02....SELECTIVE PARTS 選択部品 -6- jintex.in

Page 12 — 4. HOOK DRIVING SHAFT COMPONENTS

4. HOOK DRIVING SHAFT COMPONENTS 下軸関係 27 29 25 26 31 33 34 28 30 36 32 35 41 39 38 41 37 12 2 3 4 7 19 22 16 17 18 20 8 6 5 9 13 1 10 11 15 14 21 46 48 21 21 47 56 24 23 42 43 44 21 45 49 50 55 51 53 52 54 40 -7- jintex.in

Page 13

Juki LBH-781K parts on page 13
RefPart numberPart nameQty
1B1810-771-0A0BOBBIN CASE ASM.
2B1810-761-C00BOBBIN CASE LATCH LEVER
3B1810-761-B00BOBBIN CASE LATCH
4B1810-761-F00LATCH SPRING
5B1810-761-G00LATCH STOP SCREW
6B1810-761-D00HINGE PIN
7B1810-771-E00TENSION SPRING
8B1810-761-J00TENSION SCREW
9B1810-761-H00CLAMP SCREW
10400-09148BOBBIN
11B1808-771-0ACHOOK ASM.
12261-00404BOBBIN CASE POSITIONING PLATE
13SS-9110515-SPSCREW 11/64-40 L=5
14B1805-771-0A0HOOK SLEEVE ASM.
15SS-8660612-TPSCREW 1/4-40 L=6
16B1812-771-0A0OIL WICK ASM.
17NS-6090310-SPNUT 9/64-40
18B1806-771-000ADJUSTING SCREW
19B1804-761-0A0BUSHING ASM., FRONT
20CQ-2520000-00OIL WICK
21SS-8150822-TPSCREW 15/64-28 L=8
22B1803-761-000BUSHING, INTERMEDIATE
23B1446-761-CA0PINION ASM.
24SS-8660610-TPSCREW 1/4-40 L=6
25B1306-771-0C0GEAR & PINION ASM.
26B1306-771-0B0GEAR & PINION ASM. UPPER
27B1305-771-0A0GEAR ASM.
28SS-6660712-TPSCREW 1/4-40 L= 7.0
29B1306-771-0A0PINION ASM.
30SS-6660712-TPSCREW 1/4-40 L= 7.0
31B1307-771-0B0GEAR & PINION ASM. LOWER
32B1307-771-0A0GEAR ASM.
33SS-6660712-TPSCREW 1/4-40 L= 7.0
34B1308-771-0A0PINION ASM.
35SS-6660712-TPSCREW 1/4-40 L= 7.0
36B1223-771-000NEEDLE ROD CRANK WASHER
37229-05202UPRIGHT SHAFT BUSHING, LOWER
38400-09071UPRIGHT SHAFT
39400-09072UPRIGHT SHAFT BUSHING
40400-09150HOOK DRIVING SHAFT
41SS-8150822-TPSCREW 15/64-28 L=8
42B1223-771-000NEEDLE ROD CRANK WASHER
43B1802-771-0A0BUSHING ASM., REAR
44CQ-2020000-00OIL WICK
45TA-0850604-RORUBBER PLUG
46400-09442HOOK OIL SUPPLY RUBBER ASM.
47400-09443BUSHING
48400-09444OIL ADJUSTING RUBBER
49400-09156HOOK OIL ADJUSTING SCREW
50400-09157POSITIONING SCREW
51400-09153OIL SUPPLY FELT HOLDER
52SS-4150715-SPSCREW 15/64-28 L=7
53B1812-771-000OIL SUPPLY FELT
54B1810-771-0BABOBBIN CASE ASM.
55B1814-761-000SPRING
56400-09155PLATE SPRING

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B1810-771-0A0 BOBBIN CASE ASM. 1 2 B1810-761-C00 BOBBIN CASE LATCH LEVER (1) 3 B1810-761-B00 BOBBIN CASE LATCH (1) 4 B1810-761-F00 LATCH SPRING (1) 5 B1810-761-G00 LATCH STOP SCREW (1) 6 B1810-761-D00 HINGE PIN (1) 7 B1810-771-E00 TENSION SPRING (1) 8 B1810-761-J00 TENSION SCREW (1) 9 B1810-761-H00 CLAMP SCREW (1) 10 400-09148 BOBBIN 1 11 B1808-771-0AC HOOK ASM. 1 12 261-00404 BOBBIN CASE POSITIONING PLATE 1 13 SS-9110515-SP SCREW 11/64-40 L=5 1 14 B1805-771-0A0 HOOK SLEEVE ASM. 1 15 SS-8660612-TP SCREW 1/4-40 L=6 (4) 16 B1812-771-0A0 OIL WICK ASM. 1 17 NS-6090310-SP NUT 9/64-40 1 18 B1806-771-000 ADJUSTING SCREW 1 19 B1804-761-0A0 BUSHING ASM., FRONT 1 20 CQ-2520000-00 OIL WICK (0.03) 21 SS-8150822-TP SCREW 15/64-28 L=8 3 22 B1803-761-000 BUSHING, INTERMEDIATE 1 23 01 B1446-761-CA0 PINION ASM. 1 24 SS-8660610-TP SCREW 1/4-40 L=6 (2) 25 B1306-771-0C0 GEAR & PINION ASM. 1 26 B1306-771-0B0 GEAR & PINION ASM. UPPER (1) 27 B1305-771-0A0 GEAR ASM. (1) 28 SS-6660712-TP SCREW 1/4-40 L= 7.0 (2) 29 B1306-771-0A0 PINION ASM. (1) 30 SS-6660712-TP SCREW 1/4-40 L= 7.0 (2) 31 B1307-771-0B0 GEAR & PINION ASM. LOWER (1) 32 B1307-771-0A0 GEAR ASM. (1) 33 SS-6660712-TP SCREW 1/4-40 L= 7.0 (2) 34 B1308-771-0A0 PINION ASM. (1) 35 SS-6660712-TP SCREW 1/4-40 L= 7.0 (2) 36 B1223-771-000 NEEDLE ROD CRANK WASHER 1 37 229-05202 UPRIGHT SHAFT BUSHING, LOWER 1 38 400-09071 UPRIGHT SHAFT 1 39 400-09072 UPRIGHT SHAFT BUSHING 1 40 400-09150 HOOK DRIVING SHAFT 1 41 SS-8150822-TP SCREW 15/64-28 L=8 2 42 B1223-771-000 NEEDLE ROD CRANK WASHER 1 43 B1802-771-0A0 BUSHING ASM., REAR 1 44 CQ-2020000-00 OIL WICK (0.1) 45 TA-0850604-RO RUBBER PLUG 1 46 400-09442 HOOK OIL SUPPLY RUBBER ASM. 1 47 400-09443 BUSHING (1) 48 400-09444 OIL ADJUSTING RUBBER (1) 49 400-09156 HOOK OIL ADJUSTING SCREW 1 50 400-09157 POSITIONING SCREW 1 51 400-09153 OIL SUPPLY FELT HOLDER 1 52 SS-4150715-SP SCREW 15/64-28 L=7 1 53 B1812-771-000 OIL SUPPLY FELT 1 54 02 B1810-771-0BA BOBBIN CASE ASM. 1 55 02 B1814-761-000 SPRING (1) 56 400-09155 PLATE SPRING 1 NOTE (注記) 01....SELECTIVE PARTS 02....SPECIAL ORDER PARTS FOR SYNTHETIC THREAD -8- jintex.in

Page 14 — 5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS

5. PRESSER BAR & WORK CLAMP CARRIER COMPONENTS 押さえ棒・布送り関係 1 2 3 5 4 6 7 15 11 16 14 17 19 18 20 59 21 8 9 10 13 12 35 39 42 43 45 44 40 41 47 46 50 49 36 37 38 27 23 24 25 26 22 48 51 28 29 57 30 31 34 56 52 54 55 53 32 33 58 - 9 - jintex.in

Page 15

Juki LBH-781K parts on page 15
RefPart numberPart nameQty
1400-09129PRESSER SPRING REGULATOR
2400-09119PRESSER BAR
3B1507-761-000PRESSER SPRING
4B1506-761-000PRESSER BAR GUIDE BRACKET
5SS-7111310-SPSCREW 11/64-40 L=12.8
6B1505-761-0A0PRESSER BAR POSITION BRACKET A
7SS-8660810-TPSCREW 1/4-40 L=8
8400-09121SLEEVE
9400-09123SLIDE ROLLER
10B1503-771-000CONNECTING PIN
11B1502-771-AA0-ABRACKET ASM.
12400-09122BRACKET
13400-09132FINGER GUARD
14SS-7090710-SPSCREW 9/64-40 L= 6.8
15SS-4091520-SPSCREW 9/64-40 L=15
16SS-7110710-SPSCREW 11/64-40 L=7
17400-09122WORK CLAMP BRACKET
18SS-2110920-TPSCREW 11/64-40 L=8.5
19SS-7110840-SPSCREW 11/64-40 L=7.8
20SS-7110840-SPSCREW 11/64-40 L=7.8
21400-09190NEEDLE THREAD TRIMMER GUIDE (A
22B1552-781-0A0-APRESSER ASM.
23B1511-771-0A0-BPRESSER FOOT ASM.
24B1511-771-000-BPRESSER FOOT
25B1509-761-000WORK CLAMP CHECK SPRING
26B1510-771-00BWORK CLAMP CHECK SPRING SET PI
27B1512-761-000WORK CLAMP CHECK HOLDER SPRING
28B1552-781-000-APRESSER
29SS-6060210-SPSCREW 3/32-56 L= 1.9
30B1508-771-A00WORK CLAMP CHECK, KNIT GOOD
31B1613-771-A00-AWORK CLAMP CARRIER
32400-09445WORK CLAMP CARRIER
33B1607-763-0A0BRACKET COVER
34SS-7110810-SPSCREW 11/64-40 L=8
35B1611-771-0A0WORK CLAMP ARM BRACKET ASM.
36SS-6151440-SPSCREW 15/64-28 L=14
37B1606-763-000WORK CLAMP CARRIER BRACKET PIT
38SD-0870601-SPHINGE SCREW D= 8.73 H= 6.0
39261-05908WORK CLAMP ARM SLIDE ROD
40B1612-763-000WORK CLAMP CARIER BRACKET GUID
41SS-6111010-TPSCREW 11/64-40 L= 9.5
42B1551-781-000WORK CLAMP
43B1517-771-000CONNECTING PIN
44SS-7090920-SPSCREW 9/64-40 L= 8.5
45B1516-771-000BEARING ARM
46SS-6150710-SPSCREW 15/64-28 L=7
47SS-8150920-SPSET-SCREW
48400-09137LENGTH REGULATING HINGE STUD
49400-09134LENGTH REGULATING SHAFT GUIDE
50NS-6150310-SPNUT 15/64-28
51B1603-763-0A0LENGTH REGULATING SCALE ASM.
52400-09144LENGTH REGULATING SHAFT CRANK
53SM-6061602-TPSCREW M6 L=16
54WP-0651308-SDWASHER 6.5X13X0.8
55400-09146BELL CRANK ROLLER STUD
56400-09143ROLLER
57SD-0790203-SPHINGE SCREW D=7.94 H=2
58NS-6150310-SPNUT 15/64-28
59400-09178NEEDLE THREAD TRIMMER GUIDE (B

REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-09129 PRESSER SPRING REGULATOR 1 2 400-09119 PRESSER BAR 1 3 B1507-761-000 PRESSER SPRING 1 4 B1506-761-000 PRESSER BAR GUIDE BRACKET 1 5 SS-7111310-SP SCREW 11/64-40 L=12.8 2 6 B1505-761-0A0 PRESSER BAR POSITION BRACKET A 1 7 SS-8660810-TP SCREW 1/4-40 L=8 (1) 8 400-09121 SLEEVE 1 9 400-09123 SLIDE ROLLER 1 10 B1503-771-000 CONNECTING PIN 1 11 B1502-771-AA0-A BRACKET ASM. 1 12 400-09122 BRACKET (1) 13 400-09132 FINGER GUARD (1) 14 SS-7090710-SP SCREW 9/64-40 L= 6.8 (1) 15 SS-4091520-SP SCREW 9/64-40 L=15 1 16 SS-7110710-SP SCREW 11/64-40 L=7 1 17 400-09122 WORK CLAMP BRACKET 1 18 SS-2110920-TP SCREW 11/64-40 L=8.5 1 19 SS-7110840-SP SCREW 11/64-40 L=7.8 1 20 SS-7110840-SP SCREW 11/64-40 L=7.8 1 21 400-09190 NEEDLE THREAD TRIMMER GUIDE (A 1 22 B1552-781-0A0-A PRESSER ASM. 1 23 01 B1511-771-0A0-B PRESSER FOOT ASM. (1) 24 B1511-771-000-B PRESSER FOOT (1) 25 B1509-761-000 WORK CLAMP CHECK SPRING (2) 26 B1510-771-00B WORK CLAMP CHECK SPRING SET PI (2) 27 B1512-761-000 WORK CLAMP CHECK HOLDER SPRING (1) 28 B1552-781-000-A PRESSER (1) 29 SS-6060210-SP SCREW 3/32-56 L= 1.9 (2) 30 02 B1508-771-A00 WORK CLAMP CHECK, KNIT GOOD 1 31 02 B1613-771-A00-A WORK CLAMP CARRIER 1 32 400-09445 WORK CLAMP CARRIER 1 33 B1607-763-0A0 BRACKET COVER 1 34 SS-7110810-SP SCREW 11/64-40 L=8 2 35 B1611-771-0A0 WORK CLAMP ARM BRACKET ASM. 1 36 SS-6151440-SP SCREW 15/64-28 L=14 (2) 37 B1606-763-000 WORK CLAMP CARRIER BRACKET PIT 1 38 SD-0870601-SP HINGE SCREW D= 8.73 H= 6.0 1 39 261-05908 WORK CLAMP ARM SLIDE ROD 1 40 B1612-763-000 WORK CLAMP CARIER BRACKET GUID 1 41 SS-6111010-TP SCREW 11/64-40 L= 9.5 2 42 B1551-781-000 WORK CLAMP 1 43 B1517-771-000 CONNECTING PIN 1 44 SS-7090920-SP SCREW 9/64-40 L= 8.5 1 45 B1516-771-000 BEARING ARM 1 46 SS-6150710-SP SCREW 15/64-28 L=7 1 47 SS-8150920-SP SET-SCREW 1 48 400-09137 LENGTH REGULATING HINGE STUD 1 49 400-09134 LENGTH REGULATING SHAFT GUIDE 1 50 NS-6150310-SP NUT 15/64-28 1 51 B1603-763-0A0 LENGTH REGULATING SCALE ASM. 1 52 400-09144 LENGTH REGULATING SHAFT CRANK 1 53 SM-6061602-TP SCREW M6 L=16 (1) 54 WP-0651308-SD WASHER 6.5X13X0.8 (1) 55 400-09146 BELL CRANK ROLLER STUD (1) 56 400-09143 ROLLER 1 57 SD-0790203-SP HINGE SCREW D=7.94 H=2 1 58 NS-6150310-SP NUT 15/64-28 1 59 400-09178 NEEDLE THREAD TRIMMER GUIDE (B 1 NOTE (注記) 01....THE SIZE OF THE BUTTONHOLE VARIES ACCORDING TO THE WOR CLAMP CHECK, SO FOR FURTHER DETAILS PLEASE REFER TO PAGE 39,22-(2). 02....SPECIAL ORDER PARTS FOR LIGHT WEIGHT KNIT MATERIALS. (PLEASE USE THE WORK CLAMP CHECK AND THE WORK CLAMP CARRIER TOGETHER AS A PAIR.) - 10 - jintex.in

Page 16 — 6. NEEDLE BAR FRAME COMPONENTS

6. NEEDLE BAR FRAME COMPONENTS 針棒揺動台関係 7 6 5 8 9 11 10 1 2 3 30 32 31 33 36 37 38 35 39 40 34 41 38 36 42 46 43 47 44 45 48 50 51 12 13 15 16 18 17 19 20 25 23 26 27 24 49 29 22 21 28 - 11 - jintex.in

Page 17

Juki LBH-781K parts on page 17
RefPart numberPart nameQty
1B1414-232-000SQUARE BLOCK1
2B1410-771-000STUD1
3NS-6150310-SPNUT 15/64-281
4400-09082BUSHING1
5SS-8151150-SPSCREW 15/64-28 L=10.52
6R0-1482402-00RUBBER RING1
7B3541-012-000OIL WICK1
8B1411-771-0A0FRAME ROCK SHAFT CRANK ASM., F1
9261-06906FRAME NEEDLE BAR SHAFT(1)
10PT-0302000-S0TAPERED PIN 3.0X20(2)
11400-09099NEEDLE BAR CRANK (FRONT)(1)
12400-09452NEEDLE BAR CRANK (REARE) ASM.1
13SS-7151210-SPSCREW 15/64-28 L=12(1)
14SD-0790801-SPHINGE SCREW D=7.94 H=81
15NS-6160520-SPNUT 1/4-241
16B1415-761-000NEEDLE BAR PITMAN1
17B1416-761-000ROCK SHAFT CONNECTION GUIDE1
18SS-6111620-SPSCREW 11/64-40 L=16.02
19SS-8111251-SPSCREW 11/64-40 L=12.01
20NS-6110310-SPNUT 11/64-401
21B1445-761-0A0NEEDLE DRIVING GEAR ASM.1
22CS-095101C-SHTHRUST COLLAR ASM. D=9.53 W=101
23SS-8150920-SPSET-SCREW(1)
24SS-8150710-SPSCREW 15/64-28 L=7(1)
25B1447-761-0A0KNIFE DRIVING SHAFT ASM.1
26CQ-2020000-00OIL WICK(0.21)
27400-09091KNIFE DRIVING SHAFT(1)
28CS-095101B-SHTHRUST COLLAR ASM. D=9.53 W=101
29SS-8150710-SPSCREW 15/64-28 L=7(2)
30B1403-771-000NEEDLE BAR FRAME1
31SS-8150822-TPSCREW 15/64-28 L=81
32B1404-771-000HINGE STUD1
33CQ-2520000-00OIL WICK0.26
34400-08075POSITION BRACKET1
35SS-5110810-SPSCREW 11/64-40 L=82
36B1406-771-000OIL FELT, FOR NEEDLE BAR2
37400-09085OIL FELT UPPER1
38SS-7090520-SPSCREW 9/64-40 L= 4.52
39B1402-761-0A0NEEDLE BAR CONNECTION1
40SS-7090910-TPSCREW 9/64-40 L= 8.5(1)
41400-09086OIL FELT RETAINER1
42400-09083NEEDLE BAR1
43400-09093NEEDLE BAR BOBBIN THREAD GUIDE1
44SS-4080415-SPSCREW 1/8-44 L=41
45MDP-5J0B1100NEEDLE DPX5 #11J1
46B1451-771-00ANEEDLE BAR THREAD GUIDE1
47MC-2005E07-50NEEDLE 134SES 751
48MDP-5J0B1400NEEDLE DPX5 #14J1
49SS-8150920-SPSET-SCREW1
50MC-2005007-50NEEDLE 134 NM751
51400-09077BUSHING1
52CQ-2520000-00OIL WICK0.25

REF. NO NOTE PART NO. DESCRIPTION Qty 1 B1414-232-000 SQUARE BLOCK 1 2 B1410-771-000 STUD 1 3 NS-6150310-SP NUT 15/64-28 1 4 400-09082 BUSHING 1 5 SS-8151150-SP SCREW 15/64-28 L=10.5 2 6 R0-1482402-00 RUBBER RING 1 7 B3541-012-000 OIL WICK 1 8 B1411-771-0A0 FRAME ROCK SHAFT CRANK ASM., F 1 9 261-06906 FRAME NEEDLE BAR SHAFT (1) 10 PT-0302000-S0 TAPERED PIN 3.0X20 (2) 11 400-09099 NEEDLE BAR CRANK (FRONT) (1) 12 400-09452 NEEDLE BAR CRANK (REARE) ASM. 1 13 SS-7151210-SP SCREW 15/64-28 L=12 (1) 14 SD-0790801-SP HINGE SCREW D=7.94 H=8 1 15 NS-6160520-SP NUT 1/4-24 1 16 B1415-761-000 NEEDLE BAR PITMAN 1 17 B1416-761-000 ROCK SHAFT CONNECTION GUIDE 1 18 SS-6111620-SP SCREW 11/64-40 L=16.0 2 19 SS-8111251-SP SCREW 11/64-40 L=12.0 1 20 NS-6110310-SP NUT 11/64-40 1 21 B1445-761-0A0 NEEDLE DRIVING GEAR ASM. 1 22 CS-095101C-SH THRUST COLLAR ASM. D=9.53 W=10 1 23 SS-8150920-SP SET-SCREW (1) 24 SS-8150710-SP SCREW 15/64-28 L=7 (1) 25 B1447-761-0A0 KNIFE DRIVING SHAFT ASM. 1 26 CQ-2020000-00 OIL WICK (0.21) 27 400-09091 KNIFE DRIVING SHAFT (1) 28 CS-095101B-SH THRUST COLLAR ASM. D=9.53 W=10 1 29 SS-8150710-SP SCREW 15/64-28 L=7 (2) 30 B1403-771-000 NEEDLE BAR FRAME 1 31 SS-8150822-TP SCREW 15/64-28 L=8 1 32 B1404-771-000 HINGE STUD 1 33 CQ-2520000-00 OIL WICK 0.26 34 400-08075 POSITION BRACKET 1 35 SS-5110810-SP SCREW 11/64-40 L=8 2 36 B1406-771-000 OIL FELT, FOR NEEDLE BAR 2 37 400-09085 OIL FELT UPPER 1 38 SS-7090520-SP SCREW 9/64-40 L= 4.5 2 39 B1402-761-0A0 NEEDLE BAR CONNECTION 1 40 SS-7090910-TP SCREW 9/64-40 L= 8.5 (1) 41 400-09086 OIL FELT RETAINER 1 42 400-09083 NEEDLE BAR 1 43 400-09093 NEEDLE BAR BOBBIN THREAD GUIDE 1 44 SS-4080415-SP SCREW 1/8-44 L=4 1 45 MDP-5J0B1100 NEEDLE DPX5 #11J 1 46 01 B1451-771-00A NEEDLE BAR THREAD GUIDE 1 47 02 MC-2005E07-50 NEEDLE 134SES 75 1 48 03 MDP-5J0B1400 NEEDLE DPX5 #14J 1 49 SS-8150920-SP SET-SCREW 1 50 04 MC-2005007-50 NEEDLE 134 NM75 1 51 400-09077 BUSHING 1 52 CQ-2520000-00 OIL WICK 0.25 NOTE (注記) 01....SPECIAL ORDER PARTS FOR SYNTHETIC THREAD 02....SPECIAL ORDER PARTS 03....FOR EXPORT 04....FOR JE - 12 - jintex.in

Page 18 — 7. OVEREDGING WIDTH ADJUSTING COMPONENTS

7. OVEREDGING WIDTH ADJUSTING COMPONENTS かがり幅調節関係 - 13 - jintex.in

Page 19

Juki LBH-781K parts on page 19
RefPart numberPart nameQty
1400-09092STITCH WIDTH REGULATING SCREW
2SS-9201973-CPSCREW 5/16-18 L=19
3NM-6080721-SENUT M8
4NS-6200520-SPNUT 5/16-18
5400-09078NEEDLE THROW REPOSITIONING LEV
6SS-7121210-SPSCREW 3/16-28 L=12
7400-09107REPOSITIONING LIVER TRIP PIN A
8400-09110PIN
9400-09109ROLLER
10400-09108REPOSITIONING LEVER TRIP PIN
11B1432-761-000SWING ARM STOPPER RUBBER
12400-09106REGULATING HINGE PIN
13400-09111REGULATING LEVER ASM.
14400-09113BELL CRANK
15400-09115REGULATING LEVER SHAFT
16CQ-3030000-00OIL WICK
17NS-6110310-SPNUT 11/64-40
18SS-8111251-SPSCREW 11/64-40 L=12.0
19400-09114REGULATING LEVER BRACKET
20400-09112REGULATING LEVER
21SS-4080415-SPSCREW 1/8-44 L=4
22400-09118SPRING
23SS-4080415-SPSCREW 1/8-44 L=4
24400-09117BARRED WIDTH INDICATOR
25SS-7151210-SPSCREW 15/64-28 L=12
26SD-0790432-SPHINGE SCREW D= 7.94 H= 4.3
27400-09116ROLLER
28B1425-771-000BEARING BRACKET
29NS-6110310-SPNUT 11/64-40
30SS-8111251-SPSCREW 11/64-40 L=12.0
31B1424-761-000NEEDLE THROW REPOSITIONING SHA
32SS-7150940-SPSCREW 15/64-28 L=9
33B1421-761-0A0BEARING BRACKET ASM.
34CQ-2520000-00OIL WICK
35400-09105CONNECTING PIN
36B1418-761-0A0CONNECTING FORKED LINK PIN ASM
37CQ-2520000-00OIL WICK
38400-09103CONNECTING FORKED LINK PIN
39NS-6110310-SPNUT 11/64-40
40B1419-761-0A0CONNECTING STUD ASM.
41CQ-2520000-00OIL WICK
42400-09104CONNECTING STUD
43400-09089SUSPENSION SCREW
44261-00008CONNECTING FORKED LINK
45B1427-771-000SPRING
46NS-6150310-SPNUT 15/64-28
47400-09094SWING ARM STOPPER ASM
48400-09081SEAM WIDTH INDICATOR
49SS-4080415-SPSCREW 1/8-44 L=4
50400-09094SWING ARM STOPPER ASM
51400-09102REGULATING LEVER CONNECTION
52261-00107REPOSITIONING LIVER LINK
53SS-8111251-SPSCREW 11/64-40 L=12.0
54B1426-771-000SPRING
55SD-0640471-SPHINGE SCREW D= 6.35 H= 4.7

REF_NO NOTE PART_NO. DESCRIPTION Qty 1 400-09092 STITCH WIDTH REGULATING SCREW 3 2 SS-9201973-CP SCREW 5/16-18 L=19 1 3 NM-6080721-SE NUT M8 1 4 NS-6200520-SP NUT 5/16-18 3 5 400-09078 NEEDLE THROW REPOSITIONING LEV 1 6 SS-7121210-SP SCREW 3/16-28 L=12 2 7 400-09107 REPOSITIONING LIVER TRIP PIN A 1 8 400-09110 PIN (1) 9 400-09109 ROLLER (1) 10 400-09108 REPOSITIONING LEVER TRIP PIN (1) 11 B1432-761-000 SWING ARM STOPPER RUBBER 1 12 400-09106 REGULATING HINGE PIN 1 13 400-09111 REGULATING LEVER ASM. (1) 14 400-09113 BELL CRANK (1) 15 400-09115 REGULATING LEVER SHAFT (1) 16 CQ-3030000-00 OIL WICK (0.1) 17 NS-6110310-SP NUT 11/64-40 (1) 18 SS-8111251-SP SCREW 11/64-40 L=12.0 (1) 19 400-09114 REGULATING LEVER BRACKET (1) 20 400-09112 REGULATING LEVER (1) 21 SS-4080415-SP SCREW 1/8-44 L=4 2 22 400-09118 SPRING 1 23 SS-4080415-SP SCREW 1/8-44 L=4 2 24 400-09117 BARRED WIDTH INDICATOR 1 25 SS-7151210-SP SCREW 15/64-28 L=12 2 26 SD-0790432-SP HINGE SCREW D= 7.94 H= 4.3 1 27 400-09116 ROLLER 1 28 B1425-771-000 BEARING BRACKET 1 29 NS-6110310-SP NUT 11/64-40 2 30 SS-8111251-SP SCREW 11/64-40 L=12.0 2 31 B1424-761-000 NEEDLE THROW REPOSITIONING SHA 1 32 SS-7150940-SP SCREW 15/64-28 L=9 2 33 B1421-761-0A0 BEARING BRACKET ASM. 2 34 CQ-2520000-00 OIL WICK (0.1) 35 400-09105 CONNECTING PIN (1) 36 B1418-761-0A0 CONNECTING FORKED LINK PIN ASM 1 37 CQ-2520000-00 OIL WICK (0.1) 38 400-09103 CONNECTING FORKED LINK PIN (1) 39 NS-6110310-SP NUT 11/64-40 2 40 B1419-761-0A0 CONNECTING STUD ASM. 1 41 CQ-2520000-00 OIL WICK (0.1) 42 400-09104 CONNECTING STUD (1) 43 400-09089 SUSPENSION SCREW 2 44 261-00008 CONNECTING FORKED LINK 1 45 B1427-771-000 SPRING 1 46 NS-6150310-SP NUT 15/64-28 1 47 400-09094 SWING ARM STOPPER ASM 1 48 400-09081 SEAM WIDTH INDICATOR 1 49 SS-4080415-SP SCREW 1/8-44 L=4 2 50 400-09094 SWING ARM STOPPER ASM 1 51 400-09102 REGULATING LEVER CONNECTION 1 52 261-00107 REPOSITIONING LIVER LINK 1 53 SS-8111251-SP SCREW 11/64-40 L=12.0 2 54 B1426-771-000 SPRING 1 55 SD-0640471-SP HINGE SCREW D= 6.35 H= 4.7 1 - 14 - jintex.in

Page 20 — 8. NEEDLE THREAD TRIMMER COMPONENTS

8. NEEDLE THREAD TRIMMER COMPONENTS 上糸切り関係 14 15 16 17 18 24 26 12 9 8 11 13 10 7 6 5 4 3 2 1 23 19 20 21 22 27 28 30 34 25 24 26 36 35 37 323133 29 38 39 42 43 44 45 40 41 46 47 - 15 - jintex.in

Page 21

Juki LBH-781K parts on page 21
RefPart numberPart nameQty
1B2001-771-0A0NEEDLE THREAD TRIMMER ASM.1
2B2001-771-000NEEDLE THREAD TRIMMER, LOWER(1)
3B2005-761-000POSITION PIN(1)
4B2002-771-0A0NEEDLE THREAD TRIMMER, UPPER(1)
5B2003-771-000NEEDLE THREAD PRESSER SPRING(1)
6SD-0400191-TPHINGE SCREW D=4 H=1.9(1)
7SS-7110510-SPSCREW 11/64-40 L=52
8SS-150715-SPSCREW 15/64-28 L=71
9400-09179NEEDLE THREAD TRIMMER SHAFT GU1
10B2063-781-0B0-ATHREAD TRIMMER HOLDER ASM.1
11SM-8061002-TPSCREW M6 L=10(2)
12400-09160THREAD TRIMMER HOLDER ASM.1
13SM-8061002-TPSCREW M6 L=102
14400-08607LIMITTING PLATE1
15SS-7110840-SPSCREW 11/64-40 L=7.82
16400-09168DRAIVING CAM SPRING1
17400-09169DRAIVING CAM SPRING AXLE1
18SD-0450401-SPHINGE SCREW D=4.5 H=41
19400-08608DRIVING CAM INSTALING PLATE1
20SD-0790303-SPHINGE SCREW D=7.94 H=3.01
21400-09167DIFFERENTIAL FEED CAM1
22SS-7090710-SPSCREW 9/64-40 L=6.82
23PS-0300102-KOSPRING PIN 3.0X101
24B2010-771-000BRACKET2
25400-09163THREAD TRIMMER SPRING A1
26SS-6621212-TPSCREW 3/16-32 L=12.04
27400-09330THREAD SHAFT GUIDE BASE1
28400-09164THREAD TRIMMER SPRING B1
29B2007-771-0B0NEEDLE THREAD TRIMMER SHAFT AS1
30400-09193NEEDLE THREAD TRIMMER SHAFT(1)
31260-23200CAM ROLL(1)
32SS-6080610-TPSCREW 1/8-44 L=6(1)
33400-09195STUD(1)
34400-09196SUSPENSION SCREW(1)
35400-09186LATCH PRESSER ARM1
36SS-7090710-SPSCREW 9/64-40 L=6.82
37400-09191SPACER1
38400-09181LOCKING BRACKET LATCH ASM.1
39SS-7110840-SPSCREW 11/64-40 L=7.82
40B2030-771-000THREAD TRIMMING SHAFT SEGMENT1
41SD-0641003-SPHINGE SCREW D=6.35 H=101
42NS-6110310-SPNUT 11/64-401
43NS-6080210-SPNUT 1/8-441
44NS-6080340-SPNUT 1/8-441
45400-09188ROLLER1
46B2032-771-000STUD1
47SS-7110840-SPSCREW 11/64-40 L=7.82

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 B2001-771-0A0 NEEDLE THREAD TRIMMER ASM. 1 2 B2001-771-000 NEEDLE THREAD TRIMMER, LOWER (1) 3 B2005-761-000 POSITION PIN (1) 4 B2002-771-0A0 NEEDLE THREAD TRIMMER, UPPER (1) 5 B2003-771-000 NEEDLE THREAD PRESSER SPRING (1) 6 SD-0400191-TP HINGE SCREW D=4 H=1.9 (1) 7 SS-7110510-SP SCREW 11/64-40 L=5 2 8 SS-150715-SP SCREW 15/64-28 L=7 1 9 400-09179 NEEDLE THREAD TRIMMER SHAFT GU 1 10 B2063-781-0B0-A THREAD TRIMMER HOLDER ASM. 1 11 SM-8061002-TP SCREW M6 L=10 (2) 12 400-09160 THREAD TRIMMER HOLDER ASM. 1 13 SM-8061002-TP SCREW M6 L=10 2 14 400-08607 LIMITTING PLATE 1 15 SS-7110840-SP SCREW 11/64-40 L=7.8 2 16 400-09168 DRAIVING CAM SPRING 1 17 400-09169 DRAIVING CAM SPRING AXLE 1 18 SD-0450401-SP HINGE SCREW D=4.5 H=4 1 19 400-08608 DRIVING CAM INSTALING PLATE 1 20 SD-0790303-SP HINGE SCREW D=7.94 H=3.0 1 21 400-09167 DIFFERENTIAL FEED CAM 1 22 SS-7090710-SP SCREW 9/64-40 L=6.8 2 23 PS-0300102-KO SPRING PIN 3.0X10 1 24 B2010-771-000 BRACKET 2 25 400-09163 THREAD TRIMMER SPRING A 1 26 SS-6621212-TP SCREW 3/16-32 L=12.0 4 27 400-09330 THREAD SHAFT GUIDE BASE 1 28 400-09164 THREAD TRIMMER SPRING B 1 29 B2007-771-0B0 NEEDLE THREAD TRIMMER SHAFT AS 1 30 400-09193 NEEDLE THREAD TRIMMER SHAFT (1) 31 260-23200 CAM ROLL (1) 32 SS-6080610-TP SCREW 1/8-44 L=6 (1) 33 400-09195 STUD (1) 34 400-09196 SUSPENSION SCREW (1) 35 400-09186 LATCH PRESSER ARM 1 36 SS-7090710-SP SCREW 9/64-40 L=6.8 2 37 01 400-09191 SPACER 1 38 400-09181 LOCKING BRACKET LATCH ASM. 1 39 SS-7110840-SP SCREW 11/64-40 L=7.8 2 40 B2030-771-000 THREAD TRIMMING SHAFT SEGMENT 1 41 SD-0641003-SP HINGE SCREW D=6.35 H=10 1 42 NS-6110310-SP NUT 11/64-40 1 43 NS-6080210-SP NUT 1/8-44 1 44 NS-6080340-SP NUT 1/8-44 1 45 400-09188 ROLLER 1 46 B2032-771-000 STUD 1 47 SS-7110840-SP SCREW 11/64-40 L=7.8 2 NOTE (注記) 01...DEPENDING ON THE MACHINE FRAME. 0~2 SETS OF THIS PART WILL BE USED. ミシン頭部により0~2枚使用します。 - 16 - jintex.in

Page 22 — 9. BOBBIN THREAD TRIMMER COMPONENTS

9. BOBBIN THREAD TRIMMER COMPONENTS 下糸切り関係 - 17 -

Page 23

Juki LBH-781K parts on page 23
RefPart numberPart nameQty
1B2401-771-0AONEEDLE PLATE ASM.
2B2402-771-000NEEDLE PLATE
3SS-2090510-SPSCREW 9/64-40 L=5
4B2401-771-0BOTHROAT PLATE BASE ASM.
5B2406-771-0AOBOBBIN THREAD TRIMMER BLADE AS
6SS-6090320-SPSCREW 9/64-40 L= 3.2
7B2408-771-000-ACOUNTER KNIFE
8SS-4080310-SPSCREW 1/8-44 L=3.4
9B2404-771-000BOBBIN THREAD TRIMMER LEVER
10SS-7110570-SPSCREW 11/64-40 L=4.8
11WP-0451016-SPWASHER 4.5X20X1
12B2405-771-000BOBBIN THREAD PULLER
13SS-6090440-SPSCREW 9/64-40 L=4.0
14SS-6090630-TPSCREW 9/64-40 L=6
15400-09218BOBBIN PICKER STOPPER
16B2416-771-000PRESSER PLATE
17SS-7110540-SPSCREW 11/64-40 L=7.8
18400-09220BOBBIN PICKER PRESSER PLATE
19SD-0630272-SPHINGE SCREW
20B2422-771-000BOBBIN PICKER BRACKET
21SS-7090620-TPSCREW 9/64-40 L=6.1
22400-09217BOBBIN PICKER BRACKET SHAFT
23400-09215BOBBIN WINDER TRIP LATCH
24400-09223SAFETY STOPPER
25SS-6110610-TPSCREW 11/64-40 L=6
26400-09222PRESSER PLATE ADJUSTING SPRING
27400-09219PRESSER PLATE MOUNTING BASE
28400-09214BOBBIN THREAD TRIMMER LINK
29NS-6120310-SPNUT 3/16-28
30400-09221PRESSER PLATE ADJUSTING SCREW
31SD-0640321-SPHINGE SCREW D= 6.35 H= 3.2
32SD-0640602-SPHINGE SCREW D=6.35 H= 6.0
33B2417-771-000BOBBIN THREAD GUIDE
34SS-4090415-SPSCREW 9/64-40 L=4
35NS-6150310-SPNUT 15/64-28
36SD-0790602-SPHINGE SCREW D= 7.94 H= 6
37400-09210BOBBIN THREAD TRIMMER DRIVING
38NS-6150310-SPNUT 15/64-28
39SS-7110570-SPSCREW 11/64-40 L=4.8
40400-09211CONNECTING LINK
41B2414-761-000STOP SCREW
42NS-6680320-SPNUT 9/32-28
43B2416-761-000HING STUD
44SS-8150822-TPSCREW 15/64-28 L=8
45400-09209BOBBIN THREAD TRIMMER DRIVING
46SD-0790641-SPHINGE SCREW D= 7.94 H= 6.4
47B2412-047-000BALL SCREW
48SS-7110710-SPSCREW 11/64-40 L=7

REF. NO NOTE PART NO. D E S C R I P T I O N Qty 1 B2401-771-0AO NEEDLE PLATE ASM. ハリイタダイクミ 1 2 B2402-771-000 NEEDLE PLATE ハリイタ (1) 3 SS-2090510-SP SCREW 9/64-40 L=5 マルサラネジ 9/64-40 L=5 (2) 4 B2401-771-0BO THROAT PLATE BASE ASM. ハリイタダイクミ (1) 5 B2406-771-0AO BOBBIN THREAD TRIMMER BLADE AS シタイトキリメス クミ (1) 6 SS-6090320-SP SCREW 9/64-40 L= 3.2 トラスネジ 9/64-40 L=3.2 (1) 7 B2408-771-000-A COUNTER KNIFE コテイメス (1) 8 SS-4080310-SP SCREW 1/8-44 L=3.4 ナベネジ 1/8-44 L=3.4 (2) 9 B2404-771-000 BOBBIN THREAD TRIMMER LEVER シタイトキリウデ (1) 10 SS-7110570-SP SCREW 11/64-40 L=4.8 マルヒラネジ 11/64-40 L=4.8 (1) 11 WP-0451016-SP WASHER 4.5X20X1 ヒラザガネ 4.5X20X1 (1) 12 B2405-771-000 BOBBIN THREAD PULLER シタイトタグリウデ (1) 13 SS-6090440-SP SCREW 9/64-40 L=4.0 ヒラネジ 9/64-40 L=4 (2) 14 SS-6090630-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 6=6 4 15 400-09218 BOBBIN PICKER STOPPER ホビンオサエストッパー 1 16 B2416-771-000 PRESSER PLATE シタイトキリメスオサエ 1 17 SS-7110540-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 18 400-09220 BOBBIN PICKER PRESSER PLATE ホビンオサエオシイタ 1 19 SD-0630272-SP HINGE SCREW ダンネジ D=6.35 H=2.7 1 20 B2422-771-000 BOBBIN PICKER BRACKET ホビンオサエウデ 1 21 SS-7090620-TP SCREW 9/64-40 L=6.1 マルヒラネジ 9/64-40 L=6.1 1 22 400-09217 BOBBIN PICKER BRACKET SHAFT ホビンオサエジク 1 23 400-09215 BOBBIN WINDER TRIP LATCH ホビンオサエ 1 24 400-09223 SAFETY STOPPER アンゼンストッパー 1 25 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 1 26 400-09222 PRESSER PLATE ADJUSTING SPRING オシイタチョウセツバネ 1 27 400-09219 PRESSER PLATE MOUNTING BASE オシイタトリツケダイ 1 28 400-09214 BOBBIN THREAD TRIMMER LINK シタイトキリリンク 1 29 NS-6120310-SP NUT 3/16-28 ロツカクナツト 3/16-28 1 30 400-09221 PRESSER PLATE ADJUSTING SCREW チョウセツネジ 1 31 SD-0640321-SP HINGE SCREW D= 6.35 H= 3.2 ダンネジ D=6.35 H=3.2 1 32 SD-0640602-SP HINGE SCREW D=6.35 H= 6.0 ダンネジ D=6.35 H=6 1 33 B2417-771-000 BOBBIN THREAD GUIDE シタイトウケ 1 34 SS-4090415-SP SCREW 9/64-40 L=4 ナベネジ 9/64-40 L=4 2 35 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 36 SD-0790602-SP HINGE SCREW D= 7.94 H= 6 ダンネジ D=7.94 H=6 1 37 400-09210 BOBBIN THREAD TRIMMER DRIVING シタイトキリレバー 1 38 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 39 SS-7110570-SP SCREW 11/64-40 L=4.8 マルヒラネジ 11/64-40 L=4.8 1 40 400-09211 CONNECTING LINK イトキリクトウリンク 1 41 B2414-761-000 STOP SCREW シタイトキリリンクジク 1 42 NS-6680320-SP NUT 9/32-28 ロツカクナツト 9/32-28 1 43 B2416-761-000 HING STUD シタイトキリクトウウデジク 1 44 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 1 45 400-09209 BOBBIN THREAD TRIMMER DRIVING シタイトキリクトウウデ 1 46 SD-0790641-SP HINGE SCREW D= 7.94 H= 6.4 ダンネジ D=7.94 H=6.4 1 47 B2412-047-000 BALL SCREW シタイトキリアンナイピン 1 48 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 - 18 - jintex.in

Page 24 — 10. KNIFE BAR COMPONENTS

10. KNIFE BAR COMPONENTS メス棒関係 - 19 - jintex.in

Page 25

Juki LBH-781K parts on page 25
RefPart numberPart nameQty
1400-09302KNIFE STOP LEVER BRACKET
2PS-0300182-KFSPRING PIN 3X18
3SS-7110740-TPSCREW 11/64-40 L=7
4B2729-771-000KNIFE STOP LEVER
5SS-6110420-TPSCREW 11/64-40 L=4.8
6400-09300KNIFE STOP LEVER HINGE STUD
7B2731-761-000THREAD CHECK WIRE
8SS-7110840-SPSCREW 11/64-40 L=7.8
9B2702-771-000-AKNIFE BAR
10400-09280KNIFE ROD GUIDE PLATE A
11SS-7110740-SPSCREW 11/64-40 L=7
12400-09290HINGE STUD
13B2706-761-000KNIFE BAR CONNECTING LINK
14B2705-761-000HINGE SCREW
15NS-6660430-SPNUT 1/4-40
16400-09284KNIFE BAR POSITIONING BRACKET
17SS-7110840-SPSCREW 11/64-40 L=7.8
18B2701-761-000KNIFE HOLDER
19B2740-771-000THRUST WASHER
20SM-6061202-TPSCREW M6 L=12
21B2702-047-L00-AKNIFE 1/2
22WP-0501016-SDWASHER 5X10.5X1
23SS-7620750-SPSCREW 3/16-32 L= 6.5
24B2751-781-000KNIFE BAR DRIVING LEVER
25SS-7110810-SPSCREW 11/64-40 L= 8.0
26B2710-771-000SPRING
27SD-0550501-SPHINGE SCREW D=5.5 H=5
28400-09264KNIFE BAR STOPPER ASM.
29400-09265KNIFE BAR STOPPER
30400-09266STOPPER BUSH
31NS-6740510-SPNUT 3/8-28
32SD-0790201-SDHINGE SCREW D=7.9 H=2.0
33NS-6700540-SPNUT 5/16-24
34400-09294KNIFE BAR DRIVING CRANK NUT
35B2718-761-000TENSION SPRING
36400-09292LATCH
37SS-7161040-SPSCREW 1/4-24 L= 9.5
38400-09291KNIFE BAR DRIVING CRANK
39CQ-2520000-00OIL WICK
40B3537-122-000OIL WICK HOLDER
41SS-4090610-SPSCREW 9/64-40 L=6
42SM-6062002-TPSCREW M6 L=20
43SD-1110905-THHINGE SCREW D=11.11 H= 9.0
44261-05809KNIFE BAR DRIVING CRANK SHAFT
45400-09304SPACER
46400-09441KNIFE BAR DRIVING LEVER BELL C
47SS-8111610-SPSCREW 11/64-40 L=15.5
48NS-6110310-SPNUT 11/64-40
49SD-1110905-THHINGE SCREW D=11.11 H= 9.0
50400-09277HOOK PIN NUT
51400-09278HOOK PIN
52B2416-761-000HING STUD
53SS-8150822-TPSCREW 15/64-28 L=8
54B2725-761-000TENSION SPRING
55B2724-761-000RATCHET PAWL (B)
56B2723-761-0A0-AHOOK DIFFERENTIAL CLICK A ASM.
57B2723-761-000-AHOOK DIFFERENTIAL CLICK A
58101-20004SPRING SUSPENSION
59B1110-280-000THREAD CUTTING LINK SPRING RAC
60B2726-761-000-ATENSION SPRING
61SD-0530221-SPHINGE SCREW D= 5.3 H= 2.2
62400-09270DRIVING ROD
63400-09299TENSION SPRING
64400-09305SUSPENSION SCREW
65400-09274FINGER
66SS-7090710-SPSCREW 9/64-40 L= 6.8
67400-09303POSITIONING PIN (B)
68NS-6200520-SPNUT 5/16-18
69B2709-771-000KNIFE BAR DRIVING LEVER SHAFT

REF. NO NOTE PART NO. D E S C R I P T I O N Qty 1 400-09302 KNIFE STOP LEVER BRACKET 1 2 PS-0300182-KF SPRING PIN 3X18 1 3 SS-7110740-TP SCREW 11/64-40 L=7 2 4 B2729-771-000 KNIFE STOP LEVER 1 5 SS-6110420-TP SCREW 11/64-40 L=4.8 2 6 400-09300 KNIFE STOP LEVER HINGE STUD 1 7 B2731-761-000 THREAD CHECK WIRE 1 8 SS-7110840-SP SCREW 11/64-40 L=7.8 1 9 B2702-771-000-A KNIFE BAR 1 10 02 400-09280 KNIFE ROD GUIDE PLATE A 1 11 SS-7110740-SP SCREW 11/64-40 L=7 2 12 400-09290 HINGE STUD 1 13 B2706-761-000 KNIFE BAR CONNECTING LINK 1 14 B2705-761-000 HINGE SCREW 1 15 NS-6660430-SP NUT 1/4-40 1 16 02 400-09284 KNIFE BAR POSITIONING BRACKET 1 17 SS-7110840-SP SCREW 11/64-40 L=7.8 2 18 B2701-761-000 KNIFE HOLDER 1 19 B2740-771-000 THRUST WASHER 1 20 SM-6061202-TP SCREW M6 L=12 2 21 01 B2702-047-L00-A KNIFE 1/2 1 22 WP-0501016-SD WASHER 5X10.5X1 1 23 SS-7620750-SP SCREW 3/16-32 L= 6.5 1 24 B2751-781-000 KNIFE BAR DRIVING LEVER 1 25 SS-7110810-SP SCREW 11/64-40 L= 8.0 1 26 B2710-771-000 SPRING 1 27 SD-0550501-SP HINGE SCREW D=5.5 H=5 1 28 400-09264 KNIFE BAR STOPPER ASM. 1 29 400-09265 KNIFE BAR STOPPER (1) 30 400-09266 STOPPER BUSH (1) 31 NS-6740510-SP NUT 3/8-28 1 32 SD-0790201-SD HINGE SCREW D=7.9 H=2.0 1 33 NS-6700540-SP NUT 5/16-24 1 34 400-09294 KNIFE BAR DRIVING CRANK NUT 1 35 B2718-761-000 TENSION SPRING 1 36 400-09292 LATCH 1 37 SS-7161040-SP SCREW 1/4-24 L= 9.5 1 38 400-09291 KNIFE BAR DRIVING CRANK 1 39 CQ-2520000-00 OIL WICK 0.4 40 B3537-122-000 OIL WICK HOLDER 1 41 SS-4090610-SP SCREW 9/64-40 L=6 1 42 SM-6062002-TP SCREW M6 L=20 4 43 SD-1110905-TH HINGE SCREW D=11.11 H= 9.0 1 44 261-05809 KNIFE BAR DRIVING CRANK SHAFT 1 45 02 400-09304 SPACER 1 46 400-09441 KNIFE BAR DRIVING LEVER BELL C 1 47 SS-8111610-SP SCREW 11/64-40 L=15.5 1 48 NS-6110310-SP NUT 11/64-40 1 49 SD-1110905-TH HINGE SCREW D=11.11 H= 9.0 1 50 400-09277 HOOK PIN NUT 1 51 400-09278 HOOK PIN 1 52 B2416-761-000 HING STUD 1 53 SS-8150822-TP SCREW 15/64-28 L=8 1 54 B2725-761-000 TENSION SPRING 1 55 B2724-761-000 RATCHET PAWL (B) 1 56 B2723-761-0A0-A HOOK DIFFERENTIAL CLICK A ASM. 1 57 B2723-761-000-A HOOK DIFFERENTIAL CLICK A (1) 58 101-20004 SPRING SUSPENSION (1) 59 B1110-280-000 THREAD CUTTING LINK SPRING RAC (1) 60 B2726-761-000-A TENSION SPRING 1 61 SD-0530221-SP HINGE SCREW D= 5.3 H= 2.2 1 62 400-09270 DRIVING ROD 1 63 400-09299 TENSION SPRING 1 64 400-09305 SUSPENSION SCREW 1 65 400-09274 FINGER 1 66 SS-7090710-SP SCREW 9/64-40 L= 6.8 2 67 400-09303 POSITIONING PIN (B) 1 68 NS-6200520-SP NUT 5/16-18 1 69 B2709-771-000 KNIFE BAR DRIVING LEVER SHAFT 1 NOTE (注記) 01....THE SIZE OF THE BUTTONHOLE VARIES ACCORDING TO THE KNIFE, SO FOR FURTHER DETAILS PLEASE REFER TO PAGE 39,22-(2). 02....SELECTIVE PARTS - 20 - jintex.in

Page 26 — 11. FEED CAM & TRIPPING SEGMENT COMPONENTS

11. FEED CAM & TRIPPING SEGMENT COMPONENTS 主カム・閉止め関係 - 21 - jintex.in

Page 27

Juki LBH-781K parts on page 27
RefPart numberPart nameQty
1B2935-761-000SPUR GEAR (152)
2B2916-761-0A0SPUR GEAR BUSHING ASM.
3B2917-761-000SPUR GEAR BUSHING PIN
4SS-7120910-TPSCREW 3/16-28 L=9
5B2913-761-0A0CLUTCH COLLAR ASM.
6SS-8660610-TPSCREW 1/4-40 L=6
7SS-8660410-SPSCREW 1/4-40 L=4.2
8400-09314CLUTCH COLLAR
9B2919-761-000FEED CAM DRIVING WORM WHEEL
10400-09316FEED CAM DRIVING WORM WHEEL SH
11B3542-771-000OIL FELT
12261-07201CAM DRIVING STUD
13B2934-761-000SPUR GEAR (123)
14B2915-761-B00HANDLE CRANK BEVEL GEAR, LEFT
15B2915-761-AA0HANDLE CRANK BEVEL GEAR ASM.
16SS-8660610-TPSCREW 1/4-40 L=6
17CS-111101D-SHTHRUST COLLAR ASM. D=11.11 W=1
18SS-8660530-TPSCREW 1/4-40 L=4.5
19400-09318HANDLE CRANK SHAFT
20B2923-761-000HANDLE CRANK
21400-09319HANDLE CRANK
22SS-8150510-TPSCREW 15/64-28 L=4.7
23SS-8620610-SPSCREW 3/16-32 L=6
24400-09320HANDLE
25400-09321HANDLE SHAFT
26B2910-761-0A0FEED CAM DRIVING GEAR ASM.
27SS-8660610-TPSCREW 1/4-40 L=6
28NM-6120001-CPNUT M12
29B2909-761-000THRUST WASHER
30400-09312FEED CAM SHAFT
31B2901-771-00CFEED CAM
32WP-0982616-SPWASHER 9.8X24.0X2.6
33SS-9241513-CPSCREW 3/8-18 L=15
34SS-7111410-TPSCREW 11/64-40 L=14
35B2902-761-B00BAR TRIPPING SEGMENT NO.2 (B)
36WP-0480856-SPWASHER 4.8X 8.4X0.8
37SS-6111610-SPSCREW 11/64-40 L=16
38B2904-771-000KNIFE TRIPPING SEGMENT
39400-09309TENSION RELEASE TRIPPING SEGME
40400-09310TENSION RELEASE TRIPPING SEGME
41B2906-761-B00TRIPPING SEGMENT NO.2, UNDER 8
42261-00909BAR TRIPPING SEGMENT NO.1
43B2903-761-B00BAR TRIPPING SEGMENT NO.2 (B)
44261-00800LOW-SPEED CAM
45261-04604STOPPER CAM
46B2914-761-000CLUTCH SPRING

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 B2935-761-000 SPUR GEAR (152) 1 2 B2916-761-0A0 SPUR GEAR BUSHING ASM. 2 3 B2917-761-000 SPUR GEAR BUSHING PIN (4) 4 SS-7120910-TP SCREW 3/16-28 L=9 (4) 5 B2913-761-0A0 CLUTCH COLLAR ASM. 2 6 SS-8660610-TP SCREW 1/4-40 L=6 (1) 7 SS-8660410-SP SCREW 1/4-40 L=4.2 (1) 8 400-09314 CLUTCH COLLAR (1) 9 B2919-761-000 FEED CAM DRIVING WORM WHEEL 1 10 400-09316 FEED CAM DRIVING WORM WHEEL SH 1 11 B3542-771-000 OIL FELT 1 12 261-07201 CAM DRIVING STUD 1 13 01 B2934-761-000 SPUR GEAR (123) 1 14 B2915-761-B00 HANDLE CRANK BEVEL GEAR, LEFT 1 15 B2915-761-AA0 HANDLE CRANK BEVEL GEAR ASM. 1 16 SS-8660610-TP SCREW 1/4-40 L=6 (2) 17 CS-111101D-SH THRUST COLLAR ASM. D=11.11 W=1 1 18 SS-8660530-TP SCREW 1/4-40 L=4.5 (2) 19 400-09318 HANDLE CRANK SHAFT 1 20 B2923-761-000 HANDLE CRANK 1 21 04 400-09319 HANDLE CRANK 1 22 SS-8150510-TP SCREW 15/64-28 L=4.7 2 23 SS-8620610-SP SCREW 3/16-32 L=6 1 24 400-09320 HANDLE 1 25 400-09321 HANDLE SHAFT 1 26 B2910-761-0A0 FEED CAM DRIVING GEAR ASM. 1 27 SS-8660610-TP SCREW 1/4-40 L=6 (2) 28 NM-6120001-CP NUT M12 1 29 B2909-761-000 THRUST WASHER 1 30 400-09312 FEED CAM SHAFT 1 31 B2901-771-00C FEED CAM 1 32 WP-0982616-SP WASHER 9.8X24.0X2.6 1 33 SS-9241513-CP SCREW 3/8-18 L=15 1 34 SS-7111410-TP SCREW 11/64-40 L=14 4 35 02 B2902-761-B00 BAR TRIPPING SEGMENT NO.2 (B) 1 36 WP-0480856-SP WASHER 4.8X 8.4X0.8 10 37 SS-6111610-SP SCREW 11/64-40 L=16 10 38 B2904-771-000 KNIFE TRIPPING SEGMENT 1 39 400-09309 TENSION RELEASE TRIPPING SEGME 1 40 400-09310 TENSION RELEASE TRIPPING SEGME 1 41 03 B2906-761-B00 TRIPPING SEGMENT NO.2, UNDER 8 1 42 261-00909 BAR TRIPPING SEGMENT NO.1 2 43 02 B2903-761-B00 BAR TRIPPING SEGMENT NO.2 (B) 1 44 261-00800 LOW-SPEED CAM 1 45 261-04604 STOPPER CAM 1 46 B2914-761-000 CLUTCH SPRING 2 NOTE (注記) 01....FOR EXCHANGING GEARS, PLEASE REFER TO PAGE 39,22-(1). 02....SPECIAL ORDER PARTS FOR 80% BARTACKING 03....SPECIAL ORDER PARTS FOR LESS THAN 80 STITCHES 04....FOR URBAN WHITE - 22 -

Page 28 — 12. STOP-MOTION COMPONENTS

Juki LBH-781K parts on page 28
RefPart numberPart nameQty
1262-12308BELT COVER SETSCREW1
2B2653-771-000TENSION SPRING1
3B2615-232-000STOP LINK ROD HINGE SCREW1
4261-07807UPPER SHAFT STOPPER1
5NS-6620310-SPNUT 3/16-321
6261-07300STOPPER PIN1
7B2611-232-000STOP LINK CONNECTING SCREW1
8261-07508STOP LINK ROD HINGE STUD1
9B2604-771-000-BSTOP MOTION LEVER1
10400-09228BELT SHIFTER1
11SS-4150715-SPSCREW 15/64-28 L=72
12WP-0650876-SDWASHER 6.5X13X0.82
13400-09254INSTALLING BASE PIN1
14RC-1200001-KPC-SHAPED SNAP RING1
15RC-1200001-KPC-SHAPED SNAP RING1
16B2648-232-000STOP PIN1
17400-09229LATCH (A)1
18SM-6061602-TPSCREW M6 L=161
19WS-0610002-KPSPRING WASHER1
20SM-6062002-TPSCREW M6 L=201
21NS-6150430-SPNUT 15/64-281
22SS-6150430-SPSCREW 15/64-28 L=301
23400-09249STOP LINK ROD1
24400-09251STOP LINK ROD PRESSURE SPRING1
25400-09252SPRING SUPPORT NUT1
26NS-6240630-SPNUT 3/8-181
27B2601-761-000-ASTOP MOTION LEVER BRACKET1
28SM-6102002-TPSCREW M10 L=202

12. STOP-MOTION COMPONENTS 遮断装置関係 2 1 11 12 10 4 6 5 7 9 15 3 8 27 28 24 23 22 21 25 26 13 18 17 19 20 REF. NO NOTE PART NO. DESCRIPTION Qty. 1 262-12308 BELT COVER SETSCREW ベルトカバーメネジ 1 2 B2653-771-000 TENSION SPRING ツキアゲバネレンクバネ 1 3 B2615-232-000 STOP LINK ROD HINGE SCREW ツキアゲボレンクネジ 1 4 261-07807 UPPER SHAFT STOPPER ウワジクストッパー 1 5 NS-6620310-SP NUT 3/16-32 ロツカクナツト 3/16-32 1 6 261-07300 STOPPER PIN ストッパーピン 1 7 B2611-232-000 STOP LINK CONNECTING SCREW ストッパーレンクネジ 1 8 261-07508 STOP LINK ROD HINGE STUD ツキアゲボウアンナイ 1 9 B2604-771-000-B STOP MOTION LEVER シャダソウフレム 1 10 400-09228 BELT SHIFTER ベルトシフター 1 11 SS-4150715-SP SCREW 15/64-28 L=7 ナベネジ 15/64-28 L=7 2 12 WP-0650876-SD WASHER 6.5X13X0.8 ヒラザガネ 6.5X13X0.8 2 13 400-09254 INSTALLING BASE PIN シャダソウウチトリツケダイピン 1 14 RC-1200001-KP C-SHAPED SNAP RING Cガタトメワ 1 15 RC-1200001-KP C-SHAPED SNAP RING Cガタトメワ 1 16 B2648-232-000 STOP PIN キドーリンクチョーセツボルトアテガネ 1 17 400-09229 LATCH (A) フック A 1 18 SM-6061602-TP SCREW M6 L=16 ロツカクアナボルト 1 19 WS-0610002-KP SPRING WASHER バネザガネ 1 20 SM-6062002-TP SCREW M6 L=20 ロツカクアナボルト M6 L=20 1 21 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 22 SS-6150430-SP SCREW 15/64-28 L=30 ヒラネジ 15/64-28 L=30 1 23 400-09249 STOP LINK ROD ツキアゲボウ 1 24 400-09251 STOP LINK ROD PRESSURE SPRING ツキアゲボウヨウアツシュクバネ 1 25 400-09252 SPRING SUPPORT NUT バネウケナツト 1 26 NS-6240630-SP NUT 3/8-18 ロツカクナツト 3/8-18 1 27 B2601-761-000-A STOP MOTION LEVER BRACKET シャダソウウチトリツケダイ 1 28 SM-6102002-TP SCREW M10 L=20 ロツカクアナボルト M10 L=20 2 - 23 - jintex.in

Page 29 — 13. TRIPPING LEVER COMPONENTS

Juki LBH-781K parts on page 29
RefPart numberPart nameQty
1400-09255STARTING LINK COMPL.
2400-09256STARTING LINK ASM.
3400-09257SAFETY BASE
4SS-7110710-SPSCREW 11/64-40 L=7
5B2416-761-000HING STUD
6SS-8150822-TPSCREW 15/64-28 L=8
7400-09233HINGE SCREW
8NS-6150310-SPNUT 15/64-28
9400-09245STARTING LINK DRIVING ROD
10SD-0790451-SPHINGE SCREW D= 7.94 H= 4.5
11CS-079101B-SHTHRUST COLLAR ASM. D=7.94 W=10
12SS-7110740-TPSCREW 11/64-40 L=7
13SS-8110510-SPSCREW 11/64-40 L=5
14400-09247CRANK SHAFT TENSION SPRING
15400-09241HAND STOP CRANK SHAFT
16SS-6111010-TPSCREW 11/64-40 L=9.5
17B2608-761-000HAND STOP CRANK SHAFT BALL
18B2611-761-000CRANK SHAFT PRESSURE SPRING
19400-09242HAND STOP ROD B
20B2610-761-0AOHAND STOP CRANK ASM.
21B2610-761-0AAHAND STOP CRANK ASM.
22SS-8150510-TPSCREW 15/64-28 L=4.7
23B2617-771-000TRIPPING LEVER TENSION SPRING
24400-09262WASHER
25SS-7150940-SPSCREW 15/64-28 L=9
26NM-6060001-CPNUT M6
27400-09238LATCH (B)
28SM-6062002-TPSCREW M6 L=20
29WS-0610002-KPSPRING WASHER
30B2651-781-000-ATRIPPING LEVER
31400-09243TRIPPING DOG
32400-09116ROLLER
33SD-0640471-SPHINGE SCREW D= 6.35 H= 4.7
34400-09260TRIPPING LEVER HINGE PIN ASM.
35400-09261TRIPPING LEVER HINGE PIN
36RC-1021011-KPRETAINING RING 10.2

13. TRIPPING LEVER COMPONENTS 手動停止関係 7 5 6 1 2 3 4 8 9 10 11 12 13 34 35 36 14 24 25 15 16 17 18 19 20 21 22 23 26 30 31 32 33 27 28 29 REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-09255 STARTING LINK COMPL. キド・ワンシンクデ(ケツゴウ) 1 2 400-09256 STARTING LINK ASM. キド・ワンシンクデ(クミ) (1) 3 400-09257 SAFETY BASE スノキリメスアンゼンバン 1 4 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 5 B2416-761-000 HING STUD シタイキリ クトーウデジク 1 6 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 2 7 400-09233 HINGE SCREW キド・ワンシンロットジク 2 8 NS-6150310-SP NUT 15/64-28 ロッカクナット 15/64-28 2 9 400-09245 STARTING LINK DRIVING ROD キド・ワンシンウデロット 1 10 SD-0790451-SP HINGE SCREW D= 7.94 H= 4.5 ダンネジ D=7.94 H=4.5 1 11 CS-079101B-SH THRUST COLLAR ASM. D=7.94 W=10 スラストウケ D=7.94 W=10 1 12 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 13 SS-8110510-SP SCREW 11/64-40 L=5 トメネジ 11/64-40 L=5 (1) 14 400-09247 CRANK SHAFT TENSION SPRING シュト・ウテイシハンドバネ 1 15 400-09241 HAND STOP CRANK SHAFT シュト・ウテイシハンドジク 1 16 SS-6111010-TP SCREW 11/64-40 L=9.5 ヒラネジ 11/64-40 L=9.5 2 17 B2608-761-000 HAND STOP CRANK SHAFT BALL シュト・ウテイシハンドタマ 1 18 B2611-761-000 CRANK SHAFT PRESSURE SPRING シュト・ウテイシハンドバネ 1 19 400-09242 HAND STOP ROD B シュト・ウテイシホウボウ B 1 20 01 B2610-761-0AO HAND STOP CRANK ASM. シュト・ウテイシハンドクミ 1 21 02 B2610-761-0AA HAND STOP CRANK ASM. シュト・ウテイシハンドクミ_W 1 22 SS-8150510-TP SCREW 15/64-28 L=4.7 トメネジ 15/64-28 L=4.7 2 23 B2617-771-000 TRIPPING LEVER TENSION SPRING フックヒキハズシレバーバネ 1 24 400-09262 WASHER フック C 1 25 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 1 26 NM-6060001-CP NUT M6 ロッカクナット M6 1 27 400-09238 LATCH (B) フック B 1 28 SM-6062002-TP SCREW M6 L=20 ロッカクアナボルト M6 L=20 2 29 WS-0610002-KP SPRING WASHER バネザガネ 1 30 B2651-781-000-A TRIPPING LEVER フックヒキハズシレバー 1 31 400-09243 TRIPPING DOG フック C 1 32 400-09116 ROLLER フリハズシヘンカンローラー 1 33 SD-0640471-SP HINGE SCREW D= 6.35 H= 4.7 ダンネジ D=6.35 H=4.7 1 34 400-09260 TRIPPING LEVER HINGE PIN ASM. フックヒキハズシレバーヒンジク(クミ) (1) 35 400-09261 TRIPPING LEVER HINGE PIN フックヒキハズシレバーヒンジク (1) 36 RC-1021011-KP RETAINING RING 10.2 Cガタトメワ 10.2 (1) NOTE (注記) 01....SELECTIVE PARTS 選択部品 02....FOR URBAN WHITE アーバンホワイト用 - 24 - jintex.in

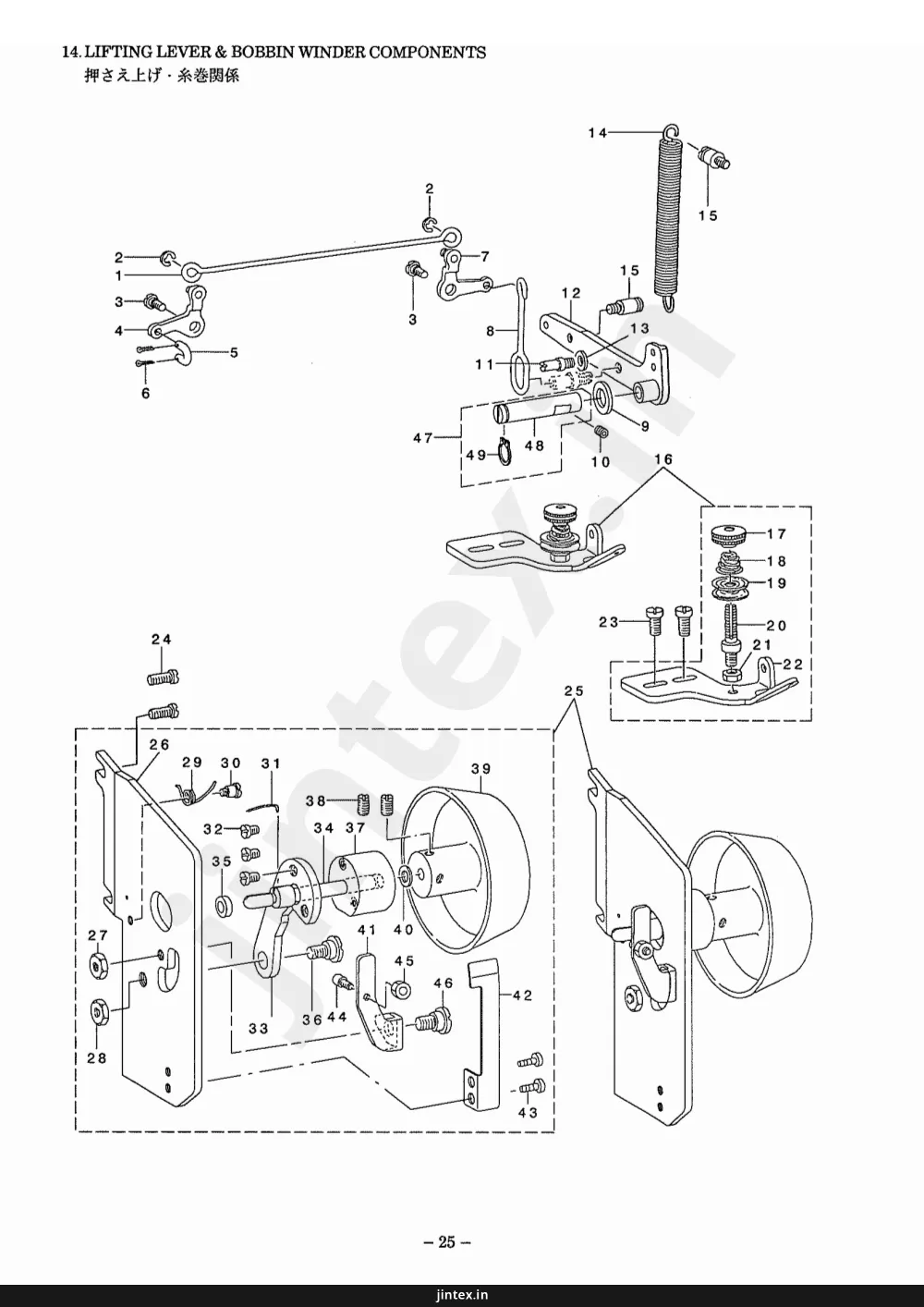

Page 30 — 14. LIFTING LEVER & BOBBIN WINDER COMPONENTS

14. LIFTING LEVER & BOBBIN WINDER COMPONENTS 押さえ上げ・糸巻関係 14 2 1 3 4 6 5 2 7 3 12 8 11 47 49 48 10 13 9 16 15 15 17 18 19 20 21 22 23 24 26 29 30 31 38 32 35 34 37 33 36 44 41 40 45 46 39 42 43 25 27 28 - 25 - jintex.in

Page 32 — 15. THREAD TENSION COMPONENTS

Juki LBH-781K parts on page 32
RefPart numberPart nameQty
1THREAD TENSION COMPONENT
2NUT
3SPRING
4SCREW
5WASHER
6ARM
7SCREW
8SPRING
9WASHER
10BRACKET
11SHAFT
12NUT
13SHAFT
14LEVER
15SCREW
16SPRING
17WASHER
18BRACKET
19SHAFT
20SCREW
21NUT
22WASHER
23RING
24SHAFT
25SPRING
26THREAD GUIDE
27THREAD GUIDE
28THREAD GUIDE
29THREAD GUIDE
30THREAD GUIDE
31THREAD GUIDE
32THREAD GUIDE
33THREAD GUIDE
34SPRING
35SPRING
36SHAFT
37THREAD GUIDE
38SPRING
39CAP
40CAP
41WASHER
42SPRING
43WASHER
44PIN
45SHAFT
46SHAFT
47NUT
48BRACKET
49SCREW
50BRACKET
51BRACKET
52SPRING
53SHAFT
54SCREW
55SHAFT
56PIN
57SCREW
58BRACKET
59SHAFT
60SHAFT
61SHAFT
62SCREW
63SPRING
64SPRING
65SPRING
66~73THREAD GUIDE ASSEMBLY

15. THREAD TENSION COMPONENTS 糸調子関係 1 2 3 13 15 5 6 7 4 14 13 10 12 11 66~73 35 34 23 33 32 31 30 29 28 27 26 36 19 18 21 22 25 20 24 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 - 27 - jintex.in

Page 33

Juki LBH-781K parts on page 33
RefPart numberPart nameQty
400-09325TENSION RELEASE LINK1
SD-0640391-TPHINGE SCREW D= 6.35 H= 3.91
B3152-781-000TENSION RELEASE LEVER1
SS-6660712-TPSCREW 1/4-40 L= 7.02
SD-0640241-SPHINGE SCREW D= 6.35 H= 3.91
400-09165BLOCKING LINK1
SD-0640391-TPHINGE SCREW D= 6.35 H= 3.91
400-09166BLOCKING ARM SPRING1
SD-0790311-TPHINGE SCREW D= 7.94 H= 3.11
400-08611BLOCKING ARM1
400-08609BLOCKING ARM BRACKET1
NS-6110310-SPNUT 11/64-402
NS-6120310-SPNUT 3/16-281
B3116-771-000TENSION RELEASE LEVER1
SS-7621040-SPSCREW 3/16-32 L= 9.51
CS-079101D-SHTHRUST COLLAR ASM. D=7.94 W= 10(2)
400-09327THREAD TENSION KNOB, RED(1)
SS-8110520-TPSCREW 11/64-40 L= 4.5(1)
400-09328TENSION RELEASE ROD1
SD-0500301-SPHINGE SCREW D= 5 H= 3(1)
NS-6090310-SPNUT 9/64-40(1)
400-09329TENSION RELEASE ROD(1)
RO-0952001-00RUBBER RING(1)
B3107-771-00BTENSION RELEASE LEVER COLLAR N1
SS-6111610-SPSCREW 11/64-40 L=161
B3110-771-0A0TENSION CONTROLLER NO.2 ASM.1
119-56703THREAD TENSION KNOB, RED(1)
B3112-704-000TENSION SPRING BUSHING(1)
B3101-804-000TENSION SPRING, RED(1)
B3107-804-000THREAD TENSION DISK PRESSER(1)
B3126-012-000THREAD TENSION DISK(2)
B3111-761-000TENSION POST NO.3(1)
B3112-761-000THREAD TAKE-UP SPRING(1)
B3110-771-000TENSION POST SOCKET(1)
SS-8090670-SPSCREW 9/64-40 L= 5.5(1)
B3106-771-000TENSION RELEASE LEVER SHAFT(1)
SS-7110840-SPSCREW 11/64-40 L= 7.81
B3120-771-000THREAD PULLING WIRE1
B3103-771-0A0TENSION CONTROLLER NO. 1 ASM.1
119-56703THREAD TENSION KNOB, RED(1)
B3112-704-000TENSION SPRING BUSHING(1)
B2017-372-000TENSION SPRING NO.1(1)
B3107-804-000THREAD TENSION DISK PRESSER(1)
B3126-012-000THREAD TENSION DISK(2)
B3103-761-000TENSION RELEASE PIN NO.2(1)
B2017-372-000TENSION SPRING(1)
NS-6160520-SPNUT 1/4-24(1)
B3102-771-000TENSION RELEASE ARM ASM.(1)
SS-9660940-TPSCREW 1/4-40 L= 8.5(1)
SS-4150715-SPSCREW 15/64-28 L=71
B111-232-000THREAD GUIDE PLATE1
B3117-771-000SPRING1
CS-0790720-THTHRUST COLLAR ASM.(2)
SS-7090720-TPSCREW 9/64-40 L= 6.8(2)
400-09339TENSION RELEASE ROD1
PS-0300182-KFSPRING PIN 3X181
SS-4110715-SPSCREW 11/64-40 L=71
229-20706TWO EYELET1
400-09037TAKE UP THREAD GUIDE1
SS-7090710-SPSCREW 9/64-40 L= 6.81
400-09340NEEDLE BAR THREAD GUIDE1
SS-7110840-SPSCREW 11/64-40 L= 7.81
B3118-771-000TENSION THREAD GUIDE, NO.21
B3114-771-000THREAD GUIDE(1)
NS-6090310-SPNUT 9/64-402
B3118-552-D00TENSION RELEASE PIN, NO.2(1)
B3118-552-F00TENSION RELEASE PIN D(1)
B3118-552-B00TENSION RELEASE PIN A(1)
B3118-552-C00TENSION RELEASE PIN B(1)
229-20904TENSION RELEASE PIN C(1)
B3118-552-F00TENSION RELEASE PIN(1)
B3118-552-G00TENSION RELEASE PIN E(1)
B3118-552-H00THREAD RELEASE PIN H(1)

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 400-09325 TENSION RELEASE LINK 1 2 SD-0640391-TP HINGE SCREW D= 6.35 H= 3.9 1 3 B3152-781-000 TENSION RELEASE LEVER 1 4 SS-6660712-TP SCREW 1/4-40 L= 7.0 2 5 SD-0640241-SP HINGE SCREW D= 6.35 H= 3.9 1 6 400-09165 BLOCKING LINK 1 7 SD-0640391-TP HINGE SCREW D= 6.35 H= 3.9 1 8 400-09166 BLOCKING ARM SPRING 1 9 SD-0790311-TP HINGE SCREW D= 7.94 H= 3.1 1 10 400-08611 BLOCKING ARM 1 11 400-08609 BLOCKING ARM BRACKET 1 12 NS-6110310-SP NUT 11/64-40 2 13 NS-6120310-SP NUT 3/16-28 1 14 B3116-771-000 TENSION RELEASE LEVER 1 15 SS-7621040-SP SCREW 3/16-32 L= 9.5 1 16 CS-079101D-SH THRUST COLLAR ASM. D=7.94 W= 10 (2) 17 400-09327 THREAD TENSION KNOB, RED (1) 18 SS-8110520-TP SCREW 11/64-40 L= 4.5 (1) 19 400-09328 TENSION RELEASE ROD 1 20 SD-0500301-SP HINGE SCREW D= 5 H= 3 (1) 21 NS-6090310-SP NUT 9/64-40 (1) 22 400-09329 TENSION RELEASE ROD (1) 23 RO-0952001-00 RUBBER RING (1) 24 B3107-771-00B TENSION RELEASE LEVER COLLAR N 1 25 SS-6111610-SP SCREW 11/64-40 L=16 1 26 B3110-771-0A0 TENSION CONTROLLER NO.2 ASM. 1 27 119-56703 THREAD TENSION KNOB, RED (1) 28 B3112-704-000 TENSION SPRING BUSHING (1) 29 B3101-804-000 TENSION SPRING, RED (1) 30 B3107-804-000 THREAD TENSION DISK PRESSER (1) 31 B3126-012-000 THREAD TENSION DISK (2) 32 B3111-761-000 TENSION POST NO.3 (1) 33 B3112-761-000 THREAD TAKE-UP SPRING (1) 34 B3110-771-000 TENSION POST SOCKET (1) 35 SS-8090670-SP SCREW 9/64-40 L= 5.5 (1) 36 B3106-771-000 TENSION RELEASE LEVER SHAFT (1) 37 SS-7110840-SP SCREW 11/64-40 L= 7.8 1 38 B3120-771-000 THREAD PULLING WIRE (1) 39 B3103-771-0A0 TENSION CONTROLLER NO. 1 ASM. 1 40 119-56703 THREAD TENSION KNOB, RED (1) 41 B3112-704-000 TENSION SPRING BUSHING (1) 42 B2017-372-000 TENSION SPRING NO.1 (1) 43 B3107-804-000 THREAD TENSION DISK PRESSER (1) 44 B3126-012-000 THREAD TENSION DISK (2) 45 B3103-761-000 TENSION RELEASE PIN NO.2 (1) 46 B2017-372-000 TENSION SPRING (1) 47 NS-6160520-SP NUT 1/4-24 (1) 48 B3102-771-000 TENSION RELEASE ARM ASM. (1) 49 SS-9660940-TP SCREW 1/4-40 L= 8.5 (1) 50 SS-4150715-SP SCREW 15/64-28 L=7 1 51 B111-232-000 THREAD GUIDE PLATE 1 52 B3117-771-000 SPRING 1 53 CS-0790720-TH THRUST COLLAR ASM. (2) 54 SS-7090720-TP SCREW 9/64-40 L= 6.8 (2) 55 400-09339 TENSION RELEASE ROD 1 56 PS-0300182-KF SPRING PIN 3X18 1 57 SS-4110715-SP SCREW 11/64-40 L=7 1 58 229-20706 TWO EYELET 1 59 400-09037 TAKE UP THREAD GUIDE 1 60 SS-7090710-SP SCREW 9/64-40 L= 6.8 1 61 400-09340 NEEDLE BAR THREAD GUIDE 1 62 SS-7110840-SP SCREW 11/64-40 L= 7.8 1 63 B3118-771-000 TENSION THREAD GUIDE, NO.2 1 64 B3114-771-000 THREAD GUIDE (1) 65 NS-6090310-SP NUT 9/64-40 2 66 01 B3118-552-D00 TENSION RELEASE PIN, NO.2 (1) 67 01 B3118-552-F00 TENSION RELEASE PIN D (1) 68 01 B3118-552-B00 TENSION RELEASE PIN A (1) 69 01 B3118-552-C00 TENSION RELEASE PIN B (1) 70 01 229-20904 TENSION RELEASE PIN C (1) 71 01 B3118-552-F00 TENSION RELEASE PIN (1) 72 01 B3118-552-G00 TENSION RELEASE PIN E (1) 73 01 B3118-552-H00 THREAD RELEASE PIN H (1) NOTE (注記) 01...SELECTIVE PARTS 選択部品 - 28 - jintex.in

Page 34 — 16. LUBRICATION MECHANISM COMPONENTS

Juki LBH-781K parts on page 34
RefPart numberPart nameQty
11NEEDLE BAR LUBRICATING DEVICE
22NEEDLE BAR LUBRICATING DEVICE
33NEEDLE BAR LUBRICATING DEVICE
44NEEDLE BAR LUBRICATING DEVICE
55NEEDLE BAR LUBRICATING DEVICE
66NEEDLE BAR LUBRICATING DEVICE
77NEEDLE BAR LUBRICATING DEVICE
88NEEDLE BAR LUBRICATING DEVICE
99NEEDLE BAR LUBRICATING DEVICE
1010NEEDLE BAR LUBRICATING DEVICE
1111NEEDLE BAR LUBRICATING DEVICE
1212NEEDLE BAR LUBRICATING DEVICE
1313NEEDLE BAR LUBRICATING DEVICE
1414NEEDLE BAR LUBRICATING DEVICE
1515NEEDLE BAR LUBRICATING DEVICE
1616NEEDLE BAR LUBRICATING DEVICE
1717NEEDLE BAR LUBRICATING DEVICE
1818NEEDLE BAR LUBRICATING DEVICE
1919NEEDLE BAR LUBRICATING DEVICE
2020NEEDLE BAR LUBRICATING DEVICE
2121NEEDLE BAR LUBRICATING DEVICE
2222NEEDLE BAR LUBRICATING DEVICE
2323NEEDLE BAR LUBRICATING DEVICE
2424NEEDLE BAR LUBRICATING DEVICE
2525NEEDLE BAR LUBRICATING DEVICE
2626NEEDLE BAR LUBRICATING DEVICE
2727NEEDLE BAR LUBRICATING DEVICE
2828NEEDLE BAR LUBRICATING DEVICE
2929NEEDLE BAR LUBRICATING DEVICE
3030NEEDLE BAR LUBRICATING DEVICE
3131NEEDLE BAR LUBRICATING DEVICE
3232NEEDLE BAR LUBRICATING DEVICE
3333NEEDLE BAR LUBRICATING DEVICE
3434NEEDLE BAR LUBRICATING DEVICE
3535NEEDLE BAR LUBRICATING DEVICE
3636NEEDLE BAR LUBRICATING DEVICE
3737NEEDLE BAR LUBRICATING DEVICE
3838NEEDLE BAR LUBRICATING DEVICE
3939NEEDLE BAR LUBRICATING DEVICE
4040NEEDLE BAR LUBRICATING DEVICE
4141NEEDLE BAR LUBRICATING DEVICE
4242NEEDLE BAR LUBRICATING DEVICE
4343NEEDLE BAR LUBRICATING DEVICE
4444NEEDLE BAR LUBRICATING DEVICE
4545NEEDLE BAR LUBRICATING DEVICE
4646NEEDLE BAR LUBRICATING DEVICE
4747NEEDLE BAR LUBRICATING DEVICE
4848NEEDLE BAR LUBRICATING DEVICE
4949NEEDLE BAR LUBRICATING DEVICE
5050NEEDLE BAR LUBRICATING DEVICE
5151NEEDLE BAR LUBRICATING DEVICE
5252NEEDLE BAR LUBRICATING DEVICE
5353NEEDLE BAR LUBRICATING DEVICE
5454NEEDLE BAR LUBRICATING DEVICE
5555NEEDLE BAR LUBRICATING DEVICE
5656NEEDLE BAR LUBRICATING DEVICE
5757NEEDLE BAR LUBRICATING DEVICE
5858NEEDLE BAR LUBRICATING DEVICE
5959NEEDLE BAR LUBRICATING DEVICE
6060NEEDLE BAR LUBRICATING DEVICE
6161NEEDLE BAR LUBRICATING DEVICE
6262NEEDLE BAR LUBRICATING DEVICE
6363NEEDLE BAR LUBRICATING DEVICE
6464NEEDLE BAR LUBRICATING DEVICE
6565NEEDLE BAR LUBRICATING DEVICE
6666NEEDLE BAR LUBRICATING DEVICE
6767NEEDLE BAR LUBRICATING DEVICE
6868NEEDLE BAR LUBRICATING DEVICE
6969NEEDLE BAR LUBRICATING DEVICE
7070NEEDLE BAR LUBRICATING DEVICE
7171NEEDLE BAR LUBRICATING DEVICE
7272NEEDLE BAR LUBRICATING DEVICE
7373NEEDLE BAR LUBRICATING DEVICE
7474NEEDLE BAR LUBRICATING DEVICE
7575NEEDLE BAR LUBRICATING DEVICE
7676NEEDLE BAR LUBRICATING DEVICE
7777NEEDLE BAR LUBRICATING DEVICE
7878NEEDLE BAR LUBRICATING DEVICE
7979NEEDLE BAR LUBRICATING DEVICE
8080NEEDLE BAR LUBRICATING DEVICE
8181NEEDLE BAR LUBRICATING DEVICE
8282NEEDLE BAR LUBRICATING DEVICE

16. LUBRICATION MECHANISM COMPONENTS 給油装置関係 19 20 21 22 23 24 28 29 30 17 18 9 16 15 14 13 10 2 8 12 7 34 35 10 11 12 37 36 38 39 40 41 44 42 43 31 32 33 25 26 47 48 78 27 6 53 51 54 55 52 56 73 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 75 76 46 74 72 75 76 45 77 79 80 81 82 - 29 - jintex.in

Page 35

Juki LBH-781K parts on page 35
RefPart numberPart nameQty
400-09374OIL FELT HOLDER
B3549-771-000OIL FELT RETURN FELT (A)
B3568-771-000OIL RETURN TUBE
B3571-771-000PIPE HOLDER
SS-7110710-SPSCREW 11/64-40 L=7
SS-7110910-TPPIPE GUIDE (A)
400-09369PIPE HOLDER
BP-6000000-00VINYL PIPE0.1
BP-5000000-00VINYL PIPE0.05
BP-3000000-00VINYL PIPE0.55
SQ-1110402-MZCONNECTING SCREW4
B3534-012-000GASKET1
B3534-155-000PLUNGER1
B1214-038-000PLUNGER SPRING1
400-09361THRUST PLATE1
SS-4150715-SPSCREW 15/64-28 L=71
400-09373OIL FELT GUIDE1
SS-7110710-SPSCREW 11/64-40 L=71
B3560-771-000OIL FELT1
B1135-771-0A0OIL SHIELD1
SS-4110515-SPSCREW 11/64-40 L=51
B3561-771-000OIL UNWOVEN CLOTH1
B1148-771-000OIL FELT1
B1147-771-000OIL FELT1
B3563-771-000-AOIL SHIELD1
SS-4110515-SPSCREW 11/64-40 L=52
B1124-771-000CUSHION1
B1154-781-000BELT GUARD1
B1154-781-00ABELT GUARD1
SS-4110815-SPSCREW 11/64-40 L=82
400-09001PLATE SPRING1
400-09365SET NUT1
B1156-781-000RUBBER BUSHING0.1
BP-8000000-00VINYL TUBE, WHITE D=80.1
CQ-3030000-00OIL WICK1
400-09360OIL PUMP BASE1
SS-4110815-SPSCREW 11/64-40 L=81
B3570-771-000FILTER OIL FELT2
B3546-771-000OIL FELT1
400-09375SPRING1
400-09366FILTER SCREEN1
400-09379BUSHING HOLDER1
SS-7090910-SPSCREW 9/64-40 L=8.51
NS-6090310-SPNUT 9/64-408
NS-6150310-SPNUT 15/64-281
400-08996DRIVING PIN BASE1
B1151-781-0A0-AMACHINE BASE ASM.1
B1151-781-0AA-AMACHINE BASE ASM.1
B1151-781-000-AMACHINE BASE(1)
B1151-781-00AHEAD BASE(2)
400-08996GUIDE PIN(4)
400-09035RUBBER CUSHION(4)
SS-7111120-SPSCREW 11/64-40 L=10.5(4)
B1122-761-000HINGE HOLDER(2)
261-09207HINGE HOLDER(2)
B1120-761-000PIN(2)
SM-6062002-TPSCREW M6 L=20(4)
WP-0621016-SDWASHER 6.2X13X1(4)
SS-6741010-SPSCREW 3/8-28 L=10(4)
B8219-125-000OIL DRAIN CAP GASKET(2)
400-09244STARTING LEVER PRESSURE SPRING(1)
SM-9082003-CPSCREW M8 L=20(1)
NS-6150310-SPNUT 15/64-28(1)
400-09235STOP SCREW ASM.(1)
NM-6080721-SENUT M8(1)
SS-7151210-SPSCREW 15/64-28 L=12(1)
400-09231STARTING LINK SHAFT(1)
SS-9150860-SPSCREW 15/64-28 L=8(1)
SS-8150710-SPSCREW 15/64-28 L=7(1)
261-07409STARTING LINK(1)
B2655-781-000STARTING LEVER(1)
RE-0600000-KOE-RING 61
B7160-781-0A0SHIFTER DRIVING PIN1
SS-7112420-SPSCREW 11/64-40 L=243
B1133-761-000MACHINE BASE FELT PAD4
B1153-771-000MACHINE BASE SCREW STUD4
WP-0612056-SDWASHER 6.2X13X24
B8213-012-000BED HINGE CONNECTION2
BP-3000000-00VINYL PIPE0.13
BP-5000000-00VINYL PIPE, WHITE D=80.05
BP-5000000-00VINYL TUBE, WHITE D=40.1
BP-4000000-00VINYL TUBE, WHITE D=40.03

REF NO NOTE PART NO DESCRIPTION Qty 1 400-09374 OIL FELT HOLDER メンイタフエルトオタエ I 2 B3549-771-000 OIL FELT RETURN FELT (A) カンシューフエルト A I 3 B3568-771-000 OIL RETURN TUBE カンシューパイプ I 4 B3571-771-000 PIPE HOLDER カンリユウパイプ トメカク I 5 * SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 6 02 SS-7110910-TP PIPE GUIDE (A) パイプアンナイ A 1 7 400-09369 PIPE HOLDER パイプアンナイ 1 8 BP-6000000-00 VINYL PIPE ビニールパイプ 0.1 9 BP-5000000-00 VINYL PIPE ビニールパイプ 0.05 10 BP-3000000-00 VINYL PIPE ビニールパイプ 0.55 11 SQ-1110402-MZ CONNECTING SCREW チューブレンケツテス 4 12 B3534-012-000 GASKET アラシヤー 1 13 B3534-155-000 PLUNGER アラシヤー 1 14 B1214-038-000 PLUNGER SPRING アラシヤーオタエハネ 1 15 400-09361 THRUST PLATE アラシヤーヤークネウケ 1 16 SS-4150715-SP SCREW 15/64-28 L=7 ナベネジ 15/64-28 L=7 1 17 400-09373 OIL FELT GUIDE フエルトアンナイ 1 18 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 19 B3560-771-000 OIL FELT ウオームギヤー キユウフエルト 1 20 B1135-771-0A0 OIL SHIELD アララウケ 1 21 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 22 B3561-771-000 OIL UNWOVEN CLOTH ウツクシヤクフエルト A 1 23 B1148-771-000 OIL FELT アブラフエルト B 1 24 B1147-771-000 OIL FELT クモジヤクシヨーブハン 1 25 B3563-771-000-A OIL SHIELD クモジヤク 1 26 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 2 27 B1124-771-000 CUSHION ヒンクククツシヨン 1 28 B1154-781-000 BELT GUARD ベルトカバー 1 29 B1154-781-00A BELT GUARD ベルトカバー 1 30 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 2 31 400-09001 PLATE SPRING ベルトカバー トメカク 1 32 400-09365 SET NUT ベルトカバー ゴムアツクス 1 33 B1156-781-000 RUBBER BUSHING ビニールパイプ 8 0.1 34 BP-8000000-00 VINYL TUBE, WHITE D=8 ユシン 0.1 35 CQ-3030000-00 OIL WICK キユウスダイ 1 36 400-09360 OIL PUMP BASE ナベネジ 11/64-40 L=8 1 37 SS-4110815-SP SCREW 11/64-40 L=8 キユウスダイフイルター 2 38 B3570-771-000 FILTER OIL FELT キユウスモウフエルト 1 39 B3546-771-000 OIL FELT キユウスダイフエルト 1 40 400-09375 SPRING キユウスアミ 1 41 400-09366 FILTER SCREEN キユウエアミナケ 1 42 400-09379 BUSHING HOLDER マルヒラネジ 9/64-40 L=8.5 1 43 SS-7090910-SP SCREW 9/64-40 L=8.5 ロクカクナツト 9/64-40 1 44 NS-6090310-SP NUT 9/64-40 ロクカクナツト 15/64-28 8 45 NS-6150310-SP NUT 15/64-28 グドービンタイ 1 46 02 400-08996 DRIVING PIN BASE トウアベース (クミ) 1 47 B1151-781-0A0-A MACHINE BASE ASM. トウアベース (クミ) 1 48 01 B1151-781-0AA-A MACHINE BASE ASM. トウアベース (1) 49 B1151-781-000-A MACHINE BASE トウアベース (1) 50 01 B1151-781-00A HEAD BASE ガイドピン (2) 51 400-08996 GUIDE PIN トウアサタエゴ A (4) 52 400-09035 RUBBER CUSHION マルヒラネジ 11/64-40 L=10.5 (4) 53 SS-7111120-SP SCREW 11/64-40 L=10.5 ヒンクジククケ (4) 54 B1122-761-000 HINGE HOLDER ヒンジジククケ (2) 55 01 261-09207 HINGE HOLDER ヒンジジククケ (2) 56 B1120-761-000 PIN ピン (2) 57 SM-6062002-TP SCREW M6 L=20 ロクカクアナツト M6 L=20 (4) 58 WP-0621016-SD WASHER 6.2X13X1 ヒラガネ 6.2X13X1 (4) 59 SS-6741010-SP SCREW 3/8-28 L=10 ヒラガネ 3/8-28 L=10 (4) 60 B8219-125-000 OIL DRAIN CAP GASKET ハイエナフアツキン (2) 61 400-09244 STARTING LEVER PRESSURE SPRING キドウリンハネ (1) 62 SM-9082003-CP SCREW M8 L=20 ロツカクナツト M8 L=20 (1) 63 NS-6150310-SP NUT 15/64-28 ロクカクナツト 15/64-28 (1) 64 400-09235 STOP SCREW ASM. キドウリンストツパー(クミ) (1) 65 NM-6080721-SE NUT M8 ロクカクナツト M8 (1) 66 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 (1) 67 400-09231 STARTING LINK SHAFT キドウリンクジク (1) 68 SS-9150860-SP SCREW 15/64-28 L=8 ロクカクアナツト 15/64-28 L=8 (1) 69 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (1) 70 261-07409 STARTING LINK キドウリンク (1) 71 B2655-781-000 STARTING LEVER キドウレバー (1) 72 02 RE-0600000-KO E-RING 6 Eガタトメワ 6 1 73 02 B7160-781-0A0 SHIFTER DRIVING PIN フツタークドピンクミ 1 74 02 SS-7112420-SP SCREW 11/64-40 L=24 マルヒラネジ 11/64-40 L=24 3 75 B1133-761-000 MACHINE BASE FELT PAD トウアベースザフエルト 4 76 B1153-771-000 MACHINE BASE SCREW STUD トウアベース スタツド 4 77 WP-0612056-SD WASHER 6.2X13X2 4 78 B8213-012-000 BED HINGE CONNECTION ヒンジジク 2 79 BP-3000000-00 VINYL PIPE ビニールパイプ 0.13 80 BP-5000000-00 VINYL PIPE, WHITE D=8 ビニールパイプ 8 0.05 81 BP-5000000-00 VINYL TUBE, WHITE D=4 ビニールパイプ 0.1 82 BP-4000000-00 VINYL TUBE, WHITE D=4 ビニールパイプ 0.03 NOTE (注記) 01...FOR URBAN WHITE 02...ACCESSORY PARTS 付属吕 - 30 - jintex.in

Page 36 — 17. SPEED TRANSMITTER COMPONENTS

Juki LBH-781K parts on page 36
RefPart numberPart nameQty
193403-10016BOLT
290105-06017BOLT
390105-06017BOLT
490105-06017BOLT
590105-06017BOLT
690105-06017BOLT
790105-06017BOLT
890105-06017BOLT
990105-06017BOLT
1090105-06017BOLT
1190105-06017BOLT
1290105-06017BOLT
1390105-06017BOLT
1493306-20617BEARING
1593306-20617BEARING
1693403-10016BOLT
1790105-06017BOLT
1890201-06001WASHER
1990105-06017BOLT
2090105-06017BOLT
2154611-26800BRACKET, SPEED TRANSMITTER
2290601-10001CIRCLIP
2390105-06017BOLT
2490201-06001WASHER
2590105-06017BOLT
2690105-06017BOLT
2790105-06017BOLT
2890105-06017BOLT
2993306-20617BEARING
3090201-06001WASHER
3190105-06017BOLT
3290105-06017BOLT
3354612-26800SHAFT, SPEED TRANSMITTER
3493306-20617BEARING
3554613-26800PULLEY, SPEED TRANSMITTER
3654614-26800PULLEY, SPEED TRANSMITTER
3793306-20617BEARING
3890201-06001WASHER
3990105-06017BOLT
4094511-17070SPRING, COMPRESSION
4154615-26800BRACKET, SPEED TRANSMITTER
4290105-06017BOLT
4390105-06017BOLT
4490105-06017BOLT
4590105-06017BOLT
4690105-06017BOLT
4790105-06017BOLT
4890105-06017BOLT
4990105-06017BOLT
5090105-06017BOLT
5190105-06017BOLT
5290105-06017BOLT
5390105-06017BOLT
5490105-06017BOLT
5554616-26800LEVER, SPEED TRANSMITTER
5690105-06017BOLT
5790105-06017BOLT
5890105-06017BOLT
5990105-06017BOLT
6090105-06017BOLT
6154617-26800BRACKET, SPEED TRANSMITTER
6290105-06017BOLT

17. SPEED TRANSMITTER COMPONENTS 減速機関係 - 31 - jintex.in

Page 37

Juki LBH-781K parts on page 37
RefPart numberPart nameQty
B7180-781-0A0TENSION PULLEY ASM.(1)
400-000388TENSION PULLEY BRACKET(1)
NS-6150430-SPNUT 15/64-28(1)
400-000392TENSION LEVER(1)
B4419-372-000NIPPER BAR ACTUATING LEVER SPR(1)
400-000393FIXING PAWL(1)
SD-0450211-SPHINGE SCREW D= 4.50 H= 2.1(1)
B7186-781-000RATCHET(1)
SS-7110710-SPSCREW 11/64-40 L=7(2)
400-000395LEVER COLLAR(1)
400-000391TENSION SPRING(1)
400-000390TENSION PULLEY LINK(1)
SD-0902501-SPHINGE SCREW D=9 H=25(1)
SB-11500002-00BEARING(1)
400-000389TENSION PULLEY(1)
SD-1501101-SPHINGE SCREW D=14.5 H=11(1)
SM-6061202-TPSCREW M6 L=122
WP-0651056-SHWASHER 6.5X11X13
SS-9152130-CPSCREW 15/64-28 L=20.53
B7151-781-0A0-BSPEED TRANSMITTER ASM.(1)
B7151-781-000-ASPEED TRANSMITTER BRACKET(1)
RE-1200000-KOE-RING 12(1)
SM-6061202-TPSCREW M6 L=12(2)
B1221-771-00AHIGH SPEED WASHER FOR BEARING(1)
400-000235STOP SCREW ASM.(1)
NS-6150310-SPNUT 15/64-28(1)
B7158-781-000SHIFTER STOPPER BRACKET(1)
SM-6061202-TPSCREW M6 L=12(2)
SB-11500002-00BEARING(2)
RC-3500002-KPRETAINING RING 35(2)
B7155-781-000ACCELERATING PULLEY(1)
SS-8150710-SPSCREW 15/64-28 L=7(2)
B7154-781-000HIGH-SPEED PULLEY(1)
SB-14500004-00BEARING(2)
B7156-781-000-ALOW-SPEED PULLEY(1)
B7152-781-000-ASPEED TRANSMITTER SHAFT(1)
WP-1502500-SCWASHER 15X24X2.5(1)
SS-7151210-SPSCREW 15/64-28 L=122
B7159-781-000SHIFTER TENSION SPRING(1)
261-01253SHIFTER BASE ASM.(1)
261-01204SHIFTER BASE(1)
NS-6150310-SPNUT 15/64-28(3)
261-02004SHIFTER CAM SPRING(1)
NS-6160520-SPNUT 1/4-24(2)
261-02202SHIFTER TENSION SPRING(1)
261-01402SHIFTER DRIVING ARM(1)
261-02509SHIFTER DRIVING ARM SCREW(3)
261-02103SHIFTER CAM ROLLER STUD(1)
261-02301SHIFTER CAM ROLLER(1)
SS-6080610-TPSCREW 1/8-44 L=6(1)
261-01600SHIFTER INSTALLING PLATE(1)
SD-0790802-SPHINGE SCREW D= 7.94 H= 8.0(2)
261-01501SHIFTER HOLDING ARM(1)
261-01709SPEED TRANSMITTER SHIFTER(1)
SS-7161040-SPSCREW 1/4-24 L= 9.5(2)
261-01303SHIFTER PIN(1)
NS-6150430-SPNUT 15/64-28(1)
261-01808SHIFTER CAM INSTALLING BASE(1)
SS-7110910-SPSCREW 11/64-40 L=8.5(2)
261-01907SHIFTER CAM(1)
261-02400SHIFTER CAM SUSPENSION(1)

REF. NO NOTE PART NO. DESCRIPTION Qty. B7180-781-0A0 TENSION PULLEY ASM. (1) 400-000388 TENSION PULLEY BRACKET (1) NS-6150430-SP NUT 15/64-28 (1) 400-000392 TENSION LEVER (1) B4419-372-000 NIPPER BAR ACTUATING LEVER SPR (1) 400-000393 FIXING PAWL (1) SD-0450211-SP HINGE SCREW D= 4.50 H= 2.1 (1) B7186-781-000 RATCHET (1) SS-7110710-SP SCREW 11/64-40 L=7 (2) 400-000395 LEVER COLLAR (1) 400-000391 TENSION SPRING (1) 400-000390 TENSION PULLEY LINK (1) SD-0902501-SP HINGE SCREW D=9 H=25 (1) SB-11500002-00 BEARING (1) 400-000389 TENSION PULLEY (1) SD-1501101-SP HINGE SCREW D=14.5 H=11 (1) SM-6061202-TP SCREW M6 L=12 2 01 WP-0651056-SH WASHER 6.5X11X1 3 01 SS-9152130-CP SCREW 15/64-28 L=20.5 3 B7151-781-0A0-B SPEED TRANSMITTER ASM. (1) B7151-781-000-A SPEED TRANSMITTER BRACKET (1) RE-1200000-KO E-RING 12 (1) SM-6061202-TP SCREW M6 L=12 (2) B1221-771-00A HIGH SPEED WASHER FOR BEARING (1) 400-000235 STOP SCREW ASM. (1) NS-6150310-SP NUT 15/64-28 (1) B7158-781-000 SHIFTER STOPPER BRACKET (1) SM-6061202-TP SCREW M6 L=12 (2) SB-11500002-00 BEARING (2) RC-3500002-KP RETAINING RING 35 (2) B7155-781-000 ACCELERATING PULLEY (1) SS-8150710-SP SCREW 15/64-28 L=7 (2) B7154-781-000 HIGH-SPEED PULLEY (1) SB-14500004-00 BEARING (2) B7156-781-000-A LOW-SPEED PULLEY (1) B7152-781-000-A SPEED TRANSMITTER SHAFT (1) WP-1502500-SC WASHER 15X24X2.5 (1) SS-7151210-SP SCREW 15/64-28 L=12 2 01 B7159-781-000 SHIFTER TENSION SPRING (1) 261-01253 SHIFTER BASE ASM. (1) 261-01204 SHIFTER BASE (1) NS-6150310-SP NUT 15/64-28 (3) 261-02004 SHIFTER CAM SPRING (1) NS-6160520-SP NUT 1/4-24 (2) 261-02202 SHIFTER TENSION SPRING (1) 261-01402 SHIFTER DRIVING ARM (1) 261-02509 SHIFTER DRIVING ARM SCREW (3) 261-02103 SHIFTER CAM ROLLER STUD (1) 261-02301 SHIFTER CAM ROLLER (1) SS-6080610-TP SCREW 1/8-44 L=6 (1) 261-01600 SHIFTER INSTALLING PLATE (1) SD-0790802-SP HINGE SCREW D= 7.94 H= 8.0 (2) 261-01501 SHIFTER HOLDING ARM (1) 261-01709 SPEED TRANSMITTER SHIFTER (1) SS-7161040-SP SCREW 1/4-24 L= 9.5 (2) 261-01303 SHIFTER PIN (1) NS-6150430-SP NUT 15/64-28 (1) 261-01808 SHIFTER CAM INSTALLING BASE (1) SS-7110910-SP SCREW 11/64-40 L=8.5 (2) 261-01907 SHIFTER CAM (1) 261-02400 SHIFTER CAM SUSPENSION (1) NOTE (注記) 01...ACCESSORY PARTS 付属

Page 38 — 18. MOTOR PULLEY COMPONENTS

Juki LBH-781K parts on page 38
RefPart numberPart nameQty
1MTJ-MS000000MOUNTING BOLT4
2B7109-771-000SPACER4
3400-09401MOTOR BASE PLATE1
4WP-0850002-SCWASHER 8.5X18X1.64
5NS-6200520-SPNUT 5/16-188
6400-09397MOTOR PULLEY FOR 50HZ 3000SPM1
7400-09398MOTOR PULLEY FOR 60HZ 3000SPM1
8400-09415MOTOR PULLEY FOR 50HZ 3000SPM1
9B7257-781-000-AMOTOR PULLEY (60HZ 3300-USE)1
10SS-8150710-SPSCREW 15/64-28 L=72
11MTJ-VM004200V-BELT, 42 INCH1
12MTJ-VM004300V-BELT, 43 INCH1
13MTJ-VM004400V-BELT, 44 INCH1
14B7252-781-000BELT1

18. MOTOR PULLEY COMPONENTS モータープーリー関係 REF. NO. NOTE PART NO. DESCRIPTION Qty 1 MTJ-MS000000 MOUNTING BOLT 4 2 B7109-771-000 SPACER 4 3 400-09401 MOTOR BASE PLATE 1 4 WP-0850002-SC WASHER 8.5X18X1.6 4 5 NS-6200520-SP NUT 5/16-18 8 6 01 400-09397 MOTOR PULLEY FOR 50HZ 3000SPM 1 7 01 400-09398 MOTOR PULLEY FOR 60HZ 3000SPM 1 8 01 400-09415 MOTOR PULLEY FOR 50HZ 3000SPM 1 9 01 B7257-781-000-A MOTOR PULLEY (60HZ 3300-USE) 1 10 SS-8150710-SP SCREW 15/64-28 L=7 2 11 01 MTJ-VM004200 V-BELT, 42 INCH 1 12 01 MTJ-VM004300 V-BELT, 43 INCH 1 13 01 MTJ-VM004400 V-BELT, 44 INCH 1 14 B7252-781-000 BELT 1 NOTE (注記) 01...SPECIAL ORDER PARTS 特別注文部品 - 33 - jintex.in

Page 39 — 19. THREAD STAND COMPONENTS

Juki LBH-781K parts on page 39
RefPart numberPart nameQty
229-30358THREAD STAND ASM.
229-31109SPOOL RETAINER
229-31000SPOOL PIN
229-30903SPOOL REST CUSHION
229-30804SPOOL REST
SM-6061610-SCSCREW M6 L=16
229-30705THREAD GUIDE ARM JOINT
229-31406SPOOL REST ROD RUBBER CAP
229-30507SPOOL REST ARM
229-30408SPOOL REST ROD, UPPER
229-31307SPOOL REST ROD JOINT
SM-4051405-SESCREW M5 L=14
NM-6050001-SENUT M5
229-30309SPOOL REST ROD, LOWER
229-30556THREAD STANDING ARM ASM.
WS-0510002-KNSPRING WASHER
NM-6050001-SENUT M5
NM-6160511-SENUT M16X1.5
WP-1612616-SEWASHER 16X30X2.6
WS-1643202-KRSPRING WASHER

19. THREAD STAND COMPONENTS 糸立装置関係 REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 229-30358 THREAD STAND ASM. イトタテツチ(クミ) (1) 2 229-31109 SPOOL RETAINER イトマキレツトメ (2) 3 229-31000 SPOOL PIN イトマキウケ (2) 4 229-30903 SPOOL REST CUSHION イトマキウケラクツシヨン (2) 5 229-30804 SPOOL REST イトマキウケラ (2) 6 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=16 (2) 7 229-30705 THREAD GUIDE ARM JOINT イトタテホウシメカク (2) 8 229-31406 SPOOL REST ROD RUBBER CAP イトタテホウウエゴム (1) 9 229-30507 SPOOL REST ARM イトタテウデ (1) 10 229-30408 SPOOL REST ROD, UPPER イトタテウデ(ウエ) (1) 11 229-31307 SPOOL REST ROD JOINT イトタテウデウヅキテ (1) 12 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2) 13 NM-6050001-SE NUT M5 ロツカクナット M5 (2) 14 229-30309 SPOOL REST ROD, LOWER イトタテウデ(シタ) (1) 15 229-30556 THREAD STANDING ARM ASM. イトタテウデ(クミ) (1) 16 WS-0510002-KN SPRING WASHER ハネザガネ 5.1X9.2X1.3 (2) 17 NM-6050001-SE NUT M5 ロツカクナット M5 (2) 18 NM-6160511-SE NUT M16X1.5 ロツカクナット M16X1.5 1シュ (1) 19 WP-1612616-SE WASHER 16X30X2.6 ヒラサガネ (2) 20 WS-1643202-KR SPRING WASHER ハネザガネ 16.4X26.6X3.2 (1) - 34 - jintex.in

Page 40 — 20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784 LBH-782 LBH-783 LBH-784專門部品

Juki LBH-781K parts on page 40
RefPart numberPart nameQty
1LBH-782
2LBH-782
3LBH-782
4LBH-782
5LBH-782
6LBH-782
7LBH-782
8LBH-782
9LBH-783
10LBH-783
11LBH-783
12LBH-783
13LBH-783
14LBH-783
15LBH-783
16LBH-783
17LBH-784
18LBH-784
19LBH-784
20LBH-784
21LBH-784
22LBH-784
23LBH-784
24LBH-784
25LBH-784
26LBH-784
27LBH-784
28LBH-784
29LBH-784
30LBH-784
31LBH-784
32LBH-784
33LBH-784
34LBH-784
35LBH-784
36LBH-784
37LBH-784
38LBH-784
39LBH-784
40LBH-784

20. EXCLUSIVE PARTS FOR LBH-782,LBH-783,LBH-784 LBH-782 LBH-783 LBH-784專門部品 (1) LBH-782 (2) LBH-783 1 2 9 10 3 4 5 12 13 11 6 7 14 8 15 16 (3) LBH-784 17 39 18 38 19 40 36 37 20 22 26 35 32 21 25 23 34 33 24 27 29 28 30 31 - 35 - jintex.in

Page 41

Juki LBH-781K parts on page 41
RefPart numberPart nameQty
B1511-772-0B0WORK CLAMP CHECK HOLDER ASM.1
B2702-047-Q00-AKNIFE 11
B1608-772-000LENGTH REGULATING SHAFT GUIDE1
B2930-761-000SPUR GEAR (100)1
B2931-761-000SPUR GEAR (190)1
B1552-782-000WORK CLAMP CHECK, 21
01B1508-772-A00WORK CLAMP CHECK (2A)
01B1613-771-A00-AWORK CLAMP CARRIER
B1511-773-0B0WORK CLAMP CHECK HOLDER ASM.1
B2702-047-S00-AKNIFE 1-1/4"1
B1608-761-000LENGTH REGULATING SHAFT GUIDE1
B2948-761-000SPUR GEAR (88)1
B2949-761-000SPUR GEAR (212)1
B1552-783-000WORK CLAMP CHECK, 31
01B1608-773-A00WORK CLAMP CHECK (3A)
01B1613-771-A00-AWORK CLAMP CARRIER
B1513-774-000WORK CLAMP BRACKET1
B1551-784-000-AWORK CLAMP ARM (4)1
B1511-774-0A0WORK CLAMP CHECK HOLDER ASM.1
B1552-784-000WORK CLAMP CHECK1
B2402-774-000THROAT PLATE1
SS-2090530-SPSCREW 9/64-40 L=4.82
B2401-774-0A0THROAT PLATE BASE ASM.1
SS-5090320-SPSCREW 9/64-40 L=3.21
B1611-774-0A0WORK CLAMP ARM BRACKET ASM.1
SS-6151440-SPSCREW 15/64-28 L=14(1)
B1606-774-000WORK CLAMP CARRIER PITMAN1
SD-0870401-SPHINGE SCREW D=8.73 H=41
B1605-774-000FEED ADJUSTING SHAFT1
B2745-774-00B-AKNIFE 1-1/2"1
B2745-774-00A-AKNIFE 1-3/8"1
B2944-761-000SPUR GEAR (74)1
B2945-761-000SPUR GEAR 2521
B1603-774-0A0LENGTH REGULATING ARM ASM.1
B1608-774-000LENGTH REGULATING SHAFT GUIDE1
B1612-774-000WORK CLAMP ARM BRACKET GUIDE1
400-09447WORK CLAMP CARRIER (4)1
B1609-774-000WORK CLAMP ARM SLIDE ROD1
B1516-774-000WORK CLAMP ARM BEARING BRACKET1
SD-0790203-SPHINGE SCREW D=7.94 H=21

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 B1511-772-0B0 WORK CLAMP CHECK HOLDER ASM. オサエラケ クミ 1 2 B2702-047-Q00-A KNIFE 1 メス 1 1 3 B1608-772-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 4 B2930-761-000 SPUR GEAR (100) コーカンハグルマ 100 1 5 B2931-761-000 SPUR GEAR (190) コーカンハグルマ 190 1 6 B1552-782-000 WORK CLAMP CHECK, 2 オサエ 1 7 01 B1508-772-A00 WORK CLAMP CHECK (2A) オサエ (2A) 1 8 01 B1613-771-A00-A WORK CLAMP CARRIER ヌノクリイタ 1 9 B1511-773-0B0 WORK CLAMP CHECK HOLDER ASM. オサエラケ クミ 1 10 B2702-047-S00-A KNIFE 1-1/4" メス(1-1/4") 1 11 B1608-761-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 12 B2948-761-000 SPUR GEAR (88) コーカンハグルマ 88 1 13 B2949-761-000 SPUR GEAR (212) コーカンハグルマ 212 1 14 B1552-783-000 WORK CLAMP CHECK, 3 オサエ 1 15 01 B1608-773-A00 WORK CLAMP CHECK (3A) オサエ (3A) 1 16 01 B1613-771-A00-A WORK CLAMP CARRIER ヌノクリイタ 1 17 B1513-774-000 WORK CLAMP BRACKET ヌノクリイタ 1 18 B1551-784-000-A WORK CLAMP ARM (4) オサエウデ (4) 1 19 B1511-774-0A0 WORK CLAMP CHECK HOLDER ASM. オサエフク クミ 1 20 B1552-784-000 WORK CLAMP CHECK オサエ 1 21 B2402-774-000 THROAT PLATE ハリイタ 1 22 SS-2090530-SP SCREW 9/64-40 L=4.8 マルサラネジ 9/64-40 L=4.8 2 23 B2401-774-0A0 THROAT PLATE BASE ASM. ハリイタ イ クミ 1 24 SS-5090320-SP SCREW 9/64-40 L=3.2 トラスネジ 9/64-40 L=3.2 1 25 B1611-774-0A0 WORK CLAMP ARM BRACKET ASM. ヌノクリイタ イ クミ 1 26 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 (1) 27 B1606-774-000 WORK CLAMP CARRIER PITMAN ヌノクリロット 1 28 SD-0870401-SP HINGE SCREW D=8.73 H=4 タンネジ D=8.73 H=4 1 29 B1605-774-000 FEED ADJUSTING SHAFT オクリチョウセツシフク 1 30 B2745-774-00B-A KNIFE 1-1/2" メス(1-1/2") 1 31 B2745-774-00A-A KNIFE 1-3/8" メス(1-3/8") 1 32 B2944-761-000 SPUR GEAR (74) コーカンハグルマ 74 1 33 B2945-761-000 SPUR GEAR 252 コーカンハグルマ 252 1 34 B1603-774-0A0 LENGTH REGULATING ARM ASM. ヌノクリナガサアームクミ 1 35 B1608-774-000 LENGTH REGULATING SHAFT GUIDE ヌノクリナガサシン 1 36 B1612-774-000 WORK CLAMP ARM BRACKET GUIDE ヌノクリイタ イアンナイタ 1 37 400-09447 WORK CLAMP CARRIER (4) ヌノクリイタ (4) 1 38 B1609-774-000 WORK CLAMP ARM SLIDE ROD ヌノクリイタ 1 39 B1516-774-000 WORK CLAMP ARM BEARING BRACKET オサエウデ シジウデ 1 40 SD-0790203-SP HINGE SCREW D=7.94 H=2 タンネジ D=7.94 H=2 1 NOTE (注記) 01...SPECIAL ORDER PARTS FOR LIGHT 薄物ニット用特別注文部品 WEIGHT KNIT MATERIALS. (押さえと布送り板は一緒にご使用 (PLEASE USE THE WORK CLAMP ください。) CHECK AND THE WORK CLAMP CARRIER TOGETHER AS A PAIR.) ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THESE USED IN MODEL LBH-781. 上記以外の部品はLBH-781と同じです。 - 36 - jintex.in

Page 42 — 21. SPECIAL ORDER PARTS

Juki LBH-781K parts on page 42
RefPart numberPart nameQty
1TAPE REEL COMPONENTS
2TAPE REEL COMPONENTS
3TAPE REEL COMPONENTS
4TAPE REEL COMPONENTS
5TAPE REEL COMPONENTS
6TAPE REEL COMPONENTS
7TAPE REEL COMPONENTS
8TAPE REEL COMPONENTS
9TAPE REEL COMPONENTS
10TAPE REEL COMPONENTS
11TAPE REEL COMPONENTS
12TAPE REEL COMPONENTS
13TAPE REEL COMPONENTS
14TAPE REEL COMPONENTS
15TAPE REEL COMPONENTS
16BUTTON-HOLING MEASURING GAUGES
17BUTTON-HOLING MEASURING GAUGES
18BUTTON-HOLING MEASURING GAUGES
19BUTTON-HOLING MEASURING GAUGES
20BUTTON-HOLING MEASURING GAUGES
21BUTTON-HOLING MEASURING GAUGES
22KNIFE FOR SPECIAL
31KNIFE FOR SPECIAL
32KNIFE FOR SPECIAL
33KNIFE FOR SPECIAL
34KNIFE FOR SPECIAL
37KNIFE FOR SPECIAL
38KNIFE FOR SPECIAL
56KNIFE FOR SPECIAL
57HOOK OIL SHIELD COMPONENTS
58HOOK OIL SHIELD COMPONENTS
59HOOK OIL SHIELD COMPONENTS
60HOOK OIL SHIELD COMPONENTS
61HOOK OIL SHIELD COMPONENTS
62HOOK OIL SHIELD COMPONENTS
63HOOK OIL SHIELD COMPONENTS
64HOOK OIL SHIELD COMPONENTS
65COVER COMPONENTS
66COVER COMPONENTS
67COVER COMPONENTS
68COVER COMPONENTS
69COVER COMPONENTS
70COVER COMPONENTS
71COVER COMPONENTS
72COVER COMPONENTS

21. SPECIAL ORDER PARTS 特別注文部品 (1) TAPE REEL COMPONENTS テープ装置関係 1 2 3 4 14 15 13 12 11 5 6 7 8 9 10 (2) BUTTON-HOLING MEASURING GAUGES ボタン間隔ゲージ 17 18 16 19 20 21 (3) KNIFE FOR SPECIAL 特別用メス 22 ? 31 32 33 38 ? 56 34 ? 37 (4) HOOK OIL SHIELD COMPONENTS 釜カバー関係 57 6158 59 60 64 62 63 (5) COVER COMPONENTS カバー関係 65 66 67 70 68 72 69 68 69 71 - 37 - jintex.in

Page 43

Juki LBH-781K parts on page 43
RefPart numberPart nameQty
B9201-761-0A0REINFORCING TAPE ATCHMENT ASM.(1)
B9204-047-0A0TAPE ATTACHMENT SUPPORT PLATE(1)
SS-4090810-SPSCREW 9/64-40 L=8(1)
B9205-047-000ADJUSTING FELT(2)
B9201-761-0B0REINFORCING TAPE ATTACHMENT AS(1)
NS-6700540-SPNUT 5/16-24(1)
B9202-761-0A0TAPE GUIDE PLATE ASM.(1)
SS-5110740-TPSCREW 11/64-40 L=6.5(1)
SS-7090510-SPSCREW 9/64-40 L=4.6(2)
WP-0450000-SDWASHER 4.5X8X0.5(2)
B9206-761-000TAPE RETAINER(1)
B9207-761-000TAPE RETAINER SPRING(1)
SS-6060210-SPSCREW 3/32-56 L=1.9(2)
B9205-761-000SPACER FOR TAPE RETAINER(1)
SS-5060410-SPSCREW 3/32-56 L=3.5(2)
B9402-771-000MEASURING GAUGE, CROSSWISE(1)
SS-6110610-TPSCREW 11/64-40 L=6(2)
WP-0501016-SDWASHER 5X10.5X1(2)
B9401-761-000DISTANCE MEASURING GAUGE(1)
SS-7110840-SPSCREW 11/64-40 L=7.8(2)
WP-0501016-SDWASHER 5X10.5X1(2)
B2745-771-F00KNIFE 1/4" (FLUOROCARBON)1
B2745-771-K00KNIFE 3/8" (FLUOROCARBON)1
B2745-771-L00KNIFE 1/2"1
B2745-771-M00KNIFE 5/8"1
B2745-771-N00KNIFE 3/4"1
B2745-771-P00KNIFE 7/8" (FLUOROCARBON)1
B2745-771-Q00KNIFE 1"1
B2745-771-R00KNIFE 1-1/8" (FLUOROCARBON)1
B2745-771-S00KNIFE 1-1/4"1
B2745-771-T00KNIFE 9/16" (FLUOROCARBON)1
B2746-771-000KNIFE GUARD1
B2402-771-00BTHROAT PLATE (FLUOROCARBON)1
B2745-771-P0BKNIFE 7/8"1
B2745-771-Q0BKNIFE 1"1
B2745-771-R0BKNIFE 1-1/81
B2745-771-S0BKNIFE 1-1/41
B2702-047-F00KNIFE 1/4"1
B2702-047-K00-AKNIFE 3/81
B2702-047-L00KNIFE (7/16)1
B2702-047-L0AKNIFE 1/21
B2702-047-V0BKNIFE 1/21
B2702-047-V00KNIFE 9/161
B2702-047-M0AKNIFE 5/81
B2702-047-M00-AKNIFE 5/81
B2702-047-A00KNIFE 11/161
B2702-047-N0AKNIFE 3/41
B2702-047-N00KNIFE 3/4"1
B2702-047-C00KNIFE 13/161
B2702-047-C00KNIFE 7/81
B2702-047-Q00-AKNIFE 11
B2702-047-R00KNIFE 1-1/81
B2702-047-S0AKNIFE 1-1/41
B2702-047-S00-AKNIFE 1-1/41
B2702-047-U00KNIFE (1-1/2)1
B1157-771-0A0HOOK OIL SHIELD ASM.(1)
B1157-771-000HOOK OIL SHIELD(1)
B1158-771-000HOOK OIL SHIELD SPRING(1)
B1159-771-000SPRING SET PLATE(1)
SS-5090610-SPSCREW 9/64-40 L=6(2)
B1161-771-000HOOK OIL SHIELD HINGE(1)
B1161-771-000HINGE PIN(1)
B1160-771-000SCREW 11/64-40 L=5(2)
SS-7110510-SPSCREW 11/64-40 L=74
SS-7110710-SPSCREW 11/64-40 L=74
WP-0480856-SPWASHER 4.8X8.4X0.84
B7272-781-000COVER MOUNTING BRACKET B1
WP-0501016-SCWASHER 5X10.5X12
SK-3452000-SEWOOD SCREW D=4.5 L=202
NS-6110310-SPNUT 11/64-404
B7273-781-000SPEED TRANSMITTER COVER1
262-36703COVER MOUNTING BRACKET C1

REF. NO NOTE DESCRIPTION Qty. 1 B9201-761-0A0 REINFORCING TAPE ATCHMENT ASM. (1) 2 B9204-047-0A0 TAPE ATTACHMENT SUPPORT PLATE (1) 3 SS-4090810-SP SCREW 9/64-40 L=8 (1) 4 B9205-047-000 ADJUSTING FELT (2) 5 B9201-761-0B0 REINFORCING TAPE ATTACHMENT AS (1) 6 NS-6700540-SP NUT 5/16-24 (1) 7 B9202-761-0A0 TAPE GUIDE PLATE ASM. (1) 8 SS-5110740-TP SCREW 11/64-40 L=6.5 (1) 9 SS-7090510-SP SCREW 9/64-40 L=4.6 (2) 10 WP-0450000-SD WASHER 4.5X8X0.5 (2) 11 B9206-761-000 TAPE RETAINER (1) 12 B9207-761-000 TAPE RETAINER SPRING (1) 13 SS-6060210-SP SCREW 3/32-56 L=1.9 (2) 14 B9205-761-000 SPACER FOR TAPE RETAINER (1) 15 SS-5060410-SP SCREW 3/32-56 L=3.5 (2) 16 B9402-771-000 MEASURING GAUGE, CROSSWISE (1) 17 SS-6110610-TP SCREW 11/64-40 L=6 (2) 18 WP-0501016-SD WASHER 5X10.5X1 (2) 19 B9401-761-000 DISTANCE MEASURING GAUGE (1) 20 SS-7110840-SP SCREW 11/64-40 L=7.8 (2) 21 WP-0501016-SD WASHER 5X10.5X1 (2) 22 01 B2745-771-F00 KNIFE 1/4" (FLUOROCARBON) 1 23 01 B2745-771-K00 KNIFE 3/8" (FLUOROCARBON) 1 24 01 B2745-771-L00 KNIFE 1/2" 1 25 01 B2745-771-M00 KNIFE 5/8" 1 26 01 B2745-771-N00 KNIFE 3/4" 1 27 01 B2745-771-P00 KNIFE 7/8" (FLUOROCARBON) 1 28 01 B2745-771-Q00 KNIFE 1" 1 29 01 B2745-771-R00 KNIFE 1-1/8" (FLUOROCARBON) 1 30 01 B2745-771-S00 KNIFE 1-1/4" 1 31 01 B2745-771-T00 KNIFE 9/16" (FLUOROCARBON) 1 32 B2746-771-000 KNIFE GUARD 1 33 B2402-771-00B THROAT PLATE (FLUOROCARBON) 1 34 02 B2745-771-P0B KNIFE 7/8" 1 35 02 B2745-771-Q0B KNIFE 1" 1 36 02 B2745-771-R0B KNIFE 1-1/8 1 37 02 B2745-771-S0B KNIFE 1-1/4 1 38 B2702-047-F00 KNIFE 1/4" 1 39 B2702-047-K00-A KNIFE 3/8 1 40 B2702-047-L00 KNIFE (7/16) 1 41 B2702-047-L0A KNIFE 1/2 1 42 B2702-047-V0B KNIFE 1/2 1 43 B2702-047-V00 KNIFE 9/16 1 44 B2702-047-M0A KNIFE 5/8 1 45 B2702-047-M00-A KNIFE 5/8 1 46 B2702-047-A00 KNIFE 11/16 1 47 B2702-047-N0A KNIFE 3/4 1 48 B2702-047-N00 KNIFE 3/4" 1 49 B2702-047-C00 KNIFE 13/16 1 50 B2702-047-C00 KNIFE 7/8 1 51 B2702-047-Q00-A KNIFE 1 1 52 B2702-047-R00 KNIFE 1-1/8 1 53 B2702-047-S0A KNIFE 1-1/4 1 54 B2702-047-S00-A KNIFE 1-1/4 1 55 B2702-047-U00 KNIFE (1-1/2) 1 56 B1157-771-0A0 HOOK OIL SHIELD ASM. (1) 57 B1157-771-000 HOOK OIL SHIELD (1) 58 B1158-771-000 HOOK OIL SHIELD SPRING (1) 59 B1159-771-000 SPRING SET PLATE (1) 60 SS-5090610-SP SCREW 9/64-40 L=6 (2) 61 B1161-771-000 HOOK OIL SHIELD HINGE (1) 62 B1161-771-000 HINGE PIN (1) 63 B1160-771-000 SCREW 11/64-40 L=5 (2) 64 SS-7110510-SP SCREW 11/64-40 L=7 (4) 65 SS-7110710-SP SCREW 11/64-40 L=7 (4) 66 WP-0480856-SP WASHER 4.8X8.4X0.8 (4) 67 B7272-781-000 COVER MOUNTING BRACKET B (1) 68 WP-0501016-SC WASHER 5X10.5X1 (2) 69 SK-3452000-SE WOOD SCREW D=4.5 L=20 (2) 70 NS-6110310-SP NUT 11/64-40 (4) 71 B7273-781-000 SPEED TRANSMITTER COVER (1) 72 262-36703 COVER MOUNTING BRACKET C (1) NOTE (注記) 01...FOR FLUOROCARBON ワッヅン用 02...FOR HEAVY WEIGHT METERIALS 厚物用 - 38 - jintex.in

Page 44 — 22. EXCHANGING PARTS

Juki LBH-781K parts on page 44
RefPart numberPart nameQty
AB2936-761-000Small gear54
BB2938-761-000Small gear62
CB2940-761-000Small gear66
DB2942-761-000Small gear70
EB2944-761-000Small gear74
FB2946-761-000Small gear79
GB2928-761-000Small gear83
HB2948-761-000Small gear88
IB2950-761-000Small gear93
JB2930-761-000Small gear100
KB2952-761-000Small gear105
LB2932-761-000Small gear110
MB2954-761-000Small gear115
NB2934-761-000Small gear123
B2956-761-000Small gear130
AB2937-761-000Large gear345
BB2939-761-000Large gear300
CB2941-761-000Large gear285
DB2943-761-000Large gear268
EB2945-761-000Large gear252
FB2947-761-000Large gear238
GB2929-761-000Large gear225
HB2949-761-000Large gear212
IB2951-761-000Large gear200
JB2931-761-000Large gear190
KB2953-761-000Large gear180
LB2933-761-000Large gear170
MB2955-761-000Large gear160
NB2935-761-000Large gear152
B2957-761-000Large gear145
1B2702-047-F00Knife
2B2702-047-K00-AKnife
3B2702-047-L00-AKnife
3B1552-781-000-AWork clamp check
4B2702-047-V00Knife
5B2702-047-M00-AKnife
6B2702-047-P00Knife
7B2702-047-P00Knife
7B1552-782-000Work clamp check
8B2702-047-Q00-AKnife
9B2702-047-S00-AKnife
9B1552-783-000Work clamp check
10B2745-774-00A-AKnife
10B1552-784-000Work clamp check
11B2745-774-008-AKnife
4B2402-771-000Throat plate
11B2402-774-000Throat plate

22. EXCHANGING PARTS 交換部品 (1) TABLE OF CHANGING GEARS 交換歯車一覧表 1. Small gear 小歯車 2. Large gear 大歯車 Set Stitch No. Part No. Stitch No. Part No. B2936-761-000 345 B2937-761-000 A 54 B 62 B2938-761-000 300 B2939-761-000 C 66 B2940-761-000 285 B2941-761-000 D 70 B2942-761-000 268 B2943-761-000 E 74 B2944-761-000 252 B2945-761-000 F 79 B2946-761-000 238 B2947-761-000 G 83 B2928-761-000 225 B2929-761-000 H 88 B2948-761-000 212 B2949-761-000 I 93 B2950-761-000 200 B2951-761-000 J 100 B2930-761-000 190 B2931-761-000 K 105 B2952-761-000 180 B2953-761-000 L 110 B2932-761-000 170 B2933-761-000 M 115 B2954-761-000 160 B2955-761-000 N 123 B2934-761-000 152 B2935-761-000 0 130 B2956-761-000 145 B2957-761-000 (2) TABLE SHOWING PARTS USED IN CONNECTION WITH KNIVES ヌメ関連表 Knife Work clamp check Throat plate メス 押え 針板 A B C No. Size (mm) Part No. 品番 Part No. 品番 Part No. 品番 1 1/4" (6.35) B2702-047-F00 2 3/8" (9.53) B2702-047-K00-A 3 1/2" (12.7) B2702-047-L00-A B1552-781-000-A 4 9/16" (14.29) B2702-047-V00 B2402-771-000 5 5/8" (15.88) B2702-047-M00-A 6 3/4" (19.05) B2702-047-P00 7 7/8" (22.23) B2702-047-P00 B1552-782-000 8 1" (25.4) B2702-047-Q00-A 9 1-1/4" (31.75) B2702-047-S00-A B1552-783-000 10 1-3/8" (34.9) B2745-774-00A-A B1552-784-000 B2402-774-000 11 1-1/2" (38.1) B2745-774-008-A Note (注釈) Standard model machine is used as the standard for work clamp check and throat plate. 押えと針板は標準数機を基準にしています。 - 39 - jintex.in

Page 45 — 23. EXCLUSIVE PARTS FOR LBH-781-K

Juki LBH-781K parts on page 45
RefPart numberPart nameQty
D1508-771-K00-ALATCH WORK CLAMP CHECK
D2402-772-K00THROAT PLATE (K)
B1808-761-0ABHOOK ASM.
B3110-772-TA0THREAD TENSION NO.3 ASM. K
SS-8090670-SPSCREW 9/64-40 L= 5.5
B3110-771-000TENSION POST SOCKET
B3111-761-000TENSION POST NO.3
B3112-761-000THREAD TAKE-UP SPRING
B3126-012-000THREAD TENSION DISK
B3107-804-000THREAD TENSION DISK PRESSER
B3129-012-A00TENSION SPRING
B3120-125-000ROTATING STOPPER
B3119-771-000THREAD TENSION NUT
D9101-771-K00HOOK TIMING GAUGE (K)
D1508-771-K0BWORK CLAMP CHECK 5/8"
D1508-771-K0CWORK CLAMP CHECK 1/2"
D1508-771-KOEWORK CLAMP CHECK 5/8"
D1508-771-KOFWORK CLAMP CHECK 1/2"
D1508-771-KOHWORK CLAMP CHECK

23. EXCLUSIVE PARTS FOR LBH-781-K LBH-781-K専用部品 (1) LBH-781-K REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 D1508-771-K00-A LATCH WORK CLAMP CHECK ハリイタ 2K 1 2 D2402-772-K00 THROAT PLATE (K) カマ カセンョー クミ 1 3 B1808-761-0AB Hook ASM. TVヨー ダイ2 イトチョー クミ 1 4 B3110-772-TA0 THREAD TENSION NO.3 ASM. K トメネジ 9/64-40 L=5.5 (1) 5 SS-8090670-SP SCREW 9/64-40 L= 5.5 イトチョーシボー・ダイ (1) 6 B3110-771-000 TENSION POST SOCKET イトチョーシボー (1) 7 B3111-761-000 TENSION POST NO.3 イトトリハネ (1) 8 B3112-761-000 THREAD TAKE-UP SPRING イトチョーシサラ (2) 9 B3126-012-000 THREAD TENSION DISK イトチョーシサラ オサエ (1) 10 B3107-804-000 THREAD TENSION DISK PRESSER イトチョーシハネ A (1) 11 B3129-012-A00 TENSION SPRING イトチョーシサラ カイテンド・メ (1) 12 B3120-125-000 ROTATING STOPPER イトチョーシサナブト (1) 13 B3119-771-000 THREAD TENSION NUT カマ タイミング ゲージ K 1 14 D9101-771-K00 Hook TIMING GAUGE (K) メリヤス オサエ 5/8 (ヘーダンヨー) 1 15 01 D1508-771-K0B WORK CLAMP CHECK 5/8" メリヤス オサエ 1/2 (ヘーダンヨー) 1 16 01 D1508-771-K0C WORK CLAMP CHECK 1/2" ダンプ オサエ 5/8 1 17 02 D1508-771-KOE WORK CLAMP CHECK 5/8" ダンプ オサエ 1/2 1 18 02 D1508-771-KOF WORK CLAMP CHECK 1/2" マエタテ オサエ 1 19 03 D1508-771-KOH WORK CLAMP CHECK NOTE (注記) 01....SPECIAL ORDER PARTS FOR FLAT 段部用特別注文部品 02....SPECIAL ORDER PARTS 段部用特別注文部品 FOR UNEVEN THICKNESS 03....SPECIAL ORDER PARTS FOR FRONT 前立て用特別注文部品 ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE OF MODEL LBH-781. 上記以外の部品はLBH-781と共通です。 - 40 - jintex.in
