High Speed 1-Needle Cylinder Bed Lockstitch Bar Tacking Industrial Sewing Machine 高速一本針筒形門止めミシン LK-1850 Series PARTS LIST JUKI JUKI LK-1850 BE185030PJA No.0200-09 jintex.in
Juki LK-1850 (68 pages) — parts catalog
- Page 1 (cover): This is the cover page for the JUKI LK-1850 Series High Speed 1-Needle Cylinder Bed Lockstitch Bar Tacking Industrial Sewing Machine parts list. It includes a diagram of the machine and document identification numbers.
- Page 2 (text): This page explains how to use the parts list, including explanations of codes used in the 'Note' and 'E.C.' columns, and provides a sample parts list with part numbers, descriptions, and quantities.
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing sections such as Frame & Miscellaneous Cover Components, Main Shaft Components, Needle Bar Components, and more, along with their corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of miscellaneous cover components for a JUKI sewing machine, with numbered parts and their corresponding references.
- Page 5 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 74.
- Page 6 (diagram): This page displays a diagram of main shaft components, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists parts for a sewing machine, including screws, washers, bearings, and springs, with their corresponding part numbers and descriptions.
- Page 9 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It also includes a legend for part notations.
- Page 10 (diagram): This page displays a diagram of thread tension release components, with numbered parts and their corresponding references.
- Page 12 (diagram): This page displays a diagram of shuttle driver shaft components, with numbered parts and their corresponding details.

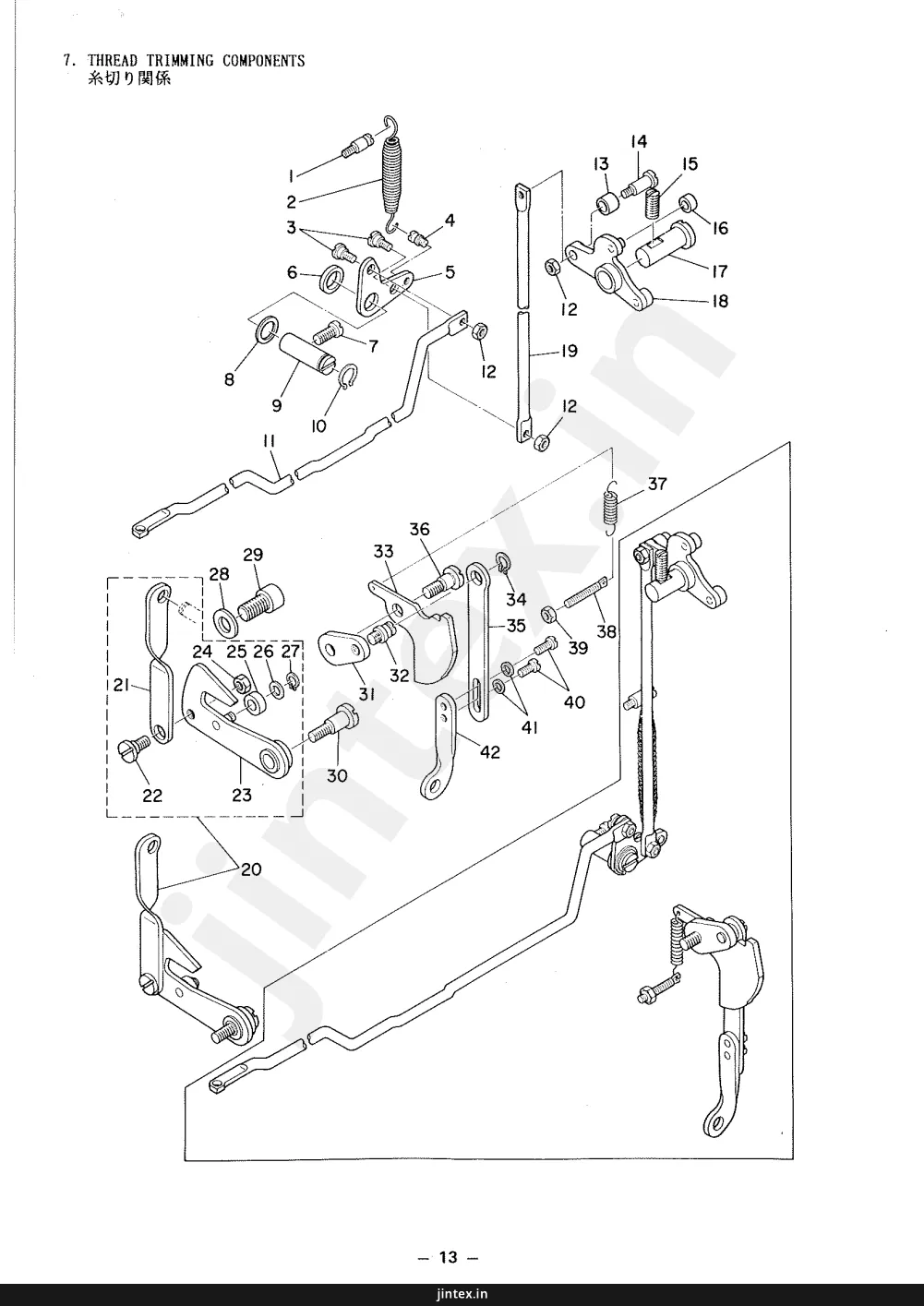

- Page 16 (diagram): This page displays a diagram of thread trimming components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details items such as tension springs, screws, nuts, rollers, and washers.
- Page 18 (diagram): This page displays a diagram of the pedal pressure decreasing unit components, with numbered parts and their corresponding references.
- Page 19 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items from reference number 1 to 56.
- Page 20 (diagram): This page displays a diagram of stop-motion mechanism components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items numbered 1 through 62.
- Page 22 (diagram): This page displays a diagram of lubrication mechanism components, with numbered parts and their corresponding references.
- Page 23 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including rubber plugs, oil wicks, screws, and felt parts, with their corresponding part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of table components and related parts for a JUKI sewing machine, with numbered items and their corresponding references.
- Page 26 (diagram): This page displays a diagram of table components for the Urban White model, including various brackets, screws, and other hardware.
- Page 27 (parts_list): This page lists parts for the LK-1850 standard model, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of LK-1850 series subclasses, specifically part (1) LK-1852-1, with numbered components and their corresponding references.
- Page 29 (parts_list): This page lists parts for the LK-1852-1, including part numbers, descriptions, and quantities. It also includes notes and a section on standard and selective parts.
- Page 30 (parts_list): This page lists parts for Small Bar Tacking Machine (28 stitches), Knit Goods Bar Tacking Machine (21 stitches), and Large Size Bar Tacking Machine (28 stitches). It includes part numbers, descriptions, and quantities.
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B1401-100-000 | Needle bar | ||
| B1401-100-000-A | Needle bar | ||
| B1105-200-000 | Frame cover | ||
| B1105-300-000 | Frame cover | ||
| B1105-500-000 | Frame cover |
HOW TO MAKE USE OF THIS PARTS LIST パーツリストの見方 1. The part numbers of parts shown in the figure indicate the corresponding numbers (Ref. No.) shown by the Index. 図に示された部品の品番は、図にみられて、いるインデツクスによ、てその品番かかっています。 2. Explanation of codes 記号の説明 1) Codes on the "Note" column “注記”欄の記号 (1) means this part is changed from the previous parts list. 前回 のパーツリストに対して今回変更された部品を意昧します (2) #01 refer to the "Note" explanation at bottom of page. 注記”欄の記号 この注記の説明を 01 参照して下さい 2) Codes on the "E.C. (Engineering change)" column “変更年月”欄の記号 (1) A.10/83. Added from October, 1983 1983年10月より追加された (2) D.10/83. Obsoleted from October, 1983 1983年10月より削除された (3) When previous parts (Obsoleted part) and new parts (Added parts) are not interchangeable with each other. 部品の互換性がない変更の場合 In this case, even obsoleted part (D.) can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. この場合は削除された品番でも、注文できますから、変更年月によりいずれかの部品を選定してご注文下さい。 Example (例) Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月 Amt. Req. 数量 1 B1401-100-000 Needle bar D.10/83 ハリホー 1-1 B1401-100-000-A Needle bar A.10/83 B1105-300-000 ハリホー 2 B1105-200-000 Frame cover D.10/83 B1105-300-000 1 Frame cover A.10/83 フレームカバー 1 (4) In case when previous parts and new part are interchangeable with each other. 部品の互換性がある場合の変更 In this case, the new part number is replaced on the " 品名 (Japanese)" column of the previous parts, so please order by the new part number. この場合は、旧部品の互換性、品名欄に新しい品番が記入してありますので、新しい品番でご注文下さい。 C.10/83 B1105-500-000 Frame cover 1 Correct No. 正しい品番 Please order by the correct part number. 正しい品番でご注文下さい。 (5) M.10/83 The amount required is changed from October, 1983 1983年10月より数量が変更になった この場合数量欄には新しい数量が表示し ます。 Wrong No. 誤り品番 3) Codes on the "Amt. Req." column “数量”欄の記号 (1) 2 Indicates amount required is 2. 数量、2個を表わします (2) 2.0 Indicates length in meters. (unit is meter) 長さ、2メートルを表わします (単位はメートルです) (3) - Indicates parts obsoleted from the parts list. このパーツリストから削除された部品 (4) (1) Indicates sub parts which construct the assembly part. Assembly part is shown as "asm." and クミ in Japanese, in the "Description" column. 祖部品を構成している子部品を表わします 祖部品は品番欄に英文で "asm" とクミと表示してあります When Ordering The Spare Parts: このパーツリストに記載されている補用部品をご注文の際は、部品の番号(例えは、B1109-012-A00)にてご注文 下さい。又、機械番号(表紙右下、例えは、No0010-01)又は、機械番号をご連絡頂ければ幸いで す。改良のため部品の一部が変更になる場合がありますのでご了承下さい。 In order to ensure that we deliver the correct parts to you, please clearly state when ordering the corresponding PART NUMBER (ex. B1109-012-A00) and also the PARTS LIST NUMBER (ex. 0010-01, given at the bottom right of the cover)'or the MACHINE SERIAL NUMBER, because there are some parts which have been changed. jintex.in
Page 3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | FRAME & MISCELLANEOUS COVER COMPONENTS | ||
| 2 | MAIN SHAFT COMPONENTS | ||
| 3 | NEEDLE BAR COMPONENTS | ||
| 4 | THREAD TENSION RELEASE COMPONENTS | ||
| 5 | SHUTTLE DRIVER SHAFT COMPONENTS | ||
| 6 | FEED MECHANISM COMPONENTS | ||
| 7 | THREAD TRIMMING COMPONENTS | ||
| 8 | PEDAL PRESSURE DECREASING UNIT COMPONENTS | ||
| 9 | STOP MOTION MECHANISM COMPONENTS | ||
| 10 | LUBRICATION MECHANISM COMPONENTS | ||
| 11 | TABLE COMPONENTS | ||
| 12 | LEG COMPONENTS (For Urban White) | ||
| 13 | LK-1850 SERIES SUBCLASS | ||
| (1) | LK 1852-1 | ||
| (2) | LK 1852-2 | ||
| (3) | LK 1852-3 | ||
| (4) | LK 1852-5 | ||
| (5) | LK 1854-6 | ||
| (6) | LK 1854-4 | ||
| (7) | LK 1854 11 | ||
| (8) | LK 1852-7 | ||
| (9) | LK 1852 210 | ||
| (10) | LK 1854 10 | ||
| (11) | LK 1852 20 | ||
| (12) | LK 1854 30 | ||
| (13) | LK 1854 40 | ||
| (14) | LK-1850-P | ||
| (15) | LK-1854P-10 | ||
| (16) | LK 1852P-20 | ||
| (17) | LK 1852P-30 | ||
| (18) | LK 1854P-40 | ||
| (19) | LK 1854 8 | ||
| 14 | THREAD STAND COMPONENTS | ||
| 15 | THREAD STAND COMPONENTS (アーバンホワイト用) | ||
| NUMERICAL INDEX OF PARTS | 索引 | ||
| (20) | LK 1854 12 | ||
| (21) | LK 1853-15 | ||
| (22) | LK 1853-16 | ||
| (23) | LK 1852H-5 | ||
| (24) | LK 1852-22 | ||
| (25) | LK 1852G-5 | ||
| (26) | LK 1854-24 | ||
| (27) | LK 1853H-15 | ||
| (28) | LK 1854H 24 | ||
| (29) | LK 1853G 15 | ||
| (30) | LK 1854G 24 | ||
| (31) | LK 1850H | ||
| (32) | LK 1850G | ||
| (33) | LK 1850T | ||
| (34) | LK 1854T 10 | ||
| (35) | LK 1852T-20 | ||
| (36) | LK 1852T-30 | ||
| (37) | LK 1854T 40 |
CONTENTS B 次 1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部外装関係 2. MAIN SHAFT COMPONENTS 上軸関係 3. NEEDLE BAR COMPONENTS 針棒関係 4. THREAD TENSION RELEASE COMPONENTS 糸調子関係 5. SHUTTLE DRIVER SHAFT COMPONENTS 下軸関係 6. FEED MECHANISM COMPONENTS 送り関係 7. THREAD TRIMMING COMPONENTS 糸切り関係 8. PEDAL PRESSURE DECREASING UNIT COMPONENTS 軽減装置関係 9. STOP MOTION MECHANISM COMPONENTS 遮断制御関係 10. LUBRICATION MECHANISM COMPONENTS 給油関係 11. TABLE COMPONENTS 脚卓関係 12. LEG COMPONENTS (For Urban White) 脚卓関係(アーバンホワイト用) 13. LK-1850 SERIES SUBCLASS LK-1850シリーズサブクラス (1) LK 1852-1 (2) LK 1852-2 (3) LK 1852-3 (4) LK 1852-5 (5) LK 1854-6 (6) LK 1854-4 (7) LK 1854 11 (8) LK 1852-7 (9) LK 1852 210 (10) LK 1854 10 (11) LK 1852 20 (12) LK 1854 30 (13) LK 1854 40 (14) LK-1850-P (15) LK-1854P-10 (16) LK 1852P-20 (17) LK 1852P-30 (18) LK 1854P-40 (19) LK 1854 8 14. THREAD STAND COMPONENTS 糸立装置関係 15. THREAD STAND COMPONENTS 糸立装置関係(アーバンホワイト用) NUMERICAL INDEX OF PARTS 索引 1 3 5 7 9 11 13 15 17 19 21 23 25 27 27 27 27 28 28 29 30 31 31 33 33 34 35 37 38 39 40 54 55 57 (20) LK 1854 12 (21) LK 1853-15 (22) LK 1853-16 (23) LK 1852H-5 (24) LK 1852-22 (25) LK 1852G-5 (26) LK 1854-24 (27) LK 1853H-15 (28) LK 1854H 24 (29) LK 1853G 15 (30) LK 1854G 24 (31) LK 1850H (32) LK 1850G (33) LK 1850T (34) LK 1854T 10 (35) LK 1852T-20 (36) LK 1852T-30 (37) LK 1854T 40 40 41 43 43 44 44 45 45 46 46 47 48 48 49 51 52 53 jintex.in
Page 4 — NEOUS COVERS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 4 | 4 | SCREW | |
| 5 | 5 | WASHER | |
| 6 | 6 | SCREW | |
| 7 | 7 | WASHER | |
| 8 | 8 | SCREW | |
| 9 | 9 | WASHER | |
| 10 | 10 | BRACKET | |
| 11 | 11 | SCREW | |
| 12 | 12 | SCREW | |
| 13 | 13 | WASHER | |
| 14 | 14 | COVER | |
| 15 | 15 | SCREW | |
| 16 | 16 | WASHER | |
| 19 | 19 | SCREW | |
| 20 | 20 | SCREW | |
| 21 | 21 | WASHER | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 24 | 24 | COVER | |
| 25 | 25 | SCREW | |
| 26 | 26 | BRACKET | |
| 27 | 27 | SCREW | |
| 28 | 28 | SCREW | |
| 29 | 29 | BULB | |
| 30 | 30 | BRACKET | |
| 31 | 31 | SCREW | |
| 32 | 32 | WASHER | |
| 33 | 33 | SHAFT | |
| 34 | 34 | WASHER | |
| 35 | 35 | CIRCLIP | |
| 36 | 36 | SCREW | |
| 37 | 37 | BRACKET | |
| 38 | 38 | BRACKET | |
| 41 | 41 | BRACKET | |
| 43 | 43 | SCREW | |
| 44 | 44 | SCREW | |
| 46 | 46 | BRACKET | |
| 47 | 47 | BUSH | |
| 48 | 48 | SCREW | |
| 49 | 49 | WASHER | |
| 50 | 50 | WASHER | |
| 51 | 51 | COVER | |
| 52 | 52 | COVER | |
| 53 | 53 | COVER | |
| 54 | 54 | COVER | |
| 55 | 55 | COVER | |
| 56 | 56 | SCREW | |
| 57 | 57 | WASHER | |
| 58 | 58 | SCREW | |
| 59 | 59 | WASHER | |
| 60 | 60 | SCREW | |
| 61 | 61 | BRACKET | |
| 62 | 62 | SCREW | |
| 63 | 63 | NUT | |
| 64 | 64 | COVER | |
| 66 | 66 | SCREW | |
| 67 | 67 | SCREW | |
| 70 | 70 | CAP | |
| 71 | 71 | BRACKET | |
| 73 | 73 | CAP | |
| 74 | 74 | CAP |
NEOUS COVERS COMPONENTS 64 6.7 73 1 JIUKI 14 22 20 3 19 21 33 41 42 43 46 48 49 50 66 70 74 15.16 23 28 71 37.38 47 51 44 45 67 11 12.13 10 29 28 27 24 25 36 30 31 32 33 34 35 52 57 56 58 59 55 54 60 61 62 63 -1- jintex.in
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-39457 | FACE PLATE ASM. | ||
| 01 | 135-38152 | FACE PLATE ASM. | |
| 3 | SS-4111015-SP | SCREW 11/64-40 L=10 | |
| 4 | SD-0640471-SP | HINGE SCREW D= 6.35 H= 4.7 | |
| 5 | WZ-0641510-KP | WAVED WASHER 6.4X11X0.3 | |
| 6 | 135-39309 | BED COVER B | |
| 01 | 135-37907 | BED COVER B | |
| 7 | 135-01606 | TOP COVER | |
| 01 | 138-16509 | TOP COVER | |
| 10 | 135-01200 | BELT COVER FIXING PLATE | |
| 11 | SS-4110815-SP | SCREW 11/64-40 L=8 | |
| 12 | 135-01101 | BELT COVER | |
| 01 | 135-05805 | BELT COVER | |
| 14 | SS-4090715-SP | SCREW 9/64-40 L=7 | |
| 15 | B1122-280-000 | THREAD TAKE-UP LEVER OIL GAURO | |
| 16 | 135-16608 | BALANCE COVER | |
| 01 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | |
| 18 | NS-6090310-SP | NUT 9/64-40 | |
| 19 | B3114-771-000 | THREAD GUIDE | |
| 20 | NS-6090310-SP | NUT 9/64-40 | |
| 21 | B1125-280-000 | L-SHAPED THREAD GUIDE A | |
| 22 | B1126-552-000 | ARM THREAD GUIDE A | |
| 23 | SS-3090610-SP | SCREW 9/64-40 L=6 | |
| 24 | B1109-980-000 | BED FITTING HOOK | |
| 25 | SS-1110821-TP | SCREW 11/64-40 L=8.3 | |
| 26 | B1111-232-000 | THREAD GUIDE PLATE | |
| 27 | SS-4150715-SP | SCREW 15/64-28 L=7 | |
| 28 | NS-6150310-SP | NUT 15/64-28 | |
| 29 | B1123-280-000 | FIRST THREAD GUIDE | |
| 30 | SS-8150822-TP | SCREW 15/64-28 L=8 | |
| 31 | 135-01507 | RUBBER WASHER | |
| 32 | PS-0800202-KH | SPRING PIN 8X20 | |
| 33 | 135-07801 | BASE CONMEVTING PIN | |
| 34 | WP-1052000-SC | WASHER 10.5X18X2 | |
| 35 | RE-0600000-KO | E-SHAPED SNAP RING (6MM) | |
| 36 | SS-7151120-SP | SCREW 15/64-28 L=11 | |
| 37 | 135-38905 | BED COVER A | |
| 38 | 135-00608 | BED COVER A | |
| 01 | 135-00908 | STAY | |
| 40 | 135-01002 | BED ROCKER | |
| 41 | 135-00707 | STAY ROCKER | |
| 42 | 135-00855 | STAY GUIDE ASM. | |
| 43 | SD-0800341-SP | HINGE SCREW D=8 H=3.4 | |
| 44 | B2008-372-000 | THREAD TENSION SPRING | |
| 45 | SS-7151210-SP | SCREW 15/64-28 L=12 | |
| 46 | 135-00509 | VIBRATION-PROOF RUBBER | |
| 47 | 135-00400 | RUBBER BUSH | |
| 48 | SS-7740740-SP | SCREW 3/8-28 L= 6.5 | |
| 49 | 135-02604 | SLUSH HOLE PACKING | |
| 50 | 135-02901 | SLUSH PACKING | |
| 51 | 135-00301 | BED FITTING BASE | |
| 52 | B3101-280-0AO | SAFTY PLATE ASM. | |
| 53 | B3120-372-000 | SAFTY PLATE | |
| 54 | SS-7110710-SP | SCREW 11/64-40 L=7 | |
| 55 | WP-0450801-SD | WASHER 4.5X10.0X0.8 | |
| 56 | SD-0600401-SP | HINGE SCREW D= 6 H= 4 | |
| 57 | B3125-155-000 | DISK SPRING | |
| 58 | B3126-076-SD | WASHER 6.5X13X0.8 | |
| 59 | B3121-980-000 | SAFETY PLATE INSTALLING PLATE | |
| 60 | B3123-372-000 | STOPPER PIN | |
| 61 | SS-7110740-TP | SCREW 11/64-40 L=7 | |
| 62 | B3101-280-000 | SAFETY PLATE MOUNTING BASE | |
| 63 | NS-6620310-SP | NUT 3/16-32 | |
| 64 | SS-7110710-SP | SCREW 11/64-40 L=7 | |
| 65 | 135-02307 | FACE PACKING | |
| 66 | SS-6151220-SP | SCREW 15/64-28 L=11.5 | |
| 67 | B2714-761-000 | SPRING RACK | |
| 68 | B1124-280-000 | ARM THREAD GUIDE B | |
| 69 | SD-0800681-SP | HINGE SCREW D=8 H=6.8 | |
| 70 | TA-2050406-RO | RUBBER PLUG | |
| 71 | 135-38806 | SPRING | |
| 72 | VP-0480856-SP | WASHER 4.8X8.4X0.8 | |
| 73 | TA-0750704-RO | RUBBER PLUG | |
| 74 | TA-1470704-RO | RUBBER PLUG |
REF. NO NOTE PART NO. DESCRIPTION ヒ ン メ イ Qty 1 135-39457 FACE PLATE ASM. メンブカバ-クミ 1 2 #01 135-38152 FACE PLATE ASM. メンブカバ-クミ 1 3 SS-4111015-SP SCREW 11/64-40 L=10 ナベネジ 11/64-40 L=10 2 4 SD-0640471-SP HINGE SCREW D= 6.35 H= 4.7 ダンネジ D=6.35 H=4.7 2 5 WZ-0641510-KP WAVED WASHER 6.4X11X0.3 ナミガタワッシャ 6.4X11X0.3 2 6 135-39309 BED COVER B ベットカバ-(B) 1 7 #01 135-37907 BED COVER B ベットカバ-(B) 1 8 135-01606 TOP COVER アームカバ- 1 9 #01 138-16509 TOP COVER アームカバ- 1 10 135-01200 BELT COVER FIXING PLATE ベルトカバ- コテイタ 1 11 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 2 12 135-01101 BELT COVER ベットカバ- 1 13 135-05805 BELT COVER ベットカバ- 1 14 SS-4090715-SP SCREW 9/64-40 L=7 ナベネジ 9/64-40 L=7 2 15 B1122-280-000 THREAD TAKE-UP LEVER OIL GAURO テンビンカバ- 1 16 135-16608 BALANCE COVER テンビンカバ- 1 17 #01 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 18 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 1 19 B3114-771-000 THREAD GUIDE イトアンナイ 1 20 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 1 21 B1125-280-000 L-SHAPED THREAD GUIDE A レガタ イトアンナイ 1 22 B1126-552-000 ARM THREAD GUIDE A アーム イトアンナイ A 1 23 SS-3090610-SP SCREW 9/64-40 L=6 マルネジ 9/64-40 L=6 1 24 B1109-980-000 BED FITTING HOOK ベット トリツケフツク B 1 25 SS-1110821-TP SCREW 11/64-40 L=8.3 サラネジ 11/64-40 L=8.3 2 26 B1111-232-000 THREAD GUIDE PLATE イトアンナイ イタ 1 27 SS-4150715-SP SCREW 15/64-28 L=7 ナベネジ 15/64-28 L=7 1 28 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 1 29 B1123-280-000 FIRST THREAD GUIDE タテイチ イトアンナイ 1 30 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 2 31 135-01507 RUBBER WASHER ベットカバ- ゴムオオガネ 2 32 PS-0800202-KH SPRING PIN 8X20 スプリングピン 8X20 2 33 135-07801 BASE CONMEVTING PIN ベツトトリツケピン 2 34 WP-1052000-SC WASHER 10.5X18X2 ヒラサカネ 10.5X18X2 1 35 RE-0600000-KO E-SHAPED SNAP RING (6MM) Eガタタトメワ 6 1 36 SS-7151120-SP SCREW 15/64-28 L=11 マルヒラネジ 15/64-28 L=11 2 37 135-38905 BED COVER A ベットカバ-(A) 1 38 135-00608 BED COVER A ベットカバ-(A) 1 39 #01 135-00908 STAY ステー 1 40 135-01002 BED ROCKER ベットロツカー 1 41 135-00707 STAY ROCKER ステーロツカー 1 42 135-00855 STAY GUIDE ASM. ステーガイド クミ 1 43 SD-0800341-SP HINGE SCREW D=8 H=3.4 ダンネジ D=8 H=3.4 2 44 B2008-372-000 THREAD TENSION SPRING イトチヨージン ヒサパツリバネ 1 45 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 2 46 135-00509 VIBRATION-PROOF RUBBER ホーシンゴム 2 47 135-00400 RUBBER BUSH ゴムブツシユ 2 48 SS-7740740-SP SCREW 3/8-28 L= 6.5 マルヒラネジ 3/8-28 L=6.5 1 49 135-02604 SLUSH HOLE PACKING ハイユアナ パツキン 1 50 135-02901 SLUSH PACKING ハイユパツキング 1 51 135-00301 BED FITTING BASE ベットトリツケダイ 1 52 B3101-280-0AO SAFTY PLATE ASM. アンセンプレート トリツケダイ クミ 1 53 B3120-372-000 SAFTY PLATE アンセン プレート (1) 54 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (2) 55 WP-0450801-SD WASHER 4.5X10.0X0.8 ヒラサカネ 4.5X10.0X0.8 (2) 56 SD-0600401-SP HINGE SCREW D= 6 H= 4 ダンネジ D=6 H=4 (1) 57 B3125-155-000 DISK SPRING サラ ハネ (1) 58 B3126-076-SD WASHER 6.5X13X0.8 ヒラサカネ 6.5X13X0.8 (1) 59 B3121-980-000 SAFETY PLATE INSTALLING PLATE アンセンプレート トリツケイタ (1) 60 B3123-372-000 STOPPER PIN アンセンプレート ストツパーピン (1) 61 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (2) 62 B3101-280-000 SAFETY PLATE MOUNTING BASE アンセンプレート マウンテイング ベ-ス 1 63 NS-6620310-SP NUT 3/16-32 ロツカクナット 3/16-32 (1) 64 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 65 135-02307 FACE PACKING メンブパツキン 1 66 SS-6151220-SP SCREW 15/64-28 L=11.5 ヒラネジ 15/64-28 L=11.5 5 67 B2714-761-000 SPRING RACK ハガネカケ 1 68 B1124-280-000 ARM THREAD GUIDE B アーム イトアンナイ B 1 69 SD-0800681-SP HINGE SCREW D=8 H=6.8 ダンネジ D=8 H=6.8 2 70 TA-2050406-RO RUBBER PLUG トメセン 1 71 135-38806 SPRING ベツトカバ-ベネ 2 72 VP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサカネ 4.8X8.4X0.8 2 73 TA-0750704-RO RUBBER PLUG トメセン 1 74 TA-1470704-RO RUBBER PLUG トメセン 1 Note ( 注記 )#01...FOR URBAN WHITE アーバンホワイト用 - 2 -
Page 6 — 2. MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | WASHER | |
| 2 | 2 | BOLT | |
| 3 | 3 | BOLT | |
| 4 | 4 | BOLT | |
| 5 | 5 | SPRING | |
| 6 | 6 | CAM | |
| 7 | 7 | SHAFT | |
| 8 | 8 | COLLAR | |
| 9 | 9 | SHAFT | |
| 10 | 10 | CAM | |
| 11 | 11 | BOLT | |
| 12 | 12 | COLLAR | |
| 13 | 13 | BOLT | |
| 14 | 14 | BOLT | |
| 15 | 15 | GEAR | |
| 16 | 16 | SPRING | |
| 17 | 17 | COLLAR | |
| 18 | 18 | SHAFT | |
| 19 | 19 | BOLT | |
| 20 | 20 | BOLT | |
| 21 | 21 | SHAFT | |
| 22 | 22 | BOLT | |
| 23 | 23 | BOLT | |
| 24 | 24 | SHAFT | |
| 25 | 25 | COLLAR | |
| 26 | 26 | SHAFT | |
| 27 | 27 | SPRING | |
| 28 | 28 | BOLT | |
| 29 | 29 | FLANGE | |
| 30 | 30 | BOLT | |
| 31 | 31 | SHAFT | |
| 32 | 32 | RING | |
| 33 | 33 | RING | |
| 34 | 34 | PULLEY | |
| 35 | 35 | BEARING | |
| 36 | 36 | RING | |
| 37 | 37 | RING | |
| 38 | 38 | RING | |
| 39 | 39 | SPRING | |
| 40 | 40 | RING | |
| 41 | 41 | SHAFT | |
| 42 | 42 | RING | |
| 43 | 43 | FLANGE | |
| 44 | 44 | SHAFT | |
| 45 | 45 | BOLT | |
| 46 | 46 | SHAFT | |
| 47 | 47 | SHAFT | |
| 48 | 48 | BEARING | |
| 49 | 49 | FLANGE | |
| 50 | 50 | BOLT | |
| 51 | 51 | BOLT | |
| 52 | 52 | FLANGE | |
| 53 | 53 | BOLT | |
| 54 | 54 | PIN | |
| 55 | 55 | RING | |
| 56 | 56 | RING |
2. MAIN SHAFT COMPONENTS 上軸関係 - 3 - jintex.in
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B1223-771-000 | NEEDLE ROD CRANK WASHER | 1 | |
| SS-6151412-TP | SCREW 15/64-28 L=14 | 1 | |
| SS-9661230-CP | SCREW 1/4-40 L=12 | 1 | |
| SS-6681712-TP | SCREW 9/32-28 L=16.5 | 1 | |
| SS-8606010-TP | SCREW 1/4-40 L=6 | 1 | |
| B1202-280-000 | COUNTER WEIGHT | 1 | |
| 135-03206 | UPPER SHAFT FRONT METAL | 1 | |
| 135-03107 | MAIN SHAFT. | 1 | |
| 135-03305 | UPPER SHAFT INNER METAL | 1 | |
| 135-10367 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| CS-150111A-TH | THRUST COLLAR ASM. D=15 W=10.8 | 1 | |
| SS-6661110-SP | SCREW 1/4-40 L=11 | (2) | |
| B1211-980-000 | UPPER SHAFT THRUST BEARING | 1 | |
| #01 | B1208-980-00B | MAIN SHAFT NEEDLE BEARING B | |
| B1207-980-000 | UPPER SHAFT REAR METAL | 1 | |
| B1210-980-000 | SET SCREW | 1 | |
| 135-03453 | THREAD CUTTING CUM ASM. | 1 | |
| SS-8661012-TP | SCREW | (1) | |
| SS-8661212-TP | SCREW | (1) | |
| SS-8151230-SP | SCREW 15/64-28 L=12 | 1 | |
| SS-6741512-TP | SCREW 3/8-28 L=14.5 | 1 | |
| SS-6742012-TP | SCREW 3/8-28 L=19.5 | 1 | |
| 135-03552 | STOP-MOTION CAM ASM. | 1 | |
| 135-03503 | STOP-MOTION CAM | (1) | |
| B1215-980-000 | STOP MOTION CAM LATCH | (1) | |
| B1217-280-000 | SAFETY PLATE STOPPER SPRING | (1) | |
| 135-03602 | PIN | (1) | |
| 135-03750 | HIGH SPEED CLUTCH PLATE ASM. | 1 | |
| SS-2110920-TP | SCREW 11/64-40 L=8.5 | 2 | |
| SS-1110640-TP | SCREW 11/64-40 L=5.5 | 1 | |
| 135-04006 | SPACER | 3 | |
| 135-03909 | SPRING | 2 | |
| 135-04204 | HIGH SPEED PULLEY | 1 | |
| SB-1350002-00 | BEARING D=35X62 | 2 | |
| #02 | 135-04907 | SHIM | |
| 135-04303 | WASHER | 2 | |
| RC-3221517-KP | RETAINING RING 32.2 | 1 | |
| 135-04105 | SLOW SPEED PULLEY SPRING | 3 | |
| RC-6022018-KP | RETAINING RING 66.2 | 2 | |
| 135-04451 | PULLEY ASM. | 1 | |
| SS-1110640-TP | SCREW 11/64-40 L=5.5 | (3) | |
| 135-04402 | PULLEY | (1) | |
| 135-04501 | PULLEY SHAFT | (1) | |
| SS-8606112-TP | SCREW 1/4-40 L=6 | 1 | |
| 135-04600 | SLOW SPEED PULLEY SHAFT | 1 | |
| SS-8661112-TP | SCREW 1/4-40 L=11 | 1 | |
| 135-04709 | SLOW SPEED PULLEY | 1 | |
| 135-04808 | SLOW SPEED PULLEY PLATE | 1 | |
| WS-0451040-KP | SPRING WASHER 4.5X8.5X1 | 2 | |
| SS-7111120-TP | SCREW | 1 | |
| 135-05003 | BALL RETAINER | 1 | |
| SS-2090710-TP | SCREW 9/64-40 L=7.2 | 2 | |
| B1253-980-000 | STOP-MOTION BALL | 1 | |
| #01 | 135-05201 | PULLEY SPACER | |
| #02 | 135-05102 | REGULATOR SHIM |
REF.NO NOTE PART NO. D E S C R I P T I O N ヒ ン メ イ Qty 1 B1223-771-000 NEEDLE ROD CRANK WASHER ハリホー-クランク ワツシャー 1 2 SS-6151412-TP SCREW 15/64-28 L=14 ロツカクアナボルト 15/64-28 1 3 SS-9661230-CP SCREW 1/4-40 L=12 ロツカクアナボルト 1/4-40 L=12 1 4 SS-6681712-TP SCREW 9/32-28 L=16.5 6カクアナボルト 9/32-28L=16.5 1 5 SS-8606010-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 1 6 B1202-280-000 COUNTER WEIGHT ツリアイオモリ 1 7 135-03206 UPPER SHAFT FRONT METAL ウツシジク マエメタル 1 8 135-03107 MAIN SHAFT. ウツシジク 1 9 135-03305 UPPER SHAFT INNER METAL ウツシジク ナカメタル 1 10 135-10367 WORM ASM. ウオーム アスム 1 11 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ-11/64-40 L=14 (4) 12 CS-150111A-TH THRUST COLLAR ASM. D=15 W=10.8 スラストウケ D=15 W=10.8 クミ 1 13 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 (2) 14 B1211-980-000 UPPER SHAFT THRUST BEARING ウツシジク スラストベアリング 1 15 #01 B1208-980-00B MAIN SHAFT NEEDLE BEARING B ウツシジク ニードルベアリング B 1 16 B1207-980-000 UPPER SHAFT REAR METAL ウツシジク ウシロメタル 1 17 B1210-980-000 SET SCREW ウツシジク ウシロメタル トメネジ 1 18 135-03453 THREAD CUTTING CUM ASM. イトキリカム クミ 1 19 SS-8661012-TP SCREW トメネジ (1) 20 SS-8661212-TP SCREW トメネジ (1) 21 SS-8151230-SP SCREW 15/64-28 L=12 トメネジ 15/64-28 L=12 1 22 SS-6741512-TP SCREW 3/8-28 L=14.5 ロツカクアナボルト 3/8-28 1 23 SS-6742012-TP SCREW 3/8-28 L=19.5 ヒラネジ 3/8-28 L=19.5 1 24 135-03552 STOP-MOTION CAM ASM. シヤタダンカム クミ 1 25 135-03503 STOP-MOTION CAM シヤタダンカム (1) 26 B1215-980-000 STOP MOTION CAM LATCH シヤタダンカム ツメ (1) 27 B1217-280-000 SAFETY PLATE STOPPER SPRING アンゼン ストツパー ハネ (1) 28 135-03602 PIN シヤタダンカム ツメピン (1) 29 135-03750 HIGH SPEED CLUTCH PLATE ASM. ユースク クラツチタイ クミ 1 30 SS-2110920-TP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 2 31 SS-1110640-TP SCREW 11/64-40 L=5.5 サラネジ 11/64-40 L=5.5 1 32 135-04006 SPACER プーリスペーサ 3 33 135-03909 SPRING ヨアツバネ 2 34 135-04204 HIGH SPEED PULLEY ユースクプーリー 1 35 SB-1350002-00 BEARING D=35X62 ベアリング D=35X62 2 36 #02 135-04907 SHIM チョウセイシム 6 37 135-04303 WASHER ユースクプーリー ザガネ 2 38 RC-3221517-KP RETAINING RING 32.2 Cガタトメワ 32.2 1 39 135-04105 SLOW SPEED PULLEY SPRING テイツク プーリーハネ 3 40 RC-6022018-KP RETAINING RING 66.2 Cガタトメワ 66.2 2 41 135-04451 PULLEY ASM. キリカエプーリー クミ 1 42 SS-1110640-TP SCREW 11/64-40 L=5.5 サラネジ 11/64-40 L=5.5 (3) 43 135-04402 PULLEY キリカエプーリー (1) 44 135-04501 PULLEY SHAFT キリカエプーリーシジク (1) 45 SS-8606112-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 1 46 135-04600 SLOW SPEED PULLEY SHAFT リイツクプーリーシジク 1 47 SS-8661112-TP SCREW 1/4-40 L=11 トメネジ 1/4-40 L=11 1 48 135-04709 SLOW SPEED PULLEY テイツクプーリー 1 49 135-04808 SLOW SPEED PULLEY PLATE テイツクプーリー トリツケイタ 1 50 WS-0451040-KP SPRING WASHER 4.5X8.5X1 ハバネガタワッシャー 4.5X8.5X1 2 51 SS-7111120-TP SCREW マルヒラネジ 2 52 135-05003 BALL RETAINER ホールウケ 1 53 SS-2090710-TP SCREW 9/64-40 L=7.2 マルサラネジ 9/64-40 L=7.2 2 54 B1253-980-000 STOP-MOTION BALL シヤタダンボール 1 55 #01 135-05201 PULLEY SPACER プーリースペーサー 1 56 #02 135-05102 REGULATOR SHIM チヨウセイシム 1 Note ( 注記 )#01....SELECTIVE PART 選択部品 #02....UP TO 6 PCS OF THIS PLATE ARE ミシン 頭部により 0~6枚 USED AS REQUIRED. 使用します。 - 4 -
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B1901-280-0B0 | LINK BALANCE ASM. | ||
| B1904-280-000 | BALANCE CRANK PIN | ||
| B1903-552-0A0 | LEFT SCREW | ||
| B1404-280-000 | NEEDLE BAR CRANK ROD | ||
| B1411-804-C00 | NEEDLE DRIVING LEVER BEARING C | ||
| B1203-280-000 | NEEDLE ROD CRANK | ||
| B1905-541-B00 | NEEDLE BEARING | ||
| B1901-280-0A0 | BALANCE ASM. | ||
| SS-7151120-SP | SCREW 15/64-28 L=11 | ||
| B1402-280-000 | NEEDLE ROD METAL | ||
| B1411-552-0A0 | NEEDLE ROD HOLDER ASM. | ||
| SS-6090670-TP | SCREW 9/64-40 L=6 | ||
| B1401-280-000 | NEEDLE BAR | ||
| B1403-280-000 | NEEDLE ROD LOWER METAL | ||
| SS-2000510-SP | SCREW 3/32-56 L=4.5 | ||
| B1405-280-000 | NEEDLE BAR THREAD GUIDE | ||
| HDP-500B1400 | NEEDLE DPX5 #14 | ||
| HDP-500B1600 | NEEDLE DPX5 #16 | ||
| HDP-500B1000 | NEEDLE #100 | ||
| SS-6080340-SP | SCREW 1/8-44 L=3.0 | ||
| B1414-232-000 | SQUARE BLOCK | ||
| SS-4150915-SP | SCREW 15/64-28 L=9 | ||
| 135-26850 | THREAD GUIDE BRACKET ASM. | ||
| NS-6110310-SP | NUT 11/64-40 | ||
| 135-26801 | THREAD GUIDE BRACKET | ||
| B3219-232-000 | BOBBIN WINDER TENSION POST | ||
| B3214-047-000 | BOBBIN WINDER TENSION DISC | ||
| B3218-232-000 | BOBBIN WINDER TENSION SPRING | ||
| B3216-047-000 | BOBBIN WINDER TENSION NUT | ||
| 135-26157 | BOBBIN WINDER ASM. | ||
| SD-0791503-SP | HINGE SCREW D=7.94 H=15 | ||
| NS-6150310-SP | NUT 15/64-28 | ||
| WP-0651056-SD | WASHER 6.5X11X1 | ||
| SS-7110510-SP | SCREW 11/64-40 L=5 | ||
| B3210-280-000 | BOBBIN WINDER BRAKE PRESSURE P | ||
| B3209-280-000 | BOBBIN WINDER BRAKE | ||
| 135-26405 | BOBBIN WINDER WHEEL | ||
| 135-26207 | BOBBIN WINDER SPINDLE BUSHING | ||
| SS-7110510-SP | SCREW 11/64-40 L=5 | ||
| 135-20900 | BOBBIN WINDER BELT SUPPORT | ||
| SS-7110840-SP | SCREW 11/64-40 L=7.8 | ||
| 135-26504 | BOBBIN WINDER TRIP LATCH | ||
| 135-26306 | BOBBIN WINDER SPINDLE | ||
| NS-6150310-SP | NUT 15/64-28 | ||
| 135-26702 | SPRING | ||
| NS-6110310-SP | NUT 11/64-40 | ||
| 135-26108 | BOBBIN WINDER BASE | ||
| B3208-280-000 | BOBBIN WINDER ADJUSTING SCREW | ||
| 135-26603 | BOBBIN WINDER TRIP LATCH | ||
| NS-6110530-SP | NUT 11/64-40 | ||
| SD-0720193-SP | HINGE SCREW D= 7.24 H= 1.9 | ||
| SS-4110915-SP | SCREW 11/64-40 L=9 | ||
| SS-1110640-TP | SCREW 11/64-40 L=5.5 | ||
| 135-15556 | NEEDLE PLATE ASM. | ||
| B2426-280-000 | NEEDLE PLATE NEEDLE HOLE GUIDE | ||
| SS-1000210-TP | SCREW 3/32-56 L=2.2 | ||
| 135-15564 | NEEDLE PLATE ASM. | ||
| B2424-280-000 | FIXING KNIFE | ||
| SS-7090410-SP | SCREW 9/64-40 L=3.5 | ||
| B2418-280-000 | MOVING KNIFE LINK | ||
| B2416-280-000 | THREAD CUTTING LEVER RING | ||
| 135-38608 | THREAD CUTTER LEVER, SMALL | ||
| B2414-280-0A0 | THREAD CUTTER LEVER ASM., LARG | ||
| SS-6110430-TP | SCREW 11/64-40 L=4 | ||
| WP-0450846-SP | WASHER | ||
| SS-7110740-TP | SCREW 11/64-40 L=7 | ||
| B2421-280-00C | MOVING KNIFE WASHER C | ||
| B2423-280-0A0 | MOVING KNIFE ASM. | ||
| SD-0500091-TP | HINGE SCREW D= 5.0 H= 0.9 |
REF. NO NOTE PART NO. DESCRIPTION HIN MEI Qty 1 B1901-280-0B0 LINK BALANCE ASM. リ ン ク テ ン ビン ク ミ 1 2 B1904-280-000 BALANCE CRANK PIN テ ン ビン ク ラ ン ク ピ ン (1) 3 B1903-552-0A0 LEFT SCREW ヒ タ リ ネ ジ (1) 4 B1404-280-000 NEEDLE BAR CRANK ROD ハ リ ボ ー ク ラ ン ク ロ ッ ド (1) 5 B1411-804-C00 NEEDLE DRIVING LEVER BEARING C ハ リ ク ト ー レ バ ー ベ ア リ ン グ C (1) 6 B1203-280-000 NEEDLE ROD CRANK ハ リ ボ ー ク ラ ン ク (1) 7 B1905-541-B00 NEEDLE BEARING テ ン ビン ニ ー ド ル ベ ア リ ン グ (1) 8 B1901-280-0A0 BALANCE ASM. テ ン ビン ク ミ (1) 9 SS-7151120-SP SCREW 15/64-28 L=11 マ ル ヒ ラ ネ ジ 15/64-28 L=11 1 10 B1402-280-000 NEEDLE ROD METAL ハ リ ボ ー メ タ ル 1 11 B1411-552-0A0 NEEDLE ROD HOLDER ASM. ハ リ ボ ー ダ ー キ ク ミ 1 12 SS-6090670-TP SCREW 9/64-40 L=6 ヒ ラ ネ ジ 9/64-40 6=6 (1) 13 B1401-280-000 NEEDLE BAR ヒ ラ ボ ー 1 14 B1403-280-000 NEEDLE ROD LOWER METAL ハ リ ボ ー シ タ メ タ ル 1 15 SS-2000510-SP SCREW 3/32-56 L=4.5 マ ル ネ ジ 3/32-56 L=4.5 (1) 16 B1405-280-000 NEEDLE BAR THREAD GUIDE ハ リ ボ ー ス レ ッ ド ガ イ ド 1 17 HDP-500B1400 NEEDLE DPX5 #14 ハ リ DPX5 #14 1 18 HDP-500B1600 NEEDLE DPX5 #16 ハ リ DPX5 #16 1 19 #02 HDP-500B1000 NEEDLE #100 ハ リ 134 100 1 20 SS-6080340-SP SCREW 1/8-44 L=3.0 ヒ ラ ネ ジ 1/8-44 L=2.9 (1) 21 B1414-232-000 SQUARE BLOCK カ ク ゴ マ 1 22 SS-4150915-SP SCREW 15/64-28 L=9 ナ ベ ネ ジ 15/64-28 L=9 2 23 135-26850 THREAD GUIDE BRACKET ASM. イ ト マ キ イ ト ア ン ナ イ ダ ク ミ (1) 24 NS-6110310-SP NUT 11/64-40 ロ ツ カ ナ ッ ト 11/64-40 (1) 25 135-26801 THREAD GUIDE BRACKET イ ト マ キ イ ト ア ン ナ イ ダ イ (1) 26 B3219-232-000 BOBBIN WINDER TENSION POST イ ト マ キ イ ト ヨ ー シ ボ ー (1) 27 B3214-047-000 BOBBIN WINDER TENSION DISC イ ト ヨ ー シ サ ラ (2) 28 B3218-232-000 BOBBIN WINDER TENSION SPRING イ ト ヨ ー シ バ ネ (1) 29 B3216-047-000 BOBBIN WINDER TENSION NUT イ ト ヨ ー シ ナ ッ ト (1) 30 135-26157 BOBBIN WINDER ASM. イ ト マ キ ク ミ 1 31 SD-0791503-SP HINGE SCREW D=7.94 H=15 タ ン ネ ジ D=7.94 H=15 (1) 32 NS-6150310-SP NUT 15/64-28 ロ ツ カ ナ ッ ト 15/64-28 (1) 33 WP-0651056-SD WASHER 6.5X11X1 ヒ ラ ガ ネ 6.5X11X1 (1) 34 SS-7110510-SP SCREW 11/64-40 L=5 マ ル ヒ ラ ネ ジ 11/64-40 L=5 (1) 35 B3210-280-000 BOBBIN WINDER BRAKE PRESSURE P イ ト マ キ ブ レ ー キ オ ウ エ イ タ (1) 36 B3209-280-000 BOBBIN WINDER BRAKE イ ト マ キ ブ レ ー キ (1) 37 135-26405 BOBBIN WINDER WHEEL イ ト マ キ グ ル マ (1) 38 135-26207 BOBBIN WINDER SPINDLE BUSHING イ ト マ キ ジ ッ ク ウ ケ (1) 39 SS-7110510-SP SCREW 11/64-40 L=5 マ ル ヒ ラ ネ ジ 11/64-40 L=5 (1) 40 135-20900 BOBBIN WINDER BELT SUPPORT イ ト マ キ ベ ル ト サ ポ ー ト (1) 41 SS-7110840-SP SCREW 11/64-40 L=7.8 マ ル ヒ ラ ネ ジ 11/64-40 L=7.8 (1) 42 135-26504 BOBBIN WINDER TRIP LATCH イ ト マ キ チ ヨ ウ セ イ タ (1) 43 135-26306 BOBBIN WINDER SPINDLE イ ト マ キ (1) 44 NS-6150310-SP NUT 15/64-28 ロ ツ カ ナ ッ ト 15/64-28 (1) 45 135-26702 SPRING 1 (1) 46 NS-6110310-SP NUT 11/64-40 ロ ツ カ ナ ッ ト 11/64-40 (1) 47 135-26108 BOBBIN WINDER BASE ホ ビン オ サ エ ボ ス (1) 48 B3208-280-000 BOBBIN WINDER ADJUSTING SCREW ホ ビン オ サ エ (1) 49 135-26603 BOBBIN WINDER TRIP LATCH オ キ リ ボ ス (1) 50 NS-6110530-SP NUT 11/64-40 ロ ツ カ ナ ッ ト 11/64-40 (1) 51 SD-0720193-SP HINGE SCREW D= 7.24 H= 1.9 ダ ン ネ ジ D=7.24 H=1.9 (1) 52 SS-4110915-SP SCREW 11/64-40 L=9 ナ ベ ネ ジ 11/64-40 L=9 2 53 SS-1110640-TP SCREW 11/64-40 L=5.5 サ ラ ネ ジ 11/64-40 L=5.5 4 54 135-15556 NEEDLE PLATE ASM. ハ リ イ タ ク ミ 1 55 B2426-280-000 NEEDLE PLATE NEEDLE HOLE GUIDE ハ リ ア ナ ガ イ ド (1) 56 SS-1000210-TP SCREW 3/32-56 L=2.2 サ ラ ネ ジ 3/32-56 L=2.2 (2) 57 135-15564 NEEDLE PLATE ASM. ハ リ イ タ ク ミ (1) 58 B2424-280-000 FIXING KNIFE ユ コ イ メ ス (1) 59 SS-7090410-SP SCREW 9/64-40 L=3.5 コ マ ネ ジ 9/64-40 L=3.5 (2) 60 B2418-280-000 MOVING KNIFE LINK ト ブ ウ メ ス リ ン ク (1) 61 B2416-280-000 THREAD CUTTING LEVER RING イ ト キ リ レ バ ー リ ン グ (1) 62 135-38608 THREAD CUTTER LEVER, SMALL イ ト キ リ レ バ ー ( シ ョ ウ ) (1) 63 B2414-280-0A0 THREAD CUTTER LEVER ASM., LARG イ ト キ リ レ バ ー ( タ イ ) ク ミ (1) 64 SS-6110430-TP SCREW 11/64-40 L=4 ヒ ラ ネ ジ 11/64-40 L=4 (1) 65 WP-0450846-SP WASHER ヒ ラ ガ ネ (2) 66 SS-7110740-TP SCREW 11/64-40 L=7 マ ル ヒ ラ ネ ジ 11/64-40 L=7 (1) 67 B2421-280-00C MOVING KNIFE WASHER C ト ー メ ス ガ ー ネ C (1) 68 B2423-280-0A0 MOVING KNIFE ASM. ト ー メ ス ク ミ (1) 69 SD-0500091-TP HINGE SCREW D= 5.0 H= 0.9 ダ ン ネ ジ D=5 H=0.9 (1) Note ( 注記 )#01...SELECTIVE PART 選 択 部 品 #02...SPECIAL ORDER PART 特 別 注 文 部 品 #03...FOR DOMESTIC USE 国 内 用 #04...STANDARD PART (EXCEPT JE) 輸 出 用 (JE は 除 く ) - 6 - jintex.in
Page 10 — 4. THREAD TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | THREAD TENSION RELEASE COMPONENTS | |
| 2 | 2 | THREAD TENSION RELEASE COMPONENTS | |
| 4 | 4 | THREAD TENSION RELEASE COMPONENTS | |
| 5 | 5 | THREAD TENSION RELEASE COMPONENTS | |
| 6 | 6 | THREAD TENSION RELEASE COMPONENTS | |
| 7 | 7 | THREAD TENSION RELEASE COMPONENTS | |
| 8 | 8 | THREAD TENSION RELEASE COMPONENTS | |
| 9 | 9 | THREAD TENSION RELEASE COMPONENTS | |
| 10 | 10 | THREAD TENSION RELEASE COMPONENTS | |
| 11 | 11 | THREAD TENSION RELEASE COMPONENTS | |
| 12 | 12 | THREAD TENSION RELEASE COMPONENTS | |
| 13 | 13 | THREAD TENSION RELEASE COMPONENTS | |
| 14 | 14 | THREAD TENSION RELEASE COMPONENTS | |
| 15 | 15 | THREAD TENSION RELEASE COMPONENTS | |
| 16 | 16 | THREAD TENSION RELEASE COMPONENTS | |
| 17 | 17 | THREAD TENSION RELEASE COMPONENTS | |
| 18 | 18 | THREAD TENSION RELEASE COMPONENTS | |
| 19 | 19 | THREAD TENSION RELEASE COMPONENTS | |
| 20 | 20 | THREAD TENSION RELEASE COMPONENTS | |
| 21 | 21 | THREAD TENSION RELEASE COMPONENTS | |
| 22 | 22 | THREAD TENSION RELEASE COMPONENTS | |
| 23 | 23 | THREAD TENSION RELEASE COMPONENTS | |
| 24 | 24 | THREAD TENSION RELEASE COMPONENTS | |
| 25 | 25 | THREAD TENSION RELEASE COMPONENTS | |
| 26 | 26 | THREAD TENSION RELEASE COMPONENTS | |
| 27 | 27 | THREAD TENSION RELEASE COMPONENTS | |
| 28 | 28 | THREAD TENSION RELEASE COMPONENTS | |
| 29 | 29 | THREAD TENSION RELEASE COMPONENTS | |
| 30 | 30 | THREAD TENSION RELEASE COMPONENTS | |
| 31 | 31 | THREAD TENSION RELEASE COMPONENTS | |
| 32 | 32 | THREAD TENSION RELEASE COMPONENTS | |
| 33 | 33 | THREAD TENSION RELEASE COMPONENTS | |
| 34 | 34 | THREAD TENSION RELEASE COMPONENTS | |
| 35 | 35 | THREAD TENSION RELEASE COMPONENTS | |
| 36 | 36 | THREAD TENSION RELEASE COMPONENTS | |
| 37 | 37 | THREAD TENSION RELEASE COMPONENTS | |
| 38 | 38 | THREAD TENSION RELEASE COMPONENTS | |
| 39 | 39 | THREAD TENSION RELEASE COMPONENTS | |
| 40 | 40 | THREAD TENSION RELEASE COMPONENTS | |
| 41 | 41 | THREAD TENSION RELEASE COMPONENTS | |
| 42 | 42 | THREAD TENSION RELEASE COMPONENTS | |
| 43 | 43 | THREAD TENSION RELEASE COMPONENTS | |
| 44 | 44 | THREAD TENSION RELEASE COMPONENTS | |
| 45 | 45 | THREAD TENSION RELEASE COMPONENTS | |
| 46 | 46 | THREAD TENSION RELEASE COMPONENTS | |
| 47 | 47 | THREAD TENSION RELEASE COMPONENTS | |
| 48 | 48 | THREAD TENSION RELEASE COMPONENTS | |
| 49 | 49 | THREAD TENSION RELEASE COMPONENTS | |
| 50 | 50 | THREAD TENSION RELEASE COMPONENTS | |
| 51 | 51 | THREAD TENSION RELEASE COMPONENTS | |
| 52 | 52 | THREAD TENSION RELEASE COMPONENTS | |
| 53 | 53 | THREAD TENSION RELEASE COMPONENTS | |
| 54 | 54 | THREAD TENSION RELEASE COMPONENTS | |
| 55 | 55 | THREAD TENSION RELEASE COMPONENTS | |
| 56 | 56 | THREAD TENSION RELEASE COMPONENTS | |
| 3 | 3 | THREAD TENSION RELEASE COMPONENTS |
4. THREAD TENSION RELEASE COMPONENTS 糸調子関係 1 2 4 5 6 7 8 9 10 11 12 13 14 15 16 17 17 18 19 20 20 21 22 23 24 25 26 27 28 29 30 31 32 33 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 3 - 7 - jintex.in
Page 12 — 5. SHUTTLE DRIVER SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SHUTTLE DRIVER SHAFT COMPONENTS | ||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 36 | |||
| 37 | |||
| 38 | |||
| 39 | |||
| 40 | |||
| 41 | |||
| 42 | |||
| 43 | |||
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 50 | |||
| 51 | |||
| 52 |
5. SHUTTLE DRIVER SHAFT COMPONENTS 下軸関係 12 11 10 9 8 7 5 4 3 2 6 1 12 15 14 13 20 19 8 18 17 35 16 34 32 33 36-37 45 38 39 40 24 25 26 27 29 30 28 31 21 22 23 41 42 43 44 47 46 48 49 50 52 51 -9- jintex.in
Page 16 — 7. THREAD TRIMMING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | THREAD TRIMMING COMPONENTS | ||
| 2 | 糸切り関係 | ||
| 3 | 1 | ||
| 4 | 2 | ||
| 5 | 3 | ||
| 6 | 4 | ||
| 7 | 5 | ||
| 8 | 6 | ||
| 9 | 7 | ||
| 10 | 8 | ||
| 11 | 9 | ||
| 12 | 10 | ||
| 13 | 11 | ||
| 14 | 12 | ||
| 15 | 13 | ||
| 16 | 14 | ||
| 17 | 15 | ||
| 18 | 16 | ||
| 19 | 17 | ||
| 20 | 18 | ||
| 21 | 19 | ||
| 22 | 20 | ||
| 23 | 21 | ||
| 24 | 22 | ||
| 25 | 23 | ||
| 26 | 24 | ||
| 27 | 25 | ||
| 28 | 26 | ||
| 29 | 27 | ||
| 30 | 28 | ||
| 31 | 29 | ||
| 32 | 30 | ||
| 33 | 31 | ||
| 34 | 32 | ||
| 35 | 33 | ||
| 36 | 34 | ||
| 37 | 35 | ||
| 38 | 36 | ||
| 39 | 37 | ||
| 40 | 38 | ||
| 41 | 39 | ||
| 42 | 40 |
7. THREAD TRIMMING COMPONENTS 糸切り関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 - 13 - jintex.in
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B1506-352-000 | TENSION SPRING RACK B | 1 | |
| B2410-980-000 | TENSION SPRING | 1 | |
| SD-0650305-TP | HINGE SCREW D= 6.5 H= 3 | 2 | |
| B1110-280-000 | THREAD CUTTING LINK SPRING RAC | 1 | |
| 135-15002 | THREAD CUTTING LINK | 1 | |
| 135-15309 | THREAD CUTTING LINK | 1 | |
| SS-6151440-SP | SCREW 15/64-28 L=14 | 1 | |
| 135-15200 | THREAD CUTTING LINK WASHER | 1 | |
| 135-15101 | THREAD CUTTING LINK SHAFT | 1 | |
| RC-1021011-KP | RETAINING RING 10.2 | 1 | |
| 135-15408 | CONNECTING ROD, LARGE | 1 | |
| NS-6120310-SP | NUT 3/16-28 | 3 | |
| 135-15310 | ROLLER | 1 | |
| SD-0651301-TH | HINGE SCREW D=6.5 H=13 | 1 | |
| SS-8681950-SP | SCREW 9/32-28 L=19 | 1 | |
| B2404-280-000 | THREAD CUTTING CAM ROLLER | 1 | |
| 135-14104 | CAM STUD | 1 | |
| 135-34060 | THREAD CUTTING CAM COMPL. | 1 | |
| 135-14906 | CONNECTING ROD, SMALL | 1 | |
| 135-07058 | LOWERING LINK ASM. | 1 | |
| 135-07009 | LOWERING LINK | 1 | |
| SD-0790402-TP | HINGE SCREW D= 7.94 H=4 | (1) | |
| 135-07157 | LOWERING LEVER ASM. | (1) | |
| HS-6150310-SP | NUT 15/64-28 | (1) | |
| 135-07405 | ROLLER | (1) | |
| 135-07504 | WASHER | (1) | |
| B2015-280-000 | STOP RING | (1) | |
| WP-0982616-SP | WASHER 9.8X24.0X2.6 | 1 | |
| SS-6741512-TP | SCREW 3/8-28 L=14.5 | 1 | |
| SD-0901101-SP | HINGE SCREW D= 9 H=11 | (1) | |
| 135-14500 | AUXILIARY LEVER | 1 | |
| 135-14609 | SHAFT | 1 | |
| 135-14401 | THREAD TRIMMING AUXILIARY CAM | 1 | |
| RC-0740816-KO | RETAINING RING | 1 | |
| 135-14807 | CONNECTING PLATE B | 1 | |
| SD-0790802-TP | HINGE SCREW D=7.94 H=8 | 1 | |
| 135-15606 | SPRING | 1 | |
| B1649-161-000 | TENSION SPRING ADJUSTING SCREW | 1 | |
| NS-6110420-SP | NUT 11/64-40 | 1 | |
| SS-7110910-TP | SCREW 11/64-40 L= 8.5 | 2 | |
| WP-0480856-SP | WASHER 4.8X8.4X0.8 | 2 | |
| 135-14708 | CONNECTING PLATE A | 1 |
REF.NO NOTE PART NO. D E S C R I P T I O N ヒ ン メ イ Qty 1 B1506-352-000 TENSION SPRING RACK B ヒツパ リ バネカケ B 1 2 B2410-980-000 TENSION SPRING イトキリ ウデバネ 1 3 SD-0650305-TP HINGE SCREW D= 6.5 H= 3 ﾀﾞﾝネジ D=6.5 H=3 2 4 B1110-280-000 THREAD CUTTING LINK SPRING RAC イトキリ リンクバネカケ 1 5 135-15002 THREAD CUTTING LINK イトキリリンク 1 6 135-15309 THREAD CUTTING LINK イトキリリンク 1 7 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 1 8 135-15200 THREAD CUTTING LINK WASHER イトキリリンク サガネ 1 9 135-15101 THREAD CUTTING LINK SHAFT イトキリリンクジク 1 10 RC-1021011-KP RETAINING RING 10.2 Cｶﾞタメワ 10.2 1 11 135-15408 CONNECTING ROD, LARGE イトキリ レンケツボー ダイ 1 12 NS-6120310-SP NUT 3/16-28 ロツカクナット 3/16-28 3 13 135-15310 ROLLER イトキリホシヨコロ 1 14 SD-0651301-TH HINGE SCREW D=6.5 H=13 ﾀﾞﾝネジ D=6.5 H=13 1 15 SS-8681950-SP SCREW 9/32-28 L=19 トメネジ 9/32-28 L=19 1 16 B2404-280-000 THREAD CUTTING CAM ROLLER イトキリカムコロ 1 17 135-14104 CAM STUD イトキリ カムウデジク 1 18 135-34060 THREAD CUTTING CAM COMPL. イトキリカムウデケツコウ 1 19 135-14906 CONNECTING ROD, SMALL イトキリ レンケツボー ショー 1 20 135-07058 LOWERING LINK ASM. オシサゲリンク クミ 1 21 135-07009 LOWERING LINK オシサゲリンク 1 22 SD-0790402-TP HINGE SCREW D= 7.94 H=4 ﾀﾞﾝネジ D=7.94 H=4 (1) 23 135-07157 LOWERING LEVER ASM. オシサゲレバー クミ (1) 24 HS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 25 135-07405 ROLLER オシサゲコロ 1 26 135-07504 WASHER オシサゲワッシャー 1 27 B2015-280-000 STOP RING シヤクン セイキヨ カムコロトメワ (1) 28 WP-0982616-SP WASHER 9.8X24.0X2.6 ヒラサガネ 9.8X24.0X2.6 1 29 SS-6741512-TP SCREW 3/8-28 L=14.5 ロツカクアナボルト 3/8-28 1 30 SD-0901101-SP HINGE SCREW D= 9 H=11 ﾀﾞﾝネジ D=9 H=11 (1) 31 135-14500 AUXILIARY LEVER イトキリ ホシコレバー 1 32 135-14609 SHAFT イトキリ サトベージク 1 33 135-14401 THREAD TRIMMING AUXILIARY CAM イトキリ ホジヨカム 1 34 RC-0740816-KO RETAINING RING トメワ 7.4 1 35 135-14807 CONNECTING PLATE B イトキリ ホジヨカム レンケツタイ B 1 36 SD-0790802-TP HINGE SCREW D=7.94 H=8 ﾀﾞﾝネジ D=7.94 H=8 1 37 135-15606 SPRING イトキリ ホジヨカム モトシバネ 1 38 B1649-161-000 TENSION SPRING ADJUSTING SCREW ヒツパ リバネ チョーセツネジ 1 39 NS-6110420-SP NUT 11/64-40 ロツカクナット 11/64-40 1 40 SS-7110910-TP SCREW 11/64-40 L= 8.5 マルヒラネジ 11/64-40 L=8.5 2 41 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサガネ 4.8X8.4X0.8 2 42 135-14708 CONNECTING PLATE A イトキリ ホジヨカム レンケツタイ A 1 - 14 - jintex.in
Page 18 — 8. PEDAL PRESSURE DECREASING UNIT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | PEDAL PRESSURE DECREASING UNIT COMPONENTS | ||
| 2 | 輕減装置関係 | ||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 9 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 36 | |||
| 37 | |||
| 38 | |||
| 39 | |||
| 40 | |||
| 41 | |||
| 42 | |||
| 43 | |||
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 50 | |||
| 51 | |||
| 52 | |||
| 53 | |||
| 54 | |||
| 55 | |||
| 56 |
8. PEDAL PRESSURE DECREASING UNIT COMPONENTS 輕減装置関係 1 2 3 4 5 6 7 9 46 47 13 14 15 16 17 18 19 45 20 21 11 12 43 25 26 28 27 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 22 23 24 48 49 50 51 52 53 54 55 56 - 15 - jintex.in
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-23188 | PRESSURE DECREASING DEVICE | ||
| 135-24608 | PRESSURE DECREASING LEVER | ||
| 135-25100 | STUD | ||
| 135-24707 | LEVER LATCH A | ||
| SS-2110920-TP | SCREW 11/64-40 L=8.5 | ||
| SS-7110910-TP | SCREW 11/64-40 L=8.5 | ||
| SD-0640321-SP | SCREW D= 6.35 H= 3.2 | ||
| 135-24806 | LEVER LATCH B | ||
| 135-25001 | SPRING | ||
| 135-24905 | PRESSURE DECREASING LEVER LINK | ||
| B1110-280-000 | THREAD CUTTING LINK SPRING RAC | ||
| SS-8150710-SP | SCREW 15/64-28 L=7 | ||
| MAT-80116S00 | SUSPENSION PIN | ||
| 135-25605 | AUXILIARY CAM | ||
| SD-0720331-SP | HINGE SCREW D= 7.24 H= 3.3 | ||
| SS-6110710-TP | SCREW 11/64-40 L=6.5 | ||
| 135-25704 | SPRING | ||
| SS-9151120-CP | SCREW 15/64-28 L=11 | ||
| 135-23352 | PRESSURE DECREASING SHAFT ASM. | ||
| PS-0300162-KH | SPRING PIN 3X16 | ||
| 135-23113 | ROTATING PREVENTING LATCH ASM. | ||
| 135-24368 | ROTATING PREVENTING LATCH ASM. | ||
| 135-24418 | SPRING | ||
| SD-0600321-SP | HINGE SCREW D=6 H=3.2 | ||
| SS-8620610-SP | SCREW 3/16-32 L=6 | ||
| 135-24277 | DECREASING CLUTCH ASM. | ||
| 135-23808 | CLUTCH SPRING | ||
| SS-6121212-TP | SCREW 3/16-28 L=12.0 | ||
| 135-24111 | INNER SLEEVE | ||
| 135-24004 | OUTER SLEEVE | ||
| 135-23915 | OUTER SLEEVY GUIDE | ||
| RC-1850001-KP | SNAP RING 18.5 | ||
| SB-1200003-00 | BEARING D=20X42 | ||
| 135-23428 | SHAFT | ||
| SB-3120001-00 | BEARING D=12X15 | ||
| 135-23519 | COLLAR A | ||
| 135-23600 | COLLAR B | ||
| 135-25308 | IDLER PULLEY INSTALLING PLATE | ||
| SS-6110810-TP | SCREW 11/64-40 L=8 | ||
| 135-25407 | SCREW | ||
| SS-8150822-TP | SCREW 15/64-28 L=8 | ||
| 135-23212 | DRIVING PULLEY | ||
| SS-8151550-SP | SCREW 15/64-28 L=15 | ||
| WP-0482086-SD | WASHER 4.8X11.5X2.0 | ||
| SS-8620850-SP | SCREW 3/16-32 L= 8.0 | ||
| SS-9152130-CP | SCREW 15/64-28 L=20.5 | ||
| WP-0621016-SD | WASHER 6.2X13X1 | ||
| 135-32254 | IDLER PULLEY ASM. | ||
| 135-32106 | IDLER PULLEY BRACKET | ||
| WP-0621016-SD | WASHER 6.2X13X1 | ||
| SS-6150760-SN | SCREW 15/64-28 L=6.5 | ||
| NS-6150310-SP | NUT 15/64-28 | ||
| WP-0612056-SD | WASHER 6.1X18.5X2 | ||
| B7810-980-000 | TENSION RING | ||
| 135-32262 | IDLER PULLEY ASM. | ||
| SD-1201501-SP | HINGE SCREW D=12 H=15 |
REF.NO NOTE PART NO. D E S C R I P T I O N ヒ ン メ イ Qty -------------------------------------------------------------------------------- 1 135-23188 PRESSURE DECREASING DEVICE ケイケツンツク クミ 1 2 135-24608 PRESSURE DECREASING LEVER オサエアゲ レバー (2) 3 135-25100 STUD ケイケツンツク チョウセツツク (2) 4 135-24707 LEVER LATCH A オサエアゲ レバーツメ A (2) 5 SS-2110920-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 (2) 6 SS-7110910-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 (2) 7 SD-0640321-SP SCREW D= 6.35 H= 3.2 タツンネジ D= 6.35 H=3.2 (2) 8 135-24806 LEVER LATCH B オサエアゲ レバーツメ B (1) 9 135-25001 SPRING オサエアゲ レバー カエシバネ (1) 10 135-24905 PRESSURE DECREASING LEVER LINK オサエアゲ レバーリンク (1) 11 B1110-280-000 THREAD CUTTING LINK SPRING RAC イトキリ リンクハネカケ (2) 12 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (1) 13 MAT-80116S00 SUSPENSION PIN ヒタドリ ハネカケ ピン (1) 14 135-25605 AUXILIARY CAM ギヤクテンボウ ウシノヨコム (1) 15 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 タツンネジ D=7.24 H=3.3 (1) 16 SS-6110710-TP SCREW 11/64-40 L=6.5 ヒラネジ 11/64-40 L=6.5 (1) 17 135-25704 SPRING ホシノモトシバネ (1) 18 SS-9151120-CP SCREW 15/64-28 L=11 ロツカクボルト 15/64-28 L=11 (2) 19 135-23352 PRESSURE DECREASING SHAFT ASM. オサアゲジククミ (1) 20 PS-0300162-KH SPRING PIN 3X16 スプリングピン 3X16 (1) 21 135-23113 ROTATING PREVENTING LATCH ASM. ケイケツンツク トリツケダイ (1) 22 135-24368 ROTATING PREVENTING LATCH ASM. ギヤクテンボウ ウシノヨコム (1) 23 135-24418 SPRING ギヤクテンボウ ウシノヨコム (1) 24 SD-0600321-SP HINGE SCREW D=6 H=3.2 タツンネジ D=6 H=3.2 (1) 25 SS-8620610-SP SCREW 3/16-32 L=6 トメネジ 3/16-32 L=6 (1) 26 135-24277 DECREASING CLUTCH ASM. ケイケツンクラツチツメ(クミ) (1) 27 135-23808 CLUTCH SPRING クラツチハネ (1) 28 SS-6121212-TP SCREW 3/16-28 L=12.0 ロツカクボルト 3/16-28 L=12 (1) 29 135-24111 INNER SLEEVE ケイケツンインナースリーブ (1) 30 135-24004 OUTER SLEEVE ケイケツンアウタースリーブ (1) 31 135-23915 OUTER SLEEVY GUIDE アウタースリーブ ガイドリング (1) 32 RC-1850001-KP SNAP RING 18.5 Cカトメワ 18.5 (1) 33 SB-1200003-00 BEARING D=20X42 ベアリング D=20X42 (1) 34 135-23428 SHAFT ニューリヨウシツク (1) 35 SB-3120001-00 BEARING D=12X15 ベアリング D=12X15 (2) 36 135-23519 COLLAR A オシサゲジクカラー A (1) 37 135-23600 COLLAR B オシサゲジクカラー B (1) 38 135-25308 IDLER PULLEY INSTALLING PLATE アイトラ トリツケイタ (1) 39 SS-6110810-TP SCREW 11/64-40 L=8 ケイリース チュウニユウネジ (3) 40 135-25407 SCREW トメネジ (1) 41 SS-8150822-TP SCREW 15/64-28 L=8 ケイリース チュウニユウネジ (2) 42 135-23212 DRIVING PULLEY トメネジ 15/64-28 L=8 (1) 43 SS-8151550-SP SCREW 15/64-28 L=15 ヒラサカネ 4.8X11.5X2 (2) 44 WP-0482086-SD WASHER 4.8X11.5X2.0 トメネジ 3/16-32 L=8 (1) 45 SS-8620850-SP SCREW 3/16-32 L= 8.0 ロツカクボルト 15/64-28 (3) 46 SS-9152130-CP SCREW 15/64-28 L=20.5 ヒラサカネ 6.2X13X1 (3) 47 WP-0621016-SD WASHER 6.2X13X1 アイトラプーリ クミ (1) 48 135-32254 IDLER PULLEY ASM. アイトラ トリツケダイ (1) 49 135-32106 IDLER PULLEY BRACKET ヒラサカネ 6.2X13X1 (1) 50 WP-0621016-SD WASHER 6.2X13X1 (1) 51 SS-6150760-SN SCREW 15/64-28 L=6.5 ヒラサカネ 6.2X13X1 (1) 52 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 53 WP-0612056-SD WASHER 6.1X18.5X2 ヒラサカネ 6.1X18.5X2 (1) 54 B7810-980-000 TENSION RING テンションリンク (1) 55 135-32262 IDLER PULLEY ASM. アイトラプーリ クミ (1) 56 SD-1201501-SP HINGE SCREW D=12 H=15 タツンネジ D=12 H=15 (1) - 16 - jintex.in
Page 20 — 9. STOP-MOTION MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | PLATE, STOP-MOTION | ||
| 2 | SCREW, BINDING | ||
| 3 | WASHER | ||
| 4 | SPRING | ||
| 5 | COLLAR | ||
| 6 | SCREW | ||
| 7 | NUT | ||
| 8 | BRACKET, STOP-MOTION | ||
| 9 | ARM, STOP-MOTION | ||
| 10 | SPRING | ||
| 11 | NUT | ||
| 12 | SCREW | ||
| 13 | SHAFT, STOP-MOTION | ||
| 14 | LEVER, STOP-MOTION | ||
| 15 | SHAFT, STOP-MOTION | ||
| 16 | SCREW | ||
| 17 | COLLAR | ||
| 18 | WASHER | ||
| 19 | SPRING | ||
| 20 | WASHER | ||
| 21 | SHAFT, STOP-MOTION | ||
| 22 | BLOCK, STOP-MOTION | ||
| 23 | BRACKET, STOP-MOTION | ||
| 24 | SPRING | ||
| 25 | NUT | ||
| 26 | SPRING | ||
| 27 | SCREW | ||
| 28 | WASHER | ||
| 29 | SCREW | ||
| 30 | NUT | ||
| 31 | COLLAR | ||
| 32 | BRACKET, STOP-MOTION | ||
| 33 | BLOCK, STOP-MOTION | ||
| 34 | WASHER | ||
| 35 | NUT | ||
| 36 | NUT | ||
| 37 | SHAFT, STOP-MOTION | ||
| 38 | SCREW | ||
| 39 | SCREW | ||
| 40 | BRACKET, STOP-MOTION | ||
| 41 | SPRING | ||
| 42 | SHAFT, STOP-MOTION | ||
| 43 | SCREW | ||
| 44 | BRACKET, STOP-MOTION | ||
| 45 | SPRING | ||
| 46 | BRACKET, STOP-MOTION | ||
| 47 | SCREW | ||
| 48 | NUT | ||
| 49 | BRACKET, STOP-MOTION | ||
| 50 | SPRING | ||
| 51 | BRACKET, STOP-MOTION | ||
| 52 | SCREW | ||
| 53 | SHAFT, STOP-MOTION | ||
| 54 | NUT | ||
| 55 | SCREW | ||
| 56 | BRACKET, STOP-MOTION | ||
| 57 | BRACKET, STOP-MOTION | ||
| 58 | BRACKET, STOP-MOTION | ||
| 59 | NUT | ||
| 60 | LEVER, STOP-MOTION | ||
| 61 | BRACKET, STOP-MOTION | ||
| 62 | NUT |
9. STOP-MOTION MECHANISM COMPONENTS 遮断制御関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 - 17 - jintex.in
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-22008 | STOP-MOTION REGULATING CAM | 1 | |
| WP-0480856-SP | WASHER 4.8X8.4X0.8 | 3 | |
| SS-6121212-TP | SCREW 3/16-28 L=12.0 | 3 | |
| RC-0470611-KP | RETAINING RING 4.7 | 1 | |
| 135-22206 | ROLLER | 1 | |
| 135-22107 | ROLLER SHAFT | 1 | |
| NS-6150430-SP | NUT 15/64-28 | 1 | |
| NS-6150430-SP | NUT 15/64-28 | 2 | |
| 135-21505 | STOP-MOTION ARM B | 1 | |
| SS-6681720-TP | SCREW 9/32-28 L=16.5 | 1 | |
| NS-6680320-SP | NUT 9/32-28 | 1 | |
| SD-0800402-TP | HINGE SCREW D=8 H=4 | 2 | |
| 135-21604 | STOP-MOTION LINK | 1 | |
| 135-21760 | LEVER ASM. | 1 | |
| 135-21901 | REGULATING LEVER STUD | 1 | |
| SS-7151120-SP | SCREW 15/64-28 L=11 | 1 | |
| B2608-280-000 | RUBBER CUSHION | 3 | |
| B2607-280-000 | WASHER | 2 | |
| B2606-280-000 | PRESSURE SPRING | 1 | |
| WP-0751576-SD | WASHER 7.5X19X1.5 | 1 | |
| B2605-372-000 | STOP MOTION PLUNGER ROD | 1 | |
| 135-37501 | STOP-MOTION HOOK | 1 | |
| 135-20309 | PULLEY PRESSING PLATE | 1 | |
| SS-8151780-SP | SCREW 15/64-28 L=17.0 | 1 | |
| NS-6150430-SP | NUT 15/64-28 | 1 | |
| WP-0621016-SD | WASHER 6.2X13X1 | 1 | |
| SS-6151440-SP | SCREW 15/64-28 L=14 | 1 | |
| WP-0612056-SD | WASHER 6.1X18.5X2 | 1 | |
| WS-0641560-KR | SPRING WASHER 6.4X11.9X1.5 | 1 | |
| SS-7151330-SP | SCREW 15/64-28 L=13.0 | 1 | |
| SS-6151412-TP | SCREW 15/64-28 L=14 | 2 | |
| 135-20705 | SAFETY PLATE | 1 | |
| 135-20101 | STOP-MOTION LEVER | 1 | |
| WP-0751576-SD | WASHER 7.5X19X1.5 | 1 | |
| NS-6680410-SP | NUT 9/32-28 | 1 | |
| NS-6680410-SP | NUT 9/32-28 | 1 | |
| 135-20606 | STOP-MOTION LEVER PLATE SPRING | 1 | |
| SS-5680740-SP | SCREW 9/32-28 L=6.8 | 1 | |
| 135-20004 | GUIDE PIN | 1 | |
| 135-20408 | DRIVING PLATE | 1 | |
| 135-20804 | TENSION SPRING | 1 | |
| 135-20200 | STOP-MOTION LEVER SHAFT | 1 | |
| 135-21307 | STARTING SPRING RACK | 1 | |
| NS-6150410-SP | NUT 15/64-28 | 1 | |
| 135-21307 | TENSION SPRING | 1 | |
| 135-21216 | STARTING LEVER | 1 | |
| SD-0640801-TP | HINGE SCREW D=6.35 H=8.0 | 1 | |
| 135-22909 | SLIDE ROLLER | 1 | |
| WP-0480856-SP | WASHER 4.8X8.4X0.8 | 1 | |
| NS-6110350-SP | NUT 11/64-40 | 1 | |
| B3413-552-000 | SUSPENSION SCREW | 1 | |
| SD-0800402-TP | HINGE SCREW D=8 H=4 | 1 | |
| 135-21406 | STOP-MOTION ARM SHAFT | 1 | |
| NS-6150310-SP | NUT 15/64-28 | 1 | |
| SS-6151440-SP | SCREW 15/64-28 L=14 | 1 | |
| 135-21117 | STOP-MOTION ARM A | 1 | |
| SS-6151812-TP | SCREW 15/64-28 L=18 | (1) | |
| SS-4150915-SP | SCREW 15/64-28 L=9 | 1 | |
| 135-21000 | NUT | 1 | |
| 135-20903 | STOP-MOTION CONNECTING LEVER | 1 | |
| RE-0400000-KO | E-SHAPED SNAP RING (4MM) | 1 | |
| SD-0800352-SP | HINGE SCREW D=8 H=3.5 | 1 |
REF.NO NOTE PART NO. DESCRIPTION ヒン メ イ Qty 1 135-22008 STOP-MOTION REGULATING CAM シャタ゛ン セイキ゛ヨコム 1 2 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサ゛カ゛ネ 4.8X8.4X0.8 3 3 SS-6121212-TP SCREW 3/16-28 L=12.0 ロツカアナホ゛ルト 3/16-28 L=12 3 4 RC-0470611-KP RETAINING RING 4.7 C゛カ゛トメワ 4.7 1 5 135-22206 ROLLER シャタ゛ン セイキ゛ヨコムコロ 1 6 135-22107 ROLLER SHAFT シャタ゛ン セイキ゛ヨコムコロシ゛ク 1 7 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 8 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 2 9 135-21505 STOP-MOTION ARM B シャタ゛ン セイキ゛ヨウテ゛ B 1 10 SS-6681720-TP SCREW 9/32-28 L=16.5 ロツカアナホ゛ルト 9/32-28 1 11 NS-6680320-SP NUT 9/32-28 ロツカクナツト 9/32-28 1 12 SD-0800402-TP HINGE SCREW D=8 H=4 タ゛ンネジ D=8 H=4 2 13 135-21604 STOP-MOTION LINK シャタ゛ン セイキ゛ヨリンク 1 14 135-21760 LEVER ASM. シャタ゛ン セイキ゛ヨ レハ゛ー (クミ) 1 15 135-21901 REGULATING LEVER STUD シャタ゛ン セイキ゛ヨ レハ゛ー 1 16 SS-7151120-SP SCREW 15/64-28 L=11 マルヒラネジ 15/64-28 L=11 1 17 B2608-280-000 RUBBER CUSHION ク゛ローフ゛クツシヨン 3 18 B2607-280-000 WASHER シャタ゛ンハ゛ネ サ゛カ゛ネ 2 19 B2606-280-000 PRESSURE SPRING シャタ゛ン アツシユク ハ゛ネ 1 20 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサ゛カ゛ネ 7.5X19X1.5 1 21 B2605-372-000 STOP MOTION PLUNGER ROD シャタ゛ン アツシユク シ゛ク 1 22 135-37501 STOP-MOTION HOOK シャタ゛ンフツク 1 23 135-20309 PULLEY PRESSING PLATE キリカ゛エーフ゛リ オシツケイタ 1 24 SS-8151780-SP SCREW 15/64-28 L=17.0 ト゛メネジ 15/64-28 L=17 1 25 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 26 WP-0621016-SD WASHER 6.2X13X1 ヒラサ゛カ゛ネ 6.2X13X1 1 27 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 1 28 WP-0612056-SD WASHER 6.1X18.5X2 ヒラサ゛カ゛ネ 6.1X18.5X2 1 29 WS-0641560-KR SPRING WASHER 6.4X11.9X1.5 ハ゛ネサ゛カ゛ネ 6.4X11.9X1.5 1 30 SS-7151330-SP SCREW 15/64-28 L=13.0 マルヒラネジ 15/64-28 L=13 1 31 SS-6151412-TP SCREW 15/64-28 L=14 ロツカアナホ゛ルト 15/64-28 2 32 135-20705 SAFETY PLATE キ゛ヨ゛ンフ゛レーム 1 33 135-20101 STOP-MOTION LEVER キ゛ヨ゛ンフ゛レーム 1 34 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサ゛カ゛ネ 7.5X19X1.5 1 35 NS-6680410-SP NUT 9/32-28 ロツカクナツト 9/32-28 1 36 NS-6680410-SP NUT 9/32-28 ロツカクナツト 9/32-28 1 37 135-20606 STOP-MOTION LEVER PLATE SPRING シャタ゛ンフ゛レーム イタ゛ハ゛ネ 1 38 SS-5680740-SP SCREW 9/32-28 L=6.8 ト゛ラス゛ネジ 9/32-28 L=6.8 1 39 135-20004 GUIDE PIN カ゛ムウ゛テ゛ カ゛イシ゛ヤ アンナイ 1 40 135-20408 DRIVING PLATE カ゛ムウ゛テ゛ カ゛イシ゛ヤ 1 41 135-20804 TENSION SPRING シャタ゛ン ヒツハ゛リハ゛ネ 1 42 135-20200 STOP-MOTION LEVER SHAFT シャタ゛ンフ゛レーム シ゛ク 1 43 135-21307 STARTING SPRING RACK キ゛ヨ゛ンハ゛ネカ゛ケ 1 44 NS-6150410-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 45 135-21307 TENSION SPRING キ゛ヨ゛ン レハ゛ー ヒツハ゛リハ゛ネ 1 46 135-21216 STARTING LEVER キ゛ヨ゛ン レハ゛ー 1 47 SD-0640801-TP HINGE SCREW D=6.35 H=8.0 タ゛ンネジ D=6.35 H=8 1 48 135-22909 SLIDE ROLLER キ゛ヨ゛ン レハ゛ー コロ 1 49 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサ゛カ゛ネ 4.8X8.4X0.8 1 50 NS-6110350-SP NUT 11/64-40 ロツカクナツト 11/64-40 1 51 B3413-552-000 SUSPENSION SCREW ヒサ゛アケ゛ リン ク゛ウテ゛ ハ゛ネカ゛ケ ウテ゛ 1 52 SD-0800402-TP HINGE SCREW D=8 H=4 タ゛ンネジ D=8 H=4 1 53 135-21406 STOP-MOTION ARM SHAFT セイキ゛ヨウテ゛ シ゛ク 1 54 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 55 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 1 56 135-21117 STOP-MOTION ARM A シャタ゛ン セイキ゛ヨウテ゛ (A) 1 57 SS-6151812-TP SCREW 15/64-28 L=18 ロツカアナホ゛ルト 15/64-28 (1) 58 SS-4150915-SP SCREW 15/64-28 L=9 ナヘ゛ネジ 15/64-28 L=9 1 59 135-21000 NUT シャタ゛ン レンケツナツト 1 60 135-20903 STOP-MOTION CONNECTING LEVER シャタ゛ン レンケツリンク 1 61 RE-0400000-KO E-SHAPED SNAP RING (4MM) E゛タ゛トメワ 4 1 62 SD-0800352-SP HINGE SCREW D=8 H=3.5 タ゛ンネジ D=8 H=3.5 1 - 18 - jintex.in
Page 22 — 10. LUBRICATION MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | RING | |
| 2 | 2 | CAP | |
| 3 | 3 | PIPE | |
| 4 | 4 | BRACKET | |
| 5 | 5 | RING | |
| 6 | 6 | BRACKET | |
| 7 | 7 | BRACKET | |
| 8 | 8 | BRACKET | |
| 9 | 9 | BRACKET | |
| 10 | 10 | BRACKET | |
| 11 | 11 | BRACKET | |
| 12 | 12 | SPRING | |
| 13 | 13 | SPRING | |
| 14 | 14 | PIPE | |
| 15 | 15 | PIPE | |
| 16 | 16 | PIPE | |
| 17 | 17 | VALVE | |
| 18 | 18 | VALVE | |
| 19 | 19 | SCREW | |
| 20 | 20 | CLAMP | |
| 21 | 21 | BRACKET | |
| 22 | 22 | SCREW | |
| 23 | 23 | COVER | |
| 24 | 24 | CAP | |
| 25 | 25 | BRACKET | |
| 26 | 26 | PIPE | |
| 27 | 27 | PIPE | |
| 28 | 28 | VALVE | |
| 29 | 29 | BRACKET | |
| 30 | 30 | PIPE | |
| 31 | 31 | CAP | |
| 32 | 32 | BRACKET | |
| 33 | 33 | BRACKET | |
| 34 | 34 | BRACKET | |
| 35 | 35 | BRACKET | |
| 36 | 36 | BRACKET | |
| 37 | 37 | BRACKET | |
| 38 | 38 | BRACKET | |
| 39 | 39 | BRACKET | |
| 40 | 40 | BRACKET | |
| 41 | 41 | BRACKET | |
| 42 | 42 | NUT | |
| 43 | 43 | NUT | |
| 44 | 44 | BRACKET | |
| 45 | 45 | RING | |
| 46 | 46 | SCREW | |
| 47 | 47 | RING | |
| 48 | 48 | PIPE | |
| 49 | 49 | CYLINDER | |
| 50 | 50 | PIPE | |
| 51 | 51 | SCREW |
10. LUBRICATION MECHANISM COMPONENTS 給油関係 1 2 5 4 6 7 8 1 2 13 12 11 10 6 3 19 37 42 43 45 46 36 44 19 2 19 17 19 14 15 3 19 39 40 38 10 36 32 33 34 35 2 1 22 16 19 21 20 19 14 18 19 23 24 28 27 26 25 10 29 11 19 18 31 30 1 47 48 49 51 50 - 19 - jintex.in
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| TA-2100904-RO | RUBBER PLUG | 5 | |
| TA-1050504-RO | RUBBER PLUG | 6 | |
| BP-6000000-00 | VINYL PIPE | 0.7 | |
| B1419-026-000 | OIL WICK PRESSER | 3 | |
| TA-1250406-RO | RUBBER PLUG | 2 | |
| CQ-2522000-00 | OIL WICK | 4.7 | |
| B3506-280-000 | OIL WICK PRESSER | 1 | |
| TA-1250406-RO | RUBBER PLUG | 1 | |
| B3507-280-000 | OIL FELT | 1 | |
| B3509-280-000 | NEEDLE ROD CRANK LUBRICATING | 4 | |
| B3518-280-000 | BALANCE LUBRICATING | 2 | |
| B3508-280-000 | BALANCE LUBRICATING PLATE | 1 | |
| SS-6092120-SP | SCREW 9/64-40 L=21.2 | 1 | |
| BP-3000001-00 | VINYL TUBE | 2.5 | |
| 135-30001 | UPPER SHAFT FRONT METAL OIL VI | 1 | |
| 135-29805 | LUBRICATING TANK | 1 | |
| SS-4090515-SP | SCREW 9/64-40 L=5 | 2 | |
| B3506-761-000 | OIL WICK HOLDER | 1 | |
| SS-4110715-SP | SCREW 11/64-40 L=7 | 11 | |
| 135-30209 | LUBRICATING OIL WICK STOPPER | 1 | |
| TA-0750704-RO | RUBBER PLUG | 1 | |
| 135-01408 | SILICON OIL POURING HOLE | ||
| 135-29904 | LUBRICATING TANK FELT | 1 | |
| B3503-980-000 | GREASE CAP | 1 | |
| 135-28708 | REAR METAL BUSH | 1 | |
| B3512-280-000 | CRANK ROD LUBRICATING PLATE | 2 | |
| 135-29201 | CRANK LUBRICATING FELT | 1 | |
| 135-29102 | OIL FELT | 1 | |
| 135-28500 | OSCILLATOR LUBRICATING PLATE | 1 | |
| B3515-280-000 | OSCILLATOR LUBRICATING FELT | 1 | |
| TA-1450404-RO | RUBBER PLUG D=14.5 L=4 | 1 | |
| WP-0621016-SD | WASHER 6.2X13X1 | 1 | |
| SS-6111140-SP | SCREW 11/64-40 L=11 | 1 | |
| SS-4110515-SP | SCREW 11/64-40 L=5 | 1 | |
| B3502-280-000 | LUBRICATING TANK FELT | 1 | |
| B3504-280-000 | SHUTTLE FELT | 2 | |
| 135-28807 | HOOK OIL WICK STOPPER A | 1 | |
| B3541-012-000 | OIL WICK | 1 | |
| 135-29706 | OIL FELT HOLDER | 1 | |
| SS-4110515-SP | SCREW 11/64-40 L=5 | 1 | |
| B3523-980-000 | OIL WICK PIPE STOPPER | 1 | |
| SS-9110543-CP | SCREW 11/64-40 L=5.3 | 1 | |
| 135-28906 | HOOK OIL WICK STOPPER B | 1 | |
| B3505-280-000 | SHUTTLE LUBRICATING PLATE | 1 | |
| 135-29607 | SHUTTLE PACKING | 2 | |
| SS-6090440-SP | SCREW 9/64-40 L=4.0 | 2 | |
| TA-1050504-RO | RUBBER PLUG | ||
| 135-01705 | SILICON OIL FELT | ||
| 135-01309 | SILICON OIL PIPE | ||
| B1127-280-000 | SILICON OIL THREAD GUIDE | ||
| SS-4110515-SP | SCREW 11/64-40 L=5 |
REF.NO NOTE PART NO. DESCRIPTION HIN MEI Qty 1 TA-2100904-RO RUBBER PLUG トメセン 5 2 TA-1050504-RO RUBBER PLUG トメセン 6 3 BP-6000000-00 VINYL PIPE ビニールパイプ 0.7 4 B1419-026-000 OIL WICK PRESSER エシン オサエ 3 5 TA-1250406-RO RUBBER PLUG トメセン D=12.5 L=4 2 6 CQ-2522000-00 OIL WICK ユシン 4.7 7 B3506-280-000 OIL WICK PRESSER ハリボー クランク ユシンオサエ 1 8 TA-1250406-RO RUBBER PLUG トメセン D=12.5 L=4 1 9 B3507-280-000 OIL FELT メンブフェルト 1 10 B3509-280-000 NEEDLE ROD CRANK LUBRICATING ハリボー クランク キューバィリィーン 4 11 B3518-280-000 BALANCE LUBRICATING テンビン キューバィリィーン 2 12 B3508-280-000 BALANCE LUBRICATING PLATE テンビン キューイタ 1 13 SS-6092120-SP SCREW 9/64-40 L=21.2 ヒラネジ 9/64-40 L=21.2 1 14 BP-3000001-00 VINYL TUBE ビニールパイプ 2.5 15 135-30001 UPPER SHAFT FRONT METAL OIL VI ウシンク マエメタル ユシントメ 1 16 135-29805 LUBRICATING TANK キユウタンク 1 17 SS-4090515-SP SCREW 9/64-40 L=5 ナベネジ 9/64-40 L=5 2 18 B3506-761-000 OIL WICK HOLDER ジタ カサハグルマ ユシンササエ 1 19 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 11 20 135-30209 LUBRICATING OIL WICK STOPPER キユウユシントメ 1 21 TA-0750704-RO RUBBER PLUG トメセン 1 22 #01 135-01408 SILICON OIL POURING HOLE エスレン チユニウケグチ 1 23 135-29904 LUBRICATING TANK FELT キユウタンクフエルト 1 24 B3503-980-000 GREASE CAP グリース キヤツプ 1 25 135-28708 REAR METAL BUSH ウシロメタル ブツシユ 1 26 B3512-280-000 CRANK ROD LUBRICATING PLATE クランククロツト キユーユイタ 2 27 135-29201 CRANK LUBRICATING FELT クランク キユウフエルト 1 28 135-29102 OIL FELT ウオーム キユウフエルト 1 29 135-28500 OSCILLATOR LUBRICATING PLATE オオブリコ キユウユイタ 1 30 B3515-280-000 OSCILLATOR LUBRICATING FELT オオブリコ キユウフエルト 1 31 TA-1450404-RO RUBBER PLUG D=14.5 L=4 トメセン D=14.5 L=4 1 32 WP-0621016-SD WASHER 6.2X13X1 ヒラサガネ 6.2X13X1 1 33 SS-6111140-SP SCREW 11/64-40 L=11 ヒラネジ 11/64-40 L=11 1 34 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 35 B3502-280-000 LUBRICATING TANK FELT キユウタンクフエルト 1 36 B3504-280-000 SHUTTLE FELT オオガマフエルト 2 37 135-28807 HOOK OIL WICK STOPPER A カマユシントメ A 1 38 B3541-012-000 OIL WICK カンリユー ユシン 1 39 135-29706 OIL FELT HOLDER カンリユウ フエルトオサエ 1 40 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 41 B3523-980-000 OIL WICK PIPE STOPPER ユシンパイプドメ 1 42 SS-9110543-CP SCREW 11/64-40 L=5.3 ロツカクボルト 11/64-40 L=5.3 1 43 135-28906 HOOK OIL WICK STOPPER B カマユシントメ B 1 44 B3505-280-000 SHUTTLE LUBRICATING PLATE オオガマ キユーユイタ 1 45 135-29607 SHUTTLE PACKING オオガマ パツキン 2 46 SS-6090440-SP SCREW 9/64-40 L=4.0 ヒラネジ 9/64-40 L=4 2 47 TA-1050504-RO RUBBER PLUG トメセン 1 48 #01 135-01705 SILICON OIL FELT エスレンフエルト 1 49 #01 135-01309 SILICON OIL PIPE エスレンパイプ 1 50 #01 B1127-280-000 SILICON OIL THREAD GUIDE エスレンイトアンナイ 1 51 #01 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 Note ( 注記 ) #01...SPECIAL ORDER PART 特別注文部品 - 20 - jintex.in
Page 24 — 11. TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7 | 7 | BOLT | |
| 8 | 8 | BOLT | |
| 9 | 9 | WASHER | |
| 10 | 10 | SCREW | |
| 11 | 11 | BRACKET | |
| 12 | 12 | WASHER | |
| 13 | 13 | NUT | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BOLT | |
| 16 | 16 | WASHER | |
| 17 | 17 | WASHER | |
| 18 | 18 | NUT | |
| 19 | 19 | COLLAR | |
| 20 | 20 | NUT | |
| 21 | 21 | WASHER | |
| 22 | 22 | WASHER | |
| 23 | 23 | BOLT | |
| 24 | 24 | BOLT | |
| 25 | 25 | BOLT | |
| 26 | 26 | BOLT | |
| 27 | 27 | BOLT | |
| 28 | 28 | BOLT | |
| 29 | 29 | BOLT | |
| 30 | 30 | PULLEY | |
| 32 | 32 | PIPE | |
| 33 | 33 | PIPE | |
| 34 | 34 | PIPE | |
| 35 | 35 | PIPE | |
| 36 | 36 | PIPE | |
| 37 | 37 | LEG | |
| 38 | 38 | LEG | |
| 39 | 39 | BRACKET | |
| 40 | 40 | SCREW | |
| 41 | 41 | BRACKET | |
| 42 | 42 | BOLT | |
| 43 | 43 | WASHER | |
| 44 | 44 | WASHER | |
| 45 | 45 | LEG | |
| 46 | 46 | BOLT | |
| 47 | 47 | WASHER | |
| 48 | 48 | WASHER | |
| 49 | 49 | BRACKET | |
| 50 | 50 | BOLT | |
| 51 | 51 | WASHER | |
| 52 | 52 | WASHER | |
| 53 | 53 | BRACKET | |
| 54 | 54 | BRACKET | |
| 55 | 55 | LEG | |
| 56 | 56 | CAP | |
| 57 | 57 | BOLT | |
| 58 | 58 | WASHER | |
| 59 | 59 | WASHER | |
| 60 | 60 | BRACKET | |
| 61 | 61 | WASHER | |
| 62 | 62 | BOLT | |
| 63 | 63 | NUT | |
| 64 | 64 | BRACKET | |
| 65 | 65 | WASHER | |
| 66 | 66 | NUT | |
| 67 | 67 | BRACKET | |
| 68 | 68 | PIN | |
| 69 | 69 | BRACKET | |
| 70 | 70 | WASHER | |
| 71 | 71 | BOLT | |
| 72 | 72 | PIN | |
| 73 | 73 | PEDAL | |
| 74 | 74 | BRACKET | |
| 75 | 75 | WASHER | |
| 76 | 76 | BOLT | |
| 77 | 77 | BRACKET | |
| 78 | 78 | COVER | |
| 79 | 79 | WASHER | |
| 80 | 80 | WASHER | |
| 81 | 81 | SCREW |
11. TABLE COMPONENTS 脚卓関係 JUKI 7 8 9 S 2 3 4 5 6 15 16 17 18 19 30 39 40 41 42 43 44 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 77 76 75 71 69 68 67 73 74 72 70 65 66 64 21 jintex.in 12 13 14 20 21 22 23 24 25 26 27 28 29 40 41 45 48 47 46 38 37 32 33 34 35 36 78 79 80 81
Page 26 — TABLE COMPONENTS (For Urban White)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20 | 20 | SCREW | |
| 19 | 19 | BRACKET | |
| 11 | 11 | BRACKET | |
| 10 | 10 | BRACKET | |
| 9 | 9 | BRACKET | |
| 8 | 8 | BRACKET | |
| 7 | 7 | BRACKET | |
| 5 | 5 | BRACKET | |
| 4 | 4 | BRACKET | |
| 3 | 3 | BOX | |
| 2 | 2 | BRACKET | |
| 1 | 1 | TABLE | |
| 13 | 13 | COVER | |
| 16 | 16 | WASHER | |
| 15 | 15 | WASHER | |
| 18 | 18 | WASHER | |
| 17 | 17 | BOLT | |
| 14 | 14 | NUT | |
| 12 | 12 | BRACKET | |
| 21 | 21 | BRACKET | |
| 27 | 27 | BOLT | |
| 28 | 28 | WASHER | |
| 29 | 29 | WASHER | |
| 23 | 23 | BRACKET | |
| 30 | 30 | BOLT | |
| 24 | 24 | BRACKET | |
| 26 | 26 | BRACKET | |
| 22 | 22 | BRACKET | |
| 31 | 31 | WASHER | |
| 32 | 32 | WASHER | |
| 33 | 33 | NUT |
12 TABLE COMPONENTS (For Urban White) 脚卓関係(アーバンホワイト用) 1 2 3 4 2 5 7 8 20 19 20 4 20 19 11 9 6 20 13 16 15 18 17 10 13 16 15 18 17 14 13 16 15 18 17 21 27 28 29 23 30 24 2622 31 30 31 32 33 12 20 31 32 33 23 jintex.in
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 138-17507 | TABLE | 1 | |
| 111-55207 | DRAWER SUPPORT | 2 | |
| 111-55108 | DRAWER | 1 | |
| D8204-555-D00 | DRAWER STOPPER | 1 | |
| 135-08056 | T-STAND COMPL. | 1 | |
| 111-57559 | T-STAND ASM. | (1) | |
| 111-57658 | STAND UPPER, RIGHT | (1) | |
| 111-57757 | STAND UPPER, LEFT | (1) | |
| 111-57955 | STUD ASH., RIGHT | (1) | |
| 111-58052 | STRUT JUNCTION (LEFT) | (1) | |
| 111-58300 | STAND SIDE SUPPORT | (1) | |
| 111-58409 | STAND SIDE SUPPORT | (1) | |
| 111-58607 | RUBBER CAP | (4) | |
| 170-07402 | NUT | (2) | |
| WP-1302501-SE | WASHER M12 | (4) | |
| WS-1253010-KN | SPRING WASHER 12.5X21.5X3 | (4) | |
| B8108-555-0A0 | ADJUSTING SCREW ASM. WITH CAP | (4) | |
| NM-6120003-SE | NUT M12 | (4) | |
| 111-58508 | PLATE | (2) | |
| SL-9082091-SE | WASHER HEXAGONAL BOLT | (12) | |
| 138-17754 | Z-STAND PEDAL ASM. | (1) | |
| GPF-060600A0 | PEDAL ASM. | (1) | |
| GPF-06080000 | PEDAL ADJUSTING PLATE | (1) | |
| 111-59001 | PEDAL SHAFT BRACKET | (1) | |
| B8153-771-000 | PEDAL CONNECTING ROD | (1) | |
| D8113-555-B00 | PEDAL BUSHING | (2) | |
| SM-9061203-SE | SCREW M6 L=12 | (2) | |
| WP-0671016-SE | WASHER 6.7X13X1 | (2) | |
| WS-0621210-KR | SPRING WASHER 6.2X11.4X1.2 | (2) | |
| SM-9082023-SE | SCREW M8 L=20 | (2) | |
| WP-0871602-SE | WASHER 8.7X18X1.6 | (4) | |
| WS-0861410-KR | SPRING WASHER 8.6X15X1.4 | (2) | |
| NM-6080721-SE | NUT M8 | (2) |
REF.NO NOTE PART NO. D E S C R I P T I O N ヒン メ イ Qty 1 138-17507 TABLE テーブル 1 2 111-55207 DRAWER SUPPORT ヒキダシ ササエ 2 3 111-55108 DRAWER ヒキダシ 1 4 D8204-555-D00 DRAWER STOPPER ヒキダシ シストツパー 1 5 135-08056 T-STAND COMPL. Tキャク ケツゴウ 1 6 111-57559 T-STAND ASM. Tキャク(クミ) (1) 7 111-57658 STAND UPPER, RIGHT ウワキャク ケツゴウ(ミギ) (1) 8 111-57757 STAND UPPER, LEFT ウワキャク ケツゴウ(ヒダリ) (1) 9 111-57955 STUD ASH., RIGHT シチュウケツゴウ(ミギ) (1) 10 111-58052 STRUT JUNCTION (LEFT) シチュウケツゴウ(ヒダリ) (1) 11 111-58300 STAND SIDE SUPPORT ヨコ シチュウ (1) 12 111-58409 STAND SIDE SUPPORT シタ シチュウ (1) 13 111-58607 RUBBER CAP キャク ドダイ キャツプ (4) 14 170-07402 NUT 44カクナツト (2) 15 WP-1302501-SE WASHER M12 ヒラサカネ 12.5X21.5X3 (4) 16 WS-1253010-KN SPRING WASHER 12.5X21.5X3 ハネサカネ 12.5X21.5X3 (4) 17 B8108-555-0A0 ADJUSTING SCREW ASM. WITH CAP キャツプツキ チョーセツネジ クミ (4) 18 NM-6120003-SE NUT M12 ロツカクナツト M12 3シュ (4) 19 111-58508 PLATE ウワキャク トメイタ (2) 20 SL-9082091-SE WASHER HEXAGONAL BOLT ザガネツキロツカクボルト (12) 21 138-17754 Z-STAND PEDAL ASM. Zキャクヨウ ペタル(ケツゴウ) (1) 22 GPF-060600A0 PEDAL ASM. ペタル(ケツゴウ) (1) 23 GPF-06080000 PEDAL ADJUSTING PLATE フミイタ チョウセツバン (1) 24 111-59001 PEDAL SHAFT BRACKET フミイタ ジクウケ (1) 25 B8153-771-000 PEDAL CONNECTING ROD ペタル コネクテイングロツド (1) 26 D8113-555-B00 PEDAL BUSHING フミイタ ブツシユ (2) 27 SM-9061203-SE SCREW M6 L=12 ロツカクボルト M6 L=12 (2) 28 WP-0671016-SE WASHER 6.7X13X1 ヒラサカネ 6.7X13X1 (2) 29 WS-0621210-KR SPRING WASHER 6.2X11.4X1.2 ハネサカネ 6.2X11.4X1.2 (2) 30 SM-9082023-SE SCREW M8 L=20 ロツカクボルト M8 L=20 (2) 31 WP-0871602-SE WASHER 8.7X18X1.6 ヒラサカネ 8.7X18X1.6 (4) 32 WS-0861410-KR SPRING WASHER 8.6X15X1.4 ハネサカネ 8.6X15X1.4 (2) 33 NM-6080721-SE NUT M8 ロツカクナツト M8 (2) Note ( 注記 )*ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 24 - jintex.in
Page 28 — 13. LK-1850 SERIES SUBCLASSES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | SCREW | |
| 3 | 3 | GEAR | |
| 4 | 4 | BRACKET | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BRACKET | |
| 7 | 7 | BRACKET | |
| 8 | 8 | SCREW | |
| 9 | 9 | BRACKET | |
| 10 | 10 | SCREW | |
| 11 | 11 | WASHER | |
| 12 | 12 | SPRING | |
| 13 | 13 | SCREW | |
| 14 | 14 | SCREW | |
| 15 | 15 | SCREW | |
| 16 | 16 | SCREW | |
| 17 | 17 | BRACKET | |
| 18 | 18 | SCREW | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SHAFT | |
| 21 | 21 | CIR-CLIP | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SHAFT | |
| 26 | 26 | NUT | |
| 27 | 27 | SPRING | |
| 28 | 28 | SCREW | |
| 29 | 29 | BRACKET | |
| 30 | 30 | BRACKET | |
| 31 | 31 | BRACKET | |
| 32 | 32 | SCREW | |
| 33 | 33 | BRACKET | |
| 34 | 34 | SCREW | |
| 35 | 35 | BRACKET | |
| 36 | 36 | NUT | |
| 37 | 37 | PLATE | |
| 38 | 38 | SCREW | |
| 39 | 39 | WASHER | |
| 40 | 40 | SCREW | |
| 41 | 41 | BRACKET | |
| 42 | 42 | BRACKET | |
| 43 | 43 | WASHER | |
| 44 | 44 | BRACKET | |
| 45 | 45 | BRACKET | |
| 46 | 46 | SCREW | |
| 47 | 47 | WASHER | |
| 48 | 48 | BRACKET | |
| 49 | 49 | SCREW | |
| 50 | 50 | PLATE | |
| 51 | 51 | BRACKET | |
| 52 | 52 | SCREW | |
| 53 | 53 | SCREW | |
| 54 | 54 | BRACKET | |
| 55 | 55 | ROD | |
| 56 | 56 | PIN | |
| 57 | 57 | SCREW | |
| 58 | 58 | ROD | |
| 59 | 59 | BRACKET | |
| 60 | 60 | BRACKET | |
| 61 | 61 | BRACKET | |
| 62 | 62 | SCREW | |
| 63 | 63 | SCREW | |
| 64 | 64 | BRACKET | |
| 65 | 65 | SCREW | |
| 66 | 66 | BRACKET | |
| 67 | 67 | BRACKET | |
| 68 | 68 | PLATE | |
| 69 | 69 | SCREW | |
| 70 | 70 | NUT | |
| 71 | 71 | WASHER |
13. LK-1850 SERIES SUBCLASSES L K - 1 8 5 0 シリーズサブクラス (1) LK-1852-1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 - 25 - jintex.in
Page 29 — FIG. 1 LK-1852-1
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-10862 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-10953 | FEED CAH WHEEL ASM. | 1 | |
| 135-41750 | FINGER GUARD ASM. | 1 | |
| SS-7111120-SP | SCREW 11/64-40 L=10.5 | 1 | |
| 135-40752 | WORK CLAMP FOOT BRACKET ASM. | 1 | |
| 135-41602 | WORK CLAMP FOOT SPRING HOLDER | (1) | |
| SS-7110840-SP | SCREW 11/64-40 L=7.8 | (2) | |
| 135-41404 | WORK CLAMP FOOT LIFTING PLATE | (1) | |
| SS-9151120-CP | SCREW 15/64-28 L=11 | (2) | |
| WP-0612516-SD | WASHER 6.1X15.2X2.5 | (2) | |
| D2529-232-D00 | PRESSER SPRING | (1) | |
| D2545-232-D0A | HINGE SCREW | (2) | |
| D2513-232-D00 | BRACKET GUIDE ASM. | (1) | |
| NS-6110530-SP | NUT 11/64-40 | (1) | |
| D2509-232-D00 | STATIONING LATCH | (1) | |
| D2511-232-D00 | TORSION SPRING | (1) | |
| D2504-282-AB0-A | KNOB FOOT MOUNT BASE ASM. | (1) | |
| D2502-232-D00 | SHAFT BLOCK SHAFT | (1) | |
| RE-0700000-KO | SNAP RING 7 | (2) | |
| SS-9110920-CP | SCREW 11/64-40 L=9 | (1) | |
| D2510-232-D00 | WORK CLAMP FOOT REGULATOR | (1) | |
| D2528-232-D00 | SHAFT | (1) | |
| D2527-232-D00 | SLEEVE | (1) | |
| B3117-352-D00 | THREAD TENSION POST NUT | (2) | |
| D2515-232-D00 | TORSION SPRING | (1) | |
| SS-7110840-SP | SCREW 11/64-40 L=7.8 | (2) | |
| 135-41107 | WORK CLAMP FOOT SPRING HOLDER | (1) | |
| 135-41057 | CLAMP GUIDE FOOT ASM. | (1) | |
| D2520-232-D00 | WORK CLAMP FOOT (LEFT) ASM. | (1) | |
| SS-1110640-TP | SCREW 11/64-40 L=5.5 | (2) | |
| D2521-232-D00 | WORK CLAMP FOOT (RIGHT) ASM. | (1) | |
| D2502-271-TP | HINGE SCREW D= 5.50 H= 2.7 | (2) | |
| D2519-232-D00 | WORK CLAMP FOOT PLATE CAM | (1) | |
| NS-6120480-SP | NUT 3/16-28 | (2) | |
| 135-40503 | FEED PLATE | (1) | |
| SS-9110460-CP | SCREW 11/64-40 L=4 | (1) | |
| WP-061016-SD | WASHER 5X10.5X1 | (1) | |
| SS-9110460-CP | SCREW 11/64-40 L=4 | (2) | |
| SS-9110460-CP | SCREW 11/64-40 L=4 | (1) | |
| 135-40802 | SHAFT BRACKET BASE | (1) | |
| 135-40901 | STATIONING BLOCK SHAFT | (1) | |
| D2548-232-D00 | SNAP RING, FOR CONNECTING ROD | (1) | |
| D2507-232-D00 | STATIONING BLOCK | (1) | |
| NS-6150310-SP | NUT 15/64-28 | (1) | |
| SS-9151120-CP | SCREW 15/64-28 L=11 | (1) | |
| WP-0612516-SD | WASHER 6.1X15.2X2.5 | (1) | |
| 135-40703 | WORK CLAMP FOOT BRACKET ASM. | (1) | |
| SS-9150710-TP | BOLT 15/64-28 L=6.5 | (1) | |
| 135-41206 | WORK CLAMP FOOT PLATE COVER | (1) | |
| 135-41354 | CONNECTING ARM ASM. | 1 | |
| SS-6151712-TP | SCREW 15/64-28 L=16.5 | (1) | |
| SD-1201501-SP | HINGE SCREW D=12 H=15 | 1 | |
| WP-0651056-SH | WASHER 6.5X11X1 | 1 | |
| 135-40604 | DRIVING BAR B | 1 | |
| PD-0201000-OB | SPLIT PIN | 2 | |
| SS-7090610-SP | SCREW 9/64-40 L=6 | 2 | |
| 135-40505 | DRIVING BAR A | 1 | |
| SD-0900701-TP | HINGE SCREW D= 9 H= 7 | 1 | |
| 135-40406 | WASHER | 1 | |
| 135-40307 | LEVER | 1 | |
| 135-40208 | LINK | 1 | |
| SD-0640321-SP | HINGE SCREW D= 6.35 H= 3.2 | 1 | |
| 135-40109 | STOP-MOTION REGULATING ARM B | 1 | |
| SD-0640241-SP | HINGE SCREW D= 6.35 H= 2.4 | 1 | |
| 135-41800 | FEED CAM | 1 | |
| 135-38301 | STOP-MOTION REGULATING CAM | 1 | |
| SS-6090510-SP | SCREW 9/64-40 L=5 | 1 | |
| NS-6090310-SP | NUT 9/64-40 | 1 | |
| WP-0612066-SP | WASHER 6.1X11X2 | 1 |
(1) LK-1852-1 REF.NO NOTE PART NO. DESCRIPTION 1 135-10862 WORM ASM. 2 SS-7111410-TP SCREW 11/64-40 L=14 3 135-10953 FEED CAH WHEEL ASM. 4 #01 135-41750 FINGER GUARD ASM. 5 #01 SS-7111120-SP SCREW 11/64-40 L=10.5 6 135-40752 WORK CLAMP FOOT BRACKET ASM. 7 135-41602 WORK CLAMP FOOT SPRING HOLDER 8 SS-7110840-SP SCREW 11/64-40 L=7.8 9 135-41404 WORK CLAMP FOOT LIFTING PLATE 10 SS-9151120-CP SCREW 15/64-28 L=11 11 WP-0612516-SD WASHER 6.1X15.2X2.5 12 D2529-232-D00 PRESSER SPRING 13 #02 D2545-232-D0A HINGE SCREW 14 D2513-232-D00 BRACKET GUIDE ASM. 15 NS-6110530-SP NUT 11/64-40 16 D2509-232-D00 STATIONING LATCH 17 D2511-232-D00 TORSION SPRING 18 D2504-282-AB0-A KNOB FOOT MOUNT BASE ASM. 19 D2502-232-D00 SHAFT BLOCK SHAFT 20 RE-0700000-KO SNAP RING 7 21 SS-9110920-CP SCREW 11/64-40 L=9 22 D2510-232-D00 WORK CLAMP FOOT REGULATOR 23 D2528-232-D00 SHAFT 24 D2527-232-D00 SLEEVE 25 B3117-352-D00 THREAD TENSION POST NUT 26 D2515-232-D00 TORSION SPRING 27 SS-7110840-SP SCREW 11/64-40 L=7.8 28 135-41107 WORK CLAMP FOOT SPRING HOLDER 29 135-41057 CLAMP GUIDE FOOT ASM. 30 D2520-232-D00 WORK CLAMP FOOT (LEFT) ASM. 31 SS-1110640-TP SCREW 11/64-40 L=5.5 32 D2521-232-D00 WORK CLAMP FOOT (RIGHT) ASM. 33 D2502-271-TP HINGE SCREW D= 5.50 H= 2.7 34 D2519-232-D00 WORK CLAMP FOOT PLATE CAM 35 NS-6120480-SP NUT 3/16-28 36 135-40503 FEED PLATE 37 SS-9110460-CP SCREW 11/64-40 L=4 38 WP-061016-SD WASHER 5X10.5X1 39 SS-9110460-CP SCREW 11/64-40 L=4 40 SS-9110460-CP SCREW 11/64-40 L=4 41 135-40802 SHAFT BRACKET BASE 42 135-40901 STATIONING BLOCK SHAFT 43 D2548-232-D00 SNAP RING, FOR CONNECTING ROD 44 D2507-232-D00 STATIONING BLOCK 45 NS-6150310-SP NUT 15/64-28 46 SS-9151120-CP SCREW 15/64-28 L=11 47 WP-0612516-SD WASHER 6.1X15.2X2.5 48 135-40703 WORK CLAMP FOOT BRACKET ASM. 49 SS-9150710-TP BOLT 15/64-28 L=6.5 50 135-41206 WORK CLAMP FOOT PLATE COVER 51 135-41354 CONNECTING ARM ASM. 52 SS-6151712-TP SCREW 15/64-28 L=16.5 53 SD-1201501-SP HINGE SCREW D=12 H=15 54 WP-0651056-SH WASHER 6.5X11X1 55 135-40604 DRIVING BAR B 56 PD-0201000-OB SPLIT PIN 57 SS-7090610-SP SCREW 9/64-40 L=6 58 135-40505 DRIVING BAR A 59 SD-0900701-TP HINGE SCREW D= 9 H= 7 60 135-40406 WASHER 61 135-40307 LEVER 62 135-40208 LINK 63 SD-0640321-SP HINGE SCREW D= 6.35 H= 3.2 64 135-40109 STOP-MOTION REGULATING ARM B 65 SD-0640241-SP HINGE SCREW D= 6.35 H= 2.4 66 135-41800 FEED CAM 67 135-38301 STOP-MOTION REGULATING CAM 68 SS-6090510-SP SCREW 9/64-40 L=5 69 NS-6090310-SP NUT 9/64-40 70 WP-0612066-SP WASHER 6.1X11X2 Note ( 注記 )#01....STANDARD PART #02....SELECTIVE PART 輸出標準 選択部品 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の一部品は、LK-1850 標準機種 と同じです。 - 26 - jintex.in
Page 30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-10862 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-42402 | WORK CLAMP FOOT, RIGHT | 1 | |
| 135-42501 | WORK CLAMP FOOT, LEFT | 1 | |
| 135-42303 | FEED PLATE | 1 | |
| 135-41800 | FEED CAM | 1 | |
| 135-38301 | STOP-MOTION REGULATING CAM | 1 | |
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| 135-10862 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-42915 | WORK CLAMP FOOT, RIGHT | 1 | |
| 135-43012 | WORK CLAMP FOOT, LEFT | 1 | |
| 135-42816 | CLOTH PRESSER PLATE | 1 | |
| D2426-282-C00 | NEEDLE HOLE GUIDE | 1 | |
| MDP-500B1100 | NEEDLE DPX5 #11 | 1 | |
| HC-2005007-50 | NEEDLE 134 75 | 1 | |
| 135-42709 | FEED CAM | 1 | |
| 135-38301 | STOP-MOTION REGULATING CAM | 1 | |
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| 135-10862 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| 135-43202 | FEED CAM | 1 | |
| 135-38301 | STOP-MOTION REGULATING CAM | 1 | |
| 135-42915 | WORK CLAMP FOOT, RIGHT | 1 | |
| 135-43012 | WORK CLAMP FOOT, LEFT | 1 | |
| 135-43103 | FEED CAM | 1 | |
| 135-42816 | CLOTH PRESSER PLATE | 1 | |
| D2426-282-C00 | NEEDLE HOLE GUIDE | 1 | |
| MDP-500B1100 | NEEDLE DPX5 #11 | 1 | |
| 135-39200 | STOP-MOTION REGULATION CAM | 1 |
(2) LK-1852-2 SMALL BAR TACKING MACHINE (28 STITCHES) 28針小門止めミシン REF. NO NOTE DESCRIPTION 1 2 3 4 5 6 7 8 (3) LK-1852-3 KNIT GOODS BAR TACKING 28針メリヤス門止めミシン 9 10 11 12 13 14 15 16 17 18 19 (4) LK-1852-5 20 21 22 23 24 (5) LK-1854-6 25 26 27 28 29 30 31 135-10862 SS-7111410-TP 135-42402 135-42501 135-42303 135-41800 135-38301 135-10953 WORM ASM. SCREW 11/64-40 L=14 WORK CLAMP FOOT, RIGHT WORK CLAMP FOOT, LEFT FEED PLATE FEED CAM STOP-MOTION REGULATING CAM FEED CAM DRIVING WHEEL ASM. 135-10862 SS-7111410-TP 135-42915 135-43012 135-42816 D2426-282-C00 MDP-500B1100 HC-2005007-50 135-42709 135-38301 135-10953 WORM ASM. SCREW 11/64-40 L=14 WORK CLAMP FOOT, RIGHT WORK CLAMP FOOT, LEFT CLOTH PRESSER PLATE NEEDLE HOLE GUIDE NEEDLE DPX5 #11 NEEDLE 134 75 FEED CAM STOP-MOTION REGULATION CAM FEED CAM DRIVING WHEEL ASM. LARGE SIZE BAR TACKING MACHINE (28 STITCHES) 135-10862 SS-7111410-TP 135-10953 135-43202 135-38301 KNIT GOODS BAR TACKING MACHINE (21 STITCHES) 135-42915 135-43012 135-43103 135-42816 D2426-282-C00 MDP-500B1100 135-39200 WORM ASM. SCREW 11/64-40 L=14 FEED CAM DRIVING WHEEL ASM. FEED CAM STOP-MOTION REGULATING CAM WORK CLAMP FOOT, RIGHT WORK CLAMP FOOT, LEFT FEED CAM CLOTH PRESSER PLATE NEEDLE HOLE GUIDE NEEDLE DPX5 #11 STOP-MOTION REGULATION CAM Qty 1 (4) 1 1 1 1 1 1 1 (4) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Note (注記) *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種と同じです。 - 27 - jintex.in
