Parts index — Juki LK-1850 (68 pages)tap a row to open its page

Page 2

Juki LK-1850 (68 pages) parts on page 2

Ref	Part number	Part name	Qty
	B1401-100-000	Needle bar
	B1401-100-000-A	Needle bar
	B1105-200-000	Frame cover
	B1105-300-000	Frame cover
	B1105-500-000	Frame cover

Page 3

Juki LK-1850 (68 pages) parts on page 3

Ref	Part number	Part name	Qty
	1	FRAME & MISCELLANEOUS COVER COMPONENTS
	2	MAIN SHAFT COMPONENTS
	3	NEEDLE BAR COMPONENTS
	4	THREAD TENSION RELEASE COMPONENTS
	5	SHUTTLE DRIVER SHAFT COMPONENTS
	6	FEED MECHANISM COMPONENTS
	7	THREAD TRIMMING COMPONENTS
	8	PEDAL PRESSURE DECREASING UNIT COMPONENTS
	9	STOP MOTION MECHANISM COMPONENTS
	10	LUBRICATION MECHANISM COMPONENTS
	11	TABLE COMPONENTS
	12	LEG COMPONENTS (For Urban White)
	13	LK-1850 SERIES SUBCLASS
	(1)	LK 1852-1
	(2)	LK 1852-2
	(3)	LK 1852-3
	(4)	LK 1852-5
	(5)	LK 1854-6
	(6)	LK 1854-4
	(7)	LK 1854 11
	(8)	LK 1852-7
	(9)	LK 1852 210
	(10)	LK 1854 10
	(11)	LK 1852 20
	(12)	LK 1854 30
	(13)	LK 1854 40
	(14)	LK-1850-P
	(15)	LK-1854P-10
	(16)	LK 1852P-20
	(17)	LK 1852P-30

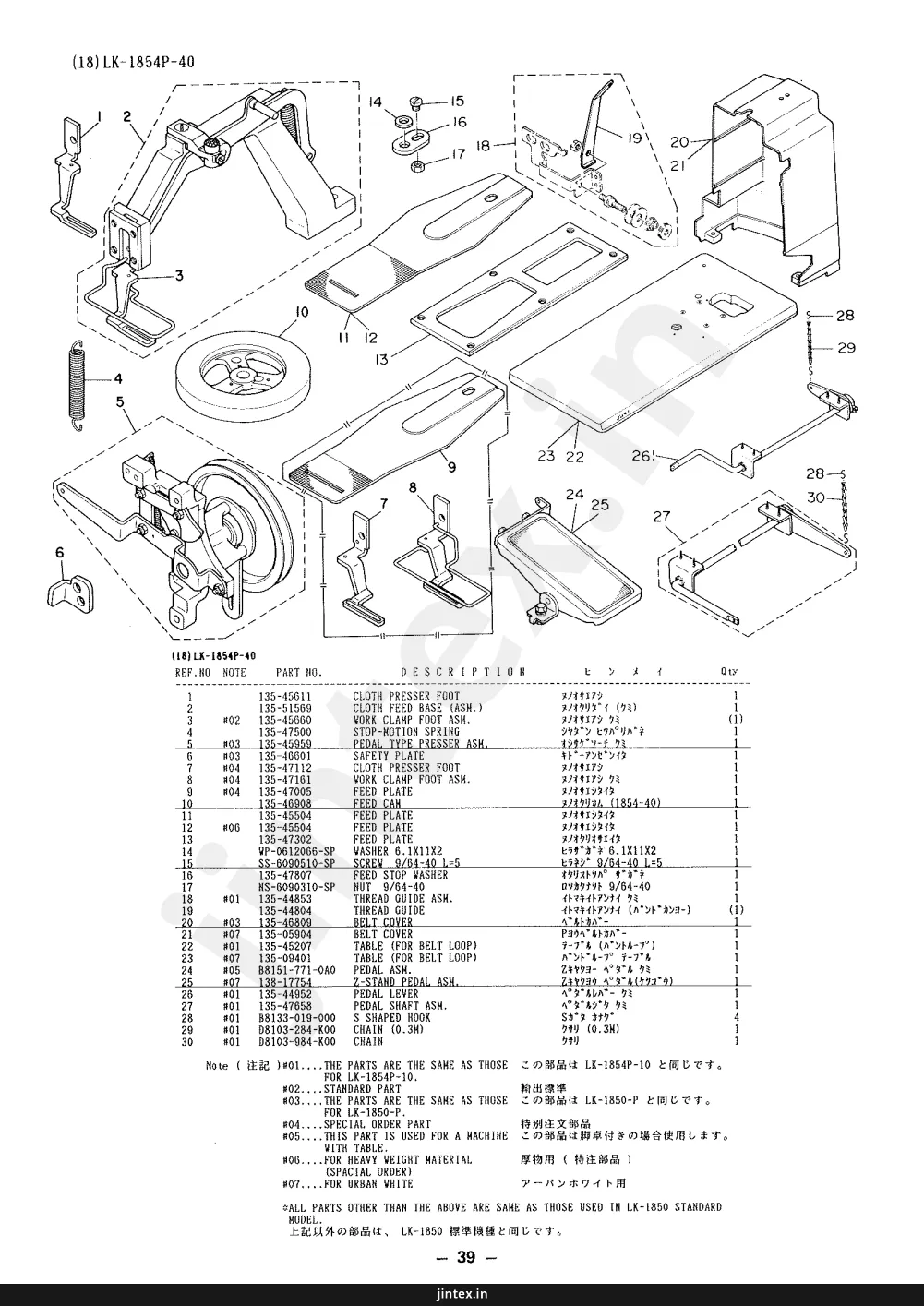

	(18)	LK 1854P-40
	(19)	LK 1854 8
	14	THREAD STAND COMPONENTS
	15	THREAD STAND COMPONENTS (アーバンホワイト用)
	NUMERICAL INDEX OF PARTS	索引
	(20)	LK 1854 12
	(21)	LK 1853-15
	(22)	LK 1853-16
	(23)	LK 1852H-5
	(24)	LK 1852-22
	(25)	LK 1852G-5
	(26)	LK 1854-24
	(27)	LK 1853H-15
	(28)	LK 1854H 24
	(29)	LK 1853G 15
	(30)	LK 1854G 24
	(31)	LK 1850H
	(32)	LK 1850G
	(33)	LK 1850T
	(34)	LK 1854T 10
	(35)	LK 1852T-20
	(36)	LK 1852T-30
	(37)	LK 1854T 40

Page 4 — NEOUS COVERS COMPONENTS

Juki LK-1850 (68 pages) parts on page 4

Ref	Part number	Part name	Qty
1	1	SCREW
4	4	SCREW
5	5	WASHER
6	6	SCREW
7	7	WASHER
8	8	SCREW
9	9	WASHER
10	10	BRACKET
11	11	SCREW
12	12	SCREW
13	13	WASHER
14	14	COVER
15	15	SCREW
16	16	WASHER
19	19	SCREW
20	20	SCREW
21	21	WASHER
22	22	BRACKET
23	23	BRACKET
24	24	COVER
25	25	SCREW
26	26	BRACKET
27	27	SCREW
28	28	SCREW
29	29	BULB
30	30	BRACKET
31	31	SCREW
32	32	WASHER
33	33	SHAFT
34	34	WASHER
35	35	CIRCLIP
36	36	SCREW
37	37	BRACKET
38	38	BRACKET
41	41	BRACKET
43	43	SCREW
44	44	SCREW
46	46	BRACKET
47	47	BUSH
48	48	SCREW
49	49	WASHER
50	50	WASHER
51	51	COVER
52	52	COVER
53	53	COVER
54	54	COVER
55	55	COVER
56	56	SCREW
57	57	WASHER
58	58	SCREW
59	59	WASHER
60	60	SCREW
61	61	BRACKET
62	62	SCREW
63	63	NUT
64	64	COVER
66	66	SCREW
67	67	SCREW
70	70	CAP
71	71	BRACKET
73	73	CAP
74	74	CAP

Page 5

Juki LK-1850 (68 pages) parts on page 5

Ref	Part number	Part name	Qty
	135-39457	FACE PLATE ASM.
01	135-38152	FACE PLATE ASM.
3	SS-4111015-SP	SCREW 11/64-40 L=10
4	SD-0640471-SP	HINGE SCREW D= 6.35 H= 4.7
5	WZ-0641510-KP	WAVED WASHER 6.4X11X0.3
6	135-39309	BED COVER B
01	135-37907	BED COVER B
7	135-01606	TOP COVER
01	138-16509	TOP COVER
10	135-01200	BELT COVER FIXING PLATE
11	SS-4110815-SP	SCREW 11/64-40 L=8
12	135-01101	BELT COVER
01	135-05805	BELT COVER
14	SS-4090715-SP	SCREW 9/64-40 L=7
15	B1122-280-000	THREAD TAKE-UP LEVER OIL GAURO
16	135-16608	BALANCE COVER
01	SS-7110840-SP	SCREW 11/64-40 L=7.8
18	NS-6090310-SP	NUT 9/64-40
19	B3114-771-000	THREAD GUIDE
20	NS-6090310-SP	NUT 9/64-40
21	B1125-280-000	L-SHAPED THREAD GUIDE A
22	B1126-552-000	ARM THREAD GUIDE A
23	SS-3090610-SP	SCREW 9/64-40 L=6
24	B1109-980-000	BED FITTING HOOK
25	SS-1110821-TP	SCREW 11/64-40 L=8.3
26	B1111-232-000	THREAD GUIDE PLATE
27	SS-4150715-SP	SCREW 15/64-28 L=7
28	NS-6150310-SP	NUT 15/64-28
29	B1123-280-000	FIRST THREAD GUIDE
30	SS-8150822-TP	SCREW 15/64-28 L=8
31	135-01507	RUBBER WASHER
32	PS-0800202-KH	SPRING PIN 8X20
33	135-07801	BASE CONMEVTING PIN
34	WP-1052000-SC	WASHER 10.5X18X2
35	RE-0600000-KO	E-SHAPED SNAP RING (6MM)
36	SS-7151120-SP	SCREW 15/64-28 L=11
37	135-38905	BED COVER A
38	135-00608	BED COVER A
01	135-00908	STAY
40	135-01002	BED ROCKER
41	135-00707	STAY ROCKER
42	135-00855	STAY GUIDE ASM.
43	SD-0800341-SP	HINGE SCREW D=8 H=3.4
44	B2008-372-000	THREAD TENSION SPRING
45	SS-7151210-SP	SCREW 15/64-28 L=12
46	135-00509	VIBRATION-PROOF RUBBER
47	135-00400	RUBBER BUSH
48	SS-7740740-SP	SCREW 3/8-28 L= 6.5
49	135-02604	SLUSH HOLE PACKING
50	135-02901	SLUSH PACKING
51	135-00301	BED FITTING BASE
52	B3101-280-0AO	SAFTY PLATE ASM.
53	B3120-372-000	SAFTY PLATE
54	SS-7110710-SP	SCREW 11/64-40 L=7
55	WP-0450801-SD	WASHER 4.5X10.0X0.8
56	SD-0600401-SP	HINGE SCREW D= 6 H= 4
57	B3125-155-000	DISK SPRING
58	B3126-076-SD	WASHER 6.5X13X0.8
59	B3121-980-000	SAFETY PLATE INSTALLING PLATE
60	B3123-372-000	STOPPER PIN
61	SS-7110740-TP	SCREW 11/64-40 L=7
62	B3101-280-000	SAFETY PLATE MOUNTING BASE
63	NS-6620310-SP	NUT 3/16-32
64	SS-7110710-SP	SCREW 11/64-40 L=7
65	135-02307	FACE PACKING
66	SS-6151220-SP	SCREW 15/64-28 L=11.5
67	B2714-761-000	SPRING RACK
68	B1124-280-000	ARM THREAD GUIDE B
69	SD-0800681-SP	HINGE SCREW D=8 H=6.8
70	TA-2050406-RO	RUBBER PLUG
71	135-38806	SPRING
72	VP-0480856-SP	WASHER 4.8X8.4X0.8
73	TA-0750704-RO	RUBBER PLUG
74	TA-1470704-RO	RUBBER PLUG

Page 6 — 2. MAIN SHAFT COMPONENTS

Juki LK-1850 (68 pages) parts on page 6

Ref	Part number	Part name	Qty
1	1	WASHER
2	2	BOLT
3	3	BOLT
4	4	BOLT
5	5	SPRING
6	6	CAM
7	7	SHAFT
8	8	COLLAR
9	9	SHAFT
10	10	CAM
11	11	BOLT
12	12	COLLAR
13	13	BOLT
14	14	BOLT
15	15	GEAR
16	16	SPRING
17	17	COLLAR
18	18	SHAFT
19	19	BOLT
20	20	BOLT
21	21	SHAFT
22	22	BOLT
23	23	BOLT
24	24	SHAFT
25	25	COLLAR
26	26	SHAFT
27	27	SPRING
28	28	BOLT
29	29	FLANGE
30	30	BOLT
31	31	SHAFT
32	32	RING
33	33	RING
34	34	PULLEY
35	35	BEARING
36	36	RING
37	37	RING
38	38	RING
39	39	SPRING
40	40	RING
41	41	SHAFT
42	42	RING
43	43	FLANGE
44	44	SHAFT
45	45	BOLT
46	46	SHAFT
47	47	SHAFT
48	48	BEARING
49	49	FLANGE
50	50	BOLT
51	51	BOLT
52	52	FLANGE
53	53	BOLT
54	54	PIN
55	55	RING
56	56	RING

Page 7

Juki LK-1850 (68 pages) parts on page 7

Ref	Part number	Part name	Qty
	B1223-771-000	NEEDLE ROD CRANK WASHER	1
	SS-6151412-TP	SCREW 15/64-28 L=14	1
	SS-9661230-CP	SCREW 1/4-40 L=12	1
	SS-6681712-TP	SCREW 9/32-28 L=16.5	1
	SS-8606010-TP	SCREW 1/4-40 L=6	1
	B1202-280-000	COUNTER WEIGHT	1
	135-03206	UPPER SHAFT FRONT METAL	1
	135-03107	MAIN SHAFT.	1
	135-03305	UPPER SHAFT INNER METAL	1
	135-10367	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	CS-150111A-TH	THRUST COLLAR ASM. D=15 W=10.8	1
	SS-6661110-SP	SCREW 1/4-40 L=11	(2)
	B1211-980-000	UPPER SHAFT THRUST BEARING	1
#01	B1208-980-00B	MAIN SHAFT NEEDLE BEARING B
	B1207-980-000	UPPER SHAFT REAR METAL	1
	B1210-980-000	SET SCREW	1
	135-03453	THREAD CUTTING CUM ASM.	1
	SS-8661012-TP	SCREW	(1)
	SS-8661212-TP	SCREW	(1)
	SS-8151230-SP	SCREW 15/64-28 L=12	1
	SS-6741512-TP	SCREW 3/8-28 L=14.5	1
	SS-6742012-TP	SCREW 3/8-28 L=19.5	1
	135-03552	STOP-MOTION CAM ASM.	1
	135-03503	STOP-MOTION CAM	(1)
	B1215-980-000	STOP MOTION CAM LATCH	(1)
	B1217-280-000	SAFETY PLATE STOPPER SPRING	(1)
	135-03602	PIN	(1)
	135-03750	HIGH SPEED CLUTCH PLATE ASM.	1
	SS-2110920-TP	SCREW 11/64-40 L=8.5	2
	SS-1110640-TP	SCREW 11/64-40 L=5.5	1
	135-04006	SPACER	3
	135-03909	SPRING	2
	135-04204	HIGH SPEED PULLEY	1
	SB-1350002-00	BEARING D=35X62	2
#02	135-04907	SHIM
	135-04303	WASHER	2
	RC-3221517-KP	RETAINING RING 32.2	1
	135-04105	SLOW SPEED PULLEY SPRING	3
	RC-6022018-KP	RETAINING RING 66.2	2
	135-04451	PULLEY ASM.	1
	SS-1110640-TP	SCREW 11/64-40 L=5.5	(3)
	135-04402	PULLEY	(1)
	135-04501	PULLEY SHAFT	(1)
	SS-8606112-TP	SCREW 1/4-40 L=6	1
	135-04600	SLOW SPEED PULLEY SHAFT	1
	SS-8661112-TP	SCREW 1/4-40 L=11	1
	135-04709	SLOW SPEED PULLEY	1
	135-04808	SLOW SPEED PULLEY PLATE	1
	WS-0451040-KP	SPRING WASHER 4.5X8.5X1	2
	SS-7111120-TP	SCREW	1
	135-05003	BALL RETAINER	1
	SS-2090710-TP	SCREW 9/64-40 L=7.2	2
	B1253-980-000	STOP-MOTION BALL	1
#01	135-05201	PULLEY SPACER
#02	135-05102	REGULATOR SHIM

Page 8 — 3. NEEDLE BAR COMPONENTS

Juki LK-1850 (68 pages) parts on page 8

Ref	Part number	Part name	Qty
	1	NEEDLE BAR COMPONENTS
	2	NEEDLE BAR COMPONENTS
	3	NEEDLE BAR COMPONENTS
	4	NEEDLE BAR COMPONENTS
	5	NEEDLE BAR COMPONENTS
	6	NEEDLE BAR COMPONENTS
	7	NEEDLE BAR COMPONENTS
	8	NEEDLE BAR COMPONENTS
	9	NEEDLE BAR COMPONENTS
	10	NEEDLE BAR COMPONENTS
	11	NEEDLE BAR COMPONENTS
	12	NEEDLE BAR COMPONENTS
	13	NEEDLE BAR COMPONENTS
	14	NEEDLE BAR COMPONENTS
	15	NEEDLE BAR COMPONENTS
	16	NEEDLE BAR COMPONENTS
	17	NEEDLE BAR COMPONENTS
	18	NEEDLE BAR COMPONENTS
	19	NEEDLE BAR COMPONENTS
	20	NEEDLE BAR COMPONENTS
	21	NEEDLE BAR COMPONENTS
	22	NEEDLE BAR COMPONENTS
	23	NEEDLE BAR COMPONENTS
	24	NEEDLE BAR COMPONENTS
	25	NEEDLE BAR COMPONENTS
	26	NEEDLE BAR COMPONENTS
	27	NEEDLE BAR COMPONENTS
	28	NEEDLE BAR COMPONENTS
	29	NEEDLE BAR COMPONENTS
	30	NEEDLE BAR COMPONENTS
	31	NEEDLE BAR COMPONENTS
	32	NEEDLE BAR COMPONENTS
	33	NEEDLE BAR COMPONENTS
	34	NEEDLE BAR COMPONENTS
	35	NEEDLE BAR COMPONENTS
	36	NEEDLE BAR COMPONENTS
	37	NEEDLE BAR COMPONENTS
	38	NEEDLE BAR COMPONENTS
	39	NEEDLE BAR COMPONENTS
	40	NEEDLE BAR COMPONENTS
	41	NEEDLE BAR COMPONENTS
	42	NEEDLE BAR COMPONENTS
	43	NEEDLE BAR COMPONENTS
	44	NEEDLE BAR COMPONENTS
	45	NEEDLE BAR COMPONENTS
	46	NEEDLE BAR COMPONENTS
	47	NEEDLE BAR COMPONENTS
	48	NEEDLE BAR COMPONENTS
	49	NEEDLE BAR COMPONENTS
	50	NEEDLE BAR COMPONENTS
	51	NEEDLE BAR COMPONENTS
	52	NEEDLE BAR COMPONENTS
	53	NEEDLE BAR COMPONENTS
	54	NEEDLE BAR COMPONENTS
	55	NEEDLE BAR COMPONENTS
	56	NEEDLE BAR COMPONENTS
	57	NEEDLE BAR COMPONENTS
	58	NEEDLE BAR COMPONENTS
	59	NEEDLE BAR COMPONENTS
	60	NEEDLE BAR COMPONENTS
	61	NEEDLE BAR COMPONENTS
	62	NEEDLE BAR COMPONENTS
	63	NEEDLE BAR COMPONENTS
	64	NEEDLE BAR COMPONENTS
	65	NEEDLE BAR COMPONENTS
	66	NEEDLE BAR COMPONENTS
	67	NEEDLE BAR COMPONENTS
	68	NEEDLE BAR COMPONENTS
	69	NEEDLE BAR COMPONENTS

Page 9

Juki LK-1850 (68 pages) parts on page 9

Ref	Part number	Part name	Qty
	B1901-280-0B0	LINK BALANCE ASM.
	B1904-280-000	BALANCE CRANK PIN
	B1903-552-0A0	LEFT SCREW
	B1404-280-000	NEEDLE BAR CRANK ROD
	B1411-804-C00	NEEDLE DRIVING LEVER BEARING C
	B1203-280-000	NEEDLE ROD CRANK
	B1905-541-B00	NEEDLE BEARING
	B1901-280-0A0	BALANCE ASM.
	SS-7151120-SP	SCREW 15/64-28 L=11
	B1402-280-000	NEEDLE ROD METAL
	B1411-552-0A0	NEEDLE ROD HOLDER ASM.
	SS-6090670-TP	SCREW 9/64-40 L=6
	B1401-280-000	NEEDLE BAR
	B1403-280-000	NEEDLE ROD LOWER METAL
	SS-2000510-SP	SCREW 3/32-56 L=4.5
	B1405-280-000	NEEDLE BAR THREAD GUIDE
	HDP-500B1400	NEEDLE DPX5 #14
	HDP-500B1600	NEEDLE DPX5 #16
	HDP-500B1000	NEEDLE #100
	SS-6080340-SP	SCREW 1/8-44 L=3.0
	B1414-232-000	SQUARE BLOCK
	SS-4150915-SP	SCREW 15/64-28 L=9
	135-26850	THREAD GUIDE BRACKET ASM.
	NS-6110310-SP	NUT 11/64-40
	135-26801	THREAD GUIDE BRACKET
	B3219-232-000	BOBBIN WINDER TENSION POST
	B3214-047-000	BOBBIN WINDER TENSION DISC
	B3218-232-000	BOBBIN WINDER TENSION SPRING
	B3216-047-000	BOBBIN WINDER TENSION NUT
	135-26157	BOBBIN WINDER ASM.
	SD-0791503-SP	HINGE SCREW D=7.94 H=15
	NS-6150310-SP	NUT 15/64-28
	WP-0651056-SD	WASHER 6.5X11X1
	SS-7110510-SP	SCREW 11/64-40 L=5
	B3210-280-000	BOBBIN WINDER BRAKE PRESSURE P
	B3209-280-000	BOBBIN WINDER BRAKE
	135-26405	BOBBIN WINDER WHEEL
	135-26207	BOBBIN WINDER SPINDLE BUSHING
	SS-7110510-SP	SCREW 11/64-40 L=5
	135-20900	BOBBIN WINDER BELT SUPPORT
	SS-7110840-SP	SCREW 11/64-40 L=7.8
	135-26504	BOBBIN WINDER TRIP LATCH
	135-26306	BOBBIN WINDER SPINDLE
	NS-6150310-SP	NUT 15/64-28
	135-26702	SPRING
	NS-6110310-SP	NUT 11/64-40
	135-26108	BOBBIN WINDER BASE
	B3208-280-000	BOBBIN WINDER ADJUSTING SCREW
	135-26603	BOBBIN WINDER TRIP LATCH
	NS-6110530-SP	NUT 11/64-40
	SD-0720193-SP	HINGE SCREW D= 7.24 H= 1.9
	SS-4110915-SP	SCREW 11/64-40 L=9
	SS-1110640-TP	SCREW 11/64-40 L=5.5
	135-15556	NEEDLE PLATE ASM.
	B2426-280-000	NEEDLE PLATE NEEDLE HOLE GUIDE
	SS-1000210-TP	SCREW 3/32-56 L=2.2
	135-15564	NEEDLE PLATE ASM.
	B2424-280-000	FIXING KNIFE
	SS-7090410-SP	SCREW 9/64-40 L=3.5
	B2418-280-000	MOVING KNIFE LINK
	B2416-280-000	THREAD CUTTING LEVER RING
	135-38608	THREAD CUTTER LEVER, SMALL
	B2414-280-0A0	THREAD CUTTER LEVER ASM., LARG
	SS-6110430-TP	SCREW 11/64-40 L=4
	WP-0450846-SP	WASHER
	SS-7110740-TP	SCREW 11/64-40 L=7
	B2421-280-00C	MOVING KNIFE WASHER C
	B2423-280-0A0	MOVING KNIFE ASM.
	SD-0500091-TP	HINGE SCREW D= 5.0 H= 0.9

Page 10 — 4. THREAD TENSION RELEASE COMPONENTS

Juki LK-1850 (68 pages) parts on page 10

Ref	Part number	Part name	Qty
1	1	THREAD TENSION RELEASE COMPONENTS
2	2	THREAD TENSION RELEASE COMPONENTS
4	4	THREAD TENSION RELEASE COMPONENTS
5	5	THREAD TENSION RELEASE COMPONENTS
6	6	THREAD TENSION RELEASE COMPONENTS
7	7	THREAD TENSION RELEASE COMPONENTS
8	8	THREAD TENSION RELEASE COMPONENTS
9	9	THREAD TENSION RELEASE COMPONENTS
10	10	THREAD TENSION RELEASE COMPONENTS
11	11	THREAD TENSION RELEASE COMPONENTS
12	12	THREAD TENSION RELEASE COMPONENTS
13	13	THREAD TENSION RELEASE COMPONENTS
14	14	THREAD TENSION RELEASE COMPONENTS
15	15	THREAD TENSION RELEASE COMPONENTS
16	16	THREAD TENSION RELEASE COMPONENTS
17	17	THREAD TENSION RELEASE COMPONENTS
18	18	THREAD TENSION RELEASE COMPONENTS
19	19	THREAD TENSION RELEASE COMPONENTS
20	20	THREAD TENSION RELEASE COMPONENTS
21	21	THREAD TENSION RELEASE COMPONENTS
22	22	THREAD TENSION RELEASE COMPONENTS
23	23	THREAD TENSION RELEASE COMPONENTS
24	24	THREAD TENSION RELEASE COMPONENTS
25	25	THREAD TENSION RELEASE COMPONENTS
26	26	THREAD TENSION RELEASE COMPONENTS
27	27	THREAD TENSION RELEASE COMPONENTS
28	28	THREAD TENSION RELEASE COMPONENTS
29	29	THREAD TENSION RELEASE COMPONENTS
30	30	THREAD TENSION RELEASE COMPONENTS
31	31	THREAD TENSION RELEASE COMPONENTS
32	32	THREAD TENSION RELEASE COMPONENTS
33	33	THREAD TENSION RELEASE COMPONENTS
34	34	THREAD TENSION RELEASE COMPONENTS
35	35	THREAD TENSION RELEASE COMPONENTS
36	36	THREAD TENSION RELEASE COMPONENTS
37	37	THREAD TENSION RELEASE COMPONENTS
38	38	THREAD TENSION RELEASE COMPONENTS
39	39	THREAD TENSION RELEASE COMPONENTS
40	40	THREAD TENSION RELEASE COMPONENTS
41	41	THREAD TENSION RELEASE COMPONENTS
42	42	THREAD TENSION RELEASE COMPONENTS
43	43	THREAD TENSION RELEASE COMPONENTS
44	44	THREAD TENSION RELEASE COMPONENTS
45	45	THREAD TENSION RELEASE COMPONENTS
46	46	THREAD TENSION RELEASE COMPONENTS
47	47	THREAD TENSION RELEASE COMPONENTS
48	48	THREAD TENSION RELEASE COMPONENTS
49	49	THREAD TENSION RELEASE COMPONENTS
50	50	THREAD TENSION RELEASE COMPONENTS
51	51	THREAD TENSION RELEASE COMPONENTS
52	52	THREAD TENSION RELEASE COMPONENTS
53	53	THREAD TENSION RELEASE COMPONENTS
54	54	THREAD TENSION RELEASE COMPONENTS
55	55	THREAD TENSION RELEASE COMPONENTS
56	56	THREAD TENSION RELEASE COMPONENTS
3	3	THREAD TENSION RELEASE COMPONENTS

Page 11

Juki LK-1850 (68 pages) parts on page 11

Ref	Part number	Part name	Qty
	B2303-280-000	TENSION RELEASE PIN
	SS-9151740-CP	SCREW 15/64-28 L=17
	B2101-280-0A0	WIPER ASM.
	B2302-280-0A0	SECOND THREAD TENSION ASM.
	SS-8090610-SP	SCREW 9/64-40 L=5.9
	B2313-280-000	THREAD TENSION ROD, LARGE
	B2302-280-000	SECOND THREAD TENSION ROD
	B3112-761-000	THREAD TAKE-UP SPRING
	B3126-012-000	THREAD TENSION DISK
	B3132-552-000	THREAD TENSION DISK PRESSER
	B3107-804-000	THREAD TENSION DISK PRESSER
	B3114-232-000	THREAD TENSION SPRING
	B3120-125-000	ROTATING STOPPER
	B3119-771-000	THREAD TENSION NUT
	B115-232-0A0	FIRST THREAD TENSION ASM.
	B3123-352-000	THREAD TENSION ROD
	B3126-012-000	THREAD TENSION DISK
	B1115-232-000	FIRST THREAD TENSION SPRING
	B3125-012-000	THREAD TENSION NUT
	SD-1000401-SP	HINGE SCREW D=10 H=4
	135-06100	CONNECTING LINK
	135-06100	LOWERING FOOT
	SD-0790601-SP	HINGE SCREW D=7.94 H=6
	NS-6150310-SP	NUT 15/64-28
	135-06258	LOWERING ARM ASM.
	SS-6151712-TP	SCREW 15/64-28 L=16.5
	135-13155	TENSION RELEASE ARM ASM.
	SS-6151712-TP	SCREW 15/64-28 L=16.5
	135-06308	SHAFT
	SD-0530221-SP	HINGE SCREW D=5.3 H=2.2
	135-13205	TENSION RELEASE BAR
	135-13304	THREAD TENSION ARM
	SS-7090620-TP	SCREW 9/64-40 L=6.1
	NS-6150310-SP	NUT 15/64-28
	135-06852	LOWERING CONNECTING LEVER ASM.
	SD-0901201-TP	HINGE SCREW D=9 H=3.2
	135-06605	LOWERING CONNECTING RING
	RC-0740811-KP	C-RING
	SD-0720331-SP	HINGE SCREW D=7.24 H=3.3
	135-06704	TENSION SPRING
	B3411-771-000	SPRING
	SD-0640391-TP	HINGE SCREW D=6.35 H=3.9
	135-06456	CONNECTING ARM ASM.
	SS-6151712-TP	SCREW 15/64-28 L=16.5
	SD-0530221-SP	HINGE SCREW D=5.3 H=2.2
	135-09500	WIPER CONNECTING LINK
	135-09708	SPRING
	135-09955	WIPER CONNECTING ARM ASM.
	RC-0470611-KP	RETAINING RING 4.7
	B2109-280-000	WIPER CONNECTING SCREW
	135-09807	OIL SHIELD CAP
	135-09609	WIPER CONNECTING PLATE
	B1229-232-000	SNAP RING
	B2102-280-000	WIPER INSTALLING PLATE
	SS-4110815-SP	SCREW 11/64-40 L=8
	SD-0640211-SP	HINGE SCREW D=6.35 H=2.1

Page 12 — 5. SHUTTLE DRIVER SHAFT COMPONENTS

Juki LK-1850 (68 pages) parts on page 12

Ref	Part number	Part name	Qty
	1	SHUTTLE DRIVER SHAFT COMPONENTS
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52

Page 13

Juki LK-1850 (68 pages) parts on page 13

Ref	Part number	Part name	Qty
	B1817-280-0A0	INNER HOOK PRESSER ASM.	1
	B1828-980-0AB	BOBBIN CASE ASM.	1
	B1827-280-000	BOBBIN	1
	B1818-280-000	INNER HOOK	1
	B1812-980-0A0	DRIVER ASM.	1
	SS-6121212-TP	SCREW 3/16-28 L=12.0	(1)
	B1813-980-000	SHUTTLE NEEDLE OUTER RING	1
	B1411-804-B00	NEEDLE DRIVING LEVER BEARING B
	WP-0952616-SD	WASHER 9.5X14.8X2.6	1
	B1814-980-000	SHUTTLE	1
	B1815-980-000	SHUTTLE UPPER SPRING	1
	SS-6060410-TP	SCREW 3/32-56 L=3.5	2
	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
	B1819-280-000	SHUTTLE RACE ADJUSTING SHAFT	1
	SS-6110480-SP	SCREW 11/64-40 L=4.5	(2)
	CS-080081C-SH	THRUST COLLAR ASM. D=8.0 W=8	1
	SS-8110520-TP	SCREW 11/64-40 L=4.5	(2)
	135-04403	LOWER SHAFT REAR METAL	1
	B1808-080-000	LOWER SHAFT THRUST WASHER	1
	135-08155	LOWER SHAFT GEAR A ASM.
	135-08115	CRANK ROD ASM.	1
	SS-6110480-TP	SCREW 11/64-40 L=10.5	(2)
	SD-0801021-TP	HINGE SCREW D=8 H=10.2	1
	B1805-980-000	OSCILLATOR	1
	NS-6600043A-SP	NUT 1/4-40	1
	CS-079101A-SH	THRUST COLLAR ASM. D=7.94 W=10	1
	SS-8110520-TP	SCREW 11/64-40 L=4.5	(2)
	B1804-280-0A0	THRUST COLLAR ASM.	1
	SS-8110520-TP	SCREW 11/64-40 L=4.5	(2)
	135-08205	OSCILLATING SHAFT	1
	SS-8150822-TP	SCREW 15/64-28 L=8	1
	B1821-280-000	INNER HOOK PRESSER, LEFT	1
	B1820-280-000	INNER HOOK PRESSER, RIGHT	1
	B1823-280-000	INNER HOOK PRESSER SPRING	2
	PS-0250162-KH	SPRING PIN 2.5X16	2
	135-08551	CYLINDER ARM CAP ASM.	1
	138-16855	CYLINDER ARM CAP
	135-08908	HOOK COVER PRESSER SPRING B	1
	SS-6111140-SP	SCREW 11/64-40 L=11	1
	135-08700	HOOK COVER PRESSER SPRING PIN	1
	SS-6661110-SP	SCREW 1/4-40 L=11	1
	SS-6742012-TP	SCREW 3/8-28 L=19.5	1
	135-10458	WORM WHEEL ASM.	1
	135-10201	WORM WHEEL SHAFT BUSHING	1
	135-08809	HOOK COVER PRESSER SPRING A	1
	CS-180121A-SH	THRUST COLLAR ASM. D=18 W=12	1
	SS-6660710-TP	SCREW 1/4-40 L=7	(2)
	NS-6660511-SP	NUT 1/4	1
	135-10151	WORM WHEEL SHAFT ASM.	1
	135-10706	CAM GUIDE PIN	1
	NS-6360810-SP	NUT 9/16-20	1
	135-10607	FEED CAM	1

Page 14 — 6. FEED MECHANISM COMPONENTS

Juki LK-1850 (68 pages) parts on page 14

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	SPRING
3	3	WASHER
4	4	LEVER
5	5	SPRING
6	6	BRACKET
7	7	SHAFT
8	8	BRACKET
9	9	SCREW
10	10	NUT
11	11	SHAFT
12	12	SCREW
13	13	WASHER
14	14	PIN
15	15	BRACKET
16	16	BRACKET
17	17	SCREW
18	18	BRACKET
19	19	BRACKET
20	20	SCREW
21	21	PLATE
22	22	BRACKET
23	23	BRACKET
24	24	SCREW
25	25	WASHER
26	26	PLATE
27	27	SCREW
28	28	PLATE
29	29	BRACKET
30	30	PIN
31	31	SCREW
32	32	SCREW
33	33	NUT
34	34	WASHER
35	35	LEVER
36	36	SCREW
37	37	BRACKET
38	38	SHAFT
39	39	LEVER
40	40	SCREW
41	41	BRACKET
42	42	NUT
43	43	WASHER
44	44	SCREW
45	45	COLLAR
46	46	BRACKET
47	47	BRACKET
48	48	SHAFT
49	49	PIN
50	50	PLATE
51	51	SCREW
52	52	SCREW
53	53	WASHER
54	54	PIN
55	55	NUT
56	56	SCREW
57	57	BRACKET
58	58	SHAFT
59	59	SCREW

Page 15

Juki LK-1850 (68 pages) parts on page 15

Ref	Part number	Part name	Qty
	SS-7110740-TP	SCREW 11/64-40 L=7	4
	RE-0700000-KO	SNAP RING 7	2
	B2557-280-00C	WASHER	2
	135-18352	LEVER DRIVING PLATE ASM.	2
	135-18402	TENSION SPRING	2
	135-18006	LIFTING LEVER, LEFT	1
	135-18105	LIFTING LEVER SHAFT	1
	135-18907	SUPPORT PLATE	1
	SS-2110920-TP	SCREW 11/64-40 L=8.5	2
	B2549-280-000	WORK CLAMP FOOT MOUNTING BASE	7
	B2548-280-000	BALL RETAINER	1
	SS-6152212-SP	SCREW 15/64-28 L=22.0	1
	WP-0621216-SD	WASHER 6.2X13X1	1
	135-18501	SPRING SUSPENSION	1
	135-17800	FEED BRACKET	1
	SS-8150510-TP	SCREW 15/64-28 L=4.7	1
	135-17909	LIFTING LEVER, RIGHT	1
	SS-8080310-TP	SCREW 1/8-44 L=2.8	2
	135-3104	FINGER GUARDE	1
	SS-2110930-SP	SCREW 11/64-40 L=8.75	5
	135-18808	WORK CLAMP FOOT FACE PLATE	1
	135-18600	WORK CLAMP FOOT, RIGHT	1
	135-18709	WORK CLAMP FOOT, LEFT	1
	SS-3151012-TR	SCREW 15/64-28 L=9.5	1
	WP-0651001-SC	WASHER	1
	135-17701	FEED PLATE	1
	SS-6110420-TP	SCREW 11/64-40 L=4.8	6
	135-17602	FEED PLATE PRESSER PLATE	1
	135-17503	FEED PLATE CARRIER BAR	1
	135-49506	FEED DRIVING ARM SHAFT	2
	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
	SS-7701010-SP	SCREW 5/16-24 L=10	1
	NS-6150540-SP	NUT 15/64-28	2
	WP-0702026-SP	WASHER 7X15X2	1
	135-16307	FEED REGULATOR	1
	135-17404	HINGE STUD	1
	NS-6700320-SP	NUT 5/16-24	2
	135-16505	FEED REGULATOR STUD	2
	135-16901	INDICATOR LEVER	2
	SD-0530221-SP	HINGE SCREW D= 5.3 H= 2.2	2
	135-16703	SLIDE BLOCK B	2
	WP-0650876-SP	NUT 1/4-40	2
	WP-0650876-SD	WASHER 6.5X13X0.8	2
	B2501-280-000	FEED CAM ROLLER SHAFT	2
	B2502-280-00B	FEED CAM ROLLER	2
	135-16109	FEED DRIVING ARM	1
	SS-9151440-CP	SCREW 15/64-28 L=14	1
	135-50108	FEED REGULATOR SHAFT	2
	TA-0550604-RO	RUBBER PLUG	2
	135-17305	PLATE	1
	SS-1110821-TP	SCREW 11/64-40 L=8.3	2
	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
	WP-0704516-SP	WASHER 7X20X4.5	1
	135-17206	SLIDE BLOCK STUD	1
	B1414-232-000	SQUARE BLOCK	1
	SS-6151142-TP	SCREW 15/64-28 L=10.5	1
	135-17107	FEED ACROSS DRIVING ARM	1
	135-17008	FEED ACROSS REGULATOR	2
	SS-6151220-SP	SCREW 15/64-28 L=11.5	1

Page 16 — 7. THREAD TRIMMING COMPONENTS

Juki LK-1850 (68 pages) parts on page 16

Ref	Part number	Part name	Qty
	1	THREAD TRIMMING COMPONENTS
	2	糸切り関係
	3	1
	4	2
	5	3
	6	4
	7	5
	8	6
	9	7
	10	8
	11	9
	12	10
	13	11
	14	12
	15	13
	16	14
	17	15
	18	16
	19	17
	20	18
	21	19
	22	20
	23	21
	24	22
	25	23
	26	24
	27	25
	28	26
	29	27
	30	28
	31	29
	32	30
	33	31
	34	32
	35	33
	36	34
	37	35
	38	36
	39	37
	40	38
	41	39
	42	40

Page 17

Juki LK-1850 (68 pages) parts on page 17

Ref	Part number	Part name	Qty
	B1506-352-000	TENSION SPRING RACK B	1
	B2410-980-000	TENSION SPRING	1
	SD-0650305-TP	HINGE SCREW D= 6.5 H= 3	2
	B1110-280-000	THREAD CUTTING LINK SPRING RAC	1
	135-15002	THREAD CUTTING LINK	1
	135-15309	THREAD CUTTING LINK	1
	SS-6151440-SP	SCREW 15/64-28 L=14	1
	135-15200	THREAD CUTTING LINK WASHER	1
	135-15101	THREAD CUTTING LINK SHAFT	1
	RC-1021011-KP	RETAINING RING 10.2	1
	135-15408	CONNECTING ROD, LARGE	1
	NS-6120310-SP	NUT 3/16-28	3
	135-15310	ROLLER	1
	SD-0651301-TH	HINGE SCREW D=6.5 H=13	1
	SS-8681950-SP	SCREW 9/32-28 L=19	1
	B2404-280-000	THREAD CUTTING CAM ROLLER	1
	135-14104	CAM STUD	1
	135-34060	THREAD CUTTING CAM COMPL.	1
	135-14906	CONNECTING ROD, SMALL	1
	135-07058	LOWERING LINK ASM.	1
	135-07009	LOWERING LINK	1
	SD-0790402-TP	HINGE SCREW D= 7.94 H=4	(1)
	135-07157	LOWERING LEVER ASM.	(1)
	HS-6150310-SP	NUT 15/64-28	(1)
	135-07405	ROLLER	(1)
	135-07504	WASHER	(1)
	B2015-280-000	STOP RING	(1)
	WP-0982616-SP	WASHER 9.8X24.0X2.6	1
	SS-6741512-TP	SCREW 3/8-28 L=14.5	1
	SD-0901101-SP	HINGE SCREW D= 9 H=11	(1)
	135-14500	AUXILIARY LEVER	1
	135-14609	SHAFT	1
	135-14401	THREAD TRIMMING AUXILIARY CAM	1
	RC-0740816-KO	RETAINING RING	1
	135-14807	CONNECTING PLATE B	1
	SD-0790802-TP	HINGE SCREW D=7.94 H=8	1
	135-15606	SPRING	1
	B1649-161-000	TENSION SPRING ADJUSTING SCREW	1
	NS-6110420-SP	NUT 11/64-40	1
	SS-7110910-TP	SCREW 11/64-40 L= 8.5	2
	WP-0480856-SP	WASHER 4.8X8.4X0.8	2
	135-14708	CONNECTING PLATE A	1

Page 18 — 8. PEDAL PRESSURE DECREASING UNIT COMPONENTS

Juki LK-1850 (68 pages) parts on page 18

Ref	Part number	Part name	Qty
	1	PEDAL PRESSURE DECREASING UNIT COMPONENTS
	2	輕減装置関係
	3
	4
	5
	6
	7
	9
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56

Page 19

Juki LK-1850 (68 pages) parts on page 19

Ref	Part number	Part name	Qty
	135-23188	PRESSURE DECREASING DEVICE
	135-24608	PRESSURE DECREASING LEVER
	135-25100	STUD
	135-24707	LEVER LATCH A
	SS-2110920-TP	SCREW 11/64-40 L=8.5
	SS-7110910-TP	SCREW 11/64-40 L=8.5
	SD-0640321-SP	SCREW D= 6.35 H= 3.2
	135-24806	LEVER LATCH B
	135-25001	SPRING
	135-24905	PRESSURE DECREASING LEVER LINK
	B1110-280-000	THREAD CUTTING LINK SPRING RAC
	SS-8150710-SP	SCREW 15/64-28 L=7
	MAT-80116S00	SUSPENSION PIN
	135-25605	AUXILIARY CAM
	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3
	SS-6110710-TP	SCREW 11/64-40 L=6.5
	135-25704	SPRING
	SS-9151120-CP	SCREW 15/64-28 L=11
	135-23352	PRESSURE DECREASING SHAFT ASM.
	PS-0300162-KH	SPRING PIN 3X16
	135-23113	ROTATING PREVENTING LATCH ASM.
	135-24368	ROTATING PREVENTING LATCH ASM.
	135-24418	SPRING
	SD-0600321-SP	HINGE SCREW D=6 H=3.2
	SS-8620610-SP	SCREW 3/16-32 L=6
	135-24277	DECREASING CLUTCH ASM.
	135-23808	CLUTCH SPRING
	SS-6121212-TP	SCREW 3/16-28 L=12.0
	135-24111	INNER SLEEVE
	135-24004	OUTER SLEEVE
	135-23915	OUTER SLEEVY GUIDE
	RC-1850001-KP	SNAP RING 18.5
	SB-1200003-00	BEARING D=20X42
	135-23428	SHAFT
	SB-3120001-00	BEARING D=12X15
	135-23519	COLLAR A
	135-23600	COLLAR B
	135-25308	IDLER PULLEY INSTALLING PLATE
	SS-6110810-TP	SCREW 11/64-40 L=8
	135-25407	SCREW
	SS-8150822-TP	SCREW 15/64-28 L=8
	135-23212	DRIVING PULLEY
	SS-8151550-SP	SCREW 15/64-28 L=15
	WP-0482086-SD	WASHER 4.8X11.5X2.0
	SS-8620850-SP	SCREW 3/16-32 L= 8.0
	SS-9152130-CP	SCREW 15/64-28 L=20.5
	WP-0621016-SD	WASHER 6.2X13X1
	135-32254	IDLER PULLEY ASM.
	135-32106	IDLER PULLEY BRACKET
	WP-0621016-SD	WASHER 6.2X13X1
	SS-6150760-SN	SCREW 15/64-28 L=6.5
	NS-6150310-SP	NUT 15/64-28
	WP-0612056-SD	WASHER 6.1X18.5X2
	B7810-980-000	TENSION RING
	135-32262	IDLER PULLEY ASM.
	SD-1201501-SP	HINGE SCREW D=12 H=15

Page 20 — 9. STOP-MOTION MECHANISM COMPONENTS

Juki LK-1850 (68 pages) parts on page 20

Ref	Part number	Part name	Qty
	1	PLATE, STOP-MOTION
	2	SCREW, BINDING
	3	WASHER
	4	SPRING
	5	COLLAR
	6	SCREW
	7	NUT
	8	BRACKET, STOP-MOTION
	9	ARM, STOP-MOTION
	10	SPRING
	11	NUT
	12	SCREW
	13	SHAFT, STOP-MOTION
	14	LEVER, STOP-MOTION
	15	SHAFT, STOP-MOTION
	16	SCREW
	17	COLLAR
	18	WASHER
	19	SPRING
	20	WASHER
	21	SHAFT, STOP-MOTION
	22	BLOCK, STOP-MOTION
	23	BRACKET, STOP-MOTION
	24	SPRING
	25	NUT
	26	SPRING
	27	SCREW
	28	WASHER
	29	SCREW
	30	NUT
	31	COLLAR
	32	BRACKET, STOP-MOTION
	33	BLOCK, STOP-MOTION
	34	WASHER
	35	NUT
	36	NUT
	37	SHAFT, STOP-MOTION
	38	SCREW
	39	SCREW
	40	BRACKET, STOP-MOTION
	41	SPRING
	42	SHAFT, STOP-MOTION
	43	SCREW
	44	BRACKET, STOP-MOTION
	45	SPRING
	46	BRACKET, STOP-MOTION
	47	SCREW
	48	NUT
	49	BRACKET, STOP-MOTION
	50	SPRING
	51	BRACKET, STOP-MOTION
	52	SCREW
	53	SHAFT, STOP-MOTION
	54	NUT
	55	SCREW
	56	BRACKET, STOP-MOTION
	57	BRACKET, STOP-MOTION
	58	BRACKET, STOP-MOTION
	59	NUT
	60	LEVER, STOP-MOTION
	61	BRACKET, STOP-MOTION
	62	NUT

Page 21

Juki LK-1850 (68 pages) parts on page 21

Ref	Part number	Part name	Qty
	135-22008	STOP-MOTION REGULATING CAM	1
	WP-0480856-SP	WASHER 4.8X8.4X0.8	3
	SS-6121212-TP	SCREW 3/16-28 L=12.0	3
	RC-0470611-KP	RETAINING RING 4.7	1
	135-22206	ROLLER	1
	135-22107	ROLLER SHAFT	1
	NS-6150430-SP	NUT 15/64-28	1
	NS-6150430-SP	NUT 15/64-28	2
	135-21505	STOP-MOTION ARM B	1
	SS-6681720-TP	SCREW 9/32-28 L=16.5	1
	NS-6680320-SP	NUT 9/32-28	1
	SD-0800402-TP	HINGE SCREW D=8 H=4	2
	135-21604	STOP-MOTION LINK	1
	135-21760	LEVER ASM.	1
	135-21901	REGULATING LEVER STUD	1
	SS-7151120-SP	SCREW 15/64-28 L=11	1
	B2608-280-000	RUBBER CUSHION	3
	B2607-280-000	WASHER	2
	B2606-280-000	PRESSURE SPRING	1
	WP-0751576-SD	WASHER 7.5X19X1.5	1
	B2605-372-000	STOP MOTION PLUNGER ROD	1
	135-37501	STOP-MOTION HOOK	1
	135-20309	PULLEY PRESSING PLATE	1
	SS-8151780-SP	SCREW 15/64-28 L=17.0	1
	NS-6150430-SP	NUT 15/64-28	1
	WP-0621016-SD	WASHER 6.2X13X1	1
	SS-6151440-SP	SCREW 15/64-28 L=14	1
	WP-0612056-SD	WASHER 6.1X18.5X2	1
	WS-0641560-KR	SPRING WASHER 6.4X11.9X1.5	1
	SS-7151330-SP	SCREW 15/64-28 L=13.0	1
	SS-6151412-TP	SCREW 15/64-28 L=14	2
	135-20705	SAFETY PLATE	1
	135-20101	STOP-MOTION LEVER	1
	WP-0751576-SD	WASHER 7.5X19X1.5	1
	NS-6680410-SP	NUT 9/32-28	1
	NS-6680410-SP	NUT 9/32-28	1
	135-20606	STOP-MOTION LEVER PLATE SPRING	1
	SS-5680740-SP	SCREW 9/32-28 L=6.8	1
	135-20004	GUIDE PIN	1
	135-20408	DRIVING PLATE	1
	135-20804	TENSION SPRING	1
	135-20200	STOP-MOTION LEVER SHAFT	1
	135-21307	STARTING SPRING RACK	1
	NS-6150410-SP	NUT 15/64-28	1
	135-21307	TENSION SPRING	1
	135-21216	STARTING LEVER	1
	SD-0640801-TP	HINGE SCREW D=6.35 H=8.0	1
	135-22909	SLIDE ROLLER	1
	WP-0480856-SP	WASHER 4.8X8.4X0.8	1
	NS-6110350-SP	NUT 11/64-40	1
	B3413-552-000	SUSPENSION SCREW	1
	SD-0800402-TP	HINGE SCREW D=8 H=4	1
	135-21406	STOP-MOTION ARM SHAFT	1
	NS-6150310-SP	NUT 15/64-28	1
	SS-6151440-SP	SCREW 15/64-28 L=14	1
	135-21117	STOP-MOTION ARM A	1
	SS-6151812-TP	SCREW 15/64-28 L=18	(1)
	SS-4150915-SP	SCREW 15/64-28 L=9	1
	135-21000	NUT	1
	135-20903	STOP-MOTION CONNECTING LEVER	1
	RE-0400000-KO	E-SHAPED SNAP RING (4MM)	1
	SD-0800352-SP	HINGE SCREW D=8 H=3.5	1

Page 22 — 10. LUBRICATION MECHANISM COMPONENTS

Juki LK-1850 (68 pages) parts on page 22

Ref	Part number	Part name	Qty
1	1	RING
2	2	CAP
3	3	PIPE
4	4	BRACKET
5	5	RING
6	6	BRACKET
7	7	BRACKET
8	8	BRACKET
9	9	BRACKET
10	10	BRACKET
11	11	BRACKET
12	12	SPRING
13	13	SPRING
14	14	PIPE
15	15	PIPE
16	16	PIPE
17	17	VALVE
18	18	VALVE
19	19	SCREW
20	20	CLAMP
21	21	BRACKET
22	22	SCREW
23	23	COVER
24	24	CAP
25	25	BRACKET
26	26	PIPE
27	27	PIPE
28	28	VALVE
29	29	BRACKET
30	30	PIPE
31	31	CAP
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	BRACKET
39	39	BRACKET
40	40	BRACKET
41	41	BRACKET
42	42	NUT
43	43	NUT
44	44	BRACKET
45	45	RING
46	46	SCREW
47	47	RING
48	48	PIPE
49	49	CYLINDER
50	50	PIPE
51	51	SCREW

Page 23

Juki LK-1850 (68 pages) parts on page 23

Ref	Part number	Part name	Qty
	TA-2100904-RO	RUBBER PLUG	5
	TA-1050504-RO	RUBBER PLUG	6
	BP-6000000-00	VINYL PIPE	0.7
	B1419-026-000	OIL WICK PRESSER	3
	TA-1250406-RO	RUBBER PLUG	2
	CQ-2522000-00	OIL WICK	4.7
	B3506-280-000	OIL WICK PRESSER	1
	TA-1250406-RO	RUBBER PLUG	1
	B3507-280-000	OIL FELT	1
	B3509-280-000	NEEDLE ROD CRANK LUBRICATING	4
	B3518-280-000	BALANCE LUBRICATING	2
	B3508-280-000	BALANCE LUBRICATING PLATE	1
	SS-6092120-SP	SCREW 9/64-40 L=21.2	1
	BP-3000001-00	VINYL TUBE	2.5
	135-30001	UPPER SHAFT FRONT METAL OIL VI	1
	135-29805	LUBRICATING TANK	1
	SS-4090515-SP	SCREW 9/64-40 L=5	2
	B3506-761-000	OIL WICK HOLDER	1
	SS-4110715-SP	SCREW 11/64-40 L=7	11
	135-30209	LUBRICATING OIL WICK STOPPER	1
	TA-0750704-RO	RUBBER PLUG	1
	135-01408	SILICON OIL POURING HOLE
	135-29904	LUBRICATING TANK FELT	1
	B3503-980-000	GREASE CAP	1
	135-28708	REAR METAL BUSH	1
	B3512-280-000	CRANK ROD LUBRICATING PLATE	2
	135-29201	CRANK LUBRICATING FELT	1
	135-29102	OIL FELT	1
	135-28500	OSCILLATOR LUBRICATING PLATE	1
	B3515-280-000	OSCILLATOR LUBRICATING FELT	1
	TA-1450404-RO	RUBBER PLUG D=14.5 L=4	1
	WP-0621016-SD	WASHER 6.2X13X1	1
	SS-6111140-SP	SCREW 11/64-40 L=11	1
	SS-4110515-SP	SCREW 11/64-40 L=5	1
	B3502-280-000	LUBRICATING TANK FELT	1
	B3504-280-000	SHUTTLE FELT	2
	135-28807	HOOK OIL WICK STOPPER A	1
	B3541-012-000	OIL WICK	1
	135-29706	OIL FELT HOLDER	1
	SS-4110515-SP	SCREW 11/64-40 L=5	1
	B3523-980-000	OIL WICK PIPE STOPPER	1
	SS-9110543-CP	SCREW 11/64-40 L=5.3	1
	135-28906	HOOK OIL WICK STOPPER B	1
	B3505-280-000	SHUTTLE LUBRICATING PLATE	1
	135-29607	SHUTTLE PACKING	2
	SS-6090440-SP	SCREW 9/64-40 L=4.0	2
	TA-1050504-RO	RUBBER PLUG
	135-01705	SILICON OIL FELT
	135-01309	SILICON OIL PIPE
	B1127-280-000	SILICON OIL THREAD GUIDE
	SS-4110515-SP	SCREW 11/64-40 L=5

Page 24 — 11. TABLE COMPONENTS

Juki LK-1850 (68 pages) parts on page 24

Ref	Part number	Part name	Qty
7	7	BOLT
8	8	BOLT
9	9	WASHER
10	10	SCREW
11	11	BRACKET
12	12	WASHER
13	13	NUT
14	14	BRACKET
15	15	BOLT
16	16	WASHER
17	17	WASHER
18	18	NUT
19	19	COLLAR
20	20	NUT
21	21	WASHER
22	22	WASHER
23	23	BOLT
24	24	BOLT
25	25	BOLT
26	26	BOLT
27	27	BOLT
28	28	BOLT
29	29	BOLT
30	30	PULLEY
32	32	PIPE
33	33	PIPE
34	34	PIPE
35	35	PIPE
36	36	PIPE
37	37	LEG
38	38	LEG
39	39	BRACKET
40	40	SCREW
41	41	BRACKET
42	42	BOLT
43	43	WASHER
44	44	WASHER
45	45	LEG
46	46	BOLT
47	47	WASHER
48	48	WASHER
49	49	BRACKET
50	50	BOLT
51	51	WASHER
52	52	WASHER
53	53	BRACKET
54	54	BRACKET
55	55	LEG
56	56	CAP
57	57	BOLT
58	58	WASHER
59	59	WASHER
60	60	BRACKET
61	61	WASHER
62	62	BOLT
63	63	NUT
64	64	BRACKET
65	65	WASHER
66	66	NUT
67	67	BRACKET
68	68	PIN
69	69	BRACKET
70	70	WASHER
71	71	BOLT
72	72	PIN
73	73	PEDAL
74	74	BRACKET
75	75	WASHER
76	76	BOLT
77	77	BRACKET
78	78	COVER
79	79	WASHER
80	80	WASHER
81	81	SCREW

Page 25

Juki LK-1850 (68 pages) parts on page 25

Ref	Part number	Part name	Qty
	135-34102	TABLE	1
	B8204-012-000	DRAWER SUPPORT	2
	SK-3311600-SC	WOOD SCREW D=3.1 L=16	6
	D8203-555-B00	DRAWER	1
	B8205-012-000	DRAWER STOPPER	1
	SK-3482500-SC	WOOD SCREW D=4.8 L=25	2
	SS-9156830-SP	SCREW 15/64-28 L=68	3
	MTJ-HS000000	MOUNTING BOLT	4
	B8133-019-000	S SHAPED HOOK	2
	SK-3311600-SE	WOOD SCREW D=3.1 L=16	3
	B8236-771-000	OIL REMOVING FUNNEL	1
	VP-0621210-SD	WASHER 6.2X13X1	3
	VP-0621016-SD	WASHER 6.2X13X1	3
	NS-6150310-SP	NUT 15/64-28	3
	B7101-761-BAO	MOTOR BASE ASM.	1
	NM-6060001-SE	NUT M6	4
	WS-0621210-KR	SPRING WASHER 6.2X11.4X1.2	4
	VP-0612050-SE	WASHER 6.1X18.5X2	8
	SM-9063213-CH	SCREW M6 L=32	4
	WP-0850002-SC	WASHER 8.5X18X1.6	4
	WS-0902010-KN	SPRING WASHER 9.0X15.0X2.0	4
	NS-6200710-SN	NUT 5/16-18	4
	135-31108	MOTOR PULLEY 50HZ 2300 SPM	1
	135-31207	MOTOR PULLEY 50HZ 2000 SPM	1
	135-31306	MOTOR PULLEY 50HZ 1800 SPM	1
	135-31405	MOTOR PULLEY 60HZ 2300 SPM	1
	135-31504	MOTOR PULLEY 60HZ 2000 SPM	1
	135-31603	MOTOR PULLEY 60HZ 1800 SPM	1
	135-53706	MOTOR PULLEY 60HZ 1500 SPM	1
	SS-8150822-TP	SCREW 15/64-28 L=8	2
	B131-019-000	CHAIN	1
	MTJ-VH005000	V-BELT, 50INCH	1
	MTJ-VH004900	V-BELT, 49 INCH	1
	MTJ-VH004800	V BELT 48 INCHES	1
	MTJ-VH004700	V BELT 47 INCHES	1
	MTJ-VH004600	V-BELT, 46 INCH	1
	B8101-980-0AO	TABLE STAND ASM.	1
	B8102-552-000	HEIGHT ADJUSTING STAND ASM., R	(1)
	B8101-552-000	HEIGHT ADJUSTING STAND ASM., L	(1)
	SK-3514000-SC	WOOD SCREW D=5.1 L=40	4
	B8104-552-000	TABLE SUPPORT	(2)
	B8082023-SE	SCREW M8 L=20	(4)
	WS-0861410-KR	SPRING WASHER 8.6X15X1.4	(4)
	WP-0871602-SE	WASHER 8.7X18X1.6	(4)
	B8111-552-000	STAND (RIGHT) ASM.	(1)
	SD-1204315-SE	HINGE SCREW D=12 H=43.1	(4)
	WS-1253010-KN	SPRING WASHER 12.5X21.5X3	(4)
	WP-1252210-SC	WASHER 12.5X25.6X2.2	(4)
	B8105-552-000	STAND SIDE SUPPORT ASM.	(1)
	SM-9082023-SE	SCREW M8 L=20	(1)
	WS-0861410-KR	SPRING WASHER 8.6X15X1.4	(1)
	WP-0871602-SE	WASHER 8.7X18X1.6	(1)
	B8126-552-0AE	OIL HOLDER ASM.	(1)
	NM-6080721-SE	NUT M8	(1)
	B8103-552-000	STAND ASM.	(1)
	NM-6120003-SE	NUT M12	(4)
	B8108-555-000	ADJUSTING SCREW ASM.	(4)
	B8108-555-0AO	ADJUSTING SCREW ASM. WITH CAP	(4)
	B8112-552-000	LEG BOTTOM SUPPORT BRACKET	(2)
	WP-0871602-SE	WASHER 8.7X18X1.6	(2)
	WS-0861410-KR	SPRING WASHER 8.6X15X1.4	(2)
	WS-0881410-KR	SCREW M8 L=20	(2)
	SM-9082023-SE	SCREW M8 L=20	(1)
	B8107-552-000	LEG BOTTOM SUPPORT	(1)
	WP-0871602-SE	WASHER 8.7X18X1.6	(4)
	NM-6080721-SE	NUT M8	(2)
	B8151-771-000	PEDAL	(1)
	D8113-555-B00	PEDAL BUSHING	(2)
	D8114-552-BOE	PEDAL SHAFT BRACKET	(2)
	WS-0861410-KR	SPRING WASHER 8.6X15X1.4	(2)
	SM-9082023-SE	SCREW M8 L=20	(1)
	B8153-771-000	PEDAL CONNECTING ROD	(1)
	B8152-771-000	PEDAL MAT	(1)
	B8125-280-000	PEDAL ADJUSTING PLATE	(1)
	WS-0621210-KR	SPRING WASHER 6.2X11.4X1.2	(2)
	WS-0621210-KR	SPRING WASHER 6.2X11.4X1.2	(2)
	SH-9061203-SE	SCREW M6 L=12	(2)
	B8211-771-00A	GUARD PLATE	1
	WP-0621016-SE	WASHER 6.2X13X1	3
	WS-0521010-KN	SPRING WASHER 5.2X8.2X1	3
	SK-3482500-SC	WOOD SCREW D=4.8 L=25	3

Page 26 — TABLE COMPONENTS (For Urban White)

Juki LK-1850 (68 pages) parts on page 26

Ref	Part number	Part name	Qty
20	20	SCREW
19	19	BRACKET
11	11	BRACKET
10	10	BRACKET
9	9	BRACKET
8	8	BRACKET
7	7	BRACKET
5	5	BRACKET
4	4	BRACKET
3	3	BOX
2	2	BRACKET
1	1	TABLE
13	13	COVER
16	16	WASHER
15	15	WASHER
18	18	WASHER
17	17	BOLT
14	14	NUT
12	12	BRACKET
21	21	BRACKET
27	27	BOLT
28	28	WASHER
29	29	WASHER
23	23	BRACKET
30	30	BOLT
24	24	BRACKET
26	26	BRACKET
22	22	BRACKET
31	31	WASHER
32	32	WASHER
33	33	NUT

Page 27

Juki LK-1850 (68 pages) parts on page 27

Ref	Part number	Part name	Qty
	138-17507	TABLE	1
	111-55207	DRAWER SUPPORT	2
	111-55108	DRAWER	1
	D8204-555-D00	DRAWER STOPPER	1
	135-08056	T-STAND COMPL.	1
	111-57559	T-STAND ASM.	(1)
	111-57658	STAND UPPER, RIGHT	(1)
	111-57757	STAND UPPER, LEFT	(1)
	111-57955	STUD ASH., RIGHT	(1)
	111-58052	STRUT JUNCTION (LEFT)	(1)
	111-58300	STAND SIDE SUPPORT	(1)
	111-58409	STAND SIDE SUPPORT	(1)
	111-58607	RUBBER CAP	(4)
	170-07402	NUT	(2)
	WP-1302501-SE	WASHER M12	(4)
	WS-1253010-KN	SPRING WASHER 12.5X21.5X3	(4)
	B8108-555-0A0	ADJUSTING SCREW ASM. WITH CAP	(4)
	NM-6120003-SE	NUT M12	(4)
	111-58508	PLATE	(2)
	SL-9082091-SE	WASHER HEXAGONAL BOLT	(12)
	138-17754	Z-STAND PEDAL ASM.	(1)
	GPF-060600A0	PEDAL ASM.	(1)
	GPF-06080000	PEDAL ADJUSTING PLATE	(1)
	111-59001	PEDAL SHAFT BRACKET	(1)
	B8153-771-000	PEDAL CONNECTING ROD	(1)
	D8113-555-B00	PEDAL BUSHING	(2)
	SM-9061203-SE	SCREW M6 L=12	(2)
	WP-0671016-SE	WASHER 6.7X13X1	(2)
	WS-0621210-KR	SPRING WASHER 6.2X11.4X1.2	(2)
	SM-9082023-SE	SCREW M8 L=20	(2)
	WP-0871602-SE	WASHER 8.7X18X1.6	(4)
	WS-0861410-KR	SPRING WASHER 8.6X15X1.4	(2)
	NM-6080721-SE	NUT M8	(2)

Page 28 — 13. LK-1850 SERIES SUBCLASSES

Juki LK-1850 (68 pages) parts on page 28

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	SCREW
3	3	GEAR
4	4	BRACKET
5	5	BRACKET
6	6	BRACKET
7	7	BRACKET
8	8	SCREW
9	9	BRACKET
10	10	SCREW
11	11	WASHER
12	12	SPRING
13	13	SCREW
14	14	SCREW
15	15	SCREW
16	16	SCREW
17	17	BRACKET
18	18	SCREW
19	19	BRACKET
20	20	SHAFT
21	21	CIR-CLIP
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	SHAFT
26	26	NUT
27	27	SPRING
28	28	SCREW
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	SCREW
33	33	BRACKET
34	34	SCREW
35	35	BRACKET
36	36	NUT
37	37	PLATE
38	38	SCREW
39	39	WASHER
40	40	SCREW
41	41	BRACKET
42	42	BRACKET
43	43	WASHER
44	44	BRACKET
45	45	BRACKET
46	46	SCREW
47	47	WASHER
48	48	BRACKET
49	49	SCREW
50	50	PLATE
51	51	BRACKET
52	52	SCREW
53	53	SCREW
54	54	BRACKET
55	55	ROD
56	56	PIN
57	57	SCREW
58	58	ROD
59	59	BRACKET
60	60	BRACKET
61	61	BRACKET
62	62	SCREW
63	63	SCREW
64	64	BRACKET
65	65	SCREW
66	66	BRACKET
67	67	BRACKET
68	68	PLATE
69	69	SCREW
70	70	NUT
71	71	WASHER

Page 29 — FIG. 1 LK-1852-1

Juki LK-1850 (68 pages) parts on page 29

Ref	Part number	Part name	Qty
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-10953	FEED CAH WHEEL ASM.	1
	135-41750	FINGER GUARD ASM.	1
	SS-7111120-SP	SCREW 11/64-40 L=10.5	1
	135-40752	WORK CLAMP FOOT BRACKET ASM.	1
	135-41602	WORK CLAMP FOOT SPRING HOLDER	(1)
	SS-7110840-SP	SCREW 11/64-40 L=7.8	(2)
	135-41404	WORK CLAMP FOOT LIFTING PLATE	(1)
	SS-9151120-CP	SCREW 15/64-28 L=11	(2)
	WP-0612516-SD	WASHER 6.1X15.2X2.5	(2)
	D2529-232-D00	PRESSER SPRING	(1)
	D2545-232-D0A	HINGE SCREW	(2)
	D2513-232-D00	BRACKET GUIDE ASM.	(1)
	NS-6110530-SP	NUT 11/64-40	(1)
	D2509-232-D00	STATIONING LATCH	(1)
	D2511-232-D00	TORSION SPRING	(1)
	D2504-282-AB0-A	KNOB FOOT MOUNT BASE ASM.	(1)
	D2502-232-D00	SHAFT BLOCK SHAFT	(1)
	RE-0700000-KO	SNAP RING 7	(2)
	SS-9110920-CP	SCREW 11/64-40 L=9	(1)
	D2510-232-D00	WORK CLAMP FOOT REGULATOR	(1)
	D2528-232-D00	SHAFT	(1)
	D2527-232-D00	SLEEVE	(1)
	B3117-352-D00	THREAD TENSION POST NUT	(2)
	D2515-232-D00	TORSION SPRING	(1)
	SS-7110840-SP	SCREW 11/64-40 L=7.8	(2)
	135-41107	WORK CLAMP FOOT SPRING HOLDER	(1)
	135-41057	CLAMP GUIDE FOOT ASM.	(1)
	D2520-232-D00	WORK CLAMP FOOT (LEFT) ASM.	(1)
	SS-1110640-TP	SCREW 11/64-40 L=5.5	(2)
	D2521-232-D00	WORK CLAMP FOOT (RIGHT) ASM.	(1)
	D2502-271-TP	HINGE SCREW D= 5.50 H= 2.7	(2)
	D2519-232-D00	WORK CLAMP FOOT PLATE CAM	(1)
	NS-6120480-SP	NUT 3/16-28	(2)
	135-40503	FEED PLATE	(1)
	SS-9110460-CP	SCREW 11/64-40 L=4	(1)
	WP-061016-SD	WASHER 5X10.5X1	(1)
	SS-9110460-CP	SCREW 11/64-40 L=4	(2)
	SS-9110460-CP	SCREW 11/64-40 L=4	(1)
	135-40802	SHAFT BRACKET BASE	(1)
	135-40901	STATIONING BLOCK SHAFT	(1)
	D2548-232-D00	SNAP RING, FOR CONNECTING ROD	(1)
	D2507-232-D00	STATIONING BLOCK	(1)
	NS-6150310-SP	NUT 15/64-28	(1)
	SS-9151120-CP	SCREW 15/64-28 L=11	(1)
	WP-0612516-SD	WASHER 6.1X15.2X2.5	(1)
	135-40703	WORK CLAMP FOOT BRACKET ASM.	(1)
	SS-9150710-TP	BOLT 15/64-28 L=6.5	(1)
	135-41206	WORK CLAMP FOOT PLATE COVER	(1)
	135-41354	CONNECTING ARM ASM.	1
	SS-6151712-TP	SCREW 15/64-28 L=16.5	(1)
	SD-1201501-SP	HINGE SCREW D=12 H=15	1
	WP-0651056-SH	WASHER 6.5X11X1	1
	135-40604	DRIVING BAR B	1
	PD-0201000-OB	SPLIT PIN	2
	SS-7090610-SP	SCREW 9/64-40 L=6	2
	135-40505	DRIVING BAR A	1
	SD-0900701-TP	HINGE SCREW D= 9 H= 7	1
	135-40406	WASHER	1
	135-40307	LEVER	1
	135-40208	LINK	1
	SD-0640321-SP	HINGE SCREW D= 6.35 H= 3.2	1
	135-40109	STOP-MOTION REGULATING ARM B	1
	SD-0640241-SP	HINGE SCREW D= 6.35 H= 2.4	1
	135-41800	FEED CAM	1
	135-38301	STOP-MOTION REGULATING CAM	1
	SS-6090510-SP	SCREW 9/64-40 L=5	1
	NS-6090310-SP	NUT 9/64-40	1
	WP-0612066-SP	WASHER 6.1X11X2	1

Page 30

Juki LK-1850 (68 pages) parts on page 30

Ref	Part number	Part name	Qty
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-42402	WORK CLAMP FOOT, RIGHT	1
	135-42501	WORK CLAMP FOOT, LEFT	1
	135-42303	FEED PLATE	1
	135-41800	FEED CAM	1
	135-38301	STOP-MOTION REGULATING CAM	1
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-42915	WORK CLAMP FOOT, RIGHT	1
	135-43012	WORK CLAMP FOOT, LEFT	1
	135-42816	CLOTH PRESSER PLATE	1
	D2426-282-C00	NEEDLE HOLE GUIDE	1
	MDP-500B1100	NEEDLE DPX5 #11	1
	HC-2005007-50	NEEDLE 134 75	1
	135-42709	FEED CAM	1
	135-38301	STOP-MOTION REGULATING CAM	1
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-43202	FEED CAM	1
	135-38301	STOP-MOTION REGULATING CAM	1
	135-42915	WORK CLAMP FOOT, RIGHT	1
	135-43012	WORK CLAMP FOOT, LEFT	1
	135-43103	FEED CAM	1
	135-42816	CLOTH PRESSER PLATE	1
	D2426-282-C00	NEEDLE HOLE GUIDE	1
	MDP-500B1100	NEEDLE DPX5 #11	1
	135-39200	STOP-MOTION REGULATION CAM	1

Page 31 — TAIL OF EYELET BUTTONHOLE BAR TACKING MACHINE (21 STITCHES)

Juki LK-1850 (68 pages) parts on page 31

Ref	Part number	Part name	Qty
	135-41756	FINGER GUARD ASM.
	SS-7111120-SP	SCREW 11/64-40 L=10.5
	135-40752	WORK CLAMP FOOT BRACKET ASM.
	SD-0791271-SP	HINGE SCREW D= 7.94 H=12.7
	135-41354	CONNECTING ARM ASM.
	SS-6151712-TP	SCREW 15/64-28 L=16.5
	PD-0201000-0B	SPLIT PIN
	135-40604	DRIVING BAR B
	SS-7090610-SP	SCREW 9/64-40 L=6
	135-40505	DRIVING BAR A
	SD-0900701-TP	HINGE SCREW D= 9 H=7
	135-40406	WASHER
	135-40307	LINK
	135-40208	LEVER
	SD-0640321-SP	HINGE SCREW D= 6.35 H= 3.2
	135-40109	STOP-MOTION REGULATING ARM B
	SD-0640241-SP	HINGE SCREW D= 6.35 H= 2.4
	135-40208	FEED CAM
	135-39200	STOP-MOTION REGULATION CAM
	135-42303	FEED PLATE
	135-42402	WORK CLAMP FOOT, RIGHT
	135-42501	WORK CLAMP FOOT, LEFT
	135-41909	FEED CAM
	135-39200	STOP-MOTION REGULATION CAM

Page 33 — (9) LK-1852-210 LAEGE SIZE BAR TACKING MACHINE (28 STITCHES)

Juki LK-1850 (68 pages) parts on page 33

Ref	Part number	Part name	Qty
1	135-10862	WORM ASM.
2	SS-7111410-TP	SCREW 11/64-40 L=14
3	135-10953	FEED CAM DRIVING WHEEL ASM.
4	135-64901	FEED CAM 1852-210
5	135-38301	STOP-MOTION REGULATING CAM

Page 34

Juki LK-1850 (68 pages) parts on page 34

Ref	Part number	Part name	Qty
	10	LK-1854-10
	11	SCREW
	12	WASHER
	13	SCREW
	14	BRACKET
	15	BRACKET
	16	SCREW
	17	SPRING
	18	SCREW
	19	BRACKET
	20	BRACKET
	21	SPRING
	22	BRACKET
	23	BRACKET
	24	NUT
	25	LEVER
	26	SCREW
	27	WASHER
	28	COLLAR
	29	NUT
	30	COVER
	31	COVER
	32	PLATE
	33	NUT
	34	PLATE
	35	WHEEL
	36	PLATE
	37	BRACKET
	38	BRACKET
	39	BRACKET
	40	BRACKET
	41	BRACKET
	42	BRACKET
	43	SCREW
	44	BRACKET
	45	CHAIN
	46	BRACKET
	47	BRACKET
	48	BRACKET
	49	BRACKET
	50	WHEEL
	51	PLATE
	52	PLATE
	53	PLATE
	54	PLATE
	55	BRACKET
	56	SHAFT
	57	SHAFT
	58	SCREW
	59	GEAR
	60	BRACKET
	61	LEVER
	62	CHAIN
	63	BRACKET
	64	BRACKET
	65	SPRING
	66	BRACKET
	11	SCREW
	13	SCREW
	16	SCREW
	18	SCREW
	26	SCREW
	43	SCREW
	58	SCREW

Page 35 — LK-1854-10 BELT LOOP ATTACHING MACHINE (21 STITCHES)

Juki LK-1850 (68 pages) parts on page 35

Ref	Part number	Part name	Qty
	135-44416	CLOTH PRESSER FOOT
	135-43764	CLOTH FEED BASE ASM.
01	135-44465	CLOTH FEEDER FOOT ASM.
	SS-7120910-SP	SCREW 3/16-28 L=9
	135-44614	CLOTH FEED BASE COVER
	135-43715	CLOTH FEED BASE
	B2539-280-000	STUD
	CS-087101B-SH	THRUST COLLAR ASM. D=8.73 W=10
	SS-8150822-TP	SCREW 15/64-28 L=8
	135-43800	BALL HOLDER
	SS-7151210-SP	SCREW 15/64-28 L=12
	B2549-280-000	WORK CLAMP FOOT MOUNTING BASE
	B2548-280-000	BALL RETAINER
	SS-7110740-TP	SCREW 11/64-40 L=7
	135-43905	SPRING SUSPENSION
	SS-6120940-SP	SCREW 3/16-28 L=9
	135-44705	SPRING
	B3413-552-000	SUSPENSION SCREW
	135-44051	LIFTING LEVER ASM.
	SS-8150822-TP	SCREW 15/64-28 L=8
	135-22503	TENSION SPRING
	135-44853	THREAD GUIDE ASM.
	135-26801	THREAD GUIDE BRACKET
	NS-6110310-SP	NUT 11/64-40
	135-44804	THREAD GUIDE
	B3219-232-000	BOBBIN WINDER TENSION POST
	B3214-047-000	BOBBIN WINDER TENSION DISC
	B3218-232-000	BOBBIN WINDER TENSION SPRING
	B3216-047-000	BOBBIN WINDER TENSION NUT
	135-45207	TABLE (FOR BELT LOOP)
03	135-09401	TABLE (FOR BELT LOOP)
	SS-2110930-SP	SCREW 11/64-40 L=8.7
	135-43509	FEED PLATE HOLDER
	NS-6150540-SP	NUT 15/64-28
	135-43400	FEED CAM
	135-39200	STOP-MOTION REGULATION CAM
	135-44952	PEDAL SHAFT
	135-44903	PEDAL LEVER
	WP-1021016-SD	WASHER
	RE-0900000-KO	SNAP RING 9.0
	135-45009	PEDAL SHAFT BRACKET
	SK-3483200-SP	WOOD SCREW D=4.8 L=32
	SS-6661110-SP	SCREW 1/4-40 L=11
	135-45157	PEDAL LEVER ASM. (BELT LOOP)
	D8103-284-K00	CHAIN (0.3M)
	B8133-019-000	S SHAPED HOOK
	135-43008	FEED PLATE
02	135-43764	CLOTH FEED BASE ASM.
01	135-44465	CLOTH PRESSER FOOT ASM.
	135-45306	FEED CAM
	135-38301	STOP-MOTION REGULATING CAM
02	135-43608	FEED PLATE
02	135-45207	TABLE (FOR BELT LOOP)
03	135-09401	TABLE (FOR BELT LOOP)
02	NS-6150540-SP	NUT 15/64-28
02	SS-2110930-SP	SCREW 11/64-40 L=8.7
	135-10862	FEED CAM DRIVING WHEEL ASM.
	SS-7111410-TP	THREAD GUIDE ASM.
	135-44853	THREAD GUIDE
02	135-44804	THREAD GUIDE
02	B8103-219-000	CHAIN (0.3M)
02	135-22503	S SHAPED HOOK
02	135-43509	FEED PLATE HOLDER
02	135-44952	PEDAL LEVER
	135-22503	TENSION SPRING
02	135-44416	CLOTH PRESSER FOOT
02	135-43509	FEED PLATE HOLDER

Page 36

Juki LK-1850 (68 pages) parts on page 36

Ref	Part number	Part name	Qty
	135-10953	FEED CAN DRIVING WHEEL ASM.	1
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	4
	135-45611	CLOTH PRESSER FOOT	1
	135-51569	CLOTH FEED BASE (ASM.)	1
#02	135-45660	WORK CLAMP FOOT ASM.
#01	135-44853	THREAD GUIDE ASM.
	135-44804	THREAD GUIDE
	135-45504	FEED PLATE
#01	SS-2110930-SP	SCREW 11/64-40 L=8.75
#01	135-43509	FEED PLATE HOLDER
#01	NS-6150540-SP	NUT 15/64-28
#01	135-45207	TABLE (FOR BELT LOOP)
#04	135-09401	TABLE (FOR BELT LOOP)
	135-54100	FEED CAM
#03	135-54100	FEED CAM
	135-38301	STOP-MOTION REGULATING CAM
#01	D8103-284-K00	CHAIN (0.3M)
#01	B8133-019-000	S SHAPED HOOK
#01	135-22503	TENSION SPRING
	135-45611	CLOTH PRESSER FOOT
	135-51569	CLOTH FEED BASE (ASH.)
#02	135-45660	WORK CLAMP FOOT ASM.
	VP-0612066-SP	WASHER 6.1X11X2
	SS-6090510-SP	SCREW 9/64-40 L=5
	135-47807	FEED STOP WASHER
	NS-6090310-SP	NUT 9/64-40
	135-45504	FEED PLATE
#01	135-44853	THREAD GUIDE ASM.
#01	135-44804	THREAD GUIDE
	135-47302	FEED PLATE (FOR BELT LOOP)
#01	135-45207	TABLE (FOR BELT LOOP)
#04	135-09401	FEED PLATE
#03	135-47112	CLOTH PRESSER FOOT
#03	135-47005	FEED CLOTH BASE ASM.
#01	135-44952	WORK CLAMP FOOT ASM.
#01	D8103-284-K00	CHAIN (0.3M)
#01	B8133-019-000	S SHAPED HOOK
#01	135-22503	TENSION SPRING
#01	135-46908	FEED CAM (1854-40)
	135-46908	FEED CAM

Page 37

Juki LK-1850 (68 pages) parts on page 37

Ref	Part number	Part name	Qty
	135-47500	STOP-MOTION SPRING	1
	135-45959	PEDAL TYPE PRESSER ASM.	(1)
	135-45959	PEDAL TYPE PRESSER ASM.	(1)
	135-45907	LOVERING LEVER	(1)
	NS-6110350-SP	NUT 11/64-40	(4)
	135-40106	LOVERING LINK	(1)
	135-46205	LOVERING CONNECTING PLATE	(1)
	SD-0640324-TP	HINGE SCREW D= 6.35 H= 3.2	(2)
	135-45900	INSTALLING BASE	(1)
	NS-6110310-SP	NUT 11/64-40	(2)
	B1649-161-000	TENSION SPRING ADJUSTING SCREW	(1)
	135-21307	TENSION SPRING	(1)
	SD-0640801-TP	HINGE SCREW D= 6.35 H= 8.0	(1)
	B2007-372-000	NIPPER BAR SPRING SCREW	(1)
	SS-9151210-TP	SCREW 15/64-28 L=11.8	(1)
	SD-0640801-TP	HINGE SCREW D= 6.35 H= 8.0	(1)
	RC-1831018-KC	RETAINING RING	(2)
	SB-1090002-00	BALL BEARING	(2)
	135-47401	PULLEY SHAFT COLLAR	(1)
	SS-61101030-SP	SCREW 3/16-28 L=10	(1)
	135-25308	IDLER PULLEY INSTALLING PLATE	(1)
	SS-6110810-TP	SCREW 11/64-40 L=8	(3)
	135-23204	DRIVING PULLEY	(1)
	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
	B8133-019-000	S SHAPED HOOK	1
	135-46809	BELT COVER	1
	135-05904	BELT COVER	1
	B8151-771-000	PEDAL ASM.	1
	138-17754	Z-STAND PEDAL ASM.	(2)
	SM-9061203-SE	SCREW H6 L=12	(2)
	WS-0861210-KR	SPRING WASHER 6.2X11.4X1.2	(2)
	WP-0671016-SE	WASHER 6.7X13X1	(2)
	88125-280-000	PEDAL ADJUSTING PLATE	(1)
	SM-9082023-SE	SCREW H8 L=20	(2)
	WS-0861410-KR	SPRING WASHER 8.6X15X1.4	(2)
	WP-0671602-SE	WASHER 8.7X18X1.6	(4)
	NW-6080721-SE	NUT H8	(2)
	D8114-555-B00	PEDAL SHAFT BRACKET	(1)
	B8151-771-000	PEDAL	(1)
	B8152-771-000	PEDAL CONNECTING ROD	(1)
	D8113-555-B00	PEDAL BUSHING	(2)
	135-05904	BELT COVER	1
	135-46809	BELT COVER	1
	135-47401	PULLEY SHAFT COLLAR	(1)
	135-46502	PULLEY BUSHING	(1)
	135-47500	STOP-MOTION SPRING	1
	135-45959	PEDAL TYPE PRESSER ASM.	(1)

Page 38

Juki LK-1850 (68 pages) parts on page 38

Ref	Part number	Part name	Qty
	1	Lever
	2	Shaft
	3	Bracket
	4	Bracket
	5	Screw
	6	Frame
	7	Shaft
	8	Roller
	9	Screw
	10	Lever
	11	Screw
	12	Screw
	13	Shaft
	14	Screw
	15	Lever
	16	Screw
	17	Screw
	18	Spring
	19	Shaft
	20	Screw
	21	Shaft
	22	Lever
	23	Screw
	24	Base Plate
	25	Screw
	26	Spring
	27	Screw
	28	Lever
	29	Shaft
	30	Screw
	31	Screw
	32	Shaft
	33	Screw
	34	Screw
	35	Roller
	36	Pulley
	37	Cover
	38	Spring
	39	Bracket
	40	Pulley
	41	Washer
	42	Base Plate
	43	Cover
	44	Cover
	45	Cover
	46	Cover
	47	Cover
	48	Shaft
	49	Lever
	50	Lever
	51	Spring
	52	Shaft
	53	Screw
	54	Screw
	55	Lever
	56	Screw

Page 39 — LK-1854P-10 BELT LOOP ATTACHING MACHINE FOR P (21 STITCHES)

Juki LK-1850 (68 pages) parts on page 39

Ref	Part number	Part name	Qty
	135-44416	CLOTH PRESSER FOOT
	135-43764	CLOTH FEED BASE ASM.
	135-44465	CLOTH PRESSER FOOT ASM.
	135-44614	CLOTH FEED BASE COVER
	SS-7120910-SP	SCREW 3/16-28 L=9
	135-43715	CLOTH FEED BASE
	B2539-280-000	STUD
	CS-087101B-SH	THRUST COLLAR ASM. D=8.73 W=10
	SS-8150822-TP	SCREW 15/64-28 L=8
	135-43806	BALL HOLDER
	SS-7151210-SP	SCREW 15/64-28 L=12
	B2549-280-000	WORK CLAMP FOOT MOUNTING BASE
	B2548-280-000	BALL RETAINER
	SS-7110740-TP	SCREW 11/64-40 L=7
	135-43905	SPRING SUSPENSION
	SS-6120940-SP	SCREW 3/16-28 L=9
	135-44705	SPRING
	B3413-552-000	SUSPENSION SCREW
	135-44051	LIFTING LEVER ASM.
	SS-8150822-TP	SCREW 15/64-28 L=8
	135-44853	THREAD GUIDE ASM.
	135-44804	THREAD GUIDE
	SS-2110930-SP	SCREW 11/64-40 L=8.7
	135-43509	FEED PLATE HOLDER
	NS-6150540-SP	NUT 15/64-28
	B8133-019-000	S SHAPED HOOK
	D8103-284-K00	CHAIN (0.3M)
	135-44952	PEDAL LEVER
	135-44903	PEDAL SHAFT
	WP-1021016-SD	WASHER
	RE-0900000-KO	SNAP RING 9.0
	135-45009	PEDAL SHAFT BRACKET
	SK-3483200-SE	WOOD SCREW D=4.8 L=32
	SS-6661110-SP	SCREW 1/4-40 L=11
	135-45157	PEDAL LEVER ASM. (BELT LOOP)
	135-45959	PEDAL TYPE PRESSER ASM.
	135-43608	FEED PLATE
	135-47500	STOP-MOTION SPRING
	135-46601	SAFETY PLATE
	135-43400	FEED CAM
	135-39200	STOP-MOTION REGULATION CAM
	B8151-771-0A0	PEDAL ASM.
	138-17754	Z-STAND PEDAL ASM.
	135-46809	BELT COVER
	135-45207	BELT COVER
	135-45207	TABLE (FOR BELT LOOP)
	135-09401	TABLE (FOR BELT LOOP)
	135-47658	PEDAL SHAFT ASM.
	135-45009	PEDAL SHAFT BRACKET
	WP-1021016-SD	WASHER
	RE-0900000-KO	SNAP RING 9.0
	135-47609	PEDAL SHAFT
	SK-3483200-SE	WOOD SCREW D=4.8 L=32
	SS-6661110-SP	SCREW 1/4-40 L=11
	135-47757	PEDAL LEVER ASM.
	D8103-984-K00	CHAIN

Page 40

Juki LK-1850 (68 pages) parts on page 40

Ref	Part number	Part name	Qty
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-44416	CLOTH PRESSER FOOT	1
	135-43764	CLOTH FEED BASE ASM.	1
	135-44465	CLOTH PRESSER FOOT ASM.	1
	135-45306	FEED CAM	1
	135-38301	STOP-MOTION REGULATING CAM	1
	135-47500	STOP-MOTION SPRING	1
	135-46601	SAFETY PLATE.	1
	135-45959	PEDAL TYPE PRESSER ASH.	1
	135-43608	FEED PLATE	1
	NS-6150540-SP	NUT 15/64-28	1
	135-43509	FEED PLATE HOLDER	1
	SS-2110930-SP	SCREW 11/64-40 L=8.75	4
	135-45207	TABLE (FOR BELT LOOP)	1
	135-09401	TABLE (FOR BELT LOOP)	1
	135-44853	THREAD GUIDE ASM.	1
	135-44804	THREAD GUIDE	(1)
	135-46809	BELT COVER	1
	135-05904	BELT COVER	1
	B8133-010-000	S SHAPED HOOK	4
	D8103-284-K00	CHAIN (0.3M)	1
	135-44952	PEDAL LEVER	1
	B8151-771-0AO	Z-STAND PEDAL ASH.	1
	138-17754	PEDAL SHAFT ASM.	1
	135-47658	CHAIN	1
	D8103-984-K00	CHAIN	1

Page 41 — LK-1852P-30

Juki LK-1850 (68 pages) parts on page 41

Ref	Part number	Part name	Qty
	135-10953	FEED CAN DRIVING WHEEL ASM.	1
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-45611	CLOTH PRESSER FOOT	1
	135-51569	CLOTH FEED BASE (ASM.)	1
	135-45660	WORK CLAMP FOOT ASM.	(1)
	135-54100	FEED CAN	1
	135-38301	STOP-MOTION REGULATING CAM	1
	135-47500	STOP-MOTION SPRING	1
	135-46601	SAFETY PLATE	1
	135-45959	PEDAL TYPE PRESSER ASM.	1
	B8151-771-0A0	PEDAL ASM.	1
	138-17754	Z-STAND PEDAL ASM.	1
	NS-6150540-SP	NUT 15/64-28	1
	135-43509	FEED PLATE HOLDER	1
	135-2110930-SP	SCREW 11/64-40 L=8.7	4
	135-45504	FEED PLATE	1
	135-45504	FEED PLATE	1
	135-45207	TABLE (FOR BELT LOOP)	1
	135-09401	TABLE (FOR BELT LOOP)	1
	135-44853	THREAD GUIDE	(1)
	135-44804	THREAD GUIDE	1
	135-46809	BELT COVER	1
	135-05904	BELT COVER	1
	135-47658	PEDAL SHAFT ASM.	1
	B8133-019-000	S SHAPED HOOK	4
	D8103-284-K00	CHAIN (0.3M)	1
	D8103-984-K00	CHAIN	1

Page 42 — LK-1854P-40

Juki LK-1850 (68 pages) parts on page 42

Ref	Part number	Part name	Qty
	135-45611	CLOTH PRESSER FOOT	1
	135-51569	CLOTH FEED BASE (ASH.)	1
	135-45660	WORK CLAMP FOOT ASM.	1
	135-47500	STOP-MOTION SPRING	1
	135-45959	PEDAL TYPE PRESSER ASM.	1
	135-46601	SAFETY PLATE	1
	135-47112	CLOTH PRESSER FOOT	1
	135-47161	WORK CLAMP FOOT ASM.	1
	135-47005	FEED PLATE	1
	135-46908	FEED CAN	1
	135-45504	FEED PLATE	1
	135-45504	FEED PLATE	1
	135-47302	FEED PLATE	1
	WP-0612066-SP	WASHER 6.1X11X2	1
	SS-6090510-SP	SCREW 9/64-40 L=5	1
	135-47807	FEED STOP WASHER	1
	NS-6090310-SP	NUT 9/64-40	1
	135-44853	THREAD GUIDE ASM.	1
	135-44804	THREAD GUIDE	1
	135-46809	BELT COVER	1
	135-05904	BELT COVER	1
	135-45207	TABLE (FOR BELT LOOP)	1
	135-09401	TABLE (FOR BELT LOOP)	1
	B8151-771-0A0	PEDAL ASM.	1
	138-17754	Z-STAND PEDAL ASM.	1
	135-44952	PEDAL LEVER	1
	135-47658	PEDAL SHAFT ASM.	1
	B8133-019-000	S SHAPED HOOK	4
	D8103-284-K00	CHAIN (0.3M)	1
	D8103-984-K00	CHAIN	1

Page 43

Juki LK-1850 (68 pages) parts on page 43

Ref	Part number	Part name	Qty
1	135-48300	FINGER GUARD
2	135-49308	WORK CLAMP FOOT. RIGHT
3	135-49407	WORK CLAMP FOOT. LEFT
4	135-49100	FEED CAM
5	135-49209	FEED PLATE
6	135-47302	FEED PLATE
7	135-39200	STOP-MOTION REGULATION CAM
8	D2426-282-C00	NEEDLE HOLE GUIDE
9	135-50009	FINGER GUARD
10	135-49803	WORK CLAMP FOOT. RIGHT
11	135-49902	WORK CLAMP FOOT. LEFT
12	135-49605	FEED CAM
13	D2530-232-B00	FEED ACROSS STOP ROLLER
14	WP-0651056-SH	WASHER 6.5X11X1
15	SS-4150915-SP	SCREW 15/64-28 L=9
16	135-49704	FEED PLATE
17	D2426-282-C00	NEEDLE HOLE GUIDE
18	HDP-500B1100	NEEDLE DPX5 #11
19	HC-2005007-50	NEEDLE 134 75
20	135-11050	WORM ASH. (36NEEDLE)
21	SS-7111410-TP	SCREW 11/64-40 L=14
22	135-50207	FEED CAM
23	135-38400	STOP-MOTION REGULATING CAM
24	135-11159	FEED CAM DRIVING WHEEL ASH.

Page 44

Juki LK-1850 (68 pages) parts on page 44

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SCREW
3	3	GEAR
4	4	BRACKET
5	5	SCREW
6	6	BRACKET
7	7	BRACKET
8	8	SCREW
9	9	BRACKET
10	10	SCREW
11	11	WASHER
12	12	SPRING
13	13	SCREW
14	14	SCREW
15	15	BRACKET
16	16	BRACKET
17	17	BRACKET
18	18	SCREW
19	19	BRACKET
20	20	SHAFT
21	21	CIR-CLIP
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	SHAFT
26	26	NUT
27	27	SPRING
28	28	SCREW
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	SCREW
33	33	BRACKET
34	34	BRACKET
35	35	BRACKET
36	36	NUT
37	37	BRACKET
38	38	BRACKET
39	39	SCREW
40	40	BRACKET
41	41	BRACKET
42	42	BRACKET
43	43	NUT
44	44	BRACKET
45	45	NUT
46	46	SCREW
47	47	WASHER
48	48	BRACKET
49	49	BRACKET
50	50	BRACKET
51	51	BRACKET
52	52	SCREW
53	53	SCREW
54	54	WASHER
55	55	BRACKET
56	56	PIN
57	57	SCREW
58	58	BRACKET
59	59	SCREW
60	60	BRACKET
61	61	BRACKET
62	62	BRACKET
63	63	BRACKET
64	64	BRACKET
65	65	SCREW
66	66	BRACKET
67	67	BRACKET
68	68	BRACKET
69	69	SCREW
70	70	NUT
71	71	WASHER

Page 45

Juki LK-1850 (68 pages) parts on page 45

Ref	Part number	Part name	Qty
	135-11050	WORM ASM. (36NEEDLE)	1
	SS-7111410-TP	SCREW 11/64-40 L=14	4
	135-11159	FEED CAM DRIVING WHEEL ASM.	1
	135-41750	FINGER GUARD ASM.	1
	SS-7111120-SP	SCREW 11/64-40 L=10.5	1
	135-40752	WORK CLAMP FOOT BRACKET ASM.	1
	135-41602	WORK CLAMP FOOT SPRING HOLDER	1
	SS-7110840-SP	SCREW 11/64-40 L=7.8	(1)
	135-41404	WORK CLAMP FOOT LIFTING PLATE	(2)
	SS-9151120-CP	SCREW 15/64-28 L=11	(2)
	VP-0612516-SP	WASHER 6.1X15.2X2.5	(1)
	D2529-232-D00	PRESSER SPRING	(1)
	D2545-232-D0A	HINGE SCREW	(2)
	D2545-232-D00	BRACKET GUIDE ASM.	(1)
	D2513-232-DAO	TORSION SPRING	(1)
	NS-6110530-SP	NUT 11/64-40	(1)
	D2509-232-D00	STATIONING LATCH	(1)
	D2512-232-D00	TORSION SPRING	(1)
	D2511-232-D00	SCREW	(1)
	D2504-282-ABO-A	KNOB FOOT MOUNT BASE ASM.	(1)
	D2502-232-D00	SHAFT BLOCK SHAFT	(1)
	RE-0700000-KO	SNAP RING 7	(2)
	SS-9110920-CP	SCREW 11/64-40 L=9	(1)
	D2516-232-DAO	WORK CLAMP FOOT REGULATOR	(1)
	D2528-232-D00	SHAFT	(1)
	D2527-232-D00	SLEEVE	(1)
	B3117-352-000	THREAD TENSION POST NUT	(2)
	D2515-232-D00	TORSION SPRING	(1)
	SS-7110840-SP	SCREW 11/64-40 L=7.8	(2)
	135-41057	WORK CLAMP FOOT SPRING HOLDER	(1)
	135-41057	CLAMP GUIDE FOOT ASM.	(1)
	D2520-232-DAO	WORK CLAMP FOOT (LEFT) ASM.	(1)
	SS-1110640-TP	SCREW 11/64-40 L=5.5	(2)
	D2521-232-DAO	WORK CLAMP FOOT (RIGHT) ASM.	(1)
	SD-0550271-TP	HINGE SCREW D=5.50 H=2.7	(2)
	D2519-232-D00	WORK CLAMP FOOT PLATE CAM	(1)
	135-40802	NUT 3/16-28	(2)
	WP-0501016-SD	FEED PLATE	(1)
	SS-9110460-CP	SCREW 11/64-40 L=4	(1)
	135-40802	SHAFT BRACKET BASE	(1)
	135-40901	STATIONING BLOCK SHAFT	(1)
	D2548-232-D00	SNAP RING, FOR CONNECTING ROD	(1)
	D2507-232-D00	STATIONING BLOCK	(1)
	NS-6150310-SP	NUT 15/64-28	(1)
	SS-9151120-CP	SCREW 15/64-28 L=11	(1)
	WP-0612516-SD	WASHER 6.1X15.2X2.5	(1)
	135-40703	WORK CLAMP FOOT BRACKET ASM.	(1)
	SS-9150710-TP	BOLT 15/64-28 L=6.5	(1)
	135-41206	WORK CLAMP FOOT PLATE COVER	(1)
	135-41206	CONNECTING ARM ASM.	(1)
	135-41354	SCREW 15/64-28 L=16.5	(1)
	SS-6151712-TP	HINGE SCREW D=12 H=15	(1)
	SD-1201501-SH	WASHER 6.5X11X1	(1)
	WP-0651056-SH	DRIVING BAR B	(1)
	135-40604	SPLIT PIN	2
	PD-0201000-OB	SCREW 9/64-40 L=6	2
	SS-7090610-SP	DRIVING BAR A	(1)
	135-40505	HINGE SCREW D=9 H=7	(1)
	SD-0900701-TP	WASHER	(1)
	135-40406	LEVER	(1)
	135-40307	LINK	(1)
	135-40208	HINGE SCREW D=6.35 H=3.2	(1)
	SD-0640321-SP	STOP-MOTION REGULATING ARM B	(1)
	135-40109	HINGE SCREW D=6.35 H=2.4	(1)
	SD-0640241-SP	STOP-MOTION REGULATING CAM	(1)
	135-50306	FEED CAM	(1)
	135-38400	FEED STOP WASHER	(1)
	135-47807	SCREW 9/64-40 L=5	(1)
	SS-6090510-SP	NUT 9/64-40	(1)
	HS-6090310-SP	WASHER 6.1X11X2	(1)
	WP-0612066-SP	WASHER 6.1X11X2	(1)

Page 47

Juki LK-1850 (68 pages) parts on page 47

Ref	Part number	Part name	Qty
1	D1401-L7V-V00	NEEDLE BAR
2	D1405-L7A-H00	NEEDLE BAR THREAD GUIDE
3	SS-7080510-TP	SCREW 1/8-44 L=4.5
4	MDI-30082300	NEEDLE DIX3 #23
5	MC-3515016-00	NEEDLE
6	135-19004	TENSION SPRING
7	135-47806	FEED CAM DRIVING WORM ASM.
8	SS-7111410-TP	SCREW 11/64-40 L=14
9	135-50702	FEED CAM
10	135-39705	STOP-MOTION REGULATING CAM
11	135-10953	FEED CAM DRIVING WHEEL ASM.
12	D2302-L4B-BA0	TENSION CONTROLLER. NO2 ASM.
13	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.
14	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)
15	B3129-053-000	TENSION SPRING
16	D1818-282-H00	SHUTTLE
17	D1817-282-H00	SHUTTLE RACE RING, THICK NEEDL
18	D2426-MMC-K00	NEEDLE HOLE GUIDE
19	D2101-L7A-MA0	WIPER ASM.
20	135-54308	WORK CLAMP FOOT. RIGHT
21	135-54407	WORK CLAMP FOOT. LEFT
22	135-54209	FEED PLATE
23	135-47906	FEED CAM
24	135-19004	TENSION SPRING
25	WP-0612066-SP	WASHER 6.1X11X2
26	135-47807	FEED STOP WASHER
27	SS-6090510-SP	SCREW 9/64-40 L=5
28	NS-6090310-SP	NUT 9/64-40
29	135-48300	FINGER GUARD
30	135-48102	WORK CLAMP FOOT. RIGHT.
31	135-48201	WORK CLAMP FOOT. LEFT
32	135-48003	FEED PLATE

Page 48

Juki LK-1850 (68 pages) parts on page 48

Ref	Part number	Part name	Qty
1	D1401-L7V-V00	NEEDLE BAR
2	D1405-L7A-H00	NEEDLE BAR THREAD GUIDE
3	SS-7080510-TP	SCREW 1/8-44 L=4.5
4	MDI-300B2300	NEEDLE DIX3 #23
	MC-3515016-00	NEEDLE
6	135-19004	TENSION SPRING
7	135-50900	FEED CAM
8	135-39804	STOP-MOTION REGULATING CAM
9	135-11159	FEED CAM DRIVING WHEEL ASM.
10	135-11050	WORK ASM. (36NEEDLE)
11	SS-7111410-TP	SCREW 11/64-40 L=14
12	D1818-282-H00	SHUTTLE
13	D1817-282-H00	SHUTTLE RACE RING, THICK NEEDL
14	D2302-L4B-BA0	TENSION CONTROLLER NO.2 ASM.
	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.
16	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)
17	B3129-053-000	TENSION SPRING
18	D2426-HHC-K00	NEEDLE HOLE GUIDE
19	D2101-L7A-MA0	VIPER ASM.
20	135-54308	WORK CLAMP FOOT, RIGHT
21	135-54407	WORK CLAMP FOOT, LEFT
22	135-54209	FEED PLATE
23	D1401-L7V-V00	NEEDLE BAR
24	D1405-L7A-H00	NEEDLE BAR THREAD GUIDE
25	SS-7080510-TP	SCREW 1/8-44 L=4.5
26	MDI-300B2300	NEEDLE DIX3 #23
	MC-3515016-00	NEEDLE
28	D2426-HHC-K00	NEEDLE HOLE GUIDE
29	135-19004	TENSION SPRING
30	135-39606	FEED CAM
31	D2302-L4B-BA0	TENSION CONTROLLER NO.2 ASM.
	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.
33	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)
34	B3129-053-000	TENSION SPRING
36	D1818-282-H00	SHUTTLE
37	D1817-282-H00	SHUTTLE RACE RING, THICK NEEDL
38	D2101-L7A-MA0	VIPER ASM.
	135-48300	FINGER GUARD
40	135-54605	WORK CLAMP FOOT, RIGHT
41	135-54704	WORK CLAMP FOOT, LEFT
42	135-54506	FEED PLATE

Page 50 — (31) LK-1850H

Juki LK-1850 (68 pages) parts on page 50

Ref	Part number	Part name	Qty
	D1401-L7V-V00	NEEDLE BAR	1
	D1405-L7A-M00	NEEDLE BAR THREAD GUIDE	1
	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
	MDI-300B2300	NEEDLE DIX3 #23	1
	MC-3515016-00	NEEDLE
	135-19004	TENSION SPRING	2
	D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL	1
	D1818-282-N00	SHUTTLE	1
	135-51403	FEED CAM	1
	135-39606	STOP-MOTION REGULATING CAM	1
	D2302-L4B-BA0	TENSION CONTROLLER. NO.2 ASM.	1
	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.
	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)	(1)
	B3129-053-000	TENSION SPRING	(1)
	B2426-280-00C	NEEDLE PLATE NEEDLE HOLE GUIDE	1
	D2101-L7A-MA0	WIPER ASM.	1
	135-48508	WORK CLAMP FOOT. RIGHT	1
	135-48607	FEED PLATE	1
	135-48409	FEED PLATE	1

Page 51

Juki LK-1850 (68 pages) parts on page 51

Ref	Part number	Part name	Qty
	D1401-L7V-V00	NEEDLE BAR	1
	D1405-L7A-HOO	NEEDLE BAR THREAD GUIDE	1
	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
	MDI-300B2300	NEEDLE DIX3 #23	1
	MC-3515016-00	NEEDLE
	135-19004	TENSION SPRING	2
	D1817-282-HOO	SHUTTLE RACE RING, THICK NEEDL	1
	D1818-282-HOO	SHUTTLE	1
	135-51403	FEED CAM	1
	135-39606	STOP-MOTION REGULATING CAM	1
	B2302-205-0A0	TENSION CONTROLLER, NO.2 ASM.
	B2302-205-0A0	TENSION CONTROLLER, NO.2 ASM.	1
	D3112-L4B-BOO	TAKE-UP SPRING (HEAVY)	(1)
	B3129-053-000	TENSION SPRING	(1)
	D2426-MMC-KOO	NEEDLE HOLE GUIDE	1
	D2101-L7A-MAO	WIPER ASM.	1
	135-54308	WORK CLAMP FOOT. RIGHT	1
	135-54407	WORK CLAMP FOOT. LEFT	1
	135-54209	FEED PLATE	1
	135-26058	LIFTING LEVER ASM. T	1
	135-26009	LIFTING LEVER. T	(1)
	135-25803	LEVER SPRING. T	(1)
	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3	(2)
	SS-9150730-SP	SCREW 15/64-28 L=7	(1)
	NS-6150350-SP	NUT 15/64-28	(1)
	135-47500	STOP-MOTION SPRING	1
	B8151-771-0A0	PEDAL ASM.
	138-17754	Z-STAND PEDAL ASM.
	135-46809	BELT COVER	1
	135-05904	BELT COVER

Page 52

Juki LK-1850 (68 pages) parts on page 52

Ref	Part number	Part name	Qty
	1	Lever
	2	Shaft
	3	Lever
	4	Bracket
	5	Screw
	6	Bracket
	7	Shaft
	8	Roller
	9	Pin
	10	Shaft
	11	Screw
	12	Screw
	13	Pin
	14	Screw
	15	Lever
	16	Screw
	17	Spring
	18	Screw
	19	Bracket
	20	Shaft
	21	Shaft
	22	Lever
	23	Screw
	24	Bracket
	25	Screw
	26	Chain
	27	Screw
	28	Lever
	29	Shaft
	30	Bracket
	31	Screw
	32	Bracket
	33	Screw
	34	Screw
	35	Pulley
	36	Base Plate
	37	Lever
	38	Spring
	39	Screw
	40	Screw
	41	Nut
	42	Cover
	43	Spring
	44	Pulley
	45	Washer
	46	Bracket
	47	Base Plate
	48	Cover
	49	Cover
	50	Cover
	51	Cover
	52	Bracket
	53	Base Plate
	54	Lever
	55	Shaft
	56	Screw
	57	Screw
	58	Screw
	59	Screw
	60	Chain

Page 53

Juki LK-1850 (68 pages) parts on page 53

Ref	Part number	Part name	Qty
	135-44416	CLOTH PRESSER FOOT	1
	135-43764	CLOTH FEED BASE ASM.	1
	135-44465	CLOTH PRESSER FOOT ASM.
	135-44614	CLOTH FEED BASE COVER	(1)
	SS-21109030-SP	SCREW 11/64-40 L=8.7	(4)
	135-43715	CLOTH FEED BASE	(1)
	B2539-280-000	STUD	(1)
	CS-087101B-SH	THRUST COLLAR ASM. D=8.73 W=10	(1)
	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
	135-43806	SPRING SUSPENSION	(1)
	SS-7151210-SP	SCREW 15/64-28 L=12	(1)
	B2549-280-000	WORK CLAMP FOOT MOUNTING BASE	(7)
	B2548-280-000	BALL RETAINER	(1)
	SS-7110740-TP	SCREW 11/64-40 L=7	(1)
	135-43905	SPRING SUSPENSION SCREW	(1)
	SS-6120940-SP	SCREW 3/16-28 L=9	(2)
	135-44705	SPRING	(1)
	B3413-552-000	SUSPENSION SCREW	(1)
	135-44051	LIFTING LEVER ASM.	(1)
	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
	135-44853	THREAD GUIDE ASM.	1
	135-44804	THREAD GUIDE	(1)
	SS-2110930-SP	SCREW 11/64-40 L=8.7	4
	135-43509	FEED PLATE HOLDER	1
	HS-6150540-SP	NUT 15/64-28	1
	B8133-019-000	S SHAPED HOOK	8
	B8103-284-K00	CHAIN (0.3M)	1
	135-44952	PEDAL LEVER	1
	135-44903	PEDAL SHAFT	(1)
	WP-1021016-SD	WASHER	(1)
	RE-0900000-KO	SNAP RING 9.0	(2)
	135-45009	PEDAL SHAFT BRACKET	(1)
	SK-3483200-SE	WOOD SCREW D=4.8 L=32	(4)
	SS-6661110-SP	SCREW 1/4-40 L=11	(2)
	135-45157	PEDAL LEVER ASM. (BELT LOOP)	(1)
	135-26058	LIFTING LEVER. T	(1)
	135-26009	LIFTING LEVER. T
	135-25803	LEVER SPRING. T
	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3
	SS-9150730-SP	SCREW 15/64-28 L=7
	NS-6150350-SP	NUT 15/64-28
	135-43608	FEED PLATE	1
	135-47500	STOP-MOTION SPRING	1
	135-43400	FEED CAM	1
	135-39200	STOP-MOTION REGULATION CAM	1
	B8151-771-0A0	PEDAL ASM.
	138-17754	Z-STAND PEDAL ASM.
	135-46809	BELT COVER
	135-05904	BELT COVER
	135-45207	TABLE (FOR BELT LOOP)
	135-09401	TABLE (FOR BELT LOOP)
	135-47858	PEDAL SHAFT ASM.
	135-45009	PEDAL SHAFT BRACKET
	WP-1021016-SD	WASHER
	RE-0900000-KO	SNAP RING 9.0
	135-47609	PEDAL SHAFT
	SK-3483200-SC	WOOD SCREW D=4.8 L=20	(4)
	SS-6661110-SP	SCREW 1/4-40 L=11	(2)
	135-47757	PEDAL LEVER ASM.	(1)
	D8103-984-K00	CHAIN	2

Page 54 — (35) LK-1852T-20

Juki LK-1850 (68 pages) parts on page 54

Ref	Part number	Part name	Qty
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-10854	FEED CAM DRIVING WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	4
	135-44416	CLOTH PRESSER FOOT	1
	135-43764	CLOTH FEED BASE ASM.	1
	135-44465	CLOTH PRESSER FOOT ASM.	1
	135-45306	FEED CAM	1
	135-38301	STOP-MOTION REGULATING CAM	1
	135-47500	STOP-MOTION SPRING	1
	135-43608	FEED PLATE	1
	135-26058	LIFTING LEVER ASM. T	1
	135-26009	LIFTING LEVER. T	1
	135-25803	LEVER SPRING. T	1
	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3	1
	SS-9150730-SP	SCREW 15/64-28 L=7	1
	NS-6150350-SP	NUT 15/64-28	1
	135-43509	FEED PLATE HOLDER	1
	SS-2110930-SP	SCREW 11/64-40 L=8.75	4
	135-45207	TABLE (FOR BELT LOOP)	1
	135-09401	TABLE (FOR BELT LOOP)	1
	135-44853	THREAD GUIDE ASM.	1
	135-44804	THREAD GUIDE	1
	135-46609	BELT COVER	1
	135-05904	S SHAPED HOOK	8
	D8133-019-000	CHAIN (0.3M)	1
	135-47658	PEDAL LEVER	1
	135-44952	PEDAL ASM.	1
	B8151-771-0A0	Z-STAND PEDAL ASM.	1
	138-17754	PEDAL SHAFT ASM.	1
	D8103-984-K00	CHAIN	1
	D8103-284-K00	CHAIN	1
	135-47658	PEDAL LEVER	1

Page 55

Juki LK-1850 (68 pages) parts on page 55

Ref	Part number	Part name	Qty
1	135-10953	FEED CAM DRIVING WHEEL ASM.
2	135-10854	FEED CAM DRIVING WORM ASM.
3	SS-7111410-TP	SCREW 11/64-40 L=14
4	135-45611	CLOTH PRESSER FOOT
5	135-45660	WORK CLAMP FOOT ASM.
6	135-54100	FEED CAM
7	135-54100	FEED CAM
8	135-38301	STOP-MOTION REGULATING CAM
9	135-47500	STOP-MOTION SPRING
10	135-26058	LIFTING LEVER ASM. T
11	135-26009	LIFTING LEVER, T
12	135-25803	LEVER SPRING, T
13	SD-0720331-SP	SCREW D= 7.24 H= 3.3
14	SS-9150730-SP	SCREW 15/64-28 L=7
15	NS-15770-SP	NUT 15/64-28
16	B8151-771-0A0	PEDAL ASH.
17	138-17754	Z-STAND PEDAL ASM.
18	NS-6150540-SP	NUT 15/64-28
19	135-43509	FEED PLATE HOLDER
20	SS-2110930-SP	SCREW 11/64-40 L=8.75
21	135-45801	FEED PLATE
22	135-45504	FEED PLATE
23	135-45207	TABLE (FOR BELT LOOP)
24	135-09401	TABLE (FOR BELT LOOP)
25	135-44853	THREAD GUIDE ASM.
26	135-44804	THREAD GUIDE
27	135-46809	BELT COVER
28	135-05904	BELT COVER
29	135-44952	PEDAL LEVER
30	135-47058	PEDAL SHAFT ASM.
31	B8133-019-000	S SHAPED HOOK
32	D8103-284-K00	CHAIN (0.3M)
33	D8103-984-K00	CHAIN

Page 56

Juki LK-1850 (68 pages) parts on page 56

Ref	Part number	Part name	Qty
	135-45611	CLOTH PRESSER FOOT	1
	135-51569	CLOTH FEED BASE (ASM.)	(1)
	135-45660	WORK CLAMP FOOT ASM.
	135-47500	STOP-MOTION SPRING
	135-26058	LIFTING LEVER ASM. T.
	135-26009	LIFTING LEVER. T.
	135-25803	LEVER SPRING. T.
	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3
	SS-9150730-SP	SCREW 15/64-28 L=7
	NS-6150350-SP	NUT 15/64-28
	135-46908	FEED CAM
	135-45801	FEED PLATE
	135-45504	FEED PLATE
	135-47302	FEED PLATE
	135-47302	WASHER 6.1X11X2
	SS-6090510-SP	SCREW 9/64-40 L=5
	135-47807	FEED STOP WASHER
	NS-6090310-SP	NUT 9/64-40
	135-44804	THREAD GUIDE
	135-44804	THREAD GUIDE
	135-46809	BELT COVER
	135-05904	BELT COVER
	135-45207	TABLE (FOR BELT LOOP)
	135-09401	TABLE (FOR BELT LOOP)
	B8151-771-OAO	PEDAL SHAFT.
	D8103-284-K00	Z-STAND PEDAL ASM.
	135-47658	PEDAL LEVER
	135-47658	PEDAL LEVER
	B8133-019-000	S SHAPED HOOK
	D8103-984-K00	CHAIN (0.3M)
	D8103-984-K00	CHAIN
	135-47112	CLOTH PRESSER FOOT
	135-47161	WORK CLAMP FOOT ASM.
	135-47005	FEED PLATE

Page 57 — 14. THREAD STAND COMPONENTS

Juki LK-1850 (68 pages) parts on page 57

Ref	Part number	Part name	Qty
	D3301-555-BA0	THREAD STAND ASM.
	B3311-704-000	SPOOL REST ROD RUBBER CAP
	B3317-704-000	NUT C15
	WP-1702600-SO	WASHER 17X30X2.6
	D3306-555-B00	THREAD GUIDE STOPPER PLATE
	B3307-704-000	THREAD GUIDE A
	B3313-704-0A0	SPOOL REST ROD ASM., UPPER
	B3305-704-000-A	SPOOL REST ROD JOINT
	SM-6041410-SC	SCREW M4X0.7 L=14
	NM-6040000-SN	NUT M4
	B3312-012-000	SPOOL RETAINER
	SM-9050813-SE	SCREW M5X0.8 L=8
	WS-0521010-KN	SPRING WASHER 5.2X8.2X1
	WP-0520656-SA	WASHER 5.2X9.5X0.6
	B3305-012-000	SPOOL PIN
	B3311-012-000	SPOOL REST CUSHION
	B3303-704-000	SPOOL REST
	WP-0560860-SE	WASHER 5.6X12X0.8
	WS-0521010-KN	SPRING WASHER 5.2X8.2X1
	NS-6123881-SE	NUT 3/16-28
	D3302-555-B00	BRACKET
	SM-9061080-SE	SCREW M6 L=10
	B3301-704-000-A	SPOOL REST ROD, LOWER
	WS-1643202-KN	SPRING WASHER 16.4X26.6X3.2
	MAO-11532000	CORD STAPLE

Page 58 — 15. THREAD STAND COMPONENTS (For Urban White)

Juki LK-1850 (68 pages) parts on page 58

Ref	Part number	Part name	Qty
1	1	THREAD STAND COMPONENTS
11	11	CAP
8	8	SHAFT
10	10	BASE
9	9	BASE
13	13	SCREW
4	4	ARM
3	3	SHAFT
5	5	HOLDER
17	17	SCREW
2	2	SHAFT
19	19	SCREW
6	6	CLAMP
7	7	CAP
22	22	CLIP
12	12	NUT
16	16	WASHER
14	14	WASHER
15	15	WASHER
21	21	WASHER
20	20	SCREW

Page 59

Juki LK-1850 (68 pages) parts on page 59

Ref	Part number	Part name	Qty
	111-83654	THREAD STAND ASM.	1
	111-83605	SPOOL REST ROD, LOWER	(1)
	111-83704	SPOOL REST ROD, UPPER	(1)
	111-83803	THREAD GUIDE	(2)
	111-84207	SPOOL REST ROD JOINT	(1)
	111-84306	THRED GUIDE ARM JOINT	(2)
	111-84108	SPOOL REST ROD RUBBER CAP	(1)
	B3320-704-L00-A	SPOOL PIN	(2)
	111-83902	SPOOL REST	(2)
	B3311-012-000	SPOOL REST CUSHION	(2)
	111-84009	SPOOL RETAINER	(2)
	B3317-704-000	NUT C15	(2)
	B3319-704-L00	THREAD GUIDE	(2)
	D3310-555-D00	RUBBER WASHER	(2)
	WS-1643202-KR	SPRING WASHER	(1)
	WP-1702600-SE	WASHER 17X30X2.6	(2)
	SM-4051405-SE	SCREW M5X0.8 L=14	(2)
	NM-6050001-SE	NUT M5X0.8	(2)
	SM-6061610-SC	SCREW M6 L=16	(2)
	NM-6050001-SE	HUT M5X0.8	(2)
	WS-0510002-KN	SPRING WASHER	(2)
	MA0-11532000	CORD STAPLE	(3)

Page 61 — NUMERICAL INDEX OF PARTS

Juki LK-1850 (68 pages) parts on page 61

Ref	Part number	Part name	Qty
14	D2426-282-C00
29	D2426-282-C00
8	D2426-282-C00
17	D2426-282-C00
31	D2426-282-C00
20	D2502-232-D00
20	D2502-232-D00
19	D2504-282-AB0-A
44	D2504-282-AB0-A
44	D2507-232-D00
42	D2507-232-D00
16	D2509-232-D00
42	D2509-232-D00
42	D2511-232-D00
17	D2511-232-D00
26	D2512-232-D00
42	D2512-232-D00
26	D2513-232-DA0
42	D2513-232-DA0
26	D2515-232-D00
42	D2515-232-D00
26	D2516-232-DA0
42	D2516-232-DA0
26	D2519-232-D00
42	D2519-232-D00
26	D2520-232-DA0
42	D2520-232-DA0
26	D2521-232-DA0
42	D2521-232-DA0
26	D2527-232-D00
42	D2527-232-D00
26	D2528-232-D00
42	D2528-232-D00
26	D2529-232-D00
42	D2529-232-D00
40	D2530-232-B00
42	D2545-232-D0A
29	D3112-L4B-B00
43	D3112-L4B-B00
44	D3112-L4B-B00
45	D3112-L4B-B00
46	D3112-L4B-B00
47	D3112-L4B-B00
48	D3112-L4B-B00
54	D3301-555-BA0
54	D3302-555-B00
54	D3306-555-B00
56	D3310-555-D00
32	D8103-284-K00
33	D8103-284-K00
33	D8103-284-K00
36	D8103-284-K00
37	D8103-284-K00
38	D8103-284-K00
39	D8103-284-K00
50	D8103-284-K00
51	D8103-284-K00
52	D8103-284-K00
53	D8103-284-K00
36	D8103-984-K00
37	D8103-984-K00
38	D8103-984-K00
39	D8103-984-K00
50	D8103-984-K00
51	D8103-984-K00
52	D8103-984-K00
53	D8103-984-K00
22	D8113-555-B00
24	D8113-555-B00
34	D8113-555-B00
22	D8114-555-B0E
34	D8114-555-B0E
22	D8203-555-B00
24	D8204-555-D00
24	GPF-060000A0
24	GPF-06080000
54	MAO-11532000
56	MAO-11532000
16	MAT-80116S00
27	MC-2005007-50
40	MC-2005007-50
43	MC-2005007-50
43	MC-3515016-00
44	MC-3515016-00
45	MC-3515016-00
46	MC-3515016-00
47	MC-3515016-00
48	MC-3515016-00
43	MDI-300B2300
44	MDI-300B2300
45	MDI-300B2300
46	MDI-300B2300
47	MDI-300B2300
48	MDI-300B2300
27	MDI-500B1100
40	MDI-500B1100
43	MDI-500B1100
6	MDI-500B1400
6	MDI-500B1600
29	MDI-500B2104
22	HTJ-HS000000
22	HTJ-VM004600
22	HTJ-VM004700
22	HTJ-VM004800
22	HTJ-VM004900
22	HTJ-VM005000
54	NM-6040000-SH
56	NM-6050001-SE
56	NM-6050001-SE
22	NM-6060001-SE
22	NM-6080721-SE
24	NM-6080721-SE
22	NM-6080721-SE
24	NM-6120003-SE
22	NM-6120003-SE
2	NS-6090310-SP
26	NS-6090310-SP
33	NS-6090310-SP
39	NS-6090310-SP
42	NS-6090310-SP
44	NS-6090310-SP
6	NS-6110310-SP
6	NS-6110310-SP
32	NS-6110310-SP
34	NS-6110310-SP
18	NS-6110350-SP
34	NS-6110350-SP
14	NS-6110420-SP
6	NS-6110530-SP
26	NS-6110530-SP
42	NS-6110530-SP
14	NS-6120310-SP
26	NS-6120480-SP
42	NS-6120480-SP
54	NS-6123881-SE
4	RE-0400000-KO
2	RE-0600000-KO
26	RE-0700000-KO
32	RE-0900000-KO
36	RE-0900000-KO
50	RE-0900000-KO
50	RE-0900000-KO
34	SB-100002-00
16	SB-1200003-00
16	SB-3120001-00
6	SD-0500091-TP
8	SD-0530221-SP
12	SD-0530221-SP
26	SD-0550271-TP
42	SD-0550271-TP
16	SD-0600321-SP
2	SD-0600401-SD
8	SD-0640211-SP
26	SD-0640241-SP
42	SD-0640241-SP
16	SD-0640321-SP
26	SD-0640321-SP
42	SD-0640321-SP
34	SD-0640324-TP
8	SD-0640391-TP
14	SD-0650305-TP
14	SD-0651301-TH
6	SD-0720193-SP
8	SD-0720331-SP
16	SD-0720331-SP
48	SD-0720331-SP
50	SD-0720331-SP
51	SD-0720331-SP
52	SD-0720331-SP
53	SD-0720331-SP
14	SD-0790402-TP
8	SD-0790601-SP
14	SD-0790802-TP
28	SD-0791271-SP
6	SD-0791503-SP
2	SD-0800341-SP
18	SD-0800402-SP
18	SD-0800402-TP
18	SD-0800402-TP
26	SD-0800402-TP
10	SD-0800681-SP
26	SD-0900701-TP
28	SD-0900701-TP
42	SD-0900701-TP
14	SD-0901101-SP
8	SD-0901201-TP
8	SD-1000401-SP
16	SD-1201501-SP
26	SD-1201501-SP
42	SD-1201501-SP
22	SD-1204315-SE
22	SK-3311600-SC
22	SK-3311600-SC
22	SK-3482500-SC
22	SK-3482500-SC
50	SK-3483200-SE
32	SK-3483200-SE
36	SK-3483200-SE
36	SK-3483200-SE
50	SK-3483200-SE
22	SK-3514000-SC
24	SL-9082091-SE
56	SM-4051405-SE
54	SM-6041410-SC
56	SM-6061610-SC
54	SM-9050813-SE
22	SM-9061203-SE
24	SM-9061203-SE
22	SM-9063213-CH
22	SM-9082023-SE
22	SM-9082023-SE
22	SM-9082023-SE
24	SM-9082023-SE
34	SM-9082023-SE
6	SS-1060210-TP

Page 65 — NUMERICAL INDEX OF PARTS

Juki LK-1850 (68 pages) parts on page 65

Ref	Part number	Part name	Qty
37	135-47005	135-51403	33
9	135-47005	135-51403	39
5	135-47005	135-51569	33
23	135-47112	135-51569	33
23	135-47112	135-51569	33
5	135-47112	135-51569	38
2	135-47161	135-51569	39
5	135-47161	135-51569	52
2	135-47161	135-51569	53
29	135-47302	135-53706	22
15	135-47302	135-54100	33
16	135-47302	135-54100	33
7	135-47302	135-54100	38
7	135-47302	135-54100	52
8	135-47302	135-54100	52
22	135-47401	135-54209	44
22	135-47500	135-54209	45
22	135-47500	135-54209	46
19	135-47500	135-54209	48
20	135-47500	135-54308	44
20	135-47500	135-54308	45
20	135-47500	135-54308	46
17	135-47500	135-54308	48
21	135-47500	135-54407	44
21	135-47500	135-54407	45
21	135-47500	135-54407	46
18	135-47500	135-54407	48
42	135-47609	135-54506	45
42	135-47609	135-54506	46
40	135-47658	135-54605	45
40	135-47658	135-54605	46
41	135-47658	135-54704	45
41	135-47658	135-54704	46
4	135-47658	135-64901	30
9	135-47757	138-16509	2
16	135-47757	138-16608	2
37	135-47807	138-16855	10
1	135-47807	138-17507	24
31	135-47807	138-17754	24
31	135-47807	138-17754	34
43	135-47807	138-17754	36
26	135-47807	138-17754	37
13	135-47807	138-17754	38
25	135-47906	138-17754	39
28	135-47906	138-17754	48
47	135-47906	138-17754	50
30	135-48003	138-17754	51
18	135-48102	138-17754	52
26	135-48201	138-17754	53
14	135-48300	170-07402	24
29	135-48300	135-48300	44
39	135-48300	135-48300	45
39	135-48300	135-48300	46
22	135-48409	135-48409	43
19	135-48409	135-48409	47
20	135-48508	135-48508	43
17	135-48508	135-48508	47
21	135-48607	135-48607	43
18	135-48607	135-48607	47
4	135-49100	135-49100	40
5	135-49209	135-49209	40
3	135-49308	135-49308	40
3	135-49407	135-49407	40
30	135-49506	135-49506	12
12	135-49605	135-49605	40
16	135-49704	135-49704	40
10	135-49803	135-49803	40
11	135-49902	135-49902	40
9	135-50009	135-50009	40
48	135-50108	135-50108	12
22	135-50207	135-50207	40
66	135-50306	135-50306	42
23	135-50504	135-50504	43
9	135-50702	135-50702	43
7	135-50702	135-50702	44
7	135-50900	135-50900	45
7	135-50900	135-50900	46

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki LK-1850 (68 pages) — parts catalog

• Page 1 (cover): This is the cover page for the JUKI LK-1850 Series High Speed 1-Needle Cylinder Bed Lockstitch Bar Tacking Industrial Sewing Machine parts list. It includes a diagram of the machine and document identification numbers.
• Page 2 (text): This page explains how to use the parts list, including explanations of codes used in the 'Note' and 'E.C.' columns, and provides a sample parts list with part numbers, descriptions, and quantities.
• Page 3 (toc): This page contains the table of contents for the parts catalog, listing sections such as Frame & Miscellaneous Cover Components, Main Shaft Components, Needle Bar Components, and more, along with their corresponding page numbers.
• Page 4 (diagram): This page displays a diagram of miscellaneous cover components for a JUKI sewing machine, with numbered parts and their corresponding references.
• Page 5 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 74.
• Page 6 (diagram): This page displays a diagram of main shaft components, with numbered parts and their corresponding references.
• Page 7 (parts_list): This page lists parts for a sewing machine, including screws, washers, bearings, and springs, with their corresponding part numbers and descriptions.
• Page 8 (diagram): This page displays a diagram of needle bar components, with numbered parts and their corresponding references.
• Page 9 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It also includes a legend for part notations.
• Page 10 (diagram): This page displays a diagram of thread tension release components, with numbered parts and their corresponding references.
• Page 11 (parts_list): This page lists parts for a sewing machine, including various screws, pins, rods, springs, and nuts, with their corresponding part numbers and descriptions.
• Page 12 (diagram): This page displays a diagram of shuttle driver shaft components, with numbered parts and their corresponding details.
• Page 13 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It also includes notes and a section for optional parts.
• Page 14 (diagram): This page displays a diagram of the feed mechanism components, including various levers, springs, screws, and nuts, with reference numbers for each part.
• Page 15 (parts_list): This page lists parts for a sewing machine, including screws, washers, springs, and various components, with their part numbers, descriptions, and quantities.
• Page 16 (diagram): This page displays a diagram of thread trimming components, with numbered parts and their corresponding references.
• Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details items such as tension springs, screws, nuts, rollers, and washers.
• Page 18 (diagram): This page displays a diagram of the pedal pressure decreasing unit components, with numbered parts and their corresponding references.
• Page 19 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items from reference number 1 to 56.
• Page 20 (diagram): This page displays a diagram of stop-motion mechanism components, with numbered parts and their corresponding references.
• Page 21 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items numbered 1 through 62.
• Page 22 (diagram): This page displays a diagram of lubrication mechanism components, with numbered parts and their corresponding references.
• Page 23 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including rubber plugs, oil wicks, screws, and felt parts, with their corresponding part numbers, descriptions, and quantities.
• Page 24 (diagram): This page displays a diagram of table components and related parts for a JUKI sewing machine, with numbered items and their corresponding references.
• Page 25 (parts_list): This page lists various parts for an industrial sewing machine, including tables, screws, washers, nuts, motor pulleys, and belts, with their corresponding part numbers and descriptions.
• Page 26 (diagram): This page displays a diagram of table components for the Urban White model, including various brackets, screws, and other hardware.
• Page 27 (parts_list): This page lists parts for the LK-1850 standard model, including part numbers, descriptions, and quantities.
• Page 28 (diagram): This page displays a diagram of LK-1850 series subclasses, specifically part (1) LK-1852-1, with numbered components and their corresponding references.
• Page 29 (parts_list): This page lists parts for the LK-1852-1, including part numbers, descriptions, and quantities. It also includes notes and a section on standard and selective parts.
• Page 30 (parts_list): This page lists parts for Small Bar Tacking Machine (28 stitches), Knit Goods Bar Tacking Machine (21 stitches), and Large Size Bar Tacking Machine (28 stitches). It includes part numbers, descriptions, and quantities.
• Page 31 (diagram): This page displays a diagram of the tail of the eyelet buttonhole bar tacking machine (21 stitches) with numbered parts and a corresponding parts list.
• Page 33 (diagram): This page displays a diagram and parts list for the (9) LK-1852-210 LAEGE SIZE BAR TACKING MACHINE (28 STITCHES). It includes a list of five parts with their corresponding part numbers, descriptions, and quantities.
• Page 34 (diagram): This page displays diagrams of sewing machine parts, specifically for models LK-1854-10 and LK-1852-20, with numbered components for easy identification.
• Page 35 (parts_list): This page lists parts for the LK-1854-10 and LK-1852-20 Belt Loop Attaching Machines, including part numbers, descriptions, quantities, and notes.
• Page 36 (parts_list): This page contains a parts list for the LK-1852-30 Belt Loop Attaching Machine (28 stitches) and the LK-1854-40 Belt Loop Attaching Machine (40 stitches). It includes part numbers, descriptions, and quantities for various components.
• Page 37 (diagram): This page contains a diagram of the pedal type clamp foot lifting device for the LK-1850-P, along with a detailed parts list.
• Page 38 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, brackets, and covers, with reference numbers for each part.
• Page 39 (parts_list): This page lists parts for the LK-1854P-10 Belt Loop Attaching Machine for P (21 stitches). It includes part numbers, descriptions, and quantities.
• Page 40 (parts_list): This page lists parts for the LK-1852P-20 belt loop attaching machine for P (28 stitches), including part numbers, descriptions, and quantities.
• Page 41 (parts_list): This page contains a parts list for the LK-1852P-30, including part numbers, descriptions, and quantities for various components.
• Page 42 (diagram): This page displays a diagram of machine parts for the LK-1854P-40, along with a detailed parts list including part numbers, descriptions, and quantities.
• Page 43 (diagram): This page contains diagrams and parts lists for the LK-1854-8, LK-1854-12, and LK-1853-15 models of label tacking machines.
• Page 44 (diagram): This page displays a diagram of various sewing machine components, including brackets, springs, screws, and other mechanical parts, identified by reference numbers.
• Page 45 (parts_list): This page lists parts for the LK-1853-16 model, including part numbers, descriptions, quantities, and notes.
• Page 47 (diagram): This page contains a diagram of sewing machine parts, with a corresponding parts list detailing part numbers, descriptions, and quantities for models (25) LK-1852G-5 and (26) LK-1854-24.
• Page 48 (diagram): This page contains a diagram of sewing machine parts, with corresponding part numbers and descriptions listed in tables below.
• Page 50 (diagram): This page displays a diagram of sewing machine parts for the LK-1850 model, along with a corresponding parts list detailing part numbers, descriptions, and quantities.
• Page 51 (parts_list): This page contains a parts list for the LK-1850G and LK-1850T sewing machines, detailing part numbers, descriptions, and quantities for various components.
• Page 52 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, wheels, and covers, with reference numbers for each part.
• Page 53 (parts_list): This page lists parts for the LK-1854T-10, including part numbers, descriptions, quantities, and notes.
• Page 54 (parts_list): This page contains a parts list for the (35) LK-1852T-20 sewing machine, detailing part numbers, descriptions, and quantities for various components.
• Page 55 (parts_list): This page contains a parts list for the (36) LK-1852T-30 sewing machine, detailing part numbers, descriptions, and quantities, along with notes explaining specific part designations.
• Page 56 (parts_list): This page lists parts for the (37) LK-1854T-40, including part numbers, descriptions, and quantities.
• Page 57 (parts_list): This page lists and describes the components of the thread stand, including part numbers, descriptions, and quantities.
• Page 58 (diagram): This page displays a diagram of thread stand components for the Urban White model, with numbered parts and their corresponding details.
• Page 59 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It also includes a note about parts being the same as the LK-1850 standard model.
• Page 61 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers.
• Page 65 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers across multiple columns.
• Page 66 (unknown): This page contains a watermark with the text "jintex.in". There is no other discernible content on the page.
• Page 67 (unknown): This page contains a watermark and some faint text, but no structured parts information is clearly visible.
• Page 68 (cover): This is the cover page of a JUKI CORPORATION parts list, printed in Japan in November 1983.

Page 1 — PARTS LIST

High Speed 1-Needle Cylinder Bed Lockstitch Bar Tacking Industrial Sewing Machine 高速一本針筒形門止めミシン LK-1850 Series PARTS LIST JUKI JUKI LK-1850 BE185030PJA No.0200-09 jintex.in

Page 2

HOW TO MAKE USE OF THIS PARTS LIST パーツリストの見方 1. The part numbers of parts shown in the figure indicate the corresponding numbers (Ref. No.) shown by the Index. 図に示された部品の品番は、図にみられて、いるインデツクスによ、てその品番かかっています。 2. Explanation of codes 記号の説明 1) Codes on the "Note" column “注記”欄の記号 (1) means this part is changed from the previous parts list. 前回 のパーツリストに対して今回変更された部品を意昧します (2) #01 refer to the "Note" explanation at bottom of page. 注記”欄の記号 この注記の説明を 01 参照して下さい 2) Codes on the "E.C. (Engineering change)" column “変更年月”欄の記号 (1) A.10/83. Added from October, 1983 1983年10月より追加された (2) D.10/83. Obsoleted from October, 1983 1983年10月より削除された (3) When previous parts (Obsoleted part) and new parts (Added parts) are not interchangeable with each other. 部品の互換性がない変更の場合 In this case, even obsoleted part (D.) can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. この場合は削除された品番でも、注文できますから、変更年月によりいずれかの部品を選定してご注文下さい。 Example (例) Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月 Amt. Req. 数量 1 B1401-100-000 Needle bar D.10/83 ハリホー 1-1 B1401-100-000-A Needle bar A.10/83 B1105-300-000 ハリホー 2 B1105-200-000 Frame cover D.10/83 B1105-300-000 1 Frame cover A.10/83 フレームカバー 1 (4) In case when previous parts and new part are interchangeable with each other. 部品の互換性がある場合の変更 In this case, the new part number is replaced on the " 品名 (Japanese)" column of the previous parts, so please order by the new part number. この場合は、旧部品の互換性、品名欄に新しい品番が記入してありますので、新しい品番でご注文下さい。 C.10/83 B1105-500-000 Frame cover 1 Correct No. 正しい品番 Please order by the correct part number. 正しい品番でご注文下さい。 (5) M.10/83 The amount required is changed from October, 1983 1983年10月より数量が変更になった この場合数量欄には新しい数量が表示し ます。 Wrong No. 誤り品番 3) Codes on the "Amt. Req." column “数量”欄の記号 (1) 2 Indicates amount required is 2. 数量、2個を表わします (2) 2.0 Indicates length in meters. (unit is meter) 長さ、2メートルを表わします (単位はメートルです) (3) - Indicates parts obsoleted from the parts list. このパーツリストから削除された部品 (4) (1) Indicates sub parts which construct the assembly part. Assembly part is shown as "asm." and クミ in Japanese, in the "Description" column. 祖部品を構成している子部品を表わします 祖部品は品番欄に英文で "asm" とクミと表示してあります When Ordering The Spare Parts: このパーツリストに記載されている補用部品をご注文の際は、部品の番号(例えは、B1109-012-A00)にてご注文 下さい。又、機械番号(表紙右下、例えは、No0010-01)又は、機械番号をご連絡頂ければ幸いで す。改良のため部品の一部が変更になる場合がありますのでご了承下さい。 In order to ensure that we deliver the correct parts to you, please clearly state when ordering the corresponding PART NUMBER (ex. B1109-012-A00) and also the PARTS LIST NUMBER (ex. 0010-01, given at the bottom right of the cover)'or the MACHINE SERIAL NUMBER, because there are some parts which have been changed. jintex.in

Page 3

CONTENTS B 次 1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部外装関係 2. MAIN SHAFT COMPONENTS 上軸関係 3. NEEDLE BAR COMPONENTS 針棒関係 4. THREAD TENSION RELEASE COMPONENTS 糸調子関係 5. SHUTTLE DRIVER SHAFT COMPONENTS 下軸関係 6. FEED MECHANISM COMPONENTS 送り関係 7. THREAD TRIMMING COMPONENTS 糸切り関係 8. PEDAL PRESSURE DECREASING UNIT COMPONENTS 軽減装置関係 9. STOP MOTION MECHANISM COMPONENTS 遮断制御関係 10. LUBRICATION MECHANISM COMPONENTS 給油関係 11. TABLE COMPONENTS 脚卓関係 12. LEG COMPONENTS (For Urban White) 脚卓関係(アーバンホワイト用) 13. LK-1850 SERIES SUBCLASS LK-1850シリーズサブクラス (1) LK 1852-1 (2) LK 1852-2 (3) LK 1852-3 (4) LK 1852-5 (5) LK 1854-6 (6) LK 1854-4 (7) LK 1854 11 (8) LK 1852-7 (9) LK 1852 210 (10) LK 1854 10 (11) LK 1852 20 (12) LK 1854 30 (13) LK 1854 40 (14) LK-1850-P (15) LK-1854P-10 (16) LK 1852P-20 (17) LK 1852P-30 (18) LK 1854P-40 (19) LK 1854 8 14. THREAD STAND COMPONENTS 糸立装置関係 15. THREAD STAND COMPONENTS 糸立装置関係(アーバンホワイト用) NUMERICAL INDEX OF PARTS 索引 1 3 5 7 9 11 13 15 17 19 21 23 25 27 27 27 27 28 28 29 30 31 31 33 33 34 35 37 38 39 40 54 55 57 (20) LK 1854 12 (21) LK 1853-15 (22) LK 1853-16 (23) LK 1852H-5 (24) LK 1852-22 (25) LK 1852G-5 (26) LK 1854-24 (27) LK 1853H-15 (28) LK 1854H 24 (29) LK 1853G 15 (30) LK 1854G 24 (31) LK 1850H (32) LK 1850G (33) LK 1850T (34) LK 1854T 10 (35) LK 1852T-20 (36) LK 1852T-30 (37) LK 1854T 40 40 41 43 43 44 44 45 45 46 46 47 48 48 49 51 52 53 jintex.in

Page 4 — NEOUS COVERS COMPONENTS

NEOUS COVERS COMPONENTS 64 6.7 73 1 JIUKI 14 22 20 3 19 21 33 41 42 43 46 48 49 50 66 70 74 15.16 23 28 71 37.38 47 51 44 45 67 11 12.13 10 29 28 27 24 25 36 30 31 32 33 34 35 52 57 56 58 59 55 54 60 61 62 63 -1- jintex.in

Page 5

REF. NO NOTE PART NO. DESCRIPTION ヒ ン メ イ Qty 1 135-39457 FACE PLATE ASM. メンブカバ-クミ 1 2 #01 135-38152 FACE PLATE ASM. メンブカバ-クミ 1 3 SS-4111015-SP SCREW 11/64-40 L=10 ナベネジ 11/64-40 L=10 2 4 SD-0640471-SP HINGE SCREW D= 6.35 H= 4.7 ダンネジ D=6.35 H=4.7 2 5 WZ-0641510-KP WAVED WASHER 6.4X11X0.3 ナミガタワッシャ 6.4X11X0.3 2 6 135-39309 BED COVER B ベットカバ-(B) 1 7 #01 135-37907 BED COVER B ベットカバ-(B) 1 8 135-01606 TOP COVER アームカバ- 1 9 #01 138-16509 TOP COVER アームカバ- 1 10 135-01200 BELT COVER FIXING PLATE ベルトカバ- コテイタ 1 11 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 2 12 135-01101 BELT COVER ベットカバ- 1 13 135-05805 BELT COVER ベットカバ- 1 14 SS-4090715-SP SCREW 9/64-40 L=7 ナベネジ 9/64-40 L=7 2 15 B1122-280-000 THREAD TAKE-UP LEVER OIL GAURO テンビンカバ- 1 16 135-16608 BALANCE COVER テンビンカバ- 1 17 #01 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 18 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 1 19 B3114-771-000 THREAD GUIDE イトアンナイ 1 20 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 1 21 B1125-280-000 L-SHAPED THREAD GUIDE A レガタ イトアンナイ 1 22 B1126-552-000 ARM THREAD GUIDE A アーム イトアンナイ A 1 23 SS-3090610-SP SCREW 9/64-40 L=6 マルネジ 9/64-40 L=6 1 24 B1109-980-000 BED FITTING HOOK ベット トリツケフツク B 1 25 SS-1110821-TP SCREW 11/64-40 L=8.3 サラネジ 11/64-40 L=8.3 2 26 B1111-232-000 THREAD GUIDE PLATE イトアンナイ イタ 1 27 SS-4150715-SP SCREW 15/64-28 L=7 ナベネジ 15/64-28 L=7 1 28 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 1 29 B1123-280-000 FIRST THREAD GUIDE タテイチ イトアンナイ 1 30 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 2 31 135-01507 RUBBER WASHER ベットカバ- ゴムオオガネ 2 32 PS-0800202-KH SPRING PIN 8X20 スプリングピン 8X20 2 33 135-07801 BASE CONMEVTING PIN ベツトトリツケピン 2 34 WP-1052000-SC WASHER 10.5X18X2 ヒラサカネ 10.5X18X2 1 35 RE-0600000-KO E-SHAPED SNAP RING (6MM) Eガタタトメワ 6 1 36 SS-7151120-SP SCREW 15/64-28 L=11 マルヒラネジ 15/64-28 L=11 2 37 135-38905 BED COVER A ベットカバ-(A) 1 38 135-00608 BED COVER A ベットカバ-(A) 1 39 #01 135-00908 STAY ステー 1 40 135-01002 BED ROCKER ベットロツカー 1 41 135-00707 STAY ROCKER ステーロツカー 1 42 135-00855 STAY GUIDE ASM. ステーガイド クミ 1 43 SD-0800341-SP HINGE SCREW D=8 H=3.4 ダンネジ D=8 H=3.4 2 44 B2008-372-000 THREAD TENSION SPRING イトチヨージン ヒサパツリバネ 1 45 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 2 46 135-00509 VIBRATION-PROOF RUBBER ホーシンゴム 2 47 135-00400 RUBBER BUSH ゴムブツシユ 2 48 SS-7740740-SP SCREW 3/8-28 L= 6.5 マルヒラネジ 3/8-28 L=6.5 1 49 135-02604 SLUSH HOLE PACKING ハイユアナ パツキン 1 50 135-02901 SLUSH PACKING ハイユパツキング 1 51 135-00301 BED FITTING BASE ベットトリツケダイ 1 52 B3101-280-0AO SAFTY PLATE ASM. アンセンプレート トリツケダイ クミ 1 53 B3120-372-000 SAFTY PLATE アンセン プレート (1) 54 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (2) 55 WP-0450801-SD WASHER 4.5X10.0X0.8 ヒラサカネ 4.5X10.0X0.8 (2) 56 SD-0600401-SP HINGE SCREW D= 6 H= 4 ダンネジ D=6 H=4 (1) 57 B3125-155-000 DISK SPRING サラ ハネ (1) 58 B3126-076-SD WASHER 6.5X13X0.8 ヒラサカネ 6.5X13X0.8 (1) 59 B3121-980-000 SAFETY PLATE INSTALLING PLATE アンセンプレート トリツケイタ (1) 60 B3123-372-000 STOPPER PIN アンセンプレート ストツパーピン (1) 61 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (2) 62 B3101-280-000 SAFETY PLATE MOUNTING BASE アンセンプレート マウンテイング ベ-ス 1 63 NS-6620310-SP NUT 3/16-32 ロツカクナット 3/16-32 (1) 64 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 65 135-02307 FACE PACKING メンブパツキン 1 66 SS-6151220-SP SCREW 15/64-28 L=11.5 ヒラネジ 15/64-28 L=11.5 5 67 B2714-761-000 SPRING RACK ハガネカケ 1 68 B1124-280-000 ARM THREAD GUIDE B アーム イトアンナイ B 1 69 SD-0800681-SP HINGE SCREW D=8 H=6.8 ダンネジ D=8 H=6.8 2 70 TA-2050406-RO RUBBER PLUG トメセン 1 71 135-38806 SPRING ベツトカバ-ベネ 2 72 VP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサカネ 4.8X8.4X0.8 2 73 TA-0750704-RO RUBBER PLUG トメセン 1 74 TA-1470704-RO RUBBER PLUG トメセン 1 Note ( 注記 )#01...FOR URBAN WHITE アーバンホワイト用 - 2 -

Page 6 — 2. MAIN SHAFT COMPONENTS

2. MAIN SHAFT COMPONENTS 上軸関係 - 3 - jintex.in

Page 7

REF.NO NOTE PART NO. D E S C R I P T I O N ヒ ン メ イ Qty 1 B1223-771-000 NEEDLE ROD CRANK WASHER ハリホー-クランク ワツシャー 1 2 SS-6151412-TP SCREW 15/64-28 L=14 ロツカクアナボルト 15/64-28 1 3 SS-9661230-CP SCREW 1/4-40 L=12 ロツカクアナボルト 1/4-40 L=12 1 4 SS-6681712-TP SCREW 9/32-28 L=16.5 6カクアナボルト 9/32-28L=16.5 1 5 SS-8606010-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 1 6 B1202-280-000 COUNTER WEIGHT ツリアイオモリ 1 7 135-03206 UPPER SHAFT FRONT METAL ウツシジク マエメタル 1 8 135-03107 MAIN SHAFT. ウツシジク 1 9 135-03305 UPPER SHAFT INNER METAL ウツシジク ナカメタル 1 10 135-10367 WORM ASM. ウオーム アスム 1 11 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ-11/64-40 L=14 (4) 12 CS-150111A-TH THRUST COLLAR ASM. D=15 W=10.8 スラストウケ D=15 W=10.8 クミ 1 13 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 (2) 14 B1211-980-000 UPPER SHAFT THRUST BEARING ウツシジク スラストベアリング 1 15 #01 B1208-980-00B MAIN SHAFT NEEDLE BEARING B ウツシジク ニードルベアリング B 1 16 B1207-980-000 UPPER SHAFT REAR METAL ウツシジク ウシロメタル 1 17 B1210-980-000 SET SCREW ウツシジク ウシロメタル トメネジ 1 18 135-03453 THREAD CUTTING CUM ASM. イトキリカム クミ 1 19 SS-8661012-TP SCREW トメネジ (1) 20 SS-8661212-TP SCREW トメネジ (1) 21 SS-8151230-SP SCREW 15/64-28 L=12 トメネジ 15/64-28 L=12 1 22 SS-6741512-TP SCREW 3/8-28 L=14.5 ロツカクアナボルト 3/8-28 1 23 SS-6742012-TP SCREW 3/8-28 L=19.5 ヒラネジ 3/8-28 L=19.5 1 24 135-03552 STOP-MOTION CAM ASM. シヤタダンカム クミ 1 25 135-03503 STOP-MOTION CAM シヤタダンカム (1) 26 B1215-980-000 STOP MOTION CAM LATCH シヤタダンカム ツメ (1) 27 B1217-280-000 SAFETY PLATE STOPPER SPRING アンゼン ストツパー ハネ (1) 28 135-03602 PIN シヤタダンカム ツメピン (1) 29 135-03750 HIGH SPEED CLUTCH PLATE ASM. ユースク クラツチタイ クミ 1 30 SS-2110920-TP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 2 31 SS-1110640-TP SCREW 11/64-40 L=5.5 サラネジ 11/64-40 L=5.5 1 32 135-04006 SPACER プーリスペーサ 3 33 135-03909 SPRING ヨアツバネ 2 34 135-04204 HIGH SPEED PULLEY ユースクプーリー 1 35 SB-1350002-00 BEARING D=35X62 ベアリング D=35X62 2 36 #02 135-04907 SHIM チョウセイシム 6 37 135-04303 WASHER ユースクプーリー ザガネ 2 38 RC-3221517-KP RETAINING RING 32.2 Cガタトメワ 32.2 1 39 135-04105 SLOW SPEED PULLEY SPRING テイツク プーリーハネ 3 40 RC-6022018-KP RETAINING RING 66.2 Cガタトメワ 66.2 2 41 135-04451 PULLEY ASM. キリカエプーリー クミ 1 42 SS-1110640-TP SCREW 11/64-40 L=5.5 サラネジ 11/64-40 L=5.5 (3) 43 135-04402 PULLEY キリカエプーリー (1) 44 135-04501 PULLEY SHAFT キリカエプーリーシジク (1) 45 SS-8606112-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 1 46 135-04600 SLOW SPEED PULLEY SHAFT リイツクプーリーシジク 1 47 SS-8661112-TP SCREW 1/4-40 L=11 トメネジ 1/4-40 L=11 1 48 135-04709 SLOW SPEED PULLEY テイツクプーリー 1 49 135-04808 SLOW SPEED PULLEY PLATE テイツクプーリー トリツケイタ 1 50 WS-0451040-KP SPRING WASHER 4.5X8.5X1 ハバネガタワッシャー 4.5X8.5X1 2 51 SS-7111120-TP SCREW マルヒラネジ 2 52 135-05003 BALL RETAINER ホールウケ 1 53 SS-2090710-TP SCREW 9/64-40 L=7.2 マルサラネジ 9/64-40 L=7.2 2 54 B1253-980-000 STOP-MOTION BALL シヤタダンボール 1 55 #01 135-05201 PULLEY SPACER プーリースペーサー 1 56 #02 135-05102 REGULATOR SHIM チヨウセイシム 1 Note ( 注記 )#01....SELECTIVE PART 選択部品 #02....UP TO 6 PCS OF THIS PLATE ARE ミシン 頭部により 0~6枚 USED AS REQUIRED. 使用します。 - 4 -

Page 8 — 3. NEEDLE BAR COMPONENTS

3. NEEDLE BAR COMPONENTS 針棒関係 2 9 1 10 21 12 13 14 15 16 17 18 19 54 53 55 56 57 58 59 60 61 62 63 64 65 66 3 6 7 8 32 33 34 35 39 40 46 47 52 42 44 45 49 50 51 22 23 24 25 26 27 28 29 30 31 36 37 38 41 43 48 - 5 - jintex.in

Page 9

REF. NO NOTE PART NO. DESCRIPTION HIN MEI Qty 1 B1901-280-0B0 LINK BALANCE ASM. リ ン ク テ ン ビン ク ミ 1 2 B1904-280-000 BALANCE CRANK PIN テ ン ビン ク ラ ン ク ピ ン (1) 3 B1903-552-0A0 LEFT SCREW ヒ タ リ ネ ジ (1) 4 B1404-280-000 NEEDLE BAR CRANK ROD ハ リ ボ ー ク ラ ン ク ロ ッ ド (1) 5 B1411-804-C00 NEEDLE DRIVING LEVER BEARING C ハ リ ク ト ー レ バ ー ベ ア リ ン グ C (1) 6 B1203-280-000 NEEDLE ROD CRANK ハ リ ボ ー ク ラ ン ク (1) 7 B1905-541-B00 NEEDLE BEARING テ ン ビン ニ ー ド ル ベ ア リ ン グ (1) 8 B1901-280-0A0 BALANCE ASM. テ ン ビン ク ミ (1) 9 SS-7151120-SP SCREW 15/64-28 L=11 マ ル ヒ ラ ネ ジ 15/64-28 L=11 1 10 B1402-280-000 NEEDLE ROD METAL ハ リ ボ ー メ タ ル 1 11 B1411-552-0A0 NEEDLE ROD HOLDER ASM. ハ リ ボ ー ダ ー キ ク ミ 1 12 SS-6090670-TP SCREW 9/64-40 L=6 ヒ ラ ネ ジ 9/64-40 6=6 (1) 13 B1401-280-000 NEEDLE BAR ヒ ラ ボ ー 1 14 B1403-280-000 NEEDLE ROD LOWER METAL ハ リ ボ ー シ タ メ タ ル 1 15 SS-2000510-SP SCREW 3/32-56 L=4.5 マ ル ネ ジ 3/32-56 L=4.5 (1) 16 B1405-280-000 NEEDLE BAR THREAD GUIDE ハ リ ボ ー ス レ ッ ド ガ イ ド 1 17 HDP-500B1400 NEEDLE DPX5 #14 ハ リ DPX5 #14 1 18 HDP-500B1600 NEEDLE DPX5 #16 ハ リ DPX5 #16 1 19 #02 HDP-500B1000 NEEDLE #100 ハ リ 134 100 1 20 SS-6080340-SP SCREW 1/8-44 L=3.0 ヒ ラ ネ ジ 1/8-44 L=2.9 (1) 21 B1414-232-000 SQUARE BLOCK カ ク ゴ マ 1 22 SS-4150915-SP SCREW 15/64-28 L=9 ナ ベ ネ ジ 15/64-28 L=9 2 23 135-26850 THREAD GUIDE BRACKET ASM. イ ト マ キ イ ト ア ン ナ イ ダ ク ミ (1) 24 NS-6110310-SP NUT 11/64-40 ロ ツ カ ナ ッ ト 11/64-40 (1) 25 135-26801 THREAD GUIDE BRACKET イ ト マ キ イ ト ア ン ナ イ ダ イ (1) 26 B3219-232-000 BOBBIN WINDER TENSION POST イ ト マ キ イ ト ヨ ー シ ボ ー (1) 27 B3214-047-000 BOBBIN WINDER TENSION DISC イ ト ヨ ー シ サ ラ (2) 28 B3218-232-000 BOBBIN WINDER TENSION SPRING イ ト ヨ ー シ バ ネ (1) 29 B3216-047-000 BOBBIN WINDER TENSION NUT イ ト ヨ ー シ ナ ッ ト (1) 30 135-26157 BOBBIN WINDER ASM. イ ト マ キ ク ミ 1 31 SD-0791503-SP HINGE SCREW D=7.94 H=15 タ ン ネ ジ D=7.94 H=15 (1) 32 NS-6150310-SP NUT 15/64-28 ロ ツ カ ナ ッ ト 15/64-28 (1) 33 WP-0651056-SD WASHER 6.5X11X1 ヒ ラ ガ ネ 6.5X11X1 (1) 34 SS-7110510-SP SCREW 11/64-40 L=5 マ ル ヒ ラ ネ ジ 11/64-40 L=5 (1) 35 B3210-280-000 BOBBIN WINDER BRAKE PRESSURE P イ ト マ キ ブ レ ー キ オ ウ エ イ タ (1) 36 B3209-280-000 BOBBIN WINDER BRAKE イ ト マ キ ブ レ ー キ (1) 37 135-26405 BOBBIN WINDER WHEEL イ ト マ キ グ ル マ (1) 38 135-26207 BOBBIN WINDER SPINDLE BUSHING イ ト マ キ ジ ッ ク ウ ケ (1) 39 SS-7110510-SP SCREW 11/64-40 L=5 マ ル ヒ ラ ネ ジ 11/64-40 L=5 (1) 40 135-20900 BOBBIN WINDER BELT SUPPORT イ ト マ キ ベ ル ト サ ポ ー ト (1) 41 SS-7110840-SP SCREW 11/64-40 L=7.8 マ ル ヒ ラ ネ ジ 11/64-40 L=7.8 (1) 42 135-26504 BOBBIN WINDER TRIP LATCH イ ト マ キ チ ヨ ウ セ イ タ (1) 43 135-26306 BOBBIN WINDER SPINDLE イ ト マ キ (1) 44 NS-6150310-SP NUT 15/64-28 ロ ツ カ ナ ッ ト 15/64-28 (1) 45 135-26702 SPRING 1 (1) 46 NS-6110310-SP NUT 11/64-40 ロ ツ カ ナ ッ ト 11/64-40 (1) 47 135-26108 BOBBIN WINDER BASE ホ ビン オ サ エ ボ ス (1) 48 B3208-280-000 BOBBIN WINDER ADJUSTING SCREW ホ ビン オ サ エ (1) 49 135-26603 BOBBIN WINDER TRIP LATCH オ キ リ ボ ス (1) 50 NS-6110530-SP NUT 11/64-40 ロ ツ カ ナ ッ ト 11/64-40 (1) 51 SD-0720193-SP HINGE SCREW D= 7.24 H= 1.9 ダ ン ネ ジ D=7.24 H=1.9 (1) 52 SS-4110915-SP SCREW 11/64-40 L=9 ナ ベ ネ ジ 11/64-40 L=9 2 53 SS-1110640-TP SCREW 11/64-40 L=5.5 サ ラ ネ ジ 11/64-40 L=5.5 4 54 135-15556 NEEDLE PLATE ASM. ハ リ イ タ ク ミ 1 55 B2426-280-000 NEEDLE PLATE NEEDLE HOLE GUIDE ハ リ ア ナ ガ イ ド (1) 56 SS-1000210-TP SCREW 3/32-56 L=2.2 サ ラ ネ ジ 3/32-56 L=2.2 (2) 57 135-15564 NEEDLE PLATE ASM. ハ リ イ タ ク ミ (1) 58 B2424-280-000 FIXING KNIFE ユ コ イ メ ス (1) 59 SS-7090410-SP SCREW 9/64-40 L=3.5 コ マ ネ ジ 9/64-40 L=3.5 (2) 60 B2418-280-000 MOVING KNIFE LINK ト ブ ウ メ ス リ ン ク (1) 61 B2416-280-000 THREAD CUTTING LEVER RING イ ト キ リ レ バ ー リ ン グ (1) 62 135-38608 THREAD CUTTER LEVER, SMALL イ ト キ リ レ バ ー ( シ ョ ウ ) (1) 63 B2414-280-0A0 THREAD CUTTER LEVER ASM., LARG イ ト キ リ レ バ ー ( タ イ ) ク ミ (1) 64 SS-6110430-TP SCREW 11/64-40 L=4 ヒ ラ ネ ジ 11/64-40 L=4 (1) 65 WP-0450846-SP WASHER ヒ ラ ガ ネ (2) 66 SS-7110740-TP SCREW 11/64-40 L=7 マ ル ヒ ラ ネ ジ 11/64-40 L=7 (1) 67 B2421-280-00C MOVING KNIFE WASHER C ト ー メ ス ガ ー ネ C (1) 68 B2423-280-0A0 MOVING KNIFE ASM. ト ー メ ス ク ミ (1) 69 SD-0500091-TP HINGE SCREW D= 5.0 H= 0.9 ダ ン ネ ジ D=5 H=0.9 (1) Note ( 注記 )#01...SELECTIVE PART 選 択 部 品 #02...SPECIAL ORDER PART 特 別 注 文 部 品 #03...FOR DOMESTIC USE 国 内 用 #04...STANDARD PART (EXCEPT JE) 輸 出 用 (JE は 除 く ) - 6 - jintex.in

Page 10 — 4. THREAD TENSION RELEASE COMPONENTS

4. THREAD TENSION RELEASE COMPONENTS 糸調子関係 1 2 4 5 6 7 8 9 10 11 12 13 14 15 16 17 17 18 19 20 20 21 22 23 24 25 26 27 28 29 30 31 32 33 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 3 - 7 - jintex.in

Page 11

REF.NO NOTE PART NO. DESCRIPTION ヒン メ イ Qty 1 B2303-280-000 TENSION RELEASE PIN イトユルメピン 1 2 SS-9151740-CP SCREW 15/64-28 L=17 ロツカクボルト 15/64-28 L=17 1 3 B2101-280-0A0 WIPER ASM. ワイパー クミ 1 4 B2302-280-0A0 SECOND THREAD TENSION ASM. ダイ12 イトチヨージ クミ 1 5 SS-8090610-SP SCREW 9/64-40 L=5.9 トメネジ 9/64-40 L=5.9 (1) 6 B2313-280-000 THREAD TENSION ROD, LARGE イトチヨージ ボウタダイ (1) 7 B2302-280-000 SECOND THREAD TENSION ROD ダイ12 イトチヨージホーバー (1) 8 B3112-761-000 THREAD TAKE-UP SPRING イトトリハネ (1) 9 B3126-012-000 THREAD TENSION DISK イトチヨージサラ (2) 10 B3132-552-000 THREAD TENSION DISK PRESSER イトチヨージサラ オサエ (1) 11 B3107-804-000 THREAD TENSION DISK PRESSER イトチヨージサラ オサエ (1) 12 B3114-232-000 THREAD TENSION SPRING イトチヨージ ハネ (1) 13 B3120-125-000 ROTATING STOPPER イトチヨージ カイデントメ (1) 14 B3119-771-000 THREAD TENSION NUT イトチヨージナツト (1) 15 B115-232-0A0 FIRST THREAD TENSION ASM. ダイ12 イトチヨージ クミ (1) 16 B3123-352-000 THREAD TENSION ROD イトチヨージ ボウタダイ (1) 17 B3126-012-000 THREAD TENSION DISK イトチヨージサラ (2) 18 B1115-232-000 FIRST THREAD TENSION SPRING ダイ11 イトチヨージ ハネ (1) 19 B3125-012-000 THREAD TENSION NUT イトチヨージナツト (1) 20 SD-1000401-SP HINGE SCREW D=10 H=4 ダンネジ D=10 H=4 2 21 135-06100 CONNECTING LINK レンケツカン 1 22 135-06100 LOWERING FOOT オシケアシ 1 23 SD-0790601-SP HINGE SCREW D=7.94 H=6 ダンネジ D=7.94 H=6 1 24 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 25 135-06258 LOWERING ARM ASM. オシサケウデ クミ 1 26 SS-6151712-TP SCREW 15/64-28 L=16.5 ロツカクアナボルト 15/64-28 (1) 27 135-13155 TENSION RELEASE ARM ASM. イトチヨージウデ クミ 1 28 SS-6151712-TP SCREW 15/64-28 L=16.5 ロツカクアナボルト 15/64-28 (1) 29 135-06308 SHAFT レントージツク 1 30 SD-0530221-SP HINGE SCREW D=5.3 H=2.2 ダンネジ D=5.3 H=2.2 1 31 135-13205 TENSION RELEASE BAR イトチヨウシ レンケツボー 1 32 135-13304 THREAD TENSION ARM イトチヨウシ ウデ 1 33 SS-7090620-TP SCREW 9/64-40 L=6.1 マルヒラネジ 9/64-40 L=6.1 2 34 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 35 135-06852 LOWERING CONNECTING LEVER ASM. オシサケ レンケツレバー クミ 1 36 SD-0901201-TP HINGE SCREW D=9 H=3.2 ダンネジ D=9 H=3.2 1 37 135-06605 LOWERING CONNECTING RING オシサケ レンケツカン 1 38 RC-0740811-KP C-RING Cガタトメワ 8 1 39 SD-0720331-SP HINGE SCREW D=7.24 H=3.3 ダンネジ D=7.24 H=3.3 1 40 135-06704 TENSION SPRING レンケツカン ヒラツバネ 1 41 B3411-771-000 SPRING オサエ アゲ レバー バネカケ B 1 42 SD-0640391-TP HINGE SCREW D=6.35 H=3.9 ダンネジ D=6.35 H=3.9 1 43 135-06456 CONNECTING ARM ASM. レントウ レンケツウデ クミ 1 44 SS-6151712-TP SCREW 15/64-28 L=16.5 ロツカクアナボルト 15/64-28 (1) 45 SD-0530221-SP HINGE SCREW D=5.3 H=2.2 ダンネジ D=5.3 H=2.2 1 46 135-09500 WIPER CONNECTING LINK ワイパー レンケツカン 1 47 135-09708 SPRING ワイパー レンケツバネ 1 48 135-09955 WIPER CONNECTING ARM ASM. ワイパー レンケツウデ クミ 1 49 RC-0470611-KP RETAINING RING 4.7 Cガタトメワ 4.7 2 50 B2109-280-000 WIPER CONNECTING SCREW ワイパー レンケツネジ 1 51 135-09807 OIL SHIELD CAP ワイパー ユボキヤツプ 1 52 135-09609 WIPER CONNECTING PLATE ワイパー レンケツイタ 1 53 B1229-232-000 SNAP RING トメワ 1 54 B2102-280-000 WIPER INSTALLING PLATE ワイパー ダイイタ 1 55 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 1 56 SD-0640211-SP HINGE SCREW D=6.35 H=2.1 ダンネジ D=6.35 H=2.1 1 - 8 - jintex.in

Page 12 — 5. SHUTTLE DRIVER SHAFT COMPONENTS

5. SHUTTLE DRIVER SHAFT COMPONENTS 下軸関係 12 11 10 9 8 7 5 4 3 2 6 1 12 15 14 13 20 19 8 18 17 35 16 34 32 33 36-37 45 38 39 40 24 25 26 27 29 30 28 31 21 22 23 41 42 43 44 47 46 48 49 50 52 51 -9- jintex.in

Page 13

REF.NO NOTE PART NO. DESCRIPTION ヒン メ イ Qty 1 B1817-280-0A0 INNER HOOK PRESSER ASM. ナカガマ オサエ クミ 1 2 B1828-980-0AB BOBBIN CASE ASM. ホビンケース クミ 1 3 B1827-280-000 BOBBIN ホビン 1 4 B1818-280-000 INNER HOOK ナカガマ 1 5 B1812-980-0A0 DRIVER ASM. ドライバ- クミ 1 6 SS-6121212-TP SCREW 3/16-28 L=12.0 ロツカクアナボルト 3/16-28 L=12 (1) 7 B1813-980-000 SHUTTLE NEEDLE OUTER RING ナカガマ ニ-ドルカバ-イリン 1 8 #01 B1411-804-B00 NEEDLE DRIVING LEVER BEARING B ハリ クト-レバ- ベアリング B 3 9 WP-0952616-SD WASHER 9.5X14.8X2.6 ヒラサカネ 9.5X14.8X2.6 1 10 B1814-980-000 SHUTTLE オカガマ 1 11 B1815-980-000 SHUTTLE UPPER SPRING オカガマ ウワバネ 1 12 SS-6060410-TP SCREW 3/32-56 L=3.5 ヒラネジ 3/32-56 L=3.5 2 13 SS-6151220-SP SCREW 15/64-28 L=11.5 ヒラネジ 15/64-28 L=11.5 1 14 B1819-280-000 SHUTTLE RACE ADJUSTING SHAFT オカガマ チヨ-セツジク 1 15 SS-6110480-SP SCREW 11/64-40 L=4.5 ヒラネジ 11/64-40 L=4.3 (2) 16 CS-080081C-SH THRUST COLLAR ASM. D=8.0 W=8 スラストウケ D=8 W=8 クミ 1 17 SS-8110520-TP SCREW 11/64-40 L=4.5 シタネジ 11/64-40 L=4.5 (2) 18 135-04403 LOWER SHAFT REAR METAL シタジク ウシロメタル 1 19 B1808-080-000 LOWER SHAFT THRUST WASHER シタジク スラストワツシャー 1 20 #01 135-08155 LOWER SHAFT GEAR A ASM. シタジク ハグルマ A クミ 1 21 135-08115 CRANK ROD ASM. クランクロツド クミ 1 22 SS-6110480-TP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 (2) 23 SD-0801021-TP HINGE SCREW D=8 H=10.2 タツネジ D=8 H=10.2 1 24 B1805-980-000 OSCILLATOR オフリコ 1 25 NS-6600043A-SP NUT 1/4-40 ロツカクナット 1/4-40 1 26 CS-079101A-SH THRUST COLLAR ASM. D=7.94 W=10 スラストウケ D=7.94 W=10 クミ 1 27 SS-8110520-TP SCREW 11/64-40 L=4.5 シタネジ 11/64-40 L=4.5 (2) 28 B1804-280-0A0 THRUST COLLAR ASM. オフリコ スラストカラ-ダイ クミ 1 29 SS-8110520-TP SCREW 11/64-40 L=4.5 シタネジ 11/64-40 L=4.5 (2) 30 135-08205 OSCILLATING SHAFT オフリコジク 1 31 SS-8150822-TP SCREW 15/64-28 L=8 ヒラネジ 15/64-28 L=8 1 32 B1821-280-000 INNER HOOK PRESSER, LEFT ナカガマ オサエ フツク ヒタガリ 1 33 B1820-280-000 INNER HOOK PRESSER, RIGHT ナカガマ オサエ フツク ミギ 1 34 B1823-280-000 INNER HOOK PRESSER SPRING ナカガマ オサエ ハネ 2 35 PS-0250162-KH SPRING PIN 2.5X16 スプリングピン 2.5X16 2 36 135-08551 CYLINDER ARM CAP ASM. カマカバ- クミ 1 37 #02 138-16855 CYLINDER ARM CAP カマカバ-(クミ) 1 38 135-08908 HOOK COVER PRESSER SPRING B カマカバ- オサエハネ B 1 39 SS-6111140-SP SCREW 11/64-40 L=11 ヒラネジ 11/64-40 L=11 1 40 135-08700 HOOK COVER PRESSER SPRING PIN カマカバ- オサエハネピン 1 41 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 1 42 SS-6742012-TP SCREW 3/8-28 L=19.5 ヒラネジ 3/8-28 L=19.5 1 43 135-10458 WORM WHEEL ASM. ウオームハグルマ クミ 1 44 135-10201 WORM WHEEL SHAFT BUSHING カムシク メタル 1 45 135-08809 HOOK COVER PRESSER SPRING A カマカバ- オサエハネ A 1 46 CS-180121A-SH THRUST COLLAR ASM. D=18 W=12 スラストウケ D=18 W=12 クミ 1 47 SS-6660710-TP SCREW 1/4-40 L=7 ヒラネジ 1/4-40 L=7 (2) 48 NS-6660511-SP NUT 1/4 ロツカクナット 1/4-40 1 49 135-10151 WORM WHEEL SHAFT ASM. カムシク クミ 1 50 135-10706 CAM GUIDE PIN カムガイドピン 1 51 NS-6360810-SP NUT 9/16-20 ロツカクナット 9/16-20 1 52 135-10607 FEED CAM ヌノクリカム 1 Note ( 注記 ) #01...SELECTIVE PART 選択部品 #02...FOR URBAN WHITE アーバンホワイト用 - 10 - jintex.in

Page 14 — 6. FEED MECHANISM COMPONENTS

6. FEED MECHANISM COMPONENTS 送り関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 18 19 17 3 2 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 - 11 - jintex.in

Page 15

REF. NO NOTE PART NO. DESCRIPTION Qty --- 1 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 4 2 RE-0700000-KO SNAP RING 7 Eガタメクワ 7 2 3 B2557-280-00C WASHER ヨコオクワリデ スガカネ C 2 4 135-18352 LEVER DRIVING PLATE ASM. ヌノオサエレバー アテイツタ クミ 2 5 135-18402 TENSION SPRING ヌノオサエバネ 2 6 135-18006 LIFTING LEVER, LEFT ヌノオサエアゲ レバー ヒダリ 1 7 135-18105 LIFTING LEVER SHAFT ヌノオサエアゲ レバー ジク 1 8 135-18907 SUPPORT PLATE オクリダイ ボールケイタ 1 9 SS-2110920-TP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 2 10 B2549-280-000 WORK CLAMP FOOT MOUNTING BASE ヌノオクリダイ ボールウケ 7 11 B2548-280-000 BALL RETAINER ロツカクアナボルト 15/64-28 1 12 SS-6152212-SP SCREW 15/64-28 L=22.0 ヒラサガネ 6.2X13X1 1 13 WP-0621216-SD WASHER 6.2X13X1 ヌノオサエバネカケ 1 14 135-18501 SPRING SUSPENSION ヌノオサエバネ 1 15 135-17800 FEED BRACKET ヌノオクリダイ 1 16 SS-8150510-TP SCREW 15/64-28 L=4.7 トメネジ 15/64-28 L=4.7 1 17 135-17909 LIFTING LEVER, RIGHT ヌノオサエアゲ レバー ミギ 1 18 #02 SS-8080310-TP SCREW 1/8-44 L=2.8 トメネジ 1/8-44 L=2.8 2 19 #02 135-3104 FINGER GUARDE コビガード 1 20 SS-2110930-SP SCREW 11/64-40 L=8.75 マルサラネジ 11/64-40 L=8.75 5 21 135-18808 WORK CLAMP FOOT FACE PLATE ヌノオサエ スペリイタ 1 22 135-18600 WORK CLAMP FOOT, RIGHT ヌノオサエアシ ミギ 1 23 135-18709 WORK CLAMP FOOT, LEFT ヌノオサエアシ ヒダリ 1 24 SS-3151012-TR SCREW 15/64-28 L=9.5 マルコネジ 15/64-28 L=9.5 1 25 WP-0651001-SC WASHER ヒラサガネ 1 26 135-17701 FEED PLATE ヌノオサエシイタ 1 27 SS-6110420-TP SCREW 11/64-40 L=4.8 ヒラサガネ 11/64-40 L=4.8 6 28 135-17602 FEED PLATE PRESSER PLATE ヌノオクリ オサエイタ 1 29 135-17503 FEED PLATE CARRIER BAR ヌノオクリイタ 1 30 135-49506 FEED DRIVING ARM SHAFT オクリウデジク 2 31 SS-6151220-SP SCREW 15/64-28 L=11.5 ヒラサガネ 15/64-28 L=11.5 1 32 SS-7701010-SP SCREW 5/16-24 L=10 マルヒラネジ 5/16-24 L=10 1 33 NS-6150540-SP NUT 15/64-28 ロツカクアナツト 15/64-28 2 34 WP-0702026-SP WASHER 7X15X2 ヒラサガネ 7X15X2 1 35 135-16307 FEED REGULATOR タテオクリ 1 36 135-17404 HINGE STUD ヌノオクリイタ シテンジク 1 37 NS-6700320-SP NUT 5/16-24 ロツカクアナツト 5/16-24 2 38 135-16505 FEED REGULATOR STUD オクリシテンジク 2 39 135-16901 INDICATOR LEVER オクリチョーセツレバー 2 40 SD-0530221-SP HINGE SCREW D= 5.3 H= 2.2 タテネジ D=5.3 H=2.2 2 41 #01 135-16703 SLIDE BLOCK B オクリシテン カクコマ B 2 42 WP-0650876-SP NUT 1/4-40 ロツカクアナツト 1/4-40 2 43 WP-0650876-SD WASHER 6.5X13X0.8 ヒラサガネ 6.5X13X0.8 2 44 B2501-280-000 FEED CAM ROLLER SHAFT タテオクリ カムコロジク 2 45 #01 B2502-280-00B FEED CAM ROLLER ヌノオクリカム コロ B 2 46 135-16109 FEED DRIVING ARM タテオクリウデ 1 47 SS-9151440-CP SCREW 15/64-28 L=14 ロツカクアナボルト 15/64-28 L=14 1 48 135-50108 FEED REGULATOR SHAFT オクリレバー ジク 2 49 TA-0550604-RO RUBBER PLUG トメセン 2 50 135-17305 PLATE ヌノオクリウケイタ 1 51 SS-1110821-TP SCREW 11/64-40 L=8.3 サラネジ 11/64-40 L=8.3 2 52 SS-6151220-SP SCREW 15/64-28 L=11.5 ヒラサガネ 15/64-28 L=11.5 1 53 WP-0704516-SP WASHER 7X20X4.5 ヒラサガネ 7X20X4.5 1 54 135-17206 SLIDE BLOCK STUD ヨコオクリ コマジク 1 55 B1414-232-000 SQUARE BLOCK 1 56 SS-6151142-TP SCREW 15/64-28 L=10.5 1 57 135-17107 FEED ACROSS DRIVING ARM 1 58 135-17008 FEED ACROSS REGULATOR 2 59 SS-6151220-SP SCREW 15/64-28 L=11.5 ヒラサガネ 15/64-28 L=11.5 1 Note ( 注記 )#01...SELECTIVE PART 選択部品 #02...STANDARD PART 輸出標準 - 12 - jintex.in

Page 16 — 7. THREAD TRIMMING COMPONENTS

7. THREAD TRIMMING COMPONENTS 糸切り関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 - 13 - jintex.in

Page 17

REF.NO NOTE PART NO. D E S C R I P T I O N ヒ ン メ イ Qty 1 B1506-352-000 TENSION SPRING RACK B ヒツパ リ バネカケ B 1 2 B2410-980-000 TENSION SPRING イトキリ ウデバネ 1 3 SD-0650305-TP HINGE SCREW D= 6.5 H= 3 ﾀﾞﾝネジ D=6.5 H=3 2 4 B1110-280-000 THREAD CUTTING LINK SPRING RAC イトキリ リンクバネカケ 1 5 135-15002 THREAD CUTTING LINK イトキリリンク 1 6 135-15309 THREAD CUTTING LINK イトキリリンク 1 7 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 1 8 135-15200 THREAD CUTTING LINK WASHER イトキリリンク サガネ 1 9 135-15101 THREAD CUTTING LINK SHAFT イトキリリンクジク 1 10 RC-1021011-KP RETAINING RING 10.2 Cｶﾞタメワ 10.2 1 11 135-15408 CONNECTING ROD, LARGE イトキリ レンケツボー ダイ 1 12 NS-6120310-SP NUT 3/16-28 ロツカクナット 3/16-28 3 13 135-15310 ROLLER イトキリホシヨコロ 1 14 SD-0651301-TH HINGE SCREW D=6.5 H=13 ﾀﾞﾝネジ D=6.5 H=13 1 15 SS-8681950-SP SCREW 9/32-28 L=19 トメネジ 9/32-28 L=19 1 16 B2404-280-000 THREAD CUTTING CAM ROLLER イトキリカムコロ 1 17 135-14104 CAM STUD イトキリ カムウデジク 1 18 135-34060 THREAD CUTTING CAM COMPL. イトキリカムウデケツコウ 1 19 135-14906 CONNECTING ROD, SMALL イトキリ レンケツボー ショー 1 20 135-07058 LOWERING LINK ASM. オシサゲリンク クミ 1 21 135-07009 LOWERING LINK オシサゲリンク 1 22 SD-0790402-TP HINGE SCREW D= 7.94 H=4 ﾀﾞﾝネジ D=7.94 H=4 (1) 23 135-07157 LOWERING LEVER ASM. オシサゲレバー クミ (1) 24 HS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 25 135-07405 ROLLER オシサゲコロ 1 26 135-07504 WASHER オシサゲワッシャー 1 27 B2015-280-000 STOP RING シヤクン セイキヨ カムコロトメワ (1) 28 WP-0982616-SP WASHER 9.8X24.0X2.6 ヒラサガネ 9.8X24.0X2.6 1 29 SS-6741512-TP SCREW 3/8-28 L=14.5 ロツカクアナボルト 3/8-28 1 30 SD-0901101-SP HINGE SCREW D= 9 H=11 ﾀﾞﾝネジ D=9 H=11 (1) 31 135-14500 AUXILIARY LEVER イトキリ ホシコレバー 1 32 135-14609 SHAFT イトキリ サトベージク 1 33 135-14401 THREAD TRIMMING AUXILIARY CAM イトキリ ホジヨカム 1 34 RC-0740816-KO RETAINING RING トメワ 7.4 1 35 135-14807 CONNECTING PLATE B イトキリ ホジヨカム レンケツタイ B 1 36 SD-0790802-TP HINGE SCREW D=7.94 H=8 ﾀﾞﾝネジ D=7.94 H=8 1 37 135-15606 SPRING イトキリ ホジヨカム モトシバネ 1 38 B1649-161-000 TENSION SPRING ADJUSTING SCREW ヒツパ リバネ チョーセツネジ 1 39 NS-6110420-SP NUT 11/64-40 ロツカクナット 11/64-40 1 40 SS-7110910-TP SCREW 11/64-40 L= 8.5 マルヒラネジ 11/64-40 L=8.5 2 41 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサガネ 4.8X8.4X0.8 2 42 135-14708 CONNECTING PLATE A イトキリ ホジヨカム レンケツタイ A 1 - 14 - jintex.in

Page 18 — 8. PEDAL PRESSURE DECREASING UNIT COMPONENTS

8. PEDAL PRESSURE DECREASING UNIT COMPONENTS 輕減装置関係 1 2 3 4 5 6 7 9 46 47 13 14 15 16 17 18 19 45 20 21 11 12 43 25 26 28 27 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 22 23 24 48 49 50 51 52 53 54 55 56 - 15 - jintex.in

Page 19

REF.NO NOTE PART NO. D E S C R I P T I O N ヒ ン メ イ Qty -------------------------------------------------------------------------------- 1 135-23188 PRESSURE DECREASING DEVICE ケイケツンツク クミ 1 2 135-24608 PRESSURE DECREASING LEVER オサエアゲ レバー (2) 3 135-25100 STUD ケイケツンツク チョウセツツク (2) 4 135-24707 LEVER LATCH A オサエアゲ レバーツメ A (2) 5 SS-2110920-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 (2) 6 SS-7110910-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 (2) 7 SD-0640321-SP SCREW D= 6.35 H= 3.2 タツンネジ D= 6.35 H=3.2 (2) 8 135-24806 LEVER LATCH B オサエアゲ レバーツメ B (1) 9 135-25001 SPRING オサエアゲ レバー カエシバネ (1) 10 135-24905 PRESSURE DECREASING LEVER LINK オサエアゲ レバーリンク (1) 11 B1110-280-000 THREAD CUTTING LINK SPRING RAC イトキリ リンクハネカケ (2) 12 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (1) 13 MAT-80116S00 SUSPENSION PIN ヒタドリ ハネカケ ピン (1) 14 135-25605 AUXILIARY CAM ギヤクテンボウ ウシノヨコム (1) 15 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 タツンネジ D=7.24 H=3.3 (1) 16 SS-6110710-TP SCREW 11/64-40 L=6.5 ヒラネジ 11/64-40 L=6.5 (1) 17 135-25704 SPRING ホシノモトシバネ (1) 18 SS-9151120-CP SCREW 15/64-28 L=11 ロツカクボルト 15/64-28 L=11 (2) 19 135-23352 PRESSURE DECREASING SHAFT ASM. オサアゲジククミ (1) 20 PS-0300162-KH SPRING PIN 3X16 スプリングピン 3X16 (1) 21 135-23113 ROTATING PREVENTING LATCH ASM. ケイケツンツク トリツケダイ (1) 22 135-24368 ROTATING PREVENTING LATCH ASM. ギヤクテンボウ ウシノヨコム (1) 23 135-24418 SPRING ギヤクテンボウ ウシノヨコム (1) 24 SD-0600321-SP HINGE SCREW D=6 H=3.2 タツンネジ D=6 H=3.2 (1) 25 SS-8620610-SP SCREW 3/16-32 L=6 トメネジ 3/16-32 L=6 (1) 26 135-24277 DECREASING CLUTCH ASM. ケイケツンクラツチツメ(クミ) (1) 27 135-23808 CLUTCH SPRING クラツチハネ (1) 28 SS-6121212-TP SCREW 3/16-28 L=12.0 ロツカクボルト 3/16-28 L=12 (1) 29 135-24111 INNER SLEEVE ケイケツンインナースリーブ (1) 30 135-24004 OUTER SLEEVE ケイケツンアウタースリーブ (1) 31 135-23915 OUTER SLEEVY GUIDE アウタースリーブ ガイドリング (1) 32 RC-1850001-KP SNAP RING 18.5 Cカトメワ 18.5 (1) 33 SB-1200003-00 BEARING D=20X42 ベアリング D=20X42 (1) 34 135-23428 SHAFT ニューリヨウシツク (1) 35 SB-3120001-00 BEARING D=12X15 ベアリング D=12X15 (2) 36 135-23519 COLLAR A オシサゲジクカラー A (1) 37 135-23600 COLLAR B オシサゲジクカラー B (1) 38 135-25308 IDLER PULLEY INSTALLING PLATE アイトラ トリツケイタ (1) 39 SS-6110810-TP SCREW 11/64-40 L=8 ケイリース チュウニユウネジ (3) 40 135-25407 SCREW トメネジ (1) 41 SS-8150822-TP SCREW 15/64-28 L=8 ケイリース チュウニユウネジ (2) 42 135-23212 DRIVING PULLEY トメネジ 15/64-28 L=8 (1) 43 SS-8151550-SP SCREW 15/64-28 L=15 ヒラサカネ 4.8X11.5X2 (2) 44 WP-0482086-SD WASHER 4.8X11.5X2.0 トメネジ 3/16-32 L=8 (1) 45 SS-8620850-SP SCREW 3/16-32 L= 8.0 ロツカクボルト 15/64-28 (3) 46 SS-9152130-CP SCREW 15/64-28 L=20.5 ヒラサカネ 6.2X13X1 (3) 47 WP-0621016-SD WASHER 6.2X13X1 アイトラプーリ クミ (1) 48 135-32254 IDLER PULLEY ASM. アイトラ トリツケダイ (1) 49 135-32106 IDLER PULLEY BRACKET ヒラサカネ 6.2X13X1 (1) 50 WP-0621016-SD WASHER 6.2X13X1 (1) 51 SS-6150760-SN SCREW 15/64-28 L=6.5 ヒラサカネ 6.2X13X1 (1) 52 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 53 WP-0612056-SD WASHER 6.1X18.5X2 ヒラサカネ 6.1X18.5X2 (1) 54 B7810-980-000 TENSION RING テンションリンク (1) 55 135-32262 IDLER PULLEY ASM. アイトラプーリ クミ (1) 56 SD-1201501-SP HINGE SCREW D=12 H=15 タツンネジ D=12 H=15 (1) - 16 - jintex.in

Page 20 — 9. STOP-MOTION MECHANISM COMPONENTS

9. STOP-MOTION MECHANISM COMPONENTS 遮断制御関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 - 17 - jintex.in

Page 21

REF.NO NOTE PART NO. DESCRIPTION ヒン メ イ Qty 1 135-22008 STOP-MOTION REGULATING CAM シャタ゛ン セイキ゛ヨコム 1 2 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサ゛カ゛ネ 4.8X8.4X0.8 3 3 SS-6121212-TP SCREW 3/16-28 L=12.0 ロツカアナホ゛ルト 3/16-28 L=12 3 4 RC-0470611-KP RETAINING RING 4.7 C゛カ゛トメワ 4.7 1 5 135-22206 ROLLER シャタ゛ン セイキ゛ヨコムコロ 1 6 135-22107 ROLLER SHAFT シャタ゛ン セイキ゛ヨコムコロシ゛ク 1 7 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 8 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 2 9 135-21505 STOP-MOTION ARM B シャタ゛ン セイキ゛ヨウテ゛ B 1 10 SS-6681720-TP SCREW 9/32-28 L=16.5 ロツカアナホ゛ルト 9/32-28 1 11 NS-6680320-SP NUT 9/32-28 ロツカクナツト 9/32-28 1 12 SD-0800402-TP HINGE SCREW D=8 H=4 タ゛ンネジ D=8 H=4 2 13 135-21604 STOP-MOTION LINK シャタ゛ン セイキ゛ヨリンク 1 14 135-21760 LEVER ASM. シャタ゛ン セイキ゛ヨ レハ゛ー (クミ) 1 15 135-21901 REGULATING LEVER STUD シャタ゛ン セイキ゛ヨ レハ゛ー 1 16 SS-7151120-SP SCREW 15/64-28 L=11 マルヒラネジ 15/64-28 L=11 1 17 B2608-280-000 RUBBER CUSHION ク゛ローフ゛クツシヨン 3 18 B2607-280-000 WASHER シャタ゛ンハ゛ネ サ゛カ゛ネ 2 19 B2606-280-000 PRESSURE SPRING シャタ゛ン アツシユク ハ゛ネ 1 20 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサ゛カ゛ネ 7.5X19X1.5 1 21 B2605-372-000 STOP MOTION PLUNGER ROD シャタ゛ン アツシユク シ゛ク 1 22 135-37501 STOP-MOTION HOOK シャタ゛ンフツク 1 23 135-20309 PULLEY PRESSING PLATE キリカ゛エーフ゛リ オシツケイタ 1 24 SS-8151780-SP SCREW 15/64-28 L=17.0 ト゛メネジ 15/64-28 L=17 1 25 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 26 WP-0621016-SD WASHER 6.2X13X1 ヒラサ゛カ゛ネ 6.2X13X1 1 27 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 1 28 WP-0612056-SD WASHER 6.1X18.5X2 ヒラサ゛カ゛ネ 6.1X18.5X2 1 29 WS-0641560-KR SPRING WASHER 6.4X11.9X1.5 ハ゛ネサ゛カ゛ネ 6.4X11.9X1.5 1 30 SS-7151330-SP SCREW 15/64-28 L=13.0 マルヒラネジ 15/64-28 L=13 1 31 SS-6151412-TP SCREW 15/64-28 L=14 ロツカアナホ゛ルト 15/64-28 2 32 135-20705 SAFETY PLATE キ゛ヨ゛ンフ゛レーム 1 33 135-20101 STOP-MOTION LEVER キ゛ヨ゛ンフ゛レーム 1 34 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサ゛カ゛ネ 7.5X19X1.5 1 35 NS-6680410-SP NUT 9/32-28 ロツカクナツト 9/32-28 1 36 NS-6680410-SP NUT 9/32-28 ロツカクナツト 9/32-28 1 37 135-20606 STOP-MOTION LEVER PLATE SPRING シャタ゛ンフ゛レーム イタ゛ハ゛ネ 1 38 SS-5680740-SP SCREW 9/32-28 L=6.8 ト゛ラス゛ネジ 9/32-28 L=6.8 1 39 135-20004 GUIDE PIN カ゛ムウ゛テ゛ カ゛イシ゛ヤ アンナイ 1 40 135-20408 DRIVING PLATE カ゛ムウ゛テ゛ カ゛イシ゛ヤ 1 41 135-20804 TENSION SPRING シャタ゛ン ヒツハ゛リハ゛ネ 1 42 135-20200 STOP-MOTION LEVER SHAFT シャタ゛ンフ゛レーム シ゛ク 1 43 135-21307 STARTING SPRING RACK キ゛ヨ゛ンハ゛ネカ゛ケ 1 44 NS-6150410-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 45 135-21307 TENSION SPRING キ゛ヨ゛ン レハ゛ー ヒツハ゛リハ゛ネ 1 46 135-21216 STARTING LEVER キ゛ヨ゛ン レハ゛ー 1 47 SD-0640801-TP HINGE SCREW D=6.35 H=8.0 タ゛ンネジ D=6.35 H=8 1 48 135-22909 SLIDE ROLLER キ゛ヨ゛ン レハ゛ー コロ 1 49 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサ゛カ゛ネ 4.8X8.4X0.8 1 50 NS-6110350-SP NUT 11/64-40 ロツカクナツト 11/64-40 1 51 B3413-552-000 SUSPENSION SCREW ヒサ゛アケ゛ リン ク゛ウテ゛ ハ゛ネカ゛ケ ウテ゛ 1 52 SD-0800402-TP HINGE SCREW D=8 H=4 タ゛ンネジ D=8 H=4 1 53 135-21406 STOP-MOTION ARM SHAFT セイキ゛ヨウテ゛ シ゛ク 1 54 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 55 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 1 56 135-21117 STOP-MOTION ARM A シャタ゛ン セイキ゛ヨウテ゛ (A) 1 57 SS-6151812-TP SCREW 15/64-28 L=18 ロツカアナホ゛ルト 15/64-28 (1) 58 SS-4150915-SP SCREW 15/64-28 L=9 ナヘ゛ネジ 15/64-28 L=9 1 59 135-21000 NUT シャタ゛ン レンケツナツト 1 60 135-20903 STOP-MOTION CONNECTING LEVER シャタ゛ン レンケツリンク 1 61 RE-0400000-KO E-SHAPED SNAP RING (4MM) E゛タ゛トメワ 4 1 62 SD-0800352-SP HINGE SCREW D=8 H=3.5 タ゛ンネジ D=8 H=3.5 1 - 18 - jintex.in

Page 22 — 10. LUBRICATION MECHANISM COMPONENTS

10. LUBRICATION MECHANISM COMPONENTS 給油関係 1 2 5 4 6 7 8 1 2 13 12 11 10 6 3 19 37 42 43 45 46 36 44 19 2 19 17 19 14 15 3 19 39 40 38 10 36 32 33 34 35 2 1 22 16 19 21 20 19 14 18 19 23 24 28 27 26 25 10 29 11 19 18 31 30 1 47 48 49 51 50 - 19 - jintex.in

Page 23

REF.NO NOTE PART NO. DESCRIPTION HIN MEI Qty 1 TA-2100904-RO RUBBER PLUG トメセン 5 2 TA-1050504-RO RUBBER PLUG トメセン 6 3 BP-6000000-00 VINYL PIPE ビニールパイプ 0.7 4 B1419-026-000 OIL WICK PRESSER エシン オサエ 3 5 TA-1250406-RO RUBBER PLUG トメセン D=12.5 L=4 2 6 CQ-2522000-00 OIL WICK ユシン 4.7 7 B3506-280-000 OIL WICK PRESSER ハリボー クランク ユシンオサエ 1 8 TA-1250406-RO RUBBER PLUG トメセン D=12.5 L=4 1 9 B3507-280-000 OIL FELT メンブフェルト 1 10 B3509-280-000 NEEDLE ROD CRANK LUBRICATING ハリボー クランク キューバィリィーン 4 11 B3518-280-000 BALANCE LUBRICATING テンビン キューバィリィーン 2 12 B3508-280-000 BALANCE LUBRICATING PLATE テンビン キューイタ 1 13 SS-6092120-SP SCREW 9/64-40 L=21.2 ヒラネジ 9/64-40 L=21.2 1 14 BP-3000001-00 VINYL TUBE ビニールパイプ 2.5 15 135-30001 UPPER SHAFT FRONT METAL OIL VI ウシンク マエメタル ユシントメ 1 16 135-29805 LUBRICATING TANK キユウタンク 1 17 SS-4090515-SP SCREW 9/64-40 L=5 ナベネジ 9/64-40 L=5 2 18 B3506-761-000 OIL WICK HOLDER ジタ カサハグルマ ユシンササエ 1 19 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 11 20 135-30209 LUBRICATING OIL WICK STOPPER キユウユシントメ 1 21 TA-0750704-RO RUBBER PLUG トメセン 1 22 #01 135-01408 SILICON OIL POURING HOLE エスレン チユニウケグチ 1 23 135-29904 LUBRICATING TANK FELT キユウタンクフエルト 1 24 B3503-980-000 GREASE CAP グリース キヤツプ 1 25 135-28708 REAR METAL BUSH ウシロメタル ブツシユ 1 26 B3512-280-000 CRANK ROD LUBRICATING PLATE クランククロツト キユーユイタ 2 27 135-29201 CRANK LUBRICATING FELT クランク キユウフエルト 1 28 135-29102 OIL FELT ウオーム キユウフエルト 1 29 135-28500 OSCILLATOR LUBRICATING PLATE オオブリコ キユウユイタ 1 30 B3515-280-000 OSCILLATOR LUBRICATING FELT オオブリコ キユウフエルト 1 31 TA-1450404-RO RUBBER PLUG D=14.5 L=4 トメセン D=14.5 L=4 1 32 WP-0621016-SD WASHER 6.2X13X1 ヒラサガネ 6.2X13X1 1 33 SS-6111140-SP SCREW 11/64-40 L=11 ヒラネジ 11/64-40 L=11 1 34 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 35 B3502-280-000 LUBRICATING TANK FELT キユウタンクフエルト 1 36 B3504-280-000 SHUTTLE FELT オオガマフエルト 2 37 135-28807 HOOK OIL WICK STOPPER A カマユシントメ A 1 38 B3541-012-000 OIL WICK カンリユー ユシン 1 39 135-29706 OIL FELT HOLDER カンリユウ フエルトオサエ 1 40 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 41 B3523-980-000 OIL WICK PIPE STOPPER ユシンパイプドメ 1 42 SS-9110543-CP SCREW 11/64-40 L=5.3 ロツカクボルト 11/64-40 L=5.3 1 43 135-28906 HOOK OIL WICK STOPPER B カマユシントメ B 1 44 B3505-280-000 SHUTTLE LUBRICATING PLATE オオガマ キユーユイタ 1 45 135-29607 SHUTTLE PACKING オオガマ パツキン 2 46 SS-6090440-SP SCREW 9/64-40 L=4.0 ヒラネジ 9/64-40 L=4 2 47 TA-1050504-RO RUBBER PLUG トメセン 1 48 #01 135-01705 SILICON OIL FELT エスレンフエルト 1 49 #01 135-01309 SILICON OIL PIPE エスレンパイプ 1 50 #01 B1127-280-000 SILICON OIL THREAD GUIDE エスレンイトアンナイ 1 51 #01 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 Note ( 注記 ) #01...SPECIAL ORDER PART 特別注文部品 - 20 - jintex.in

Page 24 — 11. TABLE COMPONENTS

11. TABLE COMPONENTS 脚卓関係 JUKI 7 8 9 S 2 3 4 5 6 15 16 17 18 19 30 39 40 41 42 43 44 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 77 76 75 71 69 68 67 73 74 72 70 65 66 64 21 jintex.in 12 13 14 20 21 22 23 24 25 26 27 28 29 40 41 45 48 47 46 38 37 32 33 34 35 36 78 79 80 81

Page 25

REF.NO NOTE PART NO. D E S C R I P T I O N ヒン メ イ Qty 1 135-34102 TABLE テーブ ル 1 2 B8204-012-000 DRAWER SUPPORT ヒキタシ ササエ 2 3 SK-3311600-SC WOOD SCREW D=3.1 L=16 マルモクネジ 6 4 D8203-555-B00 DRAWER ヒキタシ 1 5 B8205-012-000 DRAWER STOPPER ヒキタシ ストツパー 1 6 SK-3482500-SC WOOD SCREW D=4.8 L=25 マルモクネジ 2 7 SS-9156830-SP SCREW 15/64-28 L=68 ロツカクボルト 15/64-28 L=68 3 8 MTJ-HS000000 MOUNTING BOLT モータタイト トリツケボルト 4 9 B8133-019-000 S SHAPED HOOK Sガタ カナグ 2 10 SK-3311600-SE WOOD SCREW D=3.1 L=16 モクネジ D=3.1 L=16 3 11 B8236-771-000 OIL REMOVING FUNNEL アブブラス ジヨーゴ 1 12 VP-0621210-SD WASHER 6.2X13X1 ヒラサカアネ 6.1X18.5X2 3 13 VP-0621016-SD WASHER 6.2X13X1 ヒラサカアネ 6.2X13X1 3 14 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 3 15 B7101-761-BAO MOTOR BASE ASM. モータタイクミ 1 16 NM-6060001-SE NUT M6 ロツカクナット M6 1シュ 4 17 WS-0621210-KR SPRING WASHER 6.2X11.4X1.2 ハネサカアネ 6.2X11.4X1.2 4 18 VP-0612050-SE WASHER 6.1X18.5X2 ヒラサカアネ 6.1X18.5X2 8 19 SM-9063213-CH SCREW M6 L=32 ロツカクボルト M6 L=32 4 20 WP-0850002-SC WASHER 8.5X18X1.6 ヒラサカアネ 8.5X18X1.6 4 21 WS-0902010-KN SPRING WASHER 9.0X15.0X2.0 ハネサカアネ 9X15X2 4 22 NS-6200710-SN NUT 5/16-18 ロツカクナット 5/16-18 4 23 135-31108 MOTOR PULLEY 50HZ 2300 SPM モータプーリ (50HZ) 1 24 135-31207 MOTOR PULLEY 50HZ 2000 SPM モータプーリ (50HZ) 1 25 135-31306 MOTOR PULLEY 50HZ 1800 SPM モータプーリ (50HZ) 1 26 135-31405 MOTOR PULLEY 60HZ 2300 SPM モータプーリ (60HZ) 1 27 135-31504 MOTOR PULLEY 60HZ 2000 SPM モータプーリ (60HZ) 1 28 135-31603 MOTOR PULLEY 60HZ 1800 SPM モータプーリ (60HZ) 1 29 135-53706 MOTOR PULLEY 60HZ 1500 SPM モータプーリ 1 30 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 2 31 B131-019-000 CHAIN クサリ 1 32 #01 MTJ-VH005000 V-BELT, 50INCH Vベルト 50インチ 1 33 #02 MTJ-VH004900 V-BELT, 49 INCH Vベルト 49インチ 1 34 #03 MTJ-VH004800 V BELT 48 INCHES Vベルト 48インチ 1 35 #04 MTJ-VH004700 V BELT 47 INCHES Vベルト 47インチ 1 36 #05 MTJ-VH004600 V-BELT, 46 INCH Vベルト 46インチ 1 37 B8101-980-0AO TABLE STAND ASM. キャク クミ 1 38 B8102-552-000 HEIGHT ADJUSTING STAND ASM., R キャク クミ (ミギ) (1) 39 B8101-552-000 HEIGHT ADJUSTING STAND ASM., L キャク クミ (ヒダリ) (1) 40 SK-3514000-SC WOOD SCREW D=5.1 L=40 マルモクネジ 4 41 B8104-552-000 TABLE SUPPORT テーブ ル ササエ (2) 42 B8082023-SE SCREW M8 L=20 ロツカクボルト M8 L=20 (4) 43 WS-0861410-KR SPRING WASHER 8.6X15X1.4 ハネサカアネ 8.6X15X1.4 (4) 44 WP-0871602-SE WASHER 8.7X18X1.6 ヒラサカアネ 8.7X18X1.6 (4) 45 B8111-552-000 STAND (RIGHT) ASM. シチユー クミ (1) 46 SD-1204315-SE HINGE SCREW D=12 H=43.1 ダンネジ D=12 H=43.1 (4) 47 WS-1253010-KN SPRING WASHER 12.5X21.5X3 ハネサカアネ 12.5X21.5X3 (4) 48 WP-1252210-SC WASHER 12.5X25.6X2.2 ヒラサカアネ 12.5X25.6X2.2 (4) 49 B8105-552-000 STAND SIDE SUPPORT ASM. ヨコ シチユー クミ (1) 50 SM-9082023-SE SCREW M8 L=20 ロツカクボルト M8 L=20 (1) 51 WS-0861410-KR SPRING WASHER 8.6X15X1.4 ハネサカアネ 8.6X15X1.4 (1) 52 WP-0871602-SE WASHER 8.7X18X1.6 ヒラサカアネ 8.7X18X1.6 (1) 53 B8126-552-0AE OIL HOLDER ASM. アブブラス シユータイ クミ (1) 54 NM-6080721-SE NUT M8 ロツカクナット M8 (1) 55 B8103-552-000 STAND ASM. シチユー クミ (1) 56 NM-6120003-SE NUT M12 ロツカクナット M12 3シュ (4) 57 B8108-555-000 ADJUSTING SCREW ASM. チョーセツネジ クミ (4) 58 B8108-555-0AO ADJUSTING SCREW ASM. WITH CAP キャツプツキ チョーセツネジ クミ (4) 59 B8112-552-000 LEG BOTTOM SUPPORT BRACKET シタジシユー トメイツケ (2) 60 WP-0871602-SE WASHER 8.7X18X1.6 ヒラサカアネ 8.7X18X1.6 (2) 61 WS-0861410-KR SPRING WASHER 8.6X15X1.4 ハネサカアネ 8.6X15X1.4 (2) 62 WS-0881410-KR SCREW M8 L=20 ロツカクボルト M8 L=20 (2) 63 SM-9082023-SE SCREW M8 L=20 ロツカクボルト M8 L=20 (1) 64 B8107-552-000 LEG BOTTOM SUPPORT シタジシユー (1) 65 WP-0871602-SE WASHER 8.7X18X1.6 ヒラサカアネ 8.7X18X1.6 (4) 66 NM-6080721-SE NUT M8 ロツカクナット M8 (2) 67 B8151-771-000 PEDAL Z ケーヤワ ペダル (1) 68 D8113-555-B00 PEDAL BUSHING フミイタ ブツシユ (2) 69 D8114-552-BOE PEDAL SHAFT BRACKET フミイタシヤフト ケイタク (2) 70 WS-0861410-KR SPRING WASHER 8.6X15X1.4 ハネサカアネ 8.6X15X1.4 (2) 71 SM-9082023-SE SCREW M8 L=20 ロツカクボルト M8 L=20 (1) 72 B8153-771-000 PEDAL CONNECTING ROD ペダル コネクテイング ロツド (1) 73 B8152-771-000 PEDAL MAT ペダル マツト (1) 74 B8125-280-000 PEDAL ADJUSTING PLATE フミイタ チョーセツイタ (1) 75 WS-0621210-KR SPRING WASHER 6.2X11.4X1.2 ハネサカアネ 6.2X11.4X1.2 (2) 76 WS-0621210-KR SPRING WASHER 6.2X11.4X1.2 ハネサカアネ 6.2X11.4X1.2 (2) 77 SH-9061203-SE SCREW M6 L=12 ロツカクボルト M6 L=12 (2) 78 B8211-771-00A GUARD PLATE アンセンバンカー 1 79 #06 WP-0621016-SE WASHER 6.2X13X1 ヒラサカアネ 6.2X13X1 3 80 #06 WS-0521010-KN SPRING WASHER 5.2X8.2X1.1 ハネサカアネ 5.2X8.2X1 (3) 81 #06 SK-3482500-SC WOOD SCREW D=4.8 L=25 マルモクネジ D=4.8 L=25 3 Note ( 注記 )#01...FOR 50HZ 2300SPM 50HZ 2300SPM #02...FOR 50HZ 2000SPM. 60HZ 2300SPM 50HZ 2000SPM. 60HZ 2300SPM #03...FOR 50HZ 1800SPM. 60HZ 2000SPM 50HZ 1800SPM. 60HZ 2000SPM #04...FOR 50HZ 1800SPM 60HZ 1800SPM #05...FOR SLOW SPEED 低速用 #06...SPECIAL ORDER PART 特別注文部品 - 22 - jintex.in

Page 26 — TABLE COMPONENTS (For Urban White)

12 TABLE COMPONENTS (For Urban White) 脚卓関係(アーバンホワイト用) 1 2 3 4 2 5 7 8 20 19 20 4 20 19 11 9 6 20 13 16 15 18 17 10 13 16 15 18 17 14 13 16 15 18 17 21 27 28 29 23 30 24 2622 31 30 31 32 33 12 20 31 32 33 23 jintex.in

Page 27

REF.NO NOTE PART NO. D E S C R I P T I O N ヒン メ イ Qty 1 138-17507 TABLE テーブル 1 2 111-55207 DRAWER SUPPORT ヒキダシ ササエ 2 3 111-55108 DRAWER ヒキダシ 1 4 D8204-555-D00 DRAWER STOPPER ヒキダシ シストツパー 1 5 135-08056 T-STAND COMPL. Tキャク ケツゴウ 1 6 111-57559 T-STAND ASM. Tキャク(クミ) (1) 7 111-57658 STAND UPPER, RIGHT ウワキャク ケツゴウ(ミギ) (1) 8 111-57757 STAND UPPER, LEFT ウワキャク ケツゴウ(ヒダリ) (1) 9 111-57955 STUD ASH., RIGHT シチュウケツゴウ(ミギ) (1) 10 111-58052 STRUT JUNCTION (LEFT) シチュウケツゴウ(ヒダリ) (1) 11 111-58300 STAND SIDE SUPPORT ヨコ シチュウ (1) 12 111-58409 STAND SIDE SUPPORT シタ シチュウ (1) 13 111-58607 RUBBER CAP キャク ドダイ キャツプ (4) 14 170-07402 NUT 44カクナツト (2) 15 WP-1302501-SE WASHER M12 ヒラサカネ 12.5X21.5X3 (4) 16 WS-1253010-KN SPRING WASHER 12.5X21.5X3 ハネサカネ 12.5X21.5X3 (4) 17 B8108-555-0A0 ADJUSTING SCREW ASM. WITH CAP キャツプツキ チョーセツネジ クミ (4) 18 NM-6120003-SE NUT M12 ロツカクナツト M12 3シュ (4) 19 111-58508 PLATE ウワキャク トメイタ (2) 20 SL-9082091-SE WASHER HEXAGONAL BOLT ザガネツキロツカクボルト (12) 21 138-17754 Z-STAND PEDAL ASM. Zキャクヨウ ペタル(ケツゴウ) (1) 22 GPF-060600A0 PEDAL ASM. ペタル(ケツゴウ) (1) 23 GPF-06080000 PEDAL ADJUSTING PLATE フミイタ チョウセツバン (1) 24 111-59001 PEDAL SHAFT BRACKET フミイタ ジクウケ (1) 25 B8153-771-000 PEDAL CONNECTING ROD ペタル コネクテイングロツド (1) 26 D8113-555-B00 PEDAL BUSHING フミイタ ブツシユ (2) 27 SM-9061203-SE SCREW M6 L=12 ロツカクボルト M6 L=12 (2) 28 WP-0671016-SE WASHER 6.7X13X1 ヒラサカネ 6.7X13X1 (2) 29 WS-0621210-KR SPRING WASHER 6.2X11.4X1.2 ハネサカネ 6.2X11.4X1.2 (2) 30 SM-9082023-SE SCREW M8 L=20 ロツカクボルト M8 L=20 (2) 31 WP-0871602-SE WASHER 8.7X18X1.6 ヒラサカネ 8.7X18X1.6 (4) 32 WS-0861410-KR SPRING WASHER 8.6X15X1.4 ハネサカネ 8.6X15X1.4 (2) 33 NM-6080721-SE NUT M8 ロツカクナツト M8 (2) Note ( 注記 )*ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 24 - jintex.in

Page 28 — 13. LK-1850 SERIES SUBCLASSES

13. LK-1850 SERIES SUBCLASSES L K - 1 8 5 0 シリーズサブクラス (1) LK-1852-1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 - 25 - jintex.in

Page 29 — FIG. 1 LK-1852-1

(1) LK-1852-1 REF.NO NOTE PART NO. DESCRIPTION 1 135-10862 WORM ASM. 2 SS-7111410-TP SCREW 11/64-40 L=14 3 135-10953 FEED CAH WHEEL ASM. 4 #01 135-41750 FINGER GUARD ASM. 5 #01 SS-7111120-SP SCREW 11/64-40 L=10.5 6 135-40752 WORK CLAMP FOOT BRACKET ASM. 7 135-41602 WORK CLAMP FOOT SPRING HOLDER 8 SS-7110840-SP SCREW 11/64-40 L=7.8 9 135-41404 WORK CLAMP FOOT LIFTING PLATE 10 SS-9151120-CP SCREW 15/64-28 L=11 11 WP-0612516-SD WASHER 6.1X15.2X2.5 12 D2529-232-D00 PRESSER SPRING 13 #02 D2545-232-D0A HINGE SCREW 14 D2513-232-D00 BRACKET GUIDE ASM. 15 NS-6110530-SP NUT 11/64-40 16 D2509-232-D00 STATIONING LATCH 17 D2511-232-D00 TORSION SPRING 18 D2504-282-AB0-A KNOB FOOT MOUNT BASE ASM. 19 D2502-232-D00 SHAFT BLOCK SHAFT 20 RE-0700000-KO SNAP RING 7 21 SS-9110920-CP SCREW 11/64-40 L=9 22 D2510-232-D00 WORK CLAMP FOOT REGULATOR 23 D2528-232-D00 SHAFT 24 D2527-232-D00 SLEEVE 25 B3117-352-D00 THREAD TENSION POST NUT 26 D2515-232-D00 TORSION SPRING 27 SS-7110840-SP SCREW 11/64-40 L=7.8 28 135-41107 WORK CLAMP FOOT SPRING HOLDER 29 135-41057 CLAMP GUIDE FOOT ASM. 30 D2520-232-D00 WORK CLAMP FOOT (LEFT) ASM. 31 SS-1110640-TP SCREW 11/64-40 L=5.5 32 D2521-232-D00 WORK CLAMP FOOT (RIGHT) ASM. 33 D2502-271-TP HINGE SCREW D= 5.50 H= 2.7 34 D2519-232-D00 WORK CLAMP FOOT PLATE CAM 35 NS-6120480-SP NUT 3/16-28 36 135-40503 FEED PLATE 37 SS-9110460-CP SCREW 11/64-40 L=4 38 WP-061016-SD WASHER 5X10.5X1 39 SS-9110460-CP SCREW 11/64-40 L=4 40 SS-9110460-CP SCREW 11/64-40 L=4 41 135-40802 SHAFT BRACKET BASE 42 135-40901 STATIONING BLOCK SHAFT 43 D2548-232-D00 SNAP RING, FOR CONNECTING ROD 44 D2507-232-D00 STATIONING BLOCK 45 NS-6150310-SP NUT 15/64-28 46 SS-9151120-CP SCREW 15/64-28 L=11 47 WP-0612516-SD WASHER 6.1X15.2X2.5 48 135-40703 WORK CLAMP FOOT BRACKET ASM. 49 SS-9150710-TP BOLT 15/64-28 L=6.5 50 135-41206 WORK CLAMP FOOT PLATE COVER 51 135-41354 CONNECTING ARM ASM. 52 SS-6151712-TP SCREW 15/64-28 L=16.5 53 SD-1201501-SP HINGE SCREW D=12 H=15 54 WP-0651056-SH WASHER 6.5X11X1 55 135-40604 DRIVING BAR B 56 PD-0201000-OB SPLIT PIN 57 SS-7090610-SP SCREW 9/64-40 L=6 58 135-40505 DRIVING BAR A 59 SD-0900701-TP HINGE SCREW D= 9 H= 7 60 135-40406 WASHER 61 135-40307 LEVER 62 135-40208 LINK 63 SD-0640321-SP HINGE SCREW D= 6.35 H= 3.2 64 135-40109 STOP-MOTION REGULATING ARM B 65 SD-0640241-SP HINGE SCREW D= 6.35 H= 2.4 66 135-41800 FEED CAM 67 135-38301 STOP-MOTION REGULATING CAM 68 SS-6090510-SP SCREW 9/64-40 L=5 69 NS-6090310-SP NUT 9/64-40 70 WP-0612066-SP WASHER 6.1X11X2 Note ( 注記 )#01....STANDARD PART #02....SELECTIVE PART 輸出標準 選択部品 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の一部品は、LK-1850 標準機種 と同じです。 - 26 - jintex.in

Page 30

(2) LK-1852-2 SMALL BAR TACKING MACHINE (28 STITCHES) 28針小門止めミシン REF. NO NOTE DESCRIPTION 1 2 3 4 5 6 7 8 (3) LK-1852-3 KNIT GOODS BAR TACKING 28針メリヤス門止めミシン 9 10 11 12 13 14 15 16 17 18 19 (4) LK-1852-5 20 21 22 23 24 (5) LK-1854-6 25 26 27 28 29 30 31 135-10862 SS-7111410-TP 135-42402 135-42501 135-42303 135-41800 135-38301 135-10953 WORM ASM. SCREW 11/64-40 L=14 WORK CLAMP FOOT, RIGHT WORK CLAMP FOOT, LEFT FEED PLATE FEED CAM STOP-MOTION REGULATING CAM FEED CAM DRIVING WHEEL ASM. 135-10862 SS-7111410-TP 135-42915 135-43012 135-42816 D2426-282-C00 MDP-500B1100 HC-2005007-50 135-42709 135-38301 135-10953 WORM ASM. SCREW 11/64-40 L=14 WORK CLAMP FOOT, RIGHT WORK CLAMP FOOT, LEFT CLOTH PRESSER PLATE NEEDLE HOLE GUIDE NEEDLE DPX5 #11 NEEDLE 134 75 FEED CAM STOP-MOTION REGULATION CAM FEED CAM DRIVING WHEEL ASM. LARGE SIZE BAR TACKING MACHINE (28 STITCHES) 135-10862 SS-7111410-TP 135-10953 135-43202 135-38301 KNIT GOODS BAR TACKING MACHINE (21 STITCHES) 135-42915 135-43012 135-43103 135-42816 D2426-282-C00 MDP-500B1100 135-39200 WORM ASM. SCREW 11/64-40 L=14 FEED CAM DRIVING WHEEL ASM. FEED CAM STOP-MOTION REGULATING CAM WORK CLAMP FOOT, RIGHT WORK CLAMP FOOT, LEFT FEED CAM CLOTH PRESSER PLATE NEEDLE HOLE GUIDE NEEDLE DPX5 #11 STOP-MOTION REGULATION CAM Qty 1 (4) 1 1 1 1 1 1 1 (4) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Note (注記) *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種と同じです。 - 27 - jintex.in

Page 31 — TAIL OF EYELET BUTTONHOLE BAR TACKING MACHINE (21 STITCHES)

(6) LK-1854-4 TAIL OF EYELET BUTTONHOLE BAR TACKING MACHINE (21 STITCHES) 21針小門止めミシン REF. NO. PART NO. D E S C R I P T I O N 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 #01 #01 #02 135-41756 SS-7111120-SP 135-40752 SD-0791271-SP 135-41354 SS-6151712-TP PD-0201000-0B 135-40604 SS-7090610-SP 135-40505 SD-0900701-TP 135-40406 135-40307 135-40208 SD-0640321-SP 135-40109 SD-0640241-SP 135-40208 135-39200 (7) LK-1854-11 SMALL BAR TACKING MACHINE 21針小門止めミシン 20 135-42303 21 135-42402 22 135-42501 23 135-41909 24 135-39200 FINGER GUARD ASM. SCREW 11/64-40 L=10.5 WORK CLAMP FOOT BRACKET ASM. HINGE SCREW D= 7.94 H=12.7 CONNECTING ARM ASM. SCREW 15/64-28 L=16.5 SPLIT PIN DRIVING BAR B SCREW 9/64-40 L=6 DRIVING BAR A HINGE SCREW D= 9 H=7 WASHER LINK LEVER HINGE SCREW D= 6.35 H= 3.2 STOP-MOTION REGULATING ARM B HINGE SCREW D= 6.35 H= 2.4 FEED CAM STOP-MOTION REGULATION CAM FEED PLATE WORK CLAMP FOOT, RIGHT WORK CLAMP FOOT, LEFT FEED CAM STOP-MOTION REGULATION CAM Note (注記 )#01...STANDARD PART #02...THE PARTS INCLUDED IN THE KIT ARE THE SAME AS THOSE FOR LK-1852-1. *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種と同じです。 - 28 - ヒン メ イ Qty オオエバヘウケイタ ウエ クミ 1 マルヒラネジ 11/64-40 L=10.5 1 ツマミソーチ クミ 1 ダンネジ D=7.94 H=12.7 1 レンドウ レンケツウデ クミ 1 IIツカアナボルト 15/64-28 (1) ワリビピン 2X10 2 レンケツボー B 1 マルヒラネジ 9/64-40 L=6 2 レンケツボー A 1 ダンネジ D=9 H=7 1 ヒラパツリレバー ザガネ 1 ヒラパツリレバー 1 ヒラパツリリンク 1 ダンネジ D=6.35 H=3.2 1 シャダンセイギヨウデ B 1 ダンネジ D=6.35 H=2.4 1 ヌノオクリカム 1 シャダン セイギヨウカム 1 ヌノオクリツイタ 1 ヌノオクリエアシ ミギ 1 ヌノオクリアシ ヒダリ 1 ヌノオクリカム 1 シャダン セイギヨウカム 1 輸出標準 セットのニ 同じです。 jintex.in

Page 33 — (9) LK-1852-210 LAEGE SIZE BAR TACKING MACHINE (28 STITCHES)

(9) LK-1852-210 (9) LK-1852-210 LAEGE SIZE BAR TACKING MACHINE (28 STITCHES) 28針 大門止めミシン REF.NO NOTE PART NO. D E S C R I P T I O N ヒン メ イ Qty 1 135-10862 WORM ASM. ウオーム クミ 1 2 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 3 135-10953 FEED CAM DRIVING WHEEL ASM. ウオームハグルマ クミ 1 4 135-64901 FEED CAM 1852-210 ヌノクリカム 1852-210 1 5 135-38301 STOP-MOTION REGULATING CAM シヤタン セイキヨカム 1 - 30 - jintex.in

Page 34

(10) LK-1854-10 2 11 12 13 10 14 7 8 9 6 3 4 5 47 32 33 34 15 16 17 18 19 20 30 31 35 36 (11) LK-1852-20 66 48 50 51 49 65 52 53 54 23 24 25 26 27 28 29 37 38 39 40 41 42 43 44 45 46 59 58 57 56 67 55 62 63 64 60 61 - 31 - jintex.in

Page 35 — LK-1854-10 BELT LOOP ATTACHING MACHINE (21 STITCHES)

(10) LK-1854-10 BELT LOOP ATTACHING MACHINE (21 STITCHES) 21計バンドループ付けミシン REF. NO NOTE PART NO. DESCRIPTION 1 135-44416 CLOTH PRESSER FOOT 2 135-43764 CLOTH FEED BASE ASM. 3 #01 135-44465 CLOTH FEEDER FOOT ASM. 4 SS-7120910-SP SCREW 3/16-28 L=9 5 135-44614 CLOTH FEED BASE COVER 6 135-43715 CLOTH FEED BASE 7 B2539-280-000 STUD 8 CS-087101B-SH THRUST COLLAR ASM. D=8.73 W=10 9 SS-8150822-TP SCREW 15/64-28 L=8 10 135-43800 BALL HOLDER 11 SS-7151210-SP SCREW 15/64-28 L=12 12 B2549-280-000 WORK CLAMP FOOT MOUNTING BASE 13 B2548-280-000 BALL RETAINER 14 SS-7110740-TP SCREW 11/64-40 L=7 15 135-43905 SPRING SUSPENSION 16 SS-6120940-SP SCREW 3/16-28 L=9 17 135-44705 SPRING 18 B3413-552-000 SUSPENSION SCREW 19 135-44051 LIFTING LEVER ASM. 20 SS-8150822-TP SCREW 15/64-28 L=8 21 135-22503 TENSION SPRING 22 135-44853 THREAD GUIDE ASM. 23 135-26801 THREAD GUIDE BRACKET 24 NS-6110310-SP NUT 11/64-40 25 135-44804 THREAD GUIDE 26 B3219-232-000 BOBBIN WINDER TENSION POST 27 B3214-047-000 BOBBIN WINDER TENSION DISC 28 B3218-232-000 BOBBIN WINDER TENSION SPRING 29 B3216-047-000 BOBBIN WINDER TENSION NUT 30 135-45207 TABLE (FOR BELT LOOP) 31 #03 135-09401 TABLE (FOR BELT LOOP) 32 SS-2110930-SP SCREW 11/64-40 L=8.7 33 135-43509 FEED PLATE HOLDER 34 NS-6150540-SP NUT 15/64-28 35 135-43400 FEED CAM 36 135-39200 STOP-MOTION REGULATION CAM 37 135-44952 PEDAL SHAFT 38 135-44903 PEDAL LEVER 39 WP-1021016-SD WASHER 40 RE-0900000-KO SNAP RING 9.0 41 135-45009 PEDAL SHAFT BRACKET 42 SK-3483200-SP WOOD SCREW D=4.8 L=32 43 SS-6661110-SP SCREW 1/4-40 L=11 44 135-45157 PEDAL LEVER ASM. (BELT LOOP) 45 D8103-284-K00 CHAIN (0.3M) 46 B8133-019-000 S SHAPED HOOK 47 135-43008 FEED PLATE (11) LK-1852-20 BELT LOOP ATTACHING MACHINE (28 STITCHES) 28計バンドループ付けミシン 48 #02 135-43764 CLOTH FEED BASE ASM. 49 #01 135-44465 CLOTH PRESSER FOOT ASM. 50 135-45306 FEED CAM 51 135-38301 STOP-MOTION REGULATING CAM 52 #02 135-43608 FEED PLATE 53 #02 135-45207 TABLE (FOR BELT LOOP) 54 #03 135-09401 TABLE (FOR BELT LOOP) 55 #02 NS-6150540-SP NUT 15/64-28 56 #02 SS-2110930-SP SCREW 11/64-40 L=8.7 57 135-10862 FEED CAM DRIVING WHEEL ASM. 58 SS-7111410-TP THREAD GUIDE ASM. 59 135-44853 THREAD GUIDE 60 #02 135-44804 THREAD GUIDE 61 #02 B8103-219-000 CHAIN (0.3M) 62 #02 135-22503 S SHAPED HOOK 63 #02 135-43509 FEED PLATE HOLDER 64 #02 135-44952 PEDAL LEVER 65 135-22503 TENSION SPRING 66 #02 135-44416 CLOTH PRESSER FOOT 67 #02 135-43509 FEED PLATE HOLDER Note (注記) #01...STANDARD PART 輸出標準 #02...THE PARTS ARE THE SAME AS THOSE この部品は LK-1854-10 と同じです。 FOR LK-1850-10. #03...FOR URBAN WHITE アーバンホワイト用 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 32 - jintex.in

Page 36

(12) LK-1852-30 BELT LOOP ATTACHING MACHINE (28 STITCHES) 28#1 REF. NO NOTE PART NO. DESCRIPTION ヒン Qty 1 135-10953 FEED CAN DRIVING WHEEL ASM. ウオーム クミ 1 2 135-10862 WORM ASM. ウオーム クミ 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 4 135-45611 CLOTH PRESSER FOOT メノオオエフ 1 5 135-51569 CLOTH FEED BASE (ASM.) メノオクリオダイ (クミ) 1 6 #02 135-45660 WORK CLAMP FOOT ASM. メノオオエフアシ (1) 7 #01 135-44853 THREAD GUIDE ASM. イトマキイトアンナイ クミ 1 8 135-44804 THREAD GUIDE イトマキイトアンナイ (ハント・ヨウ) 1 9 135-45504 FEED PLATE メノオオエフイタ 1 10 #01 SS-2110930-SP SCREW 11/64-40 L=8.75 マルヒラネジ 11/64-40 L=8.75 4 11 #01 135-43509 FEED PLATE HOLDER メノオオエフホルダー 1 12 #01 NS-6150540-SP NUT 15/64-28 ロクボルトナット 15/64-28 1 13 #01 135-45207 TABLE (FOR BELT LOOP) テーブ ル (ハント・ルーブ) 1 14 #04 135-09401 TABLE (FOR BELT LOOP) ハント・ルーブ・テーブ ル 1 15 135-54100 FEED CAM メノオオエフカム 1 16 #03 135-54100 FEED CAM メノオオエフカム 1 17 135-38301 STOP-MOTION REGULATING CAM シヤダン セイキヨカム 1 18 #01 D8103-284-K00 CHAIN (0.3M) クサリ (0.3M) 2 19 #01 B8133-019-000 S SHAPED HOOK Sカタ カナク 1 20 #01 135-22503 TENSION SPRING ヒクハリバネ B 1 (13) LK-1854-40 BELT LOOP ATTACHING MACHINE (40 STITCHES) ルーブ 付けミシン 22 135-45611 CLOTH PRESSER FOOT メノオオエフ 1 23 135-51569 CLOTH FEED BASE (ASH.) メノオクリオダイ (クミ) (1) 24 #02 135-45660 WORK CLAMP FOOT ASM. メノオオエフアシ 1 25 VP-0612066-SP WASHER 6.1X11X2 ヒラオカネ 6.1X11X2 1 26 SS-6090510-SP SCREW 9/64-40 L=5 ヒラネジ 9/64-40 L=5 1 27 135-47807 FEED STOP WASHER オクリストツプ ワッシャー 1 28 NS-6090310-SP NUT 9/64-40 ロクボルトナット 9/64-40 1 29 135-45504 FEED PLATE メノオオエフイタ 1 30 #01 135-44853 THREAD GUIDE ASM. イトマキイトアンナイ クミ 1 31 135-44804 THREAD GUIDE イトマキイトアンナイ (ハント・ヨウ) (1) 32 135-47302 FEED PLATE (FOR BELT LOOP) テーブ ル (ハント・ルーブ) 1 33 #01 135-45207 TABLE (FOR BELT LOOP) ハント・ルーブ・テーブ ル 1 34 #04 135-09401 FEED PLATE メノオオエフイタ 1 35 #03 135-47112 CLOTH PRESSER FOOT メノオオエフ 1 36 #03 135-47005 FEED CLOTH BASE ASM. メノオクリオダイ クミ 1 37 #01 135-44952 WORK CLAMP FOOT ASM. メノオオエフアシ 1 38 #01 D8103-284-K00 CHAIN (0.3M) クサリ (0.3M) 1 39 #01 B8133-019-000 S SHAPED HOOK Sカタ カナク 1 40 #01 135-22503 TENSION SPRING ヒクハリバネ B 1 41 135-46908 FEED CAM メノオオエフカム (1854-40) 1 42 FEED CAM メノオオエフカム 1 Note ( 注記 ) #01...THE PARTS ARE THE SAME AS THOSE この部品は LK-1854-10 と FOR LK-1854-10. #02...STANDARD PART #03...SPECIAL ORDER PART #04...FOR URBAN WHITE 輸出標準 特別注文部品 アーバンホワイト用 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外 上記以外の部品は、LK-1850 標準機種 と同じです。 - 33 - jintex.in

Page 37

(14) LK-1850-P REF. NO PART NO. DESCRIPTION Qty 1 135-47500 STOP-MOTION SPRING シヤツツヒラバネ 1 2 135-45959 PEDAL TYPE PRESSER ASM. ツマミペダルクミ (1) 3 135-45959 PEDAL TYPE PRESSER ASM. ツマミペダルクミ (1) 4 135-45907 LOVERING LEVER レバー (1) 5 NS-6110350-SP NUT 11/64-40 ナット 11/64-40 (4) 6 135-40106 LOVERING LINK アンセンインクリンク (1) 7 135-46205 LOVERING CONNECTING PLATE アンセンコレクテイングタイ (1) 8 SD-0640324-TP HINGE SCREW D= 6.35 H= 3.2 ダンネジ D=6.35 H=3.2 (2) 9 135-45900 INSTALLING BASE ツマミトリクミダイ (1) 10 NS-6110310-SP NUT 11/64-40 ナット 11/64-40 (2) 11 B1649-161-000 TENSION SPRING ADJUSTING SCREW ヒクバネアジャスチングネジ (1) 12 135-21307 TENSION SPRING ヒクバネ (1) 13 SD-0640801-TP HINGE SCREW D= 6.35 H= 8.0 ダンネジ D=6.35 H=8 (1) 14 B2007-372-000 NIPPER BAR SPRING SCREW チョーセツバネネジ (1) 15 SS-9151210-TP SCREW 15/64-28 L=11.8 ネジ 15/64-28 L=11.8 (1) 16 SD-0640801-TP HINGE SCREW D= 6.35 H= 8.0 ダンネジ D=6.35 H=8 (1) 17 RC-1831018-KC RETAINING RING ケヤリ (2) 18 SB-1090002-00 BALL BEARING ボールベアリング (2) 19 SS-47405 PULLEY SHAFT COLLAR プーリシヤフトカラー (1) 20 SS-61101030-SP SCREW 3/16-28 L=10 ネジ 3/16-28 L=10 (1) 21 135-25308 IDLER PULLEY INSTALLING PLATE アイドラープーリイタ (1) 22 SS-6110810-TP SCREW 11/64-40 L=8 ネジ 11/64-40 L=8 (3) 23 SS-8150822-TP DRIVING PULLEY ドライブプーリ (1) 24 B8133-019-000 S SHAPED HOOK Sカマ 1 25 135-46809 BELT COVER ベルトカバー 1 26 135-05904 BELT COVER ベルトカバー 1 27 B8151-771-000 PEDAL ASM. ペダルクミ 1 28 #01 138-17754 Z-STAND PEDAL ASM. Zキヤツヨウ ペダルクミ (2) 29 #01 SM-9061203-SE SCREW H6 L=12 ネジ H6 L=12 (2) 30 #02 WS-0861210-KR SPRING WASHER 6.2X11.4X1.2 バネワッシャー 6.2X11.4X1.2 (2) 31 #01 WP-0671016-SE WASHER 6.7X13X1 ワツシヤ 6.7X13X1 (2) 32 #01 88125-280-000 PEDAL ADJUSTING PLATE フミダイヨウプレート (1) 33 #01 SM-9082023-SE SCREW H8 L=20 ネジ H8 L=20 (2) 34 #01 WS-0861410-KR SPRING WASHER 8.6X15X1.4 バネワッシャー 8.6X15X1.4 (2) 35 #01 WP-0671602-SE WASHER 8.7X18X1.6 ワツシヤ 8.7X18X1.6 (4) 36 #01 NW-6080721-SE NUT H8 ナット H8 (2) 37 #01 D8114-555-B00 PEDAL SHAFT BRACKET フミダイジヤフトブラケツト (1) 38 #01 B8151-771-000 PEDAL ペダル (1) 39 #01 B8152-771-000 PEDAL CONNECTING ROD ペダルコネクテイングロツド (1) 40 #01 D8113-555-B00 PEDAL BUSHING ペダルブツシング (2) 41 #02 135-05904 BELT COVER ベルトカバー 1 42 #01 135-46809 BELT COVER ベルトカバー 1 43 #01 135-47401 PULLEY SHAFT COLLAR プーリシヤフトカラー (1) 44 #01 135-46502 PULLEY BUSHING プーリブツシング (1) 45 #02 135-47500 STOP-MOTION SPRING シヤツツヒラバネ 1 46 #02 135-45959 PEDAL TYPE PRESSER ASM. ツマミペダルクミ (1) Note (注記) #01...THIS PART IS USED FOR A MACHINE この部品は脚付きの場合使用します。 #02...FOR URBAN WHITE アーバンホワイト用 *ALL PARTS OTHER THAN THOSE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD 上記以外の部品は、LK-1850 標準機様と同じです。 - 34 - jintex.in

Page 38

(15) LK-1854P-10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 - 35 - jintex.in

Page 39 — LK-1854P-10 BELT LOOP ATTACHING MACHINE FOR P (21 STITCHES)

(15) LK-1854P-10 BELT LOOP ATTACHING MACHINE FOR P (21 STITCHES) P用21針バンド付けミシン REF.NO NOTE PART NO. D E S C R I P T I O N ヒ ソ メ イ Qty 1 135-44416 CLOTH PRESSER FOOT ヌノオサエアシ 1 2 135-43764 CLOTH FEED BASE ASM. ヌノオクリタィクミ 1 3 #01 135-44465 CLOTH PRESSER FOOT ASM. ヌノオサエアシ クミ (1) 4 135-44614 CLOTH FEED BASE COVER ヌノオクリタィフタ (1) 5 SS-7120910-SP SCREW 3/16-28 L=9 マルヒラネジ 3/16-28 L=9 (4) 6 135-43715 CLOTH FEED BASE ヌノオクリタィ (1) 7 B2539-280-000 STUD オサエアケ レバージク (1) 8 CS-087101B-SH THRUST COLLAR ASM. D=8.73 W=10 スラストウケ D=8.73 W=10 クミ (1) 9 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 10 135-43806 BALL HOLDER ヌノオクリタィ (1) 11 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 (1) 12 B2549-280-000 WORK CLAMP FOOT MOUNTING BASE ヌノオクリタィ ボール (7) 13 B2548-280-000 BALL RETAINER ヌノオクリタィ ボールウケ (1) 14 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 15 135-43905 SPRING SUSPENSION ヌノオサエアシ ネカケ (1) 16 SS-6120940-SP SCREW 3/16-28 L=9 ヒラネジ 3/16-28 L=9 (2) 17 135-44705 SPRING ヌノオサエアバネ (1) 18 B3413-552-000 SUSPENSION SCREW ヒサアケ リングウデ バネカケ ウデ (1) 19 135-44051 LIFTING LEVER ASM. ヌノオエアケ レバ クミ (1) 20 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 21 135-44853 THREAD GUIDE ASM. イトマキイトアンナイ クミ 1 22 135-44804 THREAD GUIDE イトマキイトアンナイ (バンドカンヨー) (1) 23 SS-2110930-SP SCREW 11/64-40 L=8.7 マルサラネジ 11/64-40 L=8.75 4 24 135-43509 FEED PLATE HOLDER ヌノオクリウイタ 1 25 NS-6150540-SP NUT 15/64-28 ロツカクナット 15/64-28 1 26 B8133-019-000 S SHAPED HOOK Sガタ カナク 4 27 D8103-284-K00 CHAIN (0.3M) クサリ (0.3M) 1 28 135-44952 PEDAL LEVER 135-44952 1 29 135-44903 PEDAL SHAFT 135-44903 1 30 WP-1021016-SD WASHER ヒラサガネ 10.2X18X1 (1) 31 RE-0900000-KO SNAP RING 9.0 Eガタトメワリ 9 (1) 32 135-45009 PEDAL SHAFT BRACKET ペダルジクジクウケ (1) 33 SK-3483200-SE WOOD SCREW D=4.8 L=32 マルモクネジ D=4.8 L=32 (4) 34 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 (2) 35 135-45157 PEDAL LEVER ASM. (BELT LOOP) キドペダルレバー クミ (1) 36 #02 135-45959 PEDAL TYPE PRESSER ASM. オシサゲツチ クミ 1 37 135-43608 FEED PLATE ヌノオサエジタイタ 1 38 135-47500 STOP-MOTION SPRING シヤダシ ヒツパハリバネ 1 39 #02 135-46601 SAFETY PLATE キドーブアンゼンイタ 1 40 135-43400 FEED CAM ヌノオクリカム (1854-10) 1 41 135-39200 STOP-MOTION REGULATION CAM シヤダシ セイキヨカム 1 42 #03 B8151-771-0A0 PEDAL ASM. Zキャクヨー ペダル クミ 1 43 #04 138-17754 Z-STAND PEDAL ASM. Zキャクヨウ ペダル (ケツコウ) 1 44 #02 135-46809 BELT COVER ヘルトカバー 1 45 #04 135-45207 BELT COVER Pヨウヘルトカバー 1 46 135-45207 TABLE (FOR BELT LOOP) テープル (バンントループ) 1 47 135-09401 TABLE (FOR BELT LOOP) ハントループ テーブル 1 48 135-47658 PEDAL SHAFT ASM. ペダルジク クミ 1 49 135-45009 PEDAL SHAFT BRACKET ペダルジクジクウケ (2) 50 WP-1021016-SD WASHER ヒラサガネ 10.2X18X1 (1) 51 RE-0900000-KO SNAP RING 9.0 Eガタトメワリ 9 (1) 52 135-47609 PEDAL SHAFT ペダルジク (1) 53 SK-3483200-SE WOOD SCREW D=4.8 L=32 マルモクネジ D=4.8 L=32 (4) 54 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 (2) 55 135-47757 PEDAL LEVER ASM. オシサゲペダルレバー クミ (1) 56 D8103-984-K00 CHAIN クサリ 1 Note ( 注記 ) #01...STANDARD PART 輸出標準 #02...THE PARTS ARE THE SAME AS THOSE この部品は LK-1850-P と同じです。 FOR LK-1850-P. #03...THIS PART IS USED FOR A MACHINE この部品は脚付きの場合使用します。 WITH TABLE. #04...FOR URBAN WHITE アーバンホワイト用 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種と同じです。 - 36 - jintex.in

Page 40

(16) LK-1852P-20 BELT LOOP ATTACHING MACHINE FOR P (28 STITCHES) P用 28針バンド付けミシン REF.NO NOTE PART NO. DESCRIPTION ヒン Oty 1 135-10953 FEED CAM DRIVING WHEEL ASM. ウオームカムクミ 1 2 135-10862 WORM ASM. ウオームクミ 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネシ 11/64-40 L=14 (4) 4 #01 135-44416 CLOTH PRESSER FOOT メノオキエアンシ 1 5 #01 135-43764 CLOTH FEED BASE ASM. メノオキクニタイクミ 1 6 #02 135-44465 CLOTH PRESSER FOOT ASM. メノオキエアンシクミ 1 7 135-45306 FEED CAM メノオクリカム (1852-10) 1 8 135-38301 STOP-MOTION REGULATING CAM シヤタンセイギヨカム 1 9 #03 135-47500 STOP-MOTION SPRING シヤタンヒツパリスプリング 1 10 #03 135-46601 SAFETY PLATE. キドーアンゼンインタイ 1 11 #03 135-45959 PEDAL TYPE PRESSER ASH. オシキヤツチツチクミ 1 12 #01 135-43608 FEED PLATE メノオサエタイク 1 13 #01 NS-6150540-SP NUT 15/64-28 ロツカクナット 15/64-28 1 14 #01 135-43509 FEED PLATE HOLDER メノオキクタイ 1 15 #01 SS-2110930-SP SCREW 11/64-40 L=8.75 マルサラネジ 11/64-40 L=8.75 4 16 #01 135-45207 TABLE (FOR BELT LOOP) テーブ ル (バンドオープ) 1 17 #05 135-09401 TABLE (FOR BELT LOOP) テーブ ル テーブ ル 1 18 #01 135-44853 THREAD GUIDE ASM. イトマキアンナイクミ 1 19 #01 135-44804 THREAD GUIDE イトマキアンナイ (バンドカンヨー) (1) 20 #03 135-46809 BELT COVER ベルトカバー 1 21 #05 135-05904 BELT COVER ベルトカバー 1 22 #01 B8133-010-000 S SHAPED HOOK S カタカナグ 4 23 #01 D8103-284-K00 CHAIN (0.3M) クサリ (0.3M) 1 24 #01 135-44952 PEDAL LEVER ペダルレバー 1 25 #04 B8151-771-0AO Z-STAND PEDAL ASH. Zキャシヨウペダルクミ 1 26 #05 138-17754 PEDAL SHAFT ASM. ペダルジククミ 1 27 #01 135-47658 CHAIN クサリ 1 28 #01 D8103-984-K00 CHAIN クサリ 1 Note (注記) #01...THE PARTS ARE THE SAME AS THOSE この部品は LK-1854P-10 と同じです。 FOR LK-1854P-10. #02...STANDARD PART 輸出標準 #03...THE PARTS ARE THE SAME AS THOSE この部品は LK-1850-P と同じです。 FOR LK-1850-P. #04...THIS PART IS USED FOR A MACHINE この部品は脚付きの場合使用します。 WITH TABLE. #05...FOR URBAN WHITE アーバンホワイト用 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種と同じです。 37 jintex.in

Page 41 — LK-1852P-30

(17) LK-1852P-30 REF.NO NOTE PART NO. D E S C R I P T I O N ヒン メイ Qty 1 135-10953 FEED CAN DRIVING WHEEL ASM. オームハワールクミ 1 2 135-10862 WORM ASM. オームクミ 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-45611 CLOTH PRESSER FOOT メノオオアエシ 1 5 135-51569 CLOTH FEED BASE (ASM.) メノオオクリツィ (クミ) 1 6 #02 135-45660 WORK CLAMP FOOT ASM. メノオオアエシ クミ (1) 7 135-54100 FEED CAN メノオオクリカム 1 8 135-38301 STOP-MOTION REGULATING CAM シャダーン セイキヨコム 1 9 135-47500 STOP-MOTION SPRING シャダーン 1 10 #03 135-46601 SAFETY PLATE キドアーセン 1 11 #03 135-45959 PEDAL TYPE PRESSER ASM. オンシケーツクミ 1 12 #04 B8151-771-0A0 PEDAL ASM. Zキャクヨールペダルクミ 1 13 #06 138-17754 Z-STAND PEDAL ASM. Zキャクヨールペダルクミ 1 14 #01 NS-6150540-SP NUT 15/64-28 ツツカクナット 15/64-28 1 15 #01 135-43509 FEED PLATE HOLDER メノオオクリツケイク 1 16 135-2110930-SP SCREW 11/64-40 L=8.7 スサクネジ 11/64-40 L=8.75 4 17 135-45504 FEED PLATE メノオオエシタイタ 1 18 #05 135-45504 FEED PLATE メノオオエシタイタ 1 19 #01 135-45207 TABLE (FOR BELT LOOP) テーブール (ハントループ) 1 20 #06 135-09401 TABLE (FOR BELT LOOP) テーブール (ハントループ) 1 21 #01 135-44853 THREAD GUIDE イトマキイトアンナイ クミ (1) 22 135-44804 THREAD GUIDE イトマキイトアンナイ 1 23 135-46809 BELT COVER ペタルトカバー 1 24 #06 135-05904 BELT COVER ペタルトカバー 1 25 #01 135-47658 PEDAL SHAFT ASM. ペタルトシャフトクミ 1 26 #01 B8133-019-000 S SHAPED HOOK Sガタカナグ 4 27 #01 D8103-284-K00 CHAIN (0.3M) ククリ (0.3M) 1 28 #01 D8103-984-K00 CHAIN ククリ 1 Note ( 注記 )#01...THE PARTS ARE THE SAME AS THOSE この部品は LK-1854P-10 と同じです。 FOR LK-1854P-10. #02...STANDARD PART 輸出標準 #03...THE PARTS ARE THE SAME AS THOSE この部品は LK-1850-P と同じです。 FOR LK-1850-P. #04...THIS PART IS USED FOR A MACHINE この部品は脚卓付きの場合使用します。 WITH TABLE. #05...FOR HEAVY WEIGHT MATERIAL 厚物用 (特注部品) (SPACIAL ORDER) #06...FOR URBAN WHITE アーバンホワイト用 *ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 38 - jintex.in

Page 42 — LK-1854P-40

(18) LK-1854P-40 REF.NO NOTE PART NO. DESCRIPTION Qty 1 135-45611 CLOTH PRESSER FOOT ヌノオチエアシ 1 2 135-51569 CLOTH FEED BASE (ASH.) ヌノオクリヌイ (クミ) 1 3 #02 135-45660 WORK CLAMP FOOT ASM. ヌノオチエアシ クミ 1 4 135-47500 STOP-MOTION SPRING シヤツン ヒトツノスプリング 1 5 #03 135-45959 PEDAL TYPE PRESSER ASM. ヨシサゲノーフチ クミ 1 6 #03 135-46601 SAFETY PLATE キドープアンセツンイタ 1 7 #04 135-47112 CLOTH PRESSER FOOT ヌノオチエアシ 1 8 #04 135-47161 WORK CLAMP FOOT ASM. ヌノオチエアシ クミ 1 9 #04 135-47005 FEED PLATE ヌノオチエアシタイタ 1 10 135-46908 FEED CAN ヌノオクリカム (1854-40) 1 11 135-45504 FEED PLATE ヌノオチエアシタイタ 1 12 #06 135-45504 FEED PLATE ヌノオチエアシタイタ 1 13 135-47302 FEED PLATE ヌノオチエアシタイタ 1 14 WP-0612066-SP WASHER 6.1X11X2 ヒラオオガネ 6.1X11X2 1 15 SS-6090510-SP SCREW 9/64-40 L=5 ヒラネジ 9/64-40 L=5 1 16 135-47807 FEED STOP WASHER オクリトツカワー 1 17 NS-6090310-SP NUT 9/64-40 ロウカクナツト 9/64-40 1 18 #01 135-44853 THREAD GUIDE ASM. イトマキイトアンナイ クミ 1 19 135-44804 THREAD GUIDE イトマキイトアンナイ 1 20 135-46809 BELT COVER ベルトカバー 1 21 #07 135-05904 BELT COVER Pコウベルトカバー 1 22 #01 135-45207 TABLE (FOR BELT LOOP) テープル (ハントループ) 1 23 #07 135-09401 TABLE (FOR BELT LOOP) テープル (ハントループ) 1 24 B8151-771-0A0 PEDAL ASM. ペダルクミ 1 25 138-17754 Z-STAND PEDAL ASM. Zキャクヨー ペダルクミ 1 26 #01 135-44952 PEDAL LEVER ペダルレバー 1 27 #01 135-47658 PEDAL SHAFT ASM. ペダルシヤフトクミ 1 28 #01 B8133-019-000 S SHAPED HOOK Sカタナカゲ 4 29 #01 D8103-284-K00 CHAIN (0.3M) クチリ (0.3M) 1 30 #01 D8103-984-K00 CHAIN クチリ 1 Note ( 注記 )#01...THE PARTS ARE THE SAME AS THOSE この部品は LK-1854P-10 と同じです。 FOR LK-1854P-10. #02...STANDARD PART 輸出標準 #03...THE PARTS ARE THE SAME AS THOSE この部品は LK-1850-P と同じです。 FOR LK-1850-P. #04...SPECIAL ORDER PART 特別注文部品 #05...THIS PART IS USED FOR A MACHINE この部品は脚付きの場合使用します。 WITH TABLE. #06...FOR HEAVY WEIGHT MATERIAL 厚物用 (特注部品) (SPACIAL ORDER) #07...FOR URBAN WHITE アーバンホワイト用 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種と同じです。 - 39 - jintex.in

Page 43

(19) LK-1854-8 LABEL TACKING MACHINE (21 STITCHES) ラペル付けミシン (21 stitches) REF.NO NOTE PART NO. D E S C R I P T I O N 1 #01 135-48300 FINGER GUARD 2 135-49308 WORK CLAMP FOOT. RIGHT 3 135-49407 WORK CLAMP FOOT. LEFT 4 135-49100 FEED CAM 5 135-49209 FEED PLATE 6 135-47302 FEED PLATE 7 135-39200 STOP-MOTION REGULATION CAM 8 D2426-282-C00 NEEDLE HOLE GUIDE (20) LK-1854-12 HALF CIRCULAR TACKING MACHINE (42 ST) 半円止めミシン (42 stitches) 9 #01 135-50009 FINGER GUARD 10 135-49803 WORK CLAMP FOOT. RIGHT 11 135-49902 WORK CLAMP FOOT. LEFT 12 135-49605 FEED CAM 13 D2530-232-B00 FEED ACROSS STOP ROLLER 14 WP-0651056-SH WASHER 6.5X11X1 15 SS-4150915-SP SCREW 15/64-28 L=9 16 135-49704 FEED PLATE 17 D2426-282-C00 NEEDLE HOLE GUIDE 18 HDP-500B1100 NEEDLE DPX5 #11 19 HC-2005007-50 NEEDLE 134 75 (21) LK-1853-15 LARGE SIZE BAR TACKING MACHINE (36 STITCHES) 大門止めミシン (36 stitches) 20 135-11050 WORM ASH. (36NEEDLE) 21 SS-7111410-TP SCREW 11/64-40 L=14 22 135-50207 FEED CAM 23 135-38400 STOP-MOTION REGULATING CAM 24 135-11159 FEED CAM DRIVING WHEEL ASH. Note ( 注記 ) #01...STANDARD PART #02...SPECIAL ORDER PART *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 40 - jintex.in ヒン メ イ Qty ユビガード ヌノオオエアシ ミギ ヌノオオエアシ ヒダリ ヌノオオクリカム ヌノオオエ シタイタ ヌノオオクリオオエイタ シャダン セイギョカム メリヤスカンコウ ハリアナ ガイド ユビガード ヌノオオエアシ ミギ ヌノオオエアシ ヒダリ ヌノオオクリカム ヨコオクリ ストツカー コマ ヒラサガネ 6.5X11X1 ナベネジ 15/64-28 L=9 ヌノオオエ シタイタ メリヤスカンコウ ハリアナ ガイド ハリ DPX5 #11 ハリ 134 75 ウオーム クミ 36シン マルヒラネジ 11/64-40 L=14 ヌノオオクリカム シャダン セイギヨカム ウオータケグルマ クミ 輸出標準 特別注文部品 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 (4) 1 1 1 1

Page 44

(22) LK-1853-16 - 41 - jintex.in

Page 45

(22) LK-1853-16 REF. NO NOTE PART NO. D E S C R I P T I O N ヒン メ イ Qty 1 135-11050 WORM ASM. (36NEEDLE) ウオーム クミ 36シン 1 2 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 4 3 135-11159 FEED CAM DRIVING WHEEL ASM. ウオ-ク カツプルマ クミ 1 4 #01 135-41750 FINGER GUARD ASM. オサエバ ネウケイタ ウエ クミ 1 5 #01 SS-7111120-SP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 1 6 135-40752 WORK CLAMP FOOT BRACKET ASM. ツマミソーチ クミ 1 7 135-41602 WORK CLAMP FOOT SPRING HOLDER オサエバ ネウケイタ ウエ 1 8 SS-7110840-SP SCREW 11/64-40 L=7.8 オサエ アケ サト-イタ (1) 9 135-41404 WORK CLAMP FOOT LIFTING PLATE ロツカクボルト 15/64-28 L=11 (2) 10 SS-9151120-CP SCREW 15/64-28 L=11 (2) 11 VP-0612516-SP WASHER 6.1X15.2X2.5 ヒラサカネ 6.1X15.2X2.5 (1) 12 D2529-232-D00 PRESSER SPRING アナカンドメ オサエバネ (1) 13 D2545-232-D0A HINGE SCREW (2) 14 D2545-232-D00 BRACKET GUIDE ASM. イタカメ ヒツパリイタ トメ (1) 15 D2513-232-DAO TORSION SPRING イタカメ ヒツパリイタ クミ (1) 16 NS-6110530-SP NUT 11/64-40 ロツカクナツト 11/64-40 (1) 17 D2509-232-D00 STATIONING LATCH ヒツパリリンク (1) 18 D2512-232-D00 TORSION SPRING コテイフツク カエシバネ (1) 19 D2511-232-D00 SCREW コテイフツク トリツケネジ (1) 20 D2504-282-ABO-A KNOB FOOT MOUNT BASE ASM. ツマミアンリツケタイ イケメ (1) 21 D2502-232-D00 SHAFT BLOCK SHAFT ツマミソーチ トリツケネジク (1) 22 RE-0700000-KO SNAP RING 7 Eガタトメワ 7 (2) 23 SS-9110920-CP SCREW 11/64-40 L=9 ロツカクボルト 11/64-40 L=9 (1) 24 D2516-232-DAO WORK CLAMP FOOT REGULATOR ツマミリヨ-チョーセイタクミ (1) 25 D2528-232-D00 SHAFT オサエバネ チョーセイタク (1) 26 D2527-232-D00 SLEEVE オサエバネ サエバパイフ (1) 27 B3117-352-000 THREAD TENSION POST NUT イトチヨーシナツト (2) 28 D2515-232-D00 TORSION SPRING イタカメ ヒツパリイタ カエシバネ (1) 29 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 (2) 30 135-41057 WORK CLAMP FOOT SPRING HOLDER ハネケイタシタ (1) 31 135-41057 CLAMP GUIDE FOOT ASM. ツマミカイトアシ クミ (1) 32 D2520-232-DAO WORK CLAMP FOOT (LEFT) ASM. ツマミアンリ ヒタクリクミ (1) 33 SS-1110640-TP SCREW 11/64-40 L=5.5 サラネジ 11/64-40 L=5.5 (2) 34 D2521-232-DAO WORK CLAMP FOOT (RIGHT) ASM. ツマミアンリ ミキクミ (1) 35 SD-0550271-TP HINGE SCREW D=5.50 H=2.7 タツンネジ D=5.5 H=2.7 (2) 36 D2519-232-D00 WORK CLAMP FOOT PLATE CAM ツマミアンリ イタカム (1) 37 135-40802 NUT 3/16-28 ロツカクナツト 3/16-28 (2) 38 WP-0501016-SD FEED PLATE アナカツヨウ オサエタイタ (1) 39 SS-9110460-CP SCREW 11/64-40 L=4 ロツカクボルト 11/64-40 L=4 (1) 40 135-40802 SHAFT BRACKET BASE シユウチユウトリツケイタ (1) 41 135-40901 STATIONING BLOCK SHAFT ヨコフレホ-シジユウ (1) 42 D2548-232-D00 SNAP RING, FOR CONNECTING ROD ヨコフリ ホ-シ ハシラ トメワ (1) 43 D2507-232-D00 STATIONING BLOCK ヨコフレホ-シ カクゴマ (1) 44 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 (1) 45 SS-9151120-CP SCREW 15/64-28 L=11 ロツカクボルト 15/64-28 L=11 (1) 46 WP-0612516-SD WASHER 6.1X15.2X2.5 ヒラサカネ 6.1X15.2X2.5 (1) 47 135-40703 WORK CLAMP FOOT BRACKET ASM. ツマミソーチ トリツケダイ (1) 48 SS-9150710-TP BOLT 15/64-28 L=6.5 ロツカクボルト 15/64-28 L=6.5 (1) 49 135-41206 WORK CLAMP FOOT PLATE COVER オサエメ イタカバ (1) 50 135-41206 CONNECTING ARM ASM. レントウ レンケツウデ クミ (1) 51 135-41354 SCREW 15/64-28 L=16.5 ロツカクボルト 15/64-28 (1) 52 SS-6151712-TP HINGE SCREW D=12 H=15 タツンネジ D=12 H=15 (1) 53 SD-1201501-SH WASHER 6.5X11X1 ヒラサカネ 6.5X11X1 (1) 54 WP-0651056-SH DRIVING BAR B レンケツボ- B (1) 55 135-40604 SPLIT PIN ワリピン 2X10 2 56 PD-0201000-OB SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 2 57 SS-7090610-SP DRIVING BAR A レンケツボ- A (1) 58 135-40505 HINGE SCREW D=9 H=7 タツンネジ D=9 H=7 (1) 59 SD-0900701-TP WASHER ヒツパリレバ- ザガネ (1) 60 135-40406 LEVER ヒツパリレバ- (1) 61 135-40307 LINK ヒツパリリンク (1) 62 135-40208 HINGE SCREW D=6.35 H=3.2 タツンネジ D=6.35 H=3.2 (1) 63 SD-0640321-SP STOP-MOTION REGULATING ARM B シヤタン セイギヨウデ B (1) 64 135-40109 HINGE SCREW D=6.35 H=2.4 タツンネジ D=6.35 H=2.4 (1) 65 SD-0640241-SP STOP-MOTION REGULATING CAM シヤタン セイギヨウカム (1) 66 135-50306 FEED CAM ヌノオクリカム (1) 67 135-38400 FEED STOP WASHER オクリストツパ- ザガネ (1) 68 135-47807 SCREW 9/64-40 L=5 ヒラサカネ 9/64-40 L=5 (1) 69 SS-6090510-SP NUT 9/64-40 ロツカクナツト 9/64-40 (1) 70 HS-6090310-SP WASHER 6.1X11X2 ヒラサカネ 6.1X11X2 (1) 71 WP-0612066-SP WASHER 6.1X11X2 (1) Note ( 注記 )#01...STANDARD PART 輸出標準 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、 LK-1850 標準機種 と同じです。 - 42 - jintex.in

Page 47

(25) LK-1852G-5 REF.NO NOTE PART NO. DESCRIPTION ヒン メ イ Qty 1 D1401-L7V-V00 NEEDLE BAR ハリボー 1 2 D1405-L7A-H00 NEEDLE BAR THREAD GUIDE ハリボー イトアンナイ 1 3 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 1 4 MDI-30082300 NEEDLE DIX3 #23 ハリ DIX3 #23 1 5 #01 MC-3515016-00 NEEDLE ハリ 332 160 1 6 135-19004 TENSION SPRING ヌノオサエバネ 2 7 135-47806 FEED CAM DRIVING WORM ASM. ウオーム クミ 28シン 1 8 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 9 135-50702 FEED CAM ヌノオクリカム 1 10 135-39705 STOP-MOTION REGULATING CAM シャクダン セイギョカム 1 11 135-10953 FEED CAM DRIVING WHEEL ASM. ウオーム ハグルマ クミ 1 12 D2302-L4B-BA0 TENSION CONTROLLER. NO2 ASM. ダイニ イトチョウシ クミ (フトリヨー) 1 13 #02 B2302-205-0A0 TENSION CONTROLLER NO.2 ASM. フトリヨウ ダイニ イトチョウシ ケツゴウ 1 14 D3112-L4B-B00 TAKE-UP SPRING (HEAVY) イトトリバネ (キヤントン) (1) 15 B3129-053-000 TENSION SPRING イトチョーシンバネ (1) 16 D1818-282-H00 SHUTTLE ナカゴマ (フトリ ヨウ) 1 17 D1817-282-H00 SHUTTLE RACE RING, THICK NEEDL ナカゴマ オビ (フトリ ヨウ) 1 18 D2426-MMC-K00 NEEDLE HOLE GUIDE ハリ穴ナイド 1 19 D2101-L7A-MA0 WIPER ASM. ワイパー クミ 1 20 135-54308 WORK CLAMP FOOT. RIGHT ヌノオサエアシ ミギ 1 21 135-54407 WORK CLAMP FOOT. LEFT ヌノオサエアシ ヒダリ 1 (25) LK-1854-24 FEED PLATE ヌノオサエシタイク 1 22 135-54209 23 135-47906 FEED CAM ヌノオクリカム 1 24 135-19004 TENSION SPRING ヌノオサエバネ 2 25 WP-0612066-SP WASHER 6.1X11X2 ヒラガネ 6.1X11X2 1 26 135-47807 FEED STOP WASHER オクリストツパ ザカナ 1 27 SS-6090510-SP SCREW 9/64-40 L=5 ヒラネジ 9/64-40 L=5 1 28 NS-6090310-SP NUT 9/64-40 ロッカクナット 9/64-40 1 29 #03 135-48300 FINGER GUARD ユビガード 1 30 135-48102 WORK CLAMP FOOT. RIGHT. ヌノオサエアシ ミギ 1 31 135-48201 WORK CLAMP FOOT. LEFT ヌノオサエアシ ヒダリ 1 32 135-48003 FEED PLATE ヌノオサエシタイク 1 Note (注記) #01...STANDARD PART 輸出標準 #02...FOR URBAN WHITE アーバン ホワイト用 #03...SPECIAL ORDER PART 特別注文部品 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE IN LK-1850 STANDARD MODEL. 上記以外の部品は、 LK-1850 標準機種 と同じです。 - 44 - jintex.in

Page 48

(27) LK-1853H-15 (28) LK-1854H-24 3 2 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 REF. NO. NOTE 1 2 3 4 #01 5 6 7 8 9 10 11 12 13 14 15 #02 16 17 18 19 20 21 22 (27) LK-1853H-15 PART NO. D1401-L7V-V00 D1405-L7A-H00 SS-7080510-TP MDI-300B2300 MC-3515016-00 135-19004 135-50900 135-39804 135-11159 135-11050 SS-7111410-TP D1818-282-H00 D1817-282-H00 D2302-L4B-BA0 B2302-205-0A0 D3112-L4B-B00 B3129-053-000 D2426-HHC-K00 D2101-L7A-MA0 135-54308 135-54407 135-54209 23 24 25 26 27 #01 28 29 30 31 32 #02 33 34 35 36 37 38 39 #03 40 41 42 (28) LK-1854H-24 D1401-L7V-V00 D1405-L7A-H00 SS-7080510-TP MDI-300B2300 MC-3515016-00 D2426-HHC-K00 135-19004 135-39606 D2302-L4B-BA0 B2302-205-0A0 D3112-L4B-B00 B3129-053-000 D1818-282-H00 D1817-282-H00 D2101-L7A-MA0 135-48300 135-54605 135-54704 135-54506 DESCRIPTION NEEDLE BAR NEEDLE BAR THREAD GUIDE SCREW 1/8-44 L=4.5 NEEDLE DIX3 #23 NEEDLE TENSION SPRING FEED CAM STOP-MOTION REGULATING CAM FEED CAM DRIVING WHEEL ASM. WORK ASM. (36NEEDLE) SCREW 11/64-40 L=14 SHUTTLE SHUTTLE RACE RING, THICK NEEDL TENSION CONTROLLER NO.2 ASM. TENSION CONTROLLER NO.2 ASM. TAKE-UP SPRING (HEAVY) TENSION SPRING NEEDLE HOLE GUIDE VIPER ASM. WORK CLAMP FOOT, RIGHT WORK CLAMP FOOT, LEFT FEED PLATE NEEDLE BAR NEEDLE BAR THREAD GUIDE SCREW 1/8-44 L=4.5 NEEDLE DIX3 #23 NEEDLE NEEDLE HOLE GUIDE TENSION SPRING FEED CAM STOP-MOTION REGULATING CAM TENSION CONTROLLER NO.2 ASM. TENSION CONTROLLER NO.2 ASM. TAKE-UP SPRING (HEAVY) TENSION SPRING WORK CLAMP FOOT, RIGHT WORK CLAMP FOOT, LEFT FEED PLATE SERIES ハリボー ハリボーイトアンナイ マルヒラネジナ 1/8-44 マルヒラネジナ DIX3 #23 ハリボー メノオノハネ メノオノクリカム シヤダン セイヨウカム ウオーグ ヘグクルマ クミ ウオーグ クミ 36シン マルヒラネジナ 11/64-40 L=14 ナカガマ (フトコリ ヨウ) ナカガマ ナガミ (フトコリ ヨウ) ダイニ イチョウ クミ (フトトウヨー) フトトヨウ クミ (2イトヨウシ ケツゴウ) イトトヨウハネ (キャントシ) イトトヨウハネ ハリガアトガイド ワイパー クミ メノオノアツシ ミギ メノオノアツシ ヒダリ メノオノシヤダイ SERIES ハリボー ハリボーイトアンナイ マルヒラネジナ 1/8-44 マルヒラネジナ DIX3 #23 ハリボー ハリガアトガイド メノオノハネ メノオノクリカム シヤダン セイヨウカム ダイニ イチョウ クミ (フトトウヨー) フトトヨウ クミ (2イトヨウシ ケツゴウ) イトトヨウハネ (キャントシ) イトトヨウハネ メノオノアツシ ミギ メノオノアツシ ヒダリ メノオノシヤダイ Qty 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 (1) (1) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 (1) (1) 1 1 1 1 Note ( 注記 ) #01...STANDARD PART #02...FOR URBAN WHITE #03...SPECIAL ORDER PART 輸出標準 アーバンホワイト用 特別注文部品 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 45 - jintex.in

Page 50 — (31) LK-1850H

(31) LK-1850H REF.NO NOTE PART NO. D1401-L7V-V00 D1405-L7A-M00 SS-7080510-TP MDI-300B2300 MC-3515016-00 135-19004 D1817-282-N00 D1818-282-N00 135-51403 135-39606 D2302-L4B-BA0 B2302-205-0A0 D3112-L4B-B00 B3129-053-000 B2426-280-00C D2101-L7A-MA0 135-48508 135-48607 135-48409 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 #01 #02 DESCRIPTION NEEDLE BAR NEEDLE BAR THREAD GUIDE SCREW 1/8-44 L=4.5 NEEDLE DIX3 #23 NEEDLE TENSION SPRING SHUTTLE RACE RING, THICK NEEDL SHUTTLE FEED CAM STOP-MOTION REGULATING CAM TENSION CONTROLLER. NO.2 ASM. TENSION CONTROLLER NO.2 ASM. TAKE-UP SPRING (HEAVY) TENSION SPRING NEEDLE PLATE NEEDLE HOLE GUIDE WIPER ASM. WORK CLAMP FOOT. RIGHT FEED PLATE Note ( 注記 ) #01...STANDARD PART #02...FOR URBAN WHITE *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 47 - jintex.in ヒン メ イ Qty カリホー カリホー イトアンナイ マルヒラネシ 1/8-44 L=4.5 ハリ DIX3 #23 ハリ 332 160 ヌノオサエバネ ナカガマ オサエ (フトリヨウ) ナカガマ (フトリヨウ) ヌノオシクリカム シャダン セイギヨカム ダイニ イチヨージ クミ (フトイト ヨウ) フトイトヨウ ダイニ イチヨウシ ケツゴウ イトトリバネ (キャントツン) イトチヨージバネ ハリ アナガイド ワイパ クミ ヌノオサエアシ ヒダリ ヌノオサエ シタイタ 輸出標準 アーバンホワイト用 1 1 1 1 1 2 1 1 1 1 1 1 (1) (1) 1 1 1

Page 51

(32) LK-1850G REF. NO NOTE PART NO. DESCRIPTION ヒン メ イ Qty 1 D1401-L7V-V00 NEEDLE BAR ハリボー 1 2 D1405-L7A-HOO NEEDLE BAR THREAD GUIDE ハリボーイドアンナイ 1 3 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 1 4 MDI-300B2300 NEEDLE DIX3 #23 ハリ DIX3 #23 1 5 #01 MC-3515016-00 NEEDLE ハリ 332 160 1 6 135-19004 TENSION SPRING タノオエバネ 2 7 D1817-282-HOO SHUTTLE RACE RING, THICK NEEDL ナカオマオエ (フトハリ ヨウ) 1 8 D1818-282-HOO SHUTTLE ナカオマ (フトハリ ヨウ) 1 9 135-51403 FEED CAM メノオク リ カ ム 1 10 135-39606 STOP-MOTION REGULATING CAM ジヤクタン エイギヨカム 1 11 #02 B2302-205-0A0 TENSION CONTROLLER, NO.2 ASM. ダイニ イチョウ クミ (フトイト ヨー) 1 12 B2302-205-0A0 TENSION CONTROLLER, NO.2 ASM. ダイニ イチョウ クミ (フトイト ヨー) 1 13 D3112-L4B-BOO TAKE-UP SPRING (HEAVY) フトイトヨウ (フトイト ヨー) (1) 14 B3129-053-000 TENSION SPRING イトチョーシバネ (1) 15 D2426-MMC-KOO NEEDLE HOLE GUIDE ハリアナガイト 1 16 D2101-L7A-MAO WIPER ASM. ワイヤパ クミ 1 17 135-54308 WORK CLAMP FOOT. RIGHT メノオエアシ ミギ 1 18 135-54407 WORK CLAMP FOOT. LEFT メノオエアシ ヒダリ 1 19 135-54209 FEED PLATE メノオエ シタイタ 1 (33) LK-1850T 20 135-26058 LIFTING LEVER ASM. T オサエアゲレバー クミ 1 21 135-26009 LIFTING LEVER. T オサエアゲレバー. T (1) 22 135-25803 LEVER SPRING. T オサエアゲレバー オシバネ (1) 23 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 ダンネジ D=7.24 H=3.3 (2) 24 SS-9150730-SP SCREW 15/64-28 L=7 ロツカクボルト 15/64-28 L=7 (1) 25 NS-6150350-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 26 135-47500 STOP-MOTION SPRING ジヤクタン エバネ 1 27 #03 B8151-771-0A0 PEDAL ASM. Zキャクヨウ ペダル クミ 1 28 #02 138-17754 Z-STAND PEDAL ASM. Zキャクヨウ ペダル (ケツゴウナ) 1 29 135-46809 BELT COVER ベルトカバー 1 30 #02 135-05904 BELT COVER Paウベルトカバー 1 Note ( 注記 )#01...STANDARD PART 輸出標準 #02...FOR URBAN WHITE アーバンホワイト用 #03...THIS PART IS USED FOR A MACHINE この部品は脚付きの場合使用します。 WITH TABLE. *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、 LK-1850 標準機種 と同じです。 - 48 - jintex.in

Page 52

(34) LK-1854T-10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 - 49 - jintex.in

Page 53

(34) LK-1854T-10 REF. NO NOTE PART NO. DESCRIPTION 1 135-44416 CLOTH PRESSER FOOT 2 135-43764 CLOTH FEED BASE ASM. 3 #01 135-44465 CLOTH PRESSER FOOT ASM. 4 135-44614 CLOTH FEED BASE COVER 5 SS-21109030-SP SCREW 11/64-40 L=8.7 6 135-43715 CLOTH FEED BASE 7 B2539-280-000 STUD 8 CS-087101B-SH THRUST COLLAR ASM. D=8.73 W=10 9 SS-8150822-TP SCREW 15/64-28 L=8 10 135-43806 SPRING SUSPENSION 11 SS-7151210-SP SCREW 15/64-28 L=12 12 B2549-280-000 WORK CLAMP FOOT MOUNTING BASE 13 B2548-280-000 BALL RETAINER 14 SS-7110740-TP SCREW 11/64-40 L=7 15 135-43905 SPRING SUSPENSION SCREW 16 SS-6120940-SP SCREW 3/16-28 L=9 17 135-44705 SPRING 18 B3413-552-000 SUSPENSION SCREW 19 135-44051 LIFTING LEVER ASM. 20 SS-8150822-TP SCREW 15/64-28 L=8 21 135-44853 THREAD GUIDE ASM. 22 135-44804 THREAD GUIDE 23 SS-2110930-SP SCREW 11/64-40 L=8.7 24 135-43509 FEED PLATE HOLDER 25 HS-6150540-SP NUT 15/64-28 26 B8133-019-000 S SHAPED HOOK 27 B8103-284-K00 CHAIN (0.3M) 28 135-44952 PEDAL LEVER 29 135-44903 PEDAL SHAFT 30 WP-1021016-SD WASHER 31 RE-0900000-KO SNAP RING 9.0 32 135-45009 PEDAL SHAFT BRACKET 33 SK-3483200-SE WOOD SCREW D=4.8 L=32 34 SS-6661110-SP SCREW 1/4-40 L=11 35 135-45157 PEDAL LEVER ASM. (BELT LOOP) 36 135-26058 LIFTING LEVER. T 37 #02 135-26009 LIFTING LEVER. T 38 #02 135-25803 LEVER SPRING. T 39 #02 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 40 #02 SS-9150730-SP SCREW 15/64-28 L=7 41 #02 NS-6150350-SP NUT 15/64-28 42 135-43608 FEED PLATE 43 135-47500 STOP-MOTION SPRING 44 135-43400 FEED CAM 45 135-39200 STOP-MOTION REGULATION CAM 46 #03 B8151-771-0A0 PEDAL ASM. 47 #04 138-17754 Z-STAND PEDAL ASM. 48 #02 135-46809 BELT COVER 49 #04 135-05904 BELT COVER 50 135-45207 TABLE (FOR BELT LOOP) 51 #04 135-09401 TABLE (FOR BELT LOOP) 52 135-47858 PEDAL SHAFT ASM. 53 135-45009 PEDAL SHAFT BRACKET 54 WP-1021016-SD WASHER 55 RE-0900000-KO SNAP RING 9.0 56 135-47609 PEDAL SHAFT 57 SK-3483200-SC WOOD SCREW D=4.8 L=20 58 SS-6661110-SP SCREW 1/4-40 L=11 59 135-47757 PEDAL LEVER ASM. 60 D8103-984-K00 CHAIN Note ( 注記 )#01...STANDARD PART #02...THE PARTS ARE THE SAME AS THOSE FOR LK-1850-T. #03...THIS PART IS USED FOR A MACHINE WITH TABLE. #04...FOR URBAN WHITE *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機と同様です。 - 50 - jintex.in ヒン メ イ Qty ヌノオサエアシ 1 ヌノオクリタダイ クミ 1 ヌノオサエアシ クミ (1) ヌノオクリタダイフタ (1) ヌノサラネジ 11/64-40 L=8.75 (4) ヌノオクリタダイ (1) オサエアゲ レバーシク (1) スラストウケ D=8.73 W=10 クミ (1) トメネジ 15/64-28 L=8 (2) ヌノオクリタダイ ボール (1) マルヒラネジ 15/64-28 L=12 (1) ヌノオクリタダイ ボール (7) ヌノオクリタダイ ボールウケ (1) マルヒラネジ 11/64-40 L=7 (1) ヌノオクリタダイ ハネガネ (1) ヒラネジ 3/16-28 L=9 (2) ヌノオサエバネ (1) ヒラサゲアゲ リングウデ ハネカケ ウデ (1) ヌノオサエアゲ レバー クミ (1) トメネジ 15/64-28 L=8 (2) イトマキトアンナイ クミ 1 イトマキトアンナイ (ハンドカンヨー) (1) マルサラネジ 11/64-40 L=8.75 4 ヌノオクリタケイツ (1) ロツカクナット 15/64-28 1 Sカタカナゲ 8 クサイリ 30CM 1 ペダルレバー クミ 1 キトペダルジクク (1) ヒラサガネ 10.2X18X1 (1) Eガタトメワ 9 (2) ペダルジク ジクウケ (1) マルモクネジ D=4.8 L=32 (4) ヒラネジ 1/4-40 L=11 (2) キトペダルレバー クミ (1) オサエアゲ レバー (1) オサエアゲレバーカシバネ (1) ダンネジ D=7.24 H=3.3 (2) ロツカクボルト 15/64-28 L=7 (1) ロツカクナット 15/64-28 (1) ヌノオサエシタイタ 1 シヤタツ ヒツサバネ (1) ヌノオクリカム (1854-10) 1 シヤタツ セイキヨカム 1 Zキャクヨウ ペダル クミ 1 Zキャクヨウ ペダル (ケツゴウ) 1 ベルトカバー 1 Pヨウベルトカバー- 1 テーブ ル (ハンドループ) 1 ハンドループ テープル 1 ペダルジク クミ (1) ペダルジク ジクウケ (2) ヒラサガネ 10.2X18X1 (1) Eガタトメワ 9 (1) ペダルジク (1) マルモクネジ D=4.8 L=32 (4) ヒラネジ 1/4-40 L=11 (2) オシサペダルレバー クミ 2 输出標準 この部品は LK-1850-T と同じです。 この部品は脚付きの場合使用します。 アーバンホワイト用 輸出標準機と 同じです。

Page 54 — (35) LK-1852T-20

(35) LK-1852T-20 REF.NO NOTE PART NO. DESCRIPTION ヒン メイ Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. ウオームクミ 1 2 135-10854 FEED CAM DRIVING WORM ASM. ウオームクミ 28 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 4 4 #01 135-44416 CLOTH PRESSER FOOT ヌノオクリエアシ 1 5 #01 135-43764 CLOTH FEED BASE ASM. ヌノオクリダイクミ 1 6 #02 135-44465 CLOTH PRESSER FOOT ASM. ヌノオクリエアシクミ (1) 1 7 135-45306 FEED CAM ヌノオクリカム (1852-10) 1 8 135-38301 STOP-MOTION REGULATING CAM シヤタツン セイキヨコム 1 9 #03 135-47500 STOP-MOTION SPRING シヤタツン ヒリツパネ 1 10 #01 135-43608 FEED PLATE ヌノオシエジタイタ 1 11 #03 135-26058 LIFTING LEVER ASM. T オオエアゲレバー クミ 1 12 #03 135-26009 LIFTING LEVER. T オオエアゲレバー (1) 1 13 #03 135-25803 LEVER SPRING. T オオエアゲレバーカエシバネ (1) 1 14 #03 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 タツンネンジ D=7.24 H=3.3 (2) 1 15 #03 SS-9150730-SP SCREW 15/64-28 L=7 ロツカクボルト 15/64-28 L=7 (1) 1 16 #03 NS-6150350-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 1 17 #01 135-43509 FEED PLATE HOLDER ヌノオクリケイツタイケ 1 18 #01 SS-2110930-SP SCREW 11/64-40 L=8.75 マルヒラネジ 11/64-40 L=8.75 4 19 #01 135-45207 TABLE (FOR BELT LOOP) デーブん (ハントループ) 1 20 #01 135-09401 TABLE (FOR BELT LOOP) デーブん (ハントループ) 1 21 #01 135-44853 THREAD GUIDE ASM. イトマキイトアンナイ クミ 1 22 #01 135-44804 THREAD GUIDE イトマキイトアンナイ (ハントカンヨー) (1) 23 #05 135-46609 BELT COVER ペルトカバー 1 24 #03 135-05904 S SHAPED HOOK Sカタ オナゲ 8 25 #01 D8133-284-K00 CHAIN (0.3M) クリ (0.3M) 1 26 #01 135-47658 PEDAL LEVER ペダル レバー 1 27 #01 135-44952 PEDAL ASM. ペダルクミ 1 28 #04 B8151-771-0A0 Z-STAND PEDAL ASM. Zキヤクヨウ ペダルクミ 1 29 #05 138-17754 PEDAL SHAFT ASM. ペダルジククミ 1 30 #01 D8103-984-K00 CHAIN ゲリ 1 31 #01 D8103-284-K00 CHAIN ゲリ 1 32 #01 135-47658 PEDAL LEVER ペダル レバー 1 Note ( 注記 ) #01...THE PARTS ARE THE SAME AS THOSE この部品は LK-1854T-10 と同じです。 FOR LK-1854T-10. #02...STANDARD PART 輸出標準 #03...THE PARTS ARE THE SAME AS THOSE この部品は LK-1850-T と同じです。 FOR LK-1850-T. #04...THIS PART IS USED FOR A MACHINE この部品は脚付きの場合使用します。 WITH TABLE. #05...FOR URBAN WHITE アーバンホワイト用 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 51 - jintex.in

Page 55

(36) LK-1852T-30 REF.NO NOTE PART NO. DESCRIPTION ヒン メ イ Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. アカクルミ クミ 1 2 135-10854 FEED CAM DRIVING WORM ASM. ワーム クミ 2899 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-45611 CLOTH PRESSER FOOT 179 1 5 #01 135-45660 WORK CLAMP FOOT ASM. メノオクリツメ 1 6 #01 135-54100 FEED CAM メノオクリカム 1 7 #02 135-54100 FEED CAM メノオクリカム 1 8 135-38301 STOP-MOTION REGULATING CAM シャダン セイギョウカム 1 9 135-47500 STOP-MOTION SPRING シャダン スプリング 1 10 #03 135-26058 LIFTING LEVER ASM. T オシゲアゲレバー (1) 11 #03 135-26009 LIFTING LEVER, T オシゲアゲレバー (1) 12 #03 135-25803 LEVER SPRING, T テバレバネ・オシゲバネ (1) 13 #03 SD-0720331-SP SCREW D= 7.24 H= 3.3 タガネネジ D= 7.24 H= 3.3 (2) 14 #03 SS-9150730-SP SCREW 15/64-28 L=7 ロクマルナナネジ 15/64-28 L=7 (1) 15 #03 NS-15770-SP NUT 15/64-28 ロクマルナナナット 15/64-28 (1) 16 #03 B8151-771-0A0 PEDAL ASH. ヨウペダル クミ 1 17 #04 138-17754 Z-STAND PEDAL ASM. Zキヤウヨ ペダル クミ 1 18 #07 NS-6150540-SP NUT 15/64-28 ロクマルナナナット 15/64-28 1 19 #05 135-43509 FEED PLATE HOLDER フィードプレート ホルダ 1 20 #05 SS-2110930-SP SCREW 11/64-40 L=8.75 マルヒラネジ 11/64-40 L=8.75 4 21 #05 135-45801 FEED PLATE フィードプレート 1 22 #05 135-45504 FEED PLATE フィードプレート 1 23 #06 135-45207 TABLE (FOR BELT LOOP) テーブル (ベルトープ) 1 24 #05 135-09401 TABLE (FOR BELT LOOP) テーブル (ベルトープ) 1 25 #07 135-44853 THREAD GUIDE ASM. イトマキイトアンナイ クミ 1 26 #05 135-44804 THREAD GUIDE イトマキイトアンナイ 1 27 #05 135-46809 BELT COVER ベルトカバー (1) 28 #07 135-05904 BELT COVER ベルトカバー (1) 29 #05 135-44952 PEDAL LEVER ペダルレバー 1 30 #05 135-47058 PEDAL SHAFT ASM. ペダルジク クミ 1 31 #05 B8133-019-000 S SHAPED HOOK Sサオカマ 8 32 #05 D8103-284-K00 CHAIN (0.3M) クリ (0.3M) 1 33 #05 D8103-984-K00 CHAIN クリ 1 Note ( 注記 ) #01...STANDARD PART 輸出標準 #02...SPECIAL ORDER PART 特別注文部品 (フィラメント糸用) #03...THE PARTS ARE THE SAME AS THOSE この部品は LK-1850-T と同じです。 FOR LK-1850-T. #04...THIS PART IS USED FOR A MACHINE この部品は脚付きの場合使用します。 WITH TABLE. #05...THE PARTS ARE THE SAME AS THOSE この部品は LK-1854T-10 と同じです。 FOR LK-1854T-10. #06...FOR HEAVY WEIGHT MATERIAL 厚物用 (特注部品) (SPECIAL ORDER) #07...FOR URBAN WHITE アーバンホワイト用 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 52 - jintex.in

Page 56

(37) LK-1854T-40 REF.NO NOTE PART NO. D E S C R I P T I O N ヒンメ Qty 1 135-45611 CLOTH PRESSER FOOT メノオクリエン 1 2 135-51569 CLOTH FEED BASE (ASM.) メノオクリダシ (クミ) (1) 3 #01 135-45660 WORK CLAMP FOOT ASM. シメツケヒツリヘンケ (1) 4 135-47500 STOP-MOTION SPRING シメツケヒツリヘンケ 1 5 #03 135-26058 LIFTING LEVER ASM. T. オキアゲレバー 1 6 #03 135-26009 LIFTING LEVER. T. オキアゲレバー 1 7 #03 135-25803 LEVER SPRING. T. オキアゲレバー スプリングヘンケ (1) 8 #03 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 テンキンネジ D=7.24 H=3.3 (1) 9 #03 SS-9150730-SP SCREW 15/64-28 L=7 15/64-28 L=7 (2) 10 #03 NS-6150350-SP NUT 15/64-28 ロツカクアナツト 15/64-28 (1) 11 135-46908 FEED CAM メノオクリカム (1854-40) 1 12 135-45801 FEED PLATE メノオクリシタイツケ 1 13 135-45504 FEED PLATE メノオクリシタイツケ 1 14 #04 135-47302 FEED PLATE メノオクリシタイツケ 1 15 135-47302 WASHER 6.1X11X2 ヒラザガネ 6.1X11X2 1 16 SS-6090510-SP SCREW 9/64-40 L=5 ヒラザガネ 9/64-40 L=5 1 17 135-47807 FEED STOP WASHER オクリツトツト ガガネ 1 18 NS-6090310-SP NUT 9/64-40 ロツカクアナツト 9/64-40 1 19 #05 135-44804 THREAD GUIDE イトマキイトアンナイ (クミ) (1) 20 #05 135-44804 THREAD GUIDE イトマキイトアンナイ (クミ) 1 21 #03 135-46809 BELT COVER ベルトカバー 1 22 #07 135-05904 BELT COVER ヨウベルトカバー 1 23 #06 135-45207 TABLE (FOR BELT LOOP) テーブ ル (ベルトーループ) 1 24 #07 135-09401 TABLE (FOR BELT LOOP) テーブ ル (ベルトーループ) 1 25 #07 B8151-771-OAO PEDAL SHAFT. ペダルシヤフト 8 26 #07 D8103-284-K00 Z-STAND PEDAL ASM. Zキヤツヨウ ペダル クミ 1 27 #06 135-47658 PEDAL LEVER ペダルレバー 1 28 #06 135-47658 PEDAL LEVER ペダルレバー 1 29 #06 B8133-019-000 S SHAPED HOOK Sカゲフツク クミ 8 30 #06 D8103-984-K00 CHAIN (0.3M) クサリ (0.3M) 1 31 #02 D8103-984-K00 CHAIN クサリ 2 32 #02 135-47112 CLOTH PRESSER FOOT メノオクリエン 1 33 #02 135-47161 WORK CLAMP FOOT ASM. メノオクリアイクミ 1 34 #05 135-47005 FEED PLATE メノオクリシタイツケ 1 Note ( 注 記 ) #01...STANDARD PART 輸出標準 #02...SPECIAL ORDER PART 特別注文部品 #03...THE PARTS ARE THE SAME AS THOSE この部品は LK-1850-T と同じです。 FOR LK-1850-T. #04...FOR HEAVY WEIGHT MATERIAL 厚物用 (特注部品) (SPECIAL ORDER) #05...THIS PART IS USED FOR A MACHINE この部品は脚車付きの場合使用します。 WITH TABLE. #06...THE PARTS ARE THE SAME AS THOSE この部品は LK-1854T-10 と同じです。 FOR LK-1854T-10. #07...FOR URBAN WHITE アーバンホワイト用 *ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、 LK-1850 標準機種と同じです。 - 53 - jintex.in

Page 57 — 14. THREAD STAND COMPONENTS

14. THREAD STAND COMPONENTS 糸立装置関係 REF.NO NOTE PART NO. DESCRIPTION ヒン メ イ Qty 1 D3301-555-BA0 THREAD STAND ASM. イトタテソーチ クミ 1 2 B3311-704-000 SPOOL REST ROD RUBBER CAP イトタテホー ホゴゴム (1) 3 B3317-704-000 NUT C15 イトタテホー トメナツト (4) 4 WP-1702600-SO WASHER 17X30X2.6 ヒラサカガネ 17X30X2.6 (3) 5 D3306-555-B00 THREAD GUIDE STOPPER PLATE イトタテイトアンナイ トメイタ (1) 6 B3307-704-000 THREAD GUIDE A イトタテ イトアンナイ A (2) 7 B3313-704-0A0 SPOOL REST ROD ASM., UPPER イトタテホー ウエ クミ (1) 8 B3305-704-000-A SPOOL REST ROD JOINT イトタテホー ツギテ (1) 9 SM-6041410-SC SCREW M4X0.7 L=14 ヒラコネジ M4X0.7 L=14 (2) 10 NM-6040000-SN NUT M4 ロツカクナツト M4X0.7 1シュ (2) 11 B3312-012-000 SPOOL RETAINER イトマキ フルトメ (2) 12 SM-9050813-SE SCREW M5X0.8 L=8 ロツカクボルト M5X0.8 L=8 (2) 13 WS-0521010-KN SPRING WASHER 5.2X8.2X1 ハネサカガネ 5.2X8.2X1 (2) 14 WP-0520656-SA WASHER 5.2X9.5X0.6 ヒラサカガネ 5.2X9.5X0.6 (2) 15 B3305-012-000 SPOOL PIN イトマキ ウケボー (2) 16 B3311-012-000 SPOOL REST CUSHION イトマキウケサゲ (1) 17 B3303-704-000 SPOOL REST イトタテ ウケイタ (2) 18 WP-0560860-SE WASHER 5.6X12X0.8 ヒラサカガネ 5.6X12X0.8 (2) 19 WS-0521010-KN SPRING WASHER 5.2X8.2X1 ハネサカガネ 5.2X8.2X1 (2) 20 NS-6123881-SE NUT 3/16-28 ロツカクナツト 3/16-28 (2) 21 D3302-555-B00 BRACKET イトタテ ウケダイ (1) 22 SM-9061080-SE SCREW M6 L=10 ロツカクボルト M6 L=10 (1) 23 B3301-704-000-A SPOOL REST ROD, LOWER イトタテホー シタ (1) 24 WS-1643202-KN SPRING WASHER 16.4X26.6X3.2 ハネサカガネ 16.4X26.6X3.2 (1) 25 MAO-11532000 CORD STAPLE ユード ステツプル (3) - 54 - jintex.in

Page 58 — 15. THREAD STAND COMPONENTS (For Urban White)

15. THREAD STAND COMPONENTS (For Urban White) 糸立装置関係(アーバンホワイト用) 1 11 8 10 9 13 4 JUKI 3 5 17 2 19 6 13 19 6 4 21 20 JUKI 12 16 14 16 15 12 22 - 55 - jintex.in

Page 59

REF.NO NOTE PART NO. DESCRIPTION ヒン メ イ Qty 1 111-83654 THREAD STAND ASM. イトタテソウチ (クミ) 1 2 111-83605 SPOOL REST ROD, LOWER イトタテボウ (シタ) (1) 3 111-83704 SPOOL REST ROD, UPPER イトタテボウ (ウエ) (1) 4 111-83803 THREAD GUIDE イトタテウデ B (2) 5 111-84207 SPOOL REST ROD JOINT イトタテボウ ツナギテ (1) 6 111-84306 THRED GUIDE ARM JOINT イトタテウデ シメカナグ (2) 7 111-84108 SPOOL REST ROD RUBBER CAP イトタテボウ ホゴゴム (1) 8 B3320-704-L00-A SPOOL PIN イトマキケボウ (2) 9 111-83902 SPOOL REST イトマキ ウケザラ (2) 10 B3311-012-000 SPOOL REST CUSHION イトマキウケザラ (2) 11 111-84009 SPOOL RETAINER イトマキ フレトドメ (2) 12 B3317-704-000 NUT C15 イトタテボー トーメナツト (2) 13 B3319-704-L00 THREAD GUIDE イトミチ (2) 14 D3310-555-D00 RUBBER WASHER イトタテボー ボーシンゴム (2) 15 WS-1643202-KR SPRING WASHER ハネザガネ 16.4X26.6X3.2 (1) 16 WP-1702600-SE WASHER 17X30X2.6 ヒラサガネ 17X30X2.6 (2) 17 SM-4051405-SE SCREW M5X0.8 L=14 ナベコネジ M5X0.8 L=14 (2) 18 NM-6050001-SE NUT M5X0.8 ロツカクナツト M5X0.8 1シュ (2) 19 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=15 (2) 20 NM-6050001-SE HUT M5X0.8 ロツカクナツト M5X0.8 1シュ (2) 21 WS-0510002-KN SPRING WASHER ハネザガネ 5.1X9.2X1.3 (2) 22 MA0-11532000 CORD STAPLE コード ステツプル (3) Note ( 注記 )*ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外 の 部品 は、 LK-1850 標準 機種 と 同じ です。 - 56 - jintex.in

Page 61 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF 品番 页 NO 品番 页 NO 品番 页 NO D2426-282-C00 27 14 D8114-555-B0E 34 40 NS-6150310-SP 2 28 D2426-282-C00 27 29 D8203-555-B00 22 4 NS-6150310-SP 6 32 D2426-282-C00 40 8 D8204-555-D00 24 4 NS-6150310-SP 6 8 D2426-282-C00 40 17 GPF-060000A0 24 22 NS-6150310-SP 8 24 D2426-282-C00 43 31 GPF-06080000 24 23 NS-6150310-SP 8 34 D2502-232-D00 26 20 NS-6150310-SP 14 8 D2502-232-D00 42 20 NS-6150310-SP 16 24 D2504-282-AB0-A 26 19 MAO-11532000 54 25 NS-6150310-SP 18 44 D2504-282-AB0-A 26 44 MAO-11532000 56 22 NS-6150310-SP 22 14 D2507-232-D00 26 44 MAT-80116S00 16 13 NS-6150310-SP 26 45 D2507-232-D00 42 16 MC-2005007-50 27 16 NS-6150310-SP 42 45 D2509-232-D00 26 42 MC-2005007-50 40 19 NS-6150310-SP 48 25 D2509-232-D00 42 16 MC-2005007-50 43 33 NS-6150350-SP 50 41 D2511-232-D00 26 42 MC-3515016-00 43 5 NS-6150350-SP 51 16 D2511-232-D00 42 17 MC-3515016-00 44 5 NS-6150350-SP 52 53 D2512-232-D00 26 14 MC-3515016-00 45 5 NS-6150350-SP 53 10 D2512-232-D00 42 14 MC-3515016-00 46 5 NS-6150430-SP 18 7 D2513-232-DA0 26 27 MC-3515016-00 47 5 NS-6150430-SP 18 34 D2513-232-DA0 42 27 MC-3515016-00 48 5 NS-6150430-SP 25 8 D2515-232-D00 26 42 MDI-300B2300 43 4 NS-6150430-SP 26 65 D2515-232-D00 42 23 MDI-300B2300 44 4 NS-6150430-SP 28 17 D2516-232-DA0 26 45 MDI-300B2300 45 4 NS-6150430-SP 42 65 D2516-232-DA0 42 35 MDI-300B2300 46 4 NS-6150540-SP 16 7 D2519-232-D00 26 31 MDI-300B2300 47 4 NS-6150540-SP 26 63 D2519-232-D00 42 31 MDI-300B2300 48 4 NS-6150540-SP 28 15 D2520-232-DA0 26 33 MDI-500B1100 27 15 NS-6150540-SP 42 63 D2520-232-DA0 42 13 MDI-500B1100 40 18 NS-6150540-SP 34 8 D2521-232-DA0 26 44 MDI-500B1100 43 32 NS-6150540-SP 8 42 D2521-232-DA0 42 16 MDI-500B1400 6 17 NS-6200710-SN 10 23 D2527-232-D00 26 34 MDI-500B1600 6 18 NS-6600430-SP 26 59 D2527-232-D00 42 30 MDI-500B2104 29 1 NS-6600430-SP 28 11 D2528-232-D00 26 12 HTJ-HS000000 22 8 NS-6600430-SP 42 59 D2528-232-D00 42 24 HTJ-VM004600 22 36 NS-6700320-SP 14 30 D2529-232-D00 26 12 HTJ-VM004700 22 35 NS-6700320-SP 8 36 D2529-232-D00 42 13 HTJ-VM004800 22 34 SD-0550271-TP 26 34 D2530-232-B00 40 13 HTJ-VM004900 22 33 SD-0550271-TP 42 34 D2545-232-D0A 42 13 HTJ-VM005000 22 32 SD-0600321-SP 16 24 D3112-L4B-B00 29 13 NM-6040000-SH 54 10 SD-0600401-SD 2 56 D3112-L4B-B00 43 14 NM-6050001-SE 56 18 SD-0640211-SP 8 56 D3112-L4B-B00 44 14 NM-6050001-SE 56 20 SD-0640241-SP 26 65 D3112-L4B-B00 45 16 NM-6060001-SE 22 16 SD-0640241-SP 28 17 D3112-L4B-B00 46 34 NM-6080721-SE 22 54 SD-0640241-SP 42 65 D3112-L4B-B00 47 13 NM-6080721-SE 24 33 SD-0640321-SP 16 7 D3112-L4B-B00 48 34 NM-6080721-SE 22 57 SD-0640321-SP 26 63 D3301-555-BA0 54 1 NM-6120003-SE 24 18 SD-0640321-SP 28 15 D3302-555-B00 54 5 NM-6120003-SE 22 57 SD-0640321-SP 42 63 D3306-555-B00 54 5 NS-6090310-SP 2 20 SD-0640324-TP 34 8 D3310-555-D00 56 14 NS-6090310-SP 26 70 SD-0640391-TP 8 42 D8103-284-K00 32 45 NS-6090310-SP 33 28 SD-0650305-TP 14 3 D8103-284-K00 33 19 NS-6090310-SP 39 17 SD-0651301-TH 14 14 D8103-284-K00 33 40 NS-6090310-SP 42 70 SD-0720193-SP 6 51 D8103-284-K00 36 27 NS-6090310-SP 44 28 SD-0720331-SP 8 39 D8103-284-K00 37 23 NS-6110310-SP 6 24 SD-0720331-SP 16 15 D8103-284-K00 38 29 NS-6110310-SP 6 46 SD-0720331-SP 48 23 D8103-284-K00 39 30 NS-6110310-SP 32 24 SD-0720331-SP 50 39 D8103-284-K00 50 60 NS-6110310-SP 34 10 SD-0720331-SP 51 14 D8103-284-K00 51 32 NS-6110350-SP 18 50 SD-0720331-SP 52 14 D8103-284-K00 52 34 NS-6110350-SP 34 5 SD-0720331-SP 53 8 D8103-284-K00 53 31 NS-6110420-SP 14 39 SD-0790402-TP 14 22 D8103-984-K00 36 56 NS-6110530-SP 6 50 SD-0790601-SP 8 23 D8103-984-K00 37 27 NS-6110530-SP 26 15 SD-0790802-TP 14 36 D8103-984-K00 38 28 NS-6120310-SP 14 12 SD-0791271-SP 28 4 D8103-984-K00 39 29 NS-6120480-SP 26 36 SD-0791503-SP 6 31 D8103-984-K00 50 60 NS-6120480-SP 42 36 SD-0800341-SP 2 43 D8103-984-K00 51 32 NS-6123881-SE 54 20 SD-0800402-SP 18 62 D8103-984-K00 52 34 RE-0400000-KO 4 18 SD-0800402-TP 18 12 D8103-984-K00 53 31 RE-0600000-KO 2 25 SD-0800402-TP 18 52 D8113-555-B00 22 68 RE-0700000-KO 26 35 SD-0800402-TP 26 69 D8113-555-B00 24 26 RE-0900000-KO 32 40 SD-0800681-SP 10 23 D8113-555-B00 34 44 RE-0900000-KO 36 36 SD-0900701-TP 26 59 D8114-555-B0E 22 69 RE-0900000-KO 50 51 SD-0900701-TP 28 11 - 58 - jintex.in SD-0900701-TP 42 59 SD-0901101-SP 14 30 SD-0901201-TP 8 36 SD-1000401-SP 8 20 SD-1201501-SP 16 56 SD-1201501-SP 26 53 SD-1201501-SP 42 53 SD-1204315-SE 22 46 SK-3311600-SC 22 3 SK-3311600-SC 22 10 SK-3482500-SC 22 6 SK-3482500-SC 22 81 SK-3483200-SE 50 57 SK-3483200-SE 32 42 SK-3483200-SE 36 33 SK-3483200-SE 36 53 SK-3483200-SE 50 33 SK-3514000-SC 22 40 SL-9082091-SE 24 20 SM-4051405-SE 56 17 SM-6041410-SC 54 9 SM-6061610-SC 56 19 SM-9050813-SE 54 12 SM-9061203-SE 22 77 SM-9061203-SE 24 27 SM-9063213-CH 22 19 SM-9082023-SE 22 42 SM-9082023-SE 22 50 SM-9082023-SE 22 71 SM-9082023-SE 24 30 SM-9082023-SE 34 36 SS-1060210-TP 6 56

Page 65 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF 品番 頁 NO 品番 頁 NO 品番 頁 NO 135-47005 33 37 135-51403 47 9 135-47005 39 9 135-51403 48 9 135-47112 33 35 135-51569 33 23 135-47112 39 7 135-51569 33 23 135-47112 53 32 135-51569 38 5 135-47161 33 36 135-51569 39 2 135-47161 39 8 135-51569 52 5 135-47161 53 33 135-51569 53 2 135-47302 33 32 135-53706 22 29 135-47302 33 32 135-54100 33 15 135-47302 39 13 135-54100 33 16 135-47302 40 6 135-54100 38 7 135-47302 53 14 135-54100 52 7 135-47401 34 20 135-54100 52 8 135-47500 34 38 135-54209 44 22 135-47500 36 38 135-54209 45 22 135-47500 37 9 135-54209 46 22 135-47500 38 9 135-54209 48 19 135-47500 39 4 135-54308 44 20 135-47500 48 26 135-54308 45 20 135-47500 50 43 135-54308 46 20 135-47500 51 9 135-54308 48 17 135-47500 52 10 135-54407 44 21 135-47500 53 4 135-54407 45 21 135-47609 36 52 135-54407 46 21 135-47609 50 56 135-54407 48 18 135-47658 36 48 135-54506 45 42 135-47658 37 27 135-54506 46 42 135-47658 38 26 135-54605 45 40 135-47658 39 27 135-54605 46 40 135-47658 50 52 135-54704 45 41 135-47658 51 31 135-54704 46 41 135-47658 52 31 135-64901 30 4 135-47658 53 28 138-16509 2 9 135-47757 30 55 138-16608 2 16 135-47757 50 59 138-16855 10 37 135-47807 26 68 138-17507 24 1 135-47807 33 27 138-17754 24 31 135-47807 39 16 138-17754 34 31 135-47807 42 68 138-17754 36 43 135-47807 44 26 138-17754 37 26 135-47807 53 17 138-17754 38 13 135-47906 44 30 138-17754 39 25 135-47906 45 30 138-17754 48 28 135-47906 46 30 138-17754 50 47 135-48003 44 32 138-17754 51 30 135-48102 44 30 138-17754 52 18 135-48201 44 31 138-17754 53 26 135-48300 40 1 170-07402 24 14 135-48300 44 29 135-48300 45 39 135-48300 46 39 135-48409 43 22 135-48409 47 19 135-48508 43 20 135-48508 47 17 135-48607 43 21 135-48607 47 18 135-49100 40 4 135-49209 40 5 135-49308 40 3 135-49407 40 3 135-49506 12 30 135-49605 40 12 135-49704 40 16 135-49803 40 10 135-49902 40 11 135-50009 40 9 135-50108 12 48 135-50207 40 22 135-50306 42 66 135-50504 43 23 135-50702 43 9 135-50702 44 7 135-50900 45 7 135-50900 46 7 - 62 - jintex.in

Page 66

jintex.in jintex.in

Page 67

jinttex.in jintex.in

Page 68

JUKI JUKI 株式会社 JUKI CORPORATION お買い求め、ご相談は To order or for further information, please contact: ※このパーツリストは改良のため予告なく変更する事があります。 The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、1983年11月現在の製品仕様で編集・印刷したものです。 This parts list is edited and printed in accordance with the product specifications as of November 1983. Printed in Japan jintex.in
