Kansai Special FX4400 Series Parts Book (PDF)
Text index — Kansai Special FX4400 Series
Page 3 — 1. フレーム関係 (1) FRAME ASSEMBLY (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-01 | 02-118 | WASHER | 1 |
| 01-0102-118 | WASHER | 1 | |
| 01-0202-119 | WASHER | 1 | |
| 01-0305-444 | GUIDE | 1 | |
| 01-0405-445 | BRACKET | 1 | |
| 01-0505-446 | PIPE | 1 | |
| 01-0605-558 | BAR | 1 | |
| 01-0721-975 | COVER | 1 | |
| 01-0821-264 | NEEDLE BAR COVER | 1 | |
| 01-0921-265 | COVER | 1 | |
| 01-1021-266 | NEEDLE BAR COVER | 1 | |
| 01-1121-267 | COVER | 1 | |
| 01-1221-273 | EYE GUARD | 1 | |
| 01-1321-274 | EYE GUARD | 1 | |
| 01-1421-275 | BRACKET | 1 | |
| 01-1521-276 | TOP COVER | 1 | |
| 01-1621-459 | HEAD COVER | 1 | |
| 01-1721-499 | COVER | 1 | |
| 01-1821-711 | PLUG | 4 | |
| 01-1923-427 | GASKET | 1 | |
| 01-2023-462 | GASKET | 1 | |
| 01-2123-465 | TYPE PLATE | 1 | |
| 01-2224-053 | OIL MARK | 1 | |
| 01-2324-401 | KS MARK | 3 | |
| 01-2424-052 | OIL SIGHT WINDOW | 1 | |
| 01-2539-502 | PIN | 2 | |
| 01-2671-580 | WASHER | 2 | |
| 01-2775-224 | SPRING WASHER | 4 | |
| 01-2875-225 | WASHER | 1 | |
| 01-2975-436 | WASHER | 4 | |
| 01-3075-452 | SCREW | 1 | |
| 01-3184-396 | BOLT | 1 | |
| 01-3287-092 | SCREW | 4 | |
| 01-3387-099 | BOLT | 2 | |
| 01-3487-113 | BOLT | 1 | |
| 01-3587-177 | BOLT | 2 | |
| 01-3687-224 | BOLT | 8 | |
| 01-3787-264 | SCREW | 1 | |
| 01-3887-270 | SCREW | 2 | |
| 01-4087-409 | SCREW | 1 | |
| 01-4187-661 | BOLT | 4 | |
| 01-4288-166 | NUT | 1 | |
| 01-4393-701 | PIN | 2 |
Page 4 — 2. フレーム関係 (2) FRAME ASSEMBLY (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-01 | 01-108 | COVER | 1 |
| 02-02 | 02-112 | WASHER | 1 |
| 02-03 | 09-402 | FABRIC GUIDE(RIGHT) | 1 |
| 02-04 | 09-403 | TAPE GUIDE(LEFT) | 1 |
| 02-05 | 09-404 | TAPE HOLDER | 1 |
| 02-06 | 14-438 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 02-07 | 14-439 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 02-08 | 21-268 | PULLEY COVER | 1 |
| 02-09 | 21-269 | UPPER COVER | 1 |
| 02-10 | 21-270 | FRONT PLATE COVER | 1 |
| 02-11 | 26-712 | WASHER | 1~2 |
| 02-12 | 21-272 | FRONT COVER | 1 |
| 02-13 | 21-279 | COVER | 1 |
| 02-14 | 21-280 | COVER | 1 |
| 02-15 | 21-297 | COVER | 1 |
| 02-16 | 21-298 | FRONT COVER | 1 |
| 02-17 | 21-460 | COVER | 1 |
| 02-18 | 23-166 | PLUG | 1 |
| 02-19 | 23-463 | GASKET | 1 |
| 02-20 | 23-467 | PLUG | 1 |
| 02-21 | 23-501 | PLUG | 2 |
| 02-22 | 23-512 | CUSHION RUBBER | 1 |
| 02-23 | 23-427 | SEAL CAP | 1 |
| 02-24 | 25-527 | SCREW | 1 |
| 02-25 | 25-516 | HINGE | 1 |
| 02-26 | 25-517 | SCREW | 1 |
| 02-27 | 25-522 | SCREW | 1 |
| 02-28 | 09-407 | ELASTICGUIDE (L) | 1 |
| 02-29 | 35-416 | OIL FENCE | 1 |
| 02-30 | 09-408 | ELASTICGUIDE (R) | 1 |
| 02-31 | 71-116 | PIN | 1 |
| 02-32 | 71-579 | PIN | 2 |
| 02-33 | 75-455 | WASHER | 8 |
| 02-34 | 75-456 | WASHER | 1 |
| 02-35 | 75-468 | WASHER | 2 |
| 02-36 | 79-522 | SPRING | 2 |
| 02-37 | 79-912 | SPRING | 2 |
| 02-38 | 79-922 | SPRING | 2 |
| 02-39 | 84-364 | SCREW | 2 |
| 02-40 | 87-098 | SCREW | 1 |
| 02-41 | 87-145 | SCREW | 4 |
| 02-42 | 87-177 | BOLT | 4 |
| 02-43 | 87-213 | BOLT | 4 |
| 02-44 | 87-214 | BOLT | 2 |
| 02-45 | 85-181 | SCREW | 2~4 |
| 02-46 | 87-258 | PIN | 3 |
| 02-47 | 87-269 | SCREW | 11 |
| 02-48 | 87-270 | SCREW | 2 |
| 02-49 | 87-272 | SCREW | 2 |
| 02-50 | 87-414 | SCREW | 2 |
| 02-51 | 87-284 | SCREW | 3 |
| 02-52 | 87-286 | SCREW | 1 |
| 02-53 | 87-410 | PIN | 1 |
| 02-54 | 87-411 | SCREW | 4 |
| 02-55 | 87-415 | SCREW | 2 |
| 02-56 | 87-418 | SCREW | 1 |
| 02-57 | 88-146 | NUT | 2 |
| 02-58 | 94-506 | OIL SEAL | 1 |
| 02-59 | 23-528 | PLUG | 1 |
| 02-60 | 87-274 | SCREW | 2 |
Page 5 — 3. フレーム関係 (3) FRAME ASSEMBLY (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 03-0102-112 | WASHER | 1 | |
| 03-0209-402 | FABRIC GUIDE (RIGHT) | 1 | |
| 03-0309-403 | FABRIC GUIDE (LEFT) | 1 | |
| 03-0409-404 | TAPE HOLDER | 1 | |
| 03-0521-268 | PULLEY COVER | 1 | |
| 03-0621-270 | FRONT PLATE COVER | 1 | |
| 03-0721-272 | FRONT COVER | 1 | |
| 03-0821-278 | UPPER COVER | 1 | |
| 03-0921-460 | SIDE COVER | 1 | |
| 03-1021-460 | COVER | 1 | |
| 03-1122-407 | CYLINDER BED | 1 | |
| 03-1223-166 | PLUG | 1 | |
| 03-1323-463 | GASKET | 1 | |
| 03-1423-467 | PLUG | 1 | |
| 03-1523-501 | LUG | 1 | |
| 03-1623-512 | CUSHION RUBBER | 1 | |
| 03-1723-427 | SEAL CAP | 1 | |
| 03-1825-527 | SCREW | 1 | |
| 03-1925-516 | HINGE | 1 | |
| 03-2025-517 | SCREW | 1 | |
| 03-2125-522 | SCREW | 1 | |
| 03-2209-407 | ELASTIC GUIDE (L) | 1 | |
| 03-2335-416 | OIL FENCE | 1 | |
| 03-2409-408 | ELASTIC GUIDE (R) | 1 | |
| 03-2571-116 | PIN | 1 | |
| 03-2675-455 | WASHER | 4 | |
| 03-2775-456 | WASHER | 1 | |
| 03-2875-468 | WASHER | 2 | |
| 03-2979-912 | SPRING | 2 | |
| 03-3079-922 | SPRING | 2 | |
| 03-3187-098 | SCREW | 1 | |
| 03-3287-145 | SCREW | 4 | |
| 03-3387-177 | BOLT | 4 | |
| 03-3487-214 | BOLT | 2 | |
| 03-3587-414 | SCREW | 2 | |
| 03-3687-258 | PIN | 3 | |
| 03-3787-269 | SCREW | 7 | |
| 03-3887-284 | SCREW | 5 | |
| 03-3987-286 | SCREW | 1 | |
| 03-4087-411 | SCREW | 4 | |
| 03-4187-415 | SCREW | 2 | |
| 03-4287-418 | SCREW | 1 | |
| 03-4394-506 | OIL SEAL | 1 | |
| 03-4487-410 | PIN | 1 | |
| 03-4523-528 | PLUG | 2 | |
| 03-4687-274 | SCREW | 2 |
Page 6 — 4. 糸調子機構 (FX4404) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 04-01 | 23-324 | FELT | 8 |
| 04-02 | 41-101 | THREAD TENSION NUT | 8 |
| 04-03 | 41-105 | SPRING POST | 8 |
| 04-04 | 41-107 | SPRING CUP | 8 |
| 04-05 | 41-110 | TENSION DISC | 16 |
| 04-06 | 41-115 | THREAD GUIDE | 8 |
| 04-07 | 41-117 | THREAD GUIDE | 8 |
| 04-08 | 41-448 | BRACKET | 1 |
| 04-09 | 41-449 | THREAD RELEASER | 1 |
| 04-10 | 41-510 | SCREW STUD | 8 |
| 04-11 | 41-701 | SPRING(HEAVY) | 4 |
| 04-12 | 41-702 | SPRING(LIGHT) | 4 |
| 04-13 | 45-123 | THREAD EYELET | 1 |
| 04-14 | 45-133 | THREAD EYELET | 1 |
| 04-15 | 45-428 | THREAD EYELET | 1 |
| 04-16 | 45-429 | THREAD TAKE-UP PLATE | 1 |
| 04-17 | 45-430 | THREAD EYELET | 1 |
| 04-18 | 45-431 | THREAD EYELET | 1 |
| 04-19 | 45-438 | THREAD EYELET | 1 |
| 04-20 | 45-546 | THREAD GUIDE | 1 |
| 04-21 | 45-547 | BRACKET | 1 |
| 04-22 | 47-104 | THREAD EYELET | 2 |
| 04-23 | 47-411 | THREAD EYELET | 1 |
| 04-24 | 47-412 | THREAD EYELET | 1 |
| 04-25 | 47-413 | THREAD EYELET | 1 |
| 04-26 | 75-394 | COLLAR | 2 |
| 04-27 | 75-455 | WASHER | 5 |
| 04-29 | 79-514 | SPRING | 1 |
| 04-30 | 84-501 | SCREW | 1 |
| 04-31 | 87-010 | SCREW | 2 |
| 04-32 | 87-092 | BOLT | 2 |
| 04-33 | 87-113 | BOLT | 3 |
| 04-34 | 87-129 | BOLT | 2 |
| 04-35 | 87-177 | BOLT | 2 |
| 04-36 | 87-269 | SCREW | 2 |
| 04-37 | 87-270 | SCREW | 2 |
| 04-38 | 87-278 | SCREW | 2 |
| 04-39 | 87-272 | SCREW | 2 |
| 04-40 | 87-288 | SCREW | 1 |
| 04-41 | 40-7370 | TENSION ASS'Y (HEAVY) | 4 |
| 04-42 | 40-7380 | TENSION ASS'Y (LIGHT) | 4 |
| 04-0123-324 | |||
| 04-0241-101 | |||
| 04-0341-105 | |||
| 04-0441-107 | |||
| 04-0541-110 | |||
| 04-0641-115 | |||
| 04-0741-117 | |||
| 04-0841-448 | |||
| 04-0941-449 | |||
| 04-1041-510 | |||
| 04-1141-701 | |||
| 04-1241-702 | |||
| 04-1345-123 | |||
| 04-1445-133 | |||
| 04-1545-428 | |||
| 04-1645-429 | |||
| 04-1745-430 | |||
| 04-1845-431 | |||
| 04-1945-438 | |||
| 04-2045-546 | |||
| 04-2145-547 | |||
| 04-2247-104 | |||
| 04-2347-411 | |||
| 04-2447-412 | |||
| 04-2547-413 | |||
| 04-2675-394 | |||
| 04-2775-455 | |||
| 04-2979-514 | |||
| 04-3084-501 | |||
| 04-3187-010 | |||
| 04-3287-092 | |||
| 04-3387-113 | |||
| 04-3487-129 | |||
| 04-3587-177 | |||
| 04-3687-269 | |||
| 04-3787-270 | |||
| 04-3887-278 | |||
| 04-3987-272 | |||
| 04-4087-288 | |||
| 04-4140-7370 | |||
| 04-4240-7380 |
Page 7 — 5. 糸調子機構 (FX4404UTC) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-01 | 05-434 | ||
| 05-02 | 05-435 | ||
| 05-03 | 05-436 | ||
| 05-04 | 05-438 | ||
| 05-05 | 05-439 | ||
| 05-06 | 05-440 | ||
| 05-07 | 05-441 | ||
| 05-08 | 05-478 | ||
| 05-09 | 23-324 | ||
| 05-10 | 41-101 | ||
| 05-11 | 41-105 | ||
| 05-12 | 41-107 | ||
| 05-13 | 41-110 | ||
| 05-14 | 41-115 | ||
| 05-15 | 41-117 | ||
| 05-16 | 41-448 | ||
| 05-17 | 41-449 | ||
| 05-18 | 41-450 | ||
| 05-19 | 41-510 | ||
| 05-20 | 41-701 | ||
| 05-21 | 41-702 | ||
| 05-22 | 75-455 | ||
| 05-23 | 75-943 | ||
| 05-24 | 79-514 | ||
| 05-25 | 79-540 | ||
| 05-26 | 84-501 | ||
| 05-27 | 87-092 | ||
| 05-28 | 87-098 | ||
| 05-29 | 87-177 | ||
| 05-30 | 87-286 | ||
| 05-31 | 87-246 | ||
| 05-32 | 93-201 | Eリング | |
| 05-33 | 560 | ||
| 05-34 | 87-123 | ||
| 05-35 | 88-137 | ||
| 05-36 | 40-7370 | ||
| 05-37 | 40-7380 |
Page 8 — 6. 糸調子機構 (FX4406~4412) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-01 | 45-107 | THREAD EYELET | 2 |
| 06-02 | 45-127 | THREAD EYELET | 1 |
| 06-03 | 45-432 | THREAD EYELET | 1 |
| 06-04 | 45-433 | THREAD EYELET | 1 |
| 06-05 | 45-434 | THREAD EYELET | 1 |
| 06-06 | 45-435 | THREAD TAKE-UP PLATE | 1 |
| 06-09 | 47-409 | THREAD EYELET | 2 |
| 06-10 | 47-410 | THREAD EYELET | 1 |
| 06-11 | 47-413 | THREAD EYELET | 1 |
| 06-12 | 75-455 | WASHER | 2 |
| 06-13 | 75-522 | WASHER | 2 |
| 06-14 | 87-010 | SCREW | 2 |
| 06-15 | 87-113 | BOLT | 1 |
| 06-16 | 87-177 | BOLT | 4 |
| 06-17 | 87-269 | SCREW | 2 |
| 06-18 | 87-270 | SCREW | 2 |
| 06-19 | 87-272 | SCREW | 2 |
| 06-20 | 87-288 | SCREW | 1 |
Page 9 — 7. 糸調子機構 (FX4406UTC~4412UTC) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 07-01 05-442 | |||
| 07-02 05-443 | |||
| 07-03 05-479 | |||
| 07-04 05-480 | |||
| 07-05 45-107 | |||
| 07-06 45-127 | |||
| 07-07 45-432 | |||
| 07-08 45-433 | |||
| 07-09 45-434 | |||
| 07-10 45-435 | |||
| 07-11 45-436 | |||
| 07-12 05-555 | |||
| 07-13 87-214 | |||
| 07-14 47-409 | |||
| 07-15 47-410 | |||
| 07-16 47-413 | |||
| 07-17 75-455 | |||
| 07-18 75-456 | |||
| 07-19 75-522 | |||
| 07-20 87-010 | |||
| 07-21 87-113 | |||
| 07-22 87-177 | |||
| 07-23 87-269 | |||
| 07-24 87-270 | |||
| 07-25 87-272 | |||
| 07-26 87-288 |
Page 10 — 8. ブッシュ機構 BUSHING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 08-0181-407 | |||
| 08-0281-408 | |||
| 08-0381-425 | |||
| 08-0481-426 | |||
| 08-0581-427 | |||
| 08-0681-428 | |||
| 08-0781-429 | |||
| 08-0881-430 | |||
| 08-0981-432 | |||
| 08-1081-433 | |||
| 08-1181-517 | |||
| 08-1281-559 | |||
| 08-1394-502 |
Page 11 — 9. 針棒. 弓機轉 NEEDLE BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 09-01 | 11-407 | NEEDLE BAR | 1 |
| 09-02 | 23-195 | O-RING | 2 |
| 09-03 | 23-464 | GASKET | 1 |
| 09-04 | 23-555 | FELT | 2 |
| 09-05 | 66-404 | LINK | 1 |
| 09-06 | 69-444 | NEEDLE LEVER | 1 |
| 09-07 | 69-437 | WASHER | 1 |
| 09-08 | 69-438 | NEEDLE BAR GUIDE | 1 |
| 09-09 | 71-485 | PIN | 2 |
| 09-10 | 71-495 | NEEDLE LEVER STUD | 1 |
| 09-11 | 73-402 | NEEDLE BAR CLAMP | 1 |
| 09-12 | 73-403 | BRACKET | 1 |
| 09-13 | 75-452 | WASHER | 1 |
| 09-14 | 75-486 | WASHER | 1 |
| 09-15 | 81-409 | BUSHING | 1 |
| 09-16 | 81-410 | BUSHING | 1 |
| 09-17 | 87-113 | BOLT | 2 |
| 09-18 | 87-177 | BOLT | 2 |
| 09-19 | 87-233 | SCREW | 2 |
| 09-20 | 87-242 | SCREW | 2 |
| 09-21 | 87-203 | BOLT | 2 |
| 09-22 | 87-405 | BOLT | 1 |
| 09-23 | 69-4440-2 | NEEDLE LEVER (WITH BUSHING) | 1 |
Page 12 — 10. 下軸機構 CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10-01 | 23-197 | O-RING | 1 |
| 10-02 | 23-384 | FELT | 1 |
| 10-03 | 23-466 | O-RING | 1 |
| 10-04 | 31-422 | SCREW GEAR | 1 |
| 10-05 | 60-4080 | CONNECTING ROD ASS'Y | 1 |
| 10-06 | 60-4100 | BEARING ASS'Y | 1 |
| 10-07 | 60-4130 | BEARING ASS'Y | 1 |
| 10-08 | 61-415 | ECCENTRIC | 1 |
| 10-09 | 61-416 | CRANK ROD | 1 |
| 10-10 | 61-711 | CONNECTING ROD BALL | 1 |
| 10-11 | 63-422 | CONNECTING ROD | 1 |
| 10-12 | 63-621 | BALL JOINT | 1 |
| 10-13 | 63-713 | BALL JOINT | 1 |
| 10-14 | 65-302 | CONNECTING BAR | 1 |
| 10-15 | 69-121 | GUIDE | 1 |
| 10-16 | 69-440 | SLEEVE | 1 |
| 10-17 | 69-445 | COLLAR | 1 |
| 10-18 | 69-446 | PULLEY | 1 |
| 10-19 | 69-447 | FLANGE | 1 |
| 10-20 | 71-447 | CRANK SHAFT(34.5) | 1 |
| 10-21 | 71-480 | SHAFT | 1 |
| 10-22 | 75-327 | WASHER | 1 |
| 10-23 | 75-329 | WASHER | 1 |
| 10-24 | 84-567 | SCREW | 2 |
| 10-25 | 84-568 | SCREW | 2 |
| 10-26 | 84-572 | SCREW | 1 |
| 10-27 | 86-741 | NUT | 1 |
| 10-28 | 86-742 | NUT | 1 |
| 10-29 | 87-113 | BOLT | 3 |
| 10-30 | 87-172 | SCREW | 3 |
| 10-31 | 87-203 | BOLT | 1 |
| 10-32 | 87-214 | BOLT | 2 |
| 10-33 | 87-242 | SCREW | 2 |
| 10-34 | 87-253 | SCREW | 3 |
| 10-35 | 87-254 | SCREW | 6 |
| 10-36 | 91-403 | BEARING | 1 |
| 10-37 | 91-404 | BEARING | 1 |
| 10-38 | 93-264 | RING | 1 |
| 10-39 | 60-3700 | CONNECTING ROD ASS'Y | 1 |
| 10-40 | 23-663 | GASKET | 1 |
Page 13 — 11. 送り機構 FEED MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-01 | 23-166 | PLUG | 1 |
| 23-183 | O-RING | ||
| 23-341 | 3 | ||
| 55-430 | |||
| 55-431 | |||
| 55-432 | |||
| 63-420 | |||
| 67-423 | |||
| 69-431 | |||
| 69-432 | |||
| 69-433 | |||
| 69-434 | |||
| 69-435 | |||
| 69-442 | |||
| 71-434 | |||
| 71-487 | 2 | ||
| 71-488 | |||
| 75-189 | |||
| 75-453 | |||
| 75-482 | |||
| 75-509 | |||
| 79-420 | |||
| 79-421 | 2 | ||
| 84-521 | |||
| 87-104 | 2 | ||
| 87-129 | 2 | ||
| 87-171 | |||
| 87-172 | |||
| 87-233 | 2 | ||
| 87-253 | 2 | ||
| 87-254 | |||
| 87-274 | 4 | ||
| 87-286 | |||
| 87-401 | |||
| 87-407 | |||
| 87-408 | |||
| 91-406 | |||
| 91-430 | |||
| 93-202 | E-リング | ||
| 93-205 | E-リング | ||
| 93-406 | |||
| 87-317 |
Page 14 — 12. ルーバー機構 LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-01 | 04-111 | PLATE | 1 |
| 12-02 | 04-444 | LOOPER ROCKER STOPPER | 1 |
| 12-03 | 04-445 | SHAFT | 1 |
| 12-04 | 04-446 | STUD | 1 |
| 12-05 | 19-475 | LOOPER ROCKER | 1 |
| 12-06 | 23-341 | FELT | 2 |
| 12-07 | 23-519 | PLUG | 1 |
| 12-08 | 23-534 | FELT | 1 |
| 12-09 | 47-220 | TAKE-UP ROD | 1 |
| 12-10 | 61-413 | ECCENTRIC | 2 |
| 12-11 | 63-419 | ECCENTRIC LINK | 2 |
| 12-12 | 67-421 | TAKE-UP DRIVE LEVER | 1 |
| 12-13 | 67-422 | LOOPER DRIVE LEVER | 1 |
| 12-14 | 67-425 | LEVER | 1 |
| 12-15 | 71-431 | PIN | 2 |
| 12-16 | 71-478 | SHAFT | 1 |
| 12-17 | 71-479 | PIN | 1 |
| 12-18 | 71-489 | SHAFT | 1 |
| 12-19 | 71-911 | SHAFT | 1 |
| 12-20 | 73-404 | RETAINER BAR HOLDER | 1 |
| 12-21 | 75-381 | WASHER | 2 |
| 12-22 | 75-455 | WASHER | 2 |
| 12-23 | 75-483 | COLLAR | 1 |
| 12-24 | 75-504 | WASHER | 1 |
| 12-25 | 75-515 | WASHER | 1 |
| 12-26 | 75-527 | SPRING WASHER | 1 |
| 12-27 | 75-537 | COLLAR | 1 |
| 12-28 | 75-675 | WASHER | 1 |
| 12-29 | 75-901 | WASHER | 1 |
| 12-30 | 79-161 | SPRING | 1 |
| 12-31 | 79-163 | SPRING | 1 |
| 12-32 | 79-164 | SPRING | 1 |
| 12-33 | 81-142 | BUSHING | 1 |
| 12-34 | 81-143 | BUSHING | 1 |
| 12-35 | 87-113 | BOLT | 1 |
| 12-36 | 87-171 | BOLT | 1 |
| 12-37 | 87-177 | BOLT | 1 |
| 12-38 | 87-203 | BOLT | 1 |
| 12-39 | 87-224 | BOLT | 2 |
| 12-40 | 87-233 | SCREW | 2 |
| 12-41 | 87-254 | SCREW | 6 |
| 12-42 | 87-274 | SCREW | 2 |
| 12-43 | 91-430 | NEEDLE BEARING | 2 |
| 12-44 | 92-233 | BEARING | 1 |
| 12-45 | 93-211 | E-RING | 1 |
| 12-46 | 93-222 | E-RING | 1 |
| 12-47 | 93-402 | C-RING | 2 |
| 12-48 | 98-871 | O-RING | 1 |
| 12-49 | 19-4750-2 | LOOPER ROCKER ASS'Y | 1 |
| 12-50 | 75-410 | SPRING WASHER | 1 |
Page 15 — 13. 押え揚げ機構 PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13-0105-404 | |||
| 13-0205-427 | |||
| 13-0300-6082 | |||
| 13-0405-891 | |||
| 13-0523-265 | |||
| 13-0671-203 | |||
| 13-0771-492 | |||
| 13-0871-507 | |||
| 13-0975-332 | |||
| 13-1075-458 | |||
| 13-1175-537 | |||
| 13-1275-552 | |||
| 13-1377-419 | |||
| 13-1477-442 | |||
| 13-1577-422 | |||
| 13-1677-423 | |||
| 13-1777-424 | |||
| 13-1877-443 | |||
| 13-1977-444 | |||
| 13-2077-427 | |||
| 13-2177-428 | |||
| 13-2277-429 | |||
| 13-2306-580 | |||
| 13-2577-509 | |||
| 13-2677-511 | |||
| 13-2779-422 | |||
| 13-2879-423 | |||
| 13-3079-519 | |||
| 13-3184-561 | |||
| 13-3287-112 | |||
| 13-3384-581 | |||
| 13-3484-537 | |||
| 13-3584-813 | |||
| 13-3686-411 | |||
| 13-3787-129 | |||
| 13-3887-171 | |||
| 13-3987-177 | |||
| 13-4087-193 | |||
| 13-4187-203 | |||
| 13-4287-252 | |||
| 13-4387-274 | |||
| 13-4487-403 | |||
| 13-4587-404 | |||
| 13-4688-003 | |||
| 13-4793-205 | E-リング | ||
| 13-4871-446 |
Page 16 — 14. 給油機構 LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17-8010-G | |||
| 21-632 | |||
| 23-304 | |||
| 23-506 | O-リング | ||
| 23-508 | O-リング | ||
| 75-552 | |||
| 30-0130 | ポンプ ASS'Y | ||
| 31-156 | PUMP MESH | ||
| 31-157 | CLAMP | ||
| 31-222 | OIL FILTER | ||
| 31-314 | JOINT | ||
| 31-514 | OIL RESERVOIR | ||
| 31-507 | PUMP GEAR | ||
| 31-702 | PLATE | ||
| 31-703 | PUMP HOUSING | ||
| 31-704 | OUTER ROTER | ||
| 31-705 | PUMP SHAFT | ||
| 31-706 | INNER ROTER | ||
| 31-707 | PLATE | ||
| 35-413 | CLAMP | ||
| 35-414 | OIL FENCE | ||
| 35-415 | OIL RELEASER | ||
| 35-417 | OIL DISTRIBUTOR | ||
| 35-418 | FILTER | ||
| 35-419 | TUBE | ||
| 35-420 | TUBE | ||
| 88-165 | NUT | ||
| 35-505 | JOINT | ||
| 35-506 | JOINT | ||
| 35-509 | JOINT | ||
| 35-519 | TUBE | ||
| 35-521 | TUBE | ||
| 35-528 | JOINT SCREW | ||
| 35-529 | JOINT SCREW | ||
| 39-404 | OIL RETURN PIPE | ||
| 39-504 | OIL SIGHT GAUGE | ||
| 87-092 | BOLT | ||
| 87-123 | BOLT | ||
| 87-129 | BOLT | ||
| 87-140 | BOLT | ||
| 87-225 | SCREW | ||
| 87-254 | SCREW | ||
| 87-311 | BOLT | ||
| 87-663 | NUT | ||
| 30-0131 | PUMP ASS'Y | ||
| 30-5070 | OIL TANK ASS'Y | ||
| 31-503 | OIL FILTER SCREEN | ||
| 39-503 | CLAMP |
Page 17 — 15. 後プーラー機構 REAR PULLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15-01 | 02-112 | WASHER | 1 |
| 15-0102-112 | WASHER | 1 | |
| 15-0202-406 | SHAFT | 1 | |
| 15-0302-407 | BRACKET | 1 | |
| 15-0402-408 | LEVER | 1 | |
| 15-0502-409 | PLATE | 1 | |
| 15-0661-209 | PULLER DRIVING ECCENTRIC | 1 | |
| 15-0761-418 | BALL JOINT | 1 | |
| 15-0863-208 | CONNECTING LINK | 1 | |
| 15-0963-711 | BALL JOINT | 1 | |
| 15-1065-306 | CONNECTING BAR | 1 | |
| 15-1167-426 | LEVER | 1 | |
| 15-1267-529 | LEVER | 1 | |
| 15-1371-493 | SHAFT | 1 | |
| 15-1471-729 | GUIDE PIN | 1 | |
| 15-1575-187 | WASHER | 1 | |
| 15-1675-211 | COLLAR | 1 | |
| 15-1775-452 | WASHER | 1 | |
| 15-1879-425 | SPRING | 1 | |
| 15-1984-567 | SCREW | 2 | |
| 15-2084-569 | SCREW | 1 | |
| 15-2184-581 | SCREW | 2 | |
| 15-2284-582 | SCREW | 1 | |
| 15-2385-671 | SCREW | 1 | |
| 15-2486-311 | NUT | 1 | |
| 15-2586-741 | NUT | 1 | |
| 15-2686-742 | NUT | 1 | |
| 15-2787-171 | BOLT | 1 | |
| 15-2887-172 | SCREW | 5 | |
| 15-2987-225 | BOLT | 1 | |
| 15-3087-287 | BOLT | 1 | |
| 15-3187-754 | SCREW | 1 | |
| 15-3288-166 | NUT | 1 | |
| 15-3393-223 | E-RING | 1 | |
| 15-3493-258 | SNAP RING | 1 | |
| 15-3593-261 | C-RING | 1 | |
| 15-3694-506 | OIL SEAL | 1 | |
| 15-3760-3780 | BALL JOINT ASS'Y | 1 |
Page 18 — 16. 後プーラー機構 (FX4404) REAR PULLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16-0101-115 | |||
| 16-0202-117 | |||
| 16-0302-123 | |||
| 16-0402-136 | |||
| 16-0502-153 | |||
| 16-0602-178 | |||
| 16-0702-250 | |||
| 16-0802-268 | |||
| 16-0902-415 | |||
| 16-1002-417 | |||
| 16-1171-444 | |||
| 16-1271-490 | |||
| 16-1375-407 | |||
| 16-1475-451 | |||
| 16-1575-484 | |||
| 16-1675-485 | |||
| 16-1775-519 | |||
| 16-1879-551 | |||
| 16-1981-321 | |||
| 16-2081-322 | |||
| 16-2181-323 | |||
| 16-2284-162 | |||
| 16-2384-462 | |||
| 16-2484-573 | |||
| 16-2584-813 | |||
| 16-2686-411 | |||
| 16-2786-901 | |||
| 16-2887-113 | |||
| 16-2987-129 | |||
| 16-3087-181 | |||
| 16-3187-225 | |||
| 16-3287-286 | |||
| 16-3388-179 | |||
| 16-3491-407 | |||
| 16-3593-221 | |||
| 16-3698-600 | |||
| 16-3798-601 | |||
| 16-3898-821 | |||
| 16-3998-864 | |||
| 16-4000-3281 | |||
| 16-4100-2003 | |||
| 16-4260-6610 |
Page 19 — 17. 後プーラー機構 (FX4406~4412) REAR PULLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-115 | |||
| 02-117 | |||
| 02-124 | |||
| 02-138 | |||
| 02-221 | |||
| 02-246 | |||
| 02-420 | |||
| 02-496 | |||
| 02-458 | |||
| 02-494 | |||
| 71-445 | |||
| 71-490 | |||
| 75-407 | |||
| 75-451 | |||
| 75-484 | |||
| 75-519 | |||
| 79-551 | |||
| 81-321 | |||
| 81-322 | |||
| 81-323 | |||
| 84-162 | |||
| 84-462 | |||
| 84-573 | |||
| 84-813 | |||
| 86-411 | |||
| 86-901 | |||
| 87-113 | |||
| 87-129 | |||
| 87-181 | |||
| 87-225 | |||
| 87-286 | |||
| 88-179 | |||
| 91-407 | |||
| 93-221 | |||
| 98-600 | |||
| 98-601 | |||
| 98-821 | |||
| 98-864 | |||
| 00-3222 | |||
| 00-2402 | |||
| 60-6610 |
Page 20 — 18. UTC 糸切り装置 UTC KNIFE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-01 | 05-395 | NEEDL PLATE SUPPORT BRACKET | 1 |
| 18-02 | 05-420 | SEAL | 2 |
| 18-03 | 05-421 | GUIDE BRACKET | 2 |
| 18-04 | 05-426 | ROD | 2 |
| 18-05 | 05-428 | SPEED CONTROLER | 2 |
| 18-06 | 05-429 | UPPER KNIFE | 1 |
| 18-07 | 05-430 | GUIDE ROLLER(S) | 4 |
| 18-08 | 05-431 | GUIDE ROLLER(L) | 4 |
| 18-09 | 05-433 | STOPPER | 2 |
| 18-10 | 05-447 | LEAF SPRING | 4 |
| 18-11 | 06-585 | SPEED CONTROLER | 2 |
| 18-12 | 05-544 | AIR CYLINDER | 1 |
| 18-13 | 05-545 | AIR CYLINDER | 1 |
| 18-14 | 05-546 | COVER | 2 |
| 18-15 | 05-547 | PLATE | 2 |
| 18-16 | 05-548 | LOWER KNIFE | 4 |
| 18-17 | 05-549 | LEAF SPRING(UPPER) | 4 |
| 18-18 | 23-183 | O-RING | 6 |
| 18-19 | 23-512 | CUSHION RUBBER | 2 |
| 18-20 | 71-201 | PIN | 4 |
| 18-21 | 71-579 | PIN | 2 |
| 18-22 | 87-011 | SCREW | 2 |
| 18-23 | 87-097 | SCREW | 4 |
| 18-24 | 87-100 | BOLT | 8 |
| 18-25 | 87-254 | SCREW | 2 |
| 18-26 | 87-274 | SCREW | 1 |
| 18-27 | 87-278 | SCREW | 4 |
| 18-28 | 87-412 | SCREW | 4 |
| 18-29 | 87-413 | SCREW | 2 |
| 18-30 | 87-415 | SCREW | 4 |
| 18-31 | 87-416 | SCREW | 2 |
| 18-32 | 93-236 | C-RING | 2 |
| 18-33 | 98-857 | O-RING | 2 |
| 18-34 | 87-091 | SCREW | 8 |
Page 21 — 19. 糸立て及びテーブル (FX4404) THREAD STAND AND TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19-01 | 42-718 | THREAD STAND ASSEMBLY 8 | 1 |
| 23-509 | |||
| 93-501 | U型止め輪 | ||
| 42-501 | |||
| 75-536 | |||
| 88-166 | |||
| 87-901 | |||
| 21-629 |
Page 22 — THREAD STAND AND TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20-01 | 40-6507 | THREAD STAND ASSEMBLY 12 | 1 |
| 20-02 | 40-6506 | THREAD STAND ASSEMBLY 24 | 1 |
| 20-03 | 23-509 | CUSHION RUBBER | 4 |
| 20-04 | 93-501 | U-RING | 4 |
| 20-05 | 42-501 | SCREW | 4 |
| 20-06 | 75-536 | WASHER | 4 |
| 20-07 | 75-527 | WASHER | 4 |
| 20-08 | 88-166 | NUT | 4 |
| 20-09 | 87-901 | SCREW | 3 |
| 20-10 | 21-629 | COVER | 1 |
| 20-11 | 21-085 | FLAT TABLE | 1 |
| 20-12 | 21-084 | WITH ASSISTANCE TABLE | 1 |
Page 23 — 21. 糸調子機構 (FX4406, 4413) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21-01 | 23-324 | FELT | 12 |
| 21-02 | 41-101 | THREAD TENSION NUT | 12 |
| 21-03 | 41-105 | SPRING POST | 12 |
| 21-04 | 41-107 | SPRING CUP | 12 |
| 21-05 | 41-110 | TENSION DISC | 24 |
| 21-06 | 41-451 | BRACKET | 1 |
| 21-07 | 41-452 | THREAD RELEASER | 1 |
| 21-08 | 41-508 | SCREW STUD | 12 |
| 21-09 | 41-701 | SPRING(HEAVY) | 6 |
| 21-10 | 41-702 | SPRING(LIGHT) | 6 |
| 21-11 | 45-457 | THREAD EYELET | 2 |
| 21-12 | 45-458 | THREAD EYELET | 2 |
| 21-13 | 45-459 | THREAD GUIDE | 1 |
| 21-14 | 75-522 | WASHER | 1 |
| 21-15 | 75-542 | WASHER | 1 |
| 21-16 | 79-426 | SPRING | 1 |
| 21-17 | 79-514 | SPRING | 1 |
| 21-18 | 79-522 | SPRING | 1 |
| 21-19 | 84-403 | SCREW | 1 |
| 21-20 | 84-501 | SCREW | 1 |
| 21-21 | 87-092 | BOLT | 3 |
| 21-22 | 87-177 | BOLT | 1 |
| 21-23 | 87-252 | BOLT | 2 |
| 21-24 | 88-146 | NUT | 1 |
| 21-0123-324 | |||
| 21-0241-101 | |||
| 21-0341-105 | |||
| 21-0441-107 | |||
| 21-0541-110 | |||
| 21-0641-451 | |||
| 21-0741-452 | |||
| 21-0841-508 | |||
| 21-0941-701 | |||
| 21-1041-702 | |||
| 21-1145-457 | 糸道A | ||
| 21-1245-458 | 糸道B | ||
| 21-1345-459 | |||
| 21-1475-522 | |||
| 21-1575-542 | |||
| 21-1679-426 | |||
| 21-1779-514 | |||
| 21-1879-522 | |||
| 21-1984-403 | |||
| 21-2084-501 | |||
| 21-2187-092 | |||
| 21-2287-177 | |||
| 21-2387-252 | |||
| 21-2488-146 |
Page 24 — 22. 糸調子機構 (FX4406UTC) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-01 | 05-531 | BRACKET | 1 |
| 22-02 | 05-532 | AIR CYLINDER ASS'Y | 1 |
| 22-03 | 23-324 | FELT | 12 |
| 22-04 | 41-101 | THREAD TENSION NUT | 12 |
| 22-05 | 41-105 | SPRING POST | 12 |
| 22-06 | 41-107 | SPRING CUP | 12 |
| 22-07 | 41-110 | TENSION DISC | 24 |
| 22-08 | 41-451 | BRACKET | 1 |
| 22-09 | 41-452 | THREAD RELEASER | 1 |
| 22-10 | 41-508 | SCREW STUD | 12 |
| 22-11 | 41-701 | SPRING(HEAVY) | 6 |
| 22-12 | 41-702 | SPRING(LIGHT) | 6 |
| 22-13 | 45-457 | THREAD EYELET | 2 |
| 22-14 | 45-458 | THREAD EYELET | 2 |
| 22-15 | 45-459 | THREAD GUIDE | 1 |
| 22-16 | 75-943 | COLLAR | 2 |
| 22-17 | 79-514 | SPRING | 1 |
| 22-18 | 84-501 | SCREW | 1 |
| 22-19 | 87-092 | BOLT | 6 |
| 22-20 | 87-246 | BOLT | 2 |
| 22-21 | 88-157 | NUT | 1 |
| 22-0105-531 | |||
| 22-0205-532 | |||
| 22-0323-324 | |||
| 22-0441-101 | |||
| 22-0541-105 | |||
| 22-0641-107 | |||
| 22-0741-110 | |||
| 22-0841-451 | |||
| 22-0941-452 | |||
| 22-1041-508 | |||
| 22-1141-701 | |||
| 22-1241-702 | |||
| 22-1345-457 | 糸道A | ||
| 22-1445-458 | 糸道B | ||
| 22-1545-459 | |||
| 22-1675-943 | |||
| 22-1779-514 | |||
| 22-1884-501 | |||
| 22-1987-092 | |||
| 22-2087-246 | |||
| 22-2188-157 |
Page 25 — 23. 糸調子機構 (FX4412) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-01 | 05-531 | BRACKET | 1 |
| 23-02 | 23-324 | FELT | 24 |
| 23-03 | 41-101 | THREAD TENSION NUT | 24 |
| 23-04 | 41-105 | SPRING POST | 24 |
| 23-05 | 41-107 | SPRING CUP | 24 |
| 23-06 | 41-110 | TENSION DISC | 48 |
| 23-07 | 41-115 | THREAD GUIDE | 12 |
| 23-08 | 41-463 | BRACKET | 1 |
| 23-09 | 41-464 | BRACKET | 1 |
| 23-10 | 41-465 | THREAD RELEASER | 1 |
| 23-11 | 41-466 | THREAD EYELET | 12 |
| 23-12 | 41-467 | BRACKET | 1 |
| 23-13 | 41-468 | BRACKET | 1 |
| 23-14 | 41-508 | SCREW STUD | 24 |
| 23-15 | 41-701 | SPRING(HEAVY) | 12 |
| 23-16 | 41-702 | SPRING(LIGHT) | 12 |
| 23-17 | 43-519 | THREAD EYELET | 2 |
| 23-18 | 45-460 | THREAD EYELET | 2 |
| 23-19 | 75-394 | COLLAR | 1 |
| 23-20 | 75-455 | WASHER | 1 |
| 23-21 | 75-943 | COLLAR | 2 |
| 23-22 | 79-163 | SPRING | 1 |
| 23-23 | 79-514 | SPRING | 1 |
| 23-24 | 84-501 | SCREW | 1 |
| 23-25 | 84-503 | SCREW | 3 |
| 23-26 | 84-537 | SCREW | 1 |
| 23-27 | 84-566 | SCREW | 3 |
| 23-29 | 87-092 | BOLT | 1 |
| 23-30 | 87-113 | BOLT | 1 |
| 23-31 | 87-177 | BOLT | 4 |
| 23-32 | 87-246 | BOLT | 2 |
| 23-33 | 88-157 | NUT | 3 |
| 23-0105-531 | |||
| 23-0223-324 | |||
| 23-0341-101 | |||
| 23-0441-105 | |||
| 23-0541-107 | |||
| 23-0641-110 | |||
| 23-0741-115 | |||
| 23-0841-463 | |||
| 23-0941-464 | |||
| 23-1041-465 | |||
| 23-1141-466 | |||
| 23-1241-467 | 防振用取付金具(A) | ||
| 23-1341-468 | 防振用取付金具(B) | ||
| 23-1441-508 | |||
| 23-1541-701 | |||
| 23-1641-702 | |||
| 23-1743-519 | |||
| 23-1845-460 | |||
| 23-1975-394 | |||
| 23-2075-455 | |||
| 23-2175-943 | |||
| 23-2279-163 | |||
| 23-2379-514 | |||
| 23-2484-501 | |||
| 23-2584-503 | |||
| 23-2684-537 | |||
| 23-2784-566 | |||
| 23-2987-092 | |||
| 23-3087-113 | |||
| 23-3187-177 | |||
| 23-3287-246 | |||
| 23-3388-157 |
Page 26 — 24. 糸調子機構 (FX4412UTC) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24-01 | 05-531 | BRACKET | 1 |
| 24-02 | 23-324 | FELT | 24 |
| 24-03 | 41-101 | THREAD TENSION NUT | 24 |
| 24-04 | 41-105 | SPRING POST | 24 |
| 24-05 | 41-107 | SPRING CUP | 24 |
| 24-06 | 41-110 | TENSION DISC | 48 |
| 24-07 | 41-115 | THREAD GUIDE | 12 |
| 24-08 | 41-463 | BRACKET | 1 |
| 24-09 | 41-464 | BRACKET | 1 |
| 24-10 | 41-465 | THREAD RELEASER | 1 |
| 24-11 | 41-466 | THREAD EYELET | 12 |
| 24-12 | 05-532 | AIR CYLINDER | 1 |
| 24-13 | 41-468 | BRACKET | 1 |
| 24-14 | 41-508 | SCREW STUD | 24 |
| 24-15 | 41-701 | SPRING (HEAVY) | 12 |
| 24-16 | 41-702 | SPRING (LIGHT) | 12 |
| 24-17 | 43-519 | THREAD EYELET | 2 |
| 24-18 | 45-460 | THREAD EYELET | 2 |
| 24-19 | 75-394 | COLLAR | 1 |
| 24-20 | 75-455 | WASHER | 1 |
| 24-21 | 75-943 | COLLAR | 2 |
| 24-23 | 79-514 | SPRING | 1 |
| 24-24 | 84-501 | SCREW | 1 |
| 24-25 | 84-503 | SCREW | 3 |
| 24-27 | 84-566 | SCREW | 3 |
| 24-29 | 87-092 | BOLT | 3 |
| 24-30 | 87-113 | BOLT | 1 |
| 24-31 | 87-177 | BOLT | 4 |
| 24-32 | 87-246 | BOLT | 2 |
| 24-33 | 88-157 | NUT | 4 |
| 24-01 05-531 | |||
| 24-02 23-324 | |||
| 24-03 41-101 | |||
| 24-04 41-105 | |||
| 24-05 41-107 | |||
| 24-06 41-110 | |||
| 24-07 41-115 | |||
| 24-08 41-463 | |||
| 24-09 41-464 | |||
| 24-10 41-465 | |||
| 24-11 41-466 | |||
| 24-12 05-532 | |||
| 24-13 41-468 | 防振用取付金具(B) | ||
| 24-14 41-508 | |||
| 24-15 41-701 | |||
| 24-16 41-702 | |||
| 24-17 43-519 | |||
| 24-18 45-460 | |||
| 24-19 75-394 | |||
| 24-20 75-455 | |||
| 24-21 75-943 | |||
| 24-23 79-514 | |||
| 24-24 84-501 | |||
| 24-25 84-503 | |||
| 24-27 84-566 | |||
| 24-29 87-092 | |||
| 24-30 87-113 | |||
| 24-31 87-177 | |||
| 24-32 87-246 | |||
| 24-33 88-157 |
Page 27 — 25. ゴム張り機構 GUIDE ROLLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-01 | 09-145 | COLLAR | 1 |
| 25-02 | 09-147 | COLLAR | 2 |
| 25-03 | 09-519 | REAR ROLLER BRACKET | 1 |
| 25-04 | 09-521 | SLIDE PLATE | 2 |
| 25-05 | 09-522 | SCREW | 2 |
| 25-06 | 09-523 | SHAFT | 2 |
| 25-07 | 09-524 | REAR ROLLER | 1 |
| 25-08 | 09-525 | BRACKET | 1 |
| 25-09 | 09-526 | BRACKET | 2 |
| 25-10 | 09-527 | KNOB | 2 |
| 25-11 | 09-528 | BAR | 1 |
| 25-12 | 09-529 | JOINT BLOCK | 1 |
| 25-13 | 09-530 | ROLLER | 1 |
| 25-14 | 09-531 | BAR | 1 |
| 25-15 | 09-553 | HANDLE | 2 |
| 25-16 | 09-727 | TAPER ROLLER | 1 |
| 25-17 | 52-177 | BUSHING | 2 |
| 25-18 | 75-451 | WASHER | 5 |
| 25-19 | 75-452 | WASHER | 2 |
| 25-20 | 75-453 | WASHER | 2 |
| 25-21 | 84-521 | SCREW | 3 |
| 25-22 | 84-570 | SCREW | 1 |
| 25-23 | 87-172 | SCREW | 2 |
| 25-24 | 87-203 | BOLT | 1 |
| 25-25 | 87-213 | BOLT | 2 |
| 25-26 | 87-501 | SCREW | 2 |
| 25-27 | 87-502 | SCREW | 4 |
| 25-28 | 87-503 | BOLT | 2 |
| 25-29 | 87-663 | BOLT | 1 |
| 25-30 | 88-176 | NUT | 4 |
| 25-31 | 15019XX | GUIDE ROLLER ASS'Y | 1 |
Page 28 — 26. 配管、配線図 (FX4404UTC) WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26-02 | 06-928 | CLAMP | 8 |
| 26-03 | 53-254 | JUNCTION CORD | 1 |
| 26-04 | 87-140 | BOLT | 2 |
| 26-05 | 87-272 | SCREW | 8 |
| 26-06 | 87-903 | BOLT | 2 |
| 26-07 | 05-485 | SOLENOID VALVE | 1 |
| 26-08 | 05-482 | JOINT | 2 |
| 26-09 | 05-483 | JOINT | 2 |
| 26-10 | 05-484 | JOINT | 2 |
| 26-11 | 05-486 | TUBE | 1 |
| 26-13 | 05-490 | TUBE | 1 |
| 26-14 | 05-499 | TUBE | 1 |
| 26-15 | 05-492 | TUBE | 1 |
| 26-16 | 05-493 | TUBE | 1 |
| 26-17 | 05-494 | TUBE | 1 |
| 26-18 | 05-495 | TUBE | 1 |
| 26-19 | 05-505 | TUBE | 1 |
| 26-20 | 05-506 | TUBE | 1 |
| 26-22 | 05-508 | TUBE | 1 |
| 26-23 | 05-514 | TUBE | 1 |
| 26-24 | 05-515 | TUBE | 1 |
| 26-25 | 05-516 | TUBE | 1 |
| 26-26 | 05-517 | TUBE | 1 |
| 26-27 | 05-212 | REGULATOR | 1 |
| 26-28 | 05-218 | JOINT | 1 |
| 26-29 | 06-516 | CONNECTOR | 1 |
| 26-30 | 06-517 | CONNECTOR | 1 |
| 26-31 | 87-171 | BOLT | 2 |
| 26-32 | 88-166 | NUT | 2 |
| 26-01 | LAMP | 8 | |
| 26-0206-928 | |||
| 26-0353-254 | |||
| 26-0487-140 | |||
| 26-0587-272 | |||
| 26-0687-903 | |||
| 26-0705-485 | |||
| 26-0805-483 | |||
| 26-1005-484 | |||
| 26-1105-486 | |||
| 26-12 | |||
| 26-1305-490 | |||
| 26-1405-499 | |||
| 26-1505-492 | |||
| 26-1605-493 | |||
| 26-1705-494 | |||
| 26-1805-495 | |||
| 26-1905-505 | |||
| 26-2005-506 | |||
| 26-21 | |||
| 26-2205-508 | |||
| 26-2305-514 | |||
| 26-2405-515 | |||
| 26-2505-516 | |||
| 26-2605-517 | |||
| 26-2705-212 | |||
| 26-2805-218 | |||
| 26-2906-516 | |||
| 26-3006-517 | |||
| 26-3187-171 | |||
| 26-3288-166 |

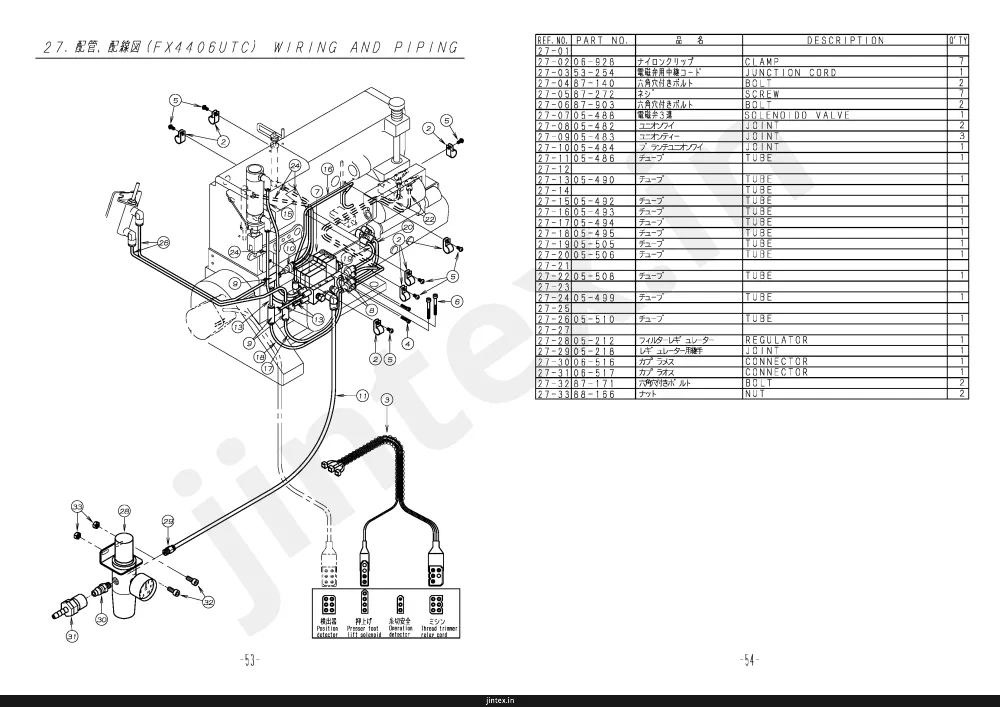

Page 29 — 27. 配管、配線図 (FX4406UTC) WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27-02 | 06-928 | CLAMP | 7 |
| 27-03 | 53-254 | JUNCTION CORD | 1 |
| 27-04 | 87-140 | BOLT | 2 |
| 27-05 | 87-272 | SCREW | 7 |
| 27-06 | 87-903 | BOLT | 2 |
| 27-07 | 05-488 | SOLENOID VALVE | 1 |
| 27-08 | 05-482 | JOINT | 2 |
| 27-09 | 05-483 | JOINT | 3 |
| 27-10 | 05-484 | JOINT | 1 |
| 27-11 | 05-486 | TUBE | 1 |
| 27-13 | 05-490 | TUBE | 1 |
| 27-15 | 05-492 | TUBE | 1 |
| 27-16 | 05-493 | TUBE | 1 |
| 27-17 | 05-494 | TUBE | 1 |
| 27-18 | 05-495 | TUBE | 1 |
| 27-19 | 05-505 | TUBE | 1 |
| 27-20 | 05-506 | TUBE | 1 |
| 27-22 | 05-508 | TUBE | 1 |
| 27-24 | 05-499 | TUBE | 1 |
| 27-26 | 05-510 | TUBE | 1 |
| 27-28 | 05-212 | REGULATOR | 1 |
| 27-29 | 05-218 | JOINT | 1 |
| 27-30 | 06-516 | CONNECTOR | 1 |
| 27-31 | 06-517 | CONNECTOR | 1 |
| 27-32 | 87-171 | BOLT | 2 |
| 27-33 | 88-166 | NUT | 2 |
| 27-01 | CLAMP | 7 | |
| 27-0206-928 | |||
| 27-0353-254 | |||
| 27-0487-140 | 2 | ||
| 27-0587-272 | 7 | ||
| 27-0687-903 | 2 | ||
| 27-0705-488 | |||
| 27-0805-482 | 2 | ||
| 27-0905-483 | 3 | ||
| 27-1005-484 | 1 | ||
| 27-1105-486 | 1 | ||
| 27-12 | 1 | ||
| 27-1305-490 | 1 | ||
| 27-14 | 1 | ||
| 27-1505-492 | 1 | ||
| 27-1605-493 | 1 | ||
| 27-1705-494 | 1 | ||
| 27-1805-495 | 1 | ||
| 27-1905-505 | 1 | ||
| 27-2005-506 | 1 | ||
| 27-21 | 1 | ||
| 27-2205-508 | 1 | ||
| 27-23 | 1 | ||
| 27-2405-499 | 1 | ||
| 27-25 | 1 | ||
| 27-2605-510 | 1 | ||
| 27-27 | 1 | ||
| 27-2805-212 | 1 | ||
| 27-2905-218 | 1 | ||
| 27-3006-516 | 1 | ||
| 27-3106-517 | 1 | ||
| 27-3287-171 | 2 | ||
| 27-3388-166 | 2 |
Page 30 — 28. 配管、配線図 (FX4412UTC) WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28-02 | 06-928 | CLAMP | 7 |
| 28-03 | 53-254 | JUNCTION CORD | 1 |
| 28-04 | 87-140 | BOLT | 2 |
| 28-05 | 87-272 | SCREW | 7 |
| 28-06 | 87-903 | BOLT | 2 |
| 28-07 | 05-488 | SOLENOIDO VALVE | 1 |
| 28-08 | 05-482 | JOINT | 2 |
| 28-09 | 05-483 | JOINT | 3 |
| 28-10 | 05-484 | JOINT | 1 |
| 28-11 | 05-486 | TUBE | 1 |
| 28-13 | 05-490 | TUBE | 1 |
| 28-15 | 05-492 | TUBE | 1 |
| 28-16 | 05-493 | TUBE | 1 |
| 28-17 | 05-494 | TUBE | 1 |
| 28-18 | 05-495 | TUBE | 1 |
| 28-19 | 05-505 | TUBE | 1 |
| 28-20 | 05-506 | TUBE | 1 |
| 28-22 | 05-508 | TUBE | 1 |
| 28-24 | 05-499 | TUBE | 1 |
| 28-26 | 05-510 | TUBE | 1 |
| 28-28 | 05-212 | REGULATOR | 1 |
| 28-29 | 05-218 | JOINT | 1 |
| 28-30 | 06-516 | CONNECTOR | 1 |
| 28-31 | 06-517 | CONNECTOR | 1 |
| 28-32 | 87-171 | BOLT | 2 |
| 28-33 | 88-166 | NUT | 2 |
| 28-01 | LAMP | 7 | |
| 28-0206-928 | |||
| 28-0353-254 | |||
| 28-0487-140 | |||
| 28-0587-272 | |||
| 28-0687-903 | |||
| 28-0705-488 | |||
| 28-0805-482 | |||
| 28-0905-483 | |||
| 28-1005-484 | |||
| 28-1105-486 | |||
| 28-1305-490 | |||
| 28-1505-492 | |||
| 28-1605-493 | |||
| 28-1705-494 | |||
| 28-1805-495 | |||
| 28-1905-505 | |||
| 28-2005-506 | |||
| 28-2205-508 | |||
| 28-2405-499 | |||
| 28-2605-510 | |||
| 28-2805-212 | |||
| 28-2905-218 | |||
| 28-3006-516 | |||
| 28-3106-517 | |||
| 28-3287-171 | |||
| 28-3388-166 |
Page 31 — 29. PMD機構 (FX4404) METERING DEVICE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29-0101-101 | |||
| 29-0201-102 | |||
| 29-0301-136 | |||
| 29-0401-111 | |||
| 29-0501-116 | |||
| 29-0601-132 | |||
| 29-0701-134 | |||
| 29-0801-136 | |||
| 29-0901-138 | |||
| 29-1001-141 | |||
| 29-1101-143 | |||
| 29-1201-145 | |||
| 29-1301-146 | |||
| 29-1401-147 | |||
| 29-1501-152 | |||
| 29-1605-954 | |||
| 29-1761-409 | |||
| 29-1863-425 | |||
| 29-1965-335 | |||
| 29-2067-419 | |||
| 29-2171-208 | |||
| 29-2271-227 | |||
| 29-2371-353 | |||
| 29-2471-361 | |||
| 29-2571-362 | |||
| 29-2675-152 | |||
| 29-2775-446 | |||
| 29-2875-451 | |||
| 29-2975-468 | |||
| 29-3075-480 | |||
| 29-3175-490 | |||
| 29-3275-552 | |||
| 29-3379-171 | |||
| 29-3481-125 | |||
| 29-3584-162 | |||
| 29-3684-314 | |||
| 29-3787-006 | |||
| 29-3887-092 | |||
| 29-3987-106 | |||
| 29-4087-129 | |||
| 29-4187-173 | |||
| 29-4287-177 | |||
| 29-4387-181 | |||
| 29-4487-203 | |||
| 29-4587-225 | |||
| 29-4687-253 | |||
| 29-4787-254 | |||
| 29-4887-456 | |||
| 29-4988-161 | |||
| 29-5088-166 | |||
| 29-5188-456 | |||
| 29-5291-405 | |||
| 29-5391-411 | |||
| 29-5493-200 | |||
| 29-5500-1402 | PMD装置(組) |
Page 32 — 30. PMD機構 (FX4406-12) METERING DEVICE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30-01 | 01-101 | BRACKET | 1 |
| 30-02 | 01-102 | SLEEVE | 1 |
| 30-03 | 01-103 | SLEEVE | 1 |
| 30-04 | 01-104 | LOWER ROLLER | 1 |
| 30-05 | 01-105 | RUBBER TENSIONER | 1 |
| 30-06 | 01-106 | PULLER COVER | 1 |
| 30-07 | 01-107 | GUIDE WIRE | 1 |
| 30-08 | 01-112 | PULLER ROCKER | 1 |
| 30-09 | 01-116 | PLATE | 1 |
| 30-10 | 01-133 | PULLER | 1 |
| 30-11 | 01-136 | ROLLER HOLDER | 2 |
| 30-12 | 01-138 | PIVOT SHAFT HOLDER | 2 |
| 30-13 | 01-143 | ROLLER CONTROLER | 1 |
| 30-14 | 01-145 | LEVER | 1 |
| 30-15 | 01-147 | PIN | 1 |
| 30-16 | 05-954 | ROD | 1 |
| 30-17 | 61-409 | ECCENTRIC | 1 |
| 30-18 | 63-425 | CONNECTING ROD | 1 |
| 30-19 | 65-335 | CONNECTING BAR | 1 |
| 30-20 | 67-419 | LEVER | 1 |
| 30-21 | 71-208 | PIN | 2 |
| 30-22 | 71-227 | PIN | 1 |
| 30-23 | 71-354 | SHAFT | 1 |
| 30-24 | 71-355 | SHAFT | 2 |
| 30-25 | 71-356 | SHAFT | 1 |
| 30-27 | 75-446 | WASHER | 1 |
| 30-28 | 75-451 | WASHER | 2 |
| 30-29 | 75-480 | WASHER | 1 |
| 30-30 | 75-490 | WASHER | 1 |
| 30-31 | 75-552 | WASHER | 3 |
| 30-32 | 79-171 | SPRING | 1 |
| 30-33 | 81-125 | BUSHING | 2 |
| 30-34 | 84-162 | SCREW | 3 |
| 30-35 | 84-314 | SCREW | 1 |
| 30-36 | 87-006 | SCREW | 1 |
| 30-37 | 87-092 | BOLT | 2 |
| 30-39 | 87-129 | BOLT | 2 |
| 30-40 | 87-173 | BOLT | 2 |
| 30-41 | 87-177 | BOLT | 2 |
| 30-42 | 87-181 | SCREW | 6 |
| 30-43 | 87-203 | BOLT | 1 |
| 30-44 | 87-225 | BOLT | 2 |
| 30-45 | 87-253 | SCREW | 1 |
| 30-46 | 87-254 | SCREW | 3 |
| 30-47 | 87-456 | SCREW | 1 |
| 30-48 | 88-161 | NUT | 1 |
| 30-49 | 88-166 | NUT | 2 |
| 30-50 | 88-456 | NUT | 1 |
| 30-51 | 91-405 | BEARING | 2 |
| 30-52 | 91-411 | BEARING | 1 |
| 30-53 | 93-200 | E-RING | 1 |
| 30-54 | 00-1403 | METERING DEVICE ASS'Y | 1 |
| 30-0101-101 | |||
| 30-0201-102 | |||
| 30-0301-103 | |||
| 30-0401-104 | |||
| 30-0501-105 | |||
| 30-0601-106 | |||
| 30-0701-107 | |||
| 30-0801-112 | |||
| 30-0901-116 | |||
| 30-1001-133 | |||
| 30-1101-136 | |||
| 30-1201-138 | |||
| 30-1301-143 | |||
| 30-1401-145 | |||
| 30-1501-147 | |||
| 30-1605-954 | |||
| 30-1761-409 | |||
| 30-1863-425 | |||
| 30-1965-335 | |||
| 30-2067-419 | |||
| 30-2171-208 | |||
| 30-2271-227 | |||
| 30-2371-354 | |||
| 30-2471-355 | |||
| 30-2571-356 | |||
| 30-2775-446 | |||
| 30-2875-451 | |||
| 30-2975-480 | |||
| 30-3075-490 | |||
| 30-3175-552 | |||
| 30-3279-171 | |||
| 30-3381-125 | |||
| 30-3484-162 | |||
| 30-3584-314 | |||
| 30-3687-025 | |||
| 30-3787-253 | |||
| 30-3887-128 | |||
| 30-3987-129 | |||
| 30-4087-173 | |||
| 30-4187-177 | |||
| 30-4287-181 | |||
| 30-4387-203 | |||
| 30-4487-225 | |||
| 30-4587-253 | |||
| 30-4687-254 | |||
| 30-4787-456 | |||
| 30-4888-161 | |||
| 30-4988-166 | |||
| 30-5088-456 | |||
| 30-5191-405 | |||
| 30-5291-411 | |||
| 30-5393-200 | |||
| 30-5400-1403 | PMD装置(組) |
Page 33 — 31. アクセサリー - ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 31-01 | 20-0010 | ACCESSORIES | 1 |
| 31-02 | 28-454 | DRIVER (S) | 1 |
| 31-03 | 28-452 | DRIVER (L) | 1 |
| 31-04 | 28-011 | TWEEZERS | 1 |
| 31-05 | 28-317 | ALLEN KEY (1.5mm) | 1 |
| 31-08 | 28-311 | ALLEN KEY (2mm) | 1 |
| 31-09 | 28-312 | ALLEN KEY (2.5mm) | 1 |
| 31-10 | 28-313 | ALLEN KEY (3mm) | 1 |
| 31-11 | 28-314 | ALLEN KEY (5mm) | 1 |
| 31-12 | 20-6020 | TAPE STAND | 1 |
| 31-13 | 20-6460 | TAPE GUIDE ASS'Y | 1 |
| 31-14 | 28-920 | CHAIN | 1 |
| 31-15 | 28-613 | OIL | 1 |
| 31-16 | 13-0540-5 | NEEDLE | 10 |
| 31-17 | 28-615 | OIL FUNNEL | 1 |
| 31-18 | 28-614 | OILER | 1 |
| 31-19 | 28-308 | ALLEN KEY (1.3mm) | 1 |
Page 34 — 32. ゲージパーツ GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| * | NEEDLE PLATE | 1 | |
| * | LOWER KNIFE BASE | 1 | |
| * | SPRING BASE | 1 | |
| * | NEEDLE CLAMP | 1 | |
| * | NEEDLE | 1 | |
| * | NEEDLE PLATE | 1 | |
| * | FEED DOG | 1 | |
| 17-3710-A | SHANK | 2 | |
| 17-3710-C | BRACKET | 1 | |
| * | BOTTOM | 1 | |
| * | BOTTOM | 1 | |
| * | SPRING | 1 | |
| 17-8190-F | RETAINER HOLDER | 1 | |
| * | LOOPER HOLDER | 1 | |
| * | LOOPER HOLDER | 1 | |
| * | RETAINER LOOPER | 1 | |
| 19-404 | NEEDLE GUIDE | * | |
| 19-405 | NEEDLE GUARD | * | |
| 19-406 | LOOPER | * | |
| 19-416 | THREAD GUIDE | * | |
| * | PIN | 1 | |
| 71-215 | SCREW | * | |
| 84-164 | SCREW | * | |
| 84-367 | SCREW | 4 | |
| 84-380 | SCREW | 1 | |
| 84-464 | SCREW | 2 | |
| 84-588 | SCREW | 2 | |
| 87-099 | SCREW | * | |
| 87-104 | SCREW | * | |
| 87-113 | BOLT | 1 | |
| 87-289 | SCREW | 2 | |
| 88-146 | NUT | 2 | |
| 84-314 | SCREW | * | |
| 87-106 | SCREW | 1 | |
| 87-233 | SCREW | 1 | |
| * | DRESSER FOOT ASS'Y | 1 | |
| 17-4210-A | RACKET | 1 | |
| * | BOTTOM | 1 | |
| 17-4210-C | RACKET | 2 | |
| 17-4210-E | LINK PLATE | 1 | |
| 17-4210-G | SLIDE PLATE | 1 | |
| 17-5810-D | PIN | 1 | |
| 17-5810-F | SCREW | 2 | |
| 79-282 | LOOPER GUARD | 2 | |
| 84-114 | SCREW | 2 | |
| 84-361 | SCREW | 2 | |
| 84-364 | SCREW | 3 | |
| 84-591 | BOLT | 1 | |
| 87-030 | SCREW | 12-13 | |
| 87-037 | SCREW | 12-13 | |
| 87-013 | SCREW | 12-13 |
Page 35 — 33. FXSシリーズ専用部品 FXS SERISE EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 33-01 | 04-447 | SHAFT | 1 |
| 33-02 | 05-202 | JOINT | 4 |
| 33-03 | 05-533 | JOINT | 2 |
| 33-04 | 05-543 | AIR CYLINDER | 1 |
| 33-05 | 05-550 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 33-06 | 06-592 | SPEED CONTROLER | 2 |
| 33-07 | 09-405 | TAPE GUIDE(R) | 1 |
| 33-08 | 09-406 | TAPE GUIDE(L) | 1 |
| 33-09 | 21-257 | BRACKET | 1 |
| 33-10 | 23-470 | GASKET | 1 |
| 33-11 | 27-040 | COVER | 1 |
| 33-12 | 27-041 | FRONT COVER | 1 |
| 33-13 | 71-201 | PIN | 2 |
| 33-14 | 71-448 | SHAFT | 1 |
| 33-15 | 71-449 | SHAFT | 1 |
| 33-16 | 75-456 | WASHER | 2 |
| 33-17 | 75-468 | WASHER | 1 |
| 33-18 | 75-492 | GUIDE COLLAR | 1 |
| 33-19 | 79-912 | SPRING | 1 |
| 33-20 | 87-096 | SCREW | 2 |
| 33-21 | 87-124 | SCREW | 2 |
| 33-22 | 87-145 | SCREW | 2 |
| 33-23 | 87-177 | BOLT | 1 |
| 33-24 | 87-288 | SCREW | 5 |
| 33-25 | 87-291 | BOLT | 1 |
| 33-26 | 87-301 | SCREW | 2 |
| 33-27 | 88-157 | NUT | 1 |
| 33-28 | 60-4140 | BEARING ASS'Y | 1 |
Page 36 — 34. ゲージ部品一覧表 GAUGE PARTS TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-3510-1 | NEEDLE HOLDER | ||
| 12-3520-1 | NEEDLE HOLDER | ||
| 12-3530-1 | NEEDLE HOLDER | ||
| 12-3540-1 | NEEDLE HOLDER | ||
| 12-3550-1 | NEEDLE HOLDER | ||
| 12-3620-1 | NEEDLE HOLDER | ||
| 12-3630-1 | NEEDLE HOLDER | ||
| 12-3580-1 | NEEDLE HOLDER | ||
| 12-3590-1 | NEEDLE HOLDER | ||
| 12-3600-1 | NEEDLE HOLDER | ||
| 14-418 | NEEDLE PLATE | 3/4 | |
| 15-418 | FEED DOG | 3/4 | |
| 19-418 | LOOPER HOLDER | 3/4 | |
| 18-375 | RETAINER BAR | 3/4 | |
| 45-371 | THREAD EYELET | 1 | |
| 14-421 | NEEDLE PLATE | 1 | |
| 15-421 | FEED DOG | 1 | |
| 19-421 | LOOPER HOLDER | 1 | |
| 18-371 | RETAINER BAR | 1 | |
| 14-422 | NEEDLE PLATE | 1-1/8 | |
| 15-422 | FEED DOG | 1-1/8 | |
| 19-422 | LOOPER HOLDER | 1-1/8 | |
| 18-372 | RETAINER BAR | 1-1/8 | |
| 19-416 | LOOPER | 1-1/8 | |
| 45-381 | THREAD EYELET | 1-1/4 | |
| 14-423 | NEEDLE PLATE | 1-1/4 | |
| 18-373 | RETAINER BAR | 1-1/4 | |
| 14-424 | NEEDLE PLATE | 1-1/2 | |
| 18-374 | RETAINER BAR | 1-1/2 | |
| 17-3770-1 | PRESSER FOOT ASSEMBLY | 1/4-3/4-1/4 | |
| 14-427 | NEEDLE PLATE | 1/4-3/4-1/4 | |
| 18-377 | RETAINER BAR | 1/4-3/4-1/4 | |
| 17-3810-1 | PRESSER FOOT ASSEMBLY | 1/4-1-1/4 | |
| 14-431 | NEEDLE PLATE | 1/4-1-1/4 | |
| 18-381 | RETAINER BAR | 1/4-1-1/4 | |
| 45-397 | THREAD EYELET | 3/16 | |
| 17-3970-1 | PRESSER FOOT ASSEMBLY | 3/16 | |
| 14-497 | NEEDLE PLATE | 3/16 | |
| 18-397 | RETAINER BAR | 3/16 | |
| 45-396 | THREAD EYELET | 1/4 | |
| 17-3960-1 | PRESSER FOOT ASSEMBLY | 1/4 | |
| 14-496 | NEEDLE PLATE | 1/4 | |
| 18-396 | RETAINER BAR | 1/4 | |
| 17-3680-1 | PRESSER FOOT ASSEMBLY | 5mm | |
| 14-045 | NEEDLE PLATE | 5mm | |
| 18-398 | RETAINER BAR | 5mm | |
| 17-3930-1 | PRESSER FOOT ASSEMBLY | 1/4 | |
| 14-443 | NEEDLE PLATE | 1/4 | |
| 18-390 | RETAINER BAR | 1/4 | |
| 12-3610-1 | NEEDLE HOLDER | 1/4 | |
| 12-3570-1 | NEEDLE HOLDER | 1/4 | |
| 17-3940-1 | PRESSER FOOT ASSEMBLY | 1/4 | |
| 18-394 | RETAINER BAR | 1/4 | |
| 12-3640-1 | NEEDLE HOLDER | 1/3 | |
| 17-4480-1 | PRESSER FOOT ASSEMBLY | 1/3 | |
| 17-4390-1 | PRESSER FOOT ASSEMBLY | 1/4 | |
| 14-440 | NEEDLE PLATE | 1/4 | |
| 18-391 | RETAINER BAR | 1/4 | |
| 17-4640-1 | PRESSER FOOT ASSEMBLY | 1/4 | |
| 14-465 | NEEDLE PLATE | 1/4 | |
| 12-3650-1 | NEEDLE HOLDER | 1/8 | |
| 17-4780-1 | PRESSER FOOT ASSEMBLY | 1/8 | |
| 14-480 | NEEDLE PLATE | 1/8 | |
| 18-365 | RETAINER BAR | 1/8 | |
| 12-3660-1 | NEEDLE HOLDER | 1/8 | |
| 17-3660-1 | PRESSER FOOT ASSEMBLY | 1/8 | |
| 14-366 | NEEDLE PLATE | 1/8 | |
| 18-366 | RETAINER BAR | 1/8 | |
| 12-3670-1 | NEEDLE HOLDER | * | |
| 17-3670-1 | PRESSER FOOT ASSEMBLY | * | |
| 14-367 | NEEDLE PLATE | * | |
| 15-367 | FEED DOG | * | |
| 19-367 | LOOPER HOLDER | * | |
| 18-367 | RETAINER BAR | * | |
| 12-3680-1 | NEEDLE HOLDER | 1/8 | |
| 14-368 | NEEDLE PLATE | 1/8 | |
| 18-368 | RETAINER BAR | 1/8 |
Page 37 — 35. UTCゲージ"専用部品一覧表 UTC GAUGE PARTS TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-351 | NEEDLE PLATE | ||
| 05-451 | LOWER KNIFE BASE | ||
| 05-452 | SPRING BASE | ||
| 05-352 | NEEDLE PLATE | ||
| 05-453 | LOWER KNIFE BASE | ||
| 05-454 | SPRING BASE | ||
| 05-353 | NEEDLE PLATE | ||
| 05-455 | LOWER KNIFE BASE | ||
| 05-456 | SPRING BASE | ||
| 05-354 | NEEDLE PLATE | ||
| 05-457 | LOWER KNIFE BASE | ||
| 05-458 | SPRING BASE | ||
| 05-355 | NEEDLE PLATE | ||
| 05-382 | LOWER KNIFE BASE | ||
| 05-383 | SPRING BASE | ||
| 05-356 | NEEDLE PLATE | ||
| 05-467 | LOWER KNIFE BASE | ||
| 05-468 | SPRING BASE | ||
| 05-357 | NEEDLE PLATE | ||
| 05-469 | LOWER KNIFE BASE | ||
| 05-470 | SPRING BASE | ||
| 05-358 | NEEDLE PLATE | ||
| 05-471 | LOWER KNIFE BASE | ||
| 05-472 | SPRING BASE | ||
| 05-359 | NEEDLE PLATE | ||
| 05-463 | LOWER KNIFE BASE | ||
| 05-464 | SPRING BASE | ||
| 05-360 | NEEDLE PLATE | ||
| 05-465 | LOWER KNIFE BASE | ||
| 05-466 | SPRING BASE |
Kansai Special FX4400 Series — parts catalog
- Page 1 (cover): This is the cover page for the FX Series of industrial sewing machines by KANSAI SPECIAL. It includes the model series name, publication details, and a part number.
- Page 2 (toc): This page contains the table of contents for the FX series parts book, listing mechanisms and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of the frame assembly (1) for sewing machine models FX4406 and FX4412, along with a detailed parts list.
- Page 4 (diagram): This page displays a diagram of frame assembly components, including part numbers, descriptions, and quantities for various sewing machine parts.
- Page 5 (parts_list): This page contains a parts list for Frame Assembly (3) for UTC and Model UTC sewing machines, detailing part numbers, descriptions, quantities, and remarks.
- Page 6 (parts_list): This page lists parts for the thread tension mechanism, including felt, thread tension nuts, spring posts, spring cups, tension discs, thread guides, rackets, thread releasers, screw studs, springs, thread eyelets, and various screws and bolts.
- Page 7 (parts_list): This page lists parts for the thread tension mechanism (FX4404UTC) including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of the thread tension mechanism for sewing machine models FX4406 to FX4412, along with a detailed parts list.
- Page 9 (parts_list): This page lists parts for the thread tension mechanism (FX4406UTC-4412UTC) including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page contains a diagram of the bushing mechanism (section 8) with a corresponding parts list detailing reference numbers, part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of the needle bar mechanism, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of the crankshaft mechanism, with numbered components and a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 13 (diagram): This page displays a diagram of the feed mechanism, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of the looper mechanism, with numbered parts and a corresponding table listing part numbers, descriptions, and quantities.
- Page 15 (parts_list): This page lists parts for the presser foot mechanism, including part numbers, descriptions, and quantities.
- Page 16 (parts_list): This page lists parts for the lubrication mechanism, including part numbers, descriptions, and quantities.
- Page 17 (diagram): This page displays a diagram of the rear puller mechanism, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 18 (parts_list): This page lists parts for the Rear Puller Mechanism (FX4404), including part numbers, descriptions, quantities, and reference numbers.
- Page 19 (parts_list): This page contains a parts list for the rear puller mechanism (FX4406~4412) with part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of the UTC knife mechanism, with numbered parts and a corresponding table listing part numbers, descriptions, and quantities.
- Page 21 (parts_list): This page contains a parts list for the thread stand and table assembly, including part numbers, descriptions, and quantities for various components.
- Page 22 (parts_list): This page contains a parts list for Thread Stand and Table assemblies, including part numbers, descriptions, and quantities for various components.
- Page 23 (diagram): This page displays a diagram of the thread tension mechanism for sewing machine models FX4406P, PMD, PL, PK, and 4413PK, along with a detailed parts list.
- Page 24 (diagram): This page displays a diagram of the thread tension mechanism for the FX4406UTC sewing machine, along with a detailed parts list.
- Page 25 (parts_list): This page contains a parts list for the thread tension mechanism (FX4412) of an industrial sewing machine, detailing part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of the thread tension mechanism (FX4412UTC) along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 27 (parts_list): This page contains a parts list for the Guide Roller Mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 28 (diagram): This page displays a wiring and piping diagram for the FX4404UTC model, along with a detailed parts list including reference numbers, part numbers, descriptions, and quantities.
- Page 29 (diagram): This page displays a diagram of wiring and piping for the FX4406UTC model, along with a detailed parts list for various components including clamps, cords, bolts, screws, solenoids, tubes, and regulators.
- Page 30 (diagram): This page displays a wiring and piping diagram for the FX4412UTC, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 31 (parts_list): This page contains a parts list for the Metering Device Mechanism, including part numbers, descriptions, and quantities.
- Page 32 (parts_list): This page lists parts for the Metering Device Mechanism (FX4406-12), including part numbers, descriptions, and quantities.
- Page 33 (parts_list): This page lists accessories for sewing machines, including various tools like screwdrivers, Allen keys, tweezers, oil, needles, and a chain, with their corresponding part numbers and quantities.
- Page 34 (parts_list): This page contains a parts list for gauge parts, including part numbers, descriptions, and quantities for various models.
- Page 35 (parts_list): This page contains a parts list for FXS series exclusive parts, detailing part numbers, descriptions, and quantities for various components.
- Page 36 (parts_list): This page contains a parts list for gauge parts, with model numbers, gauge sizes, and various part numbers for components like needle holders, thread eyelets, presser foot assemblies, needle plates, feed dogs, looper holders, retainer bars, and loopers.
- Page 37 (parts_list): This page contains a parts list for UTC gauge parts, detailing needle plates, lower knife bases, and spring bases for various models like FX4404, FX4412, FX4406, and FX4409.
