Kansai Special WX-8842 Parts Book (PDF)
Text index — Kansai Special WX-8842
Page 4 — 1. フレーム関係 (1) FRAME ASSEMBLY (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-01 | 23-504 | PLUG | 1 |
| 39-502 | |||
| 87-224 | |||
| 21-584 | |||
| 23-569 | |||
| 87-177 | |||
| 27-130 | |||
| 23-503 | |||
| 21-688 | |||
| 23-501 | |||
| 87-171 | |||
| 93-701 | |||
| 21-253 | |||
| 87-206 | |||
| 27-136 | |||
| 23-427 | |||
| 75-552 | |||
| 71-268 | |||
| 87-228 | |||
| 86-211 | |||
| 21-627 | |||
| 21-626 | |||
| 02-118 | |||
| 84-396 | |||
| 84-412 | |||
| 87-252 | |||
| 06-957 | |||
| 88-166 | |||
| 75-452 | |||
| 24-051 | |||
| 75-520 | |||
| 87-089 | |||
| 87-213 | |||
| 87-409 | |||
| 27-129 | |||
| 24-052 | |||
| 21-717 | |||
| 87-255 | |||
| 20-6270 | |||
| 21-764 |
Page 5 — 2. フレーム関係 (2-1) FRAME ASSEMBLY (2-1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-01 | 25-903 | SCREW | 1 |
| 02-02 | 87-129 | SCREW | 7 |
| 02-03 | 87-286 | SCREW | 1 |
| 02-04 | 79-922 | SPRING | 4 |
| 02-05 | 25-503 | SCREW | 1 |
| 02-06 | 23-512 | CUSHION RUBBER | 4 |
| 02-07 | 23-526 | CUSHION RUBBER | 2 |
| 02-08 | 21-665 | REAR COVER | 1 |
| 02-09 | 23-525 | REAR COVER GASKET | 1 |
| 02-10 | 21-666 | SIDE COVER | 1 |
| 02-11 | 79-531 | SPRING | 1 |
| 02-12 | 84-574 | SCREW | 4 |
| 02-13 | 84-163 | SCREW | 2 |
| 02-14 | 79-532 | SPRING | 1 |
| 02-15 | 84-396 | SCREW | 1 |
| 02-16 | 02-118 | WASHER | 1 |
| 02-17 | 21-663 | FRONT BASE COVER | 1 |
| 02-18 | 87-214 | BOLT | 5 |
| 02-19 | 21-660 | CLOTH PLATE | 1 |
| 02-20 | 87-269 | SCREW | 2 |
| 02-21 | 87-113 | SCREW | 2 |
| 02-22 | 21-662 | SIDE COVER | 1 |
| 02-23 | 21-650 | BED COVER | 1 |
| 02-24 | 23-518 | BED COVER GASKET | 1 |
| 02-25 | 23-522 | CRANK CHAMBER COVER GASKET | 1 |
| 02-26 | 69-527 | PUSH BOTTON | 1 |
| 02-27 | 79-528 | SPRING | 1 |
| 02-28 | 21-659 | CRANK CHAMBER COVER | 1 |
| 02-29 | 23-183 | O-RING | 1 |
| 02-30 | 75-453 | WASHER | 1 |
| 02-31 | 93-205 | E-RING | 1 |
| 02-32 | 14-084 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 02-33 | 71-579 | PIN | 2 |
| 02-34 | 87-092 | SCREW | 7 |
| 02-35 | 21-649 | COVER | 1 |
| 02-36 | 23-517 | GASKET | 1 |
| 02-37 | 24-053 | TYPE PLATE | 1 |
| 02-38 | 93-701 | PIN | 2 |
| 02-39 | 69-526 | HOUSING | 1 |
| 02-40 | 84-581 | SCREW | 1 |
| 02-41 | 81-548 | BUSHING | 1 |
| 02-42 | 23-521 | GASKET | 1 |
| 02-43 | 23-168 | PLUG | 1 |
| 02-44 | 88-146 | NUT | 1 |
| 02-45 | 87-112 | SCREW | 1 |
| 02-46 | 87-177 | SCREW | 7 |
| 02-47 | 25-505 | SIDE COVER HOLDER | 1 |
| 02-48 | 87-268 | SCREW | 1 |
| 02-49 | 79-530 | SPRING | 1 |
| 02-50 | 84-566 | SCREW | 2 |
| 02-51 | 75-455 | WASHER | 2 |
| 02-52 | 25-517 | SCREW | 1 |
| 02-53 | 25-516 | HINGE | 1 |
| 02-54 | 21-664 | FRONT COVER | 1 |
| 02-55 | 39-503 | OIL FILTER SCREEN CLAMP | 1 |
| 02-56 | 31-503 | OIL FILTER SCREEN | 1 |
Page 6 — 2. フレーム関係(2-2) FRAME ASSEMBLY (2-2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-57 | 87-239 | PIN | 4 |
| 02-58 | 94-507 | SAEL PLUG | 1 |
| 02-59 | 21-667 | COVER | 1 |
| 02-60 | 87-272 | SCREW | 8 |
| 02-61 | 23-529 | SEAL PLUG (φ11) | 1 |
| 02-62 | 23-528 | SEAL PLUG (φ9) | 1 |
| 02-63 | 87-400 | BOLT | 1 |
| 02-64 | 21-648 | COVER | 1 |
| 02-65 | 23-516 | GASKET | 1 |
| 02-66 | 21-832 | FRONT BASE COVER | 1 |
| 02-67 | 21-833 | FRONT COVER | 1 |
| 02-68 | 21-834 | SIDE COVER | 1 |
| 02-69 | 21-835 | SLIDE COVER | 1 |
| 02-70 | 27-087 | STOPPER | 1 |
| 02-71 | 87-087 | SCREW | 1 |
| 02-72 | 05-074 | SCREW | 1 |
| 02-73 | 87-274 | SCREW | 2 |
| 02-74 | 25-527 | SCREW | 1 |
| 02-75 | 20-6640 | FRONT COVER ASS'Y | 1 |
| 02-76 | 20-8330 | FRONT COVER ASS'Y | 1 |
| 02-77 | LX-146 | NEEDLE PLATE SUPPORT BRACKET | 1 |
Page 7 — THREAD TENSION MECHANISM (WITHOUT UTC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 03-01 | 71-209 | PIN | 1 |
| 45-541 | |||
| 41-520 | |||
| 71-202 | |||
| 27-534 | |||
| 84-162 | |||
| 27-531 | |||
| 27-533 | |||
| 75-455 | |||
| 87-177 | |||
| 45-556 | |||
| 75-468 | |||
| 87-092 | |||
| 87-269 | |||
| 41-503 | |||
| 23-324 | |||
| 45-546 | |||
| 87-287 | |||
| 25-217 | |||
| 45-517 | |||
| 45-551 | |||
| 41-501 | |||
| 87-104 | |||
| 41-115 | |||
| 84-501 | |||
| 79-514 | |||
| 41-508 | |||
| 41-502 | |||
| 41-701 | |||
| 41-101 | |||
| 41-105 | |||
| 41-702 | |||
| 41-107 | |||
| 41-509 | |||
| 45-547 | |||
| 87-099 | |||
| 41-601 | |||
| 79-533 | |||
| 84-171 | |||
| 45-543 | |||
| 45-558 | |||
| 41-521 | |||
| 20-5360 | |||
| 41-518 | |||
| 41-519 | |||
| 45-552 | |||
| 45-508 | |||
| 41-117 |
Page 8 — 4. ブッシュ機構 BUSHING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 04-01 | 81-508 | BUSHING(RIGHT) | 1 |
| 04-02 | 25-507 | SEAL PLUGΦ17 | 1 |
| 04-03 | 81-507 | BUSHING(LEFT) | 1 |
| 04-04 | 81-506 | BUSHING | 2 |
| 04-05 | 94-804 | OIL SEALΦ10 | 2 |
| 04-06 | 81-505 | BUSHING | 1 |
| 04-07 | 25-506 | SEAL PLUGΦ16 | 1 |
| 04-08 | 81-510 | BUSHING | 1 |
| 04-09 | 81-547 | BUSHING | 1 |
| 04-10 | 81-528 | BUSHING(REAR) | 1 |
| 04-11 | 94-102 | OIL SEAL | 1 |
| 04-12 | 81-529 | BUSHING(FRONT) | 1 |
| 04-13 | 81-526 | BUSHING(REAR) | 1 |
| 04-14 | 81-530 | BUSHING | 1 |
| 04-15 | 81-523 | BUSHING(RIGHT) | 1 |
| 04-16 | 81-524 | BUSHING(LEFT) | 1 |
| 04-17 | 81-525 | BUSHING(FRONT) | 1 |
| 04-18 | 94-222 | SHAFT SEAL | 1 |
| 04-19 | 81-527 | BUSHING | 1 |
| 04-20 | 81-522 | BUSHING | 2 |
| 04-21 | 94-805 | OIL SEAL | 2 |
| 04-22 | 81-539 | BUSHING(LOWER) | 1 |
| 04-23 | 81-572 | BUSHING(UPPER) | 1 |
| 04-24 | 94-503 | OIL SEAL | 1 |
| 04-25 | 81-531 | BUSHING | 2 |
| 04-26 | 94-231 | OIL SEAL | 1 |
| 04-27 | 94-505 | OIL SEAL | 1 |
Page 9 — CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-01 | 87-172 | SCREW | 8 |
| 69-523 | SLEEVE | 2 | |
| 23-527 | O-RING | 2 | |
| 91-883 | BEARING | 2 | |
| 75-502 | WASHER | 1 | |
| 71-588 | CRANK SHAFT | 1 | |
| 71-675 | CRANK SHAFT | 1 | |
| 87-259 | SCREW | 7 | |
| 87-214 | BOLT | 4 | |
| 61-510 | DRIVE BALL | 1 | |
| 63-507 | CONNECTION LOOPER DRIVE | 1 | |
| 69-513 | GUIDE | 1 | |
| 71-585 | CRANK SHAFT (LX5802M/TMF) | 1 | |
| 87-092 | SCREW | 1 | |
| 60-5130 | LOOPER CRANK ASS'Y (LX5802MF/TMF) | 1 | |
| 87-242 | SCREW | 3 | |
| 75-271 | SHAFT JOINT | 1 | |
| 23-341 | FELT | 1 | |
| 71-573 | SHAFT (RIGHT) | 1 | |
| 91-994 | BEARING | 1 | |
| 69-518 | BEARING SLEEVE | 1 | |
| 69-537 | V-PULLEY | 1 | |
| 87-270 | SCREW | 2 | |
| 25-520 | BEARING PLATE (B) | 1 | |
| 34-826 | BEARING | 1 | |
| 69-529 | BEARING SLEEVE | 1 | |
| 25-519 | SET PLATE (A) | 1 | |
| 31-701 | OIL PUMP DRIVING WARM | 1 | |
| 60-9720 | BEARING ASS'Y | 1 | |
| 60-9930 | BEARING ASS'Y | 1 | |
| 60-9950 | BEARING ASS'Y | 1 | |
| 60-9730 | BEARING ASS'Y | 1 | |
| 60-5050 | LOOPER CRANK ASS'Y (WX) | 1 | |
| 58-500 | TIMING BELT | 1 | |
| 60-5100 | LOOPER CRANK ASS'Y (LX5801) | 1 | |
| 06-554 | TIMING PULLEY | 1 | |
| 05-161 | V-PULLEY | 1 | |
| 05-163 | SET PLATE (A) | 1 | |
| 05-164 | SET PLATE (B) | 1 |
Page 10 — 6. ルーパー機構、針受機構 LOOPER MECHANISM, NEEDLE GUARD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-01 | 61-523 | ECCENTRIC | 1 |
| 06-02 | 87-254 | SCREW | 4 |
| 06-03 | 87-214 | BOLT | 3 |
| 06-04 | 63-506 | CONNECTING ROD | 1 |
| 06-05 | 60-5030 | NEEDLE GUARD CONNECTING ROD ASS'Y | 1 |
| 06-06 | 60-5040 | CONNECTING ROD ASS'Y | 1 |
| 06-07 | 87-274 | SCREW | 3 |
| 06-08 | 04-509 | PIN | 1 |
| 06-09 | 19-545 | LOOPER HOLDER | 1 |
| 06-10 | 87-181 | SCREW | ※ |
| 06-11 | 75-541 | WASHER | 1 |
| 06-12 | 75-453 | WASHER | 2 |
| 06-13 | 67-507 | LEVER | 1 |
| 06-14 | 87-224 | BOLT | 3 |
| 06-15 | 88-166 | NUT | 1 |
| 06-16 | 75-452 | WASHER | 1 |
| 06-17 | 75-537 | THRUST COLLAR Φ10 | 1 |
| 06-18 | 61-524 | ECCENTRIC | 1 |
| 06-19 | 63-508 | NEEDLE GUARD CONNECTING ROD | 1 |
| 06-20 | 71-572 | PIN | 1 |
| 06-21 | 93-222 | E-RING | 1 |
| 06-22 | 75-504 | WASHER | 1 |
| 06-23 | 71-574 | LOOPER ROCKER SHAFT | 1 |
| 06-24 | 67-506 | LOOPER DRIVING LEVER | 1 |
| 06-25 | 69-521 | LOOPER SLIDE BLOCK | 1 |
| 06-26 | 71-569 | PIN | 1 |
| 06-27 | 75-518 | COLLAR | 1 |
| 06-28 | 71-575 | LOOPER SHAFT | 1 |
| 06-29 | 93-213 | E-RING | 1 |
| 06-30 | 75-519 | WASHER | 1 |
| 06-31 | 84-314 | SCREW | 2 |
| 06-32 | 67-508 | LEVER NEEDLE GUARD | 1 |
| 06-33 | 18-809 | NEEDLE GUARD BASE | 1 |
| 06-34 | 71-571 | SHAFT NEEDLE GUARD | 1 |
| 06-35 | 87-213 | BOLT | 2 |
| 06-36 | 18-807 | NEEDLE GUARD BASE | 1 |
| 06-37 | 71-659 | SHAFT NEEDLE GUARD (8842, 8842-1) | 1 |
| 06-38 | 19-835 | LOOPER HOLDER (8842, 8842-1) | 1 |
| 06-39 | 87-245 | SCREW | 1 |
| 06-40 | 75-526 | WASHER | 1 |
| 06-41 | 18-812 | NEEDLE GUARD BASE | 1 |
| 06-42 | 19-551 | LOOPER HOLDER (WX/UTC) | 1 |
| 06-43 | 87-129 | SCREW | 2 |
| 06-44 | 19-532 | LOOPER HOLDER | 1 |
| 06-45 | 19-552 | LOOPER HOLDER | 1 |
| 06-46 | 19-537 | LOOPER HOLDER | 1 |
| 06-47 | 69-507 | MOTION | 1 |
| 06-48 | 69-522 | BALANCE WEIGHT | 1 |
| 06-49 | 84-362 | SCREW | 2 |
| 06-50 | 06-375 | WASHER | 1 |
| 06-51 | 75-455 | WASHER | 1 |
| 06-52 | 87-113 | BOLT | 1 |
| 75-451 | 1 |

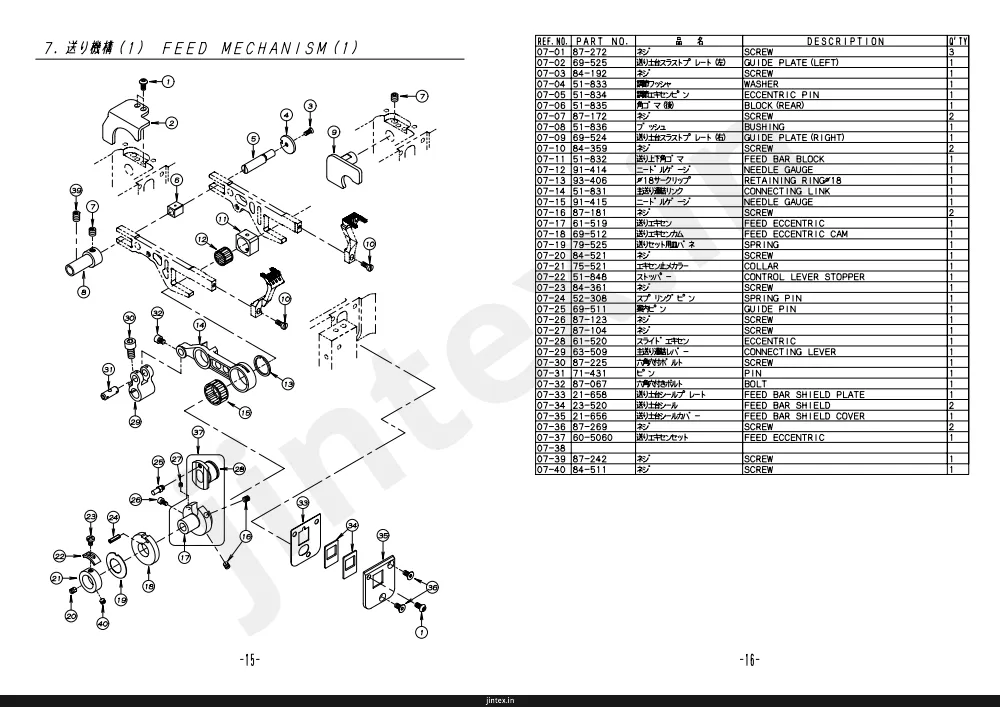

Page 11 — 7. 送り機構 (1) FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 07-01 | 87-272 | SCREW | 3 |
| 07-02 | 69-525 | 1 | |
| 07-03 | 84-192 | SCREW | 1 |
| 07-04 | 51-833 | WASHER | 1 |
| 07-05 | 51-834 | ECCENTRIC PIN | 1 |
| 07-06 | 51-835 | BLOCK (REAR) | 1 |
| 07-07 | 87-172 | SCREW | 2 |
| 07-08 | 51-836 | BUSHING | 1 |
| 07-09 | 69-524 | GUIDE PLATE (RIGHT) | 1 |
| 07-10 | 84-359 | SCREW | 2 |
| 07-11 | 51-832 | FEED BAR BLOCK | 1 |
| 07-12 | 91-414 | NEEDLE GAUGE | 1 |
| 07-13 | 93-406 | RETAINING RING 18 | 1 |
| 07-14 | 51-831 | CONNECTING LINK | 1 |
| 07-15 | 91-415 | NEEDLE GAUGE | 1 |
| 07-16 | 87-181 | SCREW | 2 |
| 07-17 | 61-519 | FEED ECCENTRIC | 1 |
| 07-18 | 69-512 | FEED ECCENTRIC CAM | 1 |
| 07-19 | 79-525 | SPRING | 1 |
| 07-20 | 84-521 | SCREW | 1 |
| 07-21 | 75-521 | COLLAR | 1 |
| 07-22 | 51-848 | CONTROL LEVER STOPPER | 1 |
| 07-23 | 84-361 | SCREW | 1 |
| 07-24 | 52-308 | SPRING PIN | 1 |
| 07-25 | 69-511 | GUIDE PIN | 1 |
| 07-26 | 87-123 | SCREW | 1 |
| 07-27 | 87-104 | SCREW | 1 |
| 07-28 | 61-520 | ECCENTRIC | 1 |
| 07-29 | 63-509 | CONNECTING LEVER | 1 |
| 07-30 | 87-225 | SCREW | 1 |
| 07-31 | 71-431 | PIN | 1 |
| 07-32 | 87-067 | BOLT | 1 |
| 07-33 | 21-658 | FEED BAR SHIELD PLATE | 1 |
| 07-34 | 23-520 | FEED BAR SHIELD | 2 |
| 07-35 | 21-656 | FEED BAR SHIELD COVER | 1 |
| 07-36 | 87-269 | SCREW | 2 |
| 07-37 | 60-5060 | FEED ECCENTRIC | 1 |
| 07-39 | 87-242 | SCREW | 1 |
| 07-40 | 84-511 | SCREW | 1 |
Page 12 — 8. 送り機構 (2) FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 08-01 | 71-576 | FEED BAR DRIVING SHAFT | 1 |
Page 13 — 9. LOOPER THREAD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 09-0141-154 | |||
| 09-0241-155 | DISC | ||
| 09-0341-504 | |||
| 09-0443-519 | THREAD EYELET | ||
| 09-0543-521 | THREAD EYELET | ||
| 09-0643-544 | THREAD GUIDE PLATE | ||
| 09-0743-547 | SUPPORT BRACKET | ||
| 09-0843-548 | HOLDER | ||
| 09-0943-549 | THREAD EYELET (LEFT) | ||
| 09-1043-550 | THREAD EYELET (RIGHT) | ||
| 09-1143-559 | SUPPORT BRACKET | ||
| 09-1247-803 | THREAD EYELET | ||
| 09-1345-513 | THREAD EYELET | ||
| 09-1449-506 | LOOPER THREAD TAKE-UP | ||
| 09-1549-507 | LOOPER THREAD TAKE-UP | ||
| 09-1675-224 | WASHER | ||
| 09-1779-534 | SPRING | ||
| 09-1884-167 | SCREW | ||
| 09-1984-361 | SCREW | ||
| 09-2087-123 | BOLT | ||
| 09-2187-172 | SCREW | ||
| 09-2287-177 | SCREW | ||
| 09-2387-268 | SCREW | ||
| 09-2487-310 | SCREW | ||
| 09-2540-5430 | WX THREAD EYELET ASS'Y (WX) | ||
| 09-2640-5450 | LOOPER THREAD EYELET ASS'Y |
Page 14 — 10. 針棒上軸機構 NEEDLE BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10-01 | 87-172 | SCREW | 9 |
| 91-888 | |||
| 87-253 | |||
| 87-254 | |||
| 81-502 | |||
| 06-553 | |||
| 73-502 | |||
| 84-359 | |||
| 71-674 | |||
| 63-417 | |||
| 91-264 | |||
| 69-532 | |||
| 75-542 | |||
| 69-533 | |||
| 87-112 | |||
| 66-504 | |||
| 63-501 | |||
| 61-501 | |||
| 87-214 | |||
| 71-819 | |||
| 87-259 | |||
| 87-213 | |||
| 69-158 | |||
| 87-036 | |||
| 61-502 | |||
| 87-242 | |||
| 91-882 | |||
| 60-5010 | |||
| 75-2700-1 | |||
| 69-534 | |||
| 75-671 | |||
| 69-538 | |||
| 71-510 | |||
| 91-994 | |||
| 75-270 | |||
| 87-241 | |||
| 11-153 | |||
| 60-9890 | |||
| 60-9970 | |||
| 66-505 | |||
| 60-9891 | |||
| 60-9892 | |||
| 69-143 | |||
| 87-274 | |||
| 91-894 |
Page 15 — 11. 上糸捌き機構 NEEDLE THREAD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-01 | 84-374 | SCREW | 1 |
| 11-02 | 45-523 | THREAD EYELET | 1 |
| 11-03 | 45-535 | THREAD EYELET | 1 |
| 11-04 | 85-618 | SCREW | 1 |
| 11-05 | 45-549 | THREAD GUIDE | 1 |
| 11-06 | 87-104 | SCREW | 1 |
| 11-07 | 94-504 | PLUG⌀15 | 1 |
| 11-08 | 87-113 | SCREW | 1 |
| 11-09 | 75-410 | WASHER | 1 |
| 11-10 | 75-508 | WASHER | 1 |
| 11-11 | 71-514 | SHAFT | 1 |
| 11-12 | 75-504 | WASHER | 1 |
| 11-13 | 87-112 | BOLT | 1 |
| 11-14 | 75-505 | COLLAR | 1 |
| 11-15 | 75-468 | WASHER | 2 |
| 11-16 | 87-272 | SCREW | 2 |
| 11-17 | 45-536 | NEEDLE THREAD TAKEUP | 1 |
| 11-18 | 67-502 | LEVER | 1 |
| 11-19 | 45-505 | NEEDLE THREAD TAKEUP | 1 |
| 11-20 | 87-224 | SCREW | 1 |
| 11-21 | 75-526 | SPRING WASHER M5 | 1 |
| 11-22 | 45-515 | THREAD EYELET | 1 |
| 11-23 | 45-507 | THREAD EYELET | 1 |
| 11-24 | 45-502 | THREAD TAKEUP | 1 |
| 11-25 | 45-514 | THREAD EYELET | 1 |
| 11-26 | 45-539 | BRACKET | 1 |
| 11-27 | 87-092 | SCREW | 2 |
| 11-28 | 45-513 | THREAD GUIDE | 1 |
| 11-29 | 87-177 | SCREW | 3 |
| 11-30 | 41-517 | TENSION DISC | 2 |
| 11-31 | 84-639 | SCREW | 1 |
| 11-32 | 79-547 | SPRING | 1 |
Page 16 — 12. 上飾り機構 SPREADER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 75-537 | |||
| 87-214 | |||
| 19-751 | |||
| 04-501 | |||
| 87-274 | |||
| 93-202 | E型止め輪10 | ||
| 75-509 | |||
| 71-513 | |||
| 04-502 | |||
| 75-452 | |||
| 88-166 | |||
| 67-510 | |||
| 87-171 | |||
| 61-527 | |||
| 91-416 | |||
| 63-500 | |||
| 75-502 | |||
| 67-511 | |||
| 87-172 | |||
| 04-508 | |||
| 04-507 | |||
| 75-510 | |||
| 87-181 | |||
| 67-512 | |||
| 23-553 | |||
| 71-536 | |||
| 04-510 | |||
| 23-531 | |||
| 19-495 | |||
| 04-514 | |||
| 75-544 | |||
| 45-557 | |||
| 87-104 | |||
| 04-513 | |||
| 04-512 | |||
| 87-129 | |||
| 06-751 | |||
| 19-505 |
Page 17 — 13. 押え揚げ機構 PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-265 | |||
| 67-503 | |||
| 71-203 | |||
| 71-507 | |||
| 71-568 | |||
| 71-517 | |||
| 75-001 | |||
| 75-504 | |||
| 77-504 | |||
| 77-518 | |||
| 77-506 | |||
| 77-507 | |||
| 77-508 | |||
| 77-509 | |||
| 77-510 | |||
| 77-511 | |||
| 77-512 | |||
| 79-518 | |||
| 79-519 | |||
| 79-538 | |||
| 84-561 | |||
| 84-566 | |||
| 87-112 | |||
| 84-581 | |||
| 84-813 | |||
| 86-411 | |||
| 87-001 | |||
| 87-272 | |||
| 87-213 | |||
| 87-252 | |||
| 87-253 | |||
| 87-254 | |||
| 87-255 | |||
| 88-003 | |||
| 71-679 | |||
| 27-088 | |||
| 27-089 | フィンガーガード(UTC用) | ||
| 87-142 | |||
| 80-5030 |
Page 18 — 14. 給油機構 (1) LUBRICATION MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14-01 | 23-506 | O-RING | 1 |
| 31-222 | |||
| 35-509 | |||
| 87-129 | |||
| 21-632 | |||
| 87-663 | |||
| 23-524 | Oリング | ||
| 87-311 | |||
| 23-304 | |||
| 31-509 | |||
| 87-225 | |||
| 39-504 | |||
| 30-0130 | |||
| 31-702 | |||
| 87-254 | |||
| 17-8010-G | |||
| 87-123 | |||
| 31-708 | |||
| 31-706 | |||
| 31-705 | |||
| 31-707 | |||
| 31-704 | |||
| 31-156 | |||
| 31-703 | |||
| 31-157 | |||
| 87-140 | |||
| 88-137 | |||
| 27-537 | |||
| 27-538 | |||
| 27-539 | |||
| 27-540 | |||
| 87-285 | |||
| 30-0131 | |||
| 30-5080 |
Page 19 — 15. 給油機構 (2) LUBRICATION MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15-02 | 35-503 | OIL RELEASER | 1 |
| 15-03 | 87-092 | SCREW | 6 |
| 15-04 | 35-539 | JOINT SCREW | 1 |
| 15-05 | 35-528 | JOINT SCREW (SHORT) | 3 |
| 15-06 | 23-386 | FELT | 1 |
| 15-07 | 35-505 | JOINT | 5 |
| 15-08 | 35-521 | TUBE (Ø6XØ3, 560L) | 1 |
| 15-09 | 39-139 | CLAMP | 1 |
| 15-10 | 39-501 | CLAMP | 1 |
| 15-11 | 35-530 | CLAMP | 1 |
| 15-12 | 35-517 | TUBE (Ø6XØ4, 540L) | 1 |
| 15-13 | 31-314 | JOINT | 1 |
| 15-14 | 35-529 | JOINT SCREW | 1 |
| 15-15 | 35-519 | TUBE (Ø6XØ4, 187L) | 2 |
| 15-16 | 35-514 | OIL DISTRIBUTOR | 1 |
| 15-17 | 35-526 | TUBE (Ø6XØ4, 47L) | 1 |
| 15-18 | 35-506 | JOINT | 1 |
| 15-19 | 35-413 | CLAMP | 1 |
| 15-20 | 23-560 | PIPE | 1 |
| 15-21 | 23-540 | FELT | 2 |
| 15-22 | 23-558 | SUPPORT | 1 |
| 15-23 | 23-559 | SPONGE | 1 |
| 15-24 | 87-254 | SCREW | 1 |
| 15-25 | 88-165 | NUT | 1 |
| 15-26 | 35-540 | PIPE | 1 |
Page 20 — 16. Fタイプ, Cタイプ専用部品 MODEL F, C EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26-823 | GUIDE PLATE FOR F | 1 | |
| 26-821 | FOLDER BASE | 1 | |
| 26-822 | PLATE | 1 | |
| 21-821 | FRONT COVER | 1 | |
| 21-822 | FRONT COVER (SMALL) | 1 | |
| 21-823 | DUSTPROOF COVER | 1 | |
| 21-824 | FRONT BASE COVER | 1 | |
| 75-455 | WASHER | 4 | |
| 26-824 | GUIDE SUPPORT | 1 | |
| 84-361 | SCREW | 2 | |
| 26-825 | GUIDE FIXING PLATE | 1 | |
| 79-530 | SPRING | 1 | |
| 84-574 | SCREW | 6 | |
| 79-532 | SPRING | 1 | |
| 84-163 | SCREW | 1 | |
| 25-516 | HINGE | 1 | |
| 87-274 | SCREW | 2 | |
| 87-214 | SCREW | 2 | |
| 25-517 | SCREW | 1 | |
| 79-922 | SPRING | 2 | |
| 25-527 | SCREW | 1 | |
| 85-182 | SCREW | 2 | |
| 26-724 | FOLDER BASE FOR F | 1 | |
| 84-566 | SCREW | 2 | |
| 84-572 | SCREW | 2 | |
| 87-177 | SCREW | 1 | |
| 23-512 | CUSHION | 2 | |
| 26-827 | RIGHT SIDE GUIDE | 1 | |
| 26-826 | LEFT SIDE GUIDE | 1 | |
| 84-167 | SCREW | 1 | |
| 84-193 | SCREW | 1 | |
| 20-6150 | ATTACHMENTS FOR F | 1 | |
| 21-825 | FRONT COVER | 1 | |
| 26-830 | FRONT GUIDE | 1 | |
| 20-8210 | FRONT COVER ASS'Y | 1 | |
| 20-8250 | FRONT COVER ASS'Y | 1 |
Page 21 — 17. DE/Lタイプ専用部品 MODEL DE/L EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17-01 | 84-566 | SCREW | 2 |
| 17-02 | 75-455 | WASHER | 9 |
| 17-03 | 26-606 | BRACKET | 1 |
| 17-04 | 84-503 | SCREW | 2 |
| 17-05 | 86-411 | NUT | 2 |
| 17-06 | 26-751 | BAR | 1 |
| 17-07 | 84-112 | SCREW | 2 |
| 17-08 | 26-753 | BRACKET | 2 |
| 17-09 | 26-752 | BAR | 1 |
| 17-10 | 26-607 | BRACKET | 1 |
| 17-11 | 75-452 | WASHER | 2 |
| 17-12 | 87-225 | SCREW | 2 |
| 17-13 | 87-092 | SCREW | 5 |
| 17-14 | 97-513 | HOLDER | 1 |
| 17-15 | 97-714 | HOLDER | 1 |
| 17-16 | 26-712 | WASHER | 1 |
| 17-17 | 21-764 | HEAD COVER | 1 |
| 17-18 | 02-119 | WASHER | 2 |
| 17-19 | 26-608 | BRACKET A | 1 |
| 17-20 | 26-609 | BRACKET B | 1 |
| 17-21 | 26-610 | BRACKET C | 1 |
| 17-23 | 84-114 | SCREW | 1 |
| 17-24 | 87-113 | BOLT | 2 |
| 17-25 | 87-264 | SCREW | 1 |
| 17-26 | 97-5010-1 | FOLDER ASS'Y (9mm) | 1 |
Page 22 — 18. EMK 前メス機構 EMK KNIFE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-01 | 63-832 | CONNECTING ROD | 1 |
| 18-02 | 71-596 | CONNECTING ROD PIN | 1 |
| 18-03 | 67-517 | LEVER (RIGHT) | 1 |
| 18-04 | 07-501 | BRACKET | 1 |
| 18-05 | 21-780 | OIL DEFENDER | 1 |
| 18-06 | 84-361 | SCREW | 2 |
| 18-07 | 81-543 | BUSHING (RIGHT) | 1 |
| 18-08 | 81-544 | BUSHING (LEFT) | 1 |
| 18-09 | 71-597 | UPPER KNIFE DRIVING SHAFT | 1 |
| 18-10 | 87-092 | SCREW | 2 |
| 18-11 | 67-518 | LEVER (LEFT) | 1 |
| 18-12 | 63-508 | CONNECTING ROD | 1 |
| 18-13 | 87-171 | SCREW | 2 |
| 18-14 | 07-502 | UPPER KNIFE CONNECTING BLOCK | 1 |
| 18-15 | 71-598 | PIN | 1 |
| 18-16 | 23-124 | FELT | 1 |
| 18-17 | 23-555 | FELT | 1 |
| 18-18 | 07-503 | UPPER KNIFE HOLDER | 1 |
| 18-19 | 07-504 | CHIP GUARD | 1 |
| 18-20 | 07-505 | UPPER KNIFE | 1 |
| 18-21 | 07-520 | LOWER KNIFE HOLDER | 1 |
| 18-22 | 07-522 | LOWER KNIFE | 1 |
| 18-23 | 07-521 | LOWER KNIFE CLAMP | 1 |
| 18-24 | 81-545 | BUSHING | 1 |
| 18-25 | 07-509 | LOWER KNIFE HOLDER BRACKET | 1 |
| 18-26 | 07-510 | LOWER KNIFE HOLDER LOCKING PLATE | 1 |
| 18-27 | 71-599 | LOWER KNIFE HOLDER SHAFT | 1 |
| 18-28 | 75-561 | COLLAR | 2 |
| 18-29 | 79-568 | SPRING | 1 |
| 18-30 | 61-525 | UPPER KNIFE ECCENTRIC | 1 |
| 18-31 | 23-533 | PLUG | 1 |
| 18-32 | 87-254 | SCREW | 2 |
| 18-33 | 87-214 | SCREW | 2 |
| 18-34 | 87-234 | SCREW | 1 |
| 18-35 | 94-507 | SEAL CUP | 1 |
| 18-36 | 93-213 | E-RING | 1 |
| 18-37 | 75-519 | WASHER | 1 |
| 18-38 | 87-129 | SCREW | 6 |
| 18-39 | 71-208 | PIN | 4 |
| 18-40 | 94-805 | OIL SEAL | 1 |
| 18-41 | 87-181 | SCREW | 7 |
| 18-42 | 87-224 | SCREW | 2 |
| 18-43 | 84-155 | SCREW | 2 |
| 18-44 | 84-360 | SCREW | 1 |
| 18-45 | 87-172 | SCREW | 1 |
| 18-46 | 84-566 | SCREW | 1 |
| 18-47 | 60-5031 | CONNECTING ROD ASS'Y (EMK) | 1 |
| 18-48 | 87-330 | SCREW | 1 |
Page 23 — 19. EMK-W ゴム送り機構 EMK-W FEED ROLLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19-01 | 01-051 | SLEEVE | 1 |
| 01-752 | |||
| 01-753 | |||
| 01-756 | |||
| 01-759 | |||
| 01-760 | |||
| 01-763 | |||
| 01-764 | |||
| 01-767 | |||
| 01-769 | |||
| 01-770 | |||
| 01-771 | |||
| 01-853 | |||
| 02-211 | |||
| 02-212 | |||
| 02-403 | |||
| 61-260 | |||
| 61-261 | |||
| 61-403 | |||
| 63-831 | |||
| 67-516 | |||
| 69-811 | |||
| 71-131 | |||
| 71-594 | |||
| 84-362 | |||
| 71-756 | |||
| 71-757 | |||
| 71-759 | |||
| 71-802 | |||
| 75-407 | |||
| 75-409 | |||
| 75-504 | |||
| 75-519 | |||
| 75-536 | |||
| 79-301 | |||
| 79-566 | |||
| 81-016 | |||
| 81-541 | |||
| 81-542 | |||
| 84-161 | |||
| 84-462 | |||
| 84-521 | |||
| 84-564 | |||
| 86-484 | |||
| 87-123 | |||
| 87-172 | |||
| 87-181 | |||
| 87-214 | |||
| 87-225 | |||
| 87-274 | |||
| 87-286 | |||
| 91-266 | |||
| 91-901 | |||
| 93-222 | Eリング | ||
| 60-3832 |
Page 24 — 20. EMK-W カバー, ガイド"関係 EMK-W COVER GUIDE ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20-01 | 01-766 | STOPPER | 1 |
| 20-02 | 01-768 | SLIDE GUIDE | 2 |
| 20-03 | 01-776 | LACE GUIDE | 1 |
| 20-04 | 01-778 | LACE GUIDE | 1 |
| 20-05 | 01-779 | ELASTIC GUIDE | 1 |
| 20-06 | 01-780 | BRACKET | 1 |
| 20-07 | 01-858 | GUIDE | 3 |
| 20-08 | 02-119 | WASHER | 1 |
| 20-09 | 07-511 | PLATE | 1 |
| 20-10 | 07-512 | STOP PLATE | 1 |
| 20-11 | 07-519 | COVER | 1 |
| 20-12 | 21-273 | EYE GUARD | 1 |
| 20-13 | 21-275 | BRACKET | 1 |
| 20-14 | 21-776 | SIDE COVER | 1 |
| 20-15 | 21-777 | FRONT COVER | 1 |
| 20-16 | 21-779 | SIDE COVER | 1 |
| 20-17 | 21-795 | UPPER COVER | 1 |
| 20-18 | 27-167 | FRONT BASE COVER | 1 |
| 20-19 | 26-816 | FRONT RULER | 1 |
| 20-20 | 27-121 | PULLEY COVER A | 1 |
| 20-21 | 27-122 | PULLER COVER B | 1 |
| 20-22 | 71-589 | SHAFT | 1 |
| 20-23 | 71-590 | SHAFT(LARGE) | 1 |
| 20-24 | 75-224 | WASHER | 2 |
| 20-25 | 75-455 | WASHER | 2 |
| 20-26 | 75-456 | WASHER | 4 |
| 20-27 | 79-569 | SPRING | 1 |
| 20-28 | 79-801 | SPRING | 1 |
| 20-29 | 79-926 | SPRING | 1 |
| 20-30 | 84-167 | SCREW | 2 |
| 20-31 | 84-361 | SCREW | 2 |
| 20-32 | 84-374 | SCREW | 4 |
| 20-33 | 84-412 | SCREW | 2 |
| 20-34 | 84-503 | SCREW | 2 |
| 20-35 | 84-521 | SCREW | 1 |
| 20-36 | 84-566 | SCREW | 2 |
| 20-37 | 84-571 | SCREW | 1 |
| 20-38 | 85-607 | SCREW | 1 |
| 20-39 | 87-099 | SCREW | 2 |
| 20-40 | 87-104 | SCREW | 3 |
| 20-41 | 87-177 | BOLT | 3 |
| 20-42 | 87-264 | SCREW | 2 |
| 20-43 | 87-273 | SCREW | 3 |
| 20-44 | 87-292 | SCREW | 1 |
| 20-45 | 93-213 | E-RING | 1 |
| 20-46 | 27-1220-2 | COVER ASS'Y | 1 |
| 20-0101-766 | |||
| 20-0201-768 | 2 | ||
| 20-0301-776 | |||
| 20-0401-778 | |||
| 20-0501-779 | |||
| 20-0601-780 | |||
| 20-0701-858 | 3 | ||
| 20-0802-119 | |||
| 20-0907-511 | |||
| 20-1007-512 | |||
| 20-1107-519 | |||
| 20-1221-273 | |||
| 20-1321-275 | |||
| 20-1421-776 | |||
| 20-1521-777 | |||
| 20-1621-779 | |||
| 20-1721-795 | |||
| 20-1827-167 | |||
| 20-1926-816 | |||
| 20-2027-121 | プーリーカバー A | ||
| 20-2127-122 | プーリーカバー B | ||
| 20-2271-589 | |||
| 20-2371-590 | |||
| 20-2475-224 | 2 | ||
| 20-2575-455 | 2 | ||
| 20-2675-456 | 4 | ||
| 20-2779-569 | |||
| 20-2879-801 | |||
| 20-2979-926 | |||
| 20-3084-167 | 2 | ||
| 20-3184-361 | 2 | ||
| 20-3284-374 | 4 | ||
| 20-3384-412 | 2 | ||
| 20-3484-503 | 2 | ||
| 20-3584-521 | 1 | ||
| 20-3684-566 | 2 | ||
| 20-3784-571 | 1 | ||
| 20-3885-607 | 2 | ||
| 20-3987-099 | 3 | ||
| 20-4087-104 | 1 | ||
| 20-4187-177 | 3 | ||
| 20-4287-264 | 2 | ||
| 20-4387-273 | 3 | ||
| 20-4487-292 | 1 | ||
| 20-4593-213 | E型止め輪 | ||
| 20-4627-1220-2 |
Page 25 — 21. テーブル関係 TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21-01 | 21-668 | TABLE | 1 |
| 21-02 | 42-503 | NUT | 4 |
| 21-03 | 25-524 | SUPPORTING BOARD | 2 |
| 21-04 | 23-509 | CUSHION RUBBER | 4 |
| 21-05 | 87-281 | BOLT | 4 |
| 21-06 | 75-535 | WASHER | 12 |
| 21-07 | 42-508 | SWING PROOF RUBBER | 4 |
| 21-08 | 42-509 | SWING PROOF RUBBER COLLAR | 4 |
| 21-09 | 42-507 | SPACER | 12 |
| 21-10 | 21-028 | TABLE (EMK) | 1 |
| 21-11 | 28-701 | CHUTE | 1 |
| 21-12 | 28-702 | BRACKET | 1 |
| 21-13 | 87-905 | SCREW | 4 |
| 21-14 | 87-177 | SCREW | 4 |
| 21-15 | 88-146 | NUT | 4 |
| 21-16 | 20-6050-0 | TAPE STAND ASSEMBLY | 1 |
| 21-17 | 21-013 | TABLE (FOR DE TYPE) | 1 |
| 21-18 | 21-733 | TABLE | 1 |
| 21-19 | 21-734 | TABLE | 1 |
| 21-20 | 21-775 | TABLE | 1 |
| 21-21 | 21-7750-2 | TABLE ASS'Y (FOR LX TYPE) | 1 |
Page 26 — 22. 糸立て及びアクセサリー関係 THREAD STAND AND ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42-706 | |||
| 42-712 | |||
| 28-600 | グ リ ス (70g) | ||
| 20-0010 | |||
| 28-612 | |||
| 28-454 | |||
| 28-452 | |||
| 28-011 | |||
| 07-522 | |||
| 87-104 | |||
| 42-704 | |||
| 28-311 | 六角レンチ 2mm | ||
| 28-312 | 六角レンチ 2.5mm | ||
| 28-313 | 六角レンチ 3mm | ||
| 28-314 | 六角レンチ 5mm | ||
| 28-317 | グ リ ッ プ 付 六角レンチ 1.5mm | ||
| 28-318 | 精密マイナスドライバー-2.5mm | ||
| 28-920 | |||
| 28-613 | |||
| 13-0110-6 | 針 UY×128GAS #11 | ||
| 28-614 | |||
| 28-615 | |||
| 42-718 | |||
| 13-0140-6 | 針 UY×128GAS #14 | ||
| 13-3020-5 | 針 SM1014H #10S |
Page 27 — 23. ゲージ関係 (1) GAUGE PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-01 | ※ | NEEDLE HOLDER | 1 |
| 23-02 | ※ | NEEDLE | ※ |
| 23-03 | ※ | NEEDLE PLATE | 1 |
| 23-04 | ※ | FRONT FEED DOG | 1 |
| 23-05 | ※ | REAR FEED DOG | 1 |
| 23-06 | 17-4430-A | SHANK | 1 |
| 23-07 | 17-7250-C | ROLLER BRACKET | 1 |
| 23-08 | 17-7250-D | ELASTIC GUIDE | 1 |
| 23-09 | 17-7250-E | SCREW | 1 |
| 23-10 | 17-7250-F | GUIDE ROLLER | 1 |
| 23-11 | 17-7250-G | PIN | 1 |
| 23-12 | 17-1760-Z | GUIDE PIN | 1 |
| 23-13 | 17-7760-D | PIN | 1 |
| 23-14 | ※ | BOTTOM | 1 |
| 23-15 | 17-7680-A | SHANK | 1 |
| 23-16 | 17-7680-B | GUIDE | 2 |
| 23-17 | 17-8190-D | SPRING(LEFT) | 1 |
| 23-18 | 17-8190-E | SPRING(RIGHT) | 1 |
| 23-19 | 17-8190-F | SPRING | 1 |
| 23-20 | 17-8190-G | PIN | 1 |
| 23-21 | 17-8190-J | GUIDE PLATE | 2 |
| 23-22 | 17-7680-K | GUIDE | 1 |
| 23-23 | 17-1760-Y | GUIDE BRACKET | 1 |
| 23-24 | 17-7490-L | SPRING | 1 |
| 23-25 | 17-7760-E | PIN | 1 |
| 23-26 | 17-7760-A | SHANK | 1 |
| 23-27 | 18-811 | NEEDLE GUARD | 1 |
| 23-28 | 19-539 | LOOPER | 1 |
| 23-29 | 19-540 | LOOPER | 1 |
| 23-30 | 45-549 | THREAD EYELET | 1 |
| 23-31 | 75-228 | WASHER | 1 |
| 23-32 | 79-191 | SPRING | 1 |
| 23-33 | 84-161 | SCREW | 1 |
| 23-34 | 84-359 | SCREW | 2 |
| 23-35 | 84-364 | SCREW | 1 |
| 23-36 | 84-382 | SCREW | 1 |
| 23-37 | 84-464 | SCREW | 2 |
| 23-38 | 85-611 | SCREW | 1 |
| 23-39 | 85-613 | SCREW | 1 |
| 23-40 | 85-618 | SCREW | 1 |
| 23-41 | 85-621 | SCREW | 1 |
| 23-42 | 85-624 | SCREW | 3 |
| 23-43 | 87-083 | SCREW | 1 |
| 23-44 | 87-104 | SCREW | ※ |
| 23-45 | 87-107 | SCREW | 4 |
| 23-46 | 87-034 | SCREW | 1 |
| 23-47 | 87-130 | SCREW | 1 |
| 23-48 | 87-035 | SCREW | 1 |
| 23-49 | 88-136 | NUT | 1 |
| 23-50 | ※ | PRESSER FOOT ASS'Y | 1 |
| 23-51 | 45-508 | PLATE | 1 |
| 23-52 | 41-601 | THREAD NIPPER | 1 |
| 23-53 | 79-533 | SPRING | 1 |
| 23-54 | 84-171 | SCREW | 1 |
| 23-55 | 17-1760-K | TAPE GUIDE | 1 |
| 23-56 | 87-397 | SCREW | 1 |
| 23-57 | 17-7680-L | GUIDE | 1 |
| 23-01 * | |||
| 23-02 * | 針(UYX128GAS #11-#14) | ||
| 23-03 * | |||
| 23-04 * | |||
| 23-05 * | |||
| 17-7750-D | |||
| 23-14 * | |||
| 17-7760-Y | |||
| 23-50 * | |||
| 17-760-K |
Page 28 — 24. ゲージ関係 (2) GAUGE PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24-01 | ※ | NEEDLE HOLDER | 1 |
| 24-02 | 12-877 | NEEDLE HOLDER | 1 |
| 24-03 | 13-0110-6 | NEEDLE | ※ |
| 24-04 | ※ | NEEDLE PLATE | 1 |
| 24-05 | 14-877 | NEEDLE PLATE | 1 |
| 24-06 | 15-781 | FRONT FEED DOG | 1 |
| 24-07 | 15-782 | REAR FEED DOG | 1 |
| 24-08 | 15-831 | FRONT FEED DOG | 1 |
| 24-09 | 15-832 | REAR FEED DOG | 1 |
| 24-10 | 17-6720-C | SCREW | 2 |
| 24-11 | 17-7760-A | SHANK | 1 |
| 24-12 | 17-7490-C | BOTTOM (LEFT) | 1 |
| 24-13 | 17-7760-D | PIN | 1 |
| 24-14 | 17-7760-E | PIN | 1 |
| 24-15 | 17-7760-F | GUIDE PIN | 1 |
| 24-16 | 17-7490-G | GUIDE | 1 |
| 24-17 | 17-7490-K | SPRING | 1 |
| 24-18 | 17-7490-L | SPRING | 1 |
| 24-19 | ※ | PRESSER FOOT ASS'Y | 1 |
| 24-20 | ※ | BOTTOM | 1 |
| 24-21 | 17-7770-H | ELASTIC GUIDE | 1 |
| 24-22 | 17-7770-I | TAPE GUIDE | 1 |
| 24-23 | 17-8770-1 | PRESSER FOOT ASS'Y (LX) | 1 |
| 24-24 | 17-8770-A | SHANK | 1 |
| 24-25 | 17-8770-B | BOTTOM | 1 |
| 24-26 | 17-8770-C | GUIDE BRACKET | 1 |
| 24-27 | 17-8770-D | SPRING | 1 |
| 24-28 | 18-811 | NEEDLE GUARD | 1 |
| 24-29 | 19-539 | LOOPER | 1 |
| 24-30 | 19-540 | LOOPER | 1 |
| 24-31 | 19-877 | LOOPER | 1 |
| 24-32 | 45-549 | THREAD EYELET | 1 |
| 24-33 | 75-442 | SPRING WASHER | 1 |
| 24-34 | 84-117 | SCREW | 1 |
| 24-35 | 84-161 | SCREW | 1 |
| 24-36 | 84-167 | SCREW | 1 |
| 24-37 | 84-171 | SCREW | 1 |
| 24-38 | 84-359 | SCREW | 1 |
| 24-39 | 84-382 | SCREW | 1 |
| 24-40 | 84-464 | SCREW | 2 |
| 24-41 | 84-726 | SCREW | 1 |
| 24-42 | 85-101 | SCREW | 1 |
| 24-43 | 85-613 | SCREW | 1 |
| 24-44 | 85-618 | SCREW | 1 |
| 24-45 | 85-621 | SCREW | 1 |
| 24-46 | 87-104 | SCREW | ※ |
| 24-47 | 87-130 | SCREW | 1 |
| 24-48 | 88-136 | NUT | 1 |
| 24-49 | 93-195 | E-RING | 1 |
| 24-50 | 45-508 | PLATE | 1 |
| 24-51 | 41-601 | THREAD NIPPER | 1 |
| 24-52 | 79-533 | SPRING | 1 |
| 24-53 | 84-358 | SCREW | 1 |
| 24-54 | 87-074 | SCREW | 1 |
| 24-01 | |||
| 24-02 | |||
| 24-03 | |||
| 24-04 | |||
| 24-05 | |||
| 24-06 | |||
| 24-07 | |||
| 24-08 | |||
| 24-09 | |||
| 24-10 | 17-6720-C | ||
| 24-11 | 17-7760-A | ||
| 24-12 | 17-7490-C | ||
| 24-13 | 17-7760-D | ||
| 24-14 | 17-7760-E | ||
| 24-15 | 17-7760-F | ||
| 24-16 | 17-7490-G | ||
| 24-17 | 17-7490-K | ||
| 24-18 | 17-7490-L | ||
| 24-19 | |||
| 24-20 | |||
| 24-21 | 17-7770-H | ||
| 24-22 | |||
| 24-23 | |||
| 24-24 | 17-8770-A | ||
| 24-25 | 17-8770-B | ||
| 24-26 | 17-8770-C | ||
| 24-27 | 17-8770-D | ||
| 24-28 | |||
| 24-29 | |||
| 24-30 | |||
| 24-31 | |||
| 24-32 | |||
| 24-33 | |||
| 24-34 | |||
| 24-35 | |||
| 24-36 | |||
| 24-37 | |||
| 24-38 | |||
| 24-39 | |||
| 24-40 | |||
| 24-41 | |||
| 24-42 | |||
| 24-43 | |||
| 24-44 | |||
| 24-45 | |||
| 24-46 | |||
| 24-47 | |||
| 24-48 | |||
| 24-49 | |||
| 24-50 | |||
| 24-51 | |||
| 24-52 | |||
| 24-53 | |||
| 24-54 |
Page 29 — 25. ゲージ関係(3) GAUGE PARTS (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-01 | 12-835 | NEEDLE HOLDER | 1 |
| 25-02 | 13-0140-6 | NEEDLE | ※ |
| 25-03 | ※ | NEEDLE PLATE | 1 |
| 25-04 | 15-836 | FRONT FEED DOG | 1 |
| 25-05 | ※ | REAR FEED DOG | 1 |
| 25-06 | ※ | PRESSER FOOT ASS'Y | 1 |
| 25-07 | 18-835 | NEEDLE GUARD | 1 |
| 25-08 | 19-836 | LOOPER (LEFT) | 1 |
| 25-09 | 19-837 | LOOPER (MEDIUM) | 1 |
| 25-10 | 19-838 | LOOPER (RIGHT) | 1 |
| 25-11 | 45-803 | THREAD EYELET | 1 |
| 25-12 | 85-611 | SCREW | 3 |
| 25-13 | 17-7820-B | BOTTOM | 1 |
| 25-14 | 17-8190-A | SHANK | 1 |
| 25-15 | 17-8190-F | SPRING | 1 |
| 25-16 | 17-8190-G | PIN | 1 |
| 25-17 | 87-104 | SCREW | ※ |
| 25-18 | 87-083 | SCREW | 1 |
| 25-19 | 75-441 | WASHER | 1 |
| 25-20 | 17-7810-F | GUIDE | 1 |
| 25-21 | 87-113 | SCREW | 1 |
| 25-22 | 17-7810-B | BOTTOM | 1 |
| 25-23 | 17-7810-C | GUIDE | 1 |
| 25-24 | 17-7810-D | SPRING | 1 |
| 25-25 | 17-7810-E | SCREW | 1 |
| 25-26 | ※ | NEEDLE HOLDER | 1 |
| 25-27 | 13-3020-5 | NEEDLE | 5 |
| 25-28 | ※ | NEEDLE PLATE | 1 |
| 25-29 | 15-888 | FRONT FEED DOG | 1 |
| 25-30 | 15-889 | REAR FEED DOG | 1 |
| 25-31 | ※ | PRESSER FOOT ASS'Y (4 NEEDLES) | 1 |
| 25-32 | ※ | STITCH TONGUE | 1 |
| 25-33 | 17-7680-A | SHANK | 1 |
| 25-34 | 17-7680-B | GUIDE | 2 |
| 25-35 | 17-7680-K | GUIDE | 1 |
| 25-36 | 17-8190-D | SPRING (LEFT) | 1 |
| 25-37 | 17-8190-E | SPRING (RIGHT) | 1 |
| 25-38 | 17-7680-L | GUIDE | 1 |
| 25-40 | 17-8190-J | GUIDE PLATE | 2 |
| 25-41 | 17-8430-A | BOTTOM | 1 |
| 25-42 | 18-811 | NEEDLE GUARD | 1 |
| 25-43 | 19-539 | LOOPER | 1 |
| 25-44 | 19-540 | LOOPER | 1 |
| 25-45 | 19-550 | LOOPER | 1 |
| 25-46 | 75-228 | WASHER | 1 |
| 25-47 | 85-603 | SCREW | 5 |
| 25-48 | 85-613 | SCREW | 1 |
| 25-49 | 85-616 | SCREW | 1 |
| 25-50 | 87-034 | SCREW | 1 |
| 25-51 | 87-035 | SCREW | 1 |
| 25-52 | 87-107 | SCREW | 4 |
| 25-05 | |||
| 25-06 | |||
| 25-26 | |||
| 25-28 | |||
| 25-31 | |||
| 25-32 |
Page 30 — 26. ゲージ関係(4) GAUGE PARTS (4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26-01 | ※ | NEEDLE HOLDER | 1 |
| 26-02 | 13-0110-6 | NEEDLE | 2 |
| 26-03 | ※ | NEEDLE PLATE | 1 |
| 26-04 | ※ | REAR FEED DOG | 1 |
| 26-05 | ※ | FRONT FEED DOG | 1 |
| 26-06 | 17-4430-A | SHANK | 1 |
| 26-07 | 17-5060-G | PIN | 1 |
| 26-08 | 17-5060-J | PIN | 1 |
| 26-09 | 17-5060-K | KNIFE | 1 |
| 26-10 | ※ | PRESSER FOOT ASSEMBLY | 1 |
| 26-11 | 17-5480-B | BOTTOM | 1 |
| 26-12 | 17-5480-G | PIN | 1 |
| 26-13 | 17-5610-A | SHANK | 1 |
| 26-14 | 17-5610-B | BRACKET | 1 |
| 26-15 | 17-5610-C | HINGE SCREW | 1 |
| 26-16 | 17-5610-D | NUT | 1 |
| 26-17 | ※ | BOTTOM | 1 |
| 26-18 | 17-5630-A | SHANK | 1 |
| 26-19 | 17-5630-B | BOTTOM | 1 |
| 26-20 | 17-5630-C | BOTTOM | 1 |
| 26-21 | 17-5630-D | BRACKET | 1 |
| 26-22 | 17-5630-E | SPRING | 1 |
| 26-23 | 17-5630-F | PIN | 1 |
| 26-24 | 17-8190-G | PIN | 2 |
| 26-25 | 18-533 | NEEDLE GUIDE | 1 |
| 26-26 | ※ | NEEDLE GUARD | 1 |
| 26-27 | ※ | FRONT LOOPER | 1 |
| 26-28 | 19-837 | LOOPER(MEDIUM) | 1 |
| 26-29 | 19-838 | LOOPER(RIGHT) | 1 |
| 26-30 | 75-473 | WASHER | 1 |
| 26-31 | 79-191 | SPRING | 1 |
| 26-32 | 79-561 | SPRING | 1 |
| 26-33 | 84-382 | SCREW | 1 |
| 26-34 | 84-464 | SCREW | 2 |
| 26-35 | 87-069 | PIN | 1 |
| 26-36 | 87-071 | SCREW | 1 |
| 26-37 | 87-072 | SCREW | 1 |
| 26-38 | 87-095 | SCREW | 1 |
| 26-39 | 87-104 | SCREW | ※ |
| 26-40 | 87-106 | SCREW | 3 |
| 26-41 | 87-166 | SCREW | 1 |
| 26-42 | 87-177 | BOLT | 1 |
| 26-43 | 88-136 | NUT | 1 |
| 26-44 | 88-146 | NUT | 2 |
Page 31 — 27. 下糸切り装置 (UTC) KNIFE MECHANISM (UTC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27-01 | 05-056 | SCREW | 1 |
| 27-02 | 05-062 | GUIDE | 1 |
| 27-03 | 05-076 | PLATE | 1 |
| 27-04 | 05-077 | LEAF SPRING (LOWER) | 1 |
| 27-05 | 05-078 | SPACER | 1 |
| 27-06 | 05-079 | GUIDE ROLLER | 2 |
| 27-07 | 05-080 | PIN | 1 |
| 27-08 | 05-081 | PIN | 1 |
| 27-09 | 05-082 | SCREW | 1 |
| 27-10 | 05-160 | STOPPER | 1 |
| 27-11 | 05-084 | SPRING | 1 |
| 27-12 | 05-085 | PIN | 1 |
| 27-13 | 05-086 | RING | 1 |
| 27-14 | 05-087 | LEVER | 1 |
| 27-15 | 05-088 | LOWER KNIFE BASE | 1 |
| 27-16 | 05-089 | GUIDE | 2 |
| 27-17 | 05-090 | PLATE | 1 |
| 27-18 | 05-091 | PLATE | 1 |
| 27-19 | 05-158 | UPPER KNIFE HOLDER | 1 |
| 27-20 | 05-093 | THREAD EYELET | 1 |
| 27-21 | 05-152 | SHAFT | 1 |
| 27-22 | 05-153 | PLATE | 1 |
| 27-23 | 05-658 | LOWER KNIFE | 1 |
| 27-24 | 05-812 | UPPER KNIFE | 1 |
| 27-25 | 05-814 | LEAF SPRING(UPPER) | 1 |
| 27-26 | 05-882 | GUIDE ROLLER | 1 |
| 27-27 | 05-894 | PLATE | 1 |
| 27-28 | 23-512 | CUSHION RUBBER | 2 |
| 27-29 | 27-128 | FRONT COVER | 1 |
| 27-30 | 27-126 | CLOTH PLATE | 1 |
| 27-31 | 27-127 | FRONT COVER | 1 |
| 27-32 | 27-015 | SIDE COVER | 1 |
| 27-33 | 27-016 | FRONT BASE COVER | 1 |
| 27-34 | 45-513 | THREAD GUIDE | 1 |
| 27-35 | 05-430 | GUIDE ROLLER | 1 |
| 27-36 | 79-535 | SPRING | 1 |
| 27-37 | 84-163 | SCREW | 2 |
| 27-38 | 84-167 | SCREW | 3 |
| 27-39 | 84-193 | SCREW | 7 |
| 27-40 | 87-075 | SCREW | 2 |
| 27-41 | 87-077 | SCREW | 4 |
| 27-42 | 87-078 | SCREW | 1 |
| 27-43 | 87-079 | SCREW | 1 |
| 27-44 | 87-107 | SCREW | 2 |
| 27-45 | 87-129 | SCREW | 2 |
| 27-46 | 87-305 | SCREW | 1 |
| 27-47 | 87-306 | SCREW | 1 |
| 27-48 | 87-307 | SCREW | 2 |
| 27-49 | 87-310 | SCREW | 1 |
| 27-50 | 87-414 | SCREW | 2 |
| 27-51 | 87-095 | SCREW | 2 |
| 27-52 | 88-147 | NUT | 2 |
| 27-53 | 00-8057 | THREAD TRIM ASSEMBLY | 1 |
| 27-54 | 05-157 | GUIDE PLATE | 1 |
| 27-55 | 05-156 | SPRING | 1 |
| 27-56 | 75-455 | WASHER | 2 |
| 27-57 | 87-083 | SCREW | 2 |
| 27-58 | 87-272 | SCREW | 3 |
| 27-59 | 87-269 | SCREW | 3 |
Page 32 — 28. UTC 驅動裝置(エア-式) THREAD TRIMMING MECHANISM (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28-01 | 05-151 | BRACKET | 1 |
| 28-02 | 05-152 | SHAFT | 1 |
| 28-03 | 05-842 | ROD | 1 |
| 28-04 | 05-906 | BRACKET | 1 |
| 28-05 | 05-909 | SWITCH PLATE | 1 |
| 28-06 | 05-910 | PLATE | 1 |
| 28-07 | 05-911 | SWITCH | 1 |
| 28-08 | 05-912 | COVER | 1 |
| 28-09 | 05-926 | BRACKET | 1 |
| 28-10 | 05-960 | PLATE | 1 |
| 28-11 | 06-927 | CLAMP | 1 |
| 28-12 | 52-177 | BUSHING | 2 |
| 28-13 | 79-642 | SPRING | 1 |
| 28-14 | 84-612 | SCREW | 1 |
| 28-15 | 87-171 | BOLT | 4 |
| 28-16 | 87-177 | BOLT | 1 |
| 28-17 | 87-213 | BOLT | 3 |
| 28-18 | 87-112 | BOLT | 1 |
| 28-19 | 87-282 | SCREW | 2 |
| 28-20 | 87-284 | SCREW | 6 |
| 28-21 | 87-245 | SCREW | 2 |
| 28-22 | 93-222 | E-RING | 1 |
| 28-23 | 05-205 | CYLINDER | 1 |
| 28-24 | 06-580 | SPPED CONTROLLER | 2 |
| 28-25 | 00-6083 | CYLINDER ASS'Y | 1 |
| 28-26 | 05-837 | SHOCK RUBBER | 1 |
| 28-27 | 75-505 | COLLAR | 1 |
| 28-28 | 05-970 | PLATE | 1 |
| 28-29 | 06-597 | PLUG | 2 |
| 28-30 | 05-964 | SOLENOID VALVE ASSEMBLY | 1 |
| 28-31 | 00-6111 | AIR CYLINDER ASSEMBLY(UTC-A) | 1 |
| 28-33 | 05-155 | BRACKET | 1 |
| 28-34 | 05-154 | ADJUST SCREW | 1 |
| 28-35 | 93-201 | E-RING | 2 |
| 28-36 | 75-473 | WASHER | 2 |
| 28-37 | 75-453 | WASHER | 1 |
| 28-38 | 87-252 | SCREW | 1 |
| 28-0105-151 | |||
| 28-0205-152 | |||
| 28-0305-842 | |||
| 28-0405-906 | |||
| 28-0505-909 | |||
| 28-0605-910 | |||
| 28-0705-911 | |||
| 28-0805-912 | |||
| 28-0905-926 | |||
| 28-1005-960 | |||
| 28-1106-927 | |||
| 28-1252-177 | |||
| 28-1379-642 | |||
| 28-1484-612 | |||
| 28-1587-171 | |||
| 28-1687-177 | |||
| 28-1787-213 | |||
| 28-1887-112 | |||
| 28-1987-282 | |||
| 28-2087-284 | |||
| 28-2187-245 | |||
| 28-2293-222 | Eリング | ||
| 28-2305-205 | |||
| 28-2406-580 | |||
| 28-2500-6083 | |||
| 28-2605-837 | |||
| 28-2775-505 | |||
| 28-2805-970 | |||
| 28-2906-597 | |||
| 28-3005-964 | |||
| 28-3100-6111 | UTC駆動装置(空気式) | ||
| 28-3305-155 | |||
| 28-3405-154 | |||
| 28-3593-201 | Eリング | ||
| 28-3675-473 | |||
| 28-3775-453 | |||
| 28-3887-252 |
Page 33 — 29. UTC駆動装置(電気式) THREAD TRIMMING MECHANISM (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29-01 | 05-151 | BRACKET | 1 |
| 29-02 | 05-152 | SHAFT | 1 |
| 29-03 | 05-842 | ROD | 1 |
| 29-04 | 05-906 | BRACKET | 1 |
| 29-05 | 05-909 | SWITCH PLATE | 1 |
| 29-06 | 05-910 | PLATE | 1 |
| 29-07 | 05-911 | SWITCH | 1 |
| 29-08 | 05-912 | COVER | 1 |
| 29-09 | 05-926 | BRACKET | 1 |
| 29-10 | 05-960 | PLATE | 1 |
| 29-11 | 06-336 | SOLENOIDO | 1 |
| 29-12 | 06-928 | CLAMP | 1 |
| 29-13 | 52-177 | BUSHING | 2 |
| 29-14 | 75-537 | COLLAR | 1 |
| 29-15 | 79-642 | SPRING | 1 |
| 29-16 | 84-612 | SCREW | 1 |
| 29-17 | 87-171 | BOLT | 4 |
| 29-18 | 87-177 | BOLT | 1 |
| 29-19 | 87-252 | BOLT | 4 |
| 29-20 | 87-274 | SCREW | 1 |
| 29-21 | 87-282 | SCREW | 2 |
| 29-22 | 87-284 | SCREW | 6 |
| 29-23 | 88-179 | NUT | 1 |
| 29-24 | 00-6057 | SOLENOID ASSEMBLY (UTC-E) | 1 |
| 29-25 | 05-155 | BRACKET | 1 |
| 29-26 | 05-154 | ADJUST SCREW | 1 |
| 29-27 | 93-201 | E-RING | 2 |
| 29-28 | 75-473 | WASHER | 2 |
| 29-29 | 75-453 | WASHER | 1 |
| 29-0105-151 | |||
| 29-0205-152 | |||
| 29-0305-842 | |||
| 29-0405-906 | |||
| 29-0505-909 | |||
| 29-0605-910 | |||
| 29-0705-911 | |||
| 29-0805-912 | |||
| 29-0905-926 | |||
| 29-1005-960 | |||
| 29-1106-336 | |||
| 29-1206-928 | |||
| 29-1352-177 | 2 | ||
| 29-1475-542 | 1 | ||
| 29-1579-642 | 1 | ||
| 29-1684-612 | 1 | ||
| 29-1787-171 | 4 | ||
| 29-1887-177 | 1 | ||
| 29-1987-252 | 4 | ||
| 29-2087-274 | 1 | ||
| 29-2187-282 | 2 | ||
| 29-2287-284 | 6 | ||
| 29-2388-179 | 1 | ||
| 29-2400-6057 | UTC駆動装置(電気式) | ||
| 29-2505-155 | |||
| 29-2605-154 | |||
| 29-2793-201 | Eリング | 2 | |
| 29-2875-473 | 2 | ||
| 29-2975-453 | 1 |
Page 34 — 30. 糸調子機構 (UTC) THREAD TENSION MECHANISM (UTC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30-01 | 05-850 | HOLDER (LARGE) | 4-5 |
| 30-02 | 05-853 | HOLDER | 1 |
| 30-03 | 05-955 | SHAFT | 1 |
| 30-04 | 05-956 | THREAD EYELET | 1 |
| 30-05 | 05-957 | SHAFT | 1 |
| 30-06 | 05-958 | LEVER | 1 |
| 30-07 | 05-961 | SPRING | 1 |
| 30-08 | 23-324 | FELT | 4-5 |
| 30-09 | 41-101 | THREAD TENSION NUT | 4-5 |
| 30-10 | 41-105 | SPRING POST | 4-5 |
| 30-11 | 41-107 | SPRING CUP | 4-5 |
| 30-12 | 41-115 | THREAD GUIDE(UPPER) | 4-5 |
| 30-13 | 41-501 | BRACKET | 1 |
| 30-14 | 41-502 | THREAD RELEASER | 1 |
| 30-15 | 41-508 | SCREW STUD(MIDDLE) | 4-5 |
| 30-16 | 41-509 | TENSION DISC | 8-10 |
| 30-17 | 41-701 | SPRING(HEAVY) | 3 |
| 30-18 | 41-702 | SPRING(LIGHT) | 1-2 |
| 30-19 | 79-514 | SPRING | 1 |
| 30-20 | 79-542 | SPRING | 1 |
| 30-21 | 84-361 | SCREW | 1 |
| 30-22 | 84-501 | SCREW | 1 |
| 30-23 | 84-553 | SCREW | 1 |
| 30-24 | 84-561 | SCREW | 1 |
| 30-25 | 84-574 | SCREW | 1 |
| 30-26 | 87-177 | BOLT | 2 |
| 30-27 | 87-224 | BOLT | 1 |
| 30-28 | 87-286 | SCREW | 4-5 |
| 30-29 | 87-423 | SCREW | 1 |
| 30-30 | 93-201 | E-RING | 1 |
| 30-31 | 93-205 | E-RING | 1 |
| 30-32 | 05-962 | THREAD EYELET | 1 |
| 30-33 | 05-963 | SHAFT | 1 |
| 30-34 | 41-519 | THREAD RELEASER | 1 |
| 30-35 | 41-525 | BRACKET | 1 |
| 30-36 | 41-117 | THREAD GUIDE | ※ |
| 30-37 | 41-514 | THREAD EYELET | 1 |
| 30-38 | 84-364 | SCREW | 1 |
| 30-0105-850 | |||
| 30-0205-853 | |||
| 30-0305-955 | |||
| 30-0405-956 | |||
| 30-0505-957 | |||
| 30-0605-958 | |||
| 30-0705-961 | |||
| 30-0823-324 | |||
| 30-0941-101 | |||
| 30-1041-105 | |||
| 30-1141-107 | |||
| 30-1241-115 | |||
| 30-1341-501 | |||
| 30-1441-502 | |||
| 30-1541-508 | |||
| 30-1641-509 | |||
| 30-1741-701 | |||
| 30-1841-702 | |||
| 30-1979-514 | |||
| 30-2079-542 | |||
| 30-2184-361 | |||
| 30-2284-501 | |||
| 30-2384-553 | |||
| 30-2484-561 | |||
| 30-2584-574 | |||
| 30-2687-177 | |||
| 30-2787-224 | |||
| 30-2887-286 | |||
| 30-2987-423 | |||
| 30-3093-201 | Eリング | ||
| 30-3193-205 | E-リング | ||
| 30-3205-962 | |||
| 30-3305-963 | |||
| 30-3441-519 | |||
| 30-3541-525 | |||
| 30-3641-117 | |||
| 30-3741-514 | |||
| 30-3884-364 |
Page 35 — 31. 上飾り糸切装置（エアー式）/ SPREADER THREAD TRIMMING MECHANISM (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 31-01 | 06-351 | TRIMMING KNIFE | 1 |
| 31-02 | 06-352 | BRACKET | 1 |
| 31-03 | 06-353 | COVER | 1 |
| 31-04 | 06-354 | BRACKET | 1 |
| 31-05 | 06-355 | BLOCK | 1 |
| 31-06 | 06-356 | STOP PLATE | 2 |
| 31-07 | 06-584 | AIR CYLINDER | 1 |
| 31-08 | 06-358 | BASE PLATE | 1 |
| 31-09 | 06-359 | GUIDE | 1 |
| 31-10 | 06-928 | CLAMP | 2 |
| 31-11 | 84-361 | SCREW | 8 |
| 31-12 | 84-360 | SCREW | 2 |
| 31-13 | 84-573 | SCREW | 1 |
| 31-14 | 85-101 | SCREW | 2 |
| 31-15 | 05-481 | SPEED CONTROLLER | 2 |
| 31-16 | 85-106 | SCREW | 2 |
| 31-17 | 85-102 | SCREW | 2 |
| 31-18 | 06-632 | FIXED KNIFE | 1 |
| 31-19 | 06-601 | SCREW | 1 |
| 31-20 | 85-105 | SCREW | 2 |
| 31-21 | 06-630 | PLATE | 1 |
| 31-22 | 06-602 | PLATE | 1 |
| 31-23 | 06-605 | LEAF SPRING (LIGHT) | 1 |
| 31-24 | 06-603 | PLATE | 1 |
| 31-25 | 06-604 | LEAF SPRING (HEAVY) | 1 |
| 31-26 | 06-608 | PLATE | 1 |
| 31-27 | 87-113 | SCREW | 2 |
| 31-28 | 00-8060 | THREAD TRIM ASSEMBLY (WITHOUT CYLINDER) | 1 |
| 31-29 | 00-8062 | THREAD TRIM ASSY (WITH CYLINDER) | 1 |
| 31-30 | 00-8063 | AIR CYLINDER SETS | 1 |
| 31-31 | 84-566 | SCREW | 2 |
| 31-32 | 75-456 | WASHER | 2 |
| 31-33 | 75-452 | WASHER | 2 |
| 31-34 | 87-171 | SCREW | 2 |
| 31-35 | 75-527 | WASHER | 2 |
| 31-36 | 06-361 | BRACKET | 1 |
| 31-37 | 87-203 | SCREW | 2 |
| 31-38 | 26-712 | BRACKET | 1 |
| 31-39 | 06-368 | BRACKET | 1 |
| 31-40 | 21-764 | HEAD COVER | 1 |
| 31-41 | 87-177 | SCREW | 2 |
| 31-42 | 75-468 | WASHER | 2 |
Page 36 — 32. 上飾り糸切装置（電気式） SPREADER THREAD TRIMMING MECHANISM(ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 32-01 | 06-367 | SPRING | 1 |
| 32-02 | 06-369 | COVER | 1 |
| 32-03 | 06-370 | HANGER | 1 |
| 32-04 | 87-080 | SCREW | 2 |
| 32-05 | 06-371 | LEVER | 1 |
| 32-06 | 06-372 | ROLLER | 1 |
| 32-07 | 06-373 | BASE PLATE | 1 |
| 32-08 | 06-350 | STOP PLATE | 2 |
| 32-09 | 06-376 | SOLENOID | 1 |
| 32-10 | 06-374 | SCREW | 1 |
| 32-11 | 06-375 | WASHER | 1 |
| 32-12 | 75-455 | WASHER | 1 |
| 32-13 | 84-571 | SCREW | 1 |
| 32-14 | 84-361 | SCREW | 6 |
| 32-15 | 75-468 | WASHER | 2 |
| 32-16 | 88-146 | NUT | 1 |
| 32-17 | 87-112 | SCREW | 1 |
| 32-18 | 86-311 | NUT | 1 |
| 32-19 | 06-354 | BRACKET | 1 |
| 32-20 | 06-351 | TRIMMING KNIFE | 1 |
| 32-21 | 85-101 | SCREW | 2 |
| 32-22 | 05-881 | WASHER (LARGE) | 2 |
| 32-23 | 05-882 | WASHER (SMALL) | 2 |
| 32-24 | 06-352 | BRACKET | 1 |
| 32-25 | 84-360 | SCREW | 2 |
| 32-26 | 06-605 | LEAF SPRING (LIGHT) | 1 |
| 32-27 | 06-603 | PLATE | 1 |
| 32-28 | 06-604 | LEAF SPRING (HEAVY) | 1 |
| 32-29 | 06-608 | PLATE | 1 |
| 32-30 | 06-630 | PLATE | 1 |
| 32-31 | 06-602 | PLATE | 1 |
| 32-32 | 06-632 | FIXED KNIFE | 1 |
| 32-33 | 06-601 | SCREW | 1 |
| 32-34 | 85-106 | SCREW | 2 |
| 32-35 | 85-102 | SCREW | 2 |
| 32-36 | 85-105 | SCREW | 2 |
| 32-37 | 23-511 | CUSHION | 1 |
| 32-38 | 00-8069 | THREAD TRIM ASS'Y (WITH SOLENOID) | 1 |
| 32-39 | 84-566 | SCREW | 2 |
| 32-40 | 75-456 | WASHER | 2 |
| 32-41 | 75-452 | WASHER | 3 |
| 32-42 | 87-171 | SCREW | 2 |
| 32-43 | 75-527 | WASHER | 2 |
| 32-44 | 06-361 | BRACKET | 1 |
| 32-45 | 87-203 | SCREW | 2 |
| 32-46 | 26-712 | BRACKET | 1 |
| 32-47 | 06-368 | BRACKET | 1 |
| 32-48 | 21-764 | HEAD COVER | 1 |
| 32-49 | 87-177 | SCREW | 2 |
| 32-50 | 06-928 | CLAMP | 2 |
| 32-52 | 88-166 | NUT | 1 |
| 32-53 | 87-277 | SCREW | 1 |
| 32-54 | 00-8070 | THREAD TRIM ASS'Y (WITHOUT SOLENOID) | 1 |
Page 37 — 33. 上糸払い装置 THREAD WIPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 33-01 | 06-490 | BRACKET | 1 |
| 33-01 06-490 | |||
| 33-02 06-492 | |||
| 33-03 06-493 | |||
| 33-04 06-494 | |||
| 33-05 06-495 | |||
| 33-06 06-496 | |||
| 33-07 06-497 | |||
| 33-08 06-498 | |||
| 33-09 87-091 | |||
| 33-10 87-123 | |||
| 33-11 87-142 | |||
| 33-12 87-177 | |||
| 33-13 93-201 | Eリング | ||
| 33-14 93-213 | E型止め輪 | ||
| 33-15 93-717 | |||
| 33-16 00-8035 |
Page 38 — 34. 押え揚げ装置, レギュレーターセット FOOT LIFTER MECHANISM, REGULATER SETS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 34-01 | 00-8028 | FOOT LIFTER SOLENOID ASS'Y (UTC-E) | 1 |
| 34-02 | 00-6082 | AIR CYLINDER ASS'Y | 1 |
| 34-04 | 05-207 | AIR CYLINDER | 1 |
| 34-05 | 05-896 | BRACKET | 1 |
| 34-06 | 05-897 | CHIP | 1 |
| 34-07 | 05-212 | REGULATOR | 1 |
| 34-08 | 06-516 | CONNECTOR | 1 |
| 34-09 | 05-218 | JOINT | 1 |
| 34-12 | 06-517 | CONNECTOR | 1 |
| 34-13 | 06-580 | SPEED CONTROLER | 2 |
| 05-597 |
Page 39 — 35-1. 配管, 配線図 (エア一式) WIRING AND PIPING (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 00-8062 | 上飾糸切装置(WX8800) | ||
| 00-8035 | 上糸払い装置(WX8700) | ||
| 00-6082 | |||
| 00-6111 | UTC空圧装置 | ||
| 05-212 |
Page 40 — 35-2. 配線図 (電気式) CORD CONNECTION (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 00-8069 | spreader thread trimming mechanism | ||
| 00-8028 | presser foot lifter solenoid ass'y | ||
| 00-6057 | solenoid assembly (UTC-E) | ||
| 00-8045 | wiper mechanism ass'y | ||
| 53-257 | relay cord |
Page 41 — 36. テープ カッター 装置 (エアー式) TAPE CUTTER MECHANISM (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 36-01 | 08-003 | SHAFT | 1 |
| 36-02 | 08-004 | LOWER KNIFE | 1 |
| 36-03 | 08-005 | UPPER KNIFE | 1 |
| 36-04 | 08-009 | SAFTY COVER | 1 |
| 36-05 | 08-011 | FABRIC GUIDE(LARGE) | 1 |
| 36-06 | 08-012 | FABRIC GUIDE(SMALL) | 1 |
| 36-07 | 08-014 | BRACKET | 1 |
| 36-08 | 08-015 | AIR CYLINDER | 1 |
| 36-09 | 08-017 | LEVER | 1 |
| 36-10 | 08-018 | KNUCKLE | 1 |
| 36-11 | 08-019 | SHAFT | 1 |
| 36-12 | 08-020 | LINK | 1 |
| 36-13 | 08-021 | LEVER | 1 |
| 36-14 | 08-022 | LINK PIN | 1 |
| 36-15 | 08-023 | ADJUSTING PIN | 1 |
| 36-16 | 08-031 | FABRIC GUIDE | 1 |
| 36-17 | 08-041 | SCREW | 1 |
| 36-18 | 14-027 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 36-19 | 27-022 | CLOTH PLATE | 1 |
| 36-20 | 27-023 | CLOTH PLATE | 1 |
| 36-21 | 52-182 | SCREW | 1 |
| 36-22 | 75-224 | WASHER | 3 |
| 36-23 | 75-339 | WASHER | 2 |
| 36-24 | 75-370 | WASHER | 1 |
| 36-25 | 75-455 | WASHER | 2 |
| 36-26 | 79-171 | SPRING | 1 |
| 36-27 | 84-661 | SCREW | 2 |
| 36-28 | 87-095 | SCREW | 2 |
| 36-29 | 87-106 | SCREW | 3 |
| 36-30 | 87-113 | BOLT | 2 |
| 36-31 | 87-123 | BOLT | 3 |
| 36-32 | 87-189 | BOLT | 2 |
| 36-33 | 87-224 | BOLT | 2 |
| 36-34 | 87-254 | SCREW | 3 |
| 36-35 | 87-291 | BOLT | 2 |
| 36-36 | 87-313 | SCREW | 1 |
| 36-37 | 27-081 | CLOTH COVER | 1 |
| 36-01 08-003 | |||
| 36-02 08-004 | |||
| 36-03 08-005 | |||
| 36-04 08-009 | |||
| 36-05 08-011 | |||
| 36-06 08-012 | |||
| 36-07 08-014 | |||
| 36-08 08-015 | |||
| 36-09 08-017 | |||
| 36-10 08-018 | |||
| 36-11 08-019 | |||
| 36-12 08-020 | |||
| 36-13 08-021 | |||
| 36-14 08-022 | |||
| 36-15 08-023 | |||
| 36-16 08-031 | |||
| 36-17 08-041 | |||
| 36-18 14-027 | |||
| 36-19 27-022 | EMK上ヘー スカパー | ||
| 36-20 27-023 | F用上ヘー スカパー | ||
| 36-21 52-182 | |||
| 36-22 75-224 | |||
| 36-23 75-339 | |||
| 36-24 75-370 | |||
| 36-25 75-455 | |||
| 36-26 79-171 | |||
| 36-27 84-661 | |||
| 36-28 87-095 | |||
| 36-29 87-106 | |||
| 36-30 87-113 | |||
| 36-31 87-123 | |||
| 36-32 87-189 | |||
| 36-33 87-224 | |||
| 36-34 87-254 | |||
| 36-35 87-291 | |||
| 36-36 87-313 | |||
| 36-37 27-081 |
Page 42 — 37. テープ カッター装置 (電気式) TAPE CUTTER MECHANISM (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 37-01 | 08-001 | BRACKET | 1 |
| 37-02 | 08-002 | SOLENOID | 1 |
| 37-03 | 08-003 | SHAFT | 1 |
| 37-04 | 08-004 | LOWER KNIFE | 1 |
| 37-05 | 08-005 | UPPER KNIFE | 1 |
| 37-06 | 08-006 | LEVER | 1 |
| 37-07 | 08-008 | CONNECTING LEVER | 1 |
| 37-08 | 08-010 | SAFTY COVER | 1 |
| 37-09 | 08-011 | FABRIC GUIDE(LARGE) | 1 |
| 37-10 | 08-012 | FABRIC GUIDE(SMALL) | 1 |
| 37-11 | 08-013 | BRACKET | 1 |
| 37-12 | 08-031 | FABRIC GUIDE | 1 |
| 37-13 | 08-041 | SCREW | 1 |
| 37-14 | 14-027 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 37-15 | 27-022 | CLOTH PLATE | 1 |
| 37-16 | 27-023 | CLOTH PLATE | 1 |
| 37-17 | 51-835 | BLOCK(REAR) | 1 |
| 37-18 | 52-182 | SCREW | 1 |
| 37-19 | 75-224 | WASHER | 3 |
| 37-20 | 75-370 | WASHER | 1 |
| 37-21 | 75-455 | WASHER | 4 |
| 37-22 | 75-527 | SPRING WASHER | 1 |
| 37-23 | 75-552 | WASHER | 1 |
| 37-24 | 79-171 | SPRING | 1 |
| 37-25 | 79-309 | SPRING | 1 |
| 37-26 | 84-581 | SCREW | 1 |
| 37-27 | 84-583 | SCREW | 1 |
| 37-28 | 84-661 | SCREW | 2 |
| 37-29 | 87-070 | SCREW | 1 |
| 37-30 | 87-095 | SCREW | 2 |
| 37-31 | 87-106 | SCREW | 1 |
| 37-32 | 87-113 | BOLT | 4 |
| 37-33 | 87-123 | BOLT | 3 |
| 37-34 | 87-173 | BOLT | 1 |
| 37-35 | 87-177 | BOLT | 3 |
| 37-36 | 87-224 | BOLT | 2 |
| 37-37 | 87-254 | SCREW | 1 |
| 37-38 | 87-291 | BOLT | 2 |
| 37-39 | 88-166 | NUT | 1 |
| 37-40 | 27-081 | CLOTH COVER | 1 |
| 37-01 08-001 | |||
| 37-02 08-002 | |||
| 37-03 08-003 | |||
| 37-04 08-004 | |||
| 37-05 08-005 | |||
| 37-06 08-006 | |||
| 37-07 08-008 | |||
| 37-08 08-010 | |||
| 37-09 08-011 | |||
| 37-10 08-012 | |||
| 37-11 08-013 | |||
| 37-12 08-031 | |||
| 37-13 08-041 | |||
| 37-14 14-027 | |||
| 37-15 27-023 | EMK用上ベースカバー | ||
| 37-16 27-023 | F用上ベースカバー | ||
| 37-17 51-835 | |||
| 37-18 52-182 | |||
| 37-19 75-224 | |||
| 37-20 75-370 | |||
| 37-21 75-455 | |||
| 37-22 75-527 | |||
| 37-23 75-552 | |||
| 37-24 79-171 | |||
| 37-25 79-309 | |||
| 37-26 84-581 | |||
| 37-27 84-583 | |||
| 37-28 84-661 | |||
| 37-29 87-070 | |||
| 37-30 87-095 | |||
| 37-31 87-106 | |||
| 37-32 87-113 | |||
| 37-33 87-123 | |||
| 37-34 87-173 | |||
| 37-35 87-177 | |||
| 37-36 87-224 | |||
| 37-37 87-254 | |||
| 37-38 87-291 | |||
| 37-39 88-166 | |||
| 37-40 27-081 |
Page 43 — 38. 配管, 配線図 WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 38-0153-285 | |||
| 38-0253-286 | |||
| 38-0305-212 | |||
| 38-0406-517 | |||
| 38-0505-218 | |||
| 38-0605-486 | チューブ 6×1000mm | 1 | |
| 38-0705-036 | |||
| 38-0887-900 | 2 | ||
| 38-0905-571 | チューブ 6×1000mm | 1 | |
| 38-1005-572 | チューブ 6×1000mm | 1 | |
| 38-1153-287 | 1 | ||
| 38-1206-516 | 1 |
Page 44 — 39. MMX 飾ルーバー機構 (1) SPREADER MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 39-01 | 04-008 | PIN | 1 |
| 39-02 | 04-019 | BASE BRACKET | 1 |
| 39-03 | 04-020 | COVER | 1 |
| 39-04 | 04-021 | SHAFT | 2 |
| 39-05 | 04-022 | CAM LEVER | 1 |
| 39-06 | 04-023 | LINK | 1 |
| 39-07 | 04-025 | WORM | 1 |
| 39-08 | 04-026 | WORM WHEEL | 1 |
| 39-09 | 04-042 | SPACER | 1 |
| 39-10 | 04-044 | SPREADER DRIVE LEVER | 1 |
| 39-11 | 04-357 | CAM No. 7 | 1 |
| 39-12 | 04-358 | CAM No. 8 | 1 |
| 39-13 | 04-359 | CAM No. 9 | 1 |
| 39-14 | 04-360 | CAM No. 10 | 1 |
| 39-15 | 04-362 | CAM No. 12 | 1 |
| 39-16 | 04-363 | CAM No. 13 | 1 |
| 39-17 | 71-208 | PIN | 2 |
| 39-18 | 71-763 | SHAFT | 1 |
| 39-19 | 75-112 | COLLAR | 2 |
| 39-20 | 75-182 | CAM COLLAR (B) | 1 |
| 39-21 | 75-257 | LINK ROLLER | 1 |
| 39-22 | 75-260 | ROLLER | 1 |
| 39-23 | 75-332 | WASHER | 1 |
| 39-24 | 75-453 | WASHER | 1 |
| 39-25 | 75-455 | WASHER | 1 |
| 39-26 | 75-504 | WASHER | 2 |
| 39-27 | 75-537 | COLLAR | 2 |
| 39-28 | 81-579 | BUSHING | 1 |
| 39-29 | 81-690 | BUSHING | 1 |
| 39-30 | 84-607 | SCREW | 1 |
| 39-31 | 84-812 | SCREW | 1 |
| 39-32 | 86-311 | NUT | 1 |
| 39-33 | 87-171 | BOLT | 5 |
| 39-34 | 87-172 | SCREW | 8 |
| 39-35 | 87-177 | BOLT | 5 |
| 39-36 | 87-181 | SCREW | 1 |
| 39-37 | 87-254 | SCREW | 4 |
| 39-38 | 87-274 | SCREW | 4 |
| 39-39 | 88-462 | NUT | 1 |
| 39-40 | 94-214 | OIL SEAL | 1 |
| 39-41 | 94-506 | OIL SEAL | 1 |
| 39-42 | 98-573 | BUSHING | 1 |
| 39-43 | 98-597 | NUT | 1 |
| 39-0104-008 | |||
| 39-0204-019 | |||
| 39-0304-020 | |||
| 39-0404-021 | |||
| 39-0504-022 | |||
| 39-0604-023 | |||
| 39-0704-025 | |||
| 39-0804-026 | |||
| 39-0904-042 | |||
| 39-1004-044 | |||
| 39-1104-357 | カムNo. 7 | ||
| 39-1204-358 | カムNo. 8 | ||
| 39-1304-359 | カムNo. 9 | ||
| 39-1404-360 | カムNo. 10 | ||
| 39-1504-362 | カムNo. 12 | ||
| 39-1604-363 | カムNo. 13 | ||
| 39-1771-208 | |||
| 39-1871-763 | |||
| 39-1975-112 | |||
| 39-2075-182 | カムカラー(B) | ||
| 39-2175-257 | |||
| 39-2275-260 | |||
| 39-2375-332 | |||
| 39-2475-453 | |||
| 39-2575-455 | |||
| 39-2675-504 | |||
| 39-2775-537 | |||
| 39-2881-579 | |||
| 39-2981-690 | |||
| 39-3084-607 | |||
| 39-3184-812 | |||
| 39-3286-311 | |||
| 39-3387-171 | |||
| 39-3487-172 | |||
| 39-3587-177 | |||
| 39-3687-181 | |||
| 39-3787-254 | |||
| 39-3887-274 | |||
| 39-3988-462 | |||
| 39-4094-214 | |||
| 39-4194-506 | |||
| 39-4298-573 | |||
| 39-4398-597 |
Page 45 — 40. MMX 飾ルーバー機構 (2) SPREADER MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40-01 | 04-027 | SPREADER 7/32 (LOWER) | 1 |
| 40-02 | 04-028 | SPREADER 7/32 (UPPER) | 1 |
| 40-03 | 04-029 | SPREADER 1/4 (LOWER) | 1 |
| 40-04 | 04-030 | SPREADER 1/4 (UPPER) | 1 |
| 40-05 | 04-031 | BRACKET | 1 |
| 40-06 | 04-032 | RACK HOUSING | 1 |
| 40-07 | 04-033 | GEAR | 1 |
| 40-08 | 04-034 | GUIDE BRACKET | 1 |
| 40-09 | 04-035 | GUIDE PLATE | 2 |
| 40-10 | 04-036 | RACK | 1 |
| 40-11 | 04-037 | RACK | 1 |
| 40-12 | 04-038 | LINK | 1 |
| 40-13 | 04-039 | BUSHING | 1 |
| 40-14 | 04-043 | SPREADER HOLDER | 2 |
| 40-15 | 04-045 | STOPPER | 1 |
| 40-16 | 04-046 | STOPPER | 1 |
| 40-17 | 23-427 | PLUG | 1 |
| 40-18 | 60-8080 | CONNECTING ROD ASS'Y | 1 |
| 40-19 | 61-809 | BALL JOINT | 1 |
| 40-20 | 63-808 | CONNECTING ROD | 1 |
| 40-21 | 71-809 | PIN | 1 |
| 40-22 | 75-441 | WASHER | 2 |
| 40-23 | 75-445 | SPRING WASHER | 1 |
| 40-24 | 75-468 | WASHER | 6 |
| 40-25 | 81-141 | BUSHING | 4 |
| 40-26 | 84-361 | SCREW | 2 |
| 40-27 | 84-653 | SCREW | 1 |
| 40-28 | 86-411 | NUT | 1 |
| 40-29 | 87-068 | SCREW | 1 |
| 40-30 | 87-092 | BOLT | 2 |
| 40-31 | 87-106 | SCREW | 2 |
| 40-32 | 87-123 | BOLT | 3 |
| 40-33 | 87-129 | BOLT | 4 |
| 40-34 | 87-214 | BOLT | 2 |
| 40-35 | 87-252 | BOLT | 2 |
| 40-36 | 87-254 | SCREW | 1 |
| 40-37 | 87-285 | BOLT | 2 |
| 40-38 | 88-137 | NUT | 1 |
Page 46 — 41. MMX 糸調子機構 THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 41-01 | 02-118 | WASHER | 2 |
| 41-0102-118 | |||
| 41-004-015 | |||
| 41-004-017 | |||
| 41-0504-018 | |||
| 41-0621-626 | |||
| 41-0723-324 | |||
| 41-0841-101 | |||
| 41-0941-105 | |||
| 41-1041-107 | |||
| 41-1141-115 | |||
| 41-1241-508 | |||
| 41-1341-509 | |||
| 41-1441-702 | |||
| 41-1545-342 | |||
| 41-1645-343 | |||
| 41-1745-344 | |||
| 41-1847-176 | |||
| 41-1971-370 | |||
| 41-2075-455 | |||
| 41-2184-374 | |||
| 41-2284-396 | |||
| 41-2384-503 | |||
| 41-2484-566 | |||
| 41-2584-579 | |||
| 41-2686-211 | |||
| 41-2787-113 | |||
| 41-2887-177 | |||
| 41-2987-286 | |||
| 41-3087-319 | |||
| 41-3187-411 | |||
| 41-3240-6507 | |||
| 41-3387-129 | |||
| 41-3421-018 |
Page 47 — 42. MMX ゲージ関係 GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42-01 | ※ | NEEDLE HOLDER | 1 |
| 42-02 | 13-0140-6 | NEEDLE | 3 |
| 42-03 | ※ | NEEDLE PLATE | 1 |
| 42-04 | ※ | FRONT FEED DOG | 1 |
| 42-05 | ※ | REAR FEED DOG | 1 |
| 42-06 | 17-1760-Z | GUIDE PIN | 1 |
| 42-07 | ※ | BOTTOM | 1 |
| 42-08 | ※ | PRESSER FOOT ASS'Y | 1 |
| 42-09 | 17-1940-D | GUIDE BRACKET | 1 |
| 42-10 | 17-7760-A | SHANK | 1 |
| 42-11 | 17-7760-D | PIN | 1 |
| 42-12 | 17-7760-E | PIN | 1 |
| 42-13 | 17-7680-A | SHANK | 1 |
| 42-14 | 17-7680-B | GUIDE | 2 |
| 42-15 | 17-8190-D | SPRING(LEFT) | 1 |
| 42-16 | 17-8190-E | SPRING(RIGHT) | 1 |
| 42-17 | 17-8190-F | SPRING | 1 |
| 42-18 | 17-8190-G | PIN | 1 |
| 42-19 | 17-8190-J | GUIDE PLATE | 2 |
| 42-20 | 17-7490-L | SPRING | 1 |
| 42-21 | 18-811 | NEEDLE GUARD | 1 |
| 42-22 | 19-539 | LOOPER | 1 |
| 42-23 | 19-540 | NEEDLE GUIDE | 1 |
| 42-24 | 41-601 | THREAD NIPPER | 1 |
| 42-25 | 45-508 | PLATE | 1 |
| 42-26 | 45-549 | THREAD EYELET | 1 |
| 42-27 | 75-228 | WASHER | 1 |
| 42-28 | 79-191 | SPRING | 1 |
| 42-29 | 79-533 | SPRING | 1 |
| 42-30 | 84-161 | SCREW | 1 |
| 42-31 | 84-171 | SCREW | 1 |
| 42-32 | 84-359 | SCREW | 2 |
| 42-33 | 84-382 | SCREW | 1 |
| 42-34 | 84-464 | SCREW | 2 |
| 42-35 | 85-613 | SCREW | 1 |
| 42-36 | 85-618 | SCREW | 1 |
| 42-37 | 85-621 | SCREW | 1 |
| 42-38 | 87-083 | SCREW | 1 |
| 42-39 | 87-104 | SCREW | 4 |
| 42-40 | 87-107 | SCREW | 4 |
| 42-41 | 87-034 | SCREW | 1 |
| 42-42 | 87-130 | SCREW | 1 |
| 42-43 | 88-136 | NUT | 1 |
| 42-44 | 17-7680-K | GUIDE | 1 |
| 42-45 | 17-7680-L | GUIDE | 1 |
| 42-46 | 87-035 | SCREW | 1 |
| 42-01 | |||
| 42-03 | |||
| 42-04 | |||
| 42-05 | |||
| 42-07 | |||
| 42-08 |
Page 48 — COVER ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43-01 | 23-061 | GASKET(RIGHT) | 1 |
| 43-02 | 23-324 | FELT | 7 |
| 43-03 | 27-079 | FRONT COVER | 1 |
| 43-04 | 27-080 | CLOTH COVER | 1 |
| 43-05 | 27-082 | PULLEY COVER | 1 |
| 43-06 | 27-086 | COVER(RIGHT) | 1 |
| 43-07 | 41-101 | THREAD TENSION NUT | 7 |
| 43-08 | 41-105 | SPRING POST | 7 |
| 43-09 | 41-107 | SPRING CUP | 7 |
| 43-10 | 41-115 | THREAD GUIDE(UPPER) | 7 |
| 43-11 | 41-154 | NUT | 1 |
| 43-12 | 41-155 | DISC | 2 |
| 43-13 | 41-504 | TENSION POST | 1 |
| 43-14 | 41-508 | SCREW STUD(MIDDLE) | 7 |
| 43-15 | 41-509 | TENSION DISC | 14 |
| 43-16 | 41-520 | BRACKET | 1 |
| 43-17 | 41-521 | THREAD RELEASER | 1 |
| 43-18 | 41-701 | SPRING(HEAVY) | 4 |
| 43-19 | 41-702 | SPRING(LIGHT) | 3 |
| 43-20 | 43-532 | THREAD EYELET | 1 |
| 43-21 | 43-533 | THREAD EYELET | 1 |
| 43-22 | 43-544 | THREAD GUIDE PLATE | 1 |
| 43-23 | 43-548 | HOLDER | 1 |
| 43-24 | 43-559 | SUPPORT BRACKET | 1 |
| 43-25 | 47-803 | THREAD EYELET | 3 |
| 43-26 | 75-224 | WASHER | 1 |
| 43-27 | 79-514 | SPRING | 1 |
| 43-28 | 79-534 | SPRING | 1 |
| 43-29 | 84-167 | SCREW | 2 |
| 43-30 | 84-361 | SCREW | 1 |
| 43-31 | 84-501 | SCREW | 1 |
| 43-32 | 87-123 | BOLT | 1 |
| 43-33 | 87-177 | BOLT | 5 |
| 43-34 | 87-268 | SCREW | 1 |
| 43-35 | 87-269 | SCREW | 2 |
| 43-36 | 87-272 | SCREW | 4 |
| 43-37 | 40-5460 | LOOPER THREAD EYELET ASS'Y | 1 |
| 43-38 | 41-117 | THREAD GUIDE | 7 |
| 41-165 |
Page 49 — THREAD CONTROL MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 44-01 | 25-217 | LATCH | 3 |
| 44-02 | 27-531 | SILICONE OIL RESERVOIR | 1 |
| 44-03 | 27-533 | COVER | 1 |
| 44-04 | 27-534 | FELT | 1 |
| 44-05 | 41-503 | THREAD GUIDE BRACKET | 1 |
| 44-06 | 41-517 | TENSION DISC | 2 |
| 44-07 | 41-601 | THREAD NIPPER | 1 |
| 44-08 | 45-502 | THREAD TAKE-UP | 1 |
| 44-09 | 45-507 | THREAD EYELET | 1 |
| 44-10 | 45-508 | PLATE | 1 |
| 44-11 | 45-513 | THREAD GUIDE | 1 |
| 44-12 | 45-514 | THREAD EYELET | 1 |
| 44-13 | 45-515 | THREAD EYELET | 1 |
| 44-14 | 45-517 | PIPE | 3 |
| 44-15 | 45-535 | THREAD EYELET | 1 |
| 44-16 | 45-536 | NEEDLE THREAD TAKE-UP | 1 |
| 44-17 | 45-543 | THREAD EYELET | 4 |
| 44-18 | 45-547 | BRACKET | 1 |
| 44-19 | 45-550 | THREAD EYELET | 1 |
| 44-20 | 45-551 | THREAD EYELET | 1 |
| 44-21 | 45-552 | THREAD GUIDE | 1 |
| 44-22 | 45-556 | THREAD SUPPORT(UPPER) | 1 |
| 44-23 | 45-558 | HOLDER | 1 |
| 44-24 | 45-559 | THREAD EYELET | 1 |
| 44-25 | 45-560 | THREAD GUIDE | 1 |
| 44-26 | 45-561 | THREAD GUIDE BRACKET | 1 |
| 44-27 | 47-803 | THREAD EYELET | 1 |
| 44-28 | 67-502 | LEVER | 1 |
| 44-29 | 71-202 | SILICONE PIN | 2 |
| 44-30 | 75-455 | WASHER | 5 |
| 44-31 | 75-468 | WASHER | 1 |
| 44-32 | 75-526 | SPRING WASHER | 1 |
| 44-33 | 79-533 | SPRING | 1 |
| 44-34 | 79-547 | SPRING | 1 |
| 44-35 | 84-162 | SCREW | 2 |
| 44-36 | 84-171 | SCREW | 1 |
| 44-37 | 84-374 | SCREW | 1 |
| 44-38 | 84-639 | SCREW | 1 |
| 44-39 | 87-092 | BOLT | 6 |
| 44-40 | 87-099 | SCREW | 2 |
| 44-41 | 87-100 | BOLT | 1 |
| 44-42 | 87-104 | SCREW | 5 |
| 44-43 | 87-177 | BOLT | 8 |
| 44-44 | 87-224 | BOLT | 1 |
| 44-45 | 87-269 | SCREW | 1 |
| 44-46 | 87-272 | SCREW | 2 |
| 44-47 | 87-287 | BOLT | 1 |
| 44-48 | 20-5360 | SILICONE OIL RESERVOIR ASS'Y | 1 |
| 44-0125-217 | |||
| 44-0227-531 | |||
| 44-0327-533 | |||
| 44-0427-534 | |||
| 44-0541-503 | |||
| 44-0641-517 | |||
| 44-0741-601 | |||
| 44-0845-502 | |||
| 44-0945-507 | |||
| 44-1045-508 | |||
| 44-1145-513 | |||
| 44-1245-514 | |||
| 44-1345-515 | |||
| 44-1445-517 | |||
| 44-1545-535 | |||
| 44-1645-536 | |||
| 44-1745-543 | |||
| 44-1845-547 | |||
| 44-1945-550 | |||
| 44-2045-551 | |||
| 44-2145-552 | |||
| 44-2245-556 | |||
| 44-2345-558 | |||
| 44-2445-559 | |||
| 44-2545-560 | |||
| 44-2645-561 | |||
| 44-2747-803 | |||
| 44-2867-502 | |||
| 44-2971-202 | |||
| 44-3075-455 | |||
| 44-3175-468 | |||
| 44-3275-526 | |||
| 44-3379-533 | |||
| 44-3479-547 | |||
| 44-3584-162 | |||
| 44-3684-171 | |||
| 44-3784-374 | |||
| 44-3884-639 | |||
| 44-3987-092 | |||
| 44-4087-099 | |||
| 44-4187-100 | |||
| 44-4287-104 | |||
| 44-4387-177 | |||
| 44-4487-224 | |||
| 44-4587-269 | |||
| 44-4687-272 | |||
| 44-4787-287 | |||
| 44-4820-5360 |
Page 50 — 45.8803-1S 駆動機構(1) DRIVE MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 45-01 | 04-055 | GEAR BOX | 1 |
| 45-02 | 04-056 | GEAR | 1 |
| 45-03 | 04-057 | GEAR | 1 |
| 45-04 | 04-058 | SPACE BUSHING | 1 |
| 45-05 | 04-059 | SHAFT | 1 |
| 45-06 | 04-060 | HOUSING | 1 |
| 45-07 | 04-061 | END COVER | 1 |
| 45-08 | 04-062 | CRANK | 1 |
| 45-09 | 04-063 | GEAR BOX COVER | 1 |
| 45-10 | 04-064 | BRACKET | 1 |
| 45-11 | 04-065 | NAIL | 1 |
| 45-12 | 04-078 | AIDLER | 1 |
| 45-13 | 04-079 | BRACKET | 1 |
| 45-14 | 04-082 | CONNECTING PLATE | 1 |
| 45-15 | 05-430 | GUIDE ROLLER(SMALL) | 1 |
| 45-16 | 06-375 | WASHER | 1 |
| 45-17 | 23-060 | O-RING S38 | 1 |
| 45-18 | 23-501 | PLUG | 1 |
| 45-19 | 27-084 | PULLEY COVER | 1 |
| 45-20 | 27-085 | PULLEY COVER | 1 |
| 45-21 | 71-048 | SHAFT | 1 |
| 45-22 | 71-049 | SLIDE SHAFT | 1 |
| 45-23 | 71-050 | SHAFT | 1 |
| 45-24 | 75-180 | WASHER | 2 |
| 45-25 | 75-455 | WASHER | 2 |
| 45-26 | 75-468 | WASHER | 1 |
| 45-27 | 75-520 | WASHER | 1 |
| 45-28 | 81-558 | BUSHING | 2 |
| 45-29 | 84-193 | SCREW | 3 |
| 45-30 | 87-032 | SCREW | 1 |
| 45-31 | 87-092 | BOLT | 2 |
| 45-32 | 87-106 | SCREW | 6 |
| 45-33 | 87-123 | BOLT | 3 |
| 45-34 | 87-129 | BOLT | 1 |
| 45-35 | 87-139 | SCREW | 4 |
| 45-36 | 87-172 | SCREW | 1 |
| 45-37 | 87-177 | BOLT | 5 |
| 45-38 | 87-224 | BOLT | 2 |
| 45-39 | 87-246 | BOLT | 1 |
| 45-40 | 87-414 | SCREW | 1 |
| 45-41 | 91-110 | BALL BEARING | 2 |
| 45-42 | 91-113 | NEEDLE BEARING | 2 |
| 45-43 | 91-891 | BALL BEARING | 2 |
| 45-44 | 93-221 | E-RING | 2 |
| 45-45 | 93-227 | SNAP RING | 3 |
| 45-46 | 93-228 | SNAP RING | 1 |
| 45-47 | 93-237 | SNAP RING | 1 |
| 45-48 | 94-805 | OIL SEAL | 1 |
| 45-0104-055 | |||
| 45-0204-056 | |||
| 45-0304-057 | |||
| 45-0404-058 | |||
| 45-0504-059 | |||
| 45-0604-060 | |||
| 45-0704-061 | |||
| 45-0804-062 | |||
| 45-0904-063 | |||
| 45-1004-064 | |||
| 45-1104-065 | |||
| 45-1204-078 | |||
| 45-1304-079 | |||
| 45-1404-082 | |||
| 45-1505-430 | |||
| 45-1606-375 | |||
| 45-1723-060 | Oリング S38 | ||
| 45-1823-501 | |||
| 45-1927-084 | |||
| 45-2027-085 | |||
| 45-2171-048 | |||
| 45-2271-049 | |||
| 45-2371-050 | |||
| 45-2475-180 | |||
| 45-2575-455 | |||
| 45-2675-468 | |||
| 45-2775-520 | |||
| 45-2881-558 | |||
| 45-2984-193 | |||
| 45-3087-032 | |||
| 45-3187-092 | |||
| 45-3287-106 | |||
| 45-3387-123 | |||
| 45-3487-129 | |||
| 45-3587-139 | |||
| 45-3687-172 | |||
| 45-3787-177 | |||
| 45-3887-224 | |||
| 45-3987-246 | |||
| 45-4087-414 | |||
| 45-4191-110 | |||
| 45-4291-113 | |||
| 45-4391-891 | |||
| 45-4493-221 | |||
| 45-4593-227 | |||
| 45-4693-228 | 軸用S形止め輪 | ||
| 45-4793-237 | 穴用R形止め輪 | ||
| 45-4894-805 |
Page 51 — 46.8803-1S 駆動機構(2) DRIVE MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 46-01 | 04-055 | GEAR BOX | 1 |
| 46-0104-055 | |||
| 46-0204-066 | |||
| 46-0304-067 | |||
| 46-0404-069 | |||
| 46-0504-071 | |||
| 46-0604-072 | |||
| 46-0704-073 | |||
| 46-0804-074 | |||
| 46-0904-076 | |||
| 46-1004-077 | |||
| 46-1104-078 | |||
| 46-1204-080 | |||
| 46-1325-105 | |||
| 46-1427-083 | |||
| 46-1571-050 | |||
| 46-1671-057 | |||
| 46-1775-180 | |||
| 46-1875-453 | |||
| 46-1975-537 | |||
| 46-2081-054 | |||
| 46-2187-092 | |||
| 46-2287-106 | |||
| 46-2387-172 | |||
| 46-2487-249 | |||
| 46-2587-274 | |||
| 46-2687-291 | |||
| 46-2791-108 | |||
| 46-2891-113 | |||
| 46-2993-221 | |||
| 46-3094-222 |
Page 52 — GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 47-01 | 12-836 | NEEDLE HOLDER(4 NEEDLES) | 1 |
| 47-02 | 12-837 | NEEDLE HOLDER(3 NEEDLES) | 1 |
| 47-03 | 13-0110-6 | NEEDLE | ※ |
| 47-04 | 14-783 | NEEDLE PLATE | 1 |
| 47-05 | 14-792 | NEEDLE PLATE | 1 |
| 47-06 | 15-811 | FRONT FEED DOG | 1 |
| 47-07 | 15-848 | FEED DOG | 1 |
| 47-08 | 15-850 | FEED DOG | 1 |
| 47-09 | 17-1760-C | GUIDE BRACKET | 1 |
| 47-10 | 17-1760-K | TAPE GUIDE | 1 |
| 47-11 | 17-1760-L | GUIDE PIN | 1 |
| 47-12 | 17-7760-D | PIN | 1 |
| 47-13 | 17-7760-E | PIN | 1 |
| 47-14 | 17-7910-1 | PRESSER FOOT ASS'Y | 1 |
| 47-15 | 17-7910-A | SHANK | 1 |
| 47-16 | 17-7910-B | BOTTOM | 1 |
| 47-17 | 17-7990-1 | PRESSER FOOT ASS'Y | 1 |
| 47-18 | 17-7990-B | BOTTOM | 1 |
| 47-19 | 17-8260-F | SPRING | 1 |
| 47-20 | 17-8910-C | SCREW | 1 |
| 47-21 | 18-809 | NEEDLE GUARD BASE | 1 |
| 47-22 | 18-810 | NEEDLE GUARD | 1 |
| 47-23 | 19-538 | REAR LOOPER | 1 |
| 47-24 | 19-539 | LOOPER | 1 |
| 47-25 | 19-540 | LOOPER | 1 |
| 47-26 | 45-562 | THREAD GUIDE BAR | 1 |
| 47-27 | 71-659 | SHAFT NEEDLE GUARD | 1 |
| 47-28 | 75-533 | WASHER | 1 |
| 47-29 | 79-191 | SPRING | 1 |
| 47-30 | 84-161 | SCREW | 1 |
| 47-31 | 84-382 | SCREW | 1 |
| 47-32 | 85-613 | SCREW | 1 |
| 47-33 | 85-621 | SCREW | 1 |
| 47-34 | 87-077 | SCREW | 1 |
| 47-35 | 87-095 | SCREW | 1 |
| 47-36 | 87-104 | SCREW | 4～5 |
| 47-37 | 87-181 | SCREW | 3 |
| 47-38 | 88-136 | NUT | 1 |
| 47-39 | 19-537 | LOOPER HOLDER | 1 |
| 47-40 | 15-813 | FRONT FEED DOG | 1 |
| 17-1760-D |
Page 53 — 48. チェーンカッター機構 CHAIN CUTTER MECHANISM (CS-1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48-01 | 00-8019 | VENTURI DEVICE FOR CS-1 | 1 |
| 48-02 | 00-8021 | CS-1 ASS'Y | 1 |
| 48-03 | 08-051 | SUCTION PIPE | 1 |
| 48-04 | 08-052 | LINK | 1 |
| 48-05 | 08-053 | JOINT | 1 |
| 48-06 | 08-054 | LEVER | 1 |
| 48-07 | 08-055 | KNIFE | 1 |
| 48-08 | 08-056 | TRIMMING KNIFE | 1 |
| 48-09 | 08-057 | PIN | 1 |
| 48-10 | 08-058 | CHAIN-OFF GUIDE COVER(SMALL) | 1 |
| 48-11 | 08-059 | CHAIN-OFF GUIDE COVER(LARGE) | 1 |
| 48-12 | 14-132 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 48-13 | 14-713 | NEEDLE PLATE(6mm) | 1 |
| 48-14 | 14-715 | NEEDLE PLATE | 1 |
| 48-15 | 14-793 | NEEDLE PLATE | 1 |
| 48-16 | 14-794 | NEEDLE PLATE | 1 |
| 48-17 | 27-131 | SIDE COVER | 1 |
| 48-18 | 27-132 | SIDE COVER | 1 |
| 48-19 | 27-133 | CLOTH PLATE | 1 |
| 48-20 | 27-134 | FRONT BASE COVER | 1 |
| 48-21 | 27-135 | FRONT BASE COVER | 1 |
| 48-22 | 71-222 | SHAFT | 1 |
| 48-23 | 75-224 | WASHER | 1 |
| 48-24 | 75-343 | WASHER | 1 |
| 48-25 | 79-310 | SPRING | 1 |
| 48-26 | 84-192 | SCREW | 4 |
| 48-27 | 84-337 | SCREW | 1 |
| 48-28 | 85-613 | SCREW | 1 |
| 48-29 | 87-096 | SCREW | 2 |
| 48-30 | 87-225 | BOLT | 1 |
| 48-31 | 87-462 | SCREW | 1 |
| 48-32 | 94-222 | OIL SEAL | 1 |
| 48-0100-8019 | |||
| 48-0200-8021 | |||
| 48-0308-051 | |||
| 48-0408-052 | |||
| 48-0508-053 | |||
| 48-0608-054 | |||
| 48-0708-055 | |||
| 48-0808-056 | |||
| 48-0908-057 | |||
| 48-1008-058 | |||
| 48-1108-059 | |||
| 48-1214-132 | |||
| 48-1314-713 | 針板(6mm) | ||
| 48-1414-715 | |||
| 48-1514-793 | |||
| 48-1614-794 | |||
| 48-1727-131 | |||
| 48-1827-132 | |||
| 48-1927-133 | |||
| 48-2027-134 | |||
| 48-2127-135 | |||
| 48-2271-222 | |||
| 48-2375-224 | |||
| 48-2475-343 | |||
| 48-2579-310 | |||
| 48-2684-192 | |||
| 48-2784-337 | |||
| 48-2885-613 | |||
| 48-2987-096 | |||
| 48-3087-225 | |||
| 48-3187-462 | |||
| 48-3294-222 |
Page 54 — 49. LX5801SP専用部品 (1-1) / MODEL LX5801SP EXCLUSIVE PARTS (1-1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 49-01 | LX-083 | GUIDE (3mm) | 1 |
| 49-02 | LX-084 | GUIDE (7mm) | 1 |
| 49-03 | LX-091 | KNIFE | 1 |
| 49-04 | LX-092 | BRACKET | 1 |
| 49-05 | LX-093 | SHAFT | 1 |
| 49-06 | LX-094 | BEARING | 2 |
| 49-07 | LX-095 | SPRING | 1 |
| 49-08 | LX-096 | LEVER B | 1 |
| 49-09 | LX-097 | LEVER | 1 |
| 49-10 | LX-100 | SPRING | 1 |
| 49-11 | LX-101 | LINK | 1 |
| 49-12 | LX-102 | LEVER A | 1 |
| 49-13 | LX-103 | SCREW | 3 |
| 49-14 | LX-104 | LEVER | 1 |
| 49-15 | LX-105 | SPRING | 1 |
| 49-16 | LX-106 | BRACKET | 1 |
| 49-17 | LX-107 | SPACER | 1 |
| 49-18 | LX-108 | RING | 1 |
| 49-19 | LX-109 | STOPPER | 1 |
| 49-20 | LX-110 | BRACKET | 1 |
| 49-21 | LX-112 | LOWER KNIFE | 1 |
| 49-22 | LX-113 | SPRING | 1 |
| 49-23 | LX-114 | GUIDE BASE | 1 |
| 49-24 | LX-116 | GUIDE PLATE | 1 |
| 49-25 | LX-117 | GUIDE (5mm) | 1 |
| 49-26 | LX-118 | BOLT | 2 |
| 49-27 | LX-119 | SCREW | 1 |
| 49-28 | LX-120 | SCREW | 3 |
| 49-29 | LX-121 | SCREW | 1 |
| 49-30 | LX-122 | WASHER | 1 |
| 49-31 | LX-123 | SCREW | 1 |
| 49-32 | LX-124 | GUIDE ROLLER | 2 |
| 49-33 | LX-125 | RING | 4 |
| 49-34 | LX-126 | GUIDE ROLLER ARM | 1 |
| 49-35 | LX-127 | SCREW | 1 |
| 49-36 | LX-128 | SPRING | 1 |
| 49-37 | LX-129 | SCREW | 1 |
| 49-38 | LX-130 | COLLAR | 1 |
| 49-39 | LX-131 | GUIDE SHAFT | 1 |
| 49-40 | LX-132 | STOPPER | 1 |
| 49-41 | LX-133 | SPRING PIN | 1 |
| 49-42 | LX-134 | STOPPER | 1 |
| 49-43 | 23-324 | FELT | 2 |
| 49-44 | 32-281 | SPRING PIN | 1 |
| 49-45 | 41-702 | SPRING (LIGHT) | 1 |
| 49-46 | 75-224 | WASHER | 3 |
| 49-47 | 75-441 | WASHER | 4 |
| 49-48 | 75-445 | SPRING WASHER | 6 |
| 49-49 | 75-455 | WASHER | 6 |
| 49-50 | 87-104 | SCREW | 1 |
| 49-51 | 87-117 | BOLT | 1 |
| 49-52 | 87-123 | BOLT | 2 |
| 49-53 | 87-124 | BOLT | 11 |
| 49-54 | 87-133 | BOLT | 1 |
| 49-55 | 87-299 | BOLT | 1 |
| 49-56 | 87-401 | SCREW | 1 |
Page 55 — 49. LX5801SP専用部品(1-2) MODEL LX5801SP EXCLUSIVE PARTS (1-2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 49-57 | 88-136 | NUT | 1 |
| 49-58 | 88-146 | NUT | 5 |
| 49-59 | 93-205 | E-RING | 1 |
| 49-60 | 93-213 | E-RING | 1 |
| 49-5788-136 | |||
| 49-5888-146 | |||
| 49-5993-205 | E-リング | ||
| 49-6093-213 | E型止め輪 |
Page 56 — 50. LX5801SP専用部品(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LX-077 | |||
| LX-078 | |||
| LX-080 | |||
| LX-081 | ストッパー-A | ||
| LX-082 | ストッパー-B | ||
| LX-098 | |||
| LX-099 | |||
| LX-115 | |||
| LX-115 | |||
| LX-135 | ブラケットA | ||
| LX-136 | |||
| LX-137 | ブラケットB | ||
| LX-138 | |||
| LX-139 | ブラケットC | ||
| LX-140 | |||
| 06-935 | |||
| 75-224 | |||
| 75-410 | |||
| 75-452 | |||
| 75-455 | |||
| 75-520 | |||
| 75-527 | |||
| 87-106 | |||
| 87-123 | |||
| 87-129 | |||
| 87-173 | |||
| 87-177 | |||
| 87-212 | |||
| 87-246 | |||
| 87-279 | |||
| 88-157 |

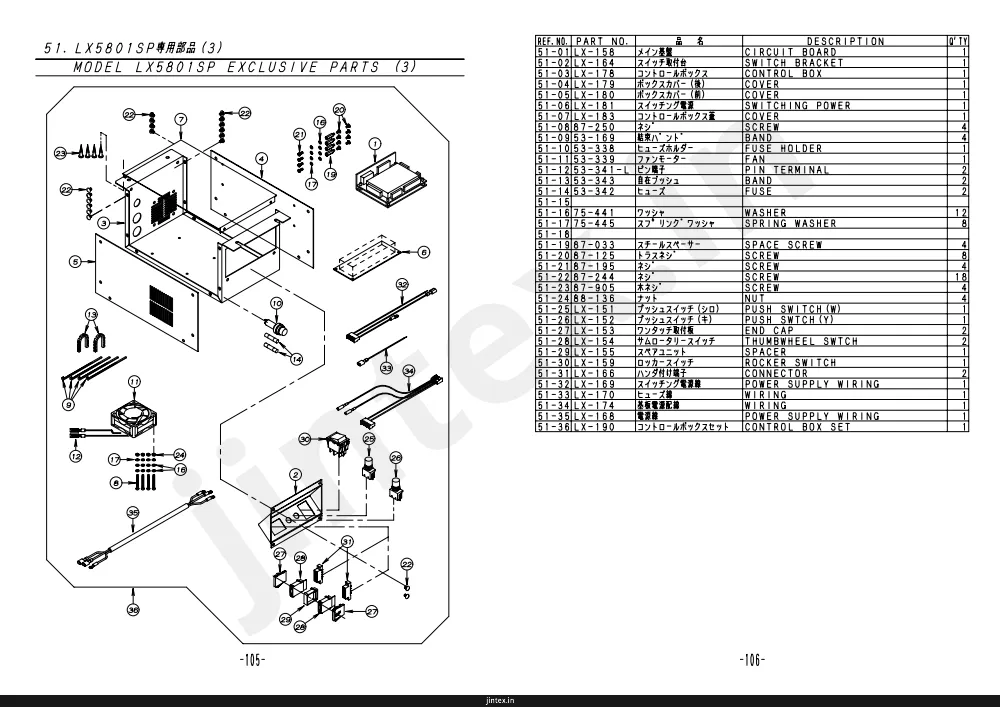

Page 57 — 51. LX5801SP専用部品 (3) / MODEL LX5801SP EXCLUSIVE PARTS (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51-01 | LX-158 | CIRCUIT BOARD | 1 |
| 51-02 | LX-164 | SWITCH BRACKET | 1 |
| 51-03 | LX-178 | CONTROL BOX | 1 |
| 51-04 | LX-179 | COVER | 1 |
| 51-05 | LX-180 | COVER | 1 |
| 51-06 | LX-181 | SWITCHING POWER | 1 |
| 51-07 | LX-183 | COVER | 1 |
| 51-08 | 87-250 | SCREW | 4 |
| 51-09 | 53-169 | BAND | 4 |
| 51-10 | 53-338 | FUSE HOLDER | 1 |
| 51-11 | 53-339 | FAN | 1 |
| 51-12 | 53-341-L | PIN TERMINAL | 2 |
| 51-13 | 53-343 | BAND | 2 |
| 51-14 | 53-342 | FUSE | 2 |
| 51-16 | 75-441 | WASHER | 12 |
| 51-17 | 75-445 | SPRING WASHER | 8 |
| 51-19 | 87-033 | SPACE SCREW | 4 |
| 51-20 | 87-125 | SCREW | 8 |
| 51-21 | 87-195 | SCREW | 4 |
| 51-22 | 87-244 | SCREW | 18 |
| 51-23 | 87-905 | SCREW | 4 |
| 51-24 | 88-136 | NUT | 4 |
| 51-25 | LX-151 | PUSH SWITCH(W) | 1 |
| 51-26 | LX-152 | PUSH SWTCH (Y) | 1 |
| 51-27 | LX-153 | END CAP | 2 |
| 51-28 | LX-154 | THUMBWHEEL SWTCH | 2 |
| 51-29 | LX-155 | SPACER | 1 |
| 51-30 | LX-159 | ROCKER SWITCH | 1 |
| 51-31 | LX-166 | CONNECTOR | 2 |
| 51-32 | LX-169 | POWER SUPPLY WIRING | 1 |
| 51-33 | LX-170 | WIRING | 1 |
| 51-34 | LX-174 | WIRING | 1 |
| 51-35 | LX-168 | POWER SUPPLY WIRING | 1 |
| 51-36 | LX-190 | CONTROL BOX SET | 1 |
Page 58 — 52. LX5801SP専用部品(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| LX-150 | |||
| LX-171 | |||
| LX-182 | |||
| 53-169 | |||
| 05-162 | |||
| LX-189 | |||
| 05-167 | |||
| 06-935 | |||
| 87-098 | |||
| 87-177 | |||
| 87-254 | |||
| 05-161 | Vプーリー | ||
| 05-163 | ベアリング止め板(A) | ||
| 05-164 | ベアリング止め板(B) |
Page 59 — 53. LX5801SP ゲージ関係 GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 53-01 | LX-086 | BOTTOM | 1 |
| LX-087 | 押エセット (7mm) | ||
| LX-088 | 押エ足 (3mm) | ||
| LX-089 | 押エセット (3mm) | ||
| LX-141 | 押エセット (5mm) | ||
| LX-142 | 押エ足 (5mm) | ||
| LX-147 | |||
| PW-468 | ブラケツトA | ||
| PW-469 | ブラケツトB | ||
| 06-004 | |||
| 12-877 | |||
| 13-0140-6 | 針 (U Y X 128 GAS #14) | ||
| 15-831 | |||
| 15-832 | |||
| 17-5530-K | |||
| 17-8770-A | |||
| 17-8770-C | |||
| 17-8770-D | |||
| 18-811 | |||
| 19-877 | COOOPER | ||
| 75-444 | |||
| 84-359 | |||
| 84-464 | |||
| 84-726 | |||
| 87-104 | |||
| 87-181 | |||
| 93-195 | E形止め輪 |
Page 60 — 55. ゲージパーツ表 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-8060-1 | |||
| 12-8070-1 | |||
| 12-8080-1 | |||
| 12-8090-1 | |||
| 12-8100-1 | |||
| 12-8200-1 | |||
| 12-8180-1 | |||
| 12-8190-1 |
Kansai Special WX-8842 — parts catalog
- Page 1 (cover): This page is the cover of the WX Series industrial sewing machine catalog, published in July 2007 by KANSAI SPECIAL.
- Page 2 (text): This page provides an introduction to the WX series parts book, explaining its structure and content, and also details the meaning of various codes and notations used within the series, such as "WX8803 is with top cover thread" and "3 is 3 Needle machine."
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing various mechanisms and components with their corresponding page numbers.
- Page 4 (parts_list): This page lists parts for the KANSAI sewing machine, including part numbers, descriptions, quantities, and reference numbers. It covers components such as plugs, oil sight windows, screws, covers, and various assemblies.
- Page 5 (parts_list): This page contains a parts list for frame assembly components, including part numbers, descriptions, and quantities for various screws, covers, and other hardware.
- Page 6 (diagram): This page displays a diagram of frame assembly components for industrial sewing machines, with a detailed parts list including part numbers, descriptions, and quantities.
- Page 7 (parts_list): This page contains a parts list for the thread tension mechanism (without UTC) of an industrial sewing machine, detailing part numbers, descriptions, and quantities.
- Page 8 (diagram): This page contains a diagram of the bushing mechanism (BUSHING) for a sewing machine, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 9 (parts_list): This page contains a parts list for the Crankshaft Mechanism, detailing parts such as screws, sleeves, O-rings, bearings, and crankshafts with their corresponding part numbers and descriptions.
- Page 10 (parts_list): This page lists parts for the Looper Mechanism and Needle Guard Mechanism, including part numbers, descriptions, and quantities for various components.
- Page 11 (parts_list): This page contains a parts list for the feed mechanism (1) of an industrial sewing machine, detailing part numbers, descriptions, and quantities.
- Page 12 (diagram): Exploded diagram of feed mechanism (2) with a parts table listing reference numbers 08-01 to 08-39, part numbers, Japanese and English names, and quantities.
- Page 13 (diagram): This page contains a diagram and parts list for the Looper Thread Mechanism, including parts for models 8842, 8842-1, and 5802.
- Page 14 (parts_list): This page contains a parts list for the Needle Bar Mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 15 (diagram): This page displays a diagram of the needle thread mechanism, including various screws, eyelets, guides, and other components, with a corresponding parts list detailing part numbers and descriptions.
- Page 16 (parts_list): This page contains a parts list for the spreader drive mechanism, detailing parts for models 8800 and 8842, 8842-1.
- Page 17 (parts_list): This page contains a parts list for the Presser Foot Mechanism, detailing parts with reference numbers, part numbers, descriptions, and quantities.
- Page 18 (parts_list): This page contains a parts list for the lubrication mechanism (1) of an industrial sewing machine, detailing part numbers, descriptions, and quantities.
- Page 19 (diagram): This page displays a diagram of the lubrication mechanism (2) with numbered parts and a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 20 (parts_list): This page lists exclusive parts for F type and C type models, including part numbers, descriptions, and quantities.
- Page 21 (parts_list): This page contains a parts list for DE/L type exclusive parts, including part numbers, descriptions, quantities, and reference numbers.
- Page 22 (parts_list): This page contains a parts list for the EMK Knife Mechanism, detailing 48 parts with their reference numbers, part numbers, descriptions, and quantities.
- Page 23 (parts_list): This page contains a parts list for the EMK-W Feed Roller Mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 24 (parts_list): This page lists parts for the EMK-W Cover Guide Assembly, including part numbers, descriptions, quantities, and reference numbers.
- Page 25 (parts_list): This page lists parts for table components, including semi-submerged and fully-submerged types, with part numbers, descriptions, and quantities.
- Page 26 (parts_list): This page lists thread stand and accessories for various sewing machine models, including part numbers, descriptions, and quantities.
- Page 27 (parts_list): This page contains a parts list for gauge components, including part numbers, descriptions, and quantities for various models.
- Page 28 (parts_list): This page lists gauge parts for EMK and LX5801 models, including part numbers, descriptions, and quantities.
- Page 29 (parts_list): This page lists parts for Model 8842 and 8842-1, including part numbers, descriptions, and quantities.
- Page 30 (parts_list): This page lists parts for models 5802M, L (1/4) and 5802MF (2.4mm), TMF (1/64), with part numbers, descriptions, and quantities.
- Page 31 (parts_list): This page contains a parts list for the knife mechanism (UTC) with part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of the 28. UTC Thread Trimming Mechanism (Pneumatic Type) with a corresponding parts list detailing reference numbers, part numbers, descriptions, and quantities.
- Page 33 (parts_list): This page contains a parts list for the UTC thread trimming mechanism (electric type), detailing part numbers, descriptions, and quantities for various components.
- Page 34 (parts_list): This page contains a parts list for the WX8703 and WX8803 thread tension mechanism (UTC) and the WX8804 model, with part numbers, descriptions, and quantities.
- Page 35 (parts_list): This page lists parts for the Spreader Thread Trimming Mechanism (Pneumatic Type), including part numbers, descriptions, and quantities.
- Page 36 (parts_list): This page contains a parts list for the Spreader Thread Trimming Mechanism (Electric Type), listing part numbers, descriptions, and quantities.
- Page 37 (parts_list): This page lists parts for the Thread Wiper Mechanism, including part numbers, descriptions, and quantities.
- Page 38 (parts_list): This page lists parts for the FOOT LIFTER MECHANISM, REGULATOR SETS, including electric and pneumatic types, with part numbers, descriptions, and quantities.
- Page 39 (diagram): This page displays a diagram of wiring and piping for a pneumatic type sewing machine, along with a parts list detailing components like spreader thread trimming mechanism, thread wiper mechanism, presser foot lifter cylinder, air cylinder assembly, and regulator.
- Page 40 (diagram): This page displays a diagram of the electrical cord connections for the sewing machine, along with a parts list detailing various components and their descriptions.
- Page 41 (diagram): This page displays a diagram of the tape cutter mechanism (pneumatic type) with numbered parts and a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 42 (parts_list): This page contains a parts list for the Tape Cutter Mechanism (Electric Type), detailing part numbers, descriptions, quantities, and reference numbers.
- Page 43 (diagram): This page displays wiring and piping diagrams for pneumatic and electric type tape cutters, along with a parts list detailing components like control boxes, switches, regulators, and tubing.
- Page 44 (diagram): This page displays a diagram of the spreader mechanism (1) with a parts list detailing components such as pins, brackets, shafts, and screws, along with their corresponding part numbers and descriptions.
- Page 45 (parts_list): This page contains a parts list for the MMX spreader mechanism (2), detailing part numbers, descriptions, quantities, and reference numbers for various components.
- Page 46 (parts_list): This page contains a parts list for the thread tension mechanism of a sewing machine, detailing part numbers, descriptions, quantities, and reference numbers.
- Page 47 (parts_list): This page lists parts for the MMX Gauge related components, including part numbers, descriptions, and quantities.
- Page 48 (parts_list): This page contains a parts list for the cover assembly, including part numbers, descriptions, and quantities for various components.
- Page 49 (parts_list): This page contains a parts list for the thread control mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 50 (parts_list): This page contains a parts list for the drive mechanism (1) of a sewing machine, detailing part numbers, descriptions, and quantities.
- Page 51 (diagram): This page displays a diagram of the drive mechanism (2) for a sewing machine, with numbered parts corresponding to a detailed parts list.
- Page 52 (parts_list): This page lists gauge parts for the 8803-1S sewing machine, including part numbers, descriptions, and quantities.
- Page 53 (parts_list): This page contains a parts list for the Chain Cutter Mechanism (CS-1), detailing reference numbers, part numbers, descriptions, and quantities for various components.
- Page 54 (parts_list): This page lists parts for the LX5801SP model, including part numbers, descriptions, and quantities.
- Page 55 (parts_list): This page contains a parts list for model LX5801SP exclusive parts (1-2), including part numbers, descriptions, and quantities.
- Page 56 (parts_list): This page lists parts for the LX5801SP model, including screws, levers, nuts, stoppers, brackets, guides, clamps, and washers, with their corresponding part numbers and quantities.
- Page 57 (diagram): Exploded diagram of LX5801SP exclusive parts (control box, switching power supply, wiring, switches, fan and fasteners) with a facing reference table listing part numbers, names and quantities for refs 51-01 to 51-36.
- Page 58 (parts_list): This page lists parts for the LX5801SP model, including part numbers, descriptions, and quantities.
- Page 59 (parts_list): This page lists gauge parts for the LX5801SP sewing machine, including part numbers, descriptions, and quantities.
- Page 60 (parts_list): Two rotated gauge parts tables (sections 54 and 55) list needle holders, presser feet, feed dogs, needle plates, loopers, spreaders and needle guards by gauge and machine model, with notes for the LX-5801 and LX-5802 sequin attachments.
