Page 5 — MACHINE BED FRAME

Pegasus EX3200 / EX5200 parts on page 5
Ref	Part number	Part name	Qty
1	2010020	SPRING PIN	1
2	2101820	SPRING PIN	1
3	2101940	INDICATOR GUIDE	2
4	2403250	PIPE	2
5	2402990	PIN	1
6	2081731	PLUG	1
7	270008-910	BRACKET ASSY.	1
8	0045110	BOLT	2
9	2700470	BED PIN	4
10	0084210	OIL MARK	1
11	9A30710	EARTH LABEL	1

Page 7 — カバー機構(1)

Pegasus EX3200 / EX5200 parts on page 7
Ref	Part number	Part name	Qty
1	270020-SD0	TOP COVER	1
2	007022A0	SCREW	4
3	2700210	GASKET	1
4	2403050	CUSHION RUBBER	3
5	179107-050	OIL SIGHT WINDOW	1
6	2401100	PLUG	1
7	270083-9U0	SIDE COVER ASSY.	1
8	270083D9U0	SIDE COVER ASSY.	1
9	270083A9U0	SIDE COVER ASSY.	1
10	274011-910	PRESSER BAR	1
11	274116A910	PRESSER BAR	1
12	0070440	SCREW	4
13	270024-9U0	BELT COVER ASSY.	1
14	2403050	CUSHION RUBBER	1
15	0071760	SCREW	3
16	2700250	FAN COVER	1
17	007019A0	SCREW	2
18	270011-UD0	FRONT COVER (RIGHT)	1
19	2700140	HINGE	1
20	007021A0	SCREW	3
21	2400430	PIN	1
22	0045430	SCREW	2
23	2403010	SPRING	1
24	2700180	LATCH	1
25	0070090	SCREW	1
26	0045740	SCREW	1
27	0045350	SCREW	1
28	2700170	LATCH	1
29	007017A0	SCREW	1
30	2100440	FLAT SPRING	1
31	007017A0	SCREW	1
32	2700120	FRONT COVER (LEFT)	1
33	007018A0	SCREW	2
34	2701530	COVER	1
35	007020A0	SCREW	2
36	007021A0	SCREW	1
37	007022A0	SCREW	1
38	2700130	FRONT COVER (LEFT)	1
39	XXXXXX	Threading diagram	1
40	XXXXXX	Threading diagram	1
41	9A30670	CAUTION LABEL	1
42	9A30690	CAUTION LABEL	1
43	9A30720	LABEL	1
44	9A31261	LABEL	1

Page 9 — カバー機構(2) COVER (2)

Pegasus EX3200 / EX5200 parts on page 9
Ref	Part number	Part name	Qty
1	2700350	CLOTH PLATE (WIDE)	1
2	2700370	CLOTH PLATE (NARROW)	1
3	2700420	BUSHING	1
4	0045430	SCREW	1
5	2103070	WASHER	1
6	2041150	WASHER	1
7	007018A0	SCREW	1
8	2403050	CUSHION RUBBER	1
9	270030-UB0	SIDE COVER (WIDE)	1
10	270031-UB0	SIDE COVER (NARROW)	1
11	007025A0	SCREW	1
12	2012520	SPRING WASHER	1
13	007018A0	SCREW	2
14	2403430	WASHER	2
15	2403050	CUSHION RUBBER	1
16	2700490	LATCH	1
17	0071800	SCREW	1
18	2700151	PLATE	1
19	0070770	SCREW	2
20	2700430	LEVER	1
21	0071720	SCREW	1
22	2700440	SPRING	1
23	2700450	BRACKET	1
24	2700190	FABRIC GUIDE	1
25	007019A0	SCREW	2
26	2700320	EYE GUARD	1
27	2700330	EYE GUARD	1
28	0070620	SCREW	2
29	2028750	WASHER	2
30	2700341	BRACKET	1
31	0070660	SCREW	1
32	2103070	WASHER	2
33	2701770	BED COVER PLATE ASSY.	1
34	0070840	BOLT	5
35	2700230	GASKET	1
36	2700260	COVER PLATE	1
37	0070200	SCREW	4
38	007023A0	SCREW	1
39	0048210	NUT	1
40	2106790	PIN	2
41	2106790	PIN	2
42	2106790	PIN	2
43	270030-UB0	SIDE COVER (WIDE)	1
44	270030DUB0	SIDE COVER	1

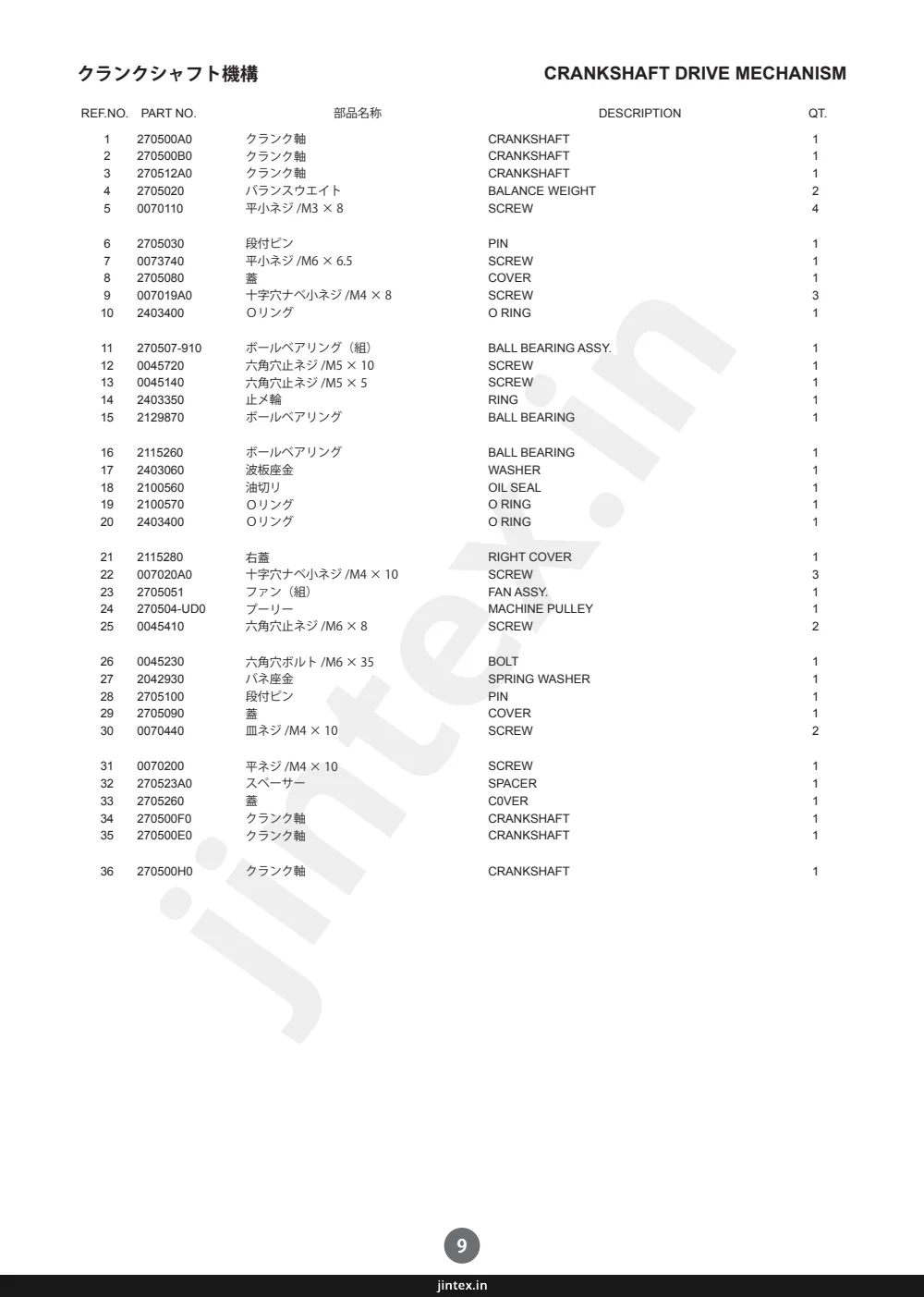

Page 11 — CRANKSHAFT DRIVE MECHANISM

Pegasus EX3200 / EX5200 parts on page 11
Ref	Part number	Part name	Qty
1	270500A0	CRANKSHAFT	1
2	270500B0	CRANKSHAFT	1
3	270512A0	CRANKSHAFT	1
4	2705020	BALANCE WEIGHT	2
5	0070110	SCREW	4
6	2705030	PIN	1
7	0073740	SCREW	1
8	2705080	COVER	1
9	007019A0	SCREW	3
10	2403400	O RING	1
11	270507-910	BALL BEARING ASSY.	1
12	0045720	SCREW	1
13	0045140	SCREW	1
14	2403350	RING	1
15	2129870	BALL BEARING	1
16	2115260	BALL BEARING	1
17	2403060	WASHER	1
18	2100560	OIL SEAL	1
19	2100570	O RING	1
20	2403400	O RING	1
21	2115280	RIGHT COVER	1
22	007020A0	SCREW	3
23	2705051	FAN ASSY.	1
24	270504-UD0	MACHINE PULLEY	1
25	0045410	SCREW	2
26	0045230	BOLT	1
27	2042930	SPRING WASHER	1
28	2705100	PIN	1
29	2705090	COVER	1
30	0070440	SCREW	2
31	0070200	SCREW	1
32	270523A0	SPACER	1
33	2705260	C0VER	1
34	270500F0	CRANKSHAFT	1
35	270500E0	CRANKSHAFT	1
36	270500H0	CRANKSHAFT	1

Page 13 — THREAD TENSION MECHANISM

Pegasus EX3200 / EX5200 parts on page 13
Ref	Part number	Part name	Qty
1	210529-9T0	TENSION SPRING ASSY.	1
2	263543-TA0	KNOB	1
3	2084480	RATCHET	1
4	263544-TA0	SPRING SHIELD	1
5	2103190	TENSION DISC	2
6	2084490	FELT	1
7	005082A0	SCREW STUD	1
8	2010370	SPRING (HEAVY)	1
9	210530-9T0	TENSION SPRING ASSY.	1
10	2010860	SPRING (MEDIUM)	1
11	2750000	THREAD GUIDE	1
12	007018A0	SCREW	2
13	2750010	THREAD GUIDE	1
14	2028490	TENSION GUIDE	1
15	004009-1HC0	SCREW	1
16	2750411	THREAD GUIDE	1
17	2750400	THREAD GUIDE	1
18	0030440	NUT	1

Page 15 — THREAD GUIDE & THREAD TAKEUP (1)

Pegasus EX3200 / EX5200 parts on page 15
Ref	Part number	Part name	Qty
1	2750210	BRACKET	1
2	0070820	SCREW	2
3	2750240	THREAD GUIDE	1
4	2750420	THREAD GUIDE	1
5	0045430	SCREW	1
6	2750260	BRACKET	1
7	0070170	SCREW	1
8	2750220	THREAD GUIDE	1
9	0045430	SCREW	1
10	2750290	THREAD GUIDE	1
11	275029A0	THREAD GUIDE	1
12	2750520	THREAD GUIDE	1
13	0070170	SCREW	1
14	2750280	THREAD GUIDE	1
15	2750570	THREAD GUIDE	1
16	0070170	SCREW	1
17	2750110	THREAD RETAINER BRACKET	1
18	2750120	THREAD RETAINER	1
19	0071630	SCREW	1
20	2403260	SPRING	1
21	2750270	NEEDLE THREAD TAKE-UP	1
22	2750440	NEEDLE THREAD TAKE-UP	1
23	0070620	SCREW	2
24	2750490	NEEDLE THREAD TAKE-UP	1
25	0070410	SCREW	1
26	0070620	SCREW	1

Page 17 — THREAD GUIDE & THREAD TAKEUP (2)

Pegasus EX3200 / EX5200 parts on page 17
Ref	Part number	Part name	Qty
1	275013A0	THREAD GUIDE	1
2	2750130	THREAD GUIDE	1
3	0045430	SCREW	1
4	2750150	BRACKET	1
5	0070820	SCREW	1
6	2750180	THREAD GUIDE	1
7	275018A0	THREAD GUIDE	1
8	275051A0	THREAD GUIDE	1
9	0070820	SCREW	1
10	2750110	THREAD RETAINER BRACKET	1
11	2750120	THREAD RETAINER	1
12	0071630	SCREW	1
13	2403260	SPRING	1
14	2750160	NEEDLE THREAD TAKE-UP	1
15	2750170	NEEDLE THREAD TAKE-UP	1
16	0070620	SCREW	2
17	275017A0	NEEDLE THREAD TAKE-UP	1
18	0070410	SCREW	1
19	0070620	SCREW	1
20	2751060	NEEDLE THREAD TAKE-UP	1

Page 19 — THREAD GUIDE & THREAD TAKEUP(3)

Pegasus EX3200 / EX5200 parts on page 19
Ref	Part number	Part name	Qty
1	2750040	BRACKET	1
2	2750470	THREAD GUIDE	2
3	0070080	SCREW	2
4	2028750	WASHER	2
5	2750050	THREAD TAKE-UP	1
6	0070190	SCREW	1
7	2750060	THREAD GUIDE	1
8	0070080	SCREW	1
9	2750070	THREAD GUIDE	1
10	2750550	THREAD GUIDE	1
11	2750560	THREAD GUIDE	1
12	2750090	THREAD TAKE-UP	1
13	2750540	THREAD TAKE-UP	1
14	0070120	SCREW	1

Page 21 — NEEDLE DRIVE MECHANISM (1)

Pegasus EX3200 / EX5200 parts on page 21
Ref	Part number	Part name	Qty
1	271000-920	CONNECTION	1
2	007023A0	SCREW	2
3	2710010	PIN	1
4	0045380	SCREW	1
5	271002-920	CRANK	1
6	0045330	BOLT	1
7	2710030	SHAFT	1
8	2403080	COLLAR	1
9	0045430	SCREW	2
10	2082350	WASHER	1
11	2025770	RING	1
12	271004-920	LEVER	1
13	0071500	BOLT	1
14	271022A910	SHAFT ASSY.	1
15	2021770	OIL WICK	2
16	271005B910	BUSHING ASSY.	1
17	0045460	SCREW	1
18	2010220	O RING	1
19	179009-050	FELT	1
20	271009-920	HOLDER	1
21	0070350	SCREW	1
22	2403100	PLUG	1

Page 23 — NEEDLE DRIVE MECHANISM (2)

Pegasus EX3200 / EX5200 parts on page 23
Ref	Part number	Part name	Qty
1	271000-920	CONNECTION	1
2	007023A0	SCREW	2
3	2710010	PIN	1
4	0045380	SCREW	1
5	271002-920	CRANK	1
6	0045330	BOLT	1
7	2710030	SHAFT	1
8	2403080	COLLAR	1
9	0045430	SCREW	2
10	2082350	WASHER	1
11	2025770	RING	1
12	271015-920	LEVER	1
13	0071500	BOLT	1
14	2710160	LINK	1
15	2710170	PIN	2
16	0071850	SCREW	2
17	271023-910	SHAFT ASSY.	1
18	2021760	OIL WICK	2
19	0045450	SCREW	1
20	271018B910	BUSHING ASSY.	1
21	0045820	SCREW	1
22	2010220	O RING	1
23	179009-050	FELT	1
24	271009-920	HOLDER	1
25	0070350	SCREW	1
26	2403100	PLUG	1

Page 25 — 針振り機構(3) NEEDLE DRIVE MECHANISM (3)

Pegasus EX3200 / EX5200 parts on page 25
Ref	Part number	Part name	Qty
1	XXXXXX	NEEDLE HOLDER ASSY.	1
2	0045540	SCREW	2
3	275030B0	THREAD GUIDE	1
4	0071190	SCREW	1
5	XXXXXX	NEEDLE	2
6	XXXXXX	NEEDLE HOLDER ASSY.	1
7	0045540	SCREW	3
8	275030B0	THREAD GUIDE	1
9	0071190	SCREW	1
10	XXXXXX	NEEDLE	3
11	XXXXXX	NEEDLE HOLDER ASSY.	1
12	0045540	SCREW	1
13	275019A0	THREAD GUIDE	1
14	0071200	SCREW	1
15	XXXXXX	NEEDLE	1
16	XXXXXX	NEEDLE HOLDER ASSY.	1
17	0045540	SCREW	2
18	275019B0	THREAD GUIDE	1
19	0071200	SCREW	1
20	XXXXXX	NEEDLE	2
21	XXXXXX	NEEDLE HOLDER ASSY.	1
22	0045540	SCREW	2
23	275019C0	THREAD GUIDE	1
24	0071200	SCREW	1

Page 27 — NEEDLE DRIVE MECHANISM (4)

Pegasus EX3200 / EX5200 parts on page 27
Ref	Part number	Part name	Qty
1	XXXXXX	NEEDLE PLATE	1
2	0071700	SCREW	2
3	2710100	BRACKET (FRONT)	1
4	007019A0	SCREW	2
5	2403050	CUSHION RUBBER	2
6	2710110	BRACKET (REAR)	1
7	007019A0	SCREW	2
8	XXXXXX	NEEDLE GUARD (FRONT)	1
9	0070100	SCREW	2
10	XXXXXX	NEEDLE GUARD (REAR)	1
11	0072590	BOLT	1
12	2402220	SPRING	1
13	0071650	SCREW	1
14	XXXXXX	NEEDLE GUARD (FRONT)	1
15	0070190	SCREW	1
16	XXXXXX	NEEDLE GUARD (REAR)	1
17	0070100	SCREW	2
18	2710130	BRACKET	1
19	0071140	SCREW	2
20	XXXXXX	NEEDLE PLATE	1
21	0071700	SCREW	2
22	2710100	BRACKET (FRONT)	1
23	007019A0	SCREW	2
24	2403050	CUSHION RUBBER	2
25	2710110	BRACKET (REAR)	1
26	007019A0	SCREW	2
27	XXXXXX	NEEDLE GUARD (FRONT)	1
28	0070190	SCREW	1
29	XXXXXX	NEEDLE GUARD (REAR)	1
30	0072590	BOLT	1
31	2402220	SPRING	1
32	0071650	SCREW	1

Page 29 — UPPER LOOPER DRIVE MECHANISM (1)

Pegasus EX3200 / EX5200 parts on page 29
Ref	Part number	Part name	Qty
1	271500-920	CONNECTION	1
2	007023A0	SCREW	2
3	007022A0	SCREW	2
4	2715010	GUIDE	1
5	0070410	SCREW	2
6	271502-920	CRANK	1
7	271503-920	CRANK	1
8	0045330	BOLT	1
9	2715040	SHAFT	1
10	2403380	WASHER	1
11	0071740	BOLT	1
12	3030670	SPRING WASHER	1
13	2755400	PLUG	1
14	2755410	FILTER	1
15	2101220	SPACER	1
16	210586A0	OIL SEAL	1
17	271517B910	UPPER LOOPER HOLDER ASSY.	1
18	271505-920	LEVER	1
19	0071500	BOLT	1
20	2715460	PIN ASSY.	1
21	2021760	OIL WICK	2
22	0045450	SCREW	1
23	271506B910	UPPER LOOPER HOLDER ASSY.	1
24	179130-050	FELT	1
25	0070541	SCREW	1
26	2330350	FELT	1
27	XXXXXX	UPPER LOOPER	1
28	271510S0	UPPER LOOPER HOLDER BASE	1
29	271510T0	UPPER LOOPER HOLDER BASE	1
30	0045100	BOLT	2
31	2715430	COVER	1
32	0070390	SCREW	1
33	0070330	SCREW	1
34	2715190	FILTER	1
35	2745890	FELT	1
36	2745880	BRACKET	1
37	0070080	SCREW	1
38	271541A910	UPPER LOOPER HOLDER ASSY.	1
39	271542-920	LEVER	1

Page 31 — UPPER LOOPER DRIVE MECHANISM (2)

Pegasus EX3200 / EX5200 parts on page 31
Ref	Part number	Part name	Qty
1	271500A920	CONNECTION	1
2	007023A0	SCREW	2
3	007022A0	SCREW	2
4	2715010	GUIDE	1
5	0070410	SCREW	2
6	271512-920	CRANK	1
7	0045330	BOLT	1
8	2715040	SHAFT	1
9	2403380	WASHER	1
10	0071740	BOLT	1
11	3030670	SPRING WASHER	1
12	2755400	PLUG	1
13	2755410	FILTER	1
14	2101220	SPACER	1
15	2403020	SPACER	1
16	2401020	WASHER	1
17	2405410	WASHER	1
18	210586A0	OIL SEAL	1
19	271518B910	UPPER LOOPER HOLDER ASSY.	1
20	271505-920	LEVER	1
21	0071500	BOLT	1
22	2715460	PIN ASSY.	1
23	2021760	OIL WICK	2
24	0045450	SCREW	1
25	271513B910	UPPER LOOPER HOLDER ASSY.	1
26	179130-050	FELT	1
27	0070541	SCREW	1
28	2330350	FELT	1
29	XXXXXX	UPPER LOOPER	1
30	271510T0	UPPER LOOPER HOLDER BASE	1
31	0045100	BOLT	2
32	271543A0	COVER	1
33	0070390	SCREW	1
34	0070330	SCREW	1
35	2715190	FILTER	1
36	2745890	FELT	1
37	2745880	BRACKET	1
38	0070080	SCREW	1

Page 33 — LOWER LOOPER DRIVE MECHANISM

Pegasus EX3200 / EX5200 parts on page 33
Ref	Part number	Part name	Qty
1	271500-920	CONNECTION	1
2	007023A0	SCREW	2
3	007022A0	SCREW	2
4	2715010	GUIDE	1
5	0070410	SCREW	2
6	272000-920	CRANK	1
7	0045330	BOLT	1
8	2715040	SHAFT	1
9	2403380	WASHER	1
10	0071740	BOLT	1
11	3030670	SPRING WASHER	1
12	2403110	WASHER	1
13	210586A0	OIL SEAL	1
14	XXXXXX	LOWER LOOPER	1
15	0071680	SCREW	1
16	272001-920	LOWER LOOPER HOLDER ASSY.	1
17	0070550	BOLT	1
18	0071690	SCREW	1
19	273511-920	CRANK	1
20	0045330	BOLT	1
21	0045140	SCREW	1

Page 35 — 二重環ルーパー機構 (1)

Pegasus EX3200 / EX5200 parts on page 35
Ref	Part number	Part name	Qty
1	2735000	CONNECTION	1
2	205015-20	NEEDLE BEARING	1
3	2735010	CRANK	1
4	2405420	BUSHING	1
5	0070560	BOLT	1
6	2400390	WASHER	1
7	2735020	SLIDER	1
8	0045310	BOLT	1
9	2400620	WASHER	1
10	3030670	SPRING WASHER	1
11	2525150	PIN	1
12	2089490	O RING	1
13	2735040	SHAFT	1
14	273505-920	HOLDER	1
15	0045330	BOLT	1
16	273509-920	CRANK	1
17	0045330	BOLT	1
18	2725170	LINK	1
19	2405420	BUSHING	1
20	0070560	BOLT	1
21	2400390	WASHER	1
22	2735060	SHAFT	1
23	204052A0	OIL SEAL	1
24	XXXXXX	DOUBLE CHAINSTITCH LOOPER	1
25	0071680	SCREW	1
26	273510-920	LOOPER HOLDER	1
27	0070550	BOLT	1
28	2403371	WASHER	1
29	0071690	SCREW	1

Page 37 — CHAINSTITCH LOOPER DRIVE MECHANISM (2)

Pegasus EX3200 / EX5200 parts on page 37
Ref	Part number	Part name	Qty
1	1921200	PIPE	1
2	007019A0	SCREW	1
3	2750320	PIPE	1
4	2061150	BRACKET	3
5	2750330	BRACKET	1
6	0070660	SCREW	1
7	2103070	WASHER	2
8	0071671	SCREW	1
9	1371080	THREAD RETAINER	2
10	2113880	SPRING	1
11	2750340	KNOB	1
12	2750350	THREAD GUIDE	1
13	0070170	SCREW	1
14	2750360	THREAD GUIDE	1
15	0070080	SCREW	1
16	2750390	THREAD GUIDE	1
17	0070080	SCREW	1
18	179498-920	LOOPER THREAD TAKE-UP ASSY.	1
19	0045540	SCREW	2
20	2750370	FLAT SPRING	1
21	2750380	THREAD GUIDE	1
22	007019A0	SCREW	1

Page 39 — FEED MECHANISM (1)

Pegasus EX3200 / EX5200 parts on page 39
Ref	Part number	Part name	Qty
1	2725000	CONNECTION	1
2	2710010	PIN	1
3	0045380	SCREW	1
4	240012-20	NEEDLE BEARING	1
5	2725010	ECCENTRIC	1
6	2101290	GUIDE (FEED ECCENTRIC)	1
7	2101300	FLAT SPRING	1
8	0045350	SCREW	2
9	272506-910	REGULATOR	1
10	0045140	SCREW	2
11	272504-910	ECCENTRIC ASSY.	1
12	2725030	SPRING	1
13	0070380	SCREW	1
14	2725020	RATCHET	1
15	2725091	PUSH BUTTON	1
16	2403150	GASKET	1
17	2063660	O RING	1
18	2403140	WASHER	1
19	2403170	SPRING	1
20	2005550	RING	1
21	2725290	LINK	1
22	0070580	SCREW	1
23	2025220	RING	1
24	272530A920	LEVER	1
25	0045330	BOLT	1
26	2725321	LEVER	1
27	0071610	SCREW	1
28	272533A1	SHAFT	1
29	2041850	O RING	1
30	2725340	SPRING	1
31	2725350	REGULATOR PLATE	1
32	007021A0	SCREW	2
33	2403210	SPACER	2
34	2520690	NUT	1
35	0070590	SCREW	1
36	2113010	SPRING	1
37	2526580	STOPPER	2
38	007018A0	SCREW	2
39	3034480	WASHER	2
40	272538A0	ADJUSTING BAR	1
41	2403220	SEAL	1
42	2005550	RING	1
43	2405590	SPRING	1
44	272539A0	PIN	1

Page 40 — FEED MECHANISM (2)

Pegasus EX3200 / EX5200 parts on page 40
Ref	Part number	Part name	Qty
	EX5214-04	EX5214-54/445
	Except	EX5214-04
	EX5214-54/445	EX5214H-55

Page 41 — FEED MECHANISM (2)

Pegasus EX3200 / EX5200 parts on page 41
Ref	Part number	Part name	Qty
1	2725160	SHAFT	1
2	2050610	RING	1
3	2081731	PLUG	1
4	2403110	WASHER	2
5	272510-910	CRANK	1
6	0045330	BOLT	1
7	0070100	SCREW	2
8	2725180	BLOCK	1
9	272514-921	CRANK	1
10	0045330	BOLT	1
11	2725151	PIN	1
12	0048050	NUT	1
13	2400620	WASHER	1
14	2725250	PIN	1
15	0072380	BOLT	1
16	2403180	GASKET	1
17	2403190	RING	1
18	2010220	O RING	1
19	2725260	BLOCK	1
20	2403030	COLLAR	2
21	0045430	SCREW	2
22	2725170	LINK	1
23	2405420	BUSHING	1
24	0070560	BOLT	1
25	2400390	WASHER	1
26	2725270	MAIN FEED BAR	1
27	XXXXXX	MAIN FEED DOG ASSY.	1
28	XXXXXX	MAIN FEED DOG	1
29	XXXXXX	AUXILIARY FEED DOG	1
30	0070100	SCREW	1
31	0070130	SCREW	1
32	2725280	DIFFERENTIAL FEED BAR	1
33	XXXXXX	DIFFERENTIAL FEED DOG	1
34	0070130	SCREW	1
35	2725240	BLOCK	1
36	2725190	FEED BAR GUIDE (RIGHT)	1
37	0071100	BOLT	2
38	2725200	FEED BAR GUIDE (LEFT)	1
39	0071100	BOLT	2
40	2726170	GUIDE (FEED BAR OIL SEAL)	1
41	2725210	OIL SEAL	2
42	0045730	BOLT	2

Page 43 — FEED MECHANISM (3)

Pegasus EX3200 / EX5200 parts on page 43
Ref	Part number	Part name	Qty
1	2725160	SHAFT	1
2	2050610	RING	1
3	2081731	PLUG	1
4	2403110	WASHER	2
5	272510-910	CRANK	1
6	0045330	BOLT	1
7	0070100	SCREW	2
8	2725180	BLOCK	1
9	272514-921	CRANK	1
10	0045330	BOLT	1
11	2725151	PIN	1
12	0048050	NUT	1
13	2400620	WASHER	1
14	2725540	PIN	1
15	2025220	RING	1
16	2404340	WASHER	1
17	0045460	SCREW	1
18	2010220	O RING	1
19	2725260	BLOCK	1
20	2403030	COLLAR	2
21	0045430	SCREW	2
22	2725170	LINK	1
23	2405420	BUSHING	1
24	0070560	BOLT	1
25	2400390	WASHER	1
26	2725270	MAIN FEED BAR	1
27	XXXXXX	MAIN FEED DOG ASSY.	1
28	XXXXXX	MAIN FEED DOG	1
29	XXXXXX	AUXILIARY FEED DOG	1
30	0070100	SCREW	1
31	0070130	SCREW	1
32	2725280	DIFFERENTIAL FEED BAR	1
33	XXXXXX	DIFFERENTIAL FEED DOG	1
34	0070130	SCREW	1
35	2725240	BLOCK	1
36	2725190	FEED BAR GUIDE (RIGHT)	1
37	0071100	BOLT	2
38	2725200	FEED BAR GUIDE (LEFT)	1
39	0071100	BOLT	2
40	2726170	GUIDE (FEED BAR OIL SEAL)	1
41	2725210	OIL SEAL	2
42	0045730	BOLT	2
43	2725530	BUSHING	1
44	2400170	O RING	1
45	2325080	COLLAR	1
46	0014590	SCREW	2
47	2725560	REGULATOR PLATE	1
48	2526580	STOPPER	2
49	3034480	WASHER	2
50	0070180	SCREW	2
51	272555-920	LEVER	1
52	0070140	SCREW	1
53	2113010	SPRING	1
54	2520690	NUT	1
55	0070590	SCREW	1
56	2403210	SPACER	4
57	0070210	SCREW	4
58	270076B0	PIN	1
59	0048210	NUT	1
60	2403050	CUSHION RUBBER	1

Page 45 — KNIFE DRIVE MECHANISM

Pegasus EX3200 / EX5200 parts on page 45
Ref	Part number	Part name	Qty
1	273000-920	CONNECTION	1
2	007023A0	SCREW	2
3	273001-920	CRANK	1
4	273002-920	CRANK	1
5	0045330	BOLT	1
6	2710010	PIN	1
7	0045380	SCREW	1
8	240235-920	COLLAR	1
9	0045470	SCREW	1
10	2730030	UPPER KNIFE LEVER	1
11	2730040	UPPER KNIFE LEVER	1
12	3080360	SCREW	1
13	2730060	PIN	1
14	179712-050	UPPER KNIFE CLAMP	1
15	179713-050	UPPER KNIFE CLAMP	1
16	0070210	SCREW	1
17	XXXXXX	UPPER KINFE	1
18	0070130	SCREW	1
19	2107560	ANGLED UPPER KNIFE CLAMP	1
20	2107570	ANGLED UPPER KNIFE CLAMP	1
21	XXXXXX	ANGLED KNIFE	1
22	0012270	SCREW	1
23	2107580	ANGLED UPPER KNIFE GIB	1
24	179341-150	WASTE GUARD	1
25	0070230	SCREW	1
26	0072130	SCREW	1
27	3002480	WASHER	1
28	2730080	LOWER KNIFE HOLDER	1
29	2730090	LOWER KNIFE HOLDER	1
30	1B00160	SCREW	1
31	2730101	LOWER KNIFE HOLDER GUIDE	1
32	007019A0	SCREW	2
33	2403240	SPRING	1
34	2730070	PLATE	1
35	007019A0	SCREW	1
36	XXXXXX	LOWER KNIFE (THICK)	1
37	2730120	LOWER KNIFE CLAMP	1
38	0071730	BOLT	1

Page 47 — 押エ機構 PRESSER FOOT MECHANISM

Pegasus EX3200 / EX5200 parts on page 47
Ref	Part number	Part name	Qty
1	2740070	LEVER	1
2	0070600	SCREW	1
3	2740080	SPRING	1
4	2740090	STOPPER	1
5	007020A0	SCREW	2
6	0071750	SCREW	1
7	0048050	NUT	1
8	2740060	LINK	1
9	2740040	LEVER	1
10	274003-921	COLLAR	1
11	0045340	BOLT	1
12	2740050	SPRING	1
13	2740020	BUSHING	1
14	0071050	SCREW	1
15	2740010	SHAFT	1
16	274000-B0	PRESSER ARM	1
17	2085490	PIN	1
18	0045940	SCREW	1
19	274018-92B0	HOLDER	1
20	0070130	SCREW	1
21	2740330	FINGER GUARD	1
22	2740200	STOPPER	1
23	0070090	SCREW	1
24	0070080	SCREW	1
25	2740190	FLAT SPRING	1
26	0050890	SCREW	1
27	2087730	SPRING	1
28	274014A1	ADJUSTING SCREW	1
29	2740150	NUT	1
30	274016A0	LEVER	1
31	0071710	SCREW	1
32	2740170	SPRING	1
33	2740100	STOPPER	1
34	0070190	SCREW	1
35	2740390	LEVER	1
36	2740400	STOPPER	1

Page 49 — 給油機構 (1) LUBRICATION MECHANISM (1)

Pegasus EX3200 / EX5200 parts on page 49
Ref	Part number	Part name	Qty
1	274505A910	PUMP	1
2	2116180	WORM WHEEL	1
3	0050600	SCREW	2
4	212978-910	ROTOR (INSIDE) SHAFT	1
5	2129810	ROTOR (OUTSIDE)	1
6	2094080	FILTER	1
7	2094090	FILTER	1
8	0070120	SCREW	3
9	0045290	BOLT	2
10	2745090	TANK	1
11	007022A0	SCREW	2
12	2062330	FILTER ELEMENT	1
13	2745100	COVER	1
14	007018A0	SCREW	3
15	2403070	O RING	1
16	2001360	JOINT	2
17	2403280	JOINT SCREW	2
18	2021990	CLAMP	2
19	2403270	TUBE	1
20	2001360	JOINT	2
21	2403280	JOINT SCREW	2
22	2021990	CLAMP	2
23	2401350	TUBE	1
24	2001360	JOINT	1
25	2403280	JOINT SCREW	1
26	2021990	CLAMP	2
27	2403340	TUBE	1
28	2745120	JOINT	1
29	2400200	O RING	1
30	004210-HU0	SCREW	1
31	274515-910	OIL DISTRIBUTOR ASSY.	1
32	2102140	PLUG	2
33	004211-HU0	SCREW	1
34	2403280	JOINT SCREW	1
35	2094100	CLAMP	1
36	0070110	SCREW	1
37	0048000	NUT	1
38	2745250	OIL GUIDE	1

Page 51 — 給油機構 (2) LUBRICATION MECHANISM (2)

Pegasus EX3200 / EX5200 parts on page 51
Ref	Part number	Part name	Qty
1	274502A0	OIL SIGHT GAUGE	1
2	2300430	O RING	1
3	210193A910	INDICATOR ASSY.	1
4	2105100	OIL INDICATOR SUPPORT	1
5	004210-HU0	SCREW	2
6	274503-910	OIL RESERVOIR ASSY.	1
7	005138B0	SCREW	1
8	202287A0	WASHER	1
9	0045310	BOLT	4
10	2403390	WASHER	4
11	2745010	GASKET	1
12	2745070	WORM	1
13	0045140	SCREW	1
14	274517B910	PIPE ASSY.	1
15	2400970	BALL	1
16	0045430	SCREW	1
17	274593B910	PIPE ASSY.	1
18	274516-910	PIPE ASSY.	1
19	2021750	OIL WICK	1
20	2400970	BALL	2
21	0045430	SCREW	1
22	274523-910	JOINT	1
23	2745220	FELT	1
24	2041850	O RING	1
25	007019A0	SCREW	1
26	2021750	OIL WICK	1
27	2745290	FELT	1
28	2745300	COVER	1
29	0071920	SCREW	1
30	274551-910	JOINT	1
31	2745560	FELT	1
32	2041850	O RING	1
33	0045430	SCREW	1

Page 53 — H.R. DEVICE

Pegasus EX3200 / EX5200 parts on page 53
Ref	Part number	Part name	Qty
1	2755000	SILICONE OIL RESERVOIR (UPPER)	1
2	2755010	COVER	1
3	2755030	FELT	1
4	2755080	FELT	1
5	2755020	THREAD GUIDE	1
6	2755070	THREAD GUIDE	1
7	007020A0	SCREW	1
8	2700900	COVER	1
9	2700840	COVER	1
10	0070180	SCREW	2
11	2755040	SILICONE OIL RESERVOIR (LOWER)	1
12	2755050	COVER	1
13	004210-HU0	SCREW	1
14	2021750	OIL WICK	1
15	2403310	TUBE	1
16	2001550	CLAMP	2
17	2755060	NEEDLE THREAD LUBRICATOR	1
18	007021A0	SCREW	2
19	2102140	PLUG	1
20	2044660	OIL FELT	1
21	2107660	PIN	1
22	2755090	NEEDLE THREAD LUBRICATOR	1
23	007019A0	SCREW	2
24	2102140	PLUG	1
25	2044660	OIL FELT	1
26	2755280	FELT	1
27	2107660	PIN	1

Page 55 — THREAD STAND

Pegasus EX3200 / EX5200 parts on page 55
Ref	Part number	Part name	Qty
1	000100-9P0	THREAD STAND ASSY. (6-SPOOL)	1 (4th column)
1	000100A9P0	THREAD STAND ASSY. (5-SPOOL)	1 (3rd column)
1	000100B9P0	THREAD STAND ASSY. (4-SPOOL)	1 (2nd column)
1	000100C9P0	THREAD STAND ASSY. (3-SPOOL)	1 (1st column)
2	000101-PA0	COLUMN PIPE (UPPER)	1
3	000102-PA0	COLUMN PIPE (LOWER)	1
4	0001030	JOINT	1
5	004066-HU0	SCREW	2
6	004067-HU0	NUT	2
7	000104-PA0	BRACKET（3-SPOOL）	1
8	000104APA0	BRACKET（2-SPOOL）	2
9	0001160	HOLDER	1
10	004068-HU0	SCREW	1
11	0001050	SPOOL PIN	3
12	303067A0	SPRING WASHER	3
13	004067-HU0	NUT	3
14	000106-PA0	SPOOL TRAY	3
15	0001070	CUSHION	3
16	000108-PA0	SPOOL RETAINING FIN	3
17	000109-PA0	BRACKET	1
18	0041130	SCREW	1
19	0048030	NUT	1
20	0001100	THREAD GUIDE BAR	1
21	004065-HU0	SCREW	1
22	0048030	NUT	1
23	000111-PA0	BRACKET	1
24	004065-HU0	SCREW	1
25	0048030	NUT	1
26	0001120	THREAD GUIDE BAR (6-SPOOL)	1
27	000112A0	THREAD GUIDE BAR (5-SPOOL)	1
28	000112B0	THREAD GUIDE BAR (3-SPOOL)	1
29	004065-HU0	SCREW	1
30	0048030	NUT	1
31	000104-PA0	BRACKET（3-SPOOL）	1
32	000104APA0	BRACKET（2-SPOOL）	2
33	0001160	HOLDER	2
34	004068-HU0	SCREW	2
35	0001130	THREAD GUIDE	4
36	0001140	ROD CAP	1
37	0001150	WASHER	2
38	0001170	SPRING WASHER	1
39	007370-HU0	NUT	1

Page 57 — PARTS FOR SEMI-SUBMERGED INSTALLATION

Pegasus EX3200 / EX5200 parts on page 57
Ref	Part number	Part name	Qty
1	2760010	REST BOARD	1
2	179483-050	CUSHION RUBBER	4
3	2063360	NUT	4
4	2054670	SPACER	4
5	0045750	BOLT	4
6	2403040	WASHER	4
7	276002-UA0	WASTE CHUTE (TOP)	1
8	276003-UA0	WASTE CHUTE (LOWER)	1
9	0049040	SCREW	3
10	2760040	BRACKET	1
11	0041090	SCREW	2
12	2401040	WASHER	2
13	2063370	WASHER	4
14	2014770	SPRING WASHER	4

Page 59 — 全沈床式据付付属品 / PARTS FOR FULLY-SUBMERGED INSTALLATION

Pegasus EX3200 / EX5200 parts on page 59
Ref	Part number	Part name	Qty
1	2760010	REST BOARD	1
2	179483-050	CUSHION RUBBER	4
3	0072370	BOLT	1
4	0072360	BOLT	4
5	2027000	WASHER	15
6	0048160	NUT	15
7	2760120	AUXILIARY PLATE	1
8	0045750	BOLT	3
9	2403040	WASHER	3
10	0048080	NUT	3
11	2760130	ANGLED UPPER KNIFE PLATE	1
12	0045750	BOLT	2
13	2403040	WASHER	2
14	0048080	NUT	2
15	0045120	BOLT	3
16	2760140	BRACKET	1
17	0041090	SCREW	3
18	2401040	WASHER	3
19	276002-UA0	WASTE CHUTE (TOP)	1
20	276003-UA0	WASTE CHUTE (LOWER)	1
21	007013A0	SCREW	3
22	1670660	WASHER	3

Page 61 — SPECIFIC PARTS (1)

Pegasus EX3200 / EX5200 parts on page 61
Ref	Part number	Part name	Qty
1	XXXXXX	PRESSER FOOT	1
2	XXXXXX	PRESSER FOOT FINGER	1
3	2771260	FABRIC GUARD	1
4	0012310	SCREW	1
5	2116000	UNCURLER	1
6	0050300	SCREW	1
7	271014-920	CRANK	1
8	0045330	BOLT	1
9	XXXXXX	PRESSER FOOT ASSY.	1
10	0070130	SCREW	1
11	208958-B0	PIN	1
12	212499-B0	PIN	1
13	0054090	NUT	1
14	2124980	LATCH	1
15	2740280	SPRING	1
16	0031530	NUT	1
17	2085310	FABRIC GUIDE	1
18	0050300	SCREW	1
19	2740220	SPRING	1
20	0070090	SCREW	1
21	2740260	FINGER GUARD	1
22	0070080	SCREW	1
23	274021-92B0	HOLDER	1
24	0070130	SCREW	1
25	2740230	SPRING	1
26	0070090	SCREW	1
27	274025A0	FINGER GUARD	1
28	0070080	SCREW	1
29	XXXXXX	PRESSER FOOT	1
30	2119190	PIN	1
31	2119180	SPRING	1
32	0031500	NUT	1
33	2119200	SPRING PIN	1
34	211915A0	PRESSER FOOT FINGER	1
35	211916A0	PRESSER FOOT FINGER	1
36	2119170	BRACKET	1
37	0050890	SCREW	1
38	3002480	WASHER	1
39	2401020	WASHER	1
40	2102220	SPACER	1
41	2403020	SPACER	1
42	2750540	THREAD TAKE-UP	1

Page 63 — 専用部品 (2) / SPECIFIC PARTS (2)

Pegasus EX3200 / EX5200 parts on page 63
Ref	Part number	Part name	Qty
1	274021-92B0	HOLDER	1
2	0070130	SCREW	1
3	2740230	SPRING	1
4	0070090	SCREW	1
5	274025A0	FINGER GUARD	1
6	0070080	SCREW	1
7	XXXXXX	PRESSER FOOT	1
8	2119190	PIN	1
9	2119180	SPRING	1
10	0031500	NUT	1
11	2119200	SPRING PIN	1
12	211915A0	PRESSER FOOT FINGER	1
13	211916A0	PRESSER FOOT FINGER	1
14	2119170	BRACKET	1
15	0050890	SCREW	1
16	3002480	WASHER	1
17	XXXXXX	PRESSER FOOT	1
18	XXXXXX	PRESSER FOOT FINGER	1
19	0012290	SCREW	1
20	2740300	SET PLATE	1
21	0012290	SCREW	1
22	2126680	UNCURLER	1
23	0050300	SCREW	1
24	274029-92B0	HOLDER	1
25	0070130	SCREW	1
26	2740330	FINGER GUARD	1
27	0070090	SCREW	1
28	2740630	SPRING	1
29	0070080	SCREW	1
30	XXXXXX	PRESSER FOOT ASSY.	1
31	0070130	SCREW	1
32	208958-B0	PIN	1
33	212499-B0	PIN	1
34	0054090	NUT	1
35	2124980	LATCH	1
36	2740280	SPRING	1
37	0031530	NUT	1
38	2085310	FABRIC GUIDE	1
39	0050300	SCREW	1
40	2740220	SPRING	1
41	0070090	SCREW	1
42	2740260	FINGER GUARD	1
43	0070080	SCREW	1
44	270083E9U0	SIDE COVER ASSY.	1
45	274116A910	PRESSER BAR.	1
46	275027A0	NEEDLE THREAD TAKE-UP	1
47	273004B0	UPPER KNIFE LEVER	1
48	270204-910	FABRIC GUIDE	1
49	2401020	WASHER	1
50	2101220	SPACER	1

Page 65 — 専用部品 (3) / SPECIFIC PARTS (3)

Pegasus EX3200 / EX5200 parts on page 65
Ref	Part number	Part name	Qty
1	XXXXXX	PRESSER FOOT	1
2	2119940	FABRIC GUARD	1
3	0013330	SCREW	1
4	XXXXXX	PRESSER FOOT FINGER	1
5	2116000	UNCURLER	1
6	0050300	SCREW	1
7	2106850	CLOTH GUIDE BRACKET ASSY.	1
8	2106800	CLOTH GUIDE BRACKET	1
9	2106810	HINGE/EDGE GUIDE BRACKET	1
10	0051840	SCREW	1
11	2011910	SPRING	1
12	0030440	NUT	1
13	2106820	STOPPER	1
14	0050530	SCREW	1
15	2106830	PIN	1
16	2106840	FLAT SPRING	1
17	0029060	SCREW	1
18	0070200	SCREW	1
19	2012520	SPRING WASHER	1
20	2122650	CLOTH GUIDE ASSY.	1
21	2106900	BRACKET	1
22	0050880	BOLT	2
23	1670660	WASHER	2
24	2122660	CLOTH GUIDE	1
25	0050570	SCREW	1
26	2106890	ADJUSTING PLATE	1
27	0051570	SCREW	2
28	0053630	SCREW	1
29	0029050	SCREW	1
30	1371420	WASHER	1
31	2122670	STOPPER	1
32	0012060	SCREW	1
33	212268A910	FOLDER ASSY. (36mm)	1
34	205835A0	AUXILIARY PLATE	1
35	0052990	SCREW	1
36	303312A0	STOPPER	1
37	3033130	CLAMP	1

Page 67 — 専用部品 (4) / SPECIFIC PARTS (4)

Pegasus EX3200 / EX5200 parts on page 67
Ref	Part number	Part name	Qty
1	XXXXXX	NEEDLE PLATE	1
2	271010A0	BRACKET (FRONT)	1
3	XXXXXX	PRESSER FOOT	1
4	XXXXXX	PRESSER FOOT FINGER	1
5	2771260	FABRIC GUARD	1
6	0012310	SCREW	1
7	2116600	UNCURLER	1
8	0050300	SCREW	1
9	210530A9T0	TENSION SPRING ASSY.	1
10	263543-TA0	KNOB	2
11	2084480	RATCHET	2
12	263544-TA0	SPRING SHIELD	2
13	2103190	TENSION DISC	4
14	2084490	FELT	2
15	005082A0	SCREW STUD	2
16	201086A0	SPRING (MEDIUM)	1
17	210531-9T0	TENSION SPRING ASSY.	1
18	2010680	SPRING (LIGHT)	1
19	2103370	SPRING	1
20	2405410	WASHER	1
21	2403020	SPACER	1
22	272528A0	DIFFERENTIAL FEED BAR	1
23	272501A0	ECCENTRIC	1

Page 69 — 専用部品 (5) / SPECIFIC PARTS (5)

Pegasus EX3200 / EX5200 parts on page 69
Ref	Part number	Part name	Qty
1	210530A9T0	TENSION SPRING ASSY.	1
2	263543-TA0	KNOB	1
3	2084480	RATCHET	1
4	263544-TA0	SPRING SHIELD	1
5	2103190	TENSION DISC	2
6	2084490	FELT	1
7	005082A0	SCREW STUD	1
8	201086A0	SPRING (MEDIUM)	1
9	210531-9T0	TENSION SPRING ASSY.	1
10	2010680	SPRING (LIGHT)	1
11	XXXXXX	PRESSER FOOT ASSY.	1
12	0070130	SCREW	1
13	208958-B0	PIN	3
14	2771080	FABRIC GUARD	1
15	2028750	WASHER	1
16	0051570	SCREW	1
17	2740240	SPRING	1
18	0071660	SCREW	1
19	2740270	FINGER GUARD	1
20	0070080	SCREW	1
21	2403471	SPRING	1
22	273009A0	LOWER KNIFE HOLDER	1
23	275030A0	THREAD GUIDE	1
24	2101220	SPACER	1
25	2405410	WASHER	1
26	270512B1	CRANKSHAFT	1
27	270083C9U0	SIDE COVER ASSY.	1
28	274116-910	PRESSER BAR.	1
29	2751220	NEEDLE THREAD TAKE-UP	1
30	2741120	SHAFT	1
31	274114-920	C0LLAR	1
32	0045310	BOLT	1
33	2401020	WASHER	1
34	2050610	RING	1
35	2741130	SHAFT	1

Page 71 — SPECIFIC PARTS (6)

Pegasus EX3200 / EX5200 parts on page 71
Ref	Part number	Part name	Qty
1	210530A9T0	TENSION SPRING ASSY.	1
2	263543-TA0	KNOB	1
3	2084480	RATCHET	1
4	263544-TA0	SPRING SHIELD	1
5	2103190	TENSION DISC	2
6	2084490	FELT	1
7	005082A0	SCREW STUD	1
8	201086A0	SPRING (MEDIUM)	1
9	210531-9T0	TENSION SPRING ASSY.	1
10	2010680	SPRING (LIGHT)	1
11	XXXXXX	PRESSER FOOT ASSY.	1
12	0070130	SCREW	1
13	208958-B0	PIN	3
14	2740240	SPRING	1
15	0071660	SCREW	1
16	2740270	FINGER GUARD	1
17	0070080	SCREW	1
18	2403470	SPRING	1
19	273009A0	LOWER KNIFE HOLDER	1
20	275030A0	THREAD GUIDE	1
21	2403020	SPACER	1
22	2405410	WASHER	1
23	270083C9U0	SIDE COVER ASSY.	1
24	274116-910	PRESSER BAR.	1
25	275122A0	NEEDLE THREAD TAKE-UP	1
26	2741120	SHAFT	1
27	274114-920	C0LLAR	1
28	0045310	BOLT	1
29	2401020	WASHER	1
30	2050610	RING	1
31	2741130	SHAFT	1

Page 73 — 専用部品 (7) / SPECIFIC PARTS (7)

Pegasus EX3200 / EX5200 parts on page 73
Ref	Part number	Part name	Qty
1	2106850	CLOTH GUIDE BRACKET ASSY.	1
2	2106800	CLOTH GUIDE BRACKET	1
3	2106810	HINGE/EDGE GUIDE BRACKET	1
4	0051840	SCREW	1
5	2011910	SPRING	1
6	0030440	NUT	1
7	2106820	STOPPER	1
8	0050530	SCREW	1
9	2106830	PIN	1
10	2106840	FLAT SPRING	1
11	0029060	SCREW	1
12	0070200	SCREW	1
13	2012520	SPRING WASHER	1
14	2106910	CLOTH GUIDE ASSY.	1
15	2106900	BRACKET	1
16	0050880	BOLT	2
17	1670660	WASHER	2
18	2053610	BRACKET	1
19	0050570	SCREW	1
20	2106890	ADJUSTING PLATE	1
21	0051570	SCREW	2
22	0024300	SCREW	1
23	0029050	SCREW	1
24	1371420	WASHER	1
25	2106920	STOPPER	1
26	0012060	SCREW	1
27	201211C910	FOLDER ASSY. (40 ㎜)	1
28	2058350	AUXILIARY PLATE	1
29	0052990	SCREW	1
30	303312A0	STOPPER	1
31	3033130	CLAMP	1
32	XXXXXX	PRESSER FOOT	1
33	XXXXXX	PRESSER FOOT FINGER	1
34	2105840	UNCURLER	1
35	0050300	SCREW	1
36	2105850	WASHER	1
37	270037D0	CLOTH PLATE (NARROW)	1
38	3080930	LEVER	1
39	270012D0	FRONT COVER (LEFT)	1
40	270505A1	FAN ASSY.	1
41	XXXXXX	PRESSER FOOT	1
42	XXXXXX	PRESSER FOOT FINGER	1
43	2105840	UNCURLER	1
44	2105850	WASHER	1
45	0050300	SCREW	1
46	273008E0	LOWER KNIFE HOLDER	1
47	2119410	SPRING	1

Page 75 — 専用部品 (8) / SPECIFIC PARTS (8)

Pegasus EX3200 / EX5200 parts on page 75
Ref	Part number	Part name	Qty
1	XXXXXX	PRESSER FOOT	1
2	XXXXXX	PRESSER FOOT FINGER	1
3	2771260	FABRIC GUARD	1
4	0012310	SCREW	1
5	2116000	UNCURLER	1
6	0050300	SCREW	1
7	XXXXXX	PRESSER FOOT	1
8	3017250	FABRIC GUARD	1
9	0012290	SCREW	1
10	XXXXXX	PRESSER FOOT FINGER	1
11	270012D0	FRONT COVER (LEFT)	1
12	XXXXXX	PRESSER FOOT	1
13	2771260	FABRIC GUARD	1
14	0012310	SCREW	1
15	XXXXXX	PRESSER FOOT FINGER	1
16	204668A0	UNCURLER	1
17	0050300	SCREW	1
18	273003A0	UPPER KNIFE LEVER	1
19	273014A0	UPPER KNIFE CLAMP	1
20	270012F0	FRONT COVER (LEFT)	1
21	270500G0	CRANKSHAFT	1
22	271518B910	UPPER LOOPER HOLDER ASSY.	1
23	271505-920	LEVER	1
24	0071500	BOLT	1
25	2715460	PIN ASSY.	1
26	2021760	OIL WICK	1
27	0045450	SCREW	1
28	271513B910	UPPER LOOPER HOLDER ASSY.	1
29	179130-050	FELT	1
30	0070541	SCREW	1
31	2330350	FELT	1
32	271510R0	UPPER LOOPER HOLDER BASE	1
33	2050881	PLUG	1
34	272616-920	ECCENTRIC	1
35	0045140	SCREW	1
36	2405390	WASHER	1

Page 77 — SPECIFIC PARTS (9)

Pegasus EX3200 / EX5200 parts on page 77
Ref	Part number	Part name	Qty
1	XXXXXX	PRESSER FOOT	1
2	XXXXXX	PRESSER FOOT FINGER	1
3	2771280	FABRIC GUARD	1
4	0012310	SCREW	1
5	2116000	UNCURLER	1
6	0050300	SCREW	1
7	210530A9T0	TENSION SPRING ASSY.	1
8	263543-TA0	KNOB	1
9	2084480	RATCHET	1
10	263544-TA0	SPRING SHIELD	1
11	2103190	TENSION DISC	2
12	2084490	FELT	1
13	005082A0	SCREW STUD	1
14	201086A0	SPRING (MEDIUM)	1
15	210531-9T0	TENSION SPRING ASSY.	1
16	2010680	SPRING (LIGHT)	1
17	2405410	WASHER	1
18	273008A0	LOWER KNIFE HOLDER	1
19	XXXXXX	PRESSER FOOT	1
20	XXXXXX	PRESSER FOOT FINGER	1
21	2771260	FABRIC GUARD	1
22	0012310	SCREW	1
23	2116000	UNCURLER	1
24	0050300	SCREW	1
25	2101220	SPACER	1
26	2403020	SPACER	1
27	2750080	THREAD GUIDE	1
28	2750170	NEEDLE THREAD TAKE-UP	1
29	2750090	THREAD TAKE-UP	1

Page 79 — SPECIFIC PARTS (10)

Pegasus EX3200 / EX5200 parts on page 79
Ref	Part number	Part name	Qty
1	275514-911	SHIRRING ATTACHMENT ASSY.	1
2	2755150	BRACKET	1
3	007022A0	SCREW	1
4	2403320	SPACER	1
5	0071910	SCREW	1
6	2109470	FLAT SPRING	1
7	0012060	SCREW	2
8	2755160	BRACKET	1
9	0071600	SCREW	1
10	2048880	SPRING	2
11	0048060	NUT	1
12	2109450	BRACKET	1
13	0053280	SCREW	2
14	2109460	FLAT SPRING	1
15	0012060	SCREW	1
16	275517-920	SPRING GUIDE	1
17	007021A0	SCREW	1
18	263543-TA0	KNOB	1
19	2084480	RATCHET	1
20	2109400	SPRING	1
21	2040910	WASHER	1
22	005082A0	SCREW STUD	1
23	2109440	WASHER	1
24	2755180	LEVER	1
25	0048060	NUT	1
26	2755200	BRACKET	1
27	2403200	SPRING	1
28	2755210	SHAFT	1
29	2025220	RING	1
30	2070450	WASHER	1
31	2403230	SPRING	1
32	2062250	COLLAR	1
33	001457-10	SCREW	2
34	2109550	WASHER	1
35	0050290	SCREW	2
36	2124350	CABLE	1
37	2124360	CABLE SUPPORT	2
38	0070990	SCREW	1
39	2024330	WASHER	1
40	0048060	NUT	1
41	2755220	LATCH	1
42	179765-150	NUT	1
43	0071640	SCREW	1
44	2401040	WASHER	1
45	2755230	BRACKET	1
46	007022A0	SCREW	2
47	2109610	FABRIC GUIDE	1
48	0070120	SCREW	2
49	1379060	WASHER	2
50	2755240	BLADE	1
51	2755250	BLADE	1
52	2000980	WASHER	1
53	270035B1	CLOTH PLATE	1
54	2109620	BINDER BRACKET	1
55	0052100	SCREW	2
56	2118850	BINDER (20)	1
57	0012020	SCREW	2
58	1670660	WASHER	2
59	2118860	BINDER (25)	1

Page 81 — SPECIFIC PARTS (11)

Pegasus EX3200 / EX5200 parts on page 81
Ref	Part number	Part name	Qty
1	XXXXXX	PRESSER FOOT	1
2	2116000	UNCURLER	1
3	0050300	SCREW	1
4	274025A0	FINGER GUARD	1
5	XXXXXX	PRESSER FOOT	1
6	0070130	SCREW	1
7	208958-B0	PIN	1
8	212499-B0	PIN	1
9	0054090	NUT	1
10	2124980	LATCH	1
11	2740280	SPRING	1
12	0031530	NUT	1
13	2085320	FABRIC GUIDE	1
14	0050300	SCREW	1
15	2740220	SPRING	1
16	0070090	SCREW	1
17	2740260	FINGER GUARD	1
18	0070080	SCREW	1
19	XXXXXX	PRESSER FOOT	1
20	2025880	WASHER	1
21	274025A0	FINGER GUARD	1
22	XXXXXX	PRESSER FOOT	1
23	274103-910	BRACKET ASSY.	1
24	0070130	SCREW	1
25	208958-B0	PIN	1
26	2028750	WASHER	1
27	0029210	SCREW	1
28	2044600	FABRIC GUIDE	1
29	0050770	SCREW	1
30	2740270	FINGER GUARD	1
31	0070080	SCREW	2
32	0004130	TAPE WIRE	1
33	2403020	SPACER	1
34	000403-9S0	TAPE DISC ASSY.	1
35	0004060	FELT	1
36	0004040	TAPE DISC	1
37	0040120	SCREW	1
38	0004070	COLLAR	1
39	0004080	SCREW	1
40	0004050	BAR	1
41	0004090	SHAFT	1
42	0048180	NUT	1
43	000410-SA0	BRACKET	1
44	0049080	SCREW	3

Page 83 — 専用部品 (12)

Pegasus EX3200 / EX5200 parts on page 83
Ref	Part number	Part name	Qty
1	2755120	TAPE GUIDE	1
2	0071800	SCREW	2
3	2092000	BINDER (10)	1
4	2089940	BINDER (8)	1
5	0012160	SCREW	1
6	2089970	BINDER GUIDE	1
7	270013A0	FRONT COVER (LEFT)	1
8	XXXXXX	PRESSER FOOT ASSY.	1
9	0070130	SCREW	1
10	208958-B0	PIN	1
11	212499-B0	PIN	1
12	0054090	NUT	1
13	2124980	LATCH	1
14	2740280	SPRING	1
15	0031530	NUT	1
16	2085310	FABRIC GUIDE	1
17	0050300	SCREW	1
18	2740220	SPRING	1
19	0070090	SCREW	1
20	2740260	FINGER GUARD	1
21	0070080	SCREW	1
22	0003370	TAPE DISC ASSY.	1
23	0003440	BRACKET	1
24	0049080	SCREW	2
25	0003410	ROD	1
26	0001890	WASHER	1
27	3030670	SPRING WASHER	1
28	0048050	NUT	1
29	0003380	TAPE REEL STAND	1
30	0003390	SCREW	1
31	0003400	TAPE REEL STAND COVER	1
32	0004670	SPRING SEAT	1
33	0003430	SPRING	1
34	0004680	COLLAR	1
35	0003390	SCREW	1

Page 85 — SPECIFIC PARTS (13)

Pegasus EX3200 / EX5200 parts on page 85
Ref	Part number	Part name	Qty
1	275542-910	TAPE GUIDE ASSY.	1
2	2755100	TAPE GUIDE	1
3	0070660	SCREW	1
4	2103070	WASHER	2
5	2755110	TAPE GUIDE	1
6	2112670	TAPE TAKE-UP	1
7	2087350	TAPE GUIDE	1
8	0013330	SCREW	1
9	XXXXXX	PRESSER FOOT	1
10	XXXXXX	PRESSER FOOT FINGER	1
11	2116000	UNCURLER	1
12	0050300	SCREW	1
13	2403020	SPACER	1
14	2750540	THREAD TAKE-UP	1

Page 87 — SPECIFIC PARTS (14)

Pegasus EX3200 / EX5200 parts on page 87
Ref	Part number	Part name	Qty
1	210530A9T0	TENSION SPRING ASSY.	1
2	263543-TA0	KNOB	1
3	2084480	RATCHET	1
4	263544-TA0	SPRING SHIELD	1
5	2103190	TENSION DISC	2
6	2084490	FELT	1
7	005082A0	SCREW STUD	1
8	201086A0	SPRING (MEDIUM)	1
9	210531-9T0	TENSION SPRING ASSY.	1
10	2010680	SPRING (LIGHT)	1
11	2119410	SPRING	1
12	2403020	SPACER	1
13	272528A0	DIFFERENTIAL FEED BAR	1
14	272501A0	ECCENTRIC	1
15	273008A0	LOWER KNIFE HOLDER	1
16	2405410	WASHER	1

Page 89 — SPECIFIC PARTS (15)

Pegasus EX3200 / EX5200 parts on page 89
Ref	Part number	Part name	Qty
1	270037C0	CLOTH PLATE (NARROW)	1
2	271010A0	BRACKET (FRONT)	1
3	270037D0	CLOTH PLATE (NARROW)	1
4	3080930	LEVER	1
5	308085-D0	BRACKET (FRONT)	1
6	XXXXXX	PRESSER FOOT	1
7	XXXXXX	PRESSER FOOT FINGER	1
8	2771260	FABRIC GUARD	1
9	0012310	SCREW	1
10	XXXXXX	PRESSER FOOT	1
11	XXXXXX	PRESSER FOOT FINGER	1
12	273008B0	LOWER KNIFE HOLDER	1
13	2119410	SPRING	1
14	XXXXXX	NEEDLE PLATE	1
15	2087350	TAPE GUIDE	1
16	0013330	SCREW	1
17	270505B1	FAN ASSY.	1
18	2403020	SPACER	1

Page 91 — SPECIFIC PARTS (16)

Pegasus EX3200 / EX5200 parts on page 91
Ref	Part number	Part name	Qty
1	XXXXXX	PRESSER FOOT	1
2	2119940	FABRIC GUARD	1
3	0013330	SCREW	1
4	XXXXXX	PRESSER FOOT FINGER	1
5	2116000	UNCURLER	1
6	0050300	SCREW	1
7	270037C0	CLOTH PLATE (NARROW)	1
8	271010A0	BRACKET (FRONT)	1
9	273008B0	LOWER KNIFE HOLDER	1
10	2106850	CLOTH GUIDE BRACKET ASSY.	1
11	2106800	CLOTH GUIDE BRACKET	1
12	2106810	HINGE/EDGE GUIDE BRACKET	1
13	0051840	SCREW	1
14	2011910	SPRING	1
15	0030440	NUT	1
16	2106820	STOPPER	1
17	0050530	SCREW	1
18	2106830	PIN	1
19	2106840	FLAT SPRING	1
20	0029060	SCREW	1
21	0070200	SCREW	1
22	2012520	SPRING WASHER	1
23	275529-910	CLOTH GUIDE	1
24	210690A0	BRACKET	1
25	0050880	BOLT	2
26	1670660	WASHER	2
27	2122660	CLOTH GUIDE	1
28	0050570	SCREW	1
29	2755300	ADJUSTING PLATE	1
30	0051570	SCREW	2
31	0053630	SCREW	1
32	0029050	SCREW	1
33	1371420	WASHER	1
34	2122670	STOPPER	1
35	0012060	SCREW	1
36	212268A910	FOLDER ASSY. (36mm)	1
37	205835A0	AUXILIARY PLATE	1
38	0052990	SCREW	1
39	303312A0	STOPPER	1
40	3033130	CLAMP	1

Page 93 — SPECIFIC PARTS (17)

Pegasus EX3200 / EX5200 parts on page 93
Ref	Part number	Part name	Qty
1	XXXXXX	PRESSER FOOT	1
2	XXXXXX	PRESSER FOOT FINGER	1
3	2105840	UNCURLER	1
4	0050300	SCREW	1
5	2105850	WASHER	1
6	2106850	CLOTH GUIDE BRACKET ASSY.	1
7	2106800	CLOTH GUIDE BRACKET	1
8	2106810	HINGE/EDGE GUIDE BRACKET	1
9	0051840	SCREW	1
10	2011910	SPRING	1
11	0030440	NUT	1
12	2106820	STOPPER	1
13	0050530	SCREW	1
14	2106830	PIN	1
15	2106840	FLAT SPRING	1
16	0029060	SCREW	1
17	0070200	SCREW	1
18	2012520	SPRING WASHER	1
19	2106910	CLOTH GUIDE ASSY.	1
20	2106900	BRACKET	1
21	0050880	BOLT	2
22	1670660	WASHER	2
23	2053610	BRACKET	1
24	0050570	SCREW	1
25	2106890	ADJUSTING PLATE	1
26	0051570	SCREW	2
27	0024300	SCREW	1
28	0029050	SCREW	1
29	1371420	WASHER	1
30	2106920	STOPPER	1
31	0012060	SCREW	1
32	201211C910	FOLDER ASSY. (40 mm )	1
33	2058350	AUXILIARY PLATE	1
34	0052990	SCREW	1
35	303312A0	STOPPER	1
36	3033130	CLAMP	1
37	2401020	WASHER	1
38	2101220	SPACER	1
39	2750170	NEEDLE THREAD TAKE-UP	1

Page 95 — Option

Pegasus EX3200 / EX5200 parts on page 95
Ref	Part number	Part name	Qty
1	2106850	CLOTH GUIDE BRACKET ASSY.	1
2	2106800	CLOTH GUIDE BRACKET	1
3	2106810	HINGE/EDGE GUIDE BRACKET	1
4	0051840	SCREW	1
5	2011910	SPRING	1
6	0030440	NUT	1
7	2106820	STOPPER	1
8	0050530	SCREW	1
9	2106830	PIN	1
10	2106840	FLAT SPRING	1
11	0029060	SCREW	1
12	0070200	SCREW	1
13	2012520	SPRING WASHER	1
14	2106860	EDGE GUIDE BRACKET ASSY.	1
15	2106870	EDGE GUIDE BRACKET	1
16	0050880	BOLT	2
17	1670660	WASHER	2
18	0012020	SCREW	1
19	1670660	WASHER	1
20	2046670	EDGE GUIDE	1
21	201233A0	EDGE GUIDE	1

Page 96 — EX3200 GAUGE PARTS LIST(1)

Pegasus EX3200 / EX5200 parts on page 96
Ref	Part number	Part name	Qty
3	277323-130	MAIN FEED DOG ASSM.	3
3	277324-130	MAIN FEED DOG	3
3	277318-130	AUX.FEED DOG	3
3	2770100 #2	UPPER LOOPER	2
3	277325-130	DIFF.FEED DOG	3
3	2022950	LOWER KNIFE	2
3	2770070	OVERLOCK NEEDLE GUARD FRONT	2
3	2770040	OVERLOCK NEEDLE GUARD REAR	2
3	2770080	CHAINSTITCH NEEDLE GUARD FRONT	2
3	2770060	CHAINSTITCH NEEDLE GUARD REAR	2
3	277026-921	NEEDLE HOLDER	2
3	DCX27 #11	NEEDLE	2
4	277326-130	DIFF.FEED DOG	2
4	2771170	PRESSER FOOT ASSM.	2
4	277014A1 #8	UPPER LOOPER	2
4	2771180	PRESSER FOOT ASSM.	3
4	211907B0	PRESSER FOOT ASSM.	3
4	277027-921	NEEDLE HOLDER	2
5	2770150	LOWER LOOPER	2
5	2770180	CHAINSTITCH LOOPER	2
5	211909B0	PRESSER FOOT ASSM.	3
5	211910B0	PRESSER FOOT ASSM.	3
	277514P300	NEEDLE PLATE
	277514P400	NEEDLE PLATE
	277515P300	NEEDLE PLATE
	277513P400	NEEDLE PLATE
	277513P500	NEEDLE PLATE
	277514P300	NEEDLE PLATE
	277514P400	NEEDLE PLATE
	277515P300	NEEDLE PLATE
	277513P400	NEEDLE PLATE
	277513P500	NEEDLE PLATE
	201121A0	UPPER KNIFE FLAT NIFE / ANGLED KNIFE
	201121A0	UPPER KNIFE FLAT NIFE / ANGLED KNIFE
	201121A0	UPPER KNIFE FLAT NIFE / ANGLED KNIFE
	201121A0	UPPER KNIFE FLAT NIFE / ANGLED KNIFE
	201121A0	UPPER KNIFE FLAT NIFE / ANGLED KNIFE
	202527A0	UPPER KNIFE FLAT NIFE
	202527A0	UPPER KNIFE FLAT NIFE
	202527A0	UPPER KNIFE FLAT NIFE
	202527A0	UPPER KNIFE FLAT NIFE
	202527A0	UPPER KNIFE FLAT NIFE

Page 97 — EX3200 ゲージパーツ表 (2) / EX3200 GAUGE PARTS LIST(2)

Pegasus EX3200 / EX5200 parts on page 97
Ref	Part number	Part name	Qty
	277563P400	NEEDLE PLATE
	277563P500	NEEDLE PLATE
	277376-130	MAIN FEED DOG ASSM.
	(277377-130)	MAIN FEED DOG
	(277318B130)	AUX.FEED DOG
	277325-130	DIFF.FEED DOG
	211909B0	PRESSER FOOT ASSM.
	211910B0	PRESSER FOOT ASSM.
	2770100 #2	UPPER LOOPER
	277014A1 #8	UPPER LOOPER
	2770150	LOWER LOOPER
	2770180	CHAINSTITCH LOOPER
	277561P400	NEEDLE PLATE
	277561P500	NEEDLE PLATE
	277562P500	NEEDLE PLATE
	277562P601	NEEDLE PLATE
	277625P400	NEEDLE PLATE
	277625P500	NEEDLE PLATE
	2022950	LOWER KNIFE
	202527A0	FLAT NIFE
	277027-921	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	2771860
	2771870
	211909C0
	211910C0
	2770040

Page 98 — EX3200 GAUGE PARTS LIST (3)

Pegasus EX3200 / EX5200 parts on page 98
Ref	Part number	Part name	Qty
	277582P400	NEEDLE PLATE
	277582P500	NEEDLE PLATE
	277583P500	NEEDLE PLATE
	277583P600	NEEDLE PLATE
	277374-130	MAIN FEED DOG ASSM.
	277375-130	MAIN FEED DOG
	277318B130	AUX.FEED DOG
	277330-130	DIFF.FEED DOG
	277329-130	DIFF.FEED DOG
	2771860	PRESSER FOOT ASSM.
	2771870	PRESSER FOOT ASSM.
	2771880	PRESSER FOOT ASSM.
	2770100 #2	UPPER LOOPER
	277014A1 #8	UPPER LOOPER
	2770150	LOWER LOOPER
	2770180	CHAINSTITCH LOOPER
	277514R300	NEEDLE PLATE
	277514R400	NEEDLE PLATE
	277515R300	NEEDLE PLATE
	277513R400	NEEDLE PLATE
	277513R500	NEEDLE PLATE
	277323-160	MAIN FEED DOG ASSM.
	(277324-160)	MAIN FEED DOG
	(277318-130)	AUX.FEED DOG
	277326-160	DIFF.FEED DOG
	277325-160	DIFF.FEED DOG
	2771170	PRESSER FOOT ASSM.
	2771180	PRESSER FOOT ASSM.
	2770100 #2	UPPER LOOPER
	277014A1 #8	UPPER LOOPER
	2770150	LOWER LOOPER
	2770180	CHAINSTITCH LOOPER
	202527A0	FLAT NIFE
	2022950	LOWER KNIFE
	2770070	OVERLOCK NEEDLE GUARD FRONT
	2770040	OVERLOCK NEEDLE GUARD REAR
	2770080	CHAINSTITCH NEEDLE GUARD FRONT
	277006A0	CHAINSTITCH NEEDLE GUARD REAR
	277027-921	NEEDLE HOLDER
	277028-920	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	201121A0	FLAT NIFE
	2107550	ANGLED KNIFE
	2022950	LOWER KNIFE
	2770070	OVERLOCK NEEDLE GUARD FRONT
	2770040	OVERLOCK NEEDLE GUARD REAR
	2770080	CHAINSTITCH NEEDLE GUARD FRONT
	2770060	CHAINSTITCH NEEDLE GUARD REAR
	277026-921	NEEDLE HOLDER
	277027-921	NEEDLE HOLDER
	DCX27 #11	NEEDLE

Page 99 — EX3200 GAUGE PARTS LIST (4)

Pegasus EX3200 / EX5200 parts on page 99
Ref	Part number	Part name	Qty
3	202527A0	FLAT NIFE	3
3	2022950	UPPER KNIFE	3
3	2770070	OVERLOCK NEEDLE GUARD FRONT	3
3	2770040	OVERLOCK NEEDLE GUARD REAR	3
3	2770080	CHAINSTITCH NEEDLE GUARD FRONT	3
3	2770060	CHAINSTITCH NEEDLE GUARD REAR	3
3	277026-921	NEEDLE HOLDER	3
5	201121A0	FLAT NIFE	3
5	2107550	ANGLED KNIFE	3
5	277006A0	CHAINSTITCH NEEDLE GUARD REAR	3
5	277027-921	NEEDLE HOLDER	3
	277514R300	NEEDLE PLATE
	277514R400	NEEDLE PLATE
	277515R300	NEEDLE PLATE
	277513R400	NEEDLE PLATE
	277513R500	NEEDLE PLATE
	277323-160	MAIN FEED DOG ASSM.
	(277324-160)	MAIN FEED DOG
	(277318-130)	AUX.FEED DOG
	277326-160	DIFF.FEED DOG
	277325-160	DIFF.FEED DOG
	277907B0	PRESSER FOOT ASSM.
	211909B0	PRESSER FOOT ASSM.
	211910B0	PRESSER FOOT ASSM.
	2770100 #2	UPPER LOOPER
	277014A1 #8	UPPER LOOPER
	2770150	LOWER LOOPER
	2770180	CHAINSTITCH LOOPER
	277564P500	NEEDLE PLATE
	277564P600	NEEDLE PLATE
	277327-160	MAIN FEED DOG ASSM.
	(277328-160)	MAIN FEED DOG
	277329-160	DIFF.FEED DOG
	2771880	PRESSER FOOT ASSM.
	580R500	NEEDLE PLATE
	277580R500	NEEDLE PLATE
	277323-160	MAIN FEED DOG ASSM.
	2771180	PRESSER FOOT ASSM.

Page 100 — EX3200 GAUGE PARTS LIST(5)

Pegasus EX3200 / EX5200 parts on page 100
Ref	Part number	Part name	Qty
	277517R400	NEEDLE PLATE
	277517R500	NEEDLE PLATE
	277327-160	MAIN FEED DOG ASSM.
	277330-160	DIFF.FEED DOG
	2771180	PRESSER FOOT ASSM.
	277010A0 #5	UPPER LOOPER
(16)	277516R500	NEEDLE PLATE	5
(16)	277516R600	NEEDLE PLATE	5
(16)	277581R500	NEEDLE PLATE	3
(16)	277518R400	NEEDLE PLATE	5
(16)	277519R400	NEEDLE PLATE	3 X 2
(16)	(277328-160)	MAIN FEED DOG	3
(16)	(277318-130)	AUX. FEED DOG	3
(16)	277329-160	DIFF. FEED DOG	5
(16)	2771190	PRESSER FOOT ASSM.	5
(16)	277118A0	PRESSER FOOT ASSM.	3
(16)	277119A0	PRESSER FOOT ASSM.	5
(16)	2770150	UPPER LOOPER	3
(16)	2770180	CHAINSTITCH LOOPER	3
(16)	201121A0	FLAT NIFE	5
(16)	2107550	ANGLED KNIFE	5
(16)	2022950	LOWER KNIFE	5
(16)	2770070	OVERLOCK NEEDLE GUARD FRONT	5
(16)	2770040	OVERLOCK NEEDLE GUARD REAR	5
(16)	2770080	CHAINSTITCH NEEDLE GUARD FRONT	5
(16)	2770060	CHAINSTITCH NEEDLE GUARD REAR	5
(16)	277027-921	NEEDLE HOLDER	5
(16)	277028-920	NEEDLE HOLDER	5
(16)	277006A0	CHAINSTITCH NEEDLE GUARD REAR	3 X 2
(16)	277030-920	NEEDLE HOLDER	3 X 2
(16)	277031-920	NEEDLE HOLDER	3 X 2

Page 101 — EX3200 ゲージパーツ表 (6) / EX3200 GAUGE PARTS LIST(6)

Pegasus EX3200 / EX5200 parts on page 101
Ref	Part number	Part name	Qty
	277524T502	NEEDLE PLATE
	277524T602	NEEDLE PLATE
	277337-252	MAIN FEED DOG ASSM.
	(277427-250)	MAIN FEED DOG
	(277428-200)	AUX.FEED DOG
	277339-251	DIFF.FEED DOG
	2771220	PRESSER FOOT ASSM.
	2770110 #3	UPPER LOOPER
	2770140 #1	UPPER LOOPER
	2770150	LOWER LOOPER
	277018-C0	CHAINSTITCH LOOPER
	2770000	FLAT NIFE
	2116621	ANGLED KNIFE
	2770091	LOWER KNIFE
	2770070	OVERLOCK NEEDLE GUARD FRONT
	2770040	OVERLOCK NEEDLE GUARD REAR
	2770080	CHAINSTITCH NEEDLE GUARD FRONT
	2770060	CHAINSTITCH NEEDLE GUARD REAR
	277029-920	NEEDLE HOLDER
	DCX27 #21	NEEDLE
	277525T402	NEEDLE PLATE
	277524T702	NEEDLE PLATE
	277521R400	NEEDLE PLATE
	277521R500	NEEDLE PLATE
	277520R500	NEEDLE PLATE
	277520R600	NEEDLE PLATE
	201121A0	FLAT NIFE
	2107550	ANGLED KNIFE
	2022950	LOWER KNIFE

Page 102 — EX3200 GAUGE PARTS LIST(7)

Pegasus EX3200 / EX5200 parts on page 102
Ref	Part number	Part name	Qty
	277521R400	NEEDLE PLATE
	277334-160	MAIN FEED DOG ASSM.
	277335-160	MAIN FEED DOG
	(277318-130)	AUX.FEED DOG
	277336-160	DIFF.FEED DOG
	204502A1	PRESSER FOOT ASSM.
	277010A0 #5	UPPER LOOPER
	277014B0 #9	UPPER LOOPER
	2770150	LOWER LOOPER
	2770180	CHAINSTITCH LOOPER
(16)	277520R601	NEEDLE PLATE	5
(16)	277331-160	MAIN FEED DOG ASSM.	5
(16)	277332-160	MAIN FEED DOG	5
(16)	277333-160	AUX.FEED DOG	5
(16)	204505A0	DIFF.FEED DOG	5
(16)	277520S500	NEEDLE PLATE	5
(16)	277331-250	MAIN FEED DOG ASSM.	5
(16)	277332-250	MAIN FEED DOG	5
(16)	277333-250	AUX.FEED DOG	5
(16)	2771210	DIFF.FEED DOG	5
(16)	277520S600	NEEDLE PLATE	6
(16)	277523R401	NEEDLE PLATE	3
(16)	277327A160	MAIN FEED DOG ASSM.	3
(16)	277328-160	MAIN FEED DOG	3
(16)	277330A160	AUX.FEED DOG	3
(16)	277522R501	NEEDLE PLATE	5
(16)	277329A160	MAIN FEED DOG ASSM.	5
(16)	201121A0	FLAT NIFE	3
(16)	2107550	ANGLED KNIFE	3
(16)	2022950	LOWER KNIFE	3
(16)	2770070	OVERLOCK NEEDLE GUARD FRONT	3
(16)	2770040	OVERLOCK NEEDLE GUARD REAR	3
(16)	2770080	CHAINSTITCH NEEDLE GUARD FRONT	3
(16)	2770060	CHAINSTITCH NEEDLE GUARD REAR	3
(16)	277027-921	NEEDLE HOLDER	3
(16)	277028-920	NEEDLE HOLDER	5

Page 103 — EX5200 GAUGE PARTS LIST(1)

Pegasus EX3200 / EX5200 parts on page 103
Part number	Part name	Qty
277500P300	NEEDLE PLATE	SW 3
277500P400	NEEDLE PLATE	SW 4
277500P500	NEEDLE PLATE	SW 5
277505P300	NEEDLE PLATE	SW 3
277505P401	NEEDLE PLATE	SW 4
277585P300	NEEDLE PLATE	SW 3
277585P400	NEEDLE PLATE	SW 4
277585P300	NEEDLE PLATE	SW 3
277585P400	NEEDLE PLATE	SW 4
277300-16F0	MAIN FEED DOG ASSM.
277303-16F0	MAIN FEED DOG ASSM.
277372A16F0	MAIN FEED DOG ASSM.
(277301-16F0)	MAIN FEED DOG
(277304-16F0)	MAIN FEED DOG
(277304B16F0)	MAIN FEED DOG
277318-130	AUX.FEED DOG
277318D130	AUX.FEED DOG
277302-16F0	DIFF.FEED DOG
277305-16F0	DIFF.FEED DOG
277373-16F0	DIFF.FEED DOG
201230C0	PRESSER FOOT ASSM.
2780050	PRESSER FOOT ASSM.
2103700 #1	PRESSER FOOT FINGER.
2103710 #2	PRESSER FOOT FINGER.
201396B0 #56	PRESSER FOOT FINGER.
201310A0 #55	PRESSER FOOT FINGER.
277199A0 #64	PRESSER FOOT FINGER.
277200A0 #65	PRESSER FOOT FINGER.
2770100 #2	UPPER LOOPER
277010B0 #6	UPPER LOOPER
2770150	LOWER LOOPER
2022950	LOWER KNIFE
2011270	LOWER KNIFE
DCX27 #9	NEEDLE
(277318-13F0)	AUX.FEED DOG
(277318D13F0)	AUX.FEED DOG
201121A0	NEEDLE PLATE
2107550	UPPER KNIFE
2770050	OVERLOCK NEEDLE GUARD
2770040	OVERLOCK NEEDLE GUARD
179630-920	NEEDLE HOLDER
277022-920	NEEDLE HOLDER

Page 104 — EX5200 GAUGE PARTS LIST(2)

Pegasus EX3200 / EX5200 parts on page 104
Ref	Part number	Part name	Qty
	277504R300	NEEDLE PLATE
	277504R400	NEEDLE PLATE
	277504R500	NEEDLE PLATE
	277500P300	NEEDLE PLATE
	277500P400	NEEDLE PLATE
	277505R300	NEEDLE PLATE
	277505R400	NEEDLE PLATE
	277505R500	NEEDLE PLATE
EX5204-02/233(K)	201121A0	FLAT NIFE	4

Page 105 — EX5200 GAUGE PARTS LIST (3)

Pegasus EX3200 / EX5200 parts on page 105
Part number	Part name	Qty
277505R300	NEEDLE PLATE
277505R400	NEEDLE PLATE
277505R500	NEEDLE PLATE
277303-16F0	MAIN FEED DOG ASSM.
277304-16F0	MAIN FEED DOG
277318-130	AUX.FEED DOG
277305-16F0	DIFF.FEED DOG
201230C0	PRESSER FOOT ASSM.
2105030 #5	PRESSER FOOT FINGER
2103740 #7	PRESSER FOOT FINGER
277010A0 #5	UPPER LOOPER
2770150	LOWER LOOPER
277578-400	NEEDLE PLATE
201121A0	FLAT KNIFE
2107550	ANGLED KNIFE
2022950	LOWER KNIFE
2770050	OVERLOCK NEEDLE GUARD FRONT
2770040	OVERLOCK NEEDLE GUARD REAR
277022-920	NEEDLE HOLDER
277002-920	NEEDLE HOLDER
DCX27 #9	NEEDLE
DCX27 #16	NEEDLE
277369-25F0	NEEDLE PLATE	2
277304B25F0	MAIN FEED DOG	2
277348-16F0	AUX.FEED DOG	2
277371A25F0	DIFF.FEED DOG	2
2770120 #4	UPPER LOOPER	2
2770160	LOWER LOOPER	2

Page 106 — EX5200 GAUGE PARTS LIST(4)

Pegasus EX3200 / EX5200 parts on page 106
Ref	Part number	Part name	Qty
	277500P300	NEEDLE PLATE
	277500P400	NEEDLE PLATE
	277500P300	NEEDLE PLATE
	277500P400	NEEDLE PLATE
	277500P300	NEEDLE PLATE
	277500P400	NEEDLE PLATE
	277504R500	NEEDLE PLATE
	277504R600	NEEDLE PLATE
	277542R400	NEEDLE PLATE
	277542R500	NEEDLE PLATE
	201121A0	UPPER KNIFE FLAT NIFE
	201121A0	UPPER KNIFE FLAT NIFE
	201121A0	UPPER KNIFE FLAT NIFE
	201121A0	UPPER KNIFE FLAT NIFE
	201121A0	UPPER KNIFE FLAT NIFE
	201152E0
	277318A130
	(277356A160)	277357A160
	2770050
	2022950
	179630-920	DCX27 #9
	2107550
	2770040

Page 107 — EX5200 GAUGE PARTS LIST(5)

Pegasus EX3200 / EX5200 parts on page 107
Ref	Part number	Part name	Qty
	277577T960	NEEDLE PLATE
	277511S700	NEEDLE PLATE
	277511S800	NEEDLE PLATE
	277510S400	NEEDLE PLATE
	277510S500	NEEDLE PLATE
	277503S300	NEEDLE PLATE
	277502P150	NEEDLE PLATE
	277512P150	NEEDLE PLATE
	201121A0
	2770000

Page 108 — EX5200 GAUGE PARTS LIST (6)

Pegasus EX3200 / EX5200 parts on page 108
Ref	Part number	Part name	Qty
	277505R300	NEEDLE PLATE
	277505R400	NEEDLE PLATE
	277306-160	MAIN FEED DOG ASSM.
	(277307-160)	MAIN FEED DOG
	277318-130	AUX.FEED DOG
	277308-160	DIFF.FEED DOG
	2771240	PRESSER FOOT ASSM.
	277010A0 #5	UPPER LOOPER
	2770150	LOWER LOOPER
	277505R300	NEEDLE PLATE
	277505R400	NEEDLE PLATE
	277306-160	MAIN FEED DOG ASSM.
	(277307-160)	MAIN FEED DOG
	277318-130	AUX.FEED DOG
	277308-160	DIFF.FEED DOG
	2771250	PRESSER FOOT ASSM.
	277010A0 #5	UPPER LOOPER
	2770150	LOWER LOOPER
	277505R300	NEEDLE PLATE
	277505R400	NEEDLE PLATE
	277306-160	MAIN FEED DOG ASSM.
	(277307-160)	MAIN FEED DOG
	277318-130	AUX.FEED DOG
	277308-160	DIFF.FEED DOG
	2771250	PRESSER FOOT ASSM.
	277010A0 #5	UPPER LOOPER
	2770150	LOWER LOOPER
	277505R300	NEEDLE PLATE
	277505R400	NEEDLE PLATE
	277505R500	NEEDLE PLATE
	277303-16F0	MAIN FEED DOG ASSM.
	(277304-16F0)	MAIN FEED DOG
	277318-130	AUX.FEED DOG
	277305-16F0	DIFF.FEED DOG
	2771120	PRESSER FOOT ASSM.
	2771590 #22	PRESSER FOOT FINGER
	2086510 #58	PRESSER FOOT FINGER
	277010A0 #5	UPPER LOOPER
	2770150	LOWER LOOPER
	277505R300	NEEDLE PLATE
	277505R400	NEEDLE PLATE
	277505R500	NEEDLE PLATE
	277303-16F0	MAIN FEED DOG ASSM.
	(277304-16F0)	MAIN FEED DOG
	277318-130	AUX.FEED DOG
	277305-16F0	DIFF.FEED DOG
	2771120	PRESSER FOOT ASSM.
	2771590 #22	PRESSER FOOT FINGER
	2086510 #58	PRESSER FOOT FINGER
	277010A0 #5	UPPER LOOPER
	2770340	LOWER LOOPER
	201121A0	FLAT NIFE
	2107550	ANGLED KNIFE
	2022950	LOWER KNIFE
	2770050	FRONT
	2770040	REAR
	277022-920	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	201121A0	FLAT NIFE
	2107550	ANGLED KNIFE
	2022950	LOWER KNIFE
	2770050	FRONT
	2770040	REAR
	277022-920	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	201121A0	FLAT NIFE
	2107550	ANGLED KNIFE
	2022950	LOWER KNIFE
	2770050	FRONT
	2770040	REAR
	277022-920	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	201121A0	FLAT NIFE
	2107550	ANGLED KNIFE
	2022950	LOWER KNIFE
	2770050	FRONT
	2770040	REAR
	277022-920	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	201121A0	FLAT NIFE
	2107550	ANGLED KNIFE
	2022950	LOWER KNIFE
	2770050	FRONT
	2770040	REAR
	277022-920	NEEDLE HOLDER
	DCX27 #9	NEEDLE

Page 109 — EX5200 GAUGE PARTS LIST(7)

Pegasus EX3200 / EX5200 parts on page 109
Ref	Part number	Part name	Qty
	277505R300	NEEDLE PLATE
	277505R400	NEEDLE PLATE
	277505R500	NEEDLE PLATE
	277507R300	NEEDLE PLATE
	277507R400	NEEDLE PLATE
	277507R500	NEEDLE PLATE
	277508R350	NEEDLE PLATE
	277508R450	NEEDLE PLATE
	277510S400	NEEDLE PLATE
	277510S500	NEEDLE PLATE
	277022-920	NEEDLE HOLDER
	277022-920	NEEDLE HOLDER
	277023-920	NEEDLE HOLDER
	277024-920	NEEDLE HOLDER
	277303-16F0	MAIN FEED DOG ASSM.
	277304-16F0	MAIN FEED DOG
	277316-16F0	DIFF.FEED DOG
	2771120	PRESSER FOOT ASSM.
	277378-16F0	MAIN FEED DOG ASSM.
	277379-16F0	MAIN FEED DOG
	277380-16F0	DIFF.FEED DOG
	2771110	PRESSER FOOT ASSM.
	277015B0	LOWER LOOPER
	277378-25F0	MAIN FEED DOG ASSM.
	277379-25F0	MAIN FEED DOG
	277380A25F0	DIFF.FEED DOG
	2771270	PRESSER FOOT ASSM.
	2770160	LOWER LOOPER
	201121A0	FLAT NIFE
	2107550	ANGLED KNIFE
	2022950	LOWER KNIFE
	2770050	OVERLOCK NEEDLE GUARD FRONT
	2770040	OVERLOCK NEEDLE GUARD REAR
	2770000	FLAT NIFE
	2116621	ANGLED KNIFE
	2770091	LOWER KNIFE

Page 110 — EX5200 GAUGE PARTS LIST(8)

Pegasus EX3200 / EX5200 parts on page 110
Ref	Part number	Part name	Qty
	277526S350	NEEDLE PLATE
	277526S-450	NEEDLE PLATE
	277510S400	NEEDLE PLATE
	277510S500	NEEDLE PLATE
	277531-300	NEEDLE PLATE
	277531-400	NEEDLE PLATE
	277531-500	NEEDLE PLATE
	277552-300	NEEDLE PLATE
	277552-400	NEEDLE PLATE
	277532-300	NEEDLE PLATE
	277532-400	NEEDLE PLATE
	277532-500	NEEDLE PLATE
	277340-16F0	MAIN FEED DOG ASSM.
	(277341-16F0)	MAIN FEED DOG
	277342-16F0	DIFF.FEED DOG
	2771140	PRESSER FOOT ASSM.
	277016A0	LOWER LOOPER
	2770150	LOWER LOOPER
	277303B16F0	MAIN FEED DOG ASSM.
	(277304A16F0)	MAIN FEED DOG
	277342A16F0	DIFF.FEED DOG
	277305A16F0	DIFF.FEED DOG
	2770000	UPPER KNIFE
	2116621	UPPER KNIFE
	2770091	LOWER KNIFE
	2770050	NEEDLE GUARD FRONT
	2770040	NEEDLE GUARD REAR
	277023-920	NEEDLE HOLDER
	277024-920	NEEDLE HOLDER
	201121A0	UPPER KNIFE
	2107550	UPPER KNIFE
	2022950	LOWER KNIFE
	179630-920	NEEDLE HOLDER
	2011270	LOWER KNIFE

Page 111 — EX5200 GAUGE PARTS LIST(9)

Pegasus EX3200 / EX5200 parts on page 111
Ref	Part number	Part name	Qty
3	277342-16F0		2
3	(277318-13F0)	277317-16F0	2
3	277011B0 #17	277015B0	2
3	277115A0 #12		3
3	201152E0	201396B0 #56	2
3	201310A0 #55	277501R300	2
4	3015100 #59	277010AD #5	2
4	2771130		2
4	277010B0 #6		2
	277530-300	NEEDLE PLATE
	277530-400	NEEDLE PLATE
	277530-300	NEEDLE PLATE
	277530-400	NEEDLE PLATE
	277531-300	NEEDLE PLATE
	277531-400	NEEDLE PLATE
	277501R300	NEEDLE PLATE
	277501R401	NEEDLE PLATE
SW	(277341-16F0)	(277318-13F0)	2
NG	2770150		2
SW	277340-16F0	(277341-16F0)	2
NG	277300-16F0	(2377301-16F0)	2
ANGLED KNIFE	2107550		2
LOWER KNIFE	2770050		2
FRONT	277022-920	DCX27 #9	2
ANGLED KNIFE	201121A0		2
LOWER KNIFE	2022950		2
FRONT	2770040		2
ANGLED KNIFE	DCX27 #11	201121A0	2
REAR	179630-920	DCX27 #9	3
NEEDLE HOLDER	DCX27 #9	201121A0	2

Page 112 — 糸通し図一覧 Threading diagram

Pegasus EX3200 / EX5200 parts on page 112
Ref	Part number	Part name	Qty
39, 40	9A00890 9A00910
39, 40	9A00940 9A00910
39, 40	9A00850 9A00910
39, 40	9A00950 9A00910
39, 40	9A00870 9A00910
39, 40	9A00960 9A00910
39	9A00790
39	9A00800
39	9A00810
39	9A00820
39	9A00830
39	9A00840
39	9A00930

Page 113 — INDEX

Pegasus EX3200 / EX5200 parts on page 113
Ref	Part number	Part name	Qty
1	000100-9P0
1	000100A9P0
1	000100B9P0
1	000100C9P0
2	000101-PA0
3	000102-PA0
4	0001030
8	000104APAO
32	000104APAO
7	000104-PA0
31	000104-PA0
29	0001050
14	000106-PA0
15	0001070
16	000108-PA0
17	000109-PA0
20	0001100
23	000111-PA0
26	0001120
27	000112A0
28	000112B0
35	0001130
36	0001140
37	0001150
9	0001160
38	0001170
26	0001890
22	0003370
29	0003380
30	0003390
35	0003400
31	0003410
25	0003430
23	0003440
34	000403-9S0
36	0004040
35	0004050
35	0004060
38	0004070
39	0004080
41	0004090
43	000410-SA0
32	0004130
15	0004530
15	0004530
25	0004530
6	0004530
10	0004530
6	0004530
10	0004530
5	0004530
8	0004530
11	0004530
27	0004530
8	0004530
4	0004530
4	0004530
3	0004530
7	0004530
25	0004530
22	0004530
4	0004530
14	0004530
4	0004530
22	0004530
9	0004530
3	0004530
8	0004530
16	0004530
3	0004530
3	0004530
16	00045430
21	00045430
33	00045430
19	00045450
22	00045450
24	00045450
29	00045450
17	00045450
17	00045460
9	00045470
2	00045540
7	00045540
12	00045540
17	00045540
19	00045540
12	00045720
42	00045730
42	00045730
24	0007019A0
37	00070200
31	00070200
18	00070200
12	00070200
21	00070200
17	00070200
35	0007020A0
22	0007020A0
5	0007020A0
8	0007020A0
57	00070210
16	0007021A0
20	0007021A0
36	0007021A0
32	0007021A0
19	0007021A0
17	0007021A0
25	0007023A0
38	0007023A0
2	0007023A0
2	0007023A0
2	0007023A0
2	0007023A0
2	0007023A0
11	0007025A0
33	00070330
34	00070330
21	00070350
25	00070350
13	00070380
32	00070390
33	00070390
25	00070410
18	00070410
19	00070770
2	00070820
5	00070820
9	00070820
34	00070840
38	00070990
14	00071050
37	00071100
39	00071100
37	00071100
19	00071140
4	00071190
9	00071190
14	00071200
19	00071200
24	00071200
13	00071500
13	00071500

Page 116

Pegasus EX3200 / EX5200 parts on page 116
Ref	Part number	Part name	Qty
13	2755410
1	275542-910
1	2760010
1	2760010
7	276002-UA0
19	276002-UA0
8	276003-UA0
20	276003-UA0
10	2760040
7	2760120
11	2760130
16	2760140
14	2771080
3	2771260
5	2771260
3	2771260
13	2771260
21	2771260
8	2771260
3	2771280
27	3002480
38	3002480
16	3002480
8	3017250
12	3030670
11	3030670
11	3030670
10	3030670
27	3030670
12	303067A0
36	303312A0
30	303312A0
39	303312A0
35	303312A0
37	3033130
31	3033130
40	3033130
36	3033130
39	3034480
49	3034480
12	3080360
5	308085-DO
38	3080930
4	3080930
41	9A30670
11	9A30710
43	9A30720
44	9A31261

Page 5 — MACHINE BED FRAME

Page 7 — カバー機構(1)

Page 9 — カバー機構(2) COVER (2)

Page 11 — CRANKSHAFT DRIVE MECHANISM

Page 13 — THREAD TENSION MECHANISM

Page 15 — THREAD GUIDE & THREAD TAKEUP (1)

Page 17 — THREAD GUIDE & THREAD TAKEUP (2)

Page 19 — THREAD GUIDE & THREAD TAKEUP(3)

Page 21 — NEEDLE DRIVE MECHANISM (1)

Page 23 — NEEDLE DRIVE MECHANISM (2)

Page 25 — 針振り機構(3) NEEDLE DRIVE MECHANISM (3)

Page 27 — NEEDLE DRIVE MECHANISM (4)

Page 29 — UPPER LOOPER DRIVE MECHANISM (1)

Page 31 — UPPER LOOPER DRIVE MECHANISM (2)

Page 33 — LOWER LOOPER DRIVE MECHANISM

Page 35 — 二重環ルーパー機構 (1)

Page 37 — CHAINSTITCH LOOPER DRIVE MECHANISM (2)

Page 39 — FEED MECHANISM (1)

Page 40 — FEED MECHANISM (2)

Page 41 — FEED MECHANISM (2)

Page 43 — FEED MECHANISM (3)

Page 45 — KNIFE DRIVE MECHANISM

Page 47 — 押エ機構 PRESSER FOOT MECHANISM

Page 49 — 給油機構 (1) LUBRICATION MECHANISM (1)

Page 51 — 給油機構 (2) LUBRICATION MECHANISM (2)

Page 53 — H.R. DEVICE

Page 55 — THREAD STAND

Page 57 — PARTS FOR SEMI-SUBMERGED INSTALLATION

Page 59 — 全沈床式据付付属品 / PARTS FOR FULLY-SUBMERGED INSTALLATION

Page 61 — SPECIFIC PARTS (1)

Page 63 — 専用部品 (2) / SPECIFIC PARTS (2)

Page 65 — 専用部品 (3) / SPECIFIC PARTS (3)

Page 67 — 専用部品 (4) / SPECIFIC PARTS (4)

Page 69 — 専用部品 (5) / SPECIFIC PARTS (5)

Page 71 — SPECIFIC PARTS (6)

Page 73 — 専用部品 (7) / SPECIFIC PARTS (7)

Page 75 — 専用部品 (8) / SPECIFIC PARTS (8)

Page 77 — SPECIFIC PARTS (9)

Page 79 — SPECIFIC PARTS (10)

Page 81 — SPECIFIC PARTS (11)

Page 83 — 専用部品 (12)

Page 85 — SPECIFIC PARTS (13)

Page 87 — SPECIFIC PARTS (14)

Page 89 — SPECIFIC PARTS (15)

Page 91 — SPECIFIC PARTS (16)

Page 93 — SPECIFIC PARTS (17)

Page 95 — Option

Page 96 — EX3200 GAUGE PARTS LIST(1)

Page 97 — EX3200 ゲージパーツ表 (2) / EX3200 GAUGE PARTS LIST(2)

Page 98 — EX3200 GAUGE PARTS LIST (3)

Page 99 — EX3200 GAUGE PARTS LIST (4)

Page 100 — EX3200 GAUGE PARTS LIST(5)

Page 101 — EX3200 ゲージパーツ表 (6) / EX3200 GAUGE PARTS LIST(6)

Page 102 — EX3200 GAUGE PARTS LIST(7)

Page 103 — EX5200 GAUGE PARTS LIST(1)

Page 104 — EX5200 GAUGE PARTS LIST(2)

Page 105 — EX5200 GAUGE PARTS LIST (3)

Page 106 — EX5200 GAUGE PARTS LIST(4)

Page 107 — EX5200 GAUGE PARTS LIST(5)

Page 108 — EX5200 GAUGE PARTS LIST (6)

Page 109 — EX5200 GAUGE PARTS LIST(7)

Page 110 — EX5200 GAUGE PARTS LIST(8)

Page 111 — EX5200 GAUGE PARTS LIST(9)

Page 112 — 糸通し図一覧 Threading diagram

Page 113 — INDEX

Page 116

Pegasus EX3200 / EX5200 — parts catalog
