Pegasus EX5100 Parts Book (PDF)
Text index — Pegasus EX5100
Page 5 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2010020 | PIN | 1 |
| 2 | 2101820 | PIN | 1 |
| 3 | 2402990 | PIN | 1 |
| 4 | 2400940 | PIN | 2 |
| 5 | 2403250 | PIPE | 2 |
| 6 | 2700470 | BED PIN | 4 |
| 7 | 2106790 | PIN | 2 |
| 8 | 2106790 | PIN | 2 |
| 9 | 2106790 | PIN | 2 |
| 10 | 007019A0 | SCREW | 3 |
| 11 | 9A30710 | EARTH LABEL | 1 |
| 12 | 2403100 | PLUG | 1 |
Page 7 — カバー機構(1) COVER (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270148-SD0 | TOP COVER | 1 |
| 2 | 007022A0 | SCREW | 4 |
| 3 | 2701490 | GASKET | 1 |
| 4 | 2403050 | RUBBER CUSHION | 3 |
| 5 | 2064571 | OIL SIGHT WINDOW | 1 |
| 6 | 2066820 | GASKET | 1 |
| 7 | 270150-UD0 | FRONT COVER (RIGHT) | 1 |
| 8 | 2701510 | FRONT COVER (LEFT) | 1 |
| 9 | 007018A0 | SCREW | 2 |
| 10 | 0045740 | SCREW | 1 |
| 11 | 0045350 | SCREW | 1 |
| 12 | 270014A0 | HINGE | 1 |
| 13 | 007021A0 | SCREW | 2 |
| 14 | 240043A0 | PIN | 1 |
| 15 | 0045430 | SCREW | 2 |
| 16 | 2700180 | LATCH | 1 |
| 17 | 0070090 | SCREW | 1 |
| 18 | 2403010 | SPRING | 1 |
| 19 | 2701520 | LATCH | 1 |
| 20 | 007017A0 | SCREW | 1 |
| 21 | 2100440 | FLAT SPRING | 1 |
| 22 | 007017A0 | SCREW | 1 |
| 23 | 2701530 | COVER | 1 |
| 24 | 007020A0 | SCREW | 2 |
| 25 | 007021A0 | SCREW | 1 |
| 26 | 007022A0 | SCREW | 1 |
| 27 | 2700250 | FAN COVER | 1 |
| 28 | 007019A0 | SCREW | 2 |
| 29 | 270024-9U0 | BELT COVER ASSY. | 1 |
| 30 | 2403050 | RUBBER CUSHION | 1 |
| 31 | 0071760 | SCREW | 3 |
| 32 | 270083B9U0 | SIDE COVER ASSY. | 1 |
| 33 | 274011-910 | PRESSER BAR | 1 |
| 34 | 0070440 | SCREW | 4 |
| 35 | 9A30670 | CAUTION LABEL | 1 |
| 36 | 9A30690 | CAUTION LABEL | 1 |
| 37 | 9A30720 | LABEL | 1 |
| 38 | 9A31261 | LABEL | 1 |
| 39 | XXXXXX | THREADING DIAGRAM | 1 |
Page 9 — カバー機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270032 | EYE GUARD | 1 |
| 2 | 0070620 | SCREW | 2 |
| 3 | 2028750 | WASHER | 2 |
| 4 | 2700341 | BRACKET | 1 |
| 5 | 0070660 | SCREW | 1 |
| 6 | 2103070 | WASHER | 2 |
| 7 | 2700680 | BRACKET | 1 |
| 8 | 0045110 | BOLT | 3 |
| 9 | 2701670 | FABRIC GUIDE | 1 |
| 10 | 0073550 | SCREW | 2 |
| 11 | 2701790 | COVER | 1 |
| 12 | 270166-SD0 | COVER ASSY. | 1 |
| 13 | 2701450 | COVER | 1 |
| 14 | 007019A0 | SCREW | 4 |
| 15 | 2701750 | GASKET | 1 |
| 16 | 213062A0 | SIDE COVER | 1 |
| 17 | 0045960 | SCREW | 1 |
| 18 | 0045540 | SCREW | 1 |
| 19 | 3069200 | PIN | 1 |
| 20 | 0045540 | SCREW | 1 |
| 21 | 2130630 | FLAT SPRING | 1 |
| 22 | 0071960 | SCREW | 1 |
| 23 | 2132730 | PIN | 1 |
| 24 | 0045540 | SCREW | 1 |
| 25 | 213094-910 | COVER | 1 |
| 26 | 007017A0 | SCREW | 2 |
Page 11 — CRANKSHAFT DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270522A0 | CRANKSHAFT | 1 |
| 2 | 270522B0 | CRANKSHAFT | 1 |
| 3 | 0045220 | SCREW | 2 |
| 4 | 2705020 | BALANCE WEIGHT | 1 |
| 5 | 0070110 | SCREW | 2 |
| 6 | 2705240 | BALANCE WEIGHT | 1 |
| 7 | 0070110 | SCREW | 2 |
| 8 | 2405030 | WASHER | 1 |
| 9 | 0071430 | SCREW | 1 |
| 10 | 2403300 | BALL BEARING | 1 |
| 11 | 2403350 | RING | 1 |
| 12 | 2129870 | BALL BEARING | 1 |
| 13 | 2115260 | BALL BEARING | 1 |
| 14 | 2403060 | WASHER | 1 |
| 15 | 2100560 | OIL SEAL | 1 |
| 16 | 2100570 | O RING | 1 |
| 17 | 2400340 | O RING | 1 |
| 18 | 2115280 | RIGHT COVER | 1 |
| 19 | 007020A0 | SCREW | 3 |
| 20 | 2705051 | FAN ASSY. | 1 |
| 21 | 270504-UD0 | MACHINE PULLEY | 1 |
| 22 | 0045410 | SCREW | 2 |
| 23 | 0045230 | BOLT | 1 |
| 24 | 2042930 | WASHER | 1 |
| 25 | 2705230 | SPACER | 1 |
| 26 | 2705260 | COVER | 1 |
Page 13 — NEEDLE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 271000-920 | CONNECTION | 1 |
| 2 | 007023A0 | SCREW | 2 |
| 3 | 2710010 | PIN | 1 |
| 4 | 0045380 | SCREW | 1 |
| 5 | 271002-920 | CRANK | 1 |
| 6 | 0045330 | BOLT | 1 |
| 7 | 271003D0 | SHAFT | 1 |
| 8 | 2402920 | C0LLAR | 1 |
| 9 | 0045540 | SCREW | 2 |
| 10 | 2082350 | WASHER | 1 |
| 11 | 2025770 | RING | 1 |
| 12 | 271004-920 | LEVER | 1 |
| 13 | 0071500 | BOLT | 1 |
| 14 | 271022A910 | SHAFT ASSY. | 1 |
| 15 | 2021770 | OIL WICK | 2 |
| 16 | 271005B91Y0 | BUSHING ASSY. | 1 |
| 17 | 0045460 | SCREW | 1 |
| 18 | 2010220 | O RING | 1 |
| 19 | 179009-050 | FELT | 1 |
| 20 | 2403100 | PLUG | 1 |
| 21 | 271009-920 | RING | 1 |
| 22 | 0070350 | SCREW | 1 |
| 23 | XXXXXX | NEEDLE | 1 |
| 24 | XXXXXX | NEEDLE HOLDER | 1 |
| 25 | 0045540 | SCREW | 1 |
| 26 | XXXXXX | NEEDLE | 2 |
| 27 | XXXXXX | NEEDLE HOLDER | 1 |
| 28 | 0045540 | SCREW | 2 |
| 29 | XXXXXX | NEEDLE PLATE | 1 |
| 30 | 0071700 | SCREW | 1 |
| 31 | 213060A910 | BRACKET ASSY. | 1 |
| 32 | 007019A0 | SCREW | 1 |
| 33 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 34 | 0070310 | SCREW | 1 |
| 35 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 36 | 0070620 | SCREW | 1 |
Page 15 — UPPER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 271500-920 | CONNECTION | 1 |
| 2 | 007022A0 | SCREW | 2 |
| 3 | 007023A0 | SCREW | 2 |
| 4 | 2715010 | GUIDE | 1 |
| 5 | 0070410 | SCREW | 2 |
| 6 | 271502-920 | CRANK | 1 |
| 7 | 271503-930 | CRANK | 1 |
| 8 | 0045330 | BOLT | 1 |
| 9 | 2715350 | SHAFT | 1 |
| 10 | 210586A0 | OIL SEAL | 1 |
| 11 | 2401020 | WASHER | 1 |
| 12 | 240201-920 | COLLAR | 1 |
| 13 | 0071100 | BOLT | 1 |
| 14 | 2403120 | WASHER | 1 |
| 15 | 271538B91Y0 | UPPER LOOPER HOLDER ASSY. | 1 |
| 16 | 271505-920 | LEVER | 1 |
| 17 | 0071500 | BOLT | 1 |
| 18 | 2715460 | PIN ASSY. | 1 |
| 19 | 2021760 | OIL WICK | 1 |
| 20 | 0045450 | SCREW | 1 |
| 21 | 271533B910 | UPPER LOOPER HOLDER ASSY. | 1 |
| 22 | 179130-050 | FELT | 1 |
| 23 | 0070541 | SCREW | 1 |
| 24 | 2330350 | FELT | 1 |
| 25 | XXXXXX | UPPER LOOPER | 1 |
| 26 | 271510M0 | UPPER LOOPER HOLDER BASE | 1 |
| 27 | 271510N0 | UPPER LOOPER HOLDER BASE | 1 |
| 28 | 0045100 | BOLT | 2 |
| 29 | 2715190 | FILTER | 1 |
| 30 | 2715340 | COVER | 1 |
| 31 | 0070330 | SCREW | 1 |
| 32 | 0070390 | SCREW | 1 |
| 33 | 2745890 | FELT | 1 |
| 34 | 2745880 | BRACKET ASSY. | 1 |
| 35 | 0070080 | SCREW | 1 |
| 36 | 0084210 | OIL SEAL | 1 |
Page 17 — LOWER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 271500-920 | CONNECTION | 1 |
| 2 | 007022A0 | SCREW | 2 |
| 3 | 007023A0 | SCREW | 2 |
| 4 | 2715010 | GUIDE | 1 |
| 5 | 0070410 | SCREW | 2 |
| 6 | 272010-920 | CRANK | 1 |
| 7 | 0045330 | BOLT | 1 |
| 8 | 271504B0 | SHAFT | 1 |
| 9 | 2403380 | WASHER | 1 |
| 10 | 3030670 | WASHER | 1 |
| 11 | 0071740 | BOLT | 1 |
| 12 | 2403110 | WASHER | 1 |
| 13 | 204052A0 | OIL SEAL | 1 |
| 14 | 272011-910 | LOWER LOOPER HOLDER ASSY. | 1 |
| 15 | 0045010 | BOLT | 1 |
| 16 | XXXXXX | LOWER LOOPER | 1 |
| 17 | 007013A0 | SCREW | 1 |
Page 19 — FEED MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2726020 | CONNECTION | 1 |
| 2 | 2725960 | ECCENTRIC | 1 |
| 3 | 2101290 | GUIDE/FEED ECCENTRIC | 1 |
| 4 | 210130A0 | FLAT SPRING | 1 |
| 5 | 0045350 | SCREW | 2 |
| 6 | 2725990 | RATCHET | 1 |
| 7 | 2726130 | SPRING | 1 |
| 8 | 0070380 | SCREW | 1 |
| 9 | 2726000 | RATCHET | 1 |
| 10 | 0045140 | SCREW | 1 |
| 11 | 0045720 | SCREW | 1 |
| 12 | 272597-910 | ECCENTRIC | 1 |
| 13 | 272595-910 | REGULATOR | 1 |
| 14 | 0045140 | SCREW | 2 |
| 15 | 2726100 | PUSH BOTTON | 1 |
| 16 | 2405171 | SPRING | 1 |
| 17 | 2404840 | WASHER | 2 |
| 18 | 2000200 | O RING | 2 |
| 19 | 2025220 | RING | 1 |
| 20 | 272603-920 | CRANK | 1 |
| 21 | 0045330 | BOLT | 1 |
| 22 | 2082350 | WASHER | 1 |
| 23 | 2402920 | COLLAR | 1 |
| 24 | 0045540 | SCREW | 2 |
| 25 | 272581-910 | CRANK ASSY. | 1 |
| 26 | 0045330 | BOLT | 1 |
| 27 | 2725830 | SLIDER | 1 |
| 28 | 2016290 | RING | 1 |
| 29 | 2725840 | GUIDE | 1 |
| 30 | 007020A0 | SCREW | 2 |
| 31 | 2725800 | MAIN FEED BAR | 1 |
| 32 | XXXXXX | MAIN FEED DOG ASSY. | 1 |
| 33 | XXXXXX | MAIN FEED DOG | 1 |
| 34 | XXXXXX | AUXILIARY FEED DOG | 1 |
| 35 | 0054920 | SCREW | 1 |
| 36 | 0070130 | SCREW | 1 |
| 37 | 2725850 | DIFFERENTIAL FEED BAR | 1 |
| 38 | XXXXXX | DIFFERENTIAL FEED DOG | 1 |
| 39 | 0070130 | SCREW | 1 |
| 40 | 2726050 | BLOCK | 1 |
| 41 | 240454-20 | NEEDLE BEARING | 1 |
| 42 | 2725790 | LINK | 1 |
| 43 | 2726090 | BUSHING | 1 |
| 44 | 2405040 | WASHER | 1 |
| 45 | 0072910 | BOLT | 1 |
| 46 | 2726040 | PIN | 1 |
| 47 | 2405050 | WASHER | 2 |
| 48 | 0071430 | SCREW | 2 |
| 49 | 2725780 | SHAFT | 1 |
| 50 | 2726070 | BLOCK | 1 |
| 51 | 0045280 | BOLT | 2 |
| 52 | 2726110 | GUIDE | 1 |
| 53 | 0072920 | SCREW | 1 |
| 54 | 2726120 | OIL SEAL | 2 |
| 55 | 2725920 | GUIDE | 2 |
| 56 | 0045380 | SCREW | 2 |
| 57 | 2725930 | GUIDE | 1 |
| 58 | 0070820 | SCREW | 2 |
| 59 | 2725870 | ECCENTRIC PIN | 1 |
| 60 | 0045840 | SCREW | 1 |
| 61 | 2041850 | O RING | 1 |
| 62 | 2403030 | COLLAR | 1 |
| 63 | 0045430 | SCREW | 1 |
| 64 | 2404040 | COLLAR | 2 |
| 65 | 0045380 | SCREW | 2 |
| 66 | 2725260 | BLOCK | 1 |
| 67 | 2400550 | WASHER | 1 |
| 68 | 0070410 | SCREW | 1 |
Page 21 — FEED MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2725880 | LINK | 1 |
| 2 | 272589-920 | LEVER | 1 |
| 3 | 0045330 | BOLT | 1 |
| 4 | 0070580 | SCREW | 1 |
| 5 | 2725900 | SHAFT | 1 |
| 6 | 2041850 | O RING | 1 |
| 7 | 2725910 | LEVER | 1 |
| 8 | 0071390 | SCREW | 1 |
| 9 | 2726140 | SPRING | 1 |
| 10 | 0071610 | SCREW | 1 |
| 11 | 2725860 | REGULATOR PLATE | 1 |
| 12 | 007019A0 | SCREW | 3 |
| 13 | 2526580 | STOPPER | 2 |
| 14 | 3034480 | WASHER | 2 |
| 15 | 007018A0 | SCREW | 2 |
| 16 | 272538A0 | ADJUSTING BAR | 1 |
| 17 | 2403220 | SEAL | 1 |
| 18 | 2405590 | SPRING | 1 |
| 19 | 272539A0 | PIN | 1 |
| 20 | 2005550 | RING | 1 |
| 21 | 2520690 | NUT | 1 |
| 22 | 2113010 | SPRING | 1 |
| 23 | 0070590 | SCREW | 1 |
Page 23 — KNIFE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 273000-920 | CONNECTION | 1 |
| 2 | 007023A0 | SCREW | 2 |
| 3 | 273001-920 | CRANK | 1 |
| 4 | 0045330 | BOLT | 1 |
| 5 | 2710010 | PIN | 1 |
| 6 | 0045380 | SCREW | 1 |
| 7 | 273004A0 | UPPER KNIFE LEVER | 1 |
| 8 | 3080360 | SCREW | 1 |
| 9 | 204052A0 | OIL SEAL | 1 |
| 10 | 240235-920 | COLLAR | 2 |
| 11 | 0045470 | SCREW | 2 |
| 12 | XXXXXX | UPPER KNIFE | 1 |
| 13 | 0070130 | SCREW | 1 |
| 14 | 179712-050 | UPPER KNIFE CLAMP | 1 |
| 15 | 2730060 | PIN | 1 |
| 16 | 0070210 | SCREW | 1 |
| 17 | XXXXXX | LOWER KNIFE | 1 |
| 18 | 213264-910 | LOWER KNIFE CLAMP | 1 |
| 19 | 0070190 | SCREW | 1 |
| 20 | 2730270 | LOWER KNIFE HOLDER | 1 |
| 21 | 0045430 | SCREW | 1 |
| 22 | 2405180 | SPRING | 1 |
| 23 | 2130840 | COVER | 1 |
| 24 | 0070100 | SCREW | 1 |
Page 25 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 274000-B0 | PRESSER ARM | 1 |
| 2 | 2085490 | PIN | 1 |
| 3 | 0045940 | SCREW | 1 |
| 4 | 2740010 | SHAFT | 1 |
| 5 | 2740020 | BUSHING | 1 |
| 6 | 0071050 | SCREW | 1 |
| 7 | 274003-921 | COLLAR | 1 |
| 8 | 0045340 | BOLT | 1 |
| 9 | 2740040 | LEVER | 1 |
| 10 | 274005A0 | SPRING | 1 |
| 11 | 2740060 | LINK | 1 |
| 12 | 2740070 | LEVER | 1 |
| 13 | 0070600 | SCREW | 1 |
| 14 | 2740080 | SPRING | 1 |
| 15 | 2740090 | STOPPER | 1 |
| 16 | 007020A0 | SCREW | 2 |
| 17 | 0071750 | SCREW | 1 |
| 18 | 0048050 | NUT | 1 |
| 19 | 2087730 | SPRING | 1 |
| 20 | 274014A1 | ADJUSTING SCREW | 1 |
| 21 | 2740150 | NUT | 1 |
| 22 | 274016A0 | LEVER | 1 |
| 23 | 0071710 | SCREW | 1 |
| 24 | 2740170 | SPRING | 1 |
| 25 | 2740100 | STOPPER | 1 |
| 26 | 0070190 | SCREW | 1 |
| 27 | 274018-92B0 | HOLDER | 1 |
| 28 | 0070130 | SCREW | 1 |
| 29 | 2740190 | FLAT SPRING | 1 |
| 30 | 0050890 | SCREW | 1 |
| 31 | 2740330 | FINGER GUARD | 1 |
| 32 | 2740200 | STOPPER | 1 |
| 33 | 0070080 | SCREW | 1 |
| 34 | 0070090 | SCREW | 1 |
Page 27 — THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 210529-9T0 | TENSION SPRING ASSY. | 1 |
| 2 | 2010370 | SPRING (HEAVY) | 1 |
| 3 | 210531-9T0 | TENSION SPRING ASSY. | 1 |
| 4 | 2010680 | SPRING (LIGHT) | 1 |
| 5 | 210530-9T0 | TENSION SPRING ASSY. | 1 |
| 6 | 2010860 | SPRING (MEDIUM) | 1 |
| 7 | 263543-TA0 | KNOB | 1 |
| 8 | 2084480 | RATCHET | 1 |
| 9 | 263544-TA0 | SPRING SHIELD | 1 |
| 10 | 2103190 | DISC | 2 |
| 11 | 2084490 | FELT | 1 |
| 12 | 005082A0 | SCREW STUD | 1 |
| 13 | 2750000 | THREAD GUIDE | 1 |
| 14 | 007018A0 | SCREW | 2 |
| 15 | 2750010 | THREAD GUIDE | 1 |
| 16 | 004009-1HC0 | SCREW | 1 |
| 17 | 2028490 | THREAD TENSION GUIDE | 3 |
| 18 | 210529-9T0 | TENSION SPRING ASSY. | 2 |
| 19 | 2028490 | THREAD TENSION GUIDE | 4 |
Page 29 — THREAD GUIDE & THREAD TAKEUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2750150 | BRACKET | 1 |
| 2 | 0070820 | SCREW | 1 |
| 3 | 275013A0 | THREAD GUIDE | 1 |
| 4 | 2750130 | THREAD GUIDE | 1 |
| 5 | 0045430 | SCREW | 1 |
| 6 | 2750180 | THREAD GUIDE | 1 |
| 7 | 275018A0 | THREAD GUIDE | 1 |
| 8 | 0070820 | SCREW | 1 |
| 9 | 275016A0 | NEEDLE THREAD TAKE-UP | 1 |
| 10 | 275017A0 | NEEDLE THREAD TAKE-UP | 1 |
| 11 | 275106A0 | NEEDLE THREAD TAKE-UP | 1 |
| 12 | 0070620 | SCREW | 1 |
| 13 | 0070410 | SCREW | 1 |
| 14 | 2750040 | BRACKET | 1 |
| 15 | 2750470 | THREAD GUIDE | 2 |
| 16 | 2028750 | WASHER | 2 |
| 17 | 0070080 | SCREW | 2 |
| 18 | 2751070 | THREAD GUIDE | 1 |
| 19 | 2750050 | THREAD TAKE-UP | 1 |
| 20 | 0070190 | SCREW | 1 |
| 21 | 2750060 | THREAD GUIDE | 1 |
| 22 | 0070080 | SCREW | 1 |
| 23 | 2751080 | THREAD TAKE-UP | 1 |
| 24 | 0070180 | SCREW | 1 |
| 25 | 2570100 | THREAD GUIDE | 1 |
| 26 | 2751090 | THREAD GUIDE | 1 |
| 27 | 2750110 | THREAD RETAINER BRACKET | 1 |
| 28 | 2750120 | THREAD RETAINER | 1 |
| 29 | 2403260 | SPRING | 1 |
| 30 | 0071630 | SCREW | 1 |
| 31 | 275019A0 | THREAD GUIDE | 1 |
| 32 | 275019B0 | THREAD GUIDE | 1 |
| 33 | 0070120 | SCREW | 1 |
Page 31 — 給油機構(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 274587-910 | OIL RESERVOIR ASSY. | 1 |
| 2 | 202287A0 | WASHER | 1 |
| 3 | 0053138B0 | SCREW | 1 |
| 4 | 0045310 | BOLT | 4 |
| 5 | 2403390 | WASHER | 4 |
| 6 | 2745830 | GASKET | 1 |
| 7 | 2745390 | OIL SIGHT GAUGE | 1 |
| 8 | 2062330 | FILTER ELEMENT | 1 |
| 9 | 274528A0 | JOINT | 1 |
| 10 | 210201-SD0 | COVER | 1 |
| 11 | 007021A0 | SCREW | 3 |
| 12 | 2064310 | O RING | 1 |
| 13 | 9A30020 | FILTER SEAL | 1 |
| 14 | 274546-910 | PUMP ASSY. | 1 |
| 15 | 2116180 | WORM WHEEL | 1 |
| 16 | 0050600 | SCREW | 2 |
| 17 | 0045220 | SCREW | 1 |
| 18 | 212978-910 | ROTOR (INSIDE) SHAFT | 1 |
| 19 | 2129810 | ROTOR (OUTSIDE) | 1 |
| 20 | 2094080 | FILTER (INSIDE) | 1 |
| 21 | 2094090 | FILTER (OUTSIDE) | 1 |
| 22 | 0070120 | SCREW | 3 |
| 23 | 2094100 | CLAMP | 1 |
| 24 | 0070110 | SCREW | 1 |
| 25 | 0048000 | NUT | 1 |
| 26 | 0045290 | BOLT | 2 |
| 27 | 2041850 | O RING | 1 |
| 28 | 0045220 | SCREW | 1 |
| 29 | 274507A0 | WORM | 1 |
| 30 | 0045140 | SCREW | 1 |
| 31 | 2001360 | JOINT | 2 |
| 32 | 2745860 | JOINT SCREW | 1 |
| 33 | 1L700400000 | TUBE | 1 |
| 34 | 2021990 | CLAMP | 2 |
| 35 | 2001360 | JOINT | 1 |
| 36 | 2403280 | JOINT SCREW | 1 |
| 37 | 2068400 | TUBE | 1 |
| 38 | 2021990 | CLAMP | 2 |
| 39 | 274591-910 | OIL DISTRIBUTOR ASSY. | 1 |
| 40 | 2102140 | BALL | 2 |
| 41 | 004211-HU0 | SCREW | 1 |
| 42 | 2755400 | PLUG | 1 |
| 43 | 2755410 | FILTER | 1 |
Page 33 — 給油機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2745920 | JOINT | 1 |
| 2 | 2745200 | TUBE | 1 |
| 3 | 274584-910 | JOINT ASSY. | 1 |
| 4 | 2041850 | O RING | 1 |
| 5 | 2745220 | FELT | 1 |
| 6 | 0071430 | SCREW | 1 |
| 7 | 274516-910 | PIPE ASSY. | 1 |
| 8 | 2400970 | BALL | 2 |
| 9 | 2021750 | OIL WICK | 1 |
| 10 | 0045430 | SCREW | 1 |
| 11 | 274517B910 | PIPE ASSY. | 1 |
| 12 | 2400970 | BALL | 1 |
| 13 | 0045430 | SCREW | 1 |
Page 35 — H.R. 装置
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2755000 | SILICONE OIL RESERVOIR (UPPER) | 1 |
| 2 | 0070200 | SCREW | 1 |
| 3 | 2755020 | THREAD GUIDE | 1 |
| 4 | 2755030 | FELT | 1 |
| 5 | 2755010 | COVER | 1 |
| 6 | 2755700 | SILICONE OIL RESERVOIR (LOWER) | 1 |
| 7 | 2755720 | JOINT SCREW | 1 |
| 8 | 2089490 | O RING | 2 |
| 9 | 2755710 | COVER | 1 |
| 10 | 275576-910 | NEEDLE COOLER | 1 |
| 11 | 2755730 | JOINT SCREW | 1 |
| 12 | 007017A0 | SCREW | 1 |
| 13 | 2021740 | OIL WICK | 1 |
| 14 | 2130900 | FELT | 1 |
| 15 | 2107660 | PIN | 1 |
Page 37 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000100B9P0 | THREAD STAND ASSY. (4-SPOOL) | 1 |
| 1 | 000100C9P0 | THREAD STAND ASSY. (3-SPOOL) | 1 |
| 2 | 000101-PA0 | THREAD BAR (UPPER) | 1 |
| 3 | 000102-PA0 | THREAD BAR (LOER) | 1 |
| 4 | 0001030 | JOINT | 1 |
| 5 | 004066-HU0 | SCREW | 2 |
| 6 | 004067-HU0 | NUT | 2 |
| 7 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 8 | 000104APA0 | BRACKET (2-SPOOL) | |
| 9 | 0001160 | HOLDER | 1 |
| 10 | 004068-HU0 | SCREW | 1 |
| 11 | 0001050 | SPOOL PIN | 3 |
| 12 | 303067A0 | WASHER | 3 |
| 13 | 004067-HU0 | NUT | 3 |
| 14 | 000106-PA0 | SPOOL TRAY | 3 |
| 15 | 0001070 | CUSHON | 3 |
| 16 | 000108-PA0 | SPOOL RETAINING FIN | 3 |
| 17 | 000109-PA0 | BRACKET | 1 |
| 18 | 0041130 | SCREW | 1 |
| 19 | 0048030 | NUT | 1 |
| 20 | 0001100 | THREAD GUIDE BAR | 1 |
| 21 | 004065-HU0 | SCREW | 1 |
| 22 | 0048030 | NUT | 1 |
| 23 | 000111-PA0 | BRACKET | 1 |
| 24 | 004065-HU0 | SCREW | 1 |
| 25 | 0048030 | NUT | 1 |
| 26 | 000112A0 | THREAD GUIDE BAR (5-SPOOL) | |
| 27 | 000112B0 | THREAD GUIDE BAR (3-SPOOL) | 1 |
| 28 | 004065-HU0 | SCREW | 1 |
| 29 | 0048030 | NUT | 1 |
| 30 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 31 | 000104APA0 | BRACKET (2-SPOOL) | |
| 32 | 0001160 | HOLDER | 1 |
| 33 | 004068-HU0 | SCREW | 1 |
| 34 | 0001130 | THREAD GUIDE | 3 |
| 35 | 0001140 | CAP | 1 |
| 36 | 0001150 | WASHER | 2 |
| 37 | 0001170 | WASHER | 1 |
| 38 | 007370-HU0 | NUT | 1 |
Page 39 — 半沈床式据付付属品 / PARTS FOR SEMI-SUBMERGED INSTALLATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2760170 | REST BOARD | 1 |
| 2 | 0097540 | BOLT ASSY. | 1 |
| 3 | 2063360 | NUT | 4 |
| 4 | 2054670 | SPACER | 4 |
| 5 | 2403040 | WASHER | 4 |
| 6 | 263370 | WASHER | 4 |
| 7 | 2014770 | WASHER | 4 |
| 8 | 0045750 | BOLT | 4 |
| 9 | 179483-050 | CUSHION RUBBER | 2 |
| 10 | 2054730 | CUSHION RUBBER ASSY. | 2 |
| 11 | 276002-UA0 | WASTE CHUTE (TOP) | 1 |
| 12 | 276003-UA0 | WASTE CHUTE (LOWER) | 1 |
| 13 | 0049040 | SCREW | 3 |
| 14 | 2760040 | BRACKET | 1 |
| 15 | 3030260 | WASHER | 1 |
| 16 | 0041090 | SCREW | 1 |
| 17 | 2401040 | WASHER | 1 |
| 18 | 0041090 | SCREW | 1 |
Page 41 — SPECIFIC PARTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | PRESSER FOOT | 1 |
| 2 | XXXXXX | PRESSER FOOT FINGER | 1 |
| 3 | 2115570 | FABRIC GUARD | 1 |
| 4 | 0013330 | SCREW | 1 |
| 5 | 2116000 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 6 | 0050300 | SCREW | 1 |
| 7 | XXXXXX | PRESSER FOOT | 1 |
| 8 | XXXXXX | PRESSER FOOT FINGER | 1 |
| 9 | 2105840 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 10 | 0050300 | SCREW | 1 |
| 11 | 2105850 | WASHER | 1 |
| 12 | 2106850 | BRACKET ASSY. | 1 |
| 13 | 2106800 | BRACKET | 1 |
| 14 | 2106810 | HINGE | 1 |
| 15 | 0051840 | SCREW | 1 |
| 16 | 2011910 | SPRING | 1 |
| 17 | 0030440 | NUT | 1 |
| 18 | 2106820 | WASHER | 1 |
| 19 | 0050530 | SCREW | 1 |
| 20 | 2106830 | PIN | 1 |
| 21 | 2106840 | FLAT SPRING | 1 |
| 22 | 0029060 | SCREW | 1 |
| 23 | 0070200 | SCREW | 1 |
| 24 | 2012520 | WASHER | 1 |
| 25 | 210691A910 | GUIDE ASSY. | 1 |
| 26 | 205361A0 | BRACKET | 1 |
| 27 | 0050570 | SCREW | 1 |
| 28 | 2106890 | BRACKET | 1 |
| 29 | 0051570 | SCREW | 2 |
| 30 | 0024300 | SCREW | 1 |
| 31 | 2106900 | BRACKET | 1 |
| 32 | 0050880 | BOLT | 2 |
| 33 | 1670660 | WASHER | 2 |
| 34 | 0029050 | SCREW | 1 |
| 35 | 1371420 | WASHER | 1 |
| 36 | 2106920 | STOPPER | 1 |
| 37 | 0012060 | SCREW | 1 |
| 38 | 2130950 | AUXILIARY PLATE | 1 |
| 39 | 0012290 | SCREW | 2 |
| 40 | 0050570 | SCREW | 1 |
| 41 | 201211C910 | GUIDE ASSY (40MM) | 1 |
| 42 | 2058350 | GUIDE | 1 |
| 43 | 0052990 | SCREW | 1 |
| 44 | 303312A0 | STOPPER | 1 |
| 45 | 3033130 | CLAMP | 1 |
Page 43 — SPECIFIC PARTS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | PRESSER FOOT ASSY. | 1 |
| 2 | 2771790 | BRACKET | 1 |
| 3 | 0070310 | SCREW | 2 |
| 4 | 213677A0 | GUIDE A | 1 |
| 5 | 0056150 | SCREW | 2 |
| 6 | 213678A0 | GUIDE B | 1 |
| 7 | 0029220 | SCREW | 2 |
| 8 | 2136720 | PRESSER FOOT | 1 |
| 9 | XXXXXX | PRESSER FOOT FINGER | 1 |
| 10 | 2740190 | FLATE SPRING | 1 |
| 11 | 0050890 | SCREW | 1 |
| 12 | 2116000 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 13 | 0050300 | SCREW | 1 |
| 14 | 274025A0 | FINGER GUARD | 1 |
Page 45 — SPECIFIC PARTS(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305276-910 | FAN ASSY. | 1 |
| 2 | XXXXXX | PRESSER FOOT ASSY. | 1 |
| 3 | 2136640 | GUIDE A | 1 |
| 4 | 0029220 | SCREW | 2 |
| 5 | 2136650 | GUIDE B | 1 |
| 6 | 0029220 | SCREW | 1 |
| 7 | 2136660 | GUIDE C | 1 |
| 8 | 0029220 | SCREW | 1 |
| 9 | 213659-910 | PRESSER FOOT | 1 |
| 10 | XXXXXX | PRESSER FOOT FINGER | 1 |
| 11 | 2740190 | FLAT SPRING | 1 |
| 12 | 0050890 | SCREW | 1 |
| 13 | 2116000 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 14 | 0050300 | SCREW | 1 |
| 15 | 2746010 | BRACKET | 1 |
| 16 | 0070310 | SCREW | 2 |
| 17 | 2136740 | GUIDE A | 1 |
| 18 | 0056150 | SCREW | 2 |
| 19 | 2746020 | GUIDE B | 1 |
| 20 | 0029220 | SCREW | 1 |
| 21 | XXXXXX | PRESSER FOOT | 1 |
| 22 | XXXXXX | PRESSER FOOT FINGER | 1 |
| 23 | 2780210 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 24 | 0050300 | SCREW | 1 |
| 25 | 2052690 | PIN | 1 |
| 26 | 2750000 | THREAD GUIDE | 1 |
| 27 | 350188A0 | SPACER | 2 |
| 28 | 0070720 | SCREW | 2 |
Page 47 — 専用部品 (4) / SPECIFIC PARTS(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2726240 | SHOULDER PIN | 1 |
| 2 | 2403110 | WASHER | 2 |
| 3 | 2726280 | WASHER | 1 |
| 4 | 272626-920 | LEVER | 1 |
| 5 | 0045310 | BOLT | 1 |
| 6 | 2011070 | BLOCK | 1 |
| 7 | 0073580 | SCREW | 1 |
| 8 | 0048200 | NUT | 1 |
| 9 | 2726250 | BRACKET | 1 |
| 10 | 0045150 | BOLT | 2 |
| 11 | 2042930 | WASHER | 2 |
| 12 | 2024330 | WASHER | 2 |
| 13 | 5131180 | AIR CYLINDER | 1 |
| 14 | 5270110 | SPEED CONTROLLER | 2 |
| 15 | 2726270 | LEVER | 1 |
Page 49 — 専用部品 (5) / SPECIFIC PARTS(5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270174-910 | CLOTH PLATE ASSY. | 1 |
| 2 | 270170-910 | CLOTH PLATE | 1 |
| 3 | 2042180 | FLAT SPRING | 1 |
| 4 | 200162A0 | WASHER | 1 |
| 5 | 0050530 | SCREW | 2 |
| 6 | 005121A0 | SCREW | 1 |
| 7 | 0030910 | NUT | 1 |
| 8 | 2048880 | SPRING | 2 |
| 9 | 0048080 | NUT | 2 |
| 10 | 2701730 | BRACKET | 1 |
| 11 | 007022A0 | SCREW | 2 |
| 12 | 2403050 | RUBBER CUSHION | 2 |
| 13 | 3050140 | BRACKET | 1 |
| 14 | 0070080 | SCREW | 2 |
| 15 | 2052690 | PIN | 1 |
| 16 | XXXXXX | PRESSER FOOT | 1 |
| 17 | XXXXXX | PRESSER FOOT FINGER | 1 |
| 18 | 2105840 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 19 | 2105850 | WASHER | 1 |
| 20 | 0050300 | SCREW | 1 |
| 21 | 2403120 | WASHER | 1 |
| 22 | 2106850 | BRACKET ASSY. | 1 |
| 23 | 2106800 | BRACKET | 1 |
| 24 | 2106810 | HINGE | 1 |
| 25 | 0051840 | SCREW | 1 |
| 26 | 2011910 | SPRING | 1 |
| 27 | 0030440 | NUT | 1 |
| 28 | 2106820 | WASHER | 1 |
| 29 | 0050530 | SCREW | 1 |
| 30 | 2106830 | PIN | 1 |
| 31 | 2106840 | FLAT SPRING | 1 |
| 32 | 0029060 | SCREW | 1 |
| 33 | 0070200 | SCREW | 1 |
| 34 | 2012520 | WASHER | 1 |
| 35 | 2106860 | EDGE GUIDE BRACKET ASSY. | 1 |
| 36 | 2106870 | EDGE GUIDE BRACKET | 1 |
| 37 | 0050880 | BOLT | 2 |
| 38 | 1670660 | WASHER | 2 |
| 39 | 0012020 | SCREW | 1 |
| 40 | 1670660 | WASHER | 1 |
| 41 | 2046670 | EDGE GUIDE | 1 |
Page 50 — EX5100 GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 213111-300 | NEEDLE PLATE | 3 | |
| 213111-400 | NEEDLE PLATE | 4 | |
| 213111-500 | NEEDLE PLATE | 5 | |
| 213110-300 | NEEDLE PLATE | 3 | |
| 213110-400 | NEEDLE PLATE | 4 | |
| 213110-500 | NEEDLE PLATE | 5 | |
| 213112-300 | NEEDLE PLATE | 3 | |
| 213112-400 | NEEDLE PLATE | 4 | |
| 213112-500 | NEEDLE PLATE | 5 | |
| 213111-300 | NEEDLE PLATE | 3 | |
| 213111-400 | NEEDLE PLATE | 4 | |
| 213111-500 | NEEDLE PLATE | 5 | |
| 277409-16F0 | MAIN FEED DOG ASSY. | 4 | |
| 277404-16F0 | AUX.FEED DOG | 4 | |
| 211987C0 | DIFF.FEED DOG | 4 | |
| 2103700 #1 | PRESSER FOOT | 3 | |
| 277062A0 #15 | PRESSER FOOT FINGER. | 4 | |
| 2770600 | UPPER LOOPER | 4 | |
| 2103710 #2 | LOWER LOOPER | 4 | |
| 277408-16F0 | MAIN FEED DOG ASSY. | 4 | |
| 2105030 #5 | PRESSER FOOT | 3 | |
| 277062B0 #18 | PRESSER FOOT FINGER. | 4 | |
| 2770010 | UPPER LOOPER | 4 | |
| 2103740 #7 | LOWER LOOPER | 4 | |
| 2770630 #19 | PRESSER FOOT | 4 | |
| 213108A0 | LOWER KNIFE | 3 | |
| 201121A0 | UPPER KNIFE | 4 | |
| 2131070 | NEEDLE GUARD FRONT | 4 | |
| 2770610 | NEEDLE GUARD REAR | 4 | |
| 179630-920 | NEEDLE HOLDER | 4 | |
| DCX27 #9 | NEEDLE | 4 | |
| 2131080 | LOWER KNIFE | 4 | |
| 277022-920 | NEEDLE HOLDER | 4 | |
| DCX27 #11 | NEEDLE | 4 |

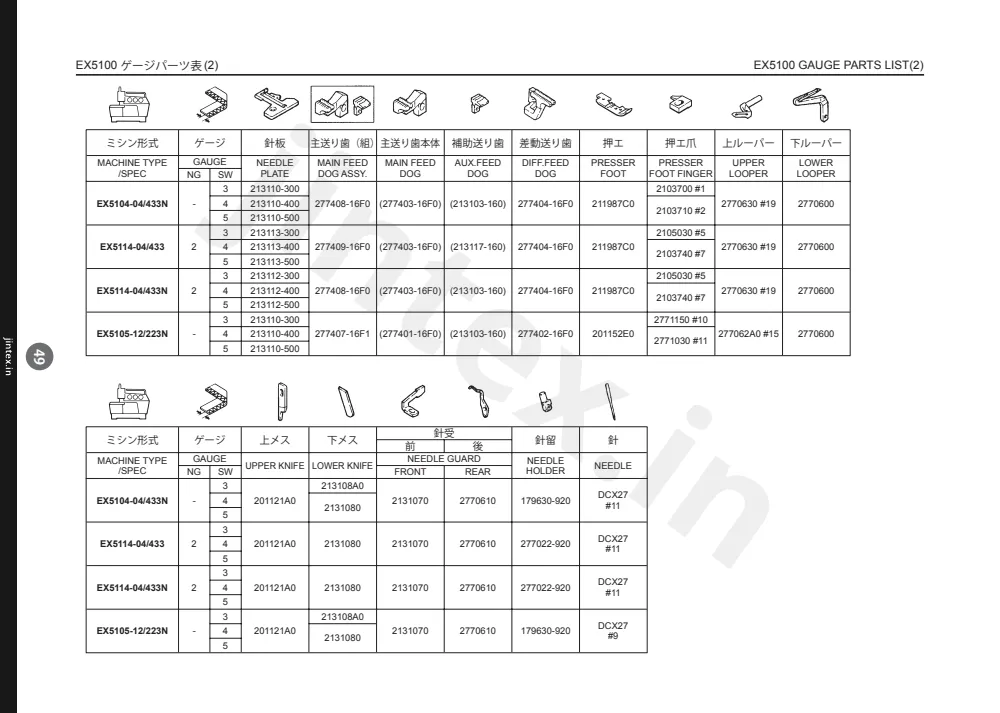

Page 51 — EX5100 GAUGE PARTS LIST(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 213110-300 | NEEDLE PLATE | ||
| 213110-400 | NEEDLE PLATE | ||
| 213110-500 | NEEDLE PLATE | ||
| 213113-300 | NEEDLE PLATE | ||
| 213113-400 | NEEDLE PLATE | ||
| 213113-500 | NEEDLE PLATE | ||
| 213112-300 | NEEDLE PLATE | ||
| 213112-400 | NEEDLE PLATE | ||
| 213112-500 | NEEDLE PLATE | ||
| 213110-300 | NEEDLE PLATE | ||
| 213110-400 | NEEDLE PLATE | ||
| 213110-500 | NEEDLE PLATE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 277408-16F0 | MAIN FEED DOG ASSY. | (2) | |
| 213103-160 | MAIN FEED DOG | (2) | |
| 277404-16F0 | AUX.FEED DOG | ||
| 211987C0 | DIFF.FEED DOG | ||
| 2103700 | PRESSER FOOT | #1 | |
| 2770630 | PRESSER FOOT FINGER | #19 | |
| 2770600 | UPPER LOOPER | ||
| 2103710 | LOWER LOOPER | #2 | |
| 277409-16F0 | MAIN FEED DOG ASSY. | (2) | |
| 213117-160 | MAIN FEED DOG | (2) | |
| 2105030 | PRESSER FOOT | #5 | |
| 2103740 | LOWER LOOPER | #7 | |
| 277407-16F1 | MAIN FEED DOG ASSY. | ||
| 277402-16F0 | AUX.FEED DOG | ||
| 201152E0 | DIFF.FEED DOG | ||
| 277062A0 | PRESSER FOOT | #15 | |
| 2771150 | LOWER LOOPER | #10 | |
| 213108A0 | LOWER KNIFE | 3 | |
| 2131070 | NEEDLE GUARD FRONT | ||
| 2770610 | NEEDLE GUARD REAR | ||
| 179630-920 | NEEDLE HOLDER | ||
| 2131080 | LOWER KNIFE | 4 | |
| DCX27 | NEEDLE | #11 | |
| 277022-920 | NEEDLE HOLDER |
Page 52 — EX5100 GAUGE PARTS LIST(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201121A0 | UPPER KNIFE | ||
| 2131080 | LOWER KNIFE | ||
| 2131070 | FRONT | ||
| 2770610 | REAR | ||
| 179630-920 | NEEDLE HOLDER | ||
| 277022-920 | NEEDLE HOLDER | ||
| DCX27 #9 | NEEDLE | ||
| 277178-910 | PRESSER FOOT | 4 | |
| 277509-400 | NEEDLE PLATE | 4 | |
| 277422-16F0 | MAIN FEED DOG ASSY. | 4 | |
| 277403-16F0 | MAIN FEED DOG | 4 | |
| 277752A130 | MAIN FEED DOG | 4 | |
| 277404-16F0 | AUX. FEED DOG | 4 | |
| 210371B0 | PRESSER FOOT FINGER | 4 | |
| 2770620 | UPPER LOOPER | 4 | |
| 2770600 | LOWER LOOPER | 4 | |
| 213670-910 | PRESSER FOOT | 4 | |
| 2136720 | DIFF. FEED DOG | 4 | |
| 277062B0 | UPPER LOOPER | 4 | |
| 2770010 | LOWER LOOPER | 4 | |
| 213109-200 | NEEDLE PLATE | 2 | |
| 213109-300 | NEEDLE PLATE | 3 | |
| 277407-16F1 | MAIN FEED DOG ASSY. | 3 | |
| 277401-16F0 | MAIN FEED DOG | 3 | |
| 213103-160 | MAIN FEED DOG | 3 | |
| 277402-16F0 | AUX. FEED DOG | 3 | |
| 201152E0 | DIFF. FEED DOG | 3 | |
| 2105030 | PRESSER FOOT FINGER | 3 | |
| 277062C0 | UPPER LOOPER | 3 | |
| 213100-400 | NEEDLE PLATE | 4 | |
| 2771030 | PRESSER FOOT FINGER | 4 | |
| DCX27 | NEEDLE | 4 |
Page 53 — THREADING DIAGRAM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 9A01150 | ||
| 1 | 9A01160 | ||
| 1 | 9A01170 |
Page 54
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000100B9P0 | ||
| 17 | 0045460 | ||
| 30 | 007020A0 | ||
| 9 | 2021750 | ||
| 3 | 2115570 | ||
| 1 | 000100C9P0 | ||
| 11 | 0045470 | ||
| 16 | 007020A0 | ||
| 19 | 2021760 | ||
| 5 | 2116000 | ||
| 2 | 000101-PA0 | ||
| 18 | 0045540 | ||
| 16 | 0070210 | ||
| 15 | 2021770 | ||
| 5 | 2116000 | ||
| 3 | 000102-PA0 | ||
| 20 | 0045540 | ||
| 13 | 007021A0 | ||
| 34 | 2021990 | ||
| 12 | 2116000 | ||
| 4 | 0001030 | ||
| 24 | 0045540 | ||
| 25 | 007021A0 | ||
| 38 | 2021990 | ||
| 15 | 2116180 | ||
| 7 | 000104-PA0 | ||
| 9 | 0045540 | ||
| 11 | 007021A0 | ||
| 2 | 202287A0 | ||
| 18 | 212978-910 | ||
| 30 | 000104-PA0 | ||
| 25 | 0045540 | ||
| 2 | 007022A0 | ||
| 12 | 2024330 | ||
| 19 | 2129810 | ||
| 8 | 000104APA0 | ||
| 28 | 0045540 | ||
| 26 | 007022A0 | ||
| 19 | 2025220 | ||
| 12 | 2129870 | ||
| 31 | 000104APA0 | ||
| 24 | 0045540 | ||
| 2 | 007022A0 | ||
| 11 | 2025770 | ||
| 31 | 213060A910 | ||
| 11 | 0001050 | ||
| 11 | 0045720 | ||
| 2 | 007022A0 | ||
| 17 | 2028490 | ||
| 16 | 213062A0 | ||
| 14 | 000106-PA0 | ||
| 10 | 0045740 | ||
| 11 | 007022A0 | ||
| 19 | 2028490 | ||
| 21 | 2130630 | ||
| 15 | 0001070 | ||
| 8 | 0045750 | ||
| 2 | 007023A0 | ||
| 3 | 2028750 | ||
| 23 | 2130840 | ||
| 16 | 000108-PA0 | ||
| 60 | 0045840 | ||
| 3 | 007023A0 | ||
| 16 | 2028750 | ||
| 14 | 2130900 | ||
| 17 | 000109-PA0 | ||
| 3 | 0045940 | ||
| 3 | 007023A0 | ||
| 13 | 204052A0 | ||
| 25 | 213094-910 | ||
| 20 | 0001100 | ||
| 17 | 0045960 | ||
| 2 | 007023A0 | ||
| 9 | 204052A0 | ||
| 38 | 2130950 | ||
| 23 | 000111-PA0 | ||
| 25 | 0048000 | ||
| 34 | 0070310 | ||
| 61 | 2041850 | ||
| 18 | 213264-910 | ||
| 26 | 000112A0 | ||
| 19 | 0048030 | ||
| 3 | 0070310 | ||
| 6 | 2041850 | ||
| 23 | 2132730 | ||
| 27 | 000112B0 | ||
| 22 | 0048030 | ||
| 16 | 0070310 | ||
| 27 | 2041850 | ||
| 9 | 213659-910 | ||
| 34 | 0001130 | ||
| 25 | 0048030 | ||
| 31 | 0070330 | ||
| 4 | 2041850 | ||
| 3 | 2136640 | ||
| 35 | 0001140 | ||
| 29 | 0048030 | ||
| 22 | 0070350 | ||
| 3 | 2042180 | ||
| 5 | 2136650 | ||
| 36 | 0001150 | ||
| 18 | 0048050 | ||
| 8 | 0070380 | ||
| 24 | 2042930 | ||
| 7 | 2136660 | ||
| 9 | 0001160 | ||
| 9 | 0048080 | ||
| 32 | 0070390 | ||
| 11 | 2042930 | ||
| 8 | 2136720 | ||
| 32 | 0001160 | ||
| 8 | 0048200 | ||
| 5 | 0070410 | ||
| 41 | 2046670 | ||
| 17 | 2136740 | ||
| 37 | 0001170 | ||
| 13 | 0049040 | ||
| 5 | 0070410 | ||
| 8 | 2048880 | ||
| 4 | 213677A0 | ||
| 39 | 0012020 | ||
| 6 | 0050300 | ||
| 68 | 0070410 | ||
| 25 | 2052690 | ||
| 6 | 213678A0 | ||
| 37 | 0012060 | ||
| 10 | 0050300 | ||
| 13 | 0070410 | ||
| 15 | 2052690 | ||
| 24 | 2330350 | ||
| 39 | 0012290 | ||
| 13 | 0050300 | ||
| 34 | 0070440 | ||
| 26 | 205361A0 | ||
| 17 | 2400340 | ||
| 4 | 0013330 | ||
| 14 | 0050300 | ||
| 23 | 0070541 | ||
| 4 | 2054670 | ||
| 14 | 240043A0 | ||
| 30 | 0024300 | ||
| 24 | 0050300 | ||
| 4 | 0070580 | ||
| 10 | 2054730 | ||
| 67 | 2400550 | ||
| 34 | 0029050 | ||
| 20 | 0050300 | ||
| 23 | 0070590 | ||
| 42 | 2058350 | ||
| 4 | 2400940 | ||
| 22 | 0029060 | ||
| 19 | 0050530 | ||
| 13 | 0070600 | ||
| 8 | 2062330 | ||
| 8 | 2400970 | ||
| 32 | 0029060 | ||
| 5 | 0050530 | ||
| 2 | 0070620 | ||
| 3 | 2063360 | ||
| 12 | 2400970 | ||
| 7 | 0029220 | ||
| 29 | 0050530 | ||
| 36 | 0070620 | ||
| 12 | 2064310 | ||
| 11 | 2401020 | ||
| 4 | 0029220 | ||
| 27 | 0050570 | ||
| 12 | 0070620 | ||
| 5 | 2064571 | ||
| 17 | 2401040 | ||
| 6 | 0029220 | ||
| 40 | 0050570 | ||
| 5 | 0070660 | ||
| 6 | 2066820 | ||
| 12 | 240201-920 | ||
| 8 | 0029220 | ||
| 16 | 0050600 | ||
| 28 | 0070720 | ||
| 37 | 2068400 | ||
| 10 | 240235-920 | ||
| 17 | 0030440 | ||
| 12 | 005082A0 | ||
| 58 | 0070820 | ||
| 10 | 2082350 | ||
| 8 | 2402920 | ||
| 27 | 0030440 | ||
| 32 | 0050880 | ||
| 2 | 0070820 | ||
| 22 | 2082350 | ||
| 23 | 2402920 | ||
| 7 | 0030910 | ||
| 30 | 0050890 | ||
| 8 | 0070820 | ||
| 8 | 2084480 | ||
| 3 | 2402990 | ||
| 16 | 004009-1HC0 | ||
| 11 | 0050890 | ||
| 6 | 0071050 | ||
| 11 | 2084490 | ||
| 18 | 2403010 | ||
| 21 | 004065-HU0 | ||
| 12 | 0050890 | ||
| 13 | 0071100 | ||
| 2 | 2085490 | ||
| 62 | 2403030 | ||
| 24 | 004065-HU0 | ||
| 6 | 005121A0 | ||
| 8 | 0071390 | ||
| 19 | 2087730 | ||
| 5 | 2403040 | ||
| 28 | 004065-HU0 | ||
| 29 | 0051570 | ||
| 9 | 0071430 | ||
| 8 | 2089490 | ||
| 4 | 2403050 | ||
| 5 | 004066-HU0 | ||
| 15 | 0051840 | ||
| 48 | 0071430 | ||
| 20 | 2094080 | ||
| 30 | 2403050 | ||
| 6 | 004067-HU0 | ||
| 25 | 0051840 | ||
| 6 | 0071430 | ||
| 21 | 2094090 | ||
| 12 | 2403050 | ||
| 13 | 004067-HU0 | ||
| 43 | 0052990 | ||
| 13 | 0071500 | ||
| 23 | 2094100 | ||
| 14 | 2403060 | ||
| 10 | 004068-HU0 | ||
| 3 | 0053138B0 | ||
| 17 | 0071500 | ||
| 21 | 2100440 | ||
| 12 | 2403100 | ||
| 33 | 004068-HU0 | ||
| 35 | 0054920 | ||
| 10 | 0071610 | ||
| 15 | 2100560 | ||
| 20 | 2403100 | ||
| 16 | 0041090 | ||
| 5 | 0056150 | ||
| 30 | 0071630 | ||
| 16 | 2100570 | ||
| 12 | 2403110 | ||
| 18 | 0041090 | ||
| 18 | 0056150 | ||
| 30 | 0071700 | ||
| 3 | 2101290 | ||
| 2 | 2403110 | ||
| 18 | 0041130 | ||
| 35 | 0070080 | ||
| 23 | 0071710 | ||
| 4 | 210130A0 | ||
| 14 | 2403120 | ||
| 41 | 004211-HU0 | ||
| 33 | 0070080 | ||
| 11 | 0071740 | ||
| 2 | 2101820 | ||
| 21 | 2403120 | ||
| 15 | 0045010 | ||
| 17 | 0070080 | ||
| 17 | 0071750 | ||
| 10 | 210201-SD0 | ||
| 17 | 2403220 | ||
| 28 | 0045100 | ||
| 22 | 0070080 | ||
| 31 | 0071760 | ||
| 40 | 2102140 | ||
| 5 | 2403250 | ||
| 8 | 0045110 | ||
| 14 | 0070080 | ||
| 22 | 0071960 | ||
| 6 | 2103070 | ||
| 29 | 2403260 | ||
| 10 | 0045140 | ||
| 17 | 0070090 | ||
| 45 | 0072910 | ||
| 10 | 2103190 | ||
| 36 | 2403280 | ||
| 14 | 0045140 | ||
| 34 | 0070090 | ||
| 53 | 0072920 | ||
| 1 | 210529-9T0 | ||
| 10 | 2403300 | ||
| 30 | 0045140 | ||
| 24 | 0070100 | ||
| 10 | 0073550 | ||
| 18 | 210529-9T0 | ||
| 11 | 2403350 | ||
| 10 | 0045150 | ||
| 5 | 0070110 | ||
| 7 | 0073580 | ||
| 5 | 210530-9T0 | ||
| 9 | 2403380 | ||
| 3 | 0045220 | ||
| 7 | 0070110 | ||
| 38 | 007370-HU0 | ||
| 3 | 210531-9T0 | ||
| 5 | 2403390 | ||
| 17 | 0045220 | ||
| 24 | 0070110 | ||
| 36 | 0084210 | ||
| 9 | 2105840 | ||
| 64 | 2404040 | ||
| 28 | 0045220 | ||
| 33 | 0070120 | ||
| 2 | 0097540 | ||
| 18 | 2105840 | ||
| 41 | 240454-20 | ||
| 23 | 0045230 | ||
| 22 | 0070120 | ||
| 35 | 1371420 | ||
| 11 | 2105850 | ||
| 17 | 2404840 | ||
| 51 | 0045280 | ||
| 36 | 0070130 | ||
| 33 | 1670660 | ||
| 19 | 2105850 | ||
| 8 | 2405030 | ||
| 26 | 0045290 | ||
| 39 | 0070130 | ||
| 38 | 1670660 | ||
| 10 | 210586A0 | ||
| 44 | 2405040 | ||
| 4 | 0045310 | ||
| 13 | 0070130 | ||
| 40 | 1670660 | ||
| 7 | 2106790 | ||
| 47 | 2405050 | ||
| 5 | 0045310 | ||
| 17 | 007013A0 | ||
| 19 | 179009-050 | ||
| 8 | 2106790 | ||
| 16 | 2405171 | ||
| 6 | 0045330 | ||
| 20 | 007017A0 | ||
| 22 | 179130-050 | ||
| 9 | 2106790 | ||
| 22 | 2405180 | ||
| 8 | 0045330 | ||
| 22 | 007017A0 | ||
| 9 | 179483-050 | ||
| 13 | 2106800 | ||
| 18 | 2405590 | ||
| 7 | 0045330 | ||
| 26 | 007017A0 | ||
| 14 | 179712-050 | ||
| 23 | 2106800 | ||
| 21 | 2520690 | ||
| 21 | 0045330 | ||
| 12 | 007017A0 | ||
| 33 | 1L700400000 | ||
| 14 | 2106810 | ||
| 13 | 2526580 | ||
| 26 | 0045330 | ||
| 24 | 0070180 | ||
| 18 | 2000200 | ||
| 24 | 2106810 | ||
| 25 | 2570100 | ||
| 3 | 0045330 | ||
| 9 | 007018A0 | ||
| 31 | 2001360 | ||
| 18 | 2106820 | ||
| 6 | 263370 | ||
| 4 | 0045330 | ||
| 15 | 007018A0 | ||
| 35 | 2001360 | ||
| 28 | 2106820 | ||
| 7 | 263543-TA0 | ||
| 8 | 0045340 | ||
| 14 | 007018A0 | ||
| 4 | 200162A0 | ||
| 20 | 2106830 | ||
| 9 | 263544-TA0 | ||
| 11 | 0045350 | ||
| 19 | 0070190 | ||
| 20 | 2005550 | ||
| 30 | 2106830 | ||
| 12 | 270014A0 | ||
| 5 | 0045350 | ||
| 26 | 0070190 | ||
| 1 | 2010020 | ||
| 21 | 2106840 | ||
| 16 | 2700180 | ||
| 4 | 0045380 | ||
| 20 | 0070190 | ||
| 18 | 2010220 | ||
| 31 | 2106840 | ||
| 29 | 270024-9U0 | ||
| 56 | 0045380 | ||
| 10 | 007019A0 | ||
| 2 | 2010370 | ||
| 12 | 2106850 | ||
| 27 | 2700250 | ||
| 65 | 0045380 | ||
| 28 | 007019A0 | ||
| 4 | 2010680 | ||
| 22 | 2106850 | ||
| 1 | 270032 | ||
| 6 | 0045380 | ||
| 14 | 007019A0 | ||
| 6 | 2010860 | ||
| 35 | 2106860 | ||
| 4 | 2700341 | ||
| 22 | 0045410 | ||
| 32 | 007019A0 | ||
| 6 | 2011070 | ||
| 36 | 2106870 | ||
| 6 | 2700470 | ||
| 15 | 0045430 | ||
| 2 | 0070200 | ||
| 16 | 2011910 | ||
| 28 | 2106890 | ||
| 7 | 2700680 | ||
| 63 | 0045430 | ||
| 23 | 0070200 | ||
| 26 | 2011910 | ||
| 31 | 2106900 | ||
| 32 | 270083B9U0 | ||
| 21 | 0045430 | ||
| 33 | 0070200 | ||
| 41 | 201211C910 | ||
| 25 | 210691A910 | ||
| 13 | 2701450 | ||
| 5 | 0045430 | ||
| 24 | 007020A0 | ||
| 24 | 2012520 | ||
| 36 | 2106920 | ||
| 1 | 270148-SD0 | ||
| 10 | 0045430 | ||
| 19 | 007020A0 | ||
| 34 | 2012520 | ||
| 15 | 2107660 | ||
| 3 | 2701490 | ||
| 13 | 0045430 | ||
| 24 | 007020A0 | ||
| 7 | 2014770 | ||
| 22 | 2113010 | ||
| 7 | 270150-UD0 | ||
| 20 | 0045450 | ||
| 19 | 007020A0 | ||
| 28 | 2016290 | ||
| 13 | 2115260 | ||
| 8 | 2701510 | ||
| 17 | 0045460 | ||
| 30 | 007020A0 | ||
| 13 | 2021740 | ||
| 18 | 2115280 | ||
| 19 | 2701520 |
Pegasus EX5100 — parts catalog
- Page 1 (cover): This is the cover page for the EX5100 Series Cylinder bed overedgers Parts Catalog by Pegasus.
- Page 2 (toc): This page provides an introduction to the parts catalog for the EX5100 series machine, outlining how the catalog is organized, how to identify parts, and how to order them, along with a list of applicable models.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various mechanisms and specific parts with their corresponding page numbers.
- Page 4 (diagram): This page displays an exploded view diagram of the main body of an industrial sewing machine, highlighting various components such as pins, screws, and plates, with reference numbers for each part.
- Page 5 (parts_list): This page lists parts for the machine bed frame, including various pins, a pipe, a screw, an earth label, and a plug, with their corresponding part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays an exploded diagram of various components, including covers, screws, and other parts, with reference numbers indicating their positions.
- Page 7 (parts_list): This page lists parts for the cover mechanism, including screws, gaskets, covers, latches, springs, and various labels, with their corresponding part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various components, including screws, washers, and plates, with reference numbers indicating their positions.
- Page 9 (parts_list): This page lists parts for the cover mechanism, including various screws, washers, brackets, and covers, with their part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays an exploded view diagram of various components, possibly related to a lift mechanism, with callouts for individual parts and notes regarding different lift types and model applicability.
- Page 11 (parts_list): This page lists parts for the crankshaft drive mechanism, including crankshafts, screws, balance weights, washers, ball bearings, O-rings, and other components, with their respective part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays an exploded view diagram of various components, likely related to a sewing machine's needle bar and thread take-up mechanisms, with specific parts highlighted for 2-needle and 1-needle models.
- Page 13 (parts_list): This page lists parts for the needle drive mechanism, including part numbers, descriptions in Japanese and English, and quantities.
- Page 14 (diagram): This page illustrates various components of a sewing machine, including parts related to the standard, high, and extra-high lift mechanisms, with reference numbers for each part.
- Page 15 (parts_list): This page lists parts for the upper looper drive mechanism, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 16 (diagram): This page contains a diagram of various components, including a tension release lever, a tension release cam, a tension release shaft, and other related parts.
- Page 17 (parts_list): This page lists parts for the lower looper drive mechanism, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 18 (diagram): This page displays an exploded view diagram of various components, including shafts, gears, and levers, with corresponding reference numbers.
- Page 19 (parts_list): This page lists parts for the feed mechanism, including screws, springs, washers, rings, cranks, bolts, sliders, guides, main feed bar components, needle bearings, links, bushings, pins, shafts, oil seals, and blocks.
- Page 20 (diagram): This page displays an exploded view diagram of various components, likely part of a mechanism, with each component numbered for identification.
- Page 21 (parts_list): This page lists parts for the feed mechanism, including part numbers, descriptions in both Japanese and English, and quantities for each item.
- Page 22 (diagram): This page contains an exploded diagram of various mechanical components, likely part of a larger assembly, with reference numbers indicating individual parts.
- Page 23 (parts_list): This page lists parts for the knife drive mechanism, including screws, levers, pins, and other components, with their part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a detailed diagram of various components, likely for a sewing machine, with numbered parts and specific model exclusions for parts 29, 30, and 31.
- Page 25 (parts_list): This page lists parts for the presser foot mechanism, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 26 (diagram): This page illustrates the thread tension components for 1-needle and 2-needle sewing machines, with various parts numbered for identification.
- Page 27 (parts_list): This page lists parts for the thread tension mechanism, including various springs, knobs, ratchets, shields, discs, felts, screws, and thread guides.
- Page 28 (diagram): This page displays a diagram of various components for EX5100 series sewing machines, including parts for standard, high, and extra-high lift configurations, with specific parts for 1-needle and 2-needle models.
- Page 29 (parts_list): This page lists parts related to the thread guide and thread take-up mechanisms, including various screws, brackets, and thread guides.
- Page 30 (diagram): This page displays an exploded view diagram of various components, including filters, shafts, and housing parts, with reference numbers for identification.
- Page 31 (parts_list): This page lists parts for the Lubrication Mechanism (1), including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays diagrams of various machine components, including part numbers and reference numbers for identification.
- Page 33 (parts_list): This page lists parts for the Lubrication Mechanism (2) with part numbers, descriptions, and quantities.
- Page 34 (diagram): This page displays a diagram of various machine components, including a lever, housing, screws, and a reservoir, with corresponding reference numbers for identification.
- Page 35 (parts_list): This page lists parts for H.R. Device, including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of various parts and accessories for an industrial sewing machine, including components like spools, rods, clamps, and fasteners, with reference numbers for identification.
- Page 37 (parts_list): This page lists parts for the Thread Stand assembly, including various brackets, bars, screws, nuts, and other components with their respective part numbers and quantities for different spool configurations.
- Page 38 (diagram): This page displays a diagram of various machine components, including screws, washers, and brackets, with reference numbers for identification.
- Page 39 (parts_list): This page lists parts for semi-submerged installation, including part numbers, descriptions, and quantities.
- Page 40 (diagram): This page contains diagrams of parts for plain seaming and blindstitch hemming, with part numbers and reference numbers indicated.
- Page 41 (parts_list): This page lists specific parts for the sewing machine, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of machine parts for models EX5104-52D/MC310,311, with numbered components and a separate illustration for EX5104-52D.
- Page 43 (parts_list): This page lists specific parts for the machine, including part numbers, descriptions, and quantities. It also provides a note that 'xxxxxx' represents gauge parts and refers the user to pages 48-50 for the gauge part list.
- Page 44 (diagram): This page displays diagrams of parts for the EX5104-52D/MC501 and EX5104-D-52D1/MC400,401 models, with numbered components for easy identification.
- Page 45 (parts_list): This page lists specific parts for the sewing machine, including part numbers, descriptions, and quantities, with reference numbers from 1 to 28.
- Page 46 (diagram): This page displays a diagram of machine parts with reference numbers, part numbers, and descriptions for the EX5104-D-52D1/MC model.
- Page 47 (parts_list): This page lists specific parts for a sewing machine, including part numbers, names, and quantities. It details items such as shoulder pins, washers, levers, bolts, blocks, screws, nuts, brackets, air cylinders, and speed controllers.
- Page 48 (diagram): This page contains a diagram illustrating the setup instructions for the EX5114-92M2 sewing machine, with various parts numbered for reference.
- Page 49 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities. It also notes that parts marked with 'xxxxxx' are gauge parts and refers the user to pages 48-50 for their details.
- Page 50 (parts_list): This page lists gauge parts for EX5100 series sewing machines, including needle plates, feed dogs, presser feet, loopers, knives, and needles, with part numbers and specifications for different machine types.
- Page 51 (parts_list): This page lists gauge parts for EX5100 series sewing machines, including needle plates, feed dogs, presser feet, loopers, knives, and needles, with part numbers and specifications for different machine models.
- Page 52 (parts_list): This page lists gauge parts for EX5100 series sewing machines, including needle plates, feed dogs, presser feet, loopers, knives, and needles, with part numbers and specifications.
- Page 53 (diagram): This page contains a threading diagram with reference numbers, part numbers, and applicable machine models for various parts.
- Page 54 (index): This page is an index listing part numbers and their corresponding page references. It includes columns for PART NO. and PAGE REF.NO.
- Page 55 (index): This page is an index listing part numbers and their corresponding reference page numbers in the catalog.
- Page 56 (cover): Cover page for a Pegasus Sewing Machine parts catalog, dated December 1, 2003, with company contact information and a disclaimer about potential changes.
