Pegasus M732 Parts Book (PDF)
Text index — Pegasus M732
Page 5 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270047 | BED PIN | 4 |
| 2 | 204003 | OIL SIGHT GAUGE | 1 |
| 3 | 210679 | PIN | 2 |
| 4 | 210679 | PIN | 2 |
| 5 | 210679 | PIN | 2 |
| 6 | 9A3071 | STICKER | 1 |
| 7 | 209537 | BRACKET | 1 |
| 8 | 209538 | BRACKET | 1 |
| 9 | 240336 | SPRING PIN | 1 |
| 10 | 004511 | BOLT | 2 |
| 11 | 240325 | PIPE | 2 |
| 12 | 240336 | SPRING PIN | 1 |
Page 7 — COVER(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209535-PD | SIDE COVER | 1 |
| 2 | 007020 | SCREW | 2 |
| 3 | 007024 | SCREW | 1 |
| 4 | 209512-PD | TOP COVER | 1 |
| 5 | 007024 | SCREW | 4 |
| 6 | 209579 | GASKET | 1 |
| 7 | 206457 | OIL SIGHT WINDOW | 1 |
| 8 | 206682 | GASKET | 1 |
| 9 | 9A3067 | STICKER | 1 |
| 10 | 209551 | FAN COVER | 1 |
| 11 | 007019 | SCREW | 2 |
| 12 | 209518 | COVER | 1 |
| 13 | 007019 | SCREW | 3 |
| 14 | 007082 | SCREW | 1 |
| 15 | 209633 | FABRIC GUARD | 1 |
| 16 | 209634 | FABRIC GUARD | 1 |
| 17 | 209736 | BRACKET | 1 |
| 18 | 007232 | SCREW | 1 |
| 19 | 007019 | SCREW | 3 |
| 20 | 209515-PD | FRONT COVER (RIGHT) | 1 |
| 21 | 270018A | LATCH | 1 |
| 22 | 007009 | SCREW | 1 |
| 23 | 209680 | LATCH | 1 |
| 24 | 007017 | SCREW | 1 |
| 25 | 210044 | FLAT SPRING | 1 |
| 26 | 007017 | SCREW | 1 |
| 27 | 240043 | PIN | 1 |
| 28 | 004543 | SCREW | 2 |
| 29 | 240301 | SPRING | 1 |
| 30 | 209516 | HINGE | 1 |
| 31 | 007021 | SCREW | 3 |
| 32 | 209664 | FRONT COVER (CENTER) | 1 |
| 33 | 209665 | FRONT COVER (CENTER) | 1 |
| 34 | 007018 | SCREW | 2 |
| 35 | 209657 | OIL GUARD | 1 |
| 36 | 007018 | SCREW | 1 |
| 37 | 209550-PB | BELT COVER | 1 |
| 38 | 007176 | SCREW | 3 |
| 39 | 9A3069 | STICKER | 1 |
| 40 | 9A3048 | STICKER | 1 |
| 41 | 209702 | SPONGE | 1 |
Page 9 — COVER(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209687 | COVER PLATE | 1 |
| 2 | 007020 | SCREW | 4 |
| 3 | 209517 | BED COVER PLATE | 1 |
| 4 | 007084 | BOLT | 4 |
| 5 | 209513-PD | NEEDLE BAR COVER | 1 |
| 6 | 209641 | PIN | 1 |
| 7 | 004543 | SCREW | 1 |
| 8 | 209645 | SPRING | 1 |
| 9 | 007017 | SCREW | 1 |
| 10 | 209636 | SCREW | 1 |
| 11 | 209618 | EYE GUARD | 1 |
| 12 | 209619 | EYE GUARD | 1 |
| 13 | 007062 | SCREW | 2 |
| 14 | 202875 | WASHER | 2 |
| 15 | 209651 | BRACKET | 1 |
| 16 | 240305 | CUSHION RUBBER | 1 |
| 17 | 007066 | SCREW | 1 |
| 18 | 210307 | WASHER | 2 |
| 19 | 209543 | FRONT COVER (LEFT) | 1 |
| 20 | 007077 | SCREW | 2 |
| 21 | 209576-91 | CLOTH PLATE ASSEMBLY | 1 |
| 22 | 209571-91 | CLOTH PLATE ASSEMBLY | 1 |
| 23 | 270042 | BUSHING | 1 |
| 24 | 004543 | SCREW | 1 |
| 25 | 210307 | WASHER | 1 |
| 26 | 007066 | SCREW | 1 |
| 27 | 270043 | LEVER | 1 |
| 28 | 270044 | SPRING | 1 |
| 29 | 007172 | SCREW | 1 |
| 30 | 270045 | BRACKET | 1 |
| 31 | 240305 | CUSHION RUBBER | 1 |
| 32 | 007023A | SCREW | 1 |
| 33 | 004821 | NUT | 1 |
| 34 | 209547-PB | SIDE COVER | 1 |
| 35 | 007018 | SCREW | 2 |
| 36 | 240343 | WASHER | 2 |
| 37 | 007025 | SCREW | 1 |
| 38 | 201252 | SPRING WASHER | 1 |
| 39 | 240305 | CUSHION RUBBER | 1 |
| 40 | 270048 | LATCH | 1 |
| 41 | 007008 | SCREW | 1 |
| 42 | 270049 | LATCH | 1 |
| 43 | 007180 | SCREW | 1 |
| 44 | 240305 | CUSHION RUBBER | 1 |
| 45 | 209644 | FACE PLATE | 1 |
| 46 | 007082 | SCREW | 1 |
Page 11 — CRANKSHAFT DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209686-91 | CRANK SHAFT | 1 |
| 2 | 001459 | SCREW | 2 |
| 3 | 005304 | SCREW | 1 |
| 4 | 004541 | SCREW | 1 |
| 5 | 270510 | PIN | 1 |
| 6 | 209608 | LEFT COVER | 1 |
| 7 | 007019 | SCREW | 3 |
| 8 | 209609 | LEFT COVER | 1 |
| 9 | 007044 | SCREW | 2 |
| 10 | 007020 | SCREW | 1 |
| 11 | 209581 | GASKET | 1 |
| 12 | 209671-92 | BUSHING | 1 |
| 13 | 007013 | SCREW | 2 |
| 14 | 209637 | SCREW | 1 |
| 15 | 240551 | BUSHING | 1 |
| 16 | 204019A | SPACER | 1 |
| 17 | 204018 | SPRING WASHER | 4 |
| 18 | 240552 | BUSHING | 1 |
| 19 | 209606 | RIGHT COVER | 1 |
| 20 | 240340 | O RING | 1 |
| 21 | 209607 | PLATE | 1 |
| 22 | 007020 | SCREW | 3 |
| 23 | 208476 | OIL SEAL | 1 |
| 24 | 208272 | O RING | 1 |
| 25 | 209481 | FAN | 1 |
| 26 | 209605 | MACHINE PULLEY | 1 |
| 27 | 004556 | SCREW | 1 |
| 28 | 004541 | SCREW | 1 |
| 29 | 004510 | BOLT | 1 |
| 30 | 240536 | WASHER | 1 |
| 31 | 209514-PD | COVER | 1 |
| 32 | 007105 | SCREW | 3 |
| 33 | 209591-91 | BALL BEARING ASSEMBLY | 1 |
| 34 | 004572 | SCREW | 1 |
| 35 | 004514 | SCREW | 1 |
| 36 | 209613-D | WORM | 1 |
| 37 | 004514 | SCREW | 1 |
Page 13 — NEEDLE DRIVE MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209544-92 | ROD | 1 |
| 2 | 007023A | SCREW | 2 |
| 3 | 209552-92 | CRANK | 1 |
| 4 | 004533 | BOLT | 1 |
| 5 | 271001 | PIN | 1 |
| 6 | 004538 | SCREW | 1 |
| 7 | 209582 | COLLAR | 1 |
| 8 | 205061 | RING | 1 |
| 9 | 240311 | WASHER | 1 |
| 10 | 240537 | COLLAR | 1 |
| 11 | 004543 | SCREW | 2 |
| 12 | 208250 | OIL SEAL | 1 |
| 13 | 209567-92 | LEVER | 1 |
| 14 | 007150 | BOLT | 1 |
| 15 | 208425 | LINK/NEEDLE BAR DRIVE | 1 |
| 16 | 209690-91 | PIN ASSEMBLY | 2 |
| 17 | 004545 | SCREW | 2 |
| 18 | 208903-C | NEEDLE BAR | 1 |
| 19 | 209566-92 | NEEDLE BAR CLAMP | 1 |
| 20 | 007013 | SCREW | 1 |
| 21 | 209640 | CAP | 1 |
| 22 | 240129 | O RING | 1 |
| 23 | 004543 | SCREW | 1 |
| 24 | XXXXXX | NEEDLE HOLDER | 1 |
| 25 | 005292-HU | SCREW | 1 |
| 26 | 005292-HU | SCREW | 2 |
| 27 | 005292-HU | SCREW | 3 |
| 28 | 209647 | COVER | 1 |
| 29 | 209648 | COVER | 1 |
| 30 | 209642 | FELT | 1 |
| 31 | 007192 | SCREW | 2 |
| 32 | 209646 | COVER | 1 |
| 33 | 007018 | SCREW | 1 |
Page 15 — NEEDLE DRIVE MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209539 | BRACKET | 1 |
| 2 | 007020 | SCREW | 2 |
| 3 | xxxxxx | NEEDLE PLATE | 1 |
| 4 | 004009-1HC | SCREW | 2 |
| 5 | 208935 | SUPPORT/NEEDLE PLATE | 1 |
| 6 | 007019 | SCREW | 2 |
| 7 | 204631 | KEY | 1 |
| 8 | 007012 | SCREW | 2 |
| 9 | xxxxxx | NEEDLE GUARD (REAR) | 1 |
| 10 | 005501 | SCREW | 1 |
| 11 | 210930 | SPRING WASHER | 1 |
| 12 | xxxxxx | NEEDLE GUARD (FRONT) | 1 |
| 13 | 007012 | SCREW | 1 |
| 14 | 204636B | BRACKET | 1 |
| 15 | 007014 | SCREW | 2 |
| 16 | 240305 | CUSHION RUBBER | 1 |
| 17 | 209541 | BRACKET | 1 |
| 18 | 007019 | SCREW | 1 |
| 19 | 209540 | BRACKET | 1 |
| 20 | 007020 | SCREW | 2 |
| 21 | xxxxxx | NEEDLE PLATE | 1 |
| 22 | 005484-HC | SCREW | 2 |
| 23 | xxxxxx | NEEDLE PLATE FINGER | 1 |
| 24 | 005315 | SCREW | 1 |
| 25 | xxxxxx | NEEDLE GUARD (REAR) | 1 |
| 26 | 005501 | SCREW | 1 |
| 27 | 210930 | SPRING WASHER | 1 |
| 28 | xxxxxx | NEEDLE GUARD (FRONT) | 1 |
| 29 | 007010 | SCREW | 2 |
| 30 | xxxxxx | NEEDLE GUARD (REAR) | 1 |
| 31 | 007032 | SCREW | 2 |
| 32 | xxxxxx | NEEDLE GUARD (FRONT) | 1 |
| 33 | 007010 | SCREW | 1 |
Page 17 — 上ルーパー機構 / UPPER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209546-92 | ROD | 1 |
| 2 | 007023A | SCREW | 4 |
| 3 | 209660 | GUIDE | 2 |
| 4 | 209560-92 | CRANK | 1 |
| 5 | 007369 | BOLT | 2 |
| 6 | 209583 | SHAFT | 1 |
| 7 | 240338 | WASHER | 1 |
| 8 | 007174 | SCREW | 1 |
| 9 | 303067 | SPRING WASHER | 1 |
| 10 | 210586A | OIL SEAL | 1 |
| 11 | 240564 | PLUG | 1 |
| 12 | 209568-92 | LEVER | 1 |
| 13 | 007150 | BOLT | 1 |
| 14 | 209587-91 | UPPER LOOPER HOLDER ASSEMBLY | 1 |
| 15 | 179130-05 | FELT | 1 |
| 16 | 179136A91 | PIN ASSEMBLY | 1 |
| 17 | 004545 | SCREW | 1 |
| 18 | 209589 | BASE/UPPER LOOPER HOLDER | 1 |
| 19 | 004510 | BOLT | 2 |
| 20 | 271519 | FILTER | 1 |
| 21 | 209590 | COVER | 1 |
| 22 | 007039 | SCREW | 1 |
| 23 | XXXXXX | UPPER LOOPER | 1 |
| 24 | 001998-2 | SCREW | 1 |
| 25 | 209703-91 | PIN ASSEMBLY | 1 |
| 26 | 210214 | PLUG | 1 |
| 27 | 004543 | SCREW | 1 |
| 28 | 209653 | COVER | 1 |
| 29 | 007018 | SCREW | 1 |
Page 19 — LOWER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209546-92 | ROD | 1 |
| 2 | 007023A | SCREW | 4 |
| 3 | 209660 | GUIDE | 2 |
| 4 | 209560-92 | CRANK | 1 |
| 5 | 007369 | BOLT | 2 |
| 6 | 209563-92 | CRANK | 1 |
| 7 | 007369 | BOLT | 2 |
| 8 | 209583 | SHAFT | 1 |
| 9 | 240338 | WASHER | 1 |
| 10 | 007174 | SCREW | 1 |
| 11 | 303067 | SPRING WASHER | 1 |
| 12 | 210586A | OIL SEAL | 1 |
| 13 | 209007-91 | LOWER LOOPER HOLDER ASSEMBLY | 1 |
| 14 | 208259 | PIN | 1 |
| 15 | 209083 | PIN | 1 |
| 16 | 007150 | BOLT | 1 |
| 17 | XXXXXX | LOWER LOOPER | 1 |
| 18 | 001175-3 | SCREW | 1 |
Page 21 — FEED MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209556-91 | CRANK ASSEMBLY | 1 |
| 2 | 007011 | SCREW | 2 |
| 3 | 004533 | BOLT | 1 |
| 4 | 204140A | LINK/DIFF. FEED REGULATING | 1 |
| 5 | 007058 | SCREW | 2 |
| 6 | 209570-92 | LEVER | 1 |
| 7 | 004533 | BOLT | 1 |
| 8 | 272533A | SHAFT | 1 |
| 9 | 204185 | O RING | 1 |
| 10 | 209649 | LEVER | 1 |
| 11 | 272534 | SPRING | 1 |
| 12 | 007161 | SCREW | 1 |
| 13 | 209650 | REGULATOR PLATE | 1 |
| 14 | 204143A | STOPPER | 2 |
| 15 | 007021 | SCREW | 2 |
| 16 | 252069A | NUT | 1 |
| 17 | 007059 | SCREW | 1 |
| 18 | 211301 | SPRING WASHER | 1 |
| 19 | 209594 | ROD | 1 |
| 20 | 209555-92 | CRANK | 1 |
| 21 | 004533 | BOLT | 1 |
| 22 | 271001 | PIN | 1 |
| 23 | 004538 | SCREW | 1 |
| 24 | 240012 | NEEDLE BEARING | 1 |
| 25 | 209592-91 | REGULATOR | 1 |
| 26 | 210717 | PIN | 1 |
| 27 | 004514 | SCREW | 2 |
| 28 | 272501 | ECCENTRIC | 1 |
| 29 | 210129 | GUIDE/FEED ECCENTRIC | 1 |
| 30 | 210130 | FLAT SPRING | 1 |
| 31 | 004535 | SCREW | 2 |
| 32 | 272504-91 | ECCENTRIC ASSEMBLY | 1 |
| 33 | 240436 | SPRING PIN | 2 |
| 34 | 272502 | RATCHET | 1 |
| 35 | 272503 | SPRING | 1 |
| 36 | 007038 | SCREW | 1 |
| 37 | 209639 | PUSH BUTTON | 1 |
| 38 | 240517 | SPRING | 1 |
| 39 | 202522 | RING | 1 |
| 40 | 240484 | WASHER | 2 |
| 41 | 200020 | O RING | 2 |
Page 23 — FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 204124 | DIFFERENTIAL FEED BAR | 1 |
| 2 | XXXXXX | DIFFERENTIAL FEED DOG | 1 |
| 3 | 001189 | SCREW | 1 |
| 4 | 001175-3 | SCREW | 1 |
| 5 | 204122 | LINK/DIFFERENTIAL FEED | 1 |
| 6 | 204114 | BUSHING | 1 |
| 7 | 005231 | SCREW | 1 |
| 8 | 204115 | WASHER | 1 |
| 9 | 205857 | BLOCK/FEED BAR GUIDE | 1 |
| 10 | 204439A | WASHER | 1 |
| 11 | 007041 | SCREW | 1 |
| 12 | 240310 | PLUG | 1 |
| 13 | 204810 | BLOCK/FEED BAR LIFT | 1 |
| 14 | 209595 | GUIDE/FEED BAR | 1 |
| 15 | 007019 | SCREW | 4 |
| 16 | 208109 | OIL SHIELD/FEED BAR GUIDE | 2 |
| 17 | 209519 | GUIDE/FEED BAR OIL SEAL | 1 |
| 18 | 007009 | SCREW | 4 |
| 19 | 209584 | SHAFT | 1 |
| 20 | 205061 | RING | 1 |
| 21 | 240311 | WASHER | 2 |
| 22 | 208173 | PLUG | 1 |
| 23 | 204123A | MAIN FEED BAR | 1 |
| 24 | XXXXXX | MAIN FEED DOG ASSEMBLY | 1 |
| 25 | XXXXXX | MAIN FEED DOG | 1 |
| 26 | XXXXXX | AUXILIARY FEED DOG | 1 |
| 27 | 005492 | SCREW | 1 |
| 28 | 001175-2 | SCREW | 1 |
| 29 | 204111A | LINK/MAIN FEED | 1 |
| 30 | 204114 | BUSHING | 1 |
| 31 | 005231 | SCREW | 1 |
| 32 | 204115 | WASHER | 1 |
| 33 | 209564-92 | CRANK | 1 |
| 34 | 004533 | BOLT | 1 |
| 35 | 209677 | PIN | 1 |
| 36 | 004805 | NUT | 1 |
| 37 | 240062 | WASHER | 1 |
| 38 | 209672 | FEED BAR PIN | 1 |
| 39 | 004543 | SCREW | 2 |
| 40 | 209673 | BUSHING | 1 |
Page 25 — KNIFE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209545-92 | ROD | 1 |
| 2 | 007023A | SCREW | 2 |
| 3 | 209554-92 | CRANK | 1 |
| 4 | 004533 | BOLT | 1 |
| 5 | 271001 | PIN | 1 |
| 6 | 004538 | SCREW | 1 |
| 7 | 208235 | WASHER | 1 |
| 8 | 209598 | UPPER BLADE LEVER | 1 |
| 9 | 204638 | UPPER BLADE CLAMP | 1 |
| 10 | 208402 | UPPER BLADE CLAMP | 1 |
| 11 | 209674 | PIN | 1 |
| 12 | 209675 | PIN | 1 |
| 13 | 007013 | SCREW | 2 |
| 14 | XXXXXX | UPPER BLADE | 1 |
| 15 | 005088 | SCREW | 1 |
| 16 | 208851 | LOWER BLADE HOLDER | 1 |
| 17 | 209542 | LOWER BLADE LEVER | 1 |
| 18 | 007019 | SCREW | 1 |
| 19 | XXXXXX | LOWER BLADE | 1 |
| 20 | 210184 | CLAMP/LOWER BLADE | 1 |
| 21 | 002193 | SCREW | 1 |
| 22 | 204158 | SPRING | 1 |
| 23 | 209666 | GUIDE | 1 |
| 24 | 007020 | SCREW | 2 |
| 25 | 209667 | GUIDE | 1 |
| 26 | 007021 | SCREW | 2 |
Page 27 — 押エ機構(1) PRESSER FOOT MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209678 | PRESSER ARM | 1 |
| 2 | 208549 | PIN | 1 |
| 3 | 004594 | SCREW | 1 |
| 4 | 209471 | FINGER GUARD | 1 |
| 5 | 209472 | FINGER GUARD | 1 |
| 6 | 007008 | SCREW | 1 |
| 7 | 202451 | CHAIN CUTTER | 1 |
| 8 | 007009 | SCREW | 1 |
| 9 | 209596 | SHAFT | 1 |
| 10 | 209597 | BUSHING | 1 |
| 11 | 004543 | SCREW | 1 |
| 12 | 274005 | SPRING | 1 |
| 13 | 274004 | LEVER | 1 |
| 14 | 274003-92 | COLLAR | 1 |
| 15 | 004534 | SCREW | 1 |
| 16 | 274006 | LINK | 1 |
| 17 | 209452 | LEVER/FOOT LIFT | 1 |
| 18 | 209458 | SPRING | 1 |
| 19 | 007060 | SCREW | 1 |
| 20 | 209676 | STOPPER | 1 |
| 21 | 007020 | SCREW | 2 |
| 22 | 007175 | SCREW | 1 |
| 23 | 004805 | NUT | 1 |
| 24 | 209603-91 | PRESSER BAR | 1 |
| 25 | 205584 | SPRING PIN | 1 |
| 26 | 274013 | PIN | 1 |
| 27 | 208773 | SPRING | 1 |
| 28 | 209638 | SCREW | 1 |
| 29 | 274016A | LEVER | 1 |
| 30 | 274017 | SPRING | 1 |
| 31 | 007171 | SCREW | 1 |
| 32 | 209652 | STOPPER | 1 |
| 33 | 007130 | SCREW | 1 |
Page 29 — PRESSER FOOT MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | PRESSER FOOT | 1 |
| 2 | XXXXXX | PRESSER FOOT | 1 |
| 3 | 201156 | SET PLATE/PRESSER FOOT | 1 |
| 4 | 005089 | SCREW | 1 |
| 5 | 005030 | SCREW | 1 |
| 6 | 208547 | REGULATOR | 1 |
| 7 | 007008 | SCREW | 1 |
| 8 | 208525-92B | BRACKET/PRESSER FOOT | 1 |
| 9 | 005328 | SCREW | 1 |
| 10 | XXXXXX | PRESSER FOOT ASSEMBLY | 1 |
| 11 | 208958-B | PIN | 1 |
| 12 | 208528-B | PIN | 1 |
| 13 | 208913 | SPRING | 1 |
| 14 | 005409 | NUT | 1 |
| 15 | 208531 | FABRIC GUIDE | 1 |
| 16 | 005030 | SCREW | 1 |
| 17 | 005328 | SCREW | 1 |
| 18 | 007008 | SCREW | 1 |
| 19 | 208529 | SPRING | 1 |
Page 31 — 給油機構 LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209610-91 | PUMP ASSEMBLY | 1 |
| 2 | 209612-D | WORM WHEEL | 1 |
| 3 | 004514 | SCREW | 1 |
| 4 | 212978-91 | ROTOR (INSIDE) SHAFT | 1 |
| 5 | 212981 | ROTOR (OUTSIDE) | 1 |
| 6 | 007012 | SCREW | 3 |
| 7 | 209408 | FILTER (INSIDE) | 1 |
| 8 | 209409 | FILTER (OUTSIDE) | 1 |
| 9 | 209410 | CLAMP | 1 |
| 10 | 007011 | SCREW | 1 |
| 11 | 004800 | NUT | 1 |
| 12 | 004529 | BOLT | 2 |
| 13 | 205113A | OIL TUBE | 1 |
| 14 | 200136 | JOINT | 2 |
| 15 | 202199 | CLAMP | 2 |
| 16 | 209654 | OIL DISTRIBUTOR | 1 |
| 17 | 007017 | SCREW | 1 |
| 18 | 007023A | SCREW | 1 |
| 19 | 274586 | JOINT SCREW | 1 |
| 20 | 209656 | SCREW | 1 |
| 21 | 240328 | JOINT SCREW | 2 |
| 22 | 209658 | OIL DISTRIBUTOR | 1 |
| 23 | 274592 | JOINT | 1 |
| 24 | 209688-91 | OIL RESERVOIR | 1 |
| 25 | 005138B | SCREW | 1 |
| 26 | 202287A | WASHER | 1 |
| 27 | 209578 | GASKET | 1 |
| 28 | 004531 | BOLT | 4 |
| 29 | 240339 | WASHER | 4 |
| 30 | 240566 | OIL TUBE | 1 |
Page 33 — THREAD GUIDE & THREAD TAKEUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209621 | THREAD GUIDE | 1 |
| 2 | 007019 | SCREW | 1 |
| 3 | 209628 | NEEDLE THREAD GUIDE | 1 |
| 4 | 209629 | NEEDLE THREAD GUIDE | 1 |
| 5 | 007082 | SCREW | 1 |
| 6 | 209713 | NEEDLE THREAD GUIDE | 1 |
| 7 | 208778 | NEEDLE THREAD GUIDE | 1 |
| 8 | 007082 | SCREW | 2 |
| 9 | 209679 | THREAD RETAINER | 1 |
| 10 | 007010 | SCREW | 1 |
| 11 | 200041 | THREAD RETAINER | 1 |
| 12 | 200041A | THREAD RETAINER | 1 |
| 13 | 202495 | GUIDE | 1 |
| 14 | 209728 | SPRING | 1 |
| 15 | 007365 | SCREW | 1 |
| 16 | 209681 | NEEDLE THREAD TAKE-UP | 1 |
| 17 | 007366 | SCREW | 2 |
| 18 | 209684 | THREAD GUIDE | 1 |
| 19 | 007367 | SCREW | 1 |
| 20 | 209624 | THREAD TAKE-UP | 1 |
| 21 | 007019 | SCREW | 1 |
| 22 | 209625 | THREAD TAKE-UP | 1 |
| 23 | 007008 | SCREW | 1 |
| 24 | 202875 | WASHER | 1 |
| 25 | 209626 | THREAD TAKE-UP | 1 |
| 26 | 007019 | SCREW | 1 |
| 27 | 210353 | THREAD GUIDE | 1 |
| 28 | 209623 | THREAD GUIDE | 1 |
| 29 | 007018 | SCREW | 1 |
| 30 | 209683 | THREAD GUIDE | 1 |
Page 35 — THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 210529-9U | THREAD TENSION ASSEMBLY | 1 |
| 2 | 208447-UA | NUT | 1 |
| 3 | 208448 | RATCHET | 1 |
| 4 | 208450-UA | CUP | 1 |
| 5 | 201037 | SPRING (HEAVY) | 1 |
| 6 | 210319 | TENSION DISC | 2 |
| 7 | 208449 | FELT | 1 |
| 8 | 005082A | SCREW STUD | 1 |
| 9 | 210530-9U | THREAD TENSION ASSEMBLY | 1 |
| 10 | 201086 | SPRING (MEDIUM) | 1 |
| 11 | 210531-9U | THREAD TENSION ASSEMBLY | 1 |
| 12 | 201068 | SPRING (LIGHT) | 1 |
| 13 | 209620 | THREAD GUIDE | 1 |
| 14 | 007170 | SCREW | 2 |
| 15 | 202849 | TENSION GUIDE | 3 |
| 16 | 209622 | TENSION GUIDE | 1 |
Page 37 — 二重環ルーパー機構(1) CHAINSTITCH LOOPER DRIVE MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209600 | BLOCK | 1 |
| 2 | 209599 | LEVER | 1 |
| 3 | 209586 | SHAFT | 1 |
| 4 | 004514 | SCREW | 1 |
| 5 | 240310 | PLUG | 1 |
| 6 | 209601 | PIN | 1 |
| 7 | 004514 | SCREW | 1 |
| 8 | 273504 | SHAFT | 1 |
| 9 | 209602 | HOLDER | 1 |
| 10 | 004514 | SCREW | 1 |
| 11 | 209585 | SHAFT | 1 |
| 12 | 208195 | PIN | 1 |
| 13 | 004535 | SCREW | 2 |
| 14 | 208194 | LINK/LOOPER DRIVE | 1 |
| 15 | 209569-92 | CRANK | 1 |
| 16 | 004533 | BOLT | 1 |
| 17 | 210586A | OIL SEAL | 1 |
| 18 | xxxxxx | CHAINSTITCH LOOPER | 1 |
| 19 | 001189 | SCREW | 1 |
| 20 | 209689-92 | LOOPER HOLDER | 1 |
| 21 | 007150 | BOLT | 1 |
Page 39 — CHAINSTITCH LOOPER DRIVE MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209699 | THREAD GUIDE PIPE | 1 |
| 2 | 206115 | BRACKET | 1 |
| 3 | 007019 | SCREW | 1 |
| 4 | 209631 | THREAD GUIDE PIPE | 1 |
| 5 | 206115 | BRACKET | 2 |
| 6 | 275033A | BRACKET | 1 |
| 7 | 007066 | SCREW | 1 |
| 8 | 210307 | WASHER | 2 |
| 9 | 275037 | FLAT SPRING | 1 |
| 10 | 007167 | SCREW | 1 |
| 11 | 137108 | TENSION DISC | 2 |
| 12 | 211388 | SPRING | 1 |
| 13 | 275034 | KNOB | 1 |
| 14 | 275035 | THREAD GUIDE | 1 |
| 15 | 007017 | SCREW | 1 |
| 16 | 275036 | THREAD GUIDE | 1 |
| 17 | 007008 | SCREW | 1 |
| 18 | 275039 | THREAD GUIDE | 1 |
| 19 | 007008 | SCREW | 1 |
| 20 | 179498-92 | LOOPER THREAD TAKE-UP ASSEMBLY | 1 |
| 21 | 004554 | SCREW | 2 |
| 22 | 209630 | THREAD GUIDE | 1 |
| 23 | 007019 | SCREW | 1 |
| 24 | 209697 | COVER | 1 |
Page 41 — H.R.装置 / H.R. DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209614 | OIL RESERVOIR (UPPER) | 1 |
| 2 | 209643 | FELT | 1 |
| 3 | 209615 | COVER | 1 |
| 4 | 209627 | THREAD GUIDE | 1 |
| 5 | 007020 | SCREW | 1 |
| 6 | 209616 | OIL RESERVOIR (LOWER) | 1 |
| 7 | 209617 | COVER | 1 |
| 8 | 007020 | SCREW | 1 |
| 9 | 303448 | WASHER | 1 |
| 10 | 202175 | OIL WICK | 1 |
| 11 | 200155 | CLAMP | 1 |
| 12 | 209661 | NEEDLE THREAD LUBRICATOR | 1 |
| 13 | 209662 | NEEDLE THREAD LUBRICATOR | 1 |
| 14 | 209663 | NEEDLE THREAD LUBRICATOR | 1 |
| 15 | 210214 | PLUG | 1 |
| 16 | 007019 | SCREW | 2 |
| 17 | 240178 | OIL FELT | 1 |
| 18 | 204466 | OIL FELT | 1 |
| 19 | 210766 | PIN | 1 |
| 20 | 209697 | COVER | 1 |
Page 43 — PARTS FOR SEMI-SUBMERGED INSTALLATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205466 | MACHINE REST BOARD | 1 |
| 2 | 205470-PA | WASTE CHUTE FUNNEL | 1 |
| 3 | 004904 | SCREW | 3 |
| 4 | 205468-PA | WASTE CHUTE TOP | 1 |
| 5 | 004905 | SCREW | 4 |
| 6 | 205469-PA | WASTE CHUTE EXTENSION | 1 |
| 7 | 206336 | NUT | 4 |
| 8 | 004575 | BOLT | 4 |
| 9 | 201477 | SPRING WASHER | 4 |
| 10 | 240565 | WASHER | 4 |
| 11 | 240304 | WASHER | 4 |
| 12 | 240565 | WASHER | 20 |
| 13 | 205473 | CUSHION RUBBER | 4 |
Page 45 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000293 | THREAD GUIDE BAR (6-SPOOL) | 1 |
| 2 | 000293A | THREAD GUIDE BAR (5-SPOOL) | 1 |
| 3 | 000293B | THREAD GUIDE BAR (4-SPOOL) | 1 |
| 4 | 000293C | THREAD GUIDE BAR (3-SPOOL) | 1 |
| 5 | 004021 | SCREW | 2 2 2 2 |
| 6 | 004805 | NUT | 2 2 2 2 |
| 7 | 000505-PA | BRACKET | 2 1 1 |
| 8 | 000505APA | BRACKET | 1 2 |
| 9 | 007102 | SCREW | 2 2 2 1 |
| 10 | 000512 | WASHER | 2 2 2 1 |
| 11 | 004022 | SCREW | 2 2 2 1 |
| 12 | 000380A | SPOOL PIN | 6 5 4 3 |
| 13 | 201252 | SPRING WASHER | 6 5 4 3 |
| 14 | 004803 | NUT | 6 5 4 3 |
| 15 | 000381-PA | SPOOL TRAY | 6 5 4 3 |
| 16 | 000507 | CUSHION | 6 5 4 3 |
| 17 | 000382-PA | SPOOL RETAINING FIN | 6 5 4 3 |
| 18 | 000383-PA | BRACKET | 1 1 1 1 |
| 19 | 004014 | SCREW | 1 1 1 1 |
| 20 | 004803 | NUT | 1 1 1 1 |
| 21 | 000384 | THREAD GUIDE BAR ROD | 1 1 1 1 |
| 22 | 004012 | SCREW | 1 1 1 1 |
| 23 | 004803 | NUT | 1 1 1 1 |
| 24 | 000233-PA | HOLDER | 1 1 1 1 |
| 25 | 004012 | SCREW | 1 1 1 1 |
| 26 | 004803 | NUT | 1 1 1 1 |
| 27 | 000502-PA | THREAD STAND ROD (UPPER) | 1 1 1 1 |
| 28 | 000503-PA | THREAD STAND ROD (LOWER) | 1 1 1 1 |
| 29 | 000504-PA | JOINT | 1 1 1 1 |
| 30 | 004012 | SCREW | 1 1 1 1 |
| 31 | 004803 | NUT | 1 1 1 1 |
| 32 | 000527-PA | BRACKET (3-SPOOL) | 2 1 1 |
| 33 | 000527APA | BRACKET (2-SPOOL) | 1 2 |
| 34 | 004021 | SCREW | 2 2 2 1 |
| 35 | 004805 | NUT | 2 2 2 1 |
| 36 | 000506 | THREAD EYELET | 6 5 4 3 |
| 37 | 000386 | ROD CAP | 1 1 1 1 |
| 38 | 000509 | WASHER | 2 2 2 2 |
| 39 | 004835 | NUT | 1 1 1 1 |
Page 47 — SPECIFIC PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 210685 | CLOTH GUIDE BRACKET ASSEMBLY | 1 |
| 2 | 210680 | CLOTH GUIDE BRACKET | 1 |
| 3 | 210681 | HINGE/EDGE GUIDE BRACKET | 1 |
| 4 | 005184 | SCREW | 1 |
| 5 | 201191 | SPRING WASHER | 1 |
| 6 | 003044 | NUT | 1 |
| 7 | 210682 | STOPPER | 1 |
| 8 | 005053 | SCREW | 1 |
| 9 | 210683 | PIN | 1 |
| 10 | 210684 | FLAT SPRING | 1 |
| 11 | 002906 | SCREW | 1 |
| 12 | 007020 | SCREW | 1 |
| 13 | 201252 | SPRING WASHER | 1 |
| 14 | 210691 | CLOTH GUIDE ASSEMBLY | 1 |
| 15 | 210690 | BRACKET | 1 |
| 16 | 005088 | SCREW | 2 |
| 17 | 167066 | WASHER | 2 |
| 18 | 205361 | CLOTH GUIDE | 1 |
| 19 | 005157 | SCREW | 2 |
| 20 | 210689 | ADJUSTING PLATE | 1 |
| 21 | 005057 | SCREW | 1 |
| 22 | 002430 | SCREW | 1 |
| 23 | 002905 | SCREW | 1 |
| 24 | 137142 | WASHER | 1 |
| 25 | 210692 | STOPPER | 1 |
| 26 | 001206 | SCREW | 1 |
| 27 | 201211C91 | FOLDER ASSEMBLY (40mm) | 1 |
| 28 | 205835 | AUXILIARY PLATE | 1 |
| 29 | 005299 | SCREW | 1 |
| 30 | 303313 | FLAT SPRING | 1 |
| 31 | 209574-91 | CLOTH PLATE ASSEMBLY | 1 |
| 32 | 209548-PB | SIDE COVER | 1 |
| 33 | 210584 | UNCURLER | 1 |
| 34 | 210585 | WASHER | 1 |
Page 49 — SPECIFIC PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209562-92 | CRANK | 1 |
| 2 | 007369 | BOLT | 2 |
| 3 | xxxxxx | NEEDLE PLATE | 1 |
| 4 | xxxxxx | NEEDLE PLATE FINGER | 1 |
| 5 | 005330 | SCREW | 1 |
| 6 | 211600 | UNCURLER | 1 |
| 7 | 208735 | FABRIC GUARD | 1 |
| 8 | 001333 | SCREW | 1 |
| 9 | 209635 | TAPE GUIDE | 1 |
| 10 | 205319 | TAPE TAKE-UP | 1 |
| 11 | 201265B | FABRIC GUARD | 1 |
| 12 | 001231 | SCREW | 1 |
| 13 | 211600 | UNCURLER | 1 |

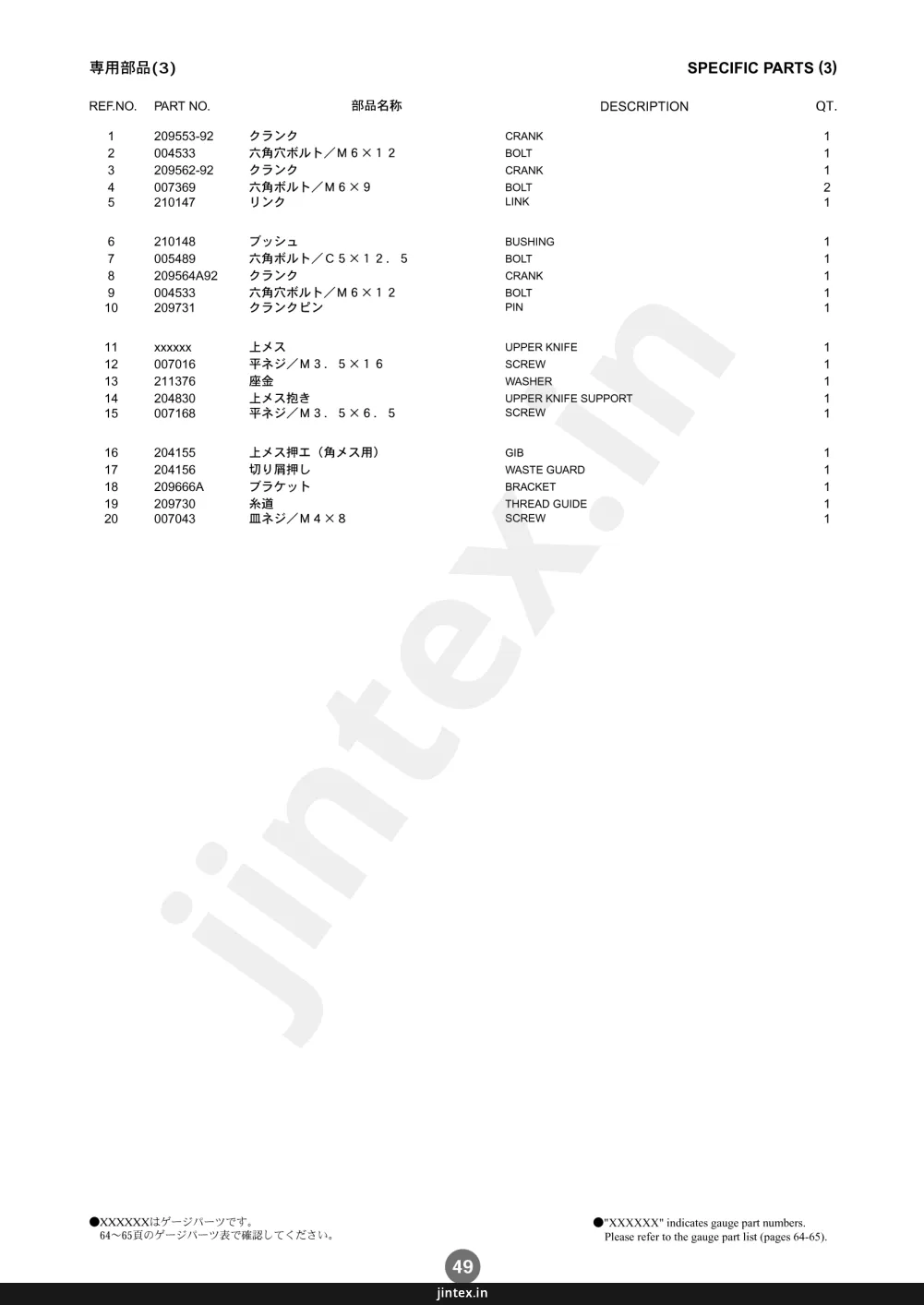

Page 51 — 専用部品(3) SPECIFIC PARTS (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209553-92 | CRANK | 1 |
| 2 | 004533 | BOLT | 1 |
| 3 | 209562-92 | CRANK | 1 |
| 4 | 007369 | BOLT | 2 |
| 5 | 210147 | LINK | 1 |
| 6 | 210148 | BUSHING | 1 |
| 7 | 005489 | BOLT | 1 |
| 8 | 209564A92 | CRANK | 1 |
| 9 | 004533 | BOLT | 1 |
| 10 | 209731 | PIN | 1 |
| 11 | XXXXXX | UPPER KNIFE | 1 |
| 12 | 007016 | SCREW | 1 |
| 13 | 211376 | WASHER | 1 |
| 14 | 204830 | UPPER KNIFE SUPPORT | 1 |
| 15 | 007168 | SCREW | 1 |
| 16 | 204155 | GIB | 1 |
| 17 | 204156 | WASTE GUARD | 1 |
| 18 | 209666A | BRACKET | 1 |
| 19 | 209730 | THREAD GUIDE | 1 |
| 20 | 007043 | SCREW | 1 |
Page 53 — SPECIFIC PARTS (4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209574B91 | CLOTH PLATE ASSEMBLY | 1 |
| 2 | 209548-PB | SIDE COVER | 1 |
| 3 | 209664A | FRONT COVER (MIDDLE) | 1 |
| 4 | 308243-91 | PIN ASSEMBLY | 1 |
| 5 | 308244 | PIN | 1 |
| 6 | 208949 | O RING | 2 |
| 7 | 209716-PD | PULLEY | 1 |
| 8 | 004523 | BOLT | 1 |
| 9 | 240293 | BUSHING | 1 |
| 10 | 270526 | PULLEY CAP | 1 |
| 11 | 209743 | SPACER | 1 |
| 12 | 209714 | BRACKET | 1 |
| 13 | 204631A | NEEDLE PLATE KEY | 1 |
| 14 | 007267 | SCREW | 2 |
Page 55 — SPECIFIC PARTS (5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209633A | FABRIC GUARD | 1 |
| 2 | 210529-9U | THREAD TENSION ASSEMBLY | 2 |
| 3 | 208447-UA | NUT | 1 |
| 4 | 208448 | RATCHET | 1 |
| 5 | 208450-UA | CUP | 1 |
| 6 | 201037 | SPRING (HEAVY) | 1 |
| 7 | 210319 | TENSION DISC | 2 |
| 8 | 208449 | FELT | 1 |
| 9 | 005082A | SCREW STUD | 1 |
| 10 | 210530-9U | THREAD TENSION ASSEMBLY | 1 |
| 11 | 201086 | SPRING (MEDIUM) | 1 |
| 12 | 210531-9U | THREAD TENSION ASSEMBLY | 1 |
| 13 | 201068 | SPRING (LIGHT) | 1 |
| 14 | 209735 | THREAD GUIDE | 1 |
| 15 | 007170 | SCREW | 2 |
| 16 | 202849 | TENSION GUIDE | 4 |
| 17 | 209562-92 | CRANK | 1 |
| 18 | 007369 | BOLT | 2 |
Page 57 — 専用部品(6) SPECIFIC PARTS (6)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209633A | FABRIC GUARD | 1 |
| 2 | 209550APB | BELT COVER | 1 |
| 3 | 209737-91 | BELT GEAR | 1 |
| 4 | 004556 | SCREW | 1 |
| 5 | 209605A | PULLEY | 1 |
| 6 | 004523 | BOLT | 1 |
| 7 | 210584 | PRESSER FOOT FABRIC GUARD | 1 |
| 8 | 209562-92 | CRANK | 1 |
| 9 | 007369 | BOLT | 2 |
| 8 | 210529-9U | THREAD TENSION ASSEMBLY | 1 |
| 9 | 208447-UA | NUT | 1 |
| 10 | 208448 | RATCHET | 1 |
| 11 | 208450-UA | CUP | 1 |
| 12 | 201037 | SPRING (HEAVY) | 1 |
| 13 | 210319 | TENSION DISC | 2 |
| 14 | 208449 | FELT | 1 |
| 15 | 005082A | SCREW STUD | 1 |
| 16 | 210530-9U | THREAD TENSION ASSEMBLY | 1 |
| 17 | 201086 | SPRING (MEDIUM) | 1 |
| 18 | 210531-9U | THREAD TENSION ASSEMBLY | 1 |
| 19 | 201068 | SPRING (LIGHT) | 1 |
| 20 | 202849 | TENSION GUIDE | 3 |
| 21 | 209620A | THREAD GUIDE | 1 |
| 22 | 007170 | SCREW | 2 |
| 23 | 209622 | TENSION GUIDE | 1 |
Page 59 — SPECIFIC PARTS (7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 210529-9U | THREAD TENSION ASSEMBLY | 2 |
| 2 | 208447-UA | NUT | 1 |
| 3 | 208448 | RATCHET | 1 |
| 4 | 208450-UA | CUP | 1 |
| 5 | 201037 | SPRING (HEAVY) | 1 |
| 6 | 210319 | TENSION DISC | 2 |
| 7 | 208449 | FELT | 1 |
| 8 | 005082A | SCREW STUD | 1 |
| 9 | 210530-9U | THREAD TENSION ASSEMBLY | 1 |
| 10 | 201086 | SPRING (MEDIUM) | 1 |
| 11 | 210531-9U | THREAD TENSION ASSEMBLY | 1 |
| 12 | 201068 | SPRING (LIGHT) | 1 |
| 13 | 209620 | THREAD GUIDE | 1 |
| 14 | 007170 | SCREW | 2 |
| 15 | 209622 | TENSION GUIDE | 1 |
| 16 | 202849 | TENSION GUIDE | 3 |
| 17 | 209694 | THREAD GUIDE | 1 |
| 18 | 209576A91 | CLOTH PLATE ASSEMBLY | 1 |
| 19 | XXXXXX | PRESSER FOOT ASSEMBLY | 1 |
| 20 | 208958-B | PIN | 1 |
| 21 | 208528-B | PIN | 1 |
| 22 | 208913 | SPRING | 1 |
| 23 | 005409 | NUT | 1 |
| 24 | 208532 | FABRIC GUIDE | 1 |
| 25 | 005030 | SCREW | 1 |
| 26 | 005328 | SCREW | 1 |
Page 61 — SPECIFIC PARTS (8)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209692-91 | SHIRRING ATTACHMENT | 1 |
| 2 | 275515 | BRACKET | 1 |
| 3 | 007022 | SCREW | 1 |
| 4 | 240332 | SPACER | 1 |
| 5 | 007191 | SCREW | 1 |
| 6 | 200098 | WASHER | 1 |
| 7 | 210947 | FLAT SPRING | 1 |
| 8 | 001206 | SCREW | 2 |
| 9 | 275516 | BRACKET | 1 |
| 10 | 007160 | SCREW | 1 |
| 11 | 204888 | SPRING WASHER | 2 |
| 12 | 004806 | NUT | 1 |
| 13 | 210945 | BRACKET | 1 |
| 14 | 005328 | SCREW | 2 |
| 15 | 210946 | FLAT SPRING | 1 |
| 16 | 001206 | SCREW | 1 |
| 17 | 275517-92 | SPRING GUIDE | 1 |
| 18 | 007021 | SCREW | 1 |
| 19 | 210940 | SPRING | 1 |
| 20 | 005082A | SCREW STUD | 1 |
| 21 | 210944 | WASHER | 1 |
| 22 | 204091 | WASHER | 1 |
| 23 | 208448 | RATCHET | 1 |
| 24 | 208447-UA | NUT | 1 |
| 25 | 275518 | LEVER | 1 |
| 26 | 004806 | NUT | 1 |
| 27 | 275520 | BRACKET | 1 |
| 28 | 240320 | SPRING | 1 |
| 29 | 275521 | SHAFT | 1 |
| 30 | 202522 | RING | 1 |
| 31 | 207045 | WASHER | 1 |
| 32 | 240323 | SPRING | 1 |
| 33 | 206225 | COLLAR | 1 |
| 34 | 001457-1 | SCREW | 2 |
| 35 | 210955 | WASHER | 1 |
| 36 | 005029 | SCREW | 2 |
| 37 | 212435 | CABLE | 1 |
| 38 | 212436 | CABLE SUPPORT | 2 |
| 39 | 7099 | SCREW | 1 |
| 40 | 202433 | WASHER | 1 |
| 41 | 004806 | NUT | 1 |
| 42 | 275522 | LATCH | 1 |
| 43 | 179765-15 | NUT | 1 |
| 44 | 007164 | SCREW | 1 |
| 45 | 240104 | WASHER | 1 |
| 46 | 209693 | BRACKET | 1 |
| 47 | 007052 | SCREW | 2 |
| 48 | 210961 | CLOTH GUIDE | 1 |
| 49 | 007012 | SCREW | 2 |
| 50 | 137906 | WASHER | 2 |
| 51 | 275525 | BLADE | 1 |
| 52 | 210962 | BRACKET | 1 |
| 53 | 005210 | SCREW | 2 |
| 54 | 211886 | BINDER | 1 |
| 55 | 001202 | SCREW | 2 |
| 56 | 167066 | WASHER | 2 |
| 57 | 0000413 | TAPE WIRE | 1 |
Page 63 — SPECIFIC PARTS (9)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 208554-91 | BRACKET ASSEMBLY | 1 |
| 2 | 208958-B | PIN | 1 |
| 3 | 005328 | SCREW | 1 |
| 4 | 202875 | WASHER | 1 |
| 5 | 002921 | SCREW | 1 |
| 6 | XXXXXX | PRESSER FOOT | 1 |
| 7 | 204460 | PRESSER FOOT FABRIC GUARD | 1 |
| 8 | 005077 | SCREW | 1 |
| 9 | 000403-9S | TAPE DISC ASSEMBLY | 1 |
| 10 | 000404 | TAPE DISC | 1 |
| 11 | 000405 | ROD | 1 |
| 12 | 004012 | SCREW | 1 |
| 13 | 000406 | FELT | 1 |
| 14 | 000407 | COLLAR | 1 |
| 15 | 000408 | SCREW | 1 |
| 16 | 000409 | SHAFT | 1 |
| 17 | 004818 | NUT | 1 |
| 18 | 000410-SA | BRACKET | 1 |
| 19 | 004908 | SCREW | 3 |
| 20 | XXXXXX | PRESSER FOOT ASSEMBLY | 1 |
| 21 | 208958-B | PIN | 3 |
| 22 | 204683 | FABRIC GUARD | 1 |
| 23 | 005157 | SCREW | 1 |
| 24 | 202875 | WASHER | 1 |
| 25 | 005328 | SCREW | 1 |
| 26 | 208978 | SPRING | 1 |
| 27 | 007365 | SCREW | 1 |
Page 65 — SPECIFIC PARTS (10)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209553-92 | CRANK ASSEMBLY | 1 |
| 2 | 004533 | BOLT | 1 |
| 3 | 209562-92 | CRANK ASSEMBLY | 1 |
| 4 | 007369 | BOLT | 2 |
| 5 | 210529-9U | TENSION SPRING ASSEMBLY | 3 |
| 6 | 210530-9U | TENSION SPRING ASSEMBLY | 1 |
| 7 | 210531-9U | TENSION SPRING ASSEMBLY | 1 |
| 8 | 208447-UA | NUT | 1 |
| 9 | 208448 | RATCHET | 1 |
| 10 | 208450-UA | CUP | 1 |
| 11 | 201037 | SPRING (HEAVY) | 1 |
| 12 | 210319 | TENSION DISC | 2 |
| 13 | 208449 | FELT | 1 |
| 14 | 005082A | SCREW STUD | 1 |
| 15 | 201086 | SPRING (MEDIUM) | 1 |
| 16 | 201068 | SPRING (LIGHT) | 1 |
| 17 | 209620 | THREAD GUIDE | 1 |
| 18 | 007170 | SCREW | 2 |
| 19 | 209711 | TENSION GUIDE | 1 |
| 20 | 202849 | TENSION GUIDE | 4 |
| 21 | 209694 | THREAD GUIDE | 1 |
| 22 | 209712 | THREAD GUIDE | 1 |
Page 66 — M732 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201121A | UPPER KNIFE | ||
| 204161 | LOWER KNIFE | ||
| 209668 | OVERLOCK NEEDLE GUARD FRONT | ||
| 209009 | OVERLOCK NEEDLE GUARD REAR | ||
| 209668 | CHAINSTITCH NEEDLE GUARD FRONT | ||
| 209669 | CHAINSTITCH NEEDLE GUARD REAR | ||
| 208909B92 | NEEDLE HOLDER | ||
| DC×27 #11 | NEEDLE | ||
| 204367 | NEEDLE PLATE FINGER | 3 | |
| 204940 | NEEDLE PLATE | 3 | |
| 204560A | NEEDLE PLATE | 5 | |
| 204529 | NEEDLE PLATE | 6 | |
| 204648 | NEEDLE PLATE | 3x2 | |
| 208266 | AUX. FEED DOG | 3 | |
| 208674 | AUX. FEED DOG | 4 | |
| 208664 | AUX. FEED DOG | 3 | |
| 208656 | AUX. FEED DOG | 5 | |
| 20874 | AUX. FEED DOG | 3x2 | |
| 204395 | MAIN FEED DOG ASS. | 3 | |
| 204396 | MAIN FEED DOG ASS. | 4 | |
| 204391 | MAIN FEED DOG ASS. | 3 | |
| 204248B | MAIN FEED DOG ASS. | 5 | |
| 204394 | MAIN FEED DOG ASS. | 6 | |
| 204420 | MAIN FEED DOG ASS. | 3x2 | |
| 208501 | PRESSER FOOT ASS. | 3 | |
| 208508 | PRESSER FOOT ASS. | 4 | |
| 208502 | PRESSER FOOT ASS. | 3 | |
| 208955 | PRESSER FOOT ASS. | 5 | |
| 208649 | PRESSER FOOT ASS. | 6 | |
| 204502A | PRESSER FOOT ASS. | 3x2 | |
| 204072 | LOWER LOOPER | 3 | |
| 209685 | CHAINSTITCH LOOPER | 3 | |
| 209685C | CHAINSTITCH LOOPER | 5 | |
| 208910B92 | NEEDLE HOLDER | 5 | |
| DC×27 #14 | NEEDLE HOLDER | 4 | |
| DC×27 #21 | NEEDLE HOLDER | 5 | |
| 204536 | 二重環針受 FRONT | 3 | |
| 209669A | 二重環針受 REAR | 3 |
Page 67 — M752 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 205773 | NEEDLE PLATE | ||
| 208090-BF | MAIN FEED DOG ASS. | ||
| (204729ABF) | MAIN FEED DOG | ||
| (204674) | AUX. FEED DOG | ||
| 204730-BF | DIFF. FEED DOG | ||
| 201152E | PRESSER FOOT ASS. | ||
| 201155C #34 | PRESSER FOOT FINGER | ||
| 204062 #2 | UPPER LOOPER | ||
| 204072 | LOWER LOOPER | ||
| 201121A | UPPER KNIFE | ||
| 202295 | LOWER KNIFE | ||
| 204659 | NEEDLE GUARD FRONT | ||
| 209009 | NEEDLE GUARD REAR | ||
| 209670-92 | NEEDLE HOLDER | ||
| DC×27 #9 | NEEDLE |
Pegasus M732 — parts catalog
- Page 1 (cover): This is the cover page for the Pegasus Parts Catalog for M732 Series High speed safety stitch machines and M752 Series High speed overedgers.
- Page 3 (toc): This page contains the table of contents for the manual, listing sections and their corresponding page numbers in both Japanese and English.
- Page 4 (diagram): This page displays a diagram of machine components, with numbered callouts indicating various parts and their corresponding part numbers.
- Page 5 (parts_list): This page lists parts for the MACHINE BED FRAME, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of various components of an industrial sewing machine, including part numbers and reference numbers for identification.
- Page 7 (parts_list): This page lists parts for COVER (1) including screws, gaskets, covers, and other components with their part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various components for M732 and M752 sewing machines, including screws, brackets, covers, and other hardware, with reference numbers for identification.
- Page 9 (parts_list): This page lists parts for COVER(2) with part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, bearings, pulleys, and other mechanical parts, with reference numbers and some model applicability notes.
- Page 11 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of various machine parts, including a detailed breakdown of components labeled with reference numbers from 1 to 33. It also shows specific part assemblies for models M752 and M732, indicating needle configurations.
- Page 13 (parts_list): This page lists parts for the Needle Drive Mechanism (1), including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays diagrams of parts for models M732 and M752, with numbered references for each component.
- Page 15 (parts_list): This page lists parts for the Needle Drive Mechanism (2) of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various machine parts, including screws, washers, levers, and other components, with reference numbers for identification.
- Page 17 (parts_list): This page lists parts for the Upper Looper Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various machine parts, including screws, washers, bearings, and other components, with reference numbers ranging from 1 to 18.
- Page 19 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their positions. It includes parts labeled from 1 to 41, illustrating different components and their assemblies.
- Page 21 (parts_list): This page lists parts for the Feed Mechanism (1) of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of various machine parts, with reference numbers pointing to specific components. It includes part numbers and descriptions for items like M752-48,48P2, M752, and M752-23B, along with their exceptions.
- Page 23 (parts_list): This page lists parts for the Feed Mechanism (2) with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of various machine parts, including screws, brackets, and other components, with reference numbers and part numbers indicated.
- Page 25 (parts_list): This page lists parts for the KNIFE DRIVE MECHANISM, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of various sewing machine parts, including levers, springs, screws, and brackets, with reference numbers for identification.
- Page 27 (parts_list): This page lists parts for the Presser Foot Mechanism (1), including screws, pins, levers, and springs with their corresponding part numbers and quantities.
- Page 28 (diagram): This page contains diagrams of parts for models M732 and M752, with some parts excluded for specific sub-models.
- Page 29 (parts_list): This page lists parts for the Presser Foot Mechanism (2), including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of various machine components, including a drive shaft assembly, a housing, and a gasket, with numbered references for each part.
- Page 31 (parts_list): This page lists parts for the lubrication mechanism, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays diagrams of various parts for sewing machine models M732 and M752, with numbered references for each component.
- Page 33 (parts_list): This page lists parts for the thread guide and thread takeup mechanism, including part numbers, descriptions, and quantities.
- Page 34 (diagram): This page displays diagrams of parts for models M752 and M732, with numbered references for each part.
- Page 35 (parts_list): This page lists parts for the thread tension mechanism, including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of various machine components, labeled with reference numbers from 1 to 21, with the title M732.
- Page 37 (parts_list): This page lists parts for the CHAINSTITCH LOOPER DRIVE MECHANISM(1), including part numbers, descriptions, and quantities.
- Page 38 (diagram): This page displays a diagram of machine components with reference numbers for parts M732.
- Page 39 (parts_list): This page lists parts for the CHAINSTITCH LOOPER DRIVE MECHANISM(2), including part numbers, descriptions, and quantities.
- Page 40 (diagram): This page displays diagrams of various sewing machine parts, including components for M752 and M732 models, with reference numbers and part numbers clearly indicated.
- Page 41 (parts_list): This page lists parts for H.R.装置 and H.R. DEVICE, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of various components and hardware, including screws, washers, and brackets, with reference numbers and a note about table thickness dependency.
- Page 43 (parts_list): This page lists parts for semi-submerged installation, including part numbers, descriptions, and quantities.
- Page 44 (diagram): This page displays a diagram of various components of an industrial sewing machine, including frames, supports, discs, and fasteners, each identified by a reference number.
- Page 45 (parts_list): This page lists parts for a thread stand, including thread guide bars, nuts, brackets, screws, washers, cushions, retaining fins, holders, joints, eyelets, and caps, with their corresponding part numbers and quantities.
- Page 46 (diagram): This page displays a diagram of blindhemming components for the M752-01 sewing machine, with numbered parts.
- Page 47 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 48 (diagram): This page displays a diagram of tape attaching components for the M752-13 sewing machine, including parts numbered 1 through 13, and describes applications such as turn down hemming and plain seaming on heavy weight fabric.
- Page 49 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 50 (diagram): This page displays a diagram of parts for the M752-23B, specifically for plain seaming on heavy weight fabric. It includes numbered illustrations of various components and hardware.
- Page 51 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities, with reference numbers from 1 to 20.
- Page 52 (diagram): This page displays a diagram of back latching components for models M752-180 and M752-181, with numbered parts including a cover, a narrow latch, a rod, and various fasteners and assemblies.
- Page 53 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities. It details items like cloth plate assembly, side cover, front cover, O-rings, pulleys, bolts, bushings, spacers, brackets, and screws.
- Page 54 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers 1 through 18, with a title "M752-181".
- Page 55 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 56 (diagram): This page displays diagrams of various components for models M752-54A and M752-55A, including a pulley assembly, a bracket, and multiple sub-assemblies with screws and springs.
- Page 57 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 58 (diagram): This page displays a diagram of shirring components for the M732-48,48P2 sewing machine, detailing various parts with reference numbers.
- Page 59 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities, with reference numbers from 1 to 26.
- Page 60 (diagram): This page displays a diagram of the shirring mechanism (part 1) for the M732-48, 48P2 model, with various components numbered for reference.
- Page 61 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 62 (diagram): This page contains diagrams for the M732-48P2 and M732-86 models, illustrating parts for shirring/piping and plain seaming on heavy weight fabric.
- Page 63 (parts_list): This page lists specific parts for the sewing machine, including part numbers, descriptions, and quantities, with reference numbers from 1 to 27.
- Page 64 (diagram): This page displays a diagram of sewing machine parts, with reference numbers indicating various components. It includes part numbers and descriptions for different fabric types.
- Page 65 (parts_list): This page lists specific parts for model 10, including crank assemblies, bolts, tension springs, nuts, ratchets, cups, springs, thread guides, screws, and tension discs.
- Page 66 (parts_list): This page lists M732 gauge parts, including machine types, gauge specifications (NG and SW), and corresponding part numbers for various components like needles, loopers, feed dogs, and guards.
- Page 67 (parts_list): Gauge parts list for the M752 sewing machine models, giving gauge settings and part numbers for needle plate, feed dogs, presser foot, loopers, upper and lower knives, needle guard, needle holder and needle; only the M752-01 row is transcribed here.
- Page 70 (cover): This is the cover page for the Pegasus Sewing Machine Mfg. Co., Ltd. parts catalog, dated July 2000, catalog number 9758. It includes the company's name in both Japanese and English, along with their address and contact information.
