Pegasus W500 (44 pages) Parts Book (PDF)
Text index — Pegasus W500 (44 pages)
Page 2 — W500/UT 構成部品一覧表 (Component list)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT101 | UT101 | ||
| UT102 | UT102 | ||
| UT103 | UT103 | ||
| UT104 | UT104 | ||
| UT203 | UT203 | ||
| UT204 | UT204 | ||
| UT301 | UT301 | ||
| UT302 | UT302 | ||
| UT303 | UT303 | ||
| UT304 | UT304 | ||
| UT331 | UT331 | ||
| UT403 | UT403 | ||
| UT404 | UT404 | ||
| UT405 | UT405 | ||
| UT423 | UT423 | ||
| UT424 | UT424 |

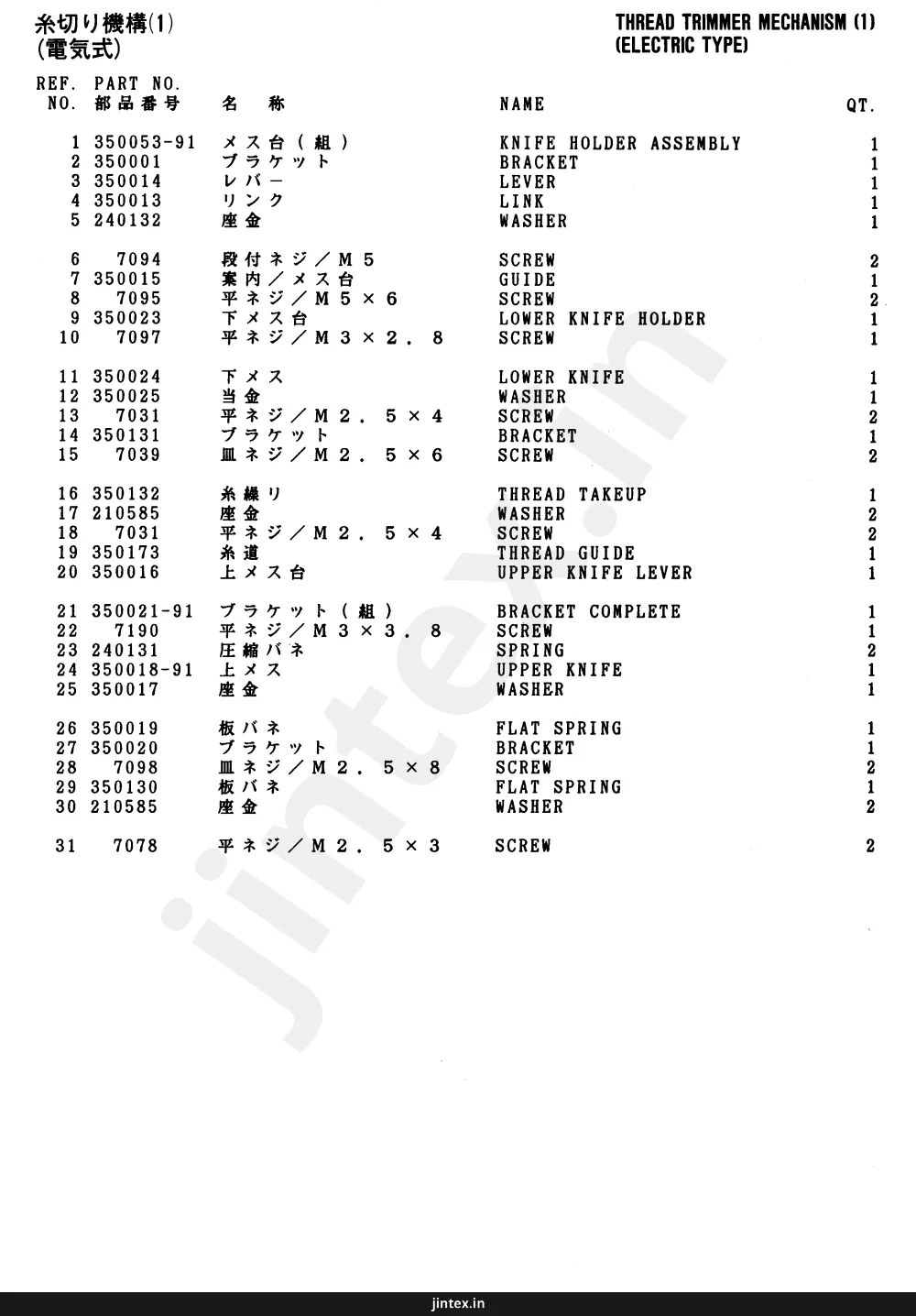

Page 5 — THREAD TRIMMER MECHANISM (1) (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350053-91 | KNIFE HOLDER ASSEMBLY | 1 |
| 2 | 350001 | BRACKET | 1 |
| 3 | 350014 | LEVER | 1 |
| 4 | 350013 | LINK | 1 |
| 5 | 240132 | WASHER | 1 |
| 6 | 7094 | SCREW | 2 |
| 7 | 350015 | GUIDE | 1 |
| 8 | 7095 | SCREW | 2 |
| 9 | 350023 | LOWER KNIFE HOLDER | 1 |
| 10 | 7097 | SCREW | 1 |
| 11 | 350024 | LOWER KNIFE | 1 |
| 12 | 350025 | WASHER | 1 |
| 13 | 7031 | SCREW | 2 |
| 14 | 350131 | BRACKET | 1 |
| 15 | 7039 | SCREW | 2 |
| 16 | 350132 | THREAD TAKEUP | 1 |
| 17 | 210585 | WASHER | 2 |
| 18 | 7031 | SCREW | 2 |
| 19 | 350173 | THREAD GUIDE | 1 |
| 20 | 350016 | UPPER KNIFE LEVER | 1 |
| 21 | 350021-91 | BRACKET COMPLETE | 1 |
| 22 | 7190 | SCREW | 1 |
| 23 | 240131 | SPRING | 2 |
| 24 | 350018-91 | UPPER KNIFE | 1 |
| 25 | 350017 | WASHER | 1 |
| 26 | 350019 | FLAT SPRING | 1 |
| 27 | 350020 | BRACKET | 1 |
| 28 | 7098 | SCREW | 2 |
| 29 | 350130 | FLAT SPRING | 1 |
| 30 | 210585 | WASHER | 2 |
| 31 | 7078 | SCREW | 2 |
Page 7 — THREAD TRIMMER MECHANISM (2) (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 811044-91 | SOLENOID ASSEMBLY | 1 |
| 2 | 750014-91 | TERMINAL BOX ASSEMBLY | 1 |
| 3 | 760149 | TERMINAL BOX | 1 |
| 4 | 760150 | CAP | 1 |
| 5 | 7018 | SCREW | 2 |
| 6 | 750015 | TERMINAL BOARD | 1 |
| 7 | 4020 | SCREW | 2 |
| 8 | 9A2519 | INDICATION PLATE | 1 |
| 9 | 747005 | BUSHING | 2 |
| 10 | 747006 | BUSHING | 1 |
| 11 | 7019 | SCREW | 2 |
| 12 | 350050 | BRACKET | 1 |
| 13 | 7009 | SCREW | 2 |
| 14 | 350005-RA | BRACKET COMPLETE | 1 |
| 15 | 4518 | SCREW | 3 |
| 16 | 811048-91 | SOLENOID | 1 |
| 17 | 4531 | SCREW | 3 |
| 18 | 350008-91 | BRACKET | 1 |
| 19 | 4500 | SCREW | 3 |
| 20 | 350011 | SHAFT | 1 |
| 21 | 240130 | SPRING | 1 |
| 22 | 201665 | COLLAR | 1 |
| 23 | 5084 | SCREW | 2 |
| 24 | 350012 | CRANK | 1 |
| 25 | 4808 | NUT | 1 |
| 26 | 201665 | COLLAR | 1 |
| 27 | 5084 | SCREW | 2 |
| 28 | 7094 | SCREW | 1 |
| 29 | 240062 | WASHER | 1 |
| 30 | 4820 | NUT | 1 |
| 31 | 7088 | NUT | 1 |
| 32 | 742271-91 | JUNCTION CORD | 1 |
Page 9 — 上飾り糸切り機構(電気式) / TOP COVER THREAD TRIMMER MECHANISM (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350153 | BRACKET | 1 |
| 2 | 4515 | SCREW | 2 |
| 3 | 350154 | BRACKET | 1 |
| 4 | 4524 | SCREW | 3 |
| 5 | 350155 | BRACKET | 1 |
| 6 | 4524 | SCREW | 2 |
| 7 | 350156 | GUIDE | 1 |
| 8 | 7022 | SCREW | 1 |
| 9 | 4529 | SCREW | 1 |
| 10 | 4821 | NUT | 1 |
| 11 | 350157 | STATIONARY KNIFE | 1 |
| 12 | 350158 | SPACER | 1 |
| 13 | 7032 | SCREW | 2 |
| 14 | 350159 | FLAT SPRING | 1 |
| 15 | 350160 | SPACER | 1 |
| 16 | 7039 | SCREW | 1 |
| 17 | 350161 | FLAT SPRING | 1 |
| 18 | 350162 | SPACER | 1 |
| 19 | 7031 | SCREW | 1 |
| 20 | 7033 | SCREW | 1 |
| 21 | 350163 | KNIFE HOLDER | 1 |
| 22 | 7116 | SCREW | 1 |
| 23 | 350164 | MOVABLE KNIFE | 1 |
| 24 | 350025 | WASHER | 1 |
| 25 | 7031 | SCREW | 2 |
| 26 | 811064-91 | SOLENOID | 1 |
| 27 | 748005 | CLAMP | 2 |
| 28 | 7019 | SCREW | 2 |
| 29 | 350165-91 | LEVER | 1 |
| 30 | 350165 | LEVER | 1 |
| 31 | 4531 | SCREW | 1 |
| 32 | 210025 | CUSHION | 2 |
| 33 | 350166-92 | LEVER | 1 |
| 34 | 350166 | LEVER | 1 |
| 35 | 4528 | SCREW | 1 |
| 36 | 350167 | BRACKET | 1 |
| 37 | 4524 | SCREW | 2 |
| 38 | 350168 | LINK | 1 |
| 39 | 350169 | THREAD GUIDE | 1 |
| 40 | 350170 | THREAD GUIDE | 1 |
| 41 | 350171 | SPRING | 1 |
| 42 | 5636 | SCREW | 1 |
| 43 | 211387 | TENSION POST | 1 |
| 44 | 3044 | NUT | 1 |
| 45 | 5526 | NUT | 1 |
| 46 | 253539 | SPRING | 1 |
| 47 | 5600 | SCREW | 1 |
| 70 | 350229 | BRACKET | 1 |
| 71 | 7023 | SCREW | 2 |
| 72 | 4821 | NUT | 1 |
Page 11 — THREAD WIPPER MECHANISM (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350062-91 | THREAD WIPER ASSEMBLY | 1 |
| 2 | 811063-91 | SOLENOID | 1 |
| 3 | 350031 | BRACKET | 1 |
| 4 | 7019 | SCREW | 2 |
| 5 | 306553 | GUIDE | 1 |
| 6 | 202522 | RING | 2 |
| 7 | 350026-92 | CRANK ASSEMBLY | 1 |
| 8 | 350026 | CRANK | 1 |
| 9 | 4577 | BOLT | 1 |
| 10 | 350027 | PIN | 1 |
| 11 | 200555 | RING | 1 |
| 12 | 7009 | SCREW | 1 |
| 13 | 350028-91 | BRACKET COMPLETE | 1 |
| 14 | 350058 | THREAD WIPER | 1 |
| 15 | 350034 | WASHER | 1 |
| 16 | 7008 | SCREW | 1 |
| 17 | 350059 | FLAT SPRING | 1 |
| 18 | 7183 | SCREW | 1 |
| 19 | 748005 | CLAMP | 3 |
| 20 | 7019 | SCREW | 2 |
| 21 | 708004 | KNEE SWITCH ASS.(MOMENTARY) | 1 |
| 22 | 303010 | BRACKET COMPLETE | 1 |
| 23 | 197 | BRACKET | 1 |
| 24 | 4300 | SCREW | 2 |
| 25 | 4805 | NUT | 2 |
| 26 | 204585 | WASHER | 2 |
| 27 | 4910 | SCREW | 2 |
| 28 | 742272-91 | JUNCTION CORD | 1 |
Page 13 — FOOT LIFTER (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 306566A91 | SOLENOID ASSEMBLY | 1 |
| 2 | 4751 | BOLT | 2 |
| 3 | 206337 | WASHER | 2 |
| 4 | 4808 | NUT | 2 |
| 5 | 306334 | BRACKET | 1 |
| 6 | 4515 | SCREW | 4 |
| 7 | 748006 | CLAMP | 1 |
| 8 | 4009-1 | SCREW | 1 |
| 9 | 303335 | WASHER | 1 |
| 10 | 306339 | SPRING | 1 |
| 11 | 811017 | SOLENOID | 1 |
| 12 | 306335 | BRACKET | 1 |
| 13 | 4515 | SCREW | 4 |
| 14 | 306338 | KNUCKLE | 2 |
| 15 | 306337 | PIN | 2 |
| 16 | 4808 | NUT | 1 |
| 17 | 306336 | LEVER | 1 |
| 18 | 742092 | JUNCTION CORD | 1 |
| 19 | 306791 | PITMAN ROD COMPLETE | 1 |
| 20 | 306793 | ROD | 1 |
| 21 | 306792 | CONNECTOR | 1 |
| 22 | 2022-4 | SCREW | 1 |
| 23 | 306795 | PITMAN ROD | 1 |
| 24 | 201166 | PIN | 2 |
Page 15 — THREAD TRIMMER MECHANISM (1) (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350053-91 | KNIFE HOLDER ASSEMBLY | 1 |
| 2 | 350001 | BRACKET | 1 |
| 3 | 350014 | LEVER | 1 |
| 4 | 350013 | LINK | 1 |
| 5 | 240132 | WASHER | 1 |
| 6 | 7094 | SCREW | 2 |
| 7 | 350015 | GUIDE | 1 |
| 8 | 7095 | SCREW | 2 |
| 9 | 350023 | LOWER KNIFE HOLDER | 1 |
| 10 | 7097 | SCREW | 1 |
| 11 | 350024 | LOWER KNIFE | 1 |
| 12 | 350025 | WASHER | 1 |
| 13 | 7031 | SCREW | 2 |
| 14 | 350131 | BRACKET | 1 |
| 15 | 7039 | SCREW | 2 |
| 16 | 350132 | THREAD TAKEUP | 1 |
| 17 | 210585 | WASHER | 2 |
| 18 | 7031 | SCREW | 2 |
| 19 | 350173 | THREAD GUIDE | 1 |
| 20 | 350016 | UPPER KNIFE LEVER | 1 |
| 21 | 350021-91 | BRACKET COMPLETE | 1 |
| 22 | 7190 | SCREW | 1 |
| 23 | 240131 | SPRING | 2 |
| 24 | 350018-91 | UPPER KNIFE | 1 |
| 25 | 350017 | WASHER | 1 |
| 26 | 350019 | FLAT SPRING | 1 |
| 27 | 350020 | BRACKET | 1 |
| 28 | 7098 | SCREW | 2 |
| 29 | 350130 | FLAT SPRING | 1 |
| 30 | 210585 | WASHER | 2 |
| 31 | 7078 | SCREW | 2 |
Page 17 — THREAD TRIMMER MECHANISM (2) (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350190-91 | CYLINDER COMPLETE | 1 |
| 2 | 750014-91 | TERMINAL BOX ASSEMBLY | 1 |
| 3 | 760149 | TERMINAL BOX | 1 |
| 4 | 760150 | CAP | 1 |
| 5 | 7018 | SCREW | 2 |
| 6 | 750015 | TERMINAL BOARD | 1 |
| 7 | 4020 | SCREW | 2 |
| 8 | 9A2519 | INDICATION PLATE | 1 |
| 9 | 747005 | BUSHING | 2 |
| 10 | 747006 | BUSHING | 1 |
| 11 | 7019 | SCREW | 2 |
| 12 | 350050 | BRACKET | 1 |
| 13 | 7009 | SCREW | 2 |
| 14 | 350185 | BRACKET | 1 |
| 15 | 562022-91 | SOLENOID VALVE | 1 |
| 16 | 4567 | SCREW | 2 |
| 17 | 601095 | CONNECTOR | 1 |
| 18 | 527009 | SPEED CONTROLLER | 2 |
| 19 | 600010 | TUBE | 1 |
| 20 | 600024 | TUBE | 1 |
| 21 | 600016 | TUBE(4X6X750) | 1 |
| 22 | 513065 | CYLINDER | 1 |
| 23 | 350187 | BRACKET | 1 |
| 24 | 601095 | CONNECTOR | 2 |
| 25 | 350008-91 | BRACKET | 1 |
| 26 | 350011 | SHAFT | 1 |
| 27 | 350188 | SPACER | 3 |
| 28 | 350005-RA | BRACKET COMPLETE | 1 |
| 29 | 4561 | SCREW | 3 |
| 30 | 4518 | SCREW | 3 |
| 31 | 350186 | JOINT | 1 |
| 32 | 350012 | CRANK | 1 |
| 33 | 4808 | NUT | 1 |
| 34 | 201665 | COLLAR | 1 |
| 35 | 5084 | SCREW | 1 |
| 36 | 240062 | WASHER | 2 |
| 37 | 4820 | NUT | 1 |
| 38 | 7088 | NUT | 1 |
| 39 | 7094 | SCREW | 1 |
| 40 | 742271-91 | JUNCTION CORD | 1 |
Page 19 — TOP COVER THREAD TRIMMER MECHANISM (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350319 | FRAME | 1 |
| 2 | 350325 | STATIONARY KNIFE | 1 |
| 3 | 7135 | SCREW | 1 |
| 4 | 4554 | SCREW | 1 |
| 5 | 350320 | HOLDER | 1 |
| 6 | 350321 | THREAD RETAINER | 1 |
| 7 | 350323 | SPRING | 1 |
| 8 | 350322 | KNIFE SUPPORT | 1 |
| 9 | 350324 | SPRING | 1 |
| 10 | 7033 | SCREW | 2 |
| 11 | 513078-91 | AIR CYLINDER | 1 |
| 12 | 513082 | CYLINDER | 1 |
| 13 | 350327 | CYLINDER TIP | 1 |
| 14 | 527006 | SPEED CONTROLLER | 2 |
| 15 | 350326 | MOVABLE KNIFE | 1 |
| 16 | 7119 | SCREW | 1 |
| 17 | 350328 | BRACKET | 1 |
| 18 | 350329 | BRACKET | 1 |
| 19 | 4524 | SCREW | 6 |
| 20 | 167066 | WASHER | 6 |
| 21 | 4821 | NUT | 2 |
| 22 | 562023A91 | SOLENOID VALVE | 1 |
| 23 | 601115 | CONNECTOR | 1 |
| 24 | 601107 | JOINT | 2 |
| 25 | 300476 | BRACKET | 1 |
| 26 | 4104 | SCREW | 2 |
| 27 | 4911 | SCREW | 2 |
| 28 | 601102 | JOINT | 1 |
| 29 | 600012 | TUBE | 1 |
| 30 | 600100 | TUBE(4X6X400) | 1 |
| 31 | 600081 | TUBE | 2 |
| 32 | 748001 | CLAMP | 2 |
| 33 | 7019 | SCREW | 2 |
| 34 | 748002 | BAND | 5 |
| 35 | 742373-91 | JUNCTION CORD | 1 |
| 36 | 257565A | SPREADER | 1 |

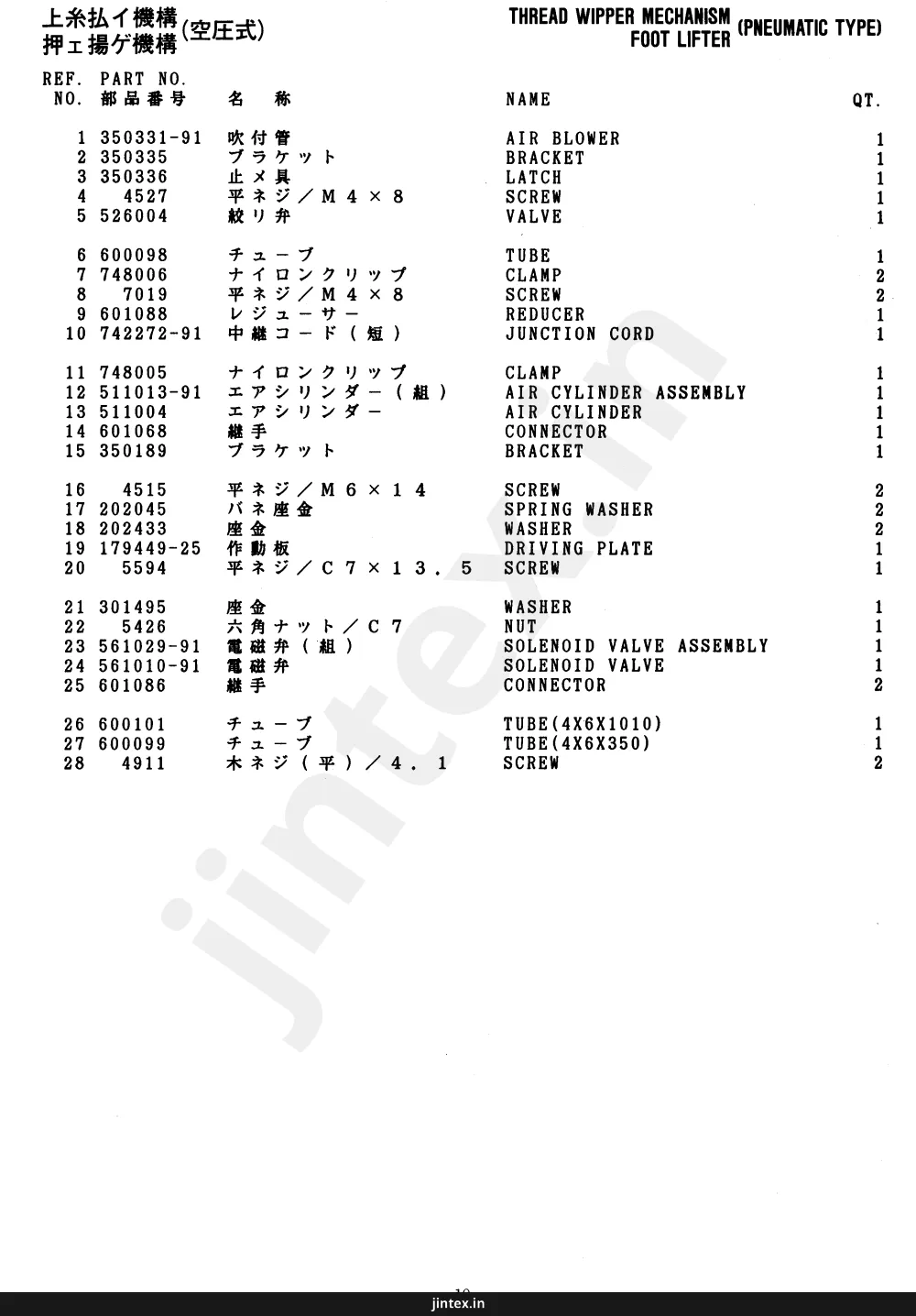

Page 21 — THREAD WIPPER MECHANISM (PNEUMATIC TYPE) FOOT LIFTER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350331-91 | AIR BLOWER | 1 |
| 2 | 350335 | BRACKET | 1 |
| 3 | 350336 | LATCH | 1 |
| 4 | 4527 | SCREW | 1 |
| 5 | 526004 | VALVE | 1 |
| 6 | 600098 | TUBE | 1 |
| 7 | 748006 | CLAMP | 2 |
| 8 | 7019 | SCREW | 2 |
| 9 | 601088 | REDUCER | 1 |
| 10 | 742272-91 | JUNCTION CORD | 1 |
| 11 | 748005 | CLAMP | 1 |
| 12 | 511013-91 | AIR CYLINDER ASSEMBLY | 1 |
| 13 | 511004 | AIR CYLINDER | 1 |
| 14 | 601068 | CONNECTOR | 1 |
| 15 | 350189 | BRACKET | 1 |
| 16 | 4515 | SCREW | 2 |
| 17 | 202045 | SPRING WASHER | 2 |
| 18 | 202433 | WASHER | 2 |
| 19 | 179449-25 | DRIVING PLATE | 1 |
| 20 | 5594 | SCREW | 1 |
| 21 | 301495 | WASHER | 1 |
| 22 | 5426 | NUT | 1 |
| 23 | 561029-91 | SOLENOID VALVE ASSEMBLY | 1 |
| 24 | 561010-91 | SOLENOID VALVE | 1 |
| 25 | 601086 | CONNECTOR | 2 |
| 26 | 600101 | TUBE(4X6X1010) | 1 |
| 27 | 600099 | TUBE(4X6X350) | 1 |
| 28 | 4911 | SCREW | 2 |
Page 23 — FOOT LIFTER (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 511013-91 | AIR CYLINDER ASSEMBLY | 1 |
| 2 | 511004 | AIR CYLINDER | 1 |
| 3 | 601068 | CONNECTOR | 1 |
| 4 | 350189 | BRACKET | 1 |
| 5 | 4515 | SCREW | 2 |
| 6 | 202045 | SPRING WASHER | 2 |
| 7 | 202433 | WASHER | 2 |
| 8 | 179449-25 | DRIVING PLATE | 1 |
| 9 | 5594 | SCREW | 1 |
| 10 | 301495 | WASHER | 1 |
| 11 | 5426 | NUT | 1 |
| 12 | 561021-91 | SOLENOID VALVE ASSEMBLY | 1 |
| 13 | 561010-91 | SOLENOID VALVE | 1 |
| 14 | 601095 | CONNECTOR | 1 |
| 15 | 601086 | CONNECTOR | 1 |
| 16 | 600101 | TUBE(4X6X1010) | 1 |
| 17 | 600099 | TUBE(4X6X350) | 1 |
| 18 | 4911 | SCREW | 2 |
Page 25 — THREAD RELEASER MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350036-92 | CRANK ASSEMBLY | 1 |
| 2 | 350036 | CRANK | 1 |
| 3 | 4531 | SCREW | 1 |
| 4 | 350037 | LEVER | 1 |
| 5 | 7027 | SCREW | 2 |
| 6 | 350038-92 | CRANK ASSEMBLY | 1 |
| 7 | 350038 | CRANK | 1 |
| 8 | 4531 | SCREW | 1 |
| 9 | 7066 | SCREW | 1 |
| 10 | 202868 | WASHER | 1 |
| 11 | 350039-91 | LEVER-SHAFT ASSEMBLY | 1 |
| 12 | 5382 | SCREW | 1 |
| 13 | 350043 | HOLDER | 1 |
| 14 | 200983 | RING | 2 |
| 15 | 4554 | SCREW | 1 |
| 16 | 350042 | SHAFT | 1 |
| 17 | 350047 | HOLDER | 1 |
| 18 | 350045 | THREAD RELEASER | 2 |
| 19 | 4554 | SCREW | 3 |
| 20 | 350046 | HOLDER | |
| 21 | 350045 | THREAD RELEASER | |
| 22 | 4554 | SCREW | |
| 23 | 254018 | THREAD GUIDE PLATE | 1 |
| 24 | 7017 | SCREW | 2 |
Page 27 — THREAD RELEASER MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350036-92 | CRANK ASSEMBLY | 1 |
| 2 | 350036 | CRANK | 1 |
| 3 | 4531 | SCREW | 1 |
| 4 | 350037 | LEVER | 1 |
| 5 | 7027 | SCREW | 2 |
| 6 | 350038-92 | CRANK ASSEMBLY | 1 |
| 7 | 350038 | CRANK | 1 |
| 8 | 4531 | SCREW | 1 |
| 9 | 7066 | SCREW | 1 |
| 10 | 202868 | WASHER | 1 |
| 11 | 350039-91 | LEVER-SHAFT ASSEMBLY | 1 |
| 12 | 5382 | SCREW | 1 |
| 13 | 350043 | HOLDER | 1 |
| 14 | 200983 | RING | 2 |
| 15 | 4554 | SCREW | 1 |
| 16 | 350042 | SHAFT | 1 |
| 17 | 350047 | HOLDER | 2 |
| 18 | 350045 | THREAD RELEASER | 4 |
| 19 | 4554 | SCREW | 6 |
| 20 | 350046 | HOLDER | |
| 21 | 350045 | THREAD RELEASER | |
| 22 | 4554 | SCREW | |
| 23 | 254018 | THREAD GUIDE PLATE | 1 |
| 24 | 7017 | SCREW | 2 |
Page 29 — UT付属品
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350035 | SCREW | 1 |
| 2 | 107723-05 | STOPPER | 1 |
| 3 | 4818 | NUT | 1 |
| 4 | 742089 | JUNCTION CORD | 1 |
| 5 | 748002 | BAND | 3 |
| 6 | 716014-91 | DETECTOR | 1 |
| 7 | 350051 | BRACKET | 1 |
| 8 | 2905 | SCREW | 1 |
| 9 | 7019 | SCREW | 2 |
| 10 | 201185 | WASHER | 2 |
| 11 | 748005 | CLAMP | 1 |
| 12 | 748003 | CLAMP | 1 |
| 13 | 7019 | SCREW | 1 |
| 14 | 201185 | WASHER | 1 |
| 15 | 810010-91 | MAGNET ASSEMBLY | 1 |
| 16 | 7027 | SCREW | 2 |
| 17 | 240062 | WASHER | 2 |
| 18 | 601089 | CONNECTOR | 1 |
| 19 | 601072 | PLUG | 1 |
| 20 | 522007 | FILTER/REGULATOR ASSEMBLY | 1 |
| 21 | 522008 | FILTER/REGULATOR | 1 |
| 22 | 300372 | BRACKET | 1 |
| 23 | 601053 | JOINT | 1 |
| 24 | 601049 | CONNECTOR | 1 |
| 25 | 608002 | HOSE BAND | 1 |
| 26 | 4910 | SCREW | 2 |
| 27 | 4304 | SCREW | 2 |
| 28 | 210061 | WASHER | 2 |
| 29 | 4806 | NUT | 2 |
Page 31 — UT COVER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350003 | COVER | 1 |
| 2 | 7043 | SCREW | 4 |
| 3 | 350004 | COVER | 1 |
| 4 | 7096 | SCREW | 1 |
| 5 | 240104 | WASHER | 1 |
| 6 | 211301 | SPRING WASHER | 2 |
| 7 | 4803 | NUT | 1 |
| 8 | 250010 | FLAT SPRING | 1 |
| 9 | 7078 | SCREW | 2 |
| 10 | 240220 | WASHER | 1 |
| 11 | 350004A | COVER | 1 |
Page 32 — UTモーター(1) / UT MOTOR [1]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 350065 | ACCSESSORIES COMPLETE | ||
| 350066 | ACCSESSORIES COMPLETE | ||
| 350067 | ACCSESSORIES COMPLETE | ||
| 350068 | ACCSESSORIES COMPLETE | ||
| 350069 | ACCSESSORIES COMPLETE | ||
| 350070 | ACCSESSORIES COMPLETE | ||
| 350071 | ACCSESSORIES COMPLETE | ||
| 350072 | ACCSESSORIES COMPLETE | ||
| BOLT | BOLT | 3 | |
| NUT | NUT | 3 | |
| WASHER | WASHER | 3 | |
| SPRING WASHER | SPRING WASHER | 3 | |
| PULLEY COVER | PULLEY COVER | 1 | |
| SCREW | SCREW | 2 | |
| PITMAN ROD COMPLETE | PITMAN ROD COMPLETE | 1 | |
| SCHEMATIC DIAGRAM FOR TABLE | SCHEMATIC DIAGRAM FOR TABLE | 1 | |
| POSITION DETECTOR ,COMPLETE | POSITION DETECTOR ,COMPLETE | 1 | |
| FUSE 8A | FUSE 8A | 2 | |
| STAPLE | STAPLE | 5 | |
| CONNECTOR MOLEX 1291P-1 | CONNECTOR MOLEX 1291P-1 | 1 | |
| CONNECTOR CAP | CONNECTOR CAP | 1 | |
| TERMINAL MOLEX 1380TL | TERMINAL MOLEX 1380TL | 1 | |
| SHORT CIRCUIT CONNECTOR | SHORT CIRCUIT CONNECTOR | 1 | |
| MOLEX 1291P-1 | CONNECTOR MOLEX 1291P-1 | 1 | |
| MOLEX 1380TL | TERMINAL MOLEX 1380TL | 1 |
Page 33 — UT MOTOR [2]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 802094 | POSITION DETECTOR | ||
| 802095 | PUSHBUTTON SWITCH(1-PHASE) | ||
| 802096 | PUSHBUTTON SWITCH(3-PHASE) | ||
| 802102 | PUSHBUTTON SWITCH(1-PHASE FOR OVERSEAS) | ||
| 742227-91 |
Page 35 — 三菱ミストモーター仕様一覧表(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 802044A91 | W500/UT (上下糸切り) | 110 | |
| 802044E91 | W500/UT (下糸切り) | 110 | |
| 802050A91 | W500/UT (上下糸切り) | 220 | |
| 802050D91 | W500/UT (下糸切り) | 220 | |
| 802050G91 | W500/UT (上下糸切り) | 110/220 | |
| 802050191 | W500/UT (下糸切り) | 110/220 | |
| 802051A91 | W500/UT (上下糸切り) | 230 | |
| 802051-91 | W500/UT (下糸切り) | 230 | |
| 802051C91 | W500/UT (上下糸切り) | 240 |
Page 37 — 上・下糸切り用バサマーモーター仕様一覧表
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 60 | 802077A91 | 100 | |
| 60 | 802078A91 | 200 | |
| 60 | 802080A91* | 110 | |
| 60 | 802081A91* | 220 | |
| 50 | 802079A91* | 110~120 | |
| 50 | 802081A91* | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 50 | 802080A91 | 220 | |
| 60 | 802080A91 | 110 | |
| 60 | 802079A91 | 110 | |
| 60 | 802080A91 | 110 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 110~120 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 220 | |
| 60 | 802080A91 | 230 | |
| 60 | 802080A91 | 230 | |
| 60 | 802080A91 | 230 | |
| 60 | 802080A91 | 230 | |
| 60 | 802080A91 | 230 | |
| 60 | 802080A91 | 240 | |
| 60 | 802080A91 | 240 | |
| 60 | 802080A91 | 240 | |
| 60 | 802080A91 | 240 | |
| 60 | 802080A91 | 240 | |
| 60 | 802080A91 | 240 |
Page 38 — SPECIFICATIONS FOR UT MOTOR 11 (MITSUBISHI L MOTOR)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 802045-91 | 802045A91 | ||
| 802044D91 | 802044A91 | ||
| 802044B91 | 802044E91 | ||
| 802046F91 | 802046J91 | ||
| 802046B91 | 802046E91 | ||
| 802046L91 | 802046P91 | ||
| 802046C91 | 802046G91 | ||
| 802046L91 | 802046P91 | ||
| 802050-91 | 802050A91 | ||
| 802048C91 | 802048P91 | ||
| 802052-91 | 802052A91 | ||
| 802048M91 | 802048N91 | ||
| 802050B91 | 802050C91 | ||
| 802048M91 | 802048N91 | ||
| 802050B91 | 802050F91 | ||
| 802048M91 | 802048N91 | ||
| 802051-91 | 802051A91 | ||
| 802051J91 | 802051K91 | ||
| 802051-91 | 802051A91 | ||
| 802051J91 | 802051K91 | ||
| 802051-91 | 802051A91 | ||
| 802051J91 | 802051K91 |
Page 39 — SPECIFICATIONS FOR UT MOTOR [2] (MITSUBISHI L MOTOR)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 802044A91 | W500/UT Bottom cover thread trimmer | ||
| 802034A91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802050M91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802050Q91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802051K91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802051J91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802044E91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802050D91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802050C91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802051D91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802051C91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802050-91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802050-91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802051A91 | W500/UT Top and Bottom cover thread trimmer | ||
| 802051-91 | W500/UT Top and Bottom cover thread trimmer |
Page 40 — SPECIFICATIONS FOR UNDER THREAD TRIMMER MOTOR (PANA-SERVO MOTOR)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 802077-91 | |||
| 802079-91 | |||
| 802079-91 | |||
| 802079-91 | |||
| 802081B91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 | |||
| 802080-91 |
Page 43 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 32 | 802046C91 | ||
| 36 | 802046C91 | ||
| 32 | 802046D91 | ||
| 36 | 802046D91 | ||
| 32 | 802046E91 | ||
| 36 | 802046E91 | ||
| 32 | 802046J91 | ||
| 36 | 802046J91 | ||
| 32 | 802046K91 | ||
| 36 | 802046K91 | ||
| 32 | 802046L91 | ||
| 36 | 802046L91 | ||
| 32 | 802048-91 | ||
| 36 | 802048-91 | ||
| 32 | 802048A91 | ||
| 36 | 802048A91 | ||
| 32 | 802048B91 | ||
| 36 | 802048B91 | ||
| 32 | 802048C91 | ||
| 36 | 802048C91 | ||
| 32 | 802048D91 | ||
| 36 | 802048D91 | ||
| 32 | 802048E91 | ||
| 36 | 802048E91 | ||
| 32 | 802048F91 | ||
| 36 | 802048F91 | ||
| 32 | 802048G91 | ||
| 36 | 802048G91 | ||
| 32 | 802048N91 | ||
| 36 | 802048N91 | ||
| 32 | 802048P91 | ||
| 36 | 802048P91 | ||
| 32 | 802048Q91 | ||
| 36 | 802048Q91 | ||
| 32 | 802049A91 | ||
| 36 | 802049A91 | ||
| 32 | 802049C91 | ||
| 36 | 802049C91 | ||
| 32 | 802050-91 | ||
| 36 | 802050-91 | ||
| 32 | 802050A91 | ||
| 36 | 802050A91 | ||
| 32 | 802050B91 | ||
| 36 | 802050B91 | ||
| 32 | 802050C91 | ||
| 33 | 802050C91 | ||
| 32 | 802050D91 | ||
| 33 | 802050D91 | ||
| 32 | 802050E91 | ||
| 36 | 802050E91 | ||
| 32 | 802050F91 | ||
| 36 | 802050F91 | ||
| 33 | 802050G91 | ||
| 37 | 802050G91 | ||
| 32 | 802050M91 | ||
| 33 | 802050M91 | ||
| 36 | 802050N91 | ||
| 37 | 802050N91 | ||
| 32 | 802050P91 | ||
| 36 | 802050P91 | ||
| 32 | 802051-91 | ||
| 33 | 802051-91 | ||
| 36 | 802051-91 | ||
| 37 | 802051-91 | ||
| 33 | 802051A91 | ||
| 37 | 802051A91 | ||
| 32 | 802051B91 | ||
| 36 | 802051B91 | ||
| 32 | 802051C91 | ||
| 33 | 802051C91 | ||
| 36 | 802051C91 | ||
| 37 | 802051C91 | ||
| 33 | 802051D91 | ||
| 37 | 802051D91 | ||
| 32 | 802051E91 | ||
| 36 | 802051E91 | ||
| 32 | 802051J91 | ||
| 33 | 802051J91 | ||
| 33 | 802051K91 | ||
| 37 | 802051K91 | ||
| 32 | 802051L91 | ||
| 36 | 802051L91 | ||
| 34 | 802077-91 | ||
| 38 | 802077-91 | ||
| 35 | 802077A91 | ||
| 39 | 802077A91 | ||
| 34 | 802078-91 | ||
| 38 | 802078-91 | ||
| 35 | 802078A91 | ||
| 39 | 802078A91 | ||
| 34 | 802079-91 | ||
| 38 | 802079-91 | ||
| 35 | 802079A91 | ||
| 39 | 802079A91 | ||
| 34 | 802079B91 | ||
| 38 | 802079B91 | ||
| 35 | 802079C91 | ||
| 39 | 802079C91 | ||
| 34 | 802080-91 | ||
| 38 | 802080-91 | ||
| 35 | 802080A91 | ||
| 39 | 802080A91 | ||
| 34 | 802081-91 | ||
| 38 | 802081-91 | ||
| 35 | 802081A91 | ||
| 39 | 802081A91 | ||
| 34 | 802081B91 | ||
| 38 | 802081B91 | ||
| 35 | 802081C91 | ||
| 39 | 802081C91 | ||
| 31 | 802094 | ||
| 31 | 802095 | ||
| 31 | 802096 | ||
| 31 | 802102 | ||
| 15 | 810010-91 | ||
| 11 | 811017 | ||
| 16 | 811044-91 | ||
| 2 | 811048-91 | ||
| 26 | 811063-91 | ||
| 26 | 8A2519 | ||
| 8 | 9A2519 |
Pegasus W500 (44 pages) — parts catalog
- Page 1 (cover): This is the cover page for the W500/UT Parts Catalog, issued in December 1990. It features the model number, machine type, and manufacturer logo.
- Page 2 (parts_list): This page is a parts list for W500/UT components, detailing various parts like thread trimmers, top cover trimmers, and foot lifters, along with their corresponding UT device numbers and applicable machine models.
- Page 3 (toc): This page is a table of contents for the parts catalog, detailing sections for electric, pneumatic, and combined electric/pneumatic types, along with an index.
- Page 4 (diagram): This page displays a diagram of machine parts for models UT101, UT104, UT203, and UT204, with numbered components indicated.
- Page 5 (parts_list): This page lists parts for the Thread Trimmer Mechanism (1) (Electric Type), including part numbers, names, and quantities.
- Page 6 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, a terminal block, a spring, a motor, and a cable assembly, with each part labeled with a reference number.
- Page 7 (parts_list): This page lists parts for the Thread Trimmer Mechanism (Electric Type), including part numbers, names, and quantities.
- Page 8 (diagram): This page displays a diagram of various machine components, including brackets, screws, and a motor, with reference numbers for each part. The diagram is associated with machine models UT203, 204, 403-405.
- Page 9 (parts_list): This page lists parts for the top cover thread trimmer mechanism (electric type), including part numbers, names, quantities, and references.
- Page 10 (diagram): This page displays diagrams of various machine parts, including a motor assembly, a cable, and a foot pedal, with reference numbers for each component. It also lists applicable models UT101, 102, 301, 302 and indicates optional parts.
- Page 11 (parts_list): This page lists parts for the Thread Wipper Mechanism (Electric Type), including part numbers, names, and quantities.
- Page 12 (diagram): This page displays a diagram of machine components for models UT101, 103, and 203, with numbered parts indicated for reference.
- Page 13 (parts_list): This page lists parts for the FOOT LIFTER (ELECTRIC TYPE) including solenoids, bolts, washers, nuts, brackets, screws, clamps, springs, levers, junction cords, pitman rods, connectors, and pins.
- Page 14 (diagram): This page displays a diagram of machine parts for models UT301-304, 331 and UT403-405, 423, 424, with numbered components indicated.
- Page 15 (parts_list): This page lists parts for the Thread Trimmer Mechanism (1) (Pneumatic Type), including part numbers, names, and quantities.
- Page 16 (diagram): This page displays a diagram of various components and sub-assemblies, including electrical connections, pneumatic fittings, and mechanical linkages, with numbered references for each part.
- Page 17 (parts_list): This page lists parts for the Thread Trimmer Mechanism (2) (Pneumatic Type), including part numbers, names, and quantities.
- Page 18 (diagram): This page displays a diagram of various components for models UT423 and UT424, including solenoids, brackets, screws, and connectors, with numbered references for each part.
- Page 19 (parts_list): This page lists parts for the TOP COVER THREAD TRIMMER MECHANISM (PNEUMATIC TYPE), including part numbers, names, and quantities.
- Page 20 (diagram): This page displays a diagram of various components of the UT331 sewing machine, including electrical connectors, tubing, fittings, a cylinder, and mounting hardware, with each part labeled with a reference number.
- Page 21 (parts_list): This page lists parts for the Thread Wiper Mechanism (Pneumatic Type) - Foot Lifter, including part numbers, names, and quantities.
- Page 22 (diagram): This page displays a diagram of pneumatic components for sewing machine models UT301, 303, 331, 403, and 423, with numbered parts for identification.
- Page 23 (parts_list): This page lists parts for the FOOT LIFTER (PNEUMATIC TYPE) with part numbers, names, and quantities.
- Page 24 (diagram): This page displays diagrams of parts for models W561, 562/UT and W541, 542/UT, illustrating different configurations with and without top cover thread. It includes numbered parts with their corresponding references.
- Page 25 (parts_list): This page lists parts for the THREAD RELEASER MECHANISM (1), including part numbers, names, and quantities.
- Page 26 (diagram): This page contains a diagram of parts for UT423,424, specifically for UT with pneumatic top cover thread trimmer, showing components labeled with reference numbers.
- Page 27 (parts_list): This page lists parts for the Thread Releaser Mechanism (2), including part numbers, names, and quantities.
- Page 28 (diagram): This page displays a diagram of various components and parts, including part numbers, model applicability, and reference numbers for items like screws, brackets, and regulators.
- Page 29 (parts_list): This page lists UT accessories with their part numbers, names, and quantities.
- Page 30 (diagram): This page displays a diagram of machine components, with parts numbered 1 through 11. It includes part numbers such as W500-01,03,21 and W500-08.
- Page 31 (parts_list): This page lists parts for the UT Cover, including part numbers, names, and quantities.
- Page 32 (parts_list): This page lists accessories for the UT Motor (1) LMI-STOP MOTOR, including pushbuttons, power supply cords, and rotation reversing plugs, as well as motor-related accessories like bolts, nuts, washers, screws, and connectors.
- Page 33 (parts_list): This page lists accessories for the UT Motor [2] PANA-SERVO MOTOR, including position detectors, pushbuttons, and various hardware like screws, nuts, and washers, along with their quantities.
- Page 35 (parts_list): This page contains a parts list for the Mitsubishi mist motor, detailing various parts with their part numbers, quantities, and specifications, organized by country and voltage/frequency.
- Page 37 (parts_list): This page lists specifications for various motors, including their part numbers, frequency, voltage, and country of origin.
- Page 38 (parts_list): This page lists specifications for Mitsubishi L Motor, including voltage, frequency, and part numbers for different models and configurations.
- Page 39 (parts_list): This page lists specifications for Mitsubishi L Motor UT Motor [2] with part numbers for different nations, voltages, and frequencies, including details for bottom cover thread trimmer and top and bottom cover thread trimmer.
- Page 40 (parts_list): This page lists specifications for under thread trimmer motors, including part numbers, voltage, frequency, and nation of use.
- Page 43 (index): This page is an index listing part numbers and their corresponding page references. It is organized into columns for part numbers and page references.
- Page 44 (cover): This is the cover page of the Pegasus Sewing Machine Mfg. Co., Ltd. parts catalog, copyright 1991.
