Pegasus W600 Parts Book (PDF)
Text index — Pegasus W600
Page 5 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2065900 | OIL LEVEL GAUGE | 1 |
| 2 | 2501170 | BED PIN | 4 |
| 3 | 2402280 | PLUG | 1 |
| 4 | 2400520 | PLUG | 1 |
| 5 | 2402270 | PLUG | 1 |
| 6 | 2401100 | PLUG | 1 |
| 7 | 2100031 | PLUG | 1 |
| 8 | 2090840 | COVER | 1 |
| 9 | 2402261 | PLUG | 1 |
| 10 | 2400450 | PLUG | 1 |
| 11 | 2050881 | PLUG | 1 |
| 12 | 2501480 | FILTER | 1 |
| 13 | 2400010 | RING | 1 |
| 14 | 2551080 | PIN | 1 |
| 15 | 2073580 | FELT | 1 |
| 16 | 250158-910 | COVER | 1 |
| 17 | 2500200 | COVER | 1 |
| 18 | 2501570 | SPONGE | 1 |
| 19 | 007017A0 | SCREW | 2 |
| 20 | 2401270 | MARK | 1 |
| 21 | 2106790 | PIN | 2 |
| 22 | 2106790 | PIN | 2 |
| 23 | 2106790 | PIN | 2 |
| 24 | 007018A0 | SCREW | 1 |
| 25 | 3034480 | WASHER | 1 |
| 26 | 0045410 | SCREW | 1 |
| 27 | 0045220 | SCREW | 1 |
| 28 | 2503880 | NAME PLATE | 1 |
| 29 | 0045390 | SCREW | 2 |
| 30 | 2105860 | OIL SEAL | 1 |
| 31 | 9A30670 | SEAL | 1 |
| 32 | 9A30690 | CAUTION LABEL | 1 |
| 33 | 9A30710 | SEAL | 1 |
| 34 | 9A30720 | SEAL | 1 |
| 35 | 9A30690 | CAUTION LABEL | 1 |
Page 7 — カバー機構(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250150-PD0 | ARM COVER (TOP) | 1 |
| 2 | 2402261 | PLUG | 1 |
| 3 | 179107-050 | OIL SIGHT WINDOW | 1 |
| 4 | 2500190 | O RING | 1 |
| 5 | 007021A0 | SCREW | 7 |
| 6 | 250151BTD0 | ARM COVER (LEFT) | 1 |
| 7 | 0052420 | SCREW | 1 |
| 8 | 2501530 | O RING | 1 |
| 9 | 007021A0 | SCREW | 4 |
| 10 | 2402630 | WASHER | 1 |
| 11 | 2501540 | ARM COVER (REAR) | 1 |
| 12 | 2501550 | GASKET | 1 |
| 13 | 0070520 | SCREW | 6 |
| 14 | 250224A0 | NEEDLE BAR GUARD | 1 |
| 15 | 007019A0 | SCREW | 2 |
| 16 | 250156-TB0 | PULLEY COVER | 1 |
| 17 | 0070750 | SCREW | 2 |
| 18 | 2501590 | AIR GUIDE | 1 |
| 19 | 0070790 | SCREW | 2 |
| 20 | 250234-TD0 | LOOPER THREAD GUIDE COVER | 1 |
| 21 | 007019A0 | SCREW | 1 |
| 22 | 2501810 | ECCENTRIC PIN | 1 |
| 23 | 0045430 | SCREW | 1 |
| 24 | 2100250 | CUSHION | 2 |
| 25 | 007022A0 | SCREW | 2 |
| 26 | 2502550 | BRACKET | 1 |
| 27 | 007020A0 | SCREW | 2 |
| 28 | 3034480 | WASHER | 2 |
| 29 | 2502560 | BRACKET | 1 |
| 30 | 0070660 | SCREW | 1 |
| 31 | 2103070 | WASHER | 1 |
| 32 | 2502570 | EYE GUARD | 1 |
| 33 | 0070090 | SCREW | 2 |
| 34 | 2028750 | WASHER | 2 |
| 35 | 250231A910 | THREAD TAKE-UP GUARD ASSEMBLY | 1 |
| 36 | 2502250 | THREAD TAKE-UP GUARD | 1 |
| 37 | 2502260 | FINGER GUARD | 1 |
| 38 | 0070180 | SCREW | 2 |
| 39 | 3034480 | WASHER | 2 |
| 40 | 250227A0 | BRACKET | 1 |
| 41 | 0070180 | SCREW | 2 |
| 42 | 3034480 | WASHER | 2 |
| 43 | 0070520 | SCREW | 2 |
| 44 | 9A31260 | SEAL | 1 |
Page 9 — COVER(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2501600 | TOP COVER | 1 |
| 2 | 2501610 | GASKET | 1 |
| 3 | 0070820 | SCREW | 8 |
| 4 | 2501800 | FLAT SPRING | 1 |
| 5 | 0070820 | SCREW | 1 |
| 6 | 250162-PD0 | BED COVER | 1 |
| 7 | 0070200 | SCREW | 3 |
| 8 | 2501680 | NEEDLE PLATE BRACKET | 1 |
| 9 | 2100250 | CUSHION | 1 |
| 10 | 0070200 | SCREW | 2 |
| 11 | 2501760 | FLAT SPRING | 1 |
| 12 | 007017A0 | SCREW | 2 |
| 13 | 250280-PD0 | SIDE COVER | 1 |
| 14 | 007024A0 | SCREW | 4 |
| 15 | 250200-9P0 | COVER PLATE ASSEMBLY | 1 |
| 16 | 2501730 | PIN | 1 |
| 17 | 2501740 | GASKET | 1 |
| 18 | 0070820 | SCREW | 2 |
| 19 | 2501750 | CLOTH PLATE | 1 |
| 20 | 007018A0 | SCREW | 2 |
| 21 | 2501810 | ECCENTRIC PIN | 1 |
| 22 | 0045370 | SCREW | 1 |
| 23 | 2402280 | PLUG | 1 |
| 24 | 2501830 | COVER | 1 |
Page 11 — CRANKSHAFT DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2505510 | CRANKSHAFT | 1 |
| 2 | 0070360 | SCREW | 1 |
| 3 | 250554-920 | CRANKSHAFT | 1 |
| 4 | 0071280 | SCREW | 2 |
| 5 | 250555-910 | CRANKSHAFT ASSEMBLY | 1 |
| 6 | 210091-920 | CONNECTION | 1 |
| 7 | 0053760 | SCREW | 4 |
| 8 | 252056-920 | CRANK | 1 |
| 9 | 0045340 | BOLT | 1 |
| 10 | 250557-910 | BUSHING | 1 |
| 11 | 0045470 | SCREW | 2 |
| 12 | 250529A910 | BUSHING | 1 |
| 13 | 0045470 | SCREW | 2 |
| 14 | 250545-910 | GEAR (LOWER) | 1 |
| 15 | 0045470 | SCREW | 4 |
| 16 | 250530-910 | BUSHING | 1 |
| 17 | 0045550 | SCREW | 1 |
| 18 | 0045470 | SCREW | 1 |
| 19 | 2505140 | SET PLATE | 1 |
| 20 | 0070820 | SCREW | 2 |
| 21 | 2505560 | FAN | 1 |
| 22 | 2505610 | MACHINE PULLEY | 1 |
| 23 | 0045410 | SCREW | 1 |
| 24 | 0045560 | SCREW | 1 |
| 25 | 2401260 | WASHER | 1 |
| 26 | 0045000 | BOLT | 1 |
| 27 | 206050C0 | TIMING BELT | 1 |
Page 13 — ARM SHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250526B910 | MOTION ASSEMBLY | 1 |
| 2 | 0070280 | SCREW | 2 |
| 3 | 0045920 | SCREW | 1 |
| 4 | 0071520 | SCREW | 1 |
| 5 | 0071530 | SCREW | 1 |
| 6 | 0072680 | SCREW | 1 |
| 7 | 250560A0 | CRANKSHAFT | 1 |
| 8 | 253500-920 | CONNECTION ASSEMBLY | 1 |
| 9 | 007021A0 | SCREW | 2 |
| 10 | 007015A0 | SCREW | 2 |
| 11 | 253501A920 | CRANK ASSEMBLY | 1 |
| 12 | 0045340 | BOLT | 1 |
| 13 | 2505240 | BALANCE WEIGHT | 1 |
| 14 | 0045140 | SCREW | 2 |
| 15 | 2505060 | JOINT | 1 |
| 16 | 0045550 | SCREW | 2 |
| 17 | 0045470 | SCREW | 2 |
| 18 | 2505520 | SHAFT | 1 |
| 19 | 250529-910 | BUSHING | 1 |
| 20 | 0045470 | SCREW | 2 |
| 21 | 250547A0 | GEAR (UPPER) | 1 |
| 22 | 0045470 | SCREW | 4 |
| 23 | 250528-910 | BUSHING | 1 |
| 24 | 0045550 | SCREW | 1 |
| 25 | 0045470 | SCREW | 1 |
| 26 | 250566-TD0 | HANDWHEEL | 1 |
| 27 | 0045410 | SCREW | 1 |
| 28 | 0045560 | SCREW | 1 |
| 29 | 0045010 | BOLT | 1 |
| 30 | 2045850 | WASHER | 1 |
Page 15 — NEEDLE BAR/GUARD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 251014-910 | NEEDLE BAR | 1 |
| 2 | 2060610 | NEEDLE BAR CLAMP | 1 |
| 3 | 0053250 | SCREW | 1 |
| 4 | 2510160 | LINK | 1 |
| 5 | 2060530 | PIN | 1 |
| 6 | 240098-20 | NEEDLE BEARING | 1 |
| 7 | 2401010 | WASHER | 1 |
| 8 | 2060630 | BLOCK | 1 |
| 9 | 2510171 | GUIDE | 1 |
| 10 | 007021A0 | SCREW | 2 |
| 11 | 2510180 | LATCH | 1 |
| 12 | 007021A0 | SCREW | 1 |
| 13 | 179040-050 | SPONGE | 1 |
| 14 | 2065240 | OIL STRING RETAINER | 1 |
| 15 | 2121860 | OIL STRING | 1 |
| 16 | XXXXXX | NEEDLE HOLDER | 1 |
| 17 | 0045540 | SCREW | 3 |
| 18 | 0045540 | SCREW | 2 |
| 19 | XXXXXX | NEEDLE PLATE | 1 |
| 20 | 005511-HC0 | SCREW | 2 |
| 21 | 251510-920 | ECCENTRIC | 1 |
| 22 | 0045430 | SCREW | 2 |
| 23 | 2515110 | LEVER | 1 |
| 24 | 0070860 | SCREW | 1 |
| 25 | 2515120 | NEEDLE GUARD HOLDER (REAR) | 1 |
| 26 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 27 | 0045430 | SCREW | 1 |
| 28 | 251513-920 | LEVER | 1 |
| 29 | 0070130 | SCREW | 1 |
| 30 | 2515140 | NEEDLE GUARD HOLDER (FRONT) | 1 |
| 31 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 32 | 0045430 | SCREW | 1 |
Page 17 — LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252036-920 | ECCENTRIC | 1 |
| 2 | 0045470 | SCREW | 1 |
| 3 | 206172-20 | NEEDLE BEARING | 1 |
| 4 | 2520350 | ROD | 1 |
| 5 | 252037-910 | PIN ASSEMBLY | 1 |
| 6 | 0048050 | NUT | 1 |
| 7 | 2400620 | WASHER | 1 |
| 8 | 2520390 | LOOPER SHAFT GUIDE | 1 |
| 9 | 201074A0 | GUIDE | 1 |
| 10 | 2022860 | SPRING WASHER | 1 |
| 11 | 0055460 | SCREW | 1 |
| 12 | 2520440 | SHAFT | 1 |
| 13 | 2402320 | WASHER | 1 |
| 14 | 0045240 | BOLT | 1 |
| 15 | 2012520 | SPRING WASHER | 1 |
| 16 | 2402310 | WASHER | 1 |
| 17 | 252046-920 | LEVER | 1 |
| 18 | 0045340 | BOLT | 1 |
| 19 | 252040-920 | HOLDER | 1 |
| 20 | 0070210 | SCREW | 1 |
| 21 | 2520410 | WASHER | 1 |
| 22 | 2520420 | SLIDER | 1 |
| 23 | 2520430 | PIN | 1 |
| 24 | 0045430 | SCREW | 1 |
| 25 | 252045-920 | HOLDER | 1 |
| 26 | 0070210 | SCREW | 1 |
| 27 | 2520410 | WASHER | 1 |
| 28 | 2520470 | WASHER | 2 |
| 29 | 2520520 | BUSHING | 1 |
| 30 | 0045220 | SCREW | 1 |
| 31 | 252049-910 | BUSHING ASSEMBLY | 1 |
| 32 | 2310110 | O RING | 1 |
| 33 | 0045220 | SCREW | 1 |
| 34 | 2520480 | SHAFT | 1 |
| 35 | 252053-920 | LOOPER HOLDER | 1 |
| 36 | 0071450 | BOLT | 1 |
| 37 | 2520550 | WASHER | 1 |
| 38 | XXXXXX | LOOPER | 1 |
| 39 | 0071290 | SCREW | 1 |
| 40 | 2401310 | SPRING | 1 |
Page 19 — FEED MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252607-920 | ECCENTRIC | 1 |
| 2 | 0045390 | SCREW | 2 |
| 3 | 204084-20 | NEEDLE BEARING | 1 |
| 4 | 240236-20 | NEEDLE BEARING | 1 |
| 5 | 2402340 | RING | 1 |
| 6 | 2402370 | RING | 1 |
| 7 | 2526080 | ROD | 1 |
| 8 | 252609-920 | CRANK | 1 |
| 9 | 0045310 | BOLT | 1 |
| 10 | 2400550 | WASHER | 1 |
| 11 | 0070410 | SCREW | 1 |
| 12 | 2526120 | ROD | 1 |
| 13 | 2526140 | LINK | 1 |
| 14 | 2526150 | LINK | 1 |
| 15 | 0045370 | SCREW | 2 |
| 16 | 2526130 | PIN | 2 |
| 17 | 2021760 | OIL STRING | 2 |
| 18 | 2073580 | FELT | 6 |
| 19 | 2526160 | PIN | 1 |
| 20 | 2021760 | OIL STRING | 1 |
| 21 | 2079250 | FELT | 4 |
| 22 | 2526170 | CRANK | 1 |
| 23 | 0071420 | SCREW | 2 |
| 24 | 252618-910 | LINK | 1 |
| 25 | 0045470 | SCREW | 2 |
| 26 | 2526220 | GUIDE | 1 |
| 27 | 0045390 | SCREW | 1 |
| 28 | 2526200 | SPRING | 1 |
| 29 | 0071310 | SCREW | 1 |
| 30 | 2526210 | SHAFT | 1 |
| 31 | 2400170 | O RING | 1 |
| 32 | 2526230 | LEVER | 1 |
| 33 | 0070340 | SCREW | 1 |
| 34 | 252624-TB0 | INDICATION PLATE | 1 |
| 35 | 0070440 | SCREW | 2 |
| 36 | 2526250 | SCREW | 1 |
| 37 | 2016290 | RING | 1 |
| 38 | 2009830 | RING | 1 |
| 39 | 2402510 | O RING | 1 |
| 40 | 0045500 | SCREW | 1 |
| 41 | 0045370 | SCREW | 1 |
| 42 | 2526260 | LINER | 1 |
| 43 | 2526600 | NUT | 1 |
| 44 | 2526710 | SEAL | 1 |
Page 21 — FEED MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2526100 | CRANKSHAFT | 1 |
| 2 | 2021750 | OIL STRING | 1 |
| 3 | 2401480 | PLUG | 1 |
| 4 | 2400970 | PLUG | 1 |
| 5 | 179320-050 | FELT | 1 |
| 6 | 2073580 | FELT | 3 |
| 7 | 2067480 | FELT | 1 |
| 8 | 240235-920 | COLLAR | |
| 9 | 0045470 | SCREW | |
| 10 | 204052A0 | OIL SEAL | 1 |
| 11 | 252633-910 | CRANKSHAFT | 1 |
| 12 | 2021770 | OIL STRING | 1 |
| 13 | 2067480 | FELT | 4 |
| 14 | 2402410 | OIL SEAL | 1 |
| 15 | 2402390 | COLLAR | 1 |
| 16 | 0071280 | SCREW | 2 |
| 17 | 2526750 | BLOCK | 1 |
| 18 | 2526310 | BLOCK | 1 |
| 19 | 2079250 | FELT | 2 |
| 20 | 2079250 | FELT | 5 |
| 21 | 2021760 | OIL STRING | 1 |
| 22 | 0045140 | SCREW | 1 |
| 23 | 252659-910 | FEED BAR ASSEMBLY | 1 |
| 24 | 2402400 | FELT | 1 |
| 25 | 2079250 | FELT | 5 |
| 26 | 2526390 | DIFFERENTIAL FEED BAR GUIDE | 1 |
| 27 | 0071430 | SCREW | 2 |
| 28 | 2526280 | GUIDE (RIGHT) | 1 |
| 29 | 0045220 | SCREW | 1 |
| 30 | 2526290 | GUIDE (LEFT) | 1 |
| 31 | 0071300 | SCREW | 2 |
| 32 | 2526360 | LINK | 1 |
| 33 | 2021750 | OIL STRING | 1 |
| 34 | 2107660 | PIN | 2 |
| 35 | 2526370 | BUSHING | 1 |
| 36 | 2400390 | WASHER | 1 |
| 37 | 0070560 | SCREW | 1 |
| 38 | 2526320 | BLOCK | 1 |
| 39 | 210238-20 | NEEDLE BEARING | 1 |
| 40 | XXXXXX | MAIN FEED DOG | 1 |
| 41 | 0070190 | SCREW | 1 |
| 42 | XXXXXX | DIFF. FEED DOG | 1 |
| 43 | 0070190 | SCREW | 1 |
| 44 | 252630-C0 | PIN | 1 |
| 45 | 0070410 | SCREW | 2 |
Page 23 — FEED MECHANISM(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2526410 | BLOCK | 1 |
| 2 | 2526420 | GUIDE | 1 |
| 3 | 2526430 | FEED BAR PIN | 1 |
| 4 | 2526650 | SHAFT | 1 |
| 5 | 2016290 | RING | 1 |
| 6 | 0045400 | SCREW | 1 |
| 7 | 2526440 | LEVER | 1 |
| 8 | 2526460 | SHAFT | 1 |
| 9 | 2401290 | O RING | 1 |
| 10 | 0045400 | SCREW | 1 |
| 11 | 2025220 | RING | 1 |
| 12 | 2526450 | SPRING | 1 |
| 13 | 2325080 | COLLAR | 1 |
| 14 | 001998-20 | SCREW | 1 |
| 15 | 252648-910 | LEVER SHAFT ASSEMBLY | 1 |
| 16 | 2069420 | OIL SEAL | 1 |
| 17 | 252651-920 | CRANK | 1 |
| 18 | 0070290 | SCREW | 1 |
| 19 | 0071320 | SCREW | 1 |
| 20 | 252652-920 | LEVER | 1 |
| 21 | 0045310 | BOLT | 1 |
| 22 | 252653-910 | LEVER SHAFT ASSEMBLY | 1 |
| 23 | 240235-920 | COLLAR | 1 |
| 24 | 0045470 | SCREW | 1 |
| 25 | 2526570 | SPRING | 1 |
| 26 | 2526560 | SCALE PLATE | 1 |
| 27 | 2401240 | SPACER | 2 |
| 28 | 007022A0 | SCREW | 2 |
| 29 | 2526580 | STOPPER | 2 |
| 30 | 3034480 | WASHER | 2 |
| 31 | 007018A0 | SCREW | 2 |
| 32 | 2520690 | NUT | 1 |
| 33 | 2113010 | SPRING WASHER | 1 |
| 34 | 0070590 | SCREW | 1 |
| 35 | 2400630 | OIL SEAL | 1 |
Page 25 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 253000-910 | ADJUSTING BAR | 1 |
| 2 | 2530031 | NUT | 1 |
| 3 | 2402520 | SPRING | 1 |
| 4 | 2402530 | SPRING | 1 |
| 5 | 2530260 | PRESSER BAR | 1 |
| 6 | 2530180 | OIL SHIELD | 1 |
| 7 | 2061390 | PRESSER BAR CLAMP | 1 |
| 8 | 0051180 | SCREW | 1 |
| 9 | 253005-910 | GUIDE | 1 |
| 10 | 007025A0 | SCREW | 2 |
| 11 | 0070100 | SCREW | 1 |
| 12 | 2404740 | WASHER | 1 |
| 13 | 253008-910 | LEVER | 1 |
| 14 | 1920240 | COLLAR | 1 |
| 15 | 0W00024-10 | SCREW | 1 |
| 16 | 2061570 | LINK | 1 |
| 17 | 0053860 | SCREW | 2 |
| 18 | 2530100 | SPRING | 1 |
| 19 | 2061560 | COLLAR | 1 |
| 20 | 0050840 | SCREW | 2 |
| 21 | 2061490 | BELL CRANK (UPPER) | 1 |
| 22 | 0051870 | SCREW | 1 |
| 23 | 2530270 | LINK | 1 |
| 24 | 0051840 | SCREW | 1 |
| 25 | 2061480 | BELL CRANK (LOWER) | 1 |
| 26 | 002022-40 | SCREW | 1 |
| 27 | 2530130 | SHAFT | 1 |
| 28 | 2530140 | LEVER | 1 |
| 29 | 0070340 | SCREW | 1 |
| 30 | 2530150 | BRACKET | 1 |
| 31 | 007019A0 | SCREW | 2 |
| 32 | 0045810 | SCREW | 1 |
| 33 | 0048050 | NUT | 1 |
| 34 | 2530280 | FINGER GUARD | 1 |
| 35 | XXXXXX | PRESSER FOOT ASSEMBLY | 1 |
| 36 | 001170-30 | SCREW | 1 |
| 37 | 250230-RA0 | GUARD (PRESSER FOOT LIFT LEVER) | 1 |
Page 27 — SPREADER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 254501A920 | ECCENTRIC ASSEMBLY | 1 |
| 2 | 0045140 | SCREW | 2 |
| 3 | 2545110 | CONNECTION | 1 |
| 4 | 254503-920 | CRANK | 1 |
| 5 | 0045340 | BOLT | 1 |
| 6 | 2545040 | SCREW | 1 |
| 7 | 2400620 | WASHER | 1 |
| 8 | 0048050 | NUT | 1 |
| 9 | 2545190 | SHAFT | 1 |
| 10 | 2061800 | WASHER | 1 |
| 11 | 3066710 | RING | 1 |
| 12 | 254506B0 | CRANK | 1 |
| 13 | 0045470 | SCREW | 2 |
| 14 | 2545070 | BLOCK | 1 |
| 15 | 2545180 | CRANKSHAFT | 1 |
| 16 | 2079250 | FELT | 2 |
| 17 | 2021760 | OIL STRING | 1 |
| 18 | 2330200 | O RING | 1 |
| 19 | 2120390 | COLLAR | 1 |
| 20 | 0012270 | SCREW | 2 |
| 21 | 254516-920 | LEVER ASSEMBLY | 1 |
| 22 | 0070200 | SCREW | 1 |
| 23 | 0070220 | SCREW | 1 |
| 24 | 2575650 | SPREADER | 1 |
Page 29 — 糸調子機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2540080 | THREAD GUIDE | 1 |
| 2 | 007019A0 | SCREW | 2 |
| 3 | 1921200 | PIPE | 2 |
| 4 | 2061150 | HOLDER | 2 |
| 5 | 007018A0 | SCREW | 1 |
| 6 | 3034480 | WASHER | 1 |
| 7 | 254003B910 | CRANK | 1 |
| 8 | 0045310 | BOLT | 1 |
| 9 | 2028680 | WASHER | 1 |
| 10 | 254000-910 | LEVER | 1 |
| 11 | 2540220 | COLLAR | 1 |
| 12 | 002133-10 | SCREW | 1 |
| 13 | 254023C9T0 | TENSION CONTROL MECHANISM | 1 |
| 14 | 2540190 | BRACKET | 1 |
| 15 | 2540210 | THREAD RELEASER | 1 |
| 16 | 263542A9T0 | TENSION SPRING ASSEMBLY (HEAVY) | |
| 17 | 263542B9T0 | TENSION SPRING ASSEMBLY | 1 |
| 18 | 263542C9T0 | TENSION SPRING ASSEMBLY (LIGHT) | 1 |
| 19 | 2540200 | THREAD GUIDE | |
| 20 | 2062030 | THREAD GUIDE | |
| 21 | 3063010 | SPRING | 1 |
| 22 | 0054470 | SCREW | 1 |
| 23 | 2062020 | SPACER | |
| 24 | 007019A0 | SCREW | 2 |
| 25 | 001817-2A0 | SCREW STUD | 1 |
| 26 | 2103190 | TENSION DISC | 2 |
| 27 | 263544-TA0 | CUP | 1 |
| 28 | 2010370 | SPRING (HEAVY) | 1 |
| 29 | 2084480 | RATCHET | 1 |
| 30 | 263543-TA0 | NUT | 1 |
| 31 | 2010860 | SPRING (MEDIUM) | 1 |
| 32 | 2010680 | SPRING (LIGHT) | 1 |
| 33 | 254023E9T0 | TENSION CONTROL MECHANISM | 1 |
Page 31 — NEEDLE & SPREADER THREAD HANDLING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 253505A1 | THREAD TAKE-UP | 1 |
| 2 | 007019A0 | SCREW | 2 |
| 3 | 3034480 | WASHER | 2 |
| 4 | 253504-920 | LEVER | 1 |
| 5 | 0045010 | BOLT | 1 |
| 6 | 3030670 | SPRING WASHER | 1 |
| 7 | 2050610 | RING | 1 |
| 8 | 204754A0 | COLLAR | 1 |
| 9 | 0021930 | SCREW | 2 |
| 10 | 2535030 | SHAFT | 1 |
| 11 | 0045270 | BOLT | 1 |
| 12 | 2012520 | SPRING WASHER | 1 |
| 13 | 2041070 | WASHER | 1 |
| 14 | 2535070 | THREAD GUIDE | 1 |
| 15 | 0070090 | SCREW | 1 |
| 16 | 253508A0 | THREAD GUIDE | 1 |
| 17 | 0070770 | SCREW | 1 |
| 18 | 253509A0 | THREAD SUPPORT | 1 |
| 19 | 0070080 | SCREW | 1 |
| 20 | 2404740 | WASHER | 1 |
| 21 | 2535160 | THREAD TENSION BRACKET | 1 |
| 22 | 007019A0 | SCREW | 1 |
| 23 | 2345610 | THREAD GUIDE | 1 |
| 24 | 0W09070-20 | SCREW | 1 |
| 25 | 2535170 | SPRING | 1 |
| 26 | 2535930 | TENSION DISC | 1 |
| 27 | 2535440 | THREAD GUIDE | 1 |
| 28 | 007019A0 | SCREW | 1 |
| 29 | 3034480 | WASHER | 1 |
| 30 | 2535450 | HOLDER | 1 |
| 31 | 2345210 | THREAD GUIDE | |
| 32 | 0045350 | SCREW | |
| 33 | 0070100 | SCREW | 2 |
| 34 | 2535060 | THREAD TAKE-UP | 1 |
| 35 | 2535140 | THREAD GUIDE | 1 |
| 36 | 007019A0 | SCREW | 2 |
| 37 | 2535150 | THREAD GUIDE | 1 |
| 38 | 007019A0 | SCREW | 1 |
| 39 | 253548B0 | THREAD GUIDE | 1 |
| 40 | 0070190 | SCREW | 2 |
| 41 | 3034480 | WASHER | 2 |
| 42 | 2535470 | THREAD GUIDE | 1 |
| 43 | 1371080 | TENSION DISC | 2 |
| 44 | 2113880 | SPRING | 1 |
| 45 | 0071671 | SCREW | 1 |
| 46 | 2750340 | KNOB | 1 |
| 47 | 2535110 | THREAD GUIDE | 1 |
| 48 | 0045540 | SCREW | 1 |
| 49 | 2502290 | GUARD (THREAD TAKE-UP LEVER) | 1 |
| 50 | 2536680 | THREAD GUIDE | 1 |
Page 33 — LOOPER THREAD HANDLING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 253693-910 | LOOPER THREAD TAKE-UP | 1 |
| 2 | 0045370 | SCREW | 2 |
| 3 | 2535920 | BRACKET (LOOPER THREAD TAKE-UP) | 1 |
| 4 | 253534A0 | THREAD GUIDE | 1 |
| 5 | 2105850 | WASHER | 1 |
| 6 | 0070310 | SCREW | 1 |
| 7 | 253533D0 | THREAD GUIDE | 1 |
| 8 | 2105850 | WASHER | 1 |
| 9 | 0070310 | SCREW | 1 |
| 10 | 0045430 | SCREW | 1 |
| 11 | 2536000 | SHAFT | 1 |
| 12 | 2402610 | COLLAR | 1 |
| 13 | 0045540 | SCREW | 1 |
| 14 | 253606A0 | SPRING | 1 |
| 15 | 2536800 | THREAD GUIDE | 1 |
| 16 | 0070090 | SCREW | 1 |
| 17 | 253607-910 | BRACKET ASSEMBLY | 1 |
| 18 | 2536010 | SHAFT | 1 |
| 19 | 202647A0 | SPRING PIN | 1 |
| 20 | 2401230 | CUSHION RUBBER | 1 |
| 21 | 0070820 | SCREW | 2 |
| 22 | 2536050 | FLAT SPRING | 1 |
| 23 | 007017A0 | SCREW | 1 |
| 24 | 2535860 | THREAD GUIDE | 1 |
| 25 | 253588A0 | TENSION DISC | 1 |
| 26 | 2535880 | TENSION DISC | 1 |
| 27 | 2402420 | SPRING | 1 |
| 28 | 0071330 | SCREW | 1 |
| 29 | 1670790 | THREAD GUIDE | 1 |
| 30 | 007018A0 | SCREW | 1 |
| 31 | 0070080 | SCREW | 1 |
Page 35 — LUBRICATION MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 255035-910 | PIPE | 1 |
| 2 | 2550370 | JOINT SCREW | 1 |
| 3 | 2401350 | TUBE | 1 |
| 4 | 2001360 | JOINT | 2 |
| 5 | 2021990 | CLAMP | 2 |
| 6 | 2001520 | JOINT SCREW | 2 |
| 7 | 2550030 | PIPE | 1 |
| 8 | 2401360 | FELT | 1 |
| 9 | 2107660 | PIN | 1 |
| 10 | 0045140 | SCREW | 1 |
| 11 | 2550210 | FELT | 1 |
| 12 | 2550050 | LATCH | 1 |
| 13 | 007018A0 | SCREW | 1 |
| 14 | 2401430 | TUBE | 1 |
| 15 | 2405680 | TUBE | 1 |
| 16 | 2550380 | JOINT | 1 |
| 17 | 2401450 | TUBE | 1 |
| 18 | 2021990 | CLAMP | 2 |
| 19 | 2550990 | OIL RELEASE PLATE | 1 |
| 20 | 007018A0 | SCREW | 2 |
| 21 | 255097-910 | OIL SPLASH PIPE | 1 |
| 22 | 0048210 | NUT | 1 |
| 23 | 2400060 | TUBE | 1 |
| 24 | 2021990 | CLAMP | 2 |
| 25 | 255094-910 | OIL SPLASH PIPE | 1 |
| 26 | 2551230 | JOINT | 1 |
| 27 | 2001520 | JOINT SCREW | 1 |
| 28 | 2021990 | CLAMP | 1 |
| 29 | 255100-910 | OIL DRAIN PIPE | 1 |
| 30 | 2551020 | PIPE | 1 |
| 31 | 007017A0 | SCREW | 1 |
| 32 | 2068400 | TUBE | 1 |
| 33 | 2021990 | CLAMP | 2 |
| 34 | 2402450 | FELT | 1 |
| 35 | 2402440 | TUBE | 1 |
| 36 | 2401430 | TUBE | 1 |
| 37 | 007018A0 | SCREW | 1 |
| 38 | 2550390 | PIPE | 1 |
| 39 | 200140A0 | OIL TUBE | 1 |
Page 37 — 給油機構(2) LUBRICATION MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2550410 | OIL RESERVOIR ASSEMBLY | 1 |
| 2 | 202287A0 | WASHER | 1 |
| 3 | 005138B0 | SCREW | 1 |
| 4 | 0045040 | BOLT | 4 |
| 5 | 2551440 | O RING | 1 |
| 6 | 255091-910 | OIL PUMP ASSEMBLY | 1 |
| 7 | 2550240 | SHAFT | 1 |
| 8 | 2550250 | ROTOR | 1 |
| 9 | 2550260 | ROTOR | 1 |
| 10 | 2550270 | ROTOR | 1 |
| 11 | 2550280 | COVER | 1 |
| 12 | 0070260 | SCREW | 2 |
| 13 | 0071050 | SCREW | 2 |
| 14 | 2550190 | WORM WHEEL | 1 |
| 15 | 0045140 | SCREW | 2 |
| 16 | 0045310 | BOLT | 2 |
| 17 | 2550930 | JOINT SCREW | 2 |
| 18 | 2062330 | OIL FILTER | 1 |
| 19 | 2102000 | OIL FILTER BRACKET | 1 |
| 20 | 2064310 | O RING | 1 |
| 21 | 210201-PD1 | COVER | 1 |
| 22 | 007021A0 | SCREW | 3 |
| 23 | 9A30020 | FILTER SEAL | 1 |
Page 39 — HR装置 / HR DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207065-9P0 | SILICONE OIL RESERVOIR (UPPER) ASSEMBLY | 1 |
| 2 | 207066-PD0 | SILICONE OIL RESERVOIR (UPPER) | 1 |
| 3 | 207067-PD0 | CAP | 1 |
| 4 | 2067810 | SPRING PIN | 2 |
| 5 | 0050530 | SCREW | 2 |
| 6 | 2070680 | FELT | 1 |
| 7 | 255103-910 | SILICONE OIL RESERVOIR ASSEMBLY | 1 |
| 8 | 0070820 | SCREW | 2 |
| 9 | 2551070 | NEEDLE COOLER (LOWER) | 1 |
| 10 | 007019A0 | SCREW | 1 |
| 11 | 2402470 | FELT | 1 |
| 12 | 2107660 | PIN | 1 |
| 13 | 2402460 | TUBE | 1 |
| 14 | 2021750 | OIL STRING | 1 |
| 15 | 2068510 | PLUG | 1 |
Page 41 — 据付附属品 / INSTALLATION PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 0090160 | CUSHION RUBBER (SET) | 1 |
| 2 | 2063380 | CUSHION RUBBER | 4 |
| 3 | 2063360 | NUT | 4 |
| 4 | 2590000 | REST BOARD | 2 |
| 5 | 0045120 | BOLT | 4 |
| 6 | 2063370 | WASHER | 12 |
| 7 | 2057640 | CUSHION RUBBER | 4 |
| 8 | 2057650 | LINER | 4 |
| 9 | 0070930 | SCREW | 4 |
| 10 | 2063290 | TREADLE CHAIN GUIDE | 1 |
| 11 | 0070270 | SCREW | 2 |
| 12 | 2054670 | SPACER | 4 |
| 13 | 0090160 | CUSHION RUBBER (SET) | 1 |
| 14 | 2063380 | CUSHION RUBBER | 4 |
| 15 | 0090320 | SCREW (SET) | 4 |
| 16 | 2070730 | SCREW | 4 |
| 17 | 2070740 | RING | 4 |
| 18 | 2007280 | WASHER | 4 |
| 19 | 2020450 | SPRING WASHER | 4 |
| 20 | 0050200 | NUT | 4 |
| 21 | 259003-TB0 | BELT COVER | 1 |
| 22 | 0049060 | SCREW | 3 |
| 23 | 3033350 | WASHER | 3 |
Page 43 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000100-9P0 | THREAD STAND ASSY. (6-SPOOL) | 1 |
| 2 | 000100A9P0 | THREAD STAND ASSY. (5-SPOOL) | 1 |
| 3 | 000101-PA0 | COLUMN PIPE (UPPER) | 1 |
| 4 | 000102-PA0 | COLUMN PIPE (LOWER) | 1 |
| 5 | 0001030 | JOINT | 1 |
| 6 | 004066-HU0 | SCREW | 2 |
| 7 | 004067-HU0 | NUT | 2 |
| 8 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 9 | 000104APA0 | BRACKET (2-SPOOL) | 1 |
| 10 | 0001160 | HOLDER | 2 |
| 11 | 004068-HU0 | SCREW | 2 |
| 12 | 0001050 | SPOOL PIN | 5 |
| 13 | 303067A0 | SPRING WASHER | 5 |
| 14 | 004067-HU0 | NUT | 5 |
| 15 | 000106-PA0 | SPOOL TRAY | 5 |
| 16 | 0001070 | SPOOL MAT | 5 |
| 17 | 000108-PA0 | SPOOL RETAINING FIN | 5 |
| 18 | 000109-PA0 | BRACKET | 1 |
| 19 | 0041130 | SCREW | 1 |
| 20 | 0048030 | NUT | 1 |
| 21 | 0001100 | THREAD GUIDE BAR | 1 |
| 22 | 004065-HU0 | SCREW | 1 |
| 23 | 0048030 | NUT | 1 |
| 24 | 000111-PA0 | BRACKET | 1 |
| 25 | 004065-HU0 | SCREW | 1 |
| 26 | 0048030 | NUT | 1 |
| 27 | 0001120 | THREAD GUIDE BAR (6-SPOOL) | 1 |
| 28 | 000112A0 | THREAD GUIDE BAR (5-SPOOL) | 1 |
| 29 | 004065-HU0 | SCREW | 1 |
| 30 | 0048030 | NUT | 1 |
| 31 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 32 | 000104APA0 | BRACKET (2-SPOOL) | 1 |
| 33 | 0001160 | HOLDER | 2 |
| 34 | 004068-HU0 | SCREW | 2 |
| 35 | 0001130 | THREAD GUIDE | 5 |
| 36 | 0001140 | ROD CAP | 1 |
| 37 | 0001150 | WASHER | 2 |
| 38 | 0001170 | SPRING WASHER | 1 |
| 39 | 007370-HU0 | NUT | 1 |
| 40 | 9A21490 | INSTRUCTIONS | 1 |
Page 45 — SPECIFIC PARTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2501670 | SLIDE PLATE | 1 |
| 2 | 250177BPD1 | FRONT COVER ASSEMBLY | 1 |
| 3 | 0070430 | SCREW | 3 |
| 4 | 2500130 | SCREW | 1 |
| 5 | 2011910 | SPRING WASHER | 2 |
| 6 | 2401980 | PIN | 1 |
| 7 | 0045540 | SCREW | 2 |
| 8 | 6A005600000 | BRACKET ASSEMBLY | 1 |
| 9 | 0070280 | SCREW | 2 |
| 10 | 2045850 | WASHER | 2 |
| 11 | 2502630 | BRACKET | 1 |
| 12 | 0070090 | SCREW | 2 |
| 13 | 2580100 | FABRIC GUIDE (RIGHT) | 1 |
| 14 | 2580110 | FABRIC GUIDE (LEFT) | 1 |
| 15 | 258013-910 | FABRIC GUIDE | 1 |
| 16 | 0070200 | SCREW | 2 |
| 17 | 3034480 | WASHER | 2 |
| 18 | 250526C910 | MOTION ASSEMBLY | 1 |
| 19 | 0070280 | SCREW | 2 |
| 20 | 0045920 | SCREW | 1 |
| 21 | 250517A0 | CRANKSHAFT | 1 |
| 22 | 251010A0 | ECCENTRIC PIN | 1 |
| 23 | 2050970 | WASHER | 1 |
| 24 | 0070410 | SCREW | 1 |
Page 47 — 専用部品(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250184-PD1 | FRONT COVER ASSEMBLY | 1 |
| 2 | 0070430 | SCREW | 2 |
| 3 | 2500130 | SCREW | 1 |
| 4 | 2011910 | SPRING WASHER | 2 |
| 5 | 2401980 | PIN | 1 |
| 6 | 0045540 | SCREW | 2 |
| 7 | 250167A0 | SLIDE PLATE | 1 |
| 8 | 250186-PD0 | FRONT COVER (SMALL) | 1 |
| 9 | 0070270 | SCREW | 2 |
| 10 | 2064390 | AUXILIARY PLATE (FRONT COVER) | 1 |
| 11 | 0070790 | SCREW | 2 |
| 12 | 2045850 | WASHER | 2 |
| 13 | 2501930 | FABRIC GUARD | 1 |
| 14 | 007017A0 | SCREW | 2 |
| 15 | 2501960 | COVER | 1 |
| 16 | 007018A0 | SCREW | 2 |
| 17 | 2501900 | BRACKET | 1 |
| 18 | 2064600 | WASHER | 1 |
| 19 | 0070270 | SCREW | 2 |
| 20 | 2501890 | CLAMP PLATE | 1 |
| 21 | 0051130 | SCREW | 2 |
| 22 | 0070270 | SCREW | 1 |
| 23 | 2400420 | WASHER | 1 |
| 24 | 000257A9S0 | TAPE GUIDE ASSEMBLY | 1 |
| 25 | 000247-SA0 | TAPE BASE | 1 |
| 26 | 0002700 | WASHER | 1 |
| 27 | 0002530 | PIN | 1 |
| 28 | 0002500 | TAPE DISC POST | 1 |
| 29 | 0014480 | SCREW | 1 |
| 30 | 000251-SA0 | BRACKET | 1 |
| 31 | 0049130 | SCREW | 3 |
| 32 | 0002520 | SCREW | 2 |
| 33 | 2045850 | WASHER | 2 |
| 34 | 3030670 | SPRING WASHER | 2 |
| 35 | 0002260 | NUT | 2 |
| 36 | 0002530 | PIN | 2 |
| 37 | 0002540 | HOLDER | 2 |
| 38 | 0051610 | SCREW | 4 |
| 39 | 0002550 | TAPE GUIDE BAR | 1 |
| 40 | 007023A0 | SCREW | 2 |
| 41 | 0048030 | NUT | 2 |
| 42 | 000256-SA0 | HOLDER | 1 |
Page 49 — SPECIFIC PARTS(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2501670 | SLIDE PLATE | 1 |
| 2 | 250177BPD1 | FRONT COVER ASSEMBLY | 1 |
| 3 | 250177MPD1 | FRONT COVER ASSEMBLY | 1 |
| 4 | 0070430 | SCREW | 3 |
| 5 | 2500130 | SCREW | 1 |
| 6 | 2011910 | SPRING WASHER | 2 |
| 7 | 2401980 | PIN | 1 |
| 8 | 0045540 | SCREW | 2 |
| 9 | 2400260 | SPRUE | 2 |
| 10 | 2575690 | FABRIC GUIDE (LEFT) | 1 |
| 11 | 0070090 | SCREW | 2 |
| 12 | 2575700 | FABRIC GUIDE (RIGHT) | 1 |
| 13 | 2575750 | FABRIC GUIDE (LEFT) | 1 |
| 14 | 2575760 | FABRIC GUIDE (RIGHT) | 1 |
| 15 | 0070090 | SCREW | 2 |
| 16 | 2502630 | BRACKET | 1 |
| 17 | 6A005600000 | BRACKET ASSEMBLY | 1 |
| 18 | 0070280 | SCREW | 2 |
| 19 | 2045850 | WASHER | 2 |
| 20 | 250526C910 | MOTION ASSEMBLY | 1 |
| 21 | 0070280 | SCREW | 2 |
| 22 | 0045920 | SCREW | 1 |
| 23 | 250517A0 | CRANKSHAFT | 1 |
| 24 | 251010A0 | ECCENTRIC PIN | 1 |
| 25 | 2050970 | WASHER | 1 |
| 26 | 0070410 | SCREW | 1 |
Page 51 — 専用部品(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250168A0 | BRACKET | 1 |
| 2 | 250177CPD1 | FRONT COVER ASSEMBLY | 1 |
| 3 | 0070430 | SCREW | 2 |
| 4 | 2500130 | SCREW | 1 |
| 5 | 2011910 | SPRING WASHER | 2 |
| 6 | 2401980 | PIN | 1 |
| 7 | 0045540 | SCREW | 2 |
| 8 | 250167A0 | SLIDE PLATE | 1 |
| 9 | 0070740 | SCREW | 1 |
| 10 | 250177HPD1 | FRONT COVER ASSEMBLY | 1 |
| 11 | 2555210 | SHAFT | 1 |
| 12 | 252675A0 | BLOCK | 1 |
| 13 | 255523-CO | SHAFT | 1 |
| 14 | 3060110 | RING | 1 |
| 15 | 255522-920 | CRANK | 1 |
| 16 | 0045220 | SCREW | 2 |
| 17 | 2079250 | FELT | 2 |
Page 53 — SPECIFIC PARTS(5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250177APD1 | FRONT COVER ASSEMBLY | 1 |
| 2 | 0070430 | SCREW | 3 |
| 3 | 2500130 | SCREW | 1 |
| 4 | 2011910 | SPRING WASHER | 2 |
| 5 | 2401980 | PIN | 1 |
| 6 | 0045540 | SCREW | 2 |
| 7 | 250167A0 | SLIDE PLATE | 1 |
| 8 | 2575710 | HEMMING GUIDE | 1 |
| 9 | 2575720 | HEMMING GUIDE | 1 |
| 10 | 0071200 | SCREW | 1 |
| 11 | 258013-910 | FABRIC GUIDE | 1 |
| 12 | 0070200 | SCREW | 2 |
| 13 | 3034480 | WASHER | 2 |
| 14 | 0070190 | SCREW | 1 |
| 15 | 2575771 | HEMMING GUIDE (LEFT) | 1 |
| 16 | 2575790 | SPACER | 1 |
| 17 | 0070710 | SCREW | 1 |
| 18 | 2575780 | HEMMING GUIDE (RIGHT) | 1 |
| 19 | 6A005600000 | BRACKET ASSEMBLY | 1 |
| 20 | 0070280 | SCREW | 2 |
| 21 | 2045850 | WASHER | 2 |
| 22 | 252053A920 | LOOPER HOLDER | 1 |
| 23 | 0071450 | BOLT | 1 |
| 24 | 2520550 | WASHER | 1 |
| 25 | 257761A0 | FABRIC GUIDE | 1 |
| 26 | 0070310 | SCREW | 2 |
| 27 | 2577610 | FABRIC GUIDE | 1 |
| 28 | 0070200 | SCREW | 1 |
| 29 | 3034480 | WASHER | 1 |
| 30 | 250321-910 | SLIDE PLATE ASSEMBLY | 1 |
| 31 | 2580140 | FABRIC GUIDE | 1 |
| 32 | 0070180 | SCREW | 2 |
| 33 | 3034480 | WASHER | 2 |
Page 55 — SPECIFIC PARTS(6)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250526C910 | MOTION ASSEMBLY | 1 |
| 2 | 0070280 | SCREW | 2 |
| 3 | 0045920 | SCREW | 1 |
| 4 | 250517A0 | CRANKSHAFT | 1 |
| 5 | 251010A0 | ECCENTRIC PIN | 1 |
| 6 | 2050970 | WASHER | 1 |
| 7 | 0070410 | SCREW | 1 |
| 8 | 250321-910 | SLIDE PLATE ASSEMBLY | 1 |
| 9 | 2580140 | FABRIC GUIDE | 1 |
| 10 | 0070180 | SCREW | 2 |
| 11 | 3034480 | WASHER | 2 |
| 12 | 250264-910 | AUXILIARY PLATE (FRONT COVER) | 1 |
| 13 | 2580270 | BRACKET | 1 |
| 14 | 2580240 | BRACKET | 1 |
| 15 | 2580260 | WASHER | 1 |
| 16 | 0070190 | SCREW | 2 |
| 17 | 0070430 | SCREW | 3 |
| 18 | 2580470 | BRACKET | 1 |
| 19 | 007019A0 | SCREW | 2 |
| 20 | 258046A0 | GUIDE BAR | 1 |
| 21 | 0045430 | SCREW | 2 |
| 22 | 250177DPD1 | FRONT COVER ASSEMBLY | 1 |
| 23 | 2500130 | SCREW | 1 |
| 24 | 2011910 | SPRING WASHER | 2 |
| 25 | 2401980 | PIN | 1 |
| 26 | 0045540 | SCREW | 2 |
| 27 | 250168B0 | BRACKET | 1 |
| 28 | 258049-910 | AUXILIARY PLATE ASSEMBLY | 1 |
| 29 | 0071430 | SCREW | 1 |
| 30 | 250210-910 | CLOTH PLATE ASSEMBLY | 1 |
Page 57 — SPECIFIC PARTS(7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250177GPD1 | FRONT COVER ASSEMBLY | 1 |
| 2 | 2500130 | SCREW | 1 |
| 3 | 2011910 | SPRING WASHER | 2 |
| 4 | 2401980 | PIN | 1 |
| 5 | 0045540 | SCREW | 2 |
| 6 | 0070430 | SCREW | 3 |
| 7 | 250321-910 | SLIDE PLATE ASSEMBLY | 1 |
| 8 | 258050-910 | BINDER ASSEMBLY | 1 |
| 9 | 3034480 | WASHER | 2 |
| 10 | 0070170 | SCREW | 2 |
| 11 | 258015B910 | FABRIC GUARD ASSEMBLY | 1 |
| 12 | 3034480 | WASHER | 2 |
| 13 | 0070180 | SCREW | 2 |
| 14 | 2502540 | BRACKET | 1 |
| 15 | 0070180 | SCREW | 2 |
| 16 | 2580140 | FABRIC GUIDE | 1 |
| 17 | 3034480 | WASHER | 2 |
| 18 | 0070180 | SCREW | 2 |
| 19 | 2580470 | BRACKET | 1 |
| 20 | 258046A0 | GUIDE BAR | 1 |
| 21 | 007019A0 | SCREW | 2 |
| 22 | 0045430 | SCREW | 2 |
| 23 | 2577610 | FABRIC GUIDE | 1 |
| 24 | 0070310 | SCREW | 2 |
| 25 | 2580740 | BRACKET | 1 |
| 26 | 2580230 | BINDER | 1 |
| 27 | 258020A910 | ELASTIC GUIDE ASSEMBLY | 1 |
| 28 | 0071430 | SCREW | 2 |
| 29 | 2580730 | FABRIC GUIDE | 1 |
| 30 | 3034480 | WASHER | 2 |
| 31 | 0070170 | SCREW | 2 |
Page 59 — SPECIFIC PARTS(8)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250177FPD1 | FRONT COVER ASSEMBLY | 1 |
| 2 | 2500130 | SCREW | 1 |
| 3 | 2011910 | SPRING WASHER | 2 |
| 4 | 2401980 | PIN | 1 |
| 5 | 0045540 | SCREW | 2 |
| 6 | 0070430 | SCREW | 3 |
| 7 | 250167A0 | SLIDE PLATE | 1 |
| 8 | 2502520 | CLOTH PLATE | 1 |
| 9 | 0070770 | SCREW | 2 |
| 10 | 2580720 | BRACKET | 1 |
| 11 | 3034480 | WASHER | 2 |
| 12 | 0070190 | SCREW | 2 |
| 13 | 3069410 | SHAFT | 1 |
| 14 | 3069400 | ROLLER | 2 |
| 15 | 0031440 | NUT | 2 |
| 16 | 2082860 | WASHER | 3 |
| 17 | 1670660 | WASHER | 1 |
| 18 | 0012060 | SCREW | 1 |
| 19 | 258069B910 | BINDER ASSEMBLY 35mm | 1 |
| 20 | 2580710 | BRACKET | 1 |
| 21 | 1379060 | WASHER | 1 |
| 22 | 2012520 | SPRING WASHER | 1 |
| 23 | 005328-HC0 | SCREW | 1 |
| 24 | 2580680 | BRACKET | 1 |
| 25 | 0070770 | SCREW | 2 |
| 26 | 250168C0 | NEEDLE PLATE BRACKET | 1 |
| 27 | 0071430 | SCREW | 1 |
| 28 | 250280APDO | SIDE COVER | 1 |
| 29 | 2580470 | BRACKET | 1 |
| 30 | 2580460 | GUIDE BAR | 1 |
| 31 | 007019A0 | SCREW | 2 |
| 32 | 0045430 | SCREW | 2 |
| 33 | 0070200 | SCREW | 1 |
| 34 | 2580930 | COVER | 1 |

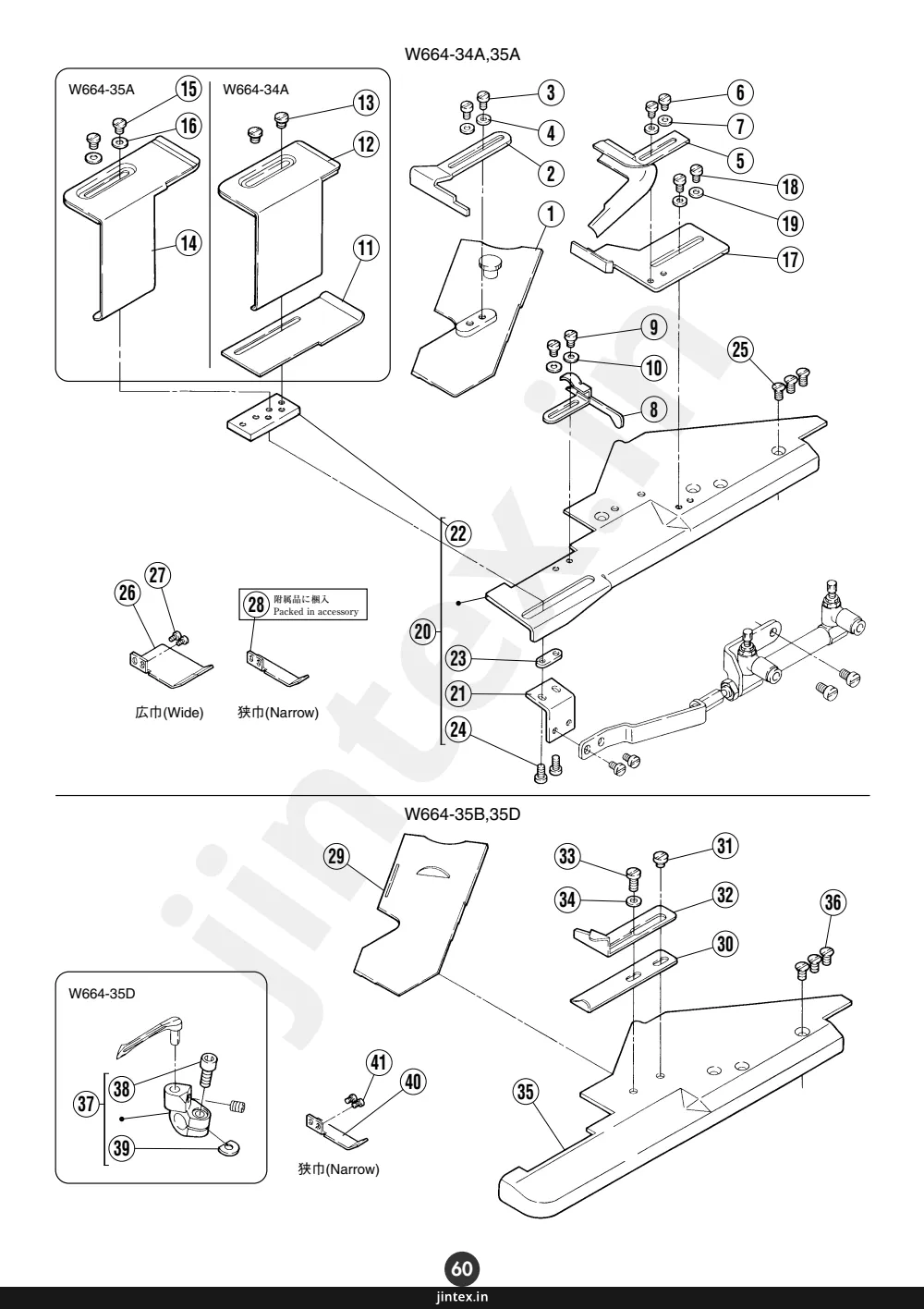

Page 61 — SPECIFIC PARTS(9)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250167A0 | SLIDE PLATE | 1 |
| 2 | 250168A0 | BRACKET | 1 |
| 3 | 2580470 | BRACKET | 1 |
| 4 | 007019A0 | SCREW | 2 |
| 5 | 2580460 | GUIDE BAR | 1 |
| 6 | 0045430 | SCREW | 2 |
| 7 | 2555210 | SHAFT | 1 |
| 8 | 252675A0 | BLOCK | 1 |
| 9 | 255523-C0 | SHAFT | 1 |
| 10 | 3060110 | RING | 1 |
| 11 | 255522-920 | CRANK | 1 |
| 12 | 0045220 | SCREW | 2 |
| 13 | 2079250 | FELT | 2 |
| 14 | 250177CPD1 | FRONT COVER ASSEMBLY | 1 |
| 15 | 0070430 | SCREW | 2 |
| 16 | 2500130 | SCREW | 1 |
| 17 | 2011910 | SPRING WASHER | 2 |
| 18 | 2401980 | PIN | 1 |
| 19 | 0045540 | SCREW | 2 |
| 20 | 250177HPD1 | FRONT COVER ASSEMBLY | 1 |
| 21 | 0070740 | SCREW | 1 |
Page 63 — SPECIFIC PARTS(10)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250321-910 | SLIDE PLATE ASSEMBLY | 1 |
| 2 | 2580140 | FABRIC GUIDE | 1 |
| 3 | 0070180 | SCREW | 2 |
| 4 | 3034480 | WASHER | 2 |
| 5 | 258050-910 | BINDER ASSEMBLY | 1 |
| 6 | 0070170 | SCREW | 2 |
| 7 | 3034480 | WASHER | 2 |
| 8 | 258017B910 | FABRIC GUARD ASSEMBLY | 1 |
| 9 | 0070170 | SCREW | 2 |
| 10 | 3034480 | WASHER | 2 |
| 11 | 2580230 | BINDER | 1 |
| 12 | 258020A910 | ELASTIC GUIDE ASSEMBLY | 1 |
| 13 | 0071430 | SCREW | 2 |
| 14 | 258020B910 | ELASTIC GUIDE | 1 |
| 15 | 0071430 | SCREW | 2 |
| 16 | 3034480 | WASHER | 2 |
| 17 | 258015A910 | FABRIC GUARD ASSEMBLY | 1 |
| 18 | 0070180 | SCREW | 2 |
| 19 | 3034480 | WASHER | 2 |
| 20 | 250264-910 | AUXILIARY PLATE (FRONT COVER) | 1 |
| 21 | 2580270 | BRACKET | 1 |
| 22 | 2580240 | BRACKET | 1 |
| 23 | 2580260 | WASHER | 1 |
| 24 | 0070190 | SCREW | 2 |
| 25 | 0070430 | SCREW | 3 |
| 26 | 2577430 | FABRIC GUIDE | 1 |
| 27 | 0070310 | SCREW | 2 |
| 28 | 257743A0 | FABRIC GUIDE | 1 |
| 29 | 250167A0 | SLIDE PLATE | 1 |
| 30 | 257577A0 | HEMMING GUIDE (LEFT) | 1 |
| 31 | 0071960 | SCREW | 1 |
| 32 | 2575780 | HEMMING GUIDE (RIGHT) | 1 |
| 33 | 0070180 | SCREW | 1 |
| 34 | 3034480 | WASHER | 1 |
| 35 | 2502810 | AUXILIARY PLATE (FRONT COVER) | 1 |
| 36 | 0070430 | SCREW | 3 |
| 37 | 252053A920 | LOOPER HOLDER | 1 |
| 38 | 0071450 | BOLT | 1 |
| 39 | 2520550 | WASHER | 1 |
| 40 | 257743A0 | FABRIC GUIDE | 1 |
| 41 | 0070310 | SCREW | 2 |
Page 65 — SPECIFIC PARTS(11)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250177EPD1 | FRONT COVER ASSEMBLY | 1 |
| 2 | 0070430 | SCREW | 3 |
| 3 | 2500130 | SCREW | 1 |
| 4 | 2011910 | SPRING WASHER | 2 |
| 5 | 2401980 | PIN | 1 |
| 6 | 004554 | SCREW | 2 |
| 7 | 250167A0 | SLIDE PLATE | 1 |
| 8 | 2575690 | CLOTH GUIDE (LEFT) | 1 |
| 9 | 2575700 | FABRIC GUIDE (RIGHT) | 1 |
| 10 | 0070090 | SCREW | 1 |
| 11 | 2577610 | FABRIC GUIDE | 1 |
| 12 | 257761A0 | FABRIC GUIDE | 1 |
| 13 | 0070310 | SCREW | 2 |
| 14 | 6A005600000 | BRACKET ASSEMBLY | 1 |
| 15 | 0070280 | SCREW | 2 |
| 16 | 2045850 | WASHER | 2 |
| 17 | 0070090 | SCREW | 1 |
Page 67 — SPECIFIC PARTS(12)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 350247-PD1 | FRONT COVER ASSEMBLY | 1 |
| 2 | 007040 | SCREW | 3 |
| 3 | 2500130 | SCREW | 1 |
| 4 | 2011910 | SPRING WASHER | 2 |
| 5 | 2401980 | PIN | 1 |
| 6 | 0045540 | SCREW | 2 |
| 7 | 250321-910 | SLIDE PLATE ASSEMBLY | 1 |
| 8 | 2580140 | FABRIC GUIDE | 1 |
| 9 | 0070180 | SCREW | 2 |
| 10 | 3034480 | WASHER | 2 |
| 11 | 2077860 | CLOTH GUIDE | 1 |
| 12 | 0070320 | SCREW | 1 |
| 13 | 2577610 | FABRIC GUIDE | 1 |
| 14 | 257761A0 | FABRIC GUIDE | 1 |
| 15 | 0070310 | SCREW | 2 |
| 16 | 6A005600000 | BRACKET ASSEMBLY | 1 |
| 17 | 0070280 | SCREW | 2 |
| 18 | 2045850 | WASHER | 2 |
| 19 | 2350400 | WASHER | 2 |
| 20 | 250526C910 | MOTION ASSEMBLY | 1 |
| 21 | 0070280 | SCREW | 2 |
| 22 | 0045920 | SCREW | 1 |
| 23 | 250517A0 | CRANKSHAFT | 1 |
| 24 | 251010A0 | ECCENTRIC PIN | 1 |
| 25 | 2050970 | WASHER | 1 |
| 26 | 0070410 | SCREW | 1 |
Page 69 — SPECIFIC PARTS(13)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2536780 | BRACKET | 1 |
| 2 | 2536770 | THREAD GUIDE | 1 |
| 3 | 2536840 | THREAD GUIDE | 1 |
| 4 | 2536830 | BRACKET | 1 |
| 5 | 2536820 | NEEDLE THREAD CAM | 1 |
| 6 | 0071540 | SCREW | 2 |
| 7 | 2028750 | WASHER | 2 |
| 8 | 2504340 | THREAD TAKE-UP GUARD | 1 |
| 9 | 2504350 | NEEDLE BAR GUARD | 1 |
| 10 | 252053A920 | LOOPER HOLDER ASSEMBLY | 1 |
| 11 | 0071450 | BOLT | 1 |
| 12 | 2520550 | WASHER | 1 |
Page 71 — FT DEVICE [-05,33]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2555250 | PIN | 1 |
| 2 | 0045530 | SCREW | 1 |
| 3 | 2555260 | CRANK | 1 |
| 4 | 0045140 | SCREW | 1 |
| 5 | 2400080 | KEY | 1 |
| 6 | 2555270 | GUIDE SHAFT (RIGHT) | 1 |
| 7 | 2402510 | O RING | 1 |
| 8 | 0045390 | SCREW | 1 |
| 9 | 2555280 | GUIDE SHAFT (LEFT) | 1 |
| 10 | 2402510 | O RING | 1 |
| 11 | 0045390 | SCREW | 1 |
| 12 | 2300300 | WASHER | 1 |
| 13 | 2555480 | SPRING | 1 |
| 14 | 2555460 | NUT | 1 |
| 15 | 255519-9P0 | BRACKET | 1 |
| 16 | 0045000 | BOLT | 2 |
| 17 | 0045020 | BOLT | 1 |
| 18 | 0070810 | SCREW | 1 |
| 19 | 2555310 | O RING | 1 |
| 20 | 007020A0 | SCREW | 1 |
| 21 | 2556380 | CLOTH GUIDE | 1 |
| 22 | 0072530 | SCREW | 2 |
| 23 | 255536-910 | SUCTION PIPE ASSEMBLY | 1 |
| 24 | 007017A0 | SCREW | 2 |
| 25 | 2555420 | BRACKET | 1 |
| 26 | 007019A0 | SCREW | 2 |
| 27 | 601110A0 | JOINT | 1 |
| 28 | 6011150 | JOINT | 1 |
| 29 | 2555290 | SHAFT | 1 |
| 30 | 255534-910 | LOWER KNIFE HOLDER ASSEMBLY | 1 |
| 31 | 2041610 | LOWER KNIFE | 1 |
| 32 | 255533-910 | LOWER KNIFE CLAMP ASSEMBLY | 1 |
| 33 | 0070820 | SCREW | 1 |
| 34 | 2575730 | UPPER KNIFE | 1 |
| 35 | 0070620 | SCREW | 1 |
| 36 | 255545-910 | UPPER KNIFE LEVER ASSEMBLY | 1 |
| 37 | 0070280 | SCREW | 1 |
| 38 | 257573A0 | UPPER KNIFE | 1 |
| 39 | 2555860 | SHAFT | 1 |
| 40 | 2555710 | CHIP GUARD | 1 |
| 41 | 0070120 | SCREW | 2 |
| 42 | 2555870 | WASTE CHUTE | 1 |
| 43 | 0071430 | SCREW | 2 |
| 44 | 2555900 | CHIP GUARD | 1 |
| 45 | 0071560 | SCREW | 1 |
| 46 | 2555880 | WASTE CHUTE | 1 |
| 47 | 2555890 | LATCH | 1 |
| 48 | 0049100 | SCREW | 1 |
| 49 | 306473-UA0 | WASTE CHUTE TOP | 1 |
| 50 | 0049040 | SCREW | 3 |
| 51 | 306474A0 | BRACKET | 1 |
| 52 | 0049050 | SCREW | 4 |
| 53 | 009050-9U0 | WASTE CHUTE SET | 1 |
| 54 | 205468-UA0 | WASTE FUNNEL | 1 |
| 55 | 205469-UA0 | WASTE FUNNEL | 1 |
| 56 | 0040120 | SCREW | 4 |
| 57 | 3034480 | WASHER | 4 |
Page 73 — FT DEVICE(1) [-33]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 255519A9P0 | BRACKET | 1 |
| 2 | 2555310 | O RING | 1 |
| 3 | 0045000 | BOLT | 2 |
| 4 | 0045020 | BOLT | 1 |
| 5 | 0070810 | SCREW | 1 |
| 6 | 2300300 | WASHER | 1 |
| 7 | 2555480 | SPRING | 1 |
| 8 | 2555460 | NUT | 1 |
| 9 | 2400080 | KEY | 1 |
| 10 | 255574-910 | CRANK | 1 |
| 11 | 0045140 | SCREW | 1 |
| 12 | 2021760 | OIL STRING | 1 |
| 13 | 2555810 | LINK (RIGHT) | 1 |
| 14 | 2555790 | LINK (CENTER) | 1 |
| 15 | 0045460 | SCREW | 1 |
| 16 | 2555770 | SHAFT | 1 |
| 17 | 2021760 | OIL STRING | 1 |
| 18 | 2555780 | LINK (LEFT) | 1 |
| 19 | 2556030 | GUIDE (LEFT) | 1 |
| 20 | 2402510 | O RING | 1 |
| 21 | 0045390 | SCREW | 1 |
| 22 | 255582-920 | GUIDE SHAFT (RIGHT) | 1 |
| 23 | 0045390 | SCREW | 1 |
| 24 | 0071810 | SCREW | 1 |
| 25 | 0045350 | SCREW | 1 |
| 26 | 2555830 | SHAFT | 1 |
| 27 | 2402510 | O RING | 1 |
| 28 | 2021760 | OIL STRING | 1 |
| 29 | 2556040 | LEVER | 1 |
| 30 | 0045530 | SCREW | 1 |
| 31 | 2556170 | LEVER SHAFT | 1 |
| 32 | 2089490 | O RING | 1 |
| 33 | 2556180 | SPRING | 1 |
| 34 | 2556190 | COLLAR | 1 |
| 35 | 0045430 | SCREW | 1 |
| 36 | 2102410 | WASHER | 2 |
| 37 | 2556200 | BRACKET | 1 |
| 38 | 0045160 | BOLT | 1 |
| 39 | 0048050 | NUT | 1 |
| 40 | 0070200 | SCREW | 1 |
| 41 | 2556460 | FINGER GUARD | 1 |
| 42 | 0070210 | SCREW | 1 |
| 43 | 3034480 | WASHER | 1 |
| 44 | 2556380 | CLOTH GUIDE | 1 |
| 45 | 0072530 | SCREW | 2 |
| 46 | 0070200 | SCREW | 1 |
| 47 | 2556440 | SPONGE | 1 |
Page 75 — FT DEVICE (2) [-33]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 255534-910 | LOWER KNIFE HOLDER ASSEMBLY | 1 |
| 2 | 2041610 | LOWER KNIFE | 1 |
| 3 | 255533-910 | LOWER KNIFE CLAMP ASSEMBLY | 1 |
| 4 | 0070820 | SCREW | 1 |
| 5 | 255545-910 | UPPER KNIFE LEVER ASSEMBLY | 1 |
| 6 | 0070280 | SCREW | 1 |
| 7 | 257573A0 | UPPER KNIFE | 1 |
| 8 | 0070620 | SCREW | 1 |
| 9 | 255571A0 | CHIP GUARD | 1 |
| 10 | 0070120 | SCREW | 2 |
| 11 | 255586A0 | SHAFT | 1 |
| 12 | 255529A0 | SHAFT | 1 |
| 13 | 2556250 | SUCTION PIPE | 1 |
| 14 | 2556400 | AIR BLOWER | 1 |
| 15 | 2556430 | HOLDER | 1 |
| 16 | 0045380 | SCREW | 1 |
| 17 | 0045540 | SCREW | 1 |
| 18 | 255630-910 | PIPE HOLDER ASSEMBLY | 1 |
| 19 | 0070200 | SCREW | 2 |
| 20 | 3034480 | WASHER | 2 |
| 21 | 6010470 | RUBBER CUFF | 1 |
| 22 | 3061680 | BRACKET | 1 |
| 23 | 5110090 | AIR CYLINDER | 1 |
| 24 | 0070290 | SCREW | 4 |
| 25 | 3028320 | KNUCKLE | 1 |
| 26 | 3065870 | PIN | 1 |
| 27 | 3030970 | RING | 2 |
| 28 | 3003860 | LINK | 1 |
| 29 | 3003870 | LEVER | 1 |
| 30 | 3066760 | ROLLER | 2 |
| 31 | 2040230 | WASHER | 2 |
| 32 | 0045150 | BOLT | 2 |
| 33 | 3003850 | LATCH | 1 |
| 34 | 3033350 | WASHER | 1 |
| 35 | 0045150 | BOLT | 1 |
| 36 | 0003900 | CHAIN | 1 |
| 37 | 0049050 | SCREW | 2 |
| 38 | 6011200 | JOINT | 1 |
| 39 | 6001750 | TUBE | 1 |
| 40 | 5260030 | VALVE | 1 |
Page 77 — FT DEVICE [-34A,35A,35B]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2555520 | CRANK | 1 |
| 2 | 0045470 | SCREW | 2 |
| 3 | 0070570 | SCREW | 1 |
| 4 | 2400390 | WASHER | 1 |
| 5 | 179160-050 | BUSHING | 1 |
| 6 | 2555530 | NUT | 1 |
| 7 | 2555540 | CRANK | 1 |
| 8 | 0045470 | SCREW | 1 |
| 9 | 2400080 | KEY | 1 |
| 10 | 252557A0 | LINK | 1 |
| 11 | 2021740 | OIL STRING | 1 |
| 12 | 2021750 | OIL STRING | 1 |
| 13 | 2550770 | LATCH | 1 |
| 14 | 0070610 | SCREW | 1 |
| 15 | 2555550 | SHAFT | 1 |
| 16 | 2300300 | WASHER | 1 |
| 17 | 2555480 | SPRING | 1 |
| 18 | 2555460 | NUT | 1 |
| 19 | 255549-9P0 | BRACKET ASSEMBLY | 1 |
| 20 | 0045010 | BOLT | 2 |
| 21 | 0045020 | BOLT | 1 |
| 22 | 2555570 | GASKET | 1 |
| 23 | 255564-910 | UPPER KNIFE HOLDER ASSEMBLY | 1 |
| 24 | 0070280 | SCREW | 1 |
| 25 | 2575740 | UPPER KNIFE | 1 |
| 26 | 0070620 | SCREW | 1 |
| 27 | 2555600 | LOWER KNIFE HOLDER | 1 |
| 28 | 0070300 | SCREW | 1 |
| 29 | 204161A0 | LOWER KNIFE | 1 |
| 30 | 255558-910 | LOWER KNIFE CLAMP ASSEMBLY | 1 |
| 31 | 0070820 | SCREW | 1 |
| 32 | 2556150 | WASTE CHUTE TOP | 1 |
| 33 | 0070120 | SCREW | 2 |
| 34 | 255567-910 | SUCTION PIPE ASSEMBLY | 1 |
| 35 | 6080050 | HOSE BAND | 1 |
| 36 | 2555620 | LATCH | 1 |
| 37 | 0071430 | SCREW | 2 |
| 38 | 6011150 | JOINT | 1 |
Page 79 — FABRIC TENSIONER DEVICE(1) [-30,34A]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 259026-910 | FABRIC TENSIONER DEVICE | 1 |
| 2 | 259021-910 | FRONT ROLLER ASSEMBLY | 1 |
| 3 | 259022-910 | LOWER ROLLER ASSEMBLY | 1 |
| 4 | 259023-910 | REAR ROLLER ASSEMBLY | 1 |
| 5 | 2590040 | BRACKET | 1 |
| 6 | 0049050 | SCREW | 2 |
| 7 | 3506220 | CLAMP LEVER | 1 |
| 8 | 2590050 | SHAFT | 1 |
| 9 | 2590060 | JOINT | 1 |
| 10 | 0070680 | SCREW | 2 |
| 11 | 0045110 | BOLT | 1 |
| 12 | 259015A0 | CLAMP LEVER | 1 |
| 13 | 2590120 | SHAFT | 1 |
| 14 | 2590130 | ROLLER | 1 |
| 15 | 2590200 | COLLAR | 1 |
| 16 | 0045430 | SCREW | 1 |
| 17 | 2590140 | COLLAR | 1 |
| 18 | 0045430 | SCREW | 1 |
| 19 | 2590070 | BRACKET | 1 |
| 20 | 0049050 | SCREW | 3 |
| 21 | 1371420 | WASHER | 3 |
| 22 | 3068290 | GUIDE PLATE | 1 |
| 23 | 306830B0 | SCREW | 1 |
| 24 | 259015A0 | CLAMP LEVER | 1 |
| 25 | 2040230 | WASHER | 1 |
| 26 | 259018-910 | ROLLER ASSEMBLY | 1 |
| 27 | 2402500 | RING | 2 |
| 28 | 2402490 | BALL BEARING | 2 |
| 29 | 2050610 | RING | 2 |
| 30 | 2590100 | BRACKET | 1 |
| 31 | 2590110 | BRACKET | 1 |
| 32 | 0045030 | BOLT | 1 |
Page 81 — FABRIC TENSIONER DEVICE(2) [-32]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 259026A910 | FABRIC TENSIONER DEVICE | 1 |
| 2 | 259021A910 | FRONT ROLLER ASSEMBLY | 1 |
| 3 | 259022A910 | LOWER ROLLER ASSEMBLY | 1 |
| 4 | 259023-910 | REAR ROLLER ASSEMBLY | 1 |
| 5 | 2590040 | BRACKET | 1 |
| 6 | 0049050 | SCREW | 2 |
| 7 | 3506220 | CLAMP LEVER | 1 |
| 8 | 2590050 | SHAFT | 1 |
| 9 | 2590060 | JOINT | 1 |
| 10 | 0070680 | SCREW | 2 |
| 11 | 0045110 | BOLT | 1 |
| 12 | 259015A0 | CLAMP LEVER | 1 |
| 13 | 2590120 | SHAFT | 1 |
| 14 | 2590130 | ROLLER | 1 |
| 15 | 2590200 | COLLAR | 1 |
| 16 | 0045430 | SCREW | 1 |
| 17 | 2590280 | COLLAR | 1 |
| 18 | 0045540 | SCREW | 1 |
| 19 | 2590070 | BRACKET | 1 |
| 20 | 0045430 | SCREW | 1 |
| 21 | 2590070 | BRACKET | 1 |
| 22 | 0049050 | SCREW | 3 |
| 23 | 1371420 | WASHER | 3 |
| 24 | 3068290 | GUIDE PLATE | 1 |
| 25 | 306830B0 | SCREW | 1 |
| 26 | 259015A0 | CLAMP LEVER | 1 |
| 27 | 2040230 | WASHER | 1 |
| 28 | 259018A911 | ROLLER ASSEMBLY | 1 |
| 29 | 2402500 | RING | 2 |
| 30 | 2402490 | BALL BEARING | 2 |
| 31 | 2050610 | RING | 2 |
| 32 | 2590100 | BRACKET | 1 |
| 33 | 2590110 | BRACKET | 1 |
| 34 | 0045030 | BOLT | 1 |
| 35 | 259018-910 | ROLLER ASSEMBLY | 1 |
Page 83 — 布張りローラー装置 (3) [-33]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 259027-910 | FABRIC TENSIONER DEVICE | 1 |
| 2 | 259024-910 | FRONT ROLLER ASSEMBLY | 1 |
| 3 | 259025-910 | LOWER ROLLER ASSEMBLY | 1 |
| 4 | 259023-910 | REAR ROLLER ASSEMBLY | 1 |
| 5 | 2590040 | BRACKET | 1 |
| 6 | 0049050 | SCREW | 2 |
| 7 | 3506220 | CLAMP LEVER | 1 |
| 8 | 259005A0 | SHAFT | 1 |
| 9 | 2590060 | JOINT | 1 |
| 10 | 0070680 | SCREW | 2 |
| 11 | 0045110 | BOLT | 1 |
| 12 | 259015A0 | CLAMP LEVER | 1 |
| 13 | 3068230 | SHAFT | 1 |
| 14 | 3068380 | BRACKET | 1 |
| 15 | 002913-10 | SCREW | 4 |
| 16 | 2590170 | SHAFT | 1 |
| 17 | 3070250 | ROLLER | 1 |
| 18 | 0070520 | SCREW | 1 |
| 19 | 2045200 | WASHER | 1 |
| 20 | 3070260 | CLOTH GUIDE | 1 |
| 21 | 0020220 | SCREW | 2 |
| 22 | 3068430 | COLLAR | 1 |
| 23 | 2590070 | BRACKET | 1 |
| 24 | 0049050 | SCREW | 3 |
| 25 | 1371420 | WASHER | 3 |
| 26 | 3068290 | GUIDE PLATE | 1 |
| 27 | 306830B0 | SCREW | 1 |
| 28 | 259015A0 | CLAMP LEVER | 1 |
| 29 | 2040230 | WASHER | 1 |
| 30 | 259019-910 | ROLLER ASSEMBLY | 1 |
| 31 | 2402500 | RING | 2 |
| 32 | 2402490 | BALL BEARING | 2 |
| 33 | 2050610 | RING | 2 |
| 34 | 2590100 | BRACKET | 1 |
| 35 | 2590110 | BRACKET | 1 |
| 36 | 0045030 | BOLT | 1 |
| 37 | 259018-910 | ROLLER ASSEMBLY | 1 |
Page 85 — ELASTIC ATTACHING DEVICE [-33]
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 258045-910 | ELASTIC ATTACHING DEVICE | 1 |
| 2 | 2580310 | SCREW | 1 |
| 3 | 0048200 | NUT | 1 |
| 4 | 2580320 | BRACKET | 1 |
| 5 | 0070270 | SCREW | 1 |
| 6 | 2580380 | SHAFT | 1 |
| 7 | 2580370 | BLADE | 1 |
| 8 | 0070400 | SCREW | 2 |
| 9 | 258039-910 | LEVER ASSEMBLY | 1 |
| 10 | 0070170 | SCREW | 1 |
| 11 | 2580360 | STOPPER | 1 |
| 12 | 0070790 | SCREW | 1 |
| 13 | 2580410 | SPRING | 1 |
| 14 | 2402660 | COLLAR | 1 |
| 15 | 0070080 | SCREW | 1 |
| 16 | 2402670 | COLLAR | 1 |
| 17 | 0045430 | SCREW | 1 |
| 18 | 2580440 | ROLLER | 1 |
| 19 | 1670660 | WASHER | 1 |
| 20 | 0070120 | SCREW | 1 |
| 21 | 2580430 | SHAFT | 1 |
| 22 | 2045850 | WASHER | 1 |
| 23 | 0048050 | NUT | 1 |
| 24 | 2580420 | BRACKET | 1 |
| 25 | 2590150 | CLAMP LEVER | 1 |
| 26 | 2045850 | WASHER | 1 |
| 27 | 2580350 | BRACKET | 1 |
| 28 | 0070270 | SCREW | 1 |
| 29 | 2580340 | HOLDER | 1 |
| 30 | 0070180 | SCREW | 1 |
| 31 | 2580330 | ELASTIC GUIDE | 1 |
| 32 | 0045540 | SCREW | 1 |
| 33 | 3070230 | BLADE | 1 |
| 34 | 0071680 | SCREW | 2 |
| 35 | 3070190 | ELASTIC GUIDE | 1 |
| 36 | 3070180 | ELASTIC GUIDE | 1 |
| 37 | 0056310 | BOLT | 1 |
| 38 | 2405880 | WASHER | 1 |
Page 87 — RP DEVICE(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 256500-920 | ECCENTRIC | 1 |
| 2 | 0045550 | SCREW | 2 |
| 3 | 0045480 | SCREW | 2 |
| 4 | 2565010 | CONNECTION | 1 |
| 5 | 240236-20 | NEEDLE BEARING | 1 |
| 6 | 2565020 | COLLAR | 1 |
| 7 | 0045470 | SCREW | 2 |
| 8 | 2565030 | CRANK | 1 |
| 9 | 0045480 | SCREW | 2 |
| 10 | 2545040 | SCREW | 1 |
| 11 | 2400620 | WASHER | 1 |
| 12 | 0048050 | NUT | 1 |
| 13 | 2016350 | COLLAR | 1 |
| 14 | 0050600 | SCREW | 2 |
| 15 | 256504-9P0 | BRACKET ASSEMBLY | 1 |
| 16 | 2565070 | O RING | 1 |
| 17 | 2565080 | PLUG | 1 |
| 18 | 0045230 | BOLT | 4 |
| 19 | 2100690 | OIL SEAL | 1 |
| 20 | 2565090 | SHAFT | 1 |
| 21 | 2061800 | WASHER | 1 |
| 22 | 3066710 | RING | 1 |
| 23 | 2112470 | PLUG | 1 |
| 24 | 256536-9P0 | BRACKET ASSEMBLY | 1 |
| 25 | 2565450 | GUIDE BAR | 1 |
| 26 | 0045180 | BOLT | 2 |
| 27 | 0045140 | SCREW | 2 |
| 28 | 2565460 | COVER | 1 |
| 29 | 2565470 | COVER | 1 |
| 30 | 0070620 | SCREW | 2 |
| 31 | 2565400 | LOWER TOOTHED ROLLER | 1 |
| 32 | 2565410 | LOWER TOOTHED ROLLER | 1 |
| 33 | 2565440 | LOWER ROLLER | 1 |
| 34 | 2565220 | CONNECTING PLATE | 1 |
| 35 | 2565230 | LEVER | 1 |
| 36 | 0071410 | SCREW | 2 |
| 37 | 3067890 | CUSHION RUBBER | 2 |
| 38 | 0070790 | SCREW | 2 |
| 39 | 0048210 | NUT | 2 |
Page 89 — RP装置(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 256510-9P0 | BRACKET ASSEMBLY | 1 |
| 2 | 2565120 | SCREW | 1 |
| 3 | 0045030 | BOLT | 2 |
| 4 | 2565180 | SHAFT | 1 |
| 5 | 2029010 | RING | 1 |
| 6 | 2402570 | SPRING | 1 |
| 7 | 240257A0 | SPRING | 1 |
| 8 | 2565170 | BRACKET | 1 |
| 9 | 0045100 | BOLT | 1 |
| 10 | 007025A0 | SCREW | 1 |
| 11 | 0048210 | NUT | 1 |
| 12 | 2565190 | LINK | 1 |
| 13 | 0070660 | SCREW | 2 |
| 14 | 3067890 | CUSHION RUBBER | 1 |
| 15 | 2565200 | LEVER | 1 |
| 16 | 2565210 | SCREW | 1 |
| 17 | 256524-910 | LEVER | 1 |
| 18 | 2565270 | SCREW | 1 |
| 19 | 2402580 | WASHER | 1 |
| 20 | 256529A0 | GUIDE PLATE | 1 |
| 21 | 0070680 | SCREW | 2 |
| 22 | 256530A0 | SHAFT | 1 |
| 23 | 0045140 | SCREW | 1 |
| 24 | 2565310 | CRANK | 1 |
| 25 | 0070830 | SCREW | 3 |
| 26 | 2565330 | FLAT SPRING | 1 |
| 27 | 256528-920 | BRACKET | 1 |
| 28 | 0045100 | BOLT | 1 |
| 29 | 0045390 | SCREW | 1 |
| 30 | 2565320 | SHAFT | 1 |
| 31 | 2402590 | WASHER | 1 |
| 32 | 2401020 | WASHER | 1 |
| 33 | 0071400 | NUT | 1 |
| 34 | 0045680 | SCREW | 1 |
| 35 | 2565480 | COVER | 1 |
| 36 | 0070740 | SCREW | 2 |
| 37 | 0070680 | SCREW | 2 |
| 38 | 2560120 | CLUTCH | 2 |
| 39 | 3065000 | PIN | 6 |
| 40 | 3062430 | GUIDE PLATE | 6 |
| 41 | 240114A0 | SPRING | 12 |
| 42 | 0070830 | SCREW | 3 |
| 43 | 2565350 | CLUTCH PLATE | 1 |
| 44 | 256550-910 | SLEEVE ASSEMBLY | 1 |
| 45 | 0071390 | SCREW | 1 |
| 46 | 0045390 | SCREW | 1 |
| 47 | 2565580 | NUT | 1 |
| 48 | 256513-920 | CRANK | 1 |
| 49 | 0045340 | BOLT | 1 |
| 50 | 2565140 | PIN | 1 |
| 51 | 1374410 | WASHER | 2 |
| 52 | 2565150 | BUSHING | 2 |
| 53 | 240011-20 | NEEDLE BEARING | 2 |
| 54 | 2565160 | LINK | 1 |
| 55 | 0048050 | NUT | 2 |
| 56 | 1374410 | WASHER | 1 |
| 57 | 0071380 | BOLT | 1 |
| 58 | 2565430 | UPPER ROLLER | 1 |
| 59 | 2565380 | UPPER TOOTHED ROLLER | 1 |
| 60 | 2565390 | UPPER TOOTHED ROLLER | 1 |
| 61 | 0070830 | SCREW | 3 |
Page 90 — W600 GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257471-320 | 257541-321 | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257128B560 | NEEDLE PLATE | ||
| 257243-16F1 | MAIN FEED DOG | ||
| 257298-16F0 | DIFF. FEED DOG | ||
| 257472-560 | PRESSER FOOT | ||
| 2575660 | LOOPER | ||
| 2575680 | NEEDLE GUARD FRONT | ||
| 2575670 | NEEDLE GUARD REAR | ||
| 2575650 | SPREADER | ||
| UY128GAS #10S | NEEDLE |
Page 91 — W600 GAUGE PARTS LIST(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-401 | NEEDLE HOLDER | ||
| 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 401 | NEEDLE HOLDER | ||
| 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER |
Page 92 — W600 GAUGE PARTS LIST(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-321 | NEEDLE HOLDER | ||
| 401 | NEEDLE HOLDER | ||
| 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 641 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 481 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER |
Page 93 — W600 GAUGE PARTS LIST(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-481 | NEEDLE HOLDER | ||
| 257125B480 | NEEDLE PLATE | ||
| 257242-16F1 | MAIN FEED DOG | ||
| 257294-16F0 | DIFF. FEED DOG | ||
| 257460-480 | PRESSER FOOT | ||
| 257542-561 | NEEDLE HOLDER | ||
| 259663C561 | NEEDLE PLATE | ||
| 257195C562 | NEEDLE PLATE | ||
| 257243-16F1 | MAIN FEED DOG | ||
| 257295-16F0 | DIFF. FEED DOG | ||
| 257461-560 | PRESSER FOOT | ||
| 257476-560 | PRESSER FOOT | ||
| 641 | NEEDLE HOLDER | ||
| C641 | NEEDLE PLATE | ||
| 640 | PRESSER FOOT | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257122B400 | NEEDLE PLATE | ||
| 257122C400 | NEEDLE PLATE | ||
| 259109-16F1 | MAIN FEED DOG | ||
| 259219-16F0 | DIFF. FEED DOG | ||
| 257479-400 | PRESSER FOOT | ||
| B480 | NEEDLE PLATE | ||
| C480 | NEEDLE PLATE | ||
| 257123B560 | NEEDLE PLATE | ||
| 257123C560 | NEEDLE PLATE | ||
| 259110-16F1 | MAIN FEED DOG | ||
| 259220-16F0 | DIFF. FEED DOG | ||
| 257480-560 | PRESSER FOOT | ||
| 3068410 | PRESSER FOOT | ||
| 3070420 | PRESSER FOOT | ||
| 3070100 | PRESSER FOOT | ||
| 3070120 | PRESSER FOOT | ||
| 2575660 | LOOPER | ||
| 2575680 | NEEDLE GUARD FRONT | ||
| 2575670 | NEEDLE GUARD REAR | ||
| 2575650 | SPREADER | ||
| UY128GAS #9S | NEEDLE | ||
| UY128GAS #10S | NEEDLE |
Page 94 — W600 GAUGE PARTS LIST(5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-401 | NEEDLE HOLDER | ||
| 257100B400 | NEEDLE PLATE | ||
| 259100-16F1 | MAIN FEED DOG | ||
| 259202-16F0 | DIFF. FEED DOG | ||
| 257485-400 | PRESSER FOOT | ||
| 257486-560 | PRESSER FOOT | ||
| 2575660 | LOOPER | ||
| 2575680 | NEEDLE GUARD FRONT | ||
| 2575670 | NEEDLE GUARD REAR | ||
| 2575650 | SPREADER | ||
| UY128GAS #9S | NEEDLE | ||
| UY128GAS #10S | NEEDLE | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257100C400 | NEEDLE PLATE | ||
| 259100-16F1 | MAIN FEED DOG | ||
| 259202-16F0 | DIFF. FEED DOG | ||
| 257485-400 | PRESSER FOOT | ||
| 257486-560 | PRESSER FOOT | ||
| 2575660 | LOOPER | ||
| 2575680 | NEEDLE GUARD FRONT | ||
| 2575670 | NEEDLE GUARD REAR | ||
| 2575650 | SPREADER | ||
| UY128GAS #9S | NEEDLE | ||
| UY128GAS #10S | NEEDLE | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257135C482 | NEEDLE PLATE | ||
| 257135B480 | NEEDLE PLATE | ||
| 257196C562 | NEEDLE PLATE | ||
| 257112B560 | NEEDLE PLATE | ||
| 257112C560 | NEEDLE PLATE | ||
| 257111B400 | NEEDLE PLATE | ||
| 257111C400 | NEEDLE PLATE | ||
| 259110-16F1 | MAIN FEED DOG | ||
| 259220-16F0 | DIFF. FEED DOG | ||
| 259109-16F1 | MAIN FEED DOG | ||
| 259219-16F0 | DIFF. FEED DOG | ||
| 257479-400 | PRESSER FOOT | ||
| 257480-560 | PRESSER FOOT | ||
| 257112B560 | NEEDLE PLATE | ||
| 257112C560 | NEEDLE PLATE |
Pegasus W600 — parts catalog
- Page 1 (cover): This is the cover page for the W600 Cylinderbed Interlock Stitch Machines Parts Catalog, featuring the Pegasus logo and website.
- Page 2 (text): This page contains introductory information about the parts catalog, including its scope, organization, and how to order parts, followed by a list of machine models covered by the W664 Series.
- Page 3 (toc): This page contains the Table of Contents for the parts catalog, listing various machine mechanisms, parts, and devices with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of various machine components, including covers, fasteners, and internal parts, with corresponding reference numbers for identification.
- Page 5 (parts_list): This page lists parts for the MACHINE BED FRAME, including oil gauges, pins, plugs, covers, filters, rings, felt, screws, washers, name plates, and seals, with their corresponding part numbers and quantities.
- Page 6 (diagram): This page displays a diagram of various machine components, including screws, covers, and brackets, with reference numbers and some model applicability notes.
- Page 7 (parts_list): This page lists parts for Cover (1), including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various machine components, including screws, plates, and brackets, with reference numbers and some model exclusions noted.
- Page 9 (parts_list): This page lists parts for COVER(2) with part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of various machine components, including shafts, pulleys, belts, and fasteners, with corresponding reference numbers for identification.
- Page 11 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including crankshafts, screws, rods, bolts, bushings, gears, fans, pulleys, and timing belts, with their corresponding part numbers and quantities.
- Page 12 (diagram): This page displays a diagram of various machine parts, including screws, shafts, couplings, and pulleys, with reference numbers and some part numbers indicated.
- Page 13 (parts_list): This page lists parts for the ARM SHAFT MECHANISM, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of various sewing machine parts, including needles, screws, and other components, with reference numbers for identification.
- Page 15 (parts_list): This page lists parts for the Needle Bar/Guard Mechanism, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various machine parts, including a lever assembly, bearings, shafts, and fasteners, with reference numbers for each component.
- Page 17 (parts_list): This page lists parts for the LOOPER DRIVE MECHANISM, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various machine parts, including bearings, shafts, levers, springs, and fasteners, each identified by a reference number.
- Page 19 (parts_list): This page lists parts for the Feed Mechanism (1), including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of various machine parts, including brackets, shafts, and fasteners, with reference numbers and some part numbers indicated.
- Page 21 (parts_list): This page lists parts for the FEED MECHANISM(2) with part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of various mechanical components, including levers, shafts, springs, bearings, and fasteners, labeled with reference numbers from 1 to 35.
- Page 23 (parts_list): This page lists parts for the FEED MECHANISM(3) with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and brackets, each identified by a reference number.
- Page 25 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 24. It also includes a note indicating that parts W664-08,30,33,34,35,81 are packed in accessory for specific models.
- Page 27 (parts_list): This page lists parts for the Spreader Mechanism, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of sewing machine parts, including needles, thread guides, and various components labeled with reference numbers.
- Page 29 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of various sewing machine parts, including screws, levers, and brackets, with reference numbers and some part numbers indicated.
- Page 31 (parts_list): This page lists parts for the Needle & Spreader Thread Handling mechanism, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of various sewing machine components, including screws, levers, springs, and other mechanical parts, each identified by a reference number.
- Page 33 (parts_list): This page lists parts for the LOOPER THREAD HANDLING section, including part numbers, descriptions, and quantities.
- Page 34 (diagram): This page displays a diagram of various machine components, including hoses, fittings, and mounting hardware, with numbered references for each part.
- Page 35 (parts_list): This page lists parts for the lubrication mechanism (1), including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of various machine components, including gears, shafts, screws, and a filter assembly, with reference numbers for each part.
- Page 37 (parts_list): This page lists parts for the Lubrication Mechanism (2) with part numbers, descriptions, and quantities.
- Page 38 (diagram): This page displays a diagram of various machine components, including brackets, screws, pins, and covers, with reference numbers for each part.
- Page 39 (parts_list): This page lists parts for the HR DEVICE, including silicone oil reservoirs, caps, pins, screws, felt, tubes, oil strings, and plugs, with their corresponding part numbers and quantities.
- Page 40 (diagram): This page displays diagrams of various machine parts, including screws, brackets, and covers, with reference numbers and quantities indicated.
- Page 41 (parts_list): This page lists installation parts with their reference numbers, part numbers, descriptions, and quantities. It includes items like cushion rubber, nuts, bolts, screws, washers, and belt covers.
- Page 42 (diagram): This page displays a diagram of sewing machine parts, including spools, rods, and mounting hardware, with reference numbers for each component.
- Page 43 (parts_list): This page lists parts for a thread stand, including part numbers, descriptions, and quantities.
- Page 44 (diagram): This page displays a diagram of machine parts for models W664-01, W664-01E, and W664-01G, with numbered components and associated part numbers.
- Page 45 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 46 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 42, and a title "W664-02".
- Page 47 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 42.
- Page 48 (diagram): This page displays a diagram of various machine parts and components, including part numbers and reference numbers for W664-03F, W664-03G, W664-03K, and W664-03L models. It also includes a section for optional parts and accessories.
- Page 49 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, quantities, and reference numbers.
- Page 50 (diagram): This page displays diagrams of various components for W664-05, W664-05/FT240, and W664-05/FT240A models, including part numbers and reference indicators.
- Page 51 (parts_list): This page lists specific parts for a machine, including part numbers, descriptions, and quantities. It contains items such as brackets, screws, pins, shafts, and felt.
- Page 52 (diagram): This page displays diagrams of various sewing machine parts and accessories for models W664-08A, 08D, 08B, 08E, and 08H, including standard and optional components.
- Page 53 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 54 (diagram): This page displays diagrams of various machine parts for models W664-30, W664-32, W664-33, W664-34, and W664-35, with numbered references for each component.
- Page 55 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 56 (diagram): This page displays a diagram of machine components, with numbered parts and their corresponding references.
- Page 57 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 58 (diagram): This page displays a diagram of various machine parts, including brackets, screws, and rods, with reference numbers and some Japanese text indicating finishing specifications.
- Page 59 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 60 (diagram): This page displays a diagram of various parts for the W664-33 sewing machine, including components labeled with reference numbers 1 through 21, and lists applicable models such as W664-33A/FT241, W664-33A/FT221, and W664-33B/FT242A, FT222.
- Page 61 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions in Japanese and English, and quantities. It covers items like screws, brackets, shafts, and assemblies.
- Page 62 (diagram): This page displays diagrams of various parts for models W664-35A, W664-34A, W664-35B, and W664-35D, including brackets, screws, and other components, with reference numbers for identification.
- Page 63 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 64 (diagram): This page displays a diagram of machine components, including part numbers, reference numbers, and descriptions for items labeled 1 through 17. Some parts are noted as 'Packed in accessory' or 'OPTION'.
- Page 65 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 66 (diagram): This page displays a diagram of sewing machine parts, including items labeled 1 through 26, with some parts indicated as optional or packed in accessory.
- Page 67 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 68 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers 1 through 12. The diagram is associated with machine models W664-01M, 03M, 05M, 08M, 08N, 35M, and 35N.
- Page 69 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 70 (diagram): This page displays a diagram of various machine parts, including components for models W664-05/FT240, FT240A, W664-33A/FT241, and W664-33B/FT242A. It lists parts with reference numbers and associated model information.
- Page 71 (parts_list): This page lists parts for FT DEVICE [-05,33], including part numbers, descriptions, and quantities.
- Page 72 (diagram): This page displays a diagram of machine components for models W664-33A/FT221 and W664-33B/FT222, with numbered parts indicated for reference.
- Page 73 (parts_list): This page lists parts for FT Device (1) [-33], including part numbers, descriptions, and quantities.
- Page 74 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their location and corresponding part numbers and descriptions.
- Page 75 (parts_list): This page lists parts for FT Device (2) [-33], including part numbers, descriptions, and quantities.
- Page 76 (diagram): This page displays a diagram of various components for the W664-34A, 35A, 35B/FT540 sewing machine, with numbered parts indicated for reference.
- Page 77 (parts_list): This page lists parts for FT Device [-34A,35A,35B], including part numbers, descriptions, and quantities.
- Page 78 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for items like levers, rollers, and fasteners, with a model number W664-30,34A.
- Page 79 (parts_list): This page lists parts for the FABRIC TENSIONER DEVICE(1) [-30,34A], including part numbers, descriptions, and quantities.
- Page 80 (diagram): This page displays diagrams of various machine components, including part numbers and reference numbers for items labeled 1 through 35.
- Page 81 (parts_list): This page lists parts for the Fabric Tensioner Device (2) [-32], including part numbers, descriptions, and quantities.
- Page 82 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers, part numbers, and descriptions, with some parts indicated as packed in accessory.
- Page 83 (parts_list): This page lists parts for the Fabric Tensioner Device (3) [-33], including part numbers, descriptions, and quantities.
- Page 84 (diagram): This page displays a diagram of machine parts for models W664-33A and W664-33B, with numbered components and their corresponding references.
- Page 85 (parts_list): This page lists parts for the Elastic Attaching Device [-33], including part numbers, descriptions, and quantities.
- Page 86 (diagram): This page displays a diagram of various machine parts, including rollers, gears, and mounting components, with corresponding reference numbers and a table detailing device types, roller surfaces, materials, and applicable models.
- Page 87 (parts_list): This page lists parts for RP DEVICE(1) with part numbers, descriptions, and quantities. It includes items like ECCENTRIC, SCREW, COLLAR, CRANK, WASHER, NUT, O RING, PLUG, BOLT, OIL SEAL, SHAFT, RING, BRACKET ASSEMBLY, GUIDE BAR, COVER, LOWER TOOTHED ROLLER, LOWER ROLLER, CONNECTING PLATE, LEVER, CUSHION RUBBER.
- Page 88 (diagram): This page displays a diagram of various machine components, including electric and pneumatic UT devices, with numbered references for each part.
- Page 89 (parts_list): This page lists parts for RP Device (2), including part numbers, descriptions, and quantities.
- Page 90 (parts_list): This page lists parts for W600 Gauge Parts List (1), including machine type, gauge, needle holder, needle plate, main feed dog, diff. feed dog, presser foot, looper, needle guard (front and rear), spreader, and needle.
- Page 91 (parts_list): This page contains a parts list for W600 gauge parts, listing part numbers and descriptions for various machine types and specifications.
- Page 92 (parts_list): This page lists gauge parts for W600 sewing machines, including part numbers, descriptions, and specifications for various machine types and gauges.
- Page 93 (parts_list): This page contains a parts list for W600 gauge parts, listing machine types, gauge sizes, and various part numbers for components like needle holders, needle plates, feed dogs, loopers, and needles.
- Page 94 (parts_list): This page lists parts for W600 gauge sewing machines, including machine type, gauge, needle holder, needle plate, feed dogs, presser foot, looper, needle guard, spreader, and needle. It details part numbers and associated specifications for various models.
- Page 95 (unknown): This page contains a watermark and page number information.
- Page 98 (index): This page is an index of machine parts, listing part numbers, page numbers, and reference numbers.
- Page 100 (cover): This is the cover page for a Pegasus Sewing Machine Mfg. Co., Ltd. parts catalog, dated March 2002, with catalog number 9586A.
