Pfaff 1181 / 1183 Parts Book (PDF)
Text index — Pfaff 1181 / 1183
Page 11 — Housing sections
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 959-71/699 | |||
| 11-130 224-25 | 2x | ||
| 91-262 162-75/698 | |||
| 11-130 257-25 | 2x | ||
| 11-180 283-25 | 9x | ||
| 91-162 582-75/895 | |||
| 11-108 222-25 | |||
| 91-262 329-75/895 | |||
| 91-162 578-71/698 | |||
| 91-167 590-15 | 2x | ||
| 11-130 224-25 | 3x | ||
| 11-225 172-25 | |||
| 91-262 985-25 | |||
| 91-264 233-15 | |||
| 11-130 170-25 | |||
| 11-130 251-15 | |||
| 91-262 761-71/895 | |||
| 91-262 326-15 | 2x | ||
| 13-030 341-05 | 2x | ||
| 12-618 170-45 | 4x | ||
| 11-130 185-15 | 2x | ||
| 91-262 536-15 | |||
| 91-700 335-25 | |||
| 11-130 173-15 | |||
| 95-774 327-91 | |||
| 11-130 293-15 | 2x | ||
| 91-700 335-25 | |||
| 99-137 247-45 | 4x | ||
| 91-262 183-75/895 | |||
| 91-162 582-75/695 | Housing sections |
Page 12 — Kopfteile Needle head parts Piezas de la cabeza 机头零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-341 904-15 | |||
| 91-069 079-72/895 | |||
| 11-225 232-15 | |||
| 11-341 277-15 | |||
| 91-161 334-25 | |||
| 11-173 168-25 | 2x | ||
| 91-262 964-91 | |||
| 91-262 941-91 | |||
| 11-330 220-15 | 2x | ||
| 13-064 247-05 | |||
| 91-171 068-05 | |||
| 91-069 075-11 | |||
| 91-162 984-05 | |||
| 91-162 596-25 | |||
| 91-171 050-05 | |||
| 11-132 172-15 | |||
| 91-069 322-01 | |||
| 12-624 210-45 | |||
| 91-262 457-12 | |||
| 11-132 223-15 | |||
| 91-069 562-05 | |||
| 91-069 568-05 | |||
| 91-100 117-15 | |||
| 91-069 579-05 | |||
| 12-640 130-55 | 2x | ||
| 91-069 434-91 | |||
| 91-162 694-05 | |||
| 91-162 690-92 | |||
| 11-108 174-25 | |||
| 91-069 105-25 |
Page 13 — Kopfteile Needle head parts Piezas de la cabeza 机头零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 786-91 | |||
| 91-262 787-91 | |||
| 12-360 064-05 | 2x | ||
| 91-262 354-05 | 2x | ||
| 12-610 210-45 | |||
| 91-262 692-05 | |||
| 91-262 788-91 | |||
| 11-225 223-15 | |||
| 91-262 691-91 | |||
| 91-262 751-91 | |||
| 11-330 220-15 | |||
| 91-262 821-91 | |||
| 11-330 085-15 | |||
| 91-262 304-45 |
Page 14 — 3.02 Needle head parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 551-91 (PFAFF 1181-D) | |||
| 91-262 836-01 | |||
| 11-330 955-15 | |||
| 91-262 854-91 | |||
| 91-262 422-05 | |||
| 91-069 056-05 | |||
| 13-250 088-25 | |||
| 26-536 301-09 (80) | |||
| 91-069 709-12 | |||
| 11-317 971-15 | 2x | ||
| 13-250 088-25 | |||
| 26-536 301-09 (80) | |||
| 91-262 336-91 (PFAFF 1181) | |||
| 91-262 836-01 | |||
| 11-330 955-15 | |||
| 11-341 901-15 | |||
| 99-133 220-01 | |||
| 91-169 457-12 | |||
| 99-069 722-01 | |||
| 11-341 277-15 | |||
| 11-330 220-15 | |||
| 25-161 801-52 (30) | |||
| 25-161 801-49 (770) | |||
| 13-250 088-25 | |||
| 26-536 301-09 (80) | |||
| 91-069 709-12 | |||
| 11-317 971-15 | 2x | ||
| 13-250 088-25 | |||
| 26-536 301-09 (80) | |||
| 91-262 837-91 | |||
| 26-536 301-09 | (80) | ||
| 91-262 551-91 | 91-262 551-91 (PFAFF 1181-D) | ||
| 91-262 336-91 | 91-262 336-91 (PFAFF 1181) | ||
| 25-161 801-52 | (30) | ||
| 25-161 801-49 | (770) |
Page 15 — Kopfteile Needle head parts Piezas de la cabeza 机头零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30 | 25-161 801-52 | ||
| 770 | 25-161 801-49 | ||
| 1030 | 26-536 301-09 | ||
| 25-161 801-52 (30) | |||
| 25-161 801-49 (770) | |||
| 13-250 097-25 | |||
| 26-536 301-09 (1030) | |||
| 13-250 097-25 | |||
| 26-536 301-09 (80) | |||
| 91-262 320-91 | PFAFF 1183 | ||
| 11-330 220-15 | |||
| 11-341 277-15 | |||
| 91-262 819-05 | |||
| 91-262 421-91 | PFAFF 1183-D | ||
| 91-069 056-05 | |||
| 91-262 422-05 | |||
| 13-250 097-25 | |||
| 26-536 301-09 (80) | |||
| 13-250 097-25 | |||
| 26-536 301-09 (80) | |||
| 12-305 114-15 | |||
| 11-130 176-15 |
Page 16 — Armteile
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 544-91 | |||
| 14-026 902-01 | |||
| 11-330 277-15 | 2x | ||
| 11-330 964-15 | 2x | ||
| 91-118 570-92 | |||
| 14-016 151-91 | |||
| 91-262 689-91 | |||
| 91-262 688-91 | |||
| 91-100 400-15 | 2x | ||
| 13-052 085-55 | |||
| 91-262 690-01 | |||
| 11-210 265-15 | |||
| 91-168 480-15 | |||
| 11-335 280-15 | |||
| 11-330 280-15 | |||
| 14-018 624-91 | |||
| 91-262 161-72/698 | |||
| 11-335 280-15 | |||
| 11-330 280-15 | |||
| 91-262 195-92 | |||
| 91-262 196-05 |
Page 17 — Armteile / Arm parts / Piezas del brazo / 机臂零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-100 331-15 | |||
| 11-170 281-15 | |||
| 91-265 198-15 | |||
| 91-262 179-05 | |||
| 91-264 340-11 | |||
| 12-610 190-45 | |||
| 12-640 150-45 | |||
| 12-640 150-55 | |||
| 91-169 556-05 | |||
| 91-264 341-91 | |||
| 91-171 811-15 | |||
| 91-264 339-15 | |||
| 12-640 150-55 | |||
| 91-262 174-11 | |||
| 12-610 190-45 |
Page 18 — Armteile
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-360 143-05 | 2x | ||
| 91-171 441-01 | |||
| 12-624 280-45 | |||
| 91-262 347-05 | |||
| 11-330 277-15 | 2x | ||
| 91-262 838-91 | |||
| 91-262 345-12 | |||
| 11-130 287-15 | |||
| 13-052 085-55 | |||
| 91-262 554-92 | |||
| 11-330 952-15 | |||
| 11-330 166-15 | |||
| 91-169 556-05 | 5x | ||
| 12-610 190-45 | 3x | ||
| 91-262 839-91 | |||
| 11-130 224-15 | |||
| 91-262 346-12 | |||
| 11-330 166-15 | |||
| 91-262 344-91 | |||
| 40/24 | Arm parts | ||
| 11-330 224-15 | Arm parts |
Page 19 — 3.03
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-335 171-15 | |||
| 12-360 054-05 | 2x | ||
| 12-610 200-45 | 2x | ||
| 11-335 280-15 | |||
| 12-360 054-05 | |||
| 12-005 175-15 | 2x | ||
| 11-130 287-15 | |||
| 91-264 293-91 | |||
| 11-336 280-15 |
Page 20 — Armteile / Arm parts / Piezas del brazo / 机臂零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-320 171-15 | |||
| 12-710 901-22 | |||
| 12-360 063-05 | |||
| 12-360 063-05 | |||
| 91-262 813-91 | |||
| 91-262 218-05 | |||
| 11-178 223-25 | |||
| 91-264 301-91 | |||
| 91-262 938-15 | |||
| 11-130 227-15 | |||
| 11-330 277-15 | 2x | ||
| 12-640 170-55 | |||
| 91-264 355-91 | |||
| 12-640 150-55 | |||
| 91-264 304-05 | |||
| 11-130 287-15 | |||
| 12-005 175-15 | 2x | ||
| 91-264 306-12 | |||
| 12-360 054-05 | 2x |
Page 21 — Armteile
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13-068 391-05 | |||
| 99-135 161-85 | |||
| 11-335 280-15 | |||
| 11-330 277-15 | |||
| 12-360 083-05 | |||
| 12-360 083-05 | |||
| 91-262 232-11 | |||
| 91-262 274-05 | |||
| 91-262 231-72/893 | |||
| 12-618 210-45 |
Page 22 — Armteile
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-130 224-15 | |||
| 12-360 063-05 | |||
| 91-262 552-12 | |||
| 91-262 197-05 | |||
| 11-330 952-15 | |||
| 91-262 355-12 | |||
| 11-330 277-15 (2x) | 2 | ||
| 91-262 410-92 | |||
| 12-640 200-55 | |||
| 91-262 578-71/698 | |||
| 91-262 201-05 | |||
| 13-033 208-05 | |||
| 91-262 202-15 | |||
| 91-262 203-05 | |||
| 91-262 200-91 | |||
| 91-105 482-05 | |||
| 91-262 577-75/698 | |||
| 12-341 090-25 | |||
| 91-100 270-25 | |||
| 11-330 277-15 | (2x) |

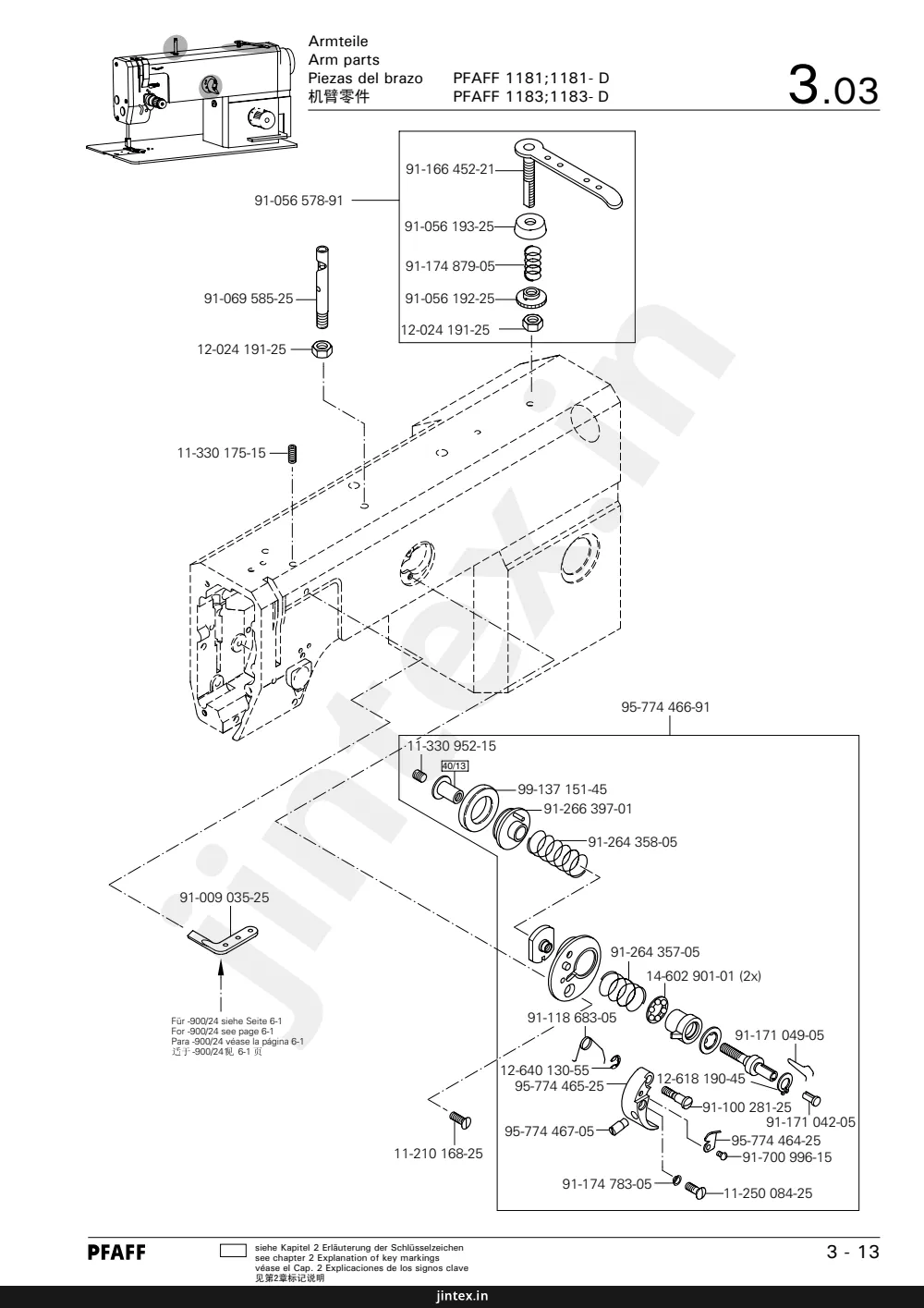

Page 23 — Armteile / Arm parts / Piezas del brazo / 机臂零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-166 452-21 | |||
| 91-056 193-25 | |||
| 91-174 879-05 | |||
| 91-056 192-25 | |||
| 12-024 191-25 | |||
| 91-056 578-91 | |||
| 91-069 585-25 | |||
| 12-024 191-25 | |||
| 11-330 175-15 | |||
| 95-774 466-91 | |||
| 11-330 952-15 | |||
| 99-137 151-45 | |||
| 91-266 397-01 | |||
| 91-264 358-05 | |||
| 91-009 035-25 | |||
| 91-264 357-05 | |||
| 14-602 901-01 | 2x | ||
| 91-118 683-05 | |||
| 91-171 049-05 | |||
| 12-640 130-55 | |||
| 12-618 190-45 | |||
| 95-774 465-25 | |||
| 91-100 281-25 | |||
| 91-171 042-05 | |||
| 95-774 467-05 | |||
| 95-774 464-25 | |||
| 91-700 996-15 | |||
| 91-174 783-05 | |||
| 11-210 168-25 | |||
| 11-250 084-25 |
Page 24 — Grundplattenteile / Bedplate parts / Piezas del cárter / 底板零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-264 154-25 (2x) | 2 | ||
| 91-262 686-91 (PFAFF 1181-D; 1181) | |||
| 91-262 804-91 (PFAFF 1183-D; 1183) | |||
| 91-262 687-25 | |||
| 91-004 181-05 | |||
| 91-100 076-15 (2x) | 2 | ||
| 91-262 805-25 | |||
| 91-262 806-05 | |||
| 91-000 621-15 (2x) | 2 | ||
| 91-701 179-15 (2x) | 2 | ||
| 91-262 825-91 | |||
| 91-069 554-12 | |||
| 11-130 176-15 | |||
| 11-330 962-15 | |||
| 91-262 300-91 | |||
| 11-330 952-15 (2x) | 2 | ||
| 91-118 711-05 | |||
| 91-265 189-05 | |||
| 91-118 711-05 | |||
| 91-169 556-05 | |||
| 91-262 824-96 | |||
| 12-610 190-45 | |||
| 11-330 952-15 | |||
| 91-262 301-12 | |||
| 11-130 284-15 | |||
| 91-118 711-05 | |||
| 91-118 711-05 | |||
| 91-262 277-05 | |||
| 91-264 154-25 | (2x) | 2x | |
| 91-262 686-91 | PFAFF 1181-D; 1181 | ||
| 91-262 804-91 | PFAFF 1183-D; 1183 | ||
| 91-000 621-15 | (2x) | 2x | |
| 91-100 076-15 | (2x) | 2x | |
| 91-701 179-15 | (2x) | 2x |
Page 25 — Grundplattenteile / Bedplate parts / Piezas del cárter / 底板零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-264 300-91 | |||
| 91-262 377-91 | |||
| 91-262 437-05 | |||
| 99-137 192-05 | |||
| 99-137 191-05 | |||
| 99-137 193-05 | |||
| 99-137 194-05 | |||
| 91-264 310-91 | |||
| 99-137 190-05 | 3x | ||
| 99-137 187-15 | 2x | ||
| 99-137 188-15 | |||
| 99-137 186-05 | |||
| 91-264 299-91 | |||
| 99-137 405-05 | 4x | ||
| 11-330 217-15 | |||
| 91-262 187-15 | |||
| 13-063 193-05 | |||
| 11-108 222-15 | 2x | ||
| 91-262 214-05 | |||
| 91-262 331-91 | |||
| 11-330 952-15 | 2x | ||
| 91-262 842-92 | |||
| 14-016 080-01 | 2x | ||
| 12-660 390-45 | 2x | ||
| 91-162 597-05 | |||
| 12-610 230-45 | |||
| 91-262 360-05 | |||
| 91-262 986-91 | |||
| 11-108 222-15 (2x) | |||
| 11-330 952-15 (2x) | |||
| 14-016 080-01 (2x) | |||
| 12-660 390-45 (2x) |
Page 26 — 3.04
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 250-91 | |||
| 91-262 377-91 | |||
| 91-262 437-05 | |||
| 99-137 192-05 | |||
| 99-137 191-05 | |||
| 99-137 193-05 | |||
| 99-137 194-05 | |||
| 91-262 376-91 | |||
| 99-137 190-05 | 3x | ||
| 99-137 187-15 | 2x | ||
| 99-137 188-15 | |||
| 99-137 186-05 | |||
| 99-137 405-05 | 4x | ||
| 11-330 217-15 | |||
| 91-262 187-15 | |||
| 13-063 193-05 | |||
| 11-108 222-15 | 2x | ||
| 91-262 214-05 | |||
| 91-262 331-91 | |||
| 91-262 237-91 | |||
| 95-669 358-05 | |||
| 26-536 301-09 (590) | |||
| 25-161 801-52 (120) | |||
| 91-262 986-91 | |||
| 11-330 952-15 | 2x | ||
| 91-262 842-92 | |||
| 14-016 080-01 | 2x | ||
| 12-660 390-45 | 2x | ||
| 91-162 597-05 | |||
| 12-349 901-05 | |||
| 12-610 230-45 | |||
| 91-262 360-05 | |||
| 91-268 076-15 | |||
| 26-536 301-09 | 590 | ||
| 25-161 801-52 | 120 | ||
| 91-262 987-91 |
Page 27 — Grundplattenteile / Bedplate parts / Piezas del cárter / 底板零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 566-92 | |||
| 91-262 566-05 | |||
| 11-330 968-15 | |||
| 14-016 171-91 | |||
| 11-335 280-15 | |||
| 91-262 061-05 | |||
| 11-330 952-15 | 2x | ||
| 12-610 250-45 | |||
| 95-774 325-02 | |||
| 95-774 508-91 | |||
| 11-341 902-15 | 2x | ||
| 11-130 224-15 | |||
| 12-360 064-05 | |||
| 12-610 210-45 | |||
| 91-264 222-15 | |||
| 12-610 210-45 | 2x | ||
| 12-360 064-05 | 2x | ||
| 11-130 224-15 | |||
| 11-330 964-15 | 2x | ||
| 91-262 844-92 | |||
| 14-016 101-91 | |||
| 12-610 250-45 | |||
| 16-409 983-05 | |||
| 12-360 061-05 | |||
| 91-262 843-01 | |||
| 12-610 210-45 | |||
| 14-012 916-01 | 2x | ||
| 91-262 846-05 | |||
| 91-262 845-91 |
Page 28 — 3.04 Grundplattenteile Bedplate parts Piezas del cárter 底板零件
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-172 676-05 | |||
| 12-624 310-45 | |||
| 91-264 259-04/001 | |||
| 91-171 409-12 | |||
| 91-700 785-15 (2x) | 2x | ||
| 91-175 203-05 | |||
| 11-330 277-15 | |||
| 91-168 347-05 (2x) | 2x | ||
| 12-610 280-45 | |||
| 91-264 255-91 | |||
| 91-700 785-15 | 91-700 785-15 (2x) | ||
| 91-168 347-05 | 91-168 347-05 (2x) |
Page 29 — 3.04
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 228-01 | |||
| 11-108 177-15 | 2x |
Page 30 — 3.04
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 680-91 | |||
| 91-262 573-05 | |||
| 91-262 677-12 | |||
| 91-262 465-15 | |||
| 11-330 952-15 | |||
| 12-710 904-12 | |||
| 11-130 224-15 | |||
| 11-330 232-15 | 2x | ||
| 12-305 264-15 | |||
| 12-610 230-45 | |||
| 12-024 171-15 | 2x | ||
| 91-262 164-12 | |||
| 11-130 287-15 | 2x |
Page 31 — 4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-130 224-15 | |||
| 11-225 232-15 | |||
| 12-624 200-45 | |||
| 91-262 882-15 | |||
| 91-262 962-91 | |||
| 91-262 958-15 | |||
| 11-130 086-15 | 2x | ||
| 71-170 002-20 | |||
| 12-005 154-15 | 3x | ||
| 91-262 940-91 | |||
| 91-262 792-05 | |||
| 91-100 117-15 | |||
| 91-069 579-05 | |||
| 12-640 130-55 | 2x | ||
| 91-262 905-91 | |||
| 91-262 790-15 | |||
| 91-262 791-05 |
Page 32 — SRP PFAFF 1181;1181-D / SRP PFAFF 1183;1183-D
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-130 305-25 | 2x | ||
| 71-370 001-31 | |||
| 11-130 167-15 | |||
| 91-262 929-15 | |||
| 12-640 130-55 | 2x | ||
| 91-262 930-05 | |||
| 12-024 191-15 | |||
| 91-262 931-05 | 2x | ||
| 99-137 341-01 | |||
| 91-262 899-75/896 | |||
| 91-264 186-91 | |||
| 12-360 043-05 | 3x | ||
| 12-610 190-45 | |||
| 91-264 187-91 | |||
| 11-225 220-15 | 3x | ||
| 12-640 130-55 | |||
| 91-262 931-05 | |||
| 91-262 926-11 | |||
| 99-137 341-01 | |||
| 11-330 955-15 | |||
| 91-118 711-05 | |||
| 91-262 770-05 | |||
| 91-264 769-92 | |||
| 11-132 223-15 | |||
| 11-130 203-15 |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-264 189-71/896 | |||
| 91-262 908-05 | |||
| 91-262 893-91 | |||
| 91-264 156-05 | |||
| 12-360 063-05 | 2x | ||
| 91-262 900-05 | 2x | ||
| 11-130 233-15 | 4x |
Page 34 — Kanten-Beschneideinrichtung (-731/01) / Edge trimmer (-731/01) / Recortador (-731/01) / 切边器（-731/01）
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-264 144-75/895 | |||
| 91-069 490-11 | |||
| 12-640 090-55 | |||
| 91-264 133-75/895 | |||
| 91-001 824-05 | |||
| 91-069 496-05 | |||
| 91-069 493-11 | |||
| 12-640 170-55 | 2x | ||
| 91-264 136-05 | |||
| 91-169 475-15 | |||
| 12-024 191-15 | |||
| 11-330 220-15 | 3x | ||
| 11-130 233-15 | 3x | ||
| 11-180 283-25 | 4x | ||
| 12-640 200-55 | |||
| 11-330 952-15 | |||
| 12-024 191-15 | |||
| 91-264 213-12 | |||
| 11-330 955-15 | 2x | ||
| 91-069 632-05 | |||
| 91-264 146-05 | |||
| 91-264 214-05 | |||
| 91-069 632-05 | |||
| 91-118 711-05 | |||
| 91-264 212-91 | |||
| 91-264 140-15 | |||
| 91-069 577-91 | |||
| 11-130 176-15 | 2x | ||
| 91-069 484-05 | |||
| 91-069 483-05 | |||
| 11-130 224-15 | |||
| 91-069 630-91 | |||
| 11-174 176-15 | 2x | ||
| 12-005 195-15 | |||
| 91-069 599-15 | |||
| 11-130 173-15 | 2x | ||
| 91-069 600-15 | |||
| 91-069 601-15 | |||
| 91-069 598-11 | |||
| 11-108 135-15 | 3x |
Page 35 — Kanten-Beschneideeinrichtung (-731/01)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-264 147-71/895 | |||
| 91-701 346-15 | |||
| 91-069 501-15 | |||
| 91-069 498-11 | |||
| 11-178 172-15 | |||
| 91-106 033-15 | 2x | ||
| 91-701 391-15 | |||
| 11-330 217-15 | 2x | ||
| 91-169 474-05 | |||
| 91-264 139-72/895 | |||
| 11-130 227-15 | |||
| 12-610 200-45 | |||
| 91-069 489-12 | |||
| 91-069 486-05 | |||
| 91-069 789-15 | |||
| 91-107 265-05 | |||
| 11-174 176-15 | 2x | ||
| 11-108 096-15 | |||
| 91-264 134-91 | |||
| 91-069 371-92 | |||
| 11-130 173-15 | 2x |
Page 36 — Edge trimmer (-731/01)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-330 277-15 | 2x | ||
| 91-264 141-91 | |||
| 91-700 335-25 | |||
| 91-264 132-75/895 | |||
| 91-262 565-92 | |||
| 11-330 958-15 |
Page 37 — Fadenabschneid-Einrichtung (-900/24)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-130 224-15 | |||
| 11-330 175-15 | |||
| 11-225 232-15 | |||
| 91-056 197-91 | |||
| 91-056 198-21 | |||
| 91-056 193-25 | |||
| 91-056 760-05 | |||
| 91-056 192-25 | |||
| 91-262 678-91 | |||
| 91-262 950-15 | |||
| 12-005 154-15 | 3x | ||
| 11-130 086-15 | 2x | ||
| 71-170 002-20 | |||
| 91-175 557-11 | |||
| 91-174 851-05 | |||
| 12-624 200-45 | |||
| 91-262 569-91 |
Page 38 — 6 Fadenabschneid-Einrichtung (-900/24)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-330 217-15 | |||
| 91-262 225-91 | |||
| 11-108 087-15 | |||
| 91-262 235-15 | |||
| 91-264 338-15 | |||
| 91-262 187-15 | |||
| 13-063 193-05 | |||
| 91-262 214-05 | |||
| 11-108 222-15 | 2x | ||
| 91-262 989-91 | |||
| 91-262 514-05 | |||
| 11-335 085-15 | 2x | ||
| 91-165 685-05 | |||
| 91-262 189-91 | |||
| 91-262 185-05 | |||
| 91-262 208-05 | |||
| 13-033 190-05 | |||
| 11-108 084-15 | 2x | ||
| 91-262 188-15 | |||
| 91-262 416-91 | |||
| 91-262 986-91 | |||
| 11-330 952-15 | 2x | ||
| 91-262 842-92 | |||
| 12-660 390-45 | 2x | ||
| 91-162 597-05 | |||
| 14-016 080-01 | 2x | ||
| 12-610 230-45 | |||
| 91-262 360-05 | |||
| 91-264 240-05 | |||
| 11-108 084-15 | 2x |
Page 39 — Fadenabschneid-Einrichtung (-900/24) / Thread trimmer (-900/24) / Cortahilos (-900/24) / 切线器 (-900/24)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-330 217-15 | |||
| 91-262 225-91 | |||
| 11-108 087-15 | |||
| 91-262 235-15 | |||
| 91-264 338-15 | |||
| 91-262 187-15 | |||
| 13-063 193-05 | |||
| 91-262 214-05 | |||
| 11-108 222-15 (2x) | |||
| 26-536 301-09 (590) | |||
| 25-161 801-49 (90) | |||
| 91-265 065-05 | |||
| 11-335 085-15 (2x) | |||
| 91-262 189-91 | |||
| 91-262 185-05 | |||
| 91-165 685-05 | |||
| 91-262 208-05 | |||
| 13-033 190-05 | |||
| 11-108 084-15 (2x) | |||
| 91-171 785-05 | |||
| 91-262 188-15 | |||
| 91-262 209-91 | |||
| 95-669 358-05 | |||
| 91-262 986-91 | |||
| 11-330 952-15 (2x) | |||
| 91-262 842-92 | |||
| 14-016 080-01 (2x) | |||
| 12-660 390-45 (2x) | |||
| 91-162 597-05 | |||
| 12-349 901-05 | |||
| 12-610 230-45 | |||
| 91-262 360-05 | |||
| 91-268 076-15 | |||
| 91-262 988-91 | |||
| 91-264 240-05 | |||
| 11-108 084-15 (2x) | |||
| 11-108 222-15 | (2x) | ||
| 25-161 801-49 | |||
| 12-660 390-45 | (2x) | ||
| 91-262 597-05 | |||
| 26-536 301-09 |
Page 40 — Fadenabschneid-Einrichtung (-900/24)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 95-774 310-91 | |||
| 11-130 176-15 | 2x | ||
| 12-305 114-15 | 2x | ||
| 12-710 190-02 | |||
| 95-774 311-01 | |||
| 12-360 043-05 | |||
| 91-020 324-05 | |||
| 71-170 002-24 | |||
| 14-012 525-01 | |||
| 12-360 033-05 | |||
| 11-330 952-15 | 2x | ||
| 95-774 314-01 | |||
| 95-774 313-91 | |||
| 95-774 317-05 | |||
| 12-640 150-55 | |||
| 95-774 318-01 | |||
| 11-130 173-15 | |||
| 95-774 324-11 | |||
| 12-499 190-45 | |||
| 11-130 287-15 |
Page 41 — Fadenabstreif-Einrichtung (-909/04) / Thread wiper (-909/04) / Retirahilos (-909/04) / 拨线器 (-909/04)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 440-71/895 | |||
| 71-170 002-16 | |||
| 11-130 233-25 | 2x | ||
| 12-499 170-45 | 2x | ||
| 12-315 140-25 | 2x | ||
| 91-173 967-15 | 4x | ||
| 71-110 003-35 | |||
| 91-262 441-75/895 | |||
| 11-130 167-15 | |||
| 12-005 195-15 | |||
| 91-021 124-15 | |||
| 91-173 968-15 | |||
| 91-130 865-15 | |||
| 91-262 513-05 | |||
| 95-600 649-05 | |||
| 12-640 150-55 | 2x | ||
| 11-210 178-15 | 4x | ||
| 91-088 883-11 | |||
| 12-360 023-05 | 3x | ||
| 11-108 177-15 | 2x | ||
| 91-262 461-15 | 2x | ||
| 12-005 154-15 | 3x | ||
| 91-262 460-15 | |||
| 11-108 180-15 | |||
| 91-175 732-15 | |||
| 91-175 729-15 | |||
| 91-088 881-11 | |||
| 91-175 354-15 | |||
| 11-210 081-15 | 2x | ||
| 91-174 223-05 | |||
| 11-130 101-15 | |||
| 91-175 806-91 | |||
| 11-108 285-15 | 5x | ||
| 91-262 442-75/895 | |||
| 11-341 904-15 | |||
| 91-175 265-12 |
Page 42 — Presserfuß-Automatik (-910/06)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 446-15 | |||
| 11-330 277-15 | |||
| 11-039 378-15 | |||
| 12-005 215-15 | |||
| 71-170 002-14 | |||
| 91-262 447-05 |
Page 43 — Verriegelungs-Einrichtung (-911/37) / Backtacking mechanism (-911/37) / Rematador (-911/37) / 锁紧装置（-911/37）
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 372-92 | |||
| 11-130 293-15 | |||
| 12-618 210-45 | |||
| 91-262 273-05 | |||
| 12-005 215-15 | |||
| 91-262 579-15 | |||
| 91-262 679-91 | |||
| 91-262 573-05 | |||
| 11-130 176-15 | 4x | ||
| 91-262 677-12 | |||
| 11-330 952-15 | |||
| 12-710 904-12 | |||
| 91-262 465-15 | |||
| 11-130 224-15 | |||
| 11-330 232-15 | 2x | ||
| 12-305 264-15 | |||
| 12-610 230-45 | |||
| 12-024 171-15 | 2x | ||
| 91-262 164-12 | |||
| 11-130 287-15 | 3x | ||
| 71-170-002-21 | |||
| Anschluß siehe Seite 13-1 For connection see page 13-1 Para la conexión, véase la pág. 13-1 接口见 1 | |||
| Anschluß siehe Seite 18-1 For connection see page 18-1 Para la conexión, véase la pág. 18-1 接口见 1 |
Page 44 — Verriegelungs-Einrichtung (-911/37) Backtacking mechanism (-911/37) Rematador (-911/37) PFAFF 1181 SRP-900/24;1181- D- SRP-900/24 锁紧装置 (-911/37) PFAFF 1183 SRP-900/24;1183- D- SRP-900/24
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 273-05 | |||
| 91-262 372-92 | |||
| 11-130 293-15 | |||
| 12-618 210-45 | |||
| 12-005 215-15 | |||
| 91-262 880-91 | |||
| 11-130 176-15 | 4x | ||
| 91-262 465-15 | |||
| 91-262 579-15 | |||
| 11-130 287-15 | 3x | ||
| 71-170-002-21 |
Page 45 — PFAFF 1181-731/01;1181- D-731/01 Vacuum waste disposal unit (-920/06) Dispositivo de aspiración (-920/06) 吹风装置 (-920/06) PFAFF 1183-731/01;1183- D-731/01
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-264 215-05 | |||
| 11-130 359-25 (2x) | 2 | ||
| 11-130 170-25 (2x) | 2 | ||
| 17-018 101-91 | |||
| 11-130 293-25 (2x) | 2 | ||
| 12-305 174-25 (2x) | 2 | ||
| 91-264 207-71/895 | |||
| 12-005 215-25 | |||
| 11-130 095-15 (2x) | 2 | ||
| 91-264 198-15 | |||
| Y1S4 | |||
| 11-108 021-15 (2x) | 2 | ||
| 12-305 064-25 (2x) | 2 | ||
| 95-784 337-91 | |||
| 25-308 820-40 | |||
| 99-137 355-91 | |||
| 99-134 369-91 | |||
| 18-378 001-91 | |||
| 25-308 820-40 | |||
| 15-032 001-45 (2x) | 2 | ||
| 99-134 452-91 | |||
| 11-130 359-25 | Screw | 2x | |
| 11-130 170-25 | Screw | 2x | |
| 11-130 293-25 | Screw | 2x | |
| 12-305 174-25 | Washer | 2x | |
| 11-130 095-15 | Screw | 2x | |
| 11-108 021-15 | Screw | 2x | |
| 12-305 064-25 | Switch | 2x | |
| 15-032 001-45 | Screw | 2x |
Page 46 — SpulenFadenvorratswächter (-926/06)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 95-774 525-91 | |||
| 11-210 084-25 | 2x | ||
| 95-774 409-25 | |||
| 91-004 181-05 | |||
| 91-100 076-15 | 2x | ||
| 95-774 408-91 | |||
| 95-784 334-91 | |||
| 95-774 361-05 | |||
| 95-774 524-91 | |||
| 11-210 084-25 | 2x | ||
| 95-774 419-25 | |||
| 91-262 806-05 | |||
| 91-000 621-15 | 2x | ||
| 95-774 408-91 | |||
| 95-784 334-91 |
Page 47 — Walzentransport-Einrichtung (-948/51) / Puller feed (-948/51) / Puller (-948/51) / 滚筒送料器 (-948/51)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-341 904-15 | |||
| 91-175 265-12 | |||
| 91-264 251-71/895 | |||
| 91-262 983-75/699 | |||
| 91-262 916-91 | |||
| 91-262 874-75/895 | |||
| 95-784 321-91 | |||
| 91-264 226-75/895 | |||
| 11-130 092-25 | 3x | ||
| 11-130 176-15 | 2x | ||
| 12-305 114-15 | 2x | ||
| 11-108 021-15 | 2x | ||
| 91-262 872-91 | |||
| 71-120 006-33 | |||
| 12-005 215-15 | |||
| 12-360 064-15 | |||
| 91-262 919-05 | 2x | ||
| 71-520 008-20 | |||
| 91-262 914-05 | |||
| 11-130 191-15 | 2x | ||
| 12-305 114-15 | 2x | ||
| 11-330 955-15 | 2x | ||
| 11-130 101-15 | 4x | ||
| 91-262 915-12 | |||
| 12-325 160-15 | |||
| 11-108 858-15 | 2x | ||
| 11-330 277-15 | 2x | ||
| 11-714 031-91 | |||
| 12-024 191-15 | |||
| 14-012 903-01 | 2x | ||
| 14-012 903-01 | |||
| 91-262 920-91 | |||
| 91-262 857-15 | |||
| 91-262 924-05 | |||
| 91-262 860-92 |
Page 48 — Walzentransport-Einrichtung (-948/51)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-130 329-25 | |||
| 11-130 299-25 (2x) | 2 | ||
| 12-305 174-25 (2x) | 2 | ||
| 11-130 326-25 | |||
| 91-174 002-05 | |||
| 91-264 200-75/895 | |||
| 91-264 201-71/895 | |||
| 91-174 284-01 | |||
| 11-225 226-15 (2x) | 2 | ||
| 91-262 871-05 | |||
| 11-108 084-25 (4x) | 4 | ||
| 11-330 955-15 | |||
| 12-325 160-15 | |||
| 91-262 865-92 (2x) | 2 | ||
| 16-409 981-05 | |||
| 12-360 043-05 | |||
| 91-264 249-91 | |||
| 14-012 903-01 | |||
| 91-262 863-15 | |||
| 11-330 955-15 | |||
| 12-710 913-12 | |||
| 11-130 173-15 | |||
| 91-264 250-05 | |||
| 14-218 906-01 (2x) | 2 | ||
| 91-264 236-01 | |||
| 91-264 170-01 | |||
| 91-264 173-01 | |||
| 91-264 166-01 | |||
| 91-264 167-05 | |||
| 11-225 178-25 | |||
| 11-130 299-25 | Screw (2x) | ||
| 12-305 174-25 | Screw (2x) | ||
| 11-225 226-15 | Screw (2x) | ||
| 11-108 084-25 | Screw (4x) | ||
| 91-262 865-92 | Part (2x) | ||
| 14-218 906-01 | Part (2x) |
Page 49 — Kabelbaum zum Oberteil PFAFF 1181-900/24; 1181-D-900/24 Cable tree to sewing head PFAFF 1183-900/24; 1183-D-900/24 Mazo de cables para el cabezal 上部机器电缆束
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 95-784 333-91 | |||
| 71-370 001-35 | |||
| 11-108 174-15 |
Page 50 — Tastschalter / Push-button / Interruptor pulsador / 按钮开关
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 71-130 006-39 | |||
| 11-130 170-25 |
Page 51 — Bedienfeld / Control panel / Panel de mandos / 操作板
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 71-590 007-70 | |||
| 71-590 007-72 | X 4 | ||
| 71-590 007-91 | |||
| 91-268 671-70/895 | |||
| 11-130 293-25 | |||
| 12-510 111-25 | |||
| 91-268 668-75/895 |
Page 52 — Bedienfeld / Control panel / Panel de mandos / 操作板
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 71-590 007-77 | |||
| 71-590 007-72 | |||
| 71-590 007-71 | |||
| 91-268 668-75/895 | |||
| 91-268 671-70/895 |
Page 53 — Einbaumotor / Built-in motor / Motor incorporado / 内装式电机
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 71-523 555-76 | |||
| 91-264 365-91 | |||
| 11-330 960-15 | 2x | ||
| 91-264 364-05 | |||
| 91-262 576-05 | |||
| 11-130 365-15 | 3x | ||
| 1181-900/24 | PFAFF 1181-900/24;1181- D-900/24 | ||
| 1183-900/24 | PFAFF 1183-900/24;1183- D-900/24 |
Page 54 — Oberteilerkennung und Einschaltsperre / Sewing head identification and start inhibitor
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-264 192-91 | |||
| 11-108 111-15 | |||
| 12-640 130-55 | |||
| 12-360 023-05 | |||
| 11-106 104-55 | |||
| 91-264 197-05 | |||
| 71-120 006-31 | |||
| 91-264 193-11 | |||
| 91-264 196-05 | |||
| 71-770 000-63 | |||
| 12-315 080-15 | 2x | ||
| 11-108 111-15 | 2x | ||
| 71-370 001-32 | |||
| 12-315 080-15 | |||
| 12-024 121-15 | |||
| 12-305 114-15 | 2x | ||
| 11-130 173-15 | 2x |
Page 55 — Sollwertgeber / Set-point generator / Emisor del valor teóruco / 给定值发生器
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 385-75/893 | |||
| 12-499 150-45 (4x) | 4 | ||
| 11-108 174-15 (4x) | 4 | ||
| 11-462 403-55 (2x) | 2 | ||
| 99-137 196-05 (4x) | 4 | ||
| 11-330 205-15 (4x) | 4 | ||
| 71-590 007-21 | |||
| 71-520 006-01 | |||
| 12-499 150-45 | Screw | 4x | |
| 11-108 174-15 | Screw | 4x | |
| 11-462 403-55 | Spacer | 2x | |
| 99-137 196-05 | Screw | 4x | |
| 11-330 205-15 | Screw | 4x |
Page 56 — 13.07 Motor-Hauptschalter / Main switch / Interruptor principal / 电机主开关; 13.08 Knietaster mit Leitung / Knee switch with cable / Interruptor
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 71-370 001-08 | |||
| 11-460 163-15 | |||
| 91-229 180-90 | |||
| 71-370 002-92 | |||
| 11-460 250-15 | 2x | ||
| 91-091 606-91 |
Page 57 — 13.09
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 71-590 007-82 | |||
| 99-136 854-55 (4x) | 4 | ||
| 91-291 458-91 | |||
| 12-305 174-25 (2x) | 2 | ||
| 91-290 113-91 | |||
| 11-130 287-25 | |||
| 91-290 733-91 | |||
| 12-510 141-45 | |||
| 11-130 224-25 | |||
| 12-305 144-25 | |||
| 12-510 140-45 | |||
| 1181-900/24;1181- D-900/24 | Control box | ||
| 1183-900/24;1183- D-900/24 | Control box | ||
| 99-136 854-55 | Screw | 4x | |
| 12-305 174-25 | Bracket | 2x |
Page 58 — 13.09 Steuerkasten / Control box / Caja de mandos / 控制箱 — PFAFF 1181 SRP-900/24;-900/24-948/51; PFAFF 1181-D-SRP-900/24;-900/24-948/51; PFAF
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 99-136 854-55 | 4x | ||
| 71-590 007-83 | |||
| 91-291 458-91 | |||
| 12-305 174-25 | 2x | ||
| 91-290 113-91 | |||
| 91-290 733-91 | |||
| 11-130 287-25 | |||
| 12-510 141-45 | |||
| 11-130 224-25 | |||
| 12-305 144-25 | |||
| 12-510 140-45 |
Page 59 — Wartungseinheit / Air filter / lubricator / Grupo acondicionador del aire comprimido / 保养单元
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-187 426-70/893 | |||
| 91-187 386-75/893 | |||
| 12-499 190-45 (2x) | 2 | ||
| 11-130 305-15 (2x) | 2 | ||
| 99-136 546-91 | |||
| 15-032 002-45 | |||
| 18-372 003-91 | |||
| 12-499 190-45 | Washer | 2x | |
| 11-130 305-15 | Screw | 2x |
Page 60 — Garnrollenständer Reel stands Portacarretas 线轴支架
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-229 070-70/895 | |||
| 91-229 128-25 | |||
| 91-229 072-45 | |||
| 12-024 191-15 | |||
| 91-229 129-25 | |||
| 11-039 306-15 | |||
| 91-229 073-71/895 | |||
| 91-229 068-75/895 | |||
| 91-229 074-05 | 3x | ||
| 91-229 071-25 | |||
| 91-229 075-45 | 3x | ||
| 91-229 076-75/698 | 3x | ||
| 91-229 123-25 | |||
| 91-229 124-25 | |||
| 91-229 125-25 | |||
| 91-229 078-25 | 3x | ||
| 91-229 069-75/895 | |||
| 91-229 077-72/895 | |||
| 91-229 080-25 | |||
| 12-315 110-25 | 3x | ||
| 91-229 081-25 | |||
| 12-024 151-25 | 3x | ||
| 91-229 081-25 | |||
| 91-229 080-25 |
Page 61 — Einstellehren / Adjustment gauges | Teile zur Tischplatte / Parts for table top
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 61-111 639-71 | |||
| 61-111 639-70 | |||
| 61-111 639-76 | |||
| 13-033 346-05 | |||
| 11-210 216-15 | 4x | ||
| 91-266 856-25 | 2x | ||
| 91-229 287-75/699 | 2x | ||
| 91-027 645-75/699 | |||
| 91-027 645-75/699 |
Page 62 — 18 Keilriemen / V-belt / Correa trapezoidal / 三角皮带; 19 Knielüfterteile / Knee lifter parts / Piezas del alzaprensatelas por rodillera / 膝松线器
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16-414 139-05 | |||
| 91-229 165-70/893 | |||
| 91-069 335-72/893 | |||
| 11-039 360-15 | 2x | ||
| 91-027 289-15 | |||
| 91-029 692-75/792 | |||
| 91-027 370-05 | |||
| 91-027 371-12 | |||
| 11-174 233-15 | |||
| 91-262 166-91 | |||
| 91-262 167-05 | |||
| 91-262 168-05 | |||
| 11-108 846-15 | |||
| 11-108 846-15 |
Page 63 — 20.01
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-108 171-15 | 2x | ||
| 12-305 114-15 | 2x | ||
| 91-262 357-75/698 | |||
| 12-305 114-15 | 2x | ||
| 11-108 171-15 | 2x | ||
| 91-262 409-15 | |||
| 12-024 210-15 | |||
| 11-130 176-15 | 3x | ||
| 91-262 408-05 |
Page 64
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28-011 201-05 | Oil | ||
| 91-027 975-91 | Oil | ||
| 91-027 976-91 | Oil | ||
| 91-027 977-91 | Oil | ||
| 28-011 202-05 | Grease | ||
| 28-011 202-05 | Grease | ||
| 28-011 202-47 | Grease | ||
| 28-011 202-47 | Grease | ||
| 95-665 735-91 | Isopropyl-Alkohol |
Page 65 — Index (Teilenummern / Seitenzahlen)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-039 306-15 | 11-039 306-15 | ||
| 11-130 191-15 | 11-130 191-15 | ||
| 11-210 084-25 | 11-210 084-25 | ||
| 11-330 962-15 | 11-330 962-15 | ||
| 11-039 360-15 | 11-039 360-15 | ||
| 11-130 203-15 | 11-130 203-15 | ||
| 11-210 168-25 | 11-210 168-25 | ||
| 11-330 964-15 | 11-330 964-15 | ||
| 11-039 378-15 | 11-039 378-15 | ||
| 11-130 224-15 | 11-130 224-15 | ||
| 11-210 178-15 | 11-210 178-15 | ||
| 11-330 968-15 | 11-330 968-15 | ||
| 11-106 104-55 | 11-106 104-55 | ||
| 11-210 216-15 | 11-210 216-15 | ||
| 11-335 085-15 | 11-335 085-15 | ||
| 11-108 021-15 | 11-108 021-15 | ||
| 11-130 224-25 | 11-130 224-25 | ||
| 11-210 265-15 | 11-210 265-15 | ||
| 11-460 163-15 | 11-460 163-15 | ||
| 11-108 021-18 | 11-108 021-18 | ||
| 11-130 227-15 | 11-130 227-15 | ||
| 11-341 277-15 | 11-341 277-15 | ||
| 11-108 084-15 | 11-108 084-15 | ||
| 11-130 233-15 | 11-130 233-15 | ||
| 11-225 178-25 | 11-225 178-25 | ||
| 11-341 901-15 | 11-341 901-15 | ||
| 11-108 084-25 | 11-108 084-25 | ||
| 11-130 233-25 | 11-130 233-25 | ||
| 11-225 220-15 | 11-225 220-15 | ||
| 11-341 902-15 | 11-341 902-15 | ||
| 11-108 087-15 | 11-108 087-15 | ||
| 11-130 251-15 | 11-130 251-15 | ||
| 11-225 223-15 | 11-225 223-15 | ||
| 11-341 904-15 | 11-341 904-15 | ||
| 11-108 096-15 | 11-108 096-15 | ||
| 11-130 257-25 | 11-130 257-25 | ||
| 11-225 226-15 | 11-225 226-15 | ||
| 11-460 163-15 | 11-460 163-15 | ||
| 11-108 111-15 | 11-108 111-15 | ||
| 11-130 284-15 | 11-130 284-15 | ||
| 11-225 232-15 | 11-225 232-15 | ||
| 11-460 250-15 | 11-460 250-15 | ||
| 11-108 135-15 | 11-108 135-15 | ||
| 11-130 287-15 | 11-130 287-15 | ||
| 11-250 084-25 | 11-250 084-25 | ||
| 11-462 403-55 | 11-462 403-55 | ||
| 11-108 171-15 | 11-108 171-15 | ||
| 11-130 287-25 | 11-130 287-25 | ||
| 11-301 761-55 | 11-301 761-55 | ||
| 11-714 031-91 | 11-714 031-91 | ||
| 11-108 174-15 | 11-108 174-15 | ||
| 11-130 293-15 | 11-130 293-15 | ||
| 11-317 971-15 | 11-317 971-15 | ||
| 12-005 154-15 | 12-005 154-15 | ||
| 11-108 174-25 | 11-108 174-25 | ||
| 11-130 293-25 | 11-130 293-25 | ||
| 11-320 171-15 | 11-320 171-15 | ||
| 12-005 175-15 | 12-005 175-15 | ||
| 11-108 177-15 | 11-108 177-15 | ||
| 11-130 299-25 | 11-130 299-25 | ||
| 11-330 085-15 | 11-330 085-15 | ||
| 12-005 195-15 | 12-005 195-15 | ||
| 11-108 180-15 | 11-108 180-15 | ||
| 11-130 305-15 | 11-130 305-15 | ||
| 11-330 166-15 | 11-330 166-15 | ||
| 12-005 215-15 | 12-005 215-15 | ||
| 11-108 222-15 | 11-108 222-15 | ||
| 11-130 305-25 | 11-130 305-25 | ||
| 11-330 175-15 | 11-330 175-15 | ||
| 12-024 121-15 | 12-024 121-15 | ||
| 11-108 222-25 | 11-108 222-25 | ||
| 11-130 326-25 | 11-130 326-25 | ||
| 11-330 205-15 | 11-330 205-15 | ||
| 12-024 151-15 | 12-024 151-15 | ||
| 11-108 285-15 | 11-108 285-15 | ||
| 11-130 329-25 | 11-130 329-25 | ||
| 11-330 217-15 | 11-330 217-15 | ||
| 12-024 171-15 | 12-024 171-15 | ||
| 11-108 846-15 | 11-108 846-15 | ||
| 11-130 359-25 | 11-130 359-25 | ||
| 11-330 220-15 | 11-330 220-15 | ||
| 12-024 191-15 | 12-024 191-15 | ||
| 11-108 858-15 | 11-108 858-15 | ||
| 11-130 365-15 | 11-130 365-15 | ||
| 11-330 232-15 | 11-330 232-15 | ||
| 12-024 191-25 | 12-024 191-25 | ||
| 11-130 086-15 | 11-130 086-15 | ||
| 11-132 172-15 | 11-132 172-15 | ||
| 11-330 277-15 | 11-330 277-15 | ||
| 12-024 210-15 | 12-024 210-15 | ||
| 11-130 092-25 | 11-130 092-25 | ||
| 11-132 223-15 | 11-132 223-15 | ||
| 12-305 064-25 | 12-305 064-25 | ||
| 11-130 095-15 | 11-130 095-15 | ||
| 11-170 281-15 | 11-170 281-15 | ||
| 11-330 280-15 | 11-330 280-15 | ||
| 12-305 114-15 | 12-305 114-15 | ||
| 11-130 101-15 | 11-130 101-15 | ||
| 11-173 168-25 | 11-173 168-25 | ||
| 11-330 952-15 | 11-330 952-15 | ||
| 12-305 144-25 | 12-305 144-25 | ||
| 11-130 167-15 | 11-130 167-15 | ||
| 11-174 176-15 | 11-174 176-15 | ||
| 12-305 174-25 | 12-305 174-25 | ||
| 11-130 170-25 | 11-130 170-25 | ||
| 11-174 233-15 | 11-174 233-15 | ||
| 11-330 955-15 | 11-330 955-15 | ||
| 12-305 264-15 | 12-305 264-15 | ||
| 11-130 173-15 | 11-130 173-15 | ||
| 11-178 172-15 | 11-178 172-15 | ||
| 11-330 958-15 | 11-330 958-15 | ||
| 12-315 080-01 | 12-315 080-01 | ||
| 11-130 176-15 | 11-130 176-15 | ||
| 11-178 223-25 | 11-178 223-25 | ||
| 11-330 960-15 | 11-330 960-15 | ||
| 12-315 080-15 | 12-315 080-15 | ||
| 11-130 185-15 | 11-130 185-15 | ||
| 11-180 283-25 | 11-180 283-25 | ||
| 12-315 110-25 | 12-315 110-25 | ||
| 11-210 081-15 | 11-210 081-15 |
Page 66 — Index (Teilenummern / Seitenzahlen) / Index (part numbers / page numbers)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-315 140-25 | |||
| 12-624 310-45 | |||
| 15-032 001-45 | |||
| 71-520 008-20 | |||
| 12-325 160-15 | |||
| 12-640 090-55 | |||
| 15-032 002-45 | |||
| 71-523 555-76 | |||
| 12-335 171-15 | |||
| 12-640 130-55 | |||
| 16-409 981-05 | |||
| 71-590 007-21 | |||
| 12-341 090-25 | |||
| 12-640 150-45 | |||
| 16-409 983-05 | |||
| 71-590 007-70 | |||
| 12-349 901-05 | |||
| 12-640 150-55 | |||
| 16-414 139-05 | |||
| 71-590 007-71 | |||
| 12-360 023-05 | |||
| 12-640 170-55 | |||
| 17-018 101-91 | |||
| 71-590 007-72 | |||
| 12-360 033-05 | |||
| 12-640 200-55 | |||
| 18-372 003-91 | |||
| 71-590 007-77 | |||
| 12-360 043-05 | |||
| 12-660 390-45 | |||
| 18-378 001-91 | |||
| 71-590 007-82 | |||
| 12-360 054-05 | |||
| 12-710 190-02 | |||
| 25-161 801-49 | |||
| 71-590 007-83 | |||
| 12-360 061-05 | |||
| 12-710 901-22 | |||
| 25-161 801-52 | |||
| 71-590 007-91 | |||
| 12-360 063-05 | |||
| 12-710 904-12 | |||
| 25-308 820-40 | |||
| 71-770 000-63 | |||
| 12-360 064-05 | |||
| 12-710 913-12 | |||
| 26-536 301-09 | |||
| 91-000 621-15 | |||
| 12-360 083-05 | |||
| 13-030 341-05 | |||
| 28-011 201-05 | |||
| 91-001 824-05 | |||
| 12-360 143-05 | |||
| 13-033 190-05 | |||
| 28-011 202-05 | |||
| 91-004 181-05 | |||
| 12-499 150-45 | |||
| 13-033 208-05 | |||
| 28-011 202-47 | |||
| 91-009 035-25 | |||
| 12-499 170-45 | |||
| 13-033 346-05 | |||
| 61-111 639-70 | |||
| 91-020 324-05 | |||
| 12-499 190-45 | |||
| 13-052 085-55 | |||
| 61-111 639-71 | |||
| 91-021 124-15 | |||
| 12-510 111-25 | |||
| 13-063 193-05 | |||
| 61-111 639-76 | |||
| 91-027 289-15 | |||
| 12-510 140-45 | |||
| 13-064 247-05 | |||
| 71-110 003-35 | |||
| 91-027 370-05 | |||
| 12-510 141-45 | |||
| 13-068 391-05 | |||
| 71-120 006-31 | |||
| 91-027 371-12 | |||
| 12-610 190-45 | |||
| 13-250 088-25 | |||
| 71-120 006-33 | |||
| 91-027 645-75/699 | |||
| 12-610 200-45 | |||
| 13-250 097-25 | |||
| 71-130 006-39 | |||
| 91-027 975-91 | |||
| 12-610 210-45 | |||
| 14-012 525-01 | |||
| 71-170 002-14 | |||
| 91-027 976-91 | |||
| 12-610 230-45 | |||
| 14-012 903-01 | |||
| 71-170 002-16 | |||
| 91-027 977-91 | |||
| 12-610 250-45 | |||
| 14-012 916-01 | |||
| 71-170 002-20 | |||
| 91-029 692-75/792 | |||
| 12-610 280-45 | |||
| 14-016 080-01 | |||
| 71-170 002-21 | |||
| 91-056 192-25 | |||
| 12-618 170-45 | |||
| 14-016 101-91 | |||
| 71-170 002-24 | |||
| 91-056 193-25 | |||
| 12-618 190-45 | |||
| 14-016 151-91 | |||
| 71-370 001-08 | |||
| 91-056 197-91 | |||
| 12-618 210-45 | |||
| 14-016 171-91 | |||
| 71-370 001-31 | |||
| 91-056 198-21 | |||
| 12-624 200-45 | |||
| 14-018 624-91 | |||
| 71-370 001-32 | |||
| 91-056 578-91 | |||
| 12-624 210-45 | |||
| 14-026 902-01 | |||
| 71-370 001-35 | |||
| 91-056 760-05 | |||
| 12-624 280-45 | |||
| 14-218 906-01 | |||
| 71-370 002-92 | |||
| 91-069 056-05 | |||
| 14-602 901-01 | |||
| 71-520 006-01 | |||
| 91-069 075-11 |
Page 67 — Index (Teilenummern / Seitenzahlen)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-069 079-72/895 | |||
| 91-100 117-15 | |||
| 91-171 409-12 | |||
| 91-229 080-25 | |||
| 91-069 105-25 | |||
| 91-100 270-25 | |||
| 91-171 441-01 | |||
| 91-229 081-25 | |||
| 91-069 322-01 | |||
| 91-100 281-25 | |||
| 91-171 785-05 | |||
| 91-229 123-25 | |||
| 91-069 335-72/893 | |||
| 91-100 331-15 | |||
| 91-171 811-15 | |||
| 91-229 124-25 | |||
| 91-069 371-92 | |||
| 91-100 400-15 | |||
| 91-172 676-05 | |||
| 91-229 125-25 | |||
| 91-069 434-91 | |||
| 91-105 482-05 | |||
| 91-173 967-15 | |||
| 91-229 128-25 | |||
| 91-069 483-05 | |||
| 91-106 033-15 | |||
| 91-173 968-15 | |||
| 91-229 129-25 | |||
| 91-069 484-05 | |||
| 91-107 265-05 | |||
| 91-174 002-05 | |||
| 91-229 165-70/893 | |||
| 91-069 486-05 | |||
| 91-118 570-92 | |||
| 91-174 223-05 | |||
| 91-229 180-90 | |||
| 91-069 489-12 | |||
| 91-118 683-05 | |||
| 91-174 284-01 | |||
| 91-229 287-75/699 | |||
| 91-069 490-11 | |||
| 91-118 711-05 | |||
| 91-174 783-05 | |||
| 91-262 061-05 | |||
| 91-069 493-11 | |||
| 91-130 865-15 | |||
| 91-174 851-05 | |||
| 91-262 161-72/698 | |||
| 91-069 496-05 | |||
| 91-161 334-25 | |||
| 91-174 879-05 | |||
| 91-262 162-75/698 | |||
| 91-069 498-11 | |||
| 91-162 578-71/698 | |||
| 91-175 203-05 | |||
| 91-262 164-12 | |||
| 91-069 501-15 | |||
| 91-162 582-75/895 | |||
| 91-175 265-12 | |||
| 91-262 166-91 | |||
| 91-069 554-12 | |||
| 91-162 596-25 | |||
| 91-175 354-15 | |||
| 91-262 167-05 | |||
| 91-069 562-05 | |||
| 91-162 597-05 | |||
| 91-175 557-11 | |||
| 91-262 168-05 | |||
| 91-069 568-05 | |||
| 91-162 690-92 | |||
| 91-175 729-15 | |||
| 91-262 174-11 | |||
| 91-069 577-91 | |||
| 91-162 694-05 | |||
| 91-175 732-15 | |||
| 91-262 179-05 | |||
| 91-069 579-05 | |||
| 91-162 984-05 | |||
| 91-175 806-91 | |||
| 91-262 183-75/895 | |||
| 91-069 585-25 | |||
| 91-165 685-05 | |||
| 91-187 386-75/893 | |||
| 91-262 185-05 | |||
| 91-069 598-11 | |||
| 91-166 452-21 | |||
| 91-187 426-70/893 | |||
| 91-262 187-15 | |||
| 91-069 599-15 | |||
| 91-167 590-15 | |||
| 91-229 068-75/895 | |||
| 91-262 188-15 | |||
| 91-069 600-15 | |||
| 91-168 347-05 | |||
| 91-229 069-75/895 | |||
| 91-262 189-91 | |||
| 91-069 601-15 | |||
| 91-168 480-15 | |||
| 91-229 070-70/896 | |||
| 91-262 195-92 | |||
| 91-069 630-91 | |||
| 91-169 457-12 | |||
| 91-229 071-25 | |||
| 91-262 196-05 | |||
| 91-069 632-05 | |||
| 91-169 474-05 | |||
| 91-229 072-45 | |||
| 91-262 197-05 | |||
| 91-069 709-12 | |||
| 91-169 475-15 | |||
| 91-229 073-71/895 | |||
| 91-262 200-91 | |||
| 91-069 789-15 | |||
| 91-169 556-05 | |||
| 91-229 074-05 | |||
| 91-262 201-05 | |||
| 91-088 881-11 | |||
| 91-171 042-05 | |||
| 91-229 075-45 | |||
| 91-262 202-15 | |||
| 91-088 883-11 | |||
| 91-171 049-05 | |||
| 91-229 076-75/698 | |||
| 91-262 203-05 | |||
| 91-091 606-91 | |||
| 91-171 050-05 | |||
| 91-229 077-72/895 | |||
| 91-262 208-05 | |||
| 91-100 076-15 | |||
| 91-171 068-05 | |||
| 91-229 078-25 | |||
| 91-262 209-91 |
Page 68 — Index (Teilenummern / Seitenzahlen) Index (part numbers / page numbers) Index (números de pieza / números de página) 注脚 (零件号/页号)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 214-05 | 3-10 | ||
| 91-262 218-05 | 3-10 | ||
| 91-262 225-91 | 6-2, 6-3 | ||
| 91-262 228-01 | 3-19 | ||
| 91-262 231-72/893 | 3-11 | ||
| 91-262 232-11 | 3-11 | ||
| 91-262 235-15 | 6-2, 6-3 | ||
| 91-262 237-91 | 3-16 | ||
| 91-262 250-91 | 3-16 | ||
| 91-262 273-05 | 9-1, 9-2 | ||
| 91-262 274-05 | 3-11 | ||
| 91-262 277-05 | 3-14 | ||
| 91-262 300-91 | 3-14 | ||
| 91-262 301-12 | 3-14 | ||
| 91-262 304-45 | 3-3 | ||
| 91-262 320-91 | 3-5 | ||
| 91-262 326-15 | 3-1 | ||
| 91-262 329-75/895 | 3-1 | ||
| 91-262 331-91 | 3-15, 3-16 | ||
| 91-262 336-91 | 3-4 | ||
| 91-262 344-91 | 3-8 | ||
| 91-262 345-12 | 3-8 | ||
| 91-262 346-12 | 3-8 | ||
| 91-262 347-05 | 3-8 | ||
| 91-262 354-05 | 3-3 | ||
| 91-262 355-12 | 3-12 | ||
| 91-262 357-75/698 | 20-1 | ||
| 91-262 360-05 | 6-2, 6-3 | ||
| 91-262 372-92 | 9-1, 9-2 | ||
| 91-262 376-91 | 3-16 | ||
| 91-262 377-91 | 3-15, 3-16 | ||
| 91-262 385-75/893 | 13-7 | ||
| 91-262 408-05 | 20-1 | ||
| 91-262 409-15 | 20-1 | ||
| 91-262 410-92 | 3-12 | ||
| 91-262 416-91 | 6-2 | ||
| 91-262 421-91 | 3-5 | ||
| 91-262 422-05 | 3-4, 3-5 | ||
| 91-262 437-05 | 3-15, 3-16 | ||
| 91-262 440-71/895 | 7-1 | ||
| 91-262 441-75/895 | 7-1 | ||
| 91-262 442-75/895 | 7-1 | ||
| 91-262 446-15 | 8-1 | ||
| 91-262 447-05 | 8-1 | ||
| 91-262 457-12 | 3-2 | ||
| 91-262 460-15 | 7-1 | ||
| 91-262 461-15 | 7-1 | ||
| 91-262 465-15 | 3-20, 9-1, 9-2 | ||
| 91-262 513-05 | 7-1 | ||
| 91-262 514-05 | 6-2 | ||
| 91-262 536-15 | 3-1 | ||
| 91-262 544-91 | 3-6 | ||
| 91-262 551-91 | 3-4 | ||
| 91-262 552-12 | 3-12 | ||
| 91-262 554-92 | 3-8 | ||
| 91-262 565-92 | 5-3 | ||
| 91-262 566-05 | 3-17 | ||
| 91-262 566-92 | 3-17 | ||
| 91-262 569-91 | 6-1 | ||
| 91-262 573-05 | 3-20, 9-1 | ||
| 91-262 576-05 | 13-5 | ||
| 91-262 577-75/698 | 3-12 | ||
| 91-262 578-71/698 | 3-12 | ||
| 91-262 579-15 | 9-1, 9-2 | ||
| 91-262 677-12 | 3-20, 9-1 | ||
| 91-262 678-91 | 6-1 | ||
| 91-262 679-91 | 9-1 | ||
| 91-262 680-91 | 3-20 | ||
| 91-262 686-91 | 3-14 | ||
| 91-262 687-25 | 3-14 | ||
| 91-262 688-91 | 3-6 | ||
| 91-262 689-91 | 3-6 | ||
| 91-262 690-01 | 3-6 | ||
| 91-262 691-91 | 3-3 | ||
| 91-262 692-05 | 3-3 | ||
| 91-262 751-91 | 3-3 | ||
| 91-262 761-71/895 | 3-1 | ||
| 91-262 770-05 | 4-2 | ||
| 91-262 786-91 | 3-3 | ||
| 91-262 787-91 | 3-3 | ||
| 91-262 788-91 | 3-3 | ||
| 91-262 790-15 | 4-1 | ||
| 91-262 791-05 | 4-1 | ||
| 91-262 792-05 | 4-1 | ||
| 91-262 804-91 | 3-14 | ||
| 91-262 805-25 | 3-14 | ||
| 91-262 806-05 | 3-14, 11-1 | ||
| 91-262 813-91 | 3-10 | ||
| 91-262 819-05 | 3-5 | ||
| 91-262 821-91 | 3-3 | ||
| 91-262 824-96 | 3-14 | ||
| 91-262 825-91 | 3-14 | ||
| 91-262 836-01 | 3-4 | ||
| 91-262 837-91 | 3-4 | ||
| 91-262 838-91 | 3-8 | ||
| 91-262 839-91 | 3-8 | ||
| 91-262 842-92 | 6-2, 6-3 | ||
| 91-262 843-01 | 3-17 | ||
| 91-262 844-92 | 3-17 | ||
| 91-262 845-91 | 3-17 | ||
| 91-262 846-05 | 3-17 | ||
| 91-262 854-91 | 3-4 | ||
| 91-262 857-15 | 12-1 | ||
| 91-262 860-92 | 12-1 | ||
| 91-262 863-15 | 12-2 | ||
| 91-262 865-92 | 12-2 | ||
| 91-262 871-05 | 12-2 | ||
| 91-262 872-91 | 12-1 | ||
| 91-262 874-75/895 | 12-1 | ||
| 91-262 880-91 | 9-2 | ||
| 91-262 882-15 | 4-1 | ||
| 91-262 893-91 | 4-3 | ||
| 91-262 899-75/896 | 4-2 | ||
| 91-262 900-05 | 4-3 | ||
| 91-262 905-91 | 4-1 | ||
| 91-262 908-05 | 4-3 | ||
| 91-262 914-05 | 12-1 | ||
| 91-262 915-12 | 12-1 | ||
| 91-262 916-91 | 12-1 | ||
| 91-262 919-05 | 12-1 | ||
| 91-262 920-91 | 12-1 | ||
| 91-262 924-05 | 12-1 | ||
| 91-262 926-11 | 4-2 | ||
| 91-262 929-15 | 4-2 | ||
| 91-262 930-05 | 4-2 | ||
| 91-262 931-05 | 4-2 | ||
| 91-262 938-15 | 3-10 | ||
| 91-262 940-91 | 4-1 | ||
| 91-262 941-91 | 3-2 | ||
| 91-262 958-15 | 4-1, 6-1 | ||
| 91-262 959-71/699 | 3-1 | ||
| 91-262 962-91 | 4-1 | ||
| 91-262 964-91 | 3-2 |
Page 69 — Index (Teilenummern / Seitenzahlen)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 91-262 985-75/699 | |||
| 91-262 985-25 | |||
| 91-262 986-91 | |||
| 91-262 987-91 | |||
| 91-262 988-91 | |||
| 91-262 989-91 | |||
| 91-264 132-75/895 | |||
| 91-264 133-75/895 | |||
| 91-264 134-91 | |||
| 91-264 136-05 | |||
| 91-264 139-72/895 | |||
| 91-264 140-15 | |||
| 91-264 141-91 | |||
| 91-264 144-75/895 | |||
| 91-264 146-05 | |||
| 91-264 147-71/895 | |||
| 91-264 154-25 | |||
| 91-264 156-05 | |||
| 91-264 166-01 | |||
| 91-264 167-05 | |||
| 91-264 170-01 | |||
| 91-264 173-01 | |||
| 91-264 186-91 | |||
| 91-264 187-91 | |||
| 91-264 189-71/896 | |||
| 91-264 192-91 | |||
| 91-264 193-11 | |||
| 91-264 196-05 | |||
| 91-264 197-05 | |||
| 91-264 198-15 | |||
| 91-264 200-75/895 | |||
| 91-264 201-71/895 | |||
| 91-264 207-71/895 | |||
| 91-265 065-05 | |||
| 91-265 189-05 | |||
| 91-265 198-15 | |||
| 91-266 397-01 | |||
| 91-266 856-25 | |||
| 91-268 076-15 | |||
| 91-268 668-75/895 | |||
| 91-268 671-70/895 | |||
| 91-290 113-91 | |||
| 91-290 733-91 | |||
| 91-291 458-91 | |||
| 91-700 335-25 | |||
| 91-700 785-15 | |||
| 91-700 996-15 | |||
| 91-701 179-15 | |||
| 91-701 346-15 | |||
| 91-701 391-15 | |||
| 95-600 649-05 | |||
| 95-665 735-91 | |||
| 95-669 358-05 | |||
| 95-774 310-91 | |||
| 95-774 311-01 | |||
| 95-774 313-91 | |||
| 95-774 314-01 | |||
| 95-774 317-05 | |||
| 95-774 318-01 | |||
| 95-774 324-11 | |||
| 95-774 325-02 | |||
| 95-774 325-05 | |||
| 95-774 327-91 | |||
| 95-774 361-05 | |||
| 95-774 407-91 | |||
| 95-774 408-91 |
Page 70 — Index (Teilenummern / Seitenzahlen)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 99-137 405-05 | 1 |
Page 72 — 23.01
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 - 10 | 91-202 308-91 | ||
| 1 - 3 | 91-154 804-21 | ||
| 2 | 91-154 744-05 | ||
| 3 | 91-154 518-05 | ||
| 4 | 91-150 671-25 | ||
| 5 | 91-059 816-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 686-91 | ||
| 8 | 91-262 687-25 | ||
| 9 | 91-004 181-05 | ||
| 10 | 91-100 076-15 | ||
| 11 | 11-108 174-15 | ||
| 1 - 10 | 91-202 310-93/001 | ||
| 1 - 3 | 91-154 838-23/001 | ||
| 2 | 91-154 744-05 3/1 | ||
| 3 | 91-154 518-05 | ||
| 4 | 91-150 672-25 | ||
| 5 | 91-059 961-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 686-91 | ||
| 8 | 91-262 687-25 | ||
| 9 | 91-004 181-05 | ||
| 10 | 91-100 076-15 | ||
| 11 | 11-108 174-15 |
Page 73 — 23.01
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 - 10 | 91-202 453-93/001 | ||
| 1 - 3 | 91-154 832-21 | ||
| 2 | 91-054 894-05 | ||
| 2 | 91-054 894-05 3/1 | ||
| 3 | 91-154 518-05 | ||
| 4 | 91-150 673-25 | ||
| 5 | 91-059 505-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 686-91 | ||
| 8 | 91-262 687-25 | ||
| 9 | 91-004 181-05 | ||
| 10 | 91-100 076-15 | ||
| 11 | 11-108 174-15 | ||
| 1 - 10 | 91-202 450-91 | ||
| 1 - 3 | 91-154 804-21 | ||
| 2 | 91-154 744-05 | ||
| 3 | 91-154 518-05 | ||
| 4 | 91-150 819-25 | ||
| 5 | 91-059 496-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 686-91 | ||
| 8 | 91-262 687-25 | ||
| 9 | 91-004 181-05 | ||
| 10 | 91-100 076-15 | ||
| 11 | 11-108 174-15 |
Page 74 — Nähwerkzeuge▲ / Gauge parts / Organos de costura / 缝纫工具
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 - 10 | 91-202 454-93/001 | ||
| 1 - 3 | 91-154 830-21 | ||
| 2 | 91-054 894-05 | ||
| 3 | 91-154 518-05 | ||
| 4 | 91-150 764-25 | ||
| 5 | 91-059 504-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 686-91 | ||
| 8 | 91-262 687-25 | ||
| 9 | 91-004 181-05 | ||
| 10 | 91-100 076-15 | ||
| 11 | 11-108 174-15 | ||
| 1 - 11 | 91-202 363-93/003 | ||
| 91-202 363-93/004 | |||
| 91-202 363-93/001 | |||
| 91-202 363-93/005 | |||
| 91-202 363-93/006 | |||
| 1 - 3 | 91-154 792-03/005 | ||
| 91-154 792-03/006 | |||
| 91-154 792-03/001 | |||
| 91-154 792-03/007 | |||
| 91-154 792-03/008 | |||
| 2 | 91-154 797-05 | ||
| 3 | 91-154 518-05 | ||
| 4 - 7 | 91-150 676-93/002 | ||
| 91-150 676-93/003 | |||
| 91-150 676-93/001 | |||
| 91-150 676-93/004 | |||
| 91-150 676-93/005 | |||
| 4 | 91-150 677-05 | ||
| 5 | 91-048 716-03/001 | ||
| 91-048 716-03/002 | |||
| 91-048 716-03/003 | |||
| 91-048 716-03/005 | |||
| 91-048 716-03/007 | |||
| 6 | 91-048 703-04/004 | ||
| 91-048 703-04/005 | |||
| 91-048 703-04/006 | |||
| 91-048 703-04/008 | |||
| 91-048 703-04/010 | |||
| 7 | 91-000 730-25 | ||
| 8 | 91-059 833-047/002 | ||
| 91-059 833-047/004 | |||
| 91-059 833-047/006 | |||
| 91-059 833-047/008 | |||
| 91-059 833-047/010 | |||
| 9 | 91-264 154-25 | ||
| 10 | 91-701 179-15 | ||
| 11 | 91-069 595-04/002 | ||
| 12 | 11-108 174-15 | ||
| 91-054 894-05 [3/1] | |||
| 91-154 797-05 [3/1] | |||
| 91-059 833-04/002 | B | ||
| 91-059 833-04/004 | B | ||
| 91-059 833-04/006 | B | ||
| 91-059 833-04/008 | B | ||
| 91-059 833-04/010 | B |
Page 75 — Nähwerkzeuge / Gauge parts / Organos de costura / 缝纫工具
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 - 10 | 91-202 356-93/001 | ||
| 1 - 3 | 91-154 807-21 | ||
| 2 | 91-154 744-05 | ||
| 3 | 91-154 518-05 | ||
| 4 | 91-150 694-24/001 | ||
| 5 | 91-059 968-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 804-91 | ||
| 8 | 91-262 805-25 | ||
| 9 | 91-262 806-05 | ||
| 10 | 91-000 621-15 | ||
| 11 | 11-108 174-15 | ||
| 1 - 10 | 91-202 357-93/001 | ||
| 1 - 3 | 91-154 845-23/001 | ||
| 2 | 91-154 744-05 | ||
| 3 | 91-154 518-05 | ||
| 4 | 91-150 693-25 | ||
| 5 | 91-059 967-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 804-91 | ||
| 8 | 91-262 805-25 | ||
| 9 | 91-262 806-05 | ||
| 10 | 91-000 621-15 | ||
| 11 | 11-108 174-15 |
Page 76 — Nähwerkzeuge▲ Gauge parts Organos de costura 缝纫工具 / -8/44
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 91-051 155-93/001 | ||
| 1-9 | 91-202 358-93/002 | B | 4,5 |
| 2 | 91-150 695-24/002 | ||
| 3 | 91-059 969-04/002 | ||
| 4 | 91-264 154-25 | ||
| 5 | 91-701 179-15 | ||
| 6-9 | 91-262 804-91 | ||
| 7 | 91-262 805-25 | ||
| 8 | 91-262 806-05 | ||
| 9 | 91-000 621-15 | ||
| 10 | 91-700 717-15 | ||
| 11-12 | 91-262 565-92 | ||
| 12 | 11-330 085-15 | ||
| 13 | 91-171 076-01 | ||
| 14 | 91-700 388-15 | ||
| 15 | 91-169 322-15 | ||
| 16 | 91-169 323-15 | ||
| 17 | 12-640 070-55 | ||
| 18 | 91-025 376-05 | ||
| 19 | 91-700 409-15 | ||
| 20 | 91-025 374-05 | ||
| 21 | 91-171 557-05 | ||
| 22 | 91-262 520-25 | ||
| 23 | 11-132 172-15 |
Page 77 — Nähwerkzeuge / Gauge parts / Organos de costura / 缝纫工具
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 - 10 | 91-202 391-93/001 | ||
| 1 - 3 | 91-154 832-21 | ||
| 2 | 91-054 894-05 | ||
| 2 | 91-054 894-05 3/1 | ||
| 3 | 91-154 518-05 | ||
| 4 | 91-150 694-24/001 | ||
| 4 | 91-150 820-24/001 | 4,5 | |
| 5 | 91-059 968-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 804-91 | ||
| 8 | 91-262 805-25 | ||
| 9 | 91-262 806-05 | ||
| 10 | 91-000 621-15 | ||
| 11 | 11-108 174-15 | ||
| 1 - 10 | 91-202 448-93/001 | ||
| 1 - 3 | 91-154 843-23/001 | ||
| 2 | 91-154 744-05 3/1 | ||
| 3 | 91-154 518-05 | ||
| 4 | 91-150 820-25 | ||
| 5 | 91-059 497-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 804-91 | ||
| 8 | 91-262 805-25 | ||
| 9 | 91-262 806-05 | ||
| 10 | 91-000 621-15 | ||
| 11 | 11-108 174-15 |
Page 78 — Nähwerkzeuge / Gauge parts / Organos de costura / 缝纫工具
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 - 10 | 91-202 449-93/001 | ||
| 1 - 3 | 91-154 834-23/001 | ||
| 2 | 91-054 894-05 | ||
| 3 | 91-154 518-05 | ||
| 3 | 91-054 894-05 [3/1] | ||
| 4 | 91-150 820-25 | ||
| 5 | 91-059 497-05 | ||
| 6 | 91-264 154-25 | ||
| 7 | 91-701 179-15 | ||
| 8 - 10 | 91-262 804-91 | ||
| 8 | 91-262 805-25 | ||
| 8 | 91-154 797-05 [3/1] | ||
| 9 | 91-262 806-05 | ||
| 10 | 91-000 621-15 | ||
| 11 | 11-108 174-15 | ||
| 1 - 11 | 91-202 364-93/001 | ||
| 91-202 364-93/002 | |||
| 1 - 3 | 91-154 794-03/005 | ||
| 91-154 794-03/006 | |||
| 91-154 794-03/001 | |||
| 91-154 794-03/007 | |||
| 91-154 794-03/008 | |||
| 2 | 91-154 797-05 | ||
| 3 | 91-154 518-05 | ||
| 4 - 7 | 91-150 680-93/001 | ||
| 91-150 680-93/002 | |||
| 4 | 91-150 677-05 | ||
| 5 | 91-048 705-03/012 | ||
| 91-048 705-03/013 | |||
| 91-048 705-03/014 | |||
| 91-048 705-03/016 | |||
| 91-048 705-03/025 | |||
| 6 | 91-048 703-04/004 | ||
| 91-048 703-04/005 | |||
| 91-048 703-04/006 | |||
| 91-048 703-04/008 | |||
| 91-048 703-04/010 | |||
| 7 | 91-000 730-25 | ||
| 8 | 91-059 464-04/009 | ||
| 91-059 464-04/010 | |||
| 91-059 464-04/011 | |||
| 91-059 464-04/012 | |||
| 91-059 464-04/013 | |||
| 9 | 91-264 154-25 | ||
| 10 | 91-701 179-15 | ||
| 11 | 91-169 395-04/002 | ||
| 12 | 11-108 174-15 |
Pfaff 1181 / 1183 — parts catalog
- Page 1 (cover): This is the cover page for the PFAFF 1181 and 1183 parts list, indicating it applies to machines from serial number 6001000 onwards.
- Page 2 (text): This page contains legal and copyright information in multiple languages, along with the company address for PFAFF Industrie Maschinen AG.
- Page 3 (toc): This page is a table of contents for the PFAFF industrial sewing machine parts catalog, listing sections from "Important note" to "Edge trimmer" with corresponding page numbers.
- Page 4 (toc): This page contains the table of contents for the manual, listing sections and their corresponding page numbers in German, English, Spanish, and Chinese.
- Page 5 (toc): This page is a table of contents for section 13, listing various components like control panels, motors, switches, and maintenance units with their corresponding page numbers.
- Page 6 (toc): This page is a table of contents for a parts catalog, listing sections such as "Parts for table top", "V-belt", "Knee lifter parts", "Mounting kit for external motor", "Overview of lubricants", "Index (part numbers / page numbers)", "Subclass parts", and "Nähwerkzeuge (PFAFF 1181)" and "Nähwerkzeuge (PFAFF 1183)", with corresponding page numbers.
- Page 7 (text): This page contains important notes and warnings in German, English, Spanish, and Chinese regarding the use of non-Pfaff parts and accessories.
- Page 9 (text): This page provides an explanation of key markings used in the catalog, including subclass-dependent part numbers and descriptions for different machine models and material types, as well as stitch length and adhesive foil information.
- Page 10 (text): This page contains explanations of key markings, including definitions for bracketed numbers, special versions, plastic-coated parts, and different types of greases and oils used with specific part numbers.
- Page 11 (diagram): This page displays a diagram of housing sections for PFAFF 1181 and 1183 sewing machines, with associated part numbers and quantities.
- Page 12 (diagram): This page displays a diagram of needle head parts for PFAFF 1181, 1181-D, 1183, and 1183-D sewing machines, with associated part numbers and descriptions.
- Page 13 (diagram): This page displays a diagram of needle head parts for Pfaff 1181 and 1183 series sewing machines, listing part numbers and their corresponding descriptions.
- Page 14 (diagram): This page displays a diagram of needle head parts for the PFAFF 1181 and 1181-D sewing machines, listing part numbers and their corresponding descriptions.
- Page 15 (diagram): This page displays a diagram of needle head parts for the PFAFF 1183; 1183-D sewing machine, listing part numbers and descriptions.
- Page 16 (diagram): This page displays a diagram of arm parts for PFAFF 1181 and 1183 series sewing machines, listing various part numbers and their corresponding components.
- Page 17 (diagram): This page displays a diagram of arm parts for PFAFF 1181/1181-D and PFAFF 1183/1183-D sewing machines, with various part numbers and references to other pages for more details.
- Page 18 (diagram): This page displays a diagram of arm parts for the PFAFF 1181;1181- D sewing machine, with various components and their corresponding part numbers.
- Page 19 (diagram): This page displays a diagram of arm parts for the PFAFF 1181; 1181- D sewing machine, with detailed views and part numbers.
- Page 20 (diagram): This page displays a diagram of arm parts for PFAFF 1181 and 1183 series sewing machines, listing various components with their part numbers and descriptions.
- Page 21 (diagram): This page displays a diagram of arm parts for PFAFF 1181 and 1183 models, with associated part numbers and descriptions.
- Page 22 (diagram): This page displays a diagram of arm parts for PFAFF 1181, 1181-D, 1183, and 1183-D sewing machines, listing various part numbers and their corresponding components.
- Page 23 (diagram): This page displays a diagram of arm parts for Pfaff sewing machines 1181, 1181-D, 1183, and 1183-D, with associated part numbers and references.
- Page 24 (diagram): This page displays a diagram of bedplate parts for PFAFF sewing machines 1181, 1181-D, 1183, and 1183-D, listing various part numbers and their corresponding components.
- Page 25 (diagram): This page displays a diagram of bedplate parts for PFAFF sewing machines 1181-D and 1183-D, listing various part numbers and their corresponding components.
- Page 26 (diagram): This page displays a diagram of bedplate parts for PFAFF 1181 and 1183 sewing machines, listing various part numbers and their corresponding descriptions.
- Page 27 (diagram): This page displays a diagram of bedplate parts for PFAFF sewing machines 1181/1181-D and 1183/1183-D, with part numbers and descriptions.
- Page 28 (diagram): This page displays a diagram of bedplate parts for PFAFF sewing machines 1181, 1181-D, 1183, and 1183-D, listing part numbers and descriptions.
- Page 29 (diagram): This page displays a diagram of bedplate parts for PFAFF 1181 and 1183 sewing machines, with part numbers and descriptions.
- Page 30 (diagram): This page displays a diagram of bedplate parts for PFAFF sewing machines 1181 and 1183, with part numbers and references indicated.
- Page 31 (diagram): This page displays a diagram of sewing machine parts, including part numbers and descriptions, for models PFAFF 1181, 1181-D, 1183, and 1183-D. It also includes references to other sections for further details.
- Page 32 (diagram): This page displays a diagram of sewing machine parts, including part numbers, descriptions, and quantities, for models PFAFF 1181 and 1183.
- Page 33 (diagram): This page displays a diagram of sewing machine parts, including part numbers, descriptions, and quantities, for models PFAFF 1181, 1181-D, 1183, and 1183-D.
- Page 34 (diagram): This page displays a diagram of the Edge trimmer (-731/01) for PFAFF 1181, 1181-D, 1183, and 1183-D sewing machines, with various part numbers and their corresponding components illustrated.
- Page 35 (diagram): This page displays a diagram of the edge trimmer assembly for PFAFF sewing machines 1181 and 1183, detailing various parts with their corresponding part numbers.
- Page 36 (diagram): This page displays a diagram of the edge trimmer assembly for PFAFF sewing machines 1181, 1181-D, 1183, and 1183-D, with part numbers and references to other pages for detailed information.
- Page 37 (diagram): This page displays a diagram of the thread trimmer (-900/24) for Pfaff 1181, 1181-D, 1183, and 1183-D sewing machines, listing various part numbers and their corresponding components.
- Page 38 (diagram): This page displays a diagram of the thread trimmer assembly for PFAFF 1181-D and 1183-D sewing machines, listing various part numbers and their corresponding components.
- Page 39 (diagram): This page displays a diagram of the thread trimmer assembly for PFAFF 1181 and 1183 sewing machines, listing various part numbers and their corresponding components.
- Page 40 (diagram): This page displays a diagram of the thread trimmer assembly for PFAFF 1181 and 1183 series sewing machines, listing various part numbers and their corresponding components.
- Page 41 (diagram): This page displays a diagram of the thread wiper assembly and related components for PFAFF sewing machines, including part numbers and quantities.
- Page 42 (diagram): This page displays a diagram of the automatic presser foot lifter for PFAFF 1181-900/24, 1181-D-900/24, 1183-900/24, and 1183-D-900/24 models, along with associated part numbers and descriptions.
- Page 43 (diagram): This page displays a diagram of the backtacking mechanism (-911/37) for Pfaff sewing machines, listing various part numbers and their corresponding descriptions.
- Page 44 (diagram): This page displays a diagram of the backtacking mechanism for PFAFF 1181 SRP-900/24 and PFAFF 1183 SRP-900/24 sewing machines, detailing various components and their part numbers.
- Page 45 (diagram): This page displays a diagram of the PFAFF 1181-731/01; 1181- D-731/01 and PFAFF 1183-731/01; 1183- D-731/01 vacuum waste disposal unit, with detailed part numbers and descriptions.
- Page 46 (diagram): This page displays a diagram of the bobbin thread supply monitor and its associated parts, including part numbers and descriptions, for PFAFF sewing machine models.
- Page 47 (diagram): This page displays a diagram of the Walzentransport-Einrichtung (-948/51) or Puller feed (-948/51) with various components labeled with part numbers and quantities.
- Page 48 (diagram): This page displays a diagram of the Walzentransport-Einrichtung (948/51) and related parts for PFAFF sewing machines, including part numbers and descriptions.
- Page 49 (diagram): This page displays a diagram of a cable harness for a PFAFF sewing machine, with various components labeled with reference numbers and part numbers, and cross-references to other pages for detailed information.
- Page 50 (diagram): This page contains a diagram of a push-button and related components, with part numbers and descriptions in multiple languages. It also includes references to other pages for connection and explanation.
- Page 51 (diagram): This page displays a diagram of the control panel and its associated components, including part numbers and descriptions for various parts like the control panel itself, cables, screws, and mounting hardware. It also lists applicable machine models.
- Page 52 (diagram): This page displays a diagram of the control panel and related components for PFAFF sewing machines, including part numbers and model applicability.
- Page 53 (diagram): This page displays a diagram of a built-in motor and its associated components, including part numbers and model information for Pfaff sewing machines.
- Page 54 (diagram): This page contains a diagram illustrating sewing head identification and start inhibitor components, with associated part numbers and descriptions.
- Page 55 (diagram): This page displays a diagram of a set-point generator and its associated parts, including part numbers and quantities, for PFAFF sewing machines.
- Page 56 (diagram): Page 13-8 shows exploded views of the motor main switch (13.07) with its mounting clip, screws and bracket, and the knee switch with cable (13.08), with their part numbers as labels on the drawings.
- Page 57 (diagram): This page displays a diagram of the control box and related wiring for Pfaff sewing machines, listing part numbers and quantities for various components.
- Page 58 (diagram): This page displays a diagram of a control box and related components for PFAFF sewing machines, including part numbers and references to other pages for more details.
- Page 59 (diagram): This page displays a diagram of an air filter/lubricator unit and its associated parts, including part numbers and descriptions.
- Page 60 (diagram): This page displays a diagram of reel stands for PFAFF 1181 and 1183 series sewing machines, listing various part numbers and their corresponding components.
- Page 61 (diagram): This page displays adjustment gauges and parts for the table top, with part numbers and corresponding machine models for PFAFF 1181, 1181-D, 1183, and 1183-D.
- Page 62 (diagram): This page displays diagrams and part numbers for V-belts and knee lifter parts for PFAFF 1181, 1181-D, 1183, and 1183-D sewing machines.
- Page 63 (diagram): This page displays a diagram of a mounting kit for an external motor, listing part numbers such as 11-108 171-15, 12-305 114-15, 91-262 357-75/698, 91-262 409-15, 12-024 210-15, 11-130 176-15, and 91-262 408-05, applicable to PFAFF 1181 and PFAFF 1183 models.
- Page 64 (text): This page contains a table listing different types of oils, greases, and cleaning agents with their specifications and part numbers for various container sizes. It also includes model information for PFAFF 1181 and 1183 series machines.
- Page 65 (parts_list): This page contains a parts list for PFAFF 1181;1181-D and PFAFF 1183;1183-D machines, listing part numbers and their corresponding page numbers across multiple columns.
- Page 66 (parts_list): This page contains a parts list for PFAFF 1181/1183-D sewing machines, listing part numbers and their corresponding page numbers.
- Page 67 (parts_list): This page contains a parts list for PFAFF 1181;1181-D and PFAFF 1183;1183-D machines, listing part numbers and their corresponding page numbers.
- Page 68 (parts_list): This page contains a parts list for PFAFF 1181 and 1183 sewing machines, listing part numbers and their corresponding page numbers.
- Page 69 (parts_list): This page contains a parts list for PFAFF 1181;1181- D, PFAFF 1183;1183- D, with part numbers and corresponding page numbers. It is page 22-5 of the catalog.
- Page 70 (index): This page is an index of part numbers and their corresponding page numbers for PFAFF 1181, 1181-D, 1183, and 1183-D models. It lists part number 99-137 405-05 with pages 3-15 and 3-16.
- Page 71 (cover): This is the cover page for a Pfaff sewing machine parts catalog, featuring the brand name and model numbers 1181, 1183, 1181-D, and 1183-D, along with multilingual descriptions of subclasses.
- Page 72 (parts_list): This page lists parts for Pfaff 1181, 1181-D, 1181-SPR, and 1181-D-SRP sewing machines, detailing part numbers, descriptions, and stitch lengths for various components.
- Page 73 (parts_list): This page lists parts for PFAFF 1181-948/51 and PFAFF 1181- D-948/51 sewing machines, detailing part numbers, descriptions, and applicable models for various components.
- Page 74 (parts_list): This page lists gauge parts for PFAFF 1181-948/51 and PFAFF 1181- D-948/51 sewing machines, detailing part numbers, models, stitch lengths, and timing margins.
- Page 75 (parts_list): This page lists parts for PFAFF 1183; 1183-SRP and PFAFF 1183- D; 1183- D-SRP sewing machines, specifically for standard part sets for medium-weight materials, with part numbers and descriptions.
- Page 76 (parts_list): This page lists parts for PFAFF 1183 and PFAFF 1183-D sewing machines, including part numbers, descriptions, and quantities.
- Page 77 (parts_list): This page lists gauge parts for PFAFF 1183-948/51 and PFAFF 1183- D-948/51 sewing machines, with part numbers, descriptions, and quantities.
- Page 78 (parts_list): This page lists gauge parts for PFAFF 1183-948/51 and PFAFF 1183- D-948/51, with part numbers, descriptions, and specifications like stitch length and timing margin.
- Page 79 (unknown): This page contains a watermark and a website address at the bottom.
- Page 80 (cover): This is the cover page of the PFAFF parts catalog, featuring the brand name prominently displayed.
